45 TO 99 HORSEPOWER
NEW 5003 SERIES TRACTORS
1
![](asset-2.png)

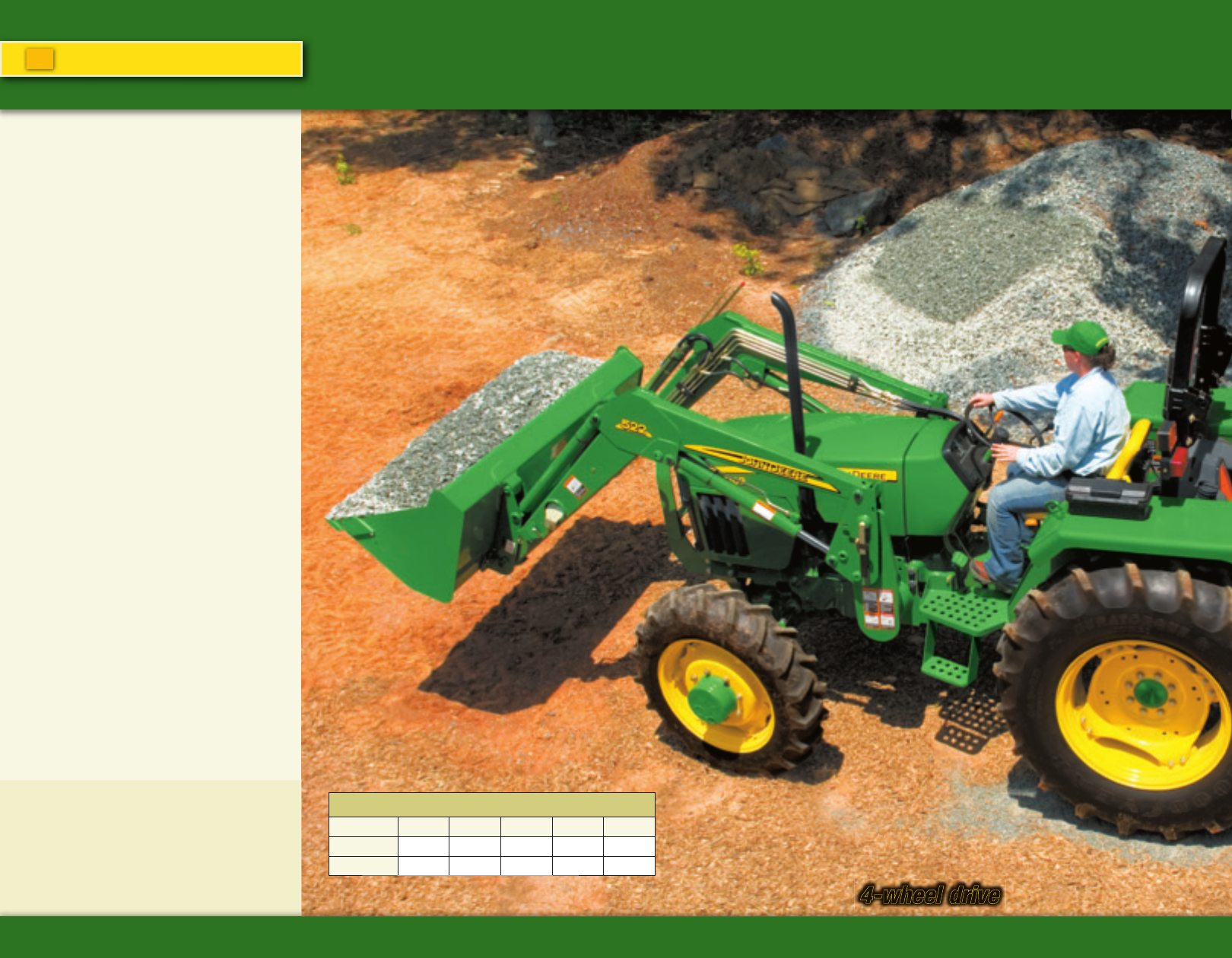

John Deere 5003 Series
Tractors are more value-
packed than ever. With five
models from 45 to 99 hp, the
easy-to-use 9F/3R collarshift
transmission becomes more
efficient with a SyncReverser or
SyncShuttle transmission. Plus,
now you can get more traction
with available 4-wheel drive.
So, what’s the same? The reliable
John Deere PowerTech™ engine
and the ease of use and quality
you’ve come to expect from
John Deere.
Experience
5003 Series Horsepower
Model 5103 5203 5303 5403 5603
Engine HP 45 (33.6) 56 (41.8) 64 (47.7) 74 (55.2) 99 (74)
PTO HP 38 (28.3) 46 (34.3) 54 (40.3) 62 (46.2) 82 (61)
4-wheel drive
Versatile, reliable tractors
that make your outdoor chores
a breeze
2 New 5003 Series Tractors
2
The best value tractors
74321_40207_5003.indd 274321_40207_5003.indd 2 11/19/07 12:35:31 PM11/19/07 12:35:31 PM
![](asset-3.png)
5003 Series overview 2-3
Operator station and controls 4-5
Hydraulics/Loaders 6-7
Transmissions 8
Three-point Hitch and PTO 9
5603 Tractor 10-11
Frontier attachments 12
Serviceability 13
Specifications and Dimensions 14-15
Need more power, more comfort at a
value price?
The value-priced 99-hp John Deere 5603
comes standard with a cab, PowrReverser
transmission, 4-wheel drive, and 540E PTO.
2-wheel drive
5603 with cab and 4-wheel drive
Table of contents 3
3
s
just got better
74321_40207_5003.indd 374321_40207_5003.indd 3 11/19/07 1:25:35 PM11/19/07 1:25:35 PM
![](asset-4.png)
A value tractor is of little value
if it’s hard to operate. That’s
why the new 5003 Series Tractors
have easy-to-use, color-coded
controls. Orange to control the
movement of the tractor, black to
operate the attachments and
yellow to control the PTO. And
unlike other tractors in this price
range, these levers are within
your reach but out of the way. No
awkward levers or controls to
straddle as you get on and off the
tractor. And once you’re on,
there’s plenty of legroom and a
comfortable seat.
Customer-focused
h
4 Section information goes here
h
Everything within reach,
w
4 Operator station and controls
4
74321_40207_5003.indd 474321_40207_5003.indd 4 11/13/07 3:02:32 PM11/13/07 3:02:32 PM
![](asset-5.png)

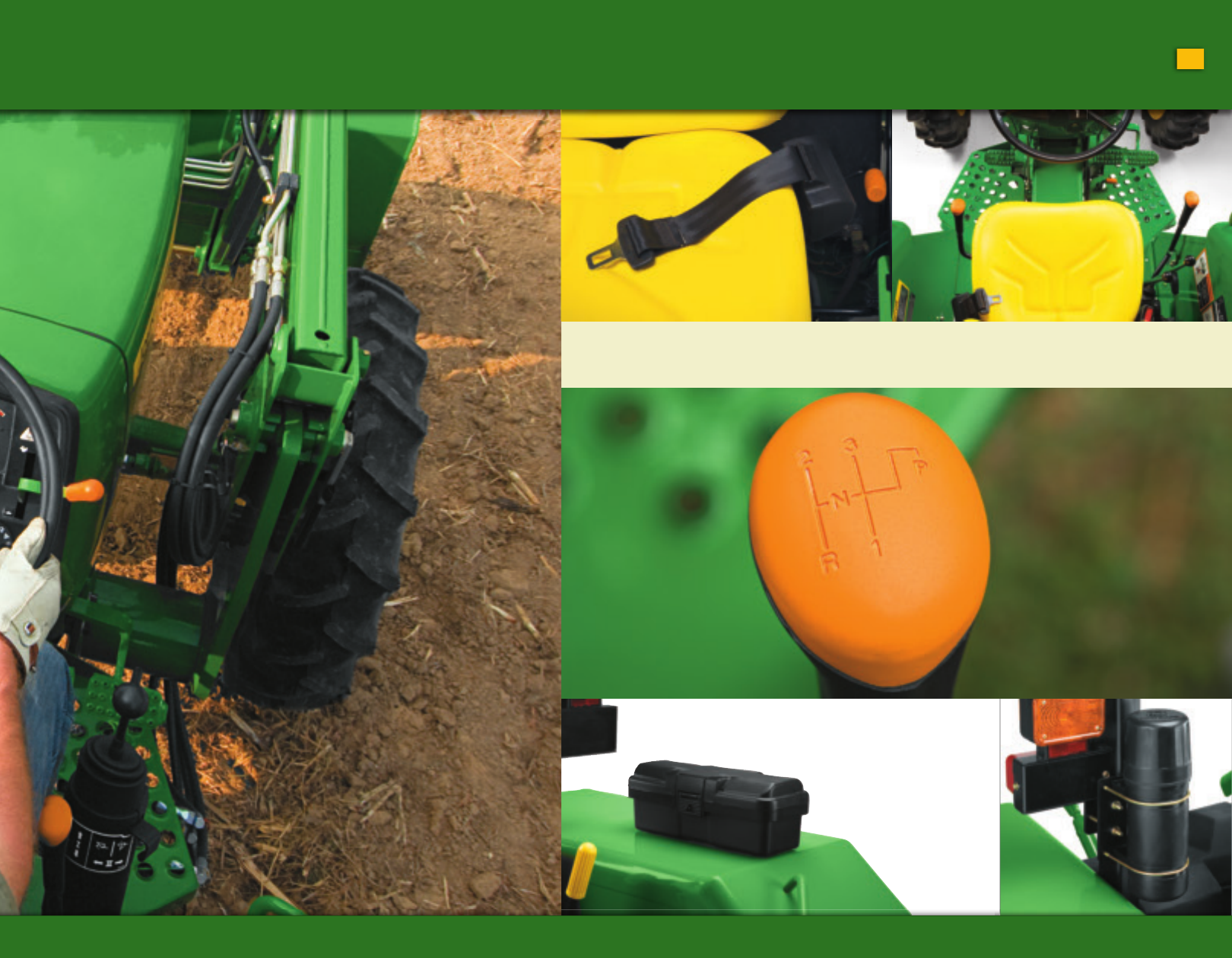

Retractable seat belts roll up and out of the way, yet are
easily accessible.
Retractable seat belts roll up and out of the way, yet are
easily accessible.
The spacious straddle-mount platform includes a
deluxe adjustable seat.
All 5003 Series Tractors come standard with storage locations
for tools, parts, and operator’s manuals. The toolbox is
located on the left fender for easy
access to tools and spare parts.
The operator’s manual holder is
mounted on the right hand post
of the ROPS for quick,
easy access.
A neutral start switch requires that
the gear shift lever be in the neutral
position or in the park position for
the engine to start. The park
position eliminates the need for a
handbrake. This also eliminates
clutch service costs that occur
when the park brake is accidentally
left engaged.
h
h
eadline goes here
Section information goes here 5
,
without being in the way
5
74321_40207_5003.indd 574321_40207_5003.indd 5 11/19/07 12:41:17 PM11/19/07 12:41:17 PM
![](asset-6.png)

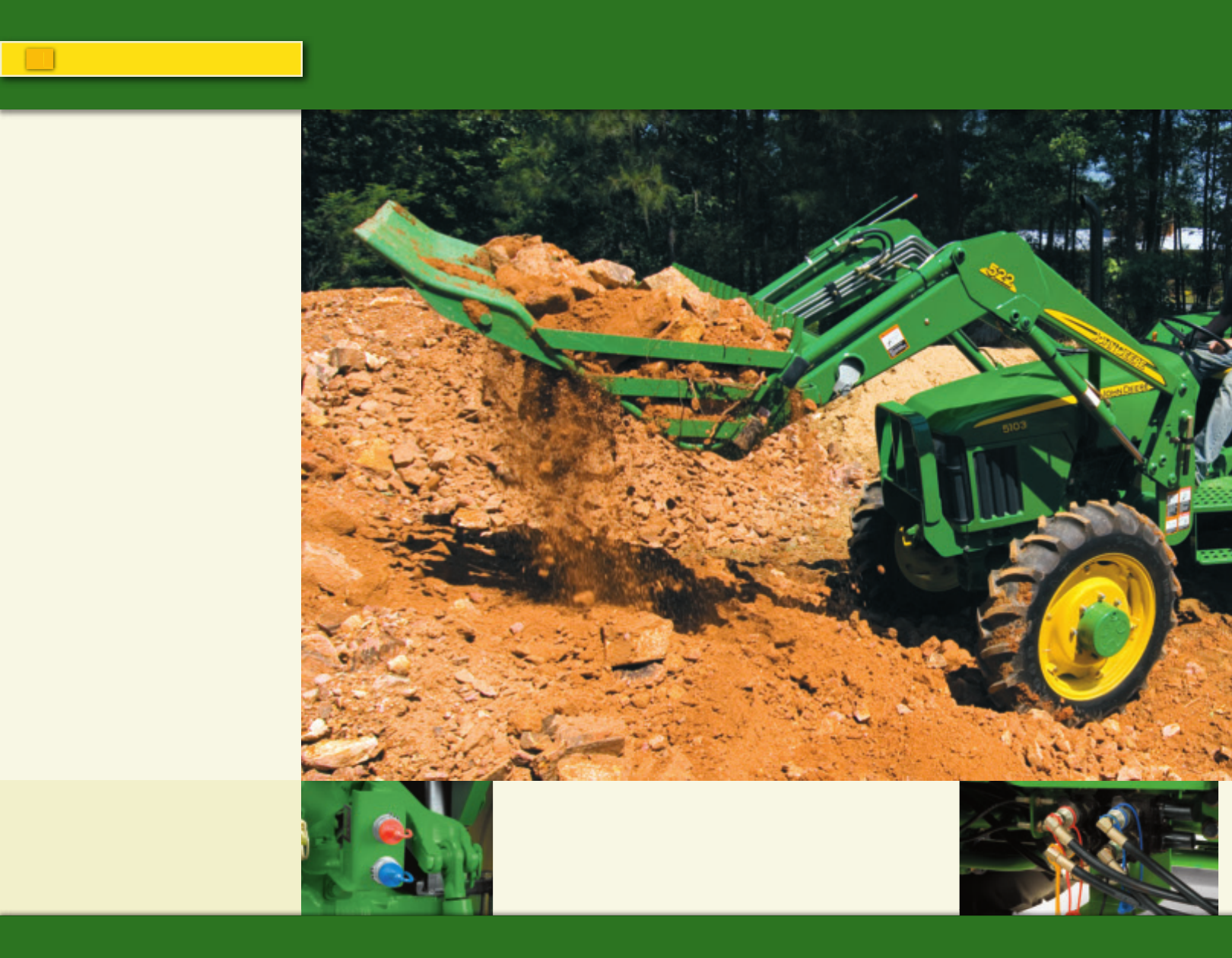

The 5003 Series Tractors come equipped with a single rear SCV standard. Dual rear
SCVs are available as an option. The open-center hydraulic systems provides plenty
of flow for running hydraulic implements.
Unlike many competitive
tractors, the 5003 Series
Tractors have separate hydraulic
systems for implement control
and braking and steering. You’re
in total control with full hydraulic
steering power, even when
moving a heavy load. And up to
four available SCVs give you more
versatility with hydraulic
implements. A detented float
position on the SCV allows your
implements to follow ground
contours.
Powerful hydraulics, with a
6 Hydraulics
6
74321_40207_5003.indd 674321_40207_5003.indd 6 11/19/07 12:43:51 PM11/19/07 12:43:51 PM
![](asset-7.png)

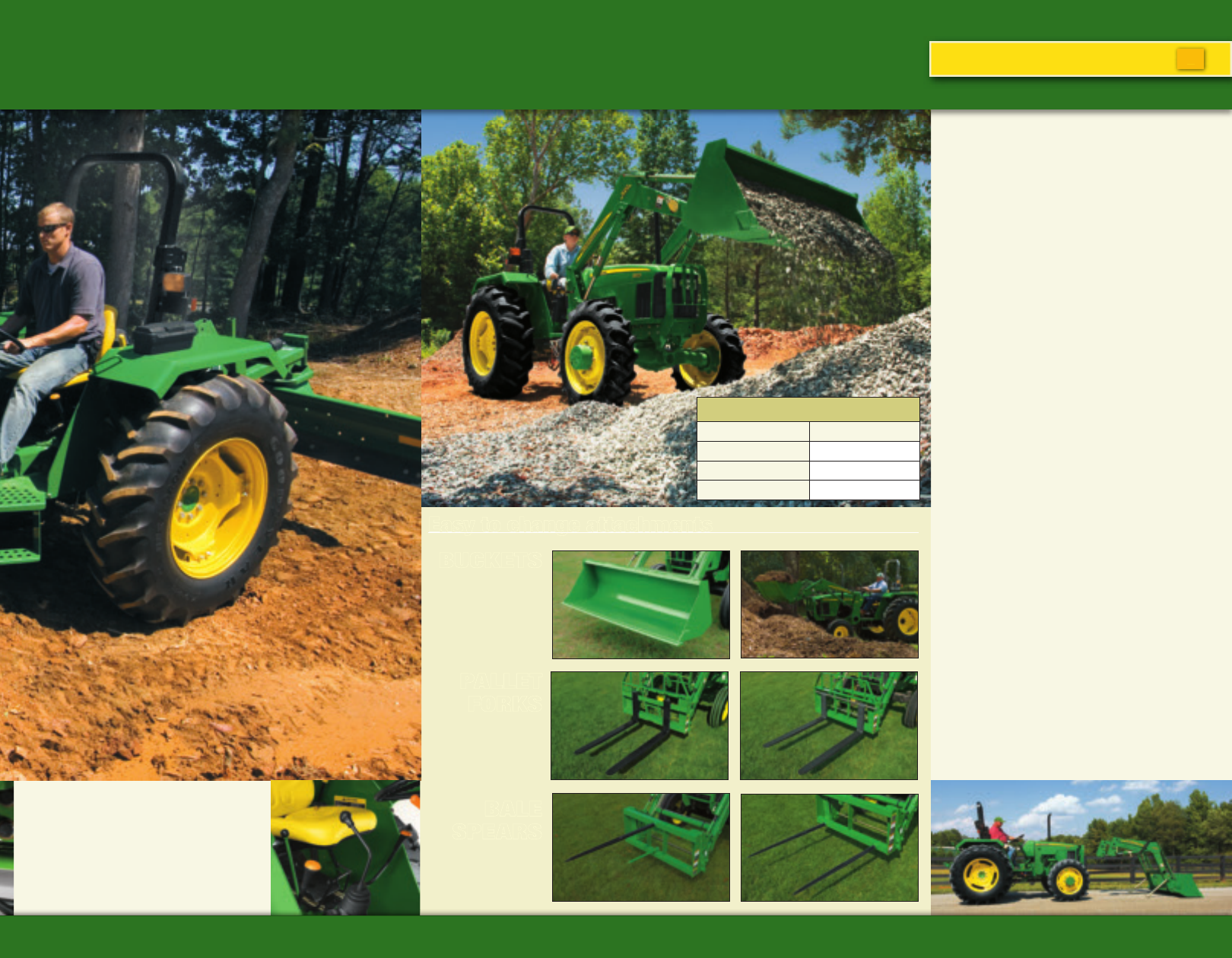

Perhaps the most versatile
attachment of all, a loader not only
allows you to move materials
quickly and efficiently, but with the
Quik-Change attachment system
you can also switch from a bucket
to a pallet fork to a bale spear in
seconds.
The 512 Loader is a non-parkable
loader, designed to be left on the
tractor when not in use.
The 522 and 542 Loaders are
parkable loaders that can be
removed from the tractor when not
in use. The 542 Loader is available
in self-leveling and non self-leveling
models.
BUCKETS
PALLET
FORKS
BALE
SPEARS
FIXED-TINE PALLET FORK
Easy to change attachments
FLOATING-TINE PALLET FORK
SINGLE-TINE BALE SPEAR DUAL-TINE BALE SPEAR
Loader Compatibility
Tractor Loader
5003 2-wheel drive 512
5003 4-wheel drive 522
5603 4-wheel drive 542
You can also equip your tractor with
mid-mount dual SCVs with joystick
control that operates independently
of the rear SCVs. The dual mid-mount
SCVs give you a total of up to four.
a
perfectly matched loader
Loaders 7
7
74321_40207_5003.indd 774321_40207_5003.indd 7 11/19/07 12:44:51 PM11/19/07 12:44:51 PM
![](asset-8.png)

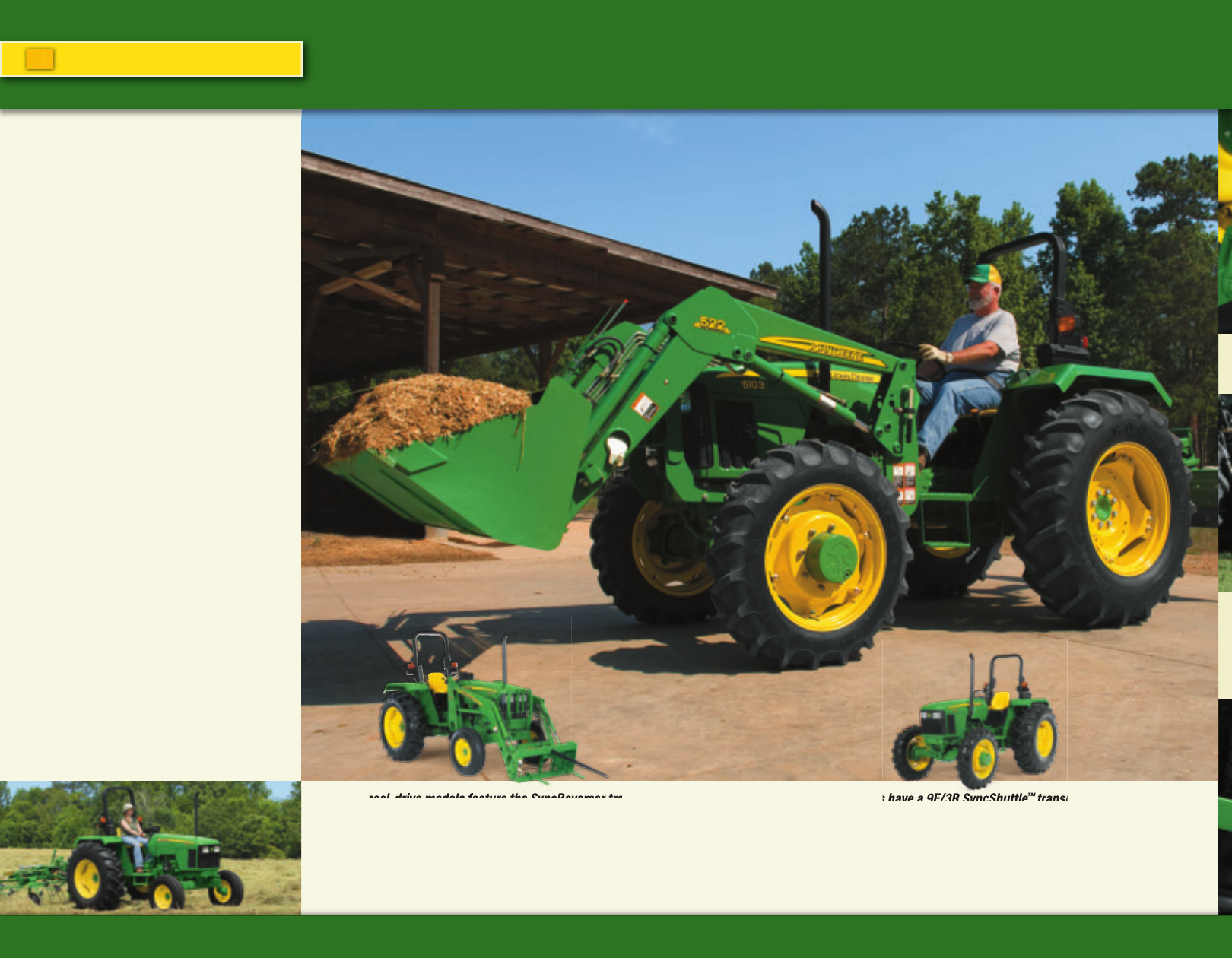

Choose the transmission that’s
right for you. The 5003 Series
Tractors are now available in 2-
wheel drive and 4-wheel drive
models. Available 4-wheel drive
gives you increased drawbar pull
and improved traction when
operating in slippery conditions.
You’ll get more power to the
ground for applications
that demand more from your
tractor.
Two-wheel-drive models feature the SyncReverser transmission
with 9 forward and 3 reverse speeds, ideal for loader applications and
various other tasks that require frequent directional changes.
With synchronized, in-line, shuttle shift capability, you can
easily switch directions without having to completely stop the
tractor. Forward shifting on-the-go between speeds and ranges is not
synchronized.
Four-wheel-drive models have a 9F/3R SyncShuttle™ transmission, perfect
when you need a durable basic transmission for a mix of field work and light
loader work. You can easily select speeds or switch directions without having
to completely stop the tractor with synchronized, in-line, shuttle shift capability.
Synchronized shifts between speeds for on-the-go shifting with use of the clutch.
Shifts between ranges are not synchronized.
Put tractor power
t
8 Transmissions
8
74321_40207_5003.indd 874321_40207_5003.indd 8 11/19/07 12:51:53 PM11/19/07 12:51:53 PM
![](asset-9.png)

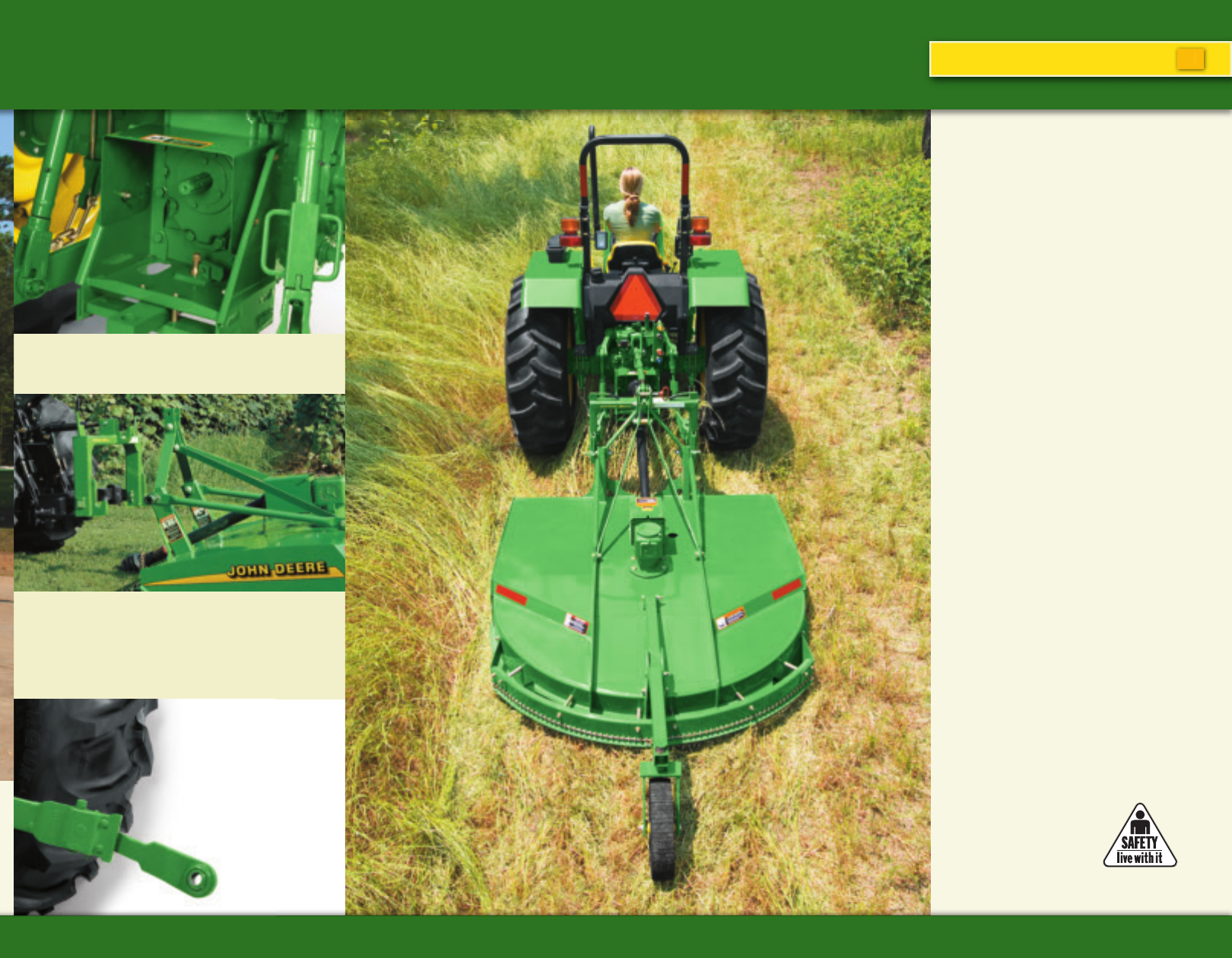

A hinged safety shield surrounds the PTO shaft. For
easy hookups, it lifts up to allow a better view.
Optional telescoping
draft links
Implement hook-up can be
even easier with optional
telescoping draft links. These
links feature cross-drilled hitch
balls to eliminate the need for
bushings.
The perfect iMatch
Add an iMatch hitch to quickly switch implements without
adjusting hitch geometry or struggling to move heavy
implements. The iMatch hitch works with Cat. 1 or Cat. 2
implements. Try it yourself to see what a difference it makes.
Get no-hassle versatility with a
durable Cat. 2 hitch.
Powerful. Lift up to 3,590 pounds
— more than enough for most
implements.
Accurate. You can position the
center link in one of three holes to
better set implement position and
draft sensing. And lift links can be
adjusted for lateral float. Perfect to
help implements with gauge wheels
or skids to follow the ground
contour.
Versatile. You can adjust sway
chains to adapt to a wide variety of
implements. And an adjustable
depth stop provides consistency
when lowering the hitch. Each time
the position control lever is pushed
forward, it will stop where the
depth stop has been
positioned. Perfect for creating a
consistent, level ground when
preparing a seedbed.
The PTO shaft can cause serious injuries.
The 5003 Series Tractors have an
operator-presence alarm that
warns you if you leave the PTO
engaged when you get off
the tractor. Also, the tractor
will not start with the PTO engaged.
r
to work for you
Three-point Hitch and PTO 99
74321_40207_5003.indd 974321_40207_5003.indd 9 11/19/07 12:56:53 PM11/19/07 12:56:53 PM
![](asset-a.png)

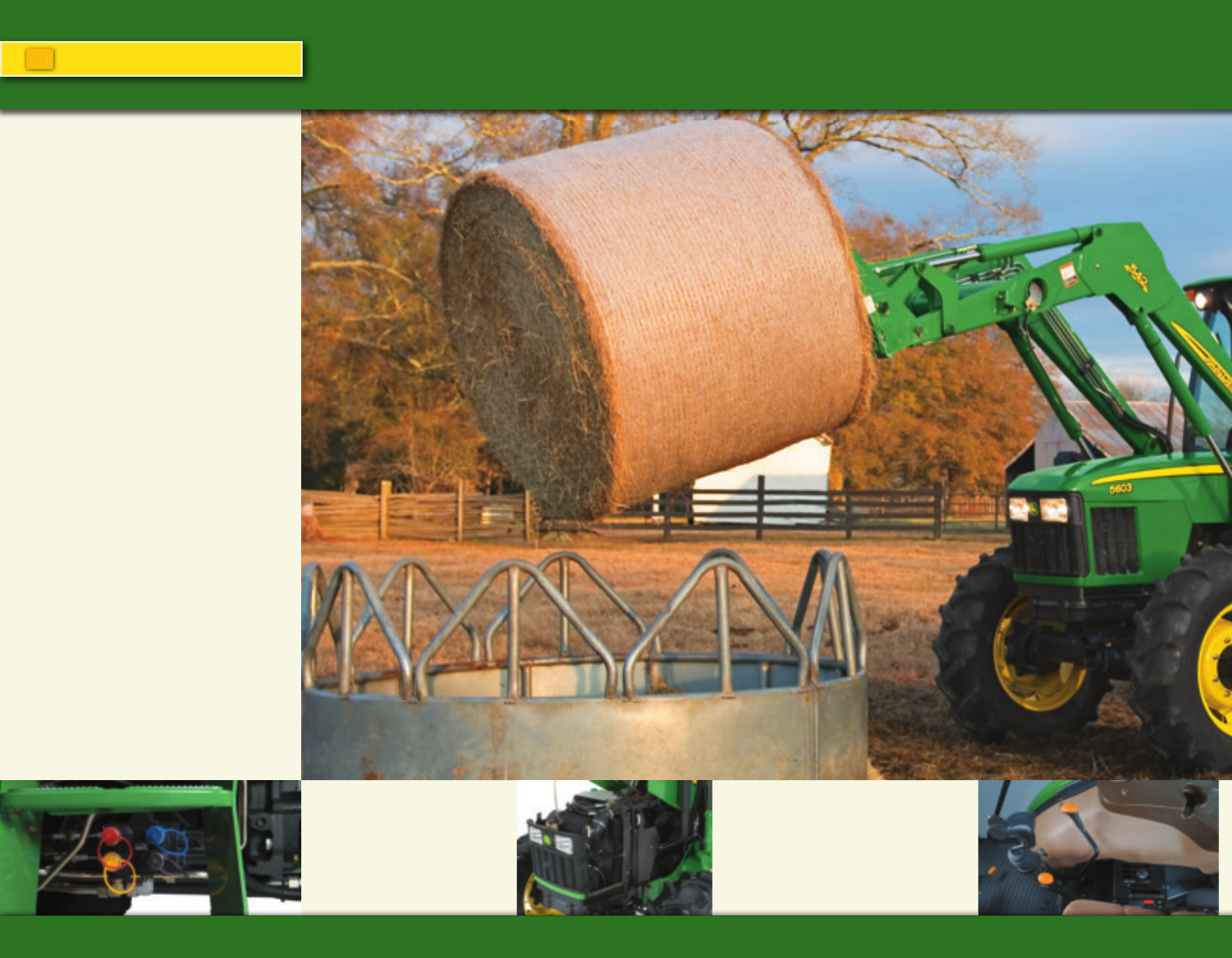

Chores made easier.
The 99-hp 5603 Tractor offers
a comfortable cab and 4-wheel
drive — standard. Perfect for
hay baling, pasture cutting, and
loader work.
The 12F/12R PowrReverser™
transmission gives you
synchronized shifting and the left-
hand PowrReverser lever makes a
direction change easy and right at
your fingertips.
The 5603 also features a fuel-
saving economy PTO — standard.
A real fuel- and money-saver
when you’re in light and mid-duty
PTO applications. And the value
price? That’s standard, too.
With mid-mount SCVs, an
optional loader-ready
package is available.
Powerful 99-hp
PowerTech™ engine gives
you unmatched power and
reliability.
Customer-focused
h
10 Section information goes here
h
99 hp in a
v
10 John Deere 5603 Tractor
10
74321_40207_5003.indd 1074321_40207_5003.indd 10 11/19/07 12:59:13 PM11/19/07 12:59:13 PM
![](asset-b.png)

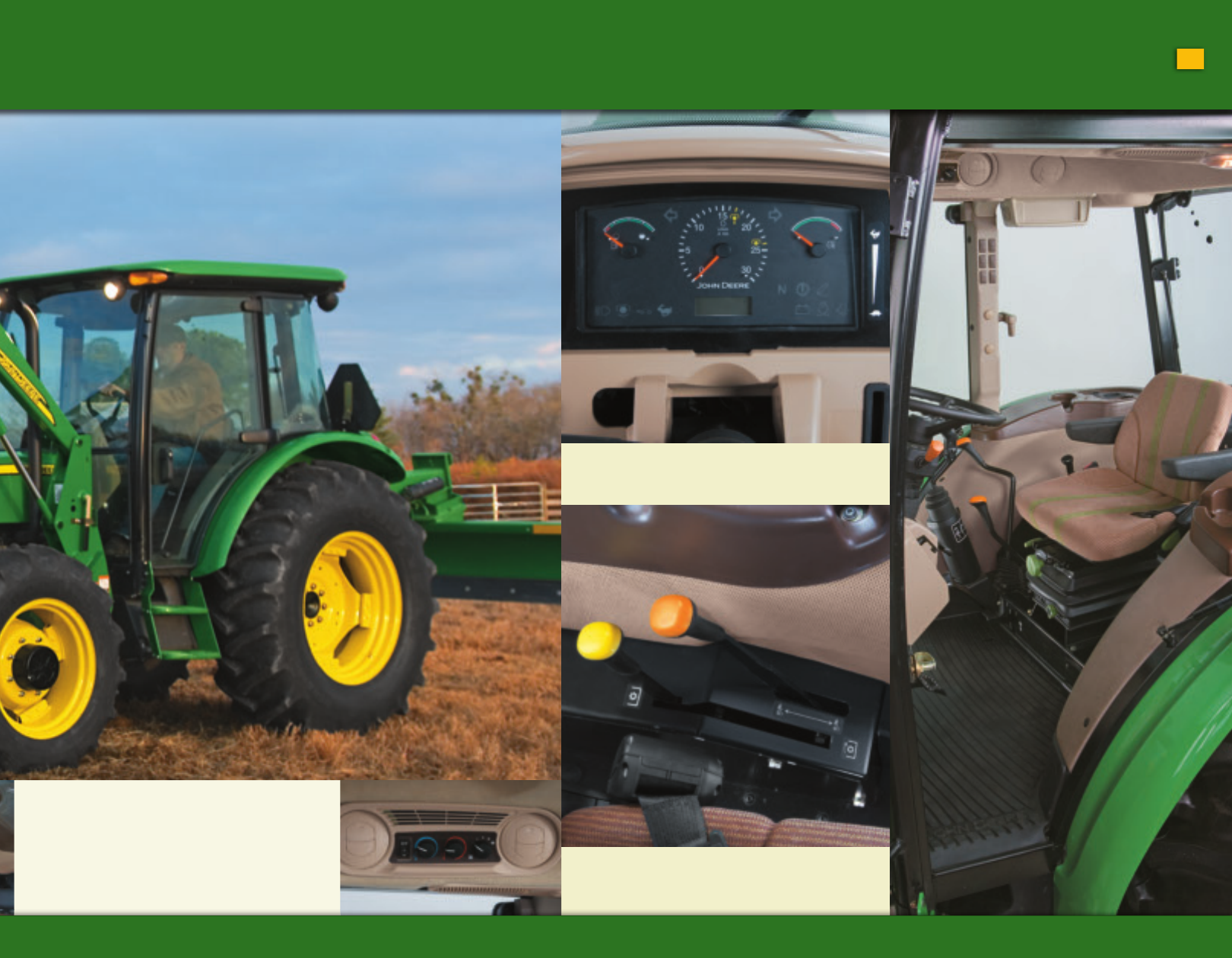

Save on fuel costs with the shiftable 540/540 Economy
PTO — standard on the 5603 Tractor.
Indicator lights on the 5603 let you easily see status of
controls and gauges. A digital speedometer readout is
standard.
Convenient right-hand
transmission and SCV
controls, plus a mid-mount
joystick keep efficiency
close at hand.
Work in any weather.
Powerful air condition and
heating system gives you
comfort and control.
h
h
eadline goes here
Section information goes here 11
a
value tractor
11
74321_40207_5003.indd 1174321_40207_5003.indd 11 11/14/07 1:18:31 AM11/14/07 1:18:31 AM
![](asset-c.png)
Your equipment needs change
with every job, but your need
for rugged and reliable
equipment doesn’t. Frontier
Equipment doesn’t just match
your John Deere tractor’s colors –
the difference goes deeper than
the green paint. With Frontier, you
get durable attachments that
integrate perfectly with
John Deere tractors — and many
attachments feature the easy-to-
use iMatch hitch. To you help you
choose the right attachment for
your tasks, see your John Deere
dealer, your exclusive distributor
of Frontier Equipment.

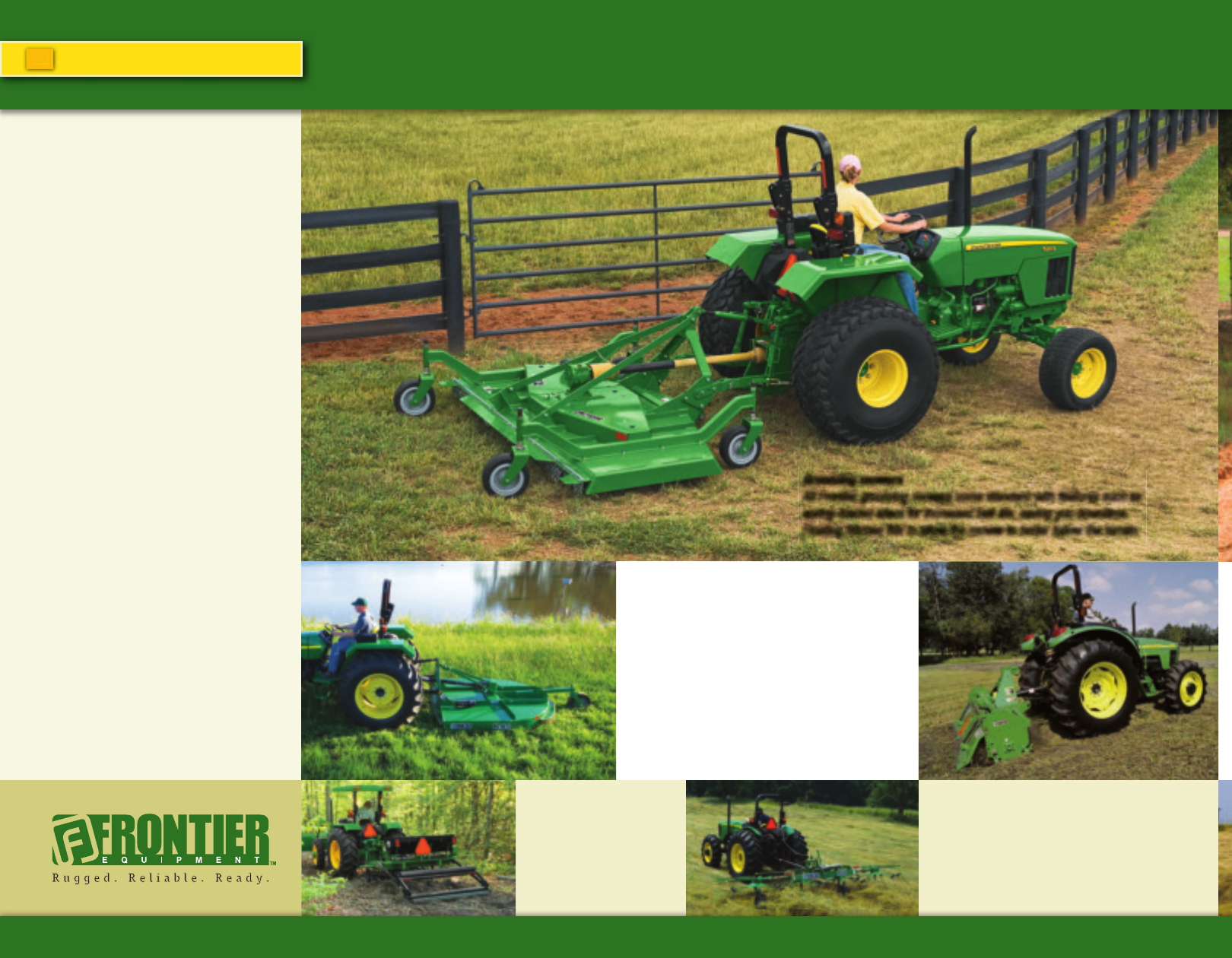

Grooming mowers
All Frontier grooming mowers come standard with features such as
spring-loaded idlers for increased belt life, saving you downtime.
Floating hitches flex to allow the mower to better follow the terrain.
Rotary tillers
Available in widths
from 40 to 129 inches,
Frontier rotary tillers
make for easier tilling
and smoother finishes.
Rotary cutters
Frontier rotary cutters
come in 4-, 5-, and
6-foot widths and are
perfect for cutting
grass, pasture, or
brush.
Wheel rakes
Frontier offers bi-fold
and high-capacity
wheel rakes
Tedders
Minimize your hay crop’s
drying time with durable
Frontier tedders. Available
in 10- to 22-foot working
widths.
Food plot seeders
Frontier Plotmaster Food
Plot Seeders let you disk,
plow, plant, cover, and
pack — all with one tool.
Frontier reserves the right to change specifications
of products described in this literature without notice
and without liability
12 Frontier Attachments
12
Get the most out of your tractor
74321_40207_5003.indd 1274321_40207_5003.indd 12 11/13/07 3:14:16 PM11/13/07 3:14:16 PM
![](asset-d.png)
Tractors that are easy to maintain
Protect your investment and increase your confidence in purchasing a high-quality John Deere
tractor through John Deere PowerGard Programs.
The PowerGard Maintenance Program is an effective preventative maintenance program
designed to make sure your tractor operates at peak performance, offers exceptional reliability and
maintains top residual value.
PowerGard Protection allows you to purchase extended engine and power train warranty
coverage for up to an additional 3 years or 3,000 hours over the normal warranty period. PowerGard
Protection provides broad coverage, flexible options and low deductibles. See your dealer for details.
Even checking and changing the air
filter is easy! It’s located right up front.
No special tools are needed to remove
and replace the filter core.
Checking oil levels is easy too. The
fluid fills and dipsticks for hydraulic
and transmission oils are located near
the hitch in an easy-to-reach position.
Servicing is easy. Lift the
hood with the integrated
prop rod. Side panels
remove for even greater
access.
With this translucent coolant
reservoir (similar to the one in your
car) you can check coolant levels at
a glance.
Work a full day between refills
with this large-capacity 19-gallon
fuel tank – a big advantage over
competitive models.
Manure spreaders
Frontier manure
spreaders come in
several sizes and duty
levels, with even spread
patterns and corrosion-
resistant components.
Rear and box blades
Frontier rear and box blades offer exceptional durability for all your
leveling and grading applications.
Posthole diggers
make putting in
fenceposts an easy
task.
Serviceability 131
3
74321_40207_5003.indd 1374321_40207_5003.indd 13 11/13/07 3:15:17 PM11/13/07 3:15:17 PM
![](asset-e.png)
5103 5203 5303 5403 5603
POWER:
Engine horsepower 45 hp( 33.6 kW) 56 hp (41.8 kW) 64 hp (47.7 kW) 74 hp (55.2 kW) 99 hp (74 kW)
PTO horsepower 38 hp (28.3 kW) 47 hp (35 kW) 55 hp (41 kW) 64 hp (47.7 kW) 82 hp (61 kW)
Rated engine speed 2,400 rpm 2,400 rpm 2,400 rpm 2,400 rpm 2,400 rpm
ENGINE:
Make John Deere PowerTech
Cylinders 33334
Displacement 179 cu. in. (2.9 L) 276 cu. in. (4.5 L)
Aspiration Turbocharged
TRANSMISSION:
Standard 9F/3R SyncReverser
12F/12R PowrReverser w/ shiftable 540/540E PTO
Optional 9F/3R SyncShuttle —
FUEL SYSTEM:
Fuel tank 19.0 U.S. gal. (72.0 L) 33.5 U.S. gal. (126.8 L)
HYDRAULIC SYSTEM:
Type Open Center, Tandem Pump
Steering 6.8 gpm (25.7 L/min) 6.6 gpm (24.9 L/min)
Implement 11.4 gpm (43.1 L/min) 15.8 gpm (60.1 L/min)
Total 18.2 gpm (68.8 L/min) 22.5 gpm (85.1 L/min)
REAR SCVS:
Single Base
Dual Option
Triple —Option
MID SCVS:
None Base —
Dual Option Option
3-POINT HITCH:
Hitch Lift Capacity at 24 in. behind hitch balls 2,270 lbs. (1030 kg) 3,374 lbs. (1530 kg)
Universal 3-point hitch Category 2, convertible to Category 1 Category 2, interchangeable to Category 1
Draft control Top-link
Interchangeable hitch ball —Standard
OPERATOR STATION:
Straddle-mount Cab
BRAKES:
Type Mechanically actuated hydraulic
Equipment
14 Specifications
14
74321_40207_5003.indd 1474321_40207_5003.indd 14 11/13/07 3:17:31 PM11/13/07 3:17:31 PM
![](asset-f.png)
5103 5203 5303 5403 5603

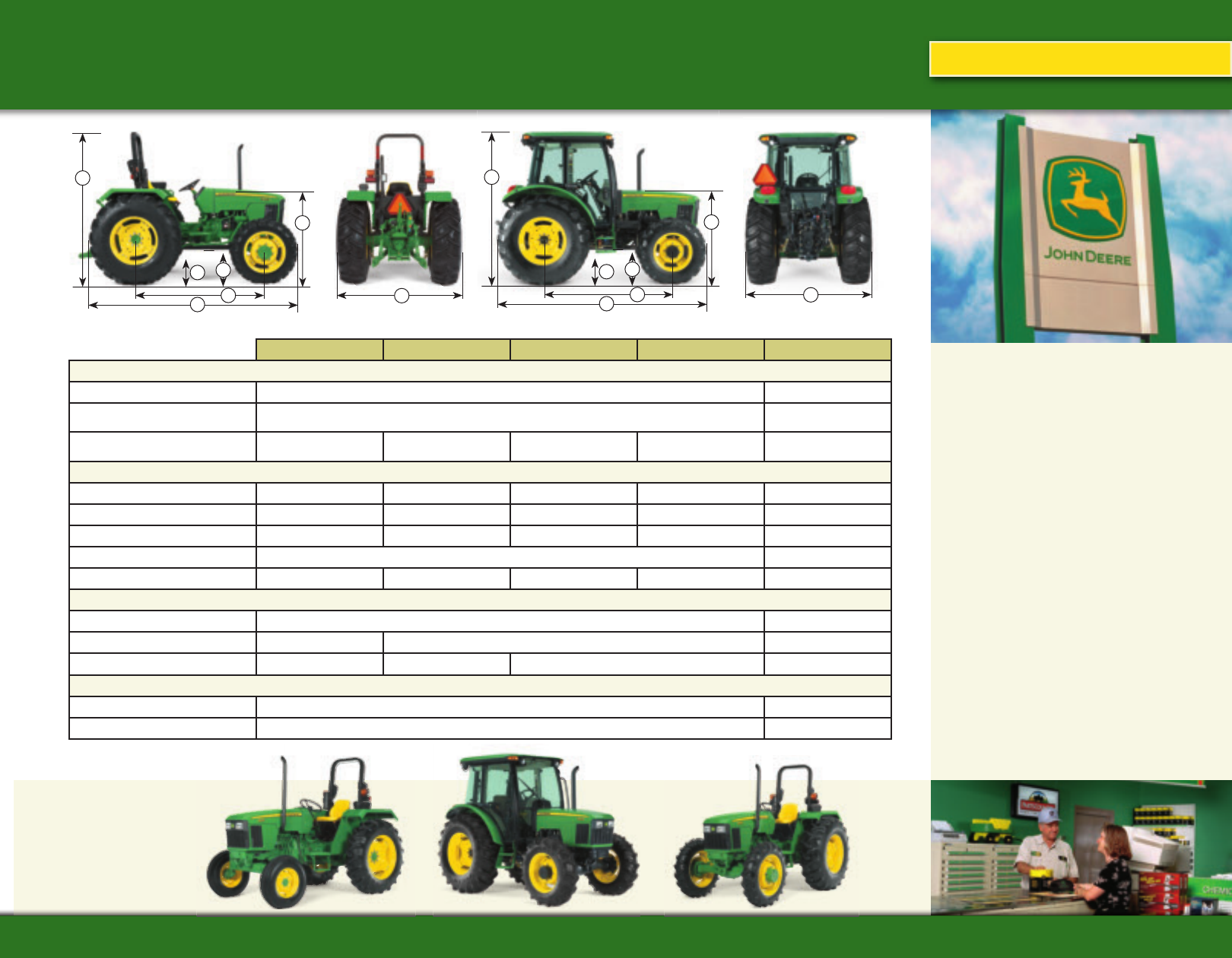

DIMENSIONS:
A-Standard wheelbase 80.7 in. (205 cm) 85.8 in. (217 cm)
B- Overall length (minimum) 137.8 in. (350 cm) , including draft links 147.6 in. (374 cm),
outside edge of tires
C- Overall width (minimum),
outside edge of tires
70.9 in. (180 cm) 72.5 in. (184 cm) 74.1 in. (188 cm) 74.1 in. (188 cm) 76.6 in. (195 cm)
HEIGHT FROM GROUND:
D-To top of hood 53 in. (135 cm) 53.8 in. (137 cm) 53.8 in. (137 cm) 53.8 in. (137 cm) 55.5 in. (140 cm)
E-To top of ROPS/Cab 93.9 in. (239 cm) 94.8 in. (241 cm) 96.8 in. (246 cm) 96.8 in. (246 cm) 100.4 in. (255 cm)
To top of folded ROPS 75.7 in. (192 cm) 76.6 in. (195 cm) 78.5 in. (199 cm) 78.5 in. (199 cm) —
F-Front-axle clearance 18.8 in. (48 cm) 17.7 in. (45 cm)
G-To top of drawbar 15 in. (38 cm) 15.9 in. (40 cm) 17.8 in. (45 cm) 17.8 in. (45 cm) 17.9 in. (45 cm)
STANDARD TIRES:
Front, 2WD 7.50-16, R1 —
Front, 4WD 8.3-24, R1 9.5-24, R1 12.4-24, R1
Rear 13.6-28, R1 14.9-28, R1 16.9-28, R1 18.4-30, R1
TURN RADIUS*:
With brakes 9.7 ft. (3.0 m) 11 ft. (3.35 m)
Without brakes 11.3 ft. (3.4 m) 12.9 ft. (3.93 m)
*With 4-wheel drive disengaged
A
E
D
F
G
BC
No one cares more about you
and your equipment.
Your time is precious. When you
need a part, service, or just some
advice, count on your nearby
John Deere dealership.
They maintain a complete
inventory of genuine John Deere
parts. And highly trained service
technicians know equipment inside
and out.
The most comprehensive,
professional agricultural dealer
organization in the world is just
down the road: Your local
John Deere dealership.
A
E
D
F
G
BC
t
Specifications
Dealer Support 15
74321_40207_5003.indd 1574321_40207_5003.indd 15 11/20/07 12:54:50 PM11/20/07 12:54:50 PM
![](asset-10.png)
Ask your dealer for John Deere Credit financing.*
www.JohnDeereCredit.com • www.JohnDeereCredit.ca
*Subject to John Deere Credit approval.
Because they work with my dealer
to design the finance package that fits
my operation. It’s the most efficient
way to get the equipment I need.
And they understand my business,
which makes credit approvals
fast and easy.
Why John Deere Credit?
www.JohnDeere.com/Ag
We are proud
to support FFA
®
DSAA40207 Litho in USA (07-11)
This literature has been compiled for worldwide circulation. While general information, pictures, and descriptions are provided, some illustrations
and text may include finance, insurance, product options and accessories NOT AVAILABLE in all regions. PLEASE CONTACT YOUR LOCAL DEALER
FOR DETAILS. John Deere reserves the right to change specification, design and price of products described in this literature without notice.
John Deere, the leaping deer symbol, and John Deere's green and yellow trade dress are the trademarks of Deere & Company.
Fast and easy credit
