247–335 NET HORSEPOWER

DOZERS

950J | 1050J

JDOZERS

DKA9501050J Page 1 Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

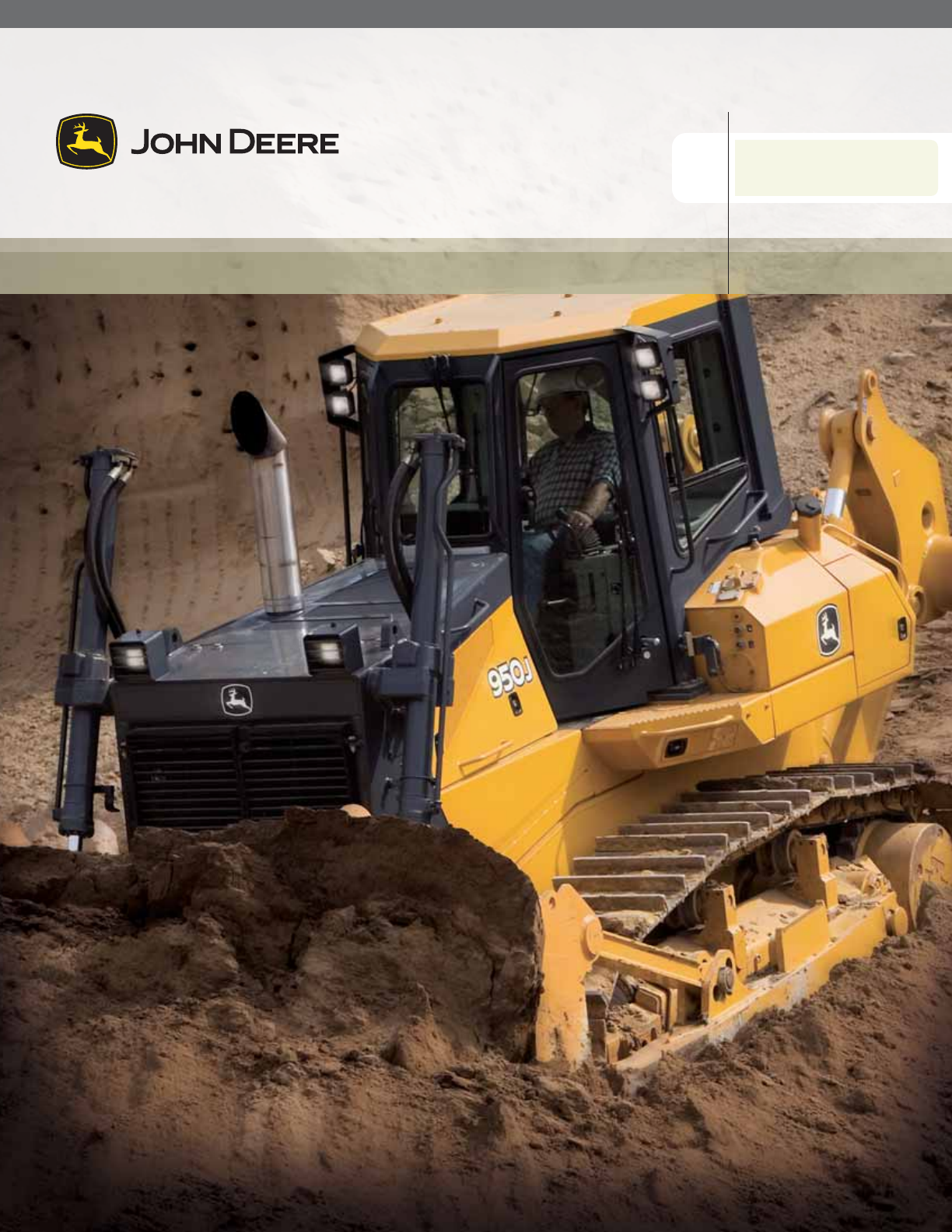

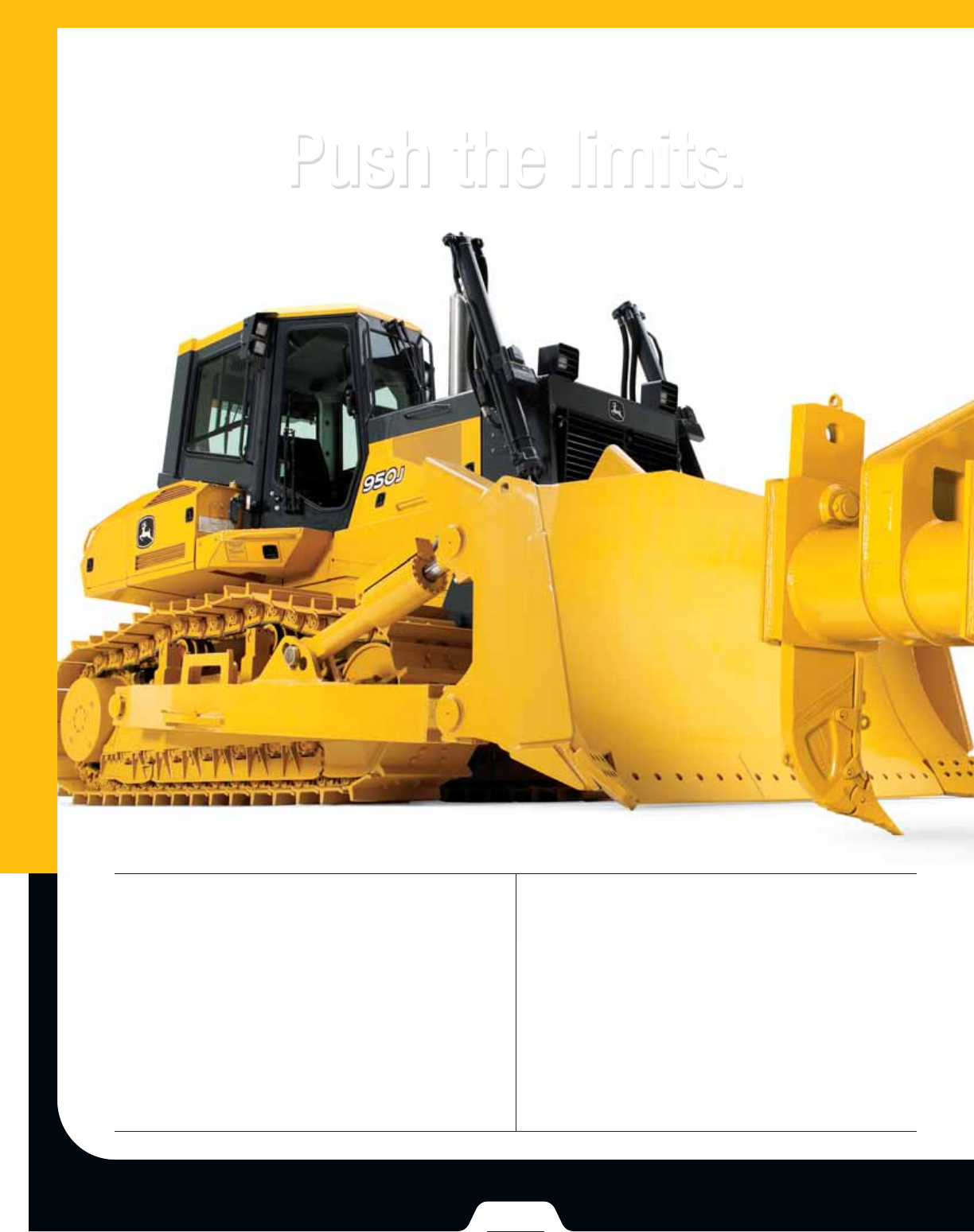

Push the limits.

Big, strong, and powerful, the 950J and 1050J

Dozers deliver the super-sized performance you

need to get the big jobs done. But it’s not just

their large stature that make these dozers such

valuable assets. Like their J-Series siblings, these

two offer many of the production-boosting advan-

tages that have made Deere crawlers so popular,

including state-of-the-art electronic controls,

Total Machine Control (TMC), and a full-featured

hydrostatic drivetrain. You simply won’t find com-

parable-size crawlers with the same combination

of power, control, reliability, and comfort. Read on

to learn how the 950J and 1050J will help you

push productivity beyond the limits of other dozers.

PAGES

2–3

950J

247 net hp

56,361 lb. w/Semi-U Blade; 59,255 lb. w/ Straight Blade

22-, 24-, 26-, 32-, and 36-in. grousers

12-ft. 1-in. and 14-ft. 10-in. blades

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black DKA9501050J Page 2 D

Hydraulic-driven variable-

speed suction fan runs

only as needed, reducing

noise, fuel consumption,

cooling system wear, and

operating costs.

Power turns, power man-

agement, inﬁ nite speed

control — John Deere

introduced them all 30 years

ago. And the 950J and 1050J

Dozers are loaded with even

more productivity- and uptime-

boosting enhancements.

Extended service intervals,

remote test ports, and

designed-in diagnostics keep

maintenance and operating

costs to a minimum.

Comfort and convenience

are noticeably enhanced in

the quieter, more spacious

redesigned cab.

Slow-running Tier 3 diesels

deliver impressive power,

torque, and drawbar pull for

unsurpassed productivity.

ade

1050J

335 net hp

86,800 lb. w/Semi-U Blade; 89,250 lb. w/Straight Blade

22-, 24-, and 28-in. grousers

13-ft. 3-in. and 14-ft. 2-in. blades

2DKA9501050J Page 3 Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

Size matters on large-scale construction sites.

With their superior power-to-weight ratios, 950J

and 1050J simply outpush every dozer in their

class. And do so with less effort. State-of-the-art

controls and full-featured hydrostatic drivetrains

put you in complete command of a whole arsenal

of productivity-boosting hydrostatic advantages

including power turns, counterrotation, infinitely

variable travel speeds, and dynamic braking. With

conventional powershift torque converter drivetrains

and differential steering systems, other crawlers

simply can’t do what a John Deere can.

PAGES

4–5

Serious productivity,

easy-going control.

Serious productivity,

easy-going control.

Inﬁ nitely variable track control lets an operator

speed up or slow power to either track, for

smooth, full-power turns.

Counterrotation is a productivity-boosting

feature that enables an operator to overcome

heavy corner loads and quickly reposition the

blade on the go. Provides space-saving spot

turns, too.

These dozers steer the same and maintain their

preset speed whether working on level ground

or a 2-1 slope.

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black DKA9501050J Page 4 D

Power management

takes the guesswork out

of efﬁ cient operation. The

operator simply sets the

desired maximum ground-

speed and the system

automatically maintains

peak engine rpm and power

efﬁ ciency without stalling

or shifting.

Inﬁ nitely variable speed

range from standstill to 6.8

mph gives total ﬂ exibility

to match groundspeed to

the load. Travel can also be

varied to ﬁ t speciﬁ c applica-

tions, terrain, or operating

preferences — and even

limited to maximize under-

carriage life.

Blade pitch is adjustable

to three mount locations,

for superior performance

in a variety of applications

and materials. Unlike other

dozers, tilt cylinder pitch can

also be set to maintain equal

tilt. A hydraulic pitch option is

available.

their

und

Blade curvature gets

material rolling and ﬁ lls

more fully for increased

productivity.

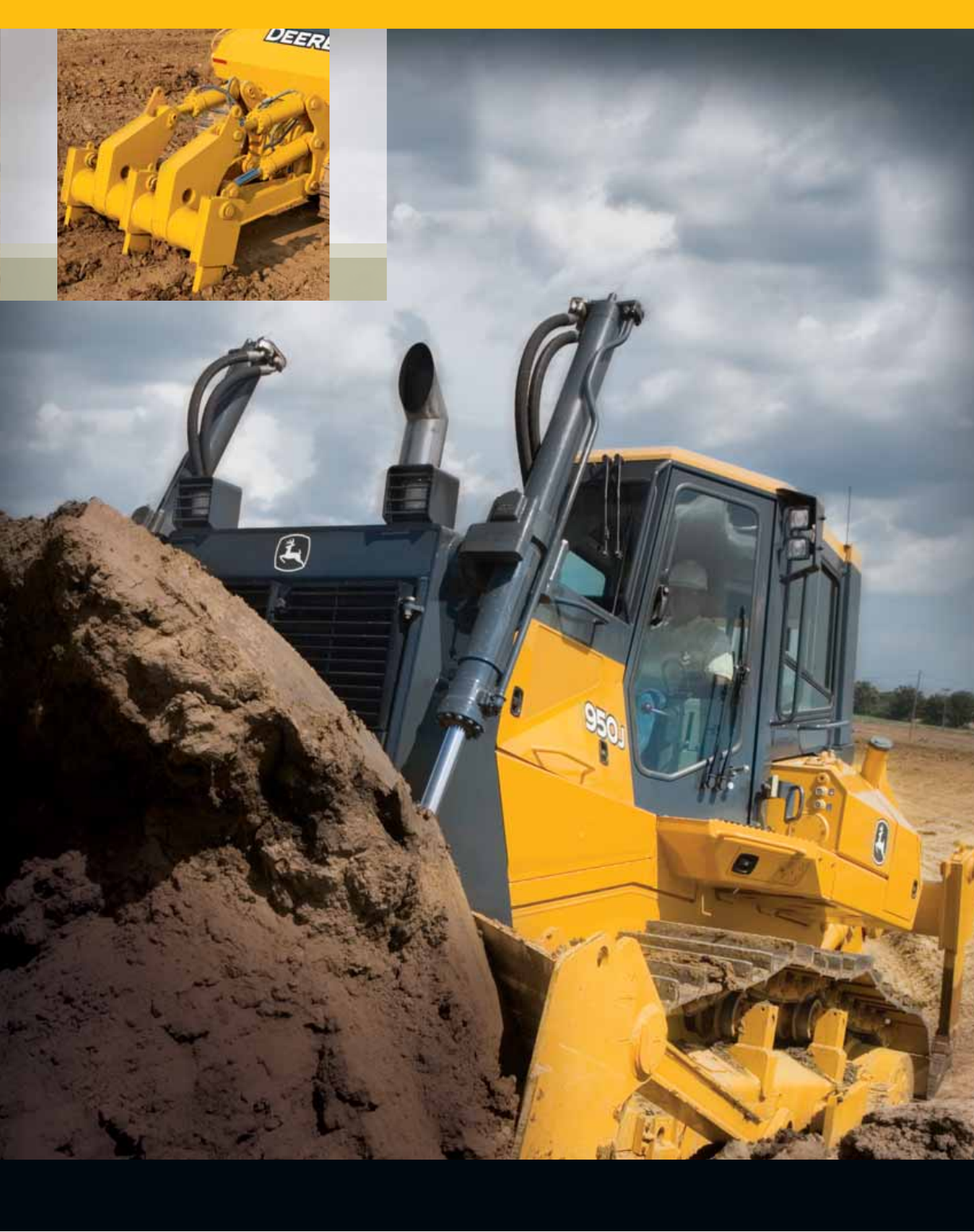

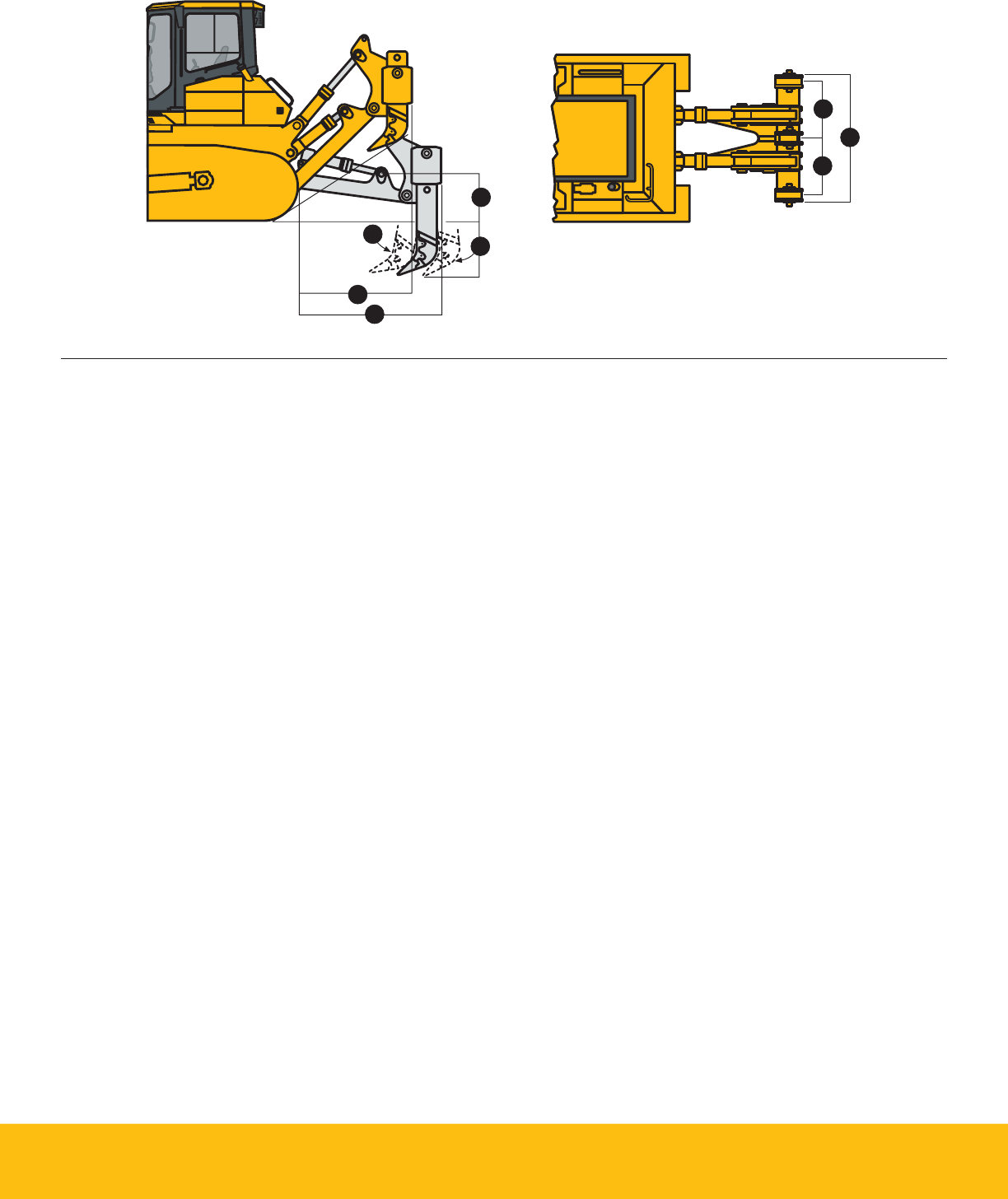

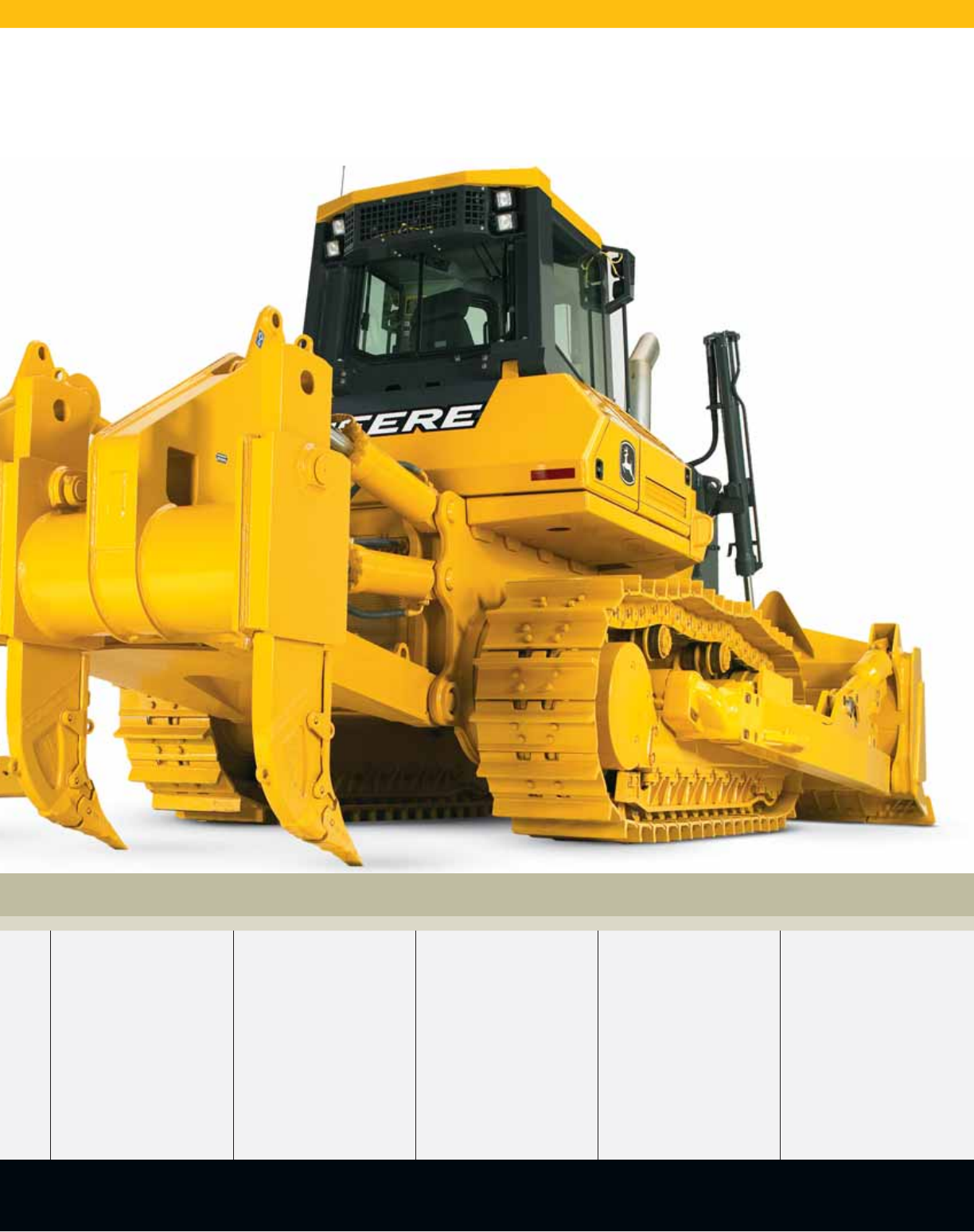

Variable-pitch parallelogram single-or multi-shank

rippers can be angled on-the-go, for

increased productivity.

4DKA9501050J Page 5 Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

Take comfort

in more productivity.

Take comfort

in more productivity.

Like all Deere dozers, state-of-

the-art short-throw, low-effort

blade and speed-in-grip

hydrostatic drivetrain controls

deliver predictable response at

all times.

Retractable seat belt,

slip-resistant ﬂ oor mat,

convenient grab bars,

neutral-start lever, and

automatic park brake help

keep the operator out of

harm’s way.

TMC lets you customize

decelerator mode and

response, forward/reverse

groundspeed ranges, FNR

shift rate, and forward/

reverse speed ratios for

superb control.

Decelerator slows ground-

speeds to maintain speed

and traction without

affecting engine power and

hydraulic response. Fully

depressing the pedal applies

the brakes.

Deluxe suspension high-back

seat adjusts seven ways

for daylong comfort and is

angled 15 degrees to provide

a more comfortable view of

the ripper. Armrests and foot-

rests are also fully adjustable

to ﬁ t any size operator.

Convenient 12-volt port powers cell

phones and other electronic devices.

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black DKA9501050J Page 6 D

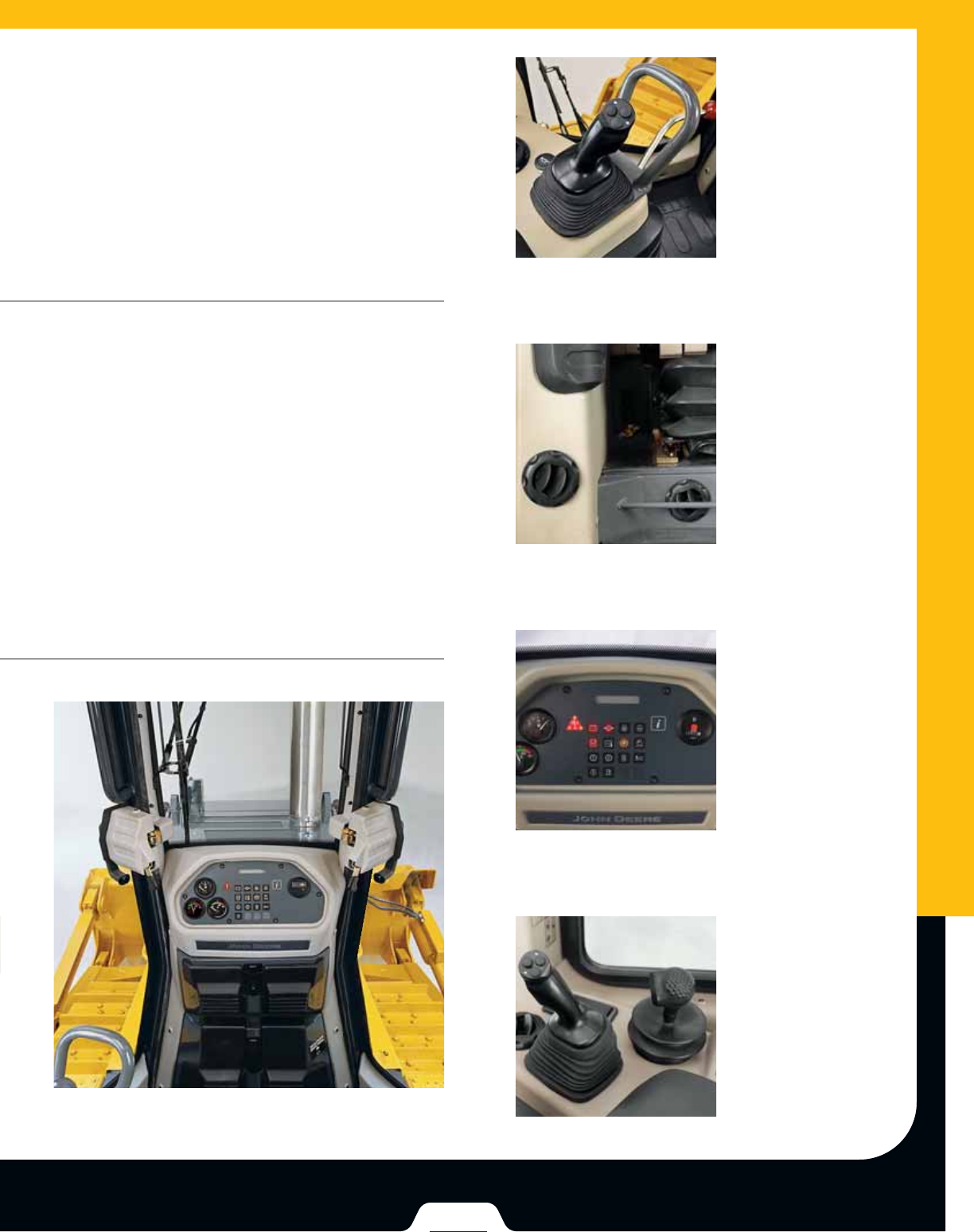

Air-conditioned and heated

pressurized cab is standard.

Automotive-style directional

vents help keep the glass clear

and interior comfortable.

PAGES

6–7

Ergonomically designed

joystick provides intuitive

control of steering, forward/

reverse travel, and ground-

speed. It’s detented so it

doesn’t require constant

attention, and employs a

ﬁ nger-actuated travel-

speed switch.

Wide expanse of glass and exclusive four-post ROPS provide an unsurpassed

commanding view of the blade, ripper, and surrounding jobsite.

Enhanced monitor is front-

mounted, where it is easier

to view while focusing on

the job at hand. Large, easy-

to-read gauges, warning

lights, and icons provide vital

operating info at a glance.

Pilot control and load-

sensing hydraulics deliver

fatigue-beating low-effort

operation and predictable

response, regardless of

the load.

erse

FNR

Everybody knows a comfortable operator is a

productive operator. And you’ll find plenty to

increase their efficiency inside this spacious

and quiet walk-through cab. The seven-way

adjustable deluxe suspension armchair, low-

effort intuitive controls, and best-in-class visibility

keep fatigue to a minimum. Plus you get the

little things that help shorten a long shift — such

as adjustable footrests and ample storage

including cup holder and space for a lunch box.

6DKA9501050J Page 7 Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

Nothing runs like a Deere

because nothing is

built like one.

Nothing runs like a Deere

because nothing is

built like one.

PAGES

8–9

Downtime is a fact of life in this business. Fight

back with the J-Series. Incorporating numerous

traditional John Deere durability features, you

get an exceptionally strong unitized mainframe,

job-proven undercarriage, heavy-duty wet-sleeve

engine, reliable ORFS hose couplings, heavy-duty

high-pressure hoses, and isolated planetary ﬁ nal

drives. Other enhancements such as a variable-

speed hydraulic-driven fan, sealed electrical con-

nectors, and extended service intervals all help

keep you, and your operation, up and running. When

you know how they’re built, you’ll run a Deere.

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black DKA9501050J Page 8 D

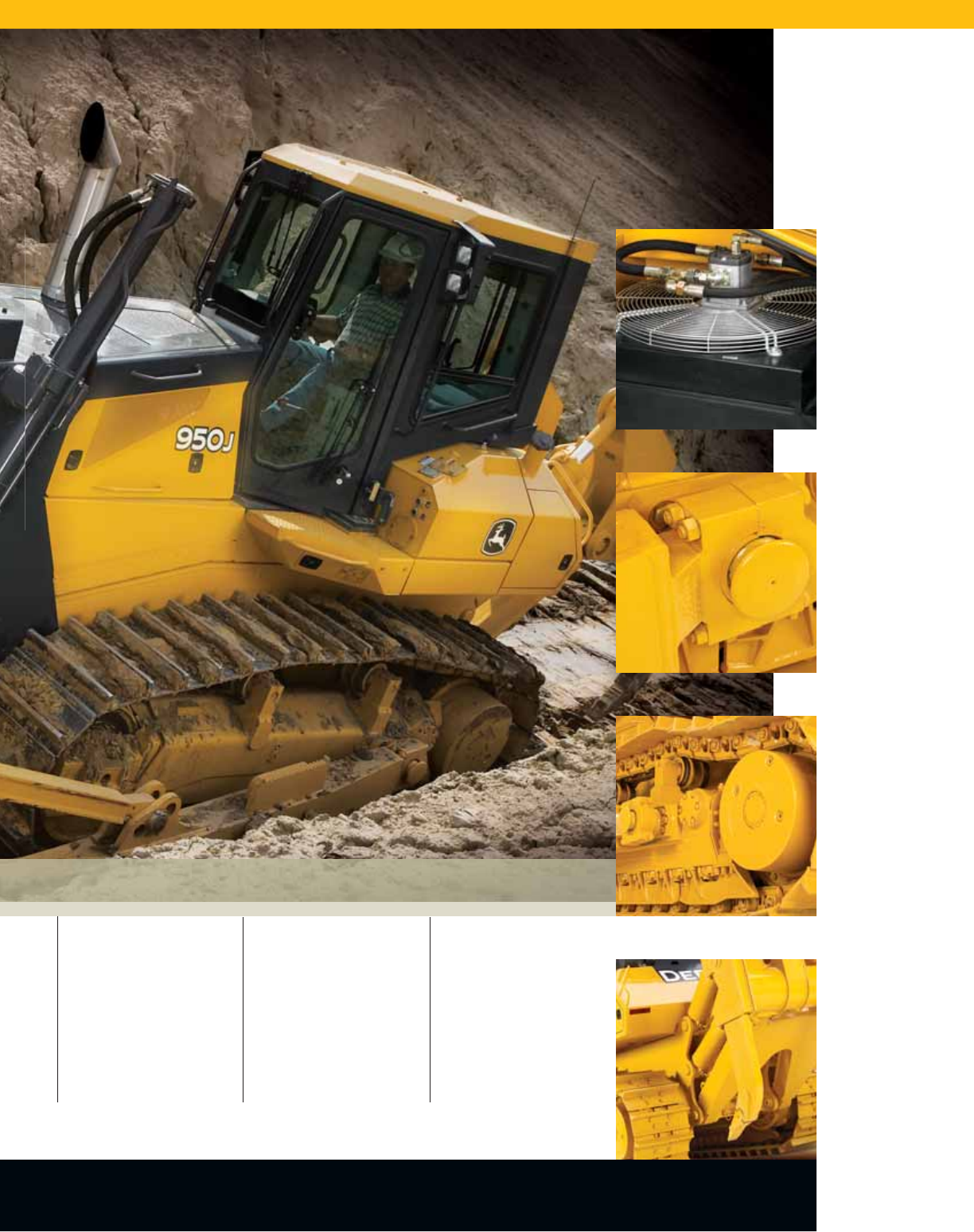

Oscillating track frames

absorb shock loads, for

lasting durability, better

gradeability, and more

comfort. Plus a smaller

diameter front idler

improves visibility.

One-piece totally welded

mainframe resists torsional

stress, absorbs shock loads,

and delivers maximum

strength. Allows simpliﬁ ed

service access to major

components, too.

Final drives incorporate a

unique oil-ﬁ lled double seal.

If oil escapes past the ﬁ rst

seal, an indicator light in the

cab alerts the operator. It’s

an early warning that helps

avert major ﬁ nal-drive failure

and expense. These dozers were

designed with rippers in

mind. Rear attachment

mounting points are an

integral part of their main-

frames, not add-ons.

Separate engine and

transmission cooling sys-

tems employ hydraulic-

driven fans for superior

cooling efﬁ ciency.

Coolers’ wide ﬁ n spacing lets

trash pass to resist plugging.

Available reversing fan back-

blows cooler cores, further

reducing debris buildup.

Heavy-duty undercarriage

is sealed, lubricated, and

built to last. Its no-non-

sense oval-track design

has only one wear-caus-

ing forward-travel ﬂ ex

point, for longer life.

Half-shell push-beam

bearings make cutting

and welding unnecessary,

so they’re less costly

and time-consuming to

replace.

Wet-sleeve diesels deliver

maximum power at low 1,600

rpm for outstanding reliability.

It’s surprisingly quiet and

exceptionally fuel efﬁ cient, too.

Hydraulic-driven variable-

speed engine fan runs only

as needed, decreasing noise

and fuel consumption.

8DKA9501050J Page 9 Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

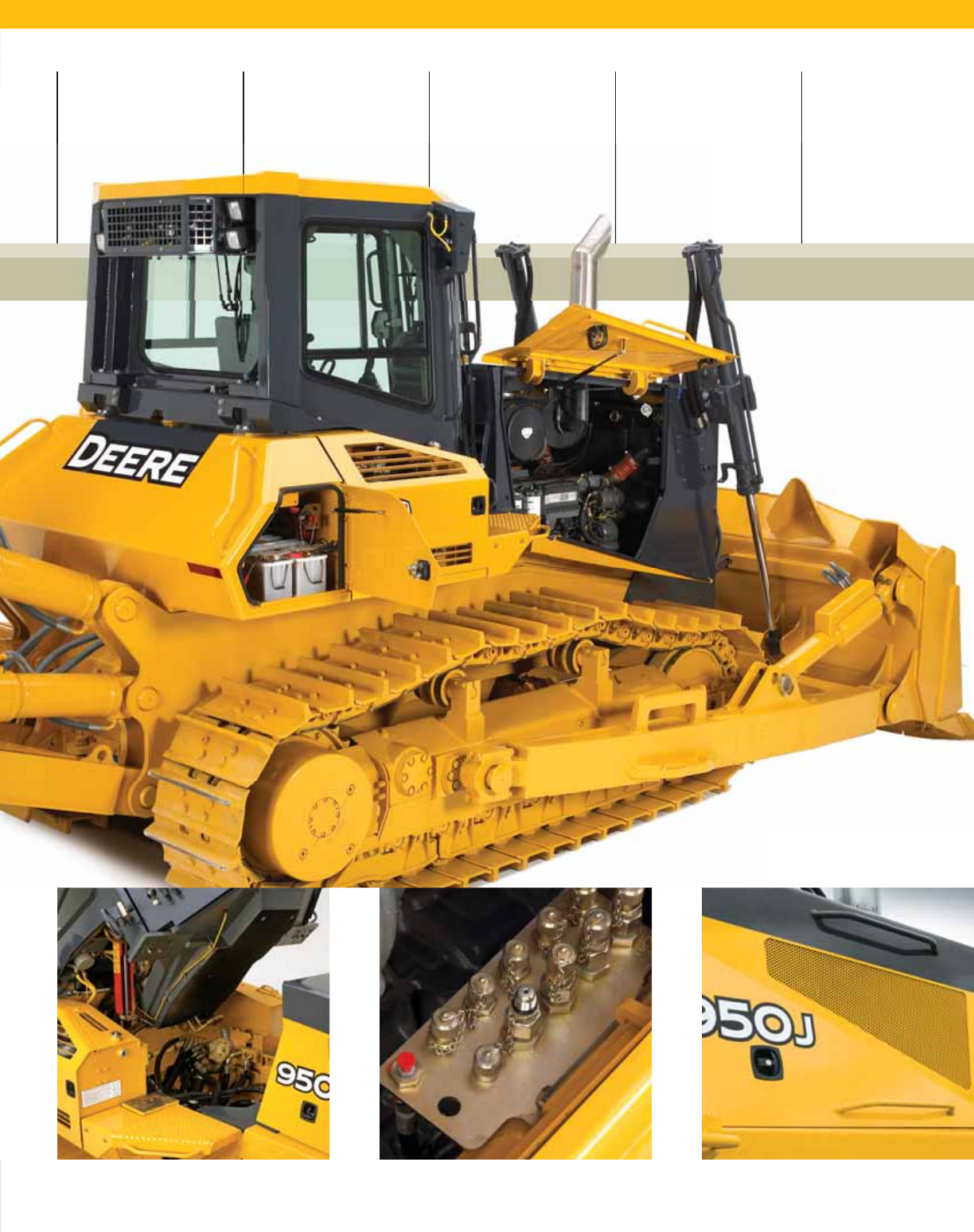

Servicing big equipment doesn’t have to be a

big production. As with all John Deere dozers,

ease of maintenance and low daily operating

costs are a high priority on the J-Series. Large,

hinged side shields and compartment doors

provide wide-open access to dipsticks, fill tubes,

maintenance-free batteries, and vertical spin-

on filters. Same-side service points make quick

work of the daily routine, and drivetrain service

intervals have been extended. These and other

time-saving features such as an easy-to-clean

undercarriage, quick-to-replace hydraulic hoses,

and designed-in diagnostics help keep downtime

and daily operating costs to a minimum.

Easier maintenance is

an open-and-shut case.

Easier maintenance is

an open-and-shut case.

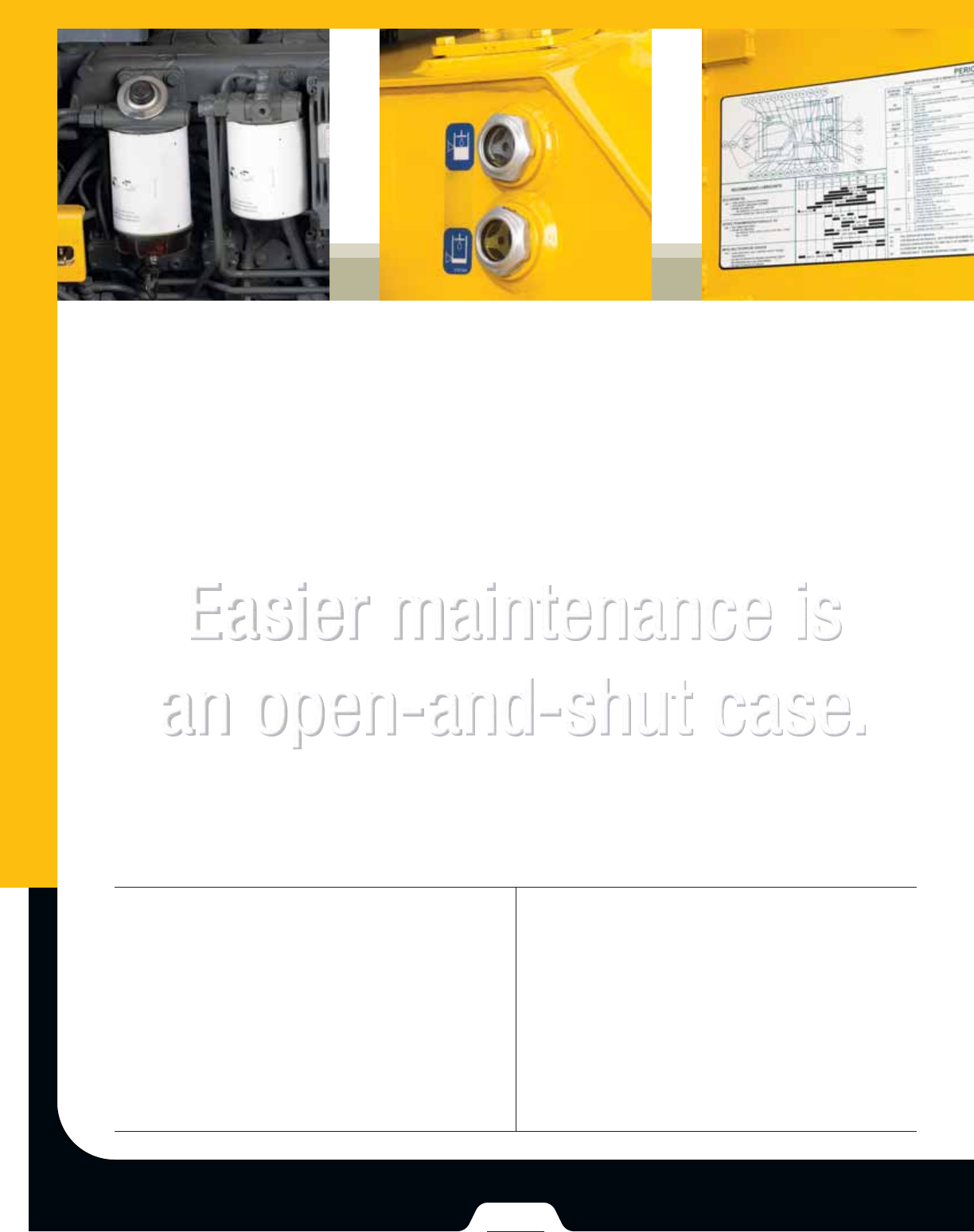

Easy-to-read sight gauges provide quick daily checks of

hydraulic, transmission, and ﬁ nal-drive seal ﬂ uids. Monitor

signals an alert should ﬁ nal-drive seal levels drop.

Vertical spin-on ﬁ lters allow quick, no-spill changes.

Engine, hydraulics, and transmission utilize a

common oil, further simplifying service.

Convenient lube and periodic maintenance chart

ensures that nothing gets overlooked.

PAGES

10–11

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black DKA9501050J Page 10 D

art

With no need to disconnect linkages, hydraulics, or wiring,

the operator station tilts in only minutes. For wide-open

access to drivetrain and hydraulic components.

Remote drive-system test ports and available ﬂ uid-

sample ports simplify preventive maintenance and

troubleshooting for increased uptime.

Perforated hood and side screens act as a “ﬁ rst ﬁ lter,”

preventing entry of most debris. Side-by-side wide-ﬁ n

radiator and charge-air cooler resist plugging.

Smooth idler-to-sprocket

covers shed material, and

wide space between the track

frames and mainframe further

eases clean-out.

Environmental drains on

ﬂ uid compartments help make

changes easier and less messy.

Five-hundred-hour engine oil

and 2,000-hour transmission

and hydraulic ﬂ uid intervals de-

crease downtime and expense.

Advanced diagnostic monitor

provides easy-to-understand

messages, for quick trouble-

shooting without special tools.

Large hinged doors provide

ample access for daily checks

and periodic maintenance.

Daily checks are limited to

hydraulic oil and engine oil

and coolant levels.

Essential maintenance items

such as engine coolant,

fuel pre-cleaner and ﬁ nal

fuel ﬁ lter, engine oil ﬁ lters,

hydrostatic oil ﬁ lter, air ﬁ lter,

and dipsticks are grouped on

the right side for time-saving

convenience.

10 DKA9501050J Page 11 Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

PAGES

12–13

Specifications

Engine 950J / 950J LGP

Manufacturer and Model. . . . . . . . . . . . . . . . . . . . . . . . . . Liebherr D 936-L A6

Non-Road Emission Standards . . . . . . . . . . . . . . . . . . . . . certified to EPA Tier 3 emissions

Cylinders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . in-line 6

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 641 cu. in. (10.5 L)

Net Power (ISO9249). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247 hp (184 kW) @ 1,600 rpm

Net Peak Torque (ISO9249) . . . . . . . . . . . . . . . . . . . . . . . . 937 lb.-ft. (1270 Nm) @ 1,400 rpm

Aspiration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . intercooled and turbocharged diesel

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure system with full-flow spin-on filter and integrated oil-to-water cooler

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual stage dry type with safety element and aspirated precleaner, with in-cab restriction indicator

Cold-Starting Aid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . intake-mounted air-inlet heater

Slope Operation (maximum angle) . . . . . . . . . . . . . . . . . . 45 deg.

Cooling

Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . suction-type cooling fan, front mounted, thermostatically controlled; hydraulically driven with perforated engine side shields

and heavy-duty front grille with tilt hose protection

Engine Coolant Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . –34 deg. F (–37 deg. C)

Powertrain

Transmission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . automatic dual-path, hydrostatic drive; load-sensing feature automatically adjusts speed and power to match changing

load conditions; each individual track is powered by a variable-displacement pump and motor combination; speed-in-

grip with fingertip speed control; infinite speed control; decelerator pedal controls ground speed to stop; dealer selectable

transmission operating parameters; transmission diagnostic test ports

Maximum Speeds (forward and reverse). . . . . . . . . . . 6.8 mph (11 km/h)

Steering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . single-lever steering, direction control, and counterrotation; full power turns and infinitely variable track speeds provide

unlimited maneuverability and optimum control

Final Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . double-reduction planetary final drives mounted independent of track frame and dozer push frame for isolation from

shock loads; hydraulic drive motors are mounted to the mainframe; final drives are double sealed with electronic seal-

integrity indicator

Drawbar Pull. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82,055 lb. (365 kN) @ .09 mph (1.5 km/h)

Service Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydrostatic (dynamic) braking stops the machine whenever the direction/steering control lever is moved to neutral or

whenever the combined decelerator/brake pedal is fully depressed

Parking Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . exclusive park brake feature engages wet, multiple-disc brakes whenever the engine stops, the combined decelerator/brake

pedal is fully depressed, the park lock lever is placed in the park position, the emergency travel stop button is depressed

on the dash, the F-N-R control is in the neutral position for more than 7 seconds, or machine motion is sensed with F-N-R

in neutral position; machine cannot be driven with brake applied, reducing wear-out or need for adjustment

Hydraulics

Load-sensing proportional pump-flow control, variable-displacement axial-piston pump

Pump Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 gpm (258 L/min.) @ 1,600 rpm

System Relief Pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . 3,770 psi (26 000 kPa)

Filter, Return Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 micron with 5-micron bypass filter

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . single joystick lever

Electrical

Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 volt

Number of Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Battery Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,000 CCA

Alternator Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 amp

Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 total: front (4) and rear (2) cab work lights, and rear reflectors (2)

Undercarriage 950J 950J LGP

Tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . track frame with front and rear track guides and sprocket guard; features deep-heat-treated, sealed, and lubricated track

links and through-hardened, sealed, and lubricated rollers for maximum wear resistance; extreme-duty shoes for severe

applications

Track Gauge (standard). . . . . . . . . . . . . . . . . . . . . . . . . . . 6 ft. 6 in. (1981 mm) 7 ft. 2 in. (2184 mm)

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

DKA9501050J Page 12 D

DKA9501050J_SPECS 4/10/07 8:16 AM Page 12

hields

ging

ctable

vide

eal-

/brake

essed

F-N-R

track

evere

Undercarriage

(continued)

950J 950J LGP

Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . sealed and lubricated sealed and lubricated

Track/Carrier Rollers (each side) . . . . . . . . . . . . . . . . . . . . 7/2 8/2

Track Chain Pitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.5 in. (216 mm) 8.5 in. (216 mm)

Sprocket Segments (each side). . . . . . . . . . . . . . . . . . . . . 5 5

Shoes (each side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 43

Ground Contact Area

22-in. (560 mm) Grouser Width . . . . . . . . . . . . . . . . . 5,203 sq. in. (33 566 cm

)

24-in. (610 mm) Grouser Width . . . . . . . . . . . . . . . . . 5,667 sq. in. (36 563 cm

)

26-in. (660 mm) Grouser Width . . . . . . . . . . . . . . . . . 6,132 sq. in. (39 560 cm

)

32-in. (812 mm) Grouser Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8,347 sq. in. (53 852 cm

)

36-in. (914 mm) Grouser Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9,396 sq. in. (60 616 cm

)

Track Length on Ground . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 10 in. (2997 mm) 10 ft. 11 in. (3316 mm)

Oscillation at Front Idler . . . . . . . . . . . . . . . . . . . . . . . . . . 5.6 in. (141 mm) 6.2 in. (158 mm)

Ground Pressure (with blade)

22 in. (560 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.0 psi (76 kPa)

24 in. (610 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.1 psi (70 kPa)

26 in. (660 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.3 psi (64 kPa)

32 in. (812 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.2 psi (50 kPa)

36 in. (914 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5 psi (45 kPa)

Serviceability 950J / 950J LGP

Integral bottom protection; engine and mid-frame reinforced guards; hydraulic hose “O”-ring face seal connectors

Sight Gauges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulic reservoir

Refill Capacities*

Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 gal. (535 L)

Cooling System with Recovery Tank . . . . . . . . . . . . . . 16.4 gal. (62 L)

Splitter Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 gal. (5.6 L)

Engine Oil with Filter. . . . . . . . . . . . . . . . . . . . . . . . . . 11.4 gal. (43 L)

Final Drive (each) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2 gal. (19.5 L)

Hydraulic/Transmission Reservoir and Filter . . . . . . . . 50 gal. (189 L)

*Please follow drain and refill procedures and volumes listed in the operator’s manual.

Operating Weights 950J 950J LGP

SAE Operating Weight Includes Standard Equipment,

Blade,Full Fuel Tank,and 175-lb.(79 kg) Operator

24-in. (610 mm) Extreme-Service Shoes . . . . . . . . . . 56,361 lb. (25 565 kg)

32-in. (812 mm) Extreme-Duty Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59,255 lb. (26 877 kg)

Tractor Shipping Weight Includes Coolant,Lubricants,

and 20% Fuel (without blade or attachments). . . . . . . 47,933 lb. (21 742 kg) 50,550 lb. (22 929 kg)

Optional Components

22-in. (560 mm) Extreme-Service Grousers . . . . . . . . – 401 lb. (– 182 kg)

24-in. (610 mm) Extreme-Service Grousers . . . . . . . . in base

26-in. (660 mm) Moderate-Service Grousers . . . . . . . – 639 lb. (– 290 kg)

32-in. (812 mm) Extreme-Duty Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . in base

36-in. (914 mm) Moderate-Service Grousers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 825 lb. (374 kg)

Automatic Reversing Fan with High-Demand

Cooling Package. . . . . . . . . . . . . . . . . . . . . . . . . . 289 lb. (131 kg) 289 lb. (131 kg)

Auxiliary Hydraulic Controls and Plumbing for

Rear Attachments

Dual-Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . 278 lb. (126 kg) 278 lb. (126 kg)

Single-Function . . . . . . . . . . . . . . . . . . . . . . . . . . 150 lb. (68 kg) 150 lb. (68 kg)

Blade Liner for Semi-U Blade . . . . . . . . . . . . . . . . . . . 937 lb. (425 kg) 937 lb. (425 kg)

Bolt-on Rock Guards. . . . . . . . . . . . . . . . . . . . . . . . . . 525 lb. (238 kg) 615 lb. (279 kg)

Bottom Tank Guard. . . . . . . . . . . . . . . . . . . . . . . . . . . 419 lb. (190 kg) 419 lb. (190 kg)

Extended Rigid Drawbar . . . . . . . . . . . . . . . . . . . . . . . 804 lb. (365 kg) 804 lb. (365 kg)

Final Drive Seal Guards. . . . . . . . . . . . . . . . . . . . . . . . 200 lb. (91 kg) N/A

Landfill Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,418 lb. (643 kg) N/A

Powered Cab Air Precleaner System* . . . . . . . . . . . . . 249 lb. (113 kg) 249 lb. (113 kg)

Push Plate

Semi-U Blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . 569 lb. (258 kg) 569 lb. (258 kg)

Straight Blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . 472 lb. (214 kg) 472 lb. (214 kg)

Rear Counterweight . . . . . . . . . . . . . . . . . . . . . . . . . . 7,055 lb. (3200 kg) 7,055 lb. (3200 kg)

With Storage Compartment . . . . . . . . . . . . . . . . . 6,120 lb. (2776 kg) 6,120 lb. (2776 kg)

Spill Guard for Semi-U Blade . . . . . . . . . . . . . . . . . . . 157 lb. (71 kg) 157 lb. (71 kg)

Wear Plates for Push Beams. . . . . . . . . . . . . . . . . . . . 436 lb. (198 kg) 436 lb. (198 kg)

*Note:Adds 12 in. (296 mm) to overall tractor height.

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

12 DKA9501050J Page 13

DKA9501050J_SPECS 4/10/07 8:16 AM Page 13

PAGES

14–15

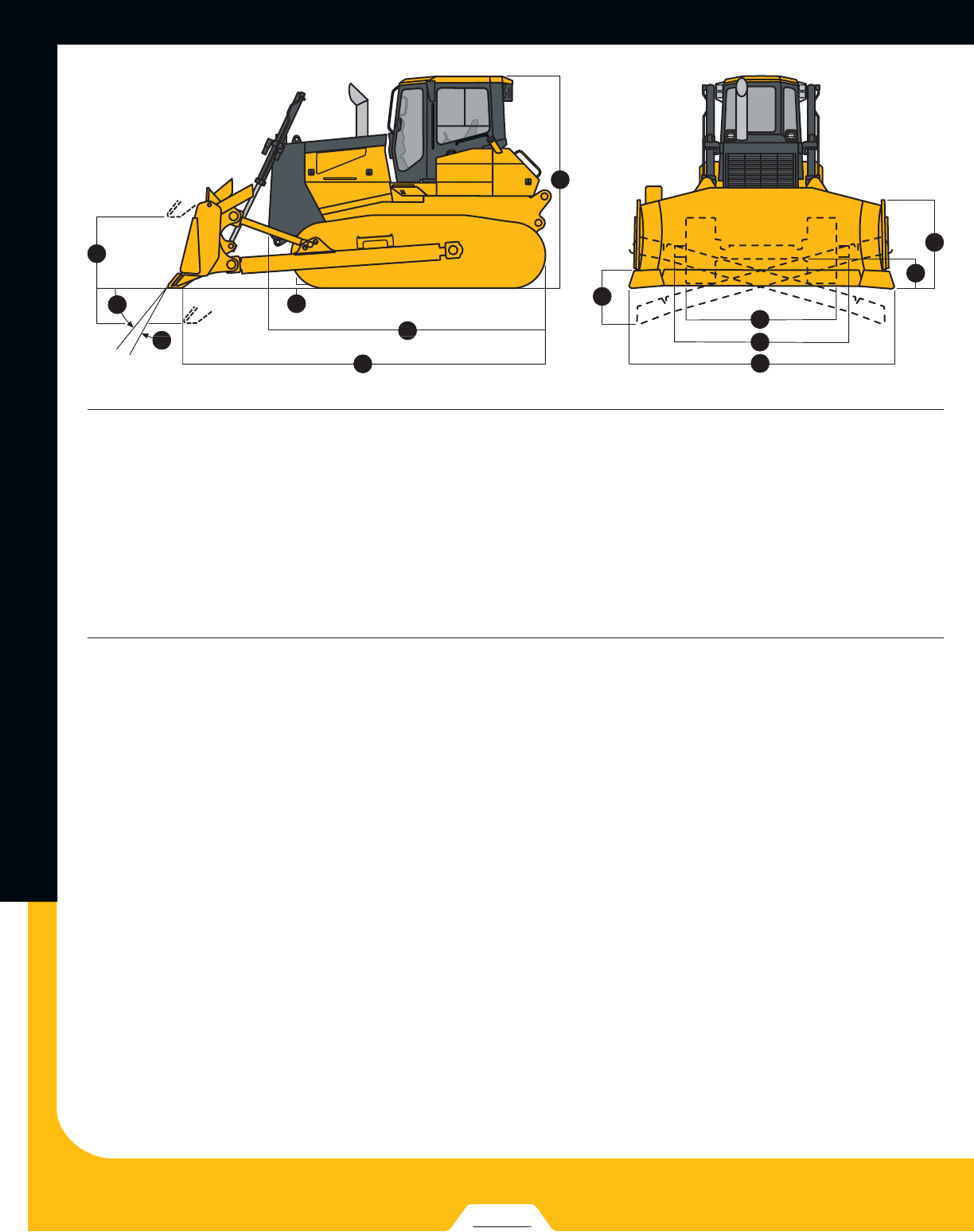

Machine Dimensions

(with straight blade)

950J 950J LGP

AOverall Height Over Cab . . . . . . . . . . . . . . . . . . . . . . . . 11 ft. 3 in. (3.43 m) 11 ft. 6 in. (3.50 m)

BOverall Length (without blade) . . . . . . . . . . . . . . . . . . . 15 ft. 3 in. (4.66 m) 15 ft. 5 in. (4.69 m)

CHeight of Grousers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8 in. (71.5 mm) 2.8 in. (71.5 mm)

DGround Clearance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 in. (545 mm) 21 in. (545 mm)

ETotal Width Over Blade-Mounting Trunnions . . . . . . . . . 9 ft. 10 in. (3.00 m) 11 ft. 10 in. (3.60 m)

FOverall Width with Extreme-Duty Single-Bar

Grouser Shoes

22 in. (560 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 4 in. (2.54 m)

24 in. (610 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 6 in. (2.59 m)

26 in. (660 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 8 in. (2.64 m)

32 in. (812 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 10 in. (2.99 m)

36 in. (914 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ft. 2 in. (3.09 m)

Blade Specs

Blade Weight with Standard Cutting Edges and

Cupped End Bits without Spill Guard. . . . . . . . . . . . . . 4,835 lb. (2193 kg) 4,996 lb. (2266 kg)

Weight of Push Beams and Tilt Cylinders

With Mechanical Pitch Adjustment . . . . . . . . . . . . . . . 3,594 lb. (1630 kg) 3,708 lb. (1682 kg)

With Power Pitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4,023 lb. (1825 kg) 4,138 lb. (1877 kg)

SAE Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.4 cu. yd. (7.19 m

) 7.9 cu. yd. (6.04 m

)

GHeight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 ft. 1 in. (1.55 m) 4 ft. 3 in. (1.3 m)

HWidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 ft. 1 in. (3.7 m) 14 ft. 9 in. (4.5 m)

ILifting Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 ft. 0 in. (1.22 m) 3 ft. 10 in. (1.17 m)

JBlade Digging Depth. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 in. (511 mm) 24 in. (610 mm)

KMaximum Blade Pitch Adjustment . . . . . . . . . . . . . . . . 10 deg. 10 deg.

LMaximum Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 in. (930 mm) 37 in. (933 mm)

MOverall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 ft. 10 in. (6.05 m) 19 ft. 6 in. (5.9 m)

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

DKA9501050J Page 14 D

DKA9501050J_SPECS 4/10/07 8:17 AM Page 14

Rear Ripper 950J / 950J LGP

3-shank parallelogram ripper with hydraulic pitch adjustment and 2 hole shank positions

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,286 lb. (3305 kg)

NRipping Depth

Maximum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 in. (749 mm)

Minimum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 in. (449 mm)

OLifting Height

Maximum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 in. (755 mm)

Minimum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 in. (459 mm)

POverall Length (attachment raised). . . . . . . . . . . . . . . 5 ft. 2 in. (1.6 m)

P' Overall Length (attachment lowered) . . . . . . . . . . . . . 6 ft. 4 in. (1.9 m)

QToolbar Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 ft. 2 in. (2.2 m)

RDistance Between Teeth . . . . . . . . . . . . . . . . . . . . . . . 3 ft. 3 in. (1.0 m)

SMaximum Pitch Adjustment . . . . . . . . . . . . . . . . . . . . 25 deg.

PP1

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

14 DKA9501050J Page 15

DKA9501050J_SPECS 4/10/07 8:17 AM Page 15

Specifications

PAGES

16–17

Engine 1050J

Manufacturer and Model. . . . . . . . . . . . . . . . . . . . . . . . . . Liebherr D 946-L A6

Non-Road Emission Standards . . . . . . . . . . . . . . . . . . . . . certified to EPA Tier 3 emissions

Cylinders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . in-line 6

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 732 cu. in. (12.0 L)

Net Power (ISO9249). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335 hp (250 kW) @ 1,800 rpm

Net Peak Torque (ISO9249) . . . . . . . . . . . . . . . . . . . . . . . . 1,254 lb.-ft. (1700 Nm) @ 1,400 rpm

Aspiration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . intercooled and turbocharged diesel

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure system with full-flow spin-on filter and integrated oil-to-water cooler

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual-stage dry type with safety element and aspirated precleaner, with dash-mounted restriction indicator

Cold-Starting Aid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . intake-mounted air-inlet heater

Slope Operation (maximum angle) . . . . . . . . . . . . . . . . . . 45 deg.

Cooling

and heavy-duty front grille

Engine Coolant Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . –34 deg. F (–37 deg. C)

Powertrain

Transmission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . automatic dual-path, hydrostatic drive; load-sensing feature automatically adjusts speed and power to match changing

load conditions; each individual track is powered by a variable-displacement pump and motor combination; speed-in-grip

with fingertip speed control; infinite speed control; decelerator pedal controls ground speed to stop; dealer selectable

transmission operating parameters; transmission diagnostic test ports

Maximum Speeds (forward and reverse). . . . . . . . . . . 6.8 mph (11 km/h)

unlimited maneuverability and optimum control

Final Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . double-reduction planetary final drives mounted independent of track frame and dozer push frame for isolation from

shock loads; hydraulic drive motors are mounted to the mainframe; final drives are double sealed with electronic seal-

integrity indicator

Drawbar Pull. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116,901 lb. (520 kN) @ .09 mph (1.5 km/h)

Service Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydrostatic (dynamic) braking stops the machine whenever the direction/steering control lever is moved to neutral or

whenever the combined decelerator/brake pedal is fully depressed

Parking Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . exclusive park brake feature engages wet, multiple-disc brakes whenever the engine stops, the combined decelerator/

brake pedal is fully depressed, the park lock lever is placed in the park position, the emergency travel stop button is

depressed on the dash, the F-N-R control is in the neutral position for more than 7 seconds, or machine motion is sensed

with F-N-R in neutral position; machine cannot be driven with brake applied, reducing wear-out or need for adjustment

Hydraulics

Load-sensing proportional pump-flow control, variable-displacement piston pump

Pump Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 gpm (258 L/min.) @ 1,600 rpm

System Relief Pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . 3,700 psi (26 000 kPa)

Filter, Return Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 microns with 5-micron bypass filter

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . single joystick lever

Electrical

Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 volt

Number of Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Battery Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,000 CCA

Alternator Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 amp

Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . cab mounted (6 total): front (4) and rear (2); and rear reflectors (2)

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

DKA9501050J Page 16 D

DKA9501050J_SPECS 4/10/07 8:17 AM Page 16

hields

ging

n-grip

vide

eal-

tor/

ensed

ment

Undercarriage 1050J

links and through-hardened, sealed, and lubricated rollers for maximum wear resistance; extreme-duty shoes for severe

applications

Track Gauge (standard). . . . . . . . . . . . . . . . . . . . . . . . . . . 7 ft. 2 in. (2180 mm)

Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . sealed and lubricated

Track/Carrier Rollers (each side) . . . . . . . . . . . . . . . . . . . . 7/2

Track Chain Pitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.5 in. (216 mm)

Sprocket Segments (each side). . . . . . . . . . . . . . . . . . . . . 5

Shoes (each side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Ground Contact Area

22-in. (560 mm) Grouser Width . . . . . . . . . . . . . . . . . 5,512 sq. in. (35 560 cm

)

24-in. (610 mm) Grouser Width . . . . . . . . . . . . . . . . . 6,004 sq. in. (38 735 cm

)

26-in. (660 mm) Grouser Width . . . . . . . . . . . . . . . . . 6,496 sq. in. (41 910 cm

)

28-in. (710 mm) Grouser Width . . . . . . . . . . . . . . . . . 6,998 sq. in. (45 149 cm

)

Track Length on Ground . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ft. 5 in. (3175 mm)

Oscillation at Front Idler . . . . . . . . . . . . . . . . . . . . . . . . . . 13 in. (330 mm)

semi-U dozer blade with power tilt U blade with power tilt and

Ground Pressure (with blade) . . . . . . . . . . . . . . . . . . . . .

and mechanical pitch adjustment mechanical pitch adjustment

22 in. (560 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.2 psi (98 kPa) 14.8 psi (102 kPa)

24 in. (610 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.9 psi (89 kPa) 13.3 psi (92 kPa)

28 in. (710 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.2 psi (77 kPa) 11.6 psi (80 kPa)

Serviceability

Integral bottom protection; engine and mid-frame reinforced guards; hydraulic hose “O”-ring face seal connectors

Sight Gauges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulic reservoir

Refill Capacities*

Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 gal. (650 L)

Cooling System with Recovery Tank . . . . . . . . . . . . . . 15 gal. (57 L)

Splitter Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 gal. (5.5 L)

Engine Oil with Filter. . . . . . . . . . . . . . . . . . . . . . . . . . 9.0 gal. (34 L)

Final Drive (each) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9 gal. (18.5 L)

Hydraulic/Transmission Reservoir and Filter . . . . . . . . 55.5 gal. (210 L)

*Please follow drain and refill procedures and volumes listed in the operator’s manual.

Operating Weights

SAE Operating Weight Includes Standard Equipment,

24-in. (610 mm) Extreme-Service Shoes, Blade,

Full Fuel Tank, and 175-lb. (79 kg) Operator

. . . . . . . .

77,843 lb. (35 309 kg)

Tractor Shipping Weight Includes Coolant,Lubricants,

and 20% Fuel (without blade or attachments). . . . . . . 64,346 lb. (29 187 kg)

Optional Components

22-in. (560 mm) Extreme-Service Grousers . . . . . . . . – 529 lb. (– 240 kg)

28-in. (710 mm) Extreme-Service Grousers . . . . . . . . 1,014 lb. (460 kg)

Automatic Reversing Fan with High-Demand

Cooling Package. . . . . . . . . . . . . . . . . . . . . . . . . . 708 lb. (321 kg)

Auxiliary Hydraulic Controls and Plumbing

for Rear Attachments . . . . . . . . . . . . . . . . . . . . . . 313 lb. (142 kg)

Blade Liner for Semi-U Blade . . . . . . . . . . . . . . . . . . . 1,311 lb. (595 kg)

Bottom Tank Guard. . . . . . . . . . . . . . . . . . . . . . . . . . . 699 lb. (317 kg)

Full-Length Rock Guards (bolt-on) . . . . . . . . . . . . . . . 1,036 lb. (470 kg)

Pin Puller (hydraulic). . . . . . . . . . . . . . . . . . . . . . . . . . 130 lb. (59 kg)

Powered Cab Air Precleaner System* . . . . . . . . . . . . . 249 lb. (113 kg)

Rear Counterweight

With Drawbar. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8,772 lb. (3979 kg)

With Storage Compartment . . . . . . . . . . . . . . . . . 7,714 lb. (3499 kg)

Wear Plates for Push Beams. . . . . . . . . . . . . . . . . . . . 752 lb. (341 kg)

*Note:Adds 12 in. (296 mm) to overall tractor height.

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

16 DKA9501050J Page 17

DKA9501050J_SPECS 4/10/07 8:17 AM Page 17

PAGES

18–19

Machine Dimensions 1050J

AOverall Height Over Cab . . . . . . . . . . . . . . . . . . . . . . . . 11 ft. 11 in. (3.63 m)

BOverall Length (without blade) . . . . . . . . . . . . . . . . . . . 16 ft. 0 in. (4.88 m)

CHeight of Grousers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 in. (84 mm)

DGround Clearance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 in. (635 mm)

ETotal Width Over Blade-Mounting Trunnions . . . . . . . . . 10 ft. 4 in. (3.15 m)

FOverall Width with Extreme-Duty Single-Bar

Grouser Shoes

22 in. (560 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 0 in. (2.74 m)

24 in. (610 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 2 in. (2.79 m)

26 in. (660 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 4 in. (2.84 m)

28 in. (710 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 6 in. (2.90 m)

Blade Specs

semi-U dozer blade with U blade with push

push beams, cupped end beams, cupped end

bits, and tilt cylinder bits, and tilt cylinder

Weight

With Mechanical Pitch Adjustment . . . . . . . . . . . . . . . 13,318 lb. (6041 kg) 14,908 lb. (6762 kg)

With Power Pitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13,567 lb. (6154 kg) 15,157 lb. (6875 kg)

With Standard Cutting Edges without Spill Guard . . . . . 7,033 lb. (3190 kg) 8,622 lb. (3911 kg)

SAE Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.6 cu. yd. (8.92 m

) 15.3 cu. yd. (11.7 m

)

GHeight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 ft. 5 in. (1.7 m) 5 ft. 5 in. (1.7 m)

HWidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 ft. 3 in. (4.04 m) 14 ft. 2 in. (4.3 m)

ILifting Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 ft. 7 in. (1.4 m) 4 ft. 7 in. (1.4 m)

JBlade Digging Depth. . . . . . . . . . . . . . . . . . . . . . . . . . . 22 in. (570 mm) 22 in. (570 mm)

KMaximum Blade Pitch Adjustment . . . . . . . . . . . . . . . . 10 deg. 10 deg.

LMaximum Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ft. 2 in. (972 mm) 3 ft. 5 in. (1043 mm)

MOverall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 ft. 4 in. (6.5 m) 22 ft. 8 in. (6.9 m)

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

DKA9501050J Page 18 D

DKA9501050J_SPECS 4/10/07 8:17 AM Page 18

1050J DOZER WITH MULTI-SHANK REAR RIPPER

1050J DOZER WITH SINGLE-SHANK REAR RIPPER

Rear Ripper 1050J

Parallelogram ripper with hydraulic pitch adjustment

multi-shank (3) with

single-shank (3-hole height hydraulic pitch (2-hole height

adjustment in each shank) adjustment in each shank)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,974 lb. (3617 kg) 10,509 lb. (4767 kg)

NRipping Depth

Maximum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ft. 11 in. (1201 mm) 2 ft. 7 in. (791 mm)

Minimum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 in. (421 mm) 19 in. (476 mm)

OLifting Height

Maximum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ft. 5 in. (1040 mm) 3 ft. 3 in. (985 mm)

Minimum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 in. (260 mm) 19 in. (476 mm)

POverall Length (attachment raised). . . . . . . . . . . . . . . 6 ft. 0 in. (1.8 m) 6 ft. 0 in. (1.8 m)

P' Overall Length (attachment lowered) . . . . . . . . . . . . . 7 ft. 9 in. (2.4 m) 7 ft. 9 in. (2.4 m)

QToolbar Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 ft. 4 in. (1.3 m) 8 ft. 0 in. (2.4 m)

RDistance Between Teeth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ft. 7 in. (1.1 m)

SMaximum Pitch Adjustment . . . . . . . . . . . . . . . . . . . . 31 deg. 31 deg.

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

18 DKA9501050J Page 19

DKA9501050J_SPECS 4/10/07 8:17 AM Page 19

Net engine power is with standard equipment including air cleaner,

exhaust system, alternator, and cooling fan at test conditions

specified per ISO9249. No derating is required up to 10,000-ft.

(3050 m) altitude.

Specifications and design subject to change without notice.Wherever applicable, specifications are in accordance with SAE standards.

Except where otherwise noted, these specifications are based on units with standard equipment,modular ROPS/cabs, full fuel tanks,

and 175-lb. (79 kg) operators.

DKA9501050J Litho in U.S.A. (07-04)

950J 1050J

Engine

●● Certified to EPA Tier 3 emissions

●● Direct-injection, intercooled, turbocharged

in-line 6-cylinder

●Liebherr D 936-L A6

●Liebherr D 946-L A6

●● Spin-on engine oil filter with anti-drain-

back valve

●● Fuel system includes precleaner with

water separator

●● Oil-to-water engine oil cooler

●● Dual-element dry-type aspirated air cleaner

with automatic dust ejector

●● Intake-mounted air-inlet heater start aid

●● Key start switch with electric fuel shutoff

●● Electronic engine throttle control

▲▲ Alternator air prescreener

Cooling

●● Engine coolant rated –34 deg. F (–37

deg. C)

●● Hydraulically driven,front-mounted suction-

type cooling fan

●● Radiator, heavy-duty, 5 fins per in.

●● Transmission oil cooler with hydraulically

driven cooling fan

●● Transmission cooler rated 5 fins per in.

●● Hinged, reinforced radiator guard

▲▲ Reversing fan drives available for engine

and hydraulic cooling systems

Powertrain

●● Dual-path hydrostatic transmission

●● Automatic load sensing for speed and

power management

●● Automatic-tracking steering control with

single-lever steering, direction/speed

control with counter-rotation

●● Infinite speed control; speed-in-grip with

fingertip speed control; dealer-selectable

transmission operating parameters

●● Double-reduction final drives with wet

multi-disc brakes

●● Integral final-drive seal protection

●● Primary and secondary service brakes

▲▲ Engine air dual-stage precleaner with

debris screen

Hydraulics

●● Load-sensing proportional flow pump

●● 68 gpm (258 L/min.) pump flow

●Hydraulic/transmission oil reservoir with

service shutoff, 49.9 gal.(189 L)

●Hydraulic/transmission oil reservoir with

service shutoff, 55.5 gal.(210 L)

●● Pilot-pressure control system

●● Two-function hydraulic valve with quick-

drop blade feature; single-lever blade

control compatible for additional functions

●● 20/5-micron replaceable dual-stage filter

element

950J 1050J

Hydraulics

(continued)

●● “O”-ring seal connectors

●● Hydraulic diagnostic ports

Electrical

●● 24-volt system

●● 80-amp alternator

●● Dual 1,000-CCA batteries

●● Circuit breakers

●● Positive-terminal battery covers

●● Electrically activated battery

●● Master disconnect

●● Backup warning alarm

●● Cab work lights (6), front (4) and rear (2)

▲▲ Additional grille-mounted front lights (2)

▲▲ Additional lift-cylinder lights (4)

▲▲ Additional rear cab-mounted lights (2)

▲▲ JDLink™

Undercarriage

●● Oscillating track frames

●● Heavy-duty, sealed and lubricated track

chain

●● Hydraulic track adjusters with dirt cover

●● Front idler and sprocket chain guides

●● Integrated track frame cover

●● Standard track frame, 78-in. (1980 mm)

gauge

▲●Frame,86-in. (2180 mm) gauge

▲●Extreme-duty grouser shoes, 22 in.

(560 mm)

●▲Extreme-duty grouser shoes, 24 in.

(610 mm)

▲▲ Extreme-service grouser shoes, 26 in.

(660 mm)

▲Moderate-service grouser shoes, 26 in.

(660 mm)

▲Extreme-service grouser shoes, 28 in.

(710 mm)

▲Moderate-service grouser shoes (LGP),

32 in. (812 mm)

▲Moderate-service grouser shoes (LGP),

36 in. (914 mm)

Operator Station

●● Modular-design ROPS/FOPS isolation-

mounted cab with left and right access

●● Heater (35,000 Btu) and air conditioning

(28,000 Btu)

●● Pressurized and filtered ventilation with

3-speed blower

●● Front windshield washer, and rear and

door window wipers

●● Dome light; rubber floor mats; interior-

mounted rearview mirror; built-in oper-

ator’s manual storage compartment with

manual; cup holder

●● Slip-resistant steps and ergonomically

located handholds

●● Comfort air suspension fabric seat with

adjustable armrests, backrest, height,

weight, and fore-aft

950J 1050J

Operator Station

(continued)

●● Seat belt, 2 in.(50 mm), with retractor

●● Electronic monitor system with audible

and visual warning for park brake; hydro-

static transmission pressure; engine air

filter restriction; hydraulic/transmission

filter restriction; low alternator voltage;

final-drive seal leak indicator; transmis-

sion selected speed indicator

●● Indicators for engine rpm and hydraulic/

hydrostatic oil temperature

●● Gauges, electric, illuminated for engine

oil pressure; engine coolant temperature;

fuel gauge; hour meter

●● Radio prepared and 12-volt/10-amp

power port

▲▲ AM/FM radio

▲▲ Powered cab air-filtration system

▲▲ Tank guard

Overall Vehicle

●● One-piece unitized mainframe

●● On-board cab-tilt system for full access

to hydrostatic motors

●● Reinforced engine bottom guards

●● Rear retrieval hitch

●● Heavy-duty hinged bar-type grille

●● Locking vandal protection for perforated

engine-access doors, and hydraulic- and

transmission-access door

●● Storage compartments (2)

Attachments

▲Semi-U blade with standard cutting

edges, 145 in. (3690 mm), 9.43 cu. yd.

(7.2 m3) (standard and LT)

▲Semi-U blade with standard cutting

edges, 178 in. (4520 mm), 7.86 cu. yd.

(6.0 m3) (LGP)

▲Semi-U blade with standard cutting edges

and cupped end bits, 159 in. (4030 mm)

▲U blade with standard cutting edges and

cupped end bits, 170 in. (4318 mm)

▲▲ Dual-function hydraulic controls and

plumbing

▲▲ Single-function hydraulic controls and

plumbing

▲▲ Dual blade-tilt cylinder for power pitch

and tilt

▲▲ Push plates, blade liners,and end bits

▲▲ Multi-shank ripper

▲Single-shank ripper

▲▲ Rear counterweight with drawbar (cannot

be used with ripper)

▲▲ Rigid heavy-duty drawbar (cannot be

used with rear counterweight or ripper)

▲▲ Rock guards

950J / 1050J CRAWLER DOZERS

Key: ●Standard equipment ▲Optional equipment *See your John Deere dealer for further information.

Vertis QCA

1300 19th Street, Suite 200

East Moline, IL 61244

Cyan Magenta Yellow Black

DKA9501050J Page 20

DKA9501050J_SPECS 4/10/07 2:55 PM Page 20

John Deere 950J Lgp Users Manual

1050J DKA9501050J

950J LGP to the manual 8c98f500-2f6e-4863-9f8c-f60d6d89fdad

Navigation menu

Versions of this User Manual:

Views

Navigation
