Jonter Digital D70 BLUETOOTH SPEAKER User Manual
Shenzhen Jonter Digital Co., Ltd BLUETOOTH SPEAKER
User Manual
D70 English Manual
Package:
1. Bluetooth Speaker x 1 pc
2. Micro USB cable x 1 pc
3. Charging card x 1 pc
4. User manual x 1 pc
5. Sucker x 1 pc
Spec:
Chipset: JIELI V4.2
Driver size: 1.5”
Output Power: 4W
Battery: Built in Li-ion battery, 3.7V, 1000mAh
Input: DC 5V/500mA
Dimension: φ92*40m

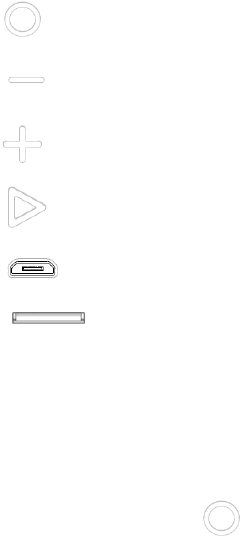

Function panel:
1. : Power ON/Power OFF
2. : Volume Down/ Last Track
3. : Volume Up/Next Track
4. : Play/Pause
5. : DC 5V/500mA IN Charging Port
6. :TF card slot
Bluetooth Mode:
1. Press and hold button to turn the speaker ON/OFF. Under the Bluetooth mode, the LED
light will be White, when the speaker is on, the LED light will keep flashing.
2. Turn on the BT function of your mobile device to find “D70” , then make speaker and mobile
device connected. When it connected, the White LED light will keep lighting.
3. Press and hold button to disconnect Bluetooth; Press button to Pause or Play
media. When playing, the White LED will be flashing slowly .
4. Press button to decrease volume; press and hold it to play the last track.
5. Press button to increase volume; press and hold it to play the next track.
6. When there is a coming call, press button to answer it, then press it again to hang it up.
Press and hold it to reject a coming call.
TF Card Mode:
Insert TF Card,the LED light will be red .Press button to Pause or play media.When
playing, the White LED will be flashing slowly .
Charging:
The speaker is with built in rechargeable battery, before using it, please make it full charged using
the USB cable. During the charging time, the LED light next to the charging port will be red, and it
will turn off when the speaker is full charged. It will take around 4 hours to make the speaker full
charged.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
