Jonter Digital M59 Bluetooth Speaker User Manual M59UM

Shenzhen Jonter Digital Co., Ltd Bluetooth Speaker M59UM

User Manual

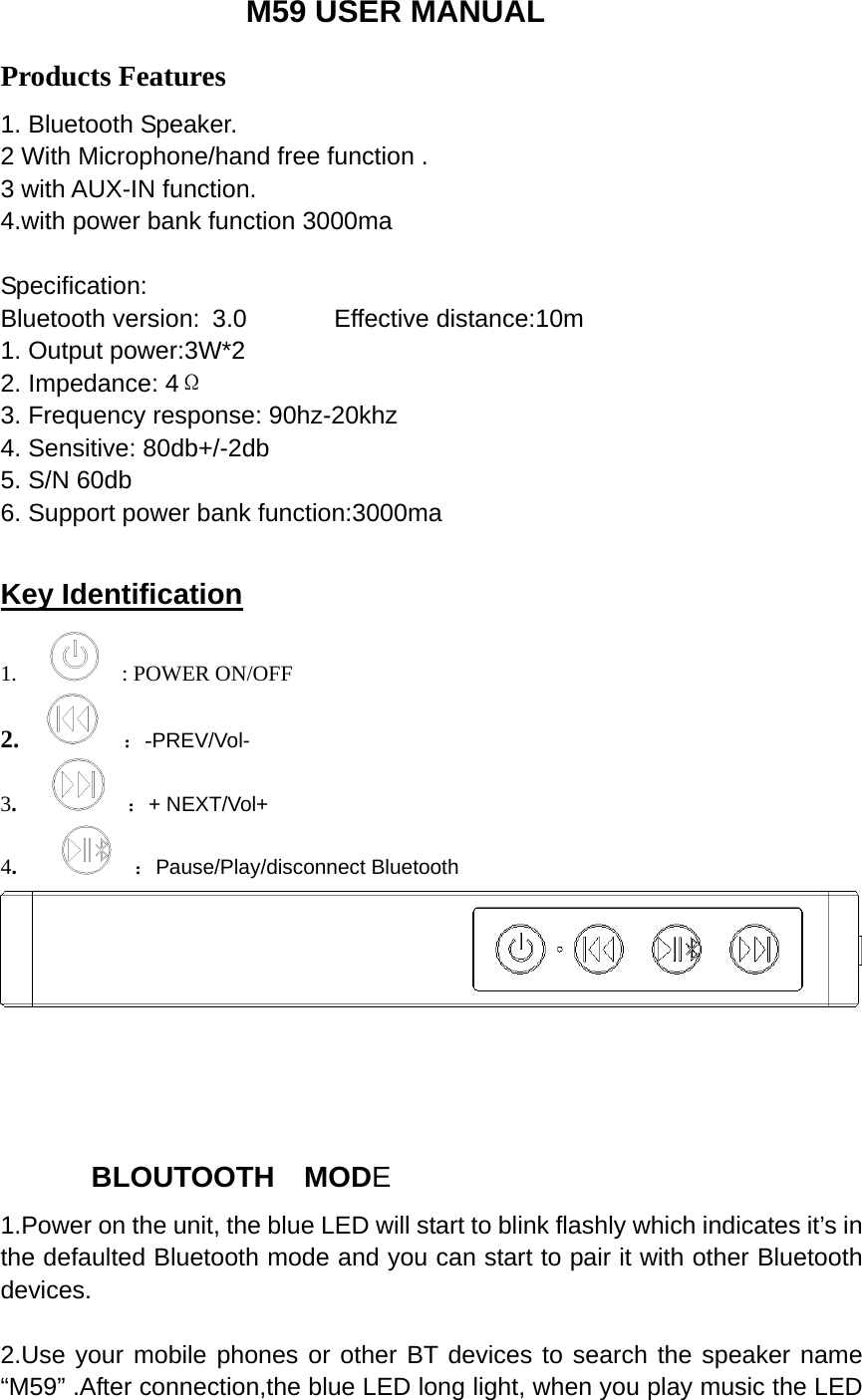

M59 USER MANUAL Products Features 1. Bluetooth Speaker. 2 With Microphone/hand free function . 3 with AUX-IN function. 4.with power bank function 3000ma Specification: Bluetooth version: 3.0 Effective distance:10m 1. Output power:3W*2 2. Impedance: 4Ω 3. Frequency response: 90hz-20khz 4. Sensitive: 80db+/-2db 5. S/N 60db 6. Support power bank function:3000ma Key Identification 1. : POWER ON/OFF 2. ：-PREV/Vol- 3. ：+ NEXT/Vol+ 4. ：Pause/Play/disconnect Bluetooth BLOUTOOTH MODE 1.Power on the unit, the blue LED will start to blink flashly which indicates it’s in the defaulted Bluetooth mode and you can start to pair it with other Bluetooth devices. 2.Use your mobile phones or other BT devices to search the speaker name “M59” .After connection,the blue LED long light, when you play music the LED

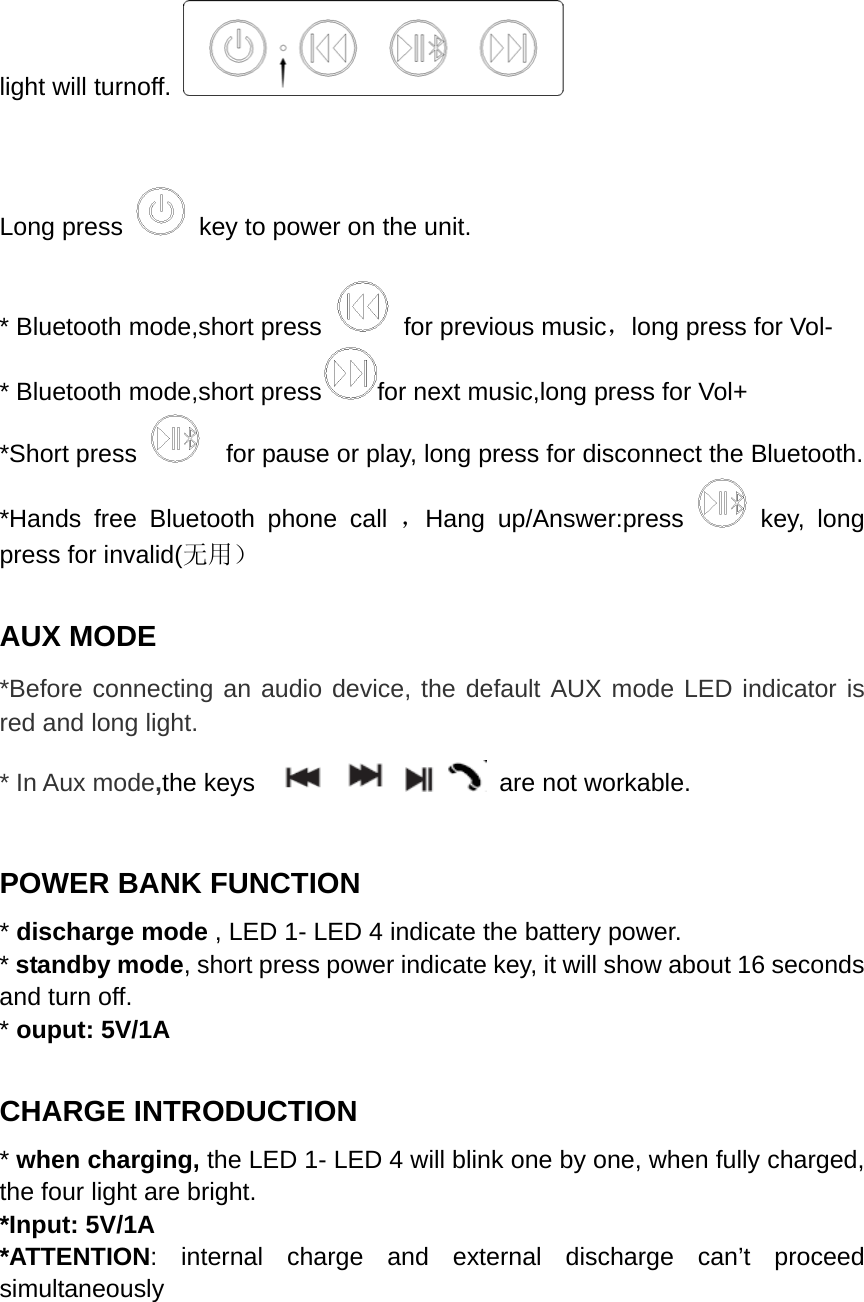

light will turnoff. Long press key to power on the unit. * Bluetooth mode,short press for previous music，long press for Vol- * Bluetooth mode,short press for next music,long press for Vol+ *Short press for pause or play, long press for disconnect the Bluetooth. *Hands free Bluetooth phone call ，Hang up/Answer:press key, long press for invalid(无用） AUX MODE *Before connecting an audio device, the default AUX mode LED indicator is red and long light. * In Aux mode,the keys are not workable. POWER BANK FUNCTION * discharge mode , LED 1- LED 4 indicate the battery power. * standby mode, short press power indicate key, it will show about 16 seconds and turn off. * ouput: 5V/1A CHARGE INTRODUCTION * when charging, the LED 1- LED 4 will blink one by one, when fully charged, the four light are bright. *Input: 5V/1A *ATTENTION: internal charge and external discharge can’t proceed simultaneously

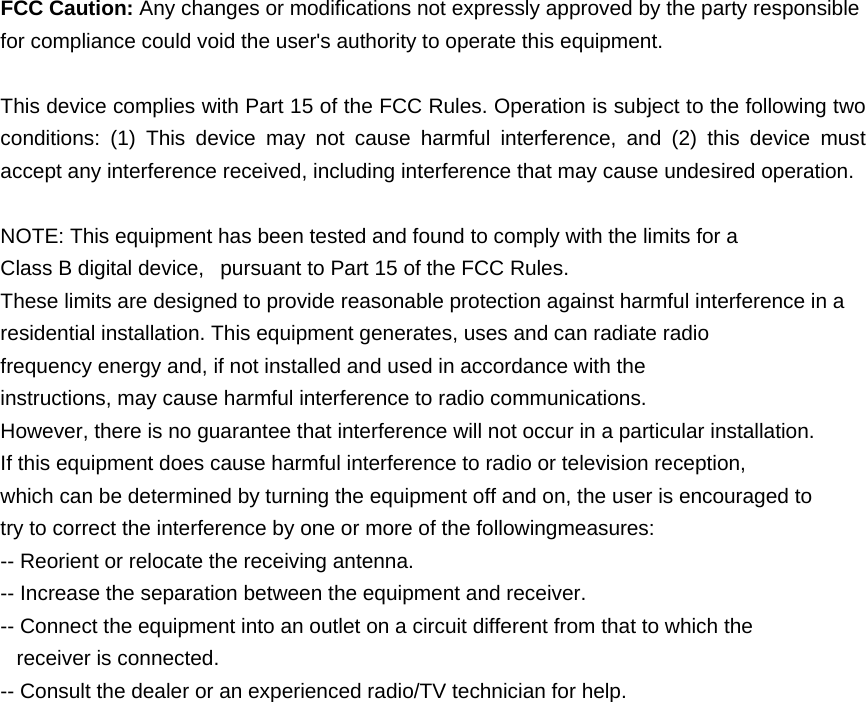

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
