Gas Inserts

and Fireplaces

Gas Inserts

and Fireplaces

94449_gas_brochure.indd 1 9/5/07 9:57:27 AM

2

Welcome to the world of Jøtul.

Or rather to “The spirit of Jøtul”.

“The spirit of Jøtul” is all about a passion for warmth, which

has burned brightly since the company began in 1853.

This passion inspires our philosophy “Warmth in every detail”

which you can read about on the following pages.

To us heating is much more than physical warmth and cosiness,

and we apply this philosophy to every stove and fireplace we

create. That is why our products provide more than just warmth

and cosiness. They do of course fulfill both of these functions

extremely well, but all the products in this catalogue have so

much more to offer.

I and everyone else at Jøtul hope that you will appreciate our

broad range of stoves and fireplaces.

“The spirit of Jøtul” was first ignited in 1853 in Norway; it now

burns brightly throughout the world. We hope that it will

kindle and inspire you too.

Erik Moe, President & CEO

94449_gas_brochure.indd 2 9/5/07 9:57:42 AM

Contents

experience the spirit of Jøtul

Jøtul’s Warmth Philosophy 4

Jøtul GI 350 DV 6

Jøtul GI 450 DV Katahdin 8

Jøtul GI 550 DV 10

Jøtul Little Diamond series 12

Jøtul Great Diamond series 13

Jøtul Cathedral Arch series 14

Jøtul Grand Forge series 16

Jøtul GZ 550 DV II Acadia 18

Jøtul Quickface System™ 20

Features & Benets 21

Technical Specifications 22

General Information 27

94449_gas_brochure.indd 3 9/5/07 9:57:44 AM

4

Jøtul’s Warmth Philosophy

Where most people consider warmth to mean heating and

cosiness, experience has taught us there is much more to it

than that. In fact, there are six types of warmth: physical

warmth and atmospheric warmth, in addition to visual,

convenient, durable and sustainable warmth.

We combine our warmth philosophy, “Warmth in every detail”,

with a rich tradition for ne craftsmanship. In doing so we

design cast iron stoves and replaces that create the

ultimate warmth experience.

• Cleanburntechnology

• Outstandingheatingefciency

• Choiceofconvectedand/orradiatedheat

• Optimalre-viewingarea

• Air-controlledcalmames

• Air-controlledsmokeemission

• Air-washedglass

• Award-winningdesigners

• Broadrangeoftimelessmodels

• Varioussizeoptions

• Choiceofpaintorenamelnishes

Physicalwarmth

To us, heating is not about creating the highest

temperature, it is about creating the most

comfortable temperature. Due to an optimum

combination of convected and radiated heat

our products can provide the most comfortable heat,

in the most efficient manner. Furthermore, our clean

burn technology ensures that practically all the

particles and gases in the smoke are burned.

Atmosphericwarmth

Nothing creates an intimate atmosphere quite like

a gently crackling fire. And nothing calms you quite

like the image of a flame dancing hypnotically on a

glowing log. We have always believed in the seductive

powers of the visible flame. For this reason, we have

developed pioneering flame technology to achieve

the perfect flame at all times.

Visualwarmth

The atmosphere produced by a stove or fireplace is

largely dependent on the aesthetic message it sends out.

We aim to create a lasting impression in the home and

follow our own “design for generations” ideal to give

our stoves and fireplaces a timeless appeal. We collaborate

with acclaimed design houses in order to design award-

winning stoves and fireplaces that outlive trends and

retain their timeless beauty for decades.

94449_gas_brochure.indd 4 9/8/07 10:31:37 AM

5

• Easytooperate

• Problem-freemaintenance

• Wipe-cleanglassandenamelsurfaces

• Simpleinstallationandpartreplacement

• Dependablecastirondurability

• 10-yearmanufacturingguarantee

• Minimum10-yearpartavailability

• Castironheritagesince1853

• Minimalsmokeemissions

• Recycledmaterials

• Cleanburnproducts

Convenientwarmth

We put an enormous amount of effort into our hearth

products so our customers don’t have to. The hearth is

the center-piece of the home – it is an essential part of

everyday life – and for this reason it should represent total

functionality. Everything about a Jøtul product is geared

towards our customers’ convenience: it is easy to install,

easy to use, easy to clean and easy to maintain. Life is

already complicated enough, so we make its pleasures

a little easier to enjoy.

Durablewarmth

Owning a Jøtul stove or fireplace is a lasting experience.

Since 1853 we have employed the finest handcrafting

techniques in order to provide our customers with long-

lasting, durable warmth. Warmth they can trust. Because

where fire is involved, safety and security are vital. Cast iron

delivers the highest standard of strength and durability.

As one of the world’s oldest cast iron stove and fireplace

manufacturers, no company delivers a longer lasting

promise of quality.

Sustainablewarmth

Our understanding of warmth enables us to create the

ultimate experience of warmth. All the cast iron we use

is recycled. And by relying mostly on hydroelectric power

to smelt recycled iron, we keep polluting emissions to an

absolute minimum. Furthermore, our clean burn technology

ensures that our products boast the most efficient use of

energy which also reduces the volumes of particles emitted

locally. This means our customers can light their hearth

products with minimal effect on the environment.

94449_gas_brochure.indd 5 9/8/07 10:31:43 AM

6

Jøtul GI 350 DV

Direct Vent Gas Insert

We looked at almost every other gas insert around and we could not find many

with clean-face designs. So we designed our Jøtul GI 350 DV gas insert with

hidden controls, “Fire on the Floor™” design, and one of the largest fire viewing

areas of any gas insert in its size on the market. The Jøtul GI 350 DV won us

industry recognition with a Vesta Design and Technology Award for best new

gas insert for 2007. Offering a variety of fronts, cast iron or steel, and various

interior panel kits, the Jøtul GI 350 DV can be tailored to fit any home or hearth.

Enjoy the view!

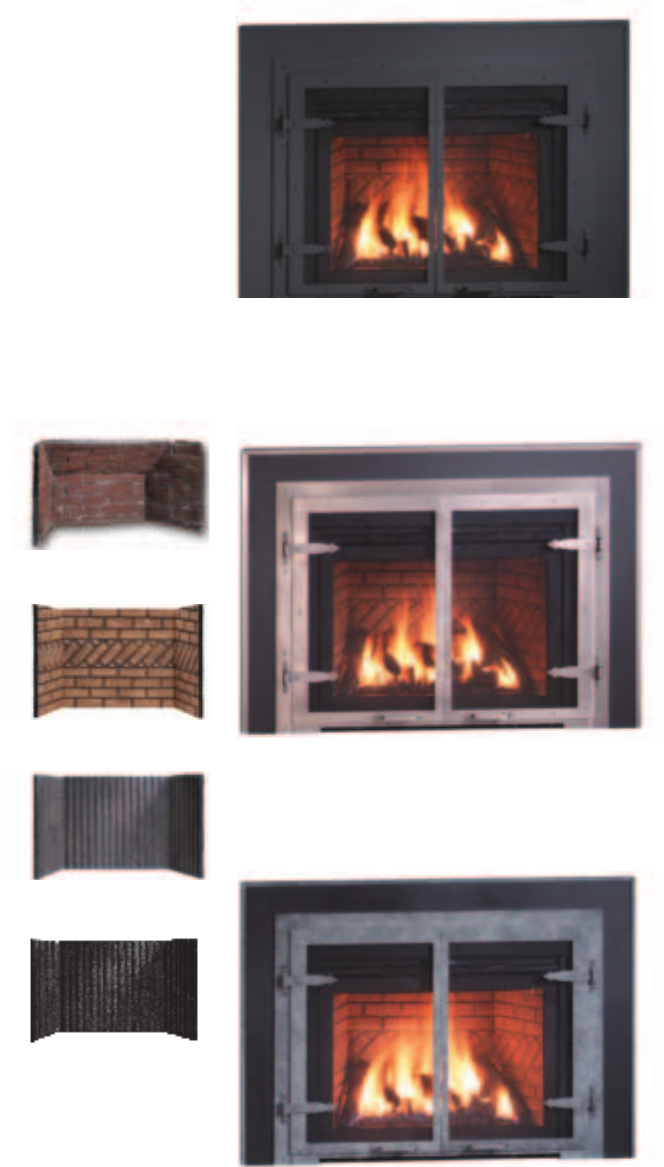

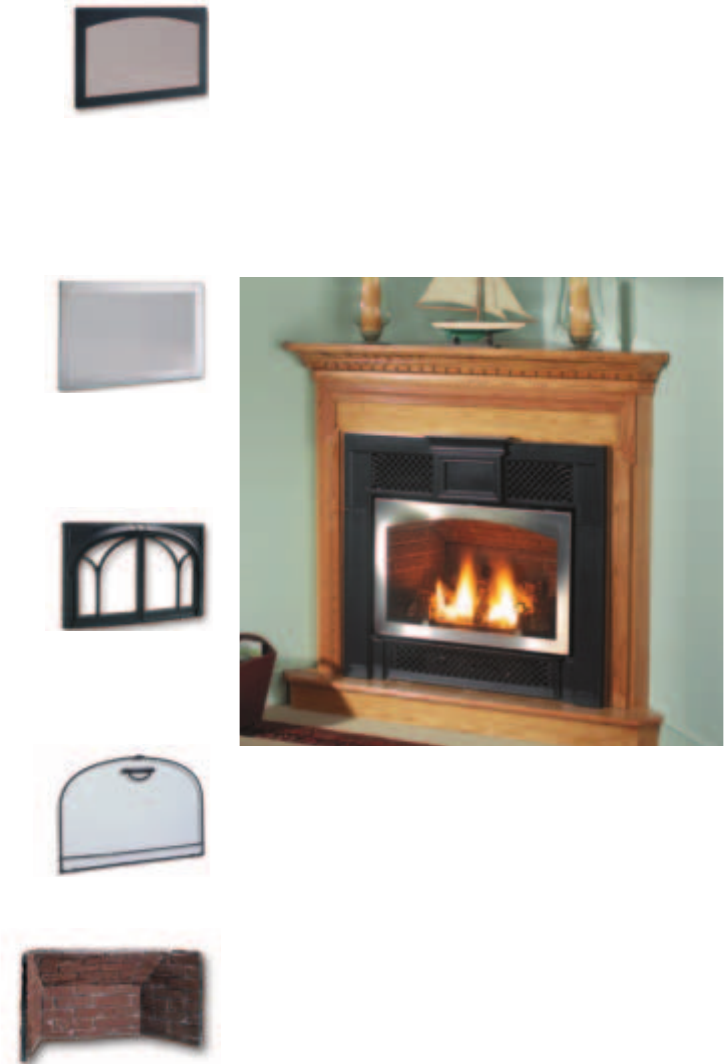

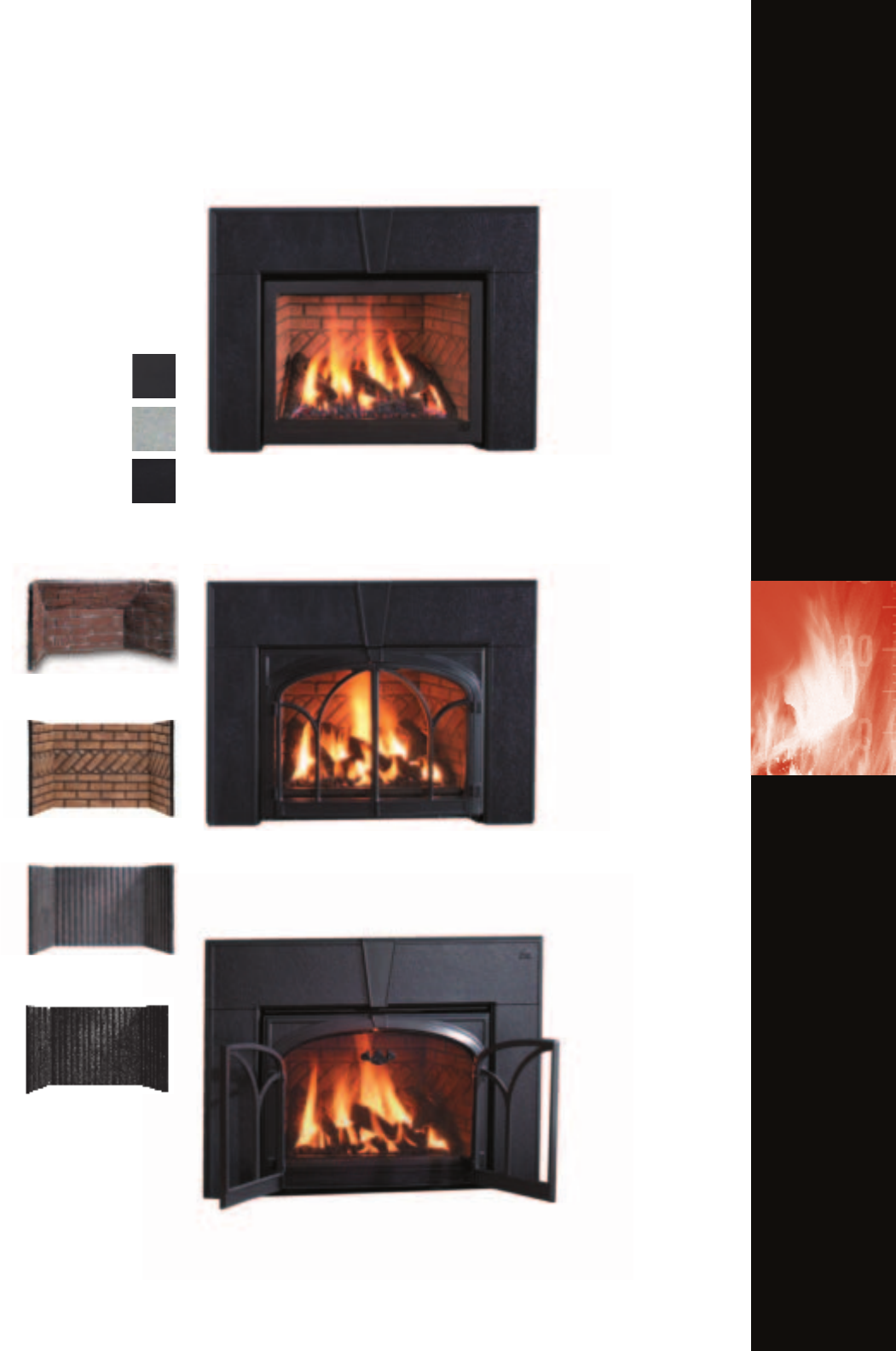

Options

Little Diamond cast iron surround

(available in three colors - see page 12)

Little Diamond cast iron double doors

(available in three colors - see page 12)

Screen for open door fire viewing

Choice of four interior panel packages

Cathedral Arch Steel Front

(available in three finishes - see page 14)

Grand Forge Steel Front

(available in three finishes - see page 16)

Surround sizes: see page 22

Features

Revolutionary new JøtulBurner™

delivers unsurpassed gas burner

technology and flame picture

(Patent #7004751)

50% heat control turndown

Innovative Fire-on-the-Floor™ design

Variable speed blower with manual

override (60-125 cfm)

Leg levelers for adjustable firebox

height - up to 3 inches

Perfectly sized to retrofit into factory

built wood fireplaces

Conveniently located side mounted

gas valve and control assembly

Handcrafted ceramic fiber log set

burns with the glowing warmth of a

wood fire

Optional remote and wall thermostat

5 year limited warranty

94449_gas_brochure.indd 6 9/10/07 1:45:58 PM

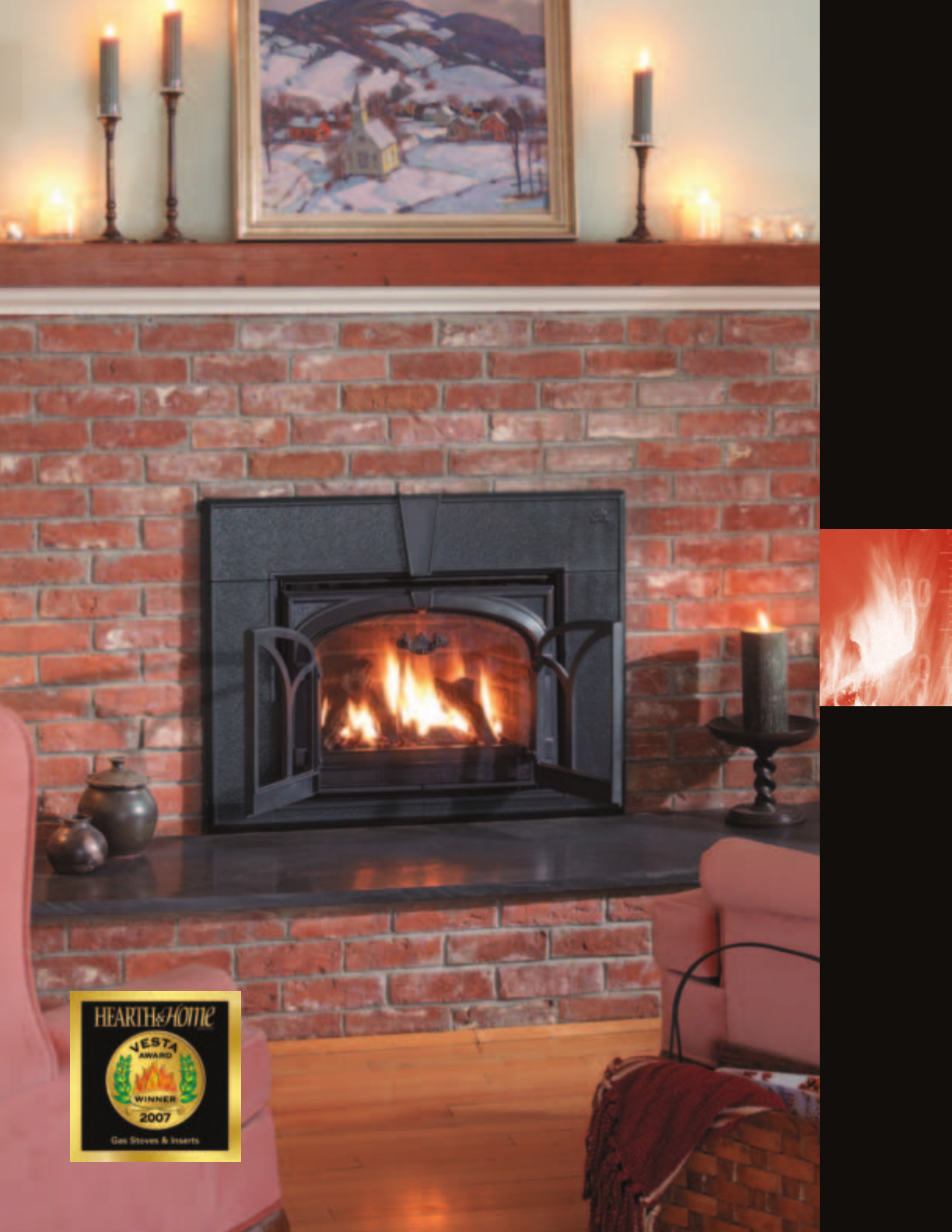

Jøtul GI 350 DV Little Diamond

Jøtul GI 350 DV shown with Classic Matte Black

Paint, Little Diamond cast iron surround, plinth and

double doors. Additional options include antique

brick panel kit and firescreen

94449_gas_brochure.indd 7 9/5/07 9:58:04 AM

8

DirectVentGasInsert

The Jøtul GI 450 DV Katahdin gas insert offers your home tremendous heat

without losing any room space. Our classic cast iron design with furnace rated

direct vent heating performance is simple to install and easy to service. Named

after Mt. Katahdin, Maine’s highest peak, the Jøtul GI 450 DV Katahdin will

surely bring some Maine charm to your home.

Jøtul includes a standard cast iron surround (40” wide by 30” high) and offers

an optional wide cast iron surround (48” wide x 34” high). Also available are a

wall thermostat, fire screen, antique brick panels (molded from real brick), and

remote control for added convenience..

Jøtul GI 450 DV Katahdin

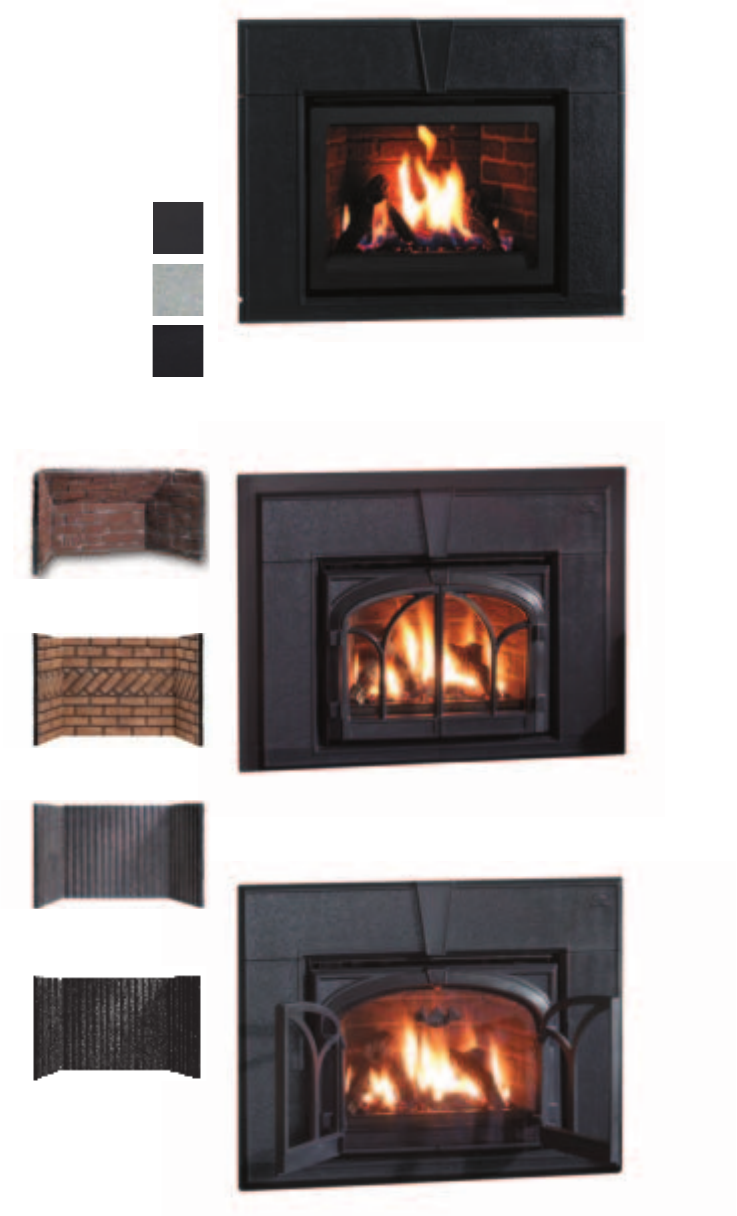

Options

Wall thermostat

Remote control

Wide cast iron surround (shown at right)

(must be used w/standard surround)

Fire screen

Antique brick panel kit (molded from real brick)

Available in three colors

Features

Panoramic flush face design

Crafted cast iron with unique

interior detailing and intricate

enameled decorative side panels

Sculpted cast iron surrounds add

classic decorative flair

Dramatic flame picture – realistic

ceramic fiber logs burn with the

warm glow of a wood fire

Enameled cast iron fettle

and andirons

Easy to install in virtually

any fireplace

Standard blower fan (60 - 125 cfm)

2” riser plinth included with every unit

Glass panel 29 1/4”W x 13 1/4”H – one

of the industry’s largest!

5 year limited warranty

Blue/Black Porcelain Enamel

Jøtul Iron™ Paint

Classic Matte Black Paint

94449_gas_brochure.indd 8 9/5/07 9:58:07 AM

Jøtul GI 450 DV Katahdin

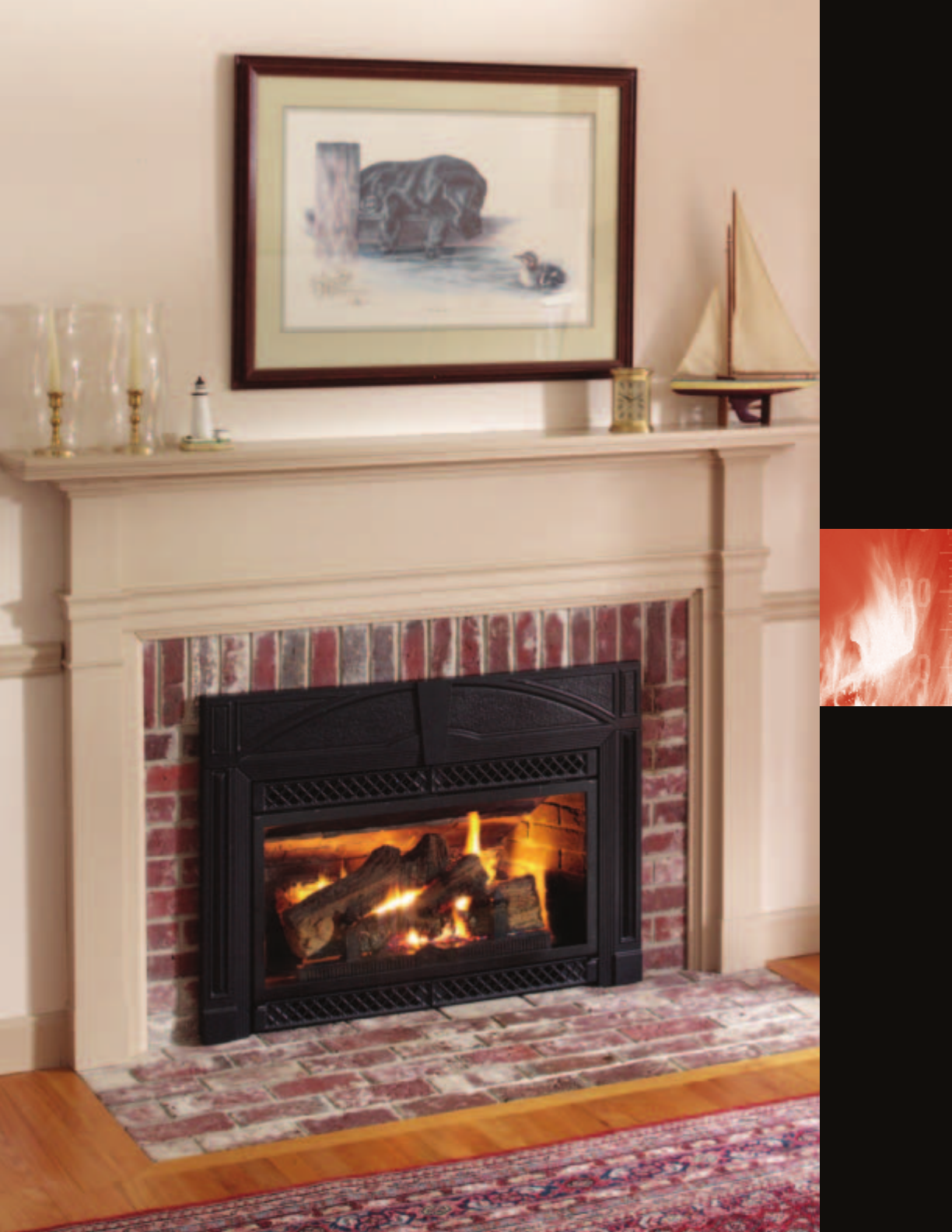

Jøtul GI 450 DV Katahdin Gas Insert shown here in

Blue/Black Porcelain Enamel, optional fire screen

and antique brick panel kit

94449_gas_brochure.indd 9 9/8/07 10:32:00 AM

10

Jøtul GI 550 DV

Direct Vent Gas Insert

It didn’t take us long to realize the Jøtul GI 350 DV needed a bigger sibling. And

naturally, we wanted the same features that distinguish these models from the

competition. So we designed our Jøtul GI 550 DV gas insert with hidden controls,

“Fire on the Floor™” design, and one of the largest fire viewing areas of any gas

insert in its size on the market. It got us more Vesta Design and Technology

recognition - a significant coup for our talented development staff! Offering a

variety of fronts, cast iron or steel, and various interior panel kits, the

Jøtul GI 550 DV can be tailored to fit any home or hearth. Enjoy the view!

Features

Revolutionary new JøtulBurner™

delivers unsurpassed gas burner

technology and flame picture

(Patent # 7004751)

50% heat control turndown

Optional remote and wall thermostat

Innovative Fire-on-the-Floor™ design

Variable speed heat activated blower

with manual override (60-125 cfm)

Leg levelers for adjustable firebox

height - up to 3 inches

Conveniently located side mounted

gas valve and control assembly

Handcrafted ceramic fiber log set

burns with the glowing warmth of a

wood fire

5 year limited warranty

Options

Great Diamond cast iron surround

(available in three colors - see page 13)

Great Diamond cast iron double doors

(available in three colors - see page 13)

Wide trim surround

Screen for open door fire viewing

Choice of four interior panel packages

Cathedral Arch Steel Front

(available in three finishes - see page 14)

Grand Forge Steel Front

(available in three finishes - see page 16)

Surround sizes: see page 24

Product name

94449_gas_brochure.indd 10 9/10/07 1:47:56 PM

Product name

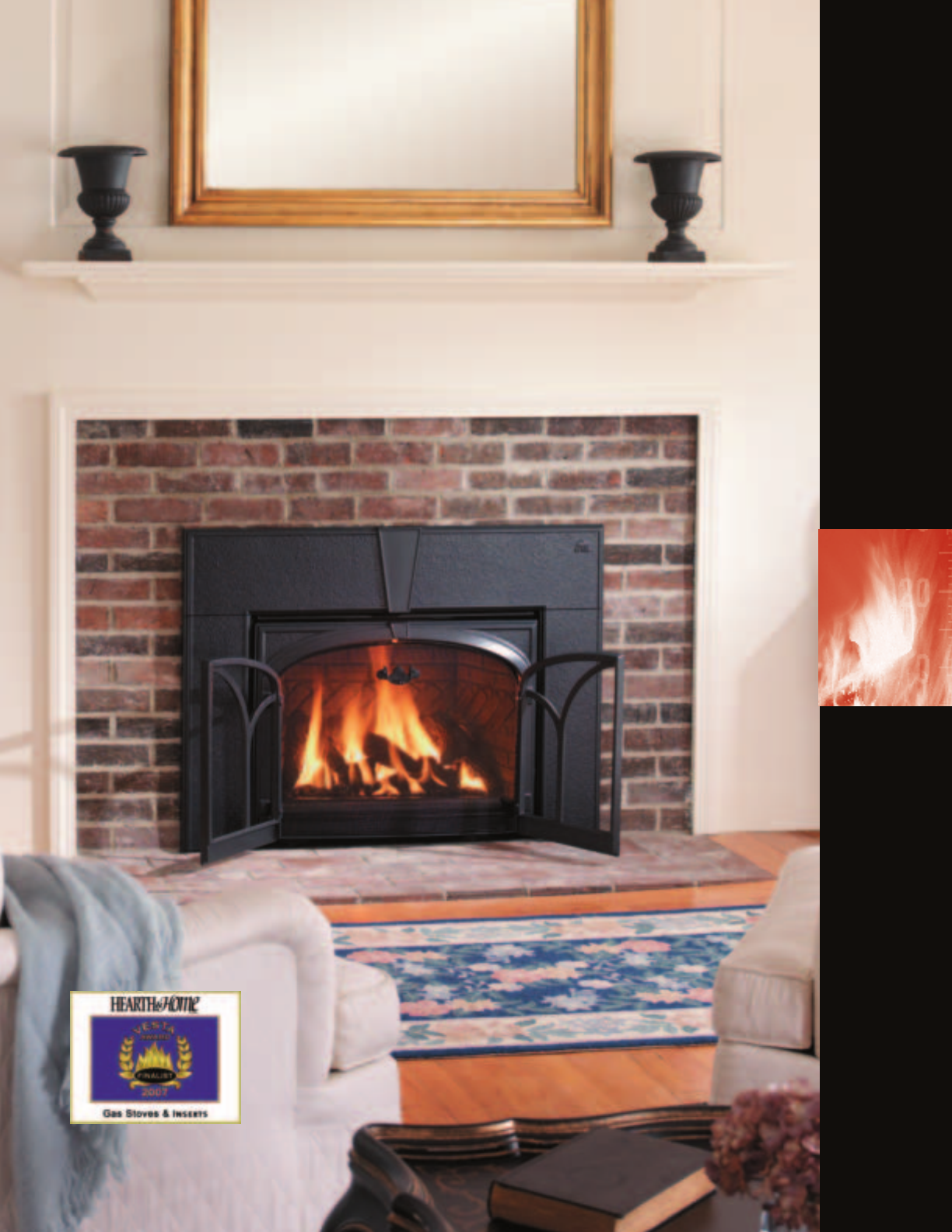

Jøtul GI 550 DV Great Diamond

Jøtul GI 550 DV shown with Classic Matte Black

Paint, Great Diamond cast iron surround and double

doors. Additional options include border brick panel

kit and firescreen

94449_gas_brochure.indd 11 9/5/07 9:58:18 AM

12

Jøtul Little Diamond Series

Available on GI 350 DV inserts

Little Diamond cast iron surround shown in Blue/Black

Porcelain Enamel with 2” plinth and optional antique brick kit

Little Diamond cast iron surround with standard steel

wide surround, 2” plinth and double doors shown in

Classic Matte Black Paint with optional antique brick kit

Little Diamond cast iron surround, double doors, and 2” plinth

shown in Classic Matte Black Paint, optional antique

brick kit and firescreen

Antique brick kit

Border brick kit

Gray Corduroy panel kit

Black Corduroy panel kit

Blue/Black Porcelain Enamel

Jøtul Iron™ Paint

Classic Matte Black Paint

94449_gas_brochure.indd 12 9/5/07 9:58:26 AM

13

Great Diamond cast iron surround shown in Classic

Matte Black Paint and optional border brick kit

Great Diamond cast iron surround and double doors

shown in Classic Matte Black Paint and optional

border brick kit

Great Diamond cast iron surround and double doors

shown in Classic Matte Black Paint, optional border

brick kit and firescreen

Jøtul Diamond Series

Jøtul Great Diamond Series

Available on GI 550 DV inserts

Antique brick kit

Border brick kit

Gray Corduroy panel kit

Black Corduroy panel kit

Blue/Black Porcelain Enamel

Jøtul Iron™ Paint

Classic Matte Black Paint

94449_gas_brochure.indd 13 9/5/07 9:58:32 AM

14

Cathedral Arch Front shown in Black Powder Coat

with optional border brick kit

Cathedral Arch Front shown in Natural Iron

with optional border brick kit

Cathedral Arch Front shown in Charcoal Gray Powder

Coat with optional border brick kit

Antique brick kit

Border brick kit

Gray Corduroy panel kit

Black Corduroy panel kit

Jøtul Cathedral Arch Series

Available on GI 350 DV and GI 550 DV inserts

94449_gas_brochure.indd 14 9/5/07 9:58:37 AM

Jøtul GI 550 DV Cathedral Arch

Jøtul GI 550 DV shown with Cathedral

Arch Front in Natural Iron with

optional border brick kit

94449_gas_brochure.indd 15 9/5/07 9:58:42 AM

16

Grand Forge Front shown in Black Powder Coat

with optional border brick kit

Grand Forge Front shown in Natural Iron

with optional border brick kit

Grand Forge Front shown in Charcoal Gray Powder Coat

with optional border brick kit

Jøtul Grand Forge Series

Available on GI 350 DV and GI 550 DV inserts

Antique brick kit

Border brick kit

Gray Corduroy panel kit

Black Corduroy panel kit

94449_gas_brochure.indd 16 9/5/07 9:58:49 AM

Jøtul GI 550 DV Grand Forge

Jøtul GI 550 DV shown with

Grand Forge Front in

Charcoal Gray Powder Coat and

optional border brick kit

94449_gas_brochure.indd 17 9/8/07 10:32:49 AM

18

Jøtul GZ 550 DV II Acadia

Direct Vent Gas Fireplace

We looked at almost every other zero clearance fireplace around and we couldn’t

find many fireplaces made of cast iron – all we saw was black tin.

So we designed a cast iron fireplace that’s not gussied up like a Victorian lady,

nor poor plain Jane. We combined the sculptural qualities of cast iron and Jøtul’s

new revolutionary cast iron and stainless steel burner, the JøtulBurner™,

to create a fireplace that’s sleek and elegant; restrained enough to enhance any

décor. The Jøtul GZ 550 DV II Acadia comes with many options – screens, arched

and rectangular faces, antique brick panels (molded from real brick), double

doors, remote control, blower fan and more.JøtulBurner™

Options

Antique brick panel kit

(molded from real brick)

Variable speed heat activated blower with

manual override

(60-125 cfm)

Screen for open door fire viewing

Multiple venting installations

Wall thermostat

Remote control

Jøtul Quickface System™ (see page 20)

Available in three colors

Blue/Black Porcelain Enamel

Jøtul Iron™ Paint

Classic Matte Black Paint

Features

Revolutionary new JøtulBurner™

delivers unsurpassed gas burner

technology and flame picture

(Patent # 70044751)

50% heat control turndown

Elegant cast iron surround panels

with Cascading Lattice™

Three position On/Off/T-stat switch

Gas conversion kit included with

every stove for use with propane

No electricity required to operate

Handcrafted ceramic fiber log set

burns with the warm glow of a

wood fire

Standard enameled cast iron fettle

and andirons

5 year limited warranty

94449_gas_brochure.indd 18 9/11/07 11:32:32 AM

Jøtul GZ 550 DV II Acadia

Jøtul GZ 550 DV II Acadia shown here

installed in a corner mantel cabinet with optional

Jøtul Quickface System™ accessories and antique

brick panel kit

94449_gas_brochure.indd 19 9/5/07 9:59:03 AM

20

Jøtul Quickface System™

(For Jøtul GZ 550 DV II Acadia)

It’s easy to change the look of your Jøtul GZ 550 DV II Acadia. By choosing one of

two face shapes, offered in two colors (Classic Matte Black or Brushed Stainless),

you can customize your Jøtul GZ 550 DV II Acadia to your particular décor or

mood. Or you can enhance your fire viewing experience with the cast iron

arched double doors option.

Quickly installed, the fully functional doors also allow use of an optional fire

screen. Add our antique brick panel kit, shown below, t0 provide a unique accent

of authenticity not available in any other zero clearance gas fireplace

or gas insert.

Here the brushed stainless Arched Face on the Jøtul GZ 550 DV II Acadia

enlivens this contemporary interior.

Arched Face Classic Matte Black,

with removable screen

(Also available in Brushed Stainless)

Rectangular Face Brushed Stainless,

with removable screen

(Also available in Classic Matte Black)

Arched Double Doors

(Available in Classic Matte Black, Jøtul Iron™

Paint or Blue/Black Porcelain Enamel)

Fire Screen

Antique Brick Panel Kit

94449_gas_brochure.indd 20 9/5/07 9:59:08 AM

21

Jøtul Fireplace & Insert

Features and Benets

Trim-coolingManifoldSystem™ (Acadia only)

This means you have the ability to frame or sheetrock right up to the unit —

a true zero clearance and cost effective installation!

AvailableinThreeCastIronColors

You can color coordinate more easily with more than one color option.

We offer three: Classic Matte Black Paint, Jøtul Iron™ Paint or

Blue/Black Porcelain Enamel.

SteelFacingOptions (GI 350 DV and GI 550 DV only)

Choose from two styles (Cathedral Arch or Grand Forge) and three color

options (Natural Iron, Black or Charcoal Gray Powder Coat) to accent the

magnicent review of our gas inserts.

OptimalFireViewingArea

Jøtul has always placed a premium on large re viewing areas.

Our replaces and inserts continue to set the standard for the industry.

CeramicGlass&AdvancedHeatExchange

All Jøtul gas replaces & inserts are furnace rated. In laymen’s terms - this

means great heating capacity with minimal heat loss.

CastIronDoubleDoorOptions

Our signature – no one does it as well as Jøtul!

HandcraftedCeramicFiberLogSet

Really, they are ceramic! Enhanced realism, including glowing ember beds,

will fool the eyes. There are no visible burner parts. We have worked hard to

reproduce the warm glow of a wood re.

JøtulQuickfaceSystem™ofOptionalFireboxFacings (Acadia only)

This system of modular facings lets you change the look of your replace

or insert to best t your existing décor. The tool-free installation of these

options makes the conversion easy for anyone.

StandardEnameledCastIronFettle&Andiron

More details which enhance the realism of the wood replace look.

Plus: enamel means no rusting!

InteriorPanelKitOptions

Our hand crafted interior panel packages are proof that we will stop at

nothing to create the most attractive and authentic looking replace

or insert you can buy!

Features and Benets

94449_gas_brochure.indd 21 9/5/07 9:59:20 AM

JøtulGI350DV

CastIronSurrounds -

34 1/2” W x 24 1/2” H

34 1/2”W x 26 1/2”H w/Plinth

CastIronSurroundw/WideSurround

38”W x 26”H w/ included Wide

Steel Surround

38”W x 28”H w/ included Wide Steel

Surround and Plinth Extensions

GrandForgeorCathedralArch

SteelFront

38” W x 28” H



















  







SurroundSizes

22

Jøtul GI 350 DV Gas

Insert Specications

A

BC

D

E

F

D

E

A

C

B

*Subtract 1” if leg leveler brackets are not used

** Add 2” for GI 350 DV & cast iron surround with plinth

A* Minimum Opening Width 31”

BMinimum Opening Height 20”

CMinimum Fireplace Depth 16”

D* Minimum Back Wall Width 19”

EMinimum Back Wall Height 19”

Jøtul GI 350 DV

AHearth width from centerline 18” 18”

BHearth depth 16” 16”

CSide trim from centerline 18 1/4” 20”

DTo side wall from centerline 41 1/4” 43”

E** To top trim from hearth 35” 38”

F** To 11 1/2” Mantel from hearth 41” 44”

Jøtul GI 350 DV Cast Iron

Jøtul GI 350 DV Steel

94449_gas_brochure.indd 22 9/5/07 9:59:21 AM

SurroundSizes

JøtulGI450DV

CastIronSurrounds

40” W x 28” H

40” x 30” w/Plinth

48” x 32” w/ optional Wide

Surround

48” x 34” w/ optional Wide Surround

and Plinth

14 5/8”

20 3/4”

20 1/2”

16 9/16”

15 3/8”

15”

20 1/2”

15 3/8

”

31 1/4”

34 11/16”

14 5/8”

20 3/4”

20 1/2”

16 9/16”

15 3/8”

15”

20 1/2”

15 3/8

”

31 1/4”

34 11/16”

23

Jøtul GI 450 DV Gas

Insert Specications

Technical Specications

*Subtract 1” if leg leveler brackets are not used

** Add 2” for GI 350 DV & cast iron surround with plinth

A* Minimum Opening Width 31”

BMinimum Opening Height 20”

CMinimum Fireplace Depth 16”

D* Minimum Back Wall Width 19”

EMinimum Back Wall Height 19”

Jøtul GI 350 DV Steel

AHearth width from centerline 16”

BHearth depth 18”

CSide trim from centerline 22”

DTo side wall from centerline 40”

ETo top trim from hearth 36”

FTo 11 1/2” Mantel from hearth 38”

Jøtul GI 450 DV Cast Iron

A

BC

D

E

F

AMinimum Opening Width 32 1/2”

BMinimum Opening Height 20”

CMinimum Fireplace Depth 15”

DMinimum Back Wall Width 21”

EMinimum Back Wall Height 17”

Jøtul GI 450 DV Cast Iron

D

E

A

C

B

94449_gas_brochure.indd 23 9/8/07 10:33:16 AM

JøtulGI550DV

CastIronSurrounds

40” W x 30” H

40”W x 32”H w/Plinth

CastIronSurroundw/WideSurround

46 1/2”W x 33”H w/ optional Wide

Steel Surround

46 1/2”W x 35”H w/ optional Wide Steel

Surround and Plinth Extensions

GrandForgeorCathedral

ArchSteelFront

44” W x 32” H







 



 











 





SurroundSizes

24

Jøtul GI 550 DV

Insert Specications

AHearth width from centerline 18” 18”

BHearth depth 18”* 18”

CSide trim from centerline 21” 23”

DTo side wall from centerline 44” 46”

E** To top trim from hearth 42” 44”

F** To 11 1/2” Mantel from hearth 48” 50”

Jøtul GI 550 DV Cast Iron

Jøtul GI 550 DV Steel

A* Minimum Opening Width 36”

BMinimum Opening Height 24”

CMinimum Fireplace Depth 17”

D* Minimum Back Wall Width 23”

EMinimum Back Wall Height 23”

Jøtul GI 550 DV

*Subtract 1” if leg leveler brackets are not used

* 16” with plinth

** Add 2” for GI 550 DV cast iron surround with plinth

A

BC

D

E

F

D

E

A

C

B

94449_gas_brochure.indd 24 9/5/07 9:59:22 AM

25

Jøtul GZ 550 DV II Acadia

12” 8” 4”

13 1/2”

10 1/2”

7 1/2”

4 1/2”

9”

12”

Top of

cabinet

35”

Cast iron surround panels

Header

Standoff

Upper trim

2 1/2” max. depth

Drywall

Mantel

area

36 1/4”

35 3/4”

8”4”

35”

900 mm

38”

5/8 Vent Adaptor

6” Vent

Section

38”

Rear Exit

16 1/4”

32 3/4”

16 1/4”

19 1/4”

Top Exit

16 1/4”

38 3/4”

21 1/2”

20”4/6 Vent

5/8 Vent

9"

41"

56 1/2”

16”

28 1/2

”

Clearances Dimensional views

Rear Exit

16 1/4”

32 3/4”

16 1/4”

19 1/4”

Top Exit

16 1/4”

38 3/4”

21 1/2”

20”4/6 Vent

5/8 Vent

Vent Adapter Center LinesMinimum Horizontal Vent Length

Corner DimensionsParallel Framing plan

Horizontal vent: Minimum vent accommodates the length

of Vent Adaptor and one 6” vent section through wall

construction.

Vent adaptor: 5/8 - A= 31 3/4

”Vertical Vent: Minimum depth includes 1” clearance

between Vent Adaptor and combustible wall construction.

Vent Adaptor: 5/8 4/6

A= 21 1/2 20”

Horizontal Framing Height = 36 1/2”

16 1/4”

35 3/4”

Security Vent:

A=25 1/4” (645 mm). Security Termination has no slip

adjustability. Simpson DuraVent and Amerivent:

A=25 3/4” (660 mm)

Product name

Jøtul GI 550 DV Steel

A* Minimum Opening Width 36”

BMinimum Opening Height 24”

CMinimum Fireplace Depth 17”

D* Minimum Back Wall Width 23”

EMinimum Back Wall Height 23”

Jøtul GI 550 DV

*Subtract 1” if leg leveler brackets are not used

* 16” with plinth

** Add 2” for GI 550 DV cast iron surround with plinth

94449_gas_brochure.indd 25 9/5/07 9:59:24 AM

Model

Venting

Heating capacity1

Min/max heat input

(BTU/hr)

Efficiency2

Safety features

Opt. blower

Opt. wall thermostat

Opt. remote control

Weight

Venting

Surround dimensions

Minimum fireplace

dimensions

Jøtul GZ 550 DV II

Acadia

Direct vent

Up to 1,400 sq.ft.

14,000 - 28,000 (NG)

14,000 - 28,000 (LP)

Up to 88%

(A.F.U.E 76%)

Sealed system

Yes

Yes

Yes

275 lbs.

5 x8 or 4 x 6

See page25

n/a

Jøtul GI 350 DV

Direct vent

Up to 1,300 sq.ft.

16,500 - 28,000 (NG)

14,300 - 28,000 (LP)

Up to 87%

(A.F.U.E 73%)

Sealed system

Standard

Yes

Yes

140 lbs

3 x 3

See page 22

31” W x 16” D x 20” H**

Jøtul GI 450 DV

Katahdin

Direct vent

Up to 1,500 sq.ft.

26,000 - 33,000 (NG)

26,000 - 33,000 (LP)

Up to 87%

(A.F.U.E 73%)

Sealed system

Standard

Yes

Yes

155 lbs.

3 x 3

See page 23

32 1/2” W x 15” D x 20” H

Jøtul GI 550 DV

Direct vent

Up to 1,700 sq.ft.

21,900 - 38,000 (NG)

20,000 - 38,000 (LP)

Up to 87%

(A.F.U.E 73%)

Sealed system

Standard

Yes

Yes

178 lbs

3 x 3

See page 24

36” W x 17” D x 24” H**

26

1 HeatingCapacitywillvarydependingonthedesignofthehome,climate,elevation,operationandventingconfiguration

2 Maximumventingconfiguration

94449_gas_brochure.indd 26 9/10/07 1:50:42 PM

27

General Information

Warranty

Our 5 year warranty: a cast iron promise of quality. Jøtul guarantees the

quality of its cast iron components against any defects in materials or

workmanship for ve years, subject to the exclusions and limitations noted

on our warranty. For complete details, ask your Authorized Jøtul Dealer.

Installation

Specications and dimensions published in this brochure are intended to be

used as guidelines for comparison only. Always consult the owner's manual

in planning any installation. Specications and dimensions are subject to

change without notice. Contact local building or re ofcials regarding

restrictions and installation inspection requirements in your area.

Photographs

Some settings for the photographs are for aesthetic purposes only and

may not comply with installation requirements. Materials, specications,

accessories, colors, and models are subject to change without notice. Some

models are shown with optional accessories.

BTU ratings are to be used as a guideline only, and do not imply a guarantee

of the heating capacity of the unit.

General Information

94449_gas_brochure.indd 27 9/5/07 9:59:30 AM

Gas Inserts

and Fireplaces

Gas Inserts

and Fireplaces

Jøtul North America

55 Hutcherson Drive

Gorham, Maine 04038

www.jotul.us

Printed in U.S.A.

September 2007

Ask your authorized Jøtul Dealer about our full line of cast iron wood and gas stoves,

inserts and fireplaces.

94449_gas_brochure.indd 24 9/8/07 10:31:06 AM
