Joy Technology RC30P-FD Panic Button/Fall Detector User Manual The Panic Emergency Pendant

Shenzhen Joy Technology Co. Ltd Panic Button/Fall Detector The Panic Emergency Pendant

Users Manual

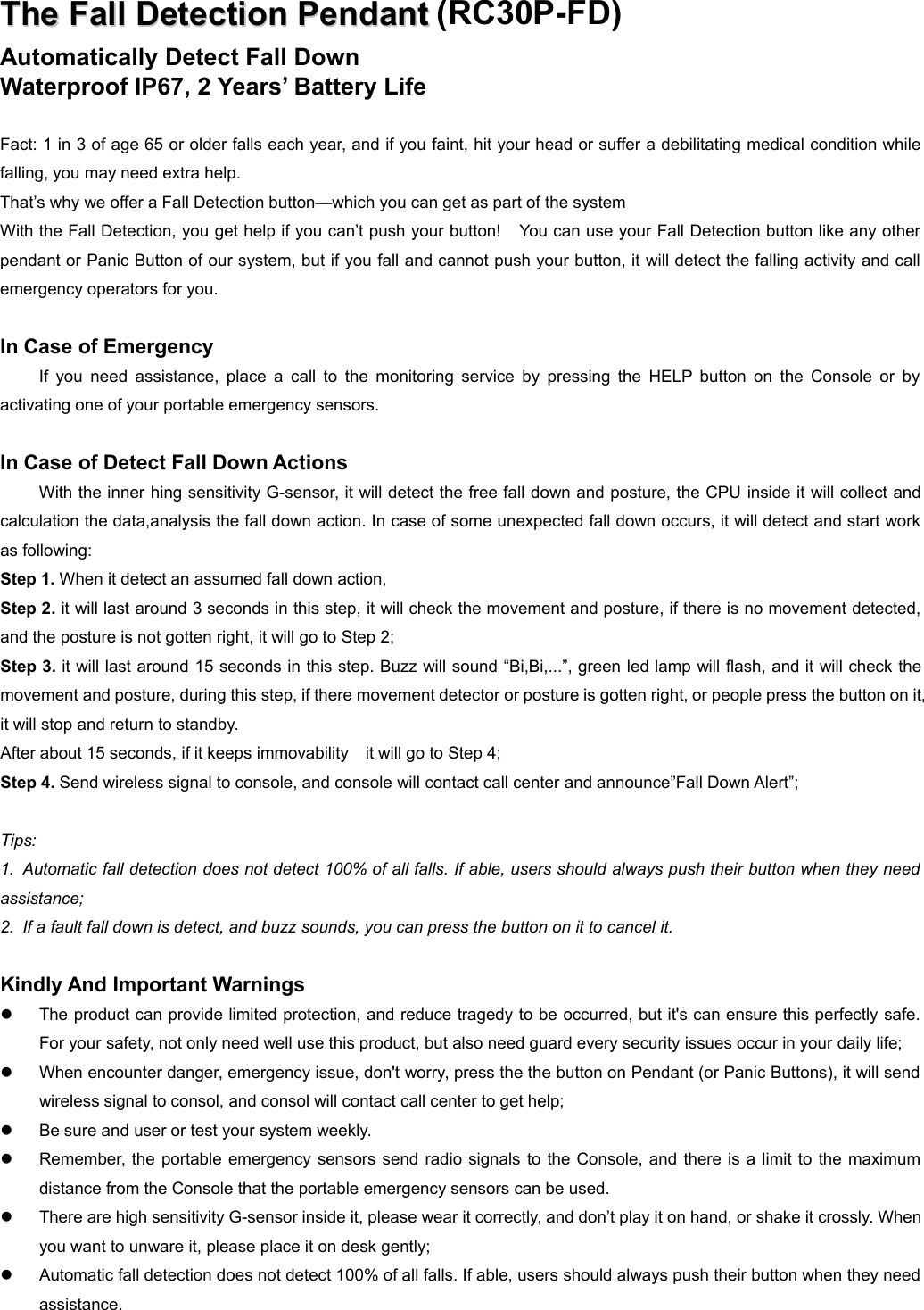

TheThe FallFall DetectionDetection PendantPendant (RC30P-FD)Automatically Detect Fall DownWaterproof IP67, 2 Years’ Battery LifeFact: 1 in 3 of age 65 or older falls each year, and if you faint, hit your head or suffer a debilitating medical condition whilefalling, you may need extra help.That’s why we offer a Fall Detection button—which you can get as part of the systemWith the Fall Detection, you get help if you can’t push your button! You can use your Fall Detection button like any otherpendant or Panic Button of our system, but if you fall and cannot push your button, it will detect the falling activity and callemergency operators for you.In Case of EmergencyIf you need assistance, place a call to the monitoring service by pressing the HELP button on the Console or byactivating one of your portable emergency sensors.In Case of Detect Fall Down ActionsWith the inner hing sensitivity G-sensor, it will detect the free fall down and posture, the CPU inside it will collect andcalculation the data,analysis the fall down action. In case of some unexpected fall down occurs, it will detect and start workas following:Step 1. When it detect an assumed fall down action,Step 2. it will last around 3 seconds in this step, it will check the movement and posture, if there is no movement detected,and the posture is not gotten right, it will go to Step 2;Step 3. it will last around 15 seconds in this step. Buzz will sound “Bi,Bi,...”, green led lamp will flash, and it will check themovement and posture, during this step, if there movement detector or posture is gotten right, or people press the button on it,it will stop and return to standby.After about 15 seconds, if it keeps immovability it will go to Step 4;Step 4. Send wireless signal to console, and console will contact call center and announce”Fall Down Alert”;Tips:1. Automatic fall detection does not detect 100% of all falls. If able, users should always push their button when they needassistance;2. If a fault fall down is detect, and buzz sounds, you can press the button on it to cancel it.Kindly And Important WarningsThe product can provide limited protection, and reduce tragedy to be occurred, but it's can ensure this perfectly safe.For your safety, not only need well use this product, but also need guard every security issues occur in your daily life;When encounter danger, emergency issue, don't worry, press the the button on Pendant (or Panic Buttons), it will sendwireless signal to consol, and consol will contact call center to get help;Be sure and user or test your system weekly.Remember, the portable emergency sensors send radio signals to the Console, and there is a limit to the maximumdistance from the Console that the portable emergency sensors can be used.There are high sensitivity G-sensor inside it, please wear it correctly, and don’t play it on hand, or shake it crossly. Whenyou want to unware it, please place it on desk gently;Automatic fall detection does not detect 100% of all falls. If able, users should always push their button when they needassistance.

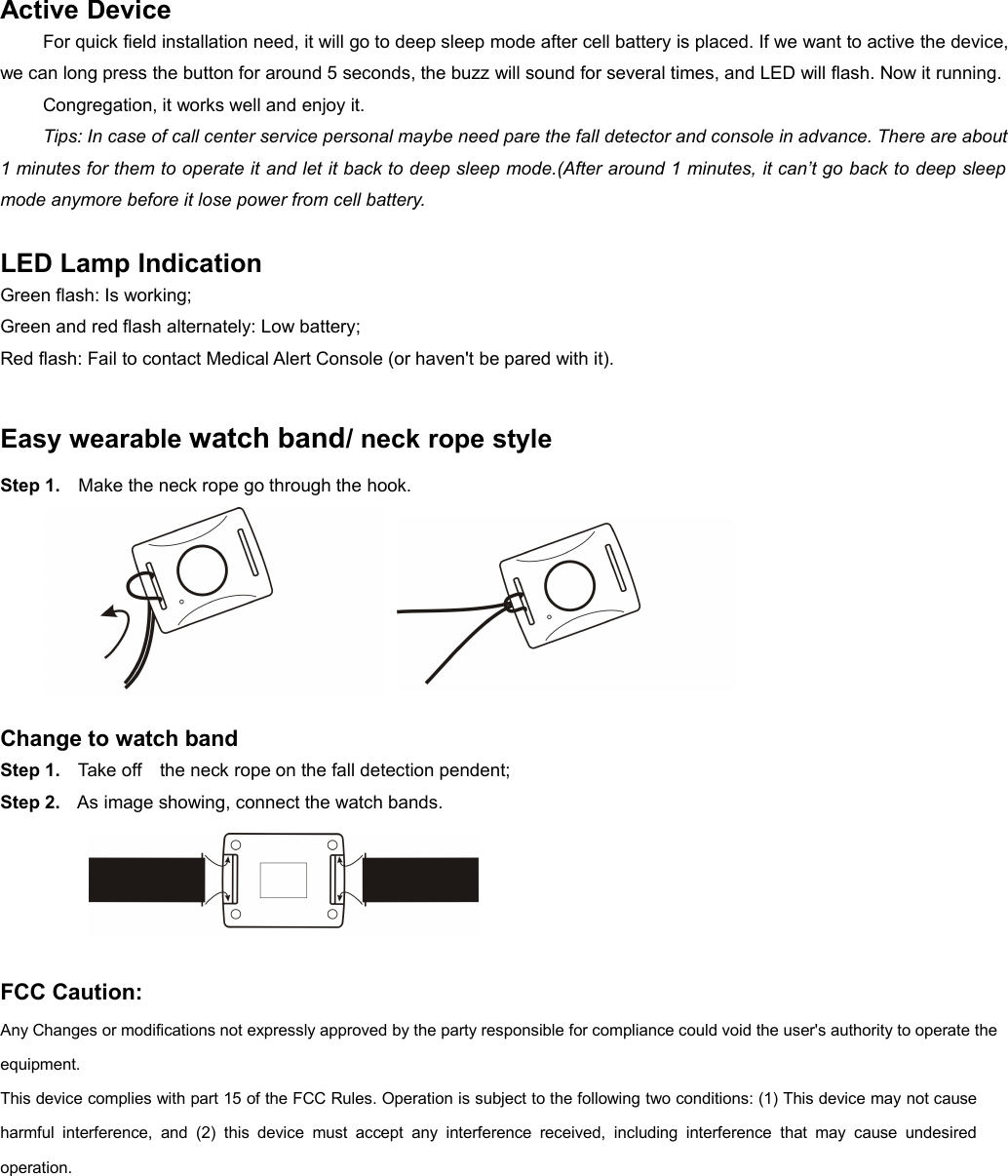

Active DeviceFor quick field installation need, it will go to deep sleep mode after cell battery is placed. If we want to active the device,we can long press the button for around 5 seconds, the buzz will sound for several times, and LED will flash. Now it running.Congregation, it works well and enjoy it.Tips: In case of call center service personal maybe need pare the fall detector and console in advance. There are about1 minutes for them to operate it and let it back to deep sleep mode.(After around 1 minutes, it can’t go back to deep sleepmode anymore before it lose power from cell battery.LED Lamp IndicationGreen flash: Is working;Green and red flash alternately: Low battery;Red flash: Fail to contact Medical Alert Console (or haven't be pared with it).Easy wearable watch band/ neck rope styleStep 1. Make the neck rope go through the hook.Change to watch bandStep 1. Take off the neck rope on the fall detection pendent;Step 2. As image showing, connect the watch bands.FCC Caution:Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate theequipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not causeharmful interference, and (2) this device must accept any interference received, including interference that may cause undesiredoperation.
