Joyo Electronics JY238 900MHz Video Baby Monitor User Manual JY238 Manual ok
Joyo Electronics Company Limited 900MHz Video Baby Monitor JY238 Manual ok
User Manual
0
Model # JY238
USER’S MANUAL
TABLE OF CONTENT
1
TABLE OF CONTENT
INTRODUCTION
PACKAGE CONTENT
PICTURE OF MONITOR UNIT
PICTURE OF CAMEAR UNIT
SAFETY INSTRUCTION
STATEMENT ON REGULATION
1
2
2
3
4
5
7
INSTALLATION
INSTALLATION BATTERY
INSTALLATION AC/DC ADAPTOR
CHARGING THE UNIT
8
8
8
9
CAMERA OPERATION
POWER ON/OFF
CHANNEL SELECTION
AUDIO VIDEO INPUT
VOICE ACTIVATION
AUTOMATIC INFRARED NIGIT VISION
10
10
10
10
10
11
MONITOR OPERATION
POWER ON/OFF
CHANNEL SLECTION
AUTOMATIC CHANNEL SCAN
LCD ON/OFF
BRIGHTNESS CONTROL
AUDIO VIDEO OUTPUT LINK
11
11
11
11
11
12
12
TROUBLE SHOOTING
13
2
INTRODUCTION
Thank you for purchasing the MobiCam AV Wireless Audio/Video
Monitoring System, which incorporates the latest in advanced technology.
We feel you will be pleased with the quality and features of this product.
This 900 MHz Color Camera and LCD Monitor set enables you to
transmit picture and sound signals wirelessly, which is ideal for
applications such as baby monitoring, household security, office or
warehouse surveillance, etc.
PACKAGE CONTENTS
Please note the package should include the following:
a) 1 x Camera Unit
b) 1 x Monitor Unit
c) 2 x AC/DC adaptors
d) 1 x Audio/Video Cable
e) Instruction Manual
3

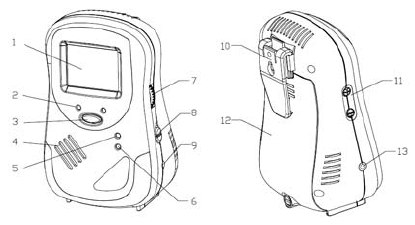

MONITOR UNIT FEATURES
1. TFT LCD Display
2. Channel indicating LEDs
3. Channel Selection Switch
4. Speaker
5. Automatic Channel Scan Indicator
6. Power On/Off Indicator
7. Volume and power On/Off switch
8. LCD On/Off Switch
9. DC Jack
10. Belt Clip
11. Brightness Control (+)(-)
12. Battery Door
13. Audio/Video output
4

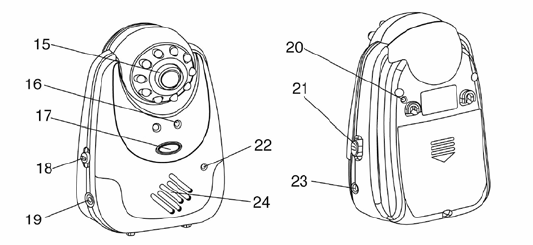

CAMERA UNIT FEATURES
15. Camera Lens
16. Channel Indicators LEDs
17. Channel Selection Switch
18. Voice Activation Action Selection Switch
19. Analog Audio/Video Input Jack
20. Light Sensor for Automatic Night Vision
21. Power On/Off Switch
22. Power On/Off Indicator
23. DC Jack
24. Microphone
5
SAFETY INSTRUCTION
Please observe the following precautions to prevent fire, personal injury,
and product damage:
Read Instructions:
All the safety and operating instructions should be read before the
Camera or Monitor are operated.
Retain Instructions:
The safety and operating instructions should be retained for future
reference.
Heed Warnings:
All warnings on the MobiCam AV System and operating instructions
should be adhered to.
Follow Instructions:
All operating instructions should be followed.
Water and Moisture:
This product is designed for indoor use only. The unit should not be
exposed to dripping or splashing and no objects filled with liquids, such
as vases, should be placed on or near either unit. Neither unit should be
used near water; for example, near a bath tub, wash bowl, sink, lavatory,
laundry tub, wet floor, swimming pool, etc.
Ventilation:
The MobiCam AV Camera and Monitor units should not be situated on a
bed, sofa, rug, or similar surface that may block the ventilation openings,
or placed in an enclosed installation, such as a bookcase or cabinet that
may impede the flow of air through the ventilation openings.
Heat:
The MobiCam AV Camera and Monitor units should be situated away
from heat sources such as radiators, heat registers, stoves, or other
appliances that produce heat. No open flame sources, such as lighted
candles, should be placed on or near the units.
6
Power Source:
Besides battery operation, the Camera and Monitor units should be
connected to the power supply only provided with the MobiCam AC
System described in this operating manual (AC/DC adaptors: 9V 500mA
Center Positive).
Cleaning:
Use only a dry cotton cloth to keep the Camera and Monitor units free of
dust. Do not use a dampened cloth, water, or liquid cleaner of any kind!
Non-Use Periods:
Always remove batteries from the Camera and Monitor and unplug the
AC adaptors from wall outlets during long periods of non-use.
Object and Liquid Entry:
Care should be taken so that objects do not fall into, and liquids are not
spilled into the enclosure through any openings.
Damage Requiring Services:
The MobiCam AV System equipment should be serviced by qualified
service personnel when:
a. Objects have fallen or liquid has spilled into the products; or
b. The units have been exposed to rain; or
c. The units do not appear to operate normally or exhibit a marked
change in performance; or
d. The units have been dropped or the enclosures damaged.
Caution:
a. This product cannot replace responsible adult supervision of a child.
You should personally check your child’s activity at regular
intervals.
b. Never use this the MobiCam AV System to a degree where your life
or health or the life or health of others, or integrity of property,
depends on its function! Manufacturer will not accept any
responsibility, or claim for death or injury, of any person, or loss or
damage of any property, due to malfunction or misuse of the
product.
Batteries:
a. Replace only with the same or equivalent type.
b. Please dispose of old, defective batteries in an environmentally
friendly manner in accordance with the relevant legislation.
7

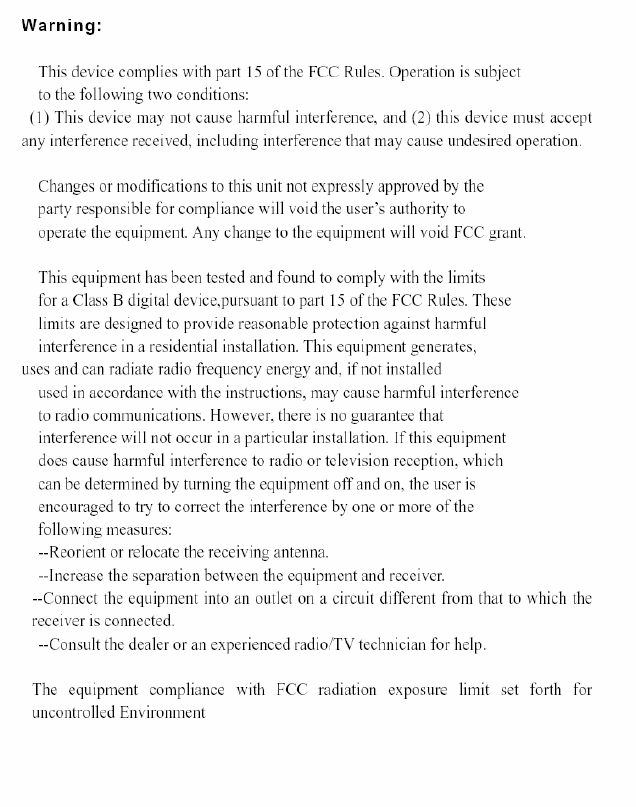

STATEMENT ON REGULATION
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and
receiver.
z Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV
technician for help.
Operation with non-approved equipment or unshielded cables is likely to
result in interference to radio or TV reception. The user is cautioned that
changes and modifications made to the equipment without the approval
of manufacturer could void the user’s authority to operate this equipment.
8
INSTALLATION
INSTALLING BATTERIES
Camera:
1. Remove the battery cover at the bottom or back of the unit.
2. Insert AA size batteries according to marking in the battery
compartment.
3. Align the battery cover tabs with the camera tab holes and replace the
cover.
Monitor:
1. Remove the battery cover at the back of the unit.
2. Insert AA size batteries according to the marking of the battery
compartment.
3. Align the battery cover tabs with the monitor tab holes and replace
the cover.
PLEASE NOTE:
1. Do not mix old and new batteries.
2. Do not mix alkaline, standard or rechargeable batteries
3. Remove the batteries during long period of non-use.
INSTALLING AC/DC ADAPTOR:
1. Install the plug of AC adaptor to the DC jack of the unit.
2. Plug the AC adaptor into a standard wall AC power outlet.
3. Switch on the unit with the power ON/OFF switch.
4. The power indicator will be illuminated.
Warning: Improper use of the AC/DC adaptor may damage or cause the
units to malfunction, voiding the warranty.
Please note that the service life of batteries is limited. Therefore, when
monitoring over long periods and, in particular, overnight, it’s
recommended to use AC adaptors for both camera and monitor units.
Use only the AC/DC adaptors supplied with the MobiCam AV System.
Please remove batteries from the camera when using the AC adaptor, and
make sure only rechargeable NiMH batteries [or no batteries] are inside
the battery compartment of the monitor.
9
RECHARGING THE UNIT (Monitor Only):
The Monitor of your MobiCam AV System has a built-in battery
recharging circuit. Make sure only rechargeable NiMH batteries are
inside the monitor battery compartment before plugging in AC/DC
adaptors.
The unit will be in recharging mode with the AC/DC adaptor plug in.
10
CAMERA OPERTATION
Power ON/OFF
Use the Power ON/OFF sliding switch to turn ON/OFF the unit.
Channel Selection
There are 2 channels for selection in order to avoid interference from
other signal sources.
Press the channel switching button at the front of the camera.
A/V Input
This feature allows the user to have an optional analog A/V (Audio-Video)
input to the Camera unit and transmit this A/V signal to the Monitor unit
when the Voice Activation option is selected.
The A/V Input jack is located on the left side of the Camera unit. Use the
AV cord to connect the source of an AV signal (e.g. DVD) to the Camera
unit.
Voice Activation
To Activate: Select the VOX setting on the Voice Activation switch on
the left side of the Camera unit.
When the sound level within the area surrounding the unit reaches a
preset level, the Camera will begin transmitting the image and sound to
the Monitor.
NOTE: The LCD on the Monitor unit will be automatically switched off
if no signal is received from the Camera
To Deactivate: Select the CAMERA setting or AV setting on the Voice
Activation switch.
When set to CAMERA, it will only transmit the signal generated but the
Camera itself.
When set to AV the Camera will only transmit any AV input signal
connected to it continuously via the Audio/Video Cable.
11
Automatic Infra-Red Night Vision
The infra-red night vision feature of the camera allows it to pick up
imagery during darkness or periods of very low levels of light. This
function will switch on automatically when the level of light is low.
During this time a black and white image will be displayed on the
monitor and only objects within 6 ft/2 m will be seen on the monitor.
MONITOR OPERTATION
Power ON/OFF
Use the volume and ON/OFF switch on the side of the unit to turn on the
unit.
Channel Selection
Press the Channel Switching Button at the front of the monitor to select a
channel with optimized clear image and sound. Channels are indicated by
LED lights labeled with letters A or B.
Automatic Channel Scan
Selecting this option allows the Monitor to scan between both channels
automatically, stopping at each for about 5 seconds. Press the Channel
Switching Button until the LED light labeled AUTO is turned on and
starts blinking. Then, images from different Camera units (on different
channels) can be seen on the Monitor as the channels alternate.
LCD On/Off
This power saving feature is located on the side of the monitor. When the
monitor is switched to LCD “off” position and the camera remains on,
there will be no picture on the monitor screen but transmission continues.
This way the Monitor uses less power but is still operational as an
audio-only monitor. The Monitor will resume working with a clear
picture when the LCD is switched back to “on”.
12
Brightness Control
The brightness of the LCD can be adjusted by the 2 Brightness Control
buttons on the side of the Monitor unit. (+) to increase and (-) to decrease
the brightness of the LCD.
Audio/Visual Output Link
An additional security feature of the MobiCam AV System allows you to
link the monitor to a VCR or other video recorder for recording whatever
video and sound the camera captures. Also, you can link to a television
set that has a “Picture-In-Picture” feature to allow you to continuously
view the monitored area while watching your favorite TV program.
The A/V Output jack is located at the left side of the monitor. Simply
connect it to the Audio and Video input jacks of your VCR, Camcorder,
or TV set with the Audio/Video Cable supplied.
13
TROUBLESHOTTING
Problem Possible Cause – things to do/check
No reception
z Unit has not been switched on.
z AC/DC adaptor has not been connected.
z Battery Levels (check Led indicator: Full
Power - Green; Low Power - Orange)
z The camera may not be transmitting.
(power is not on or is in voice activation
mode)
z Wrong Channel (Please note the monitor
will return to Channel A automatically
after power off)
No picture display but
can hear sound
z Check if the LCD on/off switch is turned
to on.
z Low Power (Check LED indicator: Full
Power - Green; Low Power – Orange)
Only Black & White
picture displayed
z Camera has switched to “Infrared Night
Version mode.
Batteries cannot be
recharged
z AC/DC adaptor has not been connected.
z Non-rechargeable batteries have been
used.
No transmission
z Unit has not been switched on.
z AC/DC adaptor has not been connected.
z Battery Levels (check Led indicator: Full
Power - Green; Low Power - Orange)
z Check if the voice activation mode is
switched on.
14
LIMITED WARRANTY
Mobi Technologies, Inc. warrants this product to be free from defects in
material and workmanship for a period of ninety (90) days from the date
of purchase. Should this product prove to be defective at any time during
the warranty period, Mobi Technologies, Inc. will, at its option, either
replace or repair it without charge. After the warranty period, a service
charge will be applied for replacement of parts or labor for repair. To
obtain warranty service please return the product to Mobi® along with a
dated sales receipt from the place of purchase. This warranty does not
cover damage caused by accident, misuse, abuse, improper maintenance,
unauthorized modification, or connection to an improper power supply. A
charge will be made for repair of such damage. This warranty excludes
all incidental or consequential damages and any liability other than what
is stated above. © 2008 Mobi Technologies, Inc. All Rights Reserved.
Mobi Technologies, Inc.
7635 San Fernando Road, Suite A
Burbank, CA 91505
www.getmobi.com
Mobi and MobiCam are registered trademarks of
Mobi Technologies, Inc.
© 2008 Mobi Technologies, Inc. All Rights Reserved
15
