Joyo Electronics JY338US 2.4 GHz Wireless Camera (Wireless Baby Monitor) User Manual
Joyo Electronics Company Limited 2.4 GHz Wireless Camera (Wireless Baby Monitor) Users Manual
Users Manual
22
21
19
20
14
17
15
18
13
16
Quick Start Guide

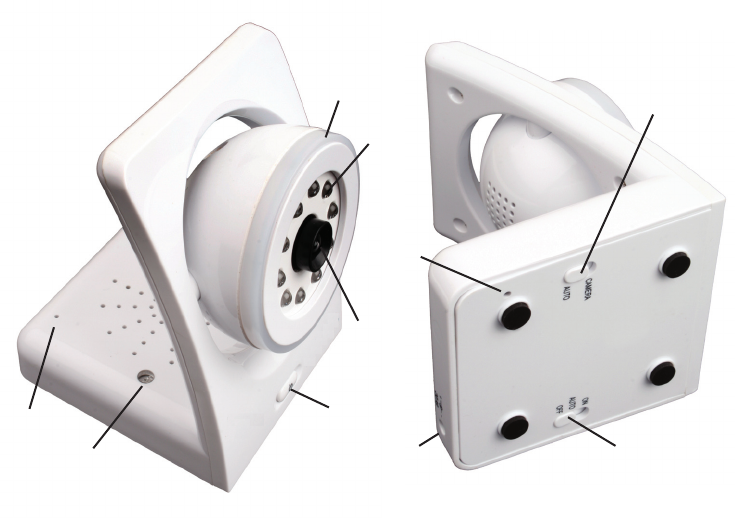

CAMERA SETUP
1. Plug the connector of the AC adaptor to the DC power input in the back of the Camera.
2. Plug the AC adapter to a wall socket nearest to the location you wish to place the camera.
3. Press the power button on the front of the camera for about 1 second or until the power light turns on.
4. Make sure the VOX switch, on the bottom of the camera, is in the desired On or OFF position. (If you
wish to use the Voice Activated Picture and Sound feature, please refer to your owner’s manual.)
5. Select the preferred Night Light Mode Setting.
ON – The Night Light will remain ON.
AUTO – The Night Light will turn on automatically in the dark.
OFF – The Night Light will remain OFF.
6. Tilt & position the Camera to get the best
view of the area you are monitoring.
13 - Night Light
14 - IR Night Vision LED’s
15 - Lens
16 - Microphone
17 - Light Sensor
18 - Power ON/OFF with LED
19 - Link/Code Key
20 - DC Power Input
21 - Night Light Mode Switch
22 - Voice Activation (VOX) Switch
5
2
6
3
7
4
1
Quick Start Guide
8
11
9
12
10

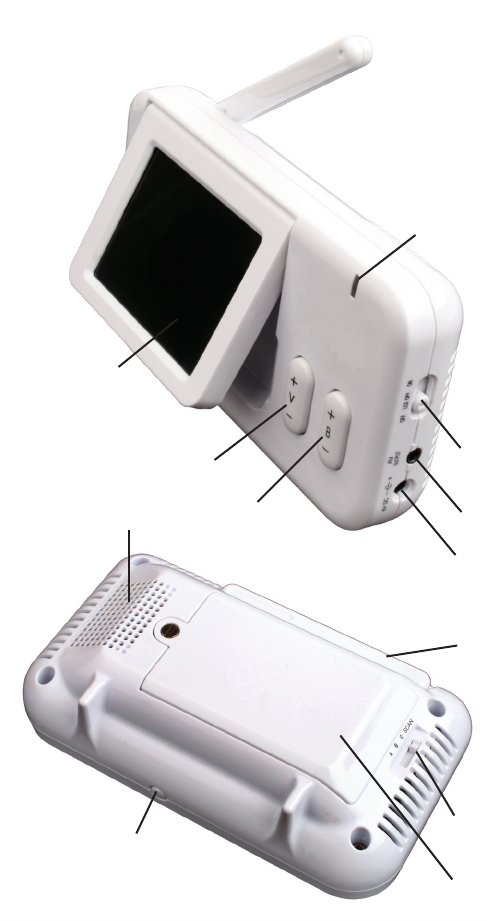

MONITOR SETUP
1. The MobiCam® Digital Wireless Monitor is designed to be powered by
either the built-in rechargeable batteries or the provided AC/DC
adaptors. We recommend charging the Monitor for at least 8
hours before operating the unit in battery mode. Reconnect
the monitor to the adaptor whenever possible to maintain
battery life.
2. Make sure the LCD switch (5), located on the right hand
side of your monitor, is in the ON position.
3. Make sure the channel selector on the back of your
monitor is set to channel A. Your monitor will auto-
matically link up to your camera. (If you wish to link
and use more than one camera, please refer to your
owners Instruction Manual.)
4. Adjust the volume and brightness of the screen by using the
control buttons on the front of your monitor to the desired setting.
To tilt your LCD screen up from the monitor housing, gently
press down the right LCD frame corner in place before
pressing the LCD Release Button located under the monitor.
The screen will pop up slightly and ready for adjustment
to your desired angle. (As with any electronics screen
use gentle force to avoid damaging the display.)
7 - DC Power input
8 - Speaker
9 - Tilt Screen Release
10 - Antenna
11 - Channel Selector/Scan Mode
12 - Battery Door
1 - 2.4” Color LCD Screen
2 - Volume Control
3 - Brightness Control
4 - Power ON LED Indicator
5 - LCD and Power ON/OFF
6 - AV Output
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for uncontrolled
environment .This equipment should be installed and operated with minimum distance
20cm between the radiator& your body.
