Joyo Electronics TV9001 Wireless Baby Monitor User Manual TV900 2C
Joyo Electronics Company Limited Wireless Baby Monitor TV900 2C
users manual
4

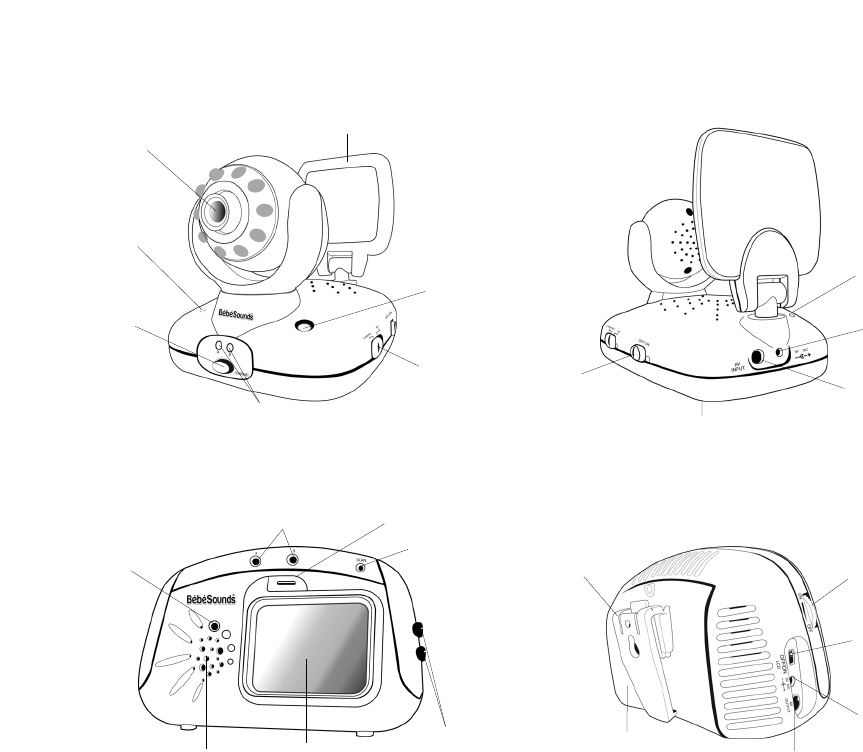

fig.2
fig.1
Power Switch
Battery Compartment
AV
Input Jack
AC
Adapter Jack
Light Sensor
Camera Lens
Microphone
Channel
Indicator Lights
Channel
Selection Button
Power
Indicator Light
Camera/AV
Switch
Directional Antenna
Power
Indicator Light
Channel
Indicator Lights
Channel
Selection Button
Auto Scan
Indicator Light
2.25"Color
LCD Display
Brightness
Control
Speaker
fig.3 fig.4
Removable
Belt Clip
Battery
Compartment
Power/Volume
Control
LCD Power
Switch
AC Adapter
Jack
AV Output
Jack
INSTRUCTIONS
You can power both the camera and receiver with an AC adapter or batteries. If you choose to
operate the receiver on batteries, you can still operate the camera with the AC adapter. For
long periods of non-use, we suggest removing the batteries and unplugging the AC adapters.
For AC Power
Insert an AC adapter into the jack marked “9V DC” on each unit and plug the adapter into
an electrical outlet. When using an AC adapter, we suggest you also keep batteries in at all
times as the units will automatically convert from AC to battery power during a power outage.
However, if you do not keep batteries in the units, the monitor will operate on just AC power.
IMPORTANT: You can only use rechargeable batteries in the receiver. You can use either
rechargeable or alkaline batteries in the camera.
For Battery Power
The camera requires six AA alkaline or rechargeable batteries for battery operation.
Rechargeable batteries can be used in the camera, however, batteries will NOT be recharged
in the camera when using the AC adapter. If you are using rechargeable batteries, they will
have to be removed and recharged by an external charger.
The receiver requires five AA rechargeable batteries for battery operation. These batteries
WILL be recharged in the receiver when using the AC adapter. DO NOT use alkaline batteries
in the receiver.
Remove the battery covers with a screwdriver. Insert six AA alkaline or rechargeable batteries
(not included) into the camera and five AA rechargeable batteries (included) in the receiver
matching positive (+) to positive (+) and negative (-) to negative (-). Replace the battery
covers. Remember, if you use rechargeable batteries in the camera, you will need to recharge
them with an external charger.
5
Charge the rechargeable batteries in the receiver for at least eight hours before using it on
battery power for the first time. This can be done while operating the receiver on AC power or
when the receiver is turned off. Charge the batteries by plugging the AC adapter directly into
the receiver.
The battery life is approximately six to eight hours in the camera and receiver. Replace the
batteries in the camera when the Power Indicator Light turns orange. Replace the batteries
in the receiver when the Power Indicator Light turns orange or the image begins to shrink.
Using Your Monitor
1. Turn the camera on by sliding the Power switch to the ON position. Turn the receiver on
by turning the Power/Volume control. The green Power Indicator on both units will light up
when they are on.
2. Make sure the switch on the camera is set to “camera.”
3. Rotate the camera head so it faces your baby. To install the camera on the wall, use the
mounting screws and anchors with the mounting template provided.
4. For daytime vision, place the camera up to ten feet from your baby making sure it is out
of reach.
5. For nighttime vision, place the camera no more than six feet from your baby making sure
it is out of reach.The camera has a built-in light sensor which will automatically turn on the
night vision feature when there is no light detected. Remember, when using the infrared
night vision, the image will only be in black and white.
6. Select the channel that gives you the best reception. Make sure both units are on the
same channel.
7. If you have two cameras, you can monitor two different rooms. Set one camera to channel
A and one to channel B. Change the channel on the receiver to determine which room
you want to monitor. You can also set the receiver to automatically scan between the two
6
cameras. Please refer to the Automatic Channel Scan section on page 7.
8. Use the buttons on the right side of the receiver to adjust the brightness.
9. Turn the volume dial on the left side of the receiver to the desired level.
SPECIAL FEATURES
Receiver LCD Power Option: Battery-Saving Feature
You can turn the screen of the receiver off and still maintain the sound monitor function. To
use this function, slide the LCD Power switch on the receiver to the OFF position. The use
of this feature will prolong the life of the batteries in the monitor when powering the monitor
with batteries only.
Automatic Infrared Night Vision
The infrared night vision function is designed to allow the camera to pick up images even
when the room is dark. Using the built-in light sensor, the camera will automatically convert
to night vision when the level of light is low. Remember, when using infrared night vision,
the image will be in black and white.
Automatic Channel Scan
Your monitor can operate with two cameras. The Automatic Channel Scan function lets you
automatically scan between both channels if two cameras are being used at the same time.
(If you have Model #TV900, please call us at 1-800-430-0222 to find out where you can
purchase an additional camera.) To activate this feature, set one camera to channel A and the
other to channel B. Turn on the Automatic Channel Scan function by pressing the Channel
Selection button on the receiver until the green Auto Scan Indicator lights up. When this feature
is on, the receiver will scan through the two channels automatically. It will stop at each
channel and display the image and monitor the sounds from each camera for approximately
five seconds. To deactivate the auto scan feature, press the Channel Selection button again.
7
Audio/Visual Output Link
This feature allows you to monitor your baby on your television. Connect the receiver to your
own television with the cable provided. Connect the black end of the AV cable to the AV out-
put jack on the receiver and the other end to the AV input jacks on your television, DVD player
or VCR. If your television has a picture-in-picture feature, you can use this to monitor your baby
while watching television. If you connect the cable to your VCR, you can also record your baby.
Audio/Visual Input Link
This feature allows you to watch a DVD or VHS on your receiver. Connect the camera to your
own DVD player or VCR with the cable provided. Connect the black end of the AV cable to
the AV input jack on the camera and the other end to the AV output jacks on your DVD player
or VCR. Slide the switch on the right side of the camera to “AV.”
IMPORTANT SAFETY INSTRUCTIONS
1. DO NOT use alkaline batteries in the receiver. Use only rechargeable batteries. You can use
alkaline or rechargeable batteries in the camera.
2. Do not mix alkaline and rechargeable batteries in the same unit.
3. Use only AA batteries or the AC adapters provided.
4. Always place both the camera and receiver on a flat surface in an upright position and
allow for proper ventilation.
5. Do not place this monitor where it can get wet such as near bathtubs, sinks, or swimming pools.
6. Do not place this monitor near sources of heat such as radiators, stoves, or other appliances.
7. Keep adapter cords and all units out of reach of children.
8
8. Avoid direct sunlight. If you are operating the unit outside, keep it in the shade.
9. This monitor uses public airwaves to transmit signals. The receiver may pick up signals or
interference from other nursery monitors in your area. Your monitor may even be picked
up by other households. To protect your privacy, make sure both units are turned off when
not in use. If you experience interference, change the channel on both units.
CARE AND CLEANING
Disconnect all units and remove all batteries before cleaning. Clean the exterior of all
units with a soft, dry or slightly damp cloth. Do not spray with cleaning products or solvents.
Do not submerge in water or any other liquid.
During long periods of non-use, remove all batteries from their compartments and unplug
the AC adapters.
9
TROUBLESHOOTING
Problem Possible Cause Solution
There is
no reception.
There is sound
but there is no
picture display.
The picture is in
black and white.
There is very
weak reception.
One of the units is not on.
The camera and receiver
are on different channels.
The camera is set to “AV”.
Batteries are low or
improperly installed.
AC adapters are not connected
or electrical outlet is out of order.
The LCD switch on the receiver
is in the OFF position.
Batteries are low or improperly
installed.
Camera is on automatic night
vision due to low light conditions.
The volume is too low.
The units are too far apart.
Make sure both units are on.
Make sure both units are
on the same channel.
Make sure the camera is
set to “camera”.
Check or replace batteries.
Check connections or change
to another electrical outlet.
Make sure the LCD
switch is set to ON.
Check or replace batteries.
If it should not be on night
vision, make sure that the
light sensor on the camera
is not being blocked.
Increase volume level.
Bring units closer together.
10
Problem Possible Cause Solution
There is static,
distortion,
interference, etc.
There is feedback
(squealing noises).
Batteries are low or
improperly installed.
AC adapters are not connected
or electrical outlet is out of order.
There maybe be interference
from other electrical equipment.
The receiver is out of range
from the camera.
Units are on different channels.
The camera and receiver
are too close to each other.
Volume is too high.
Check or replace batteries.
Check connections or change
to another electrical outlet.
Change the channel
on both units.
Bring units closer together.
Make sure both units are
on the same channel.
Move them farther apart.
Decrease volume level on receiver.
11
TECHNICAL SPECIFICATIONS
No. of Channels: 2
Power Supply: 6 AA batteries or AC/DC adapter for camera.
5 AA batteries (included) or AC/DC adapter for receiver.
Frequencies: Channel 1: 909 MHz, Channel 2: 921 MHz
Display: 2.25" color TFT LCD display
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate
the equipment.
12
