Joytech Computer Co SIS6326 VGA CARD User Manual Manual
Joytech Computer Co Ltd VGA CARD Manual
Manual
JOYSTICK COMPUTER CO., LTD
VGA CARD
Manual
Model NO. : A4-S63268M-A3-L
FCC ID : FQISIS6326
FEDERAL COMMUNICATIONS COMMISSION
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:(1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection. This equipment generates, uses
and can radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission
limits.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
Congratulations and welcome your purchase of this advanced graphic accelerator or sound card.
This enclosed setup CD contains all the information about the board.
May you enjoy it doing it by yourself. Following is the important installation procedure in Chapter 1
and 2.
Chapter 1 Hardware Installation - Safely placing the card in your computer
Chapter 2 Software Installation - Easily installing the enhanced driver
Chapter 3 Video Mode Tables
Chapter 4 Special introduction - 3Dfx PCI Voodoo 2 card
Chapter 1 Hardware Installation - Safely placing the card in your computer
1. Please power off your computer and monitor, then disconnect the monitor from the back of your
computer.
2. Be aware to discharge your body's static electricity by touching the metal surface of computer
chassis. Then remove the computer cover.
3. If there is an existing card in your system, replace it gently but save the screw. Or, you may
need to remove the cover from the rear of expansion slot that you select.
4. Align your card with an empty corresponding expansion slot (PCI or AGP), then carefully grasp
the card by top edge and put it firmly into the slot. Secure the screw to fasten the card in
place and replace the computer cover.
5. Plug the monitor cable into your card, then turn on the computer and monitor.
6. Now you have finished the hardware installation and are ready to install the driver.
Chapter 2 Software installation - Easily installing the enhanced driver
The Setup CD title bring you to take advantage of your card's performance. But, there are some
issues you should note in advance.
1. If it is the first time you install the card by the Plug and Play feature of Windows 95/98.
Windows will find a new hardware and ask for the driver. There are four (4) different kind
conditions from Windows 98, Windows 96 OSR 2, Windows 95 and Windows NT. The basic
rule is to click " Next ", " Next"...until " Finish ".
For Windows 98:
(The general rule is to click Next", Next" ... until Finish")

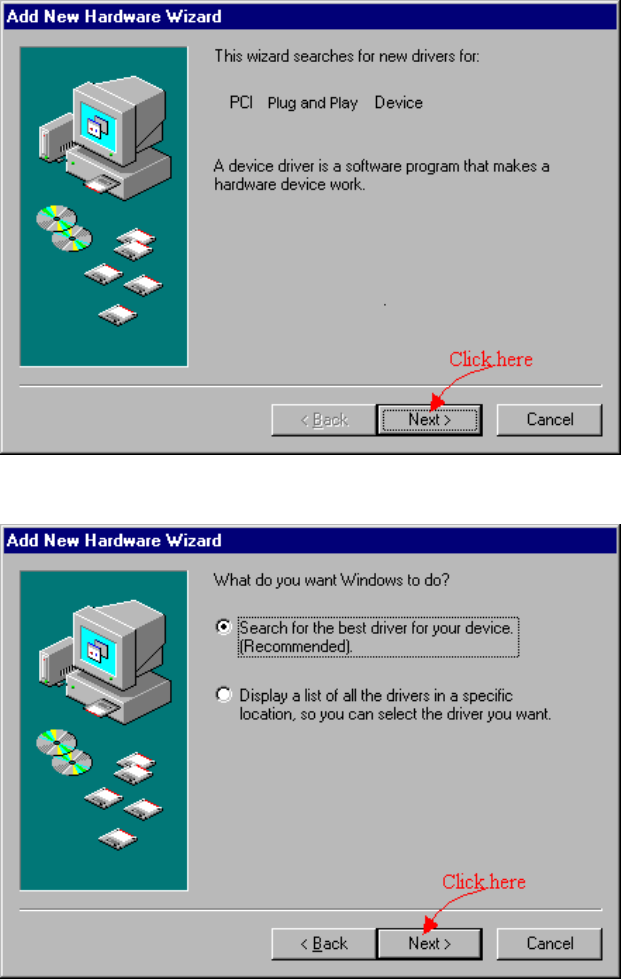

After launch Windows 98, you will see a dialog similar to the one (Add new hardware
Wizard) in the window.
The default is " Next", press " Next ", after that, you will see a dialog as follows.
The default is " Search for the best driver.... ", select it then press "Next ", after that, you will see a
dialog as follows.

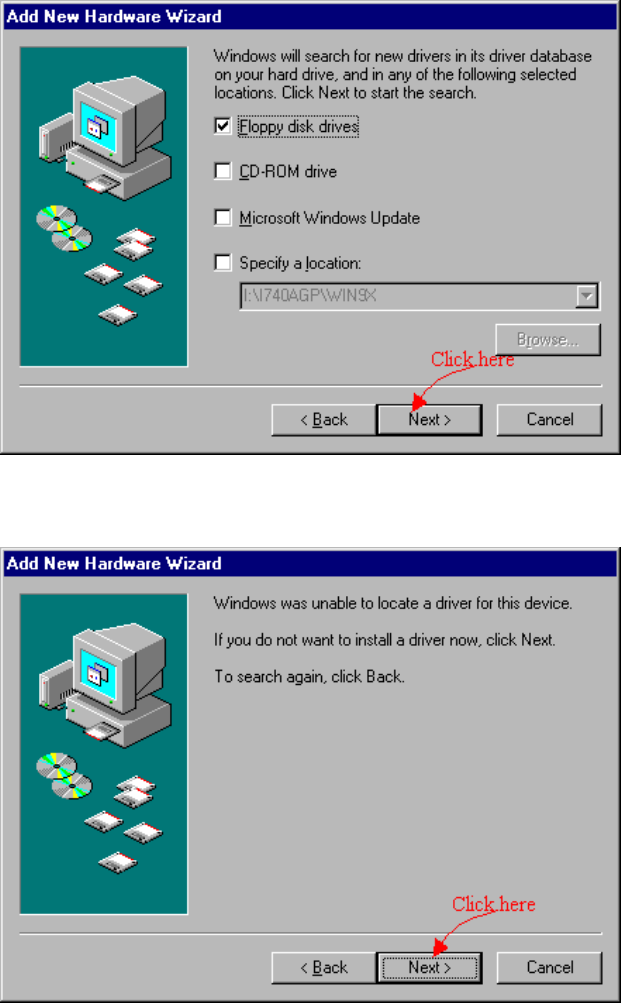

The default is " Next ", press " Next ", after that, you will see a dialog as follows.
The default is " Next ", press " Next ", after that, you will see a dialog as follows.
While Windows prompt you to restart Windows, please click " Yes " to restart your system. After
Windows restarting, go to step 2.
For Windows 95 OSR2:
(The general rules is to click Next", Next".... until Finish ")
After launch Windows 95 OSR2, You will see a dialog similar to the one (Update Device Driver
Wizard) in the Windows.
The default is " Next ", press " Next ", after that. You will see a dialog as follows.

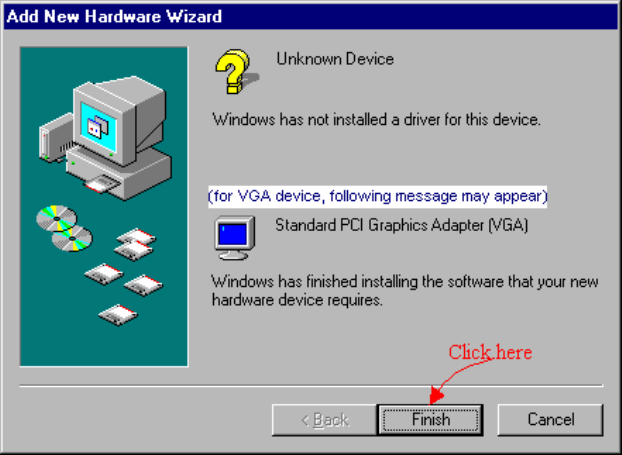

Simply press " Finish ", and after that you will see following window:
Please insert your Windows 95 CD-title into CD-ROM driver, then follow on-screen instructions to
go on.
While Windows prompt you to restart Windows, Click " Yes " to restart Windows. After Windows
restarting, go to step 2.
For Windows 95 (Original Version)
After launch Windows 95, you will see a dialog similar to the one (New Hardware Found) in the
windows.
Click " Do not install a driver (Windows will not prompt you again) " then press " OK ".
After that, if the card you are installing is a VGA card, you will see the below dialog; for the other
cards, you can skip the following procedure and go directly to step 2.
Press " Cancel ", and then you will see:
Click " Cancel ", then go to step 2.
While Windows prompt you restart Windows; please click " Yes " to restart your system. After
Windows restarting go to step 2.
For Windows NT:
Please select VGA mode from boot menu, if it is your first time to start Windows NT.
2. Insert the Setup CD into your CD-ROM driver.
IF Windows 95/98 runs the CD-ROM automatically, proceed to step 3.
3. It will auto-launch the setup program on Windows 95/98 or Windows NT then click a proper
driver.
4. If you are on the other platform on the setup program does not auto-run, please double click the
MSSETUP.EXE on the root of the setup CD. After a setup display in the specific setup window,
you can conveniently install the driver and related software by the on-screen instructions to
complete the installation.
The following windows is an example Setup Window for 3Dfx Banshee, other chipset has similar
picture. Click the button to install a corresponding drivers or software. While Windows prompt you
to restart Windows, please click YES to restart your system.
Chapter 3 Video Mode tables
Video Mode Tables
nVidia TNT AGP/16MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-170 60-170 - 60-170
800x600 60-144 60-144 - 60-144
1024x768 60-100 60-100 - 60-100
1152x864 60-100 60-100 - 60-100
1280x1024 60-85 60-85 - 60-85
1600x1200 60-75 60-75 - 60-75
3Dfx Voodoo Banshee AGP/16MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-120 60-120 60-120 60-120
800x600 60-120 60-120 60-120 60-120
1024x768 60-100 60-100 60-100 60-100
1280x1024 75-85 75-85 75-85 75-85
1600x1200 65-75 65-75 65-75 65-75
Trio 3D AGP/8MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-85 60-75 60-75 -
800x600 56-85 56-85 56-85 -
1024x768 43-85 43-85 43-85 -
1280x1024 43-60 43-60 43-60 -
1600x1200 - - -
nVidia TNT2 AGP/16/32MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-170 60-170 - 60-170
800x600 60-144 60-144 - 60-144
1024x768 60-100 60-100 - 60-100
1152x864 60-100 60-100 - 60-100
1280x1024 60-85 60-85 - 60-85
1600x1200 60-75 60-75 - 60-75
nVidia TNT2 Ultra AGP/16/32MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 70-120 70-120 - 70-120
800x600 60-240 60-240 - 60-240
1024x768 60-170 60-170 - 60-100
1152x864 60-150 60-150 - 60-140
1280x1024 60-120 60-120 - 60-100
1600x1200 60-85 60-85 - 60-75
Intel 752 AGP/8/16MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-120 60-120 60-120 -
720x480 75-85 75-85 75-85 -
720x576 60-85 60-85 60-85 -
800x600 60-120 60-120 60-120 -
1024x768 60-120 60-120 60-120 -
1152x864 60-85 60-85 - -
1280x720 60-85 60-85 - -
1280x960 60-85 60-85 - -
1280x1024 60-85 60-85 - 60-85
1600x1200 60-85 60-85 - -
SiS6326 AGP 8MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-120 60-120 60-120 -
800x600 56-120 56-120 56-120 -
1024x768 43-120 43-120 43-120 -
1280x1024 43-85 43-85 43-85 -
1600x1200 60-75 60-75 - -
nVidia M64 AGP/16/32MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-170 60-170 - 60-170
800x600 60-144 60-144 - 60-144
1024x768 60-100 60-100 - 60-100
1152x864 60-100 60-100 - 60-100
1280x1024 60-85 60-85 - 60-85
1600x1200 60-75 60-75 - 60-75
RIVA128/ZX AGP/8MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-75 60-75 - 60-75
800x600 60-75 60-75 - 60-75
1024x768 60-75 60-75 - 60-75
1152x864 60-75 60-75 - 60-75
1280x1024 60-75 60-75 - 60-75
1600x1200 60 60 - 60
Vanta AGP/16/32MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-170 60-170 - 60-170
800x600 60-100 60-100 - 60-100
1024x768 60-85 60-85 - 60-85
1152x864 60-100 60-100 - 60-100
1280x1024 60-85 60-85 - 60-85
1600x1200 60 60 - 60
Savage4 AGP/16/32MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-160 60-160 - 60-160
800x600 56-85 56-85 - 56-85
1024x768 60-85 60-85 - 60-85
1152x864 60-100 60-100 - 60-100
1280x1024 60-85 60-85 - 60-85
1600x1200 60 60 - 60
Intel i740 AGP/8MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-85 60-85 60-85 -
800x600 56-85 56-85 56-85 -
1024x768 60-85 60-85 60-85 -
1280x1024 60-85 60-85 60-85 -
1600x1200 60-75 - - -
3DLabs Permedia2/8MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-100 60-100 60-100 -
800x600 60-100 60-100 60-100 -
1024x768 60-75 60-75 60-75 -
1152x870 60-75 60-75 60-75 -
1280x1024 60-75 60-75 60-75 -
1600x1200 60-75 60-75 60-75 -
Cirrus Logic 5465 AGP/ 4MB
Color Depth 8-bit 16-bit 24-bit 32-bit
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh
Rate
640x480 60-85 60-85 60-85 -
800x600 56-85 56-85 56-85 -
1024x768 60-85 60-85 60-85 -
1152x864 70-85 70-85 70-85 -
1280x1024 60-85 60-85 60-75 -
1600x1200 60-96i 60-96i - -
3Dfx VoodooII PCI/12MB
Mode Double Buffer Double Buffer Triple Buffer Triple Buffer
(No Z) (With Z) (No Z) (With Z)
Resolution Refresh Rate Refresh Rate Refresh Rate Refresh Rate
640x400 72-120 72-120 72-120 72-120
640x480 72-120 72-120 72-120 72-120
800x600 72-120 72-120 72-120 72-120
Remark: Refresh rate might be varied slightly according to user's monitor size.
