AP21 Hardware Installation Guide
Mist Systems (C) Copyright 2016. All Rights Reserved
AP21 Hardware Installation Guide
Overview
The Mist AP21 is a high value, Enterprise-grade Access Point for 802.11ac
Wave 2 Gigabit WiFi
Mobility & Assurance Services and Bluetooth Low Energy
Location services for delivering BLE Engagement and Asset Visibility
Services.
2
AP21 Hardware Installation Guide
Mist Systems (C) Copyright 2016. All Rights Reserved
Understanding the Product
Included in the box:
AP21
Mounting bracket with mounting hardware

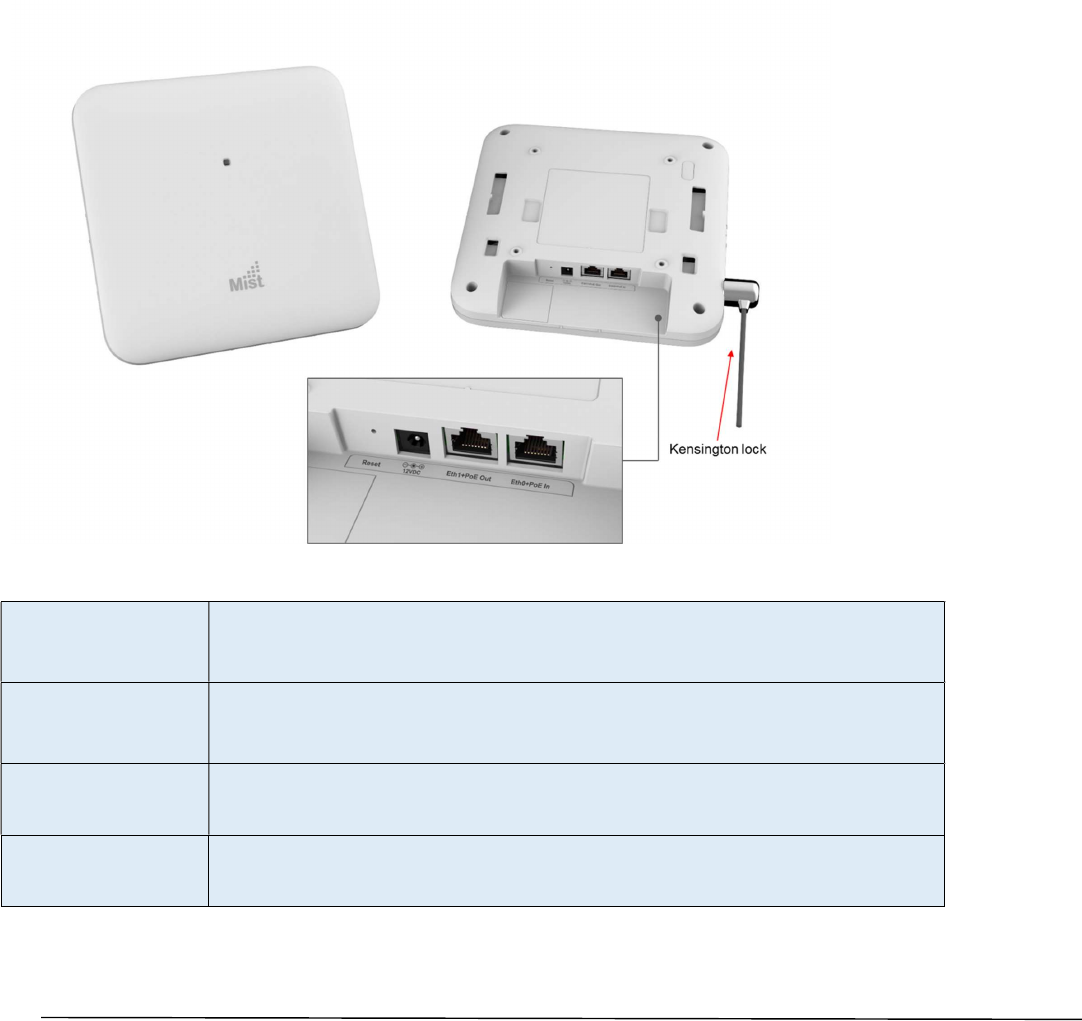

I/O ports and Kensington lock
Reset Reset to the factory default settings
12VDC Support for the 12VDC power supply recommended by Mist
Eth1+PoE Out 10/100/1000 BaseT RJ45 interface that can output 48V PoE
Eth0+PoE In 10/100/1000 BaseT RJ45 interface that supports 802.3at PoE PD
3
AP21 Hardware Installation Guide
Mist Systems (C) Copyright 2016. All Rights Reserved
Mounting kit installation

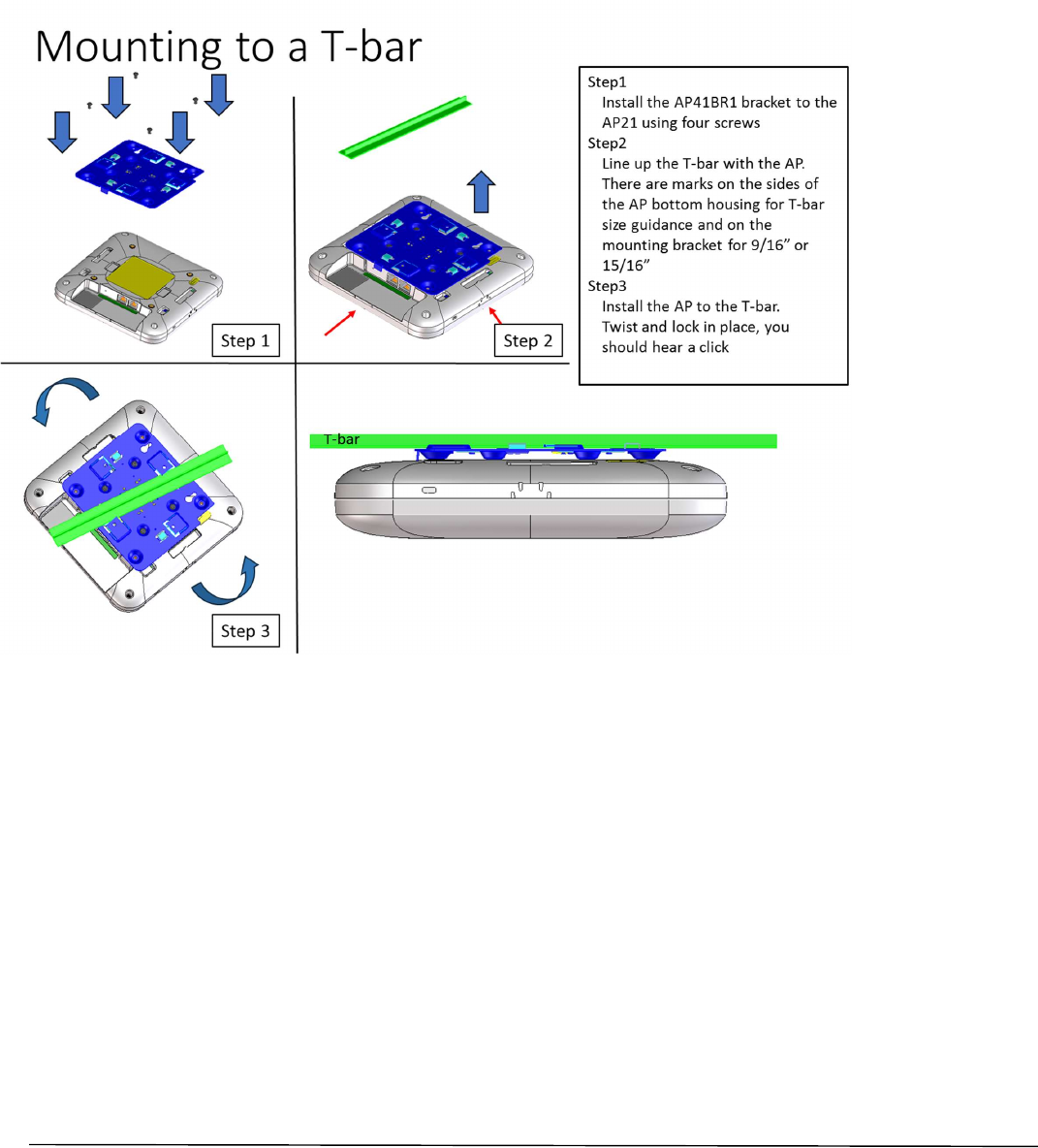

When mounting to a T-bar, please use the screws that are provided which have
a head diameter of 8mm and a length of 6mm.
4
AP21 Hardware Installation Guide
Mist Systems (C) Copyright 2016. All Rights Reserved

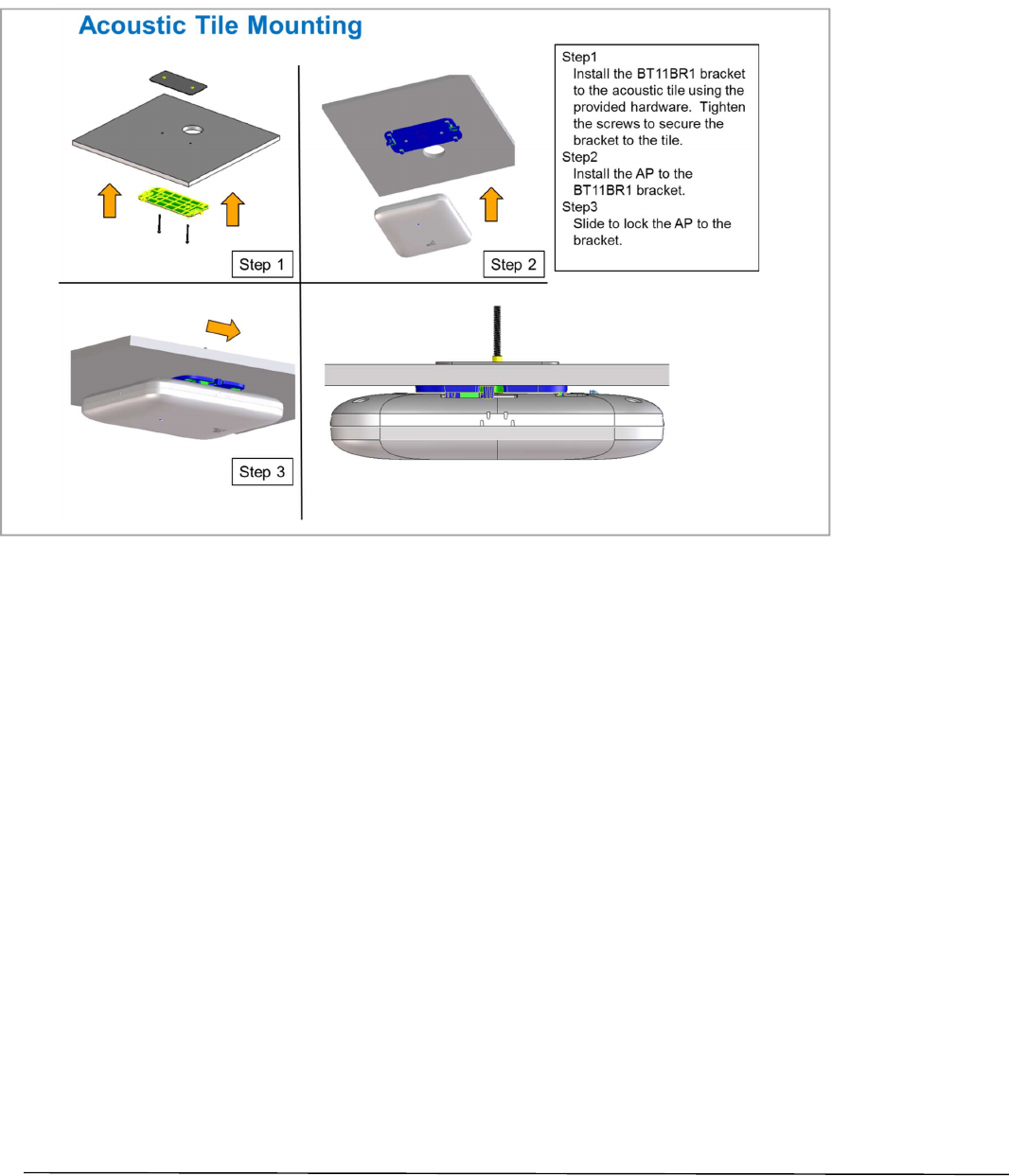

When mounting to an acoustic ceiling tile, please use the screws that are
provided which have a head diameter of 7mm and a length of 40mm.
5
AP21 Hardware Installation Guide
Mist Systems (C) Copyright 2016. All Rights Reserved
Technical Specifications:
Feature Description
Power options 802.3af PoE
12V / 3A DC power supply
Dimensions 203mm x 203mm x 40mm (7.99in x 7.99in x 1.57in)
Weight 0.636 kg (1.4 lbs)
Operating
temperature Internal antenna 0° to 40° C
Operating humidity 10% to 90% maximum relative humidity, non-
condensing
Operating altitude 3,048m (10,000 ft)
Electromagnetic
emissions FCC Part 15 Class B
I/O
1 - 10/100/1000BASE-T auto-sensing RJ-45 with PoE In
1 – 10/100/1000BASE-T auto-sensing RJ-45 with 48Vdc
PoE Out
RF
2.4GHz – 2x2:2 spatial streams 802.11ac
5GHz – 2x2:2 spatial streams 802.11ac
2.4GHz BLE with Dynamic Antenna Array
Indicators Multi-color status LED
Compliance
standards
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
FCC Part 15.247, 15.407, 15.107, and 15.109
RSS-247
ICES-003 (Canada)
The unit and all interconnected equipment must be installed indoors within the
same building, including all PoE-powered network connections as described by
Environment A of the IEEE 802.3af standard.
Suitable for use in environmental air space in accordance with Section 300-
22(C) of the National Electrical Code, and Sections 2-128, 12-010(3), and 12-
100 of the Canadian Electrical Code, Part 1, CSA C22.1.
Warranty Information
The AP21 family of Access Points comes with a limited lifetime warranty.
6
AP21 Hardware Installation Guide
Mist Systems (C) Copyright 2016. All Rights Reserved
Ordering Information:
Access Points
AP21-US WiFi & BLE Array AP with internal antennas for the US
domain
AP21-WW WiFi & BLE Array AP with internal antennas for the
Worldwide domain
Mounting brackets
AP41BR1 Premium AP T-bar ceiling mounting bracket kit
BT11BR1 BLE Array AP mounting bracket kit
Power Supply options
12V DC supply 100-240VAC, 50-60 Hz, input
All regions (output): 12V/3A DC output
This product is intended to be supplied by an UL Listed and/or IEC/EN60950-1 approved power
adapter suitable for use at maximum ambient temperature 40 degrees C, whose output meets SELV
and LPS, and is rated 12 Vdc / 3A with an altitude of operation up to 3048m
This product is intended to be supplied by an UL Listed and/or IEC/EN60950-1 approved PoE DC
Power Injector suitable for use at maximum ambient temperature 40 degrees C, whose output
meets SELV and LPS, rated 57 Vdc / 0.6A with an altitude of operation up to 3048m
If you need further assistance with purchasing the power source, please contact Mist Systems for
further information.
7
AP21 Hardware Installation Guide
Mist Systems (C) Copyright 2016. All Rights Reserved
Regulatory Compliance Information:
This product and all interconnected equipment must be installed indoors within
the same building, including the associated LAN connections as defined by the
802.3at Standard.
FCC Requirement for Operation in the United States
of America:
FCC Guideline for Human Exposure
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20 cm between the radiator & your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the
following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
● Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
8
AP21 Hardware Installation Guide
Mist Systems (C) Copyright 2016. All Rights Reserved
● This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
● Operations in the 5.15GHz – 5.25GHz band are restricted to indoor usage
only.
FCC Note
● The country code selection is for non-US model only and is not available
to all US models. Per FCC regulation, all WiFi products marketed in the US
must be fixed to US operating channels only.
Industry Canada
This device complies with ISED’s license-exempt RSS’s. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.
9
AP21 Hardware Installation Guide
Mist Systems (C) Copyright 2016. All Rights Reserved
Caution
● The device for operation in the band 5150-5250 MHz is only for indoor
use to reduce the potential for harmful interference to co-channel mobile
satellite systems;
● The maximum antenna gain permitted for devices in the band 5725-5850
MHz shall be such that the equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-to-point operation as
appropriate; and
● Users should also be advised that high-power radars are allocated as
primary users (i.e. priority users) of the bands 5650-5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
Avertissement
● les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux;
● le gain maximal d'antenne permis (pour les dispositifs utilisant la bande
de 5725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée
pour l'exploitation point à point et l’exploitation non point à point, selon le
cas;
● De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de
radars de haute puissance sont désignés utilisateurs principaux (c.-à-d.,
qu’ils ont la priorité) pour les bandes 5650-5850 MHz et que ces radars
pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-
EL.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED
établies pour un environnement non contrôlé. Cet équipement doit être installé
et utilisé avec un minimum de 20 cm de distance entre la source de
rayonnement et votre corps.
