Juniper Networks AP41 Premium Ei-Fi & BLE Array AP User Manual Hardware installation guide Rev3

Mist Systems, Inc. Premium Ei-Fi & BLE Array AP Hardware installation guide Rev3

Contents

User manual.pdf

Overview:
The Mist AP41 delivers 4x4
(MU) or single-user (SU)
mode tha
Understanding the Product:
Included in the box:
• AP41
• IoT mating connector
•
Mounting bracket with mounting hardware

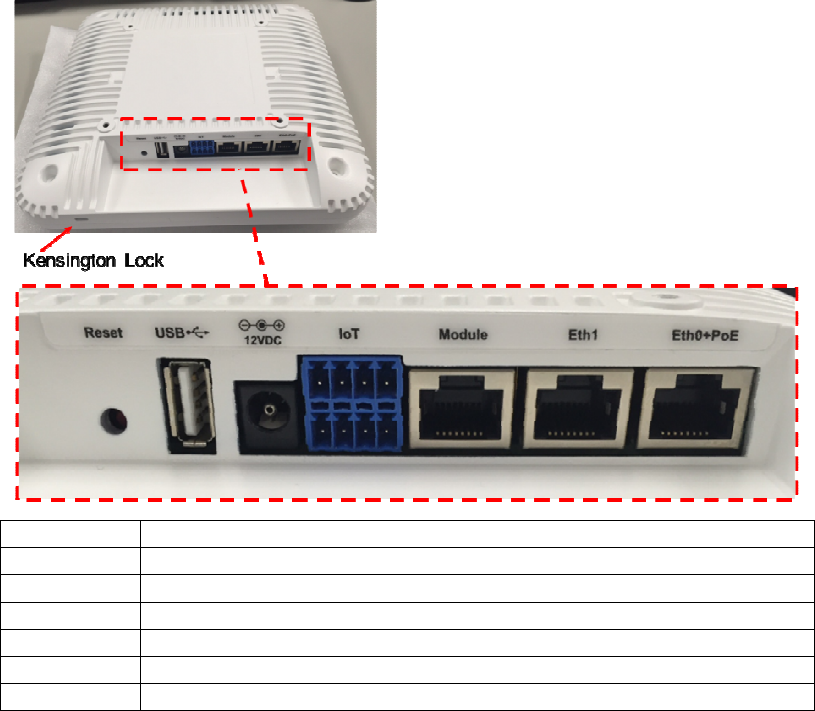

I/O ports and Kensington lock
Reset
Reset to the factory default settings
USB
USB2.0 support interface
Support for the 12VDC power supply recommended by Mist
IoT
8
-
pin interface for
Module
10/100/1000 BaseT RJ45 interface
Eth1
10/100/1000 BaseT RJ45 interface
Eth0+PoE
10/100/1000 BaseT RJ45 interface that supports 802.3at PoE PD
The Mist AP41 delivers 4x4
MIMO with four spatial streams when operating in
mode tha
t supports the IEEE 802.11ac Wave 2 specification.
Understanding the Product:
Mounting bracket with mounting hardware
I/O ports and Kensington lock
Reset to the factory default settings
USB2.0 support interface
Support for the 12VDC power supply recommended by Mist
pin interface for
digital input, digital output, analog input, and ground
10/100/1000 BaseT RJ45 interface
10/100/1000 BaseT RJ45 interface
10/100/1000 BaseT RJ45 interface that supports 802.3at PoE PD
MIMO with four spatial streams when operating in
multi-user
t supports the IEEE 802.11ac Wave 2 specification.
digital input, digital output, analog input, and ground
10/100/1000 BaseT RJ45 interface that supports 802.3at PoE PD

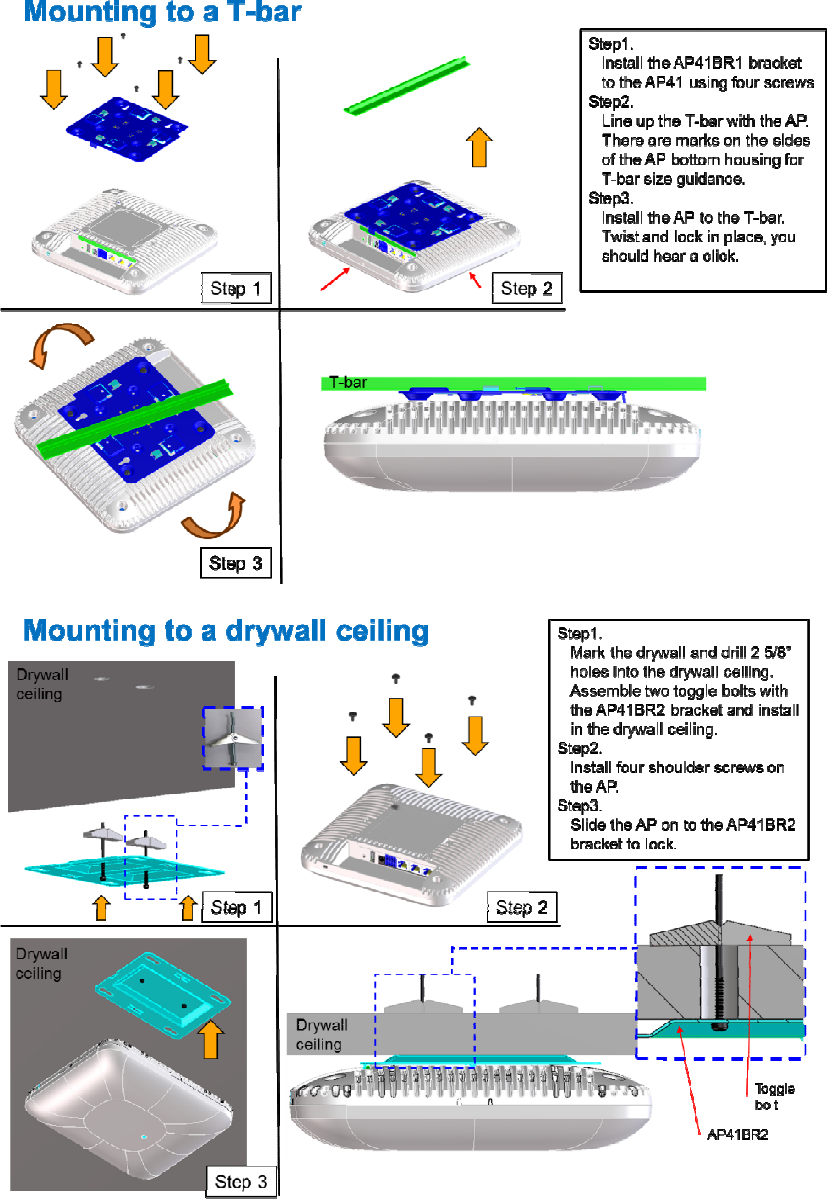

Mounting kit installation:
Technical Specifications:
Feature
Description
Power
options
802.3at PoE
12V/3A DC power supply
Powering
adaptor
100
-
240VAC, 50
-
60 Hz, input
All regions (output): 12V/3A DC output
Dimensions
215mm x 215mm x 52mm (8.46in x 8.46in x 2.05in)
Weight
1.6 kg (3.53
lbs)
Operating temperature
Internal antenna 0° to 40
°
C
External antenna -20° to 50° C
Operating humidity
10% to
90% maximum relative humidity, non
-
condensing
Operating a
ltitude
3,048m (10,000 ft)
Electromagnetic emissions
FCC Part 15 Class B
I/O
1
-
10/100/1000BASE
-
T auto
-
sensing RJ
-
45 with PoE
1 – 10/100/1000BASE-T auto-sensing RJ-45
1 – 10/100/1000BASE-T auto-sensing RJ-45
USB2.0
IoT terminal block
12VDC
RF
2.4GHz
-
4x4
:4 spatial streams
802.11ac MU
-
MIMO
&
SU
-
MIMO
5GHz - 4x4:4 spatial streams 802.11ac MU-MIMO & SU-MIMO
2.4GHz / 5GHz scanning radio
2.4GHz BLE with Dynamic Antenna Array
Maximum PHY rate
Total maximum PHY rate
–
2533Mbps
5GHz – 1733 Mbps
2.4GHz – 800Mbps
Indicators
Multi
-
color status LED
Compliance standards
UL 60950
-
1
CAN/CSA-C22.2 No. 60950-1
UL 2043
FCC Part 15.247, 15.407, 15.107, and 15.109
RSS-247
ICES-003 (Canada)
Warranty Information:
The AP41 family of Access Points comes with a limited lifetime warranty.
Ordering Information:
Access Points
AP41-US Premium Wi-Fi & BLE Array AP with internal antennas for the US and
Canada Regulatory domain
AP41E
-
US
Premium Wi
-
F
i & BLE Array AP with external antenna connectors for the
US and Canada Regulatory domain
AP41-US-M Premium Wi-Fi & BLE Array AP with internal antennas for the US and
Canada Regulatory domain – Multi-Pack
AP41E-US-M Premium Wi-Fi & BLE Array AP with external antenna connectors for the
US and Canada Regulatory domain
–
Multi
-
Pack
Mounting brackets
AP41BR1
Premium AP T
-
bar
ceiling
mounting bracket
kit
AP41BR2 Premium AP drywall ceiling mounting bracket kit
Power Supply options
12V DC supply 100-240VAC, 50-60 Hz, input
All regions (output): 12V/3A DC output
Regulatory Compliance Information:
This product and all interconnected equipment must be installed indoors within the same
building, including the associated LAN connections as defined by the 802.3at Standard.
FCC Requirement for Operation in the United States of America:
FCC Guideline for Human Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 25cm
between the radiator & your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
• Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
• This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
• For operation within 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range, it is restricted to
indoor environment.
• The band from 5600-5650MHz will be disabled by the software during the manufacturing
and cannot be changed by the end user. This device meets all the other requirements
specified in Part 15E, Section 15.407 of the FCC Rules.
Industry Canada
This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Ce dispositif est conforme à la norme CNR-247 d'Industrie Canada applicable aux appareils radio
exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif
ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage
reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Déclaration d'exposition aux radiations:Cet équipement est conforme aux limites d'exposition
aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et
votre corps.
IC Caution
(i) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce
the potential for harmful interference to co-channel mobile satellite systems;
(ii) The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and
5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
(iii) The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall
be such that the equipment still complies with the e.i.r.p. limits specified for point-to-
point and non-point-to-point operation as appropriate; and
(iv) Users should also be advised that high-power radars are allocated as primary users
(i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these
radars could cause interference and/or damage to LE-LAN devices.
Avertissement
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions
précises sur les restrictions susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement
pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5250 à 5
350 MHz et de 5470 à 5725 MHz doit être conforme à la limite de la p.i.r.e;
(iii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5
850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à
point et l’exploitation non point à point, selon le cas;
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de
haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour
les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du
brouillage et/ou des dommages aux dispositifs LAN-EL.
