Complete Hardware Guide for EX2200 Ethernet

Switches

Published: 2010-12-07

Revision 4

Copyright © 2010, Juniper Networks, Inc.

Juniper Networks, Inc.

1194 North Mathilda Avenue

Sunnyvale, California 94089

USA

408-745-2000

www.juniper.net

This product includes the Envoy SNMP Engine, developed by Epilogue Technology, an Integrated Systems Company. Copyright © 1986-1997,

Epilogue Technology Corporation. All rights reserved. This program and its documentation were developed at private expense, and no part

of them is in the public domain.

This product includes memory allocation software developed by Mark Moraes, copyright © 1988, 1989, 1993, University of Toronto.

This product includes FreeBSD software developed by the University of California, Berkeley, and its contributors. All of the documentation

and software included in the 4.4BSD and 4.4BSD-Lite Releases is copyrighted by the Regents of the University of California. Copyright ©

1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994. The Regents of the University of California. All rights reserved.

GateD software copyright © 1995, the Regents of the University. All rights reserved. Gate Daemon was originated and developed through

release 3.0 by Cornell University and its collaborators. Gated is based on Kirton’s EGP, UC Berkeley’s routing daemon (routed), and DCN’s

HELLO routing protocol. Development of Gated has been supported in part by the National Science Foundation. Portions of the GateD

software copyright © 1988, Regents of the University of California. All rights reserved. Portions of the GateD software copyright © 1991, D.

L. S. Associates.

This product includes software developed by Maker Communications, Inc., copyright © 1996, 1997, Maker Communications, Inc.

Juniper Networks, Junos, Steel-Belted Radius, NetScreen, and ScreenOS are registered trademarks of Juniper Networks, Inc. in the United

States and other countries. The Juniper Networks Logo, the Junos logo, and JunosE are trademarks of Juniper Networks, Inc. All other

trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners.

Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right to change, modify,

transfer, or otherwise revise this publication without notice.

Products made or sold by Juniper Networks or components thereof might be covered by one or more of the following patents that are

owned by or licensed to Juniper Networks: U.S. Patent Nos. 5,473,599, 5,905,725, 5,909,440, 6,192,051, 6,333,650, 6,359,479, 6,406,312,

6,429,706, 6,459,579, 6,493,347, 6,538,518, 6,538,899, 6,552,918, 6,567,902, 6,578,186, and 6,590,785.

Complete Hardware Guide for EX2200 Ethernet Switches

Copyright © 2010, Juniper Networks, Inc.

All rights reserved. Printed in USA.

Writing: Appumon Joseph, Aviva Garrett, Greg Houde, Hemraj Rao S, Hareesh Kumar K N, Keldyn West, Shikha Kalra, Steve Levine

Editing: Cindy Martin, Rajan V K

Illustration: Faith Bradford Brown

Cover Design:

Revision History

17 February 2010—Revision 1

May 2010—Revision 2

August 2010—Revision 3

December 2010—Revision 4

The information in this document is current as of the date listed in the revision history.

YEAR 2000 NOTICE

Juniper Networks hardware and software products are Year 2000 compliant. The Junos OS has no known time-related limitations through

the year 2038. However, the NTP application is known to have some difficulty in the year 2036.

SOFTWARE LICENSE

Copyright © 2010, Juniper Networks, Inc.ii

The terms and conditions for using this software are described in the software license contained in the acknowledgment to your purchase

order or, to the extent applicable, to any reseller agreement or end-user purchase agreement executed between you and Juniper Networks.

By using this software, you indicate that you understand and agree to be bound by those terms and conditions.

Generally speaking, the software license restricts the manner in which you are permitted to use the software and may contain prohibitions

against certain uses. The software license may state conditions under which the license is automatically terminated. You should consult

the license for further details.

For complete product documentation, please see the Juniper Networks Web site at www.juniper.net/techpubs.

iiiCopyright © 2010, Juniper Networks, Inc.

END USER LICENSE AGREEMENT

READ THIS END USER LICENSE AGREEMENT (“AGREEMENT”) BEFORE DOWNLOADING, INSTALLING, OR USING THE SOFTWARE.

BY DOWNLOADING, INSTALLING, OR USING THE SOFTWARE OR OTHERWISE EXPRESSING YOUR AGREEMENT TO THE TERMS

CONTAINED HEREIN, YOU (AS CUSTOMER OR IF YOU ARE NOT THE CUSTOMER, AS A REPRESENTATIVE/AGENT AUTHORIZED TO

BIND THE CUSTOMER) CONSENT TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT OR CANNOT AGREE TO THE TERMS CONTAINED

HEREIN, THEN (A) DO NOT DOWNLOAD, INSTALL, OR USE THE SOFTWARE, AND (B) YOU MAY CONTACT JUNIPER NETWORKS

REGARDING LICENSE TERMS.

1. The Parties. The parties to this Agreement are (i) Juniper Networks, Inc. (if the Customer’s principal office is located in the Americas) or

Juniper Networks (Cayman) Limited (if the Customer’s principal office is located outside the Americas) (such applicable entity being referred

to herein as “Juniper”), and (ii) the person or organization that originally purchased from Juniper or an authorized Juniper reseller the applicable

license(s) for use of the Software (“Customer”) (collectively, the “Parties”).

2. The Software. In this Agreement, “Software” means the program modules and features of the Juniper or Juniper-supplied software, for

which Customer has paid the applicable license or support fees to Juniper or an authorized Juniper reseller, or which was embedded by

Juniper in equipment which Customer purchased from Juniper or an authorized Juniper reseller. “Software” also includes updates, upgrades

and new releases of such software. “Embedded Software” means Software which Juniper has embedded in or loaded onto the Juniper

equipment and any updates, upgrades, additions or replacements which are subsequently embedded in or loaded onto the equipment.

3. License Grant. Subject to payment of the applicable fees and the limitations and restrictions set forth herein, Juniper grants to Customer

a non-exclusive and non-transferable license, without right to sublicense, to use the Software, in executable form only, subject to the

following use restrictions:

a. Customer shall use Embedded Software solely as embedded in, and for execution on, Juniper equipment originally purchased by

Customer from Juniper or an authorized Juniper reseller.

b. Customer shall use the Software on a single hardware chassis having a single processing unit, or as many chassis or processing units

for which Customer has paid the applicable license fees; provided, however, with respect to the Steel-Belted Radius or Odyssey Access

Client software only, Customer shall use such Software on a single computer containing a single physical random access memory space

and containing any number of processors. Use of the Steel-Belted Radius or IMS AAA software on multiple computers or virtual machines

(e.g., Solaris zones) requires multiple licenses, regardless of whether such computers or virtualizations are physically contained on a single

chassis.

c. Product purchase documents, paper or electronic user documentation, and/or the particular licenses purchased by Customer may

specify limits to Customer’s use of the Software. Such limits may restrict use to a maximum number of seats, registered endpoints, concurrent

users, sessions, calls, connections, subscribers, clusters, nodes, realms, devices, links, ports or transactions, or require the purchase of

separate licenses to use particular features, functionalities, services, applications, operations, or capabilities, or provide throughput,

performance, configuration, bandwidth, interface, processing, temporal, or geographical limits. In addition, such limits may restrict the use

of the Software to managing certain kinds of networks or require the Software to be used only in conjunction with other specific Software.

Customer’s use of the Software shall be subject to all such limitations and purchase of all applicable licenses.

d. For any trial copy of the Software, Customer’s right to use the Software expires 30 days after download, installation or use of the

Software. Customer may operate the Software after the 30-day trial period only if Customer pays for a license to do so. Customer may not

extend or create an additional trial period by re-installing the Software after the 30-day trial period.

e. The Global Enterprise Edition of the Steel-Belted Radius software may be used by Customer only to manage access to Customer’s

enterprise network. Specifically, service provider customers are expressly prohibited from using the Global Enterprise Edition of the

Steel-Belted Radius software to support any commercial network access services.

The foregoing license is not transferable or assignable by Customer. No license is granted herein to any user who did not originally purchase

the applicable license(s) for the Software from Juniper or an authorized Juniper reseller.

4. Use Prohibitions. Notwithstanding the foregoing, the license provided herein does not permit the Customer to, and Customer agrees

not to and shall not: (a) modify, unbundle, reverse engineer, or create derivative works based on the Software; (b) make unauthorized

copies of the Software (except as necessary for backup purposes); (c) rent, sell, transfer, or grant any rights in and to any copy of the

Software, in any form, to any third party; (d) remove any proprietary notices, labels, or marks on or in any copy of the Software or any product

in which the Software is embedded; (e) distribute any copy of the Software to any third party, including as may be embedded in Juniper

equipment sold in the secondhand market; (f) use any ‘locked’ or key-restricted feature, function, service, application, operation, or capability

without first purchasing the applicable license(s) and obtaining a valid key from Juniper, even if such feature, function, service, application,

operation, or capability is enabled without a key; (g) distribute any key for the Software provided by Juniper to any third party; (h) use the

Copyright © 2010, Juniper Networks, Inc.iv

Software in any manner that extends or is broader than the uses purchased by Customer from Juniper or an authorized Juniper reseller; (i)

use Embedded Software on non-Juniper equipment; (j) use Embedded Software (or make it available for use) on Juniper equipment that

the Customer did not originally purchase from Juniper or an authorized Juniper reseller; (k) disclose the results of testing or benchmarking

of the Software to any third party without the prior written consent of Juniper; or (l) use the Software in any manner other than as expressly

provided herein.

5. Audit. Customer shall maintain accurate records as necessary to verify compliance with this Agreement. Upon request by Juniper,

Customer shall furnish such records to Juniper and certify its compliance with this Agreement.

6. Confidentiality. The Parties agree that aspects of the Software and associated documentation are the confidential property of Juniper.

As such, Customer shall exercise all reasonable commercial efforts to maintain the Software and associated documentation in confidence,

which at a minimum includes restricting access to the Software to Customer employees and contractors having a need to use the Software

for Customer’s internal business purposes.

7. Ownership. Juniper and Juniper’s licensors, respectively, retain ownership of all right, title, and interest (including copyright) in and to

the Software, associated documentation, and all copies of the Software. Nothing in this Agreement constitutes a transfer or conveyance

of any right, title, or interest in the Software or associated documentation, or a sale of the Software, associated documentation, or copies

of the Software.

8. Warranty, Limitation of Liability, Disclaimer of Warranty. The warranty applicable to the Software shall be as set forth in the warranty

statement that accompanies the Software (the “Warranty Statement”). Nothing in this Agreement shall give rise to any obligation to support

the Software. Support services may be purchased separately. Any such support shall be governed by a separate, written support services

agreement. TO THE MAXIMUM EXTENT PERMITTED BY LAW, JUNIPER SHALL NOT BE LIABLE FOR ANY LOST PROFITS, LOSS OF DATA,

OR COSTS OR PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, OR FOR ANY SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THIS AGREEMENT, THE SOFTWARE, OR ANY JUNIPER OR JUNIPER-SUPPLIED SOFTWARE. IN NO EVENT SHALL JUNIPER

BE LIABLE FOR DAMAGES ARISING FROM UNAUTHORIZED OR IMPROPER USE OF ANY JUNIPER OR JUNIPER-SUPPLIED SOFTWARE.

EXCEPT AS EXPRESSLY PROVIDED IN THE WARRANTY STATEMENT TO THE EXTENT PERMITTED BY LAW, JUNIPER DISCLAIMS ANY

AND ALL WARRANTIES IN AND TO THE SOFTWARE (WHETHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE), INCLUDING ANY

IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT. IN NO EVENT DOES

JUNIPER WARRANT THAT THE SOFTWARE, OR ANY EQUIPMENT OR NETWORK RUNNING THE SOFTWARE, WILL OPERATE WITHOUT

ERROR OR INTERRUPTION, OR WILL BE FREE OF VULNERABILITY TO INTRUSION OR ATTACK. In no event shall Juniper’s or its suppliers’

or licensors’ liability to Customer, whether in contract, tort (including negligence), breach of warranty, or otherwise, exceed the price paid

by Customer for the Software that gave rise to the claim, or if the Software is embedded in another Juniper product, the price paid by

Customer for such other product. Customer acknowledges and agrees that Juniper has set its prices and entered into this Agreement in

reliance upon the disclaimers of warranty and the limitations of liability set forth herein, that the same reflect an allocation of risk between

the Parties (including the risk that a contract remedy may fail of its essential purpose and cause consequential loss), and that the same

form an essential basis of the bargain between the Parties.

9. Termination. Any breach of this Agreement or failure by Customer to pay any applicable fees due shall result in automatic termination

of the license granted herein. Upon such termination, Customer shall destroy or return to Juniper all copies of the Software and related

documentation in Customer’s possession or control.

10. Taxes. All license fees payable under this agreement are exclusive of tax. Customer shall be responsible for paying Taxes arising from

the purchase of the license, or importation or use of the Software. If applicable, valid exemption documentation for each taxing jurisdiction

shall be provided to Juniper prior to invoicing, and Customer shall promptly notify Juniper if their exemption is revoked or modified. All

payments made by Customer shall be net of any applicable withholding tax. Customer will provide reasonable assistance to Juniper in

connection with such withholding taxes by promptly: providing Juniper with valid tax receipts and other required documentation showing

Customer’s payment of any withholding taxes; completing appropriate applications that would reduce the amount of withholding tax to

be paid; and notifying and assisting Juniper in any audit or tax proceeding related to transactions hereunder. Customer shall comply with

all applicable tax laws and regulations, and Customer will promptly pay or reimburse Juniper for all costs and damages related to any

liability incurred by Juniper as a result of Customer’s non-compliance or delay with its responsibilities herein. Customer’s obligations under

this Section shall survive termination or expiration of this Agreement.

11. Export. Customer agrees to comply with all applicable export laws and restrictions and regulations of any United States and any

applicable foreign agency or authority, and not to export or re-export the Software or any direct product thereof in violation of any such

restrictions, laws or regulations, or without all necessary approvals. Customer shall be liable for any such violations. The version of the

Software supplied to Customer may contain encryption or other capabilities restricting Customer’s ability to export the Software without

an export license.

vCopyright © 2010, Juniper Networks, Inc.

12. Commercial Computer Software. The Software is “commercial computer software” and is provided with restricted rights. Use,

duplication, or disclosure by the United States government is subject to restrictions set forth in this Agreement and as provided in DFARS

227.7201 through 227.7202-4, FAR 12.212, FAR 27.405(b)(2), FAR 52.227-19, or FAR 52.227-14(ALT III) as applicable.

13. Interface Information. To the extent required by applicable law, and at Customer's written request, Juniper shall provide Customer

with the interface information needed to achieve interoperability between the Software and another independently created program, on

payment of applicable fee, if any. Customer shall observe strict obligations of confidentiality with respect to such information and shall use

such information in compliance with any applicable terms and conditions upon which Juniper makes such information available.

14. Third Party Software. Any licensor of Juniper whose software is embedded in the Software and any supplier of Juniper whose products

or technology are embedded in (or services are accessed by) the Software shall be a third party beneficiary with respect to this Agreement,

and such licensor or vendor shall have the right to enforce this Agreement in its own name as if it were Juniper. In addition, certain third party

software may be provided with the Software and is subject to the accompanying license(s), if any, of its respective owner(s). To the extent

portions of the Software are distributed under and subject to open source licenses obligating Juniper to make the source code for such

portions publicly available (such as the GNU General Public License (“GPL”) or the GNU Library General Public License (“LGPL”)), Juniper

will make such source code portions (including Juniper modifications, as appropriate) available upon request for a period of up to three

years from the date of distribution. Such request can be made in writing to Juniper Networks, Inc., 1194 N. Mathilda Ave., Sunnyvale, CA

94089, ATTN: General Counsel. You may obtain a copy of the GPL at http://www.gnu.org/licenses/gpl.html, and a copy of the LGPL

at http://www.gnu.org/licenses/lgpl.html .

15. Miscellaneous. This Agreement shall be governed by the laws of the State of California without reference to its conflicts of laws

principles. The provisions of the U.N. Convention for the International Sale of Goods shall not apply to this Agreement. For any disputes

arising under this Agreement, the Parties hereby consent to the personal and exclusive jurisdiction of, and venue in, the state and federal

courts within Santa Clara County, California. This Agreement constitutes the entire and sole agreement between Juniper and the Customer

with respect to the Software, and supersedes all prior and contemporaneous agreements relating to the Software, whether oral or written

(including any inconsistent terms contained in a purchase order), except that the terms of a separate written agreement executed by an

authorized Juniper representative and Customer shall govern to the extent such terms are inconsistent or conflict with terms contained

herein. No modification to this Agreement nor any waiver of any rights hereunder shall be effective unless expressly assented to in writing

by the party to be charged. If any portion of this Agreement is held invalid, the Parties agree that such invalidity shall not affect the validity

of the remainder of this Agreement. This Agreement and associated documentation has been written in the English language, and the

Parties agree that the English version will govern. (For Canada: Les parties aux présentés confirment leur volonté que cette convention de

même que tous les documents y compris tout avis qui s'y rattaché, soient redigés en langue anglaise. (Translation: The parties confirm that

this Agreement and all related documentation is and will be in the English language)).

Copyright © 2010, Juniper Networks, Inc.vi

Table of Contents

AboutThisTopicCollection.........................................xv

HowtoUseThisGuide...............................................xv

List of EX Series Guides for Junos OS Release 10.4 . . . . . . . . . . . . . . . . . . . . . . . . . xv

DownloadingSoftware..............................................xvii

DocumentationSymbolsKey........................................xviii

DocumentationFeedback............................................xix

RequestingTechnicalSupport.........................................xx

Self-Help Online Tools and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

OpeningaCasewithJTAC.........................................xx

Part 1 Switch and Components Overview and Specifications

Chapter1 EX2200SwitchOverview...........................................3

EX2200SwitchesHardwareOverview...................................3

EX2200Switches................................................3

UplinkPorts.....................................................3

PoweroverEthernet(PoE)Ports....................................4

EX2200SwitchModels...............................................4

Chassis Physical Specifications for EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . 5

FrontPanelofanEX2200Switch.......................................5

RearPanelofanEX2200Switch.......................................6

EX2200 Switch Hardware and CLI Terminology Mapping . . . . . . . . . . . . . . . . . . . . 7

Chapter2 Component Descriptions ...........................................11

Chassis Status LEDs in EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Network Port and Uplink Port LEDs in EX2200 Switches . . . . . . . . . . . . . . . . . . . . 12

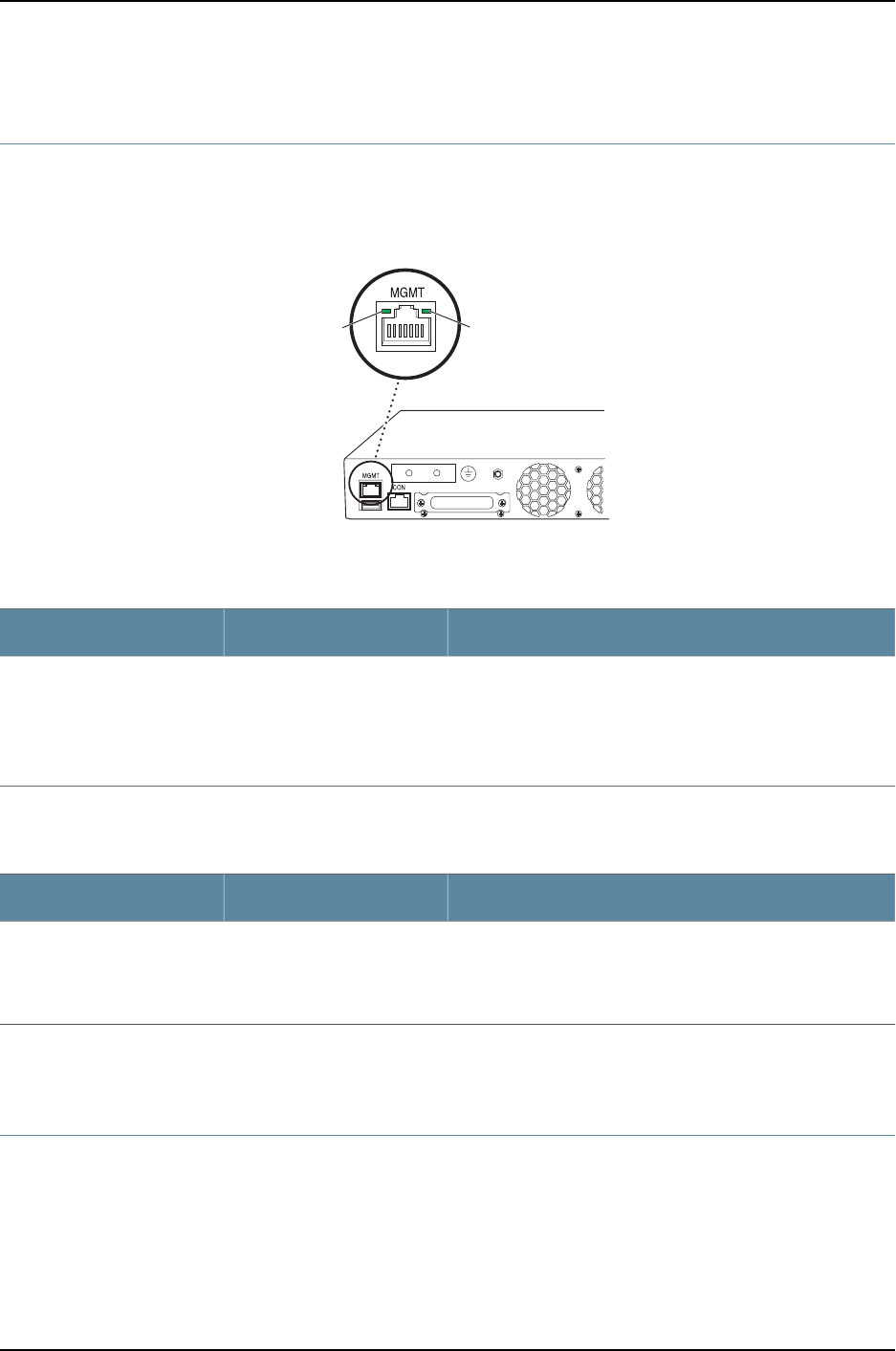

Management Port LEDs in EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

PowerSupplyinEX2200Switches.....................................14

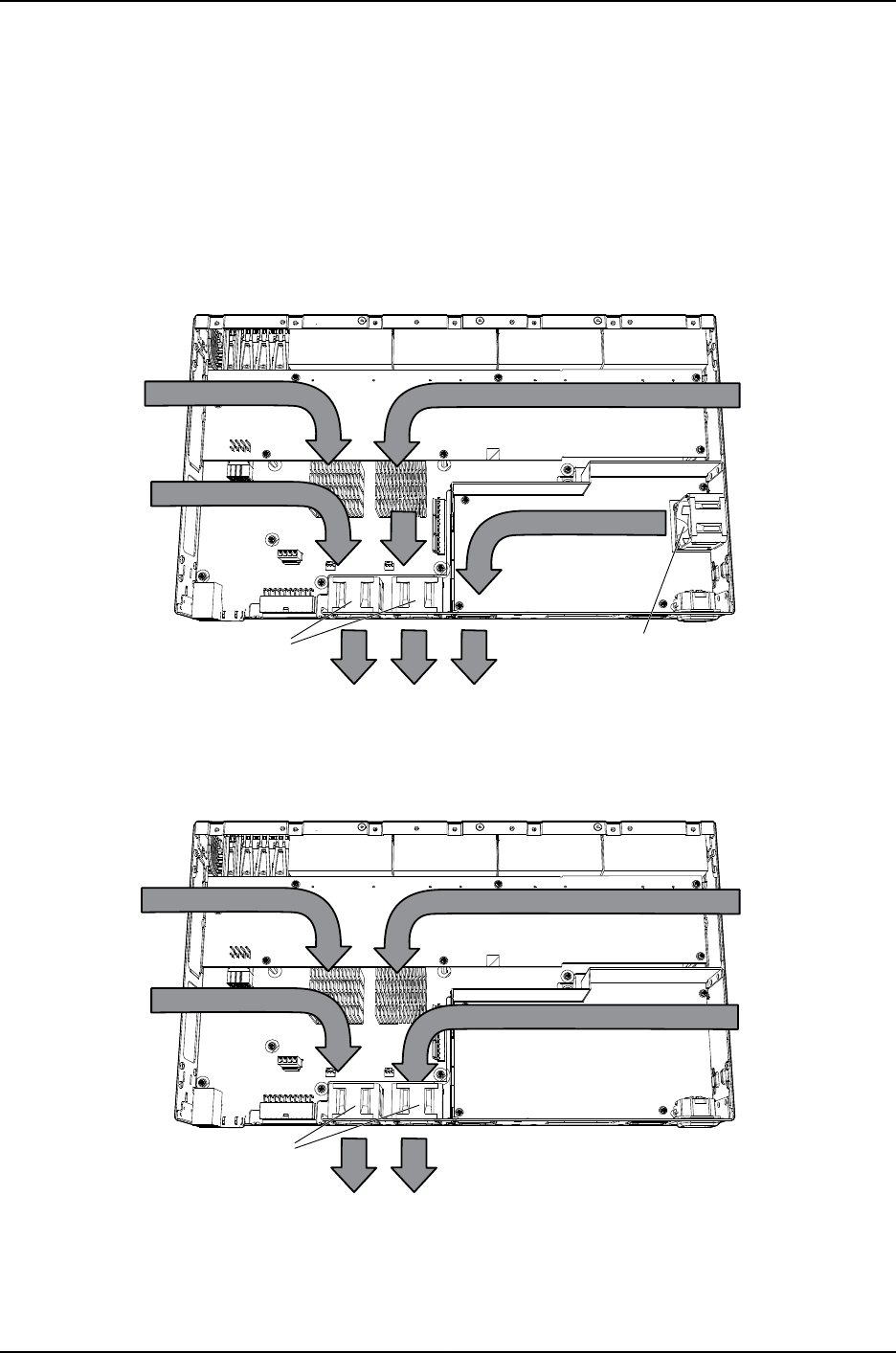

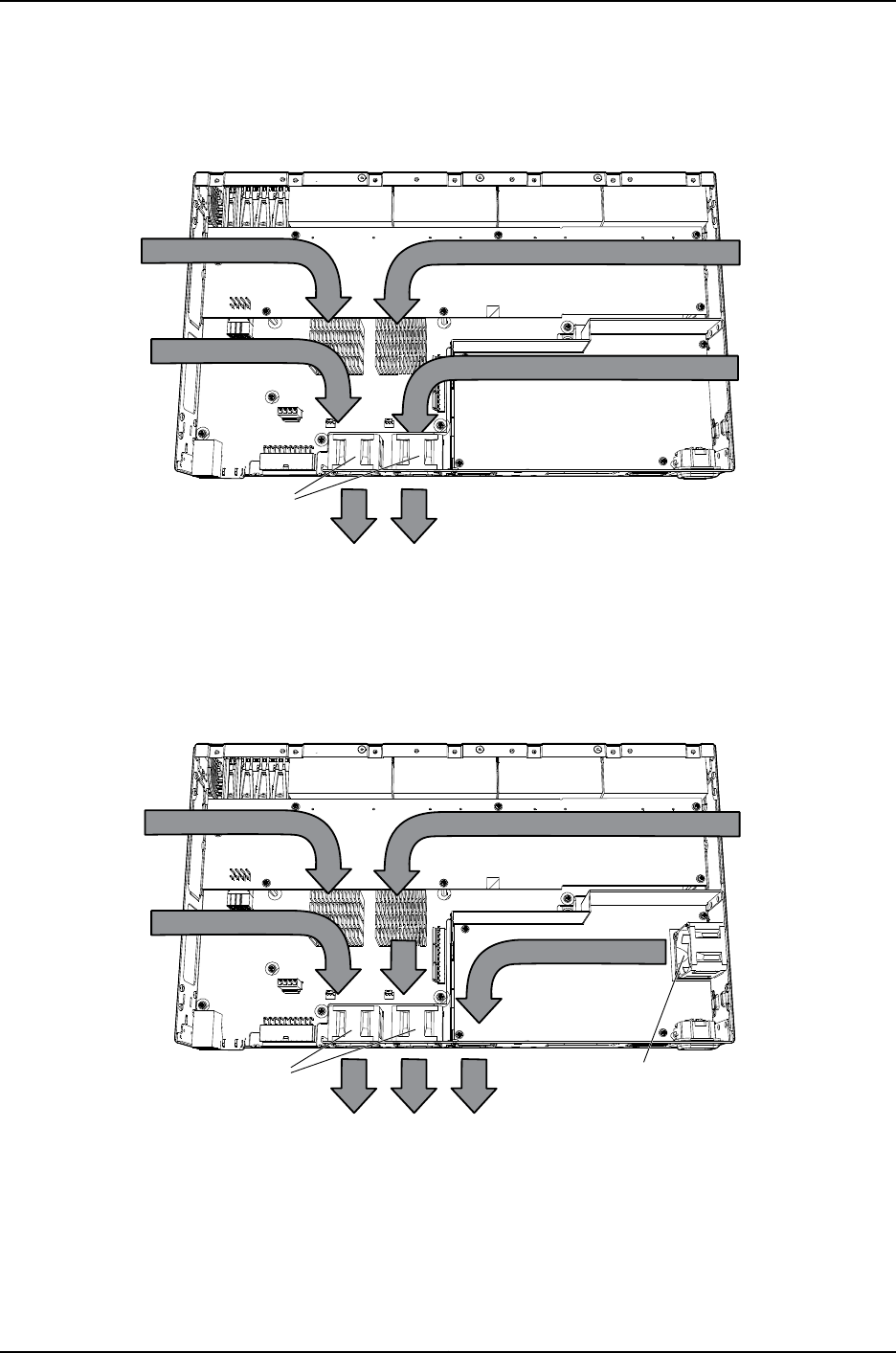

Cooling System and Airflow in an EX2200 Switch . . . . . . . . . . . . . . . . . . . . . . . . . 15

Chapter3 Component Specifications .........................................19

USB Port Specifications for an EX Series Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Network Port Connector Pinout Information for an EX2200 Switch . . . . . . . . . . . 20

Console Port Connector Pinout Information for an EX Series Switch . . . . . . . . . . . 21

Management Port Connector Pinout Information for an EX2200 Switch . . . . . . . 22

Optical Interface Support in EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

viiCopyright © 2010, Juniper Networks, Inc.

Part 2 Planning for Switch Installation

Chapter4 SitePreparation...................................................33

Site Preparation Checklist for EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . 33

General Site Guidelines for EX Series Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Site Electrical Wiring Guidelines for EX Series Switches . . . . . . . . . . . . . . . . . . . . 35

Environmental Requirements and Specifications for EX Series Switches . . . . . . . 36

Chapter 5 Mounting and Clearance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Rack Requirements for EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cabinet Requirements for EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Requirements for Mounting an EX2200 Switch on a Desktop or Wall . . . . . . . . . 42

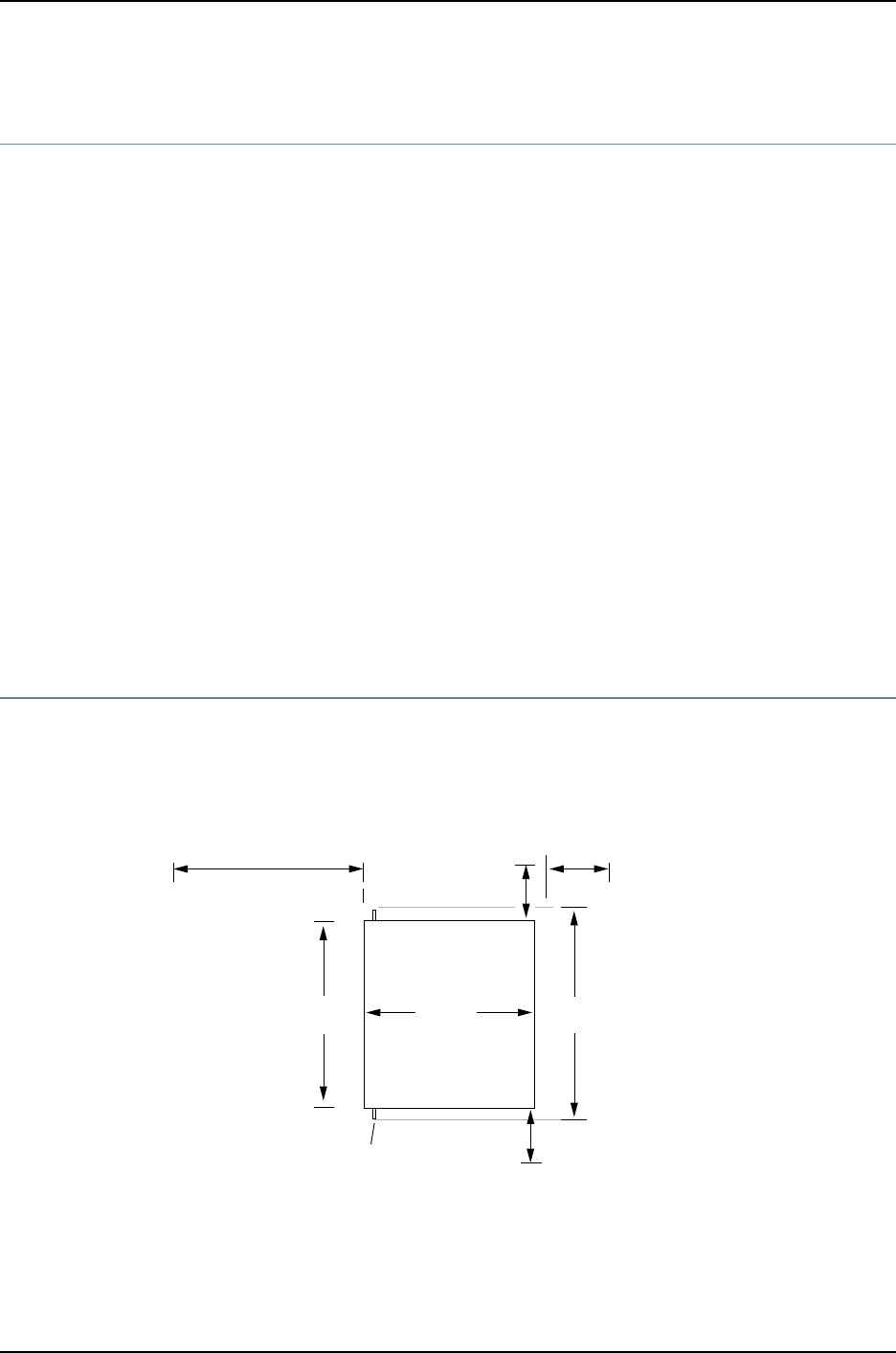

Clearance Requirements for Airflow and Hardware Maintenance for EX2200

Switches ......................................................42

Chapter6 Cable Specifications ..............................................45

Network Cable Specifications for EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . 45

Chapter7 PlanningPowerRequirements......................................47

Power Specifications for EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

AC Power Cord Specifications for EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . 47

Part 3 Installing and Connecting the Switch and Switch Components

Chapter8 InstallingtheSwitch...............................................51

Installing and Connecting an EX2200 Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

UnpackinganEX2200Switch.........................................52

MountinganEX2200Switch..........................................53

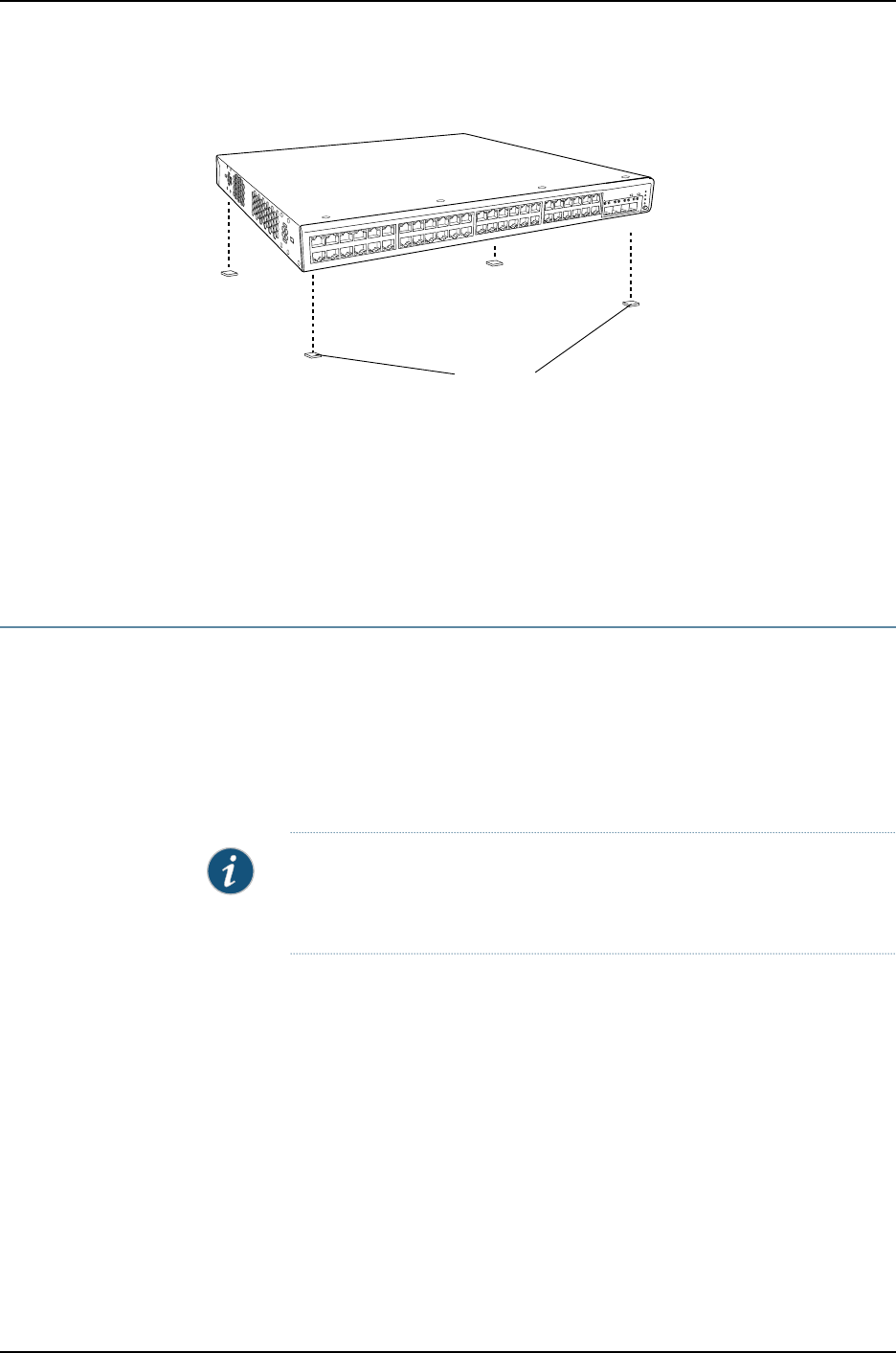

Mounting an EX2200 Switch on a Desk or Other Level Surface . . . . . . . . . . . . . . 54

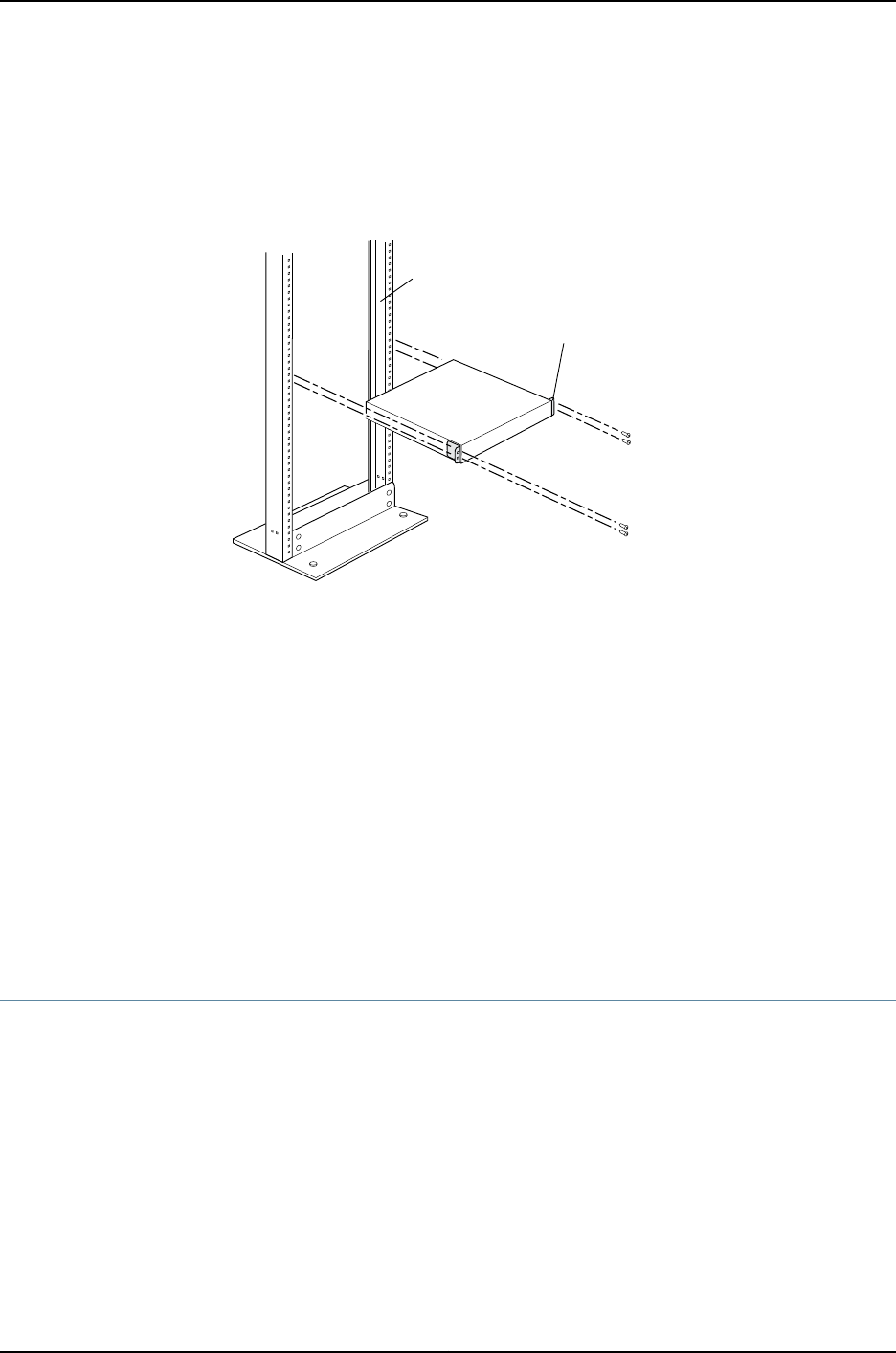

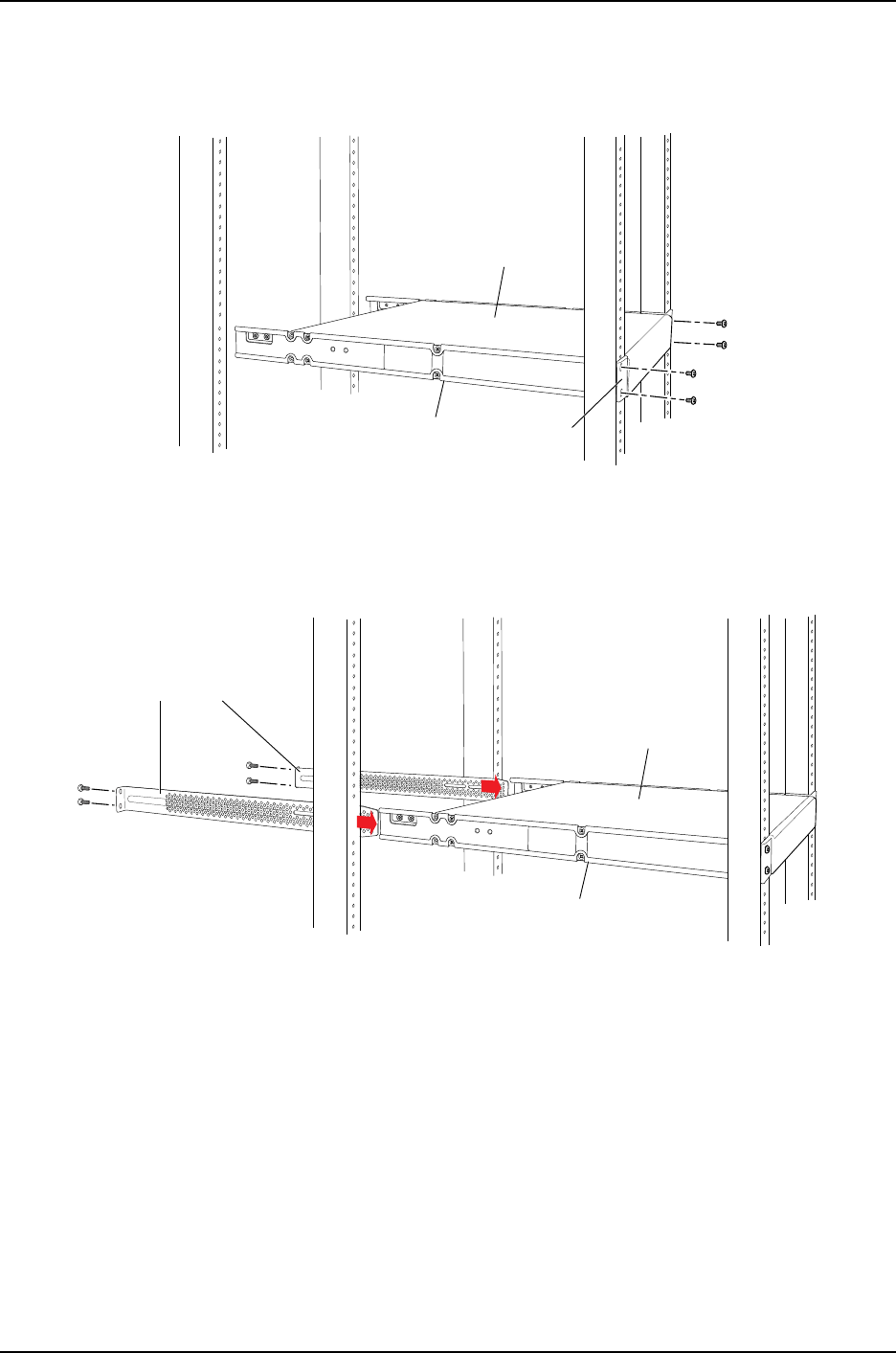

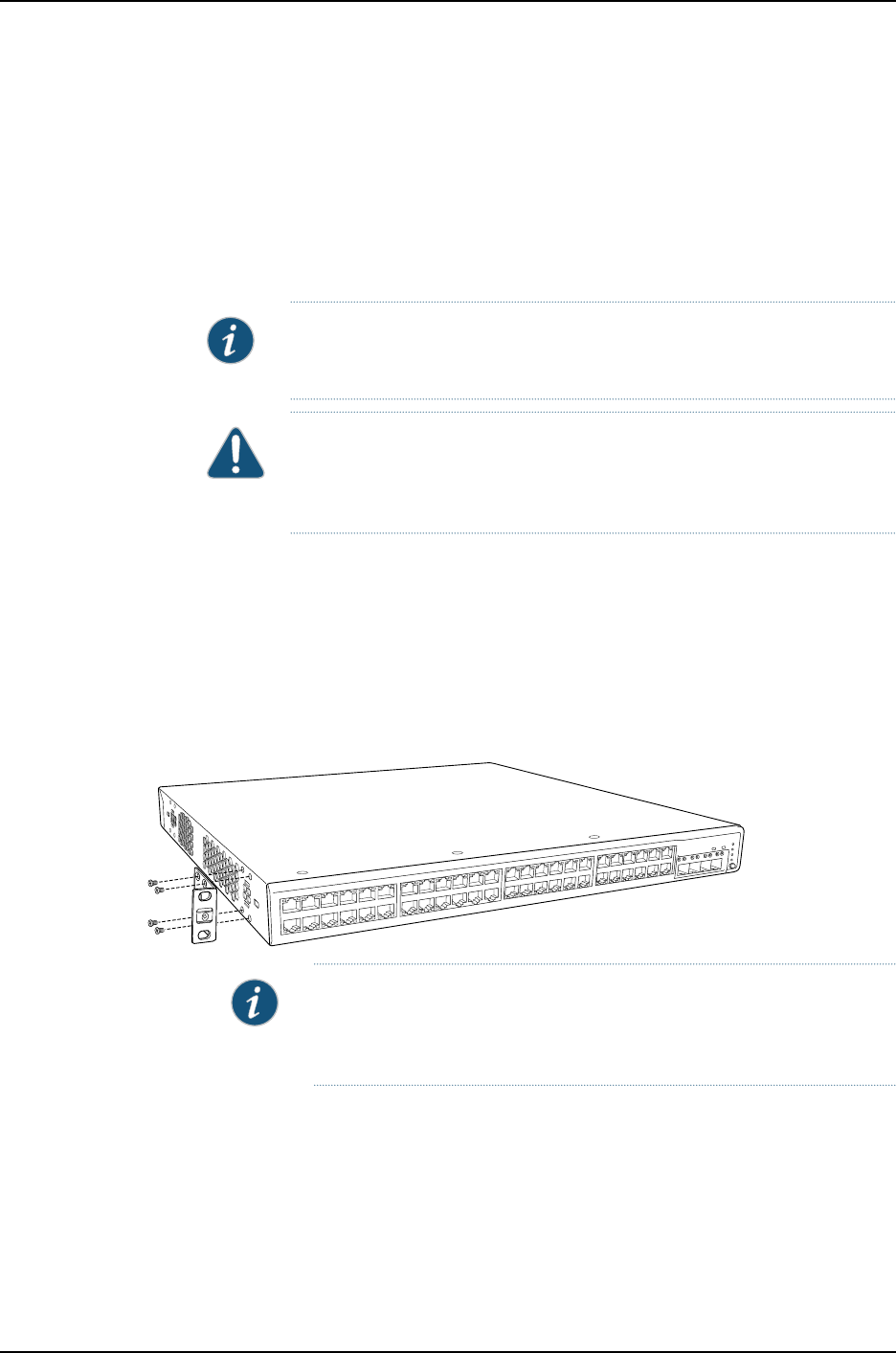

Mounting an EX2200 Switch on Two Posts in a Rack or Cabinet . . . . . . . . . . . . . 55

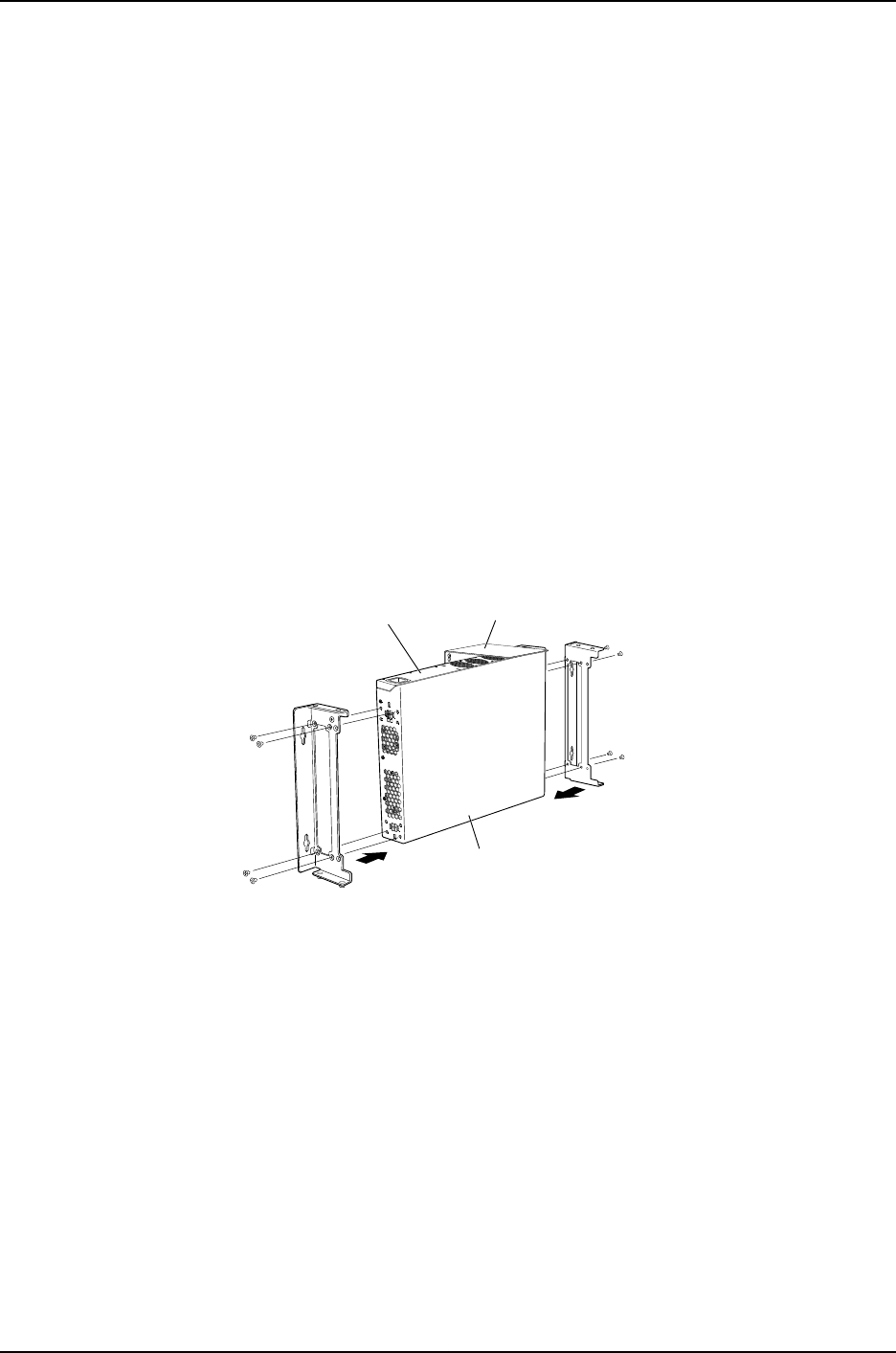

Mounting an EX2200 Switch on Four Posts in a Rack or Cabinet . . . . . . . . . . . . . 57

Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet . . . . . . 61

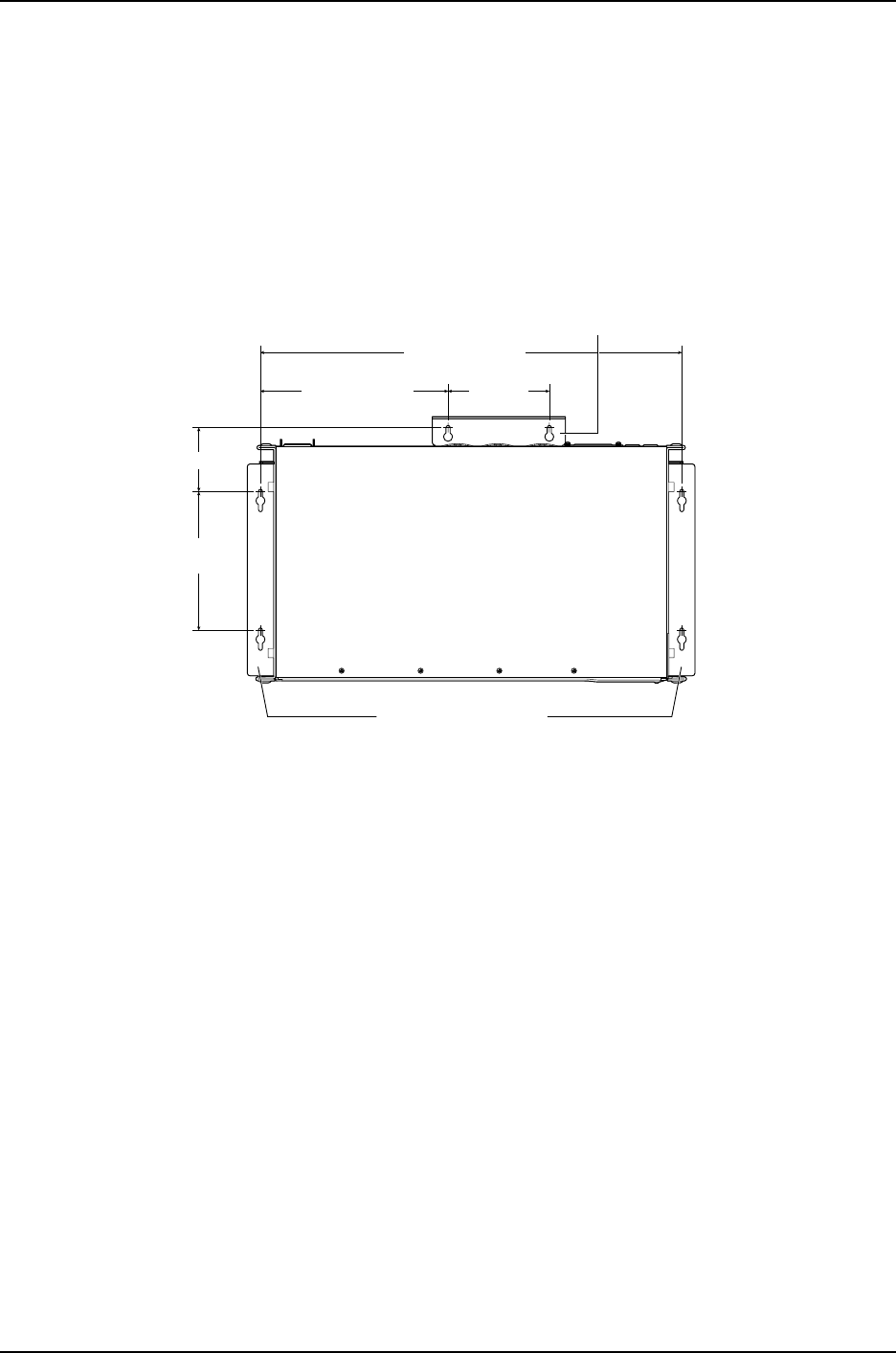

MountinganEX2200SwitchonaWall..................................61

Chapter9 InstallingSwitchComponents......................................65

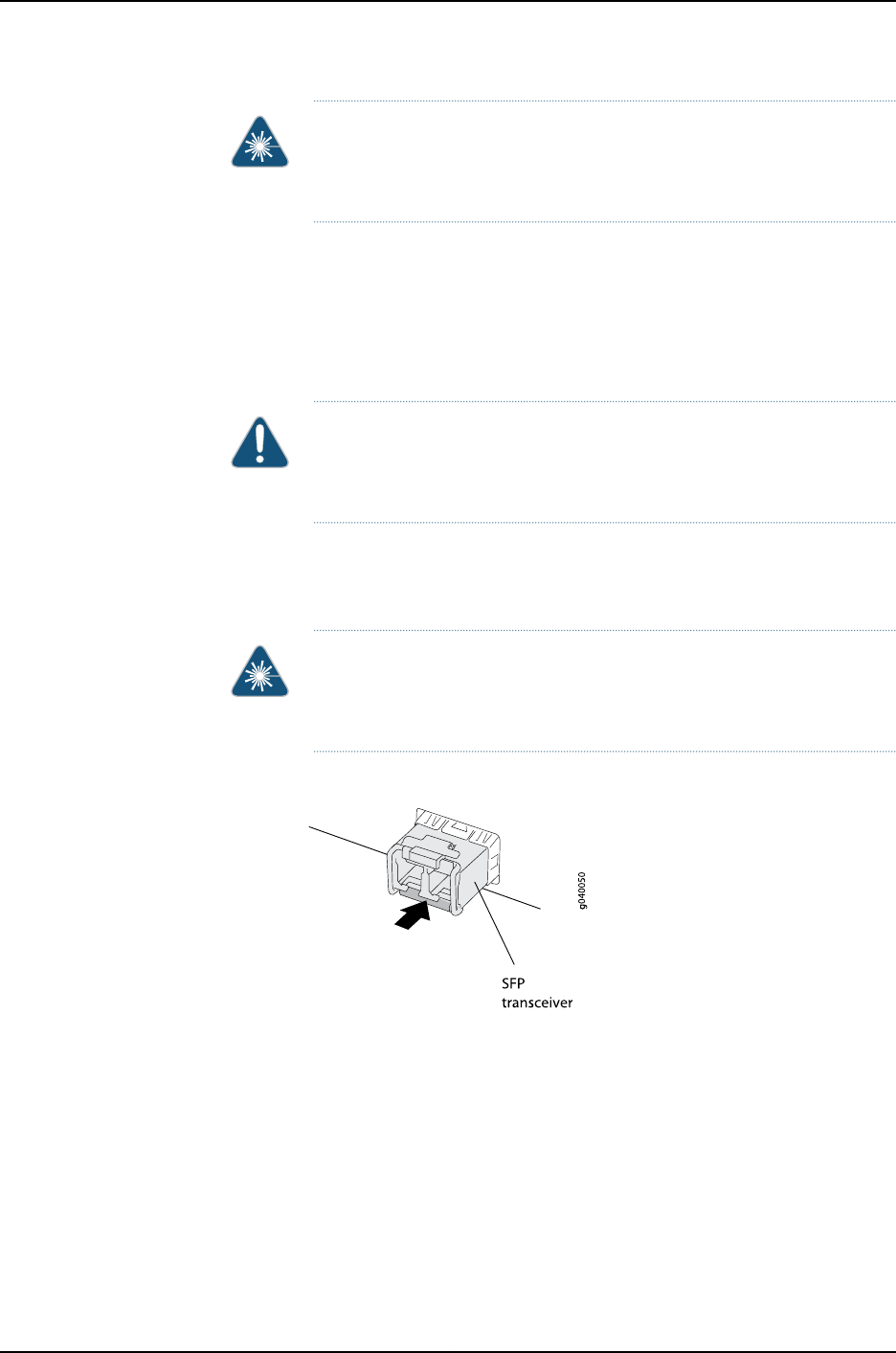

Installing a Transceiver in an EX Series Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Chapter10 ConnectingtheSwitch.............................................67

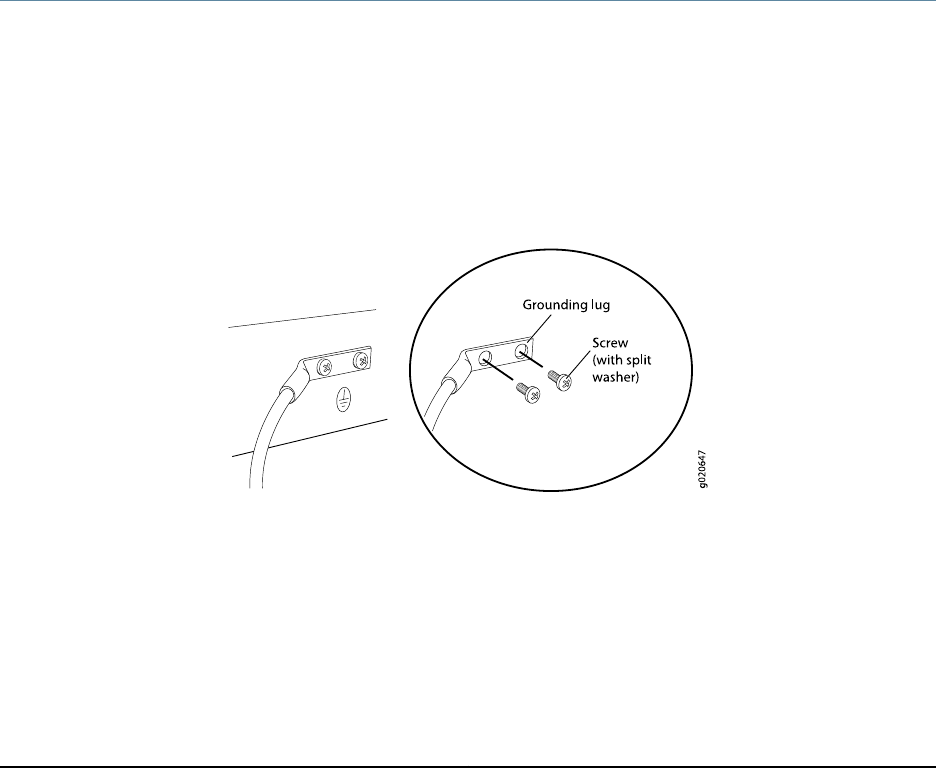

Connecting Earth Ground to an EX Series Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Connecting Earth Ground to an EX2200 or EX3200 Switch . . . . . . . . . . . . . 68

Connecting Earth Ground to an EX4200 Switch . . . . . . . . . . . . . . . . . . . . . . . 69

Connecting Earth Ground to an EX4500 Switch . . . . . . . . . . . . . . . . . . . . . . . 70

Connecting Earth Ground to an EX8208 Switch . . . . . . . . . . . . . . . . . . . . . . . 71

Connecting Earth Ground to an EX8216 Switch . . . . . . . . . . . . . . . . . . . . . . . . 72

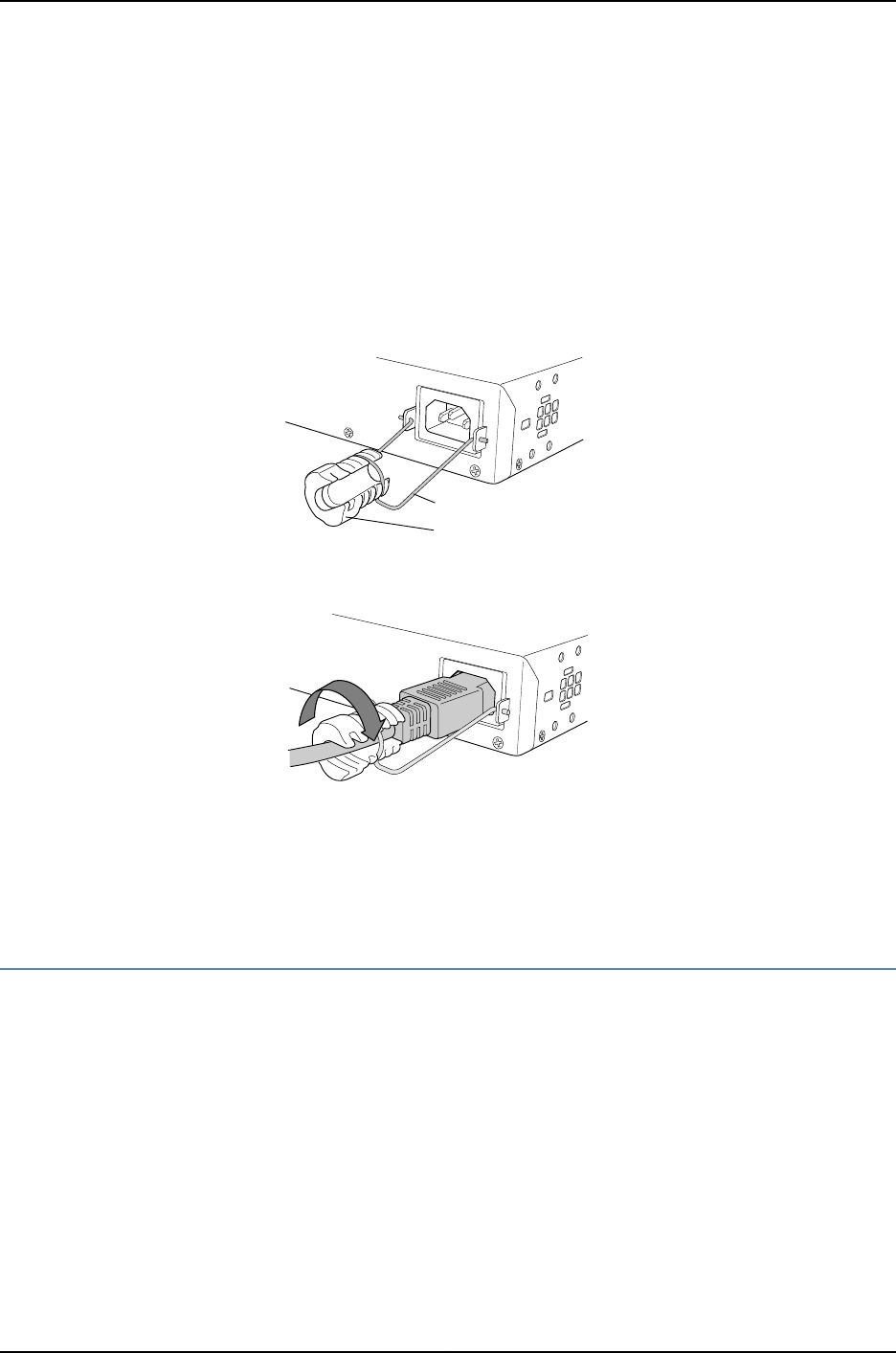

Connecting AC Power to an EX2200 Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

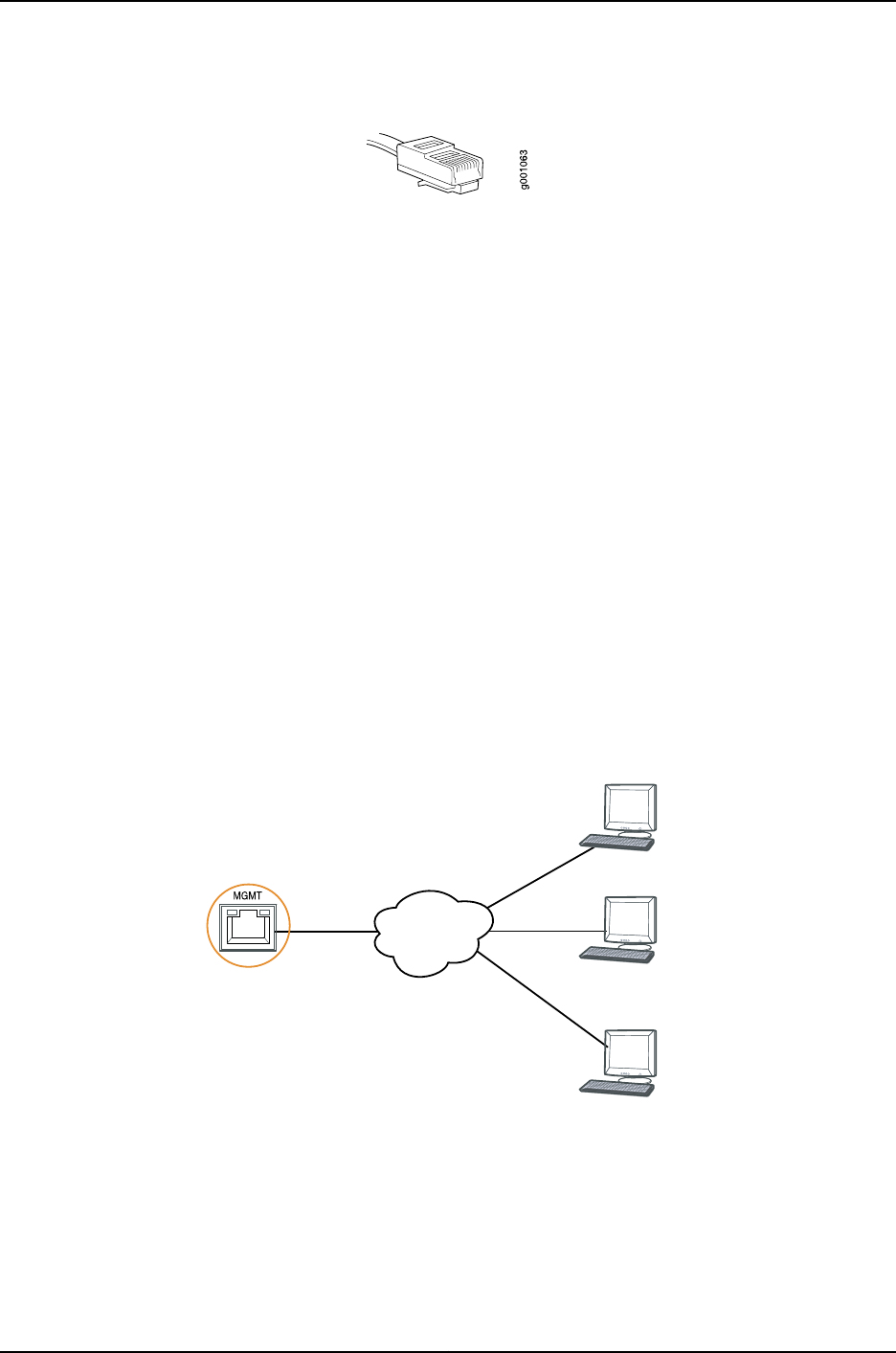

Connecting an EX Series Switch to a Network for Out-of-Band Management . . . 74

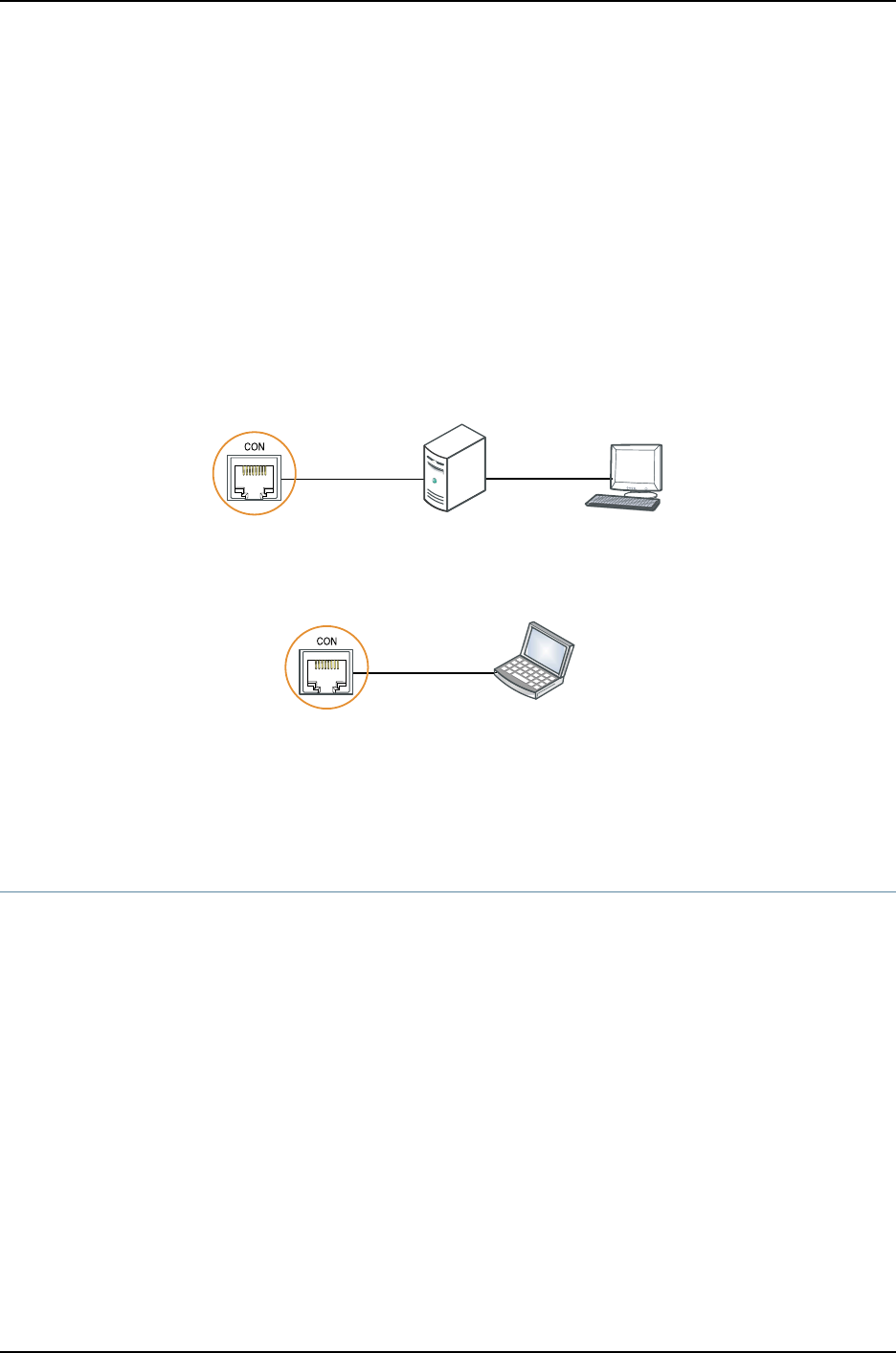

Connecting an EX Series Switch to a Management Console . . . . . . . . . . . . . . . . . 76

Connecting an EX Series Switch to a Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Setting the Serial Console Speed for the Switch . . . . . . . . . . . . . . . . . . . . . . . 78

ConfiguringtheModem..........................................79

Connecting the Modem to the Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Copyright © 2010, Juniper Networks, Inc.viii

Complete Hardware Guide for EX2200 Ethernet Switches

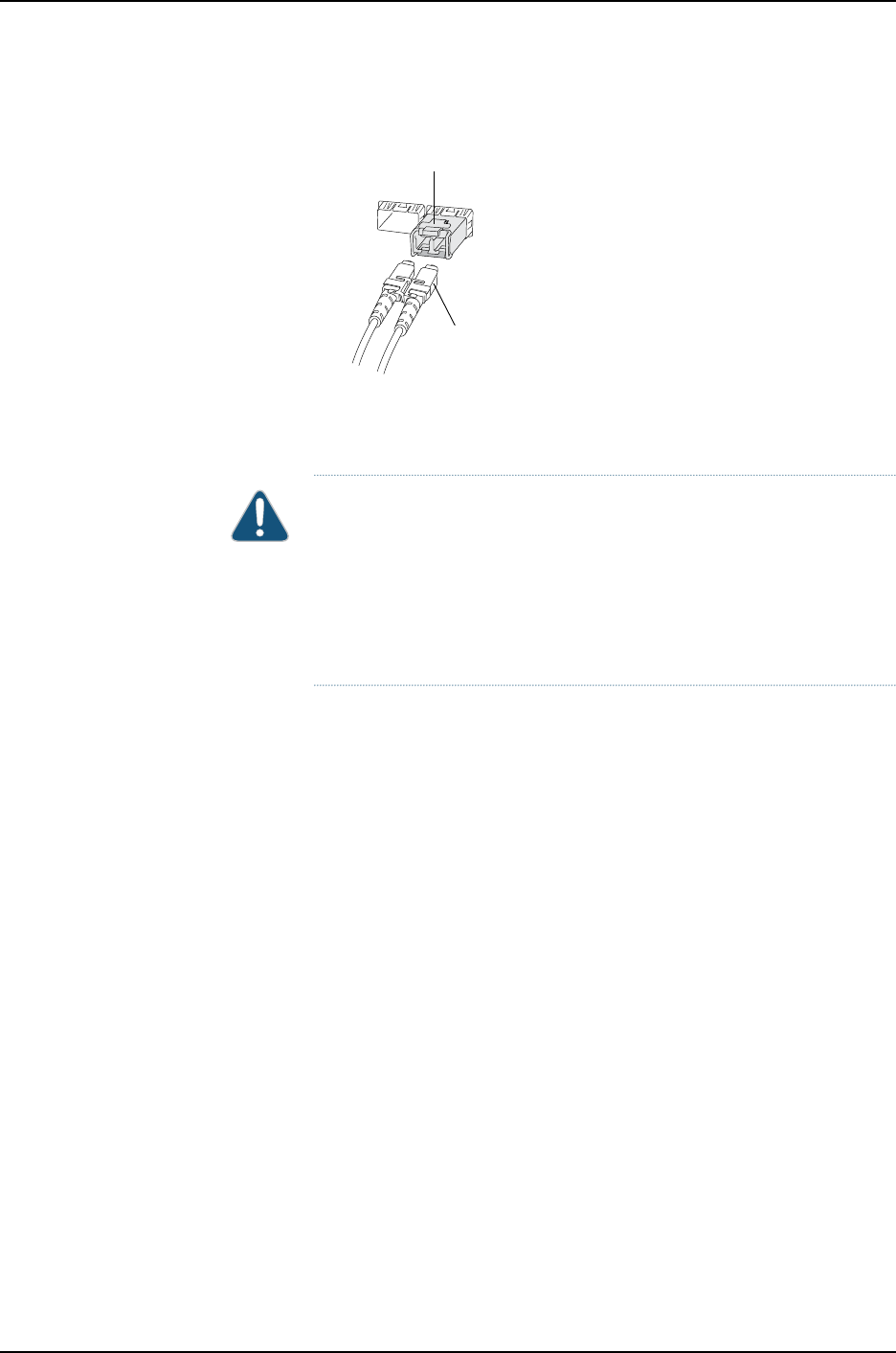

Connecting a Fiber-Optic Cable to an EX Series Switch . . . . . . . . . . . . . . . . . . . . . 81

Chapter 11 Performing Initial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

EX2200 Switch Default Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Connecting and Configuring an EX Series Switch (CLI Procedure) . . . . . . . . . . . . 87

Connecting and Configuring an EX Series Switch (J-Web Procedure) . . . . . . . . . 89

Part 4 Removing Switch Components

Chapter12 RemovingSwitchComponents.....................................95

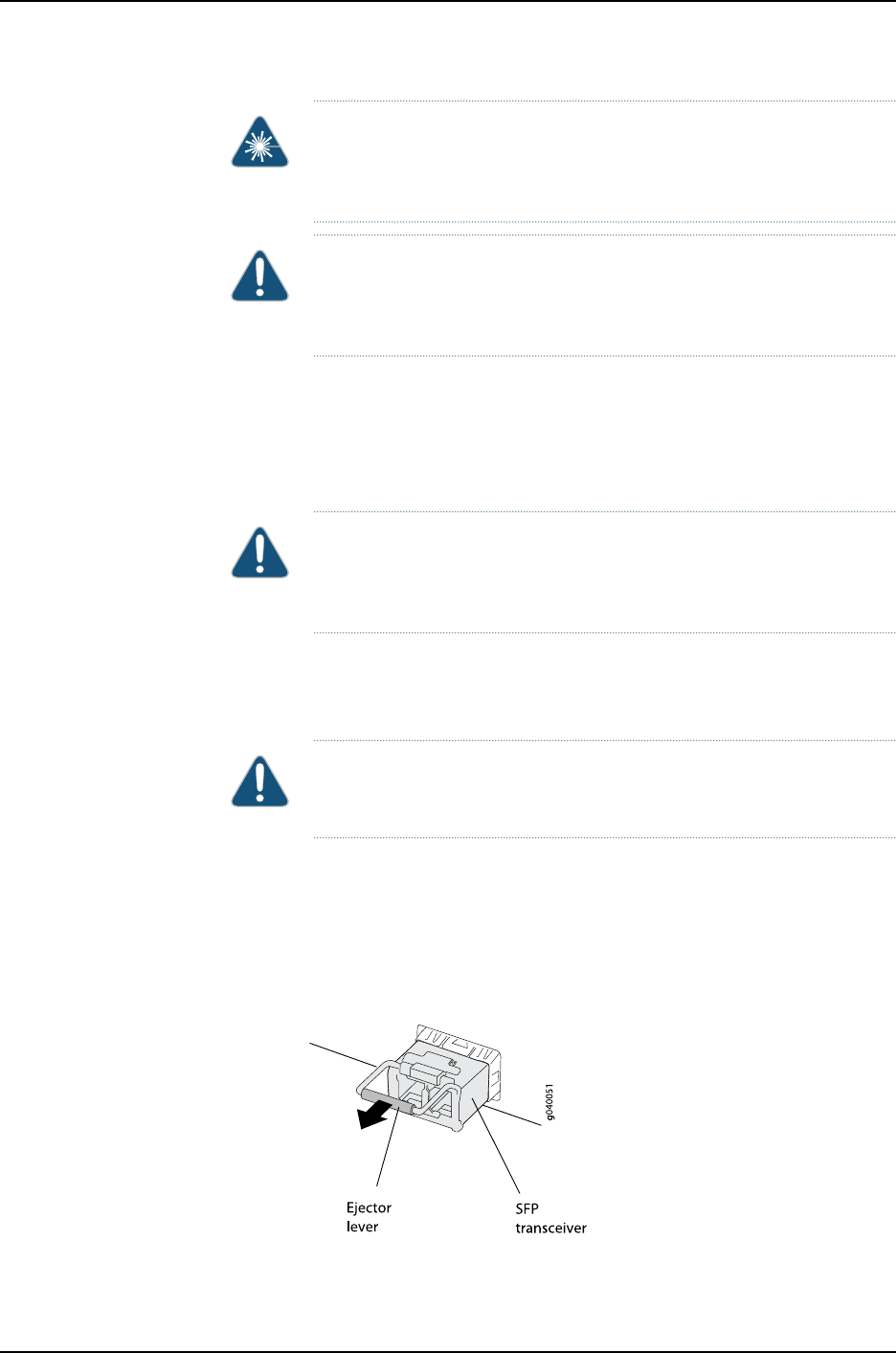

Removing a Transceiver from an EX Series Switch . . . . . . . . . . . . . . . . . . . . . . . . . 95

Disconnecting a Fiber-Optic Cable from an EX Series Switch . . . . . . . . . . . . . . . . 97

Part 5 Switch and Component Maintenance

Chapter13 Routine Maintenance .............................................101

Maintaining Fiber-Optic Cables in EX Series Switches . . . . . . . . . . . . . . . . . . . . . 101

Part 6 Returning Hardware

Chapter 14 Returning the Switch or Switch Components . . . . . . . . . . . . . . . . . . . . . . . . 105

Returning an EX2200 Switch or Component for Repair or Replacement . . . . . . 105

Locating the Serial Number on an EX2200 Switch or Component . . . . . . . . . . . 106

Listing the Switch and Components Details with the CLI . . . . . . . . . . . . . . . 106

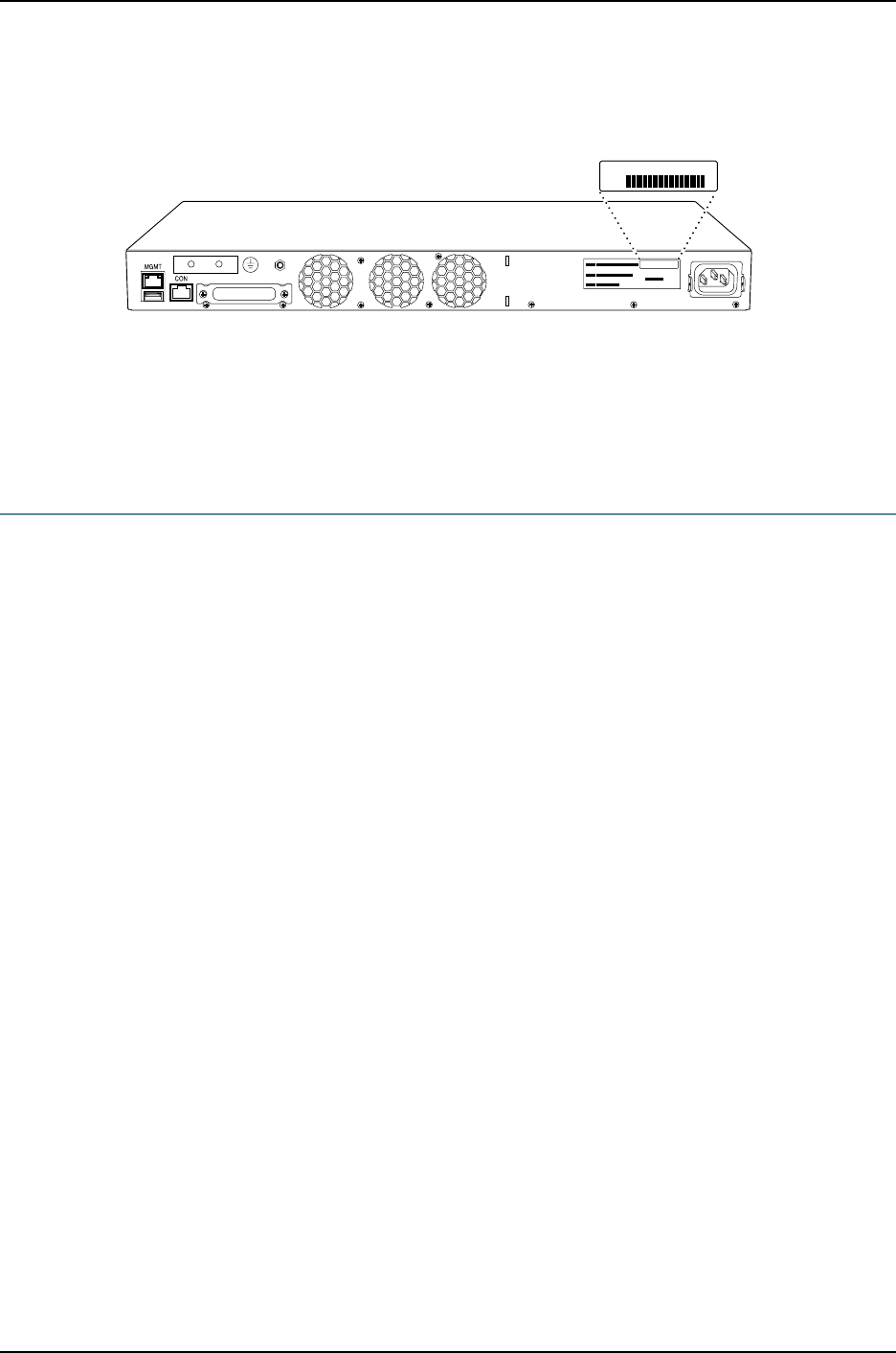

Locating the Chassis Serial Number ID Label on an EX2200 Switch . . . . . . 106

Contacting Customer Support to Obtain Return Materials Authorization for EX

SeriesSwitches................................................107

Packing an EX2200 Switch or Component for Shipping . . . . . . . . . . . . . . . . . . . 108

PackingaSwitchforShipping....................................109

Packing Switch Components for Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Part 7 Safety Information

Chapter15 GeneralSafetyInformation........................................113

General Safety Guidelines and Warnings for EX Series Switches . . . . . . . . . . . . . 113

Definitions of Safety Warning Levels for EX Series Switches . . . . . . . . . . . . . . . . . 114

Fire Safety Requirements for EX Series Switches . . . . . . . . . . . . . . . . . . . . . . . . . 116

Qualified Personnel Warning for EX Series Switches . . . . . . . . . . . . . . . . . . . . . . . 117

Warning Statement for Norway and Sweden for EX Series Switches . . . . . . . . . . 118

Chapter16 RadiationandLaserWarnings......................................121

Laser and LED Safety Guidelines and Warnings for EX Series Switches . . . . . . . . 121

GeneralLaserSafetyGuidelines...................................121

Class1LaserProductWarning.....................................122

Class1LEDProductWarning......................................122

LaserBeamWarning............................................123

Radiation from Open Port Apertures Warning for EX Series Switches . . . . . . . . . 124

Chapter 17 Installation and Maintenance Safety Information . . . . . . . . . . . . . . . . . . . . . 127

Installation Instructions Warning for EX Series Switches . . . . . . . . . . . . . . . . . . . 127

Chassis Lifting Guidelines for EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . 128

ixCopyright © 2010, Juniper Networks, Inc.

Table of Contents

RampWarningforEXSeriesSwitches..................................129

Rack-Mounting and Cabinet-Mounting Warnings for EX Series Switches . . . . . . 129

Wall-Mounting Warnings for EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Grounded Equipment Warning for EX Series Switches . . . . . . . . . . . . . . . . . . . . . 134

Maintenance and Operational Safety Guidelines and Warnings for EX Series

Switches......................................................135

JewelryRemovalWarning........................................135

LightningActivityWarning........................................137

OperatingTemperatureWarning..................................138

ProductDisposalWarning........................................139

Chapter 18 Power and Electrical Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

General Electrical Safety Guidelines and Warnings for EX Series Switches . . . . . 141

Prevention of Electrostatic Discharge Damage on EX Series Switches . . . . . . . . 142

AC Power Electrical Safety Guidelines for EX Series Switches . . . . . . . . . . . . . . . 144

AC Power Disconnection Warning for EX Series Switches . . . . . . . . . . . . . . . . . . 145

TN Power Warning for EX Series Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

In Case of Electrical Accident: Action to Take on an EX Series Switch . . . . . . . . . 147

Part 8 Compliance Information

Chapter19 ComplianceInformation...........................................151

Agency Approvals for EX Series Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Compliance Statements for EMC Requirements for EX Series Switches . . . . . . . 152

Canada.......................................................152

EuropeanCommunity...........................................153

Japan ........................................................153

UnitedStates..................................................153

FCCPart15Statement..........................................153

Non-Regulatory Environmental Standards . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Compliance Statements for Acoustic Noise for EX Series Switches . . . . . . . . . . 154

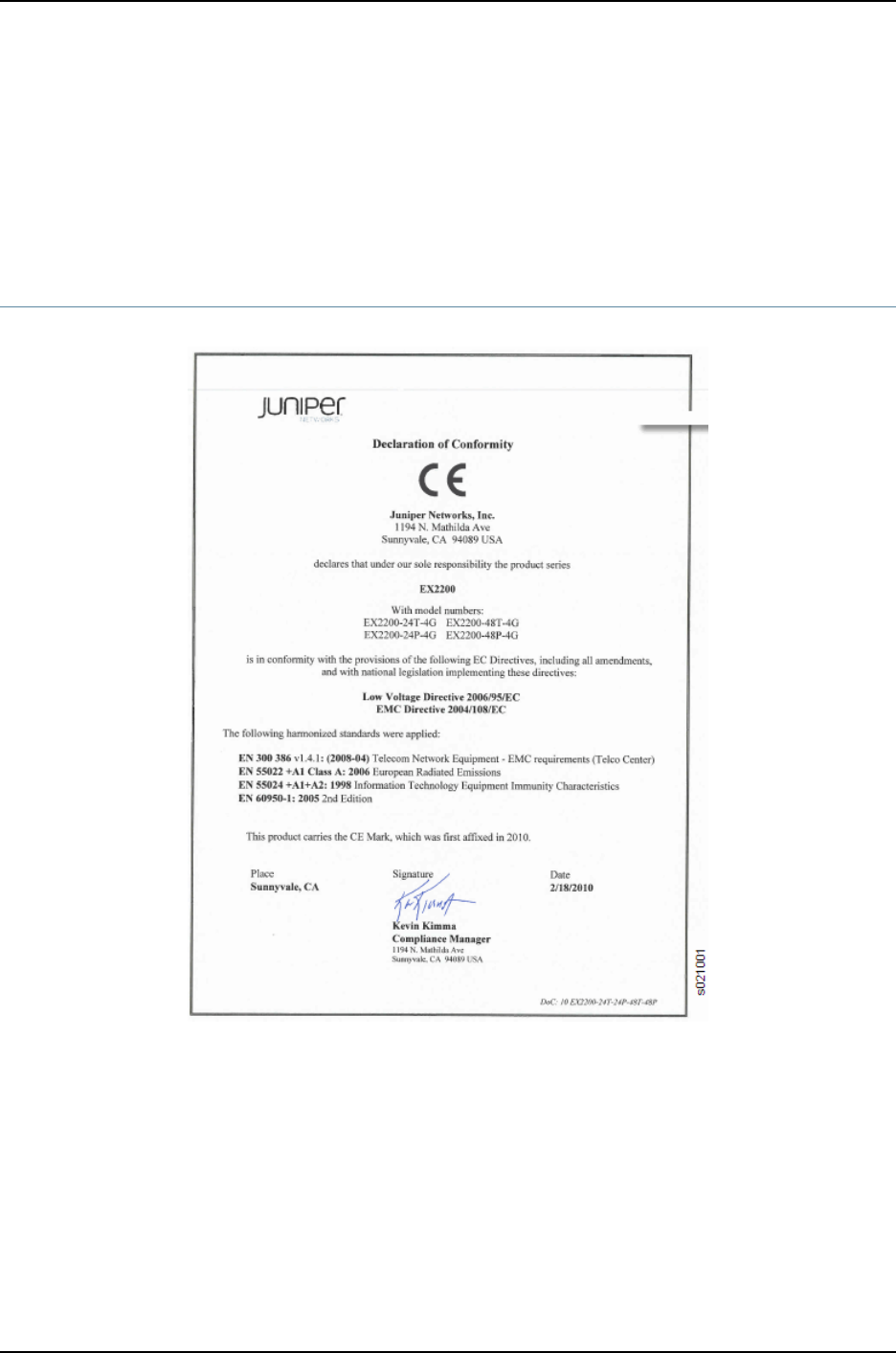

Declaration of Conformity for EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Copyright © 2010, Juniper Networks, Inc.x

Complete Hardware Guide for EX2200 Ethernet Switches

List of Figures

Part 1 Switch and Components Overview and Specifications

Chapter1 EX2200SwitchOverview...........................................3

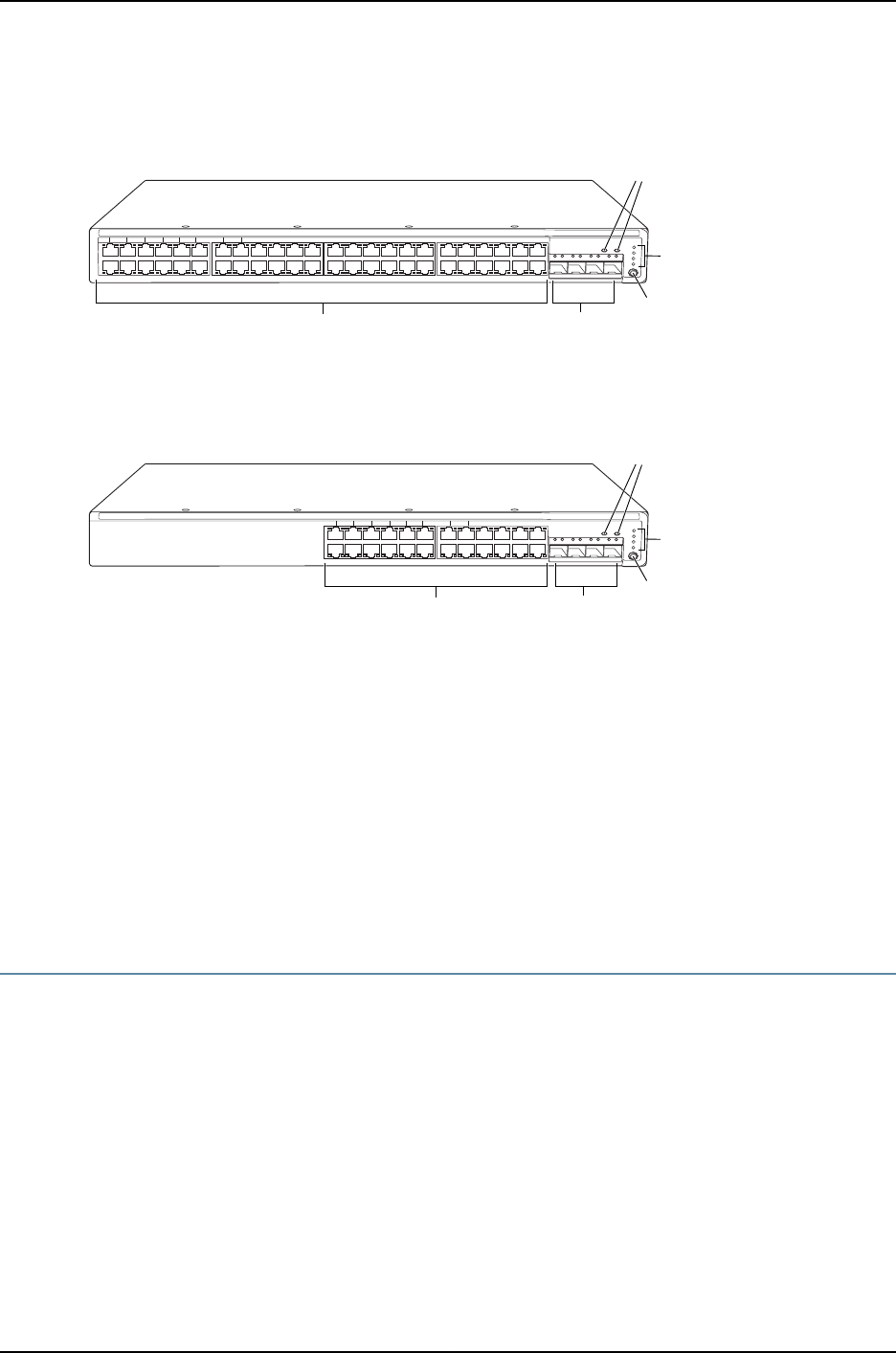

Figure 1: Front Panel of an EX2200 Switch with 48 Gigabit Ethernet Ports . . . . . . 6

Figure 2: Front Panel of an EX2200 Switch with 24 Gigabit Ethernet Ports . . . . . . 6

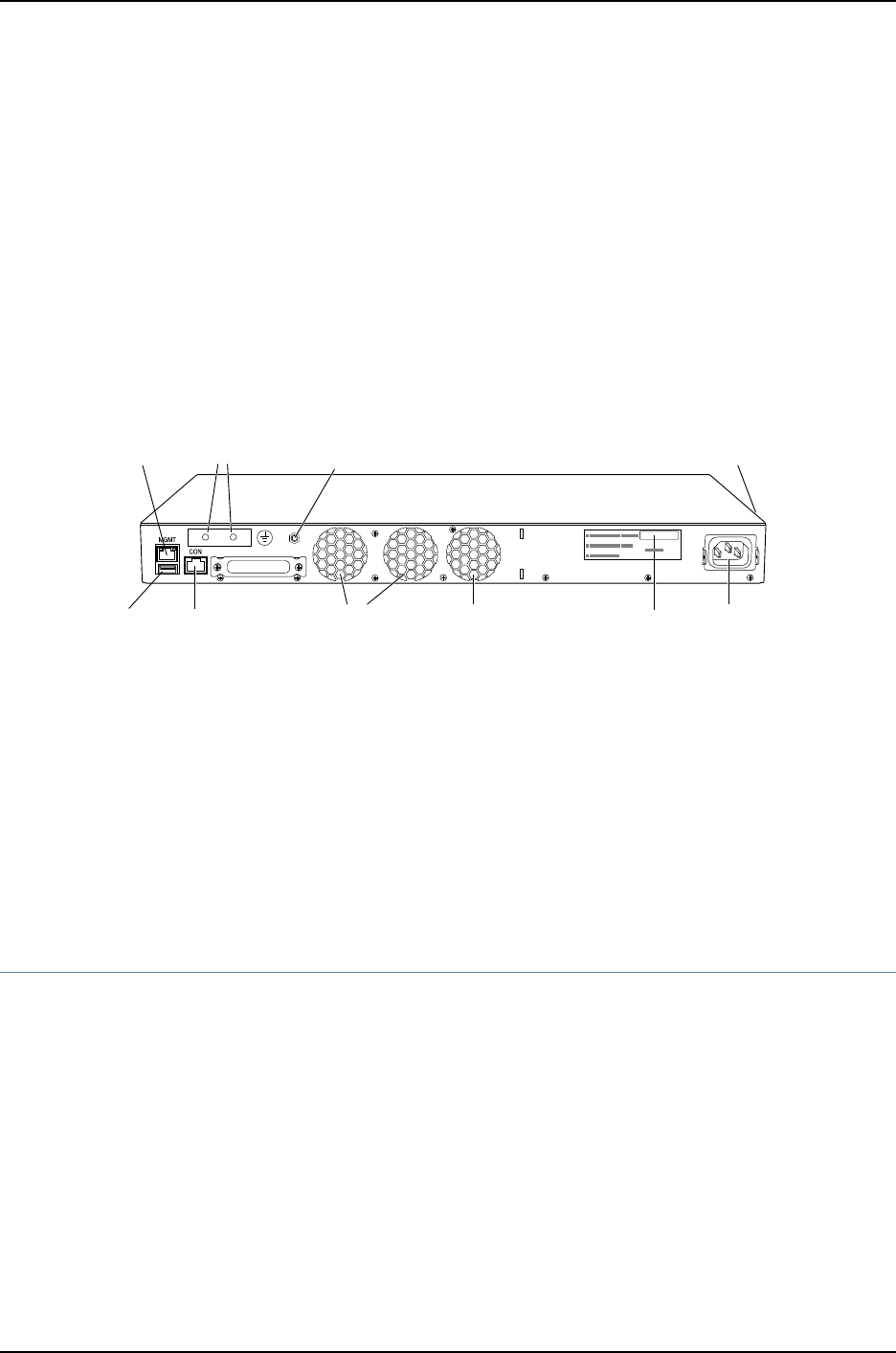

Figure 3: Rear Panel of an EX2200 Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter2 Component Descriptions ...........................................11

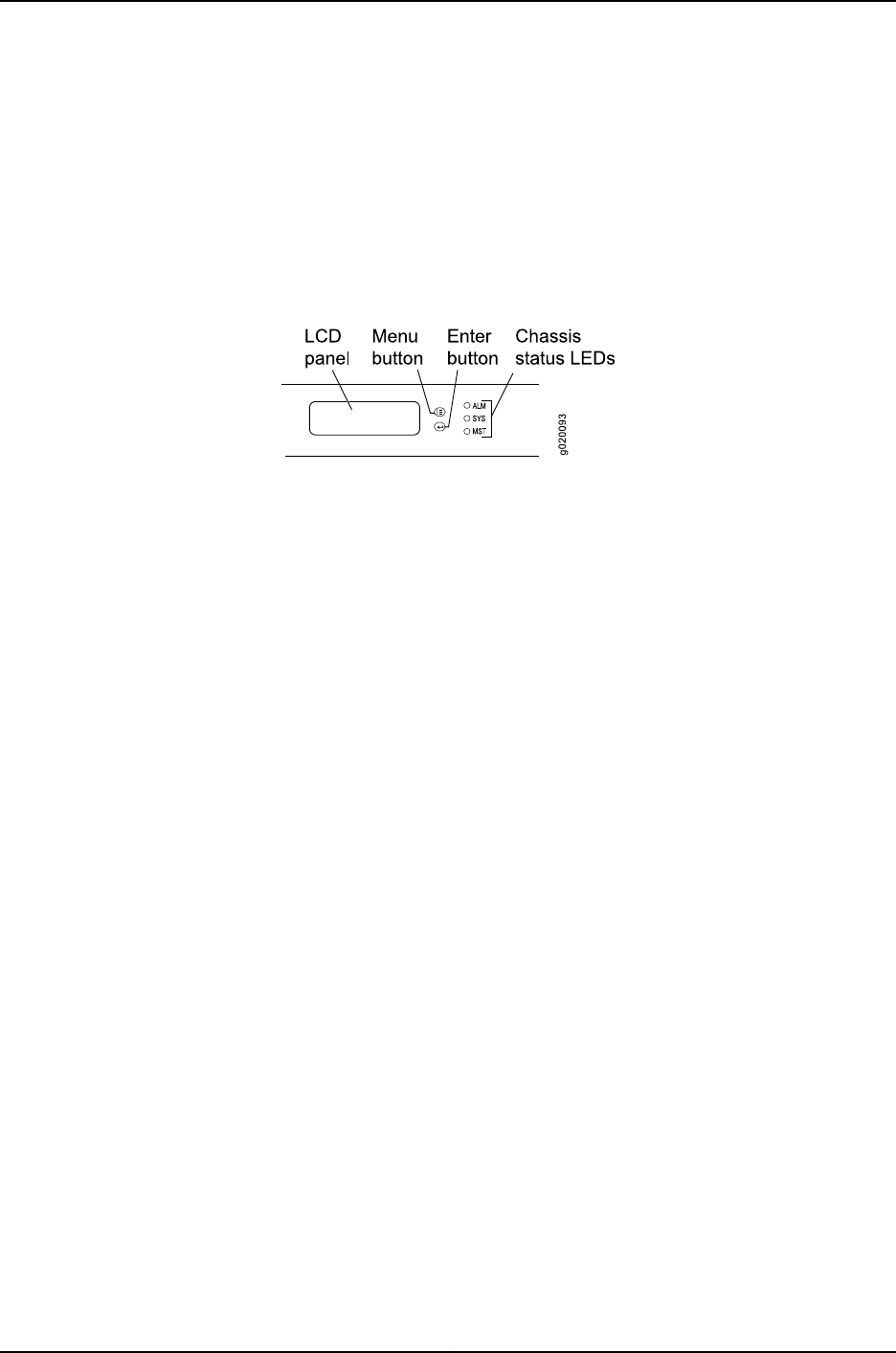

Figure 4: Chassis Status LEDs in an EX2200 Switch . . . . . . . . . . . . . . . . . . . . . . . . 11

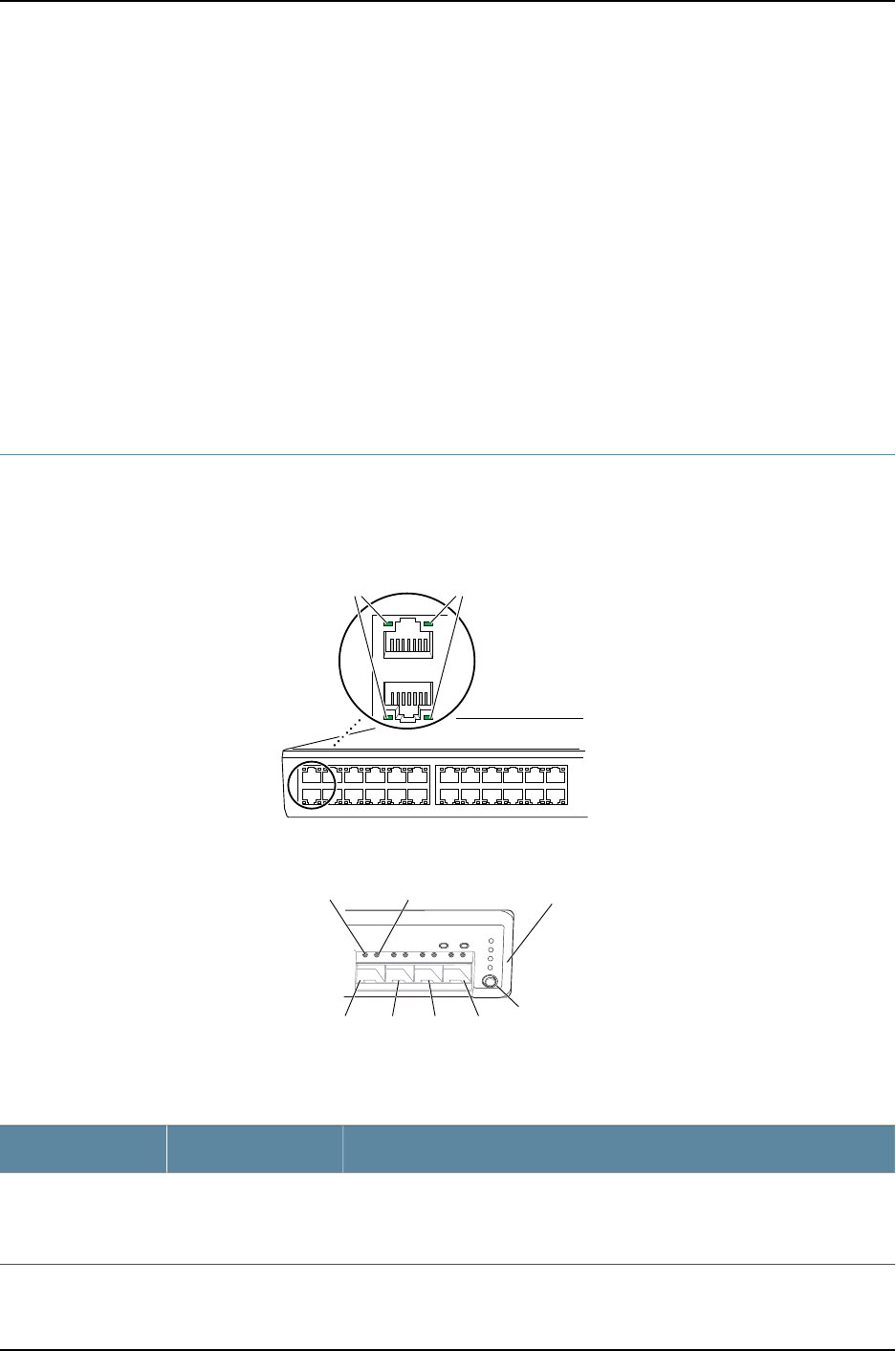

Figure 5: LEDs on the Network Ports on the Front Panel . . . . . . . . . . . . . . . . . . . . . 12

Figure 6: LEDs on the Uplink Ports and Port Status Mode LEDs . . . . . . . . . . . . . . . 12

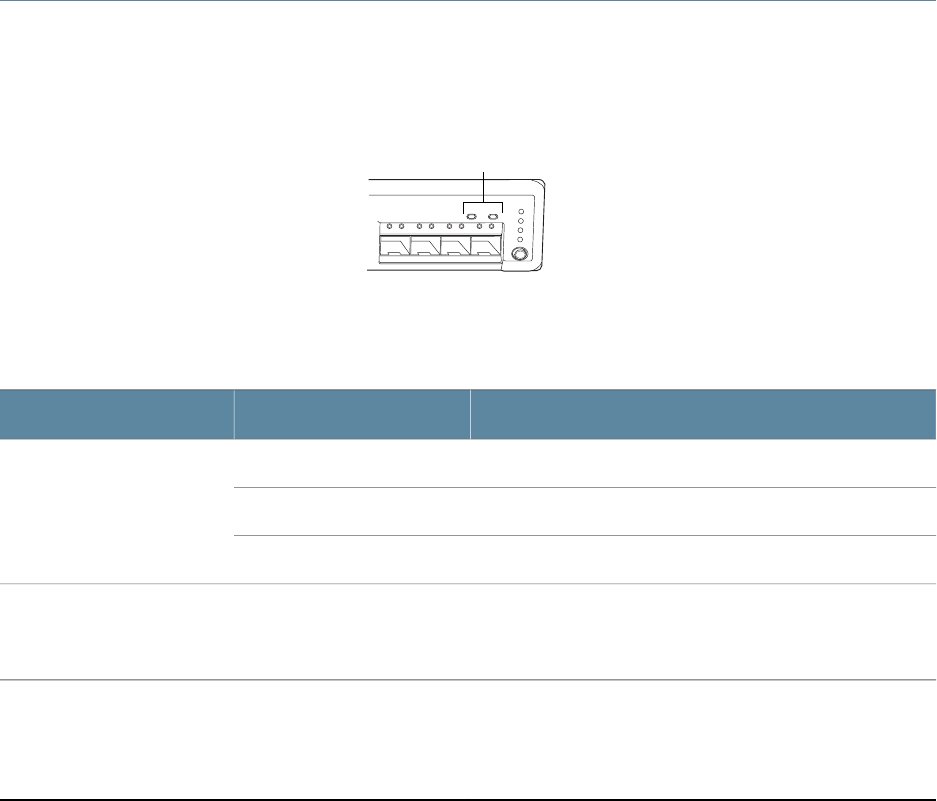

Figure 7: LEDs on the Management Port on an EX2200 Switch . . . . . . . . . . . . . . . 14

Figure 8: Airflow Through Non-PoE Models of EX2200 Switches . . . . . . . . . . . . . 16

Figure 9: Airflow Through PoE Models of EX2200 Switches . . . . . . . . . . . . . . . . . . 16

Part 2 Planning for Switch Installation

Chapter 5 Mounting and Clearance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Figure 10: Clearance Requirements for Airflow and Hardware Maintenance for

EX2200Switches...............................................42

Figure 11: Airflow Through PoE Models of EX2200 Switches . . . . . . . . . . . . . . . . . 43

Figure 12: Airflow Through Non-PoE Models of EX2200 Switches . . . . . . . . . . . . 43

Chapter7 PlanningPowerRequirements......................................47

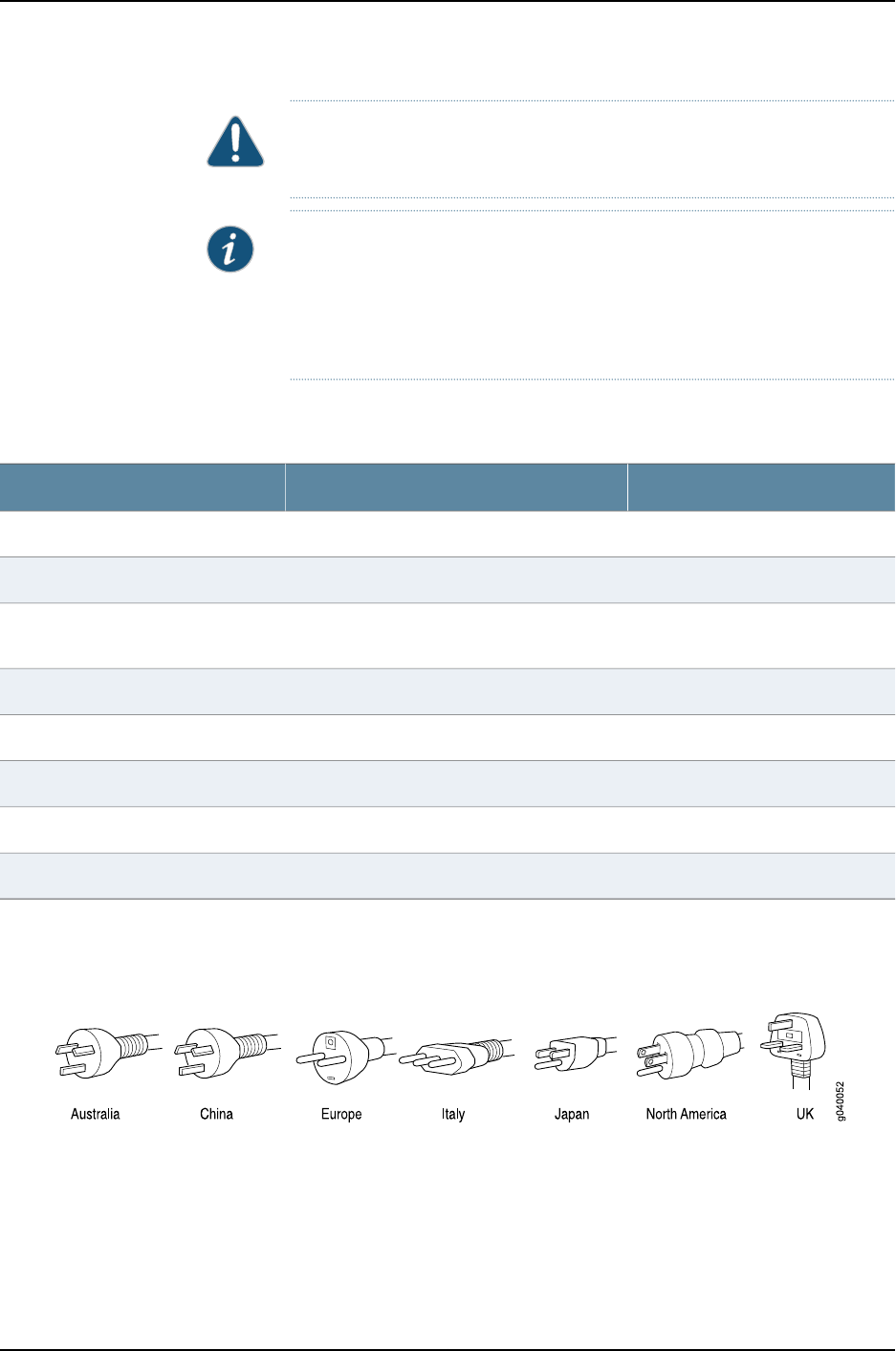

Figure13:ACPlugTypes.............................................48

Part 3 Installing and Connecting the Switch and Switch Components

Chapter8 InstallingtheSwitch...............................................51

Figure 14: Attaching Rubber Feet to a Switch Chassis . . . . . . . . . . . . . . . . . . . . . . 55

Figure 15: Attaching the Mounting Bracket Along the Front of the Switch . . . . . . 56

Figure 16: Mounting the Switch on Two Posts in a Rack . . . . . . . . . . . . . . . . . . . . . 57

Figure 17: Attaching the Front Bracket to the Side-Rail Bracket . . . . . . . . . . . . . . . 59

Figure 18: Attaching the Side-Rail Bracket to the Switch Chassis . . . . . . . . . . . . . 59

Figure 19: Mounting the Switch to the Front Posts in a Rack . . . . . . . . . . . . . . . . . 60

Figure 20: Sliding the Rear Brackets to the Rear of a Four-Post Rack . . . . . . . . . . 60

Figure 21: Attaching Wall-Mount Brackets to a Switch Chassis . . . . . . . . . . . . . . . 62

Figure 22: Measuring for Mounting Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Figure 23: Mounting a Switch on a Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Chapter9 InstallingSwitchComponents......................................65

Figure 24: Installing a Transceiver in an EX Series Switch . . . . . . . . . . . . . . . . . . . 66

xiCopyright © 2010, Juniper Networks, Inc.

Chapter10 ConnectingtheSwitch.............................................67

Figure 25: Connecting a Grounding Cable to an EX Series Switch . . . . . . . . . . . . . 67

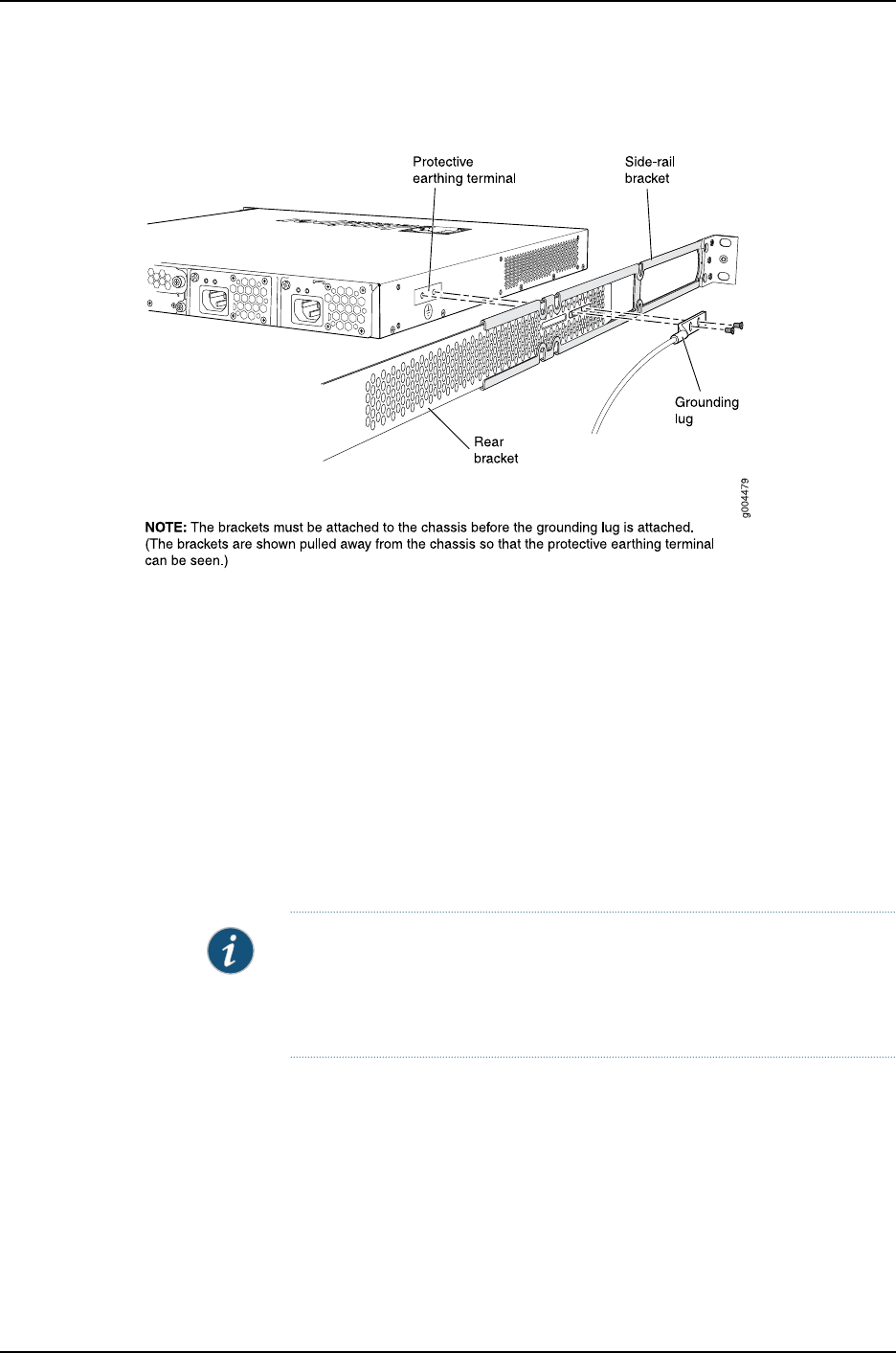

Figure 26: Connecting the Grounding Lug to an EX4200 Switch on a Four-Post

Rack..........................................................70

Figure 27: Connecting an AC Power Cord Retainer Clip to the AC Power Cord

InletonanEX2200Switch........................................74

Figure 28: Connecting an AC Power Cord to the AC Power Cord Inlet on an

EX2200Switch.................................................74

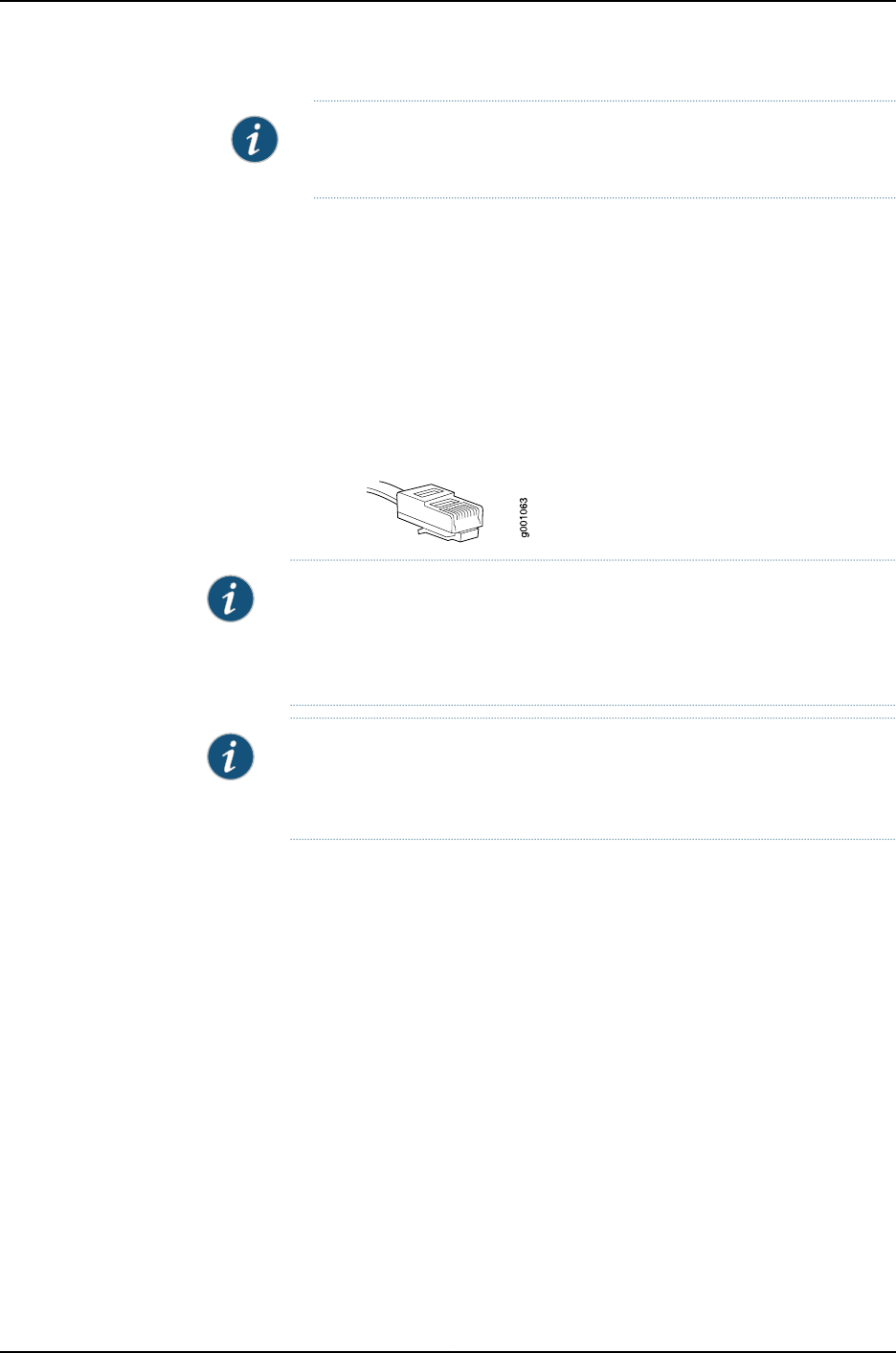

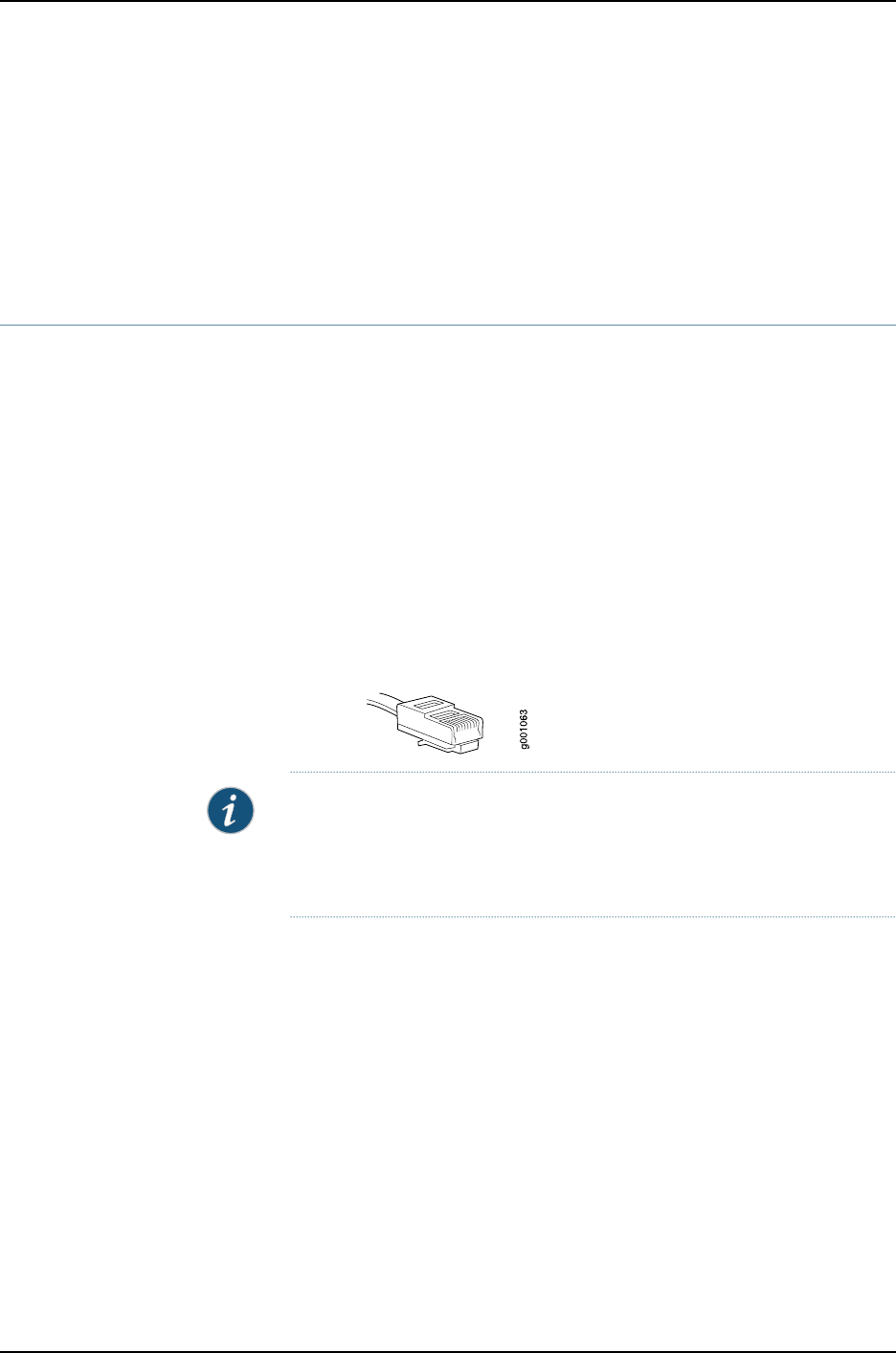

Figure29:EthernetCableConnector....................................75

Figure 30: Connecting an EX Series Switch to a Network for Out-of-Band

Management...................................................75

Figure31:EthernetCableConnector....................................76

Figure 32: Connecting an EX Series Switch to a Management Console Through

aConsoleServer................................................77

Figure 33: Connecting an EX Series Switch Directly to a Management

Console .......................................................77

Figure34:EthernetCableConnector...................................80

Figure 35: Connecting a Fiber-Optic Cable to an Optical Transceiver Installed in

anEXSeriesSwitch.............................................82

Chapter 11 Performing Initial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Figure 36: LCD Panel in an EX3200, EX4200, EX4500, or EX8200 Switch . . . . . 90

Part 4 Removing Switch Components

Chapter12 RemovingSwitchComponents.....................................95

Figure 37: Removing a Transceiver from an EX Series Switch . . . . . . . . . . . . . . . . 96

Part 6 Returning Hardware

Chapter 14 Returning the Switch or Switch Components . . . . . . . . . . . . . . . . . . . . . . . . 105

Figure 38: Location of the Serial Number ID Label on EX2200 Switches . . . . . . . 107

Part 7 Safety Information

Chapter 18 Power and Electrical Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Figure 39: Place a Component into an Antistatic Bag . . . . . . . . . . . . . . . . . . . . . . 143

Copyright © 2010, Juniper Networks, Inc.xii

Complete Hardware Guide for EX2200 Ethernet Switches

List of Tables

Part 1 Switch and Components Overview and Specifications

Chapter1 EX2200SwitchOverview...........................................3

Table1:EX2200SwitchModels.........................................4

Table 2: Physical Specifications of the EX2200 Switch Chassis . . . . . . . . . . . . . . . 5

Table 3: CLI Equivalents of Terms Used in Documentation for EX2200

Switches .......................................................8

Chapter2 Component Descriptions ...........................................11

Table 4: Chassis Status LEDs in an EX2200 Switch . . . . . . . . . . . . . . . . . . . . . . . . . 11

Table 5: Link/Activity LED on the Network Ports and Uplink Ports in EX2200

Switches.......................................................12

Table 6: Status LED on the Network Ports and Uplink Ports in EX2200

Switches.......................................................13

Table 7: Link/Activity LED on the Management Port on an EX2200 Switch . . . . . . 14

Table 8: Status LED on the Management Port on an EX2200 Switch . . . . . . . . . . 14

Table 9: Power Consumed by EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Chapter3 Component Specifications .........................................19

Table 10: Network Port Connector Pinout Information for EX2200 Switches . . . . 20

Table 11: EX Series Switches Console Port Connector Pinout Information . . . . . . . 21

Table 12: Management Port Connector Pinout Information for EX2200

Switches ......................................................22

Table 13: Optical Interface Support and Copper Interface Support for Gigabit

Ethernet SFP Transceivers in EX2200 Switches . . . . . . . . . . . . . . . . . . . . . . . 23

Table 14: Optical Interface Support for Fast Ethernet SFP Transceivers in EX2200

Switches ......................................................27

Part 2 Planning for Switch Installation

Chapter4 SitePreparation...................................................33

Table15:SitePreparationChecklist....................................33

Table 16: Site Electrical Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 17: EX Series Switch Environmental Tolerances . . . . . . . . . . . . . . . . . . . . . . 37

Chapter 5 Mounting and Clearance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 18: Rack Requirements and Specifications for the Switch . . . . . . . . . . . . . . 39

Table 19: Cabinet Requirements and Specifications for the Switch . . . . . . . . . . . . 41

Chapter7 PlanningPowerRequirements......................................47

Table 20: AC Power Supply Electrical Specifications for EX2200 Switches . . . . . 47

Table 21: AC Power Cord Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

xiiiCopyright © 2010, Juniper Networks, Inc.

Part 3 Installing and Connecting the Switch and Switch Components

Chapter8 InstallingtheSwitch...............................................51

Table 22: Inventory of Components Provided with an EX2200 Switch . . . . . . . . . 52

Chapter10 ConnectingtheSwitch.............................................67

Table23:PortSettings...............................................79

Copyright © 2010, Juniper Networks, Inc.xiv

Complete Hardware Guide for EX2200 Ethernet Switches

About This Topic Collection

•How to Use This Guide on page xv

•List of EX Series Guides for Junos OS Release 10.4 on page xv

•Downloading Software on page xvii

•Documentation Symbols Key on page xviii

•Documentation Feedback on page xix

•Requesting Technical Support on page xx

How to Use This Guide

Complete documentation for the EX Series product family is provided on webpages at

http://www.juniper.net/techpubs/en_US/release-independent/information-products/

pathway-pages/ex-series/product/index.html. We have selected content from these

webpages and created a number of EX Series guides that collect related topics into a

book-like format so that the information is easy to print and easy to download to your

local computer.

This guide, Complete Hardware Guide for EX2200 Switches, collects together information

about the EX2200 fixed-configuration switches. The release notes are at

http://www.juniper.net/techpubs/en_US/junos10.4/information-products/topic-collections/

release-notes/10.4/junos-release-notes-10.4.pdf.

List of EX Series Guides for Junos OS Release 10.4

DescriptionTitle

Component descriptions, site preparation, installation,

replacement, and safety and compliance information

for EX2200 Ethernet switches

Complete Hardware Guide for EX2200 Ethernet Switches

Component descriptions, site preparation, installation,

replacement, and safety and compliance information

for EX3200 Ethernet switches

Complete Hardware Guide for EX3200 Ethernet Switches

Component descriptions, site preparation, installation,

replacement, and safety and compliance information

for EX4200 Ethernet switches

Complete Hardware Guide for EX4200 Ethernet Switches

xvCopyright © 2010, Juniper Networks, Inc.

DescriptionTitle

Component descriptions, site preparation, installation,

replacement, and safety and compliance information

for EX4500 Ethernet switches

Complete Hardware Guide for EX4500 Ethernet Switches

Component descriptions, site preparation, installation,

replacement, and safety and compliance information

for EX8208 Ethernet switches

Complete Hardware Guide for EX8208 Ethernet Switches

Component descriptions, site preparation, installation,

replacement, and safety and compliance information

for EX8216 Ethernet switches

Complete Hardware Guide for EX8216 Ethernet Switches

Component descriptions, site preparation, installation,

replacement, and safety and compliance information

for the XRE200 External Routing Engine

Complete Hardware Guide for the XRE200 External Routing Engine

Software feature descriptions, configuration examples,

and tasks for Junos OS for EX Series switches

Complete Software Guide for Junos®OS for EX Series Ethernet Switches,

Release 10.4

Software feature descriptions, configuration examples

and tasks, and reference pages for configuration

statements and operational commands (This

information also appears in the Complete Software

Guide for Junos®OS for EX Series Ethernet Switches,

Release 10.4.)

Software Topic Collections

Junos®OS for EX Series Ethernet Switches, Release 10.4: EX4200 Virtual

Chassis

Junos®OS for EX Series Ethernet Switches, Release 10.4: EX8200 Virtual

Chassis

Junos®OS for EX Series Ethernet Switches, Release 10.4: Access Control

Junos®OS for EX Series Ethernet Switches, Release 10.4: Configuration

Management

Junos®OS for EX Series Ethernet Switches, Release 10.4: Class of Service

Junos®OS for EX Series Ethernet Switches, Release 10.4: Device Security

Junos®OS for EX Series Ethernet Switches, Release 10.4: Ethernet

Switching

Junos®OS for EX Series Ethernet Switches, Release 10.4: Fibre Channel

over Ethernet

Junos®OS for EX Series Ethernet Switches, Release 10.4: High Availability

Junos®OS for EX Series Ethernet Switches, Release 10.4: Interfaces

Copyright © 2010, Juniper Networks, Inc.xvi

Complete Hardware Guide for EX2200 Ethernet Switches

DescriptionTitle

Junos®OS for EX Series Ethernet Switches, Release 10.4: Layer 3

Protocols

Junos®OS for EX Series Ethernet Switches, Release 10.4: MPLS

Junos®OS for EX Series Ethernet Switches, Release 10.4: Multicast

Junos®OS for EX Series Switches, Release 10.4: Network Management

and Monitoring

Junos®OS for EX Series Switches, Release 10.4: Port Security

Junos®OS for EX Series Ethernet Switches, Release 10.4: Routing Policy

and Packet Filtering

Junos®OS for EX Series Ethernet Switches, Release 10.4: Software

Installation

Junos®OS for EX Series Ethernet Switches, Release 10.4: Spanning-Tree

Protocols

Junos®OS for EX Series Ethernet Switches, Release 10.4: System

Monitoring

Junos®OS for EX Series Ethernet Switches, Release 10.4: System Services

Junos®OS for EX Series Ethernet Switches, Release 10.4: System Setup

Junos®OS for EX Series Ethernet Switches, Release 10.4: User and Access

Management

Junos®OS for EX Series Ethernet Switches, Release 10.4: User Interfaces

Downloading Software

You can download Junos OS for EX Series switches from the Download Software area

at http://www.juniper.net/customers/support/ . To download the software, you must

have a Juniper Networks user account. For information about obtaining an account, see

http://www.juniper.net/entitlement/setupAccountInfo.do.

xviiCopyright © 2010, Juniper Networks, Inc.

About This Topic Collection

Documentation Symbols Key

Notice Icons

DescriptionMeaningIcon

Indicates important features or instructions.Informational note

Indicates a situation that might result in loss of data or hardware

damage.

Caution

Alerts you to the risk of personal injury or death.Warning

Alerts you to the risk of personal injury from a laser.Laser warning

Text and Syntax Conventions

ExamplesDescriptionConvention

To enter configuration mode, type the

configure command:

user@host> configure

Represents text that you type.Bold text like this

user@host> show chassis alarms

No alarms currently active

Represents output that appears on the

terminal screen.

Fixed-width text like this

•A policy term is a named structure that

defines match conditions and actions.

•Junos OS System Basics Configuration

Guide

•RFC 1997, BGP Communities Attribute

•Introduces important new terms.

•Identifies book names.

•Identifies RFC and Internet draft titles.

Italic text like this

Configure the machine’s domain name:

[edit]

root@# set system domain-name

domain-name

Represents variables (options for which

you substitute a value) in commands or

configuration statements.

Italic text like this

•To configure a stub area, include the

stub statement at the [edit protocols

ospf area area-id] hierarchy level.

•The console port is labeled CONSOLE.

Represents names of configuration

statements, commands, files, and

directories; IP addresses; configuration

hierarchy levels; or labels on routing

platform components.

Plain text like this

stub <default-metric metric>;Enclose optional keywords or variables.< > (angle brackets)

Copyright © 2010, Juniper Networks, Inc.xviii

Complete Hardware Guide for EX2200 Ethernet Switches

Text and Syntax Conventions

ExamplesDescriptionConvention

broadcast | multicast

(string1 |string2 |string3)

Indicates a choice between the mutually

exclusive keywords or variables on either

side of the symbol. The set of choices is

often enclosed in parentheses for clarity.

| (pipe symbol)

rsvp { # Required for dynamic MPLS onlyIndicates a comment specified on the

same line as the configuration statement

to which it applies.

# (pound sign)

community name members [

community-ids ]

Enclose a variable for which you can

substitute one or more values.

[ ] (square brackets)

[edit]

routing-options {

static {

route default {

nexthop address;

retain;

}

}

}

Identify a level in the configuration

hierarchy.

Indention and braces ( { } )

Identifies a leaf statement at a

configuration hierarchy level.

; (semicolon)

J-Web GUI Conventions

•In the Logical Interfaces box, select All

Interfaces.

•To cancel the configuration, click

Cancel.

Represents J-Web graphical user

interface (GUI) items you click or select.

Bold text like this

In the configuration editor hierarchy,

select Protocols>Ospf.

Separates levels in a hierarchy of J-Web

selections.

>(bold right angle bracket)

Documentation Feedback

We encourage you to provide feedback, comments, and suggestions so that we can

improve the documentation. Send e-mail to techpubs-comments@juniper.net with the

following:

•Document URL or title

•Page number if applicable

•Software version

•Your name and company

xixCopyright © 2010, Juniper Networks, Inc.

About This Topic Collection

Requesting Technical Support

Technical product support is available through the Juniper Networks Technical Assistance

Center (JTAC). If you are a customer with an active J-Care or JNASC support contract,

or are covered under warranty, and need post-sales technical support, you can access

our tools and resources online or open a case with JTAC.

•JTAC policies—For a complete understanding of our JTAC procedures and policies,

review the JTAC User Guide located at

http://www.juniper.net/us/en/local/pdf/resource-guides/7100059-en.pdf .

•Product warranties—For product warranty information, visit

http://www.juniper.net/support/warranty/ .

•JTAC hours of operation—The JTAC centers have resources available 24 hours a day,

7 days a week, 365 days a year.

Self-Help Online Tools and Resources

For quick and easy problem resolution, Juniper Networks has designed an online

self-service portal called the Customer Support Center (CSC) that provides you with the

following features:

•Find CSC offerings: http://www.juniper.net/customers/support/

•Search for known bugs: http://www2.juniper.net/kb/

•Find product documentation: http://www.juniper.net/techpubs/

•Find solutions and answer questions using our Knowledge Base: http://kb.juniper.net/

•Download the latest versions of software and review release notes:

http://www.juniper.net/customers/csc/software/

•Search technical bulletins for relevant hardware and software notifications:

https://www.juniper.net/alerts/

•Join and participate in the Juniper Networks Community Forum:

http://www.juniper.net/company/communities/

•Open a case online in the CSC Case Management tool: http://www.juniper.net/cm/

To verify service entitlement by product serial number, use our Serial Number Entitlement

(SNE) Tool: https://tools.juniper.net/SerialNumberEntitlementSearch/

Opening a Case with JTAC

You can open a case with JTAC on the Web or by telephone.

•Use the Case Management tool in the CSC at http://www.juniper.net/cm/ .

•Call 1-888-314-JTAC (1-888-314-5822 toll-free in the USA, Canada, and Mexico).

For international or direct-dial options in countries without toll-free numbers, see

http://www.juniper.net/support/requesting-support.html .

Copyright © 2010, Juniper Networks, Inc.xx

Complete Hardware Guide for EX2200 Ethernet Switches

PART 1

Switch and Components Overview and

Specifications

•EX2200 Switch Overview on page 3

•Component Descriptions on page 11

•Component Specifications on page 19

1Copyright © 2010, Juniper Networks, Inc.

Copyright © 2010, Juniper Networks, Inc.2

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 1

EX2200 Switch Overview

•EX2200 Switches Hardware Overview on page 3

•EX2200 Switch Models on page 4

•Chassis Physical Specifications for EX2200 Switches on page 5

•Front Panel of an EX2200 Switch on page 5

•Rear Panel of an EX2200 Switch on page 6

•EX2200 Switch Hardware and CLI Terminology Mapping on page 7

EX2200 Switches Hardware Overview

Juniper Networks EX Series Ethernet Switches provide scalable connectivity for the

enterprise market, including branch offices, campus locations, and data centers. The

switches run under the Juniper Networks Junos operating system (Junos OS), which

provides Layer 2 and Layer 3 switching, routing, and security services. The same Junos

OS code base that runs on EX Series switches also runs on all Juniper Networks J Series,

M Series, MX Series, and T Series routers.

•EX2200 Switches on page 3

•Uplink Ports on page 3

•Power over Ethernet (PoE) Ports on page 4

EX2200 Switches

Juniper Networks EX2200 Ethernet switches provide connectivity for low-density

environments.

EX2200 switches are available in models with either 24 or 48 built-in network ports and

four uplink ports, with Power over Ethernet (PoE) either available in all built-in network

ports or not available in any built-in network port. All models provide network ports that

have 10/100/1000Base-T Gigabit Ethernet connectors and four uplink ports. These

switches run under Junos OS for EX Series switches.

Uplink Ports

Each EX2200 switch has four uplink ports that support 1-gigabit small form-factor

pluggable (SFP) transceivers for use with fiber connections and copper connections.

See “Optical Interface Support in EX2200 Switches” on page 22.

3Copyright © 2010, Juniper Networks, Inc.

Power over Ethernet (PoE) Ports

PoE ports provide electrical current to devices through the network cables so that separate

power cords for devices such as IP phones, wireless access points, and security cameras

are unnecessary. EX2200 switches are available with full (all 24 or 48 built-in network

ports) or no PoE capability. Full PoE models are primarily used in IP telephony

environments.

EX2200 switches running Junos OS Release 10.3 or later can supply up to 30 W to

individual PoE ports, supporting powered devices that comply with IEEE 802.3af (PoE)

and IEEE 802.3at (PoE+).

NOTE: IEEE 802.3at class 4 powered devices require category 5 or higher

Ethernet cables.

EX2200 switches running Junos OS Release 10.2 or earlier can supply up to 15.4 W to

individual PoE ports, supporting powered devices that comply with IEEE 802.3af (PoE).

Related

Documentation

EX2200 Switch Models on page 4•

•Site Preparation Checklist for EX2200 Switches on page 33

EX2200 Switch Models

The EX2200 switch is available with 24 or 48 built-in network ports with full (all 24 or

48 built-in network ports) or no Power over Ethernet (PoE) capability. Table 1 on page 4

lists the EX2200 switch models.

Table 1: EX2200 Switch Models

Maximum PoE Power

AvailablePorts in Which PoE Is AvailableAccess PortsModel

––24 Gigabit EthernetEX2200-24T-4G

405 WAll 24 ports24 Gigabit EthernetEX2200-24P-4G

––48 Gigabit EthernetEX2200-48T-4G

405 WAll 48 ports48 Gigabit EthernetEX2200-48P-4G

Related

Documentation

Front Panel of an EX2200 Switch on page 5•

•EX2200 Switches Hardware Overview on page 3

Copyright © 2010, Juniper Networks, Inc.4

Complete Hardware Guide for EX2200 Ethernet Switches

Chassis Physical Specifications for EX2200 Switches

The EX2200 switch chassis is a rigid sheet-metal structure that houses the hardware

components. Table 2 on page 5 summarizes the physical specifications of the EX2200

switch chassis.

Table 2: Physical Specifications of the EX2200 Switch Chassis

ValueDescription

1.75 in. (4.45 cm)Chassis height

•17.5 in. (44.5 cm)

•19 in. (48.2 cm) with mounting brackets attached

Chassis width

10.5 in. (26.7 cm)Chassis depth

•EX2200-24T: 6 lb (2.7 kg)

•EX2200-24P: 8 lb (3.6 kg)

•EX2200-48T: 8 lb (3.6 kg)

•EX2200-48P: 10 lb (4.5 kg)

Weight

Related

Documentation

Rack Requirements for EX2200 Switches on page 39•

•Cabinet Requirements for EX2200 Switches on page 40

•Mounting an EX2200 Switch on page 53

•Installing and Connecting an EX2200 Switch on page 51

Front Panel of an EX2200 Switch

The front panel of an EX2200 switch consists of the following components:

•Network ports—depending on the switch model, either of:

•24 or 48 10/100/1000Base-T Gigabit Ethernet ports, with Power over Ethernet (PoE)

not available in EX2200-24T and EX2200-48T

•24 or 48 10/100/1000Base-T Gigabit Ethernet ports, with Power over Ethernet (PoE)

available in EX2200-24P and EX2200-48P

•4 built-in SFP uplink ports

•2 chassis status LEDs

•4 port status mode LEDs

•Mode button

Figure 1 on page 6 shows the front panel of an EX2200 switch with 48 Gigabit Ethernet

ports. Figure 2 on page 6 shows the front panel of an EX2200 switch with 24 Gigabit

Ethernet ports.

5Copyright © 2010, Juniper Networks, Inc.

Chapter 1: EX2200 Switch Overview

Figure 1: Front Panel of an EX2200 Switch with 48 Gigabit Ethernet Ports

012345678910 11 12 13 14 15 1617 1819 20 21 22 23 2425 2627 2829 30 31 3233 34 35 3637 3839 40 41 4243 4445

0 1 2

SYS

ALM

SPD

DX

EN

POE

3

46 47

Network

ports

Port status mode LEDs

Mode

button

SFP

uplink

ports

Chassis

status

LEDs

g027000

Figure 2: Front Panel of an EX2200 Switch with 24 Gigabit Ethernet Ports

012345678910 11 12 13 14 15 1617 1819 20 21 22 23

0 1 2

SYS

ALM

SPD

DX

EN

POE

3

Network

ports

Chassis

status

LEDs

g027002

SFP

uplink

ports

Port status mode LEDs

Mode

button

Related

Documentation

Chassis Status LEDs in EX2200 Switches on page 11•

•Network Port and Uplink Port LEDs in EX2200 Switches on page 12

•Network Port Connector Pinout Information for an EX2200 Switch on page 20

•Rear Panel of an EX2200 Switch on page 6

•Installing a Transceiver in an EX Series Switch on page 65

•Removing a Transceiver from an EX Series Switch on page 95

•Installing and Connecting an EX2200 Switch on page 51

Rear Panel of an EX2200 Switch

The rear panel of the EX2200 switch consists of the following components:

•Management Ethernet port

•USB port

•Console port

•Protective earthing terminal

•ESD point

•Air exhaust

Copyright © 2010, Juniper Networks, Inc.6

Complete Hardware Guide for EX2200 Ethernet Switches

•Serial number ID label

•AC power cord inlet

Figure 3 on page 7 shows the rear panel of an EX2200 switch.

All EX2200 switches have three exhaust openings on the rear panel. The two leftmost

exhaust openings have fans behind them and are open. The rightmost exhaust opening

is open on Power over Ethernet (PoE) models and closed on non-PoE models. On PoE

models, this opening exhausts the air from the fan at the air intake for the power supply

on the side panel.

The power cord retainer clips extend out of the chassis by 3 in.

Figure 3: Rear Panel of an EX2200 Switch

g027001

USB

port

Management

Ethernet port

Console

port

Protective

earthing terminal

Air exhaust without fan

(closed on non-PoE models)

Air exhaust

with fan

AC power

cord inlet

ESD

point

EX2200-24-4G REV: X1

750-026464 REV: X3

MAC: 00:23:9C:oE:19:00

Mfg. Date

20090227

MADE IN CHINA

Serial number

ID label

Air intake with fan for power supply

(fan on PoE models only)

Related

Documentation

Front Panel of an EX2200 Switch on page 5•

•USB Port Specifications for an EX Series Switch on page 19

•Cooling System and Airflow in an EX2200 Switch on page 15

•Power Supply in EX2200 Switches on page 14

•Prevention of Electrostatic Discharge Damage on EX Series Switches on page 142

•Connecting Earth Ground to an EX Series Switch on page 67

•Installing and Connecting an EX2200 Switch on page 51

EX2200 Switch Hardware and CLI Terminology Mapping

This topic describes the hardware terms used in EX2200 switch documentation and the

corresponding terms used in the Junos OS command line interface (CLI). See Table 3 on

page 8.

7Copyright © 2010, Juniper Networks, Inc.

Chapter 1: EX2200 Switch Overview

Table 3: CLI Equivalents of Terms Used in Documentation for EX2200 Switches

Additional

Information

Item in

DocumentationValue (CLI)Description (CLI)Hardware Item (CLI)

“Chassis Physical

Specifications for

EX2200 Switches” on

page 5

Switch chassis–One of the following:

•EX2200-24T-4G

•EX2200-24P-4G

•EX2200-48T-4G

•EX2200-48P-4G

Chassis

Understanding

Interface Naming

Conventions on EX

Series Switches

The switch does not

have actual FPCs. In

this case, FPC refers to

the switch itself.

Value of nis always 0.Abbreviated name of

the Flexible PIC

Concentrator (FPC)

One of the following:

•EX2200-24T-4G

•EX2200-24P-4G

•EX2200-48T-4G

•EX2200-48P-4G

FPC (n)

Understanding

Interface Naming

Conventions on EX

Series Switches

The switch does not

have actual PIC

devices; see entries for

PIC 0 through PIC 1 for

the equivalent item on

the switch.

nis a value in the range

of 0-1.

Abbreviated name of

the Physical Interface

Card (PIC)

PIC (n)

“Front Panel of an

EX2200 Switch” on

page 5

Built-in network ports

on the front panel of

the switch

PIC 0One of the following:

•24x 10/100/1000

Base-T

•48x 10/100/1000

Base-T

“Front Panel of an

EX2200 Switch” on

page 5

Built-in uplink ports on

the front panel of the

switch

PIC 14x GE SFP

“Optical Interface

Support in EX2200

Switches” on page 22

Optical transceiversnis a value equivalent

to the number of the

port in which the

transceiver is installed.

Abbreviated name of

the transceiver

Xcvr (n)

“Power Supply in

EX2200 Switches” on

page 14

AC power supplyValue of nis always 0.Built-in power supplyPower supply (n)

“Cooling System and

Airflow in an EX2200

Switch” on page 15

Fan tray–Fan trayFan tray

Copyright © 2010, Juniper Networks, Inc.8

Complete Hardware Guide for EX2200 Ethernet Switches

Related

Documentation

•EX Series Switches Hardware and CLI Terminology Mapping

•EX2200 Switches Hardware Overview on page 3

9Copyright © 2010, Juniper Networks, Inc.

Chapter 1: EX2200 Switch Overview

Copyright © 2010, Juniper Networks, Inc.10

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 2

Component Descriptions

•Chassis Status LEDs in EX2200 Switches on page 11

•Network Port and Uplink Port LEDs in EX2200 Switches on page 12

•Management Port LEDs in EX2200 Switches on page 14

•Power Supply in EX2200 Switches on page 14

•Cooling System and Airflow in an EX2200 Switch on page 15

Chassis Status LEDs in EX2200 Switches

The front panel of an EX2200 switch has two chassis status LEDs labeled SYS and ALM

on the far right side of the panel, above the uplink ports (see Figure 4 on page 11).

Figure 4: Chassis Status LEDs in an EX2200 Switch

g027003

0 1 2

SYS

ALM

SPD

DX

EN

POE

3

Chassis

status LEDs

Table 4 on page 11 describes the chassis status LEDs in an EX2200 switch, their colors

and states, and the status they indicate.

Table 4: Chassis Status LEDs in an EX2200 Switch

State and DescriptionColorLED Label

There is no alarm.UnlitALM

There is a minor alarm.Amber

There is a major alarm.Red

•On steadily—The switch is functioning normally.

•Blinking—The switch is booting.

•Off—The switch is off.

GreenSYS

A major alarm (red) indicates a critical error condition that requires immediate action.

11Copyright © 2010, Juniper Networks, Inc.

A minor alarm (amber) indicates a noncritical condition that requires monitoring or

maintenance. A minor alarm that is left unchecked might cause interruption in service or

performance degradation.

Both LEDs can be lit simultaneously.

You can view the colors of the two LEDs remotely through the CLI by issuing the

operational mode command show chassis led.

Related

Documentation

Front Panel of an EX2200 Switch on page 5•

•Checking Active Alarms with the J-Web Interface

•Understanding Alarm Types and Severity Levels on EX Series Switches

Network Port and Uplink Port LEDs in EX2200 Switches

Each network port and uplink port on the front panel of an EX2200 switch has two LEDs

that indicate link/activity and port status. See Figure 5 on page 12 and Figure 6 on page 12.

Figure 5: LEDs on the Network Ports on the Front Panel

012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23

g027005

01

Link/Activity LED Status LED

Figure 6: LEDs on the Uplink Ports and Port Status Mode LEDs

g027007

0 1 2

SYS

ALM

SPD

DX

EN

POE

3

Port 1 Port 2 Port 3

Mode

button

Link/Activity

LED

Status

LED

Port 0

Port status

mode LEDs

Table 5 on page 12 describes the Link/Activity LED.

Table 5: Link/Activity LED on the Network Ports and Uplink Ports in EX2200 Switches

State and DescriptionColorLED

•Blinking—The port and the link are active, and there is link activity.

•On steadily—The port and the link are active, but there is no link activity.

•Off—The port is not active.

GreenLink/Activity

Copyright © 2010, Juniper Networks, Inc.12

Complete Hardware Guide for EX2200 Ethernet Switches

The LEDs labeled Status LED in Figure 5 on page 12 and Figure 6 on page 12 indicate the

status of one of the four port parameters—speed, duplex mode, administrative status,

and Power over Ethernet (PoE) status. Use the mode button below the POE LED on the

far right side of the front panel to toggle the Status LED to show the different port

parameters. You can tell which port parameter is indicated by the Status LED by seeing

which port status mode LED (SPD, DX, EN, and POE) is lit. (See Figure 6 on page 12).

Table 6 on page 13 describes the Status LED.

Table 6: Status LED on the Network Ports and Uplink Ports in EX2200 Switches

State and DescriptionPort Parameters

Indicates the speed. The speed indicators for network ports are:

•One blink per second—10 Mbps

•Two blinks per second—100 Mbps

•Three blinks per second—1000 Mbps

The speed indicators for uplink ports are:

•On steadily—1000 Mbps

•Off—10/100 Mbps

Speed

Indicates the duplex mode. The status indicators are:

•On steadily—Port is set to full-duplex mode.

•Off—Port is set to half-duplex mode.

Duplex mode

Indicates the administrative status. The status indicators are:

•On steadily—Port is administratively enabled.

•Off—Port is administratively disabled.

Administrative status

Indicates the PoE status. The status indicators for network ports are:

•On steadily—PoE is available on the port, a device that draws power from the port

is connected to the port, and the device is drawing power from the port.

•Blinking—PoE is available on the port, but no power is drawn from the port because

of one of the following:

•No device that draws power from the port is connected to the port.

•A device that draws power from the port is connected to the port, but the device

is not drawing any power from the port.

•Off—PoE is not available on the port.

PoE is not available on uplink ports; therefore, the LED for those ports is always unlit.

PoE status

You can tell which port parameter is indicated by the Status LED on network ports and

uplink ports by issuing the operational mode command show chassis led.

Related

Documentation

Front Panel of an EX2200 Switch on page 5•

•Configuring Gigabit Ethernet Interfaces (CLI Procedure)

•Configuring Gigabit Ethernet Interfaces (J-Web Procedure)

13Copyright © 2010, Juniper Networks, Inc.

Chapter 2: Component Descriptions

Management Port LEDs in EX2200 Switches

The management port on the rear panel of an EX2200 switch has two LEDs that indicate

link/activity and port status (see Figure 7 on page 14).

Figure 7: LEDs on the Management Port on an EX2200 Switch

g027006

Link/Activity

LED

Status

LED

Table 7 on page 14 describes the Link/Activity LED.

Table 7: Link/Activity LED on the Management Port on an EX2200 Switch

State and DescriptionColorLED

•Blinking—The port and the link are active, and there is link

activity.

•On steadily—The port and the link are active, but there is no

link activity.

•Off—The port is not active.

GreenLink/Activity

Table 8 on page 14 describes the Status LED.

Table 8: Status LED on the Management Port on an EX2200 Switch

State and DescriptionColorLED

Indicates the speed. The speed indicators are:

•One blink per second—10 Mbps

•Two blinks per second—100 Mbps

GreenStatus

Related

Documentation

Connecting an EX Series Switch to a Network for Out-of-Band Management on page 74•

Power Supply in EX2200 Switches

The power supply in EX2200 switches is built in along the rear panel of the chassis, with

an AC power cord inlet on the rear panel to connect power to the switch.

Copyright © 2010, Juniper Networks, Inc.14

Complete Hardware Guide for EX2200 Ethernet Switches

Table 9 on page 15 lists the power consumed by each EX2200 switch model. The

maximum power available on a PoE port is 30 W for switches running Junos OS Release

10.3 or later and 15.4 W for switches running Junos OS Release 10.2 or earlier.

Table 9: Power Consumed by EX2200 Switches

Maximum PoE Power

Available

Maximum Power

Consumed by the Switch

Number of PoE-Enabled

PortsModel Number

–50 W–EX2200-24T

405 W60 W (when no PoE power is

drawn)

24EX2200-24P

–76 W–EX2200-48T

405 W91 W (when no PoE power is

drawn)

48EX2200-48P

Related

Documentation

AC Power Cord Specifications for EX2200 Switches on page 47•

•Rear Panel of an EX2200 Switch on page 6

•Power Specifications for EX2200 Switches on page 47

•Connecting AC Power to an EX2200 Switch on page 73

•Connecting Earth Ground to an EX Series Switch on page 67

Cooling System and Airflow in an EX2200 Switch

The cooling system in an EX2200 switch consists of two fans along the rear of the chassis

that provide side-to-rear chassis cooling. In switch models with network ports in which

PoE is available, there is an additional fan in the power supply.

Figure 8 on page 16 shows the airflow in an EX2200 switch with network ports in which

PoE is not available.

15Copyright © 2010, Juniper Networks, Inc.

Chapter 2: Component Descriptions

Figure 8: Airflow Through Non-PoE Models of EX2200 Switches

g027021

Chassis rear

Chassis front

Fans

Figure 9 on page 16 shows the airflow in an EX2200 switch with network ports in which

PoE is available.

Figure 9: Airflow Through PoE Models of EX2200 Switches

g027008

Chassis rear

Chassis front

Fans Fan

Under normal operating conditions, the fans operate at reduced speed to reduce noise.

Temperature sensors in the chassis monitor the temperature within the chassis. If any

fan fails or if the temperature inside the chassis rises above the threshold, the switch

raises an alarm and all functioning fans operate at a higher speed than normal. If the

Copyright © 2010, Juniper Networks, Inc.16

Complete Hardware Guide for EX2200 Ethernet Switches

temperature inside the chassis rises above the threshold, the switch shuts down

automatically.

Related

Documentation

•Rear Panel of an EX2200 Switch on page 6

•Chassis Status LEDs in EX2200 Switches on page 11

•Understanding Alarm Types and Severity Levels on EX Series Switches

•Prevention of Electrostatic Discharge Damage on EX Series Switches on page 142

17Copyright © 2010, Juniper Networks, Inc.

Chapter 2: Component Descriptions

Copyright © 2010, Juniper Networks, Inc.18

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 3

Component Specifications

•USB Port Specifications for an EX Series Switch on page 19

•Network Port Connector Pinout Information for an EX2200 Switch on page 20

•Console Port Connector Pinout Information for an EX Series Switch on page 21

•Management Port Connector Pinout Information for an EX2200 Switch on page 22

•Optical Interface Support in EX2200 Switches on page 22

USB Port Specifications for an EX Series Switch

The following Juniper Networks USB flash drives have been tested and are officially

supported for the USB port on all EX Series switches:

•RE-USB-1G-S

•RE-USB-2G-S

•RE-USB-4G-S

CAUTION: Any USB memory product not listed as supported for EX Series

switches has not been tested by Juniper Networks. The use of any

unsupported USB memory product could expose your EX Series switch to

unpredictable behavior. Juniper Networks Technical Assistance Center (JTAC)

can provide only limited support for issues related to unsupported hardware.

We strongly recommend that you use only supported USB flash drives.

All USB flash drives used on EX Series switches must have the following features:

•USB 2.0 or later.

•Formatted with a FAT or MS-DOS file system.

•If the switch is running Junos OS Release 9.5 or earlier, the formatting method must

use a master boot record. Microsoft Windows formatting, by default, does not use a

master boot record. See the documentation for your USB flash drive for information

on how your USB flash drive is formatted.

19Copyright © 2010, Juniper Networks, Inc.

Related

Documentation

See Rear Panel of an EX2200 Switch on page 6 for port location.•

•See Rear Panel of an EX3200 Switch for port location.

•See Rear Panel of an EX4200 Switch for port location.

•See Front Panel of an EX4500 Switch for port location.

•See Switch Fabric and Routing Engine (SRE) Module in an EX8208 Switch for port

location.

•See Routing Engine (RE) Module in an EX8216 Switch for port location.

•Booting an EX Series Switch Using a Software Package Stored on a USB Flash Drive

Network Port Connector Pinout Information for an EX2200 Switch

A network port on an EX2200 switch uses an RJ-45 connector to connect to a device.

The port uses an autosensing RJ-45 connector to support a 10/100/1000Base-T

connection. Two LEDs on the port indicate link/activity on the port and the port status.

See “Network Port and Uplink Port LEDs in EX2200 Switches” on page 12.

Table 10 on page 20 provides the pinout information for the RJ-45 connector. An RJ-45

cable, with a connector attached, is supplied with the switch.

Table 10: Network Port Connector Pinout Information for EX2200 Switches

DescriptionSignalPin

Transmit/receive data pair 1

Negative Vport (in PoE models)

TRP1+1

Transmit/receive data pair 1

Negative Vport (in PoE models)

TRP1-2

Transmit/receive data pair 2

Positive Vport (in PoE models)

TRP2+3

Transmit/receive data pair 3TRP3+4

Transmit/receive data pair 3TRP3-5

Transmit/receive data pair 2

Positive Vport (in PoE models)

TRP2-6

Transmit/receive data pair 4TRP4+7

Transmit/receive data pair 4TRP4-8

Copyright © 2010, Juniper Networks, Inc.20

Complete Hardware Guide for EX2200 Ethernet Switches

Related

Documentation

Front Panel of an EX2200 Switch on page 5•

Console Port Connector Pinout Information for an EX Series Switch

The console port on an EX Series switch is an RS-232 serial interface that uses an RJ-45

connector to connect to a console management device. The default baud rate for the

console port is 9600 baud.

Table 11 on page 21 provides the pinout information for the RJ-45 console connector. An

RJ-45 cable and an RJ-45 to DB-9 serial port adapter are supplied with the switch.

NOTE: If your laptop or PC does not have a DB-9 male connector pin and you

want to connect your laptop or PC directly to an EX Series switch, use a

combination of the RJ-45 to DB-9 female adapter supplied with the switch

and a USB to DB-9 male adapter. You must provide the USB to DB-9 male

adapter.

Table 11: EX Series Switches Console Port Connector Pinout Information

DescriptionSignalPin

Request to sendRTS Output1

Data terminal readyDTR Output2

Transmit dataTxD Output3

Signal groundSignal Ground4

Signal groundSignal Ground5

Receive dataRxD Input6

Data carrier detectCD Input7

Clear to sendCTS Input8

Related

Documentation

See Rear Panel of an EX2200 Switch on page 6 for port location.•

•See Rear Panel of an EX3200 Switch for port location.

•See Rear Panel of an EX4200 Switch for port location.

•See Front Panel of an EX4500 Switch for port location.

•See Switch Fabric and Routing Engine (SRE) Module in an EX8208 Switch for port

location.

•See Routing Engine (RE) Module in an EX8216 Switch for port location.

21Copyright © 2010, Juniper Networks, Inc.

Chapter 3: Component Specifications

•Connecting an EX Series Switch to a Management Console on page 76

Management Port Connector Pinout Information for an EX2200 Switch

The management port on an EX2200 switch uses an RJ-45 connector to connect to a

management device for out-of-band management.

The port uses an autosensing RJ-45 connector to support a 10/100Base-T connection.

Two LEDs on the port indicate link/activity on the port and the administrative status of

the port. See “Management Port LEDs in EX2200 Switches” on page 14.

Table 12 on page 22 provides the pinout information for the RJ-45 connector for the

management port. An RJ-45 cable, with a connector attached, is supplied with the switch.

Table 12: Management Port Connector Pinout Information for EX2200 Switches

DescriptionSignalPin

Transmit/receive data pair 1TRP1+1

Transmit/receive data pair 1TRP1-2

Transmit/receive data pair 2TRP2+3

Transmit/receive data pair 2TRP2-6

Related

Documentation

See Rear Panel of an EX2200 Switch on page 6 for port location.•

•Connecting an EX Series Switch to a Network for Out-of-Band Management on page 74

Optical Interface Support in EX2200 Switches

Uplink ports on the front panel in EX2200 switches support SFP transceivers. This topic

describes the optical interfaces supported for those transceivers. It also lists the copper

interface supported for the SFP transceivers.

NOTE: Use only optical transceivers and optical connectors purchased from

Juniper Networks for your EX2200 switch.

The two tables in this topic describe the optical interface support over single-mode

fiber-optic (SMF) and multimode fiber-optic (MMF) cables and over the copper interface

for SFP transceivers:

•Table 13 on page 23—Optical interface support and copper interface support for Gigabit

Ethernet SFP transceivers

•Table 14 on page 27—Optical interface support for Fast Ethernet SFP transceivers

Copyright © 2010, Juniper Networks, Inc.22

Complete Hardware Guide for EX2200 Ethernet Switches

Table 13: Optical Interface Support and Copper Interface Support for Gigabit Ethernet SFP

Transceivers in EX2200 Switches

ValueSpecificationEthernet Standard

EX-SFP-1GE-TModel Number1000Base-T

10/100/1000 MbpsRate

RJ-45Connector Type

–Transmitter Wavelength

–Minimum Launch Power

–Maximum Launch Power

–Minimum Receiver Sensitivity

–Maximum Input Power

–Core/Cladding Size

–Modal Bandwidth

100 m (328 ft)Distance

Junos OS for EX Series switches, Release 10.1 or laterSoftware required

23Copyright © 2010, Juniper Networks, Inc.

Chapter 3: Component Specifications

Table 13: Optical Interface Support and Copper Interface Support for Gigabit Ethernet SFP

Transceivers in EX2200 Switches (continued)

ValueSpecificationEthernet Standard

EX-SFP-1GE-SXModel Number1000Base-SX

1000 MbpsRate

LCConnector Type

DualFiber Count

850 nmTransmitter Wavelength

–9.5 dBmMinimum Launch Power

–3 dBmMaximum Launch Power

–21 dBmMinimum Receiver Sensitivity

0 dBmMaximum Input Power

MMFFiber Type

50/125 µm50/125 µm62.5/125 µm62.5/125 µmCore/Cladding Size

OM2–OM1FDDIFiber Grade

500 MHz/km400 MHz/km200 MHz/km160 MHz/kmModal Bandwidth

550 m

(1804 ft)

500 m

(1640 ft)

275 m

(902 ft)

220 m

(722 ft)

Distance

Junos OS for EX Series switches, Release 10.1 or laterSoftware required

Copyright © 2010, Juniper Networks, Inc.24

Complete Hardware Guide for EX2200 Ethernet Switches

Table 13: Optical Interface Support and Copper Interface Support for Gigabit Ethernet SFP

Transceivers in EX2200 Switches (continued)

ValueSpecificationEthernet Standard

EX-SFP-1GE-LXModel Number1000Base-LX

1000 MbpsRate

LCConnector Type

DualFiber Count

1310 nmTransmitter Wavelength

–9.5 dBmMinimum Launch Power

–3 dBmMaximum Launch Power

–25 dBmMinimum Receiver Sensitivity

–3 dBmMaximum Input Power

SMFFiber Type

9/125 µmCore/Cladding Size

–Modal Bandwidth

10 km (6.2 miles)Distance

Junos OS for EX Series switches, Release 10.1 or laterSoftware required

25Copyright © 2010, Juniper Networks, Inc.

Chapter 3: Component Specifications

Table 13: Optical Interface Support and Copper Interface Support for Gigabit Ethernet SFP

Transceivers in EX2200 Switches (continued)

ValueSpecificationEthernet Standard

EX-SFP-1GE-LHModel Number1000Base-LH (or

1000Base-ZX)

1000 MbpsRate

LCConnector Type

DualFiber Count

1550 nmTransmitter Wavelength

–2 dBmMinimum Launch Power

5 dBmMaximum Launch Power

–25 dBmMinimum Receiver Sensitivity

–3 dBmMaximum Input Power

SMFFiber Type

9/125 µmCore/Cladding Size

–Modal Bandwidth

70 km (43.5 miles)Distance

Junos OS for EX Series switches, Release 10.1 or laterSoftware required

Copyright © 2010, Juniper Networks, Inc.26

Complete Hardware Guide for EX2200 Ethernet Switches

Table 14: Optical Interface Support for Fast Ethernet SFP Transceivers in EX2200 Switches

ValueSpecificationEthernet Standard

EX-SFP-1FE-FXModel Number100Base-FX

100 MbpsRate

LCConnector Type

DualFiber Count

1310 nmTransmitter Wavelength

–20 dBmMinimum Launch Power

–14 dBmMaximum Launch Power

–32.5 dBmMinimum Receiver Sensitivity

–8 dBmMaximum Input Power

MMFFiber Type

62.5/125 µmCore/Cladding Size

FDDI/OM1Fiber Grade

500 Mhz/kmModal Bandwidth

2 km (1.2 miles)Distance

Junos OS for EX Series switches, Release 10.1 or laterSoftware required

27Copyright © 2010, Juniper Networks, Inc.

Chapter 3: Component Specifications

Table 14: Optical Interface Support for Fast Ethernet SFP Transceivers in EX2200

Switches (continued)

ValueSpecificationEthernet Standard

EX-SFP-FE20KT13R15Model Number100Base-BX-U

100 MbpsRate

LCConnector Type

SingleFiber Count

1310 nmTransmitter Wavelength

1550 nmReceiver Wavelength

–14 dBmMinimum Launch Power

–8 dBmMaximum Launch Power

–45 dBmMinimum Receiver Sensitivity

–8 dBmMaximum Input Power

SMFFiber Type

9/125 µmCore/Cladding Size

–Modal Bandwidth

20 km (12.4 miles)Distance

Junos OS for EX Series switches, Release 10.1 or laterSoftware required

Copyright © 2010, Juniper Networks, Inc.28

Complete Hardware Guide for EX2200 Ethernet Switches

Table 14: Optical Interface Support for Fast Ethernet SFP Transceivers in EX2200

Switches (continued)

ValueSpecificationEthernet Standard

EX-SFP-FE20KT15R13Model Number100Base-BX-D

100 MbpsRate

LCConnector Type

SingleFiber Count

1550 nmTransmitter Wavelength

1310 nmReceiver Wavelength

–14 dBmMinimum Launch Power

–8 dBmMaximum Launch Power

–45 dBmMinimum Receiver Sensitivity

–8 dBmMaximum Input Power

SMFFiber Type

9/125 µmCore/Cladding Size

–Modal Bandwidth

20 km (12.4 miles)Distance

Junos OS for EX Series switches, Release 10.1 or laterSoftware required

Related

Documentation

•Front Panel of an EX2200 Switch on page 5

•Installing a Transceiver in an EX Series Switch on page 65

•Removing a Transceiver from an EX Series Switch on page 95

29Copyright © 2010, Juniper Networks, Inc.

Chapter 3: Component Specifications

Copyright © 2010, Juniper Networks, Inc.30

Complete Hardware Guide for EX2200 Ethernet Switches

PART 2

Planning for Switch Installation

•Site Preparation on page 33

•Mounting and Clearance Requirements on page 39

•Cable Specifications on page 45

•Planning Power Requirements on page 47

31Copyright © 2010, Juniper Networks, Inc.

Copyright © 2010, Juniper Networks, Inc.32

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 4

Site Preparation

•Site Preparation Checklist for EX2200 Switches on page 33

•General Site Guidelines for EX Series Switches on page 35

•Site Electrical Wiring Guidelines for EX Series Switches on page 35

•Environmental Requirements and Specifications for EX Series Switches on page 36

Site Preparation Checklist for EX2200 Switches

The checklist in Table 15 on page 33 summarizes the tasks you need to perform when

preparing a site for EX2200 switch installation.

Table 15: Site Preparation Checklist

DatePerformed ByFor More InformationItem or Task

Environment

“Environmental Requirements and

Specifications for EX Series Switches”

on page 36

Verify that environmental factors such as

temperatureand humidity do not exceed switch

tolerances.

Power

Measure distance between external power

sources and switch installation site.

Locate sites for connection of system

grounding.

“Power Specifications for EX2200

Switches” on page 47

Calculate the power consumption and

requirements.

Hardware Configuration

“EX2200 Switches Hardware

Overview” on page 3

Choose the number and types of switches you

want to install.

Rack or Cabinet

33Copyright © 2010, Juniper Networks, Inc.

Table 15: Site Preparation Checklist (continued)

DatePerformed ByFor More InformationItem or Task

“Rack Requirements for EX2200

Switches” on page 39

“Cabinet Requirements for EX2200

Switches” on page 40

Verify that your rack or cabinet meets the

minimum requirements for the installation of

the switch.

“Clearance Requirements for Airflow

and Hardware Maintenance for

EX2200 Switches” on page 42

Plan rack or cabinet location, including required

space clearances.

Secure the rack or cabinet to the floor and

building structure.

Wall

“Requirements for Mounting an

EX2200 Switch on a Desktop or Wall”

on page 42

Verify that the wall meets the minimum

requirements for the installation of the switch.

“Clearance Requirements for Airflow

and Hardware Maintenance for

EX2200 Switches” on page 42

Verify that there is appropriate clearance in your

selected location.

Cables

Acquire cables and connectors:

•Determine the number of cables needed

based on your planned configuration.

•Review the maximum distance allowed for

each cable. Choose the length of cable based

on the distance between the hardware

components being connected.

Plan the cable routing and management.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•General Site Guidelines for EX Series Switches on page 35

•Installing and Connecting an EX2200 Switch on page 51

•Mounting an EX2200 Switch on page 53

Copyright © 2010, Juniper Networks, Inc.34

Complete Hardware Guide for EX2200 Ethernet Switches

General Site Guidelines for EX Series Switches

Efficient device operation requires proper site planning and maintenance and proper

layout of the equipment, rack or cabinet (if used), and wiring closet.

To plan and create an acceptable operating environment for your device and prevent

environmentally caused equipment failures:

•Keep the area around the chassis free from dust and conductive material, such as

metal flakes.

•Follow prescribed airflow guidelines to ensure that the cooling system functions properly

and that exhaust from other equipment does not blow into the intake vents of the

switch.

•Follow the prescribed ESD prevention procedures to avoid damaging the equipment.

Static discharge can cause components to fail completely or intermittently over time.

•Install the switch in a secure area, so that only authorized personnel can access the

switch.

Related

Documentation

Prevention of Electrostatic Discharge Damage on EX Series Switches on page 142•

•Clearance Requirements for Airflow and Hardware Maintenance for EX2200 Switches

on page 42

•Clearance Requirements for Airflow and Hardware Maintenance for EX3200 Switches

•Clearance Requirements for Airflow and Hardware Maintenance for EX4200 Switches

•Clearance Requirements for Airflow and Hardware Maintenance for EX4500 Switches

•Clearance Requirements for Airflow and Hardware Maintenance for an EX8208 Switch

•Clearance Requirements for Airflow and Hardware Maintenance for an EX8216 Switch

•Environmental Requirements and Specifications for EX Series Switches on page 36

Site Electrical Wiring Guidelines for EX Series Switches

Table 16 on page 36 describes the factors you must consider while planning the electrical

wiring at your site.

WARNING: It is particularly important to provide a properly grounded and

shielded environment and to use electrical surge-suppression devices.

35Copyright © 2010, Juniper Networks, Inc.

Chapter 4: Site Preparation

Table 16: Site Electrical Wiring Guidelines

GuidelinesSite Wiring Factor

If your site experiences any of the following problems, consult

experts in electrical surge suppression and shielding:

•Improperly installed wires cause radio frequency interference

(RFI).

•Damage from lightning strikes occurs when wires exceed

recommended distances or pass between buildings.

•Electromagnetic pulses (EMPs) caused by lightning

damages unshielded conductors and electronic devices.

Signaling limitations

To reduce or eliminate radio frequency interference (RFI) from

your site wiring, do the following:

•Use twisted-pair cable with a good distribution of grounding

conductors.

•If you must exceed the recommended distances, use a

high-quality twisted-pair cable with one ground conductor

for each data signal when applicable.

Radio frequency interference

If your site is susceptible to problems with electromagnetic

compatibility (EMC), particularly from lightning or radio

transmitters, seek expert advice.

Some of the problems caused by strong sources of

electromagnetic interference (EMI) are:

•Destruction of the signal drivers and receivers in the switch

•Electrical hazards as a result of power surges conducted

over the lines into the equipment

Electromagnetic compatibility

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•Prevention of Electrostatic Discharge Damage on EX Series Switches on page 142

•Power Supply in EX2200 Switches on page 14

•Power Supply in EX3200 Switches

•Power Supply in EX4200 Switches

•AC Power Supply in EX4500 Switches

•DC Power Supply in EX4500 Switches

•AC Power Supply in an EX8200 Switch

•DC Power Supply in an EX8200 Switch

Environmental Requirements and Specifications for EX Series Switches

The switch must be installed in a rack or cabinet housed in a dry, clean, well-ventilated,

and temperature-controlled environment.

Copyright © 2010, Juniper Networks, Inc.36

Complete Hardware Guide for EX2200 Ethernet Switches

Ensure that these environmental guidelines are followed:

•The site must be as dust-free as possible, because dust can clog air intake vents and

filters, reducing the efficiency of the switch cooling system.

•Maintain ambient airflow for normal switch operation. If the airflow is blocked or

restricted, or if the intake air is too warm, the switch might overheat, leading to the

switch temperature monitor shutting down the switch to protect the hardware

components.

Table 17 on page 37 provides the required environmental conditions for normal switch

operation.

Table 17: EX Series Switch Environmental Tolerances

ToleranceDescription

No performance degradation to 10,000 feet (3048 meters)Altitude

Normal operation ensured in relative humidity range of 10% through 85%, noncondensingRelative humidity

•EX2200, EX3200, EX4200, and EX4500 switches: Normal operation ensured in temperature range of 32° F

through 113° F (0° C through 45° C)

•EX8208 and EX8216 switches: Normal operation ensured in temperature range of 32° F through 104° F (0° C

through 40° C)

•XRE200 External Routing Engines: Normal operation ensured in temperature range of 41° F through 104° F

(5° C through 40° C)

Temperature

Complies with Zone 4 earthquake requirements as per GR-63, Issue 3.Seismic

NOTE: Install EX Series switches only in restricted areas, such as dedicated

equipment rooms and equipment closets, in accordance with Articles 110–16,

110–17, and 110–18 of the National Electrical Code, ANSI/NFPA 70.

Related

Documentation

•Clearance Requirements for Airflow and Hardware Maintenance for EX2200 Switches

on page 42

•Clearance Requirements for Airflow and Hardware Maintenance for EX3200 Switches

•Clearance Requirements for Airflow and Hardware Maintenance for EX4200 Switches

•Clearance Requirements for Airflow and Hardware Maintenance for EX4500 Switches

•Clearance Requirements for Airflow and Hardware Maintenance for an EX8208 Switch

•Clearance Requirements for Airflow and Hardware Maintenance for an EX8216 Switch

37Copyright © 2010, Juniper Networks, Inc.

Chapter 4: Site Preparation

Copyright © 2010, Juniper Networks, Inc.38

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 5

Mounting and Clearance Requirements

•Rack Requirements for EX2200 Switches on page 39

•Cabinet Requirements for EX2200 Switches on page 40

•Requirements for Mounting an EX2200 Switch on a Desktop or Wall on page 42

•Clearance Requirements for Airflow and Hardware Maintenance for EX2200

Switches on page 42

Rack Requirements for EX2200 Switches

You can mount the switch on two-post racks or four-post racks.

Rack requirements consist of:

•Rack type

•Mounting bracket hole spacing

•Rack size and strength

•Rack connection to the building structure

Table 18 on page 39 provides the rack requirements and specifications for the switch.

Table 18: Rack Requirements and Specifications for the Switch

GuidelinesRack Requirement

Use a two-post rack or a four-post rack. You can mount the switch on any two-post or four-post

rack that provides bracket holes or hole patterns spaced at 1 U (1.75 in./4.45 cm) increments and

that meets the size and strength requirements to support the weight.

A U is the standard rack unit defined in Cabinets, Racks, Panels, and Associated Equipment (document

number EIA-310–D) published by the Electronics Industry Association (http://www.eia.org).

The rack must meet the strength requirements to support the weight of the chassis.

Rack type

The holes in the mounting brackets are spaced at 1 U (1.75 in. or 4.45 cm), so that the switch can

be mounted in any rack that provides holes spaced at that distance.

Mounting bracket hole

spacing

39Copyright © 2010, Juniper Networks, Inc.

Table 18: Rack Requirements and Specifications for the Switch (continued)

GuidelinesRack Requirement

•Ensure that the rack complies with one of these standards:

•A 19-in. rack as defined in Cabinets, Racks, Panels, and Associated Equipment (document

number EIA-310–D) published by the Electronics Industry Association (http://www.eia.org).

•Ensure that the rack rails are spaced widely enough to accommodate the switch chassis' external

dimensions . The outer edges of the front-mounting brackets extend the width of the chassis to

19 in. (48.2 cm).

•The rack must be strong enough to support the weight of the switch.

•Ensure that the spacing of rails and adjacent racks allows for the proper clearance around the

switch and rack.

Rack size and strength

•Secure the rack to the building structure.

•If earthquakes are a possibility in your geographical area, secure the rack to the floor.

•Secure the rack to the ceiling brackets as well as wall or floor brackets for maximum stability.

Rack connection to

building structure

One pair of mounting brackets for mounting the switch on two posts of a rack is supplied

with each switch. For mounting the switch on four posts of a rack or cabinet, you can

order a four-post rack-mount kit separately.

Related

Documentation

Chassis Physical Specifications for EX2200 Switches on page 5•

•Clearance Requirements for Airflow and Hardware Maintenance for EX2200 Switches

on page 42

•Rack-Mounting and Cabinet-Mounting Warnings for EX Series Switches on page 129

•Mounting an EX2200 Switch on Two Posts in a Rack or Cabinet on page 55

•Mounting an EX2200 Switch on Four Posts in a Rack or Cabinet on page 57

•Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet on page 61

Cabinet Requirements for EX2200 Switches

You can mount the switch in a cabinet that contains a 19-in. rack.

Cabinet requirements consist of:

•Cabinet size

•Clearance requirements

•Cabinet airflow requirements

Table 19 on page 41 provides the cabinet requirements and specifications for the switch.

Copyright © 2010, Juniper Networks, Inc.40

Complete Hardware Guide for EX2200 Ethernet Switches

Table 19: Cabinet Requirements and Specifications for the Switch

GuidelinesCabinet Requirement

•You can mount the switch in a cabinet that contains a 19-in.

rack as defined in Cabinets, Racks, Panels, and Associated

Equipment (document number EIA-310–D) published by

the Electronics Industry Association (http://www.eia.org).

NOTE: The rack must meet the strength requirements to

support the weight of the switch.

•The minimum cabinet size must be able to accommodate

the maximum external dimensions of the switch.

Cabinet size

•The outer edges of the mounting brackets extend the width

of the chassis to 19 in. (48.3 cm).

•The minimum total clearance inside the cabinet is 30 in.

(76.2 cm) between the inside of the front door and the inside

of the rear door.

Cabinet clearance

When you mount the switch in a cabinet, ensure that

ventilation through the cabinet is sufficient to prevent

overheating.

•Ensure adequate cool air supply to dissipate the thermal

output of the switch or switches.

•Ensure that the cabinet allows the chassis hot exhaust air

to exit the cabinet without recirculating into the switch. An

open cabinet (without a top or doors) that employs hot air

exhaust extraction from the top allows the best airflow

through the chassis. If the cabinet contains a top or doors,

perforations in these elements assist with removing the hot

air exhaust.

•Install the switch in the cabinet in a way that maximizes the

open space on the side of the chassis that has the hot air

exhaust. This maximizes the clearance for critical airflow.

•Route and dress all cables to minimize the blockage of

airflow to and from the chassis.

•Ensure that the spacing of rails and adjacent cabinets allows

for the proper clearance around the switch and cabinet.

•A cabinet larger than the minimum required provides better

airflow and reduces the chance of overheating.

Cabinet airflow requirements

Related

Documentation

Chassis Physical Specifications for EX2200 Switches on page 5•

•Clearance Requirements for Airflow and Hardware Maintenance for EX2200 Switches

on page 42

•Rack-Mounting and Cabinet-Mounting Warnings for EX Series Switches on page 129

•Mounting an EX2200 Switch on Two Posts in a Rack or Cabinet on page 55

•Mounting an EX2200 Switch on Four Posts in a Rack or Cabinet on page 57

•Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet on page 61

41Copyright © 2010, Juniper Networks, Inc.

Chapter 5: Mounting and Clearance Requirements

Requirements for Mounting an EX2200 Switch on a Desktop or Wall

You can install the switch on a desktop or wall. When choosing a location, allow at least

6 in. (15.2 cm) of clearance between the front and back of the chassis and adjacent

equipment or walls.

Ensure that the wall onto which the switch is installed is stable and securely supported.

If you are mounting the switch in sheetrock (wall board with a gypsum plaster core) or

in wall board not backed by wall studs, use hollow wall anchors capable of supporting

the combined weight of two fully loaded chassis. Insert the screws into wall studs

wherever possible to provide added support for the chassis.

Use the wall-mount kit from Juniper Networks to mount the switch on a wall. The

wall-mount kit is not part of the standard package and needs to be ordered separately.

Related

Documentation

Clearance Requirements for Airflow and Hardware Maintenance for EX2200 Switches

on page 42

•

•Wall-Mounting Warnings for EX2200 Switches on page 134

•Mounting an EX2200 Switch on a Desk or Other Level Surface on page 54

•Mounting an EX2200 Switch on a Wall on page 61

Clearance Requirements for Airflow and Hardware Maintenance for EX2200 Switches

When planning the site for installing an EX2200 switch, you must allow sufficient

clearance around the installed switch (see Figure 10 on page 42).

Figure 10: Clearance Requirements for Airflow and Hardware Maintenance

for EX2200 Switches

g027009

Mounting bracket

6" (15.2 cm)

for airflow

Rear of chassis

Front of chassis

17.5"

44.5 cm

10.5"

(26.7 cm)

Clearance

required for

maintenance

Clearance required

for maintenance

24" (61 cm)

6" (15.2 cm)

6" (15.2 cm)

for airflow

19"

(48.2 cm)

The power cord retainer clips extend out of the rear of the chassis by 3 in.

•Allow at least 6 in. (15.2 cm) of clearance on the side between devices that have fans

or blowers installed. Allow 2.8 in. (7 cm) between the side of the chassis and any

Copyright © 2010, Juniper Networks, Inc.42

Complete Hardware Guide for EX2200 Ethernet Switches

non-heat-producing surface such as a wall. For the cooling system to function properly,

the airflow around the chassis must be unrestricted.

Figure 11 on page 43 shows the airflow in an EX2200 switch with network ports in which

PoE is available. Figure 12 on page 43 shows the airflow in an EX2200 switch with

network ports in which PoE is not available.

Figure 11: Airflow Through PoE Models of EX2200 Switches

g027008

Chassis rear

Chassis front

Fans Fan

Figure 12: Airflow Through Non-PoE Models of EX2200 Switches

g027021

Chassis rear

Chassis front

Fans

43Copyright © 2010, Juniper Networks, Inc.

Chapter 5: Mounting and Clearance Requirements

•If you are mounting an EX2200 switch in a rack or cabinet with other equipment, or if

you are placing it on the desktop or floor near other equipment, ensure that the exhaust

from other equipment does not blow into the intake vents of the chassis.

•Leave at least 24 in. (61 cm) in front of the switch and 6 in. (15.2 cm) behind the switch.

For service personnel to remove and install hardware components, you must leave

adequate space at the front and back of the switch. NEBS GR-63 recommends that

you allow at least 30 in. (76.2 cm) in front of the rack or cabinet and 24 in. (61 cm)

behind the rack or cabinet.

Related

Documentation

•Rack Requirements for EX2200 Switches on page 39

•Cabinet Requirements for EX2200 Switches on page 40

•General Site Guidelines for EX Series Switches on page 35

•Rack-Mounting and Cabinet-Mounting Warnings for EX Series Switches on page 129

•Cooling System and Airflow in an EX2200 Switch on page 15

Copyright © 2010, Juniper Networks, Inc.44

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 6

Cable Specifications

•Network Cable Specifications for EX2200 Switches on page 45

Network Cable Specifications for EX2200 Switches

EX2200 switches have interfaces that use various types of network cables.

For instructions on connecting the switch to a network for out-of-band management

using an Ethernet cable with an RJ-45 connector, see “Connecting an EX Series Switch

to a Network for Out-of-Band Management” on page 74.

For instructions on connecting the switch to a management console using an Ethernet

cable with an RJ-45 connector, see “Connecting an EX Series Switch to a Management

Console” on page 76.

For instructions on connecting a fiber-optic cable to the switch, see “Connecting a

Fiber-Optic Cable to an EX Series Switch” on page 81.

Related

Documentation

•Management Port Connector Pinout Information for an EX2200 Switch on page 22

•Console Port Connector Pinout Information for an EX Series Switch on page 21

•Front Panel of an EX2200 Switch on page 5

•Rear Panel of an EX2200 Switch on page 6

45Copyright © 2010, Juniper Networks, Inc.

Copyright © 2010, Juniper Networks, Inc.46

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 7

Planning Power Requirements

•Power Specifications for EX2200 Switches on page 47

•AC Power Cord Specifications for EX2200 Switches on page 47

Power Specifications for EX2200 Switches

This topic describes the power supply electrical specifications for EX2200 switches.

Table 20 on page 47 provides the AC power supply electrical specifications for EX2200

switches.

Table 20: AC Power Supply Electrical Specifications for EX2200 Switches

SpecificationItem

100 through 240 VACAC input voltage

50 Hz/60 Hz nominalAC input line frequency

•7 A at 100 VAC and 2.9 A at 230 VAC (for switches with ports equipped for

PoE)

•1.8 A at 100 VAC and 0.5 A at 230 VAC (for switches with no ports equipped

for PoE)

AC system current rating

Related

Documentation

AC Power Cord Specifications for EX2200 Switches on page 47•

•Power Supply in EX2200 Switches on page 14

•General Safety Guidelines and Warnings for EX Series Switches on page 113

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

AC Power Cord Specifications for EX2200 Switches

Detachable AC power cords are supplied with the switch. The coupler is type C13 as

described by International Electrotechnical Commission (IEC) standard 60320. The plug

at the male end of the power cord fits into the power source outlet that is standard for

your geographical location.

47Copyright © 2010, Juniper Networks, Inc.

CAUTION: The AC power cord for each switch is intended for use with that

switch only and not for any other use.

NOTE: In North America, AC power cords must not exceed 4.5 meters

(approximately 14.75 feet) in length, to comply with National Electrical Code

(NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52 and Canadian Electrical

Code (CEC) Section 4-010(3). The cords supplied with the switch are in

compliance.

Table 21 on page 48 lists AC power cord specifications provided for each country or region.

Table 21: AC Power Cord Specifications

Plug StandardsElectrical SpecificationsCountry/Region

AS/NZ 3112250 VAC, 10 A, 50 HzAustralia

GB2099 and GB1002250 VAC, 10 A, 50 HzChina

CEE (7) VII250 VAC, 10 A, 50 HzEurope (except Italy, Switzerland, and

United Kingdom)

CEI 23-16250 VAC, 10 A, 50 HzItaly

JIS C8303125 VAC, 12 A, 50 Hz or 60 HzJapan

NEMA 5-15125 VAC, 13 A, 60 HzNorth America

SEV 1011 SEV 6534/2250 VAC, 10 A, 50 HzSwitzerland

BS 1363/A250 VAC, 10 A, 50 HzUnited Kingdom

Figure 13 on page 48 illustrates the plug on the power cord for each country or region

listed in Table 21 on page 48.

Figure 13: AC Plug Types

Related

Documentation

•Power Supply in EX2200 Switches on page 14

•General Safety Guidelines and Warnings for EX Series Switches on page 113

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•Prevention of Electrostatic Discharge Damage on EX Series Switches on page 142

Copyright © 2010, Juniper Networks, Inc.48

Complete Hardware Guide for EX2200 Ethernet Switches

PART 3

Installing and Connecting the Switch and

Switch Components

•Installing the Switch on page 51

•Installing Switch Components on page 65

•Connecting the Switch on page 67

•Performing Initial Configuration on page 83

49Copyright © 2010, Juniper Networks, Inc.

Copyright © 2010, Juniper Networks, Inc.50

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 8

Installing the Switch

•Installing and Connecting an EX2200 Switch on page 51

•Unpacking an EX2200 Switch on page 52

•Mounting an EX2200 Switch on page 53

•Mounting an EX2200 Switch on a Desk or Other Level Surface on page 54

•Mounting an EX2200 Switch on Two Posts in a Rack or Cabinet on page 55

•Mounting an EX2200 Switch on Four Posts in a Rack or Cabinet on page 57

•Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet on page 61

•Mounting an EX2200 Switch on a Wall on page 61

Installing and Connecting an EX2200 Switch

To install and connect the EX2200 switch:

1. Follow instructions in “Unpacking an EX2200 Switch” on page 52.

2. Mount the switch by following instructions appropriate for your site:

•“Mounting an EX2200 Switch on Two Posts in a Rack or Cabinet” on page 55 (using

the mounting brackets provided)

•“Mounting an EX2200 Switch on Four Posts in a Rack or Cabinet” on page 57 (using

the separately orderable four-post rack-mount kit)

•“Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet” on page 61

(using the 2-in.-recess front brackets from the separately orderable four-post

rack-mount kit)

•“Mounting an EX2200 Switch on a Desk or Other Level Surface” on page 54 (using

the rubber feet provided)

•“Mounting an EX2200 Switch on a Wall” on page 61 (using the separately orderable

wall-mount kit)

3. Follow instructions in “Connecting Earth Ground to an EX Series Switch” on page 67.

4. Follow instructions in “Connecting AC Power to an EX2200 Switch” on page 73.

51Copyright © 2010, Juniper Networks, Inc.

5. Perform initial configuration of the switch by following instructions in “Connecting

and Configuring an EX Series Switch (CLI Procedure)” on page 87 or “Connecting and

Configuring an EX Series Switch (J-Web Procedure)” on page 89.

6. Set the switch’s management options by following the appropriate instructions:

•Connecting an EX Series Switch to a Network for Out-of-Band Management on

page 74

•Connecting an EX Series Switch to a Management Console on page 76

Related

Documentation

Rack Requirements for EX2200 Switches on page 39•

•Cabinet Requirements for EX2200 Switches on page 40

•Clearance Requirements for Airflow and Hardware Maintenance for EX2200 Switches

on page 42

Unpacking an EX2200 Switch

The EX2200 switches are shipped in a cardboard carton, secured with foam packing

material. The carton has an accessory compartment and contains the quick start

instructions.

CAUTION: EX2200 switches are maximally protected inside the shipping

carton. Do not unpack the switches until you are ready to begin installation.

To unpack the switch:

1. Open the carton.

2. Pull out the packing material holding the switch in place.

3. Verify the parts received against the inventory on the label attached to the carton and

listed in Table 22 on page 52.

4. Save the shipping carton and packing materials in case you need to move or ship the

switch later.

Table 22: Inventory of Components Provided with an EX2200 Switch

QuantityComponent

1Switch with built-in power supply

1AC power cord appropriate for your geographical location

1Power cord retainer clip

2Mounting brackets

Copyright © 2010, Juniper Networks, Inc.52

Complete Hardware Guide for EX2200 Ethernet Switches

Table 22: Inventory of Components Provided with an EX2200 Switch (continued)

QuantityComponent

8Mounting screws

4Rubber feet

1RJ-45 cable and RJ-45 to DB-9 serial port adapter

Related

Documentation

Mounting an EX2200 Switch on page 53•

•Installing and Connecting an EX2200 Switch on page 51

•Connecting and Configuring an EX Series Switch (CLI Procedure) on page 87

•Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 89

Mounting an EX2200 Switch

You can mount the switch:

•On two posts in a 19-in. rack or cabinet by using the mounting brackets provided with

the switch.

•On four posts in a 19-in. rack or cabinet by using the separately orderable four-post

rack-mount kit.

•In a position recessed 2 in. from the front of a 19-in. rack or cabinet by using the

2-in.-recess front brackets in the separately orderable four-post rack-mount kit. You

can mount the switch in this recessed position on two-post or four-post racks and

cabinets.

•On a desk or other level surface by using rubber feet. The switch is shipped with four

rubber feet to be used to stabilize the chassis on a desk or other level surface.

•On a wall by using the separately orderable wall-mount kit.

WARNING:

•When mounting an EX2200 switch chassis in a vertical position, orient

the front panel of the chassis downward to ensure proper airflow and

meet safety requirements in the event of a fire.

•When wall mounting Power over Ethernet (PoE) models (EX2200-24P

and EX2200-48P), install the wall-mount baffle above the units to reduce

the risk of objects or substances falling into the air exhaust or power

supply, which could cause a fire.

The holes in the mounting brackets are placed at 1 U (1.75 in. or 4.45 cm.) apart so that

the switch can be mounted in any rack or cabinet that provides holes spaced at that

distance.

53Copyright © 2010, Juniper Networks, Inc.

Chapter 8: Installing the Switch

Related

Documentation

Mounting an EX2200 Switch on Two Posts in a Rack or Cabinet on page 55•

•Mounting an EX2200 Switch on Four Posts in a Rack or Cabinet on page 57

•Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet on page 61

•Mounting an EX2200 Switch on a Desk or Other Level Surface on page 54

•Mounting an EX2200 Switch on a Wall on page 61

•Connecting Earth Ground to an EX Series Switch on page 67

Mounting an EX2200 Switch on a Desk or Other Level Surface

You can mount an EX2200 switch on a desk or other level surface by using the four rubber

feet that are shipped with the switch. The rubber feet stabilize the chassis.

Before mounting the switch on a desk or other level surface:

•Verify that the site meets the requirements described in “Site Preparation Checklist

for EX2200 Switches” on page 33.

•Place the desk in its permanent location, allowing adequate clearance for airflow and

maintenance, and secure it to the building structure.

•Read “General Safety Guidelines and Warnings for EX Series Switches” on page 113,

with particular attention to “Chassis Lifting Guidelines for EX2200 Switches” on page 128.

•Remove the switch from the shipping carton (see “Unpacking an EX2200 Switch” on

page 52).

Ensure that you have the following parts and tools available:

•4 rubber feet to stabilize the chassis on the a desk or other level surface (provided in

the accessory compartment in the switch carton)

To mount a switch on a desk or other level surface:

1. Turn the chassis upside down on the desk or the level surface where you intend to

mount the switch.

2. Attach the rubber feet to the bottom of the chassis, as shown in Figure 14 on page 55.

3. Turn the chassis right side up on the desk or the level surface.

Copyright © 2010, Juniper Networks, Inc.54

Complete Hardware Guide for EX2200 Ethernet Switches

Figure 14: Attaching Rubber Feet to a Switch Chassis

Rubber feet

g027015

SYS

ALM

SPD

DX

POE

EN

Related

Documentation

Connecting AC Power to an EX2200 Switch on page 73•

•Connecting and Configuring an EX Series Switch (CLI Procedure) on page 87

•Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 89

•Clearance Requirements for Airflow and Hardware Maintenance for EX2200 Switches

on page 42

Mounting an EX2200 Switch on Two Posts in a Rack or Cabinet

You can mount the switch on two posts of a 19-in. rack or cabinet by using the mounting

brackets provided with the switch. (The remainder of this topic uses “rack” to mean “rack

or cabinet”.)

You can mount the switch on four posts of a four-post rack by using the mounting brackets

provided with the separately orderable four-post rack-mount kit. See “Mounting an

EX2200 Switch on Four Posts in a Rack or Cabinet” on page 57.

NOTE: If you need to mount the switch in a recessed position on either a

two-post rack or a four-post rack, you can use the 2-in.-recess front mount

brackets provided in the separately orderable four-post rack-mount kit.

Before mounting the switch on two posts in a rack:

•Verify that the site meets the requirements described in “Site Preparation Checklist

for EX2200 Switches” on page 33.

•Place the rack in its permanent location, allowing adequate clearance for airflow and

maintenance, and secure it to the building structure.

•Read “General Safety Guidelines and Warnings for EX Series Switches” on page 113,

with particular attention to “Chassis Lifting Guidelines for EX2200 Switches” on page 128.

•Remove the switch from the shipping carton (see “Unpacking an EX2200 Switch” on

page 52).

Ensure that you have the following parts and tools available:

55Copyright © 2010, Juniper Networks, Inc.

Chapter 8: Installing the Switch

•Phillips (+) screwdriver, number 2

•2 mounting brackets and 8 mounting screws (provided in the accessory compartment

in the switch carton)

•Screws to secure the chassis to the rack (not provided)

•2-in.-recess front brackets if you will mount the switch in a recessed position (brackets

from the separately orderable four-post rack-mount kit)

NOTE: One person must be available to lift the switch while another secures

the switch to the rack.

CAUTION: If you are mounting multiple units on a rack, mount the heaviest

unit at the bottom of the rack and mount the other units from the bottom of

the rack to the top in decreasing order of the weight of the units.

To mount the switch on two posts in a rack:

1. Place the switch on a flat, stable surface.

2. Align the mounting brackets along the front or rear of the side panels of the switch

chassis depending on how you want to mount the switch. For example, if you want

to front-mount the switch, align the brackets along the front of the chassis. See Figure

15 on page 56.

Figure 15: Attaching the Mounting Bracket Along the Front of the Switch

g027019

SYS

ALM

SPD

DX

EN

POE

NOTE: If you need to mount the switch in a recessed position, use the

2-in.-recess front mount brackets from the separately orderable four-post

rack-mount kit.

3. Align the bottom holes in the mounting brackets with holes on the side panels of the

switch chassis.

4. Insert the mounting screws into the aligned holes. Tighten the screws.

5. Ensure that the other holes in the mounting brackets are aligned with the holes in the

side panels. Insert a screw in each hole and tighten the screws.

Copyright © 2010, Juniper Networks, Inc.56

Complete Hardware Guide for EX2200 Ethernet Switches

6. Have one person grasp both sides of the switch, lift the switch, and position it in the

rack, aligning the mounting bracket holes with the threaded holes in the rack or cabinet

rail. Align the bottom hole in each mounting bracket with a hole in each rack rail,

making sure the chassis is level. See Figure 16 on page 57.

Figure 16: Mounting the Switch on Two Posts in a Rack

g027020

Mounting rack

Mounting bracket

7. Have a second person secure the switch to the rack by using the appropriate screws.

Tighten the screws.

8. Ensure that the switch chassis is level by verifying that all screws on one side of the

rack are aligned with the screws on the other side.

Related

Documentation

Connecting Earth Ground to an EX Series Switch on page 67•

•Connecting AC Power to an EX2200 Switch on page 73

•Connecting and Configuring an EX Series Switch (CLI Procedure) on page 87

•Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 89

•Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet on page 61

•Rack-Mounting and Cabinet-Mounting Warnings for EX Series Switches on page 129

Mounting an EX2200 Switch on Four Posts in a Rack or Cabinet

You can mount an EX2200 switch on four posts of a 19-in. rack or cabinet by using the

separately orderable four-post rack-mount kit. (The remainder of this topic uses “rack”

to mean “rack or cabinet.”)

You can mount the switch on two posts in either a two-post rack or a four-post rack by

using the mounting brackets provided with the switch. See “Mounting an EX2200 Switch

on Two Posts in a Rack or Cabinet” on page 55.

57Copyright © 2010, Juniper Networks, Inc.

Chapter 8: Installing the Switch

NOTE: If you need to mount the switch in a recessed position on either a

two-post rack or a four-post rack, you can use the 2-in.-recess front brackets

provided in the separately orderable four-post rack-mount kit.

Before mounting the switch on four posts in a rack:

•Verify that the site meets the requirements described in “Site Preparation Checklist

for EX2200 Switches” on page 33.

•Place the rack in its permanent location, allowing adequate clearance for airflow and

maintenance, and secure it to the building structure.

•Read “General Safety Guidelines and Warnings for EX Series Switches” on page 113,

with particular attention to “Chassis Lifting Guidelines for EX2200 Switches” on page 128.

•Remove the switch from the shipping carton (see “Unpacking an EX2200 Switch” on

page 52).

Ensure that you have the following parts and tools available:

•Phillips (+) screwdriver, number 2

•6 flat-head 4-40 mounting screws (provided with the four-post rack-mount kit)

•8 flat-head 4x6-mm Phillips mounting screws (provided with the four-post rack-mount

kit)

•One pair each of flush or 2-in.-recess front brackets

•One pair of side-rail brackets

•One pair of rear brackets

•Screws to secure the chassis and the rear brackets to the rack (not provided)

CAUTION: If you are mounting multiple units on a rack, mount the heaviest

unit at the bottom of the rack and mount the other units from the bottom of

the rack to the top in decreasing order of the weight of the units.

Copyright © 2010, Juniper Networks, Inc.58

Complete Hardware Guide for EX2200 Ethernet Switches

To mount the switch on four posts in a rack:

1. Attach the front brackets (either the flush or the 2-in.-recess brackets) to the side-rail

brackets using six 4-40 flat-head Phillips mounting screws. See Figure 17 on page 59.

Figure 17: Attaching the Front Bracket to the Side-Rail Bracket

2. Place the switch on a flat, stable surface.

3. Align the side-rail brackets along the side panels of the switch chassis. Align the two

holes in the rear of the side-rail brackets with the two holes on the rear of the side

panel.

4. Insert 4x6-mm Phillips flat-head mounting screws into the two aligned holes and

tighten the screws. Ensure that the two holes in the rear of the side-rail brackets are

aligned with the remaining two holes in the side panel. See Figure 18 on page 59.

Figure 18: Attaching the Side-Rail Bracket to the Switch Chassis

g027017

5. Insert the 4x6-mm Phillips flat-head mounting screws into the remaining two holes

in the side-rail brackets and tighten the screws.

6. Have one person grasp both sides of the switch, lift the switch, and position it in the

rack, aligning the side-rail bracket holes with the threaded holes in the front post of

the rack. Align the bottom hole in both the mounting brackets with a hole in each rack

rail, making sure the chassis is level. See Figure 19 on page 60.

59Copyright © 2010, Juniper Networks, Inc.

Chapter 8: Installing the Switch

Figure 19: Mounting the Switch to the Front Posts in a Rack

g004477

Side-rail

bracket

Switch

Front

bracket

7. Have a second person secure the front of the switch to the rack by using the appropriate

screws for your rack.

8. Slide the rear brackets into the side-rail brackets. See Figure 20 on page 60.

Figure 20: Sliding the Rear Brackets to the Rear of a Four-Post Rack

g004478

Side-rail

bracket

Switch

Rear brackets

9. Attach the rear brackets to the rear post by using the appropriate screws for your rack.

Tighten the screws.

10. Ensure that the switch chassis is level by verifying that all the screws on the front of

the rack are aligned with the screws at the back of the rack.

Related

Documentation

Connecting Earth Ground to an EX Series Switch on page 67•

•Connecting AC Power to an EX2200 Switch on page 73

•Connecting and Configuring an EX Series Switch (CLI Procedure) on page 87

•Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 89

•Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet on page 61

Copyright © 2010, Juniper Networks, Inc.60

Complete Hardware Guide for EX2200 Ethernet Switches

•Rack-Mounting and Cabinet-Mounting Warnings for EX Series Switches on page 129

Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet

You can mount an EX2200 switch in a rack or cabinet such that the switch is recessed

inside the rack from the rack front by 2 inches. You can use the 2-in.-recess front brackets

provided in the separately orderable four-post rack-mount kit to mount the switch in a

recessed position.

Reasons that you might want to mount the switch in a recessed position include:

•You are mounting the switch in a cabinet and the cabinet doors will not close completely

unless the switch is recessed.

•The switch you are mounting has transceivers installed in the uplink ports—the

transceivers in the uplink ports protrude from the front of the switch.

To mount the switch in a recessed position on four posts, follow the instructions in

“Mounting an EX2200 Switch on Four Posts in a Rack or Cabinet” on page 57. To mount

the switch in a recessed position on two posts, follow the instructions in “Mounting an

EX2200 Switch on Two Posts in a Rack or Cabinet” on page 55.

Related

Documentation

Connecting Earth Ground to an EX Series Switch on page 67•

•Rack-Mounting and Cabinet-Mounting Warnings for EX Series Switches on page 129

Mounting an EX2200 Switch on a Wall

You can mount an EX2200 switch on a wall by using the separately orderable wall-mount

kit.

WARNING:

When mounting an EX2200 switch chassis in a vertical position, orient the

front panel of the chassis downward to ensure proper airflow and meet

safety requirements in the event of a fire.

•

•When wall mounting Power over Ethernet (PoE) models (EX2200-24P

and EX2200-48P), install the wall-mount baffle above the units to reduce

the risk of objects or substances falling into the air exhaust or power supply,

which could cause a fire.

Before mounting the switch on a wall:

•Verify that the site meets the requirements described in “Site Preparation Checklist

for EX2200 Switches” on page 33.

•Read “General Safety Guidelines and Warnings for EX Series Switches” on page 113,

with particular attention to “Chassis Lifting Guidelines for EX2200 Switches” on page 128.

61Copyright © 2010, Juniper Networks, Inc.

Chapter 8: Installing the Switch

•Remove the switch from the shipping carton (see “Unpacking an EX2200 Switch” on

page 52).

Ensure that you have the following parts and tools available:

•2 wall-mount brackets (provided in the wall-mount kit)

•1 wall-mount baffle (provided in the wall-mount kit)

•12 wall-mount bracket screws (provided in the wall-mount kit)

•6 mounting screws (8-32 x 1.25 in. or M4 x 30 mm) (not provided)

•Hollow wall anchors rated to support up to 75 lb (34 kg) if you are not screwing the

screws directly into wall studs (not provided)

•Phillips (+) screwdriver, number 2 (not provided)

To mount one or two switches on a wall:

1. Attach the wall-mount brackets to the sides of the chassis using four wall-mount

bracket screws on each side, as shown in Figure 21 on page 62.

Figure 21: Attaching Wall-Mount Brackets to a Switch Chassis

g027022

Front panel

Rear panel

Baffle for PoE Models

(EX2200-24P and EX2200-48P)

2. If you are mounting two switches together, align the second switch on top of the first

and attach it to the mounting brackets using two additional wall-mount bracket

screws on each side (Figure 23 on page 64 shows two aligned switches).

3. Install six mounting screws in the wall for the wall-mount brackets and baffle as

shown in Figure 22 on page 63:

•Use hollow wall anchors rated to support up to 75 lb (34 kg) if you are not inserting

the mounting screws directly into wall studs.

•Turn the screws only part way in, leaving about 1/4 in. (6 mm) distance between

the head of the screw and the wall.

a. Install screw A.

b. Install screw B18.68 in. (47.4 cm) from screw Aon a level line.

Copyright © 2010, Juniper Networks, Inc.62

Complete Hardware Guide for EX2200 Ethernet Switches

c. Install screw C5.98 in. (15.2 cm) on a plumb line down from screw Aand screw D

5.98 in. down from screw B.

d. For PoE models, install screw E2.76 in. (7 cm) up from and 8.32 in. (21.1 cm) to the

right of screw A.

e. For PoE models, install screw F4.49 in. (11.4 cm) to the right of screw E.

Figure 22: Measuring for Mounting Screws

18.68 in. (47.4 cm)

Front

Rear

A

E F

C

B

D

Side wall-mount brackets

8.32 in. (21.1 cm)

4.49 in.

(11.4 cm)

5.98 in.

(15.2 cm)

2.76 in (7 cm)

g021067

Baffle for PoE Models

(EX2200-24P and EX2200-48P)

4. Lift the unit (one switch or two) by grasping each side, and hang the unit by attaching

the brackets to the mounting screws as shown in Figure 23 on page 64.

5. For PoE models, install the baffle by attaching it to mounting screws Eand Fas shown

in Figure 23 on page 64.

6. Tighten all mounting screws.

63Copyright © 2010, Juniper Networks, Inc.

Chapter 8: Installing the Switch

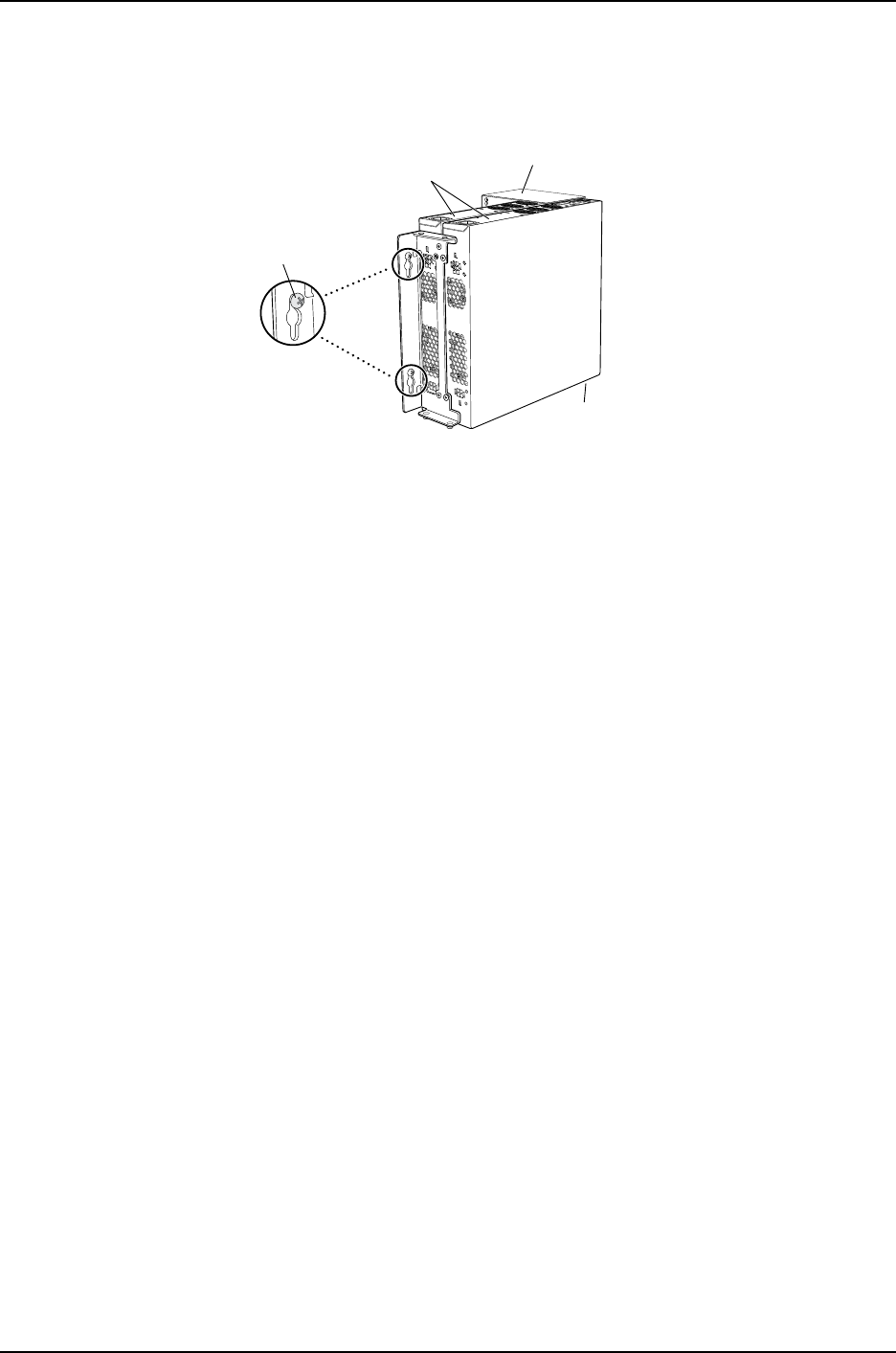

Figure 23: Mounting a Switch on a Wall

g020723

Hang attached brackets

on wall-mounted screws.

Front

panel

Rear

panel

Baffle for PoE Models

(EX2200-24P and EX2200-48P)

Related

Documentation

•Connecting AC Power to an EX2200 Switch on page 73

•Connecting and Configuring an EX Series Switch (CLI Procedure) on page 87

•Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 89

•Wall-Mounting Warnings for EX2200 Switches on page 134

Copyright © 2010, Juniper Networks, Inc.64

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 9

Installing Switch Components

•Installing a Transceiver in an EX Series Switch on page 65

Installing a Transceiver in an EX Series Switch

The transceivers for EX Series switches are hot-removable and hot-insertable

field-replaceable units (FRUs): You can remove and replace them without powering off

the switch or disrupting switch functions.

Use only optical transceivers and optical connectors purchased from Juniper Networks

for your EX Series switch.

NOTE: On an EX3200 switch, if you install a transceiver in a 1-gigabit uplink

module port, a corresponding network port from the last four built-in ports

is disabled. For example, if you install a transceiver in the 1-gigabit uplink

module port 2 (ge-0/1/3), then built-in port 23 (ge-0/0/23) is disabled. The

disabled port is not listed in the output of show interface commands.

Before you begin installing a transceiver in an EX Series switch, ensure that you have

taken the necessary precautions for safe handling of lasers (see “Laser and LED Safety

Guidelines and Warnings for EX Series Switches” on page 121).

Ensure that you have a rubber safety cap available to cover the transceiver.

Figure 24 on page 66 shows how to install an SFP transceiver. The procedure is the same

for all transceiver types.

To install a transceiver in an EX Series switch:

CAUTION: To avoid electrostatic discharge (ESD) damage to the transceiver,

do not touch the connector pins at the end of the transceiver.

1. Remove the transceiver from its bag.

2. Check to see whether the transceiver is covered by a rubber safety cap. If it is not,

cover the transceiver with a rubber safety cap.

65Copyright © 2010, Juniper Networks, Inc.

WARNING: Do not leave a fiber-optic transceiver uncovered except when

inserting or removing a cable. The rubber safety cap keeps the port clean

and prevents accidental exposure to laser light.

3. If the port in which you want to install the transceiver is covered with a dust cover,

remove the dust cover and save it in case you need to cover the port later. If you are

hot-swapping a transceiver, wait for at least 10 seconds after removing the transceiver

from the port before installing a transceiver.

4. Using both hands, carefully place the transceiver in the empty port. The connectors

must face the switch chassis.

CAUTION: Before you slide the transceiver into the port, ensure the

transceiver is aligned correctly. Misalignment might cause the pins to

bend, making the transceiver unusable.

5. Slide the transceiver in gently until it is fully seated.

6. Remove the rubber safety cap when you are ready to connect the cable to the

transceiver.

WARNING: Do not look directly into a fiber-optic transceiver or into the

ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables

connected to transceivers emit laser light that can damage your eyes.

Figure 24: Installing a Transceiver in an EX Series Switch

Related

Documentation

•Removing a Transceiver from an EX Series Switch on page 95

•Connecting a Fiber-Optic Cable to an EX Series Switch on page 81

•Optical Interface Support in EX2200 Switches on page 22

•Optical Interface Support in EX3200 Switches

•Optical Interface Support in EX4200 Switches

•Optical Interface Support in EX4500 Switches

•Optical Interface Support in EX8200 Switches

Copyright © 2010, Juniper Networks, Inc.66

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 10

Connecting the Switch

•Connecting Earth Ground to an EX Series Switch on page 67

•Connecting AC Power to an EX2200 Switch on page 73

•Connecting an EX Series Switch to a Network for Out-of-Band Management on page 74

•Connecting an EX Series Switch to a Management Console on page 76

•Connecting an EX Series Switch to a Modem on page 77

•Connecting a Fiber-Optic Cable to an EX Series Switch on page 81

Connecting Earth Ground to an EX Series Switch

To meet safety and electromagnetic interference (EMI) requirements and to ensure

proper operation, you must connect the switches to earth ground before you connect

them to power.

For installations that require a separate grounding conductor to the chassis, use the

protective earthing terminal on the EX Series switch chassis to connect to the earth

ground (see Figure 25 on page 67).

Figure 25: Connecting a Grounding Cable to an EX Series Switch

Before you connect earth ground to the protective earthing terminal of an EX Series

switch, ensure that a licensed electrician has attached an appropriate grounding lug to

the grounding cable.

67Copyright © 2010, Juniper Networks, Inc.

CAUTION: Using a grounding cable with an incorrectly attached lug can

damage the switch.

Follow the procedure that applies to your switch:

•Connecting Earth Ground to an EX2200 or EX3200 Switch on page 68

•Connecting Earth Ground to an EX4200 Switch on page 69

•Connecting Earth Ground to an EX4500 Switch on page 70

•Connecting Earth Ground to an EX8208 Switch on page 71

•Connecting Earth Ground to an EX8216 Switch on page 72

Connecting Earth Ground to an EX2200 or EX3200 Switch

The protective earthing terminal is located on the rear of the chassis in an EX2200 switch

and in an EX3200 switch.

An AC-powered EX Series switch chassis gets additional grounding when you plug the

power supply in the switch into a grounded AC power outlet by using an AC power cord

appropriate for your geographical location. For EX2200 switches, see “AC Power Cord

Specifications for EX2200 Switches” on page 47. For EX3200 switches, see AC Power

Cord Specifications for EX3200 Switches.

Ensure that you have the following parts and tools available:

•Grounding cable for your switch—The grounding cable must be minimum 14 AWG

(2 mm²), minimum 90°C wire, or as permitted by the local code.

•Grounding lug for your grounding cable—The grounding lug required is a Panduit

LCD6-14BH-L or equivalent.

•Washers and 10-32x.25-in. screws to secure the grounding lug to the protective earthing

terminal

NOTE: Some early models of EX3200 switches require 10-24x.25-in. screws

rather than 10-32x.25-in. screws. If the Juniper Networks product number

on the label next to the protective earthing terminal is from 750-021xxx

through 750-030xxx, the switch requires 10-24x.25-in. screws.

•Phillips (+) screwdriver, number 2

To connect earth ground to an EX2200 or EX3200 switch:

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in

which the switch is mounted.

2. Place the grounding lug attached to the grounding cable over the protective earthing

terminal. See Figure 25 on page 67.

Copyright © 2010, Juniper Networks, Inc.68

Complete Hardware Guide for EX2200 Ethernet Switches

3. Secure the grounding lug to the protective earthing terminal with screws.

4. Dress the grounding cable and ensure that it does not touch or block access to other

switch components and that it does not drape where people could trip over it.

Connecting Earth Ground to an EX4200 Switch

The protective earthing terminal is located on the left side of the chassis in an EX4200

switch.

An AC-powered EX Series switch chassis gets additional grounding when you plug the

power supply in the switch into a grounded AC power outlet by using an AC power cord

appropriate for your geographical location. See AC Power Cord Specifications for EX4200

Switches.

Ensure that you have the following parts and tools available:

•Grounding cable for your EX4200 switch—The grounding cable must be minimum

14 AWG (2 mm²), minimum 90°C wire, or as permitted by the local code.

•Grounding lug for your grounding cable—The grounding lug required is a Panduit

LCD6-14BH-L or equivalent.

•Washers and 10-32x.25-in. screws to secure the grounding lug to the protective earthing

terminal

NOTE: Some early models of EX4200 switches require 10-24x.25-in. screws

rather than 10-32x.25-in. screws. If the Juniper Networks product number

on the label next to the protective earthing terminal is from 750-021xxx

through 750-030xxx, the switch requires 10-24x.25-in. screws.

•Phillips (+) screwdriver, number 2

To connect earth ground to an EX4200 switch:

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in

which the switch is mounted.

2. Place the grounding lug attached to the grounding cable over the protective earthing

terminal. See Figure 25 on page 67.

If you mounted an EX4200 switch on four posts of a rack using the four-post

rack-mount kit, the protective earthing terminal on the switch is accessible through

the slot on the left rear bracket. See Figure 26 on page 70.

NOTE: The protective earthing terminal on an EX4200 switch mounted

on four posts is available only if the rack is 27.5 in. deep through 30.5 in.

deep for a switch mounted flush with the rack front and 29.5 in. deep

through 32.5 in. deep for a switch mounted 2 in. recessed from the rack

front.

69Copyright © 2010, Juniper Networks, Inc.

Chapter 10: Connecting the Switch

Figure 26: Connecting the Grounding Lug to an EX4200 Switch on a

Four-Post Rack

3. Secure the grounding lug to the protective earthing terminal with screws.

4. Dress the grounding cable and ensure that it does not touch or block access to other

switch components and that it does not drape where people could trip over it.

Connecting Earth Ground to an EX4500 Switch

The protective earthing terminal is located on the left rear of the chassis in an EX4500

switch.

An AC-powered EX Series switch chassis gets additional grounding when you plug the

power supply in the switch into a grounded AC power outlet by using an AC power cord

appropriate for your geographical location. See AC Power Cord Specifications for an

EX4500 Switch.

NOTE: If you plan to mount your switch on four posts of a rack or cabinet,

mount your switch in the rack or cabinet before attaching the grounding lug

to the switch. See Mounting an EX4500 Switch on Four Posts in a Rack or

Cabinet

Ensure that you have the following parts and tools available:

•Grounding cable for your EX4500 switch—The grounding cable must be 14 AWG

(2 mm²), minimum 90°C wire, or as permitted by the local code.

•Grounding lug for your grounding cable. See Grounding Cable and Lug Specifications

for EX4500 Switches.

Copyright © 2010, Juniper Networks, Inc.70

Complete Hardware Guide for EX2200 Ethernet Switches

•Washers and 10-32x.25-in. screws to secure the grounding lug to the protective earthing

terminal

•Phillips (+) screwdriver, number 2

To connect earth ground to an EX4500 switch:

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in

which the switch is mounted.

2. Place the grounding lug attached to the grounding cable over the protective earthing

terminal. See Figure 25 on page 67.

NOTE: If you mounted the switch on four posts of a rack using the

four-post rack-mount kit, the protective earthing terminal on the switch

is accessible through the slot on the left rear bracket.

The protective earthing terminal on the switch mounted on four posts is

available only if the rack is 27.5 in. deep through 30.5 in. deep for a switch

mounted flush with the rack front and 29.5 in. deep through 32.5 in. deep

for a switch mounted 2 in. recessed from the rack front.

3. Secure the grounding lug to the protective earthing terminal with screws.

4. Dress the grounding cable and ensure that it does not touch or block access to other

switch components and that it does not drape where people could trip over it.

Connecting Earth Ground to an EX8208 Switch

The protective earthing terminal is located on the left side of the chassis in an EX8208

switch.

An AC-powered EX Series switch chassis gets additional grounding when you plug the

power supply in the switch into a grounded AC power outlet by using an AC power cord

appropriate for your geographical location. See AC Power Cord Specifications for an

EX8200 Switch.

Ensure that you have the following parts and tools available:

•Grounding cable for your EX8208 switch—The grounding cable must be 6 AWG

(13.3 mm²), minimum 60°C wire, or as permitted by the local code.

•Grounding lug for your grounding cable. See Grounding Cable and Lug Specifications

for EX8200 Switches.

•Washers and ¼-20x.75-in. screws to secure the grounding lug to the protective earthing

terminal

•Phillips (+) screwdriver, number 2

To connect earth ground to an EX8208 switch:

71Copyright © 2010, Juniper Networks, Inc.

Chapter 10: Connecting the Switch

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in

which the switch is mounted.

2. Place the grounding lug attached to the grounding cable over the protective earthing

terminal. See Figure 25 on page 67.

3. Secure the grounding lug to the protective earthing terminal with screws.

4. Dress the grounding cable and ensure that it does not touch or block access to other

switch components and that it does not drape where people could trip over it.

Connecting Earth Ground to an EX8216 Switch

There are two protective earthing terminals on an EX8216 switch: one on the left side of

the chassis and the other on the rear of the chassis. Only one of the two protectiveearthing

terminals needs to be permanently connected to earth ground.

An AC-powered EX Series switch chassis gets additional grounding when you plug the

power supply in the switch into a grounded AC power outlet by using an AC power cord

appropriate for your geographical location. See AC Power Cord Specifications for an

EX8200 Switch.

Ensure that you have the following parts and tools available:

•Grounding cable for your EX8216 switch—The grounding cable must be 2 AWG

(33.6 mm²), minimum 60°C wire, or as permitted by the local code.

•Grounding lug for your grounding cable. See Grounding Cable and Lug Specifications

for EX8200 Switches.

•Washers and ¼-20x.5/8-in. screws to secure the grounding lug to the protective earthing

terminal

•Phillips (+) screwdriver, number 2

To connect earth ground to an EX8216 switch:

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in

which the switch is mounted.

2. Place the grounding lug attached to the grounding cable over the protective earthing

terminal. See Figure 25 on page 67.

3. Secure the grounding lug to the protective earthing terminal with screws.

4. Dress the grounding cable and ensure that it does not touch or block access to other

switch components and that it does not drape where people could trip over it.

Related

Documentation

Connecting AC Power to an EX2200 Switch on page 73•

•Connecting AC Power to an EX3200 Switch

•Connecting DC Power to an EX3200 Switch

•Connecting AC Power to an EX4200 Switch

•Connecting DC Power to an EX4200 Switch

Copyright © 2010, Juniper Networks, Inc.72

Complete Hardware Guide for EX2200 Ethernet Switches

•Connecting AC Power to an EX4500 Switch

•Connecting DC Power to an EX4500 Switch

•Connecting AC Power to an EX8200 Switch

•Connecting DC Power to an EX8200 Switch

•General Safety Guidelines and Warnings for EX Series Switches on page 113

•Grounded Equipment Warning for EX Series Switches on page 134

Connecting AC Power to an EX2200 Switch

The power supply in an EX2200 switch is located on the rear panel.

Ensure that you have the following parts and tools available:

•A power cord appropriate for your geographical location

•A power cord retainer clip

Ensure that you have connected the switch chassis to earth ground.

CAUTION: To meet safety and electromagnetic interference (EMI)

requirements and to ensure proper operation, you must connect the switches

to earth ground before you connect them to power. For installations that

require a separate grounding conductor to the chassis, use the protective

earthing terminal on the switch chassis to connect to the earth ground. For

instructions on connecting earth ground, see “Connecting Earth Ground to

an EX Series Switch” on page 67. An EX2200 switch gets additional grounding

when you plug the power supply in the switch into a grounded AC power

outlet by using the AC power cord appropriate for your geographical location

(see “AC Power Cord Specifications for EX2200 Switches” on page 47).

To connect AC power to the switch:

1. Squeeze the two sides of the power cord retainer clip and insert the L-shaped ends

of the wire clip into the holes in the bracket on each side of the AC power cord inlet

on the rear panel (Figure 27 on page 74).

The power cord retainer clip extends out of the chassis by 3 in.

2. Locate the power cord or cords shipped with the switch; the cords have plugs

appropriate for your geographical location. See “AC Power Cord Specifications for

EX2200 Switches” on page 47.

WARNING: Ensure that the power cord does not drape where people can

trip on it or block access to switch components.

3. Insert the coupler end of the power cord into the AC power cord inlet on the rear panel.

73Copyright © 2010, Juniper Networks, Inc.

Chapter 10: Connecting the Switch

4. Push the power cord into the slot in the adjustment nut of the power cord retainer

clip. Turn the nut until it is tight against the base of the coupler and the slot in the nut

is turned 90° from the top of the switch (see Figure 28 on page 74).

5. If the AC power source outlet has a power switch, set it to the OFF (0) position.

6. Insert the power cord plug into an AC power source outlet.

7. If the AC power source outlet has a power switch, set it to the ON (|) position.

Figure 27: Connecting an AC Power Cord Retainer Clip to the AC Power

Cord Inlet on an EX2200 Switch

g027013

Retainer clip

Adjustment nut

Figure 28: Connecting an AC Power Cord to the AC Power Cord Inlet on

an EX2200 Switch

g027014

Tighten

adjustment nut.

Related

Documentation

Connecting and Configuring an EX Series Switch (CLI Procedure) on page 87•

•Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 89

•Power Supply in EX2200 Switches on page 14

Connecting an EX Series Switch to a Network for Out-of-Band Management

This topic applies to multiple hardware devices in the EX Series product family, which

includes switches and the XRE200 External Routing Engine.

You can monitor and manage these devices using a dedicated management channel.

Each device has a management port with an RJ-45 connector for out-of-band

management. Use the management port to connect the EX Series switch or external

Routing Engine to the management device.

Ensure that you have an Ethernet cable with an RJ-45 connector available. One such

cable is provided with the device. Figure 29 on page 75 shows the RJ-45 connector of

the Ethernet cable supplied with the device.

Copyright © 2010, Juniper Networks, Inc.74

Complete Hardware Guide for EX2200 Ethernet Switches

Figure 29: Ethernet Cable Connector

To connect a device to a network for out-of-band management (see Figure 30 on

page 75):

1. Connect one end of the Ethernet cable to the management port (labeled MGMT) on

the device.

For the location of the MGMT port on different devices:

•See “Rear Panel of an EX2200 Switch” on page 6.

•See Rear Panel of an EX3200 Switch.

•See Rear Panel of an EX4200 Switch.

•See Front Panel of an EX4500 Switch.

•See Switch Fabric and Routing Engine (SRE) Module in an EX8208 Switch.

•See Routing Engine (RE) Module in an EX8216 Switch.

•See Front Panel of an XRE200 External Routing Engine.

2. Connect the other end of the Ethernet cable to the management device.

Figure 30: Connecting an EX Series Switch to a Network for Out-of-Band

Management

g020548

Management PC

Management PC

Management PC

To Management port

(on the switch)

Management

network

Related

Documentation

Connecting an EX Series Switch to a Management Console on page 76•

•Management Port Connector Pinout Information for an EX2200 Switch on page 22

•Management Port Connector Pinout Information for an EX3200 Switch

•Management Port Connector Pinout Information for an EX4200 Switch

75Copyright © 2010, Juniper Networks, Inc.

Chapter 10: Connecting the Switch

•Management Port Connector Pinout Information for an EX4500 Switch

•Management Port Connector Pinout Information for an EX8200 Switch

•Management Port Connector Pinout Information for an XRE200 External Routing

Engine

•Cables Connecting the EX8200 Switch to Management Devices

Connecting an EX Series Switch to a Management Console

This topic applies to multiple hardware devices in the EX Series product family, which

includes switches and the XRE200 External Routing Engine.

You can configure and manage these devices using a dedicated console. Every device

has a console port with an RJ-45 connector. Use the console port to connect the device

to the management console or to a console server. The console port accepts a cable

with an RJ-45 connector.

Ensure that you have an Ethernet cable with an RJ-45 connector available. An RJ-45

cable and an RJ-45 to DB-9 serial port adapter are supplied with the device.

Figure 31 on page 76 shows the RJ-45 connector of the Ethernet cable supplied with the

device.

Figure 31: Ethernet Cable Connector

NOTE: If your laptop or PC does not have a DB-9 male connector pin and you

want to connect your laptop or PC directly to the device, use a combination

of the RJ-45 to DB-9 female adapter supplied with the device and a USB to

DB-9 male adapter. You must provide the USB to DB-9 male adapter.

To connect the device to a management console (see Figure 32 on page 77 and Figure

33 on page 77):

1. Connect one end of the Ethernet cable into the console port (labeled CON or

CONSOLE) on the device.

For the location of the CON/CONSOLE port on different devices:

•See “Rear Panel of an EX2200 Switch” on page 6.

•See Rear Panel of an EX3200 Switch.

•See Rear Panel of an EX4200 Switch.

•See Front Panel of an EX4500 Switch.

•See Switch Fabric and Routing Engine (SRE) Module in an EX8208 Switch.

Copyright © 2010, Juniper Networks, Inc.76

Complete Hardware Guide for EX2200 Ethernet Switches

•See Routing Engine (RE) Module in an EX8216 Switch.

•See Front Panel of an XRE200 External Routing Engine.

2. Connect the other end of the Ethernet cable into the console server (see Figure 32 on

page 77) or management console (see Figure 33 on page 77).

To configure the device from the management console, see “Connecting and Configuring

an EX Series Switch (CLI Procedure)” on page 87 or “Connecting and Configuring an EX

Series Switch (J-Web Procedure)” on page 89.

Figure 32: Connecting an EX Series Switch to a Management Console

Through a Console Server

g020547

Console server

PC

To Console port

(on the switch)

Figure 33: Connecting an EX Series Switch Directly to a Management

Console

g020570

Laptop CPU

To Console port

(on the switch)

Related

Documentation

Connecting an EX Series Switch to a Network for Out-of-Band Management on page 74•

•Console Port Connector Pinout Information for an EX Series Switch on page 21

•Cables Connecting the EX8200 Switch to Management Devices

Connecting an EX Series Switch to a Modem

You can connect an EX Series switch to a modem through the console port on the switch.

Before you connect the switch to a modem:

•Perform the initial setup and configuration of the switch. See “Connecting and

Configuring an EX Series Switch (CLI Procedure)” on page 87 or “Connecting and

Configuring an EX Series Switch (J-Web Procedure)” on page 89.

Ensure that you have the following parts available before you begin to connect the switch

to the modem:

•A modem (not provided)

•A desktop or notebook computer (not provided)

•An RJ-45 to DB-9 adapter and an Ethernet cable (provided)

77Copyright © 2010, Juniper Networks, Inc.

Chapter 10: Connecting the Switch

•A phone cable (not provided)

•If your computer does not have a DB-9 male connector pin, a USB to DB-9 male adapter

(not provided)

•An adapter to connect the RS-232 DB-25 connector on the modem to the RJ-45 to

DB-9 adapter on the switch (not provided)

This topic describes:

1. Setting the Serial Console Speed for the Switch on page 78

2. Configuring the Modem on page 79

3. Connecting the Modem to the Console Port on page 80

Setting the Serial Console Speed for the Switch

Before you can connect the switch to a modem, the switch’s serial console speed must

be set to 115200 baud.

NOTE: The default serial console speed is 9600 baud.

To change the serial console speed:

1. Power on the switch. (If the switch is an EX8208 or EX8216 model, see Powering On

an EX8200 Switch.) The loader script starts.

2. You are prompted with:

Hit [Enter] to boot immediately, or space bar for command prompt.

Press the Spacebar to pause the switch in the loader state (after the Junos OS has

loaded on the switch but before the software starts).

The loader> prompt appears.

3. Set the baud rate:

loader> set baudrate=115200

Press Enter.

4. Press Enter when you see the following message:

Switch baud rate to 115200 bps and press Enter.

The loader> prompt reappears.

5. Save the new serial console speed:

loader> save

Press Enter. The serial console speed is now set to 115200 baud.

6. Boot the software:

loader> boot

Copyright © 2010, Juniper Networks, Inc.78

Complete Hardware Guide for EX2200 Ethernet Switches

The boot process proceeds as normal and ends with a login prompt.

Configuring the Modem

Before you connect the modem, you must configure the modem with required port

settings.

NOTE: Thefollowing procedureuses Hayes-compatible-modemcommands

to configure the modem. If your modem is not Hayes-compatible, see the

documentation for your modem for the equivalent modem commands.

To configure the modem:

1. Connect the modem to the desktop or notebook computer.

2. Power on the modem.

3. From the computer, start your asynchronous terminal emulation application (such

as Microsoft Windows HyperTerminal) and select the COM port to which the modem

is connected (for example, COM1).

4. Configure the port settings shown in Table 23 on page 79.

Table 23: Port Settings

ValuePort Settings

115200Bits per second

8Data bits

NoneParity

1Stop bits

NoneFlow control

5. In the HyperTerminal window, type at. Press Enter.

The modem sends an OK response to verify that it can communicate successfully

with the COM port on your desktop or notebook computer.

6. To configure the modem to answer a call on the first ring, type ats0=1 at the prompt.

Press Enter.

7. To configure the modem to accept modem-control DTR signals, type at&d1 at the

prompt. Press Enter.

8. To disable flow control on the modem, type at&k0 at the prompt. Press Enter.

9. To set the fixed serial port speed on the modem, type at&b1 at the prompt. Press

Enter.

79Copyright © 2010, Juniper Networks, Inc.

Chapter 10: Connecting the Switch

NOTE: You must set the serial port to the fixed speed so that the modem

will not adjust the serial port speed to the negotiated line speed.

10. To save the new modem settings, type at&w0 at the prompt. Press Enter.

The modem sends an OK message. The modem is now ready to be connected to the

switch.

Connecting the Modem to the Console Port

The console port on every EX Series switch accepts a cable with an RJ-45 connector.

Figure 34 on page 80 shows the RJ-45 connector of the Ethernet cable supplied with the

switch.

Figure 34: Ethernet Cable Connector

NOTE: If your laptop or PC does not have a DB-9 male connector pin and you

want to connect your laptop or PC directly to the switch, use a combination

of the RJ-45 to DB-9 female adapter supplied with the switch and a USB to

DB-9 male adapter. You must provide the USB to DB-9 male adapter.

NOTE: Most modems have an RS-232 DB-25 connector. You must separately

purchase an adapter to connect your modem to the RJ-45 to DB-9 adapter

and Ethernet cable supplied with the switch.

To connect a modem to the console port:

1. Turn off power to the switch.

2. Turn off power to the modem.

3. Connect one end of the cable to the console port (labeled CON or CONSOLE) on the

switch.

For the location of the console port on different EX Series switches:

•See “Rear Panel of an EX2200 Switch” on page 6.

•See Rear Panel of an EX3200 Switch.

•See Rear Panel of an EX4200 Switch.

•See Front Panel of an EX4500 Switch.

Copyright © 2010, Juniper Networks, Inc.80

Complete Hardware Guide for EX2200 Ethernet Switches

•See Switch Fabric and Routing Engine (SRE) Module in an EX8208 Switch.

•See Routing Engine (RE) Module in an EX8216 Switch.

4. Connect the other end of the cable to the RJ-45 to DB-9 serial port adapter supplied

with your switch.

5. Connect the serial port adapter to the DB-9 female to DB-25 male adapter or other

adapter appropriate for your modem.

6. Plug the modem adapter into the DB-25 connector on the modem.

7. Connect one end of the phone cable to the modem and the other end to your telephone

network.

8. Turn on the power to your modem.

9. Power on the switch.

Related

Documentation

Connecting an EX Series Switch to a Management Console on page 76•

•Console Port Connector Pinout Information for an EX Series Switch on page 21

Connecting a Fiber-Optic Cable to an EX Series Switch

EX Series switches have field-replaceable unit (FRU) optical transceivers to which you

can connect fiber-optic cables.

Before you begin connecting a fiber-optic cable to an optical transceiver installed in an

EX Series switch, ensure that you have taken the necessary precautions for safe handling

of lasers (see “Laser and LED Safety Guidelines and Warnings for EX Series Switches”

on page 121).

To connect a fiber-optic cable to an optical transceiver installed in an EX Series switch:

WARNING: Do not look directly into a fiber-optic transceiver or into the ends

of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables connected

to transceivers emit laser light that can damage your eyes.

1. If the fiber-optic cable connector is covered by a rubber safety cap, remove the cap.

Save the cap.

2. Remove the rubber safety cap from the optical transceiver. Save the cap.

3. Insert the cable connector into the optical transceiver (see Figure 35 on page 82).

81Copyright © 2010, Juniper Networks, Inc.

Chapter 10: Connecting the Switch

Figure 35: Connecting a Fiber-Optic Cable to an Optical Transceiver

Installed in an EX Series Switch

g027016

Fiber-optic cable

Transceiver

4. Secure the cables so that they are not supporting their own weight. Place excess cable

out of the way in a neatly coiled loop. Placing fasteners on a loop helps cables maintain

their shape.

CAUTION: Do not bend fiber-optic cables beyond their minimum bend

radius. An arc smaller than a few inches in diameter can damage the cables

and cause problems that are difficult to diagnose.

Do not let fiber-optic cables hang free from the connector. Do not allow

fastened loops of cables to dangle, which stresses the cables at the

fastening point.

Related

Documentation

•Disconnecting a Fiber-Optic Cable from an EX Series Switch on page 97

•Installing a Transceiver in an EX Series Switch on page 65

•Maintaining Fiber-Optic Cables in EX Series Switches on page 101

•Optical Interface Support in EX2200 Switches on page 22

•Optical Interface Support in EX3200 Switches

•Optical Interface Support in EX4200 Switches

•Optical Interface Support in EX4500 Switches

•Optical Interface Support in EX8200 Switches

Copyright © 2010, Juniper Networks, Inc.82

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 11

Performing Initial Configuration

•EX2200 Switch Default Configuration on page 83

•Connecting and Configuring an EX Series Switch (CLI Procedure) on page 87

•Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 89

EX2200 Switch Default Configuration

Each EX Series switch is programmed with a factory default configuration that contains

the values set for each configuration parameter when a switch is shipped. The default

configuration file for an EX2200 switch configures Ethernet switching and storm control

on all interfaces, configures Power over Ethernet (PoE) on all interfaces of models that

provide PoE, and enables the LLDP, LLDP-MED, and RSTP protocols and IGMP snooping.

When you commit changes to the configuration, a new configuration file is created that

becomes the active configuration. You can always revert to the factory default

configuration. See Reverting to the Default Factory Configuration for the EX Series Switch.

The following factory default configuration file is for an EX2200 switch with 24 ports, all

of which have PoE capability:

NOTE: For models that have more than 24 ports, this default configuration

file has more interfaces. For models without PoE, the poe stanza does not

appear. All models have four uplink ports as listed below, ge-0/1/0 to ge-0/1/3.

ethernet-switching-options {

storm-control {

interface all {

level 50;

}

}

}

protocols {

igmp-snooping {

vlan all;

}

lldp {

interface all;

}

83Copyright © 2010, Juniper Networks, Inc.

lldp-med {

interface all;

}

rstp;

}

poe {

interface all;

}

interfaces {

ge-0/0/0 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/1 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/2 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/3 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/4 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/5 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/6 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/7 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/8 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/9 {

unit 0 {

Copyright © 2010, Juniper Networks, Inc.84

Complete Hardware Guide for EX2200 Ethernet Switches

family ethernet-switching;

}

}

ge-0/0/10 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/11 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/12 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/13 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/14 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/15 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/16 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/17 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/18 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/19 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/20 {

unit 0 {

family ethernet-switching;

85Copyright © 2010, Juniper Networks, Inc.

Chapter 11: Performing Initial Configuration

}

}

ge-0/0/21 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/22 {

unit 0 {

family ethernet-switching;

}

}

ge-0/0/23 {

unit 0 {

family ethernet-switching;

}

}

ge-0/1/0 {

unit 0 {

family ethernet-switching;

}

}

ge-0/1/1 {

unit 0 {

family ethernet-switching;

}

}

ge-0/1/2 {

unit 0 {

family ethernet-switching;

}

}

ge-0/1/3 {

unit 0 {

family ethernet-switching;

}

}

}

system {

commit {

factory-settings {

reset-chassis-lcd-menu;

reset-virtual-chassis-configuration;

}

}

Related

Documentation

Configuration Files Terms•

•Connecting and Configuring an EX Series Switch (CLI Procedure) on page 87

•Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 89

•Understanding Configuration Files for EX Series Switches

•EX2200 Switches Hardware Overview on page 3

Copyright © 2010, Juniper Networks, Inc.86

Complete Hardware Guide for EX2200 Ethernet Switches

Connecting and Configuring an EX Series Switch (CLI Procedure)

There are two ways to connect and configure an EX Series switch: one method is through

the console using the CLI and the other is using the J-Web interface. This topic describes

the CLI procedure.

NOTE: To run the ezsetup script, the switch must have the factory default

configuration as the active configuration. If you have configured anything on

the switch and want to run ezsetup, revert to the factory default configuration.

See Reverting to the Default Factory Configuration for the EX Series Switch.

Before you begin connecting and configuring an EX Series switch through the console

using the CLI:

•Set the following parameter values in the console server or PC:

•Baud Rate—9600

•Flow Control—None

•Data—8

•Parity—None

•Stop Bits—1

•DCD State—Disregard

To connect and configure the switch from the console:

1. Connect the console port to a laptop or PC using the RJ-45 to DB-9 serial port adapter.

The RJ-45 cable and RJ-45 to DB-9 serial port adapter are supplied with the switch.

•EX2200, EX3200, or EX4200 switch—The console port is located on the rear panel

of the switch.

•EX4500 switch—The console port is located on the front panel of the switch.

•EX8200 switch—The console port is located on the Switch Fabric and Routing

Engine (SRE) module in slot SRE0 in an EX8208 switch or on the Routing Engine

(RE) module in slot RE0 in an EX8216 switch.

2. At the Junos OS shell prompt root%, type ezsetup.

3. Enter the hostname. This is optional.

4. Enter the root password you plan to use for this device. You are prompted to re-enter

the root password.

5. Enter yes to enable services like Telnet and SSH. By default, Telnet is not enabled and

SSH is enabled.

87Copyright © 2010, Juniper Networks, Inc.

Chapter 11: Performing Initial Configuration

NOTE: When Telnet is enabled, you will not be able to log in to an EX

Series switch through Telnet using root credentials. Root login is allowed

only for SSH access.

6. Use the Management Options page to select the management scenario:

NOTE: On EX4500 and EX8200 switches, only the out-of-band

management option is available.

•Configure in-band management. In this scenario you have the following two options:

•Use the default VLAN.

•Create a new VLAN—If you select this option, you are prompted to specify the

VLAN name, VLAN ID, management IP address, and default gateway. Select the

ports that must be part of this VLAN.

•Configure out-of-band management. Specify the IP address and gateway of the

management interface. Use this IP address to connect to the switch.

7. Specify the SNMP Read Community, Location, and Contact to configure SNMP

parameters. These parameters are optional.

8. Specify the system date and time. Select the time zone from the list. These options

are optional.

The configured parameters are displayed. Enter yes to commit the configuration.

The configuration is committed as the active configuration for the switch. You can now

log in with the CLI or the J-Web interface to continue configuring the switch. If you use

the J-Web interface to continue configuring the switch, the Web session is redirected to

the new management IP address. If the connection cannot be made, the J-Web interface

displays instructions for starting a J-Web session.

Related

Documentation

Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 89•

•Installing and Connecting an EX2200 Switch on page 51

•Installing and Connecting an EX3200 Switch

•Installing and Connecting an EX4200 Switch

•Installing and Connecting an EX4500 Switch

•Installing and Connecting an EX8208 Switch

•Installing and Connecting an EX8216 Switch

Copyright © 2010, Juniper Networks, Inc.88

Complete Hardware Guide for EX2200 Ethernet Switches

Connecting and Configuring an EX Series Switch (J-Web Procedure)

There are two ways to connect and configure an EX Series switch: one method is through

the console using the CLI and the other is using the J-Web interface. This topic describes

the J-Web procedure.

NOTE: Before you begin the configuration, enable a DHCP client on the

management PC you will connect to the switch so that the switch can obtain

an IP address dynamically.

NOTE: Read the following steps before you begin the configuration. You

must complete the initial configuration using EZSetup within 10 minutes. The

switch exits EZSetup after 10 minutes and reverts to the factory default

configuration, and the PC loses connectivity to the switch.

•EX2200 switch—The LEDs on the network ports on the front panel blink

when the switch is in the initial setup mode.

•EX3200, EX4200, EX4500, or EX8200 switch—The LCD displays a

count-down timer when the switch is in initial setup mode.

89Copyright © 2010, Juniper Networks, Inc.

Chapter 11: Performing Initial Configuration

To connect and configure the switch using the J-Web interface:

1. Transition the switch into initial setup mode:

•EX2200 switch—Press the mode button located on the lower right corner of the

front panel for 10 seconds.

•EX3200, EX4200, EX4500, or EX8200 switch—Use the Menu and Enter buttons

located to the right of the LCD panel (see Figure 36 on page 90):

Figure 36: LCD Panel in an EX3200, EX4200, EX4500, or EX8200 Switch

1. Press the Menu button until you see MAINTENANCE MENU. Then press the Enter

button.

2. Press Menu until you see ENTER EZSetup. Then press Enter.

If EZSetup does not appear as an option in the menu, select Factory Default to

return the switch to the factory default configuration. EZSetup is displayed in

the menu only when the switch is set to the factory default configuration.

3. Press Enter to confirm setup and continue with EZSetup.

2. Connect the Ethernet cable from the Ethernet port on the PC to the switch.

•EX2200, EX3200, or EX4200 switch—Connect the cable to port 0 (ge-0/0/0) on

the front panel of the switch.

•EX4500 switch—Connect the cable to the port labeled MGMT on the front panel

of the switch.

•EX8200 switch—Connect the cable to the port labeled MGMT on the Switch Fabric

and Routing Engine (SRE) module in slot SRE0 in an EX8208 switch or on the

Routing Engine (RE) module in slot RE0 in an EX8216 switch.

These ports are configured as the DHCP server with the default IP address, 192.168.1.1.

The switch can assign an IP address to the management PC in the IP address range

192.168.1.2 through 192.168.1.253.

3. From the PC, open a Web browser, type http://192.168.1.1 in the address field, and

press Enter.

4. On the J-Web login page, type root as the username, leave the password field blank,

and click Login.

5. On the Introduction page, click Next.

6. On the Basic Settings page, modify the hostname, the root password, and date and

time settings:

Copyright © 2010, Juniper Networks, Inc.90

Complete Hardware Guide for EX2200 Ethernet Switches

•Enter the hostname. This is optional.

•Enter a password and reenter the password.

•Specify the time zone.

•Synchronize the date and time settings of the switch with the management PC or

set them manually by selecting the appropriate option button. This is optional.

Click Next.

7. Use the Management Options page to select the management scenario:

NOTE: On EX4500 and EX8200 switches, only the out-of-band

management option is available.

•In-band Management—Use VLAN 'default' for management.

Select this option to configure all data interfaces as members of the default VLAN.

Click Next. Specify the management IP address and the default gateway for the

default VLAN.

•In-band Management—Create new VLAN for management.

Select this option to create a management VLAN. Click Next. Specify the VLAN

name, VLAN ID, member interfaces, management IP address, and default gateway

for the new VLAN.

•Out-of-band Management—Configure management port.

Select this option to configure only the management interface. Click Next. Specify

the IP address and default gateway for the management interface.

8. Click Next.

9. On the Manage Access page, you may select options to enable Telnet, SSH, and SNMP

services. For SNMP, you can configure the read community, location, and contact.

10. Click Next. The Summary screen displays the configured settings.

11. Click Finish.

The configuration is committed as the active switch configuration. You can now log in

with the CLI or the J-Web interface to continue configuring the switch.

If you use the J-Web interface to continue configuring the switch, the Web session is

redirected to the new management IP address. If the connection cannot be made, the

J-Web interface displays instructions for starting a J-Web session.

NOTE: After the configuration is committed, the connectivity between the

PC and the switch might be lost. To renew the connection, release and renew

the IP address by executing the appropriate commands on the management

PC or by removing and reinserting the Ethernet cable.

91Copyright © 2010, Juniper Networks, Inc.

Chapter 11: Performing Initial Configuration

Related

Documentation

•Connecting and Configuring an EX Series Switch (CLI Procedure) on page 87

•Installing and Connecting an EX2200 Switch on page 51

•Installing and Connecting an EX3200 Switch

•Installing and Connecting an EX4200 Switch

•Installing and Connecting an EX4500 Switch

•Installing and Connecting an EX8208 Switch

•Installing and Connecting an EX8216 Switch

Copyright © 2010, Juniper Networks, Inc.92

Complete Hardware Guide for EX2200 Ethernet Switches

PART 4

Removing Switch Components

•Removing Switch Components on page 95

93Copyright © 2010, Juniper Networks, Inc.

Copyright © 2010, Juniper Networks, Inc.94

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 12

Removing Switch Components

•Removing a Transceiver from an EX Series Switch on page 95

•Disconnecting a Fiber-Optic Cable from an EX Series Switch on page 97

Removing a Transceiver from an EX Series Switch

The transceivers for EX Series switches are hot-removable and hot-insertable

field-replaceable units (FRUs): You can remove and replace them without powering off

the switch or disrupting switch functions.

Before you begin removing a transceiver from an EX Series switch, ensure that you have

taken the necessary precautions for safe handling of lasers (see “Laser and LED Safety

Guidelines and Warnings for EX Series Switches” on page 121).

Ensure that you have the following parts and tools available:

•An antistatic bag or an antistatic mat

•Needlenose pliers

•Rubber safety caps to cover the transceiver and fiber-optic cable connector

•A dust cover to cover the port

Figure 37 on page 96 shows how to remove an SFP transceiver. The procedure is the

same for all transceiver types.

To remove a transceiver from an EX Series switch:

1. Place the antistatic bag or antistatic mat on a flat, stable surface.

2. Label the cable connected to the transceiver so that you can reconnect it correctly.

WARNING: Do not look directly into a fiber-optic transceiver or into the

ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables

connected to transceivers emit laser light that can damage your eyes.

95Copyright © 2010, Juniper Networks, Inc.

WARNING: Do not leave a fiber-optic transceiver uncovered except when

inserting or removing a cable. The rubber safety cap keeps the port clean

and prevents accidental exposure to laser light.

CAUTION: Do not bend fiber-optic cables beyond their minimum bend

radius. An arc smaller than a few inches in diameter can damage the cables

and cause problems that are difficult to diagnose.

3. Remove the cable connected to the transceiver (see “Disconnecting a Fiber-Optic

Cable from an EX Series Switch” on page 97). Cover the transceiver and the end of

each fiber-optic cable connector with a rubber safety cap immediately after

disconnecting the fiber-optic cables.

4. Using your fingers, pull the ejector lever on the transceiver to unlock the transceiver.

CAUTION: Before removing the transceiver, make sure you open the ejector

lever completely until you hear it click. This prevents damage to the

transceiver.

5. Using the needlenose pliers, pull the ejector lever out from the transceiver.

6. Grasp the transceiver ejector lever and gently slide the transceiver approximately

0.5 in. (1.3 cm) straight out of the port.

CAUTION: To avoid electrostatic discharge (ESD) damage to the

transceiver, do not touch the connector pins at the end of the transceiver.

7. Using your fingers, grasp the body of the transceiver and pull it straight out of the port.

8. Place the transceiver in the antistatic bag or on the antistatic mat placed on a flat,

stable surface.

9. Place the dust cover over the empty port.

Figure 37: Removing a Transceiver from an EX Series Switch

Copyright © 2010, Juniper Networks, Inc.96

Complete Hardware Guide for EX2200 Ethernet Switches

Related

Documentation

Installing a Transceiver in an EX Series Switch on page 65•

•Optical Interface Support in EX2200 Switches on page 22

•Optical Interface Support in EX3200 Switches

•Optical Interface Support in EX4200 Switches

•Optical Interface Support in EX4500 Switches

•Optical Interface Support in EX8200 Switches

Disconnecting a Fiber-Optic Cable from an EX Series Switch

EX Series switches have field-replaceable unit (FRU) optical transceivers to which you

can connect fiber-optic cables.

Before you begin disconnecting a fiber-optic cable from an optical transceiver installed

in an EX Series switch, ensure that you have taken the necessary precautions for safe

handling of lasers (see “Laser and LED Safety Guidelines and Warnings for EX Series

Switches” on page 121).

Ensure that you have the following parts and tools available:

•A rubber safety cap to cover the transceiver

•A rubber safety cap to cover the fiber-optic cable connector

To disconnect a fiber-optic cable from an optical transceiver installed in the switch:

1. Disable the port in which the transceiver is installed by issuing the command:

[edit interfaces]

user@switch# set interface-name disable

WARNING: Do not look directly into a fiber-optic transceiver or into the

ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables

connected to transceivers emit laser light that can damage your eyes.

2. Carefully unplug the fiber-optic cable connector from the transceiver.

3. Cover the transceiver with a rubber safety cap.

WARNING: Do not leave a fiber-optic transceiver uncovered except when

inserting or removing a cable. The rubber safety cap keeps the port clean

and prevents accidental exposure to laser light.

4. Cover the fiber-optic cable connector with the rubber safety cap.

97Copyright © 2010, Juniper Networks, Inc.

Chapter 12: Removing Switch Components

Related

Documentation

•Connecting a Fiber-Optic Cable to an EX Series Switch on page 81

•Removing a Transceiver from an EX Series Switch on page 95

•Maintaining Fiber-Optic Cables in EX Series Switches on page 101

•Optical Interface Support in EX2200 Switches on page 22

•Optical Interface Support in EX3200 Switches

•Optical Interface Support in EX4200 Switches

•Optical Interface Support in EX4500 Switches

•Optical Interface Support in EX8200 Switches

Copyright © 2010, Juniper Networks, Inc.98

Complete Hardware Guide for EX2200 Ethernet Switches

PART 5

Switch and Component Maintenance

•Routine Maintenance on page 101

99Copyright © 2010, Juniper Networks, Inc.

Copyright © 2010, Juniper Networks, Inc.100

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 13

Routine Maintenance

•Maintaining Fiber-Optic Cables in EX Series Switches on page 101

Maintaining Fiber-Optic Cables in EX Series Switches

Fiber-optic cables connect to optical transceivers that are installed in EX Series switches.

To maintain fiber-optic cables:

•When you unplug a fiber-optic cable from a transceiver, place rubber safety caps over

the transceiver and on the end of the cable.

•Anchor fiber-optic cables to avoid stress on the connectors. When attaching a

fiber-optic cable to a transceiver, be sure to secure the fiber-optic cable so that it is

not supporting its own weight as it hangs to the floor. Never let a fiber-optic cable hang

free from the connector.

•Avoid bending fiber-optic cables beyond their minimum bend radius. Bending fiber-optic

cables into arcs smaller than a few inches in diameter can damage the cables and

cause problems that are difficult to diagnose.

•Frequent plugging and unplugging of fiber-optic cables in and out of optical instruments

can damage the instruments, which are expensive to repair. Attach a short fiber

extension to the optical equipment. Any wear and tear due to frequent plugging and

unplugging is then absorbed by the short fiber extension, which is easier and less

expensive to replace than the instruments.

•Keep fiber-optic cable connections clean. Micro-deposits of oil and dust in the canal

of the transceiver or cable connector can cause loss of light, reduction in signal power,

and possibly intermittent problems with the optical connection.

To clean the transceiver canal, use an appropriate fiber-cleaning device such as RIFOCS

Fiber Optic Adaptor Cleaning Wands (part number 946). Follow the directions in the

cleaning kit you use.

After cleaning the transceiver, make sure that the connector tip of the fiber-optic cable

is clean. Use only an approved alcohol-free fiber-optic cable cleaning kit such as the

Opptex Cletop-S®Fiber Cleaner. Follow the directions in the cleaning kit you use.

Related

Documentation

•Connecting a Fiber-Optic Cable to an EX Series Switch on page 81

•Laser and LED Safety Guidelines and Warnings for EX Series Switches on page 121

101Copyright © 2010, Juniper Networks, Inc.

•Optical Interface Support in EX2200 Switches on page 22

•Optical Interface Support in EX3200 Switches

•Optical Interface Support in EX4200 Switches

•Optical Interface Support in EX4500 Switches

•Optical Interface Support in EX8200 Switches

Copyright © 2010, Juniper Networks, Inc.102

Complete Hardware Guide for EX2200 Ethernet Switches

PART 6

Returning Hardware

•Returning the Switch or Switch Components on page 105

103Copyright © 2010, Juniper Networks, Inc.

Copyright © 2010, Juniper Networks, Inc.104

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 14

Returning the Switch or Switch

Components

•Returning an EX2200 Switch or Component for Repair or Replacement on page 105

•Locating the Serial Number on an EX2200 Switch or Component on page 106

•Contacting Customer Support to Obtain Return Materials Authorization for EX Series

Switches on page 107

•Packing an EX2200 Switch or Component for Shipping on page 108

Returning an EX2200 Switch or Component for Repair or Replacement

If you need to return an EX2200 switch or hardware component to Juniper Networks for

repair or replacement, follow this procedure:

1. Determine the serial number of the component. For instructions, see “Locating the

Serial Number on an EX2200 Switch or Component” on page 106.

2. Obtain an RMA number from JTAC as described in “Contacting Customer Support to

Obtain Return Materials Authorization for EX Series Switches” on page 107.

NOTE: Do not return any component to Juniper Networks unless you have

first obtained an RMA number. Juniper Networks reserves the right to

refuse shipments that do not have an RMA. Refused shipments are

returned to the customer through collect freight.

3. Pack the switch or component for shipping as described in “Packing an EX2200 Switch

or Component for Shipping” on page 108.

For more information about return and repair policies, see the customer support page at

http://www.juniper.net/support/guidelines.html.

Related

Documentation

EX2200 Switches Hardware Overview on page 3•

105Copyright © 2010, Juniper Networks, Inc.

Locating the Serial Number on an EX2200 Switch or Component

If you are returning an EX2200 switch or hardware component to Juniper Networks for

repair or replacement, you must locate the serial number of the switch or component.

You must provide the serial number to the Juniper Networks Technical Assistance Center

(JTAC) when you contact them to obtain Return Materials Authorization (RMA).

If the switch is operational and you can access the CLI, you can list serial numbers for

the switch and for some components with a CLI command. If you do not have access to

the CLI or if the serial number for the component does not appear in the command output,

you can locate the serial number ID label on the physical switch (see Figure 38 on page 107)

or component.

NOTE: If you want to find the serial number on the physical switch component,

you will need to remove the component from the switch chassis, for which

you must have the required parts and tools available.

•Listing the Switch and Components Details with the CLI on page 106

•Locating the Chassis Serial Number ID Label on an EX2200 Switch on page 106

Listing the Switch and Components Details with the CLI

To list the switch and switch components and their serial numbers, enter the following

CLI command:

user@switch> show chassis hardware

Hardware inventory:

Item Version Part number Serial number Description

Chassis CV0209096579 EX2200-24P-4G

Routing Engine 0 REV 2A 750-026464 CV0209096579 EX2200-24P-4G, POE

FPC 0 REV 2A 750-026464 CV0209096579 EX2200-24P-4G, POE

CPU BUILTIN BUILTIN FPC CPU

PIC 0 BUILTIN BUILTIN 24x 10/100/1000 Base-T

PIC 1 REV 2A 750-026464 CV0209096579 4x GE SFP

Power Supply 0 PS 550W AC

Fan Tray Fan Tray

Locating the Chassis Serial Number ID Label on an EX2200 Switch

EX2200 switches have serial number ID labels located on the rear panel of the chassis

(see Figure 38 on page 107).

Copyright © 2010, Juniper Networks, Inc.106

Complete Hardware Guide for EX2200 Ethernet Switches

Figure 38: Location of the Serial Number ID Label on EX2200 Switches

g027011

SN: CT0209520001

Serial number ID label

EX2200-24-4G REV: X1

750-026464 REV: X3

MAC: 00:23:9C:oE:19:00

Mfg. Date

20090227

MADE IN CHINA

Related

Documentation

Contacting Customer Support to Obtain Return Materials Authorization for EX Series

Switches on page 107

•

•Returning an EX2200 Switch or Component for Repair or Replacement on page 105

Contacting Customer Support to Obtain Return Materials Authorization for EX Series

Switches

If you are returning a switch or hardware component to Juniper Networks for repair or

replacement, obtain a Return Materials Authorization (RMA) from Juniper Networks

Technical Assistance Center (JTAC).

After locating the serial number of the switch or hardware component you want to return,

open a Case with Juniper Networks Technical Assistance Center (JTAC) on the Web or

by telephone.

For instructions on locating the serial number of the switch or hardware component you

want to return:

•See “Locating the Serial Number on an EX2200 Switch or Component” on page 106.

•See Locating the Serial Number on an EX3200 Switch or Component.

•See Locating the Serial Number on an EX4200 Switch or Component.

•See Locating the Serial Number on an EX4500 Switch or Component.

•See Locating the Serial Number on an EX8200 Switch or Component.

•See Locating the Serial Number on an XRE200 External Routing Engine or Component.

Before you request an RMA from JTAC, be prepared to provide the following information:

•Your existing case number, if you have one

•Serial number of the component

•Your name, organization name, telephone number, fax number, and shipping address

•Details of the failure or problem

•Type of activity being performed on the switch when the problem occurred

•Configuration data displayed by one or more show commands

107Copyright © 2010, Juniper Networks, Inc.

Chapter 14: Returning the Switch or Switch Components

You can contact JTAC 24 hours a day, seven days a week on the Web or by telephone:

•Case Manager at CSC: http://www.juniper.net/cm/

•Telephone: +1-888-314-JTAC1-888-314-5822, toll free in U.S., Canada, and Mexico

NOTE: For international or direct-dial options in countries without toll free

numbers, see http://www.juniper.net/support/requesting-support.html.

If you are contacting JTAC by telephone, enter your 11-digit case number followed by the

pound (#) key for an existing case, or press the star (*) key to be routed to the next

available support engineer.

The support representative validates your request and issues an RMA number for return

of the component.

Related

Documentation

Packing an EX2200 Switch or Component for Shipping on page 108•

•Packing an EX3200 Switch or Component for Shipping

•Packing an EX4200 Switch or Component for Shipping

•Packing an EX4500 Switch or Component for Shipping

•Packing an EX8200 Switch or Component

•Packing an XRE200 External Routing Engine or Component for Shipping

•Returning an EX2200 Switch or Component for Repair or Replacement on page 105

•Returning an EX3200 Switch or Component for Repair or Replacement

•Returning an EX4200 Switch or Component for Repair or Replacement

•Returning an EX4500 Switch or Component for Repair or Replacement

•Returning an EX8200 Switch or Component for Repair or Replacement

•Returning an XRE200 External Routing Engine for Repair or Replacement

Packing an EX2200 Switch or Component for Shipping

If you are returning an EX2200 switch or component to Juniper Networks for repair or

replacement, pack the item as described in this topic.

Before you begin, ensure that you have retrieved the original shipping carton and packing

materials. Contact your JTAC representative if you do not have these materials, to learn

about approved packing materials. See “Contacting Customer Support to Obtain Return

Materials Authorization for EX Series Switches” on page 107.

Ensure that you have the following parts and tools available:

•Antistatic bag, one for each switch or component

•Phillips (+) screwdriver, number 2

Copyright © 2010, Juniper Networks, Inc.108

Complete Hardware Guide for EX2200 Ethernet Switches

This topic describes:

•Packing a Switch for Shipping on page 109

•Packing Switch Components for Shipping on page 109

Packing a Switch for Shipping

To pack a switch for shipping:

1. On the console or other management device connected to the switch, enter the CLI

operational mode and issue the following command to shut down the switch software:

user@switch> request system halt

Wait until a message appears on the console confirming that the operating system

has halted.

2. Disconnect power from the switch by performing one of the following:

•If the power source outlet has a power switch, set it to the OFF (0) position.

•If the power source outlet does not have a power switch, gently pull out the male

end of the power cord connected to the power source outlet.

3. Remove the cables that connect the switch to all external devices. See “Disconnecting

a Fiber-Optic Cable from an EX Series Switch” on page 97.

4. Remove all optical transceivers installed in the switch. See “Removing a Transceiver

from an EX Series Switch” on page 95.

5. If the switch is mounted on a wall or on two posts, have one person support the weight

of the switch while another person unscrews and removes the mounting screws.

6. Use the Phillips (+) screwdriver, number 2 to remove the screws.

7. Remove the switch from the wall, rack, cabinet, or desk and place the switch in an

antistatic bag.

8. Slip on the end caps of the packaging foam on both sides of the switch.

9. Place the switch in the shipping carton.

10. Place the packing foam on top of and around the switch.

11. If you are returning accessories or FRUs with the switch, pack them as instructed in

“Packing Switch Components for Shipping” on page 109.

12. Close the top of the cardboard carton and seal it with packing tape.

13. Write the RMA number on the exterior of the carton to ensure proper tracking.

Packing Switch Components for Shipping

To pack and ship switch components:

•Place individual components in antistatic bags.

•Ensure that the components are adequately protected with packing materials and

packed so that the pieces are prevented from moving around inside the carton.

109Copyright © 2010, Juniper Networks, Inc.

Chapter 14: Returning the Switch or Switch Components

•Close the top of the cardboard shipping carton and seal it with packing tape.

•Write the RMA number on the exterior of the carton to ensure proper tracking.

Related

Documentation

•Returning an EX2200 Switch or Component for Repair or Replacement on page 105

Copyright © 2010, Juniper Networks, Inc.110

Complete Hardware Guide for EX2200 Ethernet Switches

PART 7

Safety Information

•General Safety Information on page 113

•Radiation and Laser Warnings on page 121

•Installation and Maintenance Safety Information on page 127

•Power and Electrical Safety Information on page 141

111Copyright © 2010, Juniper Networks, Inc.

Copyright © 2010, Juniper Networks, Inc.112

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 15

General Safety Information

•General Safety Guidelines and Warnings for EX Series Switches on page 113

•Definitions of Safety Warning Levels for EX Series Switches on page 114

•Fire Safety Requirements for EX Series Switches on page 116

•Qualified Personnel Warning for EX Series Switches on page 117

•Warning Statement for Norway and Sweden for EX Series Switches on page 118

General Safety Guidelines and Warnings for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

The following guidelines help ensure your safety and protect the device from damage.

The list of guidelines might not address all potentially hazardous situations in your working

environment, so be alert and exercise good judgment at all times.

•Perform only the procedures explicitly described in the hardware documentation for

this device. Make sure that only authorized service personnel perform other system

services.

•Keep the area around the device clear and free from dust before, during, and after

installation.

•Keep tools away from areas where people could trip over them while walking.

•Do not wear loose clothing or jewelry, such as rings, bracelets, or chains, which could

become caught in the device.

•Wear safety glasses if you are working under any conditions that could be hazardous

to your eyes.

•Do not perform any actions that create a potential hazard to people or make the

equipment unsafe.

•Never attempt to lift an object that is too heavy for one person to handle.

•Never install or manipulate wiring during electrical storms.

•Never install electrical jacks in wet locations unless the jacks are specifically designed

for wet environments.

•Operate the device only when it is properly grounded.

113Copyright © 2010, Juniper Networks, Inc.

•Ensure that the separate protective earthing terminal provided on this device is

permanently connected to earth.

•Replace fuses only with fuses of the same type and rating.

•Do not open or remove chassis covers or sheet-metal parts unless instructions are

provided in the hardware documentation for this device. Such an action could cause

severe electrical shock.

•Do not push or force any objects through any opening in the chassis frame. Such an

action could result in electrical shock or fire.

•Avoid spilling liquid onto the chassis or onto any device component. Such an action

could cause electrical shock or damage the device.

•Avoid touching uninsulated electrical wires or terminals that have not been

disconnected from their power source. Such an action could cause electrical shock.

•Always ensure that all modules, power supplies, and cover panels are fully inserted

and that the installation screws are fully tightened.

Related

Documentation

AC Power Electrical Safety Guidelines for EX Series Switches on page 144•

•DC Power Electrical Safety Guidelines for EX Series Switches

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•Maintenance and Operational Safety Guidelines and Warnings for EX Series Switches

on page 135

•Laser and LED Safety Guidelines and Warnings for EX Series Switches on page 121

•Installation Instructions Warning for EX Series Switches on page 127

•Grounded Equipment Warning for EX Series Switches on page 134

Definitions of Safety Warning Levels for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

The EX Series documentation uses the following levels of safety warnings (there are two

“Warning” formats):

NOTE: You might find this information helpful in a particular situation, or you

might overlook this important information if it was not highlighted in a Note.

CAUTION: You need to observe the specified guidelines to avoid minor injury

or discomfort to you or severe damage to the device.

Copyright © 2010, Juniper Networks, Inc.114

Complete Hardware Guide for EX2200 Ethernet Switches

WARNING: This symbol alerts you to the risk of personal injury from a laser.

WARNING: This symbol means danger. You are in a situation that could cause

bodily injury. Before you work on any equipment, be aware of the hazards

involved with electrical circuitry and be familiar with standard practices for

preventing accidents.

WARNING: Waarschuwing Dit waarschuwingssymbool betekent gevaar. U

verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan

enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische

schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard

maatregelen om ongelukken te voorkomen.

WARNING: Varoitus Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa,

joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston

parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista

onnettomuuksien ehkäisykeinoista.

WARNING: Attention Ce symbole d'avertissement indique un danger. Vous

vous trouvez dans une situation pouvant causer des blessures ou des

dommages corporels. Avant de travailler sur un équipement, soyez conscient

des dangers posés par les circuits électriques et familiarisez-vous avec les

procédures couramment utilisées pour éviter les accidents.

WARNING: Warnung Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich

in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit

der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen

Stromkreisen verbundenen Gefahren und der Standardpraktiken zur

Vermeidung von Unfällen bewußt.

WARNING: Avvertenza Questo simbolo di avvertenza indica un pericolo. La

situazione potrebbe causare infortuni alle persone. Prima di lavorare su

qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti

elettrici ed essere al corrente delle pratiche standard per la prevenzione di

incidenti.

115Copyright © 2010, Juniper Networks, Inc.

Chapter 15: General Safety Information

WARNING: Advarsel Dette varselsymbolet betyr fare. Du befinner deg i en

situasjon som kan føre til personskade. Før du utfører arbeid på utstyr, må

du vare oppmerksom på de faremomentene som elektriske kretser innebærer,

samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker.

WARNING: Aviso Este símbolo de aviso indica perigo. Encontra-se numa

situação que lhe poderá causar danos físicos. Antes de começar a trabalhar

com qualquer equipamento, familiarize-se com os perigos relacionados com

circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir

possíveis acidentes.

WARNING: ¡Atención! Este símbolo de aviso significa peligro. Existe riesgo

para su integridad física. Antes de manipular cualquier equipo, considerar

los riesgos que entraña la corriente eléctrica y familiarizarse con los

procedimientos estándar de prevención de accidentes.

WARNING: Varning! Denna varningssymbol signalerar fara. Du befinner dig

i en situation som kan leda till personskada. Innan du utför arbete på någon

utrustning måste du vara medveten om farorna med elkretsar och känna till

vanligt förfarande för att förebygga skador.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•Installation Instructions Warning for EX Series Switches on page 127

•Maintenance and Operational Safety Guidelines and Warnings for EX Series Switches

on page 135

•Grounded Equipment Warning for EX Series Switches on page 134

•Laser and LED Safety Guidelines and Warnings for EX Series Switches on page 121

•Warning Statement for Norway and Sweden for EX Series Switches on page 118

Fire Safety Requirements for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

In the event of a fire emergency involving switches and other network equipment, the

safety of people is the primary concern. You should establish procedures for protecting

people in the event of a fire emergency, provide safety training, and properly provision

fire-control equipment and fire extinguishers.

Copyright © 2010, Juniper Networks, Inc.116

Complete Hardware Guide for EX2200 Ethernet Switches

In addition, you should establish procedures to protect your equipment in the event of a

fire emergency. Juniper Networks products should be installed in an environment suitable

for electronic equipment. We recommend that fire suppression equipment be available

in the event of a fire in the vicinity of the equipment and that all local fire, safety, and

electrical codes and ordinances be observed when installing and operating your

equipment.

Fire Suppression

In the event of an electrical hazard or an electrical fire, you should first turn power off to

the equipment at the source. Then use a Type C fire extinguisher, which uses noncorrosive

fire retardants, to extinguish the fire.

Fire Suppression Equipment

Type C fire extinguishers, which use noncorrosive fire retardants such as carbon dioxide

and Halotron™, are most effective for suppressing electrical fires. Type C fire extinguishers

displace oxygen from the point of combustion to eliminate the fire. For extinguishing fire

on or around equipment that draws air from the environment for cooling, you should use

this type of inert oxygen displacement extinguisher instead of an extinguisher that leaves

residues on equipment.

Do not use multipurpose Type ABC chemical fire extinguishers (dry chemical fire

extinguishers). The primary ingredient in these fire extinguishers is monoammonium

phosphate, which is very sticky and difficult to clean. In addition, in the presence of minute

amounts of moisture, monoammonium phosphate can become highly corrosive and

corrodes most metals.

Any equipment in a room in which a chemical fire extinguisher has been discharged is

subject to premature failure and unreliable operation. The equipment is considered to

be irreparably damaged.

NOTE: To keep warranties effective, do not use a dry chemical fire extinguisher

to control a fire at or near a Juniper Networks switch or other network device

provided by Juniper. If a dry chemical fire extinguisher is used, the unit is no

longer eligible for coverage under a service agreement.

We recommend that you dispose of any irreparably damaged equipment in an

environmentally responsible manner.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•In Case of Electrical Accident: Action to Take on an EX Series Switch on page 147

Qualified Personnel Warning for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

117Copyright © 2010, Juniper Networks, Inc.

Chapter 15: General Safety Information

WARNING: Only trained and qualified personnel should install or replace the

device.

Waarschuwing Installatie en reparaties mogen uitsluitend door getraind en

bevoegd personeel uitgevoerd worden.

Varoitus Ainoastaan koulutettu ja pätevä henkilökunta saa asentaa tai vaihtaa

tämän laitteen.

Attention Tout installation ou remplacement de l'appareil doit être réalisé

par du personnel qualifié et compétent.

Warnung Gerät nur von geschultem, qualifiziertem Personal installieren oder

auswechseln lassen.

Avvertenza Solo personale addestrato e qualificato deve essere autorizzato

ad installare o sostituire questo apparecchio.

Advarsel Kun kvalifisert personell med riktig opplæring bør montere eller

bytte ut dette utstyret.

Aviso Este equipamento deverá ser instalado ou substituído apenas por

pessoal devidamente treinado e qualificado.

¡Atención! Estos equipos deben ser instalados y reemplazados

exclusivamente por personal técnico adecuadamente preparado y capacitado.

Varning! Denna utrustning ska endast installeras och bytas ut av utbildad

och kvalificerad personal.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•AC Power Electrical Safety Guidelines for EX Series Switches on page 144

•DC Power Electrical Safety Guidelines for EX Series Switches

Warning Statement for Norway and Sweden for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

WARNING: The equipment must be connected to an earthed mains

socket-outlet.

Advarsel Apparatet skal kobles til en jordet stikkontakt.

Varning! Apparaten skall anslutas till jordat nätuttag.

Copyright © 2010, Juniper Networks, Inc.118

Complete Hardware Guide for EX2200 Ethernet Switches

Related

Documentation

•General Safety Guidelines and Warnings for EX Series Switches on page 113

119Copyright © 2010, Juniper Networks, Inc.

Chapter 15: General Safety Information

Copyright © 2010, Juniper Networks, Inc.120

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 16

Radiation and Laser Warnings

•Laser and LED Safety Guidelines and Warnings for EX Series Switches on page 121

•Radiation from Open Port Apertures Warning for EX Series Switches on page 124

Laser and LED Safety Guidelines and Warnings for EX Series Switches

EX Series switches and the XRE200 External Routing Engine are equipped with laser

transmitters, which are considered a Class 1 Laser Product by the U.S. Food and Drug

Administration and are evaluated as a Class 1 Laser Product per EN 60825-1 requirements.

Observe the following guidelines and warnings:

•General Laser Safety Guidelines on page 121

•Class 1 Laser Product Warning on page 122

•Class 1 LED Product Warning on page 122

•Laser Beam Warning on page 123

General Laser Safety Guidelines

When working around ports that support optical transceivers, observe the following

safety guidelines to prevent eye injury:

•Do not look into unterminated ports or at fibers that connect to unknown sources.

•Do not examine unterminated optical ports with optical instruments.

•Avoid direct exposure to the beam.

WARNING: Unterminated optical connectors can emit invisible laser

radiation. The lens in the human eye focuses all the laser power on the

retina, so focusing the eye directly on a laser source—even a low-power

laser—could permanently damage the eye.

121Copyright © 2010, Juniper Networks, Inc.

Class 1 Laser Product Warning

WARNING: Class 1 laser product.

Waarschuwing Klasse-1 laser produkt.

Varoitus Luokan 1 lasertuote.

Attention Produit laser de classe I.

Warnung Laserprodukt der Klasse 1.

WARNING: Avvertenza Prodotto laser di Classe 1.

Advarsel Laserprodukt av klasse 1.

Aviso Produto laser de classe 1.

¡Atención! Producto láser Clase I.

Varning! Laserprodukt av klass 1.

Class 1 LED Product Warning

WARNING: Class 1 LED product.

Waarschuwing Klasse 1 LED-product.

Varoitus Luokan 1 valodiodituote.

Attention Alarme de produit LED Class I.

Warnung Class 1 LED-Produktwarnung.

WARNING: Avvertenza Avvertenza prodotto LED di Classe 1.

Advarsel LED-produkt i klasse 1.

Aviso Produto de classe 1 com LED.

¡Atención! Aviso sobre producto LED de Clase 1.

Varning! Lysdiodprodukt av klass 1.

Copyright © 2010, Juniper Networks, Inc.122

Complete Hardware Guide for EX2200 Ethernet Switches

Laser Beam Warning

WARNING: Do not stare into the laser beam or view it directly with optical

instruments.

WARNING: Waarschuwing Niet in de straal staren of hem rechtstreeks

bekijken met optische instrumenten.

WARNING: Varoitus Älä katso säteeseen äläkä tarkastele sitä suoraan optisen

laitteen avulla.

WARNING: Attention Ne pas fixer le faisceau des yeux, ni l'observer

directement à l'aide d'instruments optiques.

WARNING: Warnung Nicht direkt in den Strahl blicken und ihn nicht direkt

mit optischen Geräten prüfen.

WARNING: Avvertenza Non fissare il raggio con gli occhi né usare strumenti

ottici per osservarlo direttamente.

WARNING: Advarsel Stirr eller se ikke direkte p strlen med optiske

instrumenter.

WARNING: Aviso Não olhe fixamente para o raio, nem olhe para ele

directamente com instrumentos ópticos.

WARNING: ¡Atención! No mirar fijamente el haz ni observarlo directamente

con instrumentos ópticos.

WARNING: Varning! Rikta inte blicken in mot strålen och titta inte direkt på

den genom optiska instrument.

123Copyright © 2010, Juniper Networks, Inc.

Chapter 16: Radiation and Laser Warnings

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•Radiation from Open Port Apertures Warning for EX Series Switches on page 124

•Installation Instructions Warning for EX Series Switches on page 127

•Grounded Equipment Warning for EX Series Switches on page 134

•Optical Interface Support in EX2200 Switches on page 22

•Optical Interface Support in EX3200 Switches

•Optical Interface Support in EX4200 Switches

•Optical Interface Support in EX4500 Switches

•Optical Interface Support in EX8200 Switches

Radiation from Open Port Apertures Warning for EX Series Switches

WARNING: Because invisible radiation might be emitted from the aperture

of the port when no fiber cable is connected, avoid exposure to radiation and

do not stare into open apertures.

WARNING: Waarschuwing Aangezien onzichtbare straling vanuit de opening

van de poort kan komen als er geen fiberkabel aangesloten is, dient

blootstelling aan straling en het kijken in open openingen vermeden te worden.

WARNING: Varoitus Koska portin aukosta voi emittoitua näkymätöntä

säteilyä, kun kuitukaapelia ei ole kytkettynä, vältä säteilylle altistumista äläkä

katso avoimiin aukkoihin.

WARNING: Attention Des radiations invisibles à l'il nu pouvant traverser

l'ouverture du port lorsqu'aucun câble en fibre optique n'y est connecté, il

est recommandé de ne pas regarder fixement l'intérieur de ces ouvertures.

WARNING: Warnung Aus der Port-Öffnung können unsichtbare Strahlen

emittieren, wenn kein Glasfaserkabel angeschlossen ist. Vermeiden Sie es,

sich den Strahlungen auszusetzen, und starren Sie nicht in die Öffnungen!

WARNING: Avvertenza Quando i cavi in fibra non sono inseriti, radiazioni

invisibili possono essere emesse attraverso l'apertura della porta. Evitate di

esporvi alle radiazioni e non guardate direttamente nelle aperture.

Copyright © 2010, Juniper Networks, Inc.124

Complete Hardware Guide for EX2200 Ethernet Switches

WARNING: Advarsel Unngå utsettelse for stråling, og stirr ikke inn i åpninger

som er åpne, fordi usynlig stråling kan emiteres fra portens åpning når det

ikke er tilkoblet en fiberkabel.

WARNING: Aviso Dada a possibilidade de emissão de radiação invisível

através do orifício da via de acesso, quando esta não tiver nenhum cabo de

fibra conectado, deverá evitar a exposição à radiação e não deverá olhar

fixamente para orifícios que se encontrarem a descoberto.

WARNING: ¡Atención! Debido a que la apertura del puerto puede emitir

radiación invisible cuando no existe un cable de fibra conectado, evite mirar

directamente a las aperturas para no exponerse a la radiación.

WARNING: Varning! Osynlig strålning kan avges från en portöppning utan

ansluten fiberkabel och du bör därför undvika att bli utsatt för strålning genom

att inte stirra in i oskyddade öppningar.

Related

Documentation

•General Safety Guidelines and Warnings for EX Series Switches on page 113

•Laser and LED Safety Guidelines and Warnings for EX Series Switches on page 121

•Installation Instructions Warning for EX Series Switches on page 127

•Grounded Equipment Warning for EX Series Switches on page 134

125Copyright © 2010, Juniper Networks, Inc.

Chapter 16: Radiation and Laser Warnings

Copyright © 2010, Juniper Networks, Inc.126

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 17

Installation and Maintenance Safety

Information

•Installation Instructions Warning for EX Series Switches on page 127

•Chassis Lifting Guidelines for EX2200 Switches on page 128

•Ramp Warning for EX Series Switches on page 129

•Rack-Mounting and Cabinet-Mounting Warnings for EX Series Switches on page 129

•Wall-Mounting Warnings for EX2200 Switches on page 134

•Grounded Equipment Warning for EX Series Switches on page 134

•Maintenance and Operational Safety Guidelines and Warnings for EX Series

Switches on page 135

Installation Instructions Warning for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

WARNING: Read the installation instructions before you connect the device

to a power source.

Waarschuwing Raadpleeg de installatie-aanwijzingen voordat u het systeem

met de voeding verbindt.

Varoitus Lue asennusohjeet ennen järjestelmän yhdistämistä virtalähteeseen.

Attention Avant de brancher le système sur la source d'alimentation, consulter

les directives d'installation.

Warnung Lesen Sie die Installationsanweisungen, bevor Sie das System an

die Stromquelle anschließen.

Avvertenza Consultare le istruzioni di installazione prima di collegare il sistema

all'alimentatore.

Advarsel Les installasjonsinstruksjonene før systemet kobles til strømkilden.

127Copyright © 2010, Juniper Networks, Inc.

Aviso Leia as instruções de instalação antes de ligar o sistema à sua fonte

de energia.

¡Atención! Ver las instrucciones de instalación antes de conectar el sistema

a la red de alimentación.

Varning! Läs installationsanvisningarna innan du kopplar systemet till dess

strömförsörjningsenhet.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•Laser and LED Safety Guidelines and Warnings for EX Series Switches on page 121

•Grounded Equipment Warning for EX Series Switches on page 134

•Connecting AC Power to an EX2200 Switch on page 73

•Connecting AC Power to an EX3200 Switch

•Connecting AC Power to an EX4200 Switch

•Connecting AC Power to an EX4500 Switch

•Connecting AC Power to an EX8200 Switch

•Connecting DC Power to an EX3200 Switch

•Connecting DC Power to an EX4200 Switch

•Connecting DC Power to an EX4500 Switch

•Connecting DC Power to an EX8200 Switch

•Connecting AC Power to an XRE200 External Routing Engine

•Connecting DC Power to an XRE200 External Routing Engine

Chassis Lifting Guidelines for EX2200 Switches

The weight of a fully loaded EX2200 switch chassis is approximately 10 lb (4.5 kg).

Observe the following guidelines for lifting and moving an EX2200 switch:

•Before installing the switch, read the guidelines in “Site Preparation Checklist for EX2200

Switches” on page 33 to verify that the intended site meets the specified power,

environmental, and clearance requirements.

•Before lifting or moving the switch, disconnect all external cables.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•Installation Instructions Warning for EX Series Switches on page 127

•Mounting an EX2200 Switch on page 53

Copyright © 2010, Juniper Networks, Inc.128

Complete Hardware Guide for EX2200 Ethernet Switches

Ramp Warning for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

WARNING: When installing the device, do not use a ramp inclined at more

than 10 degrees.

Waarschuwing Gebruik een oprijplaat niet onder een hoek van meer dan 10

graden.

Varoitus Älä käytä sellaista kaltevaa pintaa, jonka kaltevuus ylittää 10 astetta.

Attention Ne pas utiliser une rampe dont l'inclinaison est supérieure à 10

degrés.

Warnung Keine Rampen mit einer Neigung von mehr als 10 Grad verwenden.

Avvertenza Non usare una rampa con pendenza superiore a 10 gradi.

Advarsel Bruk aldri en rampe som heller mer enn 10 grader.

Aviso Não utilize uma rampa com uma inclinação superior a 10 graus.

¡Atención! No usar una rampa inclinada más de 10 grados

Varning! Använd inte ramp med en lutning på mer än 10 grader.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•Laser and LED Safety Guidelines and Warnings for EX Series Switches on page 121

•Installation Instructions Warning for EX Series Switches on page 127

•Grounded Equipment Warning for EX Series Switches on page 134

Rack-Mounting and Cabinet-Mounting Warnings for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

Ensure that the rack or cabinet in which the device is installed is evenly and securely

supported. Uneven mechanical loading could lead to a hazardous condition.

WARNING: To prevent bodily injury when mounting or servicing the device

in a rack, take the following precautions to ensure that the system remains

stable. The following directives help maintain your safety:

129Copyright © 2010, Juniper Networks, Inc.

Chapter 17: Installation and Maintenance Safety Information

•The device must be installed in a rack that is secured to the building

structure.

•The device should be mounted at the bottom of the rack if it is the only unit

in the rack.

•When mounting the device on a partially filled rack, load the rack from the

bottom to the top with the heaviest component at the bottom of the rack.

•If the rack is provided with stabilizing equipment, install the stabilizers

before mounting or servicing the device in the rack.

WARNING: Waarschuwing Om lichamelijk letsel te voorkomen wanneer u

dit toestel in een rek monteert of het daar een servicebeurt geeft, moet u

speciale voorzorgsmaatregelen nemen om ervoor te zorgen dat het toestel

stabiel blijft. De onderstaande richtlijnen worden verstrekt om uw veiligheid

te verzekeren:

•De Juniper Networks switch moet in een stellage worden geïnstalleerd die

aan een bouwsel is verankerd.

•Dit toestel dient onderaan in het rek gemonteerd te worden als het toestel

het enige in het rek is.

•Wanneer u dit toestel in een gedeeltelijk gevuld rek monteert, dient u het

rek van onderen naar boven te laden met het zwaarste onderdeel onderaan

in het rek.

•Als het rek voorzien is van stabiliseringshulpmiddelen, dient u de

stabilisatoren te monteren voordat u het toestel in het rek monteert of het

daar een servicebeurt geeft.

WARNING: Varoitus Kun laite asetetaan telineeseen tai huolletaan sen

ollessa telineessä, on noudatettava erityisiä varotoimia järjestelmän

vakavuuden säilyttämiseksi, jotta vältytään loukkaantumiselta. Noudata

seuraavia turvallisuusohjeita:

•Juniper Networks switch on asennettava telineeseen, joka on kiinnitetty

rakennukseen.

•Jos telineessä ei ole muita laitteita, aseta laite telineen alaosaan.

•Jos laite asetetaan osaksi täytettyyn telineeseen, aloita kuormittaminen

sen alaosasta kaikkein raskaimmalla esineellä ja siirry sitten sen yläosaan.

•Jos telinettä varten on vakaimet, asenna ne ennen laitteen asettamista

telineeseen tai sen huoltamista siinä.

Copyright © 2010, Juniper Networks, Inc.130

Complete Hardware Guide for EX2200 Ethernet Switches

WARNING: Attention Pour éviter toute blessure corporelle pendant les

opérations de montage ou de réparation de cette unité en casier, il convient

de prendre des précautions spéciales afin de maintenir la stabilité du système.

Les directives ci-dessous sont destinées à assurer la protection du personnel:

•Le rack sur lequel est monté le Juniper Networks switch doit être fixé à la

structure du bâtiment.

•Si cette unité constitue la seule unité montée en casier, elle doit être placée

dans le bas.

•Si cette unité est montée dans un casier partiellement rempli, charger le

casier de bas en haut en plaçant l'élément le plus lourd dans le bas.

•Si le casier est équipé de dispositifs stabilisateurs, installer les stabilisateurs

avant de monter ou de réparer l'unité en casier.

WARNING: Warnung Zur Vermeidung von Körperverletzung beim Anbringen

oder Warten dieser Einheit in einem Gestell müssen Sie besondere

Vorkehrungen treffen, um sicherzustellen, daß das System stabil bleibt. Die

folgenden Richtlinien sollen zur Gewährleistung Ihrer Sicherheit dienen:

•Der Juniper Networks switch muß in einem Gestell installiert werden, das

in der Gebäudestruktur verankert ist.

•Wenn diese Einheit die einzige im Gestell ist, sollte sie unten im Gestell

angebracht werden.

•Bei Anbringung dieser Einheit in einem zum Teil gefüllten Gestell ist das

Gestell von unten nach oben zu laden, wobei das schwerste Bauteil unten

im Gestell anzubringen ist.

•Wird das Gestell mit Stabilisierungszubehör geliefert, sind zuerst die

Stabilisatoren zu installieren, bevor Sie die Einheit im Gestell anbringen

oder sie warten.

WARNING: Avvertenza Per evitare infortuni fisici durante il montaggio o la

manutenzione di questa unità in un supporto, occorre osservare speciali

precauzioni per garantire che il sistema rimanga stabile. Le seguenti direttive

vengono fornite per garantire la sicurezza personale:

•Il Juniper Networks switch deve essere installato in un telaio, il quale deve

essere fissato alla struttura dell'edificio.

•Questa unità deve venire montata sul fondo del supporto, se si tratta

dell'unica unità da montare nel supporto.

131Copyright © 2010, Juniper Networks, Inc.

Chapter 17: Installation and Maintenance Safety Information

•Quando questa unità viene montata in un supporto parzialmente pieno,

caricare il supporto dal basso all'alto, con il componente più pesante

sistemato sul fondo del supporto.

•Se il supporto è dotato di dispositivi stabilizzanti, installare tali dispositivi

prima di montare o di procedere alla manutenzione dell'unità nel supporto.

WARNING: Advarsel Unngå fysiske skader under montering eller

reparasjonsarbeid på denne enheten når den befinner seg i et kabinett. Vær

nøye med at systemet er stabilt. Følgende retningslinjer er gitt for å verne om

sikkerheten:

•Juniper Networks switch må installeres i et stativ som er forankret til

bygningsstrukturen.

•Denne enheten bør monteres nederst i kabinettet hvis dette er den eneste

enheten i kabinettet.

•Ved montering av denne enheten i et kabinett som er delvis fylt, skal

kabinettet lastes fra bunnen og opp med den tyngste komponenten nederst

i kabinettet.

•Hvis kabinettet er utstyrt med stabiliseringsutstyr, skal stabilisatorene

installeres før montering eller utføring av reparasjonsarbeid på enheten i

kabinettet.

WARNING: Aviso Para se prevenir contra danos corporais ao montar ou

reparar esta unidade numa estante, deverá tomar precauções especiais para

se certificar de que o sistema possui um suporte estável. As seguintes

directrizes ajudá-lo-ão a efectuar o seu trabalho com segurança:

•O Juniper Networks switch deverá ser instalado numa prateleira fixa à

estrutura do edificio.

•Esta unidade deverá ser montada na parte inferior da estante, caso seja

esta a única unidade a ser montada.

•Ao montar esta unidade numa estante parcialmente ocupada, coloque os

itens mais pesados na parte inferior da estante, arrumando-os de baixo

para cima.

•Se a estante possuir um dispositivo de estabilização, instale-o antes de

montar ou reparar a unidade.

Copyright © 2010, Juniper Networks, Inc.132

Complete Hardware Guide for EX2200 Ethernet Switches

WARNING: ¡Atención! Para evitar lesiones durante el montaje de este equipo

sobre un bastidor, o posteriormente durante su mantenimiento, se debe

poner mucho cuidado en que el sistema quede bien estable. Para garantizar

su seguridad, proceda según las siguientes instrucciones:

•El Juniper Networks switch debe instalarse en un bastidor fijado a la

estructura del edificio.

•Colocar el equipo en la parte inferior del bastidor, cuando sea la única

unidad en el mismo.

•Cuando este equipo se vaya a instalar en un bastidor parcialmente ocupado,

comenzar la instalación desde la parte inferior hacia la superior colocando

el equipo más pesado en la parte inferior.

•Si el bastidor dispone de dispositivos estabilizadores, instalar éstos antes

de montar o proceder al mantenimiento del equipo instalado en el bastidor.

WARNING: Varning! För att undvika kroppsskada när du installerar eller utför

underhållsarbete på denna enhet på en ställning måste du vidta särskilda

försiktighetsåtgärder för att försäkra dig om att systemet står stadigt. Följande

riktlinjer ges för att trygga din säkerhet:

•Juniper Networks switch måste installeras i en ställning som är förankrad

i byggnadens struktur.

•Om denna enhet är den enda enheten på ställningen skall den installeras

längst ned på ställningen.

•Om denna enhet installeras på en delvis fylld ställning skall ställningen

fyllas nedifrån och upp, med de tyngsta enheterna längst ned på ställningen.

•Om ställningen är försedd med stabiliseringsdon skall dessa monteras fast

innan enheten installeras eller underhålls på ställningen.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•Installation Instructions Warning for EX Series Switches on page 127

•Grounded Equipment Warning for EX Series Switches on page 134

•Mounting an EX2200 Switch on page 53

•Mounting an EX3200 Switch

•Mounting an EX4200 Switch

•Mounting an EX4500 Switch

•Mounting an EX8208 Switch on a Rack or Cabinet

•Mounting an EX8216 Switch on a Rack or Cabinet

133Copyright © 2010, Juniper Networks, Inc.

Chapter 17: Installation and Maintenance Safety Information

Wall-Mounting Warnings for EX2200 Switches

WARNING:

When mounting an EX2200 switch chassis in a vertical position, orient the

front panel of the chassis downward to ensure proper airflow and meet

safety requirements in the event of a fire.

•

•When wall mounting Power over Ethernet (PoE) models (EX2200-24P

and EX2200-48P), install the wall-mount baffle above the units to reduce

the risk of objects or substances falling into the air exhaust or power supply,

which could cause a fire.

Related

Documentation

Mounting an EX2200 Switch on a Wall on page 61•

Grounded Equipment Warning for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

WARNING: The device is intended to be grounded. During normal use, ensure

that you have connected earth ground to the chassis.

Waarschuwing Deze apparatuur hoort geaard te worden Zorg dat de

host-computer tijdens normaal gebruik met aarde is verbonden.

Varoitus Tämä laitteisto on tarkoitettu maadoitettavaksi. Varmista, että

isäntälaite on yhdistetty maahan normaalikäytön aikana.

Attention Cet équipement doit être relié à la terre. S'assurer que l'appareil

hôte est relié à la terre lors de l'utilisation normale.

Warnung Dieses Gerät muß geerdet werden. Stellen Sie sicher, daß das

Host-Gerät während des normalen Betriebs an Erde gelegt ist.

Avvertenza Questa apparecchiatura deve essere collegata a massa. Accertarsi

che il dispositivo host sia collegato alla massa di terra durante il normale

utilizzo.

Advarsel Dette utstyret skal jordes. Forviss deg om vertsterminalen er jordet

ved normalt bruk.

Aviso Este equipamento deverá estar ligado à terra. Certifique-se que o host

se encontra ligado à terra durante a sua utilização normal.

¡Atención! Este equipo debe conectarse a tierra. Asegurarse de que el equipo

principal esté conectado a tierra durante el uso normal.

Copyright © 2010, Juniper Networks, Inc.134

Complete Hardware Guide for EX2200 Ethernet Switches

Varning! Denna utrustning är avsedd att jordas. Se till att värdenheten är

jordad vid normal användning.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•Connecting Earth Ground to an EX Series Switch on page 67

Maintenance and Operational Safety Guidelines and Warnings for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

While performing the maintenance activities for devices, observe the following guidelines

and warnings:

•Jewelry Removal Warning on page 135

•Lightning Activity Warning on page 137

•Operating Temperature Warning on page 138

•Product Disposal Warning on page 139

Jewelry Removal Warning

WARNING: Before working on equipment that is connected to power lines,

remove jewelry, including rings, necklaces, and watches. Metal objects heat

up when connected to power and ground and can cause serious burns or can

be welded to the terminals.

WARNING: Waarschuwing Alvorens aan apparatuur te werken die met

elektrische leidingen is verbonden, sieraden (inclusief ringen, kettingen en

horloges) verwijderen. Metalen voorwerpen worden warm wanneer ze met

stroom en aarde zijn verbonden, en kunnen ernstige brandwonden veroorzaken

of het metalen voorwerp aan de aansluitklemmen lassen.

WARNING: Varoitus Ennen kuin työskentelet voimavirtajohtoihin kytkettyjen

laitteiden parissa, ota pois kaikki korut (sormukset, kaulakorut ja kellot

mukaan lukien). Metalliesineet kuumenevat, kun ne ovat yhteydessä

sähkövirran ja maan kanssa, ja ne voivat aiheuttaa vakavia palovammoja tai

hitsata metalliesineet kiinni liitäntänapoihin.

WARNING: Attention Avant d'accéder à cet équipement connecté aux lignes

électriques, ôter tout bijou (anneaux, colliers et montres compris). Lorsqu'ils

135Copyright © 2010, Juniper Networks, Inc.

Chapter 17: Installation and Maintenance Safety Information

sont branchés à l'alimentation et reliés à la terre, les objets métalliques

chauffent, ce qui peut provoquer des blessures graves ou souder l'objet

métallique aux bornes.

WARNING: Warnung Vor der Arbeit an Geräten, die an das Netz angeschlossen

sind, jeglichen Schmuck (einschließlich Ringe, Ketten und Uhren) abnehmen.

Metallgegenstände erhitzen sich, wenn sie an das Netz und die Erde

angeschlossen werden, und können schwere Verbrennungen verursachen

oder an die Anschlußklemmen angeschweißt werden.

WARNING: Avvertenza Prima di intervenire su apparecchiature collegate

alle linee di alimentazione, togliersi qualsiasi monile (inclusi anelli, collane,

braccialetti ed orologi). Gli oggetti metallici si riscaldano quando sono

collegati tra punti di alimentazione e massa: possono causare ustioni gravi

oppure il metallo può saldarsi ai terminali.

WARNING: Advarsel Fjern alle smykker (inkludert ringer, halskjeder og klokker)

før du skal arbeide på utstyr som er koblet til kraftledninger. Metallgjenstander

som er koblet til kraftledninger og jord blir svært varme og kan forårsake

alvorlige brannskader eller smelte fast til polene.

WARNING: Aviso Antes de trabalhar em equipamento que esteja ligado a

linhas de corrente, retire todas as jóias que estiver a usar (incluindo anéis,

fios e relógios). Os objectos metálicos aquecerão em contacto com a corrente

e em contacto com a ligação à terra, podendo causar queimaduras graves

ou ficarem soldados aos terminais.

WARNING: ¡Atención! Antes de operar sobre equipos conectados a líneas

de alimentación, quitarse las joyas (incluidos anillos, collares y relojes). Los

objetos de metal se calientan cuando se conectan a la alimentación y a tierra,

lo que puede ocasionar quemaduras graves o que los objetos metálicos

queden soldados a los bornes.

WARNING: Varning! Tag av alla smycken (inklusive ringar, halsband och

armbandsur) innan du arbetar på utrustning som är kopplad till kraftledningar.

Metallobjekt hettas upp när de kopplas ihop med ström och jord och kan

förorsaka allvarliga brännskador; metallobjekt kan också sammansvetsas

med kontakterna.

Copyright © 2010, Juniper Networks, Inc.136

Complete Hardware Guide for EX2200 Ethernet Switches

Lightning Activity Warning

WARNING: Do not work on the system or connect or disconnect cables during

periods of lightning activity.

WARNING: Waarschuwing Tijdens onweer dat gepaard gaat met bliksem,

dient u niet aan het systeem te werken of kabels aan te sluiten of te

ontkoppelen.

WARNING: Varoitus Älä työskentele järjestelmän parissa äläkä yhdistä tai

irrota kaapeleita ukkosilmalla.

WARNING: Attention Ne pas travailler sur le système ni brancher ou

débrancher les câbles pendant un orage.

WARNING: Warnung Arbeiten Sie nicht am System und schließen Sie keine

Kabel an bzw. trennen Sie keine ab, wenn es gewittert.

WARNING: Avvertenza Non lavorare sul sistema o collegare oppure scollegare

i cavi durante un temporale con fulmini.

WARNING: Advarsel Utfør aldri arbeid på systemet, eller koble kabler til eller

fra systemet når det tordner eller lyner.

WARNING: Aviso Não trabalhe no sistema ou ligue e desligue cabos durante

períodos de mau tempo (trovoada).

WARNING: ¡Atención! No operar el sistema ni conectar o desconectar cables

durante el transcurso de descargas eléctricas en la atmósfera.

WARNING: Varning! Vid åska skall du aldrig utföra arbete på systemet eller

ansluta eller koppla loss kablar.

137Copyright © 2010, Juniper Networks, Inc.

Chapter 17: Installation and Maintenance Safety Information

Operating Temperature Warning

WARNING: To prevent the device from overheating, do not operate it in an

area that exceeds the maximum recommended ambient temperature of

104° F (40° C) for EX8208 switches, EX8216 switches, and XRE200 External

Routing Engines and 113° F (45° C) for EX2200, EX3200, EX4200, and

EX4500 switches. To prevent airflow restriction, allow at least 6 in. (15.2 cm)

of clearance around the ventilation openings.

WARNING: Waarschuwing Om te voorkomen dat welke switch van de Juniper

Networks router dan ook oververhit raakt, dient u deze niet te bedienen op

een plaats waar de maximale aanbevolen omgevingstemperatuur van 40° C

wordt overschreden. Om te voorkomen dat de luchtstroom wordt beperkt,

dient er minstens 15,2 cm speling rond de ventilatie-openingen te zijn.

WARNING: Varoitus Ettei Juniper Networks switch-sarjan reititin

ylikuumentuisi, sitä ei saa käyttää tilassa, jonka lämpötila ylittää korkeimman

suositellun ympäristölämpötilan 40° C. Ettei ilmanvaihto estyisi,

tuuletusaukkojen ympärille on jätettävä ainakin 15,2 cm tilaa.

WARNING: Attention Pour éviter toute surchauffe des routeurs de la gamme

Juniper Networks switch, ne l'utilisez pas dans une zone où la température

ambiante est supérieure à 40° C. Pour permettre un flot d'air constant,

dégagez un espace d'au moins 15,2 cm autour des ouvertures de ventilations.

WARNING: Warnung Um einen Router der switch vor Überhitzung zu schützen,

darf dieser nicht in einer Gegend betrieben werden, in der die

Umgebungstemperatur das empfohlene Maximum von 40° C überschreitet.

Um Lüftungsverschluß zu verhindern, achten Sie darauf, daß mindestens

15,2 cm lichter Raum um die Lüftungsöffnungen herum frei bleibt.

WARNING: Avvertenza Per evitare il surriscaldamento dei switch, non

adoperateli in un locale che ecceda la temperatura ambientale massima di

40° C. Per evitare che la circolazione dell'aria sia impedita, lasciate uno spazio

di almeno 15.2 cm di fronte alle aperture delle ventole.

WARNING: Advarsel Unngå overoppheting av eventuelle rutere i Juniper

Networks switch Disse skal ikke brukes på steder der den anbefalte maksimale

Copyright © 2010, Juniper Networks, Inc.138

Complete Hardware Guide for EX2200 Ethernet Switches

omgivelsestemperaturen overstiger 40° C (104° F). Sørg for at klaringen

rundt lufteåpningene er minst 15,2 cm (6 tommer) for å forhindre nedsatt

luftsirkulasjon.

WARNING: Aviso Para evitar o sobreaquecimento do encaminhador Juniper

Networks switch, não utilize este equipamento numa área que exceda a

temperatura máxima recomendada de 40° C. Para evitar a restrição à

circulação de ar, deixe pelo menos um espaço de 15,2 cm à volta das aberturas

de ventilação.

WARNING: ¡Atención! Para impedir que un encaminador de la serie Juniper

Networks switch se recaliente, no lo haga funcionar en un área en la que se

supere la temperatura ambiente máxima recomendada de 40° C. Para impedir

la restricción de la entrada de aire, deje un espacio mínimo de 15,2 cm

alrededor de las aperturas para ventilación.

WARNING: Varning! Förhindra att en Juniper Networks switch överhettas

genom att inte använda den i ett område där den maximalt rekommenderade

omgivningstemperaturen på 40° C överskrids. Förhindra att luftcirkulationen

inskränks genom att se till att det finns fritt utrymme på minst 15,2 cm omkring

ventilationsöppningarna.

Product Disposal Warning

WARNING: Disposal of this device must be handled according to all national

laws and regulations.

WARNING: Waarschuwing Dit produkt dient volgens alle landelijke wetten

en voorschriften te worden afgedankt.

WARNING: Varoitus Tämän tuotteen lopullisesta hävittämisestä tulee

huolehtia kaikkia valtakunnallisia lakeja ja säännöksiä noudattaen.

WARNING: Attention La mise au rebut définitive de ce produit doit être

effectuée conformément à toutes les lois et réglementations en vigueur.

139Copyright © 2010, Juniper Networks, Inc.

Chapter 17: Installation and Maintenance Safety Information

WARNING: Warnung Dieses Produkt muß den geltenden Gesetzen und

Vorschriften entsprechend entsorgt werden.

WARNING: Avvertenza L'eliminazione finale di questo prodotto deve essere

eseguita osservando le normative italiane vigenti in materia

WARNING: Advarsel Endelig disponering av dette produktet må skje i henhold

til nasjonale lover og forskrifter.

WARNING: Aviso A descartagem final deste produto deverá ser efectuada

de acordo com os regulamentos e a legislação nacional.

WARNING: ¡Atención! El desecho final de este producto debe realizarse

según todas las leyes y regulaciones nacionales

WARNING: Varning! Slutlig kassering av denna produkt bör skötas i enlighet

med landets alla lagar och föreskrifter.

Related

Documentation

•General Safety Guidelines and Warnings for EX Series Switches on page 113

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•AC Power Electrical Safety Guidelines for EX Series Switches on page 144

•DC Power Electrical Safety Guidelines for EX Series Switches

•Laser and LED Safety Guidelines and Warnings for EX Series Switches on page 121

•Installation Instructions Warning for EX Series Switches on page 127

•Grounded Equipment Warning for EX Series Switches on page 134

Copyright © 2010, Juniper Networks, Inc.140

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 18

Power and Electrical Safety Information

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•Prevention of Electrostatic Discharge Damage on EX Series Switches on page 142

•AC Power Electrical Safety Guidelines for EX Series Switches on page 144

•AC Power Disconnection Warning for EX Series Switches on page 145

•TN Power Warning for EX Series Switches on page 146

•In Case of Electrical Accident: Action to Take on an EX Series Switch on page 147

General Electrical Safety Guidelines and Warnings for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

WARNING: Certain ports on the device are designed for use as intrabuilding

(within-the-building) interfaces only (Type 2 or Type 4 ports as described in

GR-1089-CORE, Issue 4) and require isolation from the exposed outside plant

(OSP) cabling. To comply with NEBS requirements and protect against

lightning surges and commercial power disturbances, the intrabuilding ports

must not be metallically connected to interfaces that connect to the OSP or

its wiring. The intrabuilding ports on the device are suitable for connection

to intrabuilding or unexposed wiring or cabling only. The addition of primary

protectors is not sufficient protection for connecting these interfaces

metallically to OSP wiring.

CAUTION: Before removing or installing components of a device, attach an

ESD strap to an ESD point and place the other end of the strap around your

bare wrist. Failure to use an ESD strap could result in damage to the switch.

•Install the device in compliance with the following local, national, and international

electrical codes:

141Copyright © 2010, Juniper Networks, Inc.

•United States—National Fire Protection Association (NFPA 70), United States

National Electrical Code.

•Other countries—International Electromechanical Commission (IEC) 60364, Part 1

through Part 7.

•Evaluated to the TN power system.

•Canada—Canadian Electrical Code, Part 1, CSA C22.1.

•Locate the emergency power-off switch for the room in which you are working so that

if an electrical accident occurs, you can quickly turn off the power.

•Make sure that grounding surfaces are cleaned and brought to a bright finish before

grounding connections are made.

•Do not work alone if potentially hazardous conditions exist anywhere in your workspace.

•Never assume that power is disconnected from a circuit. Always check the circuit before

starting to work.

•Carefully look for possible hazards in your work area, such as moist floors, ungrounded

power extension cords, and missing safety grounds.

•Operate the device within marked electrical ratings and product usage instructions.

•To ensure that the device and peripheral equipment function safely and correctly, use

the cables and connectors specified for the attached peripheral equipment, and make

certain they are in good condition.

You can remove and replace many device components without powering off or

disconnecting power to the device, as detailed elsewhere in the hardware documentation

for this device. Never install equipment if it appears damaged.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•AC Power Electrical Safety Guidelines for EX Series Switches on page 144

•DC Power Electrical Safety Guidelines for EX Series Switches

Prevention of Electrostatic Discharge Damage on EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

Device components that are shipped in antistatic bags are sensitive to damage from

static electricity. Some components can be impaired by voltages as low as 30 V. You

can easily generate potentially damaging static voltages whenever you handle plastic

or foam packing material or if you move components across plastic or carpets. Observe

the following guidelines to minimize the potential for electrostatic discharge (ESD)

damage, which can cause intermittent or complete component failures:

Copyright © 2010, Juniper Networks, Inc.142

Complete Hardware Guide for EX2200 Ethernet Switches

•Always use an ESD grounding strap when you are handling components that are subject

to ESD damage, and make sure that it is in direct contact with your skin.

If a grounding strap is not available, hold the component in its antistatic bag (see Figure

39 on page 143) in one hand and touch the exposed, bare metal of the device with the

other hand immediately before inserting the component into the device.

WARNING: For safety, periodically check the resistance value of the ESD

strap. The measurement must be in the range of 1 through 10 Mohms.

•When handling any component that is subject to ESD damage and that is removed

from the device, make sure the equipment end of your ESD strap is attached to the

ESD point on the chassis.

If no grounding strap is available, touch the exposed, bare metal of the device to ground

yourself before handling the component.

•Avoid contact between the component that is subject to ESD damage and your clothing.

ESD voltages emitted from clothing can damage components.

•When removing or installing a component that is subject to ESD damage, always place

it component-side up on an antistatic surface, in an antistatic card rack, or in an

antistatic bag (see Figure 39 on page 143). If you are returning a component, place it in

an antistatic bag before packing it.

Figure 39: Place a Component into an Antistatic Bag

CAUTION: ANSI/TIA/EIA-568 cables such as category 5e and category 6

can get electrostatically charged. To dissipate this charge, always ground

the cables to a suitable and safe earth ground before connecting them to the

system.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•See Rear Panel of an EX2200 Switch on page 6 for the ESD point location.

•See Rear Panel of an EX3200 Switch for the ESD point location.

•See Rear Panel of an EX4200 Switch for the ESD point location.

143Copyright © 2010, Juniper Networks, Inc.

Chapter 18: Power and Electrical Safety Information

•See Front Panel of an EX4500 Switch for the ESD point location.

•See Chassis Physical Specifications of an EX8208 Switch for the ESD point location.

•See Chassis Physical Specifications of an EX8216 Switch for the ESD point location.

AC Power Electrical Safety Guidelines for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

CAUTION: For devices with AC power supplies, an external surge protective

device (SPD) must be used at the AC power source.

The following electrical safety guidelines apply to AC-powered devices:

•Note the following warnings printed on the device:

“CAUTION: THIS UNIT HAS MORE THAN ONE POWER SUPPLY CORD. DISCONNECT

ALL POWER SUPPLY CORDS BEFORE SERVICING TO AVOID ELECTRIC SHOCK.”

“ATTENTION: CET APPAREIL COMPORTE PLUS D'UN CORDON D'ALIMENTATION.

AFIN DE PRÉVENIR LES CHOCS ÉLECTRIQUES, DÉBRANCHER TOUT CORDON

D'ALIMENTATION AVANT DE FAIRE LE DÉPANNAGE.”

•AC-powered devices are shipped with a three-wire electrical cord with a grounding-type

plug that fits only a grounding-type power outlet. Do not circumvent this safety feature.

Equipment grounding must comply with local and national electrical codes.

•You must provide an external certified circuit breaker rated minimum 20 A in the building

installation.

•The power cord serves as the main disconnecting device for the AC-powered device.

The socket outlet must be near the AC-powered device and be easily accessible.

•For devices that have more than one power supply connection, you must ensure that

all power connections are fully disconnected so that power to the device is completely

removed to avoid electric shock. To disconnect power, unplug all power cords (one

for each power supply).

Power Cable Warning (Japanese)

WARNING: The attached power cable is only for this product. Do not use the cable for another product.

Copyright © 2010, Juniper Networks, Inc.144

Complete Hardware Guide for EX2200 Ethernet Switches

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•Multiple Power Supplies Disconnection Warning for EX Series Switches

•Connecting AC Power to an EX2200 Switch on page 73

•Connecting AC Power to an EX3200 Switch

•Connecting AC Power to an EX4200 Switch

•Connecting AC Power to an EX4500 Switch

•Connecting AC Power to an EX8200 Switch

•Connecting AC Power to an XRE200 External Routing Engine

AC Power Disconnection Warning for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

WARNING: Before working on the switch or near power supplies, unplug all

the power cords from an AC switch.

Waarschuwing Voordat u aan een frame of in de nabijheid van voedingen

werkt, dient u bij wisselstroom toestellen de stekker van het netsnoer uit het

stopcontact te halen.

Varoitus Kytke irti vaihtovirtalaitteiden virtajohto, ennen kuin teet mitään

asennuspohjalle tai työskentelet virtalähteiden läheisyydessä.

Attention Avant de travailler sur un châssis ou à proximité d'une alimentation

électrique, débrancher le cordon d'alimentation des unités en courant

alternatif.

Warnung Bevor Sie an einem Chassis oder in der Nähe von Netzgeräten

arbeiten, ziehen Sie bei Wechselstromeinheiten das Netzkabel ab bzw.

Avvertenza Prima di lavorare su un telaio o intorno ad alimentatori, scollegare

il cavo di alimentazione sulle unità CA.

Advarsel Før det utføres arbeid på kabinettet eller det arbeides i nærheten

av strømforsyningsenheter, skal strømledningen trekkes ut på

vekselstrømsenheter.

Aviso Antes de trabalhar num chassis, ou antes de trabalhar perto de unidades

de fornecimento de energia, desligue o cabo de alimentação nas unidades

de corrente alternada.

145Copyright © 2010, Juniper Networks, Inc.

Chapter 18: Power and Electrical Safety Information

¡Atención! Antes de manipular el chasis de un equipo o trabajar cerca de una

fuente de alimentación, desenchufar el cable de alimentación en los equipos

de corriente alterna (CA).

Varning! Innan du arbetar med ett chassi eller nära strömförsörjningsenheter

skall du för växelströmsenheter dra ur nätsladden.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•AC Power Electrical Safety Guidelines for EX Series Switches on page 144

TN Power Warning for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

WARNING: The device is designed to work with a TN power system.

Waarschuwing Het apparaat is ontworpen om te functioneren met TN

energiesystemen.

Varoitus Koje on suunniteltu toimimaan TN-sähkövoimajärjestelmien

yhteydessä.

Attention Ce dispositif a été conçu pour fonctionner avec des systèmes

d'alimentation TN.

Warnung Das Gerät ist für die Verwendung mit TN-Stromsystemen ausgelegt.

Avvertenza Il dispositivo è stato progettato per l'uso con sistemi di

alimentazione TN.

Advarsel Utstyret er utfomet til bruk med TN-strømsystemer.

Aviso O dispositivo foi criado para operar com sistemas de corrente TN.

¡Atención! El equipo está diseñado para trabajar con sistemas de

alimentación tipo TN.

Varning! Enheten är konstruerad för användning tillsammans med

elkraftssystem av TN-typ.

Related

Documentation

General Safety Guidelines and Warnings for EX Series Switches on page 113•

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•Grounded Equipment Warning for EX Series Switches on page 134

Copyright © 2010, Juniper Networks, Inc.146

Complete Hardware Guide for EX2200 Ethernet Switches

•Multiple Power Supplies Disconnection Warning for EX Series Switches

In Case of Electrical Accident: Action to Take on an EX Series Switch

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

If an electrical accident results in an injury, take the following actions in this order:

1. Use caution. Be aware of potentially hazardous conditions that could cause further

injury.

2. Disconnect power from the device.

3. If possible, send another person to get medical aid. Otherwise, assess the condition

of the victim, then call for help.

Related

Documentation

•General Safety Guidelines and Warnings for EX Series Switches on page 113

•General Electrical Safety Guidelines and Warnings for EX Series Switches on page 141

•AC Power Electrical Safety Guidelines for EX Series Switches on page 144

•DC Power Electrical Safety Guidelines for EX Series Switches

147Copyright © 2010, Juniper Networks, Inc.

Chapter 18: Power and Electrical Safety Information

Copyright © 2010, Juniper Networks, Inc.148

Complete Hardware Guide for EX2200 Ethernet Switches

PART 8

Compliance Information

•Compliance Information on page 151

149Copyright © 2010, Juniper Networks, Inc.

Copyright © 2010, Juniper Networks, Inc.150

Complete Hardware Guide for EX2200 Ethernet Switches

CHAPTER 19

Compliance Information

•Agency Approvals for EX Series Switches on page 151

•Compliance Statements for EMC Requirements for EX Series Switches on page 152

•Compliance Statements for Acoustic Noise for EX Series Switches on page 154

•Declaration of Conformity for EX2200 Switches on page 155

Agency Approvals for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

These hardware devices comply with the following standards:

•Safety

•CAN/CSA-22.2 No. 60950–1–03/UL 60950–1. Safety of Information Technology

Equipment

•EN 60950–1:2001. Safety of Information Technology Equipment

•EN 60825–1 Safety of Laser Products – Part 1: Equipment Classification,

Requirements and User's Guide

•EMC

•FCC 47CFR Part 15 Class A (USA)

•EN 55022 Class A Emissions (Europe)

•ICES-003 Class A

•VCCI Class A (Japan)

•AS/NZS CISPR 22 Class A (Australia/New Zealand)

•CISPR 22 Class A

•EN 55024

•EN 300386

•EN 61000-3-2 Power Line Harmonics

151Copyright © 2010, Juniper Networks, Inc.

•EN 61000-3-3 Voltage Fluctuations and Flicker

•EN 61000-4-2 ESD

•EN 61000-4-3 Radiated Immunity

•EN 61000-4-4 EFT

•EN 61000-4-5 Surge

•EN 61000-4-6 Low Frequency Common Immunity

•EN 61000-4-11 Voltage Dips and Sags

Related

Documentation

Compliance Statements for EMC Requirements for EX Series Switches on page 152•

•Compliance Statements for Acoustic Noise for EX Series Switches on page 154

Compliance Statements for EMC Requirements for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

This topic describes the EMC requirements for these hardware devices for:

•Canada on page 152

•European Community on page 153

•Japan on page 153

•United States on page 153

•FCC Part 15 Statement on page 153

•Non-Regulatory Environmental Standards on page 154

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

The Industry Canada label identifies certified equipment. This certification means that

the equipment meets certain telecommunications network protective, operational, and

safety requirements. Industry Canada does not guarantee the equipment will operate to

the users’ satisfaction.

Before installing this equipment, users should ensure that it is permissible to connect the

equipment to the facilities of the local telecommunications company. The equipment

must also be installed using an acceptable method of connection. In some cases, the

inside wiring associated with a single line individual service may be extended by means

of a certified connector assembly. The customer should be aware that compliance with

the above conditions may not prevent degradation of service in some situations.

Copyright © 2010, Juniper Networks, Inc.152

Complete Hardware Guide for EX2200 Ethernet Switches

Repairs to certified equipment should be made by an authorized Canadian maintenance

facility designated by the supplier. Any repairs or alterations made by the user to this

equipment, or equipment malfunctions, may give the telecommunications company

cause to request the user to disconnect the equipment.

CAUTION: Users should not attempt to make electrical ground connections

by themselves, but should contact the appropriate inspection authority or

an electrician, as appropriate.

Users should ensure for their own protection that the electrical ground connections of

the power utility, telephone lines, and internal metallic water pipe system, if present, are

connected together. This precaution may be particularly important in rural areas.

European Community

This is a Class A device. In a domestic environment this device may cause radio

interference, in which case the user may be required to take adequate measures.

Japan

The preceding translates as follows:

This is a Class A device. In a domestic environment this device may cause radio

interference, in which case the user may be required to take adequate measures.

VCCI-A

United States

The device has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in

a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference, in which case the user will be

required to correct the interference at his own expense.

FCC Part 15 Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

153Copyright © 2010, Juniper Networks, Inc.

Chapter 19: Compliance Information

communications. However, there is no guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try

and correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio or TV technician for help.

Non-Regulatory Environmental Standards

NEBS compliance—These EX Series switch models are Network Equipment Building

System (NEBS) compliant:

•EX2200-24T and EX2200-48T

•EX3200-24T, EX3200-48T, EX4200-24F, EX4200-24T, and EX4200-48T

•All EX8200 models

Those switch models meet the following NEBS compliance standards:

•SR-3580 NEBS Criteria Levels (Level 3 Compliance)

•GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment

•GR-63-CORE: NEBS, Physical Protection

•The equipment is suitable for installation as part of the Common Bonding Network

(CBN).

•The equipment is suitable for installation in locations where the National Electrical

Code (NEC) applies.

•The battery return connection is to be treated as an Isolated DC return (DC-I), as

defined in GR-1089-CORE.

Related

Documentation

Agency Approvals for EX Series Switches on page 151•

•Compliance Statements for Acoustic Noise for EX Series Switches on page 154

Compliance Statements for Acoustic Noise for EX Series Switches

This topic applies to hardware devices in the EX Series product family, which includes

switches and the XRE200 External Routing Engine.

Maschinenlärminformations-Verordnung - 3. GPSGV, der höchste Schalldruckpegel

beträgt 70 dB(A) oder weniger gemäss EN ISO 7779

Copyright © 2010, Juniper Networks, Inc.154

Complete Hardware Guide for EX2200 Ethernet Switches

Translation:

The emitted sound pressure is below 70 dB(A) per EN ISO 7779.

Related

Documentation

Agency Approvals for EX Series Switches on page 151•

•Compliance Statements for EMC Requirements for EX Series Switches on page 152

Declaration of Conformity for EX2200 Switches

Related

Documentation

•Agency Approvals for EX Series Switches on page 151

•Compliance Statements for EMC Requirements for EX Series Switches on page 152

•Compliance Statements for Acoustic Noise for EX Series Switches on page 154

155Copyright © 2010, Juniper Networks, Inc.

Chapter 19: Compliance Information

Copyright © 2010, Juniper Networks, Inc.156

Complete Hardware Guide for EX2200 Ethernet Switches
