User Manual

Model:BT2165GB

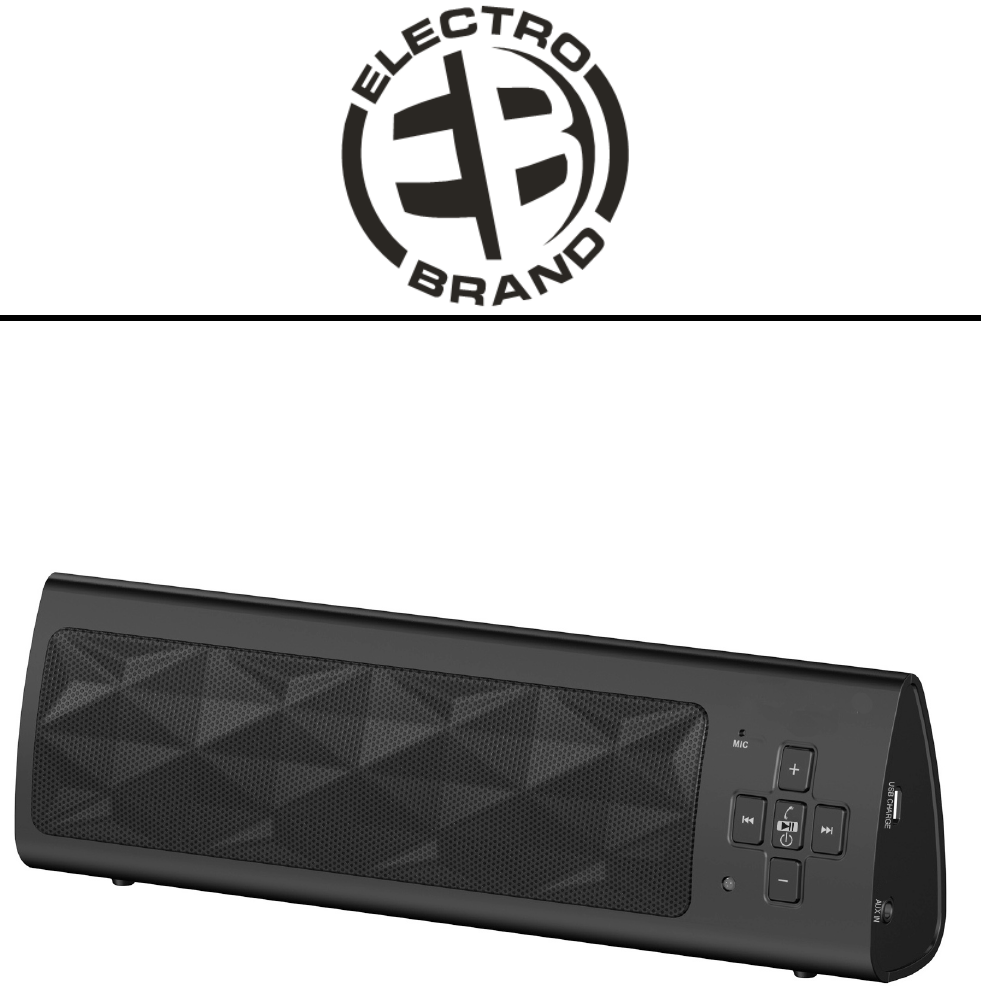

BLUETOOTH SPEAKER WITH BUILT-IN RECHARGEABLE BATTERY
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE OPERATING UNIT
FCC STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may
cause undesired operation. The antenna(s) used for this transmitter must be installed to
FCC NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER ( OR BACK ). NO
USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The exclamation point
within an equilateral triangle
is intended to alert user to
the presence of important
operating and maintenance
(servicing) instruction in the
literature accompanying the
appliance.
The lighting flash with
arrowhead symbol, within
an equilateral triangle, is
intended to alert user to the
presence of uninsulated
“dangerous voltage” within
the product’s enclosure, that
may be of sufficient
magnitude to constitute a
risk of electric shock to
person.
provide a separation distance of at least 8” from all persons and must not be co-located or
operated in conjunction with any other antenna or transmitter.
shield cables when connecting to other devices. Changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to
operate the equipment.
WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT
TO RAIN OR MOISTURE.
To assure correct operation, follow the attached installation instructions and use only
2
"This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body."
IMPORTANT SAFETY INSTRUCTIONS
Before using the unit, be sure to read all operating instructions carefully. Please note that
these are general precautions and may not pertain to your unit. For example, this unit may
not have the capability to be connected to an outdoor antenna.
1. Read these instructions – All the safety and operating instructions should be read
before the appliance is operated.
2. Keep these instructions – The safety and operating instructions should be kept for
future reference.
3. Heed all warnings All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operation and use instructions should be followed.
5. Do not use this unit near water, for example, near a bath tub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
6. Clean only with dry cloth – The unit should be cleaned only as recommended by the
manufacturer.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions. The unit should be situated so that its location or position does not
interfere with its proper ventilation. For example, the unit should not be situated on a
bed, sofa, rug, or similar surface that may block the ventilation openings; or placed in
a built-in installation, such as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades and a third grounding prong. The wide (the third prong) is
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where it exits from the unit.
11. Only use attachments / accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the unit. When a cart is used, use
with caution when moving the cart/unit combination to avoid injury
from tip-over.
13. Unplug this unit during lightning storms or when unused for long periods of time
(such as while on vacation).
14. Refer all servicing to qualified service personnel. Servicing is required when the unit
has been damaged in any way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15. This unit should not be exposed to dripping or splashing water and no objects
filled with liquids such as vases should be placed on the unit.
16. Power Sources – The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance. Do not
overload wall outlet.
17. Battery should not be exposed to excessive heat such as sunshine, fire, etc.
18. Battery could burst open if incorrectly replaced. Replace only with the same or
equivalent type.
19. Do not attempt to dismantle, open or repair this product yourself. If a problem occurs,
seek advice from your local qualified service technician or contact the distributor at
the telephone number at the back of this instruction manual.
20. Caution marking and nameplate are located on back or bottom of product.
3
Product Overview
8
9
1
2
3
4
56
7
1.Built-in microphone
2.Volume Up (+) button
3.Next ( ) button
5.Volume Down ( ) button
6.Previous ( ) button
7.Bluetooth/Battery indicator
8.USB charging port
9.AUX IN jack
4.Play/Pause/Standby On-Off
/Phone button
4
2.If the battery is completely charged, the indicator red light turns off.
3.Remove the charging cable from the Speaker and PC.
Note:
Battery Caution
POWER ON/OFF
Note:
-Automatic connection If supported by your player (e.g. mobile phone), the devices will be
connected automatically. The prerequisite for this is:
- In Bluetooth mode, the Speaker will send an alarm sound every 30 seconds or so when the
battery is nearly exhausted.
The unit is operated by an integrated lithium battery. Charge the battery as follows:
1.Plug the micro B USB plug of the charging cable into the jack of the unit. Connect the USB
plug to a powered-on computer. The indicator lights up red and the battery begins to charge.
--The battery (batteries or battery pack) should not be exposed to excessive heat such as
sunshine, fire, etc.
-Battery could burst open if incorrectly replaced. Replace only with the same or equivalent type.
- Turn on the Speaker by pressing and holding Standby button. The Bluetooth indicator will
start to blink.
-Device (i.e., mobile phone) will connect if:
1.Devices were already paired with each other.
2.Bluetooth is activated in your player.
- Hold the Standby button to turn off the Speaker. The units are now disconnected.
SYNC’ING (SYNCHRONIZING) YOUR BLUETOOTH DEVICE
TO YOUR SPEAKER
Note: The speaker will connect to your Bluetooth device automatically once you have sync’d
them.
1. When you are sync’ing the devices, make sure the speaker and your Bluetooth device are
close together. When the speaker is in Power Off state, hold “Power/Stand by” button down
until the blue light comes on and blinks. Once this happens you have now begun the sync’ing
process. (NOTE: if you do not sync the devices in a reasonable amount of time, the sync’ing
process will abort and the LED light will turn off. Repeat Step 1 to start again.)
2. Make sure Bluetooth is activated on your Bluetooth device. For details about the Bluetooth
searching device function, please refer to the user manual for that specific device.
3. Pull up the list of Bluetooth devices on the device you are trying to sync and you will see
“BT2165”. If “BT2165” is not on the Bluetooth’s list, select “Scan” to search for it. Then click on
that to start the pairing process.
BATTERY CHARGING
5
4. If it asks for a password, input pass code “0000” and confirm it to connect to speaker. When
it has finished the sync’ing process, the blue LED light stays on all the time.
Note: If an audio cable is connected to the AUX IN jack, the connection via Bluetooth will not
work.
Note:
-Depending on the device manufacturer, you need to perform the registration (PAIRING) again
to connect the devices.
-If there is a problem with the pairing of a playback device, deactivate The WiFi and mobile
data function in your playback device.
-To ensure an optimal connection, make sure that the battery of your player is completely
charged.
-If a mobile phone on which you are playing music receivesa call, the music will be interrupted.
Press the Phone button to accept the call and the caller’s voice will be heard through the
speakers. For your conversation, speak into the microphone of the device. After you have
ended the call, the devices are connected to each other again and playback continues.
Note:
The speaker will enter standby mode after about 10 minutes if no pairing/Bluetooth connection
is attempted.
DURING PLAYING:
-Press the volume + or - button to adjust the volume level.
-Press the Play/Pause button to pause, press again to resume playing.
-Press the Previous or Next button to skip the track.
Accepting / Ending/Refusing call in Bluetooth mode
-Press the Phone button to accept an incoming call.
-To end the call, press the Phone button again.
-Hold the button to refuse an incoming call.
AUX IN
Aux in Operation
An external (auxiliary) audio source (i.e., personal CD or MP3 player) can be connected to this
unit and heard through the speaker.
1. Connect the AUX 3.5mm cable (included) into the AUX IN socket on the right side of the
unit.
2. Connect the other end of the AUX cable into the headphone or Line Out socket of the
external source.
3. Turn on the Bluetooth speaker and the external audio device (such as your MP3 player).
4. The volume can be adjusted from the Bluetooth speaker and from the external audio device.
Select volume to the desired level.
6
Troubleshooting
Problem Possible cause Solution
Cannot switch the speaker on. Battery exhausted Recharge the battery.
No audio signal during
playback through AUX.
Volume of the external audio
source is too low.
Increase the volume of the
external audio device.
Volume of the device too low Increase the volume with +
button
No audio signal during
Bluetooth connection.
Speaker is switched off. Switch the Speaker on.
Speaker is not paired to the
audio device.
Check whether the connection
exists. If necessary, pair the
speaker to the audio source
again.
Audio cable is connected. Remove the cable.
Volume too low Increase the volume on the
speaker.
Increase the volume on the
audio source.
Cannot connect speaker. Pairing does not work. Check whether the audio
source supports the A2DP
protocol.
Audio source is turned off. Turn the audio source on.
Bluetooth is turned off on the
audio source.
Turn the Bluetooth function on
in the audio source.
Bluetooth version is not
supported.
Use another playback device.
7
Technical Specifications
Audio output ........................................................................................................... .......1.5W x 2
Power supply:...................................................................................................................DC 5 V
Battery:..............................................................................................3.7V,400mAh Lithium-lons
Operating time:................................................................................................approx. 3- 4 hours
(with volume level set at 1/2 )
Bluetooth
Bluetooth support:.......................................................................................................V2.1+EDR
The right to make technical and design modifications in the course of
continuous product development remains reserved.
is a trademark on a registered
trademark of Bluetooth SIG Inc. All
othe
r
trademarks and trade names are
ACCESSORY
1 X USB charging cable
Range:.....................................................................................................................up to 30 feet
8
those of their respective owners.

Navigation menu
