Junlan Electronic CAB7C370 BLUETOOTH ALEXA VOICE CONTROL SPEAKER User Manual
Shenzhen Junlan Electronic Ltd BLUETOOTH ALEXA VOICE CONTROL SPEAKER
User Manual
User’s Guide for Model ISBWV418B v2082-01
2
SAFETY WARNINGS
• WARNING: Where the mains plug or appliance coupler is used as the
disconnect device, such disconnect device shall remain readily operable.
• Risk of electric shock. Grounding continuity must be maintained.
• Lithium batteries, like all rechargeable batteries, are
recyclable and should be recycled or disposed of according to state and
local guidelines. They should never be disposed of in normal household
waste, and they should never be incinerated, as they might explode.
Contact your local government for disposal or recycling practices in your area.
• Only use the included power supply or a UL/ETL certied power supply of the same
power output specications.
WARNING: This product can expose you to chemicals including lead, which is known to the State of
California to cause cancer and birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov
This product meets and complies with all Federal regulations.
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving an tenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
R F w a r n in g s ta te m e n t:
T h e d e v ic e h a s b e e n e v a lu a te d to m e e t g e n e r a l R F e x p o s u r e
re q u ire m e n t. T h e d e v ic e c a n b e u s e d in p o r ta b le e x p o s u r e
w ith o u t r e s tric tio n .
c o n d itio n
3
TABLE OF CONTENTS
Introduction - 5
Features
Includes
Water Resistance Level IPX6
Overview
Speaker Controls & Inputs - 6
Control Functions - 7
Source Mode/Connection/Alexa Indicator Lights - 7
Setup
1. Charging the Speaker - 8
2. Download the Alexa App - 9
3. Download the iLive Smart Bluetooth App - 9
3. iLive Smart Bluetooth App - 10
4. Things to Try with Alexa - 13
Smart Bluetooth App
Home Screen - 14
Menu Screen - 15
Music Player Screen - 16
Other Ways to Play - 17
Bluetooth Without the App
Aux In
Troubleshooting - 18
Customer Support - 19
Contact Information
International Support
Warranty Information
4
INTRODUCTION
*Spotify and Pandora not supported on this device.
*Free app download required. Mobile carrier/data charges may apply when Amazon Alexa and not
connected to a Wi-Fi network.
Specications, software updates, and third party content are subject to change without prior notice.
Take Alexa with you where ever you go with our On-the-Go speaker. Link Amazon
Alexa with the speaker and ask Alexa to play music*, read the news, check
weather, control your smart home and more.
Features
» Voice-activated Amazon Alexa cloud-based voice service*
» Free iLive Smart Bluetooth app download
» Bluetooth Wireless - range 33 ft.
» IPX6 waterproof
» Aux In (3.5mm audio input)
» Built-in microphones with far-eld voice recognition
» Built-in rechargeable battery with Micro-USB port for battery recharge
Includes
» Detachable carabiner clip
» 3.5mm audio cable
» Micro-USB charging cable
» User’s Guide
» Warranty
Water Resistance Level IPX6
» Protection from powerful jets of water and splashing from any angle.
» Not suitable for submerging in water.
IMPORTANT: To ensure your speaker is prepared for use in a wet environment,
disconnect and remove any power cables, and tightly close the cover on the
rear of the unit. If the cover is not properly closed, water resistance will be
compromised and could result in damage to the speaker or personal injury.
5
5
1
6
7
8
Speaker Controls & Inputs
OVERVIEW
3
12
4
6
1. Alexa Indicator Lights
2. Alexa Mute Indicator Light
3. Microphones (x2)
4. Source Mode Indicator Light
5. Carabiner Clip Attachment
6. Speaker
7. USB Charging Port (5V 1A)

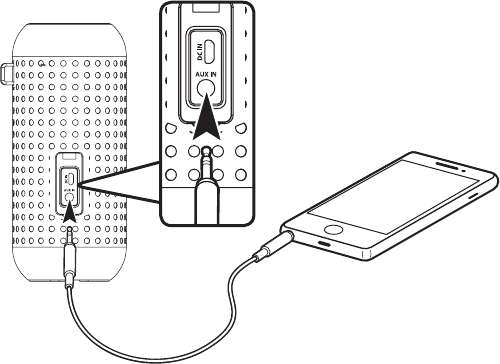

8. Aux In (3.5mm audio input)
Control Functions
Source Mode/Connection/Alexa Indicator Lights
» Alexa Indicators
Light Blue - Amazon Alexa listening/responding
» Microphone Indicators
Red - Amazon Alexa and microphones muted
» Mode/Connection Indicators
Flashing Blue - Connecting to Bluetooth
Solid Blue - Bluetooth connected
Solid Green - Aux In
» Power/Source
Press to power the speaker ON.
Press and hold to power the speaker OFF.
Press to switch between Bluetooth and Aux modes.
» Play/Pause/Disconnect Bluetooth
Press to play or pause audio from a connected Bluetooth device.
In Bluetooth Mode, press and hold to begin disconnect from a
Bluetooth device. This unit features automatic device pairing, see
Initial Bluetooth Connection on pg 10.
» Alexa ON
Press to activate Amazon Alexa and say a command. You can also
just say, “Alexa..”, within range of the speaker’s microphones.
» Alexa Mute
Press to mute the microphones and disable Amazon Alexa.
Press and hold for 10 seconds to reset the speaker.
» Volume
Press to adjust the volume up or down. You can also ask Alexa to set
the volume level by saying, “Alexa, set volume to..”.
7
1. Charging the Speaker
Use a Micro-USB to USB cable (included) to connect the DC IN (Micro-USB
power input) on the speaker to the USB port on a powered on computer or
USB power adapter (not included).
A fully charged battery will provide up to 5 hours of playtime. Battery life will
improve at lower volume levels and decrease at higher volume levels.
SETUP
Computer
USB Power Adapter
(not included)
Power port located under
the waterproof cover on
the rear of the speaker
WARNING: Do not, under any
circumstances, charge the speaker
while it is near water. Allow ample
time to dry after being splashed.
Indicator light Battery Status
Red light ON Charging battery
Red light OFF Charging
complete
Red light ashing Low battery,
charge soon
8
2. Download the Alexa App
Download the Amazon Alexa app to your device by scanning the appropriate QR
code below or search for the Amazon Alexa app in the Google Play™ Store, or
Apple App Store®.
The Amazon Alexa app connects your speaker to Alexa’s voice services. It’s also
where you can see an overview of your requests and manage your contacts, lists,
news, music, and settings.
Once downloaded, open the Alexa app and log into your Amazon account. If you
do not already have an Amazon account, choose “Create a new Amazon account”
and enter the requested info. Once logged in, the app will prompt you for setup.
You can add these details now by choosing “Get Started,” or skip these steps and
complete the process later. You cannot use Alexa Voice Services if you aren’t
logged into an Amazon account.
3. Download the iLive Smart Bluetooth App
The iLive Smart Bluetooth app connects your Amazon account and Amazon
Alexa Voice Services with the speaker. Download our free app to your device by
scanning the QR codes below or search for the iLive Smart Bluetooth app in the
Google Play™ Store, or Apple App Store®.
Note: This app is designed for mobile devices only, such as smartphones
or Wi-Fi enabled tablets. It is not available for use on regular desktop or
laptop computers.
If you are not connected to a Wi-Fi network, using Amazon Alexa may use
your mobile carrier’s data to fulll requests and answer questions.
AppleAndroid
AppleAndroid
Replace
Replace
9
3. iLive Smart Bluetooth App
To use the speaker with Amazon Alexa, your mobile device must both be
connected to a Wi-Fi network and signed into the Amazon Alexa app. The iLive
Smart Bluetooth app uses a Bluetooth connection with your device to access Wi-
Fi and Alexa. The app will guide you through the connection process, just follow
the on-screen instructions.
After the initial Bluetooth connection, the speaker will automatically have access to
Amazon Alexa, as long as your device is signed in to the Amazon Alexa app.
Initial App Connection
Note: If you have a dual band wireless router, be sure your device is connected to
the 2.4GHz band, not the 5GHz band.

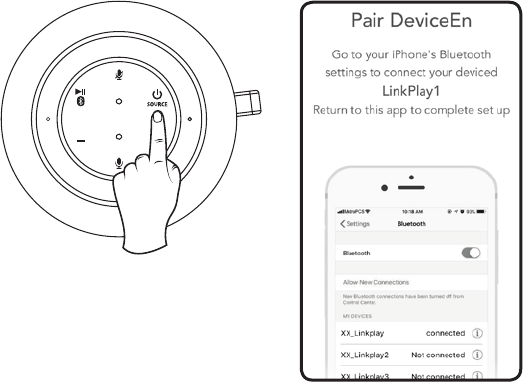

1. Press and hold the Power/Source button to power on the speaker. Be sure the
speaker is in Bluetooth Mode, indicated by a slowly ashing blue light from the
Mode/Connection LED and a voice prompt from the speaker. If the speaker is
not in Bluetooth Mode, press the Power/Source button to switch to it (Image A,
below).
2. Open the app and begin following the on screen instructions (Image B, below).
SETUP
B.A.
10
C. D.
Setup instructions continued on the next page.

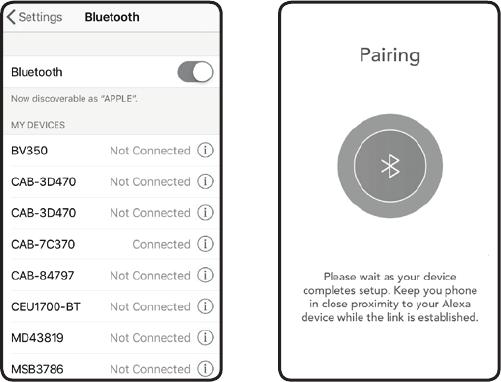

3. On your Bluetooth device, open the Bluetooth Settings and select ISBWV418
from the list of available devices. It may take a moment before your device detects
the speaker and is available in the list. When pairing, remain within 3 ft. of your
device. You may also need to scan for Bluetooth devices manually from your
mobile device (Image C, below).
4. When successfully paired, the Mode/Connection LED on the speaker will turn
solid blue and a voice will announce the connection. Audio from the connected
device will now be played through the speaker.
5. Return to the iLive Smart Bluetooth app. After a few moments, the app should
automatically pair with your phone (Image D, below).
11
SETUP
Initial App Connection (continued)

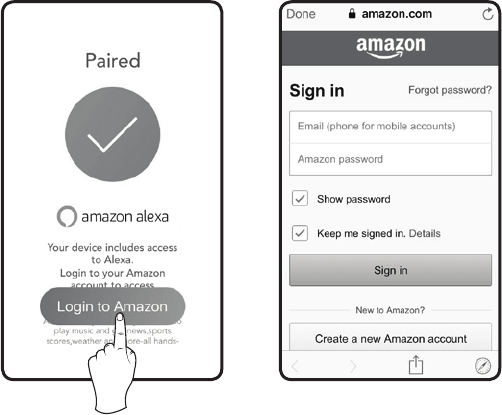

6. When the connection is complete, the app will prompt you to link the speaker with
the Amazon Alexa app on your device (Image E, below). If you do not have the
Amazon Alexa app on your device, refer to the instructions on pg. 9.
7. Enter your Amazon account information to complete setup and begin using
Amazon Alexa with your speaker (Image F, below).

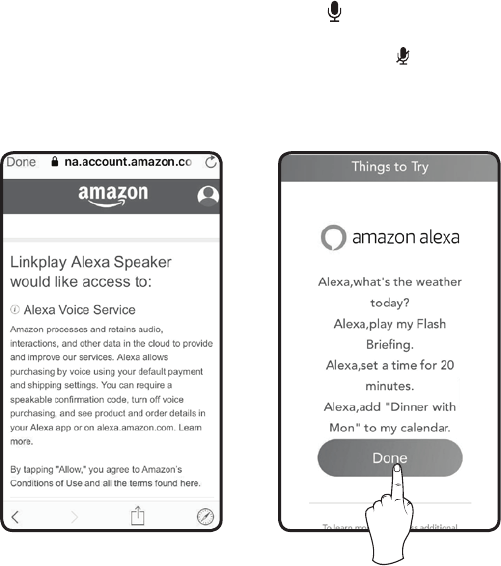

8. To work properly, Amazon Alexa needs permission to record and store audio
in the cloud. To continue with Alexa setup, accept the terms to allow Alexa the
permissions required (Image G, right).
9. Press “Done” to nish setup and begin using your speaker (Image H, right).
E. F.
12
G. H.
4. Things to Try with Alexa
Now that you’re connected, try interacting with Alexa. Start by saying “Alexa,”
followed by a command or question. Here are some examples:
» “Alexa, tell me a joke.”
» “Alexa, what’s in the news?”
» “Alexa, add apples to my shopping list.”
» “Alexa, what can you do?”
While the speaker is on, Alexa is in standby mode, awaiting a command or
question from you. All you need to do is say “Alexa...”, within range of the speaker’s
microphones and she will respond. When Alexa is listening and responding to your
commands, the Mode/Connection indicators on the speaker will light up bright
blue, accompanied by a chime. You can also press the button on the speaker
to manually activate Alexa.
You can mute Alexa and disable the microphones by pressing the button. The
Microphone Mute indicator will turn solid red while muted. This only affects Alexa,
the speaker’s audio functions will still work normally.
13
Home Screen
This is the default screen when you open the iLive Smart Bluetooth app.
SMART BLUETOOTH APP
4
2
3 5
1
1. Menu & Settings
View and adjust settings.
2. Information Area
Displays information from Alexa, for
example weather, shopping list, etc.
3. Home
Press to go to the Home screen.
4. Alexa Button/Indicator
Press to activate Alexa and ask her
a question.
5. Music
Press to go to the Music player.
14
Menu Screen
1
3
2
1. Devices
Linked devices shown here.
2. Alexa Account
Sign in or out of Amazon Alexa.
3. Alexa Language
Press to change Alexa’s interface
language.
4. Device Information
View and change the device name.
5. Send Feedback
Send feedback to the app developer.
4
5
15
Music Player Screen
1. Audio information
Artist and track info displayed here.
2. Play Controls
Use to play, pause, or skip audio.
SMART BLUETOOTH APP
2
1
16
Bluetooth Without the App
The speaker can also function as a standard Bluetooth speaker without using the
app or Amazon Alexa Voice Services. Use a connected Bluetooth device to select
and begin playing audio. Use the controls on the device or the speaker to play,
pause, or skip audio.
Aux In
Requires a 3.5mm audio cable (included).
» Power on the speaker, then press the Power/Source button again to select Aux
In Mode, indicated by a solid green LED light.
» Connect a 3.5mm audio cable to the Aux In on the unit and the audio output/
headphone jack on an audio device.
» Audio played through the connected device will now be heard through the
speakers. Use the controls on the connected device to play, pause, or skip
selected tracks.
OTHER WAYS TO PLAY
17
TROUBLESHOOTING
PROBLEM POSSIBLE SOLUTION
Speaker will not power on » Make sure the speaker’s battery is charged.
Recharge if needed.
Intermittent audio/Audio
doesn’t play
» Make sure the volume on the speaker and your
connected device is turned up to an audible level.
Audio distortion » Volume on the speaker or connected Bluetooth
device may be too high. Reduce the volume of
one or both of the devices.
Bluetooth won’t play or
fails to connect
» Make sure the volume on your Bluetooth device is
turned up to an audible level.
» Make sure the speaker’s battery is charged and is
powered on.
» Make sure both the speaker and your device are
in Bluetooth mode.
» Stay within 3 ft. of the speaker when pairing.
» Stay within 33 ft. of the speaker when paired.
Amazon Alexa not
responding
» Be sure the connected Bluetooth device is
connected to a Wi-Fi network or mobile data.
» Be sure the connected Bluetooth device has
the Amazon Alexa app and is logged into your
Amazon account.
» Be sure the Wi-Fi network or router is functioning
normally. Restart if needed.
White noise/Speaker will
not function properly
» Power the speaker OFF, then ON again.
» Hold down the button for 10 seconds to reset
the speaker.
18
CUSTOMER SUPPORT
Protect for Today
Sustain for Tomorrow
Made
Green
Contact Information
Website: www.iLiveElectronics.com
Email Support: prodinfo@dpiinc.com
Email Parts: partsinfo@dpiinc.com
Phone Support: 1-888-999-4215
Warranty Information
For Warranty Information and the most
up-to-date version of this User’s Guide,
go to www.iLiveElectronics.com.
International Support
To download this User’s Guide in English, Spanish, or French, or to get answers to
frequently asked questions, visit the support section at:
www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para
obtener respuestas a preguntas frecuentes, visite la sección de apoyo en:
www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour
obtenir des réponses à des questions fréquemment posées, consultez la rubrique:
www.iLiveElectronics.com
Copyright © 2018 Digital Products International (DPI, Inc.)
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its afliates.
All other trademarks appearing herein are the property of their respective owners.
