Users Manual

CAB‐92080

TailgateWirelessSpeakerSystem



INSTRUCTIONMANUAL

PLEASEREADALLINSTRUCTIONSCAREFULLYAND

RETAINFORFUTUREUSE



GettingStarted

 Removetheunitfromthebox.

 Removeanypackagingfromtheproduct.

 Pleaseretainallpackagingafteryouhavecheckedandcountedallthepartsandthecontents

againstthelist.



PackageContents

 Bluetoothportablespeaker

 AC/DCpoweradapter

 Aux‐incable

 InstructionManual



ProductFeatures

 Blastyourmusicanywhere,anytimeyouwant

 PowerfulspeakersystemforiPhone,iPad,iPod,Androidsmartphones,MP3playersandother

audiodevices

 StreamsmusicfromanyBluetoothenableddevices

 Perfectforparties,BBQ’sandmore

 Microphonemicinputx2

 Built‐inAuxjack

 Built‐inrechargeablebattery

 Speakerincludesruggedwheelsandtelescopinghandle



SAFETYINSTRUCTIONS

 Keeptheunitawayfromheatsources,directsunlight,humidity,waterandanyotherliquids.

 Donotusetheunitifithasbeendroppedordamagedinanyway.

 Repairstoelectricalequipmentshouldonlybeperformedbyaqualifiedelectrician.Improper

repairsmayplacetheuseratseriousrisk.

 Donotusetheunitwithwethands.

 Donotputobjectsintoanyoftheopenings.

 Keeptheunitfreefromdust,lintetc.

 Donotusethisunitforanythingotherthanitsintendeduse.

 Keeptheunitoutofreachofchildren.

 Thisunitisnotatoy.



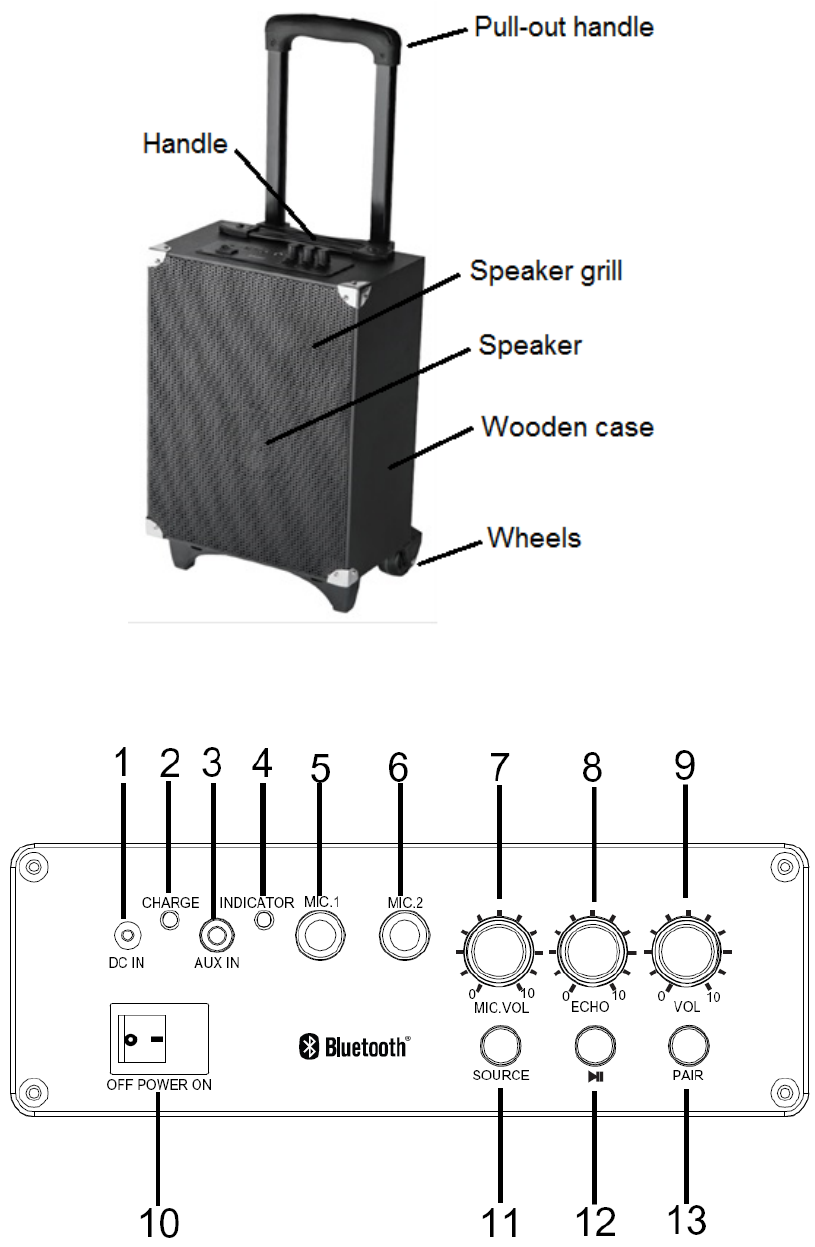

DescriptionofParts



LocationofControls



1DCIN8ECHO

2CHARGEINDICATOR9MAINVOLUME

3AUXIN10POWERON/OFFSWITCH

4LEDINDICATOR11SOURCEBUTTON

5MICINPUT112PLAY/PAUSEBUTTON

6MICINPUT213PAIRBUTTON

7MICVOLUME



INSTRUCTIONSFORUSE

ChargingtheTailgateBluetoothSpeaker

Forbestresults,fullychargetheunitbeforeuse.

1. ConnecttheprovidedadaptertotheDCINofthespeakerandplugtheadaptertoawallport.

2. Whilecharging,chargeindicatorturnsREDinPOWERONmode,anditwillturnORANGEwhen

fullycharged.

Note:Beforeusingtheunitforthefirsttime,pleasechargeitforaround5hoursoruntilthecharge

indicatorturnsORANGE.



Turnon/offtheSpeaker

PressPOWERON/OFFSWITCHtoONpositiontoturnonthespeaker,orOFFpositiontoturnoffthe

speaker.



PairingyourdevicewiththeSpeaker–

YourBluetoothTailgateSpeakercanstreamwirelessaudiofromanyBluetoothenableddevicewithin

therangeof27‐33Feet.Simplyfollowthebelowsteps.

1. Turnonthespeaker.

2. BlueLEDlightwillbegintoblink.Thespeakerisnowinpairingmode.

3. TurnontheBluetoothonyourMobilePhoneorTabletorComputer.

4. ItwillsearchforavailableBluetoothdevices.

5. BluetoothTailgateSpeakerwouldappearas“SLTAILGATESPK”,inthelistofsearcheddevices.

Selectitfromtheavailablelistofdevices.

6. Ifrequired,enterthepassword‘0000’toconfirmpairing.

7. Oncepairedsuccessfully,theBlueLEDwillstayon.

8. Ifyoufailtopairitwithinafewsecondsoryouwanttopairitwithanewdevice,pleaserepeat

abovesteps.



PlayyourfavoritesongontheBluetoothsourcedeviceandmusicwouldnowstreamthroughthe

speaker.



ListeningtoWirelessMusic

Pleaseensurethatyourdevice(iPhone,TabletorOtherSmartPhone)ispairedwiththespeakerto

streamwirelessmusic.Onceitispaired,playmusicfromyourdevice.



FunctionOperationButton

Increase/

DecreaseVolume

PlayingmusicTurnMAINVOLUMEknoblocatedonthecontrolpaneltoadjust

thevolumetoyourdesiredlevel,

or

Adjustvolumefromthesourcedevice.

PausePlayingmusicShortpressPLAY/PAUSEbuttononcetopausemusic

PlayPauseShortpressPLAY/PAUSEbuttononcetoresumemusic



Tips!!

1. ShortpresstheSOURCEbuttontoswitchdifferentfunctionsofthespeaker.Thefunctionsare–

Bluetooth/AUX.

2. Whenthespeakerisnotinuse,turnOFFthedevicetosavethebatterypower.

3. Alwaysusetheadapterincludedwiththepacktochargetheinternalbatteryofthespeaker.

Chargingthroughunauthorizedadaptormaydamagetheproduct,andwillterminateall

warrantyprivilegesinstantly.

4. Donotoverchargethespeaker.



Do’sandDon’ts

• Donotplaymusicatexcessivelevelsasdamagetohearingand/orequipmentmayresult.

• Donotuseoutdoorsinwetorindampsurroundings.



ListeningtoMusicusingAUX‐In

1. Turnonthespeaker.

2. Plugthe3.5mmAux‐incable(included)intotheAUXINportofthespeakerforAUXfunction.

And,theotherendofthecabletotheaudiodevice(suchascomputer/tablet/MP3Player

etc.).

3. PresstheSOURCEbuttontoAUXfunctionuntiltheLEDIndicatorshowspurple.

4. Selectyourfavoritesongatthesourcedevice.

(Note:WhileusingAUXINfunction,functionssuchasplay/pausecanbecontrolledonlythroughyour

sourcedevice).



UsingtheMicrophone

1. Turnonthespeaker.

2. InserttheplugoftheMicrophone(notincluded)intotheMICINPUT1or2ofthespeaker.

3. TurnontheMicrophone,andspeakformicrophoneoperationorsingforKaraokeoperation.

4. TurnMICVOLUME(andECHOknob)toadjustthedesiredlevel(andechooutput)respectively.



Careandmaintenance

Cleantheunitwithasoft,drycloth.Neverusechemicalsorhardabrasives.

Keepthisunitawayfromwetordampsurroundings.



ProductSpecifications:

Bluetoothversion :2.1+EDR

Speakeroutput :10Watts

Unitsize :18.8”x11.3”x7.9”

Unitweight :17.9lb

Powersupply  :AC/DCadaptor(Input:AC100‐240V50/60Hz0.5A,Output:DC9V1300mA

centrepositive)

Bluetoothrange :27‐33Feet

Built‐InRechargeableBattery:Li-ion Battery 7.4V, 2000mAh



TROUBLESHOOTING

ProblemPossibleCauseSolution

NopowerAC/DCadapterplugnotconnectedto

thewalloutlet

Plugtothewalloutlet.



Nosound Volumeinminimumposition.



Theconnecteddeviceisnotinplay

mode.



Inputsourceincorrect.

TurnMAINVOLUMEknobtoincrease

thevolume.

Playthemusicintheconnecteddevice

andmakesurethevolumelevelisin

highlevel.

PresstheSOURCEbuttontosetthe

inputsourcetothedesiredfunction.

SounddistortionVolumeleveltoohighTurnMAINVOLUMEknobtodecrease

thevolume.



FCCInstructions

Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe

user’sauthoritytooperatetheproduct.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment .

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.



NOTE:ThisproducthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.Thisproductgenerates,usesandcanradiateradio

frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurin

aparticularinstallation.Iftheproductdoescauseharmfulinterferencetoradioortelevisionreception,

whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrect

theinterferencebyoneormoreofthefollowingmeasures:

‐  Reorientorrelocatethereceivingantenna.

‐  Increasetheseparationbetweentheproductandreceiver.

‐  Connecttheproductintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

‐  Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



ThedevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.



LimitedWarranty

Thismanufacturer'sproductwarrantyextendstotheoriginalconsumerpurchaseroftheproduct.Neitherthe

retailernoranyothercompanyinvolvedinthesaleorpromotionofthisproductisaco‐warrantorofthis

manufacturerwarranty.

WARRANTYDURATION:Allmaterialsandworkmanshiparewarrantedtotheoriginalconsumerpurchaser

foraperiodofninety(90)daysfromtheoriginalpurchasedate.

WARRANTYCOVERAGE:Thisproductiswarrantedagainstdefectivematerialsorworkmanship.Thiswarranty

isvoidiftheproducthasbeendamagedbyaccident,inshipment,unreasonableuse,misuse,neglect,

improperservice,commercialuse,repairsbyunauthorizedpersonnelorothercausesnotarisingoutof

defectsinmaterialsorworkmanship.Thiswarrantydoesn’tcoverthefollowingwhichmaybesupplied

withthisproduct,includingbutnotlimitedto;LCDScreens,glassparts,lenses,bulbsetc.Thiswarrantyis

This equipment should be installed and operated with minimum distance 20cm

between the radiator& your body.

effectiveonlyiftheproductispurchasedandoperatedinUSAandCanada,anddoesnotextendtoany

unitswhichhavebeenusedinviolationofwritteninstructionsfurnishedbymanufacturerortounitswhichhave

beenalteredormodifiedor,todamagedproductsorpartsthereofwhichhavehadtheserialnumberremoved,

altered,defacedorrenderedillegible.

WARRANTYDISCLAIMERS:Thiswarrantyisinlieuofallwarrantiesexpressedorimpliedandnorepresentativeor

personisauthorizedtoassumeformanufactureranyotherliabilityinconnectionwiththesaleofourproducts.

Thereshallbenoclaimsfordefectsorfailureunderanytheoryoftort,contractorcommerciallawincludingbut

notlimitedto,negligence,grossnegligence,strictliability,breachofwarrantyandbreachofcontract.Underno

circumstanceswillManufacturer’s/Distributor’smaximumliabilityexceedtheretailvalueoftheproduct.

WARRANTYPERFORMANCE:Duringtheabove90daywarrantyperiod,aproductwithadefectwillbeeither

repairedorreplacedwithareconditionedcomparablemodel(atmanufacturer'soption).Therepairedor

replacementproductwillbeinwarrantyforthebalanceofthe90daywarrantyperiodandanadditional

one‐monthperiod.Nochargewillbeapplicableforsuchrepairorreplacement.

SERVICEANDREPAIR:Ifserviceisrequiredforthisproduct,youshouldfirstcontactMidwestTradingGroup

CustomerServiceatinfo@mtradinggroup.comorbycalling1(866)815‐4714,MondaytoFriday10amto6pm

EST.

NOTE:Manufacturercannotassumeresponsibilityforlossordamageduringincomingshipment.Asa

precautionarymeasure,carefullypackagetheproductforshipment,andinsureitwiththecarrier.Besureto

enclosethefollowingdetailswiththeproduct:yourfullname,returnaddressanddaytimephonenumber,a

notedescribingtheproblemyouexperienced,acopyofyoursalesreceiptorotherproofofpurchaseto

determinewarrantystatus.C.O.D.shipmentscannotbeaccepted.
