Junlan Electronic CHT909BT BLUETOOTH TOWER SPEAKER SYSTEM User Manual CHT910

Shenzhen Junlan Electronic Ltd BLUETOOTH TOWER SPEAKER SYSTEM CHT910

user manual

TOWER STEREO SYSTEM
TOWER STEREO SYSTEM
Model: CHT 909BT
Owner's Manual
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
-

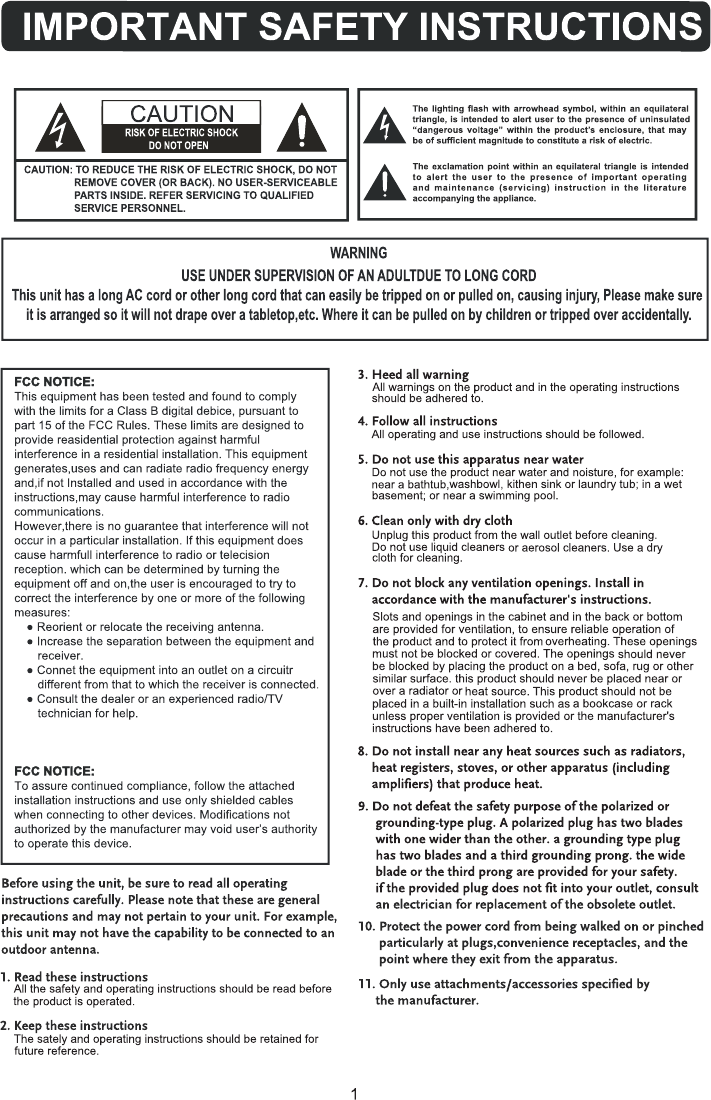

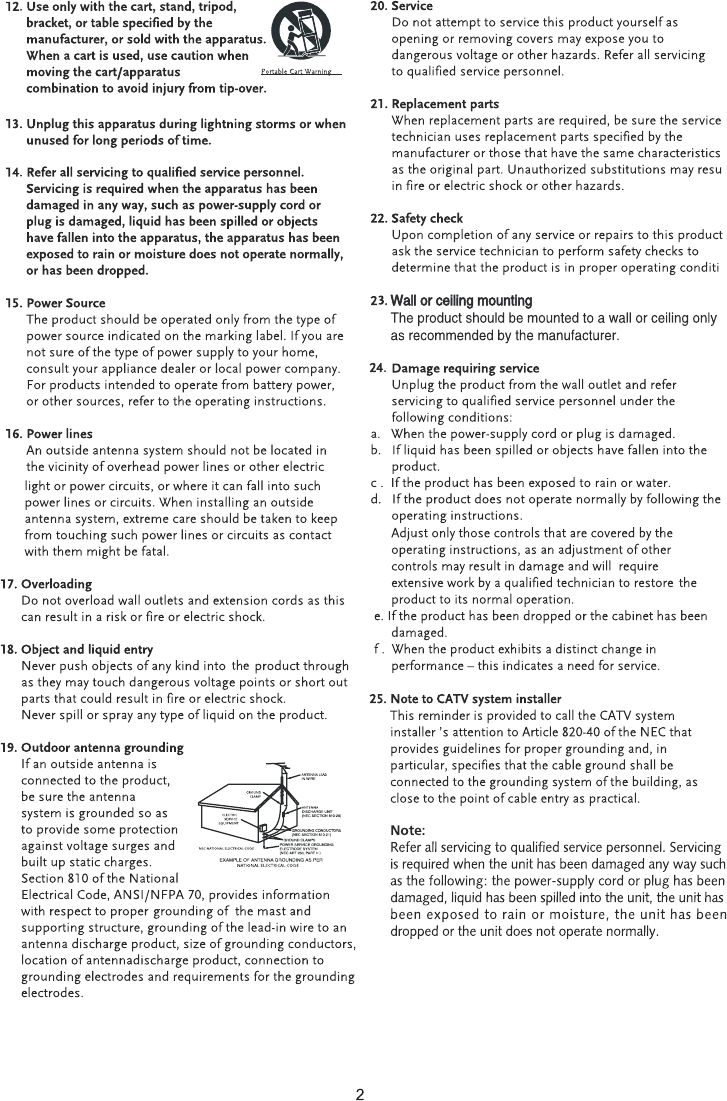

4
5
6
1
2
3

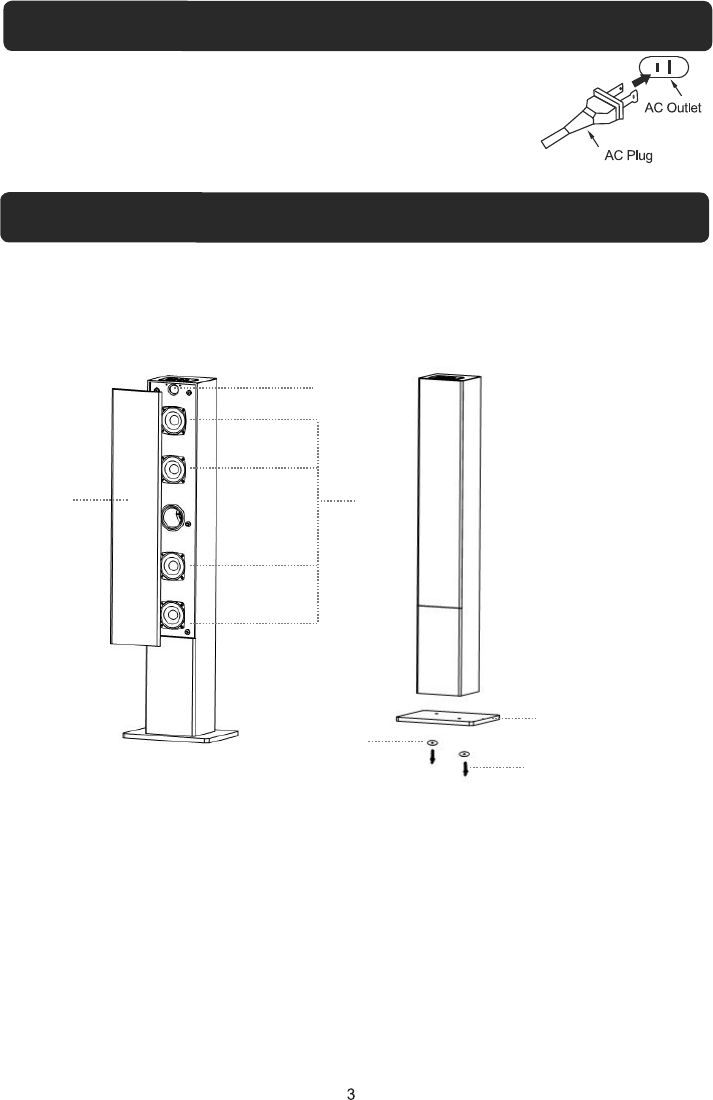

Figure1 Figure 2
1. Remote Sensor
2. Speakers
3. Speaker Net
4. Wooden Base
5. Screws
6. Washers
Insert the AC plug into a conveniently located AC outlet having AC 120V~60Hz.
NOTE: The AC plug supplied with the unit is polarized to help minimize the
obsolete outlet.
possibility of electric shock. If the AC plug dose not fit into a non polarized
AC outlet, do not file or cut the wide blade. It is the user's responsibility to
have an electrician replacing the
Note:
2.Assemble the wooden base to the main body with the supplied screws and washers as Fig.2 above.
1.The speaker net can be taken out and reassembled as Fig.1 above.
POWER SOURCE
INSTALLATION
MAIN UNIT
AUX IN 1
ANT
OFF
ON
POWER
L R
AC 120V~ 6 0Hz
11
12
13
1
INDICAT OR AUX IN 2
ST/MO SO URCE VOL- VOL +
POWER
TUNE- TU NE+
10
8 7
9
2 3 4
5
6

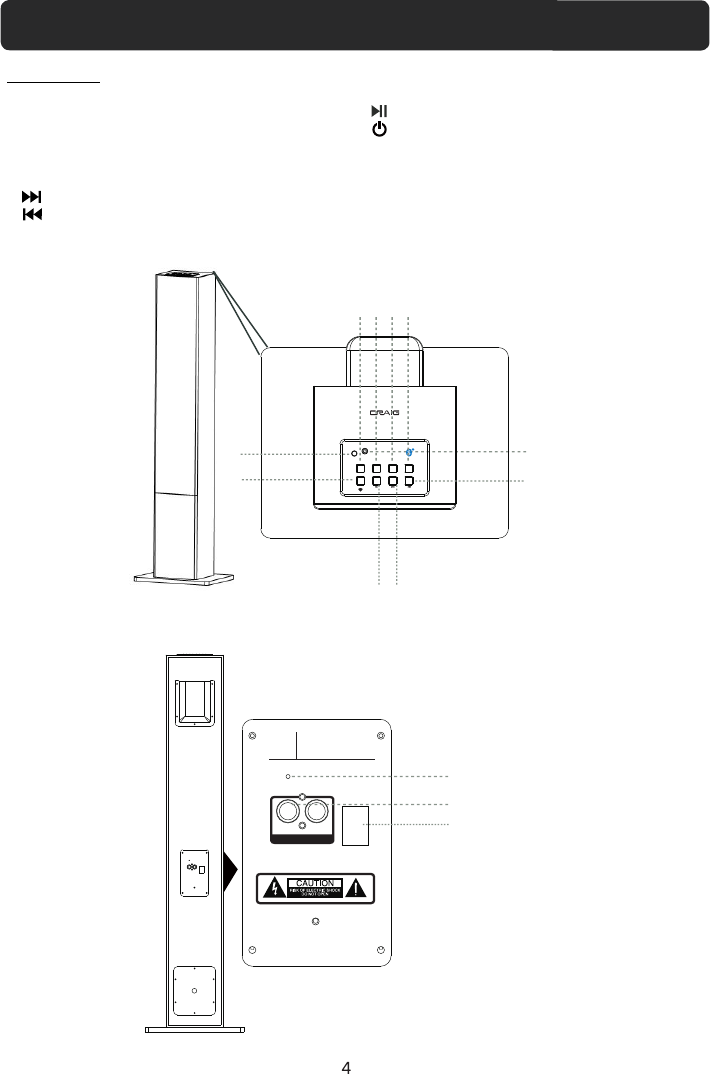

1.ST/MO (Stereo/ Mono) button
2.SOURCE button
3.VOL- (Volume Down) button
4.VOL+ (Volume Up) button
5.AUX IN 2 jack
6. / TUNE+ button
7. / TUNE- button
8. (Play/Pause) button
9. POWER button
10.Indicator
11. FM Antenna
12.AUX IN 1 jacks
13.POWER ON/OFF switch
LOCATION OF CONTROLS
REMOTE CONTROL
1
2
3
9
SOURCE
EQ
TUNE- TUNE+
VOL
ST/MO
POWER
8
7
6
5
4
1
2
3
1. POWER button
2. / TUNE - button
3. VOL (Volume)+/- buttons
4. SOURCE button
5. (Mute) button
6. / TUNE+ button
7 (Play/Pause) button
8 ST/MO (Stereo/ Mono) button
9 EQ (Equalizer) button
5
LOCATION OF CONTROLS

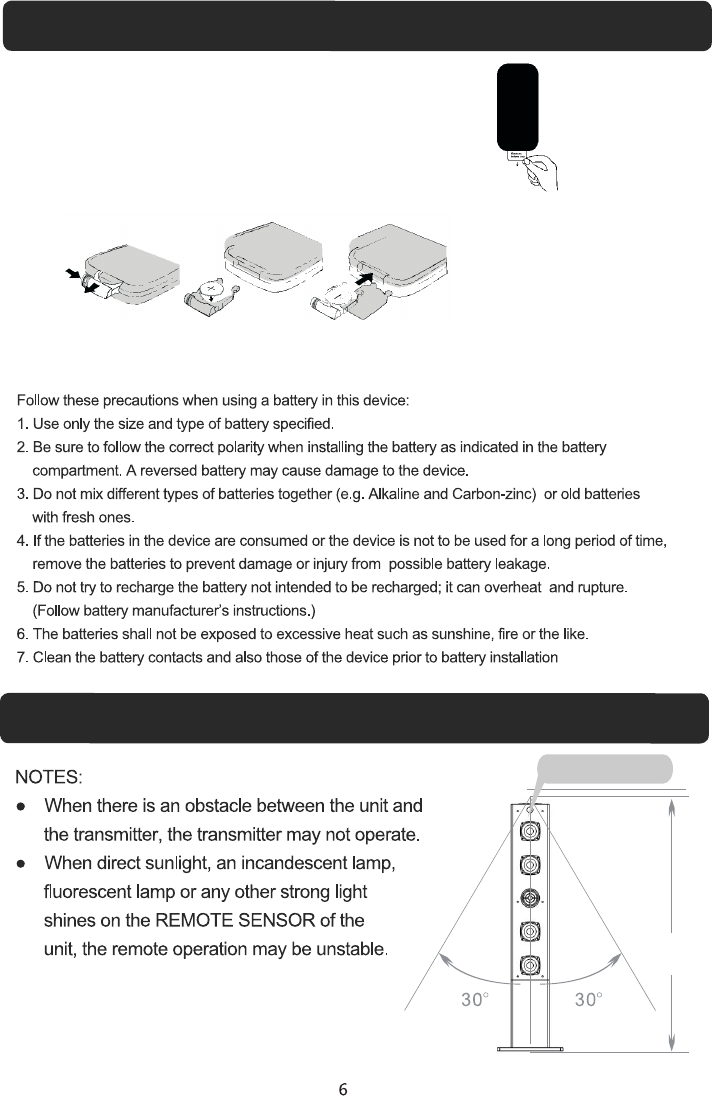

BATTERY PRECAUTIONS
Approx.15 feet
Fig.1 Fig.2 Fig.3
-First Time Use
Remove and discard the insulation tab as figure on the right
-Replacing Batteries For Remote Control
1. Push and slide out the battery holder as figure 1 below.
2. Replace the battery with a new CR2025 button cell as the
polarity markings on the rear of the Remote Control.
3. Close the battery holder.
Remote Sensor, on
the front of main unit
BATTERY INSTALLATION--- REMOTE CONTROL
EFFECTIVE DISTANCE OF REMOTE TRANSMITTER
7
1. Insert the AC plug into a conveniently located AC outlet having AC 120V~60Hz.
2. Move POWER ON/OFF switch on the rear of the unit to ON position to switch the unit to
corresponding color as below:
4.Press the SOURCE button repeatedly to switch to desired mode.The Source Indicator will turn
to
~ Green: Radio
~ Blue: Bluetooth
~ Purple: AUX IN 1
~ Orange: AUX IN 2
5.During Playback:
~ Press the VOL (Volume) buttons to adjust volume level as desired.
~ Press EQ button repeatedly to select and set equalizer mode as desired.
~ Press (Mute) button on the Remote Control to turn off the sound. Press again to resume.
6.When finished listening, press Power button to power off the unit. The indicator will turn Red.
to shut off the unit if long period of time will not
NOTE:
Press the POWER ON/OFF switch to OFF position
use the unit.
Standby mode and the indicator will turn Red.
indicator will light.
3. Press Power button on the unit or remote control to power on the unit. The Red Standby
indicator will turn off. The Source
GENERAL OPERATIONS
FM Antenna
1.Power on the unit as previous procedures.
2.Press the SOURCE button repeatedly until the color of the indicator turns Green.
4.Repeat the same procedures until the desired radio station are received.
3.Press and hold the /TUNE - or /TUNE + buttons until the indicator start blinking.
The unit will start to search next (or previous) available FM radio station then plays.
The Antenna wire on the rear of the unit is for radio reception. If reception is weak, unwind and
extend the wire or relocate the wire to improve the radio reception.
5.If the received FM stations are in stereo mode, the unit will play in stereo mode automatically..
8
If reception is weak, press ST/MO (Stereo/Mono) button to turn the unit to mono mode.
Press again to shift to stereo mode.
White
Red
AUX IN 1
L R
AC 120V~ 60H z
AUX IN 1
DVD
3. Power on the unit as previous procedures.

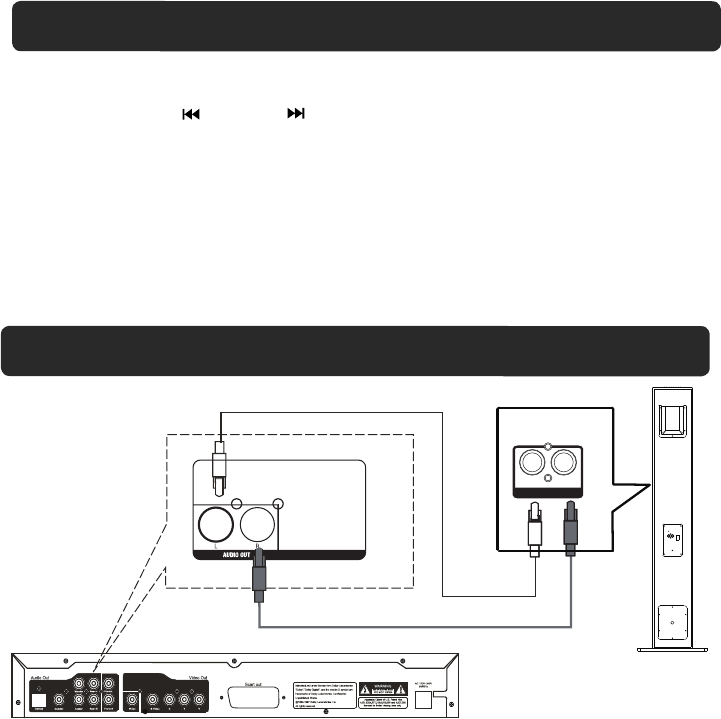

1. Connect one end of RCA audio connection cable (not supplied) to the AUX IN 1 jacks on the rear
of the unit as the figure above.
2. Connect the other end to the AUX out jacks on the external player (such as Television, VCR, DVD
Player, DVR ... etc.).
5. Play the music in the external player as usual. (Make sure the volume output level of the player is
in high level. Otherwise, sound from this unit is weak).
4. Press SOURCE button repeatedly until the indicator turns Purple.
LISTEN TO FM RADIO
LISTEN TO TV/DVD/VCR/DVR
Audio out jacks on
TV/DVD/ VCR/DVR
9
INDICAT OR AUX IN 2
ST/MO SO URCE VOL- VOL +
POWER
TUNE- TU NE+
INDIC ATOR AUX IN 2
4. Press SOURCE button repeatedly until the indicator turns Orange.
3. Power on the unit as previous procedures.

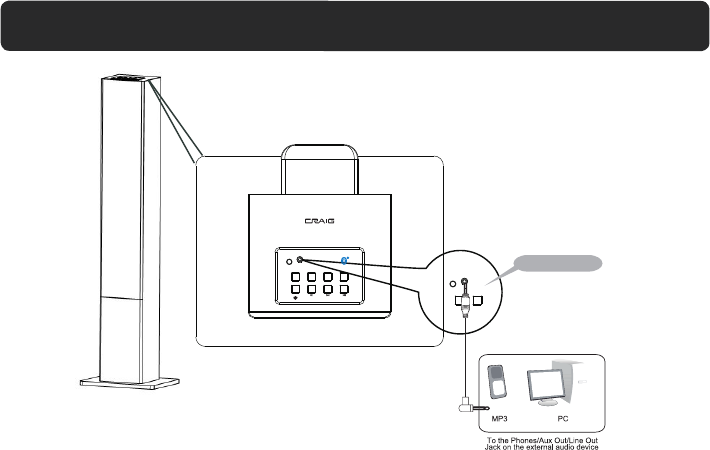

1. Connect one end of supplied audio connection cable to the AUX IN 2 jack on the top of the unit.
2. Connect the other end to the AUX out/Line out/Phone jack on the external player (such like iPod,
iPhone, iPad, MP3 player, Discman... etc.).
5. Play the music in the external player as usual. (Make sure the volume output level of the player
is in high level. Otherwise, sound from this unit is weak).
LISTEN TO EXTERNAL AUDIO DEVICES
AUX IN 2 jack
10
1. Power on the unit as previous procedures.
2. Press the SOURCE button on the unit or remote control until the indicator turns blue.
3. Turn on the BT function on the external BT device and play the music as usual. (Make sure
the volume level of the external BT device is set to high level).
4. During palyback:
Press the VOL (Volume) +/- buttons to adjust volume level.
Press the / TUNE- or / TUNE + button to skip track.
Press the (Play/Pause) button to pause. Press again to to resume normal playback.
NOTES:
During the first time use, pair the external BT device as below:
1. Power on the unit as previous procedures and press the SOURCE button repeatedly until the
indicator turns blue and blinking.
2. Power on the external BT device and enter searching mode. Start paring as the on screen
instructions on the external BT player(For detailed paring procedures, please refer to
the user's manual of your BT device.)
3. When the external BT player searched the Speaker, our model number"CHT-909BT" will
appear on the display of the external BT device.
4. Paring code"0000" may need to enter.
BLUETOOTH PARING AND PLAYBACK
11
Check the followings before requesting service
SYMPTOM POSSIBLE CAUSE POSSIBLE SOULTION
No power AC plug not connected to the
Plug to the wall outlet.
No sound
Volume in minimum position Raise volume level by pressing the VOL
(Volume) + button
The connected device is not
in payback mode
Input source incorrect
wall outlet
Sound distortion
Volume level too high
VOL (Volume- )-button
Reduce the bass level of the connected
Reduce the volume level by pressing
the -
Bass level of the connected
device too high device
Bluetooth
reception failure
The external device is far from
the unit
Have not paired Pair both unit as BT pairing page
Remote not The batteries
are consumed Replace with new battery
working
desired mode.
Press the SOURCE button repeatedly to
set the input source to the desired mode
Put the external BT device close to the
unit
TROUBLESHOOTING GUIDE
Play the music/movie in the connected
device as usual and make sure the
volume level of it is in high level
12
Accessories
Power Source...........................................................................................................AC 120V~60Hz
Radio Coverage................................................................................................FM 87.5 -108.0 MHz
Remote Working Distance.............................................................................................Up to 15 feet
Impedance of Speakers:
Loud Speakers .......................................................................................................8 Ohm, 10W x 2
Tweeters................................................................................................................... 8 Ohm, 5W x 2
Bluetooth Working Distance......................................................................................... Up to 30 feet
(Measured in open area. Wall
and structures may affect the effective range)
Power Consumption...................................................................................................................45W
1 x User Manual
1 x Remote Control, using CR 2025 button cell (Already installed in the remote control)
1 x Stereo Audio Connection Cable with 3.5 stereo plug
2 x Assembly Screws / Washers
1 x Wooden Base
GENERAL SPECIFICATIONS
Craig warrants this product to be free from manufacturing defects in material and
workmanship under normal use for a period of 90 days from date of purchase. If service
is required, please return the product to the store where it was purchased for exchange;
or, pack the unit in the original packing material with all accessories if applicable, a copy
of your sales receipt and a Cashier’s check or Money Order for $20.00 (to cover shipping
and handling costs) payable to Craig Electronics Inc. For consumers in Canada, please
make sure that the cashier check or money order is redeemable through a U.S. bank.
Ship your product freight pre-paid. Your unit will be repaired, replaced or if the unit can
not be repaired or replaced, a refund will be forwarded to you within four weeks of receipt
of your unit. Please ship your unit to:
Craig Electronics Inc.
1160 NW 163 Drive
Miami, Fl 33169
This warranty is void if the product has been: a) Used in a commercial application or
rental. b) Damaged through misuse, negligence, or abuse. c) Modified or repaired by
anyone other than an authorized Craig service center. d) Damaged because it is
improperly connected to any other equipment.
Note: This warranty does not cover: a) Ordinary adjustments as outlined in the Owner’s
Manual which can be performed by the customer. b) Damage to equipment not properly
connected to the product. c) Any cost incurred in shipping the product for repair. d)
Damage to the product not used in the USA.
This warranty is not transferable and only applies to the original purchase. Any implied
warranties, including the warranty of merchantability, are limited in duration to the period
of this expressed warranty and no warranty whether expressed or implied shall apply to
the product thereafter.
Under no circumstance shall Craig be liable for any loss or consequential damage arising
out of the use of this product. This warranty gives specific legal rights. However, you may
have other rights which may vary from state to state. Some states do not allow limitations
on implied warranties or exclusion of consequential damage. Therefore, these
restrictions may not apply to you.
To Obtain Service on your Product
email:service@craigelectronics.com
LIMITED WARRANTY
Printed in China CHT910-IB-E0CL1-B0US
