Junlan Electronic ITB133B Bluetooth Tower Speaker with PLL FM Radio User Manual Manual

Shenzhen Junlan Electronic Ltd Bluetooth Tower Speaker with PLL FM Radio Manual

Manual

USER’S GUIDE
V: 811-02
For the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com

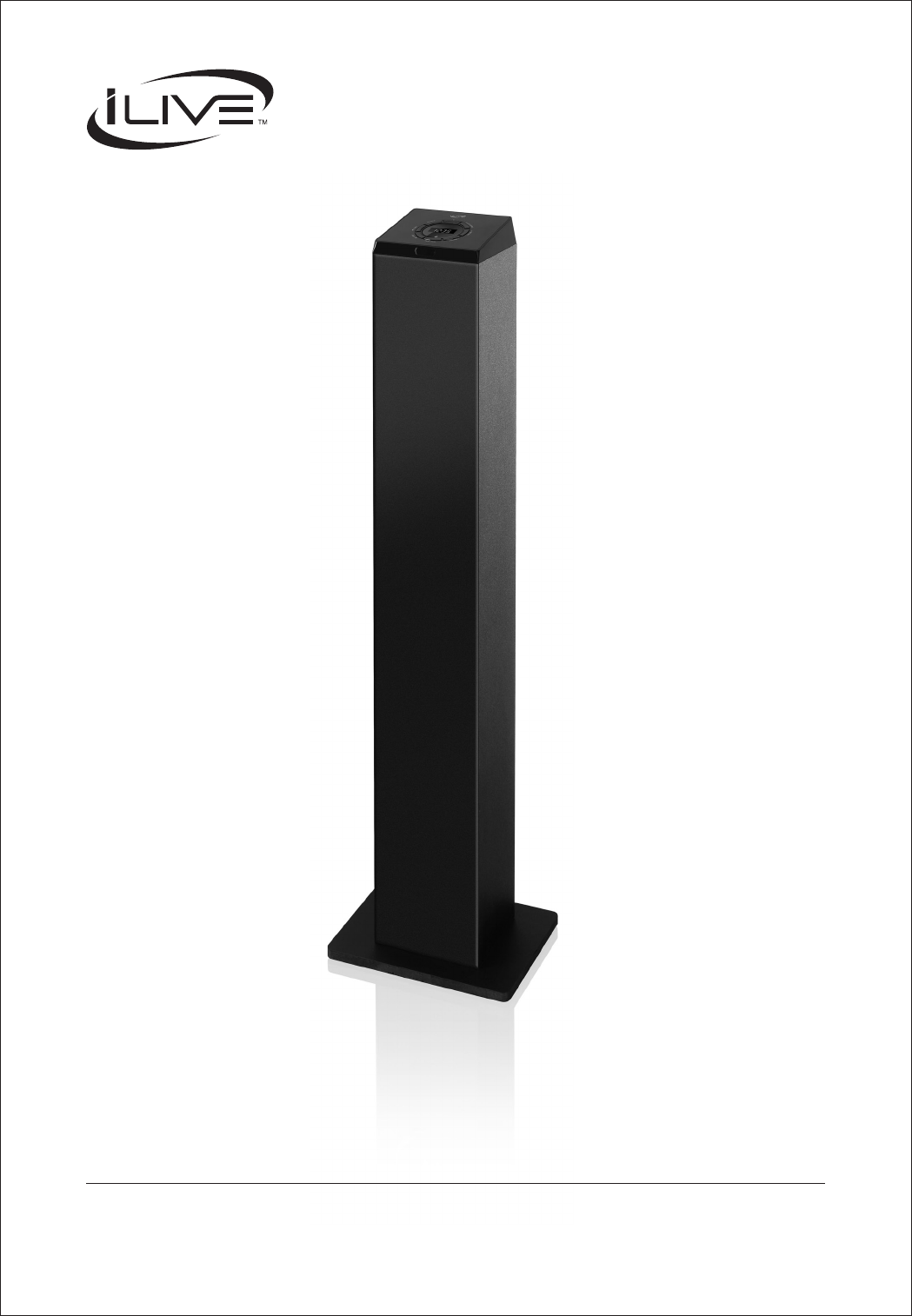

ITB133B
32” Bluetooth Tower Speaker
2
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
WARNING: To reduce the risk of re or electric shock, do
not expose this apparatus to rain or moisture.
AVERTISSEMENT: Pour réduire le risque d’incendie ou de
choc électrique, ne pas exposer cet appareil sous la pluie et
l’humidité.
CAUTION: Use of any controls or adjustments or
performance of procedures other than those herein
specied may result in hazardous radiation exposure.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
WARNING: Do not place this unit directly onto furniture
surfaces with any type of soft, porous, or sensitive nish.
As with any rubber compound made with oils, the feet
could cause marks or staining where the feet reside. We
recommend using a protective barrier such as a cloth or a
piece of glass between the unit and the surface to reduce
the risk of damage and/or staining.
WARNING: Use of this unit near uorescent lighting may
cause interference regarding use of the remote. If the unit is
displaying erratic behavior move away from any uorescent
lighting, as it may be the cause.
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
PRÉCAUTION: Danger d’explosion si les piles sont remplacées
de façon incorrect. Remplacer les piles seulement par le même
type de pile ou l’équivalent.
WARNING: The battery, batteries, and battery pack shall not
be exposed to excessive heat such as sunshine, re, or the
like.
WARNING: Lithium batteries, like all rechargeable batteries
are recyclable and should be recycled or disposed of in
normal household waste. Contact your local government
for disposal or recycling practices in your area. They should
never be incinerated since they might explode.
WARNING: Shock hazard - Do Not Open.
AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
Mains Plug or Direct plug-in adapter is used as disconnect
device and it should remain readily operable during
intended use. In order to disconnect the apparatus from the
mains completely, the Mains Plug or Direct plug-in adapter
should be disconnected from the mains socket outlet
completely.
La che d’alimentation ou adaptateur de courant est utilisé
comme dispositif de déconnexion et doit rester accessible
pendant l’utilisation. Pour mettre l’appareil hors tension, la
che ou adaptateur de courant doit être débranché de la prise
de courant.
The lightning ash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufcient magnitude to constitute a risk of electric
shock to persons.
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
Warnings and Precautions
Customer Support: 1-888-999-4215 3
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding - type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety.
When the provided plug does not t into your outlet,
consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user
accessible parts.
Use only with a cart, stand, tripod,
bracket, or table specied by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
Important Safety Instructions
Special note: When placing your unit on a lacquered or
natural nish, protect your furniture with a cloth or other
protective material.
WARNING: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
users authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The apparatus shall not be exposed to dripping or
splashing and that no objects lled with liquids, such as
vases, shall be placed on apparatus.
Lappareil ne doit pas être exposé aux écoulements ou aux
éclaboussures et aucun objet ne contenant de liquide, tel
qu’un vase, ne doit être placé sur l’objet.
Battery shall not be exposed to excessive heat such as
sunshine, re or the like.
Les piles ne doivent pas être exposées à de forte chaleur,
tel qu’à la lumière du soleil, au feu ou autres choses de
semblable.
Caution marking is located at the rear
or bottom of the apparatus.
Attention marquage est situé sur le paneau
arrière ou inférieur de l’unité.
The marking information is located at
the rear or bottom of apparatus.
Le marquage est situé sur le paneau
arrière ou inférieur de l’unité.
FCC Warnings
Additional Warnings
4
ITB133B
• Supports Bluetooth v2.1
Supports Enhanced Data Rate
(EDR)
• Supports prole A2DP
(Advanced Audio Distribution
Prole)
• Negative LCD display
• Built-in FM wire antenna
• Station memory presets (20
FM)
• Bass controls
• Treble controls
• Digital volume control
• Digital FM radio (PLL)
• Remote
• 3.5mm audio input
• LED pairing indicator
• Wireless range: 33 feet
• Built-in stereo speakers
• AC power: AC/DC adaptor
• Remote control: requires a
CR2025 battery (pre-installed)
• RCA stereo audio cable
• Wooden stand and mounting
screws
Features Includes
Setup
AC power: AC/DC adaptor Requires a CR2025 battery (pre-installed)
AC 120V~ 60Hz
L
R
AUX IN
FM ANT.
LINE IN
LITHIUM BAT TERY
CR 2025
3V
PUSH
OPEN
LITHIUM BATTERY
CR 2025
3V
CR2025
PUSH
OPEN
Power Remote
Customer Support: 1-888-999-4215 5
Table of Contents
Warnings and Precautions ............................................................................ 2
Important Safety Instructions ......................................................................... 3
ITB133B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features
Setup ................................................................................................ 4
Power
Remote
Includes
Table of Contents ..................................................................................... 5
Introduction ......................................................................................... 6
Audio Inputs & Subwoofer Output .................................................................... 8
Using the Stereo RCA Inputs
Using the Line In
Radio and Line In ..................................................................................... 9
Tuning the FM Radio
Saving Stations as Presets
Bluetooth ...........................................................................................10
Pairing a Bluetooth Device for the First Time
Playing Audio Wirelessly
Stand ...............................................................................................11
Company Information ...............................................................................12
International Support
Contact Information
Warranty
Green Initiative
6
Introduction
AC 120V~ 60Hz
AUX IN
FM ANT.
LINE IN
L
R
PM
MUTE
STEREO
MONO
PROGRAM
Stereo RCA Audio Inputs
Line Input
Clk Set/Play/Pause
In o mode, press
to begin setting
the clock. Press
to play or pause
a connected
Bluetooth device.
Volume
Turn to adjust the
volume.
Pairing Indicator
Pair/Memory
In Bluetooth mode, press to begin
pairing a Bluetooth device. In FM Radio
mode, press to browse preset stations.
Power
Press to turn the
unit on or o.
Source
Press to switch
between Bluetooth,
Line In, AUX, and
FM Radio modes.
Skip/Search
Tune (+/-)
Press to skip
between tracks .
Press and hold to
search through an
individual track.
Press to tune the
FM radio. Press and
hold to search for
the next available
station.
Customer Support: 1-888-999-4215 7
MEMORY
Source
Press to switch between
Bluetooth, Line In, AUX,
and FM Radio modes.
Mute
Press to mute the volume.
Mono
Press to switch to
Mono stereo.
FM Scan
Press to scan for
available radio stations
in FM Radio mode.
Display
Press to display the clock.
Treble
Press to adjust the treble.
Clock Set
Press to set the clock.
Power
Press to turn the
unit on or o.
Play/Pause
Press to play or pause a track.
Skip/Search
Tune (+/-)
Press to skip between tracks .
Press to tune the FM radio.
Press and hold to search for
the next available station.
Memory
In FM Radio mode, press to
browse preset stations.
EQ
Press to set the EQ.
Volume
Press to adjust the volume.
Bass
Press to adjust the bass.
8
Setting the Clock & Stereo RCA Inputs
When connecting two products using an RCA
Cable, match the colored ports with the same
colored connection.
1. Connect the RCA Cable to the RCA Stereo Inputs
located on the back of the unit, and to the audio
outputs on the television.
2. Press the Power button to power on the unit.
3. Press the Source button repeatedly to enter Aux
Mode.
4. Audio played through the television will now be
heard through the speakers.
1. If powered on, press the Power button to turn
the unit o.
2. Press the Clock Set button.
The hour will begin to ash.
3. Press the Tuning+/- buttons to adjust the hour.
4. Press the Clock Set button.
The minute will begin to ash.
5. Press the Tuning+/- buttons to adjust the
minute.
6. Press the Clock Set button again to nish setting
the time.
Using the Stereo RCA Inputs
Setting the Clock
Customer Support: 1-888-999-4215 9
Radio and Line In
3.5 mm line input cable not included.
1. Plug one end of a 3.5 mm audio input cable into
the Line In on the unit.
2. Plug the other end of the cable into the audio
output/headphone output on an MP3 Player or
other audio source.
3. Press the Power button to power the unit on.
4. Press the Source button repeatedly to enter Line
In Mode.
5. Audio played through the connected device will
now be heard through the speakers.
Using the Line In
1. Press the Source button repeatedly to enter FM
Radio Mode.
2. Press the FM Scan button on the remote.
3. The bar speaker will scan for all available
stations, and store them.
4. Press the Memory button on the remote or the
unit to browse through stored stations.
Saving Stations as Presets
1. Press the Power button to turn the unit on.
2. Press the Source button repeatedly to switch the
unit to FM Mode.
3. Press the Tuning+/- buttons on the unit or the
remote to scan for the next available station.
4. Press and hold the Tuning+/- buttons to search
for the next available station.
Tuning the FM Radio
10
Bluetooth
Playing Audio Wirelessly
Pairing a Bluetooth Device for the First Time
1. Follow the instructions for Pairing a Bluetooth
Device.
2. Press the Source button repeatedly to enter
Bluetooth mode.
3. Use the native controls on the connected
Bluetooth Device to select a track.
4. To play, pause or skip the selected track, use
the native controls on the connected Bluetooth
Device.
5. Audio played through the connected Bluetooth
device will now be heard through the speakers.
1. Power on the unit by pressing the Power button.
2. Press the Source button repeatedly to enter
Bluetooth mode.
The display will show “BT”.
3. Press the Pairing button on the top of the unit.
The Pairing Indicator will ash blue quickly.
When pairing, remain within 3 feet of the unit.
4. Using the native controls on your Bluetooth
device, select the “ITB133” in your Bluetooth
settings to pair.
If your device requests a password, enter the default
password “ 0 0 0 0 ”.
Refer to the user’s manual for your specic device
for instructions on pairing and connecting
Bluetooth devices.
5. When successfully paired and connected, a
beep will issue from the unit and the Pairing
Indicator will display a solid blue light.
After initial pairing, the unit will stay paired unless
unpaired manually by the user or erased due to a
reset of the device.
If your device should become unpaired or you nd
it is unable to connect, repeat the above steps.
Customer Support: 1-888-999-4215 11
Stand
Attaching the Stand
1. Align the holes in the bottom of the unit to the
holes in the base.
2. Use a philips-head screwdriver to tighten or
remove the screws. Using an power drill could
damage the TV stand.
Wooden Stand x 1Mounting Screw x 2
Copyright © 2012 Digital Products International (DPI, Inc.) | All other trademarks appearing herein are the property of their respective owners.
Specications are subject to change without notice.
The Bluetooth word mark and logos are owned by the Bluetooth SIG.
To download this User’s Guide in English, Spanish,
and French, or to get answers to frequently asked
questions, visit the support section at:
www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés,
español y francés, o para obtener respuestas a
preguntas frecuentes, visite la sección de apoyo en:
www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais,
espagnol ou français, ou pour obtenir des réponses
à des questions fréquemment posées, consultez la
rubrique d’assistance sur:
www.iLiveElectronics.com
Email Support: prodinfo@dpiinc.com
Email Parts: partsinfo@dpiinc.com
Phone Support: 1-888-999-4215
Website: www.iLiveElectronics.com
Green InitiativeInternational Support
Contact Information
Company Information
Environmental Commitment to ‘Protect for Today
and Sustain for Tomorrow’
On a continual basis DPI, Inc. is making eorts
to sustain the environment and improve the
recyclability of its products and packaging.
Focusing on “protecting for today and sustaining
for tomorrow DPI, Inc. has committed to reducing
packaging size, increasing the usage of recyclable
plastics, and ensuring that packaging and manuals
are made with up to 85% recycled material. In
addition to material consideration, DPI, Inc. has also
focused on the ner details that positively impact
the environment such as employing the usage of
soy-based inks.
DPI, Inc. also ensures that the factories that produce
the company’s wide variety of consumer electronics
adhere to environmentally friendly air and water
restrictions. This is yet another example that every
step of the way DPI, Inc. is making eorts to lessen
any impact on the environment.
In 2011 DPI, Inc. also began conversations with
Energy Star in order to ensure that the consumer
electronics being produced meet high standards
of energy eciency. The ultimate goal is keeping
energy costs for consumers low while providing
quality, feature-rich products.
For Warranty Information and the most up-to-date
version of this User’s Guide, go to:
www.iLiveElectronics.com
Warranty

Navigation menu
