User manual
WALL MOUNTABLE 2.1-CHANNEL BLUETOOTH
SOUNDBAR SPEAKER WITH FM RADIO
USER MANUAL
JSBW-650
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND
RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
1
DEAR JENSEN® CUSTOMER
Selecting fine audio equipment such as the unit you've just purchased is only the start of your
musical enjoyment. Now it's time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic Industries Association's
Consumer Electronics Group want you to get the most out of your equipment by playing it at
a safe level. One that lets the sound come through loud and clear without annoying blaring or
distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of
sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
Start your volume control at a low setting.
Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After
all, we want you listening for a lifetime.
We Want You Listening For a Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association's Consumer Electronics Group recommend you
avoid prolonged exposure to excessive noise.
Customer's Record:
The serial number of this product is found on its bottom cover. You should note the serial
number of this unit in the space provided as a permanent record of your purchase to aid in
identification in the event of theft of loss.
Model Number: JSBW-650 Serial Number: ____________________
2
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and manufactured to
ensure your personal safety. However, improper use can result in potential electrical
shock or fire hazards. Please read all safety and operating instructions carefully before
installation and use, and keep these instructions handy for future reference. Take
special note of all warnings listed in these instructions and on the unit.
1. Read these instructions – All the safety and operating instructions should be read
before the appliance is operated.
2. Keep these instructions – The safety and operating instructions should be kept for
future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operation and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near
water; for example, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool.
6. Clean only with dry cloth – The appliance should be cleaned only as
recommended by the manufacturer.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions. The appliance should be situated so that its location or
position does not interfere with its proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or similar surface that may block the
ventilation openings; or placed in a built-in installation, such as a bookcase or
cabinet that may impede the flow of air through the ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. AC adaptor is used as disconnect device and it should remain readily operable
during intended use. In order to disconnect the apparatus from the mains
completely, the AC adaptor should be disconnected form the mains socket outlet
completely.
10. Only use attachments / accessories specified by the manufacturer.
11. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
12. Unplug this apparatus during lightning storms or when unused for long periods of
time.
13. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
14. This appliance shall not be exposed to dripping or splashing water and that no
object filled with liquids such as vases shall be placed on the apparatus.
15. Power Sources – The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance. Do not
overload wall outlet.
3
16. Battery shall not be exposed to excessive heat such as sunshine, fire or the like
17. Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
18. Do not attempt to dismantle, open or repair this product yourself. If a fault occurs,
seek advice from your local qualified service technician or contact the distributor
via the telephone number at the back of this instruction manual.
19. Caution marking and nameplate are located on bottom of product.
IMPORTANT NOTE
Avoid installing the unit in locations described below:
Places exposed to direct sunlight or close to heat radiating appliances such as
electric heaters.
Places subject to constant vibration.
Dusty, humid or moist places.
Sources of electrical noise such as fluorescent lamps or motors.
In case of malfunction due to electrostatic discharge, the apparatus has to be reset
by disconnecting it from mains supply, wait at least for 60 seconds before reconnect
the AC power cord.
COMPLIANCE WITH FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
Protect Your Furniture
This product is equipped with non-skid rubber 'feet' to prevent the product from moving
when you operate the controls. These 'feet' are made from non-migrating rubber
material specially formulated to avoid leaving any marks or stains on your furniture.
However certain types of oil based furniture polishes, wood preservatives, or cleaning
sprays may cause the rubber 'feet' to soften, and leave marks or a rubber residue on
the furniture. To prevent any damage to your furniture we strongly recommend that you
purchase small self-adhesive felt pads, available at hardware stores and home
4
improvement centers everywhere, and apply these pads to the bottom of the rubber
'feet' before you place the product on fine wooden furniture.
ACCESSORIES
1 x AC Adaptor
1 x Remote Control,
1 x Stereo Audio Connection Cable with 3.5mm stereo plugs
1 x User Manual
1 x RCA Connection Cable
1 x Speaker Base for Stand
1 x Wall Mount Template
2 x Metallic Wall Mount Brackets
4 x Anchor (For Wall Mounting)
4 x Flat Head Screws (For Wall Mounting)
1 x Round Head Screw (For Vertical Base Mounting)
INSTALLATIONS
Placing the JSBW-650 on a table
Ventilation
When placing the Sound Bar on an entertainment center, bookshelf, or any type of
enclosed space, be sure to allow at least 2-3 inches of space around the Sound
Bar for ventilation. If the Sound Bar is enclosed in a tight space, without ventilation,
heat generated from the Sound Bar could create potential overheating.
Placing the JSBW-650 on the floor (vertical configuration)
Attach the base as shown below and use the supplied round head screw to secure it to
the sound bar. Be sure the assembled sound bar is placed on a level surface.
Note: The JENSEN logo on the front of the speaker can be rotated 90 degrees for
vertical mounting.
5

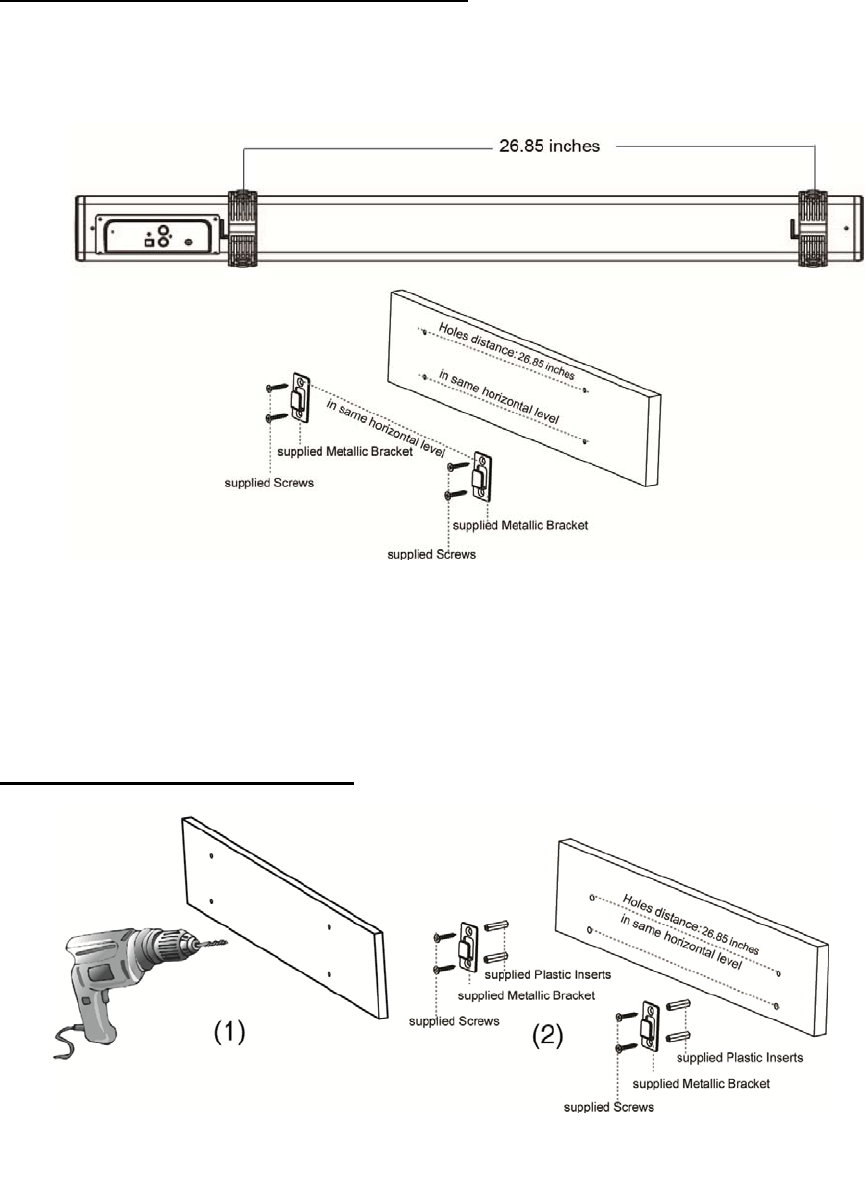

Use a power drill to make pilot holes for the
plastic anchors
Mounting the JSBW-650 on a wooden wall
It’s important to be sure there are no electric, gas or water lines located behind the wall
where you are attaching the sound bar. We recommend having this speaker
professionally installed. Use the included wall mounting accessories and template to
attach the sound bar to the wall.
1. Use the supplied wall mounting template to make drill hole marks on the wall. Make
sure the marks are level before drilling.
2. Attach the Metallic Brackets to the wall by screwing the supplied flat head screws
directly into the marks that you have made on the wall as shown above.
3. Place the sound bar onto the mounting brackets. Make sure the sound bar is
attached firmly to the wall.
Mounting the JSBW-650 on wall
1. Use the supplied wall mounting template to make drill hole marks on the wall for the
anchors. Make sure the marks are level before drilling.
2. Use a 1/4” (6.35mm) bit and power drill (Not supplied) to drill holes on the marks.
3. Insert the included plastic anchors into the holes and push in until they are flush with
the wall.
4. Secure the supplied Metallic Brackets to the wall by screwing the included flat head
6
screws into the anchors and tighten until the screw head is fully inserted and flush
with the metallic bracket.
5. Place the sound bar onto the mounting brackets. Make sure the sound bar is
attached firmly to the wall.

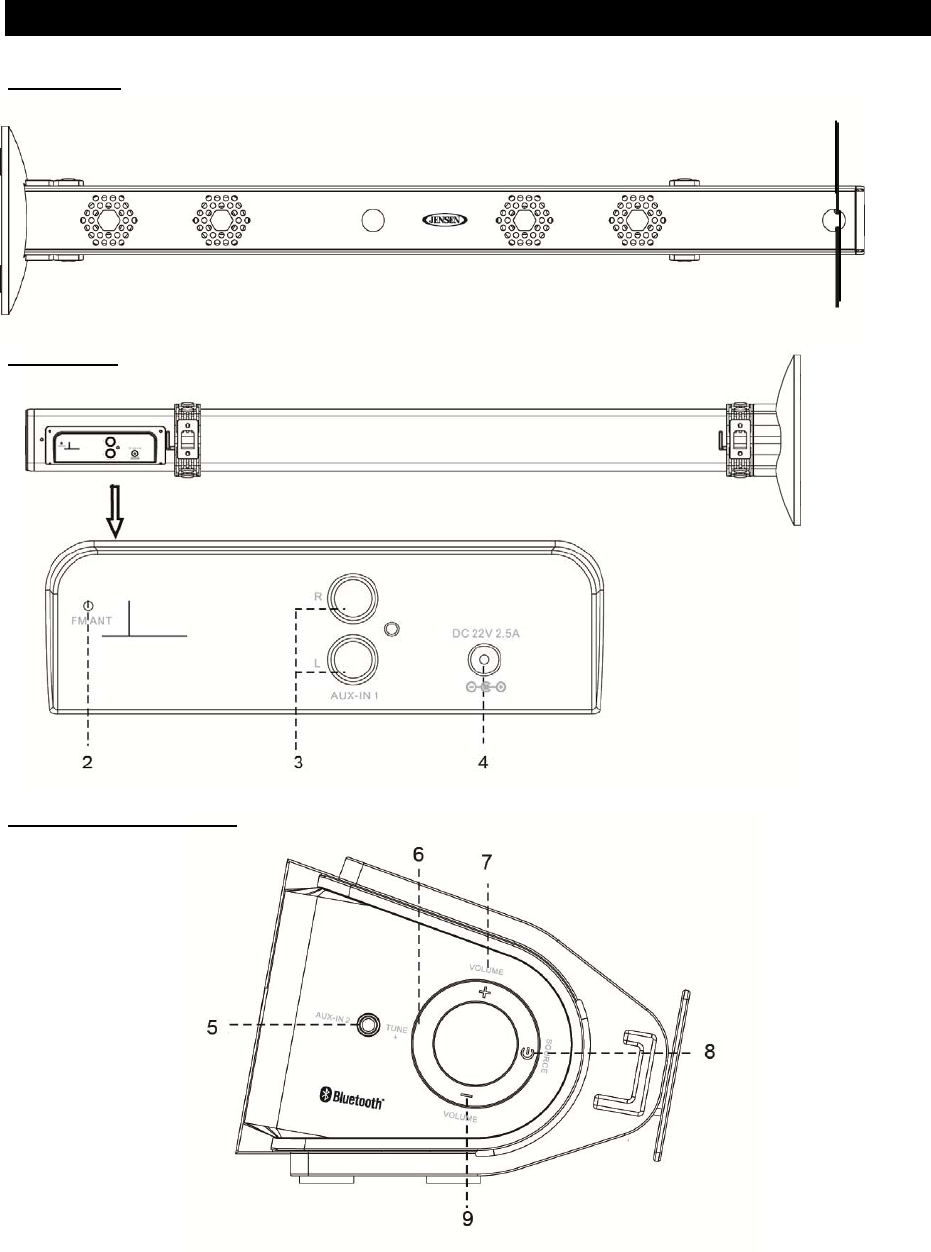

LOCATION OF CONTROLS
MAIN UNIT
Front View
10
1
Back View
Right Hand Side View
7
1. MODE INDICATOR LED
2.
FM WIRE ANTENNA
3.
AUX-IN 1
L/R RCA CONNECTORS
4.
DC IN JACK
5.
AUX-IN 2 JACK
6. FM TUNE +
7. VOLUME + BUTTON
8. POWER ON/STANDBY ; SOURCE BUTTON
9. VOLUME - BUTTON
10. REMOTE INFRARED SENSOR
REMOTE CONTROL
1. POWER ON/STANDBY BUTTON
2. VOLUME – BUTTON
3. SOURCE BUTTON
4. BASS – BUTTON
5. TREBLE – BUTTON
6. TUNE-/SKIP BACKWARD
7. BLUETOOTH PLAY/PAUSE BUTTON
8. MUTE BUTTON
9. VOLUME + BUTTON
10. BASS + BUTTON
11. BLUETOOTH PAIR BUTTON
12. TREBLE + BUTTON
13. EQ BUTTON
14. TUNE+/SKIP FORWARD BUTTON
8
GETTING STARTED
CONNECTING THE JSBW-650 TO EXTERNAL AUDIO DEVICES
You can connect the JSBW-650 audio input to the audio output of your television or
DVD Player. Please see figure below.
NOTE:
1. Make sure that the power is turned off when connecting or disconnecting the other
devices. Make sure that the other devices are connected to the correct terminals.
2. This unit is not magnetically shielded and may cause color distortion on the screen
of some TVs or video monitors. To avoid this, you may need to move the unit further
away from the TV or monitor if unnatural color shifts or image distortion occurs.
CONNECTING THE AC POWER
This unit operates using the included AC adaptor with 22V 2.5A (center-positive
) output, and is compatible with standard 120V~ 60Hz AC household power
1. Insert the the DC Plug of the AC Adaptor into the DC IN jack on the back of the unit.
Plug the AC Adaptor into a standard 120V~ 60Hz AC wall outlet.
2. Press the Power On/Standby button on main unit or remote control to turn on
the unit. Mode LED Indicator changes color from red to relative mode.
3. Press the Power On/Standby button on remote control or press and hold the
/SOURCE button on the main unit to turn the unit into standby mode after you
finish listening.
REMOTE CONTROL BATTERY INSTALLATION
The remote control operates on one CR2025 battery (included). To activate the
remote control, remove the insulation tab inserted in the battery compartment. To
remove the tab, pull it in the direction of the arrow in the illustration as shown.
When the operation of the remote control becomes intermittent or unsatisfactory,
replace the original battery with a new 3-volt lithium battery.
Replacing the battery in the remote control:
1.) Press in on the side of the battery holder and pull the holder out of the remote.
16V 3.5A
9
2.) Removed the exhausted battery and then install 1 new “CR2025” lithium
battery according to the polarity diagram on the battery compartment.
3.) Insert the battery holder into the remote control and make sure it locks into place.
NOTE: Only use a well-known brand of battery to ensure the longest life and best
performance.
LISTENING TO THE FM RADIO
TUNING THE FM RADIO
1. Press the POWER button to turn on the unit.
2. Press the SOURCE button on remote control or tap the /SOURCE button on
main unit repeatedly to select FM radio mode, the Mode Indicator LED turns to
purple color.
3. To manually tune a radio station, press the TUNE + / TUNE - button on the
remote control repeatedly to change stations. Use the manual tuning method to
tune to weaker stations that are occasionally skipped during Automatic Tuning.
4. To automatically tune to the next radio station with the strongest signal, press and
hold the / button on the remote for 1-2 seconds until the purple FM indicator
begins to flash. Release the button or tap the TUNE + button on main unit. The
tuner will stop scanning when it receives the next strongest station signal.
6. Press the VOLUME +/- button to adjust the volume control to the desired level.
7. If necessary, press the EQ to select one of the preset EQ settings or the TREBLE
and BASS +/- buttons on the remote control to adjust the separate treble and bass
levels.
Battery Precautions
Replacement of batteries must be done by an adult.
The supply terminals are not to be short-circuited.
Non-rechargeable batteries are not to be recharged.
Exhausted batteries are to be removed.
Only batteries of the equivalent type are to be used.
Batteries are to be inserted with the correct polarity.
Dispose of batteries properly. Do not dispose of batteries in fire. The batteries
may explode or leak.
10
HINTS FOR BEST RECEPTION:
To obtain the best FM/FM Stereo reception, unwrap and fully extend the FM
Antenna and adjust the position of the wire for best station reception
NOTE: Automatic tuning depends on the signal strength of the broadcasting station, so
weak stations may be skipped. You can manually tune to find the weak stations
if a station gets skipped. With strong signals, the tuner may stop before it
reaches the actual broadcast frequency, so you may need to manually tune for
the best reception.
BLUETOOTH OPERATION
PAIRING (LINKING) A BLUETOOTH ENABLED CELL PHONE OR OTHER
BLUETOOTH ENABLED DEVICE to the JSBW-650
1. With the power on, press the SOURCE button on remote control or tap the
/SOURCE button on main unit repeatedly to select Bluetooth mode. The Mode
Indicator LED turns blue and will be flashing. The JSBW-650 is now ready to pair
(link) with your Bluetooth device.
2. Turn on the Bluetooth feature of your cell phone and enable the search or scan
feature to find the JSBW-650.
3. Select "JSBW-650" from the device list when it appears on your device screen. If
required, enter the pass code “0000” to pair (link) the JSBW-650 with your cell
phone.
4. After successfully pairing (linking) your cell phone with the JSBW-650, the Mode
Indicator LED stops flashing and remains lit blue. You can now play music from
your cell phone or Bluetooth device wirelessly to the JSBW-650.
Note: If you want to connect the JSBW-650 to another cell phone after pairing
successfully, then you need to turn off the Bluetooth on the paired cell phone
first if it is in range before going through the above steps. Otherwise, the
JSBW-650 will automatically reconnect to the previously linked cell phone or
device.
5. Press the VOLUME +/- button to adjust the desired volume level.
6. To turn off the JSBW-650 Bluetooth, press the POWER button on remote
control or press and hold the /SOURCE button on main unit to turn the unit to
standby mode. Mode Indicator LED turns red. Don’t forget to also turn off the
Bluetooth feature on your cell phone or Bluetooth device.
Notes:
1.) Refer to manual of your cell phone or other Bluetooth enabled device for
Bluetooth operation, since it may vary from model to model.
11
2.) If your Bluetooth enabled device does not support A2DP, it will not play the music
through the speaker, even after it's paired (linked).
3.) If you are pairing (linking) your computer to the JSBW-650 using Bluetooth, you
may need to set the JSBW-650 as your computer’s default sound device.
CONTROLLING THE MUSIC PLAYBACK ON YOUR BLUETOOTH DEVICE USING
THE REMOTE CONTROL
1. Press the POWER button to turn on the unit.
2. Turn on Bluetooth of your cell phone or device which was previously paired with the
JSBW-650, press the SOURCE button on remote control or tap /SOURCE button
on main unit repeatedly to select the Bluetooth mode, the Mode Indicator LED turns
blue and begins flashing.
3. After the Bluetooth device is paired with the JSBW-650, wait for around 5 seconds
and then press the PLAY/PAUSE button on remote control to start music
playback from your cell phone or Bluetooth device.
4. Press the PLAY/PAUSE button to pause or resume playback.
5. Press the VOLUME+/- button to adjust your desired volume level
6. If necessary, press the TREBLE or BASS +/- buttons on the remote control to adjust
the separate treble and bass levels.
7. Press the or button on the remote to select the desire music track.
8. Press the POWER button on remote control or press and hold the button on
main unit to turn off the unit after listening.
Re-linking to a cell phone or Bluetooth device
If your cell phone or Bluetooth device is already paired with the JSBW-650, but became
unlinked at some point, even with both Bluetooth devices turned on. You can re-link
them by:
1. Press and hold the PAIR button to re-link your cell phone. The Mode Indicator LED
will turn blue and flash while linking.
2. Select the JSBW-650 from the devices list on your cell phone for linking. The Mode
Indicator LED stops flashing and remains lit blue if the JSBW-650 and your cell
phone have been re-linked successfully.
3. You can also re-link the JSBW-650 by using Bluetooth operation of your cell phone.
Please refer to operation manual of your cell phone for more information.
PRESET EQ (REMOTE CONTROL ONLY)
The JSBW-650 features 5 different EQ modes to enhance your listening experience.
You can select the desired effect by pressing the “EQ” button on remote control
repeatedly at following sequence:
12
NORMAL POP JAZZ CLASSIC ROCK
In addition, you can adjust treble and bass effects by using the TREBLE & BASS +/-
buttons.
MUTE (Remote Control Only)
- Press the MUTE button on remote control to mute the sound output from
speaker temporarily, the Mode Indicator LED will flash.
- Press the button again to resume to normal speaker playback.
LISTENING TO AUDIO FROM A TV/DVD PLAYER/VCR OR DVR
You can connect the JSBW-650 to other external audio devices using the AUX-IN 1
RCA connectors located on the back of the unit.
1. Connect the external TV/DVD/VCR/DVR to AUX-IN 1 RCA connectors on the back
of the unit (RCA connection cable included). Make sure the color coded plugs are
attached to the corresponding color coded connectors on the device.
2. Press the POWER button to turn the unit on.
3. Select external audio input by pressing the SOURCE button on the remote control or
tap the /SOURCE button on the main unit repeatedly to select AUX IN 1 mode,
Mode Indicator LED turns green.
4. The volume level can now be controlled through the main unit. Operate all other
functions on the external device as usual.
AUXILIARY INPUT
This unit provides an auxiliary audio signal input jack for connecting external audio
devices like MP3 players, CD players and listen to them through the speakers of this
unit.
1. Use an audio cable (included) with one 3.5 mm stereo plug on each end of the
cable.
2. Plug one end into the AUX-IN 2 jack on the right hand side (top panel) of main unit
and the other end of the cable into the Line-out Jack or Headphone Jack of your
external audio device.
3. Turn on the external audio device and the main unit.
4. To select auxiliary audio input, press the SOURCE button on remote control or tap
/SOURCE button on main unit repeatedly to select AUX IN 2 mode, Mode Indicator
LED turns orange.
5. The volume level can now be controlled through the main unit. Operate all other
functions on the auxiliary device as usual.
13
NOTE:
If you connect this unit to the Line-Out Jack of your external device then you only
need to adjust the volume control of this unit. If you connected the Headphone Jack
of your external device then you may need to adjust both the volume control of your
external device and the volume control of this unit to find the most desirable volume
setting.
Press the POWER button to turning off the unit when you finish listening. Don't
forget to switch off the power of your external device as well.
CARE AND MAINTENANCE
1. Do not subject the unit to excessive force, shock, dust or extreme temperature.
2. Do not tamper the internal components of the unit.
3. Clean your unit with a dry cloth. Solvent or detergent should never be used.
4. Avoid leaving your unit in direct sunlight or in hot, humid or dusty places.
5. Keep your unit away from heating appliances and sources of electrical noise such as
fluorescent lamps or motors.
CLEANING THE UNIT
To prevent fire or shock hazard, disconnect your unit from the AC power source
when cleaning.
The finish on the unit may be cleaned with a dust cloth and cared for as other
furniture, Use caution when cleaning and wiping the plastic parts.
If the cabinet becomes dusty wipe it with a soft dry dust cloth. Do not use any wax
or polish sprays on the cabinet.
If the front panel becomes dirty or smudged with fingerprints it may be cleaned with
a soft cloth slightly dampened with a mild soap and water solution. Never use
abrasive cloths or polishes, as these will damage the finish of your unit.
CAUTION: Never allow any water or other liquids to get inside the unit while cleaning.
TROUBLESHOOTING GUIDE
Should you experience difficulties in the use of this player please refer to the following chart or
call 1-800-777-5331 for Product Service and Support.
Symptom Possible Problem Solution
The unit does not
respond (no power)
The unit is disconnected from
the AC outlet. Reconnect to the AC outlet.
The AC outlet has not power. Try the unit on another outlet.
Unit is ON but there
is low or no volume The volume control has been
turned all the way down. Turn the Volume control to a higher
output.
No Sound Bluetooth speaker is not linked
with the cell phone Go through “Bluetooth Operations”
process to link the speakers.
Speaker placement out of Relocate the speaker within
14
range Bluetooth operating range
Noise or sound
distorted on FM
broadcast
Station not tuned properly for
FM. Full extend or rotate the wire
antenna for best reception.
Retune the FM broadcast station.
Sound is distorted
Volume level is set too high. Decrease the volume.
Sound source is distorted.
If the external device original sound
source is of poor quality, distortion
and noise are easily noticed with
high-power speakers. Try a different
audio source such as a music CD .
If you are using an external sound
source like older generation of iPod,
try reducing the output volume on
the device itself. Also try turning
bass boost OFF or change the EQ
setting.
Unit gets warm after
extended play at
high volume This is normal. Turn the unit off for a period of time
or lower volume.
SPECIFICATION
Power requirement:
Main Unit AC-DC Adaptor DC 22V, 2.5A
Remote Control 1 X DC 3V CR2025 lithium Battery
Frequency Range
Radio Band FM 87.5 ~ 108 MHz
At Spectra, environmental and social responsibility is a
core value of our business. We are dedicated to
continuous implementation of responsible initiatives with
an aim to conserve and maintain the environment
through responsible recycling.
Please visit us at http://www.spectraintl.com/green.htm for more information on
Spectra’s green initiatives or to find a recycler in your area.
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
16V, 3.5A
RF Exposure Guidance: This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be operated with a minimum distance of 20cm between the
radiator and persons. This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter, except in accordance with FCC multi-transmitter product procedures.
15
90 DAY LIMITED WARRANTY AND SERVICE
VALID IN THE U.S.A ONLY
SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective
materials or factory workmanship for a period of 90 days from the date of original customer purchase and
provided the product is utilized within the U.S.A. This warranty is not assignable or transferable. Our
obligation under this warranty is the repair or replacement of the defective unit or any part thereof, except
batteries, when it is returned to the SPECTRA Service Department, accompanied by proof of the date of
original consumer purchase, such as a duplicate copy of a sales receipt.
You must pay all shipping charges required to ship the product to SPECTRA for warranty service. If the
product is repaired or replaced under warranty, the return charges will be at SPECTRA’s expense. There
are no other express warranties other than those stated herein.
This warranty is valid only in accordance with the conditions set forth below:
1. The warranty applies to the SPECTRA product only while:
a. It remains in the possession of the original purchaser and proof of purchase is demonstrated.
b. It has not been subjected to accident, misuse, abuse, improper service, usage outside the
descriptions and warnings covered within the user manual or non-SPECTRA approved
modifications.
c. Claims are made within the warranty period.
2. This warranty does not cover damage or equipment failure caused by electrical wiring not in
compliance with electrical codes or SPECTRA user manual specifications, or failure to provide
reasonable care and necessary maintenance as outlined in the user manual.
3. Warranty of all SPECTRA products applies to residential use only and is void when products are used
in a nonresidential environment or installed outside the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state. TO OBTAIN SERVICE please remove all batteries (if any) and pack the unit carefully and send it
freight prepaid to SPECTRA at the address shown below. IF THE UNIT IS RETURNED WITHIN THE
WARRANTY PERIOD shown above, please include a proof of purchase (dated cash register receipt) so
that we may establish your eligibility for warranty service and repair of the unit without cost. Also include
a note with a description explaining how the unit is defective. A customer service representative may
need to contact you regarding the status of your repair, so please include your name, address, phone
number and email address to expedite the process.
IF THE UNIT IS OUTSIDE THE WARRANTY PERIOD, please include a check for $55.00 to cover the
cost of repair, handling and return postage. All out of warranty returns must be sent prepaid.
It is recommended that you contact SPECTRA first at 1-800-777-5331 or by email at
custserv@spectraintl.com for updated information on the unit requiring service. In some cases the
model you have may be discontinued, and SPECTRA reserves the right to offer alternative options for
repair or replacement.
SPECTRA MERCHANDISING INTERNATIONAL, INC.
4230 North Normandy Avenue,
Chicago, IL60634, USA.
1-800-777-5331
To register your product, visit the link on the website below to enter your information.
http://www.spectraintl.com/wform.htm
0613 Printed in China
