Junlan Electronic MD699 Stereo Suitcase Turntable System User Manual 1
Shenzhen Junlan Electronic Ltd Stereo Suitcase Turntable System 1
Users Manual

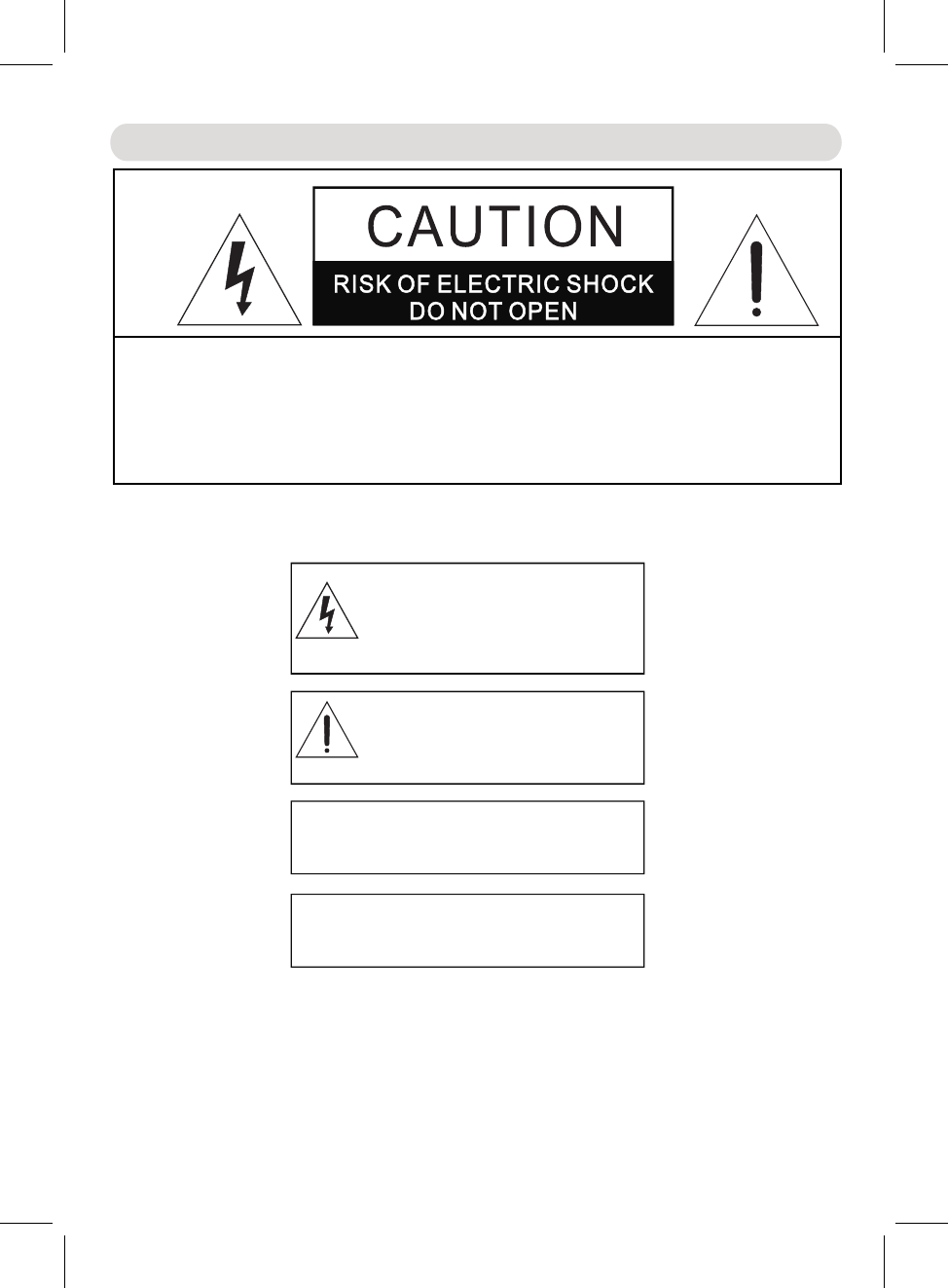

WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE THE
RECOMMENDED ACCESSORIES ONLY.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
EMOVE COVER (OR BACK). NO USER-SERVICEABLE ART
NSIDE EFER SERVICING T UALIFIED ERVICE PERSONNEL.
The lightning flash with arrowhead symbol
within an equilateral triangle is intended to alert
the user to the presence of uninsulated
dangerous voltage within the product`s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance(servicing) instructions in the
literature accompanying the appliance.
S
I
P
S
O Q. R
R
2
Before using the unit, be sure to read all operating instructions carefully. Please note that these
are general precautions and may not pertain to your unit.
For example, this unit may not have the capability to be connected to an outdoor antenna.
1) Read these instructions.
All the safety and operating instructions should be read before the product is operated.
2) Keep these instructions.
The safety and operating instructions should be retained for future reference.
3) Heed all warnings.
All warnings on the product and in the operating instructions should be adhered to.
4) Follow all instructions.
All operating and use instructions should be followed.
5) Do not use this apparatus near water.
Do not use this product near water and moisture, for example: near a bathtub, washbowl, kitchen
sink or laundry tub; in a wet basement; or near a swimming pool.
6) Clean only with dry cloth.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a dry cloth for cleaning.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure
reliable operation of the product and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should never be placed near or over a radiator or heat
source. This product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10)Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11)Only use attachments/accessories specified by the manufacturer.
12)Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold
with the apparatus. When a cart is used,
use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
An appliance and cart combination should be moved with care.
Quick stop, excessive force and uneven surfaces may cause the
appliance and cart combination to overturn.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
To protect your product from a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This
will prevent damage to the product due to lightning and power-line surges.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture does not operate normally, or has been dropped.
15) Power source
This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your home, consult your appliance dealer or local
power company. For products intended to operate from battery power, or other source, refer to the
operation instructions.
16) Power lines
An outside antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be taken to keep from touching such
power lines or circuits as contact with them might be fatal.
IMPORTANT SAFETY INSTRUCTIONS
3
17) Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric
shock.
18) Object and liquid entry
Never push objects of any kind into the product through openings as they may touch dangerous
voltage points or short out parts that could result in fire or electric shock. Never spill or spray any
type of liquid on the product.

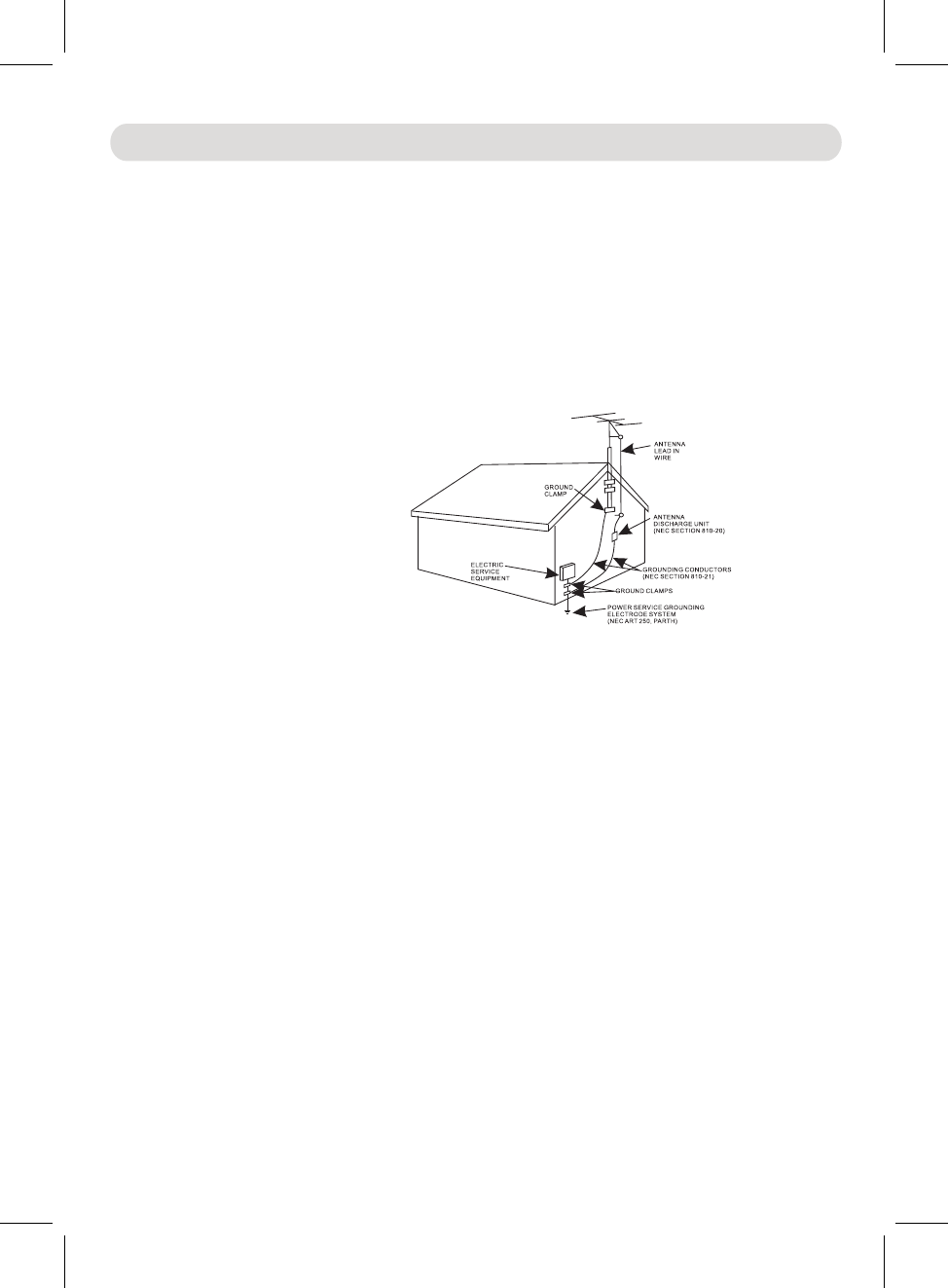

19) Outdoor antenna grounding
If an outside antenna is connected to the product, be sure the antenna system is grounded so as to
Provide some protection against voltage surges and built up static charges. Section 810 of the
National Electric Code ANSI/NFPA 70 provides information with respect to proper grounding
of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge product,
size of grounding conductors, location of antenna-discharge product, connection to grounding
electrodes and requirements for the grounding electrodes.
20)Service
Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
21)Replacement parts
When replacement parts are required, be sure the service technician uses replacement parts
specified by the manufacturer or those that have the same characteristics as the original parts.
Unauthorized substitutions may result in fire or electric shock or other hazards.
22)Safety check
Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks to determine that the product is in proper operating condition.
3
2
4
)Damage requiring service
Unplug this product from the wall outlet and refer service to qualified service personnel under the
following conditions.
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions, as an adjustment of other
controls may result in damage and will require extensive work by a qualified technician
to restore the product to its normal operation.
e) If the product has been dropped or the cabinet has been damaged.
f) When the product exhibits a distinct change in performance-this indicates a need for service.
2)Note to CATV system installer
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of cable
entry as practical.
NOTE: Refer all servicing to qualified service personnel. Servicing is required when the unit has been damage
n any way such as the following: the power-supply cord or plug has been damaged, liquid has bee
pilled into unit, the unit has been exposed to rain or moisture, the unit has been droppe r the unit doe
ot operate normally.
IMPORTANT SAFETY INSTRUCTIONS
d
in
s d o s
n
4

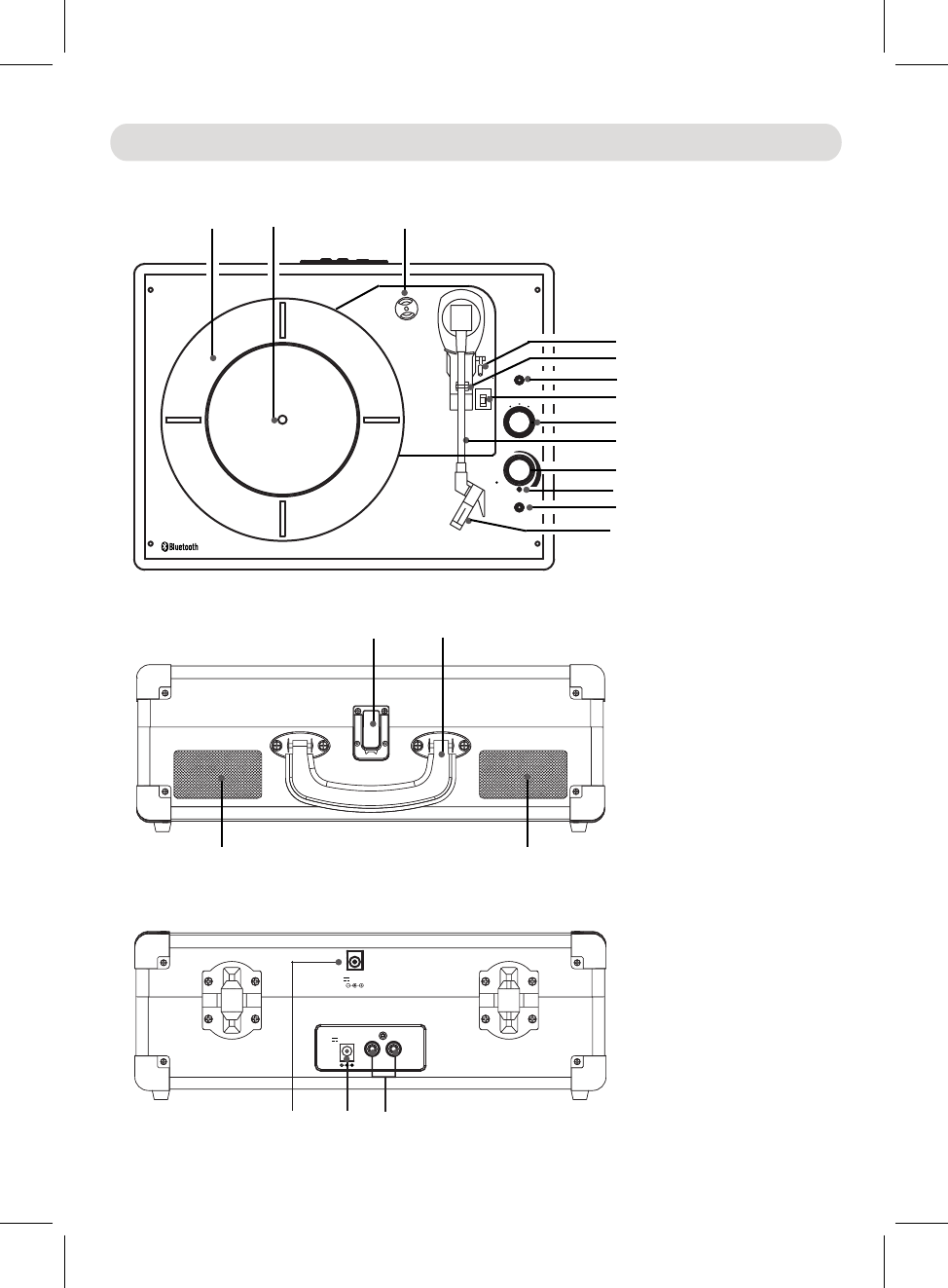

Top View
Location of Controls
E
N
I
I
N
L
B
O
T
N
O
H
P
LIN E IN
HEA DPHO NE
ON
OFF
1 2 3
4
5
6
7
8
9
10
11
12
13
1. Turntable platter
2. Turntable center spindle
3. 45 RPM adapter
4. Lever
5. Tone arm holder
6. LINE IN jack
7. Speed selector
8. Function knob
9. Tone arm
11. Indicators
12. HEADPHONE jack
13. Stylus
14 15
16
18
16
LIN E OU T
R
L
19
18. DC IN jack for main unit
19. LINE OUT jacks
14. Metallic buckle
15. Handle
16. Speakers
10.Power ON-OFF/
Volume knob
INDICATOR
DC IN
DC 9V,1300mA
17
DC IN
5
DC 9V,1300mA
Front View
Rear View
17. DC IN jack for
Decorative LED lights
Location of Controls
20. Remote Sensor
Inner Side View
20
21
LED
ON/OFF LED1 LED2
LED3 LED4 LED5
RED GREEN BLUE
1
2
3
4
5
6
7
8
9
1. LED ON/OFF button
2. LED 1 button
3. LED 2 button
4. LED 3 button
5. LED 4 button
6. LED 5 button
7. RED button
8. GREEN button
9. BLUE button
6
21. Decorative LED lights
Remote Control:
Remote Control

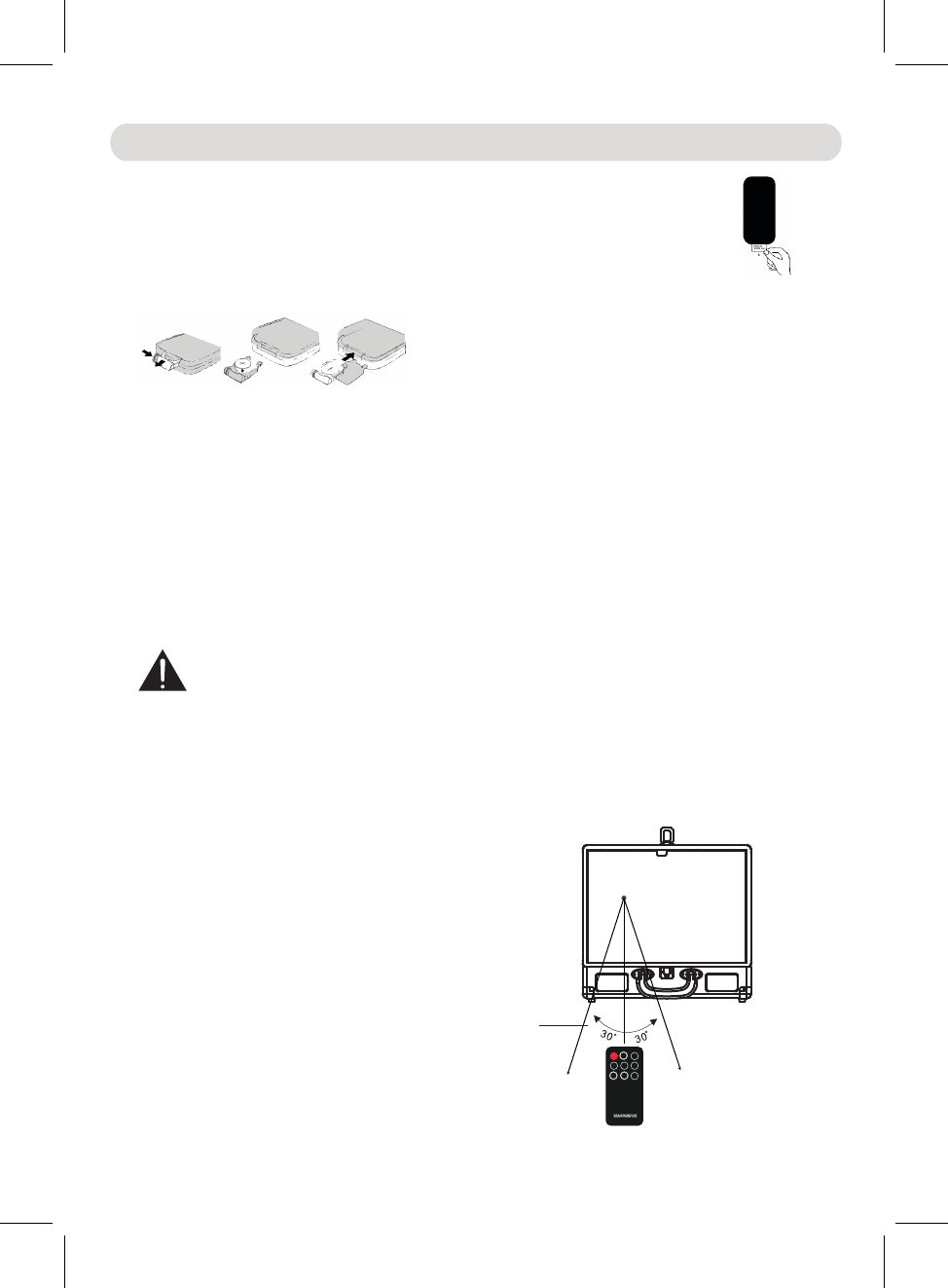

FIRST TIME USE
● Remove and discard the insulation as figure on the right.
●
1. Push and slide out the battery holder as figure 1 below.
2. Replace the with a new CR2025 button cell as the polarity markings
on the rear of the Remote Control.
3. Close the battery holder.
BATTERY PRECAUTIONS
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment,
a reserved battery may cause damage to the device.
3. Do not mix different types of batteries together ( e.g: Alkaline and Carbon-zinc ) or old batteries with
fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a long period of time, remove the
batteries to prevent damage or injury from possible leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture. ( Follow battery
manufacturer’s instructions.)
6. The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
7. Clean the battery contacts and also those of the device prior to battery installation.
Fig.1 Fig.2 Fig.3
Remote control operation range
● When there is an obstacle between the remote
and the transmitter, the unit may not operate.
● When direct sunlight, an incandescent lamp,
fluorescent lamp or any other strong light
shines on the REMOTE SENSOR of the unit,
the operation of the remote may be unstable.
film
LED
ON/OFF LED1 LED2
LED3 LED4 LED5
RED GREEN BLUE
16 feet (5M)
7
Replacing the button cell when it is drained:
button cell
8. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause
severe internal burn in just 2 hours and can lead to death.Keep new and used batteries away from
children. If the battery compartment does not close securely, stop using the product and keep it away
from children. If you think batteries might have been swallowed or placed inside any part of the body,
seek immediate medical attention.
Remote Sensor
Operation
2. Plug the AC/DC Adapter into a conveniently located AC outlet having AC 100-240V~, 50/60Hz.
Power Source
Notes:
~ This AC/DC Adapter is intended to be correctly orientated in a vertical or floor mount position.
~ For saving energy, if long period of time will not use the unit. Unplug the AC/DC Adapter from wall outlet.

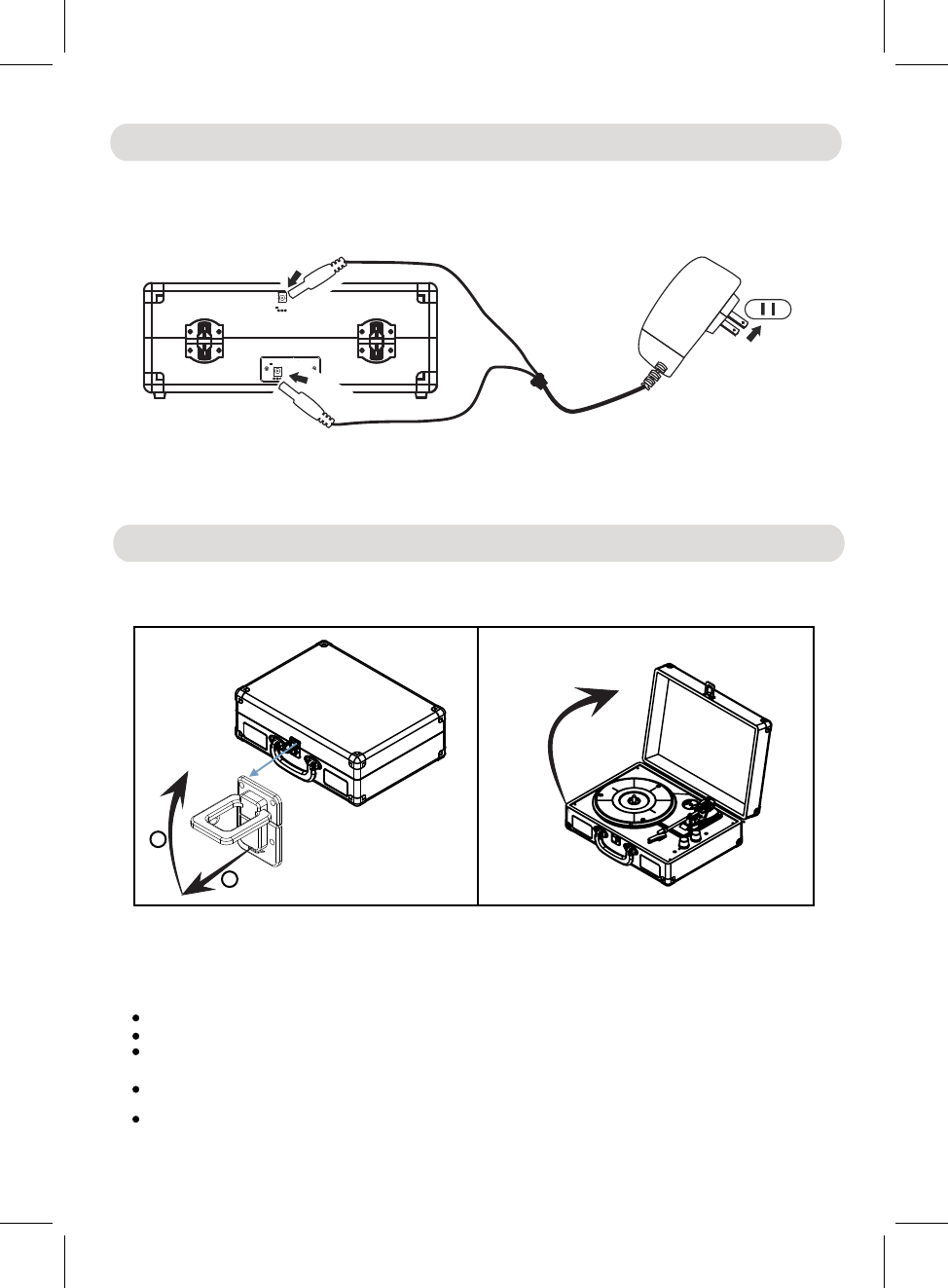

1. Open the top cover as illustrated below:
2. Connect the unit to AC power as instructed earlier.
3. Turn the Power ON/OFF--Volume knob clockwise to power on the unit and set the volume to the desired level.
The indicator will illuminate, and the LED light panel will light up.
4. Turn the Function selector to the desired position and set to different LED display modes by using the remote control.
7. Close the cover then lock it.
General Operation:
1
2
To AC outlet
AC/DC Adapter
8
1. Connect one of the small plug from the supplied AC/DC Adapter to the DC IN jack of Decorative LED lights;
connect the other small plug to the DC IN jack of the Main Unit as illustrated below.
is heard to shut off the
Press the LED ON/OFF button on the remote control to turn off the Decorative LED Lights.
5. For Decorative LED Lights:
Press the LED ON/OFF button on the remote control repeatedly to turn it ON or OFF.
Press the RED; GREEN or BLUE buttons on the remote control to set the color of the lights as desired.
Press the LED 1 - LED 5 buttons on the remote control to set or reset the blinking mode of the lights as desired.
LINE O UT
R
L
DC IN
DC 9V, 130 0mA
DC IN
DC 9V, 130 0mA
To the DC IN jack
of the main unit
To DC IN jack of the
Decorative LED Lights
6. When finished listening:
Turn the Power ON/OFF--Volume knob counterclockwise until “Click” unit. The indicators will
not light.
Listening through Bluetooth
For first time use or re-pairing to a new BT Device, pairing it as below:
Notes:
1. Power on the unit and turn the Function selector to BT position as the instructed earlier. The color of indicator will turn
to Blue and blink.
(For details pairing procedures, please refer to the user’s manual of your BT device.).
When the external BT Device searched the unit, our model number “MD699” will appear on the display of external
BT Device.
1. Power on the unit and turn the Function selector to the BT position as the instructed earlier. The color of indicator will
turn to Blue and blink.
2. Wait a few seconds until the unit auto paired to the external BT Device. (The Blue indicator will stop blinking)
(BT) Bluetooth Pairing:
Normal operation after paired:
9
2. Power on the external BT Device and enter to BT searching mode. Start pairing following the on screen instructions
from the external BT Device.
3. If pairing is complete you may now play music and answer calls with your external BT Device.
4. During playback, using the controls on the paired BT Device to skip the tracks; pause; play... etc.
If while pairing you are asked for a code please try "0000" or "1234".
After paired, the Blue indicator will stop blinking.
3. If pairing is complete you may now play music and answer calls with your external BT Device.
Listening a Record
1. For first time use, take out the protective cover from the stylus as the illustrated below:
2. Place the Record on the center spindle.
3. Slide the Speed selector to 33; 45 or 78 to match the play speed of the record.
4. Unlock the Tone Arm from the holder as the illustrated below:
clip
Note: If you are playing a 45 RPM Single (small size record), place the supplied 45 RPM
5. Power on the unit and turn the Function selector to the PHONO position as the instructed
6. Raise the Lever to raising the Tone Arm then move it to the top of the desired location
7. When finished playback, the unit will auto stop turning (or you wants to stop immediately);
adapter to the center spindle
then place the record on it.
earlier. The color of
indicator will turn to Red.
raise the Lever to rising
the Tone Arm then put it back to the Holder.
of the record. Release the
Lever to put the Tone Arm onto the record. Plays will auto start.
Plastic protective cover (White color)
Release the Lever then lock the Tone Arm on the Holder.
10
LINE OUT
R
L
LINE IN:
To the Line In/AUX In
jacks on the external
Audio Amplifier

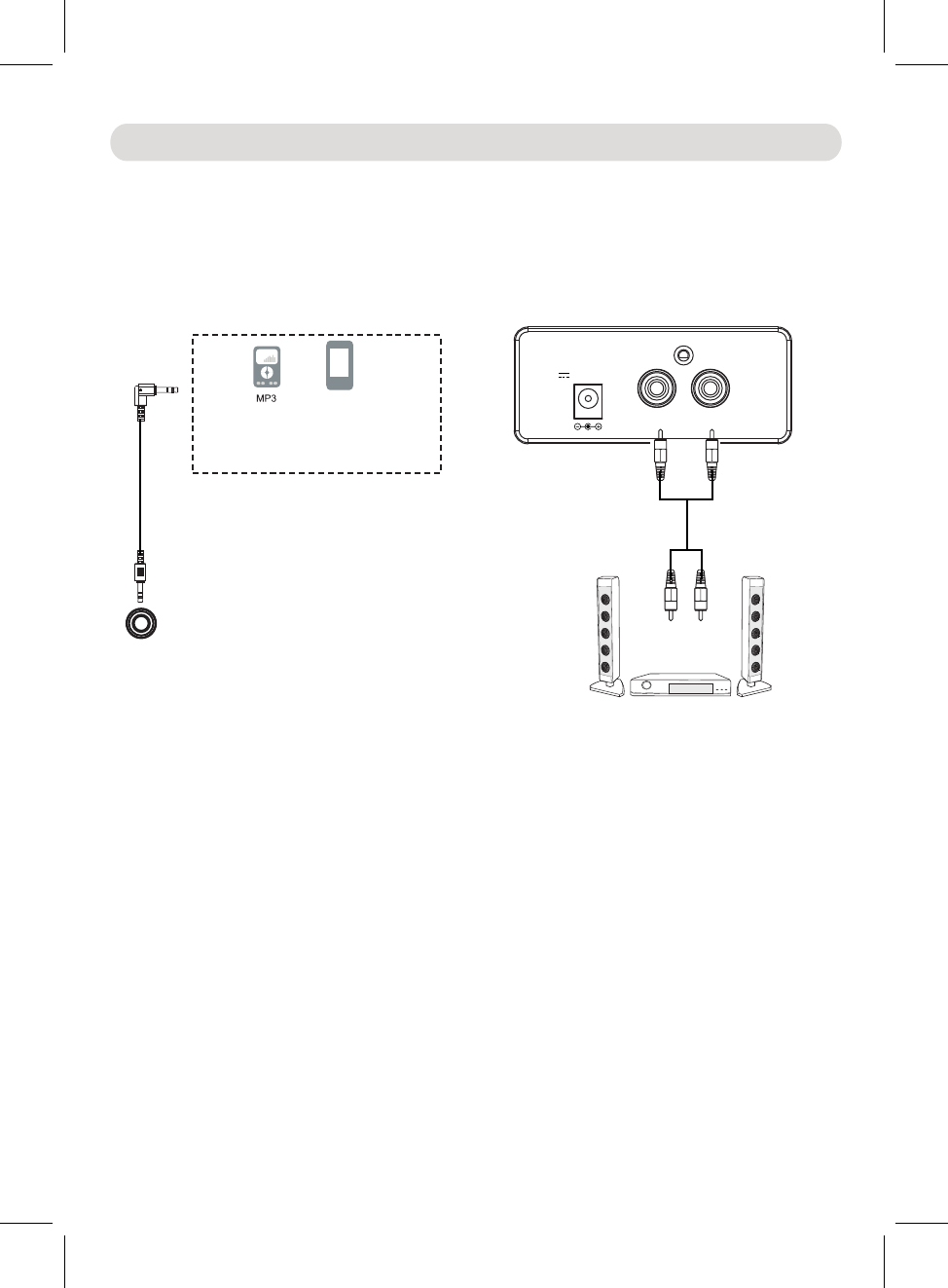

Other Connections
(Audio Connection Cable supplied) (Connection Cable not included)
To LINE IN jack on the unit
LINE OUT:
To the Line In/AUX In
jacks on the external
LINE IN
Red
White
HEADPHONE:
For private listening, connect the 3.5mm plug from the
To listening from external Audio Amplifier:
1. Connect one end of the RCA Audio Connection Cable
(not supplied) to the Line IN Jacks or AUX IN Jacks on
the external Audio Amplifier.
2. Connect the other end of the cable to the LINE OUT
jacks on the rear of unit as the illustrated below:
3. Power on the unit and plays music as usual as the
instructed earlier.
4. Power on the external Audio Amplifier and set it to
LINE IN mode to plays the music from this unit.
Listen music from the external Audio Player as follows:
1. Connect one end of the supplied Audio Connection
Cable to the Phones Jack; Line Out Jack or AUX Out
Jack on the external Audio Player.
2. Connect the other end to the LINE IN Jack on the top
of unit as the illustrated below:
3. Power on the unit and turn the Function selector to
the LINE IN position as the instructed earlier. The
color of indicator will turn to Purple.
4. Plays the music on the connected external Audio
Player as usual.
Note: Make sure the volume level of the external Audio
Player was set to high. Otherwise, sound from
this unit may weak.
Audio Amplifier
DC IN
DC 9V,1300mA
Mobile Phone
Connect to the Phones; AUX Out;
Line Out Jack of the external devices
(Such like MP3 Player; cell phones;
iPod/iPad ... etc)
Earphone/Headphone (not supplied) into the
HEADPHONE jack on the top of unit. Sound from speaker
will be auto cut.
11

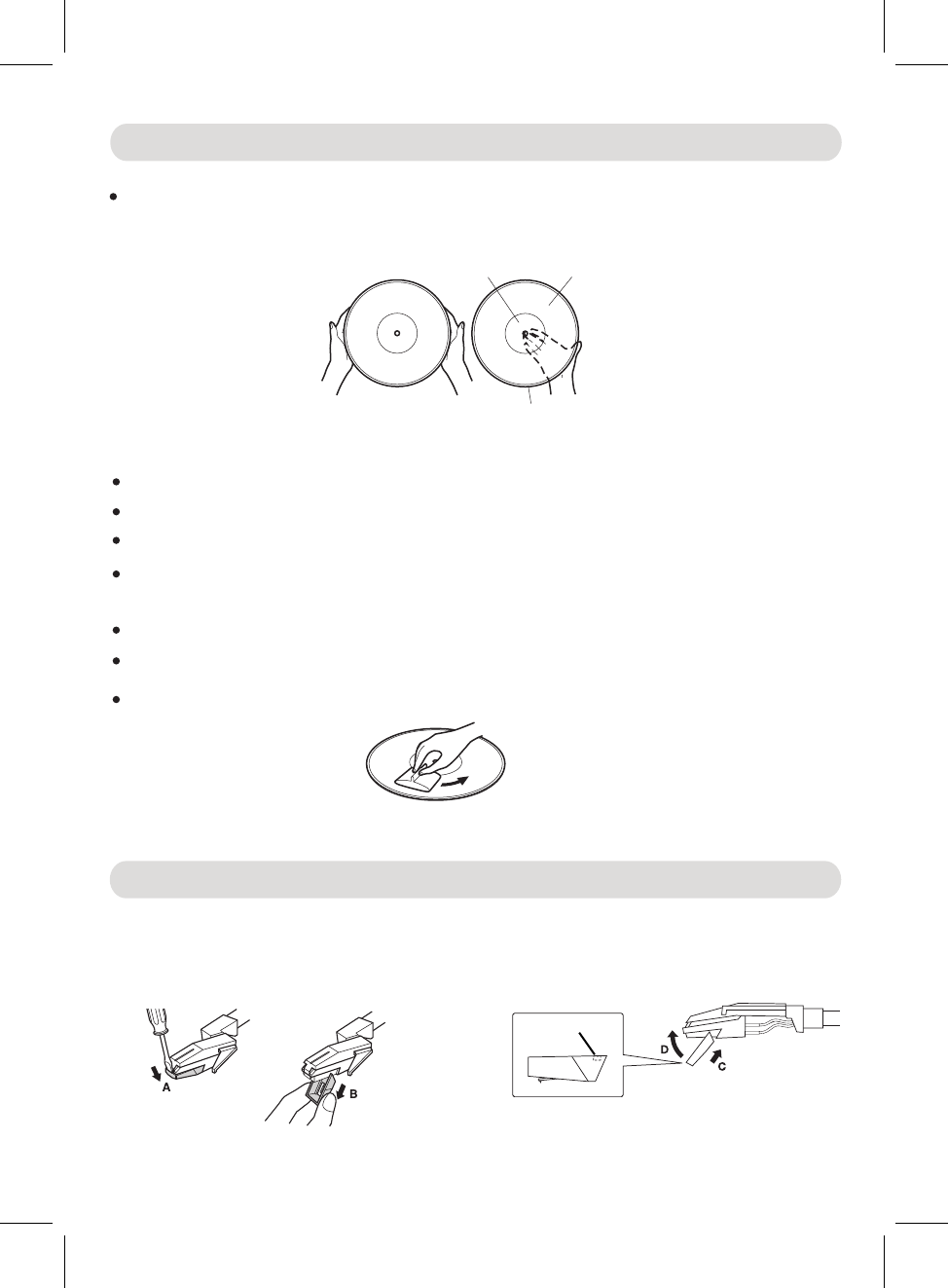

Records Handling

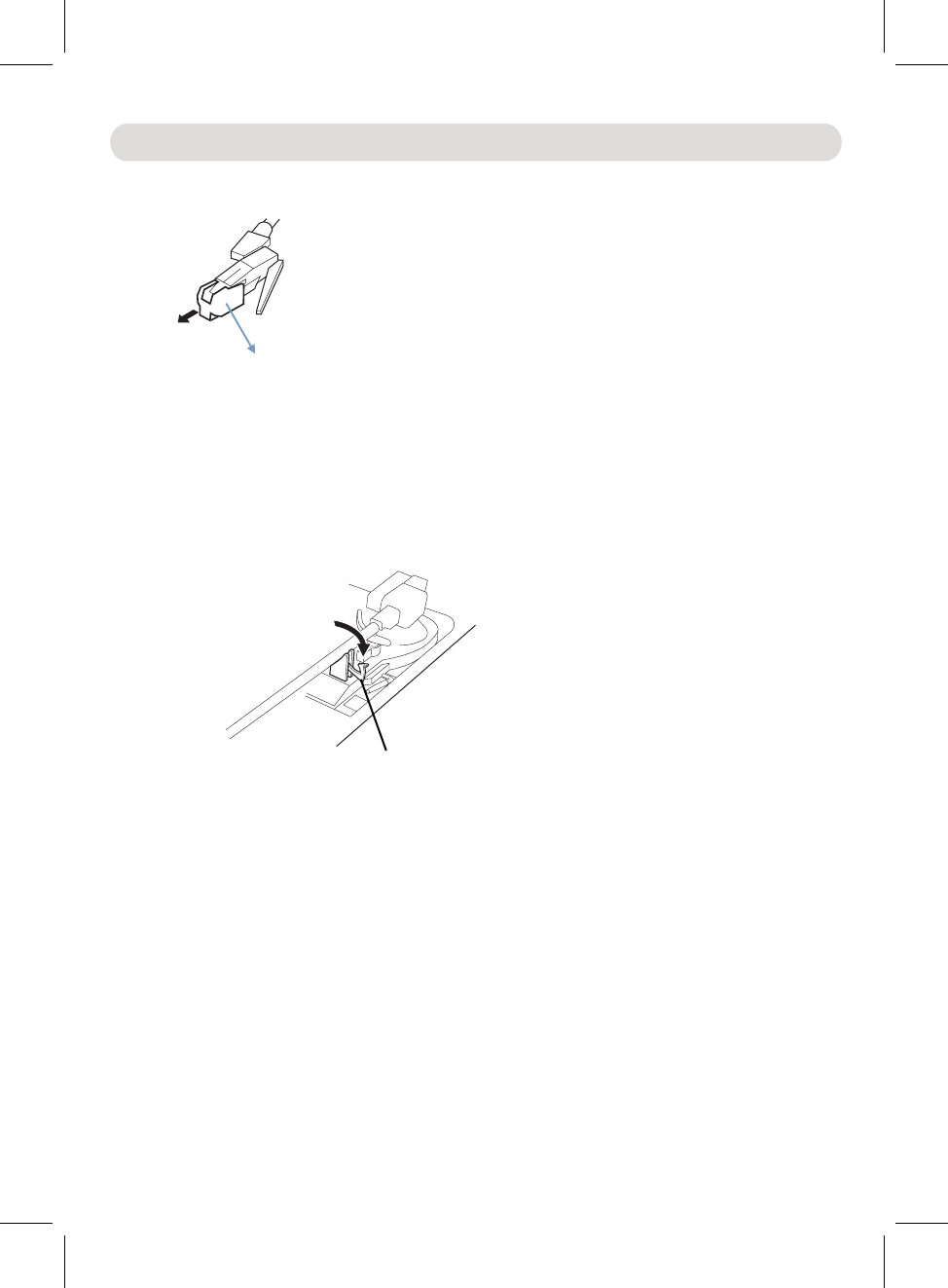

Replace the stylus
then pull it out as the illustrated below:
2. Install the new stylus as illustrated below:
1. Use a screwdriver (not supplied) to push the stylus off
Guide Pins (inside)
label grooves
edge
Do not touch the record's grooves. Only handle records, by the edges or the label. Make sure your hands are clean. Skin
oils from even clean hands can leave a residue on the record surface that will gradually deteriorate the quality of your
record.
Keep your hands away from dust. Keep them in a cool, dry place.
To avoid dust and scratches, keep records in their sleeves and jackets when not in use.
Store records upright on their edges. Records stored horizontally will eventually bend and ward.
Do not expose records to direct sunlight or high humidity and temperature. Long exposure to high temperatures will
will warp the record.
Do not store your records in the trunk of your car. The temperature in a closed trunk can ruin your collection.
Store records in an area with a stable temperature an dlow humidity.
Should the record become dirty, gently wipe the surface in a circular motion, using a soft anti-static cloth.
If the stylus was abrased after long time use, replace it by the supplied extra style as follows:
12
Troubleshooting Guide
Symptom Possible Cause Solution
Power
No power
AC/DC Adaptor had not
connected to unit or wall
outlet
Connected the AC/DC
Adaptor to the unit
wall outlet
Power ON-OFF/Volume
knob is on power off position
Turn the Power
ON-OFF/Volume knob
clockwise to power on
the unit and set the
volume to the desired
level
Turntable
Noise or sound distorted
Speed selector wrong
setting
Set the Speed selector
to the correct posit 33;
45 or 78 as the
record
The stylus may abrasion
after long time used Replace it by the
supplied
BT
BT not functioning The BT Device had not
paired to the unit
Paired the BT Device
to the unit as page
Sound weak or distortion The BT Device Place the BT Device
close to the unit
a dn
oni
playing
speed of
extra stylus
as page
far from the unit
21
too
9
13
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE
WITHOUT NOTICE
Power Source: DC 9V, 1300mA,
Audio Power: W (RMS) x 2
Impendence of Speakers: 4 Ohm; 3W x 2
BT Version:
BT Effective Range: 32 feet in open area
Turntable:
Speed: 33; 45; 78 rpm selectable
Type of Stylus: CSC-015
1 x User’s Manual
1 x AC/DC Adaptor (Input: AC 100-240V~; 50/60 Hz; 0.5A; Output: DC 9V, 1300mA, )
2 x Stylus (one pre-mounted)
1 x 45 RPM Adaptor
1 x Audio connect cable with 3.5 mm stereo plugs
8
.
1
General Specifications
Accessories
1 x Remote Control (with CR2025 button cell)
14
2.1
FCC NOTICE:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC WARNING:
To assure continued operation, follow the attached installation instructions and
use only shield cables when connecting to other devices. Changes or
modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
ISEDC Radiation Exposure Statement:
This equipment complies with ISEDC RF radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
