INSTRUCTION MANUAL
www.singingmachine.com
The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
![](/img.php?id=2963555&img=bg2.png)
— 1 —
Warnings
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The Caution marking is located on the bottom panel.
DANGEROUS VOLTAGE: The lightning flash with arrowhead
symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated dangerous voltage within
the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
Class II equipment symbol.
This symbol indicates that the unit has a double insulation
system.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
ATTENTION: The exclamation point within an equilateral
triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions
in the literature accompanying this product.
FCC WARNING: This equipment may generate or use radio frequency
energy. Changes or modifications to this equipment may cause harmful
interference unless the modifications are expressly approved in the
instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
INDUSTRY CANADA NOTICE:
This device complies with Industry Canada Iicense-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
DRIPPING WARNING: This product shall not be exposed to dripping or
splashing, and no objects filled with liquids, such as vases, shall be placed
on the product.
VENTILATION WARNING: The normal ventilation of the product shall not be
impeded for intended use.
SAFETY VERIFICATION: This device is made and tested to meet safety
standards of the FCC, requirements and compliance with safety
performance of the U.S. Department of Health and Human Services and
also with FDA Radiation Performance Standards 21 CFR Subchapter.
Warnings:
• This CD player employs a laser light beam. Only a qualified service person
should remove the cover or attempt to service this device, due to
possible eye injury.
• The use of controls, adjustments, or procedures other than those
specified herein might result in hazardous radiation exposure.
• The apparatus shall be used in an open area.
CAUTION!
Invisible laser radiation when open and interlocks defeated. Avoid exposure
to beam.
RF Exposure Statement
To maintain compliance with FCC’s RF Exposure guidelines, This
equipment should be installed and operated with minimum distance
between 20cm the radiator your body: Use only the supplied
antenna.
Important Safety Information
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all Instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in
accordance with the Manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. When the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is
used, use caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. WARNING: To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture. Do not place objects
filled with water, such as a vase, on the apparatus.
16. The AC mains plug is used as the power disconnect device
and it should remain readily accessible and operable during
intended use. In order to completely disconnect the apparatus
from power, the mains plug should be completely removed
from the AC outlet socket.
17. CAUTION: To reduce the risk of fire or explosion, do not expose
batteries to excessive heat such as sunshine, fire or other
heat sources.
CAN ICES-3(B)/NMB-3(B)
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
![](/img.php?id=2963555&img=bg3.png)
— 2 —
Included

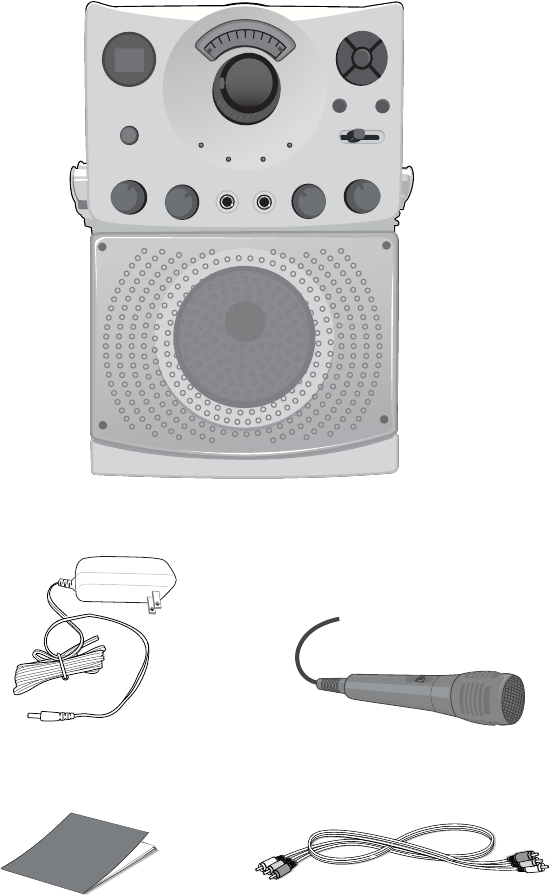

Please make sure that the following items are included.
Wired Microphone
Main Unit
AC Adapter
Audio/Video Cables
Manual
![](/img.php?id=2963555&img=bg4.png)
— 3 —

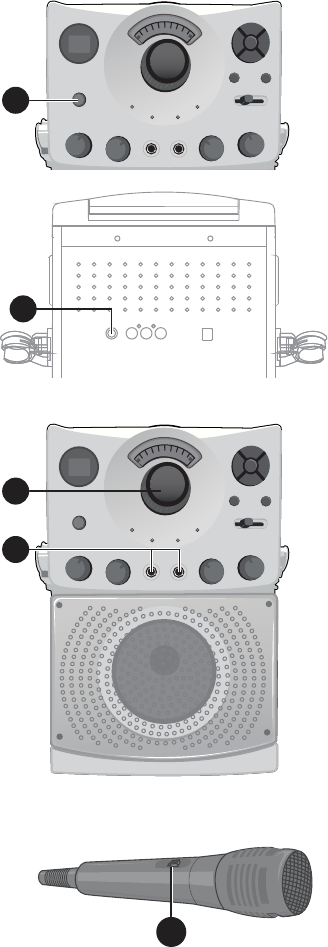

Location of Controls (Top/Front)
1
0
3
4
5
6
7
1
2
8
2
9
0
1
2
3
4
5
6
7
8
0
FRONT VIEW

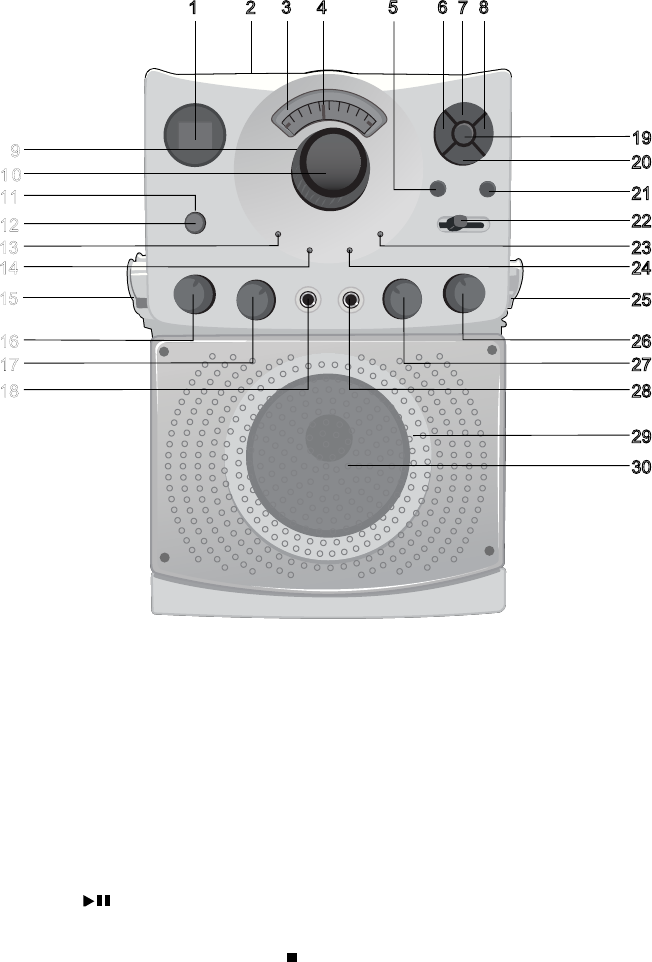

1. LED Display
2. CD Door
3. Master Volume Display
4. Master Volume
Indicator
5. CDG/BT Button
6. Skip 9 Button
7. Play/Pause Button
8. Skip : Button
9. Disco Light
10. MASTER VOLUME
Control
11. ON/OFF LED
12. Power ON/OFF Button
13. PLAY/PAUSE LED
14. CDG LED
15. Mic Holder
16. AUTO VOICE CONTROL
17. BALANCE Control
18. MIC 1 Jack
19. RANDOM Button
20. Stop /Pair Button
21. REPEAT/PROGRAM
Button
22. DISCO LIGHT Slide
Switch
23. PROGRAM LED
24. REPEAT LED
25. Mic Holder
26. MIC VOLUME Control
27. ECHO Control
28. MIC 2 Jack
29. Disco Lights
30. Speaker
![](/img.php?id=2963555&img=bg5.png)
— 4 —
Location of Controls (Rear)
31
32
33
34
35
REAR VIEW
31. VIDEO OUT Jack
32. LINE IN Jack
33. AUDIO OUT Jack (R)
34. DC IN Jack (5.8V)
35. AUDIO OUT Jack (L)
![](/img.php?id=2963555&img=bg6.png)
— 5 —
Connection
Connecting the Microphone(s)
Microphones:
Connect a microphone into MIC jack 1 u
as well as MIC jack 2 v (when desired).
Note: Do not drop or tap the Mic as
damage to the Mic or speakers may occur.
Do not twirl the microphone cord as it will
cause damage to the encased wiring.
1
2

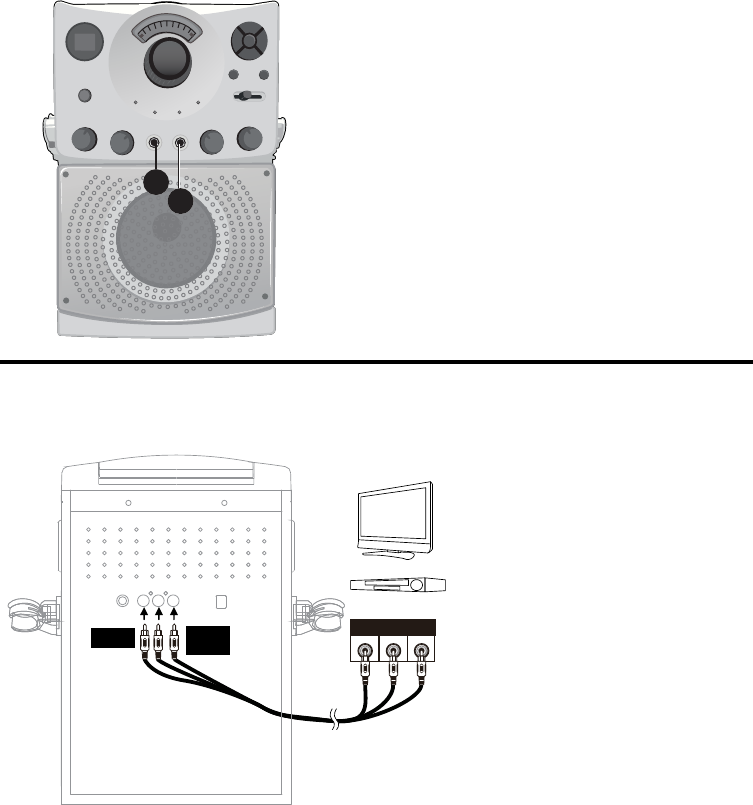

Connecting the Unit to a TV
VIDEO
INPUT
AUDIO
INPUT
R L
RCA cables
VIDEO OUT
(yellow)
AUDIO OUT
(white - L
red - R)
REAR VIEW OF TV
To output the video, lyrics and
audio to your TV, perform the
following steps:
Connect the RCA video cable
(Yellow) to the VIDEO OUT jack
and the audio cables (White
and Red) to the AUDIO OUT
jacks located on the back of the
Singing Machine.
Connect the opposite end of
the RCA video cable (Yellow) to
the VIDEO IN jack and the audio
cables (White and Red) to the
AUDIO IN on your TV.
Notes:
• This unit can be used with or without a TV, but it is highly recommended to use a TV in
order to utilize all the features.
• Also refer to the TV’s User Guide.
• To see the lyrics on the screen, you must use a CD+G disc.
![](/img.php?id=2963555&img=bg7.png)
— 6 —
Connection

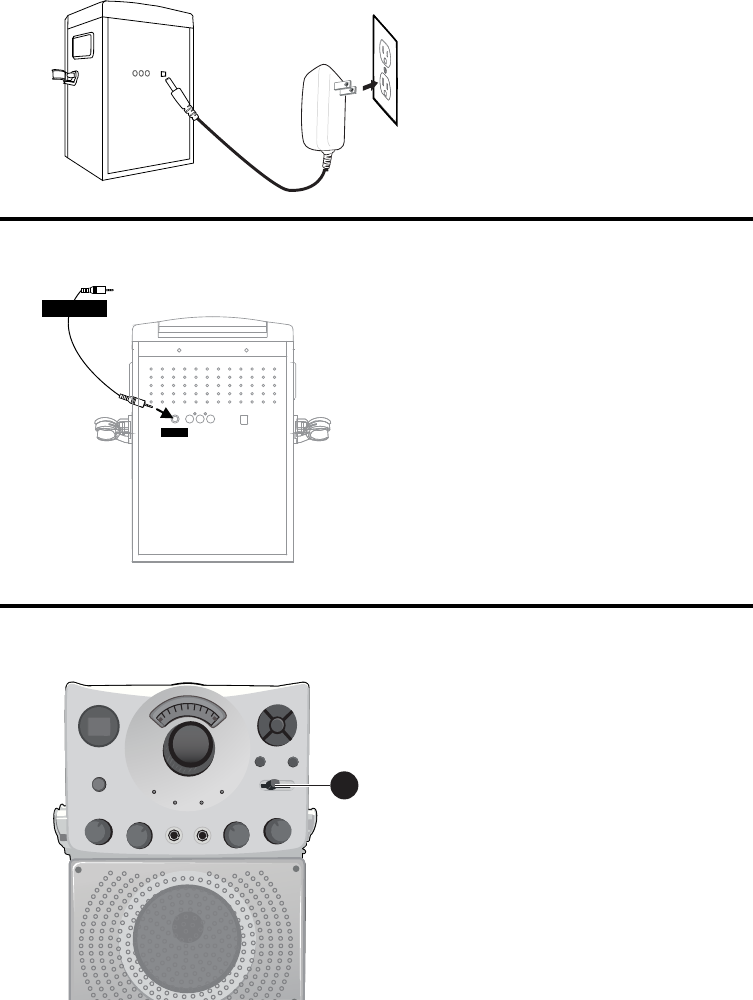

Connecting to AC Power
Connecting to LINE IN Jack
Insert the AC power cord into a
conveniently located AC outlet
having 120V AC, 60Hz.
Note:
Make all connections before
connecting to AC power.
Connect an external device
by using an appropriate cable
(3.5mm audio cable not included)
as shown.
Note:
See page 13 to select and use the
LINE IN function.
LINE IN
To External Unit
AUDIO OUTPUT
/ HEADPHONE JACK
Disco Lights
1 To illuminate the disco light and get
your desired lighting effect, slide the
DISCO LIGHT slide switch from the
OFF position to your desired level.
1
![](/img.php?id=2963555&img=bg8.png)
— 7 —
Operation
Playing a CD
1
Connect the unit as described
previously; if using a CD+G, it is
recommended to connect to a TV
(see page 5). Press the power
ON/
OFF
button to turn the unit on.
2
Lift open the CD door and insert a
CD or a CD+G by gently pressing it
on the center spindle. Then close the
CD door.
Note:
• What is a CD+G?
A CD+G (CD+Graphics) is the
standard format for most karaoke
discs that will display the words on
the screen.
• Never place anything other than a
CD in the compartment, as foreign
objects can damage the unit.
• If no disc is inserted, “No” will appear
on the display.
• If connected to a TV and/or other
audio source, adjust the volume of
the external unit using its own volume
control.
3
Repeatedly press the CDG/BT
button to select the CDG/CD mode;
“--” will appear when searching the
disc and then the total number of
tracks will appear. When a CDG disc
is inserted, the CDG indicator will
light.

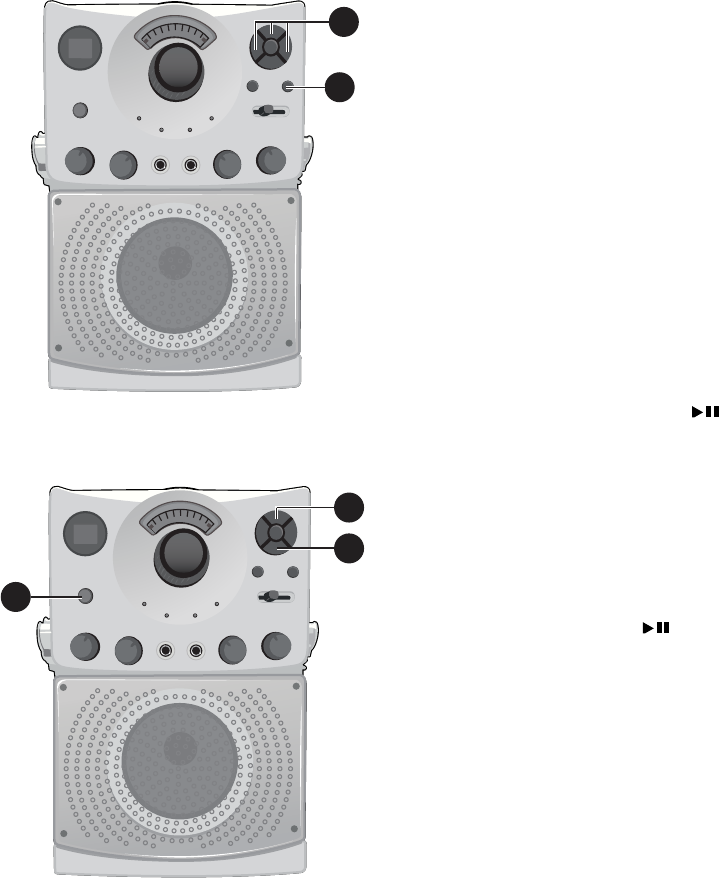

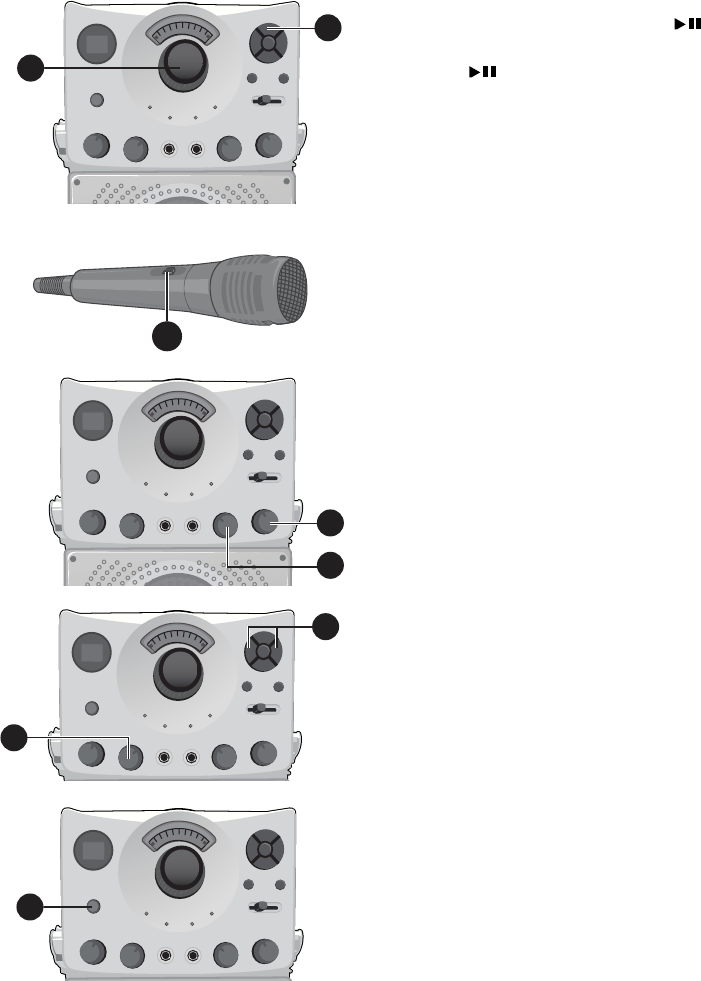

4 Press the Play/Pause button to
start playback; if listening to a CD+G
file, the image and lyrics will appear
on the TV screen (if connected) and
the PLAY/PAUSE Indicator will light.
1
2
3
4
![](/img.php?id=2963555&img=bg9.png)
— 8 —
5
7
9
8
6
Operation
Playing a CD (Continued)

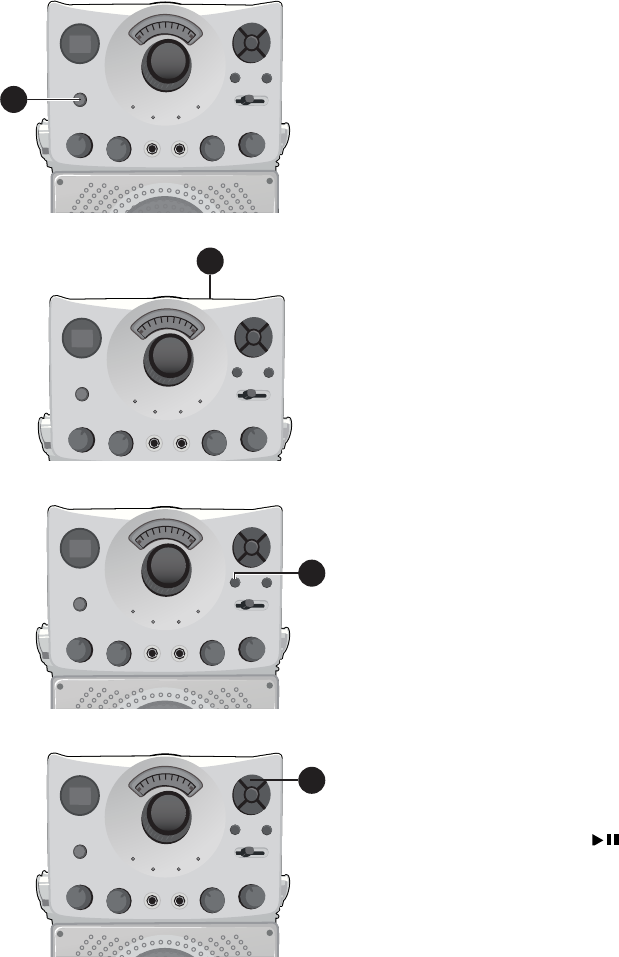

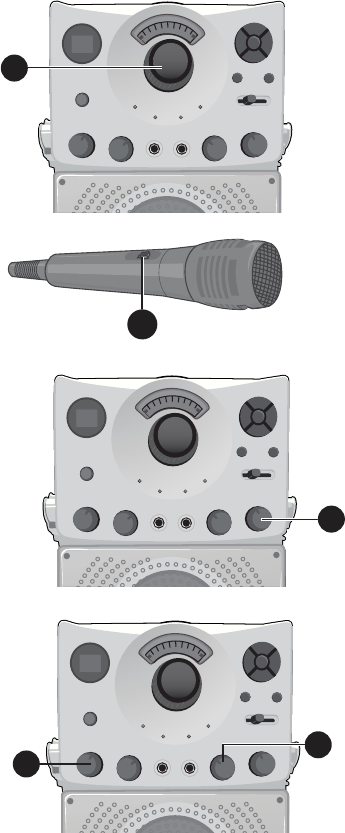

5 Adjust the volume to a comfortable
level using the MASTER VOLUME
control.
6
Connect microphone(s) as shown
on page 5, and slide the ON/OFF
switch on the microphone to the ON
position.
7 Adjust the MIC VOLUME control
as desired. Increasing this control
will increase the volume of both
microphones.
8
Rotate the ECHO control to add an echo
effect to your voice. Rotate towards
MAX to increase the echo effect.
9
AUTO VOICE CONTROL can be
activated by rotating the AUTO
VOICE CONTROL. The higher this
control is set to, the more the vocals
on the multiplex recording will be
muted when the singer starts to sing
through the microphone. When the
singer stops singing, the recorded
vocals on the multiplex recording will
resume to normal.
![](/img.php?id=2963555&img=bga.png)
— 9 —
Operation
Playing a CD (Continued)

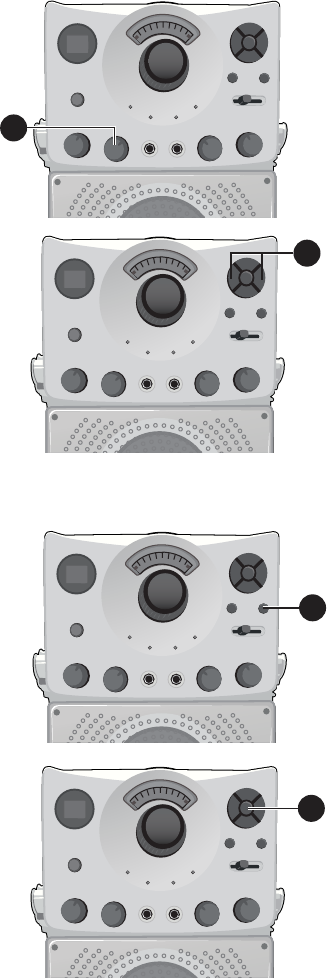

10

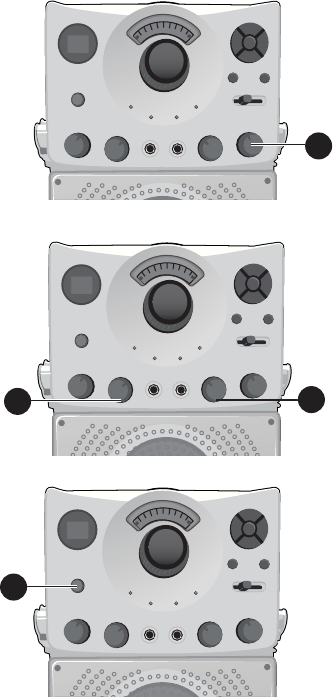

Rotate the BALANCE control
clockwise to hear the music and
recorded vocals from a multiplex
recording or counterclockwise
to hear the music only from a
multiplex recording.
Note: To use the BALANCE
control, a CD+G disc must be
used, otherwise it will operate as a
standard Balance control.
11 SKIP: Advance or go back one
track by pressing the Skip Back
9
/Skip Forward
:
buttons.
12 REPEAT: During playback,
press the REPEAT/PROGRAM
button once to repeatedly play
the selected song; the Repeat
indicator will blink. Press the
REPEAT/PROGRAM button a
second time to repeatedly play the
whole CD; the Repeat indicator
will light solid. Press it again
to cancel Repeat function, the
REPEAT/PROGRAM indicator
turns off.
13 RANDOM: During playback, press
the RANDOM button to randomly
go to another track.
10
11
12
13
![](/img.php?id=2963555&img=bgb.png)
— 10 —
Operation
Playing a CD (Continued)
14 PROGRAM: You can program up to
20 tracks on any disc for playback
in any desired order. While in the
Stop mode, press the REPEAT/
PROGRAM button; the Program
indicator will blink and “00” will
appear. Select the first track using
the Skip Back
9
/Skip Forward
:
buttons. Press the REPEAT/
PROGRAM button again to confirm
the entry. After selecting the
desired tracks the display will show
01, 02, etc. recognizing the tracks
selected have been programmed
and the program indicator will
illuminate solid red. Repeat to set
up to 20 tracks into memory. When
done, press the
Play/Pause
button
to start playback.
Note:
• Press the
Stop </Pair
button TWICE
to stop and clear the program.
15 PAUSE: During playback, if you
wish to pause the disc momentarily,
press the
Play/Pause
button;
the PLAY/PAUSE indicator will
blink. Press again to resume normal
playback.
16 Press the
Stop </Pair
button to
stop playback.
17 Press the power
ON/OFF
button to
turn the unit off.
1141
14
15
16
17
![](/img.php?id=2963555&img=bgc.png)
— 11 —
Operation
Using a Bluetooth Device
1 Connect the unit as described previously.
Press the
power
ON/OFF button to turn
the unit on.
2 Repeatedly press the CDG/BT button
to select the Bluetooth; “bt” will blink
in the display as the unit automatically
searches for and pairs a previously paired
Bluetooth device (if previously paired). If
no previously paired devices are present,
connect as shown in the next step.
Note: You can also press the Stop </Pair
button to disconnect any paired devices in
order to pair another device.

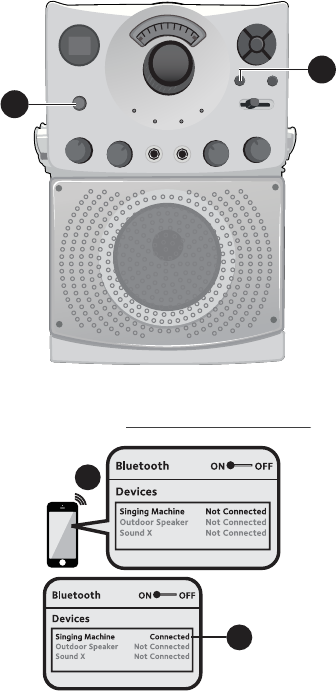

3 Turn on your device’s Bluetooth option
in settings to search for a discoverable
device with a Bluetooth signal. Select
“Singing Machine” from the device
results on the Bluetooth menu.
Note: Also refer to the user manual of your
Bluetooth device for detailed instructions.
4 “bt” will light solid in the display.
Notes:
• If your Bluetooth prompts you for a
passcode during the pairing process, please
enter “0000” to connect.
• On some Bluetooth devices, once pairing is
complete, select your Bluetooth device as
“Use as Audio Device” or similar.
• If connection is lost after successful pairing,
check to make sure the distance between
speaker and Bluetooth-enabled device does
not exceed 30 feet/10 meters.
• Nothing will appear on the connected TV
when using the Bluetooth mode.
Please connect your Music Device
Your Music Device is connected
3
4
Please connect your Music Device
Your Music Device is connected
2
1
![](/img.php?id=2963555&img=bgd.png)
— 12 —
Operation
Using a Bluetooth Device (Continued)
5 To control your Bluetooth device from
this unit, press the Play/Pause
button
to start playback. Press the Play/
Pause
button
during playback to
pause the song.
6
Adjust the volume to a comfortable level
using the MASTER VOLUME control on
this unit as well as the volume on your
Bluetooth device.
7
Connect microphone(s) as shown on
page 5, and slide the ON/OFF switch on
the microphone to the ON position.
8
Adjust the MIC VOLUME control
as desired. Increasing this control
will increase the volume of both
microphones.
9
Rotate the ECHO control to add an echo
effect to your voice. Rotate towards MAX to
increase the echo effect.
10 Adjust the balance between the
speakers using the BALANCE control.
11
SKIP: Advance or go back one track
by pressing the Skip Back
9
/Skip
Forward
:
buttons.
12 Press the power
ON/OFF
button to
turn the unit off.
5
6
8
9
10
11
12
7
![](/img.php?id=2963555&img=bge.png)
— 13 —
Operation
Using the LINE IN Jack
1
Connect the unit as described
previously (see page 6). Press the
power
ON/OFF
button to turn the unit
on.
2
Connect the external unit to the
LINE IN Jack on the back of this unit.
Connecting an external unit will allow
the audio to be played through your
Singing Machine. LINE IN function is
automatically selected once the audio
cable is plugged in.
Notes:
• It is highly recommended to set the
volume on the auxiliary unit to 1/3 or
lower to avoid distortion.
• Skipping files/tracks is not possible on
this unit when using an external device.
3 Adjust the volume using the MASTER
VOLUME control on this unit or your
external device’s volume control.
4 Connect microphone(s) as shown on
page 5. Slide the ON/OFF switch on
the microphone to the ON position.
1
2
3
4
4
![](/img.php?id=2963555&img=bgf.png)
— 14 —
Operation
Using the LINE IN Jack (Continued)
5 Adjust the MIC VOLUME control
as desired. Increasing this control
will increase the volume of both
microphones.
6
Rotate the ECHO control to add an echo
effect to your voice. Rotate towards MAX
to increase the echo effect.
7
Adjust the balance between the
speakers using the BALANCE control.
8
Press the power ON/OFF button to
turn the unit off.
5
6
7
8
— 15 —
Troubleshooting Guide
Should this unit exhibit a problem, check the following before seeking service:
No Power
• Power is not on; press the
power
ON/OFF button to turn power on.
• Confirm that the AC adapter is connected securely to the back of the unit.
• Connect the unit to a different outlet.
No Sound – General
• Master Volume is set to minimum; raise volume.
• Correct Function was not selected; select using the CDG/BT button.
• If using an external device, raise the volume.
• Check if the LINE IN jack is still connected by a cable.
.
No Sound – If connected to a TV
• Volume on the TV is muted or too low.
• Correct source (usually AV) was not selected on the TV’s menu.
Lyrics do not appear on the TV screen
• If connected to a TV, Video plug is not connected properly; see page 5.
• If connected to a TV, select the correct source on the TV (usually AV).
• The file/track being played is not a track recording with lyrics. These are the only files
that allow you to view the lyrics on the TV screen.
• Nothing will appear on the TV screen when using LINE IN or Bluetooth.
No sound from the microphone
• Make sure the microphone is firmly connected to the MIC 1 or MIC 2 jack.
• Make sure the ON/OFF switch on the microphone is set to the ON position.
• Make sure the MIC VOLUME setting is not set too low.
• MASTER VOLUME is set to minimum; raise volume.
• Adjust The Echo control past the mid point on the Singing Machine.
The Bluetooth device cannot be paired or connected with the unit
• You have not activated the Bluetooth function of your device; see page 11 or refer to
the Bluetooth device user’s manual.
• The system is not in pairing mode; press the Stop </Pair button to restart pairing.
The Music is not available on the unit after successfully connecting the Bluetooth
• Ensure your Bluetooth device can support the A2DP Bluetooth profile.
• The volume on the external Bluetooth device is set to low or muted; raise as desired.
— 16 —
Specifications
AUDIO
OUTPUT POWER (MAXIMUM) ................................................................................3.5 Watts (RMS)
OUTPUT IMPEDANCE ..................................................................................................................3 Ohms
CD PLAYER SECTION
FREQUENCY RESPONSE .............................................................................................. 100Hz - 20kHz
SIGNAL-TO-NOISE RATIO ............................................................................................................... 50dB
NUMBER OF PROGRAMS ...................................................20 Step Random Access Programming
SAMPLING SYSTEM.........................................................................................8 Times Over Sampling
BLUETOOTH
Bluetooth Version .....................................................................................................................V2.1+EDR
Working Distance ...........................................Up to 30 feet/10 meters measured in open space
AUX IN SECTION ...........................................................................3.5 mm Stereo Headphone Jack
MICROPHONE ....................-74db 600 Ohm Impedance with 6.3 mm Dynamic Microphone
POWER SECTION ............................................................................................................ DC 5.8V 1.5A
POWER CONSUMPTION .............................................................................................................. 8.7 W
DIMENSIONS (HxWxD) .......................... 13.2 x 10.5 x 9.3 inches / 33.6 x 26.6 x 23.5 cm
WEIGHT ...........................................................................................................................7.2 lbs / 3.3 kgs
Specifications are subject to change without notice.
Visit Our Website: www.singingmachine.com
The Singing Machine Company, Inc.
4060 E Jurupa Street, Unit B
Ontario, CA 91761-1413 USA
Copyright © 2016 All Rights Reserved.
PRINTED IN CHINA
385BT-1603-ENG01
