The IMPRESSA J5 Manual
The ‘IMPRESSA Manual’ has been awarded the seal of ap-
proval by the independent German Technical Inspection
Agency, TÜV SÜD, due to its easy-to-understand style, its
thoroughness and coverage of safety aspects.
2
Table of contents
Your IMPRESSA J5
Important Safeguards 4
Control elements and accessories 8
Proper use 10
For your safety ............................................................................................................................................ 10
The IMPRESSA J5 Manual 13
Model variants ............................................................................................................................................ 14
Symbol description .................................................................................................................................... 14
Welcome to the world of IMPRESSA! 15
1 IMPRESSA J5 – Perfect Enjoyment, Perfect Aesthetics 16
Coffee that fulfils your wildest dreams .................................................................................................. 16
Perfect Enjoyment, Perfect Aesthetics ...................................................................................................16
JURA on the Internet ...................................................................................................................................17
Knowledge Builder ......................................................................................................................................17
2 Preparing and using your IMPRESSA for the first time 18
Supplied as standard ................................................................................................................................. 18
Set up and connect .................................................................................................................................... 18
Filling the water tank ................................................................................................................................. 19
Filling the bean container ......................................................................................................................... 19
First-time use ............................................................................................................................................. 20
Inserting filter and activating .................................................................................................................. 21
Determining water hardness and adjusting ..........................................................................................22
Adjusting grinder ...................................................................................................................................... 24
Switching on ...............................................................................................................................................25
Switching off (standby) .............................................................................................................................25
3 Familiarising yourself with the control options 26
Preparing drinks at the touch of a button ............................................................................................ 26
One-off settings before and while your drink is being prepared ......................................................27
Permanent settings according to cup size ........................................................................................... 28
Permanent settings in programming mode ........................................................................................ 29
Query information and care status ......................................................................................................... 31
4 Recipes 34
5 Preparation at the touch of a button 40
Barista tips ..................................................................................................................................................40
Espresso ....................................................................................................................................................... 41
Coffee ........................................................................................................................................................... 41
Cappuccino.................................................................................................................................................. 41
3
Table of contents
Pre-ground coffee ..................................................................................................................................... 43
Warm milk .................................................................................................................................................. 44
Hot water .................................................................................................................................................... 45
6 Permanent settings according to cup size 46
7 Permanent settings in programming mode 47
Buttons .........................................................................................................................................................47
Energy save mode..................................................................................................................................... 48
Time ............................................................................................................................................................. 49
Programmable switch-on time ............................................................................................................... 49
Programmable automatic switch-off time ........................................................................................... 50
Units amount of water/time format ....................................................................................................... 51
Language .....................................................................................................................................................52
8 Maintenance 53
Maintenance tips ........................................................................................................................................53
Rinse machine.............................................................................................................................................53
Changing the filter .................................................................................................................................... 54
Clean machine ........................................................................................................................................... 56
Descale machine ........................................................................................................................................57
Rinse Professional Cappuccino Frother ................................................................................................. 59
Clean Professional Cappuccino Frother ................................................................................................60
Disassemble Professional Cappuccino Frother ..................................................................................... 61
Removing foreign objects ....................................................................................................................... 62
Cleaning the bean container ................................................................................................................... 62
Descaling the water tank ......................................................................................................................... 63
9 CLARIS plus filter cartridge – Water for perfect coffee 65
As fresh as from the spring ..................................................................................................................... 65
Quality knows no compromises .............................................................................................................66
10 ‘The milk makes the difference’ 73
11 Accessories and Service 75
12 Messages on plain text display 85
13 Troubleshooting 87
14 Transport and environmentally neutral disposal 89
Disposal ....................................................................................................................................................... 89
15 Technical data 90
16 Key technologies and products 92
17 JURA contact details 97
Index 102
4
Important Safeguards
These safeguards apply for machines with UL safety test (see
rating plate and Chapter 15, ‘Technical data and guide values’).
When using electrical appliances, basic safety precautions should
always be followed, to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:
Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against fire, electic shock and injury to persons, do
not immerse cord, plugs, or body of machine in water or oth-
er liquid.
Close supervision is necessary when any appliance is used by
or near children.
Unplug from outlet when not in use and before cleaning.
Allow to cool before putting or taking off parts, and before
cleaning the appliance.
Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions, or has been damaged in any
manner. Return appliance to the nearest authorized service
facility for examination, repair, or adjustment
The use of accessory attachement not recommended by the
appliance manufacturer may result in fire, electric shock, or
injury to persons.
Do not use outdoors.
Do not let the cord hang over the edge of a table or counter,
or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a
heated oven.
Always attach plug to appliance first, then plug cord into the
wall outlet. To disconnect, turn any control ‘OFF’ then remove
plug from wall outlet.
Do not use appliance for other than intented use.
Use extreme caution when dispensing hot steam.
For household use only.
p
p
p
p
p
p
p
p
p
p
p
p
p
p
Important SafeguardsImportant Safeguards
Save these instructionsSave these instructions
Follow the basic safety
precautions
Follow the basic safety
precautions
5
Important Safeguards
A short power supply cord is provided to reduce the risk result-
ing from becoming entangled in or tripping over a long
cord.
Longer extension cords are available and may be used if care
is exercised in their use.
If an extension cord is used,
the marked electrical rating of the extension cord should be
at least as great as the electrical rating of the appliance,
and
if the appliance is of the grounded type, the extension courd
should be a grounding type 3-wire cord, and
the longer cord shall be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on
by children of tripped over.
This appliance has a polarized plug (one blade is wider than
the other). As a safety feature, this plug will fit in a polarized
outlet only one way.
If the plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician.
Do not attempt to defeat this safety feature
To reduce the risk of fire or electric shock, do not remove any service
covers. No user serviceable parts inside. Repair should be done by
authorized personnel only.
This appliance is for household use. Any servicing other than clean-
ing and user maintenance should be performed by an authorized
service representative:
Do not immerse base in water or try to disassemble.
To reduce the risk of fire or electric shock, do not remove the
base. No user serviceable parts inside. Repair should be done
by authorized service personnel only.
Check voltage to be sure that the voltage indicated on the
name plate agreees with your voltage.
Never use warm or hot water to fill the water container! Use
cold water only.
Keep your hands and the cord away from hot parts of the
appliance during operation.
Never clean with scouring powders or hard implements.
p
p
p
u
u
u
p
p
p
p
p
p
p
p
p
Special cord set instructionsSpecial cord set instructions
WarningWarning
CautionCaution
6
Important Safeguards
Never fill instant coffee, chocolate mix etc. into the grinder or
ground coffee funnel (grunder by-pass). It will damage the
functioning of the brewing chamber
Never fill sugar coated coffee beans into the bean hopper. In
case of doubt, call your dealer.
Never fill anything other than coffee beans into the bean con-
tainer (no chocolate, no rice, no nuts, no spices, nothing other
than roasted coffee beans).
Never do anything with the machine which is not described in
the User‘s Manual. In case of doubt, call your dealer.
p
p
p
p
NEVER DO
(or you will void your
warranty protection):
NEVER DO
(or you will void your
warranty protection):
7
Important Safeguards
8
Control elements and accessories
10
11
12
13
14
16
17
15

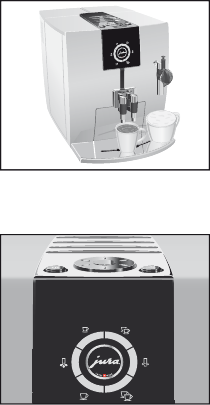

Figure: IMPRESSA J5 Pianowhite
1
2
3
4
5
6
7
9
Control elements and
accessories
18
1 Bean container with aroma preservation
cover
2 Plain text display
3 Water tank
4 Height/width-adjustable coffee spout
5 Coffee grounds container
6 Drip tray
7 Cup platform
8 Filler funnel for pre-ground coffee
9 Fineness of grind switch
10 Storage compartment with measuring spoon
and hot water nozzle
11 Power switch and power cable (side)
12 Connector System© for removable nozzles
13 Professional Cappuccino Frother

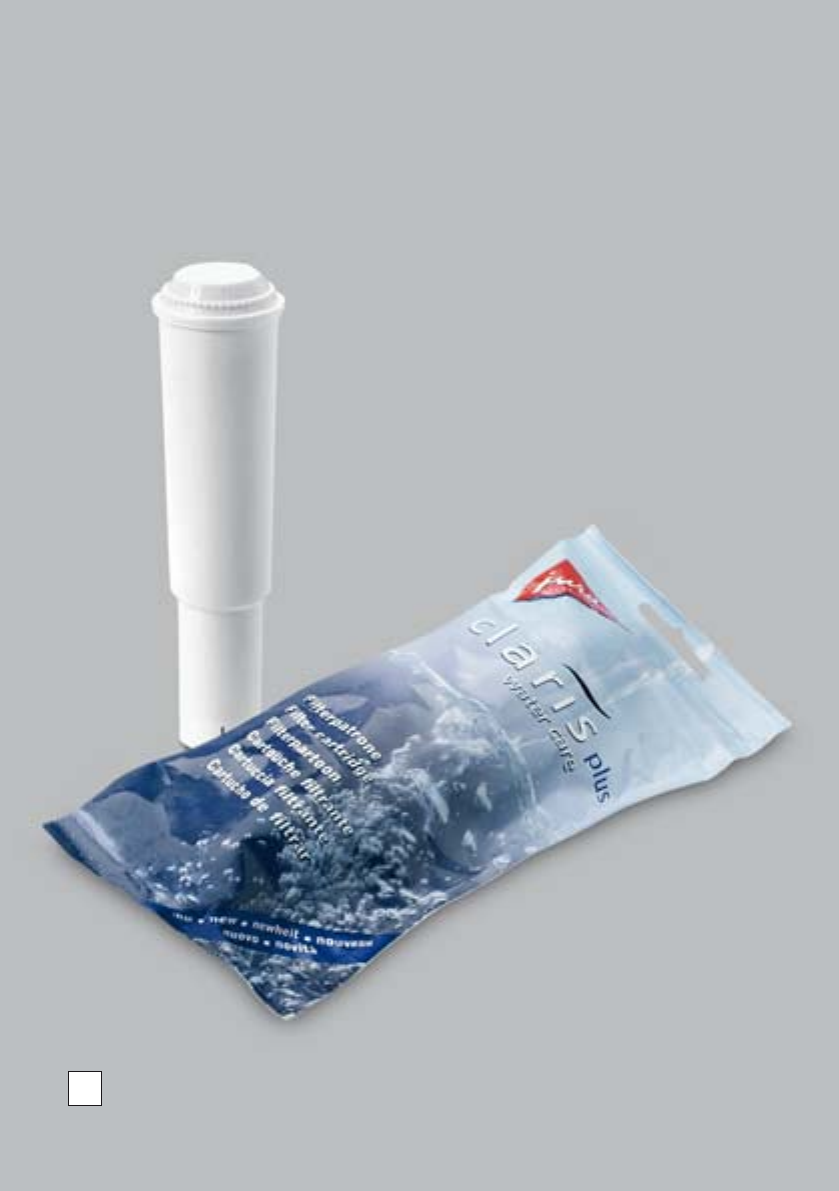

14 CLARIS plus filter cartridge

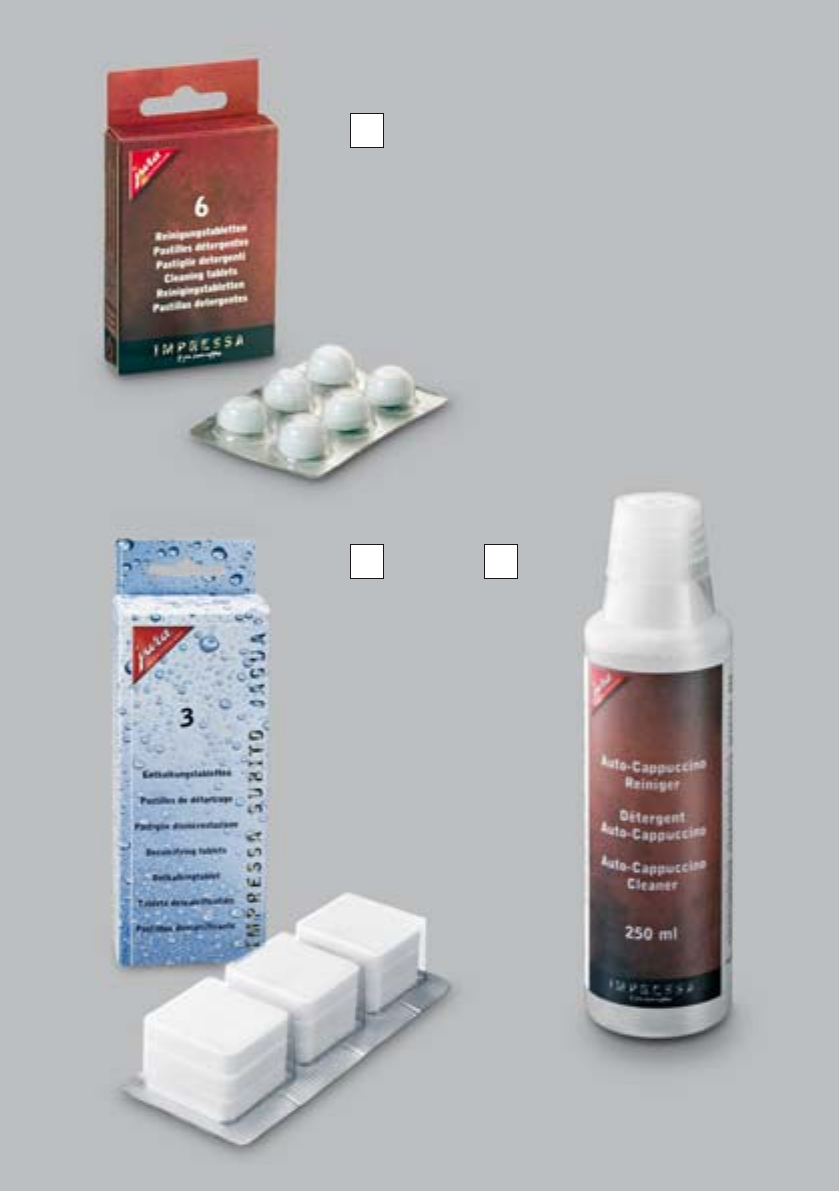

15 JURA Auto-Cappuccino Cleaner
16 JURA cleaning tablets
17 Milk pipe
18 Grinder key
8
9
Control elements and accessories
1
4
5
2
3
6
7
8
9
Surface of the machine Display
1 G On/Off button
2 ö Rotary Switch
3 h Maintenance button
4 a 1 Espresso button
5 s 2 Espressi button
6 q Hot water button
7 k Steam button
8 d 1 Coffee button
9 f 2 Coffees button
10
Important information
The machine has been designed and built for domestic use. It should
only be used to prepare coffee and to heat milk and water. Use for
any other purpose will be deemed improper. JURA cannot accept
any responsibility for the consequences of improper use.
Keep this manual close to the IMPRESSA and, if appropriate, pass it
on to the next user.
Please read and note carefully the following important safety infor-
mation.
By doing this, you can avoid the life-threatening danger of electric
shock:
Never use a machine which has been damaged or with a
defective power cable.
For information on what to do in case of damage, for example
if there is a smell of burning, unplug the machine immedi ately
from the mains supply and contact the JURA service centre.
If the power cable for this machine is damaged, it must be
repaired either directly by JURA or by a JURA approved service
centre.
Make sure that the IMPRESSA and the power cable are not
located close to hot surfaces.
Be careful to ensure that the power cable does not get caught
and does not rub against sharp edges.
Never open and repair the machine yourself. Do not modify
the machine in any way that is not described in the IMPRESSA
Manual. The machine contains live parts. If opened, there is a
danger of serious injury. Repairs may only be carried out by
JURA approved service centres, using original spare parts and
accessories.
There is a risk of scalds or burns on the spouts or in the nozzle:
Place the machine out of the reach of children.
Do not touch any hot parts. Use the handles provided.
p
p
p
p
p
p
p
p
Proper use Proper use
For your safety For your safety
11
Important information
Be careful to ensure that the appropriate nozzle is installed
and clean. The nozzle or parts of the nozzle might come off if
the parts are not assembled correctly or a blockage occurs.
A defective machine is not safe and could cause injury or fire. To
avoid damage and any associated risk of injury or fire:
Never allow the power cable to loosely hang down. The power
cable can be tripped over or damaged.
Protect your IMPRESSA from environmental influences such
as rain, frost and direct sunlight.
Do not put the IMPRESSA, cable or connections in water.
Do not put the IMPRESSA or any individual parts in the dish-
washer.
Turn your IMPRESSA off at the power switch before starting
any cleaning operation. Always wipe your IMPRESSA with a
damp cloth rather than a wet one, and protect it from pro-
longed water splash.
Only connect the machine to a power supply in accordance
with the technical data (see rating plate and Chapter 15,
‘Technical Data’).
Use only original JURA care products. Use of accessories that
are not explicitly recommended by JURA could damage the
IMPRESSA.
Do not use any coffee beans treated with additives or caramel-
ised coffee beans.
Always fill the water tank with cold, fresh mains water.
If you will be absent for an extended period, turn the machine
off and unplug.
Risk to children and persons with limited capabilities in operating
machines:
The machine is not designed to be operated by children and
persons with limited capabilities.
The machine may only be used by persons who are able to
operate the machine safely.
p
p
p
p
p
p
p
p
p
p
p
p
p
12
Important information
13
The IMPRESSA J5 Manual
You are holding the manual for your IMPRESSA J5 in your hand. It
will help you to familiarize yourself with your IMPRESSA safely and
quickly and teach you the full range of facilities it offers.
Chapter 2, ‘Preparing and using your IMPRESSA for the first time’,
explains step-by-step how to set up and prepare the IMPRESSA.
Chapter 3, ‘Familiarising yourself with the control options’ is impor-
tant for you to read as you are familiarising yourself with your
IMPRESSA. It invites you to actively explore all the different coffee
experiences that it offers.
As coffee and coffee specialities are very important to JURA, we have
compiled a selection of tasty suggestions for you in Chapter 4,
‘Recipes’.
All the other chapters are intended to help you when you have a
specific query.
If you use the IMPRESSA J5 Manual, you will become a master at
preparing exciting coffee specialities, you will be a Barista!
The IMPRESSA J5 ManualThe IMPRESSA J5 Manual
14
The IMPRESSA J5 Manual covers all J series IMPRESSA models.
Model variantsModel variants
Warnings
CAUTION
Always take note of any information marked
with the CAUTION or WARNING symbol. The
signal word WARNING points out potential
risks of injury, and the signal word CAUTION
potential risk of material damage.
CAUTION
The CAUTION symbol is used to draw attention
to circumstances which could cause the
machine to become damaged.
Symbol descriptionSymbol description
Symbols used
o Information and tips to make things easier for
you as you use your IMPRESSA.
@References to the online JURA website, where
you can find interesting further information:
www.jura.com
l Prompt to take action. This symbol means that
you are being prompted to perform some
action.
15
Welcome to the world of IMPRESSA!
Dear customer,
We thank you for the trust that you have placed in us by purchasing
a JURA IMPRESSA coffee machine. The machines, which are pro-
duced in Switzerland, have already impressed independent, critical
testers of goods and design award juries. We will do everything we
can to ensure that this fully automated, genuine 2-cup Espresso and
coffee machine continues to deliver perfect coffee specialities at the
press of a button to your family and your guests for years to come.
The IMPRESSA Manual will teach you everything you need to know
on the subject of operating and tailoring your IMPRESSA to your
particular preferences. Other subjects covered include how to solve
the problem of scale build-up and important tips on care. Our pri-
mary concern is to stimulate your imagination with attractive coffee
recipes and to invite you to put the wealth of possibilities offered by
the JURA fully automated machine to use on a daily basis.
We wish you many stimulating and enjoyable moments with your
IMPRESSA.
Yours sincerely,
Emanuel Probst
General Manager
Welcome to the world of IMPRESSA!Welcome to the world of IMPRESSA!
16
1 IMPRESSA J5 – Perfect Enjoyment, Perfect Aesthetics
JURA develops superior fully automatic coffee/Espresso machines
which get the best taste and aroma out of every coffee blend and
roast. It delivers this through a unique, intelligent pre-brew system
combined with loving attention to detail and years of experience.
The uncompromising all-round design of the IMPRESSA J5 indulges
the eyes as well as the taste buds. Gourmets will start to rave when
they live out their coffee fantasies and experience a new dimension
of enjoyment with Ristretto, Espresso, Café Crème, Cappuccino,
Latte Macchiato and many other trendy specialities. This is easy to
achieve, because the innovative operating concept leaves nothing
to be desired when it comes to simplicity. And the integrated cup
illumination places every coffee speciality in the right light.
Breathtakingly beautiful
Clear, no-frill contours and high-quality materials set the tone
of the design of the J series IMPRESSA models. All details have
been exactly thought out and come together to form an
aesthetic whole, so everyone will be enthusiastic about coffee.
This makes IMPRESSA J series a veritable household fixture,
which, thanks to its compact design, can easily be placed
anywhere.
Pure ergonomics
The centrally arranged control elements, with a unique Rotary
Switch and a plain text display which speaks your language,
will allow you to quickly and intuitively make your coffee
wishes come true. Here, the focus is on your personal taste.
Simply select the coffee strength, amount of water and tem-
perature according to your individual preferences. You can
even choose between three hot water temperature levels.
Accessories such as the measuring spoon and the hot water
nozzle can be conveniently stored in the storage compart-
ment where they are always within reach.
p
p
1 IMPRESSA J5 – Perfect Enjoyment, Perfect Aesthetics1 IMPRESSA J5 – Perfect Enjoyment, Perfect Aesthetics
Coffee that fulfils your
wildest dreams
Coffee that fulfils your
wildest dreams
Perfect Enjoyment,
Perfect Aesthetics
Perfect Enjoyment,
Perfect Aesthetics
17
1 IMPRESSA J5 – Perfect Enjoyment, Perfected Aesthetics
Height and width-adjustable coffee spout
Another JURA innovation is the height and width-adjustable
coffee spout. It allows precise adaptation to different cup
heights and diameters. This prevents coffee splashing and
guarantees a fantastic crema of ideal consistency.
Connector System©
This makes it possible to use the Professional Cappuccino
Frother, which is fitted as standard, for perfect milk foam or
warm milk, a hot water nozzle for an even jet of water, and the
optionally available 2-stage frothing nozzle.
Further information on this subject can be found in Chapter 11,
‘Accessories and Service’.
Visit us on the Internet.
At www.jura.com you will find interesting and up-to-date
information on your IMPRESSA and on every aspect of
coffee.
You can familiarize yourself with your IMPRESSA J5 in a fun way on
the PC.
The Knowledge Builder awaits you at www.jura.com. The
interactive assistant, LEO, will support you and explain the
benefits of and how to use your IMPRESSA.
p
p
@
@
JURA on the Internet JURA on the Internet
Knowledge BuilderKnowledge Builder
18
2 Preparing and using your IMPRESSA for the first time
This chapter provides you with the information you need to use your
IMPRESSA without any problems. You will prepare your IMPRESSA
step-by-step for your first coffee experience using it.
The following items are supplied as standard:
Your JURA IMPRESSA fully automatic coffee machine
The Welcome Pack, which includes:
The IMPRESSA J5 Manual
IMPRESSA J5 Quick Reference Guide
CLARIS plus filter cartridge
Filter cartridge extension
Grinding key
Milk pipe
JURA cleaning tablets
Aquadur® test strips
JURA Auto-Cappuccino Cleaner
JURAworld of Coffee gift
Keep the packaging for your IMPRESSA. It is used to protect the
machine during transportation.
When setting up and connecting your IMPRESSA, please proceed as
follows:
Set the IMPRESSA down on a horizontal surface that is not
sensitive to water.
Choose a spot for your IMPRESSA which is protected against
overheating.
Never place the IMPRESSA on a hot surface, such as a hob.
Only connect your IMPRESSA to a power supply in accordance
with the technical data (see rating plate and Chapter 15,
‘Technical Data’).
Make sure that no one can trip over the power cable.
p
pu
u
u
u
u
u
u
u
u
p
p
p
p
p
p
2 Preparing and using your IMPRESSA for the first time2 Preparing and using your IMPRESSA for the first time
Supplied as standardSupplied as standard
Set up and connect Set up and connect
19
2 Preparing and using your IMPRESSA for the first time
To enjoy perfect coffee, we recommend that you change the water
every day.
Only use fresh, cold water to refill the water tank and never
milk, mineral water or other liquids.

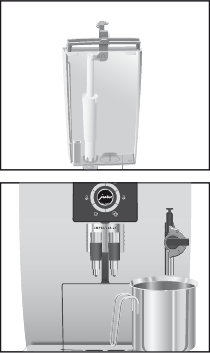

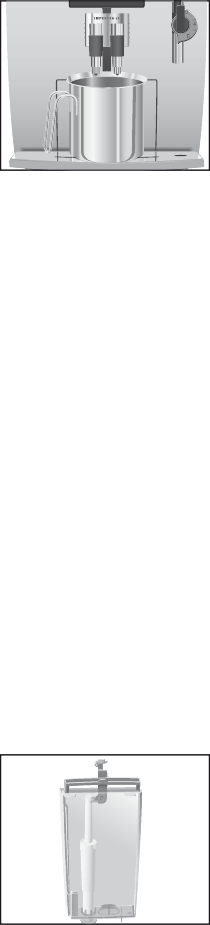

Open the cover of the water tank.
Remove the water tank and rinse it with cold water.
Fill the water tank with fresh, cold mains water and
reinsert.
Close the cover of the water tank.
The bean container has an aroma preservation cover. This will ensure
that your coffee beans retain their aroma for longer.
Coffee beans which have been treated with additives (e.g. sugar),
either pre-ground or in the form of freeze-dried coffee, will damage
the grinder.
Only use untreated coffee beans to refill the bean container.
Open the cover of the bean container and remove the aroma
preservation cover.
Remove any dirt or foreign objects inside the bean
container.
New machines contain an information sheet in the bean
container. Remove this information sheet.
Fill the bean container with coffee beans, then close the
aroma preservation cover and the bean container cover.
o
l
l
l
l
l
l
l
l
l
Filling the water tank Filling the water tank
Filling the bean
container
Filling the bean
container
CAUTIONCAUTION
20
2 Preparing and using your IMPRESSA for the first time
If the machine is operated with a defective power cable, there is a
danger of electric shock.
Never use a machine which has a defective power cable.
Precondition: The water tank must be full.
Insert the mains plug into a power socket.
e l Switch on the IMPRESSA using the power switch on the right
side of the machine.
The On/Off button g will light up (standby).
g l Press the On/Off button to switch the IMPRESSA on.
The Rotary Switch lights up. SPRACHE DEUTSCH
appears on the display.
Ä l Turn the Rotary Switch until the desired language appears.
For example LANGUAGE ENGLISH.
M L Press the Rotary Switch to confirm that you want the English
language setting.
OK appears briefly on the display to confirm the setting.
PRESS RINSE, the maintenance button h lights up.
Place a receptacle under the Professional Cappuccino
Frother.
H L Press the maintenance button.
SYSTEM FILLING, the system fills up with water.
A small amount of water will flow out of the Professional
Cappuccino Frother.
This operation stops automatically. HEATING appears on
the display.
PRESS RINSE, the maintenance button h lights up.
l
l
l
First-time use First-time use
WARNINGWARNING
21
2 Preparing and using your IMPRESSA for the first time

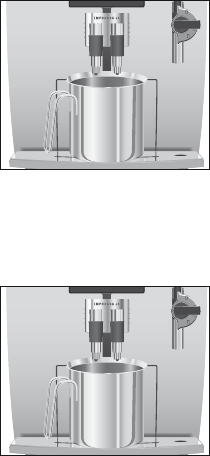

Place a receptacle under the coffee spout.
h l Press the maintenance button.
The machine will rinse itself, stopping automatically.
READY appears on the display. Your IMPRESSA is ready to
use.
After the first time that a coffee speciality has been prepared,
it may happen that FILL BEANS appears on the display
if the grinder has not yet been completely filled with coffee
beans. In that case, prepare a different coffee speciality.
Your IMPRESSA no longer has to be de-scaled if you use the CLARIS
plus filter cartridge.
Perform the ‘Insert filter’ operation without interruptions. This
will ensure that your IMPRESSA always produces its best.
You can also try out the ‘Insert filter’ operation online. Visit the
Knowledge Builder at www.jura.com.
Further information on CLARIS can be found in Chapter 9, ‘CLARIS
plus filter cartridge – Water for perfect coffee’.
After two months, the filter will cease to work. Monitor the
elapsed time as shown on the date plate on the cartridge
holder.
Precondition: READY appears on the display.
m l Keep the Rotary Switch pressed until, RINSE appears on
the display.
ä l Turn the Rotary Switch until FILTER - appears.
m l Press the Rotary Switch to enter the programme item.
NO - appears on the display.
ä l Turn the Rotary Switch until YES appears.
l
o
o
@
o
Inserting filter and
activating
Inserting filter and
activating
22
2 Preparing and using your IMPRESSA for the first time
m l Press the Rotary Switch to confirm this setting.
OK appears briefly on the display to confirm the setting.
INSERT, the maintenance button h lights up.
Remove the CLARIS plus filter cartridge and the filter car-
tridge extension from the Welcome Pack.
Stick the extension on top of the filter cartridge.
Remove the water tank and empty it.
Lift the cartridge holder and insert the filter cartridge into
the water tank, applying light pressure.
Close the cartridge holder. It will click into place audibly.
Fill the water tank with cold, fresh mains water and
reinsert.
Place a receptacle (at least 500 ml) under the Professional
Cappuccino Frother.
Turn the selection lever of the nozzle to the STEAM
position k .
h l Press the maintenance button.
FILTER RIN SIN G. Water will flow out at the nozzle.
You can interrupt the rinsing of the filter at any time by press-
ing any button.
The water may be slightly discoloured. This is not harmful to
health, nor does it affect the taste.
Rinsing of the filter automatically stops after approx. 500 ml.
HEATING appears on the display, and then READY
appears. The filter is now activated.
The harder the water is, the more frequently the IMPRESSA needs to
be descaled. It is therefore important to adjust the water hardness.
However, if you are using the CLARIS plus filter cartridge and
have activated the filter, you will not be able to adjust the
water hardness.
The water hardness is adjusted to 16° dH (German hardness)
in the factory.
l
l
l
l
l
l
l
l
o
o
o
o
Determining water
hardness and adjusting
Determining water
hardness and adjusting
23
2 Preparing and using your IMPRESSA for the first time
The water hardness can be adjusted between 1° dH and
30° dH. This can also be deactivated, which means that the
IMPRESSA won’t let you know when it has to be descaled.
You can find out what the water hardness is by using the Aquadur®
test strips enclosed in the Welcome Pack.
Hold the test strip briefly (for one second) under flowing
mains water. Shake off the water.
Wait for about 1 minute.
You will then be able to read the degree of water hardness
from the discolouration of the Aquadur® test strip and the
description on the packaging.
You can now adjust the water hardness.
Example: To change the water hardness from 16° dH to
25° dH, proceed as follows:
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until, RINSE appears on
the display.
Ä l Turn the Rotary Switch until HARDNESS - is
displayed.
M l Press the Rotary Switch to enter the programme item.
16° dH appears on the display.
Ä l Turn the Rotary Switch until 25° dH is displayed.
m l Press the Rotary Switch to confirm the setting.
OK appears briefly on the display to confirm that the water
hardness is set.
HARDNESS
Ä l Turn the Rotary Switch until EXIT appears.
m l Press the Rotary Switch to exit programming mode.
READY appears on the display.
o
l
l
l
24
2 Preparing and using your IMPRESSA for the first time
You can adjust the grinder to suit the roast of your coffee.
Our recommendations:
Select a fine setting for a light roast.
Select a coarse setting for a darker roast.
If you adjust the fineness of grind when the grinder is not operating,
the fineness of grind switch could be damaged.
Only adjust the fineness of grind when the grinder is
running.
Example: To change the fineness of grind during coffee preparation,
proceed as follows:
Open the cover of the storage compartment.
Place a cup under the coffee spout.
d l Press the 1 Coffee button.
The grinder starts and 1 COFFEE appears on the display.
After this, the coffee strength is briefly displayed.
Turn the fineness of grind switch to the desired position
while the grinder is running.
The coffee will be prepared and the fineness of grind is
adjusted.
p
p
l
l
l
l
Adjusting grinder Adjusting grinder
CAUTIONCAUTION
25
2 Preparing and using your IMPRESSA for the first time
When the IMPRESSA is switched on, a prompt to perform a rinse
operation automatically appears.
Precondition: Your IMPRESSA is switched on at the power switch
and the On/Off button g is illuminated (standby).
g l Press the On/Off button to switch the IMPRESSA on.
HEATING
PRESS RINSE, the maintenance button h lights up.
Place a receptacle under the coffee spout.
h l Press the maintenance button.
The machine will rinse itself, stopping automatically.
READY appears on the display. Your IMPRESSA is ready to
use.
When you switch off your IMPRESSA, the system is automatically
rinsed.
Place a receptacle under the coffee spout.
g l Press the On/Off button.
The system will be rinsed. RINSING appears on the dis-
play. The operation stops automatically.
The IMPRESSA is switched off (in standby mode), and the
On/Off symbol g is illuminated.
l
l
Switching on Switching on
Switching off (standby ) Switching off (standby )
26
3 Familiarising yourself with the control options
With the IMPRESSA, you can prepare an excellent coffee speciality
at the touch of a button. You also have the option of adjusting the
coffee strength and temperature, as well as the amount of water to
your personal taste.
This chapter will allow you to become familiar with all control
options with the aid of examples. To familiarise yourself with your
IMPRESSA, we recommend that you make a point of actively trying
the facilities described in this chapter. You will find this is well worth-
while.
Learn how to perform the following:
Preparing drinks at the touch of a button
One-off settings before and while your drink is being
prepared
Permanent settings according to cup size
Permanent settings in programming mode
You can stop the machine at any time while a coffee speciality
is being prepared. To do this, press any button.
If you prefer to familiarize yourself with your IMPRESSA in a
fun way on the computer, the interactive Knowledge Builder
tutorial program can be found on the Internet at
www.jura.com.
Prepare your favourite coffee speciality at the touch of a button.
All coffee specialities are prepared following this model at the touch
of a button.
Example: This is how to prepare an Espresso.
Precondition: READY appears on the display.
Place an Espresso cup under the coffee spout.
p
p
p
p
o
@
l
3 Familiarising yourself with the control options3 Familiarising yourself with the control options
Preparing drinks at the
touch of a button
Preparing drinks at the
touch of a button
27
3 Familiarising yourself with the control options
a l Press the 1 Espresso button.
1 ESPRESSO appears on the display. After this, the
coffee strength is briefly displayed.
The pre-set amount of water flows into the cup and the
process stops automatically.
READY appears on the display.
You can change both the coffee strength before and the amount of
water while your drink is being prepared. These settings are not
saved.
One-off settings before and during coffee preparation always follow
this model.
The following coffee strength options are available:
Mild
Normal
Strong
Xstrong
Example: This is how to prepare a strong cup of coffee.
Precondition: READY appears on the display.
Place a cup under the coffee spout.
ä l Turn the Rotary Switch until STRONG appears on the
display.
d l Press the 1 Coffee button until STRONG is displayed.
1 COFFEE appears on the display, and then STRONG
briefly appears.
The pre-set amount of water flows into the cup. The pre-
paration stops automatically. READY appears on the
display.
Example: This is how to prepare a 110 ML cup of coffee.
Precondition: READY appears on the display.
Place a cup under the coffee spout.
d l Press the 1 Coffee button.
1 COFFEE appears on the display, and then the strength
briefly appears.
p
p
p
p
l
l
One-off settings before
and while your drink is
being prepared
One-off settings before
and while your drink is
being prepared
Adjust the coffee strength
before your drink is
prepared
Adjust the coffee strength
before your drink is
prepared
Adjust the amount of water
while your drink is being
prepared
Adjust the amount of water
while your drink is being
prepared
28
3 Familiarising yourself with the control options
Ä l Turn the Rotary Switch until 110 ML is displayed.
The set amount of water flows into the cup. The preparation
stops automatically. READY appears on the display.
It is easy to make permanent settings for the amount of water for all
coffee specialities, the hot water and steam according to cup size. As
in the following example, adjust the amount of water once. Every
time you prepare a drink in the future, this amount of water will be
dispensed.
Permanent settings according to cup size works the same way for all
coffee specialities.
Example: To make permanent settings for the amount of water for
an Espresso, proceed as follows:
Precondition: READY appears on the display.
Place an Espresso cup under the coffee spout.
a l Press and hold the 1 Espresso button.
1 ESPRESSO appears on the display.
a l Hold the 1 Espresso button down until
ENOUGH COFFEE ? appears.
a l Release the 1 Espresso button.
Coffee preparation will start and the Espresso will flow into
the cup.
Press any button as soon as enough Espresso has flowed
into the cup.
Espresso preparation will now stop. OK appears briefly on
the display. The set amount of water for an Espresso will be
permanently stored.
You can alter these settings at any time by repeating the
above procedure.
l
l
o
Permanent settings
according to cup size
Permanent settings
according to cup size
29
3 Familiarising yourself with the control options
You can easily adjust your IMPRESSA to your personal coffee blends
and specialities. Simply by turning and pressing the Rotary Switch,
you can navigate through the easy-to-understand program steps
and make permanent settings.
You can make the following settings with the Rotary Switch.
Permanent settings in
programming mode
Permanent settings in
programming mode
Programme item Subitem Explanation
RINSE RINSE
FILTER
CLEAN
DE-SCALE
l Select the desired maintenance programme.
If you don’t take any action, the programming
mode is exited after approx. 5 seconds.
BUTTONS SELECT BUTTON l Select your settings for the coffee specialities,
steam and hot water.
FILTER -/√YES √
NO -
l Indicate whether you operate your IMPRESSA
with or without a CLARIS plus filter cartridge.
HARDNESS (is only
displayed when the
filter is not activated)
INACTIVE
1° dH – 30°dH
l Adjust the water hardness.
ENERGY -/√SAVE -
SAVE √
l Select an energy saving mode.
TIME --:-- l Set the time.
UNIT ON --:-- l Set the switch-on time.
OFF AFTER INACTIVE
0.5 H – 15 H
l Set the switch-off time.
INFO BUTTONS
CLEAN
DE-SCALE (only when
filter is not activated)
FILTER (only when
filter is activated)
l Keep track of all prepared coffee specialities
and call the care status.
DISPLAY ML / OZ
24 H / AM PM
l Select the unit of the amount of water and
the time format.
30
3 Familiarising yourself with the control options
Programme item Subitem Explanation
LANGUAGE DEUTSCH
ENGLISH
FRANCAIS
ITALIANO
NL
l Select your language.
EXIT –l Exit programming mode.
Settings in programming mode always follow the same model.
Example: To change the temperature of 1 Espresso from NORMAL
to HIGH proceed as follows:
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
Ä L Turn the Rotary Switch until BUTTONS appears.
M l Press the Rotary Switch to enter the programme item.
SELECT BUTTON
In the next step, select the coffee speciality button for which
you would like to make settings. No coffee speciality will be
prepared hereby.
a l Press the 1 Espresso button.
WATER
Ä L Turn the Rotary Switch until TEMP. appears.
M l Press the Rotary Switch to enter the programme item.
NORMAL
Ä L Turn the Rotary Switch until HIGH appears.
M l Press the Rotary Switch to confirm the setting.
OK appears briefly on the display.
TEMP.
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programme item.
BUTTONS
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit programming mode.
READY
o
31
3 Familiarising yourself with the control options
Under the programme item INFO, you can query the following
information:
Number of prepared coffee specialities, steam and hot water
Care status and number of executed maintenance pro-
grammes (cleaning, de-scaling, filter change)
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
Ä L Turn the Rotary Switch until INFO appears.
M l Press the Rotary Switch to enter the programme item.
BUTTONS
M l Press the Rotary Switch.
Total number of the prepared coffee specialities appears on
the display.
By pressing the individual buttons, the respective number of
coffee specialities, steam and hot water is displayed. Open the
filler funnel for pre-ground coffee in order to display this
number.
M l Press the Rotary Switch.
BUTTONS
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit this programme item.
INFO
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programming mode.
READY
Example: To query the care status and number of executed clean-
ings, proceed as follows:
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
Ä L Turn the Rotary Switch until INFO appears.
M l Press the Rotary Switch to enter the programme item.
BUTTONS
Ä L Turn the Rotary Switch until CLEAN appears.
p
p
o
Query information and
care status
Query information and
care status
Query information Query information
Care status query Care status query
32
3 Familiarising yourself with the control options
M l Press the Rotary Switch.
The number of executed cleanings appears on the display.
You can switch between the number of executed mainte-
nance programmes and the respective care status by turning
the Rotary Switch.
The filled out fields show the care status. Once all fields are
filled out, your IMPRESSA will request the respective mainte-
nance programme.
M l Press the Rotary Switch to exit this query.
CLEAN
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit this programme item.
INFO
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programming mode.
READY
o
o
33
3 Familiarising yourself with the control options
34
4 Recipes
You can use your IMPRESSA to create coffee classics or extraordinary specialities in your home. You
can find additional coffee recipes online at www.jura.com.
Further information on how to operate your IMPRESSA can be found in Chapter 3, ‘Familiarising your-
self with the control options’.
50 g white chocolate
2 Espressi
200 ml milk
Grated white chocolate for decoration purposes
Ingredients
(for two people)
Froth milk in two decorative glasses with the Professional Cappuccino Frother.
Melt white chocolate in a bain marie.
Prepare two Espressi, stir with the melted chocolate and pour into the milk foam.
Sprinkle grated white chocolate over the drinks.
l
l
l
l
Café Chocolat Blanc
200 ml cold milk
2 strong Espressi
20 ml cinnamon syrup
Powdered cinnamon for decoration purposes
Ingredients
(for two people)
Distribute the cinnamon syrup into Cappuccino cups.
Place cup under the Professional Cappuccino Frother and half fill with milk foam.
Pour Espresso directly into the milk foam and sprinkle it with cinnamon powder.
l
l
l
Cappuzino
4 Recipes
35
4 Recipes
36
4 Recipes
37
4 Recipes
38
4 Recipes
39
4 Recipes
2 cold Espressi
200 ml cold milk
1 small cup crushed ice
20 ml maple syrup
Milk foam
Ingredients
(for two people)
Prepare Espresso and allow to cool.
Put cold milk, the maple syrup and crushed ice in a glass and mix.
Add the cold Espresso.
l
l
l
Latte Macchiato Frio
2 strong Espressi
200 ml of hot cocoa
1 pinch of gingerbread seasoning
100 ml milk
Sugar to suit personal taste
1-2 gingerbread cakes for decoration
Ingredients
(for two people)
Prepare 2 Espressi.
Stir Espresso with cocoa and gingerbread seasoning and distribute into two glasses.
Froth the milk and add to the Espressos.
Sprinkle with small pieces of gingerbread.
l
l
l
l
Winter’s dream coffee
40
5 Preparation at the touch of a button
In this chapter, you will find out how to prepare coffee specialities,
milk and hot water without making further settings.
Chapter 3, ‘Familiarising yourself with the control options’, will teach
you how to adjust the settings to your personal preferences. Alter-
natively, you can use Chapter 6, ‘Permanent settings according to
cup size’ or Chapter 7, ‘Permanent settings in programming
mode’.
You can stop the machine at any time while a coffee speciality
is being prepared. To do this, press any button.
You can also try out the preparation of coffee specialities
online. Visit the Knowledge Builder at www.jura.com.
A ‘Barista’ is someone who is a professional at preparing Espressos
and coffee. In Italy this is a respected profession. The Barista knows
every coffee speciality and is a master at preparing perfect drinks. In
conjunction with your JURA IMPRESSA, you too can achieve perfect
results.
To do this, follow these Barista tips:
Store your coffee in a dry place. Oxygen, light, heat and mois-
ture will spoil the coffee.
Use only fresh, cold mains water so that the coffee aroma can
be at its best.
To enjoy perfect coffee, please change the water every day.
Set the grinder to your preferred roast. The correct fineness of
grind will ensure that the flavours are released in the optimal
way.
Pre-heat your cup.
Use a teaspoon for sugar and do not use sugar lumps to
ensure that the crema or milk foam are not spoilt.
Adjust the height- and width-adjustable coffee spout individ-
ually to your cup. This will ensure that you get a really good
crema.
o
@
p
p
p
p
p
p
p
5 Preparation at the touch of a button 5 Preparation at the touch of a button
Barista tipsBarista tips
41
5 Preparation at the touch of a button

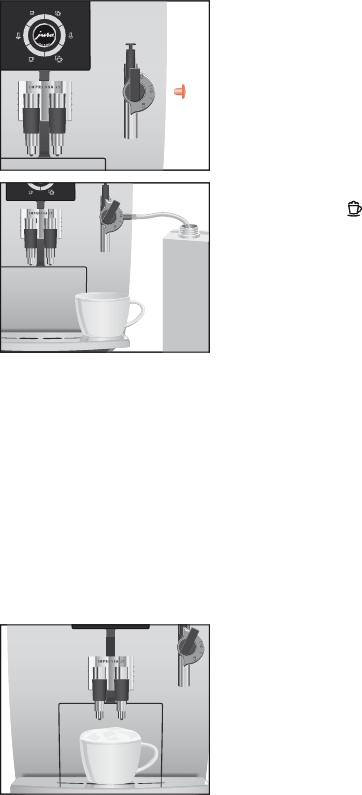

The classic coffee drink from Italy. There is a definite crema on the
surface of the Espresso.
Example: This is how to prepare an Espresso.
Place an Espresso cup under the coffee spout.
a l Press the 1 Espresso button.
1 ESPRESSO appears on the display. After this, the
strength is briefly displayed.
The pre-set amount of water flows into the cup and the proc-
ess stops automatically. READY appears on the display.
To prepare two cups of Espresso, place two cups under the coffee
spout and press the 2 Espressi button s.
Example: This is how to prepare a coffee.
Place a cup under the coffee spout.
d l Press the 1 Coffee button.
1 COFFEE appears on the display. After this, the strength
is briefly displayed.
The pre-set amount of water flows into the cup and the
process stops automatically. READY appears on the dis-
play.
To prepare two cups of coffee, place two cups under the coffee spout
and press the 2 Coffees button f.
A classic Italian recipe. The Cappuccino is made up of one-third each
of Espresso, hot milk and milk foam. The finishing touch is a sprin-
kling of cocoa powder.
l
l
Espresso Espresso
Coffee Coffee
Cappuccino Cappuccino
42
5 Preparation at the touch of a button
Precondition: The Professional Cappuccino Frother is mounted.
Take the milk pipe out of the Welcome Pack.
Take the protective cap off the Professional Cappuccino
Frother.
Attach the milk pipe to the nozzle.
Insert the other end in a milk carton/bottle or connect it to
a milk container.
Place a cup under the Professional Cappuccino Frother.
Turn the selection lever of the nozzle to the milk foam
position .
k l Press the steam button.
HEATING
READY appears as soon as the IMPRESSA has heated up.
k l Press the steam button.
STEAM, the milk foam is being prepared.
The operation stops automatically after reaching the pre-set
amount of steam.
The milk foam preparation can be interrupted at any time. To
do this, press any button.
While milk foam is being prepared, you can change the pre-
set amount of water by turning the Rotary Switch.
You can continue with preparing milk foam within approx. 40
seconds.
Move the cup under the coffee spout.
a l Press the 1 Espresso button.
1 ESPRESSO appears on the display. After this, the
strength is briefly displayed.
The pre-set amount of water flows into the cup.
Drink preparation stops automatically. READY appears on
the display.
l
l
l
l
l
l
o
o
o
l
43
5 Preparation at the touch of a button
To ensure that the Professional Cappuccino Frother works perfectly,
you should rinse and clean it regularly. You can find more informa-
tion about this in Chapter 8, ‘Maintenance – Professional Cappuc-
cino Frother’.
The high-quality milk containers available from JURA are a useful
addition for all lovers of milk specialities. Further information about
JURA accessories can be found in Chapter 11, ‘Accessories and
Service’.
You can choose a second coffee blend with the filler funnel for pre-
ground coffee.
All coffee specialities with pre-ground coffee are prepared following
this model.
Never add more than two level measuring spoons of pre-
ground coffee.
Use pre-ground coffee which is not ground too finely. Very
fine coffee can block up the system so that the coffee only
comes out in drips.
If you didn’t fill a sufficient amount of pre-ground coffee, NOT
ENOUGH PRE-GROUND is displayed and the IMPRESSA
stops operation.
The desired coffee speciality must be prepared within approx.
1 minute after filling with the pre-ground coffee. Otherwise,
the IMPRESSA stops the operation and is ready to use again.
Example: This is how to prepare a cup of coffee using pre-ground
coffee.
Place a cup under the coffee spout.
Open the cover of the storage compartment, take out the
measuring spoon for pre-ground coffee and close the cover
again.
Open the cover for pre-ground coffee.
FILL PRE-GROUND
o
o
o
o
l
l
l
Pre-ground coffee Pre-ground coffee
44
5 Preparation at the touch of a button
Place one level measuring spoon of pre-ground coffee in the
filler funnel.
Close the cover for pre-ground coffee again.
SELECT BUTTON
d l Press the 1 Coffee button.
1 COFFEE appears on the display. After this,
PRE-
GROUND is briefly displayed.
The pre-set amount of water flows into the cup and the proc-
ess stops automatically. READY appears on the display.
Precondition: The Professional Cappuccino Frother is installed.
Take the milk pipe out of the Welcome Pack.
Take the protective cap off the Professional Cappuccino
Frother.
Attach the milk pipe to the nozzle.
Insert the other end in a milk carton/bottle or connect it to
a milk container.
Place a cup under the Professional Cappuccino Frother.
Turn the selection lever of the nozzle to the milk position .
k l Press the steam button.
HEATING
READY appears as soon as the IMPRESSA has heated up.
k l Press the steam button.
STEAM appears on the display. The warm milk is being
prepared.
The operation stops automatically after reaching the pre-set
amount of steam.
The milk preparation can be interrupted at any time. To do
this, press any button.
While milk is being prepared, you can change the pre-set
amount of water by turning the Rotary Switch.
You can continue with preparing milk within approx.
40 seconds. After this, the machine must heat up again.
l
l
l
l
l
l
l
l
o
o
o
Warm milk Warm milk
45
5 Preparation at the touch of a button
To ensure that the Professional Cappuccino Frother works perfectly,
you should rinse and clean it regularly. The description for this can
be found in Chapter 8, ‘Maintenance – Professional Cappuccino
Frother’.
To obtain a perfect water flow, attach the exchangeable hot water
nozzle. You can find the nozzle under the cover of the storage
compartment.
There is a danger of scalding from hot water splashes.
Avoid direct contact with the skin.
Start by exchanging the nozzle:
Carefully remove the Professional Cappuccino Frother from
the Connector System©.
Open the cover of the storage compartment. Take out the
hot water nozzle and close the cover again.
Stick the hot water nozzle onto the Connector System© by
lightly rotating.
Place a cup under the hot water nozzle.
q l Press the hot water button.
WATER appears on the display, and then the pre-set tem-
perature briefly appears.
The pre-set amount of water flows into the cup and the
process stops automatically.
READY
By pressing the hot water button several times (within approx.
2 seconds) you can set the temperature to your individual
preference. This setting is not saved.
During preparation, you can change the amount by turning
the Rotary Switch.
l
l
l
l
l
o
o
Hot water Hot water
CAUTIONCAUTION
46
6 Permanent settings according to cup size
It is easy to make permanent settings for the amount of water for all
coffee specialities, the hot water and steam according to cup size. As
in the following example, adjust the amount of water once. Every
time you prepare a drink in the future, this amount of water will be
dispensed.
The permanent settings according to cup size works the same way
for all coffee specialities.
Example: To make permanent settings for an Espresso, proceed as
follows.
Precondition: READY appears on the display.
Place an Espresso cup under the coffee spout.
a l Press and hold the 1 Espresso button.
1 ESPRESSO appears on the display.
a l Hold the 1 Espresso button down until ENOUGH
COFFEE ? appears.
a l Release the 1 Espresso button.
Coffee preparation will start and the Espresso will flow into
the cup.
Press any button as soon as enough Espresso has flowed
into the cup.
Espresso preparation stops. OK appears briefly on the dis-
play. Your IMPRESSA will remember the amount of water
you have specified for an Espresso for good.
You can alter these settings at any time by repeating the
above procedure.
l
l
l
o
6 Permanent settings according to cup size 6 Permanent settings according to cup size
47
7 Permanent settings in programming mode
Buttons Temp. Strength Amount
1 Espresso NORMAL, HIGH MILD, NORMAL,
STRONG,
XSTRONG
15 ML – 240 ML
2 Espressi NORMAL, HIGH –15 ML – 240 ML
(per cup)
1 coffee NORMAL, HIGH MILD, NORMAL,
STRONG,
XSTRONG
15 ML - 240 ML
2 coffees NORMAL, HIGH –15 ML – 240 ML
(per cup)
Hot water REGULAR, NORMAL,
HOT
–15 ML – 450 ML
Steam – – 3 SEC – 120 SEC
In the following you will find out how to make permanent settings.
Permanent settings in programming mode always follow the same
model.
Example: To change the temperature of 1 Espresso from NORMAL
to HIGH, proceed as follows:
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
Ä L Turn the Rotary Switch until BUTTONS appears.
M l Press the Rotary Switch to enter the programme item.
SELECT BUTTON
In the next step, select the coffee speciality button for which
you would like to make settings. No coffee speciality will be
prepared hereby.
o
7 Permanent settings in programming mode 7 Permanent settings in programming mode
Buttons Buttons
48
7 Permanent settings in programming mode
A L Press the 1 Espresso button.
WATER
Ä L Turn the Rotary Switch until TEMP. appears.
M l Press the Rotary Switch to enter the programme item.
NORMAL
Ä L Turn the Rotary Switch until HIGH appears.
M l Press the Rotary Switch to confirm the setting.
OK appears briefly on the display.
TEMP.
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programme item.
BUTTONS
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programming mode.
READY
An energy saving mode permanent setting can be made under this
programme item (E.S.M.©).
Your IMPRESSA has two energy-saving modes:
ENERGY -
Your IMPRESSA is continuously ready for use.
All coffee and milk products, as well as hot water, can be pre-
pared without having to wait.
ENERGY √
After approx. 5 minutes, your IMPRESSA switches to the en-
ergy-saving temperature and is not ready for use.
Before coffee, hot water or milk is prepared, the machine
heats up for approx. 30 seconds.
ENERGY - is defined under the basic settings.
Example: To change the energy-saving level from ENERGY - to
ENERGY √, proceed as follows:
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
Ä L Turn the Rotary Switch until ENERGY - appears.
pu
u
pu
u
o
Energy save mode Energy save mode
49
7 Permanent settings in programming mode
M l Press the Rotary Switch to enter the programme item.
SAVE -
Ä L Turn the Rotary Switch until SAVE √ appears.
M l Press the Rotary Switch to confirm this selection.
OK appears briefly on the display.
ENERGY √
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programming mode.
READY
If the machine is disconnected from the mains, the time has to be
reset.
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
Ä L Turn the Rotary Switch until TIME appears.
M l Press the Rotary Switch to enter the programme item.
--:-- appears on the display.
Ä L Turn the Rotary Switch to set the hour.
M l Press the Rotary Switch to confirm the hour setting.
Ä L Turn the Rotary Switch to set the minutes.
M l Press the Rotary Switch to confirm the minute setting.
OK appears briefly on the display.
TIME
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programming mode.
READY
The programmable switch-on time is deactivated in the basic set-
ting and can only be set when the time is set.
The programmable switch-on only works when the machine
is switched on at the power switch e (standby).
o
Time Time
Programmable
switch-on time
Programmable
switch-on time
50
7 Permanent settings in programming mode
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
Ä L Turn the Rotary Switch until UNIT ON appears.
M l Press the Rotary Switch to enter the programme item.
--:-- appears on the display.
Ä L Turn the Rotary Switch to set the hour.
M l Press the Rotary Switch to confirm the hour setting.
Ä L Turn the Rotary Switch to set the minutes.
M l Press the Rotary Switch to confirm the minute setting.
OK appears briefly on the display.
UNIT ON
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programming mode.
READY
You can save energy with the programmable switch-off function of
your IMPRESSA.
The basic setting for the programmable automatic switch-off
time is 5 hours. This means that the device switches off auto-
matically 5 hours after it is used last.
The programmable automatic switch-off time can be adjust-
ed between 0.5 and 15 hours or deactivated.
Example: To change the programmable automatic switch-off time
from 5 hours to 10, proceed as follows:
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
Ä L Turn the Rotary Switch until OFF AFTER appears.
M l Press the Rotary Switch to enter the programme item.
5 H appears on the display.
Ä L Turn the Rotary Switch until 10 H is displayed.
M l Press the Rotary Switch to confirm the setting.
Once the setting is programmed, OK appears briefly on the
display.
OFF AFTER
o
o
Programmable auto-
matic switch-off time
Programmable auto-
matic switch-off time
51
7 Permanent settings in programming mode
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programming mode.
READY
The unit for the amount of water is set in the factory. You can set the
unit for the amount of water to ML or OZ.
The time format is set in the factory. You can set the formats
24 HRS or AM/PM.
Example: To change the unit for the amount of water from ML to
OZ, proceed as follows.
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
Ä L Turn the Rotary Switch until DISPLAY appears.
M l Press the Rotary Switch to enter the programme item.
ML/OZ.
To change the time format, turn the Rotary Switch until
24H/AM PM is displayed.
M l Press the Rotary Switch to enter the programme item.
ML
Ä L Turn the Rotary Switch until OZ appears.
M l Press the Rotary Switch to confirm the setting.
OK appears briefly on the display.
ML/OZ
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programme item.
DISPLAY
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programming mode.
READY
o
Units amount of water/
time format
Units amount of water/
time format
52
7 Permanent settings in programming mode
You set the language when you used the machine for the first
time.
You can choose among the following languages.
German
English
French
Italian
Dutch
Example: To change the language from ENGLISH to
FRANCAIS proceed as follows.
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
Ä L Turn the Rotary Switch until LANGUAGE appears.
M l Press the Rotary Switch to enter the programme item.
ENGLISH
Ä L Turn the Rotary Switch until FRANCAIS appears.
M l Press the Rotary Switch to confirm the setting.
OK appears briefly on the display.
LANGUE
Ä L Turn the Rotary Switch until EXIT appears.
M l Press the Rotary Switch to exit the programming mode.
PRET appears on the display.
p
p
p
p
p
Language Language
53
8 Maintenance
Your IMPRESSA has the following integrated maintenance pro-
grammes:
Rinse machine
Changing the filter
Clean machine
Descale machine
Clean or descale the machine or change the filter whenever
the appropriate indicator is lit up.
To ensure that you get many years’ reliable service out of your
IMPRESSA and to guarantee the optimum coffee quality, the ma-
chine requires daily maintenance.
You should proceed as follows:
Empty the coffee grounds container and the drip tray. Rinse
them with warm water.
Rinse the water tank with clean water.
Dismantle and rinse the Professional Cappuccino Frother (see
Chapter 8, ‘Maintenance – Rinsing the Professional Cappuc-
cino Frother’).
Wipe the surface of the machine with a damp cloth.
When your IMPRESSA has been switched on, after heating up, a
prompt to rinse appears and the maintenance button h lights up.
To initiate the rinse operation, press the maintenance button.
When the IMPRESSA is switched off, a rinse operation is automati-
cally initiated.
p
p
p
p
o
p
p
p
p
8 Maintenance 8 Maintenance
Maintenance tipsMaintenance tips
Rinse machine Rinse machine
54
8 Maintenance
Precondition: READY appears on the display.
Place a receptacle under the coffee spout.
M l Keep the Rotary Switch pressed until RINSE appears.
M l Press the Rotary Switch to enter the programme item.
RINSE
M l Press the Rotary Switch to initiate the rinse operation.
RINSING, rinsing stops automatically and your IMPRESSA
is now ready for use.
After 50 litres of water have flowed through, the filter will
cease to work. Your IMPRESSA will automatically prompt you
to replace the filter.
After two months, the filter will cease to work. Monitor the
elapsed time as shown on the date plate on the cartridge
holder.
If the CLARIS plus filter cartridge is not activated, you will not
be prompted to change the filter.
To change the CLARIS plus filter cartridge when prompted to do so
by your IMPRESSA, proceed as follows:
Precondition: FILTER / READY appears on the display, and
the maintenance button h lights up.
h l Press the maintenance button.
CHANGE
Remove the water tank and empty it.
Open up the cartridge holder and remove the old CLARIS
plus filter cartridge and the extension piece.
Stick the extension on top of a new CLARIS plus filter
cartridge.
Insert the filter cartridge into the water tank with light
pressure.
Close the cartridge holder. It will click into place audibly.
Fill the water tank with cold, fresh mains water and reinsert.
Place a receptacle (at least 500 ml) under the Professional
Cappuccino Frother.
l
o
o
o
l
l
l
l
l
l
l
Changing the filter Changing the filter
Change following a promptChange following a prompt
55
8 Maintenance
Turn the selection lever of the nozzle to the STEAM
position k .
h l Press the maintenance button.
FILTER RINSING - Water will flow out at the nozzle.
You can interrupt the filter rinsing at any time. To do this, press
any button.
The water may be slightly discoloured. This is not harmful to
health, nor does it affect the taste.
Filter rinsing stops automatically after approx. 500 ml.
HEATING appears on the display, and then READY
appears.
You can also try out ‘changing the filter’ online. Visit the
Knowledge Builder at www.jura.com.
You can initiate the ‘Changing the filter’ operation manually.
Precondition: The filter is activated and READY appears on the
display.
M l Keep the Rotary Switch pressed until RINSE appears.
M l Press the Rotary Switch to enter the programme item.
RINSE
Ä l Turn the Rotary Switch until FILTER appears.
M l Press the Rotary Switch.
CHANGE
Continue with the second prompt to take action
(indicated by a l), as is described under
‘Change following a prompt’.
l
o
o
@
l
Manual filter changeManual filter change
56
8 Maintenance
After 200 coffee preparations or 80 switch-on rinses, the IMPRESSA
will prompt you to clean it.
If the wrong cleaning agent is used, the machine could be damaged
and/or traces of detergent could be left behind in the water.
Use only original JURA care products.
The cleaning programme only lasts about 15 minutes.
Do not interrupt the cleaning programme. The quality of
cleaning will be impaired if you do so.
JURA cleaning tablets are available from your stockist.
You can also try out the ‘Clean machine’ operation online. Vis-
it the Knowledge Builder at www.jura.com.
Precondition: CLEAN / READY appears on the display, and
the maintenance button h lights up.
h l Press the maintenance button.
EMPTY TRAY
Empty the drip tray and coffee grounds container and put
them back into the machine.
PRESS RINSE, the maintenance button h lights up.
Place a receptacle (at least 500 ml) under the coffee spout.
h l Press the maintenance button.
CLEANING - Water flows out of the coffee spout.
The process is interrupted - ADD TABLET.
Open the cover of the filler funnel for pre-ground coffee.
Insert a JURA cleaning tablet into the filler funnel.
Close the cover of the filler funnel.
PRESS RINSE, the maintenance button h lights up.
h l Press the maintenance button.
CLEANING
Water flows out of the coffee spout several times.
The process is interrupted - EMPTY TRAY.
Empty the drip tray and coffee grounds container and put
them back into the machine.
l
o
o
o
@
l
l
l
l
l
l
Clean machine Clean machine
CAUTIONCAUTION
Cleaning following a
prompt
Cleaning following a
prompt
57
8 Maintenance
The cleaning operation is now complete. The IMPRESSA is
ready for use again.
You can initiate the ‘Cleaning the machine’ operation manually.
Precondition: READY appears on the display.
M l Keep the Rotary Switch pressed until RINSE appears.
M l Press the Rotary Switch to enter the programme item.
RINSE
Ä l Turn the Rotary Switch until CLEAN appears.
M l Press the Rotary Switch.
EMPTY TRAY
Continue with the second prompt to take action (indicated
by l), as is described under ‘Cleaning following a prompt’.
The IMPRESSA builds up deposits of limescale over time and auto-
matically prompts you to descale it. The degree of calcification de-
pends on the degree of hardness of your water.
If the descaling agent comes into contact with the skin or eyes, this
can cause irritation.
Avoid contact with the skin or eyes.
Rinse the descaling agent off with clean water. Should you get
any descaling agent in your eye, see a doctor.
If the wrong descaling agent is used, the machine could be dam-
aged and/or traces of detergent could be left behind in the water.
Use only original JURA care products.
If the descaling operation is interrupted, there may be damage to
the machine.
Allow the descaling program to run to the end.
If the descaling agent comes into contact with sensitive surfaces,
damage cannot be ruled out.
Clean up any splashes immediately.
l
l
l
l
l
l
Manual cleaningManual cleaning
Descale machine Descale machine
CAUTIONCAUTION
CAUTIONCAUTION
CAUTIONCAUTION
CAUTIONCAUTION
58
8 Maintenance
The descaling programme lasts approx. 40 minutes.
JURA descaling tablets are available from your stockist.
If you use a CLARIS plus filter cartridge and this is activated,
you will not be prompted to change the filter.
You can also try out the ‘Descale machine’ operation online.
Visit the Knowledge Builder at www.jura.com.
Precondition: DE-SCALE / READY appears on the display,
and the maintenance button h lights up.
h l Press the maintenance button.
EMPTY TRAY
Empty the drip tray and coffee grounds container and put
them back into the machine.
AGENT IN TANK
Remove the water tank and empty it.
Completely dissolve the contents of one blister (3 JURA des-
caling tablets) in a container that holds 500 ml of water. This
may take several minutes.
Pour the solution into the empty water tank and insert it in
the machine.
AGENT IN TANK - The maintenance button h
lights up.
Remove the nozzle.
Place a receptacle (at least 500 ml) under the Connector
System©.
h l Press the maintenance button.
DE-SCALING
This causes water to flow out of the Connector System©. The
maintenance button blinks during the descaling operation.
The operation stops automatically - EMPTY TRAY.
Empty the drip tray and coffee grounds container and put
them back into the machine.
Empty the container under the Connector System©.
FILL WATER TANK
Rinse the water tank thoroughly and fill it with cold, fresh
mains water.
o
o
o
@
l
l
l
l
l
l
l
l
l
Descaling following a
prompt
Descaling following a
prompt
59
8 Maintenance
Put the water tank back in.
PRESS RINSE - The maintenance button h lights up.
Place a container under the Connector System©.
h l Press the maintenance button.
This causes water to flow out of the Connector System©.
The operation stops automatically - EMPTY TRAY.
Empty the drip tray and coffee grounds container and put
them back into the machine.
Replace the nozzle.
The descaling operation is now complete. The IMPRESSA
heats up and is ready for use again.
If the descaling operation stops unexpectedly, rinse the water
tank thoroughly.
You can initiate the operation ‘Descaling the machine’ manually.
Precondition: READY appears on the display and the filter is not
activated.
M l Keep the Rotary Switch pressed until RINSE appears.
M l Press the Rotary Switch to enter the programme item.
RINSE
Ä l Turn the Rotary Switch until DE-SCALE appears.
M l Press the Rotary Switch.
EMPTY TRAY
Continue with the second prompt to take action (indicated
by a l), as is described under ‘Descaling following a
prompt’.
To ensure that the Professional Cappuccino Frother works perfectly,
you should rinse it with water after every milk preparation.
The IMPRESSA will not prompt you to rinse the Professional
Cappuccino Frother.
l
l
l
l
o
l
o
Manual descalingManual descaling
Rinse Professional
Cappuccino Frother
Rinse Professional
Cappuccino Frother
60
8 Maintenance
Remove the milk pipe from the milk carton/bottle or the
milk container.
Fill the receptacle with 250 ml of fresh water and immerse
the milk pipe in it.
Place a receptacle under the Professional Cappuccino
Frother.
Turn the selection lever to the milk or milk foam
position.
k l Press the steam button.
HEATING
READY
k l Press the steam button again.
STEAM - The nozzle and pipe are rinsed.
Press any button as soon as clean water flows into the cup.
To ensure that the Professional Cappuccino Frother works perfectly,
you should clean it daily when you have been preparing milk.
If the wrong cleaning agent is used, the machine could be damaged
and/or traces of detergent could be left behind in the water.
Use only original JURA care products.
The IMPRESSA will not prompt you to clean the Professional
Cappuccino Frother.
The JURA Auto-Cappuccino Cleaner is available from your
stockist.
You can also try out the ‘Clean Professional Cappuccino
Frother’ operation online. Visit the Knowledge Builder
at www.jura.com.
Place a receptacle under the Professional Cappuccino
Frother.
Pour 250 ml of fresh water into a container and add one
capful (max. 15 ml) of Auto-Cappuccino Cleaner.
Immerse the milk pipe in the receptacle.
l
l
l
l
l
l
o
o
@
l
l
l
Clean Professional
Cappuccino Frother
Clean Professional
Cappuccino Frother
CAUTIONCAUTION
61
8 Maintenance
Turn the selection lever to the milk or milk foam
position.
k l Press the steam button.
HEATING
READY
k l Press the steam button again.
STEAM
Ä l Turn the Rotary Switch until 60 SEC appears on the
display.
STEAM - The nozzle and pipe are cleaned.
Press any button as soon as the receptacle with the Auto-
Cappuccino Cleaner is empty.
Rinse the receptacle thoroughly, fill it with 250 ml of fresh
water and immerse the milk pipe in it.
k l Press the steam button.
ä l Turn the Rotary Switch until 60 SEC appears on the
display.
STEAM - The nozzle and pipe are rinsed with fresh water.
Press any button as soon as the receptacle with the water is
empty.
Carefully remove the Professional Cappuccino Frother from
the Connector System©.
Disassemble the Professional Cappuccino Frother into its
components.
Rinse all the nozzle parts thoroughly under running water.
Reassemble the Professional Cappuccino Frother and attach
it to the Connector System©.
The cleaning of the Professional Cappuccino Frother is fin-
ished.
l
l
l
l
l
l
l
l
Disassemble
Professional
Cappuccino Frother
Disassemble
Professional
Cappuccino Frother
62
8 Maintenance
Even in the case of the best bean coffee, it can happen that foreign
objects can be found in the beans. These can block the grinder.
g l Switch your machine off with the On/Off button.
e l Switch your machine off at the power switch.
Open the cover of the bean container and remove the aroma
preservation cover.
Remove the beans with a vacuum cleaner.
Loosen the screw in the bean container and lift up the
finger protection.
Remove the remaining beans with a vacuum cleaner.
Apply the grinder key.
Turn the key counterclockwise until the jammed foreign
objects are released, and remove these.
Put the finger protection down again and screw it back tight-
ly in place.
Fill the bean container with coffee beans, then close the aro-
ma preservation cover and the bean container cover.
Coffee beans may have a light layer of oil which remains on the walls
of the bean container. These traces may negatively affect the coffee
results. For this reason, clean the bean container from time to
time.
Precondition: FILL BEANS is displayed.
g l Switch your machine off with the On/Off button.
e l Switch your machine off at the power switch.
Open the cover of the bean container and remove the aroma
preservation cover.
l
l
l
l
l
l
l
l
l
Removing foreign
objects
Removing foreign
objects
Cleaning the bean
container
Cleaning the bean
container
63
8 Maintenance
Loosen the screw in the beam container and lift up the finger
protection.
Remove the remaining beans with a vacuum cleaner.
Clean the bean container with a soft, dry cloth.
Put the finger protection down again and screw it back
tightly in place.
Fill the bean container with coffee beans, then close the
aroma preservation cover and the bean container cover.
The cleaning of the bean container is now complete.
The water tank may build up deposits of limescale. In order to ensure
perfect working order, descale the water tank from time to time.
Remove the water tank.
If you use a CLARIS plus filter cartridge, remove this.
Descale the tank with a mild conventional descaling agent.
Rinse the water tank with clean water afterwards.
If you use a CLARIS plus filter cartridge, insert this again.
Fill the water tank with fresh water.
Insert it again.
l
l
l
l
l
l
l
l
l
l
l
l
Descaling the water
tank
Descaling the water
tank
64
8 Maintenance
65
9 CLARIS plus filter cartridge – Water for perfect coffee
Anyone who has ever drunk fresh spring water knows: There is a
world of difference between the elixir of life in its natural form and
the processed fluid that comes out of our taps. Very few of us have
ready access to a spring.
The answer to this is: CLARIS plus filter cartridge from JURA. It trans-
forms the hardness of the mains water into pH-neutral water. On top
of this, CLARIS plus can protect your fully automated coffee/ Espresso
machine against scale, and used properly, can prolong the service
life of your machine.
Our mains water is of very high quality and is excellent for drinking.
It is subject to ongoing health checks, meets strict, legally binding
quality requirements and contains the most important minerals
and fluorides.
Use of CLARIS plus filter cartridges guarantees you freshly filtered,
delicious-tasting water for your tea and coffee at all times. Designed
specially for JURA coffee machines, it has neutral pH and is placed
directly in the water tank.
This gives you three important benefits:
The guarantee that your water is freshly filtered before any
cup of coffee is prepared;
Fresh water and unadulterated aromas guarantee your palate
the coffee experience of a lifetime;
Lifelong protection for your IMPRESSA (eliminating the need
for descaling).
CLARIS plus from JURA is hard on scale, but soft on your coffee
machine.
p
p
p
9 CLARIS plus filter cartridge – Water for perfect coffee9 CLARIS plus filter cartridge – Water for perfect coffee
As fresh as from the
spring
As fresh as from the
spring
Water – always
pleasant and freshly
filtered
Water – always
pleasant and freshly
filtered
66
9 CLARIS plus filter cartridge – Water for perfect coffee
You can see it at work on your household appliances every day. Left
to its own devices, scale can cause serious damage. Over time, scale
is deposited on the heating elements, clogging the heating ele-
ments and pipes. Scale is also detrimental to the quality of your
chosen drinks because, with the passage of time, the water will no
longer be properly heated. Consequently: The result is that the
coffee will taste weaker, Espresso will lose its strength and tea will
taste bland. In other words: All enjoyment will be lost.
When you buy coffee, Espresso or tea specialities, aren‘t you careful
to buy top quality? In that case, you should insist on the same for
your water. You will taste and smell the difference the moment you
start using the CLARIS plus filter cartridge. The water will taste purer
and you will be thrilled by the flavour of your coffee specialities.
If you use CLARIS plus filter cartridges regularly, you will be able to
omit the time-consuming business of regular descaling. And your
coffee machine will reward you with a longer service life. We recom-
mend use of CLARIS plus wherever water is harder than 10° German
hardness (dH). You can determine the water hardness before using
your JURA coffee machine for the first time with the Aquadur® test
strip included in the Welcome Pack.
The CLARIS plus filter cartridge was developed specially for JURA
fully automatic coffee/Espresso machines. It contains a granulate
consisting of ion exchangers and active carbon – in other words,
pure, organic materials with no chemical additives. These agents
work together to reduce the formation of calcium deposits, heavy
metals and other harmful substances contained in mains water.
Other substances detrimental to flavour and aroma, such as chlorine,
are also largely eliminated. Minerals and fluorides contained in the
water are, of course, retained.
Unlike other water filtering systems for domestic use, CLARIS plus
works according to the professional up-flow principle. Practically
speaking: Only the precise amount of water required for a given
beverage is drawn in, and this is filtered directly before use.
Quality knows no
compromises
Quality knows no
compromises
Quality from A to ZQuality from A to Z
No more descalingNo more descaling
Interaction of organic
materials
Interaction of organic
materials
Water freshly filtered
on the ‘just in time’
principle
Water freshly filtered
on the ‘just in time’
principle
67
9 CLARIS plus filter cartridge – Water for perfect coffee
The water flows through the filter at a constant speed, disturbing the
granulate and ensuring that it is used evenly. This system ensures
that the filter is used to optimum effect. The remaining water in the
tank is left untouched until the next cup of coffee is made.
Inserting the CLARIS plus filter cartridge couldn‘t be easier. It is
described in Chapter 2, ‘Preparing and using for the first time –
Using and activating filter’.
After 50 litres of water have been dispensed or after two months at
the latest, the filter will cease to work. After this, the cartridge must
be replaced. Your JURA coffee machine will prompt you to change
the filter.
This process is described in detail in Chapter 8, ‘Maintenance –
changing the filter’.
You can return used filter cartridges to the stockist. They are returned
for recycling to protect the environment.
The CLARIS plus filter cartridge only needs to be removed from the
water tank if you are away for a lengthy period of time or if you wish
to clean or descale the tank using a conventional product.
If you do plan to be away for some time (e.g. for a holiday), we
recommend that you do the following to store the filter cartridge.
Remove the cartridge from the water tank. Place it in a glass with
about two centimetres of water and put it in the fridge.
We recommend that you run about half a litre of water through the
machine before starting to make coffee again. The water could be
discoloured, but this is not harmful to your health.
Up-flow principleUp-flow principle
Easy to operateEasy to operate
Economical in useEconomical in use
Maintenance and storageMaintenance and storage
68
9 CLARIS plus filter cartridge – Water for perfect coffee
CLARIS plus filter cartridges should be kept out of the reach of
children.
Store them dry in the sealed package.
Protect them from heat and direct sunlight.
Do NOT use damaged CLARIS plus filter cartridges.
Do NOT open CLARIS filter cartridges.
Pictures on the next few pages:
1 Water – always pleasant and freshly filtered.
2 CLARIS plus filter cartridges do not require any accessories and do not
take up any extra space. They can be inserted directly into the water tank.
3 4 Water for perfect coffee specialities.
5 The professional up-flow principle: Only the precise amount of water
required for a given beverage is drawn in, and this is filtered directly before
use.
6 Stainless steel pipes in the heater element: With CLARIS plus (left) you
can omit the time-consuming descaling operation (right).
7 The following substances are filtered out through the interaction with
organic materials: calcium (Ca), chlorine (Cl), lead (Pb), copper (Cu),
aluminium (Al).
p
p
p
p
p
Safe handlingSafe handling
1
32
4
5
6 7
73
10 ‘The milk makes the difference’
Coffee specialities are taking the entire planet by storm. Up until a
few years ago, classics, such as Espresso and Café Crème were the
most popular choices. Today, Cappuccino, Latte Macchiato & co.
have well surpassed them.
More and more often, one finds milk among the ingredients of the
trendy specialities. It doesn‘t matter whether whole milk or skim
milk is used. It isn‘t the fat content which is crucial for the wonderful
foam, but the protein. Heated or frothed, as cream or whipped
cream, no other natural product is combined with coffee as often or
with as much pleasure as milk. There is a wide variety of alternatives
available to allergy sufferers as well: goat/sheep milk, rice milk or soy
milk.
The most modern technology and ingenious Cappuccino nozzles
—allow you to delve into the multi-faceted world of coffee speci-
alities with every IMPRESSA. Here, the milk is not heated to above
75 °C. This is namely the only way that the inimitable fine foam can
be fully developed.
Thanks to the variable brewing unit, which can prepare between 5
and 16 grams of coffee powder under ideal conditions, you can make
sure that the tastes of the coffee and milk are harmoniously bal-
anced. Simply allow your imagination to run free in creating new
recipes and add flavour and fineness to your personal favourite
coffee specialities according to your mood.
Make sure you try out the secret Barista tip: Because milk can form
a vortex on the rough surface of a stainless steel pot especially well,
perfect foam can be formed in these receptacles. And the profes-
sional also knows what must also be given special attention: Regu-
larly and thoroughly clean the Cappuccino nozzle, rinse out the milk
container well every evening and store the milk in the refrigerator
overnight.
10 ‘The milk makes the difference’ 10 ‘The milk makes the difference’
Trendy specialities
with milk
Trendy specialities
with milk
Most modern
technology
Most modern
technology
Frothing as done
by a professional
Frothing as done
by a professional
74
10 ‘The milk makes the difference’
75
11 Accessories and Service
1 Coffee specialities made with milk are very fashionable these
days. The Connector System© and the wide range of accessories
open the door to the world of trendy drinks. Any accessories that do
not come supplied with your IMPRESSA can be obtained from
authorised stockists.
2 Cappuccino, Latte Macchiato at the touch of a button - nothing
could be easier with the Professional Cappuccino Frother. It draws
milk in directly from the container, heats it up, froths it and delivers
perfect milk foam for the ultimate Cappuccino experience, or warm
milk for your Latte Macchiato.
3 The Easy Cappuccino Frother provides milk foam at the touch
of a button. It is compatible with the Connector System©.
When steam is drawn, a negative pressure is created and this draws
milk from the container. Every Cappuccino is made successfully in
this way.
4 The 2-stage frothing nozzle is suitable for heating and frothing
drinks.
5 The hot water nozzle provides an even jet of water.
6 The high-quality stainless steel vacuum milk container holds
0.6 litres and keeps the milk cool throughout the day.
7 In the attractive chrome steel design, the milk is suitably attired.
The container holds 0.6 litres.
11 Accessories and Service11 Accessories and Service
Machine accessories –
extend your coffee
horizon
Machine accessories –
extend your coffee
horizon
Professional Cappuccino
Frother
Professional Cappuccino
Frother
Easy Cappuccino FrotherEasy Cappuccino Frother
2-stage frothing nozzle2-stage frothing nozzle
Hot water nozzleHot water nozzle
Stainless steel vacuum
milk container
Stainless steel vacuum
milk container
Deluxe milk containerDeluxe milk container
76
11 Accessories and Service
8 Original JURA care products are optimally tailored to the main-
tenance programmes. You should therefore use only original JURA
care products. Your IMPRESSA will thank you for it.
9 The CLARIS plus filter cartridge was developed specially for JURA
coffee machines. It is placed directly into the water tank. CLARIS plus
works according to the professional up-flow principle.
Further information on this subject can be found in Chapter 9,
‘CLARIS plus filter cartridge – water for perfect coffee’.
10 Your IMPRESSA machine comes with an integrated cleaning
programme. The original JURA cleaning tablets are specifically tai-
lored for the machine and optimally dissolve accumulated coffee
oils.
11 Scale is the biggest enemy of all household appliances that
involve the use of mains water. JURA has developed a descaling
tablet for the IMPRESSA which removes scale and at the same time
is easy on your machine.
12 Clean your Professional Cappuccino Frother and Easy-Cappuc-
cino Frother with the original Auto-Cappuccino Cleaner from JURA.
This will ensure that it is 100% clean.
13 Competent, high-quality service is a top priority as far as JURA
is concerned, irrespective of whether it is provided by the glassy
service factory of the Swiss parent company or in the authorised
JURA service centres all around the world.
14 Every IMPRESSA service is preceded by an electronically con-
trolled diagnostic run.
15 Service work is performed competently and professionally by
JURA‘s trained technicians.
Care products Care products
CLARIS plus filter
cartridge
CLARIS plus filter
cartridge
Cleaning tabletsCleaning tablets
Descaling tabletsDescaling tablets
Auto-Cappuccino CleanerAuto-Cappuccino Cleaner
Service Service
77
1
78
2
6 7
3 4 5
79
8
80
9
81
10
11 12
82
13
83
84
14
15
85
12 Messages on plain text display
12 Messages on plain text display
Message Cause Action
EMPTY TRAY The drip tray is full.You cannot
prepare any coffee or hot
water or milk products.
l Empty the drip tray.
FILL WATER TANK Water tank is empty.
You cannot prepare any coffee
specialities or hot water or
milk products.
l Fill the water tank (See
Chapter 2, ‘Preparing and
using for the first time – filling
the water tank’).
EMPTY GROUNDS The coffee grounds container
is full. You cannot prepare any
coffee specialities, but you can
prepare hot water or milk.
l Empty the coffee grounds
container and the drip tray.
TRAY MISSING The drip tray is not inserted
correctly or is not inserted
at all. You cannot prepare any
coffee specialities or hot water
or milk products.
l Insert the drip tray.
l Clean the metal contacts on
the back of the drip tray.
FILL BEANS Bean container is empty.
You cannot prepare any coffee
specialities, but you can
prepare hot water or milk.
l Fill the bean container
(See Chapter 2, ‘Preparing and
using for the first time – filling
the bean container’).
CLEAN The IMPRESSA is prompting
you to clean it.
l Clean the machine (See
Chapter 8, ‘Maintenance –
cleaning the machine’).
DE-SCALE The IMPRESSA is prompting
you to descale it.
l Descale the machine (See
Chapter 8, ‘Maintenance –
cleaning the machine’).
FILTER The CLARIS plus filter cartridge
is used up.
l Change the CLARIS plus filter
cartridge
(See Chapter 8,
‘Maintenance – changing the
filter’).
86
12 Messages on plain text display
Message Cause Action
CLOSE COVER The cover for pre-ground
coffee is open.
l Close the cover for
pre-ground coffee.
NOT ENOUGH
PRE-GROUND
There is too little pre-ground
coffee in the filler funnel. The
IMPRESSA stops the operation.
l The next time you prepare
coffee, fill in more pre-ground
coffee
(see Chapter 5, ‘Preparation
at the touch of a button –
pre-ground coffee’).
TOO HOT System is too hot to begin a
maintenance programme.
l Prepare a coffee speciality or
hot water.
87
13 Troubleshooting
13 Troubleshooting
Problem Cause Action
Grinder is making a very
loud noise.
There are foreign
objects in the grinder.
l Remove the foreign objects
(see Chapter 8, ‘Maintenance – Removing
foreign objects’).
The frother does not
produce enough milk
foam.
The Professional
Cappuccino Frother is
dirty.
l Clean the Professional Cappuccino
Frother (see Chapter 8, ‘Maintenance –
Rinsing the Professional Cappuccino
Frother’).
Coffee only comes out in
drips when it’s being
prepared.
Coffee or pre-ground
coffee has been
ground too finely and
is blocking the sieve.
l Put the grinder on a coarser setting or
use coarser pre-ground coffee
(see Chapter 2, ‘Preparing and using for
the first time – Adjusting grinder’).
Water hardness cannot be
adjusted.
CLARIS plus
filtercartridge is now
activated.
l Deactivate the CLARIS plus filter
cartridge.
FILL BEANS is
displayed although the
bean container has been
filled.
The grinder is not yet
completely filled with
beans.
l Prepare a coffee speciality.
FILL BEANS is not
displayed although the
bean container is empty.
The bean monitor is
dirty.
l Clean the bean container
(see Chapter 8, ‘Maintenance – Cleaning
the bean container’).
EMPTY TRAY is always
displayed.
The metal contacts of
the drip tray are dirty
or wet.
l Clean the metal contacts on the back of
the drip tray.
FILL WATER TANK
is displayed although the
water tank is full.
The water tank float is
stuck.
l Descale the water tank (see Chapter 8,
‘Maintenance – Descaling the water tank’).
88
13 Troubleshooting
If you have not been able to solve the problem, contact Customer Support in your country. You will
find the phone number in Chapter 17, ‘JURA contact details’.
Problem Cause Action
ERROR 2 is displayed. If the device was
exposed to the cold
for a long period of
time, it is disabled
from heating up due
to safety reasons.
l Warm up the device at room
temperature.
Other ERROR messages
are displayed.
–l Turn your IMPRESSA off at the power
switch. Contact Customer Support in your
country (see Chapter 17, ‘JURA contact
details’).
89
14 Transport and environmentally neutral disposal
Keep the packaging for your IMPRESSA. It is used to protect the
machine during transportation.
In order to protect the IMPRESSA from frost during transportation,
the system must be emptied.
Precondition: The IMPRESSA must be switched off (standby).
Remove the water tank.
Place a receptacle under the nozzle.
h l Press the maintenance button until EMPTYING is
displayed.
Water will flow out a little bit at the nozzle. The operation
stops automatically. The IMPRESSA will switch itself off.
e l Turn your IMPRESSA off at the power switch.
The next time you use the machine, you will need to refill the
system (see Chapter 2, ‘Preparing and using your IMPRESSA
for the first time – First-time use’).
Please dispose of old machines in an environmentally neutral way.
Old machines contain valuable materials capable of being recycled
which should be salvaged for recycling. Please therefore dispose of
old machines via suitable collection systems.
l
l
o
14 Transport and environmentally neutral disposal14 Transport and environmentally neutral disposal
Transport / Empty
system
Transport / Empty
system
DisposalDisposal
90
15 Technical data
Voltage 230 V AC, 50 Hz
120 V AC, 60 Hz
220 – 240 V AC, 50 Hz
220 V AC, 50 Hz
Safety test
Power 1450 W
Power consumption
SAVE -
12 W/h
Power consumption
SAVE √
7 W/h
Pump pressure Static max. 15 bar
Holding capacity of
water tank
2.1 l
Holding capacity of bean
container
250 g
Holding capacity of coffee
grounds container
Approx. 16 servings
Cable length Approx. 1.1 m
Weight 10.75 kg
Dimensions (W x H x D) 28.5 x 34.2 x 43.3 cm
The voltage and current vary according to the safety test.
Please observe the rating plate before connecting the device.
o
15 Technical data15 Technical data
Technical dataTechnical data
91
15 Technical data
Please only plug the machine into the power supply according
to the technical data, which you can find on the rating plate.
The rating plate is located on the bottom of your IMPRESSA.
The information shown on this should be interpreted as follows:
V AC = alternating current in volts
W = power output in watts
This product complies with all applicable EU directives.
This product meets the requirements of the Decree concern-
ing Low Voltage Electrical Products and the Decree concerning
Electromagnetic Compatibility (VEMV). This product complies
with all the pertinent ESTI requirements (Swiss Federal Inspec-
torate for Heavy Current Installations)
This product complies with all applicable UL directives
(Underwriters Laboratories Inc.®).
This product complies with all applicable SAA directives
(Standards Association of Australia).
This product complies with all applicable CCC directives
(China Compulsory Certification).
o
p
p
Rating plateRating plate
92
16 Key technologies
1 Intelligent Pre Brew Aroma System (I.P.B.A.S.©).
Perfect coffee is no accident. The Intelligent Pre Brew Aroma System©
produces the very best in flavour from every coffee blend and
roast.
1a The freshly ground coffee beans are delivered to the infusing
cylinder as a powder from the grinder.
1b There it is optimally compressed.
1c Prior to brewing, the powder is moistened. The pores swell and
the flavours are released.
1d During brewing, perfect coffee is delivered to the cup, crowned
by a velvety, soft crema for perfect enjoyment.
2 The IMPRESSA range of products includes the following series:
IMPRESSA Z series, Cappuccino at the touch of a button, pre-
mium professional technology for domestic use.
IMPRESSA S series for demanding households
IMPRESSA J series, Perfect Enjoyment, Perfect Aesthetics
IMPRESSA F series, simple operation, multi-winner
IMPRESSA C series, Click & Drink
IMPRESSA X series for catering and office applications
Obtain the advice of the JURA experts.
You will find the purchase advisor at www.jura.com.
3 For perfect coffee quality it is important to get the grinding
right. To this end, a powerful 6-level powerful conical burr grinder
with grinding cones constructed out of hardened steel is provided.
4 The variable brewing unit holds between 5 and 16 g of coffee.
This means that two cups can be prepared at once in a single brewing
operation.
5 Durable pipes constructed from a high-quality steel alloy con-
duct the water through the thermoblocks where it is heated to the
correct temperature.
p
p
p
p
p
p
@
16 Key technologies and products16 Key technologies and products
1
1b1a
1d1c
IMPRESSA Z
IMPRESSA S
IMPRESSA F
2
IMPRESSA J
IMPRESSA C
IMPRESSA X
IMPRESSA XF
3
4 5
97
17 JURA contact details
A
Australia
Global Coffee Solutions Pty Ltd
Customer Service Phone +61 1300 552 883
Fax +61 0242 846 099
E-mail info@globalcoffee.com.au
Opening Hours Monday to Friday
8:00 am – 5:00 pm
Distributor Address/
Service Address
Global Coffee Solutions Pty Ltd
5/77 Jardine Street
Fairy Meadow NSW 2519
B
Bangladesh
Please contact the Singapore office for details.
Brunei
Please contact the East Malaysian office for details.
Burma
Please contact the Singapore office for details.
C
Cambodia
Please contact the Singapore office for details.
Canada
Faema Canada
Customer Service Phone (416) 535-1555
Toll free (877) 323-6226
Fax (416) 535-3843
E-mail espresso@faema.net
Opening Hours Monday to Friday
9:00 am – 6:00 pm
Saturday 10:00 am – 5:00 pm
Distributor Address/
Service Address
Faema Canada
672 Dupont Street, Suite 201
Toronto, Ontario M6G 1Z6
China
Shanghai HJ Coffee Co., Ltd.
Customer Service Phone +86 21 62940690 ext.31
E-mail service@hjcoffee.com
Opening Hours Monday to Friday 09:00 – 17:30
Distributor Address/
Service Address
Shanghai HJ Coffee Co., Ltd.
Room D 3F, building one
Xinhua Road No. 543
Shanghai 200052
Czech Republic
Petrarco, Spol. S R.O.
Customer Service Phone +420 775 997 557
E-mail dokladal@juraswiss.cz
Opening Hours Monday to Thursday 9:00 – 17:00
Friday 9:00 – 15:00
Distributor Address/
Service Address
Petrarco, Spol. S R.O.
Udolni 5
602 00 Brno
D
Denmark
Scandinavian CoffeeSystem Aps
Customer Service Phone +45 7020 7333
Fax +45 7020 7343
E-mail service@coffeesystem.com
Opening Hours Monday to Thursday 09:00 – 16:30
Friday 09:00 – 16:00
Distributor Address/
Service Address
Scandinavian CoffeeSystem Aps
Tordenskjoldsgade 19
1055 Kobenhavn K
17 JURA contact details
98
17 JURA contact details
E
Estonia
Infomelton OÜ
Customer Service Phone +372 651 88 55
+372 651 88 50
E-mail lavazza@lavazza.ee
Opening Hours Monday to Friday 09:00 – 17:00
Distributor Address/
Service Address
Infomelton OÜ
Weizenbergi 27
Tallinn 10150
F
Finland
Home Appliance Brokers HAB Oy
Customer Service Phone +358 207 300 090
E-mail info@haboy.fi
Opening Hours Monday to Friday 08:00 – 16:00
Distributor Address Home Appliance Brokers HAB Oy
Elimäenkatu 29, 00510 Helsinki
Service Address Monilaite-Thomeko Oy
Salpakuja 6, 01200 Vantaa
G
Greece
COFFEE CONNECTION S.A.
Customer Service Phone +30 210 66 40 640
E-mail coffeeway@coffeeway.com
Opening Hours Monday to Friday 09:00 – 17:00
Distributor Address/
Service Address
COFFEE CONNECTION S.A.
Agiou Louka str. Peania
Attica 190 02
H
Hong Kong PRC
Pacific Coffee Company Ltd
Customer Service Phone +852 2805 1627
E-mail sales@pacificcoffee.com
Opening Hours Monday to Friday
9:00 am – 6:00 pm
Saturday 9:00 am – 1:00 pm
Distributor Address/
Service Address
Pacific Coffee Company Ltd
701–704 Hollywood Center
233 Hollywood Road, Sheung Wan
I
Iceland
Karl K. Karlsson
Customer Service Phone +354 540 9003
E-mail karlk@karlsson.is
Opening Hours Monday to Friday 09:00 – 18:00
Distributor Address/
Service Address
Karl K. Karlsson
Pacific Coffee Company Ltd
Skútuvogur 5, 104 Reykjavík
Indonesia Bali
BHINEKA JAYA
Customer Service Phone +62 361 724746
Mobile Nr. +62 81 23817951 or
+62 361 7460521
E-mail vivi@kopibali.com
Opening Hours Monday to Saturday 08:30 – 16:30
Distributor Address/
Service Address
BHINEKA JAYA
Jl. Pulau Moyo 9A, Denpasar, Bali
Indonesia Jakarta
SUKSES PRATAMA JAYA P.T.
Customer Service Phone +62 21 6331177
Fax +62 21 63857008
E-mail cs@suprajaya.com
Opening Hours Monday to Saturday 09:00 – 17:00
Service Number during off hours: +62
21 6331177
Distributor Address/
Service Address
SUKSES PRATAMA JAYA P.T.
Jalan: K.H. Hasyim Ashari 125
Pusat Niaga Roxy Mas
Blok C.4 No.14–15, Jakarta 10150
99
17 JURA contact details
Israel
J.Feffer l.t.d.
Customer Service Phone +972 353 350 38
Fax +972 353 305 54
E-mail feffer-j@barak-online.net
Opening Hours Sunday–Thursday 08:00 – 18:00
Friday 09:00 – 13:00
Distributor Address/
Service Address
J.Feffer l.t.d.
9,Simtat Ma‘ale Hachoma
Ind. Zone
Or-Yehuda 60370, Israel
K
Korea
HLI Company Limited
Customer Service Phone +82 234 522 127
Fax Phone +82 345 229 50
E-mail wj_lee@hlikorea.com
Opening Hours Monday to Friday 09:00 – 18:00
Distributor Address/
Service Address
HLI Company Limited
7floor, Sungwon Bldg
Yeoksam-Dong, Kangnam-Ku
Seoul
L
Labuan
Please contact the East Malaysian office for details.
Lativa
CREMA SIA
Customer Service Phone +371 7244082
+371 26622888
E-mail crema@crema.lv
Opening Hours Monday to Friday 10:00 – 17:00
Distributor Address/
Service Address
CREMA SIA
Gertrudes 86, Riga, LV-1009
Lithuania
JSC Pretendentas
Customer Service Phone + 370 315 73442
Mobile +370 650 84779
E-mail alma@pretendentas.lt
Opening Hours Monday to Friday 09:00 – 18:00
Distributor Address/
Service Address
JSC Pretendentas
62161 Alytus, str. Ulonu 33
M
Malaysia, East
RICMAS Borneo Sdn. Bhd.
Customer Service Phone +60 88 456 100, –200
Fax +60 88 241 600
E-mail jura@ricmas-malaysia.com
Opening Hours Monday to Friday 09:00 – 17:30
Service Number during off hours: +60
16 830 60 83
Distributor Address/
Service Address
RICMAS Borneo Sdn. Bhd.
Unit # E3–8, 3rd Floor
Block E, Plaza Tanjung Aru
Jalan Mat Salleh, Tanjung Aru
88150 Kota Kinabalu, Sabah
Malaysia, West
RICMAS Peninsular Sdn. Bhd.
Customer Service Phone +6 03 4296 5989
Fax +6 03 4297 5636
E-mail jura@ricmas-malaysia.com
Opening Hours Monday to Friday 09:00 – 17:30
Service Number during off hours:
016 201 5789
Office Address/ Service
Address
RICMAS Peninsular Sdn. Bhd.
3A-1 Jalan Perubatan 3
Pandan Indah
55100 Kuala Lumpur
100
17 JURA contact details
N
New Zealand
Euro Espresso Ltd
Customer Service Phone +64 9 277 1334
Fax +64 9 277 9375
E-mail info@euroespresso.co.nz
Opening Hours Monday to Friday
8.30 am – 5:00 pm
Distributor Address/
Service Address
6 Mepal Place, Manukau City,
Auckland
PO Box 76–342, Manukau City,
Auckland 1730
Norway
Black Cat Kaffe og Tehus AS
Customer Service Phone +47 22 06 29 90
Fax +47 22 06 29 99
E-mail
info@blackcatkaffeogtehus.no
Opening Hours Monday to Friday 08:30 – 16:30
Distributor Address/
Service Address
Black Cat Kaffe og Tehus AS
Aslakveien 20h, 0753 Oslo
P
Philippines
Pacific Continental Company Inc.
Customer Service Phone +63 2 551 3216
Fax +63 2 831 8314
E-mail jura@conlinscoffee.com
Opening Hours Monday to Friday 09:00 – 18:00
Service Number during off hours: +63
916 5294052
Distributor Address/
Service Address
Pacific Continental Company Inc.
2753 Park Avenue, Pasay City
Metro Manila 1300
Puerto Rico
ProExpo CA Consultores S.A.
Customer Service Phone +506 234 7404
Fax +506 253 5296
E-mail info@grupocapresso.com
Distributor Address/
Service Address
ProExpo CA Consultores S.A.
P.O. Box 75-2120
Calle Blancos, San Jose
S
Saudi Arabia
Saudi Marketing Solutions
Customer Service Phone +9661 201 2053
Fax +9661 201 2056
E-mail info@sms-arabia.com
Opening Hours Saturday to Wednesday
09:00 – 13:00 and 17:00 – 21:00
Distributor Address P.O.Box 12679 Jeddah 21483
Service Address Aruba & Muhandis Musad
Al-Anqari Street Intersection, Riyadh
Singapore
RICMAS INTERNATIONAL Pte. Ltd.
Customer Service Phone +65 6562 8853
Fax +65 6562 8854
E-mail jura@ricmas.com
Opening Hours Monday to Friday 09:00 – 17:30
Service Number during off hours: +65
90210314
Office Address/ Service
Address
RICMAS INTERNATIONAL Pte. Ltd.
25 International Business Park
German Center #01–57/58
Singapore 609916
101
17 JURA contact details
South Africa
International Coffee Equipment CC
Customer Service Phone +27 11 708 2481
E-mail info@icesa.za.net
Opening Hours Monday to Friday 08.00 – 17.00
Saturday 08.00 – 13.00
Office Address International Coffee Equipment CC
JURA Corner Building, Showroom
475/3 Hans Strydom Drive
KYA Sand
Service Address International Coffee Equipment CC
JURA Corner Building, 1st Floor
475/3 Hans Strydom Drive
KYA Sand
T
Taiwan
Eurocafé Corporation
Customer Service Phone +886 2 28272683
Fax +886 2 28225797
E-mail service@eurocafe.com.tw
Opening Hours Monday to Friday
9:00 am – 6.00 pm
Office Address/ Service
Address
Eurocafé Corporation
2F, No. 251 Sec. 2 Hsi An Street
Pei-Tou District
Taipei
Thailand
RICMAS (Thailand) Co., Ltd.
Customer Service Phone +66 2262 0543
Fax +66 2262 0542
E-mail jura@ricmas-thailand.com
Opening Hours Monday to Friday 09.00 – 17.00
Service Number during off hours:
+66 1828 6996
Office Address/ Service
Address
55 Biohouse Building Sukhumvit
39 Rd.
Klongtan-nue, Wattana,
Bangkok 10110
Turkey
John’s Coffee
Customer Service Phone +90 216 420 2400
Fax +90 216 313 56 32
E-mail info@johnscoffee.com.tr
Opening Hours Monday to Friday 08:30 – 18:00
Office Address/ Service
Address
John’s Coffee
Imes Sanayi Sitesi C blok 308 Sok.
Yukari Dudullu-Istanbul, 34776
U
United Arab Emirates
Boncafé Middle East LLC.
Customer Service Phone +97 14 28 28 742
Fax +44 20 77 222 333
E-mail info@boncafeme.com
Opening Hours Saturday to Thursday 8.30 – 17.30
Service Number during off hours:
+44 870 165 0429
Distributor Address/
Service Address
Boncafé Middle East LLC.
P.O. Box 74044, DUBAI
United Kingdom
Fairfax Coffee Ltd
Customer Service Phone +44 20 7722 7646
Fax +44 20 77 222 333
E-mail info@fairfaxcookshop.com
Opening Hours Monday to Friday 09.00 – 17.30
Distributor Address/
Service Address
Fairfax Coffee Ltd
1 Regency Parade, Finchley Road,
London NW3 5EQ
V
Vietnam
Please contact the Singapore office for details.
102
Index
Index
A
Accessories 75
Activating
Filter 21
Adjust
Amount of water 46
Adjusting
Amount of water 47
Coffee strength 47
Energy-saving mode 48
Grinder 24
Strength 47
Temperature 47
Water hardness 22
Amount of water
Adjust 46
Aroma preservation cover 8
B
Bean container 8
Cleaning 62
Filling 19
Button
Maintenance 9
On/off 9
C
Cappuccino 41
Care products 76
Care status
query 31
CLARIS plus 65, 73
CLARIS plus filter cartridge 21
Activating 21
Change 54
Inserting 21
Clean
Bean container 62
Machine 56
Professional Cappuccino Frother 59
Coffee 41
Pre-ground 43
Coffee beans
Filling 19
Coffee grounds container 8
Coffee speciality 40
Coffee spout
Height- and width-adjustable 17
Rinse 53
Connector System© 17
Control elements 16
D
Descale
Machine 57
Water tank 63
Display
Plain text 8
Drip tray 8
E
Energy-saving mode
Adjusting 48
Espresso 41
F
Filling
Bean container 19
Water tank 19
Filter
Activating 21
Change 54
Inserting 21
First-time use 20
G
Grinder
Adjusting 24
Key 8
Ground coffee 43
H
Hot water 45
I
Information
Query 31
Inserting
Filter 21
Water tank 19
Internet 17
L
Language
Setting 52
103
Index
M
Machine
Clean 56
Descaling 57
Rinse 53
Set up 18
Switching off 25
Switching on 25
Machine accessories 75
Maintenance 53
Milk 73
Milk pipe 8
Warm 44
N
Nozzle
Hot water nozzle 45
Number
Buttons, prepared 31
Maintenance programmes, executed 31
P
Plain text
Display 16
Preground
Coffee 43
Professional Cappuccino Frother 8
Clean 60
Disassemble 61
Rinse 60
Programmable
Automatic switch-off time 50
Permanent settings 46, 47
Switch-on time 49
Programming mode 47
Amount of steam 47
Amount of water 47
Language 52
Strength 47
Temperature 47
Prompt to take action 14
Q
Query
Care status 31
Information 31
R
Recipes 34
Removing foreign objects 62
Rinse
Machine 53
Professional Cappuccino Frother 60
Rotary Switch 9, 16
S
Safety 10
Service 76
Settings
Amount of steam 47
Permanent settings according to cup
size 46
Permanent settings in programming
mode 47
Setting the time 49
Specialities 34, 40
Trendy specialities with milk 73
Spout 17
Standby 25
Stones
Removing 62
Storage compartment 8
Switch-on time
Setting 49
Switching off machine 25
Switching on machine 25
T
Temperature
Adjusting 47
U
Units
Amount of water 51
Time format 51
UseProper 10
V
Voltage 90
W
Water hardness 22
Adjusting 22
Determining 22
Water tank 8
Descaling 63
Filling 19
The machine complies with the following EU directives:
73/23/EEC of 19 February 1973, Low Voltage Directive including
Amending Directive 93/68/EEC.
89/336/EEC of 3 May 1989, Electromagnetic Compatibility,
incl. Amending Directive 92/31/EEC.
We reserve the right to make technical changes.
The illustrations used in the IMPRESSA J5 Manual show
the IMPRESSA J5 Pianowhite model. Your IMPRESSA could
incorporate minor changes.
Your opinion is important to us!
Use the contact link at www.jura.com.
JURA Elektroapparate AG
Kaffeeweltstraße 10
CH-4626 Niederbuchsiten
www.jura.com
p
p
DirectivesDirectives
Technical changesTechnical changes
FeedbackFeedback
Art. 66362/J5/en/0703

Navigation menu
