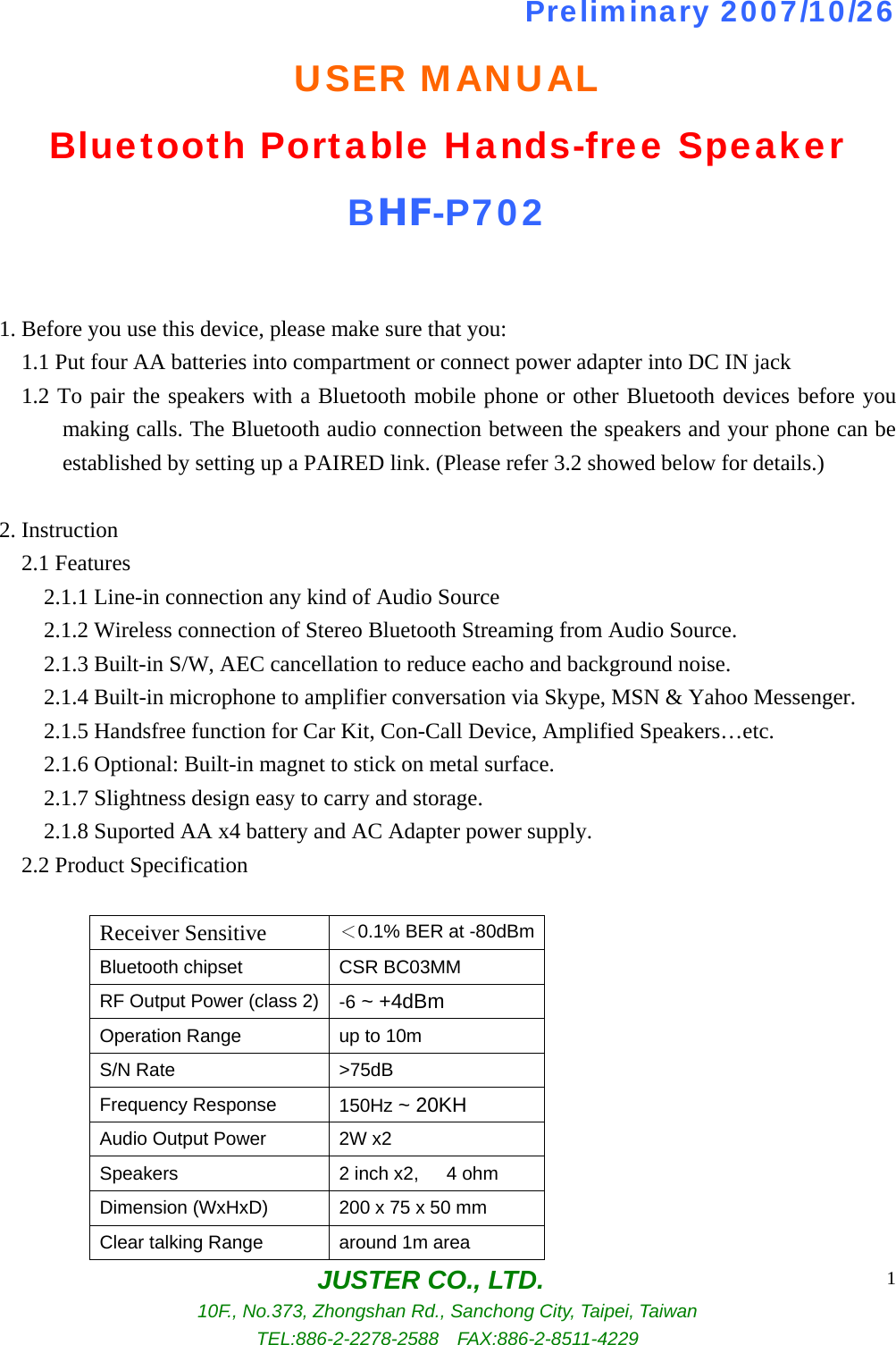

JUSTER CO., LTD. 10F., No.373, Zhongshan Rd., Sanchong City, Taipei, Taiwan TEL:886-2-2278-2588 FAX:886-2-8511-4229 1Preliminary 2007/10/26 USER MANUAL Bluetooth Portable Hands-free Speaker BHF-P702 1. Before you use this device, please make sure that you: 1.1 Put four AA batteries into compartment or connect power adapter into DC IN jack 1.2 To pair the speakers with a Bluetooth mobile phone or other Bluetooth devices before you making calls. The Bluetooth audio connection between the speakers and your phone can be established by setting up a PAIRED link. (Please refer 3.2 showed below for details.) 2. Instruction 2.1 Features 2.1.1 Line-in connection any kind of Audio Source 2.1.2 Wireless connection of Stereo Bluetooth Streaming from Audio Source. 2.1.3 Built-in S/W, AEC cancellation to reduce eacho and background noise. 2.1.4 Built-in microphone to amplifier conversation via Skype, MSN & Yahoo Messenger. 2.1.5 Handsfree function for Car Kit, Con-Call Device, Amplified Speakers…etc. 2.1.6 Optional: Built-in magnet to stick on metal surface. 2.1.7 Slightness design easy to carry and storage. 2.1.8 Suported AA x4 battery and AC Adapter power supply. 2.2 Product Specification Receiver Sensitive ＜0.1% BER at -80dBmBluetooth chipset CSR BC03MM RF Output Power (class 2) -6 ~ +4dBm Operation Range up to 10m S/N Rate >75dB Frequency Response 150Hz ~ 20KH Audio Output Power 2W x2 Speakers 2 inch x2, 4 ohm Dimension (WxHxD) 200 x 75 x 50 mm Clear talking Range around 1m area

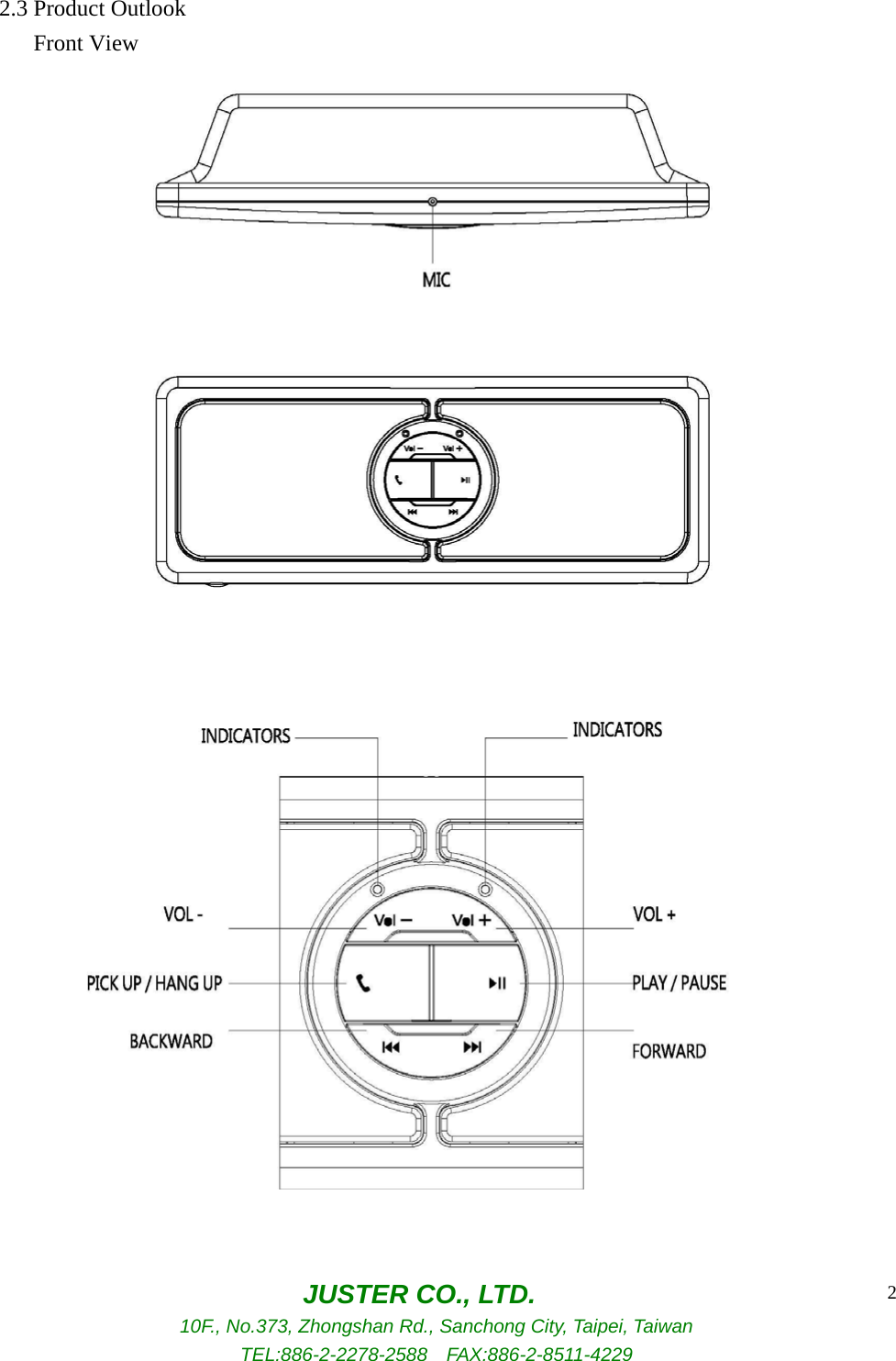

JUSTER CO., LTD. 10F., No.373, Zhongshan Rd., Sanchong City, Taipei, Taiwan TEL:886-2-2278-2588 FAX:886-2-8511-4229 2 2.3 Product Outlook Front View

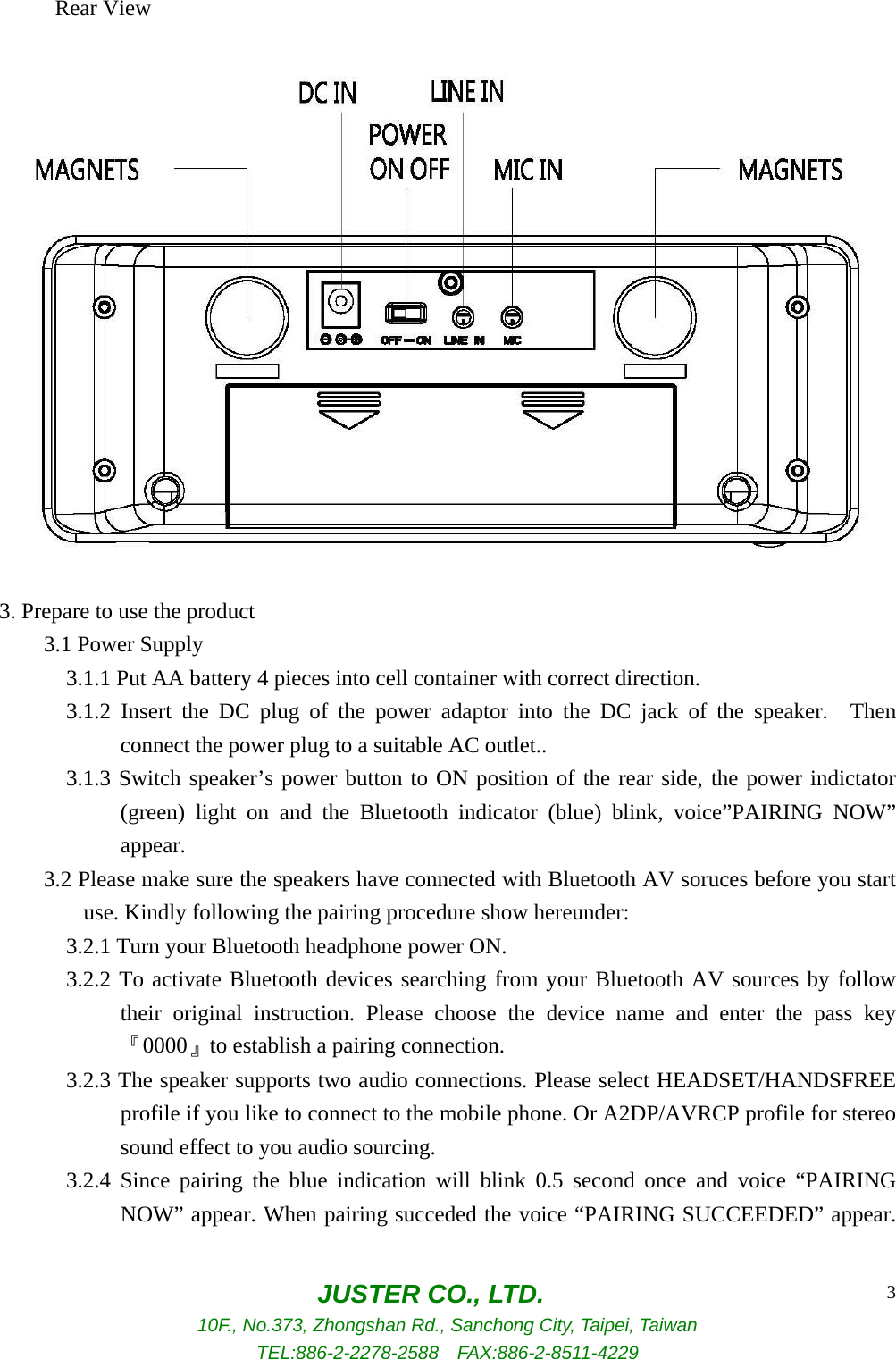

JUSTER CO., LTD. 10F., No.373, Zhongshan Rd., Sanchong City, Taipei, Taiwan TEL:886-2-2278-2588 FAX:886-2-8511-4229 3 Rear View 3. Prepare to use the product 3.1 Power Supply 3.1.1 Put AA battery 4 pieces into cell container with correct direction. 3.1.2 Insert the DC plug of the power adaptor into the DC jack of the speaker. Then connect the power plug to a suitable AC outlet.. 3.1.3 Switch speaker’s power button to ON position of the rear side, the power indictator (green) light on and the Bluetooth indicator (blue) blink, voice”PAIRING NOW” appear. 3.2 Please make sure the speakers have connected with Bluetooth AV soruces before you start use. Kindly following the pairing procedure show hereunder: 3.2.1 Turn your Bluetooth headphone power ON. 3.2.2 To activate Bluetooth devices searching from your Bluetooth AV sources by follow their original instruction. Please choose the device name and enter the pass key 『0000』to establish a pairing connection. 3.2.3 The speaker supports two audio connections. Please select HEADSET/HANDSFREE profile if you like to connect to the mobile phone. Or A2DP/AVRCP profile for stereo sound effect to you audio sourcing. 3.2.4 Since pairing the blue indication will blink 0.5 second once and voice “PAIRING NOW” appear. When pairing succeded the voice “PAIRING SUCCEEDED” appear.

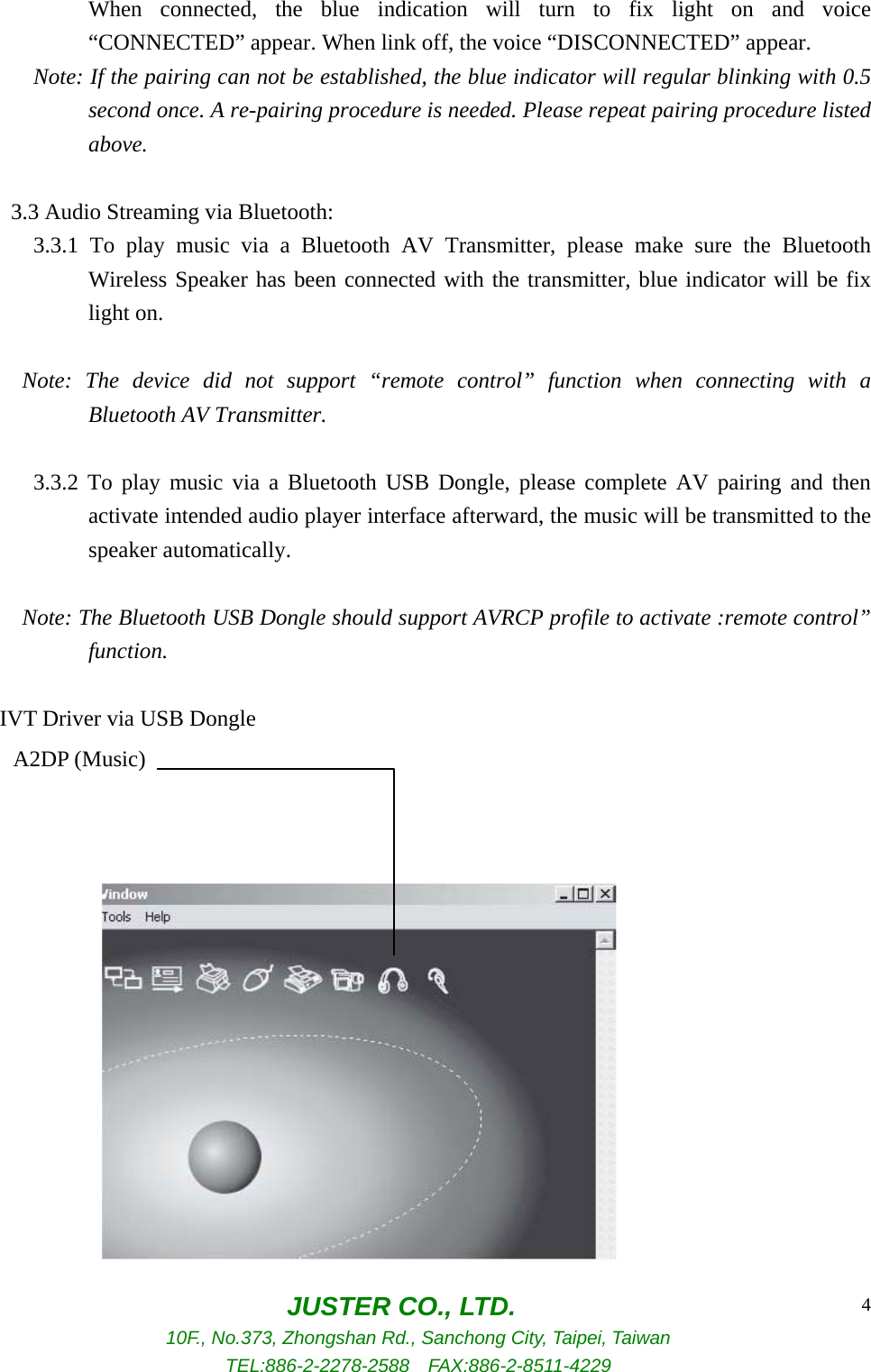

JUSTER CO., LTD. 10F., No.373, Zhongshan Rd., Sanchong City, Taipei, Taiwan TEL:886-2-2278-2588 FAX:886-2-8511-4229 4When connected, the blue indication will turn to fix light on and voice “CONNECTED” appear. When link off, the voice “DISCONNECTED” appear. Note: If the pairing can not be established, the blue indicator will regular blinking with 0.5 second once. A re-pairing procedure is needed. Please repeat pairing procedure listed above. 3.3 Audio Streaming via Bluetooth: 3.3.1 To play music via a Bluetooth AV Transmitter, please make sure the Bluetooth Wireless Speaker has been connected with the transmitter, blue indicator will be fix light on. Note: The device did not support “remote control” function when connecting with a Bluetooth AV Transmitter. 3.3.2 To play music via a Bluetooth USB Dongle, please complete AV pairing and then activate intended audio player interface afterward, the music will be transmitted to the speaker automatically. Note: The Bluetooth USB Dongle should support AVRCP profile to activate :remote control” function. IVT Driver via USB Dongle A2DP (Music)

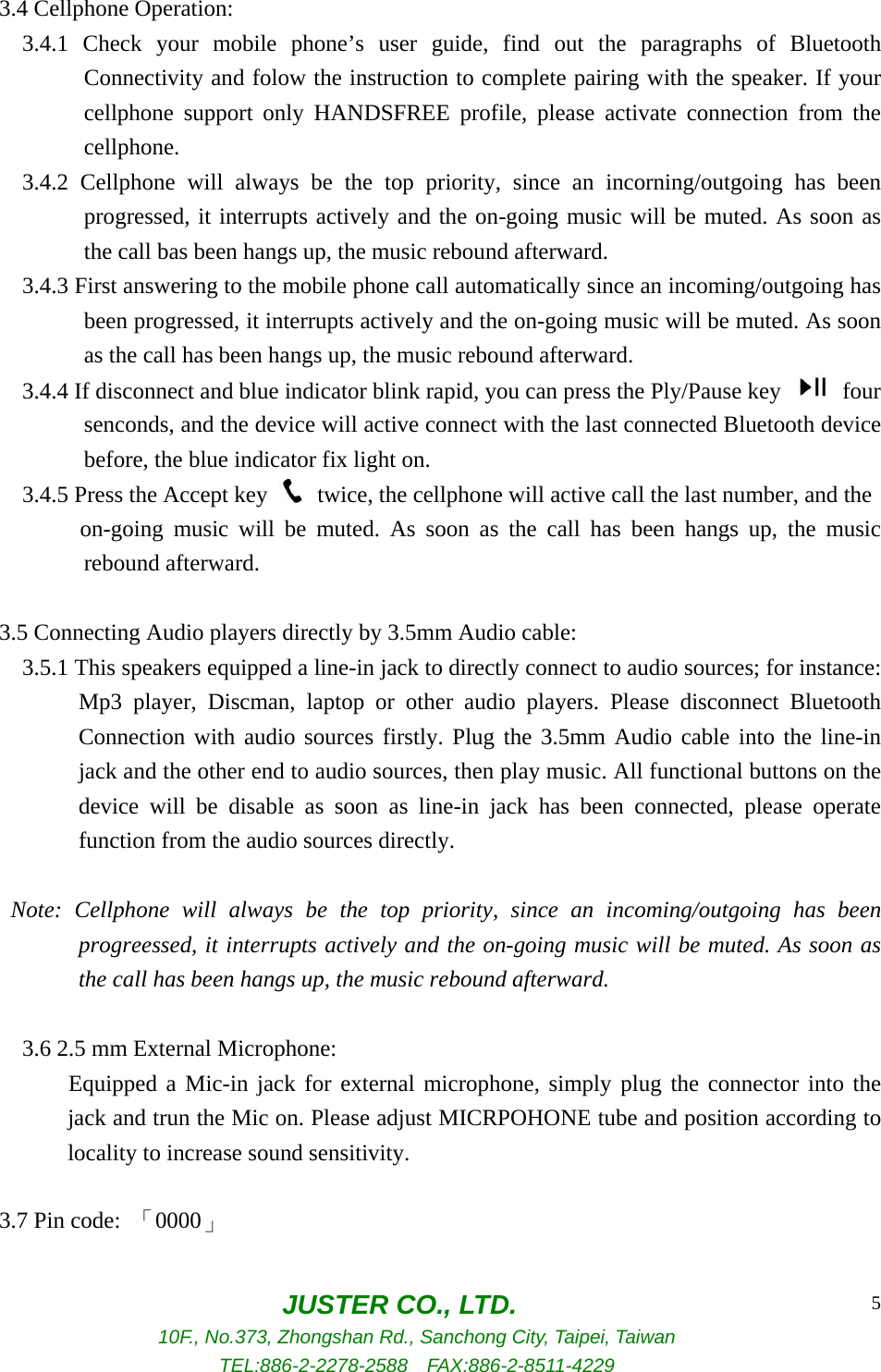

JUSTER CO., LTD. 10F., No.373, Zhongshan Rd., Sanchong City, Taipei, Taiwan TEL:886-2-2278-2588 FAX:886-2-8511-4229 5 3.4 Cellphone Operation: 3.4.1 Check your mobile phone’s user guide, find out the paragraphs of Bluetooth Connectivity and folow the instruction to complete pairing with the speaker. If your cellphone support only HANDSFREE profile, please activate connection from the cellphone. 3.4.2 Cellphone will always be the top priority, since an incorning/outgoing has been progressed, it interrupts actively and the on-going music will be muted. As soon as the call bas been hangs up, the music rebound afterward. 3.4.3 First answering to the mobile phone call automatically since an incoming/outgoing has been progressed, it interrupts actively and the on-going music will be muted. As soon as the call has been hangs up, the music rebound afterward. 3.4.4 If disconnect and blue indicator blink rapid, you can press the Ply/Pause key four senconds, and the device will active connect with the last connected Bluetooth device before, the blue indicator fix light on. 3.4.5 Press the Accept key twice, the cellphone will active call the last number, and the on-going music will be muted. As soon as the call has been hangs up, the music rebound afterward. 3.5 Connecting Audio players directly by 3.5mm Audio cable: 3.5.1 This speakers equipped a line-in jack to directly connect to audio sources; for instance: Mp3 player, Discman, laptop or other audio players. Please disconnect Bluetooth Connection with audio sources firstly. Plug the 3.5mm Audio cable into the line-in jack and the other end to audio sources, then play music. All functional buttons on the device will be disable as soon as line-in jack has been connected, please operate function from the audio sources directly. Note: Cellphone will always be the top priority, since an incoming/outgoing has been progreessed, it interrupts actively and the on-going music will be muted. As soon as the call has been hangs up, the music rebound afterward. 3.6 2.5 mm External Microphone: Equipped a Mic-in jack for external microphone, simply plug the connector into the jack and trun the Mic on. Please adjust MICRPOHONE tube and position according to locality to increase sound sensitivity. 3.7 Pin code: 「0000」

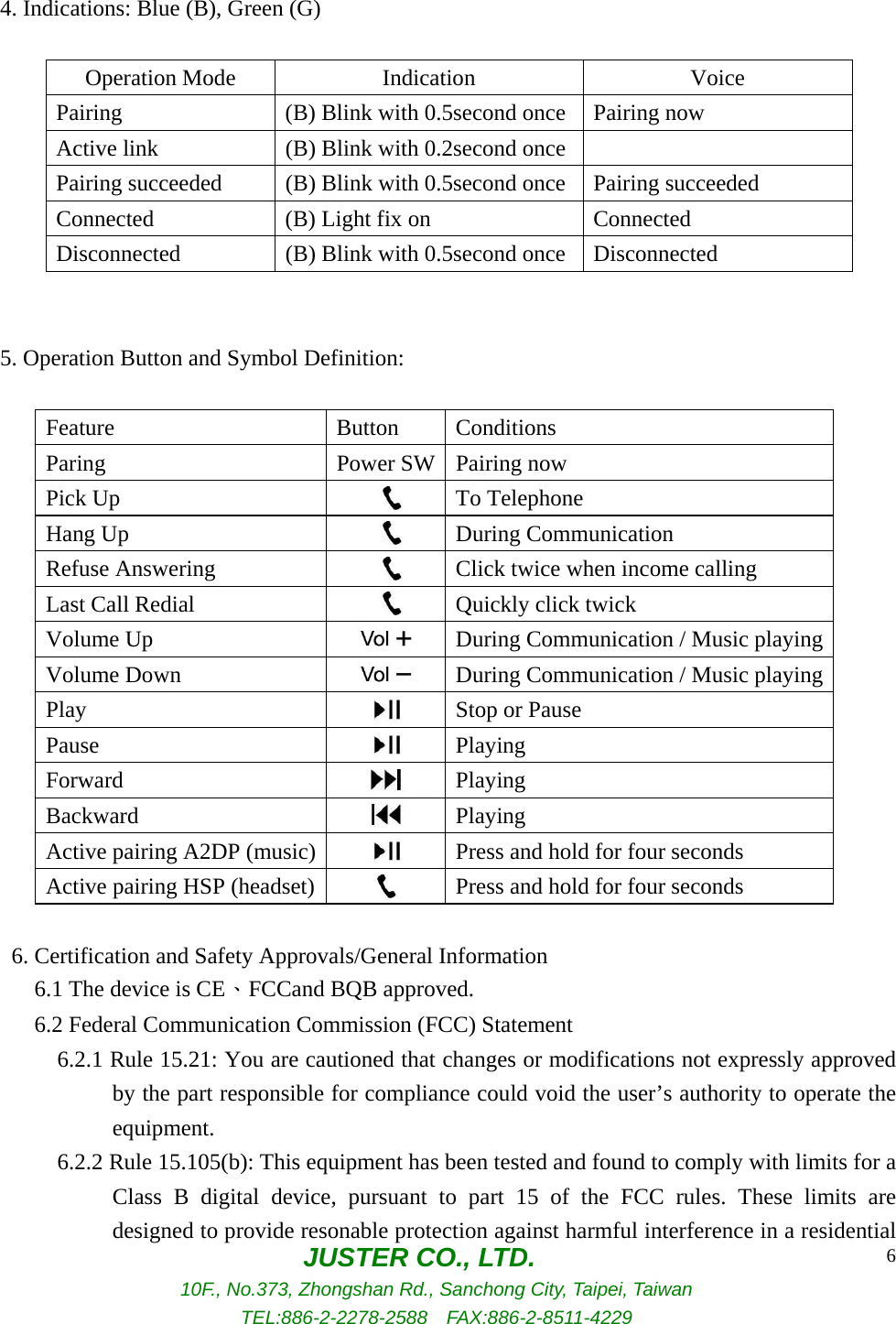

JUSTER CO., LTD. 10F., No.373, Zhongshan Rd., Sanchong City, Taipei, Taiwan TEL:886-2-2278-2588 FAX:886-2-8511-4229 6 4. Indications: Blue (B), Green (G) Operation Mode Indication Voice Pairing (B) Blink with 0.5second once Pairing now Active link (B) Blink with 0.2second once Pairing succeeded (B) Blink with 0.5second once Pairing succeeded Connected (B) Light fix on Connected Disconnected (B) Blink with 0.5second once Disconnected 5. Operation Button and Symbol Definition: Feature Button Conditions Paring Power SW Pairing now Pick Up To Telephone Hang Up During Communication Refuse Answering Click twice when income calling Last Call Redial Quickly click twick Volume Up During Communication / Music playingVolume Down During Communication / Music playingPlay Stop or Pause Pause Playing Forward Playing Backward Playing Active pairing A2DP (music) Press and hold for four seconds Active pairing HSP (headset) Press and hold for four seconds 6. Certification and Safety Approvals/General Information 6.1 The device is CE、FCCand BQB approved. 6.2 Federal Communication Commission (FCC) Statement 6.2.1 Rule 15.21: You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 6.2.2 Rule 15.105(b): This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide resonable protection against harmful interference in a residential

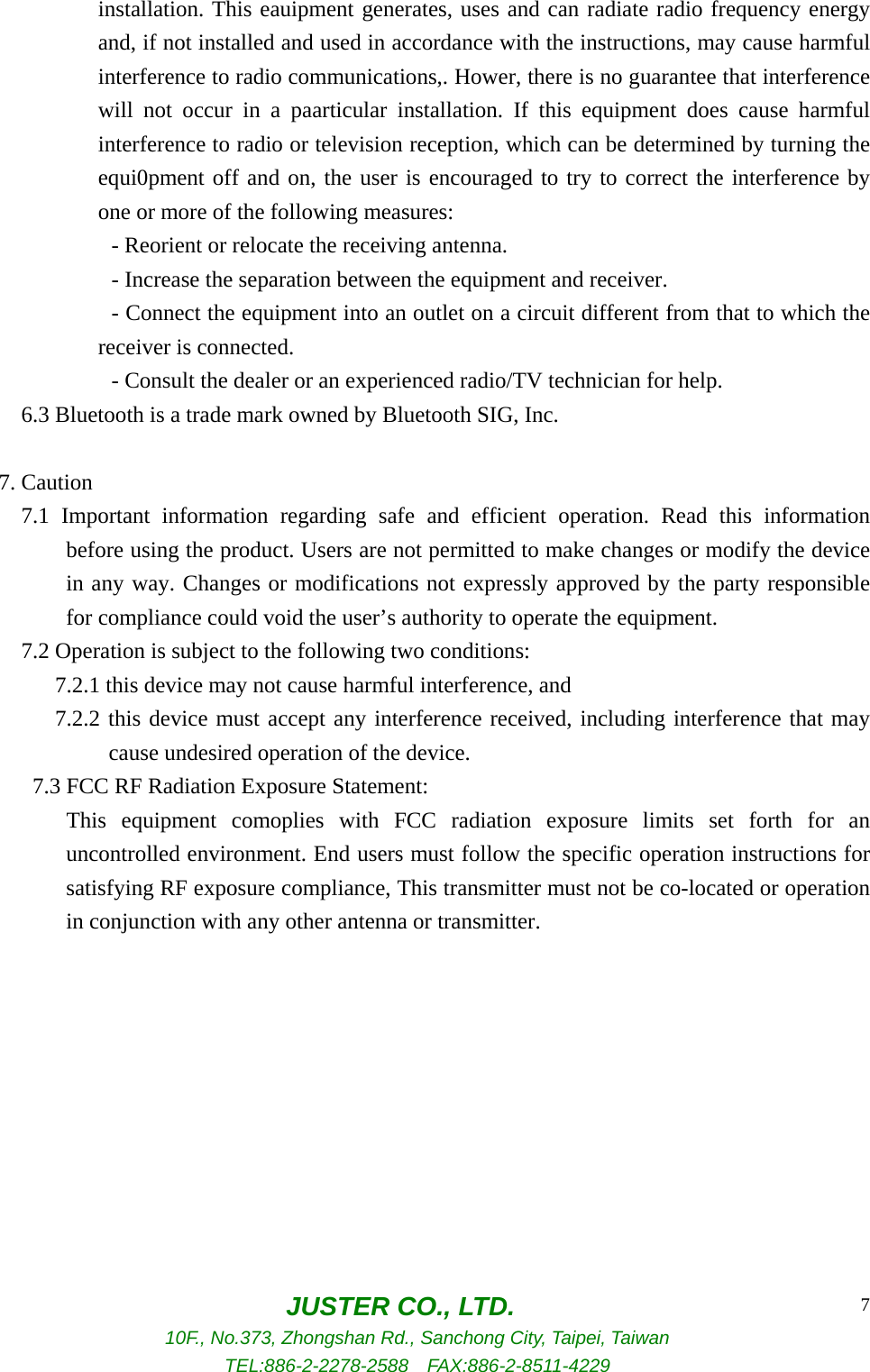

JUSTER CO., LTD. 10F., No.373, Zhongshan Rd., Sanchong City, Taipei, Taiwan TEL:886-2-2278-2588 FAX:886-2-8511-4229 7installation. This eauipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications,. Hower, there is no guarantee that interference will not occur in a paarticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equi0pment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 6.3 Bluetooth is a trade mark owned by Bluetooth SIG, Inc. 7. Caution 7.1 Important information regarding safe and efficient operation. Read this information before using the product. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 7.2 Operation is subject to the following two conditions: 7.2.1 this device may not cause harmful interference, and 7.2.2 this device must accept any interference received, including interference that may cause undesired operation of the device. 7.3 FCC RF Radiation Exposure Statement: This equipment comoplies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operation instructions for satisfying RF exposure compliance, This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter.
