Juster BISC908 Bluetooth Speaker User Manual BISC908i1ju1
Juster Co., Ltd. Bluetooth Speaker BISC908i1ju1
Juster >
Users Manual
OPERATION INSTRUCTIONS

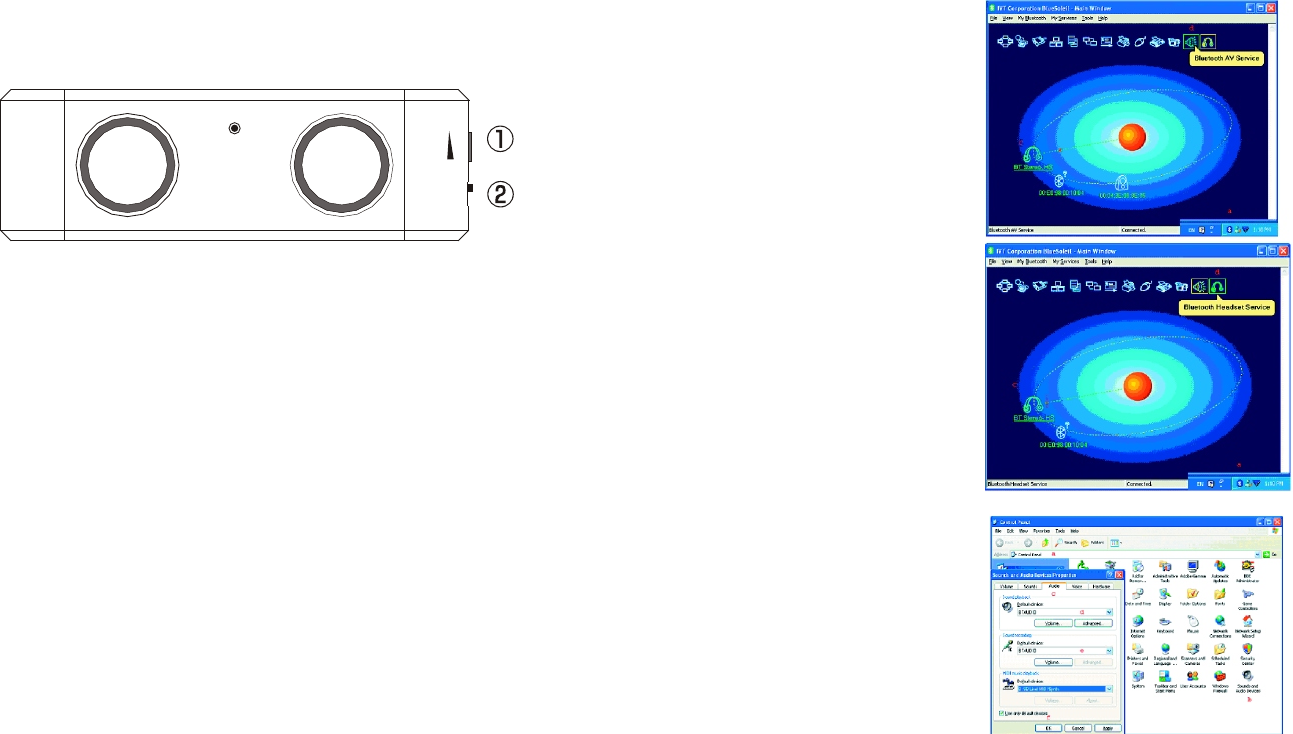

- SPEAKER CONTROLS
Slide the POWER control(2) upwards to turn on the speaker system.
The Power/Pairing indicator LED is flashing that means the power is
ON and waiting to be connected to your Bluetooth audio source.
■ Prepare audio source
Using with your Bluetooth mobile phone
The Bluetooth Multimedia speakers can be used with a Bluetooth
Mobile Phone (equipped with A2DP-Bluetooth stereo).
1. Enable Bluetooth on your mobile phone (refer to your mobile
phone user manual).
2. In the phone's Bluetooth menu, search for devices (device
name:JA2).
3. Select Audio Speaker.
4. Enter the PIN code"0000". 07J-BISC908
Using with your computer
IVT BlueSoleil™
To use the IVT BlueSoleil, first you must pair the Bluetooth
Multimedia speakers with your computer.
Search and connect
1. Double click the Bluetooth icon in
the task tray.
2. Select "My Bluetooth/Search
Bluetooth Device" in the menu, all
Bluetooth devices appear. When
search is over,double click on the
stereo headset icon and enter pin
code"0000", the icon will be
highlighted. Click the right button of
mouse, select "Connecting" then
red dot appear as shooting. This
means connection is successful.
Please repeat step 2 if connection
fails.
Note: The IVT BlueSoleil software is
not included with your Bluetooth
Multimedia speakers.
C o n f i g u r i n g W i n d o w s a u d i o
output
1. Open Control Panel and double
click Sound and Audio devices.
2. Select the Audio tab.
3. Under Sound playback, change
the device to BTAUDIO.
4. Under Sound recording, change
the device to BTAUDIO.
5. Click OK.
ONON
OF FOF F
Note: The Widcomm Bluetooth software is not included with your
Bluetooth Multmedia speakers.
Widcomm® Bluetooth software
To use the Widcomm Bluetooth software, first you must pair the
Bluetooth Multimedia speakers.
Configuring Windows audio output
1. Open Control Panel and double
click Sound and Audio devices.
2. Select the Audio tab.
3. Under Sound playback, change the
device to Bluetooth High Quality
Audio.
4. Click OK.
- CONNECTIONS
Search and connect
1. Double click the Bluetooth icon in
the task tray.
2. Click Search for devices in range.
3. Double click the Stereo Headset
icon. Enter 0000 for pin code.
4. Right click on the stereo headset
icon and select Audio Sink on
Stereo Headset to create a
connection shortcut.
Power/Pairing LED will turn light when the speaker is connected to
your Bluetooth audio source successfully. The LED will flash per
second if you do not connect to your Bluetooth audio source after 3
minutes that means the speaker is coming into idle status. Please
connect again.
Rotate the VOLUME control(1) upwards to increase or upwards to
decrease the listening level.
To turn off the speaker system, slide the POWER button(2) upwards.
The power/pairing LED will turn off.
*Connect the AC power cord to a suitable AC power outlet. The shape of
the plug may differ from that in the fig. to conform to local condition.
1. Insert one plug of the audio cable into the AUDIO IN jack on the
rear of the speaker. Then insert the other one into the
headphone or line output socket of the audio source.
2. Insert the DC plug of the adaptor into the DC jack of the
speaker. Then connect the power plug to a suitable AC
outlet.
* Disconnect the power plug of the adaptor from the AC outlet
when the system is left unused for a long period of time.
Note:
For Europe: 230V/50Hz
For U.S.A.& Canada: 120V/60Hz
For Japan: 100V, 50/60Hz
For Australia: 240V/50Hz
TO AUDIO SOURCE
- BATTERY INSTALLATION
Please remove the batteries from the compartment when the system
is left unused for a long period of time.
BATTERIES: AA x 4pcs (not included)
When LINE IN and Bluetooth are connected at the same time,
the LINE IN will be priority.
Note:
◆Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
◆This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
