COMPACT COMPONENT SYSTEM

CA-NXG9

NX-G5

—Consists of CA-NXG5 and SP-NXG5

INSTRUCTIONS

GVT0260-001A

[US/UN/UB/UG/UX/A/UW]

(CA-NXG9) (CA-NXG9)

Cover_NXG9G5_U_eng.indd 2Cover_NXG9G5_U_eng.indd 2 08.7.28 8:21:02 PM08.7.28 8:21:02 PM

G-1

Warnings, Cautions and Others

CAUTION

The button in any position does not

disconnect the mains line.

Disconnect the mains plug to shut the power off

completely (the STANDBY lamp goes off).

The MAINS plug or an appliance coupler is used

as the disconnect device, the disconnect device

shall remain readily operable.

• When the system is on standby, the STANDBY

lamp lights red.

• When the system is turned on, the STANDBY

lamp goes off.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or

moisture.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover or

cabinet. There are no user serviceable parts

inside the unit; leave all servicing to qualified

service personnel.

3. CAUTION: Visible and/or invisible class 1M

laser radiation when open. Do not view

directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL,

PLACED INSIDE THE UNIT.

Safety_NXG9G5_U_eng.indd Sec1:1Safety_NXG9G5_U_eng.indd Sec1:1 13/6/08 17:19:5213/6/08 17:19:52

G-2

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a

stand with a height of 10 cm or more.

Front view Side view

CAUTION

• Do not block the ventilation openings or

holes.

(If the ventilation openings or holes are

blocked by a newspaper or cloth, etc., the

heat may not be able to get out.)

• Do not place any naked flame sources, such

as lighted candles, on the apparatus.

• When discarding batteries, environmental

problems must be considered and local

rules or laws governing the disposal of these

batteries must be followed strictly.

• Do not expose this apparatus to rain,

moisture, dripping or splashing and that

no objects filled with liquids, such as vases,

shall be placed on the apparatus.

CA-NXG9

SP-NXG5 CA-NXG5 SP-NXG5 CA-NXG9

CA-NXG5

CAUTION:

Excessive sound pressure from earphones or

headphones can cause hearing loss.

[European Union only]

CAUTION:

Battery shall not be exposed to excessive heat

such as sunshine, fire or the like.

Safety_NXG9G5_U_eng.indd Sec1:2Safety_NXG9G5_U_eng.indd Sec1:2 13/6/08 17:19:5313/6/08 17:19:53

Introduction

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your

complete understanding and to obtain the best possible performance from the System.

Others

Should any metallic object or liquid fall into the

System, unplug the power cord and consult your dealer

before operating any further.

DO NOT disassemble the System since

there are no user serviceable parts

inside.

• If you are not going to operate the System for an

extended period of time, unplug the power cord

from the wall outlet.

If anything goes wrong, unplug the power cord and

consult your dealer.

How to Read This Manual

• Button and control operations are explained in the

table below.

• Some related tips and notes are explained later in

the sections “Learning More about This System”

and “Troubleshooting,” but not in the same

section explaining the operations ( indicates

that the content has some information).

• Illustrations used in this manual is mainly of CA-

NXG9. They may look different from the model you

have.

Indicates that you press the button

briefly.

Indicates that you press the button

briefly and repeatedly until the

option you want is selected.

Indicates that you press one of the

buttons.

sec.

Indicates that you press and hold the

button for a specified period.

Indicates that you turn the control in

the specified direction(s).

Indicates that this operation is only

possible using the remote control.

Indicates that this operation is only

possible using the main unit.

Precautions

Installation

• Install the System in a location with adequate

ventilation to prevent internal heat build-up in the

System.

DO NOT install the System in a

location near heat sources, or in a place

subject to direct sunlight, excessive dust

or vibration.

• Install in a place which is level, dry and neither too

hot nor too cold—between 5°C and 35°C.

• Leave sufficient distance between the System and the

TV.

• Keep the speakers away from the TV to avoid

interference with the TV.

Power sources

• When unplugging the System from the wall outlet,

always pull on the plug, not the power cord.

DO NOT handle the power cord with

wet hands.

Moisture condensation

Moisture may condense on the lens inside the System

in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a

warm place.

Should this occur, the System may malfunction. In this

case, leave the System turned on for a few hours until

the moisture evaporates, unplug the power cord, then

plug it in again.

Internal heat

• Make sure there is good ventilation around the

System. Poor ventilation could overheat and damage

the System.

DO NOT block the ventilation

openings or holes. If they are blocked

by a newspaper or cloth, etc., the heat

may not be able to get out.

text_EN_NXG9G5.indb 1text_EN_NXG9G5.indb 1 08.8.5 10:51:47 AM08.8.5 10:51:47 AM

Contents

Recording Operations . . . . . . . . . . . . . . . . . . . .28

Setting up the Recording Modes . . . . . . . . . . . . . . . 29

Recording from a Disc . . . . . . . . . . . . . . . . . . . . . . . 30

Recording from the Radio/External Equipment . . 31

Editing Operations . . . . . . . . . . . . . . . . . . . . . .32

Giving (Editing) Titles to Tracks or Groups . . . . . 32

Making a New Group . . . . . . . . . . . . . . . . . . . . . . . . 34

Moving a Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Erasing a Track. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Erasing a Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Erasing All Tracks and Groups . . . . . . . . . . . . . . . . 37

Bluetooth® Operations . . . . . . . . . . . . . . . . . . .38

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Listening to Bluetooth Audio Player. . . . . . . . . . . . 39

Listening to Music

Using Bluetooth Headphones. . . . . . . . . . . . . . . . 40

Changing the Bluetooth Settings . . . . . . . . . . . . . . . 42

Enjoying Karaoke (only for CA-NXG9) . . . . . . .44

Singing Along (Karaoke) . . . . . . . . . . . . . . . . . . . . . 44

Adjusting the Sound Track for Karaoke. . . . . . . . . 45

Scoring Your Karaoke Skill. . . . . . . . . . . . . . . . . . . . 45

Changing the Karaoke Setting . . . . . . . . . . . . . . . . . 46

Reserving Karaoke Songs

—Karaoke Program Play . . . . . . . . . . . . . . . . . . . . 48

On-Screen Operations . . . . . . . . . . . . . . . . . . . .49

On-screen Bar Operations . . . . . . . . . . . . . . . . . . . . 49

Control Screen Operations . . . . . . . . . . . . . . . . . . . 52

Timer Operations. . . . . . . . . . . . . . . . . . . . . . . .54

Setting the Daily Timer . . . . . . . . . . . . . . . . . . . . . . . 54

Setting the Recording Timer . . . . . . . . . . . . . . . . . . 56

Setup Menu Operations . . . . . . . . . . . . . . . . . .57

Initial Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Additional Information . . . . . . . . . . . . . . . . . .59

Learning More about This System . . . . . . . . . . . . . 59

Operating JVC’s TVs Using

the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . 62

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Display Messages for Recording or

Editing Operations . . . . . . . . . . . . . . . . . . . . . . . . 65

Optical Digital Out Signals . . . . . . . . . . . . . . . . . . . 66

Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Parts Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Playable Disc/File Types . . . . . . . . . . . . . . . . . . . . . . 3

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Preparing the remote control . . . . . . . . . . . . . . . . . . 6

Changing the Color System and

Scanning Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Display Indicators . . . . . . . . . . . . . . . . . . . . . . . .8

Daily Operations—Playback . . . . . . . . . . . . . . .9

Listening to the Radio . . . . . . . . . . . . . . . . . . . . . . . . 10

Playing Back a Disc/USB Mass Storage

Class Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Playing Back a Digital Audio Player . . . . . . . . . . . . 14

Sound & Other Adjustments. . . . . . . . . . . . . . .15

Adjusting the Sound . . . . . . . . . . . . . . . . . . . . . . . . . 15

Creating a Soothing Tone for Your Ear

—MY SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Creating 3-Dimensional Sound Field

—3D Phonic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Creating a Spacious Sound Field

for Headphones—HP Surround. . . . . . . . . . . . . . 17

Making Dialogues Clear —Clear Voice . . . . . . . . . 17

Selecting the Sound Modes. . . . . . . . . . . . . . . . . . . . 17

Creating Your Own Sound Modes

—User Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Presetting Automatic DVD

Sound Increase Level . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the Display Brightness. . . . . . . . . . . . . . . 19

Setting the ECO (Ecology) Mode . . . . . . . . . . . . . . 19

Changing the Picture Tone. . . . . . . . . . . . . . . . . . . . 19

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Turning Off the Power Automatically . . . . . . . . . . 21

Prohibiting Disc Ejection—Child Lock . . . . . . . . . 21

Unique Video Disc/File Operations . . . . . . . . .22

Selecting the Audio Track. . . . . . . . . . . . . . . . . . . . . 22

Selecting the Subtitle Language . . . . . . . . . . . . . . . . 23

Selecting the View Angle . . . . . . . . . . . . . . . . . . . . . 23

Special Effect Playback . . . . . . . . . . . . . . . . . . . . . . . 23

Advanced Playback Operations . . . . . . . . . . . .25

Programming the Playing Order

—Program Play . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Playing at Random—Random Play. . . . . . . . . . . . . 26

Playing a Group—Group Play . . . . . . . . . . . . . . . . . 26

Playing Repeatedly. . . . . . . . . . . . . . . . . . . . . . . . . . . 27

text_EN_NXG9G5.indb 2text_EN_NXG9G5.indb 2 08.8.5 10:51:51 AM08.8.5 10:51:51 AM

About color system

This System accommodates both NTSC and PAL

system and can play back discs/files recorded in either

system.

To change the color system, see page 7.

Note on Region Code

DVD players and DVDs have their own Region Code

numbers. This System can play back only DVDs with

an appropriate Region Code number.

• For details, see page 67.

• “REGION ERR” appears if DVD with a wrong

Region Code is loaded.

Ex.: For Southeast Asia

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply

with the “Compact Disc Digital Audio” standard.

Therefore, the use of the Non-DVD side of a DualDisc

in this product may not be recommended.

IMPORTANT: Before playing a disc/file, make sure

of the following...

• Turn on the TV and select an appropriate input

mode on the TV to view the pictures or on-screen

displays.

• For disc/file playback, you can change the initial

setting to your preference. See “Setup Menu

Operations” on page 57.

If “ ” appears on the TV screen when you press

a button, the disc/file cannot perform the operation

you have tried to do.

• When playing a multi-channel encoded software, the

System properly converts the multi-channel signals

into 2 channels, and emits the downmixed sound

from the speakers. To enjoy the powerful sound of

these multi-channel encoded software, connect a

proper decoder or an amplifier with a proper built-

in decoder to the OPTICAL DIGITAL OUTPUT

terminal on the rear.

How to cancel the demonstration

Press and hold DEMO button on the main unit

(until “DEMO CLEAR” appears on the display)

while on standby.

• Refer to the attached sheet “Information about the

demonstration function.”

Playable Disc/File Types

DIGITAL VIDEO

SUPER VIDEO

COMPACT

DIGITAL AUDIO

• CD-R/-RW: Recorded in the Audio CD, Video

CD, and SVCD formats. MP3, WMA, WAV,

JPEG, MPEG-1, MPEG-2, ASF and DivX files

written in accordance with the “ISO 9660” format

can also be played.

• DVD-R/-RW, +R/+RW: MP3, WMA, WAV,

JPEG, MPEG-1, MPEG-2, ASF and DivX files

written in the UDF-Bridge format can be played.

• DVD-R/-RW: Recorded in the DVD Video

format and the DVD Video Recording (VR)

format.

• +R: Recorded in the DVD Video format.

• DVD-ROM: MP3, WMA, WAV files.

• USB mass storage class device: MP3, WMA,

WAV, JPEG, MPEG-1, MPEG-2, ASF and DivX*

files.

In addition to the above discs/files, this System can

play back audio data recorded on CD-Extra and CD-G

(CD-Graphics).

• The following discs cannot be played back:

DVD-RAM, CD-I (CD-I Ready), CD-ROM, and

Photo CD.

Playing back these discs will generate noise and

damage the speakers.

• CD Text and DVD Text can be played, but Text

information will not be shown on the display.

• It is possible to play back finalized +R/+RW discs.

• “DVD Logo” is a trademark of DVD Format/Logo

Licensing Corporation.

• This System can play back EVERIO file (see page 60)

recorded on DVD, CD*, and USB mass storage class

device*.

* Only when the maximum bit rate is less than 2 Mbps.

text_EN_NXG9G5.indb 3text_EN_NXG9G5.indb 3 08.8.5 10:51:54 AM08.8.5 10:51:54 AM

Connections

Do not connect the power cord until all other

connections have been made.

• Connect VIDEO OUT directly to the video input

of your TV. Connecting VIDEO OUT to a TV via a

VCR may interfere with your viewing when playing

back copy-protected discs/files. Connecting VIDEO

OUT to an integrated TV/VCR system may also

interfere with your viewing.

Supplied accessories

Check to be sure that you have all the following

items.

• FM antenna (×1)

• AM loop antenna (×1)

• Composite video cord (×1)

• Remote control (×1)

• Batteries (×2)

• AC plug adapter (×1)

(Not supplied for Australia, Hong Kong, Thailand

and the Middle East.)

• Core filter (×1), see the rear cover for details

If any items are missing, consult your dealer

immediately.

Rear panel

~ From AM/FM antenna

See page 5.

Ÿ From the speakers

See page 5.

⁄ From the digital

input of digital

audio component

See page 6.

! From the input of TV/

monitor

See page 6.

¤ To a wall outlet

Plug in the power cord only

after all connections have

been completed.

• If the wall outlet does not match

the AC plug, use the supplied

AC plug adapter (not supplied

for Australia, Hong Kong and

the Middle East).

@ Voltage selector

(Only for CA-NXG9)

Before plugging in, confirm

the position of the voltage

selector. See page 6.

* The illustration above is for CA-NXG9.

text_EN_NXG9G5.indb 4text_EN_NXG9G5.indb 4 08.8.5 10:51:55 AM08.8.5 10:51:55 AM

Ÿ Speakers

When connecting the speaker cords, match the polarity

of the speaker terminals.

CA-NXG9:

Main speakers: blue to (+) and black to (–)

Subwoofer: red to (+) and black to (–)

NX-G5: blue to (+) and black to (–)

CA-NXG9

NX-G5

• DO NOT connect more than one

speaker to each terminal.

• DO NOT push or pull the speakers

as this will damage the foot spacers at

the bottom of the speakers.

~ AM/FM antenna

To assemble the AM loop antenna

To connect AM/FM antenna

For better FM reception

Disconnect the supplied FM antenna, and connect to

an outdoor FM antenna using a 75 Ω wire with coaxial

type connector (IEC or DIN45325).

AM loop antenna (supplied)

Turn it until the best reception is

obtained.

If the cords are covered with vinyl,

remove the vinyl to expose the tip of

the cord by twisting the vinyl.

FM antenna (supplied)

Extend it so that you can obtain the

best reception.

FM outdoor antenna

(not supplied)

Red

Black

From right

speaker

From left speaker

Blue

Black

Blue Black

From right speaker

From left speaker

Blue Black

From subwoofer

Blue

Black

text_EN_NXG9G5.indb 5text_EN_NXG9G5.indb 5 08.8.5 10:51:57 AM08.8.5 10:51:57 AM

! TV/monitor

Connect either a component video cord, a composite

video cord or a HDMI cable.

• To select progressive scanning mode (see page 7),

use COMPONENT jacks or the HDMI MONITOR

OUT jack.

• After connecting a TV, select the appropriate video

signal output according to the color system. See

“Changing the Color System and Scanning Mode”

on page 7.

• When you use an HDMI cable, make appropriate

settings in the SET UP menu (see page 58).

Optical digital cord

(not supplied)

Blue

Green

Red

Component video cord (not

supplied)

Composite video cord

(supplied)

Yellow

⁄ Digital audio component

• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO”

menu correctly according to the connected digital

audio equipment (see page 66).

• The digital signal through the OPTICAL DIGITAL

OUTPUT terminal is transmitted only when “DVD/

CD” or “USB1” is selected as the source.

@ Voltage selector (only for CA-NXG9)

• This operation is not required for Saudi Arabian

models and Australian models.

Use a screwdriver to slide the voltage selector so that

it is pointing to the correct voltage in the area you are

plugging in the unit. (See also the back cover page.)

Preparing the remote control

Insert the battery into the remote control by matching

the polarity (+ and –) correctly.

If the range or effectiveness of the remote control

decreases, replace both batteries.

Caution:

Be careful your children do not put the batteries into

their mouth.

When using the remote control

Point the top of the remote control towards the remote

sensor as directly as possible. If you operate it from a

diagonal position, the operating range (approx. 5 m)

may be shorter.

HDMI cable (not supplied)

Use an HDMI cable of less than

2 m.

Protective cap

About HDMI CEC

CEC is device controlling signals optionally employed

for the HDMI standard. When devices equipped with

CEC are connected, each device can control the others.

This System is compatible with some basic functions of

HDMI CEC. For example, when you start playback on

the System, the connected TV compatible with HDMI

CEC automatically turns on.

• This function is available only when the source is set

to “DVD/CD” or “USB1”.

• You can activate or deactivate this function (see page

58).

• For details about the CEC function, refer to the

operations manuals of the connected CEC devices.

• The CEC function may not work with some CEC

devices.

• The CEC function may not work depending on the

settings or status of the System or the connected

CEC devices.

text_EN_NXG9G5.indb 6text_EN_NXG9G5.indb 6 08.8.5 10:51:58 AM08.8.5 10:51:58 AM

Front panel

From the USB mass storage class device

To the headphones

From the digital audio player

To the microphones (only for CA-NXG9)

See page 44.

When connecting a digital audio player

• See page 14 for audio input level.

When connecting a USB mass storage class device

• When connecting with a USB cable, use the USB 2.0

cable whose length is less than 1 m.

• You can connect a USB mass storage class device

such as a USB flash memory device, hard disk drive,

multimedia card reader, etc. to this System.

You can select the video output to match it to the color

system of your TV (NTSC or PAL).

• If you connect a progressive TV through the

COMPONENT cords or the HDMI cable, you can

enjoy a high quality picture by selecting progressive

scanning mode.

• You can change the setting only while playback is

stopped.

From the Bluetooth adapter

See page 38.

When an HDMI cable is connected

AUTO The System automatically emits the

video signal to get the best picture

quality on your TV.

PAL 576P /

PAL 720P /

PAL 1080I /

PAL 1080P

For a PAL TV.

P: Progressive

I: Interlaced

NTSC 480P /

NTSC 720P /

NTSC 1080I /

NTSC 1080P

For a NTSC TV.

P: Progressive

I: Interlaced

When an HDMI cable is not connected

PAL 576I

PAL 576P

For a PAL TV. Select “PAL 576P” if

you connect a progressive TV through

the COMPONENT jacks.

NTSC 480I

NTSC 480P

For an NTSC TV. Select “NTSC

480P” if you connect a progressive TV

through the COMPONENT jacks.

Changing the Color System and Scanning Mode

Stereo mini plug

(not supplied)

From audio output (or headphone

out, etc.)

USB cable (not

supplied)

text_EN_NXG9G5.indb 7text_EN_NXG9G5.indb 7 08.8.5 10:52:00 AM08.8.5 10:52:00 AM

Display Indicators

The indications on the display tell you a lot of things while you are operating the System.

Before operating the System, be familiar with when and how the indicators illuminate on the display.

A.STBY

REC

HIGHHQ SP LP

USB

SLEEP

ALL GR PRGM RND

V.BASS

3DP S.MODE C.VOICE

MONO

K.Scoring

PRGR HD

V.MASK

Bluetooth

HDMI

1 SLEEP indicator

• Lights when the Sleep Timer is activated. (See

page 21.)

2 A.STBY (Auto Standby) indicator (See page 21.)

• Lights when Auto Standby is activated.

• Flashes when playback stops with Auto Standby

activated.

3 Playback mode indicators

• PRGM: lights when Program Play is activated.

(See page 25.)

• RND: lights when Random Play is activated. (See

page 26.)

• Repeat Mode indicators (See page 27.)

– : lights when REPEAT ALL is activated.

– : lights when REPEAT GRP is activated.

– : lights when any Repeat Mode other than

above is activated.

4 V. BASS indicator

• Lights when VARIO BASS is activated. (See page

15.)

5 3DP indicator

• Lights when 3D Phonic is activated. (See page

17.)

6 Sound Mode indicators (See page 17.)

• S.MODE: lights when one of the Sound Modes is

activated.

• : lights when one of the Sound Modes with

surround effect is activated.

7 C. VOICE (Clear Voice) indicator

• Lights when Clear Voice is activated. (See page

17.)

8 (My Sound) indicator

• Lights when MY SOUND is activated. (See page

16.)

9 FM reception indicators (See page 11.)

• ST (Stereo): lights while an FM stereo station

with sufficient signal strength is tuned in.

• MONO (Monaural): lights while receiving an FM

stereo station in monaural.

p Karaoke operation indicators (only for CA-NXG9)

(See page 44.)

• K.Scoring: lights when Karaoke Scoring is

activated; flashes when Karaoke Scoring is in use.

• : lights when Mic Mixing is activated.

• : lights when Echo is activated.

• V.MASK: lights when Vocal Masking is

activated.

q Timer indicator (See page 54.)

• : lights when Daily Timer or Recording Timer

is on standby or is being set; flashes while it is

working.

w USB indicator

• Lights when USB is selected as the source. (See

page 12.)

e Recording mode indicators

• HQ/SP/LP: indicates the transfer rate for

recording. (See page 29.)

• HIGH: lights when the high speed recording is

selected. (See page 29.)

r REC (Recording) indicator

• Lights when recording started. (See page 30.)

t Main display

y PRGR (Progressive) indicator

• Lights when the progressive scanning mode is

selected. (See page 7.)

u Bluetooth indicator (See page 39.)

• Lights when the Bluetooth connection is

established.

• Flashes when the Bluetooth adapter is connected

and “Bluetooth” is selected as the source.

• Flashes when the Bluetooth adapter is connected

and the Bluetooth transmitter is activated.

i HD indicator

• Lights when video signal is transmitted in 1080i,

720p or 1080p. (See page 7.)

o HDMI indicator

• Lights when video signal is transmitted through

the HDMI cable. (See page 7.)

text_EN_NXG9G5.indb 8text_EN_NXG9G5.indb 8 08.8.5 10:52:01 AM08.8.5 10:52:01 AM

TOP MENU,

RETURN

TITLE

4, ¢

4, ¢, 7, 8, 3

DOOR

OPEN/CLOSE

ENTER/SET

SHIFT

FILE TYPE

AUDIO IN

LEVEL

FADE

MUTING

TUNER

MODE,

1, ¡

7, 3, 8

Daily Operations—Playback

In this manual, operations using the remote

control are mainly explained; however, you can

use the buttons and controls on the main unit

if they have the same (or similar) name and marks.

To prevent accidental injuries, do not touch the

front panel while it is opening or closing.

Remote control

Main unit

Number

buttons

1 Turn on the power.

On the remote: On the main unit:

• The STANDBY lamp on the main unit turns off.

• The front panel opens

automatically.

2 Select the source.

On the remote:

On the main unit:

DVD/CD

USB1

Bluetooth

USB2

AUDIO IN

TUNER FM

TUNER AM

• Playback automatically starts if the selected

source is ready.

3 Adjust the volume.

You can adjust the volume level from “VOLUME

MIN” (level 0) to “VOLUME MAX” (level 31).

On the remote: On the main unit:

CA-NXG9: NX-G5:

text_EN_NXG9G5.indb 9text_EN_NXG9G5.indb 9 08.8.5 10:52:03 AM08.8.5 10:52:03 AM

Listening to the Radio

To select the AM tuner interval

spacing

Some countries space AM stations 9 kHz apart, and

other countries use 10 kHz spacing.

1 Select “TUNER AM.”

2 Select the AM tuner interval spacing.

To select 9 kHz:

AM 9kHz

(while holding...)

To select 10 kHz:

AM 10kHz

(while holding...)

To select the band (FM or AM)

To turn off (standby) the System

The STANDBY lamp on the main

unit lights in red.

• A small amount of power is

always consumed even while on

standby.

To open/close the front panel

On the remote: On the main unit:

To drop the volume in a moment

To restore the volume, press

again, or adjust the volume level.

For private listening

Connect a pair of headphones to the PHONES

jack on the main unit. The sound will no longer

come out of the speakers. “HPHONE IN” appears

on the display for a while. Be sure to turn down

the volume before connecting or putting on the

headphones.

• Disconnecting the headphones will activate the

speakers again.

DO NOT turn off (standby) the System

with the volume set at an extremely

high level; otherwise, the sudden blast

of sound may damage your hearing,

speakers and/or headphones when you

turn on the System or start playback.

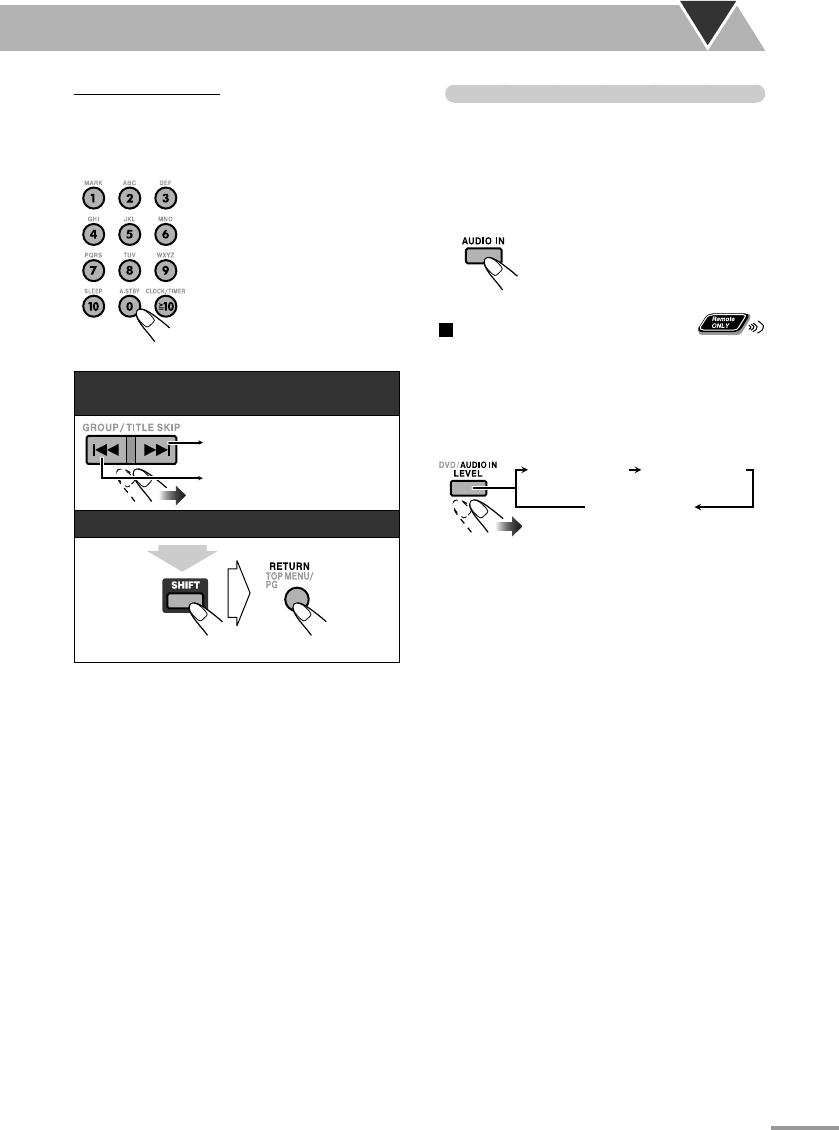

How to select a number

Examples:

To select number 5, press 5.

To select number 10, press 10.

To select number 15, press

10, 1, then 5.

To select number 30, press

10, 3, then 0.

To select number 125, press

10, 10, 1, 2, then 5.

1 sec

text_EN_NXG9G5.indb 10text_EN_NXG9G5.indb 10 08.8.5 10:52:04 AM08.8.5 10:52:04 AM

4 Store the station.

STORED

To tune in to a preset station

1 Select the band (FM or AM).

2 Select the preset number for the station

you stored.

• To select a number, see

“How to select a number”

on page 10.

Playing Back a Disc/USB Mass Storage

Class Device

To insert a disc

• When using an 8 cm disc, place it on the inner circle

of the disc tray.

To close the disc tray, press 0 again.

• If you press DVD/CD 6, disc tray closes

automatically and playback starts (depending on

how the disc is programmed internally).

To tune in to a station

While FM or AM is selected...

Frequency starts changing on the display.

When a station (frequency) with sufficient signal

strength is tuned in, the frequency stops changing.

• When you repeatedly press the button, the frequency

changes step by step.

To manually stop the search, press either button.

If the FM reception is poor

The MONO (monaural) indicator lights on the

display. Reception will improve though stereo effect is

lost—Monaural reception.

To restore the stereo effect, press the button again.

The MONO (monaural) indicator disappears.

To preset the stations

You can preset 30 FM and 15 AM stations.

1 Tune in to a station you want to preset.

• You can also store the monaural reception mode

for FM preset stations if it is selected.

2 Activate the preset number entry mode.

SET

• Finish the following process while the indication

on the display is flashing.

3 Select a preset number for the station you

store.

• To select a number,

see “How to select a

number” on page 10.

2 sec

text_EN_NXG9G5.indb 11text_EN_NXG9G5.indb 11 08.8.5 10:52:06 AM08.8.5 10:52:06 AM

On-screen guide icons

• During playback, the following icons may appear on

the TV:

At the beginning of a scene containing

multi-angle views.

At the beginning of a scene containing

multi-audio sounds.

At the beginning of a scene containing

multi-subtitles.

• The following icons will also be shown on the TV to

indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icon, see “ON

SCREEN GUIDE” in “OTHERS” menu on page 58.

To select the file type

For “DVD/CD” and “USB1”:

If different types of playable files (audio/still picture/

moving picture) are recorded, select a file type to play.

While playback is stopped...

• You can also select the file type using Setup Menu.

See “FILE TYPE” in “PICTURE” menu on page 58.

To select a title/group

While playing...

(while holding...)

To select a chapter/track/file

• For SVCD/VCD, cancel PBC (see page 13).

While playing...

• When you press 4 for

the first time, you will go

back to the beginning of

the current chapter/track/

file.

To connect a USB mass storage class device

• For connecting a USB mass storage class device, see

page 7.

• Always set volume level to the minimum level when

connecting or disconnecting a USB mass storage

class device.

• To disconnect a USB mass storage class device safely,

turn off the System before disconnecting it.

To play back a disc/USB mass storage class

device

• You can play back only music files on the USB 2

terminal.

To start:

Disc USB mass storage class

device

To pause: To stop:

To release, press 3.

For “DVD/CD” and “USB1”:

You can use the control screen shown on the TV. (For

still/moving picture files, it appears while playback is

stopped.) For details, see page 49.

Resume function

For “DVD/CD” and “USB1”:

The System can store the stop point, and when you

start playback again by pressing 3, DVD/CD 6 or

USB 1 6 (even while on standby), it starts from the

position where you have stopped—Resume Play.

To stop completely while Resume is activated, press

7 twice. (To deactivate Resume, see “RESUME” in

“OTHERS” menu on page 58.)

text_EN_NXG9G5.indb 12text_EN_NXG9G5.indb 12 08.8.5 10:52:07 AM08.8.5 10:52:07 AM

To select a chapter/track/file

• To select a number, see

“How to select a number”

on page 10.

To play back using the disc menu

For DVD Video:

1 Show the disc menu.

2 Select an item on the disc menu.

• For some discs, you can also select items by

entering the number using the number buttons.

For SVCD/VCD with PBC:

While playing a disc with PBC, “PBC” appears on the

display.

When disc menu appears on the TV, select an item on

the menu. Playback of the selected item starts.

• To select a number, see “How

to select a number” on page

10.

To locate a particular portion

• This does not function for JPEG files.

For “DVD/CD” and “USB1”:

While playing...

• For MP3/WMA/WAV/MPEG-1/MPEG-2/ASF/

DivX files, the search speed and indications on the

TV are different from those above.

To return to normal playback, press 3.

For DivX/MPEG-1/MPEG-2 files, each time you

press the 3 or 2 button, you can skip to a scene by

30 seconds or 5 minutes depending on the files.

For “USB2”:

While playing...

• The search speed changes

in two steps.

To return to normal playback, press 3.

To locate an item directly

To select a title/group

(while holding...)

• To select a number, see “How to select a number” on

page 10.

text_EN_NXG9G5.indb 13text_EN_NXG9G5.indb 13 08.8.5 10:52:09 AM08.8.5 10:52:09 AM

To move to the next or previous page of the

current menu:

Moves to the next page.

Moves to the previous page.

To return to the previous menu:

(while holding...)

To cancel PBC, press 7, then select a track by using the

number buttons (see page 10). Playback starts with the

selected track.

To reactivate PBC, press 7 (twice if Resume is turned

on), then press DVD/CD 6.

To search for a track/group by name

You can search for a track or group in the USB device

connected to the USB 2 terminal by title and start

playback.

1 Before starting playback, activate Title

Search.

TR SEARCH Search for a track by title.

GR SEARCH Search for a group by title.

2 Confirm the mode selection.

3 Enter the title.

• You can enter up to 5 characters of the title.

• To enter the title, see “How to enter titles” on

page 33.

4 Start the Title Search.

“SEARCH...” appears on the

display while searching.

When a track or group is found, playback starts.

• When no track or group is found, “SEARCH

END” appears on the display.

To search for next group or track:

To search for next track: To stop Title Search:

Playing Back a Digital Audio Player

• For connecting a digital audio player, see page 7.

You can listen to the digital audio player connected to

the AUDIO IN jack.

• Make sure to turn down the volume on the System to

minimum level before starting playback.

To adjust the audio input level

If the sound from the device connected to the AUDIO

IN jack is too loud or too quiet, you can preset the

audio input level through the AUDIO IN jack (without

changing the volume level).

While “AUDIO IN” is selected as the source...

AUDIO LVL1 AUDIO LVL2

AUDIO LVL3

• As the number of the level increases, the preset input

level is increased.

TR SEARCH GR SEARCH

Canceled

text_EN_NXG9G5.indb 14text_EN_NXG9G5.indb 14 08.8.5 10:52:10 AM08.8.5 10:52:10 AM

Adjusting the Sound

Applying an Optimal Bass Sound Effect

—VARIO BASS

VARIO BASS function adjusts bass sound

characteristics to create a sound suitable for the

playback source of your preference.

AUTO OFF LITEnEASY

TURBO TECHNO MOVIE

AUTO The System automatically applies

TURBO, LITEnEASY, MOVIE or

TECHNO according to the playback

source (initial setting).

LITEnEASY Suitable for Karaoke and classical

music. You can obtain a comfortable

bass sound.

MOVIE Suitable for a video source and

playback of external component.

You can obtain a strong bass sound.

TECHNO

(only for

CA-NXG9)

Suitable for disco or techno music.

You can obtain a strong bouncy bass

sound.

TURBO Suitable for most kinds of music and

playback of external component.

You can obtain a balanced bass

sound.

OFF No sound effect.

Adjusting the Subwoofer Level

—SUBWOOFER LEVEL

You can adjust the subwoofer level from level 1 to level

• This function is available only on CA-NXG9.

Sound & Other Adjustments

3D PHONIC/

HP SURR

SUBWOOFER

LEVEL

VFP

SOUND

MODE

SHIFT

SLEEP

A.STBY

CLOCK/

TIMER

MY SOUND

DVD LEVEL

ECO

C.VOICE

DVD/CD6

USB6

V.BASS

ECO/

DIMMER

DISPLAY

ENTER/SET

(CA-NXG9)

Remote control

Main unit

(CA-NXG9)

text_EN_NXG9G5.indb 15text_EN_NXG9G5.indb 15 08.8.5 10:52:12 AM08.8.5 10:52:12 AM

4 Memorize the measurements.

Each time you hear a test tone, press the button.

You hear 5 test tones from the speakers.

5 Select a preset number from 1 to 3 to store

the equalization pattern.

After finishing the measurement, an appropriate

equalization pattern is created and it is shown in

white on the TV screen.

EXIT

PRESET

MY SOUND

SELECT PRESET 1 TO 3 AND PRESS

THE ENTER KEY TO STORE.

On the TV

• The last equalization pattern stored into the

selected preset number is shown in green.

• To return to the measurement, select “EXIT” on

the TV screen then press ENTER/SET.

6 Store the equalization pattern.

• To store other equalization patterns, press the

button again and repeat steps 3 to 6.

To exit MY SOUND setup

Creating a Soothing Tone for

Your Ear—MY SOUND

For “DVD/CD” and “USB1”:

The sound tone you can hear is different in individuals.

MY SOUND creates an appropriate equalization

pattern for your listening condition.

To set up MY SOUND

1 Select “DVD/CD” or “USB1” as the source.

2 Enter MY SOUND setup.

MY SOUND

SELECT START AND PRESS THE ENTER KEY

TO START MEASUREMENT.

START EXIT

On the TV

“MY SOUND” and “MEASURE” appear alternately

on the display.

3 Start the measurement.

A test tone comes out of the speakers.

On the TV

MY SOUND

MEASURING... DATA 1 2 3 4 5

PRESS THE ENTER KEY IMMEDIATELY

AFTER YOU HEAR THE TEST TONE.

ENTER EXIT

Signal level

text_EN_NXG9G5.indb 16text_EN_NXG9G5.indb 16 08.8.5 10:52:13 AM08.8.5 10:52:13 AM

Making Dialogues Clear

—Clear Voice

For “DVD/CD” and “USB1”:

Clear Voice works for multi-channel software which

contains a center channel signal and for 2-channel

software with 3D Phonic activated.

C.VOICE OFF

C.VOICE ON

Selecting the Sound Modes

You can select one of the preset Sound Modes.

ROCK POP CLASSIC DANCE

HALLSTADIUMUSER 1-3FLAT

A SEA (Sound Effect Amplifier) Modes

ROCK Boosts low and high frequency. Good

for acoustic music (initial setting).

POP Good for music with an emphasis

on vocal.

CLASSIC Good for classical music.

B Surround Modes*

DANCE Increases resonance and bass.

HALL Adds depth and brilliance to the

sound.

STADIUM Adds clarity and spreads the sound,

as in an outdoor stadium.

C User Modes

USER1/2/3 Your individual mode stored in

memory. See “Creating Your Own

Sound Modes—User Mode” on the

next page.

* Surround elements are added to the SEA elements to

create being-there feel in your room.

• While one of the Sound Modes is activated, S.MODE

indicator lights up.

• While one of the Sound Modes with surround effect

is activated, “ ” lights up.

To cancel the Sound Mode, select “FLAT.”

To select the preset MY SOUND

• This does not function for DivX file.

Creating 3-Dimensional Sound Field

—3D Phonic

For “DVD/CD” and “USB1”:

• This does not function for MPEG-1/MPEG-2/ASF/

DivX files.

While playing...

ACTION Suitable for action movies and

sports programs.

DRAMA Creates natural and warm sound.

Enjoy movies in a relaxed mood.

THEATER Enjoy sound effects like in a major

theater.

OFF Canceled.

Creating a Spacious Sound Field for

Headphones—HP Surround

• This only functions while listening to disc/USB mass

storage class device.

• This does not function for MPEG-1/MPEG-2/ASF/

DivX files.

1 Connect headphones to the System.

2 SURR ON

SURR OFF

SURR ON HP Surround is activated.

SURR OFF Canceled.

text_EN_NXG9G5.indb 17text_EN_NXG9G5.indb 17 08.8.5 10:52:14 AM08.8.5 10:52:14 AM

5 Finish the adjustment.

6 Select one of the User Modes to store your

setting into.

USER 1 USER 2

USER 3

7 Store the setting.

MEMORY

• You can adjust the SEA pattern temporarily by doing

the operation on steps 1 to 4. The adjustment is

cleared when you change the sound mode to another

mode.

Creating Your Own Sound Modes

—User Mode

You can adjust the preset Sound Modes to create your

own Sound Modes which suit your taste. The changed

settings can be stored as the USER1, USER2 and

USER3 Modes.

1 Select one of the preset Sound Modes.

• To create your own Sound Mode with surround

effect, select DANCE, HALL or STADIUM.

2 Start editing the selected Sound Mode.

3 Select the SEA parameter you want to

adjust.

BASS

TRE

BASS To adjust the bass sound.

TRE To adjust the treble sound.

4 Adjust the parameter.

BASS +2

• You can adjust the bass and treble level from –4

to +4.

• Repeat steps 3 and 4 to adjust the other

parameters.

text_EN_NXG9G5.indb 18text_EN_NXG9G5.indb 18 08.8.5 10:52:15 AM08.8.5 10:52:15 AM

DVD LEVEL1 DVD LEVEL2

DVD LEVEL3

Setting the ECO (Ecology) Mode

Setting the ECO mode allows you to reduce power

consumption by turning the display off while on

standby.

• You cannot activate the ECO mode while the Daily

Timer or the Recording Timer is turned on.

While the System is on standby...

On the remote:

ECO OFF

ECO ON

(while holding...)

On the main unit:

ECO OFF

ECO ON

Changing the Picture Tone

While showing a playback picture on the TV, you can

select a preset picture tone, or adjust it and store your

own preference.

To select a preset picture tone

1 While playing, display VFP setting screen.

On the TV

2 Select a preset picture tone.

NORMAL Normally select this.

CINEMA Suitable for a movie source.

USER1/

USER2

You can adjust parameters and can

store the settings. (See the next page.)

To clear the screen, press VFP again.

Presetting Automatic DVD Sound

Increase Level

DVD sound is sometimes recorded at a lower level than

other discs and sources. You can set the increase level

for the currently loaded DVD, so you do not have to

adjust the volume when you change the source.

• This only functions for DVD Video and DVD-VR.

While “DVD/CD” is selected as the source...

As the number increases, the DVD sound level is

increased.

Changing the Display Brightness

You can dim the display.

While the System is turned on...

DIMMER 1

DIMMER 2

DIMMER OFF

AUTO DIMMER

(while holding...)

DIMMER 1 Dims the display and turns off the

blue illumination on the main unit.

DIMMER 2 Dims the display more than

DIMMER 1 and turns off the blue

illumination on the main unit.

AUTO

DIMMER

Dims the display automatically to

the same level as DIMMER 2 when

moving pictures or still pictures are

being played back.

DIMMER OFF Normal brightness.

text_EN_NXG9G5.indb 19text_EN_NXG9G5.indb 19 08.8.5 10:52:16 AM08.8.5 10:52:16 AM

Setting the Clock

Without setting the built-in clock, you cannot use Daily

Timer or Recording Timer (see page 54).

• To exit the clock settings, press CLOCK/TIMER

(while holding SHIFT) as required.

• To correct a mis-entry during the process, press

CANCEL (while holding SHIFT). You can return to

the previous step.

1 Activate the clock setting mode.

(while holding...)

0:00

• If you have already adjusted the clock before,

press the button repeatedly until the clock setting

mode is selected.

2 Adjust the hour, then the minute.

CLOCK SET

Now the built-in clock starts working.

To adjust the picture tone

1 Select “USER1” or “USER2.”

• Follow steps 1 and 2 explained in “To select a

preset picture tone.”

2 Select a parameter you want to adjust.

GAMMA Adjust if the neutral color is

bright or dark (–3 to +3).

BRIGHTNESS Adjust if the entire picture is

bright or dark (–8 to +8).

CONTRAST Adjust if the brightness ratio

is unnatural (–7 to +7).

SATURATION Adjust if the picture is

whitish or blackish (–7 to

+7).

TINT Adjust if the human skin

color is unnatural (–7 to

+7).

SHARPNESS Adjust if the picture is

indistinct (–8 to +8).

3 Adjust the parameter.

4 Repeat steps 2 and 3 to adjust other

parameters.

To clear the screen, press VFP again.

text_EN_NXG9G5.indb 20text_EN_NXG9G5.indb 20 08.8.5 10:52:17 AM08.8.5 10:52:17 AM

• Changing the source to “TUNER FM,” “TUNER

AM,” or “AUDIO IN” temporarily deactivates Auto

Standby.

To cancel this function, press and hold A.STBY (while

holding SHIFT) again.

Sleep Timer

You can set the shut-off time so that you can go to bed

without turning off the System yourself.

1 Specify the time (in minutes).

(while holding...)

2 Wait until the set time disappears.

To check the time remaining until the shut-off time,

press SLEEP (while holding SHIFT) once.

• If you press the button repeatedly, you can change

the shut-off time.

Prohibiting Disc Ejection

—Child Lock

You can lock the disc tray so that no one can eject the

loaded disc.

While the disc tray is closed...

LOCKED

(while holding...)

To cancel the prohibition, repeat the same procedure.

“UNLOCKED” appears on the display.

To check the current clock time during playback

• The information displayed and its order vary with

the source.

Ex.: While playing a disc...

*1 Only for MP3/WMA/WAV files.

*2 Only while playing back the following discs/files:

DVD-VR: Program number/Play List number and

chapter number.

MP3/WMA/WAV/JPEG/MPEG-1/MPEG-2/ASF/

DivX files: Group and file number.

DVD Video: Title and chapter number.

*3 Only while disc or USB playback is stopped.

*4 Only while a USB device is connected to the USB2

terminal. When the remaining time exceeds 100

hours, “REM –:––:––” appears.

Turning Off the Power

Automatically

Auto Standby

• This only functions while “DVD/CD,” “USB1,”

“USB2” or “Bluetooth” is selected as the source.

(while holding...)

A.STBY indicator lights on the display.

When the playback stops, the A.STBY indicator starts

flashing. If no operation is done for about 3 minutes (5

minutes for “Bluetooth”) while the indicator is flashing,

the System turns off (standby) automatically.

Current source information

Disc/file type*3

Title and chapter number*2

Folder name, file name and tag

information*1

Clock

Remaining time for the

recording*4

10 20 30 60 90 120 150 180

Canceled

text_EN_NXG9G5.indb 21text_EN_NXG9G5.indb 21 08.8.5 10:52:19 AM08.8.5 10:52:19 AM

SHIFT

AUDIO/MPX

SUBTITLE

ANGLE,

ZOOM

1, ¡

Unique Video Disc/File Operations

Remote control Selecting the Audio Track

For DivX files/DVD Video: While playing back a

chapter/file containing several audio languages, you

can select the language to listen to.

For DVD-VR/SVCD/VCD: While playing back a

track, you can select the audio channel to listen to.

• For DVD Video/DVD-VR/SVCD/VCD: You can

also select the audio track using the on-screen bar

(see page 49).

While playing a DVD Video...

Ex.:

ENGLISH

1/3 3/3

FRENCH

2/3

JAPANESE

ENGLISH

1/3

FRENCH

2/3

JAPANESE

3/3

While playing a DivX file...

1/3 2/3 3/3

While playing a DVD-VR or SVCD/VCD...

ST1 ST2 L1

R2 L2 R1

ST L R

SVCD

DVD-VR/VCD

ST1/ST2/ST To listen to normal stereo

(2-channel) playback.

L1/L2/L To listen to the left audio channel.

R1/R2/R To listen to the right audio

channel.

• SVCD can have 4 audio channels. SVCD usually uses

these 4 channels to record two 2-channel recordings

(ST1/ST2).

text_EN_NXG9G5.indb 22text_EN_NXG9G5.indb 22 08.8.5 10:52:20 AM08.8.5 10:52:20 AM

While playing an SVCD...

Selecting the View Angle

For DVD Video only: While playing back a chapter

containing multi-view angles, you can view the same

scene from different angles.

• You can also select the view angle using the on-

screen bar (see page 49).

While playing...

(while holding...)

1/3

2/3

3/3

1/3

2/3

3/3

Special Effect Playback

Still picture playback

While playing...

Still picture is displayed.

To resume normal playback, press 3.

Selecting the Subtitle Language

For DivX files/DVD Video: While playing back a

chapter/file containing subtitles in different languages,

you can select the subtitle language to display on the

TV.

For DVD-VR: While playing, you can turn the

subtitles on or off.

For SVCD: While playing, you can select the subtitles

even if no subtitles are recorded on the disc.

• For DVD Video/DVD-VR/SVCD: You can also

select the subtitle language using the on-screen bar

(see page 49).

While playing a DivX file/DVD Video...

Ex.:

1/3 3/3

2/3

FRENCH JAPANESEENGLISH

1/3 2/3

JAPANESE

3/3

ENGLISH FRENCH JAPANESE

While playing a DVD-VR...

text_EN_NXG9G5.indb 23text_EN_NXG9G5.indb 23 08.8.5 10:52:21 AM08.8.5 10:52:21 AM

To replay the previous scenes

(One-Touch Replay)

• This function is only used while playing DVD Video/

DVD-VR.

While playing....

The playback position moves back

about 10 seconds before the current

position (only within the same title

for DVD Video).

Zoom

1 While playing...

While playing a DVD Video/DVD-VR/SVCD/VCD and

MPEG-1/MPEG-2/DivX file:

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM 6 ZOOM 5

ZOOM OFF

While playing a JPEG file (not available during

slide-show):

ZOOM 1 ZOOM 2

ZOOM OFF

2 Move the zoomed-in position.

To cancel Zoom, press ZOOM repeatedly until

“ZOOM OFF” appears on the TV.

Frame-by-frame playback

• This function is used only while playing DVD Video/

DVD-VR/SVCD/VCD.

1 Display the still picture.

2 Advance the still picture frame by frame.

To resume normal playback, press 3.

Slow-motion playback

• This function is used only while playing DVD Video/

DVD-VR/SVCD/VCD.

1 Display the still picture.

2 Select slow motion speed.

* Only available for DVD Video.

To resume normal playback, press 3.

Forward slow motion starts.

Reverse slow motion* starts.

text_EN_NXG9G5.indb 24text_EN_NXG9G5.indb 24 08.8.5 10:52:22 AM08.8.5 10:52:22 AM

PRGM

PROGRAM

No Group/Title Track/Chapter

On the display On the TV

2 Select chapters/tracks/files you want for

Program Play using the number buttons.

• To select a number, see “How to select a

number” on page 10.

For DVD Video and MP3/WMA/WAV files:

1 Select a title or group number.

2 Select a chapter or track/file number.

3 Repeat step 2 until you complete your

program.

4 Start playback.

Playback starts in the order you

have programmed.

For “USB 2”:

1 Select files you want for Program Play

using the number buttons.

• To select a number, see “How to select a

number” on page 10.

STORED P 1

3 Repeat steps 1 and 2 until you complete

your program.

4 Activate Program Play.

5 Start playback.

Playback starts in the order you

have programmed.

4, ¢

CANCEL

PLAY MODE

REPEAT

(NX-G5)

REPEAT,

REPEAT A-B

(CA-NXG9)

DVD/CD

SHIFT REPEAT A-B

(NX-G5)

Advanced Playback Operations

Remote control

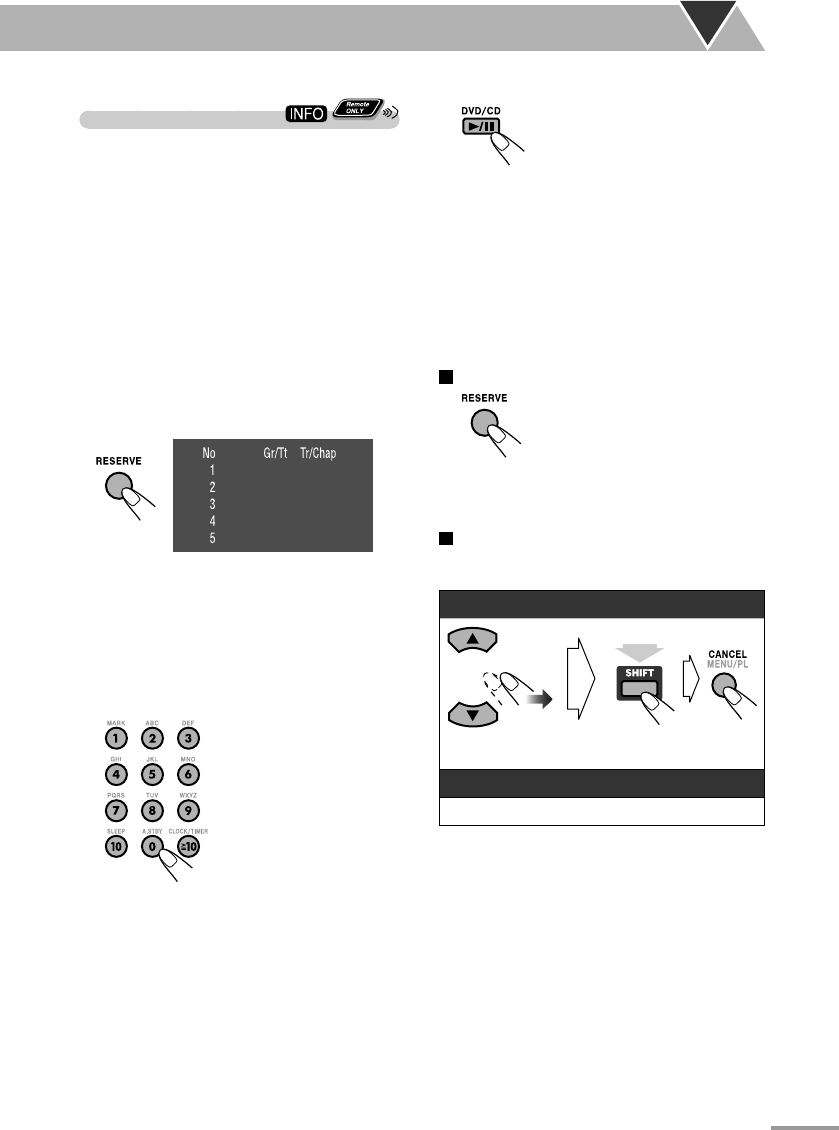

Programming the Playing Order

—Program Play

You can arrange the playing order of the chapters/

tracks/files (up to 99) before you start playback.

• Program Play can be used for CD, VCD, SVCD,

DVD Video, and MP3/WMA/WAV files on a disc or

on a USB device connected to the USB 2 terminal.

• Resume does not work for Program Play.

For “DVD/CD”:

1 Before starting playback, activate Program

Play.

Canceled

GROUP RNDM

PROGRAM RANDOM

GROUP

Canceled

text_EN_NXG9G5.indb 25text_EN_NXG9G5.indb 25 08.8.5 10:52:23 AM08.8.5 10:52:23 AM

To skip: To pause: To stop:

To release,

press 3.

To check the programmed contents

Before or after playback...

In the programmed

order.

In the reverse order.

To modify the program

Before or after playback...

To erase the last step: To erase the entire

program:

(while holding...)

To add another step in the program:

• For disc, repeat step 2 of “For DVD/CD” on page

25.

• For “USB 2,” repeat step 1 of “For USB2” on page

25.

To exit Program Play

Before or after playback, press PLAY MODE repeatedly

until PRGM, RND, and GR indicator are all off.

Playing at Random

—Random Play

You can play all chapters or tracks at random.

• Random Play cannot be used for “USB1”, DVD-VR

and JPEG/MPEG-1/MPEG-2/DivX files on a disc,

and some DVDs.

1 Before starting playback, activate Random

Play.

For “DVD/CD”:

For “USB2”:

RANDOM Plays all the tracks/chapters

at random.

GROUP RNDM

(Group Random)

Plays all tracks in a group

at random.

2 Start playback.

Playback starts in random

order. Random Play ends

when all the tracks has been

played.

To skip a chapter/

track:

To pause: To stop:

To release,

press 3.

To exit Random Play

Before or after playback, press PLAY MODE repeatedly

until PRGM, RND, and GR indicator are all off.

Playing a Group—Group Play

You can play only tracks in the specified group (only

for “USB 2.)”

To exit Group Play

Before or after playback, press PLAY MODE repeatedly

until PRGM, RND, and GR indicator are all off.

Canceled

GROUP RNDM

PROGRAM RANDOM

GROUP

Canceled

GROUP RNDM

PROGRAM RANDOM

GROUP

Canceled

text_EN_NXG9G5.indb 26text_EN_NXG9G5.indb 26 08.8.5 10:52:25 AM08.8.5 10:52:25 AM

REPEAT

CHAP

Repeats the current chapter.

REPEAT TITL Repeats the current title.

REPEAT TRK Repeats the current track/file.

REPEAT GRP Repeats the current group.

REPEAT PG Repeats the current program.

REPEAT PL Repeats the current Play List.

REPEAT ALL Repeats all the contents or

programmed tracks/files.

REPEAT OFF Canceled.

* During Program Play and Random Play, the repeat

mode changes as follows for all discs.

REPEAT OFF

REPEAT STEP REPEAT ALL

A-B Repeat

You can repeat playback of a desired portion by

specifying the beginning (point A) and the ending

(point B).

• A-B Repeat cannot be used for AV files and some

DVDs.

1 While playing (without PBC for SVCD/

VCD), select the start point (A).

CA-NXG9:

(while holding...)

NX-G5:

2 Select the end point (B).

Press the same button again.

• You can search for the end point using the ¡

button.

To cancel A-B Repeat, press REPEAT A-B again.

• A-B Repeat will also be canceled when you stop play

or skip the chapter or track.

Playing Repeatedly

• For DVD Video/DVD-VR/SVCD/VCD/CD: You

can also select the repeat mode using the on-screen

bar (see page 49).

For DVD Video:

While playing...

REPEAT CHAP REPEAT TITL

REPEAT OFF

For CD/SVCD/VCD:

While playing (without PBC for SVCD/VCD) or before

playback...

REPEAT TRK REPEAT ALL

REPEAT OFF

For DVD-VR:

While playing an Original Program...

REPEAT CHAP REPEAT PG

REPEAT ALLREPEAT OFF

While playing a Play List...

REPEAT CHAP REPEAT PL

REPEAT OFF

For MPEG-1/MPEG-2/ASF/DivX/MP3/WMA/WAV files:

While playing or before playback...

REPEAT TRK REPEAT GRP

REPEAT OFF REPEAT ALL

For “USB2”:

While playing or before playback...

REPEAT TRK

REPEAT ALL

For JPEG files during slide-show:

While playing or before playback...

REPEAT GRP

REPEAT OFF

REPEAT ALL

text_EN_NXG9G5.indb 27text_EN_NXG9G5.indb 27 08.8.5 10:52:26 AM08.8.5 10:52:26 AM

SHIFT

USB REC AUDIO REC/PLAY

USB 2

CANCEL

4, ¢

ENTER/SET

REC MODE

DVD/CD6

Recording Operations

Remote control

Before You Start Recording

• It may be unlawful to record or play back

copyrighted material without the consent of the

• The recording level is not affected by the volume.

• When Mic Mixing is activated, both the music

and your singing is recorded in analog. Sound

adjustments for Karaoke are also recorded.

• KEYCON (see page 46) is not effective during

Karaoke recording.

• You cannot record tracks while Karaoke Scoring is

activated.

• Repeat mode is canceled in the recording mode.

• You cannot record or edit tracks while you are

setting My Sound (see page 16).

• You can record up to 999 tracks to the USB device. If

you try to record a track after recording 999 tracks,

“TRACK FULL” appears on the display and the track

will not be recorded.

• The tracks which are recorded to the USB device will

be converted into MP3 or WMA format.

• You cannot start recording into a USB device while

“READING” is shown on the display.

• You cannot record tracks into the root folder.

• Do not disconnect a USB device while playing/

recording/editing. It may cause malfunction.

About SCMS (Serial Copy Management System)

The System uses the Serial Copy Management System

which allows only first-generation digital copies to be

made of premastered software such as regular CDs.

If you try to record from a duplicated CD-R or CD-RW

into the USB device, “SCMS ERROR” appears on the

display. In this case, record in analog (see page 30).

1st generation 2nd generation

Main unit

text_EN_NXG9G5.indb 28text_EN_NXG9G5.indb 28 08.8.5 10:52:28 AM08.8.5 10:52:28 AM

Setting up the Recording Modes

Before recording, select recording modes correctly.

Preparation:

Select “DVD/CD,” “FM,” “AM,” or “AUDIO IN” as

the source.

To select file format

Select the file format (MP3 or WMA) for recorded files.

2 Select a setting.

MP3

WMA

To select transfer rate

Select the transfer rate for recording.

2 Select a quality level.

HQ REC SP REC

LP REC

HQ REC

(High Quality)

192 kbps for MP3 files.

128 kbps for WMA files.

SP REC

(Standard Play)

128 kbps for MP3 files.

96 kbps for WMA files.

LP REC

(Long Play)

64 kbps for MP3 files.

64 kbps for WMA files.

To select recording speed

Only for Audio CDs: Select the recording speed.

2 Select a recording speed.

NORMAL

HIGH

NORMAL Recorded at the same speed as

playback. You can listen to the sound

while recording.

HIGH Recorded at up to 4 times normal

speed, depending on the file and

quality level settings.

To select track mark setting

Only for radio and external equipment: Select how

track marks are applied.

• You can divide a continuous recording into several

tracks by adding track marks.

2 Select a setting.

MANUAL MARK

TIME MARK

AUTO MARK

MANUAL

MARK

Track mark is recorded when you

press ENTER/SET while recording.

TIME

MARK

Track mark is recorded every 5

minutes.

AUTO

MARK

Track mark is written when 3-second

interval is detected. (You can also

record track marks by pressing

ENTER/SET.)

REC SPEED ENCODE

REC TIME

MARKING

(Canceled)

REC SPEED ENCODE

REC TIME

MARKING

(Canceled)

REC SPEED ENCODE

REC TIME

(Canceled)

ENCODE REC TIME

MARKING

(Canceled)

text_EN_NXG9G5.indb 29text_EN_NXG9G5.indb 29 08.8.5 10:52:28 AM08.8.5 10:52:28 AM

Recording from a Disc

You can record sound from a disc onto the USB device

connected to the USB 2 terminal.

• You can record the tracks on Audio CDs in digital

recording. Sound from other kinds of discs is

recorded in analog.

• You cannot record sound of DivX, ASF, or MPEG

files.

• You can also select analog recording for Audio CDs.

(See the next column.)

• When MIC MIXING is activated, the sound is

recorded in analog for all discs.

• Do not vibrate the System while recording tracks.

Take care especially while the REC indicator is

flashing or while “WRITING” is shown on the

display. It may damage the recorded tracks on the

USB device.

• See page 65 for more information about the warning

messages shown on the display.

Before recording....

Connect a recordable USB device to the USB 2

terminal. (See also page 7.)

1 Start and stop playback of the disc.

• For SVCD/VCD, cancel PBC (see page 13).

2 Select the first track you want to record.

(Not applicable to DVD and DVD-VR.)

The System records from

the selected track to the

last one.

3 Enter recording mode.

4 Select a group to record tracks into.

G 1 GROUP1?

• If “FORM GR?” is selected, the System will

automatically create the new group.

• You can also give title to the new group before

recording. See page 31.

5 Start recording.

Both recording and playback start at the same time.

When playback ends, recording also stops.

• You cannot change the source while recording.

• If Program Play is activated (see “Programming

the Playing Order—Program Play” on page

25), the tracks are recorded in the programmed

order.

• If the remaining time for the recording exceeds

10 hours, “_” is displayed in the hour-digit.

To stop

recording

manually:

To record the playing track (1

track) (not applicable to DVD

and DVD-VR):

During play or pause...

Then, follow the steps 4 and 5

above.

To record in analog

When digital recording is prohibited, you can record

in analog.

After step 2 of “Recording from a Disc”...

When the message is displayed, follow the steps 3 and

after.

REC

1>0:04:27

Remaining time for the recording

Track now being recorded

ANALOG REC?

4 sec

(on the main unit)

text_EN_NXG9G5.indb 30text_EN_NXG9G5.indb 30 08.8.5 10:52:30 AM08.8.5 10:52:30 AM

Recording from the Radio/External

Equipment

• See page 65 for more information about the warning

messages shown on the display.

Preparation:

• Connect a recordable USB device to the USB 2

terminal. (See page 7.)

• To record from the external equipment, connect an

external equipment to the System. (See page 14.)

• Make recording settings. (See page 29.)

1 Select “FM,” “AM” or “AUDIO IN” as the

source.

2 For radio: Tune in to a desired station.

3 Enter recording mode.

4 Select a group to record the track into.

G 1 GROUP1?

• You can also give title to the new group before

recording. See the next column.

5 Start recording.

• For AUDIO IN: Start playback on the connected

equipment after pressing USB REC. Recording

starts automatically when sound signal is

detected on the System.

• You cannot change the source while recording.

• When MARKING is set to MANUAL MARK

(see page 29), press ENTER/SET when you want

to divide the recorded track.

6 Stop recording.

To give title to a new group before

recording

When you record tracks into “FORM GR?”, you can

give a group title before starting to record.

1 After selecting “FORM GR?”...

2 Edit the group title.

• For entering a title, see “How to enter titles” on

page 33.

3 Finish the procedure.

Recording starts.

(on the main unit)

text_EN_NXG9G5.indb 31text_EN_NXG9G5.indb 31 08.8.5 10:52:31 AM08.8.5 10:52:31 AM

SHIFT

USB 2

CHARA

TITLE/EDIT

CANCEL

4, ¢

ENTER/SET

USB 2

Editing Operations

Remote control

Number

buttons

You can edit files on a USB device connected to the

USB 2 terminal.

• You cannot edit the group “GROUP1” (root) and the

group “MUSIC.”

Giving (Editing) Titles to Tracks

or Groups

You can give titles to the tracks and groups (up to 64

characters) in the USB device.

1 Start and stop playback of the USB device.

2 Select a group/track you want to edit.

To select a group:

(while holding...)

To select a track:

3 Select the track/group title editing mode.

1 TITLE? G 1 TITLE?

FORM GR?

TR ERASE?GR ERASE?

FORMAT? MOVE?

(Canceled)

1 TITLE? For editing the track title

G 1 TITLE? For editing the group title

Main unit

text_EN_NXG9G5.indb 32text_EN_NXG9G5.indb 32 08.8.5 10:52:32 AM08.8.5 10:52:32 AM

4 Enter a title.

Ex.: When editing a group title

• For entering a title, see “How to enter titles” on

the next column.

5 Finish the procedure.

EDITING

To give title to other groups/tracks, repeat steps

2 to 5.

How to enter titles

1 Select the character type.

2 Enter a character.

• Several characters

are assigned to one

button. Press the button

repeatedly until the

desired character is

displayed.

• For available characters,

refer to “Available

Characters” on page 34.

3 Confirm the entry.

To move the character entry position

Move the entry position

to the right.

Move the entry position

to the left.

GROUPX A

Character type

(upper case)

(number)

(lower case)

text_EN_NXG9G5.indb 33text_EN_NXG9G5.indb 33 08.8.5 10:52:33 AM08.8.5 10:52:33 AM

Available Characters

Button Uppercase

character

Lowercase

character

Numerical

character

(Space) , ! , # , $ , % , & , ’,

( , ) , +, –, . , = , @ , – , `

• Some symbols may not

appear on the display.

ABC abc 2

DEF def 3

GHI ghi 4

JKL jkl 5

MNO mno 6

PQRS pqrs 7

TUV tuv 8

WXYZ wxyz 9

——0

To erase a character

When the character entry position is on the character

you want to erase...

(while holding...)

To enter a space

Select the space by pressing MARK. (See “Available

Characters” above.)

• You can also enter a space at the end of a title by

pressing 3 (cursor key).

Making a New Group

You can make a new empty group in the USB device.

• An empty group can be used for recording or

editing. After recording or moving tracks into an

empty group, you can select that group to play back.

• You can make up to 999 groups in the USB device.

When you record a 1000th group, “GROUP FULL”

appears on the display and no group will be made.

• To go back to the previous step, press TITLE/EDIT.

• To quit editing, press CANCEL while holding

SHIFT.

1 Start and stop playback of the USB device.

2 Make a new group.

3 Enter a title of the new group.

• See “How to enter titles” on page 33.

4 Store the title.

EDITING

1 TITLE? G 1 TITLE?

FORM GR?

TR ERASE?GR ERASE?

FORMAT? MOVE?

(Canceled)

text_EN_NXG9G5.indb 34text_EN_NXG9G5.indb 34 08.8.5 10:52:34 AM08.8.5 10:52:34 AM

Moving a Track

You can move a track in the USB device into another

group.

• To go back to the previous step, press CANCEL

while holding SHIFT.

• To quit editing, press TITLE/EDIT.

1 Start playing back the track you want to

move.

2 Select “MOVE?”.

3 Select a track to move.

2 Track2

4 Select a destination group.

(while holding...)

G 3 Group3

5 Select the new track number in the

destination group for the target track.

4 Track4

6 Start moving.

EDITING

1 TITLE? G 1 TITLE?

FORM GR?

TR ERASE?GR ERASE?

FORMAT? MOVE?

(Canceled)

text_EN_NXG9G5.indb 35text_EN_NXG9G5.indb 35 08.8.5 10:52:35 AM08.8.5 10:52:35 AM

4 Confirm your selection.

OK? ENTER

EDITING

Erasing a Group

You can erase groups in the USB device.

• Once groups are erased, you cannot restore them.

• You cannot erase the root group (G1 ROOT).

• To go back to the previous step, press CANCEL

while holding SHIFT.

• To quit editing, press TITLE/EDIT.

1 Start and stop playback of the USB device.

2 Select “GR ERASE?”.

Erasing a Track

You can erase tracks on the USB device.

• Once tracks are erased, you cannot restore them.

• To go back to the previous step, press CANCEL

while holding SHIFT.

• To quit editing, press TITLE/EDIT.

1 Start and stop playback of the USB device.

2 Select “TR ERASE?”.

3 Select the tracks you want to erase.

• You can select up to 15 tracks.

• Repeat this step to select other tracks to erase.

4 Track4

Continued on the next page.

1 TITLE? G 1 TITLE?

FORM GR?

TR ERASE?GR ERASE?

FORMAT? MOVE?

(Canceled)

1 TITLE? G 1 TITLE?

FORM GR?

TR ERASE?GR ERASE?

FORMAT? MOVE?

(Canceled)

text_EN_NXG9G5.indb 36text_EN_NXG9G5.indb 36 08.8.5 10:52:36 AM08.8.5 10:52:36 AM

3 Select the group you want to erase.

(while holding...)

• When you want to erase an empty group, select a

group while playback is stopped.

OK? ENTER

5 Start erasing.

EDITING

Erasing All Tracks and Groups

You can erase all tracks and groups in the USB device.

• When you erase all tracks in the USB device, files

other than music are also erased.

• Once all tracks and groups are erased, you cannot

restore them.

• To go back to the previous step, press CANCEL

while holding SHIFT.

• To quit editing, press TITLE/EDIT.

1 Start and stop playback of the USB device.

2 Select “FORMAT?”.

3 Confirm the erasing.

OK? ENTER

4 Confirm the erasing again.

REALLY?

EDITING

1 TITLE? G 1 TITLE?

FORM GR?

TR ERASE?GR ERASE?

FORMAT? MOVE?

(Canceled)

text_EN_NXG9G5.indb 37text_EN_NXG9G5.indb 37 08.8.5 10:52:37 AM08.8.5 10:52:37 AM

Bluetooth ADPT

Bluetooth MODE

Bluetooth

SETTING

ENTER/SET

Bluetooth

Introduction

What is Bluetooth?

Bluetooth is a short-range wireless radio

communication technology for the mobile device such

as mobile phones, headphones, and other devices. The

Bluetooth devices can be connected without cables and

can communicate with each other.

What you can do with Bluetooth

Listening to a Bluetooth audio player

You can listen to the music played back on a Bluetooth

audio player (i.e. mobile phone, audio player, personal

computer, etc.) from the speakers of the System. See

page 39.

Listening to music through Bluetooth headphones

You can listen to the music played back on the System

using a set of Bluetooth headphones. See page 40.

• Some Bluetooth audio players and headphones may

not communicate with the System.

Preparation

Connect the Bluetooth adapter (separately purchased)

to the Bluetooth ADPT terminal on the front panel of

the main unit.

• Do not use a USB extension cable to connect a

Bluetooth adapter.

What is pairing?

To use a Bluetooth audio player for the first time, you

need to register the Bluetooth audio player on the

System—pairing.

• Once you have registered a device, no pairing

operation for the same device is required.

• You can register up to five devices for Bluetooth

audio player, and up to other five devices for

Bluetooth headphones. If you register the sixth

device, registration of the first device is replaced.

• Only one device can be connected at a time.

Bluetooth® Operations

Remote control

The Bluetooth word mark and logos are registered

trademarks owned by Bluetooth SIG, Inc. and any use

of such marks by Victor Company of Japan, Limited

(JVC) is under license. Other trademarks and trade

names are those of their respective owners.

• The System supports only Bluetooth audio player

using A2DP profile.

• When you are using the mobile phone as the

Bluetooth audio player, you cannot listen to the

talking voice from the speaker of the System.

Number

buttons

Main unit

Bluetooth adapter

(not supplied)

text_EN_NXG9G5.indb 38text_EN_NXG9G5.indb 38 08.8.5 10:52:38 AM08.8.5 10:52:38 AM

Only “SYS INFO?” and “CANCEL?” can be selected

when a Bluetooth device is connected to the System.

Listening to Bluetooth

Audio Player

Pairing

• See “What is pairing?” on page 38.

1 Select “Bluetooth” as the source.

Bluetooth

2 Set the System ready to be paired with the

Bluetooth audio player.

RECEIVE ? CANCEL ?

SELECT DV ?

SOUND QLTY?

SYS INFO ?

PAIRING?

DELETE DV ?

CHNG NAME ?

PAIRING

3 Operate the pairing procedure on the

Bluetooth audio player.

• You see the name of the System (“NX-G9” or

“NX-G5”) on the Bluetooth audio player. If

asked to input a PIN code, enter “0000.”

• For details on how to enter the PIN code, refer to

the audio player manual.

“SUCCESS” appears on the display of the System

and the pairing is completed.

SUCCESS

• Some Bluetooth audio players are automatically

connected to the System after pairing. If not,

establish connection manually (see the next

column).

Listening to the Bluetooth audio player

1 Select “Bluetooth” as the source.

2 RECEIVE ? CANCEL ?

SELECT DV ?

SOUND QLTY?

SYS INFO ?

PAIRING?

DELETE DV ?

CHNG NAME ?

When connection is established successfully, the

Bluetooth indicator of the System lights up.

3 Start playback on the Bluetooth audio

player.

You hear music from the speakers of the System.

• If the Bluetooth audio player supports AVRCP

profile, you can operate it as follows.

To select a track: To stop:

To pause:

To pause, press once or hold one second. (It

depends on Bluetooth audio player.)

To release, press the same button again.

• Some Bluetooth audio players may not be controlled

by the System.

Bluetooth

Bluetooth indicator

text_EN_NXG9G5.indb 39text_EN_NXG9G5.indb 39 08.8.5 10:52:40 AM08.8.5 10:52:40 AM

To turn off the sound from the Bluetooth audio

player temporarily

Press Bluetooth SETTING repeatedly to select

“CANCEL?”, then press ENTER/SET.

To resume the sound, press Bluetooth SETTING

repeatedly to select “RECEIVE?”, then press ENTER/

SET.

To change the device to connect

If you have registered several Bluetooth audio players,

select which device is to be connected to the System.

1 RECEIVE ? CANCEL ?

SELECT DV ?

SOUND QLTY?

SYS INFO ?

PAIRING?

DELETE DV ?

CHNG NAME ?

DEVICE A

The name of the current Bluetooth audio player

appears.

2 Select the device to connect.

If a Bluetooth connection cannot be established

Try the following if “CAN’T CNNCT” appears on the

display:

• Set the Bluetooth audio player ready to make

connections (refer to the device’s manual for details),

press Bluetooth SETTING repeatedly to select

“RECEIVE?”, then press ENTER/SET.

Listening to Music Using Bluetooth

Headphones

Pairing

• See “What is pairing?” on page 38.

1 Turn on the Bluetooth headphones and set

it ready to be found by the System.

• See the headphones’ manual for details.

2 Select a source other than “Bluetooth.”

3 Activate Bluetooth transmitter.

Bluetooth

Bt ON

The Bluetooth indicator of the System starts

flashing.

4 Start searching for the headphones.

SEARCHING

SEND ? CANCEL ?

SELECT DV ?

SOUND QLTY?

SYS INFO ?

SEARCH DV ?

DELETE DV ?

CHNG NAME ?

The System starts searching for Bluetooth

headphones.

The name of the first found device is displayed.

Continued on the next page.

2 sec 2 sec

text_EN_NXG9G5.indb 40text_EN_NXG9G5.indb 40 08.8.5 10:52:41 AM08.8.5 10:52:41 AM

Listening to music through Bluetooth

headphone

1 Select a source on the System.

2 Prepare the headphones ready to receive

the sound from the System.

• Set the volume of the headphones to the

minimum.

• Refer to the headphones’ manual for details.

3 Activate Bluetooth transmitter.

Bluetooth

Bt ON

The System starts searching for the headphones.

• Depending on the Bluetooth headphones, the

System will try to connect the headphones

automatically if the pairing is successful.

4 Start playback on the System.

5 Adjust the volume on the Bluetooth

headphones.

• If the Bluetooth headphones support AVRCP profile,

you can operate the System (ex. play, pause, stop and

skip) by using the keys of the Bluetooth headphones.

• Sound Mode does not affect the sound through the

Bluetooth headphones.

To turn off the sound of the headphones

temporarily

Press Bluetooth SETTING repeatedly to select

“CANCEL?”, then press ENTER/SET.

To resume the sound, press Bluetooth SETTING

repeatedly to select “SEND?”, then press ENTER/SET.

5 Select the set of headphones you want to

6 Enter the PIN code of the headphones on

the System.

KEY ____

To move the cursor

• PIN code is a four-digit number (ex. 8888)

to identify the headphones. Refer to the

headphones’ manual for details.

7 Confirm your entry.

SUCCESS

PAIRING

“SUCCESS” appears on the display of the System

and the pairing is completed.

• Sound on the speakers is muted, and you hear

sound from the headphones.

2 sec 2 sec

text_EN_NXG9G5.indb 41text_EN_NXG9G5.indb 41 08.8.5 10:52:43 AM08.8.5 10:52:43 AM

To turn off the sound of the headphones and use

the speakers of the System

Bt OFF

To change the headphones to use

If you have registered several Bluetooth devices, select

which device is to be connected to the System.

1 Turn down the volume to the minimum on

the headphones.

2 SEND ? CANCEL ?

SELECT DV ?

SOUND QLTY?

SYS INFO ?

SEARCH DV ?

DELETE DV ?

CHNG NAME ?

3 Select the headphones you want to use.

If a Bluetooth connection cannot be established

Try the following if “CAN’T CNNCT” appears on the

display:

Set the Bluetooth headphones ready to make

connections (refer to the device’s manual for details),

press Bluetooth SETTING repeatedly to select

“SEND?”, then press ENTER/SET.

Changing the Bluetooth Settings

To change the name of a registered device

To change the name of a Bluetooth audio

player:

To change the name of a set of Bluetooth

headphones:

SOUND QLTY?

SYS INFO ? DELETE DV ?

SELECT DV ?

CANCEL ?

CHNG NAME ?

RECEIVE ?

(SEND ?)

PAIRING?

(SEARCH DV ?)

3 Select the device to change the name of.

4 Input a new name.

• See page 33 for the input operation.

5 Confirm the entry.

2 sec 2 sec

2 sec

DEVICE1 A

Character type

text_EN_NXG9G5.indb 42text_EN_NXG9G5.indb 42 08.8.5 10:52:44 AM08.8.5 10:52:44 AM

To delete the registration of a device

Delete the registration if you no longer use a device.

• This setting is common for Bluetooth audio players

and Bluetooth headphones.

SOUND QLTY?

SYS INFO ? DELETE DV ?

SELECT DV ?

CANCEL ?

CHNG NAME ?

RECEIVE ?

(SEND ?)

PAIRING?

(SEARCH DV ?)

2 Select the device to delete the registration

of.

DELETE

To change the sound quality

Change the sound quality setting if the Bluetooth

connection is unstable.

• This setting is common for Bluetooth audio players

and Bluetooth headphones.

SOUND QLTY?

SYS INFO ? DELETE DV ?

SELECT DV ?

CANCEL ?

CHNG NAME ?

RECEIVE ?

(SEND ?)

PAIRING?

(SEARCH DV ?)

2 Select a setting.

HIGH

NORMAL

HIGH Select this for a better sound quality.

NORMAL Select this if the Bluetooth

connection is unstable.

To check the information about the System

You can check the name and address of this System.

SOUND QLTY?

SYS INFO ? DELETE DV ?

SELECT DV ?

CANCEL ?

CHNG NAME ?

RECEIVE ?

(SEND ?)

PAIRING?

(SEARCH DV ?)

2 Select the information to display.

The name of the

System (“NX-G9”

or “NX-G5”)

The address of the

System.

To exit the information display, press ENTER/

SET.

text_EN_NXG9G5.indb 43text_EN_NXG9G5.indb 43 08.8.5 10:52:45 AM08.8.5 10:52:45 AM

Enjoying Karaoke (only for CA-NXG9)

DO NOT keep the microphones

connected while they are not in use.

RESERVE

MIC MIX

VOCAL

SUPPORT

VOCAL

MASKING

MIC 1 MIC 2

KARAOKE

SETTING

KARAOKE

SETTING

KARAOKE

SCORING

DVD/CD

Remote control

Main unit

Number

buttons

IMPORTANT

• Always set MIC LEVEL to “MIN” (0) when

connecting or disconnecting the microphone.

• MIC LEVEL adjustment is valid for both

microphones connected to the MIC 1 and MIC 2

jacks.

• MIC LEVEL and MIC LVL mentioned in this

Instructions carry the same meaning.

Singing Along (Karaoke)

You can enjoy singing along (Karaoke) by using one or

two microphones.

• If you start recording (see page 29) while Mic Mixing

is activated, the sound and your singing are recorded

in analog.

1 Connect the microphone(s) (not supplied)

to the MIC 1 and/or MIC 2 jack.

Mic Mixing will be automatically activated.

MIC IN

2 Start playing a source.

• For Karaoke discs: Select a desired audio

channel. See “Selecting the Audio Track” on page

22.

3 Sing into the microphone.

4 Adjust the microphone level and volume.

text_EN_NXG9G5.indb 44text_EN_NXG9G5.indb 44 08.8.5 10:52:46 AM08.8.5 10:52:46 AM

Scoring Your Karaoke Skill

This System can score your Karaoke skill by comparing

your singing along with the vocal on the playback

source.

• This function is available only for “DVD/CD” and

“USB1.”

• It is recommended to select the sound track as

follows (see page 22):

For Karaoke DVD Video: Select a sound track with

vocal.

For Karaoke SVCD/CD: Select “ST,” “ST1” or

“ST2.”

• After selecting a sound track, select VOCAL MASK,

L CHANNEL or R CHANNEL using the VOCAL

MASKING button (see the previous column).

1 Select “DVD/CD” or “USB1” as the source.

2 Connect the microphone(s) (not supplied)

to the MIC 1 and/or MIC 2 jack.

Mic Mixing will be activated.

• If a microphone is already connected and Mic

Mixing is not activated, use the MIC MIX button

to reactivate Mic Mixing (see the previous

column).

3 Activate Karaoke Scoring.

K.Scoring

KSCORE ON

• During Karaoke Scoring, scoring will start when

playback is started.

• To cancel Karaoke Scoring before playback,

press the same button again. “KSCORE OFF”

appears on the display.

To use only microphones

Select “DVD/CD,” “USB1” or “USB2” in step 2, and

stop the playback.

To cancel the Mic Mixing

MIC MIX

MIC OFF

Adjusting the Sound Track

for Karaoke

You can adjust the sound track for Karaoke.

• For stereo (2-channel) source: By selecting VOCAL

MASK, you can reduce the lead vocal—Vocal

Masking.

• For Karaoke disc: By selecting L CHANNEL or R

CHANNEL, you can select the audio channel to play.

While Mic Mixing is activated...

VOCAL MASK L CHANNEL

R CHANNELOFF

VOCAL MASK Reduce the vocal from stereo (2-

channel) source.

L CHANNEL Reproduces only the left audio

channel.

R CHANNEL Reproduces only the right audio

channel.

To return to normal playback, select “OFF.”

To restore the vocal temporarily

This function allows you to recover the lead vocal

temporarily for your reference while singing.

While Vocal Masking, L CHANNEL or R CHANNEL

is activated...

The vocal or stereo effect will be

restored temporarily.

To return to Vocal Masking, L CHANNEL or R

CHANNEL, press the same button again.

text_EN_NXG9G5.indb 45text_EN_NXG9G5.indb 45 08.8.5 10:52:47 AM08.8.5 10:52:47 AM

Changing the Karaoke Setting

You can change five settings for Karaoke.

• To escape from Karaoke setting, wait for several

seconds after the setting is done.

To apply an echo to your voice

MIC LVL ECHO KEYCON*

SCORE LVL*FANFARE*

* Appears only when “DVD/CD” or “USB1” is

selected as the source with Mic Mixing activated.

2 Adjust the echo level.

• You can adjust the

echo level from ECHO

OFF (no effect) to

ECHO 6.

To adjust the key

• This function is available only for CD/VCD/SVCD/

DVD Video and Audio files.

• Key adjustment will be canceled when you deactivate

Mic Mixing, or select another disc, track or file.

1 Select “DVD/CD” or “USB1” as the source.

2 Connect the microphone(s) (not supplied)

to the MIC 1 and/or MIC 2 jack.

Mic Mixing will be automatically activated.

• If a microphone is already connected and Mic

Mixing is not activated, use the MIC MIX button

to reactivate Mic Mixing (see page 45).

3 Start playback.

4 Start playback and sing into the

microphone.

Scoring starts.

• The K.Scoring indicator flashes during scoring.

• Adjust echo level and key if you want. (See “To

apply an echo to your voice” and “To adjust the

key” on the next column.)

• When you press 4 or ¢, Karaoke Scoring is

canceled and restarts from the selected track/file.

Result of the scoring

After the song ends, playback stops and the score board

appears on the TV screen with fanfare.

Your score

The latest top 3

The calorie you consumed in your singing

• When you press 8, scoring is canceled. When

playback starts again, scoring starts from that point.

• If you do not sing for about 2 minutes after Karaoke

Scoring starts, Karaoke Scoring is canceled.

• To obtain a correct scoring result, it is recommended

to sing the song completely. If the singing time is

less than 3 minutes, the scoring result may be “0” or

incorrect.

To stop the playback in the middle of the song, press

7. Karaoke Scoring is not canceled and your singing

along is scored until that time.

To activate Karaoke Scoring in the middle of the

song, press KARAOKE SCORING. “SCORING” and

“START” appear on the display, then scoring starts

from that point.

To deactivate Karaoke Scoring in the same song

during playback, press KARAOKE SCORING.

“SCORING” and “CANCEL” appear on the display.

• Once you deactivate Karaoke Scoring in the

same song during playback, pressing KARAOKE

SCORING switches “KSCORE ON” and “KSCORE

OFF” alternately.

• When you reactivate Karaoke Scoring in the same

song during playback and “KSCORE ON” is selected,

scoring starts from the next track.

text_EN_NXG9G5.indb 46text_EN_NXG9G5.indb 46 08.8.5 10:52:49 AM08.8.5 10:52:49 AM

To turn on/off the fanfare

You can turn the fanfare on or off for Karaoke Scoring.

• This function is available only for disc/USB mass

storage class device playback.

1 Select “DVD/CD” or “USB1” as the source.

MIC LVL ECHO KEYCON

SCORE LVLFANFARE

3 Select the fanfare setting.

OFF

To change the mic volume

• You can also change the mic volume by pressing

MIC LEVEL +/– on the main unit. (See page 44.)

MIC LVL ECHO KEYCON*

SCORE LVL*FANFARE*

* Appears only when “DVD/CD” or “USB1” is

selected as the source with Mic Mixing activated.

2 Select the volume level.

• The mic volume level

can be adjusted in 16

steps (MIN (0) – MAX

(15)).

MIC LVL ECHO KEYCON

SCORE LVLFANFARE

5 Adjust the key.

To raise the key (up

to +6).

To lower the key (down

to –6).

To return to normal key, select “0.”

To change the calculation level

You can change the scoring level of Karaoke Scoring.

• This function is available only for disc/USB mass

storage class device playback.

1 Select “DVD/CD” or “USB1” as the source.

2 Connect the microphone(s) (not supplied)

to the MIC 1 and/or MIC 2 jack.

Mic Mixing will be automatically activated.

• If a microphone is already connected and Mic

Mixing is not activated, use the MIC MIX button

to reactivate Mic Mixing (see page 45).

MIC LVL ECHO KEYCON

SCORE LVLFANFARE

4 Select the scoring level setting.

PRO

AMATEUR

PRO Calculation level is strict.

AMATEUR Calculation level is lenient.

text_EN_NXG9G5.indb 47text_EN_NXG9G5.indb 47 08.8.5 10:52:50 AM08.8.5 10:52:50 AM

5 Start playback.

Karaoke Reserve screen disappears and playback

starts in the order you have programmed.

• For the Karaoke Program Play with Karaoke

Scoring: Each time the song ends, playback stops

and the score board appears. Press 3 to start

playback of the next track.

6 Sing into the microphone.

7 Adjust the microphone level and volume.

To check the programmed contents

Karaoke Reserve screen appears.

• You cannot display Karaoke Reserve screen while

Karaoke Scoring is in use.

To modify the program

While Karaoke Reserve screen is shown on the TV...

To erase the unwanted step:

(while holding...)

To erase the entire program, repeat the procedure.

To add steps in the program:

Repeat step 4.

Reserving Karaoke Songs—Karaoke

Program Play

You can determine the playback order of the titles,

chapters, tracks or files on the disc player. You can

program up to 12 steps.

• This function is not available for files in a USB mass

storage class device.

1 Select “DVD/CD” as the source.

2 Connect the microphone(s) (not supplied)

to the MIC1 or MIC2 jack.

Mic Mixing will be automatically activated.

• If a microphone is already connected and Mic

Mixing is not activated, use the MIC MIX button

to reactivate Mic Mixing (see page 45).

3 Activate Karaoke Program Play.

• The PRGM indicator flashes during this mode.

4 Select songs you want for Karaoke

Program Play.

Press the number buttons to select a song in the

following order.

1 Select a title/group.

2 Select a chapter/track/file.

• To select a number, see

“How to select a number”

on page 10.

• To cancel the procedure,

press RESERVE. The

PRGM indicator

disappears.

text_EN_NXG9G5.indb 48text_EN_NXG9G5.indb 48 08.8.5 10:52:52 AM08.8.5 10:52:52 AM

ENTER/SET

ON SCREEN

PG PL

On-Screen Operations

Remote control

Number

buttons

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

TIME OFF

TRACK 3

TIME 0:00:58

RANDOM

MPEG-1/MPEG-2/ASF/DivX files on a disc

TOTAL

1:25:58

CHAP

FILE

TIME 00:00:58

213

MPEG-1/MPEG-2/ASF/DivX files in a USB mass

storage class device

TOTAL

1:25:58

CHAP

USB

TIME 00:00:58

213

1 Disc/source

2 Playback information

Dolby D Audio format

3/2.1ch, 2/0.0 ch Channel number

PROGRAM, RANDOM Current play mode

TITLE

Current title

CHAP

Current chapter

TRACK

Current track

Current program

Current Play List

TIME 0:00:58

Time indication

3 Operation modes

Playback

/Forward/Reverse search

/Forward/Reverse slow-motion

Pause

Stop

4 Function icons (on the pull-down menu)

TIME

Select to change the time indications.

OFF

Select to repeat playback.

Select for time search.

CHAP.

Select for chapter search.

1/3

Select to change the audio language

or channel (see also page 22).

1/3

Select to change subtitle language

(see also page 23).

1/3

Select to change the view angle (see

also page 23).

You cannot do on-screen operations for “USB2.”

On-screen Bar Operations

You can check the source information (disc/USB mass

storage class device) and playback status by using the

on-screen bar (not applicable for MP3/WMA/WAV/

JPEG files). You can also use some functions when

playing back DVD Video/DVD-VR/SVCD/VCD/CD.

On-screen Bar Information

DVD Video

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TIME 0:00:58

CHAP 3

Dolby D

3/2.1ch

DVD-VR

SVCD

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

SVCD

TIME OFF ST1

TRACK 3

1/3

-/4

TIME 0:00:58

PROGRAM

VCD

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

VCD

TIME OFF ST

TRACK 3

TIME 0:00:58

PROGRAM

text_EN_NXG9G5.indb 49text_EN_NXG9G5.indb 49 08.8.5 10:52:53 AM08.8.5 10:52:53 AM

To change the time information

You can change the time information on the on-screen

bar and the display on the main unit.

1 While playing, display the entire on-screen

bar.

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TIME 0:00:58

CHAP 3

Dolby D

3/2.1ch

2 Make sure

TIME

is selected (highlighted).

3 Change the time indication.

TIME Elapsed playing time of the current

chapter/track (not applicable for DVD-

VR).

REM Remaining time of the current chapter/

track (not applicable for DVD-VR).

TOTAL Elapsed disc time.

T. REM Remaining time of title (DVD Video)/

program (DVD-VR)/disc (SVCD/VCD).

Repeat Play

• See also page 27.

1 While playing (without PBC for SVCD/

VCD), display the entire on-screen bar.

• Repeat mode can also be selected before starting

playback (not applicable for DVD Video/DVD-

VR).

2 Select

OFF

3 Display the pop-up window.

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TOTAL 1:01:58

CHAP 3

OFF

Dolby D

3/2.1ch

To operate using the On-screen Bar

Ex.: Selecting a subtitle (French) for DVD Video

While “DVD/CD” is selected as the source...

1 Display the entire on-screen bar.

* This does not appear for MPEG-1/MPEG-2/DivX

files.

2 Select (highlight) the item you want.

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TIME 0:00:58

CHAP 3

Dolby D

3/2.1ch

3 Display the pop-up window.

1/3 1/3 1/3

TOTAL

1:25:58

CHAP

TITLE 2

1/31/31/1

TOTAL 1:01:58

CHAP 3

ENGLISH

4 Select the desired option in the pop-up

window.

1/3 1/3 1/3

ITLE

TOTAL

1:25:58

CHAP

TITLE 2

1/32/31/1

TOTAL 1:01:58

CHAP 3

FRENCH

5 Finish the setting.

Pop-up window disappears.

To remove the on-screen bar

disappears

text_EN_NXG9G5.indb 50text_EN_NXG9G5.indb 50 08.8.5 10:52:55 AM08.8.5 10:52:55 AM

5 Select the start point (A).

1/3

TIME

TITLE

DVD-VIDEO TITLE 2

TIME A- CHAP. 1/3

Dolby D

3/2.1ch

6 Select the end point (B).

A-B Repeat starts. The selected

portion plays repeatedly.

• You can search for the end

point using the ¡ button.

To cancel A-B Repeat, repeat steps 1 to 3, and select

“OFF” in step 4.

• A-B Repeat will also be canceled when you stop play

or skip the chapter or track.

Time Search

You can move to a particular point by specifying the

elapsed playing time from the beginning.

• This function is not available during Program Play

and Random Play.

1 While playing (without PBC for SVCD/

VCD), display the entire on-screen bar.

• Time Search can also be used before starting

playback (not applicable for DVD Video/DVD-

VR).

2 Select .

3 Display the pop-up window.

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TIME 0:00:58

CHAP 3

TIME _ : _ _ : _ _

Dolby D

3/2.1ch

4 Enter the time.

You can specify the time in hours/minutes/seconds.

Examples:

To move to a point of 1

(hours): 02 (minutes): 00

(seconds), press 1, 0, 2, 0,

then 0.

To move to a point of 54

(minutes): 00 (seconds),

press 0, 5, 4, 0, then 0.

• It is always required to enter the hour digit (even

“0” hours), but it is not required to enter the final

zeros (the last two digits in the examples above).

• To correct a mis-entry, press 2 to erase the last

entry.

4 Select the repeat mode you want.

A-B Repeats a desired portion (see the

next column).

TITLE* Repeats the current title.

ALL Repeats the disc (not applicable

for DVD) or programmed track.

CHAPTER** Repeats the current chapter.

TRACK** Repeats the current track.

OFF Cancels Repeat Play.

* While playing a DVD-VR, “PG” appears, and

while playing a Play List, “PL” appears.

** During Program Play and Random Play, “STEP”

appears.

5 Finish the setting.

A-B Repeat

You can repeat playback of a desired portion by

specifying the beginning (point A) and the ending

(point B).

• A–B Repeat cannot be used for MP3/WMA/WAV/

JPEG/MPEG-1/MPEG-2/ASF/DivX files and some

DVDs.

1 While playing, display the entire on-screen

bar.

2 Select

OFF

3 Display the pop-up window.

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TOTAL 1:01:58

CHAP 3

OFF

Dolby D

3/2.1ch

4 Select “A-B.”

OFF

TIME

DVD-VIDEO

TIME OFF CHAP.

A–B

Dolby D

3/2.1ch

text_EN_NXG9G5.indb 51text_EN_NXG9G5.indb 51 08.8.5 10:52:57 AM08.8.5 10:52:57 AM

Control Screen Operations

You can search for and play the desired items through

the control screen for DVD-VR and MP3/WMA/

WAV/JPEG/MPEG-1/MPEG-2/ASF/DivX files.

Control screen for DVD-VR

The control screen is superimposed onto the TV screen

when you call up Original Program (PG) or Play List

(PL).

To select playback type

To display the

Original Programs:

To display the Play Lists:

To remove the list, press the same button again.

Ex.: When Original Program is selected.

ORIGINAL PROGRAM

No Date Ch Time Title

1 03/12/08 12:15L

2 09/12/08 23:05

3 18/12/08 08:17

4 20/12/08 07:47

5 25/12/08 19:38 Mr. Lawrence

Satisfy U

La fleur

The last struggle

free flyer

BOOM!

6 28/12/08 14:20

12 3 4 5 6

Ex.: When Play List is selected.

PLAY LIST

No Date Chap Length Title

1 03/12/08 002 0:23:24 Nebula G.

CDJ

Secret Garden

S. Walker

2 15/12/08 004 1:04:39

3 24/12/08 013 0:41:26

4 27/12/08 017 0:09:08

67 81 2 5

1 Listed number

2 Recording/creating date

3 Recording channels

4 Recording time

5 Title

6 Highlight bar (current selection)

7 Chapters included

8 Playback time

5 Confirm your entry.

The System starts playing the disc

from the selected playing time.

Chapter Search

For DVD Video/DVD-VR: You can search for the

chapter number to play.

• This function is not available during Program Play

and Random Play.

1 While playing, display the entire on-screen

bar.

2 Select

CHAP.

3 Display the pop-up window.

CHAPTER _

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TOTAL 1:01:58

CHAP 3

Dolby D

3/2.1ch

4 Enter the desired chapter number.

Examples:

To select chapter 5, press 5.

To select chapter 10, press

1, then 0.

To select chapter 15, press

1, then 5.

To select chapter 30, press

3, then 0.

• To correct a mis-entry, press the number

buttons until the desired number is shown in the

pop-up window.

5 Confirm your entry.

The System starts playing the

selected chapter.

text_EN_NXG9G5.indb 52text_EN_NXG9G5.indb 52 08.8.5 10:52:58 AM08.8.5 10:52:58 AM

= Highlight bar (current selection)

~ File list

• If different types of playable files (audio/still picture/

moving picture) are recorded on a disc or USB mass

storage class device, select a file type to play (see page

12).

To move the highlight bar between group list and

file list

Moves the bar to the file list.

Moves the bar to the group

list.

To select an item in the list

Move the highlight bar to the

desired item.

• If you move the highlight

bar while playing back an

MP3/WMA/WAV file, the

selected track starts playback

automatically.

To start playback

For JPEG:

The selected file (still picture) is

displayed until you change it.

Slide-show playback starts. Each file

(still picture) is shown on the screen

for about 3 seconds, then changes

one after another.

• To cancel slide-show and display

the current still picture, press 8.

For the other files:

Playback starts with the selected

track.

• Pressing DVD/CD 6 or

USB 6 also starts playback.

• Once you start to play back a picture, the control

screen disappears.

To select an item in the list and start playback

• If you move the highlight bar while playing back, the

selected item starts playback automatically.

Control screen for MP3/WMA/WAV/JPEG/

MPEG-1/MPEG-2/ASF/DivX files

The control screen appears on the TV when the System

detects MP3/WMA/WAV/JPEG/MPEG-1/MPEG-

2/ASF/DivX files.

• For JPEG/MPEG-1/MPEG-2/ASF/DivX, it appears

when playback is stopped.

Ex.: While playing an MP3 file on a disc.

Group : 2 / 3

TIME : 00:00:14

Track : 6 / 14 (Total 41)

Spring

Summer

Fall

Winter

Track Information

Cloudy.mp3

Fair.mp3

Fog.mp3

Hail.mp3

Indian summer.mp3

Rain.mp3

Shower.mp3

Snow.mp3

Thunder.mp3

Typhoon.mp3

Wind.mp3

Winter sky.mp3

Title

Rain

Artist

Album

REPEAT STEP

RANDOM

1 Current source

FILE: Current source is “DVD/CD.”

USB 1: Current source is “USB1.”

2 Current group number/total group number

3 Current group

4 Group list

5 File information (only for MP3/WMA/WAV

files)

6 Current file

7 Random Play/Program Play setting (for “DVD/

CD”)

8 Repeat Play setting

9 Elapsed playing time of the current file (not

applicable for JPEG files)

0 Operation status icon

- Current file number/total number of files in the

current group (total number of files)

text_EN_NXG9G5.indb 53text_EN_NXG9G5.indb 53 08.8.5 10:52:59 AM08.8.5 10:52:59 AM

Timer Operations

SHIFT

CLOCK/

TIMER

CANCEL

ENTER/SET

AUDIO

Remote control

Setting the Daily Timer

Using Daily Timer, you can wake up with your favorite

music.

• Finish the timer setting at least 2 minutes before the

on-time.

• To exit the timer settings, press CLOCK/TIMER

(while holding SHIFT) as required.

• To correct a mis-entry during process, press

CANCEL (while holding SHIFT). You can go back to

the previous step.

How Daily Timer works

Once the Daily Timer has been set, the timer

indicator ( ) is lit on the display. Daily Timer is

activated at the same time everyday until the timer is

turned off manually (see “To turn on or off the Daily

Timer” on page 55).

When the on-time comes

The System turns on, tunes in to the specified

station or starts playing from the specified source,

and gradually increases the volume level to the

preset level after about 30 seconds.

• While Daily Timer is working, the timer indicator

() flashes on the display.

When the off-time comes

The System stops playback, and turns off (on

standby) automatically.

• The timer setting remains in memory until you

change it.

1 Select the timer setting mode.

(while holding...)

ON 8:00

• When the clock has not been set, pressing

CLOCK/TIMER makes the System enter the

clock setting mode (see page 20).

DAILYREC TIMER

ON (Time)

Canceled Clock setting

(See page 20.)

Daily TimerRecording Timer

ON (Time)

text_EN_NXG9G5.indb 54text_EN_NXG9G5.indb 54 08.8.5 10:53:00 AM08.8.5 10:53:00 AM

To cancel the Daily Timer

1 Select “DAILY.”

(while holding...)

DAILY

2 Turn off the Timer.

(while holding...)

To turn on the Daily Timer

1 Select “DAILY.”

(while holding...)

2 Activate the Timer.

3 Wait until the indication disappears.

2 Set the timer as you like.

Repeat the procedure for the following settings

until finished.

1 Set the hour then the minute for on-time.

2 Set the hour then the minute for off-time.

3 Select the playback source—“DISC,” “USB1,”

“USB2,” “TUNER AM,” “TUNER FM,” or

“AUDIO IN.”

4 For “TUNER AM” or “TUNER FM”: Select a

preset channel.

For “DISC”: Select the title/group number, then

the chapter/track/file number*.

For “USB”: Select the group number, then the

track/file number*.

5 Select the volume level.

• You can adjust the volume level (“0” to “MAX”

and “VOLUME – –”). If you select “VOLUME

– –,” the volume is set to the same level as when

the System was last turned off.

Once settings are completed, the timer setting

information appears in sequence.

3 Turn off the System (on standby), if you

have set the timer with the System turned

on.

* You cannot select the 151st and more.

To turn on or off the Daily Timer

Since Daily Timer is activated at the same time

everyday, you may need to cancel it on some particular

days.

DAILYREC TIMER

ON (Time)

Canceled Clock setting

(See page 20.)

Daily TimerRecording Timer

ON (Time)

DAILYREC TIMER

ON (Time)

Canceled Clock setting

(See page 20.)

Daily TimerRecording Timer

ON (Time)

text_EN_NXG9G5.indb 55text_EN_NXG9G5.indb 55 08.8.5 10:53:01 AM08.8.5 10:53:01 AM

Setting the Recording Timer

• Finish the timer setting at least 2 minutes before the

on-time.

• To exit the timer settings, press CLOCK/TIMER

(while holding SHIFT) as required.

• To correct a mis-entry during process, press

CANCEL (while holding SHIFT). You can go back to

the previous step.

Preparation:

• Connect a USB mass storage class device to the USB

2 terminal.

• Change the source to “USB2” and check that the USB

device is properly detected by the System.

• Make recording settings (see page 29).

1 Select the timer setting mode.

(while holding...)

REC

ON 8:00

2 Set the timer as you like.

Repeat the procedure for the following settings

until finished.

1 Set the hour then the minute for on-time.

2 Set the hour then the minute for off-time.

3 Select the recording source—“TUNER AM,”

“TUNER FM,” or “AUDIO IN.”

4 For “TUNER AM” or “TUNER FM”: Select a

preset channel.

5 Select the volume level.

• You can adjust the volume level (“0” to “MAX”

and “VOLUME – –”). If you select “VOLUME

– –,” the volume is set to the same level as when

the System was last turned off.

Once settings are completed, the timer setting

information appears in sequence.

3 Turn off the System (on standby), if you

have set the timer with the System turned

on.

• Recorded files are stored into

the group “Timer.”

To cancel the Recording Timer

1 Select “REC TIMER.”

(while holding...)

2 Turn off the Timer.

(while holding...)

To turn on the Recording Timer

1 Select “REC TIMER.”

(while holding...)

DAILYREC TIMER

ON (Time)

Canceled Clock setting

(See page 20.)

Daily TimerRecording Timer

ON (Time)

2 Activate the Timer.

3 Wait until the indication disappears.

DAILYREC TIMER

ON (Time)

Canceled Clock setting

(See page 20.)

Daily TimerRecording Timer

ON (Time)

DAILYREC TIMER

ON (Time)

Canceled Clock setting

(See page 20.)

Daily TimerRecording Timer

ON (Time)

text_EN_NXG9G5.indb 56text_EN_NXG9G5.indb 56 08.8.5 10:53:03 AM08.8.5 10:53:03 AM

SET UP

(NX-G5)

SHIFT

SET UP

(CA-NXG9)

ENTER/SET

Setup Menu Operations

Remote control Initial Settings

You can change the settings of the System.

• The Setup Menu can be used only when “DVD/CD”

or “USB1” is selected as the source.

1 Press SET UP while playback is stopped.

MENU LANGUAGE ENGLISH

AUDIO LANGUAGE ENGLISH

SUBTITLE OFF

ON SCREEN LANGUAGE ENGLISH

LANGUAGE

2 Press 3 (or 2) to select the menu.

3 Press ∞ (or 5) to move to select the item.

4 Press ENTER/SET.

5 Press ∞ (or 5) to select the options, then

press ENTER/SET.

To remove a preference display

Press SET UP.

Menu Item Contents

LANGUAGE

MENU LANGUAGE You can select the initial menu language for DivX files/DVD Video. (See

page 66.)

AUDIO LANGUAGE You can select the initial audio language for DivX files/DVD Video. (See

page 66.)

SUBTITLE You can select the initial subtitle language for DivX files/DVD Video. (See

page 66.)

ON SCREEN LANGUAGE You can select “ENGLISH,” “CHINESE” or “SPANISH” as the on-screen

language.


MONITOR TYPE

16:9 4:3 LB

4:3 PS

You can select the monitor type to match your TV when you play back

picture recorded for wide-screen televisions.

16:9 NORMAL/16:9 MULTI NORMAL (Wide-screen television): Select this

when the aspect ratio of your wide-screen TV is fixed to 16:9.

16:9 AUTO/16:9 MULTI AUTO (Wide-screen television): Select this when

your TV is an ordinary wide-screen TV.

4:3 LB/4:3 MULTI LB (Letter Box conversion): For a conventional (4:3) TV.

Displays a wide-screen picture to fit the width of the TV screen keeping the

aspect ratio.

4:3 PS/4:3 MULTI PS (Pan Scan conversion): For a conventional (4:3) TV.

The picture is zoomed in to fill the screen vertically and the left and right

sides of the picture are cut off.

• By selecting “MULTI” mode, the color system of the System changes

automatically to match the color system of the picture. For the color

system setting, see page 7.

PICTURE SOURCE You can obtain optimal picture quality by selecting the source type of the

video source.

AUTO: Normally, select this option. The System recognizes the picture type

(film or video source) of the current picture according to its information.

FILM: For a film source picture.

VIDEO: For a video source picture.

text_EN_NXG9G5.indb 57text_EN_NXG9G5.indb 57 08.8.5 10:53:04 AM08.8.5 10:53:04 AM

Menu Item Contents


SCREEN SAVER You can set the screen saver function (ON or OFF). If no operation is done for about

5 minutes, the TV screen dims.

FILE TYPE You can select the file type to play on the disc and “USB1.”

AUDIO: To play MP3/WMA/WAV files.

STILL PICTURE: To play JPEG files.

VIDEO: To play MPEG-1/MPEG-2/DivX files.

HDMI DVI

COLOR

Select the picture appearance for a TV with an HDMI connection.

STANDARD: No effect applied.

ENHANCE: Select when you need automatic picture adjustment.

HDMI OUT Select the type of video signal output from the HDMI MONITOR OUT terminal.

AUTO: Normally select this.

RGB: Select this when no picture appears on the TV with “AUTO.”

AUDIO

DIGITAL AUDIO

OUTPUT

Set this item correctly when using the OPTICAL DIGITAL OUTPUT terminal on the

rear.

PCM ONLY: When connecting to audio equipment which is compatible with only

linear PCM signals.

DOLBY DIGITAL/PCM: When connecting to a Dolby Digital decoder or an amplifier

with a built-in Dolby Digital decoder.

STREAM/PCM: When connecting to a DTS decoder or an amplifier with a built-in

DTS decoder.

DOWN MIX This setting is effective for digital audio output if “DIGITAL AUDIO OUTPUT” is set

to “PCM ONLY.”

DOLBY SURROUND: Select this when connecting to a surround decoder.

STEREO: Select this when connecting to a stereo receiver, MD player, etc.

D. RANGE

COMPRESSION

You can enjoy powerful audio even at a low volume level while playing Dolby Digital

software.

AUTO: Select to apply the effect to multi-channel encoded software.

ON: Select to always use this function.

HDMI AUDIO

OUT

This setting is effective only for the source “DVD/CD” and “USB1.” Select whether

the System emits the audio signal from the HDMI MONITOR OUT terminal (ON) or

not (OFF).

OTHERS

RESUME You can select Resume.

ON: The System resumes playback from the position where playback has been

stopped.

OFF: Resume is deactivated.

ON SCREEN

GUIDE

Activate (ON) or deactivate (OFF) the on-screen guide (see page 12).

CEC You can select the usage for the HDMI CEC functions.

ON 1: To use the HDMI CEC functions normally.

ON 2: Select this if you do not want to have the System automatically turned on/off

by turning on/off the TV or other external HDMI CEC compatible devices. All other

available HDMI CEC functions operate the same as when “ON 1” is selected.

OFF: To deactivate the HDMI CEC functions.

DivX

REGISTRATION

The System has its own Registration Code.

If necessary, you can confirm it.

Once you have played back a DivX file in which the Registration Code is recorded, the

System’s Registration Code is overwritten for copyright protection.

text_EN_NXG9G5.indb 58text_EN_NXG9G5.indb 58 08.8.5 10:53:06 AM08.8.5 10:53:06 AM

Additional Information

Playing Back a Disc/USB Mass Storage Class Device:

JVC bears no responsibility for any loss of data in

the USB mass storage class device while using this

System.

• When you change the source to “DVD/CD” or

“USB,” it may take a while to activate the source.

• While the System is reading a disc, the source may

not change to “USB1” or “USB2” properly. In this

case, press 7, then change the source to “USB1” or

“USB2.”

• On some discs, the actual operations may be

different from what is explained in this manual

due to the programming and disc structure; such

differences are not a malfunction of this System.

• The total number of tracks (files) that the System can

detect is 4 000 for “DVD/CD” and “USB1,” and 2 000

for “USB2”.

• The System recognizes up to...

– 999 tracks (files) per group.

– 99 groups per disc.

– 99 groups per USB mass storage class device

connected to the USB 1 terminal.

– 999 groups per USB mass storage class device

connected to the USB 2 terminal.

Unplayable files are also counted in the total file

number.

Playable files which do not belong to any groups are

recognized as files of group 1.

• For playback of files in the USB mass storage class

device...

– When connecting a USB mass storage class device,

refer also to its manual.

– Connect one USB mass storage class device to the

System at a time. Do not use a USB hub.

– You cannot charge any USB mass storage class

device through the USB 1 terminal or the USB 2

terminal.

– While playing back a file in a USB mass storage

class device, do not disconnect the device. It may

cause malfunction on both the System and the

device.

– This System is compatible with USB 2.0 Full

Speed.

– You cannot play back a file larger than 2

Gigabytes.

– When playing a file of a large transfer rate, frames

or sounds may be dropped during playback.

– This System cannot recognize a USB mass storage

class device whose rating is other than 5 V and

exceeds 500 mA.

Learning More about This System

Connections (see pages 4 to 7)

• Make sure the antenna conductors do not touch any

other terminals, connecting cords or the power cord.

Also, keep the antennas away from metallic parts of

the System, connecting cords, and the power cord.

These could cause poor reception.

• Use only speakers with the same speaker impedance

as indicated by the speaker terminals on the rear of

the System.

• The speakers are magnetically shielded to avoid

color distortions on TVs. However, if not installed

properly, it may cause color distortions. So, pay

attention to the following when installing the

speakers.

– When placing the speakers near a TV set, turn off

the TV’s main power switch or unplug it before

installing the speakers.

Then wait at least 30 minutes before turning on

the TV’s main power switch again.

– Some TVs may still be affected even though

you have followed the above instructions. If this

happens, move the speakers away from the TV.

• You cannot connect a computer to the USB

terminals of the System.

• You cannot connect JVC Everio camcorder to the

USB terminals of the System.

• Noise and static electricity may stop the USB mass

storage class device sound. In this case, disconnect

and connect the USB mass storage class device again

after turning off the System.

Changing the Color System and Scanning Mode:

• You cannot change the scanning mode to progressive

in the following cases:

– When your TV does not support the progressive

video input.

– When you have not connected your TV to the

system using a component video cord or an HDMI

cable.

Daily Operations—Playback (see pages 9 to

14)

• Instead of pressing , the System is turned on

by pressing one of the source buttons, the DOOR

OPEN/CLOSE button or 0 on the main unit.

Listening to the Radio:

• If you store a new station into an occupied preset

number, the previously stored station in that number

will be erased.

• When you unplug the power cord or if a power

failure occurs, the preset stations will be erased in a

few days. If this happens, preset the stations again.

text_EN_NXG9G5.indb 59text_EN_NXG9G5.indb 59 08.8.5 10:53:07 AM08.8.5 10:53:07 AM

– The stream format should conform to MPEG

system/program stream.

– 720 x 576 pixels (25 fps) / 720 x 480 pixels (30 fps)

is recommended for the highest resolution.

– This System also supports the resolutions of

352 x 576 / 480 x 576 / 352 x 288 pixels (25 fps)

and 352 x 480 / 480 x 480 / 352 x 240 pixels (30

fps).

– The file format should be MP@ML (Main Profile

at Main Level)/SP@ML (Simple profile at Main

Level)/MP@LL (Main Profile at Low Level).

– Audio streams should conform to MPEG1 Audio

Layer-2 or MPEG2 Audio Layer-2.

• For ASF playback...

– This System can play back ASF files with the

extension code <.asf> (regardless of the letter

case—upper/lower).

– This System supports ASF files whose resolution is

352 x 288 pixels or less.

– Some recorded files may not be able to played back

depending on file characteristics, kind of digital

still/video cameras, or recording conditions.

• For DivX playback...

– This System can play only a disc of UDF-Bridge

format. “Multi-border” is not supported.

– The System supports all versions of DivX® video

(including DivX® 6).

– The System supports DivX files whose resolution

is 720 x 480 pixels or less (30 fps), and 720 x 576

pixels or less (25 fps).

– Audio stream should conform to Dolby Digital,

MPEG1 Audio Layer-2 or MPEG Audio Layer-3

(MP3).

– This System can play back DivX files with the

extension code <.divx> <.div> <.avi> (regardless

of the letter case—upper/lower).

– The System does not support GMC (Global

Motion Compression).

– The file encoded in the interlaced scanning mode

may not be played back correctly.

Sound & Other Adjustments (see pages 15 to

21)

Adjusting the Sound:

• This function also affects the sound through the

headphones.

– This System may not play back some USB mass

storage class devices and does not support DRM

(Digital Rights Management).

– It will take some time to start up a digital audio

player whose contents are larger than 1 Gigabyte.

• For DVD-VR playback...

– This System can play only a disc of UDF-Bridge

format.

– For details about DVD-VR format and Play List,

refer to the manual of the recording equipment.

• For MP3/WMA/WAV playback...

– MP3/WMA/WAV discs require a longer readout

time than regular CDs. (It depends on the

complexity of the group/file configuration.)

– Some MP3/WMA/WAV files cannot be played

back and will be skipped. This results from their

recording processes and conditions.

– This System can play only a disc of ISO 9660

Level 1 or Level 2.

– This System can play back MP3/WMA/WAV

files with the extension code <.mp3>, <.wma>,

or <.wav> (regardless of the letter case—upper/

lower).

– It is recommended that you make each MP3/

WMA/WAV files as following conditions:

– For MP3/WMA files: At a sample rate of

44.1 kHz and at a data transfer rate of 128 kbps.

This System cannot play back files made at a bit

rate of less than 64 kbps.

– For WAV files: At a sample rate of 44.1 kHz and

at a quantization rate of 16 bit Linear PCM.

• For JPEG files playback...

– It is recommended that you record a file at 640

x 480 resolution. (If a file has been recorded at a

resolution of more than 640 x 480, it will take a

long time to be shown.)

– This System can play back JPEG files with the

extension code <.jpg> or <.jpeg> (regardless of the

letter case—upper/lower).

– This System may not play back JPEG files properly

if they are recorded from a device other than a

digital camera.

• For MPEG-1/MPEG-2 playback...

– This System can play back MPEG-1/MPEG-2 files

with the extension code <.mpg>, <.mpeg>, or

<.mod>*.

* <.mod> is an extension code used for the

MPEG-2 files recorded by JVC Everio

camcorders. The MPEG-2 files with the <.mod>

extension code cannot be played back if HD

format is used or its maximum bit rate is more

than 2 Mbps.

text_EN_NXG9G5.indb 60text_EN_NXG9G5.indb 60 08.8.5 10:53:09 AM08.8.5 10:53:09 AM

Giving (Editing) Titles to Tracks or Groups:

• When a track is recorded, a title is automatically

given to the track. When you want to give a new

title to the track, delete the old title, then enter your

desired title.

Enjoying Karaoke (see pages 44 to 48)

General:

• You cannot enjoy all the Karaoke functions with

DVD-VR, video files and picture files.

• While the System is turned on, connecting a

microphone automatically activates Mic Mixing and

all the Karaoke related functions.

• While the System is turned off, connecting a

microphone does not activate Mic Mixing and any

other Karaoke related function. In this case, press

MIC MIX after turning the System on.

• You cannot activate Mic Mixing during My Sound

setup.

• While recording, connecting microphones does not

automatically activate Mic Mixing.

Adjusting the Sound Track for Karaoke:

• The Vocal Masking setting is not applied to the

optical digital output signals through the OPTICAL

DIGITAL OUTPUT terminal.

• On some music, Vocal Masking does not provide the

correct effect.

Scoring Your Karaoke Skill:

• You can also activate Karaoke Scoring while playing

back. In this case, the scoring starts from that point.

But cancel Karaoke Scoring and set Karaoke Scoring

again in the same track during the playback, scoring

starts from next track.

• While Karaoke Scoring is in use, you cannot

deactivate Mic Mixing or use MIC MIX, RESERVE

and number buttons.

• Activating Karaoke Scoring cancels Repeat Play.

• You cannot use Karaoke Scoring during Program

Play, Random Play, or recording. However, you

can turn Karaoke Scoring on and off by using

KARAOKE SCORING button during these play

modes.

• The ranking (top 3) is cleared when you turn off the

System.

Reserving Karaoke Songs—Karaoke Program Play:

• You can use RESERVE button when a microphone

is plugged in. However, you can cancel Karaoke

Program Play using the button even if a microphone

is not plugged in. In case you reactivate Karaoke

Program Play, plug in a microphone.

Creating a Soothing Tone for Your Ear —MY SOUND:

• MY SOUND setup is prohibited for certain file

format.

• MY SOUND setup is prohibited during recording/

editing or while Mic Mixing is activated.

Setting the ECO (Ecology) Mode:

• If you turn on the Daily Timer or the Recording

Timer while the ECO mode is activated, the ECO

mode is canceled.

Setting the Clock:

• “0:00” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month.

If this happens, reset the clock.

Unique Video Disc/File Operations (see pages

22 to 24)

Selecting the Audio Track:

• On some discs/files, you cannot change audio

language during playback.

Special Effect Playback:

• During slow-motion playback, no sound will be

emitted.

• While zoomed in, the picture may look coarse.

Advanced Playback Operations (see pages 25

to 27)

Programming the Playing Order—Program Play:

• While programming steps...

- Your entry will be ignored if you have tried to

program an item number that does not exist (for

example, selecting track 14 on a disc that only has

12 tracks).

- For MP3/WMA/WAV files, you can program up

to 99 files.

- You cannot select the 151st or later tracks.

Playing Repeatedly:

• A-B Repeat is available only within the same title/

program/track.

Recording and Editing Operations (see pages

28 to 37)

Setting up the Recording Modes:

• While Program Play or Randam Play is selected, or

when “HQ REC” is selected for the transfer rate, “×1

ONLY” appears on the display when you press USB

REC.

text_EN_NXG9G5.indb 61text_EN_NXG9G5.indb 61 08.8.5 10:53:10 AM08.8.5 10:53:10 AM

Operating JVC’s TVs Using the Remote

Control

You can use the remote control to operate JVC’s TVs.

TV Turn on/off TV.

TV/VIDEO Change the input mode.

TV CHANNEL

+, –

Change the channel.

TV VOL +, –

(NX-G5)

Adjust the TV volume.

While holding SHIFT, press...

TV VOL +, –

(CA-NXG9)

Adjust the TV volume.

TV/VIDEO

SHIFT

(CA-NXG9)

Remote control

• When the track starts playback, that track number

will be erased from the Karaoke Reserve screen (the

programmed contents will remain until you erase it).

• For some VCD, the Karaoke Scoring result may not

appear at the end of the track if PBC is activated. In

this case, press 7 to view your scoring result.

On-Screen Operations (see pages 49 to 53)

On-screen Bar Operations:

• A-B Repeat is available only within the same title/

program/track.

Timer Operations (see pages 54 to 56)

Setting the Daily Timer:

• If you do not specify the preset station or track

number correctly while setting a timer, the currently

selected station or the first track will be played when

the timer is activated.

• When you unplug the power cord or if a power

failure occurs, the timer will be canceled. You need

to set the clock first, then the timer again.

• If you set DVD Video as the source, Daily Timer will

not work correctly.

• If you set the Sleep Timer after Daily Timer starts

playing the selected source, Daily Timer is canceled.

Setup Menu Operations (see pages 57 and 58)

General:

• If the upper and lower parts of the menu are cut off,

adjust the picture size control of the TV.

LANGUAGE menu:

• When the language you have selected for “MENU

LANGUAGE,” “AUDIO LANGUAGE,” or

“SUBTITLE” is not recorded, the original language is

used as the initial language.

PICTURE menu—MONITOR TYPE:

• Even if “4:3 PS” is selected, the screen size may

become 4:3 letter box while playing a disc/file. This

depends on how the discs are recorded.

• When you select “16:9” for a picture whose aspect

ratio is 4:3, the picture changes slightly due to the

process of converting the picture width.

OTHERS menu—ON SCREEN GUIDE:

• The setup menu and on-screen bar will be displayed

(and recorded) even if this function is set to “OFF.”

Subtitles and the information for zoom-in always

appear on the display regardless of this setting.

text_EN_NXG9G5.indb 62text_EN_NXG9G5.indb 62 08.8.5 10:53:12 AM08.8.5 10:53:12 AM

Maintenance

To get the best performance of the System, keep your

discs and mechanism clean.

Handling Discs

• Remove the disc from its case by holding it at the

edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend

the disc.

• Put the disc back in its case after use to prevent

warping.

• Be careful not to scratch the surface of the disc when

placing it back in its case.

• Avoid exposure to direct sunlight, extreme

temperature, and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from

center to edge.

Cleaning the System

• Stains should be wiped off with a soft cloth. If the

System is heavily stained, wipe it with a cloth soaked

in water-diluted neutral detergent and wrung well,

then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become

damaged or get its paint peeled off, be careful about

the following:

– DO NOT wipe it with a hard cloth.

– DO NOT wipe it forcefully.

– DO NOT wipe it with thinner or benzine.

– DO NOT apply any volatile substance such as

insecticides to it.

– DO NOT allow any rubber or plastic to remain in

contact for a long time.

Troubleshooting

General

Adjustments or settings are suddenly canceled

before you finish.

] There is a time limit. Repeat procedure again.

Operations are disabled.

] The built-in microprocessor may malfunction

due to external electrical interference. Unplug the

power cord and then plug it back in.

Unable to operate the System from the remote

control.

] The path between the remote control and the

remote sensor on the System is blocked.

] The batteries are exhausted.

No sound is heard.

] Speaker connections are incorrect or loose.

] Headphones are connected.

No picture appears on the TV screen.

] The video cord connections are incorrect or loose.

No picture is displayed on the TV screen, the picture

is blurred, or the picture is divided into two parts.

] The System is connected to a TV which does not

support progressive video input.

] Incorrect scanning mode is selected (see page 7).

] When you unplug the power cord and plug it back

again, the scanning mode may change back to the

initial setting (see page 7).

The left and right edges of the picture are missing

on the screen.

] Select “4:3 LB/4:3 MULTI LB” for “MONITOR

TYPE” (see page 57).

Radio Operations

Hard to hear broadcasts because of noise.

] Antenna connections are incorrect or loose.

] The AM loop antenna is too close to the System.

] The FM antenna is not properly extended and

positioned.

Disc/USB mass storage class device Playback

Operations

The disc does not play.

] You have inserted a disc whose Region Code is not

correct. (“REGION ERR” appears on the display.)

] The disc is placed upside down. Place the disc with

the label side facing up.

ID3 Tag on an MP3 file cannot be shown.

] There are two types of ID3 Tag—Version 1 and

Version 2. This System can only show ID3 Tag

Version 1.

Groups and tracks are not played back as you expect.

] The playing order is determined when the groups

and tracks were recorded. It depends on the

writing application.

text_EN_NXG9G5.indb 63text_EN_NXG9G5.indb 63 08.8.5 10:53:13 AM08.8.5 10:53:13 AM

MP3, WMA, WAV, JPEG, MPEG-1, MPEG-2, ASF or DivX

files are not played back.

] The disc or the USB mass storage class device may

contain different types of files (ex. MP3/WMA/

WAV/JPEG). In this case, you can only play back

the files selected by pressing FILE TYPE (see page

12).

] You have changed the “FILE TYPE” setting

after the System read the disc or the USB mass

storage class device. In this case, reload the disc or

disconnect the USB mass storage class device and

connect it again.

The disc sound is discontinuous.

] The disc is scratched or dirty.

No subtitle appears on the display though you have

selected the initial subtitle language.

] Some DVDs/DivX files are programmed not to

display any subtitle initially. If this happens, press

SUBTITLE after starting playback (see page 23).

Audio language is different from the one you have

selected as the initial audio language.

] Some DVDs/DivX files are programmed to always

use the original language initially. If this happens,

press AUDIO/MPX after starting playback (see

page 22).

The disc tray does not open or close.

] The power cord is not plugged in.

] Child Lock is in use. “LOCKED” appears on the

display (see page 21).

Recording and Editing Operations

Unable to record into the USB device.

] The capacity of the USB device is full. Erase some

tracks.

] There have been 999 tracks or group on the USB

device you want to record into. Erase unwanted

tracks.

] The USB device is write-protected.

] The connected USB device is incompatible to this

System.

Unable to assign title to tracks on the USB device.

] When a track is damaged, you cannot edit that

track. In this case, turn off the System and turn on

again.

] The USB device is write-protected.

Bluetooth Operations

Sound of a Bluetooth audio player does not come

out of the speakers. (The Bluetooth indicator is on.)

] Another player than the one you want to listen to

is connected to the System. Change the device to

be connected to the System (see page 40).

Sound of a Bluetooth audio player does not come

out of the speakers. (The Bluetooth indicator is

flashing.)

] Connection is not established. Try pairing again

(see page 39).

Sound of a Bluetooth audio player does not come

out of the speakers. (The Bluetooth indicator is off.)

] The Bluetooth adapter is not connected properly.

] “Bluetooth” is not selected as the source.

Sound of the System does not come out of Bluetooth

headphones. (The Bluetooth indicator is on.)

] Another pair of headphones than the one you

want to use is connected to the System. Change

the headphones to be connected to the System (see

page 42).

Sound of the System does not come out of Bluetooth

headphones. (The Bluetooth indicator is flashing.)

] Connection is not established. Try searching for

the device (“SEARCH DV?”) again (see page 40).

Sound of the System does not come out of Bluetooth

headphones. (The Bluetooth indicator is off.)

] The Bluetooth adapter is not connected properly.

] The Bluetooth transmitter is not activated (see

page 41).

A Bluetooth device cannot be paired with the

System.

] Set the System ready to be paired (see page 39 or

40).

] Input the right PIN code (see page 41).

] Refer to the manual of the Bluetooth device for the

details of pairing.

The sound quality is not good.

] Change the SOUND QLTY setting to “HIGH” (see

page 43).

The sound is discontinuous.

] A wireless LAN or a microwave oven is

interfering.

text_EN_NXG9G5.indb 64text_EN_NXG9G5.indb 64 08.8.5 10:53:14 AM08.8.5 10:53:14 AM

• Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol

are trademarks of Dolby Laboratories.

• “DTS” is a registered trademark of DTS, Inc.

and “DTS2.0+Digital Out” is a trademark of

DTS, Inc.

• “Official DivX® Ultra Certified product” “Plays

all versions of DivX® video (including DivX®

6) with enhanced playback of DivX® media

files and the DivX® Media Format” “DivX,

DivX Ultra Certified, and associated logos are

trademarks of DivX, Inc. and are used under

licence.”

• Microsoft and Windows Media are either

registered trademarks or trademarks of

Microsoft Corporation in the United States

and/or other countries.

• This product incorporates copyright protection

technology that is protected by U.S. patents

and other intellectual property rights. Use of

this copyright protection technology must be

authorized by Macrovision, and is intended for

home and other limited viewing uses only unless

otherwise authorized by Macrovision. Reverse

engineering or disassembly is prohibited.

• “CONSUMERS SHOULD NOTE THAT NOT

ALL HIGH DEFINITION TELEVISION SETS

ARE FULLY COMPATIBLE WITH THIS

PRODUCT AND MAY CAUSE ARTIFACTS

TO BE DISPLAYED IN THE PICTURE.

IN CASE OF 525 OR 625 PROGRESSIVE

SCAN PICTURE PROBLEMS, IT IS

RECOMMENDED THAT THE USER SWITCH

THE CONNECTION TO THE ‘STANDARD

DEFINITION’ OUTPUT. IF THERE ARE

QUESTIONS REGARDING OUR TV SET

COMPATIBILITY WITH THIS MODEL 525p

AND 625p DVD PLAYER, PLEASE CONTACT

OUR CUSTOMER SERVICE CENTER.”

• USE OF THIS PRODUCT IN ANY MANNER

THAT COMPLIES WITH THE MPEG-4

VISUAL STANDARD IS PROHIBITED,

EXCEPT FOR USE BY A CONSUMER

ENGAGING IN PERSONAL AND NON-

COMMERCIAL ACTIVITIES.

• HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing LLC.

• HDCP is the abbreviation of “High-bandwidth

Digital Content Protection,” and is the high-

reliable copy control technology licensed by

Digital Content Protection, LLC.

] Change the SOUND QLTY setting to “NORMAL”

(see page 43).

Timer Operations

Daily Timer does not work.

] The System has been turned on when the on-time

came. Timer starts working only when the System

is turned off.

Daily Timer does not start playback.

] The loaded disc is a DVD Video. Change the disc.

Display Messages for Recording or Editing

Operations

NO DEVICE

• No USB device is connected or the connected USB

device is not compatible with this System.

DATA FULL

• The capacity of memory for USB device is full.

• The USB device is write-protected.

TRACK FULL

• The USB device exceeds the maximum number of

files it can store.

GROUP FULL

• The number of the groups exceeds 999.

TR PRTECTED

• The track is write-protected by other components.

NO AUDIO

• No music file is recorded in the USB device.

SCMS ERROR

• You have tried to copy from a duplicated disc to the

USB device.

DEVICE ERR

• The unit has failed to read the USB device.

CAN’T REC

• The music cannot be recorded.

text_EN_NXG9G5.indb 65text_EN_NXG9G5.indb 65 08.8.5 10:53:15 AM08.8.5 10:53:15 AM

Optical Digital Out Signals

DIGITAL AUDIO OUTPUT Output Signals

Playback disc/file STREAM/PCM

DOLBY DIGITAL/PCM

PCM ONLY

DVD Video with 48 kHz, 16/20/24 bit

Linear PCM 48 kHz, 16 bit Linear PCM*

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit

Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

DVD-R/-RW

in DVD-VR

format

with 48 kHz, 16/20/24 bit

Linear PCM 48 kHz, 16 bit Linear PCM*

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit

Linear PCM

SVCD/VCD/CD 44.1 kHz, 16 bit Linear PCM/48 kHz, 16 bit Linear PCM

CD with DTS DTS bitstream 44.1 kHz, 16 bit Linear PCM

MP3/WMA/WAV/MPEG-1/MPEG-2/ASF 32/44.1/48 kHz, 16 bit Linear PCM

DivX with MP2, MP3 32/44.1/48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 32/44.1/48 kHz,

16 bit Linear PCM

* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the

OPTICAL DIGITAL OUTPUT terminal if the discs are not copy-protected.

AA Afar

AB Abkhazian

AF Afrikaans

AM Ameharic

AR Arabic

AS Assamese

AY Aymara

AZ Azerbaijani

BA Bashkir

BE Byelorussian

BG Bulgarian

BH Bihari

BI Bislama

BN Bengali,

Bangla

BO Tibetan

BR Breton

CA Catalan

CO Corsican

CY Welsh

DA Danish

DZ Bhutani

EL Greek

EO Esperanto

ET Estonian

EU Basque

FA Persian

FI Finnish

FJ Fiji

FO Faroese

FY Frisian

GA Irish

GD Scots Gaelic

GL Galician

GN Guarani

GU Gujarati

HA Hausa

HI Hindi

HR Croatian

HY Armenian

IA Interlingua

IE Interlingue

IK Inupiak

IN Indonesian

IS Icelandic

IW Hebrew

JI Yiddish

JW Javanese

KA Georgian

KK Kazakh

KL Greenlandic

KM Cambodian

KN Kannada

KO Korean (KOR)

KS Kashmiri

KU Kurdish

KY Kirghiz

LA Latin

LN Lingala

LO Laothian

LT Lithuanian

LV Latvian,

Lettish

MG Malagasy

MI Maori

MK Macedonian

ML Malayalam

MN Mongolian

MO Moldavian

MR Marathi

MS Malay (MAY)

MT Maltese

MY Burmese

NA Nauru

NE Nepali

NL Dutch

NO Norwegian

OC Occitan

OM (Afan) Oromo

OR Oriya

PA Panjabi

PS Pashto,

Pushto

PT Portuguese

QU Quechua

RM Rhaeto-

Romance

RN Kirundi

RO Rumanian

RW Kinyarwanda

SA Sanskrit

SD Sindhi

SG Sangho

SH Serbo-

Croatian

SI Singhalese

SL Slovenian

SM Samoan

SN Shona

SO Somali

SQ Albanian

SR Serbian

SS Siswati

ST Sesotho

SU Sundanese

SV Swedish

SW Swahili

TA Tamil

TE Telugu

TG Tajik

TH Thai

TI Tigrinya

TK Turkmen

TL Tagalog

TN Setswana

TO Tonga

TR Turkish

TS Tsonga

TT Tatar

TW Twi

UK Ukrainian

UR Urdu

UZ Uzbek

VI Vietnamese

VO Volapuk

WO Wolof

XH Xhosa

YO Yoruba

ZU Zulu

Language Code List

text_EN_NXG9G5.indb 66text_EN_NXG9G5.indb 66 08.8.5 10:53:16 AM08.8.5 10:53:16 AM

Specifications

Amplifier section—CA-NXG9/CA-NXG5 (NX-G5)

Output Power:

CA-NXG9:

MAIN SPEAKERS 180 W (90 W + 90 W) at 3 Ω

(10% THD)

SUBWOOFER 160 W at 4 Ω (10% THD)

CA-NXG5: 40 W (20 W + 20 W) at 4 Ω

(10% THD)

Audio Input: AUDIO IN:

Stereo min. (∅ 3.5 mm)

500 mV/47 kΩ (at “AUDIO LVL3”)

250 mV/47 kΩ (at “AUDIO LVL2”)

125 mV/47 kΩ (at “AUDIO LVL1”)

Digital Input/Output:

OPTICAL DIGITAL OUTPUT (output only):

–21 dBm to –15 dBm (660 nm ±30 nm)

Bluetooth ADPT

VIDEO/AUDIO PLAY USB 1 (input only)

AUDIO REC/PLAY USB 2

HDMI MONITOR OUT (output only)

VIDEO OUT:

Color system: NTSC/PAL (interlaced/

progressive)

VIDEO (Composite): 1 V(p-p)/75 Ω

COMPONENT: (Y) 1 V(p-p)/75 Ω

(PB/PR) 0.7 V(p-p)/75 Ω

HDMI MONITOR OUT: 480p/576p/720p/1080i/1080p

Speaker impedance:

CA-NXG9:

MAIN SPEAKERS: 3 Ω – 16 Ω

SUBWOOFER: 4 Ω – 16 Ω

CA-NXG5: 4 Ω – 16 Ω

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz

AM (MW) tuning range:

531 kHz – 1 710 kHz (at 9 kHz)

530 kHz – 1 710 kHz (at 10 kHz)

For Saudi Arabia: 531 kHz – 1 602 kHz (at 9 kHz)

530 kHz – 1 600 kHz (at 10 kHz)

Disc player section

Region codes: Middle East: 2 / South East Asia: 3 /

Central and South America,

Australia: 4

Playable disc:

• DVD Video/CD/VCD/SVCD

• CD-R/CD-RW (CD/SVCD/VCD/MP3/WMA/

WAV/JPEG/MPEG-1/MPEG-2/ASF/DivX format)

• DVD-R/-RW (DVD-VR/DVD Video/MP3/WMA/

WAV/JPEG/MPEG-1/MPEG-2/ASF/DivX format)

• +R (DVD Video/MP3/WMA/WAV/JPEG/MPEG-

1/MPEG-2/ASF/DivX format)

• +RW (MP3/WMA/WAV/JPEG/MPEG-1/MPEG-

2/ASF/DivX format)

• DVD-ROM (MP3/WMA/WAV format)

Dynamic range: 80 dB

Horizontal resolution: 500 lines

Wow and flutter: Immeasurable

USB section

Playable files:

USB1: MP3/WMA/WAV/JPEG/MPEG-1/

MPEG-2/ASF/DivX format

USB2: MP3/WMA/WAV format

Recording format: MP3/WMA format

USB specification: Compatible with USB 2.0 Full Speed

Compatible device: Mass storage class

Compatible system: FAT16, FAT32

Bus power supply: DC 5 V 500 mA

Bluetooth section

Version: Bluetooth ver. 2.0 + EDR Class 1/Class 2

Compatible Bluetooth profile: A2DP, AVRCP

Communication format: 2.4 GHz FHSS

HDMI section

Output power: DC 5 V 55 mA

General—CA-NXG9

Power requirements: AC 220 V /AC 230 V – AC

240 V, (adjustable with the

voltage selector), 50 Hz / 60 Hz

For Saudi Arabia: AC 220 V , 50 Hz / 60 Hz

For Australia: AC 240 V

, 50 Hz

Power consumption: 85 W (at operation) / 13 W (at

standby) / 1.3 W or less (at ECO mode)

Dimensions (approx.):

250 mm × 158 mm × 259 mm (W/H/D)

Mass (approx.): 5.0 kg

General—CA-NXG5 (NX-G5)

Power requirements: AC 110 V – AC 240 V ,

50 Hz / 60 Hz

For Australia: AC 240 V

, 50 Hz

Power consumption: 40 W (at operation) / 3.0 W (at

standby) / 1.0 W or less (at ECO mode)

Dimensions (approx.):

250 mm × 158 mm × 259 mm (W/H/D)

Mass (approx.): 3.0 kg

Speakers—SP-NXG5 (NX-G5)

Type: 2-way 2-speaker bass reflex type

(Magnetically shielded)

Speaker units: Tweeter: 4 cm cone x 1

Woofer: 12 cm cone x 1

Impedance: 4 Ω

Power handling capacity: 20 W

Frequency Range: 50 Hz - 28 000 Hz

Dimensions (approx.):

155 mm × 250 mm × 168 mm (W/H/D)

Mass (approx.): 2.1 kg each

Supplied Accessories

See page 4.

Design and specifications are subject to change

without notice.

text_EN_NXG9G5.indb 67text_EN_NXG9G5.indb 67 08.8.5 10:53:19 AM08.8.5 10:53:19 AM

5∞2 3

ENTER/SET

4, ¢

1, ¡

10,

Number

buttons

3D PHONIC 17

ANGLE 23

A.STBY 21

AUDIO 9

AUDIO IN

LEVEL

AUDIO/MPX 22

AUDIO VOL 9

Bluetooth

SETTING

CANCEL

CHARA 33

CLOCK/

TIMER

20,

C.VOICE 17

DIMMER 19

DISPLAY 21

DVD/CD

DVD LEVEL 19

ECO 19

FADE

MUTING

FILE TYPE 12

FM/AM/

AUDIO IN

GROUP/

TITLE

GROUP/

TITLE SKIP

HP SURR 17

KARAOKE

SCORING

KARAOKE

SETTING

MENU 13

MIC MIX 45

MY SOUND 16

ON SCREEN 49

PG 52

PL 52

PLAY MODE 25

REC MODE 29

REPEAT 27

REPEAT A-B 27

RESERVE 48

RETURN 14

SCAN MODE 7

SET UP 57

SHIFT

Press and hold

together with

another button

when you want to

use the function

printed in green.

SLEEP 21

SOUND

MODE

SUBTITLE 23

SUBWOOFER

LEVEL

TITLE/EDIT 32

TITLE

TOP MENU 13

TUNER

MODE

TV 62

TV CHANNEL

+, –

TV/VIDEO 62

TV VOL 62

USB 1 612

USB 2 612

V.BASS 15

VFP 19

VOCAL

MASKING

VOCAL

SUPPORT

ZOOM 24

Parts Index

Remote control

Main unit

011

4, ¢

AUDIO IN 7

AUDIO REC/

PLAY

USB 2

Bluetooth

ADPT

Bluetooth

MODE

DEMO 3

DOOR OPEN/

ECO 19

MIC1 44

MIC2 44

MIC LEVEL

+, –

PHONES 7

SOURCE 9

USB REC 30

VIDEO/

AUDIO PLAY

USB 1

VOLUME 9

CA-NXG9

CA-NXG9 NX-G5

text_EN_NXG9G5.indb 68text_EN_NXG9G5.indb 68 08.8.5 10:53:22 AM08.8.5 10:53:22 AM

How to attach the core filter

Attach the provided core filter to the USB cable to reduce interference.

1 Release the stopper of the core filter.

2 Run the USB cable through the core filter, leaving approx. 2 cm between the unit-side end

of the USB cable and the core filter.

Firmly wind the USB cable once inside the cutout of the core filter.

3 Close the core filter until you hear a clicking sound.

• Do not damage the USB cable by applying excessive power when winding.

• When you connect USB cables to both the USB1 terminal and the USB2 terminal, attach the

core filter to the cable connected to the USB2 terminal.

To the System

CA-NXG9/NX-G5 COMPACT COMPONENT SYSTEM

For CA-NXG9:

Mains (AC) Line Instruction (not applicable for Europe,

U.S.A., Canada, and U.K.)

CAUTION for mains (AC) line

(Excluding Saudi Arabian model and Australian model)

BEFORE PLUGGING IN, do check that your mains (AC) line voltage

corresponds with the position of the voltage selector switch provided

on the outside of this equipment and, if different, reset the voltage

selector switch, to prevent from a damage or risk of fire/electric shock.

Stopper

USB cable

12 3

2 cm

Cover_NXG9G5_U_eng.indd 1Cover_NXG9G5_U_eng.indd 1 08.7.28 8:21:00 PM08.7.28 8:21:00 PM

COMPACT COMPONENT SYSTEM

CA-NXG7

NX-G3

—Consists of CA-NXG3 and SP-NXG5

INSTRUCTIONS

GVT0259-001B

[US/UN/UB/UG/UX/A/UW]

(CA-NXG7) (CA-NXG7)

Cover_NXG7G3_U_eng.indd 2Cover_NXG7G3_U_eng.indd 2 08.7.14 11:48:52 AM08.7.14 11:48:52 AM

G-1

Warnings, Cautions and Others

CAUTION

The button in any position does not

disconnect the mains line.

Disconnect the mains plug to shut the power off

completely (the STANDBY lamp goes off).

The MAINS plug or an appliance coupler is used

as the disconnect device, the disconnect device

shall remain readily operable.

• When the system is on standby, the STANDBY

lamp lights red.

• When the system is turned on, the STANDBY

lamp goes off.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or

moisture.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover or

cabinet. There are no user serviceable parts

inside the unit; leave all servicing to qualified

service personnel.

3. CAUTION: Visible and/or invisible class 1M

laser radiation when open. Do not view

directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL,

PLACED INSIDE THE UNIT.

Safety_NXG7G3_U_eng.indd Sec1:1Safety_NXG7G3_U_eng.indd Sec1:1 4/6/08 15:57:294/6/08 15:57:29

G-2

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a

stand with a height of 10 cm or more.

Front view Side view

CAUTION

• Do not block the ventilation openings or

holes.

(If the ventilation openings or holes are

blocked by a newspaper or cloth, etc., the

heat may not be able to get out.)

• Do not place any naked flame sources, such

as lighted candles, on the apparatus.

• When discarding batteries, environmental

problems must be considered and local

rules or laws governing the disposal of these

batteries must be followed strictly.

• Do not expose this apparatus to rain,

moisture, dripping or splashing and that

no objects filled with liquids, such as vases,

shall be placed on the apparatus.

CA-NXG7

SP-NXG5 CA-NXG3 SP-NXG5 CA-NXG7

CA-NXG3

CAUTION:

Excessive sound pressure from earphones or

headphones can cause hearing loss.

[European Union only]

CAUTION:

Battery shall not be exposed to excessive heat

such as sunshine, fire or the like.

Safety_NXG7G3_U_eng.indd Sec1:2Safety_NXG7G3_U_eng.indd Sec1:2 4/6/08 15:57:304/6/08 15:57:30

Introduction

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your

complete understanding and to obtain the best possible performance from the System.

Others

Should any metallic object or liquid fall into the

System, unplug the power cord and consult your dealer

before operating any further.

DO NOT disassemble the System since

there are no user serviceable parts

inside.

• If you are not going to operate the System for an

extended period of time, unplug the power cord

from the wall outlet.

If anything goes wrong, unplug the power cord and

consult your dealer.

How to Read This Manual

• Button and control operations are explained in the

table below.

• Some related tips and notes are explained later in

the sections “Learning More about This System”

and “Troubleshooting,” but not in the same

section explaining the operations ( indicates

that the content has some information).

• Illustrations used in this manual is mainly of CA-

NXG7. They may look different from the model you

have.

Indicates that you press the button

briefly.

Indicates that you press the button

briefly and repeatedly until the

option you want is selected.

Indicates that you press one of the

buttons.

sec.

Indicates that you press and hold the

button for a specified period.

Indicates that you turn the control in

the specified direction(s).

Indicates that this operation is only

possible using the remote control.

Indicates that this operation is only

possible using the main unit.

Precautions

Installation

• Install the System in a location with adequate

ventilation to prevent internal heat build-up in the

System.

DO NOT install the System in a

location near heat sources, or in a place

subject to direct sunlight, excessive dust

or vibration.

• Install in a place which is level, dry and neither too

hot nor too cold—between 5°C and 35°C.

• Leave sufficient distance between the System and the

TV.

• Keep the speakers away from the TV to avoid

interference with the TV.

Power sources

• When unplugging the System from the wall outlet,

always pull on the plug, not the power cord.

DO NOT handle the power cord with

wet hands.

Moisture condensation

Moisture may condense on the lens inside the System

in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a

warm place.

Should this occur, the System may malfunction. In this

case, leave the System turned on for a few hours until

the moisture evaporates, unplug the power cord, then

plug it in again.

Internal heat

• Make sure there is good ventilation around the

System. Poor ventilation could overheat and damage

the System.

DO NOT block the ventilation

openings or holes. If they are blocked

by a newspaper or cloth, etc., the heat

may not be able to get out.

text_EN_NXG7G3.indb 1text_EN_NXG7G3.indb 1 08.7.14 11:41:26 AM08.7.14 11:41:26 AM

Contents

Advanced Playback Operations . . . . . . . .25

Programming the Playing Order

—Program Play . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Playing at Random—Random Play. . . . . . . . . . . . . 26

Playing Repeatedly. . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Recording and Editing Operations . . . . . 28

Recording from a Disc . . . . . . . . . . . . . . . . . . . . . . . 29

Giving (Editing) Titles to Tracks or Groups . . . . . 30

Erasing the Tracks or Groups . . . . . . . . . . . . . . . . . 32

Enjoying Karaoke (only for CA-NXG7) . . . 33

Singing Along (Karaoke) . . . . . . . . . . . . . . . . . . . . . 33

Adjusting the Sound Track for Karaoke. . . . . . . . . 34

Scoring Your Karaoke Skill. . . . . . . . . . . . . . . . . . . . 34

Changing the Karaoke Setting . . . . . . . . . . . . . . . . . 35

Reserving Karaoke Songs

—Karaoke Program Play . . . . . . . . . . . . . . . . . . . . 37

On-Screen Operations . . . . . . . . . . . . . . . . 38

On-screen Bar Operations . . . . . . . . . . . . . . . . . . . . 38

Control Screen Operations . . . . . . . . . . . . . . . . . . . 41

Daily Timer Operations. . . . . . . . . . . . . . .43

Setting the Daily Timer . . . . . . . . . . . . . . . . . . . . . . . 43

Setup Menu Operations . . . . . . . . . . . . . . 45

Initial Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Additional Information . . . . . . . . . . . . . . 47

Learning More about This System . . . . . . . . . . . . . 47

Operating JVC’s TVs Using

the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . 50

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Optical Digital Out Signals . . . . . . . . . . . . . . . . . . . 51

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Display Messages for Recording or

Editing Operations . . . . . . . . . . . . . . . . . . . . . . . . 54

Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Parts Index . . . . . . . . . . . . . . . . . . . . . . . . .56

Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Main unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Playable Disc/File Types . . . . . . . . . . . . . . . . . . . . . . 3

Connections . . . . . . . . . . . . . . . . . . . . . . . . . 4

Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Preparing the remote control . . . . . . . . . . . . . . . . . . 6

Changing the Color System and

Scanning Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Display Indicators . . . . . . . . . . . . . . . . . . . . 8

Daily Operations—Playback . . . . . . . . . . . 9

Listening to the Radio . . . . . . . . . . . . . . . . . . . . . . . . 10

Playing Back a Disc/USB Mass Storage

Class Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Playing Back a Digital Audio Player . . . . . . . . . . . . 14

Sound & Other Adjustments. . . . . . . . . . . 15

Adjusting the Sound . . . . . . . . . . . . . . . . . . . . . . . . . 15

Creating a Soothing Tone for Your Ear

—MY SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Creating 3-Dimensional Sound Field

—3D Phonic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Creating a Spacious Sound Field

for Headphones—HP Surround. . . . . . . . . . . . . . 17

Making Dialogues Clear —Clear Voice . . . . . . . . . 17

Selecting the Sound Modes. . . . . . . . . . . . . . . . . . . . 17

Creating Your Own Sound Modes

—User Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Presetting Automatic DVD

Sound Increase Level . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the Display Brightness. . . . . . . . . . . . . . . 19

Setting the ECO (ecology) Mode . . . . . . . . . . . . . . 19

Changing the Picture Tone. . . . . . . . . . . . . . . . . . . . 19

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Turning Off the Power Automatically . . . . . . . . . . 21

Prohibiting Disc Ejection—Child Lock . . . . . . . . . 21

Unique Video Disc/File Operations . . . . . 22

Selecting the Audio Track. . . . . . . . . . . . . . . . . . . . . 22

Selecting the Subtitle Language . . . . . . . . . . . . . . . . 23

Selecting the View Angle . . . . . . . . . . . . . . . . . . . . . 23

Special Effect Playback . . . . . . . . . . . . . . . . . . . . . . . 23

text_EN_NXG7G3.indb 2text_EN_NXG7G3.indb 2 08.7.14 11:41:31 AM08.7.14 11:41:31 AM

About color system

This System accommodates both NTSC and PAL

system and can play back discs/files recorded in either

system.

To change the color system, see page 7.

Note on Region Code

DVD players and DVDs have their own Region Code

numbers. This System can play back only DVDs with

an appropriate Region Code number.

• For details, see page 55.

• “REGION ERR” appears if DVD with a wrong

Region Code is loaded.

Ex.: For Southeast Asia

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply

with the “Compact Disc Digital Audio” standard.

Therefore, the use of the Non-DVD side of a DualDisc

in this product may not be recommended.

IMPORTANT: Before playing a disc/file, make sure

of the following...

• Turn on the TV and select an appropriate input

mode on the TV to view the pictures or on-screen

displays.

• For disc/file playback, you can change the initial

setting to your preference. See “Setup Menu

Operations” on page 45.

If “ ” appears on the TV screen when you press

a button, the disc/file cannot perform the operation

you have tried to do.

• When playing a multi-channel encoded software, the

System properly converts the multi-channel signals

into 2 channels, and emits the downmixed sound

from the speakers. To enjoy the powerful sound of

these multi-channel encoded software, connect a

proper decoder or an amplifier with a proper built-

in decoder to the OPTICAL DIGITAL OUTPUT

terminal on the rear.

How to cancel the demonstration

Press and hold DEMO button on the main unit

(until “DEMO CLEAR” appears on the display)

while on standby.

• Refer to the attached sheet “Information about the

demonstration function.”

Playable Disc/File Types

DIGITAL VIDEO

SUPER VIDEO

COMPACT

DIGITAL AUDIO

• CD-R/-RW: Recorded in the Audio CD, Video

CD, and SVCD formats. MP3, WMA, WAV,

JPEG, MPEG-1, MPEG-2, ASF and DivX files

written in accordance with the “ISO 9660” format

can also be played.

• DVD-R/-RW, +R/+RW: MP3, WMA, WAV,

JPEG, MPEG-1, MPEG-2, ASF and DivX files

written in the UDF-Bridge format can be played.

• DVD-R/-RW: Recorded in the DVD Video

format and the DVD Video Recording (VR)

format.

• +R: Recorded in the DVD Video format.

• DVD-ROM: MP3, WMA, WAV files.

• USB mass storage class device: MP3, WMA,

WAV, JPEG, MPEG-1, MPEG-2, ASF and DivX*

files.

In addition to the above discs/files, this System can

play back audio data recorded on CD-Extra and CD-G

(CD-Graphics).

• The following discs cannot be played back:

DVD-RAM, CD-I (CD-I Ready), CD-ROM, and

Photo CD.

Playing back these discs will generate noise and

damage the speakers.

• CD Text and DVD Text can be played, but Text

information will not be shown on the display.

• It is possible to play back finalized +R/+RW discs.

• “DVD Logo” is a trademark of DVD Format/Logo

Licensing Corporation.

• This System can play back EVERIO file (see page 48)

recorded on DVD, CD*, and USB mass storage class

device*.

* Only when the maximum bit rate is less than 2 Mbps.

text_EN_NXG7G3.indb 3text_EN_NXG7G3.indb 3 08.7.14 11:41:32 AM08.7.14 11:41:32 AM

Connections

Do not connect the power cord until all other

connections have been made.

• Connect VIDEO OUT directly to the video input

of your TV. Connecting VIDEO OUT to a TV via a

VCR may interfere with your viewing when playing

back copy-protected discs/files. Connecting VIDEO

OUT to an integrated TV/VCR system may also

interfere with your viewing.

Supplied accessories

Check to be sure that you have all the following

items.

• FM antenna (×1)

• AM loop antenna (×1)

• Composite video cord (×1)

• Remote control (×1)

• Batteries (×2)

• AC plug adapter (×1)

(Not supplied for Australia, Hong Kong, Thailand

and the Middle East.)

If any items are missing, consult your dealer

immediately.

Rear panel

~ From AM/FM antenna

See page 5.

Ÿ From the speakers

See page 5.

⁄ From the digital

input of digital

audio component

See page 6.

! From the input of TV/

monitor

See page 6.

¤ To a wall outlet

Plug in the power cord only

after all connections have

been completed.

• If the wall outlet does not match

the AC plug, use the supplied

AC plug adapter (not supplied

for Australia, Hong Kong and

the Middle East).

@ Voltage selector

(Only for CA-NXG7)

Before plugging in, confirm

the position of the voltage

selector. See page 6.

* The illustration above is for CA-NXG7.

text_EN_NXG7G3.indb 4text_EN_NXG7G3.indb 4 08.7.14 11:41:34 AM08.7.14 11:41:34 AM

Ÿ Speakers

When connecting the speaker cords, match the polarity

of the speaker terminals.

CA-NXG7: red to (+) and black to (–)

NX-G3: blue to (+) and black to (–)

CA-NXG7

NX-G3

• DO NOT connect more than one

speaker to each terminal.

• DO NOT push or pull the speakers

as this will damage the foot spacers at

the bottom of the speakers.

~ AM/FM antenna

To assemble the AM loop antenna

To connect AM/FM antenna

For better FM reception

Disconnect the supplied FM antenna, and connect to

an outdoor FM antenna using a 75 Ω wire with coaxial

type connector (IEC or DIN45325).

AM loop antenna (supplied)

Turn it until the best reception is

obtained.

If the cords are covered with vinyl,

remove the vinyl to expose the tip of

the cord by twisting the vinyl.

FM antenna (supplied)

Extend it so that you can obtain the

best reception.

FM outdoor antenna

(not supplied)

Red

Black

From right speaker

From left speaker

Red

Black

Blue Black

From right speaker

From left speaker

Blue Black

text_EN_NXG7G3.indb 5text_EN_NXG7G3.indb 5 08.7.14 11:41:34 AM08.7.14 11:41:34 AM

! TV/monitor

Connect either a component video cord or a

composite video cord.

• To select progressive scanning mode (see page 7),

use COMPONENT jacks.

• After connecting a TV, select the appropriate video

signal output according to the color system. See

“Changing the Color System and Scanning Mode”

on page 7.

⁄ Digital audio component

• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO”

menu correctly according to the connected digital

audio equipment (see page 46).

• The digital signal through the OPTICAL DIGITAL

OUTPUT terminal is transmitted only when “DVD/

CD” is selected as the source.

Optical digital cord

(not supplied)

Protective cap

Green

Red Blue

Component video cord (not

supplied)

Composite video cord

(supplied)

Yellow

@ Voltage selector (only for CA-NXG7)

• This operation is not required for Saudi Arabian

models and Australian models.

Use a screwdriver to slide the voltage selector so that

it is pointing to the correct voltage in the area you are

plugging in the unit. (See also the back cover page.)

Preparing the remote control

Insert the battery into the remote control by matching

the polarity (+ and –) correctly.

If the range or effectiveness of the remote control

decreases, replace both batteries.

When using the remote control

Point the top of the remote control towards the remote

sensor as directly as possible. If you operate it from a

diagonal position, the operating range (approx. 5 m)

may be shorter.

text_EN_NXG7G3.indb 6text_EN_NXG7G3.indb 6 08.7.14 11:41:35 AM08.7.14 11:41:35 AM

Front panel

From the USB mass storage class device

To the headphones

From the digital audio player

To the microphones (only for CA-NXG7)

See page 33.

NTSC / PAL NTSC or PAL Interlaced scanning.

For a conventional NTSC or PAL

TV.

NTSC PRGR/

PAL PRGR

NTSC or PAL Progressive scanning.

For a progressive NTSC or PAL TV.

• The PRGR indicator lights up on

the display.

Changing the Color System and Scanning

Mode

You can select the video output to match it to the color

system of your TV (NTSC or PAL).

• If you connect a progressive TV through the

COMPONENT jacks, you can enjoy a high quality

picture by selecting progressive scanning mode.

• You can change the setting only while playback is

stopped.

• You cannot connect JVC Everio camcorder to the

USB REC/PLAY ( ) terminal of the System.

• Noise and static electricity may stop the USB mass

storage class device sound. In this case, disconnect

and connect the USB mass storage class device again

after turning off the System.

When connecting a digital audio player

Stereo mini plug

(not supplied)

From audio output (or headphone

out, etc.)

• See page 14 for audio input level.

When connecting a USB mass storage class device

USB cable (not

supplied)

• When connecting with a USB cable, use the USB 2.0

cable whose length is less than 1 m.

• You can connect a USB mass storage class device

such as a USB flash memory device, hard disk drive,

multimedia card reader, etc. to this System.

• You cannot connect a computer to the USB REC/

PLAY ( ) terminal of the System.

text_EN_NXG7G3.indb 7text_EN_NXG7G3.indb 7 08.7.14 11:41:36 AM08.7.14 11:41:36 AM

Display Indicators

The indications on the display tell you a lot of things while you are operating the System.

Before operating the System, be familiar with when and how the indicators illuminate on the display.

A.STBY

RECUSB

SLEEP

ALL GR PRGM RND

V.BASS

3DP S.MODE C.VOICE

MONO

K.Scoring

PRGR

V.MASK

7 C. VOICE (Clear Voice) indicator

• Lights when Clear Voice is activated. (See page

17.)

8 (My Sound) indicator

• Lights when MY SOUND is activated. (See page

16.)

9 FM reception indicators (See page 11.)

• ST (Stereo): lights while an FM stereo station

with sufficient signal strength is tuned in.

• MONO (Monaural): lights while receiving an FM

stereo station in monaural.

p Daily Timer indicators (See page 43.)

• : lights when Daily Timer is on standby or is

being set; flashes while it is working.

q USB indicator

• Lights when USB is selected as the source. (See

page 12.)

w REC (Recording) indicator

• Lights when recording started. (See page 29.)

e Main display

r PRGR (Progressive) indicator

• Lights when the progressive scanning mode is

selected. (See page 7.)

t Karaoke operation indicators (only for CA-NXG7)

(See page 33.)

• K.Scoring: lights when Karaoke Scoring is

activated; flashes when Karaoke Scoring is in use.

• : lights when Mic Mixing is activated.

• : lights when Echo is activated.

• V.MASK: lights when Vocal Masking is

activated.

1 SLEEP indicator

• Lights when the Sleep Timer is activated. (See

page 21.)

2 A.STBY (Auto Standby) indicator (See page 21.)

• Lights when Auto Standby is activated.

• Flashes when playback stops with Auto Standby

activated.

3 Playback mode indicators

• PRGM: lights when Program Play is activated.

(See page 25.)

• RND: lights when Random Play is activated. (See

page 26.)

• Repeat Mode indicators (See page 27.)

– : lights when REPEAT ALL is activated.

– : lights when REPEAT GRP is activated.

– : lights when any Repeat Mode other than

above is activated.

4 V. BASS indicator

• Lights when VARIO BASS is activated. (See page

15.)

5 3DP indicator

• Lights when 3D Phonic is activated. (See page

17.)

6 Sound Mode indicators (See page 17.)

• S.MODE: lights when one of the Sound Modes is

activated.

• : lights when one of the Sound Modes with

surround effect is activated.

text_EN_NXG7G3.indb 8text_EN_NXG7G3.indb 8 08.7.14 11:41:37 AM08.7.14 11:41:37 AM

TOP MENU,

RETURN

4, ¢

4, ¢, 7, 8, 3

DOOR

OPEN/CLOSE

ENTER/SET

SHIFT

FILE TYPE

AUDIO IN

LEVEL

FADE

MUTING

TUNER

MODE,

1, ¡

7, 3, 8

Daily Operations—Playback

In this manual, operations using the remote

control are mainly explained; however, you can

use the buttons and controls on the main unit

if they have the same (or similar) name and marks.

To prevent accidental injuries, do not touch the

front panel while it is opening or closing.

Remote control

Main unit

Number

buttons

1 Turn on the power.

On the remote: On the main unit:

• The STANDBY lamp on the main unit turns off.

• The front panel opens

automatically.

2 Select the source.

On the remote:

On the main unit:

DVD/CD

USB

AUDIO IN

TUNER FM

TUNER AM

• Playback automatically starts if the selected

source is ready.

3 Adjust the volume.

You can adjust the volume level from “VOLUME

MIN” (level 0) to “VOLUME MAX” (level 31).

On the remote: On the main unit:

CA-NXG7: NX-G3:

text_EN_NXG7G3.indb 9text_EN_NXG7G3.indb 9 08.7.14 11:41:39 AM08.7.14 11:41:39 AM

Listening to the Radio

To select the AM tuner interval

spacing

Some countries space AM stations 9 kHz apart, and

other countries use 10 kHz spacing.

1 Select “TUNER AM.”

2 Select the AM tuner interval spacing.

To select 9 kHz:

AM 9kHz

(while holding...)

To select 10 kHz:

AM 10kHz

(while holding...)

To select the band (FM or AM)

To turn off (standby) the System

The STANDBY lamp on the main

unit lights in red.

• A small amount of power is

always consumed even while on

standby.

To open/close the front panel

On the remote: On the main unit:

1 sec

To drop the volume in a moment

To restore the volume, press

again, or adjust the volume level.

For private listening

Connect a pair of headphones to the PHONES

jack on the main unit. The sound will no longer

come out of the speakers. “HPHONE IN” appears

on the display for a while. Be sure to turn down

the volume before connecting or putting on the

headphones.

• Disconnecting the headphones will activate the

speakers again.

DO NOT turn off (standby) the System

with the volume set at an extremely

high level; otherwise, the sudden blast

of sound may damage your hearing,

speakers and/or headphones when you

turn on the System or start playback.

How to select a number

Examples:

To select number 5, press 5.

To select number 10, press 10.

To select number 15, press

10, 1, then 5.

To select number 30, press

10, 3, then 0.

To select number 125, press

10, 10, 1, 2, then 5.

text_EN_NXG7G3.indb 10text_EN_NXG7G3.indb 10 08.7.14 11:41:40 AM08.7.14 11:41:40 AM

3 Select a preset number for the station you

store.

• To select a number,

see “How to select a

number” on page 10.

4 Store the station.

STORED

To tune in to a preset station

1 Select the band (FM or AM).

2 Select the preset number for the station

you stored.

• To select a number, see

“How to select a number”

on page 10.

To tune in to a station

While FM or AM is selected...

Frequency starts changing on the display.

When a station (frequency) with sufficient signal

strength is tuned in, the frequency stops changing.

• When you repeatedly press the button, the frequency

changes step by step.

To manually stop the search, press either button.

If the FM reception is poor

The MONO (monaural) indicator lights on the

display. Reception will improve though stereo effect is

lost—Monaural reception.

To restore the stereo effect, press the button again.

The MONO (monaural) indicator disappears.

To preset the stations

You can preset 30 FM and 15 AM stations.

1 Tune in to a station you want to preset.

• You can also store the monaural reception mode

for FM preset stations if it is selected.

2 Activate the preset number entry mode.

SET

• Finish the following process while the indication

on the display is flashing.

text_EN_NXG7G3.indb 11text_EN_NXG7G3.indb 11 08.7.14 11:41:42 AM08.7.14 11:41:42 AM

Resume function

The System can store the stop point, and when you

start playback again by pressing 3, DVD/CD 6 or

USB 6 (even while on standby), it starts from the

position where you have stopped—Resume Play.

To stop completely while Resume is activated, press

7 twice. (To deactivate Resume, see “RESUME” in

“OTHERS” menu on page 46.)

On-screen guide icons

• During playback, the following icons may appear on

the TV:

At the beginning of a scene containing

multi-angle views.

At the beginning of a scene containing

multi-audio sounds.

At the beginning of a scene containing

multi-subtitles.

• The following icons will also be shown on the TV to

indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icon, see “ON

SCREEN GUIDE” in “OTHERS” menu on page 46.

To select the file type

If different types of playable files (audio/still picture/

moving picture) are recorded, select a file type to play.

While playback is stopped...

• You can also select the file type using Setup Menu.

See “FILE TYPE” in “PICTURE” menu on page 46.

Playing Back a Disc/USB Mass Storage

Class Device

To insert a disc

• When using an 8 cm disc, place it on the inner circle

of the disc tray.

To close the disc tray, press 0 again.

• If you press DVD/CD 6, disc tray closes

automatically and playback starts (depending on

how the disc is programmed internally).

To connect a USB mass storage class device

• For connecting a USB mass storage class device, see

page 7.

• Always set volume level to the minimum level when

connecting or disconnecting a USB mass storage

class device.

• To disconnect a USB mass storage class device safely,

turn off the System before disconnecting it.

To play back a disc/USB mass storage class

device

To start:

Disc USB mass storage class

device

To pause: To stop:

To release, press 3.

• You can use the control screen shown on the TV.

(For still/moving picture files, it appears while

playback is stopped.) For details, see page 41.

text_EN_NXG7G3.indb 12text_EN_NXG7G3.indb 12 08.7.14 11:41:44 AM08.7.14 11:41:44 AM

To locate an item directly

To select a title/group

(while holding...)

• To select a number, see “How to select a number” on

page 10.

To select a chapter/track/file

• To select a number, see

“How to select a number”

on page 10.

To play back using the disc menu

For DVD Video:

1 Show the disc menu.

2 Select an item on the disc menu.

• For some discs, you can also select items by

entering the number using the number buttons.

To select a title/group

• Not applicable for DVD-VR.

While playing...

(while holding...)

To select a chapter/track/file

• For SVCD/VCD, cancel PBC (see page 14).

While playing...

• When you press 4 for

the first time, you will go

back to the beginning of

the current chapter/track/

file.

To locate a particular portion

• This does not function for JPEG files.

While playing...

• For MP3/WMA/WAV/MPEG-1/MPEG-2/ASF/

DivX files, the search speed and indications on the

TV are different from those above.

• No sound comes out if searching is carried out while

showing the moving picture.

To return to normal playback, press 3.

For DivX/MPEG-1/MPEG-2 files, each time you

press the 3 or 2 button, you can skip to a scene by

30 seconds or 5 minutes depending on the files.

text_EN_NXG7G3.indb 13text_EN_NXG7G3.indb 13 08.7.14 11:41:45 AM08.7.14 11:41:45 AM

Playing Back a Digital Audio Player

• For connecting a digital audio player, see page 7.

You can listen to the digital audio player connected to

the AUDIO IN jack.

• Make sure to turn down the volume on the System to

minimum level before starting playback.

To adjust the audio input level

If the sound from the device connected to the AUDIO

IN jack is too loud or too quiet, you can preset the

audio input level through the AUDIO IN jack (without

changing the volume level).

While “AUDIO IN” is selected as the source...

AUDIO LVL1 AUDIO LVL2

AUDIO LVL3

• As the number of the level increases, the preset input

level is increased.

For SVCD/VCD with PBC:

While playing a disc with PBC, “PBC” appears on the

display.

When disc menu appears on the TV, select an item on

the menu. Playback of the selected item starts.

• To select a number, see “How

to select a number” on page

10.

To move to the next or previous page of the

current menu:

Moves to the next page.

Moves to the previous page.

To return to the previous menu:

(while holding...)

To cancel PBC, press 7, then select a track by using the

number buttons (see page 10). Playback starts with the

selected track.

To reactivate PBC, press 7 (twice if Resume is turned

on), then press DVD/CD 6.

text_EN_NXG7G3.indb 14text_EN_NXG7G3.indb 14 08.7.14 11:41:46 AM08.7.14 11:41:46 AM

Adjusting the Sound

Applying an Optimal Bass Sound Effect

—VARIO BASS

VARIO BASS function adjusts bass sound

characteristics to create a sound suitable for the

playback source of your preference.

AUTO OFF LITEnEASY

TURBO TECHNO MOVIE

AUTO The System automatically applies

TURBO, LITEnEASY, MOVIE or

TECHNO according to the playback

source (initial setting).

LITEnEASY Suitable for Karaoke and classical

music. You can obtain a comfortable

bass sound.

MOVIE Suitable for a video source and

playback of external component.

You can obtain a strong bass sound.

TECHNO

(only for

CA-NXG7)

Suitable for disco or techno music.

You can obtain a strong bouncy bass

sound.

TURBO Suitable for most kinds of music and

playback of external component.

You can obtain a balanced bass

sound.

OFF No sound effect.

Reinforcing the bass sound

—SUPER BASS

You can adjust the bass level from level 1 to level 5.

• This function is available only on CA-NXG7.

Sound & Other Adjustments

3D PHONIC/

HP SURR

VFP

SOUND

MODE

SHIFT

SLEEP

A.STBY

CLOCK/

TIMER

MY SOUND

DVD LEVEL

ECO

C.VOICE

DVD/CD6

USB6

V.BASS

ECO/

DIMMER

DISPLAY

ENTER/SET

(CA-NXG7)

Remote control

Main unit

(CA-NXG7)

text_EN_NXG7G3.indb 15text_EN_NXG7G3.indb 15 08.7.14 11:41:47 AM08.7.14 11:41:47 AM

4 Memorize the measurements.

Each time you hear a test tone, press the button.

You hear 5 test tones from the speakers.

5 Select a preset number from 1 to 3 to store

the equalization pattern.

After finishing the measurement, an appropriate

equalization pattern is created and it is shown in

white on the TV screen.

EXIT

PRESET

MY SOUND

SELECT PRESET 1 TO 3 AND PRESS

THE ENTER KEY TO STORE.

On the TV

• The last equalization pattern stored into the

selected preset number is shown in green.

• To return to the measurement, select “EXIT” on

the TV screen then press ENTER/SET.

6 Store the equalization pattern.

• To store other equalization patterns, press the

button again and repeat steps 3 to 6.

To exit MY SOUND setup

Creating a Soothing Tone for

Your Ear—MY SOUND

The sound tone you can hear is different in individuals.

MY SOUND creates an appropriate equalization

pattern for your listening condition.

To set up MY SOUND

1 Select “DVD/CD” or “USB” as the source.

2 Enter MY SOUND setup.

MY SOUND

SELECT START AND PRESS THE ENTER KEY

TO START MEASUREMENT.

START EXIT

On the TV

“MY SOUND” and “MEASURE” appear alternately

on the display.

3 Start the measurement.

A test tone comes out of the speakers.

MY SOUND

MEASURING... DATA 1 2 3 4 5

PRESS THE ENTER KEY IMMEDIATELY

AFTER YOU HEAR THE TEST TONE.

ENTER EXIT

Signal level

On the TV

text_EN_NXG7G3.indb 16text_EN_NXG7G3.indb 16 08.7.14 11:41:48 AM08.7.14 11:41:48 AM

Making Dialogues Clear

—Clear Voice

Clear Voice works for multi-channel software which

contains a center channel signal and for 2-channel

software with 3D Phonic activated.

• This only functions while listening to disc/USB mass

storage class device.

C.VOICE OFF

C.VOICE ON

Selecting the Sound Modes

You can select one of the preset Sound Modes.

ROCK POP CLASSIC DANCE

HALLSTADIUMUSER 1-3FLAT

A SEA (Sound Effect Amplifier) Modes

ROCK Boosts low and high frequency. Good

for acoustic music (initial setting).

POP Good for music with an emphasis

on vocal.

CLASSIC Good for classical music.

B Surround Modes*

DANCE Increases resonance and bass.

HALL Adds depth and brilliance to the

sound.

STADIUM Adds clarity and spreads the sound,

as in an outdoor stadium.

C User Modes

USER1/2/3 Your individual mode stored in

memory. See “Creating Your Own

Sound Modes—User Mode” on the

next page.

* Surround elements are added to the SEA elements to

create being-there feel in your room.

• While one of the Sound Modes is activated, S.MODE

indicator lights up.

• While one of the Sound Modes with surround effect

is activated, “ ” lights up.

To cancel the Sound Mode, select “FLAT.”

To select the preset MY SOUND

• This does not function for DivX file.

Creating 3-Dimensional Sound Field

—3D Phonic

• This only functions while listening to disc/USB mass

storage class device.

• This does not function for MPEG-1/MPEG-2/ASF/

DivX files.

While playing...

ACTION Suitable for action movies and

sports programs.

DRAMA Creates natural and warm sound.

Enjoy movies in a relaxed mood.

THEATER Enjoy sound effects like in a major

theater.

OFF Canceled.

Creating a Spacious Sound Field for

Headphones—HP Surround

• This only functions while listening to disc/USB mass

storage class device.

• This does not function for MPEG-1/MPEG-2/ASF/

DivX files.

1 Connect headphones to the System.

2 SURR ON

SURR OFF

SURR ON HP Surround is activated.

SURR OFF Canceled.

text_EN_NXG7G3.indb 17text_EN_NXG7G3.indb 17 08.7.14 11:41:49 AM08.7.14 11:41:49 AM

5 Finish the adjustment.

6 Select one of the User Modes to store your

setting into.

USER 1 USER 2

USER 3

7 Store the setting.

MEMORY

• You can adjust the SEA pattern temporarily by doing

the operation on steps 1 to 4. The adjustment is

cleared when you change the sound mode to another

mode.

Creating Your Own Sound Modes

—User Mode

You can adjust the preset Sound Modes to create your

own Sound Modes which suit your taste. The changed

settings can be stored as the USER1, USER2 and

USER3 Modes.

1 Select one of the preset Sound Modes.

• To create your own Sound Mode with surround

effect, select DANCE, HALL or STADIUM.

2 Start editing the selected Sound Mode.

3 Select the SEA parameter you want to

adjust.

BASS

TRE

BASS To adjust the bass sound.

TRE To adjust the treble sound.

4 Adjust the parameter.

BASS +2

• You can adjust the bass and treble level from –4

to +4.

• Repeat steps 3 and 4 to adjust the other

parameters.

text_EN_NXG7G3.indb 18text_EN_NXG7G3.indb 18 08.7.14 11:41:50 AM08.7.14 11:41:50 AM

DVD LEVEL1 DVD LEVEL2

DVD LEVEL3

Setting the ECO (Ecology) Mode

Setting the ECO mode allows you to reduce power

consumption by turning the display off while on

standby.

While the System is on standby...

On the remote:

ECO OFF

ECO ON

(while holding...)

On the main unit:

ECO OFF

ECO ON

Changing the Picture Tone

While showing a playback picture on the TV, you can

select a preset picture tone, or adjust it and store your

own preference.

To select a preset picture tone

1 While playing, display VFP setting screen.

On the TV

2 Select a preset picture tone.

NORMAL Normally select this.

CINEMA Suitable for a movie source.

USER1/USER2 You can adjust parameters and

can store the settings. (See the

next page.)

To clear the screen, press VFP again.

Presetting Automatic DVD Sound

Increase Level

DVD sound is sometimes recorded at a lower level than

other discs and sources. You can set the increase level

for the currently loaded DVD, so you do not have to

adjust the volume when you change the source.

• This only functions for DVD Video and DVD-VR.

While “DVD/CD” is selected as the source...

As the number increases, the DVD sound level is

increased.

Changing the Display Brightness

You can dim the display.

While the System is turned on...

DIMMER 1

DIMMER 2

DIMMER OFF

AUTO DIMMER

(while holding...)

DIMMER 1 Dims the display and turns off the

blue illumination on the main unit.

DIMMER 2 Dims the display more than

DIMMER 1 and turns off the blue

illumination on the main unit.

AUTO

DIMMER

Dims the display automatically to

the same level as DIMMER 2 when

moving pictures or still pictures are

being played back.

DIMMER OFF Normal brightness.

text_EN_NXG7G3.indb 19text_EN_NXG7G3.indb 19 08.7.14 11:41:50 AM08.7.14 11:41:50 AM

Setting the Clock

Without setting the built-in clock, you cannot use Daily

Timer (see page 43).

• To exit the clock settings, press CLOCK/TIMER

(while holding SHIFT) as required.

• To correct a mis-entry during the process, press

CANCEL (while holding SHIFT). You can return to

the previous step.

1 Activate the clock setting mode.

(while holding...)

0:00

• If you have already adjusted the clock before,

press the button repeatedly until the clock setting

mode is selected.

2 Adjust the hour, then the minute.

CLOCK SET

Now the built-in clock starts working.

To adjust the picture tone

1 Select “USER1” or “USER2.”

• Follow steps 1 and 2 explained in “To select a

preset picture tone.”

2 Select a parameter you want to adjust.

GAMMA Adjust if the neutral color is

bright or dark (–3 to +3).

BRIGHTNESS Adjust if the entire picture is

bright or dark (–8 to +8).

CONTRAST Adjust if the brightness ratio

is unnatural (–7 to +7).

SATURATION Adjust if the picture is

whitish or blackish (–7 to

+7).

TINT Adjust if the human skin

color is unnatural (–7 to

+7).

SHARPNESS Adjust if the picture is

indistinct

(–8 to +8).

3 Adjust the parameter.

4 Repeat steps 2 and 3 to adjust other

parameters.

To clear the screen, press VFP again.

text_EN_NXG7G3.indb 20text_EN_NXG7G3.indb 20 08.7.14 11:41:51 AM08.7.14 11:41:51 AM

Sleep Timer

You can set the shut-off time so that you can go to bed

without turning off the System yourself.

1 Specify the time (in minutes).

(while holding...)

10 20 30 60 90 120 150 180

Canceled

2 Wait until the set time disappears.

To check the time remaining until the shut-off time,

press SLEEP (while holding SHIFT) once.

• If you press the button repeatedly, you can change

the shut-off time.

Prohibiting Disc Ejection

—Child Lock

You can lock the disc tray so that no one can eject the

loaded disc.

While the disc tray is closed...

LOCKED

(while holding...)

To cancel the prohibition, repeat the same procedure.

“UNLOCKED” appears on the display.

To check the current clock time during playback

• The information displayed and its order vary with

the source.

Ex.: While playing a disc...

Current source information

Disc/file type*3

Title and chapter number*2

Folder name, file name and tag

information*1

Clock

*1 Only for MP3/WMA/WAV files.

*2 Only while playing back the following discs/files:

DVD-VR: Program number/Play List number and

chapter number.

MP3/WMA/WAV/JPEG/MPEG-1/MPEG-2/ASF/

DivX files: Group and file number.

DVD Video: Title and chapter number.

*3 Only while disc or USB playback is stopped.

Turning Off the Power

Automatically

Auto Standby

• This only functions while “DVD/CD” or “USB” is

selected as the source.

(while holding...)

A.STBY indicator lights on the display.

When the playback stops, the A.STBY indicator starts

flashing. If no operation is done for about 3 minutes

while the indicator is flashing, the System turns off

(standby) automatically.

• Changing the source to “TUNER FM,” “TUNER

AM,” or “AUDIO IN” temporarily deactivates Auto

Standby.

To cancel this function, press and hold A.STBY (while

holding SHIFT) again.

text_EN_NXG7G3.indb 21text_EN_NXG7G3.indb 21 08.7.14 11:41:52 AM08.7.14 11:41:52 AM

SHIFT

AUDIO/MPX

SUBTITLE

ANGLE,

ZOOM

1, ¡

Unique Video Disc/File Operations

Remote control Selecting the Audio Track

For DivX files/DVD Video: While playing back a

chapter/file containing several audio languages, you

can select the language to listen to.

For DVD-VR/SVCD/VCD: While playing back a

track, you can select the audio channel to listen to.

• For DVD Video/DVD-VR/SVCD/VCD: You can

also select the audio track using the on-screen bar

(see page 38).

While playing a DVD Video...

Ex.:

ENGLISH

1/3 3/3

FRENCH

2/3

JAPANESE

ENGLISH

1/3

FRENCH

2/3

JAPANESE

3/3

While playing a DivX file...

1/3 2/3 3/3

While playing a DVD-VR or SVCD/VCD...

ST1 ST2 L1

R2 L2 R1

ST L R

SVCD

DVD-VR/VCD

ST1/ST2/ST To listen to normal stereo

(2-channel) playback.

L1/L2/L To listen to the left audio channel.

R1/R2/R To listen to the right audio

channel.

• SVCD can have 4 audio channels. SVCD usually uses

these 4 channels to record two 2-channel recordings

(ST1/ST2).

text_EN_NXG7G3.indb 22text_EN_NXG7G3.indb 22 08.7.14 11:41:54 AM08.7.14 11:41:54 AM

While playing an SVCD...

Selecting the View Angle

For DVD Video only: While playing back a chapter

containing multi-view angles, you can view the same

scene from different angles.

• You can also select the view angle using the on-

screen bar (see page 38).

While playing...

(while holding...)

1/3

2/3

3/3

1/3

2/3

3/3

Special Effect Playback

Still picture playback

While playing...

Still picture is displayed.

To resume normal playback, press 3.

Selecting the Subtitle Language

For DivX files/DVD Video: While playing back a

chapter/file containing subtitles in different languages,

you can select the subtitle language to display on the

TV.

For DVD-VR: While playing, you can turn the

subtitles on or off.

For SVCD: While playing, you can select the subtitles

even if no subtitles are recorded on the disc.

• For DVD Video/DVD-VR/SVCD: You can also

select the subtitle language using the on-screen bar

(see page 38).

While playing a DivX file/DVD Video...

Ex.:

1/3 3/3

2/3

FRENCH JAPANESEENGLISH

1/3 2/3

JAPANESE

3/3

ENGLISH FRENCH JAPANESE

While playing a DVD-VR...

text_EN_NXG7G3.indb 23text_EN_NXG7G3.indb 23 08.7.14 11:41:54 AM08.7.14 11:41:54 AM

To replay the previous scenes

(One-Touch Replay)

• This function is only used while playing DVD Video/

DVD-VR.

While playing....

The playback position moves back

about 10 seconds before the current

position (only within the same title

for DVD Video).

Zoom

1 While playing...

While playing a DVD Video/DVD-VR/SVCD/VCD and

MPEG-1/MPEG-2/DivX file:

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM 6 ZOOM 5

ZOOM OFF

While playing a JPEG file (not available during

slide-show):

ZOOM 1 ZOOM 2

ZOOM OFF

2 Move the zoomed-in position.

To cancel Zoom, press ZOOM repeatedly until

“ZOOM OFF” appears on the TV.

Frame-by-frame playback

• This function is used only while playing DVD Video/

DVD-VR/SVCD/VCD.

1 Display the still picture.

2 Advance the still picture frame by frame.

To resume normal playback, press 3.

Slow-motion playback

• This function is used only while playing DVD Video/

DVD-VR/SVCD/VCD.

1 Display the still picture.

2 Select slow motion speed.

Forward slow motion starts.

Reverse slow motion* starts.

* Only available for DVD Video.

To resume normal playback, press 3.

text_EN_NXG7G3.indb 24text_EN_NXG7G3.indb 24 08.7.14 11:41:55 AM08.7.14 11:41:55 AM

4, ¢

CANCEL

PLAY MODE

REPEAT

(NX-G3)

REPEAT,

REPEAT A-B

(CA-NXG7)

DVD/CD

SHIFT REPEAT A-B

(NX-G3)

Advanced Playback Operations

Remote control Programming the Playing Order

—Program Play

You can arrange the playing order of the chapters/

tracks/files (up to 99) before you start playback.

• Program Play can be used for CD, VCD, SVCD,

DVD Video, and MP3/WMA/WAV files on a disc.

• Resume does not work for Program Play.

1 Before starting playback, activate Program

Play.

Canceled

PRGM

PROGRAM

No Group/Title Track/Chapter

On the display On the TV

2 Select chapters/tracks/files you want for

Program Play using the number buttons.

• To select a number, see “How to select a

number” on page 10.

For DVD Video and MP3/WMA/WAV files:

1 Select a title or group number.

2 Select a chapter or track/file number.

3 Repeat step 2 until you complete your

program.

4 Start playback.

Playback starts in the order you

have programmed.

To skip: To pause: To stop:

To release,

press the same

button again.

text_EN_NXG7G3.indb 25text_EN_NXG7G3.indb 25 08.7.14 11:41:56 AM08.7.14 11:41:56 AM

Playing at Random

—Random Play

You can play all chapters or tracks at random.

• Random Play cannot be used for the USB mass

storage class device, DVD-VR and JPEG/MPEG-1/

MPEG-2/DivX files on a disc, and some DVDs.

1 Before starting playback, activate Random

Play.

Canceled

RND

RANDOM

2 Start playback.

Playback starts in random order.

Random Play ends when the

entire disc has been played.

To skip a chapter/

track:

To pause: To stop:

To release,

press the same

button again.

To exit Random Play

Before or after playback...

Canceled

To check the programmed contents

Before or after playback...

In the reverse order.

In the programmed

order.

• You can also use 4 or ¢ to check the

programmed contents.

To modify the program

Before or after playback...

To erase the last step:

(while holding...)

To erase the entire

program:

To add another step

in the program:

(while holding...)

Repeat step 2 on

page 25.

To exit Program Play

Before or after playback...

Canceled

text_EN_NXG7G3.indb 26text_EN_NXG7G3.indb 26 08.7.14 11:41:57 AM08.7.14 11:41:57 AM

REPEAT

CHAP

Repeats the current chapter.

REPEAT TITL Repeats the current title.

REPEAT TRK Repeats the current track/file.

REPEAT GRP Repeats the current group.

REPEAT PG Repeats the current program.

REPEAT PL Repeats the current Play List.

REPEAT ALL Repeats all the contents or

programmed tracks/files.

REPEAT OFF Canceled.

* During Program Play and Random Play, the repeat

mode changes as follows for all discs.

REPEAT OFF

REPEAT STEP REPEAT ALL

A-B Repeat

You can repeat playback of a desired portion by

specifying the beginning (point A) and the ending

(point B).

• A-B Repeat cannot be used for AV files and some

DVDs.

1 While playing (without PBC for SVCD/

VCD), select the start point (A).

CA-NXG7:

(while holding...)

NX-G3:

2 Select the end point (B).

Press the same button again.

• You can search for the end point using the ¡

button.

To cancel A-B Repeat, press REPEAT A-B again.

• A-B Repeat will also be canceled when you stop play

or skip the chapter or track.

Playing Repeatedly

• For DVD Video/DVD-VR/SVCD/VCD/CD: You

can also select the repeat mode using the on-screen

bar (see page 39).

For DVD Video:

While playing...

REPEAT CHAP REPEAT TITL

REPEAT OFF

For CD/SVCD/VCD:

While playing (without PBC for SVCD/VCD) or before

playback...

REPEAT TRK REPEAT ALL

REPEAT OFF

For DVD-VR:

While playing an Original Program...

REPEAT CHAP REPEAT PG

REPEAT ALLREPEAT OFF

While playing a Play List...

REPEAT CHAP REPEAT PL

REPEAT OFF

For MPEG-1/MPEG-2/ASF/DivX/MP3/WMA/WAV files:

While playing or before playback...

REPEAT TRK REPEAT GRP

REPEAT OFF REPEAT ALL

For JPEG files during slide-show:

While playing or before playback...

REPEAT GRP

REPEAT OFF

REPEAT ALL

text_EN_NXG7G3.indb 27text_EN_NXG7G3.indb 27 08.7.14 11:41:59 AM08.7.14 11:41:59 AM

SHIFT

CD 3 USB REC REC/PLAY USB

CHARA

TITLE/DEL

CANCEL

4, ¢

ENTER/SET

DVD/CD6

Recording and Editing Operations

Remote control

Before You Start Recording

• It may be unlawful to record or play back

copyrighted material without the consent of the

• The recording level is not affected by the volume.

• Sound adjustments (see page 15) does not affect

recordings.

• Random Play and Repeat mode are canceled in the

recording mode.

• You cannot record or edit tracks while Mic Mixing

(see page 33) is activated or while you are setting My

Sound (see page 16).

• You can record up to 999 tracks to the USB device. If

you try to record a track after recording 999 tracks,

“TRACK FULL” appears on the display and the track

will not be recorded.

• The tracks which are recorded to the USB device will

be converted into MP3 format.

• You cannot start recording into a USB device while

“READING” is shown on the display.

• Some USB devices have limit of recordable track

number in the root group. Select another group or

make a new group to record tracks when the number

of target tracks to record is over the limit.

• Do not disconnect a USB device while playing/

recording/editing. It may cause malfunction.

About SCMS (Serial Copy Management System)

The System uses the Serial Copy Management System

which allows only first-generation digital copies to be

made of premastered software such as regular CDs.

If you try to record from a duplicated CD-R or CD-RW

into the USB device, “SCMS ERROR” appears on the

display.

1st generation 2nd generation

Number

buttons

Main unit

text_EN_NXG7G3.indb 28text_EN_NXG7G3.indb 28 08.7.14 11:42:00 AM08.7.14 11:42:00 AM

• The group information is also displayed on the

TV screen.

GROUP SELECTION

USE % TO SELECT GROUP.

TO EXIT, PRESS 7.

PLEASE SELECT GROUP IN WHICH YOU WANT TO RECORD.

THEN PRESS REC TO START RECORDING.

NEW GROUP?

GROUP01

GROUP02

GROUP03

GROUP04

• If “NEW GROUP?” is selected, the System

will automatically create the new group as

“001_group.” If “001_group” already exists,

“002_group,” “003_group,” etc. will be created.

5 Start recording.

Both recording and playback start at the same time.

When playback ends, recording also stops.

• You cannot change the source while recording.

• If Program Play is activated (see “Programming

the Playing Order—Program Play” on page

25), the tracks are recorded in the programmed

order.

To stop

recording

manually:

To record the playing track (1

track):

During play or pause...

(on the main unit)

Then, follow the steps 4 and 5

above.

Recording from a Disc

You can record tracks in digital recording from an

Audio CD onto the USB device.

• Do not vibrate the System while recording/editing

tracks. Take care especially while the REC indicator

is flashing or while “EDITING” is shown on the

display. It may damage the recorded tracks on the

USB device.

Before recording....

Connect a recordable USB device to the USB REC/

PLAY ( ) terminal. (See also page 7.)

1 Start and stop playback of the disc.

2 Select the first track you want to record.

The System records from

the track to the last one.

3 Enter recording mode.

(on the main unit)

4 Select a group to record tracks into.

REC

G 1 GROUP1?

text_EN_NXG7G3.indb 29text_EN_NXG7G3.indb 29 08.7.14 11:42:00 AM08.7.14 11:42:00 AM

• For entering a title, see “How to enter titles” on

page 31.

• You can also enter a title using the TV on-screen.

GROUP TITLE EDIT

ABCDE

abcde

01234

GROUP01

[0 – 9] KEY ENTER LETTERS

[CANCEL] DELETE A LETTER

[ENTER] REGISTER NEW NAME

CHANGE CHARACTER TABLE

MOVE CURSOR

5 Finish the procedure.

EDITING

To give title to other groups/tracks, repeat steps

2 to 5.

To give title to a new group before

recording

When you record tracks into “NEW GROUP?” in step

4 of “Recording from a Disc” on page 29, you can give a

group title before starting to record.

1 After selecting “NEW GROUP?” in step 4

of “Recording from a Disc” on page 29...

2 Edit the group title by following step 4 in

the previous column.

3 Finish the procedure.

Recording starts.

See page 54 for more information about the warning

messages shown on the display.

Giving (Editing) Titles to Tracks

or Groups

You can give titles to the tracks (up to 24 characters)

and groups (up to 28 characters) in the USB device.

• While playing, you cannot edit track/group titles.

1 Start and stop playback of the USB device.

2 Select a track/group you want to edit.

To select a track:

To select a group:

(while holding...)

3 Select the track/group title editing mode.

TR TITLE?

TR DELETE?

GR TITLE?

GR DELETE?

(Canceled)

TR TITLE? For editing a track title

GR TITLE? For editing a group title

4 Enter a title.

GROUPX A

Character type

Ex.: When “GR TITLE?” is selected in step 3

text_EN_NXG7G3.indb 30text_EN_NXG7G3.indb 30 08.7.14 11:42:02 AM08.7.14 11:42:02 AM

How to enter titles

1 Select the character type.

(upper case)

(number)

(lower case)

2 Enter a character.

• Several characters

are assigned to one

button. Press the button

repeatedly until the

desired character is

displayed.

• For available characters,

refer to “Available

Characters” on the next

column.

3 Confirm the entry.

• “NO TITLE” appears on the display if no

characters is entered in step 2. Enter a title.

Available Characters

Button Uppercase

character

Lowercase

character

Numerical

character

(Space) , ! , # , $ , % , & , ’,

( , ) , +, –, . , = , @ , –

• Some symbols may not

appear on the display.

ABC abc 2

DEF def 3

GHI ghi 4

JKL jkl 5

MNO mno 6

PQRS pqrs 7

TUV tuv 8

WXYZ wxyz 9

——0

To move the character entry position

Move the entry position

to the right.

Move the entry position

to the left.

To erase a character

When the character entry position is on the character

you want to erase...

(while holding...)

text_EN_NXG7G3.indb 31text_EN_NXG7G3.indb 31 08.7.14 11:42:03 AM08.7.14 11:42:03 AM

3 Select the track/group erase mode.

TR TITLE?

TR DELETE?

GR TITLE?

GR DELETE?

(Canceled)

TR DELETE? For deleting a track

GR DELETE? For deleting a group

4 Confirm the selection.

DELETE OK?

• To quit erasing, press CANCEL (while holding

SHIFT).

5 Erase your selection.

EDITING

• If a group contains only one file and you delete

the file, the group is also deleted.

To enter a space

Select the space by pressing MARK. (See “Available

Characters” on page 31.)

• You can also enter a space at the end of a title by

pressing 3 (cursor key).

To quit title entry

• The entered titles are not stored.

Erasing the Tracks or Groups

You can erase tracks/groups on the USB device.

• Once the tracks are erased, you cannot resume them.

1 Start and stop playback of the USB device.

2 Select a track/group you want to erase.

To select a track:

To select a group:

(while holding...)

text_EN_NXG7G3.indb 32text_EN_NXG7G3.indb 32 08.7.14 11:42:04 AM08.7.14 11:42:04 AM

Enjoying Karaoke (only for CA-NXG7)

DO NOT keep the microphones

connected while they are not in use.

RESERVE

MIC MIX

VOCAL

SUPPORT

VOCAL

MASKING

MIC 1 MIC 2

KARAOKE

SETTING

KARAOKE

SETTING

KARAOKE

SCORING

DVD/CD

Remote control

Main unit

Number

buttons

IMPORTANT

• Always set MIC LEVEL to “MIN” (0) when

connecting or disconnecting the microphone.

• MIC LEVEL adjustment is valid for both

microphones connected to the MIC 1 and MIC 2

jacks.

• MIC LEVEL and MIC LVL mentioned in this

Instructions carry the same meaning.

Singing Along (Karaoke)

You can enjoy singing along (Karaoke) by using one or

two microphones.

1 Connect the microphone(s) (not supplied)

to the MIC 1 and/or MIC 2 jack.

Mic Mixing will be automatically activated.

MIC IN

2 Start playing a source.

• For Karaoke discs: Select a desired audio

channel. See “Selecting the Audio Track” on page

22.

3 Sing into the microphone.

4 Adjust the microphone level and volume.

text_EN_NXG7G3.indb 33text_EN_NXG7G3.indb 33 08.7.14 11:42:05 AM08.7.14 11:42:05 AM

Scoring Your Karaoke Skill

This System can score your Karaoke skill by comparing

your singing along with the vocal on the playback

source.

• This function is available only for disc/USB mass

storage class device playback.

• It is recommended to select the sound track as

follows (see page 22):

For Karaoke DVD Video: Select a sound track with

vocal.

For Karaoke SVCD/CD: Select “ST,” “ST1” or

“ST2.”

• After selecting a sound track, select VOCAL MASK,

L CHANNEL or R CHANNEL using the VOCAL

MASKING button (see the previous column).

1 Select “DVD/CD” or “USB” as the source.

2 Connect the microphone(s) (not supplied)

to the MIC 1 and/or MIC 2 jack.

Mic Mixing will be activated.

• If a microphone is already connected and Mic

Mixing is not activated, use the MIC MIX button

to reactivate Mic Mixing (see page 33).

3 Activate Karaoke Scoring.

K.Scoring

KSCORE ON

• During Karaoke Scoring, scoring will start when

playback is started.

• To cancel Karaoke Scoring before playback,

press the same button again. “KSCORE OFF”

appears on the display.

4 Start playback and sing into the

microphone.

Scoring starts.

• The K.Scoring indicator flashes during scoring.

• Adjust echo level and key if you want. (See “To

apply an echo to your voice” and “To adjust the

key” on page 35.)

• When you press 4 or ¢, Karaoke Scoring is

canceled and restarts from the selected track/file.

To use only microphones

Select “DVD/CD” or “USB” in step 3, and stop the

playback.

To cancel the Mic Mixing

MIC MIX

MIC OFF

Adjusting the Sound Track

for Karaoke

You can adjust the sound track for Karaoke.

• For stereo (2-channel) source: By selecting VOCAL

MASK, you can reduce the lead vocal—Vocal

Masking.

• For Karaoke disc: By selecting L CHANNEL or R

CHANNEL, you can select the audio channel to play.

While Mic Mixing is activated...

VOCAL MASK L CHANNEL

R CHANNELOFF

VOCAL MASK Reduce the vocal from stereo (2-

channel) source.

L CHANNEL Reproduces only the left audio

channel.

R CHANNEL Reproduces only the right audio

channel.

To return to normal playback, select “OFF.”

To restore the vocal temporarily

This function allows you to recover the lead vocal

temporarily for your reference while singing.

While Vocal Masking, L CHANNEL or R CHANNEL

is activated...

The vocal or stereo effect will be

restored temporarily.

To return to Vocal Masking, L CHANNEL or R

CHANNEL, press the same button again.

text_EN_NXG7G3.indb 34text_EN_NXG7G3.indb 34 08.7.14 11:42:05 AM08.7.14 11:42:05 AM

Changing the Karaoke Setting

You can change five settings for Karaoke.

• To escape from Karaoke setting, wait for several

seconds after the setting is done.

To apply an echo to your voice

MIC LVL ECHO KEYCON*

SCORE LVL*FANFARE*

* Appears only when “DVD/CD” or “USB” is

selected as the source with Mic Mixing activated.

2 Adjust the echo level.

• You can adjust the

echo level from ECHO

OFF (no effect) to

ECHO 6.

To adjust the key

• This function is available only for CD/VCD/SVCD/

DVD Video and Audio files.

• Key adjustment will be canceled when you deactivate

Mic Mixing, or select another disc, track or file.

1 Select “DVD/CD” or “USB” as the source.

2 Connect the microphone(s) (not supplied)

to the MIC 1 and/or MIC 2 jack.

Mic Mixing will be automatically activated.

• If a microphone is already connected and Mic

Mixing is not activated, use the MIC MIX button

to reactivate Mic Mixing (see page 33).

3 Start playback.

Result of the scoring

After the song ends, playback stops and the score board

appears on the TV screen with fanfare.

Your score

The latest top 3

The calorie you consumed in your singing

• When you press 8, scoring is canceled. When

playback starts again, scoring starts from that point.

• If you do not sing for about 2 minutes after Karaoke

Scoring starts, Karaoke Scoring is canceled.

• To obtain a correct scoring result, it is recommended

to sing the song completely. If the singing time is

less than 3 minutes, the scoring result may be “0” or

incorrect.

To stop the playback in the middle of the song, press

7. Karaoke Scoring is not canceled and your singing

along is scored until that time.

To activate Karaoke Scoring in the middle of the

song, press KARAOKE SCORING. “SCORING” and

“START” appear on the display, then scoring starts

from that point.

To deactivate Karaoke Scoring in the same song

during playback, press KARAOKE SCORING.

“SCORING” and “CANCEL” appear on the display.

• Once you deactivate Karaoke Scoring in the

same song during playback, pressing KARAOKE

SCORING switches “KSCORE ON” and “KSCORE

OFF” alternately.

• When you reactivate Karaoke Scoring in the same

song during playback and “KSCORE ON” is selected,

scoring starts from the next track.

text_EN_NXG7G3.indb 35text_EN_NXG7G3.indb 35 08.7.14 11:42:07 AM08.7.14 11:42:07 AM

To turn on/off the fanfare

You can turn the fanfare on or off for Karaoke Scoring.

• This function is available only for disc/USB mass

storage class device playback.

MIC LVL ECHO KEYCON

SCORE LVLFANFARE

2 Select the fanfare setting.

OFF

To change the mic volume

• You can also change the mic volume by pressing

MIC LEVEL +/– on the main unit. (See page 33.)

MIC LVL ECHO KEYCON*

SCORE LVL*FANFARE*

* Appears only when “DVD/CD” or “USB” is

selected as the source with Mic Mixing activated.

2 Select the volume level.

• The mic volume level

can be adjusted in 16

steps (MIN (0) – MAX

(15)).

MIC LVL ECHO KEYCON

SCORE LVLFANFARE

5 Adjust the key.

To raise the key (up

to +6).

To lower the key (down

to –6).

To return to normal key, select “0.”

To change the calculation level

You can change the scoring level of Karaoke Scoring.

• This function is available only for disc/USB mass

storage class device playback.

1 Select “DVD/CD” or “USB” as the source.

2 Connect the microphone(s) (not supplied)

to the MIC 1 and/or MIC 2 jack.

Mic Mixing will be automatically activated.

• If a microphone is already connected and Mic

Mixing is not activated, use the MIC MIX button

to reactivate Mic Mixing (see page 33).

MIC LVL ECHO KEYCON

SCORE LVLFANFARE

4 Select the scoring level setting.

PRO

AMATEUR

PRO Calculation level is strict.

AMATEUR Calculation level is lenient.

text_EN_NXG7G3.indb 36text_EN_NXG7G3.indb 36 08.7.14 11:42:08 AM08.7.14 11:42:08 AM

5 Start playback.

Karaoke Reserve screen disappears and playback

starts in the order you have programmed.

• For the Karaoke Program Play with Karaoke

Scoring: Each time the song ends, playback stops

and the score board appears. Press 3 to start

playback of the next track.

6 Sing into the microphone.

7 Adjust the microphone level and volume.

To check the programmed contents

Karaoke Reserve screen appears.

• You cannot display Karaoke Reserve screen while

Karaoke Scoring is in use.

To modify the program

While Karaoke Reserve screen is shown on the TV...

To erase the unwanted step:

(while holding...)

To erase the entire program, repeat the procedure.

To add steps in the program:

Repeat step 4.

Reserving Karaoke Songs—Karaoke

Program Play

You can determine the playback order of the titles,

chapters, tracks or files on the disc player. You can

program up to 12 steps.

• This function is not available for files in a USB mass

storage class device.

1 Select “DVD/CD” as the source.

2 Connect the microphone(s) (not supplied)

to the MIC1 or MIC2 jack.

Mic Mixing will be automatically activated.

• If a microphone is already connected and Mic

Mixing is not activated, use the MIC MIX button

to reactivate Mic Mixing (see page 33).

3 Activate Karaoke Program Play.

• The PRGM indicator flashes during this mode.

4 Select songs you want for Karaoke

Program Play.

Press the number buttons to select a song in the

following order.

1 Select a title/group.

2 Select a chapter/track/file.

• To select a number, see

“How to select a number”

on page 10.

• To cancel the procedure,

press RESERVE. The

PRGM indicator

disappears.

text_EN_NXG7G3.indb 37text_EN_NXG7G3.indb 37 08.7.14 11:42:09 AM08.7.14 11:42:09 AM

ENTER/SET

ON SCREEN

PG PL

On-Screen Operations

Remote control

Number

buttons

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

TIME OFF

TRACK 3

TIME 0:00:58

RANDOM

MPEG-1/MPEG-2/ASF/DivX files on a disc

TOTAL

1:25:58

CHAP

FILE

TIME 00:00:58

213

MPEG-1/MPEG-2/ASF/DivX files in a USB mass

storage class device

TOTAL

1:25:58

CHAP

USB

TIME 00:00:58

213

1 Disc/source

2 Playback information

Dolby D Audio format

3/2.1ch, 2/0.0 ch Channel number

PROGRAM, RANDOM Current play mode

TITLE

Current title

CHAP

Current chapter

TRACK

Current track

Current program

Current Play List

TIME 0:00:58

Time indication

3 Operation modes

Playback

/Forward/Reverse search

/Forward/Reverse slow-motion

Pause

Stop

4 Function icons (on the pull-down menu)

TIME

Select to change the time indications.

OFF

Select to repeat playback.

Select for time search.

CHAP.

Select for chapter search.

1/3

Select to change the audio language

or channel (see also page 22).

1/3

Select to change subtitle language

(see also page 23).

1/3

Select to change the view angle (see

also page 23).

On-screen Bar Operations

You can check the source information (disc/USB mass

storage class device) and playback status by using the

on-screen bar (not applicable for MP3/WMA/WAV/

JPEG files). You can also use some functions when

playing back DVD Video/DVD-VR/SVCD/VCD/CD.

On-screen Bar Information

DVD Video

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TIME 0:00:58

CHAP 3

Dolby D

3/2.1ch

DVD-VR

SVCD

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

SVCD

TIME OFF ST1

TRACK 3

1/3

-/4

TIME 0:00:58

PROGRAM

VCD

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

VCD

TIME OFF ST

TRACK 3

TIME 0:00:58

PROGRAM

text_EN_NXG7G3.indb 38text_EN_NXG7G3.indb 38 08.7.14 11:42:11 AM08.7.14 11:42:11 AM

To change the time information

You can change the time information on the on-screen

bar and the display on the main unit.

1 While playing, display the entire on-screen

bar.

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TIME 0:00:58

CHAP 3

Dolby D

3/2.1ch

2 Make sure

TIME

is selected (highlighted).

3 Change the time indication.

TIME Elapsed playing time of the current

chapter/track (not applicable for DVD-

VR).

REM Remaining time of the current chapter/

track (not applicable for DVD-VR).

TOTAL Elapsed disc time.

T. REM Remaining time of title (DVD Video)/

program (DVD-VR)/disc (SVCD/VCD).

Repeat Play

• See also page 27.

1 While playing (without PBC for SVCD/

VCD), display the entire on-screen bar.

• Repeat mode can also be selected before starting

playback (not applicable for DVD Video/DVD-

VR).

2 Select

OFF

3 Display the pop-up window.

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TOTAL 1:01:58

CHAP 3

OFF

Dolby D

3/2.1ch

To operate using the On-screen Bar

Ex.: Selecting a subtitle (French) for DVD Video

While “DVD/CD” is selected as the source...

1 Display the entire on-screen bar.

disappears

* This does not appear for MPEG-1/MPEG-2/DivX

files.

2 Select (highlight) the item you want.

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TIME 0:00:58

CHAP 3

Dolby D

3/2.1ch

3 Display the pop-up window.

1/3 1/3 1/3

TOTAL

1:25:58

CHAP

TITLE 2

1/31/31/1

TOTAL 1:01:58

CHAP 3

ENGLISH

4 Select the desired option in the pop-up

window.

1/3 1/3 1/3

ITLE

TOTAL

1:25:58

CHAP

TITLE 2

1/32/31/1

TOTAL 1:01:58

CHAP 3

FRENCH

5 Finish the setting.

Pop-up window disappears.

To remove the on-screen bar

text_EN_NXG7G3.indb 39text_EN_NXG7G3.indb 39 08.7.14 11:42:14 AM08.7.14 11:42:14 AM

Continued on the next page.

5 Select the start point (A).

1/3

TIME

TITLE

DVD-VIDEO TITLE 2

TIME A- CHAP. 1/3

Dolby D

3/2.1ch

6 Select the end point (B).

A-B Repeat starts. The selected

portion plays repeatedly.

• You can search for the end

point using the ¡ button.

To cancel A-B Repeat, repeat steps 1 to 3, and select

“OFF” in step 4.

• A-B Repeat will also be canceled when you stop play

or skip the chapter or track.

Time Search

You can move to a particular point by specifying the

elapsed playing time from the beginning.

• This function is not available during Program Play

and Random Play.

1 While playing (without PBC for SVCD/

VCD), display the entire on-screen bar.

• Time Search can also be used before starting

playback (not applicable for DVD Video/DVD-

VR).

2 Select .

3 Display the pop-up window.

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TIME 0:00:58

CHAP 3

TIME _ : _ _ : _ _

Dolby D

3/2.1ch

4 Enter the time.

You can specify the time in hours/minutes/seconds.

Examples:

To move to a point of 1

(hours): 02 (minutes): 00

(seconds), press 1, 0, 2, 0,

then 0.

To move to a point of 54

(minutes): 00 (seconds),

press 0, 5, 4, 0, then 0.

• It is always required to enter the hour digit (even

“0” hours), but it is not required to enter the final

zeros (the last two digits in the examples above).

• To correct a mis-entry, press 2 to erase the last

entry.

4 Select the repeat mode you want.

A-B Repeats a desired portion (see the

next column).

TITLE* Repeats the current title.

ALL Repeats the disc (not applicable

for DVD) or programmed track.

CHAPTER** Repeats the current chapter.

TRACK** Repeats the current track.

OFF Cancels Repeat Play.

* While playing a DVD-VR, “PG” appears, and

while playing a Play List, “PL” appears.

** During Program Play and Random Play, “STEP”

appears.

5 Finish the setting.

A-B Repeat

You can repeat playback of a desired portion by

specifying the beginning (point A) and the ending

(point B).

• A–B Repeat cannot be used for MP3/WMA/WAV/

JPEG/MPEG-1/MPEG-2/ASF/DivX files and some

DVDs.

1 While playing, display the entire on-screen

bar.

2 Select

OFF

3 Display the pop-up window.

OFF

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TOTAL 1:01:58

CHAP 3

OFF

Dolby D

3/2.1ch

4 Select “A-B.”

OFF

TIME

DVD-VIDEO

TIME OFF CHAP.

A–B

Dolby D

3/2.1ch

text_EN_NXG7G3.indb 40text_EN_NXG7G3.indb 40 08.7.14 11:42:15 AM08.7.14 11:42:15 AM

Control Screen Operations

You can search for and play the desired items through

the control screen for DVD-VR and MP3/WMA/

WAV/JPEG/MPEG-1/MPEG-2/ASF/DivX files.

Control screen for DVD-VR

The control screen is superimposed onto the TV screen

when you call up Original Program (PG) or Play List

(PL).

To select playback type

To display the

Original Programs:

To display the Play Lists:

To remove the list, press the same button again.

Ex.: When Original Program is selected.

ORIGINAL PROGRAM

No Date Ch Time Title

1 03/12/08 12:15L

2 09/12/08 23:05

3 18/12/08 08:17

4 20/12/08 07:47

5 25/12/08 19:38 Mr. Lawrence

Satisfy U

La fleur

The last struggle

free flyer

BOOM!

6 28/12/08 14:20

12 3 4 5 6

Ex.: When Play List is selected.

PLAY LIST

No Date Chap Length Title

1 03/12/08 002 0:23:24 Nebula G.

CDJ

Secret Garden

S. Walker

2 15/12/08 004 1:04:39

3 24/12/08 013 0:41:26

4 27/12/08 017 0:09:08

67 81 2 5

1 Listed number

2 Recording/creating date

3 Recording channels

4 Recording time

5 Title

6 Highlight bar (current selection)

7 Chapters included

8 Playback time

5 Confirm your entry.

The System starts playing the disc

from the selected playing time.

Chapter Search

For DVD Video/DVD-VR: You can search for the

chapter number to play.

• This function is not available during Program Play

and Random Play.

1 While playing, display the entire on-screen

bar.

2 Select

CHAP.

3 Display the pop-up window.

CHAPTER _

1/3 1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO TITLE 2

TIME OFF CHAP. 1/31/31/1

TOTAL 1:01:58

CHAP 3

Dolby D

3/2.1ch

4 Enter the desired chapter number.

Examples:

To select chapter 5, press 5.

To select chapter 10, press

1, then 0.

To select chapter 15, press

1, then 5.

To select chapter 30, press

3, then 0.

• To correct a mis-entry, press the number

buttons until the desired number is shown in the

pop-up window.

5 Confirm your entry.

The System starts playing the

selected chapter.

text_EN_NXG7G3.indb 41text_EN_NXG7G3.indb 41 08.7.14 11:42:17 AM08.7.14 11:42:17 AM

= Highlight bar (current selection)

~ File list

• If different types of playable files (audio/still picture/

moving picture) are recorded on a disc or USB mass

storage class device, select a file type to play (see page

12).

To move the highlight bar between group list and

file list

Moves the bar to the file list.

Moves the bar to the group

list.

To select an item in the list

Move the highlight bar to the

desired item.

• If you move the highlight

bar while playing back an

MP3/WMA/WAV file, the

selected track starts playback

automatically.

To start playback

For JPEG:

The selected file (still picture) is

displayed until you change it.

Slide-show playback starts. Each file

(still picture) is shown on the screen

for about 3 seconds, then changes

one after another.

• To cancel slide-show and display

the current still picture, press 8.

For the other files:

Playback starts with the selected

track.

• Pressing DVD/CD 6 or

USB 6 also starts playback.

• Once you start to play back a picture, the control

screen disappears.

• To show the control screen, press TOP MENU or

MENU.

To select an item in the list and start playback

• If you move the highlight bar while playing back, the

selected item starts playback automatically.

Control screen for MP3/WMA/WAV/JPEG/

MPEG-1/MPEG-2/ASF/DivX files

The control screen appears on the TV when the System

detects MP3/WMA/WAV/JPEG/MPEG-1/MPEG-

2/ASF/DivX files on the loaded disc or connected USB

mass storage class device.

• For JPEG/MPEG-1/MPEG-2/ASF/DivX, it appears

when playback is stopped.

Ex.: While playing an MP3 file on a disc.

Group : 2 / 3

TIME : 00:00:14

Track : 6 / 14 (Total 41)

Spring

Summer

Fall

Winter

Track Information

Cloudy.mp3

Fair.mp3

Fog.mp3

Hail.mp3

Indian summer.mp3

Rain.mp3

Shower.mp3

Snow.mp3

Thunder.mp3

Typhoon.mp3

Wind.mp3

Winter sky.mp3

Title

Rain

Artist

Album

REPEAT STEP

RANDOM

1 Current source

FILE: Current source is “DVD/CD.”

USB: Current source is “USB.”

2 Current group number/total group number

3 Current group

4 Group list

5 File information (only for MP3/WMA/WAV

files)

6 Current file

7 Random Play/Program Play setting (not

applicable for the files in the USB mass storage

class device)

8 Repeat Play setting

9 Elapsed playing time of the current file (not

applicable for JPEG files)

0 Operation status icon

- Current file number/total number of files in

the current group (total number of files on the

loaded disc/USB mass storage class device)

text_EN_NXG7G3.indb 42text_EN_NXG7G3.indb 42 08.7.14 11:42:18 AM08.7.14 11:42:18 AM

Daily Timer Operations

SHIFT

CLOCK/

TIMER

CANCEL

ENTER/SET

AUDIO

Remote control

Setting the Daily Timer

Using Daily Timer, you can wake up with your favorite

music.

• Finish the timer setting at least 2 minutes before the

on-time.

• To exit the timer settings, press CLOCK/TIMER

(while holding SHIFT) as required.

• To correct a mis-entry during process, press

CANCEL (while holding SHIFT). You can go back to

the previous step.

How Daily Timer works

Once the Daily Timer has been set, the timer

indicator ( ) is lit on the display. Daily Timer is

activated at the same time everyday until the timer is

turned off manually (see “To turn on or off the Daily

Timer” on page 44).

When the on-time comes

The System turns on, tunes in to the specified

station or starts playing from the specified source,

and gradually increases the volume level to the

preset level after about 30 seconds.

• While Daily Timer is working, the timer indicator

() flashes on the display.

When the off-time comes

The System stops playback, and turns off (on

standby) automatically.

• The timer setting remains in memory until you

change it.

1 Select the timer setting mode.

(while holding...)

DAILY ON (Time)

Canceled Clock setting

(See page 20.)

Daily Timer

ON 8:00

• When the clock has not been set, pressing

CLOCK/TIMER makes the System enter the

clock setting mode (see page 20).

text_EN_NXG7G3.indb 43text_EN_NXG7G3.indb 43 08.7.14 11:42:19 AM08.7.14 11:42:19 AM

To cancel the Daily Timer

1 Select “DAILY.”

(while holding...)

DAILY ON (Time)

Canceled Clock setting

(See page 20.)

DAILY

2 Turn off the Timer.

(while holding...)

To turn on the Daily Timer

1 Select “DAILY.”

(while holding...)

DAILY ON (Time)

Canceled Clock setting

(See page 20.)

2 Activate the Timer.

3 Wait until the indication disappears.

2 Set the timer as you like.

Repeat the procedure for the following settings

until finished.

1 Set the hour then the minute for on-time.

2 Set the hour then the minute for off-time.

3 Select the playback source—“DISC,” “USB,”

“TUNER AM,” “TUNER FM,” or “AUDIO IN.”

4 For “TUNER AM” or “TUNER FM”: Select a

preset channel.

For “DISC”: Select the title/group number, then

the chapter/track/file number*.

For “USB”: Select the group number, then the

track/file number*.

5 Select the volume level.

• You can adjust the volume level (“0” to “MAX”

and “VOLUME – –”). If you select “VOLUME

– –,” the volume is set to the same level as when

the System was last turned off.

Once settings are completed, the timer setting

information appears in sequence.

3 Turn off the System (on standby), if you

have set the timer with the System turned

on.

* You cannot select the 151st and over.

To turn on or off the Daily Timer

Since Daily Timer is activated at the same time

everyday, you may need to cancel it on some particular

days.

text_EN_NXG7G3.indb 44text_EN_NXG7G3.indb 44 08.7.14 11:42:20 AM08.7.14 11:42:20 AM

SET UP

(NX-G3)

SHIFT

SET UP

(CA-NXG7)

ENTER/SET

Setup Menu Operations

Remote control Initial Settings

You can change the settings of the System.

• The Setup Menu can be used only when “DVD/CD”

or “USB” is selected as the source.

1 Press SET UP while playback is stopped.

MENU LANGUAGE ENGLISH

AUDIO LANGUAGE ENGLISH

SUBTITLE OFF

ON SCREEN LANGUAGE ENGLISH

LANGUAGE

2 Press 3 (or 2) to select the menu.

3 Press ∞ (or 5) to move to select the item.

4 Press ENTER/SET.

5 Press ∞ (or 5) to select the options, then

press ENTER/SET.

To remove a preference display

Press SET UP.

Menu Item Contents

LANGUAGE

MENU LANGUAGE You can select the initial menu language for DivX files/DVD Video. (See

page 54.)

AUDIO LANGUAGE You can select the initial audio language for DivX files/DVD Video. (See

page 54.)

SUBTITLE You can select the initial subtitle language for DivX files/DVD Video.

(See page 54.)

ON SCREEN LANGUAGE You can select “ENGLISH,” “CHINESE” or “SPANISH” as the on-screen

language.


MONITOR TYPE

16:9 4:3 LB

4:3 PS

You can select the monitor type to match your TV when you play back

picture recorded for wide-screen televisions.

16:9 NORMAL/16:9 MULTI NORMAL (Wide-screen television): Select

this when the aspect ratio of your wide-screen TV is fixed to 16:9.

16:9 AUTO/16:9 MULTI AUTO (Wide-screen television): Select this

when your TV is an ordinary wide-screen TV.

4:3 LB/4:3 MULTI LB (Letter Box conversion): For a conventional (4:3)

TV. Displays a wide-screen picture to fit the width of the TV screen

keeping the aspect ratio.

4:3 PS/4:3 MULTI PS (Pan Scan conversion): For a conventional (4:3)

TV. The picture is zoomed in to fill the screen vertically and the left and

right sides of the picture are cut off.

• By selecting “MULTI” mode, the color system of the System changes

automatically to match the color system of the picture. For the color

system setting, see page 6.

text_EN_NXG7G3.indb 45text_EN_NXG7G3.indb 45 08.7.14 11:42:21 AM08.7.14 11:42:21 AM

Menu Item Contents


PICTURE SOURCE You can obtain optimal picture quality by selecting the source type of the

video source.

AUTO: Normally, select this option. The System recognizes the picture

type (film or video source) of the current picture according to its

information.

FILM: For a film source picture.

VIDEO: For a video source picture.

SCREEN SAVER You can set the screen saver function (ON or OFF). If no operation is

done for about 5 minutes, the TV screen dims.

FILE TYPE You can select the file type to play.

AUDIO: To play MP3/WMA/WAV files.

STILL PICTURE: To play JPEG files.

VIDEO: To play MPEG-1/MPEG-2/DivX files.

AUDIO

DIGITAL AUDIO OUTPUT Set this item correctly when using the OPTICAL DIGITAL OUTPUT

terminal on the rear.

PCM ONLY: When connecting to audio equipment which is compatible

with only linear PCM signals.

DOLBY DIGITAL/PCM: When connecting to a Dolby Digital decoder or

an amplifier with a built-in Dolby Digital decoder.

STREAM/PCM: When connecting to a DTS decoder or an amplifier with

a built-in DTS decoder.

DOWN MIX This setting is effective for digital audio output if “DIGITAL AUDIO

OUTPUT” is set to “PCM ONLY.”

DOLBY SURROUND: Select this when connecting to a surround decoder.

STEREO: Select this when connecting to a stereo receiver, MD player, etc.

D. RANGE COMPRESSION You can enjoy powerful audio even at a low volume level while playing

Dolby Digital software.

AUTO: Select to apply the effect to multi-channel encoded software.

ON: Select to always use this function.

OTHERS

RESUME You can select Resume.

ON: The System resumes playback from the position where playback has

been stopped.

OFF: Resume is deactivated.

ON SCREEN GUIDE Activate (ON) or deactivate (OFF) the on-screen guide (see page 12).

DivX REGISTRATION The System has its own Registration Code.

If necessary, you can confirm it.

Once you have played back a DivX file in which the Registration Code

is recorded, the System’s Registration Code is overwritten for copyright

protection.

text_EN_NXG7G3.indb 46text_EN_NXG7G3.indb 46 08.7.14 11:42:22 AM08.7.14 11:42:22 AM

Additional Information

Playing Back a Disc/USB Mass Storage Class Device:

JVC bears no responsibility for any loss of data in

the USB mass storage class device while using this

System.

• When you change the source to “DVD/CD” or

“USB,” it may take a while to activate the source.

• While the System is reading a disc, the source may

not change to “USB” properly. In this case, press 7,

then change the source to “USB.”

• On some discs, the actual operations may be

different from what is explained in this manual

due to the programming and disc structure; such

differences are not a malfunction of this System.

• The System recognizes up to 999 tracks (files) per

group, and 99 groups per disc/USB mass storage

class device. The total number of tracks (files) that

the System can detect is 4 000.

– If there are any unplayable files in a folder, those

files are also counted in the total file number.

– Playable files which do not belong to any groups

are handled as GROUP1.

• For playback of files in the USB mass storage class

device...

– When connecting a USB mass storage class device,

refer also to its manual.

– Connect one USB mass storage class device to the

System at a time. Do not use a USB hub.

– You cannot charge any USB mass storage class

device through the USB REC/PLAY ( )

terminal.

– While playing back a file in a USB mass storage

class device, do not disconnect the device. It may

cause malfunction on both the System and the

device.

– This System is compatible with USB 2.0 Full

Speed.

– You cannot play back a file larger than 2

Gigabytes.

– When playing a file of a large transfer rate, frames

or sounds may be dropped during playback.

– This System cannot recognize a USB mass storage

class device whose rating is other than 5 V and

exceeds 500 mA.

– This System may not play back some USB mass

storage class devices and does not support DRM

(Digital Rights Management).

– It will take some time to start up a digital audio

player whose contents are larger than 1 Gigabyte.

Learning More about This System

Connections (see pages 4 to 7)

• Make sure the antenna conductors do not touch any

other terminals, connecting cords or the power cord.

Also, keep the antennas away from metallic parts of

the System, connecting cords, and the power cord.

These could cause poor reception.

• Use only speakers with the same speaker impedance

as indicated by the speaker terminals on the rear of

the System.

• The speakers are magnetically shielded to avoid

color distortions on TVs. However, if not installed

properly, it may cause color distortions. So, pay

attention to the following when installing the

speakers.

– When placing the speakers near a TV set, turn off

the TV’s main power switch or unplug it before

installing the speakers.

Then wait at least 30 minutes before turning on

the TV’s main power switch again.

– Some TVs may still be affected even though

you have followed the above instructions. If this

happens, move the speakers away from the TV.

Changing the Color System and Scanning Mode:

• You cannot change the scanning mode to progressive

in the following cases:

– When your TV does not support the progressive

video input.

– When you have not connected your TV to the

system using a component video cord.

Daily Operations—Playback (see pages 9 to

14)

• Instead of pressing , the System is turned on

by pressing one of the source buttons, the DOOR

OPEN/CLOSE button or 0 on the main unit.

Listening to the Radio:

• If you store a new station into an occupied preset

number, the previously stored station in that number

will be erased.

• When you unplug the power cord or if a power

failure occurs, the preset stations will be erased in a

few days. If this happens, preset the stations again.

text_EN_NXG7G3.indb 47text_EN_NXG7G3.indb 47 08.7.14 11:42:23 AM08.7.14 11:42:23 AM

– The stream format should conform to MPEG

system/program stream.

– 720 x 576 pixels (25 fps) / 720 x 480 pixels (30 fps)

is recommended for the highest resolution.

– This System also supports the resolutions of

352 x 576 / 480 x 576 / 352 x 288 pixels (25 fps)

and 352 x 480 / 480 x 480 / 352 x 240 pixels (30

fps).

– The file format should be MP@ML (Main Profile

at Main Level)/SP@ML (Simple profile at Main

Level)/MP@LL (Main Profile at Low Level).

– Audio streams should conform to MPEG1 Audio

Layer-2 or MPEG2 Audio Layer-2.

• For ASF playback...

– This System can play back ASF files with the

extension code <.asf> (regardless of the letter

case—upper/lower).

– This System supports ASF files whose resolution is

352 x 288 pixels or less.

– Some recorded files may not be able to played back

depending on file characteristics, kind of digital

still/video cameras, or recording conditions.

• For DivX playback...

– This System can play only a disc of UDF-Bridge

format. “Multi-border” is not supported.

– The System supports all versions of DivX® video

(including DivX® 6).

– The System supports DivX files whose resolution

is 720 x 480 pixels or less (30 fps), and 720 x 576

pixels or less (25 fps).

– Audio stream should conform to Dolby Digital,

MPEG1 Audio Layer-2 or MPEG Audio Layer-3

(MP3).

– This System can play back DivX files with the

extension code <.divx> <.div> <.avi> (regardless

of the letter case—upper/lower).

– The System does not support GMC (Global

Motion Compression).

– The file encoded in the interlaced scanning mode

may not be played back correctly.

Sound & Other Adjustments (see pages 15 to

21)

Adjusting the Sound:

• This function also affects the sound through the

headphones.

• For DVD-VR playback...

– This System can play only a disc of UDF-Bridge

format.

– For details about DVD-VR format and Play List,

refer to the manual of the recording equipment.

• For MP3/WMA/WAV playback...

– MP3/WMA/WAV discs require a longer readout

time than regular CDs. (It depends on the

complexity of the group/file configuration.)

– Some MP3/WMA/WAV files cannot be played

back and will be skipped. This results from their

recording processes and conditions.

– This System can play only a disc of ISO 9660

Level 1 or Level 2.

– This System can play back MP3/WMA/WAV

files with the extension code <.mp3>, <.wma>,

or <.wav> (regardless of the letter case—upper/

lower).

– It is recommended that you make each MP3/

WMA/WAV files as following conditions:

– For MP3/WMA files: At a sample rate of

44.1 kHz and at a data transfer rate of 128 kbps.

This System cannot play back files made at a bit

rate of less than 64 kbps.

– For WAV files: At a sample rate of 44.1 kHz and

at a quantization rate of 16 bit Linear PCM.

• For JPEG files playback...

– It is recommended that you record a file at 640

x 480 resolution. (If a file has been recorded at a

resolution of more than 640 x 480, it will take a

long time to be shown.)

– This System can play back JPEG files with the

extension code <.jpg> or <.jpeg> (regardless of the

letter case—upper/lower).

– This System may not play back JPEG files properly

if they are recorded from a device other than a

digital camera.

• For MPEG-1/MPEG-2 playback...

– This System can play back MPEG-1/MPEG-2 files

with the extension code <.mpg>, <.mpeg>, or

<.mod>*.

* <.mod> is an extension code used for the

MPEG-2 files recorded by JVC Everio

camcorders. The MPEG-2 files with the <.mod>

extension code cannot be played back if HD

format is used or its maximum bit rate is more

than 2 Mbps.

text_EN_NXG7G3.indb 48text_EN_NXG7G3.indb 48 08.7.14 11:42:24 AM08.7.14 11:42:24 AM

Enjoying Karaoke (see pages 33 to 37)

General:

• You cannot enjoy all the Karaoke functions with

DVD-VR, video files and picture files.

• While the System is turned on, connecting a

microphone automatically activates Mic Mixing and

all the Karaoke related functions.

• While the System is turned off, connecting a

microphone does not activate Mic Mixing and any

other Karaoke related function. In this case, press

MIC MIX after turning the System on.

• You cannot activate Mic Mixing during recording/

editing or My Sound setup.

Adjusting the Sound Track for Karaoke:

• The Vocal Masking setting is not applied to the

optical digital output signals through the OPTICAL

DIGITAL OUTPUT terminal.

• On some music, Vocal Masking does not provide the

correct effect.

Scoring Your Karaoke Skill:

• You can also activate Karaoke Scoring while playing

back. In this case, the scoring starts from that point.

But cancel Karaoke Scoring and set Karaoke Scoring

again in the same track during the playback, scoring

starts from next track.

• While Karaoke Scoring is in use, you cannot

deactivate Mic Mixing or use MIC MIX, RESERVE

and number buttons.

• Activating Karaoke Scoring cancels Repeat Play.

• You cannot use Karaoke Scoring during Program

Play, Random Play, or recording. However, you

can turn Karaoke Scoring on and off by using

KARAOKE SCORING button during these play

modes.

• The ranking (top 3) is cleared when you turn off the

System.

Reserving Karaoke Songs—Karaoke Program Play:

• You can use RESERVE button when a microphone

is plugged in. However, you can cancel Karaoke

Program Play using the button even if a microphone

is not plugged in. In case you reactivate Karaoke

Program Play, plug in a microphone.

• When the track starts playback, that track number

will be erased from the Karaoke Reserve screen (the

programmed contents will remain until you erase it).

• For some VCD, the Karaoke Scoring result may not

appear at the end of the track if PBC is activated. In

this case, press 7 to view your scoring result.

Creating a Soothing Tone for Your Ear —MY SOUND:

• MY SOUND setup is prohibited for certain file

format.

• MY SOUND setup is prohibited during recording/

editing or while Mic Mixing is activated.

Setting the ECO (Ecology) Mode:

• You cannot activate the ECO mode while the Daily

Timer is turned on.

• If you turn on the Daily Timer while the ECO mode

is activated, the ECO mode is canceled.

Setting the Clock:

• “0:00” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month.

If this happens, reset the clock.

Unique Video Disc/File Operations (see pages

22 to 24)

Selecting the Audio Track:

• On some discs/files, you cannot change audio

language during playback.

Special Effect Playback:

• During slow-motion playback, no sound will be

emitted.

• While zoomed in, the picture may look coarse.

Advanced Playback Operations (see pages 25

to 27)

Programming the Playing Order—Program Play:

• While programming steps...

- Your entry will be ignored if you have tried to

program an item number that does not exist (for

example, selecting track 14 on a disc that only has

12 tracks).

- For MP3/WMA/WAV files, you can program up

to 99 files.

- You cannot select the 151st or later tracks.

Playing Repeatedly:

• A-B Repeat is available only within the same title/

program/track.

Recording and Editing Operations (see pages

28 to 32)

Giving (Editing) Titles to Tracks or Groups:

• When a track is recorded, a title is automatically

given to the track. When you want to give a new

title to the track, delete the old title, then enter your

desired title.

text_EN_NXG7G3.indb 49text_EN_NXG7G3.indb 49 08.7.14 11:42:26 AM08.7.14 11:42:26 AM

Operating JVC’s TVs Using the Remote

Control

You can use the remote control to operate JVC’s TVs.

TV Turn on/off TV.

TV/VIDEO Change the input mode.

TV CHANNEL

+, –

Change the channel.

TV VOL +, –

(NX-G3)

Adjust the TV volume.

While holding SHIFT, press...

TV VOL +, –

(CA-NXG7)

Adjust the TV volume.

TV/VIDEO

SHIFT

(CA-NXG7)

Remote control

On-Screen Operations

(see pages 38 to 42)

On-screen Bar Operations:

• A-B Repeat is available only within the same title/

program/track.

Daily Timer Operations (see pages 43 and 44)

Setting the Daily Timer:

• If you do not specify the preset station or track

number correctly while setting a timer, the currently

selected station or the first track will be played when

the timer is activated.

• When you unplug the power cord or if a power

failure occurs, the timer will be canceled. You need

to set the clock first, then the timer again.

• If you set DVD Video as the source, Daily Timer will

not work correctly.

• If you set the Sleep Timer after Daily Timer starts

playing the selected source, Daily Timer is canceled.

Setup Menu Operations (see pages 45 and 46)

General:

• If the upper and lower parts of the menu are cut off,

adjust the picture size control of the TV.

LANGUAGE menu:

• When the language you have selected for “MENU

LANGUAGE,” “AUDIO LANGUAGE,” or

“SUBTITLE” is not recorded, the original language is

used as the initial language.

PICTURE menu—MONITOR TYPE:

• Even if “4:3 PS” is selected, the screen size may

become 4:3 letter box while playing a disc/file. This

depends on how the discs are recorded.

• When you select “16:9” for a picture whose aspect

ratio is 4:3, the picture changes slightly due to the

process of converting the picture width.

OTHERS menu—ON SCREEN GUIDE:

• The setup menu and on-screen bar will be displayed

(and recorded) even if this function is set to “OFF.”

Subtitles and the information for zoom-in always

appear on the display regardless of this setting.

text_EN_NXG7G3.indb 50text_EN_NXG7G3.indb 50 08.7.14 11:42:27 AM08.7.14 11:42:27 AM

Optical Digital Out Signals

DIGITAL AUDIO OUTPUT Output Signals

Playback disc/file STREAM/PCM DOLBY DIGITAL/

PCM PCM ONLY

DVD Video with 48 kHz, 16/20/24

bit Linear PCM

48 kHz, 16 bit Linear PCM*

with 96 kHz, Linear

PCM

48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear

PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

DVD-R/-RW

in DVD-VR

format

with 48 kHz, 16/20/24

bit Linear PCM

48 kHz, 16 bit Linear PCM*

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear

PCM

SVCD/VCD/CD 44.1 kHz, 16 bit Linear PCM/48 kHz, 16 bit Linear PCM

CD with DTS DTS bitstream 44.1 kHz, 16 bit Linear PCM

MP3/WMA/WAV/MPEG-1/MPEG-2/

ASF

32/44.1/48 kHz, 16 bit Linear PCM

DivX with MP2, MP3 32/44.1/48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 32/44.1/48 kHz, 16 bit

Linear PCM

* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the

OPTICAL DIGITAL OUTPUT terminal if the discs are not copy-protected.

Cleaning the System

• Stains should be wiped off with a soft cloth. If the

System is heavily stained, wipe it with a cloth soaked

in water-diluted neutral detergent and wrung well,

then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become

damaged or get its paint peeled off, be careful about

the following:

– DO NOT wipe it with a hard cloth.

– DO NOT wipe it forcefully.

– DO NOT wipe it with thinner or benzine.

– DO NOT apply any volatile substance such as

insecticides to it.

– DO NOT allow any rubber or plastic to remain in

contact for a long time.

Maintenance

To get the best performance of the System, keep your

discs and mechanism clean.

Handling Discs

• Remove the disc from its case by holding it at the

edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend

the disc.

• Put the disc back in its case after use to prevent

warping.

• Be careful not to scratch the surface of the disc when

placing it back in its case.

• Avoid exposure to direct sunlight, extreme

temperature, and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from

center to edge.

text_EN_NXG7G3.indb 51text_EN_NXG7G3.indb 51 08.7.14 11:42:28 AM08.7.14 11:42:28 AM

Radio Operations

Hard to hear broadcasts because of noise.

] Antenna connections are incorrect or loose.

] The AM loop antenna is too close to the System.

] The FM antenna is not properly extended and

positioned.

Disc/USB mass storage class device Playback

Operations

The disc does not play.

] You have inserted a disc whose Region Code is not

correct. (“REGION ERR” appears on the display.)

] The disc is placed upside down. Place the disc with

the label side facing up.

ID3 Tag on an MP3 file cannot be shown.

] There are two types of ID3 Tag—Version 1 and

Version 2. This System can only show ID3 Tag

Version 1.

Groups and tracks are not played back as you expect.

] The playing order is determined when the groups

and tracks were recorded. It depends on the

writing application.

MP3, WMA, WAV, JPEG, MPEG-1, MPEG-2, ASF or DivX

files are not played back.

] The disc or the USB mass storage class device may

contain different types of files (ex. MP3/WMA/

WAV/JPEG). In this case, you can only play back

the files selected by pressing FILE TYPE (see page

12).

] You have changed the “FILE TYPE” setting

after the System read the disc or the USB mass

storage class device. In this case, reload the disc or

disconnect the USB mass storage class device and

connect it again.

The disc sound is discontinuous.

] The disc is scratched or dirty.

Troubleshooting

General

Adjustments or settings are suddenly canceled

before you finish.

] There is a time limit. Repeat procedure again.

Operations are disabled.

] The built-in microprocessor may malfunction

due to external electrical interference. Unplug the

power cord and then plug it back in.

Unable to operate the System from the remote

control.

] The path between the remote control and the

remote sensor on the System is blocked.

] The batteries are exhausted.

No sound is heard.

] Speaker connections are incorrect or loose.

] Headphones are connected.

No picture appears on the TV screen.

] The video cord connections are incorrect or loose.

No picture is displayed on the TV screen, the picture

is blurred, or the picture is divided into two parts.

] The System is connected to a TV which does not

support progressive video input.

] Incorrect scanning mode is selected (see page 7).

] When you unplug the power cord and plug it back

again, the scanning mode may change back to the

initial setting (see page 7).

The left and right edges of the picture are missing

on the screen.

] Select “4:3 LB/4:3 MULTI LB” for “MONITOR

TYPE” (see page 45).

text_EN_NXG7G3.indb 52text_EN_NXG7G3.indb 52 08.7.14 11:42:28 AM08.7.14 11:42:28 AM

• Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol

are trademarks of Dolby Laboratories.

• “DTS” is a registered trademark of DTS, Inc.

and “DTS2.0+Digital Out” is a trademark of

DTS, Inc.

• “Official DivX® Ultra Certified product” “Plays

all versions of DivX® video (including DivX®

6) with enhanced playback of DivX® media

files and the DivX® Media Format” “DivX,

DivX Ultra Certified, and associated logos are

trademarks of DivX, Inc. and are used under

licence.”

• Microsoft and Windows Media are either

registered trademarks or trademarks of

Microsoft Corporation in the United States

and/or other countries.

• This product incorporates copyright protection

technology that is protected by U.S. patents

and other intellectual property rights. Use of

this copyright protection technology must be

authorized by Macrovision, and is intended for

home and other limited viewing uses only unless

otherwise authorized by Macrovision. Reverse

engineering or disassembly is prohibited.

• “CONSUMERS SHOULD NOTE THAT NOT

ALL HIGH DEFINITION TELEVISION SETS

ARE FULLY COMPATIBLE WITH THIS

PRODUCT AND MAY CAUSE ARTIFACTS

TO BE DISPLAYED IN THE PICTURE.

IN CASE OF 525 OR 625 PROGRESSIVE

SCAN PICTURE PROBLEMS, IT IS

RECOMMENDED THAT THE USER SWITCH

THE CONNECTION TO THE ‘STANDARD

DEFINITION’ OUTPUT. IF THERE ARE

QUESTIONS REGARDING OUR TV SET

COMPATIBILITY WITH THIS MODEL 525p

AND 625p DVD PLAYER, PLEASE CONTACT

OUR CUSTOMER SERVICE CENTER.”

• USE OF THIS PRODUCT IN ANY MANNER

THAT COMPLIES WITH THE MPEG-4

VISUAL STANDARD IS PROHIBITED,

EXCEPT FOR USE BY A CONSUMER

ENGAGING IN PERSONAL AND NON-

COMMERCIAL ACTIVITIES.

No subtitle appears on the display though you have

selected the initial subtitle language.

] Some DVDs/DivX files are programmed not to

display any subtitle initially. If this happens, press

SUBTITLE after starting playback (see page 23).

Audio language is different from the one you have

selected as the initial audio language.

] Some DVDs/DivX files are programmed to always

use the original language initially. If this happens,

press AUDIO/MPX after starting playback (see

page 22).

The disc tray does not open or close.

] The power cord is not plugged in.

] Child Lock is in use. “LOCKED” appears on the

display (see page 21).

Recording and Editing Operations

Unable to record into the USB device.

] The capacity of the USB device is full. Erase some

tracks.

] There have been 999 tracks or group on the USB

device you want to record into. Erase unwanted

tracks.

] The USB device is write-protected.

] The connected USB device is incompatible to this

System.

Unable to assign title to tracks on the USB device.

] When a track is damaged, you cannot edit that

track. In this case, turn off the System and turn on

again.

] The USB device is write-protected.

Timer Operations

Daily Timer does not work.

] The System has been turned on when the on-time

came. Timer starts working only when the System

is turned off.

Daily Timer does not start playback.

] The loaded disc is a DVD Video. Change the disc.

text_EN_NXG7G3.indb 53text_EN_NXG7G3.indb 53 08.7.14 11:42:29 AM08.7.14 11:42:29 AM

Language Code List

AA Afar GD Scots Gaelic MI Maori SN Shona

AB Abkhazian GL Galician MK Macedonian SO Somali

AF Afrikaans GN Guarani ML Malayalam SQ Albanian

AM Ameharic GU Gujarati MN Mongolian SR Serbian

AR Arabic HA Hausa MO Moldavian SS Siswati

AS Assamese HI Hindi MR Marathi ST Sesotho

AY Aymara HR Croatian MS Malay (MAY) SU Sundanese

AZ Azerbaijani HY Armenian MT Maltese SV Swedish

BA Bashkir IA Interlingua MY Burmese SW Swahili

BE Byelorussian IE Interlingue NA Nauru TA Tamil

BG Bulgarian IK Inupiak NE Nepali TE Telugu

BH Bihari IN Indonesian NL Dutch TG Tajik

BI Bislama IS Icelandic NO Norwegian TH Thai

BN Bengali, Bangla IW Hebrew OC Occitan TI Tigrinya

BO Tibetan JI Yiddish OM (Afan) Oromo TK Turkmen

BR Breton JW Javanese OR Oriya TL Tagalog

CA Catalan KA Georgian PA Panjabi TN Setswana

CO Corsican KK Kazakh PS Pashto, Pushto TO Tonga

CY Welsh KL Greenlandic PT Portuguese TR Turkish

DA Danish KM Cambodian QU Quechua TS Tsonga

DZ Bhutani KN Kannada RM Rhaeto-Romance TT Tatar

EL Greek KO Korean (KOR) RN Kirundi TW Twi

EO Esperanto KS Kashmiri RO Rumanian UK Ukrainian

ET Estonian KU Kurdish RW Kinyarwanda UR Urdu

EU Basque KY Kirghiz SA Sanskrit UZ Uzbek

FA Persian LA Latin SD Sindhi VI Vietnamese

FI Finnish LN Lingala SG Sangho VO Volapuk

FJ Fiji LO Laothian SH Serbo-Croatian WO Wolof

FO Faroese LT Lithuanian SI Singhalese XH Xhosa

FY Frisian LV Latvian, Lettish SL Slovenian YO Yoruba

GA Irish MG Malagasy SM Samoan ZU Zulu

Display Messages for Recording or Editing

Operations

NO DEVICE

• No USB device is connected or the connected USB

device is not compatible with this System.

PROHIBIT

• The USB device is prohibited from editing file/group.

• The same title has been recorded.

DATA FULL

• The capacity of memory for USB device is full.

TRACK FULL

• The USB device exceeds the maximum number of

files it can store.

PROTECTED

• The USB device is write-protected.

SCMS ERROR

• You have tried to copy from a duplicated disc to the

USB device.

SAME TITLE

• The name you entered is already used by another

file/group.

NO TITLE

• No name is entered (blank) when editing the file/

group name.

DEVICE ERR

• The unit has failed to read the USB device.

CAN’T REC

• The music cannot be recorded.

text_EN_NXG7G3.indb 54text_EN_NXG7G3.indb 54 08.7.14 11:42:30 AM08.7.14 11:42:30 AM

Specifications

Amplifier section—CA-NXG7/CA-NXG3 (NX-G3)

Output Power:

CA-NXG7: 240 W (120 W + 120 W) at 8 Ω

(10% THD)

CA-NXG3: 40 W (20 W + 20 W) at 4 Ω

(10% THD)

Audio Input: AUDIO IN:

Stereo min. (∅ 3.5 mm)

500 mV/47 kΩ (at “AUDIO LVL3”)

250 mV/47 kΩ (at “AUDIO LVL2”)

125 mV/47 kΩ (at “AUDIO LVL1”)

Digital output: OPTICAL DIGITAL OUTPUT:

–21 dBm to –15 dBm (660 nm

±30 nm)

Digital input: USB REC/PLAY

VIDEO OUT:

Color system: NTSC/PAL (interlaced/

progressive)

VIDEO (Composite): 1 V(p-p)/75 Ω

COMPONENT: (Y) 1 V(p-p)/75 Ω

(PB/PR) 0.7 V(p-p)/75 Ω

Speaker impedance:

CA-NXG7: 8 Ω – 16 Ω

CA-NXG3: 4 Ω – 16 Ω

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz

AM (MW) tuning range:

531 kHz – 1 710 kHz (at 9 kHz)

530 kHz – 1 710 kHz (at 10 kHz)

For Saudi Arabia: 531 kHz – 1 602 kHz (at 9 kHz)

530 kHz – 1 600 kHz (at 10 kHz)

Disc player section

Region codes: Middle East: 2

South East Asia: 3

Central and South America,

Australia: 4

Playable disc:

• DVD Video/CD/VCD/SVCD

• CD-R/CD-RW (CD/SVCD/VCD/MP3/WMA/

WAV/JPEG/MPEG-1/MPEG-2/ASF/DivX

format)

• DVD-R/-RW (DVD-VR/DVD Video/MP3/

WMA/WAV/JPEG/MPEG-1/MPEG-2/ASF/

DivX format)

• +R (DVD Video/MP3/WMA/WAV/JPEG/

MPEG-1/MPEG-2/ASF/DivX format)

• +RW (MP3/WMA/WAV/JPEG/MPEG-1/MPEG-

2/ASF/DivX format)

• DVD-ROM (MP3/WMA/WAV format)

Dynamic range: 80 dB

Horizontal resolution: 500 lines

Wow and flutter: Immeasurable

USB section

Playable files: MP3/WMA/WAV/JPEG/MPEG-1/

MPEG-2/ASF/DivX format

USB specification: Compatible with USB 2.0 Full Speed

Compatible device: Mass storage class

Compatible system: FAT16, FAT32

Bus power supply: DC 5 V 500 mA

General—CA-NXG7

Power requirements:

AC 220 V /AC 230 V – AC 240 V,

(adjustable with the voltage

selector), 50 Hz / 60 Hz

For Saudi Arabia: AC 220 V , 50 Hz / 60 Hz

For Australia: AC 240 V

, 50 Hz

Power consumption:

70 W (at operation)

13 W (at standby)

1.3 W or less (at ECO mode)

Dimensions (approx.):

250 mm × 158 mm × 259 mm

(W/H/D)

Mass (approx.): 5.0 kg

General—CA-NXG3 (NX-G3)

Power requirements:

AC 110 V – AC 240 V , 50 Hz /

60 Hz

For Australia: AC 240 V

, 50 Hz

Power consumption:

35 W (at operation)

3.5 W (at standby)

1.0 W or less (at ECO mode)

Dimensions (approx.):

250 mm × 158 mm × 259 mm

(W/H/D)

Mass (approx.): 3.0 kg

Speakers—SP-NXG5 (NX-G3)

Type: 2-way 2-speaker bass reflex type

(Magnetically shielded)

Speaker units: Tweeter: 4 cm cone x 1

Woofer: 12 cm cone x 1

Impedance: 4 Ω

Power handling capacity: 20 W

Frequency Range: 50 Hz - 28 000 Hz

Dimensions (approx.):

155 mm × 250 mm × 168 mm

(W/H/D)

Mass (approx.): 2.1 kg each

Supplied Accessories

See page 4.

Design and specifications are subject to change

without notice.

text_EN_NXG7G3.indb 55text_EN_NXG7G3.indb 55 08.7.14 11:42:32 AM08.7.14 11:42:32 AM

5∞2 3

ENTER/SET

4, ¢

1, ¡

10,

Number

buttons

3D PHONIC 17

AM 10

ANGLE 23

A.STBY 21

AUDIO 9

AUDIO IN 14

AUDIO IN

LEVEL

AUDIO/MPX 22

AUDIO VOL 9

CANCEL

CHARA 31

CLOCK/

TIMER

20,

C.VOICE 17

DIMMER 19

DISPLAY 21

DVD/CD

DVD LEVEL 19

ECO 19

FADE

MUTING

FILE TYPE 12

FM 10

GROUP/

TITLE

GROUP/

TITLE SKIP

HP SURR 17

KARAOKE

SCORING

KARAOKE

SETTING

MENU 13

MIC MIX 33

MY SOUND 16

ON SCREEN 39

PG 41

PL 41

PLAY MODE 25

REPEAT 27

REPEAT A-B 27

RESERVE 37

RETURN 14

SCAN MODE 7

SET UP 45

SHIFT

Press and hold

together with

another button

when you want to

use the function

printed in green.

SLEEP 21

SOUND

MODE

SUBTITLE 23

SUPER BASS

LEVEL

TITLE/DEL 30

TOP MENU 13

TUNER

MODE

TV 50

CHANNEL

+, –

TV/VIDEO 50

TV VOL 50

USB 612

V.BASS 15

VFP 19

VOCAL

MASKING

VOCAL

SUPPORT

ZOOM 24

Parts Index

Remote control

Main unit

012

4, ¢

AUDIO IN 7

CD 3 USB REC 29

DEMO 3

DOOR OPEN/CLOSE 9

ECO 19

MIC1 33

MIC2 33

MIC LEVEL+, – 33

PHONES 7

REC/PLAY

USB

SOURCE 9

VOLUME 9

CA-NXG7

CA-NXG7 NX-G3

text_EN_NXG7G3.indb 56text_EN_NXG7G3.indb 56 08.7.14 11:42:34 AM08.7.14 11:42:34 AM

CA-NXG7/NX-G3 COMPACT COMPONENT SYSTEM

CAUTION for mains (AC) line

(Excluding Saudi Arabian model and Australian model)

BEFORE PLUGGING IN, do check that your mains (AC) line

voltage corresponds with the position of the voltage selector

switch provided on the outside of this equipment and, if

different, reset the voltage selector switch, to prevent from a

damage or risk of fire/electric shock.

For CA-NXG7:

Mains (AC) Line Instruction (not applicable for Europe,

U.S.A., Canada, and U.K.)

Cover_NXG7G3_U_eng.indd 1Cover_NXG7G3_U_eng.indd 1 08.7.14 11:48:51 AM08.7.14 11:48:51 AM
