KD-R618/KD-A615/KD-R610
- INSTRUCTIONS
- Installation/Connection Manual
KD-R616
- INSTRUCTIONS
- Installation/Connection Manual
KD-R611
- INSTRUCTIONS
- Installation/Connection Manual

ESPAÑOL

FRANÇAIS

ENGLISH

Instructions CD RECEIVER KD-R618 / KD-A615 / KD-R610

GET0638-001A

[J]

EN, SP, FR

For canceling the display demonstration, see page 4. / Para cancelar la demostración en pantalla,

consulte la página 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.

CD RECEIVER / RECEPTOR CON CD /

RÉCEPTEUR CD

For customer Use:

Enter below the Model

No. and Serial No. which

are located on the top or

bottom of the cabinet.

Retain this information

for future reference.

Model No.

Serial No.

KD-R618 / KD-A615 / KD-R610

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For installation and connections, refer to the separate manual.

Para la instalación y las conexiones, refiérase al manual separado.

Pour l’installation et les raccordements, se référer au manuel séparé.

KD-A615 / KD-R610

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Still having trouble??

USA ONLY

Call 1-800-252-5722

http://www.jvc.com

We can help you!

CoverRear_KD-R618[J].indd 1CoverRear_KD-R618[J].indd 1 11/19/09 11:35:31 AM11/19/09 11:35:31 AM

2ENGLISH

INFORMATION (For U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not approved by JVC could void the user’s authority to operate the

equipment.

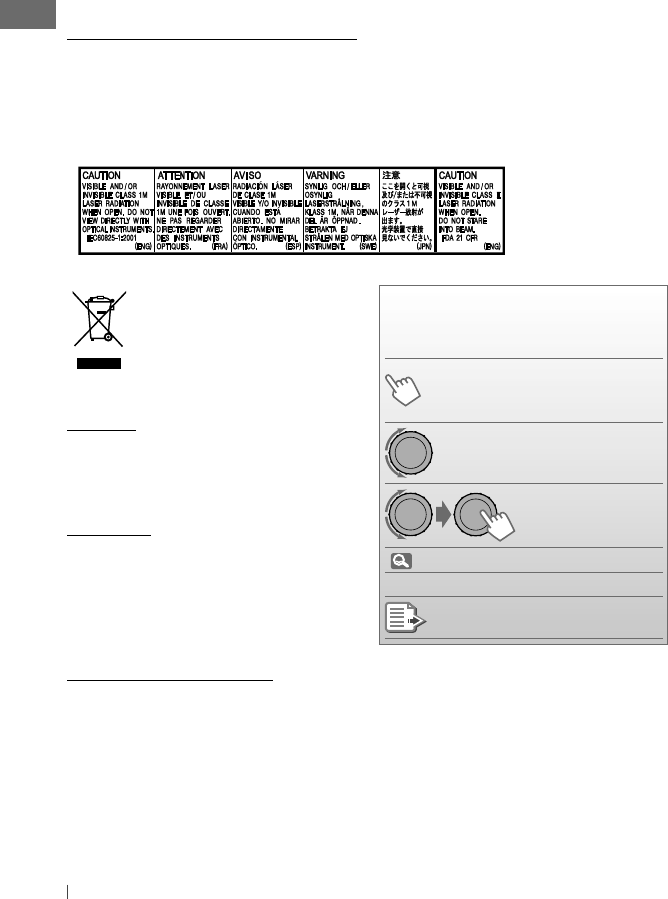

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare

into beam.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not

view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving,

be sure to look around carefully or you may be

involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as

this will block outside sounds, making driving

dangerous.

• Stop the car before performing any

complicated operations.

Temperature inside the car...

If you have parked the car for a long time in

hot or cold weather, wait until the temperature

in the car becomes normal before operating

the unit.

EN02-09_KD-R618_A615_R610[J]f.indd 2EN02-09_KD-R618_A615_R610[J]f.indd 2 11/19/09 11:36:05 AM11/19/09 11:36:05 AM

3ENGLISH

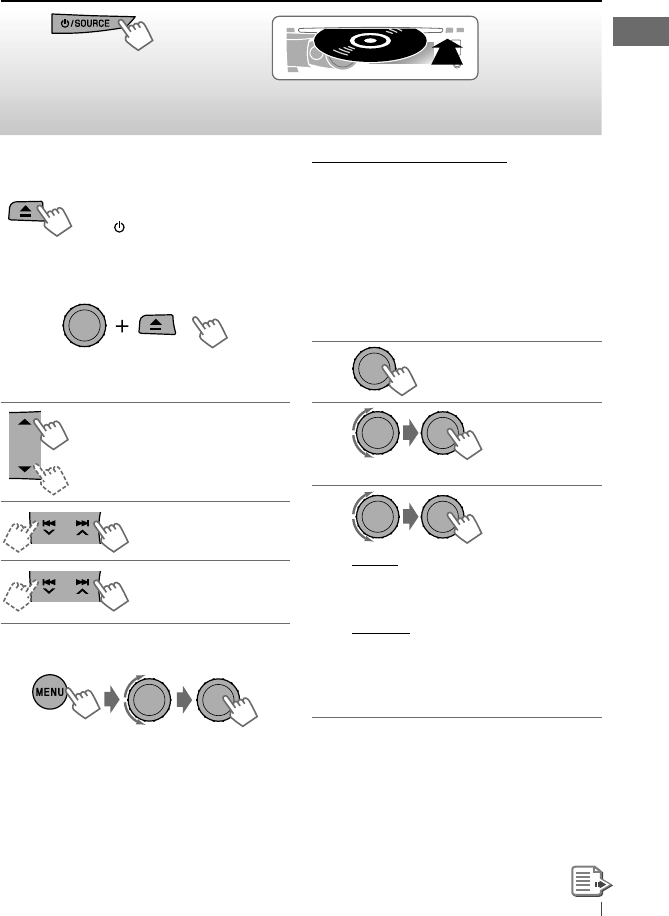

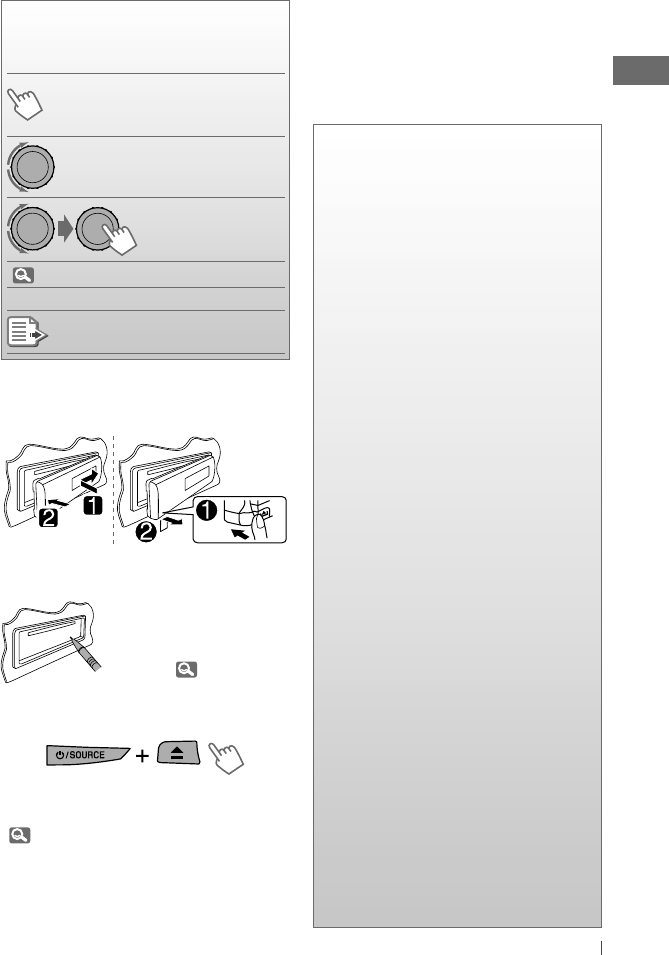

How to read this manual

The following icons/symbols are used to

indicate:

Press and hold the button(s)

until the desired operation

begins.

Turn the control dial.

Turn the control dial

to make a selection,

then press to confirm.

( XX) Reference page number

<XXXX> Menu setting item

Continued on the next page

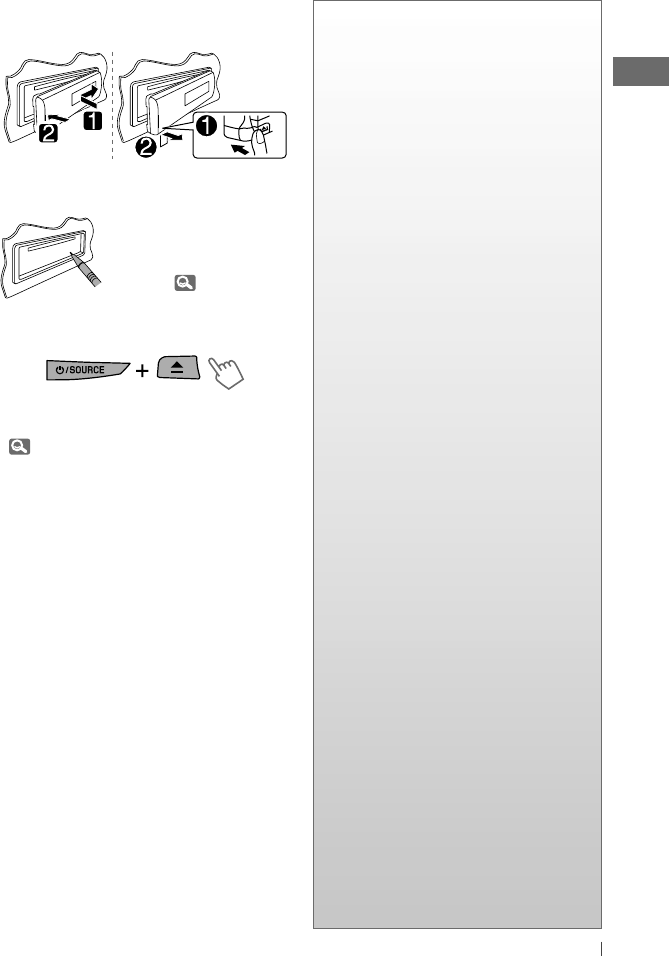

How to attach/detach the control

panel

How to reset your unit

Your preset adjustments

will also be erased (except

the registered Bluetooth

device). ( 11)

How to forcibly eject a disc

• You can forcibly eject the loaded disc even

if the disc is locked. To lock/unlock the disc,

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

CONTENTS

3 How to read this manual

3 How to attach/detach the control

panel

3 How to reset your unit

3 How to forcibly eject a disc

Canceling the display

demonstration

4 Setting the clock

5 Preparing the remote controller

(RM-RK50)

6 Basic operations

7 Listening to the radio

9 Listening to a disc

10 Listening to the USB device

11 Using Bluetooth ® devices

13 Using a Bluetooth mobile phone

14 Using a Bluetooth audio player

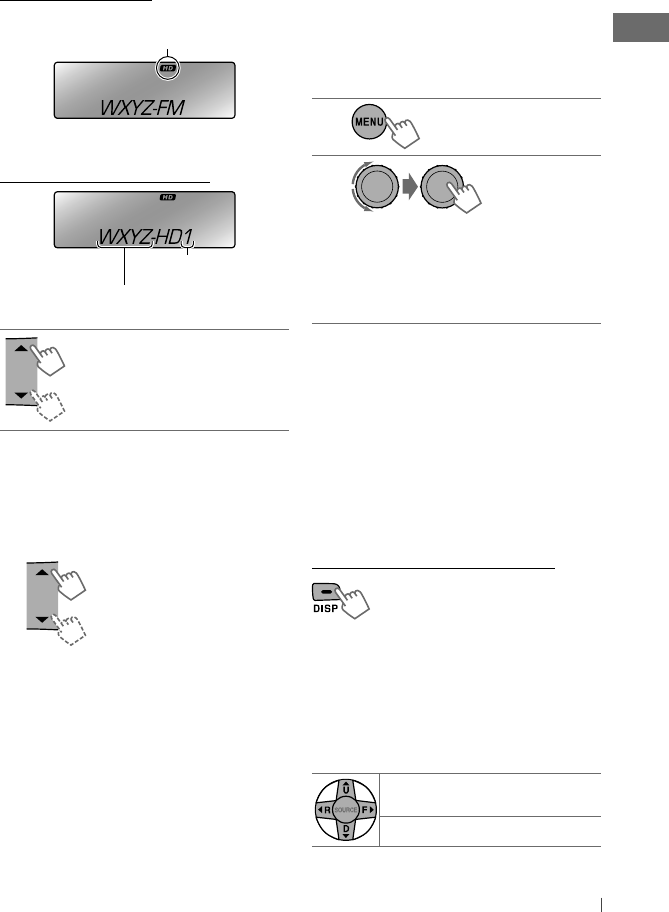

16 Listening to the HD Radio ™

Broadcast

18 Listening to the satellite radio

20 Listening to the iPod/iPhone

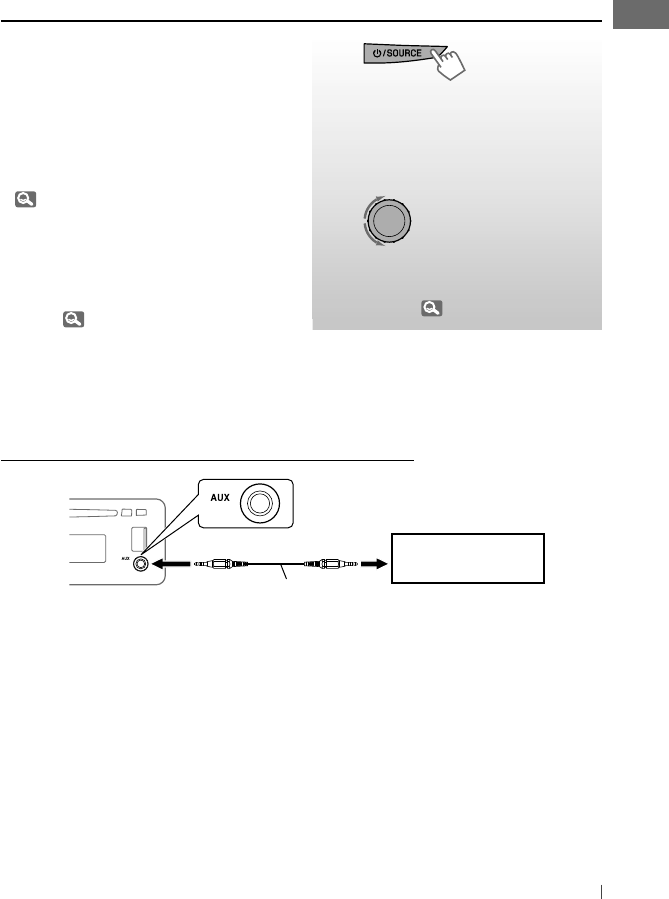

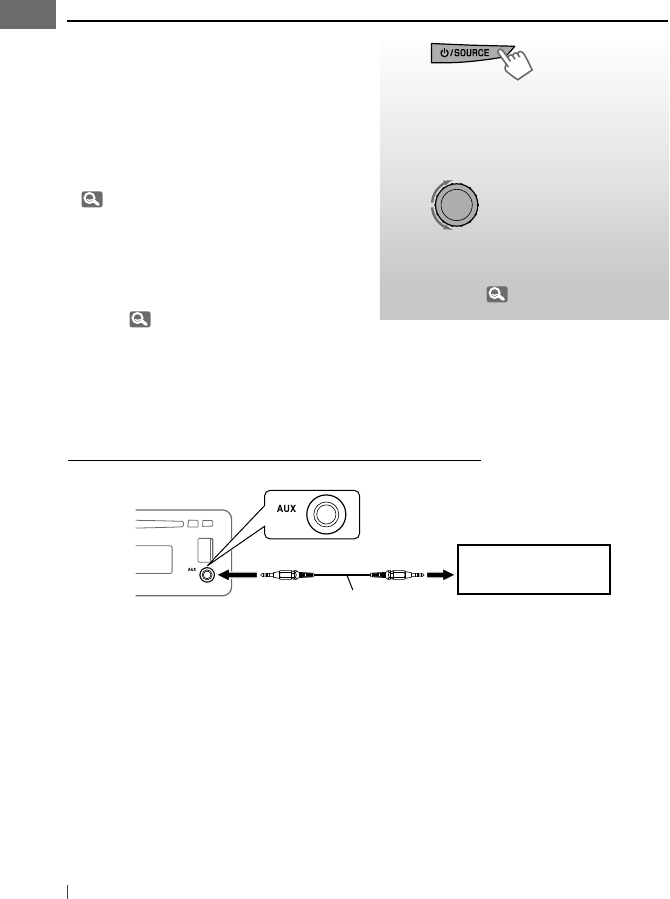

22 Listening to the other external

components

23 Selecting a preset sound mode

24 Menu operations

31 More about this unit

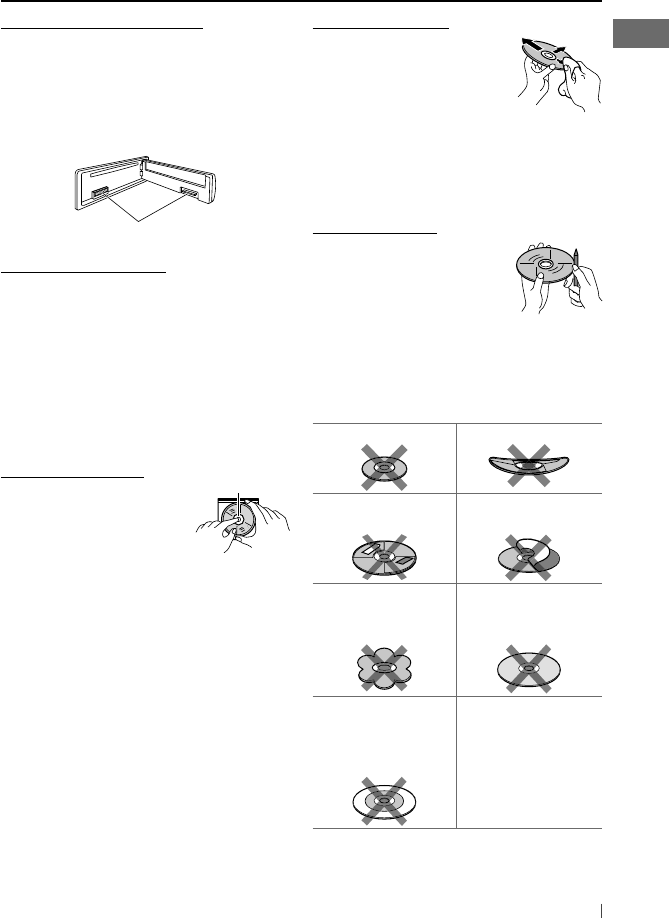

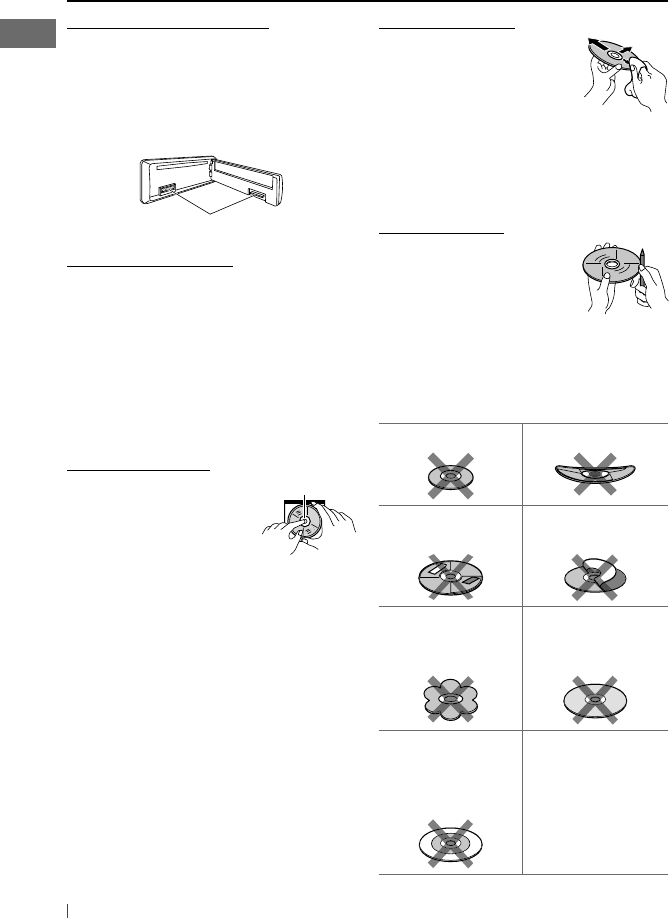

35 Maintenance

36 Troubleshooting

42 Specifications

Thank you for purchasing a JVC product.

Please read all instructions carefully before

operation, to ensure your complete

understanding and to obtain the best possible

performance from the unit.

[Hold]

EN02-09_KD-R618_A615_R610[J]f.indd 3EN02-09_KD-R618_A615_R610[J]f.indd 3 11/19/09 11:36:05 AM11/19/09 11:36:05 AM

4ENGLISH

1 Turn on the power.

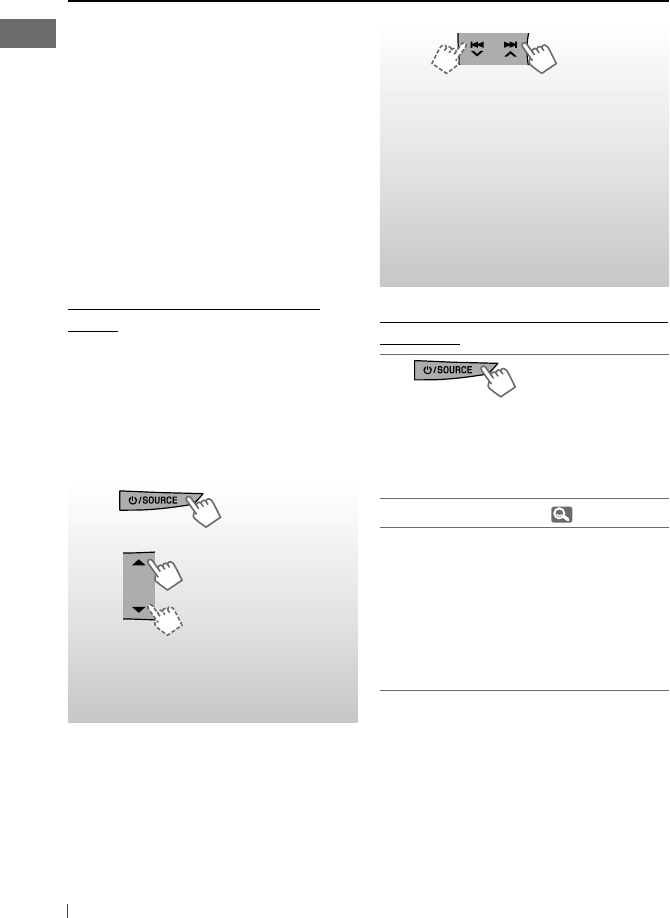

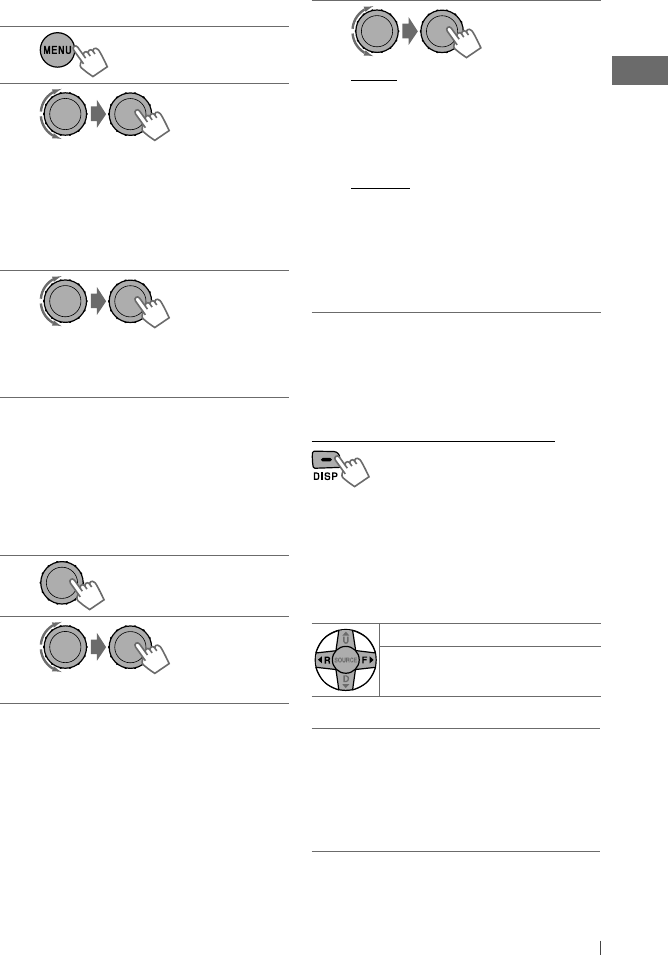

Setting the clock

1 Turn on the power.

3 Select <CLOCK>.

4 Select <CLOCK SET>.

5 Adjust the hour.

6 Adjust the minute.

7 Finish the procedure.

4 Select <DEMO OFF>.

6 Finish the procedure.

Canceling the display demonstration

(Initial setting)

[Hold]

(Initial setting)

[Hold]

EN02-09_KD-R618_A615_R610[J]f.indd 4EN02-09_KD-R618_A615_R610[J]f.indd 4 11/19/09 11:36:06 AM11/19/09 11:36:06 AM

5ENGLISH

Warning (to prevent accidents and

damage):

• Do not install any battery other than CR2025

or its equivalent.

• Do not leave the remote controller in a place

(such as dashboards) exposed to direct

sunlight for a long time.

• Store the battery in a place where children

cannot reach.

• Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

• Do not leave the battery with other metallic

materials.

• Do not poke the battery with tweezers or

similar tools.

• Wrap the battery with tape and insulate when

throwing away or saving it.

KD-R618/KD-A615 is equipped with the

steering wheel remote control function.

Before operating, connect an exclusive remote

adapter (not supplied) which matches your car

to the steering wheel remote input terminal on

the rear of the unit.

• For details, refer also to the instructions

supplied with the remote adapter.

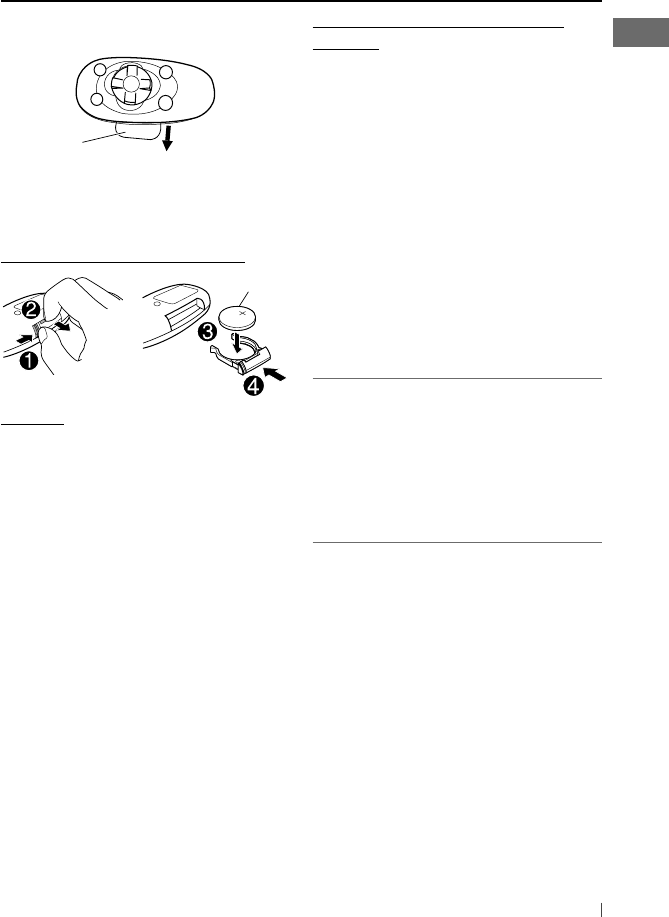

Preparing the remote controller (RM-RK50)

When you use the remote controller for the first

time, pull out the insulation sheet.

For USA-California Only:

This product contains a CR Coin Cell Lithium

Battery which contains Perchlorate Material—

special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/

perchlorate

If the effectiveness of the remote controller

decreases, replace the battery.

Replacing the lithium coin battery

CR2025

Caution:

• Danger of explosion if battery is incorrectly

replaced. Replace only with the same or

equivalent type.

• Battery shall not be exposed to excessive heat

such as sunshine, fire, or the like.

Insulation sheet

EN02-09_KD-R618_A615_R610[J]f.indd 5EN02-09_KD-R618_A615_R610[J]f.indd 5 11/19/09 11:36:06 AM11/19/09 11:36:06 AM

6ENGLISH

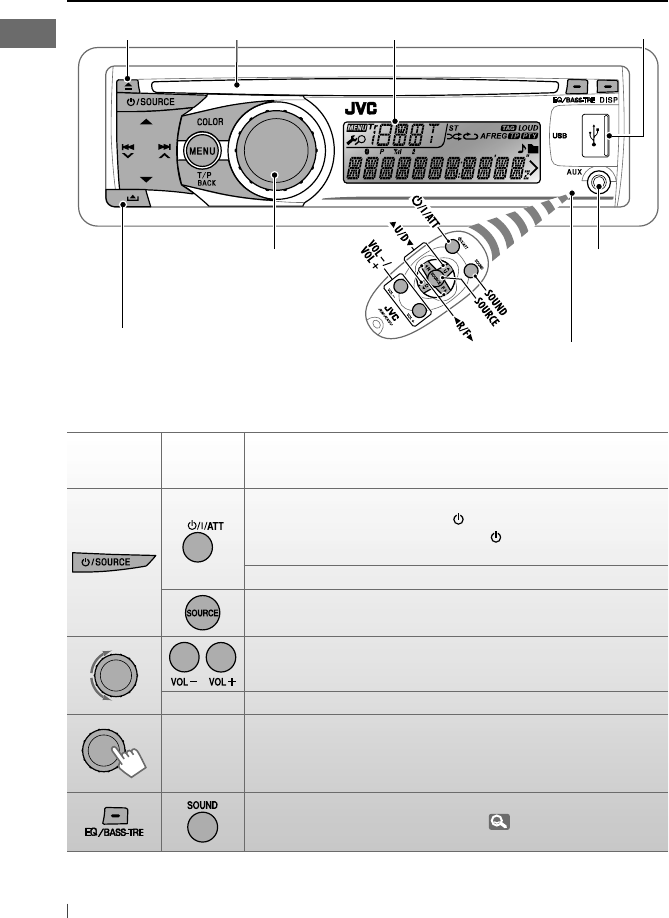

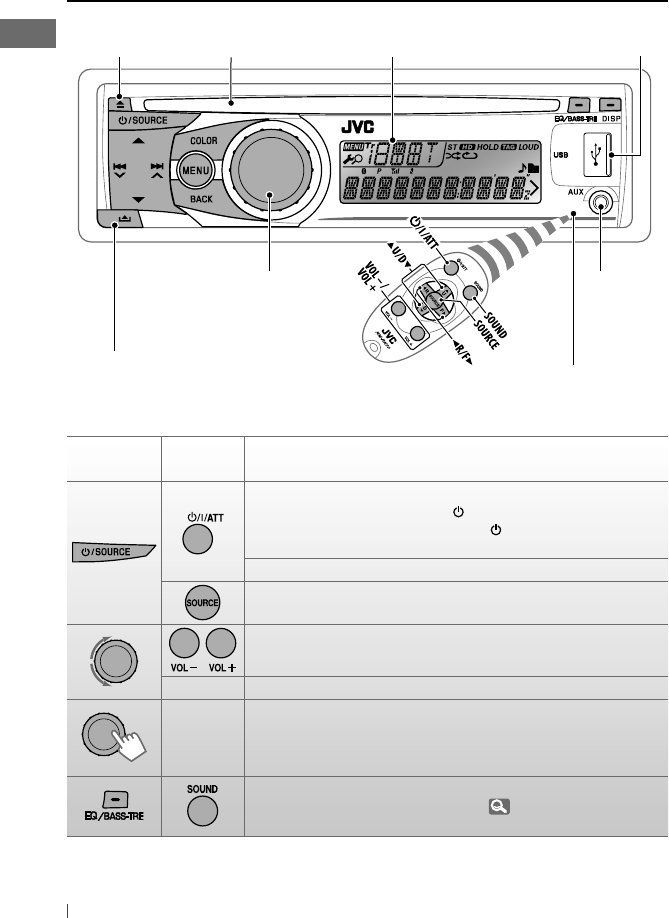

Basic operations

Control dial

Ejects the disc Loading slot USB (Universal Serial Bus) input jack

Display window

Auxiliary

input jack

Detaches the panel

When you press or hold the following button(s)...

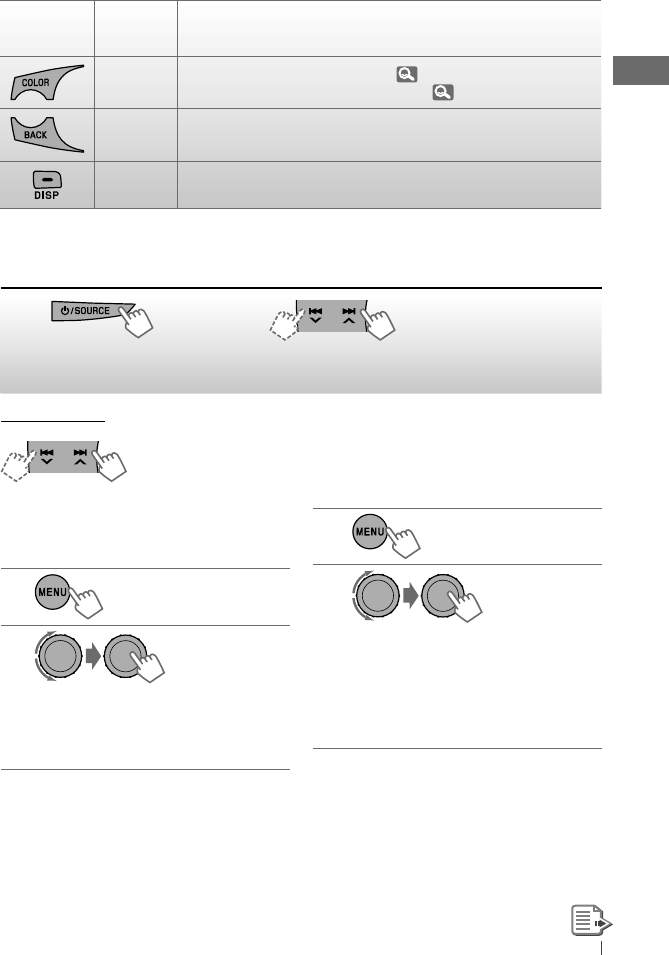

Main unit Remote

controller General operation

Turns on.

• When the power is on, pressing /I/ATT on the remote controller

also mutes the sound or pauses. Press /I/ATT again to cancel

muting or resume playback.

Turns off if pressed and held.

Selects the available sources (if the power is turned on).

• If the source is ready, playback also starts.

Adjusts the volume level.

—Selects items.

—

• Mutes the sound while listening to a source. If the source is “CD,”

“USB” or “USB-IPOD,” playback pauses. Press the control dial again

to cancel muting or resume playback.

• Confirms selection.

Selects the sound mode.

• Enters tone level adjustment directly ( 23) if pressed and held

EQ/BASS-TRE on the main unit.

Remote sensor

• DO NOT expose to bright sunlight.

EN02-09_KD-R618_A615_R610[J]f.indd 6EN02-09_KD-R618_A615_R610[J]f.indd 6 11/19/09 11:36:07 AM11/19/09 11:36:07 AM

7ENGLISH

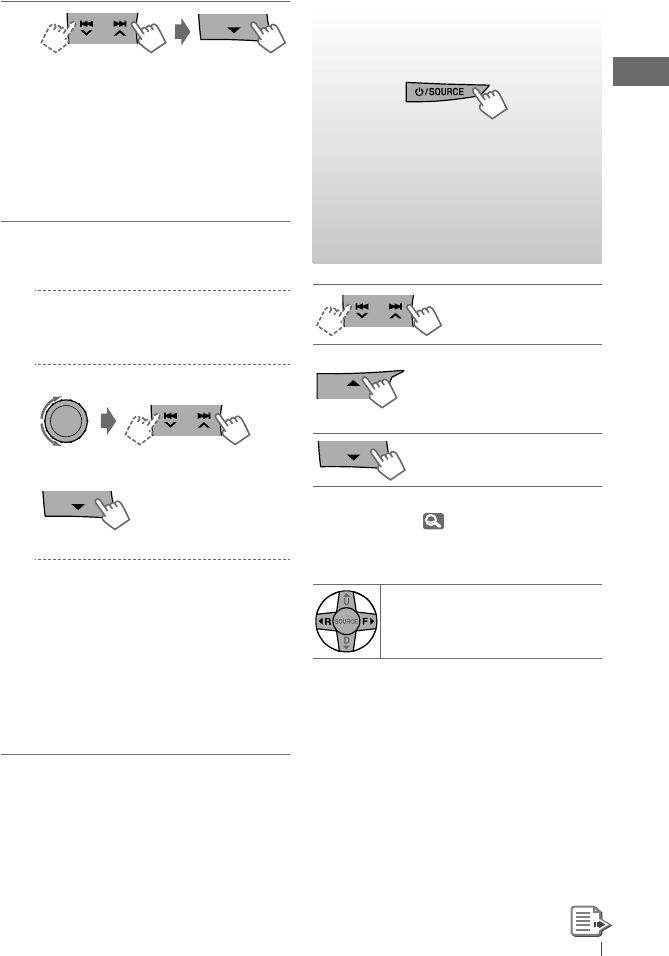

Manual search

“M” flashes, then press

the button repeatedly.

When an FM stereo broadcast is

hard to receive

]

<TUNER>

]

<MONO>

]

Reception improves, but stereo effect

will be lost.

To restore the stereo effect, repeat the same

procedure to select <MONO OFF>.

Automatic presetting (FM)—

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

While listening to a station...

]

<TUNER>

]

<SSM>

]

<SSM 01 – 06> / <SSM 07 – 12> /

“SSM” flashes and local stations with

the strongest signals are searched and

stored automatically.

To preset another 6 stations, repeat the above

procedure by selecting one of the other 6 SSM

setting ranges.

If an HD Radio tuner box is connected ( 16),

you can also search and store 6 stations for AM

by following the above operations.

Main unit Remote

controller General operation

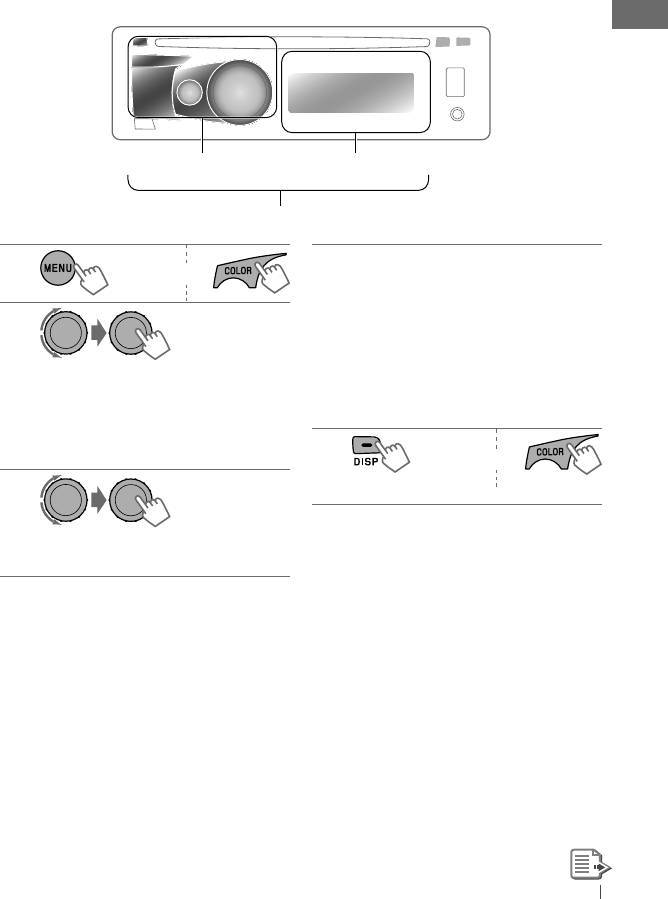

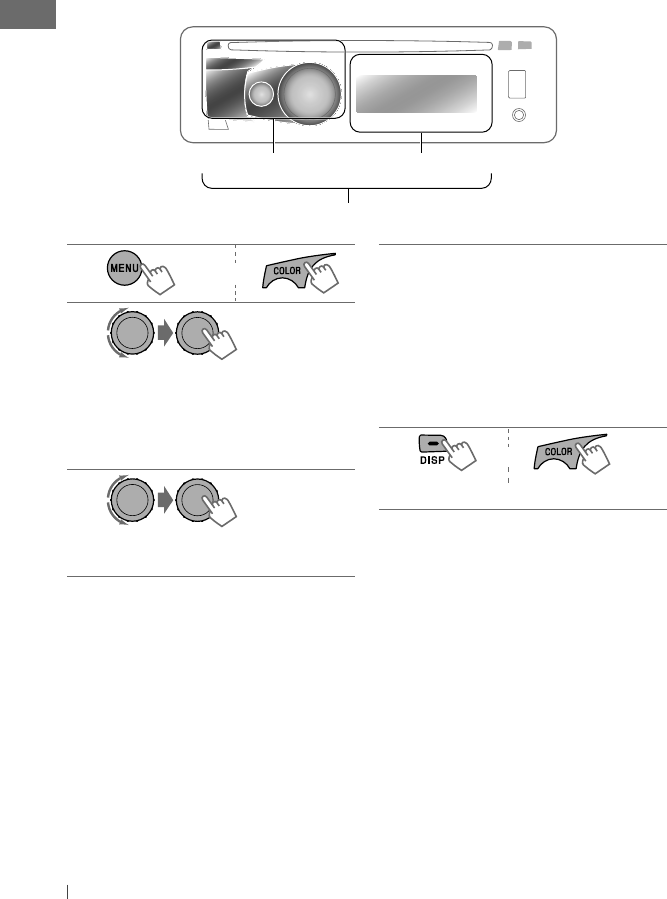

—• Enters <COLOR> setting directly ( 29).

•

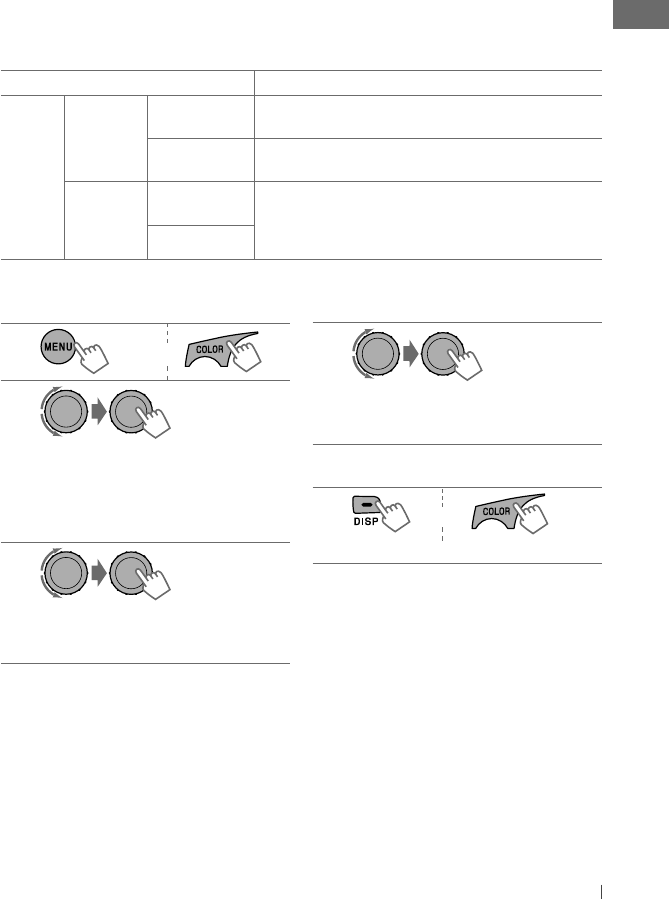

Enters <COLOR SETUP> setting directly ( 30) if pressed and held.

—Returns to the previous menu.

—Power off : Checks the current clock time.

Power on : Changes the display information.

[Hold]

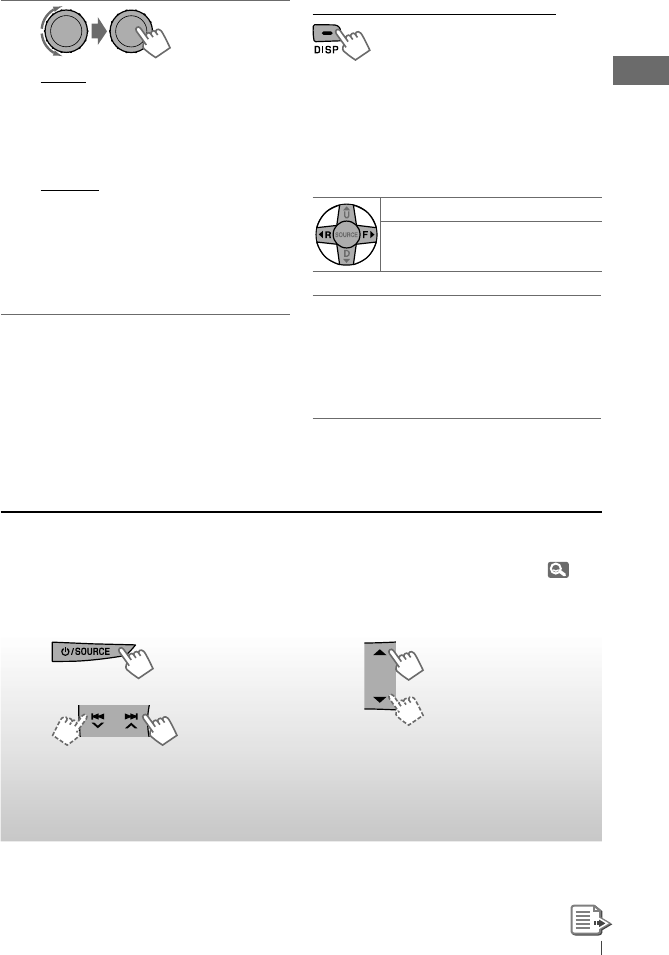

Listening to the radio

]

“FM” or “AM”

“ST” lights up when receiving an FM stereo broadcast

with sufficient signal strength.

EN02-09_KD-R618_A615_R610[J]f.indd 7EN02-09_KD-R618_A615_R610[J]f.indd 7 11/19/09 11:36:07 AM11/19/09 11:36:07 AM

8ENGLISH

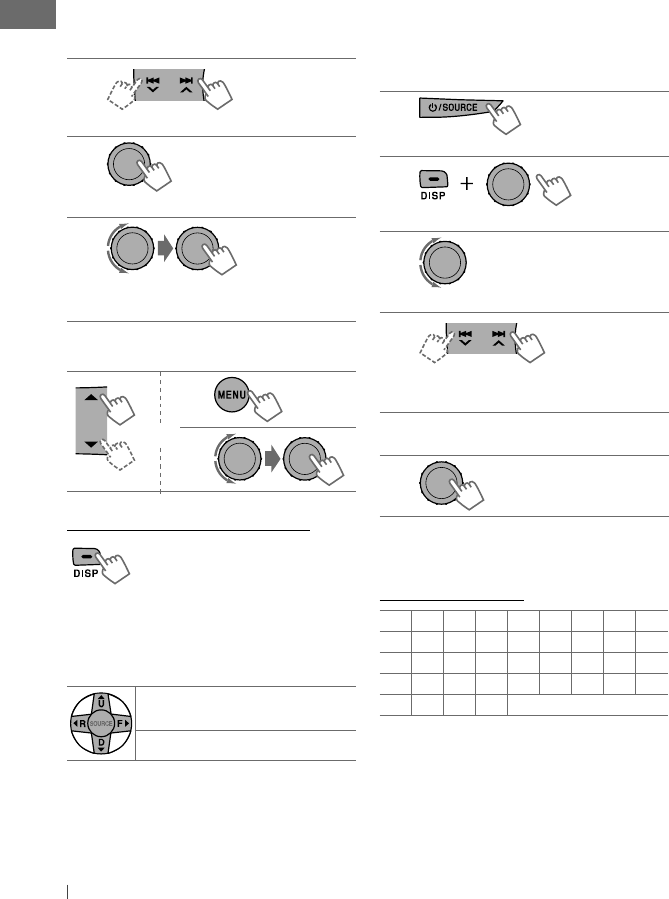

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6

stations for AM.

Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

]

“92.50MHz”

“PRESET MODE” flashes.

]

Selects preset number “04.”

“P04” flashes and “MEMORY” appears.

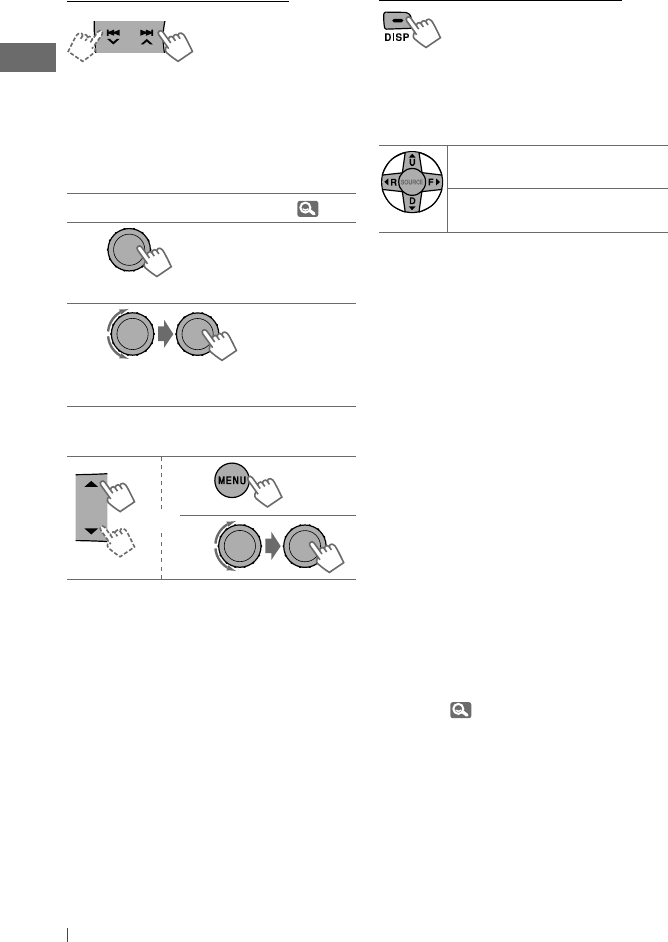

Selecting a preset station

Changing the display information

Station name *

Frequency

Clock

(back to the beginning)

* If no title is assigned to a station, “NO NAME”

appears for a few seconds.

Using the remote controller

∞

: Changes the preset

stations

: Searches for stations

[Hold]

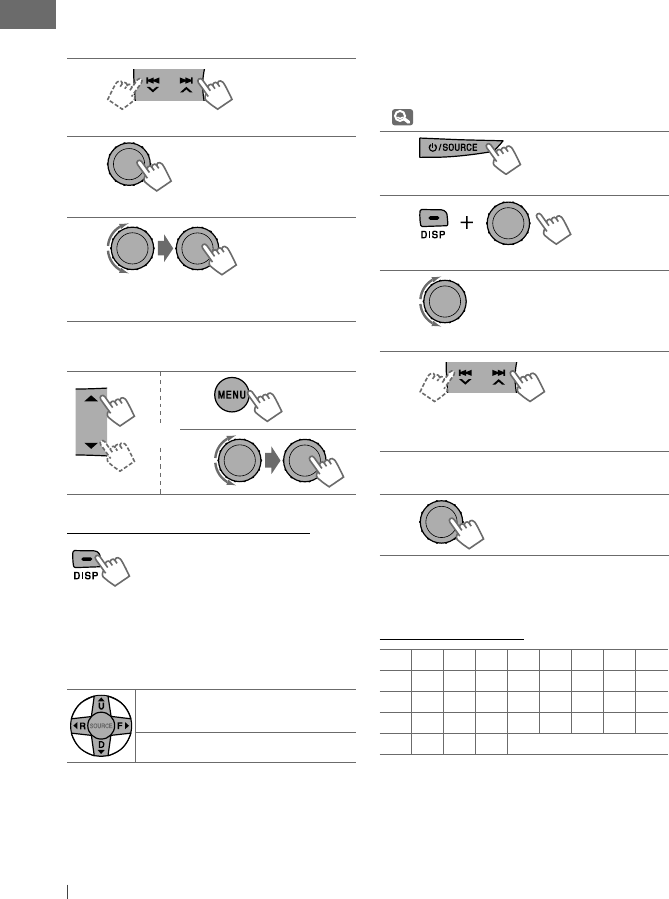

Title assignment

You can assign titles up to 30 station

frequencies (FM and AM) using 8 characters

(maximum) for each title.

• If you try to assign titles to more than 30

station frequencies, “NAME FULL” appears.

Delete unwanted titles before assignment.

• When HD Radio tuner box is connected

( 16), this feature will be disabled.

]

“FM” or “AM”

]

Show the title entry screen.

]

Select a character.

]

Move to the next (or previous)

character position.

5Repeat steps 3 and 4 until you have

finished entering the title.

To erase the entire title, press and hold

DISP

after step 2, then press the control dial.

Available characters

ABCDEFGH I

JKLMNOPQR

STUVWXYZ0

123456789

—/ <> Space

[Hold]

EN02-09_KD-R618_A615_R610[J]f.indd 8EN02-09_KD-R618_A615_R610[J]f.indd 8 11/19/09 11:36:07 AM11/19/09 11:36:07 AM

9ENGLISH

Stopping playback and ejecting

the disc

“NO DISC” appears.

Press /

SOURCE

to listen to

another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Selects folder of the MP3/WMA

Selects track

Fast-forwards or

reverses the track

Selecting a track/folder

For MP3/WMA discs, select the desired folder,

then the desired track by repeating the control

dial procedures.

• If the MP3/WMA disc contains many tracks,

you can fast search (±10, ±100, ±1000)

through the disc by turning the control dial

quickly.

• To return to the previous menu, press

BACK

Caution on volume setting:

Discs produce very little noise compared

with other sources. Lower the volume before

playing a disc to avoid damaging the speakers

by the sudden increase of the output level.

Selecting the playback modes

You can use only one of the following playback

modes at a time.

]

“REPEAT”

“RANDOM”

REPEAT

TRACK RPT : Repeats current track

FOLDER RPT : Repeats current folder

RANDOM

FOLDER RND : Randomly plays all tracks

of current folder, then

tracks of next folders

ALL RND : Randomly plays all tracks

To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

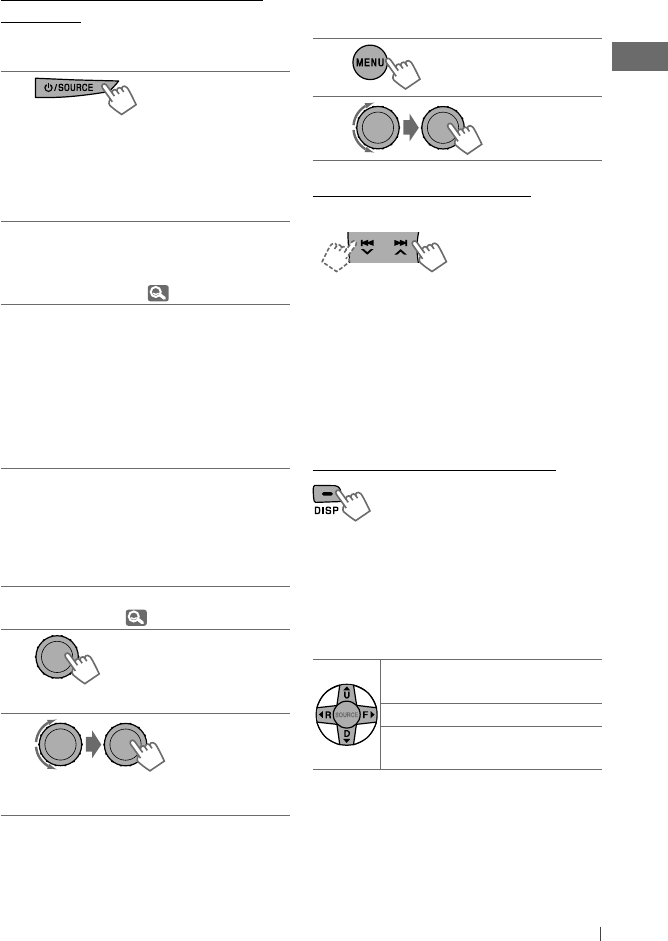

Listening to a disc

]

Turn on the power.

All tracks will be played repeatedly until you change

the source or eject the disc.

[Hold]

EN02-09_KD-R618_A615_R610[J]f.indd 9EN02-09_KD-R618_A615_R610[J]f.indd 9 11/19/09 11:36:08 AM11/19/09 11:36:08 AM

10 ENGLISH

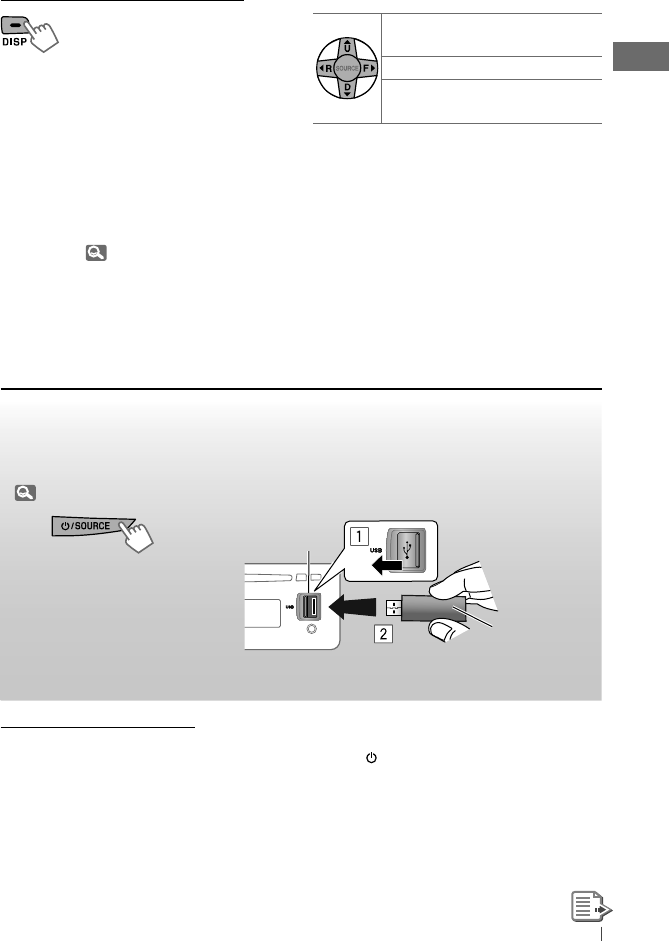

Listening to the USB device

This unit can play MP3/WMA files stored on a USB mass storage class device.

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player,

etc. to the unit.

• You can also connect an Apple iPod/iPhone to the USB input jack. For details of the operations,

20 – 21.

]

Turn on the power.

All tracks will be played repeatedly until you change the

source or detach the USB device.

Caution on volume setting:

USB devices produce very little noise compared

with other sources. Lower the volume before

playing a USB to avoid damaging the speakers

by sudden increase of the output level.

If you have turned off the power (without

detaching the USB device)...

Pressing

/ SOURCE

turns on the power and

playback starts from where it has been stopped

previously.

• If a different USB device is currently attached,

playback starts from the beginning.

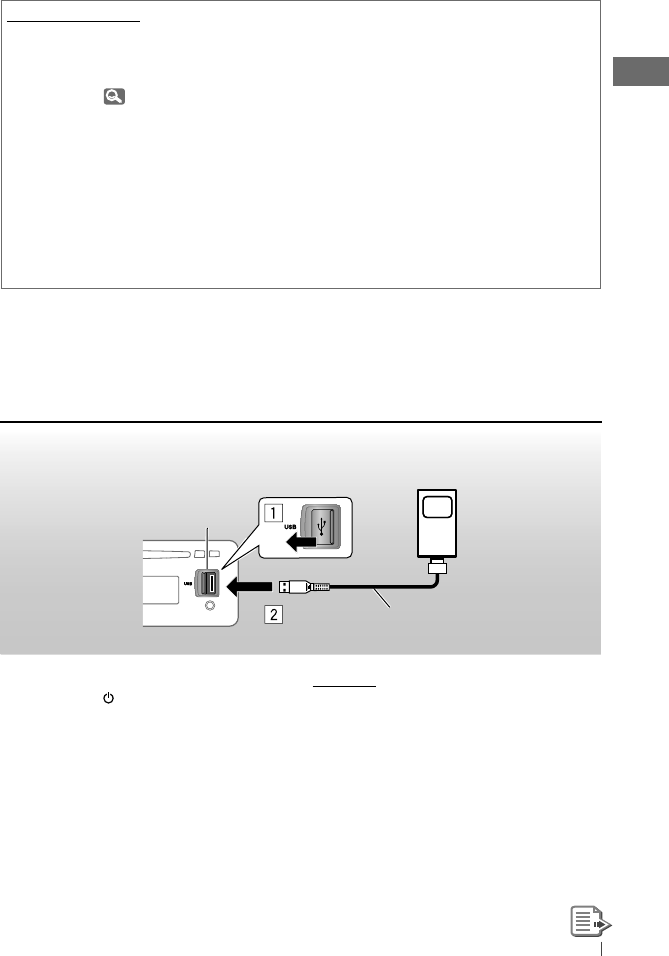

USB input jack

USB memory

Changing the display information

Disc title/Album name/performer (folder

name)*

Track title (file name)*

Current

track number with the elapsed playing time

Current track number with the clock

time

(back to the beginning)

* If the current disc is an audio CD, “NO NAME”

appears.

If an MP3/WMA file does not have Tag information

or <TAG DISPLAY> is set to <TAG OFF> ( 25),

folder name and file name appear.

Using the remote controller

∞

: Selects folder of the

MP3/WMA

: Selects track

[Hold]

: Fast-forwards or

reverses the track

Stop playing and detaching the

USB device

Straightly pull it out from the unit.

“NO USB” appears. Press

/ SOURCE

to listen to

another playback source.

You can operate the USB device in the same

way you operate the files on a disc. ( 9)

EN10-23_KD-R618_A615_R610[J]f.indd 10EN10-23_KD-R618_A615_R610[J]f.indd 10 11/24/09 6:01:16 PM11/24/09 6:01:16 PM

11ENGLISH

Using Bluetooth ® devices

For Bluetooth operations, it is required to

connect the Bluetooth adapter, KS-BTA200 (not

supplied) to the expansion port on the rear of

this unit.

• Refer to pages i and ii at the end of the

manual to check the countries where you

may use the Bluetooth ® function.

• For details, refer also to the instructions

supplied with the Bluetooth adapter and the

Bluetooth device.

To use a Bluetooth device through the unit

(“BT-PHONE” and “BT-AUDIO”) for the first time,

you need to establish a Bluetooth wireless

connection between the unit and the device.

• Once the connection is established, it is

registered on the unit even if you reset your

unit. Up to five devices can be registered in

total.

• Only one device can be connected at a time

for each source (“BT-PHONE” and “BT-AUDIO”).

Registration (Pairing) methods

Use either of the following items (“OPEN” or

“SEARCH” ) in the Bluetooth menu to register

and make the unit ready to establish a new

Bluetooth connection with a device.

“OPEN” : Connection is established by

operating the Bluetooth device.

“SEARCH” : Connection is established by

operating the unit.

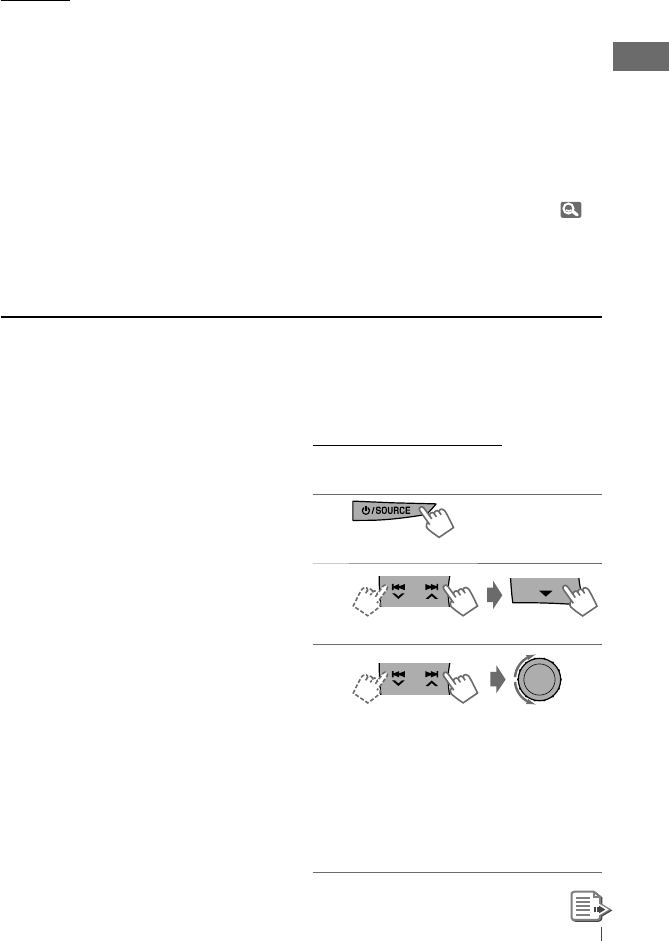

Registering using “OPEN”

Preparation: Operate the device to turn on its

Bluetooth function.

]

“BT-PHONE” or “BT-AUDIO”

]

“NEW DEVICE”

]

“OPEN”

]

Enter a PIN (Personal Identification

Number) code in to the unit.

You can enter any number you like

(1-digit to 16-digit number).

[Initial: 0000]

• Some devices have their own PIN

code. Enter the specified PIN code in

to the unit.

Cautions:

• Avoid using the USB device if it might hinder

your safety driving.

• Do not pull out and attach the USB device

repeatedly while “READING” is shown on the

display.

• Do not start the car engine if a USB device is

connected.

• This unit may not be able to play the files

depending on the type of USB device.

• Operation and power supply may not work as

intended for some USB devices.

• You cannot connect a computer to the USB

input terminal of the unit.

• Make sure all important data has been backed

up to avoid losing the data.

• Do not leave a USB device in the car, expose

to direct sunlight, or high temperature to

avoid deformation or cause damages to the

device.

• Some USB devices may not work immediately

after attaching USB device or turn on the

power.

• For more details about USB operations,

32, 33.

EN10-23_KD-R618_A615_R610[J]f.indd 11EN10-23_KD-R618_A615_R610[J]f.indd 11 11/19/09 11:36:20 AM11/19/09 11:36:20 AM

12 ENGLISH

4Repeat step 3 on page 11 until you

have finished entering the PIN code.

“OPEN..” flashes.

6Use the Bluetooth device to search and

connect.

On the device to be connected, enter

the same PIN code you have just

entered for this unit. “CONNECTED”

appears.

Now connection is established and you

can use the device through the unit.

The device remains registered even after you

disconnect the device. Use “CONNECT“ (or

activate “AUTO CNNCT”) to connect the same

device from next time on. ( 15)

Registering using

(“SEARCH”/“SPECIAL”)

]

“BT-PHONE” or “BT-AUDIO”

]

“NEW DEVICE”

]

“SEARCH” : To search for available

devices

The unit searches and displays the list

of the available devices. “UNFOUND”

appears if no available device is

detected.

– – – – – or – – – – –

]

“SPECIAL” : To connect a special

device

The unit displays the list of the preset

devices.

]

Select a device you want to connect.

5For available devices...

]

Enter the specific PIN code of the

device to the unit.

• Refer to the instructions supplied with

the device to check the PIN code.

Use the Bluetooth device to connect.

Now connection is established and you

can use the device through the unit.

For special device...

Use “OPEN” or “SEARCH” to connect.

Connecting/disconnecting/

deleting a registered device

]

“BT-PHONE” or “BT-AUDIO”

]

Select a device you want to

connect/disconnect/delete.

]

“CONNECT” or “DISCONNECT” : To

connect/disconnect the selected device

– – – – – or – – – – –

]

“DELETE”

]

“YES” : To delete the

selected device

You can set the unit to connect the Bluetooth

device automatically when the unit is turned

on. ( “AUTO CNNCT,” 15)

EN10-23_KD-R618_A615_R610[J]f.indd 12EN10-23_KD-R618_A615_R610[J]f.indd 12 11/19/09 11:36:20 AM11/19/09 11:36:20 AM

13ENGLISH

Using the remote controller

∞

SOURCE

: Answers calls

∞

SOURCE

[Hold]

: Rejects calls

Making a call

]

“BT-PHONE”

]

Select “DIAL” menu.

]

Select a calling method.

PHONE BOOK*

MISSED*

NUMBER

VOICE DIAL

REDIAL*

RECEIVED*

(back to

the beginning)

* Displays only when your mobile phone

is equipped with these functions and is

compatible with this unit.

Using a Bluetooth

mobile phone

]

“BT-PHONE”

]

Bluetooth menu

! Make a call or setting using

the Bluetooth setting menu.

( 15)

When a call comes in....

The source is automatically changed to

“BT-PHONE.”

• The display will flash in blue. (<RING COLOR>,

26)

When “AUTO ANSWER” is activated....

The unit answers the incoming calls

automatically. ( 15)

• When “AUTO ANSWER” is deactivated, press

any button (except

/ SOURCE

/ /

) to

answer the incoming call.

• You can adjust the microphone volume level.

( 15)

To end the call

Hold any button (except

/ SOURCE

/ /

When a text message comes in....

If the mobile phone is compatible with text

message (notified through JVC Bluetooth

adapter) and “MSG INFO” (message info) is

set to “AUTOMATIC” ( 15), the unit rings to

inform you of the message arrival.

• “RCV MESSAGE” (receiving message) appears

and the display illuminate in blue. (<RING

COLOR>, 26)

EN10-23_KD-R618_A615_R610[J]f.indd 13EN10-23_KD-R618_A615_R610[J]f.indd 13 11/19/09 11:36:20 AM11/19/09 11:36:20 AM

14 ENGLISH

5For REDIAL, RECEIVED, MISSED

]

Repeat step 4 on page 13 to select

a name (if it is acquired) or a phone

number.

For PHONE BOOK

]

Repeat step 4 on page 13 to select a

name or a phone number.

For NUMBER

]

Enter a phone number.

]

Confirm.

For VOICE DIAL

]

Speak the name you want to call

when “SAY NAME” appears.

• If your mobile phone does not support

the voice recognition system, “ERROR”

appears.

• Using voice tags may be difficult in

a noisy environment or during an

emergency.

• To return to the previous menu, press

Using a Bluetooth audio

player

]

“BT-AUDIO”

If playback does not start, operate the

Bluetooth audio player to start playback.

Operate the Bluetooth audio player to

pause (if playback does not pause when you

change the source).

Reverse skips/forward

skips

Pauses/starts playback*

* Operation may be different

according to the connected

Bluetooth audio player.

Enter setting menu (Device

list)

For connecting/disconnecting/deleting a

registered device, 12.

Using the remote controller

: Reverse skips/forward

skips

EN10-23_KD-R618_A615_R610[J]f.indd 14EN10-23_KD-R618_A615_R610[J]f.indd 14 11/19/09 11:36:21 AM11/19/09 11:36:21 AM

15ENGLISH

Changing the Bluetooth settings

]

“BT-PHONE” or “BT-AUDIO”

]

Bluetooth menu

]

“SETTINGS”

]

Select a setting item.

AUTO CNNCT

AUTO ANSWER * 1

MSG INFO * 2

MIC SETTING * 1

VERSION * 3

(back to the

beginning)

]

Change the setting accordingly. For

setting menu, right column.

*1 Appears only when a Bluetooth phone is

connected.

*2 Appears only when a Bluetooth phone is

connected and it is compatible with text

message (notified through JVC Bluetooth

adapter).

*3 Bluetooth Audio: Shows only “Version.”

Setting menu [Initial: Underlined]

AUTO CNNCT (connect)

When the unit is turned on, the connection is

established automatically with...

OFF: No Bluetooth device.

LAST: The last connected Bluetooth device.

ORDER: The available registered Bluetooth

device found at first.

AUTO ANSWER

Only for the device being connected for

“BT-PHONE.”

ON: The unit answers the incoming calls

automatically.

OFF: The unit does not answer the calls

automatically. Answer the calls

manually.

REJECT: The unit rejects all incoming calls.

MSG INFO (message info)

Only for the device being connected for

“BT-PHONE.”

AUTOMATIC: The unit informs you of the

arrival of a message by ringing

and displaying “RCV MESSAGE”

(receiving message).

• The display illuminate in blue.

(<RING COLOR>, 26)

MANUAL: The unit does not inform you of

the arrival of a message.

MIC SETTING (microphone setting)

Only for the device being connected for

“BT-PHONE.” Adjust microphone volume

connected to the Bluetooth adapter,

[LEVEL 01/02/03].

VERSION

The Bluetooth software and hardware versions

are shown.

EN10-23_KD-R618_A615_R610[J]f.indd 15EN10-23_KD-R618_A615_R610[J]f.indd 15 11/19/09 11:36:21 AM11/19/09 11:36:21 AM

16 ENGLISH

Listening to the HD Radio ™ Broadcast

Before operating, connect HD Radio tuner box,

KT-HD300 (not supplied) to the expansion port

on the rear of the unit.

• For details, refer also to the instructions

supplied with the HD Radio tuner box.

What is HD Radio Technology?

HD Radio Technology can deliver high-quality

digital sound—AM digital will have FM-like

quality (in stereo) and FM digital will have

CD-like quality—with static-free and clear

reception. Furthermore, stations can offer text

and data, such as artist names and song titles.

Warning messages

ERROR CNNCT (Error Connection)

The device is registered but the connection

has failed. Use “CONNECT” to connect the

device again. ( 12)

ERROR

Try the operation again. If “ERROR” appears

again, check if the device supports the

function you have tried.

UNFOUND

No available Bluetooth device is detected by

“SEARCH.”

LOADING *

The unit is updating the phone book.

PLEASE WAIT

The unit is preparing to use the Bluetooth

function. If the message does not disappear,

turn off and turn on the unit, then connect

the device again (or reset the unit).

RESET 8

Check the connection between the adapter

and this unit.

* Displays only when your mobile phone

is equipped with these functions and is

compatible with this unit.

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit the following JVC web site:

<http://www.jvc.co.jp/english/car/> (English website only)

• When the HD Radio tuner box is connected,

it can also receive conventional analog

broadcasts.

• Many HD Radio stations also offer more than

one channel of programming. This service is

called multicasting.

• To find HD Radio stations in your area, visit

<http://www.hdradio.com/>.

For basic radio operations, 7, 8.

EN10-23_KD-R618_A615_R610[J]f.indd 16EN10-23_KD-R618_A615_R610[J]f.indd 16 11/19/09 11:36:21 AM11/19/09 11:36:21 AM

17ENGLISH

When receiving...

An HD Radio station

Station Call Sign appears.

HD Radio multicast channels

Select your desired channel.

HD1

HD2

....

HD8

(back to the beginning)

“LINKING” appears while linking to a multicast

channel.

Searching for HD Radio stations

only

“HD” flashes.

Changing HD Radio reception

mode

While receiving an HD Radio broadcast, the unit

receives digital or analog audio automatically

due to the receiving condition.

While listening to an HD Radio station...

]

<TUNER>

]

]

“HD” lights up when holding the digital

reception or flashes when holding the

analog reception.

• If no sound can be heard with <AUTO>,

change the setting to <ANALOG> or

<DIGITAL>.

• The setting automatically changes to <AUTO>

if you tune in to or change to another station,

or if you turn off the power.

• This setting cannot take effect for the

conventional FM/AM stations.

• If the radio station forces the reception mode

to digital, the HOLD indicator flashes.

Changing the display information

Call Sign * 1

Frequency

Title/artist/album name of the

current segment * 2

Clock

(back to the beginning)

*1 “ **** -FM” or “ **** ” appears when no Call Sign

is received.

*2 “NO TEXT” appears when no text is received.

Using the remote controller

∞

: Changes the preset

stations

: Searches for stations

Lights up when digital audio is broadcast

Flashes when analog audio is broadcast

Channel number

First four letters of Call Sign

[Hold]

EN10-23_KD-R618_A615_R610[J]f.indd 17EN10-23_KD-R618_A615_R610[J]f.indd 17 11/19/09 11:36:21 AM11/19/09 11:36:21 AM

18 ENGLISH

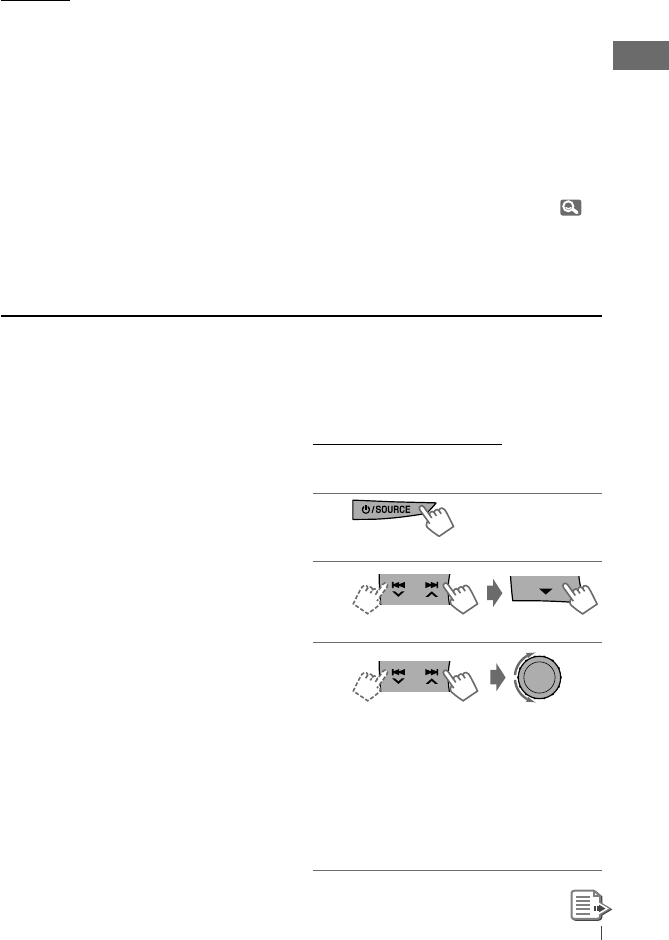

Listening to the satellite radio

Before operating, connect either one of

the following systems (not supplied) to the

expansion port on the rear of this unit.

For listening to a SIRIUS Satellite radio:

• SC-C1 and KS-SRA100

• PnP, SC-VDOC1 and KS-SRA100

For listening to an XM Satellite radio:

• JVC Smart Digital Adapter (XMDJVC100)

• CNP2000UC and CNPJVC1

• For details, refer also to the instructions

supplied with the other components.

GCI (Global Control Information)

update

• If channels are updated after subscription,

updating starts automatically. “UPDATING”

flashes and no sound can be heard.

• Update takes a few minutes to complete.

• During update, you cannot operate your

satellite radio.

]

“SIRIUS” or “XM”

]

Select a category.

SIRIUS: If you select “ALL,” you can

tune in to all the channels of all

categories.

]

Select a channel to listen.

Holding the button changes the

channels rapidly.

While searching, invalid and

unsubscribed channels are skipped.

XM: If you do not select a channel

within 15 seconds, category selected

in step

is canceled. You can select

all channels of all categories now

(including non-categorised channels).

Activate your SIRIUS subscription after

connection

]

“SIRIUS”

SIRIUS Satellite radio starts updating all

the SIRIUS channels. Once completed,

SIRIUS Satellite radio tunes in to the

preset channel, CH184.

2Check your SIRIUS ID. ( 25)

3Contact SIRIUS on the internet at

<http://activate.siriusradio.com/> to

activate your subscription, or you can

call SIRIUS toll-free at 1-888-539-SIRIUS

(7474).

• “SUB UPDT PRESS ANY KEY” scrolls on

the display once subscription has been

completed.

EN10-23_KD-R618_A615_R610[J]f.indd 18EN10-23_KD-R618_A615_R610[J]f.indd 18 11/19/09 11:36:22 AM11/19/09 11:36:22 AM

19ENGLISH

Activate your XM subscription after

connection

• Only Channel 0, 1, and 247 are available

before activation.

]

“XM”

XMDirect ™ Tuner Box or XMDirect2

Tuner System starts updating all the

XM channels. “Channel 1” is tuned in

automatically.

2Check your XM Satellite radio ID labelled

on the casing of the XMDirect™ Tuner

Box or XMDirect2 Tuner System, or tune

in to “Channel 0”. ( right column)

3Contact XM Satellite radio on

the internet at <http://xmradio.

com/activation/> to activate your

subscription, or you can call 1-800-XM-

RADIO (1-800-967-2346).

• Once completed, the unit tunes in to

one of the available channels (Channel

4 or higher).

Storing channels in memory

You can preset up to 18 channels for both

SIRIUS and XM.

Ex.: Storing channel into preset number “04.”

1Tune in to a channel you want to store.

(Steps

–

, 18.)

“PRESET MODE” flashes.

]

Select preset number “04.”

“P04” flashes.

Selecting SIRIUS/XM preset

station

Checking the satellite radio ID

While selecting “SIRIUS” or “XM”...

]

Select “Channel 0.”

SIRIUS: SIRIUS identification number is

displayed after “Channel 0” is selected.

XM: The display alternately shows “RADIO ID”

and the 8-digit (alphanumeric) ID number.

To cancel the ID number display, select any

channel other than “Channel 0.”

Changing the display information

Category name

Channel name

Artist name

Composer

name *

Song/program name/

title

Clock

(back to the

beginning)

* Only for SIRIUS Satellite radio.

Using the remote controller

∞

: Changes the

Category

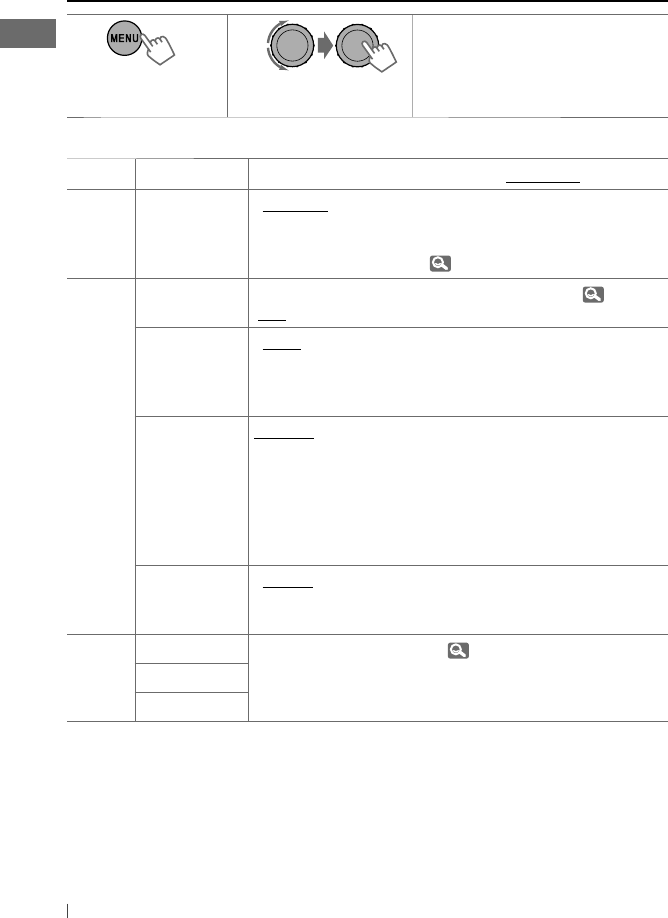

Menu item Selectable setting, [Initial: Underlined]

DEMO

Display

demonstration

• DEMO ON

• DEMO OFF

: Display demonstration will be activated

automatically if no operation is done for about

20 seconds.

: Cancels. ( 4)

CLOCK

CLOCK SET

Clock setting

—

[1:00]

: Adjust the hour, then the minute. ( 4)

CLOCK ADJ * 1

Clock

adjustment

• AUTO

• OFF

: The built-in clock is automatically adjusted

using the clock data provided via the satellite

radio channel.

: Cancels.

TIME ZONE * 1, *2EASTERN,

ATLANTIC,

NEWFOUND,

ALASKA,

PACIFIC,

MOUNTAIN,

CENTRAL

: Select your residential area from one of the time

zones for clock adjustment.

DST * 1, *2

Daylight savings

time

• DST ON

• DST OFF

: Activates daylight savings time if your

residential area is subject to DST.

: Cancels.

PRO EQ

BASS —: For settings, 23.

MIDDLE

TREBLE

*1 Displayed only when SIRIUS Satellite radio or XM Satellite radio is connected.

*2 Displayed only when <CLOCK ADJ> is set to <AUTO>.

[Hold]

EN24-33_KD-R618_A615_R610[J]f.indd 24EN24-33_KD-R618_A615_R610[J]f.indd 24 11/19/09 11:36:34 AM11/19/09 11:36:34 AM

25ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

DISPLAY

DIMMER •

DIMMER AUTO

• DIMMER ON

• DIMMER OFF

: Dims the display when you turn on the

headlights. *3

: Dims the display and button illumination.

: Cancels.

SCROLL *4• SCROLL ONCE

• SCROLL AUTO

• SCROLL OFF

: Scrolls the displayed information once.

: Repeats scrolling (at 5-second intervals).

: Cancels.

Pressing

DISP

for more than one second can scroll the display

regardless of the setting.

TAG DISPLAY • TAG ON

• TAG OFF

: Shows the Tag information while playing MP3/

WMA tracks.

: Cancels.

TUNER

SSM*5

Strong-station

Sequential

Memory

• SSM 01 – 06 * 6

• SSM 07 – 12

• SSM 13 – 18

: For settings, 7.

AREA

Tuner channel

interval

• AREA US

• AREA EU

• AREA SA

: When using in North/Central/South America.

AM/FM intervals are set to 10 kHz/200 kHz.

: When using in any other areas. AM/FM intervals

are set to 9 kHz/50 kHz (100 kHz during auto

search).

: When using in South American countries

where FM interval is 100 kHz. AM interval is set

to 10 kHz.

MONO * 5

Monaural mode

• MONO ON

• MONO OFF

: Activate monaural mode to improve FM

reception, but stereo effect will be lost. ( 7)

: Restore the stereo effect.

SID *7

SIRIUS ID

— : Your SIRIUS identification number scrolls on the

display 5 seconds after “SID” is selected.

( 19)

If no operation is done for about 60 seconds,

the unit returns to playback mode.

*3 The illumination control lead connection is required. (See “Installation/Connection Manual.”) This

setting may not work correctly on some vehicles (particularly on those having a control dial for

dimming). In this case, change the setting to any other than <DIMMER AUTO>.

*4 Some characters or symbols will not be shown correctly (or will be blanked) on the display.

*5 Displayed only when the source is “FM” or “HD Radio.”

*6 If an HD Radio tuner box is connected, you can also search and store the AM stations to

<SSM 01 – 06>.

*7 Displayed only when SIRIUS Satellite radio is connected.

EN24-33_KD-R618_A615_R610[J]f.indd 25EN24-33_KD-R618_A615_R610[J]f.indd 25 11/19/09 11:36:35 AM11/19/09 11:36:35 AM

26 ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

TUNER

BLEND HOLD * 8

HD Radio

reception mode

• AUTO

• DIGITAL

• ANALOG

: Switch between digital and analog audio

automatically. ( 17)

: Tune in to digital audio only.

: Tune in to analog audio only.

IF BAND

Intermediate

frequency band

• AUTO

• WIDE

: Increases the tuner selectivity to reduce

interference noises between adjacent stations.

(Stereo effect may be lost.)

: Subject to interference noises from adjacent

stations, but sound quality will not be

degraded and the stereo effect will remain.

COLOR

BUTTON ZONE COLOR 01 —

COLOR 29, USER

: For settings, 29.

DISP ZONE

Display zone

: For settings, 29.

ALL ZONE : For settings, 29.

COLOR SETUP

DAY COLOR • BUTTON ZONE

• DISP ZONE

: For settings, 30.

NIGHT COLOR • BUTTON ZONE

• DISP ZONE

: For settings, 30.

MENU COLOR • ON

• OFF

: Changes the display and buttons (except for

EQ/BASS-TRE

DISP

) illumination during menu,

list search and playback mode operations.

: Cancels.

RING COLOR *9• ON

• OFF

: When a call comes in, the display will flash in

blue.

• The display will change to the original color

when the call is answered or the incoming

call stops.

When the unit receives a text message, the

display only illuminate in blue.

: Cancels.

*8 Displayed only when HD Radio tuner box is connected.

*9 Displayed only when Bluetooth adapter, KS-BTA200 is connected.

EN24-33_KD-R618_A615_R610[J]f.indd 26EN24-33_KD-R618_A615_R610[J]f.indd 26 11/19/09 11:36:35 AM11/19/09 11:36:35 AM

27ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

AUDIO

FADER * 10 R06 – F06

[00]

: Adjust the front and rear speaker output

balance.

BALANCE * 11 L06 – R06

[00]

: Adjust the left and right speaker output

balance.

LOUD

Loudness

• LOUD ON

• LOUD OFF

: Boost low and high frequencies to produce a

well-balanced sound at a low volume level.

: Cancels.

VOL ADJUST

Volume adjust

VOL ADJ –05 —

VOL ADJ +05

[VOL ADJ 00]

: Preset the volume adjustment level of

each source (except FM), compared to the

FM volume level. The volume level will

automatically increase or decrease when you

change the source.

• Before making an adjustment, select the

source you want to adjust.

• “VOL ADJ FIX” appears on the display if “FM”

is selected as the source.

L/O MODE

Line output

mode

• SUB.W

• REAR

: Select if the REAR LINE OUT terminals are

used for connecting a subwoofer (through

an external amplifier).

: Select if the REAR LINE OUT terminals are

used for connecting the speakers (through

an external amplifier).

SUB.W FREQ *12

Subwoofer cutoff

frequency

• LOW

• MID

• HIGH

: Frequencies lower than 72 Hz are sent to the

subwoofer.

: Frequencies lower than 111 Hz are sent to

the subwoofer.

: Frequencies lower than 157 Hz are sent to

the subwoofer.

SUB.W LEVEL *12

Subwoofer level

SUB.W 00 —

SUB.W 08

[SUB.W 04]

: Adjust the subwoofer output level.

*10 If you are using a two-speaker system, set the fader level to “00.”

*11 This adjustment will not affect the subwoofer output.

*12 Displayed only when <L/O MODE> is set to <SUB.W>.

EN24-33_KD-R618_A615_R610[J]f.indd 27EN24-33_KD-R618_A615_R610[J]f.indd 27 11/19/09 11:36:35 AM11/19/09 11:36:35 AM

28 ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

AUDIO

BEEP

Keytouch tone

• BEEP ON

• BEEP OFF

: Activates the keypress tone.

: Deactivates the keypress tone.

AMP GAIN *13

Amplifier gain

control

• LOW POWER

• HIGH POWER

: VOLUME 00 – VOLUME 30 (Select if the

maximum power of each speaker is less than

50 W to prevent damaging the speakers.)

: VOLUME 00 – VOLUME 50

SRC SELECT

AM *14

AM station

• AM ON

• AM OFF

: Enable “AM” in source selection.

: Disable “AM” in source selection.

EXT IN *15

External input

• EXT ON

• EXT OFF

: Enable “EXT IN” in source selection.

: Disable “EXT IN” in source selection.

AUX IN *16

Auxiliary input

• AUX ON

• AUX OFF

: Enable “AUX IN” in source selection.

: Disable “AUX IN” in source selection.

AUDIOBOOKS

AUDIOBOOKS *17

Speed control of

“Audiobooks”

• NORMAL

• FASTER

• SLOWER

: You can select the playback speed of the

“Audiobook” sound file in your iPod.

• Initial selected item depends on your iPod

setting.

IPOD

SWITCH

IPOD SWITCH *18

iPod/iPhone

control

• HEAD MODE

• IPOD MODE

: Controls iPod playback through the unit.

: Controls iPod playback through the iPod/

iPhone.

*13 The volume level automatically changes to “VOLUME 30” if you change to <LOW POWER> with the

volume level set higher than “VOLUME 30.”

*14 Displayed only when any source other than “AM” is selected.

*15 Displayed only when any source other than “EXT IN“ is selected.

*16 Displayed only when any source other than “AUX IN“ is selected.

*17 Displayed only when an iPod is connected and playback is controlled from the unit.

*18 Displayed only when “USB-IPOD” is selected as the source and “IPOD MODE” is available for the

connected iPod/iPhone ( 34).

EN24-33_KD-R618_A615_R610[J]f.indd 28EN24-33_KD-R618_A615_R610[J]f.indd 28 11/19/09 11:36:35 AM11/19/09 11:36:35 AM

29ENGLISH

Selecting the variable buttons and display color illumination

You can select your preferred color for buttons illumination (except for

EQ/BASS-TRE

DISP

) and

display color separately.

1or

]

<COLOR>

]

<BUTTON ZONE> /

• Pressing

COLOR

in step 1 will enter

zone selection menu (BUTTON ZONE /

DISP ZONE / ALL ZONE) directly.

]

Select your preferred color from one

of the 29 preset colors or <USER> color.

Button zone

All zone

Display zone

[Hold] 4Repeat steps 2 and 3 to select a

different zone and your preferred color.

• If <ALL ZONE> is selected in step 2,

the buttons and display illumination

changed to the current/selected

<BUTTON ZONE> color.

You can also change the <ALL ZONE>

color to one of your preferred color by

performing step 3.

5or

]

Exit from the setting.

EN24-33_KD-R618_A615_R610[J]f.indd 29EN24-33_KD-R618_A615_R610[J]f.indd 29 11/20/09 2:29:55 PM11/20/09 2:29:55 PM

30 ENGLISH

1or

]

]

]

• Pressing

COLOR

in step 1 will enter

zone selection menu (BUTTON ZONE /

DISP ZONE) directly.

]

Select a primary color.

RED

GREEN

BLUE

(back to

the beginning)

[Hold] 4

]

Adjust the level of the selected

primary color.

00 to 31

5Repeat steps 3 and 4 to adjust other

primary colors.

6or

]

Exit from the setting.

If “00” is selected for all the primary colors (as

in step 4) for <DISP ZONE>, nothing appear on

the display.

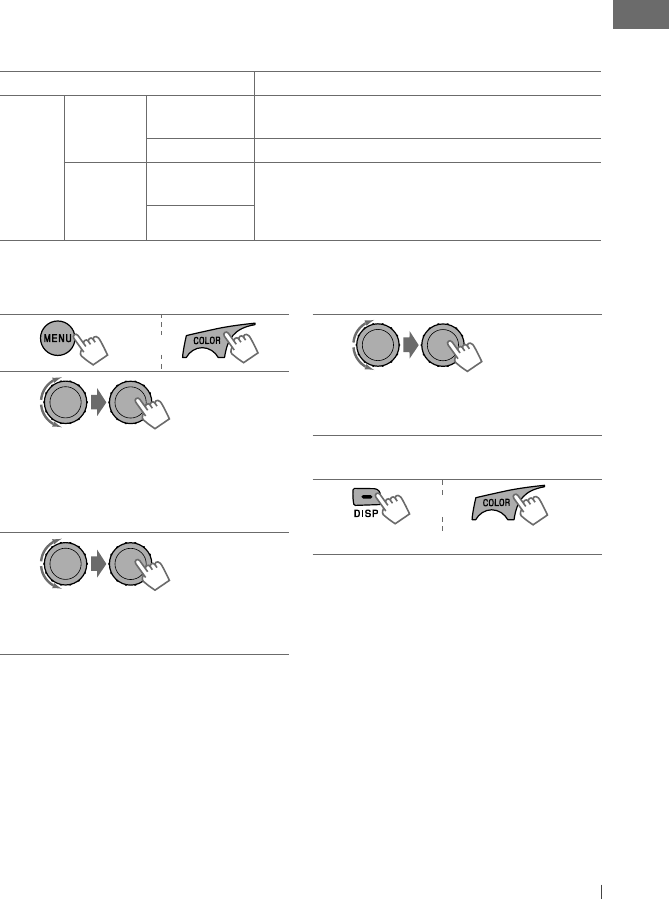

Creating your own day and night colors—USER

You can create your own colors for <DAY COLOR> and <NIGHT COLOR> to apply to button zone

and display zone.

• <DAY COLOR> Displayed when <DIMMER> is set to <DIMMER OFF>.

• <NIGHT COLOR> Displayed when <DIMMER> is set to <DIMMER ON>.

Menu hierarchy Operation

COLOR

SETUP

DAY

COLOR

• BUTTON

ZONE

Follow example below.

• DISP ZONE Press

BACK

after step 5, then select DISP ZONE in step 2.

NIGHT

COLOR

• BUTTON

ZONE

Press

BACK

after step 5, then select NIGHT COLOR in

step 2.

• DISP ZONE

Ex.: Creating <USER> color for <BUTTON ZONE> in <DAY COLOR>.

[Hold]

EN24-33_KD-R618_A615_R610[J]f.indd 30EN24-33_KD-R618_A615_R610[J]f.indd 30 11/19/09 11:36:35 AM11/19/09 11:36:35 AM

31ENGLISH

More about this unit

Basic operations

General

• If you turn off the power while listening to

a track, playback will start from where it had

been stopped previously next time you turn

on the power.

• If no operation is done for about 60 seconds

after pressing

button, the operation will

be canceled.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

the stations are stored anew.

– When SSM is over, the station stored in the

lowest preset number will be automatically

tuned in.

• When storing a station manually, the

previously preset station is erased when

a new station is stored in the same preset

number.

Disc/USB operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not

comply with the “Compact Disc Digital Audio”

standard. Therefore, the use of Non-DVD side

of a DualDisc on this product may not be

recommended.

General

• This unit has been designed to reproduce

CDs/CD Texts, and CD-Rs (Recordable)/CD-

RWs (Rewritable) in audio CD (CD-DA), MP3

and WMA formats.

• If you change the source while listening to a

disc, playback stops. Next time you select “CD”

as the playback source, playback will start

from where it had been stopped previously.

• When a disc is inserted upside down,

“PLEASE” and “EJECT” appear alternately on

the display. Press

to eject the disc.

• If the ejected disc is not removed within

15 seconds, it is automatically inserted into

the loading slot again to protect it from dust.

Playback starts automatically.

• MP3 and WMA “tracks” (words “file” and

“track” are used interchangeably) are recorded

in “folders.”

• While fast-forwarding or reversing on an MP3

or WMA disc, you can only hear intermittent

sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same

type as those detected first if a disc includes

both audio CD (CD-DA) files and MP3/WMA

files.

• This unit can play back multi-session discs;

however, unclosed sessions will be skipped

while playing.

• Some CD-Rs or CD-RWs may not play back on

this unit because of their disc characteristics,

or for the following reasons:

– Discs are dirty or scratched.

– Moisture condensation has occurred on the

lens inside the unit.

– The pickup lens inside the unit is dirty.

– The files on the CD-R/CD-RW are written

using the “Packet Write” method.

– There are improper recording conditions

(missing data, etc.) or media conditions

(stained, scratched, warped, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than

that of regular CDs.

EN24-33_KD-R618_A615_R610[J]f.indd 31EN24-33_KD-R618_A615_R610[J]f.indd 31 11/19/09 11:36:35 AM11/19/09 11:36:35 AM

32 ENGLISH

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO

format.

– MP3 files encoded in an inappropriate

format.

– MP3 files encoded with Layer 1/2.

– WMA files encoded in lossless, professional,

and voice format.

– WMA files which are not based upon

Windows Media® Audio.

– WMA files copy-protected with DRM.

– Files which have data such as AIFF, ATRAC3,

etc.

• The search function works but search speed is

not constant.

Playing MP3/WMA tracks from a USB

device

• While playing from a USB device, the playback

order may differ from other players.

• This unit may be unable to play back some

USB devices or some files due to their

characteristics or recording conditions.

• Depending on the shape of the USB devices

and connection ports, some USB devices may

not be attached properly or the connection

might be loose.

• Connect one USB mass storage class device to

the unit at a time. Do not use a USB hub.

• If the connected USB device does not have

the correct files, “CANNOT PLAY” appears.

• This unit can show Tag (Version 1.0, 1.1, 2.2,

2.3, or 2.4) for MP3 files and for WMA files.

• This unit can play back MP3/WMA files

meeting the conditions below:

– Bit rate of MP3/WMA: 32 kbps — 320 kbps

– Sampling frequency of MP3:

32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)

16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)

– Sampling frequency of WMA:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

• Do not use the following CD-Rs or CD-RWs:

– Discs with stickers, labels, or a protective seal

stuck to the surface.

– Discs on which labels can be directly printed

by an ink jet printer.

Using these discs under high temperature

or high humidity may cause malfunctions or

damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with

the extension code <.mp3> or <.wma>

(regardless of the letter case—upper/lower).

• This unit can show the names of albums,

artists (performer), and Tag (Version 1.0, 1.1,

2.2, 2.3, or 2.4) for MP3 files and for WMA files.

• This unit can display only one-byte characters.

No other characters can be correctly

displayed.

• This unit can play back MP3/WMA files

meeting the conditions below:

– Bit rate of MP3/WMA: 32 kbps — 320 kbps

– Sampling frequency of MP3:

32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)

16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)

– Sampling frequency of WMA:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

– Disc format: ISO 9660 Level 1/Level 2,

Romeo, Joliet, Windows extension

• The maximum number of characters for

file/folder names vary depending on the

disc format used (includes 4 extension

characters—<.mp3> or <.wma>).

– ISO 9660 Level 1: up to 12 characters

– ISO 9660 Level 2: up to 31 characters

– Romeo: up to 64 characters

– Joliet: up to 32 characters

– Windows extension: up to 64 characters

• This unit can recognize a total of 512 files, 255

folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR

(variable bit rate).

Files recorded in VBR have a discrepancy

in the elapsed time display, and do not

show the actual elapsed time. In particular,

this difference becomes noticeable after

performing the search function.

EN24-33_KD-R618_A615_R610[J]f.indd 32EN24-33_KD-R618_A615_R610[J]f.indd 32 11/19/09 11:36:35 AM11/19/09 11:36:35 AM

33ENGLISH

Bluetooth operations

• While driving, do not perform complicated

operation such as dialing the numbers, using

phone book, etc. When you perform these

operations, stop your car in a safe place.

• Some Bluetooth devices may not be

connected to this unit depending on the

Bluetooth version of the device.

• This unit may not work for some Bluetooth

devices.

• Connecting condition may vary depending

on the circumstances around you.

• When the unit is turned off, the device is

disconnected.

HD Radio reception

• HD Radio broadcasting can normally

be received in the USA, and it may also

be received in countries where limited

broadcasting has already begun.

• During SSM search...

– All stations including conventional FM/AM

stations are searched and stored for the

selected band.

Satellite radio

• To know more about SIRIUS Satellite radio or

to sign up, visit <http://www.sirius.com>.

• For the latest channel listings and

programming information, or to sign up for

XM Satellite radio, visit <http://www.xmradio.

com>.

• This unit can play back MP3 files recorded in

VBR (variable bit rate).

• The maximum number of characters for:

– Folder names : 32 characters

– File names : 32 characters

– MP3 Tag : 64 characters

– WMA Tag : 32 characters

• This unit can recognize a total of 5 000 files,

255 folders (255 files per folder including

folder without unsupported files), and of 8

hierarchies.

• This unit does not support SD card reader.

• This unit cannot recognize a USB device

whose rating is other than 5 V and exceeds

500 mA.

• USB devices equipped with special functions

such as data security functions cannot be

used with the unit.

• Do not use a USB device with 2 or more

partitions.

• This unit may not recognized a USB device

connected through a USB card reader.

• This unit may not play back files in a USB

device properly when using a USB extension

cord.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO

format.

– MP3 files encoded in an inappropriate

format.

– MP3 files encoded with Layer 1/2.

– WMA files encoded in lossless, professional,

and voice format.

– WMA files which are not based upon

Windows Media® Audio.

EN24-33_KD-R618_A615_R610[J]f.indd 33EN24-33_KD-R618_A615_R610[J]f.indd 33 11/19/09 11:36:36 AM11/19/09 11:36:36 AM

34 ENGLISH

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such

marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade

names are those of their respective owners.

• HD Radio™ and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corp.

• “SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc.

• XM and its corresponding logos are registered trademarks of XM Satellite Radio Inc.

• “SAT Radio,” the SAT Radio logo and all related marks are trademarks of SIRIUS Satellite Radio

Inc., and XM Satellite Radio, Inc.

• “Made for iPod” means that an electronic accessory has been designed to connect specifically

to iPod and has been certified by the developer to meet Apple performance standards.

• “Works with iPhone” means that an electronic accessory has been designed to connect

specifically to iPhone and has been certified by the developer to meet Apple performance

standards.

• Apple is not responsible for the operation of this device or its compliance with safety and

regulatory standards.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

• iPhone is a trademark of Apple Inc.

iPod/iPhone operations

• You can control the following types of iPods/

iPhone:

– iPod with video (5th Generation) *1

– iPod classic *1, *2

– iPod nano

– iPod nano (2nd Generation)

– iPod nano (3rd Generation) *1, *2

– iPod nano (4th Generation) *1, *2

– iPod nano (5th Generation) *1, *2

– iPod touch *1, *2

– iPod touch (2nd Generation) *1, *2

– iPhone/iPhone 3G/iPhone 3GS *1, *2

*1 It is not possible to browse video files on the

“Videos” menu.

*2 <IPOD MODE> is available ( 20).

• If the iPod does not play correctly, please

update your iPod software to the latest

version. For details about updating your iPod,

visit <http://www.apple.com>.

• When you turn on this unit, the iPod is

charged through this unit.

• iPod shuffle cannot be used with this unit.

• The song order displayed on the selection

menu of this unit may differ from that of the

iPod.

• The text information may not be displayed

correctly:

– Some characters such as accented letters

cannot be shown correctly on the display.

– Communication between the iPod and the

unit is not stable.

• If the text information includes more than 11

characters, it scrolls on the display.

This unit can display up to 64 characters.

EN34-43_KD-R618_A615_R610[J]f.indd 34EN34-43_KD-R618_A615_R610[J]f.indd 34 12/4/09 5:03:38 PM12/4/09 5:03:38 PM

35ENGLISH

To keep discs clean

A dirty disc may not play

correctly. If a disc does become

dirty, wipe it with a soft cloth

in a straight line from center to

edge.

• Do not use any solvents (for example,

conventional record cleaner, spray, thinner,

benzine, etc.) to clean discs.

To play new discs

New discs may have some

rough spots around the inner

and outer edges. If such a disc

is used, this unit may reject the

disc.

To remove these rough spots, rub the edges

with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD—8 cm

(3-3/16”) disc Warped disc

Sticker and sticker

residue Stick-on label

Unusual shape

C-thru Disc

(semitransparent

disc)

Transparent or

semitransparent

parts on its recording

area

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the

connectors.

To minimize this possibility, periodically wipe

the connectors with a cotton swab or cloth

moistened with alcohol, being careful not to

damage the connectors.

Moisture condensation

Moisture may condense on the lens inside the

unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the unit may malfunction.

In this case, eject the disc and leave the unit

turned on for a few hours until the moisture

has evaporated.

How to handle discs

When removing a disc

from its case, press down

the center holder of the case

and lift the disc out, holding

it by the edges.

• Always hold the disc by the edges. Do not

touch its recording surface.

When storing a disc in its case, gently insert

the disc around the center holder (with the

printed surface facing up).

• Make sure to store discs in cases after use.

Connectors

Center holder

EN34-43_KD-R618_A615_R610[J]f.indd 35EN34-43_KD-R618_A615_R610[J]f.indd 35 11/19/09 11:36:46 AM11/19/09 11:36:46 AM

36 ENGLISH

Troubleshooting

Symptom Remedy/Cause

General

Sound cannot be heard from the

speakers.

• Adjust the volume to the optimum level.

• Make sure the unit is not muted/paused ( 6).

• Check the cords and connections.

“PROTECT” appears on the display

and no operations can be done.

Check to be sure the terminals of the speaker leads

are covered with insulating tape properly, then

reset the unit ( 3).

If “PROTECT” does not disappear, consult your JVC

car audio dealer or a company supplying kits.

The unit does not work at all. Reset the unit. ( 3)

“AUX IN” cannot be selected. Check the <SRC SELECT>

<AUX IN> setting.

( 28)

Nothing appear on the display. Check the <USER> color settings. ( 30)

FM/AM

SSM automatic presetting does

not work.

Store stations manually.

Static noise while listening to the

radio.

Connect the antenna firmly.

“AM” cannot be selected. Check the <SRC SELECT>

<AM> setting. ( 28)

Disc playback

Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played

back.

• Tracks on the CD-R/CD-RW

cannot be skipped.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component

which you used for recording.

Disc can neither be played back

nor ejected.

• Unlock the disc. ( 9)

• Eject the disc forcibly. ( 3)

Disc sound is sometimes

interrupted.

• Stop playback while driving on rough roads.

• Change the disc.

• Check the cords and connections.

“NO DISC” appears on the display. Insert a playable disc into the loading slot.

“PLEASE” and “EJECT“ appear

alternately on the display.

Press

, then insert a disc correctly.

EN34-43_KD-R618_A615_R610[J]f.indd 36EN34-43_KD-R618_A615_R610[J]f.indd 36 11/19/09 11:36:46 AM11/19/09 11:36:46 AM

37ENGLISH

Symptom Remedy/Cause

MP3/WMA playback

Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

compliant with ISO 9660 Level 1, Level 2, Romeo, or

Joliet.

• Add the extension code <.mp3> or <.wma> to the file

names.

Noise is generated. Skip to another track or change the disc. (Do not add

the extension code <.mp3> or <.wma> to non-MP3 or

WMA tracks.)

A longer readout time is

required (“READING” keeps

flashing on the display).

Do not use too many hierarchical levels and folders.

Tracks do not play back in the

order you have intended them

to play.

The playback order is determined when the files are

recorded.

The elapsed playing time is not

correct.

This sometimes occurs during playback. This is caused

by how the tracks are recorded on the disc.

“NO FILE” appears on the

display.

Selected folder is an empty folder*1. Select another

folder that contains MP3/WMA tracks.

“NOT SUPPORT” appears on the

display and track skips.

Skip to the next track encoded in an appropriate format

or to the next non-copy-protected WMA track.

The correct characters are not

displayed (e.g. album name).

This unit can only display letters (upper case), numbers,

and a limited number of symbols. ( 8)

*1 Folder that is physically empty or folder that contains data but does not contain valid MP3/WMA

track.

EN34-43_KD-R618_A615_R610[J]f.indd 37EN34-43_KD-R618_A615_R610[J]f.indd 37 11/19/09 11:36:46 AM11/19/09 11:36:46 AM

38 ENGLISH

Symptom Remedy/Cause

USB device playback

Noise is generated. The track played back is not an MP3/WMA track. Skip to

another file. (Do not add the extension code <.mp3> or

<.wma> to non-MP3 or WMA tracks.)

“READING” keeps flashing on

the display.

• Readout time varies depending on the USB device.

• Do not use too many hierarchy or folders.

• Turn off the power then on again.

• Reattach the USB device again.

“NO FILE” appears on the

display.

Check whether the selected folder, the connected USB

device, or the iPod/iPhone contains a playable file.

“NOT SUPPORT” appears on the

display and track skips.

Skip to the next track encoded in an appropriate format

or to the next non-copy-protected WMA track.

Tracks/folders are not played

back in the order you have

intended.

The playback order is determined by the write-in time

stamp. The first track/folder written into the USB device

will be the first track/folder for playback.

• “CANNOT PLAY” flashes on

the display.

• “NO USB” appears on the

display.

• The unit cannot detect the

USB device.

• Attach a USB device that contains tracks encoded in

an appropriate format.

• Reattach the USB device again.

While playing a track, sound is

sometimes interrupted.

The MP3/WMA tracks have not been properly copied

into the USB device.

Copy MP3/WMA tracks again into the USB device, and

try again.

Correct characters are not

displayed (e.g. album name).

This unit can only display letters (upper case),

numbers, and a limited number of symbols. ( 8)

Bluetooth *2

Bluetooth device does not

detect the unit.

The unit can be connected with one Bluetooth mobile

phone and one Bluetooth audio device at a time.

While connecting a device, this unit cannot be detected

from another device. Disconnect currently connected

device and search again.

The unit does not detect the

Bluetooth device.

• Check the Bluetooth setting of the device.

• Search from the Bluetooth device. After the device

detects the unit, select “OPEN” on the unit to connect

the device. ( 11)

*2 For Bluetooth operations, refer also to the instructions supplied with the Bluetooth Adapter.

EN34-43_KD-R618_A615_R610[J]f.indd 38EN34-43_KD-R618_A615_R610[J]f.indd 38 11/19/09 11:36:47 AM11/19/09 11:36:47 AM

39ENGLISH

Symptom Remedy/Cause

Bluetooth *2

The unit does not make pairing

with the Bluetooth device.

• Enter the same PIN code for both the unit and target

device.

• Select the device name from “SPECIAL,” then try to

connect again. ( 12)

• Try to pair/connect from the Bluetooth device.

Echo or noise occurs. Adjust the microphone unit position.

Phone sound quality is poor. • Reduce the distance between the unit and the

Bluetooth mobile phone.

• Move the car to a place where you can get a better

signal reception.

The sound is interrupted or

skipped during playback of a

Bluetooth audio device.

• Reduce the distance between the unit and the

Bluetooth audio device.

• Disconnect the device connected for “BT-PHONE.”

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect the

device again.

The connected audio device

cannot be controlled.

Check whether the connected audio device supports

AVRCP (Audio/Video Remote Control Profile).

HD Radio reception

Sound quality changes when

receiving HD Radio stations.

Fix the reception mode either to <DIGITAL> or

<ANALOG>. ( 17, 26)

No sound can be heard. • <ANALOG> is selected when receiving all digital

broadcast of HD Radio station. Select <DIGITAL> or

<AUTO>. ( 17, 26)

• <DIGITAL> is selected when receiving weak digital

signals or receiving conventional radio broadcast.

Select <ANALOG> or <AUTO>. ( 17, 26)

“RESET 8” appears on the

display.

Reconnect this unit and the HD Radio tuner box

correctly, then reset the unit.

EN34-43_KD-R618_A615_R610[J]f.indd 39EN34-43_KD-R618_A615_R610[J]f.indd 39 11/19/09 11:36:47 AM11/19/09 11:36:47 AM

40 ENGLISH

Symptom Remedy/Cause

Satellite Radio

“CALL 1-888-539-SIRIUS TO SUBSCRIBE”

scrolls on the display while listening to

the SIRIUS Satellite radio.

Starts subscribing to SIRIUS Satellite radio.

( 18)

No sound can be heard. “UPDATING”

appears on the display.

The unit is updating the channel information

and it takes a few minutes to complete.

“ACQUIRING” or “NO SIGNAL” appears

on the display.

Move to an area where signals are stronger.

“NO ANTENNA” or “ANTENNA”appears

on the display.

Connect the antenna firmly.

“NO CHANNEL” appears on the display

for about 5 seconds, then returns

to the previous channel or default

channel while listening to the SIRIUS

Satellite radio.

No broadcast on the selected channel.

Select another channel or continue listening to

the previous channel or default channel.

Blank display appears. No text information for the selected channel.

“CH---” or “CH UNAVAIL” appears on

the display for about 2 seconds, then

returns to the previous channel while

listening to the XM Satellite radio.

Selected channel is no longer available or is

unauthorized.

Select another channel or continue listening to

the previous channel.

“OFF AIR” appears on the display while

listening to the XM Satellite radio.

Selected channel is not broadcasting at this

time.

Select another channel or continue listening to

the previous channel.

“LOADING” appears on the display

while listening to the XM Satellite

radio.

The unit is loading the channel information and

audio.

Text information are temporarily unavailable.

• “RESET 8” appears on the display.

• Satellite radio does not work at all.

Reconnect this unit and the satellite radio

correctly and reset this unit.

EN34-43_KD-R618_A615_R610[J]f.indd 40EN34-43_KD-R618_A615_R610[J]f.indd 40 11/19/09 11:36:47 AM11/19/09 11:36:47 AM

41ENGLISH

Symptom Remedy/Cause

iPod/iPhone

The iPod does not turn on or does not

work.

• Check the connecting cable and its

connection.

• Update the firmware version of the iPod/

iPhone.

• Charge the battery of the iPod/iPhone.

• Reset the iPod/iPhone.

• Check whether <IPOD SWITCH> setting is

appropriate ( 28).

The sound is distorted. Deactivate the equalizer either on this unit or

the iPod/iPhone.

A lot of noise is generated. Turn off (uncheck) the “VoiceOver” feature of the

iPod. For details, visit <http://www.apple.com>.

Playback stops. The headphones are disconnected during

playback. Restart the playback operation

( 20).

“CANNOT PLAY” appears on the

display.

No tracks are stored. Import tracks to the iPod/

iPhone.

“RESTRICTED” appears on the display. Check whether the connected iPod/iPhone is

compatible with this unit ( 34).

JVC bears no responsibility for any loss of data in an iPod/iPhone and/or USB mass storage class

device while using this System.

EN34-43_KD-R618_A615_R610[J]f.indd 41EN34-43_KD-R618_A615_R610[J]f.indd 41 11/19/09 2:44:03 PM11/19/09 2:44:03 PM

42 ENGLISH

Specifications

AUDIO AMPLIFIER SECTION

Power Output: 20 W RMS × 4 Channels

at 4 Ω and ≤ 1% THD+N

Signal-to-Noise Ratio: 80 dBA (reference: 1 W

into 4 Ω)

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range: Bass: ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)

Q1.0, Q1.25, Q1.5, Q2.0

Middle: ±12 dB (0.5 kHz, 1.0 kHz, 1.5 kHz,

2.5 kHz)

Q0.75, Q1.0, Q1.25

Treble: ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz,

17.5 kHz)

Q (Fixed)

Frequency Response: 40 Hz to 20 000 Hz

Line-Out/subwoofer-Out Level/

Impedance:

KD-R618/

KD-A615:

5.0 V/20 kΩ load (full scale)

KD-R610: 2.5 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

Other Terminal: AUX (auxiliary) input jack, USB input jack, Antenna

input, Expansion port, Steering wheel remote

input (for KD-R618/KD-A615)

TUNER SECTION

Frequency Range: FM: with channel interval set to

100 kHz or 200 kHz

87.5 MHz to 107.9 MHz

with channel interval set to

50 kHz

87.5 MHz to 108.0 MHz

AM: with channel interval set to

10 kHz

530 kHz to 1 710 kHz

with channel interval set to

9 kHz

531 kHz to 1 602 kHz

FM Tuner: Usable Sensitivity: 9.3 dBf (0.8 μV/75 Ω)

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω)

Alternate Channel Selectivity

(400 kHz):

65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 40 dB

AM Tuner: Sensitivity: 20 μV

Selectivity: 40 dB

EN34-43_KD-R618_A615_R610[J]f.indd 42EN34-43_KD-R618_A615_R610[J]f.indd 42 11/24/09 6:02:04 PM11/24/09 6:02:04 PM

43ENGLISH

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup

(semiconductor laser)

Number of Channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps

WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps

USB SECTION

USB Standard: USB 1.1, USB 2.0

Data Transfer Rate (Full Speed): Max. 12 Mbps

Compatible Device: Mass storage class

Compatible File System: FAT 32/16/12

Playable Audio Format: MP3/WMA

Max. Current: DC 5 V 500 mA

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F)

Dimensions (W × H × D):

(approx.)

Installation Size: 182 mm × 52 mm × 160 mm

(7-3/16” × 2-1/16” × 6-5/16”)

Panel Size: 188 mm × 58 mm × 6 mm

(7-7/16” × 2-5/16” × 1/4”)

Mass: 1.3 kg (2.9 lbs) (excluding accessories)

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality

shop.

EN34-43_KD-R618_A615_R610[J]f.indd 43EN34-43_KD-R618_A615_R610[J]f.indd 43 11/19/09 11:36:47 AM11/19/09 11:36:47 AM

7 The countries where you may use the

Bluetooth® function

7 Die Länder, in denen Sie die Bluetooth® Funktion verwenden können

7 Pays où vous pouvez utiliser la fonction Bluetooth®

7 De landen waar u de Bluetooth®-functie mag gebruiken

7 Países en los que se puede utilizar la función Bluetooth®

7 Paesi nei quali è possibile utilizzare la funzione Bluetooth®

7 Länder där du kan använda Bluetooth®-funktionen

7 Lande, hvor du kan bruge Bluetooth®-funktionen

7 Land hvor du kan bruke Bluetooth®-funksjonen

7 Maat, joissa voi käyttää Bluetooth®-toimintoa

7 Países onde pode usar a função Bluetooth®

7 Οι χώρες όπου μπορείτε να χρησιμοποιήσετε τη λειτουργία Bluetooth®

7 Страны, где можно воспользоваться функцией Bluetooth®

7 Země, ve kterých můžete využívat funkci Bluetooth®

7 Azok az országok, amelyekben használhatjuk a Bluetooth®-funkciót

7 Kraje, w których można używać funkcji Bluetooth®

7 Države, kjer lahko uporabljate funkcijo Bluetooth®

7 Krajiny, v ktorých môžete využívať funkciu Bluetooth®

7 Valstis, kur jūs varat izmantot Bluetooth® funkciju

7 Šalys, kuriose galite naudotis „Bluetooth®“ funkcija

7 Il-pajjiżi fejn tista’ tuża l-funzjoni Bluetooth®

7 Lönd þar sem hægt er að nota Bluetooth®

7 Riigid, kus on võimalik kasutada Bluetooth® funktsiooni

7 Bluetooth® fonksiyonunu kullanabileceğiniz ülkeler

7 Na tíortha inar féidir leat feidhmiú Bluetooth® a úsáid

7 Länner an denen der d’Bluetooth® Funktioun benotze kënnt.

7 ͪ nhͻng qu͝c gia mà b̭n có th͏ s͹ dͱng ch͵c nćng Bluetooth®

7 Els països on podrà fer servir la funció Bluetooth®

7 Zemlje u kojima je dozvoljena upotreba Bluetooth® funkcije.

7 Zemlje u kojima možete koristiti Bluetooth® funkciju

7 Zemlje u kojima je dopušteno koristiti Bluetooth®.

7 Земји каде можете да ја користите функцијата Bluetooth®

7 Страните, в които можете да ползвате функцията Bluetooth®

7 Ţările în care puteţi utiliza funcţia Bluetooth®

7 Die lande waar u die Bluetooth®-funksie kan gebruik

7 Amazwe lapho ungasebenzisa khona uhlelo lwe-Bluetooth®

7 Negara-negara yang memperbolehkan penggunaan fungsi Bluetooth®

7 Negara-negara yang anda boleh menggunakan fungsi Bluetooth®

7 您能够使用 Bluetooth® 功能的国家

7 您能夠使用 Bluetooth® 功能的國家

BluetoothNote_KD-R618_A615_R610[J]1.indd 28BluetoothNote_KD-R618_A615_R610[J]1.indd 28 10/7/09 2:37:20 PM10/7/09 2:37:20 PM

09-1672-002

Country

Andorra

Australia

Österreich

Bosna i Hercegovina

Belgien

Belgique

България

Canada

Schweiz

Suisse

Κύπρος

Kıbrıs

Česká republika

Deutschland

Danmark

Eesti

España

Suomi

Finland

France

United Kingdom

Ελλάδα

Hong Kong

香港

Hrvatska

Magyarország

Indonesia

Ireland

Éire

Ísland

Italia

Lichtenstein

Lietuva

Country

Luxemburg

Luxembourg

Lëtzebuerg

Latvija

Monaco

Crna Gora

Македонија

Malta

Nederland

Norge

New Zealand

Polska

Portugal

România

Srbija

Россия

Sverige

Singapore

新加坡

Singapura

Slovenija

Slovensko

Türkiye

台湾

United States of America

Vietnam

Vi͓t Nam

South Africa

ENingizimu Afrika

Suid-Afrika

BluetoothNote_KD-R618_A615_R610[J]1.indd 29BluetoothNote_KD-R618_A615_R610[J]1.indd 29 10/7/09 2:37:21 PM10/7/09 2:37:21 PM

ESPAÑOL

FRANÇAIS

ENGLISH

Instructions CD RECEIVER KD-R618 / KD-A615 / KD-R610

GET0638-001A

[J]

EN, SP, FR

For canceling the display demonstration, see page 4. / Para cancelar la demostración en pantalla,

consulte la página 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.

CD RECEIVER / RECEPTOR CON CD /

RÉCEPTEUR CD

For customer Use:

Enter below the Model

No. and Serial No. which

are located on the top or

bottom of the cabinet.

Retain this information

for future reference.

Model No.

Serial No.

KD-R618 / KD-A615 / KD-R610

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For installation and connections, refer to the separate manual.

Para la instalación y las conexiones, refiérase al manual separado.

Pour l’installation et les raccordements, se référer au manuel séparé.

KD-A615 / KD-R610

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Still having trouble??

USA ONLY

Call 1-800-252-5722

http://www.jvc.com

We can help you!

CoverRear_KD-R618[J].indd 1CoverRear_KD-R618[J].indd 1 11/19/09 11:35:31 AM11/19/09 11:35:31 AM

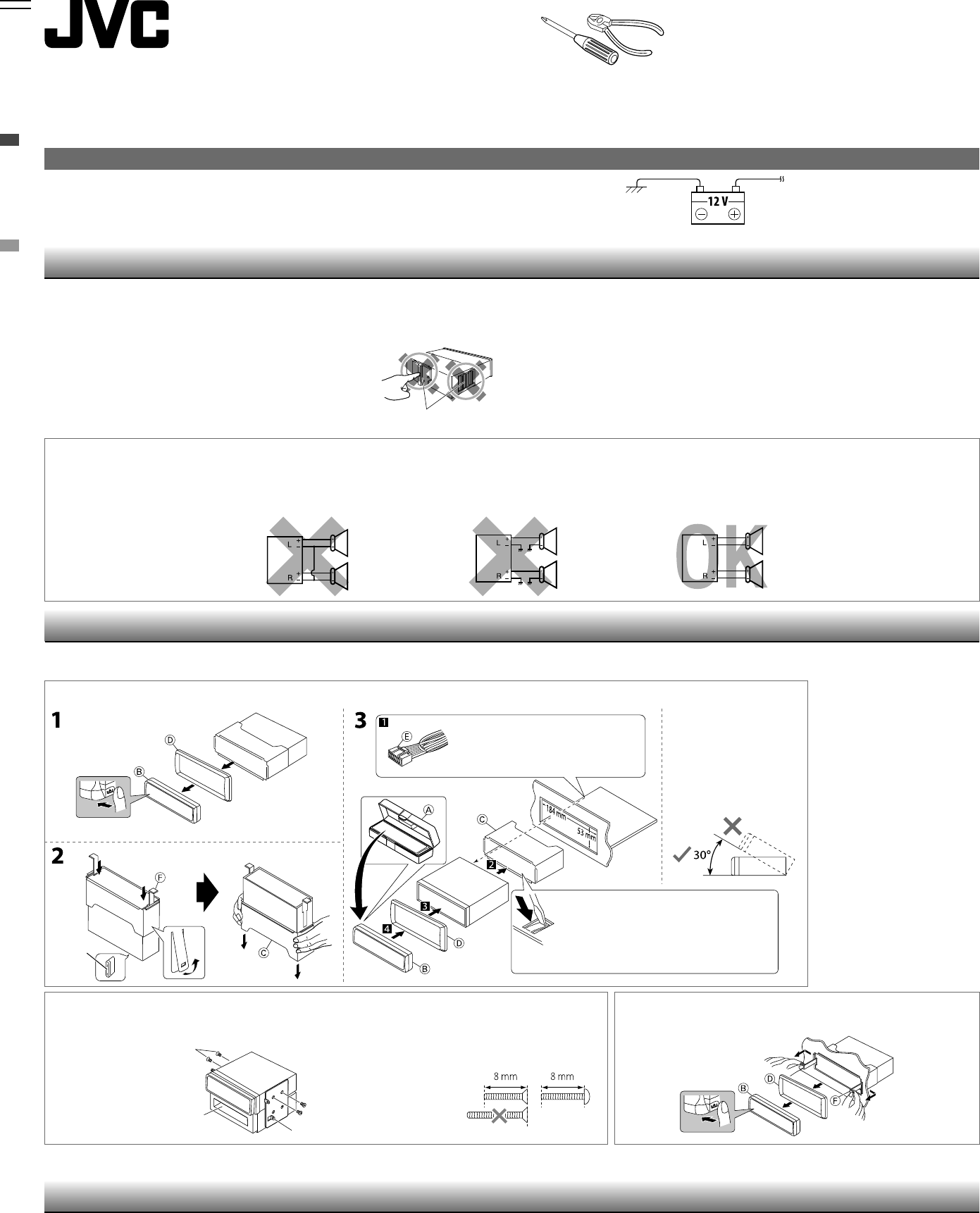

KD-R618/KD-A615/KD-R610

Installation/Connection Manual

Manual de instalación/conexión

Manuel d’installation/raccordement

ENGLISH / ESPAÑOL / FRANÇAIS

1209DTSMDTJEIN

EN, SP, FR

GET0638-002A

[J]

• To prevent short circuits:

– Disconnect the battery’s negative terminal and make all electrical

connections before installing the unit.

– Cover the terminals of the UNUSED leads with insulating tape.

• Be sure to ground this unit to the car’s chassis again after installation.

• Replace the fuse with one of the specified rating.

• Connect speakers with a maximum power of more than 50 W

(impedance of 4 Ω to 8 Ω). Otherwise, change the <AMP GAIN>

setting. (See page 28 of the INSTRUCTIONS.)

• The heat sink becomes very hot after use. Be

careful not to touch it when removing this

unit.

• Para evitar cortocircuitos:

– Desconecte el terminal negativo de la batería y realice todas las

conexiones eléctricas antes de instalar la unidad.

– Cubra los terminales de los conductores NO UTILIZADOS con

cinta aislante.

• Asegúrese de volver a conectar a masa esta unidad al chasis del

automóvil después de la instalación.

• Reemplace el fusible por uno con la corriente especificada.

• Conecte los altavoces con una potencia máxima de más de 50 W

(impedancia de 4 Ω a 8 Ω). De lo contrario, cambie el ajuste <AMP

GAIN>. (Véase la página 28 del MANUAL DE INSTRUCCIONES).

• El sumidero térmico estará muy caliente después del uso. Asegúrese

de no tocarlo al desmontar esta unidad.

• Pour éviter les courts-circuits:

– Déconnectez la borne négative de la batterie et réaliser toutes les

connexions avant d’installer l’appareil.

– Recouvrez les prises des fils NON UTILISÉS avec du ruban isolant.

• Assurez-vous de raccorder de nouveau la mise à la masse de cet appareil

au châssis de la voiture après l’installation.

• Remplacer le fusible par un de la valeur précisée.

• Connectez des enceintes avec une puissance maximum de 50 W

(impédance de 4 Ω à 8 Ω). Sinon, changez le réglage <AMP GAIN>. (Voir

la page 28 du MANUEL D’INSTRUCTIONS.)

• Le dissipateur de chaleur devient très chaud après usage. Faire attention

de ne pas le toucher en retirant cet appareil.

12 V DC, NEGATIVE ground / 12 V CC, NEGATIVO a masa / 12 V CC, masse NÉGATIVE

To the car system / Al sistema de automóvil

/ Au système autoradio

You need the installation kits which corresponds to your car. /

Necesitará los kits de instalación que corresponden con su vehículo.

/ Vous avez besoin des kits d’installation correspondants à votre voiture.

Check the battery system in your car / Verifique el sistema de batería

de su vehículo / Vérifiez le système de batterie de votre voiture

WARNINGS / ADVERTENCIAS / AVERTISSEMENTS

Heat sink / Sumidero térmico / Dissipateur de chaleur

Bracket / Ménsula / Support *2

Pocket / Compartimiento / Poche

Flat head screws—M5 × 8 mm (M5 × 3/8")

/ Tornillos de cabeza plana—M5 × 8 mm

(M5 × 3/8 pulgada) / Vis à tête plate—

M5 × 8 mm (M5 × 3/8 pouces) *2

INSTALLATION / INSTALACION / INSTALLATION

When installing the unit without using the sleeve / Instalación de la

unidad sin utilizar la cubierta / Lors de l’installation de l’appareil

scans utiliser de manchon

In-dash mounting / Montaje en el tablero / Montage encastré

Removing the unit / Extracción de la unidad /

Retrait de l’appareil

Release the rear section first... / Primero libere la sección trasera... /

Ouvrez la section arrière en premier...

The following illustration shows a typical installation. If you have any

questions or require information regarding installation kits, consult

your JVC car audio dealer or a company supplying kits.

L’illustration suivante est un exemple d’installation typique. Si vous avez des

questions ou avez besoin d’information sur des kits d’installation, consulter

votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

La siguiente ilustración muestra una instalación típica. Si tiene alguna

pregunta o necesita información acerca de las herramientas para

instalación, consulte con su concesionario de JVC de equipos de audio

para automóviles o a una compañía que suministra tales herramientas.

Do the required electrical connections.

Realice las conexiones eléctricas requeridas.

Réalisez les connexions électriques.

Bend the appropriate tabs to hold the sleeve firmly in place.

Doble las lengüetas apropiadas para retener firmemente la

manga en su lugar.

Tordez les languettes appropriées pour maintenir le manchon

en place.

Install the unit at an angle of less

than 30˚.

Instale la unidad a un ángulo de

menos de 30˚.

Installez l’appareil avec un angle de

moins de 30˚.

*1 When you stand the unit, be careful

not to damage the fuse on the rear.

/ Al poner la unidad vertical, tenga

cuidado de no dañar el fusible provisto

en la parte posterior. / Lorsque vous

mettez l’appareil à la verticale, faire

attention de ne pas endommager le

fusible situé sur l’arrière.

*2 Not supplied for this unit. / No

suministrado con esta unidad. / Non

fourni avec cet appareil.

• The fuse blows.

]

Are the red and black leads connected correctly?

• Power cannot be turned on.

]

Is the yellow lead connected?

• No sound from the speakers.

]

Is the speaker output lead short-

circuited?

• “PROTECT” appears on the display and no operation can be

done.

]

Is the speaker output lead short-circuited or touches the

chassis of the car/head unit? ; Have you reset your unit?

• Sound is distorted.

]

Is the speaker output lead grounded? ; Are

the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds.

]

Is the rear ground terminal

connected to the car’s chassis using shorter and thicker cords?

• This unit becomes hot.

]

Is the speaker output lead grounded? ;

Are the “–” terminals of L and R speakers grounded in common?

• This unit does not work at all.

]

Have you reset your unit?

• El fusible se quema.

]

¿Están los conductores rojo y negro

correctamente conectados?

• No es posible conectar la alimentación.

]

¿Está el cable amarillo

conectado?

• No sale sonido de los altavoces.

]

¿Está el cable de salida del

altavoz cortocircuitado?

• Aparece “PROTECT” en la pantalla y no se puede realizar

ninguna operación.

]

¿El conductor de salida de altavoz está en

cortocircuito o en contacto con el chasis del automóvil/auriculares? ;

¿Reinicializó la unidad?

• El sonido presenta distorsión.

]

¿Está el cable de salida del altavoz

conectado a masa? ; ¿Están los terminales “–” de los altavoces L y R

conectados a una masa común?

•

Perturbación de ruido.

]

¿El terminal de tierra trasero está conectado

al chasis del automóvil utilizando los cordones más corto y más grueso?

• Esta unidad se calienta.

]

¿Está el cable de salida del altavoz

conectado a masa? ; ¿Están los terminales “–” de los altavoces L y R

conectados a una masa común?

• Esta unidad no funciona en absoluto.

]

¿Reinicializó la unidad?

• Le fusible saute.

]

Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension.

]

Le fil jaune est-

elle raccordée?

•

Pas de son des enceintes.

]

Le fil de sortie d’enceinte est-il court-circuité?

• “PROTECT” apparaît sur l’affichage et aucune opération ne peut

être réalisée.

]

Est-ce qu’un fil de sortie d’enceinte est court-circuité ou

touche le châssis de la voiture/appareil principal? ;

Avez-vous réinitialisé

votre appareil?

•

Le son est déformé.

]

Le fil de sortie d’enceinte est-il à la masse? ; Les

bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Interférence avec les sons.

]

La prise arrière de mise à la terre est-elle

connectée au châssis de la voiture avec un cordon court et épais?

• Cet appareil devient chaud.

]

Le fil de sortie d’enceinte est-il à la

masse? ; Les bornes “–” des enceintes gauche et droit sont-elles mises

ensemble à la masse?

• Cet appareil ne fonctionne pas du tout.

]

Avez-vous réinitialisé

votre appareil?

TROUBLESHOOTING / LOCALIZACION DE AVERIAS / EN CAS DE DIFFICULTES

Part list / Lista de componentes / Liste

de pièces

A Hard case (for KD-R618/KD-A615)

/ Estuche duro (para KD-R618/

KD-A615) / Etui de transport (pour le

KD-R618/KD-A615) (×1)

B Control panel / Panel de control /

Panneau de commande (×1)

C Sleeve / Cubierta / Manchon (×1)

D Trim plate / Placa de guarnición /

Plaque d’assemblage (×1)

E Power cord / Cordón de

alimentación / Cordon d’alimentation

(×1)

F Handles / Manijas / Poignées (×2)

PRECAUTIONS on power supply and speaker

connections

• DO NOT connect the speaker leads of the power cord to the car

battery; otherwise, the unit will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the

speakers, check the speaker wiring in your car.

PRECAUTIONS sur l’alimentation et la

connexion des enceintes

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la

batterie; sinon, l’appareil serait sérieusement endommagé.

• AVANT de connecter les fils d’enceintes du cordon d’alimentation aux

enceintes, vérifiez le câblage des enceintes de votre voiture.

PRECAUCIONES sobre las conexiones de la

fuente de alimentación y de los altavoces

•

NO conecte los conductores de altavoz del cable de alimentación a la

batería de automóvil, pues podrían producirse graves daños en la unidad.

•

ANTES de conectar a los altavoces los conductores de altavoz del cable

de alimentación, verifique el conexionado de altavoz de su automóvil.

Install_KD-R618_A615_R610[J]f.indd 1Install_KD-R618_A615_R610[J]f.indd 1 12/3/09 12:29:55 PM12/3/09 12:29:55 PM

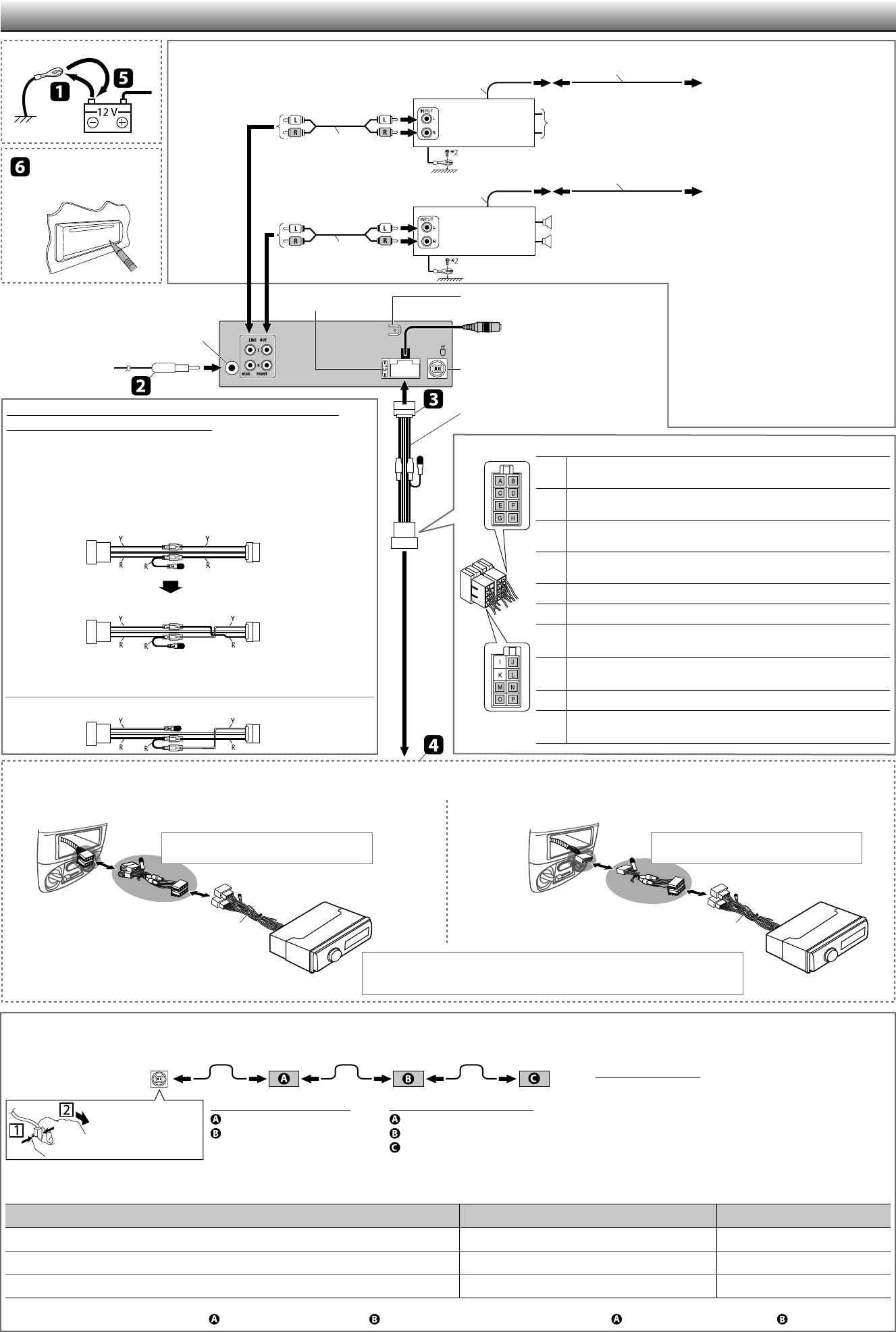

Black / Negro /

Noir

Fuse block /

Bloque de fusibles /

Porte-fusible

Ignition switch /

Interruptor de encendido /

Interrupteur d’allumage

Blue (white stripe) / Azul (rayas

blancas) / Bleu (bande blanche)

Red / Rojo /

Rouge

Yellow / Amarillo /

Jaune * 3

To the metallic body or chassis of the car /

A un cuerpo metálico o chasis del automóvil /

Vers corps métallique ou châssis de la voiture

To an accessory terminal / A un terminal

para accesorios / À une prise accessoire

To a live terminal (constant 12 V) /

A un terminal activo (12 V constantes) /

À une borne sous tension (12 V constant)

To the remote lead of other equipment or automatic antenna if any

(200 mA max.) / Al conductor remoto de otro equipo o de la antena

automática, si hubiere (máx. 200 mA) / Au fil de télécommande de l’autre

appareil ou à l’antenne automatique s’il y en a une (200 mA max.)

White / Blanco / Blanc

White (black stripe) / Blanco (rayas

negras) / Blanc (bande noire)

Gray / Gris / Gris

Gray (black stripe) / Gris (rayas

negras) / Gris (bande noire)

Green / Verde / Vert

Green (black stripe) / Verde (rayas

negras) / Vert (bande noire)

Purple / Púrpura / Violet

Purple (black stripe) / Púrpura (rayas

negras) / Violet (bande noire)

Signal cord / Cable de señal /

Cordon de signal * 1

Y-connector / Conector en Y / Connecteur Y * 1

Remote lead / Cable remoto / Fil d’alimentation à distance

To the blue (white stripe) lead of

the unit / Al conductor azul (rayas

blancas) de la unidad / Au fil bleu

(bande blanche) de l’appareil

To the blue (white stripe) lead of

the unit / Al conductor azul (rayas

blancas) de la unidad / Au fil bleu

(bande blanche) de l’appareil

Rear speakers or subwoofer (Make the <L/O MODE> setting accordingly,

see page 27 of the INSTRUCTIONS.) / Altavoces traseros o subwoofer

(Realice el ajuste <L/O MODE> de conformidad, consulte la página 27

del MANUAL DE INSTRUCCIONES). / Enceintes arrière ou le caisson de

grave (Faite le réglage <L/O MODE> en fonction, voir page 27 du MANUEL

D’INSTRUCTIONS.)

Rear ground terminal / Terminal de

tierra posterior / Borne arrière de masse

15 A fuse /

Fusible de 15 A /

Fusible 15 A

Expansion port /

Puerto de

expansión /

Port d’extension

Steering wheel remote input (for KD-R618/KD-A615) / Entrada del control remoto del

volante de dirección (para KD-R618/KD-A615) / Entrée de la télécommande de volant

(pour le KD-R618/KD-A615)

Antenna input /

Entrada de antena /

Entrée d’antenne

*1 Not supplied for this unit.

*2 Firmly attach the ground wire to the metallic body or to the chassis

of the car—to the place uncoated with paint.

Before checking the operation of this unit prior to installation, this

lead must be connected; otherwise, the power cannot be turned on.

*4 Connect the power cord supplied for the component separately for

power supply.

*5 This model is a component of SIRIUS satellite radio System.

*6 This model is a component of XM satellite radio System.

*7 To use these components, set the external input setting correctly

(see page 28 of the INSTRUCTIONS).

*1 No suministrado con esta unidad.

*2 Fije firmemente el cable de tierra a la carrocería metálica o al

chasis—a un lugar no cubierto con pintura.

*3 Antes de comprobar el funcionamiento de esta unidad previa a de

la instalación, es necesario conectar este cable, de lo contrario no se

podrá conectar la alimentación.

*4 Conecte el cable de alimentación suministrado separadamente para

el componente.

Este modelo es un componente del sistema de radio satelital SIRIUS.

*6 Este modelo es un componente del sistema de radio XM Satellite.

Para utilizar estos componentes, configure el ajuste de entrada

externa correctamente (consulte la página 28 del

MANUAL DE

INSTRUCCIONES

*1 Non fourni avec cet appareil.

*2 Attachez solidement le fil de mise à la masse au châssis métallique de la

voiture—à un endroit qui n’est pas recouvert de peinture.

*3 Pour vérifier le fonctionnement de cet appareil avant installation, ce fil

doit être raccordé, sinon l’appareil ne peut pas être mis sous tension.

*4 Connectez le cordon d’alimentation fourni avec les appareils

séparément à l’alimentation.

*5 Ce modèle est un composant du système radio satellite SIRIUS.

*6 Ce modèle est un composant du système radio satellite XM.

*7 Pour utiliser ces appareils, réglez l’entrée extérieure correctement (voir

page 28 du MANUEL D’INSTRUCTIONS).

Front speaker (left) /

Altavoz delantero (izquierdo)

/ Enceintes avant (gauche)

Front speaker (right) /

Altavoz delantero (derecho)

/ Enceintes avant (droit)

Rear speaker (left) /

Altavoz trasero (izquierdo)

/ Enceintes arrière (gauche)

Rear speaker (right) /

Altavoz trasero (derecho)

/ Enceintes arrière (droit)

ELECTRICAL CONNECTIONS / CONEXIONES ELECTRICAS / RACCORDEMENTS ELECTRIQUES

Reset the unit. / Reinicialice el

receptor. / Réinitialisez l’autoradio.

JVC Amplifier /

Amplificador de JVC /

JVC Amplificateur

Connecting the external amplifiers or subwoofer / Conexión de los amplificadores o subwoofer externos /

Connexion d’amplificateurs extérieurs ou d’un caisson de grave

Connecting the external components in series / Conexión de componentes externos en serie / Connexion d’appareils extérieurs en série

When connecting the external components, refer also to the manuals supplied for the components and adapter. / Cuando conecte componentes externos, consulte, también, los manuales suministrados con los

componentes y el adaptador. / Lors de la connexion des appareils extérieurs, référez-vous aussi aux manuels fournis avec les appareils et les adaptateurs.

You can connect the HD Radio

TM tuner box (KT-HD300) or the following components through the various JVC adapters or system to the expansion port. / Puede conectar el sintonizador HD RadioTM (KT-HD300) o los

siguientes componentes al puerto de expansión, a través de los diversos adaptadores o sistema JVC. / Vous pouvez connecter le tuner HD RadioTM (KT-HD300) ou les appareils suivants à l’aide de divers adaptateur JVC ou système

au port d’extension.

•

Connection cords may need to be purchased separately. / Puede ser necesario comprar los cables de conexión por separado. / Vous pouvez avoir besoin d’acheter certains cordons de connexion séparément.

Component / Componente / Appareil Adapter/System / Adaptador/Sistema / Adaptateur/Système Model name / Nombre del

modelo / Nom du modèle

Bluetooth device / Dispositivo Bluetooth / Périphérique Bluetooth Bluetooth adapter / Adaptador Bluetooth / Adaptateur Bluetooth KS-BTA200

XMDirect ™ Tuner Box / XMDirect ™ Tuner Box / XMDirect ™ Tuner Box Smart Digital Adapter / Adaptador digital inteligente / Adaptateur numérique intelligent XMDJVC100

XMDirect2 Tuner System / Sistema de sintonizador XMDirect2 / XMDirect2 Tuner System XM satellite radio System / Sistema de radio XM Satellite / Système radio satellite XM CNP2000UC, CNPJVC1

SIRIUS satellite radio / Radio por satélite SIRIUS / Radio satellite SIRIUS SIRIUS satellite radio System / Sistema de radio satelital SIRIUS / Système radio satellite SIRIUS SC-C1, KS-SRA100

PnP, SC-VDOC1, KS-SRA100

Portable audio player with line output jacks / Reproductor de audio portátil con jacks de

salida de línea / Lecteur audio portable avec prises de sortie de ligne Line input adapter / Adaptador de entrada por línea / Adaptateur d’entrée de ligne KS-U57

Portable audio player with 3.5 mm (3/16") stereo mini jack / Reproductor de audio portátil

con jack mini estéreo de 3,5 mm (3/16 pulgada) / Lecteur audio portable avec mini fiche

stéréo de 3,5 mm (3/16 pouces)

AUX input adapter / Adaptador de entrada AUX / Adaptateur d’entrée auxiliaire KS-U58

XM Radio and SIRIUS satellite radio cannot be used together. / No puede utilizar juntas la radio XM y la radio satelital SIRIUS. / La radio XM et SIRIUS ne peuvent pas être utilisées en même temps.

• HD Radio ™ is a proprietary trademark of iBiquity Digital Corp. / HD Radio ™ es una marca comercial de iBiquity Digital Corp. / HD Radio ™ est une marque de commerce d’iBiquity Digital Corp.

Two components / Dos componentes / Deux appareil:

A KT-HD300 *4 / KS-SRA100 *4, *5 / KS-BTA200 / XMDJVC100 / CNP2000UC *4,*6

B*7 KS-U57 / KS-U58

Three components / Tres componentes / Trois appareils:

A KT-HD300 *4 / KS-SRA100 *4, *5 / XMDJVC100 / CNP2000UC *4,*6

B KS-BTA200

C*7 KS-U57 / KS-U58

To disconnect... /

Para desconectar... /

Pour déconnecter...

Not recommended... / No recomendado... / Non recommandé...

Expansion port of the unit /

Puerto de expansión de la unidad

/ Port d’extension de l’appareil

Caution / Precaucion / Precaution:

Before connecting the external components, make sure that the unit is turned

off. / Antes de conectar los componentes externos, asegúrese de que la unidad

esté apagada. / Avant de connecter les appareils extérieurs, assurez-vous que

l’appareil est hors tension.

To car light control switch / Al interruptor de control de las luces del

automóvil / À l’interrupteur d’éclairage de la voiture

Orange with white stripe /

Naranja con rayas blancas /

Orange avec bande blanche

Front speakers /

Altavoces delanteros /

Enceintes avant

Signal cord / Cable de señal /

Cordon de signal * 1JVC Amplifier /

Amplificador de JVC /

JVC Amplificateur

IMPORTANT: A custom wiring harness (separately purchased) which is suitable for your car is

recommended for connection between the unit and your car.

• Consult your JVC car audio dealer or a company supplying kits for details.

IMPORTANTE: Para la conexión entre la unidad y su vehículo, se recomienda utilizar un mazo

de cables personalizado (vendido separadamente) que sea adecuado para su vehículo.

• Si desea información más detallada, consulte con su distribuidor de equipos de Car audio JVC

o con una compañía proveedora de kits.

IMPORTANT: Un faisceau de câbles personnalisé (vendu séparément) correspondant à votre voiture

est recommandé pour raccorder l’appareil et votre voiture.

• Pour en savoir plus, consultez votre revendeur autoradio JVC ou une compagnie fournissant des kits.

Install_KD-R618_A615_R610[J]f.indd 2Install_KD-R618_A615_R610[J]f.indd 2 12/3/09 12:29:56 PM12/3/09 12:29:56 PM

ENGLISH

GET0639-001A

[U/UH]

EN, TH

For canceling the display demonstration, see page 4. /

CD RECEIVER /

KD-R616

INSTRUCTIONS

For installation and connections, refer to the separate manual.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

CoverRear_KD-R616_001A_1.indd 1-2CoverRear_KD-R616_001A_1.indd 1-2 11/4/09 3:01:36 PM11/4/09 3:01:36 PM

2ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving,

be sure to look around carefully or you may be

involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as

this will block outside sounds, making driving

dangerous.

• Stop the car before performing any

complicated operations.

Temperature inside the car...

If you have parked the car for a long time in

hot or cold weather, wait until the temperature

in the car becomes normal before operating

the unit.

How to read this manual

The following icons/symbols are used to

indicate:

Press and hold the button(s)

until the desired operation

begins.

Turn the control dial.

Turn the control dial

to make a selection,

then press to confirm.

( XX) Reference page number

<XXXX> Menu setting item

Continued on the next page

[Hold]

EN02-09_KD-R616_001A_3.indd 2EN02-09_KD-R616_001A_3.indd 2 11/24/09 5:17:00 PM11/24/09 5:17:00 PM

3ENGLISH

CONTENTS

2 How to read this manual

3 How to attach/detach the control

panel

3 How to reset your unit

3 How to forcibly eject a disc

Canceling the display

demonstration

4 Setting the clock

5 Preparing the remote controller

(RM-RK50)

6 Basic operations

7 Listening to the radio

9 Listening to a disc

10 Listening to the USB device

11 Using Bluetooth ® devices

13 Using a Bluetooth mobile phone

14 Using a Bluetooth audio player

16 Listening to the iPod/iPhone

18 Listening to the other external

components

19 Selecting a preset sound mode

20 Menu operations

26 More about this unit

29 Maintenance

30 Troubleshooting

34 Specifications

How to attach/detach the control

panel

How to reset your unit

Your preset adjustments

will also be erased (except

the registered Bluetooth

device). ( 11)

How to forcibly eject a disc

• You can forcibly eject the loaded disc even

if the disc is locked. To lock/unlock the disc,

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

[Hold]

EN02-09_KD-R616_001A_3.indd 3EN02-09_KD-R616_001A_3.indd 3 11/24/09 5:17:00 PM11/24/09 5:17:00 PM

4ENGLISH

1 Turn on the power.

Setting the clock

1 Turn on the power.

3 Select <CLOCK>.

4 Select <CLOCK SET>.

5 Adjust the hour.

6 Adjust the minute.

7 Finish the procedure.

4 Select <DEMO OFF>.

6 Finish the procedure.

Canceling the display demonstration

(Initial setting)

[Hold]

(Initial setting)

[Hold]

EN02-09_KD-R616_001A_3.indd 4EN02-09_KD-R616_001A_3.indd 4 11/24/09 5:17:01 PM11/24/09 5:17:01 PM

5ENGLISH

Warning (to prevent accidents and

damage):

• Do not install any battery other than CR2025

or its equivalent.

• Do not leave the remote controller in a place

(such as dashboards) exposed to direct

sunlight for a long time.

• Store the battery in a place where children

cannot reach.

• Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

• Do not leave the battery with other metallic

materials.

• Do not poke the battery with tweezers or

similar tools.

• Wrap the battery with tape and insulate when

throwing away or saving it.

This unit is equipped with the steering wheel

remote control function.

Before operating, connect an exclusive remote

adapter (not supplied) which matches your car

to the steering wheel remote input terminal on

the rear of the unit.

• For details, refer also to the instructions

supplied with the remote adapter.

Preparing the remote controller (RM-RK50)

When you use the remote controller for the first

time, pull out the insulation sheet.

If the effectiveness of the remote controller

decreases, replace the battery.

Replacing the lithium coin battery

CR2025

Caution:

• Danger of explosion if battery is incorrectly

replaced. Replace only with the same or

equivalent type.

• Battery shall not be exposed to excessive heat

such as sunshine, fire, or the like.

Insulation sheet

EN02-09_KD-R616_001A_3.indd 5EN02-09_KD-R616_001A_3.indd 5 11/24/09 5:17:01 PM11/24/09 5:17:01 PM

6ENGLISH

Basic operations

Control dial

Ejects the disc Loading slot USB (Universal Serial Bus) input jack

Display window

Auxiliary

input jack

Detaches the panel

When you press or hold the following button(s)...

Main unit Remote

controller General operation

Turns on.

• When the power is on, pressing /I/ATT on the remote controller

also mutes the sound or pauses. Press /I/ATT again to cancel

muting or resume playback.

Turns off if pressed and held.

Selects the available sources (if the power is turned on).

• If the source is ready, playback also starts.

Adjusts the volume level.

— Selects items.

—

• Mutes the sound while listening to a source. If the source is “CD,”

“USB” or “USB-IPOD,” playback pauses. Press the control dial again

to cancel muting or resume playback.

• Confirms selection.

Selects the sound mode.

• Enters tone level adjustment directly ( 19) if pressed and held

EQ/BASS-TRE on the main unit.

Remote sensor

• DO NOT expose to bright sunlight.

EN02-09_KD-R616_001A_3.indd 6EN02-09_KD-R616_001A_3.indd 6 11/24/09 5:17:01 PM11/24/09 5:17:01 PM

7ENGLISH

Manual search

“M” flashes, then press

the button repeatedly.

When an FM stereo broadcast is

hard to receive

]

<TUNER>

]

<MONO>

]

Reception improves, but stereo effect

will be lost.

To restore the stereo effect, repeat the same

procedure to select <MONO OFF>.

Automatic presetting (FM)—

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

While listening to a station...

]

<TUNER>

]

<SSM>

]

<SSM 01 – 06> / <SSM 07 – 12> /

“SSM” flashes and local stations with

the strongest signals are searched and

stored automatically.

To preset another 6 stations, repeat the above

procedure by selecting one of the other 6 SSM

setting ranges.

Main unit Remote

controller General operation

—• Enters <COLOR> setting directly ( 24).

•

Enters <COLOR SETUP> setting directly ( 25) if pressed and held.

— Returns to the previous menu.

—Power off : Checks the current clock time.

Power on : Changes the display information.

[Hold]

Listening to the radio

]

“FM” or “AM”

“ST” lights up when receiving an FM stereo broadcast

with sufficient signal strength.

EN02-09_KD-R616_001A_3.indd 7EN02-09_KD-R616_001A_3.indd 7 11/24/09 5:17:02 PM11/24/09 5:17:02 PM

8ENGLISH

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6

stations for AM.

Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

]

“92.50MHz”

“PRESET MODE” flashes.

]

Selects preset number “04.”

“P04” flashes and “MEMORY” appears.

Selecting a preset station

Changing the display information

Station name *

Frequency

Clock

(back to the beginning)

* If no title is assigned to a station, “NO NAME”

appears for a few seconds.

Using the remote controller

∞

: Changes the preset

stations

: Searches for stations

[Hold]

Title assignment

You can assign titles up to 30 station

frequencies (FM and AM) using 8 characters

(maximum) for each title.

• If you try to assign titles to more than 30

station frequencies, “NAME FULL” appears.

Delete unwanted titles before assignment.

]

“FM” or “AM”

]

Show the title entry screen.

]

Select a character.

]

Move to the next (or previous)

character position.

5Repeat steps 3 and 4 until you have

finished entering the title.

To erase the entire title, press and hold

DISP

after step 2, then press the control dial.

Available characters

ABCDEFGH I

JKLMNOPQR

STUVWXYZ0

123456789

—/ <> Space

[Hold]

EN02-09_KD-R616_001A_3.indd 8EN02-09_KD-R616_001A_3.indd 8 11/24/09 5:17:02 PM11/24/09 5:17:02 PM

9ENGLISH

Stopping playback and ejecting

the disc

“NO DISC” appears.

Press /

SOURCE

to listen to

another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Selects folder of the MP3/WMA

Selects track

Fast-forwards or

reverses the track

Selecting a track/folder

For MP3/WMA discs, select the desired folder,

then the desired track by repeating the control

dial procedures.

• If the MP3/WMA disc contains many tracks,

you can fast search (±10, ±100, ±1000)

through the disc by turning the control dial

quickly.

• To return to the previous menu, press

BACK

Caution on volume setting:

Discs produce very little noise compared

with other sources. Lower the volume before

playing a disc to avoid damaging the speakers

by the sudden increase of the output level.

Selecting the playback modes

You can use only one of the following playback

modes at a time.

]

“REPEAT”

“RANDOM”

REPEAT

TRACK RPT : Repeats current track

FOLDER RPT : Repeats current folder

RANDOM

FOLDER RND : Randomly plays all tracks

of current folder, then

tracks of next folders

ALL RND : Randomly plays all tracks

To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

Listening to a disc

]

Turn on the power.

All tracks will be played repeatedly until you change

the source or eject the disc.

[Hold]

EN02-09_KD-R616_001A_3.indd 9EN02-09_KD-R616_001A_3.indd 9 11/24/09 5:17:02 PM11/24/09 5:17:02 PM

10 ENGLISH

Listening to the USB device

This unit can play MP3/WMA files stored on a USB mass storage class device.

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player,

etc. to the unit.

• You can also connect an Apple iPod/iPhone to the USB input jack. For details of the operations,

16 – 17.

]

Turn on the power.

All tracks will be played repeatedly until you change the

source or detach the USB device.

Caution on volume setting:

USB devices produce very little noise compared

with other sources. Lower the volume before

playing a USB to avoid damaging the speakers

by sudden increase of the output level.

If you have turned off the power (without

detaching the USB device)...

Pressing

/ SOURCE

turns on the power and

playback starts from where it has been stopped

previously.

• If a different USB device is currently attached,

playback starts from the beginning.

USB input jack

USB memory

Changing the display information

Disc title/Album name/performer (folder

name)*

Track title (file name)*

Current

track number with the elapsed playing time

Current track number with the clock

time

(back to the beginning)

* If the current disc is an audio CD, “NO NAME”

appears.

If an MP3/WMA file does not have Tag

information or <TAG DISPLAY> is set to

<TAG OFF> ( 20), folder name and file name

appear.

Using the remote controller

∞

: Selects folder of the

MP3/WMA

: Selects track

[Hold]

: Fast-forwards or

reverses the track

Stop playing and detaching the

USB device

Straightly pull it out from the unit.

“NO USB” appears. Press

/ SOURCE

to listen to

another playback source.

You can operate the USB device in the same

way you operate the files on a disc. ( 9)

EN10-19_KD-R616_001A_3.indd 10EN10-19_KD-R616_001A_3.indd 10 11/24/09 5:17:10 PM11/24/09 5:17:10 PM

11ENGLISH

Using Bluetooth ® devices

For Bluetooth operations, it is required to

connect the Bluetooth adapter, KS-BTA200 (not

supplied) to the expansion port on the rear of

this unit.

• Refer to pages i and ii at the end of the

manual to check the countries where you

may use the Bluetooth ® function.

• For details, refer also to the instructions

supplied with the Bluetooth adapter and the

Bluetooth device.

To use a Bluetooth device through the unit

(“BT-PHONE” and “BT-AUDIO”) for the first time,

you need to establish a Bluetooth wireless

connection between the unit and the device.

• Once the connection is established, it is

registered on the unit even if you reset your

unit. Up to five devices can be registered in

total.

• Only one device can be connected at a time

for each source (“BT-PHONE” and “BT-AUDIO”).

Registration (Pairing) methods

Use either of the following items (“OPEN” or

“SEARCH” ) in the Bluetooth menu to register

and make the unit ready to establish a new

Bluetooth connection with a device.

“OPEN” : Connection is established by

operating the Bluetooth device.

“SEARCH” : Connection is established by

operating the unit.

Registering using “OPEN”

Preparation: Operate the device to turn on its

Bluetooth function.

]

“BT-PHONE” or “BT-AUDIO”

]

“NEW DEVICE”

]

“OPEN”

]

Enter a PIN (Personal Identification

Number) code in to the unit.

You can enter any number you like

(1-digit to 16-digit number).

[Initial: 0000]

• Some devices have their own PIN

code. Enter the specified PIN code in

to the unit.

Cautions:

• Avoid using the USB device if it might hinder

your safety driving.

• Do not pull out and attach the USB device

repeatedly while “READING” is shown on the

display.

• Do not start the car engine if a USB device is

connected.

• This unit may not be able to play the files

depending on the type of USB device.

• Operation and power supply may not work as

intended for some USB devices.

• You cannot connect a computer to the USB

input terminal of the unit.

• Make sure all important data has been backed

up to avoid losing the data.

• Do not leave a USB device in the car, expose

to direct sunlight, or high temperature to

avoid deformation or cause damages to the

device.

• Some USB devices may not work immediately

after attaching USB device or turn on the

power.

• For more details about USB operations,

27, 28.

EN10-19_KD-R616_001A_3.indd 11EN10-19_KD-R616_001A_3.indd 11 11/24/09 5:17:10 PM11/24/09 5:17:10 PM

12 ENGLISH

4Repeat step 3 on page 11 until you

have finished entering the PIN code.

“OPEN..” flashes.

6Use the Bluetooth device to search and

connect.

On the device to be connected, enter

the same PIN code you have just

entered for this unit. “CONNECTED”

appears.

Now connection is established and you

can use the device through the unit.

The device remains registered even after you

disconnect the device. Use “CONNECT“ (or

activate “AUTO CNNCT”) to connect the same

device from next time on. ( 15)

Registering using

“SEARCH”/“SPECIAL”

]

“BT-PHONE” or “BT-AUDIO”

]

“NEW DEVICE”

]

“SEARCH” : To search for available

devices

The unit searches and displays the list

of the available devices. “UNFOUND”

appears if no available device is

detected.

– – – – – or – – – – –

]

“SPECIAL” : To connect a special

device

The unit displays the list of the preset

devices.

]

Select a device you want to connect.

5For available devices...

]

Enter the specific PIN code of the

device to the unit.

• Refer to the instructions supplied with

the device to check the PIN code.

Use the Bluetooth device to connect.

Now connection is established and you

can use the device through the unit.

For special device...

Use “OPEN” or “SEARCH” to connect.

Connecting/disconnecting/

deleting a registered device

]

“BT-PHONE” or “BT-AUDIO”

]

Select a device you want to

connect/disconnect/delete.

]

“CONNECT” or “DISCONNECT” : To

connect/disconnect the selected device

– – – – – or – – – – –

]

“DELETE”

]

“YES” : To delete the

selected device

You can set the unit to connect the Bluetooth

device automatically when the unit is turned

on. ( “AUTO CNNCT,” 15)

EN10-19_KD-R616_001A_3.indd 12EN10-19_KD-R616_001A_3.indd 12 11/24/09 5:17:11 PM11/24/09 5:17:11 PM

13ENGLISH

Using the remote controller

∞

SOURCE

: Answers calls

∞

SOURCE

[Hold]

: Rejects calls

Making a call

]

“BT-PHONE”

]

Select “DIAL” menu.

]

Select a calling method.

PHONE BOOK*

MISSED*

NUMBER

VOICE DIAL

REDIAL*

RECEIVED*

(back to

the beginning)

* Displays only when your mobile phone

is equipped with these functions and is

compatible with this unit.

Using a Bluetooth

mobile phone

]

“BT-PHONE”

]

Bluetooth menu

! Make a call or setting using

the Bluetooth setting menu.

( 15)

When a call comes in....

The source is automatically changed to

“BT-PHONE.”

• The display will flash in blue. (<RING COLOR>,

21)

When “AUTO ANSWER” is activated....

The unit answers the incoming calls

automatically. ( 15)

• When “AUTO ANSWER” is deactivated, press

any button (except

/ SOURCE

/ /

) to

answer the incoming call.

• You can adjust the microphone volume level.

( 15)

To end the call

Hold any button (except

/ SOURCE

/ /

When a text message comes in....

If the mobile phone is compatible with text

message (notified through JVC Bluetooth

adapter) and “MSG INFO” (message info) is

set to “AUTOMATIC” ( 15), the unit rings to

inform you of the message arrival.

• “RCV MESSAGE” (receiving message) appears

and the display illuminate in blue. (<RING

COLOR>, 21)

EN10-19_KD-R616_001A_3.indd 13EN10-19_KD-R616_001A_3.indd 13 11/24/09 5:17:11 PM11/24/09 5:17:11 PM

14 ENGLISH

5For REDIAL, RECEIVED, MISSED

]

Repeat step 4 on page 13 to select

a name (if it is acquired) or a phone

number.

For PHONE BOOK

]

Repeat step 4 on page 13 to select a

name or a phone number.

For NUMBER

]

Enter a phone number.

]

Confirm.

For VOICE DIAL

]

Speak the name you want to call

when “SAY NAME” appears.

• If your mobile phone does not support

the voice recognition system, “ERROR”

appears.

• Using voice tags may be difficult in

a noisy environment or during an

emergency.

• To return to the previous menu, press

Using a Bluetooth audio

player

]

“BT-AUDIO”

If playback does not start, operate the

Bluetooth audio player to start playback.

Operate the Bluetooth audio player to

pause (if playback does not pause when you

change the source).

Reverse skips/forward

skips

Pauses/starts playback*

* Operation may be different

according to the connected

Bluetooth audio player.

Enter setting menu (Device

list)

For connecting/disconnecting/deleting a

registered device, 12.

Using the remote controller

: Reverse skips/forward

skips

Changing the Bluetooth settings

]

“BT-PHONE” or “BT-AUDIO”

]

Bluetooth menu

]

“SETTINGS”

]

Select a setting item.

AUTO CNNCT

AUTO ANSWER * 1

MSG INFO * 2

MIC SETTING * 1

VERSION * 3

(back to the

beginning)

EN10-19_KD-R616_001A_3.indd 14EN10-19_KD-R616_001A_3.indd 14 11/24/09 5:17:11 PM11/24/09 5:17:11 PM

15ENGLISH

]

Change the setting accordingly. For

setting menu, right column.

*1 Appears only when a Bluetooth phone is

connected.

*2 Appears only when a Bluetooth phone is

connected and it is compatible with text

message (notified through JVC Bluetooth

adapter).

*3 Bluetooth Audio: Shows only “Version.”

Setting menu [Initial: Underlined]

AUTO CNNCT (connect)

When the unit is turned on, the connection is

established automatically with...

OFF: No Bluetooth device.

LAST: The last connected Bluetooth device.

ORDER: The available registered Bluetooth

device found at first.

AUTO ANSWER

Only for the device being connected for

“BT-PHONE.”

ON: The unit answers the incoming calls

automatically.

OFF: The unit does not answer the calls

automatically. Answer the calls

manually.

REJECT: The unit rejects all incoming calls.

MSG INFO (message info)

Only for the device being connected for

“BT-PHONE.”

AUTOMATIC: The unit informs you of the

arrival of a message by ringing

and displaying “RCV MESSAGE”

(receiving message).

• The display illuminate in blue.

(<RING COLOR>, 21)

MANUAL: The unit does not inform you of

the arrival of a message.

MIC SETTING (microphone setting)

Only for the device being connected for

“BT-PHONE.” Adjust microphone volume

connected to the Bluetooth adapter,

[LEVEL 01/02/03].

VERSION

The Bluetooth software and hardware versions

are shown.

Warning messages

ERROR CNNCT (Error Connection)

The device is registered but the connection

has failed. Use “CONNECT” to connect the

device again. ( 12)

ERROR

Try the operation again. If “ERROR” appears

again, check if the device supports the

function you have tried.

UNFOUND

No available Bluetooth device is detected

by “SEARCH.”

LOADING *

The unit is updating the phone book.

PLEASE WAIT

The unit is preparing to use the Bluetooth

function. If the message does not disappear,

turn off and turn on the unit, then connect

the device again (or reset the unit).

RESET 8

Check the connection between the adapter

and this unit.

* Displays only when your mobile phone

is equipped with these functions and is

compatible with this unit.

Bluetooth Information:

If you wish to receive more information

about Bluetooth, visit the following JVC web

site: <http://www.jvc.co.jp/english/car/>

(English website only)

EN10-19_KD-R616_001A_3.indd 15EN10-19_KD-R616_001A_3.indd 15 11/24/09 5:17:12 PM11/24/09 5:17:12 PM

16 ENGLISH

• Disconnecting the iPod/iPhone will stop

playback. Press

/ SOURCE

to listen to another

playback source.

• For details, refer also to the instructions

supplied with your iPod/iPhone.

Caution:

• Avoid using the iPod/iPhone if it might hinder

your safety while driving.

• Make sure all important data has been backed

up to avoid losing the data.

There are two control terminals:

• <HEAD MODE> Control by this unit.

• <IPOD MODE> Control by the connected

iPod/iPhone.

Preparation: Select the controlling terminal,

<HEAD MODE> or <IPOD MODE> for iPod

playback:

• Press and hold

BACK

button.

• Make the selection from <IPOD SWITCH>

setting, 23.

Listening to the iPod/iPhone

The operations explained below are under

<HEAD MODE>.

]

“USB-IPOD”

Playback starts automatically.

]

Select a song.

Pauses or resumes

playback

Selects track

Fast-forwards or

reverses the track

[Hold]

You can connect the iPod/iPhone using the USB 2.0 cable (accessory of the iPod/iPhone) to the

USB input jack on the control panel.

USB 2.0 cable (accessory

of the iPod/iPhone)

Apple iPod/iPhone

USB input jack

EN10-19_KD-R616_001A_4.indd 16EN10-19_KD-R616_001A_4.indd 16 12/2/09 3:55:50 PM12/2/09 3:55:50 PM

17ENGLISH

Selecting a track from the menu

]

Select the desired menu.

PLAYLISTS

ARTISTS

ALBUMS

SONGS

PODCASTS

GENRES

COMPOSERS

AUDIOBOOKS

(back to the

beginning)

]

Select the desired track.

Repeat this procedure until the desired

track is selected.

• If the selected menu contains many tracks,

you can fast search (±10, ±100, ±1000)

through the menu by turning the control dial

quickly.

• To return to the previous menu, press

BACK

Selecting the playback modes

]

“REPEAT”

“RANDOM”

[Hold]

REPEAT

ONE RPT : Functions the same as

“Repeat One” of the iPod

ALL RPT : Functions the same as

“Repeat All” of the iPod

RANDOM

ALBUM RND : Functions the same as

“Shuffle Albums” of the

iPod

SONG RND : Functions the same as

“Shuffle Songs” of the

iPod

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• “ALBUM RND” is not available for some iPod.

• To return to the previous menu, press

BACK

Changing the display information

Album name/performer

Track title

Current track number with the elapsed

playing time

Current track number with

the clock time

(back to the beginning)

Using the remote controller

: Selects track

[Hold]

: Fast-forwards or

reverses the track

Notice:

When operating an iPod, some operations

may not be performed correctly or as

intended. In this case, visit the following JVC

web site: <http://www.jvc.co.jp/english/car/>

(English website only)

EN10-19_KD-R616_001A_3.indd 17EN10-19_KD-R616_001A_3.indd 17 11/24/09 5:17:12 PM11/24/09 5:17:12 PM

18 ENGLISH

]

“EXT INPUT” or “AUX IN”

Ÿ Turn on the connected

component and start

playing the source.

]

Adjust the volume.

⁄ Adjust the sound as you

want. ( 19)

Connecting an external component to the AUX input jack

3.5 mm stereo mini plug

(not supplied)

Portable audio player,

etc.

Listening to the other external

components

You can connect an external component to:

• EXT INPUT: Expansion port on the rear of

this unit using the following adapters (not

supplied):

– KS-U57, Line Input Adapter

– KS-U58, AUX Input Adapter

Preparation: Make sure <EXT ON> is selected

for the <SRC SELECT>

<EXT IN> setting.

( 23)

• AUX IN: AUX (auxiliary) input jack on the

control panel.

Preparation: Make sure <AUX ON> is

selected for the <SRC SELECT>

setting. ( 23)

• For details, refer also to the instructions

supplied with the adapter or external

components.

EN10-19_KD-R616_001A_3.indd 18EN10-19_KD-R616_001A_3.indd 18 11/24/09 5:17:12 PM11/24/09 5:17:12 PM

19ENGLISH

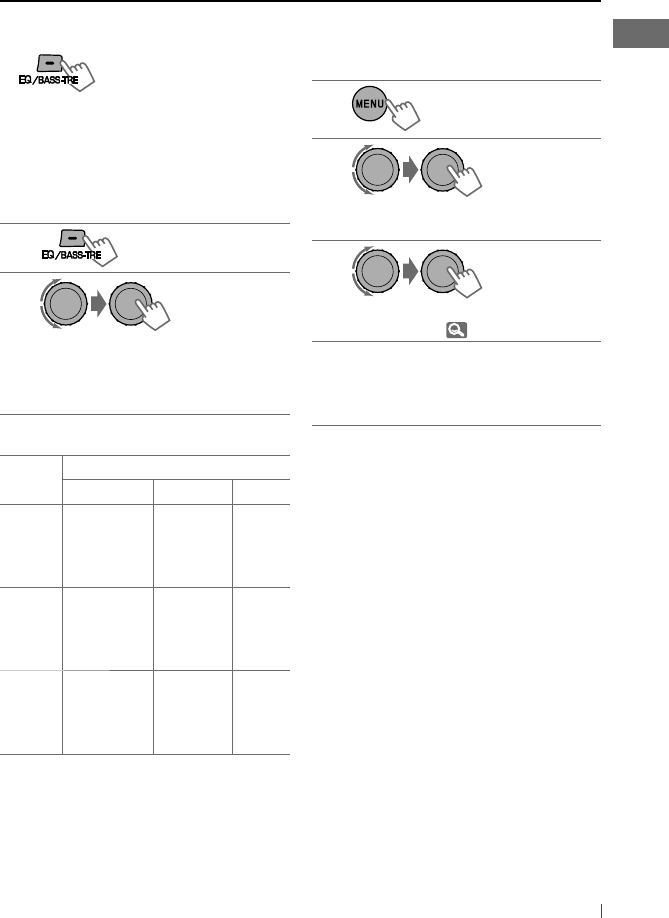

Selecting a preset sound mode

You can select a preset sound mode suitable

for the music genre.

FLAT

NATURAL

DYNAMIC

VOCAL

BOOST

BASS BOOST

USER

(back to

the beginning)

While listening, you can adjust the tone level of

the selected sound mode.

Adjust the level (–06 to +06) of the

selected tone (BASS / MID / TRE).

The sound mode is automatically stored

and changed to “USER.”

Tone Sound element

Frequency Level Q

BASS 60 Hz

80 Hz

100 Hz

200 Hz

–06 to +06 Q1.0

Q1.25

Q1.5

Q2.0

MIDDLE 0.5 kHz

1.0 kHz

1.5 kHz

2.5 kHz

–06 to +06 Q0.75

Q1.0

Q1.25

TREBLE 10.0 kHz

12.5 kHz

15.0 kHz

17.5 kHz

–06 to +06 Q FIX

Storing your own sound mode

You can store your own adjustments in

memory.

]

]

<BASS> / <MIDDLE> /

Adjust the sound elements of the

selected tone. ( table on the left)

4Repeat steps 2 and 3 to adjust other

tones.

The adjustments made will be stored

automatically in “USER.”

The current sound mode changes to “USER”

automatically.

[Hold]

EN10-19_KD-R616_001A_3.indd 19EN10-19_KD-R616_001A_3.indd 19 11/24/09 5:17:12 PM11/24/09 5:17:12 PM

20 ENGLISH

Menu operations

1 2 3 Repeat step 2 if necessary.

• To return to the previous menu,

press

BACK

• To exit from the menu, press

DISP

Category

Menu item Selectable setting, [Initial: Underlined]

DEMO

Display

demonstration

• DEMO ON

• DEMO OFF

: Display demonstration will be activated

automatically if no operation is done for about

20 seconds.

: Cancels. ( 4)

CLOCK

CLOCK SET

Clock setting

—

[1:00]

: Adjust the hour, then the minute. ( 4)

PRO EQ

BASS —: For settings, 19.

MIDDLE

TREBLE

DISPLAY

DIMMER •

DIMMER AUTO

• DIMMER ON

• DIMMER OFF

: Dims the display when you turn on the

headlights. *1

: Dims the display and button illumination.

: Cancels.

SCROLL *2• SCROLL ONCE

• SCROLL AUTO

• SCROLL OFF

: Scrolls the displayed information once.

: Repeats scrolling (at 5-second intervals).

: Cancels.

Pressing

DISP

for more than one second can scroll the display

regardless of the setting.

TAG DISPLAY • TAG ON

• TAG OFF

: Shows the Tag information while playing MP3/

WMA tracks.

: Cancels.

*1 The illumination control lead connection is required. (See “Installation/Connection Manual.”) This

setting may not work correctly on some vehicles (particularly on those having a control dial for

dimming). In this case, change the setting to any other than <DIMMER AUTO>.

*2 Some characters or symbols will not be shown correctly (or will be blanked) on the display.

[Hold]

EN20-27_KD-R616_001A_3.indd 20EN20-27_KD-R616_001A_3.indd 20 11/24/09 5:16:50 PM11/24/09 5:16:50 PM

21ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

TUNER

SSM * 3

Strong-station

Sequential

Memory

• SSM 01 – 06

• SSM 07 – 12

• SSM 13 – 18

: For settings, 7.

MONO * 3

Monaural mode

• MONO ON

• MONO OFF

: Activate monaural mode to improve FM

reception, but stereo effect will be lost. ( 7)

: Restore the stereo effect.

IF BAND

Intermediate

frequency band

• AUTO

• WIDE

: Increases the tuner selectivity to reduce

interference noises between adjacent stations.

(Stereo effect may be lost.)

: Subject to interference noises from adjacent

stations, but sound quality will not be

degraded and the stereo effect will remain.

COLOR

BUTTON ZONE COLOR 01 —

COLOR 29, USER

: For settings, 24.

DISP ZONE

Display zone

ALL ZONE

COLOR SETUP

DAY COLOR • BUTTON ZONE

• DISP ZONE

: For settings, 25.

NIGHT COLOR

MENU COLOR • ON

• OFF

: Changes the display and buttons (except for

EQ/BASS-TRE

DISP

) illumination during menu,

list search and playback mode operations.

: Cancels.

RING COLOR *4• ON

• OFF

: When a call comes in, the display will flash in

blue.

• The display will change to the original color

when the call is answered or the incoming

call stops.

When the unit receives a text message, the

display only illuminate in blue.

: Cancels.

*3 Displayed only when the source is “FM.”

*4 Displayed only when Bluetooth adapter, KS-BTA200 is connected.

EN20-27_KD-R616_001A_3.indd 21EN20-27_KD-R616_001A_3.indd 21 11/24/09 5:16:51 PM11/24/09 5:16:51 PM

22 ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

AUDIO

FADER * 5R06 – F06

[00]

: Adjust the front and rear speaker output

balance.

BALANCE * 6L06 – R06

[00]

: Adjust the left and right speaker output

balance.

LOUD

Loudness

• LOUD ON

• LOUD OFF

: Boost low and high frequencies to produce a

well-balanced sound at a low volume level.

: Cancels.

VOL ADJUST

Volume adjust

VOL ADJ –05 —

VOL ADJ +05

[VOL ADJ 00]

: Preset the volume adjustment level of

each source (except FM), compared to the

FM volume level. The volume level will

automatically increase or decrease when you

change the source.

• Before making an adjustment, select the

source you want to adjust.

• “VOL ADJ FIX” appears on the display if “FM”

is selected as the source.

L/O MODE

Line output

mode

• SUB.W

• REAR

: Select if the REAR LINE OUT terminals are

used for connecting a subwoofer (through

an external amplifier).

: Select if the REAR LINE OUT terminals are

used for connecting the speakers (through

an external amplifier).

SUB.W FREQ *7

Subwoofer cutoff

frequency

• LOW

• MID

• HIGH

: Frequencies lower than 72 Hz are sent to the

subwoofer.

: Frequencies lower than 111 Hz are sent to

the subwoofer.

: Frequencies lower than 157 Hz are sent to

the subwoofer.

SUB.W LEVEL *7

Subwoofer level

SUB.W 00 —

SUB.W 08

[SUB.W 04]

: Adjust the subwoofer output level.

*5 If you are using a two-speaker system, set the fader level to “00.”

*6 This adjustment will not affect the subwoofer output.

*7 Displayed only when <L/O MODE> is set to <SUB.W>.

EN20-27_KD-R616_001A_3.indd 22EN20-27_KD-R616_001A_3.indd 22 11/24/09 5:16:51 PM11/24/09 5:16:51 PM

23ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

AUDIO

BEEP

Keytouch tone

• BEEP ON

• BEEP OFF

: Activates the keypress tone.

: Deactivates the keypress tone.

AMP GAIN *8

Amplifier gain

control

• LOW POWER

• HIGH POWER

: VOLUME 00 – VOLUME 30 (Select if the

maximum power of each speaker is less than

50 W to prevent damaging the speakers.)

: VOLUME 00 – VOLUME 50

SRC SELECT

AM *9

AM station

• AM ON

• AM OFF

: Enable “AM” in source selection.

: Disable “AM” in source selection.

EXT IN *10

External input

• EXT ON

• EXT OFF

: Enable “EXT IN” in source selection.

: Disable “EXT IN” in source selection.

AUX IN *11

Auxiliary input

• AUX ON

• AUX OFF

: Enable “AUX IN” in source selection.

: Disable “AUX IN” in source selection.

AUDIOBOOKS

AUDIOBOOKS *12

Speed control of

“Audiobooks”

• NORMAL

• FASTER

• SLOWER

: You can select the playback speed of the

“Audiobook” sound file in your iPod.

• Initial selected item depends on your iPod

setting.

IPOD

SWITCH

IPOD SWITCH *13

iPod/iPhone

control

• HEAD MODE

• IPOD MODE

: Controls iPod playback through the unit.

: Controls iPod playback through the iPod/

iPhone.

*8 The volume level automatically changes to “VOLUME 30” if you change to <LOW POWER> with the

volume level set higher than “VOLUME 30.”

*9 Displayed only when any source other than “AM” is selected.

*10 Displayed only when any source other than “EXT IN“ is selected.

*11 Displayed only when any source other than “AUX IN“ is selected.

*12 Displayed only when an iPod is connected and playback is controlled from the unit.

*13 Displayed only when “USB-IPOD” is selected as the source and “IPOD MODE” is available for the

connected iPod/iPhone ( 28).

EN20-27_KD-R616_001A_3.indd 23EN20-27_KD-R616_001A_3.indd 23 11/24/09 5:16:51 PM11/24/09 5:16:51 PM

24 ENGLISH

Selecting the variable buttons and display color illumination

You can select your preferred color for buttons illumination (except for

EQ/BASS-TRE

DISP

) and

display color separately.

1or

]

<COLOR>

]

<BUTTON ZONE> /

• Pressing

COLOR

in step 1 will enter

zone selection menu (BUTTON ZONE /

DISP ZONE / ALL ZONE) directly.

]

Select your preferred color from one

of the 29 preset colors or <USER> color.

Button zone

All zone

Display zone

[Hold] 4Repeat steps 2 and 3 to select a

different zone and your preferred color.

• If <ALL ZONE> is selected in step 2,

the buttons and display illumination

changed to the current/selected

<BUTTON ZONE> color.

You can also change the <ALL ZONE>

color to one of your preferred color by

performing step 3.

5or

]

Exit from the setting.

EN20-27_KD-R616_001A_3.indd 24EN20-27_KD-R616_001A_3.indd 24 11/24/09 5:16:51 PM11/24/09 5:16:51 PM

25ENGLISH

1or

]

]

]

• Pressing

COLOR

in step 1 will enter

zone selection menu (BUTTON ZONE /

DISP ZONE) directly.

]

Select a primary color.

RED

GREEN

BLUE

(back to

the beginning)

[Hold] [Hold] 4

]

Adjust the level of the selected

primary color.

00 to 31

5Repeat steps 3 and 4 to adjust other

primary colors.

6or

]

Exit from the setting.

If “00” is selected for all the primary colors (as

in step 4) for <DISP ZONE>, nothing appear on

the display.

Creating your own day and night colors—USER

You can create your own colors for <DAY COLOR> and <NIGHT COLOR> to apply to button zone

and display zone.

• <DAY COLOR> Displayed when <DIMMER> is set to <DIMMER OFF>.

• <NIGHT COLOR> Displayed when <DIMMER> is set to <DIMMER ON>.

Menu hierarchy Operation

COLOR

SETUP

DAY

COLOR

• BUTTON

ZONE

Follow example below.

• DISP ZONE Press

BACK

after step 5, then select DISP ZONE in step 2.

NIGHT

COLOR

• BUTTON

ZONE

Press

BACK

after step 5, then select NIGHT COLOR in

step 2.

• DISP ZONE

Ex.: Creating <USER> color for <BUTTON ZONE> in <DAY COLOR>.

EN20-27_KD-R616_001A_3.indd 25EN20-27_KD-R616_001A_3.indd 25 11/24/09 5:16:51 PM11/24/09 5:16:51 PM

26 ENGLISH

More about this unit

Basic operations

General

• If you turn off the power while listening to

a track, playback will start from where it had

been stopped previously next time you turn

on the power.

• If no operation is done for about 60 seconds

after pressing

button, the operation will

be canceled.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

the stations are stored anew.

– When SSM is over, the station stored in the

lowest preset number will be automatically

tuned in.

• When storing a station manually, the

previously preset station is erased when

a new station is stored in the same preset

number.

Disc/USB operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not

comply with the “Compact Disc Digital Audio”

standard. Therefore, the use of Non-DVD side

of a DualDisc on this product may not be

recommended.

General

• This unit has been designed to reproduce

CDs/CD Texts, and CD-Rs (Recordable)/CD-

RWs (Rewritable) in audio CD (CD-DA), MP3

and WMA formats.

• If you change the source while listening to a

disc, playback stops. Next time you select “CD”

as the playback source, playback will start

from where it had been stopped previously.

• When a disc is inserted upside down, “PLEASE”

and “EJECT” appear alternately on the display.

Press

to eject the disc.

• If the ejected disc is not removed within

15 seconds, it is automatically inserted into

the loading slot again to protect it from dust.

Playback starts automatically.

• MP3 and WMA “tracks” (words “file” and “track”

are used interchangeably) are recorded in

“folders.”

• While fast-forwarding or reversing on an MP3

or WMA disc, you can only hear intermittent

sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same

type as those detected first if a disc includes

both audio CD (CD-DA) files and MP3/WMA

files.

• This unit can play back multi-session discs;

however, unclosed sessions will be skipped

while playing.

• Some CD-Rs or CD-RWs may not play back on

this unit because of their disc characteristics,

or for the following reasons:

– Discs are dirty or scratched.

– Moisture condensation has occurred on the

lens inside the unit.

– The pickup lens inside the unit is dirty.

– The files on the CD-R/CD-RW are written

using the “Packet Write” method.

– There are improper recording conditions

(missing data, etc.) or media conditions

(stained, scratched, warped, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than

that of regular CDs.

• Do not use the following CD-Rs or CD-RWs:

– Discs with stickers, labels, or a protective seal

stuck to the surface.

EN20-27_KD-R616_001A_3.indd 26EN20-27_KD-R616_001A_3.indd 26 11/24/09 5:16:51 PM11/24/09 5:16:51 PM

27ENGLISH

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO

format.

– MP3 files encoded in an inappropriate

format.

– MP3 files encoded with Layer 1/2.

– WMA files encoded in lossless, professional,

and voice format.

– WMA files which are not based upon

Windows Media® Audio.

– WMA files copy-protected with DRM.

– Files which have data such as AIFF, ATRAC3,

etc.

• The search function works but search speed is

not constant.

Playing MP3/WMA tracks from a USB

device

• While playing from a USB device, the playback

order may differ from other players.

• This unit may be unable to play back some

USB devices or some files due to their

characteristics or recording conditions.

• Depending on the shape of the USB devices

and connection ports, some USB devices may

not be attached properly or the connection

might be loose.

• Connect one USB mass storage class device to

the unit at a time. Do not use a USB hub.

• If the connected USB device does not have

the correct files, “CANNOT PLAY” appears.

• This unit can show Tag (Version 1.0, 1.1, 2.2,

2.3, or 2.4) for MP3 files and for WMA files.

• This unit can play back MP3/WMA files

meeting the conditions below:

– Bit rate of MP3/WMA: 32 kbps — 320 kbps

– Sampling frequency of MP3:

32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)

16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)

– Sampling frequency of WMA:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

• This unit can play back MP3 files recorded in

VBR (variable bit rate).

– Discs on which labels can be directly printed

by an ink jet printer.

Using these discs under high temperature

or high humidity may cause malfunctions or

damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with

the extension code <.mp3> or <.wma>

(regardless of the letter case—upper/lower).

• This unit can show the names of albums,

artists (performer), and Tag (Version 1.0, 1.1,

2.2, 2.3, or 2.4) for MP3 files and for WMA files.

• This unit can display only one-byte characters.

No other characters can be correctly

displayed.

• This unit can play back MP3/WMA files

meeting the conditions below:

– Bit rate of MP3/WMA: 32 kbps — 320 kbps

– Sampling frequency of MP3:

32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)

16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)

– Sampling frequency of WMA:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

– Disc format: ISO 9660 Level 1/Level 2,

Romeo, Joliet, Windows extension

• The maximum number of characters for

file/folder names (includes 4 extension

characters—<.mp3> or <.wma>).

– ISO 9660 Level 1: up to 12 characters

– ISO 9660 Level 2: up to 31 characters

– Romeo: up to 64 characters

– Joliet: up to 32 characters

– Windows extension: up to 64 characters

• This unit can recognize a total of 512 files, 255

folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR

(variable bit rate).

Files recorded in VBR have a discrepancy

in the elapsed time display, and do not

show the actual elapsed time. In particular,

this difference becomes noticeable after

performing the search function.

EN20-27_KD-R616_001A_3.indd 27EN20-27_KD-R616_001A_3.indd 27 11/24/09 5:16:52 PM11/24/09 5:16:52 PM

28 ENGLISH

• The maximum number of characters for:

– Folder names : 32 characters

–

File names : 32 characters

– MP3 Tag : 64 characters

– WMA Tag : 32 characters

• This unit can recognize a total of 5 000 files,

255 folders (255 files per folder including

folder without unsupported files), and of 8

hierarchies.

• This unit does not support SD card reader.

• This unit cannot recognize a USB device

whose rating is other than 5 V and exceeds

500 mA.

• USB devices equipped with special functions

such as data security functions cannot be

used with the unit.

• Do not use a USB device with 2 or more

partitions.

• This unit may not recognized a USB device

connected through a USB card reader.

• This unit may not play back files in a USB

device properly when using a USB extension

cord.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO

format.

– MP3 files encoded in an inappropriate

format.

– MP3 files encoded with Layer 1/2.

– WMA files encoded in lossless, professional,

and voice format.

– WMA files which are not based upon

Windows Media® Audio.

Bluetooth operations

• While driving, do not perform complicated

operation such as dialing the numbers, using

phone book, etc. When you perform these

operations, stop your car in a safe place.

• Some Bluetooth devices may not be

connected to this unit depending on the

Bluetooth version of the device.

• This unit may not work for some Bluetooth

devices.

• Connecting condition may vary depending

on the circumstances around you.

• When the unit is turned off, the device is

disconnected.

iPod/iPhone operations

• You can control the following types of iPods/

iPhone:

– iPod with video (5th Generation) *1

– iPod classic *1, *2

– iPod nano

– iPod nano (2nd Generation)

– iPod nano (3rd Generation) *1, *2

– iPod nano (4th Generation) *1, *2

– iPod nano (5th Generation) *1, *2

– iPod touch *1, *2

– iPod touch (2nd Generation) *1, *2

– iPhone/iPhone 3G/iPhone 3GS *1, *2

*1 It is not possible to browse video files on the

“Videos” menu.

*2 <IPOD MODE> is available ( 16).

• If the iPod does not play correctly, please

update your iPod software to the latest

version. For details about updating your iPod,

visit <http://www.apple.com>.

• When you turn on this unit, the iPod is

charged through this unit.

• iPod shuffle cannot be used with this unit.

• The song order displayed on the selection

menu of this unit may differ from that of the

iPod.

• The text information may not be displayed

correctly:

– Some characters such as accented letters

cannot be shown correctly on the display.

– Communication between the iPod and the

unit is not stable.

• If the text information includes more than 11

characters, it scrolls on the display.

This unit can display up to 64 characters.

EN28-35_KD-R616_001A_f.indd 28EN28-35_KD-R616_001A_f.indd 28 12/4/09 5:03:16 PM12/4/09 5:03:16 PM

29ENGLISH

To keep discs clean

A dirty disc may not play

correctly. If a disc does become

dirty, wipe it with a soft cloth

in a straight line from center to

edge.

• Do not use any solvents (for example,

conventional record cleaner, spray, thinner,

benzine, etc.) to clean discs.

To play new discs

New discs may have some

rough spots around the inner

and outer edges. If such a disc

is used, this unit may reject the

disc.

To remove these rough spots, rub the edges

with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD (8 cm disc) Warped disc

Sticker and sticker

residue Stick-on label

Unusual shape

C-thru Disc

(semitransparent

disc)

Transparent or

semitransparent

parts on its recording

area

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the

connectors.

To minimize this possibility, periodically wipe

the connectors with a cotton swab or cloth

moistened with alcohol, being careful not to

damage the connectors.

Moisture condensation

Moisture may condense on the lens inside the

unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the unit may malfunction.

In this case, eject the disc and leave the unit

turned on for a few hours until the moisture

has evaporated.

How to handle discs

When removing a disc

from its case, press down

the center holder of the case

and lift the disc out, holding

it by the edges.

• Always hold the disc by the edges. Do not

touch its recording surface.

When storing a disc in its case, gently insert

the disc around the center holder (with the

printed surface facing up).

• Make sure to store discs in cases after use.

Connectors

Center holder

EN28-35_KD-R616_001A_3.indd 29EN28-35_KD-R616_001A_3.indd 29 11/24/09 5:16:40 PM11/24/09 5:16:40 PM

30 ENGLISH

Troubleshooting

Symptom Remedy/Cause

General

Sound cannot be heard from the

speakers.

• Adjust the volume to the optimum level.

• Make sure the unit is not muted/paused ( 6).

• Check the cords and connections.

“PROTECT” appears on the display

and no operations can be done.

Check to be sure the terminals of the speaker leads

are covered with insulating tape properly, then

reset the unit ( 3).

If “PROTECT” does not disappear, consult your JVC

car audio dealer or a company supplying kits.

The unit does not work at all. Reset the unit. ( 3)

“AUX IN” cannot be selected. Check the <SRC SELECT>

<AUX IN> setting.

( 23)

Nothing appear on the display. Check the <USER> color settings ( 25).

FM/AM

SSM automatic presetting does

not work.

Store stations manually.

Static noise while listening to the

radio.

Connect the antenna firmly.

“AM” cannot be selected. Check the <SRC SELECT>

<AM> setting. ( 23)

Disc playback

Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played

back.

• Tracks on the CD-R/CD-RW

cannot be skipped.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component

which you used for recording.

Disc can neither be played back

nor ejected.

• Unlock the disc. ( 9)

• Eject the disc forcibly. ( 3)

Disc sound is sometimes

interrupted.

• Stop playback while driving on rough roads.

• Change the disc.

• Check the cords and connections.

“NO DISC” appears on the display. Insert a playable disc into the loading slot.

“PLEASE” and “EJECT“ appear

alternately on the display.

Press

, then insert a disc correctly.

EN28-35_KD-R616_001A_3.indd 30EN28-35_KD-R616_001A_3.indd 30 11/24/09 5:16:41 PM11/24/09 5:16:41 PM

31ENGLISH

Symptom Remedy/Cause

MP3/WMA playback

Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

compliant with ISO 9660 Level 1, Level 2, Romeo, or

Joliet.

• Add the extension code <.mp3> or <.wma> to the file

names.

Noise is generated. Skip to another track or change the disc. (Do not add

the extension code <.mp3> or <.wma> to non-MP3 or

WMA tracks.)

A longer readout time is

required (“READING” keeps

flashing on the display).

Do not use too many hierarchical levels and folders.

Tracks do not play back in the

order you have intended them

to play.

The playback order is determined when the files are

recorded.

The elapsed playing time is not

correct.

This sometimes occurs during playback. This is caused

by how the tracks are recorded on the disc.

“NO FILE” appears on the

display.

Selected folder is an empty folder *1. Select another

folder that contains MP3/WMA tracks.

“NOT SUPPORT” appears on the

display and track skips.

Skip to the next track encoded in an appropriate format

or to the next non-copy-protected WMA track.

The correct characters are not

displayed (e.g. album name).

This unit can only display letters (upper case), numbers,

and a limited number of symbols. ( 8)

USB device playback

Noise is generated. The track played back is not an MP3/WMA track. Skip to

another file. (Do not add the extension code <.mp3> or

<.wma> to non-MP3 or WMA tracks.)

“READING” keeps flashing on

the display.

• Readout time varies depending on the USB device.

• Do not use too many hierarchy or folders.

• Turn off the power then on again.

• Reattach the USB device again.

“NO FILE” appears on the

display.

Selected folder is an empty folder *1. Select another

folder that contains MP3/WMA tracks.

“NOT SUPPORT” appears on the

display and track skips.

Skip to the next track encoded in an appropriate format

or to the next non-copy-protected WMA track.

Tracks/folders are not played

back in the order you have

intended.

The playback order is determined by the write-in time

stamp. The first track/folder written into the USB device

will be the first track/folder for playback.

*1 Folder that is physically empty or folder that contains data but does not contain valid MP3/WMA track.

EN28-35_KD-R616_001A_3.indd 31EN28-35_KD-R616_001A_3.indd 31 11/24/09 5:16:41 PM11/24/09 5:16:41 PM

32 ENGLISH

Symptom Remedy/Cause

USB device playback

• “CANNOT PLAY” flashes on

the display.

• “NO USB” appears on the

display.

• The unit cannot detect the

USB device.

• Attach a USB device that contains tracks encoded in

an appropriate format.

• Reattach the USB device again.

While playing a track, sound is

sometimes interrupted.

The MP3/WMA tracks have not been properly copied

into the USB device.

Copy MP3/WMA tracks again into the USB device, and

try again.

Correct characters are not

displayed (e.g. album name).

This unit can only display letters (upper case),

numbers, and a limited number of symbols. ( 8)

Bluetooth *2

Bluetooth device does not

detect the unit.

The unit can be connected with one Bluetooth mobile

phone and one Bluetooth audio device at a time.

While connecting a device, this unit cannot be detected

from another device. Disconnect currently connected

device and search again.

The unit does not detect the

Bluetooth device.

• Check the Bluetooth setting of the device.

• Search from the Bluetooth device. After the device

detects the unit, select “OPEN” on the unit to connect

the device. ( 11)

The unit does not make pairing

with the Bluetooth device.

• Enter the same PIN code for both the unit and target

device.

• Select the device name from “SPECIAL,” then try to

connect again. ( 12)

• Try to pair/connect from the Bluetooth device.

Echo or noise occurs. Adjust the microphone unit position.

Phone sound quality is poor. • Reduce the distance between the unit and the

Bluetooth mobile phone.

• Move the car to a place where you can get a better

signal reception.

The sound is interrupted or

skipped during playback of a

Bluetooth audio device.

• Reduce the distance between the unit and the

Bluetooth audio device.

• Disconnect the device connected for “BT-PHONE.”

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect the

device again.

The connected audio device

cannot be controlled.

Check whether the connected audio device supports

AVRCP (Audio/Video Remote Control Profile).

*2 For Bluetooth operations, refer also to the instructions supplied with the Bluetooth Adapter.

EN28-35_KD-R616_001A_3.indd 32EN28-35_KD-R616_001A_3.indd 32 11/24/09 5:16:41 PM11/24/09 5:16:41 PM

33ENGLISH

Symptom Remedy/Cause

iPod/iPhone

The iPod does not turn on or does not

work.

• Check the connecting cable and its

connection.

• Update the firmware version of the iPod/

iPhone.

• Charge the battery of the iPod/iPhone.

• Reset the iPod/iPhone.

• Check whether <IPOD SWITCH> setting is

appropriate ( 23).

The sound is distorted. Deactivate the equalizer either on this unit or

the iPod/iPhone.

A lot of noise is generated. Turn off (uncheck) the “VoiceOver” feature of the

iPod. For details, visit <http://www.apple.com>.

Playback stops. The headphones are disconnected during

playback. Restart the playback operation

( 16).

“CANNOT PLAY” appears on the

display.

No tracks are stored. Import tracks to the iPod/

iPhone.

“RESTRICTED” appears on the display. Check whether the connected iPod/iPhone is

compatible with this unit ( 28).

JVC bears no responsibility for any loss of data in an iPod/iPhone and/or USB mass storage class

device while using this System.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such

marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade

names are those of their respective owners.

• “Made for iPod” means that an electronic accessory has been designed to connect specifically

to iPod and has been certified by the developer to meet Apple performance standards.

• “Works with iPhone” means that an electronic accessory has been designed to connect

specifically to iPhone and has been certified by the developer to meet Apple performance

standards.

• Apple is not responsible for the operation of this device or its compliance with safety and

regulatory standards.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

• iPhone is a trademark of Apple Inc.

EN28-35_KD-R616_001A_3.indd 33EN28-35_KD-R616_001A_3.indd 33 11/24/09 5:16:41 PM11/24/09 5:16:41 PM

34 ENGLISH

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front/

Rear:

50 W per channel

Continuous Power Output (RMS): Front/

Rear:

20 W per channel into 4 Ω, 40 Hz to

20 000 Hz at no more than 1% total

harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range: Bass: ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)

Q1.0, Q1.25, Q1.5, Q2.0

Middle: ±12 dB (0.5 kHz, 1.0 kHz, 1.5 kHz, 2.5 kHz)

Q0.75, Q1.0, Q1.25

Treble: ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz,

17.5 kHz)

Q (Fixed)

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance: 5.0 V/20 kΩ load (full scale)

Subwoofer-Out Level/Impedance: 5.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

Other Terminal: AUX (auxiliary) input jack, USB input jack, Antenna

input, Expansion port, Steering wheel remote input

TUNER SECTION

Frequency Range: FM: 87.5 MHz to 108.0 MHz

AM: 531 kHz to 1 602 kHz

FM Tuner: Usable Sensitivity: 9.3 dBf (0.8 μV/75 Ω)

50 dB Quieting

Sensitivity:

16.3 dBf (1.8 μV/75 Ω)

Alternate Channel

Selectivity (400 kHz):

65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 40 dB

AM Tuner: Sensitivity: 20 μV

Selectivity: 40 dB

EN28-35_KD-R616_001A_3.indd 34EN28-35_KD-R616_001A_3.indd 34 11/24/09 5:16:42 PM11/24/09 5:16:42 PM

35ENGLISH

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup

(semiconductor laser)

Number of Channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps

WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps

USB SECTION

USB Standard: USB 1.1, USB 2.0

Data Transfer Rate (Full Speed): Max. 12 Mbps

Compatible Device: Mass storage class

Compatible File System: FAT 32/16/12

Playable Audio Format: MP3/WMA

Max. Current: DC 5 V 500 mA

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C

Dimensions (W × H × D):

(approx.)

Installation Size: 182 mm × 52 mm × 160 mm

Panel Size: 188 mm × 58 mm × 6 mm

Mass: 1.3 kg (excluding accessories)

Design and specifications are subject to change without notice.

EN28-35_KD-R616_001A_3.indd 35EN28-35_KD-R616_001A_3.indd 35 11/24/09 5:16:42 PM11/24/09 5:16:42 PM

7 The countries where you may use the

Bluetooth® function

7 Die Länder, in denen Sie die Bluetooth® Funktion verwenden können

7 Pays où vous pouvez utiliser la fonction Bluetooth®

7 De landen waar u de Bluetooth®-functie mag gebruiken

7 Países en los que se puede utilizar la función Bluetooth®

7 Paesi nei quali è possibile utilizzare la funzione Bluetooth®

7 Länder där du kan använda Bluetooth®-funktionen

7 Lande, hvor du kan bruge Bluetooth®-funktionen

7 Land hvor du kan bruke Bluetooth®-funksjonen

7 Maat, joissa voi käyttää Bluetooth®-toimintoa

7 Países onde pode usar a função Bluetooth®

7 Οι χώρες όπου μπορείτε να χρησιμοποιήσετε τη λειτουργία Bluetooth®

7 Страны, где можно воспользоваться функцией Bluetooth®

7 Země, ve kterých můžete využívat funkci Bluetooth®

7 Azok az országok, amelyekben használhatjuk a Bluetooth®-funkciót

7 Kraje, w których można używać funkcji Bluetooth®

7 Države, kjer lahko uporabljate funkcijo Bluetooth®

7 Krajiny, v ktorých môžete využívať funkciu Bluetooth®

7 Valstis, kur jūs varat izmantot Bluetooth® funkciju

7 Šalys, kuriose galite naudotis „Bluetooth®“ funkcija

7 Il-pajjiżi fejn tista’ tuża l-funzjoni Bluetooth®

7 Lönd þar sem hægt er að nota Bluetooth®

7 Riigid, kus on võimalik kasutada Bluetooth® funktsiooni

7 Bluetooth® fonksiyonunu kullanabileceğiniz ülkeler

7 Na tíortha inar féidir leat feidhmiú Bluetooth® a úsáid

7 Länner an denen der d’Bluetooth® Funktioun benotze kënnt.

7 ͪ nhͻng qu͝c gia mà b̭n có th͏ s͹ dͱng ch͵c nćng Bluetooth®

7 Els països on podrà fer servir la funció Bluetooth®

7 Zemlje u kojima je dozvoljena upotreba Bluetooth® funkcije.

7 Zemlje u kojima možete koristiti Bluetooth® funkciju

7 Zemlje u kojima je dopušteno koristiti Bluetooth®.

7 Земји каде можете да ја користите функцијата Bluetooth®

7 Страните, в които можете да ползвате функцията Bluetooth®

7 Ţările în care puteţi utiliza funcţia Bluetooth®

7 Die lande waar u die Bluetooth®-funksie kan gebruik

7 Amazwe lapho ungasebenzisa khona uhlelo lwe-Bluetooth®

7 Negara-negara yang memperbolehkan penggunaan fungsi Bluetooth®

7 Negara-negara yang anda boleh menggunakan fungsi Bluetooth®

7 您能够使用 Bluetooth® 功能的国家

7 您能夠使用 Bluetooth® 功能的國家

BluetoothNote_KD-R616_001A_4.indd 28BluetoothNote_KD-R616_001A_4.indd 28 11/25/09 2:43:53 PM11/25/09 2:43:53 PM

09-1672-002

Country

Andorra

Australia

Österreich

Bosna i Hercegovina

Belgien

Belgique

България

Canada

Schweiz

Suisse

Κύπρος

Kıbrıs

Česká republika

Deutschland

Danmark

Eesti

España

Suomi

Finland

France

United Kingdom

Ελλάδα

Hong Kong

香港

Hrvatska

Magyarország

Indonesia

Ireland

Éire

Ísland

Italia

Lichtenstein

Lietuva

Country

Luxemburg

Luxembourg

Lëtzebuerg

Latvija

Monaco

Crna Gora

Македонија

Malta

Nederland

Norge

New Zealand

Polska

Portugal

România

Srbija

Россия

Sverige

Singapore

新加坡

Singapura

Slovenija

Slovensko

Türkiye

台湾

United States of America

Vietnam

Vi͓t Nam

South Africa

ENingizimu Afrika

Suid-Afrika

BluetoothNote_KD-R616_001A_4.indd 29BluetoothNote_KD-R616_001A_4.indd 29 11/25/09 2:43:55 PM11/25/09 2:43:55 PM

ENGLISH

GET0639-001A

[U/UH]

EN, TH

For canceling the display demonstration, see page 4. /

CD RECEIVER /

KD-R616

INSTRUCTIONS

For installation and connections, refer to the separate manual.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

CoverRear_KD-R616_001A_1.indd 1-2CoverRear_KD-R616_001A_1.indd 1-2 11/4/09 3:01:36 PM11/4/09 3:01:36 PM

KD-R616

Installation/Connection Manual

/

ENGLISH / 

1209DTSMDTJEIN

EN, TH

GET0639-006A

[U/UH]

Bracket /  *2

Pocket /  

Flat head screws (M5 × 8 mm) /  (M5 × 8 mm) *2

INSTALLATION / 

When installing the unit without using the sleeve / 

In-dash mounting /  In-dash

• To prevent short circuits:

– Disconnect the battery’s negative terminal and make all electrical connections before installing the unit.

– Cover the terminals of the UNUSED leads with insulating tape.

• Be sure to ground this unit to the car’s chassis again after installation.

• Replace the fuse with one of the specified rating.

• Connect speakers with a maximum power of more than 50 W (impedance of 4 Ω to 8 Ω). Otherwise,

change the <AMP GAIN> setting. (See page 23 of the INSTRUCTIONS.)

• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

•   :

–   

–  

• 

•  

•   50 W ( 4 Ω  8 Ω)  <AMP GAIN> (

23 )

•  

12 V DC, NEGATIVE ground /

  12 V,  

To the car system /



You need the installation kits which corresponds to your car. /



Check the battery system in your car /



WARNINGS / 

Removing the unit / 

Release the rear section first... / ...

The following illustration shows a typical installation. If you have any questions or require information

regarding installation kits, consult your JVC car audio dealer or a company supplying kits.

Heat sink / 

 

 JVC 

Do the required electrical connections.

 

Bend the appropriate tabs to hold the sleeve firmly

in place.



Install the unit at an angle of

less than 30˚.

 30˚

*1 When you stand the unit, be careful not to damage the fuse on the rear.

*2 Not supplied for this unit.

*1  

*2 

Part list / 

A Hard case /  (×1)

B Control panel /  (×1)

C Sleeve /  (×1)

D Trim plate /  (×1)

E Power cord /  (×1)

F Handles /  (×2)

PRECAUTIONS on power supply and speaker connections

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be

seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in

your car.



•   

•  

Install_KD-R616_006A_1.indd 1Install_KD-R616_006A_1.indd 1 11/16/09 12:58:31 PM11/16/09 12:58:31 PM

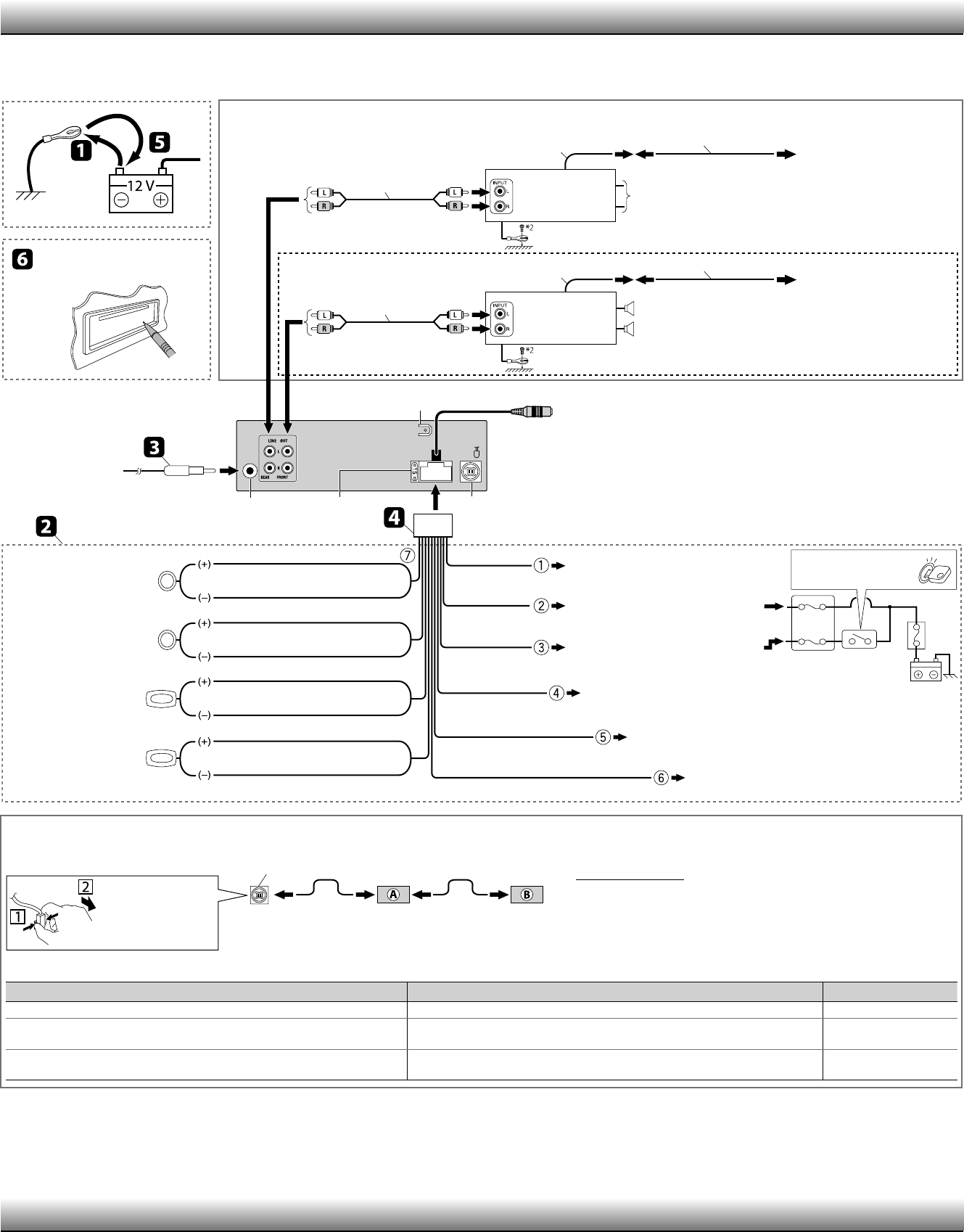

• The fuse blows.

]

Are the red and black leads connected correctly?

• Power cannot be turned on.

]

Is the yellow lead connected?

• No sound from the speakers.

]

Is the speaker output lead short-circuited?

• “PROTECT” appears on the display and no operation can be done.

]

Is the speaker output lead

short-circuited or touches the chassis of the car/head unit? ; Have you reset your unit?

• Sound is distorted.

]

Is the speaker output lead grounded? ; Are the “–” terminals of L and R speakers

grounded in common?

• Noise interfere with sounds.

]

Is the rear ground terminal connected to the car’s chassis using shorter

and thicker cords?

• This unit becomes hot.

]

Is the speaker output lead grounded? ; Are the “–” terminals of L and R

speakers grounded in common?

• This unit does not work at all.

]

Have you reset your unit?

TROUBLESHOOTING /  

Black / 

Fuse block /

 

Ignition switch /



Blue (white stripe) /

 ()

Orange with white stripe /



Red / 

Yellow /  *3

To the metallic body or chassis of the car /



To an accessory terminal /



To a live terminal (constant 12 V) /

 ( 12 V)

To the automatic antenna if any (250 mA max.) /

  ( 250 mA)

To car light control switch /



White / 

White (black stripe) /  ()

Gray / 

Gray (black stripe) /  ()

Green / 

Green (black stripe) /  ()

Purple / 

Purple (black stripe) /  ()

Signal cord /  * 1

Y-connector / 

Y *1

Y-connector / 

Y *1

Remote lead / 

To the blue (white stripe) lead

of the unit / 

() 

To the blue (white stripe) lead

of the unit / 

() 

Rear speakers or subwoofer (Make the <L/O MODE> setting accordingly,

see page 22 of the INSTRUCTIONS.) /  (

<L/O MODE>   22 )

Front speakers / 

Rear ground terminal / 

15 A fuse /   15 A

Antenna input /



*1 Not supplied for this unit.

*2 Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place uncoated

with paint.

*3 Before checking the operation of this unit prior to installation, this lead must be connected; otherwise,

the power cannot be turned on.

*4 To use these components, set the external input setting correctly (see page 23 of the INSTRUCTIONS).

Front speaker (left) /

 ()

Front speaker (right) /

 ()

Rear speaker (left) /

 ()

Rear speaker (right) /

 ()

ELECTRICAL CONNECTIONS /  

Reset the unit. / 

JVC Amplifier /



JVC

JVC Amplifier /



JVC

Connecting the external amplifier or subwoofer / 

To the remote lead of other equipment (200 mA max.) /

 ( 200 mA)

Blue



*1 

*2 —

*3   

*4   ( 23 )

•  

]

?

•  

]

?

• 

]

?

•  “PROTECT” 

]



/? ; ?

• 

]

? ;  “–”  L ()  R ()

?

• 

]

?

• 

]

?

• 

]

?

IMPORTANT: A custom wiring harness (separately purchased) which is suitable for your car is

recommanded for connection between the unit and your car.

• Consult your JVC car audio dealer or a company supplying kits for details.

:  () 



•  JVC 

Connecting the external components in series / 

When connecting the external components, refer also to the manuals supplied for the components and adapter. /  

You can connect the following components through the various JVC adapters to the expansion port. /   JVC 

• Connection cords may need to be purchased separately. / 

Component /  Adapter /  Model name / 

Bluetooth device /  Bluetooth Bluetooth adapter /  Bluetooth KS-BTA200

Portable audio player with line output jacks /

 Line input adapter /  KS-U57

Portable audio player with 3.5 mm stereo mini jack /

 3.5 .AUX input adapter /  AUX KS-U58

A KS-BTA200

B*4 KS-U57 / KS-U58

To disconnect... /

...

Expansion port of the unit /  Caution / :

Before connecting the external components, make sure that the unit is turned off. /

 

Steering wheel remote input / 

Expansion port / 

Install_KD-R616_006A_1.indd 2Install_KD-R616_006A_1.indd 2 11/20/09 5:58:46 PM11/20/09 5:58:46 PM

FRANÇAIS

ENGLISH

GET0640-003A

[E/EU]

EN, FR

For canceling the display demonstration, see page 4. / Pour annuler la démonstration des

affichages, référez-vous à la page 4.

CD RECEIVER / RÉCEPTEUR CD

KD-R611

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

For installation and connections, refer to the separate manual. / Pour l’installation et les

raccordements, se référer au manuel séparé.

Dear Customer,

This apparatus is in conformance with the valid

European directives and standards regarding

electromagnetic compatibility and electrical safety.

European representative of Victor Company of

Japan, Limited is:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Germany

Cher(e) client(e),

Cet appareil est conforme aux directives et normes

européennes en vigueur concernant la compatibilité

électromagnétique et à la sécurité électrique.

Représentant européen de la société Victor

Company of Japan, Limited:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Allemagne

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

CoverRear_KD-R611_003A_2.indd 1-2CoverRear_KD-R611_003A_2.indd 1-2 11/4/09 5:25:54 PM11/4/09 5:25:54 PM

2ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the unit while driving,

be sure to look around carefully or you may be

involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as

this will block outside sounds, making driving

dangerous.

• Stop the car before performing any

complicated operations.

Temperature inside the car...

If you have parked the car for a long time in

hot or cold weather, wait until the temperature

in the car becomes normal before operating

the unit.

Information for Users on Disposal of

Old Equipment and Batteries

[European Union only]

These symbols indicate that the product and

the battery with this symbol should not be

disposed as general household waste at its

end-of-life.

If you wish to dispose of this product and

the battery, please do so in accordance with

applicable national legislation or other rules

in your country and municipality.

By disposing of this product correctly, you

will help to conserve natural resources and

will help prevent potential negative effects

on the environment and human health.

Notice:

The sign Pb below the symbol for batteries

indicates that this battery contains lead.

Products

Battery

EN02-11_KD-R611_003A_1.indd 2EN02-11_KD-R611_003A_1.indd 2 10/27/09 11:46:16 AM10/27/09 11:46:16 AM

3ENGLISH

CONTENTS

3 How to read this manual

3 How to attach/detach the control

panel

3 How to reset your unit

3 How to forcibly eject a disc

Canceling the display

demonstration

4 Setting the clock

5 Preparing the remote controller

(RM-RK50)

6 Basic operations

7 Listening to the radio

10 Listening to a disc

11 Listening to the USB device

12 Using Bluetooth ® devices

14 Using a Bluetooth mobile phone

15 Using a Bluetooth audio player

17 Listening to the iPod/iPhone

19 Listening to the DAB tuner

21 Listening to the other external

components

22 Selecting a preset sound mode

23 Menu operations

30 More about this unit

34 Maintenance

35 Troubleshooting

40 Specifications

How to read this manual

The following icons/symbols are used to

indicate:

Press and hold the button(s)

until the desired operation

begins.

Turn the control dial.

Turn the control dial

to make a selection,

then press to confirm.

( XX) Reference page number

<XXXX> Menu setting item

Continued on the next page

How to attach/detach the control

panel

How to reset your unit

Your preset adjustments

will also be erased (except

the registered Bluetooth

device). ( 13)

How to forcibly eject a disc

• You can forcibly eject the loaded disc even

if the disc is locked. To lock/unlock the disc,

10.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

[Hold]

EN02-11_KD-R611_003A_3.indd 3EN02-11_KD-R611_003A_3.indd 3 12/4/09 5:59:37 PM12/4/09 5:59:37 PM

4ENGLISH

1 Turn on the power.

Setting the clock

4 Select <DEMO OFF>.

6 Finish the procedure.

Canceling the display demonstration

(Initial setting)

[Hold]

6 Adjust the minute.

7 Select <24H/12H>.

8 Select <24 HOUR> or

<12 HOUR>.

9 Finish the procedure.

1 Turn on the power.

3 Select <CLOCK>.

4 Select <CLOCK SET>.

5 Adjust the hour.

(Initial setting)

[Hold]

EN02-11_KD-R611_003A_1.indd 4EN02-11_KD-R611_003A_1.indd 4 10/27/09 11:46:17 AM10/27/09 11:46:17 AM

5ENGLISH

Warning (to prevent accidents and

damage):

• Do not install any battery other than CR2025

or its equivalent.

• Do not leave the remote controller in a place

(such as dashboards) exposed to direct

sunlight for a long time.

• Store the battery in a place where children

cannot reach.

• Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

• Do not leave the battery with other metallic

materials.

• Do not poke the battery with tweezers or

similar tools.

• Wrap the battery with tape and insulate when

throwing away or saving it.

This unit is equipped with the steering wheel

remote control function.

Before operating, connect a JVC's OE remote

adapter (not supplied) which matches your car

to the steering wheel remote input terminal on

the rear of the unit.

• For details, refer also to the instructions

supplied with the remote adapter.

Preparing the remote controller (RM-RK50)

When you use the remote controller for the first

time, pull out the insulation sheet.

If the effectiveness of the remote controller

decreases, replace the battery.

Replacing the lithium coin battery

CR2025

Caution:

• Danger of explosion if battery is incorrectly

replaced. Replace only with the same or

equivalent type.

• Battery shall not be exposed to excessive heat

such as sunshine, fire, or the like.

Insulation sheet

EN02-11_KD-R611_003A_1.indd 5EN02-11_KD-R611_003A_1.indd 5 10/27/09 11:46:18 AM10/27/09 11:46:18 AM

6ENGLISH

Basic operations

Control dial

Ejects the disc Loading slot USB (Universal Serial Bus) input jack

Display window

Auxiliary

input jack

Detaches the panel

When you press or hold the following button(s)...

Main unit Remote

controller General operation

Turns on.

• When the power is on, pressing /I/ATT on the remote controller

also mutes the sound or pauses. Press /I/ATT again to cancel

muting or resume playback.

Turns off if pressed and held.

Selects the available sources (if the power is turned on).

• If the source is ready, playback also starts.

Adjusts the volume level.

— Selects items.

—

• Mutes the sound while listening to a source. If the source is “CD,”

“USB” or “USB-IPOD,” playback pauses. Press the control dial again

to cancel muting or resume playback.

• Confirms selection.

Selects the sound mode.

• Enters tone level adjustment directly ( 22) if pressed and held

EQ/BASS-TRE on the main unit.

Remote sensor

• DO NOT expose to bright sunlight.

EN02-11_KD-R611_003A_1.indd 6EN02-11_KD-R611_003A_1.indd 6 10/27/09 2:48:30 PM10/27/09 2:48:30 PM

7ENGLISH

Manual search

“M” flashes, then press

the button repeatedly.

When an FM stereo broadcast is

hard to receive

]

<TUNER>

]

<MONO>

]

Reception improves, but stereo effect

will be lost.

To restore the stereo effect, repeat the same

procedure to select <MONO OFF>.

Automatic presetting (FM)—

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

While listening to a station...

]

<TUNER>

]

<SSM>

]

<SSM 01 – 06> / <SSM 07 – 12> /

“SSM” flashes and local stations with

the strongest signals are searched and

stored automatically.

To preset another 6 stations, repeat the above

procedure by selecting one of the other 6 SSM

setting ranges.

Main unit Remote

controller General operation

—• Enters <COLOR> setting directly ( 28).

•

Enters <COLOR SETUP> setting directly ( 29) if pressed and held.

—

• Activates/deactivates TA Standby Reception.

• Enters PTY Searching mode if pressed and held.

• Returns to the previous menu.

—Power off : Checks the current clock time.

Power on : Changes the display information.

[Hold]

Listening to the radio

]

“FM” or “AM”

“ST” lights up when receiving an FM stereo broadcast

with sufficient signal strength.

EN02-11_KD-R611_003A_1.indd 7EN02-11_KD-R611_003A_1.indd 7 10/27/09 2:48:31 PM10/27/09 2:48:31 PM

8ENGLISH

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6

stations for AM.

Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

]

“92.50MHz”

“PRESET MODE” flashes.

]

Selects preset number “04.”

“P04” flashes and “MEMORY” appears.

Selecting a preset station

Changing the display information

Frequency

Clock

(back to

the beginning)

Using the remote controller

∞

: Changes the preset

stations

: Searches for stations

[Hold]

The following features are available

only for FM Radio Data System stations.

Searching for your favourite

FM Radio Data System

programme—PTY Search

You can tune in to a station broadcasting your

favourite programme by searching for a PTY

code.

The last selected PTY code appears.

]

Select one of your favourite

programme types or a PTY code, and

start searching.

If there is a station broadcasting a

programme of the same PTY code as you

have selected, that station is tuned in.

PTY codes: NEWS, AFFAIRS, INFO, SPORT,

EDUCATE, DRAMA, CULTURE, SCIENCE,

VARIED, POP M (music), ROCK M (music),

EASY M (music), LIGHT M (music), CLASSICS,

OTHER M (music), WEATHER, FINANCE,

CHILDREN, SOCIAL, RELIGION, PHONE IN,

TRAVEL, LEISURE, JAZZ, COUNTRY,

NATION M (music), OLDIES, FOLK M (music),

DOCUMENT

[Hold]

EN02-11_KD-R611_003A_1.indd 8EN02-11_KD-R611_003A_1.indd 8 10/28/09 9:53:38 AM10/28/09 9:53:38 AM

9ENGLISH

Standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch

temporarily to Traffic Announcement (TA) from

any source other than AM.

• The volume changes to the preset TA volume

level if the current level is lower than the

preset level. (<TA VOLUME>, 24)

To activate TA Standby Reception

If the TP indicator lights up, TA

Standby Reception is activated.

If the TP indicator flashes, TA

Standby Reception is not yet

activated.

• To activate the reception, tune in to another

station providing Radio Data System signals

required for TA Standby Reception.

• To deactivate the reception, press

T/P BACK

again.

PTY Standby Reception

PTY Standby Reception allows the unit to

switch temporarily to your favourite PTY

programme from any source other than AM.

To activate and select your favourite

PTY code for PTY Standby Reception, see

<PTY-STANDBY> ( 24)

If the PTY indicator lights up, PTY Standby

Reception is activated.

If the PTY indicator flashes, PTY Standby

Reception is not yet activated.

• To activate the reception, tune in to another

station providing these signals.

• To deactivate the reception, select <PTY OFF>

( 24) for the PTY code. The PTY indicator

goes off.

• When a DAB tuner is connected, TA/PTY

Standby Reception also searches for services

( 20).

• The unit will not switch to Traffic

Announcement or PTY programme when

a call connection is established through

“BT-PHONE.”

Tracing the same programme—

Network-Tracking Reception

When driving in an area where FM reception is

not sufficient enough, this unit automatically

tunes in to another FM Radio Data System

station of the same network, possibly

broadcasting the same programme with

stronger signals.

Programme A broadcasting on different

frequency areas (01 – 05)

To change the Network-Tracking Reception

setting, see <AF-REG> ( 24).

• When the DAB tuner is connected, refer to

“Tracing the same programme—Alternative

Frequency Reception (DAB AF),” ( 20).

Automatic station selection—

Programme Search

Usually when you select a preset number, the

station preset in that number is tuned in.

If the signals from the FM Radio Data System

preset station are not sufficient for good

reception, this unit, using the AF data, tunes in

to another frequency possibly broadcasting the

same programme as the original preset station

is broadcasting. (<P-SEARCH>, 24)

Changing the display information

Station name (PS)

Station

Frequency

Programme

type (PTY)

Clock

(back to

the beginning)

EN02-11_KD-R611_003A_3.indd 9EN02-11_KD-R611_003A_3.indd 9 11/24/09 4:38:49 PM11/24/09 4:38:49 PM

10 ENGLISH

Stopping playback and ejecting

the disc

“NO DISC” appears.

Press /

SOURCE

to listen to

another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Selects folder of the MP3/WMA

Selects track

Fast-forwards or

reverses the track

Selecting a track/folder

For MP3/WMA discs, select the desired folder,

then the desired track by repeating the control

dial procedures.

• If the MP3/WMA disc contains many tracks,

you can fast search (±10, ±100, ±1000)

through the disc by turning the control dial

quickly.

• To return to the previous menu, press

T/P BACK

Caution on volume setting:

Discs produce very little noise compared with

other sources. Lower the volume before playing

a disc to avoid damaging the speakers by the

sudden increase of the output level.

Selecting the playback modes

You can use only one of the following playback

modes at a time.

]

“REPEAT”

“RANDOM”

REPEAT

TRACK RPT : Repeats current track

FOLDER RPT : Repeats current folder

RANDOM

FOLDER RND : Randomly plays all tracks

of current folder, then

tracks of next folders

ALL RND : Randomly plays all tracks

To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

Listening to a disc

]

Turn on the power.

All tracks will be played repeatedly until you change

the source or eject the disc.

[Hold]

EN02-11_KD-R611_003A_3.indd 10EN02-11_KD-R611_003A_3.indd 10 11/24/09 4:38:49 PM11/24/09 4:38:49 PM

11ENGLISH

Listening to the USB device

This unit can play MP3/WMA files stored on a USB mass storage class device.

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player,

etc. to the unit.

• You can also connect an Apple iPod/iPhone to the USB input jack. For details of the operations,

32.

]

Turn on the power.

All tracks will be played repeatedly until you change the

source or detach the USB device.

Caution on volume setting:

USB devices produce very little noise compared

with other sources. Lower the volume before

playing a USB to avoid damaging the speakers

by sudden increase of the output level.

USB input jack

USB memory

Changing the display information

Disc title/Album name/performer (folder

name)*

Track title (file name)*

Current

track number with the elapsed playing time

Current track number with the clock

time

(back to the beginning)

* If the current disc is an audio CD, “NO NAME”

appears.

If an MP3/WMA file does not have Tag

information or <TAG DISPLAY> is set to

<TAG OFF> ( 24), folder name and file name

appear.

Using the remote controller

∞

: Selects folder of the

MP3/WMA

: Selects track

[Hold]

: Fast-forwards or

reverses the track

If you have turned off the power (without

detaching the USB device)...

Pressing

/ SOURCE

turns on the power and

playback starts from where it has been stopped

previously.

• If a different USB device is currently attached,

playback starts from the beginning.

EN02-11_KD-R611_003A_3.indd 11EN02-11_KD-R611_003A_3.indd 11 11/24/09 4:38:50 PM11/24/09 4:38:50 PM

12 ENGLISH

For Bluetooth operations, it is required to

connect the Bluetooth adapter, KS-BTA200 (not

supplied) to the expansion port on the rear of

this unit.

• Refer to pages i and ii at the end of the

manual to check the countries where you

may use the Bluetooth

® function.

• For details, refer also to the instructions

supplied with the Bluetooth adapter and the

Bluetooth device.

To use a Bluetooth device through the unit

(“BT-PHONE” and “BT-AUDIO”) for the first time,

you need to establish a Bluetooth wireless

connection between the unit and the device.

• This unit may not be able to play the files

depending on the type of USB device.

• Operation and power supply may not work as

intended for some USB devices.

• You cannot connect a computer to the USB

input terminal of the unit.

• Make sure all important data has been backed

up to avoid losing the data.

• Do not leave a USB device in the car, expose

to direct sunlight, or high temperature to

avoid deformation or cause damages to the

device.

• Some USB devices may not work immediately

after attaching USB device or turn on the

power.

• For more details about USB operations,

32.

Stop playing and detaching the

USB device

Straightly pull it out from the unit.

“NO USB” appears. Press

/ SOURCE

to listen to

another playback source.

You can operate the USB device in the same

way you operate the files on a disc.

( 10, 11)

Cautions:

• Avoid using the USB device if it might hinder

your safety driving.

• Do not pull out and attach the USB device

repeatedly while “READING” is shown on the

display.

• Do not start the car engine if a USB device is

connected.

Using Bluetooth ® devices

• Once the connection is established, it is

registered on the unit even if you reset your

unit. Up to five devices can be registered in

total.

• Only one device can be connected at a time

for each source (“BT-PHONE” and “BT-AUDIO”).

Registration (Pairing) methods

Use either of the following items (“OPEN” or

“SEARCH” ) in the Bluetooth menu to register

and make the unit ready to establish a new

Bluetooth connection with a device.

“OPEN” : Connection is established by

operating the Bluetooth device.

“SEARCH” : Connection is established by

operating the unit.

EN12-21_KD-R611_003A_1.indd 12EN12-21_KD-R611_003A_1.indd 12 10/27/09 11:45:53 AM10/27/09 11:45:53 AM

13ENGLISH

Registering using “OPEN”

Preparation: Operate the device to turn on its

Bluetooth function.

]

“BT-PHONE” or “BT-AUDIO”

]

“NEW DEVICE”

]

“OPEN”

]

Enter a PIN (Personal Identification

Number) code in to the unit.

You can enter any number you like

(1-digit to 16-digit number).

[Initial: 0000]

• Some devices have their own PIN

code. Enter the specified PIN code in

to the unit.

4Repeat step 3 until you have finished

entering the PIN code.

“OPEN..” flashes.

6Use the Bluetooth device to search and

connect.

On the device to be connected, enter

the same PIN code you have just

entered for this unit. “CONNECTED”

appears.

Now connection is established and you

can use the device through the unit.

The device remains registered even after you

disconnect the device. Use “CONNECT“ (or

activate “AUTO CNNCT”) to connect the same

device from next time on. ( 16)

Registering using

“SEARCH”/“SPECIAL”

]

“BT-PHONE” or “BT-AUDIO”

]

“NEW DEVICE”

]

“SEARCH” : To search for available

devices

The unit searches and displays the list

of the available devices. “UNFOUND”

appears if no available device is

detected.

– – – – – or – – – – –

]

“SPECIAL” : To connect a special

device

The unit displays the list of the preset

devices.

]

Select a device you want to connect.

5For available devices...

]

Enter the specific PIN code of the

device to the unit.

• Refer to the instructions supplied with

the device to check the PIN code.

Use the Bluetooth device to connect.

Now connection is established and you

can use the device through the unit.

For special device...

Use “OPEN” or “SEARCH” to connect.

EN12-21_KD-R611_003A_3.indd 13EN12-21_KD-R611_003A_3.indd 13 11/24/09 4:47:25 PM11/24/09 4:47:25 PM

14 ENGLISH

Connecting/disconnecting/

deleting a registered device

]

“BT-PHONE” or “BT-AUDIO”

]

Select a device you want to

connect/disconnect/delete.

]

“CONNECT” or “DISCONNECT” : To

connect/disconnect the selected device

– – – – – or – – – – –

]

“DELETE”

]

“YES” : To delete the

selected device

You can set the unit to connect the Bluetooth

device automatically when the unit is turned

on. ( “AUTO CNNCT,” 16)

Using a Bluetooth

mobile phone

]

“BT-PHONE”

]

Bluetooth menu

! Make a call or setting using

the Bluetooth setting menu.

( 16)

When a call comes in....

The source is automatically changed to

“BT-PHONE.”

• The display will flash in blue. (<RING COLOR>,

25)

When “AUTO ANSWER” is activated....

The unit answers the incoming calls

automatically. ( 16)

• When “AUTO ANSWER” is deactivated, press

any button (except

/ SOURCE

/ /

) to

answer the incoming call.

• You can adjust the microphone volume level.

( 16)

To end the call

Hold any button (except

/ SOURCE

/ /

When a text message comes in....

If the mobile phone is compatible with text

message (notified through JVC Bluetooth

adapter) and “MSG INFO” (message info) is

set to “AUTOMATIC” ( 16), the unit rings to

inform you of the message arrival.

• “RCV MESSAGE” (receiving message) appears

and the display illuminate in blue. (<RING

COLOR>, 25)

Using the remote controller

∞

SOURCE

: Answers calls

∞

SOURCE

[Hold]

: Rejects calls

Making a call

]

“BT-PHONE”

]

Select “DIAL” menu.

EN12-21_KD-R611_003A_3.indd 14EN12-21_KD-R611_003A_3.indd 14 11/24/09 4:47:25 PM11/24/09 4:47:25 PM

15ENGLISH

]

Select a calling method.

PHONE BOOK*

MISSED*

NUMBER

VOICE DIAL

REDIAL*

RECEIVED*

(back to

the beginning)

* Displays only when your mobile phone

is equipped with these functions and is

compatible with this unit.

5For REDIAL, RECEIVED, MISSED

]

Repeat step 4 to select a name (if it is

acquired) or a phone number.

For PHONE BOOK

]

Repeat step 4 to select a name or a

phone number.

For NUMBER

]

Enter a phone number.

]

Confirm.

For VOICE DIAL

]

Speak the name you want to call

when “SAY NAME” appears.

• If your mobile phone does not support

the voice recognition system, “ERROR”

appears.

• Using voice tags may be difficult in

a noisy environment or during an

emergency.

Using a Bluetooth audio

player

]

“BT-AUDIO”

If playback does not start, operate the

Bluetooth audio player to start playback.

Operate the Bluetooth audio player to

pause (if playback does not pause when you

change the source).

Reverse skips/forward

skips

Pauses/starts playback*

* Operation may be different

according to the connected

Bluetooth audio player.

Enter setting menu (Device

list)

For connecting/disconnecting/deleting a

registered device, 14.

Using the remote controller

: Reverse skips/forward

skips

EN12-21_KD-R611_003A_3.indd 15EN12-21_KD-R611_003A_3.indd 15 11/24/09 4:47:26 PM11/24/09 4:47:26 PM

16 ENGLISH

Setting menu [Initial: Underlined]

AUTO CNNCT (connect)

When the unit is turned on, the connection is

established automatically with...

OFF: No Bluetooth device.

LAST: The last connected Bluetooth device.

ORDER: The available registered Bluetooth

device found at first.

AUTO ANSWER

Only for the device being connected for

“BT-PHONE.”

ON: The unit answers the incoming calls

automatically.

OFF: The unit does not answer the calls

automatically. Answer the calls

manually.

REJECT: The unit rejects all incoming calls.

MSG INFO (message info)

Only for the device being connected for

“BT-PHONE.”

AUTOMATIC: The unit informs you of the

arrival of a message by ringing

and displaying “RCV MESSAGE”

(receiving message).

• The display illuminate in blue.

(<RING COLOR>, 25)

MANUAL: The unit does not inform you of

the arrival of a message.

MIC SETTING (microphone setting)

Only for the device being connected for

“BT-PHONE.” Adjust microphone volume

connected to the Bluetooth adapter,

[LEVEL 01/02/03].

VERSION

The Bluetooth software and hardware versions

are shown.

Changing the Bluetooth settings

]

“BT-PHONE” or “BT-AUDIO”

]

Bluetooth menu

]

“SETTINGS”

]

Select a setting item.

AUTO CNNCT

AUTO ANSWER * 1

MSG INFO * 2

MIC SETTING * 1

VERSION * 3

(back to the

beginning)

]

Change the setting accordingly. For

setting menu, right column.

*1 Appears only when a Bluetooth phone is

connected.

*2 Appears only when a Bluetooth phone is

connected and it is compatible with text

message (notified through JVC Bluetooth

adapter).

*3 Bluetooth Audio: Shows only “Version.”

Bluetooth Information:

If you wish to receive more information

about Bluetooth, visit the following JVC web

site: <http://www.jvc.co.jp/english/car/>

(English website only)

EN12-21_KD-R611_003A_3.indd 16EN12-21_KD-R611_003A_3.indd 16 11/24/09 4:47:26 PM11/24/09 4:47:26 PM

17ENGLISH

Warning messages

ERROR CNNCT (Error Connection)

The device is registered but the connection

has failed. Use “CONNECT” to connect the

device again. ( 14)

ERROR

Try the operation again. If “ERROR” appears

again, check if the device supports the

function you have tried.

UNFOUND

No available Bluetooth device is detected

by “SEARCH.”

LOADING *

The unit is updating the phone book.

PLEASE WAIT

The unit is preparing to use the Bluetooth

function. If the message does not disappear,

turn off and turn on the unit, then connect

the device again (or reset the unit).

RESET 8

Check the connection between the adapter

and this unit.

* Displays only when your mobile phone

is equipped with these functions and is

compatible with this unit.

Listening to the iPod/iPhone

You can connect the iPod/iPhone using the USB 2.0 cable (accessory of the iPod/iPhone) to the

USB input jack on the control panel.

USB 2.0 cable (accessory of

the iPod/iPhone)

Apple iPod/iPhone

USB input jack

• Disconnecting the iPod/iPhone will stop

playback. Press

/ SOURCE

to listen to another

playback source.

• For details, refer also to the instructions

supplied with your iPod/iPhone.

Caution:

• Avoid using the iPod/iPhone if it might hinder

your safety while driving.

• Make sure all important data has been backed

up to avoid losing the data.

EN12-21_KD-R611_003A_3.indd 17EN12-21_KD-R611_003A_3.indd 17 12/4/09 6:00:38 PM12/4/09 6:00:38 PM

18 ENGLISH

Selecting a track from the menu

]

Select the desired menu.

PLAYLISTS

ARTISTS

ALBUMS

SONGS

PODCASTS

GENRES

COMPOSERS

AUDIOBOOKS

(back to the

beginning)

]

Select the desired track.

Repeat this procedure until the desired

track is selected.

• If the selected menu contains many tracks,

you can fast search (±10, ±100, ±1000)

through the menu by turning the control dial

quickly.

• To return to the previous menu, press

T/P BACK

Selecting the playback modes

]

“REPEAT”

“RANDOM”

[Hold]

There are two control terminals:

• <HEAD MODE> Control by this unit.

• <IPOD MODE> Control by the connected

iPod/iPhone.

Preparation: Select the controlling terminal,

<HEAD MODE> or <IPOD MODE> for iPod

playback:

• Press and hold

T/P BACK

button.

• Make the selection from <IPOD SWITCH>

setting, 27.

The operations explained below are under

<HEAD MODE>.

]

“USB-IPOD”

Playback starts automatically.

]

Select a song.

Pauses or resumes

playback

Selects track

Fast-forwards or

reverses the track

[Hold]

EN12-21_KD-R611_003A_3.indd 18EN12-21_KD-R611_003A_3.indd 18 11/24/09 4:47:52 PM11/24/09 4:47:52 PM

19ENGLISH

REPEAT

ONE RPT : Functions the same as

“Repeat One” of the iPod

ALL RPT : Functions the same as

“Repeat All” of the iPod

RANDOM

ALBUM RND : Functions the same as

“Shuffle Albums” of the

iPod

SONG RND : Functions the same as

“Shuffle Songs” of the

iPod

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• “ALBUM RND” is not available for some iPod.

• To return to the previous menu, press

T/P BACK

Changing the display information

Album name/performer

Track title

Current track number with the elapsed

playing time

Current track number with

the clock time

(back to the beginning)

Using the remote controller

: Selects track

[Hold]

: Fast-forwards or

reverses the track

Notice:

When operating an iPod, some operations

may not be performed correctly or as

intended. In this case, visit the following JVC

web site: <http://www.jvc.co.jp/english/car/>

(English website only)

Listening to the DAB tuner

Before operating, connect the JVC DAB tuner, KT-DB1000 (not supplied) to the expansion port on

the rear of the unit.

Preparation: Make sure <EXT ON> is selected in the <SRC SELECT>

<EXT IN> setting. ( 27)

• For details, refer also to the instructions supplied with the JVC DAB tuner.

]

“DAB”

]

Search for an ensemble.

When an ensemble is tuned in,

searching stops. To stop searching,

press the same button again.

]

Select a service (primary or

secondary) to listen to.

EN12-21_KD-R611_003A_3.indd 19EN12-21_KD-R611_003A_3.indd 19 11/24/09 4:47:53 PM11/24/09 4:47:53 PM

20 ENGLISH

Manual search for an ensemble

“M” flashes, then press

the button repeatedly.

Storing DAB services in memory

You can preset six DAB services (primary).

Ex.: Storing an ensemble (primary service) into

the preset number “04.”

1Select a service (steps

, 19).

“PRESET MODE” flashes.

]

Selects preset number “04.”

“P04” flashes and “MEMORY” appears.

Selecting a preset station

Changing the display information

Service name

Ensemble

name

Channel number

Frequency

Clock

(back to

the beginning)

Using the remote controller

∞

: Changes the DAB

preset stations

: Searches for DAB

stations

Tracing the same programme—

Alternative Frequency Reception (DAB AF)

You can keep listening to the same programme

by activating the Alternative Frequency

Reception.

• While receiving a DAB service:

When driving in an area where a service

cannot be received, this unit automatically

tunes in to another ensemble or FM Radio

Data System station, broadcasting the same

programme.

• While receiving an FM Radio Data System

station:

When driving in an area where a DAB service

is broadcasting the same programme as the

FM Radio Data System station is broadcasting,

this unit

automatically tunes in to the DAB

service.

When shipped from the factory, Alternative

Frequency Reception is activated.

To deactivate the Alternative Frequency

Reception,

25.

[Hold]

EN12-21_KD-R611_003A_3.indd 20EN12-21_KD-R611_003A_3.indd 20 12/1/09 9:03:30 AM12/1/09 9:03:30 AM

21ENGLISH

]

“EXT INPUT” or “AUX IN”

Ÿ Turn on the connected

component and start

playing the source.

]

Adjust the volume.

⁄ Adjust the sound as you

want. ( 22)

Connecting an external component to the AUX input jack

3.5 mm stereo mini plug

(not supplied)

Portable audio player,

etc.

Listening to the other external

components

You can connect an external component to:

• EXT INPUT: Expansion port on the rear of

this unit using the following adapters (not

supplied):

– KS-U57, Line Input Adapter

– KS-U58, AUX Input Adapter

Preparation: Make sure <EXT ON> is selected

for the <SRC SELECT>

<EXT IN> setting.

( 27)

• AUX IN: AUX (auxiliary) input jack on the

control panel.

Preparation: Make sure <AUX ON> is

selected for the <SRC SELECT>

setting. ( 27)

• For details, refer also to the instructions

supplied with the adapter or external

components.

EN12-21_KD-R611_003A_1.indd 21EN12-21_KD-R611_003A_1.indd 21 10/28/09 9:02:00 AM10/28/09 9:02:00 AM

22 ENGLISH

Selecting a preset sound mode

You can select a preset sound mode suitable

for the music genre.

FLAT

NATURAL

DYNAMIC

VOCAL

BOOST

BASS BOOST

USER

(back to

the beginning)

While listening, you can adjust the tone level of

the selected sound mode.

Adjust the level (–06 to +06) of the

selected tone (BASS / MID / TRE).

The sound mode is automatically stored

and changed to “USER.”

Tone Sound element

Frequency Level Q

BASS 60 Hz

80 Hz

100 Hz

200 Hz

–06 to +06 Q1.0

Q1.25

Q1.5

Q2.0

MIDDLE 0.5 kHz

1.0 kHz

1.5 kHz

2.5 kHz

–06 to +06 Q0.75

Q1.0

Q1.25

TREBLE 10.0 kHz

12.5 kHz

15.0 kHz

17.5 kHz

–06 to +06 Q FIX

Storing your own sound mode

You can store your own adjustments in

memory.

]

]

<BASS> / <MIDDLE> /

Adjust the sound elements of the

selected tone. ( table on the left)

4Repeat steps 2 and 3 to adjust other

tones.

The adjustments made will be stored

automatically in “USER.”

The current sound mode changes to “USER”

automatically.

[Hold]

EN22-31_KD-R611_003A_1.indd 22EN22-31_KD-R611_003A_1.indd 22 10/28/09 9:54:18 AM10/28/09 9:54:18 AM

23ENGLISH

Menu operations

1 2 3 Repeat step 2 if necessary.

• To return to the previous menu,

press

T/P BACK

• To exit from the menu, press

DISP

Category

Menu item Selectable setting, [Initial: Underlined]

DEMO

Display

demonstration

• DEMO ON

• DEMO OFF

: Display demonstration will be activated

automatically if no operation is done for about

20 seconds.

: Cancels. ( 4)

CLOCK

CLOCK SET

Clock setting

—

[0:00]

: Adjust the hour, then the minute. ( 4)

24H/12H

Time display

mode

• 24 HOUR

• 12 HOUR

: For settings, 4.

CLOCK ADJ * 1

Clock

adjustment

• AUTO

• OFF

: The built-in clock is automatically adjusted

using the CT (clock time) data in the Radio Data

System signal.

: Cancels.

PRO EQ

BASS —: For settings, 22.

MIDDLE

TREBLE

DISPLAY

DIMMER •

DIMMER AUTO

• DIMMER ON

• DIMMER OFF

: Dims the display when you turn on the

headlights. *2

: Dims the display and button illumination.

: Cancels.

*1 Takes effect only when CT (clock time) data is received.

*2 The illumination control lead connection is required. (See “Installation/Connection Manual.”) This

setting may not work correctly on some vehicles (particularly on those having a control dial for

dimming). In this case, change the setting to any other than <DIMMER AUTO>.

[Hold]

EN22-31_KD-R611_003A_2.indd 23EN22-31_KD-R611_003A_2.indd 23 11/4/09 2:17:39 PM11/4/09 2:17:39 PM

24 ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

DISPLAY

SCROLL * 3• SCROLL ONCE

• SCROLL AUTO

• SCROLL OFF

: Scrolls the displayed information once.

: Repeats scrolling (at 5-second intervals).

: Cancels.

Pressing

DISP

for more than one second can scroll the display

regardless of the setting.

TAG DISPLAY • TAG ON

• TAG OFF

: Shows the Tag information while playing MP3/

WMA/WAV tracks.

: Cancels.

TUNER

SSM *4

Strong-station

Sequential

Memory

• SSM 01 – 06

• SSM 07 – 12

• SSM 13 – 18

: For settings, 7.

AF-REG *5

Alternative

frequency/

regionalization

reception

• AF ON

• AF-REG ON

• OFF

: When the currently received signals become

weak, the unit switches to another station (the

programme may differ from the one currently

received). (The AF indicator lights up.)

: When the currently received signals become

weak, the unit switches to another station

broadcasting the same programme. (The AF

and REG indicators light up.)

: Cancels (not selectable when <DAB AF> is set

to <AF ON>).

PTY-

STANDBY *4, *5

• PTY OFF, PTY

codes

: Activates PTY Standby Reception with one of

the PTY codes ( 9).

TA VOLUME *5

Traffic

announcement

volume

• VOLUME 00

– VOLUME 50

(or

VOLUME 00 –

VOLUME 30) * 6

[ VOLUME 15 ]

—

P-SEARCH *5

Programme

• SEARCH ON

• SEARCH OFF

: Activates Programme Search. ( 9)

: Cancels.

*3 Some characters or symbols will not be shown correctly (or will be blanked) on the display.

*4 Displayed only when the source is “FM.”

*5 Only for FM Radio Data System stations.

*6 Depends on the amplifier gain control.

EN22-31_KD-R611_003A_3.indd 24EN22-31_KD-R611_003A_3.indd 24 12/1/09 9:04:41 AM12/1/09 9:04:41 AM

25ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

TUNER

DAB AF * 7

Alternative

frequency

reception

• AF ON

• AF OFF

: Traces the programme among DAB services

and FM Radio Data System stations. ( 20)

: Cancels.

MONO *8

Monaural mode

• MONO ON

• MONO OFF

: Activate monaural mode to improve FM

reception, but stereo effect will be lost. ( 7)

: Restore the stereo effect.

IF BAND

Intermediate

frequency band

• AUTO

• WIDE

: Increases the tuner selectivity to reduce

interference noises between adjacent stations.

(Stereo effect may be lost.)

: Subject to interference noises from adjacent

stations, but sound quality will not be

degraded and the stereo effect will remain.

COLOR

BUTTON ZONE COLOR 01 —

COLOR 29, USER

: For settings, 28.

DISP ZONE

Display zone

ALL ZONE

COLOR SETUP

DAY COLOR • BUTTON ZONE

• DISP ZONE

: For settings, 29.

NIGHT COLOR

MENU COLOR • ON

• OFF

: Changes the display and buttons (except for

EQ/BASS-TRE

DISP

) illumination during menu,

list search and playback mode operations.

: Cancels.

RING COLOR *9• ON

• OFF

: When a call comes in, the display will flash in

blue.

• The display will change to the original color

when the call is answered or the incoming

call stops.

When the unit receives a text message, the

display only illuminate in blue.

: Cancels.

*7 Displayed only when DAB tuner is connected.

*8 Displayed only when the source is “FM.”

*9 Displayed only when Bluetooth adapter, KS-BTA200 is connected.

EN22-31_KD-R611_003A_3.indd 25EN22-31_KD-R611_003A_3.indd 25 12/1/09 9:04:41 AM12/1/09 9:04:41 AM

26 ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

AUDIO

FADER * 10 R06 – F06

[00]

: Adjust the front and rear speaker output

balance.

BALANCE * 11 L06 – R06

[00]

: Adjust the left and right speaker output

balance.

LOUD

Loudness

• LOUD ON

• LOUD OFF

: Boost low and high frequencies to produce a

well-balanced sound at a low volume level.

: Cancels.

VOL ADJUST

Volume adjust

VOL ADJ –05 —

VOL ADJ +05

[VOL ADJ 00]

: Preset the volume adjustment level of

each source (except FM), compared to the

FM volume level. The volume level will

automatically increase or decrease when you

change the source.

• Before making an adjustment, select the

source you want to adjust.

• “VOL ADJ FIX” appears on the display if “FM”

is selected as the source.

L/O MODE

Line output

mode

• SUB.W

• REAR

: Select if the REAR LINE OUT terminals are

used for connecting a subwoofer (through

an external amplifier).

: Select if the REAR LINE OUT terminals are

used for connecting the speakers (through

an external amplifier).

SUB.W FREQ *12

Subwoofer cutoff

frequency

• LOW

• MID

• HIGH

: Frequencies lower than 72 Hz are sent to the

subwoofer.

: Frequencies lower than 111 Hz are sent to

the subwoofer.

: Frequencies lower than 157 Hz are sent to

the subwoofer.

SUB.W LEVEL *12

Subwoofer level

SUB.W 00 —

SUB.W 08

[SUB.W 04]

: Adjust the subwoofer output level.

*10 If you are using a two-speaker system, set the fader level to “00.”

*11 This adjustment will not affect the subwoofer output.

*12 Displayed only when <L/O MODE> is set to <SUB.W>.

EN22-31_KD-R611_003A_1.indd 26EN22-31_KD-R611_003A_1.indd 26 10/27/09 11:45:42 AM10/27/09 11:45:42 AM

27ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

AUDIO

BEEP

Keytouch tone

• BEEP ON

• BEEP OFF

: Activates the keypress tone.

: Deactivates the keypress tone.

TEL MUTING

Telephone

muting

• MUTING 1/

MUTING 2

• MUTING OFF

: Select either one which mutes the sounds

while using a mobile phone.

: Cancels.

AMP GAIN * 13

Amplifier gain

control

• LOW POWER

• HIGH POWER

: VOLUME 00 – VOLUME 30 (Select if the

maximum power of each speaker is less than

50 W to prevent damaging the speakers.)

: VOLUME 00 – VOLUME 50

SRC SELECT

AM * 14

AM station

• AM ON

• AM OFF

: Enable “AM” in source selection.

: Disable “AM” in source selection.

EXT IN * 15

External input

• EXT ON

• EXT OFF

: Enable “EXT IN” in source selection.

: Disable “EXT IN” in source selection.

AUX IN * 16

Auxiliary input

• AUX ON

• AUX OFF

: Enable “AUX IN” in source selection.

: Disable “AUX IN” in source selection.

AUDIOBOOKS

*17

Speed control of

“Audiobooks”

• NORMAL

• FASTER

• SLOWER

: You can select the playback speed of the

“Audiobook” sound file in your iPod.

• Initial selected item depends on your iPod

setting.

IPOD

SWITCH

IPOD SWITCH

*18

iPod/iPhone

control

• HEAD MODE

• IPOD MODE

: Controls iPod playback through the unit.

: Controls iPod playback through the iPod/

iPhone.

*13 The volume level automatically changes to “VOLUME 30” if you change to <LOW POWER> with the

volume level set higher than “VOLUME 30.”

*14 Displayed only when any source other than “AM” is selected.

*15 Displayed only when any source other than “EXT IN“ is selected.

*16 Displayed only when any source other than “AUX IN“ is selected.

*17 Displayed only when an iPod is connected and playback is controlled from the unit.

*18 Displayed only when “USB-IPOD” is selected as the source and “IPOD MODE” is available for the

connected iPod/iPhone ( 33).

EN22-31_KD-R611_003A_1.indd 27EN22-31_KD-R611_003A_1.indd 27 10/28/09 9:18:43 AM10/28/09 9:18:43 AM

28 ENGLISH

Selecting the variable buttons and display color illumination

You can select your preferred color for buttons illumination (except for

EQ/BASS-TRE

DISP

) and

display color separately.

1or

]

<COLOR>

]

<BUTTON ZONE> /

• Pressing

COLOR

in step 1 will enter

zone selection menu (BUTTON ZONE /

DISP ZONE / ALL ZONE) directly.

]

Select your preferred color from one

of the 29 preset colors or <USER> color.

Button zone

All zone

Display zone

[Hold] 4Repeat steps 2 and 3 to select a

different zone and your preferred color.

• If <ALL ZONE> is selected in step 2,

the buttons and display illumination

changed to the current/selected

<BUTTON ZONE> color.

You can also change the <ALL ZONE>

color to one of your preferred color by

performing step 3.

5or

]

Exit from the setting.

EN22-31_KD-R611_003A_3.indd 28EN22-31_KD-R611_003A_3.indd 28 11/24/09 4:50:38 PM11/24/09 4:50:38 PM

29ENGLISH

1or

]

]

]

• Pressing

COLOR

in step 1 will enter

zone selection menu (BUTTON ZONE /

DISP ZONE) directly.

]

Select a primary color.

RED

GREEN

BLUE

(back to

the beginning)

[Hold] [Hold] 4

]

Adjust the level of the selected

primary color.

00 to 31

5Repeat steps 3 and 4 to adjust other

primary colors.

6or

]

Exit from the setting.

If “00” is selected for all the primary colors (as

in step 4) for <DISP ZONE>, nothing appear on

the display.

Creating your own day and night colors—USER

You can create your own colors for <DAY COLOR> and <NIGHT COLOR> to apply to button zone

and display zone.

• <DAY COLOR> Displayed when <DIMMER> is set to <DIMMER OFF>.

• <NIGHT COLOR> Displayed when <DIMMER> is set to <DIMMER ON>.

Menu hierarchy Operation

COLOR

SETUP

DAY

COLOR

• BUTTON

ZONE

Follow example below.

• DISP ZONE Press

T/P BACK

after step 5, then select DISP ZONE in

step 2.

NIGHT

COLOR

• BUTTON

ZONE

Press

T/P BACK

after step 5, then select NIGHT COLOR

in step 2.

• DISP ZONE

Ex.: Creating <USER> color for <BUTTON ZONE> in <DAY COLOR>.

EN22-31_KD-R611_003A_3.indd 29EN22-31_KD-R611_003A_3.indd 29 11/24/09 4:50:39 PM11/24/09 4:50:39 PM

30 ENGLISH

More about this unit

Basic operations

General

• If you turn off the power while listening to

a track, playback will start from where it had

been stopped previously next time you turn

on the power.

• If no operation is done for about 60 seconds

after pressing

button, the operation will

be canceled.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

the stations are stored anew.

– When SSM is over, the station stored in the

lowest preset number will be automatically

tuned in.

• When storing a station manually, the

previously preset station is erased when

a new station is stored in the same preset

number.

FM Radio Data System operations

• Network-Tracking Reception requires two

types of Radio Data System signals—PI

(Programme Identification) and AF

(Alternative Frequency) to work correctly.

• If a Traffic Announcement is received by

TA Standby Reception, the volume level

automatically changes to the preset level

(TA VOLUME) if the current level is lower than

the preset level.

• When Alternative Frequency Reception is

activated (with AF selected), Network-Tracking

Reception is also activated automatically. On

the other hand, Network-Tracking Reception

cannot be deactivated without deactivating

Alternative Frequency Reception. ( 25)

Disc/USB operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not

comply with the “Compact Disc Digital Audio”

standard. Therefore, the use of Non-DVD side

of a DualDisc on this product may not be

recommended.

General

• This unit has been designed to reproduce

CDs/CD Texts, and CD-Rs (Recordable)/

CD-RWs (Rewritable) in audio CD (CD-DA),

MP3 and WMA formats.

• If you change the source while listening to a

disc, playback stops. Next time you select “CD”

as the playback source, playback will start

from where it had been stopped previously.

• When a disc is inserted upside down, “PLEASE”

and “EJECT” appear alternately on the display.

Press

to eject the disc.

• If the ejected disc is not removed within

15 seconds, it is automatically inserted into

the loading slot again to protect it from dust.

Playback starts automatically.

• MP3 and WMA “tracks” (words “file” and “track”

are used interchangeably) are recorded in

“folders.”

• While fast-forwarding or reversing on an MP3

or WMA disc, you can only hear intermittent

sounds.

EN22-31_KD-R611_003A_1.indd 30EN22-31_KD-R611_003A_1.indd 30 10/27/09 11:45:43 AM10/27/09 11:45:43 AM

31ENGLISH

• This unit can play back MP3/WMA files

meeting the conditions below:

– Bit rate of MP3/WMA: 32 kbps — 320 kbps

– Sampling frequency of MP3:

32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)

16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)

– Sampling frequency of WMA:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

– Disc format: ISO 9660 Level 1/Level 2,

Romeo, Joliet, Windows extension

• The maximum number of characters for

file/folder names (includes 4 extension

characters—<.mp3> or <.wma>).

– ISO 9660 Level 1: up to 12 characters

– ISO 9660 Level 2: up to 31 characters

– Romeo: up to 64 characters

– Joliet: up to 32 characters

– Windows extension: up to 64 characters

• This unit can recognize a total of 512 files, 255

folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR

(variable bit rate).

Files recorded in VBR have a discrepancy

in the elapsed time display, and do not

show the actual elapsed time. In particular,

this difference becomes noticeable after

performing the search function.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO

format.

– MP3 files encoded in an inappropriate

format.

– MP3 files encoded with Layer 1/2.

– WMA files encoded in lossless, professional,

and voice format.

– WMA files which are not based upon

Windows Media® Audio.

– WMA files copy-protected with DRM.

– Files which have data such as AIFF, ATRAC3,

etc.

• The search function works but search speed is

not constant.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same

type as those detected first if a disc includes

both audio CD (CD-DA) files and MP3/WMA

files.

• This unit can play back multi-session discs;

however, unclosed sessions will be skipped

while playing.

• Some CD-Rs or CD-RWs may not play back on

this unit because of their disc characteristics,

or for the following reasons:

– Discs are dirty or scratched.

– Moisture condensation has occurred on the

lens inside the unit.

– The pickup lens inside the unit is dirty.

– The files on the CD-R/CD-RW are written

using the “Packet Write” method.

– There are improper recording conditions

(missing data, etc.) or media conditions

(stained, scratched, warped, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than

that of regular CDs.

• Do not use the following CD-Rs or CD-RWs:

– Discs with stickers, labels, or a protective seal

stuck to the surface.

– Discs on which labels can be directly printed

by an ink jet printer.

Using these discs under high temperature

or high humidity may cause malfunctions or

damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with

the extension code <.mp3> or <.wma>

(regardless of the letter case—upper/lower).

• This unit can show the names of albums,

artists (performer), and Tag (Version 1.0, 1.1,

2.2, 2.3, or 2.4) for MP3 files and for WMA files.

• This unit can display only one-byte characters.

No other characters can be correctly

displayed.

EN22-31_KD-R611_003A_1.indd 31EN22-31_KD-R611_003A_1.indd 31 10/27/09 11:45:43 AM10/27/09 11:45:43 AM

32 ENGLISH

• USB devices equipped with special functions

such as data security functions cannot be

used with the unit.

• Do not use a USB device with 2 or more

partitions.

• This unit may not recognized a USB device

connected through a USB card reader.

• This unit may not play back files in a USB

device properly when using a USB extension

cord.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO

format.

– MP3 files encoded in an inappropriate

format.

–

MP3 files encoded with Layer 1/2.

– WMA files encoded in lossless, professional,

and voice format.

– WMA files which are not based upon

Windows Media® Audio.

Bluetooth operations

• While driving, do not perform complicated

operation such as dialing the numbers, using

phone book, etc. When you perform these

operations, stop your car in a safe place.

• Some Bluetooth devices may not be

connected to this unit depending on the

Bluetooth version of the device.

• This unit may not work for some Bluetooth

devices.

• Connecting condition may vary depending

on the circumstances around you.

• When the unit is turned off, the device is

disconnected.

Playing MP3/WMA tracks from a USB

device

• While playing from a USB device, the playback

order may differ from other players.

• This unit may be unable to play back some

USB devices or some files due to their

characteristics or recording conditions.

• Depending on the shape of the USB devices

and connection ports, some USB devices may

not be attached properly or the connection

might be loose.

• Connect one USB mass storage class device to

the unit at a time. Do not use a USB hub.

• If the connected USB device does not have

the correct files, “CANNOT PLAY” appears.

• This unit can show Tag (Version 1.0, 1.1, 2.2,

2.3, or 2.4) for MP3 files and for WMA files.

• This unit can play back MP3/WMA files

meeting the conditions below:

– Bit rate of MP3/WMA: 32 kbps — 320 kbps

– Sampling frequency of MP3:

32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)

16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)

– Sampling frequency of WMA:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

• This unit can play back MP3 files recorded in

VBR (variable bit rate).

• The maximum number of characters for:

– Folder names : 32 characters

– File names : 32 characters

– MP3 Tag : 64 characters

– WMA Tag : 32 characters

• This unit can recognize a total of 5 000 files,

255 folders (255 files per folder including

folder without unsupported files), and of 8

hierarchies.

• This unit does not support SD card reader.

• This unit cannot recognize a USB device

whose rating is other than 5 V and exceeds

500 mA.

EN32-41_KD-R611_003A_1.indd 32EN32-41_KD-R611_003A_1.indd 32 10/27/09 11:46:05 AM10/27/09 11:46:05 AM

33ENGLISH

iPod/iPhone operations

• You can control the following types of iPods/

iPhone:

– iPod with video (5th Generation) *1

– iPod classic *1, *2

– iPod nano

– iPod nano (2nd Generation)

– iPod nano (3rd Generation) *1, *2

– iPod nano (4th Generation) *1, *2

– iPod nano (5th Generation) *1, *2

– iPod touch *1, *2

– iPod touch (2nd Generation) *1, *2

– iPhone/iPhone 3G/iPhone 3GS *1, *2

*1 It is not possible to browse video files on the

“Videos” menu.

*2 <IPOD MODE> is available ( 27).

• If the iPod does not play correctly, please

update your iPod software to the latest

version. For details about updating your iPod,

visit <http://www.apple.com>.

• When you turn on this unit, the iPod is

charged through this unit.

• iPod shuffle cannot be used with this unit.

• The song order displayed on the selection

menu of this unit may differ from that of the

iPod.

• The text information may not be displayed

correctly:

– Some characters such as accented letters

cannot be shown correctly on the display.

– Communication between the iPod and the

unit is not stable.

• If the text information includes more than 11

characters, it scrolls on the display.

This unit can display up to 64 characters.

DAB operations

• Only the primary DAB service can be preset

even when you store a secondary service.

• A previously preset DAB service is erased

when a new DAB service is stored in the same

preset number.

JVC bears no responsibility for any loss of data

in an iPod/iPhone and/or USB mass storage

class device while using this System.

EN32-41_KD-R611_003A_3.indd 33EN32-41_KD-R611_003A_3.indd 33 12/4/09 6:01:27 PM12/4/09 6:01:27 PM

34 ENGLISH

To keep discs clean

A dirty disc may not play

correctly. If a disc does become

dirty, wipe it with a soft cloth

in a straight line from center to

edge.

• Do not use any solvents (for example,

conventional record cleaner, spray, thinner,

benzine, etc.) to clean discs.

To play new discs

New discs may have some

rough spots around the inner

and outer edges. If such a disc

is used, this unit may reject the

disc.

To remove these rough spots, rub the edges

with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD (8 cm disc) Warped disc

Sticker and sticker

residue Stick-on label

Unusual shape

C-thru Disc

(semitransparent

disc)

Transparent or

semitransparent

parts on its recording

area

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the

connectors.

To minimize this possibility, periodically wipe

the connectors with a cotton swab or cloth

moistened with alcohol, being careful not to

damage the connectors.

Moisture condensation

Moisture may condense on the lens inside the

unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the unit may malfunction.

In this case, eject the disc and leave the unit

turned on for a few hours until the moisture

has evaporated.

How to handle discs

When removing a disc

from its case, press down

the center holder of the case

and lift the disc out, holding

it by the edges.

• Always hold the disc by the edges. Do not

touch its recording surface.

When storing a disc in its case, gently insert

the disc around the center holder (with the

printed surface facing up).

• Make sure to store discs in cases after use.

Connectors

Center holder

EN32-41_KD-R611_003A_1.indd 34EN32-41_KD-R611_003A_1.indd 34 10/27/09 11:46:06 AM10/27/09 11:46:06 AM

35ENGLISH

Troubleshooting

Symptom Remedy/Cause

General

Sound cannot be heard from the

speakers.

• Adjust the volume to the optimum level.

• Make sure the unit is not muted/paused ( 6).

• Check the cords and connections.

“PROTECT” appears on the display

and no operations can be done.

Check to be sure the terminals of the speaker leads

are covered with insulating tape properly, then reset

the unit ( 3).

If “PROTECT” does not disappear, consult your JVC

IN-CAR ENTERTAINMENT dealer or a company

supplying kits.

The unit does not work at all. Reset the unit. ( 3)

“AUX IN” cannot be selected. Check the <SRC SELECT>

<AUX IN> setting.

( 27)

Nothing appear on the display. Check the <USER> color settings ( 29).

FM/AM

SSM automatic presetting does

not work.

Store stations manually.

Static noise while listening to the

radio.

Connect the aerial firmly.

“AM” cannot be selected. Check the <SRC SELECT>

<AM> setting. ( 27)

Disc playback

Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played

back.

• Tracks on the CD-R/CD-RW

cannot be skipped.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component

which you used for recording.

Disc can neither be played back

nor ejected.

• Unlock the disc. ( 10)

• Eject the disc forcibly. ( 3)

Disc sound is sometimes

interrupted.

• Stop playback while driving on rough roads.

• Change the disc.

• Check the cords and connections.

“NO DISC” appears on the display. Insert a playable disc into the loading slot.

“PLEASE” and “EJECT“ appear

alternately on the display.

Press

, then insert a disc correctly.

EN32-41_KD-R611_003A_1.indd 35EN32-41_KD-R611_003A_1.indd 35 10/28/09 9:19:30 AM10/28/09 9:19:30 AM

36 ENGLISH

Symptom Remedy/Cause

MP3/WMA playback

Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

compliant with ISO 9660 Level 1, Level 2, Romeo, or

Joliet.

• Add the extension code <.mp3> or <.wma> to the file

names.

Noise is generated. Skip to another track or change the disc. (Do not add

the extension code <.mp3> or <.wma> to non-MP3 or

WMA tracks.)

A longer readout time is

required (“READING” keeps

flashing on the display).

Do not use too many hierarchical levels and folders.

Tracks do not play back in the

order you have intended them

to play.

The playback order is determined when the files are

recorded.

The elapsed playing time is not

correct.

This sometimes occurs during playback. This is caused

by how the tracks are recorded on the disc.

“NO FILE” appears on the

display.

Selected folder is an empty folder *1. Select another

folder that contains MP3/WMA tracks.

“NOT SUPPORT” appears on the

display and track skips.

Skip to the next track encoded in an appropriate format

or to the next non-copy-protected WMA track.

The correct characters are not

displayed (e.g. album name).

This unit can only display letters (upper case), numbers,

and a limited number of symbols.

USB device playback

Noise is generated. The track played back is not an MP3/WMA track. Skip to

another file. (Do not add the extension code <.mp3> or

<.wma> to non-MP3 or WMA tracks.)

“READING” keeps flashing on

the display.

• Readout time varies depending on the USB device.

• Do not use too many hierarchy or folders.

• Turn off the power then on again.

• Reattach the USB device again.

“NO FILE” appears on the

display.

Selected folder is an empty folder *1. Select another

folder that contains MP3/WMA tracks.

“NOT SUPPORT” appears on the

display and track skips.

Skip to the next track encoded in an appropriate format

or to the next non-copy-protected WMA track.

*1 Folder that is physically empty or folder that contains data but does not contain valid MP3/WMA

track.

EN32-41_KD-R611_003A_1.indd 36EN32-41_KD-R611_003A_1.indd 36 10/27/09 11:46:06 AM10/27/09 11:46:06 AM

37ENGLISH

Symptom Remedy/Cause

USB device playback

Tracks/folders are not played

back in the order you have

intended.

The playback order is determined by the write-in time

stamp. The first track/folder written into the USB device

will be the first track/folder for playback.

• “CANNOT PLAY” flashes on

the display.

• “NO USB” appears on the

display.

• The unit cannot detect the

USB device.

• Attach a USB device that contains tracks encoded in

an appropriate format.

• Reattach the USB device again.

While playing a track, sound is

sometimes interrupted.

The MP3/WMA tracks have not been properly copied

into the USB device.

Copy MP3/WMA tracks again into the USB device, and

try again.

Correct characters are not

displayed (e.g. album name).

This unit can only display letters (upper case),

numbers, and a limited number of symbols.

Bluetooth *2

Bluetooth device does not

detect the unit.

The unit can be connected with one Bluetooth mobile

phone and one Bluetooth audio device at a time.

While connecting a device, this unit cannot be detected

from another device. Disconnect currently connected

device and search again.

The unit does not detect the

Bluetooth device.

• Check the Bluetooth setting of the device.

• Search from the Bluetooth device. After the device

detects the unit, select “OPEN” on the unit to connect

the device. ( 13)

The unit does not make pairing

with the Bluetooth device.

• Enter the same PIN code for both the unit and target

device.

• Select the device name from “SPECIAL,” then try to

connect again. ( 13)

• Try to pair/connect from the Bluetooth device.

Echo or noise occurs. Adjust the microphone unit position.

Phone sound quality is poor. • Reduce the distance between the unit and the

Bluetooth mobile phone.

• Move the car to a place where you can get a better

signal reception.

*2 For Bluetooth operations, refer also to the instructions supplied with the Bluetooth Adapter.

EN32-41_KD-R611_003A_1.indd 37EN32-41_KD-R611_003A_1.indd 37 10/27/09 11:46:06 AM10/27/09 11:46:06 AM

38 ENGLISH

Symptom Remedy/Cause

Bluetooth

The sound is interrupted or skipped

during playback of a Bluetooth audio

device.

• Reduce the distance between the unit and the

Bluetooth audio device.

• Disconnect the device connected for

“BT-PHONE.”

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect

the device again.

The connected audio device cannot be

controlled.

Check whether the connected audio device

supports AVRCP (Audio/Video Remote Control

Profile).

iPod/iPhone

The iPod does not turn on or does not

work.

• Check the connecting cable and its

connection.

• Update the firmware version of the iPod/

iPhone.

• Charge the battery of the iPod/iPhone.

• Reset the iPod/iPhone.

• Check whether <IPOD SWITCH> setting is

appropriate ( 27).

The sound is distorted. Deactivate the equalizer either on this unit or

the iPod/iPhone.

A lot of noise is generated. Turn off (uncheck) the “VoiceOver” feature of the

iPod. For details, visit <http://www.apple.com>.

Playback stops. The headphones are disconnected during

playback. Restart the playback operation

( 18).

“CANNOT PLAY” appears on the

display.

No tracks are stored. Import tracks to the iPod/

iPhone.

“RESTRICTED” appears on the display. Check whether the connected iPod/iPhone is

compatible with this unit ( 33).

EN32-41_KD-R611_003A_3.indd 38EN32-41_KD-R611_003A_3.indd 38 12/1/09 9:05:04 AM12/1/09 9:05:04 AM

39ENGLISH

Symptom Remedy/Cause

DAB

“noSIGNAL” appears on the display. Move to an area with stronger signals.

“RESET 8” appears on the display. Connect this unit and the DAB tuner correctly

and reset the unit ( 3).

“ANTENNA NG” appears on the display. Check the cords and connections.

The DAB tuner does not work at all. Reconnect this unit and the DAB tuner correctly

and reset the unit ( 3).

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such

marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade

names are those of their respective owners.

• “Made for iPod” means that an electronic accessory has been designed to connect specifically

to iPod and has been certified by the developer to meet Apple performance standards.

• “Works with iPhone” means that an electronic accessory has been designed to connect

specifically to iPhone and has been certified by the developer to meet Apple performance

standards.

• Apple is not responsible for the operation of this device or its compliance with safety and

regulatory standards.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

• iPhone is a trademark of Apple Inc.

EN32-41_KD-R611_003A_3.indd 39EN32-41_KD-R611_003A_3.indd 39 11/24/09 4:53:08 PM11/24/09 4:53:08 PM

40 ENGLISH

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front/Rear: 50 W per channel

Continuous Power Output (RMS): Front/Rear: 20 W per channel into 4 Ω, 40 Hz to

20 000 Hz at no more than 1% total

harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range: Bass: ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)

Q1.0, Q1.25, Q1.5, Q2.0

Middle: ±12 dB (0.5 kHz, 1.0 kHz, 1.5 kHz, 2.5 kHz)

Q0.75, Q1.0, Q1.25

Treble: ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz,

17.5 kHz)

Q (Fixed)

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)

Subwoofer-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

Other Terminal: AUX (auxiliary) input jack, USB input jack, Aerial input,

Expansion port, Steering wheel remote input

TUNER SECTION

Frequency Range: FM: 87.5 MHz to 108.0 MHz

AM: MW: 522 kHz to 1 620 kHz

LW: 144 kHz to 279 kHz

FM Tuner: Usable Sensitivity: 9.3 dBf (0.8 μV/75 Ω)

50 dB Quieting

Sensitivity:

16.3 dBf (1.8 μV/75 Ω)

Alternate Channel

Selectivity (400 kHz):

65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 40 dB

MW Tuner: Sensitivity: 20 μV

Selectivity: 40 dB

LW Tuner: Sensitivity: 50 μV

EN32-41_KD-R611_003A_2.indd 40EN32-41_KD-R611_003A_2.indd 40 11/4/09 2:24:40 PM11/4/09 2:24:40 PM

41ENGLISH

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup

(semiconductor laser)

Number of Channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps

WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps

USB SECTION

USB Standard: USB 1.1, USB 2.0

Data Transfer Rate (Full Speed): Max. 12 Mbps

Compatible Device: Mass storage class

Compatible File System: FAT 32/16/12

Playable Audio Format: MP3/WMA

Max. Current: DC 5 V 500 mA

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C

Dimensions (W × H × D):

(approx.)

Installation Size: 182 mm × 52 mm × 160 mm

Panel Size: 188 mm × 58 mm × 12 mm

Mass: 1.3 kg (excluding accessories)

Design and specifications are subject to change without notice.

EN32-41_KD-R611_003A_1.indd 41EN32-41_KD-R611_003A_1.indd 41 10/27/09 12:17:56 PM10/27/09 12:17:56 PM

7 The countries where you may use the

Bluetooth® function

7 Die Länder, in denen Sie die Bluetooth® Funktion verwenden können

7 Pays où vous pouvez utiliser la fonction Bluetooth®

7 De landen waar u de Bluetooth®-functie mag gebruiken

7 Países en los que se puede utilizar la función Bluetooth®

7 Paesi nei quali è possibile utilizzare la funzione Bluetooth®

7 Länder där du kan använda Bluetooth®-funktionen

7 Lande, hvor du kan bruge Bluetooth®-funktionen

7 Land hvor du kan bruke Bluetooth®-funksjonen

7 Maat, joissa voi käyttää Bluetooth®-toimintoa

7 Países onde pode usar a função Bluetooth®

7 Οι χώρες όπου μπορείτε να χρησιμοποιήσετε τη λειτουργία Bluetooth®

7 Страны, где можно воспользоваться функцией Bluetooth®

7 Země, ve kterých můžete využívat funkci Bluetooth®

7 Azok az országok, amelyekben használhatjuk a Bluetooth®-funkciót

7 Kraje, w których można używać funkcji Bluetooth®

7 Države, kjer lahko uporabljate funkcijo Bluetooth®

7 Krajiny, v ktorých môžete využívať funkciu Bluetooth®

7 Valstis, kur jūs varat izmantot Bluetooth® funkciju

7 Šalys, kuriose galite naudotis „Bluetooth®“ funkcija

7 Il-pajjiżi fejn tista’ tuża l-funzjoni Bluetooth®

7 Lönd þar sem hægt er að nota Bluetooth®

7 Riigid, kus on võimalik kasutada Bluetooth® funktsiooni

7 Bluetooth® fonksiyonunu kullanabileceğiniz ülkeler

7 Na tíortha inar féidir leat feidhmiú Bluetooth® a úsáid

7 Länner an denen der d’Bluetooth® Funktioun benotze kënnt.

7 ͪ nhͻng qu͝c gia mà b̭n có th͏ s͹ dͱng ch͵c nćng Bluetooth®

7 Els països on podrà fer servir la funció Bluetooth®

7 Zemlje u kojima je dozvoljena upotreba Bluetooth® funkcije.

7 Zemlje u kojima možete koristiti Bluetooth® funkciju

7 Zemlje u kojima je dopušteno koristiti Bluetooth®.

7 Земји каде можете да ја користите функцијата Bluetooth®

7 Страните, в които можете да ползвате функцията Bluetooth®

7 Ţările în care puteţi utiliza funcţia Bluetooth®

7 Die lande waar u die Bluetooth®-funksie kan gebruik

7 Amazwe lapho ungasebenzisa khona uhlelo lwe-Bluetooth®

7 Negara-negara yang memperbolehkan penggunaan fungsi Bluetooth®

7 Negara-negara yang anda boleh menggunakan fungsi Bluetooth®

7 您能够使用 Bluetooth® 功能的国家

7 您能夠使用 Bluetooth® 功能的國家

BluetoothNote_KD-R611_003A_1.indd 28BluetoothNote_KD-R611_003A_1.indd 28 10/27/09 11:45:27 AM10/27/09 11:45:27 AM

09-1672-002

Country

Andorra

Australia

Österreich

Bosna i Hercegovina

Belgien

Belgique

България

Canada

Schweiz

Suisse

Κύπρος

Kıbrıs

Česká republika

Deutschland

Danmark

Eesti

España

Suomi

Finland

France

United Kingdom

Ελλάδα

Hong Kong

香港

Hrvatska

Magyarország

Indonesia

Ireland

Éire

Ísland

Italia

Lichtenstein

Lietuva

Country

Luxemburg

Luxembourg

Lëtzebuerg

Latvija

Monaco

Crna Gora

Македонија

Malta

Nederland

Norge

New Zealand

Polska

Portugal

România

Srbija

Россия

Sverige

Singapore

新加坡

Singapura

Slovenija

Slovensko

Türkiye

台湾

United States of America

Vietnam

Vi͓t Nam

South Africa

ENingizimu Afrika

Suid-Afrika

BluetoothNote_KD-R611_003A_1.indd 29BluetoothNote_KD-R611_003A_1.indd 29 10/27/09 11:45:27 AM10/27/09 11:45:27 AM

FRANÇAIS

ENGLISH

GET0640-003A

[E/EU]

EN, FR

For canceling the display demonstration, see page 4. / Pour annuler la démonstration des

affichages, référez-vous à la page 4.

CD RECEIVER / RÉCEPTEUR CD

KD-R611

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

For installation and connections, refer to the separate manual. / Pour l’installation et les

raccordements, se référer au manuel séparé.

Dear Customer,

This apparatus is in conformance with the valid

European directives and standards regarding

electromagnetic compatibility and electrical safety.

European representative of Victor Company of

Japan, Limited is:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Germany

Cher(e) client(e),

Cet appareil est conforme aux directives et normes

européennes en vigueur concernant la compatibilité

électromagnétique et à la sécurité électrique.

Représentant européen de la société Victor

Company of Japan, Limited:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Allemagne

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

CoverRear_KD-R611_003A_2.indd 1-2CoverRear_KD-R611_003A_2.indd 1-2 11/4/09 5:25:54 PM11/4/09 5:25:54 PM

KD-R611

Installation/Connection Manual

Manuel d’installation/raccordement

ENGLISH / FRANÇAIS

1209DTSMDTJEIN

EN, FR

GET0640-010A

[E/EU]

Bracket / Support *2

Pocket / Poche

Flat head screws (M5 × 8 mm) /

Vis à tête plate (M5 × 8 mm) *2

INSTALLATION / INSTALLATION

When installing the unit without using the sleeve / Lors de l’installation de l’appareil

scans utiliser de manchon

In-dash mounting / Montage encastré

• To prevent short circuits:

– Disconnect the battery’s negative terminal and make all electrical connections before installing the unit.

– Cover the terminals of the UNUSED leads with insulating tape.

• Be sure to ground this unit to the car’s chassis again after installation.

• Replace the fuse with one of the specified rating.

• Connect speakers with a maximum power of more than 50 W

(impedance of 4 Ω to 8 Ω). Otherwise, change the <AMP GAIN> setting.

(See page 27 of the INSTRUCTIONS.)

• The heat sink becomes very hot after use. Be careful not to touch it

when removing this unit.

• Pour éviter les courts-circuits:

– Déconnectez la borne négative de la batterie et réaliser toutes les connexions avant d’installer l’appareil.

– Recouvrez les prises des fils NON UTILISÉS avec du ruban isolant.

• Assurez-vous de raccorder de nouveau la mise à la masse de cet appareil au châssis de la voiture après

l’installation.

• Remplacer le fusible par un de la valeur précisée.

• Connectez des enceintes avec une puissance maximum de 50 W (impédance de 4 Ω à 8 Ω). Sinon, changez le

réglage <AMP GAIN>. (Voir la page 27 du MANUEL D’INSTRUCTIONS.)

• Le dissipateur de chaleur devient très chaud après usage. Faire attention de ne pas le toucher en retirant cet

appareil.

12 V DC, NEGATIVE ground / 12 V CC, masse NÉGATIVE

To the car system / Au système autoradioYou need the installation kits which corresponds to your car. / Vous avez besoin des kits

d’installation correspondants à votre voiture.

Check the battery system in your car /

Vérifiez le système de batterie de

votre voiture

WARNINGS / AVERTISSEMENTS

Removing the unit / Retrait de l’appareil

Release the rear section first... / Ouvrez la section arrière en premier...

The following illustration shows a typical installation. If you have any questions or require information

regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

Heat sink / Dissipateur de chaleur

L’illustration suivante est un exemple d’installation typique. Si vous avez des questions ou avez besoin

d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC.

Bend the appropriate tabs to hold the sleeve

firmly in place.

Tordez les languettes appropriées pour maintenir le

manchon en place.

Install the unit at an angle

of less than 30˚.

Installez l’appareil avec un

angle de moins de 30˚.

*1 When you stand the unit, be careful not to damage the fuse on the rear.

*2 Not supplied for this unit.

*1 Lorsque vous mettez l’appareil à la verticale, faire attention de ne pas endommager le fusible situé sur l’arrière.

*2 Non fourni avec cet appareil.

PRECAUTIONS on power supply and speaker connections

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be

seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in

your car.

PRECAUTIONS sur l’alimentation et la connexion des enceintes

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la batterie; sinon, l’appareil serait

sérieusement endommagé.

• AVANT de connecter les fils d’enceintes du cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes

de votre voiture.

Part list / Liste de pièces

A Hard case / Etui de transport (×1)

B Control panel / Panneau de

commande (×1)

C Sleeve / Manchon (×1)

D Trim plate / Plaque d’assemblage

(×1)

E Power cord / Cordon d’alimentation

(×1)

F Handles / Poignées (×2)

Do the required electrical connections

(see page 2).

Réalisez les connexions électriques (voir

page 2).

• The fuse blows.

]

Are the red and black leads connected correctly?

• Power cannot be turned on.

]

Is the yellow lead connected?

• No sound from the speakers.

]

Is the speaker output lead short-circuited?

• “PROTECT” appears on the display and no operation can be done.

]

Is the speaker output lead

short-circuited or touches the chassis of the car/head unit? ; Have you reset your unit?

• Sound is distorted.

]

Is the speaker output lead grounded? ; Are the “–” terminals of L and R speakers

grounded in common?

• Noise interfere with sounds.

]

Is the rear ground terminal connected to the car’s chassis using shorter

and thicker cords?

• This unit becomes hot.

]

Is the speaker output lead grounded? ; Are the “–” terminals of L and R

speakers grounded in common?

• This unit does not work at all.

]

Have you reset your unit?

• Le fusible saute.

]

Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension.

]

Le fil jaune est-elle raccordée?

• Pas de son des enceintes.

]

Le fil de sortie d’enceinte est-il court-circuité?

• “PROTECT” apparaît sur l’affichage et aucune opération ne peut être réalisée.

]

Est-ce qu’un fil de

sortie d’enceinte est court-circuité ou touche le châssis de la voiture/appareil principal? ; Avez-vous réinitialisez

votre appareil?

• Le son est déformé.

]

Le fil de sortie d’enceinte est-il à la masse? ; Les bornes “–” des enceintes gauche et droit

sont-elles mises ensemble à la masse?

• Interférence avec les sons.

]

La prise arrière de mise à la terre est-elle connectée au châssis de la voiture avec

un cordon court et épais?

• Cet appareil devient chaud.

]

Le fil de sortie d’enceinte est-il à la masse? ; Les bornes “–” des enceintes

gauche et droit sont-elles mises ensemble à la masse?

• Cet appareil ne fonctionne pas du tout.

]

Avez-vous réinitialisé votre appareil?

TROUBLESHOOTING / EN CAS DE DIFFICULTES

Install_KD-R611_010A_f.indd 1Install_KD-R611_010A_f.indd 1 12/10/09 9:12:38 AM12/10/09 9:12:38 AM

Signal cord /

Cordon de signal * 1

Signal cord /

Cordon de signal * 1

Y-connector / Connecteur Y * 1

Remote lead / Fil d’alimentation à distance

To the blue (white stripe) lead of the unit /

Au fil bleu (bande blanche) de l’appareil

To the blue (white stripe) lead of the unit /

Au fil bleu (bande blanche) de l’appareil

Rear speakers or subwoofer / Enceintes arrière ou le caisson de grave

Make the <L/O MODE> setting accordingly, see page 26 of the INSTRUCTIONS. /

Faite le réglage <L/O MODE> en fonction, voir page 26 du MANUEL D’INSTRUCTIONS.

Rear ground terminal / Borne arrière de masse

15 A fuse / Fusible 15 A

Steering wheel remote input /

Entrée de la télécommande de volant

Aerial input / Entrée d’antenne

ELECTRICAL CONNECTIONS / RACCORDEMENTS ELECTRIQUES

Reset the unit. / Réinitialisez

l’autoradio.

JVC Amplifier /

JVC Amplificateur

JVC Amplifier /

JVC Amplificateur

Connecting the external amplifiers or subwoofer / Connexion d’amplificateurs extérieurs ou d’un caisson de grave

For some VW/Audi or Opel (Vauxhall) automobiles / Pour certaines

automobiles VW/Audi ou Opel (Vauxhall)

You may need to modify the wiring of the supplied power cord as illustrated. / Vous

aurrez peut-être besoin de modifier le câblage du cordon d’alimentation fourni comme

montré sur l’illustration.

• Contact your authorized car dealer before installing this unit. / Contactez votre revendeur

automobile autorisé avant d’installer l’appareil.

Original wiring / Câblage original

Modified wiring 1 / Câblage modifié 1

Use modified wiring 2 if the unit does not turn on. / Utilisez le câblage modifié 2 si l’appareil

ne se met pas sous tension.

ISO connector /

Connecteur ISO

Y: Yellow / Jaune

R: Red / Rouge

Modified wiring 2 / Câblage modifié 2

*1 Not supplied for this unit. / Non fourni avec cet

appareil.

*2 Firmly attach the ground wire to the metallic

body or to the chassis of the car—to the place

uncoated with paint. / Attachez solidement le

fil de mise à la masse au châssis métallique de la

voiture—à un endroit qui n’est pas recouvert de

peinture.

IMPORTANT/IMPORTANT: A custom wiring harness (separately purchased) which is suitable for your car is recommended for connection between the unit and your car. / Un faisceau de câbles personnalisé (vendu

séparément) correspondant à votre voiture est recommandé pour raccorder l'appareil et votre voiture.

Consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits for details

about connection. / Pour en savoir plus sur connexions, consultez votre revendeur d’autoradio

JVC ou une compagnie fournissant des kits.

(A) If your car has an ISO terminal / Si votre voiture possède une prise ISO (B) If your car does NOT have an ISO terminal / Si votre voiture ne possède pas de prise ISO

Custom wiring harness (separately purchased) /

Faisceau de fils personnalisé (à acheter séparément)

Custom wiring harness (separately purchased) /

Faisceau de fils personnalisé (à acheter séparément)

ISO connector / Connecteur ISO

Å/ ı Rear speaker, right (Purple/Purple, black stripe) (+/–) / Enceintes arrière, droit

(Violet/Violet, bande noire) (+/–)

Ç/ Î Front speaker, right (Gray/Gray, black stripe) (+/–) / Enceintes avant, droit (Gris/

Gris, bande noire) (+/–)

‰/ Ï Front speaker, left (White/White, black stripe) (+/–) / Enceintes avant, gauche

(Blanc/Blanc, bande noire) (+/–)

Ì/ Ó Rear speaker, left (Green/Green, black stripe) (+/–) / Enceintes arrière, gauche

(Vert/ Vert, bande noire) (+/–)

ÔTo mobile phone system (Brown) / Au système de téléphoneportable (Marron)

ÒCar battery 12 V (Yellow) / Batterie de la voiture 12 V (Jaune)

˜Remote lead/power aerial, 200 mA max. (Blue, white stripe) / Fil d’alimentation

à distance/antenne automatique, 200 mA max. (Bleu, bande blanche)

ˆTo car light control switch (Orange, white stripe) / À l'interrupteur d'éclairage de

la voiture (orange, bande blanche)

ØAccessory terminal (Red) / Prise accessoire (Rouge)

∏Metallic body/chassis of the car (Black) / Corps métallique/châssis de la voiture

(Noir)

Connecting the external components in series / Connexion d’appareils extérieurs en série

When connecting the external components, refer also to the manuals supplied for the components and adapter. / Lors de la connexion des appareils extérieurs, référez-vous aussi aux manuels fournis avec les appareils et les

adaptateurs.

You can connect the JVC DAB tuner (KT-DB1000) or the following components through the various JVC adapters to the expansion port. / Vous pouvez connecter le tuner DAB JVC (KT-DB1000) ou les appareils suivants à l'aide

de divers adaptateur JVC au port d'extension.

•

Connection cords may need to be purchased separately. / Vous pouvez avoir besoin d’acheter certains cordons de connexion séparément.

Component / Appareil Adapter / Adaptateur Model name / Nom du modèle

Bluetooth device / Périphérique Bluetooth Bluetooth adapter / Adaptateur Bluetooth KS-BTA200

Portable audio player with line output jacks / Lecteur audio portable avec prises de sortie de ligne Line input adapter / Adaptateur d’entrée de ligne KS-U57

Portable audio player with 3.5 mm stereo mini jack / Lecteur audio portable avec mini fiche stéréo de 3,5 mm AUX input adapter / Adaptateur d’entrée auxiliaire KS-U58

*3 To use these components, set the external input setting correctly (see page 27 of the INSTRUCTIONS). / Pour utiliser ces appareils, réglez l’entrée extérieure correctement (voir page 27 du MANUEL D’INSTRUCTIONS).

*4 If KS-BTA200 is available, connect it to position and connect KT-DB1000 to position . / Si vous disposez du KS-BTA200, connectez-le à la position et connectez le KT-DB1000 à la position .

Two components / Deux appareils:

KS-BTA200 / KT-DB1000 *

KS-U57 / KS-U58 *

To disconnect... /

Pour déconnecter...

Expansion port of the unit /

Port d’extension de l’appareil

Caution / Precaution:

Before connecting the external components, make sure that the unit is

turned off. / Avant de connecter les appareils extérieurs, assurez-vous que

l’appareil est hors tension.

Three components / Trois appareils:

KS-BTA200

KT-DB1000

KS-U57 / KS-U58 *

Front speakers / Enceintes avant

Expansion port / Port d’extension

E Power cord (supplied) / Cordon d’alimentation

(fournie)

E Power cord (supplied) /

Cordon d’alimentation (fournie)

E Power cord (supplied) /

Cordon d’alimentation (fournie)

Install_KD-R611_010A_f.indd 2Install_KD-R611_010A_f.indd 2 12/10/09 9:12:41 AM12/10/09 9:12:41 AM

Jvc Car Stereo System Kd A615 Users Manual CoverRear_KD R618[J]

GET0638-001A kda615

KD-A615 to the manual c2fdda73-62c0-4be2-8de4-4829af7d168f

Navigation menu

Versions of this User Manual:

Views

Navigation
