FRANÇAIS

ENGLISH

GET0649-003A

[E/EU]

EN, FR

For canceling the display demonstration, see page 4. / Pour annuler la démonstration des

affichages, référez-vous à la page 4.

CD RECEIVER / RÉCEPTEUR CD

KD-R711

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

For installation and connections, refer to the separate manual. / Pour l’installation et les

raccordements, se référer au manuel séparé.

Dear Customer,

This apparatus is in conformance with the valid

European directives and standards regarding

electromagnetic compatibility and electrical safety.

European representative of Victor Company of

Japan, Limited is:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Germany

Cher(e) client(e),

Cet appareil est conforme aux directives et

normes européennes en vigueur concernant la

compatibilité électromagnétique et à la sécurité

électrique.

Représentant européen de la société Victor

Company of Japan, Limited:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Allemagne

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

CoverRear_KD-R711_003A_f.indd 1-2CoverRear_KD-R711_003A_f.indd 1-2 12/10/09 11:05:49 AM12/10/09 11:05:49 AM

2ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the unit while driving,

be sure to look around carefully or you may be

involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as

this will block outside sounds, making driving

dangerous.

• Stop the car before performing any

complicated operations.

Temperature inside the car...

If you have parked the car for a long time in

hot or cold weather, wait until the temperature

in the car becomes normal before operating

the unit.

Caution on volume setting:

Digital devices (CD/USB) produce very little

noise compared with other sources. Lower the

volume before playing these digital sources to

avoid damaging the speakers by the sudden

increase of the output level.

Information for Users on Disposal of

Old Equipment and Batteries

[European Union only]

These symbols indicate that the product and

the battery with this symbol should not be

disposed as general household waste at its

end-of-life.

If you wish to dispose of this product and

the battery, please do so in accordance with

applicable national legislation or other rules

in your country and municipality.

By disposing of this product correctly, you

will help to conserve natural resources and

will help prevent potential negative effects

on the environment and human health.

Notice:

The sign Pb below the symbol for batteries

indicates that this battery contains lead.

Products

Battery

EN02-11_KD-R711_003A_5.indd 2EN02-11_KD-R711_003A_5.indd 2 12/17/09 5:23:51 PM12/17/09 5:23:51 PM

3ENGLISH

CONTENTS

3 How to read this manual

3 How to attach/detach the control

panel

3 How to reset your unit

3 How to forcibly eject a disc

Canceling the display

demonstration

4 Setting the clock

5 Preparing the remote controller

(RM-RK50)

6 Basic operations

7 Listening to the radio

10 Listening to a disc

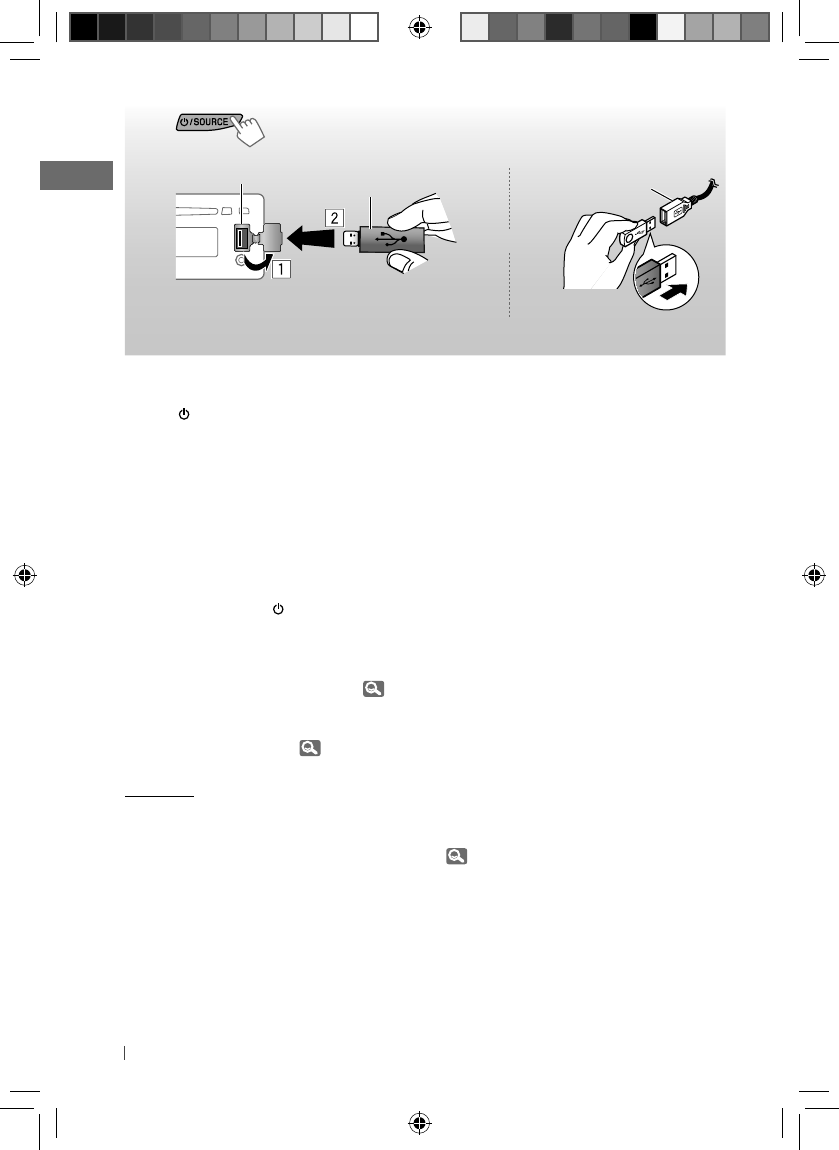

11 Listening to the USB device

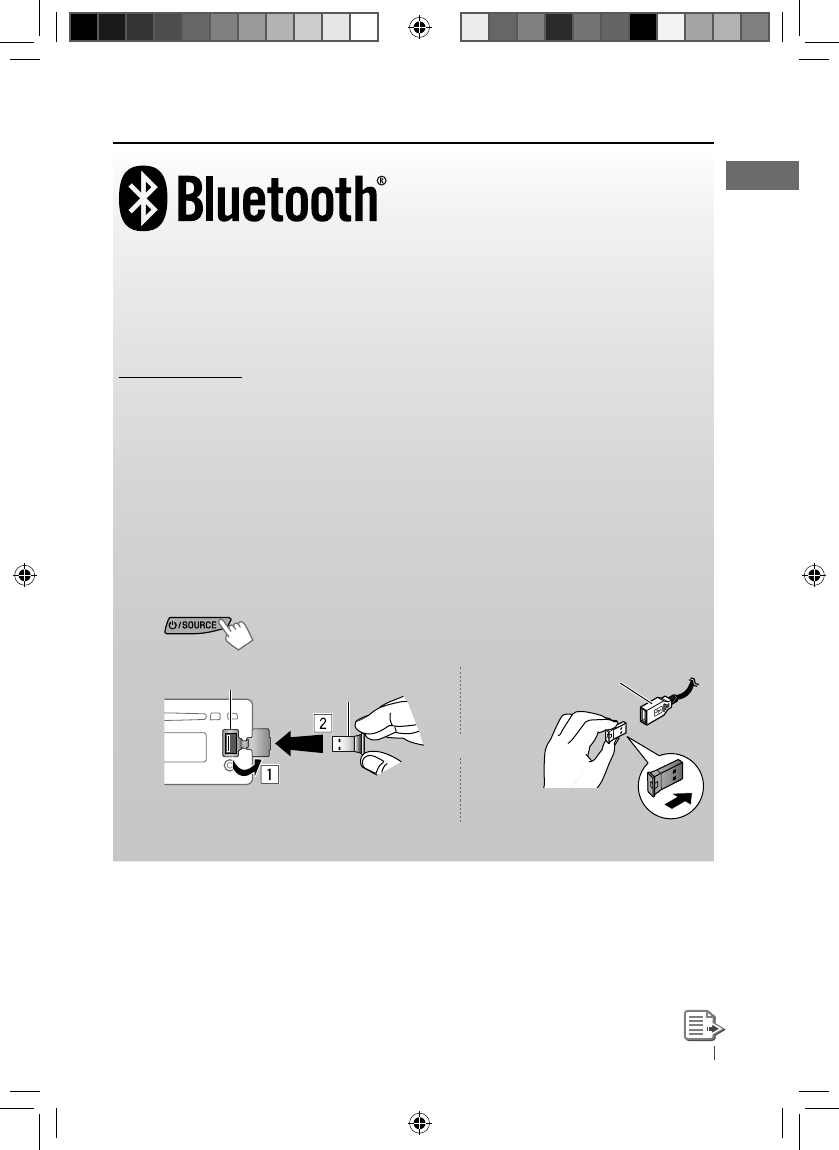

13 Using the Bluetooth ® device

15 Using a Bluetooth mobile phone

17 Using a Bluetooth audio player

18 Changing the Bluetooth settings

20 Listening to the iPod/iPhone

22 Listening to the other external

components

23 Selecting a preset sound mode

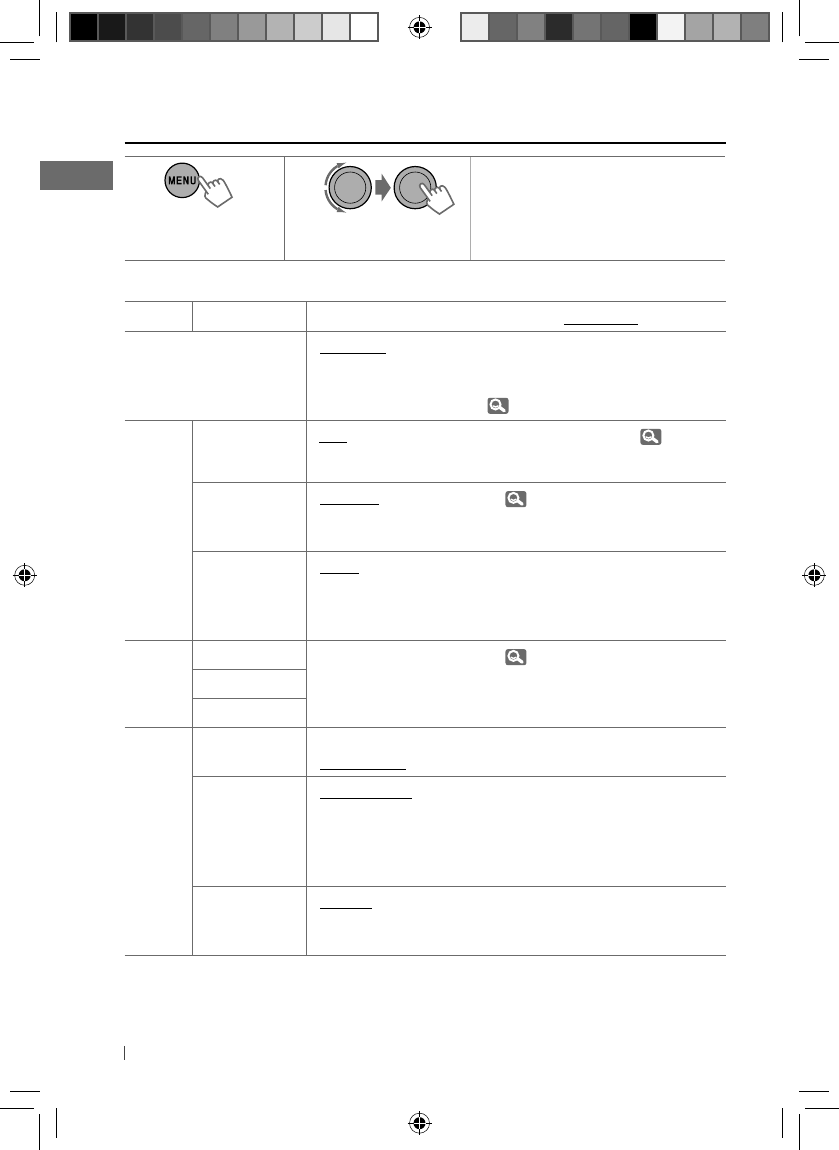

24 Menu operations

27 More about this unit

31 Maintenance

32 Troubleshooting

36 Specifications

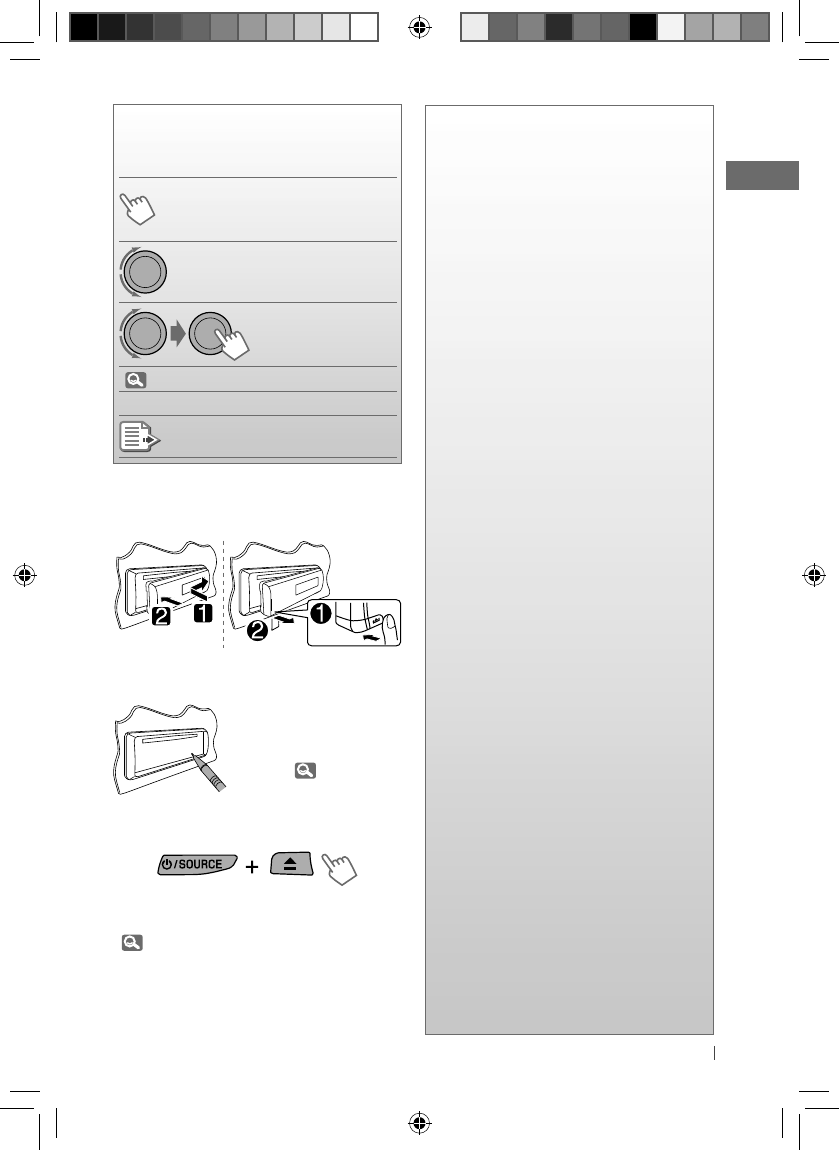

How to read this manual

The following icons/symbols are used to

indicate:

Press and hold the button(s)

until the desired operation

begins.

Turn the control dial.

Turn the control dial

to make a selection,

then press to confirm.

( XX) Reference page number

<XXXX> Menu setting item

Continued on the next page

How to attach/detach the control

panel

How to reset your unit

Your preset adjustments

will also be erased (except

the registered Bluetooth

device). ( 14)

How to forcibly eject a disc

• You can forcibly eject the loaded disc even

if the disc is locked. To lock/unlock the disc,

10.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

[Hold]

EN02-11_KD-R711_003A_5.indd 3EN02-11_KD-R711_003A_5.indd 3 12/17/09 5:23:52 PM12/17/09 5:23:52 PM

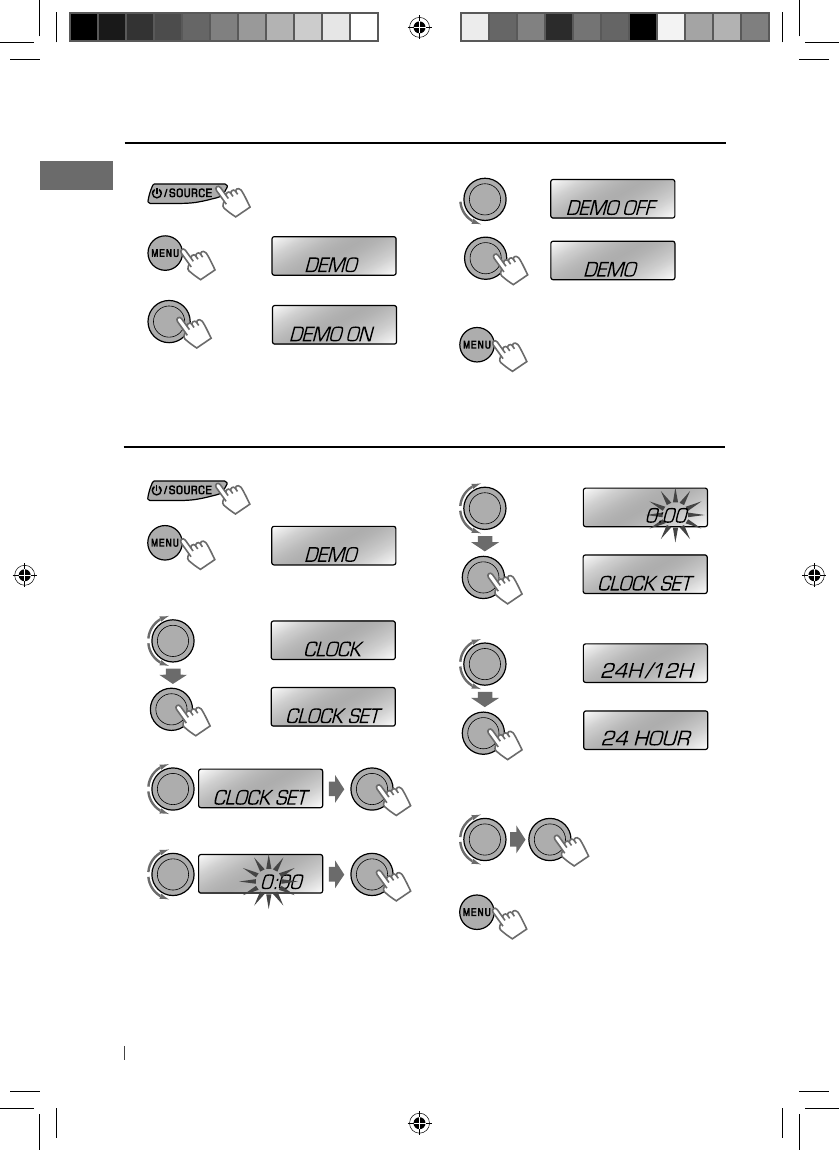

4ENGLISH

1 Turn on the power.

4 Select <DEMO OFF>.

6 Finish the procedure.

Canceling the display demonstration

(Initial setting)

[Hold]

Setting the clock

6 Adjust the minute.

7 Select <24H/12H>.

8 Select <24 HOUR> or

<12 HOUR>.

9 Finish the procedure.

1 Turn on the power.

3 Select <CLOCK>.

4 Select <CLOCK SET>.

5 Adjust the hour.

(Initial setting)

[Hold]

EN02-11_KD-R711_003A_5.indd 4EN02-11_KD-R711_003A_5.indd 4 12/17/09 5:23:52 PM12/17/09 5:23:52 PM

5ENGLISH

Warning (to prevent accidents and

damage):

• Do not install any battery other than CR2025

or its equivalent.

• Do not leave the remote controller in a place

(such as dashboards) exposed to direct

sunlight for a long time.

• Store the battery in a place where children

cannot reach.

• Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

• Do not leave the battery with other metallic

materials.

• Do not poke the battery with tweezers or

similar tools.

• Wrap the battery with tape and insulate when

throwing away or saving it.

This unit is equipped with the steering wheel

remote control function.

Before operating, connect an exclusive remote

adapter (not supplied) which matches your car

to the steering wheel remote input terminal on

the rear of the unit.

• For details, refer also to the instructions

supplied with the remote adapter.

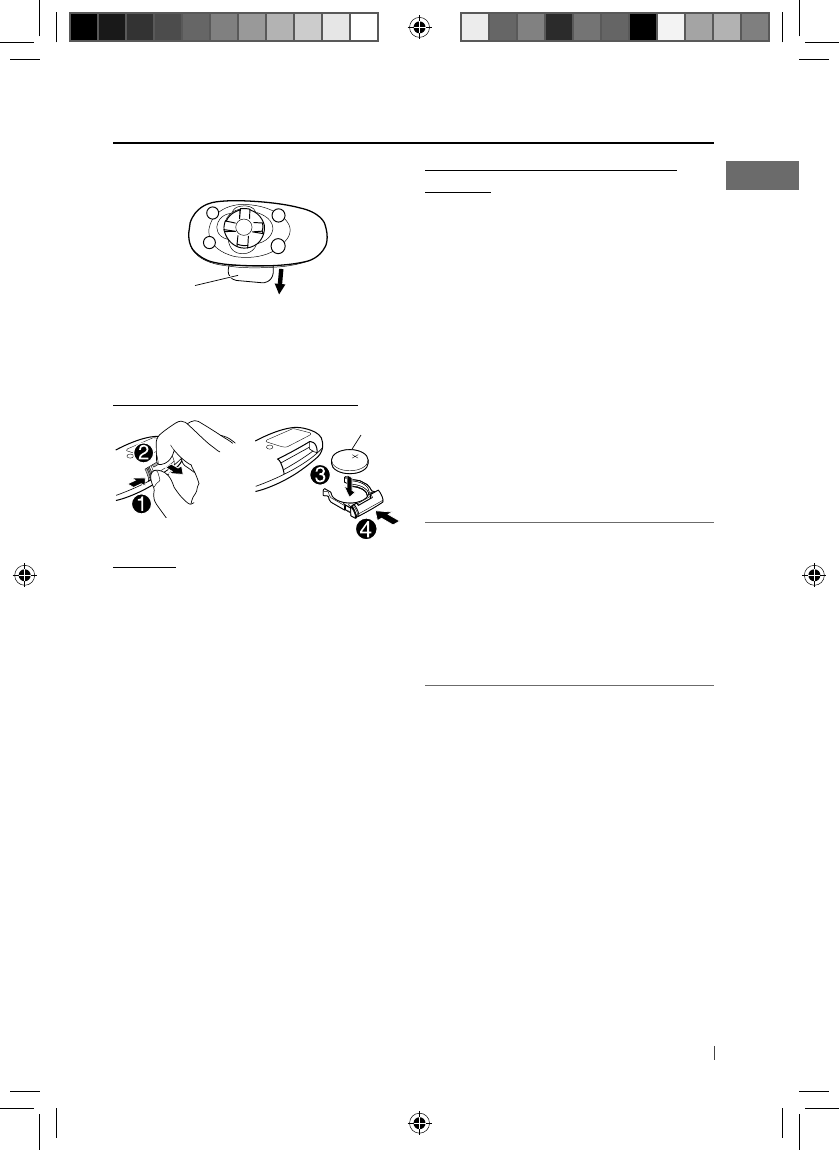

Preparing the remote controller (RM-RK50)

When you use the remote controller for the first

time, pull out the insulation sheet.

If the effectiveness of the remote controller

decreases, replace the battery.

Replacing the lithium coin battery

CR2025

Caution:

• Danger of explosion if battery is incorrectly

replaced. Replace only with the same or

equivalent type.

• Battery shall not be exposed to excessive heat

such as sunshine, fire, or the like.

Insulation sheet

EN02-11_KD-R711_003A_5.indd 5EN02-11_KD-R711_003A_5.indd 5 12/17/09 5:23:53 PM12/17/09 5:23:53 PM

6ENGLISH

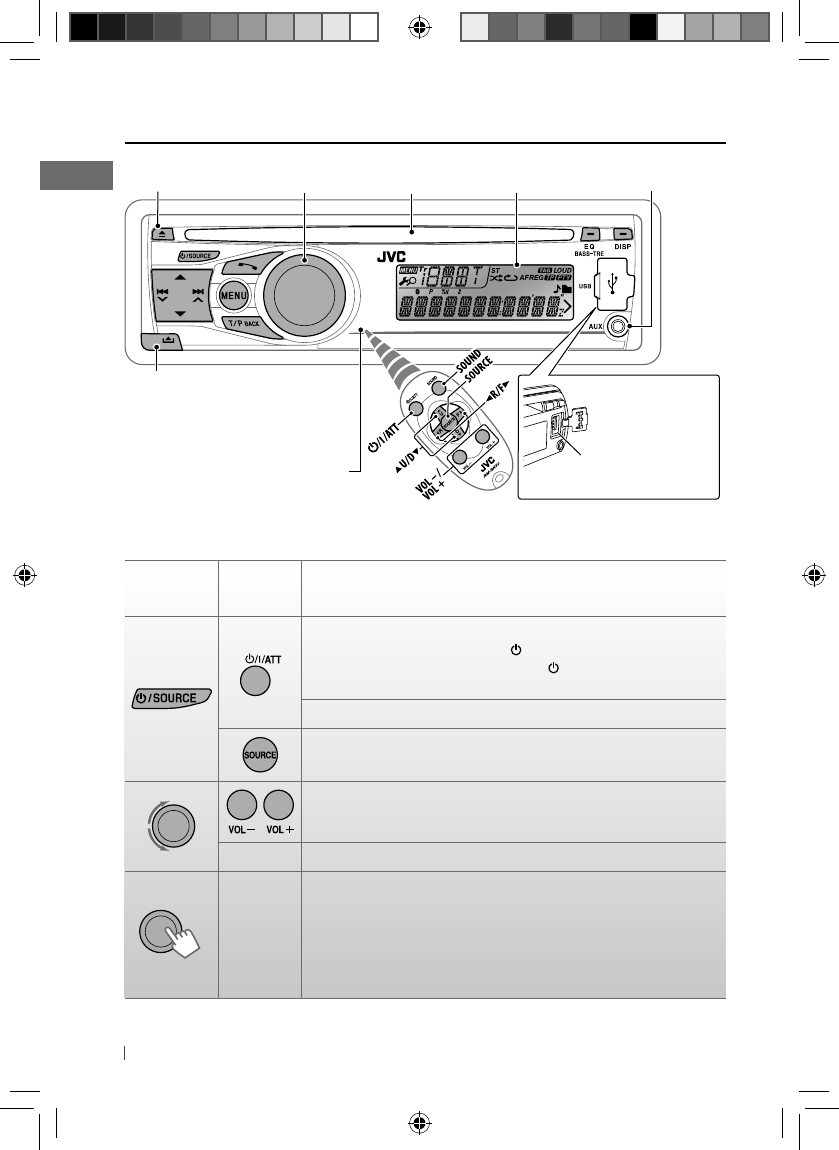

Basic operations

Control dial

Ejects the disc Loading slot

USB (Universal Serial Bus)

input terminal

Display window Auxiliary input jack

Detaches the panel

When you press or hold the following button(s)...

Main unit Remote

controller General operation

Turns on.

• When the power is on, pressing /I/ATT on the remote controller

also mutes the sound or pauses. Press /I/ATT again to cancel

muting or resume playback.

Turns off if pressed and held.

Selects the available sources (if the power is turned on).

• If the source is ready, playback also starts.

Adjusts the volume level.

— Selects items.

—

• Mutes the sound while listening to a source. If the source is “CD,”

“USB FRONT/USB REAR,” or “IPOD-FRONT/IPOD-REAR,” playback

pauses. Press the control dial again to cancel muting or resume

playback.

• Enters playback mode menu directly if pressed and held.

• Confirms selection.

Remote sensor

• DO NOT expose to bright sunlight.

EN02-11_KD-R711_003A_5.indd 6EN02-11_KD-R711_003A_5.indd 6 12/17/09 5:23:53 PM12/17/09 5:23:53 PM

7ENGLISH

Manual search

“M” flashes, then press

the button repeatedly.

When an FM stereo broadcast is

hard to receive

]

<TUNER>

]

<MONO>

]

Reception improves, but stereo effect

will be lost.

To restore the stereo effect, repeat the same

procedure to select <MONO OFF>.

Automatic presetting (FM)—

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

While listening to a station...

]

<TUNER>

]

<SSM>

]

<SSM 01 – 06> / <SSM 07 – 12> /

“SSM” flashes and local stations with

the strongest signals are searched and

stored automatically.

To preset another 6 stations, repeat the above

procedure by selecting one of the other 6 SSM

setting ranges.

Main unit Remote

controller General operation

Selects the sound mode.

• Enters tone level adjustment directly ( 23) if pressed and held

EQ/BASS-TRE on the main unit.

—

• Enters “Call Menu” screen or answers incoming call when the unit

rings.

• Ends a call if pressed and held.

—

• Activates/deactivates TA Standby Reception.

• Enters PTY Searching mode if pressed and held.

• Returns to the previous menu.

—Power off : Checks the current clock time.

Power on : Changes the display information.

[Hold]

Listening to the radio

]

“FM” or “AM”

“ST” lights up when receiving an FM stereo broadcast

with sufficient signal strength.

EN02-11_KD-R711_003A_5.indd 7EN02-11_KD-R711_003A_5.indd 7 12/17/09 5:23:54 PM12/17/09 5:23:54 PM

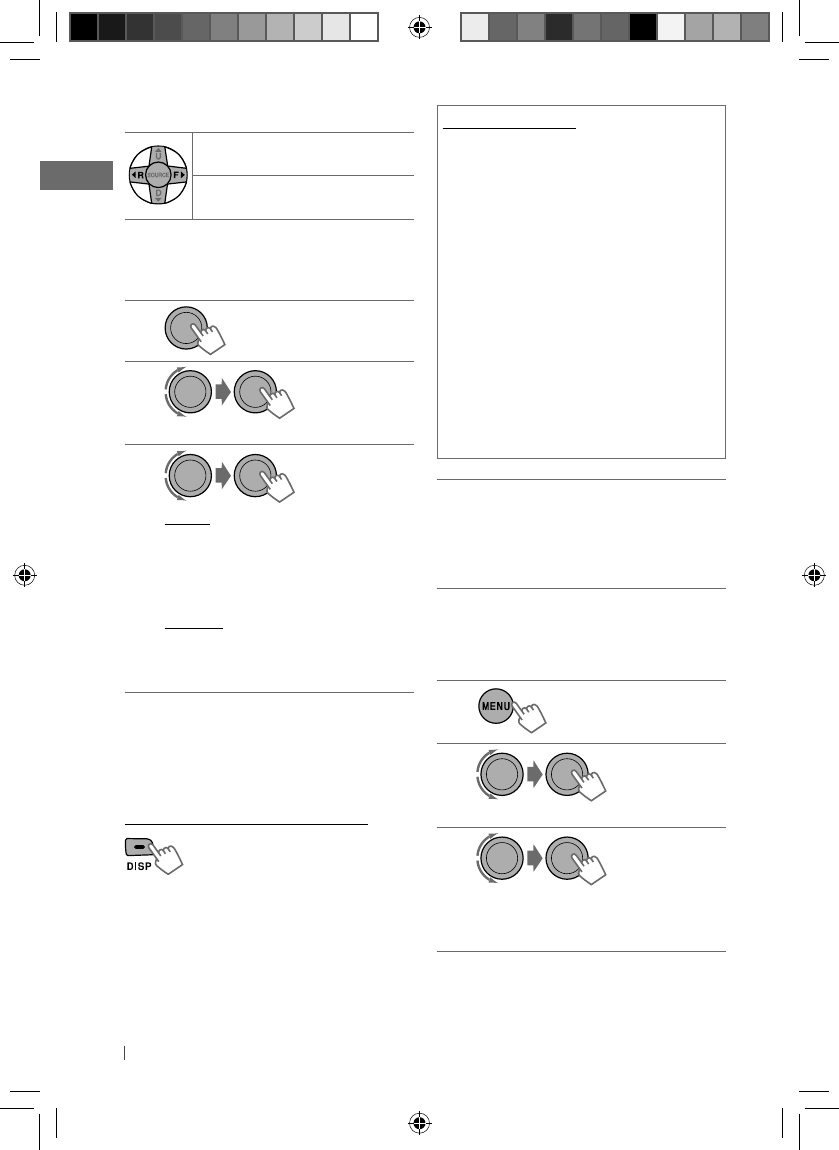

8ENGLISH

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6

stations for AM.

Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

]

“92.50MHz”

“PRESET MODE” flashes.

]

Selects preset number “04.”

“P04” flashes and “MEMORY” appears.

Selecting a preset station

Changing the display information

Frequency

Clock

(back to

the beginning)

Using the remote controller

∞

: Changes the preset

stations

: Searches for stations

[Hold]

The following features are available

only for FM Radio Data System stations.

Searching for your favourite

FM Radio Data System

programme—PTY Search

You can tune in to a station broadcasting your

favourite programme by searching for a PTY

code.

The last selected PTY code appears.

]

Select one of your favourite

programme types or a PTY code, and

start searching.

If there is a station broadcasting a

programme of the same PTY code as you

have selected, that station is tuned in.

PTY codes: NEWS, AFFAIRS, INFO, SPORT,

EDUCATE, DRAMA, CULTURE, SCIENCE,

VARIED, POP M (music), ROCK M (music),

EASY M (music), LIGHT M (music), CLASSICS,

OTHER M (music), WEATHER, FINANCE,

CHILDREN, SOCIAL, RELIGION, PHONE IN,

TRAVEL, LEISURE, JAZZ, COUNTRY,

NATION M (music), OLDIES, FOLK M (music),

DOCUMENT

[Hold]

EN02-11_KD-R711_003A_5.indd 8EN02-11_KD-R711_003A_5.indd 8 12/17/09 5:23:54 PM12/17/09 5:23:54 PM

9ENGLISH

Standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch

temporarily to Traffic Announcement (TA) from

any source other than AM.

• The volume changes to the preset TA volume

level if the current level is lower than the

preset level. (<TA VOLUME>, 25)

To activate TA Standby Reception

If the TP indicator lights up, TA

Standby Reception is activated.

If the TP indicator flashes, TA

Standby Reception is not yet

activated.

• To activate the reception, tune in to another

station providing Radio Data System signals

required for TA Standby Reception.

• To deactivate the reception, press

T/P BACK

again.

PTY Standby Reception

PTY Standby Reception allows the unit to

switch temporarily to your favourite PTY

programme from any source other than AM.

To activate and select your favourite

PTY code for PTY Standby Reception, see

<PTY-STANDBY> ( 25)

If the PTY indicator lights up, PTY Standby

Reception is activated.

If the PTY indicator flashes, PTY Standby

Reception is not yet activated.

• To activate the reception, tune in to another

station providing these signals.

• To deactivate the reception, select <PTY OFF>

( 25) for the PTY code. The PTY indicator

goes off.

• The unit will not switch to Traffic

Announcement or PTY programme when

a call connection is established through

“BT-PHONE.”

Tracing the same programme—

Network-Tracking Reception

When driving in an area where FM reception is

not sufficient enough, this unit automatically

tunes in to another FM Radio Data System

station of the same network, possibly

broadcasting the same programme with

stronger signals.

Programme A broadcasting on different

frequency areas (01 – 05)

To change the Network-Tracking Reception

setting, see <AF-REG> ( 25).

Automatic station selection—

Programme Search

Usually when you select a preset number, the

station preset in that number is tuned in.

If the signals from the FM Radio Data System

preset station are not sufficient for good

reception, this unit, using the AF data, tunes in

to another frequency possibly broadcasting the

same programme as the original preset station

is broadcasting. (<P-SEARCH>, 25)

Changing the display information

Station name (PS)

Station

Frequency

Programme

type (PTY)

Clock

(back to

the beginning)

EN02-11_KD-R711_003A_5.indd 9EN02-11_KD-R711_003A_5.indd 9 12/17/09 5:23:54 PM12/17/09 5:23:54 PM

10 ENGLISH

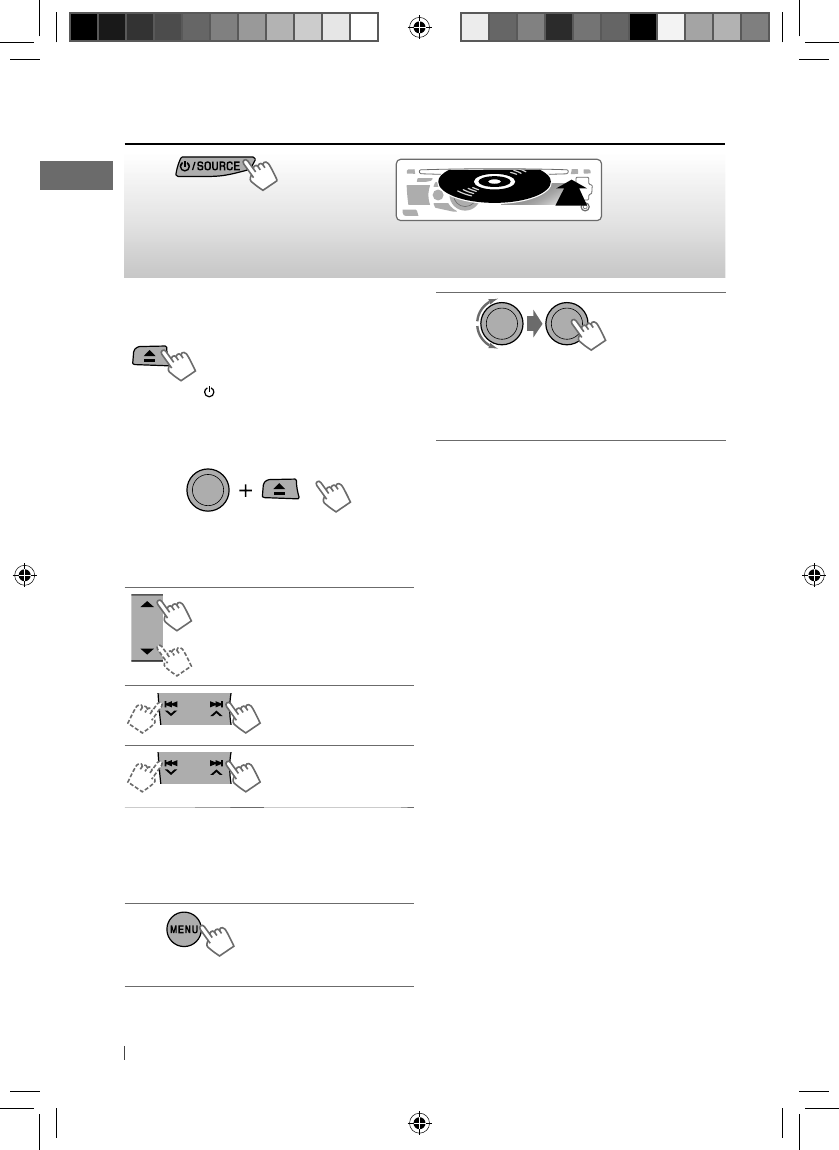

Stopping playback and ejecting

the disc

“NO DISC” appears.

Remove the disc, then press

SOURCE

to listen to another

playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Selects folder of the MP3/WMA

Selects track

Fast-forwards or

reverses the track

Selecting a folder/track on the

list

While listening to a disc....

]

Enter the list menu.

Listening to a disc

]

Turn on the power.

All tracks will be played repeatedly until you change

the source or eject the disc.

[Hold]

]

Select your desired item.

MP3/WMA: Select your desired folder,

then the desired track by repeating

this step.

• If the MP3/WMA disc contains many tracks,

you can fast search (±10, ±100, ±1000)

through the disc by turning the control dial

quickly.

• To return to the previous menu, press

T/P BACK

For MP3/WMA disc, you can also use the search

menu (A to Z, 0 to 9, and OTHERS) to scroll

through the list menu.

• “OTHERS” appears if the 1st character is not A

to Z or 0 to 9, such as #, —, !, and etc.

While in list menu....

Press

∞

to show the search menu.

• The first character of the current folder/file

name appears.

Press

∞

to select your desired character.

Then press the control dial to confirm.

• The track list with the selected character

appears.

Turn the control dial to select your desired

track. Then press the control dial to confirm.

• Only the existing characters will be shown on

the search menu.

• Press and hold

∞

to continuously change

the character of the search menu.

EN02-11_KD-R711_003A_5.indd 10EN02-11_KD-R711_003A_5.indd 10 12/17/09 5:23:55 PM12/17/09 5:23:55 PM

11ENGLISH

• If your disc contains many tracks, searching

take some time.

Selecting the playback modes

You can use only one of the following playback

modes at a time.

]

“REPEAT”

“RANDOM”

REPEAT

TRACK RPT : Repeats current track

FOLDER RPT : Repeats current folder

RANDOM

FOLDER RND : Randomly plays all tracks

of current folder, then

tracks of next folders

ALL RND : Randomly plays all tracks

To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

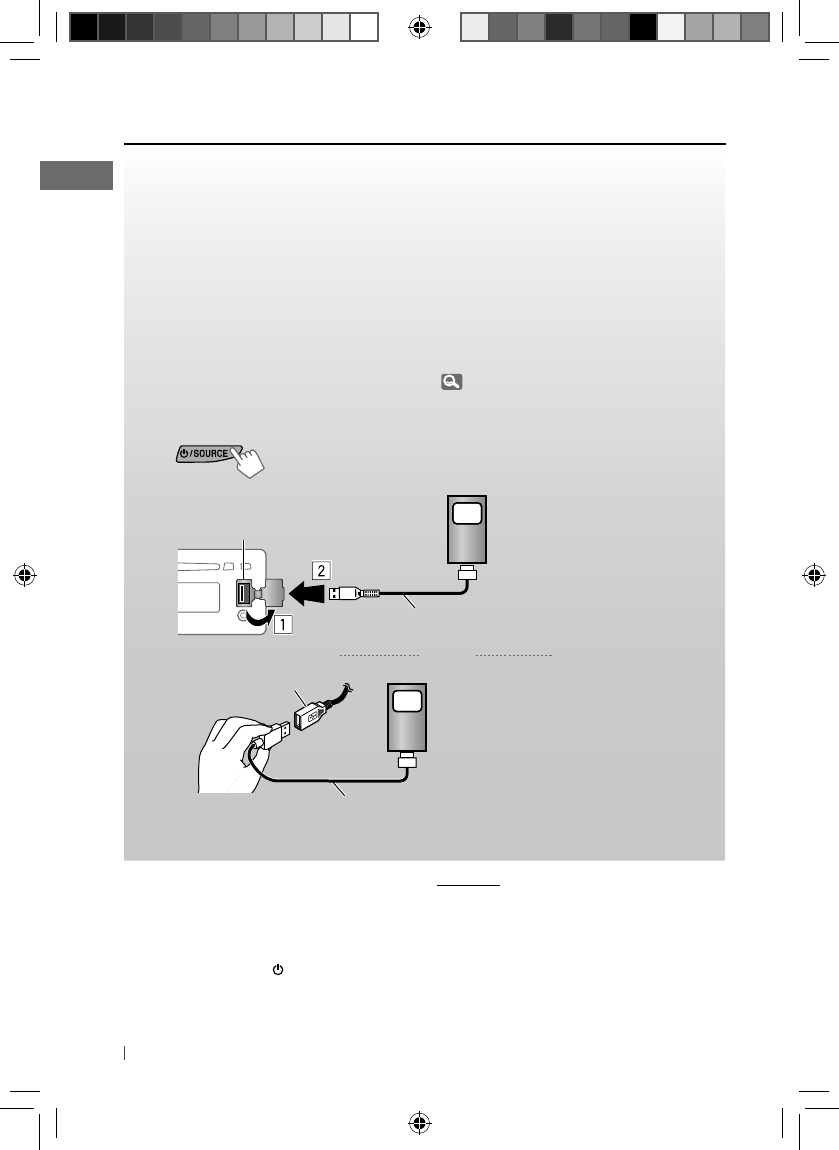

Listening to the USB device

This unit is equipped with two USB input terminals (on the control panel and USB cable from the

rear of the unit). You can use these two terminals at the same time.

• You can also connect a USB Bluetooth Adapter, KS-UBT1 (supplied), ( 13) and/or an Apple

iPod/iPhone ( 20) to the USB input terminal(s).

This unit can play MP3/WMA/WAV tracks stored in a USB mass storage class device (such

as a USB memory, Digital Audio Player, etc.).

Changing the display information

Disc title/Album name/performer (folder

name)*

Track title (file name)*

Current

track number with the elapsed playing time

Current track number with the clock

time

(back to the beginning)

* If the current disc is an audio CD (except for CD

Text), “NO NAME” appears.

If an MP3/WMA file does not have Tag

information or <TAG DISPLAY> is set to

<TAG OFF> ( 24), folder name and file name

appear.

Using the remote controller

∞

: Selects folder of the

MP3/WMA

: Selects track

[Hold]

: Fast-forwards or

reverses the track

[Hold]

EN02-11_KD-R711_003A_5.indd 11EN02-11_KD-R711_003A_5.indd 11 12/17/09 5:23:55 PM12/17/09 5:23:55 PM

12 ENGLISH

]

Turn on the power.

and / or

All tracks will be played repeatedly until you change the source or detach the USB device.

If you have turned off the power (without

detaching the USB device)...

Pressing

/ SOURCE

turns on the power and

playback starts from where it has been stopped

previously.

• If a different USB device is currently attached,

playback starts from the beginning.

Stopping playback and detaching

the USB device

Straightly pull it out from the unit.

“NO USB” appears. Press

/ SOURCE

to listen to

another playback source.

You can operate the USB device in the same

way you operate the files on a disc. (

10, 11)

• You can listen to WAV files by following the

MP3/WMA file operations. ( 10, 11)

Cautions:

• Avoid using the USB device if it might hinder

your safety driving.

• While “READING” is shown on the display:

– Do not pull out and attach the USB device

repeatedly.

– Do not pull out or attach another USB

device.

• Do not start the car engine if a USB device is

connected.

• This unit may not be able to play the files

depending on the type of USB device.

• Operation and power supply may not work as

intended for some USB devices.

• You cannot connect a computer to the USB

input terminal of the unit.

• Make sure all important data has been backed

up to avoid losing the data.

• Electrostatic shock at connecting a USB device

may cause abnormal playback of the device.

In this case, disconnect the USB device then

reset this unit and the USB device.

• Do not leave a USB device in the car, expose

to direct sunlight, or high temperature to

avoid deformation or cause damages to the

device.

• Some USB devices may not work immediately

after you turn on the power.

• The detect time and response time may

be very long for some USB devices (such as

Digital Audio Player, etc.).

• For more details about USB operations,

29, 30.

USB input terminal USB memory USB cable from the

rear of the unit

EN12-21_KD-R711_003A_5.indd 12EN12-21_KD-R711_003A_5.indd 12 12/17/09 5:24:04 PM12/17/09 5:24:04 PM

13ENGLISH

Using the Bluetooth ® device

Bluetooth is a short-range wireless radio communication technology for the mobile device such

as mobile phones, portable PCs, and other devices. The Bluetooth devices can be connected

without cables and communicate with each other.

• Refer to pages i and ii at the end of the manual to check the countries where you may use the

Bluetooth® function.

Bluetooth profile

This unit supports the following Bluetooth profiles;

HFP (Hands-Free Profile) 1.5 ; OPP (Object Push Profile) 1.1 ; PBAP (Phonebook Access Profile)

1.0 ; A2DP (Advanced Audio Distribution Profile) 1.2 ; AVRCP (Audio/Video Remote Control

Profile) 1.3

Refer also to the instructions supplied with the Bluetooth device.

Preparation:

• Connect the supplied USB Bluetooth Adapter (KS-UBT1) to one of the USB input terminals of the

unit.

• Operate the device to turn on its Bluetooth function.

]

Turn on the power.

Only one USB Bluetooth Adapter can be detected at a time.

Pairing a device

When you connect a Bluetooth device to the unit for the first time, make pairing between the unit

and the device.

• Once the connection is established, it is registered in the unit even if you reset the unit. Up to five

devices can be registered in total.

• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.

USB input terminal KS-UBT1 USB cable from the

rear of the unit

EN12-21_KD-R711_003A_5.indd 13EN12-21_KD-R711_003A_5.indd 13 12/17/09 5:24:04 PM12/17/09 5:24:04 PM

14 ENGLISH

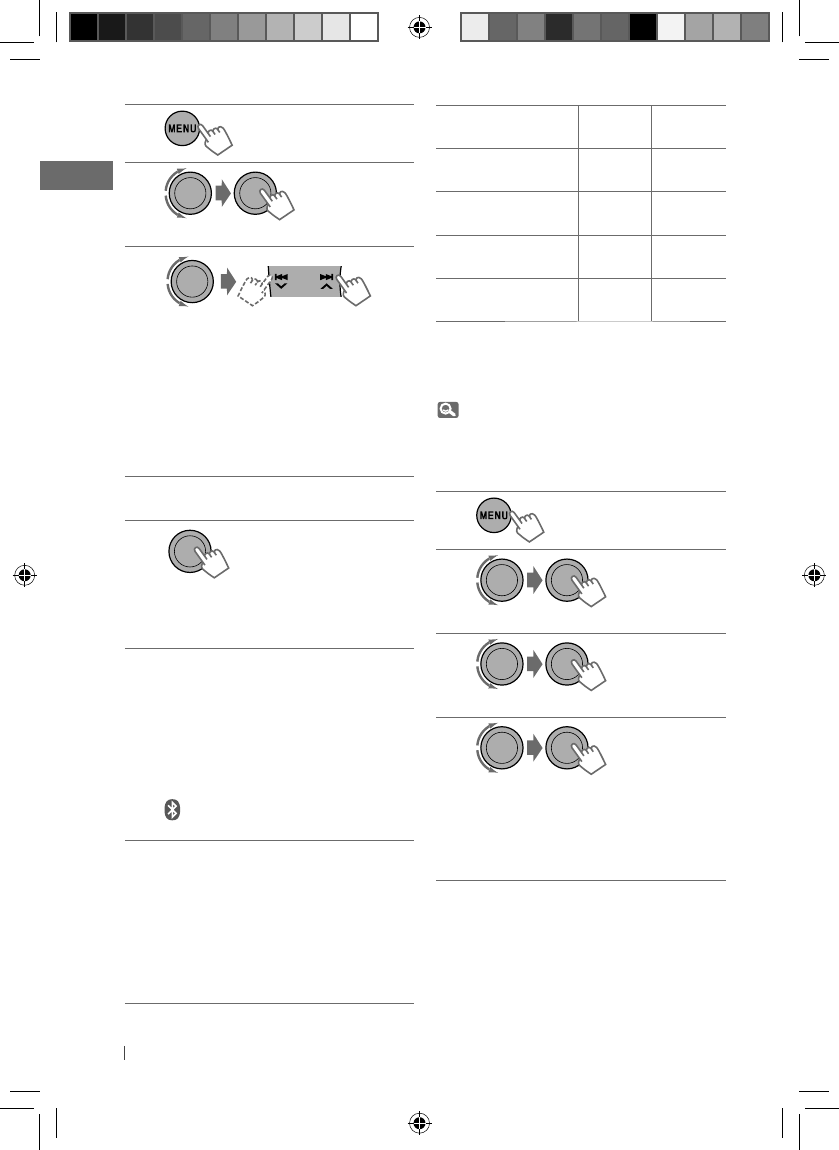

] <BLUETOOTH> ] <NEW PAIRING>

]

Enter a PIN (Personal Identification

Number) code in to the unit.

You can enter any number you like

(1-digit to 16-digit number).

[Initial: 0000]

• Some devices have their own PIN

code. Enter the specified PIN code in

to the unit.

4Repeat step 3 until you have finished

entering the PIN code.

]

Confirm the entry.

“SEARCH NOW” and “USING PHONE”

appear alternately on the display.

6Use the Bluetooth device to search.

On the device to be connected, enter

the same PIN code you have just

entered for this unit.

“PAIRING OK“ and “[Device Name]”

appear alternately when the pairing is

established.

appears when Bluetooth connection

is established.

7Use the Bluetooth device to connect *

when “CONNECT NOW” and “USING

PHONE” alternate on the display.

• Refer to the table on the right column

for connectivity results shown on the

display.

* Operations may be different according

to the connected device.

Display result Hands-

Free Call

Audio

Streaming

CONNECT OK

[Device Name]

‡‡

H.FREE OK

[Device Name]

‡

—

A. STREAM OK

[Device Name] —

‡

CONNCT FAIL

TRY CONNECT ——

The device remains registered even after you

disconnect the device. Use <CONNECT PH> or

<CONNECT AU> (or activate <AUTO CNNCT>,

19) to connect the same device from next

time on.

Deleting a registered device

] <BLUETOOTH> ] <DELETE PAIR>

]

Select a device you want to delete.

]

Select <DELETE YES> to confirm.

“DELETED” appears when the device is

deleted.

• If <DELETE NO> is selected, the unit

returns to step 3 above.

[Hold]

EN12-21_KD-R711_003A_5.indd 14EN12-21_KD-R711_003A_5.indd 14 12/17/09 5:24:05 PM12/17/09 5:24:05 PM

15ENGLISH

Connecting/disconnecting a

registered device

] <BLUETOOTH> ] <CONNECT PH/

CONNECT AU> or <DISCONNT PH/

DISCONNT AU>.

• For connecting a device, go to step 3.

• For disconnecting a device,

“DISCONNECT” and “[Device Name]”

appear alternately on the display

when the device is disconnected.

]

Select a device you want to connect.

• “CONNECTING” and “[Device Name]”

appear alternately, then “CONNECTED”

and “[Device Name]” appear

alternately on the display when the

device is connected.

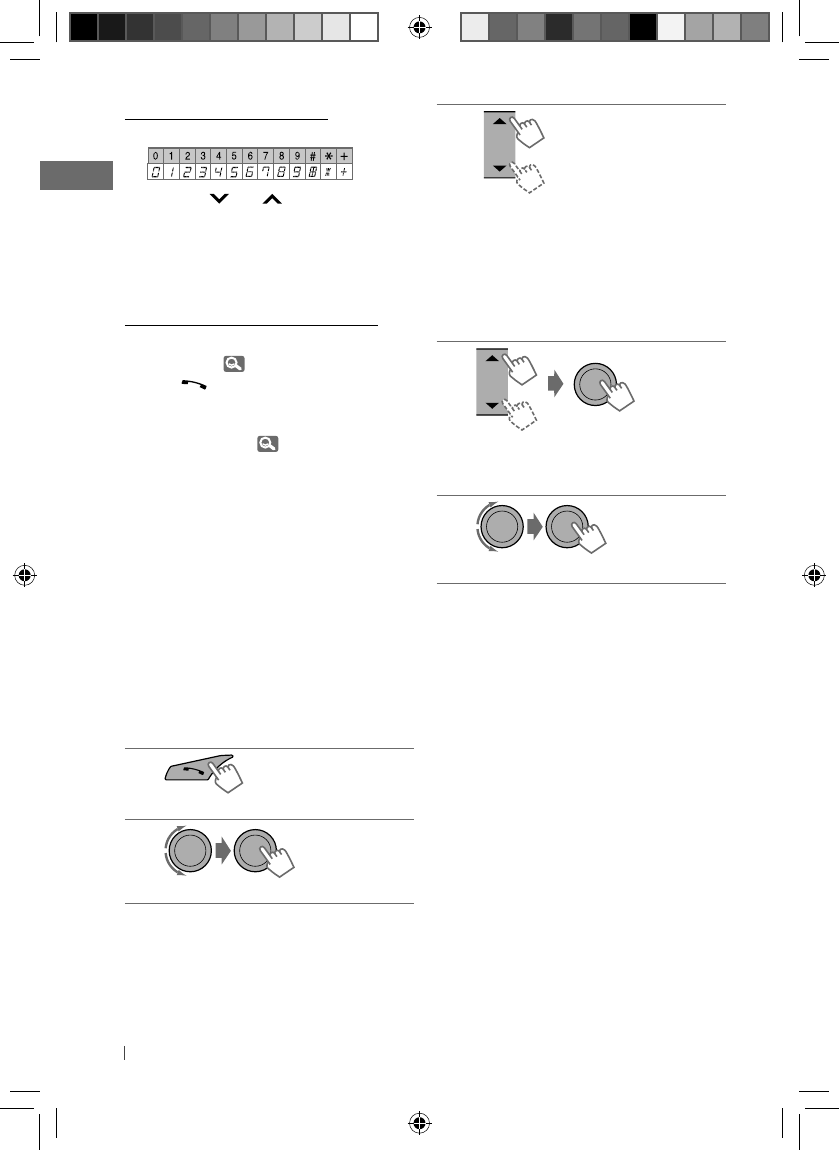

Using a Bluetooth mobile

phone

Making a call

] Enter “Call Menu” screen.

] Select the method to make a call.

• DIALED * 1: Shows the list of the phone

numbers you have dialed. Go to the

following step.

• RECEIVED * 1: Shows the list of the

received calls. Go to the following step.

[Hold]

• MISSED CALL * 1: Shows the list of the

missed calls. Go to the following step.

• PHONEBOOK * 2: Shows the name/

phone number of the phonebook

registered in the unit or from the

connected phone *3. Go to the

following step.

– To copy the phonebook memory, <P.

BOOK WAIT>, 19.

– If the phonebook contains many

numbers, you can fast search (±10,

±100, ±1000 numbers) through the

phonebook by turning the control

dial quickly.

– To search through the phonebook,

16.

• DIAL NUMBER: Shows the “Dial

Number” screen. ( 16)

• VOICE DIAL (only accessible when

the connected mobile phone has the

voice recognition system): Speak the

name (registered words) you want to

call when “SAY NAME” appears *4, *5.

*1 “NO HISTORY” appears if there is no

history stored.

*2 “NO DATA” or “SEND P. BOOK”

“MANUALLY” appears depending on

the <P. BOOK SEL> settings.

*3 Depends on the <P. BOOK SEL>

settings, 19.

*4 Operations may be different according

to the connected device.

*5 “NOT SUPPORT” appears if the

connected phone does not support

this feature.

]

Select the name/phone number you

want to call.

• When the sound is stopped or

interrupted during the use of a

Bluetooth device, turn off, then turn

on the unit.

– If the sound is not yet restored,

connect the device again using

<CONNECT PH>.

EN12-21_KD-R711_003A_5.indd 15EN12-21_KD-R711_003A_5.indd 15 12/17/09 5:24:05 PM12/17/09 5:24:05 PM

16 ENGLISH

How to enter phone number

Turn the control dial to select a number.

Press

to move the entry

position.

Repeat steps

and

until you finish

entering the phone number.

Press the control dial to confirm the entry.

How to delete name/phone number

Only when <PB IN UNIT> is selected for

<P. BOOK SEL>, 19.

Press to enter “Call Menu” screen.

Display the list of name/phone numbers

using one of the dialing method (see step 2

of “Making a call,” 15).

Turn the control dial to select the name/

phone number you want to delete.

Press and hold

T/P BACK

to enter the “Delete

Entries” screen.

Turn the control dial to select “DELETE” or

“DELETE ALL.”

• If “DELETE” is selected, the selected name/

phone number in step

is deleted.

• If “DELETE ALL” is selected, the listed

numbers in step

selection are deleted.

Press the control dial to confirm.

Selecting a contact from the

phonebook

] Enter “Call Menu” screen.

]

]

Show the search menu (A to Z, 0 to

9, and OTHERS).

The first character of the first contact on

the phonebook appears.

• “OTHERS” appears if the 1st character

is not A to Z or 0 to 9, such as #, —, !,

and etc.

]

Select your desired character.

The name list of the selected character

appears.

]

Select your desired contact.

• To return to the previous menu, press

T/P BACK

• Only the existing characters will be shown on

the search menu.

• Press and hold

∞

to continuously change

the character of the search menu.

• If your phonebook contains many contacts,

searching take some time.

Receiving a call

When a call comes in, the source is

automatically changed to “BT FRONT/BT REAR.”

“RECEIVING” appears for a while, then the

phone number or name appears on the display.

EN12-21_KD-R711_003A_7.indd 16EN12-21_KD-R711_003A_7.indd 16 1/4/10 12:17:51 PM1/4/10 12:17:51 PM

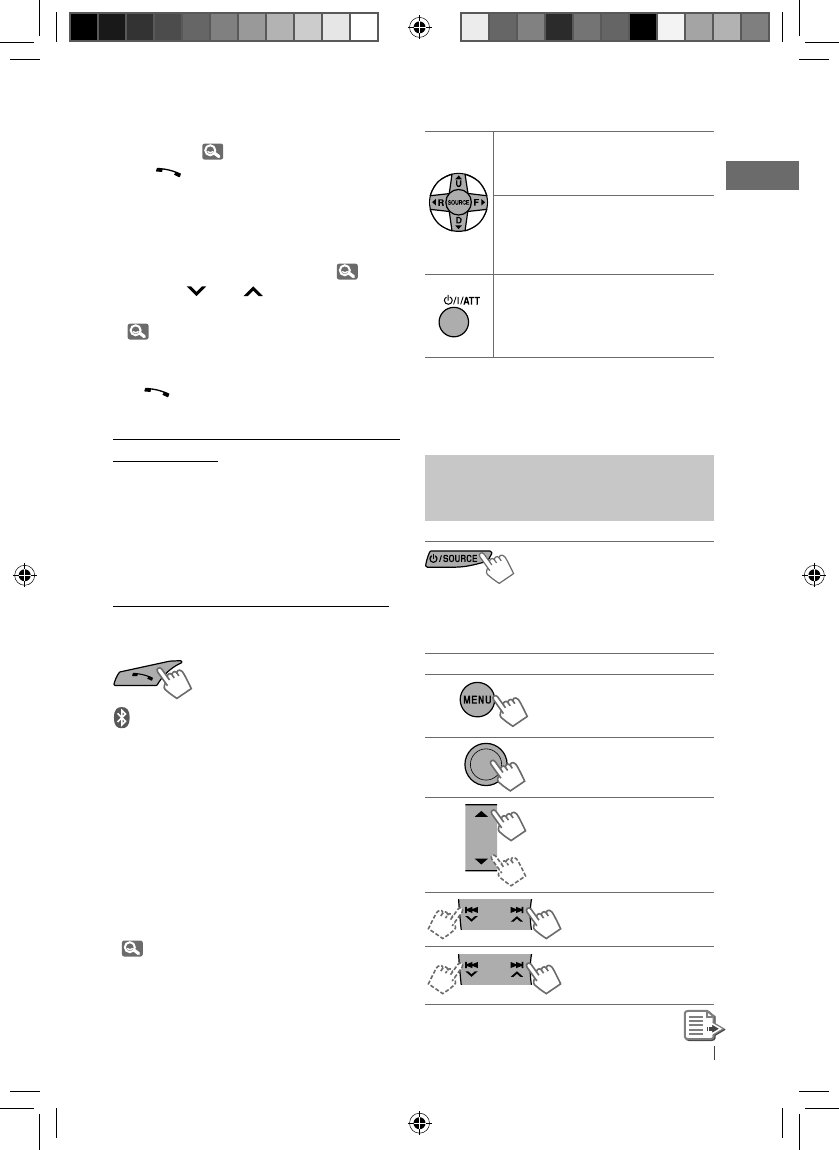

17ENGLISH

When <AUTO ANSWER> is activated....

The unit answers the incoming calls

automatically, 19.

• Press or the control dial to answer the

incoming call when <AUTO ANSWER> is

deactivated.

• Press

∞

to adjust the microphone volume

(01 – 03) during a phone call conversation.

To preset the microphone volume, 19.

• Press

to turn on/off the

Noise Reduction and Echo Cancelation mode.

( 19)

To end the call an incoming call, press and

hold or the control dial.

Switching conversation media (the unit/

mobile phone)

Press the control dial during a phone call

conversation, then continue your conversation

using the other media.

• Operations may be different according to the

connected Bluetooth device.

Switching the connected mobile phone

You can switch the current connected mobile

phone to the last connected mobile phone.

and “CONNECTING” flashes on the display.

When the last connected phone is being

reconnected again, “CONNECTED” and “[Device

Name]” appear alternately on the display. Now

you can use the last connected mobile phone

with the unit.

Arriving of a text message

When a text message comes in, the unit rings

if your mobile phone is compatible with text

message and <MSG NOTICE> is set to <ON>

( 19).

• You cannot read, edit, or send a message

through the unit.

[Hold]

Using the remote controller

∞

SOURCE

: Answers calls

∞

SOURCE

[Hold]

: Rejects calls

: Switches the conversation media

(between the unit and mobile

phone) during a phone call

conversation

Using a Bluetooth audio

player

Operations and display indications differ

depending on their availability on the

connected device.

] Select “BT FRONT” or

“BT REAR.”

• If playback does not start

automatically,

operate the Bluetooth audio player to start

playback.

Starts or resumes

playback

Mutes the sound

Selects group/folder

Forward skips or

reverse skips

Fast-forwards or

reverses the track

EN12-21_KD-R711_003A_5.indd 17EN12-21_KD-R711_003A_5.indd 17 12/17/09 5:24:06 PM12/17/09 5:24:06 PM

18 ENGLISH

Warning messages

ERROR CNNCT : The device is registered but

the connection has failed. Use <CONNECT

PH/CONNECT AU> to connect the device

again.

ERROR : Try the operation again. If <ERROR>

appears again, check if the device supports

the function you have tried.

PLEASE WAIT : The unit is preparing to use

the Bluetooth function. If the message does

not disappear, turn off and turn on the unit,

then connect the device again (or reset the

unit).

HW ERROR : Reset the unit and try the

operation again. If “HW ERROR” appears

again, consult your nearest JVC car audio

dealers.

Bluetooth Information:

If you wish to receive more information about

Bluetooth, visit the following JVC web site:

<http://www.jvc.co.jp/english/car/> (English

website only).

Changing the Bluetooth

settings

]

]

]

Select a setting item, then repeat

the procedure to change the setting

accordingly.

• To return to the previous menu, press

T/P BACK

• To exit from the menu, press

DISP

Using the remote controller

: Reverse skips/

Forward skips

[Hold]

: Fast-forwards or

reverses the track

Selecting the playback modes

• For Bluetooth devices that support AVRCP 1.3.

]

“REPEAT”

“RANDOM”

REPEAT

TRACK

ALL

GROUP

: Repeats current track

: Repeats all tracks

: Repeats all track of current

group

RANDOM

ALL

GROUP

: Randomly plays all tracks

: Randomly plays all track of

current group

To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• To return to the previous menu, press

T/P BACK

Changing the display information

Current track number with the elapsed

playing time

Current track number with

the clock time

Album name/performer

Track title

(back to the beginning)

[Hold]

EN12-21_KD-R711_003A_7.indd 18EN12-21_KD-R711_003A_7.indd 18 12/24/09 11:17:29 AM12/24/09 11:17:29 AM

19ENGLISH

Setting item Selectable setting, [Initial: Underlined]

AUTO CNNCT • LAST

• OFF

: The connection is established automatically with the last

connected Bluetooth device when you turn on the unit.

: The unit does not connect the Bluetooth device

automatically. Connect the device manually. ( 15)

AUTO

ANSWER

• ON

• OFF

: The unit answers the incoming calls automatically.

: The unit does not answer the calls automatically. Answer

the calls manually. ( 16, 17)

MSG NOTICE • ON

• OFF

: The unit informs you of the arrival of a message by

ringing and displaying “RCV MESSAGE.”

: The unit does not inform you of the arrival of a message.

MIC LEVEL —: Adjust the volume of the microphone connected to the

unit. [ LEVEL 01/02/03 ]

NR/EC MODE • ON

• OFF

: The unit adjusts the Noise Reduction and Echo

Cancelation of the microphone connected to the unit for

clearer sound.

: Cancels.

RING TONE • IN UNIT

• IN PHONE

: The unit rings to alert you when a call/Text Message

comes in.

CALL: Select your preferred ring tone when a call

comes in. [ TONE 1/2/3 ]

MESSAGE: Select your preferred ring tone when a Text

Message comes in. [ TONE 1/2/3 ]

: The unit rings (using the connected phones’ ring tone)

to alert you when a call/Text Message comes in. (The

connected mobile phone rings if it does not support this

feature.)

P. BOOK SEL *1• PB IN PHONE

• PB IN UNIT

: The unit browses the phonebook of the connected

phone.

: The unit browses the phonebook registered in the unit.

P. BOOK WAIT — : You can copy the phonebook memory of a mobile

phone into the unit (via OPP).

Enter the PIN code to the unit to transfer the phonebook

into the unit. You can transfer a maximum of 400 numbers.

INITIALIZE • YES

• NO

: Initialize all the Bluetooth settings (including stored

pairing, phonebook, and etc.).

: Cancels.

INFORMATION • MY BT NAME

• MY ADDRESS

• BT SW VER

• PH CNNT DEV *2

• AU CNNT DEV *2

: Shows the unit name.

: Shows address of USB Bluetooth Adapter.

: Shows the software version.

: Shows connected phone name.

: Shows connected audio device name.

*1 Selectable only when the connected phone supports PBAP.

*2 Displayed only when a Bluetooth phone/audio player is connected.

EN12-21_KD-R711_003A_5.indd 19EN12-21_KD-R711_003A_5.indd 19 12/17/09 5:24:06 PM12/17/09 5:24:06 PM

20 ENGLISH

Listening to the iPod/iPhone

You can connect the iPod/iPhone using the USB 2.0 cable (accessory of the iPod/iPhone) to the

USB input terminal on the control panel or USB cable from the rear of the unit.

There are three control terminals: <HEAD MODE>, control by this unit; <IPOD MODE>, control

by the connected iPod/iPhone; <EXT MODE>, the sound of any functions (musics, games,

applications, etc.) running on the connected iPod/iPhone is emitted through the speakers

connected to this unit.

Preparation:

Select the controlling terminal, <HEAD MODE>, <IPOD MODE>, or <

EXT

MODE> for iPod

playback:

• Press and hold

T/P BACK

button.

• Make the selection from <IPOD SWITCH> setting, 27.

The operations explained below are under <HEAD MODE>.

]

Turn on the power.

and/or

Playback starts automatically.

USB input terminal

USB cable from the

rear of the unit

iPod/iPhone

USB 2.0 cable (accessory of the iPod/iPhone)

Caution:

• Some of the applications in the connected

iPod/iPhone may not work correctly with this

unit.

• Avoid using the iPod/iPhone if it might hinder

your safety while driving.

• Make sure all important data has been backed

up to avoid losing the data.

Stopping playback

and

detaching the iPod/iPhone

Straightly pull the USB 2.0 cable out from the

unit.

“NO USB” appears. Press

/ SOURCE

to listen to

another playback source.

• For details, refer also to the instructions

supplied with your iPod/iPhone.

EN12-21_KD-R711_003A_5.indd 20EN12-21_KD-R711_003A_5.indd 20 12/17/09 5:24:06 PM12/17/09 5:24:06 PM

21ENGLISH

You can also use the search menu (A to Z and 0

to 9) to scroll through the desired menu.

After you have selected your desired menu (in

step 2)....

Press

∞

to show the search menu.

• The first character of the current file name

appears.

Press

∞

to select your desired character.

Then press the control dial to confirm.

• The track list with the selected character

appears.

Turn the control dial to select your desired

track. Then press the control dial to confirm.

• Only the existing characters will be shown on

the search menu.

• Press and hold

∞

to continuously change

the character of the search menu.

• If your iPod/iPhone contains many tracks,

searching take some time.

• Searching may not work on some of the layers

of the selected menu.

Selecting the playback modes

The following is not applicable in

<IPOD MODE> and <

EXT

MODE>.

]

“REPEAT”

“RANDOM”

The following is not applicable in <

EXT

MODE>.

Starts playback or pauses/

resumes playback

• While in <EXT MODE>, the

sound mutes.

Selects track or

chapter

Fast-forwards or

reverses the track

Selecting a track from the menu

The following is not applicable in

<IPOD MODE> and <

EXT

MODE>.

]

Select the desired menu.

PLAYLISTS

ARTISTS

ALBUMS

SONGS

PODCASTS

GENRES

COMPOSERS

AUDIOBOOKS

(back to the

beginning)

]

Select your desired track.

Repeat this procedure until the desired

track is selected.

• If the selected menu contains many tracks,

you can fast search (±10, ±100, ±1000)

through the menu by turning the control dial

quickly.

• To return to the previous menu, press

T/P BACK

[Hold]

EN12-21_KD-R711_003A_5.indd 21EN12-21_KD-R711_003A_5.indd 21 12/17/09 5:24:07 PM12/17/09 5:24:07 PM

22 ENGLISH

Changing the display information

Album name/performer

Track title

Current track number with the elapsed

playing time

Current track number with

the clock time

(back to the beginning)

In <EXT MODE>: EXT MODE

EXT MODE

with clock time

Using the remote controller

The following is not applicable in <EXT MODE>.

: Selects track or chapter

[Hold]

: Fast-forwards or

reverses the track

Notice:

When operating an iPod, some operations

may not be performed correctly or as

intended. In this case, visit the following JVC

web site: <http://www.jvc.co.jp/english/car/>

(English website only).

]

“AUX IN”

Ÿ Turn on the connected

component and start

playing the source.

]

Adjust the volume.

⁄ Adjust the sound as you

want. ( 23)

Listening to the other external

components

You can connect an external component to the

AUX (auxiliary) input jack on the control panel.

Preparation:

Make sure <AUX ON> is selected for the

<AUX IN> setting. ( 27)

• For details, refer also to the instructions

supplied with the external components.

REPEAT

ONE RPT : Functions the same as

“Repeat One” of the iPod

ALL RPT : Functions the same as

“Repeat All” of the iPod

RANDOM

SONG RND : Functions the same as

“Shuffle Songs” of the

iPod

ALBUM RND : Functions the same as

“Shuffle Albums” of the

iPod

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• “ALBUM RND” is not available for some iPod/

iPhone.

• To return to the previous menu, press

T/P BACK

EN22-29_KD-R711_003A_5.indd 22EN22-29_KD-R711_003A_5.indd 22 12/17/09 5:23:34 PM12/17/09 5:23:34 PM

23ENGLISH

Selecting a preset sound mode

You can select a preset sound mode suitable

for the music genre.

FLAT

NATURAL

DYNAMIC

VOCAL

BOOST

BASS BOOST

USER

(back to

the beginning)

While listening, you can adjust the tone level of

the selected sound mode.

Adjust the level (–06 to +06) of the

selected tone (BASS / MID / TRE).

The sound mode is automatically stored

and changed to “USER.”

Tone Sound element

Frequency Level Q

BASS 60 Hz, 80 Hz,

100 Hz, 200 Hz

–06 to

+06

Q1.0,

Q1.25,

Q1.5,

Q2.0

MIDDLE 0.5 kHz, 1.0 kHz,

1.5 kHz, 2.5 kHz

–06 to

+06

Q0.75,

Q1.0,

Q1.25

TREBLE 10.0 kHz, 12.5 kHz,

15.0 kHz, 17.5 kHz

–06 to

+06

Q FIX

Storing your own sound mode

You can store your own adjustments in

memory.

]

]

<BASS> / <MIDDLE> /

Adjust the sound elements of the

selected tone. ( table on the left)

4Repeat steps 2 and 3 to adjust other

tones.

The adjustments made will be stored

automatically in “USER.”

The current sound mode changes to “USER”

automatically.

[Hold]

Connecting an external component to the AUX input jack

3.5 mm stereo mini plug

(not supplied)

Portable audio player,

etc.

EN22-29_KD-R711_003A_5.indd 23EN22-29_KD-R711_003A_5.indd 23 12/17/09 5:23:35 PM12/17/09 5:23:35 PM

24 ENGLISH

Menu operations

1 2 3 Repeat step 2 if necessary.

• To return to the previous menu,

press

T/P BACK

• To exit from the menu, press

DISP

Category

Menu item Selectable setting, [Initial: Underlined]

DEMO

Display demonstration

• DEMO ON

• DEMO OFF

: Display demonstration will be activated

automatically if no operation is done for about

20 seconds.

: Cancels. ( 4)

CLOCK

CLOCK SET

Clock setting

[ 0:00 ]: Adjust the hour, then the minute. ( 4)

24H/12H

Time display

mode

• 24 HOUR

• 12 HOUR

: For settings, 4.

CLOCK ADJ * 1

Clock

adjustment

• AUTO

• OFF

: The built-in clock is automatically adjusted

using the CT (clock time) data in the Radio Data

System signal.

: Cancels.

PRO EQ

BASS —: For settings, 23.

MIDDLE

TREBLE

DISPLAY

DIMMER • DIMMER ON

• DIMMER OFF

: Dims the display and button illumination.

: Cancels.

SCROLL * 2• SCROLL ONCE

• SCROLL AUTO

• SCROLL OFF

: Scrolls the displayed information once.

: Repeats scrolling (at 5-second intervals).

: Cancels.

Pressing

DISP

for more than one second can scroll the display

regardless of the setting.

TAG DISPLAY • TAG ON

• TAG OFF

: Shows the Tag information while playing MP3/

WMA/WAV tracks.

: Cancels.

*1 Takes effect only when CT (clock time) data is received.

*2 Some characters or symbols will not be shown correctly (or will be blanked) on the display.

[Hold]

EN22-29_KD-R711_003A_5.indd 24EN22-29_KD-R711_003A_5.indd 24 12/17/09 5:23:35 PM12/17/09 5:23:35 PM

25ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

BLUETOOTH * 3

: For Bluetooth operations, 14 – 17.

: For Bluetooth settings, 18, 19.

TUNER

SSM * 4

Strong-station

Sequential

Memory

• SSM 01 – 06

• SSM 07 – 12

• SSM 13 – 18

: For settings, 7.

AF-REG *5

Alternative

frequency/

regionalization

reception

• AF ON

• AF-REG ON

• OFF

: When the currently received signals become

weak, the unit switches to another station (the

programme may differ from the one currently

received). (The AF indicator lights up.)

: When the currently received signals become

weak, the unit switches to another station

broadcasting the same programme. (The AF

and REG indicators light up.)

: Cancels.

PTY-

STANDBY *4, *5

• PTY OFF, PTY

codes

: Activates PTY Standby Reception with one of

the PTY codes ( 8).

TA VOLUME *5

Traffic

announcement

volume

• VOLUME 00 –

VOLUME 50 (or

VOLUME 00 –

VOLUME 30) * 6

[ VOLUME 15 ]

—

P-SEARCH *5

Programme

• SEARCH ON

• SEARCH OFF

: Activates Programme Search. ( 9)

: Cancels.

MONO *4

Monaural mode

• MONO ON

• MONO OFF

: Activate monaural mode to improve FM

reception, but stereo effect will be lost. ( 7)

: Restore the stereo effect.

IF BAND

Intermediate

frequency band

• AUTO

• WIDE

: Increases the tuner selectivity to reduce

interference noises between adjacent stations.

(Stereo effect may be lost.)

: Subject to interference noises from adjacent

stations, but sound quality will not be

degraded and the stereo effect will remain.

*3 Displayed only when the USB Bluetooth Adapter (KS-UBT1) is connected.

*4 Displayed only when the source is “FM.”

*5 Only for FM Radio Data System stations.

*6 Depends on the amplifier gain control.

EN22-29_KD-R711_003A_5.indd 25EN22-29_KD-R711_003A_5.indd 25 12/17/09 5:23:35 PM12/17/09 5:23:35 PM

26 ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

AUDIO

FADER * 7R06 – F06

[ 00 ]

: Adjust the front and rear speaker output

balance.

BALANCE * 8L06 – R06

[ 00 ]

: Adjust the left and right speaker output

balance.

LOUD

Loudness

• LOUD ON

• LOUD OFF

: Boost low and high frequencies to produce a

well-balanced sound at a low volume level.

: Cancels.

VOL ADJUST

Volume adjust

VOL ADJ –05 —

VOL ADJ +05

[ VOL ADJ 00 ]

: Preset the volume adjustment level of

each source (except FM), compared to the

FM volume level. The volume level will

automatically increase or decrease when you

change the source.

• Before making an adjustment, select the

source you want to adjust.

• “VOL ADJ FIX” appears on the display if “FM”

is selected as the source.

L/O MODE

Line output

mode

• SUB.W

• REAR

: Select if the REAR LINE OUT terminals are

used for connecting a subwoofer (through an

external amplifier).

: Select if the REAR LINE OUT terminals are

used for connecting the speakers (through an

external amplifier).

SUB.W FREQ *9

Subwoofer

cutoff frequency

• LOW

• MID

• HIGH

: Frequencies lower than 72 Hz are sent to the

subwoofer.

: Frequencies lower than 111 Hz are sent to the

subwoofer.

: Frequencies lower than 157 Hz are sent to the

subwoofer.

SUB.W LEVEL

Subwoofer level

SUB.W 00 —

SUB.W 08

: Adjust the subwoofer output level.

[ SUB.W 04 ]

BEEP

Keytouch tone

• BEEP ON

• BEEP OFF

: Activates the keypress tone.

: Deactivates the keypress tone.

AMP GAIN * 10

• LOW POWER

• HIGH POWER

: VOLUME 00 — VOLUME 30 (Select if the

maximum power of each speaker is less than

50 W to prevent damaging the speakers.)

: VOLUME 00 — VOLUME 50

*7 If you are using a two-speaker system, set the fader level to “00.”

*8 This adjustment will not affect the subwoofer output.

*9 Displayed only when <L/O MODE> is set to <SUB.W>.

*10 The volume level automatically changes to “VOLUME 30” if you change to <LOW POWER> with the

volume level is set higher than “VOLUME 30.”

EN22-29_KD-R711_003A_5.indd 26EN22-29_KD-R711_003A_5.indd 26 12/17/09 5:23:35 PM12/17/09 5:23:35 PM

27ENGLISH

Category

Menu item Selectable setting, [Initial: Underlined]

SRC SELECT

AM * 11 • AM ON

• AM OFF

: Enable “AM” in source selection.

: Disable “AM” in source selection.

AUX IN * 12 • AUX ON

• AUX OFF

: Enable “AUX IN” in source selection.

: Disable “AUX IN” in source selection.

BT AUDIO * 13 • BT AU ON

• BT AU OFF

: Enable “BT FRONT/BT REAR” in source selection.

: Disable “BT FRONT/BT REAR” in source selection.

USB * 14

DRIVECHANGE

: Select to change the drive when a multiple drives device is

connected to the USB input terminal (FRONT/REAR).

AUDIOBOOKS * 15 • NORMAL

• FASTER

• SLOWER

: You can select the playback speed of the

“Audiobooks” sound file in your iPod/iPhone.

• Initial selected item depends on your iPod/

iPhone setting.

IPOD SWITCH * 15 • HEAD MODE

• IPOD MODE

•

EXT MODE

* 16

: Controls iPod playback through the unit.

: Controls iPod playback through the iPod/iPhone.

: The sound of any functions (musics, games,

applications, etc.) running on the connected

iPod/iPhone is emitted through the speakers

connected to this unit.

*11 Displayed only when any source other than “AM” is selected.

*12 Displayed only when any source other than “AUX IN” is selected.

*13 Displayed only when any source other than “BT FRONT/BT REAR” is selected.

*14 Displayed only when the source is “USB FRONT/USB REAR.”

*15 Displayed only when the source is “IPOD FRONT/IPOD REAR.”

*16 While in <EXT MODE>, the display always show “EXT MODE.”

More about this unit

Basic operations

General

• If you turn off the power while listening to

a track, playback will start from where it had

been stopped previously next time you turn

on the power.

• If no operation is done for about 60 seconds

after pressing

button, the operation will

be canceled.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

the stations are stored anew.

– When SSM is over, the station stored in the

lowest preset number will be automatically

tuned in.

• When storing a station manually, the

previously preset station is erased when

a new station is stored in the same preset

number.

EN22-29_KD-R711_003A_5.indd 27EN22-29_KD-R711_003A_5.indd 27 12/17/09 5:23:35 PM12/17/09 5:23:35 PM

28 ENGLISH

• MP3 and WMA “tracks” (words “file” and “track”

are used interchangeably) are recorded in

“folders.”

• While fast-forwarding or reversing on an MP3

or WMA disc, you can only hear intermittent

sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same

type as those detected first if a disc includes

both audio CD (CD-DA) files and MP3/WMA

files.

• This unit can play back multi-session discs;

however, unclosed sessions will be skipped

while playing.

• Some CD-Rs or CD-RWs may not play back on

this unit because of their disc characteristics,

or for the following reasons:

– Discs are dirty or scratched.

– Moisture condensation has occurred on the

lens inside the unit.

– The pickup lens inside the unit is dirty.

– The files on the CD-R/CD-RW are written

using the “Packet Write” method.

– There are improper recording conditions

(missing data, etc.) or media conditions

(stained, scratched, warped, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than

that of regular CDs.

• Do not use the following CD-Rs or CD-RWs:

– Discs with stickers, labels, or a protective seal

stuck to the surface.

– Discs on which labels can be directly printed

by an ink jet printer.

Using these discs under high temperature

or high humidity may cause malfunctions or

damage to the unit.

FM Radio Data System operations

• Network-Tracking Reception requires two

types of Radio Data System signals—PI

(Programme Identification) and AF

(Alternative Frequency) to work correctly.

• If a Traffic Announcement is received by

TA Standby Reception, the volume level

automatically changes to the preset level

(TA VOLUME) if the current level is lower than

the preset level.

• When Alternative Frequency Reception is

activated (with AF selected), Network-Tracking

Reception is also activated automatically.

Disc/USB operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not

comply with the “Compact Disc Digital Audio”

standard. Therefore, the use of Non-DVD side

of a DualDisc on this product may not be

recommended.

General

• This unit has been designed to reproduce

CDs/CD Texts, and CD-Rs (Recordable)/CD-

RWs (Rewritable) in audio CD (CD-DA), MP3

and WMA formats.

• If you change the source while listening to a

disc, playback stops. Next time you select “CD”

as the playback source, playback will start

from where it had been stopped previously.

• When a disc is inserted upside down, “PLEASE”

and “EJECT” appear alternately on the display.

Press

to eject the disc.

• If the ejected disc is not removed within

15 seconds, it is automatically inserted into

the loading slot again to protect it from dust.

Playback starts automatically.

EN22-29_KD-R711_003A_5.indd 28EN22-29_KD-R711_003A_5.indd 28 12/17/09 5:23:36 PM12/17/09 5:23:36 PM

29ENGLISH

– WMA files which are not based upon

Windows Media® Audio.

– WMA files copy-protected with DRM.

– Files which have data such as AIFF, ATRAC3,

etc.

• The search function works but search speed is

not constant.

Playing MP3/WMA/WAV tracks from a

USB device

• While playing from a USB device, the playback

order may differ from other players.

• This unit may be unable to play back some

USB devices or some files due to their

characteristics or recording conditions.

• This unit is compatible with the USB

Full-Speed.

• Depending on the shape of the USB devices

and connection ports, some USB devices may

not be attached properly or the connection

might be loose.

• This unit may not work properly with some

USB hub or USB card reader.

• If the connected USB device does not have

the correct files, “NO FILE” appears.

• This unit can show Tag (Version 1.0, 1.1, 2.2,

2.3, or 2.4) for MP3 and WMA/WAV Tag.

• This unit can play back MP3/WMA/WAV files

meeting the conditions below:

MP3:

– Bit rate: 32 kbps — 320 kbps (for MPEG-1)

8 kbps — 160 kbps (for MPEG-2)

– Sampling frequency:

32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)

16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)

WMA:

– Bit rate: 5 kbps — 320 kbps

– Sampling frequency: 8 kHz — 48 kHz

– Channel: 1 ch/2 ch

WAV:

– Bit rate: Linear PCM at 705 kbps and

1 411 kbps

– Sampling frequency: 44.1 kHz

– Channel: 1 ch/2 ch

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with

the extension code <.mp3> or <.wma>

(regardless of the letter case—upper/lower).

• This unit can show the names of albums,

artists (performer), and Tag (Version 1.0, 1.1,

2.2, 2.3, or 2.4) for MP3 files and show WMA

Tag.

• This unit can display only one-byte characters.

No other characters can be correctly

displayed.

• This unit can play back MP3/WMA files

meeting the conditions below:

– Bit rate of MP3/WMA: 5 kbps — 320 kbps

– Sampling frequency of MP3:

32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)

16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)

– Sampling frequency of WMA:

8 kHz — 48 kHz

• The maximum number of characters for file/

folder names is 25 characters (including

<.mp3>, <.wma>); 128 characters for MP3/

WMA Tag.

• This unit can recognize a total of 20 000

files and 2 000 folders (999 files per folder).

However, the display can show until 999

folders/files.

• This unit can play back files recorded in VBR

(variable bit rate).

Files recorded in VBR have a discrepancy

in the elapsed time display, and do not

show the actual elapsed time. In particular,

this difference becomes noticeable after

performing the search function.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO

format.

– MP3 files encoded in an inappropriate

format.

– MP3 files encoded with Layer 1/2.

– WMA files encoded in lossless, professional,

and voice format.

EN22-29_KD-R711_003A_7.indd 29EN22-29_KD-R711_003A_7.indd 29 12/24/09 11:21:33 AM12/24/09 11:21:33 AM

30 ENGLISH

• This unit can play back MP3 files recorded in

VBR (variable bit rate).

• The maximum number of characters for folder

and file names is 25 characters (including

<.mp3>, <.wma>, <.wav>); 128 characters for

MP3/WMA/WAV Tag.

• This unit can recognize a total of 20 000

files and 2 000 folders (999 files per folder).

However, the display can shows until 999

folders/files.

• The unit cannot recognize a USB mass storage

class device whose rating is other than 5 V

and exceeds 500 mA.

• USB devices equipped with special functions

such as data security functions cannot be

used with the unit.

• Do not use a USB device with 2 or more

partitions.

• When connecting with a USB cable, use the

USB 2.0 cable.

• This unit may not recognized some of the USB

device connected through a USB card reader.

• This unit may not play back files in a USB

device properly when using a USB extension

cord.

• This unit cannot assure proper functions or

supply power to all types of USB devices

Bluetooth operations

• While driving, do not perform complicated

operation such as dialing the numbers, using

phonebook, etc. When you perform these

operations, stop your car in a safe place.

• Some Bluetooth devices may not be

connected to this unit depending on the

Bluetooth version of the device.

• If you connect a different USB Bluetooth

Adapter, all the registered devices and

information will be cleared.

• This unit may not work for some Bluetooth

devices.

• Connecting condition may vary depending

on the circumstances around you.

• If you turn off the unit, detach the control

panel, or unplug the USB Bluetooth Adapter

during a phone call conversation, the

Bluetooth connection is disconnected.

Continue the conversation using your mobile

phone.

• When the unit is turned off, the device is

disconnected.

iPod/iPhone operations

• You can control the following types of iPods/

iPhone:

– iPod with video (5th Generation) *

– iPod classic

– iPod nano (1st Generation) *

– iPod nano (2nd, 3rd, 4th, 5th Generation)

– iPod touch

– iPod touch (2nd Generation)

– iPhone/iPhone 3G/iPhone 3GS

* <IPOD MODE> and <EXT MODE> are not

available.

• It is not possible to browse video files on the

“Videos” menu in <HEAD MODE>.

• If the iPod does not play correctly, please

update your iPod software to the latest

version. For details about updating your iPod,

visit <http://www.apple.com>.

• When you turn on this unit, the iPod is

charged through this unit.

• iPod shuffle cannot be used with this unit.

• The song order displayed on the selection

menu of this unit may differ from that of the

iPod.

• The text information may not be displayed

correctly (eg. accented letters).

• This unit can display up to 128 characters

(ASCII code).

EN30-37_KD-R711_003A_5.indd 30EN30-37_KD-R711_003A_5.indd 30 12/17/09 5:24:13 PM12/17/09 5:24:13 PM

31ENGLISH

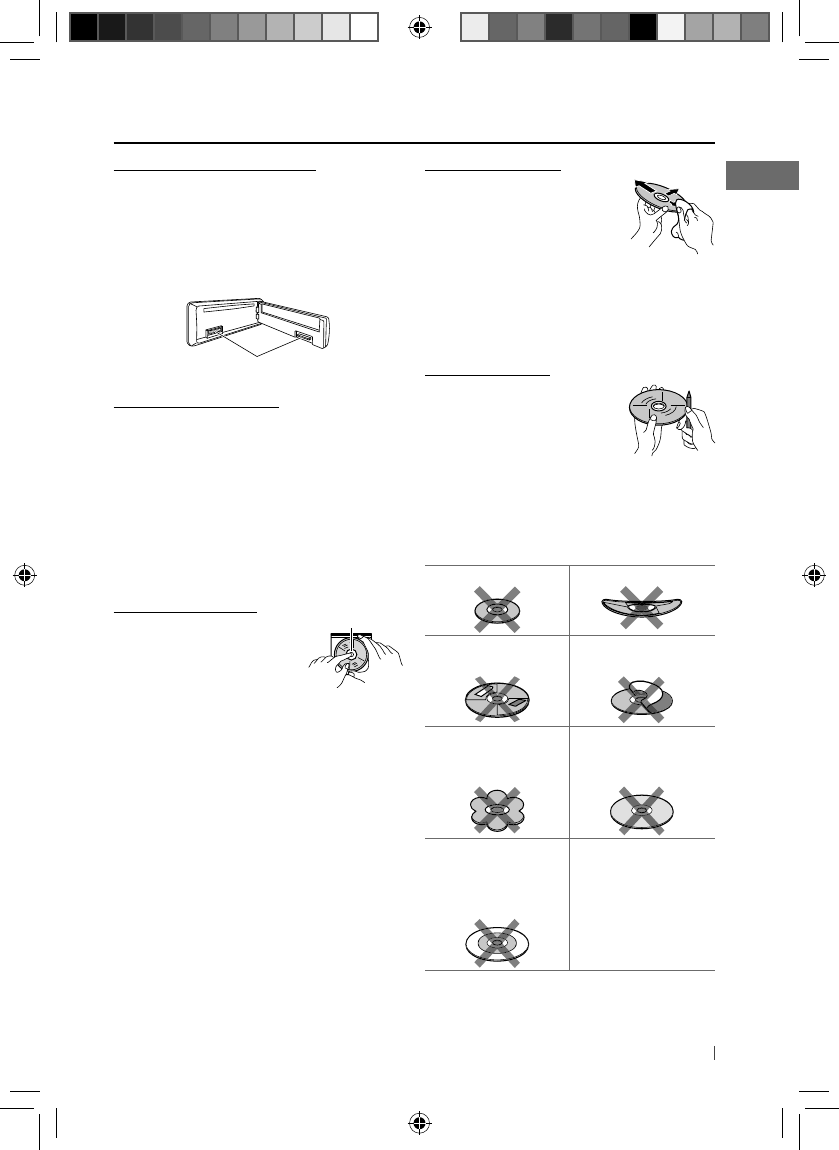

To keep discs clean

A dirty disc may not play

correctly. If a disc does become

dirty, wipe it with a soft cloth

in a straight line from center to

edge.

• Do not use any solvents (for example,

conventional record cleaner, spray, thinner,

benzine, etc.) to clean discs.

To play new discs

New discs may have some

rough spots around the inner

and outer edges. If such a disc

is used, this unit may reject the

disc.

To remove these rough spots, rub the edges

with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD (8 cm disc) Warped disc

Sticker and sticker

residue Stick-on label

Unusual shape

C-thru Disc

(semitransparent

disc)

Transparent or

semitransparent

parts on its recording

area

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the

connectors.

To minimize this possibility, periodically wipe

the connectors with a cotton swab or cloth

moistened with alcohol, being careful not to

damage the connectors.

Moisture condensation

Moisture may condense on the lens inside the

unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the unit may malfunction.

In this case, eject the disc and leave the unit

turned on for a few hours until the moisture

has evaporated.

How to handle discs

When removing a disc

from its case, press down

the center holder of the case

and lift the disc out, holding

it by the edges.

• Always hold the disc by the edges. Do not

touch its recording surface.

When storing a disc in its case, gently insert

the disc around the center holder (with the

printed surface facing up).

• Make sure to store discs in cases after use.

Connectors

Center holder

EN30-37_KD-R711_003A_5.indd 31EN30-37_KD-R711_003A_5.indd 31 12/17/09 5:24:13 PM12/17/09 5:24:13 PM

32 ENGLISH

Troubleshooting

Symptom Remedy/Cause

General

Sound cannot be heard from the

speakers.

• Adjust the volume to the optimum level.

• Make sure the unit is not muted/paused ( 6).

• Check the cords and connections.

“PROTECT” appears on the display

and no operations can be done.

Check to be sure the terminals of the speaker leads

are covered with insulating tape properly, then

reset the unit ( 3).

If “PROTECT” does not disappear, consult your JVC

IN-CAR ENTERTAINMENT dealer or a company

supplying kits.

The unit does not work at all. Reset the unit. ( 3)

“AM,” “AUX IN,” or “BT AUDIO”

cannot be selected.

Check the <SRC SELECT> setting. ( 27)

FM/AM

SSM automatic presetting does

not work.

Store stations manually.

Static noise while listening to the

radio.

Connect the aerial firmly.

Disc playback

Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played

back.

• Tracks on the CD-R/CD-RW

cannot be skipped.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component

which you used for recording.

Disc can neither be played back

nor ejected.

• Unlock the disc. ( 10)

• Eject the disc forcibly. ( 3)

Disc sound is sometimes

interrupted.

• Stop playback while driving on rough roads.

• Change the disc.

• Check the cords and connections.

“NO DISC” appears on the display. Insert a playable disc into the loading slot.

“PLEASE” and “EJECT“ appear

alternately on the display.

Press

, then insert a disc correctly.

EN30-37_KD-R711_003A_5.indd 32EN30-37_KD-R711_003A_5.indd 32 12/17/09 5:24:14 PM12/17/09 5:24:14 PM

33ENGLISH

Symptom Remedy/Cause

MP3/WMA playback

Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

compliant with ISO 9660 Level 1, Level 2, Romeo, or

Joliet.

• Add the extension code <.mp3> or <.wma> to the file

names.

Noise is generated. Skip to another track or change the disc. (Do not add

the extension code <.mp3> or <.wma> to non-MP3 or

WMA tracks.)

A longer readout time is

required (“READING” keeps

flashing on the display).

Do not use too many hierarchical levels and folders.

Tracks are not played back in

the order you have intended.

The playback order is determined by the file name.

Folder with numbers on the initial as their names

are sorted in numerical order. However, folder with

no numbers on the initial of their names are sorted

according to the file system of the CD.

“NOT SUPPORT” appears on the

display and track skips.

Skip to the next track encoded in an appropriate format

or to the next non-copy-protected WMA track.

The elapsed playing time is not

correct.

This sometimes occurs during playback. This is caused

by how the tracks are recorded on the disc.

The correct characters are not

displayed (e.g. album name).

This unit can only display letters (upper case), numbers,

and a limited number of symbols.

USB device playback

Noise is generated. The track played back is not an MP3/WMA/WAV track.

Skip to another file. (Do not add the extension code

<.mp3>, <.wma>, or <.wav> to non-MP3/WMA/WAV

tracks.)

“READING” keeps flashing on

the display.

• Readout time varies depending on the USB device.

• Do not use too many hierarchy or folders.

• Turn off the power then on again.

• Reattach the USB device again.

“NO FILE” appears on the

display.

Check whether the selected folder, the connected USB

device, or the iPod/iPhone contains a playable file.

“NOT SUPPORT” appears and

track skips.

Check whether the track is a playable file format.

EN30-37_KD-R711_003A_5.indd 33EN30-37_KD-R711_003A_5.indd 33 12/17/09 5:24:14 PM12/17/09 5:24:14 PM

34 ENGLISH

Symptom Remedy/Cause

USB device playback

Tracks/folders are not played

back in the order you have

intended.

The playback order is determined by the file name.

Folders with numbers on the initial of their names

are sorted in numerical order. However, folders with

no numbers on the initial of their names are sorted

according to the file system of the USB device.

• “READ FAILED” or “NO USB”

appears.

• The unit cannot detect the

USB device.

• Check whether the connected USB device or the iPod/

iPhone is compatible with this unit.

• The USB device is not connected properly. Connect

the USB device again.

While playing a track, sound is

sometimes interrupted.

The tracks have not been properly copied into the USB

device. Copy tracks again into the USB device, and try

again.

Correct characters are not

displayed (e.g. album name).

This unit can only display letters (upper case), numbers,

and a limited number of symbols.

Bluetooth

The unit does not detect the

Bluetooth device.

• Search from the Bluetooth device again.

• Reset the unit, then search from the Bluetooth device

again.

The unit does not make pairing

with the Bluetooth device.

Enter the same PIN code for both the unit and target

device.

Echo or noise occurs. Adjust the microphone unit’s position.

Phone sound quality is poor. • Reduce the distance between the unit and the

Bluetooth mobile phone.

• Move the car to a place where you can get a better

signal reception.

The unit does not response

when you tried to copy the

phonebook to the unit.

You may have tried to copy the same entries (as stored)

to the unit. Press

DISP

T/P BACK

to exit.

The sound is interrupted or

skipped during playback of a

Bluetooth audio player.

• Reduce the distance between the unit and the

Bluetooth audio player.

• Disconnect the device connected for Bluetooth

Phone.

• Turn off, then turn on the unit.

• Connect the player again, when the sound is not yet

restored.

The connected audio player

cannot be controlled.

• Check whether the connected audio player supports

AVRCP (Audio/Video Remote Control Profile).

(Operations depend on the connected audio player.)

• Disconnect and connect the Bluetooth player again.

EN30-37_KD-R711_003A_5.indd 34EN30-37_KD-R711_003A_5.indd 34 12/17/09 5:24:14 PM12/17/09 5:24:14 PM

35ENGLISH

Symptom Remedy/Cause

Bluetooth

“VOICE DIAL” is not successful. • Use “VOICE DIAL” calling method in a more quiet

environment.

• Reduce the distance from the microphone when

you speak the name.

• Change the <NR/EC MODE> to <OFF> ( 19),

then try again.

iPod/iPhone

The iPod/iPhone does not turn on

or does not work.

• Check the connecting cable and its connection.

• Update the firmware version of the iPod/iPhone.

• Charge the battery of the iPod/iPhone.

• Reset the iPod/iPhone.

• Check whether <IPOD SWITCH> setting is

appropriate ( 27).

The sound is distorted. Deactivate the equalizer on the iPod/iPhone.

A lot of noise is generated. Turn off (uncheck) the “VoiceOver” feature of the

iPod. For details, visit <http://www.apple.com>.

Playback stops. The headphones are disconnected during playback.

Restart the playback operation.

“NO FILE” appears on the display. No tracks are stored. Import tracks to the iPod/

iPhone.

“RESTRICTED” appears on the

display.

Check whether the connected iPod/iPhone is

compatible with this unit ( 30).

JVC bears no responsibility for any loss of data in an iPod/iPhone and/or USB mass storage class

device while using this System.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such

marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade

names are those of their respective owners.

• “Made for iPod” means that an electronic accessory has been designed to connect specifically

to iPod and has been certified by the developer to meet Apple performance standards.

• “Works with iPhone” means that an electronic accessory has been designed to connect

specifically to iPhone and has been certified by the developer to meet Apple performance

standards.

• Apple is not responsible for the operation of this device or its compliance with safety and

regulatory standards.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

• iPhone is a trademark of Apple Inc.

EN30-37_KD-R711_003A_5.indd 35EN30-37_KD-R711_003A_5.indd 35 12/17/09 5:24:14 PM12/17/09 5:24:14 PM

36 ENGLISH

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front/

Rear:

50 W per channel

Continuous Power Output (RMS): Front/

Rear:

20 W per channel into 4 Ω, 40 Hz to

20 000 Hz at no more than 1% total

harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range: Bass: ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)

Q1.0, Q1.25, Q1.5, Q2.0

Middle: ±12 dB (0.5 kHz, 1.0 kHz, 1.5 kHz, 2.5 kHz)

Q0.75, Q1.0, Q1.25

Treble: ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz,

17.5 kHz)

Q (Fixed)

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)

Subwoofer-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

Other Terminal: USB input terminal, USB rear cable, Aerial input,

AUX (auxiliary) input jack, Steering wheel remote

input

TUNER SECTION

Frequency Range: FM: 87.5 MHz to 108.0 MHz

AM: MW: 522 kHz to 1 620 kHz

LW: 144 kHz to 279 kHz

FM Tuner: Usable Sensitivity: 9.3 dBf (0.8 μV/75 Ω)

50 dB Quieting

Sensitivity:

16.3 dBf (1.8 μV/75 Ω)

Alternate Channel

Selectivity (400 kHz):

65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 40 dB

MW Tuner: Sensitivity: 20 μV

Selectivity: 40 dB

LW Tuner: Sensitivity: 50 μV

EN30-37_KD-R711_003A_5.indd 36EN30-37_KD-R711_003A_5.indd 36 12/17/09 5:24:14 PM12/17/09 5:24:14 PM

37ENGLISH

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup

(semiconductor laser)

Number of Channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps

WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps

USB SECTION

USB Standard: USB 1.1, USB 2.0

Data Transfer Rate (Full Speed): Max. 12 Mbps

Compatible Device: Mass storage class (except HDD)

Compatible File System: FAT 32/16/12

Playable Audio Format: MP3/WMA/WAV

Max. Current: DC 5 V 500 mA

BLUETOOTH

Version: Bluetooth 2.0 certified

Power Class: Class 2 Radio (possible distance 10 m)

Service Area: 10 m

Profile: HFP 1.5, OPP 1.1, A2DP 1.2, AVRCP 1.3,

PBAP 1.0

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C

Dimensions (W × H × D):

(approx.)

Installation Size: 182 mm × 52 mm × 160 mm

Panel Size: 188 mm × 58 mm × 12 mm

Mass: 1.4 kg (excluding accessories)

Design and specifications are subject to change without notice.

EN30-37_KD-R711_003A_5.indd 37EN30-37_KD-R711_003A_5.indd 37 12/17/09 5:24:14 PM12/17/09 5:24:14 PM

FRANÇAIS

Merci pour avoir acheté un produit JVC.

Veuillez lire attentivement toutes les instructions avant d’utiliser l’appareil afin de bien comprendre

son fonctionnement et d’obtenir les meilleures performances possibles.

IMPORTANT POUR PRODUITS LASER

1. PRODUIT LASER CLASSE 1

2. ATTENTION: N’ouvrez pas le couvercle supérieur. Il n’y a aucune pièce réparable par l’utilisateur

à l’intérieur de l’appareil; confiez toute réparation à un personnel qualifié.

3. ATTENTION: Rayonnement laser visible et/ou invisible de classe 1M une fois ouvert. Ne pas

regarder directement avec des instruments optiques.

4. REPRODUCTION DE L’ÉTIQUETTE: ÉTIQUETTE DE PRÉCAUTION PLACÉE À L’EXTÉRIEUR DE

L’APPAREIL.

Avertissement:

Si vous souhaitez opérer l’appareil pendant

que vous conduisez, assurez-vous de bien

regarder autour de vous afin de ne pas causer

un accident de la circulation.

Pour sécurité...

• N’augmentez pas trop le volume car cela

bloquerait les sons de l’extérieur rendant la

conduite dangereuse.

• Arrêtez la voiture avant de réaliser toute

opération compliquée.

Température à l’intérieur de la voiture...

Si votre voiture est restée garée pendant

longtemps dans un climat chaud ou froid,

attendez que la température à l’intérieur de

la voiture redevienne normale avant d’utiliser

l’appareil.

Précautions sur le réglage du volume:

Les appareils numériques (CD/USB) produisent

très peut de bruit par rapport aux autres

sources. Réduisez le volume avant de

reproduire ces sources numériques afin d’éviter

d’endommager les enceintes par la soudaine

augmentation du niveau de sortie.

Informations relatives à l’élimination

des appareils et des piles usagés, à

l’intention des utilisateurs

[Union européenne seulement]

Ces symboles signifient que le produit et les

piles ne doivent pas être éliminés en tant

que déchet ménager à la fin de son cycle

de vie.

Si vous souhaitez éliminer ce produit et les

piles, faites-le conformément à la législation

nationale ou autres règles en vigueur dans

votre pays et votre municipalité.

En éliminant correctement ce produit, vous

contribuez à la conservation des ressources

naturelles et à la prévention des éventuels

effets négatifs sur l’environnement et la

santé humaine.

Notification:

La marque Pb en dessous du symbole des

piles indique que cette pile contient du

plomb.

Produits

Pile

FR02-11_KD-R711[E-EU]1.indd 2FR02-11_KD-R711[E-EU]1.indd 2 12/14/09 11:24:13 AM12/14/09 11:24:13 AM

Jvc Car Stereo System Kd R711 Users Manual

JVC Car Stereo System KD-R711 jvc kd-r711

Navigation menu

Versions of this User Manual:

Views

Navigation
