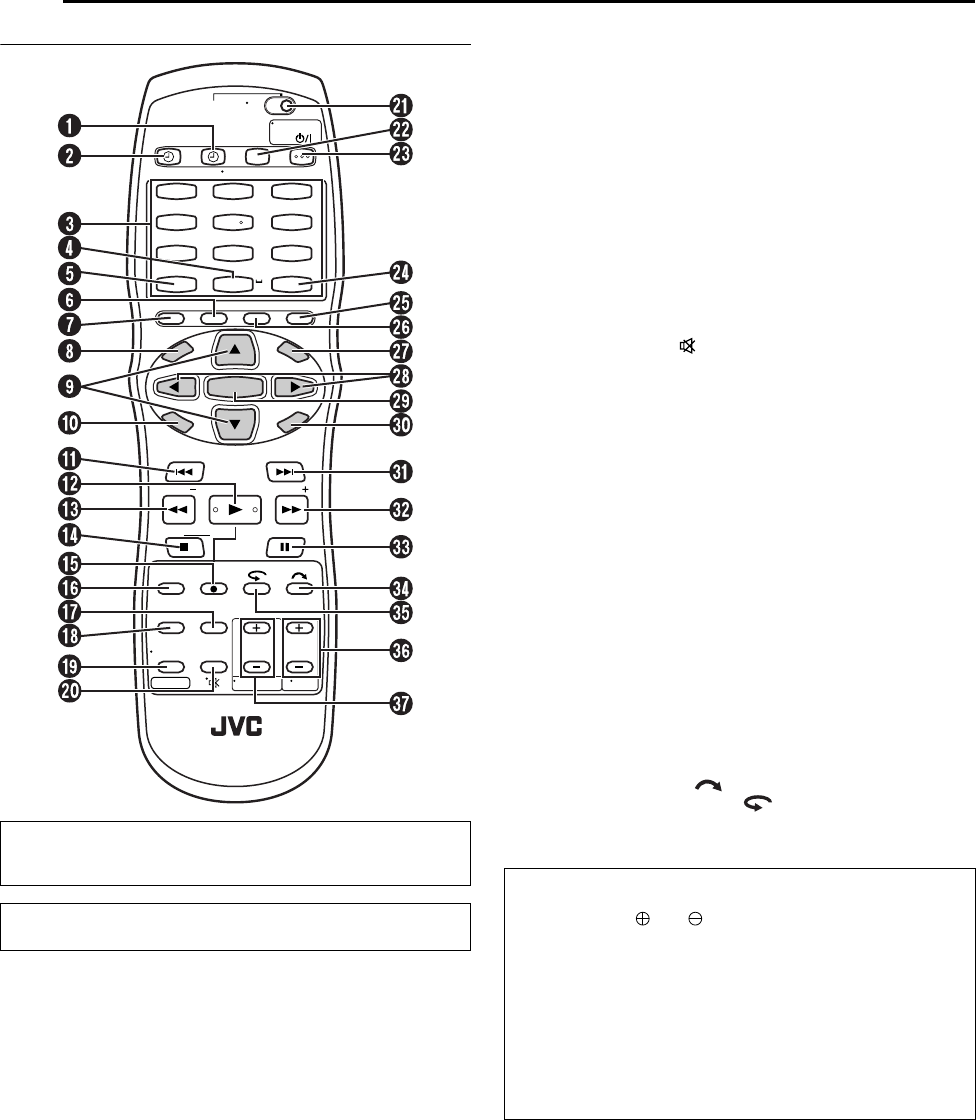

F-1
POWER
VCR EJECT
DVD
S-VIDEO VIDEO (MONO) L - AUDIO - R
VCR/DVD TIMER VCR REC OPEN/CLOSE STOP PLAY
REMAIN
REC MODE SLOW
<< >>
REC PAUSE REW FF CH DV IN
REC LINK
DVD
TIMER DVD DVDREC VCR DUBBING
PULL-OPEN PULL-OPEN
PROG/CHECK
DISPLAY ON SCREEN
DVD
TIMER VCR
/DVD
VCR
TIMER
SLOW
PREVIOUS NEXT
CLEAR
SLOW
PAUSESTOP/
PLAY/SELECT
REMAIN REC
CH
AUDIO
SUBTITLE
ANGLE
TV/VCR
REC MODE
LIVE CHECK
DVDTV
CABLE/DBS
ABC DEF
JKL MNO
TUV
GHI
PQRS WXYZ
NUMBER / TV CH /DVD CHNUMBER / TV CH /DVD CH
MEMO/MARK
PROGRESSIVE
SCAN
VCR PLUS+
AUX
SET UP
RETURN
CANCEL
NAVIGA
TION
TOP MENU
MENU
TV
VOL.
TV/CBL /DVD
TV/DVD TV
TV
/
CBL/DBS
/DVD
1
4
7
2
5
8
0
3
6
9
ENTER
Filename [DR-MV1SU_01Cov1.fm]
DVD VIDEO RECORDER &
VIDEO CASSETTE RECORDER
INSTRUCTIONS
LPT0918-001B
DR-MV1S
For Customer Use:
Enter below the Model No. and
Serial No. which are located on
the rear of cabinet. Retain this
information for future reference.
Model No.
Serial No.
DR-MV1SU_01Cov1.fm Page 1 Tuesday, March 16, 2004 3:36 PM
Filename [DR-MV1SU_02Safety.fm]
Masterpage:Left0
2 EN
Page 2 February 16, 2004 4:58 pm
CAUTIONS
CLASS 1 LASER PRODUCT
REPRODUCTION OF LABELS
WARNING LABEL INSIDE OF THE UNIT
Dear Customer,
Thank you for purchasing the JVC DVD video recorder. Before
use, please read the safety information and precautions to
ensure safe use of your new unit.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
CAUTION:
A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS
UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE
SURE TO OPERATE THE UNIT CORRECTLY AS
INSTRUCTED.
WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO
NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE
DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE
INSIDE OF THIS UNIT.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
CAUTION:
This unit should be used with AC 120Vd, 60Hz only.
To prevent electric shocks and fire hazards, DO NOT use any
other power source.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
A
TTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA
LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU
FOND.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
CAUTION:
Changes or modifications not approved by JVC could void user’s
authority to operate the equipment.
DR-MV1SU_00.book Page 2 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 3
Filename [DR-MV1SU_02Safety.fm]
Page 3 February 16, 2004 4:58 pm
IMPORTANT PRODUCT SAFETY
INSTRUCTIONS
Electrical energy can perform many useful functions. But improper
use can result in potential electrical shock or fire hazards. This
product has been engineered and manufactured to assure your
personal safety. In order not to defeat the built-in safeguards,
observe the following basic rules for its installation, use and
servicing.
A
TTENTION:
Follow and obey all warnings and instructions marked on your product
and its operating instructions. For your safety, please read all the safety
and operating instructions before you operate this product and keep
this booklet for future reference.
INSTALLATION
1. Grounding or Polarization
(A)Your product may be equipped with a polarized alternating-
current line plug (a plug having one blade wider than the other).
This plug will fit into the power outlet only one way. This is a
safety feature.
If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
(B)Your product may be equipped with a 3-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will only fit
into a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the grounding-type plug.
2. Power Sources
Operate your product only from the type of power source indicated
on the marking label. If you are not sure of the type of power
supply to your home, consult your product dealer or local power
company. If your product is intended to operate from battery power,
or other sources, refer to the operating instructions.
3. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or
electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
5. Ventilation
Slots and openings in the cabinet are provided for ventilation. To
ensure reliable operation of the product and to protect it from
overheating, these openings must not be blocked or covered.
●Do not block the openings by placing the product on a bed, sofa, rug
or other similar surface.
●Do not place the product in a built-in installation such as a bookcase
or rack unless proper ventilation is provided or the manufacturer’s
instructions have been adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
ANTENNA INSTALLATION INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product,
be sure the antenna or cable system is grounded so as to provide
some protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSI/NFPA 70,
provides information with regard to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding connectors, location of
antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
2. Lightning
For added protection for this product during a lightning storm, or
when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning
and power-line surges.
3. Power Lines
An outside antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or
where it can fall into such power lines or circuits. When installing
an outside antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact with them
might be fatal.
DR-MV1SU_00.book Page 3 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_02Safety.fm]
Masterpage:Left+
4 EN
Page 4 February 16, 2004 4:58 pm
USE
1. Accessories
To avoid personal injury:
●Do not place this product on an unstable cart, stand, tripod, bracket,
or table. It may fall, causing serious injury to a child or adult, and
serious damage to the product.
●Use only with a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with the product.
●Use a mounting accessory recommended by the manufacturer and
follow the manufacturer’s instructions for any mounting of the product.
●Do not try to roll a cart with small casters across thresholds or deep-
pile carpets.

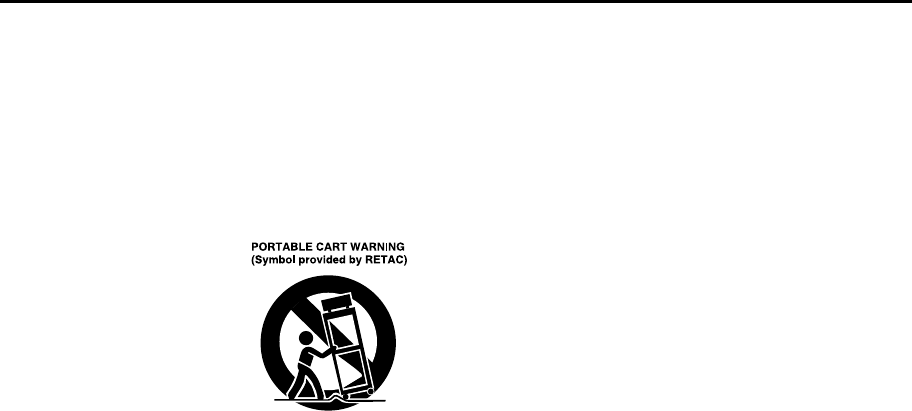

2. Product and Cart Combination
A product and cart combination should be
moved with care. Quick stops, excessive
force, and uneven surfaces may cause the
product and cart combination to overturn.
3. Water and Moisture
Do not use this product near water—for
example, near a bath tub, wash bowl,
kitchen sink or laundry tub, in a wet
basement, or near a swimming pool and
the like.
4. Object and Liquid Entry
Never push objects of any kind into this product through openings
as they may touch dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never spill liquid of any kind
on the product.
5. Attachments
Do not use attachments not recommended by the manufacturer of
this product as they may cause hazards.
6. Cleaning
Unplug this product from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
7. Heat
The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
SERVICING
1. Servicing
If your product is not operating correctly or exhibits a marked
change in performance and you are unable to restore normal
operation by following the detailed procedure in its operating
instructions, do not attempt to service it yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the
product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance—
this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or which have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric
shock or other hazards.
4. Safety Check
Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks to determine that the
product is in safe operating condition.
HOW TO USE THIS INSTRUCTION MANUAL
●All major sections and subsections are listed in the Table Of Contents
on page 7. Use this when searching for information on a specific
procedure or feature.
●The Index on pages 12 – 16 lists frequently-used terms, and the
number of the page on which they are used or explained in the

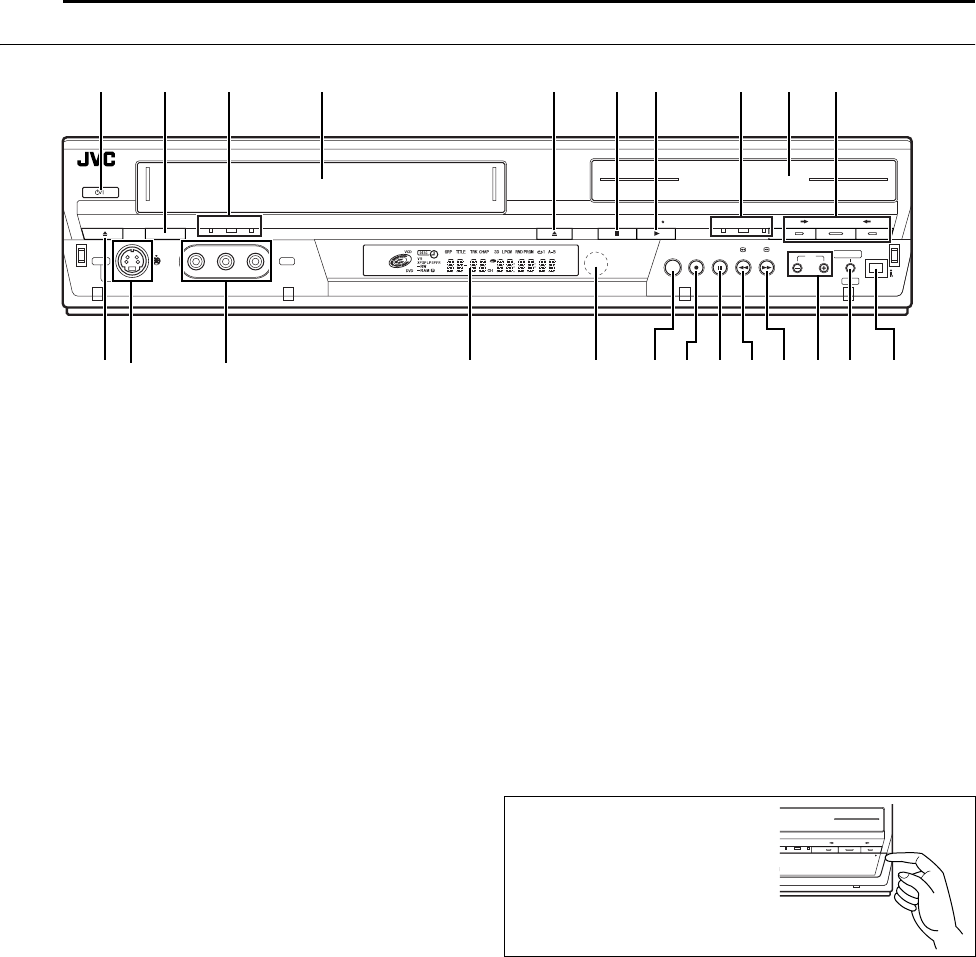

manual. This section also illustrates the controls and connections on
the front and rear panel, the front display panel and the remote
control.
●The 墌 mark signals a reference to another page for instructions or
related information.
●Operation buttons necessary for the various procedures are clearly
indicated through the use of illustrations at the beginning of each
major section.
BEFORE YOU INSTALL YOUR NEW UNIT . . .
. . . please read the sections/literature listed below.
●“CAUTIONS” on page 2
●“IMPORTANT PRODUCT SAFETY INSTRUCTIONS” on pages 3 – 5
DR-MV1SU_00.book Page 4 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 5
Filename [DR-MV1SU_02Safety.fm]
Page 5 February 16, 2004 4:58 pm
VCR Plus+, C and PlusCode are registered trademarks of
Gemstar Development Corporation.
The VCR Plus+ system is manufactured under license from
Gemstar Development Corporation.
DSS is an official trademark of DIRECTV, Inc., a unit of GM
Hughes Electronics. DISH Network is a trademark of Echostar
Communications Corporation.
●Manufactured under licence from Dolby Laboratories. “Dolby” and
double-D symbol are trademarks of Dolby Laboratories.
●“DTS” and “DTS Digital Out” are trademarks of Digital Theater
Systems, Inc.
●This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must
be authorized by Macrovision Corporation, and is intended for home
and other limited viewing users only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
When the equipment is installed in a cabinet or a shelf, make sure
that it has sufficient space on all sides to allow for ventilation
(10 cm or more on both sides, on top and at the rear).
When discarding batteries, environmental problems must be
considered and the local rules or laws governing the disposal of
these batteries must be followed strictly.
Failure to heed the following precautions may result in
damage to the unit, remote control or disc/cassette.
1. DO NOT place the unit —
— in an environment prone to extreme temperatures or
humidity.
— in direct sunlight.
— in a dusty environment.
— in an environment where strong magnetic fields are
generated.
— on a surface that is unstable or subject to vibration.
2. DO NOT block the unit’s ventilation openings or holes.
(If the ventilation openings or holes are blocked by a newspaper
or cloth, etc., the heat may not be able to get out.)
3. DO NOT place heavy objects on the unit or remote control.
4. DO NOT place anything which might spill on top of the unit
or remote control.
(If water or liquid is allowed to enter this equipment, fire or
electric shock may be caused.)
5. DO NOT expose the apparatus to dripping or splashing.
6. DO NOT use this equipment in a bathroom or places with
water. Also DO NOT place any containers filled with water or
liquids (such as cosmetics or medicines, flower vases, potted
plants, cups, etc.) on top of this unit.
7. DO NOT place any naked flame sources, such as lighted
candles, on the apparatus.
8. AVOID violent shocks to the unit during transport.
MOISTURE CONDENSATION
Moisture in the air will condense on the unit when you move it from
a cold place to a warm place, or under extremely humid
conditions—just as water droplets form on the surface of a glass
filled with cold liquid. In conditions where condensation may occur,
disconnect the unit’s power plug from the wall and keep it
disconnected for a few hours to let the moisture dry, then turn on
the unit.
Declaration of Conformity
Model Number: DR-MV1S
Trade Name: JVC
Responsible Party: JVC Americas Corp.
Address: 1700 Valley Road Wayne, N.J. 07470
Telephone Number:973-317-5000
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
3
TM
TM
A
TTENTION:
To mobile phone users:
Using a mobile phone in the vicinity of the unit may cause picture
vibration on the TV screen or change the screen to a blue back
display.
On placing the unit:
Some TVs or other appliances generate strong magnetic fields.
Do not place such appliances on top of the unit as it may cause
picture disturbance.
DR-MV1SU_00.book Page 5 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_02Safety.fm]
Masterpage:Left0
6 EN
Page 6 February 16, 2004 4:58 pm
This unit allows you various types of playback and recording because this unit has two tuners.
Record programs on both DVD deck and VCR deck simultaneously
1Start recording on the DVD deck. (墌pg. 38)
2Start recording on the VCR deck. (墌pg. 50)
NOTE:
DV IN connector is available for DVD deck only.
Watch another program while recording on the unit
Pressing VCR/DVD switches to the other tuner.
1Start recording on the DVD deck or VCR deck. (墌pg. 38, 50)
2Press VCR/DVD.
3Press CH +/– to select the desired channel.
Operate the VCR deck while recording on the DVD deck
Pressing VCR/DVD switch to the other tuner.
1Start recording on the DVD deck. (墌pg. 38)
2Press VCR/DVD.
3Operate the VCR deck.
Operate the DVD deck while recording on the VCR deck
1Start recording on the VCR deck. (墌pg. 50)
2Press VCR/DVD.
3Operate the DVD deck.
Operate the VCR deck while the DVD deck is in timer standby
mode
1Engage the DVD deck’s timer mode. (墌pg. 41)
●The VCR deck is automatically selected and the VCR lamp lights up
on the unit.
2Operate the VCR deck.
Operate the DVD deck while the VCR deck is in timer standby
mode
1Engage the VCR deck’s timer mode. (墌pg. 52)
●The DVD deck is automatically selected and the DVD lamp lights up
on the unit.
2Operate the DVD deck.
Features of this unit
F-1
Recording Recording
F-1
Recording
Another program
F-1
Playback, recording, etc. Recording
F-1
Recording Playback, recording, etc.
F-1
Playback, recording, etc. Timer standby mode
F-1
Timer standby mode Playback, recording, etc.
DR-MV1SU_00.book Page 6 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right0
EN 7
Filename [DR-MV1SU_02Safety.fm]
Page 7 March 4, 2004 8:43 pm
CONTENTS
DISC INFORMATION 8
About Discs ...................................................................................8
INDEX 12
INSTALLING YOUR NEW UNIT 17
Basic Connection ........................................................................17
INITIAL SETTINGS 18
Plug & Play Set ...........................................................................18
Language ....................................................................................19
Clock Set .....................................................................................20
Tuner Set ....................................................................................21
Cable Box and/or DBS Receiver Control Setting (DVD Deck
Only) .................................................................................. 22
Monitor Set (DVD Deck Only) .....................................................24
OPERATIONS ON DVD DECK 25
Basic Playback ............................................................................25
Playback Features ......................................................................26
Live Memory Playback ................................................................29
Using The On-screen Bar ...........................................................33
Parental Lock ..............................................................................37
Basic Recording ..........................................................................38
Recording Features .....................................................................39

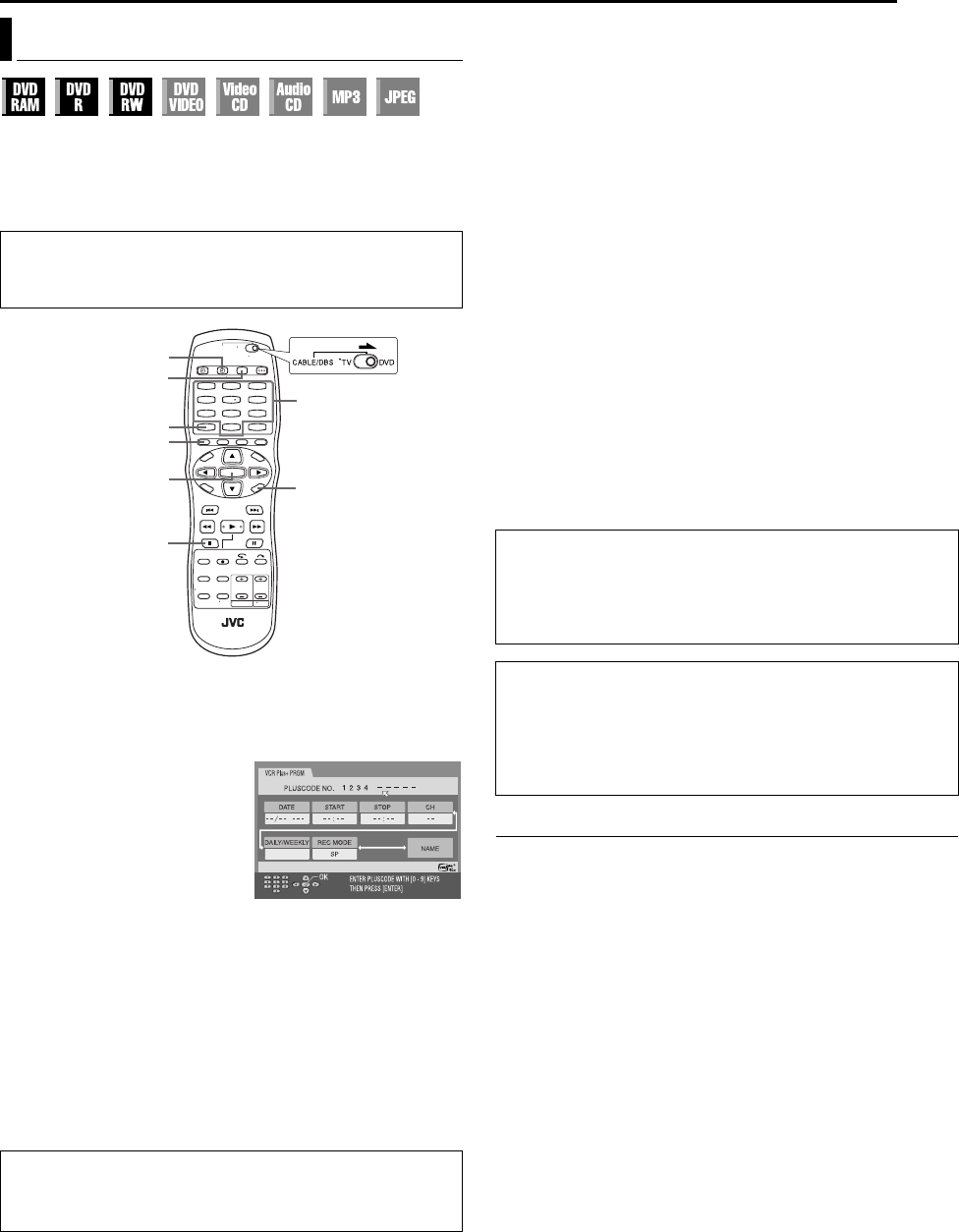

VCR Plus+® Timer Programing ....................................................41
Manual Timer Programing ...........................................................42
On-Disc Timer Programing .........................................................43
Automatic Satellite Program Recording (DVD Deck Only) ..........46
OPERATIONS ON VCR DECK 47
Basic Playback ............................................................................47
Playback Features ......................................................................48
Basic Recording ..........................................................................50
Recording Features .....................................................................50
VCR Plus+® Timer Programing ....................................................52
Manual Timer Programing ...........................................................53
NAVIGATION (DVD DECK ONLY) 55
Library Database DVD Navi ........................................................55
Modify Original Information .........................................................56
Modify Play List Information ........................................................58
Modify Library Information ...........................................................60

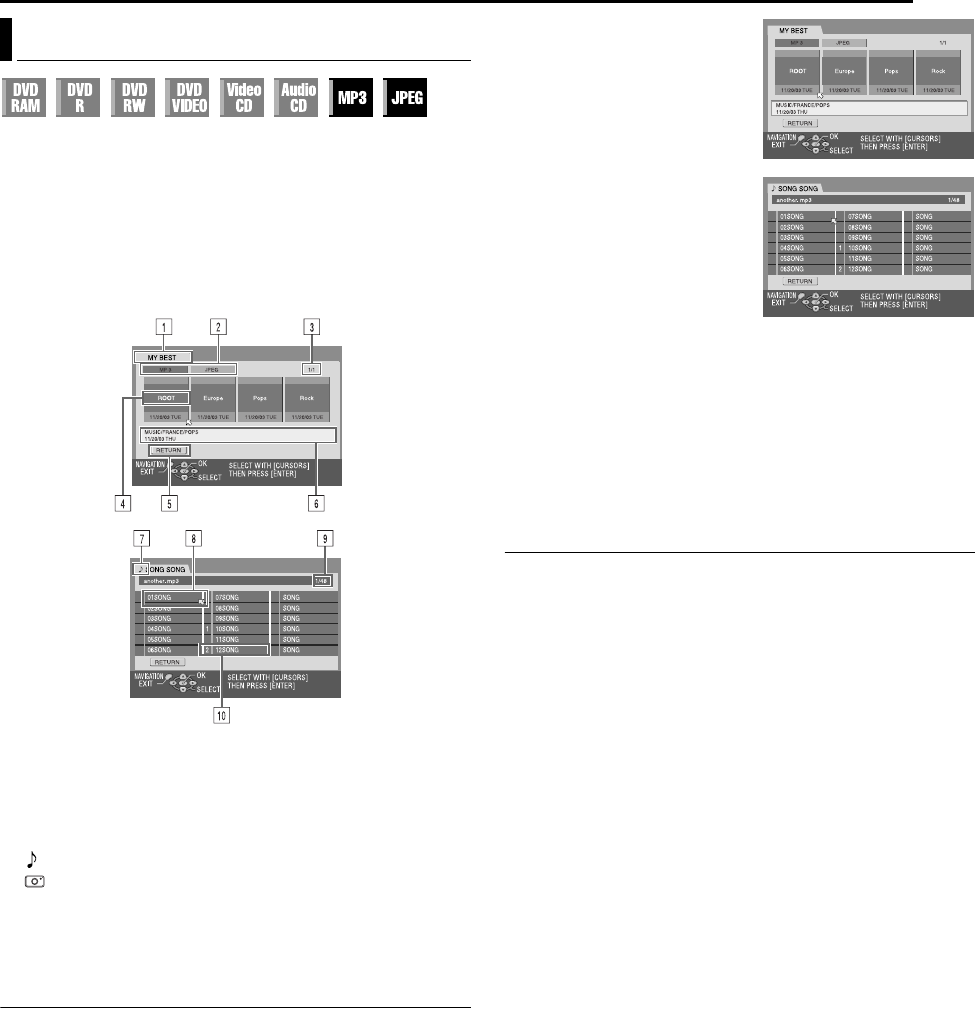

Playback With MP3/JPEG Navigation .........................................61
EDITING 62
Tape Dubbing (From VCR To DVD) ...........................................62
Manual Dubbing (From VCR To DVD) ........................................63
Disc Dubbing (From DVD To VCR) .............................................64
Manual Dubbing (From DVD To VCR) ........................................65
DV Dubbing (DVD Deck Only) ....................................................66
Edit From A Camcorder ..............................................................67
Edit To Or From Another Recorder .............................................68
Digital Audio Dubbing ..................................................................69
REMOTE CONTROL 70
Remote Control Functions ..........................................................70
SYSTEM CONNECTIONS 72

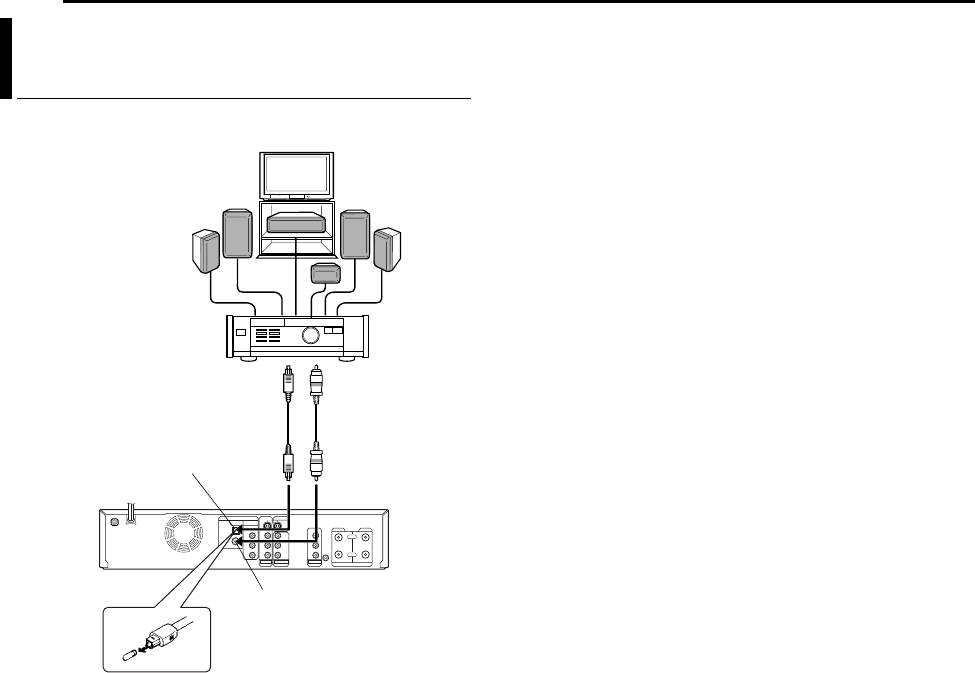

Connecting To A Dolby Digital Decoder Or An Amplifier With
Built-in DTS ...........................................................................72
SUBSIDIARY SETTINGS 73
Mode Set (DVD Deck) ................................................................ 73
Mode Set (VCR Deck) ................................................................ 75
Changing VCR Plus+® Setting ..................................................... 77
Format A Disc (DVD Deck Only) ................................................ 78
Finalize A Disc (DVD Deck Only) ............................................... 79
Scan Mode Set ........................................................................... 80
Tray Lock (DVD Deck Only) ....................................................... 80
TROUBLESHOOTING 81
GLOSSARY 86
SPECIFICATIONS 87
APPENDIX 88
LIST OF TERMS 91
WARRANTY 92
DR-MV1SU_02Safety.fm Page 7 Thursday, March 4, 2004 8:43 PM
Filename [DR-MV1SU_03DiscInfo.fm]
Masterpage:Left0
8 EN
Page 8 March 16, 2004 3:47 pm
DISC INFORMATION
Recordable/playable Discs
You can use discs with the following logos for recording and
playback.
●The above table is based on the information as of February 2004.
●Recording and playback may not be performed depending on the
characteristics and condition of the disc used, leading to
unsatisfactory results. Using discs manufactured by JVC is
recommended since they have been tested to be compatible with this
unit.
DVD-RAM Discs
It is only possible to use discs which conform with DVD-RAM
standard Version 2.0 or 2.1.
●It is impossible to record on DVD-RAM discs which do not conform to
this standard. If you use a disc formatted under a different standard
version, format it on this unit before use.
●It may not be possible to record, play back, edit or dub a DVD-RAM
disc even if it conforms to the standard if it was recorded or edited on
the devices from other manufacturers or on a PC, or if it has far too
many titles, or if there is very little available capacity remaining on the
disc.
●Some DVD-RAM discs are contained in a cartridge. This unit cannot
handle this type of disc. Remove the disc from the cartridge (only
discs with a removable cartridge); or the use of DVD-RAM discs not
contained in a cartridge is recommended.
●DVD-RAM discs recorded on this unit cannot be played back on an
incompatible DVD player.
●It is possible to record copy-once programs of digital broadcasts only
onto 4.7/9.4 GB DVD-RAM discs (2.8 GB DVD-RAM discs are not
compatible).
DVD-R/RW Discs
It is only possible to use DVD-R discs which conform with DVD-R
standard Version 2.0.
When a DVD-R/RW disc (Video mode) is finalized (墌pg. 79), it
can be played back on a standard DVD player as a DVD VIDEO
disc.
When a DVD-RW disc (VR mode) is finalized (墌pg. 79), it can be
played back on a standard DVD player compatible with the VR
mode of DVD-RW discs.
Before finalizing —
— it is possible to record on unrecorded areas of the disc, edit the
disc title and program titles, and delete programs.
●It is impossible to record or edit DVD-R/RW discs recorded on other
devices even if they have not been finalized.
●It is impossible to overwrite recorded areas of DVD-R discs.
●Available recording capacity does not increase even if a recorded
program is deleted from a DVD-R disc.
After finalizing —
After a DVD-R/RW disc (Video mode) has been finalized, it is
possible to play back the recorded programs (video and/or audio)
on a standard DVD video player as a DVD VIDEO disc.
●Edited titles are displayed as the
“DVD menu” in video mode.
●It is impossible to record, edit or
delete the data either in video
mode or in VR mode.
●Either in video mode or in VR
mode, although the disc can be
played back on DVD players from
other manufacturers, sometimes it
may not be possible to play back
depending on the disc and recording conditions.
●It is impossible to record on CD-R/RW or DVD-R discs used for
authoring.
●It is impossible to record onto DVD-R/RW (Video mode) discs
broadcasts that allow you to copy once. The copy once programs can
only be recorded onto DVD-RW discs formatted in VR mode.
NOTE:
The following may result if you play back a DVD-R disc recorded on
another unit.
●The disc does not play.
●A mosaic pattern (block noise) appears on the screen.
●Video or audio may be dropped out.
●The unit stops during playback.
Discs For Playback Only
You can use discs with the following logos for playback only.
●Playback may not be performed depending on the characteristics and
condition of the disc used.
●DTS Audio CDs can also be played back (An optional DTS decoder is
required).
●MP3 and JPEG discs can be played back on this unit only when they
have been recorded in the ISO9660 or Joliet format and finalized.
●JPEG files that can be played back on this unit must conform to JFIF/
Baseline process, and the maximum resolution of a JPEG file is
3,840 x 2,160 pixels.
●CD-R/RW discs recorded in music CD format need to be finalized to
play back on this unit.
●Operation and audio quality of this unit are not guaranteed for discs
that do not conform to the Compact Disc specification (CD-DA).
Before you play back a CD, check for the CD logo and read the notes
on the package to confirm that it conforms to the Compact Disc
specification.
●Depending on the intentions of the author of the software, recording
conditions of DVD discs and Video CD discs may be restricted. Since
this unit plays back discs according to the intentions of the author of
the software as indicated on the disc, some functions may not
operate as commanded.
●When switching from the first layer to the second layer of double-
layered DVD VIDEO discs, the image and sound may be momentarily
distorted. This is not a malfunction.
About Discs
DVD-RAM
12 cm: 4.7 GB/9.4 GB
8 cm: 1.4 GB/2.8 GB
Ver. 2.0
Ver. 2.1
DVD-RW
12 cm: 4.7 GB/9.4 GB
Ver. 1.0 (VR mode)
Ver. 1.1 (Video mode/VR mode)
DVD-R
12 cm: 4.7 GB
8 cm: 1.4 GB
General Ver. 2.0 (Video mode)
DVD VIDEO Video CD/Super Video CD
Audio CD
CD-DA files
CD-R
CD-DA/JPEG/
MP3 files
CD-RW
CD-DA/JPEG/
MP3 files
CD-ROM
JPEG/MP3 files
(example of region code
indications)
DR-MV1SU_03DiscInfo.fm Page 8 Tuesday, March 16, 2004 3:58 PM
Masterpage:Right+
EN 9
Filename [DR-MV1SU_03DiscInfo.fm]
Page 9 March 16, 2004 3:40 pm
DISC INFORMATION
●When switching from the first layer to the second layer of double-
layered DVD VIDEO discs, the image and sound may be momentarily
distorted. This is not a malfunction.
●DVD-AUDIO discs compatible with DVD video players can be played.
●Super Audio CDs (SACD) compatible with conventional CD players
can be played.
Unplayable Discs
The following types of discs cannot be played using this unit.
Do not attempt to play back any kind of disc that is damaged
(cracked, warped, or repaired with adhesive tape) or discs in
unusual shapes (heart-shaped, octagonal, or other forms). If such
discs are accidentally played back, it may cause noise that can
lead to speaker damage.
●CD-ROM discs (including PHOTO-CD and CD-G)
●Discs recorded in Packet Write (UDF) format.
●1.3-GB double density CDs (DDCD)
●High density CDs (HDCD)
The following discs also cannot be played back.
●Discs of a region number other than “1”
●DVD-RAM (2.6 GB/5.2 GB)
●DVD-RAM (TYPE1)
Region Number
The world is divided into 6 regions for DVD VIDEO discs.
DVD VIDEO discs are assigned a region number to indicate which
region they may be played back in. A disc cannot be played back
on this unit unless the region number of the disc matches that of
the unit. The region number for this unit is “1”. Only discs whose
region number includes “1” or “ALL” can be played back such as
shown below.
Examples of DVD VIDEO labels which can be played back
using this unit.
Marks of discs in this instruction manual
Recording Medium And Format
DVD-RAM
●Recording and erasing can be performed as many times as possible
on a disc.
●Editing can be performed after recording, such as deleting unwanted
parts.
●While recording, it is possible not only to start playback of a program
currently being recorded, but also to watch another program
previously recorded.
DVD-RW (VR mode)
●Recording and erasing can be performed as many times as possible
on a disc.
●Editing can be performed after recording, such as deleting unwanted
parts.
DVD-RW (Video mode)
●Can be played back on other DVD players.
●New recording can be performed by erasing all the data on a disc
once played back.
DVD-R
●Can be played back on other DVD players.
●Suitable when keeping a recorded disc for a long time.
File Structure Of Discs
DVD VIDEO
Typically, DVD VIDEO discs are made up of larger units called
“titles”. Each title has a number (title number) that can be used to
select desired titles. Titles are further divided into units called
“chapters”. Each chapter has a number (chapter number) that can
also be used to select desired chapters. Note that some discs are
not divided into titles and chapters.
When you record a program on a DVD-RAM/RW (VR mode)
disc
A single recording session results in a single title (a single
chapter). However, chapter marks are automatically inserted when
recording is paused, or audio changes from monaural to stereo
due to commercial breaks, etc. It is also possible to insert chapter
marks at desired locations during playback. (墌pg. 27)
When you record a program on a DVD-R/RW (Video mode)
disc
A single recording session results in a single title (a single
chapter). However, chapter marks are automatically inserted when
recording is paused, or audio changes due to commercial breaks,
etc. It is also possible to insert chapter marks at desired locations
during either recording or playback. Once the disc has been
finalized, these chapter marks are deleted and new chapter marks
are assigned automatically approximately every 5 minutes.
●In Video mode, even before finalizing, it is impossible to perform
editing operations other than changing the disc name and/or title
names and deleting programs and/or titles.
●After finalizing, it is impossible to perform editing operations.
Allows operation with a
DVD-RAM disc.
Allows operation with a
Video CD disc.
Allows operation with a
DVD-R disc.
Allows operation with
an Audio CD disc.
Allows operation with a
DVD-RW disc.
Allows operation with a
disc including MP3
files.
Allows operation with a
DVD VIDEO disc.
Allows operation with a
disc including JPEG
files.
DVD-RAM, DVD-RW, DVD-R or DVD VIDEO disc
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2 Chapter 3
DR-MV1SU_03DiscInfo.fm Page 9 Tuesday, March 16, 2004 3:41 PM
Filename [DR-MV1SU_03DiscInfo.fm]
Masterpage:Left+
10 EN
Page 10 February 17, 2004 2:18 pm
DISC INFORMATION
Audio CD/Video CD
Typically, Audio CD discs are divided into separate tracks each
containing one song. Each track is assigned a number. For
example, the third track is Track 3. The same is true for Video CD
discs.
However, some discs are not divided into tracks.
S

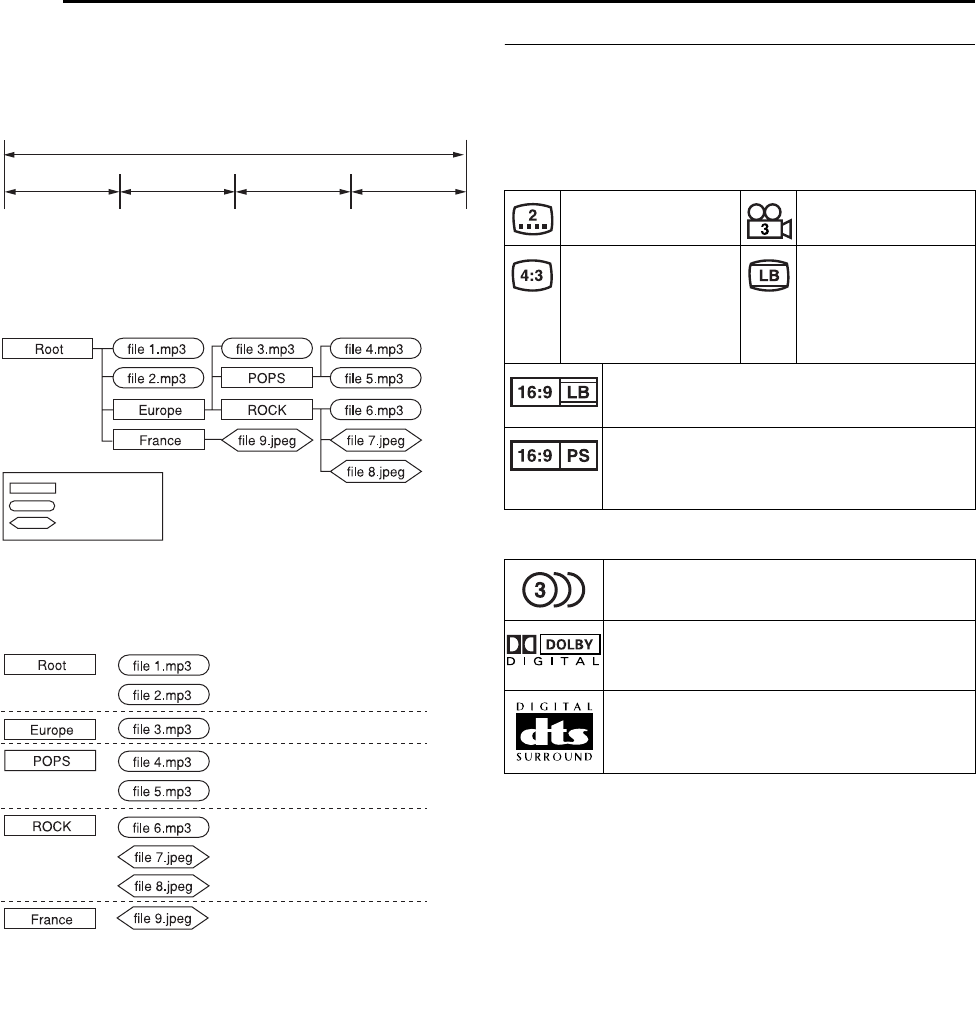

JPEG/MP3 Disc (CD-R/RW/ROM)
MP3/JPEG files put in directories nested in several levels on a disc
will be organized as if they were put in single level directories
(groups) by the MP3/JPEG Navigation of this unit. (墌pg. 61)
File structure of a disc before starting the MP3/JPEG
Navigation
File structure of the disc after starting the MP3/JPEG
Navigation
Files are automatically grouped as follows and displayed on the
MP3/JPEG Navigation screen. Data is displayed in the
alphabetical order of file name. Files are grouped based on roots.
●This unit can recognise up to 9 hierarchies including directories and
files.
Also, it can recognise up to 250 files in each group, and up to 99
groups on a disc.
NOTES:
●Video CD discs that support Playback Control (PBC)
The contents of a disc are recorded into several hierarchies, and played
back according to the instructions on the screen while navigating through
the hierarchies. It is also possible to playback recorded tracks
consecutively without activating the PBC function even when playing a
PBC-compatible disc. (墌pg. 29)
●Regarding the contents recorded on discs
Some files may not be played back depending on the file types and other
factors.
DVD VIDEO Marks
Sometimes marks are printed on a DVD disc and/or on its
packaging to indicate information regarding the contents and
functions of the disc. Check the marks indicating the contents and
functions of the disc. Note, however, that in some cases a disc may
not include a mark even for a function it supports.
Marks related to video
Marks related to audio
Audio CD or Video CD
Track 1 Track 2 Track 3 Track 4
Directory
MP3 file
JPEG file
Number of subtitles Number of angles
Recorded under the
standard 4:3 aspect
ratio
Screen includes black
bands at the top and
the bottom of image
which has a standard
4:3 aspect ratio (letter
box)
Video playback is in Wide video mode (16:9) on
wide televisions, but in letter box on televisions
with standard 4:3 aspect ratio.
Video playback is in Wide video mode (16:9) on
wide televisions, but pan and scan is used on
televisions with standard 4:3 aspect ratio (either
the left or right side of the image is cut-out).
Number of audio tracks
Dolby Digital mark
It has been developed by Dolby Laboratories as a
digital surround system.
DTS (Digital Theater Systems)
You can enjoy DTS audio if you connect an
amplifier with a built-in DTS decoder to the
DIGITAL AUDIO OUT connector of the unit.
DR-MV1SU_00.book Page 10 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 11
Filename [DR-MV1SU_03DiscInfo.fm]
Page 11 February 17, 2004 2:18 pm
DISC INFORMATION
Placing A Disc
Opening the disc tray
Press x (OPEN/CLOSE) to open the disc tray.
●Pressing the button again closes the disc tray.
●Use the buttons to open and close the disc tray.
●Do not block the disc tray with your hand while it is opening or closing
as this may result in hardware failure.
●Do not place unplayable discs or any object other than a disc on the
disc tray.
●Do not press down strongly on the disc tray or place any heavy
objects on it.
Discs without cartridges
Place the disc on the disc tray with the
label side facing up. Since disc size
changes depending on the disc to be
played back, be sure to correctly align
the disc with the grooves for its size. If
the disc is not in its groove, it may be
scratched or otherwise damaged. To
insert an 8 cm disc, place it according
to the inner groove.
DVD-RAM discs contained in
cartridges
Double-sided discs:
Remove the disc from the cartridge. Align the disc with the grooves
on the disc tray as shown in the illustration and insert with the side
you wish to play back or record facing down. If you insert the disc
with “Side A” facing down, programs are recorded on the side A.
Single-sided discs:
Remove the disc from the cartridge. Align the disc with the grooves
on the disc tray as shown in the illustration and insert with the label
side facing up.
Care And Handling Of Discs
How to handle discs
When handling a disc, do not
touch the surface of the disc.
Since discs are made of
plastic, they are easily
damaged. If a disc gets dirty,
dusty, scratched or warped, the
images and sound will not be
picked up correctly, and such a
disc may cause the unit to malfunction.
Label side
Do not damage the label side, stick paper to or use any adhesives
on its surface.
Recording side
Make sure that discs are not scratched and dirty on the recording
side before use. Scratches and dirt on the recording side of a disc
may hinder proper playback and recording. Also be careful that a
DVD-RAM disc may get scratched or dirt when removed from
cartridge then put back in after use.
Storage
Make sure that discs are kept in their cases. If discs are piled on
top of one another without their protective cases, they can be
damaged. Do not put discs in a location where they may be
exposed to direct sunlight, or in a place where the humidity or
temperature is high. Avoid leaving discs in your car!
Maintenance of discs
If there are fingerprints or other dirt adhering
to a disc, wipe with a soft dry cloth, moving
from the centre outwards.
If a disc is difficult to clean, wipe with a cloth
moistened with water. Never use record
cleaners, petrol, alcohol or any anti-static
agents.
F-1
x
P
EN/CLOSESTOPPLAY
REMAIN
REC MODESLOW
<<>
>
RECPAUSEREWFFCH
DV IN
REC LINK
DVD
TIMERDVDDVD
RECVCRDUBBING
PULL-OPEN
CAUTION:
Sometimes during playback, noise may appear or images may
be garbled. This is sometimes due to the disc. (It may not be up
to industry standards.)
These symptoms are caused by the discs, not by the malfunction
of the unit.
DR-MV1SU_00.book Page 11 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_04Name.fm]
Masterpage:Left0
12 EN
Page 12 March 4, 2004 2:32 pm
INDEX
Front View
AStandby/On Button (1)
BVCR/DVD Button
CVCR Timer Lamp (TIMER) 墌pg. 52
VCR Lamp 墌pg. 47
VCR Recording Lamp (REC) 墌pg. 50
DCassette Loading Slot
EOpen/Close Button (x (OPEN/CLOSE)) 墌pg. 11
FStop Button (8) 墌pg. 25, 47
GPlay Button (4) 墌pg. 25, 47
HDVD Timer Lamp (TIMER) 墌pg. 41
DVD Lamp 墌pg. 19, 25
DVD Recording Lamp (REC) 墌pg. 38
IDisc Tray
JDubbing Button (DUBBING) 墌pg. 62
Dubbing Direction Button (VCR]/}DVD) 墌pg. 62, 64
KEject Button (x (VCR EJECT)) 墌pg. 47
LS-video Input Connectors (S-VIDEO) (DVD deck only)
墌pg. 67
MVideo/Audio Input Connectors (VIDEO/AUDIO (L/R))
墌pg. 67
When using a monaural audio cable, use AUDIO L (MONO) input
connector. In this case, the sound on the left channel is also
recorded on the right channel.
NFront Display Panel 墌pg. 14
OInfrared Beam Receiving Window
PRemain Button (REMAIN) 墌pg. 28, 39
Recording Mode Button (REC MODE) 墌pg. 38, 50
QRecord Button (7) 墌pg. 38, 50
RPause Button (9) 墌pg. 25, 47
SReverse Search Button (3) (DVD deck) 墌pg. 26, 32
Rewind Button (3) (VCR deck) 墌pg. 47, 48
Reverse Slow Button (SLOW –) 墌pg. 27
TForward Search Button (5) (DVD deck) 墌pg. 26, 32
Fast Forward Button (5) (VCR deck) 墌pg. 47, 48
Forward Slow Button (SLOW +) 墌pg. 27
UChannel Button (CH +/–) 墌pg. 38, 50
VAutomatic Satellite Program Recording Button (REC
LINK) (DVD deck only) 墌pg. 46
WDV Input connector (DV IN (i*)) (DVD deck only)
墌pg. 66
*i (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The i logo is used for products compliant with the
i.Link standard.
F-1
POWER
VCR EJECT
DVD
S-VIDEO VIDEO (MONO) L - AUDIO - R
VCR/DVD TIMER VCR REC OPEN/CLOSE STOP PLAY
REMAIN
REC MODE SLOW
<< >>
REC PAUSE REW FF CH DV IN
REC LINK
DVD
TIMER DVD DVDREC VCR DUBBING
PONLMK Q S TRUWV
A B C D GFE IH J
To access covered connectors, pull
and open the connector cover.
SLOW
<< >>
P
AUSE REW FF CH DV IN
REC LINK
DVD
TIMER DVD DVDREC VCR DUBBING
PULL-OPEN
DR-MV1SU_04Name.fm Page 12 Thursday, March 4, 2004 2:32 PM
Masterpage:Right+
EN 13
Filename [DR-MV1SU_04Name.fm]
Page 13 February 24, 2004 12:52 pm
INDEX
Rear View
ARegion Number Label 墌pg. 9
BAC Power Cord 墌pg. 17
CCooling Fan
●This prevents the temperature from rising inside the unit.
Do not remove it.
●Install the unit so as not to block the area around the fan.
●The cooling fan on the rear of the unit may be activated even if
the unit is turned off in the following cases;
— in the Automatic Satellite Program Recording standby mode
(墌pg. 46)
— when “AUTO CLOCK” is set to “ON” (墌pg. 20)
DDigital Audio Output Connectors
(DIGITAL AUDIO OUT (COAXIAL/OPTICAL)) (DVD
deck only) 墌pg. 69, 72
EComponent Video Output Connectors (COMPONENT
VIDEO OUT) (DVD deck only) 墌pg. 17
FS-video/Video/Audio Output Connectors (S-VIDEO/
VIDEO/AUDIO OUTPUT) (DVD deck only) 墌pg. 17, 68
GS-video Input Connector (S-VIDEO INPUT) (DVD deck
only) 墌pg. 68
HAntenna Input Connectors (VHF/UHF IN (DVD/VCR))
墌pg. 17
IVideo/Audio Input Connectors (VIDEO/AUDIO INPUT
(L-1)) 墌pg. 68
JVideo/Audio Output Connectors (VIDEO/AUDIO
OUTPUT) 墌pg. 17, 68
KCable Box Control Connector (CABLE BOX) (DVD deck
only) 墌pg. 22
LAntenna Output Connectors (VHF/UHF OUT (ANT.
LOOP. OUT/TV OUT)) 墌pg. 17
1
OUTPUT
DVD/VCR VHF/UHF
OUTPUT
DVD
INPUT L-1
DVD/VCR
COAXIAL
OPTICAL
DVD DVD
DVD
IN
VCR
Y
L
R
PB
PR
DIGITAL
AUDIO OUT COMPONENT
VIDEO OUT
VIDEO
S-VIDEO
S-VIDEO
AUDIO
VIDEO
AUDIO
PCM/
STREAM
L
R
VIDEO
AUDIO
CABLE
BOX
ANT. LOOP OUT TV OUT
L
ROUT
J
A B C DFEH
G
LKI
DR-MV1SU_00.book Page 13 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_04Name.fm]
Masterpage:Left+
14 EN
Page 14 February 24, 2004 12:52 pm
INDEX

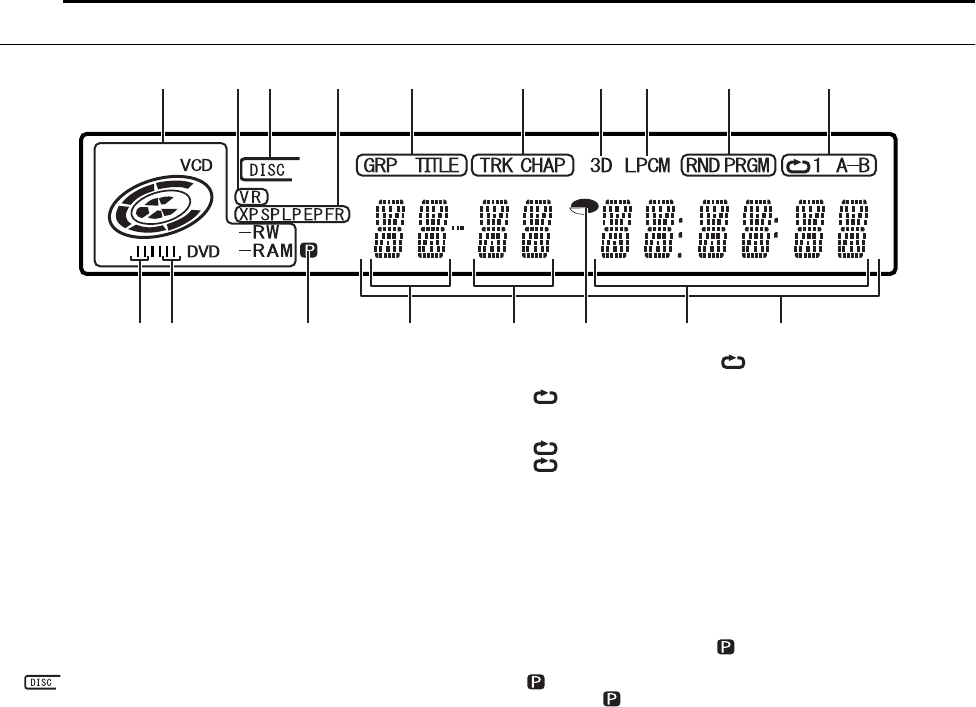

Front Display Panel
ADisc Type Indicator
When a disc is loaded, the type of the disc is indicated.
Disc Status Indicator
When a disc is running, the disc marks rotate.
During High-Speed Search: Rotate faster than normal playback.
During Slow Motion: Rotate slower than normal playback.
While recording: Inner red ring lights in the same way
as normal playback. During Instant
Timer Recording (ITR), inner red ring
slowly blinks.
While paused: Disc marks blink when either
recording or playing back.
While stopped: Disc marks all light.
While resume stopped: Disc marks all blink.
While the disc tray opened: Disc marks all light out.
No disc on the disc tray: Disc marks all light out.
BVR Mode Indicator 墌pg. 78
Lights when a DVD-RW disc is formatted in VR mode.
C Indicator 墌pg. 43
Lights when a disc set up for On-Disc Timer Programing is loaded.
DRecording Mode Indicator (XP/SP/LP/EP/FR) 墌pg. 38
Blinks when recording mode is being set.
While “FR” is blinking, the left 3 digits of the Multi Display (N O)
indicate setting values ranging from “60” to “480”. After the value
has been set, only “FR” lights.
EGroup/Title Indicator (GRP/TITLE)
“GRP” or “TITLE” lights depending on a disc loaded while the left 2
digits of the Multi Display (N) indicate the numbers explained below.
“GRP”: Total number of groups or group number being played
back are displayed on the Multi Display.
“TITLE”: Total number of titles or title number being played back
are displayed on the Multi Display.
FTrack/Chapter Indicator (TRK/CHAP)
“TRK” or “CHAP” lights depending on a disc loaded while the 3rd
and 4th digits from the left of the Multi Display (O) indicate the
numbers explained below.
“TRK”: Total number of tracks or track number being played
back are displayed on the Multi Display.
“CHAP”: Chapter number being played back are displayed on the
Multi Display.
GSimulated Surround Effect Indicator (3D) 墌pg. 35
Lights when a simulated surround effect is set to “3D-ON” on the on-
screen bar.
HLinear PCM Indicator (LPCM)
Lights when “XP MODE REC AUDIO” is set to “LINEAR PCM”
(墌pg. 74) for recording with DVD-RAM, DVD-R and DVD-RW
discs, and when Linear PCM audio is played.
IRandom/Program Playback Mode Indicator (RND/
PRGM) 墌pg. 36
“RND”: Lights when Random Playback mode is set.
“PRGM”: Lights when Program Playback mode is set.
JRepeat Mode Indicator ( /1/A–B) 墌pg. 34, 49
Select Repeat Playback mode on the on-screen bar.
“ ”: Whole disc is played back repeatedly.
It also lights up during the Repeat Playback on the
VCR deck.
“ 1”: A single title/chapter/track is played back repeatedly.
“ A–B”: The selected part (A–B) is played back repeatedly.
No display: Repeat Playback mode is off.
KAutomatic Satellite Program Recording Indicator
墌pg. 46
Lights up when the DVD deck is in the Auto Sattellite Program
Recording standby mode while the VCR deck is used.
LVCR Indicator 墌pg. 39, 50
Lights up when the mode is switched to the VCR mode using the
TV/VCR button. When switching the mode, “VCR” or “TV” appears
for about 2 seconds on the Multi Display (Q).
MVideo Output Indicator ( ) 墌pg. 80
No display:Indicates that interlace mode is engaged.
: Indicates that progressive mode is engaged.
(Example) lights when video output mode is in progressive
mode.
NGroup/Title Number Display
OTrack/Chapter Number Display
PRemaining Time/Elapsed Time Indicator 墌pg. 28, 39
Lights when remaining time of DVD-RAM, DVD-R and DVD-RW
discs is displayed, and lights out when elapsed time is displayed.
The right 6 digits of the Multi Display (Q) indicate elapsed or
remaining time of each track.
No display:Indicates elapsed time of the disc.
Displayed: Indicates remaining time of the disc.
QRemaining Time/Elapsed Time Display 墌pg. 28, 39
RMulti Display
Displays clock, received channel, elapsed time, and remaining time.
Also displays status of the unit (NO DISC/OPEN/CLOSE/
READING).
ABCD GFEIHJ
PONLMKQR
DR-MV1SU_00.book Page 14 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 15
Filename [DR-MV1SU_04Name.fm]
Page 15 February 24, 2004 12:52 pm
INDEX
On-Screen Display (DVD deck)
When “SUPERIMPOSE” is set to “AUTO” and ON SCREEN on the remote control is pressed, various operational indicators appear on the
TV screen. To clear the operational indicators, press ON SCREEN twice.
ADisc Display
Displays the type of the disc loaded on the disc tray.
BTitle Number*
Displays number of the title currently being played back.
CPlayback Operation Status Indicator*
Indicates playback operation status by pictographs.
DPlayback Time*
Displays playback time of the title currently being played back.
ERecording Mode
Displays recording mode as XP, SP, LP, EP, FR, FR60–FR360,
FR420 and FR480. Current recording mode is displayed during
recording, and recording mode in which the program was recorded
is displayed during playback. The recording mode is not displayed
during play list playback.
FTitle Number
Displays playback title number during playback, and recording title
number during recording.
GChapter Number
Displays playback chapter number during playback, and recording
chapter number during recording.
HClock Display
IBar Meter Display 墌pg. 31
Displays playback point and other information in bar meter.
JTitle Name Display
Displays title name newly registered to the title recorded on DVD-
RAM/RW/R discs, or file name of JPEG and MP3 files.
KOperation Status Indicator
Indicates operation status by pictographs. (Also indicates its speed
for forward high-speed search, reverse high-speed search and slow
motion.)
LTime Display
Displays single title playback elapsed time, single track playback
elapsed time, single track remaining time, total elapsed time, total
remaining time, and other information in turn.
MAudio Mode Display
Displays audio that is being input.
NChannel Position Number/Auxiliary Input Indicator (L-1
or F-1)
Displays currently selected input.
* During Live Memory playback, playback operation status is displayed.
During normal playback, the multichannel encoding method is displayed.
On-Screen Display (VCR deck)
When “SUPERIMPOSE” is set to “AUTO” and ON SCREEN on the remote control is pressed, various operational indicators appear on the
TV screen. To clear the operational indicators, press ON SCREEN again.
AOperation Mode Indicators
BRecording Mode (SP/EP)
CTape Position Indicator
The tape position indicator
appears on the TV screen when
you press 3 or 5 from the
Stop mode or perform an Index
Search. (墌pg. 48) The position
of “q” in relation to “0” (Beginning)
or “+” (End) shows you where
you are on the tape.
NOTE:
Depending on the type of tape
being used, the tape position
indicator may not appear
correctly.
DIndex number 墌pg. 48
ETape Remaining Time Indicator 墌pg. 51
FCounter Display
GAudio Mode Display 墌pg. 49
HSAP Indicator 墌pg. 51
IStereo Program Indicator 墌pg. 51
JDay/Clock Display
KChannel Position Number/Auxiliary Input Indicator (L-1
or F-1)
L“Cassette Loaded” Mark
Beginning End
DR-MV1SU_00.book Page 15 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_04Name.fm]
Masterpage:Left+
16 EN
Page 16 March 4, 2004 4:13 pm
INDEX
Remote Control
ADVD Timer Button (DVD TIMER (#)) (DVD deck only)
墌pg. 41
BVCR Timer Button (VCR TIMER (#)) (VCR deck only)
墌pg. 52
CNumber Keys 墌pg. 21, 38, 50
Character keys (DVD deck only) 墌pg. 57
DAuxiliary Button (AUX)
ECancel Button (CANCEL) 墌pg. 41
FProgram Check Button (PROG/CHECK) 墌pg. 42, 45,
53, 54,
GVCR Plus+ Button 墌pg. 41, 52
HTop Menu Button (TOP MENU) (DVD deck only)
墌pg. 26
Navigation Button (NAVIGATION) (DVD deck only)
墌pg. 55
Irt Button 墌pg. 19
JSet Up Button (SET UP) (DVD deck only) 墌pg. 19
KReverse Skip Button (2) (DVD deck) 墌pg. 26, 32
Index Button (2) (VCR deck) 墌pg. 48
Previous Button (PREVIOUS) (DVD deck only) 墌pg. 29
LPlay Button (4) 墌pg. 25, 47
Select Button (SELECT) (DVD deck only) 墌pg. 25, 56
MReverse Search Button (3) (DVD deck) 墌pg. 26, 32
Rewind Button (3) (VCR deck) 墌pg. 47, 48
Reverse Slow Button (SLOW –) 墌pg. 27
NStop Button (8) 墌pg. 25, 47
Clear Button (CLEAR) (DVD deck only) 墌pg. 35, 41
ORecord Button (7) 墌pg. 38, 50
PRemain Button (REMAIN) 墌pg. 28, 39
Recording Mode Button (REC MODE) 墌pg. 38, 50
QSubtitle Button (SUBTITLE) (DVD deck only) 墌pg. 28
RAngle Button (ANGLE) (DVD deck only) 墌pg. 28
Live Check Button (LIVE CHECK) (DVD deck only)
墌pg. 30, 32
STV/VCR Button 墌pg. 39, 50
TAudio Button (AUDIO) 墌pg. 28, 49
TV Muting Button ( ) 墌pg. 70
UTV/CABLE/DBS/DVD switch 墌pg. 19
VVCR/DVD Button 墌pg. 19
WTV/CBL/DBS/DVD Standby/On Button (1)
XMemo Button (MEMO) (DVD deck only) 墌pg. 56, 59, 61
Mark Button (MARK) (DVD deck only) 墌pg. 27
YOn-Screen Button (ON SCREEN) (DVD deck only)
墌pg. 15, 33
Progressive Scan Button (PROGRESSIVE SCAN)
墌pg. 80
ZDisplay Button (DISPLAY) 墌pg. 28, 39
aMenu Button (MENU) (DVD deck only) 墌pg. 26
bwe Button 墌pg. 19
cEnter Button (ENTER) 墌pg. 19
dReturn Button (RETURN) 墌pg. 29, 41
eForward Skip Button (6) (DVD deck) 墌pg. 26, 32
Index Button (6) (VCR deck) 墌pg. 48
Next Button (NEXT) (DVD deck only) 墌pg. 29
fForward Search Button (5) (DVD deck) 墌pg. 26, 32
Fast Forward Button (5) (VCR deck) 墌pg. 47, 48
Forward Slow Button (SLOW +) 墌pg. 27
gPause Button (9) 墌pg. 25, 47
hSkip Search Button ( ) 墌pg. 27, 32
iOne Touch Replay Button ( ) 墌pg. 32, 48
jTV Volume Button (TV VOL.) 墌pg. 70
kTV/CBL DVD Channel Button (CH +/–) 墌pg. 38, 70
The glow-in-the-dark buttons shown in grey on the illustration
above are helpful when using the remote control in darkened
rooms.
Buttons with a small dot on the left side of the name can also be
used to operate your TV. (墌pg. 70)
PROG/CHECK
DISPLAY ON SCREEN
DVD
TIMER VCR
/DVD
VCR
TIMER
SLOW
PREVIOUS NEXT
CLEAR
SLOW
PA U S ESTOP/
PLAY/SELECT
REMAIN REC
CH
AUDIO
SUBTITLE
ANGLE
TV/VCR
REC MODE
LIVE CHECK
DVDTV
CABLE/DBS
ABC DEF
JKL MNO
TUV
GHI
PQRS WXYZ
NUMBER / TV CH / DVD CHNUMBER / TV CH / DVD CH
MEMO/MARK
PROGRESSIVE
SCAN
VCR PLUS+
AUX
SET UP
RETURN
CANCEL
NAVIGATION
TOP MENU
MENU
TV
VOL.
TV/CBL/DVD
TV/DVD TV
TV
/
CBL/DBS
/DVD
1
4
7
2
5
8
0
3
6
9
ENTER
How To Use
Before use, insert two AA size batteries into the remote control
with the polarity ( and ) matched correctly as indicated on
the battery compartment or on the lid.
The remote control can operate most of your unit’s functions, as
well as basic functions of TV sets of JVC and other brands.
(墌pg. 70)
●Point the remote control toward the receiving window.
●The maximum operating distance of the remote control is about
8m.
NOTE:
If the remote control doesn’t work properly, remove its batteries, wait
a short time, replace the batteries and then try again.
DR-MV1SU_04Name.fm Page 16 Thursday, March 4, 2004 4:13 PM
Masterpage:Right0
EN 17
Filename [DR-MV1SU_04Name.fm]
Page 17 March 4, 2004 8:29 pm
INSTALLING YOUR NEW UNIT
It’s essential that your unit be properly connected.
1Make sure the package contains all of the accessories listed in
“SPECIFICATIONS” on page 87.
2Place the unit on a stable, horizontal surface.
3Connect the unit to a TV depending on the TV and cables you
use.
8RF Connection
To connect to a TV with NO AV input connectors —
ADisconnect the TV antenna from the TV.
BConnect the TV antenna cable to the VHF/UHF IN (DVD/VCR)
connectors on the rear panel of the unit via antenna splitter.
CConnect an optional RF cable between the TV OUT connector
on the rear panel of the unit and the TV’s antenna terminal.
NOTES:
●If you do not use antenna splitter, connect the TV antenna cable to
VHF/UHF IN (DVD) connector. However, it is not possible to record
the TV program on the VCR deck.
●Connect the unit’s ANT. LOOP OUT connector to the antenna input
connector on another vide unit.
8AV Connection
To connect to a TV with AV input connectors —
APerform A–B in “RF Connection”.
BConnect an optional audio/video cable between the AUDIO/
VIDEO OUTPUT connectors on the rear panel of the unit and the
TV’s audio/video input connectors.
8S-Video Connection (DVD deck only)
To connect to TV’s S-VIDEO input and AUDIO input
connectors
APerform A–B in “RF Connection”.
BConnect the unit’s S-VIDEO OUTPUT connector to the TV’s
S-VIDEO input connector.
CConnect the unit’s AUDIO OUTPUT connectors to the TV’s
AUDIO input connectors.
●You can obtain high-quality S-VHS pictures.
●If your TV is not stereo-capable, use the unit’s AUDIO OUTPUT
connectors to connect to an audio amplifier for Hi-Fi stereo sound
reproduction.
8Component Video Connection (DVD deck only)
To connect to TV’s component video input connectors
APerform A–B in “RF Connection”.
BConnect the unit’s COMPONENT VIDEO OUT connectors to
the TV’s component video input connectors.
CConnect the unit’s AUDIO OUTPUT connectors to the TV’s
AUDIO input connectors.
●You can obtain high-quality component video pictures.
●If your TV is not stereo-capable, use the unit’s AUDIO OUTPUT
connectors to connect to an audio amplifier for Hi-Fi stereo sound
reproduction.
●By using the component video connection, you can view the images
in the progressive mode. For switching to the progressive mode, refer
to “Scan Mode Set” (墌pg. 80).
4Plug the end of the AC power cord into an AC outlet. This unit
performs Plug & Play Set automatically. (墌pg. 18)
●The clock and tuner channels will automatically be set when the
antenna is connected and when the AC power cord is first connected
to an AC outlet. (If “AUTO” and the channel indicator are displayed on
the front display panel before the unit is powered on, the clock and
tuner channels are being set automatically. Wait for the time to be
displayed on the front display panel before turning on the unit.)
●“LOADING” blinks on the front display panel when the AC plug of the
power cord is connected into a mains outlet and it takes
approximately 50 seconds for the unit to be turned on. This is not a
malfunction.
5Set the video channel. The video channel is the channel on
which you can watch the picture from the unit on the TV when only
using RF connection.
With RF Connection
Set the video channel to “3 CH” or “4 CH”. To set the video
channel, perform steps A–C below:
●The video channel is preset to “3 CH”. Set to “4 CH” if the Channel 3
is used for broadcasting in your area.
With AV Connection
Set the video channel to “– CH” (off). To set the video channel,
perform steps A–C below:
With S-Video/Component Video Connection (DVD deck only)
Set the video channel to “– CH” (off). To set the video channel,
perform steps A–C below:
How To Set The Video Channel
AMake sure that there is no cassette in the unit.
BPress 1 to turn off the unit, then press 8 on the unit for more
than 5 seconds. “3 CH” appears on the front display panel.
CPress CH +/– on the remote control to select “3 CH”, “4 CH” or
“– CH” (off), then press ENTER. When either “3 CH” or “4 CH” is
selected, the TV/VCR indicator lights up.
Basic Connection
THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO
OPERATION CAN BE PERFORMED.
1
Antenna or Cable
Matching transformer
(not supplied)
Coaxial cable
S-VIDEO
OUTPUT
AC outlet
RF cable (supplied)
Back of unit
Audio/video
cable
(not supplied)
Flat feeder
TV
AC power cord
To 75 ohm
terminal
Antenna splitter
(supplied)
RF cable (supplied)
Component
video cable
(not supplied)
S-Video cable
(not supplied)
COMPONENT VIDEO
OUTPUT
AUDIO/VIDEO
OUTPUT
VHF/UHF IN (DVD/VCR)
TV OUT
RF cable
(not supplied)
DR-MV1SU_04Name.fm Page 17 Thursday, March 4, 2004 8:30 PM
Filename [DR-MV1SU_04Name.fm]
Masterpage:Left0
18 EN
Page 18 February 24, 2004 12:52 pm
INITIAL SETTINGS
Auto Clock Set/Auto Tuner Set
This unit sets the clock and tuner channels automatically when AC
power cord is first connected to an AC outlet. The antenna cable
must be connected for the Plug & Play setting.
The time and date can be set automatically by the clock setting
data transmitted from one of the regular TV broadcast channels.
We call this TV channel the “host channel” and it is a PBS channel
in your area.
1Connect the antenna cable to the unit. (墌pg. 17) Then connect
the AC power cord to an AC outlet. Do not turn on the unit.
The clock and tuner channels will be set automatically.
●“LOADING” blinks on the front display panel when the AC plug of the
power cord is connected into a mains outlet and it takes
approximately 50 seconds for the unit to be turned on. This is not a
malfunction.
NOTES:
●Auto Clock Set is performed first.
“AUTO” blinks on the front display panel during Auto Clock Set.
●Auto Channel Set is performed next. Auto Channel Set scans all the
channels that are receivable by your unit. During Auto Channel Set,
the channel numbers are displayed as they are scanned and set.
●When Plug & Play setting has been complete successfully, the
correct clock time is displayed. If you perform Plug & Play setting
successfully, there is no need to perform “Clock Set” (墌pg. 20) and
“Tuner Set” (墌pg. 21). If, however, you want to add or delete
channels, refer to “Manual Channel Set” (墌pg. 21).
Plug & Play Set
A
TTENTION:
●If you use a cable box, Plug&Play will not function; set the clock
and tuner channels separately. (墌pg. 20 – 21)
●Depending on areas or reception conditions, the unit may not
receive the Auto clock setting data from the PBS channel. If this
function is taking a considerable amount of time, it may be
necessary to perform the Semiauto or Manual Clock Set
procedure.
INFORMATION
●If “AUTO CLOCK” is set to “ON” (墌pg. 20), the clock will be
adjusted automatically by the host channel every hour (except
11:00 PM, midnight, 1:00 AM and 2:00 AM) using the incoming
PBS channel clock setting data. (This automatic clock adjustment
can only be performed when the unit is turned off. The clock will be
adjusted just on these hours — on the time displayed on the front
display panel, not on the actual real time.) The default setting of
“AUTO CLOCK” is “ON”. (墌pg. 20)
●If the memory backup fails, because a power outage occurs or
because the AC power cord is unplugged, Plug & Play will be
performed when power is restored to the unit.
What to do if Plug & Play setting failed
●If an incorrect time is displayed on the front display panel, you may
be receiving the clock setting data of a PBS channel from an
adjacent time zone, or an incorrect PBS channel from a cable TV
system. In this case, perform “Semiauto Clock Set” (墌pg. 20) or
“Manual Clock Set” (墌pg. 20).
●If “– –:– –” appears on the front display panel, your antenna cable
may not be connected to the unit or there may not be a Host PBS
signal available in your area. Ensure that the antenna cable is
connected correctly. Then turn on and off the unit; the Plug & Play
setting will be automatically reactivated. If Plug & Play setting is not
performed though the antenna cable is connected correctly,
perform “Manual Clock Set” (墌pg. 20) and “Auto Channel Set”
(墌pg. 21) or “Manual Channel Set” (墌pg. 21).
F-1
During Auto Clock Set
“AUTO” blinks.
During Auto Channel Set
The channel numbers are displayed and “AUTO” blinks as they
are scanned and set.
Plug&Play Completed
The current time is displayed.
●If an incorrect clock time or “– –:– –” appears on the front display
panel, see “What to do if Plug & Play setting failed” (墌pg. 18).
DR-MV1SU_00.book Page 18 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 19
Filename [DR-MV1SU_04Name.fm]
Page 19 February 24, 2004 12:52 pm
INITIAL SETTINGS
On-screen Language Set
This unit offers you the choice to view on-screen messages in 3
different languages.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “FUNCTION SET UP”, then press ENTER.
4Press we to select “DISPLAY
SET”, then press ENTER.
5Press rt to select “ON
SCREEN LANGUAGE”, then
press ENTER.
6Press rt to select your
desired language, then press
ENTER.
7Press SET UP to complete the setting.
Menu/Audio/Subtitle Language Set (DVD deck only)
Some DVD discs contain the DVD menu display, audio and
subtitles in multiple languages. With these discs, you can set the
default language as you like.
●The procedure shows how to set “MENU LANGUAGE” as an
example.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “DVD SET UP”, then press ENTER.
4Press we to select
“LANGUAGE SET”, then press
ENTER.
5Press rt to select “MENU
LANGUAGE”, then press ENTER.
6Press rt to select your
desired language, then press
ENTER.
●See “Language Code List”
(墌pg. 88).
7Press SET UP to complete the setting.
NOTE:
When the selected language is not available on the disc, the disc’s
default menu language is played back.
Language
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
rtw e
ENTER
VCR/DVD
SET UP
DR-MV1SU_00.book Page 19 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_04Name.fm]
Masterpage:Left+
20 EN
Page 20 February 25, 2004 12:39 pm
INITIAL SETTINGS
Perform clock setting only if the clock has not been set correctly by
the Plug&Play setting.
Semiauto Clock Set
You can change the host channel/D.S.T. (Daylight Saving Time)/
time zone setting manually.
NOTE:
The time set previously will be erased when “AUTO CLOCK”, “HOST
CH”, “D.S.T.” or “TIME ZONE” setting is changed.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “INITIAL SET UP”, then press ENTER.
4Press we to select “CLOCK
SET”, then press ENTER.
5Press rt to select “AUTO
CLOCK”, then press ENTER.
Press rt to select “ON”, then
press ENTER.
6Press rt to select “HOST
CH”, then press ENTER.
Press rt to select “AUTO” or the
desired PBS channel number, then press ENTER.
NOTE:
Some PBS channels do not transmit clock setting data.
7Press rt to select “D.S.T.”, then press ENTER. Press rt to
select the desired setting, then press ENTER.
AUTO: Select if you want to adjust your unit’s clock automatically by
the incoming signal from the host channel. Be sure to select the
correct time zone manually in step 8.
ON: Adjustment will be made by the built-in clock itself.
OFF: Select when Daylight Saving Time does not apply to you.
8Press rt to select “TIME ZONE”, then press ENTER. Press
rt to select “AUTO” or the desired time zone, then press ENTER.
● Each time you press rt, the time zone changes as follows:
{AUTO{ATLANTIC{EASTERN{CENTRAL{
MOUNTAIN{PACIFIC{ALASKA{HAWAII{
(back to the beginning)
NOTE:
If an incorrect time is displayed by the Plug & Play function, you may be
receiving the clock setting data of a PBS channel from an adjacent time
zone or from an incorrect PBS channel from a cable TV system. If you
selected “AUTO” for the host channel in step 6, be sure to select the
correct time zone manually.
9Press SET UP to complete the setting.
Manual Clock Set
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “INITIAL SET UP”, then press ENTER.
4Press we to select “CLOCK
SET”, then press ENTER.
5Press rt to select “AUTO
CLOCK”, then press ENTER.
Press rt to select “OFF”, then
press ENTER.
6Press rt to select “TIME”,
then press ENTER. Press rt
until the desired time appears,
then press ENTER to start clock.
●Set the date and year in the same
way.
●Holding rt changes the time in 30-minute intervals, or changes the
date in 15-day intervals.
7Press rt to select “D.S.T.”, then press ENTER. Press rt to
select the desired setting, then press ENTER.
ON: Adjustment will be made by the built-in clock itself.
OFF: Select when Daylight Saving Time does not apply to you.
8Press SET UP to complete the setting.
Clock Set
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD
IMPORTANT:
Turn off the unit after performing Semiauto Clock. “AUTO” will appear
on the front display panel while the clock is being set. The current
clock time will appear automatically when the clock setting is
complete.
Auto Daylight Saving Time
This function enables automatic adjustment of the unit’s clock at
the start and end of Daylight Saving Time.
With Auto DST activated, —
— on the first Sunday of April at 2:00 AM, the clock is adjusted
to 3:00 AM.
— on the last Sunday of October at 2:00 AM, the clock is
adjusted to 1:00 AM.
NOTE:
Timer recording may not function correctly at the time Daylight
Saving Time is adjusted.
DR-MV1SU_04Name.fm Page 20 Wednesday, February 25, 2004 12:39 PM
Masterpage:Right+
EN 21
Filename [DR-MV1SU_04Name.fm]
Page 21 February 24, 2004 12:52 pm
INITIAL SETTINGS

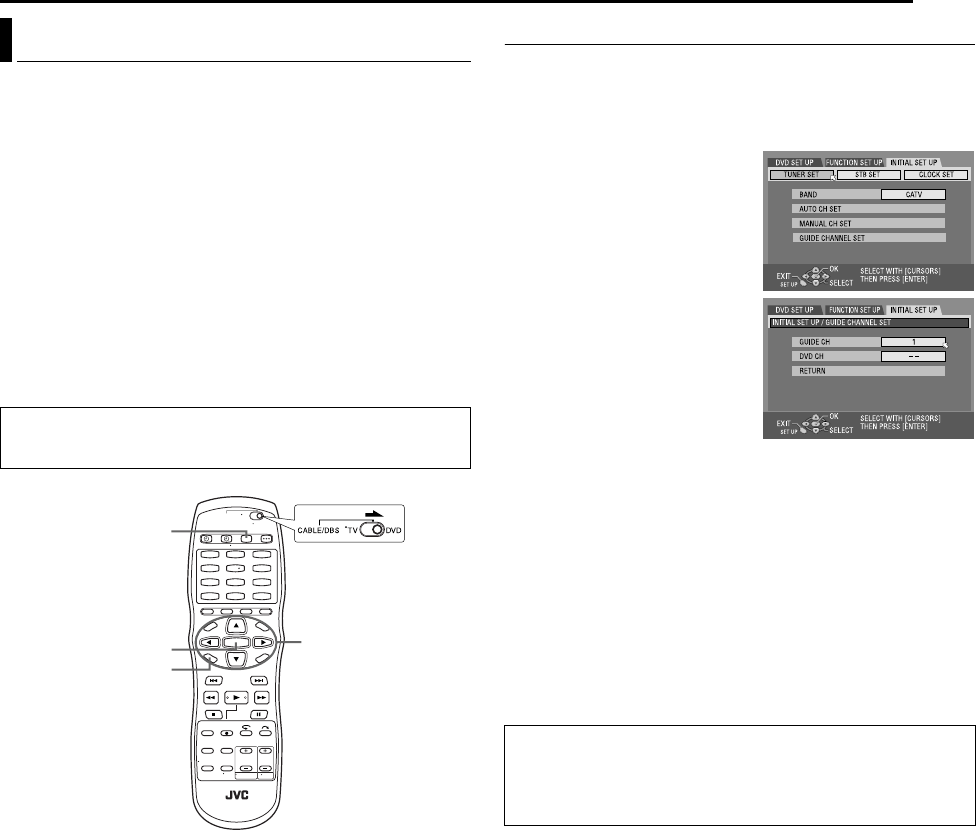

Auto Channel Set
Perform Auto Channel Set only if channels have not been set
correctly by the Plug&Play setting.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “INITIAL SET UP”, then press ENTER.
4Press we to select “TUNER
SET”, then press ENTER.
5Press rt to select “AUTO CH
SET”, then press ENTER. You can
automatically set the receivable
channels in your area in the order
of their frequencies.
●When Auto Channel Set is
complete, “SCAN COMPLETED”
appears on the TV screen.
●If the scan was unsuccessful,
“SCAN COMPLETED–NO SIGNAL–” appears on screen. Check the
connections and start again.
6Press SET UP to complete the setting.
Manual Channel Set
You can add the channels you want or delete the channels you do
not want manually.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “INITIAL SET UP”, then press ENTER.
4Press we to select “TUNER
SET”, then press ENTER.
5Press rt to select “MANUAL
CH SET”, then press ENTER.
6Add or skip the desired
channels.
To add channels
APress rt to select “CH”, then
press ENTER.
BPress rt to select a channel
number you want to add, then press
ENTER.
CPress rt to select “ADD/SKIP”, then press ENTER.
DPress rt to select “ADD”, then press ENTER.
ERepeat B – D to add other channels.
To skip channels
APress rt to select “CH”, then press ENTER.
BPress rt to select a channel number you want to skip, then
press ENTER.
CPress rt to select “ADD/SKIP”, then press ENTER.
DPress rt to select “SKIP”, then press ENTER.
ERepeat B – D to skip other channels.
7Press SET UP to complete the setting.
Tuner Set
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
INFORMATION
The unit selects the correct band (TV or CATV) automatically
during Auto Channel Set. The selected band will be displayed on
the right side of “BAND” on the Tuner Set screen.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD
DR-MV1SU_00.book Page 21 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_04Name.fm]
Masterpage:Left+
22 EN
Page 22 February 24, 2004 12:52 pm
INITIAL SETTINGS
The following procedure is required if you receive your TV
channels through a cable box (descrambler) and/or if you receive
satellite channels through DBS (Direct Broadcast Satellite)
receiver. The Controller allows the unit to automatically switch the
cable box or DBS receiver’s channel during timer recording.
NOTES:
●The Controller is not supplied with this unit. It can be requested by
mailing in the completed JVC Cable Mouse Certificate that is
included with the accessory package.
●The Controller is effective for “VCR Plus+® Timer Programing”
(墌pg. 41), “Manual Timer Programing” (墌pg. 42), or “On-Disc
Timer Programing” (墌pg. 43).
●When connecting your cable box, refer to its instruction manual.
Installing Controller
1If both a cable box and a DBS receiver are used, position the
Controller so its signal reaches the receiving windows of both the
cable box and DBS receiver.
2Fix securely using the adhesive strip attached on the back of the
Controller.
3Connect the controller to the unit.
a
If your cable box or DBS receiver does not have audio/video
output connectors
Connect the RF output connector on the cable box or DBS receiver
to the VHF/UHF IN (DVD) connector on the rear of your unit via
antenna splitter.
If your cable box or DBS receiver has audio/video output
connectors
Connect the audio/video output connectors on the cable box or
DBS receiver to the AUDIO/VIDEO INPUT connectors on the rear
of the unit.
●If both a cable box and a DBS receiver are used, it is recommended
that you connect the DBS receiver to your unit’s AUDIO/VIDEO
INPUT connectors and the cable box to your unit’s VHF/UHF IN
(DVD) connector via antenna splitter.
4Connect the Controller to the CABLE BOX connector on the rear
panel.
Setting Brand And Channel
After installation, set the cable box or DBS receiver’s brand and
channel correctly; otherwise, the Controller cannot work correctly.
1Turn on the cable box or DBS receiver.
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press SET UP to access the Main Menu screen.
4Press we to select “INITIAL SET UP”, then press ENTER.
5Press we to select “STB SET”, then press ENTER.
6Press rt to select “CABLE
BOX SET” or “DBS RECEIVER
SET”, then press ENTER.
7Press rt to select “CABLE
BOX OUTPUT CH” or “DBS
RECEIVER OUTPUT CH”, then
press ENTER.
Cable Box and/or DBS Receiver Control
Setting (DVD Deck Only)
Cable box or DBS receiver
Controller
(suggested locations)
Your unit
CABLE
BOX
Transmitter
To VHF/UHF IN
(DVD)
Controller
To RF output To Audio/video
output
or
Your unit
To AUDIO/
VIDEO INPUT
Cable box or DBS receiver
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD
DR-MV1SU_00.book Page 22 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 23
Filename [DR-MV1SU_04Name.fm]
Page 23 February 24, 2004 12:52 pm
INITIAL SETTINGS
8Select the output channel.
Your selection depends on how the cable box or DBS receiver is
connected to your unit.
●If the cable box or DBS receiver is connected to your unit’s VHF/
UHF IN (DVD) connector on the rear panel, press rt to select the
channel number representing the cable box’s output (CH2 – CH9),
then press ENTER.
●If the cable box or DBS receiver is connected to your unit’s
AUDIO/VIDEO Input connectors on the front panel, press rt to
select “F-1”, then press ENTER.
●If the cable box or DBS receiver is connected to your unit’s
AUDIO/VIDEO INPUT connectors on the rear panel, press rt to
select “L-1”, then press ENTER.
●If you do not use a cable box or DBS receiver, press rt to select
“OFF”, then press ENTER.

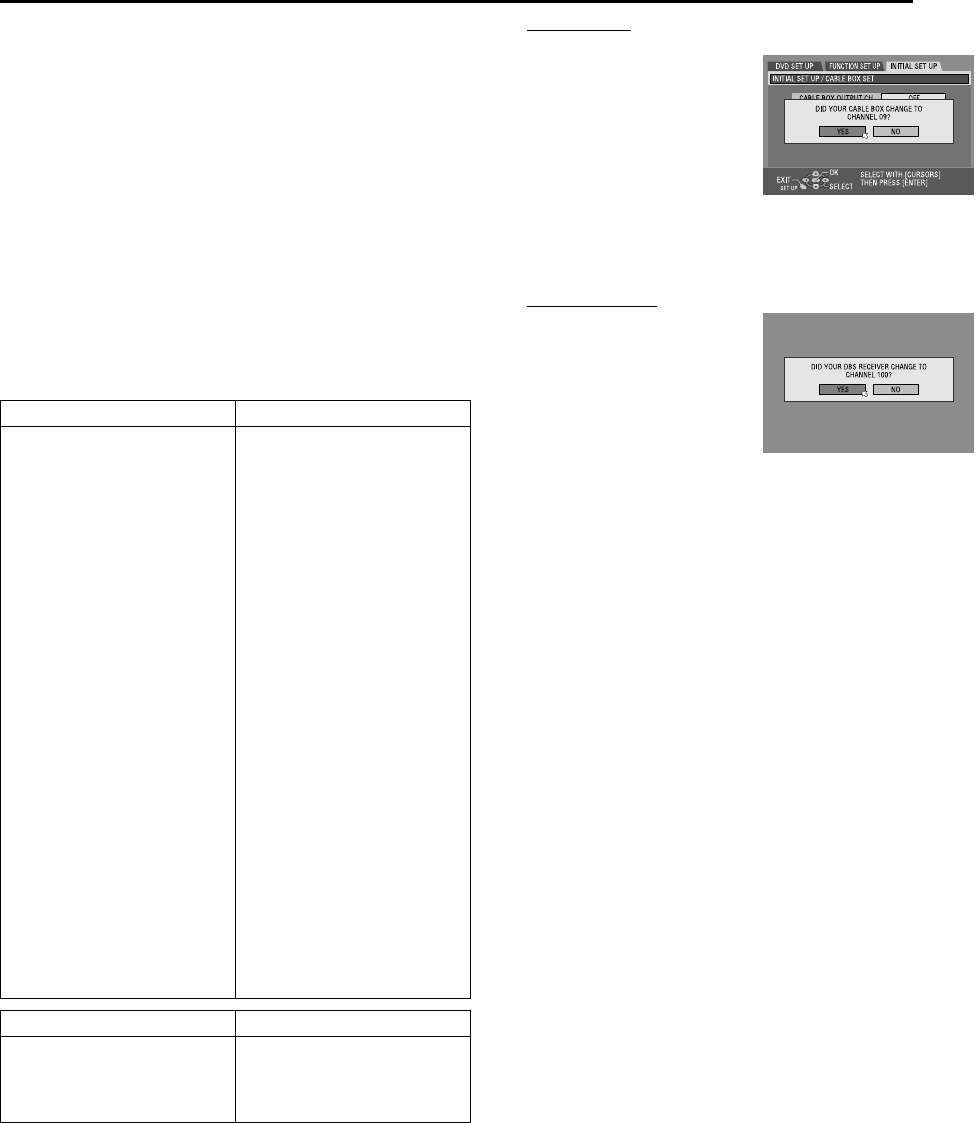

9Enter the cable box’s brand.
10 Press rt to select “CABLE BOX BRAND” or “DBS
RECEIVER BRAND”, then press ENTER. Press rt to select the
brand code from the following list, then press ENTER.
11 Press rt to select “TEST MODE”, then press ENTER.
8For cable box
If the cable box’s channel changes to 9, setting is complete.
Press ENTER and “CABLE BOX
CONTROL IS ON” appears on the
screen for about 5 seconds, then
the screen in step 6 appears.
If the cable box’s channel does
not change to 9;
APress we to select “NO”, then
press ENTER.
BRepeat step 10 – 11 until the cable box’s channel changes to 9
by entering another code.
CIf the channel does not change after going through all the code
numbers listed for your model of cable box, then try all the other
numbers.
8For DBS receiver
If the DBS receiver’s channel
changes to the channel listed
below for your brand, setting is
complete.
Press ENTER and “DBS
RECEIVER CONTROL IS ON”
appears on the screen for about 5
seconds, then press ENTER. The
screen in step 6 appears.
If the DBS receiver’s channel does not change as shown
above;
APress we to select “NO”, then press ENTER.
BRepeat step 10 – 11.
NOTES:
●The Controller may not work with all types of cable box or DBS
receiver.
●If your cable box does not respond to any code between 1 and 28,
you cannot use the Controller to change cable box channels. In this
case, make sure to leave the cable box turned on and tuned to the
proper channel before the scheduled start time of timer recording.
Contact your cable company about the possibility of exchanging your
current cable box with the one compatible with your unit.
●If your DBS receiver does not respond to the code, you cannot use
the Controller to change satellite channels. In this case, make sure to
leave the DBS receiver turned on and tuned to the proper channel
before the scheduled start time of timer recording.
●The unit can only change the cable box or satellite channel through
the Controller during timer recording.
●If your cable box or DBS receiver cannot be operated with a remote
control (because it has no receiving window), you cannot use the
Controller to change its channels. Make sure to leave the cable box
or DBS receiver turned on and tuned to the proper channel before the
scheduled start time of timer recording.
●If the unit’s memory backup expires because of a power failure, set
the cable box or DBS receiver output channel and brand again.
●For customers in U.S.A.: If you are unable to set the Controller,
contact JVC toll free at 1-800-252-5722.
CABLE BOX BRAND CODE
ARCHER
CABLETENNA
CABLEVIEW
CITIZEN
CURTIS
DIAMOND
GC BRAND
GEMINI
GENERAL INSTRUMENTS
HAMLIN
JASCO
JERROLD
NOVAVISION
OAK
PANASONIC
PULSER
RCA
REGAL
REMBRANDT
SAMSUNG
SCIENTIFIC ATLANTA
SIGMA
SL MARX
SPRUCER
STARGATE
TELEVIEW
TOCOM
UNIKA
UNIVERSAL
VIDEOWAY
ZENITH
1, 5, 17
1, 17
15, 16, 17, 21, 25
15, 16, 17, 21, 25
2, 8
1, 17
15, 16, 17, 21, 25
15
1, 4, 6, 11, 12, 15, 28
10, 18, 23
15
1, 4, 6, 11, 12, 15, 28
2, 8
7, 20
13, 14
15, 16, 17, 21, 25
13, 14
10, 18, 23
1, 16, 17
5, 16, 24
2, 8
7, 20
5, 16, 17, 24, 25
13, 14
5, 15, 16, 17, 21, 24, 25
5, 16, 24
1, 4, 16
1, 17
16, 17, 25
3, 9, 22
3, 9, 22
DBS RECEIVER BRAND CODE
JVC (DISH Network)
ECHOSTAR (DISH Network)
SONY (DSS)
RCA (DSS)
51
51
41
40
JVC ]100 SONY ]205
ECHOSTAR ]100 RCA ]205
DR-MV1SU_00.book Page 23 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_04Name.fm]
Masterpage:Left+
24 EN
Page 24 February 24, 2004 12:52 pm
INITIAL SETTINGS
You can select the monitor type depending on the TV used when
you play back DVD VIDEO discs recorded for wide-screen TVs.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “FUNCTION SET UP”, then press ENTER.
4Press we to select “VIDEO IN/
OUT”, then press ENTER.
5Press rt to select “MONITOR
TYPE”, then press ENTER.
6Press rt to select the desired
option, then press ENTER.
7Press SET UP to complete the
setting.
*The boldface settings below indicate the settings at your
purchase.
8MONITOR TYPE — 4:3LB / 4:3PS / 16:9 AUTO / 16:9 FIX
4:3LB (Letter Box conversion): Select this when the aspect ratio of
your TV is 4:3 (conventional TV). While viewing a wide screen
picture, the black bars appear on the top and the bottom of the
screen.
4:3PS (Pan&Scan): Select this when the aspect ratio of your TV is
4:3 (conventional TV). While viewing a wide screen picture, the
black bars do not appear; however, the left and right edges of the
pictures will not be shown on the screen.
16:9 AUTO (Wide television conversion): Select this when the
aspect ratio of your TV is 16:9 (wide TV).
16:9 FIX (Wide television conversion): Select this when the aspect
ratio of your TV is fixed to 16:9 (wide TV). The unit automatically
adjusts the screen width of the output signal correctly when
playing back a picture whose aspect ratio is 4:3.
Pan&Scan/Letter Box
In general, DVD VIDEO disc are produced for a wide-screen TV
with 16:9 aspect ratio.
Material with this ratio will not fit to a TV with 4:3 aspect ratio.
There are two styles to display the image, “Pan&Scan” (PS) and
“Letter Box” (LB).
Pan&Scan
The right and left side of the image are cut off.
The image fills the screen.
●The picture will be shown in the “4:3LB” mode
depending on the disc even if the “4:3PS” mode
is selected.
Letter Box
Black bands appear at the top and bottom of
the image. The image itself appears in 16:9
aspect ratio.
Monitor Set (DVD Deck Only)
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD
DR-MV1SU_00.book Page 24 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right0
EN 25
Filename [DR-MV1SU_05DVD Operation1.fm]
Page 25 February 25, 2004 12:40 pm

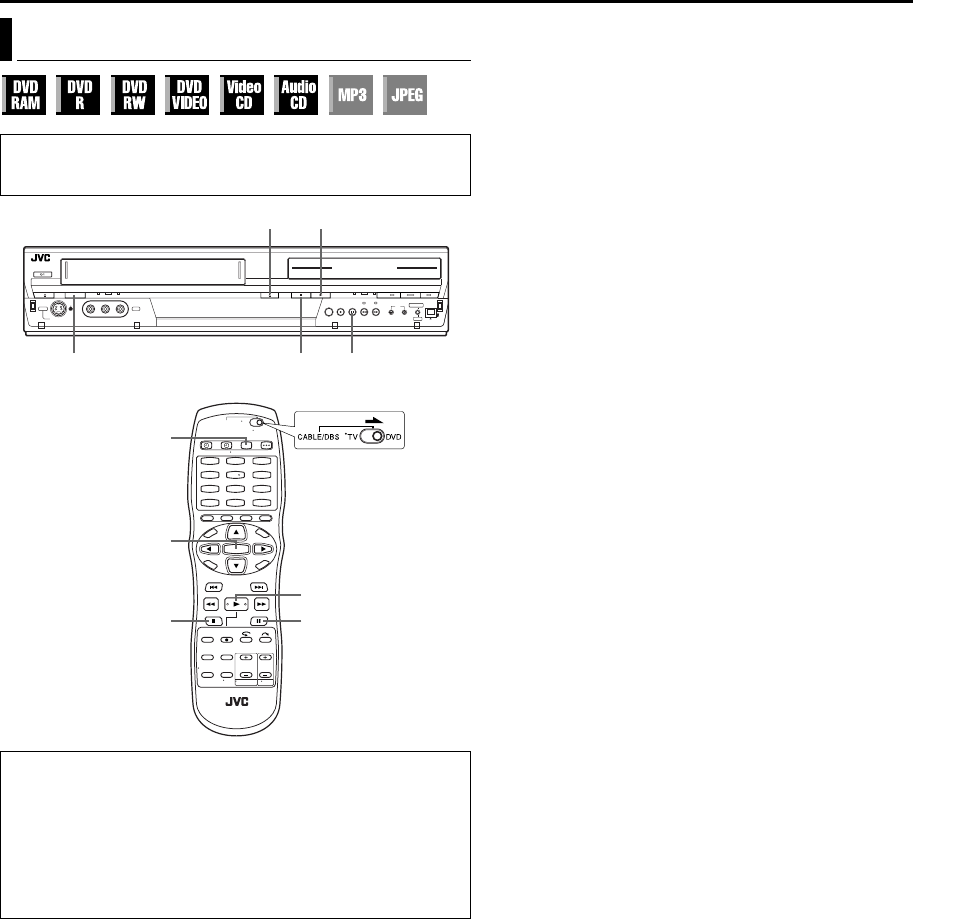

OPERATIONS ON DVD DECK
To play back an MP3/JPEG disc, see “Playback With MP3/JPEG
Navigation” (墌pg. 61).
1Load a disc.
●For details, refer to “Placing A Disc” (墌pg. 11).
●Pressing 4 also closes the disc tray.
●Playback begins automatically if an auto-playback DVD disc is
loaded.
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press 4 to start playback.
●If you load a DVD disc whose region code does not match the unit,
“REGION CODE ERROR” appears on the TV screen. For details,
refer to “Region Number” (墌pg. 9).
●If “CAN NOT PLAY BACK DISC UNDER CURRENT SETTING”
appears on the TV screen, refer to “Parental Lock” (墌pg. 37).
●With Video CD discs with PBC control or some DVD discs, the menu
display may appear on the TV screen after starting playback. In this
case, select an item which you want to play back from the menu.
Otherwise, the playback cannot go forward. Refer to “Playback
Control (PBC) Function” (墌pg. 29) or “Locating A Desired Scene
Using The DVD Menu” (墌pg. 26).
●The Library Database DVD Navi also enables you to search and
select the desired programs. (墌pg. 56)
4Press 9 to pause playback.
●To resume normal playback, press 4.
5Press 8 to stop playback.
●When a recordable disc is played, playback stops and a program
received with the unit’s tuner resumes on the TV screen.
●When a playback-only disc is played, playback stops and the still
image at the time you press 8 remains on the TV screen. Pressing 8
again resumes a program received with the unit’s tuner.
●If x (OPEN/CLOSE) is pressed during playback, playback stops,
then the disc tray opens.
NOTE:
When the Library Database DVD Navi screen appears, choose a
thumbnail image of the desired program on the TV screen, then press
SELECT(4) or ENTER. (墌pg. 56)

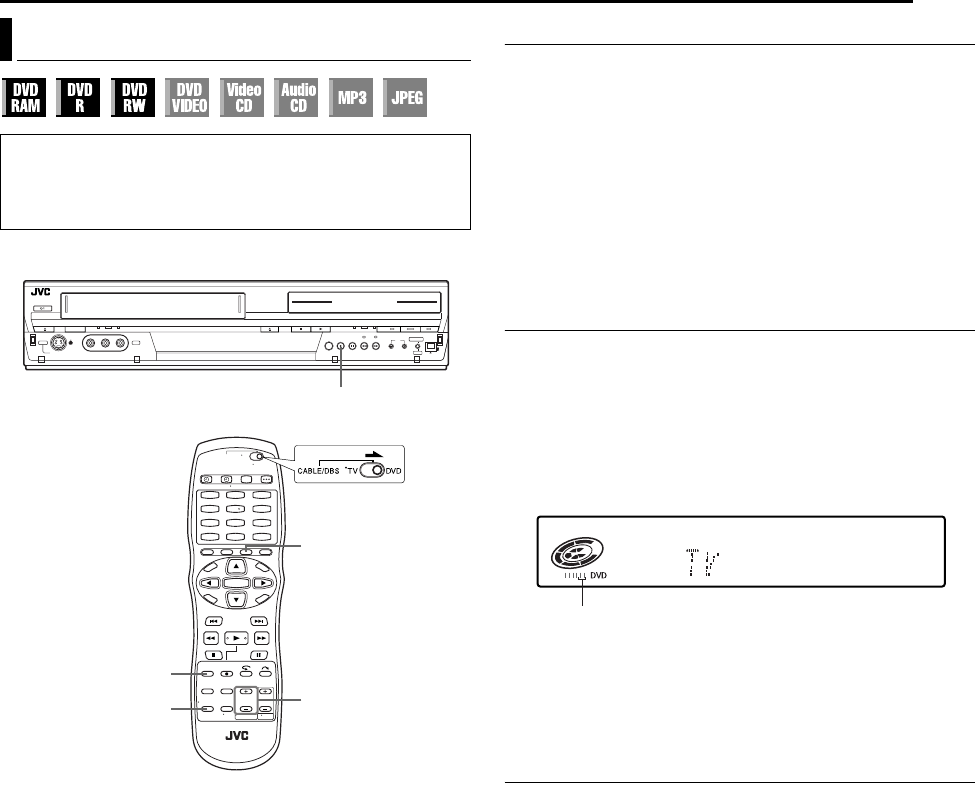

Basic Playback
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
A
TTENTION:
●It takes approximately 30 seconds to read a disc depending on the
type and condition of the disc since this unit is multi-disc
compatible (DVD-RAM, DVD-RW, DVD-R). It may even take
several minutes when a disc is dirty, scratched or warped.
●It may take a few seconds to start playback. This is not a
malfunction.
●Forward/reverse high-speed search and other operations cannot
be performed while playback is stopped.
1
4
7
2
5
8
0
3
6
9
4
SELECT
98
ENTER
VCR/DVD
F-1
8
x4
9
VCR/DVD
DR-MV1SU_05DVD Operation1.fm Page 25 Wednesday, February 25, 2004 12:40 PM
Filename [DR-MV1SU_05DVD Operation1.fm]
Masterpage:Left+
26 EN
Page 26 February 23, 2004 2:32 pm
OPERATIONS ON DVD DECK
Locating A Desired Scene Using The DVD Menu
DVD VIDEO discs may have top menu and disc menu.
Top menu
DVD discs generally have their own menus which show the disc
contents. These menus contain various items such as titles of a
movie, names of songs, or artist information. You can locate a
desired scene by using the top menu displayed on the TV screen.
Press TOP MENU to access the top menu.
Disc menu
Disc menus include playback data (angle menu, subtitle menu,
etc.) specific to each title.
Press MENU to access the disc menu.
1Press TOP MENU or MENU to
access the DVD menu.
2Press rt w e to select a
desired title, then press ENTER.
Playback starts.
●It may be possible to select the
desired item using the number
keys depending on the menu
display.
NOTE:
When “X” appears on the TV screen
in step 1, the disc does not have a top menu or disc menu.
Locating The Start Point Of The Item Or Skip The Item
Press 2 or 6 during playback.
●Pressing 6 locates the start point of the item or skips the item for
forward direction, then resumes playback.
●Pressing 2 locates the start point of the item or skips the item for
reverse direction, then resumes playback.
When a DVD-RAM/RW/R disc is played
Example:
To locate the beginning of the next item, press 6 once.
To locate the beginning of the current item, press 2 once.
To locate the beginning of the previous item, press 2 three
times.
When a DVD VIDEO, Audio CD or Video CD disc is played
Example:
To locate the beginning of the next item, press 6 once.
To locate the beginning of the current item, press 2 once.
High-Speed Search
During playback, press 5 for forward high-speed search, or 3
for reverse high-speed search.
●Each press of the button increases the search speed for each
direction.
●To resume normal playback, press 4.
OR
During playback, press and hold 6 for 2 or more seconds for
forward high-speed search, or press and hold 2 for 2 or more
seconds for reverse high-speed search.
●Releasing the button resumes normal playback.

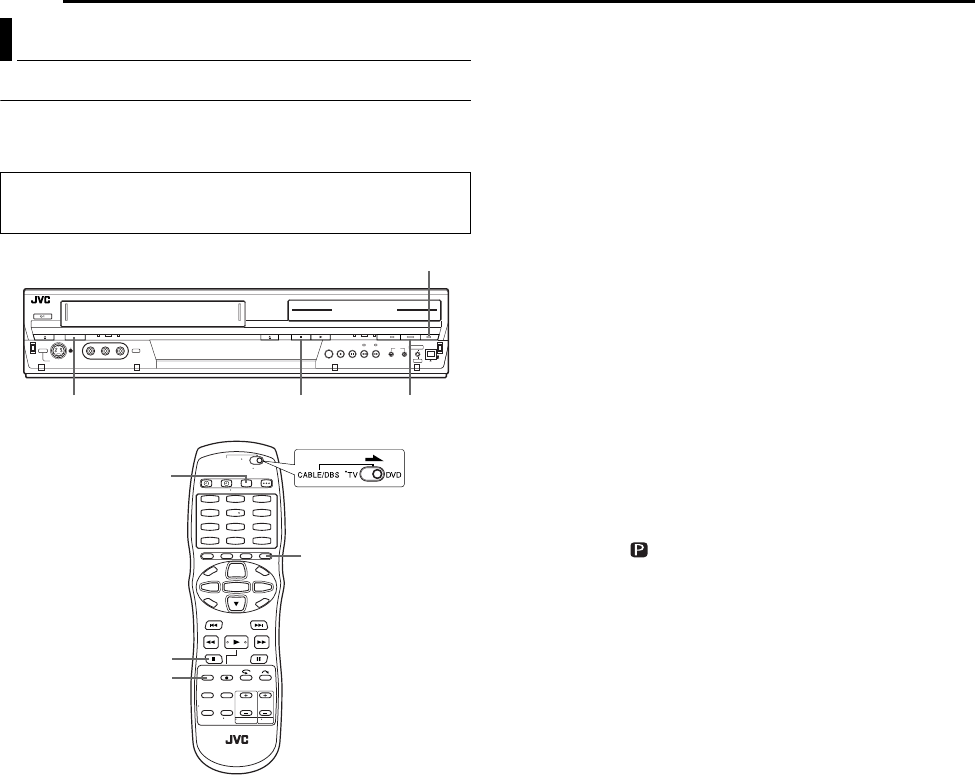

Playback Features
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
●Press VCR/DVD repeatedly so that the DVD lamp lights up on the
unit.
1
4
7
2
5
8
0
3
6
9
MENU
SLOW+ (5)
TOP MENU
ENTER
SLOW– (3)
2
4
6
rtw e
98
0 – 9
MARK
Example:
●: marked points (墌pg. 27)
Current program
Drama
Previous
program
News Next
program Movie
Reverse Forward
Playback point
Reverse Forward
Scene 2
(Chapter 2)
or
Track 2
Scene 3
(Chapter 3)
or
Track 3
Scene 4
(Chapter 4)
or
Track 4
DR-MV1SU_00.book Page 26 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 27
Filename [DR-MV1SU_05DVD Operation1.fm]
Page 27 March 4, 2004 3:21 pm
OPERATIONS ON DVD DECK
Still Picture/Frame-By-Frame Playback
1Press 9 to pause during playback.
2Press 9 or we to activate frame-by-frame playback.
●Each press of 9 advances the still picture frame by frame.
●Each press of we advances/reverses the still picture frame by
frame.
●Frame-by-frame playback for reverse direction cannot be performed
with Video CD discs.
●To resume normal playback, press 4.
Slow Motion
1Press 9 to pause during playback.
2Press SLOW – (3) or SLOW + (5).
●Each press of SLOW – (3) or SLOW + (5) increases the slow
motion speed for each direction (from 1/16 to 1/2 times the normal
speed).
●Slow motion for reverse direction cannot be performed with Video CD
discs.
OR
Press SLOW – (3) or SLOW + (5) for 2 or more seconds.
Skip Search
During playback, press .
●Each press initiates an approximately 30-second period of fast-
motion playback. Normal playback resumes automatically.
Resume Function
It is possible to memorize the position where you stop playback
and resume playback from that position.
●Be sure to set “RESUME” to “ON” or “DISC RESUME”. (墌pg. 74)
1Press 8 during playback to memories a resume point.
●The unit enters Resume Stop mode and memorises the position
where you have stopped playback as a resume point. (The inside of
the disc status indicator on the front display panel blinks while
memorising.)
●The unit retains a memory of the resume points of the last 30 discs
played back, even though they have been ejected if “RESUME” is set
to “DISC RESUME”. (墌pg. 74)
●To clear the resume points:
(The inside of the disc status indicator stops blinking and lights.)
When “RESUME” is set to “ON”:
• Press 1 to turn off the unit.
• Press x (OPEN/CLOSE) to take out the disc.
• Press 8 in stop mode.
• Press TOP MENU to display the top menu, then start playback by
selecting an item, etc.
• Press MENU to display the disc menu, then start playback by selecting
an item, etc.
When “RESUME” is set to “DISC RESUME”:
• Set “RESUME” to “OFF”. (墌pg. 74)
• Press 8 in stop mode.
• Press TOP MENU to display the top menu, then start playback by
selecting an item, etc.
• Press MENU to display the disc menu, then start playback by selecting
an item, etc.
2Press 4 in stop mode to resume playback. The unit starts
playback from the resume point.
NOTES:
●“DISC RESUME” setting works on DVD VIDEO, VCD and already
finalised DVD-R/DVD-RW (video mode) discs. For other types of
discs, the function under “ON” setting will be applied even if
“RESUME” is set to “DISC RESUME”. (墌pg. 74)
●If you stop the playback of a disc for which an resume point has
already been memorized, the memory will be updated with the new
resume point.
●After the unit has memorized the resume point for 30 discs,
remembering a new resume point will cause the unit to delete the
oldest memorized point. Stopping playback of a disc for which a
resume point is already stored may change the order in which the
points are stored. This may potentially change the order in which
points are deleted.
●When the unit memorizes a resume point for a disc, it also
remembers audio language, subtitle and angle settings.
●This function may not work for some Video CD.
●When “RESUME” is changed to “ON” or “OFF” (墌pg. 74), resume
points of the discs memorized with “RESUME” set to “DISC
RESUME” will be cleared.
●Resume points are memorized for each side of a double-sided disc.
Marking Positions To Play Back Again Later
It is possible to mark positions (up to 999 points) where you want to
play back once again later, and start playback from a marked
position. Marking onto DVD-RAM/RW/R discs when recording is
helpful to locate a start point when you play back the discs later.
To mark positions:
During playback, press MARK at
positions you want to mark.
●“MARK” appears on the TV screen.
You can easily locate the marked
positions using 2 or 6 when you
play back the disc.
To delete the marked positions:
While paused, press 2 or 6 to
locate a marked position you want to
delete, then press MARK.
●Crossed “MARK” appears on the TV
screen, and the marked position is
deleted.
NOTES:
●When a monaural program changes to a stereo program while
recording, a mark signal is automatically recorded.
●When a DVD-R/RW (Video mode) disc is finalized, marked points
marked before finalizing will be deleted, and programs will be divided
automatically into “chapters” approximately every 5 minutes.
(墌pg. 79)
DR-MV1SU_05DVD Operation1.fm Page 27 Thursday, March 4, 2004 3:21 PM
Filename [DR-MV1SU_05DVD Operation1.fm]
Masterpage:Left+
28 EN
Page 28 March 4, 2004 6:33 pm
OPERATIONS ON DVD DECK
Checking The Time Information
You can check time information of a disc on the front display panel
and the TV screen.
Press DISPLAY once to display the lastly displayed information. To
changes the display, press DISPLAY repeatedly.
8DVD-RAM/DVD-R/DVD-RW
During playback or recording
Clock time (front display panel only) ] Current title elapsed time
] Disc remaining time* ] (back to the beginning)
* only discs before finalizing
●Clock time is displayed only when a recordable disc is played back.
In stop mode
●It is possible to check disc remaining time according to recording
modes also by pressing REMAIN.
●In FR mode, it is possible to set recording time in detail. While the
recording mode and the disc remaining time are displayed by
pressing REMAIN, press rt to select “FR”, then press we to
select the desired recording time. (墌pg. 40)
●It is not possible to switch the recording mode during playback or
while recording.
8Video CD/Audio CD
During playback or in stop mode
Total remaining time ] Current track elapsed time ] Current track
remaining time ] Total elapsed time ] (back to the beginning)
NOTE:
When a PBC-compatible Video CD disc is loaded, deactivate the PBC
function. (墌pg. 29)
Angle Selection
You can enjoy a variety of scene angles if a DVD VIDEO disc
contains “multi-angle” parts, where the same scene was shot from
different angles.
If the disc contains “multi-angle” parts, “ ” appears on the TV
screen at the beginning of the “multi-angle” part.
1Press ANGLE during playback.
The angle selection display
appears on the TV screen.
2Press ANGLE or we to select
your desired angle.
●Each time you press ANGLE or
we, the angle changes.
●When “X” appears on the TV screen, the current scene is not
recorded from multiple angles. In addition, some discs prohibit angle
selection.
●To clear the angle selection display, press ENTER. In addition, the
angle selection display disappears automatically if no operation is
done for 10 seconds.
Subtitle Selection
Some DVD VIDEO discs contain more than one subtitle language,
from among which you can choose the desired subtitle language.
“ ” appears on the TV screen at the beginning of the part where
more than one subtitle language are recorded.
1Press SUBTITLE during
playback. The subtitle selection
display appears on the TV screen.
●Each time you press SUBTITLE,
the subtitle display is switched on
and off.
2Press we to select your desired language.
●To clear the subtitle selection display, press ENTER.
NOTES:
●When “X” appears on the TV screen, no subtitle language is
recorded.
●When the subtitle language won’t be changed with the procedure
above, change the subtitle on a disc menu displayed by pressing
MENU.
Audio Language/Sound Selection
Some DVD VIDEO discs contain the multiple audio language or
sound. You can select the desired audio language or sound. For
some Video CD discs, you can switch the audio channel to choose
Karaoke either with or without the vocal.
1Press AUDIO during playback.
The Audio Language/Sound
selection display appears.
2Press AUDIO or we to select
your desired audio language/
sound.
●Each time you press AUDIO or we, the audio language/sound
changes.
●To clear the Audio Language/Sound selection display, press ENTER.
NOTES:
●When “X” appears on the TV screen, no audio language is recorded.
●When the audio language won’t be changed with the procedure
above, change the audio on a disc menu displayed by pressing
MENU.
●It is only possible to select the audio language in stop mode. The
audio language cannot be selected during playback.
1
4
7
2
5
8
0
3
6
9
MENU
0 – 9
RETURN
TOP MENU
ENTER
ANGLE
AUDIO
REMAIN
PREVIOUS (2)
4
NEXT (6)
8
DISPLAY
SUBTITLE
rtw e
When 3 scene angles are
contained.
ENGLISH
When 3 subtitle languages are
contained.
When 3 audio languages are
contained.
DR-MV1SU_05DVD Operation1.fm Page 28 Thursday, March 4, 2004 6:33 PM
Masterpage:Right+
EN 29
Filename [DR-MV1SU_05DVD Operation1.fm]
Page 29 February 25, 2004 12:41 pm
OPERATIONS ON DVD DECK

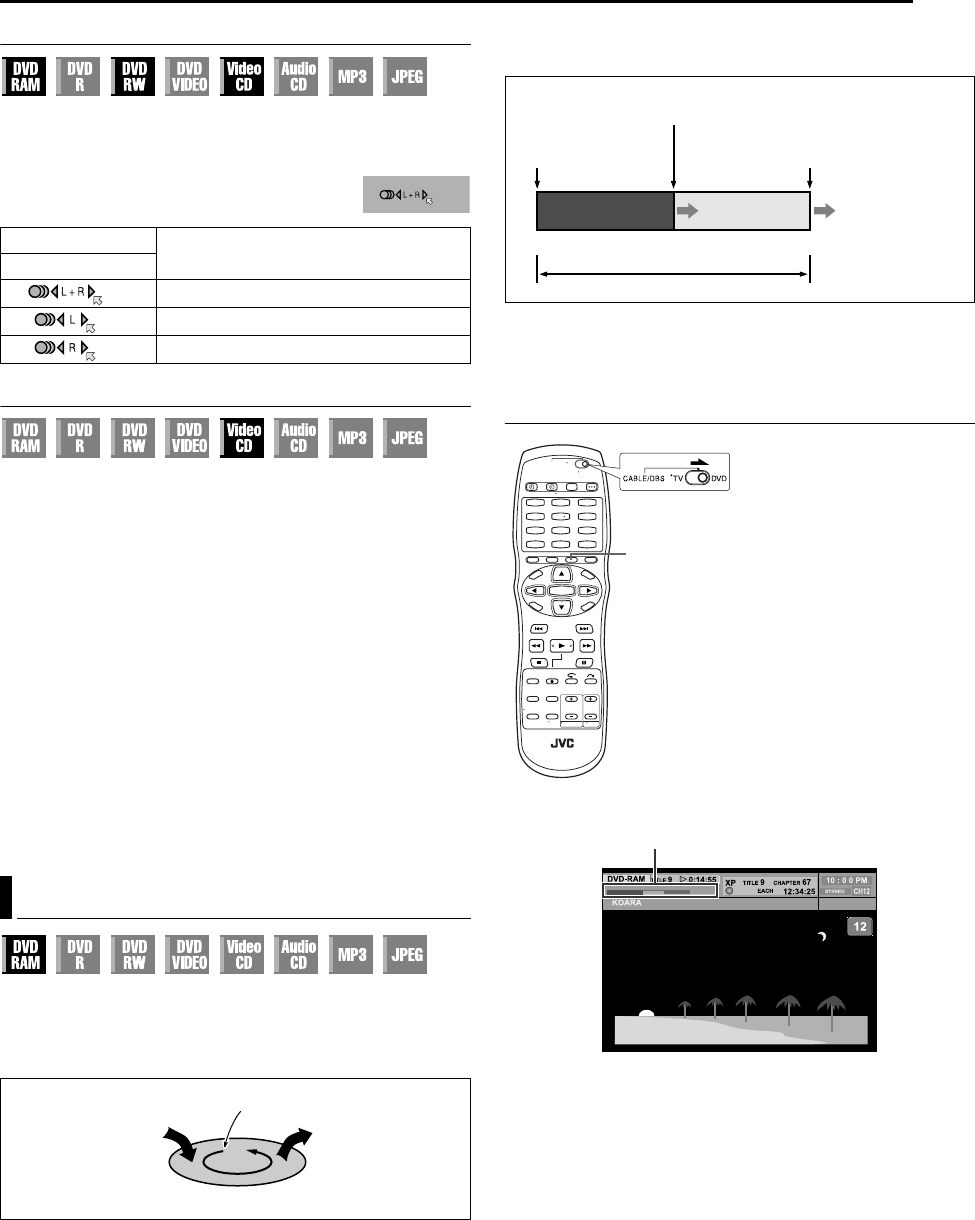

Audio Channel Selection
When playing discs on which you recorded stereo programs, you
can choose the desired audio channel.
●When “SUPERIMPOSE” is set to “AUTO”, you can confirm on the TV
screen the audio channel you have chosen. (墌pg. 74)
●Each time you press AUDIO, the audio channel
changes.
Playback Control (PBC) Function
Some Video CD discs support the PBC function. PBC is an
abbreviation of “Play Back Control”. A Video CD disc recorded with
PBC has its own menus, such as a list of the songs on the disc.
You can locate a specific scene by using the menu.
1Press 4 in stop mode. The PBC menu appears.
2Press the number keys to enter the number of the desired
scene. The unit starts playback of the selected item.
●“PBC” appears on the front display panel.
●When “NEXT” or “PREVIOUS” appears on the TV screen:
Pressing NEXT (6) advances to the next page.
Pressing PREVIOUS (2) returns to the previous page.
●You can return to the menu by pressing RETURN.
●The method of the operation is different depending on the disc.
NOTES:
●If you want to playback a PBC-compatible Video CD disc without
activating the PBC function, start playback in stop mode by using the
number keys, instead of the 4 button, to choose the track, then
press ENTER.
●To activate the PBC function when a PBC-compatible Video CD disc
is being played back without the PBC function, press TOP MENU, or
press 8 then press 4.
This unit records pictures onto DVD-RAM discs, instead of video
tapes, then plays back the pictures recorded on the discs. This
makes it possible to achieve high-speed writing and read-out that
has not been possible with conventional VCRs, enabling recording
and playback simultaneously.
It is called “Live Memory Playback” to start playback of the program
being recorded, with a time-lag between a recording point and a
playback point, as shown in the figure below.
Not only can this unit play back a program previously recorded
while recording or timer recording another program, but the unit
also allows you to play back from the beginning of a program while
continuing to record the same program.
Recording/playback Status Display
Press DISPLAY. The current status is superimposed on the TV
screen.
TRACK USE
On-Screen Display
For stereo discs
For audio of left channel
For audio of right channel
Live Memory Playback
Playback
(High-speed read-out)
Recording
(High-speed writing)
High-speed spin
Image figure of DVD-RAM disc
Current recording position
(Recording point)
Recording start point
Current playback point
(Live Memory Playback)
0 30 min. 1 hour
Playback
continues
Recording
continues
Currently elapsed recording time
1
4
7
2
5
8
0
3
6
9
DISPLAY
Live Memory Playback status can be checked by
pressing DISPLAY to display the bar meter on the
superimpose display.
Bar meter display
Superimpose display
DR-MV1SU_05DVD Operation1.fm Page 29 Wednesday, February 25, 2004 12:42 PM
Filename [DR-MV1SU_05DVD Operation1.fm]
Masterpage:Left+
30 EN
Page 30 February 23, 2004 2:32 pm
OPERATIONS ON DVD DECK
Overview Of Live Memory Playback
You can play back a program you are recording from the beginning while continuing to record or timer record onto a DVD-RAM disc. This is
called “Live Memory Playback”.
NOTES:
●Live Memory Playback cannot be performed for approximately 30
seconds after recording has started.
●Although high-speed search up to approximately 30 seconds before
the current recording point is possible during Live Memory Playback,
once the current recording point is reached, the unit resumes normal
playback and maintains a delay of approximately 30 seconds so that
recording and playback can continue.
●When using Live Memory Playback during timer recording, playback
continues even after the end of the recording.
●When using Live Memory Playback during timer recording, playback
is automatically stopped just before recording starts, and then
recording starts when the time arrives for the next timer-program.
●It is impossible to perform ITR even if you press 7 during Live
Memory Playback. (墌pg. 39)
Press 8 to display the program being recorded, then perform ITR
settings.
●Playback may be paused for a moment during Live Memory
Playback, which does not interfere with recording.
●Live Memory Playback cannot be performed while recording the
source from DV input.
●When LIVE CHECK is pressed to display the picture currently being
recorded, the picture size may not be correct.
(Recording screen) (Live Memory Playback screen)
To start Live Memory Playback,
press 4 to play back from the
beginning OR press to
reverse-skip a little
To stop Live Memory Playback,
press 8
Checking the
picture currently
being recorded
To display, press LIVE
CHECK
To clear, press LIVE
CHECK
Recording stops
To stop recording,
press 8
(Playback and Live Check screen)
Live Memory Playback
Recording
To stop Live Memory Playback,
press 8
1
4
7
2
5
8
0
3
6
9
NAVIGATION
LIVE CHECK
8
7
4
ON SCREEN
Press NAVIGATION to display
Library Database DVD Navi menu,
then choose a program to play back.
(墌pg. 55)
Pressing LIVE CHECK during Live
Memory Playback allows you to
check the picture currently being
recorded.
DR-MV1SU_00.book Page 30 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 31
Filename [DR-MV1SU_05DVD Operation1.fm]
Page 31 February 23, 2004 2:32 pm
OPERATIONS ON DVD DECK
Display During Live Memory Playback
During recording, you can watch at your will what was previously recorded or is currently being recorded. It is possible to perform freely
normal playback operations (forward/reverse high-speed search and variable-speed search) within the range of the red or blue bar on the
TV screen.
When Live Memory Playback reaches the point of 30 seconds before the current recording point by forward high-speed search or other
operations, the unit returns to normal playback.
The superimpose display appears by pressing ON SCREEN. (墌pg. 15)
The Live Check picture is displayed on the bottom right corner by pressing LIVE CHECK.
This unit displays the current recording/playback status by the bar meter.
(Example of bar meter display)
Live Memory Playback mark
Playback title number
Disc used
Bar meter (see below)
Title name
Playback counter
Recording title number
Recording counter display
(remaining/elapsed time)
Present time
Recording channel
Playback mark
Recording mode
Recording mark
Live Check picture
Recording mark
While stopped
During playback
While recording
Live Memory Playback
Live Memory Playback of
another program
Recorded
Capacity of a disc
Not recorded
Total length of the program being played back
Current playback position
Capacity of a disc
Remaining capacity when recording started
Recording start position
Current recording position
Current playback position
Current playback position
Recording start position
Blue (recorded part)
Orange (recording part)
Green (playing part)
Black (unrecorded or unplayed part)
Total length of the program being played back
Current recording position
Capacity of a disc
Capacity of a disc
Current recording position
DR-MV1SU_00.book Page 31 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_05DVD Operation1.fm]
Masterpage:Left+
32 EN
Page 32 February 25, 2004 12:42 pm
OPERATIONS ON DVD DECK
Buttons To Be Used During Live Memory Playback
ANAVIGATION
Displays Library Database DVD Navi menu. You can choose a
program to play back.
Bwe
Available only when paused
Advances/reverses the still picture frame by frame.
C2
●Pressing once skips back to the beginning of the chapter being
played back.
●Pressing down for 2 or more seconds during playback reverses
playback at 5 times the normal speed while pressed. Releasing the
button resumes normal playback.
Available only when paused
●Pressing down for 2 or more seconds reverses playback at 1/16 times
the normal speed.
D6
●Pressing once skips forward to the beginning of the next chapter
being played back.
●Pressing down for 2 or more seconds during playback advances
playback at 5 times the normal speed while pressed. Releasing the
button resumes normal playback.
Available only when paused
●Pressing down for 2 or more seconds advances playback at 1/16
times the normal speed.
E3
●Each press of the button during playback advances the playback
speed in 5 steps for reverse direction.
Available only when paused
●Pressing once reverses playback by 1/16 times the normal speed.
●Each press of the button during reverse 1/16 times slow-motion
reverses slow-motion by 1/16 times, 1/4 times and 1/2 times the
normal speed.
F5
●Each press of the button during playback advances the playback
speed in 4 steps for forward direction.
Available only when paused
●Pressing once advances playback by 1/16 times the normal speed.
●Each press of the button during forward 1/16 times slow-motion
advances slow-motion by 1/16 times, 1/4 times and 1/2 times the
normal speed.
G8
Stops Live Memory Playback to return to the screen being
recorded.
Then a resume point is stored.
Pressing 8 again stops recording.
H9
Pressing once pauses playback (still picture playback). Pressing
repeatedly advances the still picture frame by frame.
I
Pressing once skips back for approximately 7 seconds and
resumes playback.
Pressing repeatedly skips back continuously as many times as
pressed.
It is useful when watching sports programs, etc.
J
Pressing once skips forward for approximately 30 seconds and
resumes playback.
Pressing repeatedly skips forward continuously as many times as
pressed.
It is useful when skipping over unwanted sections.
KLIVE CHECK
Pressing once displays the picture currently being recorded and
the one being played back simultaneously.
Pressing successively clears the Live Check window and displays
only the picture currently being played back.
You can check, for example, if the program you are recording has
already finished.
To Play Back From The Beginning Of The Program
While Recording
You can play back a program you are recording from the beginning
while continuing to record or timer record onto a DVD-RAM disc.
Press 4. Live Memory Playback starts from the beginning of the
program being recorded.
●Pressing 2 or 6 allows you to locate the desired scenes.
To Move Back The Playback Position Slightly While
Recording (One Touch Replay function)
You can move back the playback position while continuing to
record or timer record onto a DVD-RAM disc.
Press .
●Each press skips back for approximately 7 seconds and resumes
playback.
●Pressing while paused skips back for approximately 7 seconds and
resumes pause.
To Watch A Program Previously Recorded While
Recording
You can play back a program you recorded previously while
recording.
1Press 4 during recording. Live Memory Playback starts.
2Press 2 or 6 to locate the beginning of the desired
program.
NOTE:
To stop playback, press 8. The program being recorded is displayed.
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
DR-MV1SU_05DVD Operation1.fm Page 32 Wednesday, February 25, 2004 12:43 PM
Masterpage:Right+
EN 33
Filename [DR-MV1SU_05DVD Operation1.fm]
Page 33 February 23, 2004 2:32 pm
OPERATIONS ON DVD DECK
The on-screen bar allows you to control various playback
functions. Some of the functions operated on Navigation Menu can
be controlled on the On-screen bar.
How To Access The On-screen Bar
1Press ON SCREEN whenever a disc is loaded.
Contents of the on-screen bar during playback
DVD VIDEO
Video CD
JPEG disc
ADisc type.
BSelect this for Repeat Playback. (墌pg. 34)
CSelect this for A-B Repeat Playback. (墌pg. 34)
DSelect this for search function. (墌pg. 34)
ESelect this for time search function. (墌pg. 35)
FSelect this to switch Simulated Surround Effect function.
(墌pg. 35)
GSelect this for Picture Control function. (墌pg. 35)
HSelect this to switch picture source type. (墌pg. 36)
ICurrent status area for the selected item.
JSelect this for Program Playback. (墌pg. 36)
KSelect this for Random Playback. (墌pg. 36)
LSelect this to control the switching interval of the slide show.
(墌pg. 36)
NOTE:
Although examples of the on-screen bar are provided here only for 3
types of discs, the on-screen bar will be displayed for whichever disc
indicated in the left column.
Basic Operation On The On-screen Bar
Example: When selecting Picture Control function of DVD
During playback or while stopped
1Press ON SCREEN twice to access the on-screen bar. The item
currently selected is highlighted and pointed by H.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press rt to select the desired option, then press ENTER.
To clear the on-screen bar
Press ON SCREEN.
NOTE:
See the corresponding pages for details on each menu item.
Using The On-screen Bar
Be sure to clear Library Database DVD Navi screen by pressing
NAVIGATION.
1
4
7
2
5
8
0
3
6
9
NAVIGATION ON SCREEN
ENTER
DR-MV1SU_00.book Page 33 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_05DVD Operation1.fm]
Masterpage:Left+
34 EN
Page 34 February 23, 2004 2:32 pm
OPERATIONS ON DVD DECK
Repeat Playback
You can repeat playback as you like according to the type of disc.
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press rt repeatedly to select the desired Repeat mode, then
press ENTER.
DVD-RAM/RW/R
OFF: Repeat playback is not performed.
ALL REPEAT: The whole disc is played back repeatedly.
TITLE REPEAT: The current title is played back repeatedly.
DVD VIDEO
OFF: Repeat playback is not performed.
TITLE REPEAT: The current title is played back repeatedly.
CHAPTER REPEAT: The current chapter is played back repeatedly.
Audio CD/Video CD/JPEG/MP3
OFF: Repeat playback is not performed.
ALL REPEAT: The whole disc is played back repeatedly.
TRACK REPEAT*: The current track is played back repeatedly.
* “TRACK REPEAT” cannot be selected for JPEG discs.
To clear the on-screen bar
Press ON SCREEN.
To cancel Repeat Playback
Repeat the above procedure from step 1, select “OFF” in step 3,
then press ENTER.
NOTES:
●Repeat Playback is not possible for a Video CD with PBC function.
●Repeat Playback may not work properly depending on the type of the
disc being used.

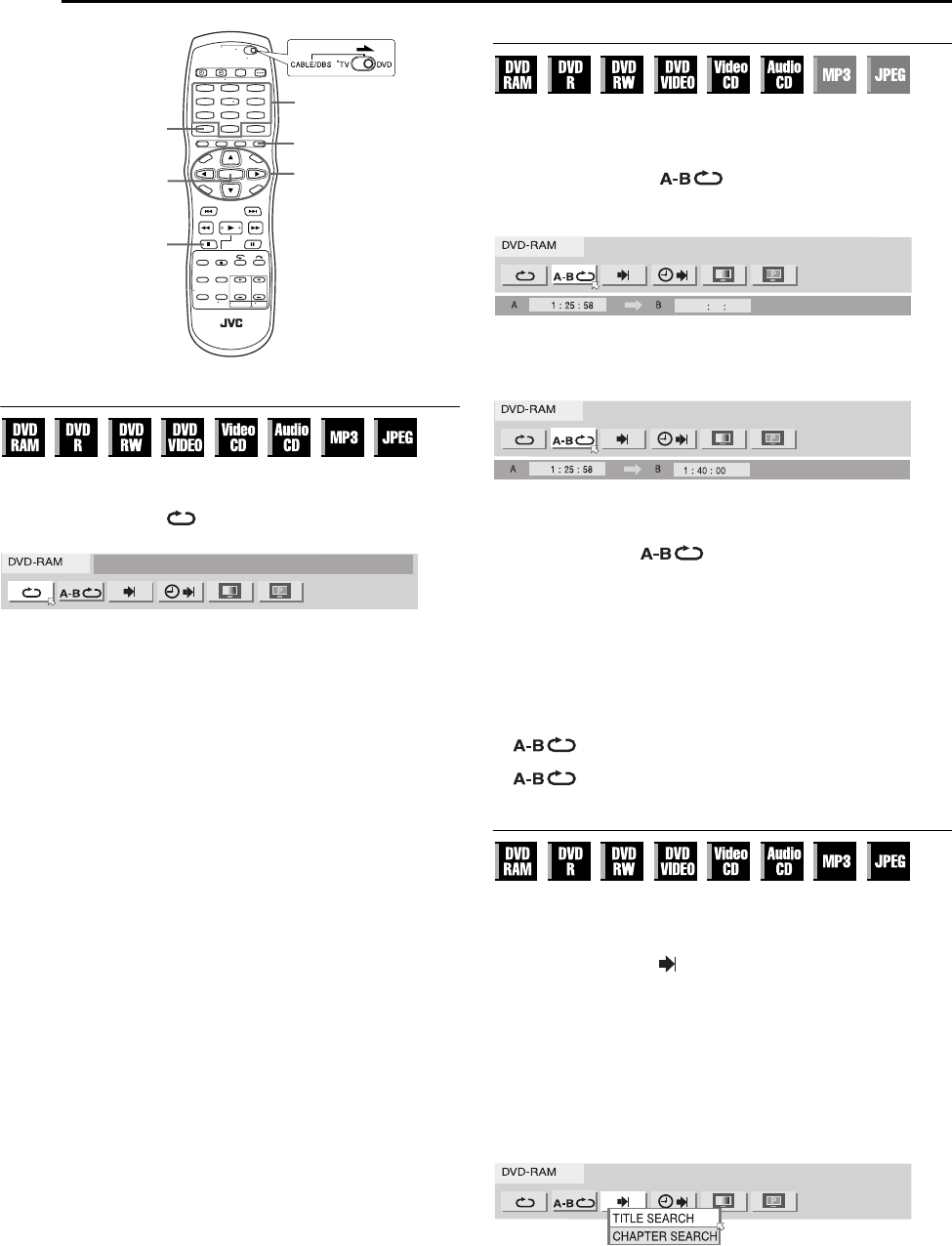

A-B Repeat Playback
You can repeat the desired part.
During playback
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”.
3Press ENTER at the beginning of the desired part you want to
repeat (point A). The elapsed playing time of the point A appears
4Press ENTER at the end of the desired part you want to repeat
(point B). The elapsed playing time of the point B appears.
●The selected part of the disc (between point A and B) is played
repeatedly.
To clear the on-screen bar
Press ON SCREEN.
To cancel A-B Repeat Playback
Press we to select “ ”, then press ENTER.
NOTES:
●A-B Repeat Playback may not work properly depending on the type
of disc being used.
●The subtitles recorded around the A-B point may not appear.
●When the end of the item is reached before the end point is set, the
on-screen bar disappears from the TV screen. In such a case, repeat
the procedure from step 1.
●The point B must be set at least 3 seconds after the point A.
●When playing back a DVD, A-B Repeat Playback is possible only
within the same title.
●“ ” cannot be selected during Program and Random
Playback.
●“ ” cannot be selected while stopped.
Locating The Beginning Of A Desired Selection
You can locate the beginning of a title, chapter, group or track.
During playback or while stopped
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER.
3Press rt to select the desired item, then press ENTER.
●Skip this step for Video CD and Audio CD.
For DVD-RAM/RW/R, DVD VIDEO
“TITLE SEARCH” or “CHAPTER SEARCH” is selectable. (“TITLE
SEARCH” only is selectable while stopped.)
For JPEG, MP3
“GROUP SEARCH” or “TRACK SEARCH” is selectable.
For Video CD, Audio CD
“TRACK” is selectable.
1
4
7
2
5
8
0
3
6
9
ON SCREEN
0 – 9
ENTER rtw e
CLEAR (8)
CANCEL
DR-MV1SU_00.book Page 34 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 35
Filename [DR-MV1SU_05DVD Operation1.fm]
Page 35 February 25, 2004 12:43 pm
OPERATIONS ON DVD DECK
4Press the number keys to enter the desired item number, then
press ENTER.
●Playback starts from the selected section.
Examples:
ATo select track 5, press the number key “5”.
BTo select track 15, press the number key “1” and “5”.
CTo select track 25, press the number key “2”, then “5”.
If you have specified a wrong selection
Press CANCEL or CLEAR (8) to clear the wrong number, then
enter the correct one before you press ENTER in this step.
To clear the on-screen bar
Press ON SCREEN.
NOTES:
●When “X” is displayed on the TV screen in step 4, the chapter you
have selected is not contained in the disc, or chapter search does not
work on the disc.
●Before you press ENTER, playback may start automatically when you
enter the section’s number depending on the disc.
●This function is not possible for a Video CD with PBC function.
Time Search
You can play back a disc from the desired point by specifying the
elapsed playing time from the beginning of a title (DVD-RAM, DVD-
R, DVD-RW and DVD VIDEO) or a disc (Video CD and Audio CD).
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press the number keys to enter the time, then press ENTER.
Playback starts from the specified time.
Example:
To play back from a point 12 (minutes): 50 (seconds) elapsed.
If you have specified a wrong selection,
Press CANCEL (for the last entered number) or CLEAR (8) (for
whole numbers) to clear the wrong number, then enter the correct
one(s) before you press ENTER in this step.
To clear the on-screen bar
Press ON SCREEN.
NOTES:
●When “X” is displayed on the TV screen in step 3, you have selected
a point that excesses the recording time of the disc.
●Some DVD VIDEO discs do not contain time information, and it is not
possible to use the Time Search function. In such cases, “X” is
displayed on the TV screen as well.
●This function is not possible for a Video CD with PBC function.
Simulated Surround Effect
It is possible to get a simulated surround effect from your stereo
system. You can enjoy the virtual surround sound with your
2-channel stereo system.
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER.
●Above the selected item, “3D-ON” appears and Simulated Surround
Effect is activated.
●Each time you press ENTER, “3D-ON” appears and disappears
alternately.
To clear the on-screen bar
Press ON SCREEN.
To cancel the simulated surround effect
Press ENTER to clear “3D-ON” from the screen.
NOTES:
●The simulated surround effect works correctly only when playing back
a title recorded in multichannels.
●Simulated Surround Effect does not affect the DVD VIDEO bitstream
signal from the DIGITAL AUDIO OUTPUT connector.
●When Simulated Surround Effect is activated, the settings of
“ANALOG AUDIO OUT” and “D. RANGE CONTROL” are disabled.
(墌pg. 73)
Adjusting The Picture Quality
You can obtain optimal picture quality by selecting an appropriate
picture mode.
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press rt to select the desired option, then press ENTER.
NORMAL: Normally select this option.
CINEMA: Suitable for a movie disc, etc.
SHARP: Clearer, sharper-edged picture when viewing images with
lots of flat, same-colored surfaces such as cartoons.
SOFT: Select this option when too much noise appears.
To clear the on-screen bar
Press ON SCREEN.
Press 1 Press 2
Press 0Press 5
DR-MV1SU_05DVD Operation1.fm Page 35 Wednesday, February 25, 2004 12:44 PM
Filename [DR-MV1SU_05DVD Operation1.fm]
Masterpage:Left+
36 EN
Page 36 February 23, 2004 2:32 pm
OPERATIONS ON DVD DECK
a
Setting The Progressive Mode
You can obtain optimal picture quality by selecting whether the
content on the disc is processed by field (video source) or by frame
(film source).
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press rt to select the desired option, then press ENTER.
AUTO 1: Used to play a disc containing both video and film source
materials. This system recognizes the source type (video or film)
of the current disc according to the disc information. Normally
select this option.
AUTO 2: Almost the same as the “AUTO 1”, but the processing of
the scenes with movement is different. Select “AUTO 1” or
“AUTO 2” to your preference.
FILM: Suitable for playing back a progressive scanned film source
disc.
VIDEO: Suitable for playing back a video source disc. The outlines
on the played back pictures will be soft.
To clear the on-screen bar
Press ON SCREEN.
Program Playback
You can play back up to 30 tracks in the desired order.
While stopped
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “PRGM”, then press ENTER. The program
table appears under on-screen bar.
3Press the number keys to
enter the track numbers in the
desired order.
Examples:
ATo select track 5, press the
number key “5” and ENTER.
BTo select track 15, press the number key “1” and “5”.
CTo select track 25, press the number key “2” and “5”.
If you have specified a wrong selection
Press CANCEL. The last selection is erased.
Or press CLEAR (8). The whole selection is erased.
4Press 4. Playback starts in the programed order.
●When all of the programed tracks have been played back, Program
Playback stops, but the programed information remains.
●To add tracks to the end of the program, perform steps 1 through 3.
●During Program Playback, pressing 6 skips to the next selection of
the program. Pressing 2 returns to the beginning of the current
selection.
To clear the on-screen bar and the contents of the program
Press ON SCREEN.
To cancel Program Playback
Press we to select “PRGM”, then press ENTER.
NOTE:
Program Playback is not possible depending on the type of disc.
Random Playback
You can play back all the tracks on the disc in random order.
While stopped
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “RND”, then press ENTER. Playback starts
in random order.
To clear the on-screen bar
Press ON SCREEN.
To cancel Random Playback
Perform steps 1 and 2.
NOTE:
The same track will not be played back more than once during Random
Playback.
Select The Switching Interval Of The Slide Show
You can control the switching interval of the slide show.
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press rt to select the desired option, then press ENTER.
●Each time you press rt, the interval changes as follows:
5 SEC. { 10 SEC. { 15 SEC. { 20 SEC. { 25 SEC. {
30 SEC. { (Back to the beginning)
To clear the on-screen bar
Press ON SCREEN.
1
4
7
2
5
8
0
3
6
9
ON SCREEN
0 – 9
ENTER
2
4
6
rtw e
CANCEL
CLEAR (8)
DR-MV1SU_00.book Page 36 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 37
Filename [DR-MV1SU_05DVD Operation1.fm]
Page 37 February 25, 2004 12:43 pm
OPERATIONS ON DVD DECK
This function restricts playback of DVD VIDEO discs which contain
violent (and other) scenes according to the level set by the user.
For example, if a movie which includes violent scenes supports the
parental lock feature, such scenes which you do not want to let
children view can be cut or replaced by other scenes.

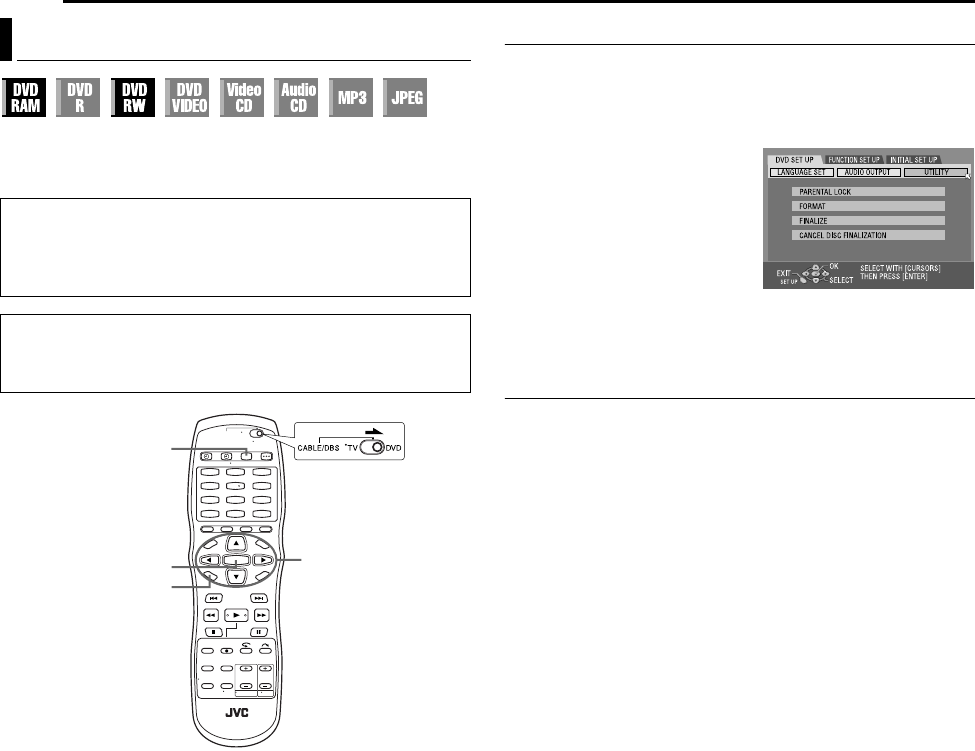

To Set Parental Lock For The First Time
While stopped
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “DVD SET UP”, then press ENTER.
4Press we to select “UTILITY”,
then press ENTER.
5Press rt to select
“PARENTAL LOCK”, then press
ENTER.
6Press rt to select
“PARENTAL LEVEL”, then press
ENTER.
7Press rt to select the desired
level, then press ENTER.
●The smaller the value of level is,
the more restrictive the Parental
Lock level becomes.
●Select “NONE” to cancel the
restriction.
8Press the number keys to
enter your desired four-digit
number, then press ENTER.
●If you made a mistake, enter a
correct number again.
9Press rt to select
“COUNTRY CODE”, then press
ENTER.
10 Press rt to select your
country code, then press ENTER.
●If you do not need to change your country code, jump to 12.
●See “Country/Area Code List for Parental Lock” (墌pg. 89)
11 Press the number keys to enter the same password as in
step 8 above, then press ENTER.
12 Press SET UP twice to complete the setting.
NOTE:
Remember your password, or make a note of it.
To Change The Settings
You can change the Parental lock settings later.
1Perform steps 1 to 5 of “To Set Parental Lock For The First
Time” to access the “PARENTAL LOCK” screen before continuing.
To change the level
2Press rt to select “PARENTAL LEVEL”, then press ENTER.
3Press rt to select the desired level, then press ENTER.
To change the country code
4Press rt to select “COUNTRY CODE”, then press ENTER.
5Press rt to select your country code, then press ENTER.
●See “Country/Area Code List for Parental Lock” (墌pg. 89).
6Press the number keys to enter the same password as in
step 8 of “To Set Parental Lock For The First Time”, then press
ENTER.
7Press SET UP twice to complete the setting.
NOTE:
If you forget your password, enter “8888” in step 6.

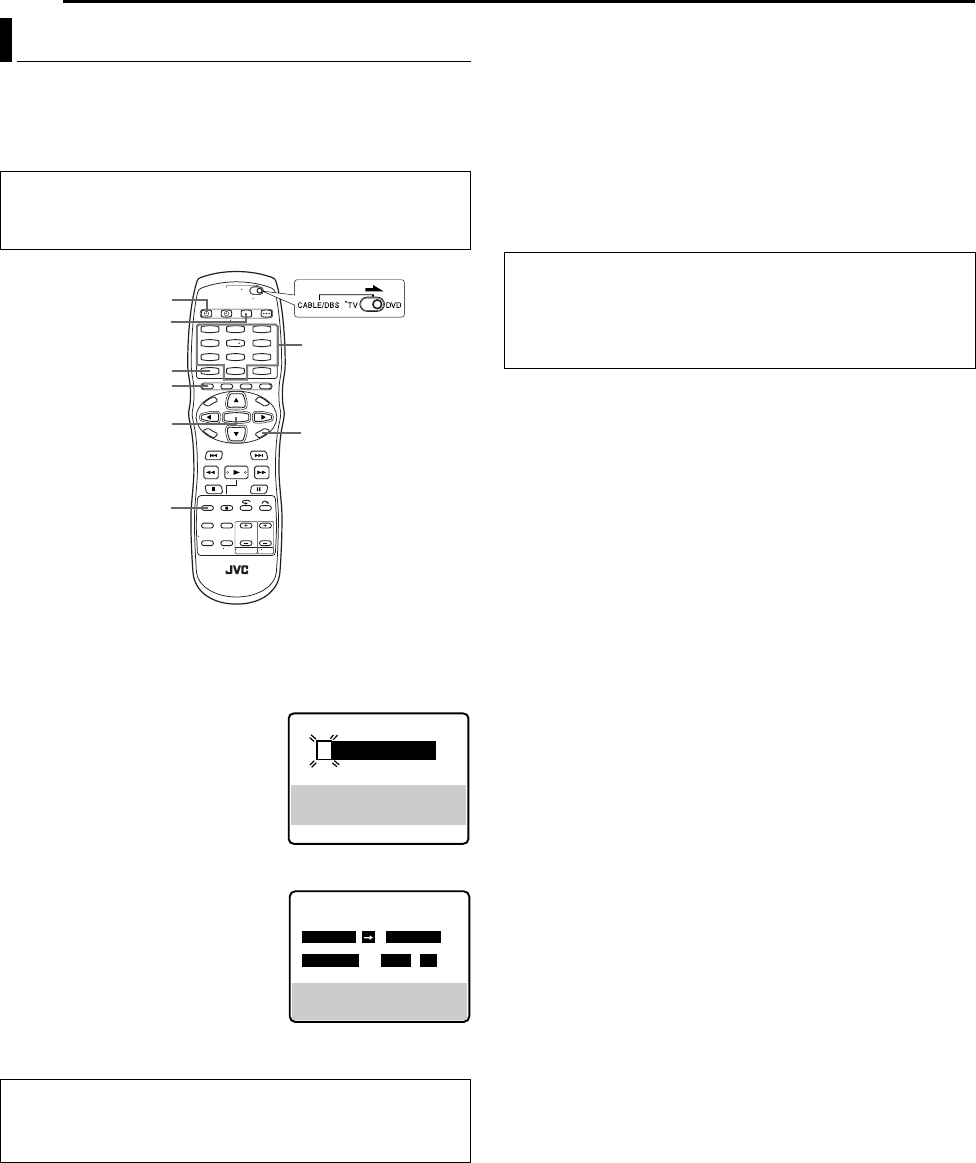

To Temporarily Release Parental Lock
When you set the parental lock level strictly, some discs may not be
played back at all. When you insert such a disc and try to play it
back, the confirmation screen appears on the TV screen, asking
you whether you want Parental Lock to be temporarily released or
not.
1Load a disc.
●If the disc is rated higher than the selected level, the confirmation
screen appears.
2Press we to select “YES”, then press ENTER.
●If you select “NO”, you cannot play back that disc.
3Press the number keys to enter the same password as in
step 8 of “To Set Parental Lock For The First Time”, then press
ENTER.
●When you enter the correct password, the Parental Lock is released
and the unit starts playback.
●If you enter a wrong password, “ENTRY ERROR RETRY” appears on
the TV screen. Enter the correct password.
●If you have successively entered wrong password three times,
“ENTRY ERROR CAN NOT CHANGE PASSWORD” appears on the
TV screen. In such a case, press ENTER. The disc will stop. Then
play back the disc again, and try the procedure again from step 1.
NOTE:
If you forget your password, enter “8888” in step 3.
Parental Lock
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
VCR/DVD
0 – 9
SET UP
ENTER rtw e
DR-MV1SU_05DVD Operation1.fm Page 37 Wednesday, February 25, 2004 12:59 PM
Filename [DR-MV1SU_06DVD Operation2.fm]
Masterpage:Left0
38 EN
Page 38 March 4, 2004 6:36 pm
OPERATIONS ON DVD DECK
1Load a recordable disc.
●For details, refer to “Placing A Disc” (墌pg. 11).
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press CH +/– or the number keys to select the channel you
wish to record.
4Press REC MODE repeatedly to set the recording mode.
●Each time you press REC MODE, the recording mode changes as
follows:
XP ] SP ] LP ] EP ] FR] (Back to the beginning)
* The value is selectable from 1 to 6 hours in 5-min. increment, from 7 to
8 hours in 1-hour increment by pressing
we
repeatedly after selecting
“FR60–FR360”, “FR420” and “FR480”. To change the value in 30-min.
increments, press and hold
we
.
●For details on the recording mode, see the right column.
5Press 7 on the unit to start recording. Or press and hold 7 and
press 4 on the remote control.
●The DVD recording lamp lights up on the unit.
6Press 9 to pause recording.
●To resume recording, press 4.
7Press 8 to stop recording.
●The DVD recording lamp lights off on the unit.
●It takes about 10 seconds to end the writing session when you stop
recording.
NOTES:
●It is recommended to format a DVD-RAM disc before use if you use
the disc on this unit for the first time.
●When using a brand-new DVD-RW disc, format the disc either in VR
mode or in Video mode. (墌pg. 78)
●Recordings made on DVD-R/RW disc must be finalized to play back
on other DVD players. Perform “Finalize A Disc (DVD Deck Only)”
(墌pg. 79)
●You can record up to 99 programs and 999 play lists on each disc.
●Some programs can only be recorded one time.
●When recording is started, an index of the first part of recording is
automatically recorded. (墌pg. 55) To record satellite programs, refer
to page 46. To delete the index, refer to page 57.
●Recording sometimes may stop or cannot be performed even if there
is enough available capacity remaining on the disc.
Recording Resume Function
If there is a power outage during recording, Instant Timer
Recording (ITR) (墌pg. 39) or timer recording (墌pg. 41, 42, 43),
the recording will resume automatically when power is restored to
the unit unless the unit’s memory backup has expired.
Recording Mode
MPEG2 format is used as recording format. As a guide for picture
quality, the “bps” unit is used to represent how much data can be
recorded per second. The larger this value is, the better the picture
quality becomes but more capacity is required for the recording.
Select XP or SP for programs where quick movement occurs, such
as sports programs, and LP or EP for talk shows, etc. with
relatively less movement.
The recording modes for a 4.7 GB disc are set as follows:
Basic Recording
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
A
TTENTION:
It is not possible to record programs on a DVD-R disc which has
already been finalized.
1
4
7
2
5
8
0
3
6
9
7
REC MODE
98
CH +/–
0 – 9
4
VCR/DVD
F-1
7
8
49
VCR/DVD CH +/–REC MODE
Recording
mode
Recording amount
(approx.)
Maximum recording
time (approx.)
XP 10 Mbps 1 hour
SP 5 Mbps 2 hours
LP 2 Mbps 4 hours
EP 1.6 Mbps 6 hours
FR60–FR360
(墌pg. 40) The amount varies
depending on the
selected time.
1 – 6 hours
FR420 7 hours
FR480 8 hours
DR-MV1SU_06DVD Operation2.fm Page 38 Thursday, March 4, 2004 6:36 PM
Masterpage:Right+
EN 39
Filename [DR-MV1SU_06DVD Operation2.fm]
Page 39 March 4, 2004 6:36 pm
OPERATIONS ON DVD DECK

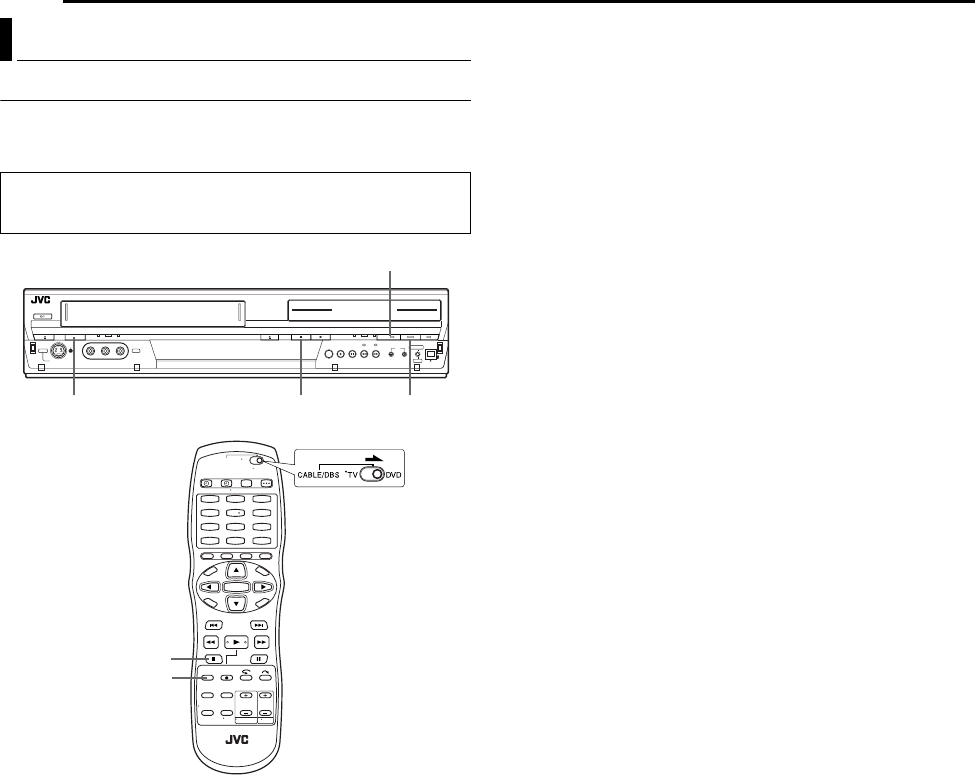

Instant Timer Recording (ITR)
This easy method lets you record for from 30 minutes to 6 hours
(selectable in 30-min. increments), and shuts the unit off after
recording is finished.
1Press 7 on the unit to start recording.
2Press 7 again to engage the ITR mode.
●On the front display panel, “0:30” appears.
3If you want to record for more than 30 minutes, press 7 to
extend the time. Each press extends recording time by 30 minutes.
NOTES:
●You can only perform ITR using the 7 button on the unit.
●When the recording capacity becomes full during timer recording or
Instant Timer Recording, the unit is automatically shut off.
Watch Another Program While Recording On The Unit
While recording is going on, you can watch another program on the
TV by using the TV’s tuner.
NOTE:
It is required that the remote control is set to be able to operate the TV
in advance. (墌pg. 70)
1During recording, press TV/VCR to select TV mode if your unit
is connected to the TV via the RF connection.
●VCR mode is disengaged, then the VCR indicator lights off and “TV”
appears on the front display panel.
●The program received on the TV’s tuner is displayed on the TV
screen.
2Slide the TV/CABLE/DBS/DVD switch to TV.
3Press CH +/– repeatedly to select the desired channel.
Elapsed Recording Time And Disc Remaining Time
Indication
During recording, press DISPLAY repeatedly until the desired
indication appears on the front display panel.
●Each time you press DISPLAY, the time indication changes as
follows:
Elapsed recording time ] Disc remaining time ] Clock ] (Back to
the beginning)
●There is another way to check the disc remaining time. While the unit
is stopped or recording is in progress, press REMAIN. The list of disc
remaining times for all recording modes appears on the TV screen.
Recording Features
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
●Press VCR/DVD repeatedly so that the DVD lamp lights up on the
unit.
1
4
7
2
5
8
0
3
6
9
CH +/–
DISPLAY
REMAIN
TV/VCR
F-1
7
VCR indicator lights off.
DR-MV1SU_06DVD Operation2.fm Page 39 Thursday, March 4, 2004 6:36 PM
Filename [DR-MV1SU_06DVD Operation2.fm]
Masterpage:Left+
40 EN
Page 40 March 4, 2004 6:36 pm
OPERATIONS ON DVD DECK
Free Rate Function
To record the entire program, the unit automatically set the
appropriate recording mode depending on the combination of the
total time of the program to be recorded and either the remaining
disc space or the specified recording time (from 60 minutes to 480
minutes).
8To record the entire program within the actual remaining
disc space
Select “FR (JUST)” in a recording mode selection procedure.
(墌pg. 41, 42)
●Note that this function is available only for timer programing
recording.
8To record the entire program by specifying the desired
recording time
Select “FR60–FR360”, “FR420” or “FR480” in a recording mode
selection procedure. (墌pg. 38, 41, 42)

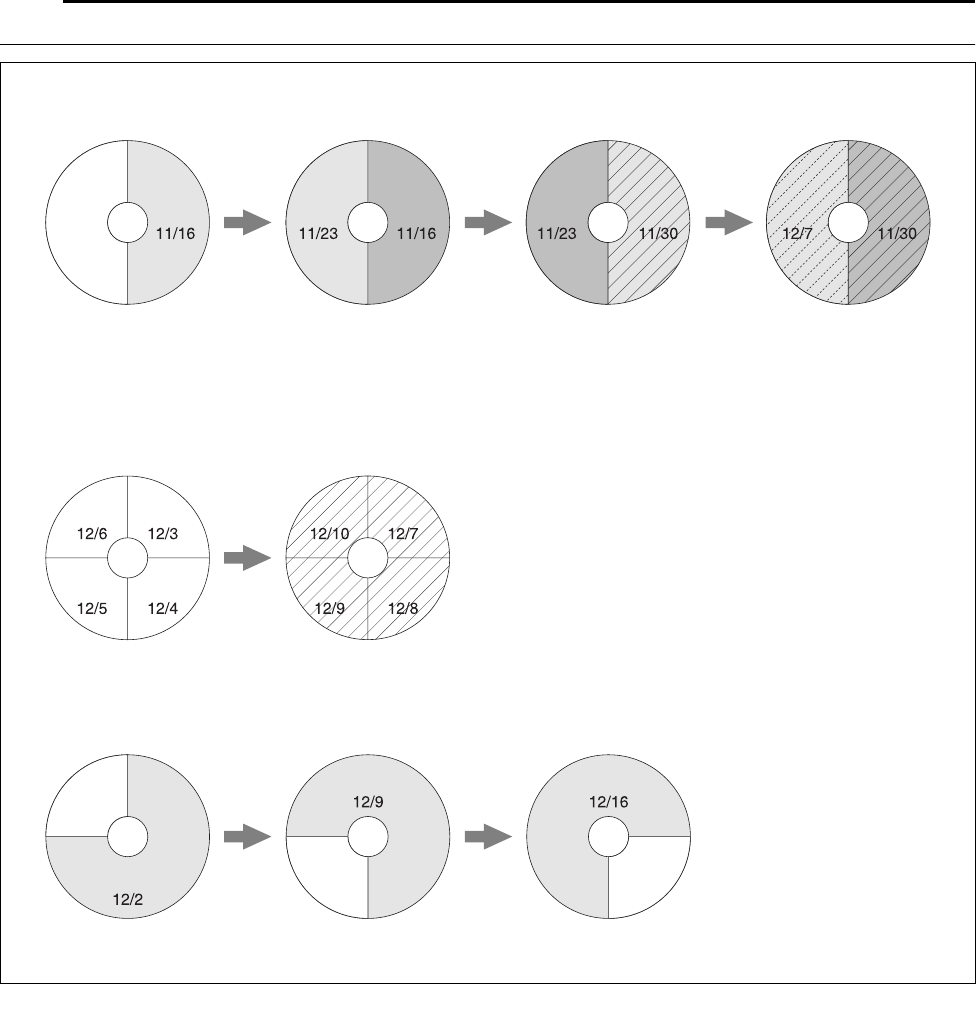

8To record a 25-min. long daily program five times just on a
same disc for example
Perform “VCR Plus+® Timer Programing” (墌pg. 41) procedure. Be
sure to set the recording mode to “FR125” and set Weekly/Daily
Rec Function to “MON–FRI” in step 6 to fit the total recording time
to the whole disc space.
When the same program is recorded in SP mode instead of in
“FR125”, the 5th program cannot be recorded.
NOTES:
●You can program this unit to timer-record, regardless of the disc
remaining time. When the disc remaining time is not enough,
recording may stop in the middle of a program. To avoid this, make
sure of the disc remaining time before setting timer-programing.
(Example) If you programed to timer-record for 60 minutes in SP
mode on a 120-minute disc, the disc remaining time would be 30
minutes in XP mode, 60 minutes in SP mode, 120 minutes in LP
mode, 180 minutes in EP mode, and 240 minutes in FR480 mode.
Timer-recording will not complete beyond these remaining times.
●The maximum recording time of FR (JUST) mode is the same as the
recording time of FR480 mode. When timer-programing a long
program in FR (JUST) mode on a disc whose remaining time is short,
it is recommended checking the disc remaining time in FR480 mode
to see if the remaining time is enough for the program.
●Even if more than one program are timer-programed in FR (JUST)
mode, only the first one is recorded.
●In order to ensure that the recording fits on the disc, this feature may
leave a slight non-recorded section at the end of the disc.
●There may be some noise and sound disturbance at the point on the
disc where the unit switches the mode.

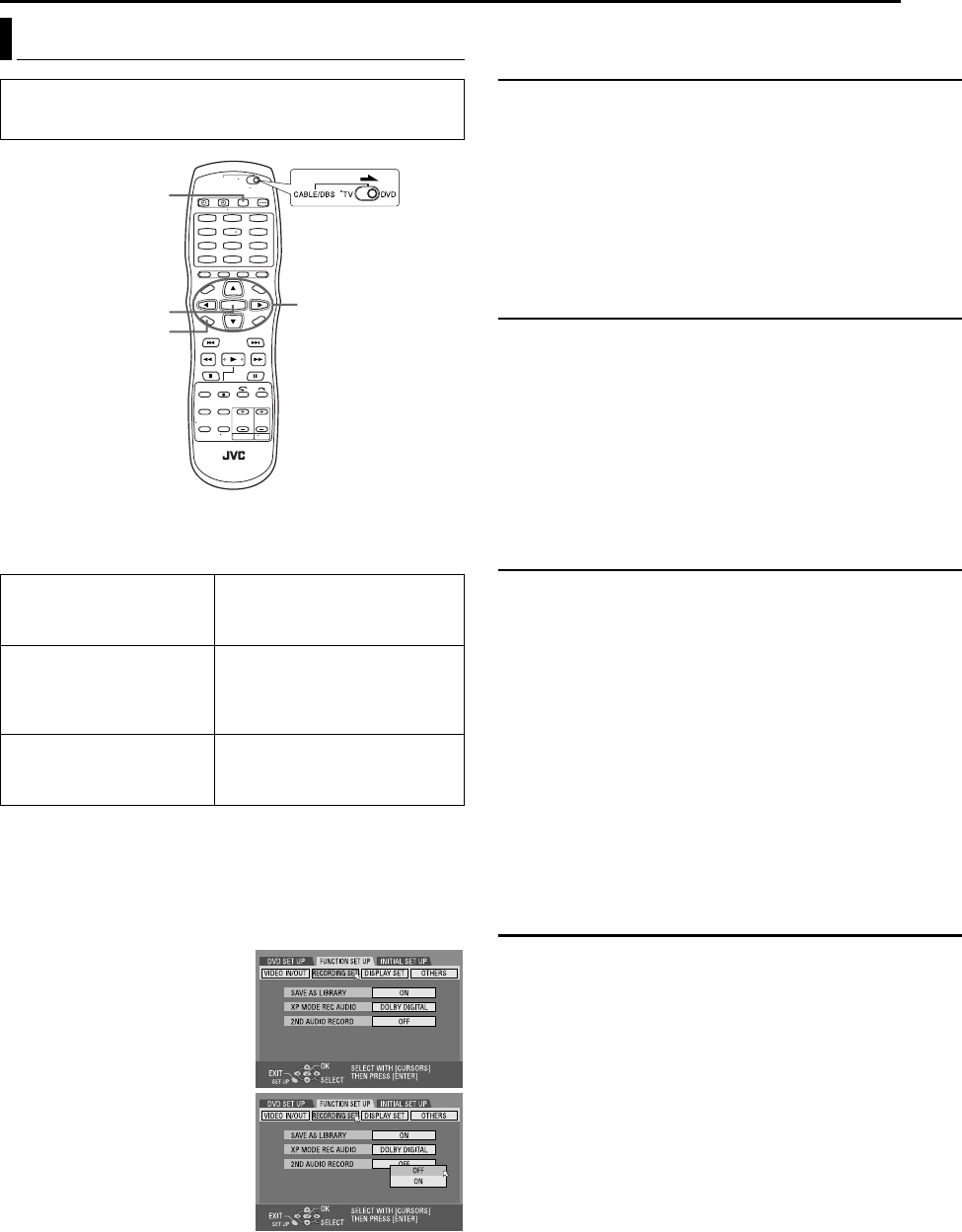

Second Audio Recording
This unit’s built-in MTS decoder enables reception of Multichannel
TV Sound broadcast. To record a SAP program received, set “2ND
AUDIO RECORD” to “ON”. (墌pg. 74)
NOTE:
When the channel is changed on the unit;
●The “MONO” indicator appears on the screen for about 5 seconds if
the program is a monaural broadcast.
●The “STEREO” indicator appears on the screen for about 5 seconds
if the program is a stereo broadcast.
●Both “STEREO” and “SAP” indicators appear when a stereo program
is accompanied by SAP sound.
●Both “MONO” and “SAP” indicators appear when the main audio on
the monaural broadcast is accompanied by SAP sound.
Blank
A
:
1
st
B: 2nd
C: 3rd
D: 4th
E: 5th
A: 1st
B: 2nd
C: 3rd
D: 4th
E: Blank (20 min.)
Blank
DR-MV1SU_06DVD Operation2.fm Page 40 Thursday, March 4, 2004 6:36 PM
Masterpage:Right+
EN 41
Filename [DR-MV1SU_06DVD Operation2.fm]
Page 41 February 24, 2004 12:47 pm
OPERATIONS ON DVD DECK
You can program this unit to timer-record as many as 8 programs.
With the VCR Plus+ system, timer programing is greatly simplified
because each TV program has a corresponding code number
which your unit is able to recognize.
You can use the remote control to enter the PlusCode number.
1Load a recordable disc.
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press VCR PLUS+ to access the VCR Plus+ screen.
4Press the number keys to
enter the PlusCode number of a
program you wish to record, then
press ENTER.
●If you have made a mistake, press
CANCEL and input the correct
number before you press ENTER.
●To clear all entered numbers at a
time, press CLEAR(8).
●If the number you entered is invalid, “PLUSCODE NO. ERROR
CONFIRM PLUSCODE NO. THEN RETRY” appears on the TV
screen. Input a valid PlusCode number.
●If “GUIDE PROGRAM IS NOT SET SELECT CHANNEL YOU WANT
TO RECORD” appears on the TV screen, set Guide Channel
Numbers manually. (墌pg. 77)
●When “PROGRAM FULL DELETE UNWANTED TIMER PROGRAM”
appears on the TV screen, you need to cancel some of the reserved
programs. (墌pg. 45)
5The PlusCode number you entered and the matching timer-
recording information are displayed on the TV screen. Check the
program data.
●To cancel this setting, press VCR PLUS+ or RETURN.
6Press we to select the desired recording option as required.
Press rt to select the desired setting, then press ENTER.
●“STOP” (To advance/go back the stop time by 30 minutes, press and
hold rt).
●“DAILY/WEEKLY” (墌pg. 41, “Daily/Weekly Recording”))
●“REC MODE” (墌pg. 38, “Recording Mode”)
●“NAME” (墌pg. 57, “Modify Program Name”)
7Press ENTER to access the Program Confirmation screen.
8Press ENTER to complete timer programing.
●To program another timer, repeat steps 3–8.
●If “PROGRAM OVERLAPPED” appears on the TV screen, see
page 45.
9Press DVD TIMER (#) to engage the unit’s timer mode. The
DVD timer lamp lights up on the unit and the VCR deck is
automatically selected. When the VCR deck is in timer standby
mode, the unit is automatically turned off.
●To disengage the timer mode, press DVD TIMER (#) again.
NOTES:
●There may be cases that VCR Plus+ Timer Programing function
prolongs the stop time of the programing.
●When two successive programs are recorded on a DVD-RW disc with
VCR Plus+ Timer Programing function, the beginning of the second
one may be left off the recording.
●VCR Plus+ Timer Programing is not possible on the discs used
exclusively for On-Disc Timer Programing.
●If the copy limited program is received during timer-recording, the unit
enters Record Pause mode. Recording starts again if it is switched to
a recordable broadcast during the time you programed.
Daily/Weekly Recording
You can record programs with one of the following weekly/daily
timer settings.
WEEKLY: Select to record a weekly program.
MON–FRI: Select to record a daily program from Monday through
Friday.
MON–SAT: Select to record a daily program from Monday through
Saturday.
SUN–SAT: Select to record a daily program from Sunday through
Saturday.
VCR Plus+® Timer Programing
●Make sure that the unit’s built-in clock is set properly.
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
IMPORTANT:
Make sure the channel position number you wish to record is
displayed; if not, see “Changing VCR Plus+® Setting” (墌pg. 77) and
set the Guide Channel number correctly.
1
4
7
2
5
8
0
3
6
9
0 – 9
RETURN
ENTER
VCR PLUS+
CLEAR (8)
CANCEL
DVD TIMER (#)
VCR/DVD
IMPORTANT:
If you have moved to a different area or if a broadcasting station's
channel number has been changed, the wrong channel number will
be displayed on the VCR Plus+ program screen in step 5. When this
happens, set the correct Guide Channel number for that station.
(墌pg. 77, “Changing VCR Plus+® Setting”)
Cable Box and DBS Receiver Users
To timer-record a satellite broadcast using the VCR Plus+
system:
APerform “Cable Box and/or DBS Receiver Control Setting
(DVD Deck Only)” (墌pg. 22).
BPerform “VCR Plus+® Timer Programing” (墌pg. 41).
CLeave the cable box or DBS receiver’s power on.
DR-MV1SU_00.book Page 41 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_06DVD Operation2.fm]
Masterpage:Left+
42 EN
Page 42 February 24, 2004 12:47 pm
OPERATIONS ON DVD DECK
You can program this unit to timer-record as many as 8 programs.
If you do not know the PlusCode number for the program you wish
to record, use the following procedure to set your unit to
timer-record the program.
1Load a recordable disc.
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press PROG/CHECK to
access the Program Check
screen.
●When “PROGRAM FULL DELETE
UNWANTED TIMER PROGRAM”
appears on the TV screen, you
need to cancel some of the
reserved programs. (墌pg. 45)
4Press rt to select “NEW
TIMER PROGRAM”, then press
ENTER. The program screen
appears.
5Press rt to set the desired
date.
●The current date appears on the
TV screen. The date you enter
appears in its place.
6Press we to select “START”, then press rt to set the desired
start time.
●Each press of rt advances/goes back the start time in 1-min.
increments.
●To advance/go back the start time in 30-min. increments, press and
hold rt.
7Press we to select “STOP”, then press rt to set the desired
stop time.
●Each press of rt advances/goes back the stop time in 1-min.
increments.
●To advance/go back the stop time in 30-min. increments, press and
hold rt.
8Press we to select “CH”, then press rt to select the desired
channel.
●If you are using a DBS receiver, see “ATTENTION FOR DBS
RECEIVER USERS” in the right column.
9Set the other recording options as required.
●Refer to step 6 in “VCR Plus+® Timer Programing” (墌pg. 41).
10 Press ENTER to access the Program Confirmation screen.
11 Press ENTER to complete timer programing.
●To program another timer, repeat steps 3–11.
12 Press DVD TIMER (#) to engage the unit’s timer mode. The
DVD timer lamp lights up on the unit and the VCR deck is
automatically selected. When the VCR deck is in timer standby
mode, the unit is automatically turned off.
●To disengage the timer mode, press DVD TIMER (#) again.
NOTES:
●When two successive programs are recorded on a DVD-RW disc with
Manual Timer Programing function, the beginning of the second one
may be left off the recording.
●If the copy limited program is received during timer-recording, the unit
enters Record Pause mode. Recording starts again if it is switched to
a recordable broadcast during the time you programed.
Manual Timer Programing
●Make sure that the unit’s built-in clock is set properly.
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
PROG/CHECK
7
ENTER
DVD TIMER (#)
rtw e
VCR/DVD
Cable Box and DBS Receiver Users
To timer-record a satellite broadcast using Manual Timer
Programing:
APerform “Cable Box and/or DBS Receiver Control Setting
(DVD Deck Only)” (墌pg. 22).
BPerform “Manual Timer Programing” (墌pg. 42).
CLeave the cable box or DBS receiver’s power on.
ATTENTION FOR DBS RECEIVER USERS
If you are using a DBS receiver (unless “DBS RECEIVER SET”
is set to “OFF” 墌pg. 22), the band indication (TV, CATV or
DBS) appears on the left of the channel number indication.
No indication: To timer-record a regular TV broadcast received
on the unit.
CATV: To timer-record a cable TV broadcast received on the unit,
or through a cable box (unless “CABLE BOX SET” is set to
“OFF” 墌pg. 22).
DBS: To timer-record a satellite broadcast received through a
DBS receiver.
NOTE:
If the channel number entered requires that the band be set,
“7=DBS” is displayed on the screen.
If this happens, press the number key “7” to select “DBS”.
DR-MV1SU_00.book Page 42 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 43
Filename [DR-MV1SU_06DVD Operation2.fm]
Page 43 February 24, 2004 12:47 pm
OPERATIONS ON DVD DECK
On-Disc Timer Programing is a function used with discs that are
especially intended for a specific program. The disc is then
programed for a program you always watch every day or every
week. Since older programs are automatically overwritten, a single
DVD-RAM/RW (VR mode) disc can be used without worrying
about how much recording capacity remains. (墌pg. 44)
You can program each disc to timer-record as many as
8programs.
To Make The Disc For On-Disc Timer Programing
1Load a recordable disc.
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press PROG/CHECK to access the Program Check screen.
4When On-Disc Timer Programing is made for the first time
on the disc
Press rt to select “DISC TIMER PRGM”, then press ENTER.
●When some programs are recorded on the disc, a caution message
appears. In such a case, backup the programs as required, then
format the disc before making On-Disc Timer Programing. (墌pg. 78)
When On-Disc Timer Programing has already been made on
the disc
Press rt to select “NEW TIMER PROGRAM”, then press
ENTER.
5Press rt to set the desired date.
●The current date appears on the TV screen. The date you enter
appears in its place.
6Press we to select “START”, then press rt to set the desired
start time.
●Each press of rt advances/goes back the start time in 1-min.
increments.
●To advance/go back the start time in 30-min. increments, press and
hold rt.
7Press we to select “STOP”, then press rt to set the desired
stop time.
●Each press of rt advances/goes back the stop time in 1-min.
increments.
●To advance/go back the stop time in 30-min. increments, press and
hold rt.
8Press we to select “CH”, then press rt to select the desired
channel.
●If you are using a DBS receiver, see “ATTENTION FOR DBS
RECEIVER USERS” (墌pg. 42).
9Set “DAILY/WEEKLY” option.
●Refer to step 6 in “VCR Plus+® Timer Programing” (墌pg. 41).
●It is necessary to set “DAILY/WEEKLY” option for On-Disc Timer
Programing. (墌pg. 41, “Daily/Weekly Recording”)
10 Set the other recording options as required.
●You can select XP, SP, LP, EP or FR480 mode for “REC MODE”.
However, you cannot select FR (JUST), FR60–FR360 and FR420.
●Refer to step 6 in “VCR Plus+® Timer Programing” (墌pg. 41).
●It is not possible to use the Free Rate function. (墌pg. 40)
11 Press ENTER to access the Program Confirmation screen.
12 Press ENTER to complete timer programing.
●To program another timer, repeat steps 3–12.
To Timer-record The Program With The Programed Disc
1Load a programed disc.
2Press DVD TIMER (#). The unit turns off and “ ” appears
on the front display panel. The DVD timer lamp also lights up on
the unit and the VCR deck is automatically selected. When the
VCR deck is in timer standby mode, the unit is automatically turned
off.
●To disengage the timer mode, press 1 again.
NOTES:
●Even if On-Disc Timer Programing is overlapping with other timer
programing, any caution message does not appear. In such a case,
recording will be executed in the descending order of the recording
start time of the program.
●On-Disc Timer Programing is not possible on a DVD-RW disc
formatted in video mode. (墌pg. 78)
●The information of a program recorded with On-Disc Timer
Programing is not stored in the library. (墌pg. 60)
●The play list is not created for the programs recorded with On-Disc
Timer Programing. (墌pg. 58)
●VCR Plus+ Timer Programing is not possible on the discs used
exclusively for On-Disc Timer Programing.
●Manual Timer Programing is not possible on the On-Disc Timer
Programed disc. (墌pg. 42)
●Basic Recording is not possible on the On-Disc Timer Programed
disc. (墌pg. 38)
●The On-Disc Timer Programing function does not work on the unit
form other manufactures even if the On-Disc Timer Programed disc is
loaded.
●The beginning of a program may not be recorded. Also, if the 1st
program’s recording stop time and the 2nd program’s recording start
time is the same, the ending of the 1st program may not be recorded.
●If there is a power cut while recording, the recordings before the
power cut are not guaranteed.
On-Disc Timer Programing
●Make sure that the unit’s built-in clock is set properly.
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
A
TTENTION:
●On-Disc Timer Programing is possible only with the disc for On-
Disc Timer Programing.
●If data is recorded on a disc for On-Disc Timer Programing using a
unit from another manufacturer, On-Disc Timer Programing may no
longer function properly.
1
4
7
2
5
8
0
3
6
9
PROG/CHECK
ENTER
DVD TIMER (#)
rtw e
VCR/DVD 1
Cable Box and DBS Receiver Users
To timer-record a satellite broadcast using the On-Disc Timer
Programing function:
APerform “Cable Box and/or DBS Receiver Control Setting
(DVD Deck Only)” (墌pg. 22).
BPerform “On-Disc Timer Programing” (墌pg. 43).
CLeave the cable box or DBS receiver’s power on.
DR-MV1SU_00.book Page 43 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_06DVD Operation2.fm]
Masterpage:Left+
44 EN
Page 44 February 24, 2004 12:47 pm
OPERATIONS ON DVD DECK
How Discs Are Overwritten
NOTE:
On-Disc Timer Programing may not always work as these examples.
(Example 1)
To record a 1-hour serial drama every Friday in SP mode
(Example 2)
To record a 15-minute serial drama every morning in XP mode
(Example 3)
To record a 90-minute serial drama every Sunday in SP mode
The first program is
overwritten by the third. The second program is
overwritten by the forth.
Overwritten
Blank
Overwritten
1st 2nd 1st 2nd 3rd 4th 3rd
1st
2nd3rd
4th 5th
6th7th
8th
Areas treated as blank cannot be played back even if they contain
recorded material.
Blank
Blank Blank
1st
2nd 3rd
DR-MV1SU_00.book Page 44 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 45
Filename [DR-MV1SU_06DVD Operation2.fm]
Page 45 February 24, 2004 12:47 pm
OPERATIONS ON DVD DECK
Check, Cancel And Change Programs
1When the DVD timer lamp lights on the unit
Press DVD TIMER (#), then press 1.
When “ ” lights on the front display panel and the DVD
timer lamp also lights up on the unit.
Press 1.
When “R-LK” lights on the front display panel
Press REC LINK on the unit, then press 1.
When the DVD lamp does not light up on the unit
Press VCR/DVD repeatedly so that the DVD lamp lights up on the
unit.
2Press PROG/CHECK to
access the Program Check
screen.
●To return to the previous screen
after you check the program, press
PROG/CHECK again.
To cancel the program
Press rt to select a program to
be cancelled, then press
CANCEL.
3Press rt to select the program, then press ENTER. The
program screen appears.
4Change the settings of the desired recording options as
required.
●Refer to steps 5–10 in “Manual Timer Programing” (墌pg. 42).
5Press PROG/CHECK to complete timer correction. The
previous screen resumes.
6For VCR Plus+, Manual or On-Disc Timer Programing
Press DVD TIMER (#).
For Automatic Satellite Program Recording
Press REC LINK on the unit for 2 seconds or more.
●The DVD timer lamp also lights up on the unit and the VCR deck is
automatically selected. When the VCR deck is in timer standby
mode, the unit is automatically turned off.
When Programs Overlap Each Other
If “PROGRAM OVERLAPPED” appears, you have another
program overlapping the program you have just made.
Confirm with the arrow on “OK”, then press PROG/CHECK.
Program Check screen appears and conflicting programs will be
highlighted in pink.
Example: Program 3 (you have
just made) and Program 4
overlap each other.
1Confirm the overlapping
programs. Overlapping programs
appear on the TV screen.
NOTE:
If you do not mind this overlap, press
PROG/CHECK to finish the timer
program setting. The program with the lower program number will be
recorded and the other one will not be recorded correctly. If no changes
are made for approximately 1 minute, the unit will return to the normal
screen.
2Press rt to select the desired program to be cancelled or
changed.
To cancel the program
Press CANCEL.
●“THE TIMER PROGRAMING SETTING WAS CANCELLED” appears
on the TV screen for about 5 seconds, then the normal screen
resumes.
To change the program setting
Press ENTER, then go to step 3.
3Change the program setting.
●Refer to steps 5–10 in “Manual Timer Programing” (墌pg. 42).
4Press PROG/CHECK to check if the conflict has been settled.
Program check screen appears.
5Engage the unit’s timer mode.
●Refer to step 6 in “Check, Cancel And Change Programs”
(墌pg. 45).
NOTE:
When any overlaps remain after deletion and modification of programs,
Program Check screen remains showing the conflicting programs. In
such a case, repeat the procedure above until the conflict is solved.
1
4
7
2
5
8
0
3
6
9
PROG/CHECK
ENTER
CANCEL
1
DVD TIMER (#)
rtw e
VCR/DVD
Program’s information on the front display panel
You can check the details of the programs even when the power
is turned off. (It is necessary that the Power Save mode
(墌pg. 74) is disengaged or the unit is not in timer standby
mode.) However, it is not possible to cancel or change the
program’s setting.
APress PROG/CHECK.
●“NEW PROG” or “P-1” (if 8 programs have already been set)
appears.
BPress rt until the desired program number (“P-1” to “P-8”)
appears, then press ENTER.
CPress e.
●Each time you press e, the indication changes as follows (the
settings in parentheses are examples):
Date (“DATE 03.08SU”) ] Start time (“ON 11:00”) ] Stop time
(“OFF 11:30”) ] Channel (“CH 1”) ] Weekly/Daily (“MO-FR
DAILY”) ] Program number (“P-1”) and recording mode (SP) ]
(Back to the beginning)
DPress PROG/CHECK to complete checking.
●The normal display resumes.
DR-MV1SU_00.book Page 45 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_06DVD Operation2.fm]
Masterpage:Left+
46 EN
Page 46 February 24, 2004 12:47 pm
OPERATIONS ON DVD DECK
This function allows you to automatically record a satellite program
which is timer-programed on your external DBS receiver. Connect
a DBS receiver to the unit’s AUDIO/VIDEO INPUT (L-1) connectors
and program the timer on the DBS receiver. The unit starts or stops
recording by the signals input from the DBS receiver. After
recording, the unit’s power shuts off automatically.
●You can also connect the cable box if it has a timer.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press REC MODE repeatedly to set the recording mode.
3Press and hold REC LINK on the unit for about 2 seconds to
engage the Automatic Satellite Program Recording mode. “R-LK”
appears on the front display panel and the VCR deck is
automatically selected. When the VCR deck is in timer standby
mode, the unit is automatically turned off.
NOTES:
●To disengage the Automatic Satellite Program Recording mode,
press REC LINK.
●If the unit’s power is off, it is not possible to engage the Automatic
Satellite Program Recording mode.
●In step 3, if “R-LK” blinks quickly on the front display panel even
though your DBS receiver’s power is off, Automatic Satellite Program
Recording will not work properly with that satellite receiver*. If this is
the case, perform “Manual Timer Programing” (墌pg. 42) to
timer-record a satellite program.
* Some DBS receivers output signals even if the power is off. Automatic
Satellite Program Recording is not possible with those DBS receivers.
●“R-LK” blinks on the front display panel while Automatic Satellite
Program Recording is in progress.
●For timer programing of the DBS receiver, refer to the instruction
manual of the DBS receiver.
●Automatic Satellite Program Recording is not possible if your DBS
receiver does not have a timer.
●Pressing the unit’s 1 button while Automatic Satellite Program
Recording is in progress turns off the unit’s power and disengages
the Automatic Satellite Program Recording mode.
●If there are more than one satellite programs you wish to record with
Automatic Satellite Program Recording, it is not possible to set
different recording modes for each program.
●Depending on the type of DBS receiver, the unit may not record a
slight portion of the beginning of the program or may record slightly
longer than the actual length of the program.
●If you engage the Automatic Satellite Program Recording mode when
the DBS receiver’s power is on, the unit will not start Automatic
Satellite Program Recording even though “R-LK” blinks on the front
display panel. When the DBS receiver shuts off once and is turned
back on again, the unit starts recording.
●You can also record a program from your cable system in the same
way if the system has a timer.
About the Automatic Satellite Program Recording
indicator on the front display panel
When the DVD deck is in the Auto Sattellite Program Recording
standby mode while the VCR deck is used, the following indicator
lights up instead of “R-LK” as illustrated.
Automatic Satellite Program Recording
(DVD Deck Only)
A
TTENTION:
●Be sure not to turn on the DBS receiver before the program is
executed; otherwise, the unit will start recording when the DBS
receiver’s power is turned on.
●If you have connected another appliance other than a DBS
receiver to the AUDIO/VIDEO INPUT (L-1) connectors, be sure not
to engage the Automatic Satellite Program Recording mode;
otherwise, the unit will start recording when the connected
appliance’s power is turned on.
●Automatic Satellite Program Recording and timer-recording cannot
be done at the same time.
F-1
REC LINK
VCR/DVD REC MODE
1
1
4
7
2
5
8
0
3
6
9
REC MODE
VCR/DVD
●Make sure the DBS receiver is connected to the unit’s AUDIO/
VIDEO INPUT (L-1) connectors.
●Program the timer on the DBS receiver.
●Slide the TV/CABLE/DBS/DVD switch to DVD.
Automatic Satellite Program
indicator
DR-MV1SU_00.book Page 46 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right0
EN 47
Filename [DR-MV1SU_07VCR Operation.fm]
Page 47 February 23, 2004 4:29 pm

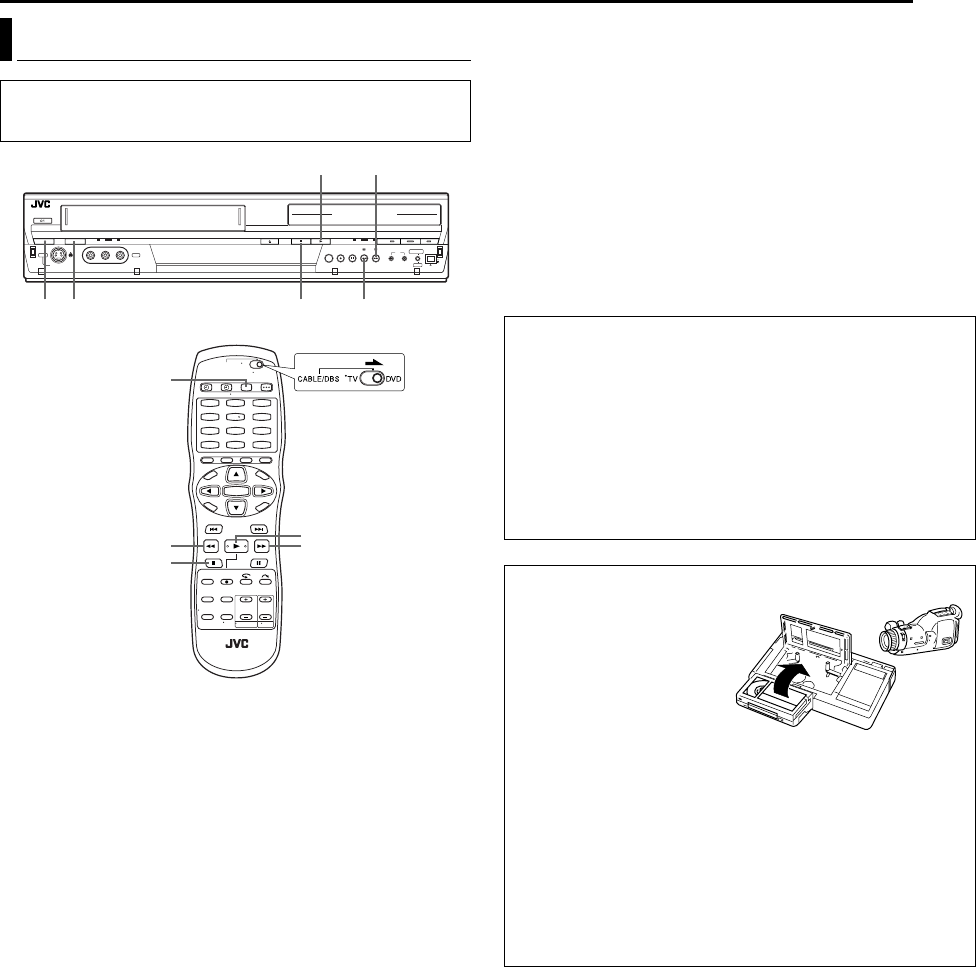

OPERATIONS ON VCR DECK
1Load a cassette. Make sure the window side is up, the rear label
side is facing you and the arrow on the front of the cassette is
pointed toward the unit.
●Do not apply too much pressure when inserting.
●If the record safety tab has been removed, playback begins
automatically.
●The unit’s power comes on automatically and the counter is reset to
0:00:00.
2Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
3Find the program start point. If the tape is advanced past the
start point, press 3. To go forward, press 5.
4Press 4 to start playback.
5Press 8 to stop playback.
●To eject the cassette, press x (VCR EJECT).
Basic Playback
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
F-1
x8
45
3
VCR/DVD
1
4
7
2
5
8
0
3
6
9
5
34
8
VCR/DVD
Clean the video heads using a dry cleaning cassette
— ECL-3F — when:
●Rough, poor picture appears while a tape is played back.
●The picture is unclear or no picture appears.
●“USE CLEANING CASSETTE” appears on the screen (only with
“SUPERIMPOSE” set to “AUTO”). (墌pg. 75)
NOTE:
The heads get dirty in the following cases:
●in an environment prone to extreme temperature or humidity
●in a dusty environment
●flaw, dirt or mold on video tapes
●continuous usage for a long time
Usable cassettes
Full-Size VHS
T-30 (ST-30**)
T-60 (ST-60**)
T90
T-120 (ST-120**)
T-160 (ST-160**)
ST-210**
Compact VHS*
TC-20 (ST-C20**)
TC-30 (ST-C30**)
TC-40 (ST-C40**)
* Compact VHS camcorder recordings can be played on this unit. Simply
place the recorded cassette into a VHS Cassette Adapter and it can be
used just like any full-sized VHS cassette.
** This unit can record on regular VHS and Super VHS cassettes.
However, it will record regular VHS signals only.
• S-VHS recording is not possible with this unit.
●This unit is equipped with SQPB (S-VHS QUASI PLAYBACK) that
lets you watch tapes recorded in the S-VHS format and the SP
mode with regular VHS resolution.
• SQPB does not deliver Super VHS resolution.
DR-MV1SU_00.book Page 47 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_07VCR Operation.fm]
Masterpage:Left+
48 EN
Page 48 February 25, 2004 1:03 pm
OPERATIONS ON VCR DECK
Still Picture/Frame-By-Frame Playback
1Press 9 to pause during playback.
●If there is vertical jitter, press CH +/– to correct the picture.
2Press 9 to activate frame-by-frame playback.
●To resume normal playback, press 4.
Slow Motion
1Press 9 to pause during playback.
2Press and hold 9 for 2 seconds, then release. Press 9 and
release again to return to still picture.
●The speed changes for each direction by pressing 3 and 5
repeatedly.
●To resume normal playback, press 4.
NOTE:
During slow motion playback, some noise may appear on the TV
screen. Press CH + or – to eliminate the noises.
High-Speed Search
During playback, press 5 for forward high-speed search, or 3
for reverse high-speed search.
●Each press of the button increases the search speed for each
direction.
When pressing 5:
(SP): +5x{+7x
(EP): +11x{+21x
When pressing 3:
Once 3 is pressed, reverse search starts in –1x normal playback
speed. After this process, each press of 3 changes the search
speed between –5x and –7x in SP mode, –11x and –21x in EP mode.
(SP): –1x]–5x{–7x
(EP): –1x]–11x{–21x
●To resume normal playback, press 4.
Quick Rewind A Little
During playback (or Live Memory Playback), press . The unit
rewinds the picture a little (about 7 seconds) and resumes
playback.
●If the button is pressed repeatedly, the unit rewinds the pictures
continuously and resumes playback.
Skip Search
During playback, press 1 to 6 times to skip over unwanted
sections.
●Each press initiates an approximately 30-second period of fast-
motion playback. Normal playback resumes automatically.
●To resume normal playback, press 4.
Index Search
Your unit automatically marks index
codes at the beginning of each
recording. This function gives you
quick access to any one of 9 index
codes in either direction.
NOTE:
Before starting, make sure the unit is in
the Stop mode.
Press 2 or 6 to activate Index Search. “INDEX –1” or
“INDEX 1” is displayed on the TV screen and search begins in the
corresponding direction.
●To access index codes 2 through 9, press 2 or 6 repeatedly
until the correct index number is displayed.
Example:
To locate the beginning of B from the current position, press 2
twice.
To locate the beginning of D from the current position, press 6
once.
●When the specified index code is located, playback begins
automatically.
Playback Features
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
●Press VCR/DVD repeatedly so that the VCR lamp lights up on the
unit.
A
TTENTION:
In the search, still, slow-motion or frame-by-frame playback mode,
●the picture will be distorted.
●the noise bars will appear.
●there may be a loss of color.
●you cannot hear the sound.
1
4
7
2
5
8
0
6
9
5
3
2
4
6
98
REC MODE
AUDIO
CH +/–
VCR/DVD
1
Current position
Index number
DR-MV1SU_07VCR Operation.fm Page 48 Wednesday, February 25, 2004 1:03 PM
Masterpage:Right+
EN 49
Filename [DR-MV1SU_07VCR Operation.fm]
Page 49 March 4, 2004 3:25 pm
OPERATIONS ON VCR DECK
Next Function Memory
The Next Function Memory “tells” the unit what to do after
rewinding. Before continuing, make sure the unit is in the Stop
mode.
For Automatic Start Of Playback
Press 3, then press 4 within 2 seconds.
For Automatic Power Off
Press 3, then press 1 within 2 seconds.
For Automatic Cassette Ejection After Tape Rewind
Press 3, then press x (VCR EJECT) on the unit within 2
seconds.
Repeat Playback
Your unit can automatically play back the whole tape 100 times
repeatedly.
1Press 4 to start playback.
2Press and hold 4 for over 5 seconds, then release.
● lights up on the front display panel.
●After playing back a tape 100 times, the unit stops automatically.
3Press 8 at any time to stop Repeat Playback.
●Pressing 4, 3, 5 or 9 also stops Repeat Playback.
Manual Tracking
Your unit is equipped with automatic tracking control. During
playback, you can override this and adjust the tracking manually by
pressing the CH buttons.
1During playback, press CH + or – on the unit simultaneously to
activate manual tracking.
2Press CH + or – to adjust the tracking manually.
●Press REC MODE again to return to automatic tracking.
NOTE:
When a new tape is inserted, the unit enters the automatic tracking
mode automatically.
Soundtrack Selection
Your unit is capable of recording three soundtracks (HI-FI L, HI-FI
R and NORM) and will play back the one you select.
During Playback
Pressing AUDIO changes the soundtrack as follows:
NOTES:
●“HIFI” should normally be selected. In this mode, Hi-Fi stereo tapes
are played back in stereo, and the normal audio track is played back
automatically for tapes with only normal audio.
●“SUPERIMPOSE” must be set to “AUTO” or the on-screen displays
will not appear. (墌pg. 75)
VHS Progressive Scan
You can watch the image on VCR deck in the Progressive scan
mode via component video.
A
TTENTION:
Your TV needs to be compatible with Progressive and to have
Component video input connectors.
ASet the Progressive-compatible TV to the component input
mode.
BPress VCR/DVD repeatedly so that the DVD lamp lights up on
the unit, then press PROGRESSIVE SCAN for 3 or more seconds
so that the Video output indicator ( ) lights on the front display
panel.
CPress VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
DPress VCR].
●“VCR]” lights up on the unit.
NOTES:
●Be sure to engage the DVD deck in stop mode.
●It is not possible to perform the above steps when the DVD deck is in
timer standby mode.
TRACK USE
On-Screen Display
HI FI Hi-Fi sound is played back
HI FI L Sound on the left Hi-Fi channel is
played back
HI FI R Sound on the right Hi-Fi channel is
played back
NORM Sound on the normal track is played
back
NORM
HI FI
Both sounds on the Hi-Fi track and
normal track are mixed and played
back
DR-MV1SU_07VCR Operation.fm Page 49 Thursday, March 4, 2004 3:25 PM
Filename [DR-MV1SU_07VCR Operation.fm]
Masterpage:Left+
50 EN
Page 50 February 25, 2004 1:05 pm
OPERATIONS ON VCR DECK
1Load a cassette with the record safety tab intact.
●The unit’s power comes on automatically and the counter is reset to
0:00:00.
2Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
3Press CH +/– or the number keys to select the channel you
wish to record.
4Press REC MODE repeatedly to set the recording mode.
5Press 7 on the unit to start recording. Or press and hold 7 and
press 4 on the remote control.
●The VCR recording lamp lights up on the unit.
6Press 9 to pause recording.
●You can select channel during the Record Pause mode.
●To resume recording, press 4.
7Press 8 to stop recording.
●The VCR recording lamp lights off on the unit.
Recording Resume Function
If there is a power outage during recording, Instant Timer
Recording or timer recording (墌pg. 50, 52, 53), the recording will
resume automatically when power is restored to the unit unless the
unit’s memory backup has expired.
Watch Another Program While Recording On The Unit
While recording is going on, you can watch another program on the
TV by using the TV’s tuner.
NOTE:
It is required that the remote control is set to be able to operate the TV
in advance. (墌pg. 70)
1During recording, press TV/VCR to select TV mode if your unit
is connected to the TV via the RF connection.
●VCR mode is disengaged, then the VCR indicator lights off and “TV”
appears on the front display panel.
●The program received on the TV’s tuner is displayed on the TV
screen.
2Slide the TV/CABLE/DBS/DVD switch to TV.
3Press CH +/– repeatedly to select the desired channel.
Basic Recording
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
7
REC MODE
98
CH +/–
0 – 9
4
VCR/DVD
F-1
7
8
49
VCR/DVD CH +/–REC MODE
Recording Features
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
●Press VCR/DVD repeatedly so that the VCR lamp lights up on the
unit.
1
4
7
2
5
8
0
3
6
9
CH +/–
DISPLAY
TV/VCR
CANCEL
VCR/DVD
F-1
7
VCR indicator lights off.
DR-MV1SU_07VCR Operation.fm Page 50 Wednesday, February 25, 2004 1:06 PM
Masterpage:Right+
EN 51
Filename [DR-MV1SU_07VCR Operation.fm]
Page 51 February 23, 2004 4:29 pm
OPERATIONS ON VCR DECK
Instant Timer Recording (ITR)
This easy method lets you record for from 30 minutes to 6 hours
(selectable in 30-min. increments), and shuts the unit off after
recording is finished.
1Press 7 on the unit to start recording.
2Press 7 again to engage the ITR mode.
●On the front display panel, “0:30” appears.
3If you want to record for more than 30 minutes, press 7 to
extend the time. Each press extends recording time by 30 minutes.
NOTES:
●You can only perform ITR using the 7 button on the unit.
●When the end of the tape is reached during timer recording or Instant
Timer Recording, the cassette is automatically ejected and the unit is
shut off.
●During Instant Timer Recording, any other timer programed recording
won’t start even if their start time has come. In such a case, the timer
programed recording starts (if the end time of the timer programed
recording is set after the end of Instant Timer Recording) after the
Instant Timer Recording finishes.
Elapsed Recording Time Indication
1Press DISPLAY until a counter reading appears on the front
display panel.
2Press CANCEL to reset the counter before starting recording or
playback.
●The counter is reset to “0:00:00” and shows the exact elapsed time
as the tape runs. You can check the exact time of a recording or
playback.
Tape Remaining Time
1Press DISPLAY until the time remaining on the tape appears.
●By pressing the DISPLAY button, you can change display to show
the clock time, counter reading or tape remaining time.
NOTES:
●When you press DISPLAY, the on-screen display appears on the TV
screen for 5 seconds, then the displays other than the counter
disappears. To clear the counter display, press DISPLAY.
●Depending on the type of tape being used, the tape remaining time
reading may not appear right away, or is not correct.
“– –:– –” may sometimes appear, or the display may blink on
occasion.
Second Audio Recording
This unit’s built-in MTS decoder enables reception of Multichannel
TV Sound broadcast. To record a SAP program received, set “2ND
AUDIO RECORD” to “ON”. (墌pg. 76)
NOTE:
When the channel is changed on the unit;
●The “STEREO” indicator appears on the screen for about 5 seconds
if the program is a stereo broadcast.
●The “SAP” indicator appears on the screen for about 5 seconds if the
program is a SAP broadcast.
●Both indicators appear when a stereo program is accompanied by
SAP sound.
Accidental erasure prevention
To prevent accidental recording
on a recorded cassette, remove
its safety tab. To record on it
later, cover the hole with
adhesive tape.
Record safety tab
DR-MV1SU_00.book Page 51 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_07VCR Operation.fm]
Masterpage:Left+
52 EN
Page 52 March 4, 2004 6:46 pm
OPERATIONS ON VCR DECK
You can program this unit to timer-record as many as 8 programs.
With the VCR Plus+ system, timer programing is greatly simplified
because each TV program has a corresponding code number
which your unit is able to recognize.
You can use the remote control to enter the PlusCode number.
1Load a cassette with the record safety tab intact.
2Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
3Press VCR PLUS+ to access the VCR Plus+ screen.
4Press the number keys to enter the
PlusCode number of a program you
wish to record, then press ENTER.
●If you have made a mistake, press
CANCEL and input the correct number
before you press ENTER.
●If the number you entered is invalid,
“ERROR” appears on the TV screen and
“Err” appears on the front display panel.
Press CANCEL and input a valid PlusCode number.
5The PlusCode number you entered
and the matching timer-recording
information are displayed on the TV
screen. Check the program data.
●To cancel this setting, press VCR
PLUS+ or PROG/CHECK.
6Press REC MODE to select the desired recording mode. Or
press we to select “SP/EP”, then press rt to select the desired
recording mode.
7Press ENTER to complete timer programing.
●To program another timer, repeat steps 3–7.
●If “PROGRAM NOT COMPLETED PROGRAM OVERLAP” appears
on the TV screen, see page 54.
8Press VCR TIMER (#) to engage the unit’s timer mode. The
VCR timer lamp lights up on the unit and the DVD deck is
automatically selected. When the DVD deck is in timer standby
mode, the unit is automatically turned off.
●To disengage the timer mode, press VCR TIMER (#) again.
NOTES:
●To Timer-Record Weekly Or Daily Serials:
— in step 5, press number key “9” for weekly serials or number key
“8” for daily serials (Monday — Friday). Either “WEEKLY” or “DAILY”
appears on the TV screen. Pressing the button again makes the
corresponding indication disappear.
●You can program this unit to timer-record as many as 8 programs. If
you try to program the unit to record a ninth, “PROGRAM FULL”
appears on the TV screen and “FULL” appears on the front display
panel. To record the extra program, you must first cancel any
unnecessary programs. (墌pg. 54)
●To record the programs received by cable box or DBS receiver,
record on the DVD discs. For details, refer to “VCR Plus+® Timer
Programing” (墌pg. 41).
VCR Plus+® Timer Programing
●Make sure that the unit’s built-in clock is set properly.
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
IMPORTANT:
Make sure the channel position number you wish to record is
displayed; if not, see “Changing VCR Plus+® Setting” (墌pg. 77) and
set the Guide Channel number correctly.
1
4
7
2
5
8
0
3
6
9
0 – 9
RETURN
ENTER
VCR PLUS+
CANCEL
VCR TIMER (#)
VCR/DVD
REC MODE
PLUSCODE NO.
PRESS NUMBER KEY (0–9)
PRESS (VCR PLUS +)
TO END
VCR PLUS+ SYSTEM
PROGRAM 1
(PLUSCODE NO. 12345678)
START STOP
12:00 AM 13:00 AM
DATE CH SP/EP
1/ 30/04 15 SP
PRESS (RTYU, 8=DAILY
9=WEEKLY), THEN (ENTER)
(PROG/CHECK) TO END
IMPORTANT:
If you have moved to a different area or if a broadcasting station's
channel number has been changed, the wrong channel number will
be displayed on the VCR Plus+ program screen in step 5. When this
happens, set the correct Guide Channel number for that station.
(墌pg. 77, “Changing VCR Plus+® Setting”)
DR-MV1SU_07VCR Operation.fm Page 52 Thursday, March 4, 2004 6:46 PM
Masterpage:Right+
EN 53
Filename [DR-MV1SU_07VCR Operation.fm]
Page 53 February 23, 2004 4:29 pm
OPERATIONS ON VCR DECK
You can program this unit to timer-record as many as 8 programs.
If you do not know the PlusCode number for the program you wish
to record, use the following procedure to set your unit to
timer-record the program.
1Load a cassette with the record safety tab intact.
2Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
3Press PROG/CHECK to access the
Program Check screen.
4Press rt to select the blank
number, then press ENTER. The
program screen appears.
5Press we to select “START”, then
press rt to set the desired start time.
●Each press of rt advances/goes back
the start time in 1-min. increments.
●To advance/go back the start time in 30-
min. increments, press and hold rt.
6Press we to select “STOP”, then press rt to set the desired
stop time.
●Each press of rt advances/goes back the stop time in 1-min.
increments.
●To advance/go back the stop time in 30-min. increments, press and
hold rt.
7Press we to select “DATE”, then press rt to set the desired
date.
●The current date appears on the TV screen. The date you enter
appears in its place.
8Press we to select “CH”, then press rt to select the desired
channel.
9Press REC MODE to select the desired recording mode. Or
press we to select “SP/EP”, then press rt to select the desired
recording mode.
10 Press ENTER to access the Program Check screen.
11 Press PROG/CHECK to complete timer programing.
“PROGRAM COMPLETED” appears on the TV screen for about 5
seconds, then the normal screen appears. If “PROGRAM NOT
COMPLETED PROGRAM OVERLAP” appears on the TV screen,
see page 54.
●To program another timer, repeat steps 3–11.
12 Press VCR TIMER (#) to engage the unit’s timer mode. The
VCR timer lamp lights up on the unit and the DVD deck is
automatically selected. When the DVD deck is in timer standby
mode, the unit is automatically turned off.
●To disengage the timer mode, press VCR TIMER (#) again.
NOTES:
●To Timer-Record Weekly Or Daily Serials:
— anytime during steps 7 through 9, press number key “9” for
weekly serials or number key “8” for daily serials (Monday – Friday).
Either “WEEKLY” or “DAILY” appears on the TV screen. Pressing the
button again makes the corresponding indication disappear.
●You can program this unit to timer-record as many as 8 programs. If
you try to program the unit to record a ninth, “PROGRAM FULL”
appears on the TV screen. To record the extra program, you must
first cancel any unnecessary programs. (墌pg. 54)
●In case of a power failure after programing, the unit’s memory backup
keeps your selections for approximately 5 seconds.
●Programs that start after midnight must have the next day’s date.
●To record the programs received by cable box or DBS receiver,
record on the DVD discs. For details, refer to “Manual Timer
Programing” (墌pg. 42).
Manual Timer Programing
●Make sure that the unit’s built-in clock is set properly.
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
PROG/CHECK
ENTER
VCR TIMER (#)
rtw e
VCR/DVD
0 – 9
REC MODE
(PROG/CHECK) TO NEXT
PR START STOP CH DATE
1 8:00P 10:00 12 12/24
2 10:00A 10:45 40 12/25
3 11:30P 1:00 125 12/25
4
5
6
7
8
PROGRAM 4
START STOP
– –:– –AM – –:– –AM
DATE CH SP/EP
– –/– –/– – – – – SP
PRESS (RTYU, 8=DAILY
9=WEEKLY), THEN (ENTER)
(PROG/CHECK) TO END
DR-MV1SU_00.book Page 53 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_07VCR Operation.fm]
Masterpage:Left+
54 EN
Page 54 February 23, 2004 4:29 pm
OPERATIONS ON VCR DECK
Check, cancel and change programs
1When the VCR timer lamp lights on the unit
Press VCR TIMER (#), then press 1.
When the VCR lamp does not light up on the unit
Press VCR/DVD repeatedly so that the VCR lamp lights up on the
unit.
2Press PROG/CHECK to access the
Program Check screen.
To cancel a program
Press CANCEL to cancel a program.
3Press rt to select the program,
then press ENTER. The program
screen appears.
4Change the settings of the desired
recording options as required.
●Refer to steps 7–10 in “Manual Timer
Programing” (墌pg. 53).
5Press PROG/CHECK to complete
timer correction. The previous screen resumes.
6Press VCR TIMER (#).
●The VCR timer lamp lights up on the unit and the DVD deck is
automatically selected. When the DVD deck is in timer standby mode,
the unit is automatically turned off.
When Programs Overlap Each Other
If “PROGRAM NOT COMPLETED PROGRAM OVERLAP”
appears, you have another program overlapping the program you
have just made.
The Program Check screen appears and conflicting programs will
start blinking.
Example: Program 1 (you have just made) and Program 4
overlap each other.
1Confirm the overlapping programs. Overlapping programs blink
on the TV screen.
2Press rt to select the program to modify, then press ENTER
or e.
●You can only select one of the overlapping programs.
NOTE:
If you do not mind this overlap, press PROG/CHECK to finish the timer
program setting. The program with the lower program number will be
recorded and the other one will not be recorded correctly. If no changes
are made for approximately 1 minute, the unit will return to the normal
screen.
3Press rt to select the desired program to be cancelled or
changed.
To cancel the program
Press CANCEL.
●“PROGRAM COMPLETED” appears on the TV screen for about 5
seconds, then the normal screen resumes.
To change the program setting
Press ENTER, then go to step 4.
4Change the program setting.
●Refer to steps 7–10 in “Manual Timer Programing” (墌pg. 53).
5Press PROG/CHECK to check if the conflict has been settled.
Program check screen appears.
●“PROGRAM COMPLETED” appears on the TV screen for about 5
seconds, then the normal screen resumes.
6Press VCR TIMER (#).
NOTE:
When any overlaps remain after deletion and modification of programs,
Program Check screen remains showing the conflicting programs. In
such a case, repeat the procedure above until the conflict is solved.
1
4
7
2
5
8
0
3
6
9
PROG/CHECK
ENTER
CANCEL
VCR TIMER (#)
rtw e
VCR/DVD 1
(PROG/CHECK) TO NEXT
PR START STOP CH DATE
1 8:00P 10:00 12 12/24
2 10:00A 10:45 40 12/25
3 11:30P 1:00 125 12/25
4
5
6
7
8
PROGRAM 4
START STOP
8:00AM 10:00AM
DATE CH SP/EP
12/24/04 12 SP
FRI
PREESS (CANCEL) TO CANCEL
PRESS (ENTER) TO CONFIRM
(PROG/CHECK) TO END
( )](ENTER) (PROG) : END
PR START STOP CH DATE
1 8:00P 10:00 12 12/24
2 10:00A 10:45 40 12/25
3 11:30P 1:00 125 12/25
4 9:00P 10:00 10 12/24
5
6
7
8
PROGRAM NOT COMPLETED
PROGRAM OVERLAP
DR-MV1SU_00.book Page 54 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right0
EN 55
Filename [DR-MV1SU_08Navigation.fm]
Page 55 February 25, 2004 1:07 pm
NAVIGATION (DVD DECK ONLY)
The Library Database DVD Navi enables you to search and select
the desired programs recorded on a DVD-RAM/R/RW disc very
easily.
You can record up to 99 programs on a disc.
Each time a program is recorded on the disc, the information of the
program is registered for the Library Database DVD Navi
automatically.
So, you can confirm the information of the programs recorded on
the disc with the Library Database DVD Navi screen. And, you can
also select one of the programs recorded on the disc using the
Library Database DVD Navi.
The following screen appears as the Library Database DVD Navi
screen when you press NAVIGATION. You can move the arrow to
select the desired position on the screen by pressing rt w e on
the remote control.
AIndex
(Small still picture of each program)
BNames of functions
ORIGINAL (墌pg. 56)
PLAY LIST (墌pg. 58)
LIBRARY (墌pg. 60)
CRemaining time
(Based on the recording mode currently selected)
DCurrent/Total number of program(s)
(For example, there are 6 recorded programs and the program
indicated by the arrow is the 3rd one.)
EIcons
(Indicate the recording situation for each program.)
FRecording information for the program indicated by the arrow
GGuidance for operations
HOperational commands
The Icons and their meanings
Using Library Database DVD Navi system, you can easily modify
registered information, edit the program or play list, as well as
search for the beginning of each program.
About registration of information
The following information is automatically registered for each
program when ordinary recording or timer recording is performed,
then stored in an area specified on the unit.
●index* (reduced still pictures to show program titles)
●program title*
●category*
●date and time
●channel
●recording mode
●length of recording time
The items marked with an asterisk (*) can be easily modified and
registered again after recording by using Library Database DVD
Navi system.
About editing of programs
Library Database DVD Navi system has the following functions for
editing of programs.
●“Modify Play List Information” (墌pg. 58)
●“Delete Program” (墌pg. 57)
The limitations of registration
You can register information up to 99 programs.
When the amount of information is at the limits of registration, you
cannot record new program any more. In this case, you need to
delete old programs to register new one. (墌pg. 57)
NOTE:
Once a DVD-R/RW (Video mode) disc has been finalized, the displays
for original and play list do not appear. Only display for library appears.
Library Database DVD Navi
This program is write-protected.
This program has stereo sounds.
This program was recorded with timer recording.
The display for original
recording
The display for play list
DR-MV1SU_08Navigation.fm Page 55 Wednesday, February 25, 2004 1:09 PM
Filename [DR-MV1SU_08Navigation.fm]
Masterpage:Left+
56 EN

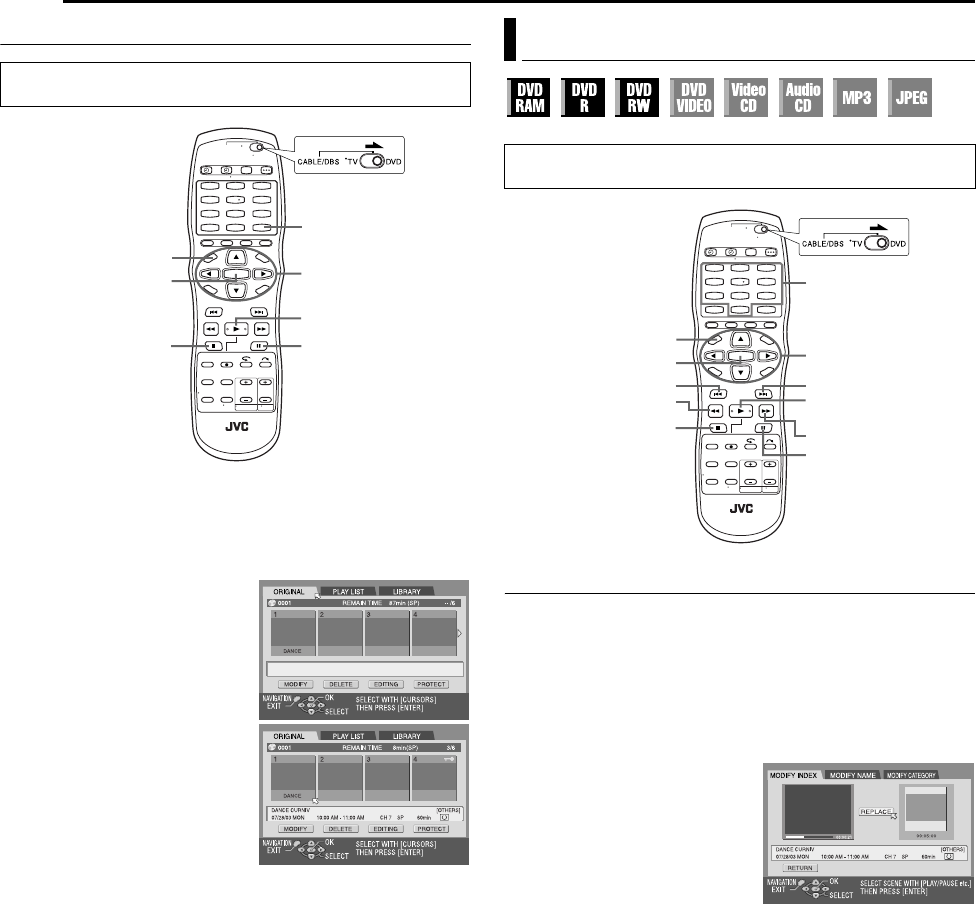

Page 56 February 25, 2004 1:07 pm
NAVIGATION (DVD DECK ONLY)
Scan For Beginning(s) Of Program(s)
You can scan the beginning of the program easily with the Library
Database DVD Navi.
1Load a recorded disc.
2Press NAVIGATION. The Library Database DVD Navi screen
appears.
3Press rt w e to select
“ORIGINAL”, then press ENTER.
4Press we to select the index
(small still pictures) of the desired
program.
●When you want the plural
programs to be played back
continuously, press MEMO after
selecting the desired program.
The numbers of the playback
order appear on the index. You
can select up to 30 programs.
●When you want to correct the order, move the arrow to the desired
index and press MEMO. The number disappears and the unit re-
numbers the other programs automatically.
●When you want to cancel the order, press CLEAR (8).
5Press ENTER or SELECT (4) to start playback. The playback
starts.
6Press 9 to pause playback.
●To resume normal playback, press 4.
7Press 8 to stop playback.
Modify Index
1Press NAVIGATION. The Library Database DVD Navi screen
appears.
2Press rt w e to select “ORIGINAL”, then press ENTER.
3Press rt w e to select one program you want to modify, then
press t.
4Press rt w e to select “MODIFY”, then press ENTER.
5Press we to select “MODIFY INDEX”.
6Search for the picture from the
program by pressing the
appropriate buttons (3, 4,
5, or 9). The pictures of the
program appear on the left
window.
7Confirm the arrow is on
“REPLACE”, then press ENTER to
register new index. New index
appears on the right window.
●When you press ENTER with the arrow on “RETURN” you can return
to the previous screen.
8Press NAVIGATION to return to the normal screen.
●Press 8 to cancel pause mode after pressing NAVIGATION.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER
4
SELECT
rtw e
9
8
CLEAR
MEMO
NAVIGATION
Modify Original Information
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
0 – 9
ENTER
2
34
SELECT
rtw e
9
6
5
8
CLEAR
NAVIGATION
DR-MV1SU_08Navigation.fm Page 56 Wednesday, February 25, 2004 1:09 PM
Masterpage:Right+
EN 57
Filename [DR-MV1SU_08Navigation.fm]
Page 57 March 4, 2004 4:14 pm
NAVIGATION (DVD DECK ONLY)
Modify Program Name
1Perform steps 1 to 3 of “Modify Index” (墌pg. 56) before
continuing.
2Press rt w e to select “MODIFY”, then press ENTER.
3Press we to select “MODIFY NAME”.
4Press rt w e to select the
desired letter or command, then
press ENTER. Repeat this
process to complete the name.
●To correct a letter, press rt w e
to select “DELETE” or “DELETE
ALL”, then press ENTER.
●You can enter the letters up to 64.
●You can also enter the new name
with the number keys. For example, when you press 2 repeatedly,
“A”, “B”, “C”, “a”, “b”, “c”, “2”, and then “A” appear by turns. You can
use the following buttons.
5Press rt w e to select “SAVE”, then press ENTER.
6Press rt w e to select “RETURN”, then press ENTER. The
Library Database DVD Navi screen appears again.
7Press NAVIGATION to return to the normal screen.
Modify Category
1Perform steps 1 to 3 of “Modify Index” (墌pg. 56) before
continuing.
2Press rt w e to select “MODIFY”, then press ENTER.
3Press we to select “MODIFY CATEGORY”.
4Press rt w e to select the
desired category, then press
ENTER.
5Press ENTER. The Library
Database DVD Navi screen
appears again.
6Press NAVIGATION to return
to the normal screen.
Protect Title
You can protect the program to prevent accidental erasure of the
important program.
1Perform steps 1 to 2 of “Modify Index” (墌pg. 56) before
continuing.
2Press rt w e to select a program you want to protect, then
press t.
3Press we to select “PROTECT”, then press ENTER. “ ”
appears.
●To cancel the protection, repeat 2–3 again.
4Press NAVIGATION to return to the normal screen.
NOTE:
All the programs on a disc will be deleted once the disc is formatted
even if they are protected titles. (墌pg. 57)
Delete Program
You cannot record any more with Library Database DVD Navi once
the registered programs on the disc reach 99 programs. Deleting
unnecessary programs after dubbing or other operations can
increase remaining time and available recording capacity. (For
DVD-R discs, although it is possible to delete recorded programs,
available recording capacity does not increase.) The deleted
program is never resumed. Play lists and program information in
the unit’s library are also deleted.
1Perform steps 1 to 2 of “Modify Index” (墌pg. 56) before
continuing.
2Press rt w e to select one program you want to delete, then
press t.
3Press rt w e to select “DELETE”, then press ENTER. The
message appears for your confirmation.
4Press we to select “YES”, then press ENTER.
●When you cancel the deletion, select “NO”, then press ENTER.
5Press NAVIGATION to return to the normal screen.
Delete Unwanted Part Of The Program
You can delete unwanted part of the program.
1Perform steps 1 to 2 of “Modify Index” (墌pg. 56) before
continuing.
2Press we to select one program whose unwanted part you
want to delete, then press t.
3Press we to select “EDITING”, then press ENTER.
4Press 4 to start playback. The playback pictures appear in the
window on the screen. The elapsed playing time starts counting
with the arrow on “IN”.
5Find the point where you want
the deletion to begin, then press
ENTER with the arrow on “IN”.
The edit-in time is fixed and the
elapsed playing time starts
counting again.
6Find the point where you want
the deletion to end, then press
ENTER with the arrow on “OUT”.
The edit-out time is fixed.
●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out
points.
7Press rt w e to select “PREVIEW”, then press ENTER to
preview the edited program.
8Press rt w e to select “EXECUTE”, then press ENTER.
●If you do not want to delete the scene, select “CLEAR” and press
ENTER.
9Press we to select “YES”, then press ENTER. The selected
scene is deleted.
●To cancel the deletion, press we to select “NO”, then press ENTER.
To modify the points
APress we to select “CLEAR”, then press ENTER.
BRepeat steps 4–9 as necessary.
10 Press NAVIGATION to return to the normal screen.
NOTES:
●There may be a discrepancy of several seconds between the scene
you intend to edit, and the scene which is actually edited.
●Available recording capacity may not match the deleted part after
deletion.
Number keys: for entering letters, numbers and blank space
we buttons: for moving the entering or inserting point
CLEAR (8) button: for correcting a letter
2/6 buttons: for changing character tables
DR-MV1SU_08Navigation.fm Page 57 Thursday, March 4, 2004 4:14 PM
Filename [DR-MV1SU_08Navigation.fm]
Masterpage:Left+
58 EN

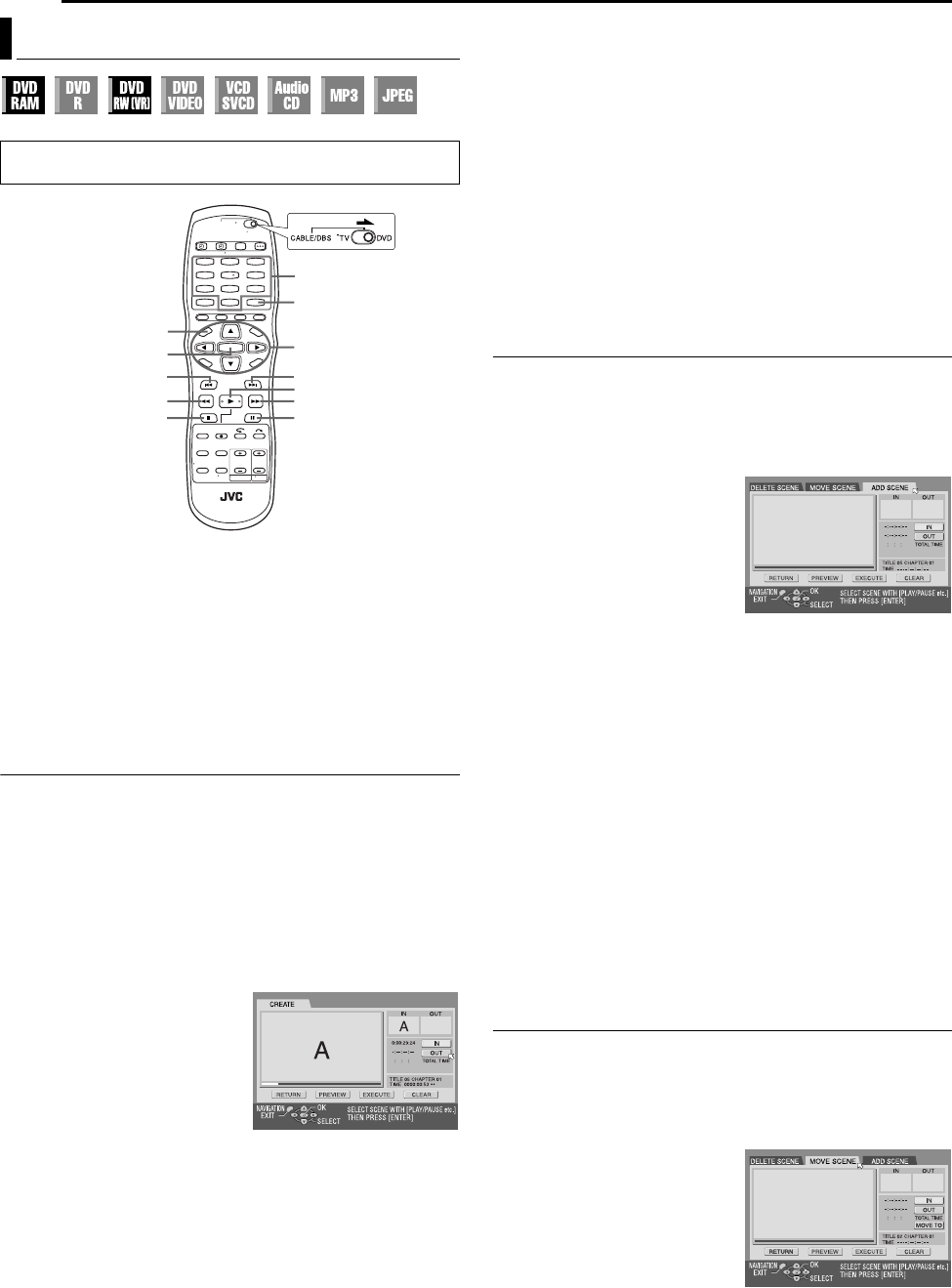

Page 58 February 25, 2004 2:44 pm
NAVIGATION (DVD DECK ONLY)
Play List
It is a collection of the scenes. A play list can be freely edited and
played back without ever changing any original recording data.
Using the random access of a DVD disc (which allows video data
to be instantly read no matter where it is on the disc), a play list
includes information such as the timer counter for the playback
start point and end point, indexes for checking the contents of
recorded data, category information, and more. Playback
according to a play list you have created allows you to enjoy
various combinations of video images from a single program.
Create Play List
1Load a DVD-RAM or DVD-RW (VR mode) disc that was
recorded with this unit.
2Press NAVIGATION. The Library Database DVD Navi screen
appears.
3Press rt w e to select “PLAY LIST”, then press t or ENTER.
4Press rt w e to select “CREATE”, then press ENTER.
5Press 4 to start playback. The playback pictures appear in the
window on the screen. The elapsed playing time starts counting
with the arrow on “IN”.
●To locate the beginning of other titles, press 2/6.
6Find the point where you want
the created play list to begin, then
press ENTER with the arrow on
“IN”. The edit-in time is fixed and
the elapsed playing time starts
counting again.
7Find the point where you want
the created play list to end, then
press ENTER with the arrow on
“OUT”. The edit-out time is fixed.
●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out
points.
●The edit-out point must come after the edit-in point.
8Press we to select “PREVIEW”, then press ENTER to preview
the play list.
9Press we to select “EXECUTE”, then press ENTER. The play
list is created.
To modify the points
APress we to select “CLEAR”, then press ENTER.
BRepeat steps 5–9 as necessary.
10 Press NAVIGATION to return to the normal screen.
NOTES:
●There may be a discrepancy of several seconds between the scene
you intend to edit, and the scene which is actually edited.
●The title, index and category of the play list can be modified in the
same way as “ORIGINAL”. (墌pg. 56)
●You can modify the play list that has just been created here by
adding, moving, or deleting unwanted parts to create a digest edition,
etc.
Add Scenes To A Play List
1Perform steps 1 to 3 of “Create Play List” (墌pg. 58) before
continuing.
2Press we to select the play list to which you wish to add a
scene, then press t.
3Press we to select “EDITING”, then press ENTER.
4Press we to select “ADD
SCENE”.
5Press 4 to start playback. The
playback pictures appear in the
window on the screen. The
elapsed playing time starts
counting with the arrow on “IN”.
●To locate the beginning of other
titles, press 2/6.
6Find the point where you want the added scene to begin, then
press ENTER with the arrow on “IN”. The edit-in time is fixed and
the elapsed playing time starts counting again.
7Find the point where you want the added scene to end, then
press ENTER with the arrow on “OUT”. The edit-out time is fixed.
●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out
points.
8Press we to select “PREVIEW”, then press ENTER to preview
approximately 5 seconds before and after the edited scene.
9Press we to select “EXECUTE”, then press ENTER. The
selected scene is added.
To modify the points
APress we to select “CLEAR”, then press ENTER.
BRepeat steps 5–8 as necessary.
10 Press NAVIGATION to return to the normal screen.
NOTE:
There may be a discrepancy of several seconds between the scene you
intend to edit, and the scene which is actually edited.
Move Scenes
1Perform steps 1 to 3 of “Create Play List” (墌pg. 58) before
continuing.
2Press we to select a play list into which you wish to move a
scene, then press t.
3Press we to select “EDITING”, then press ENTER.
4Press we to select “MOVE
SCENE”.
5Press 4 to start playback. The
playback pictures appear in the
window on the screen. The
elapsed playing time starts
counting with the arrow on “IN”.
●To locate the beginning of other
titles, press 2/6.
Modify Play List Information
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER rtw e
98
CLEAR
NAVIGATION
0 – 9
26
4/SELECT
5
3
MEMO
DR-MV1SU_08Navigation.fm Page 58 Wednesday, February 25, 2004 3:04 PM
Masterpage:Right+
EN 59
Filename [DR-MV1SU_08Navigation.fm]

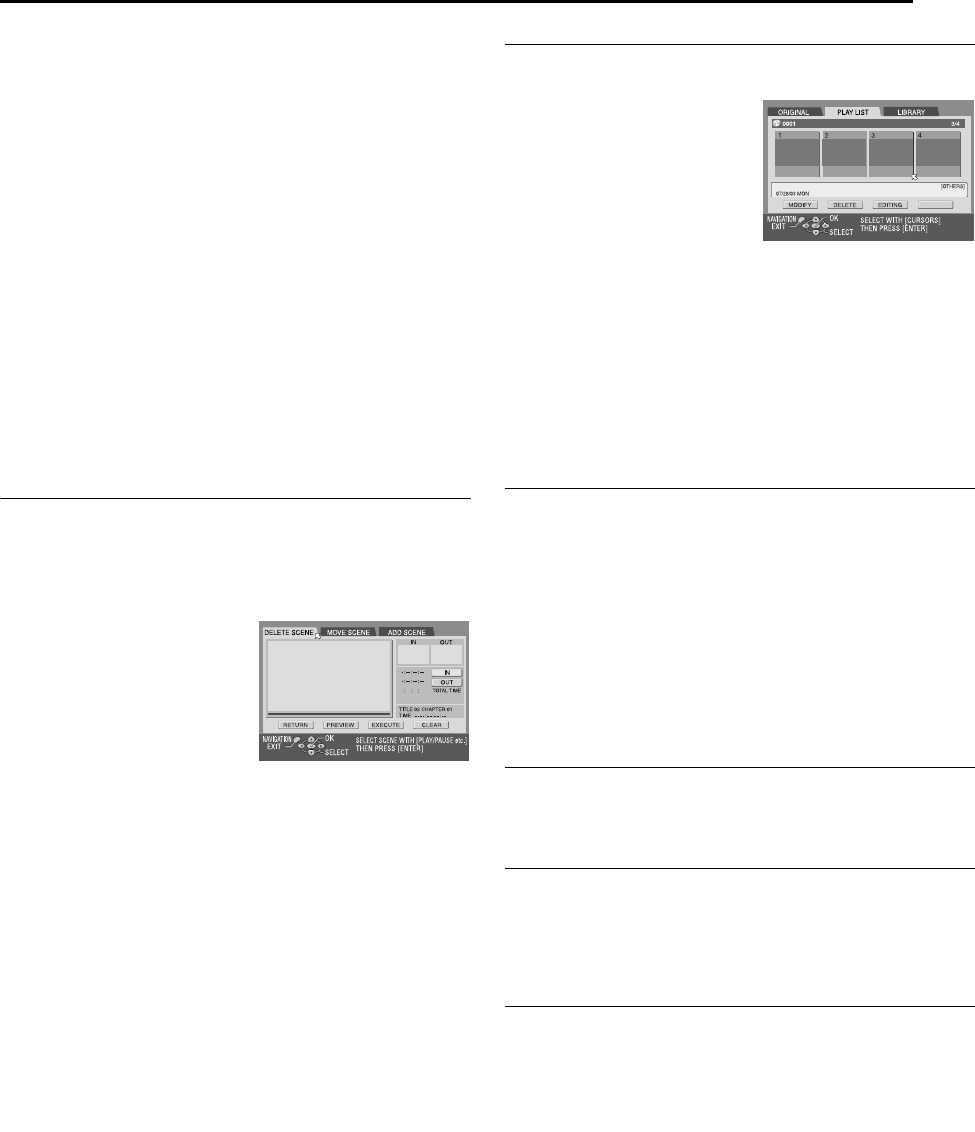

Page 59 February 23, 2004 3:27 pm
NAVIGATION (DVD DECK ONLY)
6Find the point where you want the moved scene to begin, then
press ENTER with the arrow on “IN”. The edit-in time is fixed and
the elapsed playing time starts counting again.
7Find the point where you want the moved scene to end, then
press ENTER with the arrow on “OUT”. The edit-out time is fixed.
8Press 4 to start playback.
9Find the point where you want the moved scene to be moved,
then press ENTER with the arrow on “MOVE TO”.
●Press 3, 4, 5, 2, 6 or 9 to find the edit-in, edit-out and
move-to points.
10 Press we to select “PREVIEW”, then press ENTER to
preview the part approximately 5 seconds before and after the
point to which the scene has been moved.
11 Press we to select “EXECUTE”, then press ENTER. The
selected scene is moved.
To modify the points
APress we to select “CLEAR”, then press ENTER.
BRepeat steps 5–11 as necessary.
12 Press NAVIGATION to return to the normal screen.
NOTE:
There may be a discrepancy of several seconds between the scene you
intend to edit, and the scene which is actually edited.
Delete Unwanted Part From Play List
1Perform steps 1 to 3 of “Create Play List” (墌pg. 58) before
continuing.
2Press we to select a play list from which you wish to delete
unwanted parts, then press t.
3Press we to select “EDITING”, then press ENTER.
4Press we to select “DELETE
SCENE”, then press ENTER.
5Press 4 to start playback. The
playback pictures appear in the
window on the screen. The
elapsed playing time starts
counting with the arrow on “IN”.
●To locate the beginning of other
titles, press 2/6.
6Find the point where you want the deletion to begin, then press
ENTER with the arrow on “IN”. The edit-in time is fixed and the
elapsed playing time starts counting again.
7Find the point where you want the deletion to end, then press
ENTER with the arrow on “OUT”. The edit-out time is fixed.
●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out
points.
8Press we to select “PREVIEW”, then press ENTER to preview
the scene approximately 5 seconds before and after the deleted
part.
9Press we to select “EXECUTE”, then press ENTER. The
selected scene is deleted.
To modify the points
APress we to select “CLEAR”, then press ENTER.
BRepeat steps 5–9.
10 Press NAVIGATION to return to the normal screen.
NOTE:
There may be a discrepancy of several seconds between the scene you
intend to edit, and the scene which is actually edited.
Play Back Play List
1Perform steps 1 to 3 of “Create Play List” (墌pg. 58) before
continuing.
2Press we to select the index
(small still pictures) of the desired
play list.
●When you want the plural play lists
to be played back continuously,
press MEMO after selecting the
desired play lists. The numbers of
the playback order appear on the
index. You can select up to 30 play
lists.
●When you want to correct the order, move the arrow on the desired
index and press MEMO. The number disappears and the unit re-
numbers the other play lists automatically.
●When you want to cancel the order, press CLEAR (8).
3Press ENTER or SELECT (4) to start playback. The playback
starts.
4Press 9 to pause playback.
●To resume normal playback, press 4.
5Press 8 to stop playback.
Delete Play List
1Perform steps 1 to 3 of “Create Play List” (墌pg. 58) before
continuing.
2Press we to select one play list you want to delete, then press
t.
3Press we to select “DELETE”, then press ENTER.
4Press we to select “YES”, then press ENTER.
●When you cancel the deletion, select “NO”, then press ENTER.
5Press NAVIGATION to return to the normal screen.
NOTE:
Even if a play list is deleted, the programs recorded on a DVD disc and
the library information are not affected at all.
Modify Index
APerform steps 1 to 3 of “Create Play List” (墌pg. 58) before
continuing.
BPerform steps 3 to 8 of “Modify Index” (墌pg. 56).
Modify Program Title
APerform steps 1 to 3 of “Create Play List” (墌pg. 58) before
continuing.
BPress rt w e to select one program you want to modify, then
press t.
CPerform steps 2 to 7 of “Modify Program Name” (墌pg. 57).
Modify Category
APerform steps 1 to 3 of “Create Play List” (墌pg. 58) before
continuing.
BPress rt w e to select one program you want to modify, then
press t.
CPerform steps 2 to 6 of “Modify Category” (墌pg. 57).
CREATE
DR-MV1SU_00.book Page 59 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_08Navigation.fm]
Masterpage:Left+
60 EN
Page 60 March 4, 2004 6:40 pm
NAVIGATION (DVD DECK ONLY)
Program information can be registered in the unit’s memory for up
to 1,300 programs. It is helpful when finding out on which disc the
desired program is recorded.
Scan For Program From Library
1Press NAVIGATION. The Library Database DVD Navi screen
appears.
2Press rt w e to select “LIBRARY”, then press ENTER.
3Press we to select the
appropriate sort button to sort the
information, then press ENTER.
“DISC No.” : Sort by disc number
“CATEGORY” : Sort by category
“DATE” : Sort by date
“NAME” : Sort by name
●The sorting order can be switched
between ascending order and
descending order by pressing the sort buttons.
4Press we to select the desired program, then press ENTER.
●Playback begins automatically after the selected program is located.
When the disc that contains the selected program is not
loaded
A screen prompting you to load the designated disc appears. Place
the disc whose number is displayed on the screen after pressing
ENTER to close the prompt screen. Then perform steps 1 to 4.
NOTE:
If a disc registered in the library is recorded or modified on DVD units
from other manufacturers, it may become impossible to operate
properly.
Register Disc
1Load a disc you want to register.
2Press NAVIGATION. The Library Database DVD Navi screen
appears.
3Press rt w e to select “LIBRARY”, then press ENTER.
4Press we to select “REGISTER”, then press ENTER.
5Press we to select “REGISTER”, then press ENTER to confirm
the registration.
6Press NAVIGATION to return to the normal screen.
NOTES:
●It is not possible to register discs used for On-Disc Timer Programing.
(墌pg. 43)
●It is not possible to register discs formatted on devices other than
JVC’s DVD recorders.
●It is not possible to register discs recorded on devices other than
JVC’s DVD recorders.
●It is not possible to register discs when “SAVE AS LIBRARY” is set to
“OFF”. (墌pg. 74)
Delete Information
1Press NAVIGATION. The Library Database DVD Navi screen
appears.
2Press rt w e to select “LIBRARY”, then press ENTER.
3Press rt w e to select the appropriate sort button to sort the
information, then press ENTER.
4Press we to select a program you want to delete, then
press t.
5Press rt w e to select “DELETE”, then press ENTER.
6Press we to select “DELETE”, then press ENTER to confirm
the deletion.
7Press NAVIGATION to return to the normal screen.
Modify Library Information
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER rtw e
NAVIGATION
DR-MV1SU_08Navigation.fm Page 60 Thursday, March 4, 2004 6:40 PM
Masterpage:Right+
EN 61
Filename [DR-MV1SU_08Navigation.fm]
Page 61 February 25, 2004 1:09 pm
NAVIGATION (DVD DECK ONLY)
This unit can play back discs that MP3 sound files and JPEG
image files taken with digital still cameras or other devices are
recorded.
The MP3/JPEG Navigation enables you to search and select the
desired files recorded on CD-R/RW or CD-ROM discs very easily.
The following screen appears as the MP3/JPEG Navigation screen
when you press NAVIGATION. You can move the arrow to select
the desired position on the screen by pressing rt w e on the
remote control.
AName of the inserted disc.
BSort buttons (“MP3”⁄“JPEG”)
CSelected group number/total number of groups on the disc
DGroup name
EReturn button (“RETURN”)
FGroup name/Created date
GFile type indicator
:MP3
:JPEG
HSelected file
ISelected file number/total number of files in the group that
contains the selected file
JProgram number/file name
Locating The Desired Group And Tracks
1Load a disc.
2Press NAVIGATION. The MP3/JPEG Navigation screen
appears.
3For MP3 Playback
Press we to select “MP3”. Only groups which contain MP3 files
appear.
For JPEG Playback
Press we to select “JPEG”. Only groups which contain JPEG files
appear.
4Press we to select the desired
group, then press ENTER.
For MP3 Playback
●The tracks in the selected group
appear.
For JPEG Playback
●The images in the selected group
appear.
5Press rt w e to select the
desired item, then press ENTER.
The unit starts playback from the
selected item.
●The unit stops when all items in
the selected group are played
back.
NOTES:
●If you press SELECT (4) instead
of ENTER in step 4, the unit starts playback from the first file of the
group.
●JPEG files are played back as a slide show at the set intervals.
(墌pg. 36)
●If a file name includes any 2-byte character, the unit may not show
the file name correctly.
●Press rt to select “RETURN”, then press ENTER to return to the
screen that shows the group(s).
●The order of the groups and items shown in steps 4 and 5 may differ
from the order shown on your PC.
Program Playback
1Perform steps 1 to 4 of “Locating The Desired Group And
Tracks” in the left column before continuing.
2Press rt w e to select the desired item, then press MEMO in
the desired order.
●The order number appears on the left of the track name.
●Repeat this step as necessary.
●To cancel the track, press rt w e to select the track, then press
CANCEL.
●Pressing CLEAR (8) clears all the order numbers.
3Press 4 to start playback.
●To quit the Program Playback, press 8.
●Repeat playback can be performed if it is set as such on the on-
screen bar. (墌pg. 34)
NOTES:
●It is not possible to select tracks and images simultaneously.
●It is not possible to select tracks or images in other groups.
On completion of the playback of all the items
APerform steps 1 to 4 of “Locating The Desired Group And
Tracks” in the left column.
BPress CLEAR (8).
●The order numbers are reset and cleared.
CPress NAVIGATION to complete the procedure.
Playback With MP3/JPEG Navigation
DR-MV1SU_08Navigation.fm Page 61 Wednesday, February 25, 2004 1:11 PM
Filename [DR-MV1SU_09Editing.fm]
Masterpage:Left0
62 EN
Page 62 March 4, 2004 6:46 pm
EDITING
Dubbing An Entire Cassette
Because this unit includes both DVD deck and VCR deck, you can
easily use this unit for dubbing without connecting any other
equipment.
1For DVD deck
Load a recordable disc.
For VCR deck
Load a cassette you want to dub.
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press REC MODE repeatedly to set the recording mode.
4Press VCR] to select the dubbing direction.
●“VCR]” lights up on the unit.
5Press and hold DUBBING for more than 2 seconds to start
dubbing.
●If the tape has not been rewound, the VCR deck rewinds the tape
automatically. When the VCR deck has finished rewinding, dubbing
begins automatically.
●After dubbing is completed, the VCR deck rewinds the tape
automatically and the unit shuts off.
●To stop dubbing, press 8.
NOTES:
●If you set the dubbing direction incorrectly, you could erase an
important recording that you wanted to dub. It is recommended to
conduct a test with unimportant cassettes first.
●The superimposed indication during the operation or dubbing is not
recorded.
●It is not possible to dub a tape with a copy protection signal.
●If the recording capacity of disc become full, the tape stops
automatically.
●It is not possible to perform other operations like Live Memory
Playback. Check the recorded program on the disc after dubbing.
●Dubbing is not possible on the discs used exclusively for On-Disc
Timer Programing.
●If the index code is found on a tape, a single title is created. While
creating a title, the dubbing stops and then starts again.
●When dubbing can not be performed properly, set “BLUE BACK” to
“OFF”. (墌pg. 76)
Tape Dubbing (From VCR To DVD)
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
REC MODE
8
F-1
8
VCR ]
DUBBING
VCR/DVD
DR-MV1SU_09Editing.fm Page 62 Thursday, March 4, 2004 6:46 PM
Masterpage:Right+
EN 63
Filename [DR-MV1SU_09Editing.fm]
Page 63 March 4, 2004 6:46 pm
EDITING
Dubbing A Part Of A Cassette
You can dub the selected scenes on a tape to the DVD disc,
starting and stopping wherever you wish.
1For DVD deck
Load a recordable disc.
For VCR deck
Load a cassette you want to dub.
2Press VCR] to select the dubbing direction.
●“VCR]” lights up on the front display panel.
3Prepare the VCR deck for dubbing.
APress VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
BLocate the point from where you want to start dubbing, then
pause playback by pressing the following buttons: 4, 5, 3,
8, 9
4Prepare the DVD deck for dubbing.
APress VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
BPress REC MODE repeatedly to set the recording mode.
CPress and hold 9, then press 7 so that the DVD deck enters
the Record Pause mode.
5Press and hold DUBBING for more than 2 seconds to start
dubbing.
6Press 8 to stop recording on the DVD deck. Then press VCR/
DVD, and press 8 to stop playback on the VCR deck.
NOTES:
●If you set the dubbing direction incorrectly, you could erase an
important recording that you wanted to dub. It is recommended to
conduct a test with unimportant cassettes first.
●There may be a discrepancy of several seconds between where you
intend dubbing to start, and where it actually stars.
●The superimposed indication during the operation or dubbing is not
recorded.
●It is not possible to dub a tape with a copy protection signal.
●If the recording capacity of disc become full, the tape stops
automatically.
●It is not possible to perform other operations like Live Memory
Playback. Check the recorded program on the disc after dubbing.
●Dubbing is not possible on the discs used exclusively for On-Disc
Timer Programing.
●When dubbing can not be performed properly, set “BLUE BACK” to
“OFF”. (墌pg. 76)
Manual Dubbing (From VCR To DVD)
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
REC MODE 7
5
3
4
98
VCR/DVD
F-1
8
VCR ]
DUBBING
4
73
95
VCR/DVD
DR-MV1SU_09Editing.fm Page 63 Thursday, March 4, 2004 6:46 PM
Filename [DR-MV1SU_09Editing.fm]
Masterpage:Left+
64 EN
Page 64 March 4, 2004 6:46 pm
EDITING
Dubbing An Entire Disc
Because this unit includes both DVD deck and VCR deck, you can
easily use this unit for dubbing without connecting any other
equipment.
1For DVD deck
Load a disc you want to dub.
For VCR deck
Load a cassette with the record safety tab intact.
2Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
3Press REC MODE repeatedly to set the recording mode.
4Press }DVD to select the dubbing direction.
●“}DVD” lights up on the unit.
5Press and hold DUBBING for more than 2 seconds to start the
dubbing.
●If the tape has not been rewound, the VCR deck rewinds the tape
automatically. When the VCR deck has finished rewinding, dubbing
begins automatically.
●After dubbing is completed, the VCR deck rewinds the tape
automatically and the unit shuts off.
●To stop dubbing, press 8.
NOTES:
●It is not possible to start dubbing if the unit retains a memory of the
resume points. Press 8 twice to clear the resume points.
●There may be a discrepancy of several seconds between where you
intend dubbing to start, and where it actually stars.
●The superimposed indication during the operation or dubbing is not
recorded.
●When the end of the tape is reached during dubbing, the tape is
ejected and both deck stops.
●When the progressive mode is set, “}DVD” does not light up on the
front display panel. Press PROGRESSIVE SCAN so that video
output indicator ( ) lights off on the front display panel.
●It may be impossible to dub a DVD-R or DVD-RW (Video mode) disc
recorded on the devices from other manufacturers or on a PC. In
such case, perform “Manual Dubbing (From DVD To VCR)”
(墌pg. 65).
●It is not possible to perform other operations like Live Memory
Playback. Check the recorded program on the disc after dubbing.
●If “VCR]” lights up on the unit and you play back a DVD VIDEO disc,
the images dubbed to the VCR deck may not be output to the TV
properly.
Disc Dubbing (From DVD To VCR)
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
REC MODE
PROGRESSIVE SCAN
8
VCR/DVD
F-1
8
} DVD
DUBBING
VCR/DVD
DR-MV1SU_09Editing.fm Page 64 Thursday, March 4, 2004 6:46 PM
Masterpage:Right+
EN 65
Filename [DR-MV1SU_09Editing.fm]
Page 65 March 4, 2004 6:46 pm
EDITING
Dubbing A Part Of A Disc
You can dub the selected scenes on a tape to the DVD disc,
starting and stopping wherever you wish.
1For DVD deck
Load a disc you want to dub.
For VCR deck
Load a cassette with the record safety tab intact.
2Press }DVD to select the dubbing direction.
●“}DVD” lights up on the front display panel.
3Prepare the DVD deck for dubbing.
APress VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
BLocate the point from where you want to start dubbing, then
pause playback by pressing the following buttons: 4, 5, 3,
8, 9
4Prepare the VCR deck for dubbing.
APress VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
BPress REC MODE repeatedly to set the recording mode.
CPress and hold 9, then press 7 so that the VCR deck enters
the Record Pause mode.
5Press and hold DUBBING for more than 2 seconds to start the
dubbing.
6Press 8 to stop recording on the VCR deck. Then press VCR/
DVD, and press 8 to stop playback on the DVD deck.
NOTES:
●It is not possible to start dubbing if the unit retains a memory of the
resume points. Press 8 twice to clear the resume points.
●There may be a discrepancy of several seconds between where you
intend dubbing to start, and where it actually stars.
●The superimposed indication during the operation or dubbing is not
recorded.
●When the end of the tape is reached during dubbing, the tape is
ejected and both deck stops.
●When the progressive mode is set, “}DVD” does not light up on the
front display panel. Press PROGRESSIVE SCAN so that video
output indicator ( ) lights off on the front display panel.
●It is not possible to perform other operations like Live Memory
Playback. Check the recorded program on the disc after dubbing.
Manual Dubbing (From DVD To VCR)
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
8
5
3
4
7
9
REC MODE
PROGRESSIVE SCAN
VCR/DVD
F-1
8
} DVD
DUBBING
4
73
95
VCR/DVD
DR-MV1SU_09Editing.fm Page 65 Thursday, March 4, 2004 6:46 PM
Filename [DR-MV1SU_09Editing.fm]
Masterpage:Left+
66 EN
Page 66 March 4, 2004 4:15 pm
EDITING
You can dub programs from a camcorder or DV equipment
connected to the unit with a DV cable. The unit’s remote control
allows you the limited control of the connected camcorder or DV
equipment functions during dubbing.
1Connect a camcorder or DV equipment to the DV IN connector
on the unit’s front panel.
2Load a DVD-RAM/RW/R disc on the unit.
3Press CH +/– to set the channel to “DV DUBBING”.
●The “DV DUBBING” controller appears on the TV screen.
●If “ ” does not appear on the “DV DUBBING” controller, make
sure the DV equipment is connected correctly.
4Press we to select , then press ENTER.
5Press rt to select the desired
sound track, then press ENTER.
AUDIO 1: Select this to record the
original stereo sound played
back on the connected DV
equipment.
AUDIO 2: Select this to record the
dubbed stereo sound played
back on the connected DV
equipment.
MIX: Select this to record the sound of both “AUDIO 1” and
“AUDIO 2”.
●Note that this selection is not available when the source program is
recorded in 16BIT (48 kHz) mode.
6Press REC MODE repeatedly to set the recording mode.
7Locate the point from where you want to start dubbing, then
stop or pause playback by pressing the following buttons on the
remote control: 4, 5, 3, 8, 9
●To play back in slow speed (1/10 of the normal speed), press 9 to
pause playback, then press 3 or 5.
●To play back frame-by-frame, press 9 to pause playback, then press
9 repeatedly. Each press of 9 advances a frame.
●To change the playback direction, press 3 or 5.
8Press we to select , then press ENTER. The
dubbing starts.
●Playback on the external DV equipment and recording on the unit
should start simultaneously.
●When the playback from the beginning is not possible, the “DV
DUBBING” controller cannot be used. Perform dubbing without using
the “DV DUBBING” controller. (墌below)
●To pause dubbing, press we to select , then press
ENTER. Both the unit and the external DV equipment pause dubbing.
Pressing 9 on the unit also works the same way.
●To clear the “DV DUBBING” controller from the TV screen, press ON
SCREEN.
9Press 8 on the remote control to stop dubbing.
●Both the unit and the external DV equipment stop dubbing.
NOTES:
●Dubbing copyright guarded programs is not possible.
●Original DV informations such as the recording date and time are not
recorded.
●The superimposed indication during the operation or dubbing is not
recorded.
●It is not possible to perform dubbing when “VCR]” lights up on the
unit. Press VCR] so that “VCR]” lights off.
Performing dubbing without using the “DV DUBBING”
controller
APress CH +/– to set the channel to “DV DUBBING”.
BPress REC MODE repeatedly to set the recording mode.
CStart playback on the external DV equipment slightly before the
actual point from where you wish to start dubbing.
DPress 7 on the unit to start recording. Or press and hold 7 and
press 4 on the remote control. The dubbing starts.
EWhen the dubbing ends, press 8 on the unit, then stop
playback on the external DV equipment.
DV Dubbing (DVD Deck Only)
NOTE:
When you connect a PC to the DV IN connector, we do not assure
the normal operation of this unit.
F-1
DV IN connector
DV cable
(VC-VDV 204U)
(not supplied)
Camcorder
DV connector
Your unit
DV equipment
DR-MV1SU_09Editing.fm Page 66 Thursday, March 4, 2004 4:15 PM
Masterpage:Right+
EN 67
Filename [DR-MV1SU_09Editing.fm]
Page 67 February 23, 2004 4:32 pm
EDITING
You can use a camcorder as the source player and your unit as the
recording deck.
1Make connections.
AIf the camcorder has no S-VIDEO output connector:
— connect the camcorder’s AUDIO/VIDEO OUT connectors to the
unit’s AUDIO/VIDEO input connectors on the front panel.
●When using a monaural camcorder, connect its AUDIO OUT
connector to the AUDIO L input connector on your unit.
BIf the camcorder has an S-VIDEO output connector: (DVD deck
only)
— connect the camcorder’s AUDIO OUT and S-VIDEO OUT
connectors to the unit’s AUDIO and S-VIDEO input connectors on
the front panel.
2Press VCR/DVD repeatedly to select the recording deck.
3Press CH +/– to select “F-1”.
For DVD deck
●Set “FRONT AUX F-1” to “VIDEO” for the VIDEO input connector, or
“S-VIDEO” for the S-VIDEO input connector, depending on the
connector being used. (墌pg. 74)
4Press REC MODE repeatedly to set the recording mode.
5Start playback on the camcorder slightly before the actual point
from where you wish to start dubbing.
6Press 7 on the unit to start recording. Or press and hold 7 and
press 4 on the remote control. The dubbing starts.
7Press 8 on the unit, then stop playback on the camcorder.
NOTES:
●All necessary cables can be obtained from your dealer.
●Refer to the camcorder’s instruction manual for operating procedure.
●The quality of dubbed picture becomes poorer than that of the
original.
Edit From A Camcorder
F-1
AIf the camcorder has no S-VIDEO output connector:
Recorder
AUDIO/VIDEO OUT
Player
Audio/video cable
(not supplied)
AUDIO/VIDEO input
F-1
BIf the camcorder has an S-VIDEO output connector (DVD
deck only):
Recorder
Audio cable (not supplied)
S-VIDEO OUT
AUDIO OUT
Player
AUDIO input
S-Video cable
(not supplied)
S-VIDEO input
Slide the TV/CABLE/DBS/DVD switch to DVD.
DR-MV1SU_00.book Page 67 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_09Editing.fm]
Masterpage:Left+
68 EN
Page 68 March 16, 2004 3:42 pm
EDITING
You can use your unit as the source player or as the recording
deck.
NOTE:
When using another recorder as the recording deck, refer to its
instruction manual.
1Make connections.
AWhen recording on DVD deck
1) If the another recorder has no S-VIDEO connector, connect the
unit’s AUDIO/VIDEO INPUT connectors to the audio/video output
connectors on another recorder.
2) If the another recorder has S-VIDEO connector, connect the
AUDIO INPUT and S-VIDEO INPUT connectors to the audio and
S-video output connectors on another recorder.
●If connecting a unit with an S-VIDEO connector, it is recommended to
use an optional S-Video cable to minimize picture degradation while
editing.
BWhen recording on VCR deck
1) Connect the unit’s AUDIO/VIDEO INPUT connectors to the
audio/video output connectors on another recorder
2Press VCR/DVD repeatedly to select the recording deck.
3Press CH +/– to select “L-1” when using this unit as the
recording deck.
For DVD deck
●Set “REAR AUX L-1” to “VIDEO” for the VIDEO input connector, or
“S-VIDEO” for the S-VIDEO input connector, depending on the
connector being used. (墌pg. 74)
4Press REC MODE repeatedly to set the recording mode.
5Engage the Play mode of the source player.
6Engage the Record mode of the recording deck.
7Stop recording on the recording deck, then stop playback on the
source player.
NOTES:
●All necessary cables can be obtained from your dealer.
●When you use this unit as the source player for editing, be sure to set
“SUPERIMPOSE” to “OFF” before starting. (墌pg. 74)
Edit To Or From Another Recorder
1
Player
Your unit
Another recorder
Recorder
TV receiver
AWhen recording on the DVD deck:
1
Recorder
Your unit
Another recorder
Player
TV receiver
BWhen recording on the VCR deck:
Slide the TV/CABLE/DBS/DVD switch to DVD.
DR-MV1SU_09Editing.fm Page 68 Tuesday, March 16, 2004 3:43 PM
Masterpage:Right+
EN 69
Filename [DR-MV1SU_09Editing.fm]
Page 69 February 23, 2004 4:32 pm
EDITING
You can dub selected audio from a DVD or Audio CD disc to a
digital audio device.
However, it is not possible to dub copy-protected discs.
Example: Dubbing to an MD
1Connect the unit and a digital audio device using either an
optional optical cable or an optional coaxial cable.
2Place a disc on the unit and load an MD on the connected digital
audio device.
3Select the audio to be dubbed.
4Start playback slightly before the actual point from where you
wish to start dubbing.
5Press 9 to pause playback.
6Select the input mode on the connected digital audio device.
7Press 4 to start playback on the unit.
8Start recording on the digital audio device.
9Stop recording on the digital audio device. Then press 8 to stop
playback on the unit.
NOTE:
There may be a discrepancy of several seconds between where you
intend editing to start, and where it actually starts.
Digital Audio Dubbing
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
Rear of unit
Note for connection:
Remove the protection
cap from the cable.
Digital audio device
(MD deck, etc.)
Coaxial cable
(not supplied)
DIGITAL AUDIO OUT
(COAXIAL)
Player
Recorder
Optical cable
(not supplied)
DIGITAL AUDIO OUT
(OPTICAL)
DR-MV1SU_00.book Page 69 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_09Editing.fm]
Masterpage:Left0
70 EN
Page 70 February 23, 2004 4:32 pm
REMOTE CONTROL
Remote control 1/2/3/4 Code Switching
The remote control is capable of controlling four JVC video units
independently. Each of the units can respond to one of four codes
(1, 2, 3 or 4). The remote control is preset to send 3 code signals
because your unit is initially set to respond to 3 code signals. You
can easily modify your unit to respond to 1, 2 or 4 code signals.
●Keep pressing SET UP down during step 1.
1Press the number key “1” for 1, “2” for 2, “3” for 3 or “4” for 4
to change the remote control code, then press ENTER.
2Press 1 on the unit to turn off the unit.
3Press 4 on the unit for over 5 seconds while the unit is turned
off. The code currently set appears on the front display panel.
4Press 8 on the remote control to change the unit’s code. The
code currently set on the remote control blinks on the front display
panel for approximately 5 seconds, and is applied to the unit.
NOTE:
When “POWER SAVE” is set to “ON” (墌pg. 74), it is not possible to
change the remote code.
TV Multi-Brand Remote Control
Your remote control can operate the basic functions of your TV set.
In addition to JVC TVs, other manufacturer’s TVs can also be
controlled.
IMPORTANT:
Although the supplied remote control unit is compatible with JVC
televisions, as well as many other models, it may not work with your TV,
or in some instances, may have limited function capability.
●Keep pressing SET UP down during step 1.
1Enter your TV’s brand code using the number keys, then press
ENTER.
2Press 1 on the unit’s remote control to turn on the TV and try
operations (墌 step 3).
●Once you have set the remote control to operate the TV, you do not
have to repeat this step until you replace your remote control’s
batteries.
●Some brands of TVs have more than one code. If the TV does not
function with one code, try entering another.
3Press the corresponding button to operate the TV: 1, TV/VCR,
CH +/–, TV VOL., (TV Muting), number keys.
●For some brands of TVs, you must press ENTER after having
pressed the number keys.
Remote Control Functions
Slide the TV/CABLE/DBS/DVD switch to DVD.
F-1
4
1
1
4
7
2
5
8
0
3
6
9
1 – 4
SET UP
ENTER
8
●Turn off the TV using its remote control.
●Slide the TV/CABLE/DBS/DVD switch to TV.
BRAND NAME CODE
JVC
HITACHI
MAGNAVOX
MITSUBISHI
PANAS O N IC
RCA
SHARP
SONY
SAMSUNG
SANYO
SEARS
TOSHIBA
ZENITH
01, 03
10
02
03
04, 11
05
06
07
12
13
13
08
09
1
4
7
2
5
8
0
3
6
9
TV/VCR
0 – 9
SET UP
ENTER
1
CH +/–
TV VOL.
DR-MV1SU_00.book Page 70 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 71
Filename [DR-MV1SU_09Editing.fm]
Page 71 February 23, 2004 4:32 pm
REMOTE CONTROL
Cable Box Or DBS Receiver Multi-Brand Remote
Control
Your remote control can operate the basic functions of your cable
box or DBS (Direct Broadcast Satellite) receiver set. In addition to
JVC cable boxes or DBS receivers, other manufacturer’s cable
boxes or DBS receiver can also be controlled.
●Keep pressing SET UP down during step 1.
1Enter your cable box or DBS receiver’s brand code using the
number keys, then press ENTER.
2Press 1 on the unit’s remote control to turn on the cable box or
DBS receiver and try operations (墌step 3).
●Once you have set the remote control to operate the cable box or
DBS receiver, you do not have to repeat this step until you replace
your remote control’s batteries.
●Some brands of cable box or DBS receiver have more than one code.
If the cable box or DBS receiver does not function with one code, try
entering another.
3Press the corresponding button to operate the cable box or DBS
receiver: 1, CH +/–, number keys.
●For some brands of cable box, you must press ENTER after having
pressed the number keys.
●The number keys may not function with some cable boxes.
IMPORTANT:
It may not work with your cable box, or in some instances, may have
limited function capability.
NOTES:
●You must set the brand for your remote control and for your Controller
(墌pg. 22) separately. The list of brands that can be controlled by
your remote control is different from the list of brands that can be
controlled by your controller.
●It’s not possible to operate a cable box or DBS receiver that is not
equipped with a receiving window.
●It’s not possible to set the remote control for both your cable box and
a DBS receiver at the same time. You can only set the remote control
to operate one of these units at a time.
Slide the TV/CABLE/DBS/DVD switch to CABLE/DBS.
CABLE BOX BRAND CODE
ARCHER
CABLETENNA
CABLEVIEW
CITIZEN
CURTIS
DIAMOND
GC BRAND
GEMINI
GENERAL INSTRUMENTS
HAMLIN
JASCO
JERROLD
NOVAVISION
OAK
PANAS O N IC
PULSER
RCA
REGAL
REMBRANDT
SAMSUNG
SCIENTIFIC ATLANTA
SIGMA
SL MARX
SPRUCER
STARGATE
TELEVIEW
TOCOM
UNIKA
UNIVERSAL
VIDEOWAY
ZENITH
01, 05, 17
01, 17
15, 16, 17, 21, 25
15, 16, 17, 21, 25
02
01, 17
15, 16, 17, 21, 25
15
01, 04, 06, 11, 12, 15, 28
10, 18, 23
15
01, 04, 06, 11, 12, 15, 28
02
07
13, 14
15, 16, 17, 21, 25
13, 14
10, 18, 23
01, 16, 17
05, 16, 24
02
07
05, 16, 17, 24, 25
13, 14
05, 15, 16, 17, 21, 24, 25
05, 16, 24
01, 04, 16
01, 17
16, 17, 25
03, 09, 22
03, 09, 22
DBS RECEIVER BRAND CODE
JVC (DISH Network)
ECHOSTAR (DISH Network)
SONY (DSS)
RCA (DSS)
51
51
41
40
DR-MV1SU_00.book Page 71 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_09Editing.fm]
Masterpage:Left0
72 EN
Page 72 February 23, 2004 4:32 pm
SYSTEM CONNECTIONS
These instructions enable you to connect your unit to a Dolby
Digital decoder or an amplifier with built-in DTS.
1Connect the unit and a Dolby Digital decoder or an amplifier
with built-in DTS using either an optional optical cable or an
optional coaxial cable.
NOTES:
●For Dolby Digital sound, set “DIGITAL AUDIO OUT” to “DOLBY
DIGITAL/PCM”. (墌pg. 73)
●For DTS sound, set “DIGITAL AUDIO OUT” to “STREAM/PCM”.
(墌pg. 73)
CAUTIONS:
●This unit has a dynamic range of more than 110 dB with regards to its
Hi-Fi audio capability. It is recommended that you check the
maximum level if you are going to listen to the Hi-Fi audio signals
through a stereo amplifier. A sudden surge in the input level to the
speakers may damage them.
●Some speakers and televisions are specially shielded to prevent
television interference. If both are of the non-shielded type, do not
place the speakers adjacent to the TV set as this can adversely affect
the playback picture.
Connecting To A Dolby Digital Decoder
Or An Amplifier With Built-in DTS
1
Note for connection:
Remove the protection cap from the
cable.
Optical cable
(not supplied)
Dolby Digital Decoder or
amplifier with built-in DTS
To DIGITAL AUDIO input
Coaxial cable
(not supplied)
DIGITAL AUDIO OUT (COAXIAL)
DIGITAL AUDIO OUT (OPTICAL)
DR-MV1SU_00.book Page 72 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right0
EN 73
Filename [DR-MV1SU_10Subsidiary.fm]
Page 73 February 24, 2004 12:51 pm
SUBSIDIARY SETTINGS
Various modes of this unit are categorized into menus nested in 2
levels shown in the following table. To change the settings of these
modes, find the desired mode in the menu (for details on each
menu, see pages 73 through 74), then follow the procedure below.
●The procedure below shows how to set the desired option of the
“2ND AUDIO RECORD” mode as an example.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “FUNCTION SET UP”, then press ENTER.
4Press we to select
“RECORDING SET”, then press
ENTER.
5Press rt to select “2ND
AUDIO RECORD”, then press
ENTER.
6Press rt to select the desired
option, then press ENTER.
7Press SET UP to complete the
setting.
*The boldface settings below indicate the settings at your purchase.
AUDIO OUTPUT
8DIGITAL AUDIO OUT — DOLBY DIGITAL/PCM / STREAM/
PCM / PCM ONLY
Set to the appropriate mode according to the type of the device
connected to DIGITAL AUDIO OUT connector.
DOLBY DIGITAL/PCM: Select this when you connect the digital
input connector of a Dolby Digital decoder or an amplifier with a
built-in Dolby Digital decoder.
STREAM/PCM: Select this when you connect the digital input
connector of an amplifier with a built-in DTS, Dolby Digital, or
MPEG multichannel decoder.
PCM ONLY: Select this when you connect the linear PCM digital
input of other audio equipment (amplifier, MD or DAT deck, etc.).
8ANALOG AUDIO OUT — STEREO / DOLBY SURROUND
Select the appropriate setting to accommodate the unit to the
connected A/V equipment. This function takes effect when a
DVD VIDEO disc is played back.
STEREO: Select this when listening to conventional two-channel
stereo audio with the unit’s AUDIO OUTPUT connectors
connected to a stereo amplifier/receiver or TV set, or in case you
want to record the audio from a DVD VIDEO disc to a Mini Disc,
etc.
DOLBY SURROUND: Select this when listening to multichannel
surround audio with the unit’s AUDIO OUTPUT connectors
connected to an amplifier/receiver with a built-in surround
decoder or a surround decoder.
8D. RANGE CONTROL — NORMAL / WIDE RANGE / TV
MODE
The dynamic range (the difference between the loudest sound and
the quietest one) can be compressed during playback of a program
encoded in Dolby Digital format.
This function takes effect when a DVD VIDEO disc recorded in
Dolby Digital format is played back at low or middle volume.
NORMAL: Normally select this setting to activate this function.
WIDE RANGE: Select this to deactivate this function when you
enjoy wide dynamic range program.
TV MODE: Select this when you hear the sound through the TV’s
speaker(s).
NOTES:
●This function takes no effect on programs other than that recorded in
Dolby Digital format.
●This function dose not work when Simulated Surround Effect is
activated. (墌pg. 35)
●The effect of “NORMAL” and “WIDE RANGE” may not be different
depending on discs.
8OUTPUT LEVEL — STANDARD / LOW
You can lower the output level of analog audio to accommodate the
unit to the connected A/V equipment.
STANDARD: Normally select this setting.
LOW: The output level of analog audio is lowered.
Mode Set (DVD Deck)
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
DVD SET UP LANGUAGE SET (墌pg. 19)
AUDIO OUTPUT (墌pg. 73)
UTILITY (墌pg. 37, 78)
FUNCTION SET UP VIDEO IN/OUT (墌pg. 24, 74)
RECORDING SET (墌pg. 74)
DISPLAY SET (墌pg. 74)
OTHERS (墌pg. 74)
INITIAL SET UP TUNER SET (墌pg. 21)
STB SET (墌pg. 22)
CLOCK SET (墌pg. 20)
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD
DR-MV1SU_00.book Page 73 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_10Subsidiary.fm]
Masterpage:Left+
74 EN
Page 74 March 4, 2004 3:51 pm
SUBSIDIARY SETTINGS
VIDEO IN/OUT
8MONITOR TYPE — 4:3LB / 4:3PS / 16:9 AUTO / 16:9 FIX
You can select the monitor type depending on the TV used when
you play back DVD VIDEO discs recorded for wide-screen TVs. For
details, refer to “Monitor Set (DVD Deck Only)” (墌pg. 24).
8FRONT AUX F-1 — VIDEO / S-VIDEO
Select the appropriate mode depending on the connector (F-1)
being used on the front panel.
VIDEO: To use the VIDEO input connector on the front panel.
S-VIDEO: To use the S-VIDEO input connector on the front panel.
8REAR AUX L-1 — VIDEO / S-VIDEO
Select the appropriate mode depending on the connector (L-1)
being used on the rear panel.
VIDEO: To use the VIDEO INPUT connector on the rear panel.
S-VIDEO: To use the S-VIDEO INPUT connector on the rear panel.
RECORDING SET
8SAVE AS LIBRARY — OFF / ON
When this function is set to “ON”, the recording information is
automatically stored in the library. For details, refer to “Modify
Library Information” (墌pg. 60).
8XP MODE REC AUDIO — DOLBY DIGITAL / LINEAR PCM
You can select the audio format when you record a program in XP
mode. When this function is set to “LINEAR PCM”, you can obtain
a high-quality audio sound.
DOLBY DIGITAL: To record in Dolby Digital format.
LINEAR PCM: To record in Linear PCM format.
82ND AUDIO RECORD — OFF /ON
When this function is set to “ON”;
If a SAP program is received, the SAP audio is recorded on L/R
tracks. The main audio is not recorded.
If a non-SAP program is received, the main audio is recorded on L/
R tracks.
When this function is set to “OFF”, the SAP audio cannot be
recorded.
NOTE:
When the channel is changed on the unit;
●The “MONO” indicator appears on the screen for about 5 seconds if
the program is a monaural broadcast.
●The “STEREO” indicator appears on the screen for about 5 seconds
if the program is a stereo broadcast.
●Both “STEREO” and “SAP” indicators appear when a stereo program
is accompanied by SAP sound.
●Both “MONO” and “SAP” indicators appear when the main audio on
the monaural broadcast is accompanied by SAP sound.
DISPLAY SET
8SUPERIMPOSE — OFF / AUTO
When this function is set to “AUTO”, various operational indicators
appear on the TV screen. Messages appear in the selected
language. (墌pg. 19)
OFF: To turn off superimposed indications.
AUTO: To superimpose operational indications for approximately
five seconds just after the corresponding operation.
NOTES:
●Even when “SUPERIMPOSE” is set to “OFF”, you can display the
various operational indicators by pressing ON SCREEN. To clear the
operational indicators, press ON SCREEN again.
●When you use this unit as the source player for editing, be sure to set
“SUPERIMPOSE” to “OFF” before starting. (墌pg. 74)
●When you select “AUTO”, during playback, the operation mode
indicators may be disturbed depending on the type of disc being
used.
8GRAY BACK — OFF / ON
When this function is set to “ON”, the TV screen becomes all grey
when receiving a channel not in use.
NOTE:
When you want to receive an unstable channel with poor signals, set
this function to “OFF”.
8DIMMER — BRIGHT / DIM
You can change the brightness of the front display panel.
BRIGHT: Normally select this.
DIM: To dim the front display panel. (Blue lamp on the front display
panel is turned off.)
8POWER SAVE — OFF / ON
When this function is set to “ON”, you can reduce the power
consumption while the unit is turned off.
NOTES:
●During Power Save mode —
— the front display panel will be turned off.
●Power Save does not work when —
— the unit is in the Timer mode.
— the unit’s power is turned off after timer-recording or Instant Timer
Recording.
— the Automatic Satellite Program Recording mode is engaged.
(墌pg. 46)
●It takes some time for the unit to complete initialisation after you turn
on unit power, with “WAKE UP” blinking on the front display panel.
8ON SCREEN LANGUAGE
This unit offers you the choice to view on-screen messages in 3
different languages.
For details, refer to “On-screen Language Set” (墌pg. 19).
OTHERS
8RESUME — ON / OFF / DISC RESUME
When this function is set to “ON” or “DISC RESUME”, you can use
the resume function. (墌pg. 27)
ON: You can start playback from the resume point of the placed
disc.
OFF: You cannot use the resume function.
DISC RESUME: The unit retains a memory of the resume points of
the last 30 discs played back, even though they have been
ejected.
NOTE:
“DISC RESUME” setting works on DVD VIDEO, VCD and already
finalised DVD-R/DVD-RW (video mode) discs. For other types of discs,
the function under “ON” setting will be applied even if “RESUME” is set
to “DISC RESUME”.
DR-MV1SU_10Subsidiary.fm Page 74 Thursday, March 4, 2004 3:51 PM
Masterpage:Right+
EN 75
Filename [DR-MV1SU_10Subsidiary.fm]
Page 75 February 24, 2004 12:51 pm
SUBSIDIARY SETTINGS
You can change various mode settings on the Function Set screen.
To change the settings of these modes, find the desired mode in
the menu (for details on each menu, see pages 75 through 76),
then follow the procedure below.
1Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
2Press SET UP to access the
Function Set screen.
3Press rt to select the item you
want to change, then press ENTER or e
to select the desired mode.
4Press SET UP to complete the
setting.
*The boldface settings below indicate the settings at your purchase.
8PICTURE CONTROL — NORM / EDIT / SOFT / SHARP
This feature helps you to adjust the playback picture quality
according to your preference. Normally select “NORM”.
NORM: Picture quality is adjusted automatically.
EDIT: Minimizes picture degradation during editing (recording and
playback).
SOFT: Reduces image coarseness when viewing overplayed tapes
containing a lot of noise.
SHARP: Clearer, sharper-edged picture when viewing images with
lots of flat, same-colored surfaces such as cartoons.
NOTES:
●When you select “EDIT”, “SOFT” or “SHARP”, the selected mode will
not change until you select another mode.
●When you select “EDIT” to dub tapes, be sure to select “NORM” after
you finish dubbing the tapes.
8SUPERIMPOSE — AUTO / OFF
When this function is set to “AUTO”, various operational indicators
appear on the TV screen. Messages appear in the selected
language. (墌pg. 19)
NOTES:
●Even when “SUPERIMPOSE” is set to “OFF”, you can display the
various operational indicators by pressing ON SCREEN. To clear the
operational indicators, press ON SCREEN again.
●When you use this unit as the source player for editing, be sure to set
“SUPERIMPOSE” to “OFF” before starting.
●During playback, the operation mode indicators may be disturbed
depending on the type of tape being used.
8AUTO SP]EP TIMER — ON / OFF
When this function is set to “ON”, the unit automatically switches to
EP mode to allow complete recording if there is not enough tape to
record the entire program while timer-recording in SP mode.
For Example:
Recording a program of 140 minutes in length onto a 120-minute
tape
Make sure you set this function to “ON”, before the timer-recording
starts.
NOTES:
●If you have programed the unit to timer-record 2 or more programs,
the second program and those thereafter may not fit on the tape if
you set “AUTO SP]EP TIMER” to “ON”. In this case, make sure the
mode is not engaged, then set the tape speed manually during timer
programing.
●In order to ensure that the recording fits on the tape, this feature may
leave a slight non-recorded section at the end of the tape.
●There may be some noise and sound disturbance at the point on the
tape where the unit switches from SP to EP mode.
●The Auto SP]EP Timer feature is not available during ITR (Instant
Timer Recording), and the feature will not work properly on the
following tapes: T(ST)-30, T(ST)-60, T(ST)-90, and T(ST)-120
Mode Set (VCR Deck)
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD
( , ) THEN (ENTER)
(SET UP) TO END
FUNCTION
PICTURE CONTROL NORM
SUPERIMPOSE AUTO
AUTO SP EP TIMER OFF
VIDEO STABILIZER OFF
BLUE BACK ON
2ND AUDIO RECORD OFF
Total 140 minutes
Approximately 110 minutes Approximately 30 minutes
SP mode EP mode
DR-MV1SU_00.book Page 75 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_10Subsidiary.fm]
Masterpage:Left+
76 EN
Page 76 March 4, 2004 3:51 pm
SUBSIDIARY SETTINGS
8VIDEO STABILIZER — ON / OFF
When this function is set to “ON”, you can automatically correct
vertical vibration in the picture when playing back unstable
recordings made on another recorder.
NOTES:
●When you finish viewing a tape, be sure to set this function to “OFF”.
●Regardless of the setting, this function has no effect during recording
and during special effects playback.
●The on-screen display may jitter vertically when this function is set to
“ON”.
●To watch recordings with close-caption, set this function to “OFF”.
8BLUE BACK — ON / OFF
When this function is set to “ON”, the TV screen becomes all blue
when receiving a channel not in use.
NOTE:
When you want to receive an unstable channel with poor signals, set
this function to “OFF”.
82ND AUDIO RECORD — ON / OFF
When this function is set to “ON”;
If a SAP program is received, the SAP audio is recorded on L/R
tracks. The main audio is not recorded.
If a non-SAP program is received, the main audio is recorded on L/
R tracks.
When this function is set to “OFF”, the SAP audio cannot be
recorded.
NOTE:
When the channel is changed on the unit;
●The “STEREO” indicator appears on the screen for about 5 seconds
if the program is a stereo broadcast.
●Both “STEREO” and “SAP” indicators appear when a stereo program
is accompanied by SAP sound.
DR-MV1SU_10Subsidiary.fm Page 76 Thursday, March 4, 2004 3:52 PM
Masterpage:Right+
EN 77
Filename [DR-MV1SU_10Subsidiary.fm]
Page 77 February 24, 2004 12:51 pm
SUBSIDIARY SETTINGS
The VCR Plus+ programing system assigns a VCR Plus+ guide
channel to the TV channels and the cable channels. These guide
channel numbers are also called the VCR Plus+ channel codes.
Most TV listings have a section, usually a chart, indicating the
guide channel numbers assigned to each station.
To ensure that VCR Plus+ timer recording operates correctly, it is
necessary to set the VCR Plus+ “Guide Channel Set” for each
station.
If you have moved to a different area or if a broadcasting station’s
channel number has been changed, perform the following steps to
set the correct guide channel number.
NOTES:
●In many instances, the VCR Plus+ guide channel numbers for cable
and broadcast TV stations DO NOT match the channel number on
which it is received by your unit or cable box. Check your TV listing,
or contact your cable supplier for details.
●Many TV stations can be viewed on cable. Check your TV listing, or
contact your cable supplier for details.
Guide Channel Number Set
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “INITIAL SET UP”, then press ENTER.
4Press we to select “TUNER
SET”, then press ENTER.
5Press rt to select “GUIDE
CHANNEL SET”, then press
ENTER.
6Press rt to select “GUIDE CH”,
then press ENTER.
7Press rt to select the Guide
Channel number for the desired
station as shown in the TV listings.
Then press ENTER.
●To change the Guide Channel
number in 10 increments, press and
hold rt.
●If you receive your channels with a cable box and if you have properly
set your Controller, “CATV CH”appears in place of “DVD CH”. If not,
perform “Cable Box and/or DBS Receiver Control Setting (DVD Deck
Only)” (墌pg. 22).
8Press rt to select “DVD CH”, then press ENTER. Press rt
to select the number of the unit’s channel position on which the
Guide Channel number’s broadcast is received by the unit or the
DBS receiver. Then press ENTER.
●To timer-record a satellite program with the VCR Plus+ system, you
need to install the Controller and perform the procedure described in
“Cable Box and/or DBS Receiver Control Setting (DVD Deck Only)”
(墌pg. 22).
●Repeat steps 6 and 8 as necessary.
9Press SET UP to complete the setting.
Changing VCR Plus+® Setting
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD
Guide Channel Number
“Guide Channel (GUIDE CH) number” refers to the assigned TV
station numbers, according to broadcast area, for the VCR Plus+
timer recording. The Guide Channel numbers can be found in
most TV listings.
DR-MV1SU_00.book Page 77 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_10Subsidiary.fm]
Masterpage:Left+
78 EN
Page 78 February 24, 2004 12:51 pm
SUBSIDIARY SETTINGS
Some DVD-RAM/RW discs are unformatted.
Format the disc when you use an unformatted disc or you want to
delete all recordings and data on the disc.
Format A DVD-RAM Disc
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press rt w e to select “DVD SET UP”, then press ENTER.
4Press we to select “UTILITY”,
then press ENTER.
5Press rt to select “FORMAT”,
then press ENTER. Press we to
select “YES”, then press ENTER
when “DISC WILL BE
FORMATTED” appears on the TV
screen.
6Press we to select “OK”, then
press ENTER when “DISC FORMATTING WAS SELECTED”
appears on the TV screen.
Format A DVD-RW Disc
1Perform steps 2 to 4 of “Format A DVD-RAM Disc” on the above
before continuing.
2Press rt to select “FORMAT”, then press ENTER. Press we
to choose “VR MODE” or “VIDEO MODE”, then press ENTER
when “DISC WILL BE FORMATTED” appears on the TV screen.
“VR MODE”: To be chosen when you want to record, erase, or
edit data on the disc repeatedly.
“VIDEO MODE”: To be chosen when you want to erase all the data
on the disc once played back to record new data,
or play back the disc on other DVD players.
3Press we to select “YES”, then press ENTER when “DISC
WILL BE FORMATTED IN VR MODE/VIDEO MODE” appears on
the TV screen.
NOTES:
●It is impossible to format Version 1.0 DVD-RW discs in Video mode.
●It is impossible to format DVD-R discs.
●All the programs on a disc will be deleted once the disc is formatted
even if they are protected titles. (墌pg. 57)
Format A Disc (DVD Deck Only)
A
TTENTION:
●When a disc is formatted, all recordings and data are erased. It is
impossible to restore them.
●Never turn off the unit or disconnect the mains power cord while
“NOW FORMATTING...” is displayed on the TV screen.
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
●Load a DVD-RAM/RW disc to format.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD
DR-MV1SU_00.book Page 78 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 79
Filename [DR-MV1SU_10Subsidiary.fm]
Page 79 February 24, 2004 12:51 pm
SUBSIDIARY SETTINGS
Finalizing DVD-R/RW discs recorded on this unit makes it possible
for the discs to be played back on other DVD players. DVD-RW
discs are finalized in the mode that the discs were formatted,
enabling playback on compatible DVD players.
Titles input in the Library Database DVD Navi are registered as
titles in the DVD menu. (墌pg. 57)
Before finalizing
●It is possible to record on a blank space.
●It is possible to enter a program title. (墌pg. 57)
●It is possible to delete programs. (墌pg. 57)
●It is impossible to overwrite recorded areas of DVD-R discs.
●Available recording capacity does not increase even if a recorded
program is deleted from a DVD-R disc.
●It is impossible to record or edit DVD-R/RW discs recorded on other
devices even if they have not been finalized.
After finalizing (For DVD-R/RW (Video mode) discs)
●Video and audio that have been recorded by then are recorded in
conformity to the DVD Video standard, enabling you to play back the
discs as DVD VIDEO discs.
●Although DVD-R/RW discs finalized on this unit become playable on
DVD players compatible with DVD-R/RW discs, some discs still may
not play, for which JVC cannot take responsibility.
●Marked points marked before finalizing will be deleted, and programs
will be divided automatically into “chapters” approximately every 5
minutes. (墌pg. 27)
●Depending on the DVD players and DVD-R/RW discs used, and on
the conditions of recording, it may not be possible to play back the
discs. In this case, play back the discs on this unit.
●Additional recordings become impossible.
Finalize A DVD-R/RW Disc
1Perform steps 2 to 4 of “Format A DVD-RAM Disc” (墌pg. 78)
before continuing.
2Press rt to select “FINALIZE”, then press ENTER. Press we
to select “YES”, then press ENTER when “DISC WILL BE
FINALIZED” appears on the TV screen.
3Press we to select “OK”, then press ENTER when
“FINALIZING WILL MAKE DISC READ-ONLY” appears on the TV
screen.
4Press SET UP to return to the normal screen.
●Menu screen is cleared.
●Once a DVD-R/RW (Video mode) disc has been finalized, the
displays for original and play list do not appear. Only display for
library appears.
●Once a DVD-RW (VR mode) disc has been finalized, it can be played
on DVD players compatible with VR mode.
Cancel The Finalization Of A DVD-RW Disc
1Load a DVD-RW disc to cancel the disc finalization, and perform
steps 2 to 4 of “Format A DVD-RAM Disc” (墌pg. 78) before
continuing.
2Press rt to select “CANCEL DISC FINALIZATION”, then
press ENTER.
3Press we to select “OK”, then press ENTER when “CANCEL
DISC FINALIZATION” appears on the TV screen.
4Press SET UP to return to the normal screen.
●When the disc finalization is cancelled, the mode in which the disc
was formatted is restored, making the disc recordable. (墌pg. 9, 78)
Finalize A Disc (DVD Deck Only)
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
●Load a DVD-R/RW disc to finalize.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD
DR-MV1SU_00.book Page 79 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_10Subsidiary.fm]
Masterpage:Left+
80 EN
Page 80 March 4, 2004 4:00 pm
SUBSIDIARY SETTINGS
If you connect the unit and TV with Component Video Connection
(墌pg. 17), you can select the scan mode from two modes:
Interlaced scan mode which is used in the conventional TV
system, and Progressive scan mode which enables reproduction of
higher-quality images. For details, refer to “GLOSSARY”
(墌pg. 86).
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press PROGRESSIVE SCAN for 3 or more seconds.
●Video output indicator ( ) lights on the front display panel if
Progressive scan mode has been established. (墌pg. 14)
●Each press of PROGRESSIVE SCAN for 3 or more seconds
switches the scan mode.
NOTES:
●When the Progressive scan mode is engaged, no video signal is
output from AUDIO/VIDEO and S-VIDEO OUTPUT connectors.
●Interlaced scan mode is the setting at your purchase.
●Interlaced scan mode might be suitable depending on video material.
●Scan mode cannot be set while menu screen is displayed.
You can lock the disc tray to prohibit the unwanted disc ejection by
children.
To lock tray
While the unit is turned off, press and hold 8, then press x
(OPEN/CLOSE) on the unit. “LOCKED” appears on the front
display panel and the disc tray is locked.
To unlock tray
While the unit is turned off, press and hold 8, then press x
(OPEN/CLOSE) on the unit. “UNLOCK” appears on the front
display panel.
Scan Mode Set
A
TTENTION:
Your TV needs to be compatible with Progressive.
●Turn on the unit.
●Turn on the TV and select the video channel (or AV mode).
●Slide the TV/CABLE/DBS/DVD switch to DVD.
Watch the image on VCR deck in the Progressive scan
mode via component video
ASet the Progressive-compatible TV to the component input
mode.
BPress VCR/DVD repeatedly so that the DVD lamp lights up
on the unit, then press PROGRESSIVE SCAN for 3 or more
seconds so that the Video output indicator ( ) lights on the front
display panel.
CPress VCR/DVD repeatedly so that the VCR lamp lights up
on the unit.
DPress VCR].
●“VCR]” lights up on the unit.
NOTES:
●Be sure to engage the DVD deck in stop mode.
●It is not possible to perform the above steps when the DVD deck is
in timer standby mode.
1
4
7
2
5
8
0
3
6
9
PROGRESSIVE SCAN
VCR/DVD
Tray Lock (DVD Deck Only)
●Turn off the unit.
F-1
8
x
DR-MV1SU_10Subsidiary.fm Page 80 Thursday, March 4, 2004 4:01 PM
Masterpage:Right0
EN 81
Filename [DR-MV1SU_10Subsidiary.fm]
Page 81 March 4, 2004 4:00 pm
TROUBLESHOOTING
Before requesting service for a problem, use this chart and see if
you can solve the trouble yourself. Small problems are often easily
solved, and this can save you the trouble of sending your unit off
for repair.
General
●The AC power plug is disconnected from the AC outlet.
]Connect the AC power plug to the AC outlet securely. (墌pg. 17)
]Remove the batteries, wait for 5 minutes or more, then load the
butteries again.
●The setting of the remote control code is inappropriate.
]Set the same remote control code (1, 2, 3, or 4) on both the unit
and the remote control. (墌pg. 70)
●The batteries are discharged.
]Replace the dead batteries with new ones.
●The source (another video recorder, camcorder) has not been
properly connected.
]Confirm that the source is properly connected.
●All necessary power switches have not been turned on.
]Confirm that all units’ power switches are turned on.
●The setting of the input channel position is inappropriate.
]Select the input channel position (“F-1” or “L-1”) that
corresponds to the input terminal connected to the external
equipment. (墌pg. 68)
●The record safety tab has been removed when dubbing to the
cassette.
]Using adhesive tape, cover the hole where the tab was removed.
]Set “SUPERIMPOSE” to “OFF”. (墌pg. 74, 75)
●There are cases when the operation is prohibited on the disc.
●Lightning or static electricity may cause malfunction of the unit.
]Press 1 to turn the power off, then press the button again to
turn the power on.
Playback (DVD Deck)
●The DVD deck is not selected.
]Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
●The TV receiver’s channel selector is not set to the video
channel or AV mode.
]If you are using the RF connection, set the TV receiver to the
video channel.
]If you are using the AV, S-VIDEO or Component Video
connection, set the TV to its AV mode.
●The unit’s video channel has not been correctly set.
]Perform the video channel set. (墌pg. 17)
●When interlace scanned program is played back, progressive
scan mode is selected.
]Press and hold PROGRESSIVE SCAN until disappears from
the front display panel.
●The disc is loaded upside down.
]Place the disc on the disc tray with the playback surface facing
downward. (墌pg. 11)
●A disc not being compatible with the unit is loaded.
]Load a playable disc on the unit. (墌pg. 8)
●A dirty disc is loaded.
]Clean the disc. (墌pg. 11)
●Defective disc is loaded.
]Replace the warped or scratched disc with a normal one.
]Images are blurred or distorted at the point where the playback
speed changes and this is not a malfunction of the unit.
]Playback does not start for approximately 30 seconds after
recording is stopped and this is not a malfunction of the unit.
●The Parental Lock is engaged and the disc is rated higher than
the set level.
]Release the Parental Lock temporarily or change the set level.
(墌pg. 37)
No power is supplied to the unit.
The remote control does not work properly.
Dubbing from the external equipment is not possible.
The on-screen display superimposed on the program played
back/received on this unit is recorded when you dub the program
to an external recording equipment.
The unit does not operate.
The DVD deck can not be operated.
Images do not appear on the TV screen.
Playback dose not start or stop immediately after playback is
started by pressing .
On the front display panel, “NO DISC” appears.
Images are blurred or distorted when you start High-Speed
Search.
Playback does not start.
Playback does not start when you select a title or a chapter.
DR-MV1SU_10Subsidiary.fm Page 81 Thursday, March 4, 2004 4:01 PM
Filename [DR-MV1SU_10Subsidiary.fm]
Masterpage:Left+
82 EN
Page 82 March 4, 2004 4:00 pm
TROUBLESHOOTING
Playback (VCR Deck)
●The VCR deck is not selected.
]Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
●The tape is already fully rewound or fast-forwarded.
]Check the cassette.
●The TV receiver’s channel selector is not set to the video
channel.
]If you are using the RF connection, set the TV receiver to the
video channel.
]If you are using the AV connection, the TV receiver is not set to
the AV mode.
●The unit’s video channel has not been correctly set.
]Perform the video channel set. (墌pg. 17)
●This is normal.
●The automatic tracking mode is engaged.
]Try manual tracking. (墌pg. 49)
●The video heads may be dirty.
]Use a dry cleaning cassette ECL-3F, or consult your JVC dealer.
●The automatic tracking mode is engaged.
]Try manual tracking. (墌pg. 49)
Recording (DVD Deck)
●The channel position does not correspond to that in the
receiving area.
]Set the correct channel position for the receiving broadcast.
(墌pg. 21)
●No disc or a disc not being compatible with the unit is loaded.
]Load a recordable disc on the unit. (墌pg. 8)
●The disc loaded is not formatted.
]Format the disc. (墌pg. 78)
●A finalized DVD-R disc is loaded.
]Recording cannot be made on finalized discs. Load a recordable
disc on the unit.
●The disc is full or does not have enough space for the program
to be recorded.
]Clear unnecessary programs on the disc or load a blank disc.
(墌pg. 57)
Recording (VCR Deck)
●The unit is in the Record Pause mode.
Press 4 to resume recording.
●There is no cassette loaded, or the cassette loaded has had its
record safety tab removed.
]Insert a cassette, or using adhesive tape, cover the hole where
the tab was removed.
●“L-1” or “F-1” has been selected as the input mode.
]Set to the desired channel.
●The camcorder has not been properly connected.
]Confirm that the camcorder is properly connected.
●The input mode is not correct.
]Set the input mode to “F-1”.
●The end of the tape was reached during recording.
]The program may not have been recorded in its entirety. Next
time make sure you have enough time on the tape to record the
entire program.
The VCR deck can not be operated.
The tape will not rewind or fast-forward.
The playback picture does not appear while the tape is running.
Noise appears during visual search.
Noise appears during normal playback.
The playback picture is blurred or interrupted while TV
broadcasts are clear or “USE CLEANING CASSETTE” message
appears on the screen.
Breaks are noticeable in Hi-Fi soundtrack.
The desired program cannot be recorded.
Recording cannot be made.
During recording, the tape does not run. The VCR recording lamp
lights up on the front display panel.
Recording cannot be made.
TV broadcasts cannot be recorded.
Camcorder recording is not possible.
The tape is automatically rewound, then the unit is shut off.
DR-MV1SU_10Subsidiary.fm Page 82 Thursday, March 4, 2004 4:01 PM
Masterpage:Right+
EN 83
Filename [DR-MV1SU_10Subsidiary.fm]
Page 83 March 4, 2004 4:00 pm
TROUBLESHOOTING
Timer Recording (DVD Deck)
●Date and time is not correct.
]Set date and time correctly. (墌pg. 20)
●The timer is not engaged.
]Press DVD TIMER (#) and confirm that the DVD timer lamp
lights up on the unit.
●Timer recording is in progress.
]Timer programing can’t be performed while a timer recording is
in progress. Wait until it finishes.
●Date and time is not correct.
]Set date and time correctly. (墌pg. 20)
●The timer is not engaged.
]Press DVD TIMER (#) and confirm that the DVD timer lamp
lights up on the unit.
●There is a power outage while the DVD deck is in the timer
standby mode.
]The unit does not enter timer standby mode automatically when
the power is restored to the unit. Engage the timer standby
mode again.
●Date and time set on the unit is not correct.
]Set date and time correctly. (墌pg. 20)
●The channel position does not correspond to that in the
receiving area.
]Set the correct channel position for the receiving broadcast.
(墌pg. 21)
●The DBS receiver is not connected properly to this unit.
]Connect the DBS receiver to the AUDIO/VIDEO INPUT (L-1)
connector properly. (墌pg. 46)
●Power failure occurred.
]Set date and time correctly. (墌pg. 20)
●Eight programs have already been timer programed.
]Clear unnecessary programs on the unit, then try timer
programing again. (墌pg. 45)
●The PC’s data recorded on a DVD-RAM drive cannot be cleared
on this unit.
]Format the disc. (When the disc is soiled, wipe the disc with a
soft dry cloth before formatting.) (墌pg. 11, 78)
Timer Recording (VCR Deck)
●Date and time is not correct.
]Set date and time correctly. (墌pg. 20)
●The timer is not engaged.
]Press VCR TIMER (#) and confirm that the VCR timer lamp
lights up on the unit.
●Timer recording is in progress.
]Timer programing can’t be performed while a timer recording is
in progress. Wait until it finishes.
●Date and time is not correct.
]Set date and time correctly. (墌pg. 20)
●The timer is not engaged.
]Press VCR TIMER (#) and confirm that the VCR timer lamp
lights up on the unit.
●The timer is engaged but there’s no cassette loaded.
]Load a cassette with the record safety tab intact.
●The loaded cassette has had its record safety tab removed.
]Remove the cassette and cover the hole with adhesive tape, or
insert a cassette with the record safety tab intact.
●The end of the tape was reached during timer recording.
]The program may not have been recorded in its entirety. Next
time make sure you have enough time on the tape to record the
entire program.
●The end of the tape was reached during Instant Timer
Recording.
]The program may not have been recorded in its entirety. Next
time make sure you have enough time on the tape to record the
entire program.
●Date and time set on the unit is not correct.
]Set date and time correctly. (墌pg. 20)
●The channel position does not correspond to that in the
receiving area.
]Set the correct channel position for the receiving broadcast.
(墌pg. 21)
●The unit’s channel positions have been set incorrectly.
]Refer to “Changing VCR Plus+® Setting” (墌pg. 77) and re-
perform the procedure.
Timer programing cannot be made.
Timer programing recording does not start.
VCR Plus+ Timer Programing cannot be made.
Automatic Satellite Program Recording recording does not start.
On the front display panel, “– –:– –” appears.
“PROGRAM FULL” appears on the TV screen during timer
programing.
The disc space does not increase when recorded programs are
cleared.
Timer programing cannot be made.
Timer programing recording does not start.
The VCR Timer lamp on the unit won’t stop blinking.
The tape is automatically ejected, then the unit is shut off.
VCR Plus+ Timer Programing cannot be made.
The VCR Plus+ system does not timer-record properly.
DR-MV1SU_10Subsidiary.fm Page 83 Thursday, March 4, 2004 4:01 PM
Filename [DR-MV1SU_10Subsidiary.fm]
Masterpage:Left+
84 EN
Page 84 February 24, 2004 12:51 pm
TROUBLESHOOTING
Initializing (DVD Deck Only)
]Press 1 to turn off the unit, press and hold 1, then press 8
for two seconds or more.
Other Problems
For RF/AV/S-VIDEO connection
]Press PROGRESSIVE SCAN for 3 or more seconds so that the
Video output indicator ( ) lights off on the front display panel.
For component video connection
]Press PROGRESSIVE SCAN for 3 or more seconds so that the
Video output indicator ( ) lights up on the front display panel.
●The camcorder’s microphone is too close to the TV.
]Position the camcorder so its microphone is away from the TV.
●The TV’s volume is too high.
]Turn the TV’s volume down.
●Those channels have been designated to be skipped.
]If you need the skipped channels, restore them. (墌pg. 21)
●Recording or Live Memory recording* is in progress.
]Press 9 to pause the recording, change channels, then press 4
to resume recording.
* DVD deck only
●After the manual settings were made, Auto Channel Set was
performed.
]Perform “Manual Clock Set” (墌pg. 20).
●The clock setting data received from the host channel is
incorrect.
]Select a different host channel during “Semiauto Clock Set”
(墌pg. 20), or perform “Manual Clock Set” (墌pg. 20).
On-screen Message (DVD Deck Only)
●The memory is full for registration for the Navigation system. The
recording cannot be started even though the capacity for the
recording is enough. (墌pg. 60)
●The remaining capacity of the memory is not enough for
registration for the Navigation system. The recording cannot be
started even though the capacity for the recording is enough.
(墌pg. 60)
●A disc that is not registered in the library has been inserted.
Register the disc as necessary. (墌pg. 60)
●Appears when a title that has been selected in the library is not
contained in the loaded disc.
●Recording and/or editing cannot be performed with a loaded
DVD-RAM disc.
●The number of titles exceeds 99.
●The number of play lists exceeds 999.
●To set the timer program, the clock must be set in advance.
(墌pg. 20)
●You can program this unit to timer-record as many as 8
programs. To program more, you need to cancel a timer program
already set. (墌pg. 45)
●On-Disc Timer Programing has been attempted when a disc that
is not compatible with the function is loaded. (墌pg. 43)
●On-Disc Timer Programing has been attempted when a disc is
not loaded, or loaded upside down. (墌pg. 11, 43)
●When a playback-only disc or a finalized disc is loaded, 7 has
been pressed. (墌pg. 8)
Malfunction occurs on the unit.
The image of the TV broadcast appears distorted on the TV
screen.
Whistling or howling is heard from the TV during camcorder
recording.
When scanning channels, some of them are skipped over.
The channel cannot be changed.
Channel settings that were made manually seem to have
changed or disappeared.
Even though Auto or Semiauto Clock Set has been performed,
the clock is incorrect.
MEMORY IS FULL
NOTHING MORE CAN BE REGISTERED IN THE LIBRARY
IF YOU DELETE UNNECESSARY TITLE INFORMATION,
YOU CAN THEN REGISTER ADDITIONAL INFORMATION
AVAILABLE MEMORY IS LOW
SOON YOU WILL NO LONGER BE ABLE
TO REGISTER INFORMATION IN THE LIBRARY
IF YOU DELETE UNNECESSARY TITLE INFORMATION,
YOU CAN THEN REGISTER ADDITIONAL INFORMATION
DISC NOT REGISTERED IN THE LIBRARY
REGISTER DISC?
INSERT DISC #XXXX
CAN NOT RECORD OR MAKE PLAY LIST
DELETE UNWANTED TITLES
SET CLOCK BEFORE TIMER PROGRAMING
PROGRAM FULL
DELETE UNWANTED TIMER PROGRAM
CAN NOT SET DISC TIMER PROGRAMING WITH THIS DISC
PREPARE A FORMATTED DISC AS DESCRIBED BELOW
DVD-RAM
DVD-RW (VR MODE)
NO DISC INSERTED
DISC NOT RECORDABLE
INSERT RECORDABLE DISC
DR-MV1SU_00.book Page 84 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 85
Filename [DR-MV1SU_10Subsidiary.fm]
Page 85 March 4, 2004 4:00 pm
TROUBLESHOOTING
●An invalid VCR Plus+ number has been input. (墌pg. 41)
●To set the timer program using the VCR Plus+ system, the
Guide Channel number must be set in advance. (墌pg. 77)
●Appears when you tried to input a PlusCode number during
timer recording or instant timer recording.
●A disc loaded cannot be played back on this unit since the region
number of the disc does not match that of the unit. (墌pg. 9)
●When an incompatible disc is loaded, 4 has been pressed.
(墌pg. 9)
●Formatting is not complete since the disc may be dirty or
damaged. Take out the disc, clean it and retry. (墌pg. 11, 78)
●Finalizing is not complete since the disc may be dirty or
damaged. Take out the disc, clean it and retry. (墌pg. 11, 79)
●Cancelling disc finalization is not complete since the disc may be
dirty or damaged. Take out the disc, clean it and retry. (墌pg. 11,
79)
●During Live Memory playback, 8 has been pressed. (墌pg. 32)
●Timer recording has finished during Live Memory playback.
●Timer recording finished during Live Memory playback, then the
next timer recording is about to begin while playback continues.
●An attempt has been made to record copy-protected contents.
●An attempt has been made to record copy-once contents on a
disc that is not CPRM compatible, such as DVD-R.
●The unit has detected invalid contents at the start or in the
middle of playback.
●An attempt has been made to start DV dubbing when a digital
video camera is not properly connected to the unit.
●Check the connection. (墌pg. 66)
PLUSCODE NO. ERROR
CONFIRM PLUSCODE NO. THEN RETRY
GUIDE PROGRAM IS NOT SET
SELECT CHANNEL YOU WANT TO RECORD
CAN NOT SET VCR PLUS TIMER PROGRAMING DURING TIMER
RECORDING OR INSTANT TIMER RECORDING
CANCEL TIMER RECORDING OR
INSTANT TIMER RECORDING, THEN
ENTER THE PLUSCODE AGAIN
REGION CODE ERROR
CHECK DISC
UNREADABLE DISC
CHECK DISC
COULD NOT FORMAT THE DISC
CHECK THE DISC
COULD NOT FINALIZE THE DISC
CHECK THE DISC
COULD NOT CANCEL DISC FINALIZATION
CHECK THE DISC
PRESS [STOP] AGAIN TO STOP RECORDING
TIMER RECORDING COMPLETED
PLAYBACK WILL STOP
THEN TIMER RECORDING WILL START
COPY PROHIBITED
CAN NOT RECORD
COPY PROHIBITED
CAN NOT PLAY
THE i.LINK DEVICE THAT YOU HAVE CONNECTED IS NOT
RECOGNIZED
MAKE SURE THAT THE DEVICE IS CONNECTED PROPERLY AND
POWERED ON
DR-MV1SU_10Subsidiary.fm Page 85 Thursday, March 4, 2004 4:01 PM
Filename [DR-MV1SU_10Subsidiary.fm]
Masterpage:Left0
86 EN
Page 86 February 24, 2004 12:51 pm
GLOSSARY
8Aspect ratio
The ratio of vertical and horizontal sizes of a displayed image. The
horizontal vs. vertical ratio of conventional TVs is 4:3, and that of
wide-screens is 16:9.
8Chapter
Refers to individual chapters included in a title.
8Composite video signal
Refers to video signal comprised of three kinds of signals
combined: an image signal made up of luminance and
chrominance signals using the frequency multiplication technique;
burst signal providing the basis for color reproduction; and
synchronization signal.
8Component video signal
A video signal system where parts of information necessary for
reproducing image signal comprised of the three primary colors of
light are transmitted via separate signal lines. Types of signal, such
as R/G/B, Y/PB/PR, etc., are available.
8Disc menu
A screen display prepared for allowing selection of images,
sounds, subtitles, multiangles, etc. recorded on a DVD disc.
8Dolby Digital (AC-3)
A six-channel system consisting of left, centre, right, left rear, right
rear and LFE (Low-Frequency Effect channel, for use with a sub-
woofer) channels. All processing is done in the digital domain.
Not all Dolby Digital discs contain six (5.1) channels of information.
8Down-mix
Internal stereo mix of multichannel surround audio by a DVD
player. The down-mix signals are output from stereo output
connectors.
8DTS
A Digital Surround audio encoding format configured with six (5.1)
channels, similar to Dolby Digital. It requires a decoder, either in
the player or in an external receiver. DTS stands for Digital Theater
Systems.
Not all DTS discs contain six (5.1) channels of information.
8Interlaced scan
In the conventional video system, a picture is shown on the display
monitor in two halves. The Interlaced scan system places lines of
the second half of the picture in-between lines of the first half of the
picture.
8JPEG
A still-picture data compression system proposed by the Joint
Photographic Expert Group, which features small decrease in
image quality in spite of its high compression ratio.
8Letter box
A method of displaying wide images like movies in the centre of a
4:3 TV screen with no part of the image deleted, by placing black
bands on the top and bottom of the screen. This name has resulted
from the screen form looking literally like a letter box.
8Linear PCM (PCM: Pulse Code Modulation)
A system for converting analog sound signal to digital signal for
later processing, with no data compression used in conversion.
8MP3
A file format with a sound data compression system. “MP3” is the
abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. By using MP3 format, one CD-R/RW can contain about 10
times as much data volume as a regular CD can.
8MPEG
A family of Standards for compressing audio-visual information.
“MPEG” standards include MPEG-1, MPEG-2 and MPEG-4. Video
CD and MP3 are based on MPEG-1, while DVD is based on
MPEG-2. MPEG stands for Moving Picture coding Experts Group.
8Multiangle
By recording multiple scenes progressing at the same time in a
single title, the user can select view angles. This feature is called
the multiangle function.
8Multichannel
DVD is specified to have each sound track constitute one sound
field. Multichannel refers to a structure of sound tracks having
three or more channels.
8Multilanguage
When a title is created to cope with multiple languages, it is
generally called a multilanguage title.
8NTSC (National television system committee)
A black and white and color television system format used in the
U.S.A., Canada, Mexico and Japan.
8PAL (Phase Alternation by Line)
A color television system format used extensively in Western
Europe.
8Parental Lock
A feature of this system to automatically determine whether or not
to reproduce particular DVD software by comparing its parental
lock level (a measure of undesirability of scenes, etc. from
educational viewpoint) set for the software beforehand with that set
on this system by the user; if the software’s level is less restrictive
than the user-set level, it will be reproduced.
8Playback control (PBC)
Refers to the signal recorded on Video CDs for controlling
reproduction. By using menu screens recorded on a Video CD that
supports PBC, you can enjoy interactive-type software as well as
software having a search function.
8Progressive scan
Progressive scan displays all the horizontal lines of a picture at one
time, as a single frame. This system can convert the interlaced
video from DVD into progressive format for connection to a
progressive display. It dramatically increases the vertical
resolution.
8Region Code
A system for allowing discs to be played back only in the regions
designated beforehand. All the countries in the world are grouped
into six regions, each region being identified by a specified Region
Code (or region number). If the Region Code given to a disc
includes a numeral which matches one in the Region Code of a
player, the player can play back the disc.
8Sampling frequency
Frequency of sampling data when analog data is converted to
digital data. Sampling frequency numerically represents how many
times the original analog signal is sampled per second.
8Surround
A system for creating three-dimensional sound fields full of realism
by arranging multiple speakers around the listener.
8Transfer rate
The rate of transferring digital data. Usually the measure is in baud
per second. The DVD system applies a variable transfer rate
system for high efficiency.
DR-MV1SU_00.book Page 86 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right0
EN 87
Filename [DR-MV1SU_10Subsidiary.fm]
Page 87 March 16, 2004 3:14 pm
SPECIFICATIONS
Power requirement
AC 120 Vd, 60 Hz
Power consumption
Power on: 43 W
Power off: 16.5 W
Temperature
Operating: 5°C to 35°C (41°F to 95°F)
Storage: –20°C to 60°C (–4°F to140°F)
Operating position
Horizontal only
Dimensions (WxHxD)
435 mm x 96 mm x 347 mm (17-3/16" x 3-13/16" x 13-11/16")
Weight
6.1 kg (13.5 lbs)
Recording format
DVD-RAM: DVD Video Recording format
DVD-R: DVD-Video format
DVD-RW: DVD-Video format, DVD Video Recording format
Recording time
Maximum 8 hours (with 4.7 GB disc)
(XP): Approx. 1 hour
(SP): Approx. 2 hours
(LP): Approx. 4 hours
(EP): Approx. 6 hours
(FR): Approx. 1 hour – 8 hours
Audio recording system
Dolby Digital (2 ch)
Linear PCM (XP mode only)
Video recording compression system
MPEG2 (CBR/VBR)
Input/Output
S-video input:
Y: 0.8 – 1.2 Vp-p, 75 ohms
C: 0.2 – 0.4 Vp-p, 75 ohms
S-video output:
Y: 1.0 Vp-p, 75 ohms
C: 0.3 Vp-p, 75 ohms
Video input: 0.5 – 2.0 Vp-p, 75 ohms (pin jack)
Video output: 1.0 Vp-p, 75 ohms (pin jack)
Audio input:
–8 dB, 50 kilohms (pin jack)
Corresponding to mono (left)
Audio output: –8 dB, 1 kilohms (pin jack)
i.Link: 4-pin for DV input
Component video output:
Y: 1.0 Vp-p, 75 ohms
CB/CR, PB/PR: 0.7 Vp-p, 75 ohms
Corresponding to copy protection
Digital audio output:
Optical: –18 dBm, 660 nm
Coaxial: 0.7 Vp-p, 75 ohms
Corresponding to Dolby Digital and DTS Digital Surround
Bit stream
Selectable in digital audio output setting menu
Signal system
NTSC color signal and EIA monochrome signal, 525 lines/60 fields
Recording system
DA4 (Double Azimuth) head helical scan system
Format
VHS NTSC standard
Maximum recording time
(SP): 210 min. with ST-210 video cassette
(EP): 30 min. with ST-210 video cassette
Signal-to-noise ratio
45 dB
Horizontal resolution
230 lines
Frequency range
(Normal audio): 70 Hz to 10,000 Hz
(Hi-Fi audio): 20 Hz to 20,000 Hz
Input/Output
RCA connectors: IN x 2, OUT x 1
Specifications shown are for SP mode unless otherwise specified.
Tuning system
Frequency synthesized tuner
Channel coverage
VHF: Channels 2 – 13
UHF: Channels 14 – 69
CATV: 113 Channels
RF output
Channel 3 or 4 (switchable; preset to Channel 3 when shipped)
75 ohms, unbalanced
Memory backup time
Approx. 5 seconds
Provided accessories
RF cable x 3,
Antenna splitter,
Infrared remote control unit,
“AA” battery x 2
E.& O.E. Design and specifications subject to change without
notice.
GENERAL
VIDEO/AUDIO (DVD Deck)
VIDEO/AUDIO (VCR Deck)
TUNER/TIMER
ACCESSORIES
A
TTENTION:
This unit contains microcomputers. External electronic noise or
interference could cause malfunctioning. In such cases, switch the
unit off and unplug the mains power cord. Then plug it in again and
turn the unit on. Take out the disc. After checking the disc, operate
the unit as usual.
DR-MV1SU_10Subsidiary.fm Page 87 Tuesday, March 16, 2004 3:15 PM
Filename [DR-MV1SU_10Subsidiary.fm]
Masterpage:Left0
88 EN
Page 88 February 24, 2004 12:51 pm
APPENDIX
Language Code List
AA Afar IK Inupiak RN Kirundi
AB Abkhazian IN Indonesian RO Rumanian
AF Afrikaans IS Icelandic RU Russian
AM Ameharic IW Hebrew RW Kinyarwanda
AR Arabic JA Japanese SA Sanskrit
AS Assamese JI Yiddish SD Sindhi
AY Aymara JW Javanese SG Sangho
AZ Azerbaijani KA Georgian SH Serbo-Croatian
BA Bashkir KK Kazakh SI Singhalese
BE Byelorussian KL Greenlandic SK Slovak
BG Bulgarian KM Cambodian SL Slovenian
BH Bihari KN Kannada SM Samoan
BI Bislama KO Korean (KOR) SN Shona
BN Bengali, Bangla KS Kashmiri SO Somali
BO Tibetan KU Kurdish SQ Albanian
BR Breton KY Kirghiz SR Serbian
CA Catalan LA Latin SS Siswati
CO Corsican LN Lingala ST Sesotho
CS Czech LO Laothian SU Sundanese
CY Welsh LT Lithuanian SW Swahili
DZ Bhutani LV Latvian, Lettish TA Tamil
EL Greek MG Malagasy TE Telugu
EO Esperanto MI Maori TG Tajik
ET Estonian MK Macedonian TH Thai
EU Basque ML Malayalam TI Tigrinya
FA Persian MN Mongolian TK Turkmen
FJ Fiji MO Moldavian TL Tagalog
FO Faroese MR Marathi TN Setswana
FY Frisian MS Malay (MAY) TO Tonga
GA Irish MT Maltese TR Turkish
GD Scots Gaelic MY Burmese TS Tsonga
GL Galician NA Nauru TT Tatar
GN Guarani NE Nepali TW Twi
GU Gujarati OC Occitan UK Ukrainian
HA Hausa OM (Afan) Oromo UR Urdu
HI Hindi OR Oriya UZ Uzbek
HR Croatian PA Panjabi VI Vietnamese
HU Hungarian PL Polish VO Volapuk
HY Armenian PS Pashto, Pushto WO Wolof
IA Interlingua PT Portuguese XH Xhosa
IE Interlingue QU Quechua YO Yoruba
RM Rhaeto-Romance ZU Zulu
DR-MV1SU_00.book Page 88 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right+
EN 89
Filename [DR-MV1SU_10Subsidiary.fm]
Page 89 February 24, 2004 12:51 pm
APPENDIX
Country/Area Code List for Parental Lock
AD Andorra CK Cook Islands GN Guinea
AE United Arab Emirates CL Chile GP Guadeloupe
AF Afghanistan CM Cameroon GQ Equatorial Guinea
AG Antigua and Barbuda CN China GR Greece
AI Anguilla CO Colombia GS South Georgia and the South
Sandwich Islands
AL Albania CR Costa Rica GT Guatemala
AM Armenia CU Cuba GU Guam
AN Netherlands Antilles CV Cape Verde GW Guinea-Bissau
AO Angola CX Christmas Island GY Guyana
AQ Antarctica CY Cyprus HK Hong Kong
AR Argentina CZ Czech Republic HM Heard Island and McDonald
Islands
AS American Samoa DE Germany HN Honduras
AT Austria DJ Djibouti HR Croatia
AU Australia DK Denmark HT Haiti
AW Aruba DM Dominica HU Hungary
AZ Azerbaijan DO Dominican Republic ID Indonesia
BA Bosnia and Herzegovina DZ Algeria IE Ireland
BB Barbados EC Ecuador IL Israel
BD Bangladesh EE Estonia IN India
BE Belgium EG Egypt IO British Indian Ocean Territory
BF Burkina Faso EH Western Sahara IQ Iraq
BG Bulgaria ER Eritrea IR Iran (Islamic Republic of)
BH Bahrain ES Spain IS Iceland
BI Burundi ET Ethiopia IT Italy
BJ Benin FI Finland JM Jamaica
BM Bermuda FJ Fiji JO Jordan
BN Brunei Darussalam FK Falkland Islands (Malvinas) JP Japan
BO Bolivia FM Micronesia
(Federated States of) KE Kenya
BR Brazil FO Faroe Islands KG Kyrgyzstan
BS Bahamas FR France KH Cambodia
BT Bhutan FX France, Metropolitan KI Kiribati
BV Bouvet Island GA Gabon KM Comoros
BW Botswana GB United Kingdom KN Saint Kitts and Nevis
BY Belarus GD Grenada KP Korea, Democratic People’s
Republic of
BZ Belize GE Georgia KR Korea, Republic of
CA Canada GF French Guiana KW Kuwait
CC Cocos (Keeling) Islands GH Ghana KY Cayman Islands
CF Central African Republic GI Gibraltar KZ Kazakhstan
CG Congo GL Greenland LA Lao People’s Democratic
Republic
CH Switzerland GM Gambia LB Lebanon
CI Côte d’Ivoire
DR-MV1SU_00.book Page 89 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_10Subsidiary.fm]
Masterpage:Left+
90 EN
Page 90 February 24, 2004 12:51 pm
APPENDIX
LC Saint Lucia NU Niue SZ Swaziland
LI Liechtenstein NZ New Zealand TC Turks and Caicos Islands
LK Sri Lanka OM Oman TD Chad
LR Liberia PA Panama TF French Southern Territories
LS Lesotho PE Peru TG Togo
LT Lithuania PF French Polynesia TH Thailand
LU Luxembourg PG Papua New Guinea TJ Tajikistan
LV Latvia PH Philippines TK Tokelau
LY Libyan Arab Jamahiriya PK Pakistan TM Turkmenistan
MA Morocco PL Poland TN Tunisia
MC Monaco PM Saint Pierre and Miquelon TO Tonga
MD Moldova, Republic of PN Pitcairn TP East Timor
MG Madagascar PR Puerto Rico TR Turkey
MH Marshall Islands PT Portugal TT Trinidad and Tobago
ML Mali PW Palau TV Tuvalu
MM Myanmar PY Paraguay TW Taiwan, Province of China
MN Mongolia QA Qatar TZ Tanzania, United Republic of
MO Macau RE Réunion UA Ukraine
MP Northern Mariana Islands RO Romania UG Uganda
MQ Martinique RU Russian Federation UM United States Minor Outlying
Islands
MR Mauritania RW Rwanda US United States
MS Montserrat SA Saudi Arabia UY Uruguay
MT Malta SB Solomon Islands UZ Uzbekistan
MU Mauritius SC Seychelles VA Vatican City State (Holy See)
MV Maldives SD Sudan VC Saint Vincent and the
Grenadines
MW Malawi SE Sweden VE Venezuela
MX Mexico SG Singapore VG Virgin Islands (British)
MY Malaysia SH Saint Helena VI Virgin Islands (U.S.)
MZ Mozambique SI Slovenia VN Viet Nam
NA Namibia SJ Svalbard and Jan Mayen VU Vanuatu
NC New Caledonia SK Slovakia WF Wallis and Futuna Islands
NE Niger SL Sierra Leone WS Samoa
NF Norfolk Island SM San Marino YE Yemen
NG Nigeria SN Senegal YT Mayotte
NI Nicaragua SO Somalia YU Yugoslavia
NL Netherlands SR Suriname ZA South Africa
NO Norway ST Sao Tome and Principe ZM Zambia
NP Nepal SV El Salvador ZR Zaire
NR Nauru SY Syrian Arab Republic ZW Zimbabwe
DR-MV1SU_00.book Page 90 Tuesday, February 24, 2004 12:53 PM
Masterpage:Right0
EN 91
Filename [DR-MV1SU_11IX.fm]
Page 91 February 23, 2004 4:08 pm
LIST OF TERMS
A
A-B Repeat Playback ................................................ 34
Accidental erasure prevention .................................... 51
Adjusting The Picture Quality ..................................... 35
Angle Selection ........................................................ 28
Audio Channel Selection ........................................... 29
Audio Language/Sound Selection ............................... 28
Auto Channel Set ..................................................... 21
Auto Daylight Saving Time ........................................ 20
C
Check, Cancel And Change Programs ...................45, 54
D
Delete Program ........................................................ 57
Disc menu ............................................................... 26
Disc Remaining Time ................................................ 39
Discs For Playback Only ............................................. 8
DVD menu ............................................................... 26
E
Elapsed Recording Time Indication .......................39, 51
F
File Structure Of Discs ................................................ 9
Free Rate Function ................................................... 40
G
Guide Channel Number ............................................. 77
H
High-Speed Search .............................................26, 48
I
Index Search ............................................................ 48
Instant Timer Recording (ITR) ...............................39, 51
L
Letter Box ................................................................ 24
Live Memory ............................................................ 29
M
Manual Channel Set ................................................. 21
Manual Clock Set ..................................................... 20
Manual Tracking ....................................................... 49
Marking Positions To Play Back Again Later ................ 27
Menu/Audio/Subtitle Language Set ............................. 19
N
Next Function Memory .............................................. 49
O
One Touch Replay .................................................... 32
On-screen bar .......................................................... 33
On-screen Language Set .......................................... 19
P
Pan&Scan ................................................................ 24
Play List ................................................................... 58
Playback .............................................. 25 –37, 47 –49
Playback Control (PBC) ............................................. 29
Program Playback .................................................... 36
Q
Quick Rewind A Little ................................................ 48
R
Random Playback ..................................................... 36
Recordable/playable discs ........................................... 8
Recording ............................................ 38 –40, 50 –51
Recording Medium And Format .................................... 9
Recording Mode ....................................................... 38
Recording Resume Function ................................ 38, 50
Region Number .......................................................... 9
Register Disc ............................................................ 60
Repeat Playback ................................................ 34, 49
Resume Function ..................................................... 27
S
SAP .................................................................. 40, 51
Second Audio Recording ..................................... 40, 51
Select The Switching Interval Of The Slide Show ......... 36
Semiauto Clock Set .................................................. 20
Setting The Progressive Mode ................................... 36
Simulated Surround Effect ......................................... 35
Skip Search ....................................................... 27, 48
Slow Motion ....................................................... 27, 48
Soundtrack Selection ................................................ 49
Still Picture/Frame-By-Frame Playback ................. 27, 48
Subtitle Selection ...................................................... 28
T
Tape Position Indicator .............................................. 15
Tape Remaining Time ............................................... 51
Time Search ............................................................ 35
Timer Recording ................................... 41 –46, 52 –54
Top menu ................................................................ 26
U
Unplayable Discs ........................................................ 9
Usable cassettes ...................................................... 47
W
When Programs Overlap Each Other .................... 45, 54
DR-MV1SU_00.book Page 91 Tuesday, February 24, 2004 12:53 PM
Filename [DR-MV1SU_11IX.fm]
Masterpage:Left0
92 EN
Page 92 March 4, 2004 8:43 pm
WAR RANTY
REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF
REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION
PACKAGED WITH EACH REFURBISHED PRODUCT.
LIMITED WARRANTY USA ONLY
ONLY FOR PRODUCT PURCHASED IN U.S.A. CONSUMER VIDEO 1-90
JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL
PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase
for the period as shown below. (“The Warranty Period”)
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN
COMMONWEALTH OF PUERTO RICO.
WHAT WE WILL DO:
If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and
replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for
replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC
authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on
an in-home basis.
WHAT YOU MUST DO FOR WARRANTY SERVICE:
Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center,
please call toll free: (800) 252-5722.
If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of
sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given
to you by the toll-free number.
If you have any questions concerning your JVC Product, please contact our Customer Relations Department.
WHAT IS NOT COVERED:
This limited warranty provided by JVC does not cover:
1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation,
lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service,
or if affixed to any attachment not provided with the products, or if the model number or serial number has been altered, tampered
with, defaced or removed;
2. Initial installation and installation and removal for repair;
3. Operational adjustments covered in the Owner’s Manual, normal maintenance, video and audio head cleaning;
4. Damage that occurs in shipment, due to act of God, and cosmetic damage;
5. Signal reception problems and failures due to line power surge;
6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;
7. Accessories;
8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);
There are no express warranties except as listed above.
THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO
THE DURATION OF THE EXPRESS WARRANTY HEREIN.
JVC SHALL NOT BE LIABLE FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES,
WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS
OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL
