11/13 Rev. A EM32TS QUICK START GUIDE

QUICK START GUIDE

TV MODEL: EM32TS

32” CLASS LED TV

11/13 Rev. A EM32TS QUICK START GUIDE

IMPORTANT SAFETY INFORMATION

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of

uninsulated dangerous voltage with the product’s enclosure that may be of sufficient magnitude to constitute a risk of

electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the appliance.

•Read and follow all these instructions.

•Heed all warnings.

•Do not use this device near water.

•Clean only with dry cloth.

•Do not block any ventilation openings. Install in accordance with manufacturer’s

instructions.

•Do not install near any heat sources such as radiators, heat registers, stoves, or

other heat-generation devices.

•Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding-type

plug has two blades and a third grounding prong. The wide blade or the third

prong is provided for your safety. If the provided plug does not fit into your

outlet, consult an electrician for replacement of the obsolete outlet.

•Protect the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles, and the point where they exit from the device.

•Only use attachments/accessories specified by the manufacturer.

•Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

•

Unplug this apparatus during lightning storms or when unused for long periods of

time.

•Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

•Apparatus should not be exposed to dripping or splashing, and objects filled with

liquids, such as vases, should not be placed on the apparatus.

•An outside antenna system should not be located in the vicinity of overhead

power lines or other electric light or power circuits, or where it can fall into such

power lines or circuits. When installing an outside antenna system, extreme care

should be taken to keep from touching such power lines or circuits, as contact

with them might be fatal.

•Do not overload wall outlets and extension cords, as this can result in a risk or fire

or electric shock.

•Do not push objects through any openings in this unit as they may touch

dangerous voltage points or short out parts that could result in fire or electric

shock. Never spill or spray any type of liquid into the unit.

•If an outside antenna or cable system is connected to the unit, be sure he

antenna or cable system is grounded to provide some protection against voltage

surges and built-up static charges, Section 810 of the National Electrical Code,

ANSI/NFPA 70, provides information with respect to proper grounding practices

•When replacement parts are required, be sure the service technician uses

replacement parts specified by the manufacturer or those that have the same

characteristics as the original part. Unauthorized substitutions may result in fire,

electric shock, or other hazards.

•Upon completion of any service or repairs to this unit, ask the service technician

to perform safety checks to determine that the unit is in proper operating

condition.

•When you connect the product to other equipment, turn off the power and

unplug all of the equipment from the wall outlet.

•Sudden high volume sound may cause hearing or speaker damage. When you

use headphones (if the unit is equipped with a headphone jack), keep the volume

at a moderate level.

11/13 Rev. A EM32TS QUICK START GUIDE

CHECK MATERIALS IN PACKAGE

DOWNLOAD FULL VERSION USER MANUAL

http://go.jvc.com/HDTVsupport

11/13 Rev. A EM32TS QUICK START GUIDE

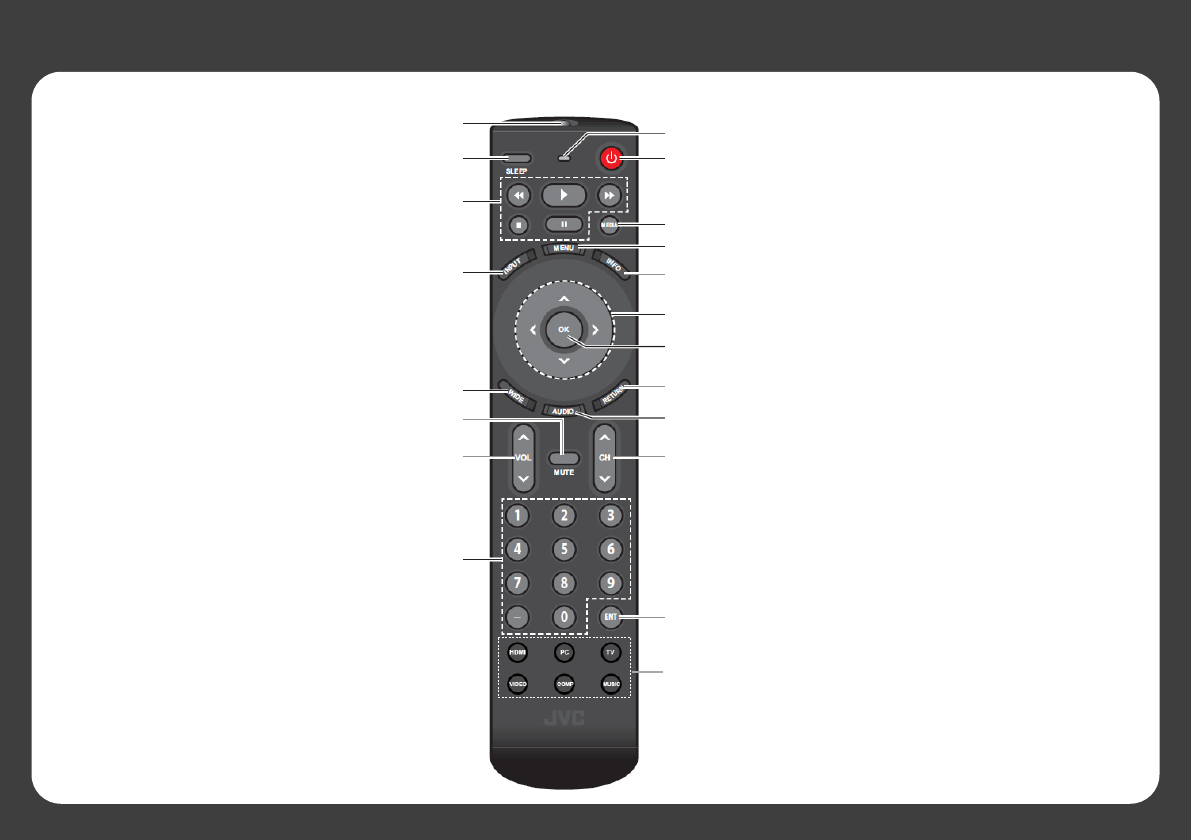

REMOTE CONTROL

Control USB multimedia and HDMI-CEC devices

IR Transmitter

SLEEP button

Playback Controls

INPUT button

WIDE button

MUTE button

VOLUME Controls

Number Pad

LED indicator

TV POWER button

MEDIA button

MENU button

INFO button

Direction buttons

OK button

RETURN button

AUDIO button

CHANNEL Controls

ENTER button

Quick Input Select button

Select a sleep mode timer

Select Input source

Select viewing aspect

To directly key in channels. Use “-” for sub-

channel. Example: 2-1 or 18-7

Access USB Multimedia

Enter Audio Only Mode

11/13 Rev. A EM32TS QUICK START GUIDE

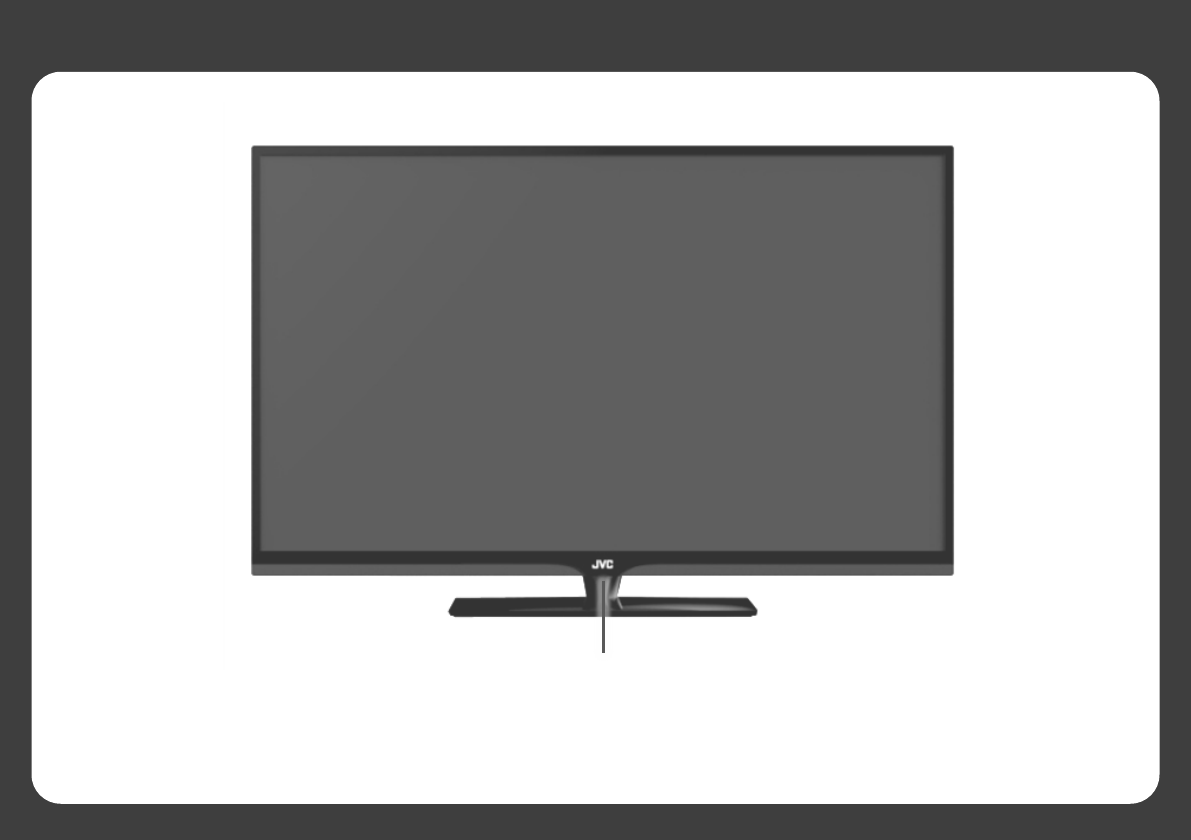

FRONT VIEW

Power Indicator & Remote Sensor

11/13 Rev. A EM32TS QUICK START GUIDE

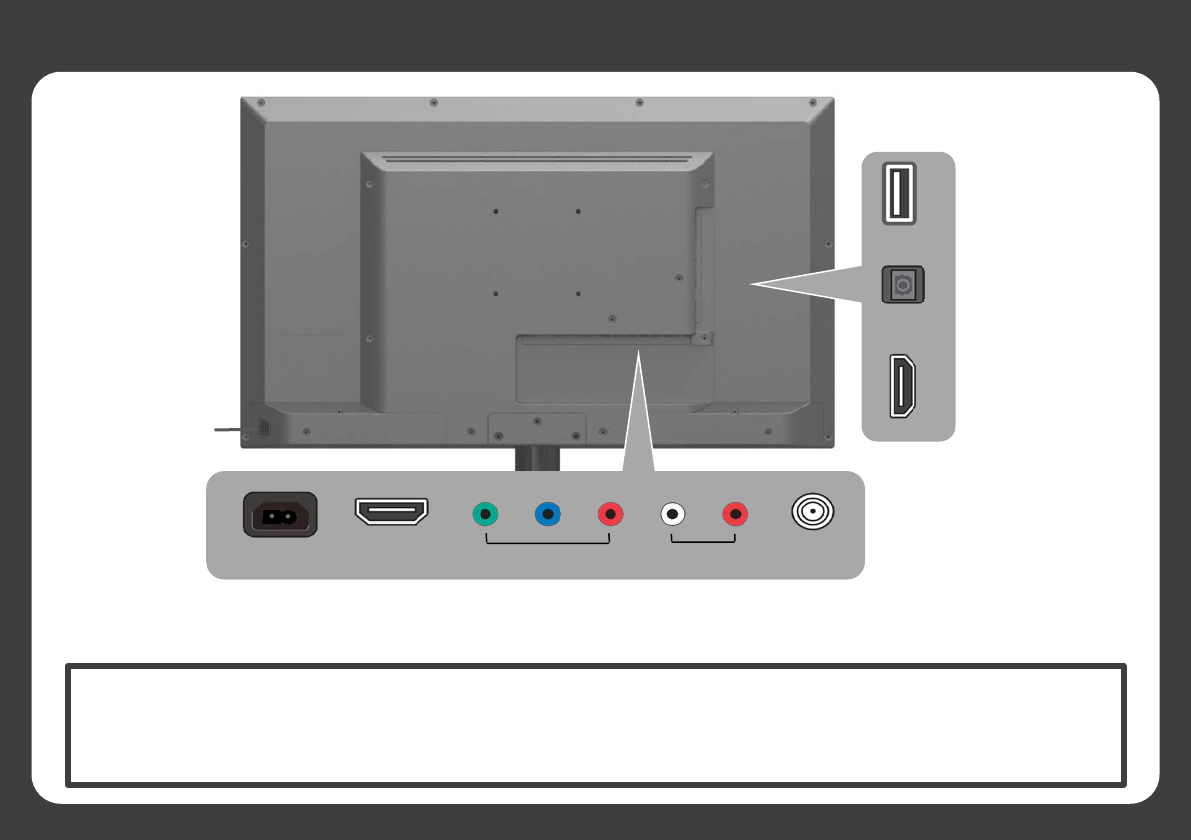

REAR VIEW

Power / Multi-

Function Button

AC Power Component /

Video Input

Audio Input/

Music Port

Antenna

Input

HDMI - 1

USB

Digital Optical Out

HDMI - Side

Power / Multi-Function Button Operation:

•Press the button to show Quick Control Menu and switch between options

•Press and hold the button to select highlighted option

•To power off TV, press and hold the button while Quick Control Menu is not on screen

11/13 Rev. A EM32TS QUICK START GUIDE

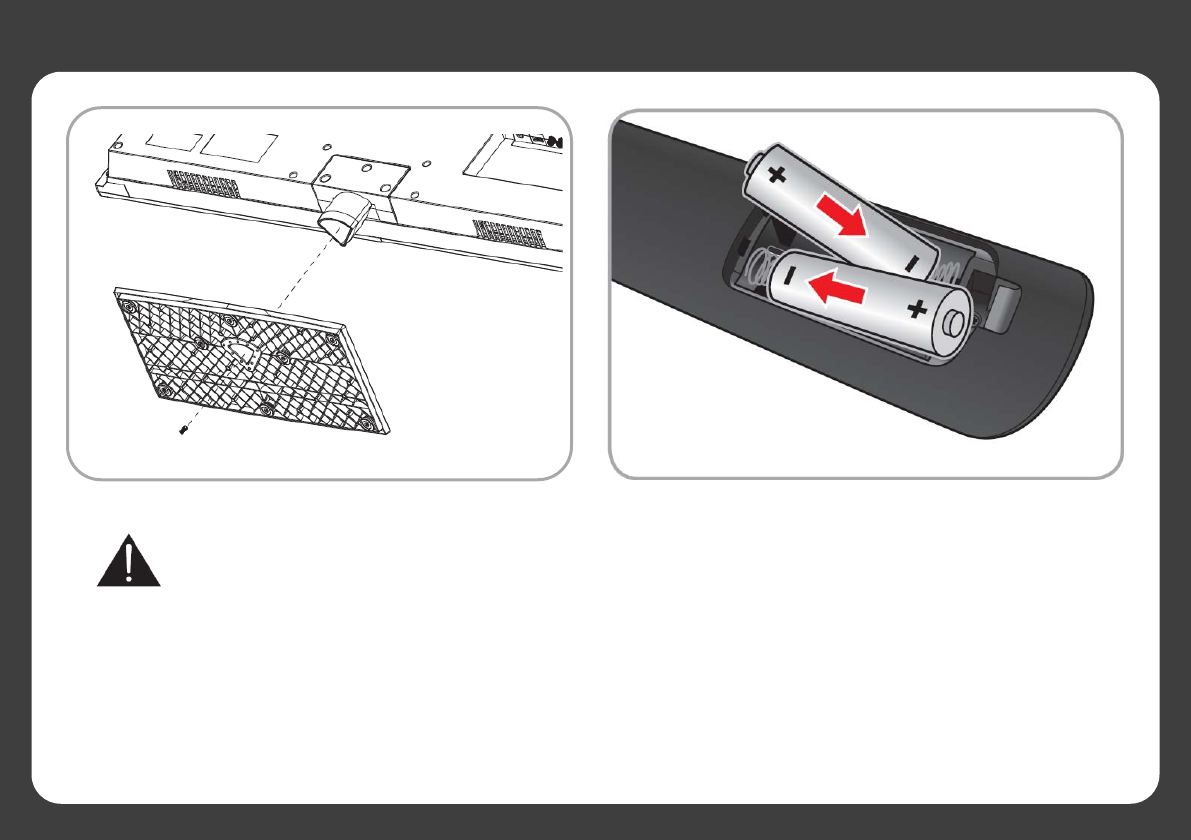

INSTALLING BASE AND BATTERIES

Carefully place TV face down on a flat

and clean surface. It is recommended to

place the TV cover or protection sheet

between the TV and the flat surface

Attach base to stand and Fasten the screw provided

Be sure to follow correct polarity.

Do NOT combine a used battery with a new one

Do NOT combine rechargeable battery with a non-

rechargeable battery (e.g. Alkaline or Carbon-zinc)

11/13 Rev. A EM32TS QUICK START GUIDE

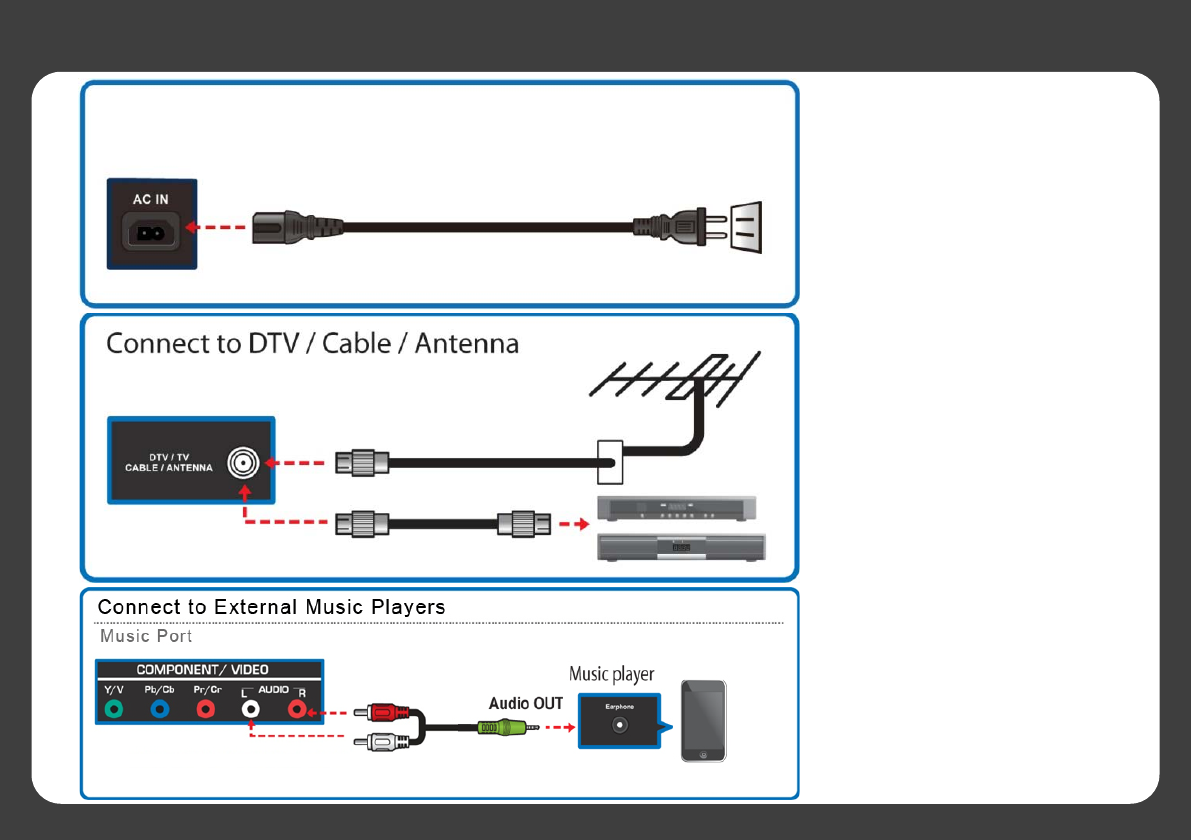

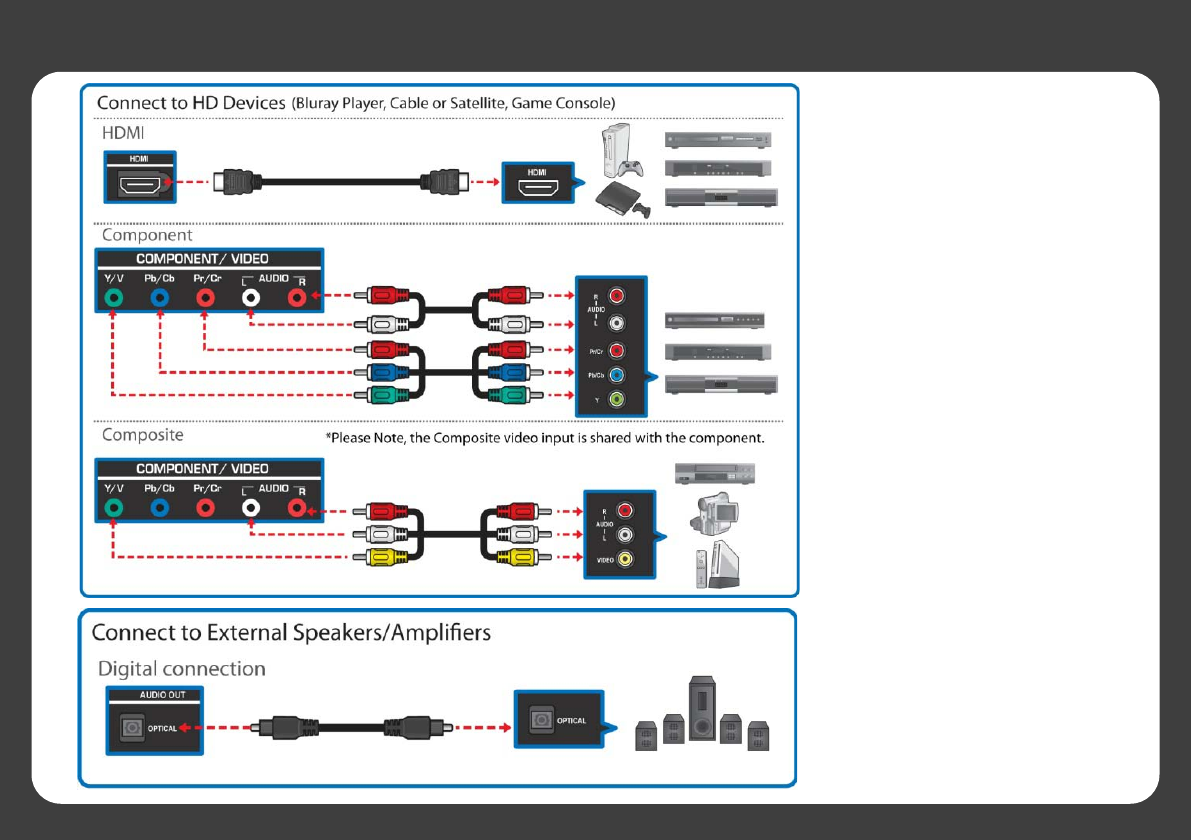

CONNECTING TV AND DEVICES

Connect to Power

Audio cable is not included

Antenna Cable is not included

11/13 Rev. A EM32TS QUICK START GUIDE

CONNECTING TV AND DEVICES

Optical cable is not included

HDMI, AV Cables are not

included

11/13 Rev. A EM32TS QUICK START GUIDE

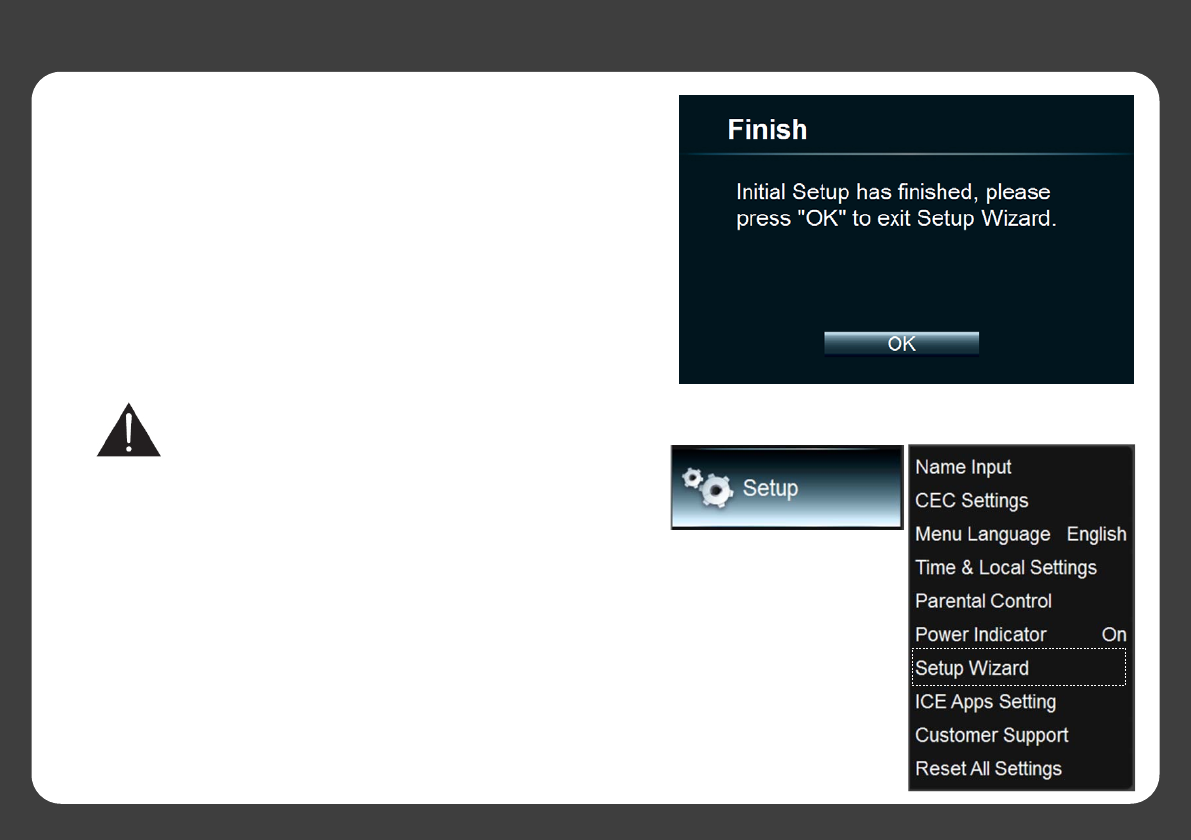

You can also run the Setup Wizard at any time, by choosing

MENU > SETUP > SETUP WIZARD

FIRST TIME SETUP

The Setup Wizard appears when you turn on the TV for the

first time.

Follow the TV on-screen instruction and use the remote to

choose

•Menu language

•TV mode

•Time Zone

•Channel Scan

Make sure batteries are inserted to the TV remote

control

11/13 Rev. A EM32TS QUICK START GUIDE

TROUBLESHOOTING

Problem Solution

No Power •Make sure the power cord is plugged in.

•The power is off; press Power button to turn on the TV.

•Try another outlet.

•Unplug the unit for an hour, and then plug it back in.

Poor or No Sound •Press the VOL Up button on the remote control or the VOL+ button on the TV.

•Press MUTE button on the remote control to ensure mute is not on.

•The channel or cable TV broadcast is experiencing problems. Tune to another channel.

•Check the TV audio settings.

•Check for possible sources of interference.

Poor or No Picture •The channel or cable TV is experiencing problems. Tune to another channel.

•Make sure that channels are set into memory.

•Check the antenna or cable TV connections.

•Check for possible sources of interference.

Poor Reception on Some

Channels

•The channel or cable TV broadcast is experiencing problems. Tune to another channel.

•Make sure that channels are set into memory

•The network signal is weak. Adjust the antenna to receive a better reception

•Check for possible sources of interference.

The Remote Control does not

work

•Batteries may be weak, dead, or inserted incorrectly.

•Point the remote control directly at the IR sensor on the TV with an angle of 35 degrees.

•Remove any obstacles between the remote control and the TV.

•Remote control is out of range. Move closer to the TV.

TV Shuts Off •Sleep timer is set.

•Power is interrupted.

No CATV Reception •Check all cable TV connections.

•Set the TV Mode in Channel menu.

Closed Caption is not activated •The channel/program is not a closed caption broadcast. Try another channel.

•Enable Closed Caption in the Menu.

11/13 Rev. A EM32TS QUICK START GUIDE

LIMITED WARRANTY

On Parts and Labor

This Limited Warranty covers units that are purchased as new and in the United

States Only. This Product is manufactured, distributed, and warranted by AmTRAN

Video Corporation (hereinafter known as “Warrantor”) under brand license by JVC

KENWOOD Corporation. The Warrantor provides a warranty to the original

purchaser of a new Product against defects in materials and workmanship for a

period of one (1) year of non-

commercial usage and ninety (90) days of commercial

use. If a Product covered by this warranty is determined to be defective within the

warranty period, the Warrantor will either repair or replace the Product at its sole

option and discretion.

To obtain warranty service, contact Technical Support:

Visit the Web Site: http://go.jvc.com/HDTVSupport

Or call our Customer Support and Service Center 1-855-868-1928

PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A

DESIGNATED SERVICE CENTER.

Proof of purchase in the form of a purchase receipt or copy thereof is required to

show that a Product is within the warranty period.

Parts and Labor

There will be no charge for parts or labor during the warranty period.

Replacement parts and Products may be new or recertified at the Warrantor’s

option and sole discretion. Replacement parts and Products are warranted for the

remaining portion of the original warranty or for ninety (90) days from warranty

service or replacement, whichever is longer.

Types of Service

Defective Products must be sent to the designated service center to obtain

warranty service. The Warrantor is not responsible for the transportation costs to

the service center, but will cover the costs for return shipping to the customer.

PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A

DESIGNATED SERVICE CENTER FOR WARRANTY SERVICE.

Product returned to designated service centers must either utilize the original

carton box and shipping material or packaging that affords an equal degree of

protection. Technical Support will provide instructions for packing and shipping

the Product to the designated service center.

Limitations and Exclusions

The Warrantor’s one-year limited warranty only covers defects in materials and

workmanship. This warranty does not cover product issues caused by any other

reason including, but not limited to, cosmetic damage, normal wear and tear,

improper operation, improper voltage supply or power surges, signal issues,

damages from shipping, acts of God, any type of customer misuse, modifications or

adjustments, as well as installation and setup issues or any repairs attempted by

anyone other than by a authorized service center. Products with unreadable or

removed serial numbers, or requiring routine maintenance are not covered. This

one-year limited warranty does not cover Products that are sold “As-Is”, “Open

Box”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED

ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED

IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. THE WARRANTOR’S

TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY

CAUSE WHATSOEVER

INCLUDING WARRANTOR’S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE

GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO

EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. THE WARRANTOR SHALL

NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA,

COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR

CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY

NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU

MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS

WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE.

CHECK TV.JVC.COM FOR THE MOST CURRENT VERSION.

11/13 Rev. A EM32TS QUICK START GUIDE

LIMITED WARRANTY

REGULATORY STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation. Note: This

equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected

Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Changes or modifications not expressly approved by the party

responsible for compliance with the FCC Rules could void the user’s

authority to operate this equipment.

Responsible Party: AmTRAN Video Corporation

Address: 9 Goddard, Irvine, CA 92618, USA

Telephone No; 949-336 6633

Required Marking Location

The rating sheet and the safety caution are on the rear of the unit.

PERSONAL DATA

If your Product is capable of storing personal data and other information, all contents

and information will be deleted in the course of some in-home, and all ship-in, warranty

service. If this occurs, your Product will be restored to you configured as originally

purchased. You will be responsible for restoring all applicable data and passwords.

Recovery and reinstallation of User data is not covered under this Limited Warranty. In

order to protect your personal information, we recommend that you always clear all

personal information from the Product before it is serviced, regardless of the servicer.

Important Open Source Software Notice

Some JVC device may contain free software which is based on the license granted under

the GNU General Public License and Lesser General Public License (hereinafter

“GPL/LPGL”) that are subject to the GPL2.0/LGPL2.1 You may use, modify, or distribute

only if you agree to all of the terms and conditions of the GPL/LGPL. For more details on

the list of JVC devices with open source software, please visit

http://go.jvc.com/HDTVSupport.

Please note that any software component developed or created independently by

AmTRAN Video Corporation shall not be subject to “GPL/LGPL” requirement for

provision of the source code. Users are urged to read the details for the relevant license

carefully before using the software component covered by “GPL/LGPL.”

You can obtain a copy of the GPL/LGPL license from http://www.gnu.org/licenses/gpl

and http://www.gnu.org/licenses/lgpl. Please note that we are unable to answer any

inquiry relating to the contents, etc of the source code.

Permission is hereby granted, free of charge, to any person obtaining a copy of any such

software and associated documentation files (the “Open Source Software”), to deal in

the Open Source Software without restriction including without limitation the rights to

use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Open

Source Software, and to permit persons to whom the Open Source Software is

furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT, IN NO EVENT SHALL

THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR

OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE,

ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR

OTHER DEALINGS IN THE SOFTWARE.

11/13 Rev. A EM32TS QUICK START GUIDE

Blank Page

11/13 Rev. A EM32TS QUICK START GUIDE

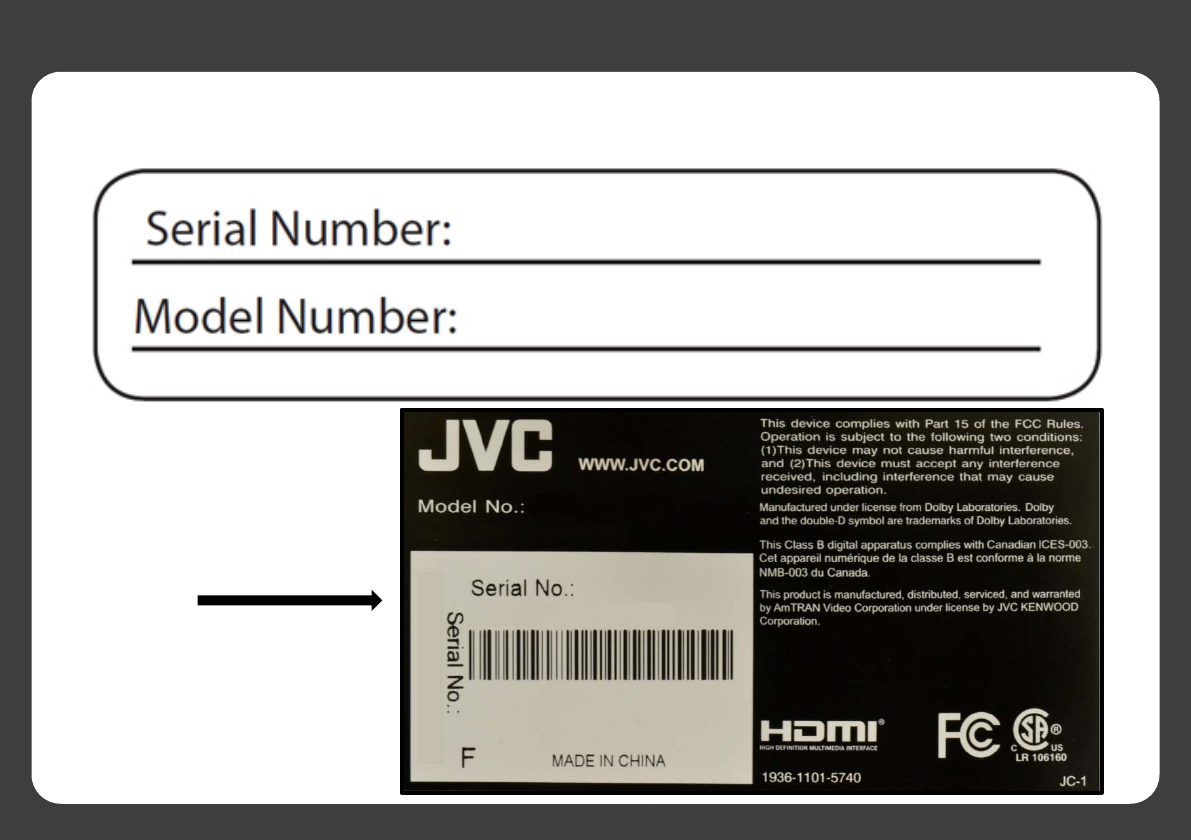

TV SERIAL NUMBER

Copy TV serial number here for quick future reference

Serial and Model numbers

are found on safety label

located on back of TV

EXAMPLE

11/13 Rev. A EM32TS QUICK START GUIDE

We Are Here To Help!

Call our highly trained support team at

1 - 855 - 868 - 1928

We can help you with

•Damaged Package

•Missing Parts

•Technical Support

Or visit

http://go.jvc.com/HDTVsupport

192513015472
