LYT0465-001A

EN

COMPACT

VHS CAMCORDER

INSTRUCTIONS

GR-SXM320

GR-SX851

GR-AX750

For Customer Use:

Enter below the Model No. and Serial No. which is located on the

bottom of cabinet. Retain this information for future reference.

Model No.

Serial No.

ENGLISH

CONTENTS

SAFETY PRECAUTIONS

2 – 5

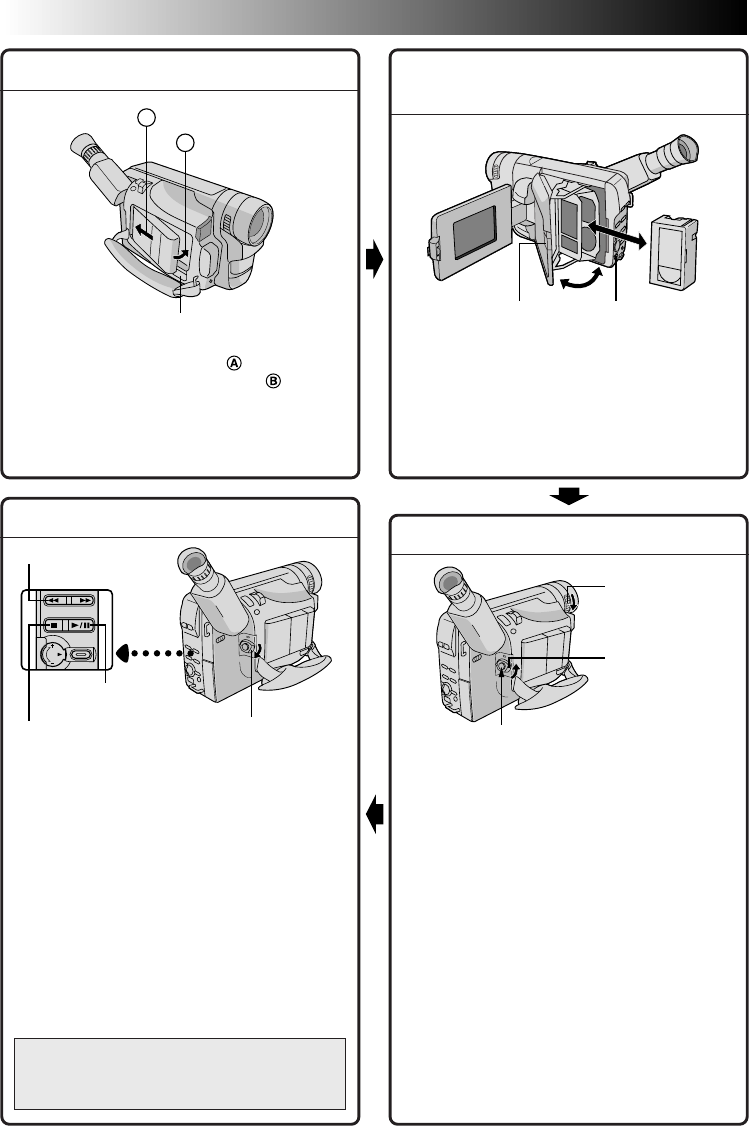

QUICK OPERATION GUIDE

6

MAJOR FEATURES

7

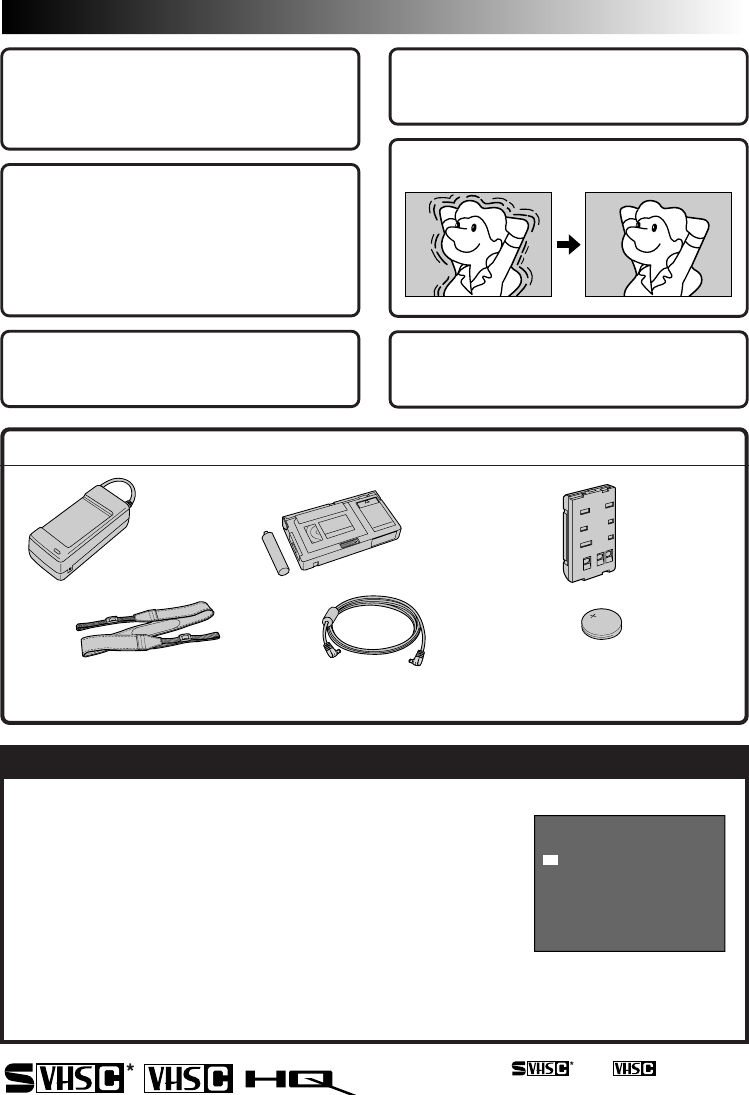

PROVIDED ACCESSORIES

7

GETTING STARTED

8 – 15

RECORDING

16 – 30

Basic Recording .......................... 16

Basic Features ........................... 18

Advanced Features ...................... 21

PLAYBACK

31 – 35

Basic Playback ........................... 31

Features .................................. 32

Using The Cassette Adapter ........... 33

Connections ............................... 34

USING THE REMOTE

CONTROL UNIT

(GR-SXM320/SX851 only)

36 – 39

Animation And Time-Lapse ............. 37

Insert Editing ............................. 38

Audio Dubbing ........................... 39

TROUBLESHOOTING

40 – 41

INDEX

42 – 45

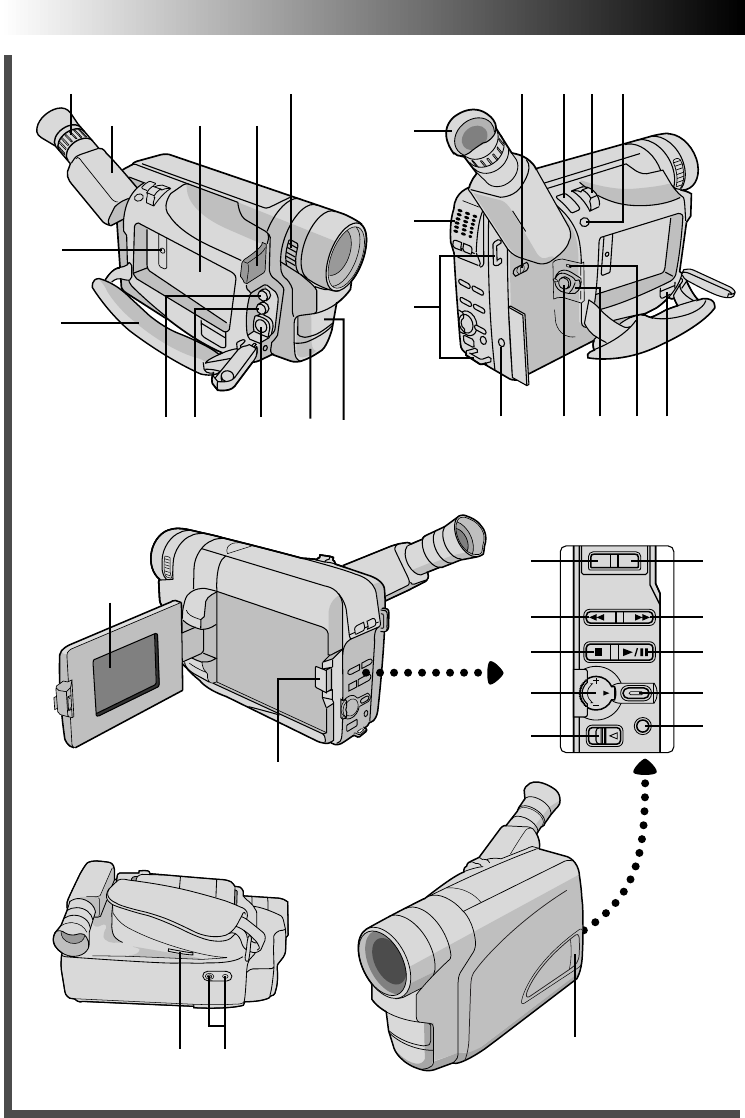

Controls, Connectors And

Indicators ............................... 42

Indications ................................ 44

CAUTIONS

46 – 47

TERMS

48

USER MAINTENANCE

50

SPECIFICATIONS

51

ESPAÑOL

52 – 53

FOR SERVICING (Only in U.S.A.)

54

WARRANTY (Only in U.S.A.)

55

*GR-SXM320/SX851 only

2 EN

Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents on the cover.

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

.... refer to the Index (Z pgs. 42 – 45) and familiarize yourself with button locations, etc. before use.

.... read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely

important information regarding the safe use of this product.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated "dangerous voltage" within the

product's enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

You are recommended to carefully read the cautions on pages 46 – 48 before use.

NOTES:

●

The rating plate (serial number plate) and safety

caution are on the bottom and/or the back of

the main unit.

●

The rating information and safety caution of the

AC Power Adapter/Charger are on its bottom.

Warning on lithium battery (for clock

operation and remote control unit)

The battery used in this device may present a fire

or chemical burn hazard if mistreated. Do not

recharge, disassemble, heat above 100°C (212°F)

or incinerate.

Replace the battery with Maxell, Panasonic

(Matsushita Electric), Sanyo or Sony CR2025; use

of another battery may present a risk of fire or

explosion.

nDispose of used battery promptly.

nKeep away from children.

nDo not disassemble and do not dispose of in

fire.

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE

THIS UNIT TO RAIN OR

MOISTURE.

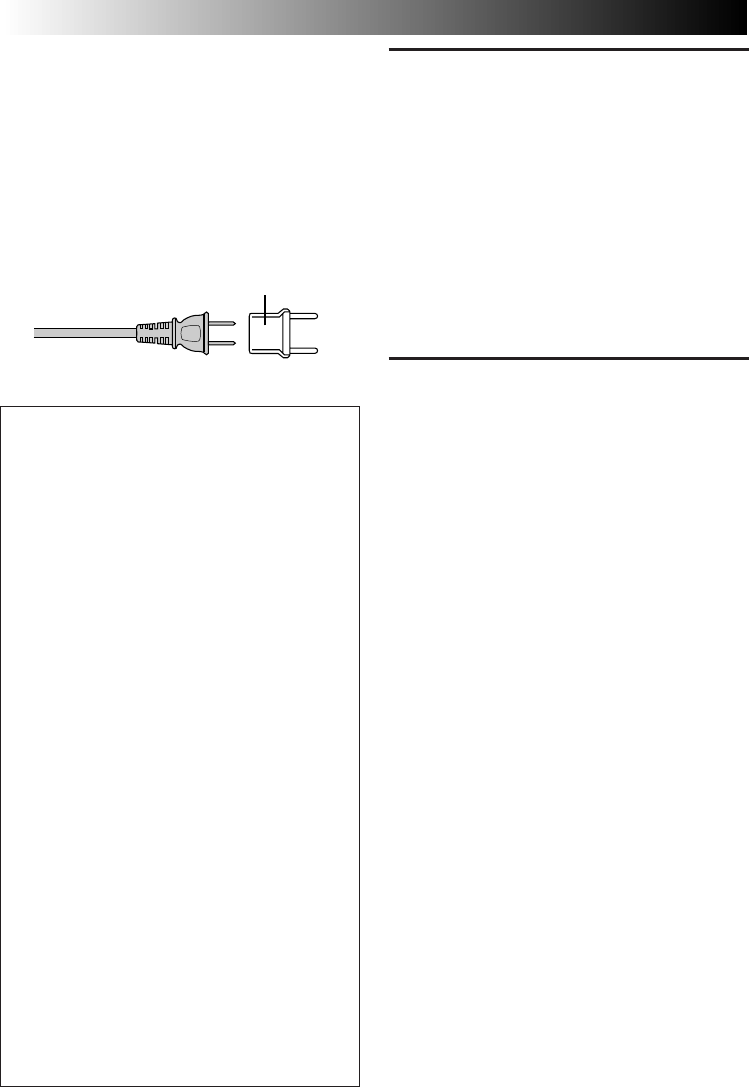

The AA-V16U AC Power Adapter/Charger

should be used with:

AC 120 V`, 60 Hz in the USA and Canada,

AC 110 – 240 V`, 50/60 Hz in other countries.

CAUTION (applies to the AA-V16U)

TO PREVENT ELECTRIC SHOCK MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

ATTENTION (s’applique à l’AA-V16U)

POUR ÉVITER LES CHOCS ÉLECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE

DE LA PRISE ET POUSSER JUSQU’AU FOND.

Dear Customer,

Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information

and precautions contained in the following pages to ensure safe use of this product.

This Class B digital apparatus complies with

Canadian ICES-003.

Cet appareil numérique de la classe B est

conforme à la norme NMB-003 du Canada.

EN3

When the equipment is installed in a cabinet or on a shelf, make sure that is has sufficient space on all

sides to allow for ventilation (10 cm (3-15/16") or more on both sides, on top and at the rear).

Do not block the ventilation holes.

(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws

governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases,

potted plants, cups etc.) on top of this unit.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

The EPA certified RBRC® Battery Recycling Seal on the nickel-cadmium (Ni-Cd) battery indicates JVC is

voluntarily participating in an industry program to collect and recycle these batteries at the end of their

useful life, when taken out of service in the United States. The RBRC® program provides a convenient

alternative to placing used Ni-Cd batteries into the trash or the municipal waste stream, which may be

illegal in your area. Please call 1-800-8-BATTERY™ for information on Ni-Cd battery recycling and

disposal bans/restrictions in your area. JVC’s involvement in this program is part of our commitment to

preserving our environment and conserving our natural resources.

ATTENTION:

The product that you have purchased is powered by a rechargeable battery. The battery is recyclable. At

the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into

the municipal waste stream. Check with your local solid waste officials for details in your area for

recycling options or proper disposal.

This camcorder is designed to be used with NTSC-type color television signals. It cannot be used for

playback with a television of a different standard. However, live recording and LCD monitor*/viewfinder

playback are possible anywhere. Use the BN-V11U/V12U/V20U battery packs and, to recharge them, the

provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary

to accommodate different designs of AC outlets in different countries.)

*GR-SXM320 only.

4 EN

5. Ventilation

Slots and openings in the cabinet are provided for

ventilation. To ensure reliable operation of the product

and to protect it from overheating, these openings must

not be blocked or covered.

• Do not block the openings by placing the product on a

bed, sofa, rug or other similar surface.

• Do not place the product in a built-in installation such

as a bookcase or rack unless proper ventilation is

provided or the manufacturer’s instructions have been

adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only

as recommended by the manufacturer.

ANTENNA INSTALLATION

INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the

product, be sure the antenna or cable system is

grounded so as to provide some protection against

voltage surges and built-up static charges. Article 810 of

the National Electrical Code, ANSI/NFPA 70, provides

information with regard to proper grounding of the mast

and supporting structure, grounding of the lead-in wire

to an antenna discharge unit, size of grounding

conductors, location of antenna discharge unit,

connection to grounding electrodes, and requirements

for the grounding electrode.

2. Lightning

For added protection for this product during a lightning

storm, or when it is left unattended and unused for long

periods of time, unplug it from the wall outlet and

disconnect the antenna or cable system. This will

prevent damage to the product due to lightning and

power-line surges.

3. Power Lines

An outside antenna system should not be located in the

vicinity of overhead power lines or other electric light or

power circuits, or where it can fall into such power lines

or circuits. When installing an outside antenna system,

extreme care should be taken to keep from touching

such power lines or circuits as contact with them might

be fatal.

IMPORTANT PRODUCT

SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions.

But improper use can result in potential electrical

shock or fire hazards. This product has been

engineered and manufactured to assure your

personal safety. In order not to defeat the built-in

safeguards, observe the following basic rules for its

installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions

marked on your product and its operating instruc-

tions. For your safety, please read all the safety and

operating instructions before you operate this

product and keep this manual for future reference.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized

alternating-current line plug (a plug having one blade

wider than the other). This plug will fit into the

power outlet only one way. This is a safety feature.

If you are unable to insert the plug fully into the

outlet, try reversing the plug. If the plug should still

fail to fit, contact your electrician to replace your

obsolete outlet. Do not defeat the safety purpose of

the polarized plug.

(B) Your product may be equipped with a 3-wire

grounding-type plug, a plug having a third (ground-

ing) pin. This plug will only fit into a grounding-type

power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet,

contact your electrician to replace your obsolete

outlet. Do not defeat the safety purpose of the

grounding-type plug.

2. Power Sources

Operate your product only from the type of power

source indicated on the marking label. If you are not

sure of the type of power supply to your home, consult

your product dealer or local power company. If your

product is intended to operate from battery power, or

other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral

convenience receptacles as this can result in a risk of fire

or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are

not likely to be walked on or pinched by items placed

upon or against them, paying particular attention to

cords at plugs, convenience receptacles, and the point

where they exit from the product.

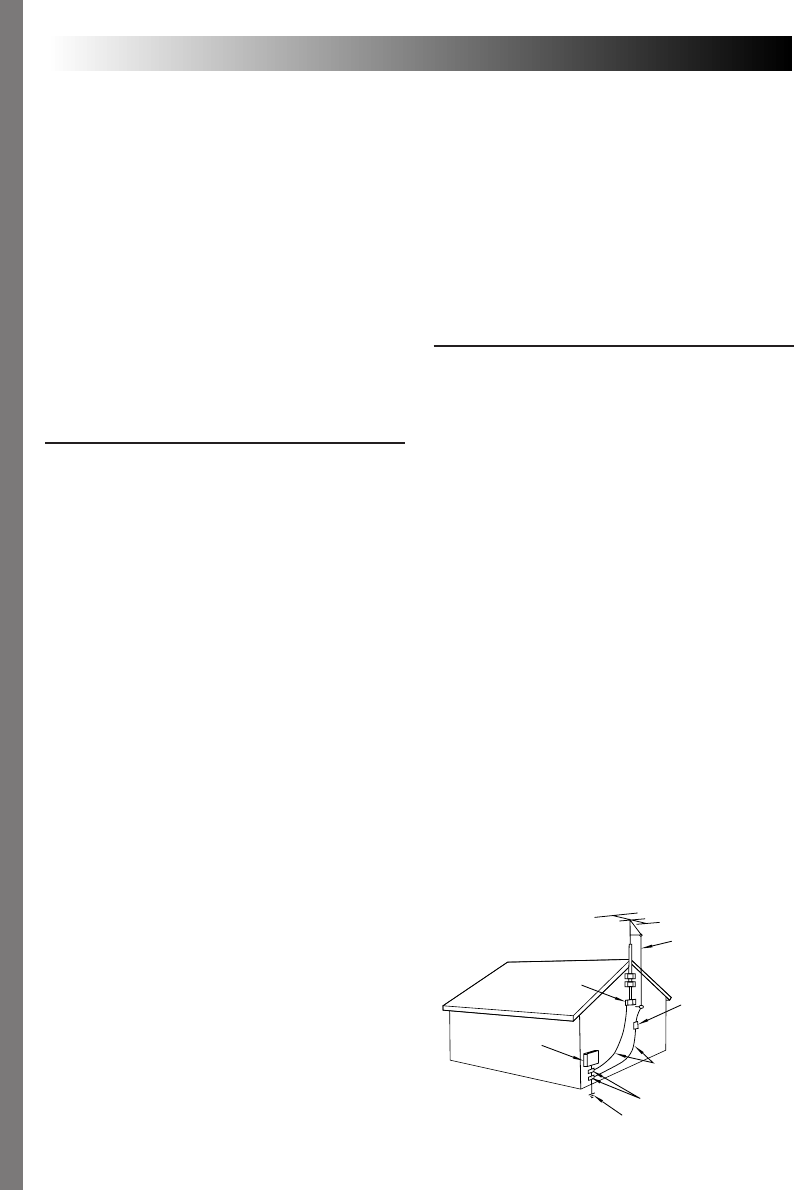

ANTENNA

LEAD IN WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION

810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

ELECTRIC SERVICE

EQUIPMENT

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

GROUND CLAMP

EN5

USE

1. Accessories

To avoid personal injury:

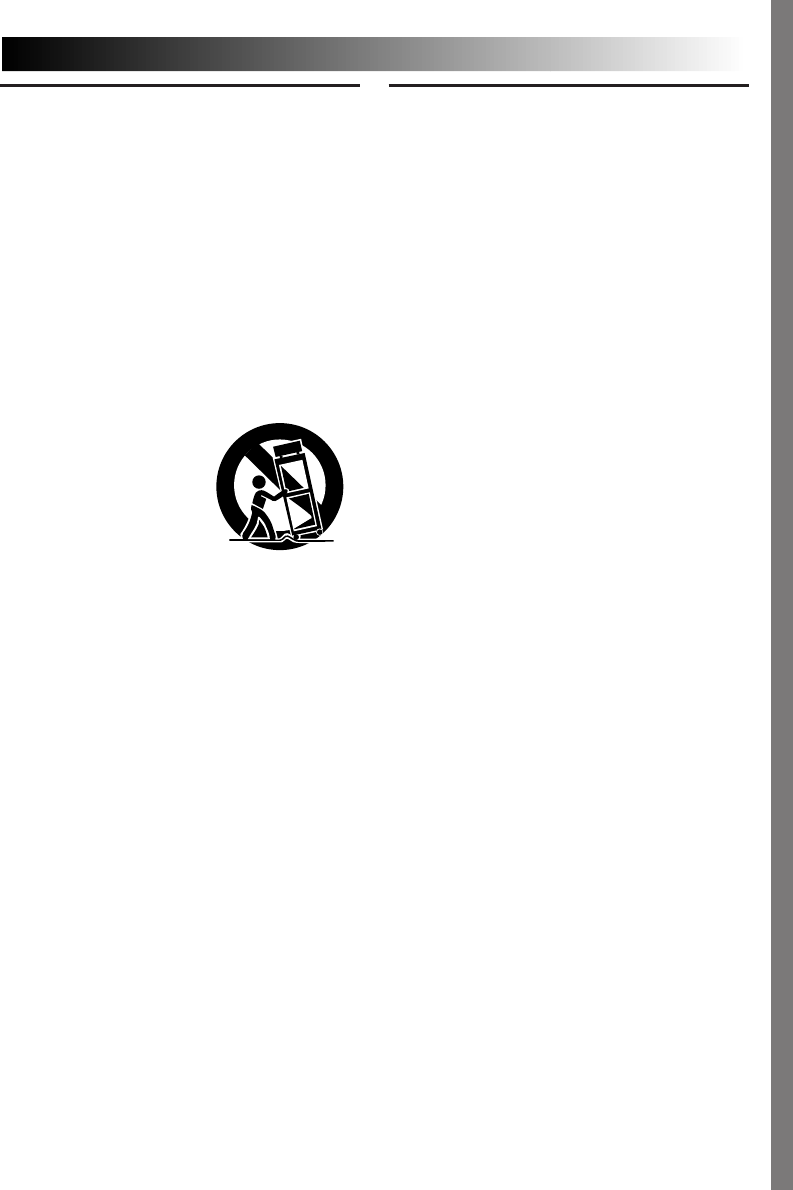

•Do not place this product on an unstable cart,

stand, tripod, bracket or table. It may fall, causing

serious injury to a child or adult, and serious

damage to the product.

•Use only with a cart, stand, tripod, bracket, or table

recommended by the manufacturer or sold with the

product.

•Use a mounting accessory recommended by the

manufacturer and follow the manufacturer’s

instructions for any mounting of the product.

•Do not try to roll a cart with small casters across

thresholds or deep-pile carpets.

2. Product and Cart

Combination

A product and cart

combination should be

moved with care. Quick

stops, excessive force, and

uneven surfaces may cause

the product and cart

combination to overturn.

3. Water and Moisture

Do not use this product near water—for example,

near a bath tub, wash bowl, kitchen sink or laundry

tub, in a wet basement, or near a swimming pool and

the like.

4. Object and Liquid Entry

Never push objects of any kind into this product

through openings as they may touch dangerous

voltage points or short-out parts that could result in a

fire or electric shock. Never spill liquid of any kind

on the product.

5. Attachments

Do not use attachments not recommended by the

manufacturer of this product as they may cause

hazards.

6. Cleaning

Unplug this product from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat

sources such as radiators, heat registers, stoves, or

other products (including amplifiers) that produce

heat.

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a

marked change in performance and you are unable

to restore normal operation by following the detailed

procedure in its operating instructions, do not

attempt to service it yourself as opening or removing

covers may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service

personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer

servicing to qualified service personnel under the

following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen

into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the product to its normal operation.

e. If the product has been dropped or damaged in

any way.

f. When the product exhibits a distinct change in

performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the

service technician has used replacement parts

specified by the manufacturer or have the same

characteristics as the original part. Unauthorized

substitutions may result in fire, electric shock or other

hazards.

4. Safety Check

Upon completion of any service or repairs to this

product, ask the service technician to perform safety

checks to determine that the product is in safe

operating condition.

PORTABLE CART WARNING

(Symbol provided by RETAC)

6 EN

A

B

3

1

2

3

2

1

Using the battery pack

Hook its end to the camcorder and push the

battery pack in until it locks in place .

(Charging procedure, Z pg. 8)

To remove the battery pack

Slide BATTERY RELEASE and pull out the battery

pack.

QUICK OPERATION GUIDE

1Set the Power Switch to “PLAY”.

2Press

2

.

— The tape will automatically stop at the

beginning of the tape.

3Press

4

/6.

— Playback starts and the playback picture

appears.

•To stop playback, press 5.

(For more details, Z pg. 31.)

For GR-SXM320 Owners:

•The viewfinder switches off automatically to

save power when the LCD monitor is opened

at an angle of over 60 degrees.

•The LCD monitor turns on/off when it is

opened/closed at approx. 60 degrees.

Or simply play back the tape on a VHS VCR

using the Cassette Adapter (VHS Playpak).

Z pg. 33

1Turn the LENS COVER Open/Close Ring to

open the lens cover.

2Set the Power Switch to “AUTO” or “PRO.”.

— The power lamp will light and an image

will appear.

3Press the Recording Start/Stop Button.

— Recording starts.

•To stop recording temporarily, momentarily

press the Recording Start/Stop Button once

again.

(For more details, Z pgs. 16, 17)

For GR-SXM320 Owners:

•The viewfinder switches off automatically to

save power when the LCD monitor is opened

at an angle of over 60 degrees.

•The LCD monitor turns on/off when it is

opened/closed at approx. 60 degrees.

SUPPLY POWER INSERTING A VIDEO

CASSETTE

PLAYBACK SHOOTING

1Open the LCD monitor fully (GR-SXM320

only).

2Slide EJECT to open the cassette holder.

3Insert a video cassette.

4Press PUSH to close the cassette holder.

(For more details, Z pg. 10)

Set to

“PLAY”.

PUSH Button EJECT Switch

Hook on.

Push in.

BATTERY RELEASE

LENS COVER

Open/Close Ring

Set to “AUTO”

or “PRO.”.

Recording Start/Stop Button

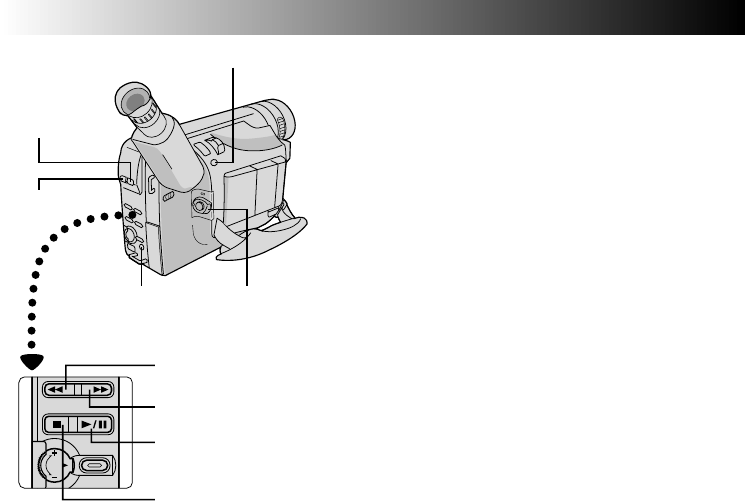

Rewind (

2

) Button

Stop (5) Button

Play/Pause (

4

/6)

Button

EN7

MAJOR FEATURES

Cassettes marked and can be used

with this camcorder.

Integrated Auto Light

(GR-SXM320/SX851 only)

(Z pg. 20)

Program AE with Special

Effects (Z pg. 22)

n Electronic Fog Filter n ND Effect

n Sepia n Twilight n Sports n Nega/Posi

n 1/2000 sec. High Speed Shutter

Super VHS-ET (GR-SXM320/

SX851 only) (Z pg. 13)

Picture Stabilizer (Z pg. 18)

TBC (Time Base Corrector)

(Z pg. 32)

NOTES about Automatic Demonstration

Automatic Demonstration takes place when ”DEMO MODE” is set to ”ON” (factory-preset).

n

Available when the Power Switch is set to ”AUTO” or ”PRO.”.

n

Operating the Power Zoom Lever during the demonstration stops the

demonstration temporarily. If the Power Zoom Lever is not moved for more

than 1 minute after that, the demonstration will resume.

n

To cancel Automatic Demonstration, set the Power Switch to “PRO.” and press

MENU while the demo is in progress. This takes you directly to the demo mode’s

Setting Menu (so you will not have to go through the main Menu Screen.) Rotate

the Select Wheel to select “OFF” and press it. The Menu Screen appears with the

highlight bar on “RETURN”. Press it to close the Menu Screen.

* ”DEMO MODE” remains ”ON” even if the camcorder power is turned off.

NOTE:

When a tape whose Erase Protection tab is in the position that allows recording is loaded in the camcorder,

demonstration is not available.

•AC Power

Adapter/

Charger

AA-V16U

•Cassette Adapter

(VHS Playpak)

C-P7U

•Shoulder Strap •DC Cord

•Lithium Battery

CR2025

(for clock operation)

PROVIDED ACCESSORIES

•Battery Pack

BN-V11U

O

O

E

F

N

X

F

IT

DEMO MODE

Setting Menu

Digital Hyper Zoom

(Z pg. 18)

*S-VHS recording is possible with GR-SXM320/SX851 only.

8 EN

GETTING STARTED

Power

This camcorder’s 3-way power supply system lets you

choose the most appropriate source of power. Do not use

provided power supply units with other equipment.

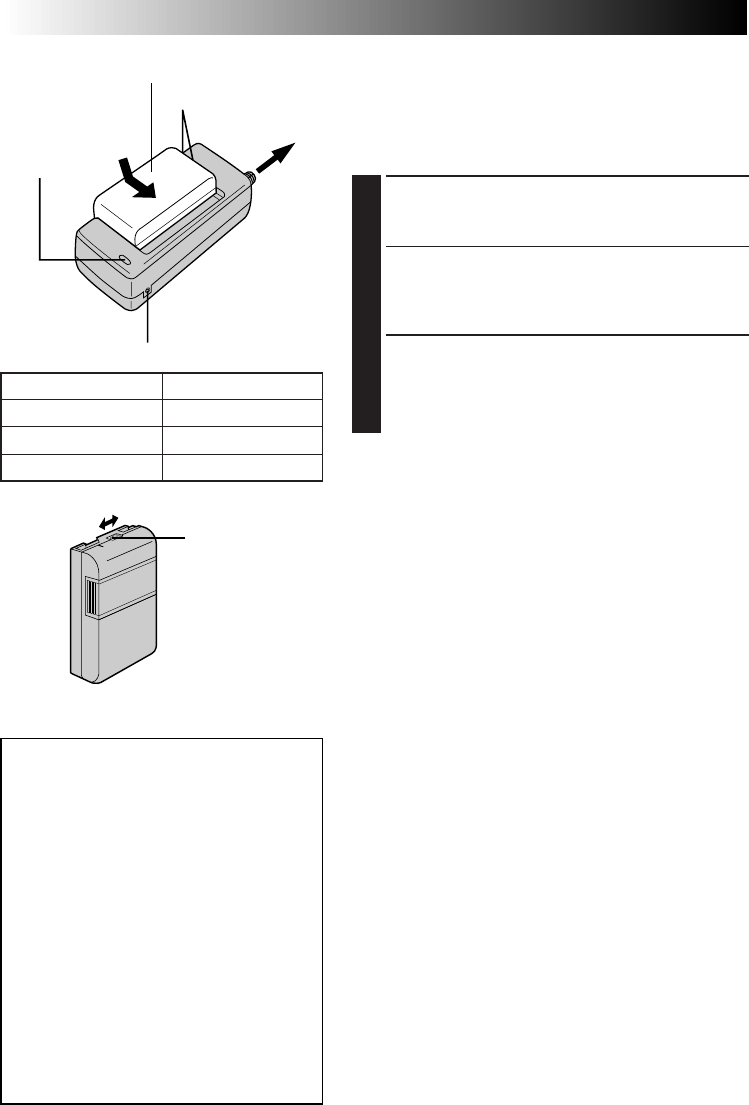

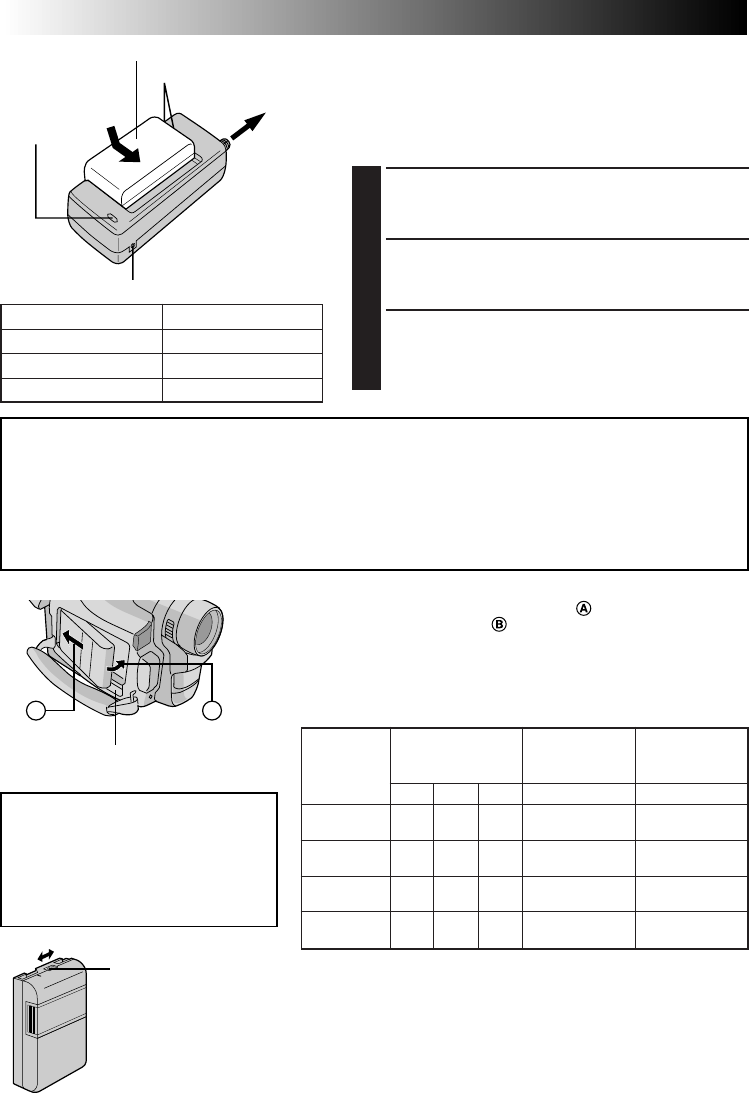

CHARGING THE BATTERY PACK

1

Make sure you unplug the camcorder’s DC cord from

the AC Power Adapter/Charger. Plug the AC Adapter/

Charger’s power cord into an AC outlet.

2

Align the marks and slide the battery pack in the

direction of the arrow until it locks in place. The

CHARGE indicator begins blinking to indicate

charging has started.

3

When the CHARGE indicator stops blinking but stays

lit, charging is finished. Slide the battery in the

opposite direction of the arrow and lift off. Remember

to unplug the AC Adapter/Charger’s power cord from

the AC outlet.

To AC outlet

Marks

CHARGE

indicator

Battery pack BN-V11U,

BN-V12U or BN-V20U

AC Power

Adapter/Charger

AA-V16U

Battery pack

BN-V11U

BN-V12U (optional)

BN-V20U (optional)

Charging time

approx. 1 hr. 10 min.

approx. 1 hr. 10 min.

approx. 1 hr. 50 min.

Charge Marker

A charge marker is provided on the battery pack to help

you remember whether it has been charged or not. Two

colors are provided (red and black)—you choose which

one means charged and which means discharged.

NOTES:

●

Perform charging where the temperature is between 10°

and 35°C (50°F and 95°F). 20° to 25°C (68°F to 77°F) is

the ideal temperature range for charging. If the environ-

ment is too cold, charging may be incomplete.

●

Charging times noted above are for a fully discharged

battery pack.

●

Charging time varies according to the ambient

temperature and the status of the battery pack.

●

To avoid interference with reception, do not use the AC

Power Adapter/Charger near a radio.

●

If you connect the camcorder’s DC cord to the adapter

during battery charging, power is supplied to the

camcorder and charging stops.

●

Since the AC Power Adapter/Charger processes

electricity internally, it becomes warm during use. Be

sure to use it only in well-ventilated areas.

●

When charging the battery pack for the first time or after

a long storage period, the CHARGE indicator may not

light. In this case, remove the battery pack from the AC

Power Adapter/Charger, then try charging again.

●

If the battery operation time remains extremely short

even after having been fully charged, the battery is worn

out and needs to be replaced. Please purchase a new

one.

●

Remember to set the charge marker after charging a

battery pack or after detaching a discharged one from

your camcorder.

Charge marker

DC OUT connector

ATTENTION:

Charging a battery with some charge

remaining reduces that battery’s capacity.

Perform the procedure below to fully

discharge the battery pack before

recharging.

1. Attach the battery pack to the camcorder

and make sure a cassette is

not

inserted,

then set the Power Switch to ”AUTO” or

”PRO.”.

2. The camcorder power turns off

automatically when discharging is

complete.

When you are not using a battery pack for

a long period of time, be sure to fully

discharge it before storing because leaving

a battery with some charge left over also

reduces performance.

EN9

A

B

ATTENTION:

Before detaching the power source,

make sure that the camcorder’s

power is turned off. Failure to do so

can result in a camcorder

malfunction.

USING THE BATTERY PACK

Hook its end to the camcorder and push the battery pack in

until it locks in place .

•

If the battery pack is attached in the wrong position, a

malfunction may occur.

To Detach The Battery Pack . . .

.... slide BATTERY RELEASE and pull out the battery pack.

Approximate recording time (unit: min.)

BATTERY RELEASE Switch

Hook on.

Push in.

USING AC POWER

Use the AC Power Adapter/Charger (connect as shown in

the illustration).

NOTES:

●

The provided AC Power Adapter/Charger features

automatic voltage selection in the AC range from 110 V

to 240 V.

●

For other notes,

Z

pg. 8.

USING A CAR BATTERY

Use the optional Car Battery Cord or Car Battery Charger/

Adapter (connect as shown in the illustration).

NOTES:

●

When using the car battery, leave the engine idling.

●

The optional Car Battery Charger (BH-V3U) can also be

used to charge the battery pack (except BN-V20U/

V856U).

●

When using the optional Car Battery Charger or Car

Battery Cord (AP-V7U), refer to the respective instruction

booklet.

NOTES:

●

Recording time is reduced significantly under the following

conditions:

•

Zoom or Record-Standby mode is engaged repeatedly.

•

The LCD monitor is used repeatedly (GR-SXM320 only).

●

Before extended use, it is recommended that you prepare

enough battery packs to cover 3 times the planned shooting

time.

Battery pack

BN-V11U

BN-V12U

(optional)

BN-V20U

(optional)

BN-V856U

(optional)

LCD

monitor off/

Viewfinder on

12 3

90 105 100

(45) (50)

90 105 100

(45) (50)

140 170 165

(65) (90)

570 670 670

(330) (360)

LCD

monitor on/

Viewfinder off

1

80

(45)

80

(45)

130

(75)

520

(310)

LCD

monitor on/

Viewfinder on

1

70

(40)

70

(40)

115

(70)

460

(290)

Core

filter

To DC IN

connector

To DC OUT

connector

To AC outlet

AC Power

Adapter/

Charger

AA-V16U

DC Cord

To car’s

cigarette

lighter

socket

Car Battery Cord

AP-V7U (optional)

Car Battery

Charger/Adapter

BH-V3U (optional)

INFORMATION:

VU-V856KIT is a set composed of the

BN-V856U battery pack and AA-V80U

AC Power Adapter/Charger.

Read the VU-V856KIT’s instruction

manuals before using.

It is impossible to charge the BN-V856U

battery pack using the provided AC

Power Adapter/Charger. Use the

optional AA-V80U AC Power Adapter/

Charger.

( ) : when the video light is on. 1When using GR-SXM320

2When using GR-SX851

3When using GR-AX750

10 EN

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to

perform date/time settings.

1

Switch off the unit’s power and remove the power

supply unit (battery pack, AC Power Adapter/Battery

Charger, etc.).

2

Pull out the battery holder to remove it from the

camcorder.

3

Insert the battery in the holder, and be sure to have

the “+” mark visible.

4

Slide the holder back into the slot until you hear a

click.

NOTES:

●

See “SAFETY PRECAUTIONS” (

Z

pg. 2) for information

on safe handling of lithium batteries.

●

To avoid losing the battery and/or battery holder, place

the camcorder with the grip side up as shown in the

illustration when inserting/removing the battery.

GETTING STARTED

(cont.)

Slot

Battery holder

Loading/Unloading A Cassette

1

Open the LCD monitor fully (GR-SXM320 only).

2

Slide EJECT until the cassette holder opens. Do not

use force to open.

3

Insert or remove a cassette. When inserting, make

sure the label is facing outward.

4

Press PUSH to close the cassette holder until it locks

into place.

5

Close the LCD monitor (GR-SXM320 only).

NOTES:

●

Closing the LCD monitor while the cassette holder is still

open may cause damage to the LCD monitor

(GR-SXM320 only).

●

The cassette holder can’t be opened unless a power

supply is attached.

●

Make sure that the tape is not slack when loading the

cassette. If there is any slack, turn the gear on the

cassette in the direction of the arrow to take up the

slack.

●

Make sure the Erase Protection tab is in the position that

allows recording. If not, slide the tab. Some cassettes

have removable tabs. If the tab has been removed, cover

the hole with adhesive tape.

●

The cassette holder cannot be opened while the

camcorder is in the record mode.

Cassette holder

EJECT SwitchPUSH Button

Erase Protection tab Gear

Turn to take

up slack.

Cassette holder

EJECT SwitchPUSH Button

EN11

4

R

I

T

D

J

D

4

B

E

N

I

A

L

E

R

A

C

T

T

T

I

M

E

C

.

L

E

P

O

T

K

T

E

/

U

I

T

T

I

M

R

M

I

L

I

D

O

N

E

M

A

M

D

E

N

E

N

E

G

O

.

.

O

O

E

0

O

F

F

N

6

F

F

F

G

F

LISH

Y

M

D

T

E

E

O

A

I

X

A

N

Y

M

I

R

T

E

T

H

DATE / T I M

P

E

M

2

8

0

J

:

0

U

2

2

0

N

8

0

4

R

I

T

D

J

D

4

B

E

N

I

A

L

E

R

A

C

T

T

T

I

M

E

C

.

L

E

P

O

T

K

T

E

/

U

I

T

T

I

M

R

M

I

L

I

D

O

N

E

M

A

M

D

E

N

E

N

E

G

O

.

.

O

O

E

0

O

F

F

N

6

F

F

F

G

F

LISH

4

D

T

T

N

.

E

A

E

Z

L

P

X

O

E

E

T

OM

M

L

A

E

C

N

R

G

O

TH

O

O

O

T

N

F

N

3

F

0

12-hour indication

with AM or PM

Menu Screen 1

DATE/TIME Menu

Select Wheel

MENU Button

Power Switch

Display

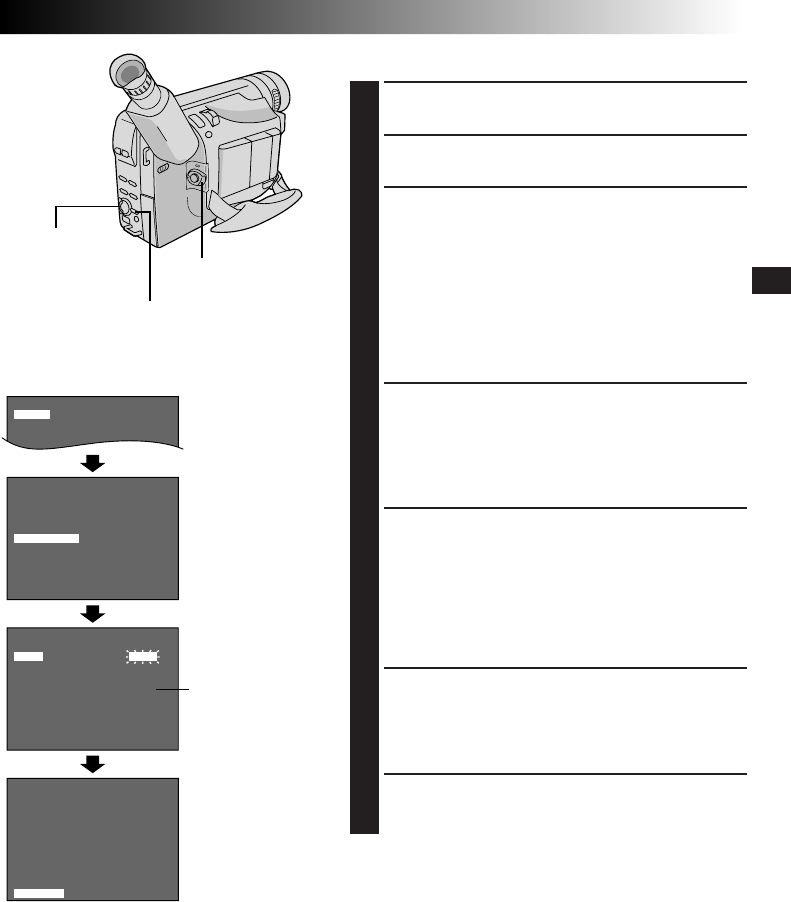

Date/Time Settings

1

Set the Power Switch to “PRO.”. The power lamp

comes on.

2

Press MENU. The Menu Screen appears.

3

Rotate the Select Wheel to move the highlight bar to

“NEXT” in Menu Screen 1 and press it to display

Menu Screen 2. Then, rotate it to move the highlight

bar to “DATE/TIME” and press it. The DATE/TIME

Menu appears.

•To return to the previous settings, rotate the Select

Wheel to move the highlight bar to “EXIT” and

press it, then go to step 7.

•To set only the time without changing the date, go

to step 5.

4

To set “YEAR”, “MONTH” or “DAY”, rotate the Select

Wheel to move the highlight bar to the desired item,

and press it. When the setting begins blinking, rotate

the Select Wheel until the correct setting appears and

then press it. The setting stops blinking.

Repeat for other date settings.

5

Rotate the Select Wheel to move the highlight bar to

“TIME” and then press it. When the hour setting

begins blinking, rotate the Select Wheel until the

correct setting appears and then press it. When the

hour setting stops blinking and the minute setting

begins blinking, rotate the Select Wheel until the

correct setting appears and then press it. The minute

setting stops blinking.

6

When none of these settings (“YEAR”, “MONTH”,

“DAY”, “TIME”) blinks, rotate the Select Wheel to

move the highlight bar to “EXIT”, and press it. The

Menu Screen reappears with the highlight bar on

“RETURN”.

7

Press the Select Wheel to close the Menu Screen.

NOTE:

To display the date and time in the camcorder’s display

and on a connected TV, see “Date/Time Insert”

(

Z

pg. 26).

Menu Screen 2

12 EN

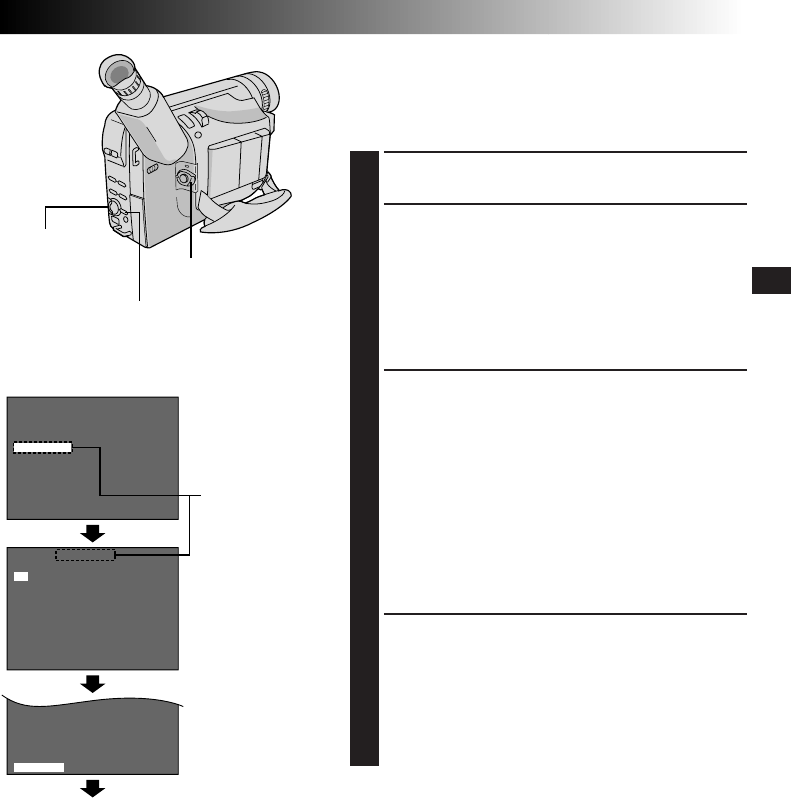

Recording Mode Setting

Set depending on your preference.

1

Set the Power Switch to “AUTO” or “PRO.”. Press SP/

EP for more than 1 second. “SP” (Standard Play)

provides higher picture and sound quality and is better

for dubbing, while “EP” (Extended Play) is more

economical, providing three times the recording time.

NOTE:

If the recording mode is switched during recording, the

playback picture will be blurred at the switching point.

GETTING STARTED

(cont.)

SP T30

T

T

4

E

A

R

L

P

E

E

E

TU

M

L

R

A

E

N

C

N

R

G

O

TH

O

T

F

3

F

0

T

T

T

T

E

2

3

3

4

X

0

0

5

0

IT

TAPE LENGTH

T

T

4

E

A

R

L

P

E

E

E

TU

M

L

R

A

E

N

C

N

R

G

O

TH

O

T

F

4

F

0

Recording mode

indicator

Tape length indicator

TAPE LENGTH

Setting Menu

Select Wheel

Power Switch

MENU Button

SP/EP Recording

Mode Button

Viewfinder Tape Length Setting

Set the tape length according to the length of the tape

used.

1

Set the Power Switch to “PRO.”, then press MENU.

2

Rotate the Select Wheel to move the highlight bar to

“TAPE LENGTH”, then press it. The TAPE LENGTH

Setting Menu appears.

3

Rotate the Select Wheel to move the highlight bar to

the correct tape length setting. T20=20 minutes of

recording time, T30=30 minutes, T35=35 minutes,

and T40=40 minutes (in SP).

•To return to the previous setting, rotate the Select

Wheel to move the highlight bar to “EXIT”.

4

Press the Select Wheel. The Menu Screen reappears

with the highlight bar on “RETURN”. Press the Select

Wheel again to close the Menu Screen.

NOTE:

The tape remaining time (

Z

pg. 16) displayed in the

viewfinder is correct only if the correct tape length has

been selected.

Menu Screen

Display

EN13

4

D

T

S

T

4

N

.

E

–

A

R

E

Z

L

V

P

E

X

O

E

H

E

T

T

O

S

U

M

M

L

R

A

E

E

N

C

T

N

R

G

O

TH

O

O

O

T

N

F

F

3

F

F

0

O

O

E

N

F

X

F

IT

S

–

VHS ET

T

T

4

E

A

R

L

P

E

E

E

TU

M

L

R

A

E

N

C

N

R

G

O

TH

O

T

F

3

F

0

Normal Screen

Select Wheel

MENU Button

Power Switch

Menu Screen

Setting Menu

Display: when a VHS cassette is loaded.

Menu Screen

Recording Format Setting (GR-SXM320/

SX851 only)

Set the recording format according to the format of the

tape used or type of recording you wish to perform.

1

Set the Power Switch to “PRO.”. Press MENU.

2If a VHS cassette is loaded . . .

.... rotate the Select Wheel to move the highlight bar

to “S-VHS ET”, then press it. The S-VHS ET

Setting Menu appears.

If an S-VHS cassette is loaded . . .

.... rotate the Select Wheel to move the highlight bar

to “S-VHS”, then press it. The S-VHS Setting

Menu appears.

3

Rotate the Select Wheel to set to either of the

parameters, then press it. The highlight bar moves to

“EXIT”.

In the S-VHS ET Setting Menu,

ON : Records with S-VHS picture quality on a VHS

cassette (factory-preset). This is called Super

VHS ET (Expansion Technology).

OFF: Records in VHS.

In the S-VHS Setting Menu,

ON : Records in S-VHS on an S-VHS cassette

(factory-preset).

OFF: Records in VHS on an S-VHS cassette.

4

Press the Select Wheel. The Menu Screen reappears

with the highlight bar on “RETURN”. Press the Select

Wheel again to close the Menu Screen.

•When the S-VHS ET mode is engaged, “S-ET” is

displayed.

•During S-VHS record mode, “S“ is displayed.

•When S-VHS ET or S-VHS recording starts, “S-VHS

REC.” is displayed for approx. 3 seconds.

NOTE:

If a cassette is not loaded, “S-VHS” will be displayed in the

Menu Screen.

When an S-VHS

cassette is loaded:

S-VHS

CONTINUED ON NEXT PAGE.

14 EN

Recording Playback

NOTES about S-VHS and S-VHS ET (GR-SXM320/SX851 only)

n

JVC EHG (Extra High Grade) tapes are recommended for superior results.

Use S-VHS tape for storing recordings for an extended period or for recording important scenes, as it

enables higher-quality recording and playback.

n

With some tapes, better picture quality may not be obtained even with S-VHS ET recording. It is

recommended that you do test record beforehand to make sure whether better results can be obtained.

n

If the S-VHS ET mode or recording format is switched during recording, the playback picture will be

blurred at the switching point.

n

It is recommended that tapes recorded in the SP mode on this camcorder be played back on this

camcorder.

n

Noise may appear on-screen when tapes recorded in the EP mode are played back.

n

Tapes recorded in S-VHS or S-VHS ET mode can be played back not only on this camcorder but also on

a Super VHS VCR or a VCR equipped with the SQPB (S-VHS QUASI PLAYBACK) function.

— When tapes recorded in S-VHS or S-VHS ET mode are played back on a VCR equipped with the

SQPB (S-VHS QUASI PLAYBACK) function, S-VHS picture quality is not available.

— Tapes recorded in S-VHS ET mode cannot be played back on some VCRs, including some JVC VCRs

(eg: HR-S6600U, HR-SC1000U, etc.).

n

Tapes recorded in S-VHS or S-VHS ET mode cannot be played back correctly on a normal VHS VCR.

n

You can play back S-VHS ET recordings not only on this VCR but also on another VHS VCR equipped

with S-VHS ET.

— It is recommended to specifically label S-VHS ET recordings so you can easily distinguish them from

regular VHS recordings.

n

S-VHS ET does not work with S-VHS tapes.

n

To avoid on-screen noise, do not perform Still Playback or Shuttle Search repeatedly.

n

If the picture contains a lot of jitter or noise, use a cleaning cassette.

Compatibility Between S-VHS And VHS (GR-SXM320/SX851 only)

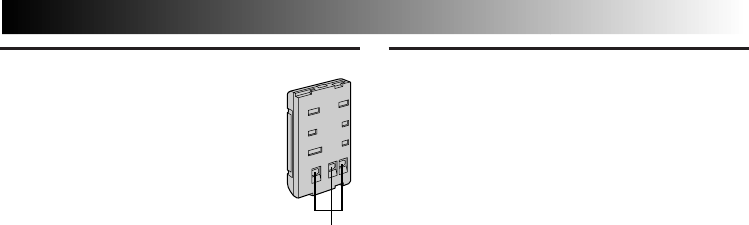

Cassette adapter

S-VHS VCR

VHS VCR with SQPB

function

Regular VHS VCR

VHS

recordings

•The recorded format (S-VHS or

VHS) is automatically detected

when playback begins.

•S-VHS recorded tapes cannot be

viewed on regular VHS VCRs,

other than those equipped with the

SQPB (S-VHS QUASI PLAYBACK)

function.

Blank tape Camcorder Recorded tape

S-VHS-C

cassette

VHS-C

cassette

S-VHS

recordings

Cassette adapterBlank tape Camcorder Recorded tape

GETTING STARTED

(cont.)

EN15

1

33

22

180

°

180

°

2

3

1

4

PAUSE

Power Zoom Lever

Recording

Start/Stop Button

Set to “CAMERA”

(“AUTO” or “PRO.”).

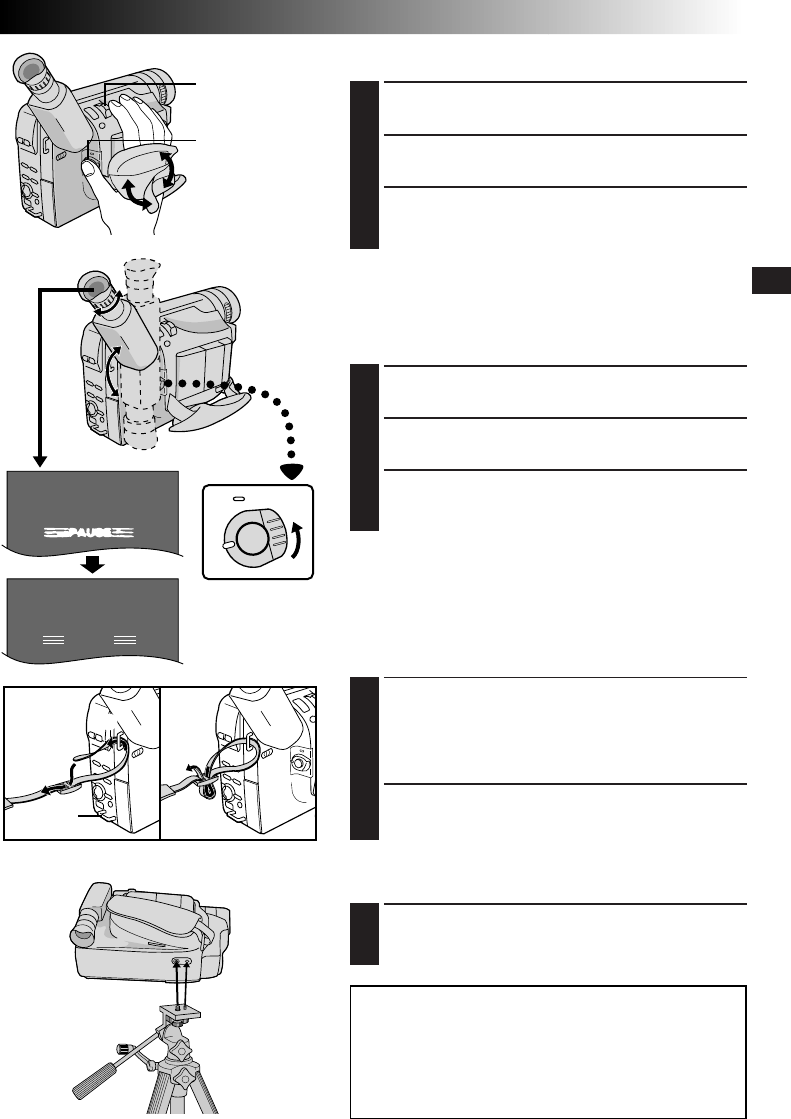

Grip Adjustment

1

Separate the Velcro strip.

2

Pass your right hand through the loop and grasp the

grip.

3

Adjust so that your thumb and fingers can easily

operate the Recording Start/Stop Button and Power

Zoom Lever. Refasten the Velcro strip.

Viewfinder Adjustment

1

Set the Power Switch to “CAMERA” (“AUTO” or

“PRO.”).

2

Adjust the viewfinder manually for best viewability.

3

Turn the Diopter Adjustment Control until the

indications in the viewfinder are clearly focused.

Shoulder Strap Attachment

1

Following the illustration, thread the strap through the

eyelet 1, then fold it back and thread it through the

buckle 2. Repeat the procedure to attach the other

end of the strap to the other eyelet 3, making sure

the strap is not twisted.

2

Adjust as shown in the illustration 4.

CAUTION:

When using a tripod, be sure to open and extend

its legs fully to stabilize the camcorder. To

prevent damage to the unit caused by falling

over, do not use a small-sized tripod.

Tripod Mounting

1

Align the screw and camera direction stud on the

tripod with the camera’s mounting socket and stud

hole. Then tighten the screw.

16 EN

180°90°

BR I GHT ––––––6

––––– +

25MIN

120MIN

3MIN

2MIN

MIN 119MIN

1MIN0MIN

NOTE:

You should already have performed the procedures listed

below. If not, do so before continuing.

●

Power (

Z

pg. 8)

●

Recording Mode Setting (

Z

pg. 12)

●

Load A Cassette (

Z

pg. 10)

●

Grip Adjustment (

Z

pg. 15)

●

Viewfinder Adjustment (

Z

pg. 15)

Shooting While Watching The

Viewfinder

1

Make sure the LCD monitor is closed and locked

(GR-SXM320 only). Turn the LENS COVER Open/

Close Ring to open the lens cover. Set the Power

Switch to “CAMERA” (“AUTO” or “PRO.”). The

power lamp lights and the camcorder enters the

Record-Standby mode. “PAUSE” is displayed in the

viewfinder.

2

Press the Recording Start/Stop Button. “ ” appears

in the viewfinder while recording is in progress.

To Stop Recording . . .

.... press the Recording Start/Stop Button. The camcorder

re-enters the Record-Standby mode.

Shooting While Watching The

LCD Monitor (GR-SXM320 only)

1

Make sure the LCD monitor is fully open. Turn the

LENS COVER Open/Close Ring to open the lens

cover. Set the Power Switch to “CAMERA” (“AUTO”

or “PRO.”). The power lamp lights and the

camcorder enters the Record-Standby mode.

“PAUSE” is displayed in the LCD monitor.

2

Tilt the LCD monitor upward/downward for best

viewability and press the Recording Start/Stop Button.

“ ” appears in the LCD monitor while recording is

in progress.

NOTE:

When you use the LCD monitor outdoors in direct

sunlight, the LCD monitor may be difficult to see. If this

happens, use the viewfinder instead.

To Stop Recording . . .

.... press the Recording Start/Stop Button. The camcorder

re-enters the Record-Standby mode.

Power Switch

Select Wheel (BRIGHT)

Recording Start/Stop Button

Tape remaining time

indicator

(Approximate)

(Now calculating)

(Blinking) (Blinking) (Blinking)

To Adjust The Brightness Of The LCD Monitor

.... rotate the Select Wheel (BRIGHT) until the

bright level indicator on the display moves

and the appropriate brightness is reached.

LENS COVER Open/Close Ring

RECORDING

Basic Recording

Power Switch Position

AUTO : Suitable for standard recording using NO special effects or manual adjustments.

PRO. : Allows you to set recording functions using the menus for more creative capabilities.

OFF : Switches off the camcorder.

PLAY : Allows you to play back your recordings.

DISPLAY Button

EN17

NOTES:

●

When the Power Switch is set to CAMERA and the LCD monitor is opened at an angle of 60 degrees or more,

the LCD monitor switches on and the viewfinder switches off automatically to save power (GR-SXM320 only).

●

The cassette holder cannot be opened unless a power supply is attached.

●

There may be a delay after you slide EJECT until the cassette holder opens. Do not use force.

●

The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary

according to the type of tape used.

●

The tape remaining time indicator is correct only if the correct tape length has been selected (

Z

pg. 12).

●

“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this

condition for 5 minutes. “TAPE END” also appears when a cassette whose tape is already at its end is loaded.

●

If the Record-Standby mode continues for 5 minutes without performing Zoom or any other operations, the

camcorder’s power shuts off automatically. Set the Power Switch to “OFF”, and then back to “CAMERA” to

turn the camcorder on again.

●

If the Recording Start/Stop button is pressed after the Record-Standby mode has continued for over 5 minutes,

recording may not start immediately.

●

If you are recording on a cassette from the middle (such as when a tape is removed and re-inserted during

recording), use the Retake function (

Z

pg. 19) to find the end of the last recording so you do not erase any

of it.

●

While shooting, sound is not heard from the speaker (GR-SXM320 only).

Self-Recording

JOURNALISTIC SHOOTING (GR-SXM320

only)

In some situations, different shooting angles may provide

more dramatic results. Hold the camcorder in the desired

position and tilt the LCD monitor in the most convenient

direction. It can rotate 270° (90° downward, 180° upward).

INTERFACE SHOOTING (GR-SXM320 only)

The person you shoot can view himself/herself in the LCD

monitor, and you can even shoot yourself while viewing your

own image in the LCD monitor.

Open the LCD monitor and tilt it upward to 180 degrees so

that it faces forward. When the LCD monitor is tilted upward

to an angle of over approx. 105 degrees, the monitor image is

inverted vertically, and the viewfinder also switches on.

Point the lens toward the subject (yourself when self-

recording) and start recording.

During Interface Shooting, the monitor image and indications

do not appear inverted as they would when viewing a mirror.

NOTE:

The monitored image can be viewed on the LCD monitor

and in the viewfinder.

LCD MONITOR*/VIEWFINDER INDICA-

TIONS

Press DISPLAY for more than 1 second to make the following

indications appear/disappear from the camcorder’s display:

cassette warning, tape remaining time, battery pack remaining

power indicator and tape length indicator (Z pg. 44, 45).

NOTE:

Even if the indications are off, the tape remaining time

appears blinking when the tape is near its end, and the

battery pack remaining power indicator appears blinking

when the power is almost gone.

*GR-SXM320 only.

18 EN

1X

Zoom in (T: Telephoto)

Zoom out (W: Wide angle)

Power Zoom Lever

Zoom indicator bar

FEATURE:

Zooming

PURPOSE:

To produce the zoom in/out effect, or an instantaneous

change in image magnification.

Digital circuitry extends the maximum magnification

offered by optical zoom. This system is called Digital

Zoom.

OPERATION:

Zoom In

Slide the Power Zoom Lever towards “T”.

Zoom Out

Slide the Power Zoom Lever towards “W”.

nThe further you slide the Power Zoom Lever, the

quicker the zoom action.

NOTES:

●

Focusing may become unstable during Zooming. In

this case, set the zoom while in Record–Standby,

lock the focus by using the manual focus

(

Z

pg. 29), then zoom in or out in Record mode.

●

The zoom level indicator (

5

) moves during zoom.

Once the zoom level indicator reaches the top of

the zoom indicator bar, all magnification from that

point is through digital processing.

●

When using Digital Zoom, the quality of image may

suffer. To deactivate Digital Zoom, set “D.ZOOM”

to “OFF” in the Menu Screen (

Z

pg. 24).

FEATURE:

Picture Stabilizer

PURPOSE:

To compensate for unstable images caused by camera-

shake, particularly at high magnification.

OPERATION:

Press P. STABILIZER. “ ”appears.

nTo switch off the Picture Stabilizer, press

P. STABILIZER. The indicator disappears.

NOTES:

●

Accurate stabilization may not be possible if hand

shake is excessive, or under the following conditions:

•

When shooting subjects with vertical or horizontal

stripes.

•

When shooting dark or dim subjects.

•

When shooting subjects with excessive backlighting.

•

When shooting scenes with movement in various

directions.

•

When shooting scenes with low-contrast backgrounds.

●

Switch off the Picture Stabilizer when recording

with the camcorder on a tripod.

●

The “ ” indicator appears blinking if the

Stabilizer cannot be used.

Zoom level

indicator

Display

Approximate

zoom ratio

P. STABILIZER Button

Picture stabilizer indicator

RECORDING

Basic Features

EN19

FEATURE:

Quick Review

PURPOSE:

To check the end of the last recording.

OPERATION:

1) Set the Power Switch to “CAMERA” (“AUTO” or

“PRO.”).

2) Press

2

and release quickly during the Record–

Standby mode.

nTape is rewound for approx. 2 seconds and played

back automatically, then pauses in Record–Standby

mode for the next shot.

NOTE:

Distortion may occur at the start of playback. This is

normal.

FEATURE:

Retake

PURPOSE:

To re-record certain segments.

OPERATION:

1) Make sure the camcorder is in the Record–Standby

mode.

2) Press and hold either RETAKE to reach the start point

for new recording. Pressing

3

forwards the tape

and pressing

2

reverses it.

3) Press the Recording Start/Stop Button to start

recording.

NOTE:

Noise bars appear and pictures may become

monochrome or darken during Retake. This is normal.

FEATURE:

5Sec. Rec (5-sec. Recording)

PURPOSE:

To record a scene for 5 seconds, providing quick scene

transitions like those seen in TV programs.

OPERATION:

nMake sure the recording mode is set to “SP”.

1) During Record–Standby, press 5SEC. REC. “ 5S”

appears and 5Sec. Rec is reserved.

2) Press the Recording Start/Stop Button. Recording

starts, and after 5-second recording is finished, the

camcorder reenters the Record–Standby mode

automatically.

nTo cancel the 5Sec. Rec. function, press 5SEC. REC

again so that “ 5S” disappears.

NOTE:

Fade/Wipe (

Z

pg. 21) cannot be activated by

pressing 5SEC. REC.

5S

PAUSE

RETAKE

(

2

/

3

)

Button

5 Sec. Rec mode indicator

5 SEC. REC Button

Display

20 EN

DANGER

nThe video light can become extremely

hot. Do not touch it either while in

operation or soon after turning it off,

otherwise serious injury may result.

nDo not place the camcorder into the

carrying case immediately after using the

video light, since it remains extremely

hot for some time.

nWhen operating, keep a distance of

about 30 cm (11-13/16") between the

video light and people or objects.

nDo not use near flammable or explosive

materials.

nIt is recommended that you consult your

nearest JVC dealer for replacing the video

light.

LIGHT OFF/AUTO/ON Switch

FEATURE:

Video Light

(GR-SXM320/SX851 only)

PURPOSE:

To brighten the scene when natural lighting is too dim.

OPERATION:

Set LIGHT OFF/AUTO/ON as required:

OFF : Turns off the light.

AUTO : Automatically turns on the light when the

camcorder senses insufficient lighting on the

subject.

ON : Always keeps the light on as long as the

camcorder is turned on.

nThe video light can only be used with the

camcorder’s power on.

nIt is recommended to set the white balance

(Z pg. 30) to when you use the video light.

nWhen not using the video light, turn it off to save

battery power.

NOTES:

●

Even if the battery indicator ( ) does not blink if

the battery pack’s charge is low, the camcorder may

turn off automatically when you turn on the video

light, or when you start recording with the video light

turned on.

●

When LIGHT OFF/AUTO/ON is set to “AUTO”:

•

Depending on the lighting conditions, the video

light may keep turning on and off. In this case,

manually switch the light on or off using LIGHT

OFF/AUTO/ON.

•

While the “Sports” or “High Speed Shutter” mode

(

Z

pg. 22) is engaged, the light is likely to stay on.

•

While the “Twilight” mode (

Z

pg. 22) is engaged,

the light will not activate.

RECORDING

Basic Features (cont.)

EN21

Fade/Wipe Effects

These effects let you make pro-style scene transitions.

Fade- or wipe-in works at recording start, and fade- or

wipe-out works at recording end or when you enter

Record–Standby mode.

1

Set the Power Switch to “PRO.”.

2

Press EFFECT repeatedly until the desired mode’s

name and indication appear.

3

They are displayed for approx. 2 seconds, then the

name disappears so that only the indication remains.

The effect is reserved.

3

Press the Recording Start/Stop Button to activate fade-

in/out or wipe-in/out.

4

To cancel a fade or wipe, press EFFECT repeatedly

until “OFF” appears.

“OFF” is displayed for approx. 2 seconds and the

fade/wipe standby mode is canceled.

Recording Start/Stop Button

EFFECT

Button

Power Switch

FADER

Fades in/out to a black screen.

MOSAIC (Fader)

Gradually turns/returns the picture into/from a mosaic

pattern.

SHUTTER (Wipe)

A black screen moves in from the top and bottom, closing

over the image like a shutter, or a new image pushes open

the black screen vertically from the center.

SLIDE (Wipe)

A black screen moves in from the left to gradually cover

the image, or a new image moves in from right to left.

DOOR (Wipe)

Wipes in as the two halves of a black screen open to the

left and right, revealing the scene, or wipes out and the

black screen reappears from left and right to cover the

scene.

CW:CORNER (Wipe)

Wipes in on a black screen from the upper right to the

lower left corner, or wipes out from lower left to upper

right, leaving a black screen.

WW:WINDOW (Wipe)

The next scene gradually wipes in from the center of the

screen toward the corners, covering the previous scene.

NOTES:

●

Pressing and holding the Recording Start/Stop

Button allows you to vary the length for the

image during fade in/out or wipe in/out.

●

The screen becomes slightly reddish when

the Fade/Wipe is used with Sepia (

Z

pg. 22).

●

With the Electronic fog filter mode

(

Z

pg. 22) engaged, the image fades in/out

to a white screen.

RECORDING

Advanced Features

22 EN

Program AE With Special Effects

1

Set the Power Switch to “PRO.”.

2

Press P.AE repeatedly until the desired mode’s name

and indication appear.

They are displayed for approx. 2 seconds, then the

name disappears so that only the indication remains.

The mode is activated.

3

To cancel the effect, press P.AE repeatedly until “OFF”

appears. “OFF” is displayed for approx. 2 seconds.

NOTES:

●

Only one mode can be engaged at a time.

●

The screen becomes slightly reddish when the Fade/

Wipe (

Z

pg. 21) is used in the Sepia mode.

●

The screen becomes slightly dark in the High Speed

Shutter mode. Use in well-lit situations.

●

In the “High Speed Shutter” or “Sports” modes, picture

color may be adversely affected if the subject is lit by

alternating discharge-type light sources such as

flourescent or mercury-vapor lights.

P.AE

Button

Power Switch

SEPIA

The scene being shot is recorded in sepia-tinted

(reddish-brown) monochrome, giving the effect of

an older movie. Use together with Wide (Z pg. 24)

for the authentic look of a classic Hollywood

movie.

SPORTS

High shutter speed clearly captures fast-moving

action.

ND:ND EFFECT

A black mist darkens the picture, as when an ND

filter is used. Helps to counter the effects of glare on

the subject.

FG:FOG

Makes the picture look misty white, as when an

external fog filter is attached to the lens. Softens the

image and gives it a “fantasy” look.

TWILIGHT

Dusk, twilight scenery, fireworks, etc., look more

natural and dramatic. The following happens when

Twilight mode is selected:

•Auto gain control is turned off.

•White Balance is set to “ :FINE” (day mode),

but can also be manually changed to another

mode (Z pg. 30).

•Auto Focus becomes available only in the range of

10 m (32 ft.) to infinity. To focus when the subject-

to-camera distance is less than 10 m (32 ft.), use

manual focusing (Z pg. 29).

S1/2000

Captures faster action than Sports mode.

NEGA POSI

The colors of a picture are reversed.

NEGA POSI mode

RECORDING

Advanced Features (cont.)

EN23

Using Menus For Detailed Adjustment

This camcorder is equipped with an easy-to-use,

on-screen menu system that simplifies many of the more

detailed camcorder settings.

1

Set the Power Switch to “PRO.”.

2

Menu access depends on the function you select.

If you select the functions from the “Menu Screen

Available Using The Select Wheel” described on

pg. 24 . . .

.... press the Select Wheel. The Menu Screen

appears.

If you select the functions from the “Menu Screen

Available Using The MENU Button” described on

pg. 24 and 25 . . .

.... press MENU. The Menu Screen appears.

3

Rotate the Select Wheel to place the highlight bar on

the desired function.

•To go from Menu Screen 1 to Menu Screen 2, rotate

the Select Wheel to “NEXT” and press it. To go back

to Menu Screen 1 from Menu Screen 2, rotate the

Select Wheel to “BACK”, and press it.

•To return to the previous setting, place the highlight

bar on “RETURN”, then go to step 6.

4

Press the Select Wheel. The setting procedure

depends on the function you select.

If you select “FOCUS”, “EXPOSURE”, “M.W.B.” or

“DATE/ TIME”. . .

.... see respective pages (FOCUS: Z pg. 29,

EXPOSURE: Z pg. 28, M.W.B.: Z pg. 30,

DATE/TIME: Z pg. 11) and perform each

procedure from step 4.

If you select “JLIP ID NO.” . . .

.... rotate the Select Wheel until the desired number

appears, and press it. Then rotate the Select

Wheel to move the highlight bar to “EXIT”.

If you select any other functions . . .

.... rotate the Select Wheel to move the highlight bar

to the desired setting.

•To return to the previous setting, place the

highlight bar on “RETURN”.

5

Press the Select Wheel. The Menu Screen reappears

with the highlight bar on “RETURN”.

6

Press the Select Wheel. The normal screen reappears.

NOTE:

No menu functions except “FOCUS” and “EXPOSURE”

are available while in the Record mode.

4

D

T

T

N

.

E

A

E

Z

L

P

X

O

E

E

T

OM

M

L

A

E

C

N

R

G

O

TH

O

O

O

T

N

F

N

3

F

0

E

F

S

P

E

N

R

P

O

X

G

E

A

R

I

L

N

N

T

T

T

I

C

I

U

I

S

H

S

G

T

H

H

U

L

E

E

SE

LANG.

4

R

I

T

D

J

D

4

B

E

N

I

A

L

E

R

A

C

T

T

T

I

M

E

C

.

L

E

P

O

T

K

T

E

/

U

I

T

T

I

M

R

M

I

L

I

D

O

N

E

M

A

M

D

E

N

E

N

E

G

O

.

.

O

O

E

0

O

F

F

N

6

F

F

F

G

F

LISH

4

R

I

T

D

J

D

4

B

E

N

I

A

L

E

R

A

C

T

T

T

I

M

E

C

.

L

E

P

O

T

K

T

E

/

U

I

T

T

I

M

R

M

I

L

I

D

O

N

E

M

A

M

D

E

N

E

N

E

G

O

.

.

O

O

F

0

O

F

F

R

6

F

F

F

E

F

NCH

Display

(ex. Menu Screen available using the MENU Button)

Select Wheel

Menu Screen 1

Setting Menu

(ex. TITLE LANG.)

Menu Screen 2

Normal Screen

MENU Button

24 EN

RECORDING

Advanced Features (cont.)

Menu Screen Available Using The Select Wheel

Menu Screen Available Using The MENU Button

This Menu Screen cannot be accessed while recording.

MENU SCREEN EXPLANATIONS

Refer to “Focusing” (Z pg. 29).

Refer to “Exposure Control” (Z pg. 28).

Refer to “White Balance Adjustment” and “Manual White Balance Operation”

(Z pg. 30).

OFF Does not display black bars.

ON Allows you to record black bars at the top and bottom of the screen

to produce a cinema-like “wide-screen” effect.

MAX To record a subject in a darkly lit environment, when it is more

convenient to shoot the subject with a brighter image even if the

picture becomes slightly coarse.

NORMAL To record a subject in a dimly lit environment, when it is more

convenient to shoot with a less coarse picture although the

subject becomes slightly dark. This setting is suitable for

measuring sensitivity conforming to EIA-639 (EIA* Standard for

Low Light Sensitivity Measurement).

*EIA : Electronic Industries Alliance

OFF Allows you to shoot dark scenes with no picture brightness

adjustment.

Allows you to superimpose one of eight preset titles (Z pg. 26).

Makes the date/time settings appear in the camcorder or on a connected monitor

(Z pg. 26).

OFF

ON

D. ZOOM

TELE MACRO

TITLE

DATE/TIME

DISP.

S.LX

FOCUS

EXPOSURE

WIDE

M.W.B.

ON Allows you to use the Digital Zoom. By digitally processing and

magnifying images, zooming is possible from 16X (the optical

zoom limit), to a maximum of 400X (GR-SXM320)/300X

(GR-SX851/AX750) digital magnification.

OFF Digital Zoom is not available. Only optical zoom (maximum

16x magnification) can function. When set to “OFF” during

Digital Zoom, zoom magnification changes to 16X.

Usually the distance to a subject where the lens is in focus

depends on the zoom magnification. Unless there is a distance of

more than 1 m (3.25 ft.) to the subject, the lens is out of focus at

the maximum telephoto setting. When set to “ON”, you can

shoot a subject as large as possible at a distance of approx. 60 cm

(23-5/8").

•Depending on the zoom position, the lens may go out of focus.

: Factory-preset

EN25

ON Records in S-VHS on a VHS or S-VHS cassette (Z pg. 13).

OFF Records in VHS on a VHS or S-VHS cassette (Z pg. 13).

Allows you to set the tape length depending on the tape used (Z pg. 12).

Refer to “Animation” and “Time-Lapse” (Z pg. 27).

Refer to “Time-Lapse” (Z pg. 27).

Allows you to select the language (ENGLISH, FRENCH, SPANISH or PORTUGUESE)

of Instant Titles (Z pg. 26).

Allows you to set the current date and time (Z pg. 11).

This number is necessary when connecting the camcorder to a device such as a computer

using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 06.

ON Demonstrates certain functions such as Fade/Wipe, etc. When

“DEMO MODE” is set to “ON” and the Menu Screen is closed,

the demonstration starts.

Operating the Power Zoom Lever during the demonstration

stops the demonstration temporarily. If the Power Zoom Lever is

not moved for more than 1 minute after that, the demonstration

will resume.

NOTE:

When a tape whose Erase Protection tab is in the position that

allows recording is loaded in the camcorder, demonstration is

not available.

OFF Automatic demonstration will not take place.

S-VHS*

(S-VHS ET*)

(GR-SXM320/

SX851 only)

Menu Screen Available Using The MENU Button (cont.)

: Factory-preset

TAPE LENGTH

REC TIME

JLIP ID NO.

DEMO MODE

INT. TIME

TITLE LANG.

DATE/TIME

*S-VHS ET is displayed when a VHS cassette is loaded, and S-VHS is displayed when an S-VHS cassette is

loaded (Z pg. 13). If a cassette is not loaded, “S-VHS” will be displayed in the Menu Screen.

S-VHS ET is preset to “OFF”.

26 EN

RECORDING

Advanced Features (cont.)

DEC 25. 99

DEC 25. 99

AM 10 : 25 : 00

AM 10 : 25 : 00

DEC 25. 99

(DATE)

(TIME)

(DATE&TIME)

AUTO DATE

No indication

(OFF)

1

Set the Power Switch to “PRO.”.

2

Press the Select Wheel to display the Menu Screen.

3

Rotate the Select Wheel to move the highlight bar to

“DATE/TIME DISP.” while in Record-Standby, then

press it to display the Date/Time DISP. Menu.

4

Rotate the Select Wheel to move the highlight bar to

the desired mode, then press it. The desired mode is

activated.

5

The Menu Screen reappears with the highlight bar on

“RETURN”. Press the Select Wheel to close the Menu

Screen.

NOTES:

DISPLAY

●

The selected display can be recorded.

●

If you do not want to record the display, select the OFF

mode before shooting.

AUTO DATE

●

Your camcorder automatically records the date for about

5 seconds after recording is initiated in the following

situations:

•

After changing the date.

•

After loading a cassette.

•

After Auto Date Record mode is selected by rotating

the Select Wheel.

●

In this mode, the date is replaced after 5 seconds with

“AUTO DATE” but this is not recorded.

Select Wheel

Power Switch

O

H

O

M

A

H

O

W

C

E

F

A

U

E

A

U

E

O

X

F

P

R

R

S

P

R

D

N

I

P

R

P

P

D

G

T

Y

V

Y

E

Y

N

I

R

A

C

E

N

A

B

C

C

I

H

W

G

T

T

I

A

H

A

O

U

I

R

T

R

L

L

B

D

L

T

T

I

I

I

A

A

A

L

H

O

S

D

D

B

Y

T

E

D

N

T

A

A

Y

I

A

M

Y

Y

O

Y

A

S

N

S

S

Instant Titles

The camcorder has eight preset titles in

memory. You can superimpose one of them

over the video image.

Instant Titles can be displayed not only in

English but also in French, Spanish and

Portuguese. Change the setting in TITLE LANG.

in the Menu Screen. (Z pg. 23, 25).

1

Set the Power Switch to “PRO.”.

2

Press the Select Wheel to display the Menu Screen.

3

Rotate the Select Wheel to move the highlight bar to

“TITLE” while in Record-Standby, then press it to

display the TITLE Menu.

4

Rotate the Select Wheel to move the highlight bar to

the desired mode, then press it. The desired mode is

activated.

•To make the title indication disappear, select “OFF”.

5

The Menu Screen reappears with the highlight bar on

“RETURN”. Press the Select Wheel to close the Menu

Screen.

NOTE:

The selected title will remain until OFF is selected in the

TITLE Menu.

Date/Time Insert

Allows you to display the date and time in the

camcorder or on a connected color monitor, as

well as to record them manually or

automatically.

You should have already performed the Date/

Time Setting procedure (Z pg. 11).

EN27

1

15

SS

O

1

3

1

5

F

5

0

F

M

M

S

S

I

IN

N

INT. TIME

O

1

1

1

5

F

/

/

F

4

2

S

S

S

S

REC T I ME

Select Wheel

Recording

Start/Stop Button

REC TIME Menu

Display

Recording time

indicator

Interval time

indicator

INT. TIME Menu

MENU Button

INT. TIME and REC TIME indications on the normal

screen

Animation

You can shoot a series of pictures, each slightly different,

of the same object for a brief period of time.

1

Press MENU. The Menu Screen appears.

2

Rotate the Select Wheel to move the highlight bar to

“NEXT” in Menu Screen 1 and press it to display

Menu Screen 2. Then, move the highlight bar to

“REC TIME” and press it. The REC TIME Menu

appears. Rotate the Select Wheel to move the

highlight bar to the desired recording time, then press

it. The Menu Screen reappears with the highlight bar

on “RETURN”.

3

Press the Select Wheel again to close the Menu

Screen.

4

Press the Recording Start/Stop Button after focusing

on the subject. The recording stops automatically

after the selected period of time.

•Repeat step 4 for the desired number of pictures.

5

To release the Animation mode, set “REC TIME” in

the Menu screen to “OFF”.

Time-Lapse

You can record sequentially at preset time spans. Leaving

the camcorder aimed at a specific subject, you can record

subtle changes over an extended period of time.

1

Set “REC TIME” (Z step 1 and 2 of “Animation”

above).

2

Rotate the Select Wheel to move the highlight bar to

“INT. TIME” and press it. The INT. TIME Menu

appears. Rotate the Select Wheel to move the

highlight bar to the desired interval time, then press it.

The Menu Screen reappears with the highlight bar on

“RETURN”. Press the Select Wheel again to close the

Menu Screen.

3

Press the Recording Start/Stop Button. Recording and

intervals alternate automatically.

4

To release the Time-Lapse mode, when “ ” is not

displayed, press the Recording Start/Stop Button to

display “ ”, then set “REC TIME” and

“INT. TIME” in the Menu Screen to “OFF”.

NOTES:

Before performing the following steps, make

sure that:

●

The Power Switch is set to “PRO.”.

●

The camcorder is in the Record-Standby

mode.

●

The recording mode is set to “SP”.

NOTES (for Animation and Time-Lapse):

●

For best results, make sure the camcorder is secured when shooting in Animation or Time-Lapse mode.

●

Fade- or wipe-in/out cannot be performed during Animation or Time-Lapse shooting.

●

Before performing other operations following Animation or Time-Lapse recording, make sure the Animation

or Time-Lapse mode is deactivated.

●

Animation and Time-Lapse are canceled when the power is shut off or when the cassette is ejected.

28 EN

Exposure Control

This feature automatically adjusts the iris for the best

available picture quality, but you can override it and make

the adjustment manually. Manual exposure adjustment is

recommended in the following situations:

•

When shooting using reverse lighting or when the

background is too bright.

•

When shooting on a reflective natural background such

as at the beach or when skiing.

•

When the background is overly dark or the subject light.

1

Set the Power Switch to “PRO.”.

2

Press the Select Wheel to display the Menu Screen.

3

Rotate the Select Wheel to move the highlight bar to

“EXPOSURE” and press it. The EXPOSURE Menu

appears.

4

Rotate the Select Wheel to move the highlight bar to

“MANU”, then press it. The Menu Screen disappears

and “00” (exposure control level counter) appears.

5

To brighten the image, rotate the Select Wheel

upward. The exposure control level counter increases

(maximum +06).

To darken the image, rotate the Select Wheel

downward. The exposure control level counter

decreases (maximum –06).

6

Press the Select Wheel. The setting is complete. The

Menu Screen reappears with the highlight bar on

“RETURN”.

7

Press the Select Wheel. The Menu Screen disappears

and the exposure control level counter reappers to

indicate the exposure is adjusted.

NOTES:

●

To return to the factory setting, select “AUTO” in step 4.

●

To re-adjust exposure, repeat the procedure from step 2.

00

–06 –06 +06

Manual Exposure

Screen

To brighten the image

To darken the image

Select Wheel

Power Switch

Exposure control

level counter

RECORDING

Advanced Features (cont.)

EN29

Focus detection zone Focusing

AUTO FOCUS

The camcorder’s Full Range AF system offers continuous

shooting ability from close-up to infinity. However, correct

focus may not be obtainable in the situations listed below

(in these cases use manual focusing):

•When two subjects overlap in the same scene.

•When illumination is low.*

•When the subject has no contrast (difference in bright-

ness and darkness), such as a flat, one-color wall, or a

clear, blue sky.*

•When a dark object is barely visible in the viewfinder.*

•When the scene contains minute patterns or identical

patterns that are regularly repeated.

•When the scene is affected by sunbeams or light

reflecting off the surface of a body of water.

•When shooting a scene with a high-contrast background.

*The low-contrast warning “ ” appears

MANUAL FOCUS

Make the necessary viewfinder adjustments to use the

viewfinder (

Z

pg. 15).

1

Set the Power Switch to “PRO.”.

2

Press the Select Wheel to display the Menu Screen.

3

Rotate the Select Wheel to move the highlight bar to

“FOCUS” and press it. The FOCUS Menu appears.

4

Rotate the Select Wheel to move the highlight bar to

“MANU”, then press it. The Menu Screen disappears

and “ ” and “ ” appear. The focus is locked at this

point.

5

To focus on a farther subject, rotate the Select Wheel

upward. “ ” appears and blinks.

To focus on a nearer subject, rotate the Select Wheel

downward. “ ” appears and blinks.

6

Press the Select Wheel. The setting is complete. The

Menu Screen reappears with the highlight bar on

“RETURN”.

7

Press the Select Wheel. The Menu Screen disppears

and “ ” reappears to indicate the focus is locked.

NOTES:

●

If the lens is smeared or blurred, accurate

focusing is not possible. Keep the lens clean,

wiping with a piece of soft cloth if it gets

dirty. When condensation occurs, wipe with

a soft cloth or wait for it to dry naturally.

●

When shooting a subject close to the lens,

zoom out first (

Z

pg. 18). If zoomed in in

the auto focus mode, the camcorder could

automatically zoom out depending on the

distance between the camcorder and the

subject. This does not occur with “TELE

MACRO” (

Z

pg. 24).

Select Wheel

Power Switch

NOTES:

●

To return to Auto Focus, select “AUTO” in step 4.

●

To re-adjust Manual Focus, repeat the procedure from step 2.

●

Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you

focus in on a certain subject in the wide-angle position, sharply focused images cannot be obtained when

zoomed in because the depth-of-field is reduced at longer focal lengths.

●

When the focus level cannot be adjusted any farther or closer, “ ” or “ ” will blink.

30 EN

Power Switch

White Balance Adjustment

A term that refers to the correctness of color

reproduction under various lighting. If the white

balance is correct, all other colors will be accurately

reproduced.

The white balance is usually adjusted automatically.

However, more advanced camcorder operators

control this function manually to achieve a more

professional color/tint reproduction.

1

Set the Power Switch to “PRO.”.

2

Press MENU. The Menu Screen appears.

3

Rotate the Select Wheel to move the highlight

bar to “M.W.B.”, then press it. The Menu Screen

disappears and the M.W.B. Menu appears.

4

Rotate the Select Wheel to move the highlight

bar to the desired setting.

“AUTO”

White balance is adjusted automatically (factory

preset).

“ : FINE”

Outdoors on a sunny day.

“ : CLOUD”

Outdoors on a cloudy day.

“ : HALOGEN”

A video light or similar type of lighting is used.

“MWB”

White balance is set manually.

5

Press the Select Wheel. The Menu Screen

reappears with the highlight bar on “RETURN”.

Press the Select Wheel again to close the Menu

Screen.

To Return To Automatic White Balance . . .

.... select “AUTO” in step 4. Or set the Power

Switch to “AUTO”.

NOTE:

White balance cannot be used when Sepia

(

Z

pg. 22) is activated.

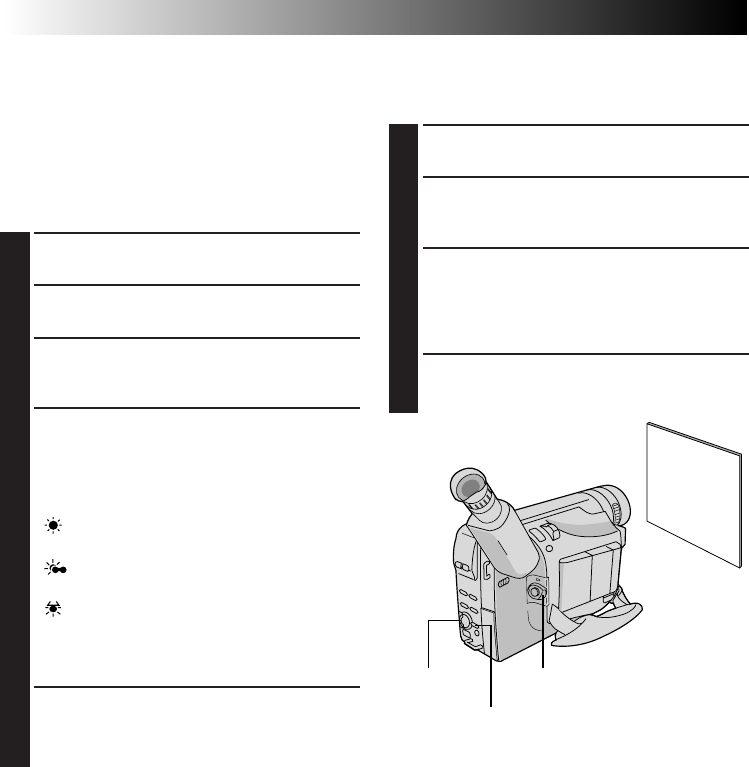

Manual White Balance Operation

Perform Manual White Balance when shooting under

various types of lighting.

1

Follow steps 1 through 4 of the white balance

adjustment, and select “MWB”.

2

Hold a sheet of plain white paper in front of the

subject. Adjust zoom or position yourself so that

the white paper fills the screen.

3

Press the Select Wheel until “MWB” begins

blinking.

When the setting is completed, “MWB” stops

blinking, and the Menu Screen reappears with

the highlight bar on “RETURN”.

4

Press the Select Wheel again to close the Menu

Screen.

White paper

Select Wheel

To Change The Tint For Recording . . .

.... in step 2, substitute colored paper for white. The

white balance is adjusted based on the color,

changing the tint. Red paper = deeper green;

blue paper = orange; yellow paper = deeper

purple.

NOTES:

●

In step 2, it may be difficult to focus on the white

paper. In such a case, adjust focus manually

(

Z

pg. 29).

●

A subject can be shot under various types of

lighting conditions indoors (natural, flourescent,

candlelight, etc.). Because the color temperature is

different depending on the light source, the subject

tint will differ depending on the white balance

settings. Use this function for a more natural result.

●

Once you adjust white balance manually, the

setting is retained even if the power is turned off or

the battery removed.

RECORDING

Advanced Features (cont.)

MENU Button

EN31

1

Load a tape (Z pg. 10).

2

Set the Power Switch to “PLAY”. To start playback,

press

4

/6.

•To stop playback, press 5.

•Press

2

to rewind, or

3

to fast-forward the tape

during Stop mode.

NOTES:

●

The camcorder shuts off automatically after about

5 minutes in Stop mode. To turn on again, set the Power

Switch to “OFF”, then to “PLAY”.

●

When the Power Switch is set to “PLAY” and the LCD

monitor is opened at an angle of 60 degrees or more, the

LCD monitor switches on and the viewfinder switches

off automatically to save power (GR-SXM320 only).

●

The playback picture can be viewed in the viewfinder

(with the LCD monitor* shut), on the LCD monitor* or

on a connected TV (

Z

pg. 34, 35). *GR-SXM320 only

●

You can also view the playback picture on the LCD

monitor with it flipped over and retracted (GR-SXM320

only).

●

If a blank portion on the tape is played back, the screen

may become black. This is not a malfunction.

PLAYBACK

Basic Playback

LCD Monitor Brightness Adjustment

(GR-SXM320 only): Rotate the Select Wheel

(BRIGHT) towards “+” to brighten, or towards “–” to

darken.

●

The Bright Level Indicator is displayed under the Date/

Time Display when you play back images recorded in

Wide Mode (

Z

pg. 24).

Speaker Volume Control (GR-SXM320

only): Slide the Power Zoom Lever (VOL.) towards

“+” to turn up the volume, or towards “–” to turn down

the volume.

●

The Speaker Volume Indicator is displayed under the

Date/Time Display when you play back images recorded

in Wide Mode (

Z

pg. 24).

Still Playback: Pauses during playback.

1) Press

4

/6 during playback.

2) To resume normal playback, press

4

/6 again.

●

Noise bars will appear and the picture will become

monochrome during Still Playback.

Shuttle Search: Allows high-speed search in either

direction.

1) Press

3

for forward or

2

for reverse search during

playback.

2) To resume normal playback, press

4

/6.

●

During playback, press and hold

2

or

3

. The search

continues as long as you hold the button. Once you

release it, normal playback resumes.

●

Noise bars appear and pictures may become mono-

chrome or darken during Shuttle Search. This is normal.

Rewind (

2

) Button

Fast-Forward (

3

) Button

Play/Pause (

4

/6) Button

Stop (5) Button

Power Zoom Lever (VOL.*)

Select Wheel

(BRIGHT*) Set to “PLAY”.

Speaker*

*GR-SXM320 only

32 EN

Set to “PLAY”.

P.AE Button

EFFECT Button

P.STABILIZER Button

PLAYBACK

Features

COUNTER R/M

Button

Rewind (

2

) Button

Fast-Forward (

3

) Button

Play/Pause (

4

/6) Button

Stop (5) Button

Tracking: Eliminates noise bars that appear on-screen

during playback. Factory-preset is Auto Tracking.

To activate Manual Tracking:

1) Press P.AE and EFFECT simultaneously. “MT” appears.

2) Press P.AE or EFFECT as many times as necessary until

the noise bars disappear.

●

To return to Auto Tracking, press P.AE and EFFECT

simultaneously. “AT” blinks. When Auto Tracking

finishes, the indication disappears.

●

When noise bars appear during playback, the

camcorder enters the Auto Tracking mode and “AT” is

displayed.

●

Manual Tracking may not work with tapes recorded on

other VCRs or camcorders.

TBC (Time Base Corrector): Removes jitter from

fluctuating video signals to deliver a stable picture even

with old tapes. Factory-preset: TBC is engaged.

To activate/release the TBC mode, press P.STABILIZER

during playback for more than 1 second. When the TBC

mode is activated, “TBC” is displayed.

●

The “TBC” indicator turns green (gray with a camcorder

equipped with a black/white viewfinder) while TBC is

working.

●

TBC does not work during still playback and shuttle

search.

●

The “TBC” indicator turns white while TBC is not

operative.

●

It may take a few seconds before TBC actually starts

working.

●

The picture may be distorted if the TBC mode is

activated or deactivated at the edit-in/-out points or

when normal playback resumes after still playback or

shuttle search.

●

If the playback picture is distorted when TBC is set to

on, turn off TBC.

Counter Memory Function: Makes it easier to

locate a specific tape segment.

1) Press COUNTER R/M and hold for more than 1 second.

The counter resets to “0:00:00”.

2) Press COUNTER R/M for less than 1 second. “M”

appears.

3) After recording or playback, press 5, then

2

. The tape

automatically stops at or close to 0:00:00.

4) Press

4

/6 to start playback.

●

The counter memory functions in the Fast-Forward and

Rewind modes.

●

To disable the Counter Memory Function, press COUN-

TER R/M for less than 1 second so that “M” disappears.

EN33

PLAYBACK

Using The Cassette Adapter

Compact video cassette

VCR

Reels

Compartment door

Recording safety hole

Sliding latch

Cassette Adapter (VHS Playpak)

Use this to play back an S-VHS-C/VHS-C video cassette

recorded with this camcorder on a VHS VCR. It is fully

compatible with any S-VHS/VHS video cassette recorder.

The C-P7U adapter is battery powered and automatically

performs tape loading and unloading.

1

Slide the battery cover up to remove it, install one

“AA (R6)” size battery as shown, then reattach the

cover.

2

Slide the latch to open the adapter compartment

door, then insert the cassette and close the compart-

ment door.

3

Load the cassette adapter into the VCR and play the

tape back as you would any other.

4

Slide the latch and the compartment door opens

automatically. This may take around 10 seconds. Do

not attempt to force the adapter open. Then, insert

your finger in the hole on the underside of the

adapter as shown in the illustration at left, and push

up and remove the cassette.

NOTES:

●

During tape loading and unloading, do not touch the

reels for safety and tape protection.

●

Tapes recorded in S-VHS or S-VHS ET mode cannot be

played back on a regular VHS VCR. Playback is possible

with a VCR equipped with the S-VHS or SQPB (S-VHS

QUASI PLAYBACK) function (GR-SXM320/SX851 only).

●

During special-effect playback (slow motion, still frame,

etc.), the picture may vibrate or noise bars may appear

on the screen.

●

To record on a VCR using a compact cassette and the

adapter, cover the adapter’s recording safety hole with

adhesive tape.

34 EN

PLAYBACK

Connections

These are some basic types of connections. When making connections, refer also to your VCR and TV

instruction manuals.

Audio cable

(optional)

To Audio

Output

TV

VCR

(Recording deck)

Connector cover*

To TV or VCR

To AUDIO IN

*When connecting the cables, open this cover.

Connector cover*

Audio cable (optional)

To Video

Output Video cable

(optional)

To

VIDEO IN

VCR

(Recording deck)

TV

To AUDIO INTo Audio Output

B. Connection to a TV or VCR equipped only with A/V input connectors

A.Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input

connectors (GR-SXM320/SX851 only)

To TV or VCR

To S-Video Output To S-VIDEO IN

S-Video cable (optional)

*When connecting the cables, open this cover.

EN35

Basic Connections

1

Make sure all units are turned off.

2

Connect the camcorder to a TV or VCR as

shown in the illustration (Z pg. 34).

If using a VCR . . . go to step 3.

If not . . . go to step 4.

3

Connect the VCR output to the TV input,

referring to your VCR’s instruction manual.

4

Turn on the camcorder, the VCR and the TV.

5

Set the VCR to its AUX input mode, and set the

TV to its VIDEO mode.

NOTES:

●

It is recommended to use the AC Power Adapter/

Charger as the power supply instead of the battery

pack (

Z

pg. 9).

●

If your VCR has an S-Video input connector,

connect the camcorder and the VCR using an

optional S-Video cable. This can improve the

dubbed picture quality (GR-SXM320/SX851 only).

●

To monitor the picture and sound from the

camcorder without inserting a tape, set the

camcorder’s Power Switch to “CAMERA” (“AUTO”

or “PRO.”), then set your TV to the appropriate

input mode.

●

Make sure you adjust the TV sound volume to its

minimum level to avoid a sudden burst of sound

when the camcorder is turned on.

●

If you have a TV or speakers that are not specially

shielded, do not place the speakers adjacent to the

TV as interference will occur in the camcorder

playback picture.

Tape Dubbing

1

Following the illustration on pg. 34, connect the

camcorder and the VCR.

2

Set the camcorder’s Power Switch to “PLAY”,

turn on the VCR’s power, and insert the

appropriate cassettes in the camcorder and the

VCR.

3

Engage the VCR’s AUX and Record-Pause

modes.

4

Engage the camcorder’s Play mode to find a

spot just before the edit-in point. Once it is

reached, press

4

/6 on the camcorder.

5

Press

4

/6 on the camcorder and engage the

VCR’s Record mode.

6

Engage the VCR’s Record-Pause mode and press

4

/6 on the camcorder.

7

Repeat steps 4 through 6 for additional editing,

then stop the VCR and camcorder when

finished.

36 EN

1

4

6

8

2

!

#

%

&

3

5

7

9

0

@

$

^

1

1

231

23

1

AB

USING THE REMOTE CONTROL UNIT (GR-SXM320/SX851 only)

Buttons

1PAUSE IN Connector*

2Infrared beam

transmitting window

3MBR SET Button*

4INT. TIME Button

SELF-TIMER Button*

5REC TIME Button

ANIM. Button

6FF Button

7 REW Button

8PAUSE Button

9PLAY Button

0START/STOP Button

!VISS Button*

@ZOOM (T/W) Buttons

#VCR CTL. Button*

$A.DUB Button

%STOP Button

^INSERT Button

&R. A. EDIT Buttons*

Functions

With the camcorder’s Power Switch set

to “CAMERA”, “AUTO” or “PRO.”.

—

Transmits the beam signal.

—

Time-Lapse (Z pg. 37)

Animation/Time-Lapse (Z pg. 37)

Retake (forward) (

Z

pg. 19)

Retake (rewind), Quick Review

(Z pg. 19)

—

—

Functions same as the Recording Start/Stop button on the camcorder.

—

Zoom in/out (

Z

pg. 18)

—

—

—

—

—

With the camcorder’s Power Switch

set to “PLAY”.

—

—

Fast-Forward, Forward Shuttle Search

(Z pg. 31)

Rewind, Reverse Shuttle Search

(Z pg. 31)

Pause (Z pg. 31)

Playback start (Z pg. 31)

—

Audio dubbing (Z pg. 39)

Stop (Z pg. 31)

Insert Editing (Z pg. 38)

Lock hole

The Full-Function Remote Control Unit can operate

this camcorder from a distance as well as the basic

operations (Playback, Stop, Pause, Fast-Forward and

Rewind) of your VCR. The RM-V700U remote

control unit (optional) makes additional recording

functions possible.

Installing The Batteries

The remote control uses one lithium battery

(CR2025).

1

: Pull out the battery holder while sliding the

lock hole.

: Pinch the release tab and pull out the

battery holder.

2

Insert the battery in the holder, and be sure to

have the “+” mark visible.

3

Slide the holder back in until you hear a click.

•Read the caution concerning lithium batteries

(Z pg. 2).

RM-V700U

(optional)

Release tab

*This function is unavailable wih this camcorder.

EN37

1

1M

/I

2N

S

START/STOP

REC. TIME

INT. TIME

FEATURE:

Animation and Time-Lapse

PURPOSE:

The remote control lets you set/release Interval Time

and Recording Time without using the Menu Screen.

OPERATION:

Animation

1) Set

Instead of performing steps 1 and 2 on pg. 27

(“Animation”), press REC TIME on the remote

control. Each time REC TIME is pressed, the

Recording Time indicator appears, changing in the

following order: 1/4S, 1/2S, 1S, 5S and no indication

(off).

2) Release

Instead of using the Menu in step 5 on pg. 27, press

REC TIME on the remote control until the Recording

Time indicator disappears.

Time-Lapse

1) Set

Instead of performing steps 1 through 3 on pg. 27

(“Time-Lapse”), press INT. TIME and REC TIME on

the remote control. Each time INT. TIME is pressed,

the Interval Time indicator appears, changing in the

following order: 15S, 30S, 1MIN, 5MIN and no

indication (off). Each time REC TIME is pressed, the

Recording Time indicator appears, changing in the

following order: 1/4S, 1/2S, 1S, 5S and no indication

(off).

2) Release

Instead of using the Menu in step 5 on pg. 27, press

INT. TIME and REC TIME on the remote control until

the indicators disappear.

NOTE:

Also refer to page 27.

Interval time

indicator

Recording time

indicator

Remote sensor

RM-V700U

(optional)

Transmitted beam

effective area

Remote sensor

When using the remote control, be sure to point it at

the remote sensor. The illustration shows the

approximate transmitted beam effective area for

indoor use.

The transmitted beam may not be effective or may

cause incorrect operation outdoors or when the

remote sensor is directly exposed to sunlight or

powerful lighting.

38 EN

USING THE REMOTE CONTROL UNIT (GR-SXM320/SX851 ony)

(cont.)

w

M–0:12:34

START/STOP

REW

PLAY

PAUSE

STOP

INSERT

Insert editing

indicator

Display

COUNTER R/M Button

Tape Counter

RM-V700U

(optional)

Remote sensor

Power Switch

Insert Editing

You can record a new scene onto a previously recorded

tape, replacing a section of the original recording with

minimal picture distortion at the in- and out-points. The

original audio remains unchanged.

NOTE:

Use the RM-V700U remote control unit to perform this

procedure.

1

Set the Power Switch to “PLAY”.

2

Play back the tape, locate the Edit-Out point and

press PAUSE.

3

Press and hold COUNTER R/M on the camcorder for

more than 1 second to reset the tape counter, then

press again for less than 1 second so that “M”

appears.

4

Press REW to go a little beyond the beginning of the

scene you want to replace, press PLAY to view the

recorded tape, and press PAUSE exactly at the Edit-In

point where the new scene should start.

5

Press and hold INSERT, and without releasing

INSERT, press and release PAUSE. The Insert Editing

indicator appears and the Insert Editing mode is

engaged. When the scene the camcorder is aimed at

appears on the screen, go to the next step.

6

To begin Insert Editing, press START/STOP. When the

counter reaches “0:00:00”, editing stops automati-

cally and the camcorder enters the Insert-Pause

mode.

7

To end Insert Editing, press STOP.

NOTES:

●

During Insert Editing, the original audio will be heard

from the speaker.

●

After step 5, Retake (

Z

pg. 19) can be performed.

●

The tape may stop slightly before or after the designated

end point, and noise bars may appear. Neither indicates

a defect in the unit.

●

Only the video signal is recorded in the Insert Editing

mode.

EN39

M

–

0:05:

e

2

4

0

PLAY

REW

A.DUB

STOP

PAUSE

Audio Dubbing

You can record a new soundtrack on a prerecorded tape

(normal audio only). The sound is recorded from the built-

in microphone.

Perform steps 1, 2 and 3 of the Insert Editing procedure

(Z pg. 38) before continuing.

NOTE:

Use the RM-V700U remote control unit to perform the

following procedures.

1

Press REW to go a little beyond the beginning of the

scene onto which you want to dub the new audio,

press PLAY to view the recorded tape, then press

PAUSE at exactly the point where dubbing should

start.

2

Press and hold A. DUB, and without releasing

A. DUB, press and release PAUSE. The Audio Dub-

Standby mode is engaged.

3

To begin Audio Dubbing, press PLAY. When the

counter reaches “0:00:00”, Audio Dubbing stops

automatically and the camcorder enters the Audio

Dub-Standby mode.

4

To end Audio Dubbing, press STOP.

NOTES:

●

Do not press FF or REW during Audio Dub-Standby, or

the edit points will not be accurate.

●

If the microphone is too close to the TV, or if the TV’s

volume is too high, whistling or howling may occur.

NOTES

(for Insert Editing and Audio Dubbing):

●

Insert Editing and Audio Dubbing may not work

correctly if the tape contains blank segments, or if the

recording speed was changed during the original

recording.

●

To edit/dub onto a tape, make sure the Erase Protection

tab is in the position that allows recording. If not, slide

the tab. Some cassettes have removable tabs. If the tab

has been removed, cover the hole with adhesive tape.

●

Do not press STOP during Insert Editing or Audio

Dubbing, or the edit points will not be accurate.

●

During Insert Editing and Audio Dubbing, when Insert-

Pause or Audio Dub-Standby is engaged, the counter

may go slightly past “0:00:00”. Recording, however,

stops at exactly 0:00:00.

Microphone

During Audio

Dubbing

Audio dubbing

indicator

Remote sensor

Display

RM-V700U

(optional)

40 EN

TROUBLESHOOTING

If, after following the steps in the chart below, the problem still exists, please consult your JVC dealer.

The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio,

etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery

pack, AC Power Adapter/Battery Charger, etc.) and clock battery; and then re-connect it and proceed as

usual from the beginning.

SYMPTOM POSSIBLE CAUSE(S)

POWER

No power is supplied.

The power suddenly goes off and

does not come back on by itself.

Recording cannot be performed.

Recording does not start.

Animation or Time-Lapse is not

available.

The tape is running, but there is no

playback picture.

Playback picture is blurred or

interrupted.

The counter indication is blurred

during Still playback.

The tape stops during fast-forward or

rewind.

Rewinding or fast-forwarding cannot

be performed.

●The battery pack has not been attached correctly

(Z pg. 8).

●The battery pack is not charged (Z pg. 8).

●The power supply has not been correctly connected

(Z pg. 9).

●The battery pack has completely discharged.

●Remove the cassette and disconnect the power source, then

after a few minutes, try turning the power back on. If it still

does not come on, consult your nearest JVC dealer.

●Make sure the Erase Protection tab is in the position that

allows recording. If not, slide the tab. Some cassettes have

removable tabs. If the tab has been removed, cover the

hole with adhesive tape (Z pg. 10).

●The camcorder Power Switch has not been set to

“CAMERA” (“AUTO“ or “PRO“.) (Z pg. 16).

●Before recording in the Animation mode at the very

beginning of a tape, set the camcorder to the Recording

mode for about 5 seconds, so that the tape runs smoothly.

Using the Fade-in function at this point is a good way to

begin an animated program (Z pg. 27, 37).

●The TV has not been set to its VIDEO mode or channel.

●If A/V connection is used, the TV’s VIDEO/TV Switch has

not been set to VIDEO.

●The video heads are dirty or worn out. Consult your nearest

JVC dealer for head cleaning or replacement.

●This is normal.

●The Counter Memory Function has been activated

(Z pg. 32).

●The tape is already fully wound on one reel or the other.

RECORDING

PLAYBACK

TAPE TRANSPORT

EN41

SYMPTOM POSSIBLE CAUSE(S)

OTHER

During recording, the indications do

not appear.

The tape will not eject.

Some functions are not available.

Vertical white lines appear when

shooting a very bright object.

Bright, crystal-shaped spots appear in

the LCD monitor and the viewfinder.

The rear of the LCD monitor is hot.

Colored bright spots appear all over

the LCD monitor or the viewfinder.

The indicators and the picture color

on the LCD monitor are not clear.

The LCD monitor, the viewfinder and

the lens have become dirty (ex.

fingerprints).

The picture is blurred in the Quick

Review or Retake mode.

An error number (i.e. E03) appears.

The image is out of focus.

The date and time displays

disappear.

The wrong date and time are

displayed/recorded.

Even though the lens cover is open,

the Lens Cover Warning indicator

blinks.

●Press DISPLAY for longer than 1 second to make the

indications appear (Z pg. 17).

●The battery pack is running low.

●If the LCD monitor is not open over 60 degrees, the EJECT

Switch does not function.

●The Power Switch is set to “AUTO”.

●Certain combinations of modes or effects are not possible

to use.

●This sometimes occurs when the contrast between the

background and the object is great. It is not a defect of the

camcorder.

●Sunlight is directly entering the lens. This is not a defect of

the camcorder.

●The light used to illuminate the LCD monitor causes it to be

hot. Close the LCD monitor to turn it off or set the Power

Switch to “OFF”, and let the unit cool down.

●The LCD monitor and the viewfinder are made with high-

precision technology. However, black spots or bright spots

of light (red, green or blue) may appear constantly on the

LCD monitor or in the viewfinder. These spots are not

recorded on the tape. This is not due to any defect of the

unit. (Effective dots: more than 99.99 %.)

●This may occur when the surface or the edge of the LCD

monitor is pressed.

●Wipe them gently with a soft cloth. Gently wipe in a

semicircular motion, as wiping strongly spreads the stain

and it won’t come out easily.

●This is normal while recording in the EP mode. Some noise

may be present while recording in the SP mode (Z pg. 12).

●Turn the camcorder’s power off, then disconnect the power

source. After a few minutes, try turning the power on again.

If the error number still appears in the viewfinder, consult

your nearest JVC dealer.

●The diopter needs to be adjusted (Z pg. 15).

●The scene being shot is adversely affecting the operation of

Auto Focus (Z pg. 29).

●If you remove the power source from the camcorder while

the power is on, all settings and selections are erased. Make

sure to turn the camcorder’s power off before disconnecting

the power source.

●If you have not performed Date/Time Setting (Z pg. 11),

the date and time are not displayed/recorded correctly. Be

sure that Date/Time setting is carried out.

●The Lens Cover Warning indicator may blink when the

camcorder is used in dark areas, regardless of the position

of the lens cover.

42 EN

INDEX

Controls, Connectors And Indicators

U I

3 4 5 6

& (* y

E

R

Y

T

t

7 8

0

@

$

%

9

!

#

^

)

)

1

i

o

q

u p

e rw

2

Q

W

Model with

LCD monitor

Model without

LCD monitor

EN43

Controls

1Diopter Adjustment Control ................. Z pg. 15

2Lens Cover Open/Close Ring................ Z pg. 16

3Video Light Switch

[LIGHT OFF/AUTO/ON]

(GR-SXM320/SX851 only) .................... Z pg. 20

45-Second Recording Button

[5 SEC. REC] ........................................ Z pg. 19

5•Power Zoom Lever [T/W] .................. Z pg. 18

•Speaker Volume Control [VOL.]

(GR-SXM320 only) ............................ Z pg. 31

6•Picture Stabilizer Button

[P.STABILIZER] .................................. Z pg. 18

•Time Base Corrector Button ............... Z pg. 32

7Program AE Button [P.AE] ..................... Z pg. 22

8Fade/Wipe Button [EFFECT] ................. Z pg. 21

9•Retake Rewind Button [RETAKE R]..... Z pg. 19

•Quick Review Button [ R] ............. Z pg. 19

•Rewind Button [REW] ....................... Z pg. 31

0•Retake Forward Button [RETAKE F] .... Z pg. 19

•Fast-Forward Button [FF] ................... Z pg. 31

!Stop Button [STOP] .............................. Z pg. 31

@Play/Pause Button

[PLAY/PAUSE] ..................................... Z pg. 31

#•Select Wheel [PUSH] ........................ Z pg. 23

•Bright Dial [BRIGHT]

(GR-SXM320 only) ...................... Z pg. 16, 31

$MENU/DISPLAY Button ................. Z pg. 17, 23

%•Recording Mode Button [SP/EP] ......... Z pg. 12

•Counter Reset/Memory Button

[COUNTER R/M] .............................. Z pg. 32

^EJECT Switch ....................................... Z pg. 10

&Recording Start/Stop Button.................. Z pg. 16

*Power Switch

[, OFF, AUTO, PRO.] .............. Z pg. 16, 31

(Battery Release Switch

[BATTERY RELEASE] .............................. Z pg. 9

)PUSH Button ....................................... Z pg. 10

Connectors

qDC IN Connector................................... Z pg. 9

The connectors w to t are located beneath the

cover.

wVideo Output Connector ...................... Z pg. 34

eAudio Output Connector ..................... Z pg. 34

rS-Video Output Connector

(GR-SXM320/SX851 only) .................... Z pg. 34

tJ Terminal [JLIP (Joint Level Interface Protocol)

Connector]

•It is used to connect the camcorder to a device

such as a personal computer.

For further details consult your nearest JVC

dealer.

•JLIP-controlled editing from camcorder to VCR

is not possible if the VCR is not equipped with a

J terminal.

Indicators

yPower Lamp ........................................ Z pg. 16

Other Parts

uBattery Pack Mount ............................... Z pg. 9

iViewfinder ........................................... Z pg. 15

oGrip Strap ............................................ Z pg. 15

p•Camera sensor

Be careful not to cover this area; a sensor

necessary for shooting is built-in here.

•Remote Sensor

(GR-SXM320/SX851 only) ................. Z pg. 37

QVideo Light

(GR-SXM320/SX851 only) .................... Z pg. 20

WMicrophone......................................... Z pg. 39

EEyepiece .............................................. Z pg. 50

RSpeaker (GR-SXM320 only) .................. Z pg. 31

TLCD Monitor (GR-SXM320 only) .......... Z pg. 17

YShoulder Strap Eyelets .......................... Z pg. 15

UClock Battery Slot ................................ Z pg. 10

ITripod Mounting Socket ....................... Z pg. 15

44 EN

INDEX

Indications

1

R

4

B

D

2

E

4

5

1

R

E

0

C

4

M

/

I

C

M

I

2

G

C

I

E

N

S

H

O

2

N

P

T

T

N

5

W

S

G

.

I

–

–

R

9

L

V

P

A

9

I

H

A

–

T

G

S

U

–

U

H

S

–

L

A

S

T

R

E

–

A

M

–

E

–

T

E

C

6

I

1

T

.

–

O

1

–

N

:

–

S

4

T

+

M

–

5

4

0

W

–

:

0

2

B

1

+

8

1X

7

8

9

0

!

#

$

@

*

&

^

%

53 42

1

(

6

a

b

1Tape Remaining Time .......................... Z pg. 17

Blinks when a tape is about to reach its end.

2Recording Mode Indicator (SP/EP) ........ Z pg. 12

3,8 Program AE Indicator ...................... Z pg. 22

Displayed at 3 for approx. 2 seconds when

Program AE with special effects is switched from

one mode to another by pressing P.AE., then only

the indicator remains at 8.

3,9 Fade/Wipe-Standby Indicator .......... Z pg. 21

Displayed at 3 for approx. 2 seconds when the

Fade/Wipe is switched from one effect to another

by pressing EFFECT, then only the indicator

remains at 9.

4Recording Format Indicator (S/S-ET)

(GR-SXM320/SX851 only) .................... Z pg. 13

5Tape Length Indicator .......................... Z pg. 12

6Zoom Indicator Bar .............................. Z pg. 18

Zoom Level Indicator

Approximate Zoom Ratio

7Recording Indicator ............................. Z pg. 16

0Picture Stabilizer Indicator ................... Z pg. 18

!•Interval Timer/Recording Time

Indicator ........................................... Z pg. 27

•5 Sec. Rec Mode Indicator................. Z pg. 19

@Bright Level Indicator

(GR-SXM320 only)............................... Z pg. 16

#Instant Title Display ............................. Z pg. 26

$Date/Time Display ............................... Z pg. 26

%Focus Indicator .................................... Z pg. 29

^Exposure Control Level Counter ........... Z pg. 28

&White Balance Mode Indicator ............. Z pg. 30

*S-VHS/S-VHS ET Recording Indicator

(GR-SXM320/SX851 only) .................... Z pg. 13

(Record–Standby Mode Indicator .......... Z pg. 16

Indications During Recording

EN45

Warning Indications

Indications Function

Displays the battery remaining power.

Remaining power level: high. It does not necessarily mean that the battery

pack is fully charged.

Remaining power level: exhausted

As the battery power comes close to nil, the battery indicator blinks

(battery power warning).

When the battery power is exhausted, power turns off automatically.

Blinks when no cassette is loaded, or when the Erase Protection tab is not in

the position that allows recording. (Z pg. 10)

Blinks for approx. 10 seconds when the power is turned on. This display also

blinks when the clock (lithium) battery is either not installed or has discharged.

Install or replace the old battery with a new one. (Z pg. 10)

Appears when the tape ends during recording, playback or fast-forward.

(Z pg. 17)

Blinks for approx. 5 seconds when the camcorder is turned on with the lens

cover closed. (Z pg. 16)

These 2 warnings appear alternately every 3 seconds if condensation occurs. In this

case, all functions except tape eject and power on/off are disabled. Turn the unit off

(without removing the power supply), wait a few minutes for the warnings to clear,

and turn it on again.

These 2 warnings appear alternately every 3 seconds if dirt is detected on the

heads during recording. In this case, use an optional cleaning cassette. If the

warning remains after cleaning, consult your nearest JVC dealer.

The error indications (E01 — E06) show what type of malfunction has occured.

If an error indication and warning appear, turn the unit off, remove the power

supply (battery, etc.) and wait a few minutes for them to clear. When it does,

you can resume using the camcorder. If the indication remains, consult your

nearest JVC dealer.

Indications During Playback

TAPE END

E01 — E06

SAFEGUARD FUNCTION

HAS BEEN ACTIVATED

REATTACH BATTERY

CONDENSATION

PLEASE WAIT

LENS COVER

TAPE HEAD IS DIRTY

USE CLEANING

CASSETTE

T

V

B

O

C

LUM

M

E

–

0

–

:

S

1

–

–

2

–

E

:

–

T

3

–

–

4

–

1

6

S

:

–

P

2

–

3

–

:

–

4

4

A

–

5

T

+

2 7 4 1 3 5 6

9 8

1•: Cassette Indicator

Displayed when a tape is loaded.

•w: Insert Editing Indicator .................. Z pg. 38

Displayed during Insert Editing.

2TBC Indicator ...................................... Z pg. 32

3Recording Format Indicator (S/S-ET)

(GR-SXM320/SX851 only) .................... Z pg. 13

4Tape Counter ................................. Z pg. 32, 38

5Recording Mode Indicator (SP/EP) ........ Z pg. 12

6Tape Running Indicator

4

: Playback

3

: Fast-Forward/Shuttle Search

2

: Rewind/Shuttle Search

6: Pause

e

4

: Audio Dubbing

7Tracking Indicator ................................ Z pg. 32

8Tape Counter ....................................... Z pg. 38

Displayed only during Insert Editing.

9•BRIGHT: Bright Level Indicator

(GR-SXM320 only) ............................ Z pg. 31

•VOLUME: Speaker Volume

Indicator (GR-SXM320 only) .............. Z pg. 31

46 EN

When using the AC Power Adapter/Charger in areas

other than the USA

nThe provided AC Power Adapter/Charger features

automatic voltage selection in the AC range from

110 V to 240 V.

USING HOUSEHOLD AC PLUG ADAPTER

In case of connecting the unit’s power cord to an AC

wall outlet other than American National Standard

C73 series type use an AC plug adapter, called a

“Siemens Plug”, as shown.

For this AC plug adapter, consult your nearest JVC

dealer.

CAUTIONS

(cont.)

Plug adapter

Video Light

DANGER:

•The video light becomes extremely hot. Do not

touch it either while in operation or soon after

turning it off, otherwise serious injury may result.

•Do not place the camcorder into the carrying case

immediately after using the video light, since it

remains extremely hot for some time.

•When operating, keep a distance of about 30 cm

(11-13/16" ft.) between the video light and people

or object.

•Do not use near flammable or explosive materials.

•It is recommended that you consult your nearest

JVC dealer for replacing the video light.

General Battery Precautions

•When the C-P6U or C-P7U (cassette adapter) is not

functioning even when correctly operated, the

battery is exhausted. Replace it with a fresh one.

•Use only the following battery:

C-P6U or C-P7U ..................... AA (R6) size

Please make note of the following rules for battery

use. When misused, battery can leak or explode.

1. Refer to the C-P6U/C-P7U instructions when

replacing the battery.

2. Do not expose the battery to excessive heat as it

can leak or explode.

3. Do not dispose of battery in a fire.

4. Remove battery from the unit if it is to be stored for

an extended period to avoid battery leakage which

can cause malfunctions.

INFORMATION

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two

conditions:

(1) This device may not cause harmful

interference, and (2) this device must accept any

interference received, including interference that

may cause undesired operation.

Change or modifications not approved by the

party responsible for compliance could void the

user’s authority to operate the equipment. This

equipment has been tested and found to comply

with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable

protection against harmful interference in a

residential installation. This equipment gener-

ates, uses, and can radiate radio frequency

energy and, if not installed and used in accord-

ance with the instructions, may cause harmful

interference to radio communications. However,

there is no guarantee that interference will not

occur in a particular installation. If this equip-

ment does cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user is

encouraged to try to correct the interference by

one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equip-

ment and receiver.

Connect the equipment into an outlet on a

circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV

technician for help.

EN47

Battery Packs

The battery packs are nickel-cadmium

or nickel metal-hydride batteries.

Before using the supplied battery pack

or an optional battery pack, be sure to

read the following cautions:

1. To avoid hazard . . .

... do not burn.

... do not short-circuit the terminals.

... do not modify or disassemble.

... use only specified chargers.

2. To prevent damage and prolong service life . . .

... do not subject to unnecessary shock.

... avoid repeated charging without fully discharg-

ing.

... charge in an environment where temperatures

are within the tolerances shown in the chart

below. This is a chemical reaction type

battery—cooler temperatures impede chemical

reaction, while warmer temperatures can

prevent complete charging.

... store in a cool, dry place. Extended exposure to

high temperatures will increase natural

discharge and shorten service life.

... avoid prolonged uncharged storage.

... remove from charger or powered unit when

not in use, as some machines use current even

when switched off.

NOTES:

●

It is normal for the battery pack to be warm after

charging, or after use.

Temperature Range Specifications

Charging .............. 10°C to 35°C (50°F to 95°F)

Operation ............ 0°C to 40°C (32°F to 104°F)

Storage ................ –10°C to 30°C (14°F to 86°F)

●

Recharging time is based on room temperature of

20°C (68°F.)

●

The lower the temperature, the longer recharging

takes.

Cassettes

To properly use and store your cassettes, be sure to

read the following cautions:

1. During use . . .

... make sure the cassette bears the VHS-C mark.

... be aware that recording onto prerecorded tapes

automatically erases the previously recorded

video and audio signals.

... make sure the cassette is positioned properly

when inserting.

... do not load and unload the cassette

repeatedly without allowing the tape to run at

all. This slackens the tape and can result in

damage.

... do not open the front tape cover. This exposes

the tape to fingerprints and dust.

2. Store cassettes . . .

... away from heaters or other heat sources.

... out of direct sunlight.

... where they won’t be subject to unnecessary

shock or vibration.

... where they won’t be exposed to strong

magnetic fields (such as those generated by

motors, transformers or magnets).

... vertically, in their original cases.

Terminals

48 EN

CAUTIONS

About moisture condensation . . .

●You may have observed that pouring a cold

liquid into a glass will cause drops of water to

form on the glass’ outer surface. This same

phenomenon occurs on the head drum of a

camcorder when it is moved from a cool place

to a warm place, after heating a cold room,

under extremely humid conditions or in a

place directly subjected to the cool air from an

air conditioner.

●Moisture on the head drum can cause severe

damage to the video tape, and can lead to

internal damage to the camcorder itself.

Serious malfunctioning

If malfunctioning occurs, stop using the unit

immediately and consult your local JVC dealer.

Main Unit

1. For safety, DO NOT . . .

... open the camcorder’s chassis.

... disassemble or modify the unit.

... short-circuit the terminals of the battery pack.

Keep it away from metallic objects when not in

use.

... allow inflammables, water or metallic objects

to enter the unit.

... remove the battery pack or disconnect the

power supply while the power is on.

... leave the battery pack attached when the

camcorder is not in use.

2. Avoid using the unit . . .

... in places subject to excessive humidity or dust.

... in places subject to soot or steam such as near

a cooking stove.

... in places subject to excessive shock or

vibration.

... near a television set.

... near appliances generating strong magnetic or

electric fields (speakers, broadcasting antennas,

etc.).

... in places subject to extremely high (over 40°C

or 104°F) or extremely low (under 0°C or 32°F)

temperatures.

3. DO NOT leave the unit . . .

... in places of over 50°C (122°F).

... in places where humidity is extremely low.

(below 35%) or extremely high (above 80%).

... in direct sunlight.

... in a closed car in summer.

... near a heater.

4. To protect the unit, DO NOT . . .

... allow it to become wet.

... drop the unit or strike it against hard objects.

... subject it to shock or excessive vibration during

transportation.

... keep the lens directed at extremely bright

objects for long periods.

... direct the eyepiece of the viewfinder at the sun.

... carry it by holding the viewfinder or the LCD

monitor. Be sure to hold the main unit with

both hands or use the grip.

... swing it excessively when using the shoulder

strap.

LCD Monitor

1. To prevent damage to the LCD monitor,

DO NOT . . .

... push it strongly or apply any shocks.

... place the camcorder with the LCD monitor on

the bottom.

2. To prolong service life . . .

... avoid rubbing it with coarse cloth.

3. Be aware of the following phenomena for LCD

monitor use. These are not malfunctions:

•While using the camcorder, the surface around the

LCD monitor and/or the back of the LCD monitor

may heat up.

•If you leave power on for a long time, the surface

around the LCD monitor becomes hot.

EN49

TERMS

A

AC Power Adapter/Charger ......................... pg. 8, 9

Animation Recording .............................. pg. 27, 37

Audio Dubbing ............................................. pg. 39

Auto Date Record ......................................... pg. 26

Auto Focus .................................................... pg. 29

Auto Shut Off .......................................... pg. 17, 31

B

Battery Pack .......................................... pg. 8, 9, 46

Brighten The Image ....................................... pg. 28

Brighten The LCD Monitor ............................ pg. 16

C

Car Battery ...................................................... pg. 9

Cassette Adapter ........................................... pg. 33

Charge Marker ................................................ pg. 8

Charging The Battery Pack .............................. pg. 8

Clean The Camcorder ................................... pg. 50

Clock (Lithium) Battery ................................. pg. 10

Connection To A VCR/TV ............................. pg. 34

Contents ................................................ cover page

Counter Memory ........................................... pg. 32

D

Darken The Image ........................................ pg. 28

Darken The LCD Monitor ............................. pg. 16

Date/Time Display ........................................ pg. 26

Date/Time Settings ........................................ pg. 11

Demonstration Mode ................................ pg. 7, 25

Digital Zoom ................................................ pg. 24

Diopter Adjustment ....................................... pg. 15

E

Electronic Fog Filter Mode ............................ pg. 22

Erase Protection ............................................ pg. 10

Exposure Control .......................................... pg. 28

F

Fade-In/Out .................................................. pg. 21

Fast-Forward Tape ......................................... pg. 31

5 Sec. Recording ........................................... pg. 19

G

Grip Adjustment............................................ pg. 15

H

High Speed Shutter Mode ............................. pg. 22

I

Insert Editing ................................................. pg. 38

Instant Titles .................................................. pg. 26

Interface Shooting ......................................... pg. 17

J

JLIP ID NO. ................................................... pg. 25

Journalistic Shooting ..................................... pg. 17

L

LCD monitor/Viewfinder, Indications ...... pg. 44, 45

Load A Tape .................................................. pg. 10

M

Manual Focus ............................................... pg. 29

Menu Screen ......................................... pg. 23 – 25

N

ND Effect Mode ............................................ pg. 22

Nega/Posi Mode ........................................... pg. 22

P

Picture Stabilizer ........................................... pg. 18

Power Switch Position .................................. pg. 16

Program AE With Special Effects ................... pg. 22

Provided Accessories ...................................... pg. 7

Q

Quick Review ............................................... pg. 19

R

Recording Format ......................................... pg. 13

Recording Mode ........................................... pg. 12

Record-Standby ............................................ pg. 16

Remote Control ............................................. pg. 36

Retake ........................................................... pg. 19

Rewind The Tape .......................................... pg. 31

S

Self-Recording .............................................. pg. 17

Sepia Mode ................................................... pg. 22

Shoulder Strap Attachment ............................ pg. 15

Shuttle Search ............................................... pg. 31

Specifications ................................................ pg. 51

Sports Mode .................................................. pg. 22

Still Playback ................................................ pg. 31

Super LoLux (S.LX) ........................................ pg. 24

Super VHS Expansion Technology ................. pg. 13

T

Tape Counter .......................................... pg. 32, 38

Tape Dubbing ......................................... pg. 34, 35

Tape Length Setting ....................................... pg. 12

Tele Macro .................................................... pg. 24

Time Base Corrector ..................................... pg. 32

Time-Lapse Shooting ............................... pg. 27, 37

Tracking ........................................................ pg. 32

Tripod Mounting ........................................... pg. 15

Twilight Mode ............................................... pg. 22

U

Unload A Tape .............................................. pg. 10

V

Video Light ................................................... pg. 20

Viewfinder Adjustment .................................. pg. 15

W

White Balance Adjustment ............................ pg. 30

Wide Mode ................................................... pg. 24

Wipe-In/Out .................................................. pg. 21

Z

Zooming ....................................................... pg. 18

50 EN

USER MAINTENANCE

After Use

1

Turn off the camcorder.

2

Open the LCD monitor* fully. Slide EJECT to open the

cassette holder, then remove the cassette.

3

Press PUSH to close and lock the cassette holder.

4

Close and lock the LCD monitor*.

5

Slide BATTERY RELEASE to remove the battery pack.

6

Turn the LENS COVER Open/Close Ring to close

the lens cover.

Cleaning The Camcorder

1

To clean the exterior, wipe gently with a soft cloth.

Put the cloth in diluted mild soap and wring it well to

wipe off heavy dirt. Then wipe again with a dry cloth.

2

Open the LCD monitor* and wipe gently with a soft

cloth. Be careful not to damage the monitor*. Close

the LCD monitor*.

3

To clean the lens, blow it with a blower brush, then

wipe gently with lens cleaning paper.

4

To detach the eyepiece, turn it counterclockwise and

pull it out.

5

Remove dust from the viewfinder using a blower

brush.

6

Re-attach the eyepiece and turn it clockwise.

*GR-SXM320 only.

NOTES:

●

Avoid using strong cleaning agents such as benzine or

alcohol.

●

Cleaning should be done only after the battery pack has

been removed or other power units have been

disconnected.

●

Mold may form if the lens is left dirty.

●

When using a cleaner or chemically treated cloth refer

to the cautions of each product.

●

When removing the eyepiece, be sure to hold the

viewfinder securely.

LENS COVER Open/Close Ring

Set to “OFF”.

BATTERY RELEASE

Remove.

PUSH Button EJECT Switch

Remove.

PUSH Button EJECT Switch

EN51

LCD monitor : 2.5" diagonally measured,

(GR-SXM320 only) LCD panel/TFT active matrix

system

Speaker : Monaural

(GR-SXM320 only)

Connectors

JLIP: ø3.5 mm, 4-pole, mini-head jack

(compatible with RC-5325

plug)

Video : 1 Vp-p, 75 Ω unbalanced,

analog output

(via Video output connector)

Audio : –8 dBs, 1 kΩ analog output

(via Audio output connector)

S-Video :Y: 1Vp-p, 75 Ω, analog

(GR-SXM320/ output

SX851 only) C : 0.29 Vp-p, 75 Ω, analog

output

AC Power Adapter/Charger AA-V16U

Power requirement

U.S.A. and Canada : AC 120 V`, 60 Hz

Other countries : AC 110 V to 240 V`, 50/60 Hz

Power consumption : 23 W

Output

Charge : DC 8.5 V , 1.3 A

VTR : DC 6.3 V , 1.8 A

Charging system : Constant current, peak

detection, timer controlled

Dimensions : 125 (W) x 42 (H) x 68 (D) mm

(4-15/16" x 1-11/16" x 2-11/16")

Weight : Approx. 270 g (0.6 lbs)

Cassette Adapter C-P7U

Dimensions : 188 (W) x 25 (H) x 104 (D) mm

(7-7/16" x 1" x 4-1/8")

Weight : Approx. 240 g (0.53 lbs)

Accessory : “AA (R6)”-size battery x 1

Optional Accessories

• Battery Packs BN-V12U, BN-V20U, BN-V856U

• Car Battery Charger BH-V3U

• Battery Charger BH-VC10U

• Audio/Video Cable

• S-Video Cable QAM0004-004

• Car Battery Cord AP-V7U

• Compact S-VHS ( ) Cassettes ST-C-40/30/20

• Compact VHS ( ) Cassettes TC-40/30/20

• Active Carrying Bag CB-V7U

SPECIFICATIONS

Camcorder

General

Format : VHS NTSC standard

Power source : DC 6.0 V

Power consumption

LCD monitor* off,

viewfinder on : 4.2 W (GR-SXM320)

3.6 W (GR-SX851)

3.7 W (GR-AX750)

LCD monitor* on,

viewfinder off : 4.6 W

LCD monitor* on,

viewfinder on : 5.2 W

Video light** : 3.0 W

*GR-SXM320 only.

** GR-SXM320/SX851 only.

Signal system : NTSC-type

Video recording system

Luminance : FM recording

Color : Converted sub-carrier

direct recording

Conforms to VHS standard

Cassette : / cassette

Tape speed

SP : 33.35 mm/sec. (1-5/16 ips)

EP : 11.12 mm/sec. (7/16 ips)

Recording time (max.)

SP : 40 minutes

EP : 120 minutes (with TC-40)

Operating

temperature : 0°C to 40°C (32°F to 104°F)

Operating humidity : 35% to 80%

Storage temperature : –20°C to 50°C (–4°F to 122°F)

Weight : Approx. 890 g (2.0 lbs)

(GR-SXM320)

Approx. 730 g (1.6 lbs)

(GR-SX851)

Approx. 750 g (1.7 lbs)

(GR-AX750)

Dimensions : 198 (W) x 119 (H) x 99 (D) mm

(7-13/16" x 4-11/16" x

3-15/16") (GR-SXM320)

198 (W) x 119 (H) x 91 (D) mm

(7-13/16" x 4-11/16" x

3-5/8") (GR-SX851/AX750)

(with the LCD monitor* closed

and with the viewfinder fully

tilted downward)

*GR-SXM320 only.

Pickup : 1/4" format CCD

Lens : F1.6, f = 3.9 to 62.4 mm, 16:1

power zoom lens with auto iris

and macro control, filter

diameter 40.5 mm

Viewfinder : Electronic viewfinder with

0.55" color LCD (GR-SX851)

Electronic viewfinder with 0.5"

black/white CRT

(GR-SXM320/AX750)

White balance

adjustment : Auto/Manual adjustment

Some accessories are not available in some areas.

Please consult your nearest JVC dealer for details on

accessories and their availability.

Specifications shown are for SP mode unless otherwise

indicated. E & O.E. Design and specifications subject to

change without notice.

52 EN

ESPAÑOL

A

B

Alimentación

Esta cámara de video posee un sistema de alimentación de 3

vías que le permite seleccionar la fuente de alimentación más

apropiada. No utilice las unidades de alimentación

suministradas con otro equipo.

CARGA DE LA BATERIA

1

Asegúrese de desconectar el cable CC de la cámara de

video del adaptador/cargador de CA. Conecte el cable

de alimentación de CA del cargador a una toma de

corriente.

2

Alinee las marcas y deslice la batería en la dirección de

la flecha hasta que quede bloqueada en su lugar.

El indicador CHARGE comienza a destellar para indicar

que se ha iniciado la carga.

3

Cuando el indicador CHARGE deja de destellar y

permanece encendido, la carga ha terminado. Deslice la

batería en el sentido opuesto al de la flecha y retírela.

Recuerde de desconectar el cable de alimentación del

adaptador/cargador de CA de la toma de corriente alterna.

ATENCION:

Antes de desmontar la fuente de

alimentación, asegúrese que la

alimentación de la cámara de video

esté desconectada. El no hacerlo

puede producir un error de

funcionamiento en la cámara de video.

Indicador

CHARGE

(carga)

Marcas A la toma de

corriente de CA

Enganche. Empuje.

BATTERY RELEASE

*Se incorpora un indicador

de carga sobre la batería

para ayudarle a recordar si

ha sido cargada o no. Los

dos colores indicadores

(rojo y negro), le permiten

seleccionar la carga y la

descarga.

USO DE LA BATERIA

Enganche el extremo a la cámara de video y presione la batería

hasta que se trabe en el lugar .

•

Si la batería es colocada en la posición equivocada puede ocurrir un mal

funcionamiento.

Para la extracción de la batería . . .

..... deslice BATTERY RELEASE y extraiga la batería.

Batería

BN-V11U

BN-V12U (opcional)

BN-V20U (opcional)

Tiempo de carga

aprox. 1 h 10 min

aprox. 1 h 10 min

aprox. 1 h 50 min

Adaptador/

Cargador de CA

AA-V16U

ATENCION:

La carga de la batería sin que esté completamente agotada afectará a la capacidad original de ésta. Efectué el

procedimiento abajo para descargar totalmente la batería antes de recargarla.

1. Coloque la batería en la cámara de video y asegúrese que el cassette esté

no

colocado, luego ajuste el

conmutador de alimentación en ”AUTO” o ”PRO.”.

2. La alimentación de la camára de video se desconectará automáticamente cuando la descarga termina.

Cuando usted no vaya a usar una batería por un período prolongado, asegúrese de descargarla totalmente antes

de almacenarla porque dejar la batería sin que esté completamente agotada afectará su rendimiento.

Conector DC OUT

Batería BN-V11U, BN-V12U o BN-V20U

INFORMACION:

El VU-V856KIT es un juego compuesto de la batería

BN-V856U y del cargador/adaptador de CA AA-V80U. Lea los manuales

de instrucción del VU-V856KITU antes de utilizarlo.

Es imposible cargar la batería BN-V856U utilizando el cargador/adaptador

de CA suministrado. Use el cargador/adaptador de CA AA-V80U opcional.

Tiempo de grabación aproximado (unidad: min)

Batería

BN-V11U

BN-V12U

(opcional)

BN-V20U

(opcional)

BN-V856U

(opcional)

Monitor LCD

desconectado/

visor conectado

12 3

90 105 100

(45) (50)

90 105 100

(45) (50)

140 170 165

(65) (90)

570 670 670

(330) (360)

Monitor LCD

conectado/visor

desconectado

1

80

(45)

80

(45)

130

(75)

520

(310)

Monitor LCD

conectado/

visor conectado

1

70

(40)

70

(40)

115

(70)

460

(290)

( ) : Cuando está encendido el

foco. 1Cuando utilice GR-SXM320

2Cuando utilice GR-SX851

3Cuando utilice GR-AX750

Indicador de carga*

EN53

A

B

3

1

2

3

2

1

Utilización de la batería

Enganche el lado extremo de la batería en la

cámara de video y empuje la batería hasta

que se bloquee en el lugar .

(Procedimiento para carga, Z p. 8)

Para extraer la batería

Deslice BATTERY RELEASE y extraiga la batería.

GUIA PARA OPERACION RAPIDA

1Ajuste el conmutador de alimentación en “PLAY”.

2Presione

2

.

— La cinta se detiene automáticamente al

comienzo de la misma.

3Presione

4

/6.

— Comienza la reproducción y la imagen

aparece.

• Presione 5 para detener la grabación.

(Por más detalles, Z p. 31.)

Para los propietarios de la GR-SXM320:

•El visor se desconecta automáticamente para

ahorrar energía cuando el monitor LCD es

abierto a un ángulo mayor de 60 grados.

•El monitor LCD se activa/desactiva cuando se lo

abre/cierre a 60 grados aprox.

O simplemente reproduzca la cinta en un VCR

de VHS utilizando el adaptador de cassette

(VHS Playpak). Z p. 33

1Gire el anillo LENS COVER de abertura/cierre

para abrir el cubreobjetivo.

2Adjuste el conmutador de alimentación en

“AUTO” o “PRO.”.

— La lámpara de alimentación se encenderá

y aparecerá una imagen.

3Presione el botón inicio/parada de grabación.

— Comenzará la grabación.

•Para detener temporariamente la grabación,

presione nuevamente el botón de inicio/parada

de grabación.

(Por más detalles, Z p. 16, 17)

Para los propietarios de la GR-SXM320:

•El visor se desconecta automáticamente para

ahorrar energía cuando el monitor LCD es

abierto a un ángulo mayor de 60 grados.

•El monitor LCD se activa/desactiva cuando se

lo abre/cierre a 60 grados aprox.

ALIMENTACION INSERCION DEL CASSETTE DE

VIDEO

REPRODUCCION FILMACION

1Abra el monitor LCD completamente

(GR-SXM320 exclusivamente).

2Deslice EJECT para abrir el portacassette.

3Inserte cassette de video.

4Presione PUSH para cerrar el portacassette.

(Por más detalles, Z p. 10)

Colóquelo

en “PLAY”.

Botón PUSH Conmutador EJECT

Enganche.

Empuje.

BATTERY RELEASE

Anillo de abertura

del cubreobjetivo

(LENS COVER)

Colóquelo en

“AUTO” o “PRO.”.

Botón de inicio/parada de grabación

Botón de

rebobinado (

2

)

Botón de parada (5)

Si la unidad comienza a funcionar mal, deje de usarla inmediatamente y consulte a su concesionario local de JVC.

Botón de

reproducción/pausa

(

4

/6)

54 EN

HOW TO LOCATE YOUR JVC SERVICE CENTER

Dear customer:

In order to receive the most satisfaction from your purchase, read the instruction booklet before

operating the unit. In the event that repair is necessary, or for the address nearest your location,

please refer to the factory service center list below or within the Continental United States, call 1-800-

252-5722 for your authorized servicer. Remember to retain your Bill of Sale for Warranty Service.

— JVC

TOLL FREE: 1-800-252-5722

10 New Maple Avenue 1500 Lakes Parkway 705 Enterprise Street

Pine Brook, NJ 07058-9641 Lawrenceville, GA 30243-5857 Aurora, IL 60504-8135

(973) 396-1000 (770) 339-2522 (630) 851-7855

5665 Corporate Avenue 10700 Hammerly Blvd., Suite 110 2969 Mapunapuna Place, Suite 105

Cypress, CA 90630-4727 Houston, TX 77043-2310 Honolulu, HI 96819-2000

(714) 229-8011 (713) 935-9331 (808) 833-5828

13 Cummings Park 8192 West State Road 84 890 Dubuque Avenue

Woburn, MA 01801 Davie, FL 33324-4611 South San Francisco, CA 94080-1804

(781) 376-9100 (954) 472-1960 (650) 871-2666

Sophisticated electronic products may require occasional service. Just as quality is a keyword in the

engineering and production of the wide array of JVC products, service is the key to maintaining the

high level performance for which JVC is world famous. The JVC service and engineering organization

stands behind our products.

NATIONAL HEADQUARTERS

JVC SERVICE & ENGINEERING COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

10 New Maple Avenue

Pine Brook, NJ 07058-9641

Pack your JVC unit in the original carton or one of equivalent size and strength. Enclose, with the unit,

a letter stating the problem or symptom that exists and also a copy of the receipt or bill of sale you

received when you purchased your JVC unit. Print your home return address on the outside and the

inside of the carton. Send to the appropriate JVC Factory Service Center as listed above.

If you ship the product...

To purchase accessories for your JVC product, you

may contact your local JVC Dealer.

Or from the 48 Continental United States call toll free:

1-800-882-2345.

ACCESSORIES

CAUTION

To prevent electrical shock, do not open the

cabinet. No user serviceable parts inside.

Refer servicing to qualified service personnel.

Don’t service it yourself.

JVC SERVICE & ENGINEERING

COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

FACTORY SERVICE CENTER LOCATIONS

FOR SERVICING (Only in U.S.A.)

EN55

WARRANTY (Only in U.S.A.)

LIMITED WARRANTY

CONSUMER VIDEO 1-90

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO

THE ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP

from the date of original retail purchase for the period as shown below. (“The Warranty Period”)

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF

COLUMBIA AND IN THE COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner.

Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized

service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All

products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for

Television sets having a screen size 25 inches and above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC

authorized service center, please call toll free: (800) 252-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with

a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center,

the name and location of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse,

faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility

authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if
