Introduction
Preparations
Shooting
Playback
Menu Display and Detailed Settings
Status Screen
Camera Features
Connecting External Devices
Others

HD MEMORY CARD CAMERA RECORDER

GY-HM790U

GY-HM790CHU

GY-HM790E

GY-HM790CHE

INSTRUCTIONS

* The illustration shows the GY-HM790E with the supplied viewfinder, microphone and lens attached.

* GY-HM790CHU/GY-HM790CHE does not come with a lens.

For Customer Use:

Enter below the Serial No. which is located on the body.

Retain this information for future reference.

Model No. GY-HM790U/GY-HM790CHU

Serial No.

Please read the following before getting started:

Thank you for purchasing this JVC product.

Before operating this unit, please read the instructions

carefully to ensure the best possible performance.

In this manual, each model number is described without the last letter

(U/E) which means the shipping destination. (U: for USA and Canada,

E: for Europe)

Only “U”models (GY-HM790CHU/GY-HM790U) have been evaluated by

UL.

LST1108-001A

Introduction

Readall of these instructions.

Save these instructionsfor later use.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3125A

IMPORTANT SAFEGUARDS

Unplug thisappliance system from the wall outlet before cleaning. Do not use liquid cleanersor aerosol

cleaners.Useadamp cloth for cleaning.

Do not useattachmentsnot recommended by the appliance manufacturer as they maycausehazards.

Do not use thisappliance nearwater - for example, nearabathtub,washbowl, kitchen sink, or laundry tub,inawet

basement, or nearaswimming pool, etc.

Do not place thisappliance on anunstable cart, stand, or table. The appliance mayfall,

causing serious injury to achild or adult, and serious damage to the appliance.

Use only with acart or stand recommended by the manufacturer, or sold with the appliance.

Wall or shelf mounting should follow the manufacturer'sinstructions,and should usea

mounting kit approved by the manufacturer. An appliance and cart combination should be

moved with care.

Quick stops, excessive force, and uneven surfacesmaycause the appliance and cart

combination to overturn.

Slotsand openingsin the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of

the appliance and to protect it from overheating, these openingsmust not beblocked or covered. The openingsshould

never beblocked byplacing the appliance on abed, sofa,rug, or other similarsurface.

Thisappliance should never beplaced near or over aradiator or heat register.

Thisappliance should not beplaced in abuilt-in installation such asabookcaseunless proper ventilation isprovided.

Thisappliance should be operated only from the type of power source indicated on the marking label. If youare not sure

of the type of power supplied to your home, consult yourdealer or local power company. For appliance designed to

operate from battery power, refer to the operating instructions.

10.

For added protection for thisproduct during alightning storm, or when it isleft unattended and unused for long periods

of time, unplug it form the wall outlet and disconnect the antennaor cable system. Thiswill prevent damage to the

product due to lightning and power-line surges.

These are general IMPORTANT SAFEGUARDSand certain itemsmay not apply to all appliances.

All warningson the product and in the operating instructionsshould beadhered to.

FOR USA

14.

Never pushobjectsof any kind into thisappliance through cabinet slotsasthey maytouch dangerous voltage pointsor

short outpartsthatcould result in afire or electric shock. Never spill liquid of any kind on the appliance.

15.

Do not attempt to service thisappliance yourself as opening or removing coversmay exposeyouto dangerous voltage

or other hazards. Refer all servicing to qualified service personnel.

16.

Unplug thisappliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plugisdamaged or frayed.

b. If liquid has been spilled into the appliance.

c. If the appliance has been exposed to rain or water.

e. If the appliance has been dropped or the cabinet has been damaged.

If the appliance doesnot operate normally by following the operating instructions. Adjust only those controlsthat

are covered by the operating instructionsasimproper adjustment of other controlsmayresult in damage and will

often require extensive work byaqualified techniciantorestore the appliance to normal operation.

When the appliance exhibitsadistinct change in performance - thisindicatesaneed for service.

17.

When replacement partsare required, besure the service technicianhas used replacement partsspecified by the

manufacturer thathave the same characteristicsasthe originalpart. Unauthorized substitutionsmayresult in fire,

electric shock, or other hazards.

18.

Upon completion of any service or repairsto thisappliance, ask the service technician to perform routine safety checks

to determine that the appliance isin safe operating condition.

13.

Do not overloadwall outletsand extension cordsasthiscanresult in fire or electric shock.

12.

Follow all warningsand instructionsmarked on the appliance.

11.

Do not allow anything to rest on the power cord. Do not locate thisappliance where the cord will beabused by persons

walking on it.

III

Safety Precautions

CAUTION:

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

FOR USA AND CANADA

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

INFORMATION:

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a

commercial environment.

This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications.

Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct

the interference at his own expense.

CAUTION:

CHANGES OR MODIFICATIONS NOT APPROVED BY JVC

COULD VOID USER’S AUTHORITY TO OPERATE THE

EQUIPMENT.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC

RULES.

OPERATION IS SUBJECT TO THE FOLLOWING TWO

CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE

HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST

ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED

OPERAT ION.

The lightning flash with arrowhead symbol,

within an equilateral triangle is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to

persons.

TO REDUCE THE RISK OF ELECTRIC

SHOCK. DO NOT REMOVE COVER

(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

POUR CANADA

ATTENTION

RISQUE D’ELECTROCUTION NE

PAS OUVRIR

ATTENTION:

POUR EVITER TOUT RISQUE D’ELECTROCUTION

NE PAS OUVRIR LE BOITER.

AUCUNE PIECE INTERIEURE N’EST A REGLER

PAR L’UTILISATEUR.

SE REFERER A UN AGENT QUALIFIE EN CAS DE

PROBLEME.

Le symbole de l’éclair à l’intérieur d’un triangle

équilatéral est destiné à alerter l’utilisateur sur la

présence d’une “tension dangereuse” non isolée

dans le boîtier du produit. Cette tension est

suffisante pour provoquer l’électrocution de

personnes.

Le point d’exclamation à l’intérieur d’un triangle

équilatéral est destiné à alerter l’utilisateur sur la

présence d’opérations d’entretien importantes au

sujet desquelles des renseignements se trouvent

dans le manuel d’instructions.

Ces symboles ne sont utilisés qu’aux Etats-Unis.

INFORMATION (FOR CANADA)

RENSEIGNEMENT (POUR CANADA)

This Class A digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la Class A est conforme à la

norme NMB-003 du Canada.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.

CAUTION:

This unit should be used with 12V DC only.

To prevent electric shocks and fire hazards, do NOT use any

other power source.

AVERTISSEMENT:

POUR EVITER LES RISQUES

D’INCENDIE OU D’ELECTROCUTION, NE PAS

EXPOSER L’APPAREIL A L’HUMIDITE OU A LA

PLUIE.

ATTENTION:

Ce magnétoscope ne doit être utilisé que sur du courant

direct en 12V.

Afin d’eviter tout resque d’incendie ou d’electrocution, ne

pas utillser d’autres sources d’alimentation électrique.

NOTE:

The rating plate (serial number plate) is on the unit.

REMARQUE:

La plaque signalétique (plaque du numéro desérie) est située sur

le cadre inférieur de l’unité.

CAUTION:

To prevent electric shock, do not open the cabinet. No user

serviceable parts inside. Refer servicing to qualified service

personnel.

Due to design modifications, data given in this instruction book

are subject to possible change without prior notice.

The apparatus shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases, shall be placed

close to the apparatus.

Introduction

FOR EUROPE

This equipment is in conformity with the provisions and

protection requirements of the corresponding European

Directives. This equipment is designed for professional video

appliances and can be used in the following environments:

●

Controlled EMC environment (for example, purpose-built

broad-casting or recording studio), and rural outdoors

environments.

In order to keep the best performance and furthermore for

electromagnetic compatibility we recommend to use cables

not exceeding the following lengths:

Safety Precautions

(continued)

Port Cable Length

[DC INPUT] Exclusive Cable 5 m

[Y/VIDEO], [PB], [PR] Coaxial Cable 10 m

[AUDIO INPUT 1/2] Shielded Cable 3 m

[AUDIO OUTPUT] Shielded Cable 10 m

[PHONES] Exclusive Cable 3 m

[IEEE1394] Exclusive Cable 3 m

[HD/SD-SDI] Coaxial Cable 10 m

[REMOTE] Exclusive Cable 5 m

[LENS] Unshielded Cable 0.1 m

[VF] Special Cable 0.3 m

[USB] Shielded Cable 2 m

[GENLOCK INPUT] Shielded Cable 10 m

[TC IN] Shielded Cable 10 m

[TC OUT] Shielded Cable 10 m

[STUDIO] Exclusive Cable 0.3 m

Caution:

Where there are strong electromagnetic wavesor magnetism, for

example neararadio or TV transmitter, transformer, motor, etc.,

the picture and the sound maybedisturbed. In such case, please

keep the apparatus away from the sourcesof the disturbance.

Dear Customer,

This apparatus is in conformance with the valid European directives and

standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Germany

Sehr geehrter Kunde, sehr geehrte Kundin,

dieses Gerät stimmt mit den gültigen europäischen Richtlinien und

Normen bezüglich elektromagnetischer Verträglichkeit und

elektrischer Sicherheit überein.

Die europäische Vertretung für die Victor Company of Japan,

Limited ist:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Deutschland

Information for Userson Disposal of Old Equipment

[European Union]

Thissymbol indicatesthat the electricaland electronic

equipment should not bedisposed as generalhousehold

waste atitsend-of-life. Instead, the product should behanded

over to the applicable collection point for the recycling of

electricaland electronic equipment for proper treatment,

recovery and recycling in accordance with yournational

legislation.

By disposing of thisproduct correctly, youwill help to conserve

naturalresourcesand will help prevent potentialnegative

effectson the environment and humanhealth which could

otherwisebecaused byinappropriate waste handling of this

product. For more information about collection point and

recycling of thisproduct, please contact your localmunicipal

office, yourhousehold waste disposalservice or the shop

where youpurchased the product.

Penaltiesmaybeapplicable

for incorrect disposalofthiswaste, in accordance with national

legislation.

(Business users)

If youwish to dispose of thisproduct, please visit ourweb

page http://www.jvc.euto obtain information about the take-

back of the product.

[Other Countriesoutside the European Union]

If youwish to dispose of thisproduct, pleasedosoin

accordance with applicable national legislation or other rules

in yourcountry for the treatment of old electricaland

electronic equipment.

Attention:

Thissymbol isonly valid in the European

Union.

Introduction

Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Precautions for Proper Use . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Names of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Side Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Side Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

SD Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Zoom Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Basic System Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Displays on the LCD Monitor and Viewfinder . . . . . . . . . .18

Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Enlarged Status Display on LCD Monitor . . . . . . . . . .19

Auto White Display (Camera Mode Only,

Excluding AUX Mode) . . . . . . . . . . . . . . . . . . . . . . . . 20

Menu Setting Screen . . . . . . . . . . . . . . . . . . . . . . . . . .20

Alarm Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Zebra Pattern Display . . . . . . . . . . . . . . . . . . . . . . . . . 20

Preparations

Attaching Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Attaching the Zoom Lens . . . . . . . . . . . . . . . . . . . . . . . 21

Attaching the Microphone (Supplied) . . . . . . . . . . . . . . 21

Attaching the Viewfinder (Supplied) . . . . . . . . . . . . . . . 21

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Using AC Power (DC IN Power) . . . . . . . . . . . . . . . . . . . .22

Using a Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Turning On/Off the Power . . . . . . . . . . . . . . . . . . . . . . . . .25

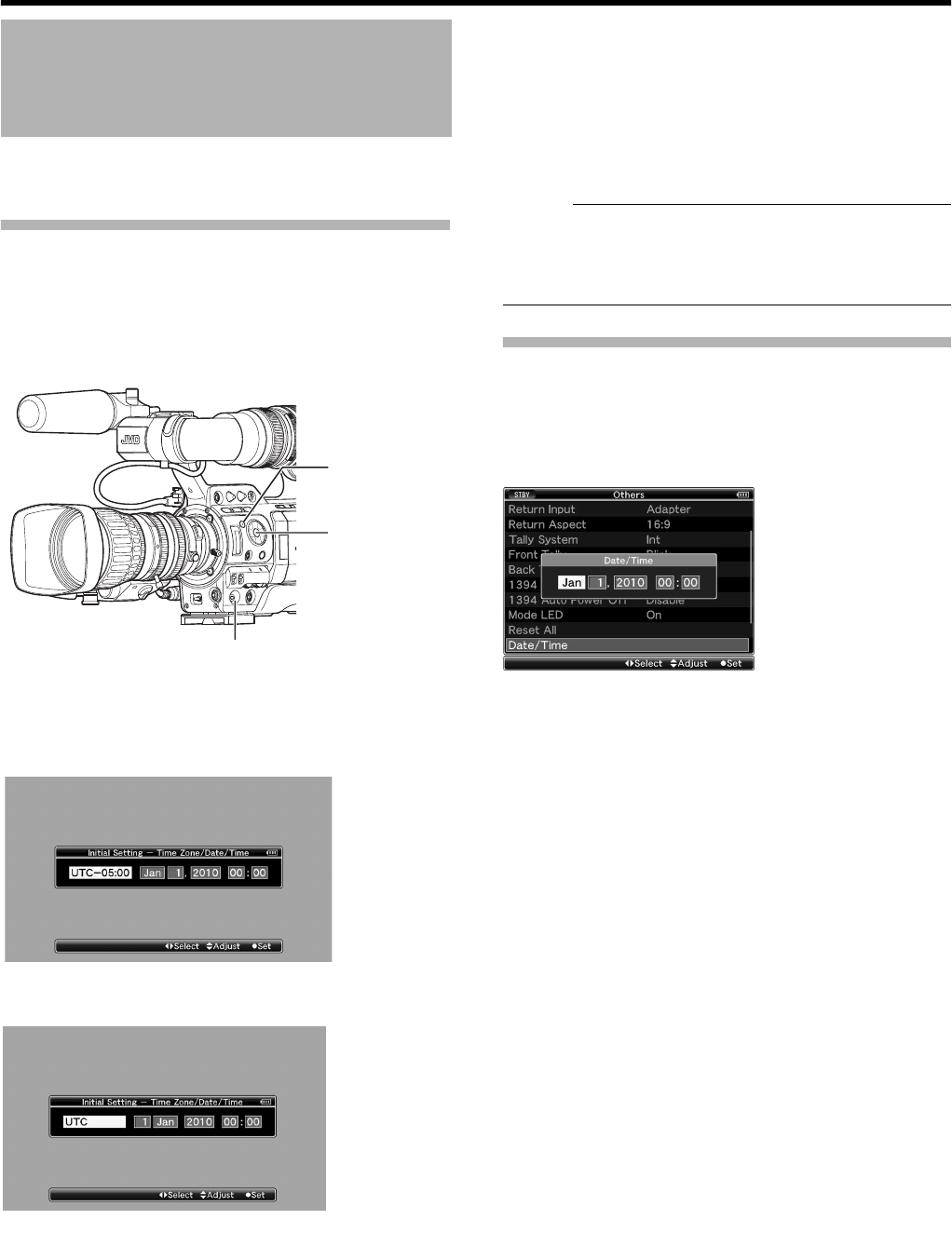

Setting the Clock (Initial Setting) . . . . . . . . . . . . . . . . . . . .26

Adjusting the Monitor Speaker . . . . . . . . . . . . . . . . . . . . . 27

Adjusting Back Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Adjusting the LCD Monitor and Viewfinder . . . . . . . . . . . . 28

Tally Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

SDHC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

SDHC Cards to Use . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Formatting (Initializing) SDHC Cards . . . . . . . . . . . . . . 33

Restoring the SDHC Card . . . . . . . . . . . . . . . . . . . . . .34

Clips Recorded to SDHC Cards . . . . . . . . . . . . . . . . . 35

Recording Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Shooting

Basic Shooting Procedures . . . . . . . . . . . . . . . . . . . . . . . .36

Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Focus Assist Function . . . . . . . . . . . . . . . . . . . . . . . . .37

Selecting System Definition, File Format and Video Forma

t . . .38

Selecting the Aspect Ratio of SD Videos . . . . . . . . . . .39

Adjusting the Iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Setting Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Setting the Electronic Shutter . . . . . . . . . . . . . . . . . . . . . .40

Adjusting the White Balance . . . . . . . . . . . . . . . . . . . . . . .42

Adjusting the White Shading . . . . . . . . . . . . . . . . . . . . . . .44

Setting the ND Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Adjusting Audio Input Settings and Recording Level . . . . .46

Setting Audio Input . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Adjusting Audio Recording Level . . . . . . . . . . . . . . . . .46

Audio Monitor During Recording . . . . . . . . . . . . . . . . .47

Time Code and User’s Bit . . . . . . . . . . . . . . . . . . . . . . . . .48

Displaying Time Code and User’s Bit . . . . . . . . . . . . . .48

Time Code Operation Mode . . . . . . . . . . . . . . . . . . . . .48

Using the Internal Time Code Generator . . . . . . . . . . . . . .49

Presetting the Time Code . . . . . . . . . . . . . . . . . . . . . .49

Presetting the User’s Bit . . . . . . . . . . . . . . . . . . . . . . . .50

Setting Time Code Without Opening the Menu . . . . . .51

Setting User’s Bit Without Opening the Menu . . . . . . .52

Recording Time Code in Continuation of

the Recorded Time Code on SDHC card . . . . . . . . .52

Synchronizing Time Code with External Time Code

Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Setting Zebra Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Setting Spot Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Viewing Recorded Videos Immediately (Clip Review) . . . .56

Assigning Functions to User Buttons . . . . . . . . . . . . . . . . .57

Protecting Important Scenes (OK Mark Function) . . . . . . .58

Special Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Pre Rec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Clip Continuous Rec . . . . . . . . . . . . . . . . . . . . . . . . . .59

Variable Frame Rec . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Playback

Playing Back Recorded Clips . . . . . . . . . . . . . . . . . . . . . . .61

Thumbnail Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Playing Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Thumbnail Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Deleting Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Appending and Deleting OK Marks . . . . . . . . . . . . . . . . . .68

Contents

Menu Display and Detailed Settings

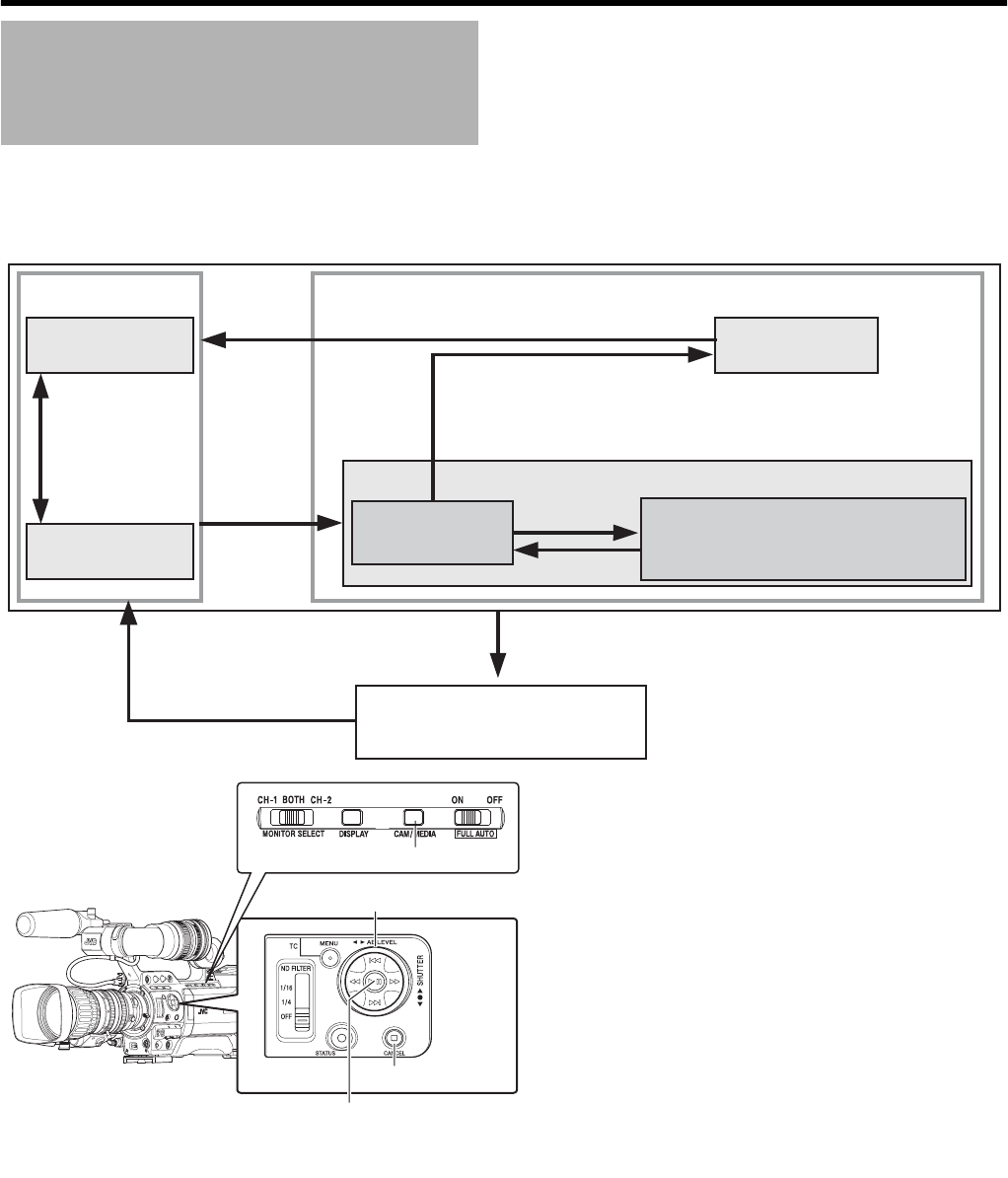

Basic Operations in Menu Screen . . . . . . . . . . . . . . . . . . .70

Display and Description of the Menu Screen . . . . . . . .70

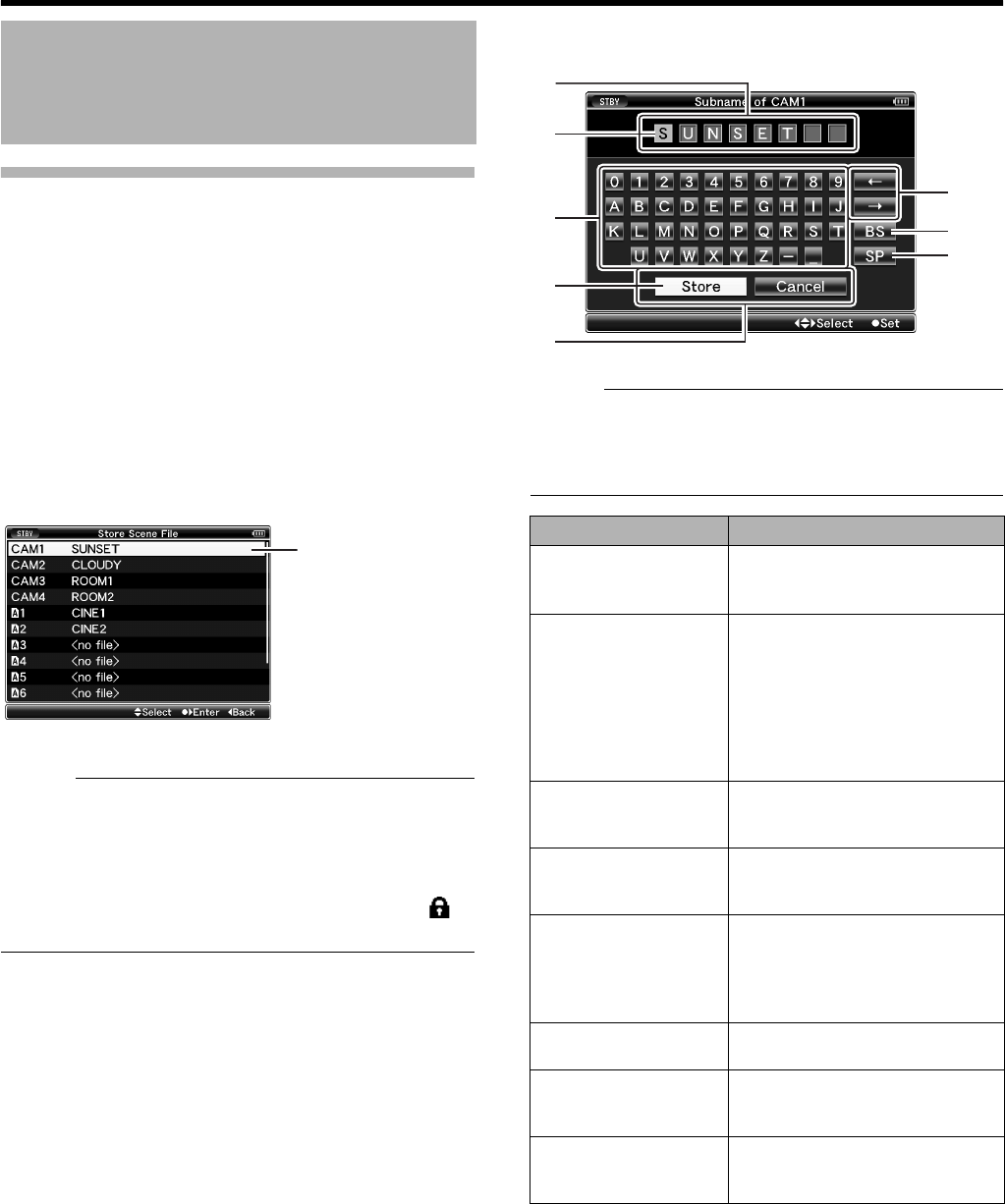

Text Input with Software Keyboard . . . . . . . . . . . . . . . . 71

Menu Screen Hierarchical Chart . . . . . . . . . . . . . . . . . . . . 72

Main Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Record Set Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Record Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . .75

Rec Mode Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Clip Set Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Audio Set Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Camera Function Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Switch Set Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

FULL AUTO Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Camera Process Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Detail/Adjust... Item . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

White Balance Item . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Shading Mode/Adjust Item . . . . . . . . . . . . . . . . . . . . . .86

Color Matrix/Adjust Item . . . . . . . . . . . . . . . . . . . . . . .86

TC/UB Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

LCD/VF Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Shooting Assist Item . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Marker Setting Item . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Status Display Item . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

A/V Out Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Others Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Genlock Adjust Item . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Media Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Setup File Manage Menu . . . . . . . . . . . . . . . . . . . . . . . . .97

Adding/Editing Frequently Used Menu Items

(Favorites Menu) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

Adding Menu Items to Favorites Menu . . . . . . . . . . . .98

Editing Favorites Menu . . . . . . . . . . . . . . . . . . . . . . . .99

Status Screen

Status Screen in Camera Mode . . . . . . . . . . . . . . . . . . . 102

Status Screen in SD Card Mode . . . . . . . . . . . . . . . . . . .108

Status Screen in IEEE1394 Input Mode . . . . . . . . . . . . . 109

Enlarged Status Display on LCD Monitor . . . . . . . . . . . .110

Camera Features

Marker and Safety Zone Displays (Camera Mode Only,

Excluding AUX Mode) . . . . . . . . . . . . . . . . . . . . . . . . . .112

Smoothening the Skin Color (Skin Detail Function) . . . .114

Color Bar Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Color Matrix Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 116

Reproduction of Dark Areas (Black Stretch/Compress

Function) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Configuring Setup Files . . . . . . . . . . . . . . . . . . . . . . . . . .119

Saving Setup Files . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Loading a Setup File . . . . . . . . . . . . . . . . . . . . . . . . .121

Resetting Setup Files . . . . . . . . . . . . . . . . . . . . . . . . .121

Connecting External Devices

Connecting an External Monitor . . . . . . . . . . . . . . . . . . .122

IEEE1394 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .123

Backup Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Input of Composite Video Signals from External Device

(GY-HM790CHU/GY-HM790U only) . . . . . . . . . . . . . . .125

Input of External Synchronizing Signal (Genlock) . . . . . .126

Displaying Return Video from External Device . . . . . . . .128

Studio System Connection . . . . . . . . . . . . . . . . . . . . .129

Managing/Editing Clips on a PC . . . . . . . . . . . . . . . . . . .130

Remote Control Unit Connection . . . . . . . . . . . . . . . . . . .131

List of Remote Control Unit Functions . . . . . . . . . . . .132

Others

Error Displays and Actions . . . . . . . . . . . . . . . . . . . . . . .134

Tally Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

Alarm Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

How to use this manual

䡵Symbols used

Note ：Describes precautions concerning the

operation of this product.

Memo ：Describes reference information, such as

functions and usage restrictions of this

product.

A：Indicates the reference page numbers and

reference items.

䡵Content of this manual

reprinting of this manual, in whole or in part, is strictly

prohibited.

●All other product names used in this manual are

trademarks or registered trademarks of their respective

companies. Marks such as ™, 姞, 姝 have been omitted in

this manual.

●Illustrated designs, specifications and other contents of

this manual are subject to change for improvement

without prior notice.

Introduction

This camera recorder enables recording of HD/SD format

images to an SDHC card, and also playback of these

images.

[GENLOCK INPUT], [TC IN], [TC OUT]

Terminals and Return Video Function

Equipped with a function that enables use of multiple

cameras as well as use as a studio camera.

SD (Standard Definition) Recording

Supports DV compression of SD images and recording in the

QuickTime or AVI file format.

The use of a wide array of non-linear editing software is also

supported, which helps to ease production of SD videos,

such as DVDs.

Recording in QuickTime File Format

Recording can be made in QuickTime file format of Final Cut

Pro, a video editing software from Apple Inc.

You can edit the recorded clips directly with Final Cut Pro.

Recording in MP4 File Format

This camera supports recording in the MP4 file format for

Windows NLE systems, which can be utilized in a wide range

of non-linear editing environments.

Recording on SDHC Memory Card (Class

6/10)

The absence of mechanisms with the use of SDHC (Class

6/10) as recording media brings about increased operation

reliability. In addition, the improved compatibility with

computers enables high-speed data transfer to NLE as well

as reduction of operating costs.

35 Mbps High Image Quality Mode

This camera recorder is equipped with a 35 Mbps high quality

mode, in addition to the HDV mode bit rate (19/25 Mbps).

Dual Media Slots

Continuous recording is possible by loading two recording

media, thereby allowing a long recording time.

Wide Variety of Recording Formats

This camera recorder supports various HD formats (1080i,

1080p, 720p) as well as SD (DV) formats (480i : U model,

576i : E model), enabling it to be used under various

environments. It also supports 1440x1080 and 1920x1080

full resolution in the 1080 format.

Adoption of MPEG-2 Long GOP for Easy

Editing

Shortens editing and output time by adopting MPEG-2

codec, which puts less stress on the editing computer.

High Resolution via Triplex Offset

2.5k x 1.4k pixels are generated with the Triplex Offset, and a

high resolution of more than 900 horizontal lines and 1000

diagonal lines is achieved using the proprietary front

processing.

Spot Meter Function

The brightest and darkest positions on the screen are

automatically detected and displayed together with the

dynamic range. As this is a pre-gamma value, it allows you to

understand the lighting ratio and prevents overexposure or

underexposure in shooting scenes where lighting is

controlled.

High Resolution Viewfinder

With a high resolution of 852 x 480 in 0.425 inches, the

viewfinder is now more robust and enables more accurate

focusing.

High Resolution LCD Monitor

Equipped with a 4.3 inch 800x480 large LCD monitor, both

shooting precision and viewing performance are improved.

Intuitive User Interface

The sophisticated user interface allows more intuitive

operations. Thumbnail display is also available for you to

easily select a recorded clip for playback.

Compact Shoulder Style

By inheriting the compact shoulder style from the GY-HD100

series which is widely accepted in the industry, more stable

shooting can be done on this camera recorder while its weight

remains similar to that of a handheld camera recorder.

Lens Interchangeability

Existing lenses can be used, thus saving on costs. You can

also select the most appropriate lens according to your

shooting requirements.

Professional Batteries

Batteries such as Anton Bauer and IDX batteries that are

used in the broadcast industry can be used with this camera

recorder.

Support for Wide Variety of Output

Supports industrial output such as HD-SDI output and

IEEE1394 output.

Main Features

Application Software Provided

The [JVC ProHD Clip Manager] application software is

provided for you to copy recorded clips to Windows or

Macintosh computers and for checking the video images.

(For MP4 file format)

Storage and Usage Locations

䡵Allowable ambient temperature and humidity

Be sure to use this unit within the allowable temperature range of

to 40

and a relative humidity of 30 % to 80 %. Using this

unit at a temperature or humidity outside the allowable ranges could

result not only in malfunction but also serious impact on the CCD

elements as small white spots may be generated. Please exercise

care during use.

䡵Strong electromagnetic waves or magnetism

Noise may appear in the picture or audio and/or the colors may be

incorrect if this unit is used near a radio or television transmitting

antenna, in places where strong magnetic fields are generated by

transformers, motors, etc., or near devices emitting radio waves,

such as transceivers or cellular phones.

䡵Use of wireless microphone near this unit

When a wireless microphone or wireless microphone tuner is used

near this unit during recording, the tuner could pick up noise.

䡵Avoid using or placing this unit in the following places.

●Places subject to extreme heat or cold

●Places with excessive dirt or dust

●Places with high humidity or moisture

●Places subject to smoke or vapor such as near a

cooking stove

●Places subject to strong vibrations or unstable surfaces

●In a parked car under direct sunlight or near a heater for

long hours.

䡵Do not place this unit at places that are subject to

radiation or X-rays, or where corrosive gases occur.

䡵Protect this unit from being splashed with water.

(Especially when shooting in the rain)

䡵Protect this unit from getting wet when shooting on a

beach. In addition, salt and sand may adhere to the body.

Be sure to clean the unit after use.

䡵Protect this unit against penetration of dust when using it

in a place subject to sandy dust.

Transportation

Do not drop or hit this unit against a hard object when

transporting.

Power Saving

䡵

When this unit is not in use, be sure to set the [POWER] switch

OFF

in order to reduce power consumption.

The CD-ROM provided with this camera recorder

comes with [JVC ProHD Clip Manager] and other

application software as well as their user guides.

* For details, refer to the user guides for each application

software.

Precautions for Proper Use

Introduction

Maintenance

䡵Turn off the power before performing any maintenance.

䡵

Wipe the external cabinet of the unit with a soft cloth. Do not

wipe the body with benzene or thinner. Doing so may cause the

surface to melt or turn cloudy. When it is extremely dirty, soak the

cloth in a solution of neutral detergent, wipe the body with it, and

then use a clean cloth to remove the detergent.

Batteries

䡵The following batteries can be used on this unit.

GY-HM790CHU/GY-HM790U : Dionic90 (Anton Bauer)

GY-HM790CHE/GY-HM790E : Endura-HL9 (IDX)

* Models with an E suffix are for the European market and

the UL Listing mark is not applicable.

䡵Make use of the recommended batteries. Heavy batteries

may fall off if not used correctly.

Regular Inspection (Maintenance)

Under normal environment, dust will accumulate on the

camera recorder when it is used over a long period. Dust

may enter the camera recorder especially if it is used

outdoors. This may affect the image and sound quality of the

camera recorder. Check and replace the fan after every 9000

hours (suggested guideline).

You can check the usage time of the fan in the [Others]

menu B [System Information] B [Fan Hour]. (APage 95)

If the fan is used for more than 9000 hours without

replacement, AFAN MAINTENANCE REQUIREDB will be

displayed every time you turn on the power.

SDHC Cards

Use an SDHC card (4 GB to 32 GB) with Class 6 or higher

performance.

Using cards other than those from Panasonic, TOSHIBA or

SanDisk may result in recording failure or data loss.

Others

䡵Do not insert objects other than the memory card into the

card slot.

䡵Do not block the vent on the unit.

Blocking of the vent causes internal heating and may lead to

burns and fires.

䡵Do not turn off the [POWER] switch or remove the power

cable during recording or playback.

䡵The camera recorder may not show stable pictures for a

few seconds immediately after the power is turned on, but

this is not a malfunction.

䡵When the video signal output terminals are not in use, put

on the covers to prevent damage to the terminals.

䡵Do not drop this unit or subject it to strong impact or

vibration as it is a precision equipment.

䡵Optical performance of lens

Due to the optical performance of the lens, color divergence

phenomena (magnification chromatic aberration) may occur

at the periphery of the image. This is not a camera

malfunction.

LCD Monitor and Viewfinder

䡵The LCD monitor and viewfinder screens are

manufactured using high-precision technology. Black spots

may appear on the LCD monitor and viewfinder screens, or

red, blue, and/or white spots may not disappear. However,

this is not a malfunction and these spots are not recorded on

the SDHC card.

䡵If you use this unit continuously for a long period of time,

the characters displayed in the viewfinder may temporarily

remain on the screen. This is not recorded on the SDHC

card. They will not appear after you turn the power off and

then on again.

䡵If you use this unit in a cold place, the images may appear

to lag on the screen, but this is not a malfunction. Retained

images are not recorded on the SDHC card.

䡵Do not press against the surface with force or subject it to

strong impact. Doing so may damage or break the screens.

䡵Noise may appear in the viewfinder when switching

between the live video and playback images.

Due to the characteristic of the viewfinder display device,

colors may appear on the images when you blink your eyes.

This is not a malfunction. It does not affect the recorded

images, SDI output, or component output.

Precautions for Proper Use

(continued)

Handling of SDHC Cards

䡵The access lamp lights up in red when data on the SDHC

card is being accessed. Do not remove the SDHC card

during data access (such as recording, playback, or

formatting). Do not turn off the power or remove the battery

and AC adapter during access either.

䡵Do not use or store the SDHC card in a place that is

subject to static electricity or electrical noise.

䡵Do not place the SDHC card near locations that are

exposed to strong magnetic fields or radio waves.

䡵Inserting the SDHC card incorrectly may result in damage

of this unit or the SDHC card.

䡵We are not liable for any accidental loss of data stored on

the SDHC card. Please back up any important data.

䡵Make use of the SDHC card within the prescribed

conditions of use.

䡵Do not use it at the following locations.

Places that are subject to direct sunlight, high humidity or

corrosion, places near thermal equipment, sandy or dusty

places, or in a car under the sun with the doors and windows

closed.

䡵Do not bend or drop the SDHC card, or subject it to strong

impact or vibration.

䡵When formatting or erasing data using the camera

recorder, only the file administration information is changed.

The data is not completely erased from the SDHC card. If

you want to completely erase all of the data, we recommend

either using commercially available software that is specially

designed for that purpose, or by physically destroying the

SDHC card with a hammer, etc.

䡵Do not dismantle or modify the SDHC card.

䡵Do not touch the terminals with your hands or with a metal

object.

䡵Do not allow dust, dirt, water, or foreign objects to adhere

to the terminals.

䡵Do not remove the labels or stick other labels or stickers

on the SDHC cards.

䡵Do not use pencils or ballpoint pens to write on the SDHC

cards. Always use oil-based pens.

䡵If you format (initialize) the SDHC card, all data recorded

on the card, including video data and setup files, will be

deleted.

䡵You are recommended to use cards that are formatted

(initialized) on this camera recorder.

●

The SDHC card may be damaged if the camera recorder is

not operated correctly. Formatting (Initializing) the SDHC

card may allow it to operate correctly.

●

SDHC cards that have been formatted (initialized) on other

cameras, computers or peripheral equipment may not

operate correctly. In this case, format (initialize) the SDHC

card on this camera recorder.

Characteristic CCD Phenomena

䡵Smear and blooming

Due to the physical structure of CCDs, vertical streaking

(called “smear”) may occur when shooting an extremely

bright light source or expansion of light (called “blooming”)

may appear around it. Although the CCD employed in this

unit produces very little smear or blooming, these

phenomena may still occur when shooting a bright light

source.

䡵Moire or aliasing

Stripes, lines or other fine patterns may appear jagged when

they are shot.

䡵White dots

High temperatures can cause CCD sensor pixels to produce

white dots in the image. This is especially prominent when

boosting the sensitivity.

This is a characteristic of the charged-coupled device (CCD).

As far as possible, use this unit under conditions where the

temperature of this unit does not increase.

Any recordings made on this camera recorder that are

played back for profit or public preview may infringe on the

rights of the owner of the recordings.

Do not use the recordings for purpose other than personal

enjoyment without prior consent from the owner.

Smear

Vertical pale streaking appearing at

high luminous object

High luminous object (such as light

bulbs, sun)

Blooming

Blurring in highlight

Monitor Screen

Introduction

This camera recorder has three operation modes - Camera mode, Media mode, and USB mode.

The operation mode indicator on the left side of the camera recorder lights up according to the mode. The AUX mode is only

available on GY-HM790CHU/GY-HM790U.

Operation Mode

Camera Mode Media Mode

USB Mode

(USB Mass Storage Class)

Camera Mode IEEE1394

Mode

SD Card Mode

Thumbnail Display

Playback

(Playback/Pause/Fast Forward/

Rewind/Clip Jump)

[CAM/MEDIA] Selection Button

[CAM/MEDIA]

Selection

Button

[CAM/MEDIA] Selection Button

Playback Button

Stop Button

Connection disabled on PC

[CAM/MEDIA] Button

USB Connection (When the confirmation to change to USB mode

appears and [Change] is selected)

Playback Button

Stop Button

Operation Mode Indicator

AUX Mode

(U model only)

[GENLOCK/AUX]

Selection Switch

Operation Mode

Operation

Mode

Indicator

Description

Camera

Mode

Camera

Mode

Blue This is the camera shooting mode. The camera recorder starts up in Camera mode when

the power is turned on.

Memo :

●Images recorded on the SDHC card cannot be played back in this mode. However, you

can check (play back) the most recently recorded image using the Clip Review function.

(APage 56)

Purple When [Rec Mode] is set to AVariable FrameB, the operation mode indicator lights up in

purple during Variable Frame REC in Camera mode. (APage 60)

AUX Mode

(U model)

Blue This is a mode for input and recording of composite video signals from an external device.

Media

Mode

SD Card

Mode

Green This mode allows you to play back or delete clips recorded on the SDHC card.

Press the [CAM/MEDIA] selection button to enter SD Card mode when you are not

shooting in Camera mode. Once the camera recorder is in SD Card mode, thumbnails of

the selected media slot are displayed.

IEEE1394

Mode

Orange This is the input mode for video images from the IEEE1394-connected equipment.

The camera recorder enters IEEE1394 mode when you press the [CAM/MEDIA] selection

button while the power of the equipment connected to the [IEEE1394] terminal is turned on

during thumbnail display in Media mode (SD Card mode). (Only for HD video systems)

When an SD video system is in use, availability of the [IEEE1394] terminal connection

cannot be detected in Media mode (SD Card mode). Allow the camera recorder to detect

the [IEEE1394] terminal connection in advance by turning on the power of the connected

equipment in Camera mode.

Once the camera recorder is in IEEE1394 mode, the playback images of the connected

equipment are displayed.

However, if the IEEE1394 connection is not recognized (such as when the power of the

IEEE1394-connected equipment is not turned on), the camera recorder will switch to

Camera mode instead.

Press the [CAM/MEDIA] selection button during IEEE1394 mode to switch to Camera

mode.

If the power of the equipment connected to the [IEEE1394] terminal is OFF or if connection

is canceled in IEEE1394 mode, the camera recorder will not automatically switch to other

modes. To quit IEEE1394 mode, you must operate the [CAM/MEDIA] selection button.

Note :

●This mode is used for viewing images input to the [IEEE1394] terminal from an external

device, and not intended for recording input images on the camera recorder.

USB Mode Orange This mode allows you to connect to a PC and transfer the files on an SDHC card to the PC.

When the camera recorder is connected to a USB cable, the message AChange to USB

ModeB appears. Select [Change] and press the Set button to switch to USB mode.

(APage 130)

In USB mode, the camera recorder is recognized by the connected PC as a peripheral

drive (USB mass storage class only). Disable the connection on the PC and remove the

USB cable from the camera recorder to switch to Camera mode. (APage 130)

Memo :

●When a USB cable is connected, the message appears after recording stops.

●If playback is in progress, the message appears once the files are closed automatically,

such as when playback stops.

Introduction

Front Tally Lamp (

Page 30, 94)

Viewfinder Cable Clamp (

Page 21)

[ZEBRA ON/OFF] Zebra ON/OFF Switch (

Page 20)

[SKIN AREA/SPOT METER] Skin Area/Spot Meter Switch

(

Page 80)

[AWB] Auto White Balance Button (

Page 42)

●Setting the [WHT.BAL.] selection switch (APage 12) I

on the control panel on the right side of the camera

recorder to AAB or ABB starts up the Auto White function.

●If the [WHT.BAL.] selection switch (APage 12) I is set

to APRESETB, you can switch the color temperature of the

preset white balance.

Lens Lock Lever (

Page 21)

[MONITOR SELECT] Audio Monitor Selection Switch

(

Page 46)

[DISPLAY] Display Button (

Page 30)

[CAM/MEDIA] Camera/Media Mode Selection Button

(

Page 8)

[FULL AUTO] Full Auto Shooting (FAS) Switch

(

Page 81)

Monitor Speaker (Cheek Pad) (

Page 27)

Shoe

For mounting separately sold lights and accessories.

Microphone Holder Lock Knob (

Page 21)

Microphone Holder (

Page 21)

Microphone (

Page 21)

Names of Parts

LN M K

DC E

FGHI

Viewfinder (APage 13)

Side Control Panel (APage 12)

LCD Monitor (APage 13)

Zoom Lens (APage 16)

Back Tally Lamp (

Page 30, 94)

[PHONES] Earphone Connector (

3.5) (

Page 47)

[LENS] Lens Connector (12-pin Connector)

(

Page 21)

R[INPUT1/INPUT2] Audio Input Terminal 1, 2

(XLR 3-pin ⳯ 2) (APage 46)

Microphone Cable Clamp (

Page 21)

[CH-2 INPUT] CH-2 Audio Input Terminal Selection

Switch

Select the audio input terminal to record to CH-2. (

Page 46)

Memo :

●

Audio from [INPUT1] terminal is input to CH-1 regardless of the

setting.

[AUDIO INPUT 1/2] Audio Input Signal Selection

Switch (

Page 46)

Viewfinder Connector (20-pin) (

Page 21)

Accessory Mounting Screw Hole (x2)

[FOCUS ASSIST] Focus Assist Button (

Page 37)

Record Button Lock Switch

Set the switch toward the lens to lock the [REC] trigger

button Z.

Memo :

●

The [REC] trigger button (

Page 12)

at the side control

panel on the right of the camera recorder is not locked.

[REC] Rec Trigger Button (Recording Start/Stop)

Starts/stops recording.

Memo :

●

The [REC] trigger button (

Page 12)

at the side control

panel on the right of the camera recorder is interlocked with

this button.

aHandle

XY W

Battery Adapter

(APage 22)

Side Terminal (APage 14)

SDHC Slot

(APage 15)

Introduction

Side Control Panel

[VF BRIGHT] Viewfinder Luminance Adjustment Knob

(

Page 29)

[VF PEAKING] Contour Adjustment Knob (

Page 29)

Memo :

●

This knob does not function when Focus Assist is activated.

(

Page 37)

[FOCUS ASSIST] Focus Assist Button

Press this button during shooting to display the focus area in

either blue, red, or green. This enables easy and accurate

focusing. (APage 37)

[USER1], [USER2], [USER3] User Buttons (

Page 79)

Use these buttons to switch shooting conditions according to

the object. The functions change as below according to the

operation mode (APage 8).

Memo :

●

Set the functions of the [USER1,USER2,USER3] buttons in

the menu. (

Page 79)

●

When the menu screen is displayed, these buttons function

as the menu operation buttons.

(

Page 70 [Operation Buttons])

[MENU] Menu Button (

Page 70)

[ND FILTER] ND Filter Switch (

Page 45)

[STATUS] Status Screen Display Button

●

Press the [STATUS] button to display the status screen on

the viewfinder and LCD monitor during normal screen

display (when the menu screen is not displayed).

(

Page 18 [Status Screen])

●

Switches between [Main Menu] and [Favorites Menu] when

the [STATUS] button is pressed while the menu screen is

displayed. (

Page 70)

[GAIN] Sensitivity Selection Switch (

Page 40)

[WHT.BAL.] White Balance Selection Switch (

Page 42)

You can select one of the three white balance types.

[POWER] Power ON/OFF Switch

Turns ON/OFF the power.

When the power is OFF, APOFFB appears on the LCD

monitor and viewfinder.

Wait for 5 seconds or more to turn on the power again.

[REC] Rec Trigger Button (Recording Start/Stop)

Starts/stops recording.

The [REC] trigger button (APage 11) Z on top and the

[REC] trigger button (APage 16) of the lens are interlocked

with this button.

Memo :

●

When [1394 Rec Trigger] in the [Others] menu is set to

Split

, this button becomes the recording start/stop button

of the external equipment. (

Page 94)

(

Page 124 [Backup Recording])

[AUDIO LEVEL CH-1/CH-2]/[AUTO] CH-1/CH-2

Recording Level Adjustment Knob/Auto Indicator

(

Page 46)

[CANCEL] Cancel Button

Cancels various settings and stops playback.

Cross-Shaped Button (

JKH

)/Set Button (

)

The function changes according to the operation status of

the camera recorder.

䡵During menu operation (all modes) (APage 70)

Center Set button (

) : Confirms menu items and setting

values

Cross-Shaped Button (

) : Selects menu items and setting

values

䡵During Camera mode (Except AUX mode)

Shutter operation:

Center Set button (

) : Shutter ON/OFF

Cross-Shaped Button (

) : Switches shutter speed when shutter

is ON

AE level operation : Cross-shaped button (H I)

Names of Parts (continued)

During Camera mode

(Except AUX mode) During Media mode

[USER1]

Button

●

Activates the function assigned to

[USER1] in the menu.

●

Loads the [TC Preset] screen

when pressed together with the

[MENU] button. (

Page 51)

Adds/deletes OK

mark.

(APage 68)

[USER2]

Button

●

Activates the function assigned to

[USER2] in the menu.

●

Resets settings on the [TC Preset]/

[UB Preset] screen when pressed.

(

Page 51, 52)

Deletes clips

(APage 66)

[USER3]

Button

●

Activates the function assigned to

[USER3] in the menu.

Memo :

●When [Camera Function] menu B [Switch Set] B

[AE LEVEL] is set to AAE LEVEL/VFRB, the cross-shaped

button (H I) is used to set the number of frames during

Variable Frame Rec.

(A Page 60 [Variable Frame Rec])

(A Page 80 [AE LEVEL])

䡵During Media mode (SD Card mode) (APage 61)

Thumbnail operation : Cross-shaped button (JKH I), center

Set button (R)

Operation Mode Indicator

Lights up as below according to the operation mode.

(APage 8)

Memo :

●You can select whether to light up the indicator using

[Mode LED] in the [Others] menu. (APage 94)

[MONITOR] Audio Monitor Level Adjustment Knob

For adjusting the volume of the monitor speaker and earphones.

Viewfinder

(APage 29)

AViewfinder Slide Lock Ring

For loosening the ring and adjusting the position of the

viewfinder E to the left or right.

Eyepiece Focus Ring

For adjusting the visibility.

Viewfinder Eyepiece Lock Ring

For loosening the ring and adjusting the eyepiece position of

the viewfinder to the front or back.

Viewfinder

Eyepiece

Prevents external light from entering the viewfinder screen

and cameraman’s vision.

LCD Monitor

ALCD Monitor (APage 28)

[LCD PEAKING +/-] LCD Contour Adjustment Button

(

Page 28)

[LCD BRIGHT +/-] LCD Display Brightness

Adjustment Button (

Page 28)

D[AUDIO SELECT CH-1/CH-2] Audio Recording Mode

Switch (APage 46)

[TC DISPLAY] TC/UB Display Switch (

Page 48)

[TC GENE.] Time Code Generator Switch (

Page 48)

LCD Cover Lock Release Knob (

Page 28)

Operation Mode Color

Camera Mode (Except AUX mode)

Blue/Purple

AUX Mode (U model only) Blue

Media Mode (SD Card Mode) Green

Media Mode (IEEE1394 Mode) Orange

USB Mode Orange

When the LCD monitor is open

Introduction

Side Terminal

A[Y/VIDEO] Y/Composite Video Signal Output

Terminal (BNC) (APage 122)

[PB] PB Video Signal Output Terminal (BNC)

(

Page 122)

C[GENLOCK/AUX] Genlock/AUX Selection Switch

(U model only) (APage 125)

[GENLOCK/AUX IN] Genlock/AUX Input Terminal

(U model)/[GENLOCK INPUT] Genlock Input Terminal

(E model)

U model : For input of external synchronizing signals or

external composite video signals.

(A Page 125 [Input of Composite Video Signals

from External Device (GY-HM790CHU/GY-

HM790U only)])

E model : For input of external synchronizing signals.

(A Page 126 [Input of External Synchronizing

Signal (Genlock)])

E[TC IN] Time Code Input Terminal (BNC)

( A Page 48 to 52)

F[TC OUT] Time Code Output Terminal (BNC)

( A Page 48 to 52)

G[STUDIO] Studio Terminal (10-pin) (APage 128)

Connect to this terminal when combining the use of products,

such as a transmission unit, from a different manufacturer.

[PR] PR Video Signal Output Terminal (BNC)

(

Page 122)

[DC INPUT] DC Input Terminal (

Page 22)

Input terminal for DC 12 V power supply. Connects with an

AC adapter.

[REMOTE] Remote Terminal (

Page 131)

[HD/SD-SDI] HD/SD-SDI Output Terminal (BNC)

(

Page 122)

[AUDIO OUTPUT CH-1/CH-2] Audio Output Terminal

(RCA)

Output terminal for audio signals.

●

Input audio signals are output during Camera mode.

●

Playback audio signals are output during Media mode.

●

Audio from input audio signals is output during HD/DV signal

(IEEE1394) input.

Memo :

●

Alarm tone is not output.

[INT/EXT] IEEE1394 Interface Terminal Switch

(

Page 123)

For selecting a valid IEEE1394 interface terminal.

Shoulder Pad Slide Button

For adjusting the shoulder pad position. Press this button to

adjust the shoulder pad O position to the front or back.

Shoulder Pad

[USB] USB Terminal (

Page 130)

[IEEE1394] IEEE1394 Terminal (4-pin)

For connecting digital video equipment with IEEE1394

terminal using an IEEE1394 cable (sold separately).

To enable this terminal, set the [INT/EXT] IEEE1394 terminal

switch M to [EXT].

(A Page 123 [IEEE1394 Connection])

Note :

●

When connecting IEEE1394 cables, check that the

connectors are facing the right direction before you insert.

Memo :

●

Put on the covers when the connectors are not in use.

Names of Parts (continued)

Pin No. Signal Input/

Output

1NC ^

2 CALL TALLY IN

3RM TALLY OUT

4 RM PREVIEW OUT

5NC ^

6NC ^

7 TALLY IN IN

8 RETURN GND ^

9 RETURN IN IN

10 GND ^

KL M N O

[EXT] :Enables IEEE1394 signals from the [IEEE1394]

terminal Q.

[INT] :Enables the accessory connector B at the rear

of the camera recorder. (APage 15)

SD Slot

(APage 31)

ACard Slot A Status Indicator

[SLOT SELECT] Card Slot Selection Button

For switching SDHC cards.

SDHC Card Cover

Card Slot B Status Indicator

[OPEN] SDHC Card Cover Open/Close Knob

Rear

AShoulder Belt Mount (x2)

For mounting a shoulder belt (sold separately).

Note :

●

Be sure to use a shoulder belt with the strength to withstand

the weight of this camera recorder.

●

If the shoulder belt is not properly attached, the camera

recorder may fall and cause injuries.

●

Check the instruction manual provided with the shoulder belt

before using.

Accessory Connection Terminal

Terminal for connecting a KA-MR100G (Memory Recorder :

sold separately) or KA-M790G (Multicore Remote Adapter :

sold separately) unit.

Memo :

●When using this terminal, make sure that the Battery

Adapter C is removed.

Battery Adapter (

Page 22)

The shape is different for GY-HM790CHU/GY-HM790U and

GY-HM790CHE/GY-HM790E.

* The above is the illustration for GY-HM790CHE/GY-

HM790E.

Introduction

Zoom Lens

(Supplied with GY-HM790U/GY-HM790E only)

AFocus Ring

Zoom Lever/Ring

To operate zoom with this lever, turn the [ZOOM] switch M

and set it to AMANU.B.

Iris Ring

To operate auto iris, set the iris mode switch H to AAB.

Lens Cable

[REC] Record Trigger Button

Starts/stops recording.

[RET] Return Video Button

Press this button to play back and check the latest clip,

according to the settings under [Clip Review] of [Switch Set]

in the [Camera Function] menu. (APage 79)

(A Page 56 [Viewing Recorded Videos Immediately (Clip

Review)])

Memo :

●

When [LENS RET] of [Switch Set...] in the [Camera Function]

menu is set to

Focus Assist

, this button functions as the

Focus Assist button. When it is set to

Return

, a return

video is displayed. (

Page 79)

Zoom Servo Control Lever

To operate zoom servo with the zoom servo control lever, set

the [ZOOM] switch M to ASERVOB.

●

Zooms into wide angle and increases the angle of view

when

is pressed.

●

Zooms into telephoto and decreases the angle of view when

is pressed.

●

Zoom speed increases when the lever is pressed hard.

Iris Mode Switch

Iris Momentary Button

Press and hold this button to change to auto iris mode when

the iris mode switch H is set at AMB.

[I.G.] Iris Speed Adjustment Knob

If the speed is set too fast, opening/closing of the iris

becomes unstable and hunting may occur. Readjust the

speed in this case.

Filter Built-In Screw

A transparent or UV filter for lens protection can be installed

inside the lens hood from the front. Filters for various effects

can also be used.

●Installable filter types

Zoom Servo Connector

For connecting a zoom servo unit (sold separately).

[ZOOM] Zoom Switch

Back Focus Ring/Lock Screw

Exclusive ring for adjusting the back focus. After adjusting,

secure with a lock screw.

(A Page 28 [Adjusting Back Focus])

[M] Macro Focus Ring (for close-ups)

Turn the ring in the direction of the arrow to take close-up

shots of small objects.

Normal focusing and zooming cannot be performed in macro

mode.

To take macro shots

●Set focus ring A to infinity (n).

●Set zoom ring B to the maximum wide angle.

●Rotate this ring in the direction of the arrow to adjust

focus on the object.

Note :

●

As the back focus knob is located nearby, be careful not to

mistake the two knobs.

●

Do not forget to restore the macro ring to its original position

after use. (

Page 28 [Adjusting Back Focus])

Names of Parts (continued)

RET

IRIS

A M

REC

ABC

GFE

NL O

MANU.SERVO

ZOOM

CANON KT14 x 4.4KRSJ A: Auto iris operation mode.

M: Manual iris operation mode.

When installed on the hood : 82 mm P0.75

When installed on the lens body : 72 mm P0.75

SERVO : Enables zooming with the zoom servo control

lever G.

MANU. : Enables zooming with the zoom lever/ring B.

* Models with an E suffix are for the European market and the UL Listing mark is not applicable.

Basic System Diagram

CALLTALLY

INTERCOM

LEVEL

FULL AUTO F1

SHUTTER

GAIN

F3MENU/SHUTTER GAIN PAINT AUTO

W.BAL

AUTO

MANU

WHITE MASTER BLACK POWER

IRIS

STEP

SHUTTER

MENU PUSH-ON

DOWN UP

VARIABLE

PUSH-ON

HIGH

LOW

PRESET

CLOSE OPEN

MID

DOWN UP

BARS

REMOTE CONTROL UNIT RM-P250

Shoulder Belt

Earphone

Focus Manual Unit

HZ-FM13 (FUJINON)

HZ-FM15 (CANON)

1/3 Zoom Lens

Th13x3.5BRMU(FUJINON)

Zoom Servo Control

HZ-ZS13B

1/2 Zoom Lens

Microphone

1/3 Zoom Lens

KT14x4.4KRSJ (CANON)

(GY-HM790U/GY-HM790E only)

Standard Package

Mount Converter

(1/2

1/3):ACM-12

Carrying Case

SDHC Memory Card

XLR 4P

AC Adapter

Tripod

Composite Cable

BNC

Audio Cable

RCA pin

IEEE1394 Cable

4P-6P

Monitor

VTR

Non-linear Editing

System

BR-HD50U/E*

For GY-HM790CHE/GY-HM790E*

Anton Bauer

Battery

(Dionic90)

Remote Control Unit

RM-LP25U/RM-LP55U/

RM-LP57U

IDX

Battery Charger

External Recording

Device

Component Cable

BNC

Battery Adapter

Monitor

IDX Battery

(Endura)

Anton Bauer

Battery Charger

For GY-HM790CHU/GY-HM790U

SDI Cable

BNC

GY-HM790CHU/GY-HM790U : Gold Mount

GY-HM790CHE/GY-HM790E : V Mount

SDHC Card Reader

USB Cable

Mount Converter

(2/3 B1/3): ACM-17

2/3 Zoom Lens

Tripod Base

KA-551U

Non-linear Editing

System

PL Mount

Film Lens

16 mm PL Mount

Film Lens adapter

HZ-CA13U

Studio Adapter

KA-790G

Studio Viewfinder

VF-HP790G

Multicore Remote Adapter

KA-M790G

Memory Recorder

KA-MR100G

Headset

(Beyerdynamic)

Monitor

Remote Control Unit

RM-P210U/E*/RM-HP250AU/RM-HP250DE*

Remote Control Unit

RM-LP25U

(Connection is possible only

when RM-HP250AU/RM-

HP250DE* is used.)

Introduction

You can display the camera status, media information, zebra

pattern, and various markers in the video image on the LCD

monitor and viewfinder screens during shooting.

Besides camera and playback images, the following

characters are displayed on the LCD monitor and viewfinder.

䡵Status screen (APage 18)

䡵Auto White display* (APage 20)

䡵Menu setting screen (APage 20)

䡵Alarm display (APage 20)

䡵

Marker and safety zone indicators* (

Page 112)

䡵Zebra pattern display (APage 20)

* Displayed in Camera mode only (Except AUX mode)

Memo :

●

When [Analog Out Char.]/[SDI Out Char.] in the [A/V Out]

menu is set to

, the status screen and menu screen are

also displayed in the video image of the video signal output

terminal. (

Page 92)

Status Screen

This screen allows you to check the current settings.

To display the status screen, press the [STATUS] button in

the normal screen.

The status display differs according to the operation mode

(4 types). (A Page 8 [Operation Mode])

䡵Status Screen in Camera Mode

(APage 102)

Viewfinder display

The display switches between the 5 screen types with every press

of the [STATUS] button. (STATUS 0

* The STATUS 0 screen is skipped in the AUX mode

(U model only).

LCD monitor display

The display switches between the 5 screen types with every press

of the [STATUS] button. (STATUS 0

Press the [DISPLAY] button to switch to the enlarged status

display screen. (APage 19)

* The STATUS 0 screen is skipped in the AUX mode

(U model only).

Displays on the LCD

Monitor and Viewfinder

[STATUS]

Button

[DISPLAY]

Button

Viewfinder

LCD Monitor

STBY

MAX 123%

MIN 45%

S.DTL

B -3

A<3200K>

F5.6 AE+1 9dB 1/10000

30/24 fps

00:00:00:00

MAX 123%

MIN 45%

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

STBY

100min

1280x720

24p HQ

282min

30/24 fps

CAMERA INFORMATION

SETUP FILE SCENE

[ SCENE ]

ZEBRA1 50%~100%

ZEBRA2 70%~80%

AUDIO CH1 CH2

FORMAT QuickTime

MEDIA 125min

123min

STBY Jan 2. 2009 01:23:45AM

282min

SWITCH ASSIGN

FAW NONE

GAIN [ L / M / H ] 0dB / 9dB / 12dB

USER 1 BARS

USER 2 B.STRETCH3

USER 3 LOAD FILE

RET CLIP REVIEW

SKIN/SPOT SPOT METER

AELEVEL AE LEVEL/VFR

STBY Jan 2. 2009 01:23:45AM

282min

30/24 fps

MAX 123%

MIN 45%

STBY

FREE

100 min

min

1280 x 720

24p HQ

CH1

CH2

STBY

282min

STATUS 0 Screen

STATUS 1 Screen

STATUS 4 Screen

STATUS 2 Screen

STATUS 3 Screen

STATUS 1 Enlarged Display Screen (LCD monitor only)

Press [DISPLAY]

䡵

Status Screen (VF/LCD) During Clip

Playback in Media Mode (SD Card Mode)

(

Page 108)

The display switches between the 3 screen types with every

press of the [STATUS] button. (STATUS 0 B 1 B 2 B 0)

䡵Status Screen in Media Mode

(IEEE1394 Mode) (APage 109)

The display switches between the 2 screen types with every

press of the [STATUS] button. (STATUS 0 B 1 B 0)

䡵Status Screen in USB Mode

This screen displays the USB mode.

Enlarged Status Display on LCD Monitor

You can enlarge and display only the characters of the status

screen on the LCD monitor. (Camera mode only)

1 Set [LCD + VF] in the [LCD/VF] menu to AOnB.

(APage 88)

2 Press the [DISPLAY] button while the LCD screen is

displayed.

The display switches between the same display as the

viewfinder and the enlarged display with every press of the

button.

Memo :

●

During enlarged display of the status on the LCD monitor

screen, the video image remains displayed on the

viewfinder.

STATUS 0 Screen

STATUS 1 Screen

STATUS 2 Screen

1280x720

24p HQ

282min

STATUS 0 Screen

STATUS 1 Screen

FREE

B100 min

min

1280 x 720

24p HQ

CH1

CH2

STBY

282min

[DISPLAY] Button

Introduction

Auto White Display (Camera Mode Only,

Excluding AUX Mode)

Displays the operation and result when Auto White Balance is

activated.

(A Page 42 [Adjusting the White Balance])

Menu Setting Screen

For configuring various settings.

Press the [MENU] button to display the menu setting screen.

(A Page 70 [Basic Operations in Menu Screen])

Alarm Display

●

Alarm is displayed during the status screen display in

Camera mode (STATUS 0, 1, 4) and Media mode. If the

alarm sounds during STATUS 2 or 3 screen display in

Camera mode, the display will return to STATUS 0 screen

and alarm will be displayed.

(

Page 134 [Error Displays and Actions])

Zebra Pattern Display

Two types of zebra patterns that indicate the luminance level

of the video image can be displayed on this camera recorder.

You can set the luminance levels for displaying the two types

of zebra patterns.

(A Page 54 [Setting Zebra Pattern])

Memo :

●

Use the [ZEBRA ON/OFF] switch in front to turn ON/OFF the

zebra pattern display.

●

Set the display pattern and luminance level in [LCD/VF]

[Shooting Assist]

[Zebra]. (

Page 89)

Displays on the LCD Monitor

and Viewfinder (continued)

[Main Menu] Screen

STBY

MAX 123%

MIN 45%

S.DTL

B -3

A<3200K>

F5.6 AE+1 9dB 1/10000

30/24 fps

1min

RES

Alarm Display Area

Zebra Pattern

Preparations

Attaching the Zoom Lens

(Supplied with GY-HM790U/GY-HM790E only)

Loosen the mount ring.

2 Attach the zoom lens such that the pin matches the

hole of the mounting area.

3 Tighten the mount ring.

4 Connect the cable connector.

5 Attach the lens cable to the clamp.

Memo :

●

Tighten the mount ring completely. If it is not fully tightened,

the lens may drop or the back focus may be out of alignment.

●

When attaching or removing the zoom lens, set the

[POWER] switch of the camera recorder to

OFF

Attaching the Microphone (Supplied)

You can attach the supplied microphone to the microphone

holder.

The supplied microphone has a phantom power supply.

1Turn the knob on the microphone holder

anticlockwise to loosen and open the microphone

holder.

2Place the microphone in the microphone holder.

3Turn the knob on the microphone holder clockwise to

secure the microphone.

4Connect the microphone cable to the [INPUT1] or

[INPUT2] terminal.

5Pin the microphone cable to the clamp.

6Make sure to perform the correct settings for the

phantom microphone (APage 46).

Attaching the Viewfinder (Supplied)

1 Slide the viewfinder in the direction of the arrow to

attach it.

2 Turn the slide lock ring to secure the position of the

viewfinder.

3 Attach the viewfinder cable to the viewfinder terminal.

4 Pin the viewfinder cable to the clamp.

Attaching Accessories

REC

Hole

Clamp

Microphone

Microphone Holder

Clamp

[INPUT1/INPUT2] Terminal

Knob

Viewfinder

Slide Lock Ring

Clamp

Preparations

To use this camera recorder, you can attach a battery pack or

connect an AC adapter to it.

(A Page 22 [Using a Battery Pack])

(A Page 22 [Using AC Power (DC IN Power)])

Note :

●Set the [POWER] switch to AOFFB before changing the

power supply that operates this camera recorder.

Use an AC adapter (sold separately) to operate the camera

recorder with AC power.

1 Connect the DC cable of the AC adapter to the

[DC INPUT] terminal of the camera recorder.

Check that the power of the camera recorder and the AC

adapter is turned AOFFB and connect as shown in the

diagram.

2 Set the [POWER] switch of the camera recorder to

AONB after turning on the AC adapter.

Power will be supplied to the camera recorder.

Note :

●

Do not insert or remove the DC cable during recording.

●

Do not use power supply of high voltage fluctuation,

containing noise such as ripple, or with insufficient capacity.

䡵Charging the Built-In Battery

The date/time and time code data are stored using the

built-in rechargeable battery.

When power is connected to the camera recorder, the

built-in battery always gets charged. When the power is

disconnected, the battery gradually discharges.

The battery will be totally discharged if left unused for 3

months and the date/time and time code data will be reset.

When this happens, set the [POWER] switch to AONB to

display the [Initial Setting] screen, then set the date/time.

(A Page 26 [Setting the Clock (Initial Setting)])

Recommended Batteries

U model : Dionic90 (Anton Bauer)

E model : Endura-HL9 (IDX)

* Models with an E suffix are for the European market and

the UL Listing mark is not applicable.

Note :

●

Make use of the recommended batteries. Heavy batteries

may fall off if not used correctly.

●

See the battery instruction manual on how to charge the

battery.

Battery Operating Time

The following are the approximate times for continuous

operation on fully-charged batteries.

Memo :

●

Actual operating times may differ depending on the age of

the battery, charging condition, and operating environment.

●

Operating time is shortened in cold environment.

●

The operating time may shorten when power zoom is used,

accessories are connected, or when the LCD monitor is

frequently used.

Power Supply

Using AC Power

(DC IN Power)

DC Cable

AC Adapter

[DC INPUT]

DC OUTPUT

Using a Battery Pack

Battery Continuous Operating Time

(At 25 f)

Dionic90 (U model) Approx. 2.75 h

Endura-HL9 (E model) Approx. 2.75 h

Precautions for the Battery Operation

●

Do not remove the battery when the [POWER] switch is

●

Do not insert or remove the DC cable when the battery is in

use.

●

Leaving the camera recorder unused with the battery inside

will deplete the battery power even if you set the [POWER]

switch to

OFF

. Remove the battery if you are not using the

camera recorder.

Attaching the Battery

(GY-HM790CHU/GY-HM790U)

Use the Dionic90 (Anton Bauer) battery.

Align the battery guide pins (x3) with the battery,

adapter, and guide hole, and insert straight.

Memo :

●If the guide pins are not inserted straight, the battery will

not be attached correctly.

2 Slide the battery toward the SDHC card cover side

panel until it snaps into place.

䡵Detaching the Battery

Press down the release lever and slide the battery toward

you to detach it from the camera recorder.

Attaching the Battery

(GY-HM790CHE/GY-HM790E)

Use the Endura-HL9 (IDX) battery.

Attach the battery

Face the terminal downward and attach the V mount of the

battery onto the V mount attachment bracket of the camera

recorder.

2 Press down the battery until it snaps into place.

䡵Detaching the Battery

Press down the release lever and slide the battery upward to

detach it from the camera recorder.

Release Lever

Guide Hole (x3)

Guide Pins

Battery

LCD Screen Side

Release Lever

Battery

V Mount

V Mount Attachment Bracket

Release Button

Battery

Preparations

Power Status Display

䡵Viewfinder and LCD Monitor Screens

The power status is displayed on the status and menu

screens. If the battery or supplied voltage from the AC

adapter is low, a warning will be displayed in red.

Note :

●If the battery in use is not a recommended one, the battery

mark which indicates the battery level may not appear.

䡵Status Screen

(A Page 102 [Status Screen in Camera Mode])

(A Page 108 [Status Screen in SD Card Mode])

(A Page 109 [Status Screen in IEEE1394 Input Mode])

䡵Menu screen (APage 70)

䡵Warnings by Lamps and Alarm Tones

●

Warning status is indicated by tally lamps and alarm tones.

●The front and back tally lamps of the camera recorder

blink.

●Alarm tone is output from the monitor speaker or

[PHONES] terminal.

Memo :

●If you continue to use the camera recorder while the

power warning is displayed, the camera recorder will stop

automatically when the battery or supplied voltage from

the AC adapter becomes lower.

●Alarm tone is not output during recording.

Note :

●

The remaining battery power and time are displayed as

there are from the battery information. Accurate data may

not be displayed according to the battery condition. Replace

the battery as soon as possible when the remaining battery

power and time are low.

Precautions for Batteries

●

Store the battery in a cool and dry place when not in use.

Do not expose the battery to high temperatures (such as in a

car under direct sunlight). This will cause battery leakage

and shorten the battery life.

●

Operating time is shortened if the battery terminal is dirty.

●

If the operating time shortens drastically even after charging,

the battery may be reaching the end of its life. Replace the

battery with a new one.

Charging

●

Use up the charge completely before you charge the battery.

If the battery is not fully discharged before charging, the

battery capacity may drop after repeated cycles.

●

If the battery capacity drops due to repetitive shallow

charging and discharging, it may be recovered by using up

the charge completely and then fully charging the battery

again.

●

If you charge the battery immediately after using while the

battery is still warm, it may not be fully charged.

●

It is recommended that you charge the battery in an

environment between 10

and 35

. The battery may not

be fully charged or the charging time may be prolonged if

charged under low temperatures (below 10

Using a Battery Pack

(continued)

00:00:00:00

MAX 123%

MIN 45%

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

STBY

100min

1280x720

24p HQ

30/24 fps

RES

FREE

B100 min

min

1280 x 720

24p HQ

CH1

CH2

STBY

䡵

Enlarged status display on the LCD monitor

(

Page 110)

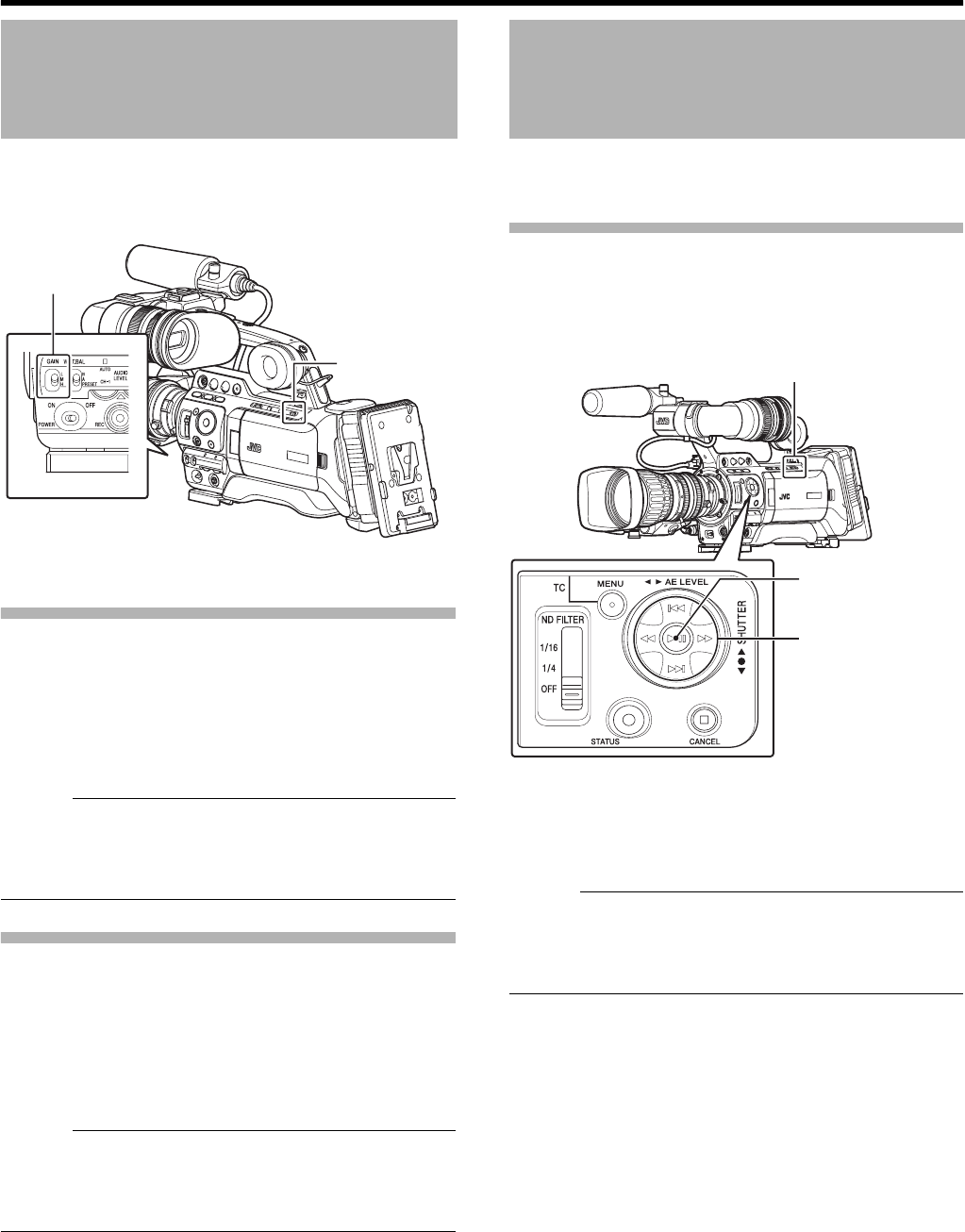

Turning On the Power

Set the [POWER] switch to

The camera recorder starts up in Camera mode.

Memo :

●The camera recorder always start up in Camera mode

when the [POWER] switch is set to AONB.

●

Press the [CAM/MEDIA] button to switch to a different mode.

The operation mode indicator changes as below. While in

the Camera mode, setting the [GENLOCK/AUX] selection

switch to

AUX

switches the camera recorder to the AUX

mode. (U model only)

See [Operation Mode] (A Page 8) for details of each

operation mode.

Memo :

●The camera recorder will switch to IEEE1394 Input mode

only when the IEEE1394-connected equipment is in

operation.

䡵Camera Mode (Except AUX Mode)

Camera images are output on the viewfinder and LCD

monitor. When a recordable SDHC card is inserted, the

camera recorder enters the recording standby mode.

ASTBYB appears on the operation mode display area of the

LCD monitor and viewfinder.

Press the [REC] trigger button to start recording.

Memo :

●

Playback of SDHC card is not possible in Camera mode.

However, you can use the Clip Review function to check the

most recently recorded video clip. (

Page 56)

䡵AUX Mode (U model only)

This is a mode for recording composite videos from an

external device. When a recordable SDHC card is inserted,

the camera recorder enters the recording standby mode.

Press the [REC] trigger button to start recording.

Composite videos from the external device are output to the

viewfinder and LCD monitor.

Memo :

●

[System Definition] is fixed at

SD (DV)

in the AUX mode.

(

Page 56)

䡵Media Mode (SD Card Mode)

This mode allows you to play back or delete clips recorded

on the SDHC card.

When a playable SDHC card is inserted, the thumbnail or

playback screen is output on the viewfinder and LCD

monitor.

䡵Media Mode (IEEE1394 Input Mode)

This mode allows you to check IEEE1394 input signals.

When playable IEEE1394 signals are input, input images are

output on the viewfinder and LCD monitor. IEEE1394 input

signals cannot be recorded.

Turning Off the Power

Set the camera recorder to the recording standby or stop

mode.

Set the [POWER] switch to

OFF

2 Remove the battery and the power to the [DC INPUT]

terminal (when not in use for a long time).

Note :

●Do not set the [POWER] switch to AOFFB during

recording. Check that the operation mode display is

ASTBYB or ASTOPB before you turn off the power.

●If you have mistakenly set the [POWER] switch to AOFFB

during recording, wait for 5 seconds or more before you

turn on the power again.

●When turning off the power, first set the [POWER] switch

of the camera recorder to AOFFB. Do not remove the

battery or turn off the AC power while the [POWER] switch

is set to AONB.

Turning On/Off the Power

●

During Camera mode (Except AUX

mode)

: Lights up in blue/purple

●

AUX Mode (U model only) : Blue

●

During Media mode (SD Card mode) : Lights up in green

●

Media Mode (IEEE1394 Input Mode)

: Lights up in orange

●

During USB mode : Lights up in orange

●

During mode switching : Blinks in the color of the

new mode

[POWER] Switch

[MENU] Button

Cross-Shaped

Button

(JKH I)

Set Button (R)

[CAM/MEDIA] Button

[REC] Button

[CANCEL]

Button

Preparations

Set the date/time of the built-in clock in the [Initial Setting]

screen. The configured date/time data is saved in the

built-in rechargeable battery even if the power is turned off.

Setting the Clock in the [Initial Setting]

Screen

The [Initial Setting] screen appears when the power is turned

on for the first time and when the built-in battery is turned on

again after being fully discharged.

All operations are disabled until initial settings are complete.

Set the [POWER] switch to

The [Initial Setting] screen appears.

䡵For GY-HM790CHU/GY-HM790U

䡵For GY-HM790CHE/GY-HM790E

2 Specify [Time Zone] and [Date/Time].

AMove the cursor with the cross-shaped button (H I) and

select the setting item.

BChange the values with the cross-shaped button (JK).

3 Press the Set button after setting is complete.

The clock is set to 0 seconds of the input date/time.

Memo :

●

The configured date/time data can be displayed on the LCD

monitor and viewfinder and be recorded to the SDHC card.

●

The value of the year can be set in the range of

2000

2099

Changing the Time after Initial Setting

䡵Setting the date/time (APage 95)

Select [Others] menu

[Date/Time].

The [Date/Time] setting screen appears.

2 Set the date and time.

AMove the cursor with the cross-shaped button (H I) and

select the setting item.

BChange the values with the cross-shaped button (JK).

3 Press the Set button (R) after setting is complete.

The clock is set to 0 seconds of the input date/time.

Setting the Clock

(Initial Setting)

[MENU] Button

Cross-Shaped

Button

(JKH I)

Set Button

(R)

[POWER] Switch

Changing the Display Style

You can change the display style of the date/time on the

menu.

Memo :

●To perform the settings while looking at the monitor

screen connected to the video signal output terminal, set

[Analog Out Char.] or [SDI Out Char.] in the [A/V Out]

menu to AOnB. (APage 92)

䡵Setting the date style (Date Style) (APage 91)

ASelect [LCD/VF] menu B [Status Display] menu B

[Date Style].

BSelect the date display style.

[Setting values : YMD (year, month, day), MDY (month,

day, year), DMY (day, month, year)]

CPress the Set button (R).

䡵Setting the time style (Time Style) (APage 91)

ASelect [LCD/VF] menu B [Status Display] menu B

[Time Style].

BSelect the time display style.

[Setting values : 12hour (12 hour display), 24hour (24

hour display)]

CPress the Set button (R).

Date/Time Display in Different Operation

Modes

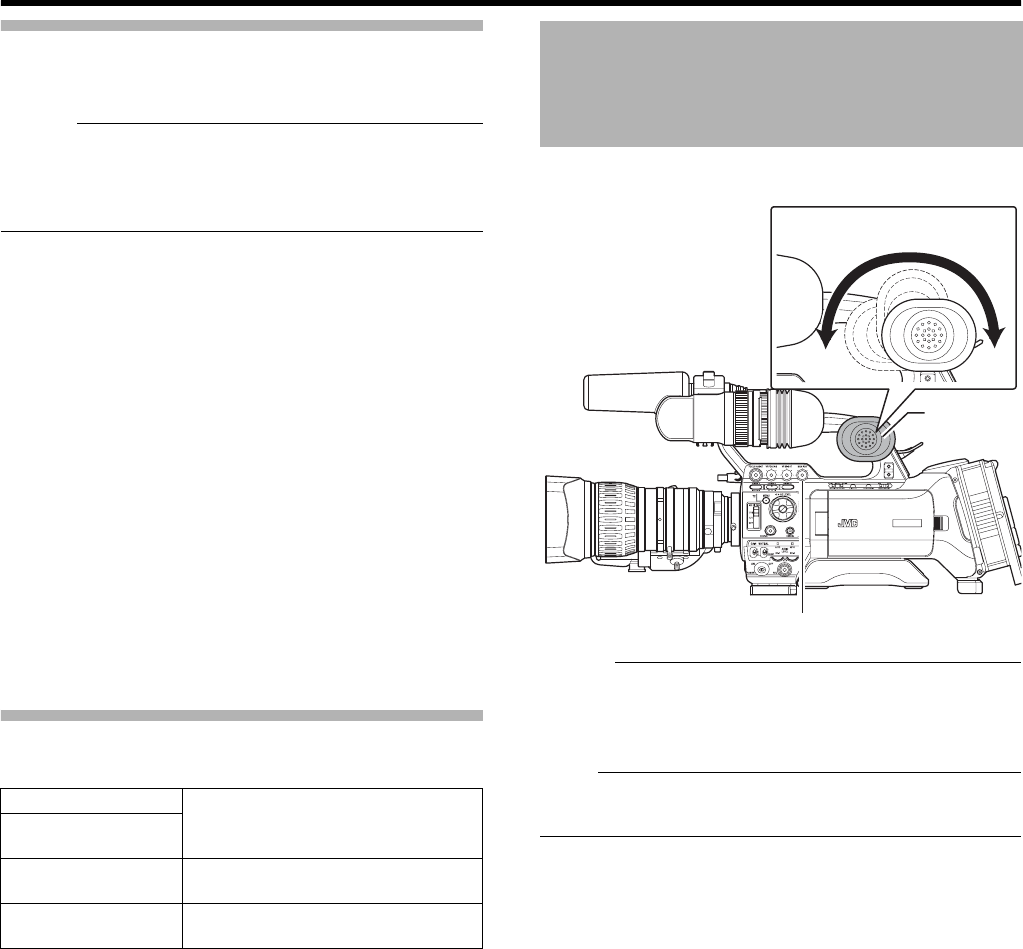

The monitor speaker can be rotated 180 degrees.

Adjust according to the position of your ear.

Memo :

●Adjust the volume of the monitor speaker with the

[MONITOR] level adjustment knob at the side control

panel on the right of the camera recorder. Various warning

alarm tones may also be output repeatedly. (APage 135)

Note :

●

The rotation angle of the monitor speaker is 180 degrees.

Do not over-rotate the monitor speaker.

During Camera mode Date/time of the built-in clock is

displayed.

During AUX mode

(U model)

During Media mode

(SD Card mode)

Shooting date/time of the clip being

played back is displayed.

During Media mode

(IEEE1394 mode)

Date/time is not displayed.

Adjusting the Monitor

Speaker

Monitor

Speaker

180 Degrees Rotation

[MONITOR] Level Adjustment Knob

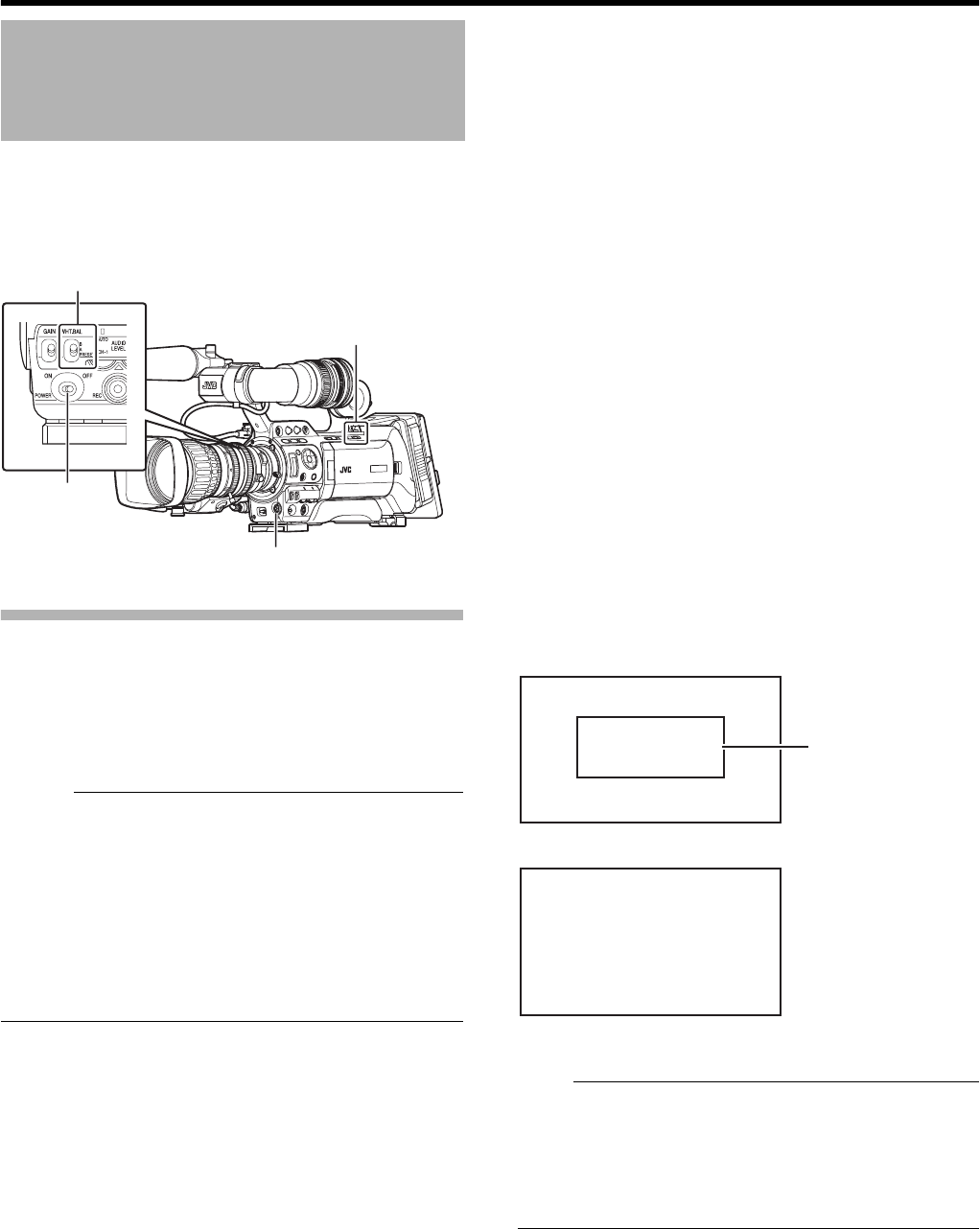

Preparations

When the lens is first attached, adjust the back focus of the

lens if the focus is not clear when zoomed to the telephoto or

wide angle end.

●Place an object 3 m and above away from the camera

recorder.

●The Siemens Star Chart is most suitable as the object.

Set the iris mode switch of the lens to

(manual).

2 Set the zoom mode switch to AMANU.B (manual).

3 Turn to open the iris ring.

Adjust the lighting such that the optimum image level can be

obtained.

4 Turn the zoom lever to set the lens to the maximum

telephoto position.

5 Turn the focus ring to adjust the focus of the object.

6 Set the lens to the maximum wide angle position.

7 Loosen the lock screw of the back focus ring.

8 Shoot the same object and secure the back focus ring

at the position where the object is in focus.

9 Repeat steps 4 to 8 three times until the object is in

focus at both the telephoto and wide angle positions.

10 Tighten and secure the lock screw of the back focus

ring.

Adjusting the LCD Monitor

You can change the angle and brightness of the LCD monitor

screen according to your usage condition.

Changing the brightness of the screen will not affect the

recorded images.

䡵Adjusting the Angle of the LCD Monitor

Slide the LCD lock release knob to open the LCD

monitor.

2 Rotate the LCD monitor to adjust the angle.

●While the LCD monitor is open, you can rotate it 180

degrees upward or 90 degrees downward.

●Rotating the LCD monitor 180 degrees upward enables

you to see the screen from the lens side. To display the

image when it is viewed from the opposite direction

(mirror image), perform setting as follows.

[Main Menu] B[LCD/VF] menu B Set [LCD Mirror Mode]

to AMirrorB B Press Set button (R) (APage 88)

Adjusting Back Focus

2 7, 8, 10

RET

IRIS

A M

34, 6 5

Siemens Star Chart

Adjusting the LCD Monitor

and Viewfinder

LCD Lock Release Knob

Tilt 90 degrees

downward

Tilt 180 degrees

upward

[LCD PEAKING +/-] Button

[LCD BRIGHT +/-] Button

䡵Adjusting the LCD Monitor Screen

Adjusting contour and brightness

●Use the [LCD BRIGHT +/-] button to adjust the brightness

of the LCD monitor screen. Press the [+] and [-] buttons

simultaneously to return to standard settings.

●During adjustment, the brightness level is displayed on

the LCD monitor screen.

●During Camera mode, SD Card mode (playback), or

IEEE1394 mode

●During SD Card mode (thumbnail), menu operation, or

USB mode

●

Use the [LCD PEAKING +/-] button to adjust the contour of

the LCD monitor screen. Press the [+] and [-] buttons

simultaneously to return to standard settings.

●During adjustment, the contour level is displayed on the

LCD monitor screen.

(A Page 29 [Adjusting contour and brightness])

●During Camera mode, SD Card mode (playback), or

IEEE1394 mode

●During SD Card mode (thumbnail), menu operation, or

USB mode

Adjusting the Viewfinder

You can change the brightness and peaking of the viewfinder

screen according to your usage conditions.

Changing the brightness of the screen will not affect the

recorded images.

Note :

●A high-definition viewfinder is used on this camera

recorder in order to provide an accurate focusing

environment. Due to the characteristic of the display

device, colors may appear on the images when you blink

your eyes. This is not a malfunction. It does not affect the

recorded images, SDI output, or component output.

䡵Adjusting the Angle

Adjust the position and angle of the viewfinder.

䡵Adjusting the Visibility

Turn the eyepiece focus ring to sharpen the image on the

viewfinder screen.

䡵Adjusting the Viewfinder Screen

Adjusting contour and brightness

●Use the [VF BRIGHT] knob to adjust the brightness of the

viewfinder screen.

●Use the [VF PEAKING] knob to adjust the contour of the

viewfinder screen.

TScreen display during adjustment

(A Page 29 [Adjusting contour and brightness])

Displaying in black and white (APage 88)

You can display the viewfinder screen in black and white.

[Main Menu]

[LCD/VF] menu

[VF Display] item

Press Set button (

)

Select

B & W

Press Set button (

)

[+] : Press this button to brighten the screen.

[-] : Press this button to darken the screen.

[+] : Press the button to increase contour correction.

[-] : Press the button to decrease contour correction.

Slide Lock Ring

[VF PEAKING] Knob

[VF BRIGHT] Knob

Eyepiece

Lock Ring

Eyepiece Focus Ring

Preparations

Displays on the LCD Monitor and

Viewfinder Screens

䡵When [LCD + VF] in the [LCD/VF] Menu

is Set to AOffB (APage 88)

Displays on the LCD monitor and viewfinder screens (VF)

are indicated as below.

Memo :

●Press and hold the [DISPLAY] button for 2 seconds to

switch the display between the LCD monitor and

viewfinder screens.

●The function to switch between LCD monitor and

viewfinder displays by pressing the [DISPLAY] button can

be canceled by opening/closing or rotating the LCD

monitor.

●When the LCD monitor is stored in the camera recorder in

the direction of normal display, pressing of the [DISPLAY]

button will not work.

●You can display both the LCD monitor and viewfinder

screens at the same time by selecting [LCD + VF] in the

[LCD/VF] menu. (APage 88)

䡵When [LCD + VF] in the [LCD/VF] Menu

is Set to AOnB (APage 88)

Displays on the LCD monitor and viewfinder screens (VF)

are indicated as below.

Memo :

●Press and hold the [DISPLAY] button for 2 seconds to turn

ON/OFF the LCD monitor screen.

●The function to turn ON/OFF the LCD monitor screen by

pressing the [DISPLAY] button can be canceled by

opening/closing or rotating the LCD monitor.

●The viewfinder screen is always displayed.

These are indicator lamps for recording and warning. The

operation changes according to the menu settings. When the

battery or remaining space on the SDHC card is low, the

lamps blink. (Camera mode only)

Set using [Tally System]/[Front Tally]/[Back Tally] in the [Main

Menu] B [Others] menu. (APage 94)

Adjusting the LCD Monitor

and Viewfinder (continued)

LCD Monitor Status LCD Display VF Display

Closed LCD Normal LCD OFF ON

Inversed LCD ON OFF

Opened LCD Normal LCD ON OFF

Inversed LCD ON OFF

[DISPLAY] Button

Normal LCD

Inversed LCD

LCD closed at 40

degrees and below

LCD opened at

40 degrees

and above

LCD Monitor Status LCD Display VF Display

Closed LCD Normal LCD OFF ON

Inversed LCD ON ON

Opened LCD Normal LCD ON ON

Inversed LCD ON ON

Tally Lamps

Back Tally Lamp

Front Tally Lamp

*1 : [Front Tally] and [Back Tally] can be set independently

with the menu settings. (APage 94)

*2 : Only battery alarm is displayed.

*3: Paused state during special recording ([Clip

Continuous]). (APage 59)

Memo :

●Blinking takes priority over lighting up.

This camera recorder saves the recorded images and audio

sound on the SDHC card (sold separately) in the card slot.

Memo :

●If the SDHC card contains files recorded by devices other

than this camera recorder or files that are saved from a

PC, the recordable time may be shorter or data may not

be properly recorded.

SDHC Cards to Use

Use a Class 6/10 SDHC card (4 GB - 32 GB).

Note :

●Using cards other than those from Panasonic, TOSHIBA

or SanDisk may result in recording failure or data loss.

䡵Estimated Recordable Time of SDHC

Cards

The estimated recordable time is only a guide. Differences

may occur depending on the SDHC card in use and the

battery condition.

(A Page 75 [Camera Resolution])

(A Page 75 [Frame & Bit Rate])

Memo :

●If the SDHC card contains files recorded by devices other

than this camera recorder or files that are saved from a

PC, the recordable time may be shorter or data may not

be properly recorded.

䡵Write-Protect Switch on the SDHC Card

ASlide the write-protect switch upward to enable writing or

deleting.

BSlide the write-protect switch downward to prevent writing

or deleting. (Images in the card are protected.)

Setting

[Tally System] ^[Int] [Ext] [Studio]

[Front Tally]/

[Back Tally] *1

Off On Blin

On Blink On Blink

Camera

Recorder

Information

Warning ^^ J^J^J

Alarm ^^ o^o*2 ^o

External

Device

Information

Warning

^^ ^ ^ J^^

Alarm

Camera

Recorder

Recording

Status

Recording ^RR^^^^

Special

Recording *3^RR^^^^

External

Device

Recording

Status

Recording

^^ ^ RR^^

Remote

Control Unit

Input

[CALL] ^^ ^ ^ ^ oo

[TALLY(PGM)] ^^ ^ ^ ^ RR

[TALLY(PVW)] ^^ ^ ^ ^ XX

R: Lights up o: Blinks once in 1 second

J: Blinks four times in 1 second X: Only back tally lamp lights up

SDHC Cards

SDHC Card Size

Camera

Resolution Bit Rate

4 GB 8 GB 16 GB 32 GB

1280x720

1440x1080

1920x1080

HQ 12 min 25 min 50 min 100 min

1440x1080 SP 17 min 35 min 70 min 140 min

1280x720 SP 22 min 45 min 90 min 180 min

720 x 480 -- 15 min 30 min 60 min 120 min

720 x 576 -- 15 min 30 min 60 min 120 min

SDHC Card Cover Knob

[SLOT SELECT]

Button

Slot A Status

Indicator

Slot B Status Indicator

SDHC Card

Cover

Write/Delete Enabled Write/Delete Disabled

Write-Protect Switch

Preparations

Inserting an SDHC Card

This camera recorder comes with two card slots for video/

audio recording and playback (Slot A and B).

1 Slide the SDHC card cover knob of the desired slot in

the direction of the arrow and open the cover.

2 Insert an SDHC card with the notched corner first.

3 Close the SDHC card cover.

䡵Card Slot Status Indicator

The following table shows the respective states of slot A and B.

Removing the SDHC Card

Check that the SDHC card to be removed is not being

accessed (lights up in red).

2 Slide the SDHC card cover knob in the direction of the

arrow and open the cover.

3 Push the SDHC card and remove it from the slot.

4 Close the SDHC card cover.

Memo :

●When both slots are inserted with usable SDHC cards, the

previously selected slot is used.

Note :

●Data may be lost if you turn off the power of the camera

recorder or remove the SDHC card when it is being

accessed. All data recorded on the card, including the file

that is being accessed, may be corrupted. Be sure to

check whether the status indicator is lighted in green or

not before you turn off the power or remove the SDHC

card.

●If you mistakenly remove the card when it is being

accessed, reinsert the card only after the status indicator

goes off.

●The SDHC card may not be recognized if you insert and

remove the card within a short time. When this happens,

remove the card and wait for a few seconds before you

reinsert.

Switching SDHC cards

When both card slots are inserted with SDHC cards, you can

use the [SLOT SELECT] button to switch the card to use.

When the memory on an SDHC card is full during recording,

data recording automatically switches to the other card.

Note :

●The [SLOT SELECT] button is disabled during recording

or playback. Cards will not be switched even if you press

the button.

SDHC Cards (continued)

Lamp Slot Status

Lights up in red Inserted SDHC card is being accessed.

(writing/reading data)

Do not turn off the power of the camera

recorder or remove the SDHC card.

Lights up in green On standby. Inserted SDHC card can be

used for recording or playback.

Light goes out ●SDHC card is not inserted.

●An unusable card is inserted.

●An SDHC card is inserted but a different

slot is selected.

SDHC Card

Notched Corner

[SLOT SELECT] Button

[CANCEL] Button

Cross-Shaped

Button

(JKH I)

Set Button (R)

Formatting (Initializing) SDHC Cards

When the following cards are inserted,

AFORMATTING REQUIREDB appears. Format the card

using the camera recorder menu.

●

Unformatted SDHC cards

●

SDHC cards formatted under different specifications

* For details of the menu operation, see

[Basic Operations in Menu Screen] (A Page 70).

Note :

●Be sure to format the SDHC card on this camera recorder.

SDHC cards formatted on a PC and other peripheral

equipment cannot be used on this camera recorder.

Memo :

●To cancel the message display, press the [CANCEL]

button. A [!] mark appears at the remaining media display

area when an SDHC card that requires formatting is

inserted.

1 Select [Format Media] in the [Media] menu.

(APage 97)

2 Select the slot of the SDHC card to be formatted and

press the Set button (R).

3 The status of the selected SDHC card appears.

4 Select [Format] and press the Set button (R).

5 Formatting starts.

6 Formatting is complete.

ACompleteB appears when formatting is complete.

Memo :

●If you do not want to format the card, select [Cancel] or

press the [CANCEL] button to return to the previous

screen.

●If you remove the SDHC card during formatting,

AFormat Error!B appears and the camera recorder returns

to the previous screen.

●During formatting, menu operation is unavailable but you

can start recording. However, this is only available when a

recordable SDHC card is inserted in the other slot.

●Formatting cannot be performed in the following cases.

●Recording is in progress on the SDHC card to be

formatted.

●SDHC card is not inserted.

●Write-protect switch of the SDHC card is set ( is

displayed).

Note :

●If you format the SDHC card, all data recorded on the

card, including video data and setup files, will be deleted.

Preparations

Restoring the SDHC Card

It is necessary to restore the SDHC card if an abnormality

occurs to the data in the card due to some reasons.

The message ARESTORE MEDIAB appears on the LCD

monitor/viewfinder screen when an SDHC card that requires

restoring is inserted.

Memo :

●To cancel the message display, press the [CANCEL]

button. A [!] mark appears at the remaining media display

area when an SDHC card that requires formatting is

inserted.

Select [Restore Media] in the [Media] menu. (

Page 97)

2 Select the SDHC card to be restored and press the Set

button (R).

3 Restoring starts.

4 Restoring is complete.

●When restoring is complete, ACompleteB appears and the

camera recorder returns to the [Restore Media] screen.

●When no media that requires restoring is inserted, the

camera recorder returns to the [Media] menu screen.

Note :

●[Restore Media] can only be selected in Camera mode.

However, it cannot be selected while the camera recorder

is recording. Select [Restore Media] in Camera mode

when the camera recorder is not recording.

●[Restore Media] does not restore the SDHC card to its

original states completely. If restoring fails, replace or

format the SDHC card. Take note that formatting the

SDHC card erases all information inside.

Memo :

●Restoring cannot be performed in the following cases.

●Camera recorder is recording in progress.

●SDHC card is not inserted.

●Write-protect switch of the SDHC card is set ( is

displayed).

●Restoring is not required.

SDHC Cards (continued)

Clips Recorded to SDHC Cards

䡵Folders in the SDHC Card

Images captured are recorded to [PRIVATE] B [JVC] folder

inside the SDHC card.

Images recorded are sorted into the respective folders

according to the menu settings below.

Memo :

●By formatting (initializing) the SDHC card from the

[Format Media] menu on the camera recorder, folders

required for recording in the current [System Definition]

settings and [File Format] settings will be generated.

●

When the

[System Definition]

settings and

[File Format]

settings are changed, folders required for recording in those

settings will be automatically generated.

Note :

●When a clip inside the folder is moved or deleted using the

Explorer (Windows) or Finder (Mac), recording to the

SDHC card may fail if formatting (initializing) of the card is

not performed.

Recording Clips

䡵Clip (Recorded Data) and Clip Name

When recording is stopped, the images, audio and

accompanying data which are recorded from start to stop are

recorded as one “clip” on the SDHC card.

An 8-character clip name is automatically generated for the

recorded clip. (Clip Name Prefix + Clip Number)

Example:

Clip Name Prefix (any 4 alphanumeric characters)

This is set to AxxxGB (AxxxB denotes the last 3 digits of the

serial number) by default.

Memo :

●Before recording starts, you can set any characters for the

clip name prefix by using [Main Menu] B [Record Set]

menu B [Clip Set] B [Clip Name Prefix]. (APage 76)

●Changes cannot be made after recording.

䡵Recorded Clips

This camera recorder uses FAT32 File System.

As such, recorded materials may be split into several files

due to the file size. However, they can be played back

continuously on the camera recorder. Clips may be recorded

across the two SDHC cards in card slots A and B depending

on the recording time of the clip.

When copying clips to a HDD using a PC, it is recommended

to use [JVC Clip Manager Software], which is found in the

bundled CD-ROM, to maintain continuity.

Note :

●A clip recorded across several cards cannot be played

back continuously. Continuous playback is only possible

when the recording is made on one card.

[System Definition]

Setting

[File Format]

Setting

Folders in the

SDHC Card

HD (MPEG2) MOV CQAV

HD (MPEG2) MP4 BPAV

SD (DV) MOV CQDV

SD (DV) AVI CADV

ABCG0001

Clip Number

A number in automatic ascending order is

assigned in the recording order.

The clip number can be reset in the menu.

* [Clip Set]

[Reset Clip Number] (

Page 76)

Shooting

Preparations

1 Attach the accessories. (APage 21)

2 Supply battery or AC adapter power to the camera

recorder. (APage 22)

3 Insert an SDHC card. (APage 31)

4 Turn on the power of the camera recorder.

Set the [POWER] switch to AONB. The camera recorder

starts up in Camera mode and is ready for shooting.

5 Adjust the angle of the LCD monitor and viewfinder.

(APage 28)

Shooting

Configure the video and audio input settings.

You have to configure video settings such as brightness

adjustment (iris, gain, shutter) and white balance adjustment

in order to start shooting. You also have to adjust the audio

input settings and audio recording level for audio recording.

●

Adjusting the Iris (

Page 39)

●

Setting Gain (

Page 40)

●

Setting the Electronic Shutter (

Page 40)

●

Adjusting the White Balance (

Page 42)

●

Adjusting the White Shading (

Page 44)

●

Setting the ND Filter (

Page 45)

●

Adjusting Audio Input Settings and Recording Level

(

Page 46)

2 Press the [REC] button to start recording to the SDHC

card.

●

There are two [REC] buttons on the camera recorder and

one on the lens. Any of the [REC] buttons can be used to

start/stop recording by default.

●

During recording, the front and back tally lamps light up in

red.

Memo :

●Tally lamps can be turned off with [Front Tally]/

[Back Tally] in the [Others] menu. (APage 94)

●To separately control this camera recorder and other

equipment connected to the [IEEE1394] terminal, you can

configure the setting at [1394 Rec Trigger] in the [Others]

menu. (APage 94)

Check the most recently captured images (Clip Review).

Press the [RET] button on the lens to activate the Clip

Review function (APage 56). The most recently captured

images are played back on the LCD monitor and viewfinder

screens. After playback, the camera recorder returns to

standby mode (STBY).

* When [Main Menu] B [Camera Function] B [Switch Set] B

[LENS RET] is set to AClip ReviewB (APage 79)

Basic Shooting Procedures

[REC] Button

[POWER] Switch

Back Tally Lamp

Front Tally Lamp

Focus Assist Function

When the [FOCUS ASSIST] button is pressed during

shooting, the focused area is displayed in color (blue, red, or

green). This enables easy and accurate focusing. Select the

color in the menu.

Memo :

●

When [Main Menu]

[LCD/VF] menu

[Shooting Assist]

[Focus Assist] is set to

ACCU-Focus

, the depth of field

becomes shallower to enable easier focusing. (

Page 89)

●

The

ACCU-Focus

function switches automatically to

Off

after about 10 seconds.

●

Select the display color in [Main Menu]

[LCD/VF]

[Shooting Assist]

[Color]. (

Page 89)

●

The [VF PEAKING] knob and [LCD PEAKING +/-] button do

not function when Focus Assist is activated.

䡵Assigning Focus Assist function to the [RET]

button on the lens

You can assign the Focus Assist function to the [RET] button

on the lens.

* Set [Main Menu] B [Camera Function] B [Switch Set] B

[LENS RET] to AFocus AssistB. (APage 79)

[FOCUS ASSIST] Button

Shooting

You can select the system definition (HD or SD), file format

for recording/playback and the record format for video

images on this camera recorder.

Memo :

●

Make a selection in [Main Menu]

[Record Format] menu.

Selecting a System Definition

Select the system definition in [System Definition].

There are two different definitions for selection.

HD (MPEG2) : Records in HD (High Definition) quality

SD (DV) : Records in SD (Standard Definition) quality

Selecting a File Format

Select a file format in [File Format].

There are three file formats for selection.

QuickTime : QuickTime file format (.MOV)

MP4 : MP4 file format

AVI : Standard video file format for Windows

systems

Memo :

●The available options vary as follows depending on the

[System Definition] setting.

●AHD (MPEG2)B: QuickTime, MP4

●ASD (DV)B:QuickTime, AVI

Selecting a Video Format

Select a [Record Format] from the list of formats. The

selectable [Frame & Bit Rate] changes according to the

settings of [System Definition], [File Format], and

[Camera Resolution].

The recording bit rate is 35 Mbps VBR when AHQB is

selected, and 18.3 Mbps (1080i is 25 Mbps) CBR when ASPB

is selected.

䡵List of Formats

The following is a list of file formats and video formats that

can be selected on this camera recorder.

䡵When [System Definition] is set to AHD (MPEG2)B

Selecting System

Definition, File Format and

Video Format Record Format

Remarks

File Format Camera Resolution Frame & Bit Rate

Horizontal×Line

QuickTime 1280x720 60p (HQ)

60p (SP) HDV

compatible

30p (HQ)

30p (SP) HDV

compatible

24p (HQ)

24p (SP) HDV

compatible

50p (HQ)

50p (SP) HDV

compatible

25p (HQ)

25p (SP) HDV

compatible

1440x1080 60i (HQ)

60i (SP) HDV

compatible

50i (HQ)

50i (SP) HDV

compatible

1920x1080 60i (HQ) Full HD

30p (HQ) Full HD

50i (HQ) Full HD

25p (HQ) Full HD

24p (HQ) Full HD

MP4 1280x720 60p (HQ)

60p (SP) HDV

compatible

30p (HQ)

30p (SP) HDV

compatible

24p (HQ)

24p (SP) HDV

compatible

50p (HQ)

50p (SP) HDV

compatible

25p (HQ)

25p (SP) HDV

compatible

1440x1080 60i (SP) HDV

compatible

50i (SP) HDV

compatible

1920x1080 60i (HQ) Full HD

30p (HQ) Full HD

50i (HQ) Full HD

25p (HQ) Full HD

24p (HQ) Full HD

䡵When [System Definition] is set to ASD (DV)B

When [System Definition] is set to ASD (DV)B, the video

format is fixed as follows for the different models.

Selecting the Aspect Ratio of SD Videos

Select an aspect ratio for the images.

The available options vary as follows depending on the

[System Definition] setting.

●AHD (MPEG2)B:Fixed at 16:9

●ASD (DV)B: 16:9, 4:3

Setting the Record Format Menu

1 Display the [Main Menu] B [Record Format] menu.

2 Set each of the items.

3 After setting is complete for all items, select [SET] at

the bottom of the screen, and press the Set button (R).

●The record format is switched.

●A APlease WaitB message appears on the screen during

switching.

Note :

●

[System Definition] is fixed at

SD (DV)

in the AUX mode.

Only [File Format] and [Aspect Ratio] can be set. (U model)

You can adjust the aperture of the lens iris manually or

automatically according to the brightness of the object.

Manual Iris (Manual Adjustment) Mode

Set the [IRIS] switch on the lens to AMB to enter Manual Iris

mode.

Turn the iris ring on the lens to adjust the iris manually.

Memo :

●Even during Manual Iris mode, the camera recorder

enters forced Auto Iris mode while the [IRIS AUTO] button

is pressed.

Auto Iris (Automatic Adjustment) Mode

Set the [IRIS] switch on the lens to AAB to enter Auto Iris

mode. The iris is automatically adjusted according to the

brightness of the object.

Memo :

●Even when the [IRIS] switch of the lens is set to AMB, it

switches automatically to Auto Iris mode when the [FULL

AUTO] switch is set to AONB.

●When [Iris Control] in the [Camera Function] B

[FULL AUTO] menu is set to AOffB, you can adjust the iris

manually even if the [FULL AUTO] switch on the camera

recorder is set to AONB. (APage 81)

●You can use the cross-shaped button (H I) on this camera

recorder to set the target level (brighter/darker) of the auto

iris. You can also use the menu to set the tracking

sensitivity of the auto iris. (APage 78)

Record Format

Remarks

File Format Camera Resolution

Frame & Bit Rate

Horizontal×Line

QuickTime/

AVI

720 x 480(U model) 60i DV

compatible

720 x 576(E model) 50i DV

compatible

Adjusting the Iris

RET

IRIS

A M

[IRIS] Switch

Iris Ring

Shooting

This function electrically boosts the light sensitivity when

there is insufficient illumination on the object. You can set the

gain of the video amplifier according to the brightness of the

object. Select the setting mode according to your shooting

conditions.

Fixed Gain Mode (Manual Gain Switching)

You can select the gain of the video amplifier using the

[GAIN] switch on the camera recorder.

The default positions of the switch are as follows.

Memo :

●

The gain value of each position can be set to

ALC

and

within the range of

0dB

18dB

(in increments of 3 dB)

in the menu. Increasing the sensitivity causes the screen to

appear grainier. (

Page 79)

Automatic Gain Mode (Automatic Gain

Adjustment)

Set the [FULL AUTO] switch on the camera recorder to AONB

to enter Automatic gain Level Control (AALCB fixed). The

gain of the video amplifier is automatically set according to

the brightness of the object.

In this case, the [GAIN] switch on the camera recorder is

disabled.

Memo :

●When [Gain] in the [Camera Function] B [FULL AUTO]

menu is set to ASW SetB, you can switch the gain with the

[GAIN] switch even if the [FULL AUTO] switch on the

camera recorder is set to AONB. (APage 81)

You can change the shutter speed (time for each shooting

frame) using the electronic shutter function. Electronic

shutter can be adjusted manually or automatically.

Fixed Shutter Mode (Manual Shutter

Switching)

Use the Set button (R) to switch between the shutter modes

and the cross-shaped button (JK) to switch between the

speeds.

䡵Switching Shutter Mode

Press the Set button (center of the cross-shaped button) to

turn ON/OFF the shutter.

Memo :

●When the shutter is ON, AStepB, AVariableB, or AEEIB

(Extended Electric Iris, i.e. Automatic Shutter mode) may

be selected using [Shutter] in the [Camera Function]

menu. AStepB is the factory default. (APage 78)

Setting Gain

[L] : 0 dB (No electrical boosting.)

[M] : 9 dB (Boosts sensitivity by about 2.8 times. )

[H] : 18 dB (Boosts sensitivity by about 8 times. )

[GAIN] Selection

Switch

[FULL AUTO]

Switch

Setting the Electronic

Shutter

Cross-Shaped Button

(JK)

[FULL AUTO] Switch

Set Button (R)

䡵Switching Shutter Speed

When shutter is ON, use the cross-shaped button (JK) to set

the shutter speed. Shutter speed differs according to the

video format and variable frame rate settings.

䡵During modes other than Variable Frame Rec

䡵During Variable Frame Rec

Memo :

●Shutter speed is usually displayed in seconds (SEC).

However, only when [Frame & Bit Rate] is set to A24p

(SP)B, A24p (HQ)B, A25p (SP)B, or A25p (HQ)B, the speed

can be displayed in angle (DEG).

(A Page 75 [Frame & Bit Rate])

(A Page 91 [Shutter Disp.])

Automatic Shutter Mode (Automatic Shutter

Adjustment)

Set the [FULL AUTO] switch on the camera recorder to AONB

to enter the automatic shutter adjustment mode. The shutter

speed is automatically adjusted according to the brightness

of the object.

Switching of shutter speed with the cross-shaped

button (JK) and switching of shutter mode with the Set

button (R) are disabled.

Memo :

●When [Shutter] in the [Camera Function] B [FULL AUTO]

menu is set to ASW SetB, you can switch the shutter mode

with the Set button (R) and shutter speed with the cross-

shaped button (JK) even if the [FULL AUTO] switch on

the camera recorder is set to AONB. (APage 81)

●When [Shutter] in the [Camera Function] B [FULL AUTO]

menu is set to AEEIB, the camera recorder enters

Automatic Shutter Adjustment mode. Switching of shutter

mode with the Set button (R) and shutter speed with

cross-shaped button (JK) is disabled. (APage 81)

Shutter

Camera

Resolution/

Frame & Bit

Rate

720/60p

720/30p

1080/60i

1080/30p

480/60i

720/50p

720/25p

1080/50i

1080/25p

576/50i

720/24p

1080/24p

Button

Step

1/10000

1/10000 1/10000 1/4000

1/4000 1/4000 1/2000

1/2000 1/2000 1/1000

1/1000 1/1000 1/500

1/500 1/500 1/250

1/250 1/250 1/100

1/100 1/120 1/60

(Standard)

1/60 1/50 1/48

1/30 1/25 1/24

1/15 1/12.5 1/12

Button

1/7.5 1/6.25 1/6

Button

Variable

(Upper limit)

1/10489.5

(Standard)

1/60.00 1/50.00 1/48.00

Button (Lower limit)

1/30.031/25.04 1/24.01

Shutter

Camera

Resolution/

Frame & Bit

Rate

720/30p

720/24p

Frame Rate

60, 30, 15 48, 24, 12 40, 20, 10

Button

Step

1/10000

1/10000 1/4000

1/10000 1/4000 1/2000

1/4000 1/2000 1/1000

1/2000 1/1000 1/500

1/1000 1/500 1/250

1/500 1/250 1/100

1/250 1/100 1/60

1/100 1/60 1/48

(Standard)

1/60 1/48 1/40

1/30 1/24 1/20

1/15 1/12 1/10

Button

1/7.5 1/6 1/5

Button

Variable

(Upper limit)

1/10489.5

Button (Lower limit)

1/60.00 1/48.00 1/40.00

Shutter

Camera

Resolution/

Frame & Bit

Rate

720/25p

Frame Rate

50, 25, 12.5 40, 20, 10

Button

Step

1/10000

1/10000 1/4000

1/4000 1/2000

1/2000 1/1000

1/1000 1/500

1/500 1/250

1/250 1/120

1/120 1/50

(Standard)

1/50 1/40

1/25 1/20

1/12.5 1/10

Button

1/6.25 1/5

Button

Variable

(Upper limit)

1/10489.5

Button (Lower limit)

1/50.00 1/40.00

Shooting

Adjust the white balance according to the color temperature

of the lighting. You can select the adjustment mode

according to the shooting conditions.

As the color of the light (color temperature) varies according to

the light source, it is necessary to readjust the white balance

when the main light source illuminating the object changes.

Manual White Balance Mode (Manual

Switching)

You can select the white balance with the [WHT.BAL.]

selection switch.

Use the [WHT.BAL.] selection switch to select APRESETB

(preset mode), AAB (memory A mode), or ABB (memory B

mode).

Memo :

●The [FAW] (Fulltime Auto White balance) function can be

assigned to the [A], [B], or [PRESET] button using

[Switch Set] in the [Camera Function] menu. (APage 79)

●In [FAW] mode, color temperature of the images is

sampled and white balance is automatically adjusted to

the appropriate level.

●When [White Balance] in the [Camera Function] B

[FULL AUTO] menu is set to AFAWB and the [FULL AUTO]

switch on the camera recorder is set to AONB, the mode is

fixed at AFAWB.

䡵Preset Mode (PRESET)

Two different color temperature settings are registered on

this camera recorder. You can switch between them using

the [AWB] button.

(Default setting: A3200KB1A5600KB)

You can change both the color temperature settings in the

Preset mode in the menu.

[Main Menu]

[Camera Process]

[White Balance] menu

Select either [Preset Temp.] or [Alternative Temp.].

(

Page 85)

1 Set the [W. BAL] switch to APRESETB.

2 Press the [AWB] button.

Press the [AWB] button to switch to a different color

temperature. (APreset Temp.B1AAlternative Temp.B)

䡵

Memory A Mode (A), Memory B Mode (B)

Set to the white balance saved in Memory A or Memory B.

When the [WHT.BAL.] selection switch is set to [A] or [B],

press the [AWB] button to execute white balance. The white

balance will be automatically adjusted and the adjusted

value will be saved in Memory A or Memory B.

Prepare the camera recorder.

ASet the [POWER] switch to AONB.

BSet the iris mode switch of the lens to AAB (automatic).

CSet the [FULL AUTO] switch to AOFFB.

2 Set the [ND FILTER] switch according to the lighting

(APage 45).

3 Set the [WHT.BAL.] switch to AAB or ABB.

4 Locate a place with similar lighting conditions as the

object to be shot, place a white object near the center of

the screen and zoom in to fill the screen with white.

5 Press the [AWB] (Auto White Balance) button.

●

The white detection frame appears when Auto White

Balance is activated. Fill the frame with white completely.

●

AUTO WHITE A, B OPERATION

appears on the

viewfinder when Auto White Balance is activated.

●

When the correct white balance is achieved,

AUTO WHITE A, B OK

appears for about 3 seconds

together with the approximate color temperature.

Note :

●

Do not use highly reflective objects, such as metals. Doing

so may result in improper white balance adjustment.

●

The Auto White function cannot provide optimum white

balance with an object outside the adjustment range, for

example when it contains only a single color or not enough

white color.

Adjusting the White

Balance

[WHT.BAL.] Selection Switch

[FULL AUTO]

Switch

[POWER]

Switch

[AWB] Button

AUTO WHITE A

OK <3200K>

AUTO WHITE A

OPERATION

[AWB] Activating

Result Display

White Detection Frame

䡵Error Message

If the white balance adjustment is not correctly completed,

one of the following messages will appear for about 5

seconds.

䡵White Paint Adjustment

You can fine-tune the white balance saved in Memory A or

Memory B.

* Adjust [White Paint R]/[White Paint B] in [Main Menu] B

[Camera Process] B [White Balance] menu (APage 85)

When [AWB] is selected, the normal white paint adjustment

value is cleared. However, you can also set to keep the value

even when [AWB] is executed. (APage 85)

Automatic White Balance Mode

(FAW: Fulltime Auto White balance)

You can assign AFAWB (Fulltime Auto White balance) to any

of the three positions on the [WHT.BAL.] selection switch.

Configure the setting with [FAW] in the [Camera Function] B

[SW Set] menu. (APage 79)

Set the [FULL AUTO] switch on the camera recorder to AONB

to enter FAW mode. White balance is automatically adjusted

according to the color temperature of the lighting on the

object.

White balance switching with the [WHT.BAL.] selection

switch is disabled.

Memo :

●When [White Balance] in the [Camera Function] B

[FULL AUTO] menu is set to ASW SetB, you can switch

the white balance with the [WHT.BAL.] selection switch on

the camera recorder. (APage 81)

Note :

●The accuracy of [FAW] is inferior to that of Auto White

Balance.

●When the power of the camera recorder is turned on with

the [FAW] mode selected, it takes about 15 seconds for

the colors to stabilize.

Error Message Status

NG : OBJECT The object used is defective.

Displayed when there is not enough

white color on the object, or when the

color temperature is not suitable.

Use another white object and adjust

the white balance again.

ERROR : LOW LIGHT Insufficient illumination.

Displayed when the lighting is dark.

Increase the lighting and adjust the

white balance again.

ERROR : OVER LIGHT Excessive illumination.

Displayed when the lighting is too

bright. Decrease the lighting and adjust

the white balance again.

Shooting

You need to adjust white shading when you change the lens.

Even if white balance is adjusted in the center of the screen,

the top and bottom of the screen may not be adjusted.

In this case, green and yellow colors may appear on the

screen. This is due to the characteristic of the lens.

Correcting this phenomena is known as white shading

adjustment.

Perform this adjustment after adjusting the white balance.

Fill the monitor screen with a pattern box of uniform light

source or white (plain) paper shone with uniform lighting.

2 Set the control of the camera lens as follows.

ASet the aperture to F4 or more such that the iris

achieves optimum brightness.

If the brightness is insufficient even at F4, set to the

optimum brightness by increasing the lighting.

BWhen using a zoom lens, set to the center of the zoom

adjustment range.

3 Adjust the white balance of the camera recorder.

(A Page 42 [Memory A Mode (A), Memory B Mode (B)])

4 Set the chroma level of the monitor to the maximum.

5 Check the monitor screen.

●

There is no need for adjustment if there is no color at the top

and bottom of the screen.

●

If the top of the screen is greenish and the bottom is reddish

or vice versa, continue this adjustment.

6 Adjust the white shading.

It is recommended to adjust only G (green).

Set [Main Menu]

[Camera Process]

[White Balance]

[Shading Mode] to

Manual

. (

Page 85)

BSelect [Adjust] in the [White Balance] menu and press

the Set button (R).

CSelect the item to change with the cross-shaped

button (JK) and press the Set button (R).

DChange the setting value with the cross-shaped

button (JK) while looking at the evaluated value at the

bottom right of the LCD monitor or viewfinder screen.

●If the evaluated value of the adjusting channel is larger

than 0, use the cross-shaped button (K) to change the

setting value so that the value is more or less AEvenB.

Similarly, if the value is smaller than 0, use the cross-

shaped button (J) to change the setting value.

(A Page 44 [Evaluated value:])

(Adjustment range : Min (-128) to Normal to Max (127))

Memo :

●

There may be some delay in the changes of the evaluated

value after pressing the cross-shaped button (

●

Increasing the setting value suppresses the colors at the

bottom and enhances the colors on top.

EPress the Set button (R) to save the settings after the

changes are complete.

FSelect [Back] and press the Set button (R) to return to

the [White Balance] menu.

7 Press the [MENU] button to return to the normal

screen.

8 Readjust the white balance. (APage 42)

Note :

●

If the lens setup is incorrect, you may over-correct the white

shading. Set to the recommended settings for the lens. (Do

not open the iris more than F4. Do not adjust the zoom lens

at the telephoto or wide angle end.)

●

White shading occurs as a result of the optical characteristic

of the attached lens. This is not a camera malfunction.

Adjusting the White

Shading

Cross-Shaped

Button (JK)

Set Button (R)

[MENU] Button

[R] Red adjustment

[G] Green adjustment

[B] Blue adjustment

Evaluated value:

A value that compares the average values of the R, G, B

channels in the evaluated value detection frames at the top

(Top) and bottom (Btm) of the LCD monitor or viewfinder

(difference between [Top] and [Btm]).

If [Top] is larger than [Btm], a negative value is displayed. If

[Top] is smaller than [Btm], a positive value is displayed.

When there is no difference between [Top] and [Btm],

AEvenB is displayed. Set such that the evaluated value is

more or less AEvenB.

To p

Btm

Evaluated Value Detection Frames

Evaluated

Value

Use the ND filter to keep the lens aperture in the appropriate

range.

Switch according to the brightness of the object. When the

switch is changed, the position of the switched ND filter is

displayed on the LCD monitor and viewfinder screens.

(STATUS 1 Screen)

Memo :

●The display of the ND filter position is set to AOffB by

default. To display the position of the ND filter, set [Filter]

in the [LCD/VF] B [Status Display] menu to AOnB.

(APage 90)

●It is recommended to use the ND filter to set the lens

aperture to less than F5.6.

Setting the ND Filter

[1/16] Reduces the amount of incident light to 1/16. Select

this for extremely bright outdoor environments.

[1/4] Reduces the amount of incident light to 1/4. Select

this for bright and sunny outdoor environments.

[OFF] Select this for indoor and dark outdoor environments.

00:00:00:00

MAX 123%

MIN 45%

S.DTL

B -3

ND1/16 A<3200K>

STBY

100min

1280x720

24p HQ

282min

30/24 fps

[ND FILTER]

Switch

Displays the position of the ND filter

Shooting

You can record audio from the two channels (CH-1/CH-2) in

synchronization with video images on this camera recorder.

The camera recorder is equipped with [INPUT1] and [INPUT2]

terminals for audio input. You can select a recording channel

and the adjustment mode (manual/automatic).

Setting Audio Input

Select the audio to input through [INPUT1] and [INPUT2]

terminals with the [AUDIO INPUT 1/2] mode switch.

Note :

●When connecting a device that does not require a +48 V

power supply, make sure that it is not set to the

AMIC+48VB position.

●When the [AUDIO INPUT 1/2] mode switch is set to

AMICB, make sure that a microphone is connected to the

[INPUT1/INPUT2] terminal. If you increase the recording

level when a microphone is not connected, noise from the

input terminal may be recorded.

●

When a microphone is not connected to the [INPUT1/INPUT2]

terminal, set the [AUDIO INPUT 1/2] mode switch to

LINE

adjust the volume with the [AUDIO LEVEL CH-1/CH-2]

recording level adjustment knob.

Memo :

●

Set the reference input level of

MIC

and

MIC+48V

using [Input1 Mic Ref.]/[Input2 Mic Ref.] in the

[Main Menu]

[Record Set]

[Audio Set] menu.

(

Page 77)

䡵

Setting of [CH-2 INPUT] Selection Switch

Use the [CH-2 INPUT] selection switch to select the audio to

be recorded to CH-2.

Adjusting Audio Recording Level

You can select to adjust the audio recording levels for the two

channels (CH-1/CH-2) manually or automatically.

䡵Manual Adjustment Mode

(Manual Adjustment)

Set the [AUDIO SELECT CH-1/CH-2] switch on the camera

recorder to AMANUALB to enter the manual adjustment

mode, and use the [AUDIO LEVEL CH-1/CH-2] adjustment

knob to set the recording level.

You can adjust the level manually during the recording,

recording pause, and stop modes.

Set the [AUDIO SELECT CH-1/CH-2] switch to

MANUAL

for the channel to manually adjust the

recording level.

2 Turn the corresponding [AUDIO LEVEL CH-1/CH-2]

adjustment knob to adjust the level.

Adjust such that the audio level meter does not light up at -2 dB

even for loud sounds.

Memo :

●Set [Audio Limiter] in the [Main Menu] B [Record Set] B

[Audio Set] menu to AOnB to activate the audio limiter in

the Manual Adjustment mode. This controls the recording

level when excessive audio signals are input.

(APage 77)

●

For the reference level to be recorded on SDHC cards, set

[Audio Ref. Level] in the [Main Menu]

[Record Set]

[Audio Set] menu to

-20dB

-12dB

. (common for

CH-1, CH-2) (

Page 77)

Adjusting Audio Input

Settings and Recording

Level

[LINE]

Use this setting when connecting to an audio device or

other equipment. The reference input level is +4 dBu.

[MIC]

Use this setting when connecting to a dynamic

microphone.

[MIC+48V]

Use this setting when connecting to a microphone

(phantom microphone) that requires a +48 V power

supply.

[INPUT1] Records audio from [INPUT1] terminal to CH-2.

[INPUT2] Records audio from [INPUT2] terminal to CH-2.

[AUDIO INPUT 1/2]

Mode Switch

[INPUT1/INPUT2] Terminal

[CH-2 INPUT] Selection Switch

[AUDIO LEVEL

CH-1/CH-2]

Adjustment Knob

[AUDIO SELECT CH-1/CH-2]

Selection Switch

When the LCD monitor is open

[FULL AUTO] Switch

00:00:00:00

MAX 123%

MIN 45%

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

STBY

100min

1280x720

24p HQ

282min

30/24 fps

Audio Level Meter

STATUS 1 Screen

-2 dB

Note :

●When the [FULL AUTO] switch on the camera recorder is

set to AONB, the recording level cannot be adjusted with

the [AUDIO LEVEL CH-1/CH-2] adjustment knob.

䡵Automatic Adjustment Mode

Set the [AUDIO SELECT CH-1/CH-2] switch on the camera

recorder to AAUTOB or the [FULL AUTO] switch to AONB to

enter Automatic Adjustment mode. The audio recording level

is set automatically according to the input level.

When the [FULL AUTO] switch is set to AONB, mode

switching with the [AUDIO SELECT CH-1/CH-2] switch is

disabled.

Memo :

●When [Audio] in the [Camera Function] B [FULL AUTO]

menu is set to ASW SetB, you can switch the recording

level mode with the [AUDIO SELECT CH-1/CH-2] switch

on the camera recorder even if the [FULL AUTO] switch is

set to AONB. (APage 81)

Audio Monitor During Recording

You can check the input audio with the monitor speaker or

earphones.

1 Select the channel to monitor with the

[MONITOR SELECT] switch.

2 Adjust the volume of the monitor audio with the

[MONITOR] adjustment knob.

Memo :

●Alarm tone is output when there is an abnormality in the

camera recorder. Alarm tone is also output when the

SDHC card is full or when the battery is low.

(APage 135)

●

Alarm tone is not output during recording.

Note :

●Increasing the volume of the monitor too much may result

in howling of the camera microphone.

䡵Using Stereo Type Earphone Jack

When a stereo type earphone jack is connected, perform the

following setting to output stereo sound.

Set the [MONITOR SELECT] switch to

BOTH

2 Set [Main Menu] B [A/V Out] B [Audio Monitor] to

AStereoB. (APage 93)

Only audio from [CH-1] is output through the monitor

speaker.

Memo :

●You can set the volume of the alarm tone with

[Alarm Level] in the [Main Menu] B [Others] menu.

(AOffB/ALowB/AMiddleB/AHighB) (APage 93)

[CH-1] Outputs audio from [INPUT1] terminal.

[BOTH] Mixes and outputs audio from both [INPUT1/INPUT2]

terminals.

[CH-2] Outputs audio from [INPUT2] terminal.

[MONITOR]

Adjustment Knob

[MONITOR SELECT]

Switch

Monitor

Speaker

[PHONES]

Te r m i n a l

Shooting

Time code and user’s bit data are recorded with the video in

this camera recorder.

The time code and user’s bit are displayed on the viewfinder

and LCD screens during playback or recording.

(Status screen)

Displaying Time Code and User’s Bit

The time code and user’s bit are displayed on the viewfinder

and LCD screens during playback or recording.

The display differs according to the menu settings.

1 Set [Main Menu] B [LCD/VF] B [Status Display] B

[TC/UB] to AOnB. (APage 91)

Time code or user’s bit data is displayed on the status

screen.

2 Select the display with the [TC DISPLAY] switch on

the LCD monitor.

Select time code display (TC) or user’s bit display (UB).

Memo :

●When [TCG Source] in the [TC/UB] menu is set to

AInternalB, the built-in time code generator number is

displayed.

●When [TCG Source] in the [TC/UB] menu is set to

AExternalB, the value of the external time code generator

input to the [TC IN] terminal is displayed.

●Time code display for [IEEE1394] input is not supported.

●Values recorded on the SDHC card is displayed in Media

mode.

Time Code Operation Mode

Three types of time code operation can be selected with the

[TC GENE.] switch. They are AFREEB, ARECB, and

AREGENB.

* The [TC GENE.] selection switch is enabled when

[TCG Source] in the [TC/UB] menu is set to AInternalB.

* When [Rec Mode] in the [Record Set] menu is set to

AVariable FrameB, time code operation enters RecRun

mode.

Time Code and User’s Bit

00:00:00:00

MAX 123%

MIN 45%

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

STBY

100min

1280x720

24p HQ

282min

30/24 fps

Time Code or User’s Bit

STATUS 1 Screen

[TC DISPLAY]

Setting Switch

[TC GENE.] Setting Switch

Setting Display LCD/VF Display VIDEO Output

Display

Time

Code

When [Main Menu] B

[LCD/VF] B [Status

Display] B [TC/UB] is set to

AOnB, time code or user’s

bit is displayed during the

following status display and

information display mode of

the LCD screen.

䡵

STATUS 1 screen in

Camera mode

䡵

STATUS 1, STATUS 2

screens in Media mode (SD)

When [Analog

Out Char.] or

[SDI Out Char.] in

the [A/V Out]

menu is set to

AOnB, time code

or user’s bit is

displayed in the

respective video

output images

during the

LCD/VF display

setting on the left.

User’s Bit

Setting Mode

Description

FREE

FreeRun

mode

The time code operates in the run mode at all

times regardless of the recording status.

It continues to run even when the power of the

camera recorder is turned off. *

REC

RecRun

mode

The time code operates in the run mode during

recording. It continues to run in the order of the

recorded clips as long as the SDHC card is not

replaced. If the SDHC card is removed and

recording is made on another card, time code

will be recorded on the new card from where it

was left off in the previous card.

REGEN

Regen

mode

The time code operates in the run mode during

recording. When the SDHC card is replaced,

the last time code recorded on the card is read

and recorded on a new card so that the time

code continues in running order. (APage 52)

Presetting the Time Code

Time code and user’s bit data generated from the internal

time code generator are recorded.

This section describes how to set [TC Preset] in the [TC/UB]

menu. (APage 88)

Memo :

●When the frame rate setting in [Main Menu] B

[Record Set] B [Record Format] B [Frame & Bit Rate] is

A50, 25, 24B, settings cannot be made in [Drop].

(APage 75)

●

You can configure the setting without accessing the [TC/UB]

menu screen. (

Page 51)

䡵Required Settings Before Preset

Set [Main Menu]

[TC/UB]

[TCG Source] to

Internal

. (

Page 88)

2 Set the [TC GENE.] switch to ARECB or AFREEB.

3 Select the framing mode for the time code generator

(only when the frame rate setting is A60B or A30B).

Set using [Main Menu] B [TC/UB] B [Drop].

(APage 88)

Memo :

Drop frame/non-drop frame mode

●When the frame rate setting in [Main Menu] B

[Record Set] B [Record Format] B [Frame & Bit Rate] is

60 (30), the actual number of frames per second is

approximately 59.94 (29.97). However, the time code

processing standard is 60 (30) frames. To make up for the

frame number discrepancy, the drop frame mode (Drop)

drops the 00 frame and 01 frame every minute except for

minutes that are multiples of 10.

●On the other hand, the non-drop frame mode (Non Drop)

does not drop frames and ignores the discrepancy with

the actual time.

Using the Internal Time

Code Generator

[REC] Preset data in the time code generator operates in

run mode during recording mode. Set this when

recording continuous time code in connecting

frames.

[FREE] Time code starts to operate in run mode from the

preset time in the time code generator.

[Drop] Sets the run mode of the time code generator to drop

frame mode.

Use this setting when placing emphasis on the

recording time.

[Non

Drop]

Sets the run mode of the time code generator to non-

drop frame mode.

Use this setting when placing emphasis on the

number of frames.

[TC GENE.] Setting Switch

[USER2] Button

Shooting

Presetting the Time Code (continued)

䡵Setting Time Code

Select [Main Menu]

[TC/UB]

[TC Preset] and press

the Set button (

). (

Page 88)

The [TC Preset] screen appears.

Memo :

●When the [TC GENE.] switch is set to AREGENB, the

parameter is displayed as ARegenerationB and cannot be

selected.

●When [Main Menu] B [TC/UB] B [TCG Source] is set to

AExternalB, the parameter is displayed as AExternalB and

cannot be selected.

2 Set the time code (hour, minute, second, frame).

Use the cross-shaped button (H I) to place the cursor at the

item to set, then the cross-shaped button (JK) to change the

values.

Memo :

●Press the [USER2] button to reset each digit to A0B. The

cursor moves to the time digit (left).

3 Check the values and press the Set button (R).

●The time code is set and the screen returns to [TC/UB].

●To cancel the setting, press the [CANCEL] button.

4 Press the [MENU] button.

Returns to the normal screen.

Presetting the User’s Bit

You can add an 8-digit hexadecimal number as the user’s bit

to the recorded image.

1 Set [Main Menu] B [TC/UB] B [TCG Source] to

AInternalB. (APage 88)

2 Select [Main Menu] B [TC/UB] B [UB Preset] and

press the Set button (R). (APage 88)

The [UB Preset] setting screen appears.

Memo :

●When the [TC GENE.] switch is set to AREGENB, the

parameter is displayed as ARegenerationB and cannot be

selected.

●When [Main Menu] B[TC/UB] B [TCG Source] is set to

AExternalB, the parameter is displayed as AExternalB and

cannot be selected.

Using the Internal Time

Code Generator

(continued)

[CANCEL] Button

[USER2] Button

[MENU] Button

Set Button (R)

Cross-

shaped

button

(JKH I)

[TC/UB] Menu Screen

Cursor

[TC Preset] Screen

(During drop frame)

During non-drop frame

[CANCEL] Button

[USER2] Button

[MENU] Button

Set Button (R)

Cross-

shaped

button

(JKH I)

[TC/UB] Menu Screen

3 Use the cross-shaped button (H I) to place the cursor

at the item to set, then use the cross-shaped button (JK)

to change the values.

Numbers between 0 and 9 or alphabets between A and F

can be specified for the user’s bit.

Memo :

●

Press the [USER2] button to reset each digit to

. The

cursor moves to the left.

Check the values and press the Set button (

●The time code is set and the screen returns to [TC/UB].

●To cancel the setting, press the [CANCEL] button.

5 Press the [MENU] button.

Returns to the normal screen.

Setting Time Code Without Opening the

Memo :

●

Settings cannot be made in the following cases.

●[TCG Source] in the [TC/UB] menu is set to

ExternalB.

●[TC GENE.] switch is set to AREGENB.

●Menu screen is displayed.

●The camera recorder is not in the Camera mode.

(Except AUX Mode)

䡵Required Settings Before Preset

(APage 49)

●

Set [TCG Source] in the [TC/UB] menu to

Internal

●

Set the [TC DISPLAY] switch to

●Set the [TC GENE.] switch to settings other than

AREGENB.

䡵Setting Time Code

Hold down the [MENU] button and press the [USER1]

button.

The [TC Preset] setting screen appears.

2 Set the time code (hour, minute, second, frame).

Use the cross-shaped button (H I) to place the cursor at the

item to set, then the cross-shaped button (JK) to change the

values.

Memo :

●

Press the [USER2] button to reset each digit to

. The

cursor moves to the time digit (left).

3 Check the values and press the Set button (R).

●

The time code is set and the screen returns to the normal

screen.

●

To cancel the setting, press the [CANCEL] button.

Note :

●

Editing will be canceled and the screen will close under the

following situations.

●

The [TC DISPLAY] switch is selected during editing.

●

The camera recorder is switched to the Media mode.

●

When editing time code, operations of the [USER1],

[USER2], [USER3] buttons that are set in the [Main Menu]

[Camera Function]

[Switch Set] menu are disabled.

[USER2] functions as the number reset button. (

Page 79)

Cursor

[UB Preset] Screen

[USER1] Button

[CANCEL] Button

[USER2] Button

[MENU] Button

Set Button (R)

Cross-

shaped

button

(JKH I)

Cursor

[TC Preset] Screen

(During drop frame)

Shooting

Setting User’s Bit Without Opening the Menu

Memo :

●

Settings cannot be made in the following cases.

●[TCG Source] in the [TC/UB] menu is set to AExternalB.

●[TC GENE.] switch is set to AREGENB.

●Menu screen is displayed.

●The camera recorder is not in Camera mode. (Except

AUX mode)

䡵Required Settings Before Preset

(APage 49)

●Set [TCG Source] in the [TC/UB] menu to AInternalB.

●Set the [TC DISPLAY] switch to AUBB.

●

Set the [TC GENE.] switch to settings other than

REGEN

䡵Setting User’s Bit

1 Hold down the [MENU] button and press the [USER1]

button.

The [UB Preset] setting screen appears.

2 Set the user’s bit.

Use the cross-shaped button (

) to place the cursor at the item

to set, then the cross-shaped button (

) to change the values.

Memo :

●Press the [USER2] button to reset each digit to A0B. The

cursor moves to the left.

3 Check the values and press the Set button (R).

●The user’s bit is set and the screen returns to the normal

screen.

●To cancel the setting, press the [CANCEL] button.

Note :

●Editing will be canceled and the screen will close under

the following situations.

●The [TC DISPLAY] switch is selected during editing.

●The camera recorder is switched to the Media mode.

Note :

●When editing time code, operations of the [USER1],

[USER2], [USER3] buttons that are set in the

[Main Menu] B [Camera Function] B [Switch Set] menu

are disabled. [USER2] functions as the number reset

button. (APage 79)

Recording Time Code in Continuation of

the Recorded Time Code on SDHC card

This camera recorder is equipped with the time code reader.

Set [Main Menu]

[TC/UB]

[TCG Source] to

Internal

. (

Page 88)

2 Set the [TC GENE.] switch on the inner panel of the

LCD to AREGENB.

When the camera recorder enters from recording standby

mode to recording mode, it reads the time code already

recorded on the SDHC card and records the new time code

in continuation of that value.

The same data as the user’s bit already recorded on the

SDHC card is recorded.

Memo :

●When the [TC GENE.] switch is set to AREGENB, the

framing mode of the time code follows the settings in

[Drop] of the [TC/UB] menu instead of the clip settings.

(APage 88)

This camera recorder comes with a time code input terminal

([TC IN]).

An external time code generator can be connected to the

[TC IN] terminal to enable synchronization with the SMPTE/

EBU LTC time code.

Memo :

●After synchronization (slave lock) is complete, the built-in

time code generator continues to run even when there is

no input from the external time code generator.

Using the Internal Time

Code Generator (continued)

Cursor

[UB Preset] Screen

Synchronizing Time Code

with External Time Code

Generator

[TC GENE.] Setting Switch

Connection

䡵When connecting external time code generator

to a master device

Input the external synchronizing signal to the external

time code generator and the [GENLOCK/AUX INPUT]

terminal of this camera recorder.

Make use of BB signal or HDTV 3 level synchronizing signal

as the external synchronizing signal.

Note :

●If the power of the camera recorder is turned ON/OFF

during input of the external synchronizing signal, the

screen may be disrupted for a few seconds. This is not a

malfunction.

2 Input the SMTPE/EBU LTC time code from the

external time code generator to the [TC IN] terminal of

this camera recorder.

䡵When connecting multiple units of this camera

recorder with one as the master and the rest as

slave devices

Connect the [TC OUT] terminal of the master device to

the [TC IN] terminal of the slave device.

2 Connect the [Y/VIDEO] terminal of the master device

to the [GENLOCK INPUT] terminal of the slave device.

Settings on the Camera Recorder

Set to the Camera mode. (

Page 8)

2 Set the [GENLOCK/AUX] selection switch to

AGENLOCKB. (U model)

3 Set [Genlock Input] in the [Others] menu to ABNCB.

(APage 93)

4 Set [TCG Source] in the [TC/UB] menu as follows.

●Slave device : Set to AExternalB

●Master device : Set to AInternalB

5 Set the LCD monitor or viewfinder as follows.

●Viewfinder : Set to the STATUS 1 screen display

(APage 108)

●LCD monitor : Set to the enlarged status display

screen (APage 110)

The input and synchronizing status of the external time

code generator are displayed as follows.

Camera Recorder Operation

Set the external time code generator or master device,

and run the time code.

●When the built-in time code generator is synchronized

with the input of the external time code generator, L on

the STATUS 1 screen or enlarged status display screen

will light up.

●If the time code is not synchronized or when there is no

time code input, L does not light up.

Memo :

●After synchronization is complete, the built-in time code

generator will continue to run even when the external time

code generator or master device is disconnected.

●The user’s bit becomes the data of the external time code

generator or master device.

SYNC Signal Generator

External Time Code

Generator

External Synchronizing Signal

[GENLOCK/AUX] Switch

[GENLOCK/AUX INPUT] Terminal (U Model)

[GENLOCK INPUT] Terminal (E Model)

External Synchronizing Signal

Master Device

Slave Device

LTC Time Code

To [TC IN]

terminal of

another camera

[GENLOCK/AUX INPUT] Terminal

Master Device

[TC IN] Terminal

Slave Device

[TC OUT] Terminal

[Y/VIDEO] Output Terminal

00:00:00:00

20 min

MAX 123%

MIN 45%

SKIN AREA

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

STBY

100min

1280x720

60p HQ

282min

30/24 fps

EXT

B123 min

min

1280 x 720

60p HQ

CH1

CH2

STBY

100min

67.8min

[TCG Source] : AExternalB

Status Screen Enlarged Status Display Screen

Lights up Lights up

00:00:00:00

20 min

MAX 123%

MIN 45%

SKIN AREA

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

STBY

100min

1280x720

60p HQ

282min

30/24 fps

EXT

B123 min

min

1280 x 720

60p HQ

CH1

CH2

STBY

100min

67.8min

[TCG Source] : AExternalB

Status Screen Enlarged Status Display Screen

Lights up Lights up

Shooting

When the luminance level range for displaying zebra patterns

is specified, diagonal lines (zebra pattern) are displayed at

areas with the specified luminance levels during shooting.

Specify the brightness (luminance) level

range for displaying zebra pattern

Specify the upper (Top1, Top2) and lower (Bottom1,

Bottom2) limits of the luminance level.

Set the zebra display pattern.

●Select the display pattern in [LCD/VF] menu B

[Shooting Assist] B [Zebra].

2 Specify the brightness (luminance) level range for

displaying zebra pattern.

Specify the upper (Top1, Top2) and lower (Bottom1,

Bottom2) limits of the luminance level in [LCD/VF] menu B

[Shooting Assist] B [Zebra].

Memo :

●ATo p 2 B and ABottom2B cannot be set if [Zebra] is set to

A1PatternB.

●When the specified range of two zebra patterns overlaps,

the two zebra patterns overlap and are displayed in a grid.

3 Display the zebra pattern.

Set the [ZEBRA ON/OFF] switch in front of the camera

recorder to AONB to display the zebra pattern at the specified

range.

Setting Zebra Pattern

Item Settings Options

Zebra Zebra display pattern 1Pattern

2Patterns

Top1 Upper luminance limit for

displaying [Zebra1]

5 % - 100 %, Over

(in 5 % increments)

Bottom1 Lower luminance limit for

displaying [Zebra1]

0 % - 100 %

(in 5 % increments)

Top2 Upper luminance limit for

displaying [Zebra2]

5 % - 100 %, Over

(in 5 % increments)

Bottom2 Lower luminance limit for

displaying [Zebra2]

0 % - 100 %

(in 5 % increments)

[ZEBRA ON/OFF] Switch

[Zebra1] Display [Zebra2] Display

Zebra Pattern

The brightness of the object during shooting is displayed.

This function is useful when setting video or stage lighting or

when specifying camera exposure.

A cursor indicating the location and the brightness (%) of that

location are displayed in the images shown on the LCD

monitor and viewfinder screens.

●Zebra patterns display the brightness of output video

signals. (APage 54)

●This function allows you to check the brightness of input

images from the lens without depending on image

processing such as gamma curve. The dynamic range of

the camera recorder is 300 % and a brightness range of

0 % to 300 % and above is displayed.

Memo :

●Spot meter may not be consistent with the zebra display

range. When [Gamma] in the [Camera Process] menu is

set to ACinemaB or AFilm OutB, the 100IRE output is not

consistent with the 100 % display. (APage 83)

When an object of more than 300 % luminance is

detected, it is displayed as 300 %.

Select

Spot Meter

in [SKIN A./SPOT M.] of the [Main

Menu]

[Camera Function]

[Switch Set] menu. (

Page 80)

Select one of the following from [SPOT METER]. (

Page 80)

3 Flip the [SKIN AREA/SPOT METER] switch of the

camera recorder.

The operation switches as below when the [SKIN AREA/

SPOT METER] switch is flipped.

䡵When [Max&Min]/[Max]/[Min] is selected

A[SPOT METER ON] is displayed when the switch is

flipped. Cursors appear according to the settings. The

positions of the brightest (Max) and darkest (Min) areas

in the screen are automatically detected with regard to

the changes of the object, and the brightness of these

areas is displayed.

B[SPOT METER FIXED] is displayed when the switch is

flipped. Automatic detection stops. Frames are fixed at

the stopped positions and the brightness is displayed.

C[SPOT METER OFF] is displayed when the switch is

flipped. Displays of cursors and brightness disappear.

DReturns to the state in A.

Setting Spot Meter

Item Settings

Color of Frame

Indicating the Position

[Max&Min] Displays the brightness (%)

and positions of the

brightest and darkest areas

in the screen. Frames may

also be stopped at the

current positions.

[Max] : Green

[Min] : Yellow

[Max] Displays the brightness (%)

and position of the brightest

area in the screen. Frames

may also be stopped at the

current positions.

Green

[Min] Displays the brightness (%)

and position of the darkest

area in the screen. Frame

may also be stopped at the

current positions.

Ye l l o w

[Manual] Displays the brightness (%)

of the specified position.

Green

(Blinks in red when

specifying the position)

[SKIN AREA/SPOT METER] Switch

Set Button (R)

Cross-shaped

Button

(

JKH

)

Cursor

([Max] : Green)

Cursor

([Min] : Yellow)

Cursor

([Max] : Green)

Cursor

([Min] : Yellow)

Shooting

䡵When [Manual] is selected

A[SPOT METER FIXED] is displayed when the switch is

flipped. The brightness of the cursor position is displayed.

B[SPOT METER OFF] is displayed when the switch is

flipped. Displays of cursors and brightness disappear.

C[SPOT METER SELECT] is displayed when the switch is

flipped. The cursor blinks in red.

Move the cursor with the cross-shaped button (JKH I) to

specify the position to display the brightness. When the

position is decided, press the Set button (R) or flip the

switch to confirm.

DReturns to the state in A.

Memo :

●

When moving the cursor position, [SHUTTER]/

[AE LEVEL] control is disabled.

●

You can also decide the position of the cursor with the Set

button (

●

When the brightness is 0 % in the entire screen, the frame

is fixed in the center.

●

If the cursor is outside the

4:3

range, changing the

[Aspect Ratio] item in the [Record Format] menu from

16:9

4:3

restores the cursor to the default position.

(

Page 75)

You can check (review) the last recorded video clip on the

screen.

However, the video clip cannot be played back if the settings

of the camera recorder are different from the video format

(Camera Resolution/Frame & Bit Rate) of the clip.

(APage 75)

Memo :

●To use this function, assign AClip ReviewB to any of the

[USER1], [USER2], [USER3] buttons or the [RET] button

on the lens.

* [Main Menu] B [Camera Function] B [Switch Set] B

[LENS RET]/[USER1]/[USER2]/[USER3] B

AClip ReviewB(APage 79)

1 Press the button assigned with the AClip ReviewB

function during standby (ASTBYB is displayed).

Playback of the configured section starts.

Memo :

●

The video clip is played back according to the [Clip Review]

settings in the [Camera Function] menu. By default setting

(Last 5 sec), the last 5 seconds of the clip is played back.

(

Page 79)

●

When playback is complete, the camera recorder exits Clip

Review and returns to

STBY

(recording standby) mode.

Setting Spot Meter

(continued)

Cursor (Green)

Cursor

(Blinks in red)

Viewing Recorded Videos

Immediately (Clip Review)

RET

IRIS

A M

[RET] Button

Note :

●During Clip Review, only the [CANCEL] and [REC]

buttons are enabled. Press the [CANCEL] button to

cancel clip review and return to ASTBYB (recording

standby) mode. Press the [REC] button to cancel clip

review and enter recording mode. It will take some time to

start recording after the button is pressed.

●When the last clip is less than 5 seconds, the whole clip is

played back.

●Only video clips in the currently selected slot can be

reviewed.

●When there are no clips in the selected slot, Clip Review

function is disabled.

●Clip Review is unavailable when Clip Continuous Rec is

paused (STBYC, yellow text). To operate Clip Review,

use the [CANCEL] button to set to ASTBYCB (white text)

first. (APage 59)

●Clip Review is unavailable when the camera recorder is

connected to an external equipment and the equipment is

in recording state.

You can assign functions to the [USER1], [USER2], and

[USER3] buttons.

By assigning functions to the [USER1], [USER2], and

[USER3] buttons, the usability of the camera recorder is

enhanced.

1 Assign functions to the [USER1], [USER2], and

[USER3] buttons from the menu. (APage 79)

Set each of the [USER1], [USER2], and [USER3] items in

the [Main Menu] B [Camera Function] B [Switch Set] menu.

Memo :

●Operations of the [USER1], [USER2], and [USER3]

buttons are interlocked with the menu settings.

●When the menu screen is displayed, these buttons

function as the menu operation buttons.

(A Page 70 [Basic Operations in Menu Screen])

Assigning Functions to

User Buttons

[USER1], [USER2], [USER3]

Buttons

Shooting

You can append OK marks to the clips for important scenes.

Clips appended with OK marks cannot be deleted, thus

protecting the important clips. In addition, you can display

only the clips with OK marks in the thumbnail display during

Media mode.

Appending OK Marks During Recording

1 Assign the AOK MarkB function to the [RET] button on

the lens from the menu.

●Select [Main Menu] B [Camera Function] B

[Switch Set] B [LENS RET] B AOK MarkB. (APage 79)

●Append or delete the [OK] mark with every press of the

[RET] button.

●When an OK mark is appended, AOKB appears at the top

left of the status screen on the viewfinder/LCD monitor.

(A Page 104, 111)

Memo :

●Clips appended with [OK Mark] cannot be deleted from

the camera recorder using [Delete Clip]. (However, they

will be deleted when the SDHC card is formatted.)

●When the camera recorder is in Media mode (SD Card

mode), you can delete the [OK] marks appended during

recording, or append/delete [OK] marks after shooting.

(A Page 68 [Appending and Deleting OK Marks])

Note :

●When the write-protect switch on the SDHC card is set

( is displayed), [OK] marks cannot be appended/

deleted.

Besides the normal recording mode, three special recording

methods are available in this camera recorder. They are Pre

Rec, Clip Continuous Rec, and Variable Frame Rec.

Select the mode from [Rec Mode] in the [Record Set] menu.

* Set using [Main Menu] B [Record Set] B [Rec Mode].

(APage 76)

Pre Rec

By setting the number of seconds in the [Pre Rec Time], you

can start recording video and audio before actual recording

starts based on the Pre Rec Time setting.

When starting actual recording while the camera recorder is

in Recording Standby (STBYP) mode, you can start

recording a few seconds earlier based on the [Pre Rec Time]

setting.

Using Pre Rec allows you to record a complete event without

missing the initial scenes even if you start the recording late.

* Pre Rec Time can be set to A5secB, A10secB, or A20secB

in [Main Menu] B [Record Set] B [Pre Rec Time].

(APage 76)

1 Set [Rec Mode] to APre RecB. (APage 76)

●Set [Main Menu] B [Record Set] B [Rec Mode] to

APre RecB.

●The status display changes from ASTBYB B ASTBYPB.

2 Press the [REC] button to start recording in Pre Rec

mode.

●The status display changes from ASTBYPB B ARECPB

and the card slot status indicator lights up in red.

●Press the [REC] button again to pause recording. The

display changes from ARECPB B ASTBYPB and the card

slot status indicator lights up in green.

Note :

●When the interval between start and stop recording is

short, ASTBYPB may not be displayed immediately after

recording is complete.

ARECPBBASTBYPB (STBY blinks in red) B ASTBYPB

is displayed.

●When the SDHC card becomes full during recording,

recording stops and ASTOPPB is displayed.

Protecting Important

Scenes (OK Mark Function)

00:00:00:00

MAX 123%

MIN 45%

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

REC

100min

1280x720

60p HQ

282min

30/24 fps

AOKB Mark

STATUS 1 Screen

Special Recording

Completed Clip

(Recorded video and audio)

Press [REC]

(Recording starts)

Recording starts a

number of seconds

earlier based on

the [Pre Rec Time]

setting Press [REC]

(Recording stops)

Note :

●Video and audio before the above mentioned time may not

be recorded after recording starts in the following cases.

●Immediately after power on

●Immediately after recording stops

●Immediately after switching from Media mode to

Camera mode

●Immediately after setting [Rec Mode]

●Immediately after the end of Clip Review

●Immediately after changing file format

●Immediately after changing video format

Clip Continuous Rec

In normal recording, when the recording stops, the image,

audio, and accompanying data from the start till the end of

the recording are recorded as one AclipB on the SDHC card.

This mode allows you to consolidate several rounds of Astart-

stop recordingB into one clip.

Example : In normal recording, three clips are generated as

Recording 1, Recording 2, and Recording 3.

However, recording in this mode generates only

one clip.

Set [Rec Mode] to

Clip Continuous

●Set [Main Menu] B [Record Set] B [Rec Mode] to

AClip ContinuousB. (APage 76)

●

The status display changes from

STBY

2 Start recording. (Recording 1)

●

Press the [REC] button to start recording in Clip Continuous

mode.

●The status display changes from ASTBYCB B ARECCB

and the card slot status indicator lights up in red.

3 Pause recording.

●

Press the [REC] button again to pause recording. The display

changes from

REC

STBY

(yellow text).

●The card slot status indicator remains lighted in red.

Memo :

●

When the [CANCEL] button is pressed while the camera

recorder is paused (STBY

), the display changes from

STBY

(yellow text)

STBY

(blinking yellow text)

STBY

(white text). A

clip

is generated. The card slot

status indicator lights up in green.

4 Resume recording. (Recording 2)

●

Press the [REC] button again to resume recording. The

display changes from

STBY

(yellow text)

REC

●The card slot status indicator remains lighted in red.

5 Pause recording.

●

Press the [REC] button again to pause recording. The display

changes from

REC

STBY

(yellow text).

●The card slot status indicator remains lighted in red.

6 Resume recording. (Recording 3)

●

Press the [REC] button again to resume recording. The

display changes from

STBY

(yellow text)

REC

●The card slot status indicator remains lighted in red.

7 Press and hold the [REC] button.

●

Recording stops and the display changes from

REC

STBY

. A

clip

is generated.

●The card slot status indicator lights up in green.

8 Press the [REC] button again.

●The status display changes from ASTBYCB B ARECCB

and the card slot status indicator lights up in red.

●A new AclipB is generated from here.

Memo :

●The following operations cannot be performed while

recording is paused (STBYC, yellow text).

●Clip Review operation (APage 56)

●Switching SDHC card slots

●Switching operation mode (APage 8)

●Files are split into sizes of 4 GB (or 30 minutes)

regardless of the menu settings.

Note :

●Do not remove the SDHC card during recording (RECC,

red text) or recording pause (STBYC, yellow text).

●To remove the SDHC card in AClip ContinuousB mode,

press the [CANCEL] button, check that ASTBYCB (white

text) is displayed and the card slot status indicator is

lighted in green before you remove the card.

●When the SDHC card becomes full during recording,

recording stops and ASTOPCB is displayed.

●When the [POWER] switch is turned off during recording

or recording pause, recording stops and power is cut off

after a clip is generated.

●If the power is cut off due to low battery power, a proper

clip may not be generated.

Completed Clip

(Recorded video and audio)

Recording 1 Recording 2 Recording 3

Press [REC]

(Recording starts)

Press [REC]

(Recording pauses)

Press [REC]

(Recording resumes)

Press [REC]

(Recording pauses)

Press [REC]

(Recording stops)

Press [REC]

(Recording resumes)

Shooting

Variable Frame Rec

Shooting in this mode allows you to obtain smooth slow

motion or quick motion videos.

Using different frame rate settings for recording and

playback, videos captured at normal speed can be played

back more smoothly than those in low or high speed

playback.

To enable Variable Frame Rec, the following two settings are

required at the same time.

●

[Camera Resolution] in the [Record Format] menu is set to

1280x720

●

[Frame & Bit Rate] in the [Record Format] menu is set to

30p (HQ)

24p (HQ)

, or

25p (HQ)

䡵Number of Frames that can be Set

Set [Camera Resolution] to

1280x720

, then set

[Frame & Bit Rate]. (

Page 76)

Set [Frame & Bit Rate] to A30p (HQ)B, A24p (HQ)B, or A25p

(HQ)B.

2 Set [Rec Mode] to AVariable FrameB. (APage 76)

Set [Main Menu] B [Record Set] B [Rec Mode] to

AVariable FrameB.

3 Select a recording frame rate from [Frame Rate].

(APage 76)

The selectable frame rates are as shown below.

Memo :

●

When [AE LEVEL] in the [Main Menu]

[Camera Function]

[Switch Set] menu is set to

AE LEVEL/VFR

, you can use the

cross-shaped button (

) to select the frame rate during

Variable Frame Rec. In modes other than Variable Frame Rec,

the cross-shaped button (

) functions as the [AE LEVEL]

setting button. (

Page 80)

Note :

●The recording frame rate cannot be changed during

recording. To change the frame rate, stop the recording

first and perform the change.

●When the [TC GENE.] switch located on the inner panel of

the LCD is set to AFREEB, videos are recorded in Rec

(RecRun) time code.

●Audio cannot be recorded. A mark appears in the audio

level meter display. (APage 104)

●Depending on the settings, images beyond the recording

stop position may be recorded and it may take time for the

camera recorder to enter ASTBYB mode.

Special Recording

(continued)

Record Format Selectable Shooting Frame Rate

1280x720 30p (HQ) 10 12 15 20 24 30 404860^

24p (HQ) ^10 12 15 20 24 30404860

25p (HQ) ^^10 12.5 20 25 40 50 ^^

Effect during playback Quick motion Standard Slow motion

Playback

To play back clips recorded on SDHC cards, switch to the

Media mode (SD Card mode).

Press the [CAM/MEDIA] selection button in Camera mode to

enter SD Card mode. A thumbnail screen of the clips

recorded on the SDHC card is displayed.

You can play back the selected clip on the thumbnail screen.

Memo :

●When an SDHC card without any clips is inserted,

ANo ClipsB is displayed.

Operation Buttons

Use the operation buttons on the side control panel of the

camera recorder to operate the thumbnail screen.

Thumbnail Screen

The thumbnail screen is available in “No Detailed Properties

(4x3 thumbnails)” and “Detailed Properties (4x1 thumbnails)”

displays.

Use the thumbnail menu [Detailed Properties] to switch

display. (APage 65)

The first frame of the recorded clip on the SDHC card is

displayed as the thumbnail.

Thumbnails are displayed in order of recording from the

oldest to most recent.

䡵

No Detailed Properties (4x3 Thumbnails)

Screen

Playing Back Recorded

Clips

Name Description

A[MENU] Button Displays the thumbnail screen menu.

Press this button to close the menu

screen during menu display and return

to the normal screen.

B[USER1] Button Appends (or deletes) an OK mark on

the selected clip.

C[USER2] Button Deletes the selected clip.

DSet (Play) Button Sets the values and items. (Confirm)

Plays back the selected clip.

ECross-Shaped

Button (JKH I)

J: Moves the cursor upward.

K: Moves the cursor downward.

H: Moves back to the previous item.

I: Moves forward to the next item.

(To enter sub-menus or display

pop-up menus.)

F[CANCEL] (Stop)

Button

Cancels settings and returns to the

previous screen.

Stops video playback.

Name Description

ACursor Indicates the selected clip. Use the cross-

shaped button (JKH I) to move the cursor.

After power is turned on and SDHC card is

inserted, or when the camera recorder is

switched to Media mode (SD Card mode),

the cursor is positioned on top of the latest

clip.

When the camera recorder changes to the

thumbnail screen during playback, the cursor

is positioned on the clip that was played

back. If you play back the same clip again, it

will continue from where it was left off.

The default position of the cursor when

SDHC card slot is switched is on the

previously selected clip before the switch.

䡵Example of the moving order of the cursor

(total 22 clips)

Scrolls

page

Playback

Thumbnail Screen (continued)

䡵No Detailed Properties (4x3

Thumbnails) Screen (continued)

Playing Back Recorded

Clips (continued)

Name Description

BSDHC Card Displays the status of the inserted SDHC

card, selected SDHC card, write-protect

switch, and the need for restoring.

Use the [SLOT SELECT] switch to switch

slots. Clips in slot A and B cannot be

displayed at the same time.

: Write-protect switch of the SDHC card

in slot A is set.

: SDHC card in slot B needs to be

restored or formatted, or is an

unsupported SDHC card.

CFile Format Shows the file format of the currently

displayed clips.

Only clips with the resolution (AHD

(MPEG2)B or ASD (DV)B) selected in [System

Definition] are displayed. (APage 75)

* Depends on the settings in [Record Set] B

[Record Format] B [File Format] on the

[Main Menu] screen. (APage 75)

Name Description

DVideo

Format

Displays the video format (Camera

Resolution/Frame Rate) that allows playback

and thumbnail display.

Five types including [1080/60i, 30p, 24p],

[1080/50i, 25p], [720/60p, 30p, 24p],

[720/50p, 25p], [480/60i] (U model) and

[576/50i] (E model). Clips of other video

formats are represented in alternative

display. Clips that are in alternative display

cannot be played back with the current video

format settings.

AA clip with corrupted management

information. It cannot be played back

even if you press the playback button.

A clip that cannot be played back nor

displayed in thumbnail with the current

video format settings. It cannot be played

back even if you press the playback

button. The format of the clip is displayed.

* Depends on the settings in [Record Set]

[Record Format]

[System Definition],

[Camera Resolution], and [Frame & Bit Rate]

items of the [Main Menu] screen.

(

Page 75)

ENumber of

Clips

Displays the [running number/total number of

clips] of the displayed clips.

FRemaining

Battery

Power

: Ample battery power.

: Slightly reduced battery power.

: Low battery power.

: Empty battery power. (Blinks in red)

: External power supply connected.

Memo :

●If the battery in use is not a recommended

one, the battery mark which indicates the

battery level may not appear.

GScroll Bar Indicates the scroll position.

When there is a black space below the scroll

bar (white), this indicates further pages.

When the scroll bar (white) is at the bottom,

this indicates the last page.

A B

Name Description

HThumbnail

Tex t

Displays the time code or date/time at the

start of clip recording. Date/time is displayed

in the local time of the shooting location.

Set whether to display ATCB or ADate/TimeB

in the thumbnail menu [Thumbnail Text].

(APage 65)

Data/time display depends on the settings in

[LCD/VF] B [Status Display] B [Date Style] of

the [Main Menu] screen. (APage 91)

Time is displayed in 24-hour display

regardless of the [Time Style] setting.

IClip Mark Displays clip information (properties).

AOK Mark

Clip is appended with OK mark.

Memo :

●Clips appended with OK marks cannot be

deleted on the camera recorder.

Continued From Mark

This mark indicates that the current clip is

continued from another SDHC card when

recording is divided and made on several

SDHC cards.

Continue Mark

This mark indicates that the current clip will

continue to another SDHC card when

recording is divided and made on several

SDHC cards.

JOperation

Guide

Guide for the current operation buttons.

Moves the clip cursor to the top/bottom/left/

right.

Plays back the selected clip.

Appends an OK mark to the selected clip.

This is displayed when an OK mark is not

appended to the clip. (APage 68)

Memo :

●This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the OK mark from the selected clip.

This is displayed when an OK mark is

appended to the clip. (APage 69)

Memo :

●This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the selected clip.

(APage 66)

Playback

Thumbnail Screen (continued)

䡵Detailed Properties (4x1 Thumbnails)

Screen

Playing Back Recorded

Clips (continued)

Name Description

ACursor Indicates the selected clip. Use the cross-

shaped button (H I) to move the cursor.

After power is turned on and SDHC card is

inserted, or when the camera recorder is

switched to Media mode (SD Card mode),

the cursor is positioned on top of the latest

clip.

When the camera recorder changes to the

thumbnail screen during playback, the cursor

is positioned on the clip that was played

back. If you play back the same clip again, it

will continue from where it was left off.

The default position of the cursor when

SDHC card slot is switched is on the

previously selected clip before the switch.

䡵

Example of the moving order of the cursor

(total 6 clips)

BScroll Bar Indicates the scroll position.

When there is a black space on the right of

the scroll bar (white), this indicates further

pages.

When the scroll bar (white) is at the right end,

this indicates the last page.

Scrolls page

Name Description

CDetailed

Properties

Shows the detailed properties of the selected

clip. The following information is displayed.

File Format : File format

Clip Name : Clip name

Resolution : Image size

Frame Rate : Frame rate

Bit Rate : Bit rate

Audio : Audio format

Start TC : Time code at the start of

recording

End TC : Time code at the end of

recording

Duration : Clip length

UB : User’s bit

Creation Date : Date created

Memo :

●The information of time and date displays

in the following order, Year, Month, Date,

Time, Minute, Second and Time zone.

●A-B is the break character between Year,

Month and Date for each, and A:B is the

break character between Time, Minute and

Second for each, and ATB is the break

character Date and Time.

●

displays behind Time when Time zone is

set to

UTC+00:00

(Time and date display example)

In case of AUTC+00:00B 21:18:50 on

March 4th in 2009 (Western European

time zone):

A2009-03-04T21:18:50ZB

In case of AUTC-05:00B 10:13:15 on

March 19th in 2009 (North American

Eastern time zone).

A2009-03-19T10:13:15-05:00B

Variable Frame : Variable frame (only in

Variable Frame Rec)

DOperation

Guide

Guide for the current operation buttons.

Moves the clip cursor to the left/right.

Plays back the selected clip.

Appends an OK mark to the selected clip.

This is displayed when an OK mark is not

appended to the clip. (APage 68)

Memo :

●This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the OK mark from the selected clip.

This is displayed when an OK mark is

appended to the clip. (APage 69)

Memo :

●This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the selected clip. (APage 66)

Playing Back

Use the operation buttons on the side control panel of the

camera recorder to play back.

Select the clip to play back on the thumbnail screen.

Select the clip to play back with the cross-shaped

button (JKH I).

2 Press the playback/pause button.

Playback of the selected clip starts.

䡵Time Code Playback

Time code or user’s bit recorded on an SDHC card can be

displayed on the LCD monitor and viewfinder.

Memo :

●When [HD/SD-SDI Out] in the [A/V Out] menu is set to

AHD-SDIB or ASD-SDIB, time code is also output from the

[HD/SD-SDI] output terminal. (APage 92)

●User’s bit output from the [HD/SD-SDI] output terminal is

used as a flag to determine valid video signals. Therefore,

accurate values will not be output.

●If a section without time code is played back, the time

code will stop. However, playback will continue.

Press the [MENU] button during thumbnail display to display

the thumbnail menu.

Press the [MENU] button during menu display to cancel the

settings and exit the menu.

Name Description

A Button Plays back/pauses the selected clip.

B Button Skips in the reverse or forward

direction.

Button Fast forwards in the reverse or forward

direction.

C Button Stops playback.

Thumbnail Menu

Item Function

Media info Displays the information screen of the SDHC

card.

Detailed

Properties

For selecting the display method of the

thumbnail screen.

If a check is selected, the thumbnail screen will be

displayed as [Detailed Properties (4x1 Thumbnail)

Screen]. (

Page 64)

Thumbnail Text For selecting the display method for the

thumbnail text on the thumbnail screen.

Displays the recording start time code at the

thumbnail text display area (below the thumbnail).

Date/Time

Displays the recording start date/time at the

thumbnail text display area (below the thumbnail).

Delete Clip For deleting clips. (APage 66)

One Clip Deletes the selected clip.

All Clips Deletes all clips that are displayed.

Main Menu... Opens the [Main Menu] screen. (APage 74)

Exit Exits and closes the menu.

Thumbnail Menu

Sub-Menu

Thumbnail Menu Screen

Playback

For deleting clips.

Memo :

●Clips appended with OK marks cannot be deleted on the

camera recorder.

●Read-only clips can be deleted on a PC.

Deleting One Clip

You can delete a selected clip with any of the following

operations.

APress [USER2] button when menu is not displayed.

BPerform [Delete Clip] B [One Clip] in thumbnail menu.

Memo :

●A clip cannot be deleted with the [USER2] button and

menu operation ([Delete Clip] B [One Clip]) under the

following situations.

●A clip with OK mark is selected.

●Write-protect switch of the SDHC card is set ( is

displayed).

䡵During Thumbnail Screen

䡵Deleting with [USER2] button

Select the clip to delete.

Select the clip to delete with the cross-shaped

button (JKH I).

2 Press the [USER2] button.

A screen to confirm deletion appears.

3 Select [Delete] using the cross-shaped button (JK),

and press the Set button (R).

Deleting starts.

Memo :

●

Button operations are unavailable during deletion. The

deleting operation cannot be canceled.

●

The cursor moves to the next clip (or previous clip if a next

clip does not exist) after deletion.

䡵Deleting with [Delete Clip] B [One Clip] in the

Select the clip to delete.

Select the clip to delete with the cross-shaped

button (JKH I).

2 Press the [MENU] button.

The thumbnail menu screen appears.

3 Select [Delete Clip] B [One Clip] and press the Set

button (R).

A screen to confirm deletion appears.

Deleting Clips

[CANCEL] Button

[USER2] Button

[MENU] Button

Set Button (R)

Cross-shaped

Button

(

JKH

)

4 Select [Delete] using the cross-shaped button (JK),

and press the Set button (R).

Deleting starts.

Memo :

●Button operations are unavailable during deletion. The

deleting operation cannot be canceled.

●The cursor moves to the next clip (or previous clip if a next

clip does not exist) after deletion.

䡵During Playback or Pause Screen

䡵Deleting with [USER2] button

Press [USER2] button during clip playback.

A screen to confirm deletion appears.

2 Select [Delete] and press the Set button (R).

Deleting starts.

Deleting All Clips

Deletes all clips that are displayed.

Press the [MENU] button.

The thumbnail menu screen appears.

2 Select [Delete Clip] B [All Clips] in the menu.

A screen to confirm deletion appears.

3 Select [Delete] and press the Set button (R).

Deleting starts.

Memo :

●Button operations are unavailable during deletion. The

deleting operation cannot be canceled.

●The time taken to delete clips depends on the number of

clips to be deleted.

Playback

You can append OK marks to the clips for important scenes.

Clips appended with OK marks cannot be deleted, thus

protecting the important clips.

When the camera recorder is in Media mode (SD Card

mode), you can delete the OK marks appended during

recording, or append/delete OK marks after shooting.

Appending OK Marks

䡵During Thumbnail Screen

1 Select a clip without an OK mark and press the

[USER1] button.

An OK mark is appended to the clip.

Memo :

●The [USER1] button is disabled (displayed in gray) and

OK marks cannot be appended when the write-protect

switch of the SDHC card is set ( is displayed).

●AOK Mark Added...B is displayed when changing marks

and other operations are unavailable.

䡵During Playback or Pause Screen

1 Press [USER1] button during clip playback.

An OK mark is appended to the clip.

Memo :

●The clip pauses when an OK mark is appended or deleted

during playback.

Appending and Deleting

OK Marks

[CANCEL] Button

[USER1] Button

[MENU] Button

Set Button (R)

Cross-shaped

Button

(

JKH

)

OK Mark

Deleting OK Marks

䡵During Thumbnail Screen

1 Select a clip to delete OK mark and press the [USER1]

button.

The OK mark is deleted.

Memo :

●The [USER1] button is disabled (displayed in gray) and

OK marks cannot be deleted when the write-protect

switch of the SDHC card is set ( is displayed).

●AOK Mark Added...B/AOK Mark Deleted...B is displayed

when changing marks and other operations are

unavailable.

䡵During Playback or Pause Screen

1 Press the [USER1] button when playing back a clip

appended with OK mark.

The OK mark is deleted.

Menu Display and Detailed Settings

Press the [MENU] button on the side control panel of the

camera recorder to display the menu screen on the LCD

monitor and viewfinder.

Various settings for shooting and playback can be configured

on the menu screen.

There are two types of menu screens - [Main Menu] and

[Favorites Menu].

[Main Menu] contains all the setting items of the camera

recorder, classified according to functions and uses, while

[Favorites Menu] allows users to customize the menu items

freely. (APage 98)

The operating procedures and main screen displays are the

same for both menus.

The menu screen can also be displayed on external monitors

connected to the video signal output terminal.

(A Page 92 [Analog Out Char.])

(A Page 92 [SDI Out Char.])

Operation Buttons

Use the operation buttons on the side control panel of the

camera recorder to operate the menu.

Display and Description of the Menu

Screen

䡵Selecting Menu Items

Basic Operations in Menu

Screen

Name Description

A[MENU] Button Displays the menu screen. ([Main

Menu] is displayed by default when

pressed.)

During normal usage, [Main Menu] is

displayed if the previous menu

operation ended at [Main Menu], and

[Favorites Menu] if the previous menu

operation ended at [Favorites Menu].

Press this button to close the menu

screen during menu display and return

to the normal screen.

B[USER1] Button Adds the selected menu or submenu

item to the [Favorites Menu].

(APage 98)

C[USER2] Button Resets settings in the [TC Preset] or

[UB Preset] setting screen. This button

is disabled in other screens.

DSet Button (R)Sets the values and items.

Name Description

ECross-shaped

Button (JKH I)

J : Moves the cursor upward.

K : Moves the cursor downward.

H : Moves back to the previous item.

I : Moves forward to the next item.

F[CANCEL] Button Cancels settings and returns to the

previous screen.

G[STATUS] Button Switches between the [Main Menu] and

[Favorites Menu] screens.

Name Description

AStatus Display Recording, playback, etc. Displays the

current status.

Same display as the status screen.

䡵During Camera mode :

[STBY], [REC], etc. (APage 102)

䡵

During Media mode (SD Card mode) :

[PLAY], [STILL], etc. (APage 109)

BCursor Indicates the selected item. Use the cross-

shaped button (JK) to move the cursor.

CMenu Item Displays the names of the menu item and

sub-menu.

Menu items with [...] after them indicates

that there is a sub-menu to access.

DFixed Item Items that cannot be changed are displayed

in gray and cannot be selected.

E[Back] Back Select [Back] and press the Set button (R)

to return to the previous level.

FMenu Title Title of the currently displayed menu.

GRemaining

Battery Power

: Ample battery power.

: Slightly reduced battery power.

: Low battery power.

: Empty battery power. (Blinks in red)

: External power supply connected.

Memo :

●If the battery in use is not a

recommended one, the battery mark

which indicates the battery level may not

appear.

䡵Changing Setting Values

Text Input with Software Keyboard

Use the software keyboard to enter the [Scene File]/

[Picture File] subname and [Clip Name Prefix].

䡵

[Scene File]/[Picture File] (

Page 120)

䡵[Clip Name Prefix] (APage 76)

Name Description

HHeader Indicates the current menu type with the

line color.

Blue : [Main Menu] Screen

Green : [Favorites Menu]

(Operation screen)

Magenta : [Favorites Menu]

(Editing screen)

IScroll Bar Indicates the scroll position.

JSetting Values Setting values for the menu items.

For menus with sub-menus, values are not

displayed.

KOperation

Guide

Guide for the current operation buttons.

Name Description

AMenu Item to

Change

Menu item to be changed.

A list of setting values C appears in

a pop-up.

BOperation Guide Guide for the current operation

buttons.

CList of Setting

Values

A pop-up displaying a list of setting

values for selection.

The height of the pop-up depends

on the number of settings available.

Use the scroll bar D to confirm the

current display status.

DScroll Bar Indicates the scroll position.

ECursor Indicates the selected item. Use the

cross-shaped button (JK) to move

the cursor.

FSetting Values

Before Change

Setting values before changing.

R appears at the beginning of the

item.

Name Description

ACharacter Entry

Field

Field for entering the title.

You can enter up to 8 characters for the

[Scene File]/[Picture File] subname or up

to 4 characters for the [Clip Name Prefix].

BCharacter

Cursor

Select a character using the key cursor D,

and press the Set button (R) to input the

selected character at the position of the

character cursor. The character cursor

moves to the next position on the right

each time a character is input.

The cursor can be moved using the arrow

keys F.

CCharacter Keys Use the cross-shaped button (JKH I) to

move the key cursor D to the character

you want to enter.

DKey Cursor Indicates the currently selected character

or item. Use the cross-shaped button

(JKH I) to move the cursor.

EConfirmation

Buttons

Select [Set]/[Store] and press the Set

button (R) to confirm the title.

Select [Cancel] and press the Set button

(R) on the side control panel of the camera

recorder to abort character input and

return to the previous screen.

FArrow Keys Moves the position of the character cursor

G[BS] Backspace

Key

Select [BS] and press the Set button (R)

on the side control panel of the camera

recorder to delete the character on the left

of the character cursor B.

H[SP] Space Key Select [SP] and press the Set button (R)

on the side control panel of the camera

recorder to enter a space at the current

position of the character cursor B.

Menu Display and Detailed Settings

Memo :

●A [Back] item (omitted in the chart) can be found at the end of each menu item. Select [Back] and press the Set button (R) to

return to the previous level.

Menu Screen Hierarchical

Chart

Main Menu... (APage 74)

Record Set... (APage 75) Record Format... (APage 75) System Definition

File Format

Camera Resolution

Frame & Bit Rate

Aspect Ratio

Rec Mode... (APage 76) Frame Rate

Pre Rec Time

Clip Set... (APage 76) Clip Name Prefix

Reset Clip Number

Audio Set... (APage 77) Input1 Mic Ref.

Input2 Mic Ref.

Mic Wind Cut

Audio Ref. Level

Camera Function... (APage 78) Bars Audio Limiter

Shutter Test Tone

AE LEVEL

AE Speed

ALC Limit

Auto Iris Limit (OPEN)

Auto Iris Limit (CLOSE)

EEI Limit

Smooth Trans

Switch Set... (APage 79)

FULL AUTO... (APage 81)

Camera Process... (APage 82) Detail Adjust... (APage 84)

Master Black

Black Toe

Knee

White Clip

Gamma

White Balance... (APage 85)

Color Matrix Adjust...(APage 86)

Color Gain

DNR

Reverse Picture

Reset Process

Memo :

●A [Back] item (omitted in the chart) can be found at the end of each menu item. Select [Back] and press the Set button (R) to

return to the previous level.

TC/UB... (APage 88) TCG Source

TC Preset

UB Preset

Drop

LCD/VF... (APage 88) Shooting Assist... (APage 89)

Marker Setting... (APage 90)

Status Display... (APage 90)

LCD + VF

VF Display

LCD Mirror Mode

A/V Out... (APage 92) Output Terminal

Set Up

HD/SD-SDI Out

Down Convert

Analog Out Char.

SDI Out Char.

Audio Monitor

Others... (APage 93)Alarm Level

Genlock Input

Genlock Adjust... (APage 96)

Return Input

Return Aspect

Tally System

Front Tally

Back Tally

1394 Rec Trigger

1394 Auto Power Off

Mode LED

Reset All

Date/Time

Time Zone

System Information

Media... (APage 97) Format Media

Restore Media

Setup File Manage... (APage 97) Load File...

Store File...

Reset File...

Menu Display and Detailed Settings

Some menus cannot be set depending on the operating mode or status of the camera recorder. These items are displayed in

gray, and they cannot be selected.

Main Menu Screen

Item Function

Record Set... Menu screen for specifying video or audio settings during shooting and playback.

The cursor does not move to this item during recording or in Media mode. (APage 75)

Camera Function... Menu screen for specifying operation settings during shooting.

The cursor moves to this item only in Camera mode. (APage 78)

Camera Process... Menu screen for adjusting the quality of camera images.

The cursor does not move to this item in the AUX and Media modes. (APage 82)

TC/UB... Menu screen for setting time code and user’s bit.

The cursor does not move to this item during recording. (APage 88)

LCD/VF... Item for specifying settings related to the LCD monitor or viewfinder screen.

This menu screen can be used to specify settings related to the Focus Assist mode, zebra pattern display, screen

size, marker, and safety zone. In addition, it is also used for selecting whether to display characters on the LCD

monitor or viewfinder screen, as well as for adjusting the picture quality of the LCD monitor screen.

The cursor does not move to this item in Media mode. (APage 88)

A/V Out... Item for specifying connection settings with external devices. (APage 92)

Others... Menu screen for specifying the settings of other functions.

Use this item to adjust the alarm volume, front/back tally lamp settings, status indicator, 1394 input settings, genlock

input and return video input settings, date/time, time zone, and other settings. It can also be used to reset the menu

settings to their default values. (APage 93)

Media... Item for formatting or restoring the SDHC card. (APage 97)

Setup File Manage... Displays the [Setup File Manage] menu screen.

Settings of the menu screen can be saved as a file on the camera recorder or an SDHC card, and the saved

settings can be loaded when necessary.

The cursor does not move to this item during recording or in Media mode. (APage 97)

Exit Select this item and press the Set button (R) to return to the normal screen.

Record Format Menu

After setting of all items in the [Record Format] menu is complete, select [Set] at the bottom of the screen to apply the new

settings on the camera recorder and switch the record format. A APlease WaitB message appears during switching.

* Default values are indicated in bold characters.

Record Set Menu

Item Setting Values Function

System Definition HD (MPEG2)

SD (DV)

For selecting a system definition.

HD (MPEG2) : Records in HD (High Definition) quality.

SD (DV) : Records in SD (Standard Definition) quality.

Note :

●The selectable options for the [File Format], [Camera Resolution], and

[Frame & Bit Rate] settings vary depending on the setting of this item.

●When the [GENLOCK/AUX] switch is set to AAUXB, this item is fixed at ASD

(DV)B. (U model)

File Format For selecting the format of the file to be recorded to the SDHC card.

When [System Definition] is

AHD (MPEG2)B

QuickTime

MP4

When [System Definition] is ASD

(DV)B

QuickTime

AVI

Camera Resolution 1920x1080

1440x1080

1280x720

720 x 480

720 x 576

For setting the size of the recorded image when [System Definition] is set to

AHD (MPEG2)B. (Horizontal x vertical)

Memo :

●When [System Definition] is set to ASD (DV)B, this item is fixed as follows for

the different models.

●U model : 720 x 480

●E model : 720 x 576

●The selectable values of [Frame & Bit Rate] vary according to the setting of

this item.

Frame & Bit Rate For setting the frame rate and encoding bit rate when [System Definition] is set

to AHD (MPEG2)B.

Selection can be made from 19 combinations of frame rate (60p, 50p, 30p, 25p,

24p, 60i, 50i) and bit rate (HQ (35Mbps) VBR), (SP (25 Mbps/19 Mbps) CBR).

Memo :

●When [System Definition] is set to ASD (DV)B, this item is fixed as follows for

the different models.

●U model : 60i

●E model : 50i

●The selectable items vary according to the [File Format] and

[Camera Resolution] settings.

When [Camera Resolution] is

A1280x720B

60p (HQ) (U model),

60p (SP), 30p (HQ), 30p

(SP),

50p (HQ) (E model),

50p (SP), 25p (HQ), 25p

(SP), 24p (HQ), 24p (SP)

When [Camera Resolution] is

A1440x1080B, and [File Format]

is AQuickTimeB

60i (HQ) (U model),

60i (SP),

50i (HQ) (E model),

50i (SP)

When [Camera Resolution] is

A1440x1080B, and [File Format]

is AMP4B

60i (SP) (U model),

50i (SP) (E model)

When [Camera Resolution] is

A1920x1080B

60i (HQ) (U model),

30p (HQ),

50i (HQ) (E model),

25p (HQ), 24p (HQ)

Aspect Ratio 16:9

4:3

For setting the aspect ratio of the recorded image when [System Definition] is

set to ASD (DV)B.

Memo :

●When [System Definition] is set to AHD (MPEG2)B, this item is fixed at

A16:9B.

Menu Display and Detailed Settings

Rec Mode Menu

Clip Set Menu

* Default values are indicated in bold characters.

Record Set Menu

(continued)

Item Setting Values Function

Rec Mode Normal

Pre Rec

Clip Continuous

Variable Frame

For selecting the record mode for recording to the SDHC card. (APage 58)

Memo :

●[Variable Frame] is selectable when [Camera Resolution] is set to

A1280x720B, and [Frame & Bit Rate] is set to A30p (HQ)B, A24p (HQ)B, or

A25p (HQ)B.

Frame Rate For setting the recording [Frame Rate] when [Rec Mode] is set to

[Variable Frame].

Memo :

●

When [AE LEVEL] in the [Main Menu]

[Camera Function]

[Switch Set]

menu is set to

AE LEVEL/VFR

, you can use the cross-shaped button (

)

to select the frame rate during Variable Frame Rec. In modes other than

Variable Frame Rec, the cross-shaped button (

) functions as the [AE

LEVEL] setting button. (

Page 80)

●

When [Frame Rate] is changed and the shutter speed becomes a value that is

invalid for the current [Frame Rate], the shutter speed is automatically

changed to match the current [Frame Rate].

When [Frame & Bit Rate] is

A30p (HQ)B

60, 48, 40,

30,

24, 20, 15, 12, 10

When [Frame & Bit Rate] is

A24p (HQ)B

60, 48, 40, 30,

24,

20, 15, 12, 10

When [Frame & Bit Rate] is

A25p (HQ)B

50, 40,

25,

20, 15, 12.5, 10

Pre Rec Time 5sec,

10sec, 20sec

For setting the pre-recording time when [Rec Mode] is set to APre RecB.

Item Setting Values Function

Clip Name Prefix xxxG

(The default value of xxx

is the last three digits of

the serial number.)

For setting the first four characters of the name of the clip file to be recorded to

the SDHC card.

Enter any of the 38 characters including alphabets (upper case), numbers

(0 to 9), “_” (underscore), and “-” (hyphen) using the software keyboard.

(A Page 71 [Text Input with Software Keyboard])

Reset Clip Number ^For assigning a new number to (Clip Number) by resetting it (0001). Select

[Reset] and press the Set button (R) to reset the number.

When other clips exist on the SDHC card, the smallest available number is

used after reset.

Example: If the [Clip Name Prefix] is AABCDB, and AABCD0001B already

exists on the SDHC card, AABCD0002B will be assigned.

Audio Set Menu

Item Setting Values Function

Input1 Mic Ref. -50dB

-60dB

For setting the reference input level when the [AUDIO INPUT1] button is set to AMICB or

AMIC+48VB.

-50dB : Sets -50 dB as the reference value.

-60dB : Sets -60 dB as the reference value.

Input2 Mic Ref. -50dB

-60dB

For setting the reference input level when the [AUDIO INPUT2] button is set to AMICB or

AMIC+48VB.

-50dB : Sets -50 dB as the reference value.

-60dB : Sets -60 dB as the reference value.

Mic Wind Cut Both

Input2

Input1

Off

For selecting whether to cut the low frequencies of the audio input signals (low-cut) when

the [AUDIO INPUT 1/2] button is set to AMICB or AMIC+48VB. Set this item to reduce wind

noise from the microphone.

Both : Enables low-cut on both the [INPUT1] and [INPUT2] terminals.

Input2 : Enables low-cut on the audio of the [INPUT2] terminal only.

Input1 : Enables low-cut on the audio of the [INPUT1] terminal only.

Off : Disables low-cut.

Audio Ref. Level -12dB

-20dB

For setting the audio reference level to be recorded to the SDHC card. (Applies to both

[CH1/CH2].)

-20dB : Outputs signals of the reference level when the meter is at -20 dBFS.

-12dB : Outputs signals of the reference level when the meter is at -12 dBFS.

Audio Limiter On

Off

For specifying whether to trigger the limiter when the [AUDIO SELECT CH-1/CH-2] switch

is set to AMANUALB.

On : Triggers the limiter when excessive audio signals are input, and compresses the

recording level.

Off : Does not trigger limiter.

Test Tone On

Off

For specifying whether to output the audio test signals (1 kHz) during color bar output.

On : Audio test signals are output.

Off : Audio test signals are not output.

Menu Display and Detailed Settings

* Default values are indicated in bold characters.

Camera Function Menu

Item Setting Values Function

Bars On

Off

For setting whether to output color bars.

On : Color bars are output.

Off : Color bars are not output.

Memo :

●When the [FULL AUTO] switch on the camera recorder is set to AONB, and [Bars] in the

[FULL AUTO] menu is set to AOffB, this item is set to AOffB automatically. (APage 81)

Shutter EEI

Variable

Step

For specifying shutter-related settings.

Use this item to set to AStepB (fixed value) or AVariableB when operating with the cross-

shaped button (JK) on the right of the camera recorder. During automatic control, this is

set to AEEIB.

EEI : Sets to automatic control.

Variable : Sets to variable scan. Use this setting such as when shooting a PC monitor.

Step : Sets to step shutter, which switches the shutter speed by a fixed value.

AE LEVEL +3 to +1,

Normal,

-1 to -3

For setting the convergence level during AE (Auto Exposure).

This can also be adjusted using the cross-shaped button (H I) on the right of the camera

recorder.

AE Speed Fast

Middle

Slow

For setting the convergence speed during AE (Auto Exposure).

ALC Limit 18dB

12dB

6dB

For setting the maximum gain value of AALCB, which electrically boosts the sensitivity level

according to the brightness automatically.

18dB : Sets the maximum ALC gain value to +18 dB.

12dB : Sets the maximum ALC gain value to +12 dB.

6dB : Sets the maximum ALC gain value to +6 dB.

Auto Iris Limit

(OPEN)

F5.6, F4, F2.8, F2,

F1.6,

F1.4

For setting the limit value of the OPEN end when auto iris is enabled.

Auto Iris Limit

(CLOSE)

F16,

F11,

F8, F5.6,

For setting the limit value of the CLOSE end when auto iris is enabled.

EEI Limit 4F-stop

3F-stop

2F-stop

For setting the shutter speed control range when EEI is enabled.

4F-stop : Moves iris control by 4 f/stops in EEI.

3F-stop : Moves iris control by 3 f/stops in EEI.

2F-stop : Moves iris control by 2 f/stops in EEI.

Smooth Trans Fast

Middle

Slow

Off

For setting the shock reduction function, which slows down the sudden change when

switching with the [GAIN] or [WHT.BAL.] selection switch.

However, this function is disabled when the [FULL AUTO] switch of the camera recorder is

set to AONB, or when switching the gain selection switch while AALCB is set.

Fast : Runs the Smooth Trans function at high speed.

Middle : Runs the Smooth Trans function at medium speed.

Slow : Runs the Smooth Trans function at low speed.

Off : Deactivates the Smooth Trans function.

Switch Set... For specifying the switch settings of the camera recorder. (APage 79)

FULL AUTO... For specifying settings when the [FULL AUTO] switch of the camera recorder is set to AONB. (APage 81)

Switch Set Item

* Default values are indicated in bold characters.

Item Setting Values Function

FAW None

PRESET

For assigning the FAW (Fulltime Auto White Balance) function to a position on the [WHT.BAL.]

selection switch.

This is fixed at AFAWB when the [FULL AUTO] switch of the camera recorder is set to AONB.

None : FAW function is not assigned.

PRESET : Assigns FAW to the PRESET position.

A : Assigns FAW to the A position.

B : Assigns FAW to the B position.

GAIN L

GAIN M

GAIN H

ALC, 18dB, 15dB,

12dB, 9dB, 6dB, 3dB,

0dB

For setting the gain value of each position on the [GAIN] selection switch.

This is fixed at AALCB when the [FULL AUTO] switch of the camera recorder is set to AONB.

(Default values GAIN L: 0dB, GAIN M: 9dB, GAIN H: 18dB)

USER1

USER2

USER3

By assigning one of the following functions to each of the [USER1]/[USER2]/[USER3] buttons, these buttons can be

used to control the assigned function (on/off, start, switch).

Set according to the shooting conditions. Functions can be assigned only in Camera mode (except AUX mode).

(Default values USER1: Bars, USER2: B.Stretch3, USER3: Load File)

Setting Values Description

None No function is assigned.

Bars Assigns the function of [Bars] in the [Camera Function] menu. (APage 78)

Load File Assigns the function of [Load File] in the [Setup File Manage] menu. (APage 97)

Clip Review Assigns the Clip Review function. (APage 56)

B.Stretch1

B.Stretch2

B.Stretch3

B.Stretch4

B.Stretch5

B.Compress1

B.Compress2

B.Compress3

B.Compress4

B.Compress5

Assigns the functions of [Stretch Level] and [Compress Level] under [Black Toe] in the

[Camera Process] menu. (APage 82)

LENS RET Clip Review

OK Mark

Focus Assist

Return

For assigning a function to the [RET] button on the lens. This function does not work if the [RET]

button is not available on the lens in use.

Clip Review : Assigns the Clip Review function to the [RET] button. (APage 56)

OK Mark : Assigns the OK mark function to the [RET] button. This function operates during

shooting. (APage 58)

Focus Assist : Assigns the Focus Assist function to the [RET] button. (APage 37)

Return : Assigns the return video display function to the [RET] button. (APage 128)

Clip Review Last 5 sec

To p 5 se c

CLIP

For specifying the operation when [LENS RET] is set to AClip ReviewB.

Last 5 sec : Views about 5 seconds of the clip from the ending.

Top 5 sec : Views about 5 seconds of the clip from the beginning.

CLIP : Views the entire clip.

Memo :

●Selectable when [LENS RET] is set to AClip ReviewB, or when any of the [USER1]/[USER2]/

[USER3] buttons is set to AClip ReviewB.

Menu Display and Detailed Settings

* Default values are indicated in bold characters.

Camera Function Menu

(continued)

Item Setting Values Function

SKIN A./SPOT M. Skin Area

Spot Meter

For assigning the function of the [SKIN AREA/SPOT METER] switch on the camera recorder.

Skin Area : Assigns the Skin Detail function and its area display.

Spot Meter : Assigns the Spot Meter display function.

Memo :

●When ASkin AreaB is selected, [Skin Detect] is forcibly set to AOnB when the [SKIN AREA/

SPOT METER] switch is flipped, even if [Skin Detect] is set to AOffB. Alternatively, you can set

[Skin Detect] to AOffB, and turn the Skin Detail function On/Off by flipping the lever whenever

necessary. (APage 84)

SPOT METER Max&Min

Min

Max

Manual

For specifying the operation of [Spot Meter]. (APage 55)

Max&Min : Displays the brightest and darkest areas of the image.

Min : Displays the darkest area of the image.

Max : Displays the brightest area of the image.

Manual : Displays the image brightness at a specified position.

Memo :

●This item is selectable when [SKIN A./SPOT M.] is set to ASpot MeterB. When ASkin AreaB is

set, this item appears as A---B and cannot be selected.

●Positions are detected automatically when this item is set to AMax&MinB, AMinB, or AMaxB.

When set to AManualB, it functions in a fixed position.

AE LEVEL AE LEVEL/VFR

AE LEVEL

Disable

For specifying the operation of the cross-shaped button (H I) on the right of the camera

recorder.

AE LEVEL/VFR: Sets the number of frames during Variable Frame Rec, and operates as the

AE LEVEL setting button in other cases. (APage 60)

AE LEVEL : Operates as the AE LEVEL setting button at all times.

Disable : Disables the button.

FULL AUTO Item

This is used to set specific functions to the auto mode when the [FULL AUTO] switch of the camera recorder is set to AONB.

Item Setting Values Function

Gain SW Set

ALC

SW Set : Sets gain according to the [GAIN] selection switch.

ALC : Sets gain to the AALCB (forced auto) mode.

Memo :

●When the remote control unit comes with an FAS function, this is fixed at AALCB and cannot

be selected. (APage 131)

Iris Control Off

Auto

Off : Iris control is not performed.

Auto : Sets iris control to the forced auto mode.

Memo :

●When the remote control unit comes with an FAS function, this is fixed at AAutoB and cannot

be selected. (APage 131)

●When the iris mode switch of the lens is set to AAB (auto), the iris is fixed at the point of time

when this item is switched from AAutoB to AOffB.

Shutter SW Set

EEI

SW Set : Sets shutter according to the switch.

EEI : Sets shutter to the forced auto mode.

Memo :

●When the remote control unit comes with an FAS function, this is fixed at AEEIB and cannot

be selected. (APage 131)

White Balance SW Set

FAW

SW Set : Sets white balance according to the [WHT.BAL.] selection switch.

FAW : Sets white balance to the forced auto mode.

Memo :

●When the remote control unit comes with an FAS function, this is fixed at AFAWB and cannot

be selected. (APage 131)

Bars Menu Set

Off

Menu Set : Sets color bar output according to the menu settings (via switch operation).

Off : Sets color bar output to the forced Off mode.

Memo :

●When the remote control unit comes with an FAS function, this is fixed at AOffB and cannot be

selected. (APage 131)

Audio SW Set

Auto

SW Set : Sets the audio recording level according to the switch.

Auto : Sets the audio recording level to the forced auto mode.

Menu Display and Detailed Settings

* Default values are indicated in bold characters.

Camera Process Menu

Item Setting Values Function

Detail Max, 9 to 1,

Normal,

-1 to -9, Min, Off

For adjusting the contour (detail) enhancement level.

Increase the number : Sharpens the contour.

Decrease the number : Softens the contour.

Off : Disables this function.

Adjust... For specifying the detailed settings of the contour (detail). (APage 84)

Memo :

●This item cannot be selected when [Detail] is set to AOffB.

Master Black Max, 9 to 1,

Normal,

-1 to -9, Min

For adjusting the pedestal level (master black) that serves as the reference black.

Increase the number : Raises the pedestal level.

Decrease the number : Lowers the pedestal level.

Black Toe Compress

Stretch

Normal

For altering the gain of dark areas. Adjust this item according to the condition of the captured

video signals.

Compress : Compresses the gain of dark areas to increase the contrast when the entire image

appears bright and contrast is weak. Specify the compression amount with

[Compress Level].

Stretch : Increases the gain of dark areas in an image to stretch the signals of these areas

only, thereby showing the contrast between bright and dark areas more clearly.

Specify the stretch amount with Stretch Level.

Normal : Normal condition.

Stretch Level Level 5

Level 4

Level 3

Level 2

Level 1

Stretch amount increases when a larger value is specified.

Memo :

●This item is displayed only when [Black Toe] is set to AStretchB. Otherwise, this item appears

as A---B and cannot be selected.

Compress

Level

Compression amount increases when a larger value is specified.

Memo :

●This item is displayed only when [Black Toe] is set to ACompressB. Otherwise, this item

appears as A---B and cannot be selected.

Point Level 15% to 11%

10%,

9% to 5%

For specifying the luminance point at which the dark area is to be stretched or compressed.

Memo :

●When [Black Toe] is set to ANormalB, this item appears as A---B and cannot be selected.

Knee Manual

Auto

For specifying the AKneeB operation, which compresses video signals beyond a certain level to

show the gradation of the highlighted portion. To check the gradation of a bright area, set to

AManualB and adjust the knee point manually.

Manual : Enables manual adjustment of the knee point (starting point of knee operation) using

ALevelB.

Auto : Adjusts the knee point (starting point of knee operation) automatically according to the

luminance level.

Level 100%

95%, 90%, 85%,

80%, 75%, 70%

For setting the starting point of knee compression (knee point).

Increase the number : Increases the knee point level.

Decrease the number : Decreases the knee point level.

Memo :

●When [Knee] is set to AAutoB, this item appears as A---B and cannot be selected.

Sensitivity Fast

Middle

Slow

For setting the response speed of the AKneeB operation when [Knee] is set to AAutoB.

Set to ASlowB when shooting an object under a condition where there is drastic change in the

light intensity.

Memo :

●When [Knee] is set to AManualB, this item appears as A---B and cannot be selected.

* Default values are indicated in bold characters.

Item Setting Values Function

White Clip 100%

108%

For setting the point to apply white clip for input video signals with a high luminance level.

100% : Applies white clip at the point where the luminance level is 100 %. Even when this

item is set to A108%B, it switches automatically to A100%B if the screen appears too

white. Set to this value when the system in use limits Y output signals within 100 %.

108% : Applies white clip at the point where the luminance level is 108 %.

Gamma Film Out

Cinema

Standard

Off

For adjusting the gamma curve that determines the gradation expression.

Film Out : Sets to a gamma curve that focuses on the gradation expression of dark areas in

order to ease post-processing of movie film output.

Cinema : Sets to a gamma curve with similar gradation to the screen characteristics of movies.

Standard : Sets to a standard gamma curve.

Off : Disables gamma curve adjustment.

Master Level Max, 4 to1,

Normal,

-1 to -4, Min

This item can be specified separately when [Gamma] is set to AStandardB, ACinemaB, or AFilm

OutB.

Increase the number : Enhances the gradation of black. However, the gradation of bright areas

deteriorates.

Decrease the number : Enhances the gradation of bright areas. However, the gradation of black

deteriorates.

Memo :

●When [Gamma] is set to AOffB, this item appears as A---B and cannot be selected.

R Level Max, 4 to1,

Normal,

-1 to -4, Min

Gamma curves can be adjusted for each of R, G, and B.

Use this to adjust to a color tone that cannot be expressed by the [Color Matrix] setting.

Memo :

●When [Gamma] is set to AOffB, this item appears as A---B and cannot be selected.

G Level

B Level

White Balance... Menu for adjusting white balance. (APage 85)

Color Matrix Cinema Subdued

Cinema Vivid

Standard

Off

For setting the color matrix.

Cinema Subdued : Sets to a subdued color matrix that is similar to the screen

characteristics of movies.

Cinema Vivid : Sets to a vivid color matrix that is similar to the screen characteristics of

movies.

Standard : Sets to a standard color matrix.

Off : Sets the color matrix function to Off.

Adjust... This item is used to adjust [Color Matrix] to a color according to the user’s preference.

This item cannot be selected when [Color Matrix] is set to AOffB. (APage 86)

Color Gain Off, Min, -1 to -9,

Normal

9 to 1, Max

For adjusting the video signal color level.

Off : Sets the video to black-and-white.

Increase the number : Makes the colors more dense.

Decrease the number : Makes the colors less dense.

Memo :

●Images are displayed in black-and-white when this is set to AOffB.

DNR On

Off

For setting the DNR (Digital Noise Reduction) function. The S/N ratio of the video can be

enhanced by setting [DNR] to AOnB.

On : Enables noise reduction.

Off : Disables noise reduction.

Memo :

●A retained image may appear when this is set to AOnB.

Reverse Picture Rotate

Off

For recording images correctly by reversing the image horizontally or vertically (Rotate) when

the lens image appears upside down or laterally inverted.

Rotate : Enables horizontal/vertical inversion of the image.

Off : Disables horizontal/vertical inversion of the image.

Reset Process ^Restores all items in the [Camera Process] menu to their default settings.

Menu Display and Detailed Settings

Detail/Adjust... Item

* Default values are indicated in bold characters.

Camera Process Menu

(continued)

Item Setting Values Function

V/H Balance H-Max, 4 to1,

Normal,

-1 to -4, H-Min

For setting the H/V balance to enhance contour (detail) in the horizontal (H) or vertical (V)

direction.

Increase the number : Enhances contour in the horizontal direction.

Decrease the number : Enhances contour in the vertical direction.

H Frequency High

Middle

Low

For specifying the correction frequency of the horizontal contour. Set this according to the object.

High : Emphasizes the high frequency range. Use this when shooting objects with fine

patterns.

Middle : Emphasizes the intermediate frequency range.

Low : Emphasizes the low frequency range. Use this when shooting objects with large

patterns.

V Frequency High

Low

For specifying the correction frequency of the vertical contour. Set this according to the object.

Low : Emphasizes the low frequency range.

High : Emphasizes the high frequency range.

Memo :

●This item can only be selected when [Camera Resolution] of [Record Format] in the

[Record Set] menu is set to A1280x720B. (APage 75)

Skin Detect On

Off

For turning On/Off the Skin Detail function, which is used to adjust the contour correction effect

of the colors captured by the [Skin Color Adjust] menu.

On : Enables the Skin Detail function. (Softens the detail at areas where skin tone is

detected.)

Off : Disables the Skin Detail function.

Memo :

●Even if [Skin Detect] is set to AOffB, [Skin Detect] is forcibly set to AOnB when the

[SKIN AREA/SPOT METER] switch is flipped. Alternatively, you can set [Skin Detect] to AOffB,

and turn the Skin Detail function On/Off by flipping the lever whenever necessary.

Level -3

-2

-1

For setting the level of contour correction (degree of softening) using the Skin Detail function.

-3 : High level of contour correction (degree of softening)

-2 : Medium level of contour correction (degree of softening)

-1 : Low level of contour correction (degree of softening)

Skin Color

Adjust...

For setting the Skin Detail function. (APage 114)

Skin Color

Detect

Execute

Stop

For capturing the skin color.

Execute : Captures the color that triggers the Skin Detail function.

Stop : Disables capturing of the color that triggers the Skin Detail function.

Skin Color

Range

Wide, 9 to 1,

Normal,

-1 to -9, Narrow

For adjusting the range of skin tone to trigger the Skin Detail function. Adjust accordingly while

checking the color range visually.

Increase the number : Widens the range.

Decrease the number : Narrows the range.

Memo :

●When [Color Gain] in the [Camera Process] menu is set to AOffB, only the area where Skin

Detail is functioning is displayed in skin tone. (APage 83)

White Balance Item

* Default values are indicated in bold characters.

Item Setting Values Function

Preset Temp. 2800K, 3200K,

3400K, 4200K,

4800K, 5200K,

5600K, 6500K,

7500K

For setting the color temperature when the [WHT.BAL.] selection switch of the camera recorder

is set to APRESETB.

Alternative Temp. 2800K, 3200K,

3400K, 4200K,

4800K, 5200K,

5600K, 6500K,

7500K

For setting the alternative color temperature in the Preset mode.

When the [WHT.BAL.] switch of the camera recorder is set to APRESETB, pressing the [AWB]

button each time switches the color temperature setting in the Preset mode.

([Preset Temp.] 1 [Alternative Temp.])

White Paint R Max, 30 to 1,

Normal,

-1 to -31, Min

For adjusting the R (red) component in the AWB (Auto White Balance) mode.

Increase the number : Strengthens the red.

Decrease the number : Weakens the red.

Memo :

●This item is selectable when the [WHT.BAL.] selection switch on the right of the camera

recorder is set to AAB or ABB. When APRESETB is set, this item appears as A---B and cannot

be selected.

●Different values can be specified for AAB and ABB.

●After the [AWB] (Auto White Balance) button is pressed to readjust the white balance while

[Clear Paint After AWB] set to AOnB, [White Paint R] switches automatically to ANormalB.

White Paint B Max, 30 to 1,

Normal,

-1 to -31, Min

For adjusting the B (blue) component in the AWB (Auto White Balance) mode.

Increase the number : Strengthens the blue.

Decrease the number : Weakens the blue.

Memo :

●This item is selectable when the [WHT.BAL.] selection switch on the right of the camera

recorder is set to AAB or ABB. When APRESETB is set, this item appears as A---B and cannot

be selected.

●Different values can be specified for AAB and ABB.

●After the [AWB] (Auto White Balance) button is pressed to readjust the white balance while

[Clear Paint After AWB] set to AOnB, [White Paint B] switches automatically to ANormalB.

Clear Paint After

AWB

Off

For specifying whether to clear the [White Paint R]/[White Paint B] settings after executing AWB

(Auto White Balance).

On : [White Paint R]/[White Paint B] are set to ANormalB after executing AWB.

Off : [White Paint R]/[White Paint B] are not changed after executing AWB.

Shading Mode Manual

Preset

For specifying white shading adjustment settings. (APage 44)

Preset : Sets white shading adjustment to a fixed level. Manual adjustment is disabled.

Manual : Enables manual white shading adjustment.

Adjust... For making white shading adjustments.

Memo :

●This item cannot be selected when [Shading Mode] is set to APresetB.

Menu Display and Detailed Settings

Shading Mode/Adjust Item

* Default values are indicated in bold characters.

●

This item is selectable only when [Shading Mode] is set to

Manual

. [R Level], [G Level], and [B Level] cannot be selected when

this is set to

Preset

●

The screen switches to a color display, and the displays for Bars, Zebra and the Focus Assist mode are temporarily set to

OFF

while the

B & W

mode in the [VF Display] menu temporarily switches to

Color

Color Matrix/Adjust Item

This item is used to adjust [Color Matrix] to a color according to the user’s preference.

The adjusted values of AStandardB, ACinema VividB, and ACinema SubduedB in [Color Matrix] can be stored individually.

(APage 83)

Camera Process Menu

(continued)

Item Setting Values Function

R Level Max, 126 to 1,

Normal,

-1 to -127, Min

For adjusting the red level of white shading when [Shading Mode] is set to AManualB.

Increase the number : Decreases the red level at the bottom of the screen, and increases the

red level at the top of the screen.

Decrease the number : Decreases the red level at the top of the screen, and increases the red

level at the bottom of the screen.

G Level Max, 126 to 1,

Normal,

-1 to -127, Min

For adjusting the green level of white shading when [Shading Mode] is set to AManualB.

Increase the number : Decreases the green level at the bottom of the screen, and increases

the green level at the top of the screen.

Decrease the number : Decreases the green level at the top of the screen, and increases the

green level at the bottom of the screen.

B Level Max, 126 to 1,

Normal,

-1 to -127, Min

For adjusting the blue level of white shading when [Shading Mode] is set to AManualB.

Increase the number : Decreases the blue level at the bottom of the screen, and increases the

blue level at the top of the screen.

Decrease the number : Decreases the blue level at the top of the screen, and increases the

blue level at the bottom of the screen.

Item Setting Values Function

Mg&R Mg Level Max, 19 to 1,

Normal,

-1 to -19, Min

For adjusting the magenta/red level of the video toward magenta.

Increase the number : Enhances the magenta component of magenta/red.

Decrease the number : Reduces the magenta component of magenta/red.

Mg&R R Level For adjusting the magenta/red level of the video toward red.

Increase the number : Enhances the red component of magenta/red.

Decrease the number : Reduces the red component of magenta/red.

R&Yl R Level For adjusting the red/yellow level of the video toward red.

Increase the number : Enhances the red component of red/yellow.

Decrease the number : Reduces the red component of red/yellow.

R&Yl Yl Level For adjusting the red/yellow level of the video toward yellow.

Increase the number : Enhances the yellow component of red/yellow.

Decrease the number : Reduces the yellow component of red/yellow.

Yl&G Yl Level For adjusting the yellow/green level of the video toward yellow.

Increase the number : Enhances the green component of yellow/green.

Decrease the number : Reduces the yellow component of yellow/green.

Yl&G G Level For adjusting the yellow/green level of the video toward green.

Increase the number : Enhances the green component of yellow/green.

Decrease the number : Reduces the green component of yellow/green.

Yl&G Mask Range Max, 19 to 11,

10,

9 to 1, Min

For adjusting the extent of effect on the skin tone (color near the I-axis) when [Yl&G Yl Level]

and [Yl&G G Level] are adjusted.

Increase the number : Reduces the effect on the skin tone.

Decrease the number : Increases the effect on the skin tone.

Memo :

●When green is enhanced in the + direction with [Yl&G G Level], increasing the

[Yl&G Mask Range] value helps to prevent the skin tone from becoming greenish.

●When [Yl&G Yl Level] and [Yl&G G Level] are set to ANormalB, no changes will be observed

on the screen when the [Yl&G Mask Range] value is changed.

* Default values are indicated in bold characters.

Item Setting Values Function

G&Cy G Level Max, 19 to 1,

Normal,

-1 to -19, Min

For adjusting the green/cyan level of the video toward green.

Increase the number : Enhances the green component of green/cyan.

Decrease the number : Reduces the green component of green/cyan.

G&Cy Cy Level For adjusting the green/cyan level of the video toward cyan.

Increase the number : Enhances the cyan component of green/cyan.

Decrease the number : Reduces the cyan component of green/cyan.

Cy&B Cy Level For adjusting the cyan/blue level of the video toward cyan.

Increase the number : Enhances the cyan component of cyan/blue.

Decrease the number : Reduces the cyan component of cyan/blue.

Cy&B B Level For adjusting the cyan/blue level of the video toward blue.

Increase the number : Enhances the blue component of cyan/blue.

Decrease the number : Reduces the blue component of cyan/blue.

B&Mg B Level For adjusting the blue/magenta level of the video toward blue.

Increase the number : Enhances the blue component of blue/magenta.

Decrease the number : Reduces the blue component of blue/magenta.

B&Mg Mg Level For adjusting the blue/magenta level of the video toward magenta.

Increase the number : Enhances the magenta component of blue/magenta.

Decrease the number : Reduces the magenta component of blue/magenta.

R Rotation Max, 4 to1,

Normal,

-1 to -4, Min

For adjusting the hue of the R-axis (red and cyan).

Increase the number : Rotates hue of red toward yellow, and cyan toward blue.

Decrease the number : Rotates hue of red toward magenta, and cyan toward green.

G Rotation For adjusting the hue of the G-axis (green and magenta).

Increase the number : Rotates hue of green toward blue, and magenta toward red.

Decrease the number : Rotates hue of green toward yellow, and magenta toward blue.

B Rotation For adjusting the hue of the B-axis (blue and yellow).

Increase the number : Rotates hue of blue toward magenta, and yellow toward green.

Decrease the number : Rotates hue of blue toward cyan, and yellow toward red.

Menu Display and Detailed Settings

* Default values are indicated in bold characters.

TC/UB Menu

Item Setting Values Function

TCG Source Internal

External

For selecting the source of the time code generator.

Internal : Selects the built-in time code generator of the camera recorder.

External : Selects the time code generator connected to the [TC IN] terminal.

Memo :

●If this item is set to AExternalB, [TC Preset], [UB Preset], and [Drop Frame] cannot be set.

TC Preset ^For setting the time code (hour, minute, second, frame).

Display : Drop setting 02:02:25.20

: Non Drop setting 02:02:25:20

UB Preset ^For setting the user’s bit. (Digit by digit)

Display : AB CD EF 01

Drop Frame Non Drop

Drop

For setting the framing mode of the time code generator.

Non Drop : Internal time code generator works in the non-drop-frame mode. Use this setting

when placing emphasis on the number of frames.

Drop : Internal time code generator works in the drop-frame mode. Use this setting when

placing emphasis on the recording time.

Memo :

●This item can be set only when the frame rate of [Frame & Bit Rate] in the [Record Set] B

[Record Format] menu is set to A60pB, A30pB, or A60iB. When the frame rate is A24pB, ANon

DropB becomes fixed and cannot be selected. When the frame rate is A50pB, A25pB, or A50iB,

this item appears as A---B and cannot be selected. (APage 75)

LCD/VF Menu

Item Setting Values Function

Shooting Assist Menu for setting the Shooting Assist function. (APage 89)

Marker Setting... For setting items such as the safety zone and center mark. (APage 90)

Status Display... For setting displays related to the status screen. (APage 90)

LCD + VF On

Off

For selecting a method to switch between the LCD monitor and viewfinder screen displays.

(APage 30)

On : Displays images on the viewfinder at all times.

Off : Turns off the viewfinder screen display when the LCD monitor is turned on.

VF Display B & W

Color

For selecting whether to display the image on the viewfinder screen in color or black-and-white.

B & W : Displays the viewfinder image in black-and-white.

Color : Displays the viewfinder image in color.

Memo :

●The setting of this item is valid only in Camera mode. However, it becomes invalid in the AUX

mode (U model) and during display of return video, and the camera recorder operates in the

AColorB setting.

●When this item is set to AB & WB, only the captured images are displayed in black-and-white.

The status and menu screens are displayed in color.

LCD Mirror Mode Mirror

Normal

For specifying the image display method when facing the LCD monitor. (APage 28)

Mirror : Displays image after laterally inverting it. (Mirror display)

Normal : Displays image without laterally inverting it.

Memo :

●The setting of this item is valid only in Camera mode. However, it becomes invalid in the AUX

mode (U model) and during display of return video, and the camera recorder operates in the

ANormalB setting.

●During color bar and enlarged status displays, the AMirrorB setting is disabled.

(A Page 115 [Color Bar Output])

(A Page 19 [Enlarged Status Display on LCD Monitor])

Shooting Assist Item

* Default values are indicated in bold characters.

Item Setting Values Function

Focus Assist ACCU-Focus

Normal

For specifying the operation when the [FOCUS ASSIST] button on the camera recorder is

pressed. (APage 37)

ACCU-Focus : Enables the Focus Assist and ACCU-Focus (forced focus) functions. The

depth of field of the object becomes shallower to enable easier focusing. The

ACCU-Focus function switches automatically to AOffB after about 10 seconds.

Normal : Enables only the Focus Assist function. The focused area is displayed in color

to enable easier focusing. Display color can be specified with [Color].

Color Blue

Green

Red

For setting the display color of the focused area when Focus Assist is activated.

Blue : Displays the focused area in blue.

Green : Displays the focused area in green.

Red : Displays the focused area in red.

Level High

Middle

Low

For setting the display range of the focused area when Focus Assist is activated.

High : Sets the display range wider than Middle.

Middle : Sets the display range to standard.

Low : Sets the display range narrower than Middle.

Zebra 2Patterns

1Pattern

For selecting the number of zebra patterns to be displayed.

2Patterns : Displays 2 types of zebra patterns (Zebra1 and Zebra2).

1Pattern : Displays 1 type of zebra pattern (Zebra1).

Top1 Over,

100% to 85%,

80%,

75% to 5%

(In 5 % increments)

For setting the maximum luminance level for the AZebra1B display.

Memo :

●The Bottom1 value is automatically adjusted during setting of the Top1 value to ensure that a

Top1 > Bottom1 relationship is always maintained.

Bottom1 100% to 75%,

70%,

65% to 0%

(In 5 % increments)

For setting the minimum luminance level for the AZebra1B display.

Memo :

●The Top1 value is automatically adjusted during setting of the Bottom1 value to ensure that a

Top1 > Bottom1 relationship is always maintained.

Top2 Over,

100% to 5%

(In 5 % increments)

For setting the maximum luminance level for the AZebra2B display.

Memo :

●This item cannot be selected when [Zebra] is set to A1PatternB.

●The Bottom2 value is automatically adjusted during setting of the Top2 value to ensure that a

Top2 > Bottom2 relationship is always maintained.

Bottom2 100% to 85%,

80%,

75% to 0%

(In 5 % increments)

For setting the minimum luminance level for the AZebra2B display.

Memo :

●This item cannot be selected when [Zebra] is set to A1PatternB.

●The Top2 value is automatically adjusted during setting of the Bottom2 value to ensure that a

Top2 > Bottom2 relationship is always maintained.

Peaking

Frequency

High

Middle

Low

For setting the frequency range for applying contour enhancement using the [VF PEAKING]

adjustment knob or [LCD PEAKING +/-] button.

High : Emphasizes the high frequency range.

Middle : Emphasizes the intermediate frequency range.

Low : Emphasizes the low frequency range.

Menu Display and Detailed Settings

Marker Setting Item

(A Page 112 [Marker and Safety Zone Displays (Camera Mode Only, Excluding AUX Mode)])

* Default values are indicated in bold characters.

*1: Regardless of the setting, the marker does not appear during Clip Review, return video display, and in the AUX mode (U model) and Media

mode.

Status Display Item

This menu is used to set the status displays on the LCD monitor and viewfinder screens.

LCD/VF Menu (continued)

Item Setting Values Function

Aspect Ratio *1 4:3, 14:9,

16:9,

16:9 (+4:3),

2.35:1 Center,

2.35:1C.HeadRM,

1.85:1 Center,

1.85:1C.HeadRM,

1.66:1, 1.75:1

For selecting the final image aspect ratio to be used from the overall angle of view.

Memo :

●When [Aspect Ratio] in the [Record Format] menu is set to A4:3B, this item is fixed at A4:3B

and cannot be selected. (APage 75)

Aspect Marker *1 Line+Halftone

Halftone

Line

Off

For specifying how boundary markers are to be used to indicate the parts of an image that are

beyond the range of the aspect ratio selected in [Aspect Ratio].

Line+Halftone : Displays the boundary using lines, and areas outside the boundary in

halftone.

Halftone : Displays areas outside the boundary in halftone.

Line : Displays the boundary using lines.

Off : Hides the boundary markers.

Safety Zone *1 95%, 93%, 90%,

88%, 80%,

Off

For setting the percentage of area that is to be deemed as valid area (Safety Zone) within the

boundary of the aspect ratio selected in [Aspect Ratio].

Center Mark *1 On

Off

For specifying whether to display a mark to indicate the screen center within the aspect ratio

selected in [Aspect Ratio].

On : Displays the center mark.

Off : Hides the center mark.

Item Setting Values Function

F.No/Iris Indicator F.No+Iris Ind.

F. N o

Off

For specifying whether to display the iris position/iris level mark in the status display on the LCD

monitor and viewfinder screens.

F.No+Iris Ind. : Displays the iris position/level.

F.No : Displays the iris position.

Off : Hides the iris position/iris level mark.

Filter On

Off

For specifying whether to display the filter position in the status display on the LCD monitor and

viewfinder screens.

On : Displays the filter position.

Off : Hides the filter position.

Video Format On

Off

For specifying whether to display the recording/playback video format in the status display on

the LCD monitor and viewfinder screens.

On : Displays the video format mode.

Off : Hides the video format mode.

Media Remain On

Off

For specifying whether to display the remaining space of the recording SDHC card in the status

display on the LCD monitor and viewfinder screens.

On : Displays the remaining space on the SDHC card.

Off : Hides the remaining space on the SDHC card. However, when the remaining space

warning is displayed, the information appears regardless of the setting.

* Default values are indicated in bold characters.

Item Setting Values Function

TC/UB On

Off

For specifying whether to display the time code/user’s bit rate in the status display on the LCD

monitor and viewfinder screens.

On : Displays the time code or user’s bit rate. Whether time code or user’s bit rate is

displayed is determined by the setting of the [TC DISPLAY] switch on the inner

panel of the camera recorder’s LCD monitor.

Off : Hides the time code or user’s bit rate.

Audio Meter On

Off

For specifying whether to display the audio level meter in the status display on the LCD monitor

and viewfinder screens.

On : Displays the audio level meter.

Off : Hides the audio level meter.

Battery Info Time

Capacity%

Voltage

For setting the battery information to be displayed on the status screen when an AntonBauer or

IDX battery that supports communication is loaded.

The status screen is displayed on the LCD monitor and/or viewfinder.

The battery information appears only on the STATUS 1 screen in Camera mode. (APage 104)

Time : Displays the remaining battery power in minutes. AminB

Capacity% : Displays the remaining battery power in percentage. A%B

Voltage : Displays the current battery voltage in units of 0.1 V. AVB

Memo :

●When a battery other than the one recommended (communication supported) is used,

AVoltageB may sometimes be displayed even when ATimeB or ACapacity%B is selected.

●When ATimeB or ACapacity%B is selected, the battery mark that appears before the value

changes according to the remaining battery power.

: 12 % and below, : 13 % - 29 %, : 30 % - 59 %, : 60 % - 100 %

●Display changes to AB once the battery power falls below 12 %.

●When calibration of the battery is required, AB appears for 2 seconds after every 30

seconds of the voltage display.

●CALIBRATION is a state that requires renewal of the battery power information. The battery is

able to function as usual without calibration. However, calibration is recommended as correct

information of the remaining power and time cannot be obtained otherwise. For more details,

refer to the instruction manual of the battery.

●The remaining battery power and remaining time are intended as reference values for the

shooting duration.

●When an IDX battery is loaded while the camera recorder is connected to a KA-MR100G

(Memory Recorder), the ATimeB display setting may be disabled even when a recommended

battery (communication supported) is used.

Date Style DMY (E model)

MDY (U model)

YMD

For setting the date display sequence in the status display on the LCD monitor and viewfinder

screens.

DMY : Day/Month/Year

MDY : Month/Day/Year

YMD : Year/Month/Day

Time Style 24hour (E model)

12hour (U model)

For setting the time display in the status display on the LCD monitor and viewfinder screens.

24hour : 24-hour display.

12hour : 12-hour display. (AM/PM)

Shutter Disp. DEG

SEC

For setting the shutter display in the status display on the LCD monitor and viewfinder screens.

DEG : Displays the shutter speed in degrees in the same way as film cameras.

SEC : Displays the shutter speed in seconds.

Memo :

●ADEGB is selectable only when [Frame & Bit Rate] is set to A24p (SP)B, A24p (HQ)B, A25p

(SP)B, or A25p (HQ)B. When [Frame & Bit Rate] is set to other values, the shutter display

setting is fixed at ASECB and cannot be selected. (APage 75)

●When a Remote Control Unit is connected, the shutter display setting is fixed at ASECB

regardless of the [Frame & Bit Rate] setting.

RES

CAL

Menu Display and Detailed Settings

* Default values are indicated in bold characters.

A/V Out Menu

Item Setting Values Function

Output Terminal Composite

Component

Off

For setting output signals from the [Y/VIDEO]/[PB]/[PR] video signal output terminal (BNC) on

the side of the camera recorder.

Composite : Outputs composite signals to the [Y/VIDEO] video signal output terminal.

Component : Outputs component signals.

Off : Signals are not output.

Set Up 7.5% (U model)

0.0% (E model)

For selecting whether to add a setup signal to the video signal output from the [Y/VIDEO]/[PB]/

[PR] video signal output terminal (BNC) on the side of the camera recorder.

A setup signal can also be selected during signal input from the [IEEE1394] terminal.

7.5% : Adds setup signal.

0.0% : Setup signal is not added.

Memo :

●When [Frame & Bit Rate] is set to A50p (SP)B, A50p (HQ)B, A50i (SP)B, A50i (HQ)B, A25p

(SP)B, or A25p (HQ)B, this item appears as A---B and cannot be selected. (APage 75)

●Depending on the menu settings of the camera recorder and the condition of the cable

connected to it, the setup signal setting may be fixed at A0.0%B. A0.0%B is displayed in gray in

this case.

HD/SD-SDI Out HD-SDI

SD-SDI

Off

For specifying whether to output SDI signals from the [HD/SD-SDI] output terminal on the side of

the camera recorder.

HD-SDI : Outputs HD-SDI signals. Embedded (superimposed) audio signals and the time

code are also output.

SD-SDI : Outputs SD-SDI signals down converted from HD. When [System Definition] in the

[Record Format] menu is set to AHD (MPEG2)B (APage 75), SD-SDI signals

down converted from HD are output. Embedded (superimposed) audio signals and

the time code are also output.

Off : SDI signals are not output.

Memo :

●When [System Definition] in the [Record Format] menu is set to ASD (DV)B, AHD-SDIB cannot

be selected. Only SD-SDI signals are output. (APage 75)

●

When DV signals are input from the [IEEE1394] terminal,

HD-SDI

cannot be selected.

●User’s bit output from the [HD/SD-SDI] output terminal is used as a flag to determine valid

video signals. Therefore, accurate values will not be output.

Down Convert Side Cut

Letter Box

Squeeze

For setting the style of displaying down-converted images on a 4:3 aspect ratio screen. This

setting applies to all Composite/SD-SDI/DV outputs.

Side Cut : Displays image with the left and right sides cut off.

Letter Box : Displays as a wide image with the top and bottom blackened.

Squeeze : Displays image that is squeezed horizontally.

Memo :

●When [System Definition] in the [Record Format] menu is set to ASD (DV)B, this item appears

as A---B and cannot be selected. (APage 75)

Analog Out Char. On

Off

For selecting whether to display status and menu characters on the screen output from the

[Y/VIDEO]/[PB]/[PR] video signal output terminal (BNC) on the side of the camera recorder.

On : Turns on display.

Off : Turns off display.

Memo :

●When [Analog Out Char.] is set to AOnB, the details shown on the viewfinder are also

displayed in the image output from the video signal output terminal (BNC).

SDI Out Char. On

Off

For selecting whether to display status and menu characters on the screen output from the

[HD/SD-SDI] output terminal on the side of the camera recorder.

On : Turns on display.

Off : Turns off display.

* Default values are indicated in bold characters.

Item Setting Values Function

Audio Monitor Stereo

Mix

For setting the audio sound of the [PHONES] terminal to stereo or mixed sound when the

[MONITOR SELECT] switch on the side of the camera recorder is set to ABothB.

Mix : Outputs mixed sound (outputs mixed sound of CH-1 and CH-2 to both L and R).

Stereo : Outputs stereo sound (outputs audio sound of CH-1 to L, and CH-2 to R). When a

monitor speaker is used, only the audio sound of CH-1 is output.

䡵[PHONES] terminal, speaker, and RCA outputs according to the combination of the camera

recorder’s [MONITOR SELECT] switch settings and [Audio Monitor] settings

[MONITOR SELECT]

Setting

[Audio Monitor]

Setting

Output from [PHONES]

Terminal Speaker

Output

RCA Output

L R CH1 CH2

[CH-1] ^CH1 CH1

CH1 CH2

[BOTH] [Mix] CH1+CH2 CH1+CH2

[Stereo] CH1 CH2 CH1

[CH-2] ^CH2 CH2

Others Menu

Item Setting Values Function

Alarm Level High

Middle

Low

Off

For selecting whether to turn on the alarm tone as well as setting the volume.

Alarm tone is output from the monitor speaker or [PHONES] terminal.

High : Outputs alarm tone at a high volume level.

Middle : Outputs alarm tone at a medium volume level.

Low : Outputs alarm tone at a low volume level.

Off : Alarm tone is not output.

Genlock Input BNC

Adapter

For selecting a destination to input video synchronizing signal.

BNC : [GENLOCK/AUX IN] terminal at the side of the camera recorder.

Adapter : Adapter connected to the accessory connection terminal (68 pin) at the back of

the camera recorder.

Note :

●This item cannot be selected when the [GENLOCK/AUX] switch is set to AAUXB.

(U model)

Genlock Adjust... ^For adjusting the H phase of the video signal of this camera recorder with respect to the

synchronizing signal input. (APage 127)

Note :

●This item cannot be selected when the [GENLOCK/AUX] switch is set to AAUXB.

(U model)

Return Input Adapter

Studio

For selecting a destination to input the return video.

Adapter : Adapter connected to the accessory connection terminal (68 pin) at the back of

the camera recorder.

Studio : Adapter connected to the [STUDIO] terminal at the side of the camera recorder.

Note :

●This item cannot be selected when the [GENLOCK/AUX] switch is set to AAUXB.

(U model)

Return Aspect 16:9

4:3

For selecting the aspect ratio of the return video.

16:9 : Select this setting when the return video is a squeeze signal.

4:3: Select this setting when the return video is a 4:3 aspect signal

(including Letter Box).

Note :

●This item cannot be selected when the [GENLOCK/AUX] switch is set to AAUXB.

(U model)

Menu Display and Detailed Settings

* Default values are indicated in bold characters.

Others Menu (continued)

Item Setting Values Function

Tally System Studio

Ext

Int

For setting the display conditions of the camera recorder’s tally lamps (front/back).

Studio : Displays according to the TALLY IN/PREVIEW IN signals from an external device,

such as a Remote Control Unit.

Ext : Displays mainly the status of external devices.

Int : Displays mainly the status of the camera recorder.

Front Tally

Blink

Off

For specifying the illumination settings of the camera recorder’s front tally lamp during

recording.

On : Lights up only during recording.

Blink : Blinks after the [REC] trigger button is pressed until recording starts, and lights up

during recording.

Off : Turns off the tally lamp.

Back Tally

Blink

Off

For specifying the illumination settings of the camera recorder’s back tally lamp during

recording.

On : Lights up only during recording.

Blink : Blinks after the [REC] trigger button is pressed until recording starts, and lights up

during recording.

Off : Turns off the tally lamp.

1394 Rec Trigger Ext

Series

Split

Synchronize

Off

For setting the recording trigger for the external recording device connected to the

[IEEE1394] terminal.

Ext : Outputs recording trigger to the external system only. (Recording is not

performed by the internal system.)

Series : Outputs recording trigger to enable consecutive recording by the internal

and external systems.

Split : Outputs separate recording triggers to the internal and external systems.

Synchronize : Outputs recording trigger simultaneously to the internal and external

systems.

Off : Recording trigger is not output to the external system.

Memo :

●This item is selectable only in Camera mode. It cannot be set when recording is in

progress on the camera recorder or an external device.

●When the external recording device connected to the [IEEE1394] terminal switches to the

recording mode according to the settings, switching of operation mode using the

[CAM/MEDIA] button and the Clip Review function will be disabled.

●When [1394 Rec Trigger] is set to ASplitB, the [REC] button on the side of the camera

recorder becomes a Rec Start/Stop button for the external device. (APage 12)

●When the [REC] button is pushed immediately after the power is turned on or after a

menu setting is changed, recording with the external device might start about 10 seconds

late.

1394 Auto Power

Off

Enable

Disable

For setting whether to automatically turn off the power of the external recording device

connected to the [IEEE1394] terminal when the [POWER] switch of the camera recorder is

turned off.

Enable : Turns off the power automatically.

Disable : Disables this function.

Memo :

●The IEEE1394 control is only valid for external devices with a POWER OFF button.

Mode LED On

Off

For specifying the illumination settings of the operation mode indicator on the side control

panel of the camera recorder.

On : Lights up as below according to the operation mode. (APage 8)

Off : Turns off the indicator.

Operation Mode Color

Camera Mode Blue/Purple

Media Mode (SD Card Mode) Green

Media Mode (IEEE1394 Mode) Orange

USB Mode Orange

* Default values are indicated in bold characters.

Item Setting Values Function

Reset All ^Resets all menu settings.

Select [Reset All] in the AResetB menu and press the Set button (R). The message

AResetting...B appears. After the resetting process is complete, the message ACompleteB

appears for about 1 second. Reset will not be performed if [Cancel] is selected.

Memo :

●[Date/Time] (A Page 95) and [Time Zone] (A Page 95) cannot be reset.

●This item is not selectable when recording in Camera mode, during Clip Review, and in

Media mode.

Date/Time ^For setting the year, month, day, hour, and minute.

Memo :

●The display order of the date (year, month, and day) follows the [Date Style] setting in the

[Status Display] menu. However, the 24-hour format is used for the hour display

regardless of the [Time Style] setting. (APage 91)

Time Zone

UTC-00:30 to UTC-12:00,

UTC,

UTC+14:00 to UTC+00:30

(In increments of 30

minutes)

For setting the UTC time difference in units of 30 minutes.

[Default values : UTC-05:00 (U model), UTC (E model)]

Memo :

●If [Date/Time] is already set, the [Date/Time] item is automatically adjusted when

[Time Zone] is altered.

System

Information

For displaying the usage time of the internal fan.

Memo :

●Under normal environment, dust will accumulate on the internal fan when the camera recorder is used over a long

period. Dust may enter the camera recorder especially if it is used outdoors. This may affect the image and sound

quality of the camera recorder. Check and replace the fan after every 9000 hours (suggested guideline).

Fan Hour

Menu Display and Detailed Settings

Genlock Adjust Item

* Default values are indicated in bold characters.

Memo :

●You can alter the setting value in increments of 10 by pressing down the cross-shaped button (JK) for 2 seconds or longer.

(Excluding the [Analog SD H Phase] item)

Others Menu (continued)

Item Setting Values Function

Analog SD H

Phase

Min, -27 to 0 to 81, Max For adjusting the H phase of the SD analog signal of the camera recorder with respect to

the external synchronizing signal input to the [GENLOCK INPUT] terminal.

Increase value : Advances the H phase.

Decrease value : Delays the H phase.

Analog HD H

Phase

Min, -1023 to 0 to 1022,

Max

For adjusting the H phase of the HD analog signal of the camera recorder with respect to

the external synchronizing signal input to the [GENLOCK INPUT] terminal.

Increase value : Advances the H phase.

Decrease value : Delays the H phase.

Memo :

●When [System Definition] in the [Record Format] menu is set to ASD (DV)B, this item

appears as A---B and cannot be selected. (APage 75)

SD-SDI H Phase Min, -372 to -1, 0, 1 to

372, Max

For adjusting the H phase of the SD-SDI signal of the camera recorder with respect to the

external synchronizing signal input to the [GENLOCK INPUT] terminal.

Increase value : Advances the H phase.

Decrease value : Delays the H phase.

Memo :

●When [HD/SD-SDI Out] in the [A/V Out] menu is set to a setting other than ASD (DV)B,

this item appears as A---B and cannot be selected. (APage 92)

HD-SDI H Phase Min, -1023 to 0 to 1022,

Max

For adjusting the H phase of the HD-SDI signal of the camera recorder with respect to the

external synchronizing signal input to the [GENLOCK INPUT] terminal.

Increase value : Advances the H phase.

Decrease value : Delays the H phase.

Memo :

●When [HD/SD-SDI Out] in the [A/V Out] menu is set to a setting other than AHD-SDIB,

this item appears as A---B and cannot be selected. (APage 92)

* Default values are indicated in bold characters.

Menu settings and button operations ([SHUTTER], [AE LEVEL], etc.) can be saved.

It is useful to save settings according to different shooting conditions.

Media Menu

Item Function

Format Media For formatting (initializing) an SDHC card.

Select a card slot (A or B), select [Format] from [Cancel]/[Format], and press the Set button (R) to format (initialize) the

card. (A Page 33 [Formatting (Initializing) SDHC Cards])

Restore Media For restoring an SDHC card.

Select a card slot (A or B), select [Restore] from [Cancel]/[Restore], and press the Set button (R) to restore the SDHC

card. (A Page 34 [Restoring the SDHC Card])

Memo :

●This item appears only when the SDHC card needs to be restored. However, it is not selectable when recording in

Camera mode and during Clip Review.

Setup File Manage Menu

Item Setting Values Function

Load File... ^Loads the settings. (APage 121)

Store File... ^Saves the settings. (APage 120)

Reset File... ^Restores the saved settings to their default values. (APage 121)

Menu Display and Detailed Settings

You can select and add/edit frequently used menu items freely

to create a personal menu screen (Favorites Menu).

Memo :

●[Favorites Menu] is valid only in Camera mode (except

AUX mode), and remains common even when the

recording format is changed.

●Up to 20 menu items can be added (two pages on the

screen).

●Added items in [Favorites Menu] will not be reset even

when [Reset All] in the main menu is executed.

Adding Menu Items to Favorites Menu

1 Press the [MENU] button to open the [Main Menu]

screen.

2 Select the menu or submenu item to add.

Memo :

●Adding items to [Favorites Menu] cannot be performed in

the following cases. [USER1 Add] is displayed in gray in

the operation guide.

●Selected item is already added to [Favorites Menu].

●Number of menu items that can be added (20 items) is

exceeded.

3 Press the [USER1] button.

A screen to confirm the addition appears.

4 Select [Add] and press the Set button (R).

The selected menu item is added to [Favorites Menu].

Memo :

●Long descriptive names may be displayed for the menu

items in [Favorites Menu] to enable better understanding.

Adding/Editing Frequently

Used Menu Items

(Favorites Menu)

[STATUS] Button

[CANCEL] Button

[USER1] Button

[MENU] Button

Set Button (R)

Cross-shaped

Button

(

JKH

)

[USER2] Button

Editing Favorites Menu

You can delete or change the order of the items added to

[Favorites Menu].

䡵Deleting Items from [Favorites Menu]

Open the [Favorites Menu] screen.

APress the [MENU] button to open the [Main Menu]

screen.

BPress the [STATUS] button to open the [Favorites Menu]

screen.

2 Select [Edit Favorites] and press the Set button (R) or

crossed-shaped button (I).

The header turns magenta and the editing mode is activated.

3 Select the menu or submenu item to delete.

4 Press the [USER2] button.

[Delete Mark] ( ) appears at the beginning of the item.

Memo :

●When the [USER2] button is pressed again while the

menu item with [Delete Mark] ( ) is selected,

[Delete Mark] ( ) disappears.

5 Press the [USER1] button.

The option menu to exit the [Favorites Menu] editing mode

appears.

6 Select [Save & Exit] and press the Set button (R).

Memo :

●Deletion is not complete until the changes are saved with

[Save & Exit].

●To exit the editing mode without deleting any items, select

[Exit without Saving].

●To return to the editing mode, select [Cancel].

Header

(Magenta)

Delete Mark

100

Menu Display and Detailed Settings

Editing Favorites Menu (continued)

䡵Changing the Order of Items in

[Favorites Menu]

Open the [Favorites Menu] screen.

APress the [MENU] button to open the [Main Menu]

screen.

BPress the [STATUS] button to open the [Favorites Menu]

screen.

2 Select [Edit Favorites] and press the Set button (R) or

crossed-shaped button (I).

The header turns magenta and the editing mode is activated.

3 Select the menu or submenu item to move and press

the Set button (R).

The moving mode is activated and a position selection bar

for the move appears.

Adding/Editing Frequently

Used Menu Items (Favorites

Menu) (continued)

[STATUS] Button

[CANCEL] Button

[USER1] Button

[MENU] Button

Set Button (R)

Cross-shaped

Button

(

JKH

)

[USER2] Button

Header

(Magenta)

Position

Selection Bar

101

4 Select the position to move to with the cross-shaped

button (JK).

Move the position selection bar with the cross-shaped

button (JK) and select a position to move to.

5 Press the Set button (R).

The selected item moves to the new position.

6 Press the [USER1] button.

The option menu to exit the [Favorites Menu] editing mode

appears.

7 Select [Save & Exit] and press the Set button (R).

Memo :

●Moving is not complete until the changes are saved with

[Save & Exit].

●To exit the editing mode without saving any changes,

select [Exit without Saving].

●To return to the editing mode, select [Cancel].

102

Status Screen

STATUS 0 Screen

The STATUS 0 screen is not displayed in the AUX mode. (U model)

Status Screen in Camera

Mode

STBY

MAX 123%

MIN 45%

SKIN AREA

S.DTL

B -3

A<3200K>

F5.6 AE+1 9dB 1/10000

30/24 fps

1min

EDBC

Appears only when a warning is displayed. (APage 104)

Appears only when connected to an external device.

Item Description

AMedia Status ---- : No card found in the selected slot *

STBY : Recording standby (recording pause)

REC : Recording

REVIEW : Clip Review (APage 56)

STBYP: Pre Rec recording standby (APage 58)

RECP: Pre Rec recording (APage 58)

STBYC: Clip Continuous recording standby

(APage 59)

RECC: Clip Continuous recording (APage 59)

STBYC (displayed in yellow)

: Clip Continuous recording pause

(APage 59)

STOP : Unable to record to the card in the slot

POFF : Power OFF

* When

[Tally System]

in the

[Others]

menu is set to AStudioB, A----B is not displayed even when a

card is not inserted into the slot.

(

Page 94)

BIris Status Mark Indicates whether the brightness of the image is appropriate.

J: Iris set higher than normal

R: Iris set to normal

K: Iris set lower than normal

CIris F-Number Displays F-number of the lens iris.

This is not displayed for some lens types, and when the lens cable is disconnected.

(OPEN, F2, F2.8, F4, F5.6, F8, F11, F16, CLOSE)

Memo :

●

You can specify the type of display and whether to display the information using [F.No/Iris Indicator] of

[Status Display] in the [LCD/VF] menu. (

Page 90)

DAE Level Appears when the AE function is activated and [AE LEVEL] in the [Camera Function] menu is set to a

value other than ANormalB. (APage 78)

(AE-3, AE-2, AE-1, AE+1, AE+2, AE+3)

EGain Displays the gain value when it is not A0dBB.

(3dB, 6dB, 9dB, 12dB, 15dB, 18dB, ALC)

FShutter Displays the current shutter speed when [Shutter] in the [Camera Function] menu is set to [Step]/

[Variable] and the shutter is ON. (APage 78)

EEI : Displayed when [Shutter] is set to AEEIB (auto adjustment mode).

FAS : Displayed when shutter or gain is set to the auto adjustment mode.

Memo :

●

The variable range of the shutter speed varies according to the video format settings. (

Page 41)

GWhite Balance Mode Displays the current white balance mode.

A<**00K>, B<**00K>, P<**00K> (

**00

indicates color temperature)

FAW : When the Fulltime Auto White balance mode is ON

MANU : Manual White Balance mode (only during control using the Remote Control Unit)

103

* 1 : The variable range of the shutter speed varies according to the video format settings. (APage 41)

Item Description

HBlack Toe Appears when [Black Toe] in the [Camera Process] menu is set to a value other than ANormalB.

(APage 82)

B+1 to B+5 : Displays the AStretch LevelB when [Black Toe] is set to AStretchB (Level 1 to Level 5)

B-1 to B-5 : Displays the ACompress LevelB when [Black Toe] is set to ACompressB (Level 1 to Level 5)

No display : When [Black Toe] is set to ANormalB

ISkin Detail Operation Appears as AS.DTLB when the Skin Detail function is turned ON.

JOperation of Functions SKIN AREA : Blinks when the Skin Area display is ON.

FOCUS : Appears when the Focus Assist function is activated. When AACCU-FocusB is enabled,

AACCU-FOCUSB blinks for about 10 seconds while Focus Assist starts up, after which

the AFOCUSB indicator lights up. When [ACCU-Focus] is operating, it is forcibly turned

OFF after recording starts. (APage 89)

KLuminance Information Appears when the Spot Meter function is activated. For details of the display, refer to [Setting Spot Meter]

(A Page 55).

MAX : Maximum luminance

MIN : Minimum luminance

LEvent/Warning Display

Area

Displays the settings for about 3 seconds when the gain or shutter speed is manually changed.

For other messages displayed in this area, refer to [Error Displays and Actions] (A Page 134).

Displayed Content Setting Status

GAIN **dB (** : 0, 3, 6, 9, 12, 15, 18) Gain value is altered

GAIN ALC Gain is set to AALCB

FULL AUTO ON, FULL AUTO OFF [FULL AUTO] is turned AON/OFFB

ZEBRA ON, ZEBRA OFF [Zebra] is turned AON/OFFB

FOCUS ASSIST ON, FOCUS ASSIST OFF [Focus Assist] is turned AON/OFFB

SHUTTER **

(****K : 1/6, 1/6.25, 1/7.5, 1/12, 1/12.5, 1/15, 1/24, 1/

25, 1/30, 1/48, 1/50, 1/60, 1/100, 1/120, 1/

250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000)

Shutter speed is altered *1

V. SHUTTER **** (**** : 1/24.01 to 1/1998.0) Variable shutter speed is altered *1

SHUTTER OFF **

(**** is the standard shutter value in the respective

modes.)

Shutter is turned AOFFB *1

WHITE BAL * <****K>

(* : A, B, PRESET)

(****, K indicates color temperature)

White balance value is altered

WHITE BAL FAW FAW (Fulltime Auto White balance) is activated

FILTER ****

(** : OFF,1/4ND,1/16ND)

[ND FILTER] setting is altered

AE LEVEL **

(**** : -3, -2, -1, NORMAL, +1, +2, +3)

[AE LEVEL] value is altered

SPOT METER ****

(**** : ON, FIXED, OFF, SELECT)

Spot meter status is changed

(APage 55)

BLACK NORMAL [Black Toe] is set to ANormalB

BLACK STRETCH * (* : 1,2,3,4,5,) [Stretch Level] of [Black Toe] is altered

BLACK COMPRESS * (* : 1,2,3,4,5,) [Compress Level] of [Black Toe] is altered

REC SWITCH LOCKED, REC SWITCH UNLOCKED Record button lock switch is turned ON/OFF in

Camera mode, or [REC] switch on the handle of

the camera recorder is pressed while being

locked

SLOT SWITCHED * (* : A, B) Active SDHC slot is switched automatically or

using the [SLOT SELECT] button in Camera

mode.

TRIGGER TO EXT Recording command is sent out from the

[IEEE1394] terminal

FRAME RATE rrrr/pp fps

(rrrr : recording frame rate, pp : playback frame rate)

Variable frame rate is adjusted using the cross-

shaped button

OK MARK ADDED, OK MARK DELETED OK mark is added or deleted

(APage 68)

Other Displays (A Page 134 [Error Displays and Actions])

MFrame Rate Appears as xx/yy fps (xx: recording frame rate, yy: playback frame rate) only when AVariable FrameB is set

in the [Rec Mode] menu. (APage 76)

104

Status Screen

STATUS 1 Screen

Status Screen in Camera

Mode (continued)

00:00:00:00

20 min

ND1/16

100min

1280x720

60p HQ

282min

MAX

123%

MIN

45%

SKIN ARE

.DTL

-3

A<3200K

AE+1

dB 1

0000

24 f

* 0 : Same as STATUS 0 Screen (APage 102)

Item Description

AResolution Displays the video image resolution.

(1920⳯1080, 1440⳯1080, 1280⳯720, 720⳯480, 720⳯576)

BFrame Rate/Bit Rate Displays the frame rate and bit rate in pairs.

(60p HQ, 30p HQ, 60i HQ, 60p SP, 30p SP, 60i SP, 50p HQ, 25p HQ, 50i HQ, 50p SP, 25p SP, 50i SP, 24p HQ,

24p SP, 50i, 60i)

Memo :

●Displayed as A60i AUXB in the external input recording mode. (U model)

COK Mark Appears when an OK mark is added. (APage 68)

DRemaining Space on

Media

Displays the remaining recording time of the SDHC cards in Slot A and Slot B separately.

Memo :

●Only warnings are displayed in the STATUS 0 and STATUS 4 screens. (When the total remaining time for the

SDHC cards in slot A and slot B is less than 3 minutes)

: Currently selected slot. (White card)

: SDHC card requires restoring or formatting, or SDHC card is not supported (not of Class 6/10 type).

: Write-protect switch of SDHC card is set.

EVoltage/Battery

Power

Displays the current status of the power supply in use.

Display Description

Currently powered by an AC adapter. The current voltage is shown on the right.

If the supplied voltage from the AC adapter is low, the voltage value will be

displayed in red as a warning.

Currently powered by a battery.

When the battery power runs out, the battery mark appears hollow, and ARESB is

displayed.

The display on the right can be set using [Battery Info] of [Status Display] in the

[LCD/VF] menu. (APage 91)

FAudio Level Meter Displays the audio level for CH-1 and CH-2.

When [Rec Mode] in the [Rec Mode] menu is set to AVariable FrameB, audio cannot

be recorded and is indicated by the mark.

The positions of -20 dB and -10 dB are displayed as AoB.

Memo :

●You can turn ON/OFF the display using [Audio Meter] of [Status Display] in the

[LCD/VF] menu. (APage 91)

12.3V

200min

30%

RES

-20 dB -10 dB

105

Item Description

GND Filter Position Displays the current ND filter position.

No display : [ND FILTER] is set to AOFFB

ND1/4 : [ND FILTER] is set to A1/4B

ND1/16 : [ND FILTER] is set to A1/16B

Memo :

●

You can turn ON/OFF the display using [Filter] of [Status Display] in the [LCD/VF] menu.

(

Page 90)

HRemaining Space on

External Device

Displays the remaining recording time of the external device (0 to 999). When the remaining time is running out,

this is indicated in red (value + unit of measurement) as a warning to the user.

Memo :

●Only warnings are displayed in the STATUS 0 and STATUS 4 screens.

IOperation of External

Device

Displays the operating status of the connected external device. For details, refer to the instruction manual of the

corresponding external device.

Memo :

●Only warnings are displayed in the STATUS 0 and STATUS 4 screens.

JTime Code (TC)/

User’s Bit (UB)

Displays the time code (hour : minute : second : frame) or user’s bit data.

Memo :

●

You can turn ON/OFF the display using [TC/UB] of [Status Display] in the [LCD/VF] menu.

(

Page 91)

●

You can select whether to display the time code or user’s bit using the [TC DISPLAY] switch on the inner panel of

the LCD monitor.

KSynchronization with

External Time Code

Generator

This item is valid when [TCG Source] in the [TC/UB] menu is set to AExternalB.

Lights up : When the built-in time code generator is synchronized with the time code that is input to the

[TC IN] terminal.

Light goes out : When the signal is not synchronized, or when there is no time code input to the [TC IN]

terminal.

00:00:00:00

FF EE DD 20

Colon (:) for non-drop frames

Dot (.) for drop frames

Example : Time Code:

User’s Bit :

106

Status Screen

STATUS 2 Screen

Status Screen in Camera

Mode (continued)

CAMERA INFORMATION

SETUP FILE SCENE

[ SCENE ]

ZEBRA1 50%-100%

ZEBRA2 70%-80%

AUDIO CH1 CH2

FORMAT QuickTime

MEDIA 125min

123min

Jan 2. 2009 01:23:45AM

TBY * 0 : Same as STATUS 0 Screen (APage 102)

* 1 : Same as STATUS 1 Screen (APage 104)

*0 *1

Item Description

ADate/Time Displays the current date and time.

Note :

●The date/time display style can be specified in [LCD/VF] menu B [Status Display] B [Date Style]/[Time

Style]. (APage 91)

BRemaining Space on

MEDIA

Displays the remaining recording time of the SDHC cards in slot A and slot B separately.

: Currently selected slot. (White card)

: SDHC card requires restoring or formatting, or SDHC card is not supported (not of Class 6/10

type).

: Write-protect switch of SDHC card is set.

CFORMAT Displays the file format for recording to the SDHC card (File Format) that is specified at [File Format] in

the [Record Format] menu. (APage 75)

DAUDIO Displays the status of the [AUDIO SELECT CH-1/CH-2] switch. (A: AAUTOB/M: AMANUALB)

EZEBRA1/ZEBRA2 Values Displays the settings from ABottom1B to ATo p 1 B specified at [Zebra], and the settings from ABottom2B to

ATop2B specified at [Zebra]. (APage 89)

Memo :

●

When [Zebra] in the menu is set to

1Pattern

, ZEBRA2 appears as

---

. (

Page 89)

FSubname of Setup File Displays the subname of the setup file.

Memo :

●ARB appears at the beginning when changes are made to the loaded file. (APage 119)

GSETUP FILE Displays the type of the loaded file. (SCENE/PICTURE)

107

STATUS 3 Screen

This screen displays a list of the functions assigned to the switches.

STATUS 4 Screen

This screen displays the event. It is also used to display warnings only.

SWITCH ASSIGN

FAW NONE

GAIN [ L / M / H ] 0dB / 9dB / 12dB

USER 1 BARS

USER 2 B.STRETCH3

USER 3 LOAD FILE

RET CLIP REVIEW

SKIN/SPOT SPOT METER

AE LEVEL AE LEVEL/VFR

1min

282mi

STB

an 2. 2008 01:23:45A

* 0 : Same as STATUS 0 Screen (APage 102)

* 1 : Same as STATUS 1 Screen (APage 104)

* 2 : Same as STATUS 2 Screen (APage 106)

*0 *1 *2

* 1 : (Appears only during warnings)

Item Description

A[FAW] Function

Assignment

Displays the position of the [WHT.BAL.] selection switch that is assigned with the FAW function.

(NONE, A, B, PRESET)

B[GAIN] Switch Settings Displays the setting values for each of the positions ([L]/[M]/[H]) on the [GAIN] switch.

(0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, ALC)

C[USER1,USER2,USER3]

Button Function Settings

Displays the setting status of the [USER1], [USER2], and [USER3] buttons.

(NONE, BARS, B.STRETCH*, B.COMPRESS*, RET, LOAD FILE)

* indicates 1 to 5

D[RET] Button Function

Settings

Displays the setting status of the [RET] button on the lens.

(CLIP REVIEW, RETURN, FOCUS ASSIST, OK MARK)

E[SKIN AREA/SPOT

METER] Switch Settings

Displays the setting status of the [SKIN AREA/SPOT METER] switch.

(SKIN AREA, SPOT METER)

FCross-Shaped Button (H I)

Function Assignment

Displays the functions assigned to the left/right (H I) of the cross-shaped button.

(DISABLE, AE LEVEL, AE LEVEL/VFR)

30/24 fps

MAX 123%

MIN 45%

STBY

1min

0 mi

* 0 : Same as STATUS 0 Screen (APage 102)

* 1 : Same as STATUS 1 Screen (APage 104)

*0 * 1 (Appears only during warnings)

Appears only when connected to an external device (APage 104)

108

Status Screen

These are the status screens displayed in Media mode (SD Card mode, Media mode).

STATUS 0 Screen

This screen displays the media status or event. It is also used to display warnings only.

STATUS 1 and STATUS 2 Screens

Status Screen in SD Card

Mode

OK OK

BAC

IH K

BAC

STATUS 1 Screen STATUS 2 Screen

Item Description

AOK Mark Appears when an OK mark is added. (APage 68)

BResolution Displays the video image resolution.

(1920⳯1080, 1440⳯1080, 1280⳯720, 720⳯480, 720⳯576)

CFrame Rate/Bit Rate Displays the frame rate and bit rate in pairs.

(60p HQ, 30p HQ, 60i HQ, 60p SP, 30p SP, 60i SP, 50p HQ, 25p HQ, 50i HQ, 50p SP, 25p SP, 50i SP, 24p

HQ, 24p SP, 50i, 60i)

DMedia Displays the media slot (A or B) of the currently played clip.

A key mark appears when the write-protect switch of the SDHC card is set.

EClip Information Displays current clip number/total number of clips.

FTime Code (TC)/

User’s Bit (UB)

Displays the time code (hour : minute : second : frame) or user’s bit data.

TC : Time code

UB : User’s bit

The framing mode display for the time code is as follows.

Memo :

●

You can turn ON/OFF the display using [TC/UB] of [Status Display] in the [LCD/VF] menu.

(

Page 91)

●

You can select whether to display the time code or user’s bit using the [TC DISPLAY] switch on the inner

panel of the LCD monitor.

GDate/Time Displays the date/time that is recorded on the currently played SDHC card.

Note :

●The date/time display style can be specified in [LCD/VF] menu B [Status Display] B [Date Style]/

[Time Style]. (APage 91)

00:00:00:00 Colon (:) for non-drop frames

Dot (.) for drop frames

109

These are the status screens displayed in Media mode (IEEE1394 Input mode).

STATUS 1 Screen

STATUS 2 Screen

Item Description

HAudio Level Meter Displays the audio level for CH-1 and CH-2.

The positions of -20 dB and -10 dB are displayed as AoB.

Memo :

●You can turn ON/OFF the display using [Audio Meter] of [Status Display] in the

[LCD/VF] menu. (APage 91)

Voltage/

Battery Power

Displays the current status of the power supply in use.

Display Description

Currently powered by an AC adapter. The current voltage is shown on the right.

If the supplied voltage from the AC adapter is low, the voltage value will be

displayed in red as a warning.

Currently powered by a battery.

When the battery power runs out, the battery mark appears hollow, and ARESB is

displayed.

Memo :

●The display on the right can be set using [Battery Info] of [Status Display] in the

[LCD/VF] menu. (APage 91)

JMedia Status PLAY : Playing

STILL : Still picture playback mode

FWD * : High-speed playback in the forward direction (* playback speed: 5x or 15x)

REV * : High-speed playback in the reverse direction (* reverse playback speed: 5x or 15x)

STOP : Stop mode

POFF : Power OFF

KOperation Guide Displays a guide for the current operation buttons.

-20 dB -10 dB

12.3V

200min

30%

RES

Status Screen in IEEE1394

Input Mode

[Event/Warning Display Area] (A Page 103)

* Appears only when a warning is displayed. [Voltage/Remaining Battery Power] (A Page 110)

1280x720

24p HQ

282min

[Event/Warning Display Area] (A Page 103)

110

Status Screen

You can enlarge and display only the characters of the status screen on the LCD monitor.

Status Screen in IEEE1394

Input Mode (continued)

Item Description

AFrame Rate/Bit Rate Displays the frame rate and bit rate in pairs. (60p HQ, 30p HQ, 60i HQ, 60p SP, 30p SP, 60i SP, 50p HQ, 25p

HQ, 50i HQ, 50p SP, 25p SP, 50i SP, 24p HQ, 24p SP, 50i, 60i)

BResolution Displays the video image resolution. (1920⳯1080, 1440⳯1080, 1280⳯720, 720⳯480, 720⳯576)

CAudio Level Meter Displays the audio level for CH-1 and CH-2.

A mark is displayed when the audio format is not supported in the IEEE1394

mode. (32k, 44.1k)

The positions of -20 dB and -10 dB are displayed as AoB.

Memo :

●You can turn ON/OFF the display using [Audio Meter] of [Status Display] in the

[LCD/VF] menu. (APage 91)

DVoltage/Remaining

Battery Power

Displays the current status of the power supply in use.

Display Description

Currently powered by an AC adapter. The current voltage is shown on the right.

If the supplied voltage from the AC adapter is low, the voltage value will be

displayed in red as a warning.

Currently powered by a battery.

When the battery power runs out, the battery mark appears hollow, and ARESB is

displayed.

Memo :

●The display on the right can be set using [Battery Info] of [Status Display] in the

[LCD/VF] menu. (APage 91)

-20 dB -10 dB

12.3V

200min

30%

RES

Enlarged Status Display on

LCD Monitor

FREE

123 min

min

1280 x 720

60p HQ

CH1

CH2

STBY

100min

67.8min

STBY REVIEWSTOP REC

E F HG

Item Description

AAudio Level Meter Displays the audio levels of [CH-1] and [CH-2].

If the reference audio level (A-20dBB or A-12dBB) is exceeded, this is displayed in yellow. The AOverB area is

displayed in red. A48kB is the sampling frequency.

Memo :

●When [Rec Mode] in the [Rec Mode] menu is set to AVariable FrameB, audio cannot be recorded and is

indicated by the mark.

BFraming Mode Displays the framing mode.

[DF] : Drop frame

[NDF] : Non-drop frame

111

Memo :

●

During enlarged display of the status on the LCD monitor screen, the video image remains displayed on the viewfinder.

Item Description

CTime Code Generator Displays the operation mode of the time code. (Display: [FREE], [RECR], [REGN], [EXT], [EXT L]) (APage 48)

This item appears as AEXTB when [TCG Source] in the [TC/UB] menu is set to AExternalB.

L indicates the synchronizing status of the built-in time code generator with respect to the time code that is

input to the [TC IN] terminal.

Lights up : During synchronization with the external time code.

Light goes out : When the signal is not synchronized, or when there is no time code input.

DMedia Status Displays the SDHC card status in characters and symbols.

---- : No card found in the selected slot

STBY : Recording standby (recording pause)

REC : Recording

REVIEW : Clip Review (APage 56)

STBYP: Pre Rec recording standby (APage 58)

RECP: Pre Rec recording (APage 58)

STBYC: Clip Continuous recording standby

(APage 59)

RECC: Clip Continuous recording (APage 59)

STBYC (displayed in yellow)

: Clip Continuous recording pause

(APage 59)

STOP : Unable to record to the card in the slot

POFF : Power OFF

ERemaining Space on

Media

Displays the remaining recording time on the SDHC card. The currently active slot is indicated using an

enlarged card icon with black characters and a white background. A key mark appears when the write-protect

switch of the SDHC card is set.

FOK Mark Appears as [OK] when the currently played clip is appended with an OK mark.

Video Format

Displays the video format that is set. (APage 38)

Memo :

●Displayed as A60i AUXB in the external input recording mode. (U model)

HVoltage/

Battery Power

Displays the current status of the power supply in use.

Display Description

Currently powered by an AC adapter. The current voltage is shown on the right.

If the supplied voltage from the AC adapter is low, the voltage value will be displayed in

red as a warning.

Currently powered by a battery.

When the battery power runs out, the battery mark appears hollow, and

RES

is displayed.

Memo :

●The display on the right can be set using [Battery Info] of [Status Display] in the

[LCD/VF] menu. (APage 91)

IOperation of External

Device

Displays the operating status of the connected external device.

For details, refer to the instruction manual of the corresponding external device.

JTime Code (TC)/

User’s Bit (UB)

Displays the time code (hour : minute : second : frame) or user’s bit data.

12.3V

200min

30%

RES

00:00:00:00 Colon (:) for non-drop frames

Dot (.) for drop frames

112

Camera Features

The marker and safety zone displays are useful in helping you determine the angle of view for the image according to the

shooting purpose.

䡵Example of display when [Aspect Ratio] = A4:3B, [Aspect Marker] = ALine+HalftoneB, and [Center Mark] = AOnB

You can turn ON/OFF the safety zone and center mark displays as shown below using the [Aspect Ratio], [Safety Zone] and

[Center Mark] settings of [Marker Setting] in the [LCD/VF] menu. (APage 90)

[Aspect Marker] Display

䡵When [Aspect Ratio] = A4:3B

[Aspect Marker] Display for Different

[Aspect Ratio] Settings

䡵When [Aspect Marker] = AHalftoneB

Marker and Safety Zone

Displays (Camera Mode

Only, Excluding AUX Mode)

Center Mark

Aspect Marker

Safety Zone

[Line] [Halftone] [Line+Halftone]

[4:3][14:9] [16:9]/[16:9 (+4:3)] [2.35:1 Center] [2.35:1C.HeadRM]

[1.85:1 Center] [1.85:1C.HeadRM] [1.66:1] [1.75:1]

113

[Safety Zone] Display

䡵When [Aspect Ratio] = A4:3B, [Aspect Marker] = AHalftoneB, and [Center Mark] = AOnB

[Center Mark] Display

䡵When [Aspect Ratio] = A4:3B, [Aspect Marker] = AHalftoneB, and [Safety Zone] = A80%B

䡵When [Aspect Ratio] = A4:3B, [Aspect Marker] = AHalftoneB, and [Safety Zone] = AOffB

[Off] [95%] [93%] [90%] [88%]

[80%]

[Off] [On]

114

Camera Features

The Skin Detail function can be used to reduce the contour

enhancement of video signals for only the skin areas so as to

produce a smoother skin tone.

Preparations Before Using the Skin Detail

Function (Skin Adjust Function)

Adjust the white balance. (

Page 42)

2 Display the [Skin Color Adjust] screen. (APage 84)

●

Select [Main Menu] screen

[Camera Process] menu

[Detail]/[Adjust]

[Skin Color Adjust], and press the Set

button (

●

The entire image switches to black-and-white display,

leaving only the detected skin areas in color.

Memo :

●The displays for [Bars], [Zebra] and [Focus Assist] are

temporarily set to AOffB, while the [B & W] display in

[VF Display] temporarily switches to AColorB.

䡵Hue Range Detection

1 Project the detected object inside the skin color

detection frame.

2 Place the cursor at [Skin Color Detect] with the

cross-shaped button (JK).

3 Press the Set button (R).

Display switches from AStopB to AExecuteB, and detection

starts.

Memo :

●

Error

is displayed if the object inside the frame is not

within the preset color range.

4 Press the Set button (R) after the desired hue range is

detected.

●

If no

Error

is displayed, the data is saved and the process

ends.

●

Error

appears, the process ends without saving the data.

5 Place the cursor at [Back] after the hue range is

detected, and press the Set button (R).

Returns to the [Detail] menu screen.

䡵Color Range Setting

1 Place the cursor at [Skin Color Range] with the cross-

shaped button (JK).

2 Press the Set button (R) or cross-shaped button (I) to

move the cursor to a setting value.

3 Select a setting value using the cross-shaped

button (JK), and press the Set button (R).

Select a setting within the [Narrow, -1 to -9, Normal, 9 to 1,

Wide] range.

4 Place the cursor at [Back] after setting is complete,

and press the Set button (R).

The data is saved, and the screen returns to the [Detail]

menu.

Using the Skin Detail Function

1 Set [Skin Detect] to AOnB. (APage 84)

●Select [Main Menu] screen B [Camera Process] menu B

[Detail]/[Adjust] B [Skin Detect] and set to AOnB.

●AS.DTLB appears on the STATUS 0 and 1 screens of the

LCD monitor and viewfinder when the Skin Detail function

is activated.

2 Set the adjustment level for the contour enhancement

of the skin tone. (APage 84)

Set using [Main Menu] screen B [Camera Process] menu B

[Detail]/[Adjust] B [Skin Color Detect]/[Level].

Smoothening the Skin Color

(Skin Detail Function)

Skin Color

Detection Frame

00:00:00:00

MAX 123%

MIN 45%

SKIN AREA

S.DTL

B -3

ND1/16 A<3200K>

STBY

100min

1280x720

24p HQ

282min

30/24 fps

AS.DTLB appears

STATUS 1 Screen

115

Checking the Preset Hue Area

1 Set the [ZEBRA ON/OFF] switch at the front of the

camera recorder to the [SKIN AREA/SPOT METER] end.

Doing so forcibly turns ON the Skin Adjust function

temporarily, and the preset hue area is displayed in color on

the LCD monitor and viewfinder.

Memo :

●When [Color Gain] in the [Camera Process] menu is set to

AOffB, only the area where Skin Detail is functioning is

displayed in skin tone. (APage 83)

●When [SKIN A./SPOT M.] of [Switch Set] in the

[Camera Function] menu screen is set to ASpot MeterB,

the hue area cannot be checked using the

[SKIN AREA/SPOT METER] switch. (APage 80)

Multi-format color bars can be output on this camera

recorder.

Setting

To output color bars, follow the setting procedure below.

Set the [FULL AUTO] switch to

OFF

2 Set [Bars] in the [Camera Function] menu to AOnB.

(APage 78)

Color bars are output.

Color Bar Output Using the USER Buttons

1 Set the [FULL AUTO] switch to AOFFB.

2 Assign ABarsB to any one of the [USER1]/[USER2]/

[USER3] buttons.

Set using [USER1]/[USER2]/[USER3] of [Switch Set] in the

[Camera Function] menu. (APage 79)

3 Press the corresponding [USER1]/[USER2]/

[USER3] button that is assigned with ABarsB.

Color bars are output.

Memo :

●During color bar output, you can select whether to output

the reference audio signals using [Test Tone] in the

[Audio Set] menu. (APage 77)

●When the [FULL AUTO] switch is set to AONB and [Bars]

in the [FULL AUTO] menu is set to AOffB, color bars are

not output in the AUX and Media modes.

[ZEBRA ON/OFF]

Switch

Color Bar Output

[FULL AUTO]

Switch

[USER1,USER2,USER3]

Buttons

116

Camera Features

The color matrix of the camera recorder can be adjusted to a

color of the user’s preference.

When shooting is performed using multiple cameras, the

colors of the different cameras can be adjusted, and a color

of the user’s preference can be set on this camera recorder.

13 saturation parameters and 3 hue parameters are available

for adjustment. Adjust the color on the vector scope and

waveform monitor using the color chart.

* The adjusted values of AStandardB, ACinema VividB, and

ACinema SubduedB in [Color Matrix] can be stored

individually. (APage 83)

Select [Color Matrix] or [Adjust] in the [Camera Process]

menu. (

Page 86)

2 Adjust the saturation.

●

Use the cross-shaped button (

) to select a value.

●

The correction range (gray area in the chart below) for each

of the 12 levels from [Mg&R Mg Level] to [B&Mg Mg Level]

changes in the direction indicated by the arrow on the vector

scope.

Memo :

●In addition to the vector, the luminance Y level of the

correction range changes as well.

Color Matrix Adjustment

Mg&R Mg Level Increase the value:

Corrected Y decreases

Decrease the value:

Corrected Y increases

Mg&R R Level Increase the value:

Corrected Y increases

Decrease the value:

Corrected Y decreases

Cross-Shaped Button

(JK)


R&Yl R Level Increase the value:

Corrected Y increases

Decrease the value:

Corrected Y decreases

R&Yl Yl Level Increase the value:

Corrected Y decreases

Decrease the value:

Corrected Y increases

Yl&G Yl Level Increase the value:

Corrected Y decreases

Decrease the value:

Corrected Y increases

Yl&G G Level Increase the value:

Corrected Y increases

Decrease the value:

Corrected Y decreases

G&Cy G Level Increase the value:

Corrected Y increases

Decrease the value:

Corrected Y decreases

G&Cy Cy Level Increase the value:

Corrected Y decreases

Decrease the value:

Corrected Y increases

Cy&B Cy Level Increase the value:

Corrected Y decreases

Decrease the value:

Corrected Y increases

Cy&B B Level Increase the value:

Corrected Y increases

Decrease the value:

Corrected Y decreases


117

3 Adjust Yl&G Mask Range.

Adjusting [Yl&G Yl Level] and [Yl&G G Level] may also affect

the I-axis (color close to the skin tone). When [Yl&G Yl Level]

is increased, the skin tone becomes slightly more yellowish.

On the other hand, when [Yl&G G Level] is increased, the

skin tone becomes slightly more greenish.

Adjust [Yl&G Mask Range] if you want to increase YI&G

toward yellow and green without affecting the skin tone. As

illustrated in the chart below, [Yl&G Mask Range] adjusts the

gray area from the R-axis, which disables the [Yl&G Yl Level]

and [Yl&G G Level] adjustments.

Increasing the [Yl&G Mask Range] value widens the

masking range. By doing so, the effect on the I-axis (color

close to the skin tone) due to adjustments of [Yl&G Yl Level]

and [Yl&G G Level] is reduced. However, this also reduces

the amount of correction by [Yl&G Yl Level] and

[Yl&G G Level].

4 Adjust the hue.

Adjust the hue based on the R-, G-, and B-axes.

As illustrated in the chart below, increasing the value rotates

the hue in the anti-clockwise direction on the vector scope,

with the respective axes as the center. Decreasing the value

rotates the hue in the clockwise direction.

B&Mg B Level Increase the value:

Corrected Y increases

Decrease the value:

Corrected Y decreases

B&Mg Mg Level Increase the value:

Corrected Y decreases

Decrease the value:

Corrected Y increases

Yl&G Mask Range

[Yl&G Yl Level] and [Yl&G G Level]

adjustment


R Rotation Increase the value:

Hue rotates in the anti-

clockwise direction with

R-axis as the center.

G Rotation Increase the value:

Hue rotates in the anti-

clockwise direction with

G-axis as the center.

B Rotation Increase the value:

Hue rotates in the anti-

clockwise direction with

B-axis as the center.


118

Camera Features

Process the dark areas according to the balance of bright

and dark areas in the image to adjust the overall balance of

contrast.

1 Adjust [Black Toe] in the [Camera Process] menu

according to the captured video signals.

2 Set the luminance point (Point Level) for AStretchB or

ACompressB.

●Decide the luminance point (Point Level) at which the dark

areas in the image are to be stretched or compressed.

●The luminance point (Point Level) can be set within the

range of A5% to 15%B.

3 Adjust the amount of AStretchB or ACompressB.

●Set the amount to stretch or compress the dark areas in

the image using [Stretch Level] or [Compress Level].

●The amount of stretch or compression increases when a

larger value is specified.

䡵Example

To increase the area of 10 % level (Point A in the figure

below) in the image under normal condition ([Black Toe] is

ANormalB)

ASet [Black Toe] to AStretchB.

BSet [Point Level] to A10%B.

CSet the amount to increase using [Stretch Level] (ALevel

1 to Level 5B).

The reproduction of dark areas improves as the 10 % level

point A stretches toward point B. (See figure below)

Reproduction of Dark Areas

(Black Stretch/Compress

Function)

OUTPUT

INPUT

10%5% 15%

When [Black Toe] is

AStretchB

When [Black Toe] is

ANormalB

Increasing the A10%B area

[Point Level] set at A10%B

119

The menu settings can be stored on the camera recorder or

an SDHC card by saving them as a setup file.

Loading a saved setup file enables you to reproduce the

appropriate setup state speedily.

Two types of setup files are available.

䡵Scene file:

File that contains all menu settings, ranging from video

format settings to image creation settings such as device

settings and shooting conditions, as well as the contents of

the [Favorites Menu].

䡵Picture file:

File that contains image creation settings in accordance to

the shooting conditions ([Camera Process] menu items).

(APage 82)

Make use of the [Setup File Manage] menu to save or load a

setup file.

The following operations can be performed on the [Setup File

Manage] menu.

䢇Saving setup files (APage 120)

䢇Loading a setup file (APage 121)

䢇Resetting a saved file (APage 121)

䡵Number of Storable Setup Files

Camera recorder : [CAM1] ~ [CAM4]

SDHC Card

Slot A : A[EXT1] ~ A[EXT8]

Slot B : B[EXT1] ~ B[EXT8]

䡵Preset Setup Files

As described below, there are three types of scene files and

two types of picture files that can be loaded according to

different shooting conditions.

Scene file

[GY-HD 60p LIKE] : Setting is adjusted according to the

tone of the GY-HD series.

[Camera Resolution] is set to

1280x720

, and [Frame & Bit Rate]

is set to

60p (HQ)

[GY-HD 50p LIKE] : Setting is adjusted according to the

tone of the GY-HD series.

[Camera Resolution] is set to

1280x720

, and [Frame & Bit Rate]

is set to

50p (HQ)

[CINEMA 1080/24p] : Setting that is suited for movie-like

video shooting.

[Camera Resolution] is set to

1920x1080

, and [Frame & Bit Rate]

is set to

24p (HQ)

Picture file

[GY-HD LIKE] : Setting is adjusted according to the

tone of the GY-HD series.

[CINEMA] : Setting that is suited for movie-like

video shooting.

Memo :

●

The above setup files are used exclusively for loading. They

cannot be overwritten or reset.

䡵Compatibility

Scene file

●Scene files saved using the GY-HM700 series cannot be

loaded using this camera recorder.

●Scene files saved using this camera recorder cannot be

loaded using the GY-HM700 series.

Picture file

●Picture files saved using the GY-HM700 series can be

loaded using this camera recorder. When the

[Alternative Temp.] setting is not available on the

GY-HM700 series, it is set to the default value.

●JVC does not provide guarantee that picture files saved

using this camera recorder can be loaded using the

GY-HM700 series.

Configuring Setup Files

120

Camera Features

Saving Setup Files

Display the [Setup File Manage] menu.

Select the [Setup File Manage] menu on the [Main Menu]

screen, and press the Set button (R). (APage 97)

2 Select [Store File] and press the Set button (R).

3 Select [Scene File] or [Picture File], and press the Set

button (R).

The existing files are displayed.

4 Select the file to be newly saved (or overwritten)

using the cross-shaped button (JK), and press the Set

button (R).

Memo :

●

Files cannot be written in the following cases. (Displayed in

gray, selection disabled)

●The inserted SDHC card is not supported (those other

than SDHC Class 6/10 cards, or unformatted cards).

(File name appears as A---B. )

●When a write-protected SDHC card is inserted (a

mark appears beside the SDHC card icon.)

5 Name the file.

Enter the subname using the software keyboard.

䡵Operating instructions of software keyboard (APage 71)

Memo :

●

When overwriting an existing file, the subname of the

existing file is displayed.

●

Select [Cancel] and press the Set button (

), or press the

[CANCEL] button to return to the previous screen.

6 Select [Store] from the confirmation buttons E, and

press the Set button (R).

A confirmation screen appears.

7 Select [Store] on the confirmation screen, and press

the Set button (R).

Saving starts, and AStoring...B appears on the screen.

Configuring Setup Files

(continued)

[Store File] Menu Screen

Cursor

Name Description

Character Entry Field

Field for entering the title.

You can enter up to 8 characters for the

[Scene File]/[Picture File] subname.

Character Cursor

Select a character using the key cursor

, and press the Set button (

) to input

the selected character at the position of

the character cursor. The character

cursor moves to the next position on the

right each time a character is input.

The cursor can be moved using the

arrow keys

Character Keys

Use the cross-shaped button (

JKH

)

to move the key cursor

to the

character you want to enter.

Key Cursor

Indicates the currently selected

character or item. Use the cross-shaped

button (

JKH

) to move the cursor.

Confirmation Buttons

Select [Store] and press the Set

button (

) to confirm the title.

Select [Cancel] and press the Set

button (

) to abort character input and

return to the previous screen.

Arrow Keys

Moves the position of the character

cursor

[BS] Backspace Key

Select [BS] and press the Set

button (

) to delete the character on the

left of the character cursor

[SP] Space Key

Select [SP] and press the Set

button (

) to enter a space at the current

position of the character cursor

121

Memo :

●If you do not want to save the file, select [Cancel] or press

the [CANCEL] button to return to the previous screen.

●When saving of a file fails, a AStore Error!B message

(indicated in red frame) appears for several seconds, after

which the previous screen is displayed.

8 Saving is complete.

After saving of the file is complete, ACompleteB appears on

the screen, and the menu screen closes automatically.

Loading a Setup File

1 Display the [Setup File Manage] menu.

Select the [Setup File Manage] menu on the [Main Menu]

screen, and press the Set button (R). (APage 97)

2 Select [Load File] and press the Set button (R).

3 Select [Scene File] or [Picture File], and press the Set

button (R).

The existing files are displayed.

4 Select the file to load using the cross-shaped

button (JK), and press the Set button (R).

Memo :

●When the write-protect switch of the inserted SDHC card

is set, a mark appears beside the SDHC card icon.

Setup files can be loaded from an SDHC card even if the

write-protect switch is set.

●A mark is displayed at the right end when there are

some settings that are not supported by the setup file

(e.g., picture files saved using the GY-HM700 series).

These files can be loaded by this camera recorder, but

some of the settings will not be compatible. (APage 119)

●Setup files that are completely incompatible will not be

displayed. (APage 119)

5 Select [Load] on the confirmation screen, and press

the Set button (R).

Loading starts, and ALoading...B appears on the screen.

Memo :

●If you do not want to load the file, select [Cancel] or press

the [CANCEL] button to return to the previous screen.

●When loading of a file fails, a ALoad Error!B message

(indicated in red frame) appears for several seconds, after

which the previous screen is displayed.

6 Loading is complete.

After loading of the file is complete, ACompleteB appears on

the screen, and the menu screen closes automatically.

Resetting Setup Files

1 Display the [Setup File Manage] menu.

Select the [Setup File Manage] menu on the [Main Menu]

screen, and press the Set button (R). (APage 97)

2 Select [Reset File] and press the Set button (R).

3 Select [Scene File] or [Picture File], and press the Set

button (R).

The existing files are displayed.

4 Select the file to delete using the cross-shaped

button (JK), and press the Set button (R).

Memo :

●

Scene files and preset scene files stored inside the SDHC

card cannot be selected or reset.

5 Select [Reset] on the confirmation screen, and press

the Set button (R).

Deletion starts, and AResetting...B appears on the screen.

Memo :

●If you do not want to reset the file, select [Cancel] or press

the [CANCEL] button to return to the previous screen.

6 Resetting is complete.

After resetting of the file is complete, ACompleteB appears on

the screen, and the menu screen closes automatically.

[Load File] Menu Screen

Cursor

122

Connecting External Devices

To output live or playback video images and audio sound to

an external monitor, select the output signals from the

camera recorder, and connect using an appropriate cable

according to the monitor to be used.

Connecting via Composite/Component

Output

Either component or composite signals can be output from the

BNC terminals on the terminal area of the camera recorder.

Connect the external monitor to the [Y/VIDEO] output terminal

for composite signals, or to [Y/VIDEO], [PB], and [PR] video

signal output terminals for component signals.

* Select the output signal using [Output Terminal] in the

[A/V Out] menu. (

Page 92)

* To display menu screens or status screens on the external

monitor, set [Analog Out Char.] in the [A/V Out] menu to

. (

Page 92)

䡵Settings for Composite Output

Down convert the signals.

You can select the method to Adown convertB HD video

images to SD images during composite output.

Set using [Down Convert] in the [A/V Out] menu.

The available modes include ASide CutB, ALetter BoxB

(blackened at the top and bottom), and ASqueezeB (full size,

compressed at the left and right). (APage 92)

Memo :

●When [System Definition] in the [Record Format] menu is

set to ASD (DV)B, selection cannot be made. (APage 75)

2 Add setup signals.

Setup signals can be added to the output video signals

during composite output.

* You can select whether to add setup signals using [Set Up]

in the [A/V Out] menu. (APage 92)

Connecting via SDI

Either HD-SDI or SD-SDI signals can be output from the

[HD/SD-SDI] terminal (BNC) on the terminal area of the

camera recorder.

●Digital video signals, together with embedded

(superimposed) audio signals and time code signals, are

output for both the HD-SDI and SD-SDI signals.

●

User’s bit output from the [HD/SD-SDI] output terminal is

used as a flag to determine valid video signals. Therefore,

accurate values will not be output.

Memo :

●The sampling frequency for embedded (superimposed)

audio signals is 48 kHz. Time code of the built-in time

generator as well as playback time code are also output.

* Select the output signal using [HD/SD-SDI Out] in the

[A/V Out] menu. (APage 92)

* When [System Definition] in the [Record Format] menu is

set to ASD (DV)B, only SD-SDI signals are output.

(APage 75)

* To display menu screens or status screens on the external

monitor, set [SDI Out Char.] in the [A/V Out] menu to AOnB.

(APage 92)

䡵Settings for SDI Output

Down convert the signals.

You can select the method to Adown convertB HD video

images to SD images during SD-SDI output.

Set using [Down Convert] in the [A/V Out] menu.

The available modes include ASide CutB, ALetter BoxB

(blackened at the top and bottom), and ASqueezeB (full size,

compressed at the left and right). (APage 92)

Memo :

●When [System Definition] in the [Record Format] menu is

set to ASD (DV)B, selection cannot be made. (APage 75)

Connecting an External

Monitor

COMPONENT IN

VIDEO IN

[AUDIO OUTPUT]

AUDIO IN

[Y/VIDEO] [Y/VIDEO], [PB], [PR]

Component Output

Composite Output

SDI IN

[HD/SD-SDI]

123

[PHONES] Terminal

Audio output from the [PHONES] terminal can be selected

using [Audio Monitor] in the [A/V Out] menu (APage 93) as

well as the [MONITOR SELECT] switch on the camera

recorder.

The different combinations of settings that are output from

the [PHONES] terminal and monitor speaker are as follows. “ Backup recording ” can be performed, which allows the

same image recorded to the SDHC card on the camera

recorder to be recorded to the external device connected to

the IEEE1394 terminal. (APage 124)

Note :

●When connecting the camera recorder to an external

device using an IEEE1394 cable, make sure to observe

the following. Improper connection may cause the circuit

of the connected unit to malfunction.

●Turn off the power of the camera recorder and

connected devices before connecting the IEEE1394

cable.

●Do not connect the cable in an environment where

static electricity occurs or is likely to occur.

●Make sure that each camera recorder is connected to

only one external device at any one time.

●When the video format input from the [IEEE1394] terminal

is different from the video format of the camera recorder, a

AVIDEO FORMAT INCORRECTB message is

displayed. Set according to the video format entered for

[System Definition], [Camera Resolution], and

[Frame & Bit Rate] in the [Record Format] menu.

(APage 75)

●If the [INT/EXT] IEEE1394 interface terminal switch is set

at AEXTB and the AHQB mode is selected in

[Frame & Bit Rate], signals will not be output from the

[IEEE1394] terminal. (APage 75)

[MONITOR

SELECT]

Switch

Settings

[Audio Monitor]

Settings

[PHONES]

Terminal Speaker

L R

[CH-1] ^CH1 CH1

[BOTH] [Mix] CH1+CH2 CH1+CH2

[Stereo] CH1 CH2

[CH-2] ^CH2 CH2

IEEE1394 Connection

[IEEE1394] Terminal

VIDEO FORMAT

INCORRECT

124

Connecting External Devices

Backup Recording

When the camera recorder is set to Camera mode, images

shot using it can be stream output from the IEEE1394

terminal.

According to the recording operation on the camera recorder,

recording to the camera recorder and external device may be

performed synchronously or separately.

Connect the camera recorder to the backup device.

Connect the camera recorder to the backup device using an

IEEE1394 cable, using the camera recorder as the master

device.

2 Set the camera recorder to Camera mode.

3 Set the recording video format.

Perform setting in the [Record Format] menu. Select a video

format in [System Definition]. (APage 75)

Note :

●

To back up in the HDV format, be sure to select SP mode for

the [Frame & Bit Rate] setting.

4 Perform the following settings on the camera recorder

(master device).

ASet the [INT/EXT] IEEE1394 interface terminal switch to

AEXTB.

BSwitch to Camera mode.

Specify how recording to the camera recorder and

external device is to be performed with the recording

operation on the camera recorder using [1394 Rec

Trigger] in the [Others] menu. (

Page 94)

5 Set the external device to a mode that enables

recording.

For setting and operation of external devices, refer to the

instruction manual of the respective devices.

Note :

●

Adjust the camera recorder and external device to the same

IEEE1394 settings.

●

Start recording only after ensuring that the devices are

properly connected.

6 Perform recording using the camera recorder.

If the settings in 3 are appropriate, video images will be

recorded to the camera recorder and external device.

Note :

●

Images, audio and time code at the points where recording

starts and ends may be out of sync depending on the

camera recorder and backup device in use.

Memo :

●When backup recording starts, a ATRIGGER TO EXTB

message appears on the LCD monitor and viewfinder for

about 3 seconds.

䡵Checking Videos Recorded on the

External Device

(IEEE1394 Input mode of Media mode)

When images are displayed in thumbnails in Media mode

(SD Card mode) and power of the device connected to the

[IEEE1394] terminal is turned on, pressing the [CAM/MEDIA]

selection button displays the playback images of the

connected device on the LCD monitor and viewfinder.

(Only for HD video systems)

Pressing the same button has no effect if the [IEEE1394]

connection is not recognized, such as when the power of the

device connected to the [IEEE1394] terminal is turned off.

When an SD video system is in use, availability of the

[IEEE1394] terminal connection cannot be detected in Media

mode (SD Card mode). Allow the camera recorder to detect

the [IEEE1394] terminal connection in advance by turning on

the power of the connected equipment in Camera mode.

Refer to [Status Screen in IEEE1394 Input Mode] (

Page 109)

for the status display of this mode.

1 Set the [Record Format] menu according to the input

video format. (APage 75)

2 Press the [CAM/MEDIA] button to set to the IEEE1394

Input mode.

3 Set the external device to the playback mode.

Video images recorded on the external device are displayed

on the LCD monitor and viewfinder.

Note :

●This mode is used for viewing images input to the

[IEEE1394] terminal from an external device, and not

intended for recording input images on the camera

recorder.

IEEE1394 Connection

(continued)

[HD (MPEG2)] : Performs backup in the HDV format.

[SD (DV)] : Performs backup in the DV format.

Camera recorder

(Master Device)

Backup Device

IEEE1394

Cable

Signal Flow

[IEEE1394]

Te r m i n a l

[INT/EXT] IEEE1394

Interface Terminal

Switch

125

This camera recorder is equipped with an AUX input terminal

on the side for recording composite video signals from an

external device to an SDHC card.

Memo :

●

[Favorites Menu]

does not function in AUX mode.

Set the camera recorder to Camera mode.

2 Set the [GENLOCK/AUX] switch to AAUXB.

The [Record Format] menu settings are as follows. (

Page 75)

3 Set the following items in the [Record Format] menu.

(APage 75)

●Select the format for recording to the SDHC card in

[File Format] (AQuickTimeB or AAVIB).

●Set the [Aspect Ratio].

4 Set [Set Up] in the [A/V Out] menu. (APage 92)

5 Input composite video signals from the external

device to the [GENLOCK INPUT] terminal.

Note :

●Input jitter-free composite video signals.

Input level : 1.0 ± 0.3 V (p-p)

6 Start/Stop recording using the [REC] button on the

camera recorder.

The EE image of the input signal is output in the SD (DV)

format from the respective video output terminals.

Note :

●During recording of external video signals, checking of the

recording (Clip Review) cannot be performed using the

[RET] button on the lens.

●Do not touch the [GENLOCK/AUX] switch while recording

is in progress.

䡵Status Screen Display in AUX Mode

In the AUX mode, AAUXB is displayed on the status screens

of the LCD monitor and viewfinder.

Input of Composite Video Signals

from External Device (GY-

HM790CHU/GY-HM790U only)

[System Definition] Item : SD (DV)

[Camera Resolution] Item : 720 x 480

[Frame Rate] Item : 60i

16:9

When the input analog signal is a squeeze signal

4:3

All cases other than that stated above

7.5%

When input analog signals include setup signals

0.0%

When input analog signals do not include setup signals

[GENLOCK/AUX] Switch

[GENLOCK/AUX IN]

Terminal

00:00:00:00

STBY

100min

720x480

60i AUX

282min

FREE

B123 min

min

720x480

60i AUX

CH1

CH2

STBY

100min

67.8min

AAUXB Display

Status Screen

Enlarged Status Display Screen

126

Connecting External Devices

This camera recorder is equipped with a genlock input

terminal on the side.

Synchronizing signals can also be input from a KA-M790G

unit (Multicore Remote Adapter: sold separately) that is

connected to the accessory connection terminal (68 pin) at

the rear of the camera recorder.

The following describes the case of signal input using the

side [GENLOCK INPUT] terminal.

Input the external synchronizing signal from the

[GENLOCK INPUT] terminal, and synchronize the camera

recorder’s video and playback images with the external

signal.

You can also adjust the H (Horizontal) phase of the camera

recorder’s video signals with respect to the external

synchronizing signals on the [Genlock Adjust] screen of the

[Others] menu. (APage 96)

Only horizontal (H) and vertical (V) genlock are supported.

The camera recorder does not come with an SC (subcarrier)

lock function.

䡵Synchronizing Signal to Use

Note :

●The genlock function can only be used in the Camera

mode. It is not available in the AUX mode (U model only)

and Media mode.

1 Set the camera recorder to Camera mode.

2 Set [Genlock Input] in the [Others] menu to ABNCB.

(APage 93)

Memo :

●During input of synchronizing signals from the accessory

connection terminal (68 pin) at the rear of the camera

recorder, set to AAdapterB.

3 Set the [GENLOCK/AUX] selection switch to

AGENLOCKB. (U model only)

4 When in the standby or stop mode, input

synchronizing signals from the SYNC generator to the

[GENLOCK INPUT] terminal.

●

When the camera recorder’s video is locking to the external

synchronizing signal,

SYNC LOCKING

appears on the

screen.

●

After locking to the external synchronizing signal is

complete, the display disappears and recording can be

performed.

Note :

●

When the frame rate is set to 30p, 60p, 60i, or 24p in the

[Frame & Bit Rate] item of the [Record Format] menu, 59.94 Hz

synchronizing signals (vertical synchronization) are input.

50 Hz/60 Hz synchronizing signals are not synchronized.

●

When the frame rate is set to 25p, 50p, or 50i in the

[Frame & Bit Rate] item of the [Record Format] menu, 50 Hz

synchronizing signals (vertical synchronization) are input.

59.94 Hz/60 Hz synchronizing signals are not synchronized.

●

Do not connect or disconnect the input cable for the

synchronizing signals during recording or playback.

●

If the power is turned ON during input of external

synchronizing signals, vertical oscillation may occur. This is

not a malfunction.

●

Signals such as VTR playback signals with jitters may not be

synchronized.

●

The camera recorder does not come with an SC (subcarrier)

lock function. Color flash may occur during switching such as

when composite signals are used by a switcher.

Input of External

Synchronizing Signal

(Genlock)

synchronizing

signal : BB (Black Burst) signal

Supports SMPTE170M(RS-170A)-NTSC

Supports ITU-R BT.470-6 PAL

synchronizing

signal : HDTV 3 level synchronizing signal

Supports SMPTE296M-HD720p

Supports SMPTE274M-HD1080i

SYNC Signal

Generator

Video Equipment

External Synchronizing

Signal

[GENLOCK/AUX] Switch

(U Model only)

[GENLOCK/AUX IN] Terminal (U Model)

[GENLOCK INPUT] Terminal (E Model)

External

Synchronizing

Signal

127

䡵Phase Items to Synchronize

The phase items to be synchronized may vary depending on

the input synchronizing signal and output video signal. (See

table below)

Adjusting the H Phase

Select [Genlock Adjust] in the [Others] menu. (

Page 96)

2 Select the phase item to adjust in [Genlock Adjust].

3 Select a value using the cross-shaped button (JK).

The H phase of the camera recorder’s video signals is

adjusted with respect to the external synchronizing signal

input to the [GENLOCK INPUT] terminal.

You can alter the setting value for [Analog HD H Phase], [SD-

SDI H Phase], and [HD-SDI H Phase] in increments of 10 by

pressing down the cross-shaped button (JK) for 2 seconds

or longer.

Memo :

●Adjustment cannot be performed when recording or

playback is in progress.

●The video image may be disrupted momentarily during

adjustment. This is not a malfunction.

Terminal Output Video

Signal

Input Sync Signal

BB Tr i - s y n c

720p 1080i

VIDEO Composite H, V, F V V, F

Y/PB/PR

SD Component H, V, F V V, F

HD Component

720p VH, VV

HD Component

1080i V, F V H , V, F

HD/SD-SDI

S D - S DI H , V, F V V, F

HD-SDI 720p V H, V V

HD-SDI 1080i V, F V H, V, F

H : Horizontal phase F : Field phase

V : Vertical phase

Analog SD H Phase :For adjusting the H phase of SD analog

signal.

Analog HD H Phase :For adjusting the H phase of HD analog

signal.

SD-SDI H Phase :For adjusting the H phase of SD-SDI

signal.

HD-SDI H Phase :For adjusting the H phase of HD-SDI

signal.

128

Connecting External Devices

Return video from an external device (switcher, etc.) can be

displayed on the viewfinder or LCD monitor of the camera

recorder.

You can select the destination to input return video in the

[Return Input] item of the [Others] menu. (APage 93)

Note :

●This function can only be used in the Camera mode. It is

not available in the AUX mode (U model) and Media mode.

1 Set the camera recorder to Camera mode.

2 Set the [GENLOCK/AUX] switch to AAUXB. (U model

only)

3 Set the function of the [RET] button on the lens to

Return Video.

Set [Camera Function] menu B [Switch Set] menu B

[LENS RET] to AReturnB. (APage 79)

4 Select a destination to input the return video.

Set the [Return Input] item in the [Others] menu. (

Page 93)

5 Select the aspect ratio for the return video.

Set the [Return Aspect] item in the [Others] menu. (

Page 93)

6 Press the [RET] button on the lens.

The return video is displayed on the viewfinder and LCD

monitor while the [RET] button is pressed down.

Note :

●The following displays and operations are invalid when

return video is displayed. [Zebra], [Skin Area],

[Spot Meter], [Focus Assist] ([ACCU-Focus] operation),

[Aspect Marker], [Safety Zone], [Center Mark], and status

displays.

●When return video is displayed, the [VF Display] and

[LCD Mirror Mode] items in the [LCD/VF] menu become

invalid, and the camera recorder operates as follows.

●[VF Display] : Operates in the AColorB setting.

●[LCD Mirror Mode] : Operates in the ANormalB setting.

Displaying Return Video

from External Device

Adapter : During input of return video from the KA-M790G

(Multicore Remote Adapter : sold separately)

connected to the accessory connector (68-pin)

at the rear of the camera recorder

Studio : During input of return video from the [STUDIO]

terminal at the side of the camera recorder

16:9 : When the return video is a squeeze signal

4:3: When the return video is a 4:3 aspect signal

(including Letter Box)

RET

IRIS

A M

[RET] Button

129

Studio System Connection

Memo :

●For connections between the Camera Remote Control Units, refer to the [INSTRUCTIONS] of the Camera Remote Control

Unit.

* Models with an E suffix are for the European market and the UL Listing mark is not applicable.

CALLTALLY

INTERCOM

LEVEL

F3MENU/SHUTTER GAIN PAINT AUTO

W.BAL

AUTO

MANU

WHITE MASTER BLACK POWER

IRIS

STEP

SHUTTER

MENU PUSH-ON

DOWN UP

VARIABLE

PUSH-ON

HIGH

LOW

PRESET

CLOSE OPEN

MID

DOWN UP

REMOTE CONTROL UNIT RM-P250

FULL AUTO F1

SHUTTER

GAIN

BARS

CALLTALLY

INTERCOM

LEVEL

F3MENU/SHUTTER GAIN PAINT AUTO

W.BAL

AUTO

MANU

WHITE MASTER BLACK POWER

IRIS

STEP

SHUTTER

MENU PUSH-ON

DOWN UP

VARIABLE

PUSH-ON

HIGH

LOW

PRESET

CLOSE OPEN

MID

DOWN UP

REMOTE CONTROL UNIT RM-P250

FULL AUTO F1

SHUTTER

GAIN

BARS

CALLTALLY

INTERCOM

LEVEL

F3MENU/SHUTTER GAIN PAINT AUTO

W.BAL

AUTO

MANU

WHITE MASTER BLACK POWER

IRIS

STEP

SHUTTER

MENU PUSH-ON

DOWN UP

VARIABLE

PUSH-ON

HIGH

LOW

PRESET

CLOSE OPEN

MID

DOWN UP

REMOTE CONTROL UNIT RM-P250

FULL AUTO F1

SHUTTER

GAIN

BARS

GY-HM790CHU/GY-HM790U/

GY-HM790CHE*/GY-HM790E*

Studio Viewfinder

VF-HP790G

Studio Adapter

KA-790G

Headset

(Beyerdynamic)

Multicore Remote Adapter

KA-M790G

26Pin Camera

Cable

VC-P110U (5m)

VC-P112U (20m)

VC-P113U (50m)

VC-P114U (100m)

Camera Remote Control Unit

RM-HP250AU/RM-HP250DE*

Remote Control

Unit RM-LP25U

Remote Control

Unit RM-LP25U

26Pin Camera Cable

VC-P110U (5m)

VC-P112U (20m)

VC-P113U (50m)

VC-P114U (100m)

Camera Remote Control Unit

RM-HP250AU/RM-HP250DE*

HD/SD-SDI

Component

26Pin Camera Cable

VC-P110U (5m)

VC-P112U (20m)

VC-P113U (50m)

VC-P114U (100m)

Camera Remote Control Unit

RM-HP250AU/RM-HP250DE*

Remote Control

Unit RM-LP25U

External Synchronizing

Signal HD Switcher

GY-HM790CHU/GY-HM790U/

GY-HM790CHE*/GY-HM790E*

GY-HM790CHU/GY-HM790U/

GY-HM790CHE*/GY-HM790E*

Headset

(Beyerdynamic)

Headset

(Beyerdynamic)

Headset

(Beyerdynamic)

Headset

(Beyerdynamic)

Headset

(Beyerdynamic)

Studio Viewfinder

VF-HP790G

Studio Viewfinder

VF-HP790G

Studio Adapter

KA-790G

Studio Adapter

KA-790G

Multicore Remote Adapter

KA-M790G

Multicore Remote Adapter

KA-M790G

Coaxial cable (for E model)

130

Connecting External Devices

Loading Clips to the PC (USB Connection

Mode)

You can load clips to a PC by connecting the camera

recorder to the PC via the USB port. Doing so enables clips

stored in the SDHC card to be managed and edited on the

PC.

Files on the SDHC card can be managed/edited on the

connected PC in this mode only for USB mass storage class

devices that are recognized by the said PC as a peripheral

drive.

Memo :

●Files cannot be written to the SDHC card.

●Make sure to manage/edit files recorded in the MP4 file

format using the (JVC ProHD Clip Manager) PC

application software in the bundled CD-ROM.

●For details on how to install the application software, refer

to the [User’s Guide] of the [SxS Memory Card Device

Driver Software] inside the bundled CD-ROM.

1 Connect the camera recorder to the PC using a USB

cable.

A confirmation message AChange to USB ModeB to enable

the USB connection appears.

2 Select [Change] using the cross-shaped button (JK),

and press the Set button (R).

The camera recorder switches to USB mode.

Memo :

●If recording is in progress (including recording on the

camera recorder and device connected to the IEEE1394

terminal), the AChange to USB ModeB message appears

after recording stops.

●If playback is in progress, the camera recorder switches to

USB mode after the file closes automatically, such as

when playback stops.

䡵Disconnecting

Disable the connection on the PC, then remove the USB

cable from the camera recorder.

Doing so exits the USB mode and switches the camera

recorder to Camera mode.

Memo :

●The procedure for disabling the USB connection varies

according to the PC in use. For details, refer to the

instruction manual of the PC.

Managing/Editing Clips on

a PC

[USB] Terminal

131

The switch functions of the camera recorder can be

configured using the remote control unit.

* Remote control units supported : RM-LP25U, RM-LP55U,

RM-LP57U

Connect the remote control unit to the camera recorder.

Connect the remote cable of the remote control unit to the

[REMOTE] terminal on the terminal area of the camera

recorder.

Note :

●Turn off the power of the camera recorder when

connecting a remote control unit.

2 Turn on the power of the camera recorder.

3 Set the operate switch of the remote control unit to

ON.

Memo :

●For details on functions that can be operated using the

remote control unit, refer to [List of Remote Control Unit

Functions] (A Page 132).

䡵Precautions for Using the Remote

Control Unit

●When the switches of the camera recorder and remote

control unit are operated at the same time, the switch

operation of the remote control unit takes priority over that

of the camera recorder.

●Focus and zoom operations cannot be performed using

the remote control unit.

●The shutter speed may vary slightly from the value

displayed on the camera recorder.

●When the frame rate in [Frame & Bit Rate] of the camera

recorder is set to A24pB, the shutter speed cannot be set

to A1/60B using the remote control unit. Even if the shutter

speed is set to A1/60B, the actual speed is A1/48B.

(APage 75)

●When the camera recorder is in the Media mode, Auto

White does not function even when it is operated using

the remote control unit.

●When the H phase is set using a remote control unit, only

the H phase of the SD signal is activated.

●When setting the H Phase using a remote control unit,

any value beyond the setting range in the menu of the

camera recorder cannot be set. (APage 96)

Remote Control Unit

Connection

RM-LP25U

[REMOTE] Terminal

132

Connecting External Devices

List of Remote Control Unit Functions

䡵RM-LP25U

䡵RM-LP55U

Remote Control Unit

Connection (continued)

Function 3: Available

-: Not available

SHUTTER NORMAL 3

1/100*1, 1/120*23

1/250 3

1/500 3

1/1000 3

1/2000 3

VARIABLE*6

SPEED

GAIN -6dB -

-3dB -

0dB 3

3dB 3

6dB 3

9dB 3

12dB 3

15dB 3

18dB 3

ALC 3

LOLUX -

VARIABLE -

LEVEL

DETAIL 3

LEVEL 3

GAMMA 3

LEVEL 3

BLACK STRETCH*33

NORMAL 3

COMPRESS*33

WHITE BALANCE

MODE

MANUAL 3

PRESET 3

FAW 3

AW A 3

AW B 3

WHITE PAINT 3

AUTO WHITE 3

AUTO BLACK -

BLACK PAINT 3

Function 3: Available

-: Not available

IRIS CONTROL 3

Iris F Value

Display 3

MASTER BLACK 3

TALLY (LED) 3

CALL*43

PREVIEW -

AUTO KNEE 3

KNEE POINT 3

BARS 3

TALLY(PGM)*4Rear Input 3

TALLY(PVW)*4Rear Input 3

Function 3: Available

-: Not available

CAM MODE CAM, BARS 3

CONTOUR OFF, ON (LEVEL) 3

GAMMA OFF, ON (LEVEL) 3

WHT.BAL. MANUAL, PRESET, AUTO1,

AUTO2, FAW 3

AUTO WHITE 3

WHITE PAINT 3

GAIN dB mode 0dB, +3dB*5, +6dB,

+9dB, +12dB,

+15dB*5, +18dB

ALC+EEI 3

ALC 3

PA I N T R 3

SHUTTER NORMAL 3

STEP 1/100*1, 1/120*2,

1/250, 1/500, 1/1000,

1/2000, 1/4000*5,

1/10000*5

EEI 3

IRIS MANUAL, AUTO 3

AUTO IRIS LEVEL, MANUAL

IRIS LEVEL 3

ZOOM WIDE, STOP, TELE -

FOCUS NEAR, STOP, FAR -

H.PHASE*53

133

䡵RM-LP57U

*1 : Only when the [Frame & Bit Rate] of the camera

recorder is A60B, A30B, or A24B.

*2 : Only when the [Frame & Bit Rate] of the camera

recorder is A50B or A25B.

*3: Switches automatically to ANORMALB when both

[STRETCH] and [COMPRESS] are set to AOffB.

*4 : Only when [Tally System] in the [Others...] menu is set

to AStudioB.

*5 : Only available on RM-LP55U(A).

*6 : This function may not be operable for some RM-LP25U

software versions. For more details, please consult

your nearest JVC dealer. Also, it cannot be controlled

when the camera recorder is set to the Variable Frame

Rec mode.

Function 3: Available

-: Not available

MODE BARS, CAM 3

H.PHASE*53

SC COARSE 0⬚, 90⬚, 180⬚, 270⬚-

SC FINE -

CONTOUR OFF, ON 3

LEVEL 3

GAIN 0dB 3

+6dB 3

+9dB 3

+12dB 3

+18dB 3

ALC 3

ALC+EEI 3

WHITE BAL AUTO1 3

AUTO2 3

FAW 3

AUTO WHITE 3

PA I N T R 3

SHUTTER OFF 3

1/100*1, 1/120*23

1/250 3

1/500 3

1/1000 3

1/2000 3

EEI 3

MASTER BLACK 3

IRIS MANUAL, AUTO 3

MANUAL LEVEL 3

AI LEVEL 3

134

Others

Alarm displays on the LCD monitor and viewfinder screens, as well as the tally lamps and alarm tones are output as follows

according to the alarm status.

Memo :

●This camera recorder makes use of a microcomputer. Noise interference from external sources may prevent it from functioning

properly. When this occurs, turn off and on the power of the camera recorder again.

Error Displays and Actions

Error Display

Status Action

Status Screen Menu Screen

Thumbnail Screen

TURN POWER OFF

TURN BACK ON

LATER

^System error.

* The alarm sounds and the tally lamp blinks

about once every second.

Turn off the power, and turn it on again.

If the error persists, consult your nearest JVC

dealer.

INCORRECT MEDIA

[***]

Incorrect Media [***] SDHC card is not supported (a type other than

Class 6/10). (***: A, B, A/B)

Insert an SDHC card that is compliant with

Class 6/10.

(APage 31)

INVALID MEDIA

[***]

Invalid Media [***] ●An irrecoverable error is detected.

●SDHC card reading/writing error.

(Faulty SDHC card) (***: A, B, A/B)

Replace the SDHC card with a new one.

FORMATTING

REQUIRED

[***]

Formatting Required

[***]

SDHC card is not formatted using this camera

recorder. (***: A, B, A/B)

Format the card using this camera recorder.

(APage 33)

RESTORE MEDIA

[***]

Restore Media [***] ●SDHC card requires restoring.

●Recording is not successfully completed.

(Temporary blackout/card removed)

(***: A, B, A/B)

Restore the card using this camera recorder.

(APage 34)

NO MEDIA ^[REC] button is pressed when an SDHC card

is not inserted.

Insert an SDHC card. (APage 31)

^No Media No SDHC card is found in Media mode or

when the thumbnail screen is displayed.

Insert an SDHC card. (APage 31)

^No Clips No clips are found on the inserted SDHC card

in Media mode or when the thumbnail screen

is displayed.

Insert an SDHC card that contains playable

clips. (A Page 31, 61)

NO CLIP ^No viewable clips are found on the card for

Clip Review.

Insert an SDHC card that contains clips that

can be reviewed. (A Page 31, 56)

REC INHIBITED ^[REC] button is pressed when the write-protect

switch of the SDHC card is set.

Turn off the write-protect switch of the SDHC

card, or insert a recordable SDHC card.

(APage 31)

CLOSE SLOT

COVER

^●Recording to the SDHC card is started with

the cover of the selected slot left open.

●The cover is opened while recording is in

progress.

Close the cover of the SDHC card slot.

(APage 32)

LOST MEDIA INFO [*] Lost Media Info [*] ●Card is removed while recording is in

progress.

●Card is removed while formatting is in

progress.

●Card is removed while restoring is in

progress.

●Card is removed while adding the OK mark.

●Card is removed while writing a setup file.

●

Card is removed while deleting a clip. (*: A, B)

Restore the card using this camera recorder.

(APage 34)

135

Tally Lamps

The tally lamps start blinking when the remaining space on the SDHC card is running out during recording, or when the battery

power is running low.

Alarm Tone

Alarm tone is output from the monitor speaker and [PHONES] terminal when the battery level is low.

Alarm tone is output from the monitor speaker and [PHONES] terminal when the SDHC card is full. (Camera mode only)

Alarm tone is also output when an error occurs in the camera recorder.

Memo :

●[Alarm Level] in the [Others] menu can be used to specify whether alarm tone is to be output, as well as the volume level.

(APage 93)

●Alarm tone is not output during recording.

Error Display

Status Action

Status Screen Menu Screen

Thumbnail Screen

EXT-RECORDER

POWER ?

^Power of the camera recorder is

turned off while the external device

connection is detected, and the same

connection cannot be detected

several seconds after power is turned

on again. (Error displays for about 7

seconds)

When making use of a connected external

device, turn on the power supply on the

connected device.

VIDEO FORMAT

INCORRECT

^●Video format of the file for Clip

Review is different from the

[Frame & Bit Rate] setting of the

camera recorder.

●IEEE1394 input video format is

different from the

[Camera Resolution] and

[Frame & Bit Rate] settings.

Set [Camera Resolution] and

[Frame & Bit Rate] correctly. (APage 75)

●The video system of the camera

recorder is not compatible with the

IEEE1394 input signal.

Set [System Definition] in the

[Record Format] menu according to the

IEEE1394 signal. (APage 75)

MEDIA FULL ^●[REC] button is pressed when the

media in use has no remaining

space.

●Remaining space ran out during

recording.

Replace the SDHC card with a new one.

FAN MAINTENANCE

REQUIRED

^●Usage time of the fan has

exceeded 9000 hours.

Check the fan and replace accordingly. For

more details, consult your nearest JVC

dealer.

Memo :

●

You can check the usage time of the fan in the

[Others] menu

[System Information]

[Fan Hour]. (

Page 95)

Blinking Mode Remaining Battery Power/SDHC Card Space

Blinks slowly

(once every second)

●Battery power is low

●Remaining recording time on SDHC card is less than 3 minutes

Blinks quickly

(4 times a second)

●SDHC card is full

●Error on the camera recorder

136

Others

Troubleshooting

Symptom Action

Power does not turn on. ●Is the AC adapter properly connected?

●Is the battery charged?

●Is the power turned on immediately after it is turned off? Make sure to wait for

an interval of at least 5 seconds before turning on the power again.

Unable to start recording. ●Is the record button lock switch on the handle turned on?

●Is the write-protect switch of the SDHC card turned on? Make sure that the

write-protect switch is turned off. (APage 31)

●Is the camera recorder set to the Camera mode? (Operation mode indicator:

Lights up in blue/purple) If the operation mode indicator lights up in another

color, camera images are not output. Use the [CAM/MEDIA] selection button

to switch to the Camera mode. (APage 8)

Camera image is not output on the LCD

monitor and viewfinder screens.

●Is the camera recorder set to the Camera mode? (Operation mode indicator:

Lights up in blue/purple) If the operation mode indicator lights up in another

color, camera images are not output. Use the [CAM/MEDIA] selection button

to switch to the Camera mode. (APage 8)

Images on the LCD monitor and viewfinder

screens appear dark or blurred.

●Readjust the brightness of the LCD monitor screen and viewfinder.

●Is the [ND FILTER] switch set to [1/16]?

●Is the iris closed?

●Is the shutter speed setting too high?

●Check the connection of the viewfinder cable.

●Is the amount of peaking too little? Use the [LCD PEAKING +/-] button to

adjust the contour for the LCD monitor screen and the [VF PEAKING] knob

for the viewfinder screen. (APage 28)

●Is the [GENLOCK/AUX] selection switch set to AAUXB?

Camera images are not output in the AUX mode. (U model)

Playback does not start after selecting a

clip thumbnail and pressing the Set

button (R).

●Is the selected clip a playable clip? Playback is not possible if the clip has a

different video format setting.

HDV/DV signals cannot be input. ●Is the camera recorder set to the IEEE1394 Input mode? (Operation mode

indicator: Lights up in orange)

●Is [System Definition] in the [Record Format] menu correctly set?

(APage 75)

No sound during playback. ●Is the currently played clip recorded in the Variable Frame Rec mode?

(APage 60)

The [AUDIO LEVEL CH-1/CH-2]

adjustment knob does not work.

●Is the [AUDIO LEVEL CH-1/CH-2] switch set to AAUTOB?

●Is the [FULL AUTO] switch set to AONB?

SDHC card cannot be initialized (formatted).

●Is the write-protect switch of the SDHC card turned on? Make sure that the

write-protect switch is turned off. (APage 31)

Battery alarm appears even after loading

a charged battery.

●Is the battery too old?

The time code and user’s bit are not

displayed.

●The time code and user’s bit are not displayed in IEEE1394 Input mode.

●Even in Camera mode or SD Card mode, the time code and user’s bit may not

be displayed depending to the type of status display.

●Is [TC/UB] of [Status Display] in the [LCD/VF] menu set to AOffB? To display

the time code and user’s bit, set it to AOnB. (APage 91)

137

General

Camera Section

Lens Section (GY-HM790U/GY-HM790E only)

Storage Section

Symptom Action

The date and time are not displayed. ●The date and time are only displayed on the STATUS 2 and STATUS 3

screens in the Camera mode (during shooting). (A Page 106, 107)

No output from the [Y/VIDEO], [PB], and

[PR] video signal output terminals.

●Is [Output Terminal] in the [A/V Out] menu correctly set? (APage 92)

Incorrect display on the viewfinder. ●Is the LCD monitor used with [LCD + VF] in the [LCD/VF] menu set to AOffB?

(APage 88)

IEEE1394 connection between the camera

recorder and the external device cannot

be established (e.g., no image on the

camera recorder and/or external device).

●Is the operation mode correctly set? (APage 8)

●Is the [INT/EXT] IEEE1394 interface terminal switch correctly set?

●

Is [System Definition] in the [Record Format] menu correctly set? (

Page 75)

●Check the connection, such as by removing the IEEE1394 cable and inserting

it again, or by reconnecting the power.

When the camera recorder is in the Media

mode (SD Card mode), pressing the

[CAM/MEDIA] button does not switch it to

the IEEE1394 Input mode.

●Is the power of the device connected to the [IEEE1394] terminal turned ON?

If the power of the connected device is OFF, the camera recorder does not

switch to the IEEE1394 Input mode.

●

Is [System Definition] in the [Record Format] menu set to

SD (DV)

? (

Page 75)

When the SD video system is in use, the camera recorder is unable to

recognize the IEEE1394 connection in the Media mode (SD Card mode).

Turn ON the power of the IEEE1394-connected device in the Camera mode,

followed by switching from the Media mode (SD Card mode) to the IEEE1394

Input mode using the [CAM/MEDIA] button.

Specifications

Power :DC 12 V (10.5 V to 17 V)

Power

consumption :Approx. 26 W

(During recording [when the camera

recorder + standard lens + LCD monitor

are in use])

Mass

GY-HM790CHU :Approx. 2.7 kg

GY-HM790CHE :Approx. 2.8 kg

GY-HM790U :Approx. 3.7 kg

GY-HM790E :Approx. 3.9 kg

Allowable

operating

temperature :0 f to 40 f (32 J to 104 J)

Allowable

operating

humidity :30 % RH

Allowable storage

temperature :-20 f to 60 f (-4 J to 122 J)

Image pickup device :1/3" Progressive IT CCD

Color separation

prism :F1.4, 3-color separation prism

Sync system :Internal sync (built-in SSG)

Lens mount :1/3" bayonet system

Optical filter :OFF, 1/4, 1/16

Gain :0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB,

ALC

Electronic shutter :1/6 to 1/10000, EEI

Variable frame :10/30-60/30fps, 10/25-50/25fps, 10/24-

60/24fps

LCD monitor :4.3" LCD, 800 x 480

(WVGA, 410,000 pixels)

Viewfinder :0.45" LCOS, 1.22 megapixels

(852 x 480 x 3)

Lens :Canon F/1.6, 14x, f = 4.4-61.6 mm

(35 mm conversion: 32-448 mm)

Filter diameter :82 mm

Supported media :SDHC (Class 6/10)

Slots :x 2

138

Others

Time Code

Terminal Section

Video/Audio

Accessories

Specifications (continued)

Time code signal :Compliant with SMPTE/EBU

LTC input signal :1.0 Vp-p to 4.0 Vp-p, high impedance

(unbalanced)

LTC output signal :1.0 Vp-p to 4.0 Vp-p, low impedance

(unbalanced)

[Y/VIDEO], [PB], and [PR] analog video output terminals

Analog composite output (480i or 576i : Downconverted, 4:3/16:9)

:1.0 V (p-p), 75 K, BNC (unbalanced)

Component output (720p/1080i)

:Y: 1.0 V (p-p), 75 K

Pb, Pr: 0.7 V (p-p), 75 K, BNCx3

(unbalanced)

[HD/SD-SDI] output terminal (480i or 576i : Downconverted 720p/

1080i : embedded audio), BNC (unbalanced)

HD-SDI :Compliant with SMPTE 292 M

SD-SDI :Compliant with SMPTE 259 M

[AUDIO INPUT 1/2] terminal

[MIC] :

-60 dBu, 3 k

, XLR (balanced),

+48 V output (phantom power supply)

[LINE] :+4 dBu, 10 kK, XLR (balanced)

[AUDIO OUTPUT] terminal

:-8 ±1 dBu (during reference level

input), 1 kK, RCA x2 (unbalanced)

[PHONES] terminal :3.5 mm mini jack (stereo) x 2

[REMOTE] terminal :6-pin JVC remote control unit

connection

[IEEE1394] terminal :4-pin

[USB] terminal :

Mini USB-B type, USB 2.0, miniB, slave

function (mass storage class) only

[GENLOCK INPUT]

terminal

BB signal

SMPTE 170M(RS-170A) NTSC/ITU-R

BT.470-6 PAL

HDTV 3 level synchronizing signal

SMPTE 296 M/SMPTE 274 M

BNC

[AUX INPUT] terminal

(GY-HM790CHU/GY-

HM790U only)

Composite video signal

1.0 V (p-p), 75

, BNC

[STUDIO] terminal :

10 pin

Recording time :Approx. 25 minutes (8 GB SDHC card,

35 Mbps, VBR mode)

Video recording file

format :QuickTime File Format (For Final Cut

Pro)

MP4 File Format (HD only)

AVI File Format (SD only)

: Video signal

HD (HQ mode) :MPEG-2 Long GOP

VBR, 35 Mbps (Max) MPEG-2

MP@HL

HD (SP mode) :MPEG-2 Long GOP

CBR, 25 Mbps (1440x1080i)/

19 Mbps (1280x720p) MPEG-2

MP@H14

SD :DV

CBR, 25 Mbps (720x480i)/(720x576i)

: Audio signal :LPCM 2ch, 48 kHz/16 Bit

Video format

: NTSC setting

HD (HQ mode) :1920x1080/59.94i, 29.97p, 23.98p,

1440x1080/59.94i (MOV only),

1280x720/59.94p, 29.97p, 23.98p

HD (SP mode) :1440x1080/59.94i, 1280x720/59.94p,

29.97p, 23.98p

SD : 720x480/59.94i

(GY-HM790CHU/GY-HM790U only)

: PAL setting

HD (HQ mode) :1920x1080/50i, 25p, 1440x1080/50i

(MOV only), 1280x720/50p, 25p

HD (SP mode) :1440x1080/50i, 1280x720/50p, 25p

SD 720x576/50i

(GY-HM790CHE/GY-HM790E only)

Viewfinder.....................................................................................1

Microphone...................................................................................1

Lens (GY-HM790U/GY-HM790E only)..........................................1

Instructions ...................................................................................1

CD-ROM.......................................................................................1

Warranty Card (GY-HM790CHU/GY-HM790U only) .....................1

139

Dimensional Outline Drawing (Unit: mm)

231

(166)

210324

40 95

242.3

225

82.3

(82.3)108.5 133 56

209

44.659.8

231

(166)

210

311

40 95

242.3

225

82.3

(82.3)108.5 133 56

209

44.659.8

* The specifications and appearance of this product are subject to changes for further improvement without prior notice.

䡵GY-HM790CHU/GY-HM790U

䡵GY-HM790CHE/GY-HM790E

(VF MOVE)

(S.PAD

MOVE)

(S.PAD

MOVE)

2010 Victor Company of Japan, Limited

LST1108-001A

GY-HM790U/GY-HM790CHU/

GY-HM790E/GY-HM790CHE

HD MEMORY CARD CAMERA RECORDER

Jvc Gy Hm790Che Users Manual HM790U_E

GY-HM790CHE GY-HM790CHE, GY-HM790CHU LST1108-001A nglish,

GY-HM790CHU GY-HM790CHU LST1108-001A English,

GY-HM790U GY-HM790U

LST1108-001A to the manual 3e9562dd-1ae1-4d6e-8994-62a7b942d554

Navigation menu

Versions of this User Manual:

Views

Navigation
