HR-S5300U
VIDEO CASSETTE RECORDER
INSTRUCTIONS
PU30425-1826-1
For Customer Use:
Enter below the Serial No. which is
located on the rear of cabinet. Retain
this information for future reference.
Model No. HR-S5300U
Serial No.
w Channel
Changer
Cable
REW FF
JOG
SHUTTLE
POWER MENU CH/
SET
A.DUB
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
PAUSE
REC
STOP/EJECT PLAY
INSERT
SELECT
+
–
HMS
IT R TIMER
VIDEO
M
SP
EP
REC
SAP
PAUSE
ST
AM
PM
PLAY
L
dB –20 15 10 8 4620246
+
8
R
dB –20 15 10 8 4620246
+
8
S-VHS
POWER
TV/VIDEO DISPLAY
123
456
789
DAILY(M-F) WEEKLY
AUX
TIMER
0
C.MEMORY SELECT
ADD
VOL. CH/SET
REW PLAY
SHUTTLE
PLUS
MULTI BRAND
REMOTE CONTROL UNIT
FF
REC STOP PAUSE
A
B
VCR
POWER
TV/VIDEO DISPLAY CANCEL
SP/EP
SKIP SEARCH
C. RESET/CH SKIP
123
456
789
DAILY(M-F) WEEKLY
AUX
TIMER
0
ENTER
ADD
OSD
A
B
TVVCR CABLE
MENU
EN
ENGLISH

2
Dear Customer,
Thank you for purchasing the JVC VHS video cassette recorder. Before use, please read the safety information and precautions
contained in the following pages to ensure safe use of your new VCR.
CAUTIONS
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
CAUTION:
This video cassette recorder should be used with AC
120V`, 60Hz only.
To prevent electric shocks and fire hazards, DO NOT use
any other power source.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU'AU FOND.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
Failure to heed the following precautions may result in
damage to the VCR, remote control or video cassette.
1. DO NOT place the VCR . . .
... in an environment prone to extreme temperatures or
humidity.
... in direct sunlight.
... in a dusty environment.
... in an environment where strong magnetic fields are
generated.
... on a surface that is unstable or subject to vibration.
2. DO NOT block the VCR’s ventilation openings.
3. DO NOT place heavy objects on the VCR or remote control.
4. DO NOT place anything which might spill on top of the
VCR or remote control.
5. AVOID violent shocks to the VCR during transport.
**MOISTURE CONDENSATION
Moisture in the air will condense on the VCR when you move it
from a cold place to a warm place, or under extremely humid
conditions—just as water droplets form on the surface of a glass
filled with cold liquid. Moisture condensation on the head drum
will cause damage to the tape. In conditions where condensa-
tion may occur, keep the VCR’s power turned on for a few
hours to let the moisture dry before inserting a tape.
**ABOUT HEAD CLEANING
Accumulation of dirt and other particles on the video heads
may cause the playback picture to become blurred or inter-
rupted. Be sure to contact your nearest JVC dealer if such
troubles occur.
Note to CATV system installer:
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as practical.
nCassettes marked "S-VHS" and "VHS" can be used with this
video cassette recorder. However, S-VHS recordings are
possible only with cassettes marked "S-VHS".
CAUTION:
Changes or modifications not approved by JVC could void
user's authority to operate the equipment.
VCR Plus+C3 and PlusCode are trademarks of Gemstar
Development Corporation.
The VCR Plus+C3 system is manufactured under licence from
Gemstar Development Corporation.
DSSTM is an official trademark of DIRECTV, Inc., a unit of GM
Hughes Electronics.

3
IMPORTANT PRODUCT
SAFETY INSTRUCTIONS
Electrical energy can perform many useful functions. But
improper use can result in potential electrical shock or fire
hazards. This product has been engineered and manufactured
to assure your personal safety. In order not to defeat the built-in
safeguards, observe the following basic rules for its installation,
use and servicing.
ATTENTION:
Follow and obey all warnings and instructions marked on your
product and its operating instructions. For your safety, please
read all the safety and operating instructions before you operate
this product and keep this booklet for future reference.
INSTALLATION
1. Grounding or Polarization
(A) Your product may be equipped with a polarized alternating-
current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way.
This is a safety feature.
If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
(B) Your product may be equipped with a 3-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will
only fit into a grounding-type power outlet. This is a safety
feature.
If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.
2. Power Sources
Operate your product only from the type of power source
indicated on the marking label. If you are not sure of the type of
power supply to your home, consult your product dealer or
local power company. If your product is intended to operate
from battery power, or other sources, refer to the operating
instructions.
3. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or
electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
5. Ventilation
Slots and openings in the cabinet are provided for ventilation.
To ensure reliable operation of the product and to protect it
from overheating, these openings must not be blocked or
covered.
• Do not block the openings by placing the product on a bed,
sofa, rug or other similar surface.
• Do not place the product in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as
recommended by the manufacturer.

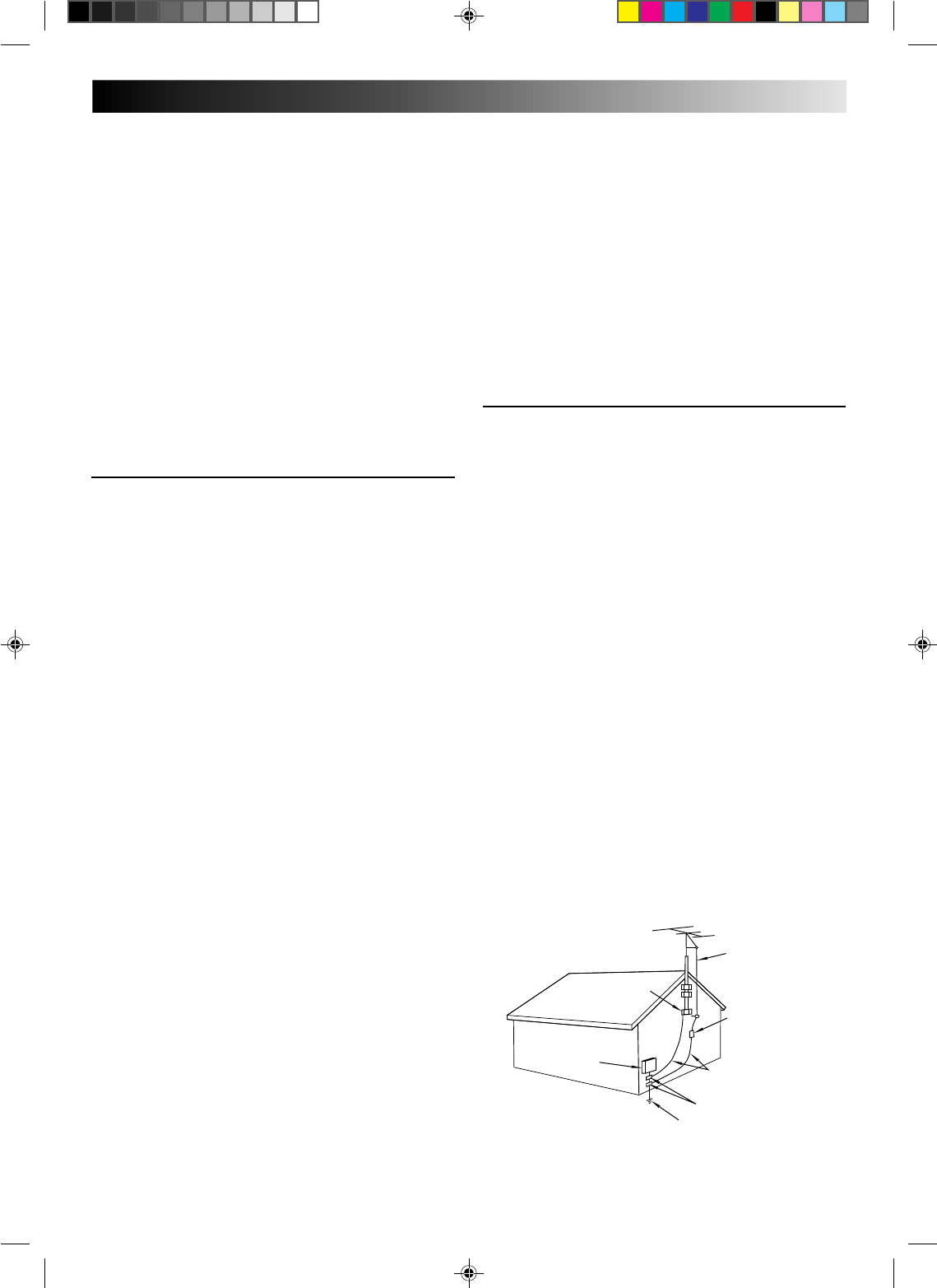

ANTENNA
LEAD IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250. PART H)
NEC – NATIONAL ELECTRICAL CODE
ELECTRIC SERVICE
EQUIPMENT
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
GROUND CLAMP
ANTENNA INSTALLATION
INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so as
to provide some protection against voltage surges and built-up
static charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of
the lead-in wire to an antenna discharge unit, size of grounding
connectors, location of antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding
electrode.
2. Lightning
For added protection for this product during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna
or cable system. This will prevent damage to the product due to
lightning and power-line surges.
3. Power Lines
An outside antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as
contact with them might be fatal.

4
SERVICING
1. Servicing
If your product is not operating correctly or exhibits a marked
change in performance and you are unable to restore normal
operation by following the detailed procedure in its operating
instructions, do not attempt to service it yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a.When the power supply cord or plug is damaged.
b.If liquid has been spilled, or objects have fallen into the
product.
c.If the product has been exposed to rain or water.
d.If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to its normal operation.
e.If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in
performance—this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock or other hazards.
4. Safety Check
Upon completion of any service or repairs to this product, ask
the service technician to perform safety checks to determine
that the product is in safe operating condition.
HOW TO USE THIS INSTRUCTION
MANUAL
●All major sections and subsections are listed in the Table Of
Contents on page 5. Use this when searching for information
on a specific procedure or feature.
●The Index on pages 61–63 lists frequently-used terms, and
the number of the first page on which they are used or
explained in the manual. This section also illustrates the
controls and connections on the front and rear panel, the
front display panel and the remote control.
●The Z mark signals a reference to another page for
instructions or related information.
●Operation buttons necessary for the various procedures are
clearly indicated through the use of illustrations at the
beginning of each major section.
BEFORE YOU INSTALL YOUR NEW
VCR . . .
. . . please read the sections/literature listed below.
●”Cautions” on page 2
●”Important Products Safety Instructions” on the previous pages
USE
1. Accessories
To avoid personal injury:
• Do not place this product on an unstable cart, stand, tripod,
bracket, or table. It may fall, causing serious injury to a child
or adult, and serious damage to the product.
• Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer or sold with the product.
• Use a mounting accessory recommended by the
manufacturer and follow the manufacturer’s instructions for
any mounting of the product.
• Do not try to roll a cart with small casters across thresholds or
deep-pile carpets.
2. Product and Cart Combination
A product and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the product and
cart combination to overturn.
3. Water and Moisture
Do not use this product near water—for example, near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet basement,
or near a swimming pool and the like.
4. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or short-
out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
5. Attachments
Do not use attachments not recommended by the manufacturer
of this product as they may cause hazards.
6. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
7. Heat
The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
PORTABLE CART WARNING
(Symbol provided by RETAC)

5
CONTENTS
TIMER RECORDING 38
VCR Plus+ Timer Programming ............ 38
Instant Timer Recording (ITR) ............... 40
On-Screen Timer Programming ........... 40
Check And Cancel Programs .......................... 42
Auto Timer ......................................................43
EDITING 44

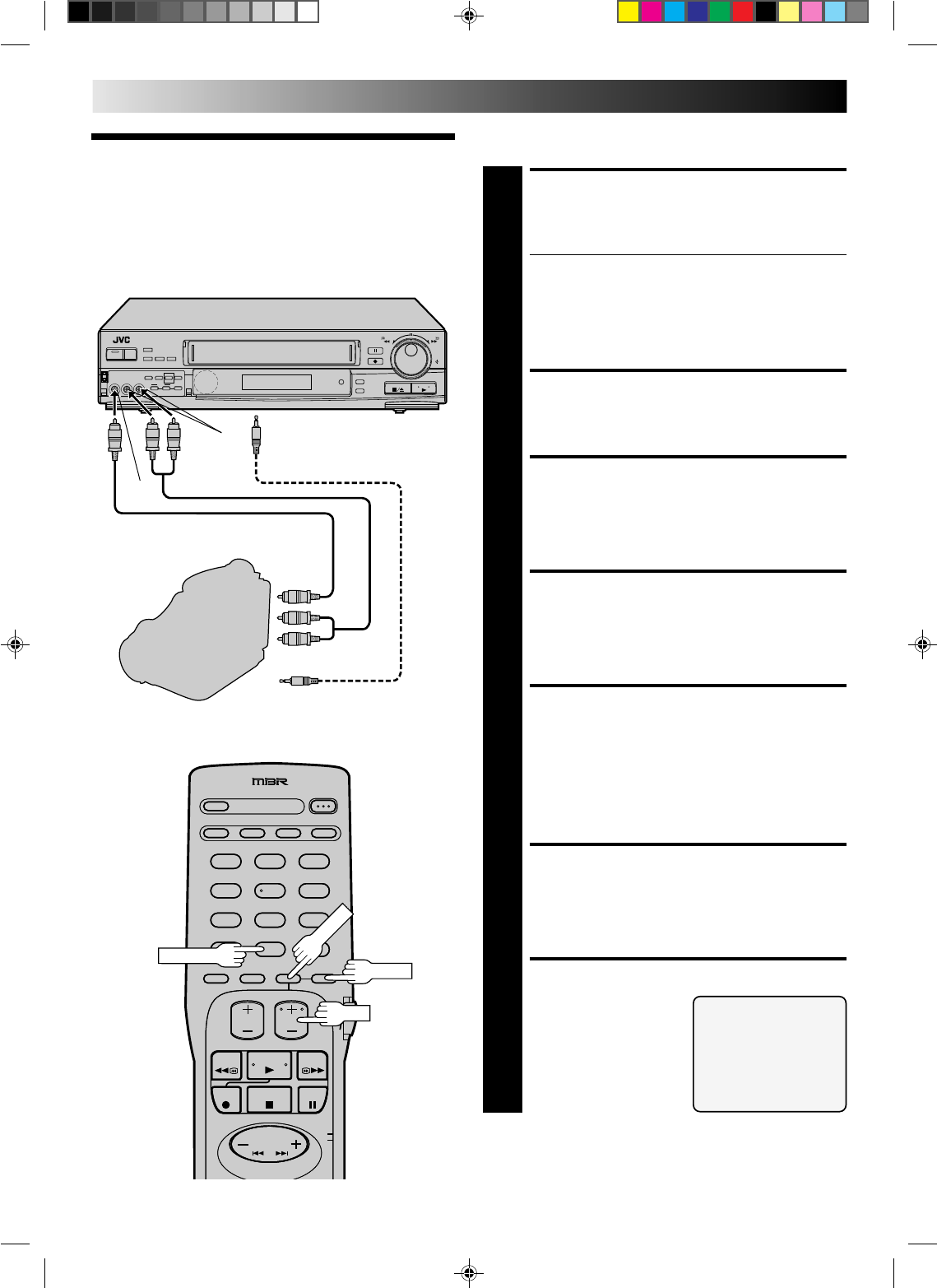

Edit From A Camcorder ....................... 44
Edit To Or From Another VCR ............... 46
Assemble Editing .................................47
Insert Editing .......................................48
Random Assemble Editing ................... 50
Audio Dubbing ....................................52
SPECIAL FEATURES 53
TV Multi-Brand Remote Control ..................... 53
Cable Box Multi-Brand Remote Control.......... 54
DSS Receiver Multi-Brand Remote Control ..... 55
Control Two JVC VCRs ................................... 55
TROUBLESHOOTING 56
Power .................................................56
Tape Transport .....................................56
Playback .............................................56
Recording ............................................57
Timer Recording ...................................57
Other Problems....................................58
QUESTIONS AND ANSWERS 59
Playback .............................................59
Recording ............................................59
Timer Recording ...................................59
S PECIFICATIONS 60
INDEX 61
List Of Terms ........................................61

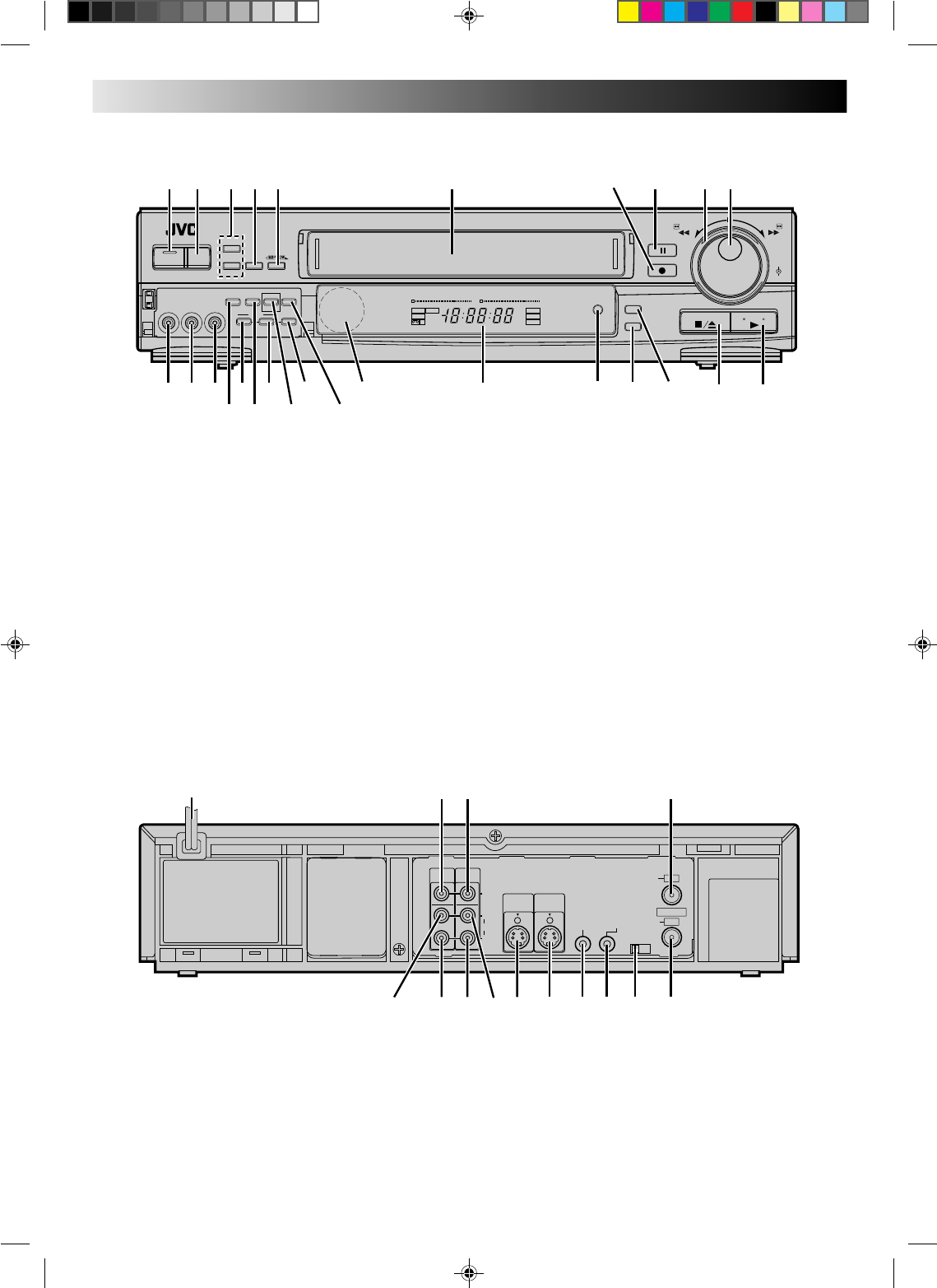

Front View ...........................................62
Rear View ...........................................62

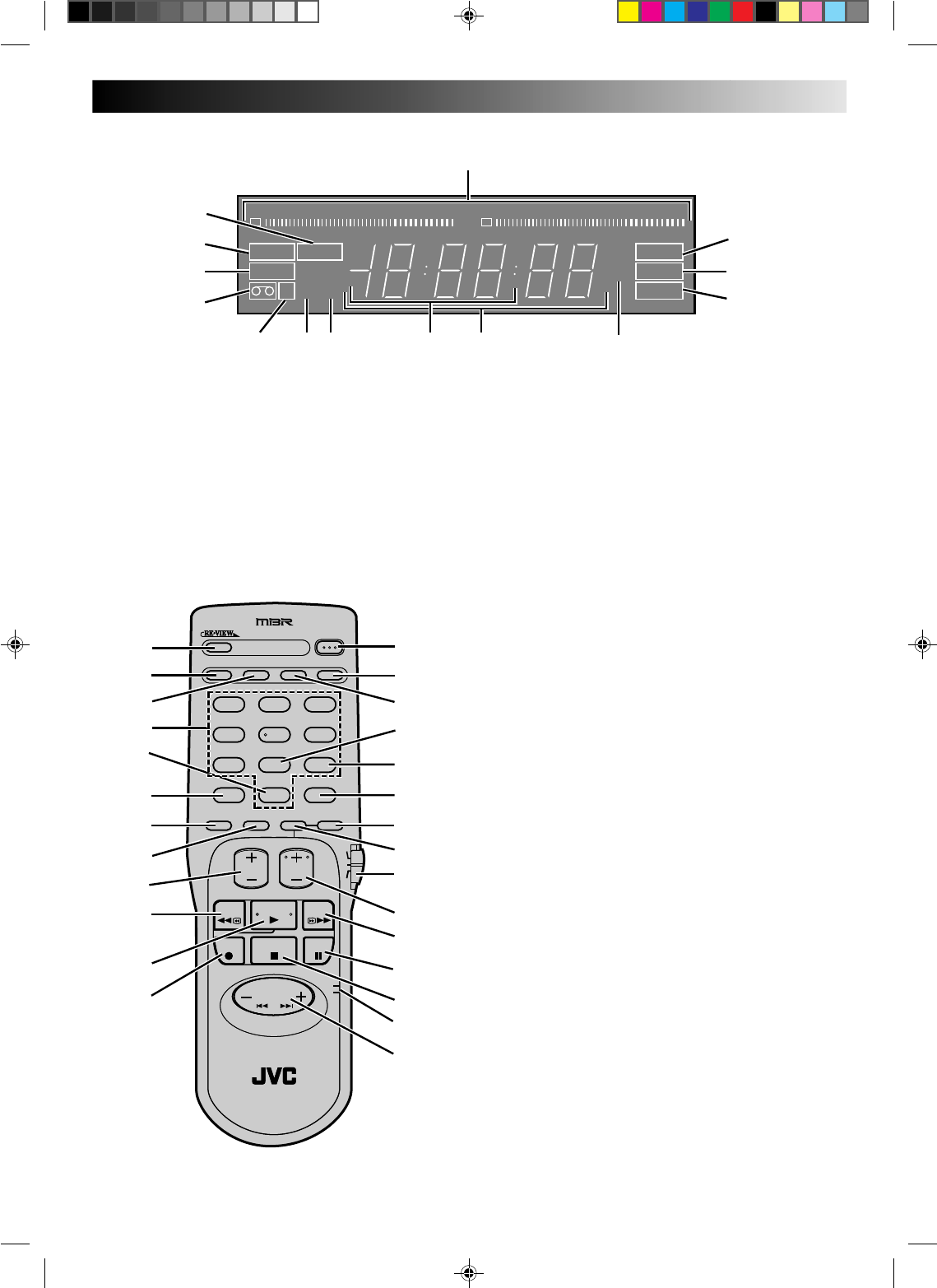

Front Display Panel ..............................63
Remote Control ....................................63
FOR SERVICING 64
WARRANTY 65
INSTALLING YOUR NEW VCR 6
Connections ...........................................6
Basic Connections ............................................ 6
S-VIDEO Connection ....................................... 7
INITIAL SETTINGS 8
Clock .....................................................8
Advanced Auto Clock Set ................................. 8
Clock Setting .....................................................9
Preparation .......................................................9
Semi-Auto .......................................................10
Manual ........................................................... 11
Auto ................................................................ 11
Language ............................................12
Tuner ...................................................13
Set Receivable Channels ................................ 13
Add Or Delete A Channel .............................. 15

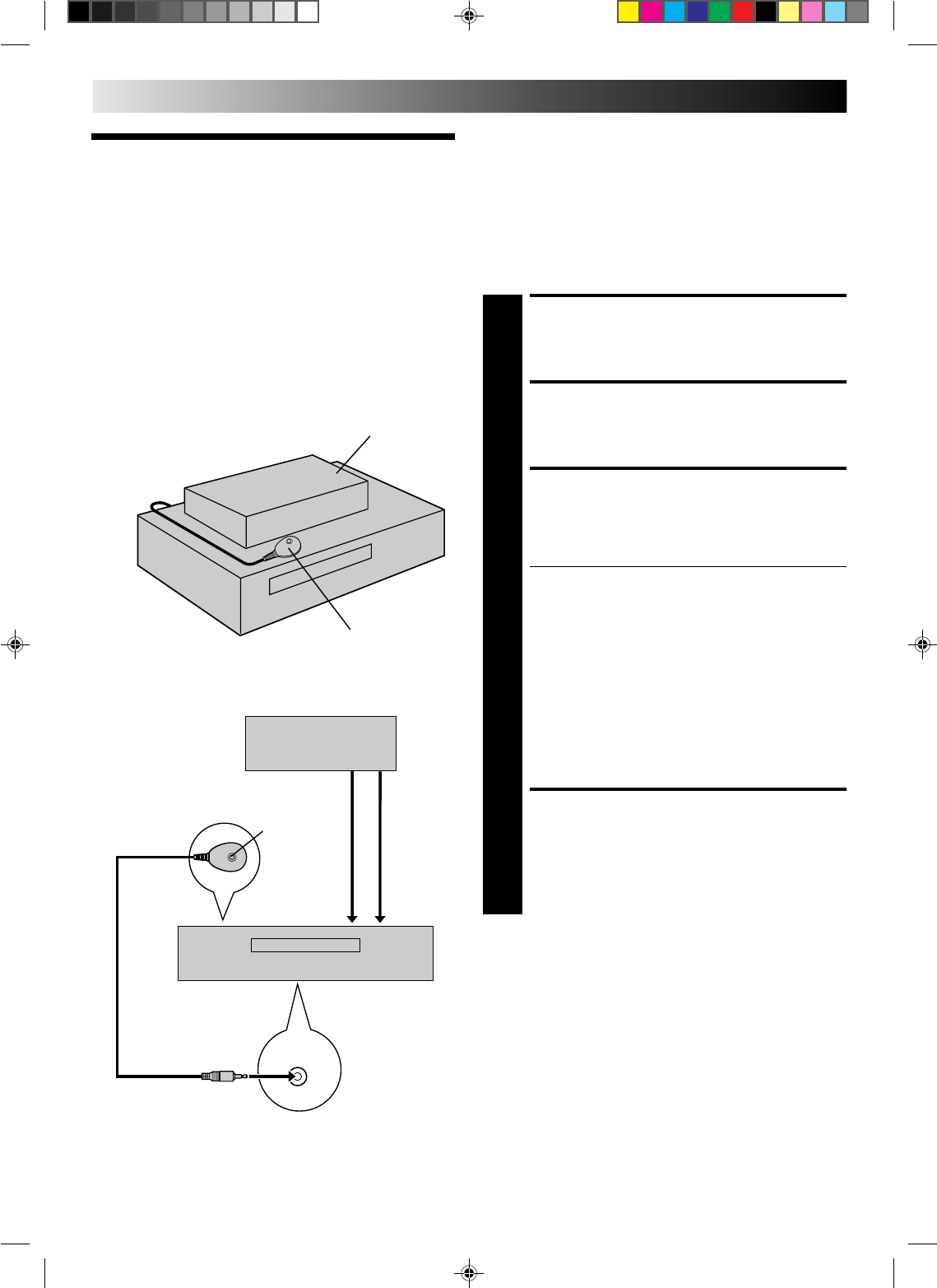

Tuner And Cable Box Controller........... 16
Situate And Connect Controller ...................... 16
Set Cable Box Output Channel ....................... 17
Set Cable Box Brand....................................... 18
VCR Plus+ Setup ..................................20
SIMPLE PLAYBACK AND
RECORDING 23
Simple Playback ..................................23
Simple Recording .................................24
PLAYBACK AND RECORDING
FEATURES 25
Playback .............................................25
Still Picture/Frame-By-Frame Playback ........... 25
Slow Motion/Reverse Slow Motion ................. 25
Variable-Speed Search/Reverse Motion
Playback .........................................................26
High-Speed Search ......................................... 26
Manual Tracking............................................. 27
Skip Search .....................................................27
Repeat Playback ............................................. 27
Select The Soundtrack .................................... 28
Superimpose ...................................................29
Index Search ...................................................30
Manual Index Mark/Erase ............................... 30
Instant ReView ................................................31
Counter Reset ..................................................31
Counter Memory ............................................ 31
Next-Function Memory .................................. 32
AV COMPU LINK Playback ............................ 32
Recording ............................................34
Record One Program While
Watching Another .......................................... 34
Display Elapsed Recording Time..................... 34
S-VHS (Super VHS) and VHS .......................... 34
Stereo And SAP (Second Audio Program)........ 35
To Record SAP Programs ................................ 35
Hi-Fi Audio Recording Level Control .............. 36
Display Tape Remaining Time ........................ 37

6

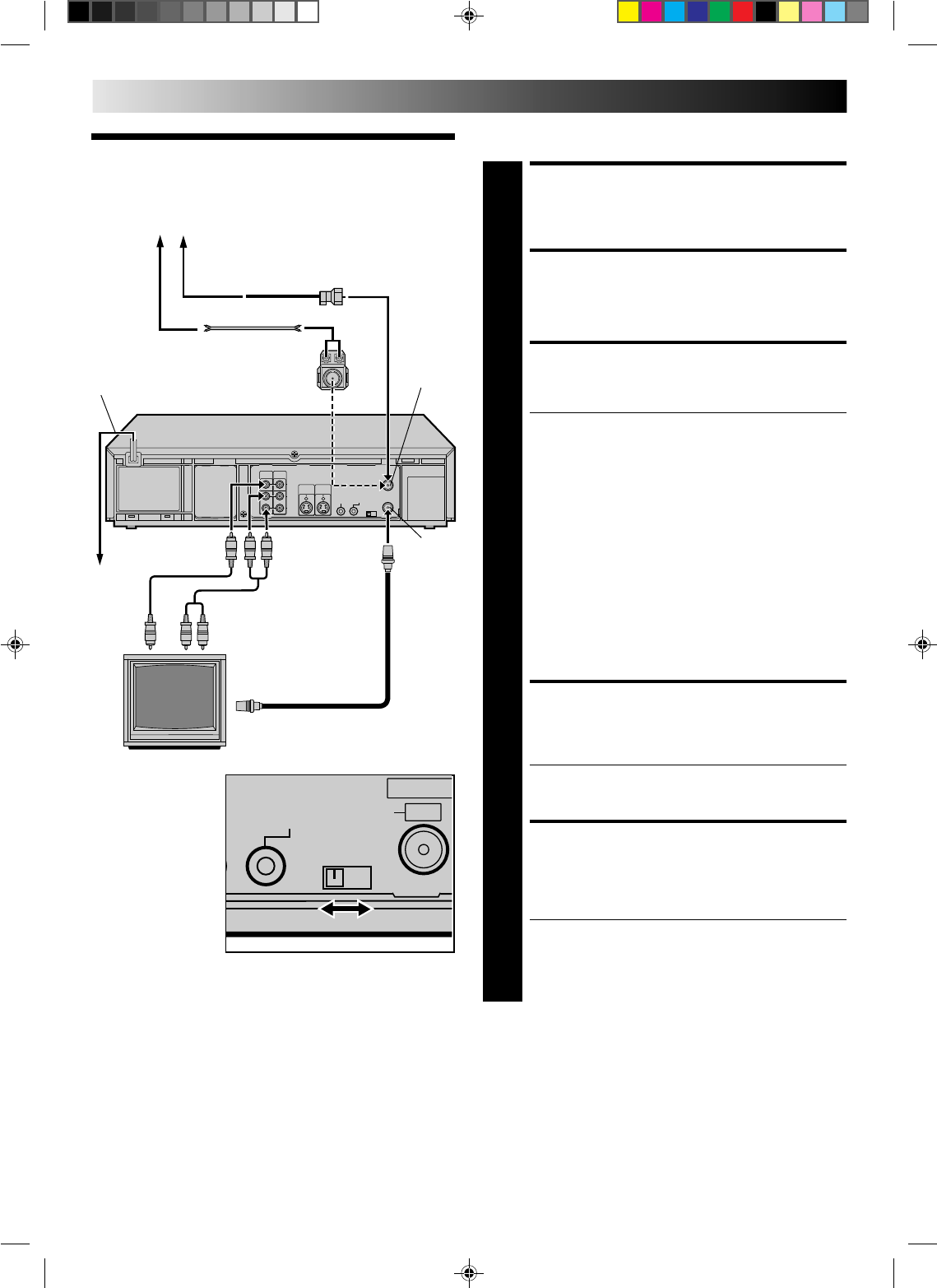

INSTALLING YOUR NEW VCR
Connections
AC Power
Cord
Antenna or Cable
Coaxial Cable
Flat Feeder
Matching Transformer
(Not supplied)
Back of VCR TV
OUT
TV
Audio Cable
(supplied)
Back of VCR
Basic Connections
CHECK CONTENTS
1
Make sure the package contains all of the accessories
listed in “SPECIFICATIONS” (Z pg. 60).
SITUATE VCR
2
Place the VCR on a stable, horizontal surface.
CONNECT VCR TO TV
3
The connection method you use depends on the type of
TV you have.
RF Connection
●
To Connect To A TV With NO AV Input Terminals . . .
a– Disconnect the TV antenna from the TV.
b– Connect the TV antenna cable to the ANTENNA
IN jack on the rear of the VCR.
c– Connect the supplied RF cable between the TV
OUT jack on the rear of the VCR and the TV’s
antenna terminal.
AV Connection
●
To Connect To A TV With AV Input Terminals . . .
a– Connect the antenna, VCR and TV as shown in
the illustration.
b– Connect an Audio/Video Cable between the AUDIO
OUT and VIDEO OUT jacks on the rear of the VCR
and the AV IN jacks on the TV.
If you have a TV with S-VIDEO input terminals, see "S-
VIDEO Connection" on page 7.
CONNECT VCR TO
POWER SOURCE
4
Connect the power plug to an AC outlet.
●The clock will automatically be set when the antenna
is connected and when the AC is first connected to
the VCR (Z pg. 8).
FINAL PREPARATION FOR
USE
5
Select the VCR channel (3 or 4) by setting the switch
on the rear of the VCR as shown in the illustration.
Turn on the power to the TV. You are now able to perform
simple playback (Z pg. 23) and recording (Z pg. 24).

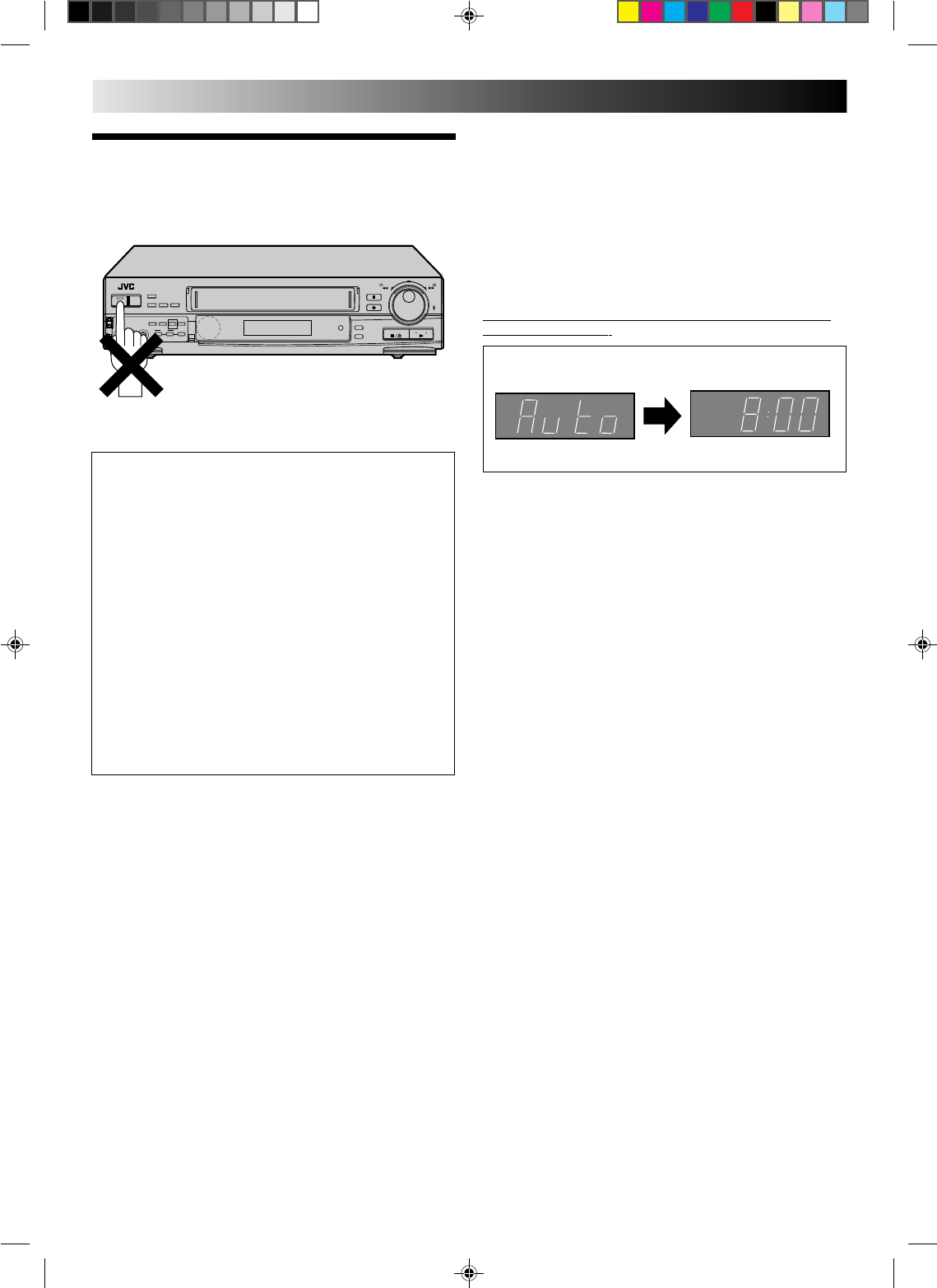

(If 'Auto' is displayed on the front display panel, the
clock is being set automatically. Wait for the time to be
displayed before powering on the VCR.)
NOTES:
●
The VCR channel is the channel on the TV which will display
the audio and video signals from the VCR. The VCR's CH3-
CH4 switch sets the VCR channel to CH3 or CH4.
●
The CH3–CH4 switch is preset to the CH3 position.
Set to CH4 if CH3 is used for broadcasting in your area.
●
If your TV has no AV input terminals, set the channel on the
TV to correspond to the CH3–CH4 switch on the back of the
VCR.
●
Even if your TV has AV input terminals, you must connect it
to the VCR using an RF cable in order to record one show
while watching another (
Z
pg. 34).
●
For full identification of the VCR's rear panel, refer to the
Index (REAR VIEW
Z
pg. 62).
Video Cable
(supplied)
AC
Outlet
ANTENNA-
IN (Antenna
or Cable
input)
RF Cable
(supplied)
75 ohm terminal
CH3
E/
A
L
I
ON CABLE
BOX
CH4
VHF / UH
F
OUT
TV

7
Antenna or Cable
AC Power
Cord
Video Cable
(supplied)
TV OUT
S VIDEO
OUT
NOTES:
nTo make the most of Super VHS picture performance, we
recommend you use the S-VIDEO connection.
nTo operate the VCR with your TV using the S VIDEO connec-
tion, set your TV to the AV mode using the TV's remote
control.
You can also use the TV/VIDEO button on the VCR's remote
control to set your TV to the AV mode. (Z
pg. 53)

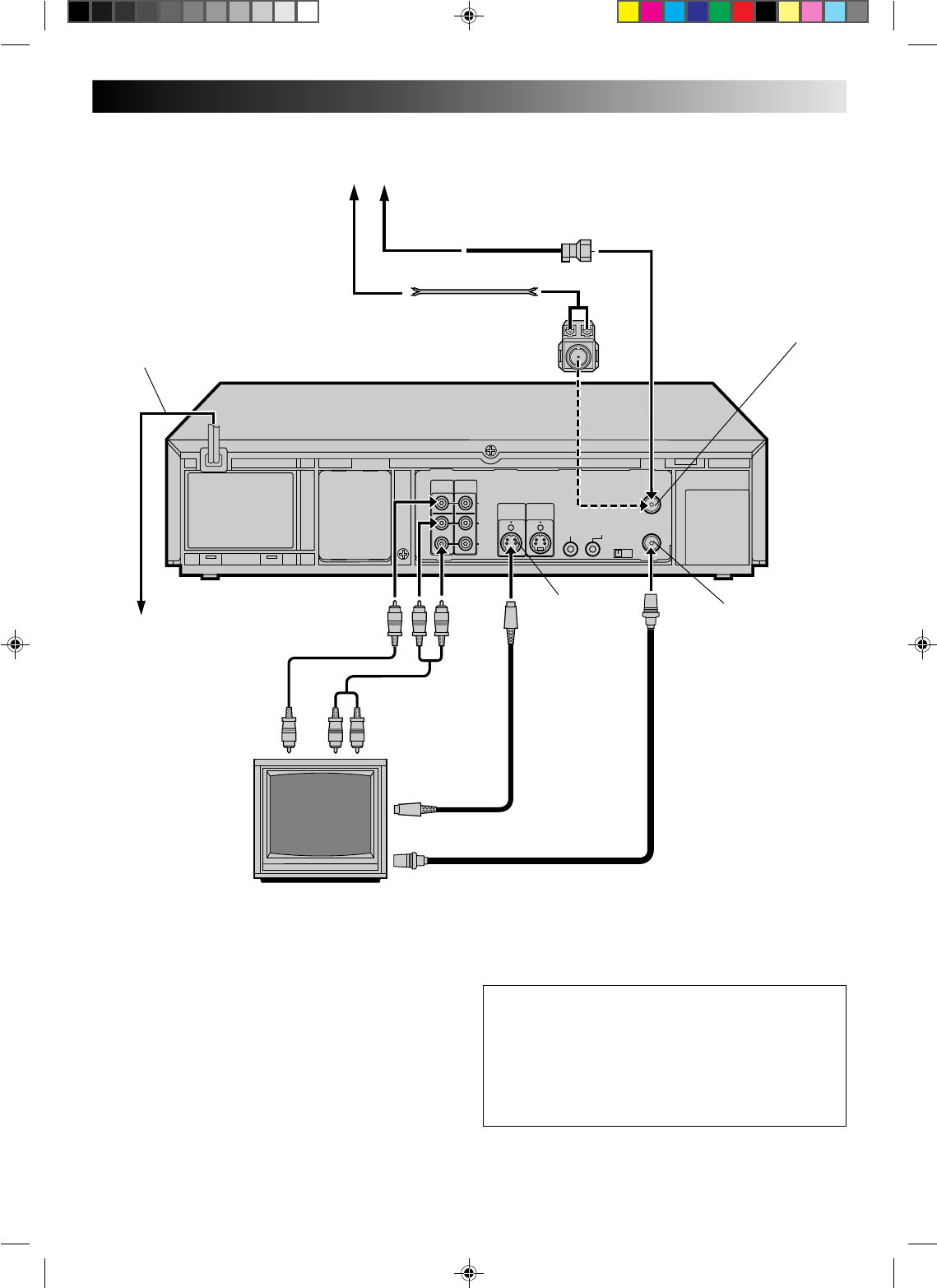

S-VIDEO Connection
CONNECT VCR TO TV
a– Perform both RF connection and AV connection as
described in step 3 of "Basic Connections" (Z pg. 6).
b– Connect the S-Video cable between the S-VIDEO OUT
jack on the rear of the VCR and the S-VIDEO IN jack on
the TV.
ANTENNA-IN
(Antenna or Cable input)
Matching Transformer
(Not supplied)
Coaxial Cable
Flat Feeder
Back of VCR
AC Outlet
Audio Cable
(supplied)
75 ohm terminal
S VIDEO IN
S-Video Cable
(supplied)
RF Cable
(supplied)
TV

8
INITIAL SETTINGS
Clock
ATTENTION CABLE BOX SUBSCRIBERS
If you perform the Advanced Auto Clock Set procedure . . .
●Select the PBS channel on your cable box before plugging
your VCR’s power plug into the AC outlet. (If you have
more than one PBS channel, you may have to select an
alternative PBS channel if Advanced Auto Clock Set is not
successful.)
●If there is no PBS channel in your area, perform the
Manual Clock Set procedure (Z pg. 11).
●For automatic clock adjustment to take place the VCR's
power must be off and the cable box must be set to the
PBS channel at clock adjustment times.
●If you perform Advanced Auto Clock Set successfully,
D.S.T. will be set to “AUTO”. At the D.S.T. adjustment time
(Z pg. 11), your VCR's power must be off and your cable
box must be set to the host PBS channel in your area for the
D.S.T. adjustment to take place. If the clock is not set
correctly, change the D.S.T. setting to “ON” or “OFF. See
step 9 of Semi-Auto procedure (Z pg. 10) or step 6 of
Manual procedure (Z pg. 11).

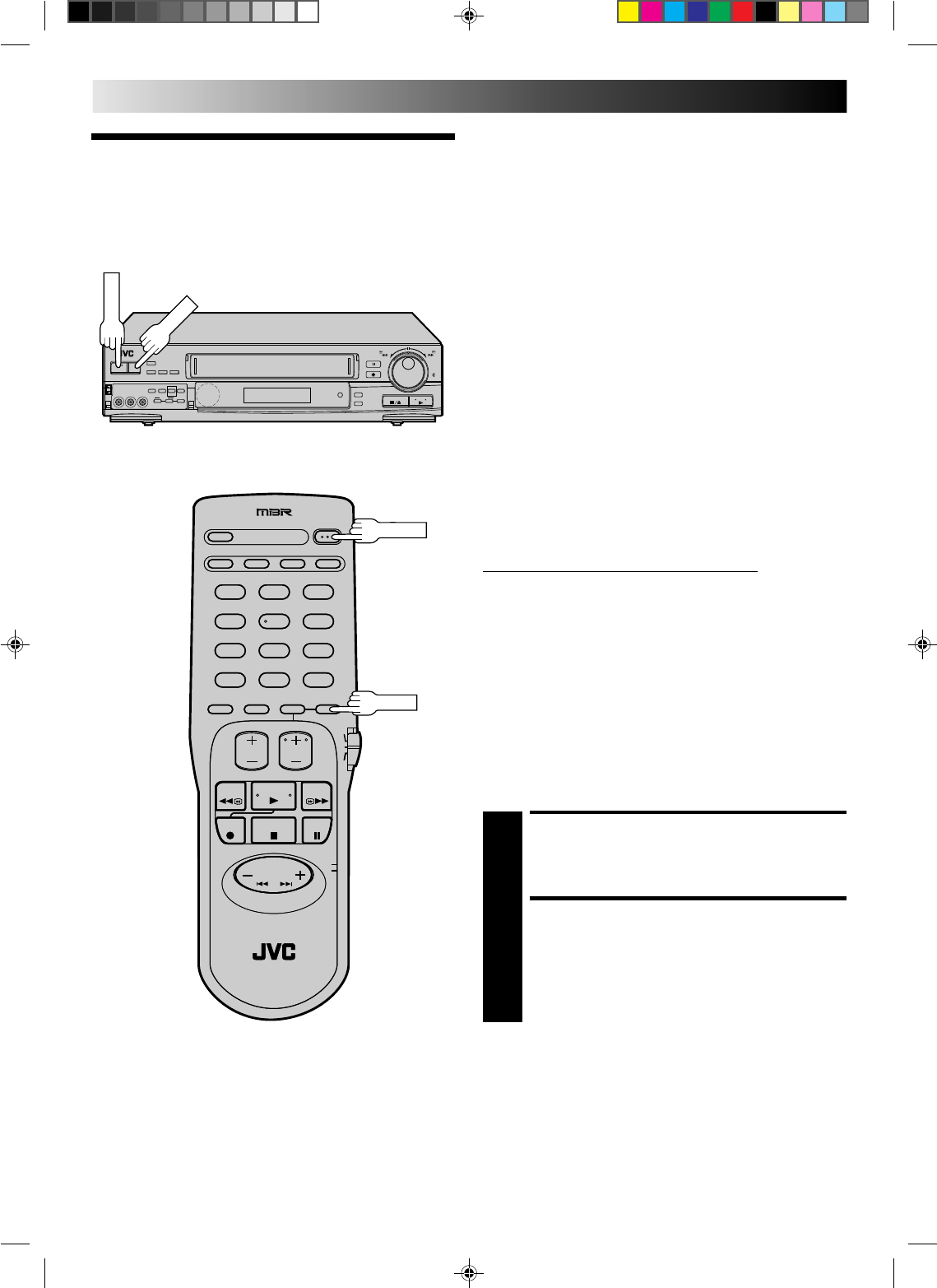

Advanced Auto Clock Set
The time and date can be set automatically from clock setting data
that is transmitted by one of the regular TV broadcast channels.
We call this TV channel the "Host Channel" and it is a PBS channel
in your area. With the antenna cable connected, your VCR can
automatically set the clock when the power plug is first
connected to an AC outlet.
The Advanced Auto Clock Set function scans all the channels
received by your VCR to find the Host Channel and then sets
the clock.
*Don’t turn the power on until the time (or “- - : - - ”) appears on
the front display panel.
Before the clock is set, AUTO appears on the display.
After setting, the current time appears (in hours and minutes).
The Advanced Auto Clock Set function will normally set the
clock correctly. However, if an incorrect time is displayed on
the front display panel, you may be receiving the clock setting
data of a PBS channel from an adjacent time zone, or an
incorrect PBS channel from a cable TV system. In this case,
perform the Semi-Auto (Z pg. 10) or Manual (Z pg. 11) clock
setting procedure.
If "AUTO CLOCK SET" or "SEMI-AUTO CLOCK SET" is selected
at the Override Auto Clock Set screen on page 10, the clock
will be adjusted automatically by the Host PBS every hour on
the hour (except for 11:00 PM, midnight, 1:00 AM and 2:00
AM) by the incoming PBS channel clock setting data. (This
automatic clock adjustment can only be performed when the
VCR’s power is turned off. The clock will be adjusted on the
hour based on the time displayed on the VCR, not on the actual
real time.) The default setting is "AUTO CLOCK SET".
If “- - : - - ” appears on the display, your antenna cable may not
be connected to the VCR, there may not be a Host PBS signal
available in your area, or your cable box may not be set to the
PBS channel. If the antenna connection or cable box setting is
incorrect, connect the antenna cable to the VCR or select the
correct cable channel. Then power on and power off the VCR,
the Advanced Auto Clock Set mode will be automatically
reactivated and "Auto" will be displayed on the VCR's front
panel. If everything is connected and set correctly, perform the
Manual Clock Set procedure (Z pg. 11).
NOTE:
If, due to a power outage or other event, the memory backup
fails, Advanced Auto Clock Set is performed when power is
restored to the VCR.
NOT SET
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
PM
SET

9
123
456
789
0
123
456
789
0

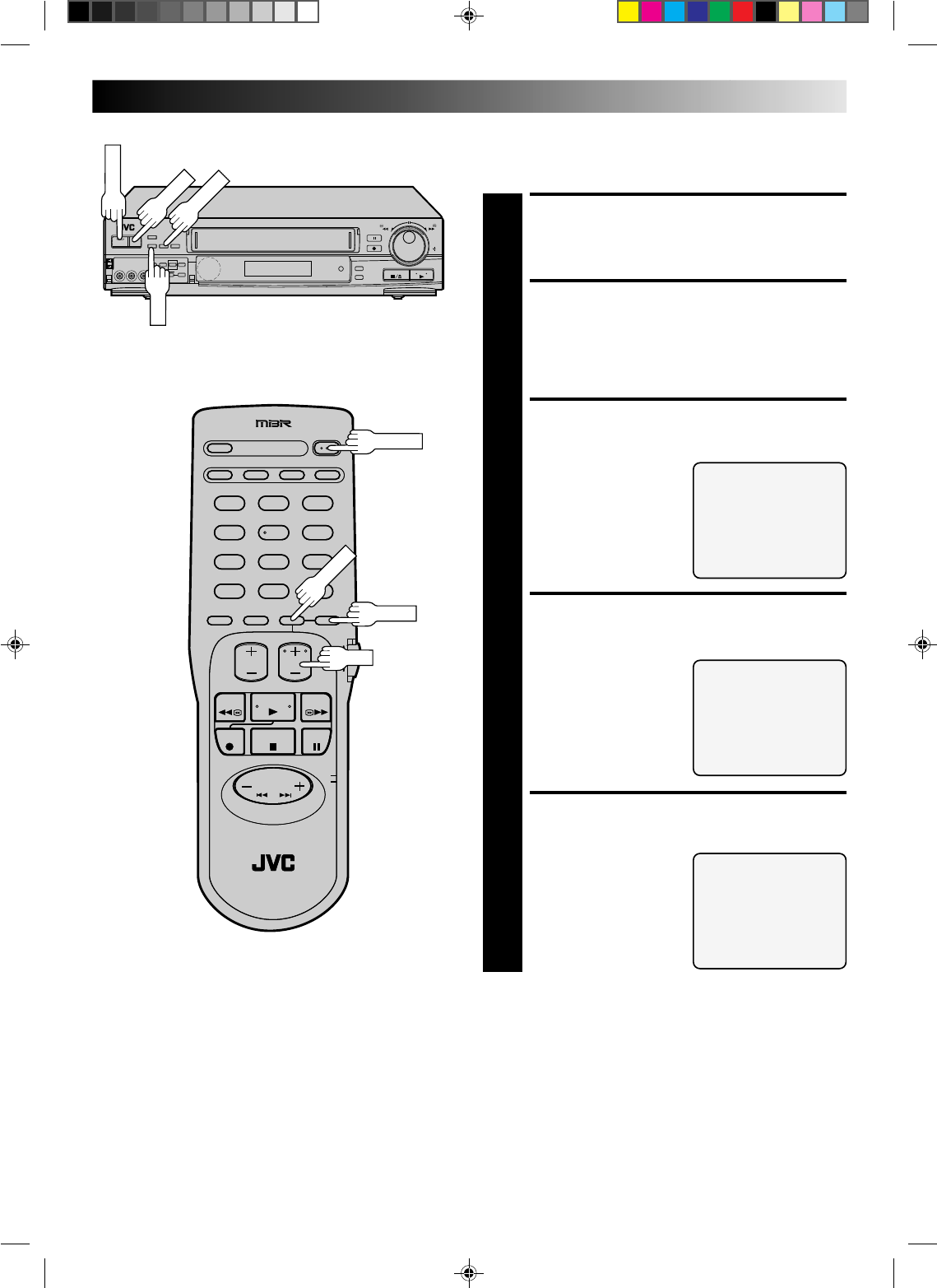

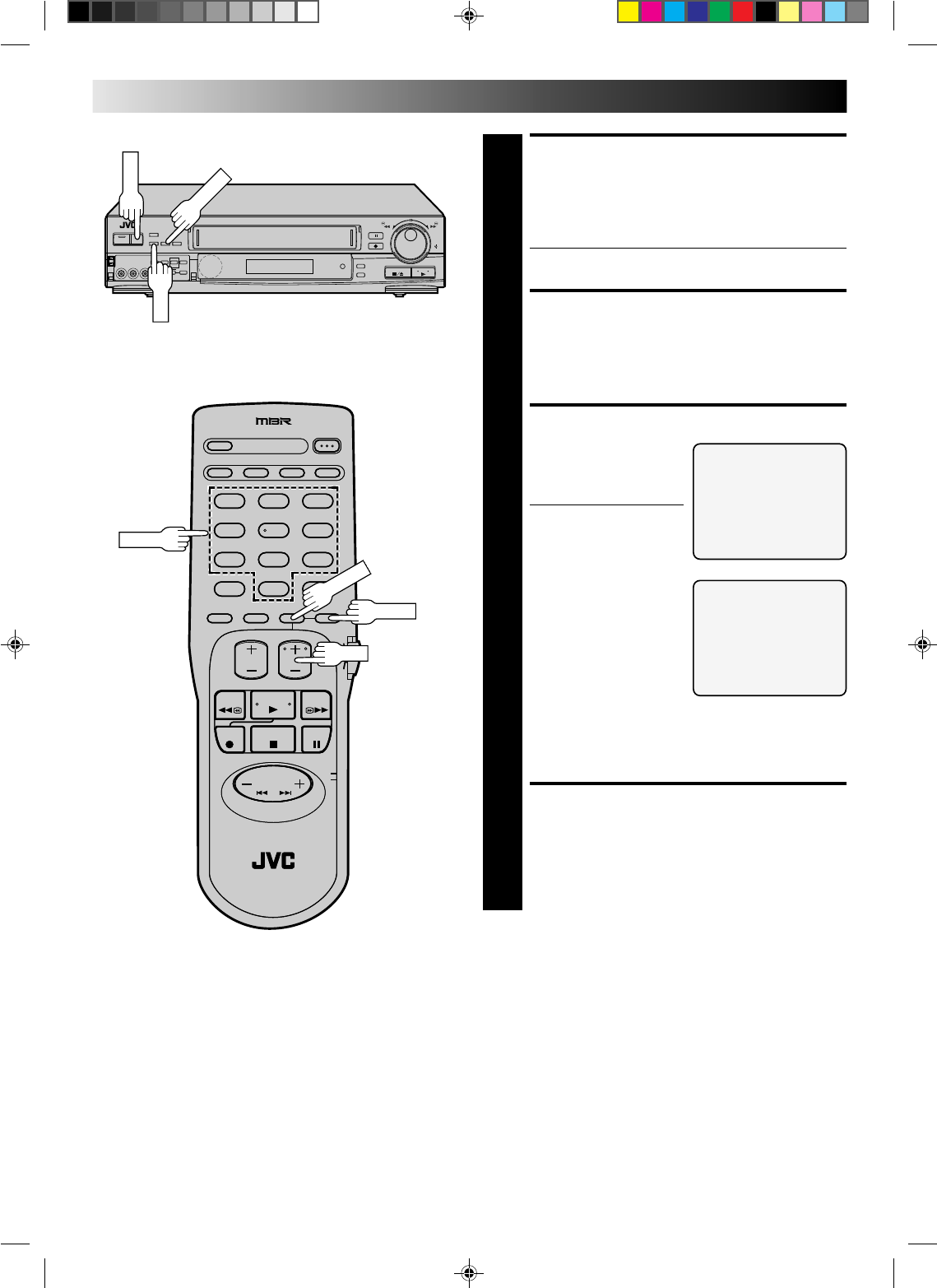

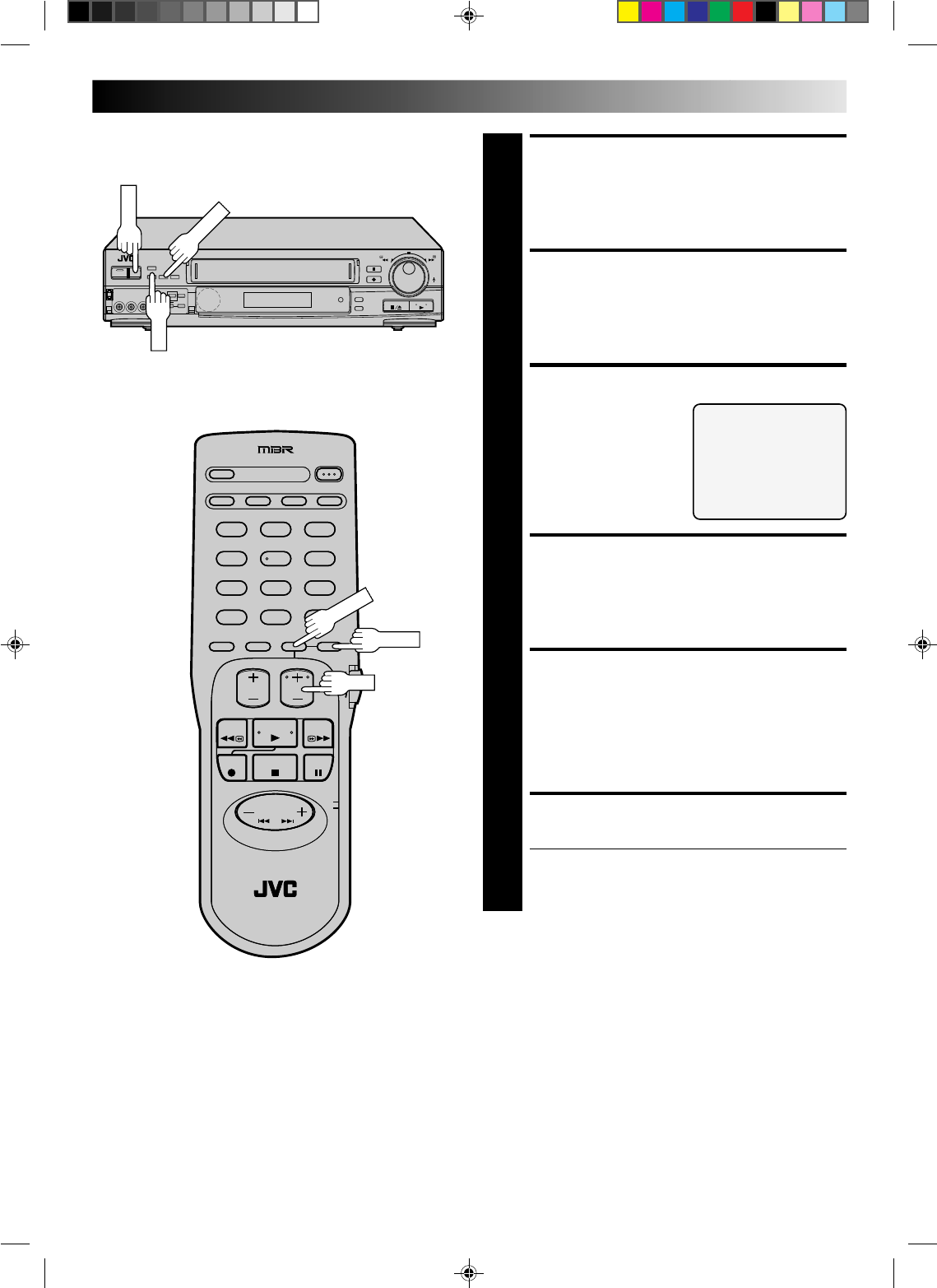

Clock Setting
Perform clock setting only if the clock has not been set correctly
by Advanced Auto Clock Set. Access the Override Auto Clock
Set screen to choose the Auto, Semi-Auto or Manual clock
setting procedure. Each procedure starts from step 5. *Auto
need only be selected if Semi-Auto or Manual had previously
been selected.
Preparation

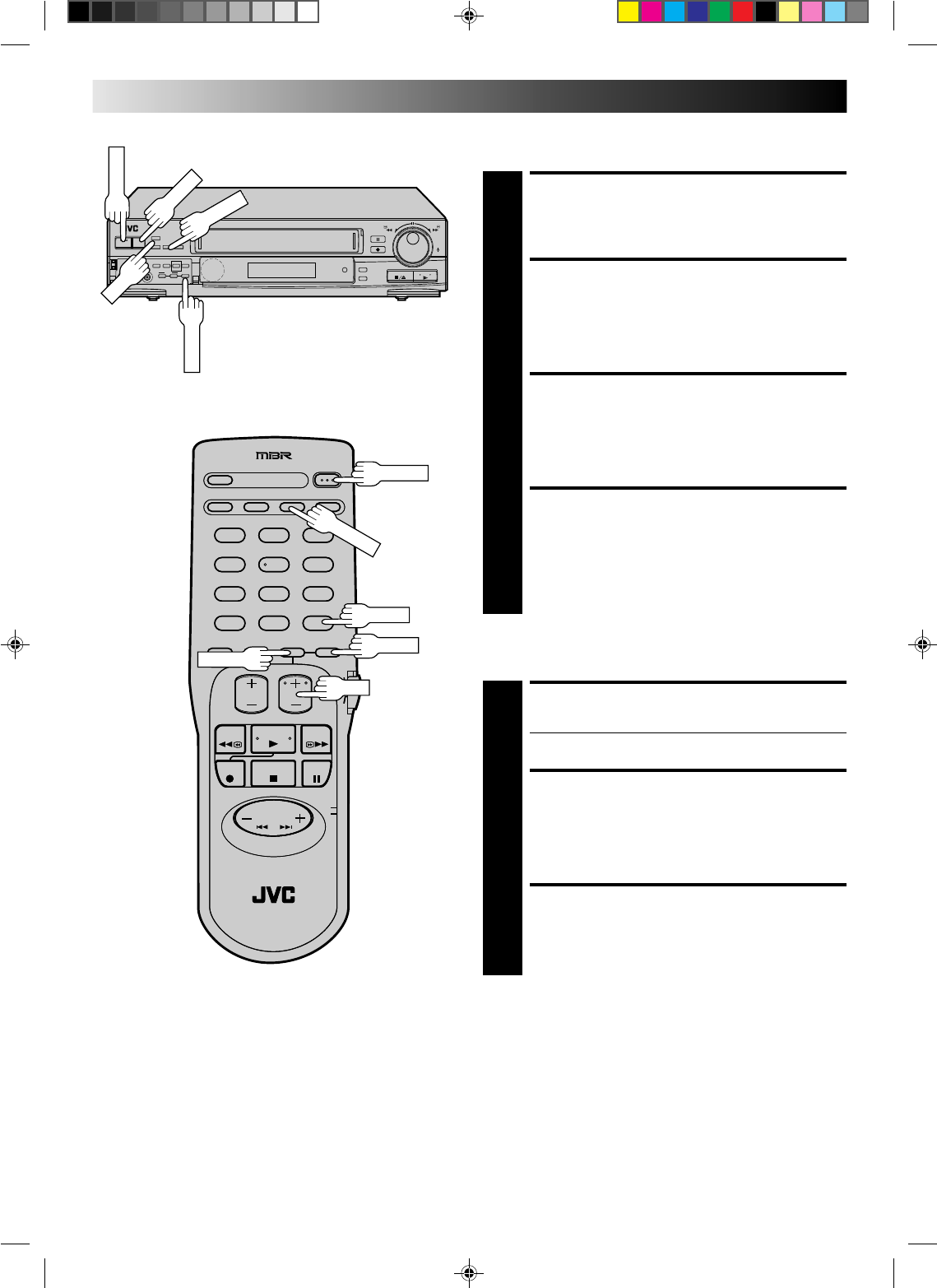

TURN ON THE VCR
1
Press POWER.
ACCESS ON-SCREEN
MENU
2
Press MENU as many times as necessary to bring up
the Main Menu screen.
●You can change the on-screen display language to
Spanish, French, and back to English.
If necessary, see "Language" on page 12.
ACCESS CUSTOM SET
SCREEN
3
At the Main Menu screen,
place the arrow next to
“CUSTOM SET” by
pressing SET +/–, then
press SELECT.
ACCESS CLOCK SET MODE
SELECT SCREEN
4
Place the arrow at the
Custom Set screen next to
“OVERRIDE AUTO
CLOCK SET” by pressing
SET +/–. Then press
SELECT.
MAIN MENU
PROGRAM SET
FUNCTION SET
TUNER SET
=CUSTOM SET
R.A. EDIT
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
CUSTOM SET
=OVERRIDE
AUTO CLOCK SET
LANGUAGE SELECT
CABLE BOX SET
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
POWER
MENU
SELECT
POWER
SELECT
MENU
SET +/–
SET +/–

10
123
456
789
0
123
456
789
0
INITIAL SETTINGS (cont.)
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

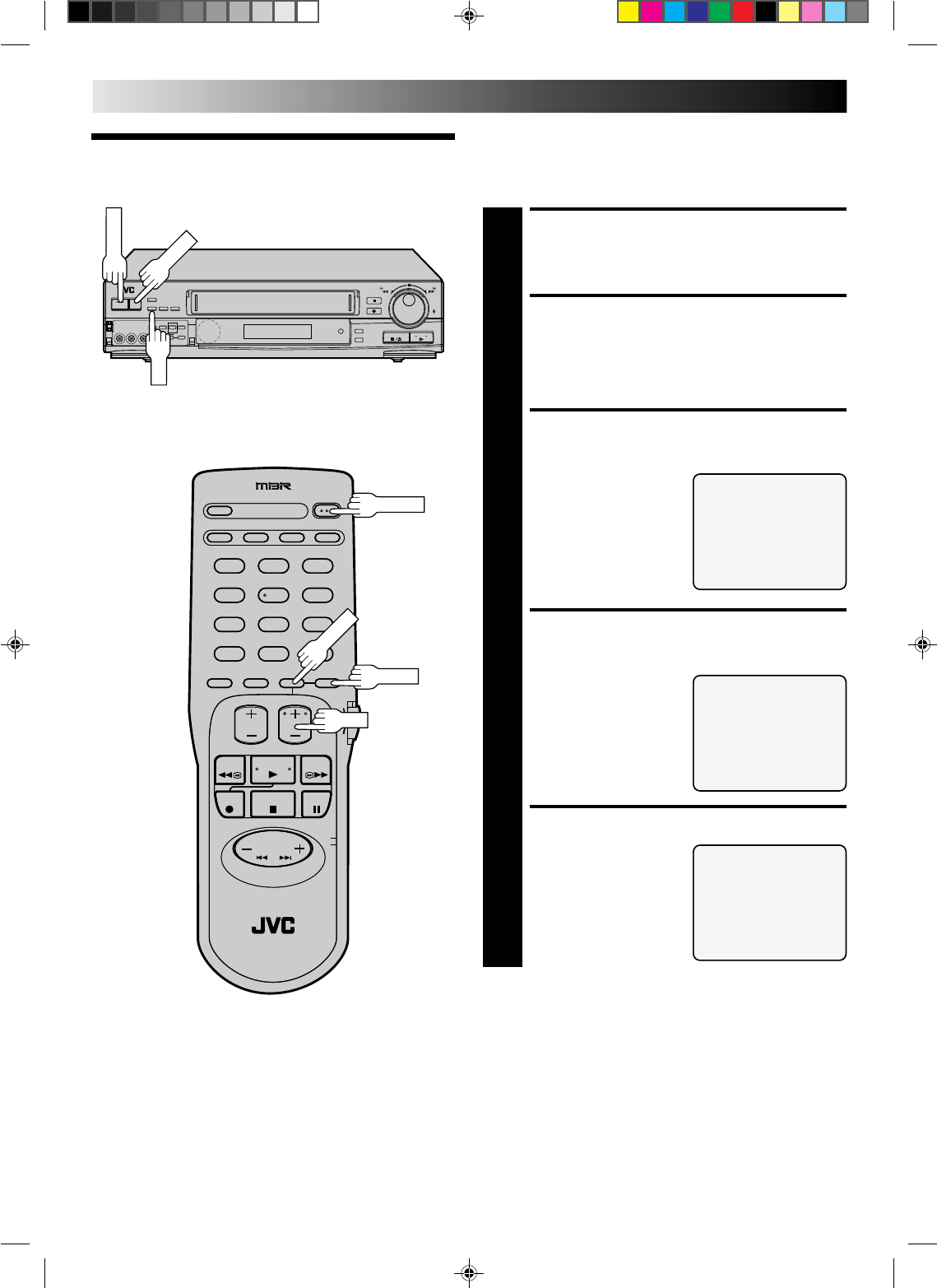

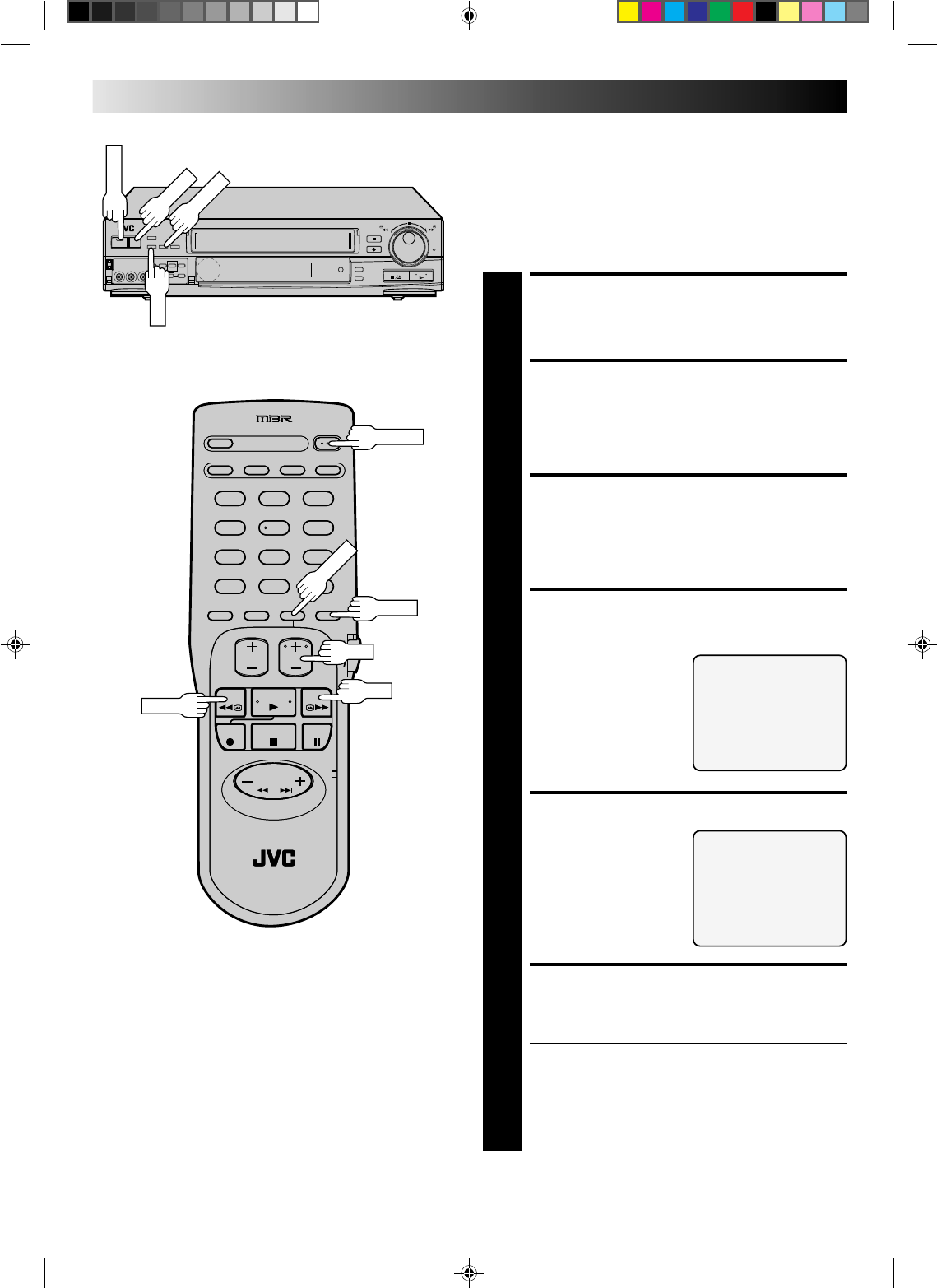

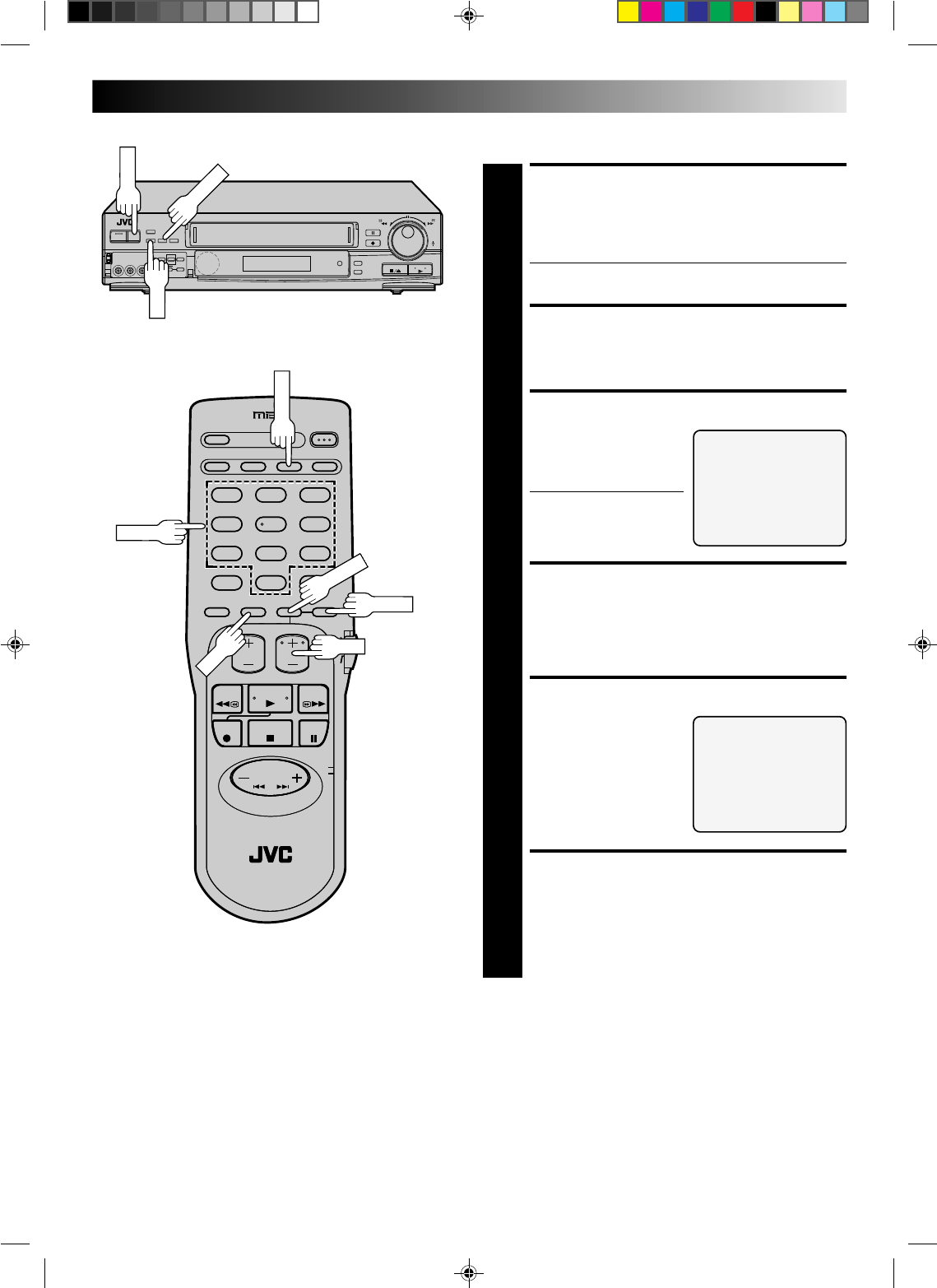

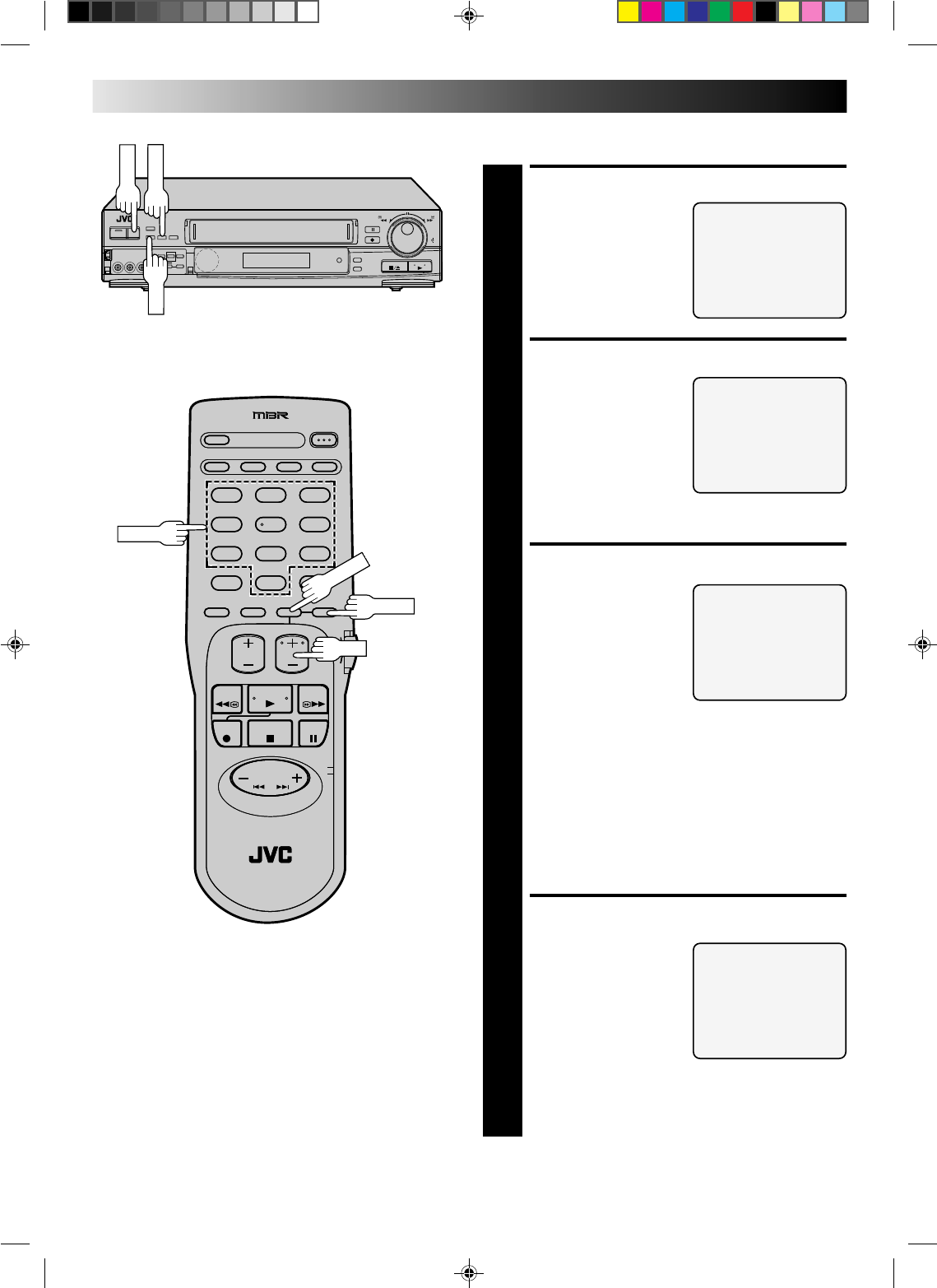

SELECT MODE
5
At the Override Auto
Clock Set screen, place the
arrow next to “SEMI-
AUTO CLOCK SET” by
pressing SET +/–, then
press SELECT.
ACCESS SELECT SCREENS
6
At the Semi-Auto Clock Set
screen, place the
arrow next to the desired
mode by pressing SET +/–,
then press SELECT.
To select the Host Channel
— step 7
To select the Time Zone
— step 8
To select the D.S.T. mode — step 9
SELECT HOST CHANNEL
7
You can either select
“AUTO”, or enter a PBS
channel number. For
automatic channel
selection, simply press
MENU. To manually select
the PBS channel, press the
appropriate DIGIT key or
SET +/– to cycle through
the channel numbers (hold button down to speed
through numbers) and stop when the desired number
appears. Press MENU and the Semi-Auto Clock Set
screen reappears.
NOTES:
●
For cable box users: Select "AUTO" or the channel
on your VCR that receives the cable box channels,
and set the cable box to the PBS channel.
●
There are some PBS channels that do not transmit
clock setting data.
SELECT TIME ZONE
8
You can either select
“AUTO”, or select the
correct zone. If you
selected "AUTO" in step 7
and if you live near the
boundary of an adjacent
time zone, or receive
cable TV channels, a PBS
channel from a different
time zone may become
your host channel. Therefore, in this case make sure to
manually select the correct time zone. Place the arrow
next to your choice by pressing SET +/–, then press
MENU to return to the Semi-Auto Clock Set screen.
Semi-Auto
OVERRIDE AUTO CLOCK SET
AUTO CLOCK SET
=SEMI-AUTO CLOCK SET
MANUAL CLOCK SET
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
TIME ZONE SELECT
=AUTO MOUNTAIN
ATLANTIC PACIFIC
EASTERN ALASKA
CENTRAL HAWAII
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
SEMI-AUTO CLOCK SET
=HOST CHANNEL SELECT
TIME ZONE SELECT
D.S.T. SELECT
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
HOST CHANNEL SELECT
(CATV)
CH AUTO
PRESS (SET+/–) TO SELECT
PRESS (MENU) TO END
MENU
SELECT
SET
DIGIT
MENU
SELECT
SET

11
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
123
456
789
0
123
456
789
0
SELECT D.S.T. MODE
9
You have three choices:
a–Select “AUTO” and the
adjustment to your VCR’s
clock will be made
according to the incoming
signal from the host
channel.
b–Select “ON” and the
adjustment will be made
based on the clock itself.
c–Select “OFF” if Daylight Saving Time doesn’t apply to
you.
Place the arrow next to your choice by pressing SET +/–,
then press MENU and the Semi-Auto Clock Set screen
reappears.
D.S.T. SELECT
=AUTO
ON
OFF
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
IMPORTANT
After setting the Semi-Auto clock set, make sure that the VCR
is off before the next hour so that the clock can be adjusted.
(The clock is automatically adjusted on the hour except at
11:00 PM, midnight, 1:00 AM and 2:00 AM.)
SELECT MODE
5
At the Override Auto Clock Set screen (Z pg. 10), place
the arrow next to “MANUAL CLOCK SET” by pressing
SET +/–, then press SELECT.
SET DATE, TIME AND D.S.T.
6
The Manual Clock Set
screen is displayed and the
first setting that can be set
begins blinking.
Press SET +/– to set the
month, then press SELECT.
The day display begins
blinking. Repeat the
procedure to set the day,
year, hour (including AM/PM), minutes and D.S.T.
(Daylight Saving Time).
● As for the D.S.T. setting
a–Set to "ON" and the adjustment will be made based
on VCR's clock.
b–Set to "OFF" if D.S.T. doesn't apply to you.
When you’re finished with this set-up procedure, press
MENU to start the clock.
MAKE CORRECTIONS
7
To change any of the settings, press SELECT until the
item you want to change blinks, then set as in step 6.
MANUAL CLOCK SET
DATE 1/ 1/96 MON
TIME – – : – – AM
D.S.T. ON
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
Manual
MENU
SELECT
SET
DIGIT
MENU
SELECT
SET
**AUTO DAYLIGHT SAVING TIME
This function enables automatic adjustment of the VCR’s
clock at the start and end of Daylight Saving Time.
With Auto DST activated, . . .
. . . on the first Sunday of April at 2:00 AM, the clock is
adjusted to 3:00 AM.
. . . on the last Sunday of October at 2:00 AM, the clock is
adjusted to 1:00 AM.
SELECT MODE
5
At the Override Auto Clock Set screen, place the arrow
next to "AUTO CLOCK SET" by pressing SET +/–, then
power off the VCR. Do not power it on again until the
clock has been adjusted. The clock is automatically
adjusted on the hour except at 11:00 PM, midnight,
1:00 AM and 2:00 AM. (The clock will be adjusted on
the hour based on the time displayed on the VCR, not
on the actual real time.)
Auto

12
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

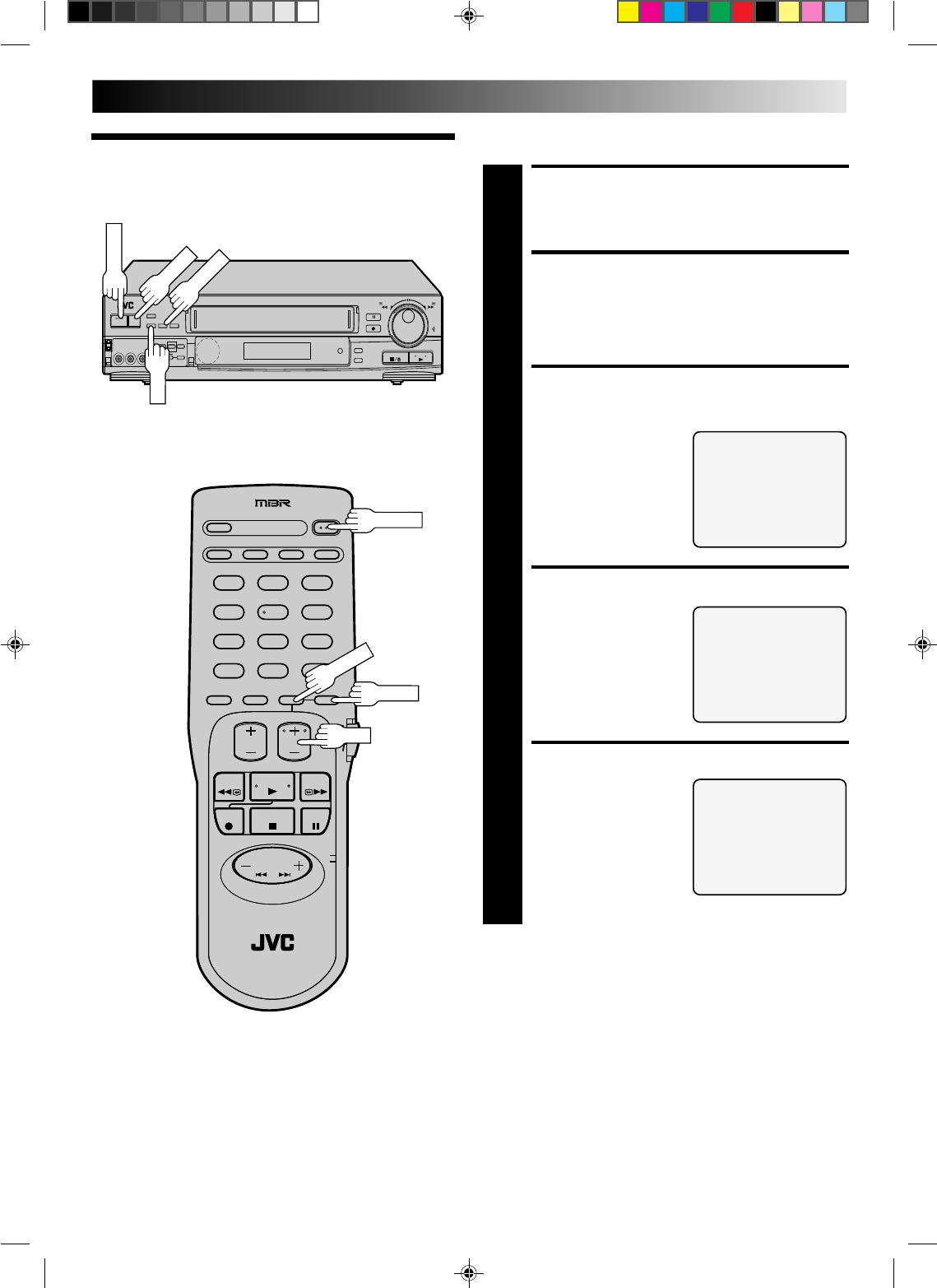

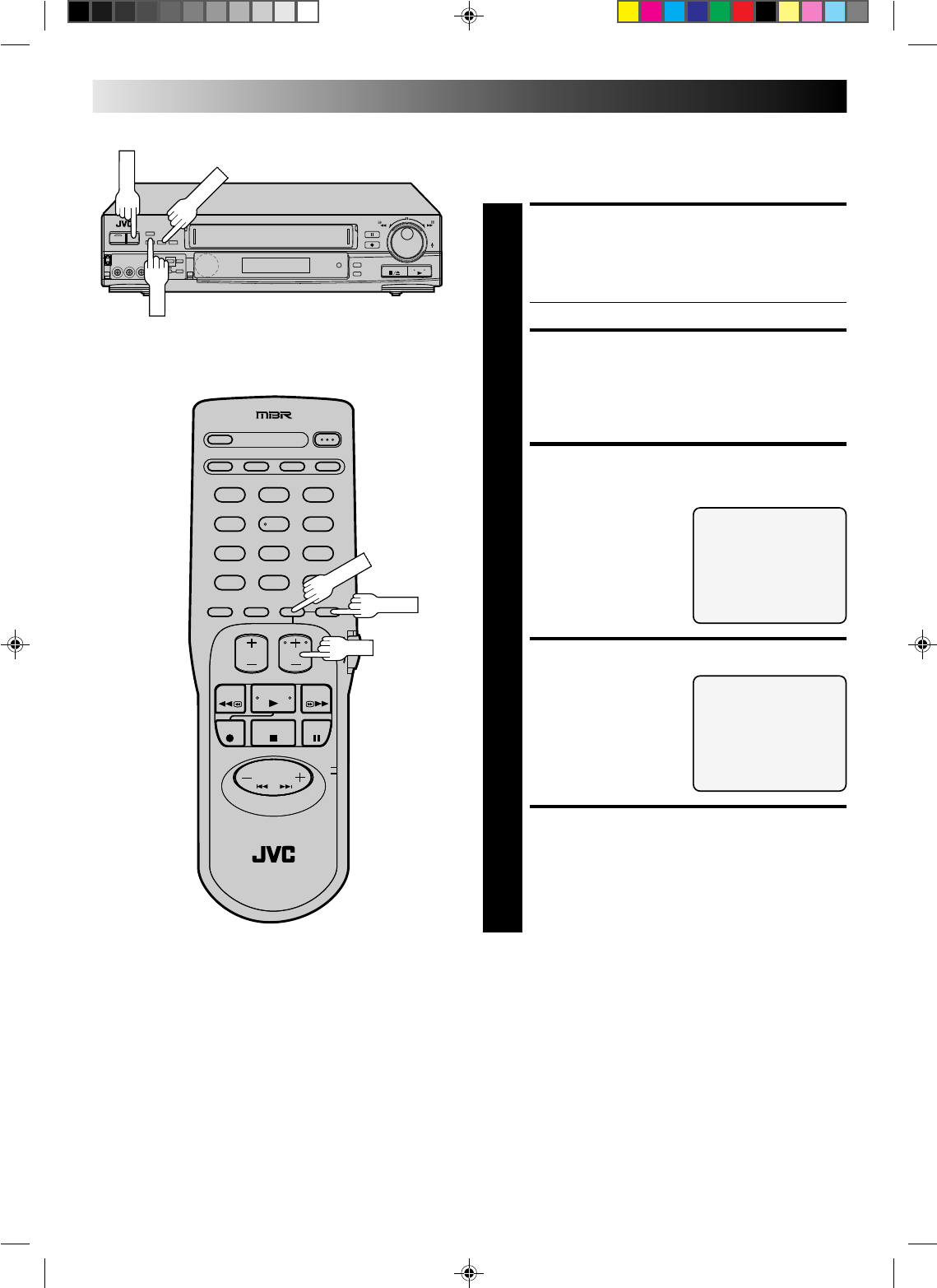

Language This VCR offers you the choice to view on-screen messages in
English, Spanish or French (not including messages superimposed
on the TV picture). Select the desired language using this
procedure. The default setting is "ENGLISH".
TURN ON THE VCR
1
Press POWER.
ACCESS ON-SCREEN
MENU
2
Press MENU as many times as necessary to bring up the
Main Menu screen.
ACCESS CUSTOM SET
SCREEN
3
At the Main Menu screen,
place the arrow next to
“CUSTOM SET” by
pressing SET +/–, then
press SELECT.
ACCESS LANGUAGE
SELECT SCREEN
4
The messages are preset to
appear in English. If you want
to see them in Spanish or
French, place the arrow next
to “LANGUAGE SELECT” by
pressing SET +/–, then press
SELECT.
SELECT LANGUAGE
5
At the Language Select
screen, place the arrow
next to the desired
language by pressing SET
+/–, then press MENU as
many times as necessary to
return to the normal
screen.
MAIN MENU
PROGRAM SET
FUNCTION SET
TUNER SET
=CUSTOM SET
R.A. EDIT
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
CUSTOM SET
OVERRIDE
AUTO CLOCK SET
=LANGUAGE SELECT
CABLE BOX SET
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
LANGUAGE SELECT
=ENGLISH
ESPAÑOL
FRANCAIS
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
INITIAL SETTINGS (cont.)
POWER
MENU
SELECT
MENU
POWER
SET
SET

13

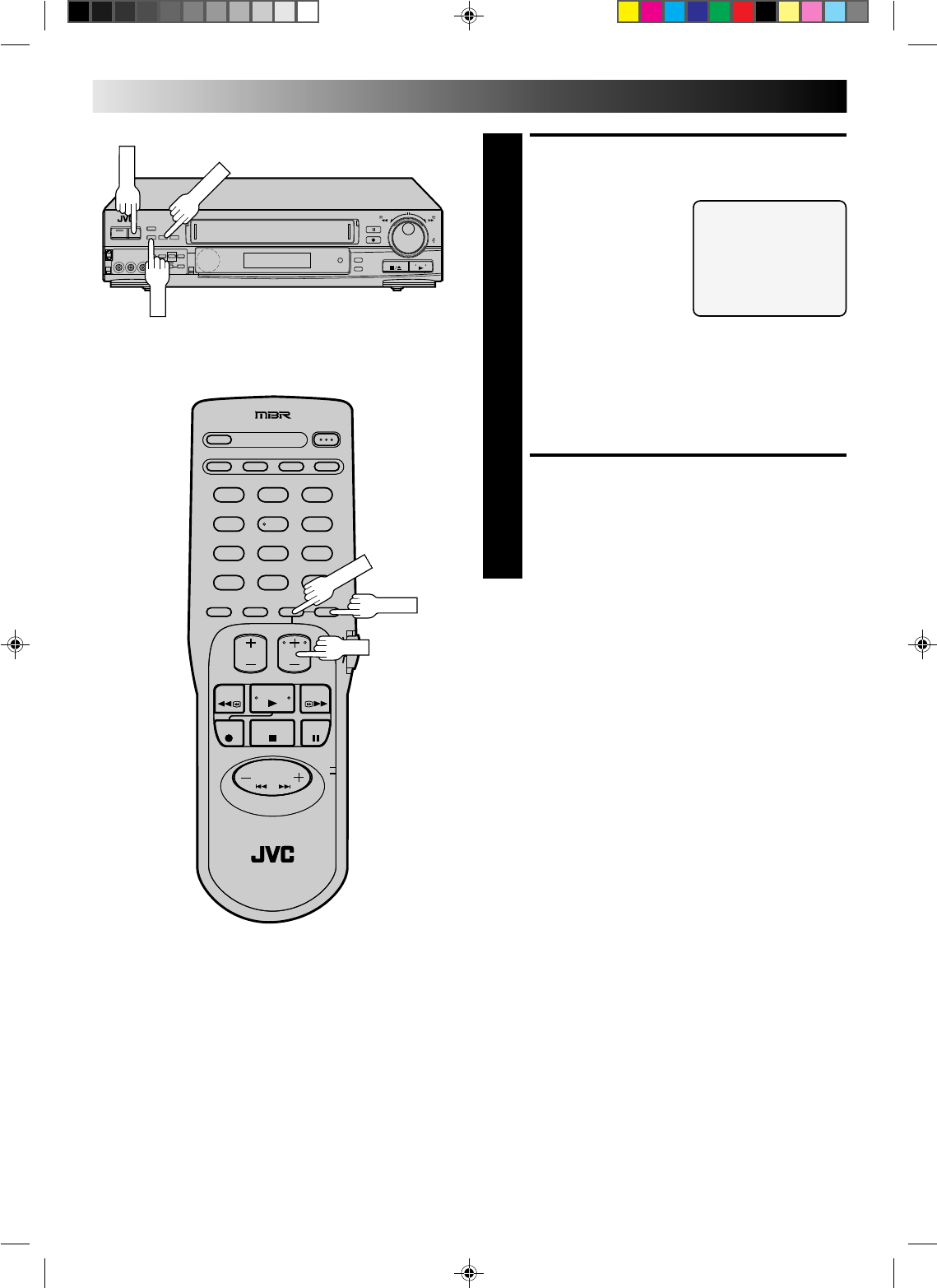

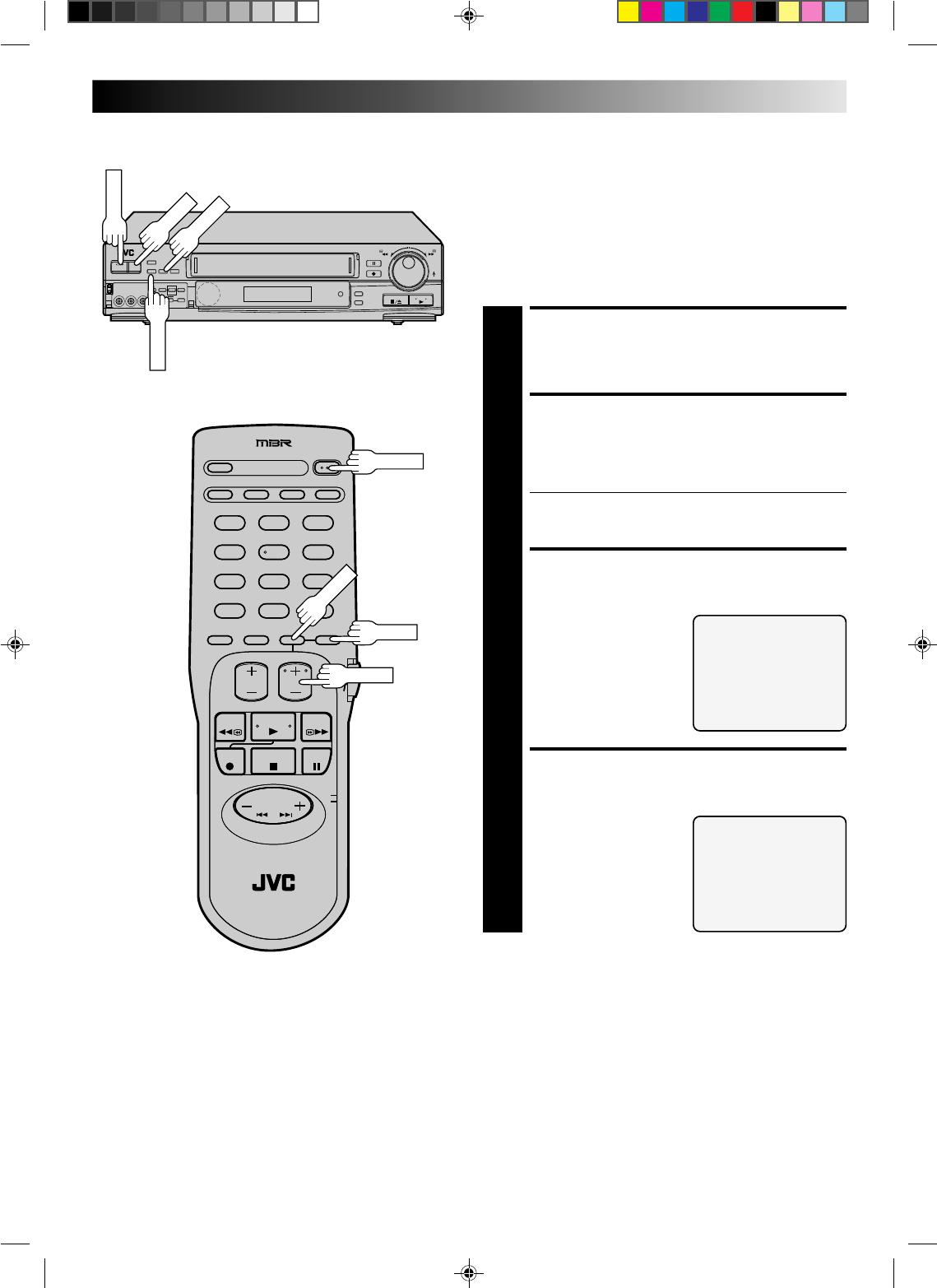

Tuner Set Receivable Channels
TURN ON THE VCR
1
Press POWER.
ACCESS MAIN MENU
SCREEN
2
Press MENU as many times as necessary.
ACCESS TUNER SET
SCREEN
3
Place the arrow next to
"TUNER SET" by pressing
SET +/–, then press
SELECT.
ACCESS BAND SCREEN
4
Place the arrow next to
"BAND" by pressing
SET +/–, then press
SELECT.
SET FREQUENCY BAND
5
If you receive your TV
channels from an external
antenna, select "TV". If
you receive your TV
channels from a cable TV
system, select "CATV".
Place the arrow next to
your choice by pressing
SET +/–, then press MENU
to return to the Tuner Set screen.
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
POWER
MENU
SELECT
SET
SET
MENU
SELECT
POWER
MAIN MENU
PROGRAM SET
FUNCTION SET
=TUNER SET
CUSTOM SET
R.A. EDIT
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
BAND
TV
=CATV
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
CONTINUED ON NEXT PAGE.
TUNER SET
=BAND
AFC
AUTO CHANNEL SET
MANUAL CHANNEL SET
GUIDE CHANNEL SET
GUIDE CHANNEL MAP
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END

14
PERFORM AUTO CHANNEL
SET
6
Place the arrow next to
"AUTO CHANNEL SET" by
pressing SET +/–, then
press SELECT. Receivable
channels in your area are
automatically assigned to
the CH +/– buttons, and
non-receivable channels
are skipped.
NOTES:
●
At the end of Auto Channel Set, “SCAN COM-
PLETED” appears on screen.
●
If the scan was unsuccessful, “SCAN COMPLETED–
NO SIGNAL” appears on screen. Check the band
setting and connections and start again.
RETURN TO NORMAL
SCREEN
7
Press MENU as many times as necessary.
AUTO CHANNEL SET
(TV)
CH 2 ADD
SCANNING ...
PRESS (MENU) TO END
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
INITIAL SETTINGS (cont.)
MENU
SET
SELECT
SET
MENU
SELECT

15

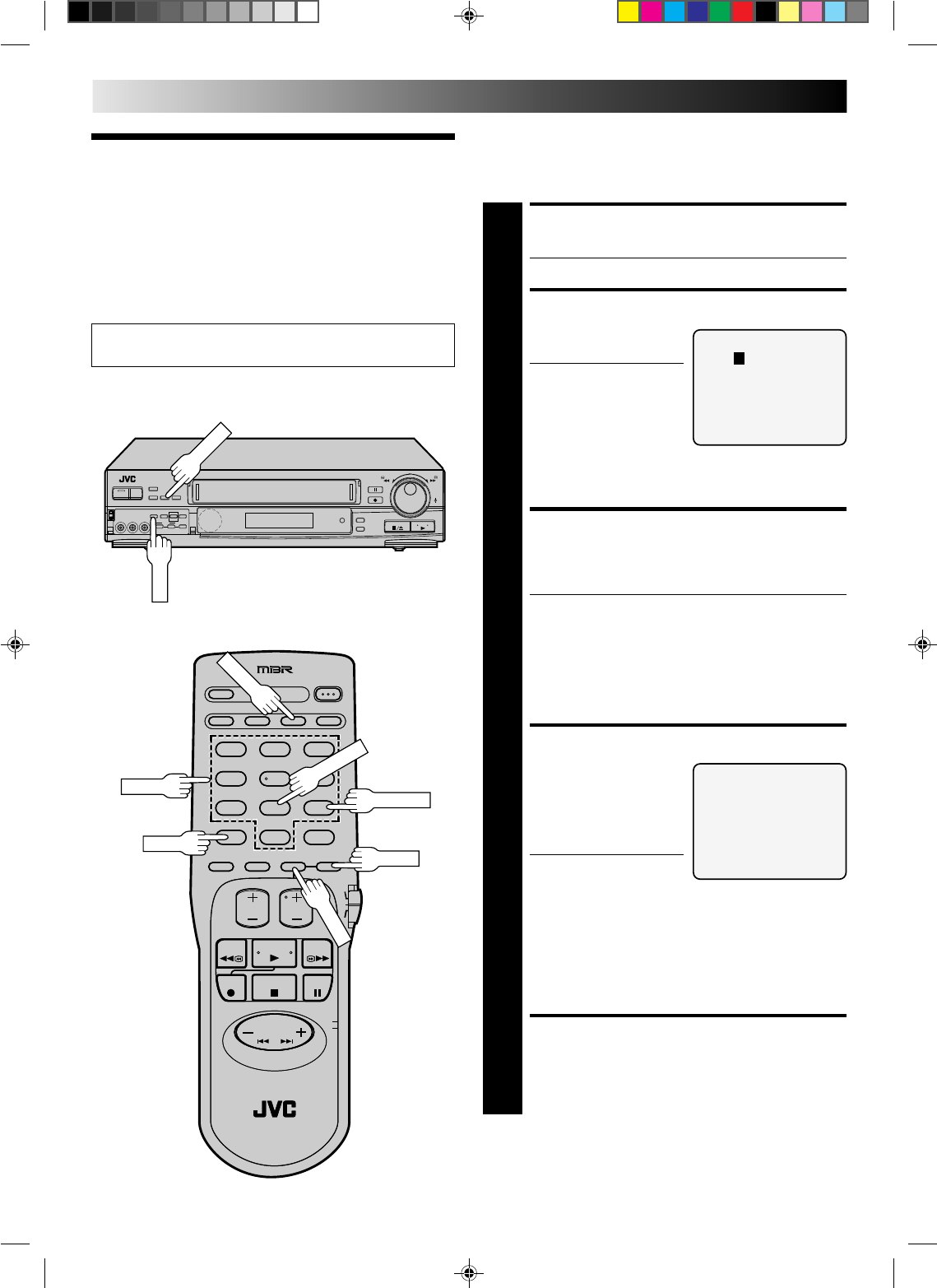

Add Or Delete A Channel
ACCESS TUNER SET
SCREEN
1
Access by performing steps 2 and 3 of the Tuner
procedure on page 13.
●To add a channel, go to step 2.
●To delete a channel, skip to step 4.
ACCESS AFC SCREEN
2
Place the arrow next to "AFC" by pressing SET +/–, then
press SELECT.
MAKE SELECTION
3
Place the arrow next to
"SPCL" by pressing SET +/–,
then press MENU to return
to the Tuner Set screen.
●AFC set to SPCL (special)
is necessary for turning
on certain CATV
systems.
ACCESS MANUAL
CHANNEL SET SCREEN
4
Place the arrow next to "MANUAL CHANNEL SET" by
pressing SET +/–, then press SELECT.
STORE DESIRED CHANNEL
5
Input the channel number
using the DIGIT keys or by
pressing SET +/–, then press
ADD to add or CH.SKIP to
delete. Repeat for each
channel you want to store
or skip.
RETURN TO NORMAL
SCREEN
6
Press MENU as many times as necessary.
AFC
NORM
=SPCL
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MANUAL CHANNEL SET
(CATV)
CH 125 SKIP
SELECT CH NO. AND
PRESS (ADD/SKIP)
PRESS (MENU) TO END
MENU
SET
SELECT
SET
MENU
SELECT
CH.SKIP
DIGIT
ADD

16
This procedure is required if you receive your TV channels
through a cable box (descrambler). The Cable Box Controller
allows the VCR to automatically switch the cable box channel
during timer-recording. The Cable Box Controller is effective for
recording shows that have been programmed using VCR Plus+
(Z pg. 38) or On-Screen Timer Programming (Z pg. 40).

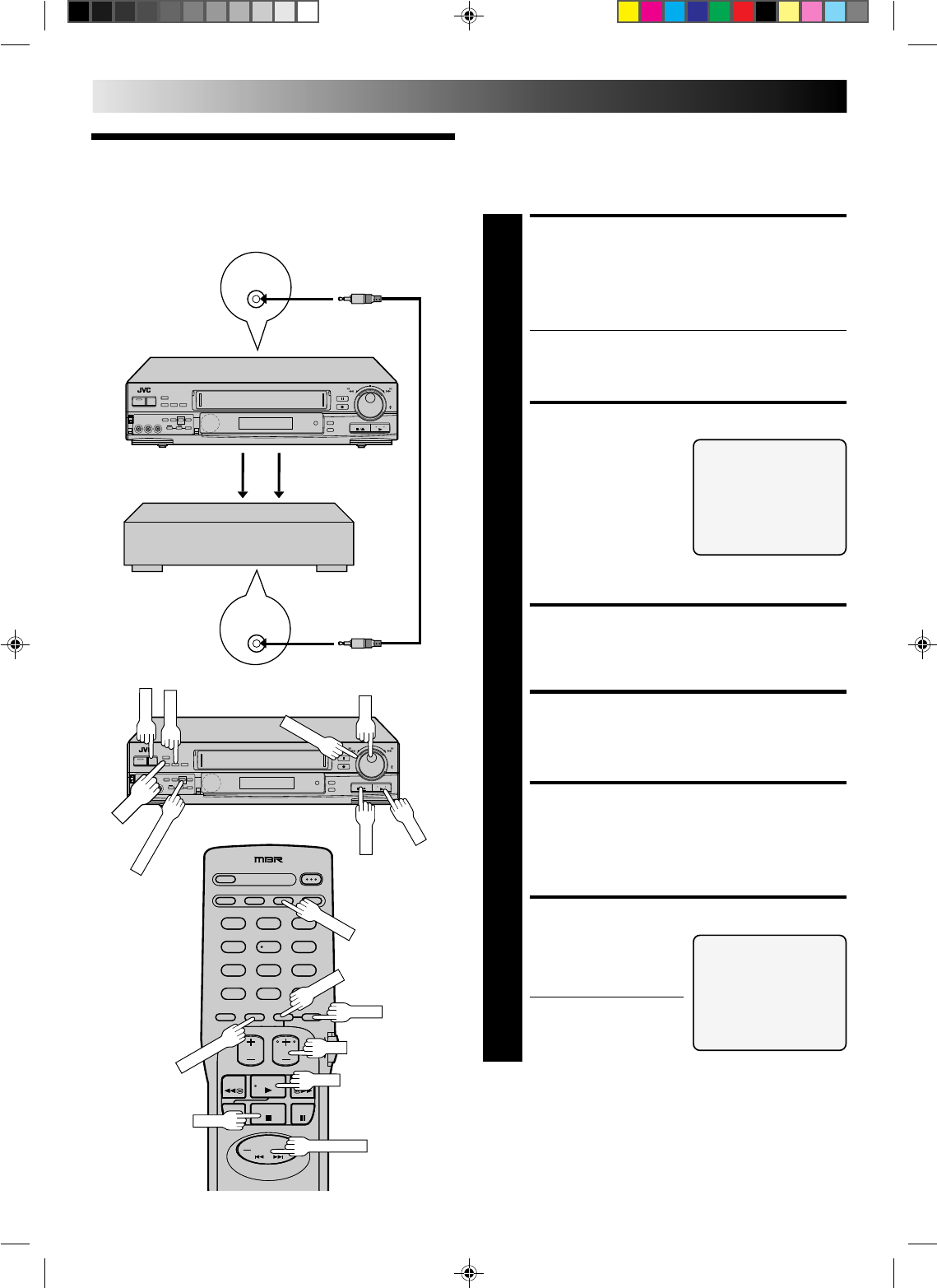

Situate And Connect
Controller
Tuner And
Cable Box
Controller
Suggested Location
Place the cable box on top of the VCR. Attach the VCR's Cable
Box Controller to the top of the VCR with the Controller’s
transmitter pointed towards the cable box’s remote sensor.
CABLE
BOX
Cable box
Controller
(suggested locations)
Cable box
Controller
Transmitter
Connected to
ANT. IN Connected
to VIDEO/
AUDIO IN
Your VCR
Your VCR
INITIAL SETTINGS (cont.)
SITUATE CONTROLLER
1
Place the Cable Box Controller so that the path
between its transmitter and the cable box’s remote
sensor is unobstructed.
ATTACH CONTROLLER
2
Fasten securely using the supplied adhesive strips.
CONNECT CABLE BOX TO
VCR
3
The connection method depends on the type of cable
box you have.
If your cable box has AUDIO and VIDEO OUT
connectors . . .
. . . connect them to the AUDIO and VIDEO IN
connectors on your VCR.
If your cable box doesn’t have AUDIO and VIDEO
OUT connectors . . .
. . . connect the antenna output connector on the cable
box to the ANT.IN connector on the rear of your VCR.
Set the VCR tuner to the same channel as the cable box
RF output (see page 18 also).
NOTE:
Refer to your cable box’s instruction manual during
connection.
CONNECT CONTROLLER
TO VCR
4
Connect to the CABLE BOX connector on your VCR.
About Your Cable Box
This VCR has two separate methods to control your Cable Box.
●
The VCR's Wireless Remote Control Unit can control your
Cable Box.
This eliminates the need for a separate Cable Box Remote
Control Unit.
●
The VCR's Cable Box Controller can also control your Cable Box.
This allows the VCR to change your Cable Box's channel
number during timer recording.
Each method must be set up separately. To set up the VCR's
Remote Control unit, refer to page 54. To set up the Cable Box
Controller go to page 17.

17
Set Cable Box Output
Channel
TURN ON THE VCR
1
Press POWER.
ACCESS MAIN MENU
SCREEN
2
Press MENU as many times as necessary.
ACCESS CUSTOM SET
SCREEN
3
Press SET +/– to place the
arrow next to “CUSTOM
SET”, then press SELECT.
ACCESS CABLE BOX SET
SCREEN
4
Press SET +/– to place the
arrow next to “CABLE
BOX SET”, then press
SELECT.
ACCESS CABLE BOX
OUTPUT
SCREEN
5
Press SET +/– to place the
arrow next to “CABLE
BOX OUTPUT”, then
press SELECT.
CUSTOM SET
OVERRIDE
AUTO CLOCK SET
LANGUAGE SELECT
=CABLE BOX SET
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
CABLE BOX SET
=CABLE BOX OUTPUT
BRAND SET
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
MAIN MENU
PROGRAM SET
FUNCTION SET
TUNER SET
=CUSTOM SET
R.A. EDIT
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
CONTINUED ON NEXT PAGE.
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
POWER
MENU
SELECT
SET
SELECT
MENU
POWER
SET

18
SELECT CABLE BOX
OUTPUT CHANNEL
6
Your selection depends on
how your cable box is
connected to your VCR.
If your cable box is
connected to your VCR
using an RF connection . . .
. . . press SET+/– to place
the arrow next to the
channel number representing the cable box’s output (2–
6).
If your cable box is connected to your VCR’s AUDIO/
VIDEO IN connectors . . .
. . . press SET+/– to place the arrow next to “ON
LINE”.
RETURN TO CABLE BOX
SET SCREEN
7
Press MENU.
CABLE BOX OUTPUT
=OFF
ON CH2
ON CH3
ON CH4
ON CH5
ON CH6
ON LINE
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
TURN ON CABLE BOX
1
Select a channel other than channel 9 on your Cable
Box.
ACCESS BRAND SET
SCREEN
2
At the Cable Box Set
screen, press SET +/– to
place the arrow next to
“BRAND SET”, then press
SELECT.
ENTER CABLE BOX BRAND
3
Press the appropriate
DIGIT keys to enter the
Cable Box Code from the
CABLE BOX BRAND LIST
on page 19, then press
ENTER.
●If the cable box’s
channel changes to 9,
setting is complete.
●If there are more than one code number listed for
your brand of cable box, repeat step 3 until the cable
box’s channel changes to 9.
●If you go through all listed code numbers and the
channel doesn’t change, try all other numbers
between 1 and 69. That is because, maybe, your
cable box model is not listed.
CABLE BOX SET
CABLE BOX OUTPUT
=BRAND SET
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
Set Cable Box Brand
INITIAL SETTINGS (cont.)
CABLE BOX BRAND
1
SELECT BRAND NO. AND
PRESS (ENTER)
PRESS (MENU) TO END
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MENU
SET
SELECT
SET
MENU
SELECT
DIGIT
ENTER

19
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
RETURN TO NORMAL
SCREEN
4
Press MENU as many times as necessary.
You can now set up the VCR Plus+ feature ( Z pg. 20).

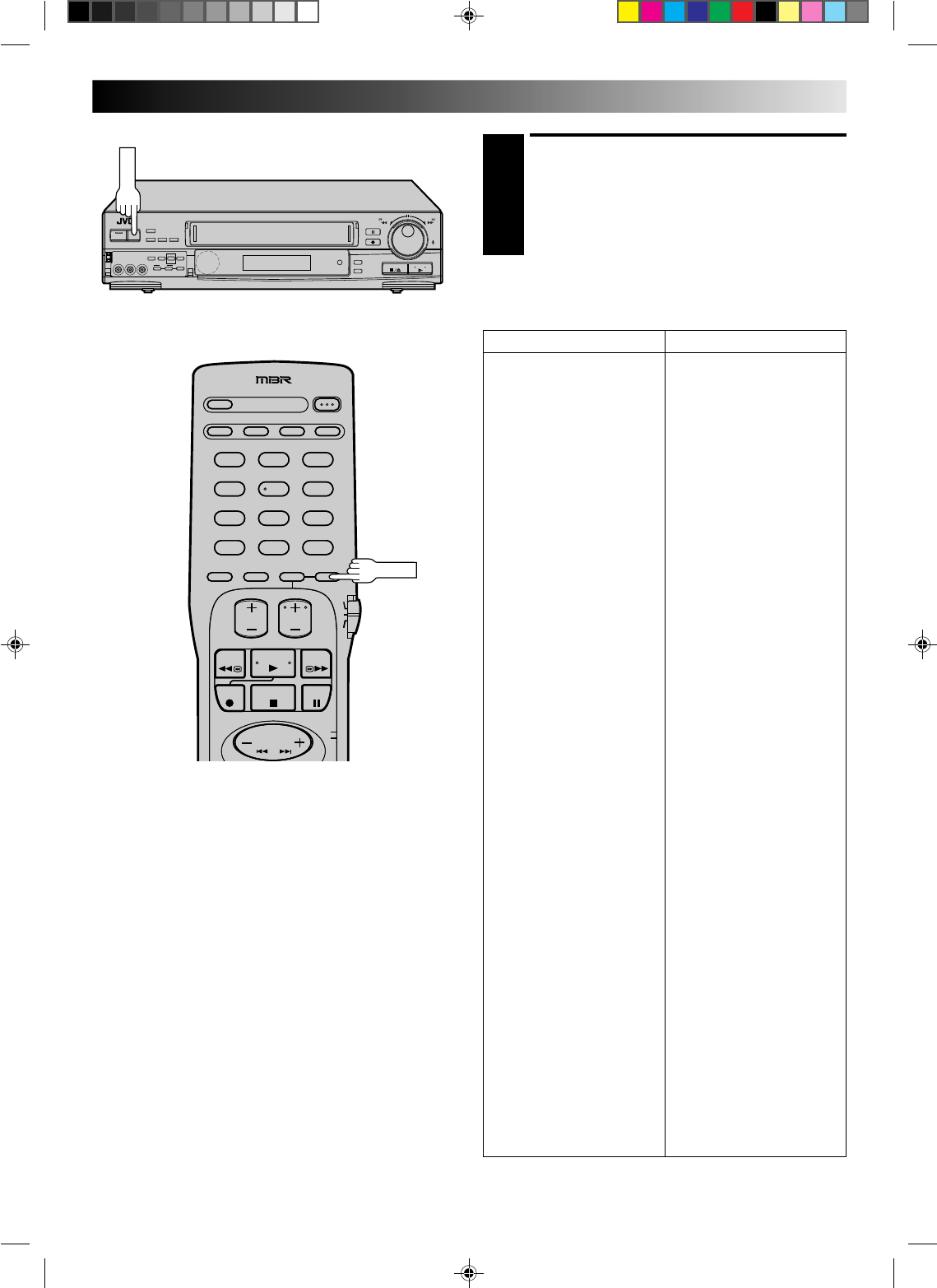

CABLE BOX BRAND LIST
BRAND CODE
ARCHER 49, 52, 53, 54
CABLEVIEW 49, 53
CITIZEN 49, 53
CURTIS 9, 10, 62, 63
DIAMOND 52, 53, 54
EAGLE 30, 31, 32, 33, 34, 35, 36, 37
EASTERN 51
GC BRAND 49, 53
GEMINI 8, 56
GENERAL ELECTRIC 67
GENERAL INSTRUMENTS 1, 2, 3, 4, 5, 6, 7,8
HAMLIN 15, 16, 17,18
JERROLD 1, 2, 3, 4, 5, 6, 7, 8
MACOM, HITACHI 57, 58, 59
MAGNAVOX 30, 31, 32, 33, 34, 35, 43
MOVIETIME 44, 45, 46
NSC 44, 45, 46
OAK 19, 20, 21, 30, 47, 48
PANASONIC 24, 25, 26
PHILIPS 30, 31, 32, 33, 42
PIONEER 13, 14
PULSER 49, 53
RCA 24, 25, 26
REGAL 15, 16, 17, 18, 33
REGENCY 51
SAMSUNG 8, 13, 49, 50
SCIENTIFIC ATLANTA 9, 10, 62, 63
SIGMA 19, 20, 21
SL MARX 8, 13, 49, 50
SPRUCER 24, 25, 26
STARGATE 8, 13, 49, 50
SYLVANIA 29
TEKNIKA 68, 69
TELECAPTION 27
TELEVIEW 8, 13, 49, 50
TEXSCAN 28, 29
TOCOM 22, 23, 64, 65, 66
UNIKA 52, 53, 54
UNIVERSAL 38, 39, 40, 41
VIDEOWAY 11, 12, 60, 61
VIDEO TECH 55
VIDTER 55
VIEWSTAR 30, 31, 32, 33, 34, 35, 36, 37
ZENITH 11, 12, 60, 61
NOTES:
●
Although the supplied Cable Box Controller is compatible
with many different cable box brands, it is possible that it will
not work with your cable box.
●
If your cable box doesn’t respond to any code between 1 and
69, you can’t use the Controller to change cable box
channels. In this case, make sure to leave the cable box
turned on and tuned to the proper channel before the
scheduled start of timer recording.
Please contact your cable company about the possibility of
exchanging your current cable box with one that is compat-
ible with your VCR.
●
The VCR can only change the cable box channel through the
Cable Box Controller during timer recording.
●
If your cable box is one that can’t be operated with a remote
control (has no remote sensor), you can’t use the Cable Box
Controller to change its channels. Make sure to leave the
cable box turned on and tuned to the proper channel before
the scheduled start of timer recording.
●
If you are unable to set the Cable Box Controller, please
contact JVC toll free at 1-800-252-5722.
123
456
789
0
123
456
789
0
MENU
MENU

20
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
123
456
789
0
123
456
789
0
MENU
The VCR Plus+ timer programming system eliminates the need
to input channel, date, start and stop time data when setting the
timer record function. Simply key in the PlusCode number for
the TV program you wish to record (found in most TV listings)
and the VCR’s timer is automatically programmed.
Depending on the TV or cable stations that you receive and the
channel numbers that they are received on in your area, you may
have to make certain changes in your VCR’s “Guide Channel Set”
menu to get proper results. Please read the following information
carefully to find out which tasks you need to perform.
Before VCR Plus+ setup you must have performed the following
procedures:
●Advanced Auto Clock Setting (Z pg. 8)
OR
Clock setting (Z pg. 9)
●Tuner setting (Z pg. 13)
●Tuner and cable box setting if you receive your TV channels
through a cable box (Z pg. 16)
Channel Number Matching
Most TV listings have a chart indicating the “Guide Channel”
number assigned to each station for purposes of VCR Plus+
programming. Check the chart in your TV listings and see if the
Guide Channel numbers listed for the stations you receive are
the same as the channel number on which each is received by
your VCR or cable box.
**SPECIAL NOTES FOR CABLE SUBSCRIBERS**
●In many instances, cable TV stations have VCR Plus+ Guide
Channel numbers that DO NOT match the number of the
channel on which you receive the station. Check your TV
listings, or contact your cable supplier for details.
●Many normal broadcast TV stations can be viewed on cable.
Check your TV listing, or contact your cable supplier for
details.
If the numbers match, go directly to “VCR Plus+ Timer
Programming” (Z pg. 38).
If the numbers are different, and you want to be able to timer
record programs from those stations, you have to inform the
VCR of the mismatch. Go to step 1. If you will not want to timer
record from those stations, you can go directly to “VCR Plus+
Timer Programming” (Z pg. 38).
VCR Plus+
Setup
INITIAL SETTINGS (cont.)
POWER
MENU
POWER
TURN ON THE VCR
1
Press POWER.
ACCESS MAIN MENU
SCREEN
2
Press MENU as many times as necessary.

21
ACCESS TUNER SET
SCREEN
3
Press SET+/– to place the
arrow next to “TUNER
SET”, then press SELECT.
ACCESS GUIDE CHANNEL
SET SCREEN
4
Press SET+/– to place the
arrow next to “GUIDE
CHANNEL SET”, then
press SELECT.
INPUT GUIDE CHANNEL
NUMBER
5
Press SET+/– or the
appropriate DIGIT keys to
input the Guide Channel
number as shown in the
TV listing. Then press
SELECT.
●If you receive your
channels with a cable
box and if you have properly set your Cable Box
Controller, “CABLE CH” appears in place of “VCR
CH”. If not, refer to pages 16–17 and re-perform the
procedure.
MAIN MENU
PROGRAM SET
FUNCTION SET
=TUNER SET
CUSTOM SET
R.A. EDIT
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
TUNER SET
BAND
AFC
AUTO CHANNEL SET
MANUAL CHANNEL SET
=GUIDE CHANNEL SET
GUIDE CHANNEL MAP
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
GUIDE CHANNEL SET
GUIDE CH : VCR CH
1 : 1
PRESS
(SELECT, SET+/–, DIGIT)
PRESS (MENU) TO END
CONTINUED ON NEXT PAGE.
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
SET
SELECT
MENU
SELECT
DIGIT
SET

22
INPUT RECEIVING CHANNEL
NUMBER
6
Press SET+/– or the appropriate DIGIT keys to input the
number of the channel on which the Guide Channel’s
broadcasts are received. Then press SELECT.
●If there is more than one mismatch, repeat steps 5 and 6
for each instance.
RETURN TO TUNER SET
SCREEN
7
Press MENU.
CHECK INPUT DATA
8
Press SET+/– to place the
arrow next to “GUIDE
CHANNEL MAP”, then
press SELECT.
●The Guide Channel and
VCR or cable box
channel numbers you
input appear on the
screen in ascending
order. Check to ensure
you’ve entered them
correctly.
●If you entered more than
10 sets of numbers, press
SELECT to see the next
set of numbers.
●Guide Channel Map
contains only the Guide
Channels and VCR channels that you entered. (Guide
Channels 90 through 99 may be included even if you
did not enter them; this has no effect on actual
operation.)
RETURN TO NORMAL
SCREEN
9
Press MENU as many times as necessary.
TUNER SET
BAND
AFC
AUTO CHANNEL SET
MANUAL CHANNEL SET
GUIDE CHANNEL SET
=GUIDE CHANNEL MAP
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
GUIDE CHANNEL MAP
GUIDE: VCR GUIDE : VCR
6 : 47 10 : 55
12 : 41 15 : 38
33 : 28 67 : 49
PRESS (SELECT) TO NEXT
PRESS (MENU) TO END
INITIAL SETTINGS (cont.)
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MENU
SET
SELECT
SET
MENU
SELECT
DIGIT
You can now use VCR Plus+ for quick and simple timer
programming (Z pg. 38).

23
123
456
789
0
123
456
789
0

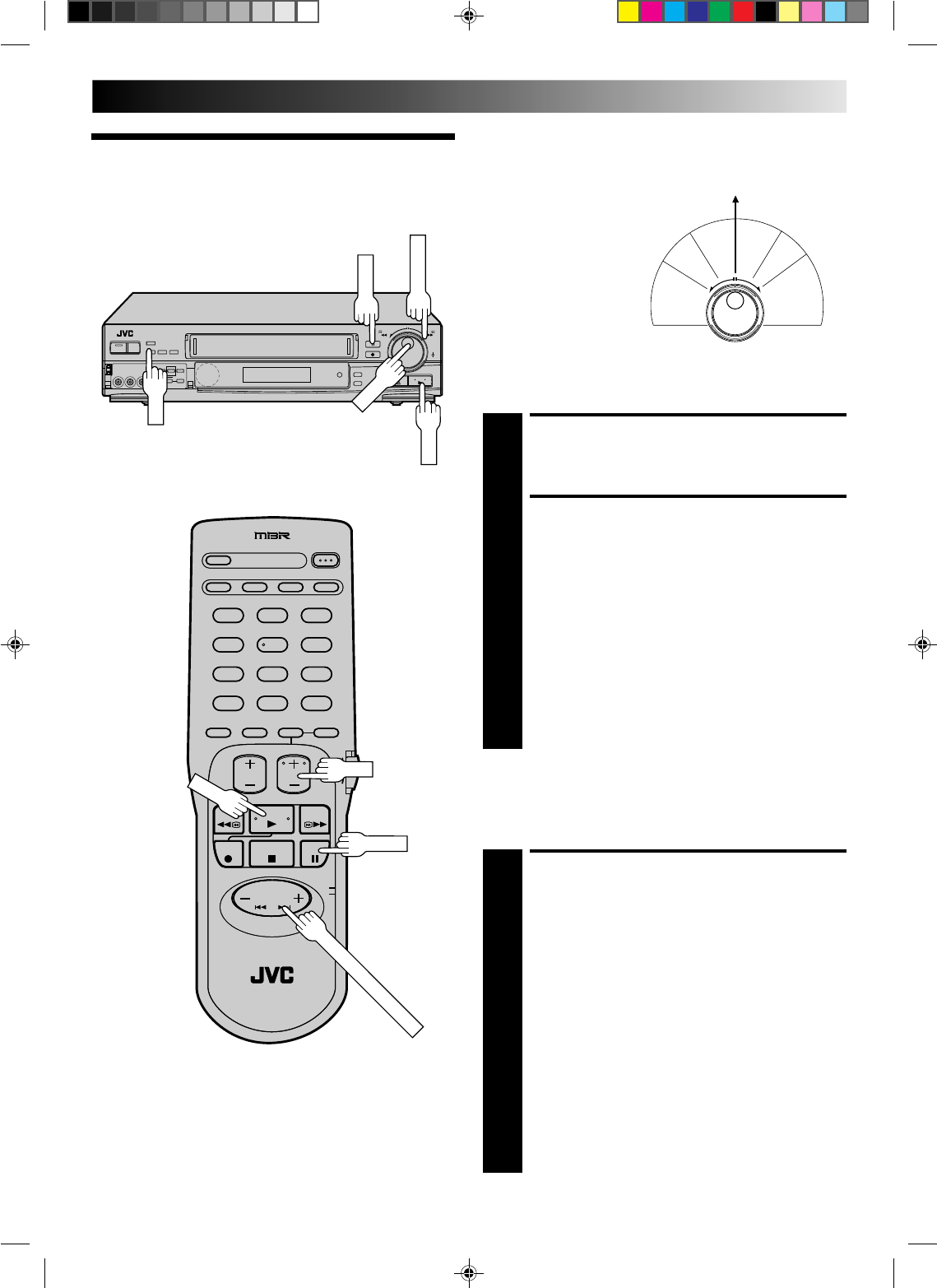

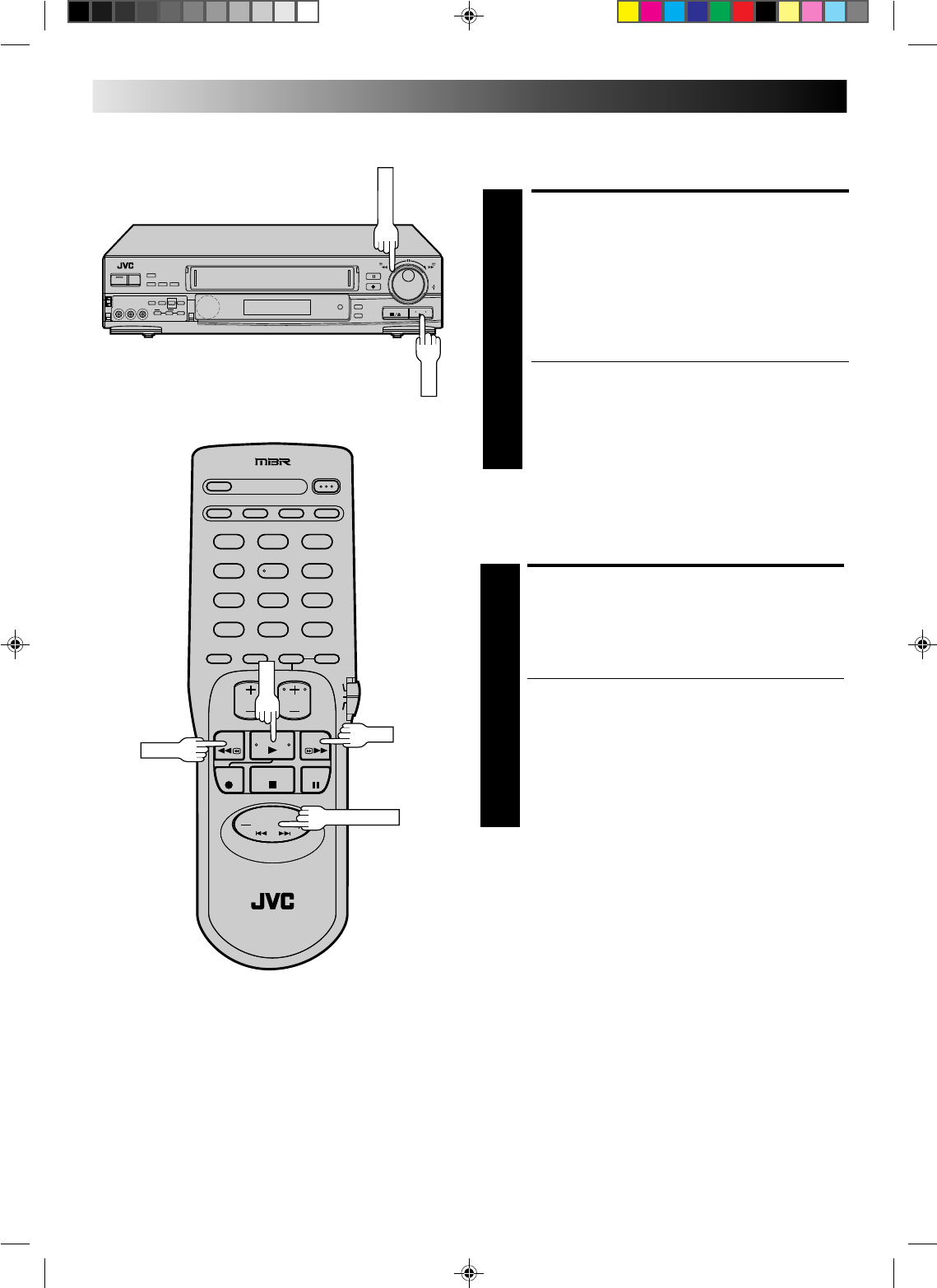

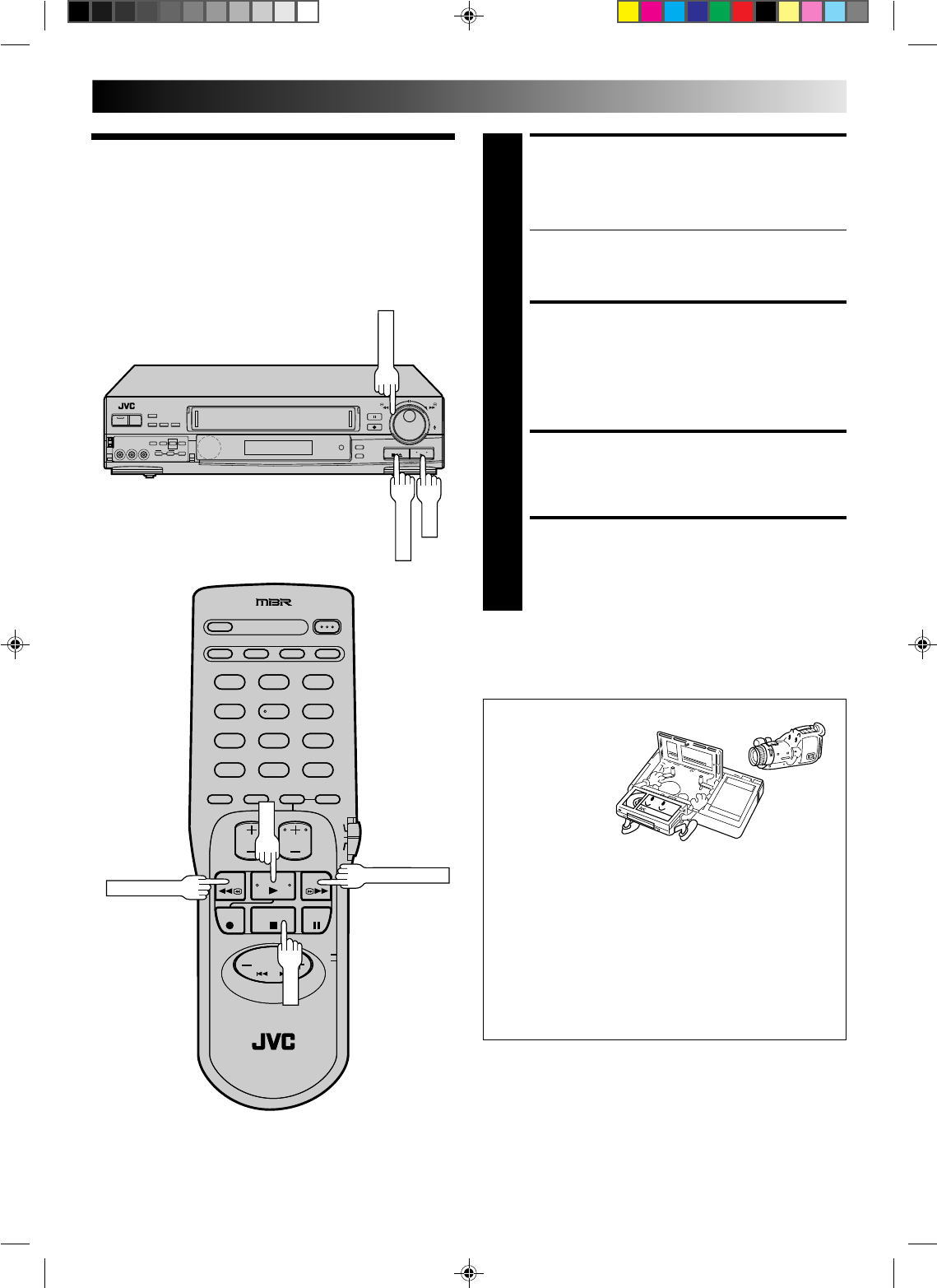

SIMPLE PLAYBACK AND RECORDING

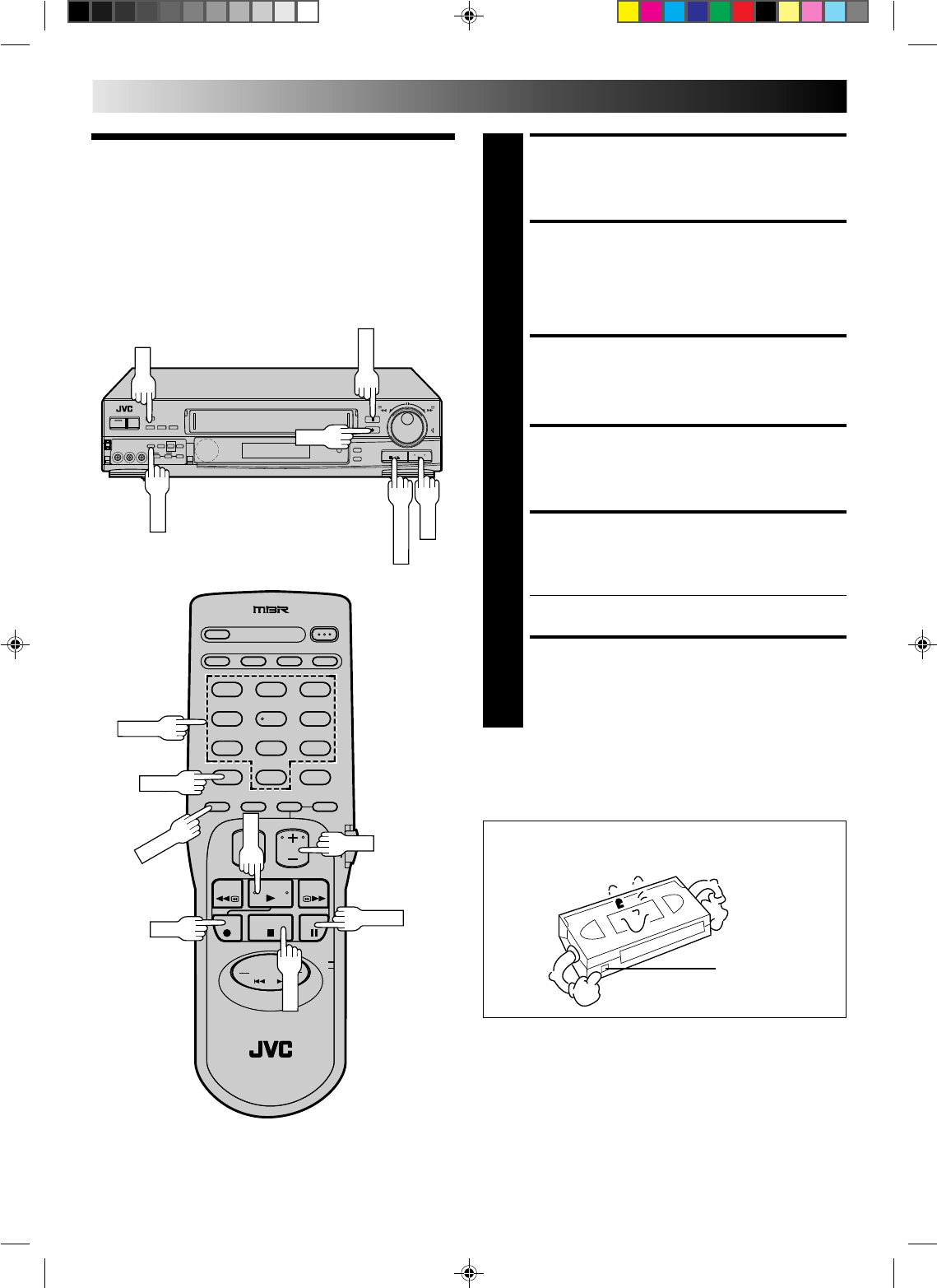

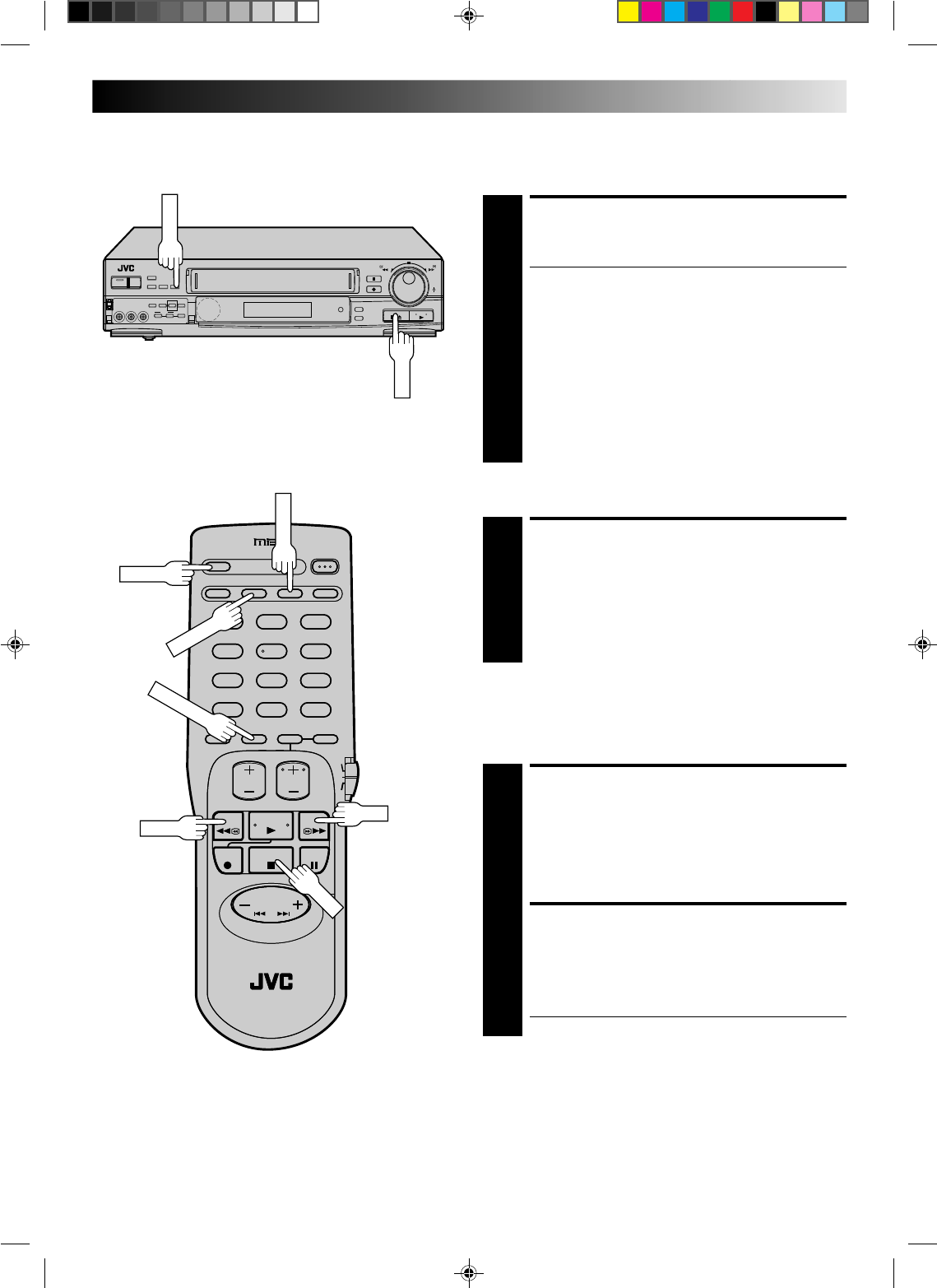

LOAD A CASSETTE
1
Make sure the window side is up, the rear label side is
facing you and the arrow on the front of the cassette is
pointing towards the VCR. Don’t apply too much
pressure when inserting.
●The VCR’s power comes on automatically.
●The counter is automatically reset to "0H 00M 00S".
●If the cassette's record safety tab has been removed,
playback begins automatically.
FIND PROGRAM START
POINT
2
If the tape is advanced past the start point, press REW
or turn the SHUTTLE ring to the left and release it.
To go forward, press FF or turn the SHUTTLE ring to the
right and release it.
START PLAYBACK
3
Press PLAY.
STOP PLAYBACK
4
Press STOP or STOP/EJECT. Then press STOP/EJECT
to remove the cassette.
Simple
Playback
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Full-Size VHS
T-30 (ST-30**)
T-60 (ST-60**)
T-90
T-120 (ST-120**)
T-160 (ST-160**)
ST-210**
Compact VHS*
TC-20 (ST-C20**)
TC-30 (ST-C30**)
TC-40 (ST-C40**)
* Compact VHS camcorder recordings can be played on
this video recorder. Simply place the recorded cassette
into a VHS Cassette Adapter and it can be used just like
any full-sized VHS cassette.
** This VCR can record on regular VHS and Super VHS
cassettes. While only VHS signals can be recorded on
regular VHS cassettes, both VHS and Super VHS signals
can be recorded and played back using Super VHS
cassettes.
Usable cassettes
SHUTTLE
PLAY
STOP/EJECT
REW (Rewind)
FF (Fast-Forward)
PLAY
STOP

24
Simple
Recording
123
456
789
0
123
456
789
0
LOAD A CASSETTE
1
Make sure the record safety tab is intact. If not, cover the
hole with adhesive tape before inserting the cassette.
SELECT RECORDING
CHANNEL
2
Press CH+/–. Or press the appropriate DIGIT keys, then
press ENTER. (The channel changes after a few seconds
whether you press ENTER or not.)
SET TAPE SPEED
3
Press SP/EP to set the recording speed.

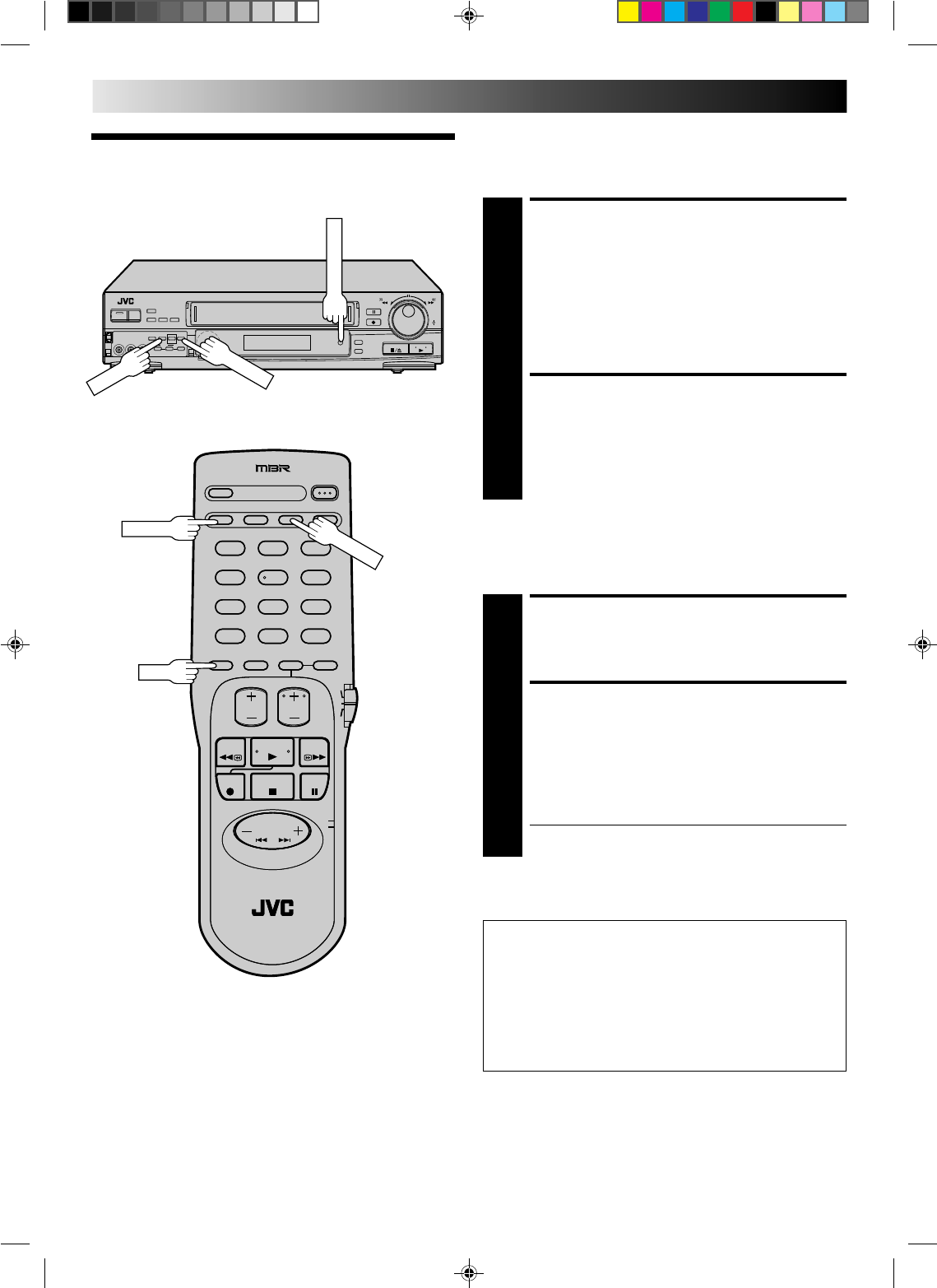

START RECORDING
4
Press and hold REC and press PLAY on the remote
control, or press REC on the VCR's front panel.
PAUSE/RESUME
RECORDING
5
Press PAUSE. Press PLAY to resume recording.
●During record pause, you can change the recording
channel by using the CH+/– buttons or DIGIT keys.
STOP RECORDING
6
Press STOP or STOP/EJECT. Then press STOP/EJECT to
remove the cassette.
●To prevent accidental recording on a recorded cassette,
remove its record safety tab.
To record on it later, cover the hole with adhesive tape.
Record safety tab
Accidental erasure prevention
SIMPLE PLAYBACK AND RECORDING (cont.)
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
PAUSE
PLAY
STOP/EJECT
REC
DIGIT
CH
PAUSE
REC
STOP
SP/EP
ENTER
PLAY
CH
SP/EP

25
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
PLAYBACK AND RECORDING FEATURES
Playback Take advantage of special functions possible with the recorder’s
controls or the remote control.
NOTE:
Refer to the SHUTTLE ring
illustration as you read the
following procedures.
123
456
789
0
123
456
789
0
CH
PAUSE
JOG
SHUTTLE
PLAY
PAUSE
SHUTTLE PLUS ™/£
CH
PLAY
Slow Motion/Reverse Slow
Motion
ACTIVATE SLOW-MOTION
PLAYBACK
1
During playback or still, turn the SHUTTLE ring to the
right for forward slow motion, or to the left for reverse
slow motion (refer to the illustration above).
OR
During still picture, press and hold SHUTTLE PLUS
™or £. Release to return to still picture.
OR
For hands-free slow-motion, press SHUTTLE PLUS ™
during playback to decrease speed in the forward
direction. To play in reverse slow-motion (and in
reverse play mode), continue to press ™after
selecting all the forward direction slow-motion modes.
OR
For forward slow motion during still picture,
press and hold PAUSE for more than 2 seconds. Press
PAUSE again to return to still picture.
To resume normal playback, press PLAY.
Still Picture/Frame-By-
Frame Playback
PAUSE DURING PLAYBACK
1
Press PAUSE. If there is vertical jitter, use the CH+ or –
button to correct the picture.
ACTIVATE FRAME-BY-
FRAME PLAYBACK
2
Turn the JOG dial to the right for forward frame-by-
frame playback, or to the left for reverse frame-by-frame
playback.
OR
Press PAUSE repeatedly to advance one frame at a time.
OR
Press SHUTTLE PLUS ™or £repeatedly to
advance one frame at a time.
Press SHUTTLE PLUS £ for forward frame by frame
playback or SHUTTLE PLUS ™ for reverse frame by
frame.
To resume normal playback, press PLAY.
R
e
v
e
r
s
e
R
e
v
e
r
s
e
R
e
v
e
r
s
e
S
l
o
w
P
l
a
y
F
o
r
w
a
r
d
s
e
a
r
c
h
p
l
a
y
s
l
o
w
m
o
t
i
o
n
s
e
a
r
c
h
Still
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

26
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

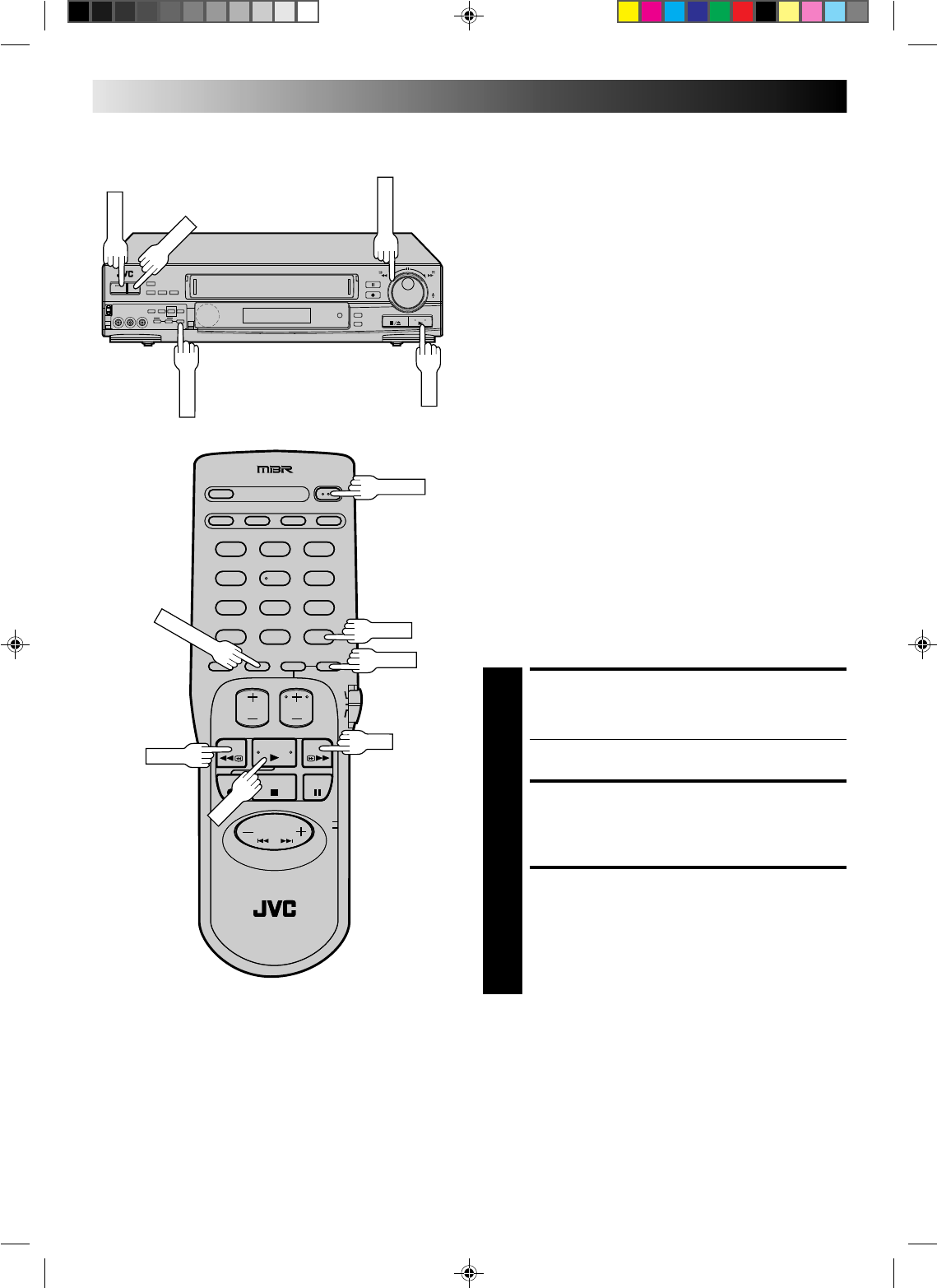

Variable-Speed Search/
Reverse Motion Playback
PLAYBACK AND RECORDING FEATURES (cont.)
SHUTTLE
PLAY
REW
FF
SHUTTLE PLUS
PLAY
High-Speed Search
ACTIVATE HIGH-SPEED
SEARCH
1
During playback or still, turn the SHUTTLE ring all the
way to the right for forward high-speed search, or to the
left for reverse high-speed search.
●For forward search with a visible picture, during
playback or still turn the SHUTTLE ring all the way to
the right and release it within 1 second.
●For reverse search with a visible picture, during
playback or still turn the SHUTTLE ring all the way to
the left and release it within 1 second.
OR
During playback or still press FF for forward high-speed
search, or REW for reverse high-speed search.
To resume normal playback, press PLAY.
NOTE:
For short searches, during playback or still press and hold FF or
REW for over 2 seconds. When released, normal playback
resumes.
ACTIVATE VARIABLE-SPEED
SEARCH
1
During playback or still, turn the SHUTTLE ring to the
right for forward variable-speed search, or to the left for
reverse variable-speed search (refer to the illustration on
page 25).
OR
During playback, press SHUTTLE PLUS ™or £.
●To increase the speed in the forward direction,
press £.
●To decrease the speed in the forward direction,
press ™.
●To play in reverse slow motion, and in reverse play
mode, continue to press ™ after selecting all the
forward slow motion modes.
To resume normal playback, press PLAY.

27

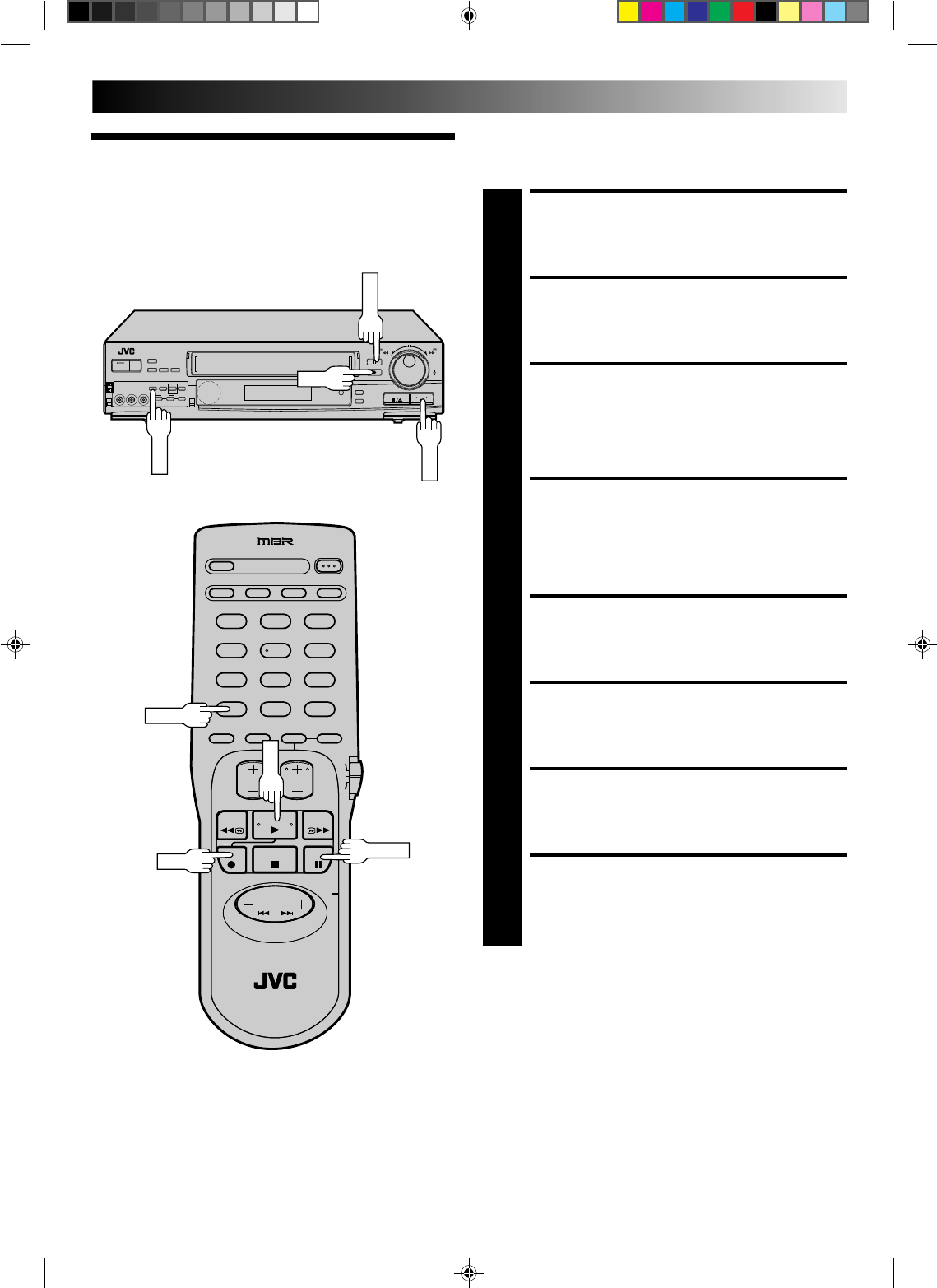

Manual Tracking
Once playback begins, the VCR’s automatic tracking function is
engaged. If noise appears in the picture, you can override this
and make the adjustment manually.
ENGAGE MANUAL
TRACKING MODE
1
During playback, press the CH+/– buttons on the VCR's
front panel simultaneously to cancel the automatic
tracking mode and enable manual tracking adjust.
ADJUST MANUAL
TRACKING
2
Press CH+/– on the VCR's front panel or remote. Press
lightly for fine adjust, or press and hold for coarse
adjust. Watch the screen and continue adjusting until
optimum picture and sound quality are achieved.
RE-ENGAGE AUTOMATIC
TRACKING
3
Press the CH+/– buttons on the VCR's front panel
simultaneously.
NOTES:
●
To obtain a noiseless still picture it may be necessary to adjust
tracking in slow playback and then engage Pause.
●
Manual tracking is possible during hands-free slow-motion.
During hands-free slow-motion playback simply press CH +
or – on the VCR'S front panel or remote to adjust tracking.
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
STOP
PLAY
CH
123
456
789
0
123
456
789
0
REW
FF
CH
PLAY
PAUSE
SHUTTLE PLUS
STOP

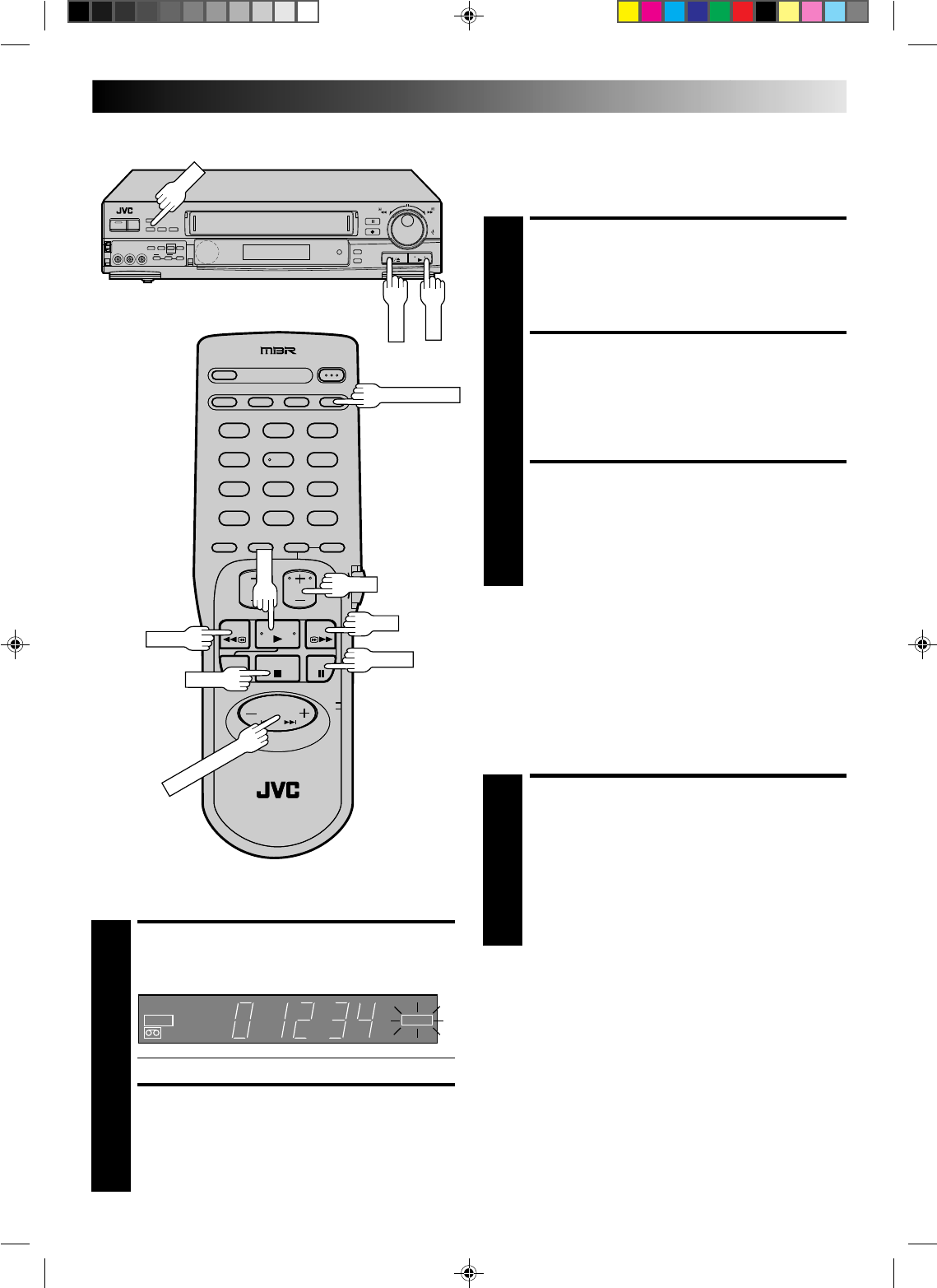

SKIP SEARCH
START REPEAT
1
Press and hold PLAY (until "PLAY" blinks on the front
display panel) during playback, then release.
●The entire tape is played back 20 times.
STOP REPEAT
2
To stop, press STOP at any time.
NOTE:
Pressing PLAY, REW, FF, PAUSE or SHUTTLE PLUS
™
or
£
also stops Repeat Playback.
Repeat Playback
VIDEO SP
PLAY
HMS
SKIP OVER UNWANTED
SECTIONS
1
Press SKIP SEARCH 1 to 4 times during playback. Each
press initiates a 30-second period of fast- motion
playback. Normal playback resumes automatically.
NOTE:
To return to normal playback during a Skip Search,
press PLAY.
Skip Search

28
Select The Soundtrack
Your VCR can record two soundtracks simultaneously (Normal
and Hi-Fi) and play back the selected one, or both together.
ACCESS MAIN MENU
SCREEN
1
Press MENU during playback or when VCR is in stop
mode.
●If the VCR Plus+ screen appears press MENU again.
ACCESS FUNCTION SET
SCREEN
2
Place the arrow next to "FUNCTION SET" by pressing
SET+/–, then press SELECT.
ACCESS AUDIO MONITOR
SCREEN
3
Place the arrow next to
"AUDIO MONITOR" by
pressing SET+/–, then
press SELECT.
SELECT MODE
4
You have three choices:
a– Hi-Fi
b– Normal
c– Mix
Place the arrow next to
your choice by pressing
SET+/–.
RETURN TO NORMAL
SCREEN
5
Press MENU as many times as necessary.
NOTES:
●
If the tape being played back has no Hi-Fi soundtrack, the
Normal soundtrack will be heard no matter what choice you
make at the Audio Monitor screen.
●
If you select "HI-FI" or "MIX", the L and R symbols near the
audio level meters will be illuminated.
123
456
789
0
123
456
789
0
FUNCTION
AUTO TIMER
SUPERIMPOSE
2ND AUDIO
=AUDIO MONITOR
TAPE DUB MODE
SPECIAL FUNCTION
HI-FI REC LEVEL
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
AUDIO MONITOR
=HI-FI
NORM
MIX
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
PLAYBACK AND RECORDING FEATURES (cont.)
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MENU
SELECT
SET
SELECT
MENU
SET

29

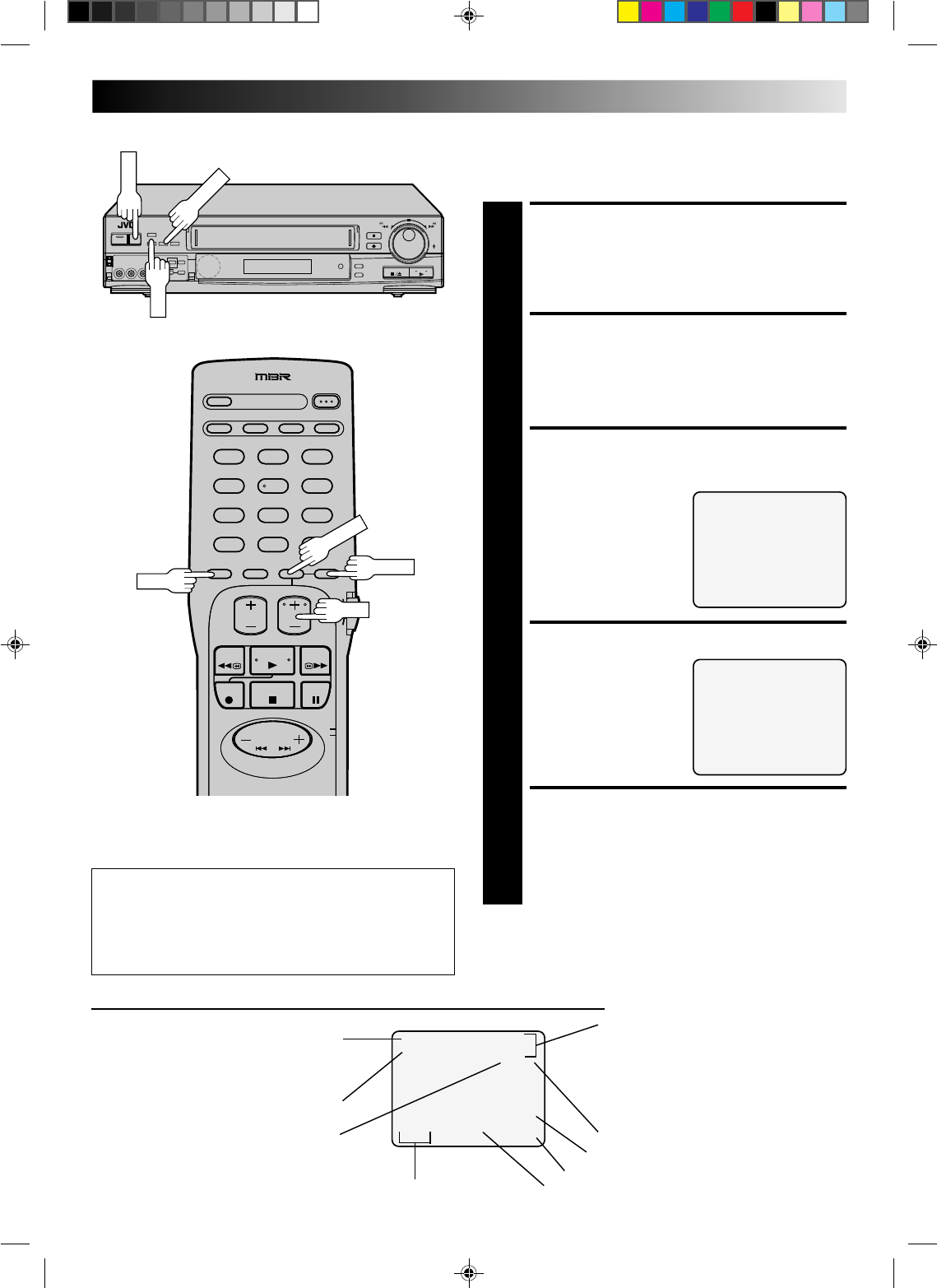

Superimpose
This function, switchable between ON and OFF, determines
whether or not operational indicators will appear on screen.
ACCESS MAIN MENU
SCREEN
1
Press MENU as many times as necessary.
ACCESS FUNCTION SET
SCREEN
2
Place the arrow next to "FUNCTION SET" by
pressing SET+/–, then press SELECT.
ACCESS SUPERIMPOSE
SCREEN
3
Place the arrow next to
"SUPERIMPOSE" by
pressing SET+/–, then
press SELECT.
SELECT MODE
4
Place the arrow next to
"ON" or "OFF" by pressing
SET+/–.
RETURN TO NORMAL
SCREEN
5
Press MENU as many times as necessary.
NOTE:
If you engage the Record Pause mode, RECORD/PAUSE is
displayed whether "SUPERIMPOSE" is set to "ON" or "OFF".
123
456
789
0
123
456
789
0
The superimposed indication on the TV screen tells you what the VCR is doing.
CH 125 RECORD
THU 12:00 AM PAUSE
]SP
INDEX-1
NORM MEMORY OFF
HI–FI COUNT –1:23:45
Tuned-in channel or AUX(iliary) mode
When the channel is changed, the new
channel is displayed on the screen for 5
seconds.
Clock time
Operation mode
When the operation mode is changed,
the new mode is displayed — RECORD
(5 sec.), PLAY (5 sec.), FF/REW (5 sec.
when engaged from Stop mode),
RECORD PAUSE (for as long as Pause is
engaged), and ITR *:** (5 sec.).
Audio mode indicators
Tape speed indicator
Counter memory on/off
INDEX indication
Counter reading
To recall an indication
1Press OSD.
nAll indications corresponding to the current status are
displayed for 5 seconds, leaving the counter information,
and RECORD/PAUSE if in the Record Pause mode, on
the screen. (No indication during still and search.)
2Press OSD again to clear the display.
FUNCTION
AUTO TIMER
=SUPERIMPOSE
2ND AUDIO
AUDIO MONITOR
TAPE DUB MODE
SPECIAL FUNCTION
HI-FI REC LEVEL
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
SUPERIMPOSE
=ON
OFF
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MENU
SELECT
SET
SELECT
MENU
OSD
SET
"Cassette Loaded" mark
When a cassette is loaded, the mark is
displayed for 5 seconds. It blinks when the
VCR's EJECT button is pushed.

30
123
456
789
0
123
456
789
0
SHUTTLE PLUS
PLAYBACK AND RECORDING FEATURES (cont.)

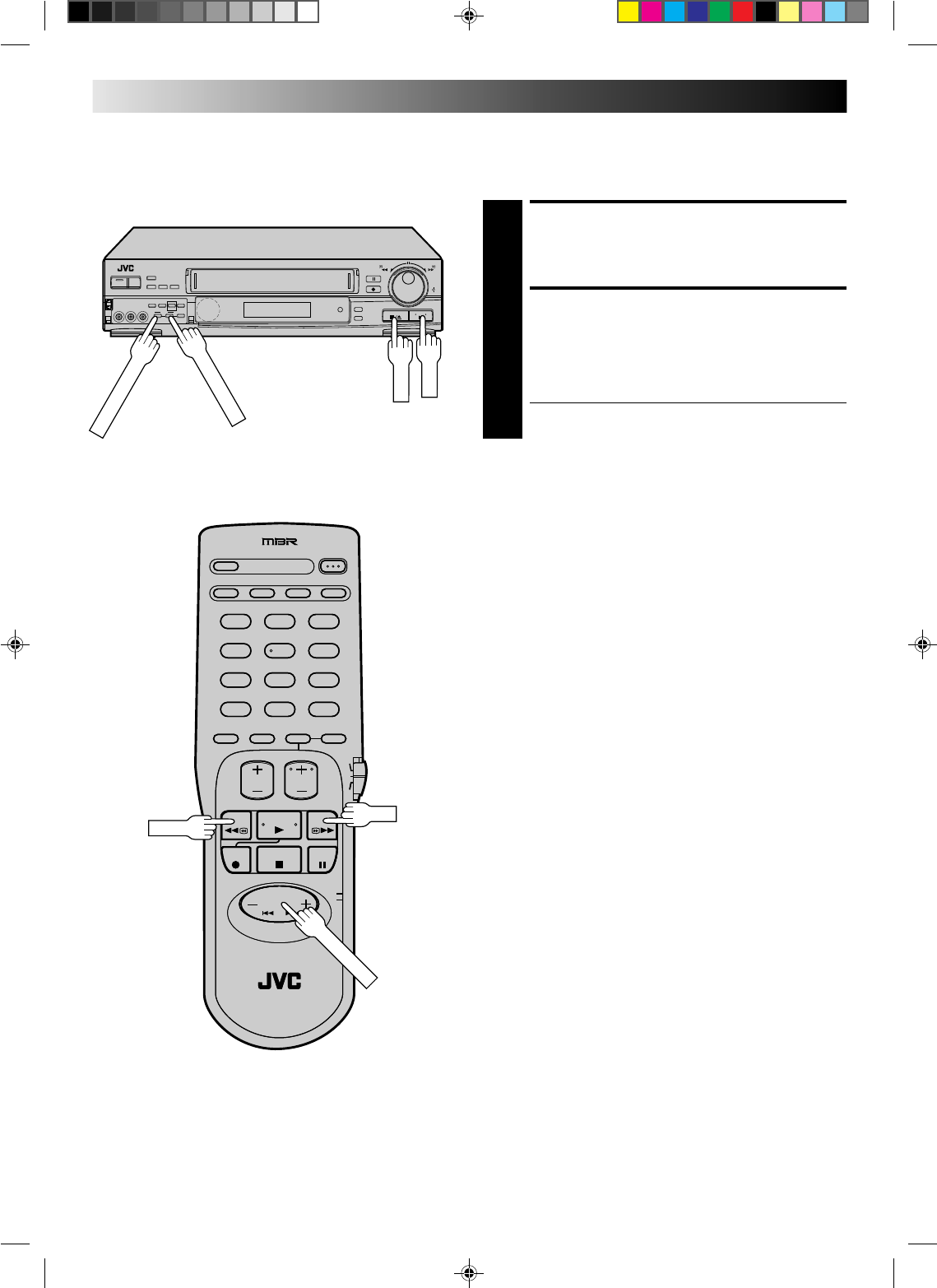

Index Search
This function seeks out index codes that are placed on the tape
at recording start.
START SEARCH
1
While the tape is stopped, press SHUTTLE PLUS ™
or £.
ACCESS DISTANT CODE
2
To access a recording 2–9 index codes away, press
SHUTTLE PLUS ™ or £ repeatedly until the
correct number is displayed on screen (only if SUPER-
IMPOSE is set to ON (Z pg. 29). Playback begins
automatically when the desired recording is located.
●To find the very beginning of the desired program,
press REW or FF and search visually for the start point.
NOTE:
An index code is not placed on the tape when recording is
paused and then resumed.
REW
FF
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
STOP
PLAY
INDEX MARK
INDEX ERASE
Manual Index Mark/Erase
To mark an index code...
...during playback press INDEX MARK on the VCR.
nThe VCR will mark an index code at that location.
nIf "SUPERIMPOSE" is set to ON (Z pg. 29), "MARK" blinks on
the screen while an index code is being marked.
To erase an index code...
...during playback or still press INDEX ERASE on the VCR.
nThe VCR will fast-forward to the nearest index code and erase
it. Playback continues after the index code is erased.
nIf "SUPERIMPOSE" is set to ON (Z pg. 29), "ERASE" blinks on
the screen while an index code is being erased.

31
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
123
456
789
0
123
456
789
0

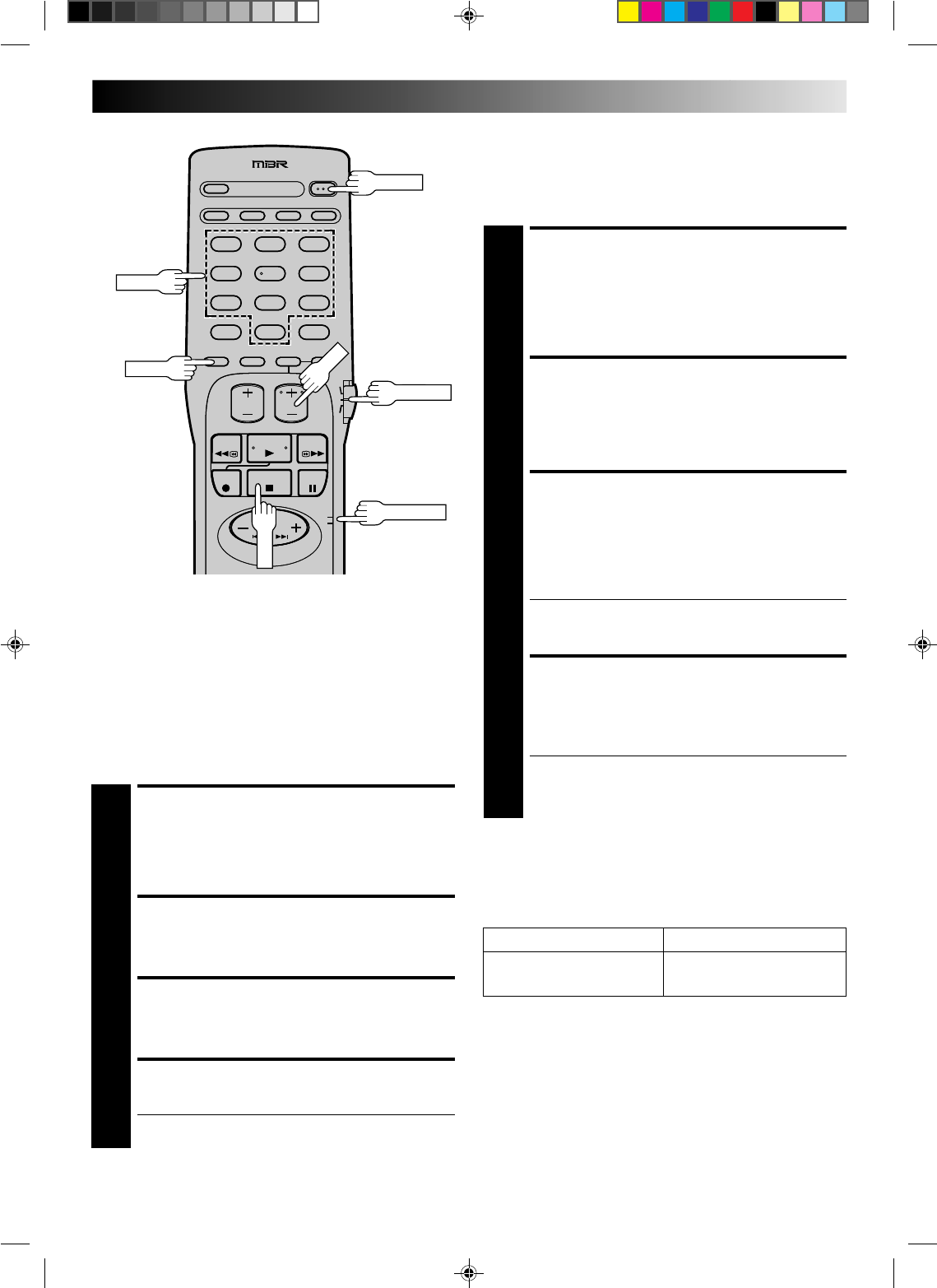

Instant ReView
At the press of a button, you can power up your VCR, rewind the
tape and begin viewing the most recent timer-recorded program.
ACTIVATE INSTANT REVIEW
1
After ensuring that the VCR is off and the Timer mode is
disengaged, press REVIEW.
●The power comes on and the VCR searches for the
index code indicating the start of the last timer-recorded
program, then begins playback automatically.
●You can access a program 2–9 index codes away
from the current position on the tape. If, for example,
you have 5 programs recorded and you want to
watch the third one, press REVIEW three times.
●The VCR's REVIEW button lights when timer-
recording is finished, and blinks while the tape is
being rewound.
●To find the very beginning of the desired program,
press REW or FF and search visually for the program’s
start point.
RESET COUNTER TO ZERO
1
Press C.RESET.
NOTE:
By pressing the DISPLAY button, you can change the
display to show the counter reading, channel number,
clock time or tape remaining time. (Channel number is
not displayed during playback.)
Counter Memory
When activated, this feature returns the tape to counter position
“zero”.
ACTIVATE COUNTER
MEMORY
1
Press C.RESET during playback at a point you want to have
quick access to later. The counter reads “0H 00M 00S”.
Then press C.MEMORY. The Counter Memory indicator
in the front display panel lights.
RETURN TO COUNTER
POSITION ZERO
2
Press STOP (during playback), then press REW or FF.
The tape rewinds or fast-forwards and stops at approxi-
mately “0H 00M 00S” automatically.
●To cancel Counter Memory, press C.MEMORY.
Counter Reset
STOP
REVIEW
REVIEW
DISPLAY
REW
FF
C.MEMORY
STOP
C.RESET

32
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
PLAYBACK AND RECORDING FEATURES (cont.)
Next-Function Memory
The Next Function Memory “tells” the VCR what to do after
rewinding. * Before continuing, ensure that the VCR is in stop mode.
a– For Automatic Start Of Playback After Tape Rewind . . .
. . . press REW, then press PLAY within 2 seconds.
b– For Automatic Power Off After Tape Rewind . . .
. . . press REW, then press POWER within 2 seconds.
c– For Automatic Timer Standby After Tape Rewind . . .
. . . press REW, then press TIMER within 2 seconds.
NOTES:
●
To do the above using the VCR's controls:
During Stop, turn the SHUTTLE all the way to the left and
release it instead of pressing REW, and then press PLAY,
POWER or TIMER within 2 seconds.
●
If you want the "next function" to automatically start when the
counter reads "0H 00M 00S" (instead of at the beginning of the
tape), press C. MEMORY so that the counter memory indicator
appears on the front display panel before pressing REW or FF.
AV COMPU LINK Playback
Your VCR is compatible with JVC’s AV COMPU LINK components,
including amplifiers (or receivers) and televisions. AV COMPU
LINK provides one touch control of the audio and video compo-
nents that are linked via their AV COMPU LINK connectors.
For example: simply load a cassette in the VCR and press PLAY
and the AV COMPU LINK components automatically power on,
the TV's VIDEO mode is selected and the VCR goes into play
mode. (PLAY need not be pressed if the cassette's record safety
tab is removed.)
MAKE CONNECTION
1
Connect your VCR to an AV COMPU LINK component
as shown in the illustration on page 33.
●The mini-plug cable is a mono 3.5 mm mini-plug to
mono 3.5 mm mini-plug connector.
TURN ON THE VCR
2
Press POWER.
ACCESS MAIN MENU
SCREEN
3
Press MENU as many times as necessary.
123
456
789
0
123
456
789
0
POWER
MENU
SHUTTLE
PLAY
POWER
TIMER
FF
MENU
REW
C.MEMORY
PLAY
TIMER

33
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
ACCESS FUNCTION SET
SCREEN
4
Press SET+/– to place the arrow next to “FUNCTION
SET”, then press SELECT.
ACCESS SPECIAL
FUNCTION SCREEN
5
Press SET+/– to place the
arrow next to “SPECIAL
FUNCTION”, then press
SELECT.
ENABLE AV COMPU LINK
PLAYBACK
6
Press SET+/– to place the
arrow next to “AV COMPU
LINK”.
RETURN TO NORMAL
SCREEN
7
Press MENU as many times as necessary.
PERFORM AV COMPU LINK
PLAYBACK
8
Simply insert a cassette and press PLAY (if the cassette’s
record safety tab has been removed, playback begins
automatically). Linked components are turned on, and
the TV set to its VIDEO mode, automatically!
NOTE:
Connection varies depending on the type of JVC TV you have.
Please refer to the TV’s instruction manual when making this
connection.
123
456
789
0
123
456
789
0
Your VCR
Example
AUDIO IN
AV COMPU LINK
Television
AV COMPU LINK II
(VCR ONLY)
FUNCTION
AUTO TIMER
SUPERIMPOSE
2ND AUDIO
AUDIO MONITOR
TAPE DUB MODE
=SPECIAL FUNCTION
HI-FI REC LEVEL
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
SPECIAL FUNCTION
R.A. EDIT/PAUSE
=AV COMPU-LINK
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
MENU
PLAY
SET
SELECT
PLAY
SET
MENU
SELECT
PAUSE/SPECIAL
FUNCTION
VIDEO IN
VIDEO OUT
AUDIO OUT
Mini-plug cable
(supplied)

34
PLAYBACK AND RECORDING FEATURES (cont.)
Record One Program While
Watching Another
ENGAGE TV MODE
1
During recording...
●Press TV/VIDEO. The VCR's VIDEO indicator goes
out. (If you are using the RF connection (Z pg. 6). to
view the output from your VCR, the TV broadcast
being recorded disappears.)
●If you are using the AV connection (Z pg. 6) or S-
VIDEO connection (Z pg. 7), to view the output
from your VCR, change the TV's input mode from AV
to TV.
SELECT CHANNEL FOR
VIEWING
2
Use the TV’s channel selector to set the channel you
want to watch.
Recording
123
456
789
0
123
456
789
0
Display Elapsed Recording
Time
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
S-VHS
TV/VIDEO
OSD
TV/VIDEO
C.RESET
RESET COUNTER TO ZERO
1
Before recording starts, press C.RESET. The counter
resets to zero and displays the exact elapsed time as the
tape runs.
DISPLAY ELAPSED TIME ON
SCREEN
2
During recording, press OSD at any time to see the
elapsed time. All indications corresponding to the
current status of the VCR are displayed for 5 seconds.
The counter display remains on the screen indicating the
elapsed time. Press OSD again to remove the display.
●Make sure "SUPERIMPOSE" is set to "ON" (Z pg. 29).
●The indications are not be recorded.
S-VHS indicator
Your VCR can record in either S-VHS or VHS.
●To record in S-VHS, insert a cassette marked "S-VHS".
The S-VHS indicator will light and the S-VHS recording
mode is automatically selected.
●To record in VHS, insert a cassette marked "VHS". The
VHS recording mode is automatically selected.
●You can also record in VHS on S-VHS cassettes. To do
this, after inserting an S-VHS cassette, press the S-VHS
button. The S-VHS indicator will go out.
S-VHS (Super VHS) and VHS

35
Stereo And SAP
(Second Audio Program)
Your VCR’s built-in MTS decoder enables reception of Multi-
channel TV Sound broadcasts.
●The ST indicator on the front display panel lights during
stereo broadcast reception, and SAP lights during SAP
program reception.
●Both indicators light when a stereo program is accompanied
by SAP audio.
To Record Stereo Programs . . .
. . . simply follow the basic recording procedure.
To Listen To Stereo Soundtrack During Recording . . .
. . . select "HI-FI" at the Audio Monitor screen (Z pg. 28).
To Record SAP Programs . . .
ACCESS MAIN MENU
SCREEN
1
Press MENU as many times as necessary.
ACCESS FUNCTION SET
SCREEN
2
Place the arrow next to "FUNCTION SET" by pressing
SET+/–, then press SELECT.
ACCESS 2ND AUDIO
SCREEN
3
Place the arrow next to "2ND AUDIO" by pressing
SET+/–, then press SELECT.
SELECT MODE
4
Place the arrow next to
"ON" by pressing SET+/–.
RETURN TO NORMAL
SCREEN
5
Press MENU as many times as necessary.
NOTES:
●
If a SAP program is received, the SAP audio is recorded on
both the Normal and Hi-Fi tracks. The main audio program is
not recorded.
●
If a non-SAP program is received, the main audio is recorded
on both the Hi-Fi and Normal audio tracks.
2ND AUDIO
=ON
OFF
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MENU
SELECT
SET
SELECT
MENU
SET

36
Hi-Fi Audio Recording Level
Control
Your VCR allows manual adjustment of the Hi-Fi audio
recording level. Although the preset audio recording level is
satisfactory for normal recording, if the sound you are going to
record is too loud or too low, adjust the audio recording level
while referring to the VCR's audio level meters.
TURN ON THE VCR
1
Press POWER.
ACCESS MAIN MENU
SCREEN
2
Press MENU as many times as necessary.
ACCESS FUNCTION SET
SCREEN
3
Press SET +/– to place the arrow next to “FUNCTION
SET”, then press SELECT.
ACCESS HI-FI REC LEVEL
SCREEN
4
Press SET +/– to place the
arrow next to “HI-FI REC
LEVEL”, then press SELECT.
SELECT MODE
5
Place the arrow next to
“MANUAL” by pressing
SET +/–.
ADJUST AUDIO RECORD-
ING LEVEL
6
Press FF or REW.
●To move the on-screen's audio levels by one division
of the scale, press FF or REW briefly for 5 times in
succession. To move the audio levels faster, keep FF
or REW presssed.
●Adjust the recording level so that the audio level
meters reach from 0dB to 4dB at the maximum sound
volume.
FUNCTION
AUTO TIMER
SUPERIMPOSE
2ND AUDIO
AUDIO MONITOR
TAPE DUB MODE
SPECIAL FUNCTION
=HI-FI REC LEVEL
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
HI-FI REC LEVEL CONTROL
PRESET
=MANUAL
PRESS PRESS
(REW) (FF)
MIN------*------MAX
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
PLAYBACK AND RECORDING FEATURES (cont.)
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
123
456
789
0
123
456
789
0
POWER
MENU
SELECT
SET
POWER
SET
SELECT
MENU
FF
REW

37
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
123
456
789
0
123
456
789
0
OSD
DISPLAY
RETURN TO NORMAL
SCREEN
7
Press MENU as many times as necessary to exit.
NOTE:
●
Noise will increase if the recording level is too low, while
distortion will increase if the level is too high.
Display Tape Remaining
Time
DISPLAY COUNTER INFOR-
MATION
1
Press OSD.
DISPLAY TAPE REMAINING
TIME
2
Press DISPLAY until "REMAIN" appears on screen. The
approximate tape remaining time appears on the TV
screen and VCR display panel.
• The tape remaining time is calculated based on the
tape speed (SP or EP) being used. The indicated
remaining time is only an estimate.
• By pressing DISPLAY, you can change the indication
on the display panel to show the counter reading,
channel number, clock time or tape remaining time.
EXIT THE DISPLAY
3
Press OSD again.
NOTES:
●
"SUPERIMPOSE" must be set to "ON", or the on-screen
display will not appear (
Z
pg. 29).
●
Near the beginning of the tape, this estimate may be inaccu-
rate. However, as the tape is used and the amount of
remaining tape decreases, the estimate becomes more
accurate.
●
The tape remaining time indication is not accurate when
using VHS-C tapes with VHS-C adapter.
MENU
MENU

38
VCR Plus+
Timer
Programming
TIMER RECORDING
Before VCR Plus+ Timer programming, see "VCR Plus+
Setup" on page 20.
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
123
456
789
0
123
456
789
0
SELECT
MENU
SP/EP
DIGIT
SELECT
DIGIT "9"
DIGIT "8"
CANCEL
Timer recording allows you to program the VCR to automati-
cally record a program which will be broadcast at some future
time. The timer record function can be programmed using VCR
Plus + or On-Screen Timer Programming (Z pg. 40).
LOAD A CASSETTE
1
Make sure the record safety tab is present.
●The VCR’s power comes on automatically.
ACCESS VCR PLUS+ SCREEN
2
Press MENU on the remote
control.
●The clock must be set in
order to access the VCR
Plus+ screen. If you
haven’t set the clock, the
Main Menu screen
appears when you press
MENU. Refer to page 8 for the Advanced Auto Clock
Set procedure or page 9 for the clock setting
procedure.
ENTER PLUSCODE NUMBER
3
Press the appropriate DIGIT keys to enter the PlusCode
number printed in the TV listings for the TV program
you wish to record.
●To make corrections, press CANCEL and input the
correct PlusCode number.
●If the PlusCode number you input is incorrect,
"ERROR" may appear on the screen to advise you of
the error. This happens when the PlusCode number is
for a program which has already passed. "ERROR" is
displayed for about 4 seconds and the VCR Plus+
screen reappears (step 2).
CHECK INPUT DATA
4
Press SELECT and the
Program screen appears.
The PlusCode number you
entered appears in the
Program screen. Check to
make sure it’s accurate.
●To timer-record daily or
weekly serials, press
DAILY (DIGIT “8”) or WEEKLY (DIGIT “9”). “DAILY”
or “WEEKLY” appears on the Program screen.
●For weekly recording, the desired date for the day of
the week must be entered.
●If you made a mistake, press CANCEL and, after
pressing MENU as many times as necessary to access
the VCR Plus+ screen, input the correct PlusCode
number.
SET TAPE SPEED
5
Press SP/EP.
VCR PLUS+
PRESS (DIGIT)
THEN PRESS (SELECT)
PRESS (MENU) TO MAIN MENU
SP/EP
PROGRAM 1
(VCR PLUS+ 12345678)
DATE 7/10 FRI
START 8:00 PM
STOP 9:00 PM
CHANNEL 8 SP
PRESS (8=DAILY, 9=WEEKLY
SP/EP=REC SPEED)
PRESS (MENU) TO END

39
CHECK/CORRECT INPUT
DATA
6
If the data is correct as it is, go to step 7. If not, press
SELECT until the item you want to change begins to
blink. Then press the SET +/– to obtain the desired
setting.
RETURN TO NORMAL
SCREEN
7
Press MENU as many times as necessary.
●Press just once to access the Auto Timer screen
(Z pg. 43).
ENGAGE TIMER MODE
8
Press TIMER. The VCR turns off automatically.
NOTES:
●
To disengage the timer before recording starts, press TIMER
again. Pressing once more re-engages it.
●
In case of a power failure after programming, the VCR’s
memory backup keeps your selections for approximately 60
minutes.
●
When timer-recording cable channels received through a
Cable Box, be sure to keep the Cable Box set to ON.
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
123
456
789
0
123
456
789
0
SELECT
MENU
DIGIT
SET
TIMER
TIMER
CH
SELECT

40
Instant Timer
Recording
(ITR)
This easy method lets you record for from 30 minutes to 9 hours
(selectable in 30-min. increments), and shuts the VCR off after
recording is finished.
START RECORDING
1
Press REC on the front panel.
ENGAGE ITR MODE
2
Press REC again. ITR blinks and 0:30 appears on the
front display panel.
SET RECORDING
DURATION
3
If you want to record for more than 30 minutes, press
REC to extend the time. Each press extends recording
time by 30 minutes.
NOTES:
●
You can only perform ITR using the REC button on the VCR's
front panel.
●
After you set the time, the previous display reappears.
●
To check the remaining time, press REC once during record-
ing and the remaining time will be displayed for about 5
seconds. Be careful not to press REC again within these 5
seconds, or you will round the recording time up to the next
30 minute increment.
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
ITR
VIDEO
SP
REC
TIMER RECORDING (cont.)
On-Screen
Timer
Programming
* Refer to the illustration on page 41.
You can directly program the VCR’s timer to record up to 8
shows, as far as a year in advance. Remember, the clock must
be set before you can program the timer (Z pg. 8 or 9).
LOAD A CASSETTE
1
Make sure the record safety tab is intact. If not, cover
the hole with adhesive tape, then load.
●The VCR comes on, and the counter is reset,
automatically.
PROGRAM 1
DATE - - / - -
START - - : - - AM
STOP - - : - - AM
CHANNEL - - SP
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
ACCESS ON-SCREEN
MENU
2
Press MENU as many times as necessary to bring up the
Main Menu screen.
ACCESS PROGRAM SET
SCREEN
3
Make sure the arrow is to
the left of "PROGRAM
SET", then press SELECT.
SELECT PROGRAM
NUMBER
4
Press SET +/– to select a vacant program number, then
press SELECT. The first time you do this, all numbers will
be vacant, so just press SELECT when the screen appears.
REC

41
SET PROGRAM
INFORMATION
5
Press SET +/– to set the month, then press SELECT. The
day display begins blinking. Repeat the procedure to set
the day, start time, stop time, channel and tape speed.
To set the channel you can also use the DIGIT keys.
●Do not use the SET – button to set the date.
** You can record selected programs at the same time
every weekday, or once a week. Before entering the
month or day, press DIGIT key “8” (DAILY) or “9”
(WEEKLY). Either "DAILY" or "WEEKLY" appears.
Press again and "DAILY" or "WEEKLY" disappears.
For weekly recording, the desired date for the day of
the week must be entered.
MAKE CORRECTIONS
6
To change any of the settings, press SELECT until the item
you want to change begins blinking. Then set as in step 5.
RETURN TO NORMAL
SCREEN
7
Press MENU as many times as necessary.
●Press just once to access the Auto Timer screen
(Z pg. 43).
ENGAGE TIMER MODE
8
Press TIMER. The VCR turns off automatically.
EXAMPLE
If you program the VCR to timer
record a show on September 6
on channel 40 from 12:00 noon
to 1:00 PM in SP mode, the
screen will look like this:
PROGRAM 1
DATE 9/ 6 SUN
START 12:00 PM
STOP 1:00 PM
CHANNEL 40 SP
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
123
456
789
0
123
456
789
0
MENU
DIGIT
TIMER
MENU
SELECT
SET
SELECT
SET
DIGIT "9"
TIMER
DIGIT "8"
NOTES:
●
To disengage the timer before recording starts, press TIMER
again. Pressing once more re-engages it.
●
In case of a power failure after programming, the VCR’s
memory backup keeps your selections for approximately 60
minutes.
●
If you select "PROGRAM SET" without having set the date and
time, an error message appears. Follow its instructions.
●
If you enter a start time that has already passed, "ERROR"
appears on the screen and flashes.
●
Programs that start after midnight must have the next day’s date.
●
After timer recording is completed, the VCR’s power goes off
automatically.
●
You can program the timer while a regular recording is in
progress; the on-screen menu will not be recorded.
●
If the end of tape is reached during timer recording, the
cassette is automatically ejected.
●
When timer-recording cable channels received through a
Cable Box, be sure to keep the Cable Box set to ON.

42
TIMER RECORDING (cont.)
DISENGAGE TIMER
1
Press TIMER, then press POWER.
ACCESS MAIN MENU
SCREEN
2
Press MENU as many times as necessary.
ACCESS PROGRAM SET
SCREEN
3
Press SET +/– to place the arrow next to "PROGRAM
SET", then press SELECT.
CHECK PROGRAM INFOR-
MATION
4
Press SET +/– to check the programs in succession.
Check And Cancel Programs
123
456
789
0
123
456
789
0
CANCEL A PROGRAM
5
Press CANCEL.
●Repeat steps 4 and 5 as many times as necessary.
RETURN TO NORMAL
SCREEN
6
Press MENU as many times as necessary. If there are
still programs remaining, go to step 7.
RE-ENGAGE TIMER
7
Press TIMER again.
To Cancel A Program . . .
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
TIMER
SET
SELECT
MENU
POWER
POWER
TIMER
SET
MENU
CANCEL
SELECT

43
ACCESS MAIN MENU
SCREEN
1
Press MENU as many times as necessary.
ACCESS FUNCTION SET
SCREEN
2
Place the arrow next to "FUNCTION SET" by pressing
SET +/–, then press SELECT.
ACCESS AUTO TIMER
SCREEN
3
Place the arrow next to "AUTO TIMER" by pressing SET
+/–, then press SELECT. Now skip to step 2 of the
procedure below.
Or, during on-screen timer programming ...
ACCESS AUTO TIMER
SCREEN
1
In step 7 in the VCR Plus+ Timer Programming proce-
dure (Z pg. 39) or in step 7 in the On-Screen Timer
Programming procedure (Z pg. 41), press MENU.
SELECT MODE
2
Place the arrow next to
your choice ("ON" or
"OFF") by pressing SET +/–.
RETURN TO NORMAL
SCREEN
3
Press MENU as many times as necessary.
NOTE:
For safety, when AUTO TIMER is set to “OFF”, all other VCR
functions are disabled while the Timer mode is engaged. To
disengage the timer, press TIMER.
Auto Timer
When the Auto Timer is set to ON the timer is automatically
engaged when the VCR's power is turned off and automatically
disengaged when the VCR is powered back on.
AUTO TIMER
=ON
OFF
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
TIMER
SET
TIMER
SET
MENU
MENU
SELECT
SELECT

44
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
EDITING
Edit From A
Camcorder
You can use a camcorder as the player and your VCR as the
recorder.
MAKE CONNECTIONS
1
Connect an AV cable between the camcorder’s VIDEO
OUT and AUDIO OUT connectors and your VCR’s
VIDEO IN and AUDIO IN connectors.
●When a Master Edit Control-equipped JVC camcorder is
used, the camcorder is capable of controlling your VCR.
The mini-plug cable is a mono 3.5 mm mini-plug to
mono 3.5 mm mini-plug connector.
●If connecting to a camcorder with a monaural output,
connect the audio output connector on the
camcorder to the AUDIO IN L of the VCR.
LOAD A CASSETTE
2
Insert the cassette to be recorded on into the recorder.
SET RECORDER’S INPUT
MODE
3
Press DIGIT key “0” to set to AUX.
ACCESS MAIN MENU
SCREEN
4
Press MENU as many times as necessary.
ACCESS FUNCTION SET
SCREEN
5
Press SET +/– to place the arrow next to “FUNCTION
SET”, then press SELECT.
If you’re using a JVC Master Edit Control-equipped
camcorder — step 6
If not — step 9
ACCESS SPECIAL
FUNCTION SCREEN
6
Press SET +/– to place the arrow next to “SPECIAL
FUNCTION”, then press SELECT.
SELECT MODE
7
Press SET +/– to place the
arrow next to “R.A. EDIT/
PAUSE”.
Your VCR
VIDEO
IN
Camcorder
Player
VIDEO
OUT
EDIT
Recorder
To rear panel PAUSE/SPECIAL
FUNCTION connector
Mini-plug cable (JVC camcorder
only)
AUDIO OUT
DIGIT "0"
SET
MENU
SELECT
SPECIAL FUNCTION
=R.A. EDIT/PAUSE
AV COMPU-LINK
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
AUDIO
IN

45
RETURN TO FUNCTION
SET SCREEN
8
Press MENU.
ACCESS TAPE DUB MODE
SCREEN
9
Press SET +/– to place the arrow next to “TAPE DUB
MODE”, then press SELECT.
SELECT MODE
10
Place the arrow next to
"ON" by pressing SET +/–.
RETURN TO NORMAL
SCREEN
11
Press MENU as many times as necessary.
START PLAYER
12
Set the camcorder to its play mode.
NOTE:
If the camcorder is equipped with a superimpose/OSD
disable feature then set its superimpose or display
feature to OFF before pressing play.
START RECORDER
13
Set your VCR to its record mode.
●If you are using a Master Edit Control-equipped JVC
camcorder, it can put the recorder automatically into
Record mode. (Refer to camcorder's instruction
manual.)
NOTE:
●
Connections made to the front panel VIDEO and AUDIO
inputs automatically override any rear panel VIDEO/AUDIO
or S-VHS input connections. If you wish to edit with another
machine connected to the rear input connectors, make sure
that there is nothing connected to the front connectors.
TAPE DUB MODE
=ON
OFF
PRESS (SET+/–) FOR CHOICE
PRESS (MENU) TO END
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MENU
SELECT
SET
SELECT
MENU
SET

46
Edit To Or
From Another
VCR
You can use your VCR as the player or the recorder.
MAKE CONNECTIONS
1
Connect an AV cable between the player’s VIDEO OUT
and AUDIO OUT connectors and the recorder’s VIDEO
IN and AUDIO IN connectors.
●When using your VCR as the recorder and a monaural
VCR as the player, connect the player’s AUDIO OUT
connector to the AUDIO IN L connector on the recorder.
LOAD CASSETTES
2
Insert the playback cassette into the player and the
cassette to be recorded on into the recorder.
ENGAGE TAPE DUBBING
MODE
3
Follow steps 4, 5, 9–11 from the "Edit From A
Camcorder" section (Z pg. 44)
SET RECORDER’S INPUT
MODE
4
Set to AUX. With this VCR, press DIGIT key “0” (AU
appears on the front display panel in place of a channel
number).
START PLAYER
5
Set to its play mode.
NOTE:
If the player is equipped with a superimpose/OSD
disable feature then set "SUPERIMPOSE" to OFF before
pressing PLAY (
Z
pg. 29).
START RECORDER
6
Set to its record mode.
NOTE:
●
Connections made to the front panel VIDEO and AUDIO
inuts automatically override any rear panel VIDEO/AUDIO or
S-VHS input connections. If you wish to edit with another
machine connected to the rear input connectors, make sure
that there is nothing connected to the front connectors.
Player Your VCR
EDITING (cont.)
VIDEO IN AUDIO IN
Another VCR
Recorder
123
456
789
0
123
456
789
0
Advantages Of S-VHS VCRs
You can edit from VHS to S-VHS, from S-VHS to VHS, or
from S-VHS to S-VHS.
●From VHS to S-VHS (VIDEO-VIDEO connection): Record
VHS playback signals in the S-VHS mode. Although the
picture quality is inherently limited by that of the original,
the edited tape has better picture quality than those made
by VHS-to-VHS editing.
●From S-VHS to VHS (VIDEO-VIDEO connection): Because
the picture quality of the source material is very high, the
edited tape has better picture quality than those made by
VHS-to-VHS editing.
●From S-VHS to S-VHS (S-VIDEO connection): All signals
will be transferred without degradation.
VIDEO OUT
AUDIO OUT
DIGIT "0"

47
123
456
789
0
123
456
789
0
SP/EP
PAUSE
REC
PLAY
Assemble Editing adds one recorded scene to another in
succession.
To use your VCR as the recorder ...
LOAD CASSETTES
1
Insert the original cassette in the player, and the
recording cassette in the recorder.
SET TAPE SPEED
2
Set to "SP" or "EP" by pressing the SP/EP button.
ENGAGE TAPE DUBBING
MODE
3
Follow steps 4, 5, 9–11 from the "Edit From A
Camcorder" section (Z pg. 44)
ENGAGE RECORD-STANDBY
MODE
4
Press and hold PAUSE, and press REC.
FIND EDIT START POINT
5
Play back the original tape until you reach the scene to
be edited.
START EDITING
6
When you reach the scene on the original tape to be
edited, press PLAY to initiate the recorder’s record
mode.
STOP EDITING
7
Press PAUSE to pause the tape in the recorder.
CONTINUE EDITING
8
Repeat steps 5 through 7 to add additional scenes.
NOTE:
Assemble Editing is also possible using your VCR as the
playback deck.
Assemble
Editing
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
PAUSE
PLAY
REC
SP/EP

48
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

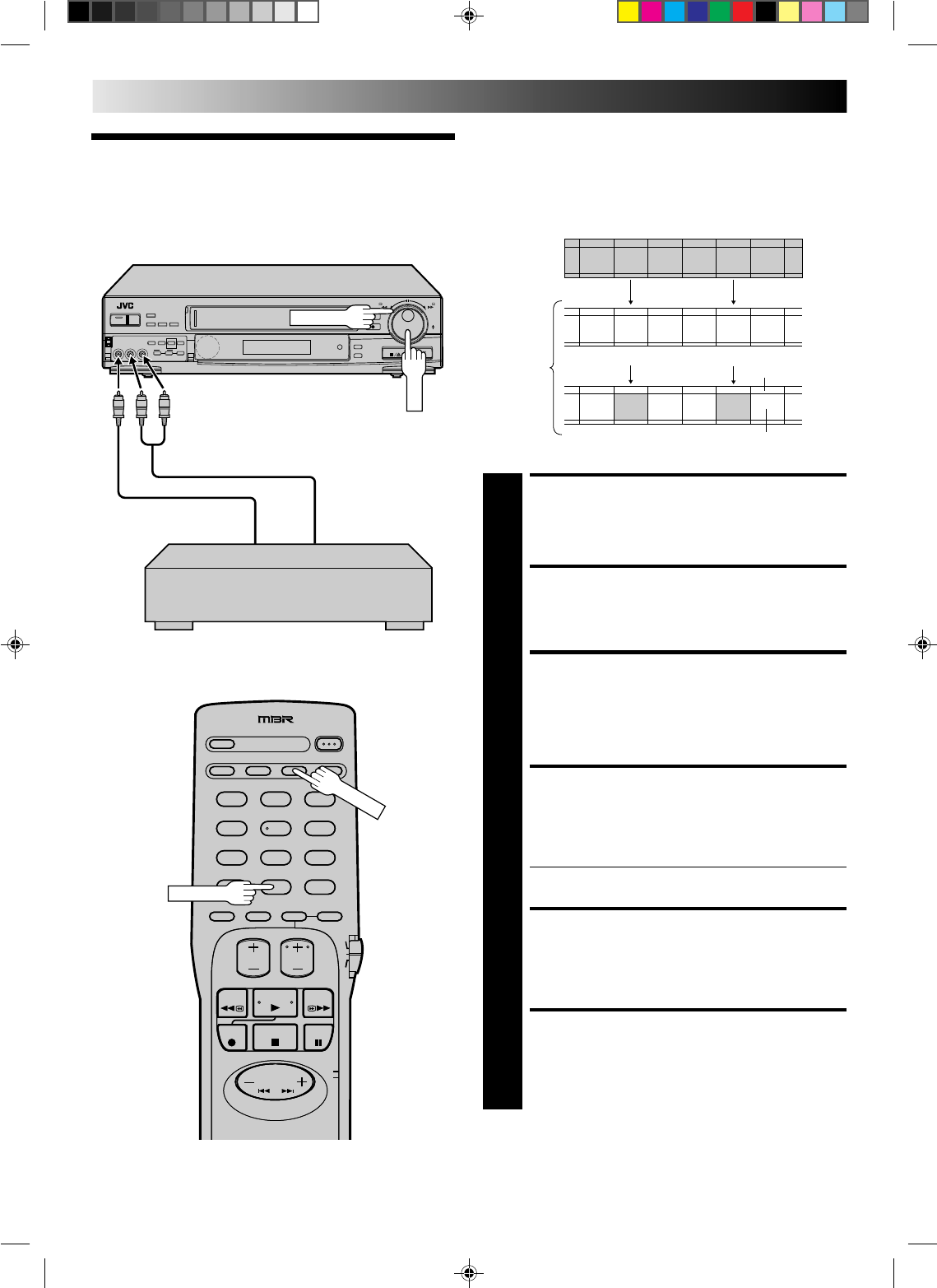

Insert editing replaces part of the recorded scene with new
material. Both the picture and Hi-Fi audio soundtrack are
replaced with new ones, while the normal audio soundtrack
remains unchanged. If you wish to change the normal audio
track as well, use the audio dubbing function simultaneously.
Use your VCR as the recorder.
Insert Editing
EDITING (cont.)
123
456
789
0
123
456
789
0
Another VCR
Recorded
tape
Recorder Your VCR
Video signal
Audio signal
SHUTTLE
JOG
Player
DIGIT "0"
C.RESET
Source tape
Before insert editing
After insert editing Video/Hi-Fi audio track
Normal audio
track
MAKE CONNECTIONS
1
Connect the player's VIDEO OUT and AUDIO OUT
connectors to your VCR's VIDEO IN and AUDIO IN on
the front panel.
SET INPUT MODE
2
Press DIGIT key "0". "AU" appears in place of a
channel number.
ENGAGE TAPE DUBBING
MODE
3
Follow steps 4, 5, 9–11 from the "Edit From A
Camcorder" section (Z pg. 44)
LOCATE END POINT
4
Load the recording cassette into your VCR, and play it
back to determine the edit-out point (the end of the
segment to be replaced) using the JOG/SHUTTLE
controls.
●Releasing the JOG/SHUTTLE controls engages the
Still mode .
RESET THE COUNTER
5
Press C.RESET to change the counter display to
"0H00M00S".
LOCATE START POINT
6
Determine the edit-in point (the beginning of the segment
to be replaced) using the JOG/SHUTTLE controls.

49
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
123
456
789
0
123
456
789
0
INSERT
PLAY
PLAY
C.RESET
ENGAGE INSERT EDITING
7
Press INSERT.
●Your VCR enters the Insert-Pause mode. (REC, PLAY
and PAUSE light up on the front display panel.)
●The TV screen changes from the still picture to the
input source you are going to record.
START EDITING
8
Load the source cassette into another VCR and play
back the segment that is to be inserted. When you
reach the start of section of source tape that you wish to
insert, press PLAY to start the tape in your VCR; Insert
Editing begins at this point.
●PLAY and REC are displayed on the front display
panel.
END INSERT EDITING
9
At counter "0H00M00S", Insert Editing will stop
automatically while the tape continues running in the
Play mode. if you wish to stop Insert Editing before the
specified edit-out point, press C.RESET.
FOR AV INSERT EDITING
If you want to replace the picture, Hi-Fi audio soundtrack and
normal audio soundtrack all at the same time...
In step 7 above, after you press INSERT, press A. DUB. also.
(REC and PLAY blink and PAUSE lights up on the display panel.)
NOTES:
●
Suitable leads can be obtained from your dealer.
●
Insert editing is not possible with cassettes whose safety tab
has been removed.
●
In insert editing, the recording speed (SP/EP) is determined by
the previous recording to be replaced. If the previous
recording's speed changes within a single edit, the inserted
picture will be distorted at the switching point.
●
A small portion of the recording which precedes an insert edit
may become erased.
●
Insert Editing is also possible using the rear connectors.
●
Connections made to the front panel VIDEO and AUDIO
inputs automatically override any rear panel VIDEO/AUDIO
or S-VHS input connections. If you wish to edit with another
machine connected to the rear input connectors, make sure
that there is nothing connected to the front connectors.

50
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
PAUSE/
SPECIAL
FUNCTION
REMOTE
PAUSE
This function makes it easier to create edited videos when your
VCR is used as the source player in combination with another
VCR equipped with a Remote PAUSE Connector. You can pre-
program up to 8 scenes or “cuts” for automatic editing in the
sequence you have specified.
Random As-
semble Editing MAKE CONNECTIONS
1
Connect your VCR’s VIDEO OUT and AUDIO OUT
connectors to the VIDEO IN and AUDIO IN connectors
on the recording deck, and connect your VCR’s PAUSE/
SPECIAL FUNCTION connector to the PAUSE connec-
tor on the recording deck.
●If the recording deck doesn’t have a PAUSE connec-
tor, connect to the R.A. EDIT connector instead.
●The Mini-plug cable is a mono 3.5 mm mini-plug to
mono 3.5 mm mini-plug connector.
PREPARE FOR EDITING
2
Perform steps 2 – 11 on
page 44, “Edit From A
Camcorder”.
NOTE:
If you mistakenly select
“AV COMPU LINK” in
step
7
on page 44, an error
message appears when
you finish step 6. Make sure “R.A. EDIT/PAUSE” is
selected before you continue.
LOAD SOURCE CASSETTE
3
Insert the source cassette into your VCR.
START SOURCE PLAYBACK
4
Press PLAY.
ACCESS MAIN MENU
SCREEN
5
Press MENU as many times as necessary to bring up the
Main Menu screen.
ACCESS R.A. EDIT SCREEN
6
Place the arrow next to
“R.A. EDIT” by pressing
SET +/–, then press
SELECT.
●The screen is superim-
posed on the video
playback in step 7.
-ERROR-
CHOOSE SPECIAL FUNCTION
ON MAIN MENU AND SELECT
R.A. EDIT/PAUSE
BEFORE YOU BEGIN
R.A. EDIT
PRESS (MENU) TO MAIN MENU
EDITING (cont.)
Video signal
Audio signal
Recorder
Player Your VCR
Another VCR
(w/PAUSE connector)
123
456
789
0
123
456
789
0
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MENU
STOP
PLAY
C.MEMORY
MENU
PLAY
STOP
SELECT
CANCEL
SET
SHUTTLE PLUS
Mini-plug Cable
R.A.EDIT START
SET
MAIN MENU
PROGRAM SET
FUNCTION SET
TUNER SET
CUSTOM SET
=R.A. EDIT
PRESS (SELECT, SET+/–)
PRESS (MENU) TO END
SHUTTLE
JOG
SELECT

51
END R.A. EDIT
11
Press MENU as many times as necessary to return to the
normal screen, and engage the Stop mode for the both
VCRs.
NOTES:
●
You can also monitor the sound when searching for scenes
you want to edit in steps 7 – 8. Since you can hear the
soundtrack during selection, you can avoid abrupt or
unnatural sounding scene-to-scene transitions.
●
When editing, there may be a discrepancy of about 2 seconds
on the source tape between the locations you chose as edit-in/-
out points and the locations the VCR recognizes as those points.
●
There are no limitations for R.A. Edit list (such as repeat
segments, negative counter values, segments out of order).
Only the start-stop sequence has to be in the normal play
direction.
●
For any scene, the edit-out point must have a counter reading
that is at least 1 second after the corresponding edit-in point. Any
less than 1 second and the edit-out point will not be registered.
●
Since the source VCR prerolls during Random Assemble
Editing, there must be at least 15 seconds worth of recorded
material prior to any edit-in point on the source tape.
●
If the search time for an edit-in point exceeds 5 minutes, the
recording deck enters its Stop mode and editing will not take
place.
To Make Corrections . . .
. . . during step 7 or 8, you can cancel registered in and out
points by pressing CANCEL on the remote control. Each time
you press, the preceding point is erased.
●If, for example, you have registered 5 sets of in and out points
and want to reset the first set, you have to press CANCEL until
all points after the first set have been erased. Reenter them
after you've repaired the first set of points.
Memory Capacity
Random Assemble Editing shares
memory space with the VCR's
timer. If there are programs
occupied by timer-recording data,
those spaces cannot be used to
register edit-in and -out points —
meaning you won't be able to edit
8 scenes.
●When all 8 programs are full, "PROGRAM FULL" appears on
the R.A. EDIT screen.
●To cancel a program, see page 42.
RM-V403U Multi-Brand R.A. Edit Controller
(Not supplied)
By connecting this controller to your VCR's R.A. EDIT connec-
tor, you can perform Random Assemble Editing in combination
with a second non-JVC VCR. The controller is compatible with
various major VCR brands. For compatible systems and
availability, please consult your JVC dealer.
LOCATE EDIT-IN POINT
7
Find the point on the source
tape from where you want
the edited scene to begin by
pressing SHUTTLE PLUS
™£, or JOG/
SHUTTLE then press
SELECT.
●The edit-in point is
registered in memory and appears on the screen.
●You can also perform an Index Search (if index marks
have been previously recorded on the tape at the
desired points Z pg. 30) to find the points you want,
but this will result in reduced accuracy.
LOCATE EDIT-OUT POINT
8
Find the point where you
want the edited scene to
end by pressing SHUTTLE
PLUS ™£, or JOG/
SHUTTLE then press
SELECT.
●The edit-out point is
registered in memory and
appears on the screen.
●The total time of the
edited scenes is displayed
to the right of "TTL".
●Repeat steps 7 and 8 for
each additional scene.
PREPARE RECORDING DECK
9
Engage its Record-Standby mode.
START R.A. EDIT
10
Press R.A. EDIT START on the VCR or C.MEMORY on
the remote control.
●Automatic editing begins; all the specified scenes are
copied to the recording deck in the order they were
registered.
●The on-screen display remains while your VCR
searches for each scene (blinking cursor indicates
scene currently being searched for), but disappears
during actual editing.
●During scene search, the recording deck automati-
cally enters its Record-Standby mode. "SEARCHING"
appears on the screen.
●When all registered scenes have been edited, your
VCR enters the Still mode, the recording deck enters
its Record-Standby mode, and the cursor blinks at the
next available number.
R.A. EDIT EDIT MODE
=1
2
3
4
5
6
7
8
TTL 0:00:00 CNT 0:00:00
R.A. EDIT EDIT MODE
=1 0:02:23
2
3
4
5
6
7
8
TTL 0:00:00 CNT 0:02:23
R.A. EDIT EDIT MODE
1 0:02:23 0:02:51
=2
3
4
5
6
7
8
TTL 0:00:28 CNT 0:02:51
R.A. EDIT EDIT MODE
PROGRAM FULL
TTL 0:00:00 CNT 0:00:00

52
+
–
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

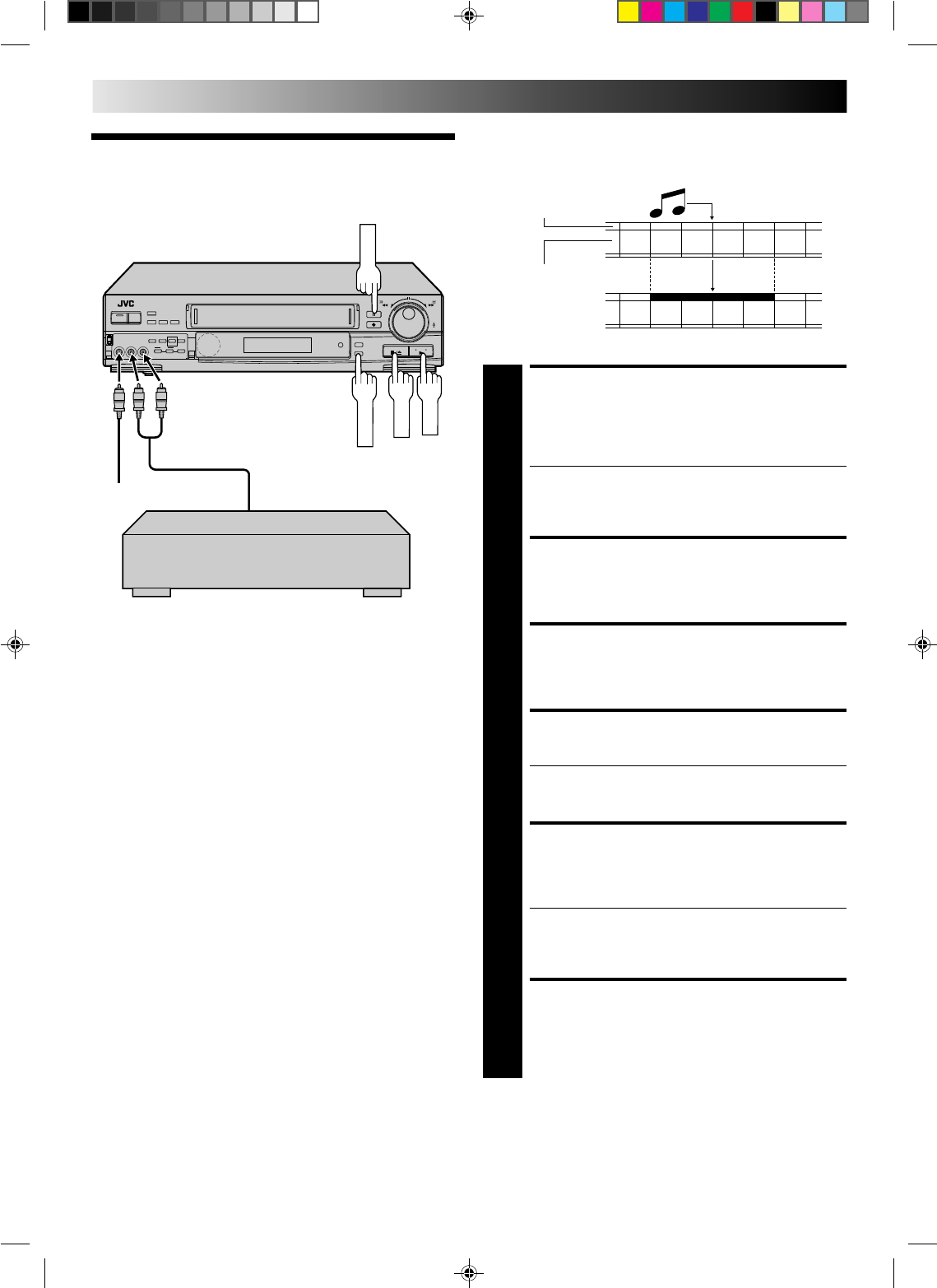

Audio dubbing replaces the normal audio sound of a previously
recorded tape with a new soundtrack. Use your VCR as the
recorder.
Audio Dubbing
MAKE CONNECTIONS
1
Connect an audio component to the AUDIO IN L + R
and VIDEO IN connectors on the VCR's front panel.
*When connecting monaural equipment, use only the
VCR's AUDIO IN L connector.
●By connecting to the front panel VIDEO IN connec-
tor, the front panel connectors will automatically
override any rear panel Video/Audio input connec-
tions.
SET INPUT MODE
2
Press DIGIT key "0" on the remote control. "AU"
appears in place of a channel number.
LOCATE START POINT
3
Press PLAY to start playback of the tape in your VCR,
and press PAUSE when you find the point where you
want to start dubbing.
ENGAGE AUDIO DUBBING
4
Press A. DUB.
●Your VCR enters the Audio Dubbing Pause mode.
(REC blinks, PLAY and PAUSE light up on the front
display panel.)
START DUBBING
5
Engage the audio component's Play mode, then press
PLAY to start the tape in your VCR. Audio dubbing
begins at this point.
●REC blinks and PLAY is displayed on the front display
panel.
●To stop dubbing temporarily, press PAUSE. Press
PLAY to resume dubbing.
END AUDIO DUBBING
6
Press STOP to stop the tape in your VCR, and engage
the audio component's Stop mode.
Pre-recorded tape
Audio-dubbed tape
Normal audio track
Video/Hi-Fi audio
track
EDITING (cont.)
PAUSE
PLAY
STOP
A. DUB
Audio component
(CD player etc.)
NOTES:
●
When monitoring the sound during Audio Dubbing, the
normal soundtrack is automatically selected. If you wish to
hear the Hi-Fi or mixed sound (Hi-Fi + Normal soundtracks),
refer to the "Select The Soundtrack" section (
Z
pg. 28) and
select the soundtrack you wish to hear.
●
Audio dubbing stops automatically when the counter reaches
"0H00M00S", and the VCR enters the Play mode. Check the
counter reading before dubbing.
●
Audio dubbing is also possible using the rear AUDIO IN
connectors.
●
Audio dubbing cannot be performed on a cassette that has
had its record safety tab removed.
●
When playing back an audio-dubbed tape, refer to the "Select
The Soundtrack" section (
Z
pg. 28) to select the soundtrack
you wish to hear.
●
It may be unlawful to record or play back copyrighted
material without the consent of the copyright owner.
NOT USED

53
SPECIAL FEATURES
TV Multi-Brand Remote
Control
The VCR's remote control can control several functions on JVC
remote control TVs and on the brands of remote control TVs
listed below.
TURN ON THE TV
1
Turn the power on using the TV's remote control.
SET REMOTE CONTROL
MODE
2
Set the TV/CABLE/VCR switch on the VCR's remote
control to TV.
SET TV BRAND CODE
3
Refer to the chart below. While holding down POWER
on the VCR’s remote control, enter your TV’s brand
code using the DIGIT keys, then press STOP.
●Once you have set the remote control to operate the
TV, you don’t have to repeat this step until you
replace your remote control’s batteries.
●PANASONIC has two codes. If the TV does not
function with one code, try entering the other.
OPERATE TV
4
First, press POWER on the remote to see if the TV’s power
goes off as it should. If it does, try other operations.
●The POWER, TV/VIDEO, CH +/–, VOL +/– and
DIGIT keys on the remote can all be used to operate
the TV.
●To return the remote to VCR control, set the TV/
CABLE/VCR switch to VCR.
NOTE:
Depending on the kind of TV, there may be cases where some
or all functions cannot be operated using the remote control.
TV BRAND NAME BRAND CODE
JVC 01
MAGNAVOX 02
MITSUBISHI 03
PANASONIC 04, 11
RCA 05
SHARP 06
SONY 07
TOSHIBA 08
ZENITH 09
HITACHI 10
SAMSUNG 12
SANYO 13
123
456
789
0
123
456
789
0
POWER
DIGIT
TV/VIDEO
VOL. +/-
STOP
CH
ENTER
TV/CABLE/VCR

54
SPECIAL FEATURES (cont.)
Cable Box Multi-Brand
Remote Control
The VCR's remote control can control functions on the brands
of cable boxes listed below. Some cable box brands have more
than one code. If your cable box does not function with a
specified code, try other codes.
CABLE BOX BRAND NAME BRAND CODE
GENERAL INSTRUMENTS 01, 02, 03, 04, 05, 06, 07, 08
HAMLIN 15, 16, 17, 18
JERROLD 01, 02, 03, 04, 05, 06, 07, 08
OAK 19, 20, 21
PANASONIC 24, 25, 26
PIONEER 13, 14
RCA 24, 25, 26
REGAL 15, 16, 17, 18
SCIENTIFIC ATLANTA 09, 10
SIGMA 19, 20, 21
SPRUCER 24, 25, 26
TOCOM 22, 23
ZENITH 11, 12
TURN ON THE CABLE BOX
1
Turn the power on using the cable box’s remote control.
SET REMOTE CONTROL
MODE
2
Set the TV/CABLE/VCR switch on the VCR’s remote
control to CABLE.
ENTER CABLE BOX BRAND
3
While holding down POWER on the VCR’s remote
control, use the DIGIT keys to enter the cable box
brand number from the chart below and then press
STOP.
●Once you have set the remote control to operate the
cable box, you don't have to repeat this step until you
replace the remote control's batteries.
OPERATE CABLE BOX
4
First, press POWER to see if the cable box’s power goes
off as it should. If it does, try other functions (CH +/–
and the DIGIT keys can be used to operate the cable
box).
●For some brands of cable box, you must press ENTER
after having pressed the DIGIT keys.
●To return the remote to VCR control, set the TV/
CABLE/VCR switch to VCR.
NOTES:
●
You must set the cable box brand for your remote control and
the cable box brand for your Cable Box Controller (
Z
pg. 18)
separately. The list of cable box brands that can be controlled
by your remote control is different from the list of cable box
brands that can be controlled by your cable box controller.
●
It is possible that the remote control will not operate your cable
box even if the cable box’s channels automatically change
during timer recording using the Cable Box Controller.
123
456
789
0
123
456
789
0
POWER
DIGIT
STOP
CH
ENTER
TV/CABLE/VCR

55
123
456
789
0
123
456
789
0
POWER
A/B CODE
Control Two JVC VCRs
The supplied remote control is capable of controlling two JVC
VCRs independently using the A/B CODE switch. You can set
this VCR so it responds to remote commands only when the
switch is set to B, and another VCR so it responds to commands
when the switch is set to A. The switch is preset to A because
this VCR normally responds to A-code signals. You can easily
modify this VCR to accept B-code commands.
UNPLUG VCR'S POWER
CORD
1
Unplug from the AC outlet.
SET A/B CODE SWITCH
2
Set the A/B CODE switch on the remote control to B.
PLUG IN POWER CORD
3
Plug back in to the AC outlet.
TURN VCR POWER ON
4
Press POWER on the remote.
●You can control two VCRs with the same remote
control by toggling the slide switch between A and B.
The VCR will now respond only to B-code commands.
DSS Receiver Multi-Brand
Remote Control
The VCR's remote control can control functions on the brands
of DSS (Digital Satellite System) receivers listed below.
TURN ON THE DSS
RECEIVER
1
Turn the power on using the DSS receiver's remote
control.
SET REMOTE CONTROL
MODE
2
Set the TV/CABLE/VCR switch on the VCR’s remote
control to CABLE.
ENTER DSS RECEIVER
BRAND
3
While holding down POWER on the VCR’s remote
control, use the DIGIT keys to enter the DSS receiver
brand number from the chart below and then press
STOP.
●Once you have set the remote control to operate the
DSS receiver, you don't have to repeat this step until
you replace the remote control's batteries.
OPERATE DSS RECEIVER
4
First, press POWER to see if the DSS receiver's power
goes off as it should. If it does, try other functions (CH
+/– and the DIGIT keys can be used to operate the DSS
receiver).
●Depending on the DSS receiver you may have to
press ENTER after having pressed the DIGIT keys.
●To return the remote to VCR control, set the TV/
CABLE/VCR switch to VCR.
NOTE:
Depending on type of DSS receiver, there may be cases where
some or all functions cannot be operated using the remote
control.
ENTER
DIGIT
CH
TV/CABLE/VCR
STOP
DSS BRAND NAME BRAND CODE
RCA 80
SONY 81

56
TROUBLESHOOTING
Before requesting service for a problem, use this chart and see if you can repair the trouble yourself. Small problems are often easily
corrected, and this can save you the trouble of sending your VCR off for repair.
POWER
POSSIBLE CAUSE
●The power cord is disconnected.
●The TIMER mode is engaged with
Auto Timer set to "OFF" (Z pg. 43).
●The batteries are discharged.
●The A/B CODE switch is in the
wrong position.
●The TV/CABLE/VCR switch is in the
wrong position.
SYMPTOM
1. The power won’t come on.
2. The clock works, but the VCR’s
power won’t come on.
3. The remote control won’t function.
CORRECTIVE ACTION
Connect the power cord.
Press TIMER to disengage.
Replace the dead batteries with new ones.
Re-perform the A/B Code setting
(Z pg. 55).
Set the switch to the position corre-
sponding with the unit you want to
operate.
TAPE TRANSPORT
POSSIBLE CAUSE
●The cassette was inserted incorrectly.
●The Counter Memory indicator (“M”)
is lit on the front display panel.
SYMPTOM
1. The cassette gets stuck partway
during loading, and is ejected.
2. The tape stops during rewind or
fast forward.
CORRECTIVE ACTION
Make sure the window side is up, the
rear label side is facing you and the
arrow on the front of the cassette is
pointing towards the VCR. Then insert
the cassette
Press C.MEMORY to disengage the
Counter Memory mode and extinguish
the indicator.
SYMPTOM
1. The tape is running but the picture
won’t appear.
2. Noise appears during visual search.
3. Breaks are noticeable in Hi-Fi
soundtrack.
4. The playback picture is blurred or
interrupted, even though TV
broadcasts are clear.
5. The Hi-Fi soundtrack cannot be
heard.
PLAYBACK
POSSIBLE CAUSE
●If you’re using the RF OUT connec-
tion (Z pg. 6), the channel selector
on the TV is set incorrectly.
●If you’re using the AV connection or
S-VIDEO connection (Z pg. 6 or 7),
the TV receiver is set to the wrong
mode.
●This is normal.
●Automatic tracking is engaged.
●The video heads may be dirty.
●The AUDIO MONITOR option at the
Function Set screen was set incor-
rectly.
CORRECTIVE ACTION
Set the channel selector to channel 3
or 4.
Set the TV receiver to its AV mode.
Engage and adjust tracking manually
(Z pg. 27).
The heads must be cleaned. Consult
your JVC dealer (Z pg. 64).
Set AUDIO MONITOR to "HI-FI"
(Z pg. 28).

57
CORRECTIVE ACTION
Check or re-perform the clock/timer
settings to ensure correctness.
Press TIMER and check to make sure
that TIMER appears on the front
display panel.
Re-perform the set-up procedures.
Make sure you have compensated for
Guide Channel and VCR or cable
box channel number mismatches
(Z pg. 20).
Timer programming can’t be performed
when timer recording is in progress.
Wait until it finishes.
Load a cassette with the record safety
tab intact, or with the hole covered
with adhesive tape.
Remove the cassette and cover its
hole with adhesive tape, or replace it
with a cassette on which the safety
tab is intact.
Check the programmed data and re-
program as necessary, then press
TIMER again.
The program may not have been
recorded in its entirety. Next time
make sure you have enough time on
the tape to record the entire program.
Connect the Cable Box Controller
correctly (Z pg. 16).
After confirming your cable box’s
output channel number, re-access the
Cable Box Output screen and select
the correct number (Z pg. 18).
Make sure the power is on before
timer recording starts.
POSSIBLE CAUSE
●The clock and/or the timer have
been set incorrectly.
●The timer is not engaged.
●The VCR has not been set up properly.
●Timer recording is in progress.
●The timer is engaged but there’s no
cassette loaded.
●The loaded cassette has had its
record safety tab removed.
●TIMER has been pressed when there
are no programs in memory, or the
timer record program information
has not been programmed correctly.
●The end of tape was reached during
timer recording.
●The Cable Box Controller is not
properly connected to the VCR.
●The output channel selected in the
Cable Box Output screen is incorrect.
●The cable box’s power is off.
SYMPTOM
1. Timer recording won’t work.
2. On-screen timer programming
won’t work.
3. TIMER and ] on the front
display panel won’t stop blinking.
4. The cassette is automatically
ejected, and TIMER and ] on the
front display panel won’t stop
blinking.
5. TIMER blinks for 10 seconds and
the timer mode is disengaged.
6. The cassette is automatically
ejected, the power shuts off and
TIMER and ] won’t stop
blinking.
7. Cable channels are not automatically
switched during timer recording.
CORRECTIVE ACTION
Insert a cassette.
Remove the cassette and cover the
hole with adhesive tape, or load a
cassette on which the record safety
tab is intact.
Set the VCR to the appropriate
channel.
Refer to the directions and the
illustration under “Edit To Or From
Another VCR” (Z pg. 46) or “Edit
From A Camcorder” (Z pg. 44) and
properly connect the units.
Make sure the power to all units is on.
Make sure nothing is connected to
the front panel connectors if using a
rear panel input connection.
POSSIBLE CAUSE
●There’s no cassette loaded.
●The loaded cassette has had its
record safety tab removed.
●The VCR has been set to its AUX
mode by mistake.
●The VCRs or the camcorder and the
VCR have been incorrectly con-
nected.
●The power to one or more of the
units has not been turned on.
●The recorder’s input mode has been
set incorrectly.
SYMPTOM
1. Recording won’t start.
2. TV broadcasts won’t record
properly.
3. Tape-to-tape editing won’t work.
RECORDING
CONTINUED ON NEXT PAGE.
TIMER RECORDING

58
8. Timer recording begins as sched-
uled, but the channel is always
incorrect.
9. We moved, and now VCR Plus+
doesn’t work properly.
10.“PROGRAM FULL” is displayed on
the VCR Plus+ screen.
●Even though you don't use an
external Cable Box, "CABLE BOX
OUTPUT" is set to "ON".
●The receivable stations in the new area
are received on different channels than
those in the previous area.
●All 8 programs of the VCR’s timer
memory are used.
ATTENTION:
This recorder contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases,
switch the power off and unplug the power cord. Then plug it in again and switch power on. Take out the cassette. After
checking the cassette, operate the unit as usual.
OTHER PROBLEMS
CORRECTIVE ACTION
If you need the skipped channels,
restore them (Z pg. 15).
Press PAUSE to pause the recording,
change channels, then press PLAY to
resume recording.
Set the switch to TV.
Set the switch to CABLE.
Select a different Host Channel during
the Semi-Auto setting procedure
(Z pg. 10), or perform the Manual
setting procedure (Z pg. 11).
SYMPTOM
1. When scanning channels, some of
them are skipped over.
2. The channel can’t be changed.
3. The remote control won’t operate
my TV.
4. The remote control won't operate
my cable box.
5. Even though Auto or Semi-Auto
clock setting has been selected, the
clock is incorrect.
Set "CABLE BOX OUTPUT" to "OFF"
(Z pg. 17).
Re-perform the VCR Plus+ setup
procedure (Z pg. 20).
Wait until a space in memory clears,
or cancel unnecessary program
information (Z pg. 42).
POSSIBLE CAUSE
●Those channels have been preset to
be skipped.
●Recording is in progress.
●The TV/CABLE/VCR switch is set to
a position other than TV.
●The TV/CABLE/VCR switch is set to
a position other than CABLE.
●The clock setting data received from
the Host Channel is incorrect.
TROUBLESHOOTING (cont.)

59
QUESTIONS AND ANSWERS
PLAYBACK
Q. What happens if the end of the tape is reached
during playback or search?
A. The tape is automatically rewound to the beginning.
Q. Can the VCR indefinitely remain in the still mode?
A. No. It stops automatically after 5 minutes to protect
the heads.
Q. During search, slow, still and frame-by-frame
playback, I can’t hear any audio. What’s the
problem?
A. This is normal.
Q. During search, still and frame-by-frame playback,
the picture is intermittent. What’s the cause?
A. Picture loss occurs when these types of playback are
attempted with a tape recorded in LP mode. Pressing
PLAY to return to normal playback will restore the
picture.
Q. When returning from multi-speed search to normal
playback, the picture is disturbed. Should I be
concerned about this?
A. No, it is normal.
Q. Noise bars appear during multi-speed search. What’s
the problem?
A. This is normal.
Q. Other than preventing further recording, what effect
does removing the safety tab have?
A. It disables marking or erasing of index codes.
Q. Sometimes, during Index Search, the VCR can’t find
the program I want to see. Why not?
A. There may be index codes too close together.
Q. During playback, on-screen operational indicators
sometimes jitter. Why does this happen?
A. If the condition of the tape being played back is not
good, jittering of the video (including on-screen
indicators) may occur.
RECORDING
Q. When I pause and then resume a recording, the end
of the recording before the pause is overlapped by
the new recording. Why does this happen?
A. This is normal. It reduces distortion at the pause and
resume points.
Q. Can the VCR indefinitely remain in the Record-Pause
mode?
A. No. The VCR automatically goes to its Stop mode
after 5 minutes to protect the heads. When paused
during Instant Timer Recording (ITR), the VCR shuts
off automatically after 5 minutes.
Q. What happens if the tape runs out during recording?
A. The VCR automatically rewinds it to the beginning.
TIMER RECORDING
Q. REC and TIMER remain lit on the front display panel.
Is there a problem?
A. No. This is a normal condition for a timer recording
in progress.
Q. Can I program the timer while I’m watching a tape
or a TV broadcast?
A. You won’t see the picture as it is replaced by the on-
screen menu, but the audio from the program or tape
you’re viewing is present.

60
GENERAL
Power requirement : AC 120 V` , 60 Hz
Power consumption : 26 W
Temperature
Operating : 5°C to 40°C (41°F to 104°F)
Storage : –20°C to 60°C (–4°F to140°F)
Operating position : Horizontal only
Dimensions (W x H x D) : 400 x 94 x 341 mm
(15-3/4" x 3-3/4" x 13-7/16")
Weight : 4.5 kg (8.2 lbs)
Format : S-VHS/VHS NTSC standard
Maximum recording time
SP : 210 min. with ST-210 video
cassette
EP : 630 min. with ST-210 video
cassette
VIDEO/AUDIO
Signal system : NTSC-type color signal and
EIA monochrome signal, 525
lines/60 fields
Recording/
Playback system : DA-4 (Double Azimuth) head
helical scan system
Signal-to-noise ratio : 45 dB
Horizontal resolution : 240 lines (VHS)
400 lines (S-VHS)
Frequency range
Normal audio : 70 Hz to 10,000 Hz
Hi-Fi audio : 20 Hz to 20,000 Hz
Input/Output : RCA connectors (IN x 2,
OUT x 1)
S-VIDEO connectors (INx1,
OUTx1)
TUNER
Tuning system : Frequency-synthesized tuner
Channel coverage
VHF : Channels 2–13
UHF : Channels 14–69
CATV : 113 Channels
RF output : Channel 3 or 4 (switchable;
preset to Channel 3 when
shipped) 75 ohms,
unbalanced
TIMER
Clock reference : Quartz
Program capacity : 1-year programmable timer/
8 programs
Memory backup time : Approx. 60 min.
ACCESSORIES
Provided accessories : RF cable (F-type),
Infrared remote control unit,
“AAA” battery x 2,
Cable Box Controller,
S-Video cable (4-pin),
Audio/Video cable,
Mini-plug cable
Specifications shown are for SP mode unless otherwise specified.
E. & O.E. Design and specifications subject to change without
notice.
SPECIFICATIONS

61
INDEX
List Of Terms
This guide serves as a quick way to locate frequently used terms and on-screen display names. The first page on which the term
appears is listed. Most terms appear more than once in the instruction manual.
A
A/B Code ....................................................................55
Add Channel ...............................................................15
AFC.............................................................................15
Audio Dubbing ...........................................................52
Audio Monitor ............................................................28
Auto Channel Setting ..................................................14
Auto Clock Setting ...................................................... 11
Auto Daylight Saving Time .......................................... 11
Auto Timer ..................................................................43
Automatic Tracking .....................................................27
Aux Input ....................................................................44
AV Compu Link Playback ...........................................32
AV Connection .............................................................6
B
Band ...........................................................................13
C
Cable Box ...................................................................16
Cable Box Brand Setting..............................................18
Cable Box Controller...................................................16
Cancel Program ..........................................................42
Cassette Adapter.................................... ......................23
Check Program ...........................................................42
Connection to TV ..........................................................6
Contents........................................................................5
Counter Memory .........................................................31
Counter Reset..............................................................31
D
Delete Channel ...........................................................15
E
Editing.........................................................................44
F
Frame-by-Frame Playback ...........................................25
Function Setting ..........................................................28
G
Guide Channel Map....................................................22
Guide Channel Setting ................................................21
H
Host Channel Selection ...............................................10
I
Index Search ...............................................................30
Insert Cassette .............................................................23
Insert Editing ...............................................................48
Instant ReView ............................................................31
ITR (Instant Timer Recording) ......................................40
J
Jog Dial .......................................................................25
L
Language Selection .....................................................12
M
Main Menu ...................................................................9
Manual Channel Setting ..............................................15
Manual Clock Setting .................................................. 11
Manual Tracking .........................................................27
MBR (Multi-Brand Remote) Code Setting.....................53
N
Next-Function Memory ...............................................32
O
On-Screen Display ......................................................29
On-Screen Timer Programming ...................................40
On-Screen Timer Recording ........................................40
Override Auto Clock Setting..........................................9
P
PBS Channel .................................................................8
Playback .....................................................................23
R
Record Safety Tab .......................................................24
Recording ...................................................................24
Repeat Playback..........................................................27
Reverse Motion Playback ............................................26
Reverse Slow Motion Playback ...................................26
RF Connection ..............................................................6
S
SAP (Second Audio Program) ......................................35
Second Audio .............................................................35
Select Cable Box Output Channel ...............................17
Semi-Auto Clock Setting..............................................10
Shuttle Plus .................................................................25
Skip Search .................................................................27
Slow Motion Playback ................................................25
Specifications ..............................................................60
Still Picture Playback...................................................25
SHUTTLE Ring ............................................................25
Superimpose ...............................................................29
S-VHS (Super VHS) .....................................................34
S-Video Connection ......................................................7
T
Tape Remaining Time ..................................................37
Tape Speed Setting ......................................................24
Time Zone Selection ...................................................10
Tuner Setting ...............................................................13
V
Variable-Speed Search ................................................26
VCR Plus+...................................................................20
VCR Plus+ Timer Programming ...................................38
VCR Plus+ Timer Recording ........................................38

62
INDEX (cont.)
FRONT VIEW
REAR VIEW
1Power Cord (Z pg. 6)
2Video Output Connector (Z pg. 6)
3Video Input Connector (Z pg. 46)
4ANTENNA IN Connector (Z pg. 6)
5Audio Output Connector [L] (Z pg. 6)
6Audio Output Connector [R] (Z pg. 6)
7Audio Input Connector [R] (Z pg. 46)
8Audio Input Connector [L] (Z pg. 46)
9S-Video Output Connector (Z pg. 7)
0 S-Video Input Connector (Z pg. 46)
!PAUSE/SPECIAL FUNCTION connector
●Remote PAUSE Connector (Z pg. 44)
●AV COMPU LINK Connector (Z pg. 32)
●Random Assemble Editing Connector (Z pg. 50)
@CABLE BOX Connector (Z pg. 16)
#Channel 3/4 Switch (Z pg. 6)
$TV OUT Connector (Z pg. 6)
ANTENNA
OUT
CH3
PAUSE/
SPECIAL
FUNCTION
IN
VIDEO
AUDIO
L
(MONO)
R
CABLE
BOX
CH4
IN
VHF / UHF
OUT
TV
OUT
S VIDEO
IN
S VIDEO
123 4
@# $!6 7 90
58
1Power ON/OFF Button (Z pg. 9)
2Menu Button (Z pg. 9)
3Channel [CH] +/– Buttons (Z pg. 24)
SET +/– Buttons (Z pg. 9)
4SELECT Button (Z pg. 9)
5Instant REVIEW Button (Z pg. 31)
6Cassette Loading Slot
7Record [REC] Button (Z pg. 24)
8Pause Button (Z pg. 24)
9SHUTTLE Ring (Z pg. 23)
0JOG Dial (Z pg. 25)
!Video Input Connector (Z pg. 44)
@Mono Audio Input Connector (Z pg. 44)
Audio Input Connector [L] (Z pg. 44)
#Audio Input Connector [R] (Z pg. 44)
$Recording Speed [SP/EP] Button (Z pg. 24)
% INDEX MARK Button (Z pg. 30)
^ S-VHS Button (Z pg. 34)
& INDEX ERASE Button (Z pg. 30)
* R.A. EDIT START Button (Z pg. 51)
( TIMER button (Z pg. 39)
) TV/VIDEO Button (Z pg 9)
qRemote Control Sensor
wFront Display Panel (Z pg. 63)
eS-VHS indicator (Z pg. 34)
rAudio Dubbing [A. DUB] Button (Z pg. 52)
tINSERT Button (Z pg. 48)
yStop/Eject Button (Z pg. 23)
uPlay Button (Z pg. 23)
REW FF
JOG
SHUTTLE
POWER MENU
CH/
SET
A.DUB
PAUSE
REC
STOP/EJECT PLAY
SELECT
+
–
HMS
ITR TIMER
VIDEO
M
SP
EP
REC
SAP
PAUSE
ST
AM
PM
PLAY
L
dB –20 15 10 8 4620246
+
8
R
dB –20 15 10 8 4620246
+
8
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
INSERT
MARK
R.A.EDIT
VIDEO
(MONO)
L–AUDIO–R
ERASE TIMER
START
INDEX
SP/EP S-VHS
TV/VIDEO
S-VHS
1
@
! #
$
% &
^
w e r u
y
269
7
*
( q t
)
8 0
453

63
FRONT DISPLAY PANEL
1Instant REVIEW Button (Z pg. 31)
2TV/VIDEO Button (Z pg. 34)
3DISPLAY Button (Z pg. 31)
4DIGIT Buttons (Z pg. 10)
5“AUX” Mode Select Button (Z pg. 44)
6Recording Speed [SP/EP] Button (Z pg. 24)
7ENTER Button (Z pg. 24)
On-Screen Display [OSD] Button (Z pg. 29)
8Counter [C.] MEMORY Button (Z pg. 31)
ADD Button (Z pg. 15)
9Volume [VOL] +/– Buttons (Z pg. 53)
0Rewind [REW] Button (Z pg. 23)
!PLAY Button (Z pg. 23)
@Record [REC] Button (Z pg. 24)
#POWER ON/OFF Button (Z pg. 9)
$SKIP SEARCH Button (Z pg. 27)
%CANCEL Button (Z pg. 42)
Counter [C.] RESET (Z pg. 31)
Channel [CH.] SKIP Button (Z pg. 15)
^DAILY Timer Recording Button (Z pg. 38)
&WEEKLY Timer Recording Button (Z pg. 38)
*TIMER Button (Z pg. 39)
(MENU Button (Z pg. 9)
)SELECT Button (Z pg. 9)
qTV/CABLE/VCR Switch (Z pg. 53)
wChannel [CH] +/– Buttons (Z pg. 24)
SET +/– Button (Z pg. 9)
eFast-Forward [FF] Button (Z pg. 23)
rPAUSE Button (Z pg. 24)
tSTOP Button (Z pg. 23)
yA/B Code Select Switch (Z pg. 55)
uSHUTTLE PLUS Button (Z pg. 25)
POWER
TV/VIDEO DISPLAY
123
456
789
DAILY(M-F) WEEKLY
AUX
TIMER
0
C.MEMORY SELECT
ADD
VOL. CH/SET
REW PLAY
SHUTTLE
PLUS
MULTI BRAND
REMOTE CONTROL UNIT
FF
REC STOP PAUSE
A
B
VCR
POWER
TV/VIDEO DISPLAY CANCEL
SP/EP
SKIP SEARCH
C. RESET/CH SKIP
123
456
789
DAILY(M-F) WEEKLY
AUX
TIMER
0
ENTER
ADD
OSD
A
B
TVVCR CABLE
MENU
4
2
1
8
3
5
9
!
@
#
$
^
*
)
%
e
w
q
(
t
y
r
u
6
7
0
&
2
L
dB –20 15 10 8 4620246
+
8
R
dB –20 15 10 8 4620246
+
8
HMS
REC
SAP
PAUSE
ST
PLAY
ITR TIMER
VIDEO
M
SP
EP
AM
PM
4
876 0
9
1
$
#
3
5@
!
** If the remote control doesn't work properly, remove its
batteries, wait a short time and then try again.
REMOTE CONTROL (Provided)
1Audio Level Meter (Z pg. 36)
2Timer Mode Indicator (Z pg. 39)
3Instant Timer Recording Indicator (Z pg. 40)
4Video Mode Indicator (Z pg. 34)
5“Cassette Loaded” Mark
6Counter Memory Mark (Z pg. 31)
7Tape Speed Indicators (Z pg. 24)
8AM/PM Indicators (Z pg. 8)
9Clock Display (Z pg. 8)
0Channel Display [“AU” for AUX mode]
(Z pg. 24)
Counter Display (Z pg. 23)
!Multi-Channel TV Sound Indicators (Z pg. 35)
@Pause Mode Indicator (Z pg. 24)
#Play Mode Indicator (Z pg. 23)
$Recording Mode Indicator (Z pg. 24)

64
HOW TO LOCATE YOUR JVC SERVICE CENTER
TOLL FREE: 1-800-252-5722
JVC SERVICE & ENGINEERING
COMPANY OF AMERICA
DIVISION OF US JVC CORP.
FACTORY SERVICE CENTER LOCATIONS
If you ship the product...
ACCESSORIES
107 Little Falls Road 1500 Lakes Parkway 705 Enterprise Street
Fairfield, NJ 07004-2105 Lawrenceville, GA 30243-5357 Aurora, IL 60504-8149
(201) 808-9279 (770) 339-2522 (708) 851-7855
5665 Corporate Avenue 10700 Hammerly, Suite 110 2969 Mapunapuna Place
Cypress, CA 90630-0024 Houston, TX 77043-2310 Honolulu, HI 96819-2040
(714) 229-8011 (713) 935-9331 (808) 833-5828
230 Eliot Street 14505 Commerce Way 890 Dubuque Avenue
Ashland, MA 01721-2377 Miami Lakes, FL 33016-1512 South San Francisco, CA 94080-1804
(508) 881-5923 (305) 362-6252 (415) 871-2666
Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production
of the wide array of JVC products, service is the key to maintaining the high level performance for which JVC is world famous. The
JVC service and engineering organization stands behind our products.
NATIONAL HEADQUARTERS
JVC SERVICE & ENGINEERING COMPANY OF AMERICA
DIVISION OF US JVC CORP.
107 Little Falls Road
Fairfield, NJ 07004-2105
Pack your JVC unit in the original carton or one of equivalent
size and strength. Enclose, with the unit, a letter stating the
problem or symptom that exists and also a copy of the receipt
or bill of sale you received when you purchased your JVC
unit. Print your home return address on the outside and the
inside of the carton. Send to the appropriate JVC Factory
Service Center as listed above.
To purchase accessories for your JVC product, you may
contact your local JVC Dealer.
Or from the 48 Continental United States call toll free:
1-800-882-2345.
Dear customer:
In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the event
that repair is necessary, or for the address nearest your location, please refer to the factory service center list below or within the
Continental United States, call 1-800-252-5722 for your authorized servicer. Remember to retain your Bill of Sale for Warranty
Service.
— JVC
CAUTION
To prevent electrical shock, do not open the cabinet. No user
serviceable parts inside.
Refer servicing to qualified service personnel.
Don't service it yourself.
FOR SERVICING

65
LIMITED WARRANTY CONSUMER VIDEO 1-90
JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL
PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail
purchase for the period as shown below. ("The Warranty Period")
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN
COMMONWEALTH OF PUERTO RICO.
WHAT WE WILL DO:
If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair
and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts
used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be
brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and
above which are covered on an in-home basis.
WHAT YOU MUST DO FOR WARRANTY SERVICE:
Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized
service center, please call toll free: (800) 252-5722.
If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of
your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location
of which will be given to you by the toll-free number.
If you have any questions concerning your JVC Product, please contact our Customer Relations Department.
WHAT IS NOT COVERED:
This limited warranty provided by JVC does not cover:
1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty
installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to
render such service, or if affixed to any attachment not provided with the products, or if the model or serial number has been
altered, tampered with, defaced or removed;
2. Initial installation and installation and removal for repair;
3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;
4. Damage that occurs in shipment, due to act of God, and cosmetic damage;
5. Signal reception problems and failures due to line power surge;
6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;
7. Accessories;
8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase); from the date of purchase);
There are no other express warranties except as listed above.
THE DURATION OF ANY IMPLIED WARRANTIES INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS
LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.
JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER
DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO
TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH
OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET
FORTH ABOVE.
Some states do not allow the exclusion of incidental or consequential dameges or limitations on how long an implied warranty
lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
JVC COMPANY OF AMERICA 41 Slater Drive
DIVISION OF US JVC CORP. Elmwood Park, New Jersey 07407
REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF
REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION
PACKAGED WITH EACH REFURBISHED PRODUCT.
For customer use:
Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future
reference.
Model No.: Serial No.:
Purchase date: Name of dealer:
PARTS LABOR
1 YR 90 DAYS
WARRANTY

HR-S5300U
COPYRIGHT © 1996 VICTOR COMPANY OF JAPAN, LTD. U/U(C)Printed in Japan
0596HOV
*
UN
*
VP
VICTOR COMPANY OF JAPAN, LIMITED
EN
