ENGLISH

FRANÇAIS

CD RECEIVER

RECEPTEUR CD

KD-G411

For canceling the display demonstration, see page 7.

Pour annuler la démonstration des affichages, référez-vous à la page 7.

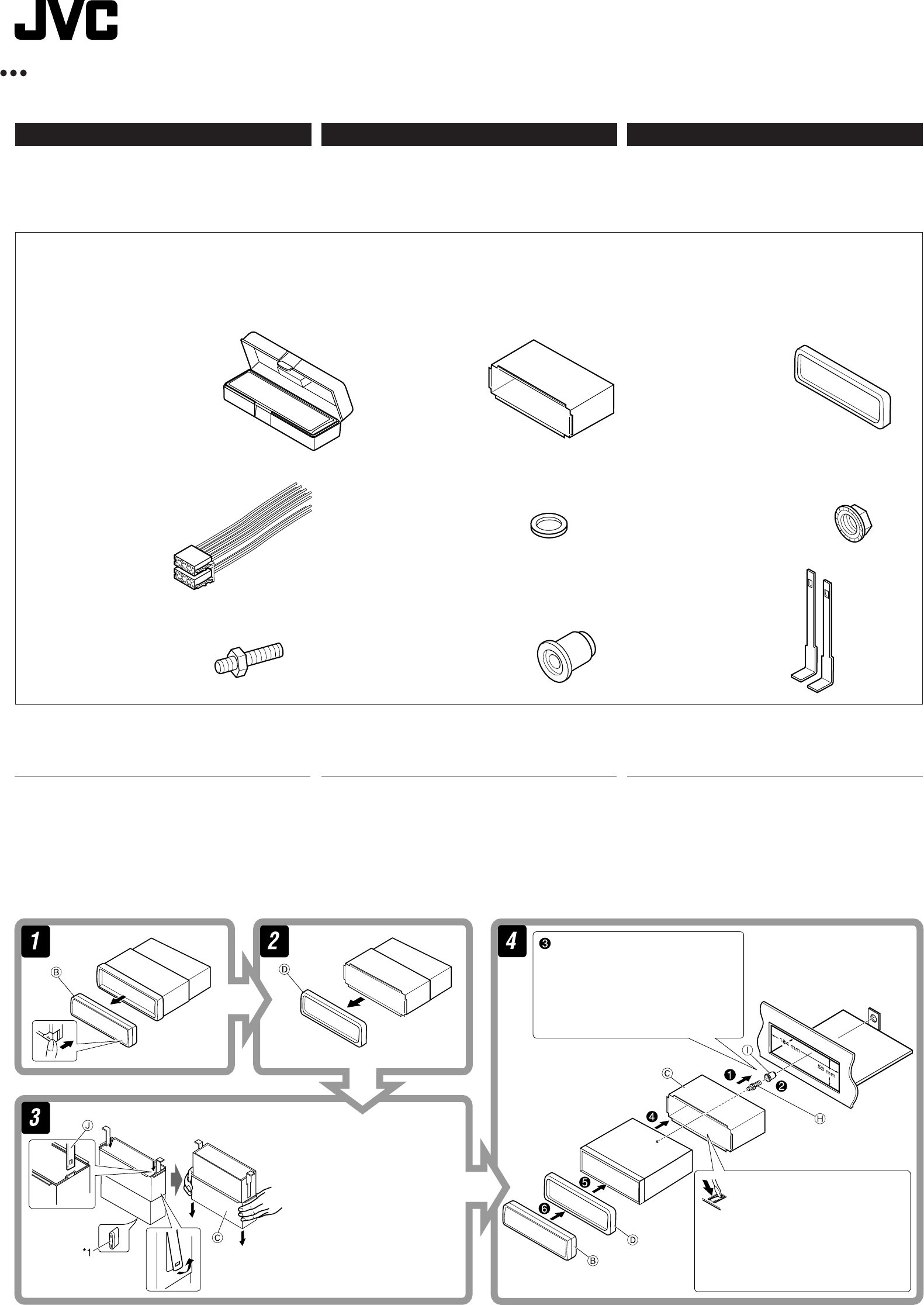

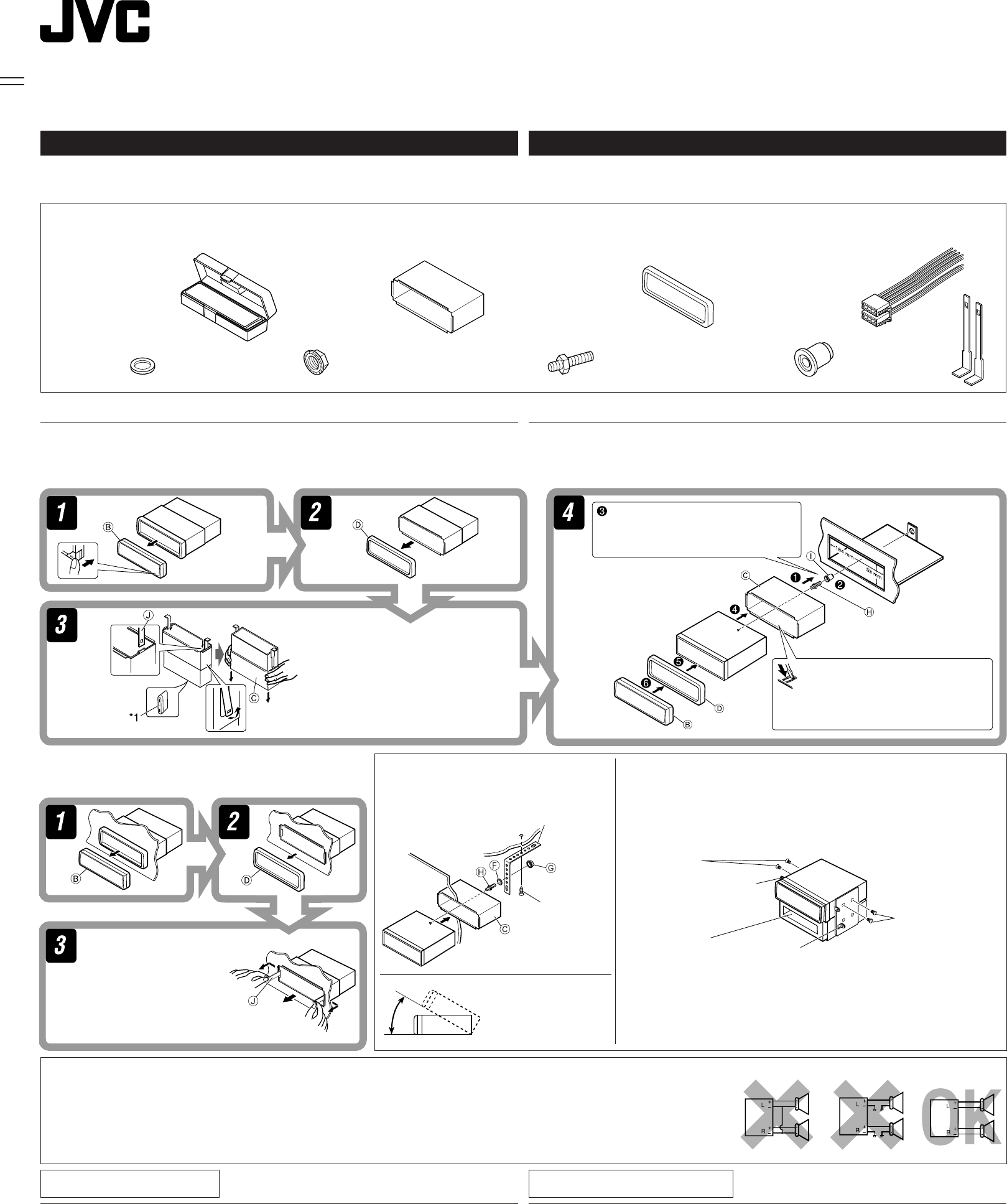

For installation and connections, refer to the separate manual.

Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

GET0257-003A

[EX/EU]

Cover_KD-G411[EX_EU]003A_f.indd 2 9/23/04, 1:41:41 PM

ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while

driving, be sure to look ahead carefully or

you may be involved in a traffic accident.

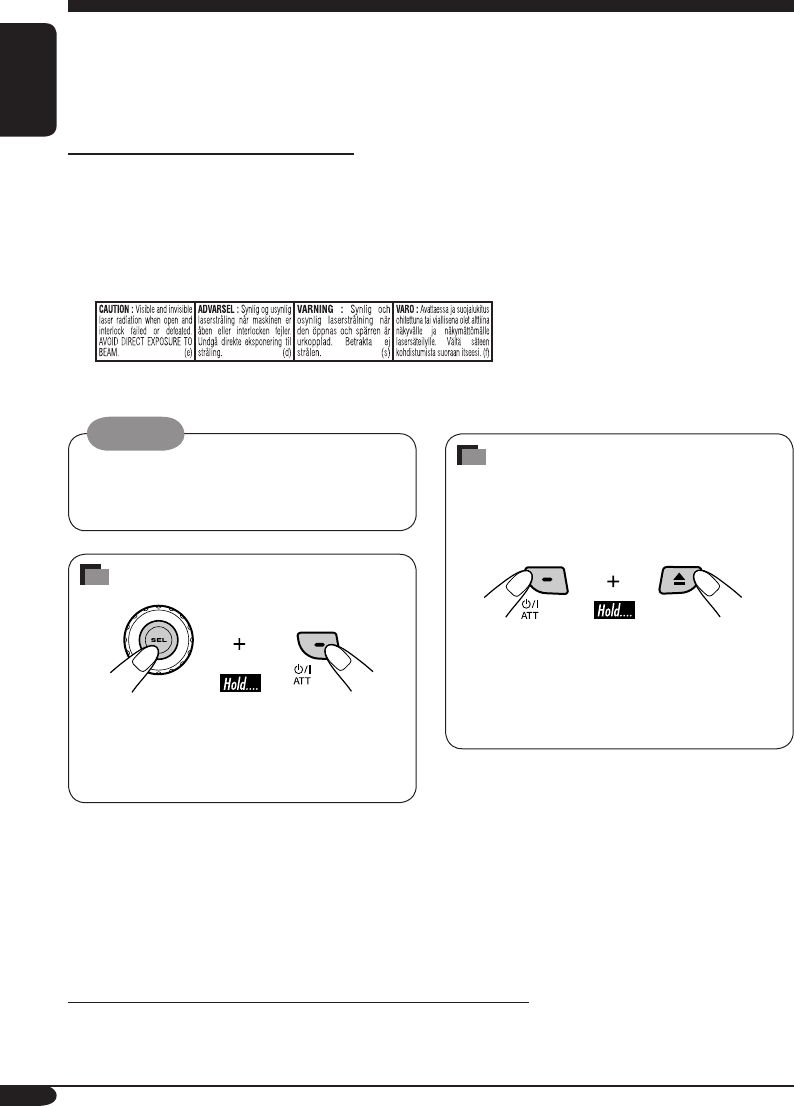

How to reset your unit

• This will reset the microcomputer. Your

preset adjustments will also be erased.

• If a disc is loaded, it will eject. Be careful

not to drop the disc.

How to forcibly eject a disc

If a disc cannot be recognized by the

receiver or cannot be ejected, ejects the disc

as follows.

• If this does not work, try to reset your

receiver.

• Be careful not to drop the disc when it

ejects.

Note: Only for [EX] model users in UK and European countries

For security reasons, a numbered ID card is provided with this receiver, and the same ID number is

imprinted on the receiver’s chassis. Keep the card in a safe place, as it will help the authorities to

identify your receiver if stolen.

EN02-05_KD-G411[EX_EU]f.indd 2 9/27/04, 7:51:56 PM

ENGLISH

How to reset your unit ........................... 2

How to forcibly eject a disc................... 2

How to read this manual........................ 4

How to use the MODE button ............... 4

Control panel — KD-G411 ......... 5

Parts identification................................. 5

Getting started....................... 6

Basic operations.................................. 6

Canceling the display demonstrations ... 7

Setting the clock .................................... 7

Radio operations ................... 8

Listening to the radio........................... 8

Storing stations in memory.................... 9

Listening to a preset station ................... 9

FM RDS operations................. 10

Searching for your favorite FM RDS

programme

....................................... 10

Storing your favorite programmes......... 11

Using the standby receptions................. 11

Tracking the same programme

—Network-Tracking Reception ........ 12

Disc operations ...................... 13

Playing a disc ..................................... 13

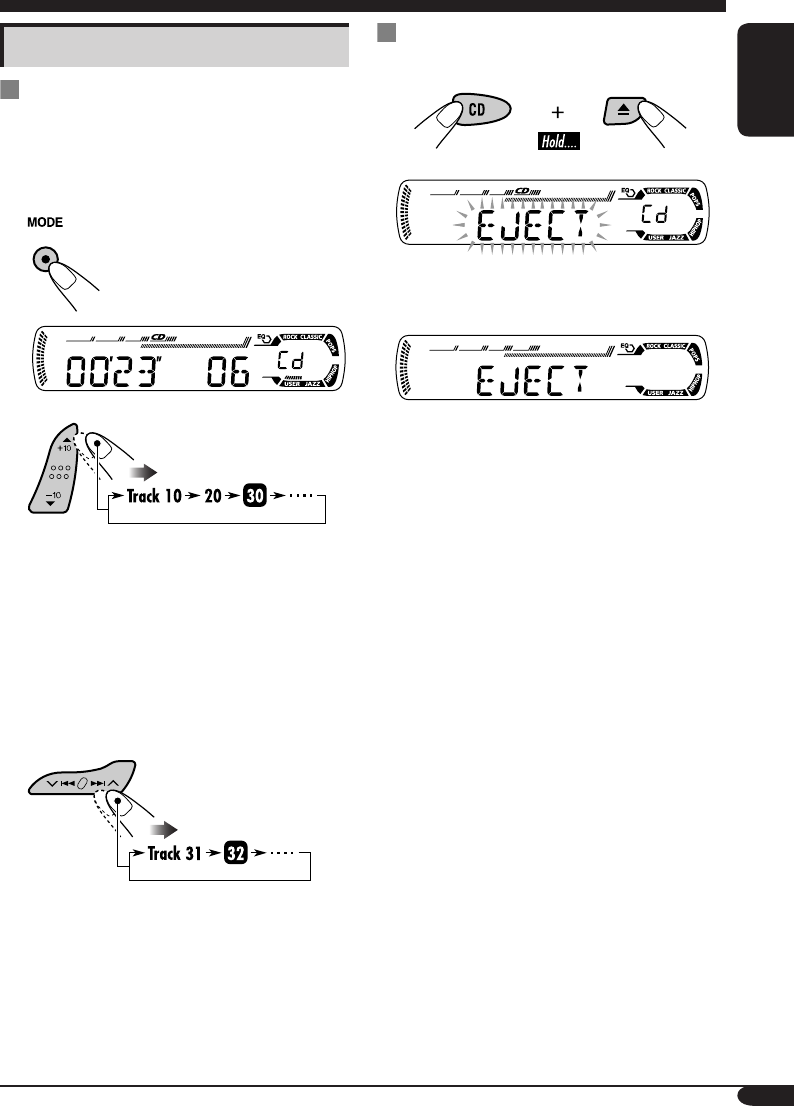

Other main functions ............................. 15

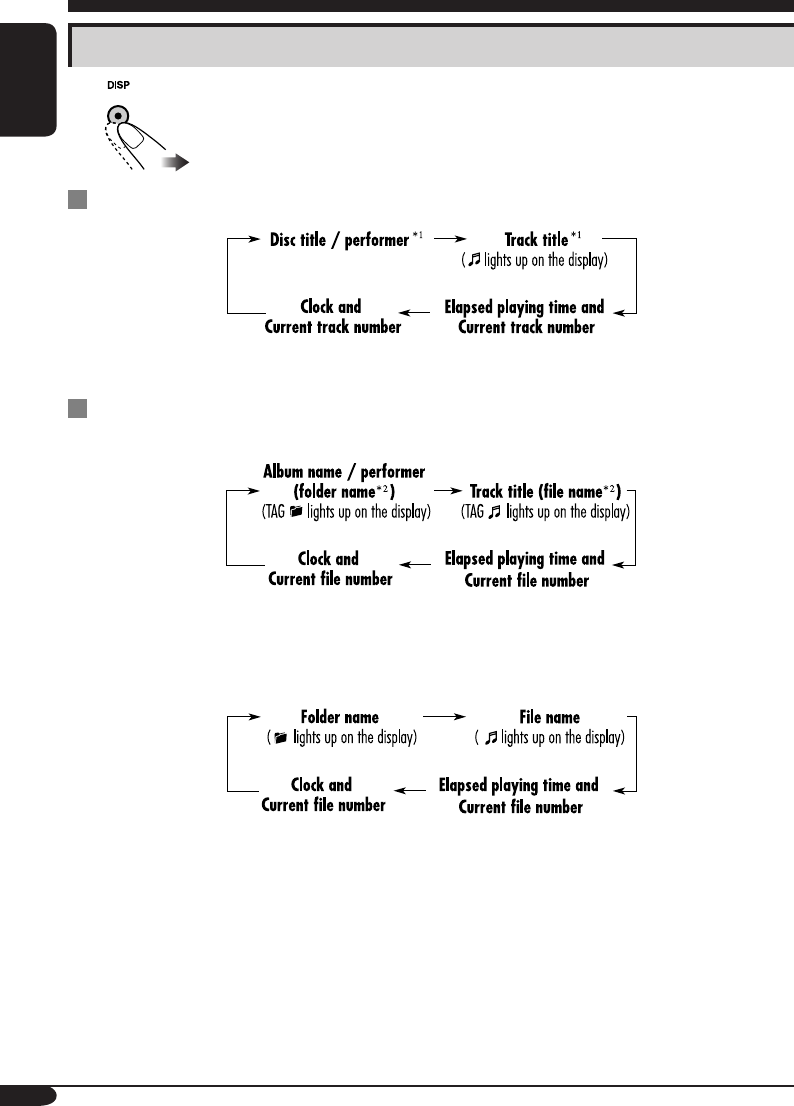

Changing the display information ......... 16

Selecting the playback modes................ 17

Sound adjustments ................ 18

Selecting preset sound modes

(C-EQ: custom equalizer) .................. 18

Adjusting the sound ............................... 19

General settings — PSM ......... 20

Basic procedure ..................................... 20

Detaching the control

panel .................................. 22

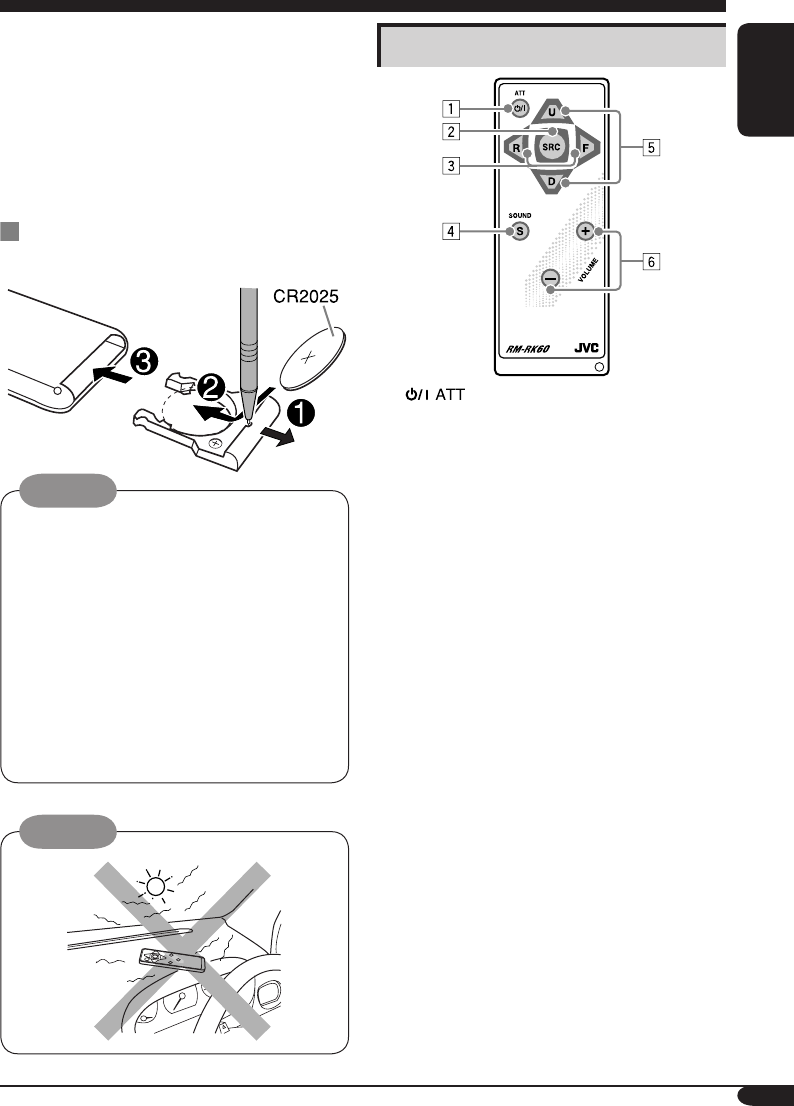

Using the remote controller

— RM-RK60............................ 23

Main elements and features ...................... 23

Maintenance .......................... 24

More about this receiver ........ 25

Troubleshooting ..................... 27

Specifications ......................... 29

*For safety....

• Do not raise the volume level too much, as

this will block outside sounds, making driving

dangerous.

• Stop the car before performing any

complicated operations.

Contents

*Temperature inside the car....

If you have parked the car for a long time in

hot or cold weather, wait until the temperature

in the car becomes normal before operating the

unit.

EN02-05_KD-G411[EX_EU]f.indd 3 10/9/04, 2:25:03 PM

ENGLISH

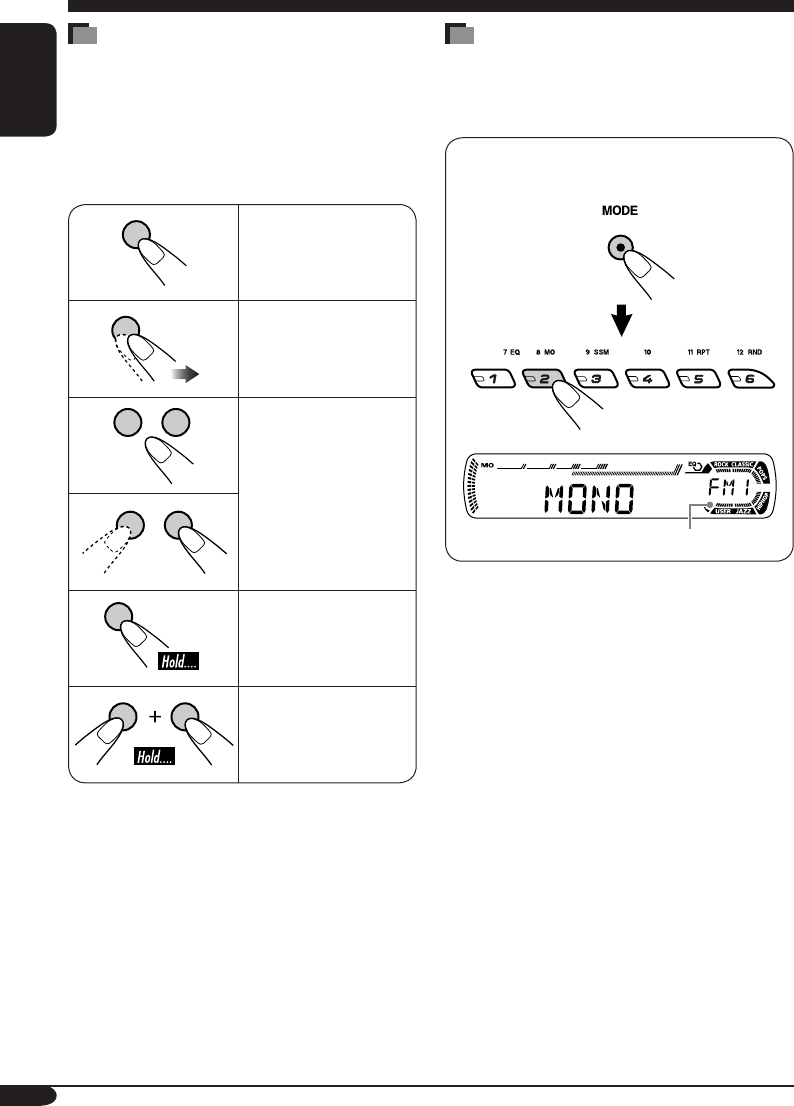

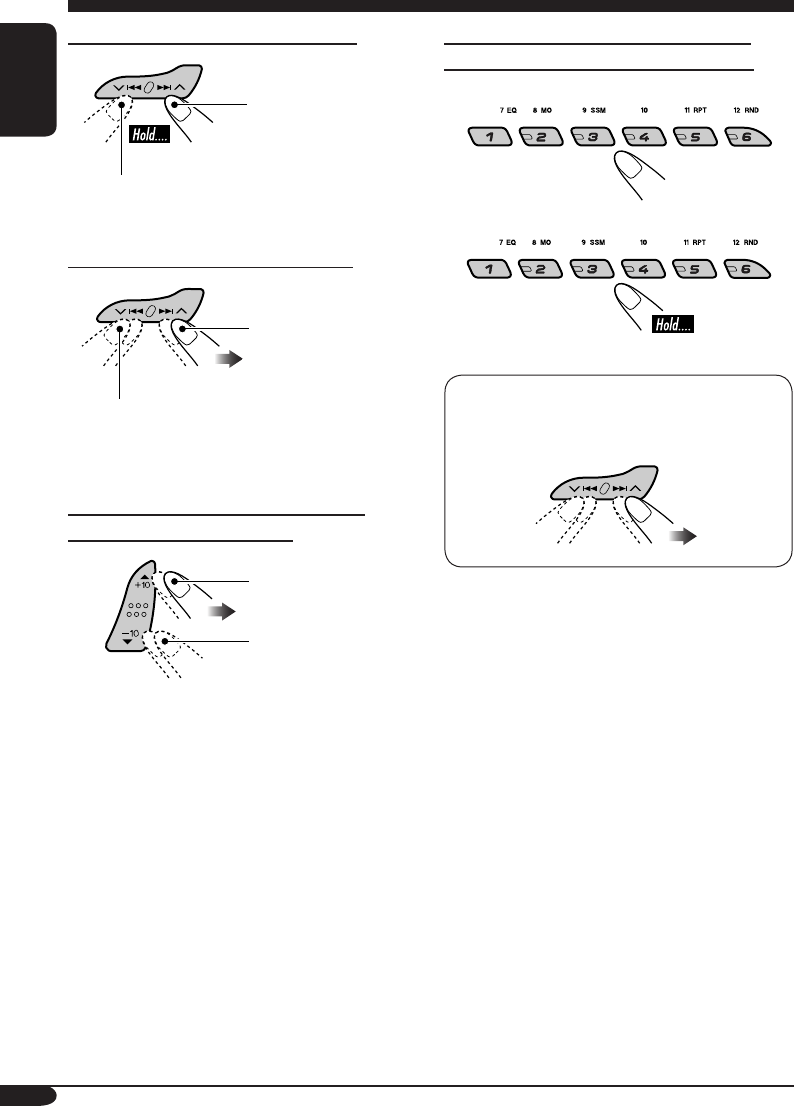

How to read this manual

The following methods are used to made the

explanations simple and easy-to-understand:

• Some related tips and notes are explained in

“More about this receiver” (see page 25).

• Button operations are mainly explained with

the illustrations as follows:

Press briefly.

Press repeatedly.

Press either one.

Press and hold until

your desired response

begins.

Press and hold both

buttons at the same

time.

How to use the MODE button

If you press MODE, the receiver goes into

functions mode, then the number buttons and

5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

Time countdown indicator

To use these buttons for original functions

again after pressing MODE, wait for

5 seconds without pressing any of these buttons

until the functions mode is cleared.

• Pressing MODE again also clears the

functions mode.

EN02-05_KD-G411[EX_EU]f.indd 4 9/15/04, 11:46:48 AM

ENGLISH

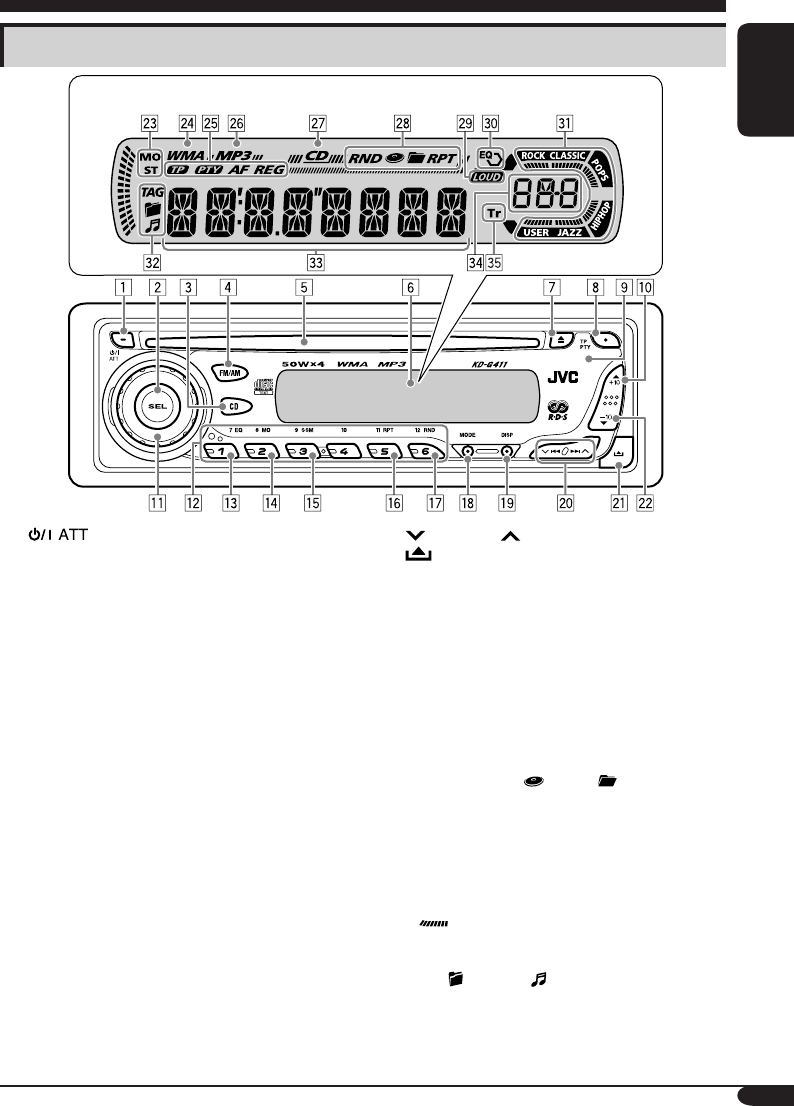

Control panel — KD-G411

Display window

1 (standby/on attenuator) button

2 SEL (select) button

3 CD button

4 FM/AM button

5 Loading slot

6 Display window

7 0 (eject) button

8 TP PTY (traffic programme/programme

type) button

9 Remote sensor

• You can control this receiver with an

optionally purchased remote controller.

• DO NOT expose the remote sensor to

strong light (direct sunlight or artificial

lighting).

p 5 (up) button / +10 button

q Control dial

w Number buttons

e EQ (equalizer) button

r MO (monaural) button

t SSM (Strong-station Sequential Memory)

button

y RPT (repeat) button

u RND (random) button

i MODE button

o DISP (display) button

; 4/¢ buttons

a (control panel release) button

s ∞ (down) button / –10 button

Display window

d Tuner reception indicators—

MO (monaural), ST (stereo)

f WMA indicator

g RDS indicators—TP, PTY, AF, REG

h MP3 indicator

j CD indicator

k Playback mode / item indicators—

RND (random), (disc), (folder),

RPT (repeat)

l LOUD (loudness) indicator

/ EQ (equalizer) indicator

z Sound mode (C-EQ: custom equalizer)

indicators—ROCK, CLASSIC, POPS,

HIP HOP, JAZZ, USER

• also works as the time countdown

indicator.

x Disc information indicators—TAG (ID3

Tag), (folder), (track/file)

c Main display

v Source display / Volume level indicator

b Tr (track) indicator

Parts identification

EN02-05_KD-G411[EX_EU]f.indd 5 9/15/04, 10:22:23 AM

ENGLISH

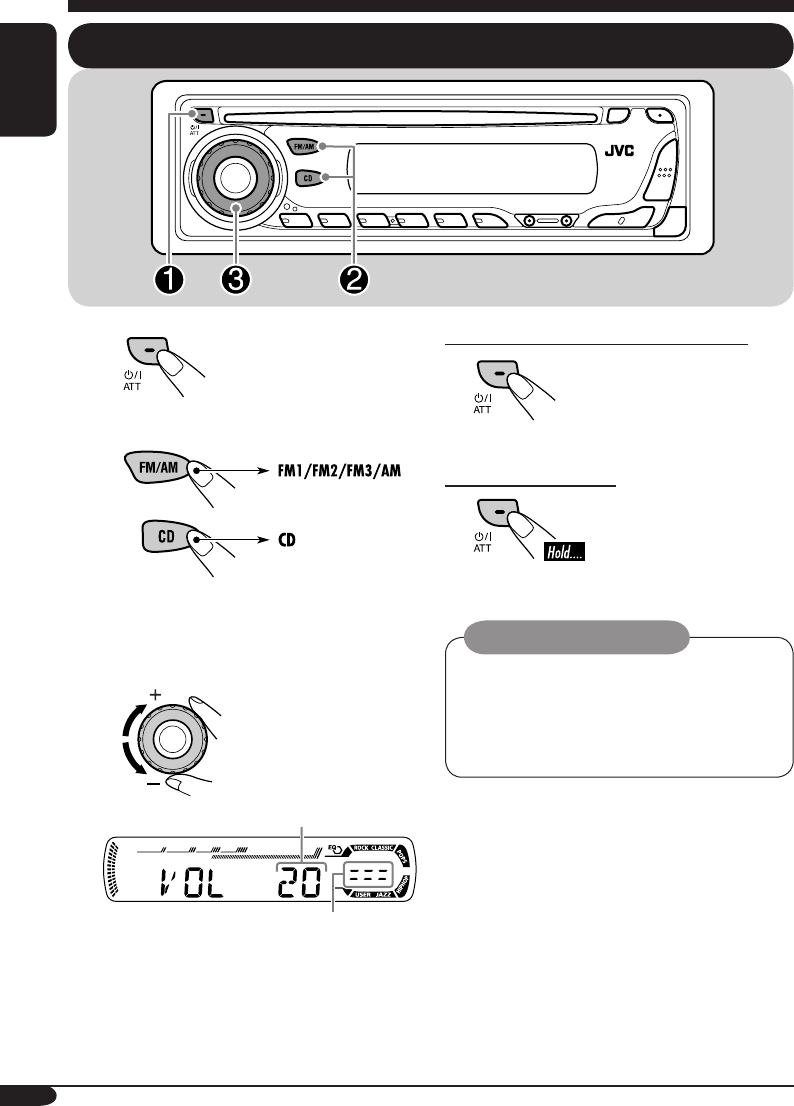

Getting started

Basic operations

You cannot select “CD” as the playback

source if there is no disc in the loading

slot.

Volume level appears.

Volume level indicator

⁄ Adjust the sound as you want.

(See pages 18 and 19.)

To drop the volume in a moment (ATT)

To restore the sound, press it

again.

To turn off the power

Caution on volume setting:

Discs produce very little noise compared

with other sources. Lower the volume

before playing a disc to avoid damaging the

speakers by the sudden increase of the output

level.

EN06-11_KD-G411[EX_EU]f.indd 6 9/15/04, 10:22:38 AM

ENGLISH

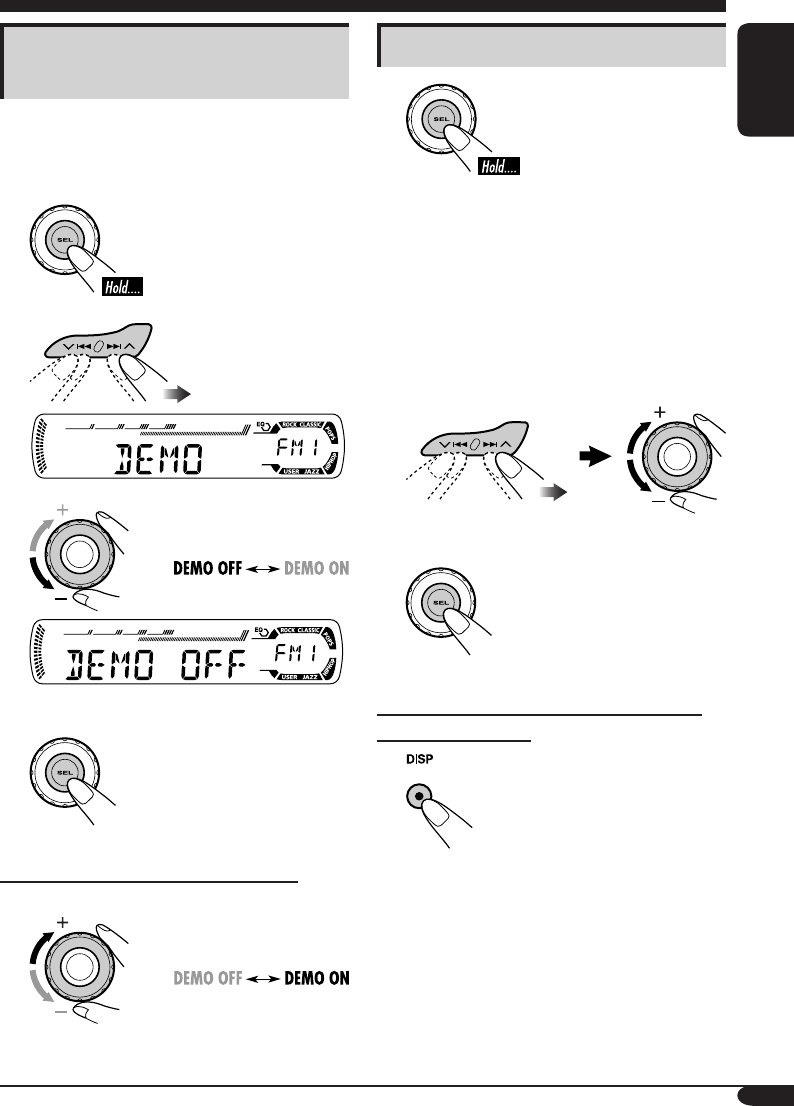

Canceling the display

demonstrations

If no operations are done for about 20 seconds,

display demonstration starts.

[Initial: DEMO ON]—see page 20.

4 Finish the procedure.

To activate the display demonstration

In step 3 above...

Setting the clock

2 Set the hour, minute, and clock

system.

1 Select “CLOCK H” (hour), then

adjust the hour.

2 Select “CLOCK M” (minute),

then adjust the minute.

3 Select “24H/12H,” then select

“24H” (hour) or “12H” (hour).

3 Finish the procedure.

To check the current clock time when the

power is turned off

EN06-11_KD-G411[EX_EU]f.indd 7 10/7/04, 11:13:45 AM

ENGLISH

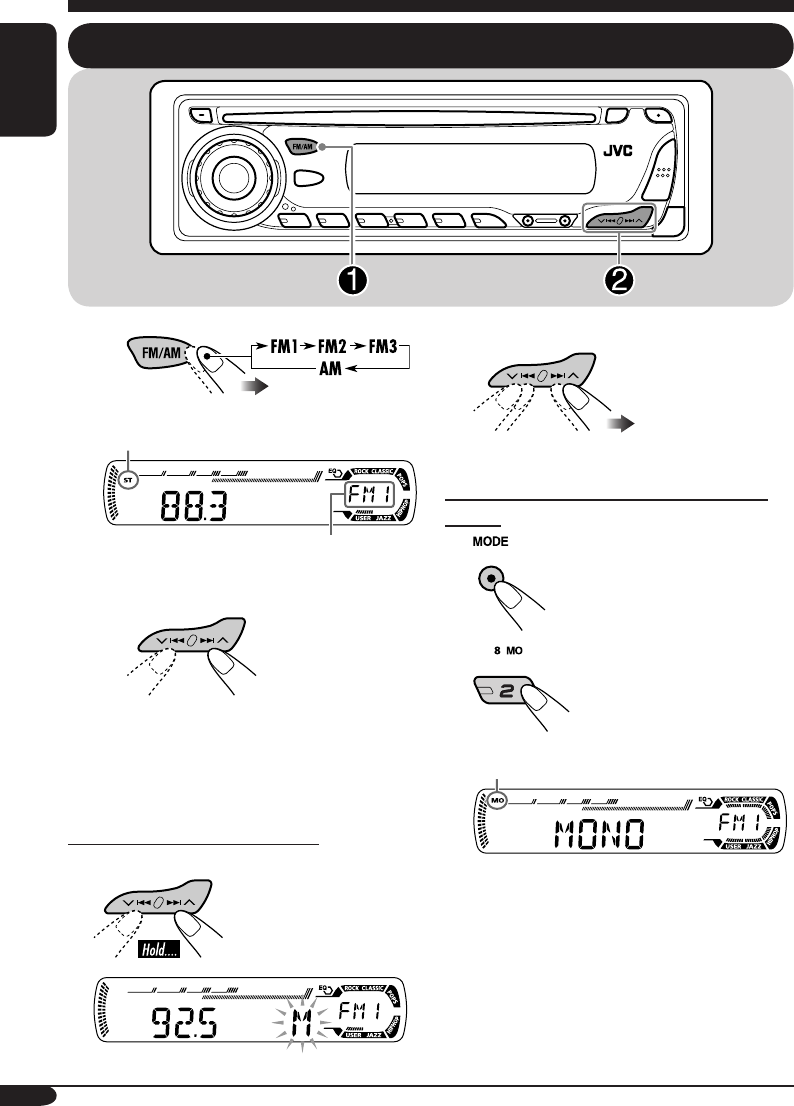

Radio operations

Listening to the radio

Lights up when receiving an FM stereo

broadcast with sufficient signal strength.

Selected band appears.

Ÿ Start searching for a station.

When a station is received, searching

stops.

To stop searching, press the same

button again.

To tune in to a station manually

In step Ÿ above...

2 Select the desired station frequencies.

When an FM stereo broadcast is hard to

receive

Lights up when monaural mode is activated.

Reception improves, but stereo effect will

be lost.

To restore the stereo effect, repeat the same

procedure so that the MO indicator goes off.

EN06-11_KD-G411[EX_EU]f.indd 8 9/15/04, 10:22:39 AM

ENGLISH

Preset number flashes for a while.

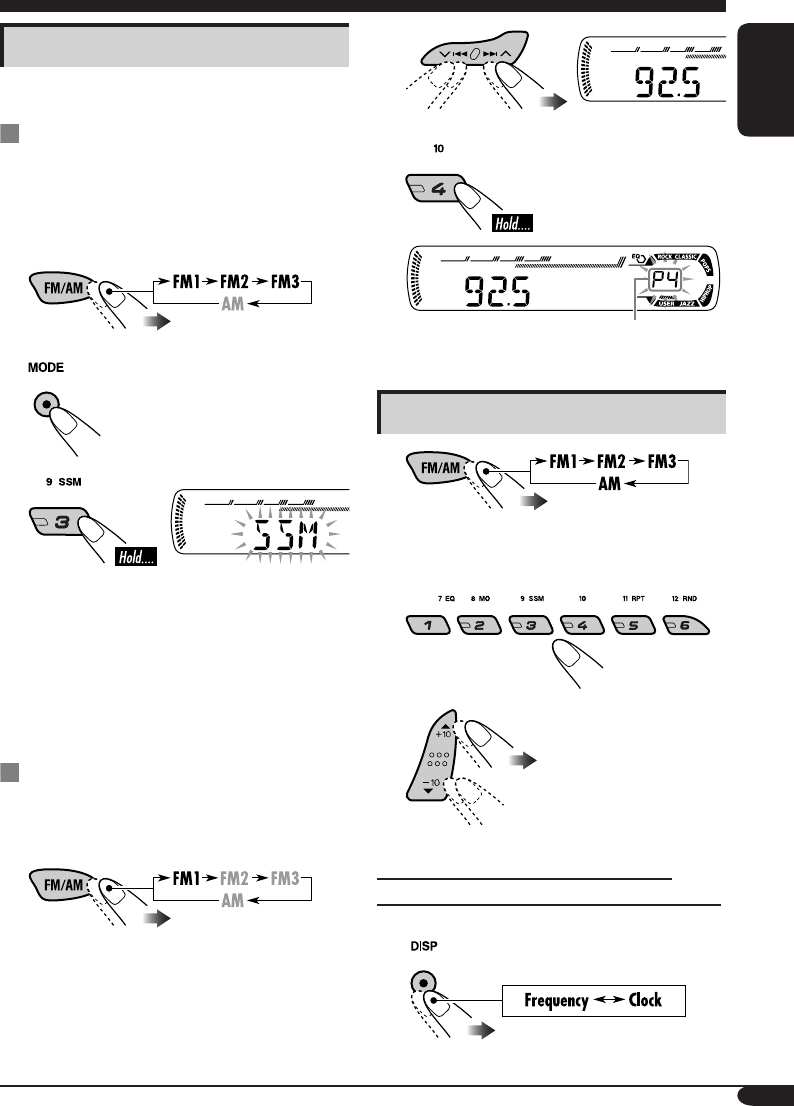

Listening to a preset station

2 Select the preset station (1 – 6) you

want.

To check the current clock time while

listening to an FM (non-RDS) or AM station

• For FM RDS stations, see page 12.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential

Memory)

1 Select the FM band (FM1 – FM3)

you want to store into.

“SSM” flashes, then disappears when

automatic presetting is over.

Local FM stations with the strongest signals are

searched and stored automatically in the FM

band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset

number 4 of the FM1 band.

EN06-11_KD-G411[EX_EU]f.indd 9 9/15/04, 10:22:39 AM

ENGLISH

FM RDS operations

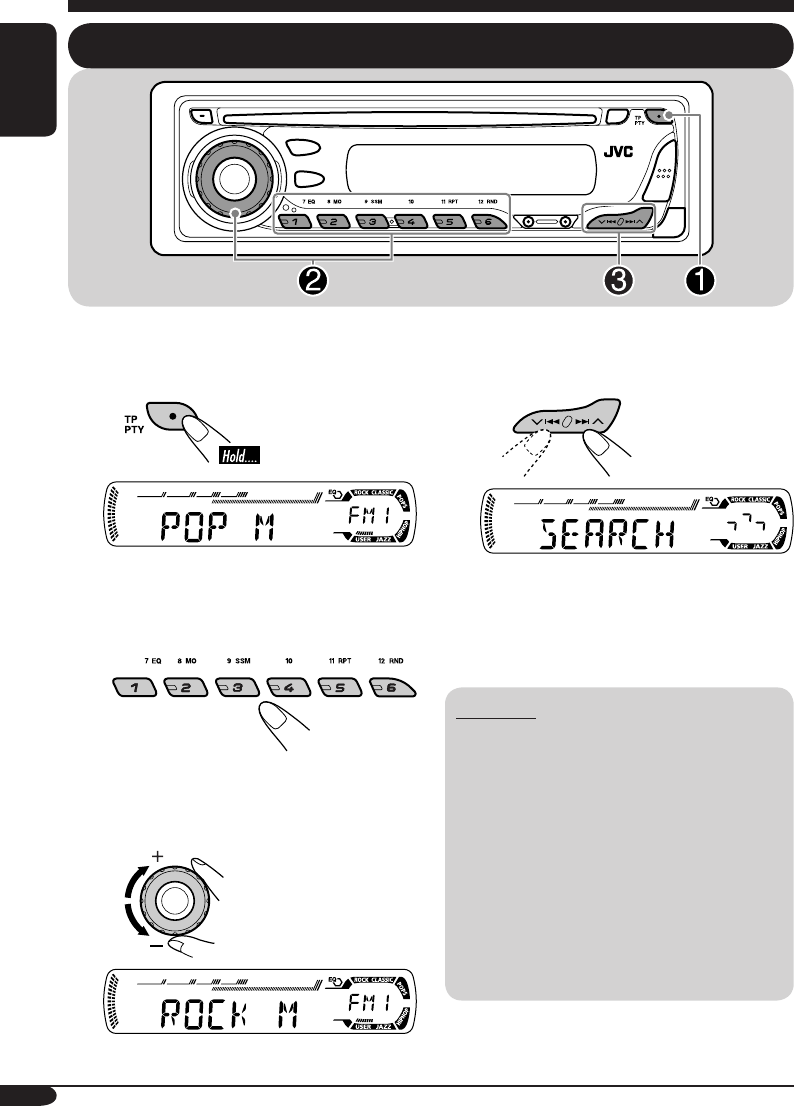

Searching for your favorite FM RDS programme

You can tune in to a station broadcasting your

favorite programme by searching for a PTY code.

The last selected PTY code appears.

Ÿ Select one of your favorite

programme type.

Select one of the twenty-nine PTY

codes.

Ex.: When “ROCK M” is selected

! Start searching for your favorite

programme.

If there is a station broadcasting a

programme of the same PTY code as

you have selected, that station is tuned

in.

PTY codes

NEWS O AFFAIRS O INFO O SPORT O

EDUCATE O DRAMA O CULTURE O

SCIENCE O VARIED O POP M (music)

O ROCK M (music) O EASY M (music) O

LIGHT M (music) O CLASSICS O

OTHER M (music) O WEATHER O

FINANCE O CHILDREN O SOCIAL O

RELIGION O PHONE IN O TRAVEL O

LEISURE O JAZZ O COUNTRY O

NATION M (music) O OLDIES O

FOLK M (music) O DOCUMENT O

OFF O (back to the beginning)

EN06-11_KD-G411[EX_EU]f.indd 10 9/15/04, 10:22:40 AM

ENGLISH

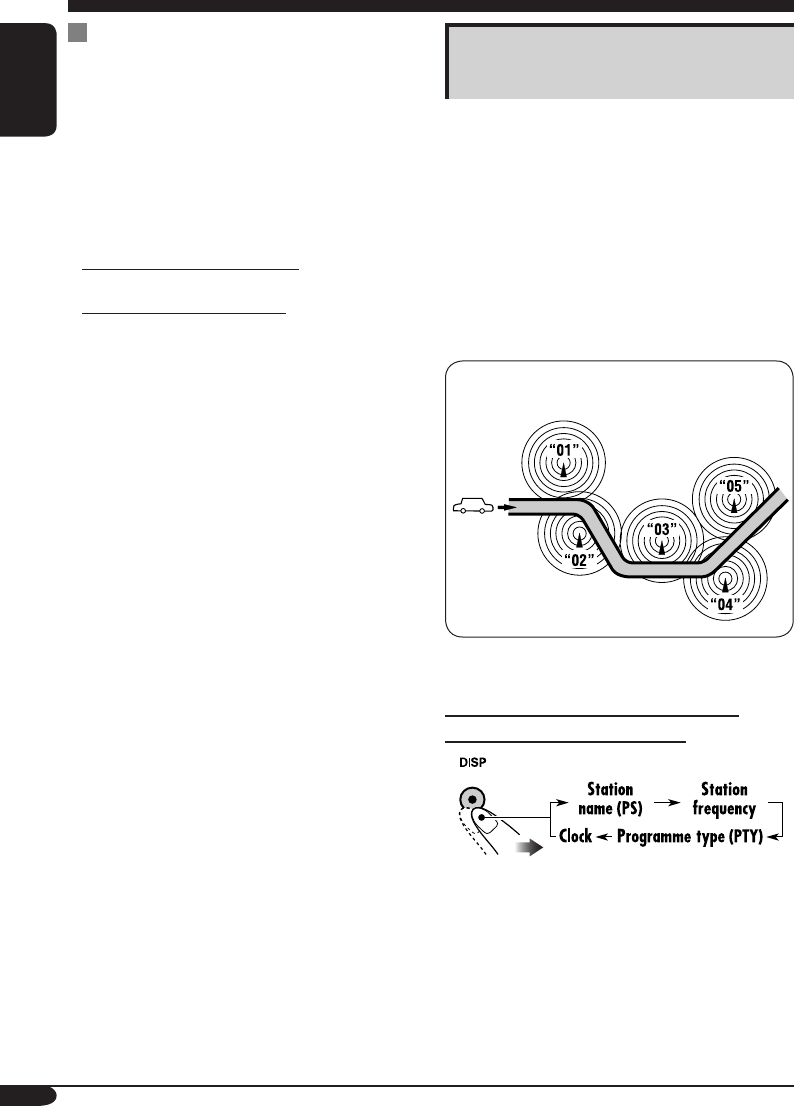

What you can do with RDS

RDS (Radio Data System) allows FM

stations to send an additional signal along

with their regular programme signals.

By receiving the RDS data, this receiver can

do the following:

•

Programme Type (PTY) Search (see page 10)

• Standby Reception of Traffic

Announcement —TA (see the following) or

your favorite programme (PTY) (see pages

12 and 21)

•

Tracing the same programme automatically

—Network-Tracking Reception (see page 12)

• Programme Search (see page 21)

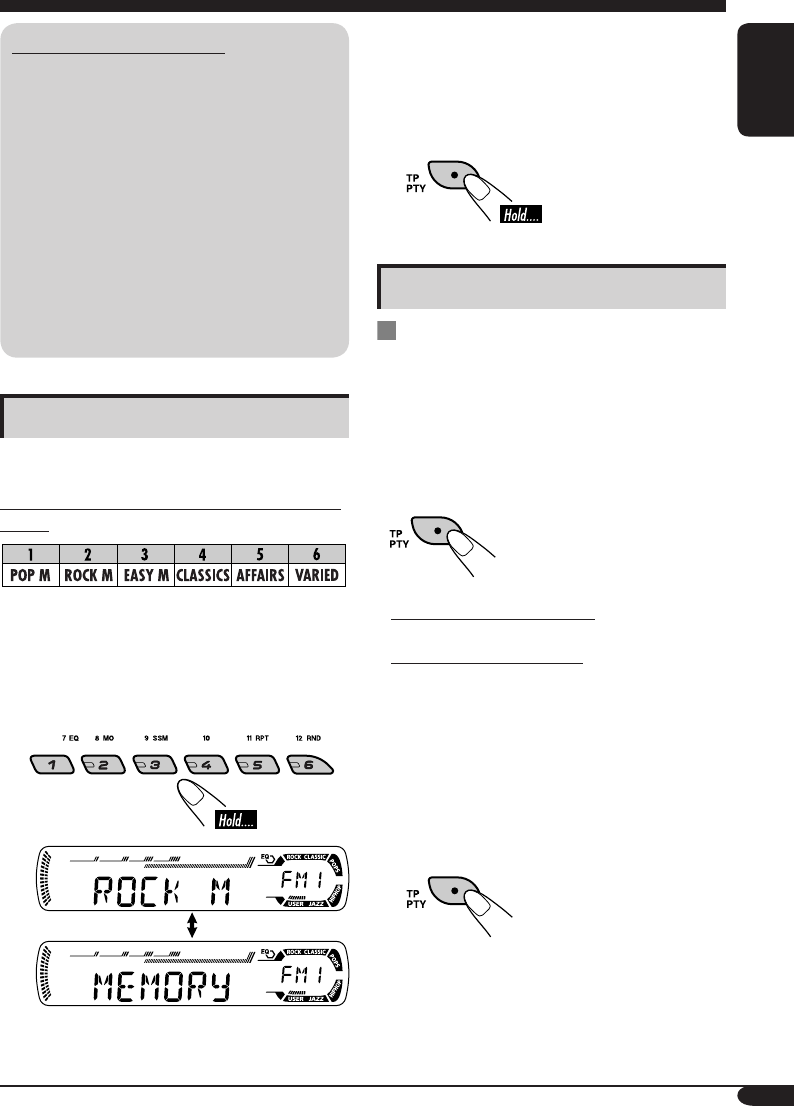

Storing your favorite programmes

You can store six favorite programme types.

Preset programme types in the number buttons

(1 –6):

1 Perform steps ~ and Ÿ on page 10 to

select a PTY code.

2 Select the preset number (1 – 6) you

want to store into.

Ex.: When “ROCK M” is selected

3 Repeat steps 1 and 2 to store

other PTY codes into other preset

numbers.

4 Finish the procedure.

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the receiver to

switch temporarily to Traffic Announcement

(TA) from any source other than AM.

The volume changes to the preset TA volume

level (see page 21).

To activate TA Standby Reception

The TP indicator either

lights up or flashes.

• If the TP indicator lights up, TA Standby

Reception is activated.

• If the TP indicator flashes, TA Standby

Reception is not yet activated. (This occurs

when you are listening to an FM station

without the RDS signals required for TA

Standby Reception.)

To activate TA Standby Reception, tune in to

another station providing these signals. The

TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

EN06-11_KD-G411[EX_EU]f.indd 11 10/7/04, 11:13:54 AM

ENGLISH

Tracking the same programme—

Network-Tracking Reception

When driving in an area where FM reception

is not sufficient enough, this receiver

automatically tunes in to another FM RDS

station of the same network, possibly

broadcasting the same programme with stronger

signals (see the illustration below).

When shipped from the factory, Network-

Tracking Reception is activated.

To change the Network-Tracking Reception

setting, see page 21.

Programme A broadcasting on different

frequency areas (01 – 05)

To check the current clock time while

listening to an FM RDS station

PTY Standby Reception

PTY Standby Reception allows the receiver

to switch temporarily to your favorite PTY

programme from any source other than AM.

To activate and select your favorite PTY

code for PTY Standby Reception, see page

21.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby

Reception is activated.

• If the PTY indicator flashes, PTY Standby

Reception is not yet activated.

To activate PTY Standby Reception, tune in

to another station providing these signals. The

PTY indicator will stop flashing and remain

lit.

To deactivate the PTY Standby Reception,

select “OFF” for the PTY code. The PTY

indicator goes off.

EN12-17_KD-G411[EX_EU]f.indd 12 10/7/04, 11:17:54 AM

ENGLISH

Disc operations

Playing a disc

About MP3 and WMA discs

MP3 and WMA (Windows Media® Audio)

“tracks” (words “file” and “track” are used

interchangeably) are recorded in “folders.”

• When inserting an MP3 or a WMA disc:

When playback starts, disc information will

automatically appear (see page 16).

* Either the MP3 or WMA indicator lights up

depending on the first detected file.

• When inserting an audio CD or a CD Text

disc:

To stop play and eject the disc

Total folder

number

Total file

number

Total playing time of

the inserted disc

Total track number

of the inserted disc

Elapsed playing

time

Current track

number

All tracks will be played

repeatedly until you stop

playback.

CD Text: Disc title/performer =

Track title appear automatically.

EN12-17_KD-G411[EX_EU]f.indd 13 10/7/04, 11:17:54 AM

ENGLISH

To fast-forward or reverse the track

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following

tracks.

To the beginning of the current track, then

the previous tracks.

To go to the next or previous folders

(only for MP3 or WMA disc)

To next folders.

To previous folders.

To locate a particular track (for CD) or

folder (for MP3 or WMA discs) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To select a particular track in a folder

(for MP3 or WMA disc) after selecting a

folder:

EN12-17_KD-G411[EX_EU]f.indd 14 9/17/04, 4:07:12 PM

ENGLISH

Other main functions

Skipping a track quickly during play

• For MP3 or WMA disc, you can skip a track

within the same folder.

Ex.: To select track 32 while playing track 6

First time you press +10 or –10 button, the

track skips to the nearest higher or lower

track with a track number of multiple ten

(ex. 10th, 20th, 30th).

Then each time you press the button, you

can skip 10 tracks.

• After the last track, the first track will be

selected and vice versa.

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same

procedure.

EN12-17_KD-G411[EX_EU]f.indd 15 9/15/04, 12:47:11 PM

ENGLISH

Changing the display information

While playing an audio CD or a CD Text

*1 If the current disc is an audio CD, “NO NAME” appears.

While playing an MP3 or WMA disc

• When “TAG DISP” is set to “TAG ON” (see page 21)

*2 If an MP3/WMA file does not have ID3 tags, folder name and file name appear. In this

case, the TAG indicator will not light up.

• When “TAG DISP” is set to “TAG OFF”

EN12-17_KD-G411[EX_EU]f.indd 16 9/16/04, 8:22:40 PM

ENGLISH

Selecting the playback modes

You can use only one of the following playback modes at a time.

2 Select your desired playback mode.

Repeat play

Ex.: When “TRK RPT” is selected while

playing an MP3 disc

Mode Plays repeatedly

TRK RPT: The current track.

• RPT lights up.

FLDR RPT*: All tracks of the current folder.

• and RPT light up.

Off: Cancels repeat play.

Random play Mode Plays at random

Ex.: When “DISC RND” is selected while

playing an MP3 disc

FLDR RND*: All tracks of the current folder,

then tracks of the next folder

and so on.

• RND and light up.

DISC RND: All tracks of the current disc.

• RND and light up.

Off: Cancels random play.

* Only while playing an MP3 or WMA disc.

EN12-17_KD-G411[EX_EU]f.indd 17 9/15/04, 10:23:00 AM

ENGLISH

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode suitable to

the music genre.

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

Indication For: Preset values

BAS*1TRE*2

LOUD

USER (Flat sound) 00 00 OFF

ROCK Rock or

disco music

+03 +01 ON

CLASSIC Classical

music

+01 –02 OFF

POPS Light music +04 +01 OFF

HIP HOP Funk or rap

music

+02 00 ON

JAZZ Jazz music +02 +03 OFF

*1 BAS: Bass

*2 TRE: Treble

*3 LOUD: Loudness

EN18-23_KD-G411[EX_EU]f.indd 18 9/16/04, 8:27:10 PM

ENGLISH

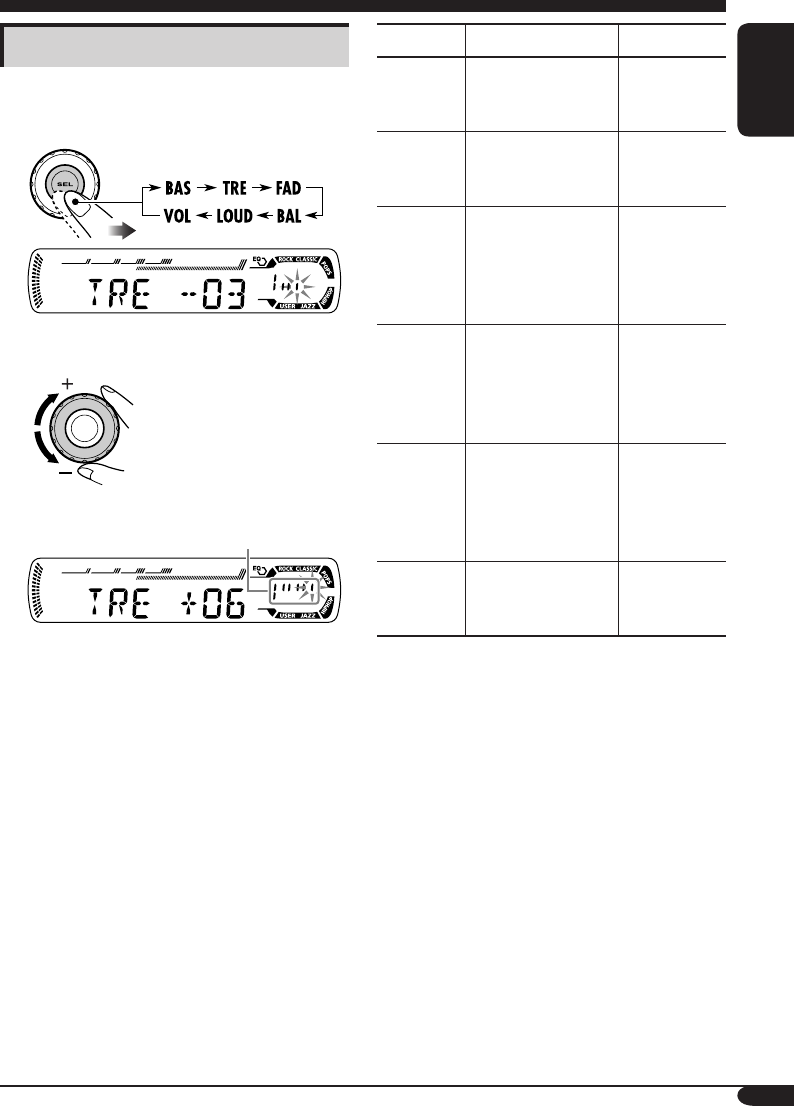

Adjusting the sound

You can adjust the sound characteristics to your

preference.

Ex.: When “TRE” is selected

Indication pattern changes as

you adjust the level.

Indication To do: Range

BAS*1

(bass)

Adjust the bass. –06 (min.)

+06 (max.)

TRE*1

(treble)

Adjust the treble. –06 (min.)

+06 (max.)

FAD*2

(fader)

Adjust the front

and rear speaker

balance.

R06 (Rear

only)

F06 (Front

only)

BAL

(balance)

Adjust the left

and right speaker

balance.

L06 (Left

only)

R06 (Right

only)

LOUD*1

(loudness)

Boost low and

high frequencies

to produce a well-

balanced sound at

low volume level.

LOUD ON

LOUD OFF

VOL*3

(volume)

Adjust the volume. 00 (min.) to

30 or 50

(max.)*4

*1 When you adjust the bass, treble, or

loudness, the adjustment you have made is

stored for the currently selected sound mode

(C-EQ) including “USER.”

*2 If you are using a two-speaker system, set

the fader level to “00.”

*3 Normally the control dial works as the

volume control. So you do not have to select

“VOL” to adjust the volume level.

*4 Depending on the amplifier gain control

setting. (See page 21 for details.)

EN18-23_KD-G411[EX_EU]f.indd 19 10/7/04, 11:29:36 AM

ENGLISH

Indications Selectable settings, [reference page]

DEMO

Display demonstration

DEMO ON: [Initial]; Display demonstration will be activated

automatically if no operation is done for about

20 seconds, [7].

DEMO OFF: Cancels.

CLOCK H

Hour adjustment

0 – 23 (1 – 12), [7]

[Initial: 0 (0:00)]

CLOCK M

Minute adjustment

00 – 59, [7]

[Initial: 00 (0:00)]

24H/12H

24 hours or 12 hours time

display

12H O 24H, [7]

[Initial: 24H]

CLK ADJ

Clock adjustment

AUTO: [Initial]; The built-in clock is automatically adjusted

using the CT (clock time) data in the RDS signal.

OFF: Cancels.

General settings — PSM

Basic procedure

You can change PSM (Preferred Setting Mode)

items listed in the table that follows.

2 Select a PSM item.

Ex.: When you select “DIMMER”

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust the

other PSM items if necessary.

5 Finish the procedure.

EN18-23_KD-G411[EX_EU]f.indd 20 10/7/04, 11:29:36 AM

ENGLISH

Indications Selectable settings, [reference page]

AF-REG

Alternative frequency/

regionalization reception

When the received signals from the current station become weak...

AF: [Initial]; Switches to another station (the programme

may differ from the one currently received), [12].

• The AF indicator lights up.

AF REG: Switches to another station broadcasting the same

programme.

• The AF and REG indicators light up.

OFF: Cancels.

PTY STBY

PTY standby

[Initial: OFF]; Activates PTY Standby Reception with one of the

29 PTY codes, [12].

TA VOL

Traffic announcement

volume

[Initial: VOL 20]; VOL 00 – VOL 30 or 50*, [11]

* Depends on the amplifier gain control.

P-SEARCH

Programme search

ON: Using the AF data, the receiver tunes in to another

frequency broadcasting the same programme as the

original preset RDS station is if the preset station

signals are not sufficient.

OFF: [Initial]; Cancels.

DIMMER

Dimmer

ON: Activates dimmer.

OFF: [Initial]; Cancels.

TEL

Telephone muting

MUTING 1/MUTING 2: Select either one which mutes the

sounds while using the cellular phone.

OFF: [Initial]; Cancels.

SCROLL

Scroll

ONCE: [Initial]; Scrolls the disc information once.

AUTO: Repeats scrolling (5-second intervals in between).

OFF: Cancels.

• Pressing DISP for more than one second can scrolls the display

regardless of the setting.

TAG DISP

Tag display

TAG ON : [Initial]; Shows the ID3 tag while playing

MP3/WMA tracks, [16].

TAG OFF: Cancels.

AMP GAIN

Amplifier gain control

You can change the maximum volume level of this receiver.

LOW PWR: VOL 00 – VOL 30 (Select this if the maximum

power of the speaker is less than 50 W to prevent

them from damaging the speaker.)

HIGH PWR: [Initial]; VOL 00 – VOL 50

EN18-23_KD-G411[EX_EU]f.indd 21 10/19/04, 10:05:25 AM

ENGLISH

When detaching or attaching the control panel,

be careful not to damage the connectors on

the back of the control panel and on the panel

holder.

Detaching the control panel

Before detaching the control panel, be sure to

turn off the power.

Attaching the control panel

Detaching the control panel

EN18-23_KD-G411[EX_EU]f.indd 22 9/15/04, 10:21:30 AM

ENGLISH

Main elements and features

1 (standby/on attenuator) button

• Turns on and off the power and also

attenuates the sound.

2 SRC (source) button

• Selects the source.

3 R (reverse) / F (forward) buttons

• Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if

pressed and held.

• Changes the tracks on the disc.

4 SOUND button

• Selects the sound mode (C-EQ: custom

equalizer).

5 U (up) / D (down) buttons

• U (up): Changes the FM/AM bands.

• D (down): Changes the preset stations.

• Changes the folder on the MP3/WMA

discs.

6 VOLUME +/– buttons

• Adjusts the volume level.

The receiver is equipped with the steering

wheel remote control function.

• See the Installation/Connection Manual

(separate volume) for connection.

This receiver can be remotely controlled as

instructed here (with an optionally purchased

remote controller). We recommend that you use

remote controller RM-RK60 with your receiver.

• When operating, aim the remote controller

directly at the remote sensor on the

receiver. Make sure there is no obstacle in

between.

Installing the lithium coin battery

(CR2025)

Warning:

• Store the battery in a place where children

cannot reach to avoid risk of accident.

• To prevent the battery from over-heating,

cracking, or starting a fire:

– Do not recharge, short, disassemble, or

heat the battery or dispose of it in a fire.

– Do not leave the battery with other

metallic materials.

– Do not poke the battery with tweezers or

similar tools.

– Wrap the battery with tape and insulate

when throwing away or saving it.

Caution:

Using the remote controller — RM-RK60

EN18-23_KD-G411[EX_EU]f.indd 23 10/7/04, 11:30:04 AM

ENGLISH

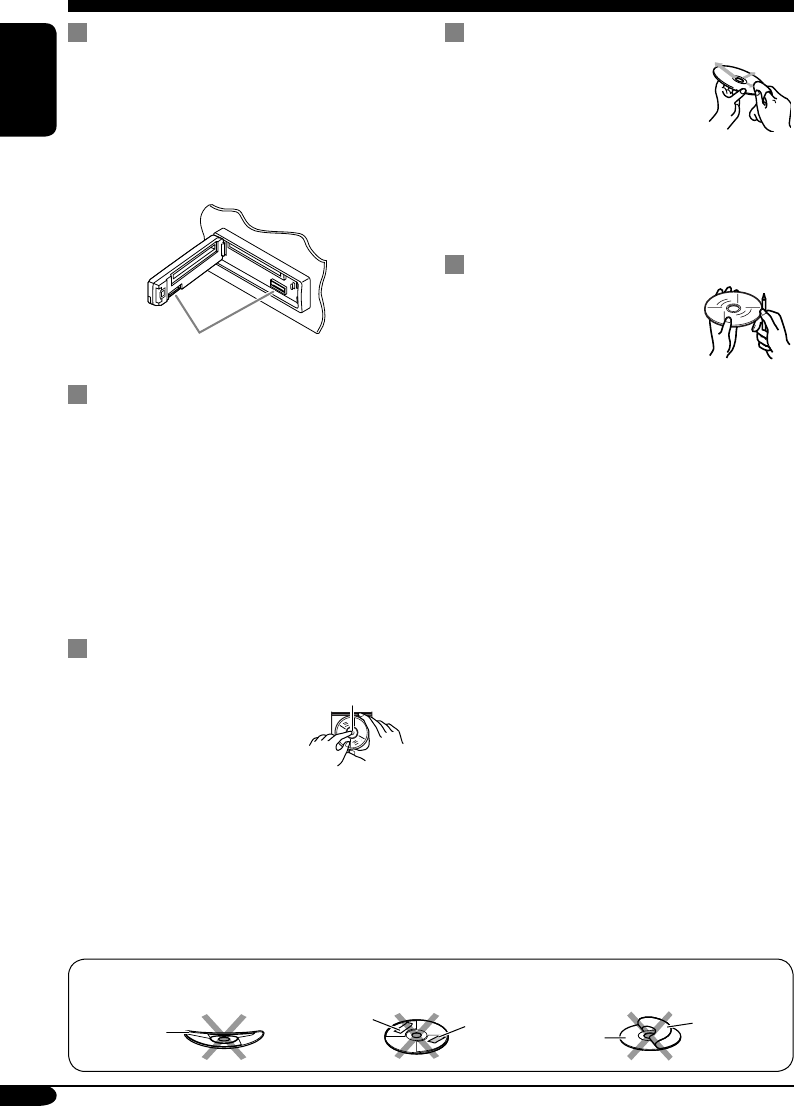

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the

connectors.

To minimize this possibility, periodically wipe

the connectors with a cotton swab or cloth

moistened with alcohol, being careful not to

damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the

CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may

malfunction. In this case, eject the disc and

leave the receiver turned on for a few hours

until the moisture evaporates.

How to handle discs

When removing a disc from

its case, press down the center

holder of the case and lift the

disc out, holding it by the

edges.

• Always hold the disc by the edges. Do not

touch its recording surface.

When storing a disc into its case, gently insert

the disc around the center holder (with the

printed surface facing up).

• Make sure to store discs into the cases after

use.

To keep discs clean

A dirty disc may not play correctly.

If a disc does become dirty, wipe

it with a soft cloth in a straight line

from center to edge.

• Do not use any solvent (for

example, conventional record cleaner, spray,

thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough

spots around the inner and outer

edges. If such a disc is used, this

receiver may reject the disc.

To remove these rough spots, rub the edges

with a pencil or ball-point pen, etc.

Center holder

Warped

disc

Sticker Sticker

residue Disc

Stick-on

label

Do not use the following discs:

EN24-29_KD-G411[EX_EU]f.indd 24 10/19/04, 11:44:46 AM

ENGLISH

More about this receiver

Basic operations

Turning off the power

• If you turn off the power while listening to a

disc, disc play will start from where playback

has been stopped previously, next time you

turn on the power.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously

preset station is erased when a new station is

stored in the same preset number.

FM RDS operations

• Network-Tracking Reception requires two

types of RDS signals—PI (Programme

Identification) and AF (Alternative

Frequency) to work correctly. Without

receiving these data correctly, Network-

Tracking Reception will not operate.

• If a Traffic Announcement is received, the

volume level (TA Volume) automatically

changes to the preset level.

Disc operations

General

• This receiver has been designed to reproduce

CDs/CD Texts, and CD-Rs (Recordable)/

CD-RWs (Rewritable) in audio CD (CD-DA),

MP3 and WMA format.

• When a disc has been loaded, selecting “CD”

for the playback source starts disc play.

Inserting a disc

• When a disc is inserted upside down, the disc

automatically ejects.

• Do not insert 8 cm discs (single CD) and

unusual shape discs (heart, flower, etc.) into

the loading slot.

Playing a disc

• While fast-forwarding or reversing on an MP3

or WMA disc, you can only hear intermittent

sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back only the files of

the same type which is first detected if a disc

includes both audio CD (CD-DA) files and

MP3/WMA files.

• This receiver can play back multi-session

discs; however, unclosed sessions will be

skipped while playing.

• Some CD-Rs or CD-RWs may not play

back on this receiver because of their disc

characteristics, and for the following causes:

– Discs are dirty or scratched.

– Moisture condensation occurs on the lens

inside the receiver.

– The pickup lens inside the receiver is dirty.

– CD-R/CD-RW on which the files are

written with “Packet Write” method.

– There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower

than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs:

– Discs with stickers, labels, or protective seal

stuck to the surface.

– Discs on which labels can be directly

printed by an ink jet printer.

Using these discs under high temperatures

or high humidity may cause malfunctions or

damage to discs.

EN24-29_KD-G411[EX_EU]f.indd 25 10/7/04, 11:33:46 AM

ENGLISH

Playing an MP3/WMA disc

• This receiver can play back MP3/WMA files

with the extension code <.mp3> or <.wma>

(regardless of the letter case—upper/lower).

• This receiver can show the names of albums,

artists (performer), and ID3 Tag (Version 1.0,

1.1, 2.2, 2.3, or 2.4) for MP3 files and for

WMA files.

• This receiver can handle only one-byte

characters. No other characters can be

correctly displayed.

• This receiver can play back MP3/WMA files

meeting the conditions below:

– Bit rate: 8 kbps — 320 kbps

– Sampling frequency:

48 kHz, 44.1 kHz, 32 kHz (for MPEG-1)

24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)

– Disc format: ISO 9660 Level 1/ Level 2,

Romeo, Joliet, Windows long file name

• The maximum number of characters for file/

folder names vary among the disc format used

(includes 4 extension characters—<.mp3> or

<.wma>).

– ISO 9660 Level 1: up to 12 characters

– ISO 9660 Level 2: up to 31 characters

– Romeo*: up to 128 (72) characters

– Joliet*: up to 64 (36) characters

– Windows long file name*: up to 128 (72)

characters

* The parenthetic figure is the maximum

number of characters for file/folder names

in case the total number of files and folders

is 313 or more.

• This receiver can recognize the total of 512

files, of 200 folders, and of 8 hierarchies.

• This receiver can play back the files recorded

in VBR (variable bit rate).

The files recorded in VBR have a discrepancy

in elapsed time display, and do not show

the actual elapsed time. Especially, after

performing the search function, this difference

becomes noticeable.

• This receiver cannot play back the following

files:

– MP3 files encoded with MP3i and MP3

PRO formats.

– MP3 files encoded in an unappropriated

format.

– MP3 files encoded with Layer 1/2.

– WMA files encoded with lossless,

professional, and voice formats.

– WMA files which are not based upon

Windows Media® Audio.

– WMA formatted files copy-protected with

DRM.

– Files which have the data such as WAVE,

ATRAC3, etc.

• The search function works but search speed is

not constant.

Changing the source

• If you change the source, playback also stops

(without ejecting the disc).

Next time you select “CD” for the playback

source, disc play starts from where it has been

stopped previously.

Ejecting a disc

• If the ejected disc is not removed within

15 seconds, the disc is automatically inserted

again into the loading slot to prevent it from

dust. (Disc will not play this time.)

General settings—PSM

• If you change the “AMP GAIN” setting from

“HIGH PWR” to “LOW PWR” while the

volume level is set higher than “VOL 30,” the

receiver automatically changes the volume

level to “VOL 30.”

EN24-29_KD-G411[EX_EU]f.indd 26 10/7/04, 11:33:47 AM

ENGLISH

Symptoms Causes Remedies

General

• Sound cannot be heard

from the speakers.

The volume level is set to

the minimum level.

Adjust it to the optimum

level.

Connections are incorrect. Check the cords and

connections.

• The receiver does not

work at all.

The built-in microcomputer

may have functioned

incorrectly due to noise, etc.

Reset the receiver (see page

2).

FM/AM

• SSM automatic presetting

does not work.

Signals are too weak. Store stations manually.

• Static noise while listening

to the radio.

The aerial is not connected

firmly.

Connect the aerial firmly.

Disc playback

• Disc automatically ejects. Disc is inserted upside

down.

Insert the disc correctly.

• CD-R/CD-RW cannot be

played back.

• Tracks on the CD-R/

CD-RW cannot be

skipped.

CD-R/CD-RW is not

finalized.

• Insert a finalized CD-R/

CD-RW.

• Finalize the CD-R/CD-

RW with the component

which you used for

recording.

• Disc can be neither played

back nor ejected.

Disc is locked. Unlock the disc (see page

15).

The CD player may have

functioned incorrectly.

Eject the disc forcibly (see

page 2).

• Disc sound is sometimes

interrupted.

You are driving on rough

roads.

Stop playback while driving

on rough roads.

Disc is scratched. Change the disc.

Connections are incorrect. Check the cords and

connections.

• “NO DISC” appears on the

display.

No disc in the loading slot. Insert a disc into the loading

slot.

Disc is inserted incorrectly. Insert the disc correctly.

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service

center.

EN24-29_KD-G411[EX_EU]f.indd 27 10/1/04, 9:02:57 PM

ENGLISH

Symptoms Causes Remedies

MP3/WMA playback

• Disc cannot be played

back.

No MP3/WMA tracks are

recorded on the disc.

Change the disc.

MP3/WMA tracks do not

have the extension code

<.mp3> or <.wma> in their

file names.

Add the extension code

<.mp3> or <.wma> to their

file names.

MP3/WMA tracks are not

recorded in the format

compliant with ISO 9660

Level 1, Level 2, Romeo, or

Joliet.

Change the disc.

(Record MP3/WMA

tracks using a compliant

application.)

• Noise is generated. The track played back

is not an MP3/WMA

track (although it has the

extension code <.mp3> or

<.wma>).

Skip to another track or

change the disc. (Do not add

the extension code <.mp3>

or <.wma> to non-MP3 or

WMA tracks.)

• A longer readout time is

required (“CHECK” keeps

flashing on the display).

Readout time varies due to

the complexity of the folder/

file configuration.

Do not use too many

hierarchies and folders.

• Tracks cannot be played

back as you have intended

them to play.

Playback order is determined

when the files are recorded.

• Elapsed playing time is not

correct.

This sometimes occurs

during play. This is caused

by how the tracks are

recorded on the disc.

• “NO FILES” appears on

the display.

The current disc does not

contain any MP3/WMA

tracks.

Insert a disc that contains

MP3/WMA tracks.

• Correct characters are

not displayed (e.g. album

name).

This receiver can only

display alphabets (capital:

A – Z), numbers, and a

limited number of symbols.

EN24-29_KD-G411[EX_EU]f.indd 28 10/14/04, 9:29:14 AM

ENGLISH

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel

Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%

total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%

total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance:

2.5 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz): 65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 30 dB

Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV

Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical

pickup (semiconductor laser)

Number of channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

MP3 decoding format:

MPEG1/2 Audio Layer 3

Max. Bit Rate: 320 Kbps

WMA (Windows Media® Audio) decoding

format:

Max. Bit Rate: 192 Kbps

GENERAL

Power Requirement:

Operating Voltage:

DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature:

0°C to +40°C

Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 11 mm

Mass (approx.):

1.3 kg (excluding accessories)

Design and specifications are subject to change

without notice.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

EN24-29_KD-G411[EX_EU]f.indd 29 10/14/04, 9:29:43 AM

EN, FR

1004DTSMDTJEIN

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

Rear_KD-G411[EX_EU]003A_f.indd 2 9/27/04, 7:46:42 PM

KD-G411

Installation/Connection Manual

Manuel d’installation/raccordement

GET0257-010A

[EX/EU]

1004DTSMDTJEIN

EN, FR

ENGLISH

This receiver is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If

your vehicle does not have this system, a voltage inverter is required, which can be purchased

at JVC IN-CAR ENTERTAINMENT dealers.

FRANÇAIS

Cet appareil est conçu pour fonctionner sur des sources de courant continu de 12 V à masse

NEGATIVE. Si votre véhicule n’offre pas ce type d’alimentation, il vous faut un convertisseur de tension,

que vous pouvez acheter chez un revendeur d’autoradios JVC.

Handles

Poignées

Washer (ø5)

Rondelle (ø5)

Lock nut (M5)

Ecrou d’arrêt (M5)

Mounting bolt (M5 x 20 mm)

Boulon de montage (M5 x 20 mm)

Rubber cushion

Amortisseur en caoutchouc

A / B

Hard case/Control panel

Etui de transport/Panneau de

commande

Sleeve

Manchon

Trim plate

Plaque d’assemblage

Power cord

Cordon d’alimentation

Parts list for installation and connection

The following parts are provided for this receiver.

After checking them, please set them correctly.

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil.

Après vérification, veuillez les placer correctement.

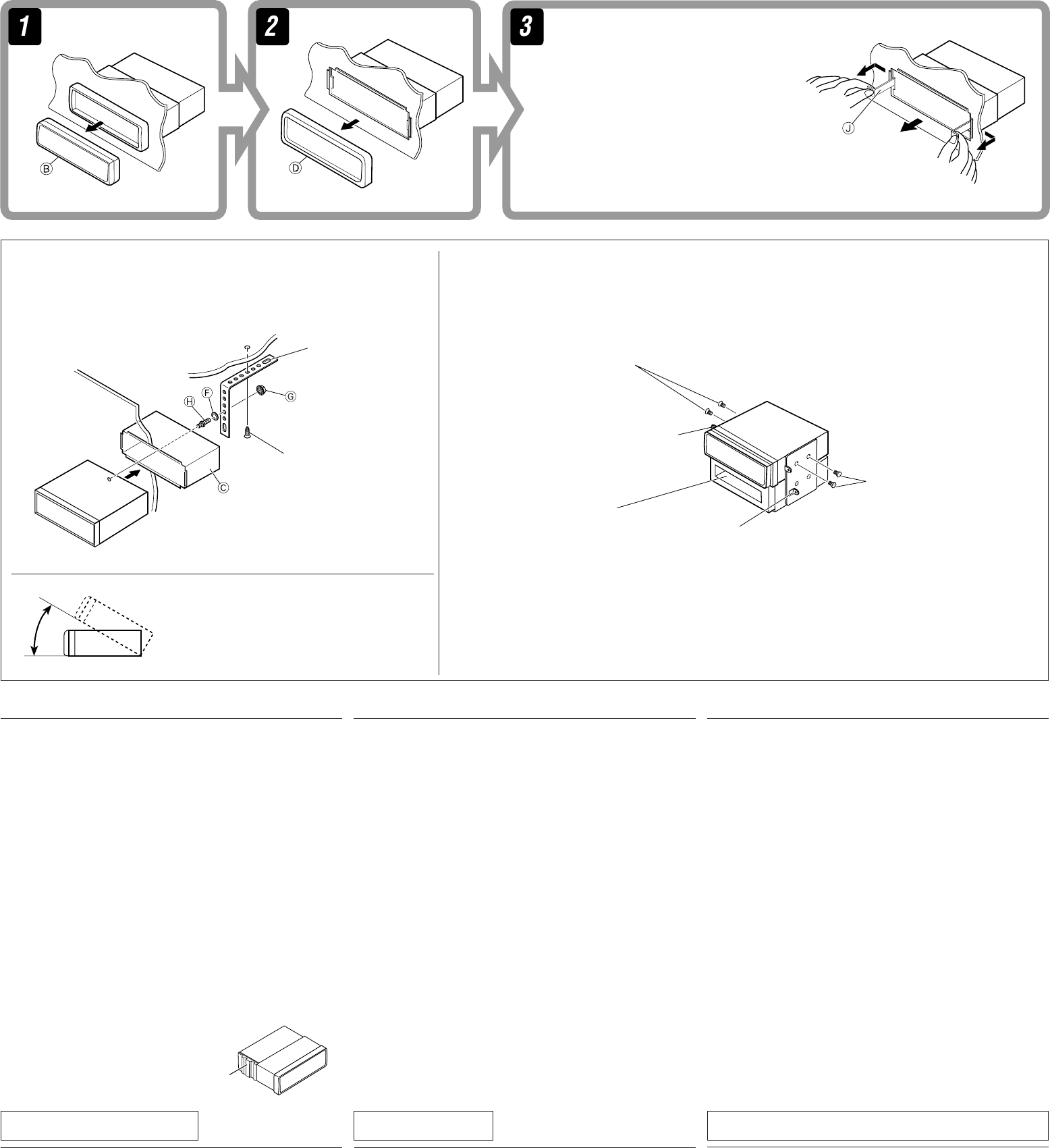

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require

information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a

company supplying kits.

•

If you are not sure how to install this receiver correctly, have it installed by a qualified technician.

INSTALLATION (MONTAGE DANS LE TABLEAU DE BORD)

L’illustration suivante est un exemple d’installation typique. Si vous avez des questions ou avez besoin

d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie

d’approvisionnement.

• Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le faire installer par un technicien qualifié.

Do the required electrical connections.

Réalisez les connexions électriques.

*1 When you stand the receiver, be

careful not to damage the fuse on

the rear.

*1 Lorsque vous mettez l’appareil à la

verticale, faire attention de ne pas

endommager le fusible situé sur l’arrière.

Bend the appropriate tabs to hold the

sleeve firmly in place.

Tordez les languettes appropriées pour

maintenir le manchon en place.

Removing the receiver / Retrait de l’appareil

Before removing the receiver, release the rear section.

Avant de retirer l’appareil, libérer la section arrière.

Insert the two handles, then

pull them as illustrated so

that the receiver can be

removed.

Insérez les deux poignées, puis

tirez de la façon illustrée de

façon à retirer l’appareil.

When installing the receiver without using the sleeve / Lors de

l’installation de l’appareil scans utiliser de manchon

In a Toyota for example, first remove the car radio and install the receiver in its place.

Par exemple dans une Toyota, retirer d’abord l’autoradio et installer l’appareil à la

place.

When using the optional stay / Lors

de l’utilisation du hauban en option

Note : When installing the receiver on the mounting bracket, make

sure to use the 8 mm-long screws. If longer screws are

used, they could damage the receiver.

Remarque : Lors de l’installation de l’appareil sur le support de montage,

s’assurer d’utiliser des vis d’une longueur de 8 mm. Si des vis plus

longues sont utilisées, elles peuvent endommager l’appareil.

Bracket*

Support*

Bracket*

Support*

* Not included with this receiver.

* Non fourni avec cet appareil.

Flat type screws

(M5 x 8 mm)*

Vis à tête plate

(M5 x 8 mm)*

Pocket

Poche

Flat type screws

(M5 x 8 mm)*

Vis à tête plate

(M5 x 8 mm)*

Screw (option)

Vis (en option)

Stay (option)

Hauban (en option)

Fire wall

Cloison

Dashboard

Tableau de

bord

Install the receiver at an

angle of less than 30˚.

Installez l’appareil avec un

angle de moins de 30˚.

PRECAUTIONS on power supply and speaker

connections:

• DO NOT connect the speaker leads of the power cord to

the car battery; otherwise, the receiver will be seriously

damaged.

• BEFORE connecting the speaker leads of the power cord to the

speakers, check the speaker wiring in your car.

PRECAUTIONS sur l’alimentation et la connexion

des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon

d’alimentation à la batterie; sinon, l’appareil serait

sérieusement endommagé.

• AVANT de connecter les fils d’enceintes du cordon d’alimentation aux

enceintes, vérifiez le câblage des enceintes de votre voiture.

TROUBLESHOOTING

• The fuse blows.

* Are the red and black leads connected correctly?

• Power cannot be turned on.

* Is the yellow lead connected?

• No sound from the speakers.

* Is the speaker output lead short-circuited?

• Sound is distorted.

* Is the speaker output lead grounded?

* Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds.

* Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?

• Receiver becomes hot.

* Is the speaker output lead grounded?

* Are the “–” terminals of L and R speakers grounded in common?

• This receiver does not work at all.

* Have you reset your receiver?

EN CAS DE DIFFICULTES

• Le fusible saute.

* Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension.

* Le fil jaune est-elle raccordée?

• Pas de son des enceintes.

* Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé.

* Le fil de sortie d’enceinte est-il à la masse?

* Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Interférence avec les sons.

La prise arrière de mise à la terre est-elle connectée au châssis de la voiture avec un cordon court et épais?

• L’appareil devient chaud.

* Le fil de sortie d’enceinte est-il à la masse?

* Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Cet appareil ne fonctionne pas du tout.

* Avez-vous réinitialisé votre appareil?

Instal1-2_G411_010A_f.indd 1 10/10/04, 1:59:10 PM

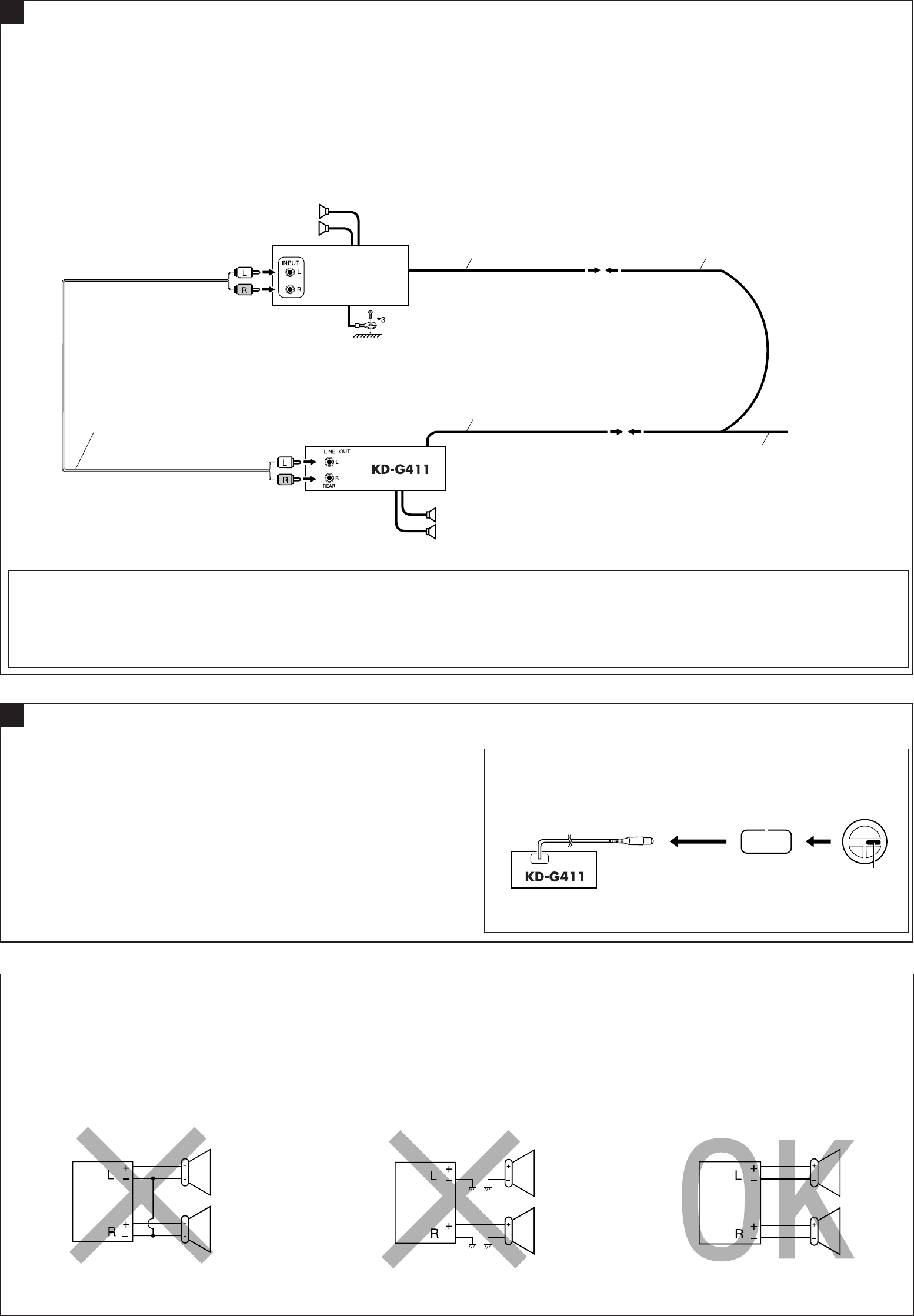

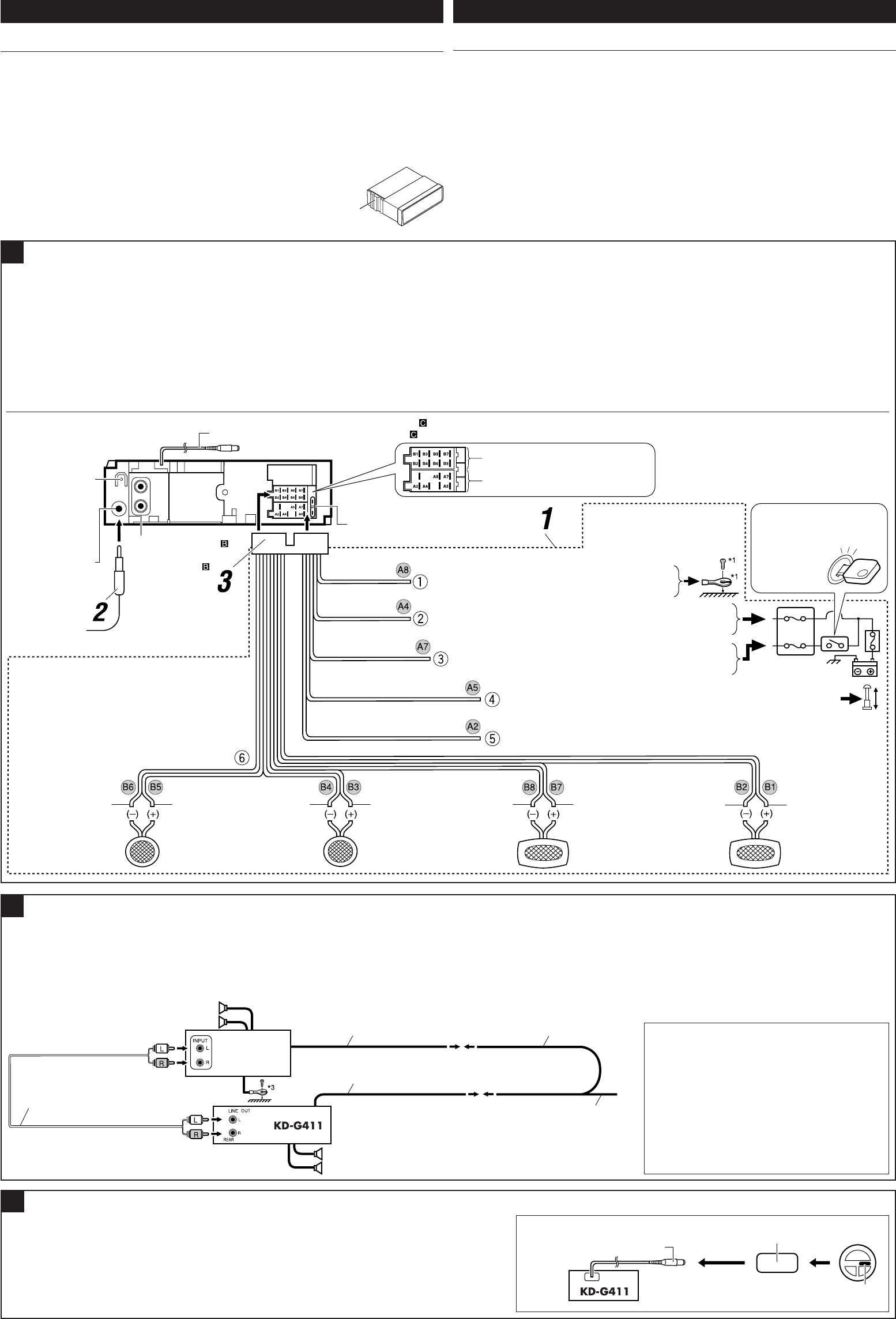

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and

make all electrical connections before installing the receiver.

• Be sure to ground this receiver to the car’s chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC

IN-CAR ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum power of more than 50 W (both

at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less

than 50 W, change “AMP GAIN” setting to prevent the speakers

from being damaged (see page 21 of the INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED

leads with insulating tape.

• The heat sink becomes very hot after use. Be

careful not to touch it when removing this receiver.

RACCORDEMENTS ELECTRIQUES

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et

d’effectuer tous les raccordements électriques avant d’installer l’appareil.

• Assurez-vous de raccorder de nouveau la mise à la masse de cet appareil au châssis

de la voiture après l’installation.

Remarques:

• Remplacer le fusible par un de la valeur précisée. Si le fusible saute souvent, consulter votre revendeur

d’autoradios JVC.

• Il est recommandé de connecter des enceintes avec une puissance de plus de 50 W (les enceintes arrière

et les enceintes avant, avec une impédance comprise entre 4 Ω et 8 Ω). Si la puissance maximum est

inférieure à 50 W, changez “AMP GAIN” pour éviter d’endommager vos enceintes (voir page 21 du

MANUEL D’INSTRUCTIONS).

• Pour éviter les court-circuits, couvrir les bornes des fils qui ne sont PAS UTILISÉS avec de la bande

isolante.

• Le dissipateur de chaleur devient très chaud après usage. Faire attention de ne pas le toucher en retirant

cet appareil.

Heat sink

Dissipateur de chaleur

ENGLISH FRANÇAIS

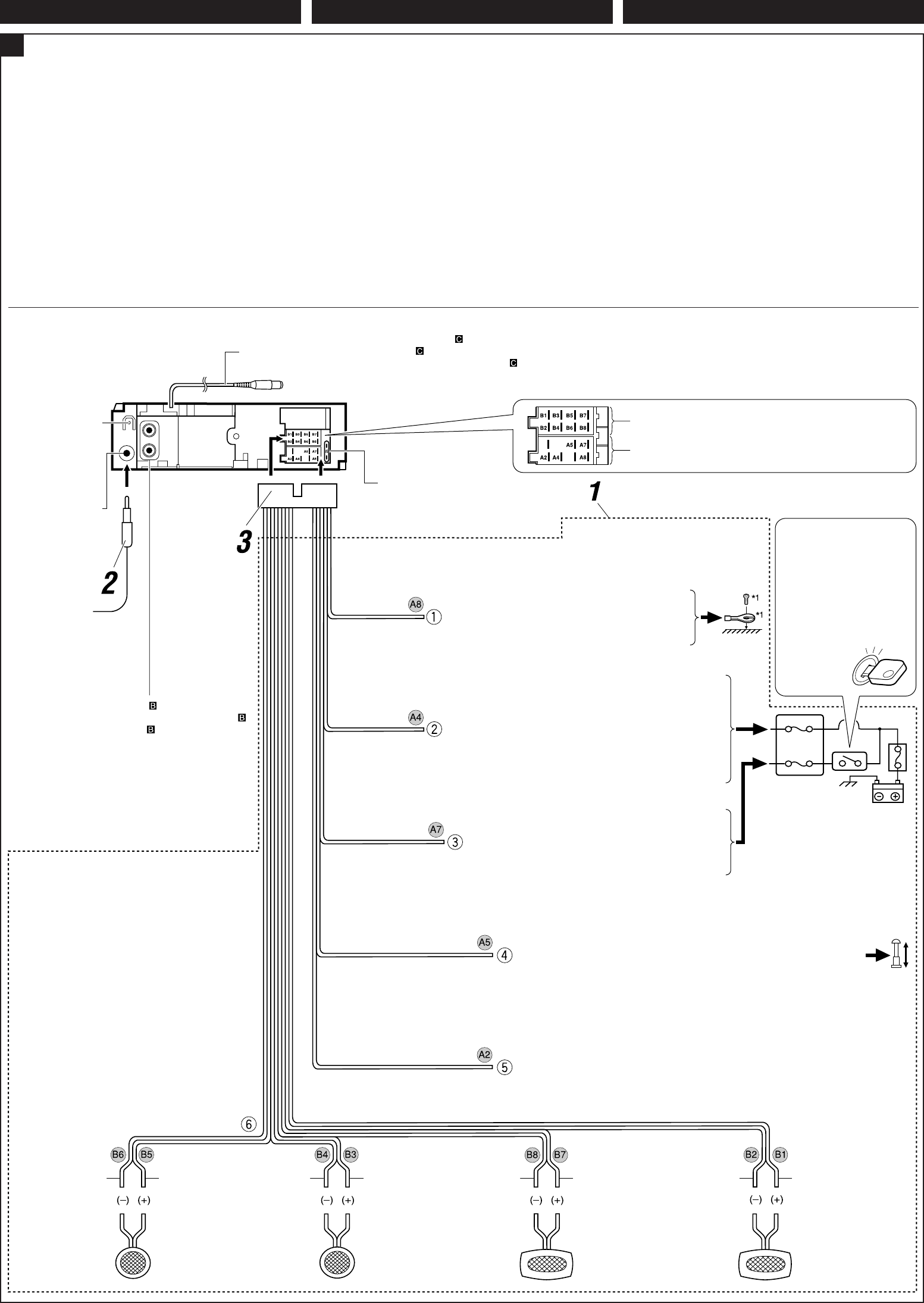

Typical connections / Raccordements typiques

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause

serious damage to this receiver.

The leads of the power cord and those of the connector from the car body may be different in

color.

1 Connect the colored leads of the power cord in the order specified in the illustration below.

2 Connect the aerial cord.

3 Finally connect the wiring harness to the receiver.

Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse

position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+)

battery terminal.

• The yellow lead (A4) is not used in this case.

Avant de commencer la connexion: Vérifiez attentivement le câblage du véhicule. Une

connexion incorrecte peut endommager sérieusement l’appareil.

Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents

en couleur.

Connectez les fils colorés du cordon d’alimentation dans l’ordre spécifié sur l’illustration ci-dessous.

2 Connectez le cordon d’antenne.

3 Finalement, connectez le faisceau de fils à l’appareil.

Remarque: Si votre véhicule ne possède pas de borne accessoire, déplacez le fusible de la position de

fusible 1 (position originale) à la position de fusible 2 et connectez le fil rouge (A7) à la borne positive

(+) de la batterie.

• Le fil jaune (A4) n’est pas utilisé dans ce cas.

Connecting the external amplifier / Connexion d’un amplificateur extérieur

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so

that it can be controlled through this receiver.

• Disconnect the speakers from this receiver, connect them to the amplifier. Leave the

speaker leads of this receiver unused.

Vous pouvez connecter un amplificateur pour améliorer votre système autoradio.

• Connectez le fil de commande à distance (bleu avec bande blanche) au fil de commande à distance de

l’autre appareil de façon qu’il puisse être commandé via cet appareil.

• Déconnectez les enceintes de cet appareil et connectez-les à l’amplificateur. Laissez

les fils d’enceintes de cet appareil inutilisés.

Signal cord (not supplied with this receiver)

Cordon de signal (non fourni avec cet appareil)

Front speakers

Enceintes avant

Rear speakers

Enceintes arrière

JVC Amplifier

JVC

Amplificateur

Remote lead

Fil d’alimentation à distance

Y-connector (not supplied with this receiver)

Connecteur Y (non fourni avec cet appareil)

Remote lead (Blue with white stripe)

Fil d’alimentation à distance (Bleu avec bande blanche)

To the remote lead of other equipment or power

aerial if any

Au fil de télécommande de l’autre appareil ou à l’antenne

automatique s’il y en a une

*3 Firmly attach the ground wire to the metallic

body or to the chassis of the car—to the place

not coated with paint (if coated with paint,

remove the paint before attaching the wire).

Failure to do so may cause damage to the

receiver.

*3 Attachez solidement le fil de mise à la masse au

châssis métallique de la voiture—à un endroit qui

n’est pas recouvert de peinture (s’il est recouvert

de peinture, enlevez d’abord la peinture avant

d’attacher le fil). L’appareil peut être endommagé si

cela n’est pas fait correctement.

Before checking the operation of this receiver

prior to installation, this lead must be connected,

otherwise power cannot be turned on.

*2 Pour vérifier le fonctionnement de cet appareil avant

installation, ce fil doit être raccordé, sinon l’appareil

ne peut pas être mis sous tension.

Line out (see diagram )

Sortie de ligne

(voir le diagramme )

Rear ground terminal

Borne arrière de masse

15 A fuse

Fusible 15 A

Aerial terminal

Borne de l’antenne

Black

Noir

Blue with white stripe

Bleu avec bande blanche

Red

Rouge

Yellow*2

Jaune*2

*1 Not included for this receiver

*1 Non fourni avec cet appareil

To metallic body or chassis of the car

Vers corps métallique ou châssis de la voiture

To a live terminal in the fuse block connecting to the car battery

(bypassing the ignition switch) (constant 12 V)

À une borne sous tension du porte-fusible connectée à la batterie de la voiture

(en dérivant l’interrupteur d’allumage) (12 V constant)

Ignition switch

Interrupteur d’allumage

Fuse block

Porte-fusible

To an accessory terminal in the fuse block

Vers borne accessoire du porte-fusible

To the remote lead of other equipment or power aerial if any (200 mA max.)

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une

(200 mA max.)

Left speaker (front)

Enceinte gauche (avant)

Right speaker (front)

Enceinte droit (avant)

Left speaker (rear)

Enceinte gauche (arrière)

Right speaker (rear)

Enceinte droit (arrière)

Purple

Violet

Purple with black stripe

Violet avec bande noire

Green

Vert

Green with black stripe

Vert avec bande noire

Gray

Gris

Gray with black stripe

Gris avec bande noire

White

Blanc

White with black stripe

Blanc avec bande noire

To steering wheel remote controller (see diagram )

Pour la télécommande de volant (voir le diagramme )

Fuse position 2 / Position de fusible 2

Fuse position 1 / Position de fusible 1

Brown

Marron To cellular phone system

À un système de téléphone cellulaire

Connecting to the steering wheel remote controller / Connexion de la télécommande de volant

If your car is equipped with the steering wheel remote controller, you can operate this receiver using the

controller. To do it, a JVC’s OE remote adapter (not supplied) which matches with your car is required.

Consult your JVC IN-CAR ENTERTAINMENT dealer for details.

Si votre voiture est munie d’une télécommande de volant, vous pouvez commander cet autoradio en utilisant la

télécommande. Pour le faire, un adaptateur pour télécommande au volant JVC (non fourni) correspondant à votre

voiture est nécessaire. Consultez votre revendeur d’autoradio JVC pour les détails.

Steering wheel remote input

Entrée de la télécommande de volant

OE remote adapter (not supplied)

Adaptateur pour télécommande au volant (non fourni)

Steering wheel remote controller (equipped in the car)

Télécommande de volant (installée dans la voiture)

Instal1-2_G411_010A_f.indd 2 10/2/04, 9:06:51 AM

ENGLISHDEUTSCH

РУCCKИЙ

CD RECEIVER

CD-RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ

KD-G411

For canceling the display demonstration, see page 7.

Zum Abbrechen der Displaydemonstration siehe Seite 7.

Информацию об отмене демонстрации функций дисплея см. на стр. 7.

For installation and connections, refer to the separate manual.

Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0257-006A

[EY]

Cover_KD-G411[EY]006A_1.indd 2 9/28/04, 8:50:32 AM

ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while

driving, be sure to look ahead carefully or

you may be involved in a traffic accident.

How to reset your unit

• This will reset the microcomputer. Your

preset adjustments will also be erased.

• If a disc is loaded, it will eject. Be careful

not to drop the disc.

How to forcibly eject a disc

If a disc cannot be recognized by the

receiver or cannot be ejected, ejects the disc

as follows.

• If this does not work, try to reset your

receiver.

• Be careful not to drop the disc when it

ejects.

For security reasons, a numbered ID card is provided with this receiver, and the same ID number is

imprinted on the receiver’s chassis. Keep the card in a safe place, as it will help the authorities to

identify your receiver if stolen.

EN02-05_KD-G411[EY]f.indd 2 10/14/04, 10:09:13 AM

ENGLISH

How to reset your unit ........................... 2

How to forcibly eject a disc................... 2

How to read this manual........................ 4

How to use the MODE button ............... 4

Control panel — KD-G411 ......... 5

Parts identification................................. 5

Getting started....................... 6

Basic operations.................................. 6

Canceling the display demonstrations ... 7

Setting the clock .................................... 7

Radio operations ................... 8

Listening to the radio........................... 8

Storing stations in memory.................... 9

Listening to a preset station ................... 9

FM RDS operations................. 10

Searching for your favorite FM RDS

programme

....................................... 10

Storing your favorite programmes......... 11

Using the standby receptions................. 11

Tracking the same programme

—Network-Tracking Reception ........ 12

Disc operations ...................... 13

Playing a disc ..................................... 13

Other main functions ............................. 15

Changing the display information ......... 16

Selecting the playback modes................ 17

Sound adjustments ................ 18

Selecting preset sound modes

(C-EQ: custom equalizer) .................. 18

Adjusting the sound ............................... 19

General settings — PSM ......... 20

Basic procedure ..................................... 20

Detaching the control

panel .................................. 22

Using the remote controller

— RM-RK60............................ 23

Main elements and features ...................... 23

Maintenance .......................... 24

More about this receiver ........ 25

Troubleshooting ..................... 27

Specifications ......................... 29

*For safety....

• Do not raise the volume level too much, as

this will block outside sounds, making driving

dangerous.

• Stop the car before performing any

complicated operations.

Contents

*Temperature inside the car....

If you have parked the car for a long time in

hot or cold weather, wait until the temperature

in the car becomes normal before operating the

unit.

EN02-05_KD-G411[EX_EU]f.indd 3 10/9/04, 2:25:03 PM

ENGLISH

How to read this manual

The following methods are used to made the

explanations simple and easy-to-understand:

• Some related tips and notes are explained in

“More about this receiver” (see page 25).

• Button operations are mainly explained with

the illustrations as follows:

Press briefly.

Press repeatedly.

Press either one.

Press and hold until

your desired response

begins.

Press and hold both

buttons at the same

time.

How to use the MODE button

If you press MODE, the receiver goes into

functions mode, then the number buttons and

5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

Time countdown indicator

To use these buttons for original functions

again after pressing MODE, wait for

5 seconds without pressing any of these buttons

until the functions mode is cleared.

• Pressing MODE again also clears the

functions mode.

EN02-05_KD-G411[EX_EU]f.indd 4 9/15/04, 11:46:48 AM

ENGLISH

Control panel — KD-G411

Display window

1 (standby/on attenuator) button

2 SEL (select) button

3 CD button

4 FM/AM button

5 Loading slot

6 Display window

7 0 (eject) button

8 TP PTY (traffic programme/programme

type) button

9 Remote sensor

• You can control this receiver with an

optionally purchased remote controller.

• DO NOT expose the remote sensor to

strong light (direct sunlight or artificial

lighting).

p 5 (up) button / +10 button

q Control dial

w Number buttons

e EQ (equalizer) button

r MO (monaural) button

t SSM (Strong-station Sequential Memory)

button

y RPT (repeat) button

u RND (random) button

i MODE button

o DISP (display) button

; 4/¢ buttons

a (control panel release) button

s ∞ (down) button / –10 button

Display window

d Tuner reception indicators—

MO (monaural), ST (stereo)

f WMA indicator

g RDS indicators—TP, PTY, AF, REG

h MP3 indicator

j CD indicator

k Playback mode / item indicators—

RND (random), (disc), (folder),

RPT (repeat)

l LOUD (loudness) indicator

/ EQ (equalizer) indicator

z Sound mode (C-EQ: custom equalizer)

indicators—ROCK, CLASSIC, POPS,

HIP HOP, JAZZ, USER

• also works as the time countdown

indicator.

x Disc information indicators—TAG (ID3

Tag), (folder), (track/file)

c Main display

v Source display / Volume level indicator

b Tr (track) indicator

Parts identification

EN02-05_KD-G411[EX_EU]f.indd 5 9/15/04, 10:22:23 AM

ENGLISH

Getting started

Basic operations

You cannot select “CD” as the playback

source if there is no disc in the loading

slot.

Volume level appears.

Volume level indicator

⁄ Adjust the sound as you want.

(See pages 18 and 19.)

To drop the volume in a moment (ATT)

To restore the sound, press it

again.

To turn off the power

Caution on volume setting:

Discs produce very little noise compared

with other sources. Lower the volume

before playing a disc to avoid damaging the

speakers by the sudden increase of the output

level.

EN06-11_KD-G411[EX_EU]f.indd 6 9/15/04, 10:22:38 AM

ENGLISH

Canceling the display

demonstrations

If no operations are done for about 20 seconds,

display demonstration starts.

[Initial: DEMO ON]—see page 20.

4 Finish the procedure.

To activate the display demonstration

In step 3 above...

Setting the clock

2 Set the hour, minute, and clock

system.

1 Select “CLOCK H” (hour), then

adjust the hour.

2 Select “CLOCK M” (minute),

then adjust the minute.

3 Select “24H/12H,” then select

“24H” (hour) or “12H” (hour).

3 Finish the procedure.

To check the current clock time when the

power is turned off

EN06-11_KD-G411[EX_EU]f.indd 7 10/7/04, 11:13:45 AM

ENGLISH

Radio operations

Listening to the radio

Lights up when receiving an FM stereo

broadcast with sufficient signal strength.

Selected band appears.

Ÿ Start searching for a station.

When a station is received, searching

stops.

To stop searching, press the same

button again.

To tune in to a station manually

In step Ÿ above...

2 Select the desired station frequencies.

When an FM stereo broadcast is hard to

receive

Lights up when monaural mode is activated.

Reception improves, but stereo effect will

be lost.

To restore the stereo effect, repeat the same

procedure so that the MO indicator goes off.

EN06-11_KD-G411[EX_EU]f.indd 8 9/15/04, 10:22:39 AM

ENGLISH

Preset number flashes for a while.

Listening to a preset station

2 Select the preset station (1 – 6) you

want.

To check the current clock time while

listening to an FM (non-RDS) or AM station

• For FM RDS stations, see page 12.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential

Memory)

1 Select the FM band (FM1 – FM3)

you want to store into.

“SSM” flashes, then disappears when

automatic presetting is over.

Local FM stations with the strongest signals are

searched and stored automatically in the FM

band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset

number 4 of the FM1 band.

EN06-11_KD-G411[EX_EU]f.indd 9 9/15/04, 10:22:39 AM

ENGLISH

FM RDS operations

Searching for your favorite FM RDS programme

You can tune in to a station broadcasting your

favorite programme by searching for a PTY code.

The last selected PTY code appears.

Ÿ Select one of your favorite

programme type.

Select one of the twenty-nine PTY

codes.

Ex.: When “ROCK M” is selected

! Start searching for your favorite

programme.

If there is a station broadcasting a

programme of the same PTY code as

you have selected, that station is tuned

in.

PTY codes

NEWS O AFFAIRS O INFO O SPORT O

EDUCATE O DRAMA O CULTURE O

SCIENCE O VARIED O POP M (music)

O ROCK M (music) O EASY M (music) O

LIGHT M (music) O CLASSICS O

OTHER M (music) O WEATHER O

FINANCE O CHILDREN O SOCIAL O

RELIGION O PHONE IN O TRAVEL O

LEISURE O JAZZ O COUNTRY O

NATION M (music) O OLDIES O

FOLK M (music) O DOCUMENT O

OFF O (back to the beginning)

EN06-11_KD-G411[EX_EU]f.indd 10 9/15/04, 10:22:40 AM

ENGLISH

What you can do with RDS

RDS (Radio Data System) allows FM

stations to send an additional signal along

with their regular programme signals.

By receiving the RDS data, this receiver can

do the following:

•

Programme Type (PTY) Search (see page 10)

• Standby Reception of Traffic

Announcement —TA (see the following) or

your favorite programme (PTY) (see pages

12 and 21)

•

Tracing the same programme automatically

—Network-Tracking Reception (see page 12)

• Programme Search (see page 21)

Storing your favorite programmes

You can store six favorite programme types.

Preset programme types in the number buttons

(1 –6):

1 Perform steps ~ and Ÿ on page 10 to

select a PTY code.

2 Select the preset number (1 – 6) you

want to store into.

Ex.: When “ROCK M” is selected

3 Repeat steps 1 and 2 to store

other PTY codes into other preset

numbers.

4 Finish the procedure.

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the receiver to

switch temporarily to Traffic Announcement

(TA) from any source other than AM.

The volume changes to the preset TA volume

level (see page 21).

To activate TA Standby Reception

The TP indicator either

lights up or flashes.

• If the TP indicator lights up, TA Standby

Reception is activated.

• If the TP indicator flashes, TA Standby

Reception is not yet activated. (This occurs

when you are listening to an FM station

without the RDS signals required for TA

Standby Reception.)

To activate TA Standby Reception, tune in to

another station providing these signals. The

TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

EN06-11_KD-G411[EX_EU]f.indd 11 10/7/04, 11:13:54 AM

ENGLISH

Tracking the same programme—

Network-Tracking Reception

When driving in an area where FM reception

is not sufficient enough, this receiver

automatically tunes in to another FM RDS

station of the same network, possibly

broadcasting the same programme with stronger

signals (see the illustration below).

When shipped from the factory, Network-

Tracking Reception is activated.

To change the Network-Tracking Reception

setting, see page 21.

Programme A broadcasting on different

frequency areas (01 – 05)

To check the current clock time while

listening to an FM RDS station

PTY Standby Reception

PTY Standby Reception allows the receiver

to switch temporarily to your favorite PTY

programme from any source other than AM.

To activate and select your favorite PTY

code for PTY Standby Reception, see page

21.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby

Reception is activated.

• If the PTY indicator flashes, PTY Standby

Reception is not yet activated.

To activate PTY Standby Reception, tune in

to another station providing these signals. The

PTY indicator will stop flashing and remain

lit.

To deactivate the PTY Standby Reception,

select “OFF” for the PTY code. The PTY

indicator goes off.

EN12-17_KD-G411[EX_EU]f.indd 12 10/7/04, 11:17:54 AM

ENGLISH

Disc operations

Playing a disc

About MP3 and WMA discs

MP3 and WMA (Windows Media® Audio)

“tracks” (words “file” and “track” are used

interchangeably) are recorded in “folders.”

• When inserting an MP3 or a WMA disc:

When playback starts, disc information will

automatically appear (see page 16).

* Either the MP3 or WMA indicator lights up

depending on the first detected file.

• When inserting an audio CD or a CD Text

disc:

To stop play and eject the disc

Total folder

number

Total file

number

Total playing time of

the inserted disc

Total track number

of the inserted disc

Elapsed playing

time

Current track

number

All tracks will be played

repeatedly until you stop

playback.

CD Text: Disc title/performer =

Track title appear automatically.

EN12-17_KD-G411[EX_EU]f.indd 13 10/7/04, 11:17:54 AM

ENGLISH

To fast-forward or reverse the track

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following

tracks.

To the beginning of the current track, then

the previous tracks.

To go to the next or previous folders

(only for MP3 or WMA disc)

To next folders.

To previous folders.

To locate a particular track (for CD) or

folder (for MP3 or WMA discs) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To select a particular track in a folder

(for MP3 or WMA disc) after selecting a

folder:

EN12-17_KD-G411[EX_EU]f.indd 14 9/17/04, 4:07:12 PM

ENGLISH

Other main functions

Skipping a track quickly during play

• For MP3 or WMA disc, you can skip a track

within the same folder.

Ex.: To select track 32 while playing track 6

First time you press +10 or –10 button, the

track skips to the nearest higher or lower

track with a track number of multiple ten

(ex. 10th, 20th, 30th).

Then each time you press the button, you

can skip 10 tracks.

• After the last track, the first track will be

selected and vice versa.

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same

procedure.

EN12-17_KD-G411[EX_EU]f.indd 15 9/15/04, 12:47:11 PM

ENGLISH

Changing the display information

While playing an audio CD or a CD Text

*1 If the current disc is an audio CD, “NO NAME” appears.

While playing an MP3 or WMA disc

• When “TAG DISP” is set to “TAG ON” (see page 21)

*2 If an MP3/WMA file does not have ID3 tags, folder name and file name appear. In this

case, the TAG indicator will not light up.

• When “TAG DISP” is set to “TAG OFF”

EN12-17_KD-G411[EX_EU]f.indd 16 9/16/04, 8:22:40 PM

ENGLISH

Selecting the playback modes

You can use only one of the following playback modes at a time.

2 Select your desired playback mode.

Repeat play

Ex.: When “TRK RPT” is selected while

playing an MP3 disc

Mode Plays repeatedly

TRK RPT: The current track.

• RPT lights up.

FLDR RPT*: All tracks of the current folder.

• and RPT light up.

Off: Cancels repeat play.

Random play Mode Plays at random

Ex.: When “DISC RND” is selected while

playing an MP3 disc

FLDR RND*: All tracks of the current folder,

then tracks of the next folder

and so on.

• RND and light up.

DISC RND: All tracks of the current disc.

• RND and light up.

Off: Cancels random play.

* Only while playing an MP3 or WMA disc.

EN12-17_KD-G411[EX_EU]f.indd 17 9/15/04, 10:23:00 AM

ENGLISH

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode suitable to

the music genre.

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

Indication For: Preset values

BAS*1TRE*2

LOUD

USER (Flat sound) 00 00 OFF

ROCK Rock or

disco music

+03 +01 ON

CLASSIC Classical

music

+01 –02 OFF

POPS Light music +04 +01 OFF

HIP HOP Funk or rap

music

+02 00 ON

JAZZ Jazz music +02 +03 OFF

*1 BAS: Bass

*2 TRE: Treble

*3 LOUD: Loudness

EN18-23_KD-G411[EX_EU]f.indd 18 9/16/04, 8:27:10 PM

ENGLISH

Adjusting the sound

You can adjust the sound characteristics to your

preference.

Ex.: When “TRE” is selected

Indication pattern changes as

you adjust the level.

Indication To do: Range

BAS*1

(bass)

Adjust the bass. –06 (min.)

+06 (max.)

TRE*1

(treble)

Adjust the treble. –06 (min.)

+06 (max.)

FAD*2

(fader)

Adjust the front

and rear speaker

balance.

R06 (Rear

only)

F06 (Front

only)

BAL

(balance)

Adjust the left

and right speaker

balance.

L06 (Left

only)

R06 (Right

only)

LOUD*1

(loudness)

Boost low and

high frequencies

to produce a well-

balanced sound at

low volume level.

LOUD ON

LOUD OFF

VOL*3

(volume)

Adjust the volume. 00 (min.) to

30 or 50

(max.)*4

*1 When you adjust the bass, treble, or

loudness, the adjustment you have made is

stored for the currently selected sound mode

(C-EQ) including “USER.”

*2 If you are using a two-speaker system, set

the fader level to “00.”

*3 Normally the control dial works as the

volume control. So you do not have to select

“VOL” to adjust the volume level.

*4 Depending on the amplifier gain control

setting. (See page 21 for details.)

EN18-23_KD-G411[EX_EU]f.indd 19 10/7/04, 11:29:36 AM

ENGLISH

Indications Selectable settings, [reference page]

DEMO

Display demonstration

DEMO ON: [Initial]; Display demonstration will be activated

automatically if no operation is done for about

20 seconds, [7].

DEMO OFF: Cancels.

CLOCK H

Hour adjustment

0 – 23 (1 – 12), [7]

[Initial: 0 (0:00)]

CLOCK M

Minute adjustment

00 – 59, [7]

[Initial: 00 (0:00)]

24H/12H

24 hours or 12 hours time

display

12H O 24H, [7]

[Initial: 24H]

CLK ADJ

Clock adjustment

AUTO: [Initial]; The built-in clock is automatically adjusted

using the CT (clock time) data in the RDS signal.

OFF: Cancels.

General settings — PSM

Basic procedure

You can change PSM (Preferred Setting Mode)

items listed in the table that follows.

2 Select a PSM item.

Ex.: When you select “DIMMER”

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust the

other PSM items if necessary.

5 Finish the procedure.

EN18-23_KD-G411[EX_EU]f.indd 20 10/7/04, 11:29:36 AM

ENGLISH

Indications Selectable settings, [reference page]

AF-REG

Alternative frequency/

regionalization reception

When the received signals from the current station become weak...

AF: [Initial]; Switches to another station (the programme

may differ from the one currently received), [12].

• The AF indicator lights up.

AF REG: Switches to another station broadcasting the same

programme.

• The AF and REG indicators light up.

OFF: Cancels.

PTY STBY

PTY standby

[Initial: OFF]; Activates PTY Standby Reception with one of the

29 PTY codes, [12].

TA VOL

Traffic announcement

volume

[Initial: VOL 20]; VOL 00 – VOL 30 or 50*, [11]

* Depends on the amplifier gain control.

P-SEARCH

Programme search

ON: Using the AF data, the receiver tunes in to another

frequency broadcasting the same programme as the

original preset RDS station is if the preset station

signals are not sufficient.

OFF: [Initial]; Cancels.

DIMMER

Dimmer

ON: Activates dimmer.

OFF: [Initial]; Cancels.

TEL

Telephone muting

MUTING 1/MUTING 2: Select either one which mutes the

sounds while using the cellular phone.

OFF: [Initial]; Cancels.

SCROLL

Scroll

ONCE: [Initial]; Scrolls the disc information once.

AUTO: Repeats scrolling (5-second intervals in between).

OFF: Cancels.

• Pressing DISP for more than one second can scrolls the display

regardless of the setting.

TAG DISP

Tag display

TAG ON : [Initial]; Shows the ID3 tag while playing

MP3/WMA tracks, [16].

TAG OFF: Cancels.

AMP GAIN

Amplifier gain control

You can change the maximum volume level of this receiver.

LOW PWR: VOL 00 – VOL 30 (Select this if the maximum

power of the speaker is less than 50 W to prevent

them from damaging the speaker.)

HIGH PWR: [Initial]; VOL 00 – VOL 50

EN18-23_KD-G411[EY]f.indd 21 10/19/04, 10:06:11 AM

ENGLISH

When detaching or attaching the control panel,

be careful not to damage the connectors on

the back of the control panel and on the panel

holder.

Detaching the control panel

Before detaching the control panel, be sure to

turn off the power.

Attaching the control panel

Detaching the control panel

EN18-23_KD-G411[EX_EU]f.indd 22 9/15/04, 10:21:30 AM

ENGLISH

Main elements and features

1 (standby/on attenuator) button

• Turns on and off the power and also

attenuates the sound.

2 SRC (source) button

• Selects the source.

3 R (reverse) / F (forward) buttons

• Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if

pressed and held.

• Changes the tracks on the disc.

4 SOUND button

• Selects the sound mode (C-EQ: custom

equalizer).

5 U (up) / D (down) buttons

• U (up): Changes the FM/AM bands.

• D (down): Changes the preset stations.

• Changes the folder on the MP3/WMA

discs.

6 VOLUME +/– buttons

• Adjusts the volume level.

The receiver is equipped with the steering

wheel remote control function.

• See the Installation/Connection Manual

(separate volume) for connection.

This receiver can be remotely controlled as

instructed here (with an optionally purchased

remote controller). We recommend that you use

remote controller RM-RK60 with your receiver.

• When operating, aim the remote controller

directly at the remote sensor on the

receiver. Make sure there is no obstacle in

between.

Installing the lithium coin battery

(CR2025)

Warning:

• Store the battery in a place where children

cannot reach to avoid risk of accident.

• To prevent the battery from over-heating,

cracking, or starting a fire:

– Do not recharge, short, disassemble, or

heat the battery or dispose of it in a fire.

– Do not leave the battery with other

metallic materials.

– Do not poke the battery with tweezers or

similar tools.

– Wrap the battery with tape and insulate

when throwing away or saving it.

Caution:

Using the remote controller — RM-RK60

EN18-23_KD-G411[EX_EU]f.indd 23 10/7/04, 11:30:04 AM

ENGLISH

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the

connectors.

To minimize this possibility, periodically wipe

the connectors with a cotton swab or cloth

moistened with alcohol, being careful not to

damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the

CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may

malfunction. In this case, eject the disc and

leave the receiver turned on for a few hours

until the moisture evaporates.

How to handle discs

When removing a disc from

its case, press down the center

holder of the case and lift the

disc out, holding it by the

edges.

• Always hold the disc by the edges. Do not

touch its recording surface.

When storing a disc into its case, gently insert

the disc around the center holder (with the

printed surface facing up).

• Make sure to store discs into the cases after

use.

To keep discs clean

A dirty disc may not play correctly.

If a disc does become dirty, wipe

it with a soft cloth in a straight line

from center to edge.

• Do not use any solvent (for

example, conventional record cleaner, spray,

thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough

spots around the inner and outer

edges. If such a disc is used, this

receiver may reject the disc.

To remove these rough spots, rub the edges

with a pencil or ball-point pen, etc.

Center holder

Warped

disc

Sticker Sticker

residue Disc

Stick-on

label

Do not use the following discs:

EN24-29_KD-G411[EY]f.indd 24 10/19/04, 11:45:05 AM

ENGLISH

More about this receiver

Basic operations

Turning off the power

• If you turn off the power while listening to a

disc, disc play will start from where playback

has been stopped previously, next time you

turn on the power.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously

preset station is erased when a new station is

stored in the same preset number.

FM RDS operations

• Network-Tracking Reception requires two

types of RDS signals—PI (Programme

Identification) and AF (Alternative

Frequency) to work correctly. Without

receiving these data correctly, Network-

Tracking Reception will not operate.

• If a Traffic Announcement is received, the

volume level (TA Volume) automatically

changes to the preset level.

Disc operations

General

• This receiver has been designed to reproduce

CDs/CD Texts, and CD-Rs (Recordable)/

CD-RWs (Rewritable) in audio CD (CD-DA),

MP3 and WMA format.

• When a disc has been loaded, selecting “CD”

for the playback source starts disc play.

Inserting a disc

• When a disc is inserted upside down, the disc

automatically ejects.

• Do not insert 8 cm discs (single CD) and

unusual shape discs (heart, flower, etc.) into

the loading slot.

Playing a disc

• While fast-forwarding or reversing on an MP3

or WMA disc, you can only hear intermittent

sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back only the files of

the same type which is first detected if a disc

includes both audio CD (CD-DA) files and

MP3/WMA files.

• This receiver can play back multi-session

discs; however, unclosed sessions will be

skipped while playing.

• Some CD-Rs or CD-RWs may not play

back on this receiver because of their disc

characteristics, and for the following causes:

– Discs are dirty or scratched.

– Moisture condensation occurs on the lens

inside the receiver.

– The pickup lens inside the receiver is dirty.

– CD-R/CD-RW on which the files are

written with “Packet Write” method.

– There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower

than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs:

– Discs with stickers, labels, or protective seal

stuck to the surface.

– Discs on which labels can be directly

printed by an ink jet printer.

Using these discs under high temperatures

or high humidity may cause malfunctions or

damage to discs.

EN24-29_KD-G411[EX_EU]f.indd 25 10/7/04, 11:33:46 AM

ENGLISH

Playing an MP3/WMA disc

• This receiver can play back MP3/WMA files

with the extension code <.mp3> or <.wma>

(regardless of the letter case—upper/lower).

• This receiver can show the names of albums,

artists (performer), and ID3 Tag (Version 1.0,

1.1, 2.2, 2.3, or 2.4) for MP3 files and for

WMA files.

• This receiver can handle only one-byte

characters. No other characters can be

correctly displayed.

• This receiver can play back MP3/WMA files

meeting the conditions below:

– Bit rate: 8 kbps — 320 kbps

– Sampling frequency:

48 kHz, 44.1 kHz, 32 kHz (for MPEG-1)

24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)

– Disc format: ISO 9660 Level 1/ Level 2,

Romeo, Joliet, Windows long file name

• The maximum number of characters for file/

folder names vary among the disc format used

(includes 4 extension characters—<.mp3> or

<.wma>).

– ISO 9660 Level 1: up to 12 characters

– ISO 9660 Level 2: up to 31 characters

– Romeo*: up to 128 (72) characters

– Joliet*: up to 64 (36) characters

– Windows long file name*: up to 128 (72)

characters

* The parenthetic figure is the maximum

number of characters for file/folder names

in case the total number of files and folders

is 313 or more.

• This receiver can recognize the total of 512

files, of 200 folders, and of 8 hierarchies.

• This receiver can play back the files recorded

in VBR (variable bit rate).

The files recorded in VBR have a discrepancy

in elapsed time display, and do not show

the actual elapsed time. Especially, after

performing the search function, this difference

becomes noticeable.

• This receiver cannot play back the following

files:

– MP3 files encoded with MP3i and MP3

PRO formats.

– MP3 files encoded in an unappropriated

format.

– MP3 files encoded with Layer 1/2.

– WMA files encoded with lossless,

professional, and voice formats.

– WMA files which are not based upon

Windows Media® Audio.

– WMA formatted files copy-protected with

DRM.

– Files which have the data such as WAVE,

ATRAC3, etc.

• The search function works but search speed is

not constant.

Changing the source

• If you change the source, playback also stops

(without ejecting the disc).

Next time you select “CD” for the playback

source, disc play starts from where it has been

stopped previously.

Ejecting a disc

• If the ejected disc is not removed within

15 seconds, the disc is automatically inserted

again into the loading slot to prevent it from

dust. (Disc will not play this time.)

General settings—PSM

• If you change the “AMP GAIN” setting from

“HIGH PWR” to “LOW PWR” while the

volume level is set higher than “VOL 30,” the

receiver automatically changes the volume

level to “VOL 30.”

EN24-29_KD-G411[EX_EU]f.indd 26 10/7/04, 11:33:47 AM

ENGLISH

Symptoms Causes Remedies

General

• Sound cannot be heard

from the speakers.

The volume level is set to

the minimum level.

Adjust it to the optimum

level.

Connections are incorrect. Check the cords and

connections.

• The receiver does not

work at all.

The built-in microcomputer

may have functioned

incorrectly due to noise, etc.

Reset the receiver (see page

2).

FM/AM

• SSM automatic presetting

does not work.

Signals are too weak. Store stations manually.

• Static noise while listening

to the radio.

The aerial is not connected

firmly.

Connect the aerial firmly.

Disc playback

• Disc automatically ejects. Disc is inserted upside

down.

Insert the disc correctly.

• CD-R/CD-RW cannot be

played back.

• Tracks on the CD-R/

CD-RW cannot be

skipped.

CD-R/CD-RW is not

finalized.

• Insert a finalized CD-R/

CD-RW.

• Finalize the CD-R/CD-

RW with the component

which you used for

recording.

• Disc can be neither played

back nor ejected.

Disc is locked. Unlock the disc (see page

15).

The CD player may have

functioned incorrectly.

Eject the disc forcibly (see

page 2).

• Disc sound is sometimes

interrupted.

You are driving on rough

roads.

Stop playback while driving

on rough roads.

Disc is scratched. Change the disc.

Connections are incorrect. Check the cords and

connections.

• “NO DISC” appears on the

display.

No disc in the loading slot. Insert a disc into the loading

slot.

Disc is inserted incorrectly. Insert the disc correctly.

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service

center.

EN24-29_KD-G411[EX_EU]f.indd 27 10/1/04, 9:02:57 PM

ENGLISH

Symptoms Causes Remedies

MP3/WMA playback

• Disc cannot be played

back.

No MP3/WMA tracks are

recorded on the disc.

Change the disc.

MP3/WMA tracks do not

have the extension code

<.mp3> or <.wma> in their

file names.

Add the extension code

<.mp3> or <.wma> to their

file names.

MP3/WMA tracks are not

recorded in the format

compliant with ISO 9660

Level 1, Level 2, Romeo, or

Joliet.

Change the disc.

(Record MP3/WMA

tracks using a compliant

application.)

• Noise is generated. The track played back

is not an MP3/WMA

track (although it has the

extension code <.mp3> or

<.wma>).

Skip to another track or

change the disc. (Do not add

the extension code <.mp3>

or <.wma> to non-MP3 or

WMA tracks.)

• A longer readout time is

required (“CHECK” keeps

flashing on the display).

Readout time varies due to

the complexity of the folder/

file configuration.

Do not use too many

hierarchies and folders.

• Tracks cannot be played

back as you have intended

them to play.

Playback order is determined

when the files are recorded.

• Elapsed playing time is not

correct.

This sometimes occurs

during play. This is caused

by how the tracks are

recorded on the disc.

• “NO FILES” appears on

the display.

The current disc does not

contain any MP3/WMA

tracks.

Insert a disc that contains

MP3/WMA tracks.

• Correct characters are

not displayed (e.g. album

name).

This receiver can only

display alphabets (capital:

A – Z), numbers, and a

limited number of symbols.

EN24-29_KD-G411[EX_EU]f.indd 28 10/14/04, 9:29:14 AM

ENGLISH

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel

Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%

total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%

total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance:

2.5 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz): 65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 30 dB

Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV

Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical

pickup (semiconductor laser)

Number of channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

MP3 decoding format:

MPEG1/2 Audio Layer 3

Max. Bit Rate: 320 Kbps

WMA (Windows Media® Audio) decoding

format:

Max. Bit Rate: 192 Kbps

GENERAL

Power Requirement:

Operating Voltage:

DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature:

0°C to +40°C

Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 11 mm

Mass (approx.):

1.3 kg (excluding accessories)

Design and specifications are subject to change

without notice.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

EN24-29_KD-G411[EX_EU]f.indd 29 10/14/04, 9:29:43 AM

EN, GE, RU

1004DTSMDTJEIN

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?

Bitte setzen Sie Ihr Gerät zurück

Siehe Seite Zurücksetzen des Geräts

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше устройство

Для получения информации о перезагрузке Вашего

устройства обратитесь на соответствующую страницу

Rear_KD-G411[EY]006A_1.indd 2 9/28/04, 12:02:52 PM

KD-G411

Installation/Connection Manual

Einbau/Anschlußanleitung

Руководство по установке/подключению

GET0257-013A

[EY]

1004DTSMDTJEIN

EN, GE, RU

ENGLISH

This receiver is designed to operate on 12 V DC, NEGATIVE

ground electrical systems. If your vehicle does not have this

system, a voltage inverter is required, which can be purchased

at JVC IN-CAR ENTERTAINMENT dealers.

DEUTSCH

Dieses Gerät ist für einen Betrieb in elektrischen Anlagen

mit 12 V Gleichstrom und (–) Erdung ausgelegt. Verfügt

Ihr Fahrzeug nicht über diese Anlage, ist ein Spannungsinverter

erforderlich, der bei JVC Autoradiohändler erworben werden kann.

Handles

Griffe

Рычаги

Washer (ø5)

Unterlegscheibe (ø5)

Шайба (њ5)

Lock nut (M5)

Sicherungsmutter (M5)

Фиксирующая гайка (M5)

Mounting bolt (M5 x 20 mm)

Befestigungsschraube (M5 x 20 mm)

Крепежный болт (M5 x 20 мм)

Rubber cushion

Gummipuffer

Резиновый чехол

A / B

Hard case/Control panel

Etui/Schalttafel

Жесткий футляр/панель управления

Sleeve

Halterung

Муфта

Trim plate

Frontrahmen

Декоративную панель

Power cord

Stromkable

Кабель питания

Parts list for installation and connection

The following parts are provided for this receiver.

After checking them, please set them correctly.

Teileliste für den Einbau und Anschluß

Die folgenden Teile werden zusammen mit diesem Gerät geliefert.

Nach ihrer Überprüfung, die Teile richtig einsetzen.

INSTALLATION

(IN-DASH MOUNTING)

The following illustration shows a typical installation. If you

have any questions or require information regarding installation

kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a

company supplying kits.

• If you are not sure how to install this receiver correctly, have it

installed by a qualified technician.

EINBAU

(IM ARMATURENBRETT)

Die folgende Abbildung zeigt einen typischen Einbau. Bei

irgendwelchen Fragen oder wenn Sie Informationen hinsichtlich

des Einbausatzes brauchen, wenden Sie sich an ihren JVC

Autoradiohändler oder ein Unternehmen das diese Einbausätze

vertreibt.

• Sind Sie sich über den richtigen Einbau des Geräts nicht sicher,

lassen Sie es von einem qualifizierten Techniker einbauen.

Do the required electrical connections.

Nehmen Sie die erforderlichen elektrischen

Anschlüsse vor.

Выполните необходимые подключения

контактов, как показано на оборотной

стороне этой инструкции.

*1 When you stand the receiver, be

careful not to damage the fuse

on the rear.

*1 Beim Aufstellen des Geräts darauf

achten, daß die Sicherung auf der

Rückseite nicht beschädigt wird.

*1 Устанавливайте устройство

таким образом, чтобы не

повредить предохранитель,

расположенный сзади.

Bend the appropriate tabs to hold

the sleeve firmly in place.

Die geeigneten Zapfen biegen, um die

Manschette sicher festzuhalten.

Отогните соответствующие

фиксаторы, предназначенные

для прочной установки корпуса.

РУССКИЙ

Это устройство разработано для эксплуатации на 12 В

постоянного напряжения с минусом на массе. Если

Ваш автомобиль не имеет этой системы, требуется

инвертор напряжения, который может быть приобретен у

дилера автомобилнего специалиста JVC.

Список деталей для установки и подключения

Следующие детали поставлены в комплекте с

устройством.

После проверки комплектации, пожалуйста, установите

их правильно.

УСТАНОВКА (УСТАНОВКА В

ПРИБОРНУЮ ПАНЕЛЬ)

На следующих иллюстрациях показана типовая установка.

Если у Вас есть какие-либо вопросы, касающиеся

установки, обратитесь к Вашему дилеру автомобилнего

специалиста JVC или в компанию, поставляющую

соответствующие принадлежности.

• Если Вы не знаете точно, как следует устанавливать

это устройство, обратитесь к квалифицированному

специалисту.

Instal1-2_G411_013A_1.indd 1 9/23/04, 6:52:41 PM

Removing the receiver

Before removing the receiver, release the rear section.

Ausbau des Geräts

Vor dem Ausbau des Geräts den hinteren Teil freigeben.

When installing the receiver without using the sleeve / Beim Einbau des Geräts

ohne Halterung / При установке устройства без использования муфты

In a Toyota for example, first remove the car radio and install the receiver in its place.

Zum Beispiel in einem Toyota zuerst das Autoradio ausbauen und dann das Gerät an seinem Platz einbauen.

В автомобилях “Toyota”, например, сначала удалите автомобильную магнитолу, затем установите на

ее место это устройство.

When using the optional stay / Beim Verwenden der

Anker-Option / При использовании дополнительной стойки

Note : When installing the receiver on the mounting bracket, make sure to use the 8 mm-long

screws. If longer screws are used, they could damage the receiver.

Hinweis : Beim Anbringen des Gerät an der Konsole sicherstellen, daß 8 mm lange Schrauben verwendet

werden. Werden längere Schrauben verwendet, können sie das Gerät beschädigen.

Примечание : При установке устройства на крепежный кронштейн, используйте только винты

длиной 8 мм. При использовании более длинных винтов можно повредить устройство.

Bracket*

Konsole*

Кронштейн*

* Not included with this receiver.

* Nicht Teil dieses Geräts.

* Не входят в комплект.

Pocket

Taschen

Карман

Flat type screws (M5 x 8 mm)*

Senkkopfschrauben (M5 x 8 mm)*

Крепежные винты (M5 x 8 мм)*

Screw (option)

Schraube (Option)

Винт (дополнительно)

Stay (option)

Anker (Option)

Стойка

(дополнительно)

Fire wall

Feuerwand

Стена

Dashboard

Armaturenbrett

Приборная панель

Install the receiver at an angle of less than 30˚.

Stellen Sie das Gerät mit einem Winkel von weniger

als 30˚ auf.

Установите устройство под углом менее

30°.

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect

the battery’s negative terminal and make all electrical

connections before installing the receiver.

• Be sure to ground this receiver to the car’s chassis

again after installation.

Notes:

• Replace the fuse with one of the specified rating. If

the fuse blows frequently, consult your JVC IN-CAR

ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum

power of more than 50 W (both at the rear and at the front,

with an impedance of 4 Ω to 8 Ω). If the maximum power

is less than 50 W, change “AMP GAIN” setting to prevent

the speakers from being damaged (see page 21 of the

INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED

leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to

touch it when removing this receiver.

ELEKTRISCHE ANSCHLÜSSE

Zur Vermeidung von Kurzschlüssen empfehlen wir, daß Sie

den negativen Batterieanschluß abtrennen und alle elektrischen

Anschlüsse herstellen, bevor das Gerät eingebaut wird.

• Sicherstellen, daß das Gerät nach dem Einbau a

Chassis des Fahrzeugs geerdet wird.

Hinweise:

• Die Sicherung mit einer der entsprechenden Nennleistung ersetzen.

Brennt die Sicherung häufig durch, wenden Sie sich an ihren JVC

Autoradiohändler.

• Es wird empfohlen, Lautsprecher mit einer Maximalleistung von

mehr als 50 W anzuschließen (sowohl hinten als auch vorne, mit

einer Impedanz von 4 Ω bis 8 Ω). Wenn die Maximalleistung

weniger als 50 W beträgt, stellen Sie „AMP GAIN“ anders ein, um

Schäden an den Lautsprechern zu vermeiden (siehe Seite 21 der

BEDIENUNGSANLEITUNG).

• Zur Vermeidung eines Kurzschlusses die Anschlußklemmen

der NICHT VERWENDETEN Leitungen mit Isolierklebeband

umwickeln.

• Das Abstrahlblech wird nach dem Gebrauch sehr heiß. Beim

Ausbau des Geräts darauf achten, das Abstrahlblech nicht zu

berühren.

Heat sink

Abstrahlblech

Радиатор

TROUBLESHOOTING

• The fuse blows.

* Are the red and black leads connected correctly?

• Power cannot be turned on.

* Is the yellow lead connected?

• No sound from the speakers.

* Is the speaker output lead short-circuited?

• Sound is distorted.

* Is the speaker output lead grounded?

* Are the “–” terminals of L and R speakers grounded in

common?

• Noise interfere with sounds.

* Is the rear ground terminal connected to the car’s chassis

using shorter and thicker cords?

• Receiver becomes hot.

* Is the speaker output lead grounded?

* Are the “–” terminals of L and R speakers grounded in

common?

• This receiver does not work at all.

* Have you reset your receiver?

FEHLERSUCHE

• Die Sicherung brennt durch.

* Sind die roten und schwarzen Leitungen richtig angeschlossen?

• Stromversorgung kann nicht eingeschaltet werden.

* Ist die gelbe Leitung angeschlossen?

• Kein Ton aus den Lautsprechern.

Ist die Lautsprecherausgangsleitung kurzgeschlossen?

• Ton verzerrt.

* Ist die Lautsprecherausgangsleitung geerdet?

* Sind die (–) Anschlußklemmen der linken und rechten Lautsprecher

zusammen geerdet?

• Störgeräusche im Klang.

* Ist die hintere Erdungsklemme mit kürzeren und dickeren Kabeln

an das Fahrzeugchassis angeschlossen?

• Gerät wird heiß.

* Ist die Lautsprecherausgangsleitung geerdet?

* Sind die (–) Anschlußklemmen der linken und rechten Lautsprecher

zusammen geerdet?

• Dieser Receiver funktioniert überhaupt nicht.

* Haben Sie einen Reset am Receiver vorgenommen?

Insert the two handles, then pull them as

illustrated so that the receiver can be removed.

Die beiden Handgriffe einsetzen und dann ziehen wie

in der Abbildung gezeigt, so daß das Gerät entfernt

werden kann.

Вставьте два рычажка, затем потяните

их, как показано на рисунке, чтобы вынуть

устройство.

Удаление устройства

Перед удалением устройства освободите заднюю часть.

BЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ

• Сработал предохранитель.

* Правильно ли подключены черный и красный провода?

• Питание не включается.

* Подключен ли желтый провод?

• Звук не выводится через громкоговорители.

* Нет ли короткого замыкания на кабеле выхода

громкоговорителей?

• Звук искажен.

* Заземлен ли провод выхода громкоговорителей?

* Заземлены ли разъемы “–” правого (R) и левого (L)

громкоговорителей?

• Шум мешает звучанию.

* Соединен ли находящийся сзади зажим заземления с

шасси автомобиля с помощью более короткого и тонкого

шнуров?

• Устройство нагревается.

* Заземлен ли провод выхода громкоговорителей?

* Заземлены ли разъемы “–” правого (R) и левого (L)

громкоговорителей?

• Приемник не работает.

* Выполнена ли перенастройка приемника?

ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ

Для предотвращения коротких замыканий мы

рекомендуем Вам отсоединить отрицательный разъем

аккумулятора и осуществить все подключения перед

установкой устройства.

• После установки обязательно заземлите данное

устройство на шасси автомобиля.

Примечания:

• Заменяйте предохранитель другим предохранителем

указанного класса. Если предохранитель сгорает

слишком часто, обратитесь к дилеру автомобилнего

специалиста JVC.

• Рекомендуется подключать динамики с максимальной

мощностью более 50 Вт (к задней и передней панели

устройства, с полным сопротивлением от 4 Ω до 8 Ω).

Если максимальная мощность динамиков менее 50 Вт,

перейдите в режим “AMP GAIN”, чтобы предотвратить

их повреждение (см. ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

на стр. 21).

• Для предотвращения короткого замыкания заклейте

НЕИСПОЛЬЗУЕМЫЕ концы изолирующей лентой.

• Радиатор во время использования сильно нагревается.

Старайтесь его не трогать во время удаления

устройства.

Bracket*

Konsole*

Кронштейн*

Flat type screws (M5 x 8 mm)*

Senkkopfschrauben (M5 x 8 mm)*

Крепежные винты (M5 x 8 мм)*

Instal1-2_G411_013A_f.indd 2 10/2/04, 9:24:26 AM

ENGLISH DEUTSCH

ATypical Connections / Typische Anschlüsse / Типичные подключения

Before connecting: Check the wiring in the vehicle

carefully. Incorrect connection may cause serious damage to

this receiver.

The leads of the power cord and those of the connector from

the car body may be different in color.

1 Connect the colored leads of the power cord in the order

specified in the illustration below.

2 Connect the aerial cord.

3 Finally connect the wiring harness to the receiver.

Note: If your vehicle does not have any accessory terminal,

move the fuse from the fuse position 1 (initial position) to fuse

position 2, and connect the red lead (A7) to the positive (+)

battery terminal.

• The yellow lead (A4) is not used in this case.

Перед началом подключений: Тщательно проверьте

проводку в автомобиле. Неправильное подключение

может привести к серьезному повреждению устройства.

Жилы силового кабеля и жилы соединителя от кузова

автомобиля могут быть разного цвета.

1 Подсоедините цветные провода шнура питания в

указанном ниже порядке.

2 Подключите кабель антенны.

3 В последнюю очередь подключите электропроводку к

устройству.

Примечание: Если в Вашем автомобиле никакого

вспомогательного разъема не имеется, переставьте

предохранитель из положения 1 предохранителя

(первоначальное положение) в положение 2

предохранителя и подключите красный провод (А7) к

положительному (+) полюсу аккумулятора.

• Желтый провод (А4) в этом случае не используется.

Before checking the operation of this receiver prior to

installation, this lead must be connected, otherwise

power cannot be turned on.

*2 Vor der Überprüfung der Funktionsfähigkeit

des Geräts vor dem Einbau, muß diese Leitung

angeschlossen werden, da sonst die Stromversorgung

nicht eingeschaltet werden kann.

*2 Перед проверкой работы устройства подключите

этот провод, иначе питание не включится.

Line out (see diagram )

Schutz kappen Signalausgang (siehe Schaltplan )

К выходу (см. схему )

Rear ground terminal

Hintere Erdungscan-

schlußklemme

Задний разъем

заземления

To steering wheel remote controller (see diagram )

An Lenkradfernbedienung (siehe Schaltplan )

К рулевому пульту дистанционного управления (см. схему )

15 A fuse

15 A Sicherung

Предохранитель 15 A

Aerial terminal

Antennenanschlu-

ßklemme

Разъем антенны

Black

Schwarz

Черный

Blue with white stripe

Blau mit weißem Streifen

Синий с белой полосой

Red

Rot

Красный

Yellow*2

Gelb*2

Желтый*2

Brown

Braun

Коричневый

*1 Not included for this receiver

*1 Wird nicht mit Gerät mitgeliefert

*1 Не входит в комплект

To metallic body or chassis of the car

Zur metallenen Karosserie oder zum Fahrwerk des Autos

К металлическому корпусу или шасси автомобиля

To a live terminal in the fuse block connecting to the car battery

(bypassing the ignition switch) (constant 12 V)

Zur einer stromführenden Anschlußklemme im Sicherungsblock

zum Anschließen an die Autobatterie (Umgehen des Zündschalters)

(konstant 12 V)

К разъему фазы в блоке предохранителя (минуя блок

зажигания) (постоянный 12 В)

Ignition switch

Zündschalter

Переключатель зажигания

Fuse block

Sicherungsblock

Блок предохранителя

To an accessory terminal in the fuse block

Zur einer Zubehöranschlußklemme im Sicherungsblock

К вспомогательному разъему в блоке предохранителя

To the remote lead of other equipment or power aerial if any (200 mA max.)

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden

(max. 200 mA)

К удаленному проводу другого оборудования или антенны (макс. 200 мА)

To cellular phone system

Zur Mobiltelefon

К системе сотового телефона

Left speaker (front)

Linker Lautsprecher (vorne)

Левый громкоговоритель

(передний)

Right speaker (front)

Rechter Lautsprecher (vorne)

Правый громкоговоритель

(передний)

Left speaker (rear)

Linker Lautsprecher (hinten)

Левый громкоговоритель

(задний)

Right speaker (rear)

Rechter Lautsprecher (hinten)

Правый громкоговоритель

(задний)

Purple

Lila

Пурпурный

Purple with black stripe

Lila mit schwarzem

Streifen

Пурпурный с черной

полосой

Green

Grün

Зеленый

Green with black stripe

Grün mit schwarzem

Streifen

Зеленый с черной

полосой

Gray

Grau

Серый

Gray with black stripe

Grau mit schwarzem

Streifen

Серый с черной

полосой

White

Weiß

Белый

White with black stripe

Weiß mit schwarzem

Streifen

Белый с черной

полосой

Fuse position 2 / 2. Sicherungsposition / Положение 2

предохранителя

Vor dem Anschließen: Die Verdrahtung im Fahrzeug sorgfältig

überprüfen. Falsche Anschlüsse können ernsthafte Schäden am Gerät

hervorrufen.

Die Leiter des Stromkabels und die Leiter des Anschlusses im

Fahrzeug können sich farblich unterscheiden.

1 Die farbigen Adern des Stromkabels in der Reihenfolge

anschließen, wie in der Abbildung unten gezeigt.

2 Das Antennenkabel anschließen.

3 Die Kabelbäume am Gerät anschließen.

Hinweis: Verfügt Ihr Fahrzeug nicht über eine

Zubehöranschlußklemme, die Sicherung von der 1.

Sicherungsposition (Erstposition) in die 2. Sicherungsposition

versetzen, die rote Leitung (A7) an der (+) Batterieanschlußklemme

anschließen.

• Die gelbe Leitung (A4) wird in diesem Fall nicht verwendet.

РУССКИЙ

Fuse position 1 / 1. Sicherungsposition / Положение 1

предохранителя

Instal3-4_G411_013A_f.indd 3 10/2/04, 9:28:40 AM

BConnecting the external amplifier / Anschließen des externen Verstärkers / Подключение внешнего усилителя

You can connect an amplifier to upgrade your car stereo

system.

• Connect the remote lead (blue with white stripe) to the

remote lead of the other equipment so that it can be

controlled through this receiver.

• Disconnect the speakers from this receiver, connect

them to the amplifier. Leave the speaker leads of this

receiver unused.

Можно подключить усилитель для обновления

автомобильной стереосистемы.

• Подсоедините провод внешнего устройства (синий с

белой полосой) к проводу внешнего устройства другого

оборудования так, чтобы им можно было управлять с

этого устройства.

• Отсоедините громкоговорители от данного

устройства, подключите их к усилителю. Оставьте

провода громкоговорителей данного устройства

неиспользованными.

Signal cord (not supplied with this receiver)

Einzelleitung (nicht mit diesem Gerät mitgeliefert)

Кабель сигнала (не входит в комплект)

Front speakers

Vordere Lautsprecher

Передние громкоговорители

*3 Плотно прикрепите заземляющий провод к

металлическому кузову или шасси автомобиля—в

месте, не покрытом краской (если оно покрыто

краской, удалите краску перед тем, как прикреплять

провод). Невыполнение этого требования может

привести к повреждению данного устройства.

CConnecting to the steering wheel remote controller / Anschluß an die Lenkradfernbedienung / Подключение к рулевому пульту

дистанционного управления

If your car is equipped with the steering wheel remote controller, you can operate this receiver

using the controller. To do it, a JVC’s OE remote adapter (not supplied) which matches with your

car is required. Consult your JVC IN-CAR ENTERTAINMENT dealer for details.

Wenn Ihr Fahrzeug mit einer Lenkradferndienung ausgestattet ist, können Sie damit diesen Receiver

steuern. Hierfür ist ein für Ihr Fahrzeug passender Radio-Lenkrad-Fernbedienungsadaption von JVC

(nicht im Lieferumfang enthalten) erforderlich. Für weitere Einzelheiten wenden Sie sich an Ihren JVC

Autoradiohändler.

Если автомобиль оборудован рулевым пультом дистанционного управления, его можно

использовать для управления данным устройством. Для этого необходим адаптер

рулевого пульта дистанционного управления JVC OE (не поставляется), подходящий

для Вашего автомобиля. За более подробной информацией обратитесь к поставщику

автомобильных аудиосистем компании JVC.

PRECAUTIONS on power supply and speaker

connections:

• DO NOT connect the speaker leads of the power cord

to the car battery; otherwise, the receiver will be

seriously damaged.

• BEFORE connecting the speaker leads of the power cord to

the speakers, check the speaker wiring in your car.

ПРЕДОСТЕРЕЖЕНИЯ по питанию и

подключению громкоговорителей:

• НЕ подключайте провода громкоговорителей к

аккумулятору автомобиля, иначе устройство будет

повреждено.

• ПЕРЕД подключением проводов громкоговорителей

к кабелю питания громкоговорителя проверьте схему

соединений громкоговорителей в Вашем автомобиле.

Rear speakers

Hintere Lautsprecher

Задние громкоговорители

JVC Amplifier

JVC Verstärker

JVC-усилитель

Remote lead

Fernbedienungsleitung

Провод внешнего устройства

Y-connector (not supplied with this receiver)

Y-Anschluß (nicht mit diesem Gerät mitgeliefert)

Разъем Y (не входит в комплект)

Remote lead (Blue with white stripe)

Fernbedienungsleitung (Blau mit weißem Streifen)

Провод внешнего устройства (Синий с белой полосой)

To the remote lead of other equipment or power aerial if any

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern

vorhanden

К удаленному проводу другого оборудования или антенны

*3 Firmly attach the ground wire to the metallic body or to

the chassis of the car—to the place not coated with paint

(if coated with paint, remove the paint before attaching

the wire). Failure to do so may cause damage to the

receiver.

Steering wheel remote input

Eingang für Lenkradfernbedienung

Вход рулевого пульта дистанционного

управления

OE remote adapter (not supplied)

Radio-Lenkrad-Fernbedienungsadaption

(nicht im Lieferumfang enthalten)

Aдаптер рулевого пульта дистанционного

управления OE (не поставляется)

Steering wheel remote controller (equipped in the car)

Lenkradfernbedienung (im Fahrzeug installiert)

Рулевой пульт дистанционного управления

(устанавливаемый в автомобиле)

Sie können einen Verstärker anschließen, um Ihre Autostereoanlage

zu erweitern.

• Schließen Sie das Fernbedienungskabel (blau mit weißem Streifen)

an das Fernbedienungskabel des anderen Geräts an, so daß es über

dieses Gerät gesteuert werden kann.

• Die Lautsprecher von diesem Gerät abtrennen und am

Verstärker anschließen. Die Lautsprecherleitungen

dieses Geräts unbenutzt lassen.

*3 Verbinden Sie den Erdungsleiter mit der Karosserie oder dem

Rahmen des Fahrzeugs. Die Kontaktstelle darf nicht lackiert sein

(sollte die Kontaktstelle lackiert sein, entfernen Sie den Lack

der Kontaktstelle, bevor Sie den Leiter befestigen). Wenn der

Erdungsleiter nicht ordnungsgemäß angeschlossen wird, kann

dieses Gerät beschädigt werden.

VORSICHTSMASSREGELN beim Anschließen der

Stromversorgung und Lautsprecher:

• Die Lautsprecherleitungen des Netzkabels NICHT an der

Autobatterie anschließen, da sonst das Gerät schwer

beschädigt wird.

• VOR dem Anschließen der Lautsprecherleitungen des

Spannunsgversorgungskabels an die Lautsprecher, die

Lautsprecherverdrahtung in Ihrem Auto überprüfen.

Instal3-4_G411_013A_f.indd 4 10/2/04, 9:28:41 AM

Jvc Kd G411 Users Manual G411[EY]

KD-G411 to the manual b7fb3333-cc97-4baa-ba4b-7c1a9c86a4ad

Navigation menu

Versions of this User Manual:

Views

Navigation
