WARNINGS

FCC Warning: This equipment may

generate or use radio frequency

energy. Changes or modifications to

this equipment may cause harmful

interference unless the modifications

are expressly approved in this User

Guide. The user could lose the

authority to operate this equipment if

an unauthorized change or

modification is made.

Note: This equipment has been tested

and found to comply with the limits for

a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits

are designed to provide reasonable

protection against harmful interference

in a residential installation. This

equipment generates, uses and can

radiate radio frequency energy and, if

not installed and used in accordance

with the instructions, may cause

harmful interference to radio

communications. However, there is no

guarantee that interference will not

occur in a particular installation. If this

equipment does cause harmful

interference to radio or television

reception, which can be determined by

tuning the equipment off and on, the

user is encouraged to try to correct the

interference by one or more of the

following measures:

Reorient or relocate the receiving

antenna.

Increase the separation between the

equipment and receiver.

Connect the equipment into an outlet

on a circuit different from that to

which the receiver is connected.

2

Consult the dealer or an experienced

radio/TV technician for help.

Operating Temperature

The receiver is designed to operate

between –20oC (–4oF) to +70 oC

(158oF).

Avoid leaving the receiver in a vehicle

or elsewhere where the temperature

may fall outside this range. Extreme

temperatures or extreme temperature

fluctuations can degrade the

performance of the LCD display

screen, and possibly damage it.

Cleaning and Maintenance

If the receiver or accessories become

dirty, turn the power off and wipe it

clean with a soft cloth. Do not use hard

cloths, strong cleaning fluids, paint

thinner, alcohol, or other volatile

solvents to clean. These may cause

damage to the receiver.

Changes or modifications not approved

by JVC could void the user’s authority to

operate the equipment.

Caution:

3

CAUTIONS

This symbol means important

instructions. Failure to heed them

can result in injury or material

property damage.

Liquid Crystal Precautions

If the liquid crystal fluid comes in

contact with your skin, wipe the

skin area with a cloth and then

wash the skin thoroughly with

soap and running water.

If the liquid crystal fluid gets into

your eye, flush the eye with clean

water for at least 15 minutes.

Seek medical care.

If the liquid crystal fluid is ingested,

flush your mouth thoroughly with

water. Drink large quantities of

water and induce vomiting. Seek

medical care.

Safety Precautions

Be sure to observe the following

warnings. Failure to follow these

safety instructions and warnings may

result in a serious accident.

Do not operate the receiver in a

way that might divert your

attention from driving safely. As a

driver, you alone are responsible

for safely operating your vehicle in

accordance with traffic safety laws

at all times.

Do not install the receiver where it

may obstruct your view through

the windshield, or of your vehicle’s

indicator displays.

Do not install the receiver where it

may hinder the function of safety

4

devices such as an airbag. Doing

so may prevent the airbag from

functioning properly in the event

of an accident.

Be sure the receiver and

accessories are installed as

described in the installation

instructions which accompany

each accessory kit.

To avoid short circuits, do not

open the receiver or accessories,

and never put or leave any

metallic objects (coins, tools, etc.)

inside the receiver.

If the receiver or accessories

emits smoke or unusual odors,

turn the power off immediately,

and disconnect the receiver from

any power source.

Do not drop the receiver or

subject it to strong shocks.

If the receiver doesn’t seem to be

working properly, turn the receiver

off, wait 10 seconds, replace the

battery and then turn it on again.

The installation and use suggestions

contained in this manual are subject to

any restrictions or limitations that may

be imposed by applicable law. The

purchaser should check applicable law

for any restrictions or limitations before

installing and/or operating this unit.

[European Union only]

5

Index

Package Contents ......................................................................................7

Optional Accessories (Sold Separately) ..................................................... 9

Installation for Car Use............................................................................. 12

“Professional” Installation ................................................................. 12

“Do it Yourself” Installation ................................................................ 15

Installation for Home Use .........................................................................18

Connecting the Cigarette Lighter Adapter ................................................ 19

Controls .................................................................................................... 20

Getting to Know Your HD Radio Receiver ........................................20

Getting to Know Your Remote Control.............................................. 23

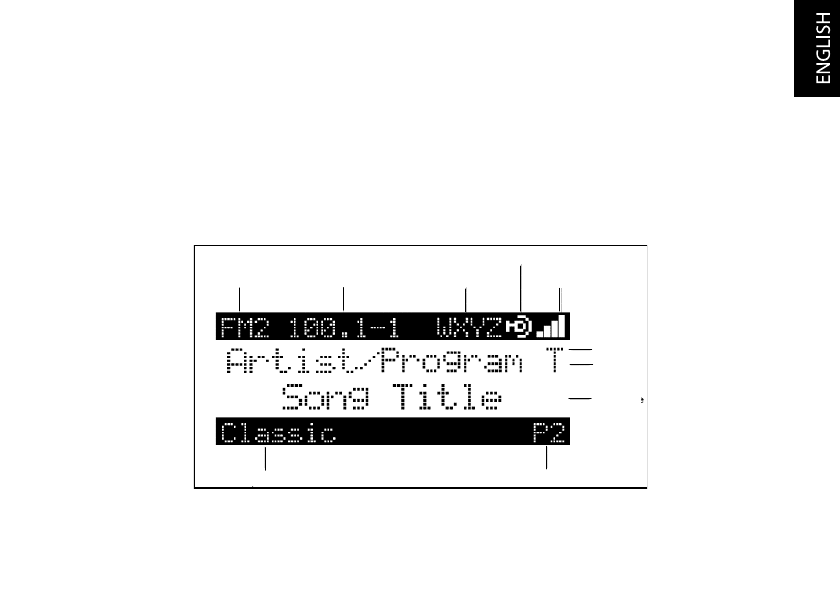

On-Screen Information ............................................................................. 26

During HD Radio Mode ....................................................................26

During FM/AM Mode ........................................................................27

Menu Options ........................................................................................... 28

6

Operations ................................................................................................ 29

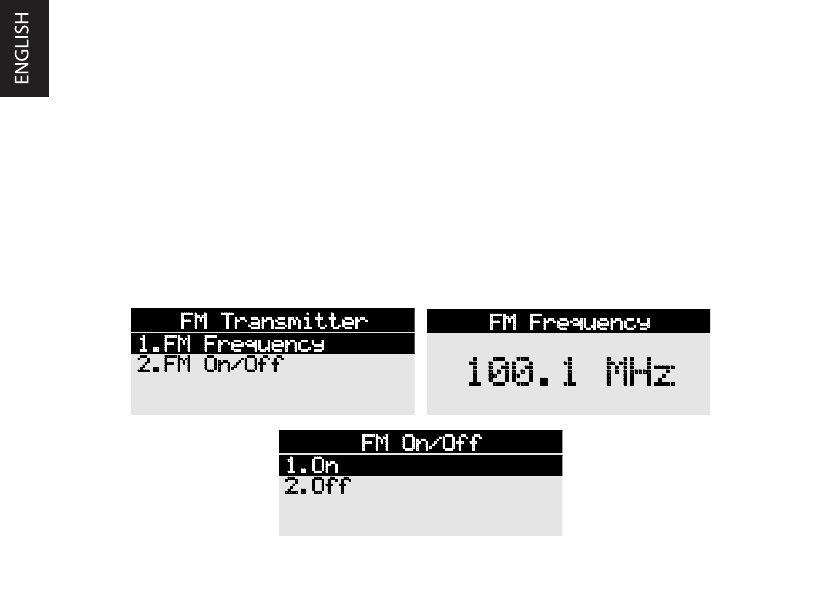

FM Transmitter ................................................................................. 29

Display Options ................................................................................30

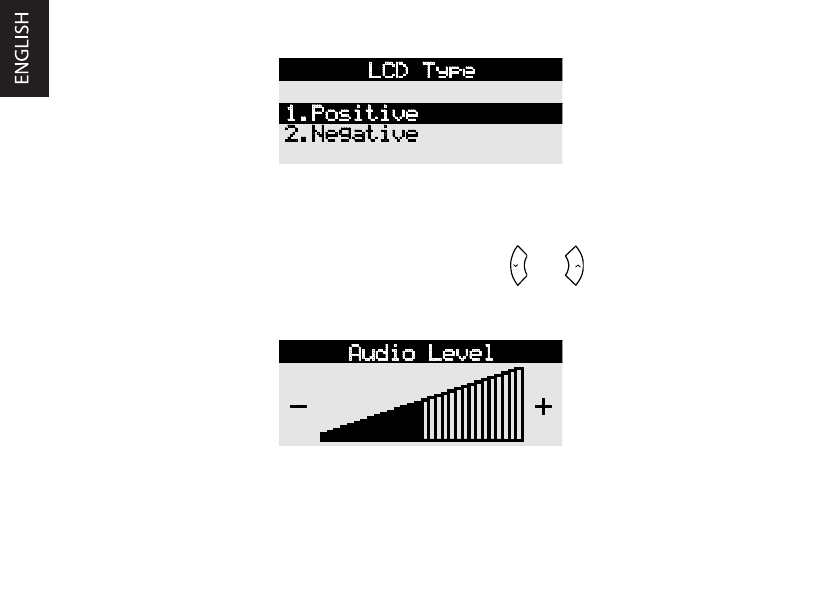

Audio Control.................................................................................... 31

Equalizer...................................................................................32

Tone Control ............................................................................. 32

Balance.....................................................................................33

Loudness .................................................................................. 33

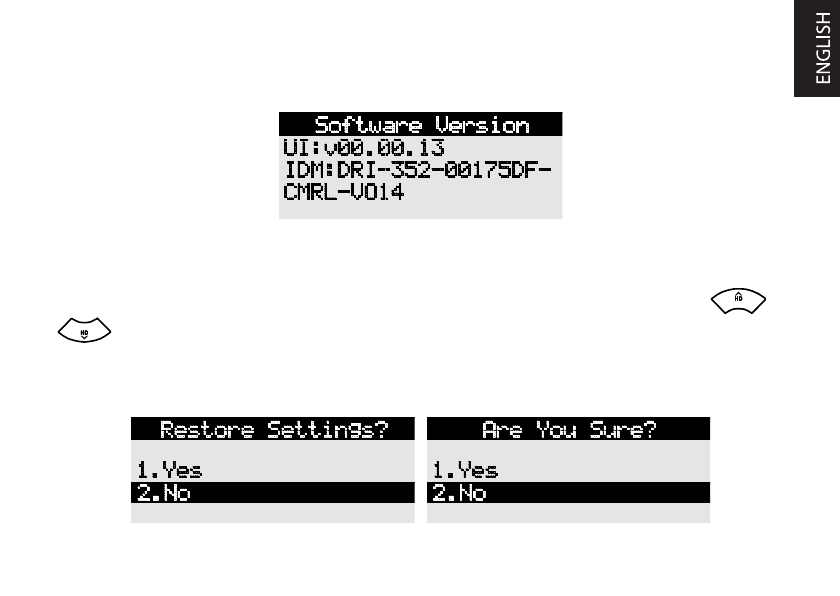

Software Version............................................................................... 34

Factory Default ................................................................................. 34

Specifications ........................................................................................... 35

7

Package Contents

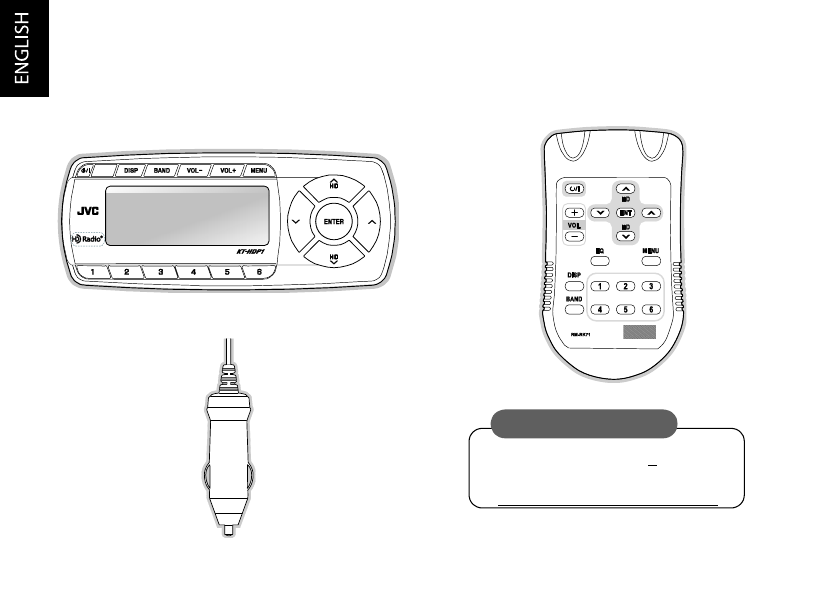

1. HD Radio receiver

2. Cigarette lighter adapter

3. Remote control with battery

This product contains a CR Coin Cell Lithium Battery

which contains Perchlorate Material special

handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

For USA-California Only

8

 Do not install any battery other than CR2025 or its equivalent; otherwise, it

may explode.

 Store the battery in a place where children cannot reach to avoid risk of

accident.

 To prevent the battery from over-heating, cracking, or starting a fire;

-Do not recharge, short, disassemble, heat the battery, or dispose of it in fire.

-Do not leave the battery with other metallic materials.

-Do not poke the battery with tweezers or similar tools.

-Wrap the battery with tape and insulate when throwing away or saving it.

Warning

Note! You will need to purchase an additional Home or Car installation kit to

use your KT-HDP1.

9

Optional Accessories (Sold Separately)

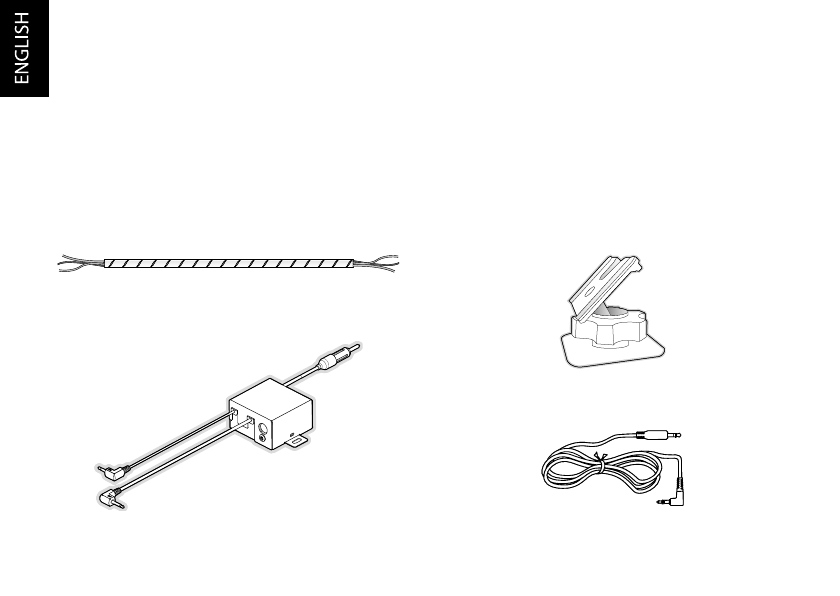

1. Car Kit [KV-K1017]

“Professional” Installation Kit (Optional)

(a) Cable clip

(b) Connection unit

(c) Dash mount

(d) Audio cable

10

2. Car Kit [KV-K1018]

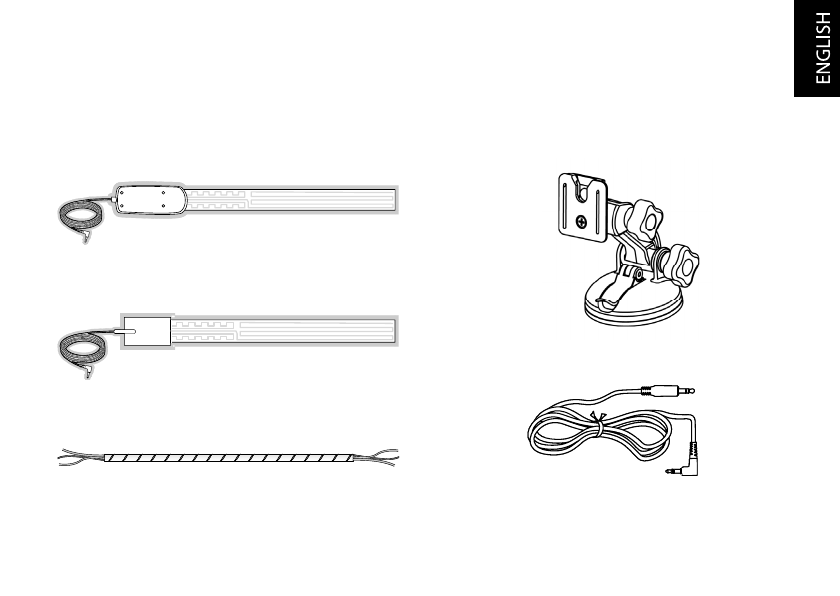

“Do it Yourself” Installation Kit (Optional)

(a) Input antenna (Sleeve type)

(b) Output antenna (Sleeve type)

(c) Cable clip

(d) Suction cup

(e) Audio cable

11

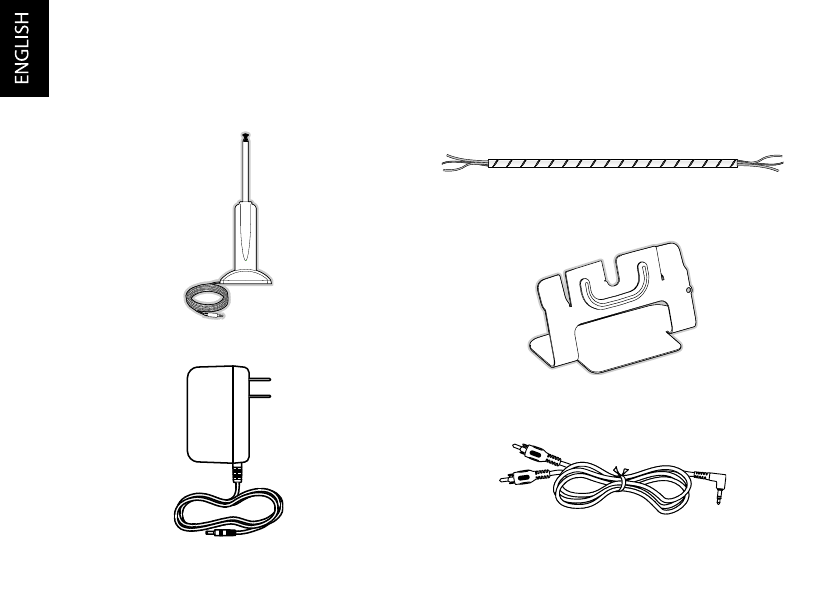

3. Home Kit [KV-K1019] (Optional)

(a) Home (Input) antenna

(b) AC adapter

(c) Cable clip

(d) Home stand

(e) Audio cable

12

Installation for Car Use

There are two ways for installation: “Professional” installation and “Do it

Yourself” installation.

“Professional” Installation

Professional installation requires an experienced technician to install this product

in your vehicle, and provides advice for selecting a suitable mounting location,

installation of the antenna, and routing all the necessary wires and cables.

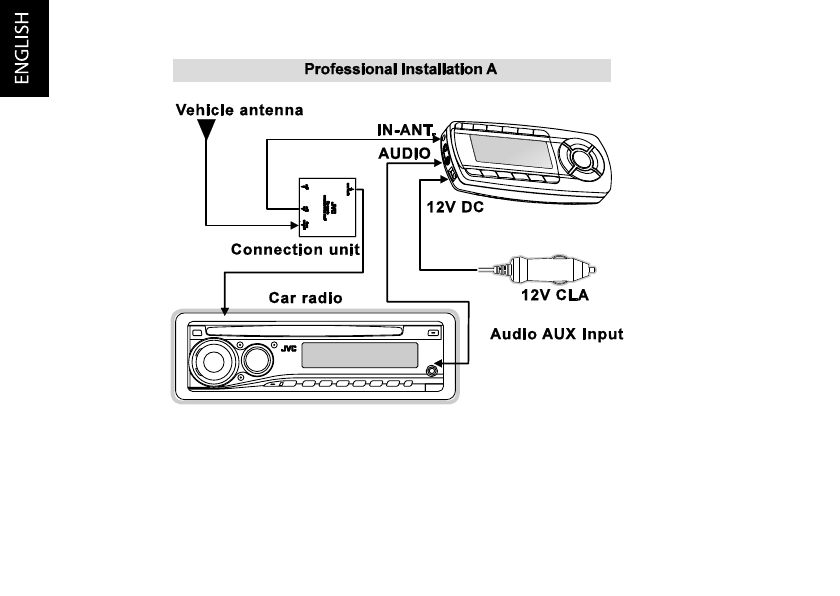

“Professional ” Installation- Type (A)

Professional installation-type (A) is for car radios with an AUX-IN (audio input)

function. Please locate the AUX-IN (audio input)’s location and determine

whether it is in front or rear of the car radio.

13

Note! Some motorized vehicle antennas will automatically retract down when AUX-IN

mode is selected. Under the mentioned circumstances, signal reception will become

poor and the sound quality will be poor. Vehicles equipped with a built-in windshield

antenna, will automatically turn off when switching the car radio to AUX-IN mode.

14

“Professional ” Installation- Type (B)

Professional installation-type (B) is for car radios without Aux-in (audio input)

and is using wired FM Transmitter’s function.

15

“Do it Yourself” Installation

“Do it Yourself” installation facilitates you to set up your device in convenient and

quick ways.

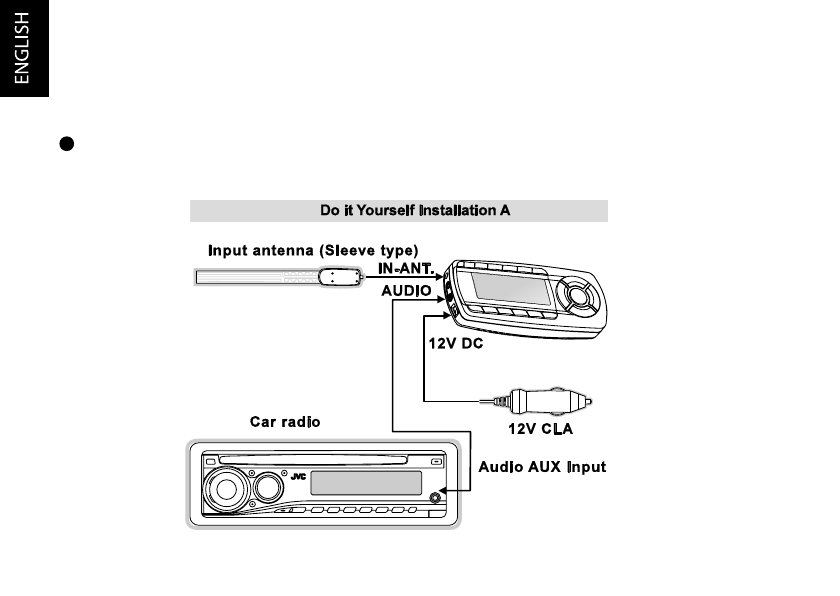

“Do it Yourself” Installation- Type (A)

Do it Yourself installation-type (A) is for car radios with Aux-in (audio input)

connection.

16

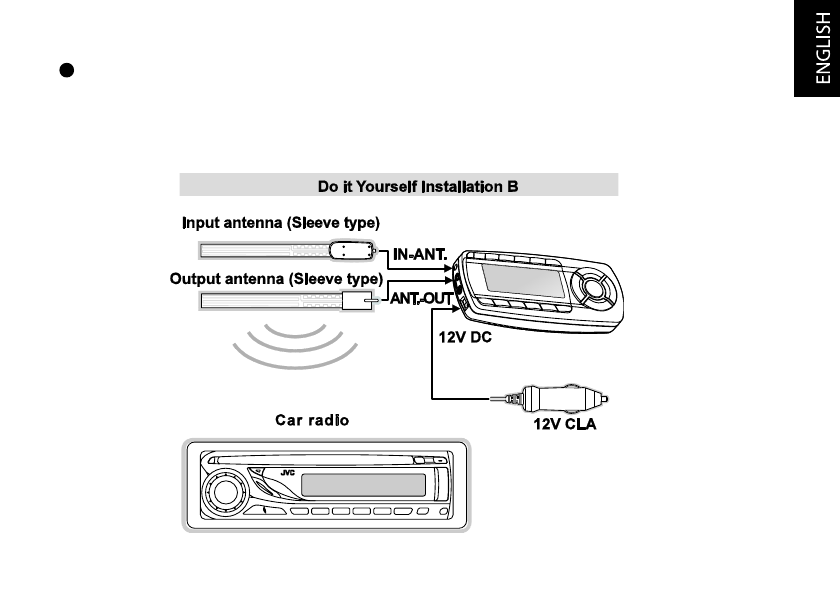

“Do it Yourself ” Installation- Type (B)

Do it Yourself installation-type (B) is for car radios without Aux-in (audio

input) and uses a wireless FM Transmitter connection. Do it Yourself

installation-type (B) uses a sleeve type of antenna for FM signal reception.

17

“Do it Yourself ” Installation- Type (C)

Do it Yourself installation-type (C) takes advantage of receiver’s internal

antenna and uses a wireless FM Transmitter for linking to the car radio.

18

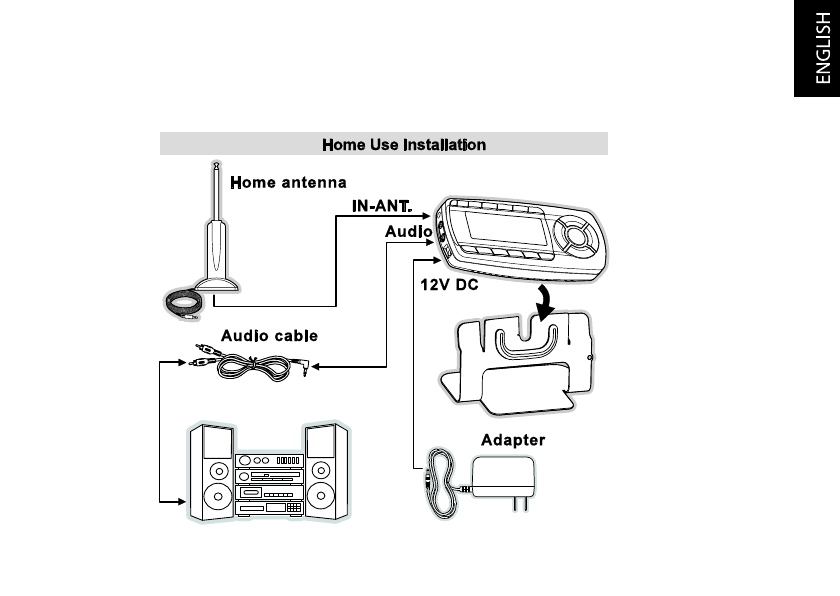

Installation for Home Use

Your transportable HD Radio receiver can be also used while at home.

19

Connecting the Cigarette Lighter Adapter

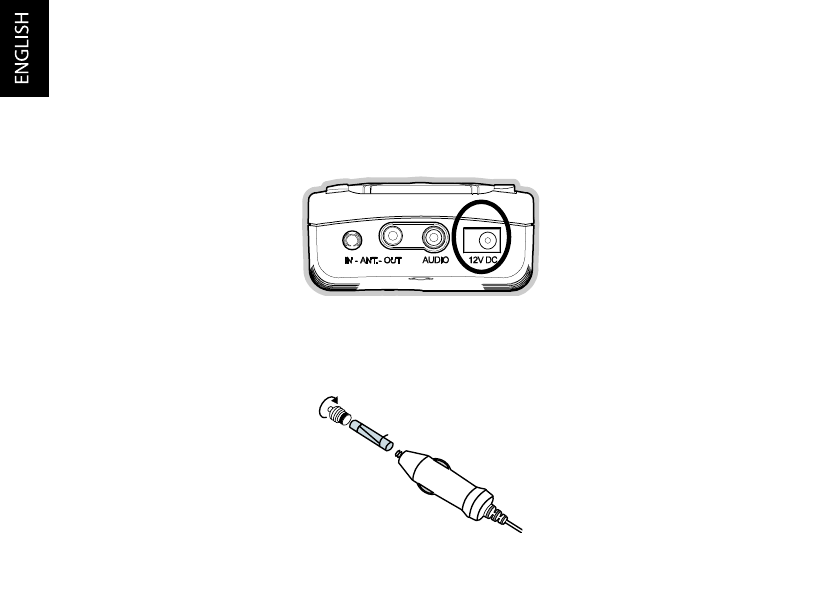

Connect the provided cigarette lighter adapter (12V CLA) to the 12V DC

connection at the side of the receiver.

Changing Fuse

Replace the fuse with one of the specified rating (2A).

20

Controls

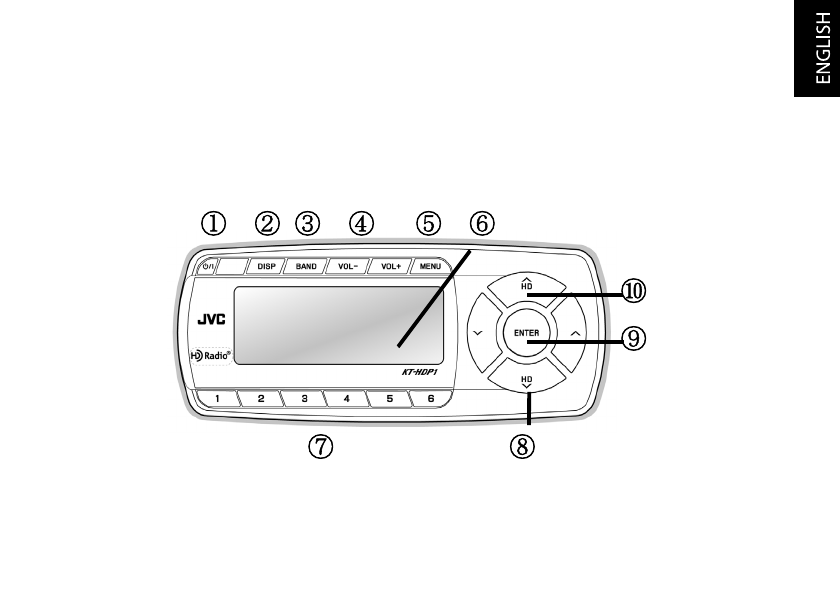

Getting to Know Your HD Radio Receiver

21

1. POWER Button: Turns the receiver On or Off.

2. DISP (Display) Button: Switches multi-line, single line and Spectrum

Analyzer on the HD Radio mode or FM/AM frequency and Spectrum

Analyzer on the analog channel display. Pressing and holding

switches the display to the multicast channels.

3. BAND Button: Switches FM1, FM2, FM3, AM.

4. VOL(Volume) Button: Adjusts the volume (down - or up +) of the

receiver.

5. MENU Button: Select menu and configuration options. Once the

menu options are displayed, use this button to return to the previous

menu screen or station display. To return from any menu screen to

the station display, press and hold the menu button.

6. Screen: Indicates information of Artist/ Category/ Song Title, etc.

7. Preset Button: Holds your favorite radio stations in memory. Once a

preferred station is tuned, press and hold one of the six preset keys

(1-6) to set the station into memory. To recall the preset stations

press a preset key (1-6) once.

8. HD Radio Button: Seeks for an HD Radio station upward or

downward.

22

9. ENTER Button:

(1) In the station display mode, enables information scrolling

feature. Press the ENTER button to scroll and view additional

information characters. If song, artist or any other information is

too long to fit on the display, use this function to display the

additional information.

(2) In Menu settings mode, selects the option high lighted on the

screen. Once an option is selected, this button functions as

Save and Exit.

(3) In seek mode, stops the “Seek” operation.

10. Seek Button: Seeks radio station downward/ upward. Press and hold

will tune radio frequency up/down.

23

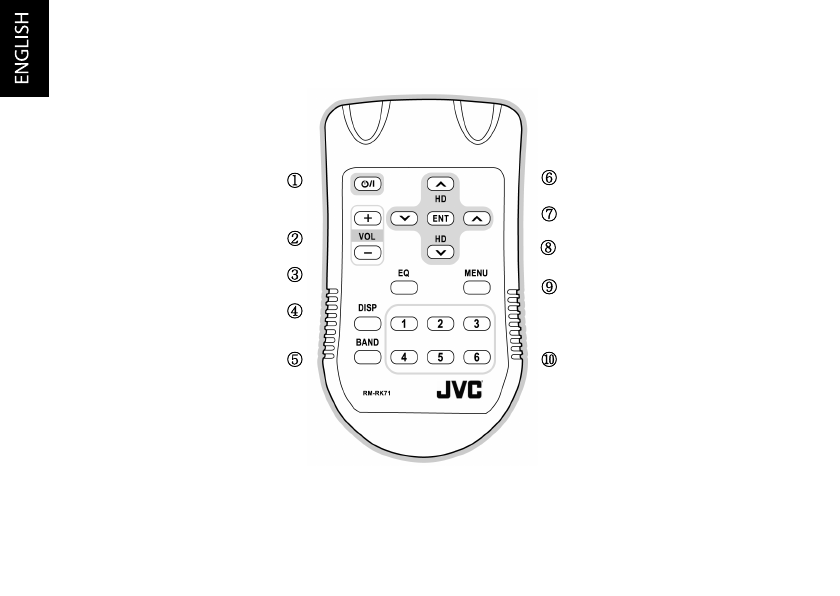

Getting to Know Your Remote Control

1. POWER Button: Turns the receiver On or Off.

2. VOL (Volume) Button: Adjusts the volume (down - or up +) of the receiver.

24

3. EQ Button: Adjusts the equalizer.

4. DISP (Display) Button: Switches multi-line, single line and Spectrum

Analyzer on the HD Radio mode or FM/AM frequency and Spectrum

Analyzer on the analog channel display. Pressing and holding switches the

display to the multicast channels.

5. BAND Button: Switches FM1, FM2, FM3, AM.

6. HD Radio Button: Seeks for an HD Radio station upward or downward.

7. Seek Button: Seeks radio station downward/ upward. Press and hold will

tune radio frequency up/down.

8. ENTER Button:

(1) In the station display mode, enables information scrolling

feature. Press the ENTER button to scroll and view additional

information characters. If song, artist or any other information is

too long to fit on the display, use this function to display the

additional information.

(2) In Menu settings mode, selects the option high lighted on the

screen. Once an option is selected, this button functions as

Save and Exit.

(3) In seek mode, stops the “Seek” operation.

25

9. MENU Button: Selects menu and configuration options. Once the menu

options are displayed, use this button to return to the previous menu

screen or station display. To return from any menu screen to the station

display, press and hold the menu button.

10. Preset Button: Holds your favorite radio stations in memory. Once a

preferred station is tuned, press and hold one of the six preset keys (1-6)

to set the station into memory. To recall the preset stations press a preset

key (1-6) once.

26

On-Screen Information

During HD Radio Mode

When your HD Radio receiver receives a digital (HD Radio) signal, the following

information is indicated:

Artist

Program

Type

Song title

Preset radio station Equalizer

Source indicator Frequenc

y

Station name

HD indicator

Digital signal indicator

27

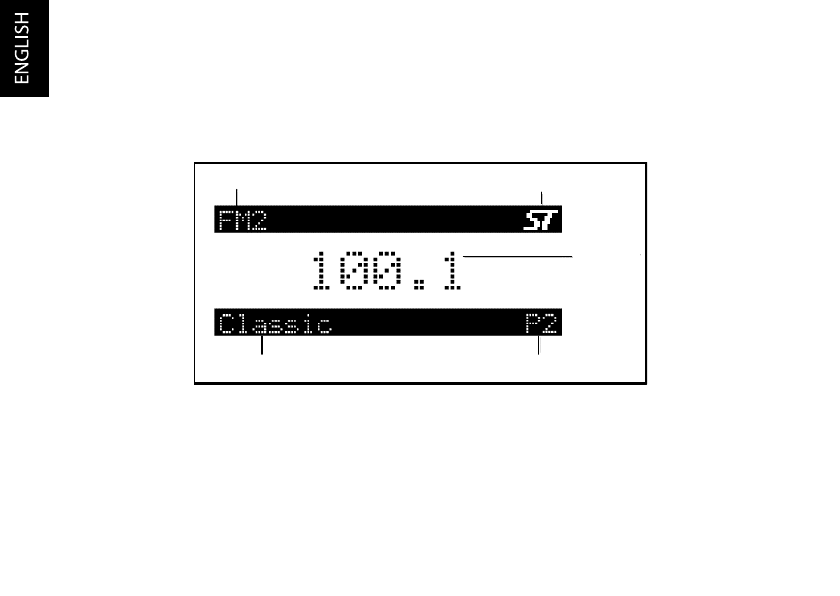

During FM/AM Mode

When your HD Radio receiver receives a stereo or analog signal, the following

information is indicated:

Frequency

Preset radio station

Equalizer

Source indicator Stereo

28

Menu Options

To enter the Menu Options page of the receiver, press the MENU button. The

Menu Options list will be displayed.

To select a menu option, use the HD Radio up and down buttons to

highlight the option you wish to adjust.

To exit the Menu Options screen, or any of the other menu option screens, press

and hold the MENU button to return to the default display screen.

29

Operations

FM Transmitter

The FM Transmitter feature allows you to create suitable FM frequencies between

your HD Radio receiver and the car radio. Set the FM Transmitter frequency

setting to unused FM station frequency. You can also turn the FM transmitter On

and Off. FM/AM reception of adjacent frequency (+/- 0.2 MHz) could cause

interference (ie. No sounds or having noise) when you set the FM transmitter at a

certain frequency. If interference is experienced, set the FM Transmitter to a

different frequency setting.

30

Display Options

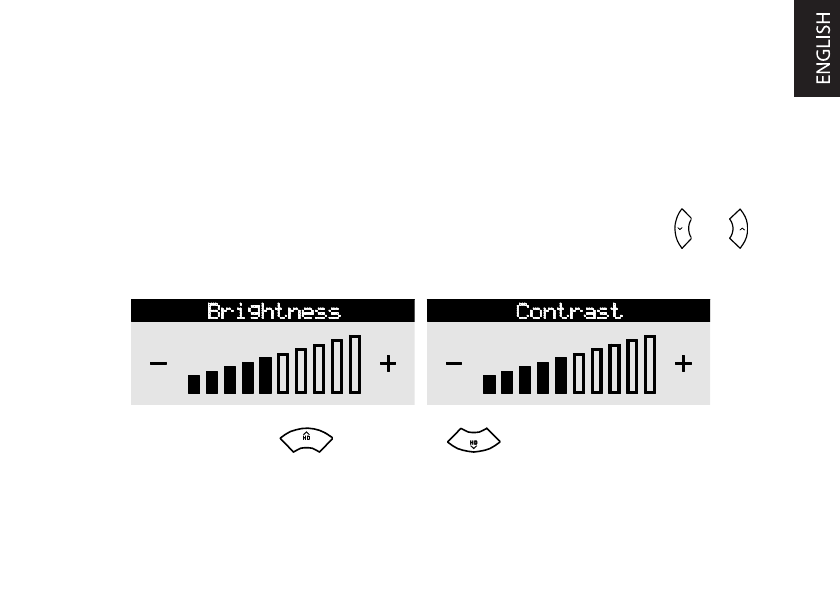

The receiver’s display screen can be adjusted for brightness, contrast and LCD

type using the Display Options.

Brightness adjusts the overall intensity of the LCD display to help with viewing in

different lighting conditions. Contrast adjusts the relationship between the

background and the text on the LCD display. Use the Seek buttons ( or ), to

adjust the brightness/contrast. The bar graph will move to indicate the change.

Use the HD Radio up and down buttons, to select Positive or

Negative for LCD display Type.

31

Audio Control

The Audio Level setting adjusts the level of the audio output of the receiver.

To adjust the audio level, use the Seek buttons ( or ) to change the audio

level. The bar graph will move to indicate the change.

The Audio Level setting can also adjust Equalizer, Tone Control, Balance and

Loudness.

32

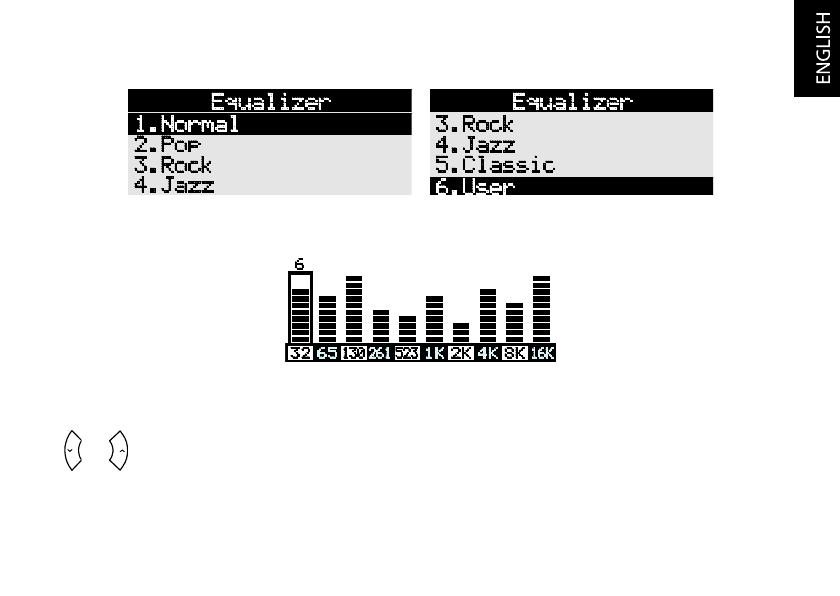

Equalizer

While choosing “User”, users can define the equalizer level between –7 and +3.

The default value is 0.

Tone Control

You can adjust Bass and Treble for Tone Control settings. Use the Seek buttons

(or ) to change Bass or Treble level. The bar graph will move to indicate the

change.

33

Balance

Use the Seek buttons ( or ) to change Balance level. The bar graph will move

to indicate the change.

Loudness

You can set Loudness On or Off.

34

Software Version

The latest software version will be indicated by using this option.

Factory Default

The Factory Default option will restore most features of the receiver to the original

factory settings.

When “ Restore Settings? ” is displayed, use the HD Radio buttons ( or

) to select Yes to restore all factory settings, or select No to leave them as

present and return to the Menu Options. Once you select Yes, a message “Are

You Sure?” indicates on the screen to ask for final confirmation.

35

Specifications

Power Requirements..................………………………...12Volt DC (10-16 Volts DC)

Receiver Dimensions ....………….…….127mm x 52.3mm x 25.2mm (W x H x D)

(5” x 2-1/16” x 1” (W x H x D))

Mass (approx.)..…………………………...121g (0.266 lbs) (excluding accessories)

Remote Control Dimensions………………….50mm x 90mm x 9mm (W x H x D)

(2” x 3-9/16” x 3/8” (W x H x D))

FM Receiving Frequencies………………………………………….…87.9~107.9MHz

AM Receiving Frequencies………………………………………………530~1710KHz

FM Hybrid……………………………………………………………………….-88dBm

FM All Digital………………………………………………………………..…-108dBm

AM Hybrid……………………………………………………………………….-90dBm

AM All Digital………………………………………………..…………………-105dBm

Input………………………………………………………………………..2.5 mm Jack

FM Transmission Output Interface………………………………………2.1 mm Jack

Audio Output Interface..........…………………………… ………3.5 mm Stereo Jack

Audio Output………………………………………… 2.8V(Peak-to-Peak) maximum

Digital Audio Total Harmonic Distortion (THD) ……………………………..…<0.1%

Digital Audio Stereo Separation @1KHz.……………………………..….…...>70dB

36

HD RadioTM Technology Manufactured Under License From iBiquity Digital

Corporation. iBiquity Digital and the HD Radio and HD Symbols are

registered trademarks of iBiquity Digital Corporation. U.S. and Foreign

Patents.
