Filename [XV48EK_02Cov1.fm]

DVD PLAYER &

VIDEO CASSETTE RECORDER

INSTRUCTIONS

LPT0991-001A

HR-XV48EK

XV48EK_01.book Page 1 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_03Safety.fm]

Masterpage:Left0

2

Page 2 November 18, 2004 10:44 pm

SAFETY FIRST

Safety Precautions

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CLASS 1 LASER PRODUCT

REPRODUCTION OF LABELS

WARNING LABEL INSIDE OF THE UNIT

Use only discs marked with the following.

●Manufactured under license from Dolby Laboratories. “Dolby”

and the double-D symbol are trademarks of Dolby

Laboratories.

●“DTS”and “DTS 2.0+ Digital Out” are trademarks of Digital

Theater Systems, Inc.

●Cassettes marked “VHS” (or “S-VHS”) can be used with this

video cassette recorder. However, S-VHS recording is not

possible with this model.

●This model is equipped with SQPB (S-VHS QUASI PLAYBACK)

that makes it possible to play back S-VHS recordings in the SP

mode with regular VHS resolution.

●HQ VHS is compatible with existing VHS equipment.

●VIDEO Plus+ and PlusCode are registered trademarks of

Gemstar Development Corporation. The VIDEO Plus+ system

is manufactured under license from Gemstar Development

Corporation.

●This product incorporates copyright protection technology that

is protected by U.S. patents and other intellectual property

rights. Use of this copyright protection technology must be

authorized by Macrovision Corporation, and is intended for

home and other limited viewing uses only unless otherwise

authorized by Macrovision. Reverse engineering or

disassembly is prohibited.

●“Official DivX Certified™ product”

“Plays DivX® 5, DivX® 4, DivX® 3, and DivX® VOD video

content (in compliance with DivX Certified™ technical

requirements)”

“DivX, DivX Certified, and associated logos are trademarks of

DivXNetworks, Inc. and are used under license.”

CAUTION

8When you are not using the unit for a long period of time, it

is recommended that you disconnect the power cord from

the mains outlet.

8Dangerous voltage inside. Refer internal servicing to

qualified service personnel. To prevent electric shock or fire

hazard, remove the power cord from the mains outlet prior

to connecting or disconnecting any signal lead or aerial.

IMPORTANT

Connection to the mains supply in the United Kingdom.

DO NOT cut off the mains plug from this equipment. If the

plug fitted is not suitable for the power points in your home or

the cable is too short to reach a power point, then obtain a

proper safety approved extension lead/adapter or consult your

dealer.

In the unlikely event of the plug fuse failing be sure to replace

the fuse only with an identical approved type, as originally

fitted, and to replace the fuse cover. If the fuse fails again

consult your nearest JVC dealer.

If nonetheless the mains plug is cut off remove the fuse and

dispose of the plug immediately, to avoid a possible shock

hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then

follow the instructions given below:

DO NOT make any connection to the Larger Terminal coded E

or Green.

The wires in the mains lead are coloured in accordance with

the following code:

If these colours do not correspond with the terminal

identifications of your plug, connect as follows:

Blue wire to terminal coded N (Neutral) or coloured Black.

Brown wire to terminal coded L (Live) or coloured Red.

If in doubt — consult a competent electrician.

CAUTION

A DVD/VCR IS A CLASS 1 LASER PRODUCT. HOWEVER THIS

DVD/VCR USES A VISIBLE LASER BEAM WHICH COULD

CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE UNIT CORRECTLY AS

INSTRUCTED.

WHEN THIS DVD/VCR IS PLUGGED INTO THE WALL

OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE

OPENING OF THE DISC TRAY AND OTHER OPENINGS TO

LOOK INTO THE INSIDE OF THIS DVD/VCR.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE

OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

Blue to N (Neutral) or Black

Brown to L (Live) or Red

IMPORTANT

8Please read the various precautions on pages 2 and 3 before

installing or operating the unit.

8It should be noted that it may be unlawful to re-record pre-

recorded tapes, DVDs, or discs without the consent of the

owner of copyright in the sound or video recording,

broadcast or cable programme and in any literary, dramatic,

musical, or artistic work embodied therein.

DVD VIDEO

(8 cm /12 cm disc) Audio CD

(8 cm /12 cm disc)

Video CD

(8 cm /12 cm disc) Super Video CD

(8 cm /12 cm disc)

The STANDBY/ON 1 button does not completely shut off

mains power from the unit, but switches operating current on

and off. “`” shows electrical power standby and “!” shows

ON.

Video tapes recorded with this unit in the LP (Long Play) mode

cannot be played back on a single-speed video recorder. (VHS

deck only)

XV48EK_01.book Page 2 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

3

Filename [XV48EK_03Safety.fm]

Page 3 November 18, 2004 10:44 pm

When the equipment is installed in a cabinet or a shelf, make

sure that it has sufficient space on all sides to allow for ventilation

(10 cm or more on both sides, on top and at the rear.)

When discarding batteries, environmental problems must be

considered and the local rules or laws governing the disposal of

these batteries must be followed strictly.

Failure to heed the following precautions may result in

damage to the unit, remote control or video cassette.

1. DO NOT place the unit —

— in an environment prone to extreme temperatures or

humidity.

— in direct sunlight.

— in a dusty environment.

— in an environment where strong magnetic fields are

generated.

— on a surface that is unstable or subject to vibration.

2. DO NOT block the unit’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a

newspaper or cloth, etc., the heat may not be able to get out.)

3. DO NOT place heavy objects on the unit or remote control.

4. DO NOT place anything which might spill on top of the unit

or remote control.

(If water or liquid is allowed to enter this equipment, fire or

electric shock may be caused.)

5. DO NOT expose the apparatus to dripping or splashing.

6. DO NOT use this equipment in a bathroom or places with

water. Also DO NOT place any containers filled with water or

liquids (such as cosmetics or medicines, flower vases, potted

plants, cups, etc.) on top of this unit.

7. DO NOT place any naked flame sources, such as lighted

candles, on the apparatus.

8. AVOID violent shocks to the unit during transport.

MOISTURE CONDENSATION

Moisture in the air will condense on the unit when you move it

from a cold place to a warm place, or under extremely humid

conditions—just as water droplets form on the surface of a glass

filled with cold liquid. Moisture condensation on the head drum

will cause damage to the tape. In conditions where condensation

may occur, keep the unit turned on for a few hours to let the

moisture dry.

Some Do’s And Don’ts On

The Safe Use Of Equipment

This equipment has been designed and manufactured to

meet international safety standards but, like any

electrical equipment, care must be taken if you are to

obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to

use the equipment.

DO ensure that all electrical connections (including the

mains plug, extension leads and interconnections

between pieces of equipment) are properly made

and in accordance with the manufacturer’s

instructions. Switch off and withdraw the mains plug

when making or changing connections.

DO consult your dealer if you are ever in doubt about

the installation, operation or safety of your

equipment.

DO be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in

any doubt about it working normally, or if it is

damaged in any way — switch off, withdraw the

mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose

dangerous voltages.

DON’T leave equipment switched on when it is

unattended unless it is specifically stated that it

is designed for unattended operation or has a

standby mode. Switch off using the switch on

the equipment and make sure that your family

knows how to do this. Special arrangements may

need to be made for infirm or handicapped

people.

DON’T use equipment such as personal stereos or radios

so that you are distracted from the requirements

of road safety. It is illegal to watch television

whilst driving.

DON’T listen to headphones at high volume, as such use

can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for

example with curtains or soft furnishings.

Overheating will cause damage and shorten the

life of the equipment.

DON’T use makeshift stands and NEVER fix legs with

wood screws — to ensure complete safety

always fit the manufacturer’s approved stand or

legs with the fixings provided according to the

instructions.

DON’T allow electrical equipment to be exposed to rain

or moisture.

ABOVE ALL...

ATTENTION

To mobile phone users:

Using a mobile phone in the vicinity of the unit may cause

picture vibration on the TV screen or change the screen to a

blue back display.

On placing the unit:

Some TVs or other appliances generate strong magnetic fields.

Do not place such appliances on top of the unit as it may cause

picture disturbance.

—NEVER let anyone especially children push

anything into holes, slots or any other opening in

the case — this could result in a fatal electrical

shock;

—NEVER guess or take chances with electrical

equipment of any kind — it is better to be safe

than sorry!

XV48EK_01.book Page 3 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_03Safety.fm]

Masterpage:Left0

4

Page 4 November 18, 2004 10:44 pm

CONTENTS

SAFETY FIRST 2

Safety Precautions ............................................... 2

Some Do’s And Don’ts On The Safe Use Of

Equipment ........................................................ 3

DISC INFORMATION 5

About Discs ......................................................... 5

INDEX 7

INSTALLING YOUR NEW UNIT 10

Check Contents ................................................. 10

Basic Connections ............................................. 11

INITIAL SETTINGS 12

Auto Set Up ....................................................... 12

Preset Download ............................................... 13

Initial Set Up for DVD Deck .............................. 15

Language ........................................................... 16

OPERATIONS ON VHS DECK 18

Basic Playback .................................................. 18

Playback Features .............................................. 19

Basic Recording ................................................ 21

Recording Features ............................................ 22

B.E.S.T. Picture System ...................................... 23

VIDEO Plus+® Timer Programming ................... 24

Express Timer Programming .............................. 26

Automatic Satellite Programme Recording ......... 28

OPERATIONS ON DVD DECK 30

Basic Playback .................................................. 30

Playback Features .............................................. 31

Using the On-Screen Bar ................................... 38

Audio/Video Files Playback ............................... 40

EDITING (VHS DECK) 44

Editing from a Camcorder .................................. 44

Editing to or from Another Video Recorder ........ 45

Dubbing (from DVD to VHS) ............................. 46

EDITING (DVD DECK) 47

Digital Audio Dubbing ...................................... 47

REMOTE CONTROL 48

Remote Control Functions ................................. 48

SYSTEM CONNECTIONS 50

Connecting to a Satellite Receiver ..................... 50

Connecting to a Dolby Digital Decoder or an Ampli-

fier with a Built-In DTS (DVD deck only) ........ 51

SUBSIDIARY SETTINGS 52

Mode Set (VHS deck) ......................................... 52

Mode Set (DVD deck) ........................................ 55

Tuner Set ........................................................... 59

Video Channel Set ............................................. 64

Clock Set ........................................................... 65

Child Lock ......................................................... 66

TROUBLESHOOTING 67

SPECIFICATIONS 70

LIST OF TERMS 71

XV48EK_01.book Page 4 Thursday, November 18, 2004 10:45 PM

Masterpage:Right0

5

Filename [XV48EK_05DiscInfo.fm]

Page 5 November 18, 2004 10:45 pm

DISC INFORMATION

About Discs

Playable Discs

You can use discs with the following logos for playback only.

●The following discs also can be played back.

• DVD-R/-RW discs recorded in DVD VIDEO format and

finalized.

• CD-R/RW discs recorded in Video CD, SVCD (Super Video

CD), or Audio CD format and finalized.

• The DivX file on the DVD-R and DVD-RW discs written in

the UDF format.

• CD-R/RW discs written in MP3/JPEG/DivX in accordance

with the “ISO 9660” format. (See page 40 for details.)

●This unit can also play back audio signals recorded in MIX-

MODE CD, CD-G, CD-EXTRA, and CD TEXT.

●The image may be sometimes poor or noisy due to defects in

the disc itself.

●With some discs, operations may not be possible.

Marks of discs in this instruction manual

Unplayable Discs

The following types of discs cannot be played using this unit.

●CD-ROM discs (including PHOTO-CD)

●DVD AUDIO discs

●Super Audio CDs (SACD)

●DVD-RW discs recorded in VR format

●DVD-RAM discs

●DVD-ROM discs

In addition, this unit does not play:

●Unfinalized discs

●Discs of irregular shape or discs with tape, seals, or paste on

either the label side or playback side. Playing back these discs

may damage the unit.

Region Number

The world is divided into 6 regions for DVD VIDEO discs. DVD

VIDEO discs are assigned a region number to indicate which

region they may be played back in. A disc cannot be played

back on this unit unless the region number of the disc matches

that of the unit. The region number for this unit is “2.” Only discs

whose region number includes “2” can be played back such as

shown below.

Examples of DVD VIDEO labels which can be played back using

this unit.

DVD VIDEO Marks

Sometimes marks are printed on a DVD disc and/or on its

packaging to indicate information regarding the contents and

functions of a disc. Check marks indicating the contents and

functions of a disc. Note, however, that in some cases a disc may

not include a mark even for a function it supports.

Marks related to video

Marks related to audio

DVD VIDEO Video CD/Super Video CD

Audio CD

CD-DA files

Allows operation with a

DVD VIDEO disc.

Allows operation with a

Video CD disc.

Allows operation with a

SVCD disc.

Allows operation with

an Audio CD disc.

Number of subtitles Number of angles

Recorded under the

standard 4:3 aspect

ratio

Screen includes black

bands at top and

bottom of image

which has a standard

4:3 aspect ratio (letter

box)

Video playback is in Wide video mode (16:9) on

wide televisions, but in letter box on televisions

with standard 4:3 aspect ratio.

Video playback is in Wide video mode (16:9) on

wide televisions, but pan and scan is used on

televisions with standard 4:3 aspect ratio (either

the left or right side of the image is cut-out).

Number of audio tracks

Dolby Digital mark

Dolby Laboratories has developed a digital

surround system for the home. This mark

indicates that you may enjoy 5.1-channel

audio (front left and right, center, rear left and

right, and a channel for LFE (Low-Frequency

Effects)).

DTS (Digital Theater System)

You can enjoy DTS audio if you connect an

amplifier with a built-in DTS decoder to the

DIGITAL AUDIO OUT connector of the unit.

ALL 2

52 5

3

4

2

3

2

1

6

5

4

XV48EK_01.book Page 5 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_05DiscInfo.fm]

Masterpage:Left+

Page 6 November 18, 2004 10:45 pm

DISC INFORMATION (cont.)

6

File Structure of Discs

DVD VIDEO

Typically, DVD VIDEO discs are made up of larger units called

“titles.” Each title has a number (title number) that can be used to

select desired titles. Titles are further divided into units called

“chapters.” Each chapter has a number (chapter number) that

can also be used to select desired chapters. Note that some discs

are not divided into titles and chapters.

Audio CD/Video CD

Typically, Audio CD discs are divided into separate tracks each

containing one song. Each track is assigned a number. For

example, the third track is Track 3. The same is true for Video

CD discs.

NOTE:

Video CD discs that support Playback Control (PBC)

The still image or motion image which follows a menu screen is

called a “scene.” Each scene has a scene number.

For more details, refer to “Locating a Desired Scene Using the

Menu of a Video CD/SVCD with Playback Control (PBC)

Function” (墌pg. 31).

Placing a Disc

1Open the disc tray.

Press x on the DVD deck to open the disc tray.

●The unit’s power comes on

automatically.

●Do not block the disc tray with

your hand while it is opening or

closing as this may result in

hardware failure.

●Do not place unplayable discs or

any object other than a disc in

the disc tray.

●Do not press down strongly on the disc tray or place any heavy

objects on it.

2Place the disc.

Place the disc in the disc tray with

the label side facing up.

●Since disc size changes depending on

the disc to be played back, be sure to

correctly align the disc with the

grooves for its size. If the disc is not in

its groove, it may be scratched or

otherwise damaged.

●To insert an 8 cm disc, place it according to the inner groove.

3Press x on the DVD deck to close the disc tray.

●Pressing 4 also closes the disc tray.

●Playback begins automatically if an auto-playback DVD disc is

loaded. Although the VHS deck is selected, the DVD deck is

selected automatically (except when the VHS deck is in the

timer mode or the Automatic Satellite Programme Recording

mode.)

Care and Handling of Discs

How to handle discs

When handling a disc, do not

touch the surface of the disc.

Since discs are made of

plastic, they are easily

damaged. If a disc gets dirty,

dusty, scratched or warped,

the images and sound will not

be picked up correctly, and such a disc may cause the unit to

malfunction.

Label side

Do not damage the label side, stick paper to or use any adhesive

on its surface.

Storage

Make sure that discs are kept in their cases. If discs are piled on

top of one another without their protective cases, they can be

damaged. Do not put discs in a location where they may be

exposed to direct sunlight, or in a place where the humidity or

temperature is high. Avoid leaving discs in your car!

Maintenance of discs

If there are fingerprints or other dirt

adhering to a disc, wipe with a soft dry

cloth, moving from the center outwards.

If a disc is difficult to clean, wipe with a

cloth moistened with water. Never use

record cleaners, petrol, alcohol or any

anti-static agents.

Title1 Title2

Chapter 1 Chapter 2

Chapter 1Chapter 3

Chapter 2

Track 1 Track 4Track 3Track 2

CAUTION

Sometimes during playback, noise or images may be garbled.

This is sometimes due to the disc. (It may not be up to

industry standards.)

These symptoms are caused by the discs, not by the

malfunction of the unit.

XV48EK_01.book Page 6 Thursday, November 18, 2004 10:45 PM

Masterpage:Right0

7

Filename [XV48EK_06Index.fm]

Page 7 November 18, 2004 10:45 pm

INDEX

Front View

ASTANDBY/ON Button (1) 墌pg. 12, 18, 40

BVCR Indicator 墌pg. 18, 21

CCassette Loading Slot 墌pg. 18

DVCR/DVD Button 墌pg. 18, 21, 30, 40

EDisc Tray 墌pg. 30

FDVD Indicator 墌pg. 30

GStop Button (8) 墌pg. 18, 21, 30, 41, 48

HPlay Button (4) 墌pg. 18, 21, 30, 41, 48

IDVD Open/Close Button (x) 墌pg. 30, 41

JCassette Eject Button (x) 墌pg. 18, 21

KVideo/Audio Input Connectors (VIDEO/AUDIO)

墌pg. 44

LInfrared Beam Receiving Window

MFront Display Panel 墌pg. 8

NRecord Button (7) 墌pg. 21, 22

ORewind Button (3) 墌pg. 18, 19, 32

PFast Forward Button (5) 墌pg. 18, 19, 32

QProgramme Button (PR +/–) 墌pg. 21

RAutomatic Satellite Programming Button (SAT#)

墌pg. 28

Rear View

ARegion Number Label 墌pg. 5

BMains Power Cord 墌pg. 11

CL-1 Input/Output Connector (L-1 IN/OUT) 墌pg. 11,

45, 50

DAudio Output Connectors (AUDIO OUT (L/R))

EAntenna Input Connector (ANTENNA IN) 墌pg. 11,

50

FDigital Audio Output Connector

(DIGITAL AUDIO OUT) 墌pg. 47, 51

GL-2 Input/Decoder Connector

(L-2 IN/DECODER) 墌pg. 45, 50

HRemote Pause Connector (PAUSE) 墌pg. 44

I

Antenna Output Connector (ANTENNA OUT)

墌

pg. 11,

50

FACBDEGHI

JK L M NOPQR

To access covered

connectors or buttons, pull

and open the cover.

DVD

AC

FI

B D E

H

G

XV48EK_01.book Page 7 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_06Index.fm]

Masterpage:Left+

Page 8 November 18, 2004 10:45 pm

INDEX (cont.)

8

Front Display Panel

AVCR Mode Indicator 墌pg. 21, 22

BChannel/Clock Display

Mode Display (L-1, L-2, F-1 or SAT*)

* When “L-2 SELECT” is set to “SAT” (

墌

pg. 54), “SAT” appears

instead of “L-2”.

Counter Display

Tape Speed (SP/LP) 墌pg. 21

Multi-information window*

* The current group/title/track/chapter number(s), time and status

information.

CVCR Indicator 墌pg. 22

D“Timer” Indicator 墌pg. 25, 26, 29

EAutomatic Satellite Programme Recording Indicator

(N) 墌pg. 29

On-Screen Display (VHS deck)

If you press ––:–– on the remote control when “O.S.D.”

is set to “ON” (墌pg. 53), various operational indicators

appear on the TV screen.

For the on-screen display for DVD deck, refer to “Using

the On-Screen Bar” (墌pg. 38).

A“Cassette Loaded” Mark

BOperation Mode Indicators

CChannel Position Number and Station Name/Auxiliary

Input Indicator (L-1, L-2, F-1 or SAT*)

* When “L-2 SELECT” is set to “SAT” (

墌

pg. 54), “SAT” appears

instead of “L-2.”

DClock Display

ECurrent Day/Month/Year

FType of Broadcast 墌pg. 23

GPDC* Indicator 墌pg. 24, 26

* VPS (Video Programme System) recording is not currently available

in the U.K. and not possible with this unit.

HTape Position Indicator

The tape position indicator

appears on the TV screen

when you press 3 or

5 from the Stop mode or

perform an Index Search.

(墌pg. 19) The position of

“q” in relation to “0”

(beginning) or “+” (end)

shows you where you are

on the tape.

NOTE:

Depending on the type of tape being used, the tape position

indicator may not appear correctly.

IAudio Mode Display 墌pg. 20

JTape Speed (SP/LP)

KTape Direction

LIndex Mark Indicator (MARK) 墌pg. 21

MCounter Display

NTape Remaining Time Indicator 墌pg. 22

CDE

A B

Beginning End

XV48EK_01.book Page 8 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

9

Filename [XV48EK_06Index.fm]

Page 9 November 18, 2004 10:45 pm

Remote Control ATV Standby/On Button (TV 1) 墌pg. 49

BTV/VCR/DVD switch 墌pg. 13, 15, 18, 21, 30, 40, 49

CDVD Button 墌pg. 15, 30, 40

DVCR Button 墌pg. 15, 18, 21, 24, 26

ENumber Keys

FDaily Button (DAILY) 墌pg. 25, 27

GPDC* Button 墌pg. 24, 26

* VPS (Video Programme System) recording is not currently available

in the U.K. and not possible with this unit.

HReset Button (0000) 墌pg. 22

Cancel Button (&) 墌pg. 24, 27

IAuxiliary Button (AUX) 墌pg. 44

JStart Time Button (START +/–) 墌pg. 26

Repeat Button (REPEAT) 墌pg. 33

Zooming Button (ZOOM) 墌pg. 32

KStop Time Button (STOP +/–) 墌pg. 26

On Screen Button (ON SCREEN) 墌pg. 38

LProgramming Button (PROG) 墌pg. 24, 26

MTape Speed Button (p) 墌pg. 21, 24, 26

Top Menu Button (TOP MENU) 墌pg. 31

NProgramme Check Button (") 墌pg. 27

Return Button (RETURN) 墌pg. 31

Owe Button

rt Button

ENTER Button

VCR Programme Button (VCR PR +/–)

PSet Up Menu Button (SET UP) 墌pg. 13, 15, 52, 55

QPlay Button (4) 墌pg. 18, 30

RRewind Button (3) 墌pg. 18, 19, 32

SRecord Button (7) 墌pg. 21, 22

TForward Skip/Index Button (6) 墌pg. 19, 31

UReverse Skip/Index Button (2) 墌pg. 19, 31

Review Button ( ) 墌pg. 20

VDVD Picture Button (DVD PICTURE) 墌pg. 36

WSound Effect Button (SOUND EFFECT) 墌pg. 37

XStandby/On Button (1) 墌pg. 12, 18, 40

YTV Muting Button ( ) 墌pg. 49

Audio Monitor Button (A.MONITOR) 墌pg. 20, 23,

35

ZTV/VCR Button 墌pg. 22

aTV Volume Button (TV % +/–) 墌pg. 49

bWeekly Button (WEEKLY) 墌pg. 25, 27

cTV Programme Button (TV PR +/–) 墌pg. 49

dProgramme Button (PR +/–) 墌pg. 21, 26

eDate Button (DATE +/–) 墌pg. 26

Subtitle Button (SUBTITLE) 墌pg. 34

Angle Button (ANGLE) 墌pg. 35

fTimer Button (#) 墌pg. 25, 26, 27

gMenu Button (MENU) 墌pg. 31

hAutomatic Satellite Programming Button (REC LINK)

墌pg. 28

iDisplay Button (– –:– –) 墌pg. 22

jFast Forward Button (5) 墌pg. 18, 19, 32

kStop/Clear Button (8) 墌pg. 18, 21, 30

lPause Button (9) 墌pg. 19, 21, 30

mOne Touch Replay Button ( ) 墌pg. 19, 32

nSkip Search Button ( ) 墌pg. 19

oTracking Button (TRACKING +/–) 墌pg. 20

Buttons with a small dot on the left side of the name can also

be used to operate your JVC TV. (墌pg. 49)

How To Use

The remote control can operate most of your unit’s functions,

as well as basic functions of TV sets of JVC. (墌pg. 49)

●Point the remote control toward the receiving window.

●The maximum operating distance of the remote control is

about 8 m.

NOTES:

●When inserting the batteries, be sure to insert in the correct

directions as indicated under the battery cover.

●If the remote control doesn’t work properly, remove its

batteries, wait a short time, replace the batteries and then try

again.

F

A

C

B

D

E

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

b

Y

X

Z

a

c

d

e

f

g

h

i

j

n

k

l

m

o

XV48EK_01.book Page 9 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_06Index.fm]

Masterpage:Left0

10

Page 10 November 18, 2004 10:45 pm

INSTALLING YOUR NEW UNIT

Check Contents

CHECK ALL THE CONTENTS SHOWN BELOW

4

You are now ready to install your unit. (墌pg. 11)

DVD Player and Video Cassette Recorder

RF Cable “AA” Batteries (x 2)

Infrared Remote Control Unit

XV48EK_01.book Page 10 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

11

Filename [XV48EK_06Index.fm]

Page 11 November 18, 2004 10:45 pm

Basic Connections It’s essential that your unit be properly connected.

ASituate the unit.

Place the unit on a stable, horizontal surface.

BConnect the unit to TV.

The connection method you use depends on the type of

TV you have.

RF Connection

8To connect to a TV with NO AV input connectors —

ADisconnect the TV aerial cable from the TV.

BConnect the TV aerial cable to the ANTENNA IN

connector on the rear panel of the unit.

CConnect the provided RF cable between the

ANTENNA OUT connector on the rear panel of the

unit and the TV’s aerial connector.

AV Connection

8To connect to a TV with AV input connectors —

If your TV is equipped with a 21-pin SCART connector,

perform AV connection to improve picture quality during

tape playback.

AConnect the aerial, unit and TV as per “RF

Connection.”

BConnect an optional 21-pin SCART cable between the

L-1 IN/OUT connector on the rear panel of the unit

and the TV’s 21-pin SCART connector.

CConnect the unit to mains.

Plug the end of the mains power cord into a mains outlet.

TV aerial cable

RF cable (provided)

21-pin SCART cable

(not provided)

Mains power cord

Mains outlet

Back of unit

TV

THESE STEPS MUST BE COMPLETED BEFORE ANY

VIDEO OPERATION CAN BE PERFORMED.

After the connection is completed, perform “Auto Set

Up” on page 12.

XV48EK_01.book Page 11 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_06Index.fm]

Masterpage:Left0

12

Page 12 November 18, 2004 10:45 pm

INITIAL SETTINGS

Auto Set Up

Auto Channel Set/Auto Clock Set/

Auto Guide Program Number Set

ATurn on the unit.

Press 1 on the unit or remote control.

BPerform Auto Set Up.

The AUTO SET/T-V LINK display appears on the TV

screen.

.

●When you have connected the unit to a TV offering T-V Link

via a fully-wired 21-pin SCART cable (墌pg. 11) and the TV is

turned on, the unit automatically performs the Preset

Download (墌pg. 13) even if you select “AUTO SET” for Auto

Set Up function.

CConfirm/Set video channel.

With RF Connection

The video channel that is

blinking on the front display

panel is your video channel. Press ENTER.

●To view picture signals from the unit, set your TV to the video

channel.

With AV Connection

Press PR – until the front

display panel shows “– –.”

Now the video channel is set to off. Then press ENTER.

●To view picture signals from the unit, set your TV to its AV

mode.

NOTES:

●In areas where no TV station transmits a PDC (Programme

Delivery Control) signal, the unit can perform neither Auto

Clock Set nor Auto Guide Program Number Set.

●If there is a power cut, or if you press 1 or SET UP while Auto

Set Up is in progress, Auto Set Up will be interrupted; be sure

to turn off the unit power once and try again from step A.

●Auto Clock Set may not function properly depending on the

reception condition.

After the 1 button on the unit or remote control is pressed

for the first time to power on the unit, the Auto Set Up

function sets the tuner channels, clock and Guide Program

numbers automatically.

Before starting, make sure of the following:

●The TV aerial cable should be connected to the unit.

●The unit’s mains power cord should be connected to a

mains outlet.

●The TV should be set to its AV mode (with AV connection

墌pg. 11) or UHF channel 52 (with RF connection

墌pg. 11).

●Slide the TV/VCR/DVD switch on the remote control to the

right.

Press rt to move the

highlight bar (pointer) to

“AUTO SET” and press

ENTER or e.

●When selecting “AUTO SET,”

“Auto” also appears on the

front display panel.

Slide to the

right.

While Auto Set Up is in progress, do NOT press any

button on the unit or remote control until the front

display panel shows either the display as illustrated in

step C or “– –:– –” as illustrated on page 14.

●The AUTO SET screen will

appear on the TV screen. As

Auto Set Up progresses, the

“q” mark on the TV screen

moves from left to right.

A

TTENTION

Once you have performed Auto Set Up, even if the unit’s

memory backup has expired, all the stored stations and their

Guide Program numbers remain in the unit’s memory and

the unit will not perform Auto Set Up again. The unit

performs only Auto Clock Set when the unit is turned on.

If you have moved to a different area, perform each setting as

required.

●Video channel setting (for RF connection users) 墌pg. 64

●Tuner setting 墌pg. 59

●Clock setting 墌pg. 65

If a new station starts broadcasting in your area, perform

tuner setting (墌pg. 59) and, if necessary, video channel

setting (墌pg. 64).

After “Auto Set Up” is completed, perform “Initial Set

Up for DVD Deck” on page 15.

Beginning End

XV48EK_01.book Page 12 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

13

Filename [XV48EK_06Index.fm]

Page 13 November 18, 2004 10:45 pm

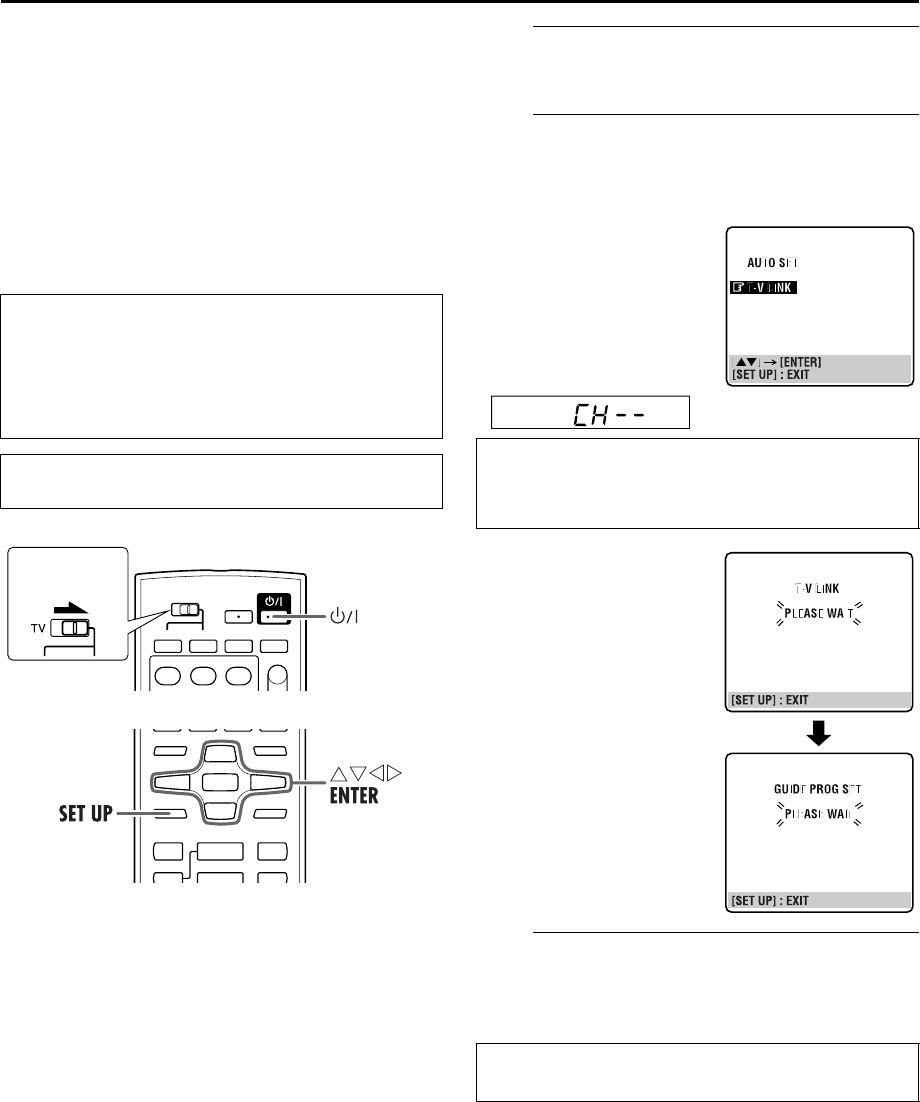

Preset Download

Auto Channel Set by Downloading

from TV/Auto Clock Set/Auto Guide

Program Number Set

If you have connected the unit to your TV via the AV connection

(墌pg. 11), the unit will automatically perform Preset

Download instead of the Auto Set Up in step B on page 12.

After downloading, the unit sets the clock and Guide Program

numbers automatically.

NOTES:

●For details, refer to the instruction manual of your TV.

●In areas where no TV station transmits a PDC (Programme

Delivery Control) signal, the unit can perform neither Auto

Clock Set nor Auto Guide Program Number Set.

●If there is a power cut, or if you press 1 or SET UP while

downloading or set up is in progress, it will be interrupted; be

sure to turn off the unit power once and try again from the

beginning.

●Auto Clock Set may not function properly depending on the

reception condition.

●On this unit, the characters available for station names (ID) are

A–Z, 0–9, –, f, + and I (space). Some names of downloaded

stations may differ from those of your TV. (墌pg. 61)

ATurn on the unit.

Press 1 on the unit or remote control.

BPerform Preset Download.

The AUTO SET/T-V LINK display appears on the TV

screen.

CSet the video channel.

Set the video channel to off manually. (墌pg. 64)

ATTENTION

You can use this function only with a TV offering T-V Link,

etc.* Be sure to use a fully-wired 21-pin SCART cable.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link or DATA LOGIC via fully-wired 21-pin SCART

cable. The degree of compatibility and available functions may

differ by system.

Slide the TV/VCR/DVD switch on the remote control to the

right.

Slide to the

right.

Press rt to move the

highlight bar (pointer) to

“T-V LINK” and press ENTER

or e.

●When selecting “T-V LINK,”

“CH – –” also appears on the

front display panel.

Preset positions on the front display panel increase from “1”;

do NOT press any button on the unit or remote control until

the front display panel shows clock time, “1” or “– –:– –” as

illustrated on page 14.

●The T-V LINK screen will

appear. Then the GUIDE

PROG SET screen will appear

during Guide Program

Number Set. When Preset

Download is completed,

“COMPLETED” appears for

about 5 seconds, then the

normal screen appears.

●If you press any button on the

unit or remote control while

downloading is in progress, it

will be interrupted.

After “Preset Download” is completed, perform

“Initial Set Up for DVD Deck” on page 15.

XV48EK_01.book Page 13 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_06Index.fm]

Masterpage:Left+

Page 14 November 18, 2004 10:45 pm

INITIAL SETTINGS (cont.)

14

Results of Auto Set Up/Preset

Download Appear on the Front Display

Panel

If both Auto Channel Set and Auto

Clock Set have been performed

successfully, the correct current time

is displayed.

Turn on the TV and select its video channel or AV mode, then

make sure that all necessary stations have been stored in the

unit’s memory by using the PR button(s).

●If station names (ID – 墌pg. 62) have also been stored in the

unit’s memory, the station name will be displayed at the top

left corner of the TV screen for about 5 seconds when the unit

is tuned to a different station.

●If you want to set the tuner manually such as to add or skip

channels, to change channel positions, or to set or change

station names, see pages 60 – 62.

If Auto Channel Set has succeeded

but Auto Clock Set has not, “1”

(channel position) is displayed.

ATurn on the TV and select its video channel or AV mode, then

make sure that all necessary stations have been stored in the

unit’s memory by using the PR button(s).

●If station names (ID – 墌pg. 62) have also been stored in the

unit’s memory, the station name will be displayed at the top

left corner of the TV screen for about 5 seconds when the unit

is tuned to a different station.

●If you want to set the tuner manually such as to add or skip

channels, to change channel positions, or to set or change

station names, see pages 60 – 62.

BPerform “Clock Set” on page 65.

If both Auto Channel Set and Auto

Clock Set have failed, “– –:– –” is

displayed.

Make sure the cables are connected properly and turn off the

unit’s power once, then turn the unit’s power back on again.

Perform “Auto Set Up” on page 12 or “Preset Download” on

page 13 again.

IMPORTANT

●To check if the Guide Program numbers have been set

correctly, perform the VIDEO Plus+ Timer Programming.

(墌pg. 24) (VHS deck only)

●In certain reception conditions, station names may not be

stored correctly, and auto Guide Program Number Set may not

work properly. If the Guide Program numbers are not set

properly when you timer-record a TV programme using the

VIDEO Plus+ system, the unit will record a TV programme of a

different station. When programming the timer using the

VIDEO Plus+ system, be sure to check the desired channel is

selected correctly. (墌pg. 24, “VIDEO Plus+

®

Timer

Programming”) (VHS deck only)

●Your unit memorizes all detected stations even if reception of

some of them is poor. You can delete those stations with an

unacceptable picture. (墌pg. 60, “Deleting a Channel”)

INFORMATION

Language for the on-screen display (DVD deck)

About the on-screen language for the DVD deck, see page 15.

Just Clock

Your unit is equipped with the Just Clock function which

provides accurate time keeping through automatic adjustments

at regular intervals, by reading data from a PDC signal. If you

want to take advantage of this function, simply set it to “ON.”

(墌pg. 65, “Just Clock”)

T-V Link Functions

When you connect the unit to your TV via a fully-wired 21-pin

SCART cable (墌pg. 11), the following functions are available.

You can use these functions only with a TV offering T-V Link,

etc.*

For details, refer to the instruction manual of your TV.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link or DATA LOGIC via fully-wired 21-pin SCART

cable. The degree of compatibility and available functions may differ by

system.

TV Auto Power On

The TV will turn on and be set to its AV mode automatically

whenever you play a tape.

For details, refer to the instruction manual of your TV.

Unit Auto Standby

You can use your TV’s remote control to turn off the unit.

For details, refer to the instruction manual of your TV.

Direct Rec (VHS deck only)

You can easily start recording the programme that you are

watching on your TV. When you use this function, set “DIRECT

REC” to “ON.” (墌pg. 53)

If you have any difficulty with the above

procedures call the JVC Customer Service Hot Line

on 0870 330 5000

XV48EK_01.book Page 14 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

15

Filename [XV48EK_06Index.fm]

Page 15 November 20, 2004 6:55 pm

Initial Set Up for DVD

Deck

When you turn on the DVD deck of the unit for the first

time after you purchase, the menu screen for making the

initial settings appears on the TV screen.

Make the following settings.

ATurn on the unit.

Press 1.

BSelect the DVD deck.

On the unit

Press VCR/DVD repeatedly so that the DVD indicator

lights up.

On the remote control

Press DVD so that the DVD indicator lights up.

The following message appears on the TV screen.

Press ENTER to start the initial setting.

CSelect the on-screen language for the DVD

deck.

The DVD deck offers you the

choice to view on-screen

messages in 3 different

languages.

Press rt to select the

desired language, then press

ENTER.

DSelect the type of your monitor connected to

the unit.

Press rt to select the

desired setting, then press

ENTER.

●16:9 (Wide television conversion):

Select this for a wide-screen (16:9) TV.

●4:3 LB (Letter Box conversion):

Select this for a conventional (4:3)

TV. While viewing a wide screen

picture, the black bars appear on the

top and the bottom of the screen.

●4:3 PS (Pan Scan conversion):

Select this for a conventional (4:3)

TV. While viewing a wide screen

picture, the black bars do not

appear; however, the left and right

edges of the pictures will not be

shown on the screen.

ESelect the signal type of the digital audio

output.

Set this item correctly

according to the logo on your

amplifier or decoder.

Press rt to select the desired

setting, then press ENTER.

(If you do not connect the unit

to such a device, press ENTER

to finish the initial setting.)

●PCM ONLY: Select this when connecting to an

amplifier/a decoder bearing neither Dolby Digital nor

DTS logo, or a digital recorder.

●DOLBY DIGITAL/PCM: Select this when connecting an

amplifier/a decoder bearing Dolby Digital (without

DTS) logo.

●STREAM/PCM: Select this when connecting an

amplifier/a decoder bearing both Dolby Digital and

DTS logos.

To access the initial setting menu screen again

Press SET UP for a few seconds until the initial setting

menu screen appears.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Slide to the

right.

EXECUTE DVD PLAYER SETUP? - BASIC PICTURE/AUDIO

SETTING

YES - PRESS ENTER NO - PRESS STOP

ENGLISH

ENGLISH

ENGLISH

ENGLISH

DVD PLAYER SETUP

MENU LANGUAGE

ON SCREEN LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ENGLISH

FRENCH

GERMAN

4:3LB

DVD PLAYER SETUP

MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

AUTO

ON

BACKGROUND STANDARD

16:9

4:3 LB

4:3 PS

4:3LB

DVD PLAYER SETUP

DIGITAL AUDIO OUTPUT

ANALOG DOWNMIX

D.RANGE CONTROL

AUTO

ON

OUTPUT LEVEL STANDARD

PCM ONLY

DOLBY DIGITAL/PCM

STREAM/PCM

XV48EK_06Index.fm Page 15 Saturday, November 20, 2004 6:56 PM

Filename [XV48EK_06Index.fm]

Masterpage:Left+

Page 16 November 18, 2004 10:45 pm

INITIAL SETTINGS (cont.)

16

Language Menu/Audio/Subtitle Language Set

(DVD deck only)

Some DVD discs contain the DVD menu display, audio,

subtitle in multiple languages. With these discs, you can

set the default language as you like.

●The procedure shows how to set “MENU LANGUAGE”

on the DVD menu screen as an example.

ATurn on the unit.

Press 1.

BSelect the DVD deck.

On the unit

Press VCR/DVD repeatedly so that the DVD indicator

lights up.

On the remote control

Press DVD so that the DVD indicator lights up.

CAccess the DVD Set Up menu screen.

DSelect the mode.

ESelect the mode setting.

Press rt to select the desired setting, then press ENTER.

●See “Language Code List” (墌pg. 17).

FReturn to the normal screen.

Press SET UP.

NOTE:

When the selected language is not available on the disc, the

disc’s default menu language is played back.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Slide to the

right.

APress SET UP.

BPress we to select

“LANGUAGE.”

Press rt to move H to

“MENU LANGUAGE,” then

press ENTER.

ENGLISH

ENGLISH

ENGLISH

ENGLISH

LANGUAGE

MENU LANGUAGE

ON SCREEN LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ENGLISH

ENGLISH

ENGLISH

ENGLISH

LANGUAGE

MENU LANGUAGE

ON SCREEN LANGUAGE

AUDIO LANGUAGE

SUBTITLE

XV48EK_01.book Page 16 Thursday, November 18, 2004 10:45 PM

Masterpage:Right 3Column

17

Filename [XV48EK_06Index.fm]

Page 17 November 18, 2004 10:45 pm

Language Code List

AA

AB

AF

AM

AR

AS

AY

AZ

BA

BE

BG

BH

BI

BN

BO

BR

CA

CO

CS

CY

DA

DZ

EL

EO

ET

EU

FA

FI

FJ

FO

FY

GA

GD

GL

GN

GU

HA

HI

HR

HU

HY

IA

IE

Afar

Abkhazian

Afrikaans

Ameharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bislama

Bengali, Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

Bhutani

Greek

Esperanto

Estonian

Basque

Persian

Finnish

Fiji

Faroese

Frisian

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Interlingue

IK

IN

IS

IW

JI

JW

KA

KK

KL

KM

KN

KO

KS

KU

KY

LA

LN

LO

LT

LV

MG

MI

MK

ML

MN

MO

MR

MS

MT

MY

NA

NE

NL

NO

OC

OM

OR

PA

PL

PS

PT

QU

RM

Inupiak

Indonesian

Icelandic

Hebrew

Yiddish

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean (KOR)

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay (MAY)

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

Occitan

(Afan) Oromo

Oriya

Panjabi

Polish

Pashto, Pushto

Portuguese

Quechua

Rhaeto-Romance

RN

RO

RU

RW

SA

SD

SG

SH

SI

SK

SL

SM

SN

SO

SQ

SR

SS

ST

SU

SV

SW

TA

TE

TG

TH

TI

TK

TL

TN

TO

TR

TS

TT

TW

UK

UR

UZ

VI

VO

WO

XH

YO

ZU

Kirundi

Rumanian

Russian

Kinyarwanda

Sanskrit

Sindhi

Sangho

Serbo-Croatian

Singhalese

Slovak

Slovenian

Samoan

Shona

Somali

Albanian

Serbian

Siswati

Sesotho

Sundanese

Swedish

Swahili

Tam il

Telugu

Tajik

Thai

Tigrinya

Tur kme n

Tagalog

Setswana

Tonga

Tur kish

Tsonga

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapuk

Wolof

Xhosa

Yoruba

Zulu

XV48EK_01.book Page 17 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_07S-VHS.fm]

Masterpage:Left0

18

Page 18 November 18, 2004 10:44 pm

OPERATIONS ON VHS DECK

Basic Playback ALoad a cassette.

Make sure the window side is

up, the rear label side is

facing you and the arrow on

the front of the cassette is

pointed toward the unit.

●Do not apply too much

pressure when inserting.

●If the record safety tab has been removed, playback begins

automatically. Although the DVD deck is selected, the VHS

deck is selected automatically.

●The unit’s power comes on automatically and the counter is

reset to 0:00:00.

BSelect the VHS deck.

On the unit

Press VCR/DVD repeatedly so that the VCR indicator

lights up.

On the remote control

Press VCR so that the VCR indicator lights up.

CFind the programme start point.

If the tape is advanced past the start point, press 3. To

go forward, press 5.

DStart playback.

Press 4. “bESt” appears blinking on the front display

panel during automatic tracking. (墌pg. 23)

EStop playback.

Press 8. Then press x on the VHS deck to remove the

cassette.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Clean the video heads using a dry cleaning

cassette — ECL-3F — when:

●Rough, poor picture appears while a tape is played back.

●The picture is unclear or no picture appears.

●“USE CLEANING CASSETTE” appears on the screen (only

with “O.S.D.” set to “ON”). (墌pg. 53)

NOTE:

The heads get dirty in the following cases:

●in an environment prone to extreme temperature or

humidity

●in a dusty environment

●flaw, dirt or mold on video tapes

●continuous usage for a long time

Slide to the

right.

Usable cassettes

●Compact VHS

camcorder

recordings can be

played on this unit.

Simply place the

recorded cassette

into a VHS Cassette

Adapter and it can be used just like any full-sized VHS

cassette.

●This video recorder is equipped with SQPB (S-VHS QUASI

PLAYBACK) that lets you watch tapes recorded in the

S-VHS format and the SP mode with regular VHS

resolution.

* SQPB does not deliver Super VHS resolution.

●This video recorder can record on regular VHS and Super

VHS cassettes. However, it will record regular VHS signals

only.

* S-VHS recording is not possible with this recorder.

XV48EK_01.book Page 18 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

19

Filename [XV48EK_07S-VHS.fm]

Page 19 November 18, 2004 10:44 pm

Playback Features

Still Picture/Frame-By-Frame

Playback

1Pause during playback.

Press 9.

●If there is vertical jitter, press PR +/– on the remote control to

correct the picture.

2Activate frame-by-frame playback.

Press 9.

Slow Motion

While playback is paused, press and hold 9 for 2

seconds, then release. Press 9 and release again to return

to still picture.

NOTE:

During slow motion playback, some noise may appear on the TV

screen. Press PR + or – on the remote control to eliminate the

noises.

Variable Speed Search

During playback, press 5 for forward variable speed

search, or 3 for reverse variable speed search.

●The speed changes for each direction by pressing 3 and

5 repeatedly.

When pressing 5: +5x{+7x

When pressing 3: –1x]–5x{–7x

(Once 3 is pressed, reverse search starts in –1x normal

playback speed. After this process, each press of 3 changes

the search speed between –5x and –7x.)

NOTE:

The search speed changes in the same way for SP and LP mode.

Skip Search

During playback, press 1 to 6 times to skip over

unwanted sections.

Each press initiates a 30-second period of fast-motion

playback. Normal playback resumes automatically.

Index Search

Your unit automatically marks index codes at the beginning of

each recording. This function gives you quick access to any one

of 9 index codes in either direction.

NOTE:

Before starting, make sure the unit is in the Stop mode.

Activate Index Search.

Press 2 or 6. “2 1” or “6 1” is displayed on

the TV screen and search begins in the corresponding

direction.

●To access index codes 2

through 9, press 2 or

6 repeatedly until the

correct index number is

displayed.

Example:

To locate the beginning of B

from the current position,

press 2 twice.

To locate the beginning of D from the current position, press

6 once.

●When the specified index code is located, playback begins

automatically.

Next Function Memory

The Next Function Memory “tells” the unit what to do after

rewinding. Before continuing, make sure the unit is in the Stop

mode.

a- For Automatic Start Of Playback

Press 3, then press 4 within 2 seconds.

b- For Automatic Power Off

Press 3, then press 1 within 2 seconds.

c- For Automatic Timer Standby

Press 3, then press # within 2 seconds.

d- For Automatic Cassette Ejection After Tape Rewind

Press 3, then press x within 2 seconds.

One Touch Replay

Press during playback.

Pressing once moves the playback position back to about 7

seconds before the current position. You can press up to 4

times each One Touch Replay.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

ATTENTION

In the search, still, slow-motion or frame-by-frame playback

mode,

●the picture will be distorted.

●the noise bars will appear.

●there may be a loss of colour.

●you cannot hear the sound.

To resume normal playback, press 4.

To resume normal playback during a Skip Search,

press 4.

Current position

Index number

XV48EK_01.book Page 19 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_07S-VHS.fm]

Masterpage:Left+

Page 20 November 18, 2004 10:44 pm

OPERATIONS ON VHS DECK (cont.)

20

Instant ReView

Simply by pressing a single button, the unit power comes on,

rewinds, and begins playback of the last timer-recorded

programme. If you have several programmes recorded, you can

easily access any of them.

NOTE:

Before starting, make sure that the unit is off and that the Timer

mode is disengaged.

Activate Instant ReView.

Press . The unit power comes on and the unit

searches for the index code indicating the start of the last

timer-recorded programme. Once it’s found, playback

begins automatically.

●To watch the first of the 3 programmes, press three

times. The unit searches and begins playback automatically.

You can access a programme as far as 9 index codes away

from the current tape position.

Repeat Playback

Your unit can automatically play back the whole tape 100 times

repeatedly.

1Start playback.

Press 4.

2Activate Repeat Playback.

Press 4 and hold for over 5 seconds, then release.

●The Play indicator ($) on the front display panel blinks slowly.

●After playing back a tape 100 times, the unit stops

automatically.

3Stop Repeat Playback.

Press 8 at any time.

Pressing 4, 3, 5 or 9 also stops Repeat Playback.

Manual Tracking

Your unit is equipped with automatic tracking

control. During playback, you can override this

and adjust the tracking manually by pressing the

TRACKING +/– buttons.

1Override automatic tracking.

During playback, press TRACKING + and – at the same

time.

2Adjust the tracking manually.

Press TRACKING +/–.

●Press TRACKING + and – at the same time again to return to

automatic tracking.

NOTE:

When a new tape is inserted, the unit enters the automatic

tracking mode automatically.

Soundtrack Selection

Your unit is capable of recording three soundtracks (HI-FI L,

HI-FI R and NORM) and will play back the one you select.

During Playback

Pressing A.MONITOR changes the soundtrack as follows:

NOTES:

●“HIFI L jhR” should normally be selected. In this mode,

Hi-Fi stereo tapes are played back in stereo, and the normal

audio track is played back automatically for tapes with only

normal audio.

●For instructions on recording stereo and bilingual

programmes, refer to page 23.

●“O.S.D.” must be set to “ON” or the on-screen displays will

not appear. (墌pg. 53)

NTSC Playback

Your unit is equipped with NTSC circuitry that can play back

NTSC tapes.

1Load a cassette.

Insert a cassette recorded in NTSC.

2Start playback.

Press 4.

●“NTSC]PAL” appears on the screen for about 5 seconds.

NOTES:

●Some TVs shrink the picture vertically and place black bars at

the top and bottom of the screen. This is not a malfunction on

the part of either the unit or the TV.

●The picture may roll up and down. This can be corrected using

the V-HOLD control found on some TVs. (This cannot be

corrected if the TV does not have a V-HOLD control.)

●

The counter and tape remaining time readings will be incorrect.

●During search, still, or frame-by-frame playback, the picture

will be distorted, and there may be a loss of colour.

●Depending on the type of TV, the top and bottom portions of

superimposed displays may be cut off during NTSC playback.

Slide to the

right.

Track Use

On-screen display

HI FI

L j h R For Hi-Fi stereo tapes

HI FI

L jFor main audio of Bilingual tapes

HI FI

h R For sub audio of Bilingual tapes

NORM For audio-dubbed tapes

HI FI

NORM For audio-dubbed tapes

XV48EK_01.book Page 20 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

21

Filename [XV48EK_07S-VHS.fm]

Page 21 November 18, 2004 10:44 pm

Basic Recording

ALoad a cassette.

Insert a cassette with the record safety tab intact.

●The unit’s power comes on automatically and the counter is

reset to 0:00:00.

BSelect the VHS deck.

On the unit

Press VCR/DVD repeatedly so that the VCR indicator

lights up.

On the remote control

Press VCR so that the VCR indicator lights up.

CChoose a programme.

Press PR +/– or the number keys to select the channel

you wish to record.

DSet the tape speed.

Press p. The current setting appears on the front

display panel or TV screen. Press p again to change

the setting while the tape speed is displayed on the TV

screen.

EStart recording.

Press and hold 7 and press 4 on the remote control, or

press 7 on the unit.

●If “O.S.D.” is set to “ON” (墌pg. 53), “MARK” blinks on the

screen while an index code is being marked.

●When “DIRECT REC” is set to “ON” (墌pg. 53), if you press

any button just after pressing 7 on the unit (or 7 and 4 on

the remote control), the unit may not function properly.

FPause/Resume recording.

Press 9. Press 4 to resume recording.

●You can select channel during the Record Pause mode.

GStop recording.

Press 8. Then press x on the VHS deck to remove the

cassette.

NOTE:

When the end of the tape is reached during recording, the unit

stops and “䡬” and “$” blink on the front display panel.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Slide to the

right.

B.E.S.T. works at the beginning of both the first SP and the

first LP recording after inserting the cassette. (墌pg. 23)

If “DIRECT REC” is set to “ON,” the programme that appears

on the TV screen will be recorded. (墌pg. 53)

Recording Resume Function

If there is a power outage during recording, Instant Timer

Recording, or timer recording (墌pg. 22, 26), the recording

will resume automatically when power is restored to the unit

unless the unit’s memory backup has expired.

Accidental erasure

prevention

To prevent accidental recording

on a recorded cassette, remove its

safety tab. To record on it later,

cover the hole with adhesive tape. Record safety tab

XV48EK_01.book Page 21 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_07S-VHS.fm]

Masterpage:Left+

Page 22 November 18, 2004 10:44 pm

OPERATIONS ON VHS DECK (cont.)

22

Recording Features

Recording One Programme While

Watching Another

If your unit is connected to the TV via the AV connection,

press TV/VCR. The unit’s VCR indicator and the TV

broadcast being recorded disappear. Once recording is in

progress, all you need to do is to set the channel controls

on the TV for the station you wish to view.

●The programme selected with the TV’s channel controls

appears on the TV screen, while the one selected with the

unit’s PR buttons is recorded on the tape.

NOTE:

You can also use the DVD deck in the following cases. Before

use, be sure to turn on the unit and select the DVD deck.

●During recording

●During timer recording

●During timer standby mode

Instant Timer Recording (ITR)

This easy method lets you record for

from 30 minutes to 6 hours (selectable in

30-min. increments), and shuts the unit

off after recording is finished.

1Start recording.

Press 7 on the unit.

2Engage the ITR mode.

Press 7 again. “䡬” blinks and “0:30” appears on the

front display panel.

3Set the recording duration.

If you want to record for more than 30 minutes, press 7

to extend the time. Each press extends recording time by

30 minutes.

NOTES:

●You can only perform ITR using the 7 button on the unit’s

front panel.

●Still picture playback stops automatically after 5 minutes to

protect the heads.

●When the end of the tape is reached during Instant Timer

Recording or timer recording, the unit is turned off and “䡬”

and “$” blink on the front display panel.

●During Instant Timer Recording, any other timer programmed

recording won’t start even if their start time has come. In such

a case, the timer programmed recording starts (if the end time

of the timer programmed recording is set after the end of

Instant Timer Recording) after the Instant Timer Recording

finishes.

Elapsed Recording Time Indication

1Set the counter display.

Press ––:–– until a counter reading appears on the front

display panel.

2Reset the counter.

Press 0000 before starting recording or playback.

●The counter is reset to “0:00:00” and shows the exact elapsed

time as the tape runs. You can check the exact time of a

recording or playback.

Tape Remaining Time

Press ––:–– until the time remaining on the tape

appears.

●The front display panel shows the tape remaining time with “:”

blinking.

●By pressing the ––:–– button, you can change the display to

show the channel position, clock time, counter reading, and

tape remaining time.

* The channel position is not displayed during playback.

NOTES:

●When you press ––:––, the on-screen display appears on the

TV screen for 5 seconds, then the displays other than the

counter disappears. To clear the counter display, press ––:––.

●Depending on the type of tape being used, the tape remaining

time reading may not appear right away, or is not correct.

“– –:– –” may sometimes appear with “:” blinking, or the

display may blink on occasion.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Slide to the

right.

XV48EK_01.book Page 22 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

23

Filename [XV48EK_07S-VHS.fm]

Page 23 November 18, 2004 10:44 pm

Receiving Stereo and Bilingual

Programmes

Your unit is equipped with a Digital stereo sound decoder

(NICAM) making reception of stereo and bilingual broadcasts

possible.

When the channel is changed, the type of broadcast being

received will be displayed on the TV screen for a few seconds.

●To listen to a stereo programme, press A.MONITOR until

“HIFI L jhR” appears on the TV screen.

●To listen to a bilingual programme, press A.MONITOR until

“HIFI L j” or “HIFI hR” appears on the TV screen.

●To listen to the standard (Regular Monaural) audio while

receiving a NICAM broadcast, press A.MONITOR until

“NORM” appears on the TV screen.

NOTE:

“O.S.D.” must be set to “ON,” or the on-screen displays will not

appear. (墌pg. 53)

To Record NICAM Stereo and Bilingual Programmes

The NICAM audio programme will be recorded on the Hi-Fi

audio track, and the standard audio programme will be recorded

on the normal audio track.

NOTES:

●If the quality of stereo sound being received is poor, the

broadcast will be received in monaural with better quality.

●Before playing back a programme recorded in stereo, or a

bilingual programme, refer to “Soundtrack Selection” on

page 20.

B.E.S.T. Picture System

The B.E.S.T. (Biconditional Equalised Signal Tracking)

system checks the condition of the tape in use during

playback and recording, and compensates to provide the

highest-possible playback and recording pictures. You

can set “B.E.S.T.” to “ON” or “OFF” to your preference.

(墌pg. 53)

Playback

The unit assesses the quality of the tape once you initiate

playback.

●The unit adjusts the playback picture quality based on the

quality of the tape in use.

●B.E.S.T. is active during automatic tracking. “bESt” appears

blinking on the front display panel.

●“bESt” only appears at the beginning of automatic tracking.

Even though it doesn’t appear after that, the B.E.S.T. function is

operative.

Recording

The unit assesses the quality of the tape once you initiate

recording.

●The unit spends approximately 7 seconds assessing the

condition of the tape, then begins recording.

Type of broadcast being

received On-screen display

Regular Monaural

NICAM Stereo

NICAM Bilingual

NICAM Monaural

(none)

ST NICAM

BIL. NICAM

NICAM

ATTENTION

Since the B.E.S.T. system works before recording actually

starts, there is a delay of approximately 7 seconds after 7

and 4 on the remote control are pressed, or 7 on the unit is

pressed. To make sure you record the desired scene or

programme in its entirety, first perform the following steps:

APress and hold 9 and press 7 to engage the Record Pause

mode.

●The unit then automatically checks the condition of the

tape and, after approximately 7 seconds, re-enters Record

Pause mode.

BPress 4 to start recording.

If you want to bypass the B.E.S.T. system and begin recording

immediately, set “B.E.S.T.” to “OFF.” (墌pg. 53)

XV48EK_01.book Page 23 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_07S-VHS.fm]

Masterpage:Left+

Page 24 November 18, 2004 10:44 pm

OPERATIONS ON VHS DECK (cont.)

24

VIDEO Plus+® Timer

Programming

With the VIDEO Plus+ system, timer programming is greatly

simplified because each TV programme has a corresponding

code number which your unit is able to recognize.

ASelect the VHS deck.

On the unit

Press VCR/DVD repeatedly so that the VCR indicator

lights up.

On the remote control

Press VCR so that the VCR indicator lights up.

BAccess the VIDEO Plus+ screen.

CEnter the PlusCode number.

DAccess the VIDEO Plus+ Program screen.

●If the number you entered is invalid, “ERROR” appears on the

TV screen. Press & and input a valid PlusCode number.

ESet the tape speed.

Press p.

FSet the PDC mode.

Press PDC (number key “7”) to select “ON” or “OFF.”

●If “VPS/PDC ON” is displayed on the TV screen, “PDC” is set

to “ON.”

●If “VPS/PDC OFF” is displayed on the TV screen, “PDC” is set

to “OFF.”

墌“PDC Recording” on page 25.

●VPS (Video Programme System) recording is not currently

available in the U.K. and not possible with this unit.

Before performing the VIDEO Plus+ Timer

Programming:

●Make sure that the unit’s built-in clock is set properly.

●Insert a cassette with the safety tab in place. The unit will

come on automatically.

●Turn on the TV and select the video channel (or AV mode).

●Slide the TV/VCR/DVD switch on the remote control to the

right.

Press PROG.

Slide to the

right.

Press the number keys to

enter the PlusCode number

of a programme you wish to

record.

●If you make a mistake, press &

and input the correct number.

Press ENTER, then the

VIDEO Plus+ Program screen

appears (if you’re just starting

out, “P1” appears).

IMPORTANT

Make sure the channel position number you wish to record is

displayed; if not, or “TV PROG” shows “– –,” press PR +/– to

input the channel position number on which your unit

receives the station, then press ENTER or e.

XV48EK_01.book Page 24 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

25

Filename [XV48EK_07S-VHS.fm]

Page 25 November 18, 2004 10:44 pm

GReturn to the normal screen.

Press PROG or ENTER. “PROGRAM COMPLETED”

appears on the TV screen for about 5 seconds, then the

normal screen appears.

●Repeat steps B–G for each additional programme.

HEngage the unit’s timer mode.

Press #. The unit turns off automatically and “#”

appears on the front display panel.

●To disengage the timer mode, press # again.

NOTES:

●To Change The Stop Time:

— press STOP +/– after pressing ENTER in step D. You can

compensate for anticipated programme schedule delays.

●To Timer-Record Weekly Or Daily Serials:

— after pressing ENTER in step D, press WEEKLY (number key

“9”) for weekly serials or DAILY (number key “8”) for daily

serials (Monday — Friday). Either “WEEKLY” or “DAILY”

appears on the TV screen. Pressing the button again makes the

corresponding indication disappear.

●You can programme this unit to timer-record as many as 8

programmes. If you try to programme the unit to record a

ninth, “PROGRAM FULL” appears on the TV screen and

“FULL” appears on the front display panel. To record the extra

programme, you must first cancel any unnecessary

programmes. (墌pg. 27)

●If there is a conflict in the timer schedule and one programme

overlaps with another, the programme starting earlier or

programme with the lower programme number will be

recorded.

Satellite Receiver Users

To timer-record a satellite broadcast using the VIDEO Plus+

system:

ASet “L-2 SELECT” to “A/V.” (墌pg. 54)

BPerform steps A–H.

CSet the satellite receiver to the appropriate channel before

the selected programme begins.

DLeave the satellite receiver’s power on.

PDC Recording

Now available from some TV stations, PDC (Programme

Delivery Control) is a service designed to assure safe,

accurate timer recording. With this system, special code

signals are transmitted together with the audio/video signals.

These code signals control your unit and have precedence

over the advertised times which you may have preset into the

timer. This means that your unit will start and stop recording

when the preset TV programmes actually start and end —

even if the broadcast time of a preset TV programme is

changed from what has been advertised. PDC is currently

available nationally on BBC1, BBC2, Ch.4 and Ch.5, except

from a few small relay transmitters. Ch.3 operates a PDC

service in some areas. All channels intend to offer this

service in due course. Check your TV programme listing

guide for latest information. If the channel you intend to

record does not offer a PDC service your unit will not start

recording if PDC has been selected. Be sure to set PDC to

“OFF” if PDC is not available on your selected channel.

(See step F on page 24 and step I on page 26.

NOTES:

●When you use Express Timer Programming, set the start

time (PDC time) exactly as advertised in the TV listing. A

different time than advertised will result in no recording.

●PDC recording is also possible when a satellite receiver or

a cable system is connected to L-2 IN/DECODER

connector on your unit.

●PDC recording is also possible via the L-1 IN/OUT

connector.

XV48EK_01.book Page 25 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_07S-VHS.fm]

Masterpage:Left+

Page 26 November 18, 2004 10:44 pm

OPERATIONS ON VHS DECK (cont.)

26

Express Timer

Programming

If you do not know the PlusCode number for the programme you

wish to record, use the following procedure to set your unit to

timer-record the programme.

Example: To timer-record the programme from 21:00 to

22:00 on 25th December, on channel 1.

ASelect the VHS deck.

On the unit

Press VCR/DVD repeatedly so that the VCR indicator

lights up.

On the remote control

Press VCR so that the VCR indicator lights up.

BAccess the VIDEO Plus+ screen.

Press PROG.

CAccess the Programme screen.

DEnter the programme start time.

EEnter the programme stop time.

Press STOP +/– to enter the time you want recording to

stop.

●Press and hold STOP +/– to move in 30-minute increments, or

press and release repeatedly to move 1 minute at a time.

FEnter the programme date.

Press DATE +/–.

●The current date appears on the TV screen. The date you enter

appears in its place.

GEnter the channel position.

HSet the tape speed.

Press p.

ISet the PDC mode.

Press PDC (number key “7”) to select “ON” or “OFF.”

●If “VPS/PDC ON” is displayed on the TV screen, “PDC” is set

to “ON.”

●If “VPS/PDC OFF” is displayed on the TV screen, “PDC” is set

to “OFF.”

墌“PDC Recording” on page 25.

●VPS (Video Programme System) recording is not currently

available in the U.K. and not possible with this unit.

JReturn to the normal screen.

Press PROG or ENTER. “PROGRAM COMPLETED”

appears on the TV screen for about 5 seconds, then the

normal screen appears.

●Repeat steps B–J for each additional programme.

KEngage the unit’s timer mode.

Press #. The unit turns off automatically and “#”

appears on the front display panel.

●To disengage the timer mode, press # again.

Before performing Express Timer Programming:

●Make sure that the unit’s built-in clock is set properly.

●Insert a cassette with the safety tab in place. The unit will

come on automatically.

●Turn on the TV and select the video channel (or AV mode).

●Slide the TV/VCR/DVD switch on the remote control to the

right.

Press START +/–. (If you’re

just starting out, “P1”

appears.)

Slide to the

right.

Press START +/– to enter the

time you want recording to

start.

●Press and hold START +/– to

move in 30-minute

increments, or press and

release repeatedly to move 1

minute at a time.

Press PR +/–.

XV48EK_01.book Page 26 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

27

Filename [XV48EK_07S-VHS.fm]

Page 27 November 18, 2004 10:44 pm

To Timer-Record Weekly Or Daily Serials:

— anytime during steps D through I, press WEEKLY (number

key “9”) for weekly serials or DAILY (number key “8”) for daily

serials (Monday – Friday). Either “WEEKLY” or “DAILY” appears

on the TV screen. Pressing the button again makes the

corresponding indication disappear.

NOTES:

●You can programme this unit to timer-record as many as 8

programmes. If you try to programme the unit to record a

ninth, “PROGRAM FULL” appears on the TV screen and

“FULL” appears on the front display panel. To record the extra

programme, you must first cancel any unnecessary

programmes. (墌“To cancel or change a programme”)

●If there is a conflict in the timer schedule and one programme

overlaps with another, the programme starting earlier or

programme with the lower programme number will be

recorded.

Check, Cancel and Change Programmes

ADisengage the timer mode.

Press #, then press 1.

BAccess the Programme Check screen.

CAccess the Programme screen.

To cancel or change a programme

DCancel or change a programme.

Press & to cancel a programme. To change programme

settings, press the appropriate button: START +/–,

STOP +/–, DATE +/–, PR +/–, PDC (number key “7”),

DAILY (number key “8”), WEEKLY (number key “9”) and/

or p.

EReturn to the normal screen.

Press " as many times as necessary. If there are still

some programmes remaining, go on to step F.

FReturn to the timer mode.

Press #.

Satellite Receiver Users

To timer-record a satellite broadcast using Express Timer

Programming:

ASet “L-2 SELECT” to “A/V.” (墌pg. 54)

BPerform steps A–K. Enter “L-2” for the channel position

in step G.

CSet the satellite receiver to the appropriate channel before

the selected programme begins.

DLeave the satellite receiver’s power on.

Press ".

Press " again to check

more information. Each time

you press ", the next

programme’s information

appears.

XV48EK_01.book Page 27 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_07S-VHS.fm]

Masterpage:Left+

Page 28 November 18, 2004 10:44 pm

OPERATIONS ON VHS DECK (cont.)

28

When Programmes Overlap Each

Other

If “PROGRAM OVERLAPPED” appears, you have another

programme overlapping the programme you have just made.

The Programme Check screen appears and conflicting

programmes will start blinking.

Example: Programme 1 (you have just made) and

Programme 4 overlap each other.

AConfirm the overlapping programmes.

Overlapping programmes blink on the TV screen.

BSelect the programme to modify.

Press rt, then press ENTER or e.

●You can only select one of the overlapping programmes.

NOTE:

If you do not mind this overlap, press PROG to finish the timer

programme setting. The programme with the lower programme

number will be recorded and the other one will not be recorded

correctly. If no changes are made for approximately 1 minute,

the unit will return to the normal screen.

CCancel or change programme setting.

To cancel a programme, press & when the Programme

screen you do not want is shown. “PROGRAM

COMPLETED” appears on the TV screen for about 5

seconds, then the normal screen appears.

To change a programme, press the appropriate button:

START +/–, STOP +/–, DATE +/–, PR +/–, PDC (number

key “7”), DAILY (number key “8”), WEEKLY (number key

“9”) and/or p when the Programme screen on which

you want to make changes is shown, then press ENTER.

“PROGRAM COMPLETED” appears on the TV screen for

about 5 seconds, then the normal screen appears.

NOTE:

If the overlap is not yet solved, or another overlap occurs with

the timer programme setting after making the last correction on a

programme, the conflicting programmes will be shown on the

Programme Check screen again. Repeat the above steps again

until the overlap is solved.

Automatic Satellite

Programme Recording

This function allows you to automatically record a

satellite programme which is timer-programmed on your

external satellite receiver. Connect a satellite receiver to

the unit’s L-2 IN/DECODER connector and programme

the timer on the satellite receiver. The unit starts or stops

recording by the signals input from the satellite receiver.

After recording, the unit’s power shuts off automatically.

Slide to the

right.

ATTENTION

●Be sure not to turn on the satellite receiver before the

programme is executed; otherwise, the unit will start

recording when the satellite receiver’s power is turned on.

●If you have connected another appliance other than a

satellite receiver to the L-2 IN/DECODER connector, be

sure not to engage the Automatic Satellite Programme

Recording mode; otherwise, the unit will start recording

when the connected appliance’s power is turned on.

●Automatic Satellite Programme Recording and timer-

recording cannot be done at the same time.

XV48EK_01.book Page 28 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

29

Filename [XV48EK_07S-VHS.fm]

Page 29 November 18, 2004 10:44 pm

ASelect the VHS deck.

On the unit

Press VCR/DVD repeatedly so that the VCR indicator

lights up.

On the remote control

Press VCR so that the VCR indicator lights up.

BSelect the L-2 SELECT mode.

Set “L-2 SELECT” to “A/V” or “SAT.” (墌pg. 54)

●When you select “SAT,” refer to “IMPORTANT” on page 50.

CSet the tape speed.

Press p.

DEngage the Automatic Satellite Programme

Recording mode.

On the unit

Press and hold SAT# for

about 2 seconds.

On the remote control

Press and hold REC LINK

for about 2 seconds.

●The “N” and “#” indicators

light up and the unit turns

off automatically.

NOTES:

●Operations on the DVD deck are not possible when the

Automatic Satellite Programme Recording mode is engaged or

timer recording is in progress.

●To disengage the Automatic Satellite Programme Recording

mode, press REC LINK. The “N” indicator goes off.

●If the unit’s power is off, it is not possible to engage the

Automatic Satellite Programme Recording mode.

●In step D, if the “N” indicator does not light but instead blinks

quickly even though your satellite receiver’s power is off,

Automatic Satellite Programme Recording will not work

properly with that satellite receiver*. If this is the case, perform

“Express Timer Programming” (墌pg. 26) to timer-record a

satellite programme.

* Some satellite receivers output signals even if the power is off.

Automatic Satellite Programme Recording is not possible with those

satellite receivers.

●The “N” indicator blinks while Automatic Satellite Programme

Recording is in progress.

●For timer programming of the satellite receiver, refer to the

instruction manual of the satellite receiver.

●Automatic Satellite Programme Recording is not possible if

your satellite receiver does not have a timer.

●Pressing the unit’s 1 button while Automatic Satellite

Programme Recording is in progress turns off the unit’s power

and disengages the Automatic Satellite Programme Recording

mode.

●If there are more than one satellite programmes you wish to

record with Automatic Satellite Programme Recording, it is not

possible to set different tape speeds for each programme.

●Depending on the type of satellite receiver, the unit may not

record a slight portion of the beginning of the programme or

may record slightly longer than the actual length of the

programme.

●If you engage the Automatic Satellite Programme Recording

mode when the satellite receiver’s power is on, the unit will

not start Automatic Satellite Programme Recording even

though the “N” and “#” indicators blink. When the satellite

receiver shuts off once and is turned back on again, the unit

starts recording.

●You can also record a programme from your cable system in

the same way if the system has a timer.

●The B.E.S.T. system (墌pg. 23) does not work while Automatic

Satellite Programme Recording is in progress.

●Just Clock (墌pg. 65) does not work when the Automatic

Satellite Programme Recording mode is engaged.

Before performing the following steps:

●Make sure the satellite receiver is connected to the unit’s

L-2 IN/DECODER connector. (墌pg. 50)

●Programme the timer on the satellite receiver.

●Insert a cassette with the safety tab in place.

●Slide the TV/VCR/DVD switch on the remote control to the

right.

XV48EK_01.book Page 29 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_08DVD.fm]

Masterpage:Left0

30

Page 30 18 November 2004 10:44 pm

OPERATIONS ON DVD DECK

Basic Playback ALoad the disc.

●For details, refer to “Placing a Disc” (墌pg. 6).

BSelect the DVD deck.

On the unit

Press VCR/DVD repeatedly so that the DVD indicator

lights up.

On the remote control

Press DVD so that the DVD indicator lights up.

CStart playback.

Press 4.

Example: DVD VIDEO

●You can switch the display on the front display panel between

the title/chapter/track number and the playback time by

pressing ––:––.

●It may take a few seconds to start playback.

●When inserting a DVD or Video CD disc, a menu display may

appear on the TV screen. To play back from the menu, refer to

“Locating a Desired Scene Using the DVD Menu” (墌pg. 31)

or “Locating a Desired Scene Using the Menu of a Video CD/

SVCD with Playback Control (PBC) Function” (墌pg. 31).

DPause playback.

Press 9.

●To resume normal playback, press 4.

EStop playback.

Press 8.

●When “RESUME” (墌pg. 57) is “ON” or “DISC RESUME,” the

unit memorizes the position on the disc where you have

interrupted playback.

-To resume playback, press 4.

-To stop playback completely, press 8 again.

●Press x on the DVD deck to open the disc tray, then remove

the disc.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

ATTENTION

●You can not use the DVD deck when the VHS deck is in

the Automatic Satellite Programme standby and recording

mode.

●You can use the DVD deck when the VHS deck is in the

timer standby mode.

●If the unit does not accept an operation, appears on the

TV screen. (Operations are occasionally unacceptable

even if is not displayed.)

Slide to the

right.

Title number Chapter number

Playback time

XV48EK_01.book Page 30 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

31

Filename [XV48EK_08DVD.fm]

Page 31 18 November 2004 10:44 pm

Playback Features

Locating a Desired Scene Using the

DVD Menu

DVD VIDEO discs generally have their own menus which show

the disc contents. These menus contain various items such as

titles of movies, names of songs, or artist information, and

display them on the TV screen. You can locate a desired scene

using the DVD menu.

1Access the DVD menu.

Press TOP MENU or MENU.

2Start playback.

Press rt w e to select a

desired item, then press

ENTER.

●It may be possible to select the

desired item using the number

keys depending on the disc.

Locating a Desired Scene Using the

Menu of a Video CD/SVCD with

Playback Control (PBC) Function

Some Video CD/SVCD discs support the PBC function. PBC is an

abbreviation of “PlayBack Control.” A Video CD/SVCD disc

recorded with PBC has its own menus, such as a list of the songs

on the disc. You can locate a specific scene by using the menu.

1Access the PBC menu.

In stop mode

Press 4.

●Depending on a disc, PBC

menu may automatically appear

on the TV screen by simply

loading a disc on the unit. “Pbc”

appears on the front display

panel.

During playback

Press RETURN.

2Start playback.

Press the appropriate number keys.

●The unit starts playback of the selected item.

●When “NEXT” or “PREVIOUS” appears on the TV screen:

Pressing 6 advances to the next page.

Pressing 2 returns to the previous page.

●The method of the operation is different depending on the

disc.

To cancel PBC

Start playback by using the number keys instead of 4.

To reactivate PB C

●Press TOP MENU or MENU.

●Press 8 to stop playback, then press 4

Locating the Start Point of the Item or

Skip the Item

Press 2 or 6 during playback.

Example:

To locate the beginning of

item B from the current

position, press 2 twice.

To locate the beginning of

item D from the current

position, press 6 once.

●When the specified item is

located, playback begins

automatically.

Using the number keys

For DVD VIDEO

●While stopped: title is selected.

●While playing back: chapter is selected.

For Video CD/SVCD/Audio CD

Track is selected.

Examples:

To select 5, press the number key “5.”

To select 25, press the number key “+10,” “+10,” then “5.”

To select 40, press number key “+10” three times, then “10.”

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Example:

Current position

The number you press the button

XV48EK_01.book Page 31 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_08DVD.fm]

Masterpage:Left+

Page 32 18 November 2004 10:44 pm

OPERATIONS ON DVD DECK (cont.)

32

Variable Speed Search

During playback, press 5 for forward variable speed

search, or 3 for reverse variable speed search.

●The more times you press, the faster the playback picture

moves.

●To resume normal playback, press 4.

OR

During playback, press and hold 6 for forward

variable speed search, or press and hold 2 for reverse

variable speed search.

●While you press and hold the button, the image is played back

at 5x speed.

●To resume normal playback, release 2 or 6.

NOTE:

During varirable speed search the sound will be muted except

when playing an Audio CD disc or when playing a DVD VIDEO

disc at 1.5x speed search mode.

One Touch Replay

Press while playing back a DVD VIDEO disc.

The playback position moves back about 10 seconds before the

current position (only within the same title).

Still Picture/Frame-By-Frame

Playback

1Pause during playback.

Press 9.

2Activate frame-by-frame playback.

Press 9 to advance a still picture.

●To resume normal playback, press 4.

Slow Motion

During playback, press 9, then press 3 for reverse

slow motion playback, or 5 for forward slow motion

playback.

●Each press of 5 changes the playback speed as follows:

1/32]1/16]1/4]1/2

●Each press of 3 changes the playback speed as follows

(only for DVD VIDEO discs):

–1/32]–1/16]–1/4]–1/2

●To resume normal playback, press 4.

NOTES:

●Reverse slow motion playback is possible only with the DVD

VIDEO discs.

●This function may not works for some Video CD or SVCD.

Zooming

Press ZOOM during playback or while paused.

●Each press of ZOOM changes the magnification as follows:

1.5x]2x]4x

●While zoomed, the picture may look coarse or distorted.

Press rt w e to move the

zoomed-in scene.

●To resume normal playback,

press ZOOM repeatedly to select

the normal size.

REPEAT

ZOOM

ON SCREEN

Slide to the

right.

Current magnification Zoomed-in area

XV48EK_01.book Page 32 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

33

Filename [XV48EK_08DVD.fm]

Page 33 18 November 2004 10:44 pm

Repeat Playback

You can repeat playback as you like according to the type of

disc.

DVD VIDEO: during playback or in stop mode

Audio CD: during playback or in stop mode

Video CD/SVCD: in stop mode or during playback with PBC

disactivated

AAccess the repeat mode.

Press REPEAT.

●Repeat mode is displayed on the TV.

BSelect the repeat mode.

Press REPEAT repeatedly to select the desired repeat

mode.

DVD VIDEO

CHAP]TITLE]OFF](Back to the beginning)

Video CD/SVCD/Audio CD

TRACK]ALL]OFF](Back to the beginning)

To cancel Repeat Playback,

Press REPEAT repeatedly until “OFF” appears on the TV

screen.

NOTES:

●Repeat Playback is not possible with a Video CD or SVCD

with PBC function.

●Repeat Playback may not work properly depending on the

type of disc being used.

●You cannot select A-B Repeat Playback by pressing REPEAT.

A-B Repeat Playback

You can repeat the desired part.

DVD VIDEO/Audio CD:during playback

Video CD/SVCD:during playback with PBC disactivated

AAccess the on-screen bar.

Press ON SCREEN twice. The on-screen bar appears on

the TV screen.

BSelect the menu item.

Press we to move H to , then press ENTER.

●The following pop-up window appears under the selected

item.

CSelect the repeat mode.

Press rt repeatedly to select “A-B.”

DSelect the start point.

Press ENTER at the beginning of the part you want to

repeat (point A).

●The following display appears in the on-screen bar.

ESelect the end point.

Press

ENTER

at the end of the part you want to repeat (point

B).

●A-B Repeat Playback starts. The selected part of the disc

(between point A and B) is played repeatedly.

To cancel A-B Repeat Playback

Repeat from step A, select “OFF” in step C, then press

ENTER.

To clear the on-screen bar

Press ON SCREEN.

NOTE:

The points A and B must be set in the same title or track.

CHAPTER: The current chapter is played back repeatedly.

TITLE: The current title is played back repeatedly.

OFF: Each title and chapter is played back once.

TRACK:The current track is played back repeatedly.

ALL:All tracks are played back repeatedly.

OFF: Each track is played back once.

XV48EK_01.book Page 33 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_08DVD.fm]

Masterpage:Left+

Page 34 18 November 2004 10:44 pm

OPERATIONS ON DVD DECK (cont.)

34

Time Search

You can play back a disc from the desired point by specifying the

elapsed time from the beginning of the current title (for DVD

VIDEO) or the disc (for Audio CD/Video CD) using the Time

Search.

DVD VIDEO/Audio CD: during playback or in stop mode

Video CD/SVCD: during playback with PBC disactivated or in

stop mode

AAccess the on-screen bar.

Press ON SCREEN twice. The on-screen bar appears on

the TV screen.

BSelect the menu item.

Press we to move H to , then press ENTER.

●The following pop-up window appears under the selected

item.

CSelect the time.

Press the number keys (0-9) to enter the time, then press

ENTER.

Example:

To play back from a point 2 (hours): 34 (minutes): 08 (seconds)

elapsed

If you have specified a wrong selection,

Press w repeatedly until the wrong number is erased,

then press number keys to enter the correct numbers.

●The unit starts playback from the specified time.

To clear the on-screen bar

Press ON SCREEN.

NOTES:

●Some DVD VIDEO discs do not contain time information, and

it is not possible to use the Time Search function.

●Time Search cannot be used during Programme and Random

Playback.

Subtitle Selection

You can select subtitle language.

●During playback

AAccess the menu.

Press SUBTITLE.

●The following pop-up window appears on the TV screen.

Example (DVD):“ENGLISH” is selected out of 3 subtitle

languages recorded.

BSelect the subtitle language.

Press rt or SUBTITLE repeatedly to select the desired

subtitle language, then press ENTER.

●Each time you press the button, the subtitle language changes.

●The pop-up window disappears if no operation is done for

about several seconds.

NOTES:

●For DVD VIDEO

Some subtitle languages are abbreviated in the pop-up

window. See “Language Code List” (墌pg. 17).

●For SVCD

An SVCD can contain up to four subtitles. Pressing SUBTITLE

changes the subtitles regardless of whether the subtitles are

recorded or not.

Slide to the

right.

TIME _ : _ _ : _ _ TIME _ : _ _ : _ _TIME 2 : _ _ : _ _

TIME _ : _ _ : _ _TIME 2 : 3 _ : _ _ TIME _ : _ _ : _ _TIME 2 : 3 4 : _ _

TIME _ : _ _ : _ _TIME 2 : 3 4 : 0 _ TIME _ : _ _ : _ _TIME 2 : 3 4 : 0 8

Press 2 Press 3

Press 4

Press 8

Press 0

XV48EK_01.book Page 34 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

35

Filename [XV48EK_08DVD.fm]

Page 35 18 November 2004 10:44 pm

Angle Selection

You can enjoy a variety of scene angles if the DVD VIDEO disc

contains “multi-angle” parts, where multiple cameras were used

to shoot the same scene from different angles.

●During playback

AAccess the menu.

Press ANGLE.

●The following pop-up window appears on the TV screen.

Example: The first view angle is selected out of 3 view angles

recorded.

BSelect the view angle.

Press rt or ANGLE repeatedly to select the desired

view angle, then press ENTER.

●Each time you press the button, the angle of the scene

changes.

●The pop-up window disappears if no operation is done for

about several seconds.

Example:

1/3]2/3]3/3](Back to the beginning)

Audio Language and Sound Selection

The audio selection setting allows you to change the audio

language of a movie, or to listen to karaoke with or without the

vocal.

●During playback

AAccess the menu.

Press A.MONITOR.

●The following pop-up window appears on the TV screen.

Example: “ENGLISH” is selected out of 3 audio languages

recorded during DVD VIDEO playback.

BSelect the audio language.

Press rt or A.MONITOR repeatedly to select the

desired audio language, then press ENTER.

●Each time you press the button, the audio language changes.

●The pop-up window disappears if no operation is done for

about several seconds.

DVD VIDEO (example)

1/3 ENGLISH]2/3 FRENCH]3/3 SPANISH](Back to the

beginning)

Video CD

ST]L]R](Back to the beginning)

SVCD

ST 1]ST 2]L 1]R 1]L 2]R 2](Back to the beginning)

NOTE:

For DVD VIDEO disc, some audio languages are abbreviated in

the pop-up window. See “Language Code List” (墌pg. 17).

1

1/3

2

1/3

3

1/3 ST:To listen to normal stereo playback.

L:To listen to L (left) audio channel only.

R: To listen to R (right) audio channel only.

ST 1/ST 2:To listen to normal stereo playback of ST 1 or

ST 2 channel.

L 1/L 2:To listen to the L (left) 1 or 2 audio channel.

R 1/R 2: To listen to the R (right) 1 or 2 audio channel.

XV48EK_01.book Page 35 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_08DVD.fm]

Masterpage:Left+

Page 36 18 November 2004 10:44 pm

OPERATIONS ON DVD DECK (cont.)

36

Programme Playback

You can play back up to 99 tracks in the desired order.

AAccess the on-screen bar.

Press ON SCREEN twice in stop mode.

BSelect the menu item.

Press we to move H to , then press ENTER.

●The programme table appears under the on-screen bar.

CSelect the tracks in the desired order.

If you have specified a wrong selection

Press rt to move H to the track to be corrected, then press 8.

The track is erased and the next programmed tracks move up.

DStart playback.

Press 4. Playback starts in the selected order.

●With an Audio CD disc, the programme table remains on the

TV.

●When all of the programmed tracks have been played back,

Programme Playback stops, but the programmed information

remains.

To check the programme contents

During playback, press 8. Playback stops and the

programme table appears on the TV screen.

●You can also check the programme contents through the on-

screen bar during playback.

To clear the programme

Press 8 while playback is stopped and the programme

table appears on the TV screen.

To exit from Programme Playback

After clearing the programme, press ON SCREEN.

Random Playback

You can play back all the tracks on the disc in random order.

AAccess the on-screen bar.

Press ON SCREEN twice in stop mode.

BSelect the menu item.

Press we to move H to , then press ENTER.

●Playback starts in random order.

To clear the on-screen bar

Press ON SCREEN.

Press the appropriate

number keys to select the

tracks.

Slide to the

right.

Programme time

Examples:

●To select track 5, press the number key “5.”

●To select 25, press the number key “+10,” “+10,” then

“5.”

●To select 40, press number key “+10” three times, then

“10.”

XV48EK_01.book Page 36 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

37

Filename [XV48EK_08DVD.fm]

Page 37 18 November 2004 10:44 pm

Sound Effect

Using the Sound Effect function, you can change the sound field.

●This function works only for analog audio output.

AAccess the selection menu.

Press SOUND EFFECT during playback.

●The current setting appears on the TV screen.

BSelect the Sound Effect mode.

Press SOUND EFFECT repeatedly to select the desired

mode.

●Each time you press SOUND EFFECT, the Sound Effect mode

changes as follows:

SOUND EFFECT:1]SOUND EFFECT:2]

SOUND EFFECT:3]OFF](Back to the beginning)

●As the value becomes bigger, the Sound Effect works stronger.

●The selection menu disappears if no operation is done for

about several seconds.

To deactivate Sound Effect

Press SOUND EFFECT repeatedly until “OFF” appears on

the TV screen.

VFP Function

—Adjusting the Picture Quality

The VFP (Video Fine Processor) function enables you to adjust

the picture character according to the type of programming,

picture tone or personal preference.

AAccess the VFP setting menu.

BSelect the VFP mode.

Press we repeatedly.

●Each time you press we, the VFP mode changes as follows:

NORMAL]CINEMA]USER 1]USER 2](Back to the

beginning)

To adjust picture appearance manually

CAccess the USER menu.

Press we repeatedly to select “USER 1” or “USER 2.”

DSelect the parameter.

Press rt repeatedly to select a parameter you want to

adjust, then press ENTER.

●Adjust gradually and confirm picture appearance results are as

preferred.

●VFP menu disappears and the following pop-up window

appears on the TV screen.

EAdjust the parameter.

Press rt repeatedly to change the setting, then press

ENTER.

●The current VFP settings appear again.

Repeat steps D and E to adjust other parameters.

To return to the normal screen

Press DVD PICTURE.

NOTE:

The VFP setting screen disappears if no operation is done for

more than about 10 seconds.

Press DVD PICTURE during

playback.

●The current setting appears on

the TV screen.

NORMAL: For watching TV in a general room.

CINEMA: For watching a movie software in a room

with suppressed light.

USER 1/

USER 2:

You can adjust parameters that affect the

picture appearance and store the settings. Go

to step C.

GAMMA

(LOW/MID/

HIGH):

Adjust this if the neutral color is bright or dark.

The brightness of dark and bright portions is

maintained.

BRIGHTNESS

(–16 to +16):

Adjust this if the picture is bright or dark on

the whole.

CONTRAST

(–12 to +12):

Adjust this if the objects in far and near

positions look unnatural.

SATURATION

(–16 to +16):

Adjust this if the picture is whitish or blackish.

TINT

(–16 to +16):

Adjust this if the appearance of flesh tone is

unnatural.

SHARPNESS

(LOW/ HIGH):

Adjust this if the picture is indistinct.

YDELAY

(–2 to +2):

Adjust this if the picture looks separately or

overlapped.

XV48EK_01.book Page 37 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_08DVD.fm]

Masterpage:Left+

Page 38 18 November 2004 10:44 pm

OPERATIONS ON DVD DECK (cont.)

38

Using the On-Screen Bar

You can check disc information while the disc is loaded and you

can use some functions using the on-screen bar. The on-screen

bar allows you the various playback operations.

How to Access the On-Screen Bar

AAccess the status bar.

Press ON SCREEN when a disc is loaded. The status bar

appears on the TV screen.

Example: During DVD VIDEO playback

BAccess the menu bar.

Press ON SCREEN again. The menu bar appears under

the status bar.

To clear the on-screen bar

Press ON SCREEN.

Basic Operation on the Menu Bar

AAccess the menu bar.

Press ON SCREEN twice. The menu bar appears on the

TV screen.

●The currently selected item is highlighted.

BSelect the menu item.

Press we to move H to the item you want to work with,

then press ENTER.

After pressing ENTER

●When a pull-down menu appears, press rt to select the

setting you want, then press ENTER.

●When a number-entry box appears, use the number key to

enter the number you want, then press ENTER.

●When changing the indication of playback time, press ENTER

repeatedly to select the setting you want.

For details about each function, see page 39.

ON SCREEN

Slide to the

right.

Transfer

rate

Chapter

number

Title

number

Playback

time

Playback

status

XV48EK_01.book Page 38 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

39

Filename [XV48EK_08DVD.fm]

Page 39 18 November 2004 10:44 pm

Menu Bar Functions for DVD VIDEO

8 Time mode selection

During playback, selects the time mode shown in the status bar

and on the front display.

●TOTAL: Current title elapsed time

●T.REM: Current title remaining time

●TIME: Current chapter elapsed time

●REM: Current chapter remaining time

8 Repeat mode (See also page 33)

Selects the repeat mode during playback.

●CHAPTER: Current chapter repeat

●TITLE: Current title repeat

●A-B: A-B repeat

●OFF: Repeat mode deactivated

8 Time search (See also page 34)

Specifies a time from the beginning of the current title as the

point from which to begin playback.

8 Chapter search

During playback, specifies a desired chapter to be played back

from.

8 Audio selection (See also page 35)

During playback, selects the audio language or sound track.

8 Subtitle selection (See also page 34)

During playback, selects the subtitle language.

8 Angle selection (See also page 35)

During playback, selects a desired scene angle in a multi-angle

part.

Menu Bar Functions for SVCD/Video

CD/Audio CD

8 Time mode selection

Selects the time mode shown in the status bar and on the front

display.

●TIME: Current track elapsed time

●REM: Current track remaining time (while in stop mode,

current track total time)

●TOTAL: Disc elapsed time

●T.REM: Disc remaining time (while in stop mode, disc total

time)

8 Repeat mode (See also page 33)

Selects the repeat mode.

●TRACK: Current track repeat

●ALL: All track repeat

●A-B: A-B repeat

●OFF: Repeat mode deactivated

8 Time search (See also page 34)

Specifies a time from the beginning of the disc as the point from

which to begin playback.

8 Program playback (See also page 36)

While stopped, specifies the playback order of tracks.

8 Random playback (See also page 36)

While stopped, activates random playback.

8 Audio selection (See also page 35)

During Video CD/SVCD playback, selects the audio channel(s).

8 Subtitle selection (See also page 34)

During SVCD playback, selects the subtitle.

CHAP.

PROG.

RND.

XV48EK_01.book Page 39 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_08DVD.fm]

Masterpage:Left+

Page 40 18 November 2004 10:44 pm

OPERATIONS ON DVD DECK (cont.)

40

Audio/Video Files

Playback

Outline

This unit can play back MP3 and JPEG files on a personally

recorded on CD-R/RW and commercially available CD disc.

This unit can also play back DivX files recorded on CD-R/RW

and DVD-R/-RW disc. Some DVD-R and DVD-RW discs

mastered as multi border (multi-session) may not be compatible

with the unit.

●This unit may be unable to play back the disc due to the

characteristics or recording conditions.

Precautions

About files and folders (groups) on the disc

●The unit recognizes up to the fifth layer of groups, 999 files per

group, and up to 250 groups per disc. Files other than MP3/

JPEG/DivX files count in the 999 total.

●Add the appropriate extension, such as “avi,” “divx,” “jpeg,”

and “mp3,” to the file name.

For making your own disc:

●Use “UDF format” as the disc format for DVD-R/-RW.

●Use “ISO 9660” as the disc format for CD-R/RW.

●The unit does not support “packet writing” for CD-R/RW.

●The unit supports discs recorded with up to five multiple

sessions.

For MP3 files:

MP3i and MP3 Pro are not available.

For JPEG files:

The unit cannot play back a picture of more than 5120 x 3413

pixels (baseline JPEG) or 2048 x 1536 pixels (progressive JPEG).

For DivX files:

●The unit supports DivX 5.x, 4.x and 3.11.

●The unit supports the DivX files whose resolution is 720 x 480

pixels or less (30 fps), and 720 x 576 pixels or less (25 fps).

●Audio stream should conform to MPEG 1 Audio Layer-2 or

MPEG Audio Layer-3 (MP3).

●The unit does not support GMC (Global Motion Compression)

and Q-Pel (Quarter Pixel).

●The file encoded in the interlaced scanning mode may not be

played back correctly.

●The unit has its own Registration Code for DivX playback. If

necessary, you can confirm the Registration Code of your

player using the OTHERS menu screen. (墌pg. 57)

Basic Operations

When you insert a disc with groups and files, the Control display

that shows the contents of the disc automatically appears on the

TV screen.

You can specify and play back the desired group/file from the

Control display using the following procedure.

ATurn on the unit.

Press 1.

BSelect the DVD deck.

On the unit

Press VCR/DVD repeatedly so that the DVD indicator

lights up.

On the remote control

Press DVD so that the DVD indicator lights up.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

ZOOM

Slide to the

right.

XV48EK_01.book Page 40 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

41

Filename [XV48EK_08DVD.fm]

Page 41 23 November 2004 7:18 pm

CLoad the disc.

●For details, refer to “Placing a Disc” (墌pg. 6).

●The Control display appears on the TV.

DSelect a group.

Press we to select the desired group, then press ENTER.

EStart playback.

Press rt to select the desired file, then press ENTER or

4.

● When press ENTER, the unit play the selected file.

● When press 4, the unit start continuous playback of the

group from the selected file.

FStop playback.

Press 8. The Control display appears on the TV screen.

●Press x on the DVD deck to open the disc tray, then remove

the disc.

To pause playback

Press 9.

●To resume normal playback, press 4.

To reverse or advance DivX file playback rapidly

During playback of DivX file, press 3 or 5.

●Each time you press 3 or 5, the playback speed changes

with the following indication on the TV screen:

3 1/5 1]3 2/5 2]3 3/5 3]3 4/5 4

The higher the value is, the faster the playback speed is.

Zooming

Press ZOOM during playback or while paused.

●Each time you press ZOOM, the magnification changes:

- 2 times for DivX files (available only during playback)

- 1.5 and 2 times for JPEG files (This function is not available

for some JPEG files depending on their resolution size and

JPEG format.)

Rotating/Reflecting a Still Picture

While a still picture is played back:

●Pressing we rotates the picture by 90°.

●Pressing r reflects the picture vertically.

●Pressing t reflects the picture horizontally.

Repeat Playback

AChange the playback mode.

Press we to select the current playback mode on the

Control display.

BSelect the repeat mode.

Press ENTER repeatedly to select the desired repeat

mode.

CStart Repeat Playback.

Press we to move the cursor bar to the file column, then

press 4.

To cancel Repeat Playback,

Select “NORMAL” in step B above.

NORMAL GROUP

MP3

SLIDESHOW

MIX

--




MUSIC01.mp3

MUSIC02.mp3

DISC CONTROL

Current playback mode Select these sections to

show the upper layer.

Selected file

File column

Current group

Group column

REPEAT

1:

The current file is played back repeatedly.

REPEAT

GROUP:

The all files in the current group are played back

repeatedly.

REPEAT

ALL:

All files on the disc is played back repeatedly.

XV48EK_08DVD.fm Page 41 Tuesday, November 23, 2004 7:18 PM

Filename [XV48EK_08DVD.fm]

Masterpage:Left+

Page 42 18 November 2004 10:44 pm

OPERATIONS ON DVD DECK (cont.)

42

Random Playback

AChange the playback mode.

Press we to select the current playback mode on the

Control display.

BSelect the random playback mode.

Press ENTER repeatedly to select “RANDOM.”

CStart Random Playback.

Press we to move the cursor bar to the file column, then

press 4.

●All files in the selected group are played back in random order.

To cancel Random Playback,

Select “NORMAL” in step B above.

Programme Playback

AChange the playback mode.

Press we to select the current playback mode on the

Control display.

BSelect the programme playback mode.

Press ENTER repeatedly to select “PROGRAM.”

CSelect files.

Press rtw e to select the desired file, then press

ENTER.

●Repeat step 3 until all the desired files are programmed.

●To erase the last programmed file, press we to move the

cursor bar to the programmed file column, then press 8.

DStart Programme Playback.

Press 4.

To cancel Programme Playback,

Select “NORMAL” in step B above.

SET UP

Slide to the

right.

XV48EK_01.book Page 42 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

43

Filename [XV48EK_08DVD.fm]

Page 43 18 November 2004 10:44 pm

Slide Show Playback (JPEG Files)

You can display JPEG files (still pictures) one after another

automatically.

Press 4 while a JPEG file is selected on the Control

display.

To keep showing the current picture

Press 9

Changing the Picture of the Opening

Display

You can change and set the opening display to your favorite

image.

APlay back a JPEG file of your favorite image.

BAccess the PICTURE menu screen.

Press SET UP, then press we to show the PICUTRE

menu screen.

CSelect “BACKGROUND.”

Press rt to select “BACKGROUND,” then press ENTER.

DSelect “SAVE AS BACKGROUND.”

Press rt to select “SAVE AS BACKGROUND,” then

press ENTER.

ERegister your image.

Press rt to select “YES,” then press ENTER.

The player starts reading the JPEG file, and the opening

screen is changed after reading the file.

To return to the normal screen

Press SET UP.

XV48EK_01.book Page 43 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_09Editing.fm]

Masterpage:Left0

44

Page 44 November 18, 2004 10:44 pm

EDITING (VHS DECK)

Editing from a Camcorder

You can use a camcorder as the source player and your

unit as the recording deck.

AMake connections.

Connect the camcorder’s AUDIO OUT and VIDEO OUT

connectors to the unit’s front panel AUDIO and VIDEO

input connectors.

●When using a monaural camcorder, connect its AUDIO OUT

connector to the AUDIO L input connector on your unit.

●When a Master Edit Control-equipped JVC camcorder is used,

the camcorder is capable of controlling the unit. Refer to the

camcorder’s instruction manual for operating procedure.

BSelect the VHS deck.

On the unit

Press VCR/DVD repeatedly so that the VCR indicator

lights up.

On the remote control

Press VCR so that the VCR indicator lights up.

CSet the unit’s input mode.

Press AUX (number key “0”) and/or PR to select “F-1.”

DSet the edit mode.

See “PICTURE CONTROL” on page 53.

EEngage the Record Pause mode.

Use 4, 3, or 5 to locate the point where you start

recording, then press and hold 9 and press 7 to engage

the Record Pause mode.

FStart the camcorder.

Engage the Play mode of the camcorder.

GStart the unit.

Press 4 to engage the Record mode of the unit.

NOTES:

●All necessary cables can be obtained from your dealer.

●When you select “EDIT” to dub tapes in step D, be sure to

select “AUTO” (or “NORM” when “B.E.S.T.” is set to “OFF”)

after you finish dubbing the tapes.

Slide the TV/VCR/DVD switch on the remote control

to the right.

Recorder

AUDIO OUT

VIDEO OUT

AUDIO input

Player

VIDEO input

Video cable (not provided)

Audio cable (not provided)

EDIT

To PAUSE

connector

Mini-plug cable

(not provided)

(JVC camcorder

only)

XV48EK_01.book Page 44 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

45

Filename [XV48EK_09Editing.fm]

Page 45 November 18, 2004 10:44 pm

Editing to or from

Another Video Recorder

You can use your unit as the source player or as the

recording deck.

AWhen using your unit as the source player:

BWhen using your unit as the recording deck:

AMake connections.

Connect the player’s 21-pin SCART connector to the

unit’s 21-pin SCART connector as illustrated.

AWhen using your unit as the source player:

— connect its L-1 IN/OUT connector to the recording

deck.

BWhen using your unit as the recording deck:

— connect its L-1 IN/OUT or L-2 IN/DECODER

connector to the source player.

BSelect the VHS deck.

On the unit

Press VCR/DVD repeatedly so that the VCR indicator

lights up.

On the remote control

Press VCR so that the VCR indicator lights up.

CSet the input mode of recording deck.

With this unit, press AUX (number key “0”) and/or PR to

select “L-1” for the L-1 IN/OUT connector, or “L-2” for

the L-2 IN/DECODER connector, depending on the

connector being used.

●When using another recorder as the recording deck, refer to its

instruction manual.

●When using the L-2 IN/DECODER connector, set “L-2

SELECT” to “A/V.” (墌pg. 54)

DSet the edit mode.

See “PICTURE CONTROL” on page 53.

EEngage the Record Pause mode of the

recording deck.

Locate the point where you start recording, then engage

the Record Pause mode.

FStart the source player.

Engage the Play mode of the source player.

GStart the recording deck.

Engage the Record mode of the recording deck.

NOTES:

●All necessary cables can be obtained from your dealer.

●When you select “EDIT” to dub tapes in step D, be sure to

select “AUTO” (or “NORM” when “B.E.S.T.” is set to “OFF”)

after you finish dubbing the tapes.

●When you use this unit as the source player for editing, be sure

to set “O.S.D.” to “OFF” before starting. (墌pg. 53)

Slide the TV/VCR/DVD switch on the remote control

to the right.

AV mode

21-pin SCART cable

(not provided)

Recorder

Your unit

Another recorder

Player

TV

Recorder Your unit

Player

AV mode

21-pin SCART cable

(not provided)

TV

Another recorder

XV48EK_01.book Page 45 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_09Editing.fm]

Masterpage:Left+

Page 46 November 18, 2004 10:44 pm

EDITING (VHS DECK) (cont.)

46

Dubbing (from DVD to VHS)

You can dub selected scenes from the DVD disc to a cassette,

starting and stopping wherever you wish.

However, it is not possible to dub copy-protected discs.

In such case, “ERROR” appears on the front display panel.

ALoad a cassette and place a disc.

For the VHS deck

Insert a cassette with the record safety tab intact.

For the DVD deck

APress x on the DVD deck to open the disc tray.

BPlace the disc in the disc tray.

CPress x on the DVD deck to close the disc tray.

BPrepare the VHS deck for dubbing.

APress VCR.

BPress p to select recording speed.

CSearch for the point where you want to start dubbing

by pressing 4, 5 or 3 then press 8.

CPrepare the DVD deck for dubbing.

APress DVD.

BStart playback and search for the point where you

want to start dubbing by pressing 4, 5 or 3.

DStart dubbing.

A little before the dubbing start point, press and hold 7,

then press 4 on the remote control.

●“dub” lights on the front display panel.

EEnd dubbing.

Press 8.

●Be sure to press 8 while the VCR indicator lights up on the

unit.

●If you press 8 or x with the DVD deck selected, the dubbing

stopped, but the opening screen is also recorded.

●When you have finished dubbing, press DVD to select the

DVD deck and press 8 to stop playback.

NOTES:

●Set “ON SCREEN GUIDE” to “OFF” (墌pg. 57) if you do not

want to record the on-screen display for DVD discs during

dubbing.

●There may be a discrepancy of several seconds between where

you intend editing to start, and where it actually starts.

●The superimposed indication during the operation or dubbing

is not recorded.

●Set “PICTURE CONTROL” to “EDIT.” (墌pg. 53)

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Slide to the

right.

XV48EK_01.book Page 46 Thursday, November 18, 2004 10:45 PM

Masterpage:Right0

47

Filename [XV48EK_09Editing.fm]

Page 47 November 18, 2004 10:44 pm

EDITING (DVD DECK)

Digital Audio Dubbing You can dub selected audio from the DVD or Audio CD disc to

an MD etc.

However, it is not possible to dub copy-protected discs.

Example: Dubbing to an MD

AMake connections.

Connect the optical cable between the unit and the

digital audio device.

BPlace a disc and load an MD.

For the DVD deck

APress x on the DVD deck to open the disc tray.

BPlace the disc in the disc tray.

CPress x on the DVD deck to close the disc tray.

For the digital audio device

Insert an MD.

CPrepare the DVD deck for dubbing.

APress DVD and select the audio to be dubbed.

BSearch for the point where you want to start dubbing

by pressing 4, 5 or 3 then press 8.

CPress 3 a little, then press 4 to start playback.

DPress 9 to pause playback a little before the start

point.

DPrepare the audio device for dubbing.

Select the input mode.

EStart dubbing.

APress 4 to start playback on the DVD deck.

BStart recording on the audio device.

FEnd dubbing.

Stop recording on the audio device. Then press 8 to stop

playback on the DVD deck.

NOTES:

●There may be a discrepancy of several seconds between where

you intend editing to start, and where it actually starts.

●You can also dub audio from a Video CD or SVCD. Set

“DIGITAL AUDIO OUTPUT” to “PCM ONLY.” (墌pg. 15, 56)

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Note for connection:

Remove the connector cover from

the unit and remove the protection

cap from the cable.

Digital audio device

(MD deck etc.)

Optical cable

(not provided)

DIGITAL AUDIO OUT Player

Recorder

XV48EK_01.book Page 47 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_09Editing.fm]

Masterpage:Left0

48

Page 48 November 18, 2004 10:44 pm

REMOTE CONTROL

Remote Control Functions

Remote A/B/C/D Code Switching

The remote control is capable of controlling four JVC video units

independently. Each of the units can respond to one of four

codes (A, B, C or D). The remote control is preset to send A code

signals because your unit is initially set to respond to A code

signals. You can easily modify your unit to respond to B, C or D

code signals.

On the remote control

Keep pressing VCR down during steps A–B.

AChange the remote control code.

Press the number key “1” for A, “2” for B, “3” for C, or

“4” for D.

BSet the remote control code.

Press ENTER to set the code.

On the unit

CTurn off the unit.

Press 1.

DDisplay the code.

Press 4 on the unit for over 5 seconds while the unit is

turned off. The code currently set appears on the front

display panel.

●If the code displayed on the front display panel is different

from the code set on the remote control, go to step E.

EChange the unit’s code.

Press 8 on the remote control. The code currently set on

the remote control will be applied to the unit.

NOTE:

When “POWER SAVE” is set to “ON” (墌pg. 54), it is

impossible to change the remote code.

Before performing the following steps:

Slide the TV/VCR/DVD switch on the remote control to the

right.

Slide to the

right.

XV48EK_01.book Page 48 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

49

Filename [XV48EK_09Editing.fm]

Page 49 November 18, 2004 10:44 pm

Operating a JVC TV

Your remote control can operate the basic functions of your JVC

TV set.

IMPORTANT

Although the provided remote control unit is compatible with

JVC televisions, it may not work with your JVC TV, or in some

instances, may have limited function capability.

ASlide the TV/VCR/DVD switch on the

remote control to the left.

BOperate the TV.

Press the corresponding button: TV 1, TV/VCR, TV %

+/– (Volume), TV PR +/–, (TV Muting), number keys.

●For some JVC TVs, you must press ENTER after having pressed

the number keys.

Slide to the

left.

Control Your JVC TV Using Additional Buttons

Use the number keys, and the p button or & button to

select the TV’s channel.

●The p button corresponds to the 1-digit/2-digit entry

switching button (often labelled – /– –) of your TV’s remote

control.

●With some JVC TVs, the & button corresponds to the 10 +

button of your TV’s remote control.

NOTE:

The way these buttons are used is determined by your TV.

Use these buttons as instructed for your TV’s remote control.

XV48EK_01.book Page 49 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_09Editing.fm]

Masterpage:Left0

50

Page 50 November 18, 2004 10:44 pm

SYSTEM CONNECTIONS

Connecting to a Satellite Receiver

Connect the satellite receiver to the L-2 IN/DECODER

connector, then connect the L-1 IN/OUT connector to

the TV’s connector.

NOTES:

●Set “L-2 SELECT” to “A/V.” (墌pg. 54)

●You can use the Automatic Satellite Programme Recording

function (墌pg. 28) with this connection. (VHS deck only)

●To record a programme via the satellite receiver, select L-2

mode by pressing AUX (number key “0”) and/or PR so that

“L-2” appears on the front display panel. (VHS deck only)

●For details, refer to the instruction manual of the satellite

receiver.

IMPORTANT

When you set “L-2 SELECT” to “SAT” (墌pg. 54), it is possible to view a satellite broadcast with the TV set to its AV mode even if

the unit is turned off. When the unit is in Stop mode or recording, press TV/VCR on the remote control to turn off the VCR indicator

on the front display panel.

●If you turn on the unit when the satellite receiver’s power is off, nothing appears on the TV screen. In this case, turn on the

satellite receiver, or set the TV to its TV mode, or press TV/VCR on the remote control to set the unit to the video mode.

Outdoor unit

Satellite cable

Satellite receiver

Aerial

TV aerial cable

TV

ANTENNA OUT

ANTENNA IN

L-1 IN/OUT

L-2 IN/DECODER

ANTENNA IN

ANTENNA OUT

XV48EK_01.book Page 50 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

51

Filename [XV48EK_09Editing.fm]

Page 51 November 18, 2004 10:44 pm

Connecting to a Dolby Digital Decoder or an Amplifier

with a Built-In DTS (DVD deck only)

These instructions enable you to connect your unit to a

Dolby Digital Decoder or an amplifier with built-in DTS.

Make connections.

Connect the optical cable between the unit and the

Dolby Digital Decoder or amplifier with a built-in DTS.

NOTES:

●For Dolby Digital sound, set “DIGITAL AUDIO OUTPUT” to

“DOLBY DIGITAL/PCM.” (墌pg. 15, 56)

●For DTS sound, set “DIGITAL AUDIO OUTPUT” to “STREAM/

PCM.” (墌pg. 15, 56)

CAUTIONS:

●This unit has a dynamic range of more than 80 dB with regards

to its Hi-Fi audio capability. It is recommended that you check

the maximum level if you are going to listen to the Hi-Fi audio

signals through a stereo amplifier. A sudden surge in the input

level to the speakers may damage them.

●Some speakers and televisions are specially shielded to

prevent television interference. If both are of the non-shielded

type, do not place the speakers adjacent to the TV set as this

can adversely affect the video playback picture.

Note for connection:

Remove the connector cover from

the unit and remove the protection

cap from the cable.

Optical cable

(not provided)

Dolby Digital Decoder or

amplifier with built-in DTS

DIGITAL

AUDIO OUT

To DIGITAL AUDIO

input

XV48EK_01.book Page 51 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_10Subsidiary.fm]

Masterpage:Left0

52

Page 52 November 18, 2004 10:44 pm

SUBSIDIARY SETTINGS

Mode Set (VHS deck)

You can change various mode settings on the Mode Set

screen by following the procedure described below.

●For each mode setting, see pages 53 to 54.

ATurn on the unit.

Press 1.

BSelect the VHS deck.

On the unit

Press VCR/DVD repeatedly so that the VCR indicator

lights up.

On the remote control

Press VCR so that the VCR indicator lights up.

CAccess the Main Menu screen.

Press SET UP.

DAccess the Mode Set screen.

ESelect the mode.

Press rt to move the highlight bar (pointer) to the item

you want to change.

FSelect the mode setting.

Press ENTER or e.

GReturn to the normal screen.

Press SET UP.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Slide to the

right.

Press rt to move the

highlight bar (pointer) to

“MODE SET,” then press

ENTER or e.

XV48EK_01.book Page 52 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

53

Filename [XV48EK_10Subsidiary.fm]

Page 53 November 18, 2004 10:44 pm

* The default setting is bold in the table below.

8B.E.S.T. — ON / OFF

You can set the B.E.S.T. (Biconditional Equalised Signal Tracking)

system to “ON” or “OFF.” (墌pg. 23)

NOTES:

●When watching a tape recorded with “B.E.S.T.” set to “ON,” it

is recommended that you leave B.E.S.T. on during playback as

well.

●When watching a rental tape or one recorded on another

video recorder, or when using this unit as the player for

editing, set B.E.S.T. to your preference.

●The B.E.S.T. system works for both SP and LP modes only after

a tape has been inserted and the Record mode is first initiated.

It does not work during recording.

●The B.E.S.T. system does not work while Automatic Satellite

Programme Recording is in progress. (墌pg. 28)

●In the case of timer recordings, the B.E.S.T. system works

before recording is initiated.

●Once the cassette is ejected, the B.E.S.T. data is cancelled. The

next time the cassette is used for recording, B.E.S.T. is re-

performed.

●Pressing the unit’s 7 button while “BEST” is displayed does

not start Instant Timer Recording. (墌pg. 22)

8PICTURE CONTROL— AUTO / EDIT / SOFT

This feature helps you to adjust the playback picture quality

according to your preference. Normally select “AUTO.”

AUTO: Provides the optimised picture benefits of the B.E.S.T.

Picture System.

EDIT: Minimizes picture degradation during editing (recording

and playback).

SOFT: Reduces image coarseness when viewing overplayed

tapes containing a lot of noise.

NOTES:

●When you select “EDIT” or “SOFT,” the selected mode will not

change until you select another mode.

●When you select “EDIT” to dub tapes, be sure to select

“AUTO” after you finish dubbing the tapes.

●When “B.E.S.T.” is “OFF”, “PICTURE CONTROL” switches

automatically from “AUTO” to “NORM.”

8O.S.D. — ON / OFF

When this function is set to “ON,” various operational indicators

appear on the TV screen.

NOTES:

●When you use this unit as the source player for editing, be sure

to set “O.S.D.” to “OFF” before starting.

●During playback, the operation mode indicators may be

disturbed depending on the type of tape being used.

8DIRECT REC — ON / OFF

When this function is set to “ON,” you can easily start recording

the programme that you are watching on your TV. Press and hold

7 and press 4 on the remote control, or press 7 on the unit.

NOTES:

●When you use the Direct Rec function, be sure to use a TV

offering T-V LINK, etc. and connect a fully-wired 21-pin

SCART cable between the unit and the TV. (墌pg. 11)

●If “DIRECT REC” is set to “OFF,” the 7 button functions as

described in “Basic Recording” (墌pg. 21).

●During Direct Rec, “– –” appears on the front display panel.

●When “DIRECT REC” is set to “ON,” if you press any button

just after pressing 7 on the unit (or 7 and 4 on the remote

control), the unit may not function properly.

8AUTO SP]LP TIMER — ON / OFF

When this function is set to “ON”, the unit automatically

switches to LP mode to allow complete recording if there is not

enough tape to record the entire programme while timer-

recording in SP mode.

For Example:

Recording a programme of 210 minutes in length onto a 180-

minute tape

Make sure you set this function to “ON,” before the timer-

recording starts.

NOTES:

●If you have programmed the unit to timer-record 2 or more

programmes, the second programme and those thereafter may

not fit on the tape if you set “AUTO SP]LP TIMER” to “ON.”

In this case, make sure the mode is not engaged, then set the

tape speed manually during timer programming.

●In order to ensure that the recording fits on the tape, this

feature may leave a slight non-recorded section at the end of

the tape.

●There may be some noise and sound disturbance at the point

on the tape where the unit switches from SP to LP mode.

●The Auto SP]LP Timer feature is not available during ITR

(Instant Timer Recording), and the feature will not work

properly with any tapes longer than E-180, or with some tapes

of shorter lengths.

●If you perform timer recording with both PDC and the Auto

SP]LP Timer activated, and the programme goes beyond its

originally scheduled length, there may be times when the

programme cannot be recorded in its entirety.

Total 210 minutes

Approximately 150 minutes Approximately 60 minutes

SP mode LP mode

XV48EK_01.book Page 53 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_10Subsidiary.fm]

Masterpage:Left+

Page 54 November 18, 2004 10:44 pm

SUBSIDIARY SETTINGS (cont.)

54

8POWER SAVE — ON / OFF

When this function is set to “ON,” you can reduce the power

consumption while the unit is turned off.

NOTES:

●During Power Save mode:

— the front display panel will be turned off.

— the Just Clock function (墌pg. 65) does not work.

— the picture may be distorted momentarily when you turn

on/off the unit.

●Power Save does not work when:

— the unit is in the timer mode.

— the unit’s power is turned off after timer-recording or Instant

Timer Recording.

— the Automatic Satellite Programme Recording mode is

engaged. (墌pg. 28)

— “L-2 SELECT” is set to “DECODER” or “SAT.”

8VIDEO STABILIZER — ON / OFF

When this function is set to “ON,” you can automatically correct

vertical vibration in the picture when playing back unstable

recordings made on another recorder.

NOTES:

●When you finish viewing a tape, be sure to set this function to

“OFF.”

●Regardless of the setting, this function has no effect during

recording and during special effects playback.

●The on-screen display may jitter vertically when this function

is set to “ON.”

●To watch recordings with close-caption, set this function to

“OFF.”

8L-2 SELECT — A/V / DECODER / SAT

Set “L-2 SELECT” to the appropriate mode depending on the

type of appliance connected to the unit’s L-2 IN/DECODER

connector.

A/V: To use this unit as the recording deck with the player

connected to the L-2 IN/DECODER connector, or to use the

satellite receiver connected to the L-2 IN/DECODER

connector.

DECODER: To use a decoder connected to the L-2 IN/DECODER

connector.

SAT: To view a satellite programme with the TV set while the

unit is turned off. (墌pg. 50)

NOTES:

●Decoder function is not available in the U.K.

●If you have a satellite receiver or a decoder connected to the

L-2 IN/DECODER connector, be sure to set “L-2 SELECT” back

to the appropriate mode after editing.

●

If you are not connecting a satellite receiver or a decoder to the

L-2 IN/DECODER connector, leave “L-2 SELECT” set to “A/V.”

●When “L-2 SELECT” is set to “SAT,” “SAT” appears on the TV

screen or front display panel instead of “L-2.”

8AUTO POWER OFF — 3H / OFF

When this function is set to “3H,” the unit is turned off

automatically if no operation is done within 3 hours. “AUTO

POWER OFF IN 3 MIN” appears on the screen 3 minutes before

the unit is turned off.

XV48EK_01.book Page 54 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

55

Filename [XV48EK_10Subsidiary.fm]

Page 55 November 18, 2004 10:44 pm

Mode Set (DVD deck)

You can change various mode settings on the Mode Set

screen by following the procedure described below.

●For each mode setting, see corresponding pages.

●The procedure shows how to set “RESUME” to “ON”

on the DVD Set Up menu screen as an example.

ATurn on the unit.

Press 1.

BSelect the DVD deck.

On the unit

Press VCR/DVD repeatedly so that the DVD indicator

lights up.

On the remote control

Press DVD so that the DVD indicator lights up.

CAccess the DVD Set Up menu screen.

LANGUAGE]PICTURE]AUDIO ]OTHERS

](Back to the beginning)

DSelect the mode.

Press rt to move H to “RESUME,” then press ENTER.

ESelect the mode setting.

Press rt to select “ON,” then press ENTER.

FReturn to the normal screen.

Press SET UP.

LANGUAGE

MENU LANGUAGE (墌pg. 16)

AUDIO LANGUAGE (墌pg. 16)

SUBTITLE (墌pg. 16)

ON SCREEN LANGUAGE (墌pg. 15)


MONITOR TYPE (墌pg. 15)

PICTURE SOURCE (墌pg. 56)

SCREEN SAVER (墌pg. 56)

BACKGROUND (墌pg. 56)

AUDIO

DIGITAL AUDIO OUTPUT (墌pg. 15)

ANALOG DOWNMIX (墌pg. 56)

D. RANGE CONTROL (墌pg. 56)

OUTPUT LEVEL (墌pg. 56)

OTHERS

RESUME (墌pg. 57)

ON SCREEN GUIDE (墌pg. 57)

DivX REGISTRATION (墌pg. 57)

PARENTAL LOCK (墌pg. 57)

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Slide to the

right.

APress SET UP.

BPress we to select

“ OTHERS.”

●Each time you press the

button, the setup menus

change as follows;

ON

OTHERS

RESUME

ON SCREEN GUIDE ON

DivX REGISTRATION

PARENTAL LOCK

ON

OTHERS

RESUME

ON SCREEN GUIDE ON

DivX REGISTRATION

PARENTAL LOCK

XV48EK_01.book Page 55 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_10Subsidiary.fm]

Masterpage:Left+

Page 56 November 18, 2004 10:44 pm

SUBSIDIARY SETTINGS (cont.)

56

* The default setting is bold in the table below.

Picture Settings

8MONITOR TYPE —

16:9 / 4:3 LB / 4:3 PS

You can select the monitor type depending on the TV used when

you play back DVD VIDEO discs recorded for wide-screen TVs.

For more details, refer to “Initial Set Up for DVD Deck”

(墌pg. 15).

8PICTURE SOURCE —

AUTO / FILM / VIDEO (NORMAL) / VIDEO (ACTIVE)

You can obtain optimal picture quality by selecting whether the

content on the disc is processed by field (video source) or by

frame (film source).

Normally set to “AUTO.”

AUTO: Used to play back a disc containing both video and film

source materials. This unit recognizes the picture type (film or

video source) of the current disc according to the disc

information.

FILM: Suitable for playing back a film or progressive source disc.

VIDEO (NORMAL): Suitable for playing back a video source disc

with relatively a few movements.

VIDEO (ACTIVE): Suitable for playing back a video source disc

with relatively a lot of movements.

●If the playback picture is unclear or noisy, or the oblique lines

of the picture are rough, try to change to other modes.

8SCREEN SAVER — ON / OFF

The TV screen may be burned out if a static picture is displayed

for a long time. When this function is set to “ON,” the unit

automatically activates the screen saver function if a static

picture, such as an on-screen display or menu is displayed for

over 5 minutes.

NOTE:

This function is not available for Audio files playback.

8BACKGROUND —

STANDARD / USER / SAVE AS BACKGROUND

You can use your favorite image as the opening display.

STANDARD: Select this to display the JVC original image.

USER: Select this to display your favorite image when a JPEG

image is registered.

SAVE AS BACKGROUND: To register a new image, select this

while a JPEG image is displayed on the TV screen.

Audio Settings

8DIGITAL AUDIO OUTPUT —

PCM ONLY / DOLBY DIGITAL/PCM / STREAM/PCM

Set to the appropriate mode according to the type of the device

connected to DIGITAL AUDIO OUT connector on the rear of

unit.

It is not necessary to set this mode when you connect no device

to the DIGITAL AUDIO OUT connector.

For more details, refer to “Initial Set Up for DVD Deck”

(墌pg. 15).

8 ANALOG DOWNMIX — DOLBY SURROUND / STEREO

Set to the appropriate mode according to your audio system

when you play back a DVD VIDEO disc recorded with surround

multichannel audio. This setting affects only the analogue audio

output signal from the AUDIO OUT connectors when playing

back a DVD VIDEO disc recorded with surround multichannel

audio.

DOLBY SURROUND: Select this when you enjoy multichannel

surround audio by connecting the unit’s analogue AUDIO

OUTPUT connectors (DVD) to a surround decoder.

STEREO: Select this when you enjoy conventional 2-channel

stereo audio by connecting the unit’s analogue AUDIO

OUTPUT connectors (DVD) to a stereo amplifier/receiver or

TV, or when you dub audio of a DVD VIDEO disc recorded

with surround audio to your MD, cassette, etc.

8D. RANGE CONTROL —

WIDE RANGE / NORMAL / TV MODE

The dynamic range (the difference between the loudest sound

and the quietest one) can be compressed during playback of a

programme encoded in Dolby Digital format.

This function takes effect when a DVD VIDEO disc recorded in

Dolby Digital format is played back at low or middle volume.

WIDE RANGE: Select this to inactivate this function when you

enjoy wide dynamic range programme.

NORMAL: Normally select this setting to activate this function.

TV MODE: Select this when you hear the sound through the TV's

speaker(s).

8OUTPUT LEVEL — STANDARD / LOW

You can lower the output level of analog audio to accommodate

the unit to the connected A/V equipment.

STANDARD: Normally select this.

LOW: Select this if the sound output from the speaker is

distorted. The output level of analog audio is lowered.

XV48EK_01.book Page 56 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

57

Filename [XV48EK_10Subsidiary.fm]

Page 57 November 18, 2004 10:44 pm

NOTES:

●The unit is not equipped with the DTS decoding function.

●When you play back a DVD VIDEO or Audio CD disc with

DTS, use a DTS decoder to get correct signals from your

speakers. Never use the unit’s analog output connectors,

which output incorrect signals that may damage your

speakers.

●If you connect the analog outputs and digital outputs

simultaneously, be sure to select the source of the amplifier

correctly, or set the level control of the amplifier connected to

the analog outputs to minimum.

Others Settings

8RESUME — ON / OFF / DISC RESUME

You can select the resume playback mode.

ON: The unit resumes playback from the position where

playback has been stopped if the disc is still in the disc tray.

OFF: This function is deactivated.

DISC RESUME: The unit resumes playback of the last 30 discs

played. The unit retains a memory of the stopped position of

each disc even if the disc is removed from the disc tray.

NOTE:

This function is not available for Audio CD discs and Audio/

Video files playback.

8ON SCREEN GUIDE — ON / OFF

When this function is set to “ON,” the unit can display “on-

screen guide” icons or characters which show the conditions of

the unit or disc.

8DivX REGISTRATION

The unit has its own Registration Code for DivX playback. You

can confirm the code of your unit.

NOTE:

Once you played back a disc created by using the Registration

Code, the unit’s code is overwritten by a totally different new

one for copyright protection purpose.

8PARENTAL LOCK

Select this, then press ENTER to show the PARENTAL LOCK

menu screen for limiting playback by children.

Parental Lock

This function restricts playback of DVD VIDEO discs which

contains violent (and other) scenes according to the level set by

the user. Scenes which are limited by this function are not played

or replaced with other scenes.

8COUNTRY CODE

Select the code of your country/area. (墌pg. 58)

8SET LEVEL

Select the level of restriction. (“1” is the strictest.)

8PASSWORD

Enter your password by pressing the number keys(0-9).

8EXIT

Select this, then press ENTER to go back to the OTHERS menu

screen.

NOTES:

●Some DVD VIDEO discs cannot be played by this function. If

you try to play such a disc, the PARENTAL LOCK menu screen

appears on the TV screen and asks whether you want to

release the lock or not.

To release the lock and play, select “TEMPORARY RELEASE,”

press ENTER, then enter your password. Otherwise, eject the

disc.

●To change the setting of the limitation, you need to enter your

password.

●If you forget your pass word, enter “8888.”

Playback discs

Output

STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY

DVD VIDEO with

48 kHz, 16/20/24 bit linear

PCM

48 kHz, 16 bit linear PCM

DVD VIDEO with DTS DTS bitstream 48 kHz, 24 bit stereo linear PCM

DVD VIDEO with Dolby

Digital Dolby Digital bitstream 48 kHz, 24 bit stereo linear

PCM

Video CD/SVCD/Audio CD 44.1 kHz, 16 bit stereo linear PCM

Audio CD with DTS DTS bitstream 44.1 kHz, 24 bit stereo linear PCM

CD-R/RW recorded MP3

,

CD-R/RW or DVD-R/RW

recorded DivX

Linear PCM

XV48EK_01.book Page 57 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_10Subsidiary.fm]

Masterpage:Left+

Page 58 November 23, 2004 1:08 pm

SUBSIDIARY SETTINGS (cont.)

58

Country/Area Code List for Parental Lock

AD

AE

AF

AG

AI

AL

AM

AN

AO

AQ

AR

AS

AT

AU

AW

AZ

BA

BB

BD

BE

BF

BG

BH

BI

BJ

BM

BN

BO

BR

BS

BT

BV

BW

BY

BZ

CA

CC

CF

CG

CH

CI

CK

CL

CM

CN

CO

CR

CU

CV

CX

CY

CZ

DE

DJ

DK

DM

DO

DZ

EC

EE

EG

EH

ER

Andorra

United Arab Emirates

Afghanistan

Antigua and Barbuda

Anguilla

Albania

Armenia

Netherlands Antilles

Angola

Antarctica

Argentina

American Samoa

Austria

Australia

Aruba

Azerbaijan

Bosnia and Herzegovina

Barbados

Bangladesh

Belgium

Burkina Faso

Bulgaria

Bahrain

Burundi

Benin

Bermuda

Brunei Darussalam

Bolivia

Brazil

Bahamas

Bhutan

Bouvet Island

Botswana

Belarus

Belize

Canada

Cocos (Keeling) Islands

Central African Republic

Congo

Switzerland

Côte d’Ivoire

Cook Islands

Chile

Cameroon

China

Colombia

Costa Rica

Cuba

Cape Verde

Christmas Island

Cyprus

Czech Republic

Germany

Djibouti

Denmark

Dominica

Dominican Republic

Algeria

Ecuador

Estonia

Egypt

Western Sahara

Eritrea

ES

ET

FI

FJ

FK

FM

FO

FR

FX

GA

GB

GD

GE

GF

GH

GI

GL

GM

GN

GP

GQ

GR

GS

GT

GU

GW

GY

HK

HM

HN

HR

HT

HU

ID

IE

IL

IN

IO

IQ

IR

IS

IT

JM

JO

JP

KE

KG

KH

KI

KM

KN

KP

KR

KW

KY

KZ

LA

LB

Spain

Ethiopia

Finland

Fiji

Falkland Islands (Malvinas)

Micronesia (Federated States of)

Faroe Islands

France

France, Metropolitan

Gabon

United Kingdom

Grenada

Georgia

French Guiana

Ghana

Gibraltar

Greenland

Gambia

Guinea

Guadeloupe

Equatorial Guinea

Greece

South Georgia and the South

Sandwich Islands

Guatemala

Guam

Guinea-Bissau

Guyana

Hong Kong

Heard Island and McDonald

Islands

Honduras

Croatia

Haiti

Hungary

Indonesia

Ireland

Israel

India

British Indian Ocean Territory

Iraq

Iran (Islamic Republic of)

Iceland

Italy

Jamaica

Jordan

Japan

Kenya

Kyrgyzstan

Cambodia

Kiribati

Comoros

Saint Kitts and Nevis

Korea, Democratic People’s

Republic of

Korea, Republic of

Kuwait

Cayman Islands

Kazakhstan

Lao People’s Democratic

Republic

Lebanon

LC

LI

LK

LR

LS

LT

LU

LV

LY

MA

MC

MD

MG

MH

ML

MM

MN

MO

MP

MQ

MR

MS

MT

MU

MV

MW

MX

MY

MZ

NA

NC

NE

NF

NG

NI

NL

NO

NP

NR

NU

NZ

OM

PA

PE

PF

PG

PH

PK

PL

PM

PN

PR

PT

PW

PY

QA

RE

RO

RU

RW

Saint Lucia

Liechtenstein

Sri Lanka

Liberia

Lesotho

Lithuania

Luxembourg

Latvia

Libyan Arab Jamahiriya

Morocco

Monaco

Moldova, Republic of

Madagascar

Marshall Islands

Mali

Myanmar

Mongolia

Macau

Northern Mariana Islands

Martinique

Mauritania

Montserrat

Malta

Mauritius

Maldives

Malawi

Mexico

Malaysia

Mozambique

Namibia

New Caledonia

Niger

Norfolk Island

Nigeria

Nicaragua

Netherlands

Norway

Nepal

Nauru

Niue

New Zealand

Oman

Panama

Peru

French Polynesia

Papua New Guinea

Philippines

Pakistan

Poland

Saint Pierre and Miquelon

Pitcairn

Puerto Rico

Portugal

Palau

Paraguay

Qatar

Réunion

Romania

Russian Federation

Rwanda

SA

SB

SC

SD

SE

SG

SH

SI

SJ

SK

SL

SM

SN

SO

SR

ST

SV

SY

SZ

TC

TD

TF

TG

TH

TJ

TK

TM

TN

TO

TP

TR

TT

TV

TW

TZ

UA

UG

UM

US

UY

UZ

VA

VC

VE

VG

VI

VN

VU

WF

WS

YE

YT

YU

ZA

ZM

ZR

ZW

Saudi Arabia

Solomon Islands

Seychelles

Sudan

Sweden

Singapore

Saint Helena

Slovenia

Svalbard and Jan Mayen

Slovakia

Sierra Leone

San Marino

Senegal

Somalia

Suriname

Sao Tome and Principe

El Salvador

Syrian Arab Republic

Swaziland

Turks and Caicos Islands

Chad

French Southern Territories

Togo

Thailand

Tajikistan

Tokelau

Turkmenistan

Tunisi a

Tonga

East Timor

Turkey

Trinidad and Tobago

Tuvalu

Taiwan

Tanzania, United Republic of

Ukraine

Uganda

United States Minor Outlying

Islands

United States

Uruguay

Uzbekistan

Vatican City State (Holy See)

Saint Vincent and the Grenadines

Venezuela

Virgin Islands (British)

Virgin Islands (U.S.)

Viet Nam

Vanuatu

Wallis and Futuna Islands

Samoa

Ye m e n

Mayotte

Yugoslavia

South Africa

Zambia

Zaire

Zimbabwe

XV48EK_10Subsidiary.fm Page 58 Tuesday, November 23, 2004 1:08 PM

Masterpage:Right-No-Heading

59

Filename [XV48EK_10Subsidiary.fm]

Page 59 November 18, 2004 10:44 pm

Tuner Set

Your unit needs to memorize all necessary stations in channel

positions in order to record TV programmes. Auto Channel Set

automatically assigns all receivable stations in your area to call

them up by using the PR buttons without going through any

vacant channels.

Auto Channel Set

ATurn on the unit.

Press 1.

BSelect the VHS deck.

On the unit

Press VCR/DVD repeatedly so that the VCR indicator

lights up.

On the remote control

Press VCR so that the VCR indicator lights up.

CAccess the Main Menu screen.

Press SET UP.

DPerform Auto Channel Set.

●When you have connected

the unit to a TV offering T-V

Link via a fully-wired 21-pin

SCART cable (墌pg. 11), the

unit automatically performs

the Preset Download and the

T-V LINK screen will appear.

(墌pg. 13)

●The Auto Set screen appears,

and remains on screen while

the unit searches for

receivable stations.

As Auto Channel Set progresses, the “q” mark on the TV screen

moves from left to right. Wait until the TV screen as shown in

step E appears.

EView the Confirmation screen.

After “SCAN COMPLETED” is

displayed on the TV screen for

about 5 seconds, the

Confirmation screen looking

like the one to the right

appears. The stations your unit

located appear on the

Confirmation screen —

channel positions (PR),

channels (CH) and station names (ID – 墌pg. 62). The

blueback screen and the programme currently being

broadcast by the blinking station appear alternately for 8

seconds each. To view the next page, use the rt w e

button on the remote control.

●The Guide Program numbers will also be set automatically

during Auto Channel Set.

FReturn to the normal screen.

Press SET UP.

●Using the Confirmation screen, you can skip or add channel

positions, enter station names and perform other operations.

Refer to pages 60 – 61 for the procedures.

●

Depending on reception conditions, the stations may not be

stored in order, and the station names may not be stored correctly.

IMPORTANT

Perform the following steps only if —

— Auto Channel Set has not been set correctly by Auto Set

Up or by Preset Download. (墌pg. 12, 13)

— you have moved to a different area or if a new station

starts broadcasting in your area.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Slide to the

right.

Press rt to move the

highlight bar (pointer) to

“AUTO CH SET,” then press

ENTER or e twice.

IMPORTANT

●

In certain reception conditions, station names may not be

stored correctly, and Auto Guide Program Number Set may

not work properly. If the Guide Program numbers are not set

properly when you timer-record a TV programme using the

VIDEO Plus+ system, the unit will record a TV programme

of a different station. When programming the timer using the

VIDEO Plus+ system, be sure to check the desired channel

is selected correctly. (

墌

pg. 24, “VIDEO Plus+

®

Timer

Programming”)

●

Your unit memorizes all detected stations even if reception

of some of them is poor. You can delete those stations with

an unacceptable picture. (

墌

pg. 60, “Deleting a Channel”)

Beginning End

XV48EK_01.book Page 59 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_10Subsidiary.fm]

Masterpage:Left+

Page 60 November 18, 2004 10:44 pm

SUBSIDIARY SETTINGS (cont.)

60

NOTES:

●Fine tuning is performed automatically during Auto Channel

Set. If you want to perform tuning manually, refer to page 61.

●If you perform Auto Channel Set when the aerial cable is not

connected properly, “SCAN COMPLETED –NO SIGNAL–”

appears on the TV screen in step E. When this happens, make

sure of the aerial connection and press ENTER; Auto Channel

Set will take place again.

Manual Channel Set

Store channels that were not stored during Auto Set Up

(墌pg. 12), Preset Download (墌pg. 13) or Auto Channel Set

(墌pg. 59).

AAccess the Main Menu screen.

Press SET UP.

BAccess the Confirmation screen.

Press rt to move the highlight bar (pointer) to

“MANUAL CH SET”, then press ENTER or e. The

Confirmation screen appears.

CSelect the channel position.

DSelect the band.

EInput the channel.

Press the number keys to input the channel number you

want to store.

●Input “0” before any single number entries.

●To input the registered station name (ID – 墌pg. 62), press e

until “– – – –” (ID setting) begins blinking, then press rt.

●For fine tuning adjustment, press e until “+/–” begins blinking,

then press rt. While tuning, “+” or “–” appears.

●When “L-2 SELECT” is set to “A/V” or “SAT,” the “DECODER”

setting cannot be changed. (墌pg. 54)

FEnter new channel information.

Press ENTER and the Confirmation screen appears.

●Repeat steps C–F as necessary.

GClose the Confirmation screen.

Press SET UP.

●To change positions, see “Changing Station Channel Position”

(墌pg. 61).

●

If you wish to set station names other than the ones registered

in your unit, see “Setting Station Names Manually” (

墌

pg. 61).

Deleting a Channel

ASelect the item.

Press rt w e until the item you want to delete begins

blinking.

BDelete a channel.

Press &.

●The item directly beneath the cancelled one moves up one

line.

●Repeat steps A and B if necessary.

CClose the Confirmation screen.

Press SET UP.

Press rt w e until an open

position in which you want to

store a channel begins

blinking, then press ENTER.

The Manual Channel Set

screen appears.

●The blueback screen and the

programme currently being

broadcast by the selected

channel appear alternately for 8

seconds each.

(Example) To store in position 6.

Press rt to change the

band between CH (regular)

and CC (cable), then press e.

ATTENTION

Guide Program numbers are not set when channels are

stored manually. (墌pg. 24, “VIDEO Plus+

®

Timer

Programming”)

Perform steps A and B of “Manual Channel Set” on page 60

to access the Confirmation screen before continuing.

XV48EK_01.book Page 60 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

61

Filename [XV48EK_10Subsidiary.fm]

Page 61 November 18, 2004 10:44 pm

Changing Station Channel Position

ASelect the item.

Press rt w e until the item you want to move begins

blinking. Then press ENTER and the station name (ID)

and its channel (CH) number begin blinking.

BSelect the new position.

Press rt w e to move the station to the new channel

position, then press ENTER.

Example: If you moved the station in position 4 to position 2, the

stations originally in positions 2 and 3 each move

down one space.

●Repeat steps A and B if necessary.

CClose the Confirmation screen.

Press SET UP.

Setting Station Names by ID Code

Set station names by ID codes (“ID”

)

that are registered in your unit.

ASelect the item.

Press rt w e until the item you want begins blinking.

BAccess the Manual Channel Set screen.

Press ENTER twice.

CSelect the new station.

DSwitch the stations.

Press ENTER.

●The Confirmation screen appears.

●Repeat steps A–D if necessary.

EClose the Confirmation screen.

Press SET UP.

Setting Station Names Manually

You can set station names manually.

ASelect the character for station name.

BEnter the new character.

Press rt to cycle through the characters (A–Z, 0–9, –,

f, +, I (space) ) and stop when the desired character is

indicated, then press e to enter. Enter the remaining

characters the same way (maximum of 4). After entering

all characters, press ENTER.

●The Confirmation screen appears.

●If you make a mistake, press w until the incorrect character

begins blinking. Then enter the correct character by pressing

rt.

CClose the Confirmation screen.

Press SET UP.

NOTE:

The characters available for the station name (ID) are A–Z, 0–9, –,

f

, +,

I

(space) (maximum of 4).

Fine-Tuning a Stored Channel

ASelect the channel to fine-tune.

Press rt w e until the channel you want to tune begins

blinking.

BAccess the Manual Channel Set screen.

Press ENTER twice. The Manual Channel Set screen

appears.

CPerform tuning.

Press e until “+/–” begins blinking, then press rt to

obtain the best picture quality. After finishing adjustment,

press ENTER.

●The Confirmation screen appears.

●Repeat steps A–C if necessary.

DClose the Confirmation screen.

Press SET UP.

Perform steps A and B of “Manual Channel Set” on page 60

to access the Confirmation screen before continuing.

Perform steps A and B of “Manual Channel Set” on page 60

to access the Confirmation screen before continuing.

Press e until the station

name (ID) begins blinking,

then press rt until the new

station’s name (ID) you want

to store begins blinking.

Registered station names

(墌pg. 62) appear as you

press rt.

Perform steps A and B of “Manual Channel Set” on page 60

to access the Confirmation screen and then perform steps A

and B of “Setting Station Names by ID Code” above before

continuing.

Press e until the first letter of

the station name begins

blinking.

Perform steps A and B of “Manual Channel Set” on page 60

to access the Confirmation screen before continuing.

XV48EK_01.book Page 61 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_10Subsidiary.fm]

Masterpage:Left+

Page 62 November 18, 2004 10:44 pm

SUBSIDIARY SETTINGS (cont.)

62

TV Station and ID List

* The “ID” abbreviation is what is shown on-screen in lieu of the station name. The “ID” abbreviation is listed in the Confirmation screen and is displayed

on the TV screen when the unit is tuned to a different station.

STATION NAME ID*

Anglia TV

ARD

ARTE

BBC Group

BBC1

BBC2

Berlin 1

Berlin 2

Border TV

Bayern1

Bayern3

BRT1

BRT2

Children Ch

Canal +

CNN

Channel TV

Central TV

Channel 4

Channel 5

DRS

DR TV

DSF

Euronews

Euronews

Eurosports

France1

France2

France3

Granada TV

Grampian TV

Hessen1

Hessen3

HRT

HTV

ITV Network

Kabelkanal

London

MDR

MTV

Nord3

NDR1

NDR3

NED1

NED2

NED3

Network 2

NRK

N-TV

Offener Kanal

ORF1

ORF2

ORF3

OWL 3

Premiere

PR07

RAI1

RAI2

RAI3

RB1

RB3

Rikisutvarpid-S

RTBF 1

RTBF 2

RTE 1

RTL

RTL 2

RTP

ANGL

ARD

ARTE

BBC

BBC1

BBC2

BLN1

BLN2

BORD

BR1

BR3

BRT1

BRT2

CHLD

CH+

CNN

CHNL

CNTR

CH 4

CH 5

DRS

DRTV

DSF

EURN

EURO

EURS

FR1

FR2

FR3

GRNA

GRMP

HR1

HR3

HRT

HTV

ITV

KABL

LNDN

MDR

MTV

N3

NDR1

NDR3

NED1

NED2

NED3

NET2

NRK

N-TV

OKAN

ORF1

ORF2

ORF3

OWL3

PRMI

PR07

RAI1

RAI2

RAI3

RB1

RB3

RKPS

RTB1

RTB2

RTE1

RTL

RTL2

RTP

STATION NAME ID*

SAT

SAT 1

Scottish TV

SC4

SDR

SDR1

SFB1

SFB3

SKY

Sky One

Sky Net

Sport

SR 1

Super RTL

STV Test

STV 1

STV 2

Suedwest3

SWF 1

Schweiz4

TYNE TEES

Text

TF1

TNT int

TRT int

TSI

TSR

TSW

TVE

TV Polonia

TVP 1

TVP 2

TVS

TV2

TV5

Tele Zurich

Ulster TV

Veronica

VIVA

VIVA2

VOX

VTM

VT4

West1

West3

YLE 1

YLE 2

Yo rk shi re TV

ZDF

Zurich 1

3SAT

SAT

SAT1

SCOT

SC4

SDR

SDR1

SFB1

SFB3

SKY

SKY1

SKYN

SPRT

SR1

SRTL

STVT

STV1

STV2

SWR

SWF1

SWZ4

TEES

TEXT

TF1

TNT

TRT

TSI

TSR

TSW

TVE

TVPA

TVP1

TVP2

TVS

TV2

TV5

TZUR

ULST

VERN

VIVA

VIV2

VOX

VTM

VT4

WDR1

WDR3

YLE1

YLE2

YORK

ZDF

ZUR1

3SAT

XV48EK_01.book Page 62 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

63

Filename [XV48EK_10Subsidiary.fm]

Page 63 November 18, 2004 10:44 pm

TV Station Channel Number Guide

Only the main stations are listed. There are in addition many relay stations, and full lists are available from the BBC and ITV.

BBC1 BBC2 ITV CH4 CH5

London & South-East

Bluebell Hill.........................40 46 43 65 —

Crystal Palace.......................26 33 23 30 37

Dover...................................50 56 66 53 —

Heathfield ............................49 52 64 67 —

Oxford .................................57 63 60 53 49

South-West

Beacon Hill..........................57 63 60 53 —

Caradon Hill ........................22 28 25 32 —

Huntshaw Cross ...................55 62 59 65 67

Redruth ................................51 44 41 47 37

Stockland Hill ......................33 26 23 29 —

Channel Islands

Fremont Point.......................51 44 41 47 —

South

Hannington..........................39 45 42 66 35

Midhurst...............................61 55 58 68 —

Rowridge.............................. 31 24 27 21 —

West

Mendip ................................58 64 61 54 37

East

Sandy Heath.........................31 27 24 21 39

Sudbury................................51 44 41 47 35

Tacolneston..........................62 55 59 65 52

Midlands

Ridge Hill.............................22 28 25 32 35

Sutton Coldfield ...................46 40 43 50 37

The Wrekin ..........................26 33 23 29 35

Waltham ..............................58 64 61 54 35

North

Belmont ...............................22 28 25 32 56

Emley Moor..........................44 51 47 41 37

BBC1 BBC2 ITV CH4 CH5

North-West

Caldbeck..............................30 34 28 32 56

Winter Hill...........................55 62 59 65 48

North-East

Bilsdale West Moor ..............33 26 29 23 35

Chatton ................................39 45 49 42 —

Pontop Pike..........................58 64 61 54 68

Scotland

Angus................................... 57 63 60 53 —

Black Hill.............................40 46 43 50 37

Sandale................................22————

Caldbeck.............................. — 34 28 32 56

Creigkelly.............................31 27 24 21 48

Darvel.................................. 33 26 23 29 35

Durris...................................22 28 25 32 67

Eitshal ..................................33 26 23 29 —

Keelylang Hill ......................40 46 43 50 —

Knock More .........................33 26 23 29 —

Rosemarkie ..........................39 45 49 42 67

Rumster Forest......................31 27 24 21 —

Selkirk..................................55 62 59 65 52

Wales

Blaenplwyf...........................31 27 24 21 56

Carmel.................................57 63 60 53 —

Llanddona............................57 63 60 53 —

Moel-y-Parc..........................52 45 49 42 —

Presely ................................. 46 40 43 50 37

Wenvoe ...............................44 51 41 47 —

Northern Ireland

Brougher Mountain ..............22 28 25 32 —

Divis ....................................31 27 24 21 37

Limavady.............................. 55 62 59 65 —

XV48EK_01.book Page 63 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_10Subsidiary.fm]

Masterpage:Left+

Page 64 November 18, 2004 10:44 pm

SUBSIDIARY SETTINGS (cont.)

64

Video Channel Set

Video channel (RF output channel) is the channel on which your

TV receives picture and sound signals from the unit through the

RF cable.

If you have connected the unit to your TV via the AV

connection (墌pg. 11), you have to set the video

channel to off.

If you have connected the unit to your TV via the RF

connection (墌pg. 11), you have to set the correct

video channel.

AAccess the Video Channel Set mode.

Hold down 8 on the unit until the front display panel

shows the following.

BSet the video channel.

With AV Connection

Press PR – until the front display panel shows “– –.”

●Now the video channel is set to off.

With RF Connection

Press PR + or – to set the unit to a vacant channel

between 22 and 69 which is not occupied by any local

station in your area.

(Example) If channel 50 is available in your area

Then set your TV to UHF channel 50.

●If the two vertical white bars appear

clearly on the TV screen as shown to

the right, go to step C.

●If the two vertical white bars do not

appear clearly, re-set the unit to

another vacant channel and try again.

NOTES:

●If you set the unit to a channel which is occupied by a local

station or has neighbouring channels that are occupied by

local stations, the picture reception quality will be affected

and some interference noise will appear on the TV screen. Be

sure to select a vacant channel which has no broadcast on

neighbouring channels.

●If you cannot obtain the two vertical white bars clearly with

any channel between 22 and 69, consult your JVC dealer.

CExit the Video Channel Set mode.

Press ENTER.

IMPORTANT

Perform the following steps only if —

— Video Channel Set has not been done correctly by the

Auto Set Up function (墌pg. 12),

— interference appears in the TV picture after you have

moved to a different area or a new station has started

broadcasting in your area.

— you change the connection between your unit and TV

from RF connection to AV connection, or vice versa.

Before performing the following steps:

●Make sure there is no cassette inserted in the unit.

●Press VCR/DVD on the unit or VCR on the remote control

so that the VCR indicator lights up, then press 1 to turn

off the unit.

With AV Connection

To view picture signals from the unit, set your TV to its

AV mode.

With RF Connection

The channel you have set in step B is your video

channel.

To view picture signals from the unit, set your TV to

this video channel.

XV48EK_01.book Page 64 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

65

Filename [XV48EK_10Subsidiary.fm]

Page 65 November 18, 2004 10:44 pm

Clock Set

ATurn on the unit.

Press 1.

BSelect the VHS deck.

On the unit

Press VCR/DVD repeatedly so that the VCR indicator

lights up.

On the remote control

Press VCR so that the VCR indicator lights up.

CAccess the Main Menu screen.

Press SET UP.

DAccess the Clock Set screen.

Press rt to move the highlight bar (pointer) to “CLOCK

SET,” then press ENTER or e. The Clock Set screen

appears.

ESet the date and time.

Press rt to set the time, then press ENTER or e. The

“DATE” display begins blinking. Repeat the same

procedure to set the date and year.

●When you set the time/date, press and hold rt to change the

time by 30 minutes/15 days.

FSet Just Clock.

The default setting is “ON.” Set as desired by pressing

rt, then press ENTER or e.

●For the Just Clock function, refer to “Just Clock” on page 65.

●If you set it “OFF,” press SET UP to finish the clock setting.

GSet the source channel position for clock

data.

The unit is preset to receive clock setting and adjustment

data from channel position 1.

Press rt to set the channel position to the number

representing the station transmitting clock setting data,

then press ENTER or e.

HStart the clock operation.

Press SET UP.

NOTES:

●Just Clock (when set to “ON”) adjusts the unit’s built-in clock

every hour, except for 23:00, 0:00, 1:00 and 2:00.

●Just Clock is not effective when:

— the unit’s power is on.

— the unit is in the timer mode. (VHS deck only)

— a difference of more than 3 minutes exists between the

built-in clock’s time and the actual time.

— the unit is in the Automatic Satellite Programme Recording

mode. (墌pg. 28) (VHS deck only)

— the unit is in the Power Save mode. (墌pg. 54) (VHS deck

only)

— “L-2 SELECT” is set to “SAT.” (墌pg. 54) (VHS deck only)

●If Just Clock is set to “ON,” the unit’s clock is automatically

adjusted at the start/end of Summer Time.

●Just Clock may not function properly depending on the

reception condition.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

IMPORTANT

If you performed Auto Set Up (墌pg. 12) or Preset

Download (墌pg. 13), without ever having set the clock

previously, the unit’s built-in clock is also set automatically.

Perform the following steps only if —

—Auto Clock Set has not been performed correctly by Auto

Set Up or Preset Download.

OR

—you want to change the Just Clock setting. (墌pg. 65, “Just

Clock”)

Slide to the

right.

Just Clock

The Just Clock function provides accurate time keeping

through automatic adjustments at regular intervals, by

reading data from a PDC signal.

The Just Clock option can be set “ON” or “OFF” at the Clock

Set screen (the default setting is “ON”). Press ENTER until the

Just Clock setting begins blinking, then press rt to change

the setting.

IMPORTANT: If you turn off Just Clock, the accuracy of the

built-in clock may be reduced, which could adversely effect

timer recording. We recommend you to set Just Clock on. In

cases where the clock setting data from a PDC signal is

incorrect, however, you are advised to set it “OFF.”

XV48EK_01.book Page 65 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_10Subsidiary.fm]

Masterpage:Left+

Page 66 November 18, 2004 10:44 pm

SUBSIDIARY SETTINGS (cont.)

66

Child Lock

You can disable the unit’s operation.

ASet the Child Lock.

Press and hold 1 on the remote control for more than

10 seconds while the unit is turned on. The unit turns off,

and “CL“ appears on the front display panel.

●To release the child lock, press and hold 1 on the remote

control until the unit turns on.

NOTES:

●When the child lock function is in use, keep the remote

control out of the children’s reach.

●Timer recording programmes will be performed even if the

child lock function is activated.

●Turn on the TV and select the video channel (or AV

mode).

●Slide the TV/VCR/DVD switch on the remote

control to the right.

Slide to the

right.

XV48EK_01.book Page 66 Thursday, November 18, 2004 10:45 PM

Masterpage:Right

67

Filename [XV48EK_11Trouble.fm]

Page 67 November 18, 2004 10:44 pm

TROUBLESHOOTING

Before requesting service for a problem, use this chart

and see if you can repair the trouble yourself. Small

problems are often easily corrected, and this can save

you the trouble of sending your unit off for repair.

Power

●The mains power cord is disconnected.

]Connect the mains power cord.

●The batteries are discharged.

]Replace the dead batteries with new ones.

Tape Transport (VHS deck)

●The unit is in the Record Pause mode.

]Press 4 to resume recording.

●The tape is already fully rewound or fast-forwarded.

]Check the cassette.

Playback (VHS deck)

●The VHS deck is not selected.

On the unit

]Press VCR/DVD repeatedly so that the VCR indicator lights

up.

On the remote control

]Press VCR so that the VCR indicator lights up.

●If you are using the RF connection,

— the TV receiver’s channel selector is not set to the video

channel.

— the unit’s video channel has not been correctly set.

]If you are using the RF connection,

— set the TV receiver to the video channel.

— perform “Video Channel Set” (墌pg. 64).

●If you are using the AV connection, the TV receiver is not set

to the AV mode.

]If you are using the AV connection, set the TV to its AV mode.

●This is normal.

●The automatic tracking mode is engaged.

]Try manual tracking. (墌pg. 20)

●The video heads may be dirty.

]Use a dry cleaning cassette ECL-3F, or consult your JVC

dealer.

●The automatic tracking mode is engaged.

]Try manual tracking. (墌pg. 20)

Playback (DVD deck)

●The operation is prohibited on the placed disc.

●The DVD deck is not selected.

On the unit

]Press VCR/DVD repeatedly so that the DVD indicator lights

up.

On the remote control

]Press DVD so that the DVD indicator lights up.

●The operation is prohibited on the placed disc.

●The disc’s region number does not match that of the unit.

]Use the discs whose region number includes “ALL” or “2.”

(墌pg. 5)

●The disc’s region number does not match that of the unit.

]Use the discs whose region number includes “ALL” or “2.”

(墌pg. 5)

●This type of disc cannot be played back.

]See “Unplayable Discs” (墌pg. 5).

●The disc is not placed properly.

]Remove the disc, then place the disc properly in the disc tray.

(墌pg. 6, “Placing a Disc”)

●The Parental Lock is engaged, and the placed disc is rated

higher than the set level.

]Release the Parental Lock temporarily (墌pg. 57), or change

the set level (墌pg. 57).

●The disc does not contain the language you set.

No power is supplied to the unit.

The remote control won’t function.

During recording, the tape does not run. “ ” lights up on

the front display panel.

The tape will not rewind or fast-forward.

The VHS deck can not be operated.

The playback picture does not appear while the tape is

running.

Noise appears during visual search.

Noise appears during normal playback.

The playback picture is blurred or interrupted while TV

broadcasts are clear or “USE CLEANING CASSETTE”

message appears on the screen.

Breaks are noticeable in Hi-Fi soundtrack.

The button does not work.

The DVD deck can not be operated.

“ ” appears on the TV screen.

“REGION CODE ERROR!” appears on the TV screen.

The disc cannot be played back.

The language is not played back as you set.

XV48EK_01.book Page 67 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_11Trouble.fm]

Masterpage:Left+

Page 68 November 18, 2004 10:44 pm

TROUBLESHOOTING (cont.)

68

●The disc does not contain audio/subtitles in multiple

languages.

]With some discs, the language should be set on the disc

menu. (墌pg. 31)

●The disc does not contain subtitles.

●The subtitle display is set to off.

]Set the subtitles display to on. (墌pg. 34)

●A-B Repeat Playback is in progress. (墌pg. 33)

]The subtitles recorded around point A-B may not appear.

●The scene is not recorded from multiple angles.

Audio/Video Files Playback (DVD deck)

●MP3 disc is recorded with the “packet writing (UDF format).”

It cannot be played back.

●Check the files if they are playable or unplayable.

●The unit plays the files in the alphabetic order. So, the

playback order can vary.

●The unit can play back the MP3 sound for the audio part of

the DivX files. Select the proper audio CODEC when making

DivX files.

Recording (VHS deck)

●There is no cassette loaded, or the cassette loaded has had its

record safety tab removed.

]Insert a cassette, or using adhesive tape, cover the hole where

the tab was removed.

●“L-1,” “L-2” or “F-1” has been selected as the input mode.

]Set to the desired channel.

●The source (another video recorder, camcorder) has not been

properly connected.

]Confirm that the source is properly connected.

●All necessary power switches have not been turned on.

]Confirm that all units’ power switches are turned on.

●The input mode is not correct.

]Set the input mode to “L-1,” “L-2” or “F-1.”

●The camcorder has not been properly connected.

]Confirm that the camcorder is properly connected.

●The input mode is not correct.

]Set the input mode to “L-1,” “L-2” or “F-1.”

●The end of the tape was reached during recording.

]The programme may not have been recorded in its entirety.

Next time make sure you have enough time on the tape to

record the entire programme.

Changing audio/subtitle language is not possible.

The subtitles do not appear on the TV screen.

Angle cannot be changed.

No sound and/or no picture comes out.

Files (tracks) are not played in the recorded order.

DivX files are played back without sound.

Recording cannot be started.

TV broadcasts cannot be recorded.

Tape-to-tape editing is not possible.

Camcorder recording is not possible.

“ ” and “ ” on the front display panel won’t stop blinking.

XV48EK_01.book Page 68 Thursday, November 18, 2004 10:45 PM

Masterpage:Right-No-Heading

69

Filename [XV48EK_11Trouble.fm]

Page 69 November 18, 2004 10:44 pm

Timer Recording (VHS deck)

●The clock and/or the timer have been set incorrectly.

]Re-perform the clock and/or timer settings.

●The timer is not engaged.

]Press # and confirm that “#” is displayed on the front display

panel.

●Timer recording is in progress.

]Timer programming can’t be performed while a timer

recording is in progress. Wait until it finishes.

●The timer is engaged but there’s no cassette loaded.

]Load a cassette with the record safety tab intact.

●The loaded cassette has had its record safety tab removed.

]Remove the cassette and cover the hole with adhesive tape, or

insert a cassette with the record safety tab intact.

●The end of the tape was reached during timer recording.

]The programme may not have been recorded in its entirety.

Next time make sure you have enough time on the tape to

record the entire programme.

●# has been pressed when there are no programs in memory,

or the timer record information has been programmed

incorrectly.

]Check the programmed data and re-program as necessary,

then press # again.

●The unit’s channel positions have been set incorrectly.

]Refer to “VIDEO Plus+

®

Timer Programming” (墌pg. 24) and

re-perform the procedure.

●The end of the tape was reached during Instant Timer

Recording.

]The programme may not have been recorded in its entirety.

Next time make sure you have enough time on the tape to

record the entire programme.

●The loaded cassette has had its record safety tab removed.

]Remove the cassette and cover the hole with adhesive tape, or

insert a cassette with the record safety tab intact.

●The end of the tape was reached during Automatic Satellite

Programme Recording.

]The programme may not have been recorded in its entirety.

Next time make sure you have enough time on the tape to

record the entire programme.

Other Problems

●The unit is left turned on and the DVD deck is selected.

]Turn off the unit, or press VCR to select the VHS deck, then

press TV/VCR so that the VCR indicator disappears from the

front display panel.

●The camcorder’s microphone is too close to the TV.

]Position the camcorder so its microphone is away from the TV.

●The TV’s volume is too high.

]Turn the TV’s volume down.

●Those channels have been designated to be skipped.

]If you need the skipped channels, restore them. (墌pg. 60)

●Recording is in progress.

]Press 9 to pause the recording, change channels, then press

4 to resume recording.

●After the manual settings were made, Auto Channel Set was

performed.

]Perform the manual settings again.

●The TV aerial cable was not connected to the unit when Auto

Set Up was performed.

]Turn off the unit once and connect the TV aerial cable to the

unit properly, then turn on the unit again. Then perform Auto

Set Up again. (墌pg. 12)

●The fully-wired 21-pin SCART cable was not connected

between the TV and the unit when Preset Download was

performed.

]Turn off the unit once and connect the fully-wired 21-pin

SCART cable to the unit properly, then turn on the unit again.

Then perform Preset Download again. (墌pg. 13)

Timer recording won’t work.

Timer programming is not possible.

“ ” on the front display panel won’t stop blinking.

“ ”, “ ” and “ ” on the front display panel won’t stop

blinking.

“ ” blinks for 10 seconds and the timer mode is

disengaged.

The VIDEO Plus+ system does not timer-record properly.

“ ” and “ ” on the front display panel won’t stop blinking.

“ ”, “ ” and “ ” on the front display panel won’t stop

blinking.

The image of the TV broadcast appears distorted on the TV

screen.

Whistling or howling is heard from the TV during camcorder

recording.

When scanning channels, some of them are skipped over.

The channel cannot be changed.

Channel settings that were made manually seem to have

changed or disappeared.

No channels are stored in the unit’s memory.

ATTENTION

This unit contains microcomputers. External electronic noise

or interference could cause malfunctioning. In such cases,

switch the unit off and unplug the mains power cord. Then

plug it in again and turn the unit on. Take out the cassette.

After checking the cassette, operate the unit as usual.

XV48EK_01.book Page 69 Thursday, November 18, 2004 10:45 PM

Filename [XV48EK_11Trouble.fm]

Masterpage:Left0

70

Page 70 November 18, 2004 10:44 pm

SPECIFICATIONS

GENERAL

Power requirement : AC 220 V – 240 V , 50 Hz/60 Hz

Power consumption

Power on : 23 W

Power off : 4.0 W

Tempera tu re

Operating : 5°C to 40°C

Storage : –20°C to 60°C

Operating position : Horizontal only

Dimensions (WxHxD)

: 435 mm x 93 mm x 272 mm

Weight : 4.3 kg

Format : VHS PAL standard

Maximum recording time

(SP) : 240 min. with E-240 video cassette

(LP) : 480 min. with E-240 video cassette

VIDEO/AUDIO (VHS deck)

Signal system : PAL-type colour signal and CCIR

monochrome signal, 625 lines

50 fields

Recording system : DA4 (Double Azimuth) head helical

scan system

Signal-to-noise ratio: 45 dB

Horizontal resolution

: 250 lines

Frequency range : 70 Hz to 10,000 Hz (Normal audio)

20 Hz to 20,000 Hz (Hi-Fi audio)

Input/Output : 21-pin SCART connectors:

IN/OUT x 1, IN/DECODER x 1

RCA connectors:

VIDEO IN x 1, AUDIO IN x 1,

AUDIO OUT x 1

VIDEO/AUDIO (DVD deck)

Signal system : PAL

Applicable disc : DVD VIDEO, DVD-R (Video

format), DVD-RW (Video format),

Video CD, SVCD, Audio CD (CD-

DA), CD-R/RW (CD-DA, Video CD,

SVCD, MP3 format, JPEG, DivX)

Frequency responce

DVD : 4 Hz – 22 KHz

CD : 4 Hz – 20 KHz

S/N Ratio : 90 dB

Wow and flutter : Below Measurable Level

Dynamic range : 90 dB

Output

Audio : (RCA) 2 Vrms, 1 Kohm

Digital Audio : –21 dBm to –15 dBm (peak)

TUNER/TIMER (VHS deck)

TV channel storage capacity

: 99 positions (+AUX position)

Tuning system : Frequency synthesized tuner

Channel coverage : VHF 44.5 MHz – 143 MHz/

143 MHz – 470 MHz/

UHF 470 MHz – 862 MHz

Aerial output : UHF channels 22 – 69 (Adjustable)

Memory backup time

: Approx. 10 min.

ACCESSORIES

Provided accessories

: RF cable,

Infrared remote control unit,

“AA” battery x 2

Specifications shown are for SP mode unless otherwise

specified.

E.& O.E. Design and specifications subject to change without

notice.

XV48EK_01.book Page 70 Thursday, November 18, 2004 10:45 PM

Masterpage:Right

71

Filename [XV48EK_12IX.fm]

Page 71 November 18, 2004 11:24 pm

LIST OF TERMS

A

A-B Repeat Playback ................................................ 33

About Discs

Placing a Disc ..................................................... 6

Playable Discs .................................................... 5

Region Number ................................................... 5

Unplayable Discs ................................................ 5

Angle Selection ...................................................... 35

Audio Language and Sound Selection ........................... 35

Auto Channel Set .................................................... 59

Auto Set Up .......................................................... 12

Automatic Satellite Programme Recording ...................... 28

C

Changing Station Channel Position .............................. 61

Changing the Picture of the Opening Display .................. 43

Check, Cancel and Change Programmes ........................ 27

Child Lock ............................................................ 66

Clock Set .............................................................. 65

Connecting to a Dolby Digital Decoder or an Amplifier with a

Built-In DTS ..................................................... 51

Connecting to a Satellite Receiver ................................ 50

Country/Area Code List for Parental Lock ....................... 58

D

Deleting a Channel .................................................. 60

Digital Audio Dubbing ............................................. 47

Dubbing (from DVD to VHS) ...................................... 46

DVD Menu ........................................................... 31

E

Editing from a Camcorder .......................................... 44

Editing to or from Another Video Recorder ..................... 45

Elapsed Recording Time Indication .............................. 22

Express Timer Programming ....................................... 26

F

Fine-Tuning a Stored Channel ..................................... 61

I

INDEX ................................................................... 7

Index Search .......................................................... 19

Instant ReView ....................................................... 20

Instant Timer Recording (ITR) ..................................... 22

J

Just Clock ........................................................14, 65

L

Language Code List ................................................. 17

Locating the Start Point of the Item or Skip the Item .......... 31

M

Manual Channel Set ................................................ 60

Manual Tracking ..................................................... 20

Menu/Audio/Subtitle Language Set (DVD deck only) ......... 16

Mode Set (DVD deck)

ANALOG DOWNMIX ......................................... 56

AUDIO LANGUAGE .......................................... 16

BACKGROUND ................................................ 56

D. RANGE CONTROL ........................................ 56

DIGITAL AUDIO OUTPUT .............................15, 56

DivX REGISTRATION ......................................... 57

MENU LANGUAGE ........................................... 16

MONITOR TYPE ..........................................15, 56

ON SCREEN GUIDE ........................................... 57

ON SCREEN LANGUAGE .................................... 15

OUTPUT LEVEL ................................................ 56

PARENTAL LOCK .............................................. 57

PICTURE SOURCE ............................................. 56

RESUME .......................................................... 57

SCREEN SAVER ................................................. 56

SUBTITLE ........................................................ 16

Mode Set (VHS deck)

AUTO POWER OFF ............................................ 54

AUTO SP]LP TIMER .......................................... 53

B.E.S.T. .......................................................... 53

DIRECT REC ..................................................... 53

L-2 SELECT ....................................................... 54

O.S.D. ........................................................... 53

PICTURE CONTROL ........................................... 53

POWER SAVE ................................................... 54

VIDEO STABILIZER ............................................ 54

N

Next Function Memory ............................................. 19

NTSC Playback ....................................................... 20

O

One Touch Replay ............................................ 19, 32

OPERATIONS ON DVD DECK ............................ 30 –43

OPERATIONS ON VHS DECK ............................. 18 –29

P

PDC Recording ....................................................... 25

Playback Control (PBC) Function ................................. 31

Preset Download ..................................................... 13
