LT-17S2
LT-23S2
1
WIDE LCD PANEL TV INSTRUCTIONS
5030057088A
1
Thank you for buying this JVC WIDE LCD PANEL TV
To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.
(“LCD” stands for Liquid Crystal Display.)
WARNING
Always use the provided AC adapter and power cord.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

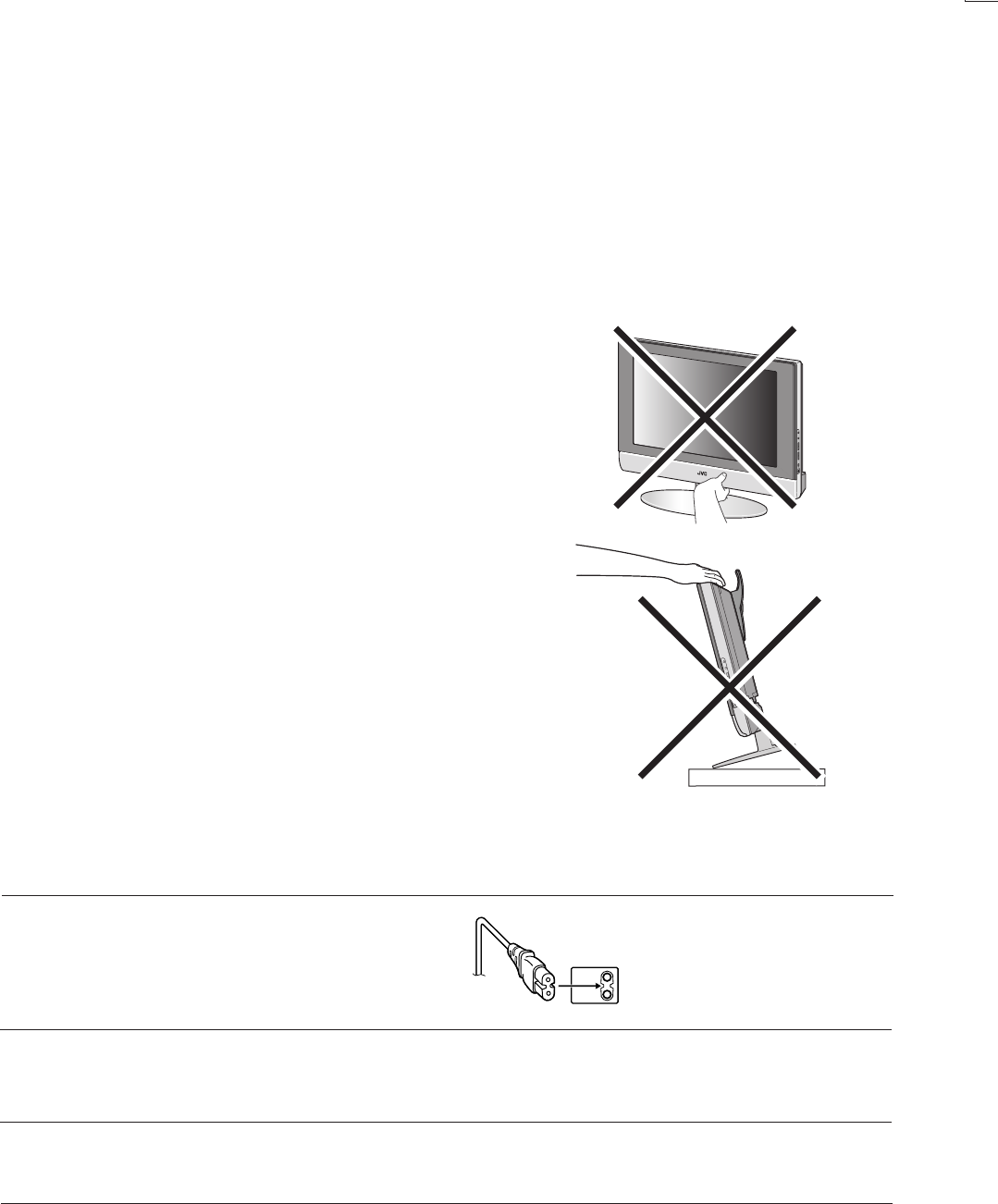

WARNING
• Fingers may be trapped under the TV causing injuries. Hold the TV at the
bottom in the middle, and do not allow it to tilt up or down.
• The TV may fall causing injuries. Hold the bottom of the stand with your
hand and tilt the TV up and down.
CAUTION:
• Operate only from the power source specified – 240 V,
50/60 Hz) on the AC adapter.
• Avoid damaging the AC plug, AC adapter and power cord.
• When you are not using this unit for a long period of time, it is
recommended that you disconnect the power cord from the
main outlet.
• Do not allow children to hang from the TV, place their elbows on the TV
or lean against the TV. Doing so may cause the TV to fall over and lead
to injuires.
(AC 100 • only
•
CAUTION ON HEATING OF AC ADAPTER:
• In using, the AC adapter get heat on the sunface of case. • Don't be covered with any material on case of AC adapter
It is normal, not defective. while it is in operation.
CAUTION:
• To avoid electric shock or damage to the unit, first firmly
insert the small end of the power cord into the AC Adpater
unit it is no longer wobbly, and then plug the larger end of
power cord into an AC outlet.
NOTES:
• The rating plate (serial number plate) and safety caution
are on the back of the main unit.
are on its upper and lower sides.
• The rating information and safty causion of the AC Adapter
2
Failure to take the following precautions may cause damage to the television or remote control.
DO NOT block the TV’s ventilat ion opening s or holes.
(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)
DO NOT place anything on top of the TV.
(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)
(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
DO NOT place any naked flame sources, such as lighted candles, on the TV.
DO NOT subject the TV to direct sunlight.
Cleaning the screen
The screen is coated with a special thin film to reduce reflection. If this film is damaged, uneven colors, discoloration, scratches,
and other problems that can not be repaired may occur. Pay attention to the following when handling the screen.
• Do not use glue or adhesive tape on the screen.
• Do not write on the screen.
• Do not allow the screen to come in contact with any hard objects.
• Do not allow condensation to form on the screen.
• Do not use alcohol, thinner, benzene or other solvents on the screen.
• Do not rub the screen hard.
Point defects
LCDs use collections of fine pixels to display images. While there is no problem with more than 99.99% of these pixels, please
understand that a very small number of pixels may not light or may light all the time.

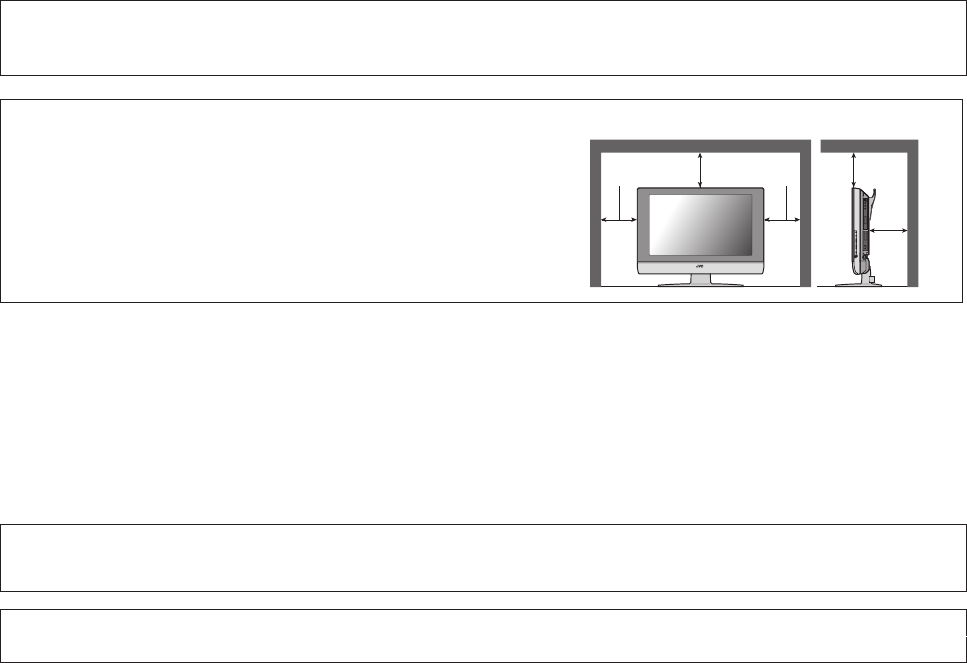

Distance recommendations
Avoid improper installation and never position the unit where good
ventilation is impossible.
When installing this TV, distance recommendations must be maintained
between the set and the wall, as well as inside a tightly enclosed area or
piece of furniture.
Keep to the minimum distance guidelines shown for safe operation.
The surface of the TV screen is easily damaged. Be very careful with it when handling the TV.
Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully.
Never use any cleaner or detergent on it.
If there is a fault, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover and the
200 mm 200 mm
50 mm
150 mm 150 mm
DO NOT allow objects or liquid into the cabinet openings.
AC adapter.
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
CONTENTS
Setting up your TV..................................4
Installation..........................................................4
Using the stand ..................................................4
Putting the batteries into the Remote control.....5
Remove the terminal cover ................................5
Connecting the aerial and video cassette
recorder (VCR)...................................................6
Connecting the power cord to the AC outlet ......6

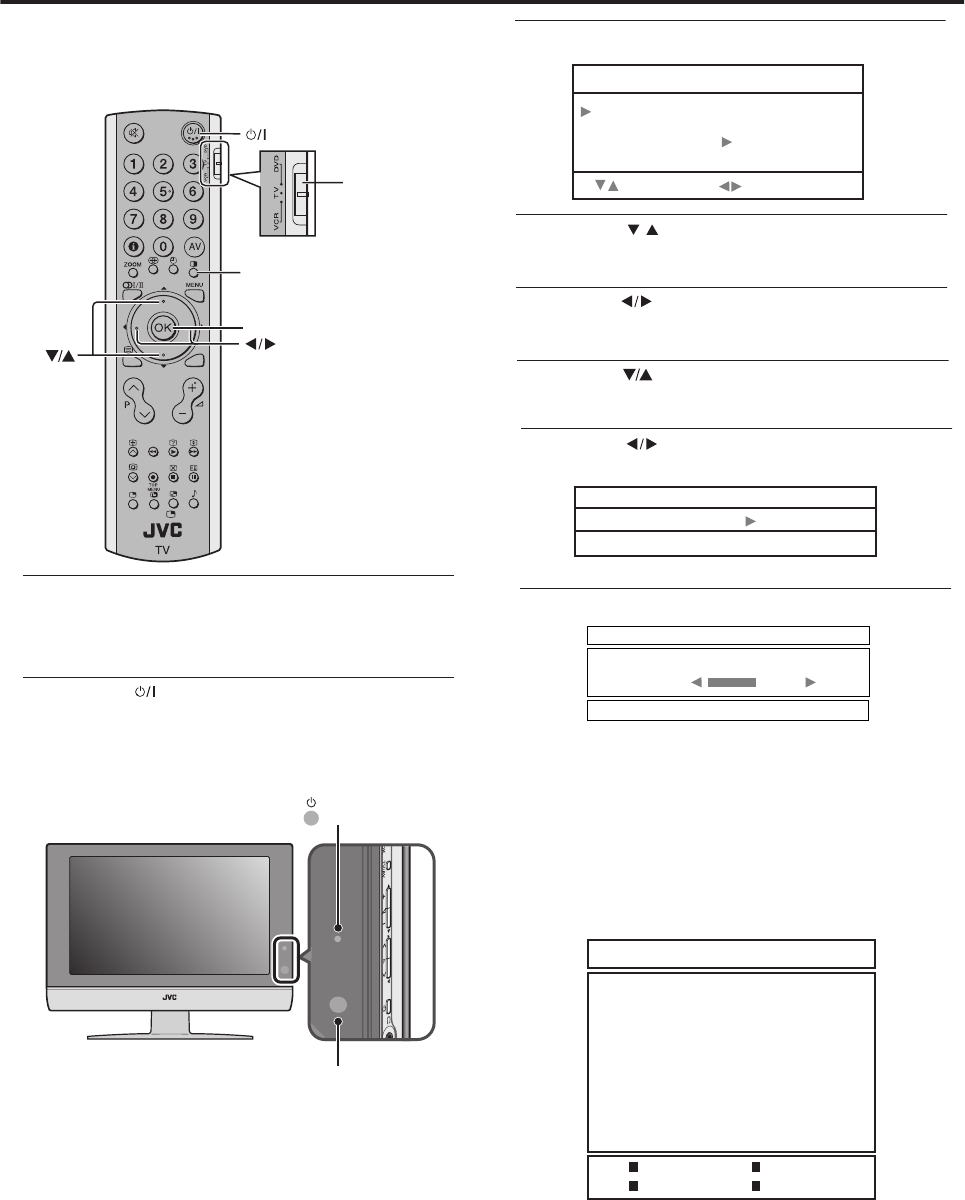

Initial settings .........................................7

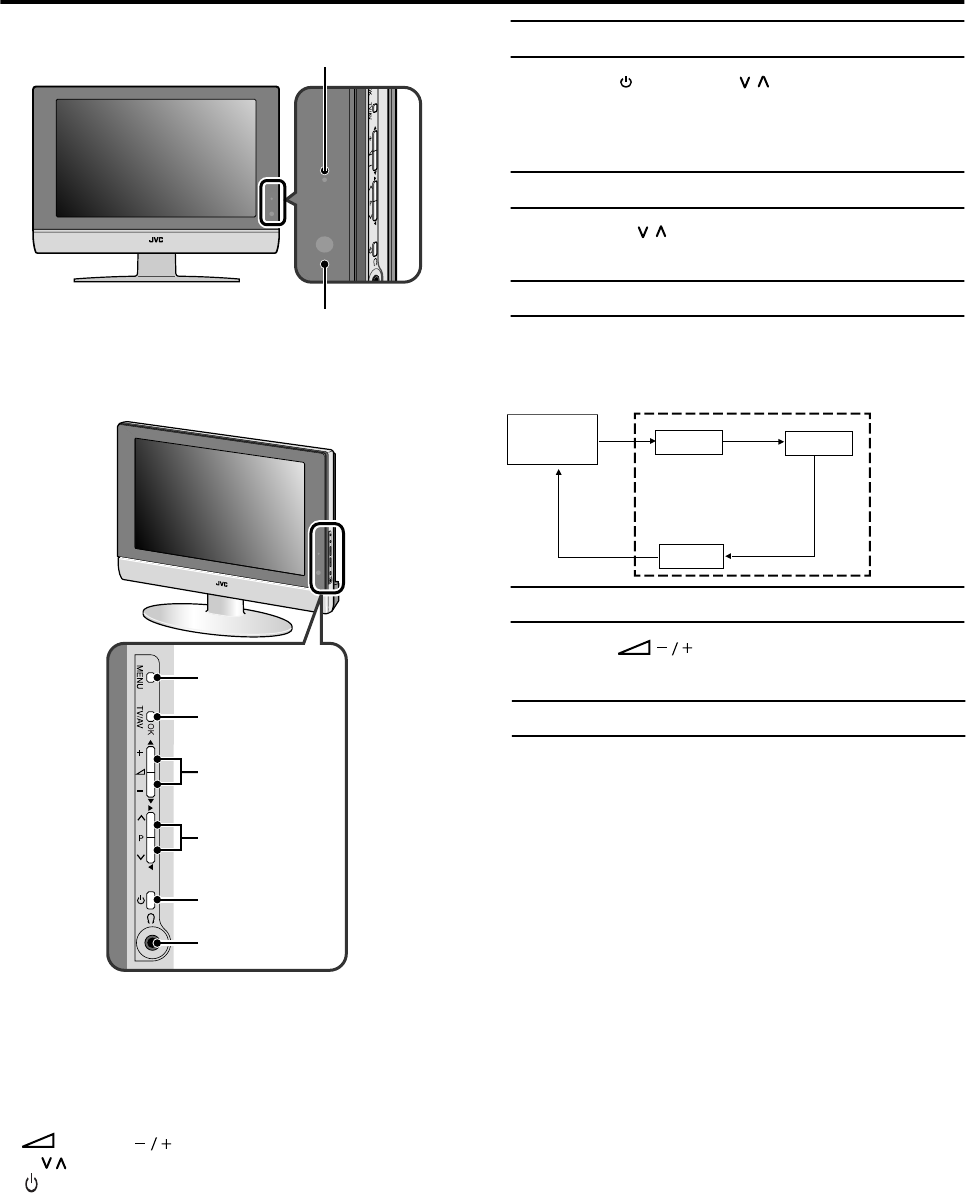

TV buttons and functions ......................9
Turn the TV on from standby mode ...................9
Choose a TV channel ........................................9
Watch images from external devices .................9
Adjust the volume ..............................................9
Using the Menu..................................................9

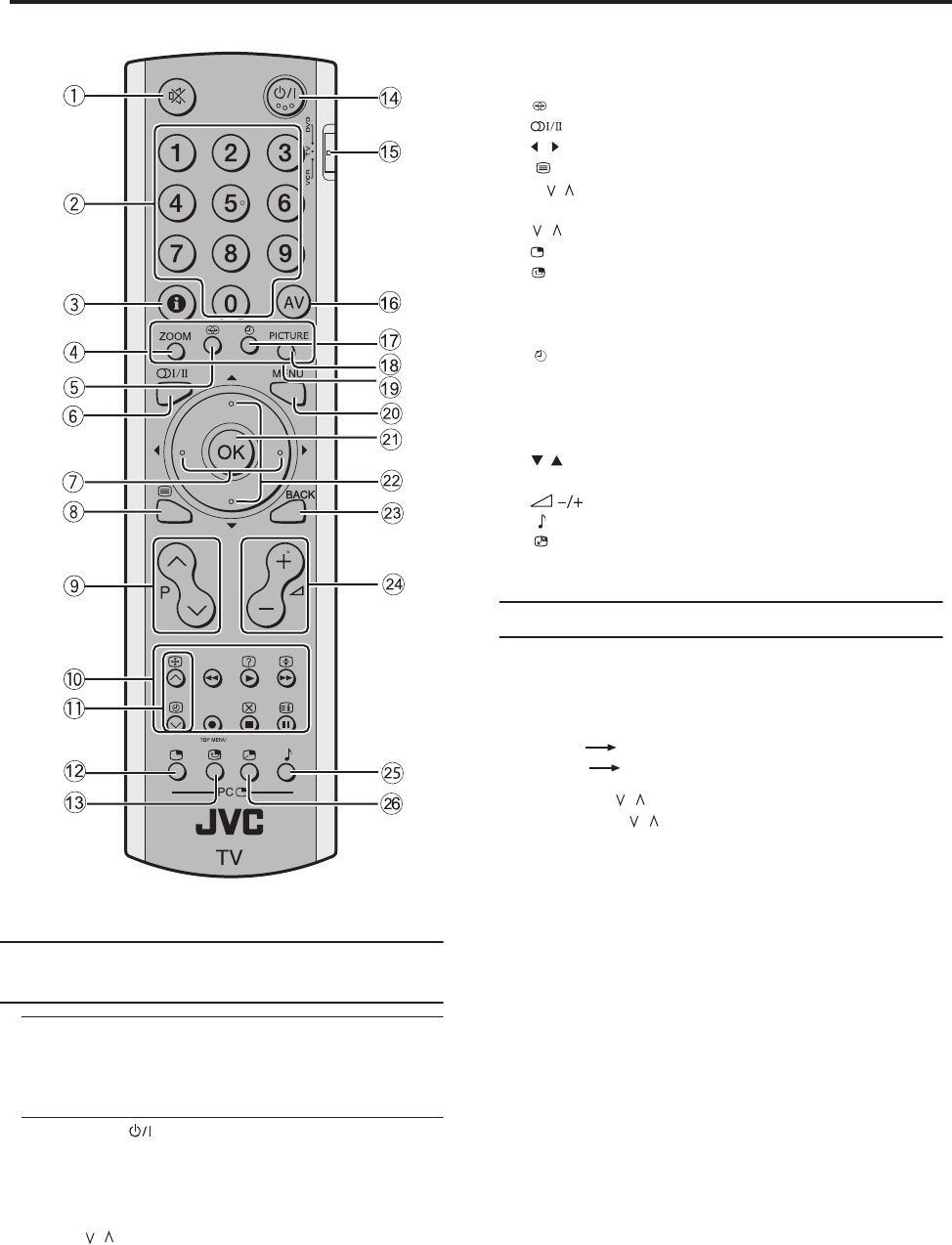

Remote control buttons and
functions............................................10
Turn the TV on or off from standby mode........10
Choose a TV channel ......................................10
Adjust the volume ............................................11
Watch images from external equipment ..........11

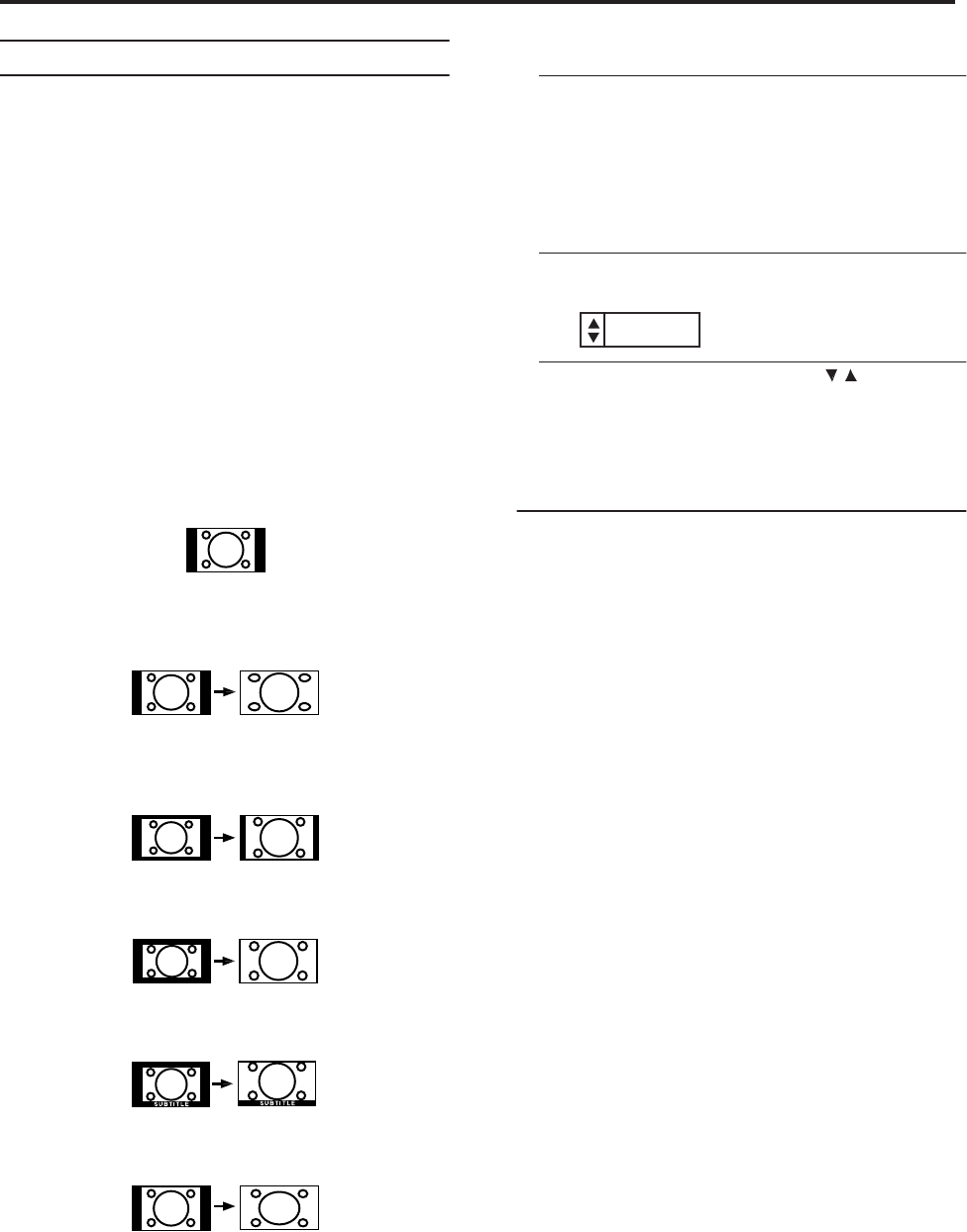

ZOOM function.................................................12

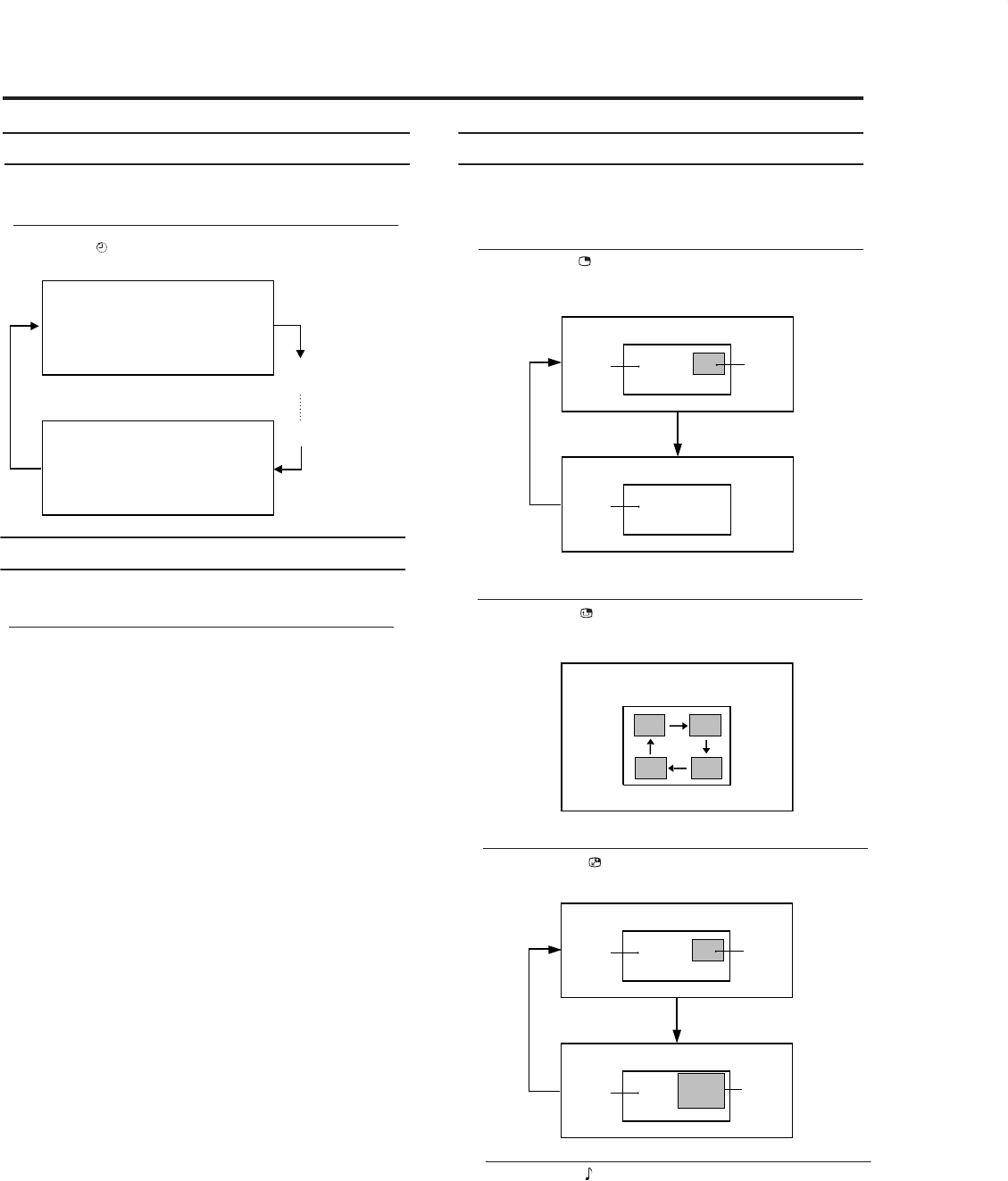

Using the PCPIP function ...............................13
Operating a JVC brand VCR or DVD player ....14

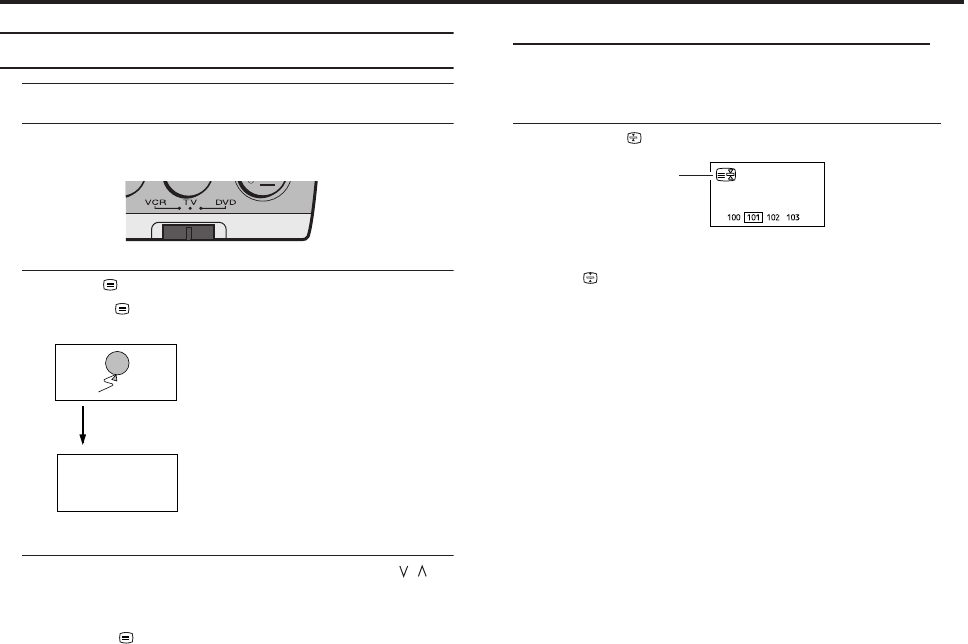

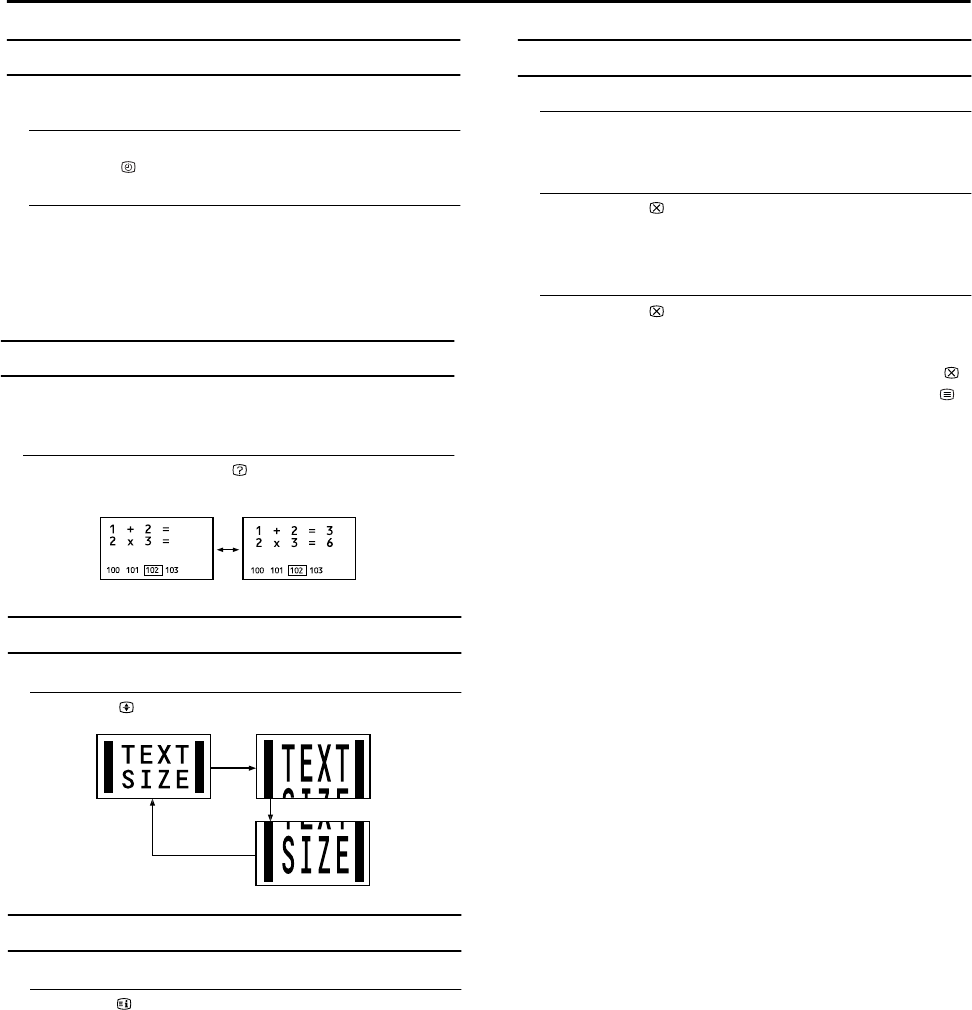

Teletext function...................................15
Basic operation ................................................15
Hold..................................................................15
Sub-page .........................................................16
Reveal..............................................................16
Size ..................................................................16
Index ................................................................16
Cancel..............................................................16

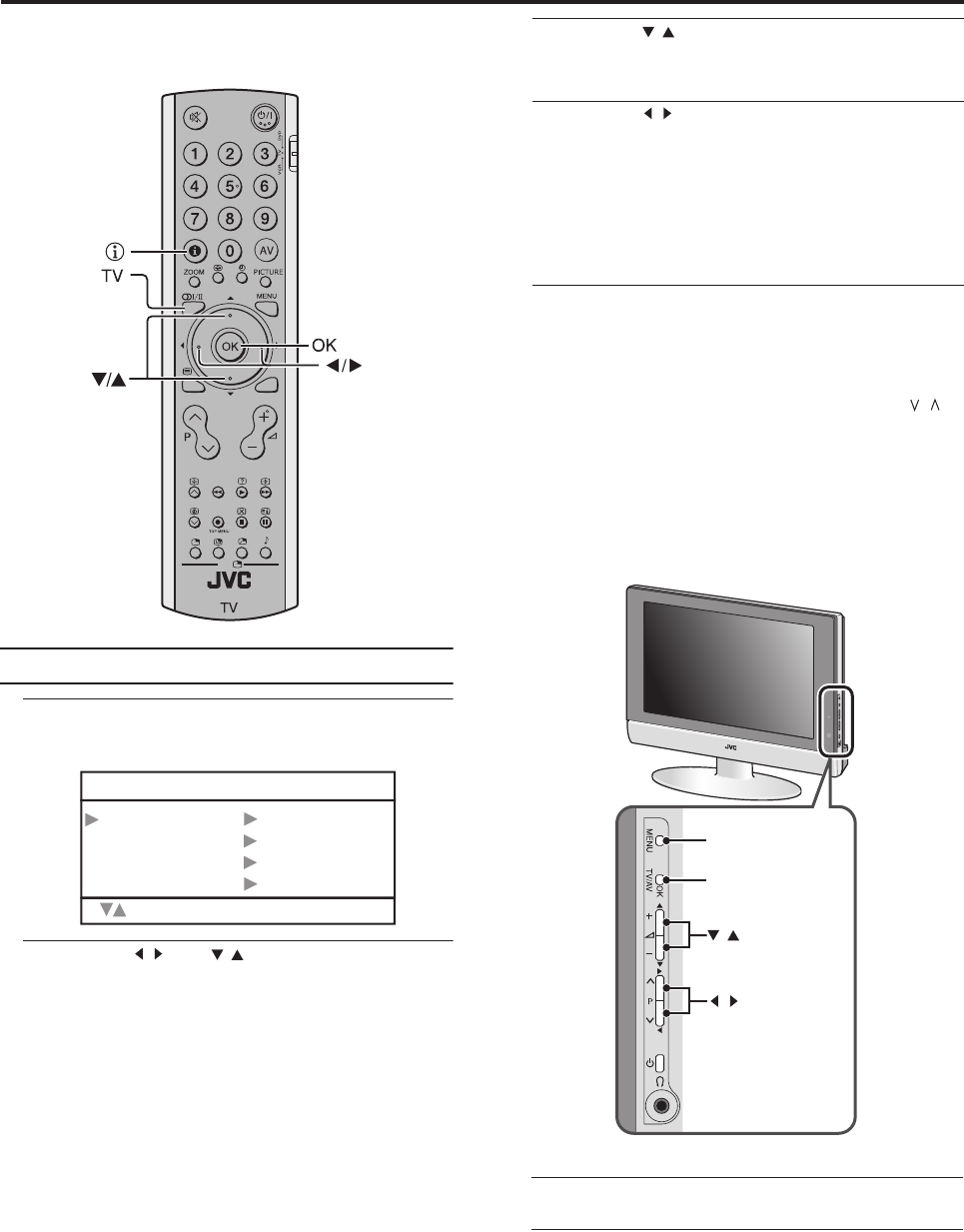

Using the TV’s menu............................17
Basic operation ................................................17

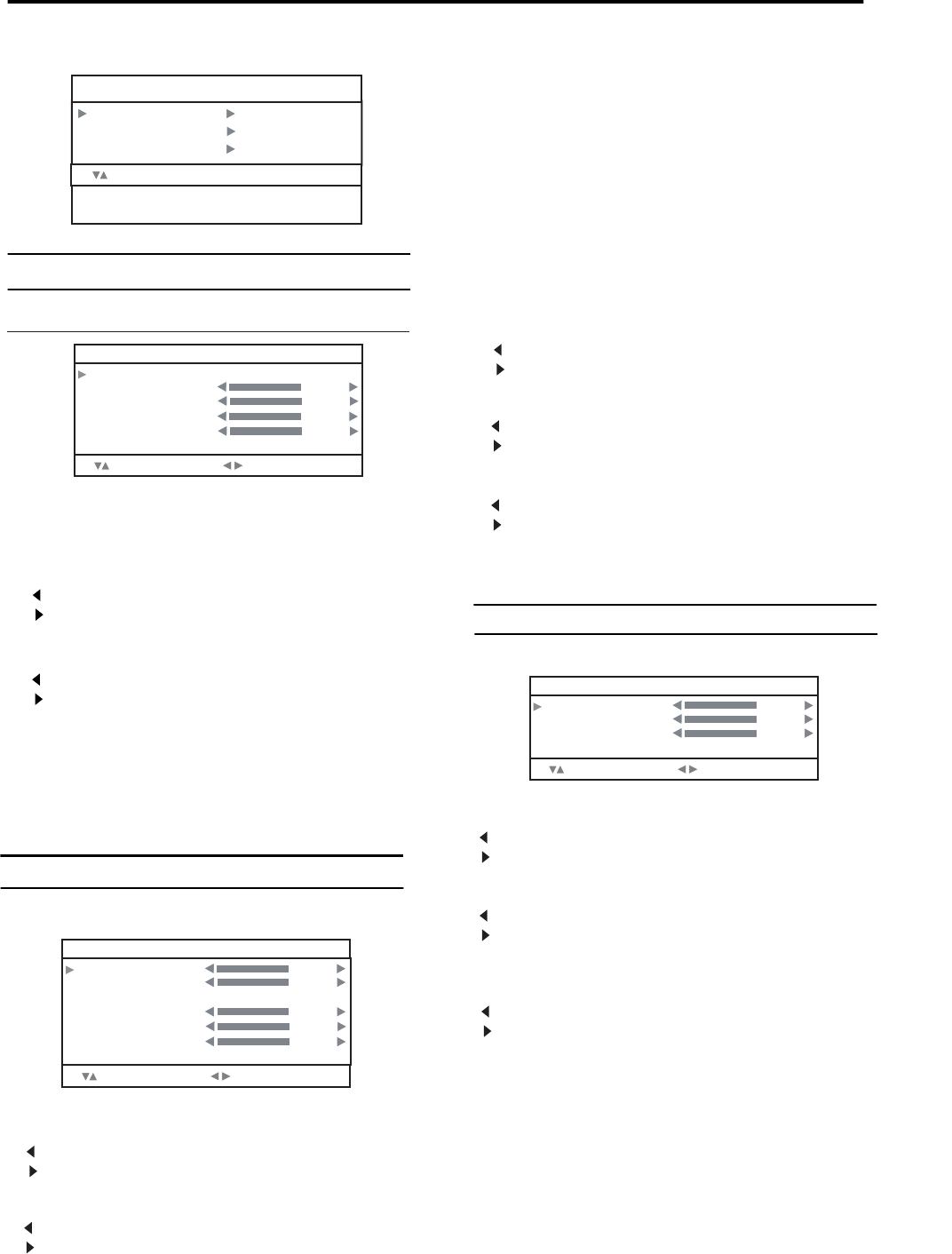

Picture setting.......................................18
PICTURE MODE .............................................18
Picture Adjustment...........................................18
WHITE BALANCE..........................................18
SOUND .................................................19
Sound Adjustment........................................... 19
.............................................. 19
FEATURES............................................20
BLUE BACK.................................................... 20
CHILD LOCK................................................... 20
INSTALL................................................21
MANUAL.......................................................... 21
AUTO PROGRAM........................................... 21
Additional preparation.........................27

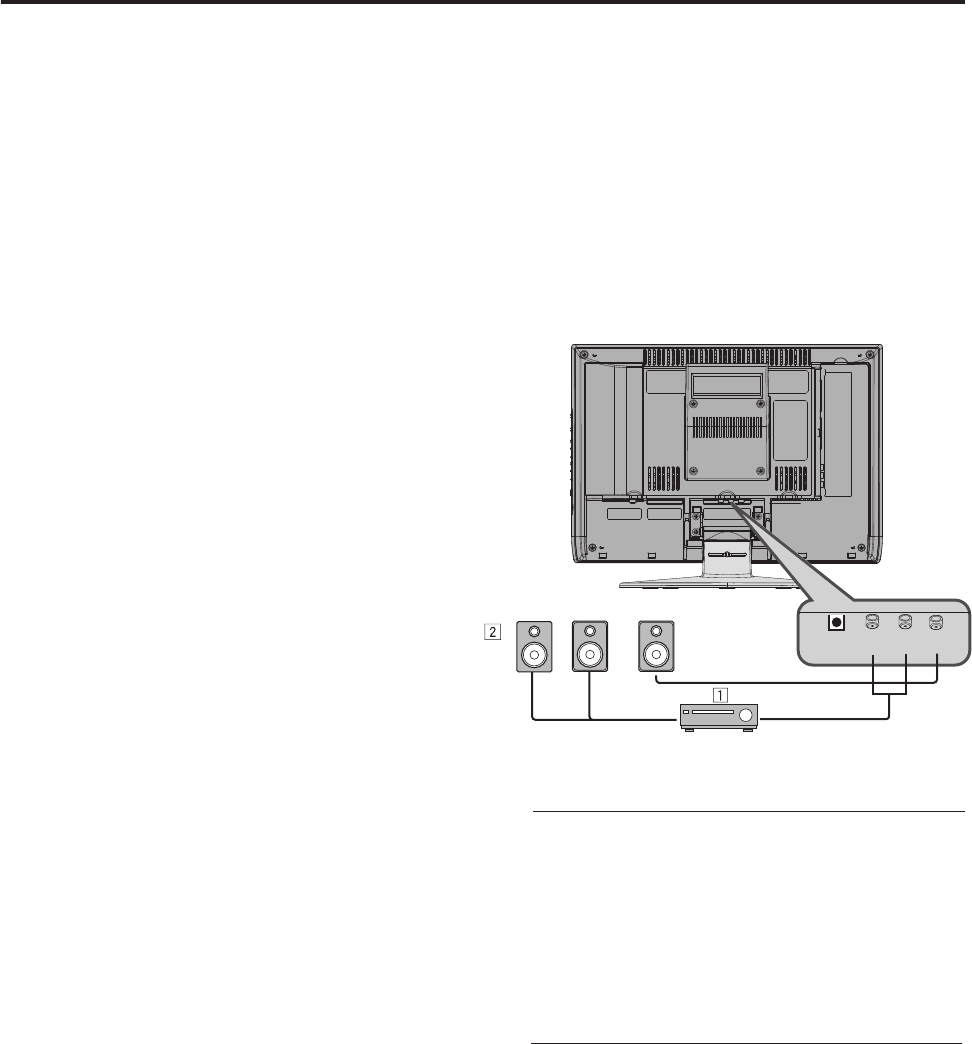

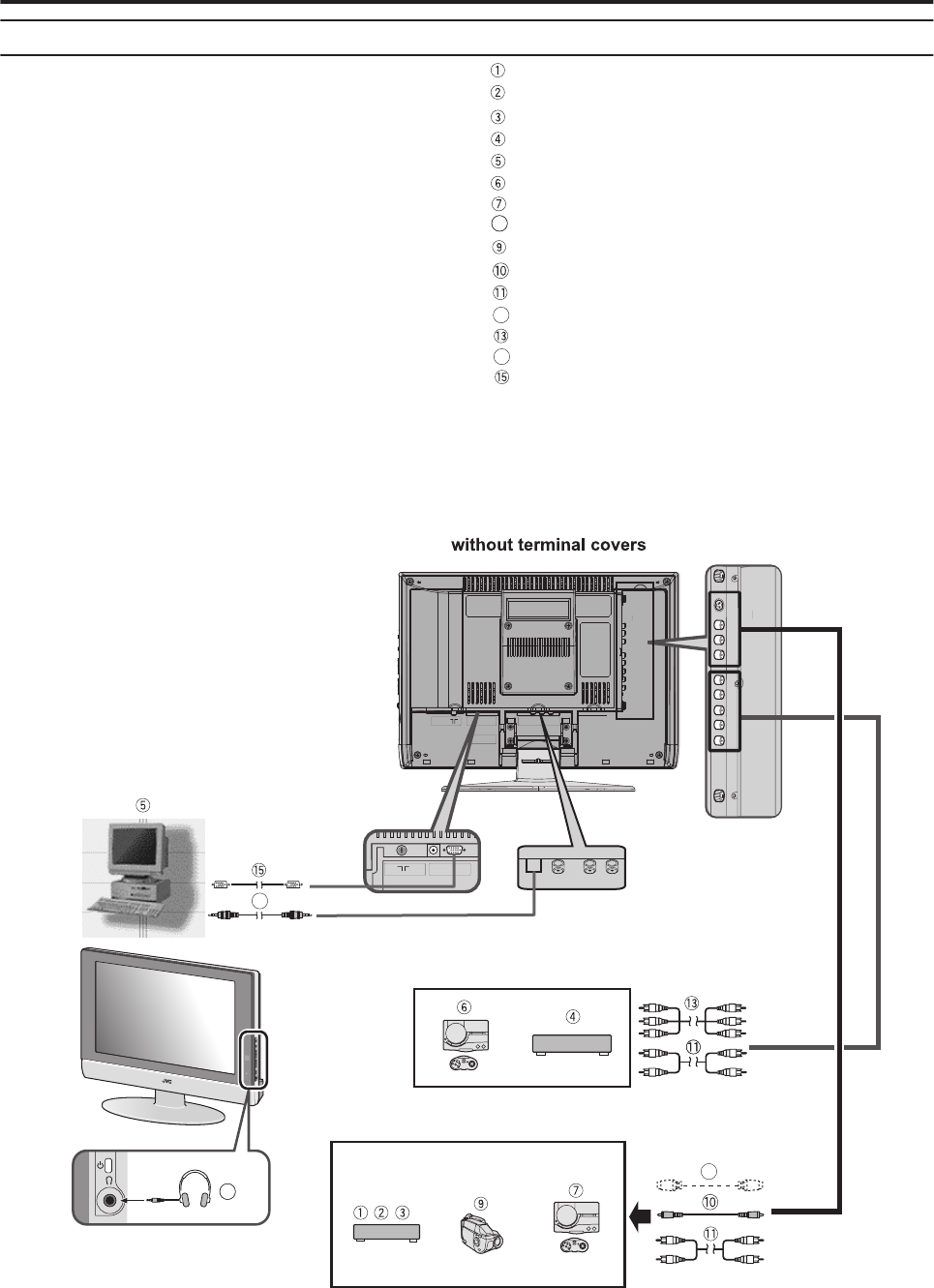

Connecting external equipment ...................... 27
Troubleshooting...................................29
Specifications.......................................31
LT-26C31BUE(EK)_Eng.book Page 3 Tuesday, August 5, 2003 2:18 PM
HYPER SOUND

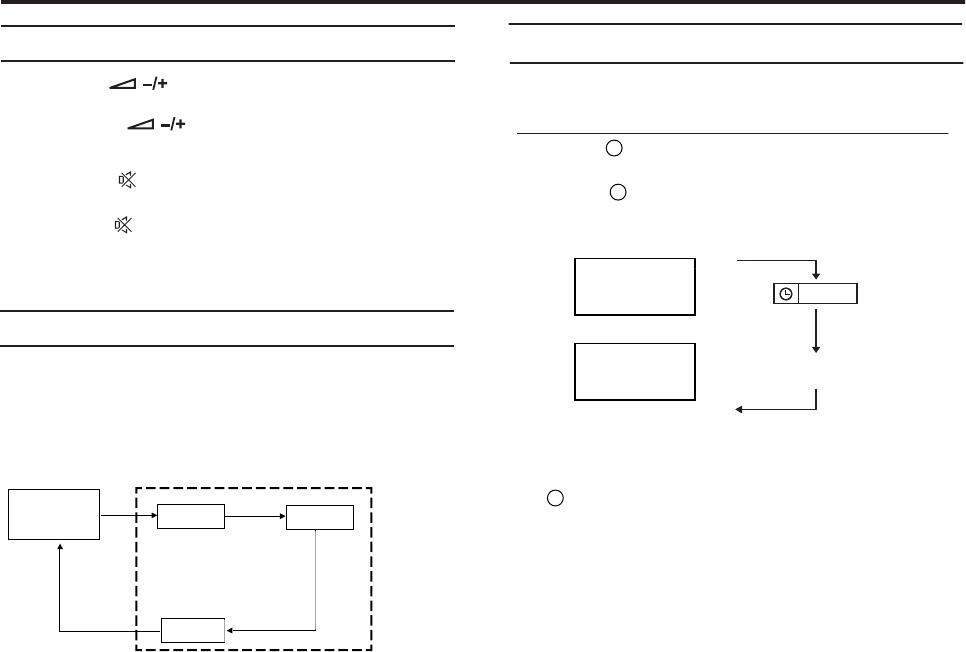

Sleep timer funtion...........................................13
RESET..............................................................18
Picture mode....................................................13
PC MENU...............................................25
PC PICTURE POSITION................................. 25
PC PICTURE................................................... 25
SOUND............................................................ 25
Displaying the source information .....................11
To edit the PR LIST menu............................... 22
PC support mode list........................................ 26
3
Setting up your TV
Installation
Cautions for installation
• Install the TV in a corner on a wall or on the floor so as to keep cords out of the way.
• The TV will generate a slight amount of heat during operation. Ensure that sufficient space is available around the TV to allow
satisfactory cooling. See “Distance recommendations” on page 2.

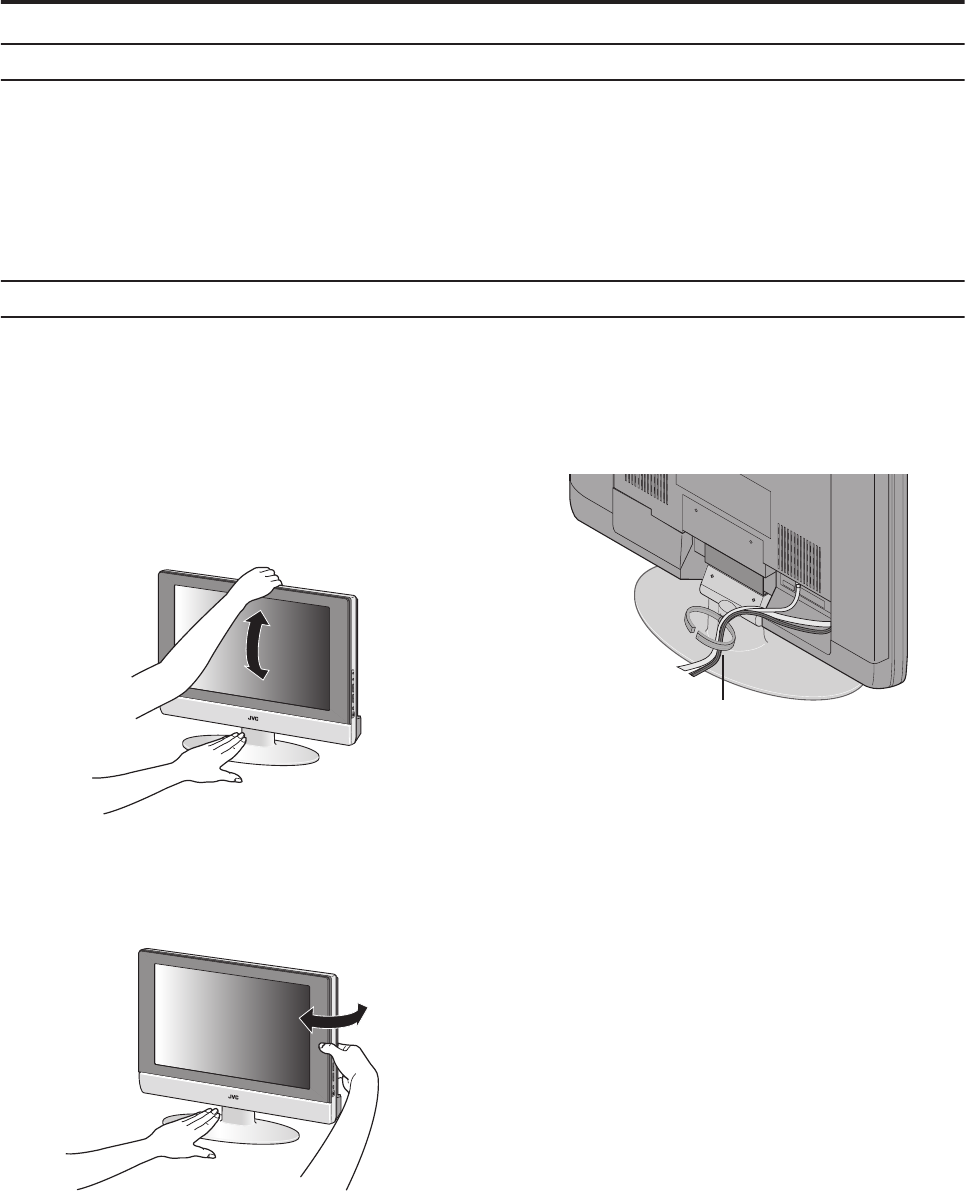

Using the stand
This TV comes with a Table Top Stand already
attached.
This stand can be used to adjust the direction of the TV
screen 5° up, 10° down, and 20° to the left or right.
Tilt the TV up and down:
While holding the bottom of the stand with one hand, use
your other hand to hold the middle of the top of the TV and
slowly tilt the TV up and down.
• As a safety measure, the stand is constructed so that it
requires a certain amount of force to tilt the TV.
Rotate the TV to the left and right:
While holding the bottom of the stand with one hand, use
your other hand to hold the edge of the panel and slowly
adjust the direction of the TV screen.
Cable holder
A cable holder which is used to keep the connection cables
tidy is attached to the back of the stand.
cable holder
4
Setting up your TV
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)

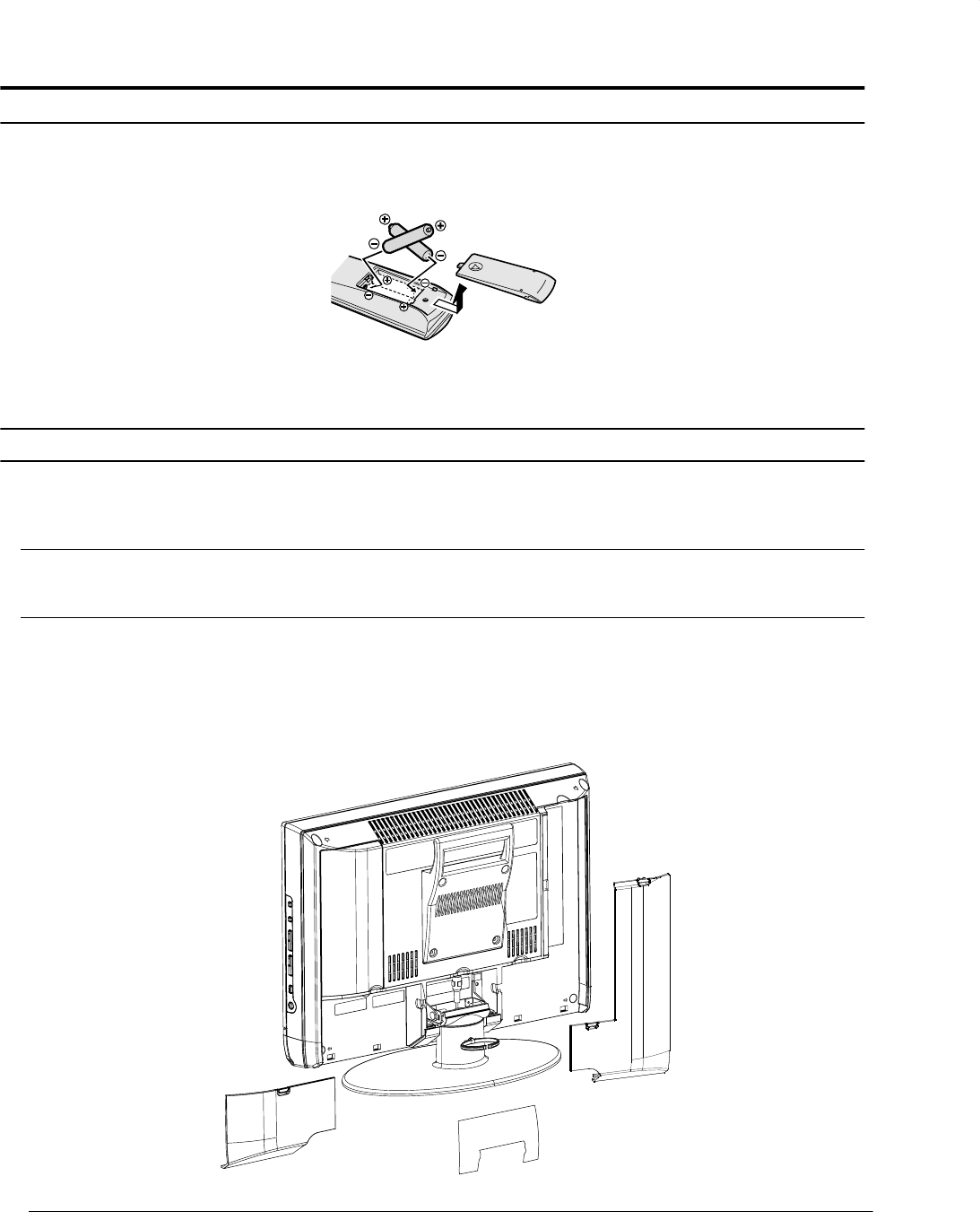

Putting the batteries into the Remote control
Use two AA/R6 dry cell batteries.
Insert the batteries from the - end, making sure the + and - polarities are correct.
• Follow the warnings printed on the batteries.
• Battery life is about six months to one year, depending on your frequency of use.
• The batteries we supply are only for setting up and testing your TV, please replace them as soon as you need to.
• If the remote control does not work properly, replace the batteries.
Remove the terminal cover
There are connection terminals behind the covers of the rear of the TV. Remove the cover before
connecting a DVD or VCR.
The covers can be removed by removing the hook at the top and then pulling out while lifting slightly. To replace the covers,
first connect the hook at the bottom of the cover to the TV and then insert the hook at the top.
• Leave the covers off if they do not fit properly. Do not force to replace the covers. Doing so may cause damages of the
connection cables and the covers.
• Leave these covers off when mounting the TV on a wall.
LT-26C31BUE(EK)_Eng.book Page 5 Tuesday, August 5, 2003 2:18 PM
• 100mm mount based on VESA regulation is equipped.
• The handle and the stand can be left by loosing the screws with a screwdriver when mounting the TV on a wall.
• Spread a soft cloth on a flat table and then place the TV on the cloth with the screen facing downwards when you leave the
handle and the stand.
5
B
A
DC IN
(12V)
PC IN
D-SUB
15 PIN
S-VIDEO
VIDEO
VIDEO
L/MONO
R
Y
Pb/Cb
Pr/Cr
R
COMPONENT
PC
AUDIO
IN
AUDIO
OUT
R L
SUBWOOFER
OUT
AUDIO
(VIDEO-2)
VIDEO-1
L/MONO
AUDIO
Setting up your TV

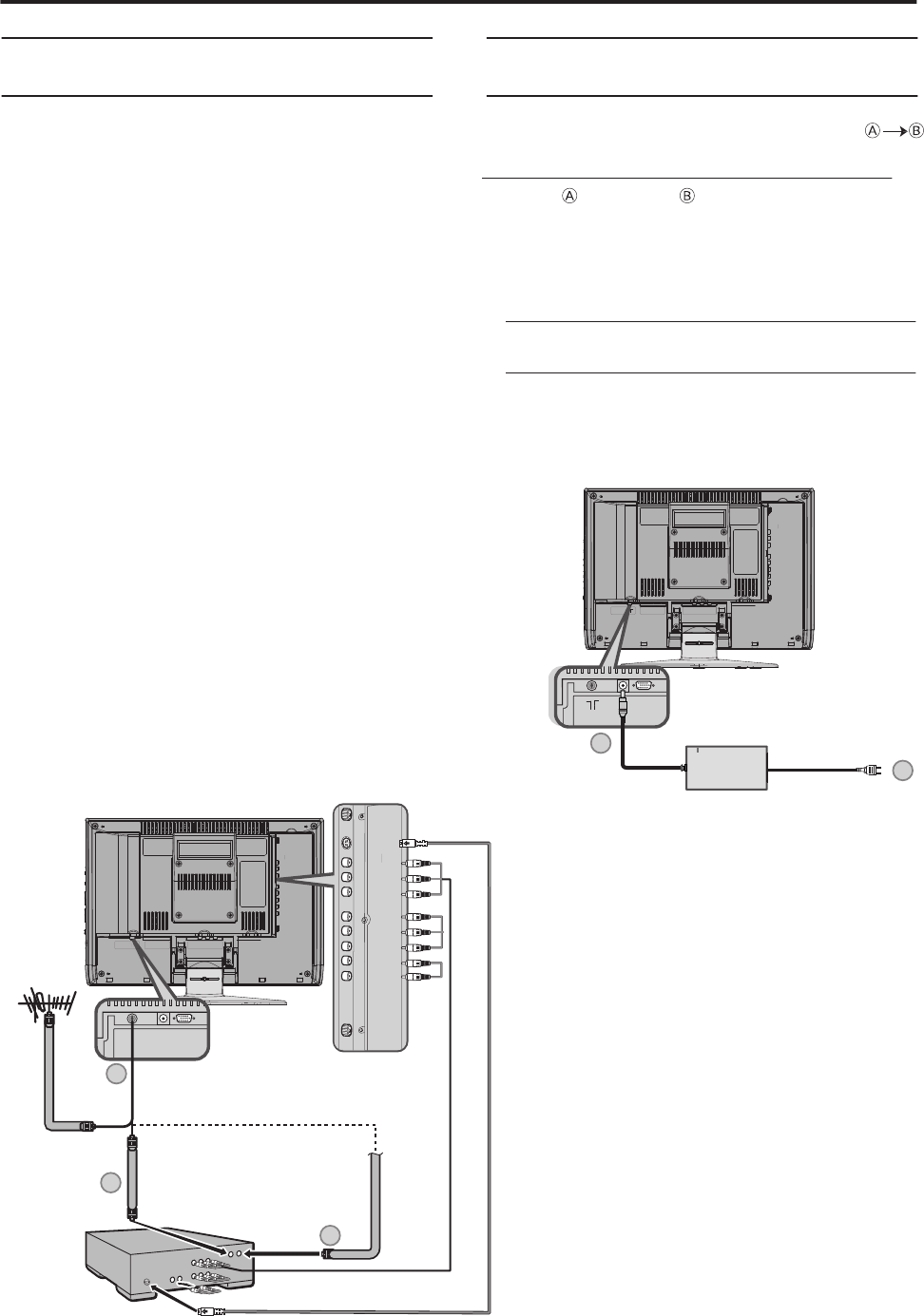

Connecting the aerial and video
cassette recorder (VCR)
Connecting the power cord to the AC
outlet
Caution
• Operate only from the power source spec
– 240 V, 50/60 Hz) on the unit.
• Remove the AC plug from the outlet to completely
disconnect the TV from the power supply.
6
If you are connecting a AC adapter, follow
in the diagram below.
• Connect to the TV and to the AC outlet.
ified (AC 100
• Aerial cable is not supplied. Use a good quality 75-ohm
coaxial cable.
• Read the manual that came with the VCR before
connecting.
If not connecting a VCR (follow 11):
Connect an aerial cable to the aerial socket on
this TV.
If connecting a VCR:
1 Connect the aerial cable to the aerial input
socket on the VCR, and connect the VCR and
TV with another aerial cable
2 Connect the VCR’s VIDEO OUT (video output)
terminal and the TV’s VIDEO terminal with a
video cable
To connect a VCR to the TV with an S-VIDEO cable:
Connect the VCR’s S-VIDEO OUT (S-VIDEO output)
terminal and TV’s S-VIDEO terminal with an S-VIDEO
cable A, instead of connecting with a video cable.
Note that the connection with a video cable will be
ignored in case you connect a VCR to the TV with both
video cable and S-VIDEO cable.
3 Connect the VCR’s VIDEO OUT (audio L/R
output) terminals and the TV’s AUDIO input
terminals with an audio cable
•
To connect additional external devices, please see
“Connecting the external equipment” on page 27.
• If the VCR's audio output is in mono, connect the VCR's AUDIO
OUT(audio output)terminal and the TV's audio L/MONO input
terminal with an audio cable.
B
A
1
2
S-VIDOE
VIDEO
VIDEO
L/MONO
AUDIO
R
Y
Pb/Cb
PR/CR
L/MONO
AUDIO
R
R
AUDIO
S-VIDEO
VIDEO
COMPONENT
(VIDEO-2)
PC
AUDIO
IN
AUDIO
OUT
R L
SUBWOOFER
OUT
DC IN
(12V)
PC IN
D-SUB
15 PIN
DC IN
(12V)
PC IN
D-SUB
15 PIN
VIDEO-1
VIDEO
L/MONO
Y
Pb/Cb
Pr/Cr
L/MONO
R
AUDIO
VIDEO-1
Initial settings
When the TV is first turned on, it enters the initial setting
mode. Follow the instructions on the on-screen display to
make the initial settings.
1 Make sure to set the VCR/TV/DVD switch to the
TV position.
• You cannot turn the TV on when the VCR/TV/DVD
switch is set to the VCR or DVD position.
2 Press the button on the remote control
After a short interval the power lamp changes from red
• Check that the AC plug on the power cord from the
TV is connected to AC outlet.
4 he buttons to choose the
LANGUAGE.
The on-screen display will then be in English.
AUTO PROGRAM.
3 AUTO PROGRAM menu appears.
The AUTO PROGRAM menu appears and received TV
channels are automatically stored in the programme
numbers.
• To cancel the AUTO PROGRAM function:
Press the MENU button.
After the TV channels have been registered in
the programme numbers, the PR LIST
menu appears
• If you want, you can now edit the programme
numbers using the AUTO PROGRAM function.
For details, see “To edit the PR LIST menu” on
page 22.
VCR/TV/DVD
Switch
Yellow button
Blue but
OK
ton
Power lamp
Remote control
ress
t
P
sensor
5 he buttons to choose the ENGLISH.
ress
t
P
6 he buttons to choose the
ress
t
P
7 he buttons to enter the
ress
t
P
AUTO PROGRAM.
AUTO PROGRAM
NOW PROGRAMMING CH-01
MENU : EXIT
PC
___ ___
BACK
to green.
/
Remote control
sensor
INSTALL
LANGUAGE ENGLISH
AUTO PROGRAM
:SELECT :MOVE
8 Press the OK button to start AUTO PROGRAM.
OK : START
AUTO PROGRAM
START
7
PR LIST
N
I
A
N
ME DELETE
SE
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
R
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
T
Initial settings
Now, the initial settings are complete, and you can
watch the TV
• If your TV can detect the TV channel name from the TV
channel broadcast signal, the TV channel name is
assigned to the programme number to which the
TV channel has been set. However, which TV channels
are set to which programme numbers will depend
on the area in which you live.
• If a TV channel you want to view is not set to a
programme number, you can set it using the
MANUAL function. For details, see “To edit the
• The AUTO PROGRAM function does not set the
programme number PR 0 for your video cassette
recorder. You will need to set this using the MANUAL
function.
• In some areas you may get TV reception from more than
one transmitter, for example different ITV regions. In
this case each TV channel could be set twice. If this
happens, the first set of channels will have the stronger
signal. If you want to delete the second set of channels,
you will have to do it manually (see page 21).
PR LIST menu" on page 22.
8
9
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
TV buttons and functions
1
2Remote control sensor
3
4
MENU button
5
TV/AV OK button
6
(Volume) button
7
P buttons
8 Headphone jack (mini jack)
Turn the TV on from standby mode
Press the button or P buttons to turn the TV
on from standby mode
• Check that the AC plug on the power cord from the TV
is connected to correctly AC outlet.
Choose a TV channel
Press the P buttons to choose a programme
number or an EXT terminal
Watch images from external devices
Press the TV/AV button to choose a TV/AV
terminal
Adjust the volume
Press the buttons
The volume level indicator appears.
Using the Menu
Use the MENU button.
using the menu.
3
4
5
6
7
8
LT-26C31BUE(EK)_Eng.book Page 9 Tuesday, August 5, 2003 2:18 PM
(Standby) botton
/
1
2
/
Power lamp
/
Refer to "Using the TV's menu"(see page 17) for details of
VIDEO-1
PC
VIDEO-2
TV mode EXT modes
Last
program
number
Remote control buttons and functions
1Muting button
2Number buttons
3 Information button
4 ZOOM button
5
6
7 /
/
buttons
8 (Text) button
9 P buttons
10 VCR/DVD/Teletext control buttons
11 buttons
12
Standby button
13
VCR/TV/DVD switch
14
Picture button
button
15
16
MENU button
17
OK
BACK
button
18
buttons
19
button
20
buttons
21
button
22
23
24
25
button
Turn the TV on or off from standby
mode
1 Make sure to set the VCR/TV/DVD switch to the
TV position.
• You cannot turn the TV on or off when the VCR/TV/
DVD switch is set to the VCR or DVD position.
2 Press the (standby) button to turn the TV on
or off.
When the TV is turned on, the power lamp changes from
• The power can be turned on by pressing
buttons or Number buttons.
• Check that the AC plug on the power cord from the
TV is connected to AC outlet.
Choose a TV channel
Use the number buttons:
Enter the programme number of the
channel using the number buttons.
Example:
•PR press 66
• PR 12 press 1 and 2
Use the
e
buttons:
Press th buttons to choose the
programme number want.
/
/
AV
P
/
P /
P /
button
button
button
button
button
red to green.
• If you do not have a clear picture or no colour appears,
change the colour system manually. Follow the description
"MUNUAL" on page 21 to try to change COLOUR
SYSTEM.
• If the SOUND SYSTEM setting for a TV channel is
incorrect, it may provent the sound from being issued.
Follow the description "MANUAL" on page 21 to try
to change the SOUND SYSTEM setting.
you
26
Color buttons
10
Remote control buttons and functions
Adjust the volume
Press the buttons to adjust the volume.
The volume indicator appears and the volume changes as
you press the buttons.
Muting the sound
Press the (muting) button to turn off the
sound.
Pressing the (muting) button again restores the previous
volume level.
Watch images from external equipment
Use the AV button:
Press the button to choose an EXT
terminal.
Displaying the source information
You can display the source information and current time on
Press the (information) button to display the
source information.
(information) button changes the display as
follows:
or
Signal source
01
O
VIDEO-1
TV
VIDEO-1
• The source information and current time switched by
(information) button.
__ : __
No display
• The source type :
TV/VIDEO-1/VIDEO-2/PC
AV
the screen.
i
i
Pressing the
i
• When watching videos, an incorrect current time
is sometime displayed.
To use the Programme number 0:
When the TV and VCR are connected only by the Aerial
cable, choosing the Programme number 0 allows you to
view images from the VCR. Set the VCR RF channel to
the Programme number 0 manually. For details, see
"MANUAL" on page 21.
• In PC mode, the current time will not be displayed
• If the programme being watched does not have Teletext
transmission, only a box will be displayed at the same
location.
In the PC mode:
If following message appears, the power lamp blinks in
amber and the TV goes in to reduced power mode.
- "NO SIGNAL"
- "CABLE NO INSERT"
- "OUT OF RANGE"
See "Troubleshooting" on page 30 for detials of this messages.
11
VIDEO-1
PC
VIDEO-2
TV mode EXT modes
Last
program
number
Remote control buttons and functions
ZOOM function
You can change the screen size according to the picture
aspect ratio. Choose the optimum one from the following
ZOOM modes.
AUTO:
When a WSS (Wide Screen Signalling) signal, which shows
the aspect ratio of the picture, is included in the broadcast
signal or the signal from an external device, the TV
automatically changes the ZOOM mode to 16:9 ZOOM
mode or FULL mode according to the WSS signal.
If a WSS signal is not included, the picture is displayed in
accordance with the ZOOM mode set with the 4:3 AUTO
ASPECT function.
• When the AUTO (WSS) mode does not function
correctly due to poor WSS signal quality or when you
want to change the ZOOM mode, press the ZOOM
button and change to another ZOOM mode.
REGULAR:
Use to view a normal picture (4:3 aspect ratio) as this is its
original shape.
PANORAMIC:
This stretches the left and right sides of a normal picture
(4:3 aspect ratio) to fill the screen, without making the
picture appear unnatural.
• The top and bottom of the picture are slightly cut off.
14:9 ZOOM:
This zooms up the wide picture (14:9 aspect ratio) to the
upper and lower limits of the screen.
16:9 ZOOM:
This zooms up the wide picture (16:9 aspect ratio) to the
full screen.
16:9 ZOOM SUBTITLE:
This zooms up the wide picture (16:9 aspect ratio) with
subtitles to the full screen.
FULL:
This uniformly stretches the left and right sides of a normal
picture (4:3 aspect ratio) to fill the wide TV screen.
• For 16:9 aspect ratio pictures that have been squeezed
into a normal picture (4:3 aspect ratio), use the FULL
mode to restore the picture to its original shape.
12
16:9 ZOOM
Choose the ZOOM mode
1Press the button to choose the ZOOM
menu
• The button does not work in the twin
pictures mode.
Adjusting the visible area of the picture
If subtitles or the top (or bottom) of the picture are cut off,
you can adjust the visible area of the picture manually.
1Press the button
2
The indicator appears.
While it is displayed, press the buttons to
change the position of the picture
• You cannot adjust the visible area in REGULAR or
FULL mode.
ZOOM
ZOOM
ZOOM
Only REGULAR and FULL modes are available in PC
mode.
•
/
Remote control buttons and functions
Using the PCPIP function
A PC picture and TV or a video programme from an
external device can be watched at the same time.
1Press
the button.
2Press the button to change the position of
sub-picture
D0057
Picture in picture mode
Cancel the PIP function
Main-
Main-
Sub-
Sleep timer function
The Sleep Timer can turn the TV off for you after you fall
asleep. Programme it to work in intervals of 10 minutes, for
a total time of up to 120 minutes.
Press the button.
Picture mode
Press the PICTURE button.
MANUAL:
User define.
You can choose one of four PICTURE MODEs to adjust
the picture settings automatically.
BRIGHT:
Heightens contrast and sharpness.
STANDARD:
Standardizes picture adjustment.
SOFT:
Softens contrast and sharpness.
3Press the button to change the sub-picture
size
Change sub-picture position
Picture in picture mode
Change sub-picture size
Main-
Main-
Sub-
Sub-
13
4Press the button to choose the sound
MAIN : Main picture
SUB : Sub picture
SLEEP TIMER
OFF
SLEEP TIMER
120
10
20
30
100
110
Remote control buttons and functions
• If the main-picture signal is poor, the quality of the
sub-picture may also be poor.
• If the pictures have different standards, the top and
bottom of one of them may be missing.
Operating a JVC brand VCR or DVD
player
These buttons will operate a JVC brand VCR or DVD
player. Pressing a button that looks the same as the device’s
original remote control button has the same effect as the
original remote control.
1 Set the VCR/TV/DVD switch to the VCR or DVD
position
VCR:
When you are using a VCR, set the switch to the VCR
position. You can turn the VCR on or off with the
(Standby) button.
DVD:
When you are using a DVD player, set the switch to the
DVD position. You can turn the DVD player on or off
with the (Standby) button.
2 Press the VCR/DVD Control Button to control
your VCR or DVD player
• If your device is not made by JVC, these buttons will
not work.
• Even if your device is made by JVC, some of these
buttons may not work, depending on the device you
are using.
• You can use the p buttons to choose a TV channel
the VCR will receive, or choose the chapter the DVD
player plays back.
• Some models of DVD player use the p buttons for
both operating the fast forward/backward functions
and for choosing the chapter.
• Set the VCR/TV/DVD switch to the TV position
when you turn the TV on or off.
/
/
• If you press the menu button when the PIP functions
is on, PC menu will appear. To display the TV menu,
change the mode to the TV mode.
14
Teletext function
Basic operation
1 Choose a TV channel with a teletext broadcast
2 Make sure to set the VCR/TV/DVD switch to the
TV position.
3 Press (Text) button to display the teletext
Pressing (Text) button changes the mode as follows:
4 Choose a teletext page by pressing the P
buttons, number buttons or colour buttons
To return to the TV mode:
Press the (Text) button.
• If you have trouble receiving teletext broadcasts,
consult your local dealer or the teletext station.
• The ZOOM function will not work in the TV and text
mode or Text mode.
• You cannot operate menus when viewing a teletext
programme.
D1043
TV mode
Text mode
TEXT---
TEXT---
TEXT---
/
Hold
You can hold a teletext page on the screen for as long
as
you want, even while several other teletext pages are being
received.
Press the (Hold) button
To cancel the Hold function:
Press (Hold) button again.
Hold indication
15
Teletext function
Sub-page
Some teletext pages include sub-pages that are
automatically displayed.
1 Choose a teletext page that includes sub-pages
Press the button, Sub-page numbers can be viewed
and displayed at the screen.
2 Press the number buttons to choose a sub-page
number
Reveal
Some teletext pages include hidden text (such as the
answers to a quiz).
You can display the hidden text.
Each time you press the (Reveal) button, text is
hidden or revealed
Size
You can double the height of the teletext display.
Press the (Size) button.
Index
You can return to the index page instantly.
Press the (Index) button
Returns to page 100 or a previously specified page.
Cancel
You can search for a teletext page while watching TV.
1 Press the number button to enter a page
number, or press a colour button
The TV searches for a teletext page.
2 Press the (Cancel) button
The TV programme appears. When the TV finds the
teletext page, its page number appears in the upper left
of the screen.
3 Press the (Cancel) button to return to a
teletext page when the page number is on the
screen
• The TV mode cannot be resumed by pressing the
(Cancel) button. To return to the TV mode press
button.
Sxxxx : xxxx is the number 0 ~ 9 that you entered.
For example, sub-page 1 is S0001, you must enter 0,0,
0 and 1 serially to view sub-page S0001.
16
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
Using the TV’s menu
This TV has a number of functions you can operate using
menus. To use all your TV’s functions, you need to
understand the basic menu operating techniques fully.
Basic operation
1 Press the MENU button to display the MENU (main
menu)
2 Press the and buttons to choose a
menu title, and press the OK button
The menu appears.
To return to the previous menu:
To exit
Press the MENU button on the remote control or
a menu instantly:
3Press the buttons to choose a function
• For details of the functions in the menus, see the
following pages.
4Press the buttons to choose the setting of
that function
• If you want to operate a function which appears only
with its name, follow the descriptions of that function
on the following pages.
• The display appearing at the bottom of a menu shows
you a button on the remote control that you can use
when you operate a chosen function.
5Press the button to complete the setting
The menu disappears.
• When watching the television with the NTSC system,
the menus are displayed at about half of their normal
vertical size.
• The menu will be disappear if you press the P
buttons, the AV button or the number buttons while
displayed.
Operation with the buttons on the TV
You can also operate the menus using the buttons on the
front panel of the TV.
The menu will disappear after about one minute if no
operation is performed.
MENU button
buttons
buttons
OK button
LT-26C31BUE(EK)_Eng.book Page 17 Tuesday, August 5, 2003 2:18 PM
/
/
/
/
//
/
Press the BACK button on the remote control or the
PC
BACK
MENU
MENU button on the TV.
press the MENU button on the TV several times.
the menu is
: SELECT
OK: MOVE
MENU
SOUND
FEATURES
INSTALL
17

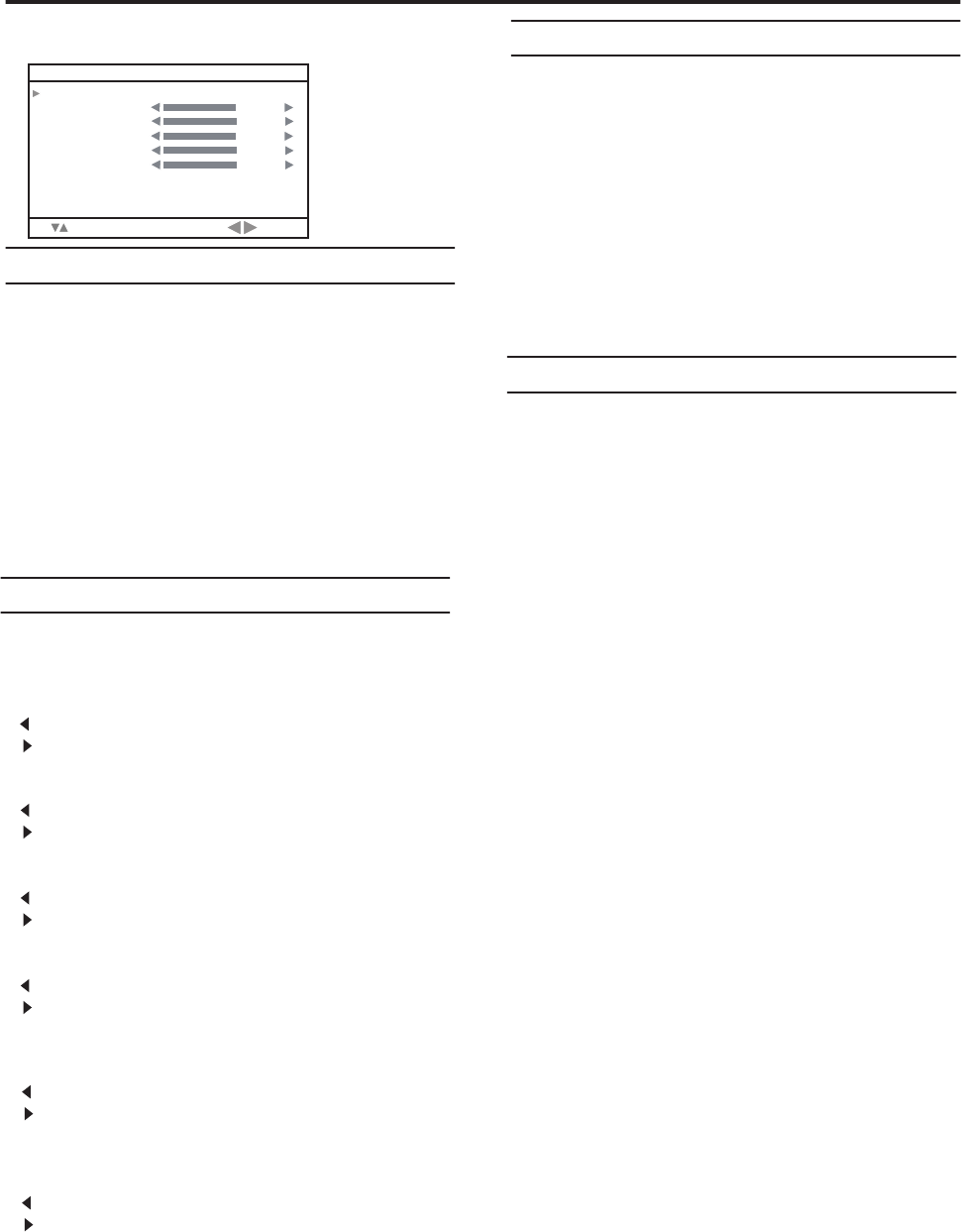

PICTURE SETTING
Refer to “Using the TV’s menu” (see page 17) for details of
displaying the menu.
PICTURE MODE
You can choose one of four PICTURE MODEs to adjust
the picture settings automatically.
BRIGHT:
Heightens contrast and sharpness.
STANDARD:
Standardizes picture adjustment.
SOFT:
Softens contrast and sharpness.
Picture Adjustment
You can change the picture settings of each PICTURE
MODE mode as you like.
CONTRAST:
You can adjust the picture contrast.
:lower
: higher
BRIGHT-1:
You can adjust the picture brightness.
:darker
: brighter
SHARP:
You can adjust the picture sharpness.
:softer
:sharper
COLOUR:
You can adjust the picture colour.
: lighter
: deeper
WHITE BALANCE
You can select one of three WHITE BALANCE modes (three
tones of white) to adjust the white balance of the picture.
Since white is the colour which is used as a reference for all
the other colours, changing the WHITE BALANCE mode
affects the appearance of all the other colours on the screen.
COOL:
A bluish white. Using this mode when watching bright
pictures allows you to enjoy a more vivid and bright picture.
NORMAL:
The normal white colour.
WARM:
A reddish white. Using this mode when watching films
allows you to enjoy colours that are characteristic of films.
MANUAL:
User define.
BRIGHT-2:
You can adjust the back light.
:darker
:lighter
RESET
You can reset the picture settings you have chosen to the
: SELECT : MOVE
PICTURE MODE BRIGHT
CONTRAST
BRIGHT-1
SHARP
COLOUR
BRIGHT-2
WHITE BALANCE
COOL
default settings.
18
RESET
TINT:
You can adjust the picture tint.
:reddish
:greenish
• You can change the TINT setting when the colour system
is NTSC 3.58 or NTSC 4.43.
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
SOUND
Refer to “Using the TV’s menu” (see page 17) for details of
displaying the menu.
Sound Adjustment
You can adjust the sound to your liking.
BASS:
You can adjust the low tone of the sound.
: weaker
: strong
TREBLE:
You can adjust the high tone of the sound.
: weaker
: strong
BALANCE:
You can adjust the volume balance between the left and
right speaker.
:turn the left speaker’s volume level up.
: turn the right speaker’s volume level up.
LT-26C31BUE(EK)_Eng.book Page 21 Tuesday, August 5, 2003 2:18 PM
HYPER SOUND
You can enjoy Surround sound with a “live” effect by using
the function.
ON:
function is turned on.
OFF:
function HYPER SOUND
HYPER SOUND
HYPER SOUND
is turned off.
SOUND
BASS
TREBLE
BALANCE
HYPER SOUND OFF
: SELECT :MOVE
19
• The SOUND settings are common in the TV mode and
in the PC mode.
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
FEATURES
Refer to “Using the TV’s menu” (see page 17) for details of
displaying the menu.
BLUE BACK
You can set the TV to automatically change to a blue screen
and mute the sound if the signal is weak or absent, or when
there is no input from an external device.
ON:
This function is turned on.
OFF:
This function is turned off.
CHILD LOCK
When the CHILD LOCK mode is on, the TV buttons will be
LT-26C31BUE(EK)_Eng.book Page 25 Tuesday, August 5, 2003 2:18 PM
locked except button. TV only can be controled by remote
controller.
FEATURES
BLUE BACK OFF
CHILD LOCK OFF
: SELECT :MOVE
20
ON:
This function is turned on.
OFF:
This function is turned off.
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
INSTALL
Refer to “Using the TV’s menu” (see page 17) for details of
displaying the menu.
1
LT-26C31BUE(EK)_Eng.book Page 27 Tuesday, August 5, 2003 2:18 PM
AUTO PROGRAM
NOW PROGRAMMING
MENU : EXIT
The AUTO PROGRAM menu appears and received TV
channels are automatically stored in the programme
numbers.
• To cancel the AUTO PROGRAM function:
Press the MENU button.
Choose AUTO PROGRAM. Then press the OK button.
OK : STRAT
AUTO PROGRAM
START
2 he OK button to start the AUTO PROGRAM
ress
t
P
21
INSTALL
LANGUAGE ENGLISH
AUTO PROGRAM
MANUAL
PR LIST
：SELECT : MOVE
LANGUAGE
he buttons to choose the ENGLISH.
ress
t
P
The on-screen display will then be in English.
AUTO PROGRAM
You can automatically store the TV channels for which you
have the best reception. Store them in the TV’s program
numbers list by doing the following.
AUTO PROGRAM
After the TV channels have been registered in
the programme numbers, the PR LIST menu
appears.
• If you want, you can now edit the program
numbers using the AUTO PROGRAM function.
For details, see “To edit the PR LIST menu”
on page 22.
MANUAL
You can store the TV channel for which you needed.
Store them in the TV’s programme numbers list
by setting the following.
AUTO / PAL / SECAM
AUTO / B/G / D/K / I
: SELECT : MOVE
MANUAL
PROGRAM 00
BAND CH
CHANNEL 02
COLOUR SYSTEM AUTO
SOUND SYSTEM AUTO
SEARCH
FINE TUNING
STORE
1 Select PROGRAM and press the buttons to
choose the programme number from 00 to 99.
/
2 Select BAND and press the buttons to
choose the band type.
/
CH(AIR) / CC(CATV)
3 Select CHANNEL and press the buttons to
choose the channel number. (CH:02-69,CC:01-99)
4 Select COLOUR SYSTEM and press the
buttons to choose the colour system.
/
/
• If you do not have a clear picture or no colour appears,
change the colour system.
5 Select SOUND SYSTEM and press the
buttons to choose the sound system.
/
• If the SOUND SYSTEM setting for a TV channel is
incorrect, it may provent the sound from being issued.
6 Select SEARCH and press the buttons to
choose the serviceable TV channel.
/
7 If the channel reception is poor, select
FINE TUNING and press the buttons to
/
fine tune the program.
8 Select Store and press the buttons to
store the manual setting.
/
PR LIST
N
I
A
N
ME DELETE
SE
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
R
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
T
When stored, OK will be displayed for short
seconds.
INSTALL
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
To edit the PR LIST menu
Caution
• Using the NAME, DELETE or INSERT functions
rewrites the current programme numbers list.
Therefore, the programme nu of some of
the TV channels will change.
1 Choose PR LIST, then press the OK button
LT-26C31BUE(EK)_Eng.book Page 28 Tuesday, August 5, 2003 2:18 PM
2 Follow the operation description of a function
you want to use and operate the function
This function changes a programme number of a
TV channel.
NAME:
This function registers a channel name (ID) to a TV
channel.
INSERT:
DELETE:
This function deletes a TV channel you do not want to
list.
NAME
1Press t
channel
Every time you press the buttons, the
programme number changes and the picture of the
TV channel stored in the programme number appears
on the screen.
2Press the red button to start the NAME function
3Press th e buttons
channel name you want to give the TV channel
/
PR LIST
N
INSERT
AME DELETE
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
/-
he and buttons to choose a TV
and
/
/
/
PR LIST
STORE
CANCEL
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
/
and
to edit the
PR LIST
STORE
CANCEL
01 -----
02 JVC
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
4 Press the red button to store the setting
PR LIST
NAME DELETE
INSERT
01 -----
02 JVC
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
Press th-e BACK button.
To return- to the INSTALL menu:
-
To exit
Press the MENU button.
a menu instantly:
mber
You can edit the programme numbers.
22
INSTALL
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
INSERT
2 Press the green button to start the INSERT
LT-26C31BUE(EK)_Eng.book Page 29 Tuesday, August 5, 2003 2:18 PM
/
he and buttons to choose a
/
1Press t
program number for which you want
and
/
Every time you press the buttons, the
programme number changes and the picture of the
TV channel stored in the programme number appears
on the screen.
/
PR LIST
NAME
INSERT
DELETE
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
function-
PR LIST
INSERT CANCEL
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
/
he and buttons to choose a new
/
3Press t
program number
PR LIST
INSERT CANCEL
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
4 Press the green button to insert the channel into
the new program number
PR LIST
NAME DELETE
INSERT
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
Press the BACK button.
To return to the INSTALL menu:
To exit
Press the MENU button.
a menu instantly:
23
INSTALL
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
DELETE
2 Press the yellow button to start DELETE
function
The TV channel is deleted from the programme numbers
list.
LT-26C31BUE(EK)_Eng.book Page 30 Tuesday, August 5, 2003 2:18 PM
PR LIST
NAME
INSERT
DELETE
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
/
he and buttons to choose a
/
1Press t
program number for which you want
and
/
Every time you press the buttons, the
programme number changes and the picture of the
TV channel stored in the programme number appears
on the screen.
/
PR LIST
CANCEL
DELETE
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
3 Press the yellow button to delete the selected
TV channel
Press the BACK button.
To return to the INSTALL menu:
To exit
Press the MENU button.
a menu instantly:
PR LIST
NAME
INSERT
DELETE
01 -----
02 -----
03 -----
04 -----
05 -----
06 -----
07 -----
08 -----
09 -----
10 -----
11 -----
12 -----
13 -----
14 -----
15 -----
16 -----
17 -----
18 -----
19 -----
20 -----
21 -----
22 -----
23 -----
24 -----
25 -----
26 -----
27 -----
28 -----
29 -----
30 -----
COLOUR SYSTEM in EXT mode
he buttons to choose the colour system
/
Press t
When you are in EXT mode, you can only change the
colour system in the INSTALL menu.
24
PC MENU (In PC mode only)
PC PICTURE POSITION
AUTO SETUP:
You can adjust picture settings automatically for optimized
H POSITION:
You can adjust picture horizontal position.
V POSITION:
You can adjust picture vertical position.
PC PICTURE
You can change the picture settings of each PICTURE
MODE mode as you like.
CONTRAST:
You can adjust the picture contrast.
:left
: right
WHITE BALANCE:
You can adjust the picture colour mode.
This TV also has a number of functions on PC mode,
you can operate using pc menus.
You can adjust the picture settings as following functions.
:down
: up
CLOCK:
PHASE:
RESET:
:lower
: higher
BRIGHT-2:
You can adjust the back light.
:darker
:lighter
You can select RESET mode for default setting.
RESET:
You can select RESET mode for default setting.
COOL:
A bluish white. Using this mode when watching bright
pictures allows you to enjoy a more vivid and bright picture.
NORMAL:
The normal white colour.
WARM:
A reddish white. Using this mode when watching films
allows you to enjoy colours that are characteristic of films.
MANUAL:
User defined.
:reddish
: redder
G:
You can adjust the Green color component
:greenish
:greener
R:
You can adjust the Red color component.
B:
You can adjust the Blue color component.
:blueish
:bluer
SOUND
You can adjust the sound to your liking.
BASS:
You can adjust the low tone of the sound.
: weaker
: strong
TREBLE:
You can adjust the high tone of the sound.
:weaker
: strong
BALANCE:
You can adjust the volume balance between the left and
right speaker.
:turn the left speaker’s volume level up.
: turn the right speaker’s volume level up.
HYPER SUOUND:
You can enjoy Surround sound with a “live” effect by using
ON: function is turned on.
OFF: function is turned off.
the HYPER SOUND functions.
HYPER SOUND
HYPER SOUND
You can adjust CLOCK to fine tune picture.
You can adjust PHASE to fine tune picture.
: SELECT
PC PICTURE POSITION
AUTO SETUP
H POSITION
V POSITION
CLOCK
PHASE
RESET
:MOVE
: SELECT
PC MENU
PC PICTURE POSITION
PC PICTURE
SOUND
OK : MOVE
1024 X 768
V : 60 Hz
H : 48 kHz
picture position, clock and phase.
: SELECT
PC PICTURE
CONTRAST
BRIGHT-2
WHITE BALANCE COOL
R
G
B
:MOVE
RESET
: SELECT
SOUND
BASS
TREBLE
BALANCE
HYPER SOUND OFF
:MOVE
25
NOTE: When WHITE BALANCE at COOL, NORMAL
and WARM, R,G,B and bars in Gray and can not move.
• The SOUND settings are common in the TV mode and
in the PC mode.
PC MENU
Mode NO. Mode Name
Resolution H Freq. (kHz)
V Freq. (Hz)
1
2
3
5
4
VGA 60 Hz
640x480
SVGA 56 Hz
800x600
SVGA 60 Hz
800x600
XGA 60 Hz
1024x768
WXGA
1280x768 47.73
60
48.363
60.004
37.879
60.317
35.16
56.25
31.469
59.941 The Auto SETUP functions will work automatically
when you change the resolution of PC mode. The
picture position, clock, and phase will be optimized.
The resolution and the freauencies which are
displayed on the screen may not exactly same as
this list.
26
Notice when using LCD-TV under PC mode:
1. Whenever your LCD-TV is connected to the PC,
or you have changed the PC display mode.
configure your display to the best settings.
2. You must perform auto setup before making
Please use Auto Setup to automatically
any adjustment.
LT-23S2
LT-17S2
PC support mode list
Mode NO. Mode Name
Resolution H Freq. (kHz)
V Freq. (Hz)
1
2
3
5
4
VGA 70 Hz
640x350
VGA 60 Hz
640x480
SVGA 56 Hz
800x600
SVGA 60 Hz
800x600
XGA 60Hz
1024x768 48.363
60.004
37.879
60.317
35.16
56.25
31.469
59.941
31.469
70.087
6
7
8
9
XGA 70Hz 56.476
1024x768 70.069
MAC VGA 35
640x480 66.667
US TEXT 31.469
720x400 70.087
WXGA 47.73
1280x768 60
DC IN
(12V)
PC IN
D-SUB
15 PIN
DC IN
(19V)
PC IN
D-SUB
15 PIN
S-VIDEO
VIDEO
L/MONO
R
Y
Pb/Cb
R
COMPONENT
VIDEO-1
PC
AUDIO
IN
AUDIO
OUT
R L
SUBWOOFER
OUT
VIDEO
L/MONO
R
Y
Pb/Cb
Pr/Cr
R
VIDEO-1
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
Additional preparation
Connecting external equipment
Connect the equipment to the TV, making the correct rear
panel and front panel connections.
Before connecting anything:
• Read the manuals that came with the equipment.
Depending on the equipment, the connection method
may be different from the diagram. Also, the equipment
settings may need to change depending on the
connection method.
• Turn off all the equipment including the TV.
• The “Specifications” on page 29 give the details of the
EXT terminals. If you are connecting equipment not
listed in the following connection diagram, see the table
to choose the best EXT terminal.
• Connecting cables are not supplied.
VCR (composite signal)
VCR (composite signal/S-VIDEO signal)
DVD player (composite signal/S-VIDEO signal)
DVD player (component
signal)
TV game
TV game (composite signal/S-VIDEO signal)
Headphones
Camcorder (composite signal/S-VIDEO signal)
Component cable
Video cable
S-VIDEO cable
D-SUB cable
LT-26C31BUE(EK)_Eng.book Page 33 Tuesday, August 5, 2003 2:18 PM
L
PC AUDIO IN SUBWOOFER
R
PC
Stereo mini jack
12
DC IN
(12V)
PC IN
D-SUB
15 PIN
(component
signal)
Audio cable
14
8
27
12
8
14
• If the VCR'saudio output is in mono, connect the VCR's
AUDIO OUT (audio output) terminal and TV's Audio
L/MONO input terminal with an audio cable.
• Progressive scanning singnals are not availavle.
S-VIDEO
VIDEO
VIDEO
AUDIO
COMPONENT
(VIDEO-2)
AUDIO
L/MONO
VIDEO
AUDIO
(VIDEO-2)
Pr/Cr
L/MONO
AUDIO
Additional preparation
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
Equipment which can output the S-VIDEO
signal (Y/C signal) such as an S-VHS VCR
Connect the equipment to an EXT terminal.
You can choose between an S-VIDEO signal (Y/C signal).
Connecting headphones
Connect the headphones with a stereo mini-jack (3.5 mm
diameter) to the headphone socket at the TV.
Connecting Speakers/Amplifier
See the Audio equipment connection diagram, then connect
the audio equipment you desire to the TV.
You can use external front speakers to listen to the TV
sound instead of the TV speakers.
Before connecting anything:
• Read the manuals provided with the amplifier and
speakers.
• Turn the TV and amplifier off.
• To prevent magnetism from the speakers adversely
affecting the TV screen, use magnetically-shielded
speakers for the front speakers.
• Note that connecting cables are not supplied.
• The output from the AUDIO OUT terminal is not
interrupted by headphone connection to the TV. You
cannot cut the sound from the front speaker even if you
connect a headphone to the TV.
• Adjust the volume of the external speakers with the
amplifier.
without terminal covers
1Amplifier
2External speakers (Magnetic-shielded type)
LT-26C31BUE(EK)_Eng.book Page 34 Tuesday, August 5, 2003 2:18 PM
• Connect the subwoofer which carried an amplifier.
• The subwoofer is interlocked with the TV volume.
Connecting the PC
Connect the PC with the D-SUB cable to the D-SUB in at
the TV, and connect the sound device of PC with a stereo
mini-jack to PC AUDIO IN.
You can adjust the picture by AUTO SETUP function when
the PC signal is output correctly, the AUTO SETUP function
can optimize the picture position, clock and phase. You can
have a fine vision after AUTO SETUP function executed.
L
R
PC
L
RSUBWOOFER
28
• You can not connect an amplifier and a Subwoofer
at the same time.
AUDIO
IN
AUDIO
OUT SUBWOOFER
OUT
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
Troubleshooting
If a problem arises while you are using the TV, please read this troubleshooting guide carefully before you ask to have the TV
repaired. You may be able to fix it easily by yourself. For example, if the mains plug is disconnected from the mains outlet, or the
TV aerial has problems, you may think there is a problem with the TV itself.
Important:
• This troubleshooting guide only covers problems whose causes are not easy to decide. If you have a question when you are
operating a function, read the page(s) for that function carefully, not this troubleshooting guide.
• If you follow the advice in this troubleshooting guide without any success, unplug the mains plug and ask for your TV to be
repaired. Do not attempt to repair the TV by yourself or to remove the rear cover of the TV.
If you cannot turn on the TV
• Are the AC plug on the power cord from the TV is
connected to AC outlet?
• Make sure to set the VCR/TV/DVD switch to the TV
position. You cannot turn the TV on when the VCR/TV/
DVD switch is set to the VCR or DVD position.
If you cannot turn off the TV
• Make sure to set the VCR/TV/DVD switch to the TV
position. You cannot turn the TV off when the VCR/TV/
DVD switch is set to the VCR or DVD position.
No picture or no sound
• Have you chosen a TV channel with very poor
reception? If so, the BLUE BACK function will be
activated: the entire screen becomes blue, and the sound
is muted. If you still want to view the TV channel,
follow the description “FEATURES” on page 20 to
change the BLUE BACK function setting to OFF.
• If the SOUND SYSTEM setting for a tTV channel is
incorrect, it may prevent the sound from being issued.
Follow the description “INSTALL” on page 21 to use the
MANUAL function to try to change the SOUND SYSTEM
setting.
Poor picture
• If noise (snow) totally blocks out the picture, there may
be a problem with the aerial or aerial cable. Check the
following to try to solve the problem:
–Have the TV and aerial been connected properly?
–Has the aerial cable been damaged?
–Is the aerial pointing in the right direction?
–Is the aerial itself faulty?
• If the TV or aerial suffers interference from other
equipment, stripes or noise may appear in the picture.
Move any equipment such as an amplifier, personal
computer, or a hair drier, that can cause interference
away from your TV. Or try moving the TV. If the aerial
suffers interference from a radio tower or high-voltage
wire, please contact your local dealer.
• If the TV suffers interference from signals reflecting
from mountains or buildings, double-pictures (ghosting)
will occur. Try to change the aerial’s direction or replace
it with one with better directionality.
• Have the COLOUR and BRIGHT settings been adjusted
properly? Follow the description “Picture Adjustment”
on page 18 to try to adjust them properly.
• Videotaping teletext is not recommended because it may
not record correctly.
• When viewing images from commercially available
video software products, or videos from videotapes
which have been recorded improperly, the top of the
image may be distorted. This is due to the condition of
the video signal. There is nothing wrong with the TV.
Poor sound
• Have you adjusted BASS or TREBLE properly? If not,
follow the description “Sound Adjustment” on page 19.
If the TV does not respond to the remote
control
• Have the batteries of the remote control worn out?
Follow the description “Putting the batteries into the
Remote control” on page 5 and replace them with new
batteries.
• Have you attempted to use the remote control from the
sides or rear of the TV or from more than seven metres
away from the TV? Use the remote control in the front of
your TV or from less than seven metres away.
• When you are viewing a teletext programme, you cannot
operate the menus. Press the button to return to the
ordinary TV programme, and then try operating the
menus.
• If the TV suddenly stops responding, disconnect the
power cord of the TV from the AC outlet.
Connect them to the AC outlet again to turn on the TV.
If the TV returns to a normal state, it is not a failure.
LT-26C31BUE(EK)_Eng.book Page 36 Tuesday, August 5, 2003 2:18 PM
29
Troubleshooting
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
Other concerns
• When the SLEEP TIMER function operates, the TV is
automatically turned off. If the TV suddenly turns off,
try to press the (standby) button to turn on the TV
once again. If the TV goes back to normal, there is no
problem.
• When the TV is receiving a wide-screen signal (WSS) or
a signal from an external device affecting the screen
size, the ZOOM mode automatically changes. When you
want to resume the previous ZOOM mode, press the
button again.
• It takes a short period of time from the time an operation
such as changing channels is performed until an image is
displayed. This is not a malfunction. This is the time
required for the image to stabilize before it can be
displayed.
• The TV may make a crackling sound due to a sudden
change in temperature. The picture or sound may be
normal. If you hear crackling sounds frequently while
you are viewing the TV, there may be other causes. As a
precaution, ask your service technician to inspect it.
• In the twin pictures mode the sub-picture may disappear
when the external device is operated. If this happens,
press the button and display the sub-picture again.
• The top of the TV and the screen may become hot during
use but this has no affect on the performance of the TV.
Ensure that the ventilation holes are not blocked.
• When the picture is unstable, the screen may become
white for a moment. This occurs when the signal which
drives the liquid crystal is missing. This is not a
malfunction.
• When a still image has been displayed for a long period,
a faint residual image may remain on the screen for a
short time after the power has been turned off or when
another image is displayed. This is not a malfunction and
the image will eventually disappear.
LT-26C31BUE(EK)_Eng.book Page 37 Tuesday, August 5, 2003 2:18 PM
ZOOM
• When the correct picture has not been displayed on screen,
the following error messages will display on screen.
NO SIGNAL - TV recived no signal from PC, you may
check your PC is working correctly or not.
CABLE NO INSERT - The cable is not connected correctly.
OUT OF RANGE - The picture resolution is out of limit.
Ensure that the cable is connected correctly.
Ensure that the PC picture resolution is set correctly.
30
LT-26C31BUE/SUE/BJE/SJE / LCT1484-001A-U / English (EK)
Specifications
Design and specifications subject to change without notice.
Pictures displayed on the screen using this TV’s ZOOM functions should not be shown for any commercial or demonstration purpose
in public places (cafes, hotels, etc.) without the consent of the owners of copyright of the original picture sources, as this constitutes an
infringement of copyright.
Model
Item LT-17S2 LT-23S2
Broadcasting systems CCIR B/G, I, D/K
Colour systems PAL, SECAM
• The EXT terminals also support the NTSC 3.58/4.43 MHz system.
Channels and frequencies • E2-E12, E21-E69, S1-S41, X, Y, Z, Z+1, Z+2, ITALY A-H, ITALY H+1, ITALY H+2, F2-F10, F21-F69, R1-R12,
R21-R69, IR A-J
• French cable TV channel of broadcast frequencies 116 - 172 MHz and 220 - 469 MHz
Sound-multiplex systems A2 (B/G, D/K), NICAM (B/G, I, D/K system
Teletext systems FLOF (Fastext),
WST (World Standard System)
Power requirements TV : 24V DC, AC adapter : 100 - 240 V AC, 50/60 Hz
Power consumption 60 W, Standby: 3 W
Screen size Viewable area 43.5cm (measured diagonally)
Display resolution 1280 x 768 (W-XGA)
Audio output
Rated Power output: 3 W + 3 W
Speakers 5.4 cm round x 2
AUDIO OUT terminal RCA connectors x 3
•
Headphone jack Stereo mini-jack (3.5 mm in diameter)
Dimensions (W x H x D)
Weight 6.1 kg (TV only)
Accessories Remote control unit x 1 (RM-C1860)
AA/R6 dry cell battery x 2
LT-26C31BUE(EK)_Eng.book Page 38 Tuesday, August 5, 2003 2:18 PM
TV : 12V DC, AC adapter : 100 - 240 V AC, 50/60 Hz
120W, Standby: 3 W
Rated Power output: 5 W + 5 W
Audio L/R outputs and a subwoofer output are available.
PC IN terminal
Analog RGB : D-SUB (15 pins) x 1, PC AUDIO IN x 1
•PC signal and audio inputs are available.
465 mm x 363 mm x 190 mm
465 mm x 325 mm x 78 mm (TV only) 619 mm x 498 mm x 227 mm
619 mm x 436 mm x 86 mm (TV only)
7.3 kg
7.8 kg (TV only)
9.8 kg
Power cord x 1
AC adapter x 1 (HP-OL060D033)
Viewable area 58.2cm(measured diagonally)
31
Remote control unit x 1 (RM-C1860)
AA/R6 dry cell battery x 2
Power cord x 1
AC adapter x 1 (HP-OW120A034)
VIDEO -1 terminal
• Video input, S-VIDEO (Y/C) input and Audio L/ MONO and R inputs are available.
VIDEO -2 terminal • Component Video(Y,Pb,Pr) input and Audio L/MONO and R inputs are available.
)
5
LT-26C31BUE/SUE/BJE/SJE / LCT1485-001A-U / All cover
Cover 4
0704-MK-TU
LCT1485-001A-U(7Lang)_Cover.fm Page 5 Tuesday, August 5, 2003 10:47 AM
© 2004 Victor Company of Japan, Limited

Navigation menu
