Jvc Lt 37X776 Users Manual 26X776, 32X776,

LCT1881-001A-A YA300ien

LT-37X776 to the manual 982a6984-16a4-6354-e91e-35cdec91fe13

2015-01-23

: Jvc Jvc-Lt-37X776-Users-Manual-323309 jvc-lt-37x776-users-manual-323309 jvc pdf

Open the PDF directly: View PDF .
Page Count: 88

Important Safety Precautions
Warnings
Table of Contents
Remote Programming
Onscreen Menus
Initial Setup
Picture Adjust
Sound Adjust
Clock/Timers
Button Functions
Digital Setup
Digital Button Functions
OSD Information
Cable Card Information
Troubleshooting

Important Note:

In the spaces below, enter the model and serial number of your television (located at the

rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this

guide. Keep this user’s guide in a convenient place for future reference. Keep the carton

and original packaging for future use.

LCT1881-001A-A

0405TNH-II-IM

Model Number:

Serial Number:

Illustration of LT-32X776 and RM-C14G

For Models:

LT-37X776

LT-32X776

LT-26X776

LCD Flat Television Users Guide

LCT1881-001A-A ENG 1 4/26/05, 9:39:43 AM

Important Safety Precautions

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS TV SET

TO RAIN OR MOISTURE.

CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES

REGARDING THE USE OF THIS UNIT.

1. Operate only from the power source specified on the unit.

2. Avoid damaging the AC plug and power cord.

3. Avoid Improper installation and never position the unit where good ventilation is unattainable.

4. Do not allow objects or liquid into the cabinet openings.

5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair

it yourself or remove the rear cover.

Changes or modifications not approved by JVC could void the warranty.

* When you don’t use this TV set for a long period of time, be sure to disconnect both the

power plug from the AC outlet and antenna for your safety.

* To prevent electric shock do not use this polarized plug with an extension cord, receptacle or

other outlet unless the blades can be fully inserted to prevent blade exposure.

CAUTION: To reduce the risk of electric shock. Do not

remove cover (or back). No user serviceable

parts inside. Refer servicing to qualified service

personnel.

The lightning flash with arrowhead symbol, within an

equilateral triangle is intended to alert the user to the

presence of uninsulated “dangerous voltage” within

the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

IMPORTANT RECYCLING INFORMATION

This product has a fluorescent lamp that contains a small amount of mercury. It also

contains lead in some components. Disposal of the materials may be regulated in your

community due to environmental considerations. For disposal or recycling information,

please contact your local authorities, or the Electronic Industries Alliance:

http://www.eiae.org

LCT1881-001A-A ENG 2 4/26/05, 9:39:45 AM

This product incorporates copyright protection technology that is protected by U.S. patents

and other intellectual property rights. Use of this copyright protection technology must

be authorized by Macrovision, and is intended for home and other limited viewing uses

only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is

prohibited.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's

instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and

a third grounding prong. The wide blade or the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

IMPORTANT SAFETY INSTRUCTIONS

LCT1881-001A-A ENG 3 4/26/05, 9:39:46 AM

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as

vases, shall be placed on the apparatus.

16) Avoid improper installation and never position the unit where good ventilation is impossible. When

installing this TV, distance recommendations must be maintained between the set and the wall,

as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance

guidelines shown for safe operation.

17) Cautions for installation

— Do not tilt the TV towards the left or right, or towards the back.

— Install the TV in a corner on the floor so as to keep cords out of the way.

— The TV will generate a slight amount of heat during operation. Ensure that sufficient space is

available around the TV to allow satisfactory cooling.

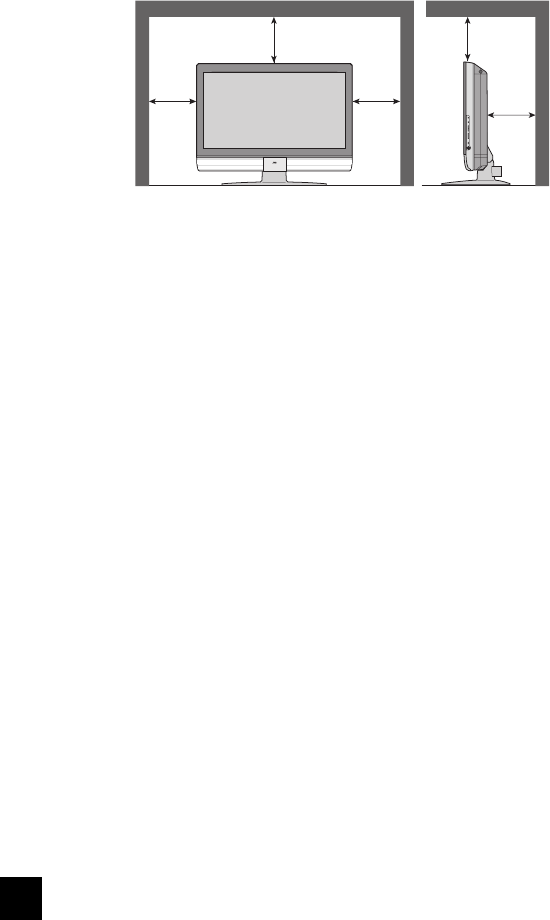

150 mm

200 mm

150 mm

200 mm

50 mm

LCT1881-001A-A ENG 4 4/26/05, 9:39:46 AM

Warnings

Displaying ﬁ xed images for extended periods of time can leave a subtle but temporary ghost

image on your screen. To avoid this, mix your viewing pattern.

Examples include, but are not limited to the following:

Caring for the Cabinet

Caring for the Screen

Avoiding Ghost Images

XYZ XYZ

TV on TV off

Normally, light dusting with a soft, non-scratching duster will keep your TV clean.

If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly

moistened with water. You can add a few drops of mild liquid detergent to the water to help

remove spots of oily dirt.

• DO NOT allow liquid to enter the TV through the ventilation slots.

• DO NOT use strong or abrasive cleaners on the TV.

• DO NOT spray liquids or cleaners directly on the TV’s surface.

• DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth.

For example...

The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a

soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner

and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth.

Do not apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen.

These will remove the coating layer and cause discolorations.

Do not push or hit the screen. This could cause scratches on the screen surface and image

distortions.

• Stock-market report bars

• Shopping channel logos and pricing

displays

• Video game patterns or scoreboards

• Bright station logos

• Internet web sites or other computer-style

images.

• DVD discs, video tapes, laser discs

• Broadcast, cable, satellite channels or

digital television tuners/converters.

LCT1881-001A-A ENG 5 4/26/05, 9:39:47 AM

Warnings (Continued...)

Your fingers may become trapped under

the TV, causing injuries. Hold the TV at the

bottom in the middle, and do not allow the TV

to tilt up or down.

The TV may fall causing injuries. Hold the

bottom of the stand with your hand and tilt

the TV up or down.

How to move the cabinet

LCT1881-001A-A ENG 6 4/26/05, 9:39:47 AM

Table of Contents

Unpacking your TV . . . . . . . . . . . . 9

TV Models . . . . . . . . . . . . . . . . 10

TV Remote Control . . . . . . . . . . . 11

Getting Started . . . . . . . . . . . . . 12

Using the Stand . . . . . . . . . . . . 12

The Remote Control . . . . . . . . . . 14

Connecting Your Devices . . . . . . . 15

Interactive Plug In Menu . . . . . . . . 25

Setting CATV, VCR and DVD Codes . . . 28

CATV or Satellite Codes . . . . . . . . 28

VCR Codes . . . . . . . . . . . . . . 29

DVD Codes . . . . . . . . . . . . . . 30

Search Codes . . . . . . . . . . . . . 31

Using the Guide . . . . . . . . . . . . . 32

Onscreen Menu System . . . . . . . . . 33

Auto Tuner Setup . . . . . . . . . . . . 35

Channel Summary . . . . . . . . . . . . 36

V-Chip . . . . . . . . . . . . . . . . . . 38

Set Lock Code . . . . . . . . . . . . . 44

Auto Demo . . . . . . . . . . . . . . . 45

Illumination . . . . . . . . . . . . . 45

Language . . . . . . . . . . . . . . . . 45

Closed Caption . . . . . . . . . . . . . 46

Auto Shut Off . . . . . . . . . . . . . . 48

XDS ID . . . . . . . . . . . . . . . . . 48

Noise Muting . . . . . . . . . . . . . . 49

Front Panel Lock . . . . . . . . . . . . 49

V1 Smart Input . . . . . . . . . . . 50

Video Input Label . . . . . . . . . . 50

Position Adjustment . . . . . . . . . . . 51

Power Indicator . . . . . . . . . . . . . 51

Video-1 Monitor Out . . . . . . . . . . 51

Digital-In . . . . . . . . . . . . . . . . . 52

Digital-In Audio . . . . . . . . . . . . . 52

Picture Settings . . . . . . . . . . . . . 53

Adjust Picture Settings . . . . . . . . . 53

Color Temperature . . . . . . . . . . . . 53

Digital Noise Clear . . . . . . . . . . . . 54

Color Management . . . . . . . . . . 54

Dynamic Gamma . . . . . . . . . . 54

Smart Picture . . . . . . . . . . . . . . 55

Reset . . . . . . . . . . . . . . . . . . 55

Sound Settings . . . . . . . . . . . . . 56

Adjust Sound Settings . . . . . . . . . 56

Reset . . . . . . . . . . . . . . . . 56

Set Clock . . . . . . . . . . . . . . . . 57

On/Off Timer . . . . . . . . . . . . . . . 58

Multi Screen Function . . . . . . . . . . 59

Index . . . . . . . . . . . . . . . . . . 59

Twin . . . . . . . . . . . . . . . . . 59

Freeze . . . . . . . . . . . . . . . . . . 60

Swap . . . . . . . . . . . . . . . . . 60

Select . . . . . . . . . . . . . . . . . . 60

Power . . . . . . . . . . . . . . . . . . 61

Number Buttons . . . . . . . . . . . . . 61

Tune . . . . . . . . . . . . . . . 61

Input . . . . . . . . . . . . . . . . . . . 61

TheaterPro D6500K . . . . . . . . . . . 61

Return+/TV . . . . . . . . . . . . . . . 62

Sound . . . . . . . . . . . . . . . . . . 62

Muting . . . . . . . . . . . . . . . . . . 63

Video Status . . . . . . . . . . . . . . . 63

Natural Cinema . . . . . . . . . . . . . . . 63

Sleep Timer . . . . . . . . . . . . . . . 64

ML/MTS . . . . . . . . . . . . . . . . . 64

Display . . . . . . . . . . . . . . . . . 65

C.C. . . . . . . . . . . . . . . . . . . . 65

Channel +/- . . . . . . . . . . . . . 65

Volume +/- . . . . . . . . . . . . . 65

Favorite . . . . . . . . . . . . . . . . . 66

Aspect . . . . . . . . . . . . . . . . . 67

Aspect Ratios . . . . . . . . . . . . . 68

Menu . . . . . . . . . . . . . . . . . . 68

OK . . . . . . . . . . . . . . . . . . . 68

Back . . . . . . . . . . . . . . . . . . . 68

TV/CATV Slide Switch . . . . . . . . . . 69

VCR/DVD Slide Switch . . . . . . . . . 69

VCR Buttons . . . . . . . . . . . . . . . 69

DVD Buttons . . . . . . . . . . . . . . . 69

Light . . . . . . . . . . . . . . . . . . . 69

Quick Setup . . . . . . . . . . . 9

Remote Programming . . . . . 28

Onscreen Menus . . . . . . . . 32

Button Functions . . . . . . . 59

Initial Setup . . . . . . . . . . 35

Clock Timers . . . . . . . . . . 57

Picture Adjust . . . . . . . . . 53

Sound Adjust . . . . . . . . . 56

Warnings . . . . . . . . . . . . 5

Important Safety Precautions . 2

LCT1881-001A-A ENG 7 4/26/05, 9:39:47 AM

Table of Contents

Digital Setup . . . . . . . . . . . . . 70

Antenna Level . . . . . . . . . . . . . 70

Digital Sound . . . . . . . . . . . . . 71

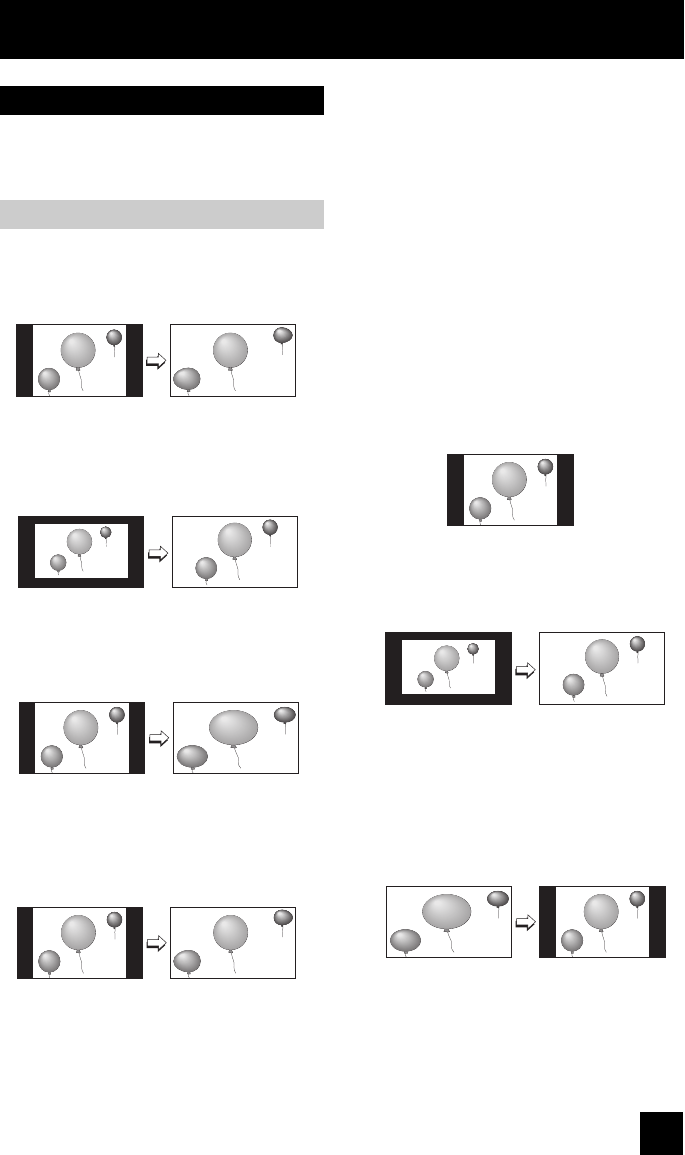

Aspect Ratio . . . . . . . . . . . . . 71

Cable Card Application . . . . . . . . . 72

i.LINK Auto Play . . . . . . . . . . . 72

Software Update . . . . . . . . . . . 72

Digital CH D/A (Digital/Analog) . . . . . 73

Sub Channel . . . . . . . . . . . . . 73

i.LINK Menu . . . . . . . . . . . . . . . 74

Controller . . . . . . . . . . . . . 74

Device . . . . . . . . . . . . . . 75

Timer . . . . . . . . . . . . . . . 76

Reservation . . . . . . . . . . . . . . 76

Timer Edit . . . . . . . . . . . . . . 77

Guide . . . . . . . . . . . . . . . 78

Weak Signal . . . . . . . . . . . . . 79

No Program . . . . . . . . . . . . . 79

Cable Card Connection . . . . . . . . 80

Troubleshooting . . . . . . . . . . . . . 81

Warranty . . . . . . . . . . . . . . 83

Specifications . . . . . . . . . . . . . 85

Notes . . . . . . . . . . . . . . . . . 86

Digital Button Functions . . . 73

Cable Card Information . . . . 80

Digital Setup . . . . . . . . . 70

Appendices . . . . . . . . . . 81

OSD Information . . . . . . 79

LCT1881-001A-A ENG 8 4/26/05, 9:39:48 AM

2-WAY SPLITTER

Two Way Splitter x 1

RF Cable × 2

Two AA

Batteries

1 Television 1 Remote Control

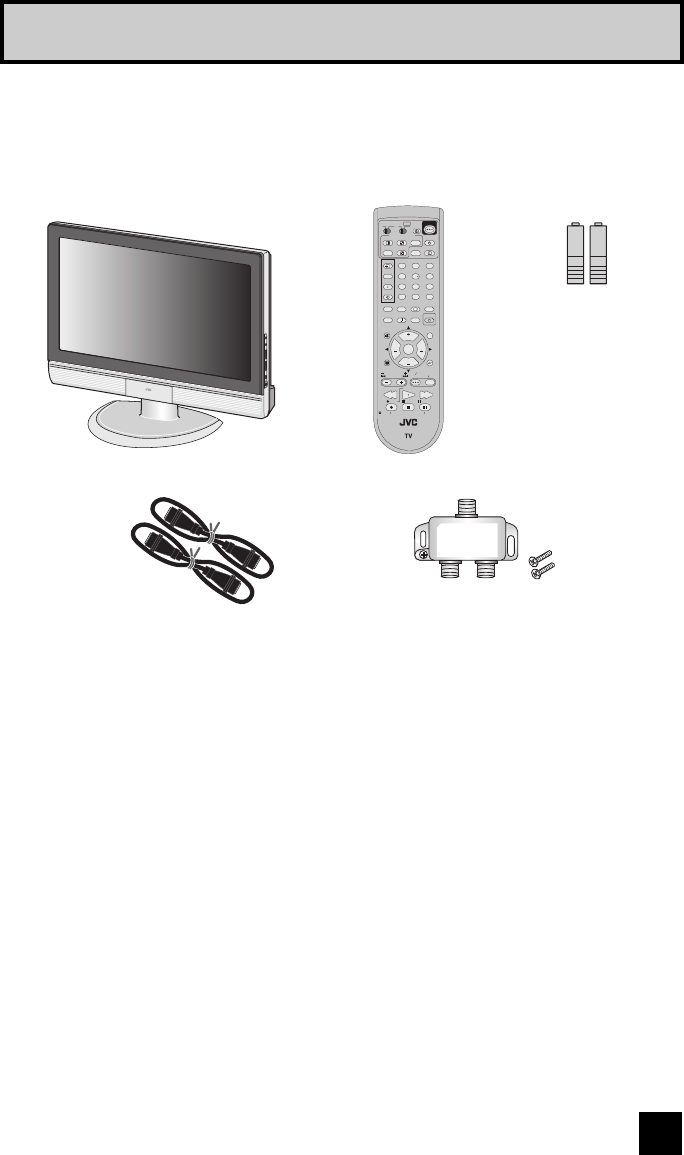

Quick Setup Unpacking your TV

Thank you for your purchase of a JVC LCD Flat Television. Before you begin setting up your

new television, please check to make sure you have all of the following items. In addition to

this guide, your television box should include:

INPUT

INDEX

ASPECT

FREEZE SWAP

SELECT

RETURN+

FAVORITE

THEATER

PRO

NATURAL

CINEMA

VIDEO

STATUS

TIMER

i.LINK MENU

SOUND

LIGHT

CATV VCR DVD

MUTING

MENU BACK

GUIDE

RM-C14G

REW

VCR CHANNEL

PREV NEXT VCR DVD

POWER TV VCR

FFPLAY

REC PAUSE

OPEN CLOSE STILL PAUSE

STOP

VOL VOL

MULTI SCREEN

TWIN

D/A

123

456

789

TUNE

POWER

C.C.

SUB

CHANNEL

SUB

ML/MTS

SLEEP

DISPLAY

AA Alkaline

Note: Your television

and/or remote

control may differ

from the examples

illustrated here.

LCT1881-001A-A ENG 9 4/26/05, 9:39:48 AM

INPUT 3 INPUT 2 INPUT 1

INPUT 1 COMPONENT

DIGITAL IN AUDIO

AUDIO OUT

DIGITAL-IN

S-VIDEO VIDEO

R - AUDIO - L

S-VIDEO VIDEO

R - AUDIO - L

Pr Pb

VIDEO

R - AUDIO - L

R L

S-VIDEO VIDEO

R - AUDIO - L

S-VIDEOVIDEO

R - AUDIO - L

VIDEO

R - AUDIO - L

Pr Pb

R - AUDIO - L

75Ω

(VHF/UHF)

S-VIDEOVIDEO

R - AUDIO - L

MONITOR / REC OUT

S-VIDEO VIDEO

R - AUDIO - L

OVER

ATSC

/ DIGITAL CABLE IN

i.LINK IN/OUT

S400(TS)

OPTICAL OUT

Digital Audio

DIGITAL-IN

75Ω

(VHF/UHF)

ATSC

/ DIGITAL CABLE IN

i.LINK IN/OUT

S400(TS)

OPTICAL OUT

Digital Audio

CABLE CARD

Quick Setup TV Models

NOTE: Before you connect your television to another device, please refer to the proper

diagrams for your specific TV and remote. These will help assist you in understanding

how to connect your television to another device, as well as use the remote to set up

your television.

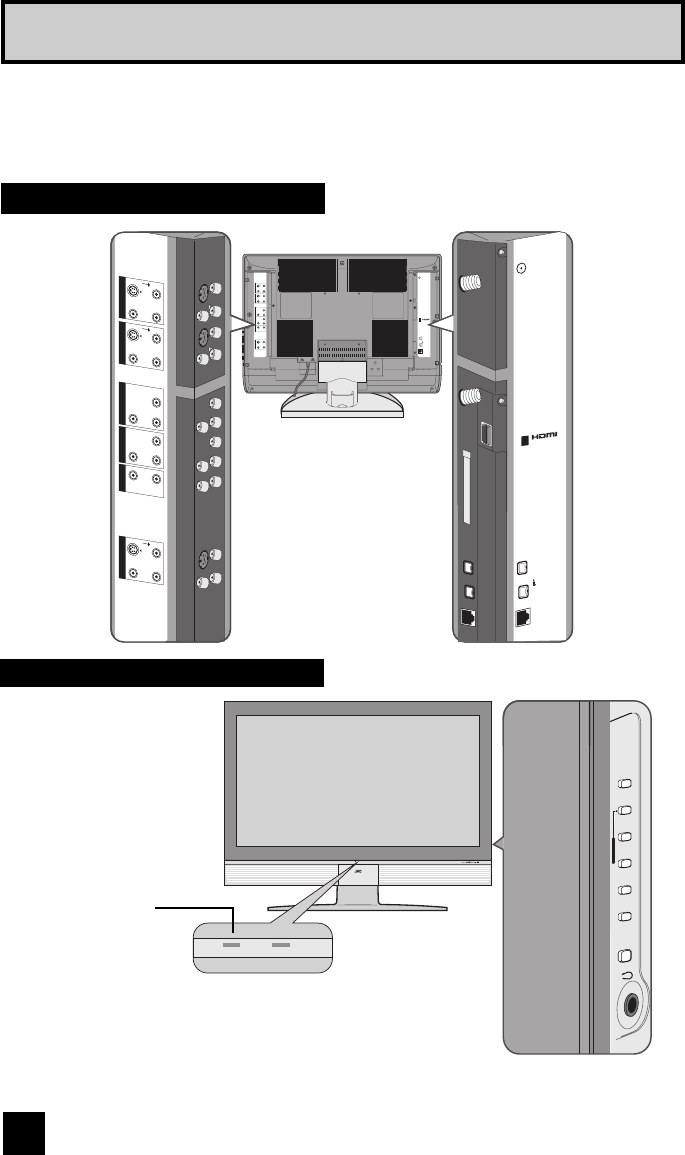

Rear Panel Diagram

Side Panel Diagram

INPUT MENU/OK POWER< CHANNEL > + VOLUME -

OPERATE

POWER PROGRAM/TIMER

Illumination Lamp

(Page 45)

LCT1881-001A-A ENG 10 4/26/05, 9:39:49 AM

INPUT

INDEX

ASPECT

FREEZE SWAP

SELECT

RETURN+

FAVORITE

THEATER

PRO

NATURAL

CINEMA

VIDEO

STATUS

TIMER

i.LINK MENU

SOUND

LIGHT

CATV VCR DVD

MUTING

MENU BACK

GUIDE

RM-C14G

REW

VCR CHANNEL

PREV NEXT VCR DVD

POWER TV VCR

FFPLAY

REC PAUSE

OPEN CLOSE STILL PAUSE

STOP

VOL VOL

MULTI SCREEN

TWIN

D/A

123

456

789

TUNE

POWER

C.C.

SUB

CHANNEL

SUB

ML/MTS

SLEEP

DISPLAY

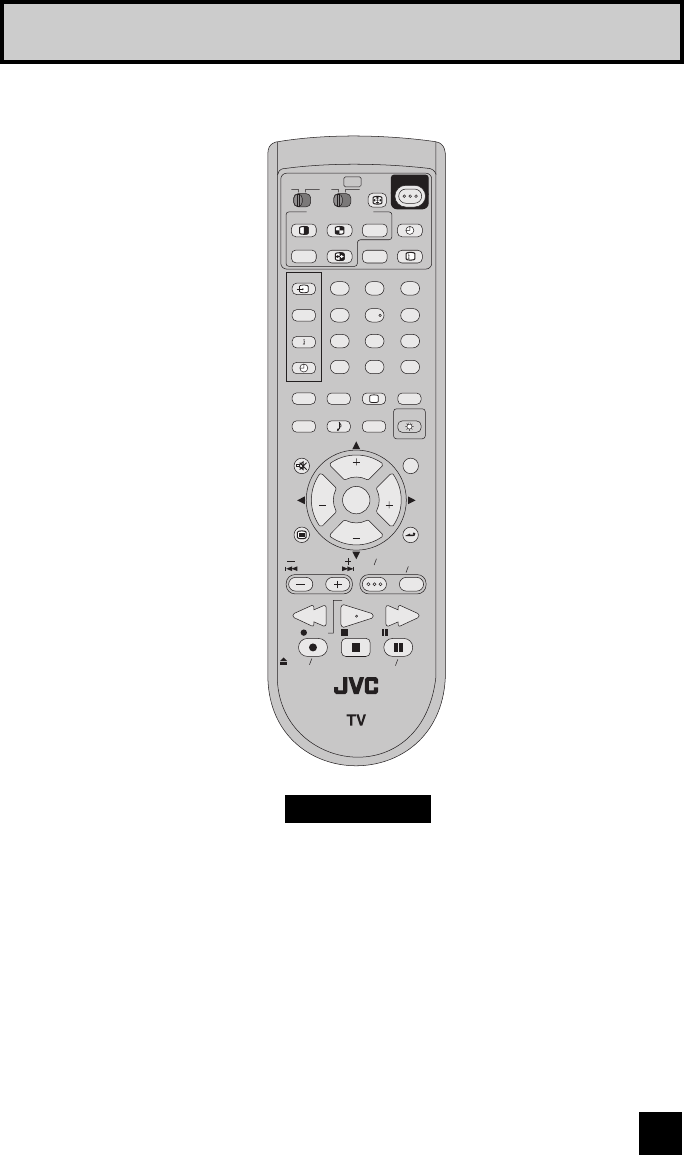

Quick Setup TV Remote Control

RM-C14G

Notes:

• For information on remote control buttons, see pages 59 - 69 and 73 - 78.

• i.LINK MENU, TIMER, SUB CHANNEL, FAVORITE and GUIDE buttons are for digital

channels. If your TV is connected to an ATSC antenna or Digital Cable, you can use these

buttons.

LCT1881-001A-A ENG 11 4/26/05, 9:39:49 AM

These quick setup pages will provide you, in four easy steps, with the basic information you

need to begin using your new television right away.

If you have questions, or for more detailed information on any of these steps, please consult

other sections of this manual.

Quick Setup Getting Started

Getting Started

This TV comes with a Table Top Stand already attached.

This stand can be used to adjust the direction of the TV screen 5° up, 10° down and 20° to the

left or right.

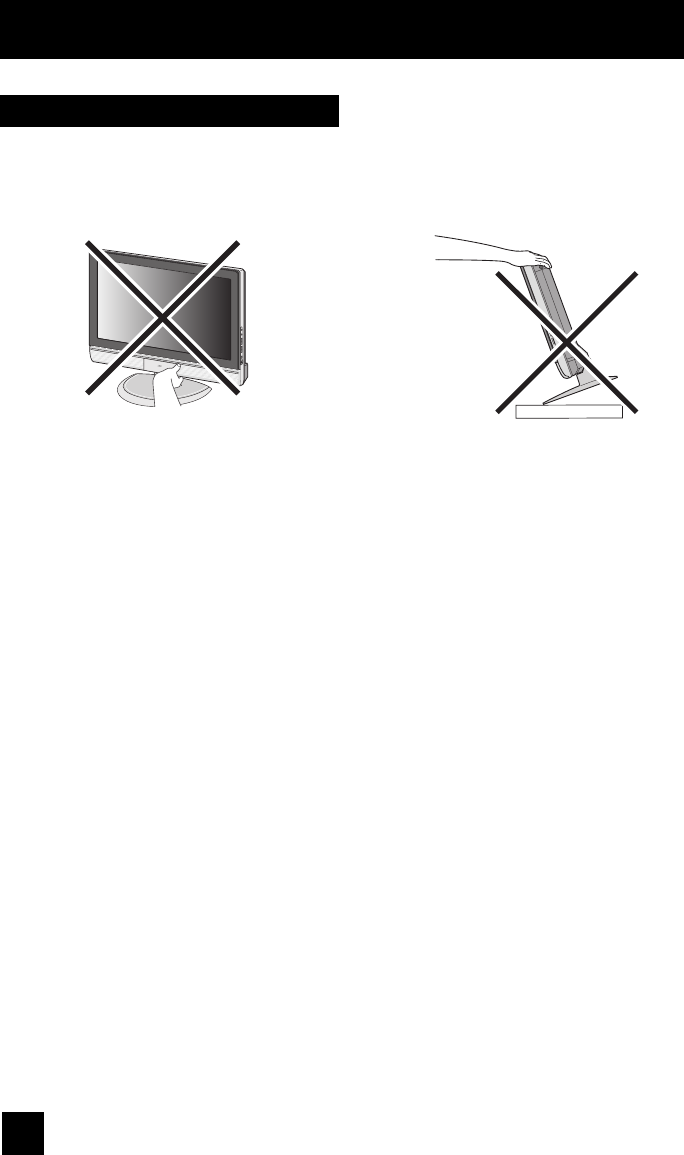

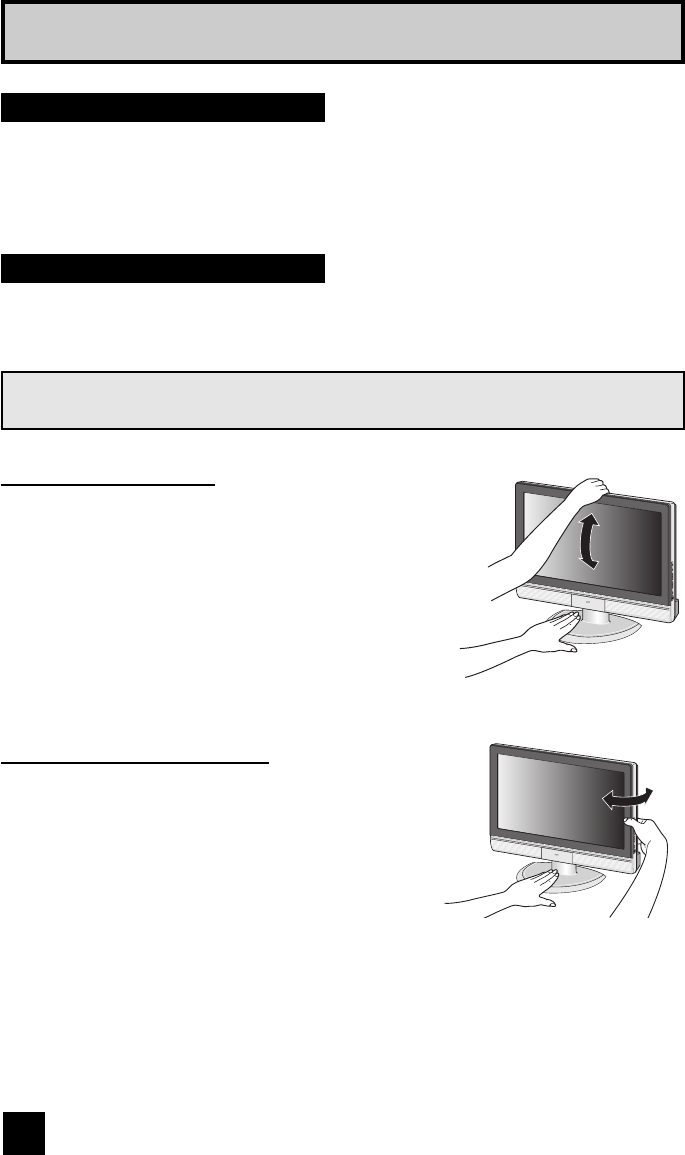

Step 1 - Using the stand

Tilt the TV up or down

While holding the bottom of the stand with one hand,

use your other hand to hold the middle of the top of the

TV, and slowly tilt the TV up or down.

• As a safety measure, the stand is constructed so that

it requires a certain amount of force to tilt the TV.

Rotate the TV left or right

While holding the bottom of the stand with one hand,

use your other hand to hold the edge of the panel

and slowly adjust the direction of the TV stand.

These illustrations are for LT-26X776 and LT-32X776. The stand for the LT-37X776 is

different. You can only adjust the direction of the TV screen 20º to the left or right.

LCT1881-001A-A ENG 12 4/26/05, 9:39:49 AM

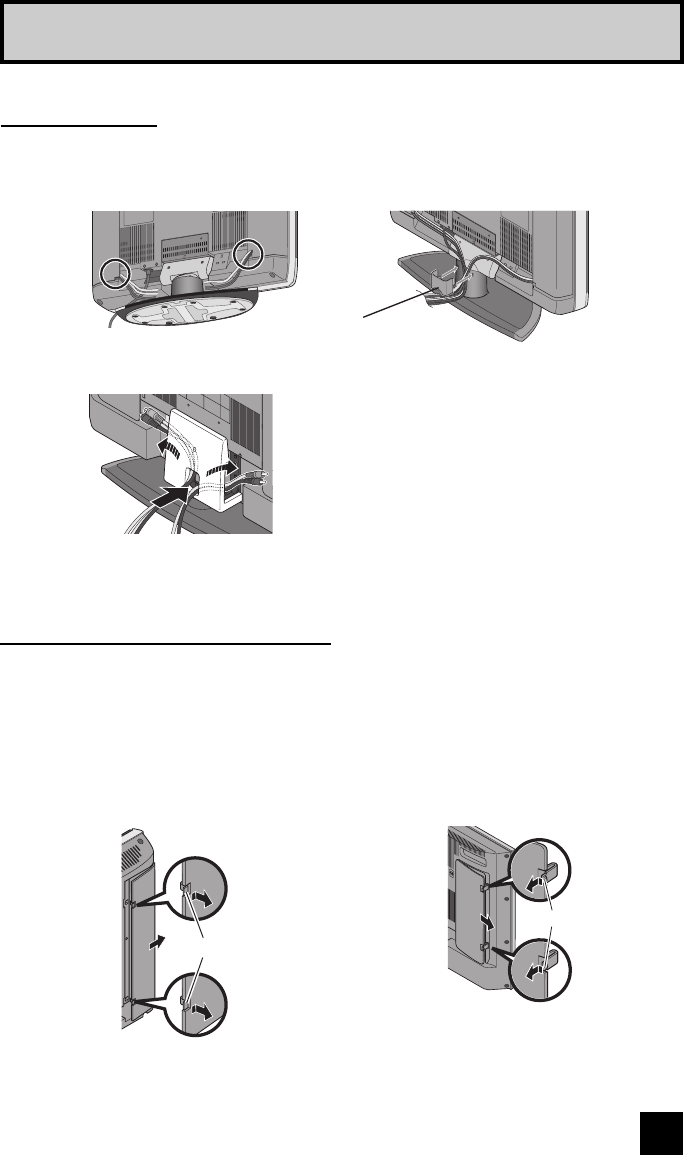

Quick Setup Getting Started

Remove the terminal cover

There are connection terminals behind the covers on the left and right in the back of the TV.

Remove these two covers before connecting an antenna or other devices. The covers can

be removed by removing the hooks. When replacing the covers, place the side of the covers

against the TV and insert the hooks.

Note:

• Leave the terminal covers off if they do not fit properly. Do not force to replace the covers.

Doing so may damage the connection cables and covers.

Cable Holder

A cable holder which keeps your connection cables tidy is attached on the back of the stand.

Gently squeeze the left and right of the cable holder, and pull it to remove it from the stand.

After putting the cables in the cable holder, attach it to the back of the stand again.

Cable Holder

Illustration of LT-32X776 and LT-26X776

Illustration of LT-37X776

Illustration of LT-32X776 and LT-26X776 Illustration of LT-37X776

LCT1881-001A-A ENG 13 4/26/05, 9:39:50 AM

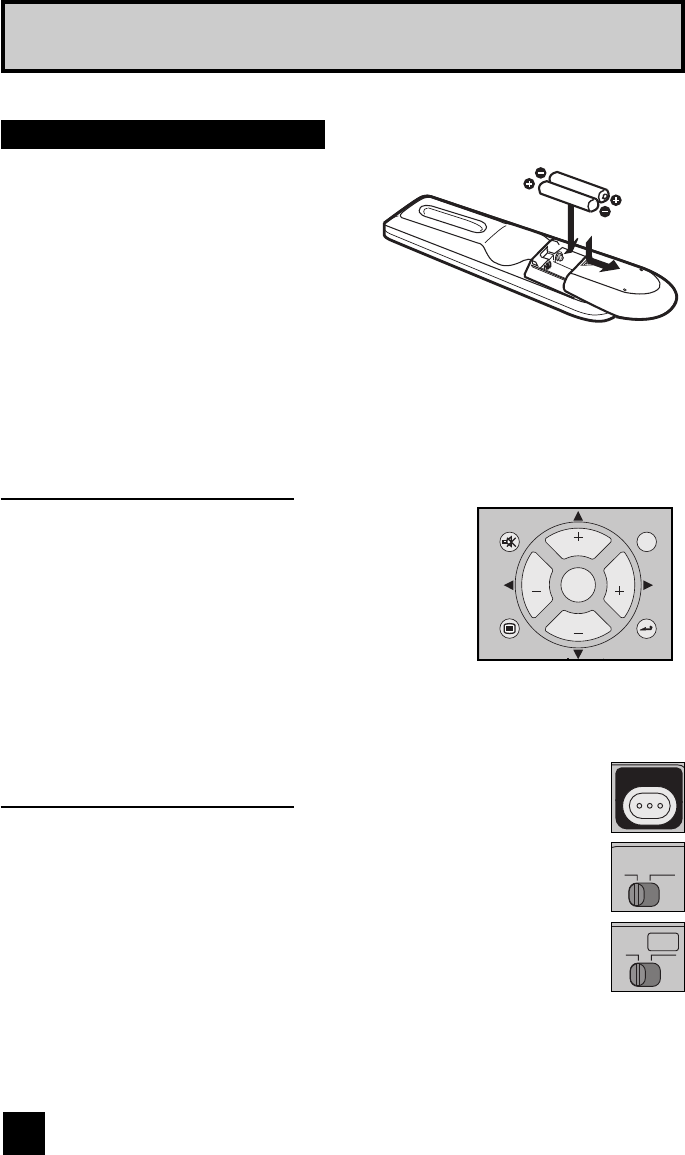

Before you can operate your remote control, you

first need to install the batteries (included).

Slide the cover on the back of the remote down

towards the bottom of the remote control. Insert

two batteries (included) carefully noting the “+”

and “–” markings, placing the “–” end in the unit

first. Slide the cover back into place.

When you change the batteries, try to

complete the task within three minutes. If you

take longer than three minutes, the remote

control codes for your VCR, DVD, and/or

cable box/satellite receiver may have to be

reset. See pages 28 - 31.

Step 2 – The Remote Control

Key Feature Buttons

The four key feature buttons at the center of the remote can be

used for basic operation of the television. The top and bottom

buttons will scan forward and back through the available

channels. To move rapidly through the channels using

JVC’s Hyperscan feature, press and hold CH+ or CH –. The

channels will zip by at a rate of five channels per second. The

right and left buttons will turn the volume up or down. These

buttons are also marked with four arrows and are used with

JVC’s onscreen menu system. To use the onscreen menus,

press the MENU button.

MUTING

MENU BACK

GUIDE

VCR CHANNEL VCR DVD

VOL VOL

Basic Operation

Turn the television on and off by pressing the POWER button at the top right corner

of the remote. If this is the first time you are turning on the TV, the interactive

plug-in menu appears.

• Make sure the TV/CATV switch is set to TV. Move the switch to CATV only if

you need to operate a cable box.

• Slide the VCR/DVD selector switch to VCR to control a VCR. Slide to

DVD to control a DVD player. Please see pages 28 to 31 for instructions on

programming your remote control to operate a cable box, VCR or DVD player.

POWER

CATV

MUL

VCR DVD

LTI SCREEN

Quick Setup Getting Started

LCT1881-001A-A ENG 14 4/26/05, 9:39:50 AM

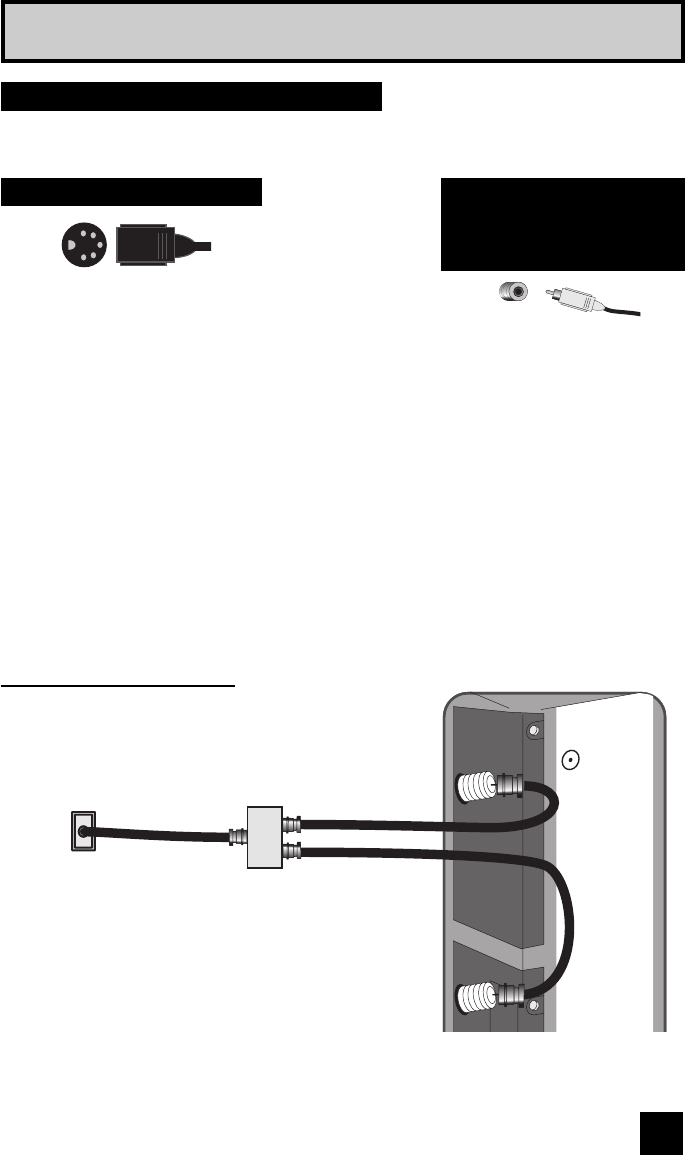

Step 3 - Connecting your devices

Quick Setup Connections

Used to make video

connections with S-Video

VCRs, Camcorders and DVD

players.

S-Video Cable

Used to connect audio/video

devices like VCRs, DVD players,

stereo amplifiers, game consoles,

etc.

Component Cables

Composite Cables

Audio Cables

To make these connections, you will use plugs like the ones illustrated below.

Notes:

• These connections are examples.

• After you are finished connecting your devices, plug the power cord into the nearest power

outlet and turn on the TV.

• If you follow these diagrams and the television does not work properly, contact your local

cable operator.

• To connect a DVD player, see VCR Connection. A DVD player is optional

• If you have a satellite television system, refer to the satellite TV manual.

DIGITAL-IN

75Ω

(VHF/UHF)

ATS C

/ DIGITAL CABLE IN

TV Rear Panel

Cable or Antenna

Output Coaxial Cable

(Attachment)

Two-way Splitter

(Attachment)

OUT OUT

No VCR Connection

LCT1881-001A-A ENG 15 4/26/05, 9:39:50 AM

Quick Setup Connections

Notes:

• Green, blue and red are the most common colors for DVD cables. Some models may vary

colors. Please consult the user’s manual for your DVD player for more information.

• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete

one set of connections (DVD or audio output) before starting the other to avoid accidentally

switching the cables.

• You may also connect the DVD player to Input 1.

DIGITAL-IN

75Ω

(VHF/UHF)

ATS C

/ DIGITAL CABLE IN

i.LINK IN/OUT

S400(TS)

CABLE CARD

TV Rear Panel

INPUT 3 INPUT 2 INPUT 1

INPUT 1 COMPONENT

DIGITAL IN AUDIO

AUDIO OUT

S-VIDEO VIDEO

R - AUDIO - L

S-VIDEO VIDEO

R - AUDIO - L

Pr Pb

VIDEO

R - AUDIO - L

R L

OUT

V L R

Cable or Antenna

Output

Two-Way Splitter

(Attachment)

Coaxial Cable

(Attachment)

VCR

OUT OUT

Green

Blue

Red

DVD Player (OPTIONAL)

OUT

AUDIO OUT

R L

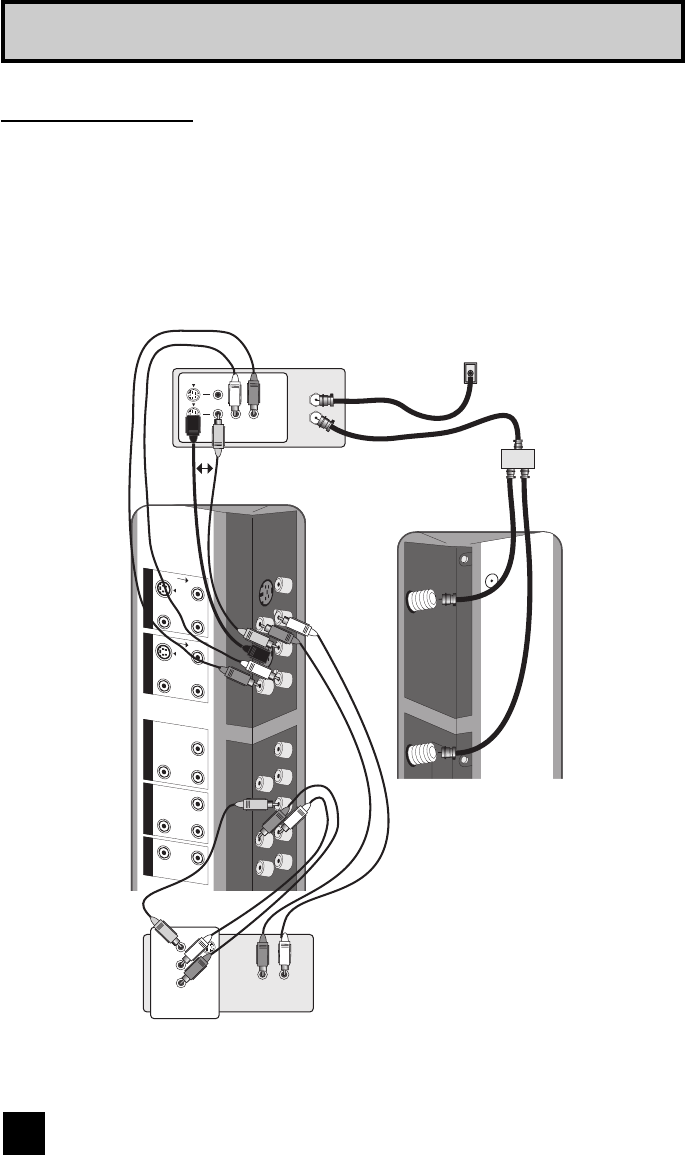

VCR Connection

Note:

• If this connection setup does not work for you, try the connection setup on page 17.

Diagram #1

LCT1881-001A-A ENG 16 4/26/05, 9:39:51 AM

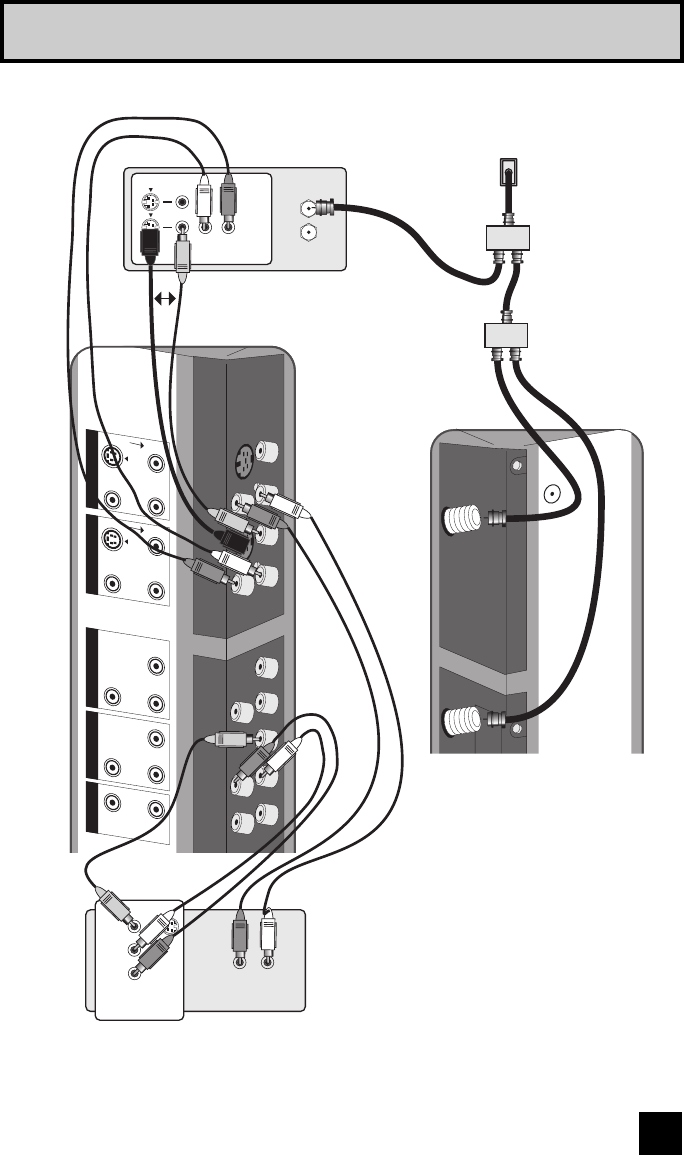

Quick Setup Connections

Diagram #2

DIGITAL-IN

75Ω

(VHF/UHF)

ATS C

/ DIGITAL CABLE IN

CABLE CARD

TV Rear Panel

INPUT 3 INPUT 2 INPUT 1

INPUT 1 COMPONENT

DIGITAL IN AUDIO

AUDIO OUT

S-VIDEO VIDEO

R - AUDIO - L

S-VIDEO VIDEO

R - AUDIO - L

Pr Pb

VIDEO

R - AUDIO - L

R L

OUT

V L R

OUT

AUDIO OUT

R L

Two-Way Splitter

Cable or Antenna

Output

Two-Way Splitter

(Attachment)

Coaxial Cable

(Attachment)

VCR

Green

Blue

Red DVD Player (OPTIONAL)

OUT OUT

LCT1881-001A-A ENG 17 4/26/05, 9:39:51 AM

Quick Setup Connections

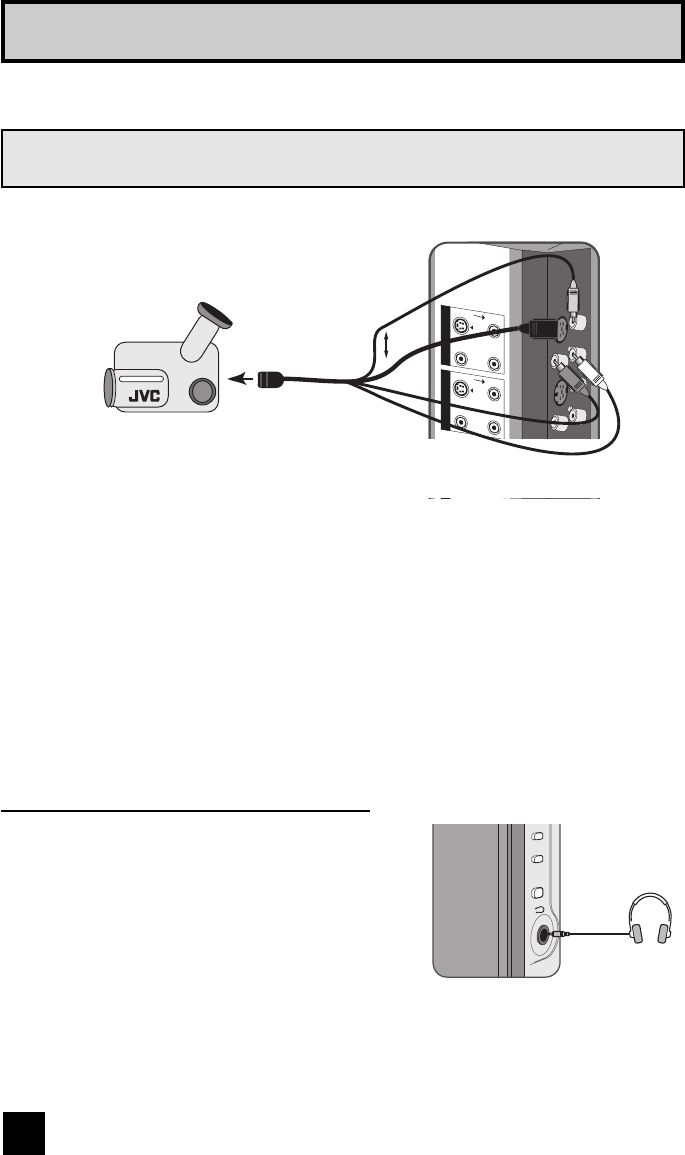

1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on

the back of the TV, OR connect an S-Video cable from the camcorder to the back of the TV.

2) Connect a white cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on

the back of the TV.

3) Connect a red cable from the camcorder RIGHT AUDIO OUT, into the RIGHT AUDIO IN on

the back of the TV.

Note:

• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the

LEFT AUDIO IN on the back of the TV.

You can connect a camcorder to you televison by using the input jacks located on the back of

the television.

INPUT 3 INPUT 2 INPUT 1

S-VIDEO VIDEO

R - AUDIO - L

S-VIDEO VIDEO

R - AUDIO - L

VIDEO

R-AUD

CAMCORDER

TV Rear Panel

Connecting to a Camcorder

Headphone Connection

You can connect a pair of headphones to the television

using the headphone jack located on the side of the

television.

1) Plug a headphone jack into the headphone jack on

the television’s side panel.

POWER+ VOLUME -

TV Side Panel

LCT1881-001A-A ENG 18 4/26/05, 9:39:51 AM

Quick Setup Connections

AUDIO OUT

R L

MONITOR / REC OUT

S-VIDEO VIDEO

R - AUDIO - L

OVER

TV Rear Panel

Speake

Speaker

Amplifier

1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the

LEFT AUDIO INPUT on the amplifier.

2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the

RIGHT AUDIO INPUT on the amplifier.

Notes:

• Refer to your amplifier’s manual for more information.

• You can use AUDIO OUTPUT for your home theater system.

• DVI analog sound can not be outputted.

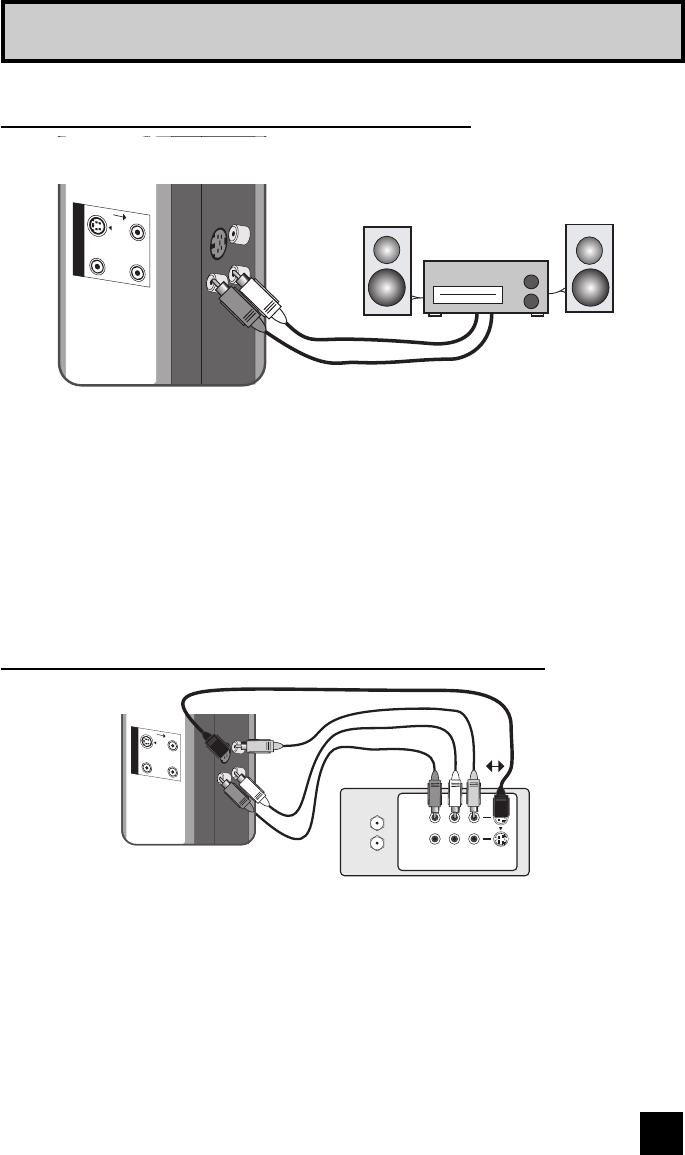

Connecting to an External Amplifier

Connecting to Monitor/Recording Output Terminal

Notes:

• When you make this connection, set the Video-1 Monitor Out menu to ON. See page 51.

• If you are receiving ATSC/Digital Cable signal, it can be outputted to the S-Video output

terminal or Video (composite video) terminal.

• If you are receiving Analog TV signal, it can not be outputted to the S-Video output terminal.

• No signal will be outputted through the S-Video output terminal when you are not viewing

images coming from the composite video input terminal.

• No signal will be outputted through the Monitor/Recording output terminal when you are

viewing images from the component video input.

VCR

TV Rear Panel

OUT

R L V

OUT

AUDIO OUT

R L

MONITOR / REC OUT

S-VIDEO VIDEO

R - AUDIO - L

OVER

LCT1881-001A-A ENG 19 4/26/05, 9:39:52 AM

Quick Setup Connections

By connecting your AV Receiver to your television's V1 Smart Input, you can watch picture

sources from many different devices, without having to change or use the other input

connections on your TV. This allows you to free up the other input connections so you can

connect more devices to your television.

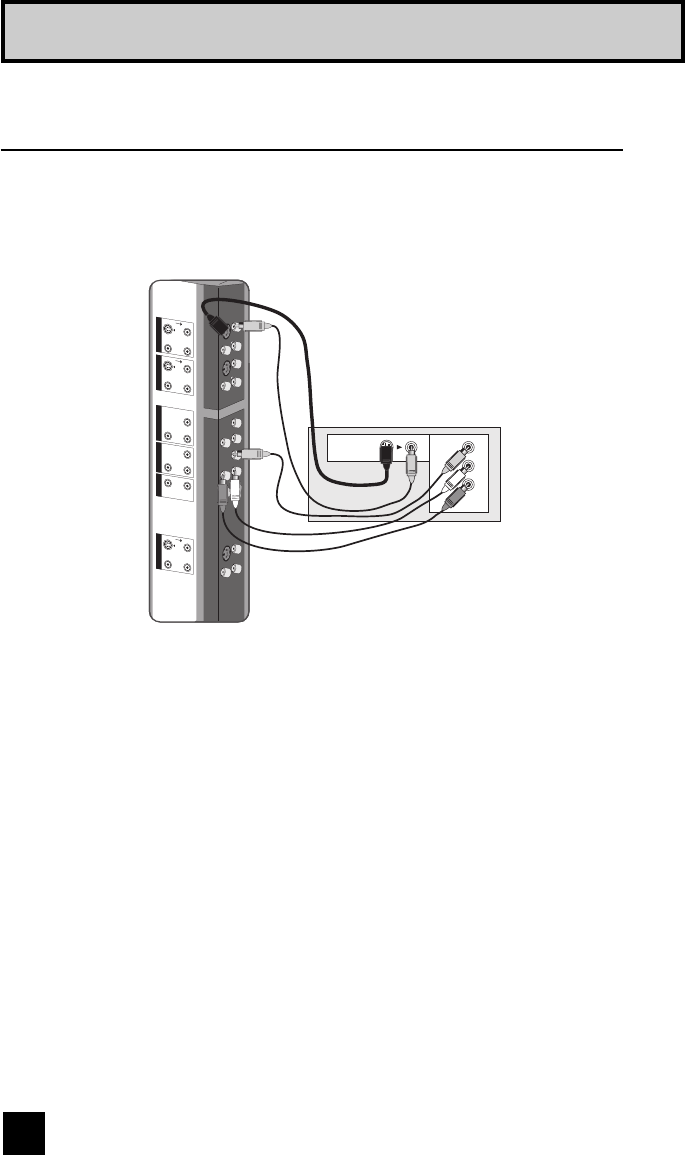

Connecting to an AV Receiver using your television's

V1 Smart Input

INPUT 3 INPUT 2 INPUT 1

INPUT 1 COMPONENT

DIGITAL IN AUDIO

AUDIO OUT

S-VIDEO VIDEO

R - AUDIO - L

S-VIDEO VIDEO

R - AUDIO - L

Pr Pb

VIDEO

R - AUDIO - L

R L

MONITOR / REC OUT

S-VIDEO VIDEO

R - AUDIO - L

OVER

TV Rear Panel

AV Receive

MONITOR

OUT

MONITOR OUT

1) Connect an S-Video Cable from the AV Receiver's MONITOR OUT, to the S-Video INPUT-1

on the back of your television.

2) Connect a Yellow Composite Cable from the AV Receiver's MONITOR OUT, into the VIDEO

INPUT-1 on the back of your television.

3) Connect a Green Component Cable from the AV Receiver's Y MONITOR OUT, into the Y

VIDEO INPUT-1 on the back of your television.

4) Connect a Blue Component Cable from the AV Receiver's PB MONITOR OUT, into the Pb

VIDEO INPUT-1 on the back of your television.

5) Connect a Red Component Cable from the AV Receiver's PR MONITOR OUT, into the Pr

VIDEO INPUT-1 on the back of your television.

Notes:

• Please refer to your AV Receiver instruction manual for more information on connecting your

speakers and other devices like a DVD player.

• Use your AV Receiver's remote to switch to the different devices you have connected.

• Some AV Receivers may not respond when the V1 Smart Input function is turned on.

• If you have video connections for each input device connected to your AV Receiver, you

should not connect them using both S-Video and Composite connection at the same time

when you are using V1 Input as the V1 Smart Input. In this case we recommend using the

S-Video connection.

LCT1881-001A-A ENG 20 4/26/05, 9:39:52 AM

Quick Setup Connections

By connecting a Digital TV Receiver, high definition pictures can be displayed on your TV in

their digital form.

DIGITAL-IN

ATS C

/ DIGITAL CABLE IN

CABLE CARD

TV Rear Panel

INPUT 3 INPUT 2

INPUT 1 COMPONENT

DIGITAL IN AUDIO

AUDIO OUT

R - AUDIO - L

Pr Pb

VIDEO

R - AUDIO - L

R L

DTV Decoder

AUDIO OUTDIGITAL OUT

HDMI to DVI Cable

After the connections have been made,

tighten the screw to secure the cables.

TV Rear Panel

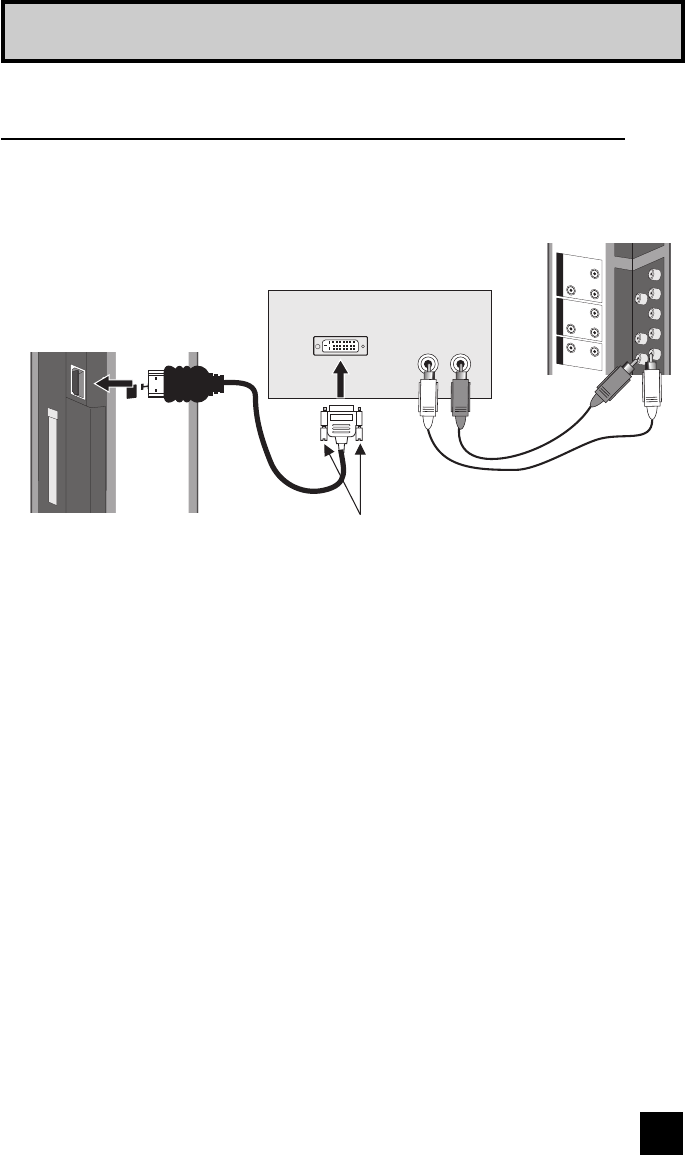

Connecting to a Digital TV Receiver

1) Connect the HDMI to DVI Cable from the DIGITAL OUT on the back of your DTV decoder, to

the DIGITAL-IN on the back of your television.

2) Connect a red cable from the DTV decoder RIGHT AUDIO OUT, to the RIGHT AUDIO

DIGITAL-IN on the back of your television.

3) Connect a white cable from the DTV decoder LEFT AUDIO OUT, to the LEFT AUDIO

DIGITAL-IN on the back of your television.

• The digital-in terminal is not compatible with the picture signal of a personal computer.

• Use a HDMI to DVI cable (commercially available) in order to digitally connect the television

with a DTV decoder.

Notes:

• If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance

may be slightly shifted. Access the “DIGITAL-IN” in the initial setup menu to adjust it. (Refer

to page 52.)

• When you do the above connection, set DIGITAL-IN AUDIO in the Initial Setup menu to

ANALOG. See "DIGITAL-IN AUDIO", page 52.

LCT1881-001A-A ENG 21 4/26/05, 9:39:52 AM

Quick Setup Connections

By connecting a HDMI compatible device, high definition pictures can be displayed on your

TV in their digital form. Some HDMI devices can include DVD players, D-VHS or any HDMI

compatible device.

HDMI (High Definition Multimedia Interface) is the first industry supported, uncompressed, all

digital audio/video interface. HDMI provides and interface between any audio/video source,

such as a set-top box, DVD player, A/V receiver or an audio and/or video monitor, such as a

digital television (DTV).

DIGITAL-IN

ATS C

/ DIGITAL CABLE IN

CABLE CARD

TV Rear Panel

HDMI Compatible Device

HDMI Cable

AUDIO OUT

DIGITAL OUT

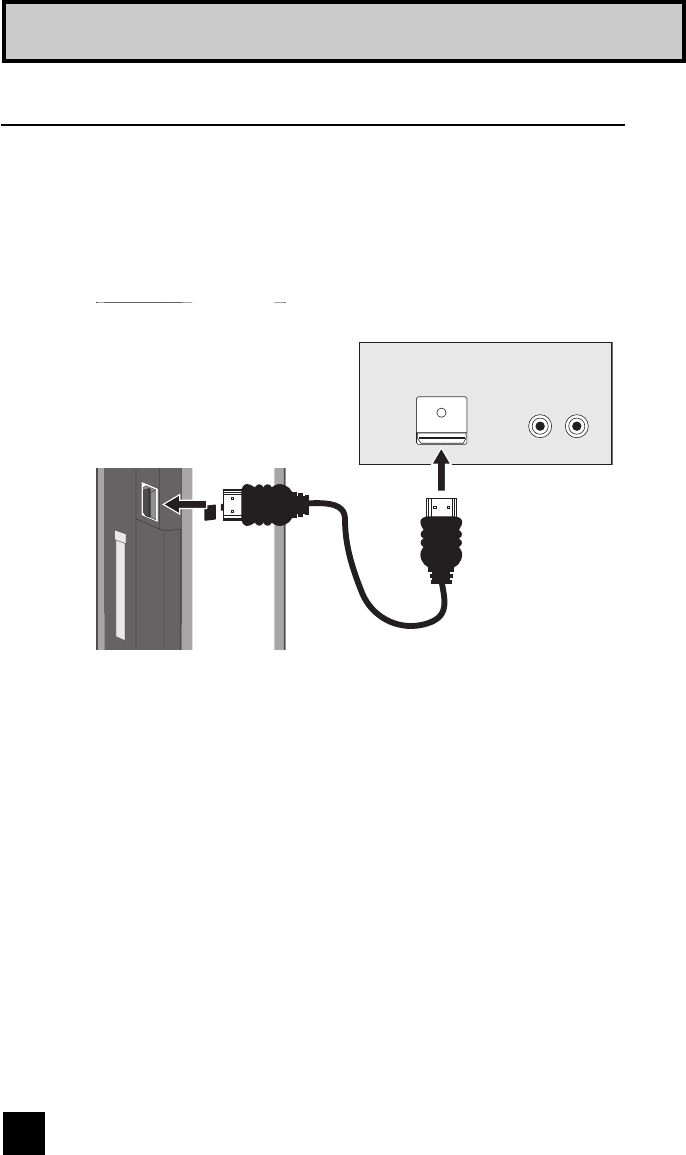

Connecting to a HDMI Compatible Device

1) Connect the HDMI Cable from the DIGITAL OUT on the back of your DTV or HDMI device, to

the DIGITAL-IN on the back of your television.

Notes:

• When you do the above connection, set DIGITAL-IN AUDIO in the Initial Setup menu to

DIGITAL. See "DIGITAL-IN AUDIO", page 52.

• Some decoders may not respond depending on the equipment that you have connected

when it is connected to the HDMI.

• If the HDMI output device signal is changed (for example, 480i/60Hz is changed to

480p/60Hz), the screen may turn green and there may be some distortion for a short time

until the signal becomes stable.

LCT1881-001A-A ENG 22 4/26/05, 9:39:53 AM

Quick Setup Connections

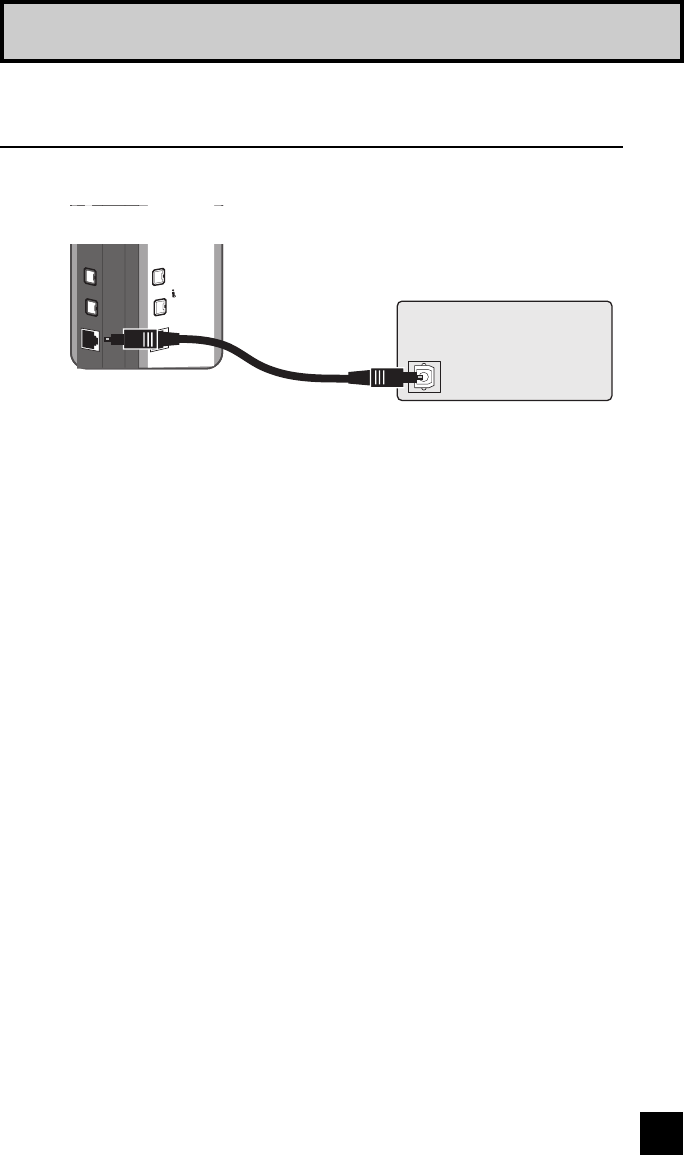

Connecting to an amplifier using your optical output

You can connect an amplifier that has an optical digital input terminal by using an optical digital

cable from the optical output. The signal that is output can be PCM or Dolby Digital.

i.LINK IN/OUT

S400(TS)

OPTICAL OUT

Digital Audio

Television Rear Panel

Amplifier

1) Connect the optical cable from underneath the television to the back of the amplifier.

Notes:

• This terminal can only output digital audio.

• In order to use the optical output connection, select PCM or Dolby Digital on Digital Sound in

the Digital Setup Menu. See page 71.

• Refer to your owners manual on using your amplifier.

LCT1881-001A-A ENG 23 4/26/05, 9:39:53 AM

Quick Setup Connections

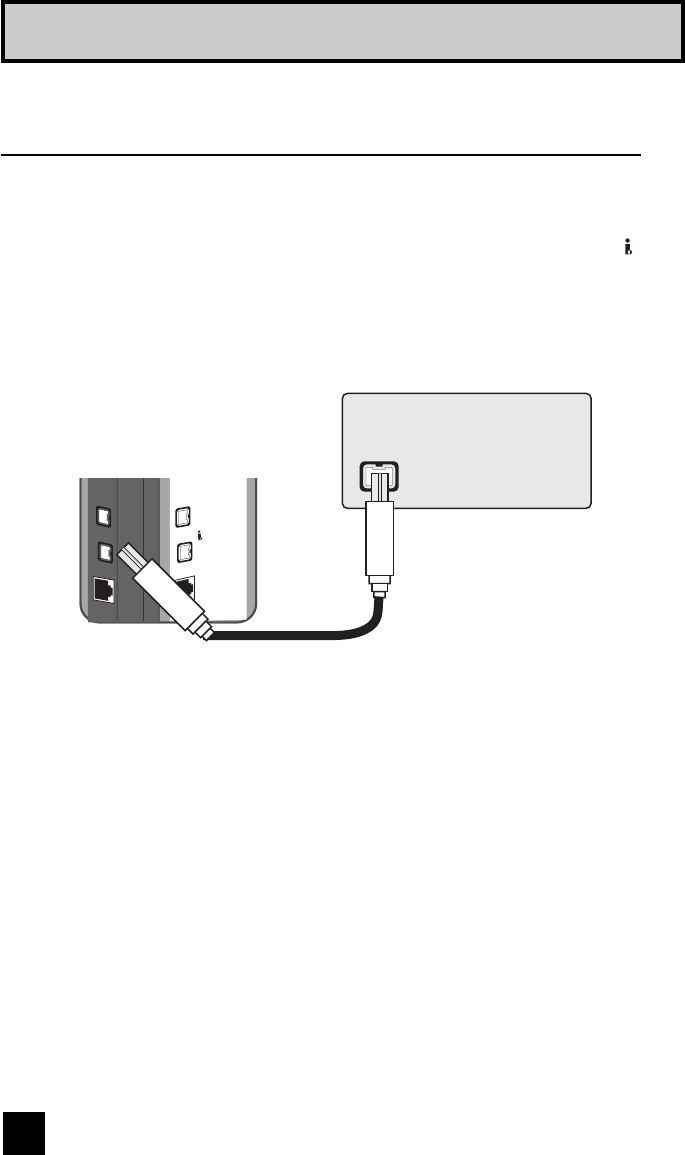

Connecting an i.LINK compatible device to the back of

your television

i.LINK is a digital serial interface that allows devices equipped with an i.LINK connector to

exchange digital video signals, digital audio signals and device control signals bi-directionally

over a single cable. (For example, a JVC D-VHS VCR).

i.LINK refers to the IEEE1394-1995 industry specification and extensions thereof. The logo

is used for products compliant with the i.LINK standard.

This projection television uses a four-pin i.LINK connector to input and output MPEG2 video

signals, audio signals and control signals.

i.LINK IN/OUT

S400(TS)

i.LINK Compatible Device

TV Rear Panel

OPTICAL OUT

Digital Audio

1) Connect the i.LINK cable from underneath the TV to the back of the i.LINK compatible

device.

Notes:

• Use only the S400 i.LINK cable when connection your devices.

• See page 74 on how to select the i.LINK device.

• Refer to your owners manual on using your i.LINK device.

• When recording or playing back video with an i.LINK device, if you perform the Auto Tuner

Setup, the video signal you are recording or playing back may stop or you may not be able

to perform the Digital Auto Tuner Setup.

• Your television can connect with i.LINK D-VHS decks and HD-Camcorders (JVC brand only).

If you connect other brand devices, with i.LINK cable, they will not work.

• It can play only the recorded contents in Digital Mode.

• Use only tapes bearing the DVHS (SVHS) mark for recording.

LCT1881-001A-A ENG 24 4/26/05, 9:39:53 AM

When you turn your television on for the first time the interactive plug-in menu will appear. The

plug-in menu helps you to get your TV ready to use by letting you set your preferences for:

• The language in which you want the onscreen menus to appear.

• Setting the TV’s clock to the correct time so your timer functions will work properly. You can

choose “AUTO” or “MANUAL” for setting the clock.

• The auto tuner setup of which channels you wish to receive.

We recommend you complete the interactive plug-in items before you start using your

television.

Notes:

• The interactive plug-in menu setting does not appear if your TV has been turned on before.

In this case use the onscreen menus to perform these settings. See pages 45, 57, 35.

• If you press the Menu button while setting up the interactive plug-in menu, it will skip over it.

Step 4 – The Interactive Plug In Menu

Quick Setup Plug-In Menu

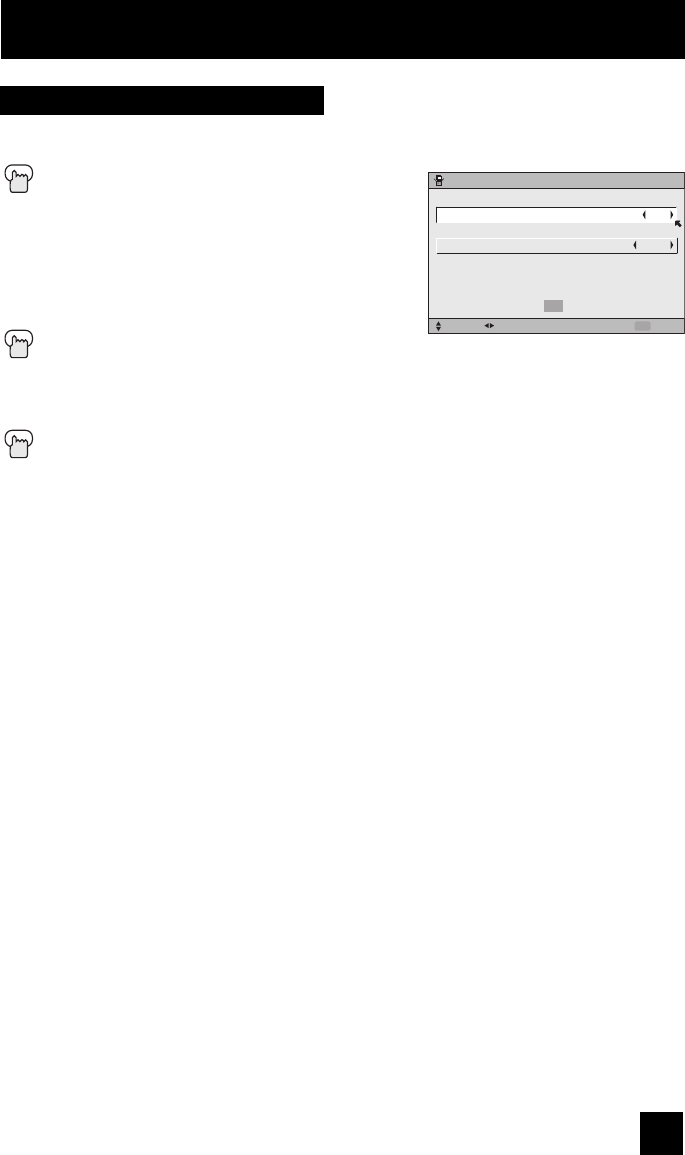

After the “JVC INTERACTIVE PLUG IN MENU” has been displayed, the TV automatically

switches to the LANGUAGE settings. You can choose to view your onscreen menus in three

languages: English, French (Français) or Spanish (Español).

√®

To choose a language:

(English, Français or Español)

†

To NEXT (To set clock)

Language

(To be continued...)

LANGUAGE/LANGUE/IDIOMA

ENGLISH

SELECT OPERATE EXIT

LCT1881-001A-A ENG 25 4/26/05, 9:39:54 AM

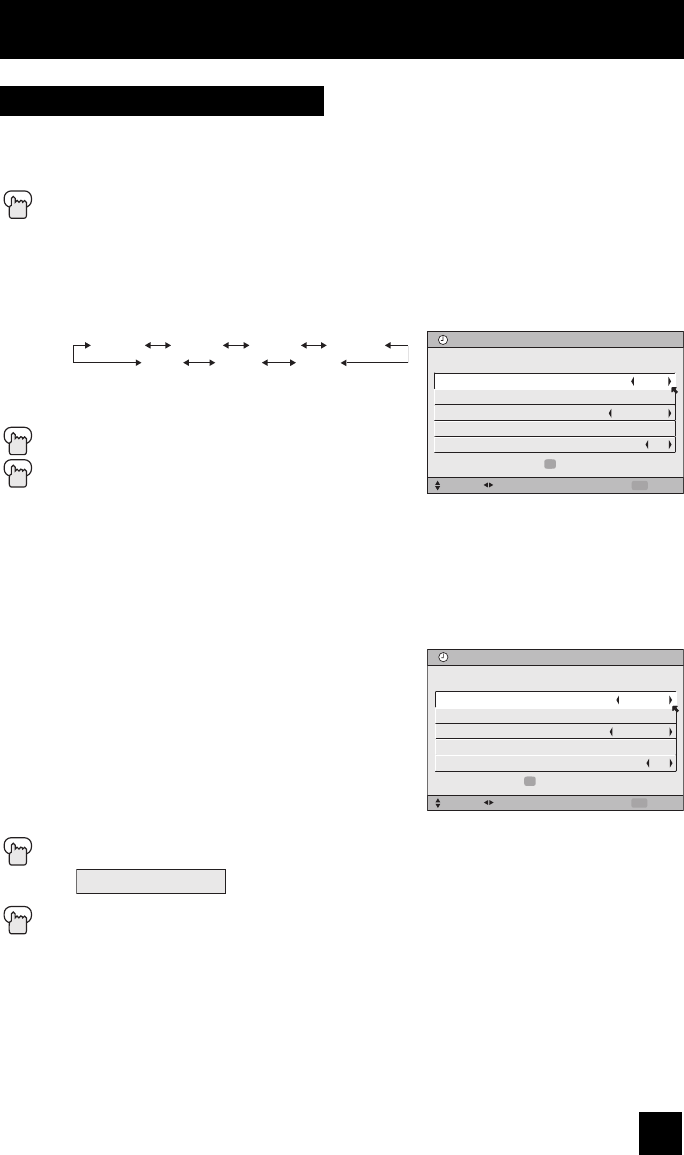

To set your clock manually (without using the XDS signal), choose MANUAL. If you choose

AUTO, see auto clock set above.

√®

To choose MANUAL

†

To TIME

√®

To set the hour

†

To minute

√®

To set the minute

†

To TIME ZONE

√®

To select your time zone: (Atlantic, Eastern,

Central, Mountain, Pacific, Alaska or

Hawaii)

†

To DATE/YEAR

√®

To set the month

†

To day

√®

To set the day

†

To year

√®

To set the year

†

To move to D.S.T. (Daylight Savings Time)

√®

To turn D.S.T. ON or OFF

†

To START CLOCK

Manual Clock Set

Note:

• You will have to reset the clock after a power interruption. You must set the clock before

operating any timer functions.

Quick Setup Plug-In Menu

Before you use any of your TV’s timer functions, you must first set the clock. You may

precisely set your clock using the XDS time signal broadcast by most public analog

broadcasting stations. If you do not have this in your area, you will have to set the clock

manually. See manual clock set below. To set the clock using the XDS signal:

√®

To choose AUTO

†

To TIME ZONE

√®

To select your time zone: (Atlantic, Eastern,

Central, Mountain, Pacific, Alaska or

Hawaii)

†

To move to D.S.T. (Daylight Savings Time)

√®

To turn D.S.T. ON or OFF

†

To NEXT (To Auto Tuner Setup)

Notes:

• D.S.T. can be used when it is set to ON in the SET CLOCK menu.

• Only when the MODE is set to AUTO, the Daylight Savings Time feature automatically

adjusts your TV’s clock for Daylight Savings. The clock will move forward one hour at 2:00

am on the first Sunday in April. The clock will move back one hour at 2:00 am on the last

Sunday in October.

• You will have to reset the clock after a power interruption. You must set the clock before

operating any timer functions.

Auto Clock Set

(To be continued...)

SET CLOCK

SELECT OPERATE EXIT

TIME

MODE

TIME ZONE

DATE/YEAR

D.S.T.

MANUAL

ATLANTIC

JAN/01/05

START CLOCK

SET CLOCK

SELECT OPERATE EXIT

TIME

MODE

TIME ZONE

DATE/YEAR

D.S.T.

AUTO

ATLANTIC

JAN/01/05

LCT1881-001A-A ENG 26 4/26/05, 9:39:54 AM

Quick Setup Plug-In Menu

The Quick Setup is complete

STOP

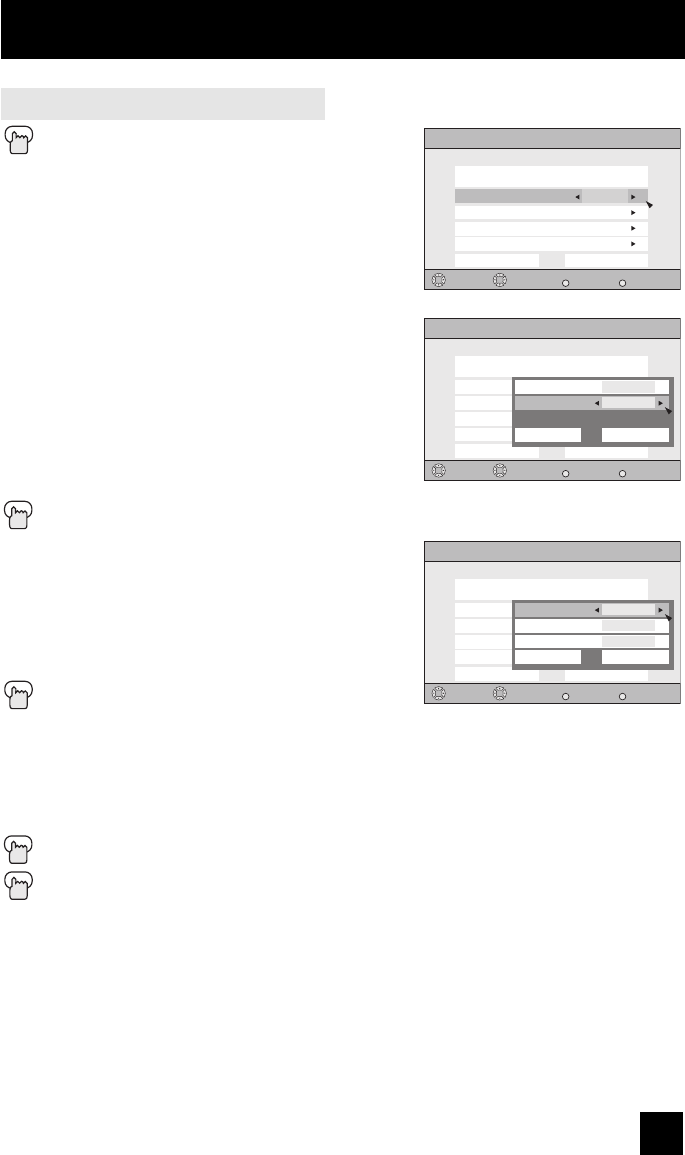

In auto tuner setup, the TV automatically scans through all available channels, memorizing the

active ones and skipping over blank ones or channels with weak signals. This means when you

scan (using the CHANNEL +/– buttons) you will receive only clear, active channels. There are

two tuner modes to choose from, ANALOG or DIGITAL.

√®

To choose CABLE or AIR (or SKIP when

you skip Analog Auto Tuner Setup)

π†

To TUNER MODE (IN DIGITAL)

√®

To choose ATSC or Digital Cable (or SKIP

when you skip Digital Auto Tuner Setup)

†

To START

After Analog Auto Tuner Setup is finished, Digital Auto

Tuner Setup starts.

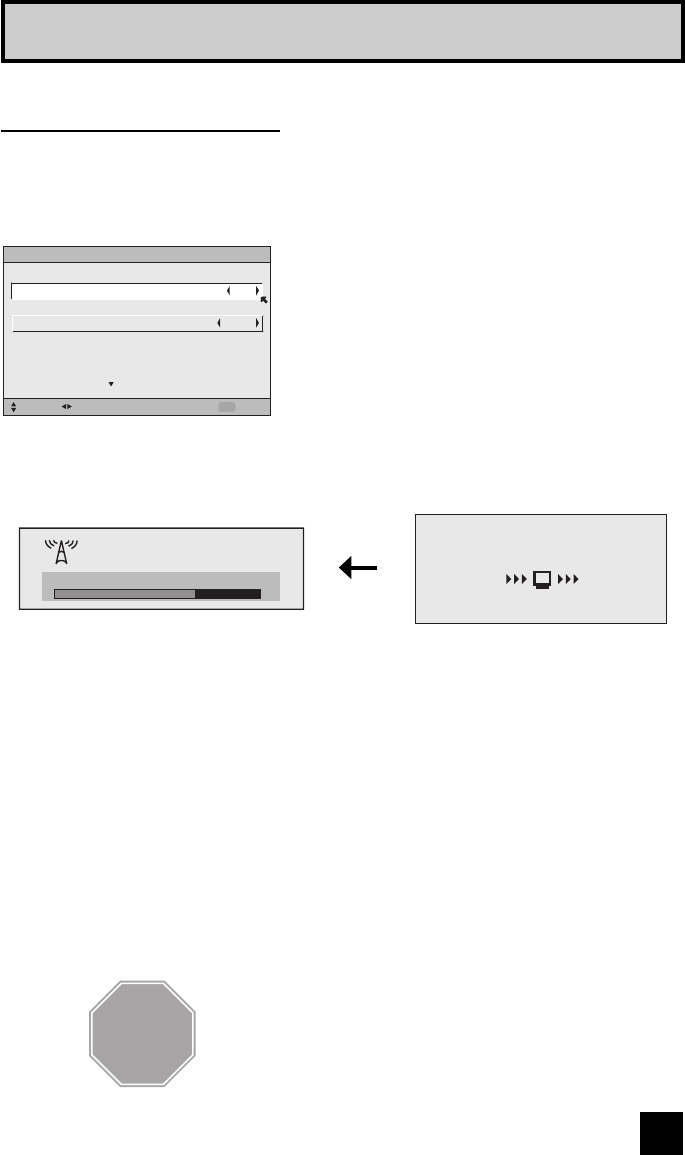

Auto Tuner Setup

When the setup is finished, "THANK YOU ! SETUP IS NOW COMPLETE" is displayed. Your

quick setup is now complete. You can now begin watching your television, or you can continue

on in this guide for more information on programming your remote control, or using the

JVC onscreen menu system to customize your television viewing experience.

Notes:

• If you want to cancel the Auto Tuner Setup, press the MENU button.

• Noise muting will not work during Auto Tuner Setup.

• If you choose SKIP, it finished without doing the Auto Tuner Setup.

Cable Box and Satellite Users: After your auto tuner setup is complete, you may, (depending

on the type of hookup), have only 1 channel, usually 3 or 4 in the auto tuner memory. This is

normal.

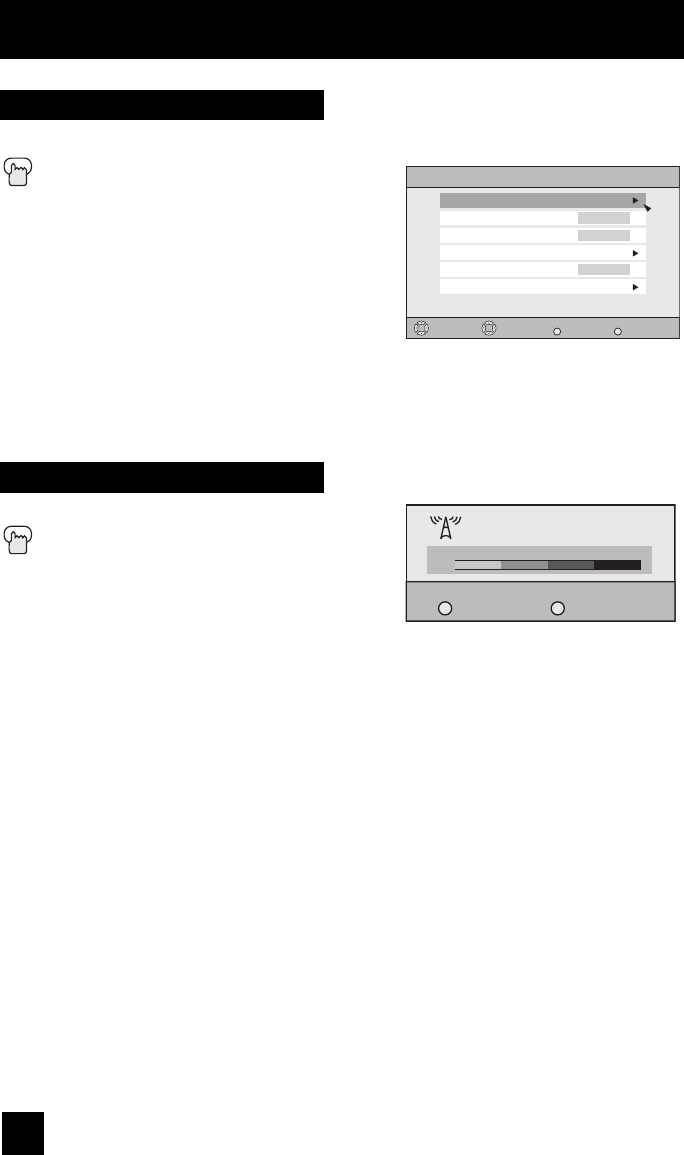

AUTO TUNER SETUP

SELECT OPERATE EXIT

IN ANALOG

IN DIGITAL

ATSC

TUNER MODE

AIRTUNER MODE

START

NOW

PROGRAMMING !

Now Programming...

LCT1881-001A-A ENG 27 4/26/05, 9:39:55 AM

You can program your remote to operate your cable box, satellite receiver, VCR or DVD

player by using the instructions and codes listed below. If the equipment does not respond

to any of the codes listed below or to the code search function, use the remote control

supplied by the manufacturer.

The remote control is programmed with cable box and satellite codes for power on/off,

channel up/down, and 10 key operation.

1) Find the cable box or satellite brand from the list of codes shown below.

2) Slide the 2-way selector switch to “CATV”.

3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10

key pad.

4) Release the DISPLAY button, and confirm the operation of the cable box/satellite receiver.

• If your cable or satellite box does not respond to the first code, try the others listed. If it does

not respond to any code, try the search codes function, on page 31.

Remote Programming

Setting the CATV, VCR and DVD Codes

Cable Box or Satellite Codes

ABC

Archer

Cableview

Citizen

Curtis

Diamond

Eagle

Eastern

GC Brand

Gemini

General

Instrument/Jerrold

Hamlin

Hitachi

Macom

Magnavox

Memorex

Movietime

Oak

Paragon

Panasonic

Philips

Pioneer

024

032, 025

051, 032

022, 051

058, 059

024, 032, 025

029

034

032, 051

022, 043

065, 024, 025,

026, 027, 020,

021, 022, 057,

023, 072, 074

040, 041, 042,

045, 058, 064

049, 024

049, 050, 051,

054

033

030

032, 051

039, 037, 048

055, 056, 060,

071, 073

063

028, 029, 030,

052, 053, 031,

069

047, 062

Pulsar 051, 032

Cable Box Codes

Puser

RCA

Realistic

Regal

Regency

Rembrandt

Samsung

Scientific Atlanta

SLMark

Sprucer

Stargate

Telecaption

Teleview

Texscan

Toc o m

Toshiba

Unika

Universal

Videoway

Viewstar

032

061, 070

032

058, 064, 040,

041, 042, 045,

068

034

037, 032, 051,

038

051

057, 058, 059

051, 047

051, 056

032, 051

067

047, 051

044

035, 036, 066,

074

050, 048

032, 025

022, 032

052

029, 030

Zenith 063, 046

Zenith/Drake

Satellite

046

Echostar

(Dish Network)

Express VU

G.E.

G.I.

Gradiente

Panasonic

Philips

Primestar

RCA

Proscan

Sony

Star Choice

Toshiba

Uniden

100, 113, 114,

115

100, 113

106

108, 120, 121,

122

112

Hitachi

HNS (Hughes)

104, 111

104

105

102, 103, 116

108

106, 109, 110

107

104, 108

101, 104, 117,

118, 119

102, 103

Digital

Satellite

Systems

Codes

Magnavox 102, 103

Cable Box Codes

LCT1881-001A-A ENG 28 4/26/05, 9:39:55 AM

The remote control is programmed with VCR codes for power on/off, play, stop, fast-forward,

rewind, pause, record, channel up/down operation.

1) Find the VCR brand from the list of codes shown below.

2) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR”.

3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10

key pad.

4) Release the DISPLAY button, and confirm the operation of the VCR.

• If your VCR does not respond to the first code, try the others listed. If it does not respond to

any of the codes, try the search codes function on page 31.

• After you program your remote, some VCR buttons may not work properly. If so, use the

VCR’s remote.

• To record, hold down the REC button on the remote and press PLAY.

Remote Programming

VCR Codes

Admiral

Aiwa

Akai

Audio Dynamic

Bell & Howell

Broksonic

Canon

CCE

Citizen

Craig

Curtis Mathes

Daewoo

DBX

Dimensia

Emerson

Fisher

Funai

G.E.

Go Video

Goldstar

Hitachi

Gradiente

Instant Replay

Jensen

035

027, 032, 095

029, 072, 073,

074

003, 005

063, 071

020, 026, 094

023, 025

043

064

063, 029, 064

045, 024, 027,

093

043, 059, 024,

092

003, 004, 005

045, 093

043, 026, 077,

061, 025, 042,

020, 076

063, 066, 067,

065, 071, 091

027, 026, 020,

000

033, 045, 024

037, 051, 049,

050, 089

064

083, 084, 081,

000, 001

023, 045, 058,

093, 027, 081

024, 023

003

JVC

Kenwood

003, 004, 005,

000, 001, 002,

006, 007

003, 004, 064,

005

LXI 027, 064, 058,

065, 066, 063,

067

VCR Codes

Magnavox

Marantz

Marta

Memorex

MGA

Minolta

Mitsubishi

Multitech

NEC

Olympic

Optimus

Orion

Panasonic

Penney

Pentax

Philco

Philips

Pioneer

Proscan

Quasar

Radio Shack

031, 023, 024,

086

003, 004, 005

064

024, 067

038, 040, 047,

048, 041, 042

058, 045, 093

038, 040, 047,

048, 041, 042,

078, 090

047, 027, 062

003, 004, 005,

000

024, 023

028, 021, 035,

064

026, 020

023, 024, 021,

022

024, 058, 045,

063, 003, 004,

005, 093

058, 005, 045,

093

031, 024, 027,

023, 026, 020,

043

031, 023, 024,

086

023

045, 058, 023,

024, 031, 046,

059, 060, 093,

033, 087

021, 022, 023,

024

033, 024, 063,

036, 067, 040,

027

RCA 033, 045, 058,

023, 024, 031,

046, 059, 060,

083, 084, 085,

087, 093, 096

Realistic 024, 063, 036,

067, 040, 027

Codes

Samsung

Samtron

Sansui

Sanyo

Scott

Sears

Sharp

Signature 2000

Sony

Singer

SV 2000

Sylvania

Symphonic

Tashiro

Tatung

Teac

Technics

Teknika

Toshiba

Vector Research

Wards

037, 060, 062,

033, 089

089

003, 026, 020,

052

063, 067, 091,

071

059, 060, 062,

067, 038, 040,

047, 048, 026,

020

063, 064, 065,

066, 058

Shintom 075

035, 036, 080,

088

027, 035

075

028, 029, 030,

053, 054, 055

027

031, 023, 024,

027

027, 081

064

003, 004, 005

003, 004, 027,

005

021, 022, 023,

024

024, 027, 070

059, 046, 079

005

035, 036, 067,

044, 064

Yamaha 063, 003, 004,

005

Zenith 044, 082, 064,

094

Codes

LG 064

Thomson 033, 096

VCR VCR

LCT1881-001A-A ENG 29 4/26/05, 9:39:55 AM

The remote control is programmed with DVD codes for power on/off, play, stop, fast-forward,

rewind, previous/next chapter, tray open/close, and still/pause operation.

1) Find the DVD player brand from the list of codes shown below.

2) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “DVD”.

3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10

key pad.

4) Release the DISPLAY button, and confirm the operation of the DVD player.

• If your DVD player does not respond to the first code, try the others listed. If it does not

respond to any of the codes, try the search codes function on page 31.

• After you program your remote, some DVD buttons may not work properly. If so, use the

DVD player’s remote.

Remote Programming

DVD Codes

CodesDVD Player Codes Codes

Aiwa 043

Apex 040, 054,

055

Denon 020, 037

Hitachi 031

JVC 000

Kenwood 035, 020

Konka 039

Mitsubishi 025

Onkyo 041, 052

Oritron 044

Panasonic 020

Philips 023, 036

Pioneer 022

Raite 033

RCA 021, 026

Sampo 034

Samsung 030

Sharp 028

Silvania 038

Sony 024, 045,

046, 047

Technics 020

Toshiba 023

Wave 042

Yamaha 020, 049

Zenith 027, 032

Vialta 050

Bose 058

Funai 038

Go–Video 032

Harman

Kardon

053

KLH 051

Koss 050

Mintek 057

Next Base 056

Polk Audio 036

SMC 048

Thomson 021

Venturer 051

DVD Player DVD Player

LCT1881-001A-A ENG 30 4/26/05, 9:39:56 AM

Cable/Satellite Search Codes Function

1) Slide the first 2-Way Mode Selector switch to CATV.

2) Press the POWER and RETURN+/TV buttons. Hold for at least three seconds and release.

3) Press the POWER button on the remote, and see if the cable or satellite box responds.

4) If there was a response, press RETURN+/TV. The codes are now set. If there was no

response, repeat Step 3. If you repeat Step 3 a total of 80 times without a response, use

the remote control that came with your equipment.

5) Press RETURN+/TV to exit.

VCR/DVD Search Codes Function

1) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR” or

“DVD”.

2) Press the VCR or DVD POWER and RETURN+/TV buttons. Hold for at least three seconds

and release.

3) Press the VCR or DVD POWER button, and see if the VCR or DVD responds.

4) If there was a response, press RETURN+/TV. The codes are now set. If there was no

response, repeat Step 3. If you repeat Step 3 a total of 80 times for the VCR (40 times for

the DVD player), and there is no response, use the remote control that came with your

equipment.

5) Press RETURN+/TV to exit.

Remote Programming

Search Codes

LCT1881-001A-A ENG 31 4/26/05, 9:39:56 AM

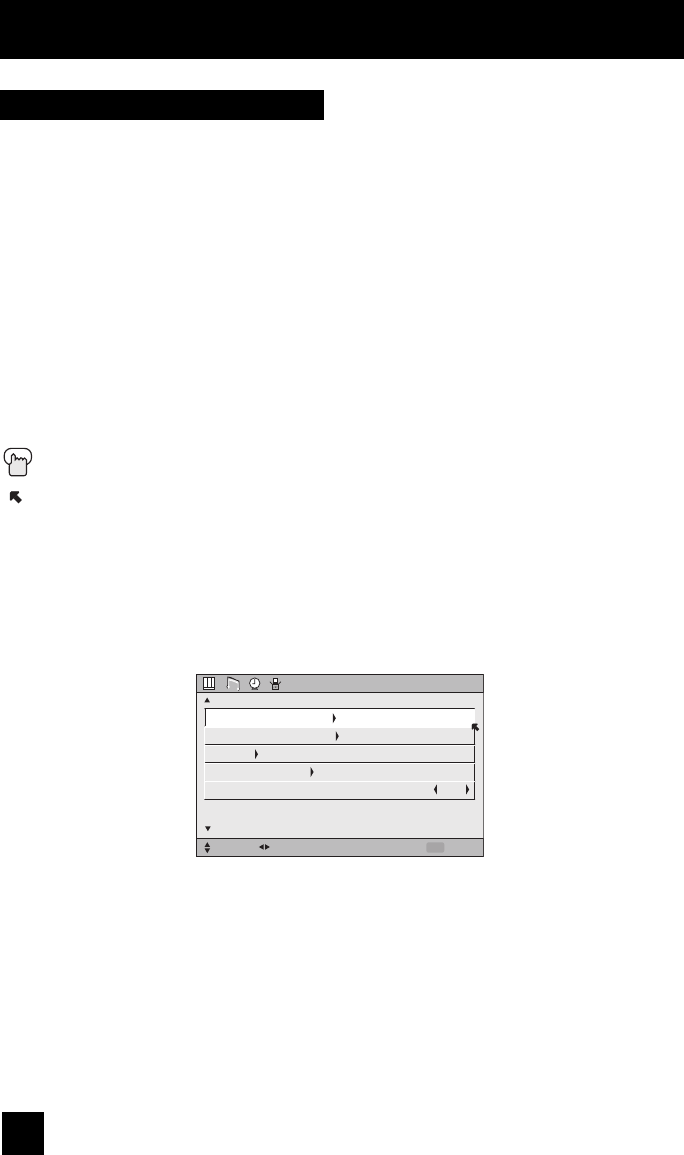

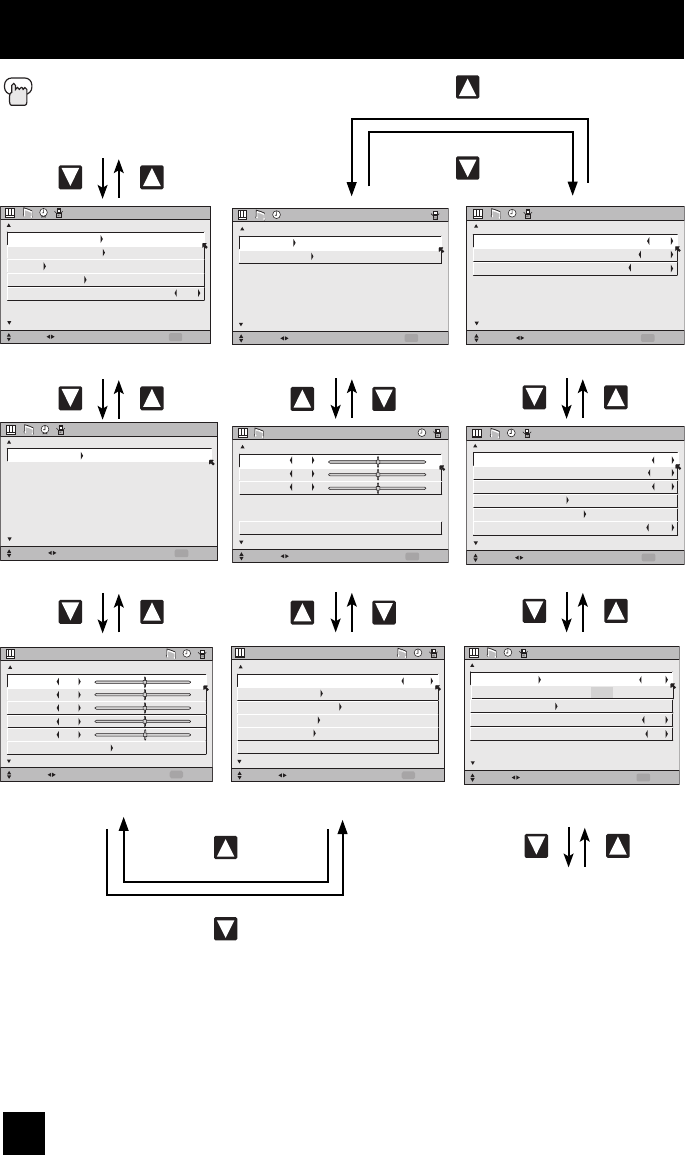

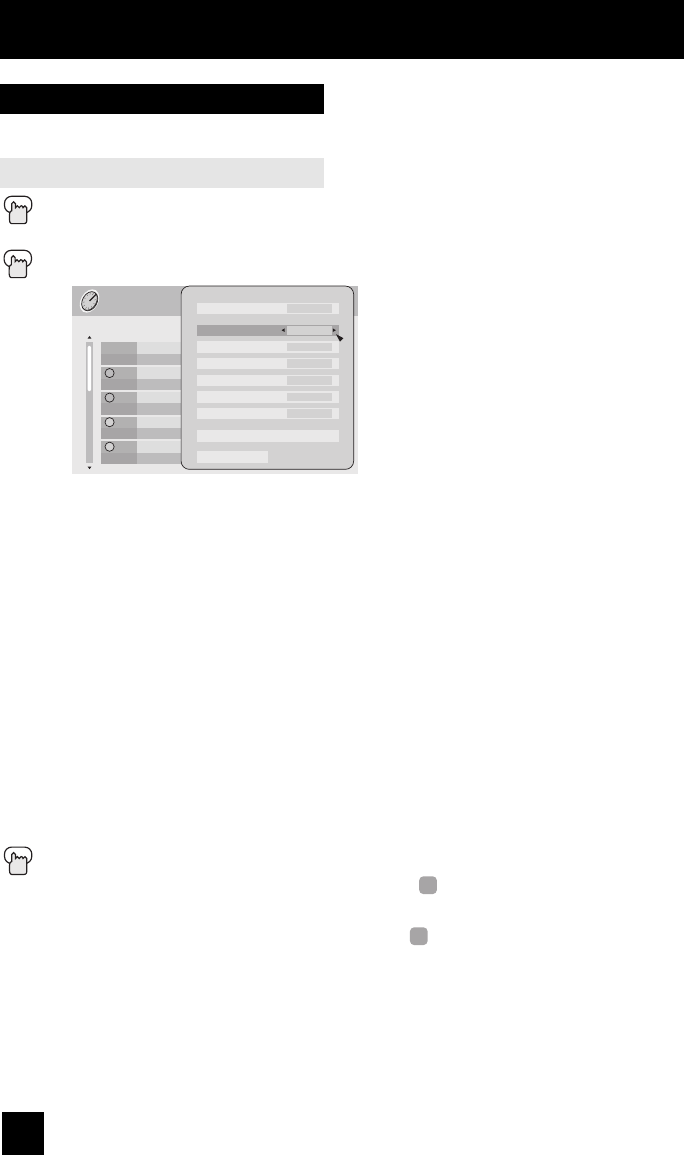

To bring up the onscreen menu, press the MENU button on the remote control. The item that

appears in green is the one currently selected. If you use the Menu button on the TV’s side

panel instead of the remote, an additional menu screen showing VIDEO STATUS and ASPECT

will appear between INITIAL SETUP and PICTURE ADJUST. The “interactive plug-in menu” will

appear the first time the TV is plugged in.

Note:

• Menus shown in this book are illustrations, not exact replications of the television’s onscreen

displays.

Certain symbols are used throughout this guide to help you learn about the features of your

new television. The ones you will see most frequently are:

π†

Up and Down arrows mean press the CH+ or CH– buttons. Pressing the CH+ or CH–

buttons let you:

• Move vertically in a main menu screen

• Move through a submenu screen

• Move to the next letter, number, or other choice in a submenu

• Back up to correct an error

• Scan through TV channels (when not in a menu screen)

√®

Left and right arrows mean press the VOLUME+ or VOLUME- buttons to move left or right

to:

• Select a highlighted menu item

• Select an item in a submenu

• Select numbers in certain menu options

• Turn the volume up or down (when not in a menu screen)

The “press button” icon means you should press the button named on your remote

control. (Button names appear in SMALL CAPITAL LETTERS.)

The “helping arrow” icon points to the highlighted or selected item in a menu.

Onscreen Menus

Using the Guide

INITIAL SETUP

SELECT OPERATE EXIT

AUTO TUNER SETUP

CHANNEL SUMMARY

V-CHIP

SET LOCK CODE

AUTO DEMO OFF

(4/5)

LCT1881-001A-A ENG 32 4/26/05, 9:39:56 AM

Your television comes with JVC’s onscreen menu system. The onscreen menus let you make

adjustments to your television’s operation simply and quickly. Examples of the onscreen

menus are shown on the next page. Detailed explanations on using each menu follow later in

this guide. For information about the interactive plug-in Menu, see pages 25 - 27.

Onscreen Menus

The Onscreen Menu System

To open the onscreen menu system, press the MENU button on the remote control. You

navigate within the onscreen menus by using the four directional arrow buttons on the remote

control. (These buttons are also the CH +/– and VOL +/– buttons. Channel and volume functions

will not operate when the onscreen menu is active).

The selected feature and option on a menu screen are highlighted in a different color.

To move to a different feature use the π† arrows to move up or down the list. When you

press the up arrow at the top of the list or the down arrow at the bottom, the next menu screen

will appear. Use the arrows √ ® to select an option from the highlighted feature. Pressing

MENU on the remote control will close the onscreen menu system and return you to normal

television viewing.

Each menu and its features will be discussed in the following pages of this guide.

Notes:

• If you do not press any buttons for a few seconds, the onscreen menu will automatically

shut off.

• Button names in this guide are shown in SMALL CAPITAL LETTERS.

• Menus may appear in different sizes onscreen depending on the aspect ratio selected.

• Some menu items may not appear in menu screens when certain aspect ratios or inputs

are selected.

Selected Option

(Green)

Selected Option

(Blue)

The Onscreen Menu System

LANGUAGE

CLOSED CAPTION

ENG. FRAN. ESP.

LCT1881-001A-A ENG 33 4/26/05, 9:39:57 AM

Press the MENU button

Onscreen Menus

TINT

COLOR


BRIGHT

DETAIL

ENERGY SAVER MODE

PICTURE ADJUST

SELECT OPERATE EXIT

STANDARD

(1/2)

SELECT OPERATE EXIT

PREVIOUS STANDARD

PICTURE ADJUST

(2/2)

HIGH

OFF

COLOR TEMPERATURE

DIG. NOISE CLEAR

COLOR MANAGEMENT

DYNAMIC GAMMA

SMART PICTURE

RESET

BASS

TREBLE

BALANCE

RESET

SOUND ADJUST

SELECT OPERATE EXIT

INITIAL SETUP 04

PICTURE ADJUST 01 PICTURE ADJUST 02

SOUND ADJUST

INITIAL SETUP

SELECT OPERATE EXIT

AUTO TUNER SETUP

CHANNEL SUMMARY

V-CHIP

SET LOCK CODE

AUTO DEMO OFF

(4/5)

CLOCK / TIMERS

SELECT OPERATE EXIT

SET CLOCK

ON / OFF TIMER

CLOCK/TIMERS

INITIAL SETUP

SELECT OPERATE EXIT

(3/5)

ILLUMINATION

LANGUAGE

CLOSED CAPTION

AUTO SHUT OFF

XDS ID

OFF

ENG. FRAN. ESP.

LOW

INITIAL SETUP 03

INITIAL SETUP 02

OFF

INITIAL SETUP

SELECT OPERATE EXIT

(2/5)

NOISE MUTING

FRONT PANEL LOCK

V1 SMART INPUT

VIDEO INPUT LABEL

POSITION ADJUSTMENT

POWER INDICATOR LOW

INITIAL SETUP 01

INITIAL SETUP

SELECT OPERATE EXIT

(1/5)

VIDEO-1 MONITOR OUT

DIGITAL-IN

DIGITAL-IN AUDIO

OFF

SIZE1

DIGITAL

INITIAL SETUP 05

INITIAL SETUP

SELECT OPERATE EXIT

(5/5)

DIGITAL SETUP

Notes:

• The DIGITAL-IN menu can only be displayed when a 480p picture signal is input to the

digital-in terminal and the picture is being displayed on the screen.

• When the Menu button on the TV side panel is pressed, the FRONT PANEL CONTROL menu

between INITIAL SETUP 05 and PICTURE ADJUST 01 will appear.

• Regarding the digital setup menu, see page 70.

TO INITIAL SETUP 04

TO INITIAL SETUP 03

LCT1881-001A-A ENG 34 4/26/05, 9:39:57 AM

Auto Tuner Setup

The auto tuner setup function is described on page 27 as the interactive plug-in menu. If you

need to run the auto tuner setup again, follow the steps below.

Press the MENU button

π†

To AUTO TUNER SETUP

√®

To operate

π†

To TUNER MODE (IN ANALOG)

√®

To choose CABLE, AIR or SKIP

π†

To TUNER MODE (IN DIGITAL)

√®

To choose ATSC, DIGITAL CABLE or SKIP

Press the OK button to start

Programming will take approximately 2 to 4 minutes. The auto tuner is finished when the

message PROGRAMMING OVER! appears onscreen.

Press the Menu button when finished

AUTO TUNER SETUP

SELECT OPERATE EXIT

IN ANALOG

IN DIGITAL

ATSC

TUNER MODE

AIRTUNER MODE

PRESS OK TO START

Initial Setup

LCT1881-001A-A ENG 35 4/26/05, 9:39:58 AM

Initial Setup

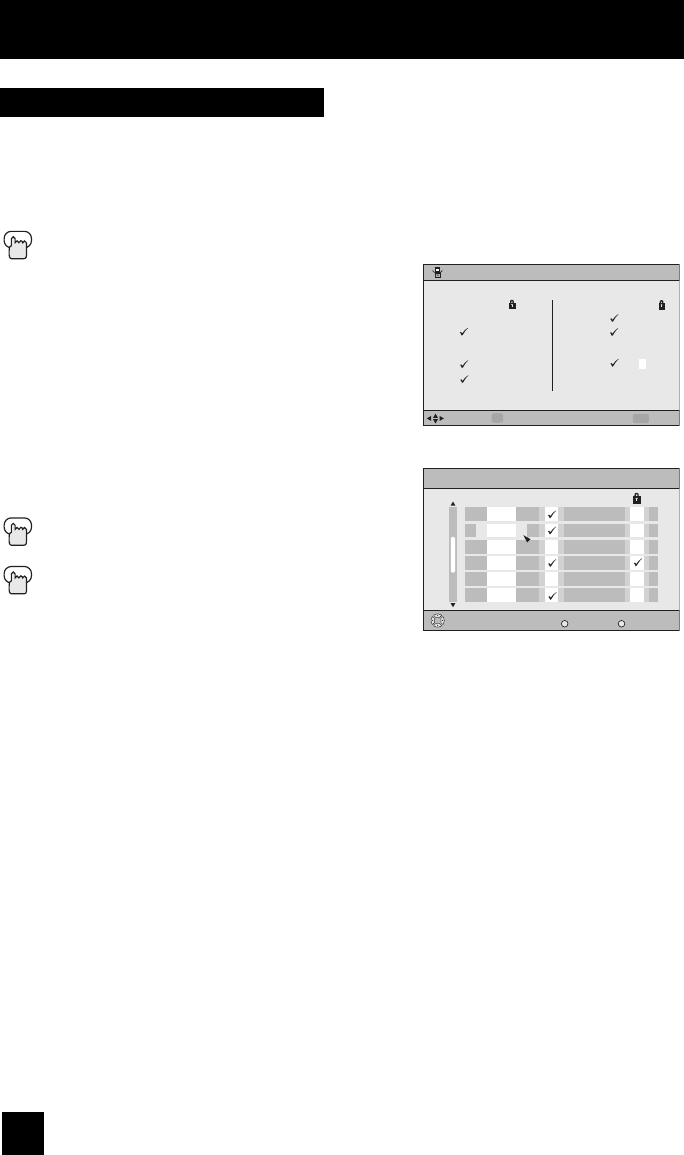

Channel Summary

Channel summary allows you to customize the line-up of channels received by your TV.

Regarding analog channels, you can add or delete channels from the line-up or prevent any

unauthorized viewers from watching any or all 191 channels. Regarding digital channels, the

only channels that will appear are the ones that are broadcasting.

Press the MENU button

π†

To CHANNEL SUMMARY

√®

To operate

The Channel summary screen will now be displayed with

the channels set to scan marked with an “√”. Regarding

analog channels, you can delete channels from the scan

by removing the “√”. If any channels were missed during

auto tuner setup and you wish to add them, you may by

placing an “√” next to the channel number.

• Digital channels can not be added to the channel

summary if the auto tuner setup did not find them.

π†

√®

To the SCAN column

Press the OK button to include or delete from

scan

Press the MENU button when finished

CHANNEL SUMMARY

CHNO.

SELECT OPERATE EXIT

SCAN CHNO. SCANID ID

MTV

A&E

HBO

Channel Summary Digital

CH No.

Operate Back

BACK

Exit

Scan

FOX

ABC

CNN

NBC

BOX

NHK

Station Name

D01

D02

D10-1

D10-2

D12345

Analog Channels

Digital Channels

Note:

• The number of a digital channel may change,

depending on the time of some broadcastings. If

this channel existed and now had disappeared, the

lock channel or scanned channel by the channel

summary for that channel will be cancelled.

Note:

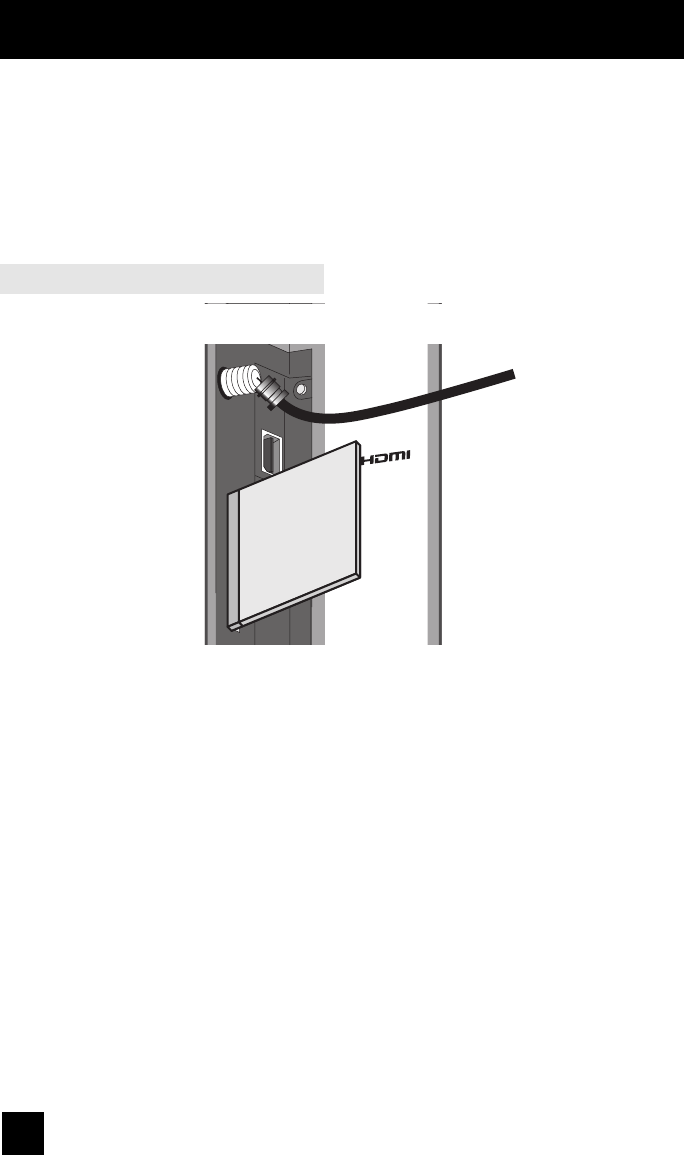

• When the Cable Card is not

inserted into the Cable Card

Slot:

If you are watching analog

channels, the above screen

appears.

If you are watching digital

channels, the below screen

appears.

• When the Cable Card is

inserted into the Cable Card

Slot:

Below screen appears

Both analog and digital

channels are listed, but the

background video is not

displayed.

LCT1881-001A-A ENG 36 4/26/05, 9:39:59 AM

Initial Setup

How to set the channel label. (This is only for analog broadcasting.)

Press the MENU button

π†

To CHANNEL SUMMARY

√®

To operate

π†

To the ID column

Press the OK button to enter

√®

To select the character you want

π†

To move to the next space

...continue to follow these directions for all four

spaces

Press the OK button to finish

Your characters are now set

Press the MENU button when finished

If you want to reset the characters you set:

Press the MENU button

π†

To CHANNEL SUMMARY

√®

To operate

π†

To the ID column

Press the OK button to enter

π†

To select RESET

Press the OK button to finish

Your characters are now reset

Notes:

• You can use characters for: Alphabet, numbers, marks and spaces.

• It is possible to set the maximum of 40 channel labels.

• If you try to set more than the 40 maximum, the message "MEMORY OVERFLOW" will

appear.

You can block access to a channel by activating the channel lock.

Press the MENU button

π†

To CHANNEL SUMMARY

√®

To operate

π†

√®

To the Lock Column ( )

Press the ZERO button to lock or unlock that channel

Press the MENU button when finished

PRESS TO FINISH

SELECT OPERATE EXIT

CHANNEL 09

RESET

LCT1881-001A-A ENG 37 4/26/05, 9:39:59 AM

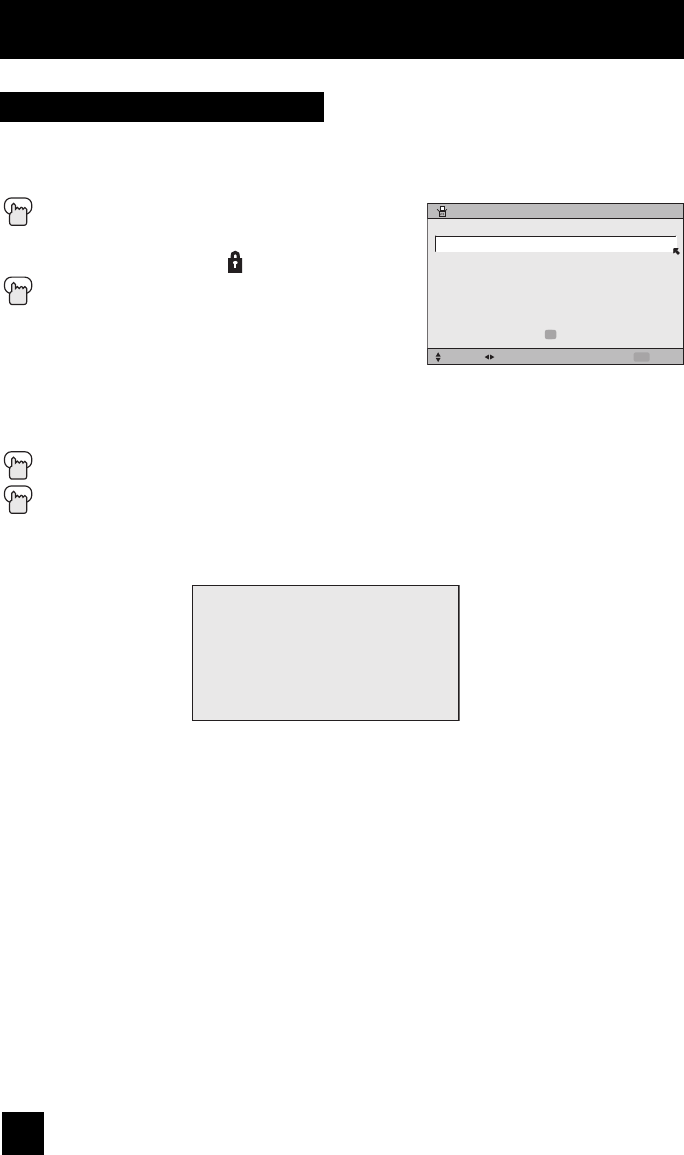

When a viewer attempts to watch a guarded channel, the following message appears:

To watch a channel that you have locked, enter the

Lock Code using the 10 key pad.

If the wrong code is entered, the message

“INVALID LOCK CODE!” will flash on the screen.

The channel cannot be accessed until the correct code

is entered.

Notes:

• Once a channel has been unlocked, it will remain unlocked until the television is turned off.

• See also “Set Lock Code”, page 44.

Initial Setup

Channel Guard Message

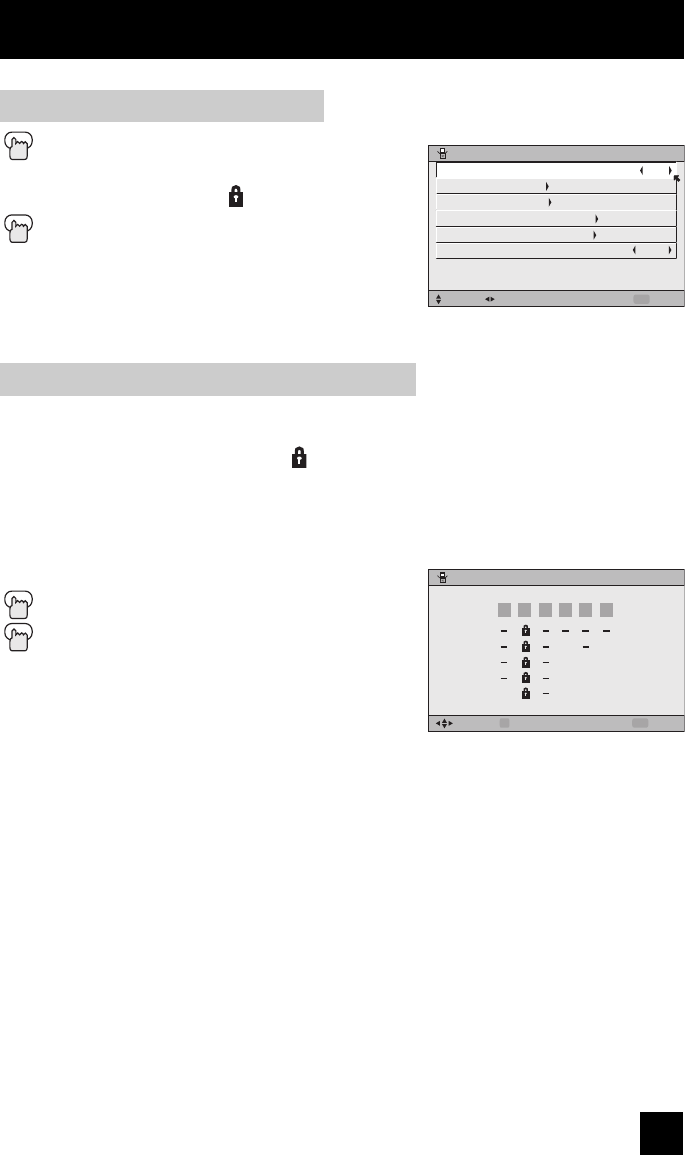

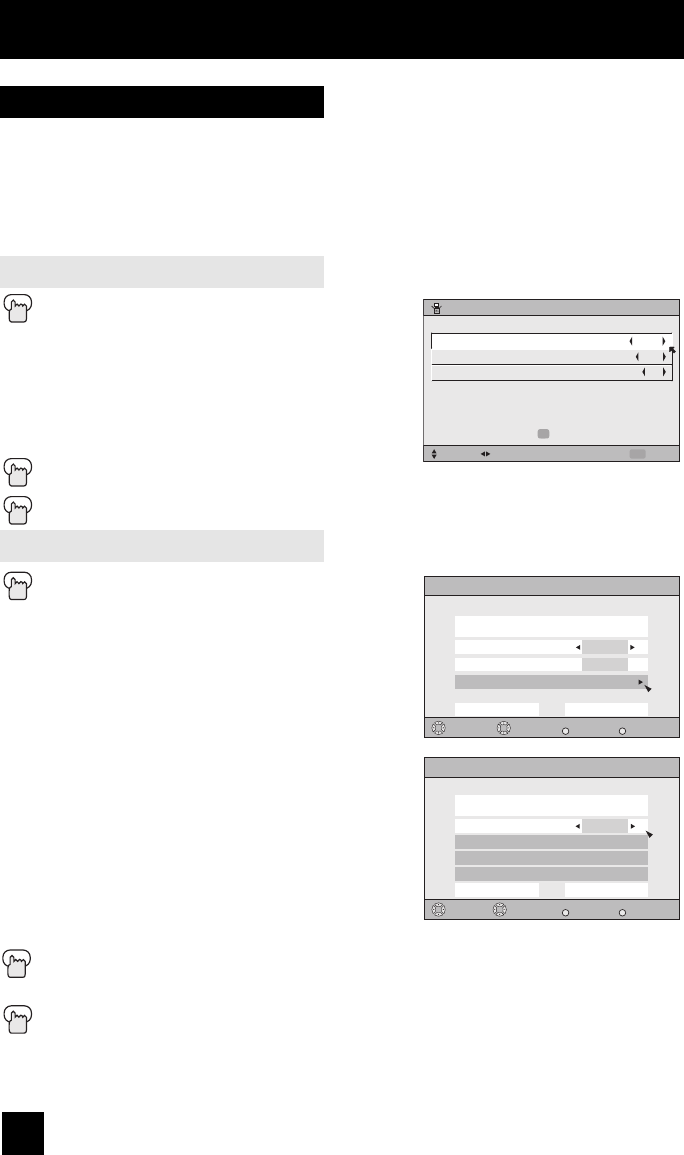

You can customize the V-Chip settings of your television to match your personal tastes. The

V-Chip menu below is the starting point for your V-Chip settings

You can use US V-Chip settings (for programming broadcast from the United States), Canadian

V-Chip settings (for programming broadcast from Canada), and movie ratings. You may use

any or all of the settings (US V-Chip, Canada V-Chip, Movie ratings). Descriptions for setting

each of the three V-Chip formats appear in the next six pages along with descriptions of the

rating categories.

To access the rating categories:

Press the MENU button

π†

To V-CHIP

√®

To operate (Lock icon will appear)

Press ZERO to access the V-Chip menu

√®

To turn V-Chip ON or OFF (V-Chip must be

turned ON for rating settings to operate)

π†

To move to SET US TV RATINGS,

SET MOVIE RATINGS, or

SET CANADIAN RATINGS (see following

pages for descriptions of each item)

V-Chip

Your TV is equipped with V-Chip technology which enables you to block channels or content

that you feel to be inappropriate for children, based on US and Canada rating guidelines.

V-Chip has no effect on video signals from a DVD discs, VCR tapes or Camcorder connection.

Note: Some programs, and movies are broadcast without a ratings signal. Even if you set

up V-CHIP ratings limits, these programs will not be blocked. See page 39 for information on

how to block unrated programs.

Note (for Canadian viewers): The V-Chip function is based on specifications designed for

the United States and therefore may not work properly in Canada.

V-CHIP

SET US TV RATINGS

SET MOVIE RATINGS

SET CANADIAN RATINGS ENG

SET CANADIAN RATINGS FRE

UNRATED

V-CHIP

SELECT OPERATE EXIT

VIEW

OFF

THIS CHANNEL IS LOCKED BY

CHANNEL GUARD.

PLEASE ENTER LOCK CODE BY

10 KEY PAD TO UNLOCK IT.

NO. - - - -

LCT1881-001A-A ENG 38 4/26/05, 9:40:00 AM

You can block programs that are not rated.

Press the MENU button

π†

To V-CHIP

√®

To operate (The lock icon appears)

Press ZERO to access V-Chip setup options

π†

To UNRATED

√®

To VIEW or BLOCK

Press MENU when done

Directions to Block Unrated Programs

Initial Setup

Unrated Programs

Unrated programming refers to any programming which does not contain a rating signal.

Programming on television stations which do not broadcast rating signals will be placed in the

“Unrated Programming” category.

Examples of Unrated programs:

• Emergency Bulletins • Locally Originated Programming

• News • Political Programs

• Public Service Announcements • Religious Programs

• Sports • Weather

• Some Commercials

Note:

• TV programs or movies that do not have rating signals will be blocked if the unrated category

is set to BLOCK.

V-CHIP

SET US TV RATINGS

SET MOVIE RATINGS

SET CANADIAN RATINGS ENG

SET CANADIAN RATINGS FRE

UNRATED

V-CHIP

SELECT OPERATE EXIT

VIEW

OFF

LCT1881-001A-A ENG 39 4/26/05, 9:40:00 AM

U.S. PARENTAL RATING SYSTEMS

Programs with the following ratings are appropriate for children.

❒ TV Y is Appropriate for All Children

Programs are created for very young viewers and should be suitable for all ages, including

children ages 2 - 6.

❒ TV Y7 is for Older Children

Most parents would find such programs suitable for children 7 and above. These programs

may contain some mild fantasy violence or comedic violence, which children should be able

to discern from reality.

Programs with the following ratings are designed for the entire audience.

❒ TV G stands for General Audience

Most parents would find these programs suitable for all age groups. They contain little or no

violence, no strong language, and little or no sexual dialog or situations.

❒ TV PG Parental Guidance Suggested

May contain some, but not much, strong language, limited violence, and some suggestive

sexual dialog or situations. It is recommended that parents watch these programs first, or

with their children.

❒ TV 14 Parents Strongly Cautioned

Programs contain some material that may be unsuitable for children under the age of 14

including possible intense violence, sexual situations, strong coarse language, or intensely

suggestive dialog. Parents are cautioned against unattended viewing by children under 14.

❒ TV MA Mature Audiences Only

These programs are specifically for adults and may be unsuitable for anyone under 17

years of age. TV MA programs may have extensive V, S, L, or D.

US V-Chip Ratings

Initial Setup

Viewing Guidelines

In addition to the ratings categories explained above, information on specific kinds of content

are also supplied with the V-Chip rating. These types of content may also be blocked. The

content types are:

• V/FV is for VIOLENCE/FANTASY VIOLENCE

• S stands for SEXUAL CONTENT

• L stands for strong LANGUAGE

• D stands for suggestive DIALOG

LCT1881-001A-A ENG 40 4/26/05, 9:40:01 AM

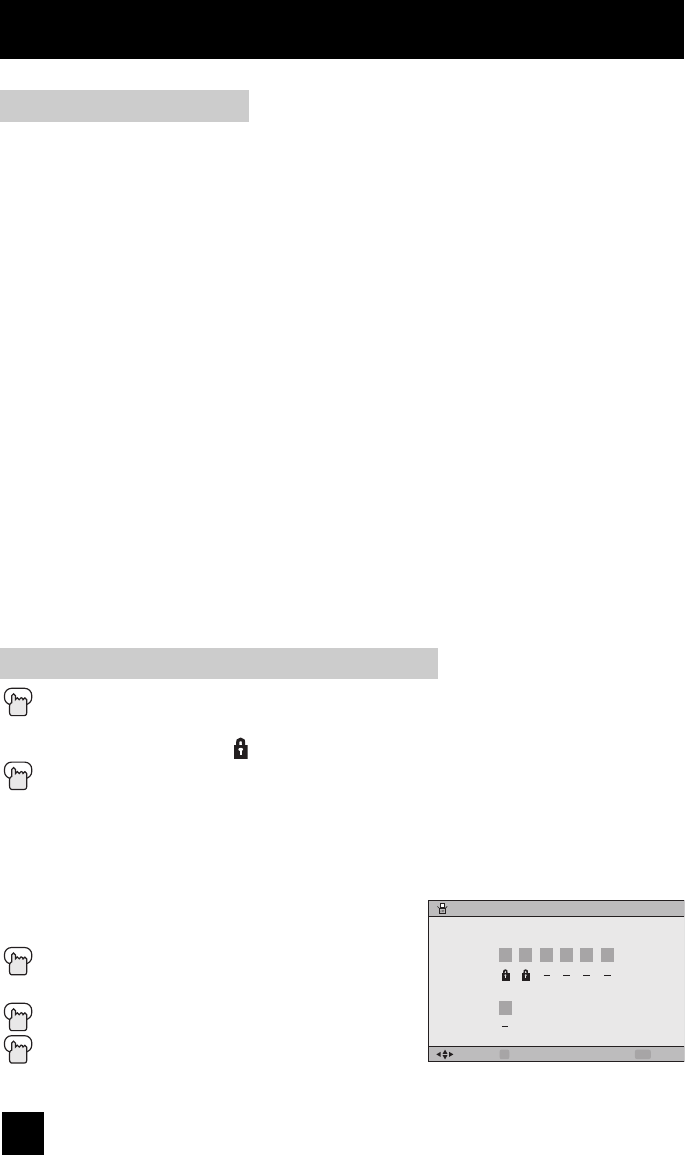

Initial Setup

Line up the cursor in the column (TV PG, TV G, etc.) with the content row (V/FV, S, etc.) and

press the

π†

√®

to move the cursor to the correct location. Press OK to turn the locking

feature on or off. An item is locked if the icon appears instead of a “—”.

For example. To block viewing of all TV 14 shows, move the cursor to the top row of that

column and add a lock icon. Once you’ve put a lock on the top row, everything in that column

is automatically locked.

π†

√®

To the TV 14 Column

Press the OK button to lock

Press the MENU button when finished

Note:

• If you want to change the setup, move the cursor to

the top column and change the lock icon to “—” by

pressing OK again. You may then select individual

categories to block.

Directions to set US V-Chip Ratings

Press the MENU button

π†

To V-CHIP

√®

To operate (lock icon appears)

Press ZERO to access the V-Chip menu

√®

To turn V-Chip ON or OFF

π†

To move to SET US TV RATINGS

√®

To operate

Setting US V-Chip Ratings

V/FV

SET US TV RATINGS

SELECT OPERATE EXIT

V-CHIP

SET US TV RATINGS

SET MOVIE RATINGS

SET CANADIAN RATINGS ENG

SET CANADIAN RATINGS FRE

UNRATED

V-CHIP

SELECT OPERATE EXIT

VIEW

OFF

LCT1881-001A-A ENG 41 4/26/05, 9:40:01 AM

Initial Setup

❒ NR – Not Rated

This is a film which has no rating. In many cases these films were imported from countries

which do not use the MPAA ratings system. Other NR films may be from amateur producers

who didn’t intend to have their film widely released.

NR (Not Rated) Programming may contain all types of programming including children’s

programming, foreign programs, or adult material.

❒ G – General Audience

In the opinion of the review board, these films contain nothing in the way of sexual content,

violence, or language that would be unsuitable for audiences of any age.

❒ PG – Parental Guidance

Parental Guidance means the movie may contain some contents such as mild violence,

some brief nudity, and strong language. The contents are not deemed intense.

❒ PG-13 – Parents Strongly Cautioned

Parents with children under 13 are cautioned that the content of movies with this rating may

include more explicit sexual, language, and violence content than movies rated PG.

❒ R – Restricted

These films contain material that is explicit in nature and is not recommended for

unsupervised children under the age of 17.

❒ NC-17 – No One Under 17

These movies contain content which most parents would feel is too adult for their children

to view. Content can consist of strong language, nudity, violence, and suggestive or explicit

subject matter.

❒ X – No One under 18

Inappropriate material for anyone under 18.

Movies Ratings

Press the MENU button

π†

To V-CHIP

√®

To operate (Lock icon appears)

Press ZERO to access V-Chip setup options

π†

To SET MOVIE RATINGS

√®

To enter movies menu

For example:

To block viewing of X and NC-17 rated from shows:

π†

√®

To the X Column

Press the OK button to lock

π†

√®

To the NC-17 Column

Press the OK button to lock

Press the MENU button to finish

Directions to set Movie (MPAA) Ratings

SET MOVIE RATINGS

SELECT OPERATE EXIT

NC17

PG13

LCT1881-001A-A ENG 42 4/26/05, 9:40:02 AM

Press the MENU button

π†

To V-CHIP

√®

To operate (lock icon appears)

Press ZERO to access V-Chip setup options

π†

To SET CANADIAN RATINGS ENG (for English)

√®

To enter ratings menu

For example:

To block viewing of programming rated 14+ and 18+:

√®

To the 18+ Column

Press the OK button to lock

√®

To the 14+ Column

Press the OK button to lock

Press the MENU button to finish

Note:

• For instructions on “SET CANADIAN RATINGS FRE (in French)”, please see page 43 in the

French side of this user’s guide.

Directions to set Canadian V-Chip Ratings

❒ E – Exempt

Exempt programming includes: news, sports, documentaries and other information

programming, talk shows, music videos, and variety programming.

❒ C – Programming Intended for Children

Violence Guidelines: There will be no realistic scenes of violence. Depictions of aggressive

behavior will be infrequent and limited to portrayals that are clearly imaginary, comedic or

unrealistic in nature.

❒ C8+ – Programming Intended for Children 8 and Over

Violence Guidelines: Any realistic depictions of violence will be infrequent, discreet, of low

intensity and will show the consequences of the acts. There will be no offensive language,

nudity or sexual content.

❒ G – General Audience

Programming will contain little violence and will be sensitive to themes which could affect

younger children.

❒ PG – Parental Guidance

Programming intended for a general audience, but which may not be suitable for younger

children. Parents may consider some content not appropriate for children aged 8-13.

❒ 14+ – 14 Years and Older

Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and

early teens. Programming may contain mature themes and scenes of intense violence.

❒ 18+ – Adult

Material intended for mature audiences only.

Canadian V-Chip Ratings

Initial Setup

14+

18+ PG

SET CANADIAN RATINGS ENG

SELECT OPERATE EXIT

LCT1881-001A-A ENG 43 4/26/05, 9:40:02 AM

Channel guard and V-Chip settings are protected by a four-digit lock code. Your TV comes

preset with a lock code of “0000”. You may change the code to any four-digit number you wish.

To change the lock code, follow the steps below.

Press the MENU button

π†

To SET LOCK CODE

√®

To operate (lock icon appears)

Press ZERO to access the lock code

The first digit will be highlighted

√®

To select the number

π†

To move to the next digit

Continue to follow these directions for all four numbers

Press the OK button to finish (your lock code is now set)

Press the Menu button when finished

• After a power interruption you must reset the lock code.

• Write your lock code number down and keep it hidden from potential viewers.

• If you forget the lock code, a new code may be set using the steps listed above.

Notes:

When a viewer attempts to watch a blocked channel, this message appears:

The channel will remain blocked until the correct lock code is entered (see above for

information on setting your lock code).

Initial Setup

Set Lock Code

LOCK CODE

SET LOCK CODE

SELECT OPERATE EXIT

PRESS TO FINISH

0000

THIS PROGRAMMING EXCEEDS

YOUR RATING LIMITS.

PLEASE ENTER LOCK CODE BY

10 KEY PAD TO UNLOCK IT.

NO. - - - -

LCT1881-001A-A ENG 44 4/26/05, 9:40:03 AM

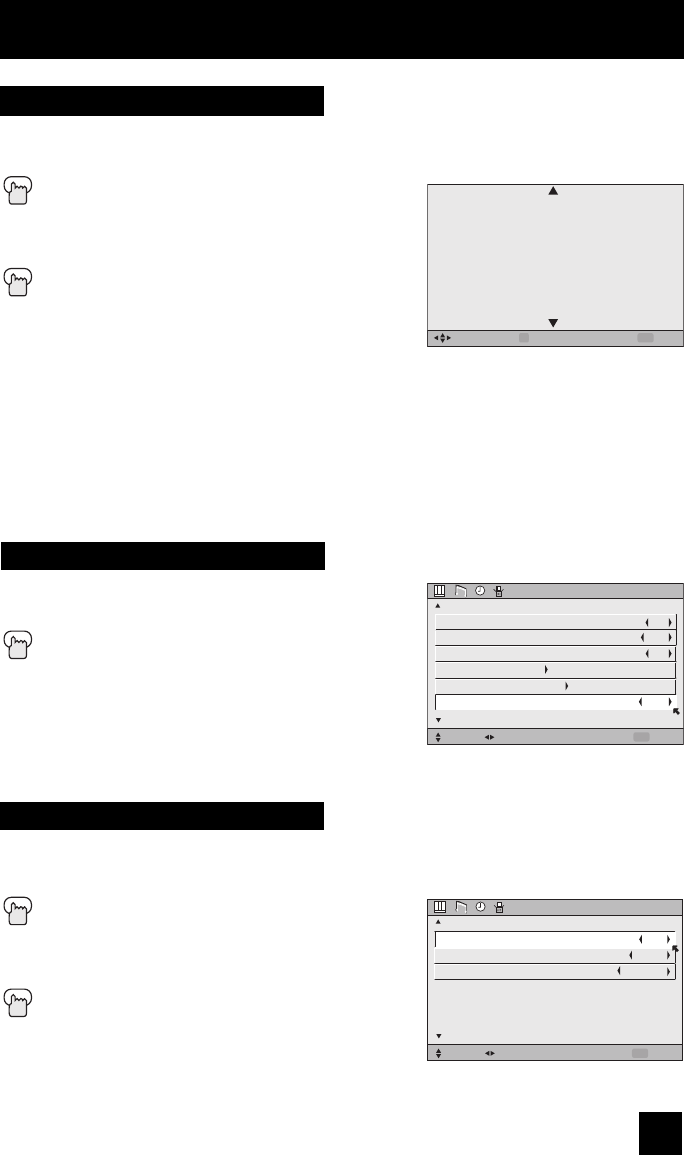

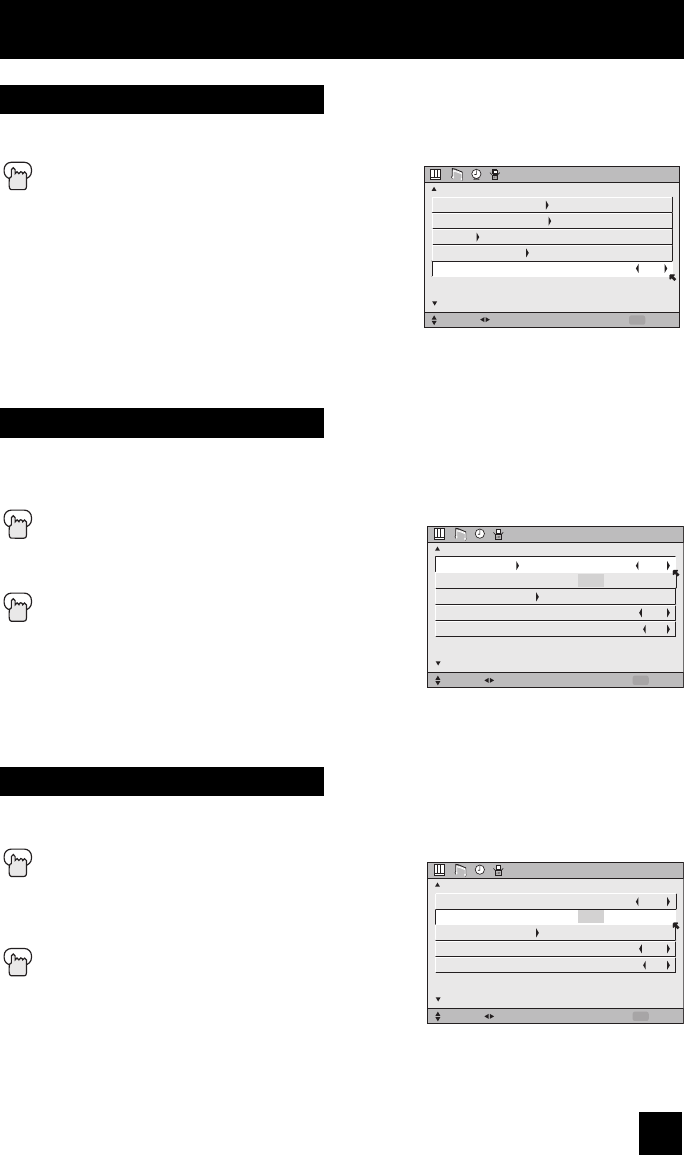

This function lets you preview the Dynamic Gamma demo.

Press the MENU button

π†

To AUTO DEMO

√®

To turn AUTO DEMO ON or OFF

Notes:

• Auto demo starts 2 seconds after it is set to ON.

• To stop auto demo, press the BACK button.

Initial Setup

INITIAL SETUP

SELECT OPERATE EXIT

(4/5)

AUTO TUNER SETUP

CHANNEL SUMMARY

V-CHIP

SET LOCK CODE

AUTO DEMO OFF

Auto Demo

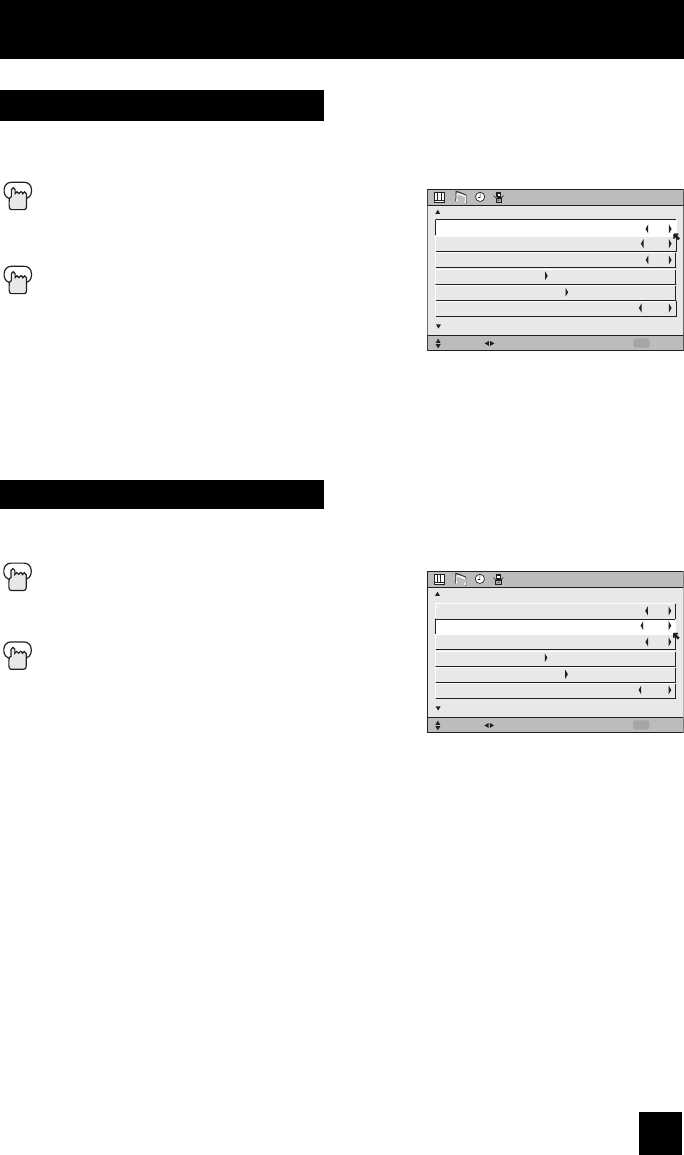

The illumination feature allows you to adjust the brightness of the light on the front of the

television. When you turn the power on the televison, the front panel light remains on when

illumination is set to LOW or HIGH.

Press the Menu button

π†

To ILLUMINATION

√®

To choose HIGH, LOW or OFF

Press the MENU button when finished

Illumination

INITIAL SETUP

SELECT OPERATE EXIT

(3/5)

ILLUMINATION

LANGUAGE

CLOSED CAPTION

AUTO SHUT OFF

XDS ID

OFF

ENG. FRAN. ESP.

LOW

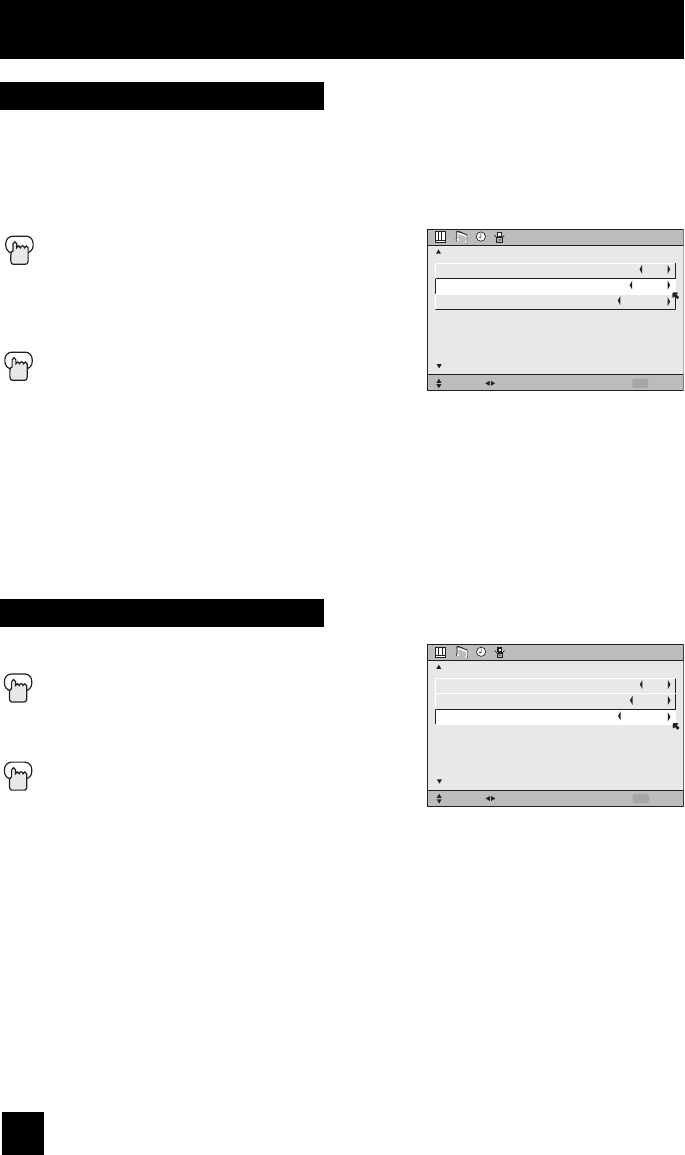

The language function is described on page 25 as the interactive plug-in menu. If you need to

choose the language again, follow the steps below.

Press the Menu button

π†

To LANGUAGE

√®

To choose a language: ENG. (English), FRAN.

(French) or ESP. (Spanish)

Press the MENU button when finished

Language

INITIAL SETUP

SELECT OPERATE EXIT

(3/5)

ILLUMINATION

LANGUAGE

CLOSED CAPTION

AUTO SHUT OFF

XDS ID

OFF

ENG. FRAN. ESP.

LOW

LCT1881-001A-A ENG 45 4/26/05, 9:40:03 AM

Initial Setup

Press the MENU button

π†

To CLOSED CAPTION

√®

To enter

π†

To MODE

√®

To select CAPTION or TEXT in MODE

π†

To CAPTION or TEXT

√®

To select a caption (CC1 to CC4) or text

channel (T1 to T4)

Press the OK button to save

Press the MENU button when finished

Many broadcasts now include an onscreen display of dialog called closed captions. Some

broadcasts may also include displays of additional information in text form. Your television can

access and display this information using the closed caption feature. To activate the closed

caption feature, follow the steps below. There are three methods. When you are watching

analog channels, you can perform Analog Setting of closed caption. When you are watching

digital channels, you can perform Digital Auto Setting or Digital Manual Setting.

Closed Caption

Analog Setting

Digital Auto Setting

Press the MENU button

π†

To CLOSED CAPTION

√®

To enter

π†

To Type

√®

To select Auto, Advanced or Basic

Auto: Shows closed caption a priority for

digital channels over analog channels. It is

set automatically.

Advanced: Shows only the digital closed

caption.

Basic: Shows only the analog closed

caption.

π†

To Service

√®

To select 1, 2, 3, 4, 5 or 6

π†

To Appearance

√®

To enter

√®

To select Auto

π†

To Set

Press the OK button to save

The font/type and color are set automatically.

Press the MENU button when finished

Note:

• If you want to cancel the settings, select cancel.

CLOSED CAPTION

SELECT OPERATE EXIT

PRESS TO FINISH

TEXTMODE

CAPTION

TEXT

CC1

Digital Closed Caption

Preview

Select Back

BACK

Exit

Operate

Closed Caption Sample

Cancel Set

AUTO

Type

Service

Appearance

Digital Closed Caption > Appearance

Preview

Select Back

BACK

Exit

Closed Caption Sample

Auto

Cancel Set

Appearance Mode

Font

Colors

Opacities

Operate

LCT1881-001A-A ENG 46 4/26/05, 9:40:04 AM

Initial Setup

• Closed caption subtitles are usually found on closed caption channel CC1. Some programs

may include additional text information which is usually found on text channel T1. The other

channels are available for future use.

• Closed captioning may not work correctly if the signal being received is weak or if you are

playing a video tape.

• Most broadcasts containing closed captioning will display a notice at the start of the program.

• To select the mode, press the C.C. button. See page 65.

Notes:

Press the MENU button

π†

To CLOSED CAPTION

√®

To enter

π†

To Type

√®

To select Auto, Advanced or Basic

π†

To Service

√®

To select 1, 2, 3, 4, 5 or 6

π†

To Appearance

√®

To enter

√®

To select Manual

π†

To Font

√®

To enter

π†

To select Font Size or Font Style

√®

To select the setting you like

Font Size: Auto, Standard, Large or Small

Font Style: Auto, Serif Mono, Serif, Sanserif mono,

Sanserif, Casual, Cursive or Small Capital

π†

To Set

Press the OK button to save

π†

To Colors

√®

To enter

π†

To select Text, Edge or Background

√®

To select the setting you like

Auto, White, Black, Red, Green, Blue,

Yellow, Magenta or Cyan

π†

To Set

Press the OK button to save

π†

To Opacities

√®

To enter

π†

To select Text/Edge or Background

√®

To select Auto, Transparent, Translucent,

Solid or Flashing

π†

To Set

Press the OK button to save

Press the MENU button when finished

Digital Manual Setting

Digital Closed Caption > Appearance

Preview

Select Back

BACK

Exit

Closed Caption Sample

Manual

Cancel Set

Appearance Mode

Font

Colors

Opacities

Operate

Digital Closed Caption > Appearance

Preview

Select Back

BACK

Exit

Closed Caption Sample

Manual

Cancel Set

Appearance Mode

Font

Colors

Opacities

Operate

Cancel Set

Standard

Auto

Font Size

Font Style

Digital Closed Caption > Appearance

Preview

Select Back

BACK

Exit

Closed Caption Sample

Manual

Cancel Set

Appearance Mode

Font

Colors

Opacities

Operate

Cancel Set

Tex t

Edge

Background

White

Black

All fonts used for digital closed

caption and digital menus are

licensed from Monotype Imaging

Inc.

LCT1881-001A-A ENG 47 4/26/05, 9:40:05 AM

This function automatically shuts off your TV when there is no signal from the channel the

TV is on.

Press the MENU button

π†

To AUTO SHUT OFF

√®

To turn ON or OFF

Press the MENU button when finished

• If the channel that you have on does not receive a

signal for more than one minute, the blinking text

“NOT RECEIVING A SIGNAL” appears on the screen,

and starts the countdown. If no signal is being

received within 10 minutes, the TV shuts itself off.

• When i.LINK is displayed, Auto Shut Off will not work.

Auto Shut Off

INITIAL SETUP

SELECT OPERATE EXIT

(3/5)

ILLUMINATION

LANGUAGE

CLOSED CAPTION

AUTO SHUT OFF

XDS ID

OFF

ENG. FRAN. ESP.

LOW

XDS ID Display provides a channel’s call letters, the network’s name, and even a program

name. The XDS ID information is provided by the broadcaster.

Press the MENU button

π†

To XDS ID

√®

To turn ON or OFF

Press the MENU button when finished

XDS ID

INITIAL SETUP

SELECT OPERATE EXIT

(3/5)

ILLUMINATION

LANGUAGE

CLOSED CAPTION

AUTO SHUT OFF

XDS ID

OFF

ENG. FRAN. ESP.

LOW

Initial Setup

LCT1881-001A-A ENG 48 4/26/05, 9:40:05 AM

This feature inserts a blank grey screen over channels which are not broadcasting or are too

weak to be received clearly.

Press the MENU button

π†

To NOISE MUTING

√®

To turn noise muting ON or OFF

Press the MENU button when finished

Note:

• Noise muting will not work during auto tuner setup or

when you operate channel summary.

• Noise muting will not work when the digital TV or i.LINK is displayed.

Noise Muting

Initial Setup

OFF

INITIAL SETUP

SELECT OPERATE EXIT

(2/5)

NOISE MUTING

FRONT PANEL LOCK

V1 SMART INPUT

VIDEO INPUT LABEL

POSITION ADJUSTMENT

POWER INDICATOR LOW

This allows you to lock the keys on the side of the TV, so that a child may not accidentally

change your viewing preferences.

Press the MENU button

π†

To FRONT PANEL LOCK

√®

To turn ON or OFF

Press the MENU button when finished

Front Panel Lock

You can turn off this feature in the following ways:

• Unplug the power cord, and plug it back in. Do this if

your batteries die, or you lose your remote control.

• Use the remote control.

• Press the MENU button on the side of the TV for more than 3 seconds. In this case, the OSD

for FRONT PANEL LOCK will appear.

Note:

• To turn ON/OFF the TV, press the power button for more than 3 seconds. This feature will

remain ON.

INITIAL SETUP

SELECT OPERATE EXIT

(2/5)

LOW

OFF

NOISE MUTING

FRONT PANEL LOCK

V1 SMART INPUT

VIDEO INPUT LABEL

POSITION ADJUSTMENT

POWER INDICATOR

LCT1881-001A-A ENG 49 4/26/05, 9:40:06 AM

Initial Setup

This feature is used if you have connected an AV Receiver to your television. By turning this

feature on, your television can automatically detect the signal source from your components

that are connected to your AV Receiver.

Press the MENU button

π†

To V1 SMART INPUT

√®

To turn ON or OFF

Press the MENU button when finished

Notes:

• If you do not have an AV Receiver connected to your

television, turn this feature OFF.

• Some AV Receivers may not work with this function.

V1 Smart Input

INITIAL SETUP

SELECT OPERATE EXIT

(2/5)

LOW

OFF

NOISE MUTING

FRONT PANEL LOCK

V1 SMART INPUT

VIDEO INPUT LABEL

POSITION ADJUSTMENT

POWER INDICATOR

This function is used to label video input connections for the onscreen displays.

Press the MENU button

π†

To VIDEO INPUT LABEL

√®

To operate

π†

To select the desired video input

√®

To select the desired preset input label (see

chart below)

Press the OK button to save

Press the MENU button when finished

INITIAL SETUP

SELECT OPERATE EXIT

(2/5)

LOW

OFF

NOISE MUTING

FRONT PANEL LOCK

V1 SMART INPUT

VIDEO INPUT LABEL

POSITION ADJUSTMENT

POWER INDICATOR

Video Input Label

Preset

Labels

VCR

DVD

DVHS

STB

SAT

AMP

GAME

CAM

DISC

You have a VCR connected to the video input

You have a DVD connected to the video input

You have a Digital VCR connected to the video input

You have a Set-top Box connected to the video input

You have a Satellite Receiver connected to the video input

You have an Amplifier connected to the video input

You have a Video Game connected to the video input

You have a Video Camera connected to the video input

You have a Video Disc player connected to the video input

Select when...

VIDEO INPUT LABEL

VCR

DVD

SAT

STB

VIDEO-1

VIDEO-2

VIDEO-3

DIGITAL-IN

SELECT OPERATE EXIT

PRESS TO FINISH

LCT1881-001A-A ENG 50 4/26/05, 9:40:06 AM

Power indicator allows you to adjust the brightness of

the power indicator

Press the MENU button

π†

To POWER INDICATOR

√®

To adjust POWER INDICATOR LOW, HIGH

or OFF

Note:

• If you set a timer on the TV, the power indicator will light even if the TV is on stand by.

Power Indicator

INITIAL SETUP

SELECT OPERATE EXIT

(2/5)

OFF

NOISE MUTING

FRONT PANEL LOCK

V1 SMART INPUT

VIDEO INPUT LABEL

POSITION ADJUSTMENT

POWER INDICATOR LOW

Position adjustment allows you to adjust the position of the picture on the screen vertically

when the aspect is set to panorama, cinema, or full.

Press the MENU button

π†

To POSITION ADJUSTMENT

√®

To enter

π†

√®

To adjust the position

Press the MENU button to finish

Notes:

• To reset the adjustment to the center, press the

OK button.

• When the arrow disappears, while you are adjusting the position, the position is at it’s

maximum limit.

• If you select regular size and slim size with aspect or Multi Screen, position adjustment

option is not seen.

• When you change the screen size, perform the position adjustment again.

• Position adjustment allows you to adjust the screen position vertically and horizontally when

the aspect is set PANORAMA ZOOM or CINEMA ZOOM for 1080i and 720p signals.

Position Adjustment

OPERATE RESET EXIT

OK MENU

Initial Setup

INITIAL SETUP

SELECT OPERATE EXIT

(1/5)

VIDEO-1 MONITOR OUT

DIGITAL-IN

DIGITAL-IN AUDIO

OFF

SIZE1

DIGITAL

This function allows you to set whether the signal, which comes from VIDEO-1 input terminal,

should be output from MONITOR OUT terminal. If you select it from MONITOR OUT, set it to

"ON".

Press the MENU button

π†

To VIDEO-1 MONITOR OUT

√®

To select ON or OFF

Press the MENU button to finish

Video-1 Monitor Out

LCT1881-001A-A ENG 51 4/26/05, 9:40:07 AM

Initial Setup

The DIGITAL-IN option can only be displayed in the INITIAL SETUP menu when a 480p picture

signal is being input to the DIGITAL-IN terminal. This option adjusts the position when a 480p

picture signal is being displayed on the screen. There are two types of 480p picture signals:

640x480 and 720x480. If the displayed picture is slightly shifted, the position can be adjusted

by selecting either SIZE1 or SIZE2.

Press the MENU button

π†

To DIGITAL-IN

√®

To enter

π†

To select AUTO, SIZE1 or SIZE2

Press the MENU button to finish

Notes:

• The DIGITAL-IN menu can only be displayed when a 480p picture signal is input to the

Digital-In terminal and the picture is being displayed on the screen.

• You can select AUTO only when the signal is 480p for HDMI. When you select AUTO, the

televison will select "SIZE1" or "SIZE2" automatically.

Digital-In

INITIAL SETUP

SELECT OPERATE EXIT

(1/5)

VIDEO-1MONITOR OUT

DIGITAL-IN

DIGITAL-IN AUDIO

OFF

SIZE1

DIGITAL

This feature is used if you have a DTV or HDMI

compatible component connected to your TV.

Press the MENU button

π†

To DIGITAL-IN AUDIO

√®

To select “ANALOG”, “DIGITAL” or "AUTO"

Press the Menu button when ﬁ nished

Notes:

• If your DTV or HDMI component is capable of digital audio and video, choose DIGITAL. If

your DTV or HDMI component is capable of analog audio and digital video, choose ANALOG.

• Refer to your DTV or HDMI component’s instruction manual for more information.

• When you select DIGITAL, select PCM on Digital Sound in the Digital Setup menu. See page

71.

• When you select AUTO, the television will select "ANALOG" or "DIGITAL" automatically,

depending on the audio input from the HDMI.

Digital-In Audio

INITIAL SETUP

SELECT OPERATE EXIT

(1/5)

VIDEO-1MONITOR OUT

DIGITAL-IN

DIGITAL-IN AUDIO

OFF

SIZE1

DIGITAL

LCT1881-001A-A ENG 52 4/26/05, 9:40:07 AM

Press the MENU button

π†

To TINT, COLOR, PICTURE, BRIGHT, DETAIL

or ENERGY SAVER MODE

√ ®

To enter

√ ®

To adjust the setting

π†

To move to the next setting

Press the MENU button when finished

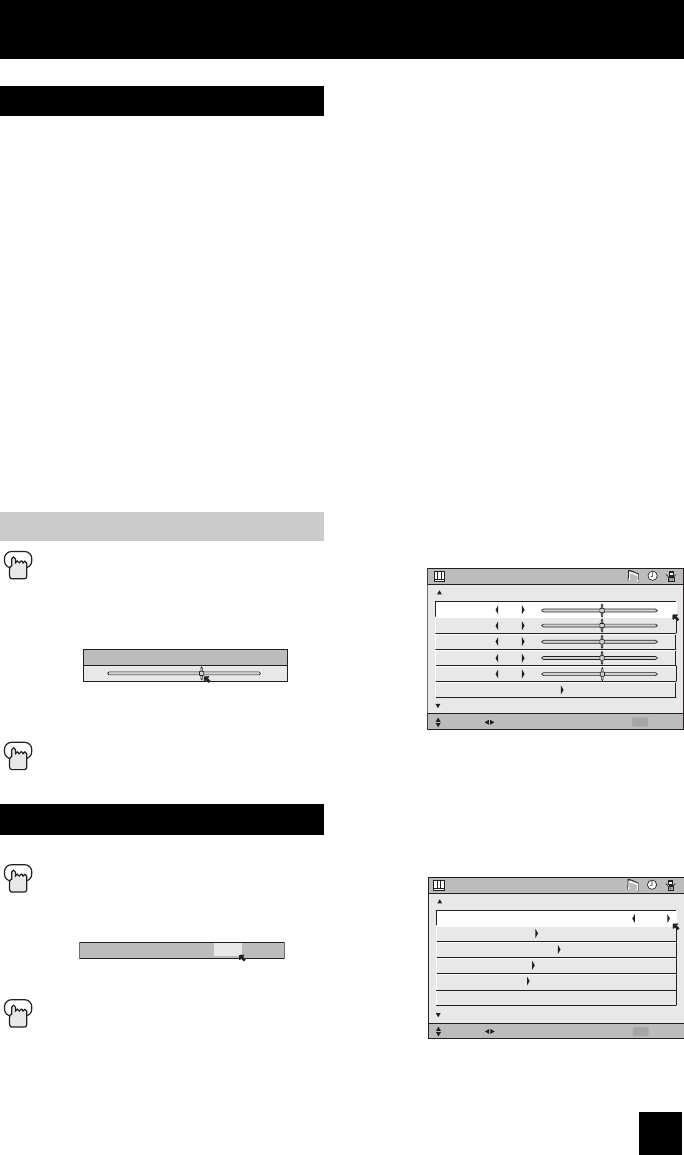

These settings allow you to change and adjust the way the picture appears on your television.

TINT

Tint allows you to adjust the levels of red and green in your TV picture.

COLOR

The color function lets you make all the colors in the TV picture appear either more vivid or

subtle.


Picture allows you to adjust the levels of black and white on the TV screen, giving you a darker

or brighter picture overall.

BRIGHT

You can adjust the overall brightness of the TV picture with the Bright control.

DETAIL

The Detail feature adjusts the level of fine detail displayed in the picture.

ENERGY SAVER MODE

The energy saver mode adjusts the level of brightness on the TV screen.

Picture Adjust

Picture Settings

Adjust the Picture Settings

Color Temperature

You can decide how strong or dull the colors appear on the TV screen.

Press the MENU button

π†

To COLOR TEMPERATURE

√®

To enter

√®

To set LOW or HIGH

Press the MENU button when finished

SELECT OPERATE EXIT

PREVIOUS STANDARD

PICTURE ADJUST

(2/2)

HIGH

OFF

COLOR TEMPERATURE

DIG. NOISE CLEAR

COLOR MANAGEMENT

DYNAMIC GAMMA

SMART PICTURE

RESET

COLOR TEMPERATURE LOW HIGH

TINT +02

TINT

COLOR


BRIGHT

DETAIL

ENERGY SAVER MODE

PICTURE ADJUST

SELECT OPERATE EXIT

STANDARD

(1/2)

LCT1881-001A-A ENG 53 4/26/05, 9:40:08 AM

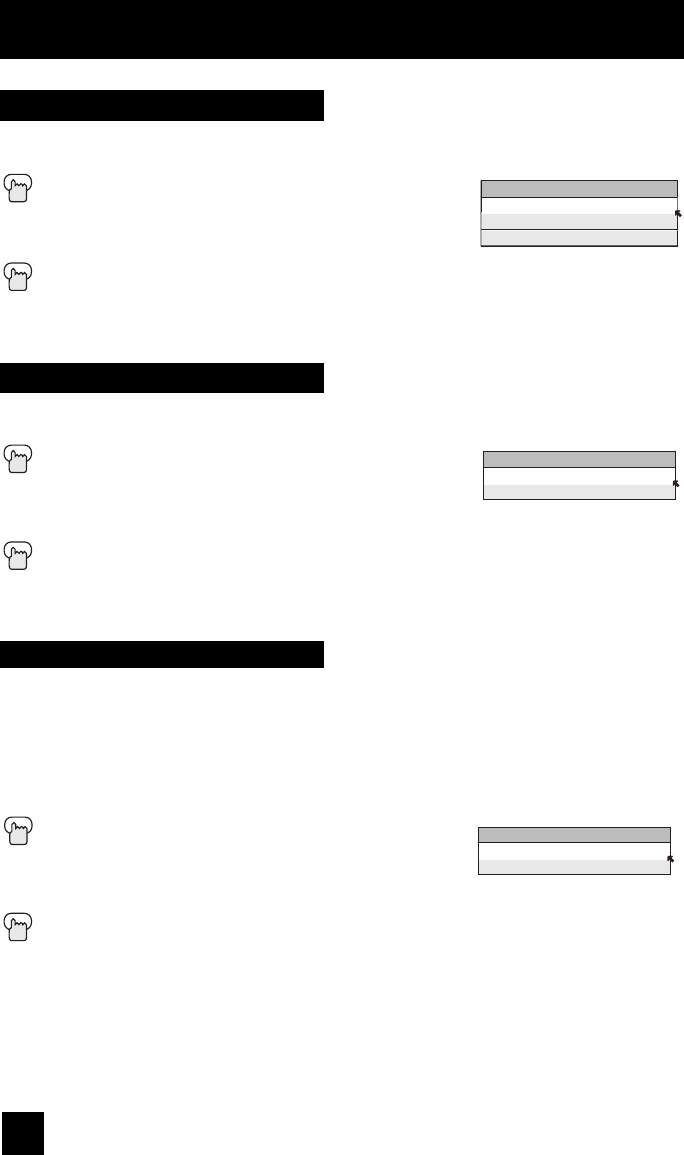

Picture Adjust

With digital noise clear, this helps take our static or noise from a channel that may not be

coming in clearly.

Press the MENU button

π†

To DIG. NOISE CLEAR

√®

To enter

π†

To select the mode “LOW”, “HIGH” or “OFF”

Press the MENU button when finished

Digital Noise Clear

DIG. NOISE CLEAR

OFF

LOW

HIGH

Color Management

This TV supports the COLOR MANAGEMENT function to ensure dull colors are compensated

to produce natural hues.

Press the MENU button

π†

To COLOR MANAGEMENT

√®

To enter

π†

To select the mode “ON" or "OFF"

Press the MENU button when finished

COLOR MANAGEMENT

OFF

Dynamic Gamma

JVC's Dynamic Gamma Circuitry (DGC makes it easier to see dark areas when a picture has

many dark areas, and makes it easier to see the bright areas when a picture has many bright

areas. DGC is turned on, DGC analyzes and adjusts the total level of picture brightness

balance, especially in dark areas where the level of greyscale is often lost, turning completely

to black DGC automatically enhances the detail in these dark areas providing a more dynamic

image with ﬁ ner detail, so the optimum picture settings are automatically set for each picture.

Normally use with DGC on.

Press the MENU button

π†

To DYNAMIC GAMMA

√®

To enter

π†

To turn ON or OFF

Press the MENU button when finished

DYNAMIC GAMMA

OFF

LCT1881-001A-A ENG 54 4/26/05, 9:40:08 AM

Picture Adjust

Reset

Reset resets all picture adjustments (tint, color, picture, bright, detail, energy saver mode, color

temperature, dig. noise clear, color management and dynamic gamma and smart picture) at

once to the default settings.

Press the MENU button

π†

To RESET

√®

To enter

The onscreen menu disappears for a moment,

and then the settings are reset to the default

setting for all the picture adjustments.

Press the MENU button when finished

SELECT OPERATE EXIT

PREVIOUS STANDARD

PICTURE ADJUST

(2/2)

OFF

COLOR TEMPERATURE

DIG. NOISE CLEAR

COLOR MANAGEMENT

DYNAMIC GAMMA

SMART PICTURE

RESET

HIGH

Smart Picture

Smart Picture detects the APL (Average Picture Level) and adjusts the contrast suitable for

what you are watching.

Press the MENU button

π†

To SMART PICTURE

√®

To enter

π†

To select the mode "ON" or "OFF"

Press the MENU button when finished

Note:

• When you have "DYNAMIC" selected in the "VIDEO STATUS", Smart Picture is not selected.

SMART PICTURE

OFF

LCT1881-001A-A ENG 55 4/26/05, 9:40:09 AM

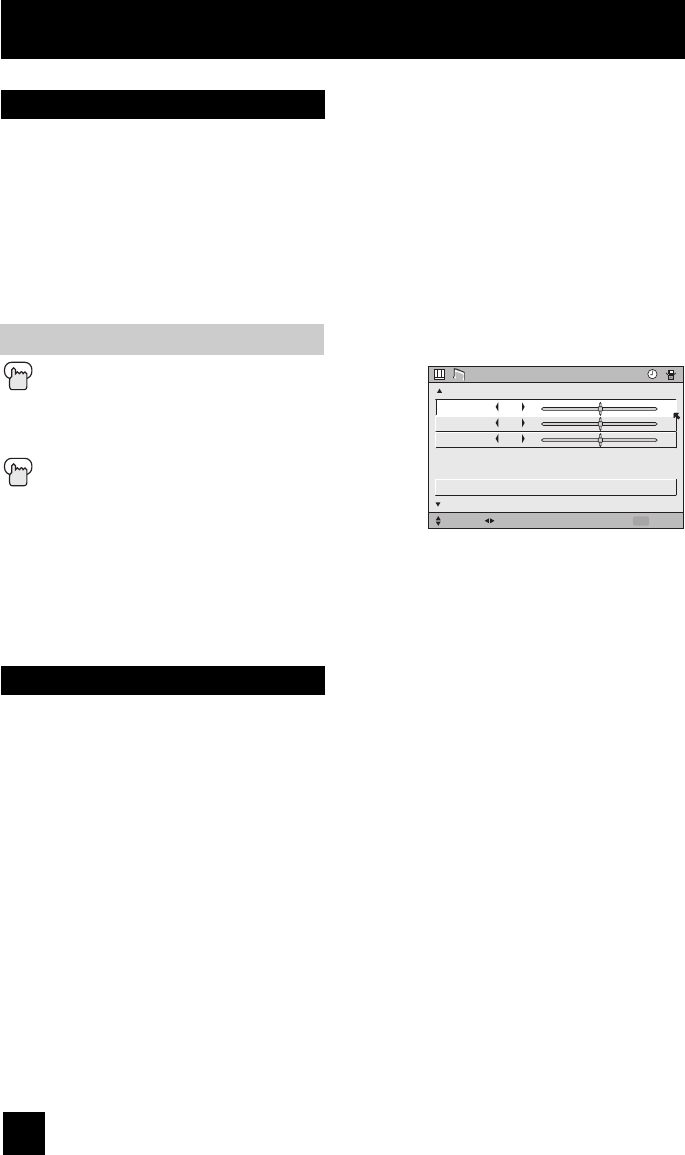

These settings allow you to change and adjust the sound on your television.

BASS – You can increase or decrease the level of low-frequency sound in the TV’s audio with

the bass adjustment.

TREBLE – Use treble to adjust the level of high-frequency sound in your TV’s audio.

BALANCE – Adjust the level of sound between the TV’s left and right speakers with the

balance setting.

Press the MENU button

π†

To BASS, TREBLE or BALANCE

√ ®

To adjust the setting

π†

To move to the next setting

Press the MENU button when finished

Note:

• You can reset the sound adjustments (BASS, TREBLE and BALANCE) you set at once as

the default setting when you select reset. See page 55.

• You can adjust BALANCE only when A.H.S. is off. See page 62.

Sound Adjust

Sound Settings

Adjust the Sound Settings

BASS

TREBLE

BALANCE

RESET

SOUND ADJUST

SELECT OPERATE EXIT

Reset

Reset resets all Sound Adjustments (Bass, Treble and Balance) at once to the default settings.

See page 55 on how to use reset.

LCT1881-001A-A ENG 56 4/26/05, 9:40:10 AM

Clock/Timers

Set Clock

The set clock function is described on page 26 as the interactive plug-in menu. You can choose

to set the clock automatically or manually. If you need to set the clock again, follow the steps

below.

Press the MENU button

π†

To SET CLOCK

√®

To enter

When you set the clock automatically, choose AUTO by pressing the

√

arrows.

π†

To TIME ZONE

√®

To select your time zone

π†

To D.S.T. (daylight savings time)

√®

To turn D.S.T. ON or OFF

Press OK to finish

Press the MENU button when finished

When you set the clock manually, choose MANUAL by

pressing the

√

arrows.

π†

To move to the hours

√®

To set the hours

π†

To move to minutes

√®

To set the minutes

π†

To TIME ZONE

√®

To select your time zone:

(Atlantic, Eastern, Central, Mountain, Pacific,

Alaska or Hawaii)

π†

To DATE/YEAR

√®

To set the month

π†

To day

√®

To set the day

π†

To year

√®

To set the year

π†

To D.S.T. (daylight savings time)

√®

To turn D.S.T. ON or OFF

Press OK to start clock

Press the MENU button when finished

SET CLOCK

PRESS TO START CLOCK

SELECT OPERATE EXIT

TIME

MODE

TIME ZONE

DATE/YEAR

D.S.T.

MANUAL

ATLANTIC

JAN/01/05

SET CLOCK

PRESS TO FINISH

SELECT OPERATE EXIT

TIME

MODE

TIME ZONE

DATE/YEAR

D.S.T.

AUTO

ATLANTIC

JAN/01/05

THANK YOU !!

ATLANTIC EASTERN CENTRAL MOUNTAIN

HAWAII ALASKA PACIFIC

Notes:

• D.S.T. can be used when it is set to ON in the SET CLOCK menu.

• Only when the MODE set to AUTO, the Daylight Savings Time feature automatically adjusts

your TV’s clock for Daylight Savings. The clock will move forward one hour at 2:00 am on

the first Sunday in April. The clock will move back one hour at 2:00 am on the last Sunday in

October.

• You will have to reset the clock after a power interruption. You must set the clock before

operating any timer functions.

LCT1881-001A-A ENG 57 4/26/05, 9:40:10 AM

Clock/Timers

The on/off timer lets you program your television to turn itself on or off. You can use it as an

alarm to wake up, to help you remember important programs, or as a decoy when you’re not

home.

Press the MENU button

π†

To ON/OFF TIMER

√®

To operate (begins with ON TIME)

√®

To set the hour (AM/PM) you want the TV to

turn on

†

To move to minutes

√®

To set the minutes

†

To accept ON TIME and move to OFF TIME (the time the TV will turn off). Set the

OFF TIME the same way as ON TIME

†

To accept OFF TIME and move to CHANNEL

√®

To select channel

†

To ON VOLUME

√®

To set the volume level

†

To move to MODE

√®

Choose ONCE or EVERYDAY

†

To ON/OFF TIMER

√®

Choose YES to accept the timer setting, choose NO if you don’t wish to accept

Press the OK button to finish

Press the MENU button to exit the menu

• The on/off time cannot be set to locked or guarded channels.

• In order for the on/off timer to work, the clock must be set.

• After a power interruption, the timer settings must be reset.

Notes:

On/Off Timer

ON TIME

OFF TIME

CHANNEL

ON VOLUME

MODE

ON/OFF TIMER

7:00 PM

10:00 PM

CURRENT

EVERYDAY

ON/OFF TIMER

SELECT OPERATE EXIT

PRESS TO FINISH

LCT1881-001A-A ENG 58 4/26/05, 9:40:11 AM

Button Functions

Your television has two kinds of screen: TWIN (2 channels) and INDEX (12 channels).

Multi Screen Function

Note: After you press any multiscreen button, if you press the menu button, only the picture

adjust screen will appear.

This allows you to quickly look at up to 12 channels at a time so that you can decide which one

to watch.

Notes:

• Only RF input signal will be displayed.

• You can watch the channel added in channel summary. See page 36.

Index

Twin

Activate the split-screen option by pressing Twin on

the remote control. The channel (or input) you were

watching before pressing Twin will appear on the left,

the new channel will appear on the right. The sound

will continue to come from the main screen channel

(or input). To turn split-screen off and return to

normal television viewing, press TWIN again or press

the BACK button.

MAIN SCREEN


V-1

SPLIT SCREEN


Notes:

• If the signal that you are watching is coming from the HDMI input, you cannot enter the

SWAP or INDEX mode.

• Main Screen and Split Screen will not display the same channel or input at the same time.

• You can enter the TWIN mode when the screen is in NORMAL or INDEX mode.

• Split-screen functions will not work with locked channels or channels blocked by V-Chip

ratings limits. A grey screen will display instead.

• With split screen, the picture from the component terminal and DIGITAL-IN terminal will

not be displayed.

• The aspect of MAIN CHANNEL PICTURE becomes 16:9 when you input the picture of

480p, 720p and 1080i from the component terminal and DIGITAL-IN terminal.

• After you press the Select button, and select SPLIT SCREEN when you press the

OK button, select normal screen. If you don’t operate, the MAIN CHANNEL SCREEN will

be automatically selected about 8 seconds later.

• Aspect does not work in Twin mode.

• When you press the Menu button in Twin mode, it appears only as Picture Adjust menu.

• When the cable card is inserted into the TV, the combination of analog broadcasting and

digital broadcasting will not appear in the TWIN mode.

LCT1881-001A-A ENG 59 4/26/05, 9:40:11 AM

Button Functions

You can exchange the channel (or input) displayed in the split screen window for the main

screen image by pressing the SWAP button.

Note:

• It will only work in TWIN mode.

Freeze

Swap

With SELECT, you can select the picture (channel) while viewing SPLIT screen. When you

press SELECT button, the channel number on the top will be highlighted. Each press of SELECT

will shift the channel.

Select

Note: When the screen is in freeze mode, if you do not operate it within 15 minutes, this

function will cancel out.

Pressing the FREEZE button causes the screen to change to the split-screen display with the still

picture displayed on the right. In order to return to the normal display, press the FREEZE button

once again.

LCT1881-001A-A ENG 60 4/26/05, 9:40:12 AM

Button Functions

Turns the TV on or off.

Press the POWER button

Note:

• When you press the power button on the TV, and you are tuned to a digital channel or i.Link,

"NOW WARMING UP... PLEASE WAIT" appears on the screen. It takes a little while to warm

up.

Power

Use the number buttons on the remote control to move directly to a specific channel. For

example, to move to channel 12:

0 (Zero)

1 (One)

2 (Two)

Number Buttons - 10Key Pad

Tune

Selects the signal input source for the television: VIDEO-1, 2, 3, DIGITAL-IN or i.LINK for

video devices like VCRs, DVD players or camcorders.

Press the INPUT button

By every press of the INPUT button, you can change the input mode.

Notes:

• When you return to TV mode, press the RETURN +/TV button or direct 10 key pad or CHANNEL

+/– button.

• You can also access by pressing the INPUT button on the side of the TV instead of the remote

control.

• i.LINK can be selected only when you have an i.LINK device connected.

Input

Lets you decide the input channel and select it. After you press the number buttons on the

remote, press the TUNE button. For example, to move to channel 12:

1 (One)

2 (Two)

Press the TUNE button

The TheaterPro D6500K color temperature technology function makes sure that the video you

watch is set to the standard color temperature, so that what you see is as true to what the film

to video editors intended it to be.

Press the THEATERPRO button

TheaterPro D6500K

LCT1881-001A-A ENG 61 4/26/05, 9:40:12 AM

Button Functions

The RETURN+/TV button has three functions:

Return - Returns to the channel viewed just before the channel currently onscreen.

Return+ - Lets you program a specific channel to return to while scanning through the

channels using the CH+ and CH– buttons.

TV - Returns to the TV mode.

Press the RETURN+/TV and hold for three seconds

The channel currently active has been programmed as your return+ channel. Now scan

through the channels using the CHANNEL+/– buttons.

Press the RETURN+/TV

You will return to your programmed channel.

• To cancel your return+ channel, press and hold the RETURN+ button for three seconds. The

message “RETURN CHANNEL CANCELLED!” will appear.

• Return+ works only with the Channel+/– buttons. Pressing any number key will cancel

return+.

Return +/TV

RETURN CHANNEL

PROGRAMMED!

By pressing the SOUND button, you can change the A.H.S. (Advanced Hyper Surround) mode,

BBE, SMART SOUND and A.H.B (Active Hyper Bass) on or off.

A.H.S. - Adds a more spacious surround sound. Music gives basic effect and movie for more

effect.

BBE - BBE High Definition Sound restores clarity and presence for better speech intelligibility

and musical realism.

SMART SOUND - Decreases high sound levels, giving a regulated sound level.

A.H.B. - You can reinforce the bass sound to maintain rich, full bass at low volumes, and enjoy

a clear sound with boosted bass.

Press the SOUND button

π†

To select A.H.S., BBE, SMART SOUND or

A.H.B.

√®

To choose the setting

Press the MENU when finished

Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under

USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered trademarks of

BBE Sound, Inc.

Sound

SOUND EFFECT

SELECT OPERATE EXIT

A.H.S.

BBE

SMART SOUND

A.H.B.

MOVIE MUSIC OFF

ON OFF

Note: Smart Sound may become an unnatural effect, depending on the signal source.

LCT1881-001A-A ENG 62 4/26/05, 9:40:13 AM

Button Functions

The MUTING button instantly turns the volume down completely when you press it. Press

MUTING and the volume level will instantly go to zero. To restore the volume to its previous

level, press MUTING again.

Muting

The VIDEO STATUS button gives you a choice of four TV picture display settings, including a

display of your own preferences.

Standard - Resets the picture display to the factory settings.

Dynamic - Gives a vivid picture with better contrast when viewing in

a brightly lit room.

Theater - Gives a rich, film-like look to video when viewing in a

dimly lit room.

Game - Used for when you are playing video games connected to

your TV.

Press the VIDEO STATUS button

By every press of the VIDEO STATUS button, you change the mode.

Note:

• You can also change the mode by pressing the

π†

buttons.

• You can also access the FRONT CONTROL PANEL screen by using the MENU button on

the side of the TV instead of the remote control. It appears between INITIAL SETUP and

PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose VIDEO

STATUS by pressing MENU

†

on the side panel and choose a mode by using the CHANNEL

+/- buttons (

√

OPERATE

Video Status

VIDEO STATUS

STANDARD

DYNAMIC

THEATER

GAME

Natural cinema corrects the problem of blurred edges which may occur when viewing a program

originally shot on film (such as motion pictures) or animation. If you notice blurring at the edges

of these programs, press NATURAL CINEMA and set it to AUTO. Natural Cinema helps correct

conversion errors that occur when film, which is shot at 24 frames-per-second, is broadcast at the

television rate of 30 frames-per-second.

Press the NATURAL CINEMA button

Notes: The natural cinema mode is automatically set to “AUTO” in the

following cases:

• Turning on or off

• Changing the channel or input mode

• Using multi-screen functions

Natural Cinema

NATURAL CINEMA

AUTO

OFF

LCT1881-001A-A ENG 63 4/26/05, 9:40:13 AM

Button Functions

The Sleep Timer can turn the TV off for you after you fall asleep. Program it to work in intervals

of 15 minutes, for a total time of up to 180 minutes.

Press the SLEEP button

Sleep Timer Message

20 seconds before the automatic shutoff, this message will appear:

You then have 20 seconds to press the SLEEP button to

delay the shut off for another 15 minutes.

Sleep Timer

GOOD NIGHT!!

PUSH SLEEP TIMER BUTTON

TO EXTEND

0 15 30 45 60 75 90 105 120 135 150 165 180

ML/MTS

MTS technology allows several audio signals to be broadcast in analog at once, giving you a

choice in what you wish to hear with a TV program. In addition to mono or stereo sound, an

MTS broadcast may also include a second audio program (SAP).

Press the ML/MTS button

By every press of the ML/MTS button, you change

the mode

Notes:

• When you are receiving a digital broadcast, if there are other languages, you can change the

language by pressing the ML/MTS button.

• Keep the TV in stereo mode to get the best sound quality. The sound will work in stereo

mode even if a certain broadcast is in mono sound only.

• Choose the mono setting to reduce excessive noise on a certain channel or broadcast.

• Selecting SAP will allow you to hear an alternative soundtrack, if one is available.

• MTS unavailable if your television’s Input source is in input 1, 2, 3 or 4 mode, as described

on page 61.

• ML/MTS will not work when you are using the Digital-In.

• You can also change the mode by pressing the

π†

buttons.

MTS

STEREO

SAP

MONO

ON AIR

LCT1881-001A-A ENG 64 4/26/05, 9:40:14 AM

Button Functions

The display screen shows the current status of timers, inputs and XDS ID.

Press the DISPLAY button

The screen to the right shows the following

information:

•

The current channel or AV input (Channel 05)

• The current time (12:20 pm)

• Sleep timer status/minutes remaining (The Sleep

Timer is off)

• On/off timer status (Set to turn on everyday at 7:

00 PM, off at 10:00 PM)

• Each Press of the DISPLAY button changes the

display mode:

Display - Full screen shown above

Time - Shows the current time only

Channel - Shows the current channel

Off - Turns display off

Notes:

• You may also turn off the display at any step by pressing MENU.

• If the clock, sleep timer or on/off timer are not set, the display screen will show:

“CLOCK NOT SET”, “SLEEP TIMER OFF”, and “ON/OFF TIMER OFF” respectively.

Display

05 KLVX PBS

JAZZ FESTIVAL

NOW

SLEEP TIMER

ON/OFF TIMER

ON TIME

OFF TIME

12:20 PM

OFF

EVERYDAY

7:00 PM

10:00 PM

Display Time Channel Off

C.C. (Closed Caption)

Use the C.C. (Closed Caption) button to select the mode of closed caption.

Press the C.C. button

Notes:

• SMART CAPTION will appear when you press the MUTING button,

only on channels where the broadcast contains closed captioning.

• When you select ON, it will be the mode selected in the Closed

Caption Menu.

• See page 46 when you set the caption/text mode.

• You can also change the mode by pressing the

π†

buttons.

CLOSED CAPTION

OFF

SMART CAPTION

Use these buttons to move up or down all the available channels your TV is able to receive.

Channel +/–

Use these buttons to raise or lower the TV’s volume level.

Volume +/–

LCT1881-001A-A ENG 65 4/26/05, 9:40:14 AM

Button Functions

The Favorite button allows you to select your favorite channels easily. First, you must register

the channels that you like. See how to register below.

Press the FAVORITE button

The favorite channel list will appear.

π†

To select the channel you want to watch

Press the OK button

It will change to the channel you have selected.

Favorite

Press the channel number you want to register

The channel program will change.

Press the FAVORITE button for three seconds

The channel will be registered in the favorite channel list.

Notes:

• Both analog and digital channels can be registered. The digital channels have a "D" in front

of the channel number.

• The maximum number of channels you can register is 24.

• If you have registered the maximum number of channels, and try to register more channels,

the oldest channel you registered will be deleted.

• Sub channels can not be registered.

• The newest channel you registered will appear at the top of the list.

• Regarding digital channels, see pages 73 - 78.

Delete the favorite channel

Press the FAVORITE button

The favorite channel list will appear.

π†

To select the channel you want to delete

√®

To enter

Press the OK button

The channel was deleted.

Press the FAVORITE button when finished

Note:

• Before pressing the FAVORITE button when you are finished, press the

√®

button again, and

you can return to the deleted channel.

FAVORITE

101

102

D103

D107

CBS

FOX

PBS2

HBO

ABC

LCT1881-001A-A ENG 66 4/26/05, 9:40:15 AM

Button Functions

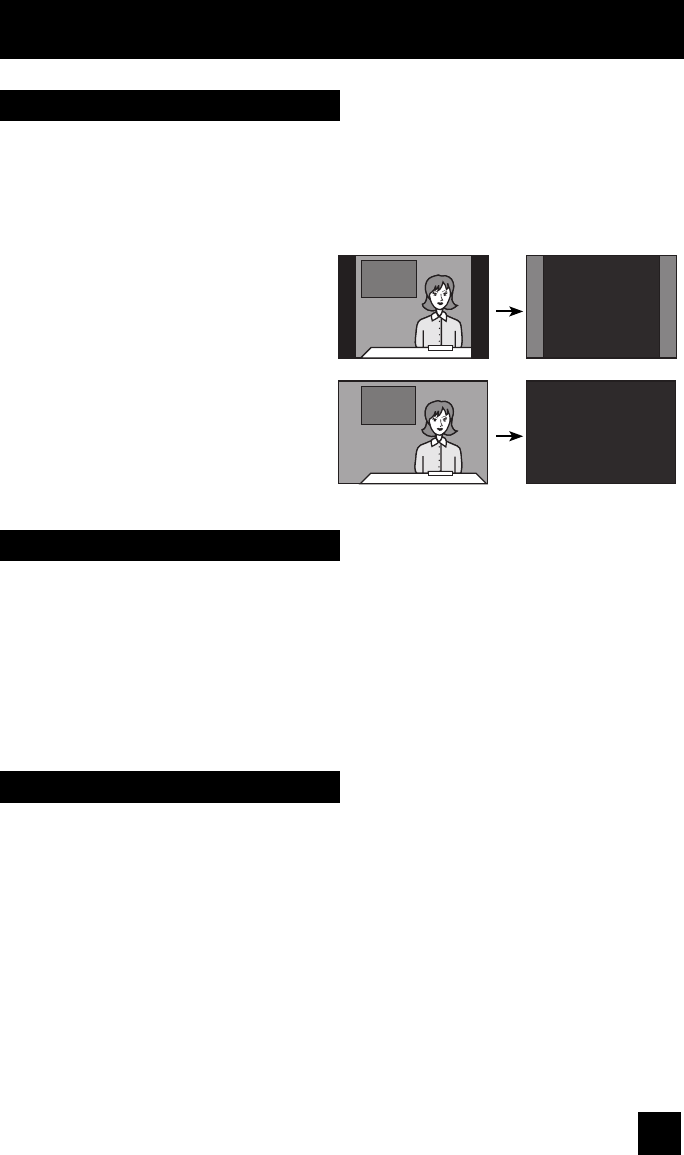

This feature will help you adjust the picture you are watching to give you the best possible

picture quality.

REGULAR - The regular ratio is used

when you want to watch a 4:3 broadcast

or recorded program without modifying the

original picture to fit the dimensions of your

16:9 screen. The 4:3 picture will fill the

screen from top to bottom, while black bars

will appear to fill up the remaining space

along the picture’s sides. The 4:3 picture

will be centered within the boundaries of the

16:9 screen.

Aspect

Aspect Ratios

PANORAMA - With this ratio a normal

4:3 aspect picture is stretched to fit the

dimensions of the 16:9 aspect screen.

CINEMA - This ratio “zooms in” on the

center part of a 4:3 aspect picture, blowing

it up to fill the 16:9 screen.

FULL - This is the ratio to use when

watching 16:9 High-Definition broadcasts.

PANORAMA ZOOM - This ratio stretches

the High-Definition 16:9 aspect image to

eliminate the black side bars.

CINEMA ZOOM - This ratio stretches

the High-Definition 16:9 aspect image to

eliminate the black surrounding bars.

SLIM - This aspect mode shrinks the

screen of 16:9 to 4:3. There are some

programming that is already stretched by

mistake at broadcasting companies, so

this mode corrects it. Black side bars will

appear.

LCT1881-001A-A ENG 67 4/26/05, 9:40:15 AM

Button Functions

When you change the aspect ratios, it is different from their broadcast or recorded program.

Aspect Ratios (Continued)

Press the ASPECT button

• By pressing the ASPECT button, you can change the size.

ASPECT

PANORAMA

CINEMA

FULL

REGULAR

ASPECT

PANORAMA ZOOM

CINEMA ZOOM

FULL

Notes:

• You can also choose the size by pressing the

π†

buttons.

• When you change the aspect ratio or signal, reset the picture position to center.

• You can also access the FRONT PANEL CONTROL screen by using the MENU button

on the side of the TV instead of the remote control. It appears between INITIAL SETUP

and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose

ASPECT by pressing Menu

†

on the side panel and choose a mode by using the CHANNEL

+/- buttons (

√

OPERATE

• "SLIM" can only be dispalyed when the signal is ATSC (480i or 480p).

• If the televison receives a 16:9 signal from your HDMI device, the aspect mode will turn to

FULL automatically. If the television receives a 4:3 signal from your HDMI device when you

are in FULL aspect mode, it will return to REGULAR aspect mode. If you change the aspect

mode after the televison changed it to FULL automatically, the televison will change to the

aspect mode you choosed.

HD (1080i, 720p)

ATSC (1080i, 720p)

NTSC, 480i, 480p

The MENU button allows you to access JVC’s onscreen menu system. Press MENU to activate

the onscreen menu system.

• See individual topics like “Sound Adjust” for specific information on using menus.

Back

This button allows you to go back in the menu to change a selection or correct a mistake.

This button confirms your selection when you are in one of the onscreen menus.

ASPECT

PANORAMA ZOOM

CINEMA ZOOM

FULL

SLIM

ATSC (480i, 480p)

LCT1881-001A-A ENG 68 4/26/05, 9:40:16 AM

Button Functions

Use either the television’s own tuner or a cable box to select channels. Set this switch to TV to

operate the television’s built-in tuner. Move the switch to CATV to operate a cable box.

Note:

• See page 28 for information on programming your remote for cable box operation.

You can control a VCR or DVD player with the buttons on the lower part of the remote control.

Move the slide switch to VCR or DVD to operate.

Notes:

• The remote is preset with the code 000 to control JVC-brand VCR’s. For any other

manufacturer’s brand VCR, please see the code chart and instructions on page 29.

• The remote is preset with the code 000 to control JVC-brand DVD players. For any other

manufacturer’s brand DVD player, please see the code chart and instructions on page 30.

TV/CATV Slide Switch

VCR/DVD Slide Switch

You can also use this remote control to operate the basic functions of your DVD player. These

functions include: play, rewind, fast-forward, stop, still/pause, previous/next, tray open/close,

power on and power off.

Move the selector switch to DVD to operate.

• The remote is preset with the code 000 to control JVC-brand DVD players. For any other

manufacturer’s brand DVD player, please see the code chart and instructions on page 30.

You can use this remote control to operate the basic functions of your VCR. These functions

include: play, record, rewind, fast-forward, stop, pause, channel scan, TV/VCR, power on and

power off.

Move the selector switch to VCR to operate.

• The remote is preset with the code 000 to control JVC-brand VCR’s. For any other

manufacturer’s brand VCR, please see the code chart and instructions on page 29.

VCR Buttons

DVD Buttons

All remote control buttons are illuminated, except for the TV/CATV slide switch, VCR/DVD slide

switch and Light button. Press the LIGHT button to turn the illumination on for 4 seconds.

Light

LCT1881-001A-A ENG 69 4/26/05, 9:40:17 AM

Use this function when you are receiving a digital broadcast.

Press the MENU button

π†

To DIGITAL SETUP

√®

To enter

The onscreen will appear

Notes:

• Software Update will only appear when the SD Card

is inserted.

• If you are watching an analog channel, you can still

access the digital setup menu at anytime, while you are doing this, the background screen

will turn blank. In this case, the tuner will switch to digital, since you are accessing the digital

setup menu.

Digital Setup

Select Back

BACK

Exit

Operate

PCM

4:3

OFF

Antenna Level

Digital Sound

Aspect Ratio

Cable Card Application

i.LINK Auto Play

Software Update

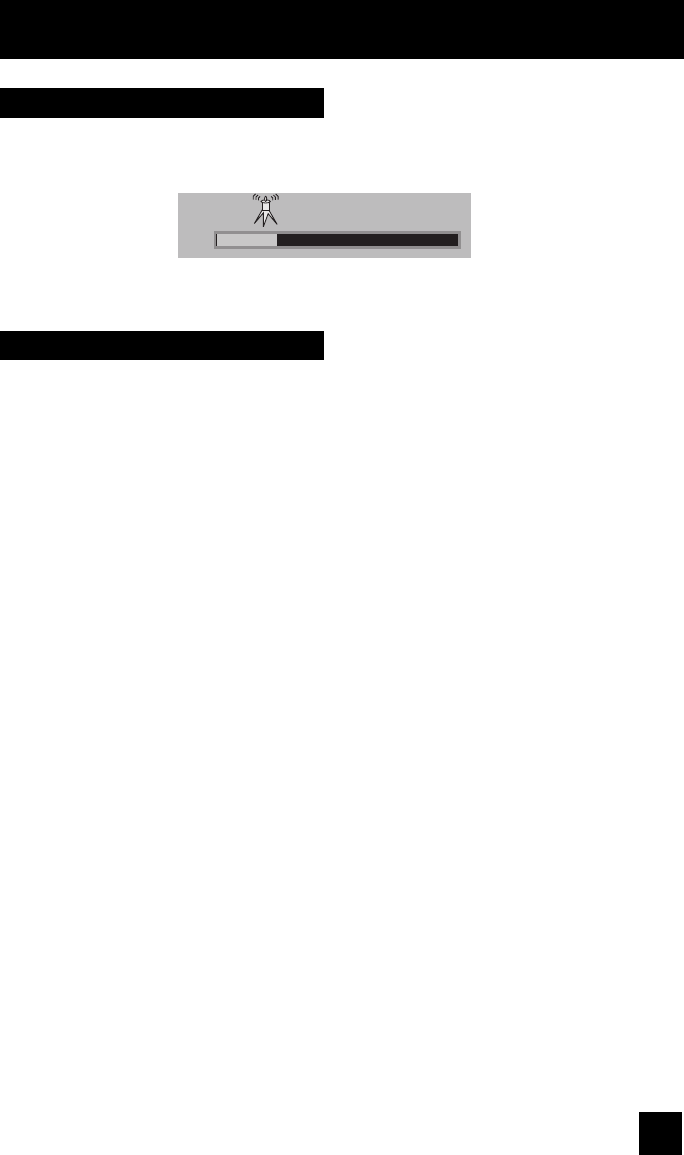

Confirms the present antenna level.

Press the MENU button

π†

To DIGITAL SETUP

√®

To enter

π†

To Antenna Level

√®

To enter

Note:

• If you are watching an analog channel or a signal from your i.Link device, antenna level will

not appear.

Antenna Level

Back

BACK

Exit

Antenna Level

Digital Setup

LCT1881-001A-A ENG 70 4/26/05, 9:40:17 AM

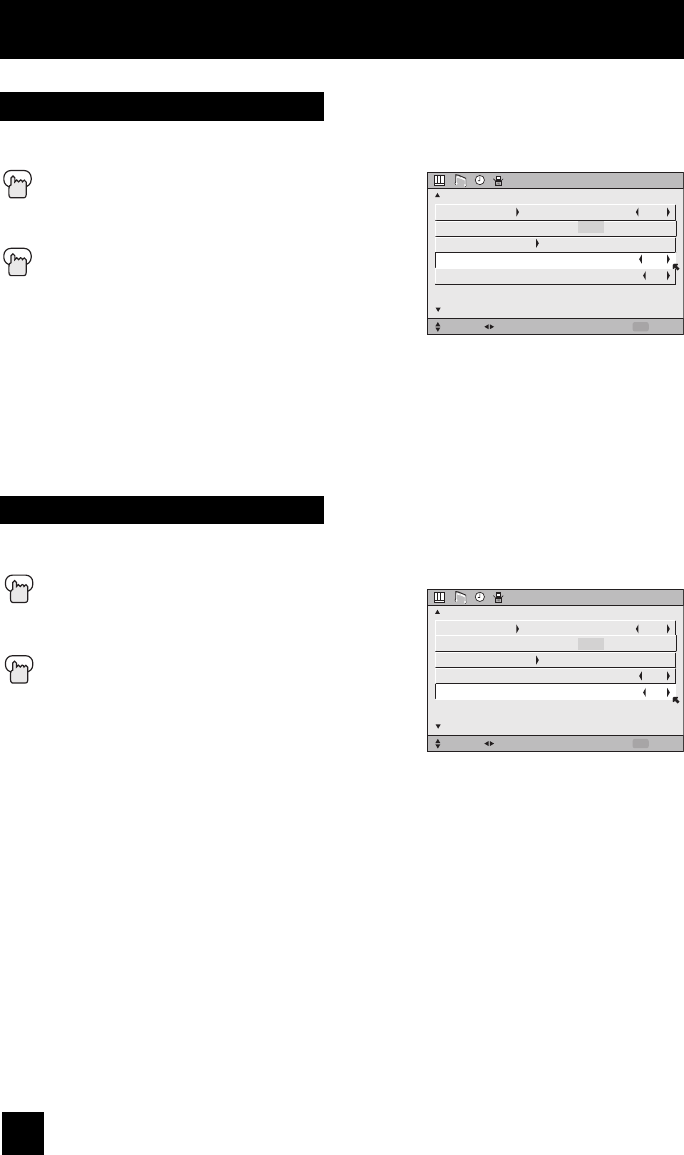

Aspect Ratio

You can select the aspect mode for ATSC from 4:3 or 16:9.

Press the MENU button

π†

To DIGITAL SETUP

√®

To enter

π†

To Aspect Ratio

√®

To select 4:3 or 16:9

Press the MENU button when finished

Notes:

• Set the mode to 4:3 or 16:9 before you record a program using the ATSC MONITOR OUT.

• Make sure the mode you choose is the same as the TV’s aspect ratio when the recorded

program is played back, so that you can obtain a good picture quality, free from any unatural

distortions.

Digital Setup

Digital Sound

Manufactured under license from Dolby Laboratories. "Dolby", and the

double-D symbol are trademarks of Dolby Laboratories.

You can select the optical digital sound output, either PCM or Dolby Digital when your TV is

connected to an amplifier that has Dolby Digital decoder. If you select Dolby Digital, you can

enjoy listening in 5.1ch sound when watching digital broadcasts.

Press the MENU button

π†

To DIGITAL SETUP

√®

To enter

π†

To Digital Sound

√®

To select PCM or DOLBY DIGITAL

Press the MENU button when finished

Notes:

• If your amplifier does not have Dolby Digital decoder, select PCM. If you don't select PCM, it

cannot output the sound from the speakers.

• For connecting an amplifier using the optical output, see page 23.

LCT1881-001A-A ENG 71 4/26/05, 9:40:18 AM

At first, insert the SD(Multi-media) card into the memory card slot. This function will appear

only when you insert an SD Card.

Press the MENU button

π†

To DIGITAL SETUP

√®

To enter

π†

To Software Update

√®

To enter

π†

Checks the card if it needs an update or not

Press the MENU button when finished

Software Update

When playing a D-VHS tape, you can set it to the i.LINK input automatically, or manually.

Press the MENU button

π†

To DIGITAL SETUP

√®

To enter

π†

To i.LINK Auto Play

√®

To select ON or OFF

ON: Set to i.LINK input automatically

OFF: Select the input manually

Press the MENU button when finished

i.LINK Auto Play

Digital Setup

Press the MENU button

π†

To DIGITAL SETUP

√®

To enter

π†

To Cable Card Application

√®

To enter

Press the OK button

The application will perform

Cable Card Application

LCT1881-001A-A ENG 72 4/26/05, 9:40:18 AM

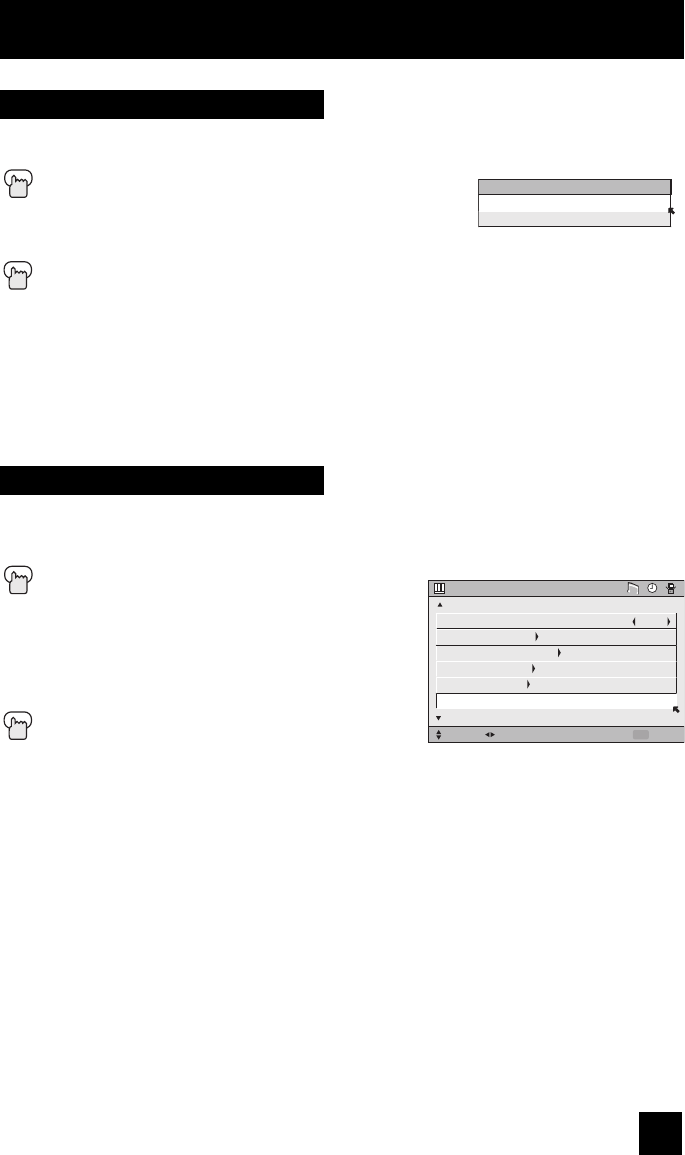

Digital Button Functions

Sub Channel

Digital CH D/A (Digital/Analog)

The D/A button changes the analog and digital channel. Each time you press the D/A button,

you can switch back and forth the analog and digital channels. Digital channels have a "D" in

front of the channel number.

Note:

• If the cable card is inserted into the TV, you cannot use the D/A button. You can select a

digital channel only.

Press the D/A button

To watch digital channels

For example, to move to channel D23:

Press 2 (Two)

Press 3 (Three)

Press the TUNE button

The main channel sometimes has minor channels (Sub Channels). By using the SUB button,

you can select a sub channel easily.

For example, to move to sub channel 123-45:

Press 1 (One)

Press 2 (Two)

Press 3 (Three)

Press the SUB button

Press 4 (Four)

Press 5 (Five)

Press the TUNE button

Note:

• If there are more than 2 major channels, select the digital channel by using the

π†

buttons

and then press the OK button.

LCT1881-001A-A ENG 73 4/26/05, 9:40:19 AM

Digital Button Functions

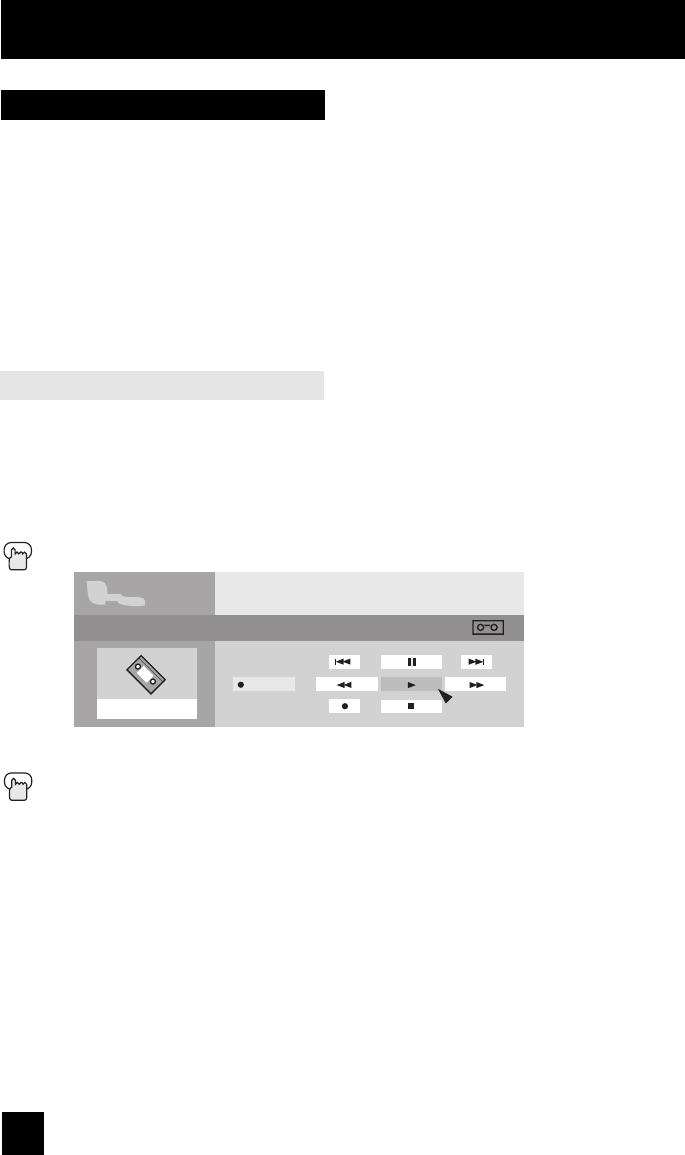

i.LINK Menu

i.LINK has two menus - Controller and Device.

By connecting a D-VHS VCR with an i.LINK cable, you can set the timer easily.

Notes:

• The i.LINK/Timer function will only work when you are receiving digital programming only.

• As for the connection of a D-VHS VCR with the i.LINK cable, see page 24.

• When operating the i.LINK, don't insert or disconnect the i.LINK cable.

Controller

You can operate a D-VHS VCR connected with an i.LINK cable by using this controller.

Notes:

• If the i.LINK is not connected, the Controller OSD will not appear. The OSD of device on

page 75 will appear.

• Some controller operations may differ from your D-VHS VCR operations.

Press the i.LINK MENU button

√®

π†

To select the key you want to operate

Press the OK button

i.LINK

D-VHS1

Device

STOP 00:00:00

POWER

Controller

LCT1881-001A-A ENG 74 4/26/05, 9:40:19 AM

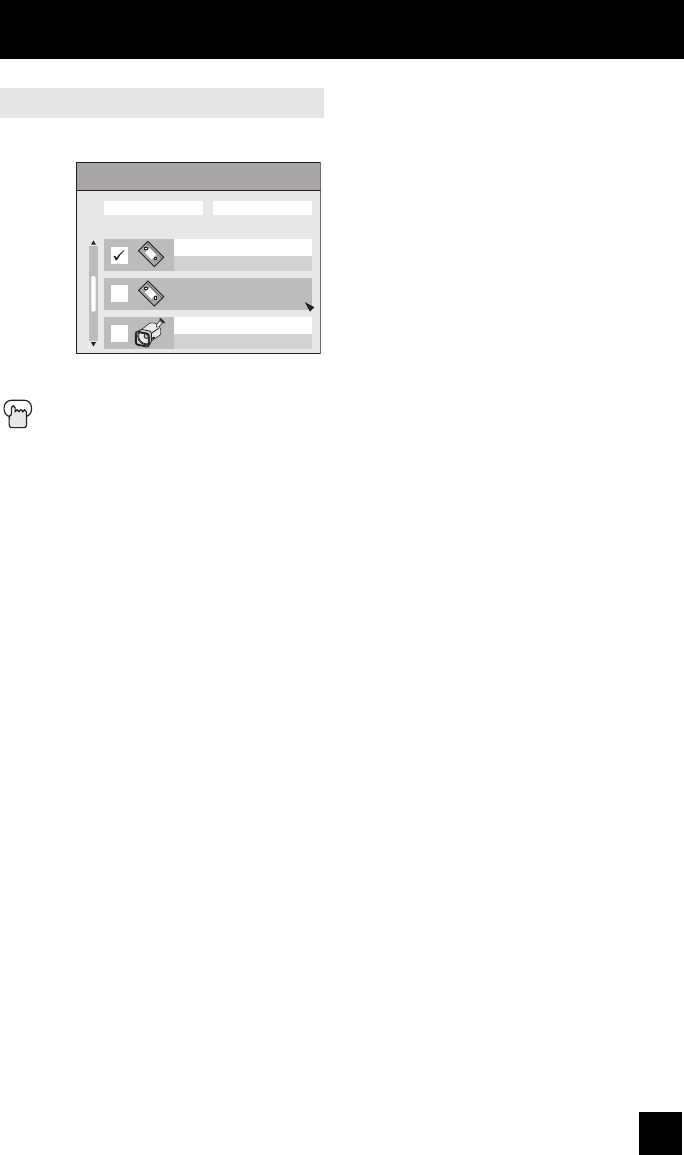

Device

To operate, select a device.

π†

To select your device connecting with i.LINK

Press the OK button

Notes:

• If you do not select the device, you cannot use the i.LINK timer functions.

• When one device is selected and you select controller, you will move to the Controller

onscreen.

• The devices listed on the device onscreen are only D-VHS and HD-MOVIE that have i.LINK,

which can be recognized on this television. However, you can not record programs to HD-

MOVIE.

• If you disconnect one device, it will be removed from the list. Then, select Renumber to

rearrange the list in the new order.

i.LINK

Controller Renumber

Device

D-VHS1

HM-DH30000U

D-VHS2

HM-DH40000U

JVC

HD-MOVIE 1

GR-HD1

JVC

Page 2/3

JVC

Digital Button Functions

LCT1881-001A-A ENG 75 4/26/05, 9:40:19 AM

You can set the two timers: Record and view. The timer starts the recording or turns to the

channel you set for it automatically.

Press the TIMER button

π†

To New Reservation

Press the OK button

†

To Timer Mode

√®

To select Rec or View

†

To Channel

√®

To select the channel you want to set the timer for

†

To Date

√®

To select the date

†

To Start Time

√®

To set the start time

†

To End Time

√®

To set end time

†

To Weekly/Daily

√®

To select Once, Weekly, Daily(Sun.-Sat.), Daily(Mon.-Sat.) or Daily(Mon.-Fri.)

†

To Rec to i.LINK

√®

To select ON or OFF

†

To Set Timer

Press the OK button

If you set the Rec on timer mode, set recording is added in front of the program

title.

If you set the View on timer mode, set viewing is added in front of the program

title.

Notes:

• In order for the timer setting to work, you must set the clock on your television. See page

57.

• When you want to edit the timer settings, see Timer Edit on page 77.

Digital Button Functions

Timer

80-3 PBS1DTV

Sep. 11 (Wed) 6:00PM - 6:30PM Once

335-1 KDVRet Retailer News Channel

Sep. 11 (Wed) 6:00PM - 7:00PM Mon - Fri

335-1 KDVRet Regular Schedule

Sep. 18 (Wed) 5:00PM - 6:00PM Daily

35-1 PBPBPB

Sep. 18 (Wed) 8:00PM - 8:30PM Weekly

i.LINK

0. New Reservation

Page 1/3

Sept. 10 (Wed) 4:55PMTimer

New Reservation

Channel

Date

Start Time

End Time

Weekly/Daily

Rec to i.LINK

Timer Mode

Set Timer

Cancel

35-1

Sep. 10 (wed)

5:00PM

6:00PM

Weekly

Rec

Reservation

LCT1881-001A-A ENG 76 4/26/05, 9:40:20 AM

Timer Edit

When you want to confirm the timer you set or edited, or delete the timer setting, use this

function.

Timer Edition

Press the TIMER button

π†

To select the timer list you want to edit

Press the OK button

√®

π†

To change the setting you want to edit

†

To Set Timer

Press the OK button

Timer Deletion

Press the TIMER button

π†

To select the timer list you want to delete

Press the OK button

π†

To Delete

Press the OK button

Digital Button Functions

80-3 PBS1DTV

Sep. 11 (Wed) 6:00PM - 6:30PM Once

335-1 KDVRet Retailer News Channel

Sep. 11 (Wed) 6:00PM - 7:00PM Mon - Fri

335-1 KDVRet Regular Schedule

Sep. 18 (Wed) 5:00PM - 6:00PM Daily

35-1 PBPBPB

Sep. 18 (Wed) 8:00PM - 8:30PM Weekly

i.LINK

0. New Reservation

Page 1/3

Sept. 10 (Wed) 4:55PMTimer

New Reservation

Timer Edit

Channel

Date

Start Time

End Time

Weekly/Daily

Rec to i.LINK

Timer Mode

Set Timer

Cancel

35-1

Sep. 10 (wed)

5:00PM

6:00PM

Weekly

Rec

Delete

LCT1881-001A-A ENG 77 4/26/05, 9:40:20 AM

You can view the program from the GUIDE.

Notes:

• The GUIDE function will only work when you are receiving digital programming only.

• The GUIDE will not show the correct time and date if you have not performed the set clock

function on your television. See page 57.

Guide

Digital Button Functions

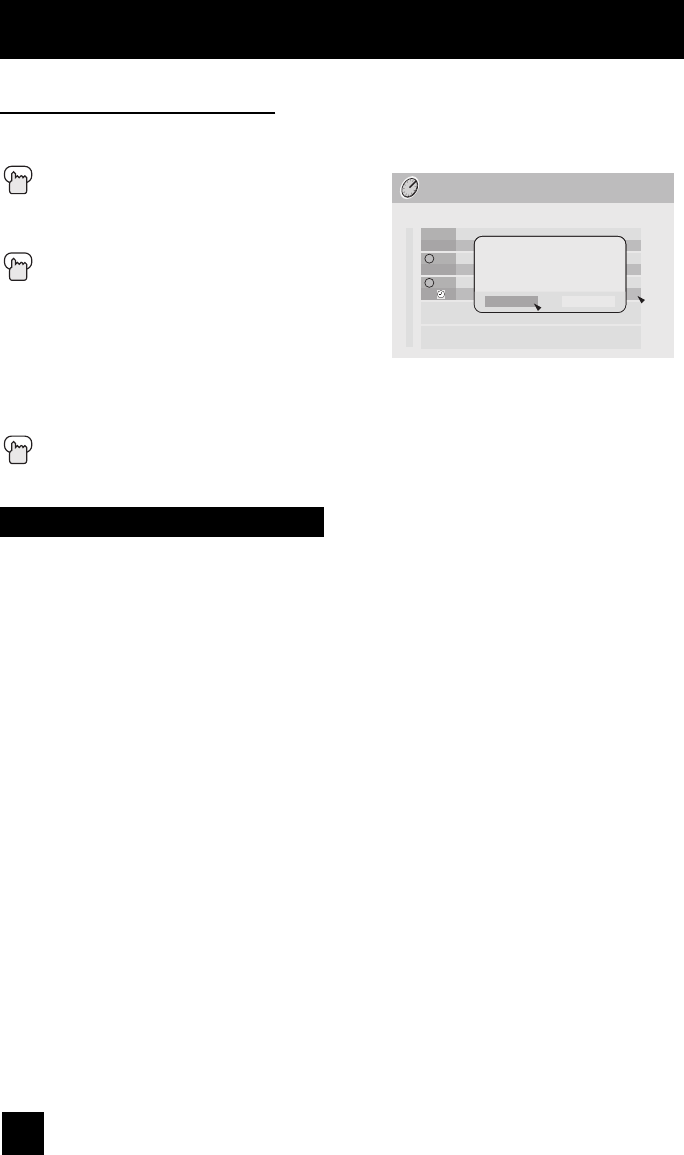

Cancel the timer recording

When you record a digital program now, you can cancel the recording.

Press the TIMER button

π†

To select the timer list you want to cancel

the recording

Press the OK button

The message "Do you want to

terminate current program ?" will

appear.

√®

To select

YES: Cancel the recording

NO: Continue the recording

Press the OK button

80-3 PBS1DTV

Sept. 11 (Wed) 6:00PM - 6:30PM Once

335-1 KDVRet Retailer News Channel

Sept. 11 (Wed) 6:00PM - 7:00PM Mon - Fri

i.LINK

0. New Reservation

Page 1/1

Sep. 10 (Wed) 4:55PMTimer

New Reservation

Do you want to terminate current program?

No Yes

LCT1881-001A-A ENG 78 4/26/05, 9:40:21 AM

OSD Information

This OSD warning appears when the digital channel that you have selected is too weak to

receive or no signal is being detected for that channel.

Weak Signal

If the TV channel you selected, or were watching is not receiving a signal, "NO PROGRAM"

appears on the television screen. It appears when that channel is not receiving a signal and you

have the Noise Muting function OFF and you have a single screen. It moves automatically every

two seconds to prevent the screen from burn-in.

Note:

• Even if "NO PROGRAM" appears on the screen, your timer functions and auto shut off

functions that you set, are still active.

No Program

LCT1881-001A-A ENG 79 4/26/05, 9:40:21 AM

Cable Card Information

Cable card offers information when a cable card is inserted into the CABLE CARD slot on the

back of the television.

Notes:

• Please contact your local cable company regarding detailed information.

• When the cable card is inserted into the cable card slot, if you turned the power off, the fan will

continue to rotate because the program information is being renewed. This is normal.

Cable Card Connection

DIGITAL-IN

ATS C

/ DIGITAL CABLE IN

CABLE CARD

Cable Card

Note for inserting Cable Card:

• When you are watching a digital program, and if a weather or government emergency occurs,

the following may occur automatically regardless of what channel you were watching: the

channel may change, the screen will disappear or important text will appear on the screen.

The information is transmitted from EAS (Emergency Alert System), Firmware Upgrade of

Cable Card or compulsory HTML.

LCT1881-001A-A ENG 80 4/26/05, 9:40:21 AM

Troubleshooting

Refer to the table below to check the condition. If you think that there is a problem, contact the

JVC Service Center where you purchased the television.

There is no power

There is no picture

or sound

You cannot select a

certain channel

The power turns off

by itself

The clock is wrong

The color quality

is poor

There are lines

across the picture

The picture is spotted

There are double

pictures (ghosts)

Picture is snowy

(image noise)

Screen is 80% black

Stereo or bilingual

programs can't be

heard

Remote control is not

operating properly or

at all

• See if the power cord became unplugged.

• Check for a blown fuse or circuit breaker or a power outage.

• The antenna could be disconnected.

• The input mode could be set improperly. See page 61.

• The tuner (Auto Tuner Setup) could be set improperly. See page 35.

• The TV station may be having difficulties. Check to see if other stations are working.

• Check to see that the batteries are still working and properly installed.

• Make sure the remote has a clear sight path to the TV.

• Check that the TV/CATV switch is in the proper position.

• You may be too far from the TV. You must be within 23 feet (7 meters).

• Make sure the channels have been programmed. See "Channel Summary", page 36.

• Check to see if the channel is locked. See "Channel Summary - Lock" page 37.

• Make sure the set did not become unplugged.

• Perhaps the On/Off Timer is set. See page 58.

• Check to see if the Sleep Timer was set. See page 64.

• The power was interrupted and the clock was not reset. See page 57.

• Tint and Color may be improperly adjusted. See page 53.

• The Video Status mode may be turned to the wrong setting. See page 63.

• There could be interference from another electrical appliance, such as a computer,

another TV or VCR. Move any such appliances further away from the TV.

• There could be interference from a high-wattage appliance, like a hairdryer or vacuum,

operating nearby. Move the antenna away from the appliance or change to a coaxial

cable connection which is less prone to interference.

• A building or passing airplane can reflect the original signal and produce a second,

slightly delayed one. Adjust your antenna position.

• Your antenna may be damaged, disconnected or turned. Check the antenna

connection. If the antenna is damaged, replace it.

• The Closed Caption Text mode is on. Turn it off in the Closed Caption Menu, page 46.

• Make sure the MTS settings are correct. See page 64.

PROBLEMS CHECK

It does not operate

correctly

• This television is operated by a microprocessor. It is possible that external noise or

interference is causing the problem. If the television does not function correctly, remove the

electrical plug from the wall outlet and wait a while before inserting it into the wall outlet

again and operating the television.

LCT1881-001A-A ENG 81 4/26/05, 9:40:22 AM

Troubleshooting

PROBLEMS CHECK

Static electricity

You hear occasional

crackling sounds

• It is normal to feel static electricity if you brush or touch the screen.

• It is normal for the TV to make crackling sounds when first turned on or off. Unless

the sound or picture become abnormal, this is fine.

The AUTO DEMO

finished automatically

• The On Timer that you programmed has started.

• The channel that the AUTO DEMO is using is a channel that is blocked by V-Chip.

• The Auto Shut Off that you programed has occured.

It does not operate

correctly

• Press the CHANNEL- and VOLUME- buttons on the front panel of the TV simultaneously

for a few seconds. The Digital Tuner will be reset. If this does not reset it correctly, unplug

the power cord and plug it back in.

The following are not malfunctions.

• The television may make a creaking sound if the temperature of the room or the

temperature of the inside of the television changes. If there is no problem with the screen or

sound, then there is no need to worry.

• Although the picture may be temporarily disturbed and noise may be seen on the screen if

the power is turned on immediately after it has been turned off, this is not a malfunction.

LCT1881-001A-A ENG 82 4/26/05, 9:40:22 AM

LCT1881-001A-A ENG 83 4/26/05, 9:40:22 AM

LCT1881-001A-A ENG 84 4/26/05, 9:40:22 AM

LCD Flat TelevisionType

Reception Format

Reception Range

Power Source

Power Consumption

Model

NTSC, BTSC System (Multi-Channel Sound)

ATSC Terrestrial, Digital Cable

VHF 2 to 13, UHF 14 to 69 CATV 135 Sub, Mid, Super, Hyper

and Ultra bands (191 channel frequency synthesizer system)

• Reception of channel A-5 ("95" of the TV set's on-screen cable channel

numbers) is not recommended for your TV set.

AC 120V, 60 Hz

173W

Screen Size

Speakers 6.6 cm round x 4

Audio Output 10W + 10W

Antenna Terminal

(VHF/UHF,

ATSC/DIGITAL

CABLE IN)

75 ohms (VHF/UHF)(F-type connector)

External Input Jacks Video: 1 Vp-p, 75 ohms

Audio: 500 mVrms (-4dBs) high impedance

Component Input

Jack

Y: 1Vp-p positive, 75 ohms (negative sync provided)

Pb/Pr: 0.7 Vp-p 75 ohms

S-Video Input Jacks Y: 1Vp-p positive, 75 ohms (negative sync provided)

C: 0.286 Vp-p (burst signal), 75 ohms

Digital–In HDMI jack x 1

Note: The Digital–In terminal is not compatible with picture signals of a

personal computer

Refer to "unpacking your TV", page 9

Dimensions (inch/cm)

W X H X D

Weight (lbs / kg)

Accessories

LT-32X776

Monitor/Recording

Output

Video: 1Vp-p, 75ohms

Y: 1Vp-p positive, 75 ohms (negative sync provided)

C: 0.286 Vp-p (burst signal), 75 ohms

Audio: 250mVrms (-10dBs)

Fs-18dB Low Impedance

Optical Output

Digital Audio Digital Out (optical) x 1

i.LINK In/Out Jack TS IN/OUT (4-pin, S400) x 2

IEEE1394 compliant DTCP digital copy protection compatible

LT-26X776 LT-37X776

139W 202W

26 inch / 64.8 cm

measured diagonally,

16:9 ratio

32 inch / 80.2 cm

measured diagonally,

16:9 ratio

37 inch / 94.9 cm

measured diagonally,

16:9 ratio

36 1/2 x 27 1/8 x 12 7/8

(with stand)

92.6 x 68.7 x 32.5

(with stand)

6.6 cm round x 2

27 3/4 x 21 7/8 x 12 1/4

(with stand)

70.3 x 55.3 x 30.9

(with stand)

31 7/8 x 24 3/4 x 12 1/4

(with stand)

80.8 x 62.8 x 30.9

(with stand)

27 3/4 x 19 1/8 x 4 5/8

(without stand)

70.3 x 48.3 x 11.5

(without stand)

31 7/8 x 22 x 4 5/8

(without stand)

80.8 x 55.9 x 11.6

(without stand)

36 1/2 x 24 7/8 x 4 3/8

(without stand)

92.6 x 63.2 x 10.9

(without stand)

43.2 / 19.6 (with stand)

35.9 / 16.3 (without stand)

44.9 / 20.4 (with stand)

37.6 / 17.1 (without stand)

61.6 / 27 (with stand)

47.7 / 21.7 (without stand)

Specifications subject to change without notice.

• The open source software is embedded in this product. For more information, please go to:

http://software.jvc.com/opensource/lnx/DP/04_AtscCC/download.html

Specifications

LCT1881-001A-A ENG 85 4/26/05, 9:40:22 AM
