Jvc Sr Mv45U Users Manual MV55U/SR

SR-MV45US SR-MV45US, SR-MV55US LPT1145-001A English,

SR-MV55U to the manual fb6889df-5e81-ba24-6db9-d3794a09dc26

: Jvc Jvc-Sr-Mv45U-Users-Manual-322848 jvc-sr-mv45u-users-manual-322848 jvc pdf

Open the PDF directly: View PDF .
Page Count: 88

FINALIZEF3

DISPLAY ON SCREEN

F2 VCR

/DVD

F1

SLOW

PREVIOUS NEXT

CLEAR

SLOW

PAUSESTOP/

PLAY/SELECT

REMAIN REC

INPUT

/ TV CH

AUDIO

SUBTITLE

ANGLE

TV/VCR

REC MODE

LIVE CHECK

DVDTV

CABLE/DBS

ABC DEF

JKL MNO

TUV

GHI

PQRS WXYZ

MEMO/MARK

PROGRESSIVE

SCAN

AUX

SET UP

RETURN

CANCEL

NAVIGATION

TOP MENU

MENU

TV

VOL.

TV/CBL /DVD

TV TV

TV

/

CBL/DBS

/DVD

1

4

7

2

5

8

0

3

6

9

ENTER

NUMBER / TV CH

EJECTEJECTTBC

OPERATE

VCR/DVD REC MODE DUBB

S-VIDEO

IN F-1

VIDEO (MONO)L - AUDIO - R

RECDVDDUBBTBCRECVCR

DV IN

RECPAUSEPLAY

–

INPUT SELECT

FFREWSTOP

DVDVCR DVDVCR

+

Filename [SR-MV45_55U_01Cov1.fm]

DVD VIDEO RECORDER &

VIDEO CASSETTE RECORDER

INSTRUCTIONS

SR-MV55U/

SR-MV45U

For Customer Use:

Enter below the Model No. and

Serial No. which are located on

the rear of cabinet. Retain this

information for future reference.

Model No.

Serial No.

LPT1145-001A EN

SR-MV45_55US.book Page 1 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_02Safety.fm]

Masterpage:Left0

2 EN

Page 2 January 10, 2007 1:18 pm

CAUTIONS

CLASS 1 LASER PRODUCT

REPRODUCTION OF LABELS

WARNING LABEL INSIDE OF THE UNIT

OR

This unit apply to the standard “IEC60825-1:2001” for laser

products.

Dear Customer,

Thank you for purchasing the JVC DVD video recorder/video

cassette recorder. Before use, please read the safety information

and precautions to ensure safe use of your new unit.

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user

to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

CAUTION:

A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS

UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE

SURE TO OPERATE THE UNIT CORRECTLY AS

INSTRUCTED.

WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO

NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE

DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE

INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION

AVIS

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This Class B digital apparatus complies with

Canadian ICES-003.

Cet appareil numérique de la

classe B est conforme à la

norme NMB-003 du Canada.

RISQUE DE CHOC ELECTRIQUE

- NE PAS OUVRIR.

KLASS 1 M

LASERSTRÅLNING

NÅR DEN ÄR ÖPPEN.

TITTA INTE DIREKT PÅ

DEN MED OPTISKA

INSTRUMENT.

(SW)

LP41334-001A

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE

THIS UNIT TO RAIN OR MOISTURE.

CAUTION:

This unit should be used with AC 120Vd, 60Hz only.

To prevent electric shocks and fire hazards, DO NOT use any

other power source.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF

PLUG TO WIDE SLOT, FULLY INSERT.

A

TTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA

LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE

CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU

FOND.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s

attention to Article 820-40 of the NEC that provides guidelines

for proper grounding and, in particular, specifies that the cable

ground shall be connected to the grounding system of the

building, as close to the point of cable entry as practical.

CAUTION:

Changes or modifications not approved by JVC could void user’s

authority to operate the equipment.

SR-MV45_55US.book Page 2 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 3

Filename [SR-MV45_55U_02Safety.fm]

Page 3 January 10, 2007 1:18 pm

IMPORTANT PRODUCT SAFETY

INSTRUCTIONS

Electrical energy can perform many useful functions. But improper

use can result in potential electrical shock or fire hazards. This

product has been engineered and manufactured to assure your

personal safety. In order not to defeat the built-in safeguards,

observe the following basic rules for its installation, use and

servicing.

A

TTENTION:

Follow and obey all warnings and instructions marked on your product

and its operating instructions. For your safety, please read all the safety

and operating instructions before you operate this product and keep

this booklet for future reference.

INSTALLATION

1. Grounding or Polarization

(A)Your product may be equipped with a polarized alternating-

current line plug (a plug having one blade wider than the other).

This plug will fit into the power outlet only one way. This is a

safety feature.

If you are unable to insert the plug fully into the outlet, try

reversing the plug. If the plug should still fail to fit, contact your

electrician to replace your obsolete outlet. Do not defeat the

safety purpose of the polarized plug.

(B)Your product may be equipped with a 3-wire grounding-type

plug, a plug having a third (grounding) pin. This plug will only fit

into a grounding-type power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet, contact your

electrician to replace your obsolete outlet. Do not defeat the

safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated

on the marking label. If you are not sure of the type of power

supply to your home, consult your product dealer or local power

company. If your product is intended to operate from battery power,

or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral

convenience receptacles as this can result in a risk of fire or

electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to cords at plugs, convenience

receptacles, and the point where they exit from the product.

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To

ensure reliable operation of the product and to protect it from

overheating, these openings must not be blocked or covered.

●Do not block the openings by placing the product on a bed, sofa, rug

or other similar surface.

●Do not place the product in a built-in installation such as a bookcase

or rack unless proper ventilation is provided or the manufacturer’s

instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as

recommended by the manufacturer.

USE

1. Accessories

To avoid personal injury:

●Do not place this product on an unstable cart, stand, tripod, bracket,

or table. It may fall, causing serious injury to a child or adult, and

serious damage to the product.

●Use only with a cart, stand, tripod, bracket, or table recommended by

the manufacturer or sold with the product.

●Use a mounting accessory recommended by the manufacturer and

follow the manufacturer’s instructions for any mounting of the product.

●Do not try to roll a cart with small casters across thresholds or deep-

pile carpets.

2. Product and Cart Combination

A product and cart combination should be

moved with care. Quick stops, excessive

force, and uneven surfaces may cause the

product and cart combination to overturn.

3. Water and Moisture

Do not use this product near water—for

example, near a bath tub, wash bowl,

kitchen sink or laundry tub, in a wet

basement, or near a swimming pool and

the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings

as they may touch dangerous voltage points or short-out parts that

could result in a fire or electric shock. Never spill liquid of any kind

on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of

this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not

use liquid cleaners or aerosol cleaners. Use a damp cloth for

cleaning.

7. Heat

The product should be situated away from heat sources such as

radiators, heat registers, stoves, or other products (including

amplifiers) that produce heat.

SR-MV45_55US.book Page 3 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_02Safety.fm]

Masterpage:Left+

4 EN

Page 4 January 10, 2007 1:18 pm

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked

change in performance and you are unable to restore normal

operation by following the detailed procedure in its operating

instructions, do not attempt to service it yourself as opening or

removing covers may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to

qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions as an improper

adjustment of other controls may result in damage and will often

require extensive work by a qualified technician to restore the

product to its normal operation.

e. If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in performance—

this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service

technician has used replacement parts specified by the

manufacturer or which have the same characteristics as the

original part. Unauthorized substitutions may result in fire, electric

shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the

service technician to perform safety checks to determine that the

product is in safe operating condition.

HOW TO USE THIS INSTRUCTION MANUAL

●All major sections and subsections are listed in the Table Of Contents

on page 6. Use this when searching for information on a specific

procedure or feature.

●The Index on pages 11 – 15 illustrates the controls and connections

on the front and rear panel, the front display panel and the remote

control.

●The list of terms on page 87 lists frequently-used terms, and the

number of the page on which they are used or explained in the

manual.

●The 墌 mark signals a reference to another page for instructions or

related information.

●Operation buttons necessary for the various procedures are clearly

indicated through the use of illustrations at the beginning of each

major section.

BEFORE YOU INSTALL YOUR NEW UNIT . . .

. . . please read the sections/literature listed below.

●“CAUTIONS” on page 2

●“IMPORTANT PRODUCT SAFETY INSTRUCTIONS” on pages 3 – 5

SR-MV45_55US.book Page 4 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 5

Filename [SR-MV45_55U_02Safety.fm]

Page 5 January 10, 2007 1:18 pm

●Manufactured under licence from Dolby Laboratories. “Dolby” and the

double-D symbol are trademarks of Dolby Laboratories.

●“DTS” and “DTS Digital Out” are trademarks of Digital Theater

Systems, Inc.

●Cassettes marked “S-VHS” and “VHS” can be used with this unit.

However, S-VHS recordings are possible only with cassettes marked

“S-VHS”.

By using the S- VHS ET function, it is possible to record and play

back with S-VHS picture quality on VHS cassettes with this unit.

●This product incorporates copyright protection technology that is

protected by method claims of certain U.S. patents and other

intellectual property rights owned by Macrovision Corporation and

other rights owners. Use of this copyright protection technology must

be authorized by Macrovision Corporation, and is intended for home

and other limited viewing users only unless otherwise authorized by

Macrovision Corporation. Reverse engineering or disassembly is

prohibited.

When the equipment is installed in a cabinet or a shelf, make sure

that it has sufficient space on all sides to allow for ventilation

(10 cm or more on both sides, on top and at the rear).

When discarding batteries, environmental problems must be

considered and the local rules or laws governing the disposal of

these batteries must be followed strictly.

Failure to heed the following precautions may result in

damage to the unit, remote control or disc/cassette.

1. DO NOT place the unit —

— in an environment prone to extreme temperatures or

humidity.

— in direct sunlight.

— in a dusty environment.

— in an environment where strong magnetic fields are

generated.

— on a surface that is unstable or subject to vibration.

2. DO NOT block the unit’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper

or cloth, etc., the heat may not be able to get out.)

3. DO NOT place heavy objects on the unit or remote control.

4. DO NOT place anything which might spill on top of the unit

or remote control.

(If water or liquid is allowed to enter this equipment, fire or

electric shock may be caused.)

5. DO NOT expose the apparatus to dripping or splashing.

6. DO NOT use this equipment in a bathroom or places with

water. Also DO NOT place any containers filled with water or

liquids (such as cosmetics or medicines, flower vases, potted

plants, cups, etc.) on top of this unit.

7. DO NOT place any naked flame sources, such as lighted

candles, on the apparatus.

8. AVOID violent shocks to the unit during transport.

MOISTURE CONDENSATION

Moisture in the air will condense on the unit when you move it from

a cold place to a warm place, or under extremely humid

conditions—just as water droplets form on the surface of a glass

filled with cold liquid. In conditions where condensation may occur,

disconnect the unit’s power plug from the wall and keep it

disconnected for a few hours to let the moisture dry, then turn on

the unit.

Declaration of Conformity

Model Number: SR-MV55U/SR-MV45U

Trade Name: JVC

Responsible Party: JVC Americas Corp.

Address: 1700 Valley Road Wayne, N.J. 07470

Telephone Number:973-317-5000

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for

help.

A

TTENTION:

8Using a mobile phone in the vicinity of the unit may cause

picture vibration on the TV screen or change the screen to a

black back display.

8Some TVs or other appliances generate strong magnetic

fields. Do not place such appliances on top of the unit as it

may cause picture disturbance.

8If there is a power outage when using the unit, the recorded

data may be erased.

8Recorded programs and data cannot be restored once the

disc or tape is damaged.

SR-MV45_55US.book Page 5 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_03TOC.fm]

Masterpage:Left0

6 EN

Page 6 January 10, 2007 1:18 pm

CONTENTS

DISC INFORMATION 7

About Discs....................................................................................7

INDEX 11

INSTALLING YOUR NEW UNIT 16

Basic Connection .........................................................................16

INITIAL SETTINGS 17

Clock Set......................................................................................17

Language .....................................................................................18

Monitor Set (DVD Deck Only) ......................................................19

OPERATIONS ON DVD DECK 20

Basic Playback.............................................................................20

Playback Features .......................................................................21

Live Memory Playback.................................................................24

Using The On-screen Bar ............................................................28

Parental Lock ...............................................................................32

OPERATIONS ON VCR DECK 33

Basic Playback.............................................................................33

Playback Features .......................................................................34

RECORDING 36

Simultaneous Recording..............................................................36

Recording Features (DVD Deck) .................................................37

Recording Features (VCR Deck) .................................................38

NAVIGATION (DVD DECK ONLY) 39

Library Database DVD Navi.........................................................39

Edit Original Information...............................................................40

Edit Play List Information .............................................................42

Edit Library Information................................................................44

Playback With MP3/JPEG Navigation..........................................45

EDITING 46

Tape Dubbing (From VCR To DVD)............................................ 46

Manual Dubbing (From VCR To DVD) ........................................ 47

Disc Dubbing (From DVD To VCR) ............................................. 48

Manual Dubbing (From DVD To VCR) ........................................ 49

Program Dubbing (From DVD to VCR) ....................................... 50

DV Dubbing (DVD Deck Only)..................................................... 51

Edit From A Camcorder............................................................... 52

Edit To Or From Another Recorder ............................................. 53

Digital Audio Dubbing .................................................................. 54

REMOTE CONTROL 55

Remote Control Functions........................................................... 55

SYSTEM CONNECTIONS 57

Connecting To A Dolby Digital Decoder Or An Amplifier

With Built-in DTS ..................................................................... 57

SUBSIDIARY SETTINGS 58

Mode Set (DVD Deck) ................................................................. 58

Mode Set (VCR Deck) ................................................................. 60

Format A Disc (DVD Deck Only) ................................................. 62

Finalize A Disc (DVD Deck Only) ................................................ 63

Scan Mode Set ............................................................................ 65

Tray Lock (DVD Deck Only) ........................................................ 65

Mode Lock ................................................................................... 65

Last Function Memory ................................................................. 65

TROUBLESHOOTING 66

GLOSSARY 69

APPENDIX 70

RS-232C INTERFACE (SR-MV55U ONLY) 73

RS-232C Interface – Command Table – ..................................... 73

RS-232C Interface – Specifications –.......................................... 73

RS-232C Interface – Command – ............................................... 74

SPECIFICATIONS 86

LIST OF TERMS 87

SR-MV45_55US.book Page 6 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right0

EN 7

Filename [SR-MV45_55U_04DiscInfo.fm]

Page 7 January 10, 2007 1:18 pm

DISC INFORMATION

Recordable/playable Discs

You can use discs with the following logos for recording and

playback.

●The above table is based on the information as of December 2006.

●Recording and playback may not be performed depending on the

characteristics and condition of the disc used, leading to

unsatisfactory results. Using discs manufactured by JVC is

recommended since they have been tested to be compatible with this

unit.

DVD-RAM Discs

It is only possible to use discs which conform with DVD-RAM

standard Version 2.0 or 2.1.

●It is impossible to record on DVD-RAM discs which do not conform to

this standard. If you use a disc formatted under a different standard

version, format it on this unit before use.

●It may not be possible to record, play back, edit or dub a DVD-RAM

disc even if it conforms to the standard if it was recorded or edited on

the devices from other manufacturers or on a PC, or if it has far too

many titles, or if there is very little available capacity remaining on the

disc.

●Some DVD-RAM discs are contained in a cartridge. This unit cannot

handle this type of disc. Remove the disc from the cartridge (only

discs with a removable cartridge); or the use of DVD-RAM discs not

contained in a cartridge is recommended.

●DVD-RAM discs recorded on this unit cannot be played back on an

incompatible DVD player.

●It is possible to record copy-once programs of digital broadcasts only

onto 4.7/9.4 GB DVD-RAM discs (2.8 GB DVD-RAM discs are not

compatible).

DVD-R/RW Discs

It is only possible to use DVD-R discs which conform with DVD-R

standard Version 2.0.

When a DVD-R/RW disc (Video mode) is finalized (墌pg. 63), it

can be played back on a standard DVD player as a DVD VIDEO

disc.

When a DVD-RW disc (VR mode) is finalized (墌pg. 63), it can be

played back on a standard DVD player compatible with the VR

mode of DVD-RW discs.

Before finalizing —

— it is possible to record on unrecorded areas of the disc, edit the

disc title and program titles, and delete programs.

●It is impossible to record or edit DVD-R/RW discs recorded on other

devices even if they have not been finalized.

●It is impossible to overwrite recorded areas of DVD-R discs.

●Available recording capacity does not increase even if a recorded

program is deleted from a DVD-R disc.

After finalizing —

After a DVD-R/RW disc (Video mode) has been finalized, it is

possible to play back the recorded programs (video and/or audio)

on a standard DVD video player as a DVD VIDEO disc.

●Edited titles are displayed as the

“DVD menu” in video mode.

●It is impossible to record, edit or

delete the data either in video

mode or in VR mode.

●Either in video mode or in VR

mode, although the disc can be

played back on DVD players from

other manufacturers, sometimes it

may not be possible to play back

depending on the disc and recording conditions.

●It is impossible to record on CD-R/RW or DVD-R discs used for

authoring.

●It is impossible to record onto DVD-R/RW (Video mode) discs

broadcasts that allow you to copy once. The copy once programs can

only be recorded onto DVD-RW discs formatted in VR mode.

NOTE:

The following may result if you play back a DVD-R disc recorded on

another unit.

●The disc does not play.

●A mosaic pattern (block noise) appears on the screen.

●Video or audio may be dropped out.

●The unit stops during playback.

Discs For Playback Only

You can use discs with the following logos for playback only.

●Playback may not be performed depending on the characteristics and

condition of the disc used.

●DTS Audio CDs can also be played back (An optional DTS decoder is

required).

●MP3 and JPEG discs can be played back on this unit only when they

have been recorded in the ISO9660 or Joliet format and finalized.

●JPEG files that can be played back on this unit must conform to JFIF/

Baseline process, and the maximum resolution of a JPEG file is

2,812 pixels in width and 2,112 pixels in height.

●CD-R/RW discs recorded in music CD format need to be finalized to

play back on this unit.

●Operation and audio quality of this unit are not guaranteed for discs

that do not conform to the Compact Disc specification (CD-DA).

Before you play back a CD, check for the CD logo and read the notes

on the package to confirm that it conforms to the Compact Disc

specification.

●Depending on the intentions of the author of the software, recording

conditions of DVD discs and Video CD discs may be restricted. Since

this unit plays back discs according to the intentions of the author of

the software as indicated on the disc, some functions may not

operate as commanded.

●When switching from the first layer to the second layer of double-

layered DVD VIDEO discs, the image and sound may be momentarily

distorted. This is not a malfunction.

About Discs

DVD-RAM

12 cm: 4.7 GB/9.4 GB

8 cm: 1.4 GB/2.8 GB

Ver. 2.0

Ver. 2.1, Ver. 2.1/3x

Ver. 2.2/5x

DVD-RW

12 cm: 4.7 GB/9.4 GB

8 cm: 1.4 GB/2.8 GB

Ver. 1.0 (VR mode)

Ver. 1.1, Ver. 1.1/2x

(Video mode/VR mode)

Ver. 1.2/4x

(Video mode/VR mode)

DVD-R

12 cm: 4.7 GB/9.4 GB

8 cm: 1.4 GB/2.8 GB

General Ver. 2.0 (Video mode)

General Ver. 2.0/4x/8x/16x

(Video mode) DVD VIDEO Video CD/Super Video CD

Audio CD

CD-DA files CD-R

CD-DA/JPEG/

MP3 files

CD-RW

CD-DA/JPEG/

MP3 files

CD-ROM

JPEG/MP3 files

(example of region code

indications)

SR-MV45_55US.book Page 7 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_04DiscInfo.fm]

Masterpage:Left+

8 EN

Page 8 January 10, 2007 1:18 pm

DISC INFORMATION

●DVD-AUDIO discs compatible with DVD video players can be played.

●Super Audio CDs (SACD) compatible with conventional CD players

can be played.

●Super Video CDs (SVCD) can be played. However, depending on the

discs, some may not be playable.

Unplayable Discs

The following types of discs cannot be played using this unit.

Do not attempt to play back any kind of disc that is damaged

(cracked, warped, or repaired with adhesive tape) or discs in

unusual shapes (heart-shaped, octagonal, or other forms). If such

discs are accidentally played back, it may cause noise that can

lead to speaker damage.

●CD-ROM discs (including PHOTO-CD and CD-G)

●Discs recorded in Packet Write (UDF) format.

●1.3-GB double density CDs (DDCD)

●High density CDs (HDCD)

The following discs also cannot be played back.

●Discs of a region number other than “1”

●DVD-RAM (2.6 GB/5.2 GB)

●DVD-RAM (TYPE1)

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the

“Compact Disc Digital Audio” standard. Therefore, the use of Non-

DVD side of a DualDisc on this product may not be recommended.

Region Number

The world is divided into 6 regions for DVD VIDEO discs.

DVD VIDEO discs are assigned a region number to indicate which

region they may be played back in. A disc cannot be played back

on this unit unless the region number of the disc matches that of

the unit. The region number for this unit is “1”. Only discs whose

region number includes “1” or “ALL” can be played back such as

shown below.

Examples of DVD VIDEO labels which can be played back

using this unit.

Marks of discs in this instruction manual

Recording Medium And Format

DVD-RAM

●Recording and erasing can be performed as many times as possible

on a disc.

●Editing can be performed after recording, such as deleting unwanted

parts.

●While recording, it is possible not only to start playback of a program

currently being recorded, but also to watch another program

previously recorded.

DVD-RW (VR mode)

●Recording and erasing can be performed as many times as possible

on a disc.

●Editing can be performed after recording, such as deleting unwanted

parts.

DVD-RW (Video mode)

●Can be played back on other DVD players.

●New recording can be performed by erasing all the data on a disc

once played back.

DVD-R

●Can be played back on other DVD players.

●Suitable when keeping a recorded disc for a long time.

File Structure Of Discs

DVD VIDEO

Typically, DVD VIDEO discs are made up of larger units called

“titles”. Each title has a number (title number) that can be used to

select desired titles. Titles are further divided into units called

“chapters”. Each chapter has a number (chapter number) that can

also be used to select desired chapters. Note that some discs are

not divided into titles and chapters.

When you record a program on a DVD-RAM/RW (VR mode)

disc

A single recording session results in a single title (a single

chapter). However, chapter marks are automatically inserted when

recording is paused, or audio changes from monaural to stereo

due to commercial breaks, etc. It is also possible to insert chapter

marks at desired locations during playback. (墌pg. 22)

When you record a program on a DVD-R/RW (Video mode)

disc

A single recording session results in a single title (a single

chapter). However, chapter marks are automatically inserted when

recording is paused, or audio changes due to commercial breaks,

etc. It is also possible to insert chapter marks at desired locations

during either recording or playback. Once the disc has been

finalized, these chapter marks are deleted and new chapter marks

are assigned automatically approximately every 5 minutes.

●In Video mode, even before finalizing, it is impossible to perform

editing operations other than changing the disc name and/or title

names and deleting programs and/or titles.

●After finalizing, it is impossible to perform editing operations.

Allows operation with a

DVD-RAM disc. Allows operation with a

Video CD disc.

Allows operation with a

DVD-R disc. Allows operation with

an Audio CD disc.

Allows operation with a

DVD-RW disc. Allows operation with a

disc including MP3

files.

Allows operation with a

DVD VIDEO disc. Allows operation with a

disc including JPEG

files.

DVD-RAM, DVD-RW, DVD-R or DVD VIDEO disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2 Chapter 3

SR-MV45_55US.book Page 8 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 9

Filename [SR-MV45_55U_04DiscInfo.fm]

Page 9 January 10, 2007 1:18 pm

DISC INFORMATION

Audio CD/Video CD

Typically, Audio CD discs are divided into separate tracks each

containing one song. Each track is assigned a number. For

example, the third track is Track 3. The same is true for Video CD

discs.

However, some discs are not divided into tracks.

JPEG/MP3 Disc (CD-R/RW/ROM)

MP3/JPEG files put in directories nested in several levels on a disc

will be organized as if they were put in single level directories

(groups) by the MP3/JPEG Navigation of this unit. (墌pg. 45)

File structure of a disc before starting the MP3/JPEG

Navigation

File structure of the disc after starting the MP3/JPEG

Navigation

Files are automatically grouped as follows and displayed on the

MP3/JPEG Navigation screen. Data is displayed in the

alphabetical order of file name. Files are grouped based on roots.

●This unit can recognize up to 9 hierarchies including directories and

files.

Also, it can recognize up to 250 files in each group, and up to 99

groups on a disc.

NOTES:

●Video CD discs that support Playback Control (PBC)

The contents of a disc are recorded into several hierarchies, and played

back according to the instructions on the screen while navigating through

the hierarchies. It is also possible to playback recorded tracks

consecutively without activating the PBC function even when playing a

PBC-compatible disc. (墌pg. 24)

●Regarding the contents recorded on discs

Some files may not be played back depending on the file types and other

factors.

DVD VIDEO Marks

Sometimes marks are printed on a DVD disc and/or on its

packaging to indicate information regarding the contents and

functions of the disc. Check the marks indicating the contents and

functions of the disc. Note, however, that in some cases a disc may

not include a mark even for a function it supports.

Marks related to video

Marks related to audio

Audio CD or Video CD

Track 1 Track 2 Track 3 Track 4

Directory

MP3 file

JPEG file

Number of subtitles Number of angles

Recorded under the

standard 4:3 aspect

ratio

Screen includes black

bands at the top and

the bottom of image

which has a standard

4:3 aspect ratio (letter

box)

Video playback is in Wide video mode (16:9) on

wide televisions, but in letter box on televisions

with standard 4:3 aspect ratio.

Video playback is in Wide video mode (16:9) on

wide televisions, but pan and scan is used on

televisions with standard 4:3 aspect ratio (either

the left or right side of the image is cut-out).

Number of audio tracks

Dolby Digital Recording mark

Developed by Dolby Laboratories. It enables

high-quality stereo audio recording.

DTS (Digital Theater Systems)

You can enjoy DTS audio if you connect an

amplifier with a built-in DTS decoder to the

DIGITAL AUDIO OUT connector of the unit.

SR-MV45_55US.book Page 9 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_04DiscInfo.fm]

Masterpage:Left+

10 EN

Page 10 January 10, 2007 1:18 pm

DISC INFORMATION

Placing A Disc

Opening the disc tray

Press x (EJECT) to open the disc tray.

●Pressing the button again closes the disc tray.

●Use the button to open and close the disc tray.

●Do not block the disc tray with your hand while it is opening or closing

as this may result in hardware failure.

●Do not place unplayable discs or any object other than a disc on the

disc tray.

●Do not press down strongly on the disc tray or place any heavy

objects on it.

Discs without cartridges

Place the disc on the disc tray with the

label side facing up. Since disc size

changes depending on the disc to be

played back, be sure to correctly align

the disc with the grooves for its size. If

the disc is not in its groove, it may be

scratched or otherwise damaged. To

insert an 8 cm disc, place it according

to the inner groove.

DVD-RAM discs contained in

cartridges

Double-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves

on the disc tray as shown in the illustration and insert with the side

you wish to play back or record facing down. If you insert the disc

with “Side A” facing down, programs are recorded on the side A.

Single-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves

on the disc tray as shown in the illustration and insert with the label

side facing up.

Care And Handling Of Discs

How to handle discs

When handling a disc, do not

touch the surface of the disc.

Since discs are made of

plastic, they are easily

damaged. If a disc gets dirty,

dusty, scratched or warped, the

images and sound will not be

picked up correctly, and such a

disc may cause the unit to malfunction.

Label side

Do not damage the label side, stick paper to or use any adhesives

on its surface.

Recording side

Make sure that discs are not scratched and dirty on the recording

side before use. Scratches and dirt on the recording side of a disc

may hinder proper playback and recording. Also be careful that a

DVD-RAM disc may get scratched or dirt when removed from

cartridge then put back in after use.

Storage

Make sure that discs are kept in their cases. If discs are piled on

top of one another without their protective cases, they can be

damaged. Do not put discs in a location where they may be

exposed to direct sunlight, or in a place where the humidity or

temperature is high. Avoid leaving discs in your car!

Maintenance of discs

If there are fingerprints or other dirt adhering

to a disc, wipe with a soft dry cloth, moving

from the centre outwards.

If a disc is difficult to clean, wipe with a cloth

moistened with water. Never use record

cleaners, petrol, alcohol or any anti-static

agents.

x

PLAY

REMAIN

REC MODESLOW

<<>

>

RECPAUSEREWFFCH

DV IN

REC LINK

DVD

TIMERDVDDVD

RECVCRDUBBING

PULL-OPEN

CAUTION:

Sometimes during playback, noise may appear or images may

be garbled. This is sometimes due to the disc. (It may not be up

to industry standards.)

These symptoms are caused by the discs, not by the malfunction

of the unit.

SR-MV45_55US.book Page 10 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right0

EN 11

Filename [SR-MV45_55U_05Name.fm]

Page 11 January 10, 2007 1:18 pm

INDEX

Front View

AOperate Button (OPERATE 1)

BEject Button (EJECT x)(VCR) 墌pg. 33

CCassette Loading Slot

DVCR Lamp 墌pg. 33

VCR Recording Lamp (REC) 墌pg. 36

ETBC Lamp 墌pg. 35

Dubbing Lamp (DUBB.) 墌pg. 46

FDVD Lamp (DVD) 墌pg. 17, 20

DVD Recording Lamp (REC) 墌pg. 36

GOpen/Close Button (EJECT x)(DVD) 墌pg. 10

HVCR/DVD Button

IRecording Mode Button (REC MODE) 墌pg. 36

JDisc Tray

KDubbing Button (DUBB.) 墌pg. 46

Dubbing Direction Button (VCR]DVD/VCR}DVD)

墌pg. 46, 48

LTBC Button 墌pg. 35

MS-video Input Connectors (S-VIDEO IN F-1) 墌pg. 52

NVideo/Audio Input Connectors (VIDEO/AUDIO (L/R) IN

F-1) 墌pg. 52

When using a monaural audio cable, use [AUDIO L

(MONO)] input connector. In this case, the sound on the

left channel is also recorded on the right channel.

OInput Select Button (INPUT SELECT +/–) 墌pg. 35, 36

PFront Display Panel 墌pg. 13

QInfrared Beam Receiving Window

RStop Button (8) 墌pg. 20, 33

SReverse Search Button (3) 墌pg. 21, 27, 34

Rewind Button (3) (VCR deck) 墌pg. 33

Reverse Slow Button (SLOW –) 墌pg. 22

TPlay Button (4) 墌pg. 20, 33

UForward Search Button (5) 墌pg. 21, 27, 34

Fast Forward Button (5) (VCR deck) 墌pg. 33

Forward Slow Button (SLOW +) 墌pg. 22

VPause Button (9) 墌pg. 20, 34

WRecord Button (7) 墌pg. 36

XDV Input connector [DV IN (i*)] (DVD deck only)

墌pg. 51

*i (i.Link) refers to the IEEE1394-1995 industry specification and

extensions thereof. The i logo is used for products compliant with the

i.Link standard.

EJECTEJECTTBC

OPERATE

VCR/DVD REC MODE DUBB.

S-VIDEO

IN F-1

VIDEO (MONO)L - AUDIO - R

RECDVDDUBB.TBCRECVCR

DV IN

RECPAUS EPLAY

–

INPUT SELECT

FFREWSTOP

DVDVCR DVDVCR

+

L

D

E

HGI

J

BA

M

PQRSTUVWXON

F

CK

SR-MV45_55US.book Page 11 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_05Name.fm]

Masterpage:Left+

12 EN

Page 12 January 10, 2007 1:18 pm

INDEX

Rear View

ARegion Number Label 墌pg. 8

BAC Power Cord 墌pg. 16

CCooling Fan

●This prevents the temperature from rising inside the unit.

Do not remove it.

●Install the unit so as not to block the area around the fan.

●The cooling fan may be activated even if the unit is turned off

when “POWER SAVE” is set to “OFF” (墌pg. 59).

DDigital Audio Output Connectors

[DIGITAL AUDIO OUT (COAXIAL/OPTICAL)] (DVD deck

only) 墌pg. 54, 57

EComponent Video Output Connectors [COMPONENT

VIDEO OUT (Y/PB/PR)] 墌pg. 16

●This component video output enables you to watch the images on

the VCR deck in Progressive scan mode, refer to “VHS

Progressive Scan” (墌pg. 35).

FS-video Output Connector (DVD deck only) 墌pg. 16

GS-video Input Connector 墌pg. 53

HBNC Video Output Connector [VIDEO OUTPUT]

墌pg. 16

IS-video Output Connector 墌pg. 16

JVideo/Audio Output Connectors [VIDEO/AUDIO

OUTPUT] (DVD deck only) 墌pg. 16

KVideo/Audio Input Connectors (VIDEO/AUDIO INPUT

(L-1)) 墌pg. 53

LSerial Command Connector (D-SUB 9-PIN) [SERIAL

COM.] 墌pg. 73 (SR-MV55U)

●Use this connector when controlling this unit via a computer. The

cable to be used should be a RS-232C interface cable (straight

type). For details on the RS-232C interface command, refer to

page 73.

MAudio Output Connectors [AUDIO OUTPUT] 墌pg. 16

NRemote In Connector* (REMOTE IN)

* There is currently no compatible remote control unit available.

OUTPUT

OUTPUT

DVD DVD/VCR DVD/VCR

INPUT L-1

OPTICAL

DVD

L

R

DIGITAL

AUDIO OUT COMPONENT

VIDEO OUT

VIDEO

AUDIO

VIDEO

AUDIO

PCM/

STREAM

L

R

VIDEO

L

R

COAXIAL SERIAL

COM.

Y

PB

PR

AUDIO

REMOTE IN

AEFDB G

C

N

H I

LMJK

SR-MV45_55US.book Page 12 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 13

Filename [SR-MV45_55U_05Name.fm]

Page 13 January 10, 2007 1:18 pm

INDEX

Front Display Panel

ADisc Type Indicator

When a disc is loaded, the type of the disc is indicated.

Disc Status Indicator

When a disc is running, the disc marks rotate.

VR Mode Indicator 墌pg. 62

Lights when a DVD-RW disc is formatted in VR mode.

BLinear PCM Indicator (LPCM)

Lights when “XP MODE REC AUDIO” is set to “LINEAR PCM”

(墌pg. 59) for recording with DVD-RAM, DVD-R and DVD-RW

discs, and when Linear PCM audio is played.

CCassette Loaded Mark ( )

Indicates the present of a cassette in the VCR deck. Lights when a

cassette is loaded into the VCR deck.

DRecording Mode Indicator (XP/SP/LP/EP/FR) 墌pg. 37

Blinks when recording mode is being set.

While “FR” is blinking, the left 3 digits of the Multi Display (M N)

indicate setting values ranging from “60” to “480”. After the value

has been set, only “FR” lights.

EGroup/Title Indicator (GRP/TITLE)

“GRP” or “TITLE” lights depending on a disc loaded while the left 2

digits of the Multi Display (M) indicate the numbers explained below.

“GRP”: Total number of groups or group number being played

back are displayed on the Multi Display.

“TITLE”: Total number of titles or title number being played back

are displayed on the Multi Display.

FInput Indicator

Indicates the input selected.

GTrack/Chapter Indicator (TRK/CHAP)

“TRK” or “CHAP” lights depending on a disc loaded while the 3rd

and 4th digits from the left of the Multi Display (N) indicate the

numbers explained below.

“TRK”: Total number of tracks or track number being played

back are displayed on the Multi Display.

“CHAP”: Chapter number being played back are displayed on the

Multi Display.

HSimulated Surround Effect Indicator (3D) 墌pg. 30

Lights when a simulated surround effect is set to “3D-ON” on the

on-screen bar.

IRandom/Program Playback Mode Indicator (RND/

PRGM) 墌pg. 31

“RND”: Lights when Random Playback mode is set.

“PRGM”: Lights when Program Playback mode is set.

JRepeat Mode Indicator ( /1/A–B) 墌pg. 29, 35

Select Repeat Playback mode on the on-screen bar.

“ ”: Whole disc is played back repeatedly.

It also lights up during the Repeat Playback on the

VCR deck.

“ 1”: A single title/chapter/track is played back repeatedly.

“ A–B”: The selected part (A–B) is played back repeatedly.

No display: Repeat Playback mode is off.

KS-VHS Indicator

Lights up when a cassette marked “S-VHS” is inserted with “S-VHS

MODE” set to “ON” (墌pg. 61), the cassette recorded in S-VHS or

S-VHS ET mode is played back, or when “S-VHS ET” is set to “ON”.

(墌pg. 60)

LVideo Output Indicator ( ) 墌pg. 65

No display: Indicates that interlace mode is engaged.

: Indicates that progressive mode is engaged.

(Example) lights when video output mode is in progressive

mode.

MGroup/Title Number Display

NTrack/Chapter Number Display

ORemaining Time/Elapsed Time Indicator 墌pg. 23, 37

Lights when remaining time of DVD-RAM, DVD-R and DVD-RW

discs is displayed, and lights out when elapsed time is displayed.

The right 6 digits of the Multi Display (P) indicate elapsed or

remaining time of each track.

No display: Indicates elapsed time of the disc.

Displayed: Indicates remaining time of the disc.

PRemaining Time/Elapsed Time Display 墌pg. 23, 37

QMulti Display

Displays clock, elapsed time and remaining time.

Also displays status of the unit (NO DISC/OPEN/CLOSE/

READING).

S-VHS DVD

VR

-

RAM

LPCM

FR

XP SP LP EP

-

RW VCD

ACBF

M

L

DHGI

N

K

J

OPQ

E

SR-MV45_55US.book Page 13 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_05Name.fm]

Masterpage:Left+

14 EN

Page 14 January 10, 2007 1:18 pm

INDEX

On-Screen Display (DVD deck)

When “SUPERIMPOSE” is set to “AUTO” and ON SCREEN on the remote control is pressed, various operational indicators appear on the

TV screen. To clear the operational indicators, press ON SCREEN twice.

ADisc Display

Displays the type of the disc loaded on the disc tray.

BTitle Number*

Displays number of the title currently being played back.

CPlayback Operation Status Indicator*

Indicates playback operation status by pictographs.

DPlayback Time*

Displays playback time of the title currently being played back.

ERecording Mode

Displays recording mode as XP, SP, LP, EP, FR60–FR360, FR420

and FR480. Current recording mode is displayed during recording,

and recording mode in which the program was recorded is displayed

during playback. The recording mode is not displayed during play

list playback.

FTitle Number

Displays playback title number during playback, and recording title

number during recording.

GChapter Number

Displays playback chapter number during playback, and recording

chapter number during recording.

HClock Display

IBar Meter Display 墌pg. 26

Displays playback point and other information in bar meter.

JTitle Name Display

Displays title name newly registered to the title recorded on DVD-

RAM/RW/R discs, or file name of JPEG and MP3 files.

KOperation Status Indicator

Indicates operation status by pictographs. (Also indicates its speed

for forward high-speed search, reverse high-speed search and slow

motion.)

LTime Display

Displays single title playback elapsed time, single track playback

elapsed time, single track remaining time, total elapsed time, total

remaining time, and other information in turn.

MAudio Mode Display

Displays audio that is being input.

NAuxiliary Input Indicator (L-1 or F-1)

Displays currently selected input.

* During Live Memory playback, playback operation status is displayed.

During normal playback, the multichannel encoding method is displayed.

On-Screen Display (VCR deck)

When “SUPERIMPOSE” is set to “ON” or “AUTO” and ON SCREEN on the remote control is pressed, various operational indicators appear

on the TV screen. To clear the operational indicators, press ON SCREEN again.

AOperation Mode Indicators

BRecording Mode (SP/EP)

CTape Position Indicator

The tape position indicator

appears on the TV screen when

you press 3 or 5 from the

Stop mode or perform an Index

Search. (墌pg. 34) The position

of “q” in relation to “B”

(Beginning) or “E” (End) shows

you where you are on the tape.

NOTE:

Depending on the type of tape

being used, the tape position

indicator may not appear

correctly.

DIndex number 墌pg. 34

ETape Remaining Time Indicator 墌pg. 38

FCounter Display

GAudio Mode Display 墌pg. 35

HDay/Clock Display

IAuxiliary Input Indicator (L-1 or F-1)

J“Cassette Loaded” Mark

L

L-1

R

I

HA

B

E

G

J

C

D

F

Beginning End

SR-MV45_55US.book Page 14 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 15

Filename [SR-MV45_55U_05Name.fm]

Page 15 January 10, 2007 1:18 pm

INDEX

Remote Control

AF2 Button: Not use on this unit.

BF1 Button 墌pg. 65

CNumber Keys 墌pg. 24

Character Keys (DVD deck only) 墌pg. 41

DAuxiliary Button (AUX) 墌pg. 53

ECancel Button (CANCEL) 墌pg. 30

FFinalize Button (FINALIZE) 墌pg. 63, 64

GF3 Button: Not use on this unit.

HTop Menu Button (TOP MENU) (DVD deck only)

墌pg. 21

Navigation Button (NAVIGATION) (DVD deck only)

墌pg. 39

Irt Button 墌pg. 17

JSet Up Button (SET UP) 墌pg. 17

KReverse Skip Button (2) (DVD deck) 墌pg. 21, 27

Index Button (2) (VCR deck) 墌pg. 34

Previous Button (PREVIOUS) (DVD deck only) 墌pg. 24

LPlay Button (4) 墌pg. 20, 33

Select Button (SELECT) (DVD deck only) 墌pg. 20, 40

MReverse Search Button (3) 墌pg. 21, 27, 34

Rewind Button (3) (VCR deck) 墌pg. 33

Reverse Slow Button (SLOW –) 墌pg. 22

NStop Button (8) 墌pg. 20, 33

Clear Button (CLEAR) (DVD deck only) 墌pg. 30

ORecord Button (7) 墌pg. 36

PRemain Button (REMAIN) 墌pg. 23, 37

Recording Mode Button (REC MODE) 墌pg. 36

QSubtitle Button (SUBTITLE) (DVD deck only) 墌pg. 23

RAngle Button (ANGLE) (DVD deck only) 墌pg. 23

Live Check Button (LIVE CHECK) 墌pg. 25, 27

STV/VCR Button 墌pg. 55

TAudio Button (AUDIO) 墌pg. 23, 35

TV Muting Button ( ) 墌pg. 55

UTV/CABLE/DBS/DVD switch 墌pg. 17, 55, 56

VVCR/DVD Button 墌pg. 17

WTV/CBL/DBS/DVD Standby/On Button (1)

XMemo Button (MEMO) (DVD deck only) 墌pg. 40, 43, 45

Mark Button (MARK) (DVD deck only) 墌pg. 22

YOn-Screen Button (ON SCREEN) 墌pg. 14, 28

Progressive Scan Button (PROGRESSIVE SCAN)

墌pg. 65

ZDisplay Button (DISPLAY) 墌pg. 23, 37

aMenu Button (MENU) (DVD deck only) 墌pg. 21

bwe Button 墌pg. 17

cEnter Button (ENTER) 墌pg. 17

dReturn Button (RETURN) 墌pg. 24

eForward Skip Button (6) (DVD deck) 墌pg. 21, 27

Index Button (6) (VCR deck) 墌pg. 34

Next Button (NEXT) (DVD deck only) 墌pg. 24

fForward Search Button (5) 墌pg. 21, 27, 34

Fast Forward Button (5) (VCR deck) 墌pg. 33

Forward Slow Button (SLOW +) 墌pg. 22

gPause Button (9) 墌pg. 20, 34

hSkip Search Button ( ) 墌pg. 22, 27

iInstant Replay Button ( ) 墌pg. 27, 34

jTV Volume Button (TV VOL.) 墌pg. 55

kTV/CBL DVD Channel Button (INPUT/TV CH +/–)

墌pg. 36, 55

The glow-in-the-dark buttons shown in grey on the illustration

above are helpful when using the remote control in darkened

rooms.

Buttons with a small dot on the left side of the name can also be

used to operate your TV. (墌pg. 55)

FINALIZEF3

DISPLAY ON SCREEN

F2 VCR

/DVD

F1

SLOW

PREVIOUS NEXT

CLEAR

SLOW

PAUSESTOP/

PLAY/SELECT

REMAIN REC

INPUT

/ TV CH

AUDIO

SUBTITLE

ANGLE

TV/VCR

REC MODE

LIVE CHECK

DVDTV

CABLE/DBS

ABC DEF

JKL MNO

TUV

GHI

PQRS WXYZ

NUMBER / TV CH

MEMO/MARK

PROGRESSIVE

SCAN

AUX

SET UP

RETURN

CANCEL

NAVIGATION

TOP MENU

MENU

TV

VOL.

TV/CBL /DVD

TV TV

TV

/

CBL/DBS

/DVD

1

4

7

2

5

8

0

3

6

9

ENTER

How To Use

Before use, insert two AA size batteries into the remote control

with the polarity ( and ) matched correctly as indicated on

the battery compartment or on the lid.

The remote control can operate most of your unit’s functions, as

well as basic functions of TV sets of JVC and other brands.

(墌pg. 55)

●Point the remote control toward the receiving window.

●The maximum operating distance of the remote control is about

8m.

NOTE:

If the remote control doesn’t work properly, remove its batteries, wait

a short time, replace the batteries and then try again.

SR-MV45_55US.book Page 15 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_05Name.fm]

Masterpage:Left0

16 EN

Page 16 January 10, 2007 1:18 pm

INSTALLING YOUR NEW UNIT

It’s essential that your unit be properly connected.

Connecting to a TV Monitor

Connect the unit to a TV depending on the TV and cables you use.

8AV Connection

To connect to a TV with BNC connector —

AConnect an optional audio cable between the [AUDIO

OUTPUT] connectors on the rear panel of the unit and the TV’s

audio input connectors.

BConnect an optional BNC video cable between the unit’s BNC

[VIDEO OUTPUT] connector and the TV’s BNC VIDEO input

connector.

8S-Video Connection

To connect to TV’s S-VIDEO input and AUDIO input

connectors —

AConnect the unit’s S-VIDEO output connector to the TV’s

S-VIDEO input connector.

BConnect the unit’s [AUDIO OUTPUT] connectors to the TV’s

AUDIO input connectors.

●You can obtain high-quality S-VHS pictures.

●If your TV is not stereo-capable, use the unit’s [AUDIO OUTPUT]

connectors to connect to an audio amplifier for Hi-Fi stereo sound

reproduction.

8Component Video Connection (DVD deck only)

To connect to TV’s component video input connectors —

AConnect the unit’s [COMPONENT VIDEO OUT (Y/PB/PR)]

connectors to the TV’s component video input connectors.

BConnect the unit’s [AUDIO OUTPUT] connectors to the TV’s

AUDIO input connectors.

●You can obtain high-quality component video pictures.

●If your TV is not stereo-capable, use the unit’s [AUDIO OUTPUT]

connectors to connect to an audio amplifier for Hi-Fi stereo sound

reproduction.

●By using the component video connection, you can view the images

in the progressive mode. For switching to the progressive mode, refer

to “Scan Mode Set” (墌pg. 65).

●You can also watch the images on the VCR deck in Progressive scan

mode via the component video output, refer to “VHS Progressive

Scan” (墌pg. 35).

Connecting to a Camcorder

8AV Connection

AConnect the unit’s [VIDEO/AUDIO (L/R) IN F-1] connectors on

the front panel to the camcorder’s AV connector.

●Set “FRONT AUX F-1” to “VIDEO”. (墌pg. 59)

8S-Video Connection

AConnect the unit’s [S-VIDEO IN F-1] connector on the front

panel to the camcorder’s s-video output connector.

BConnect the unit’s [AUDIO IN F-1] connectors on the front panel

to the camcorder’s AV connector.

●Set “FRONT AUX F-1” to “S-VIDEO”. (墌pg. 59)

To connect to a DV camcorder, refer to “DV Dubbing (DVD Deck

Only)” (墌pg. 51).

Connecting to Another Recorder

AConnect the unit’s [S-VIDEO INPUT] or [VIDEO INPUT]

connector to another recorder’s s-video or video output connector.

BConnect the unit’s [AUDIO INPUT] connectors to another

recorder’s audio output connectors.

Plug the end of the AC power cord into an AC outlet.

●“LOADING” blinks on the front display panel when the AC

plug of the AC power cord is connected into an AC outlet.

It takes approximately 50 seconds for the unit to be turned

on. This is not a malfunction.

Basic Connection

A

TTENTION:

Connect the AC plug only after all connections to the TV has been

completed.

●Make sure the package contains all of the accessories listed in

“SPECIFICATIONS” on page 86.

●Place the unit on a stable, horizontal surface.

TV

Audio/Video

cable

(not supplied)

S-video cable

(not supplied)

To [S-VIDEO

IN F-1]

To

S-VIDEO

output

S-video cable

(supplied)

To

[AUDIO

OUTPUT]

Audio cable

(supplied)

Component video

cable

(not supplied)

To

[VIDEO

OUTPUT]

Back of unit

To

[COMPONENT

VIDEO OUT

(Y/PB/PR)]

To [AUDIO/VIDEO

INPUT]

AC power cord

AC outlet

Audio/Video

cable

(not supplied)

S-video cable

(not supplied)

Camcorder

Another Recorder

BNC video

cable

(not supplied)

To S -VIDEO

input

THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO

OPERATION CAN BE PERFORMED.

SR-MV45_55US.book Page 16 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right0

EN 17

Filename [SR-MV45_55U_05Name.fm]

Page 17 January 10, 2007 1:18 pm

INITIAL SETTINGS

1Press VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

2Press SET UP to access the Main Menu screen.

3Press we to select “INITIAL

SET UP”, then press ENTER.

4Press rt to select “TIME”,

then press ENTER. Press rt

until the desired time appears,

then press ENTER to start clock.

●Set the date and year in the same

way.

●Holding rt changes the time in

30-minute intervals, or changes the date in 15-day intervals.

5Press rt to select “D.S.T.”, then press ENTER. Press rt to

select the desired setting, then press ENTER.

ON: Adjustment will be made by the built-in clock itself.

OFF: Select when Daylight Saving Time does not apply to you.

6Press SET UP to complete the setting.

Clock Set

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

ENTER

SET UP

rtw e

VCR/DVD

Daylight Saving Time

This function enables automatic adjustment of the unit’s clock at

the start and end of Daylight Saving Time.

With D.S.T activated, —

— on the second Sunday of March at 2:00 AM, the clock is

adjusted to 3:00 AM.

— on the first Sunday of November at 2:00 AM, the clock is

adjusted to 1:00 AM.

SR-MV45_55US.book Page 17 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_05Name.fm]

Masterpage:Left+

18 EN

Page 18 January 10, 2007 1:18 pm

INITIAL SETTINGS

On-screen Language Set

This unit offers you the choice to view on-screen messages in 3

different languages.

1Press VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

2Press SET UP to access the Main Menu screen.

3Press we to select “FUNCTION SET UP”, then press ENTER.

4Press we to select “DISPLAY

SET”, then press ENTER.

5Press rt to select “ON

SCREEN LANGUAGE”, then

press ENTER.

6Press rt to select your

desired language, then press

ENTER.

7Press SET UP to complete the setting.

Menu/Audio/Subtitle Language Set (DVD deck only)

Some DVD discs contain the DVD menu display, audio and

subtitles in multiple languages. With these discs, you can set the

default language as you like.

●The procedure shows how to set “MENU LANGUAGE” as an

example.

1Press VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

2Press SET UP to access the Main Menu screen.

3Press we to select “DVD SET UP”, then press ENTER.

4Press we to select

“LANGUAGE SET”, then press

ENTER.

5Press rt to select “MENU

LANGUAGE”, then press ENTER.

6Press rt to select your

desired language, then press

ENTER.

●See “Language Code List”

(墌pg. 70).

7Press SET UP to complete the setting.

NOTE:

When the selected language is not available on the disc, the disc’s

default menu language is played back.

Language

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

rtw e

ENTER

VCR/DVD

SET UP

SR-MV45_55US.book Page 18 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 19

Filename [SR-MV45_55U_05Name.fm]

Page 19 January 10, 2007 1:18 pm

INITIAL SETTINGS

You can select the monitor type depending on the TV used when

you play back DVD VIDEO discs recorded for wide-screen TVs.

1Press VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

2Press SET UP to access the Main Menu screen.

3Press we to select “FUNCTION SET UP”, then press ENTER.

4Press we to select “VIDEO IN/

OUT”, then press ENTER.

5Press rt to select “MONITOR

TYPE”, then press ENTER.

6Press rt to select the desired

option, then press ENTER.

7Press SET UP to complete the

setting.

*The boldface settings below indicate the settings at your

purchase.

8MONITOR TYPE — 4:3LB / 4:3PS / 16:9AUTO / 16:9FIX

4:3LB (Letter Box conversion):

Select this when the aspect ratio of your TV is 4:3 (conventional

TV). While viewing a wide screen picture, the black bars appear

on the top and the bottom of the screen.

4:3PS (Pan&Scan):

Select this when the aspect ratio of your TV is 4:3 (conventional

TV). While viewing a wide screen picture, the black bars do not

appear; however, the left and right edges of the pictures will not

be shown on the screen.

16:9AUTO (Wide television conversion):

Select this when the aspect ratio of your TV is 16:9 (wide TV).

16:9FIX (Wide television conversion):

Select this when the aspect ratio of your TV is fixed to 16:9 (wide

TV). The unit automatically adjusts the screen width of the output

signal correctly when playing back a picture whose aspect ratio is

4:3.

Pan&Scan/Letter Box

In general, DVD VIDEO disc are produced for a wide-screen TV

with 16:9 aspect ratio.

Material with this ratio will not fit to a TV with 4:3 aspect ratio.

There are two styles to display the image, “Pan&Scan” (PS) and

“Letter Box” (LB).

Pan&Scan

The right and left side of the image are cut off.

The image fills the screen.

●The picture will be shown in the “4:3LB” mode

depending on the disc even if the “4:3PS” mode

is selected.

Letter Box

Black bands appear at the top and bottom of

the image. The image itself appears in 16:9

aspect ratio.

Monitor Set (DVD Deck Only)

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

ENTER

SET UP

rtw e

VCR/DVD

SR-MV45_55US.book Page 19 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_06DVD Operation1.fm]

Masterpage:Left0

20 EN

Page 20 January 10, 2007 1:18 pm

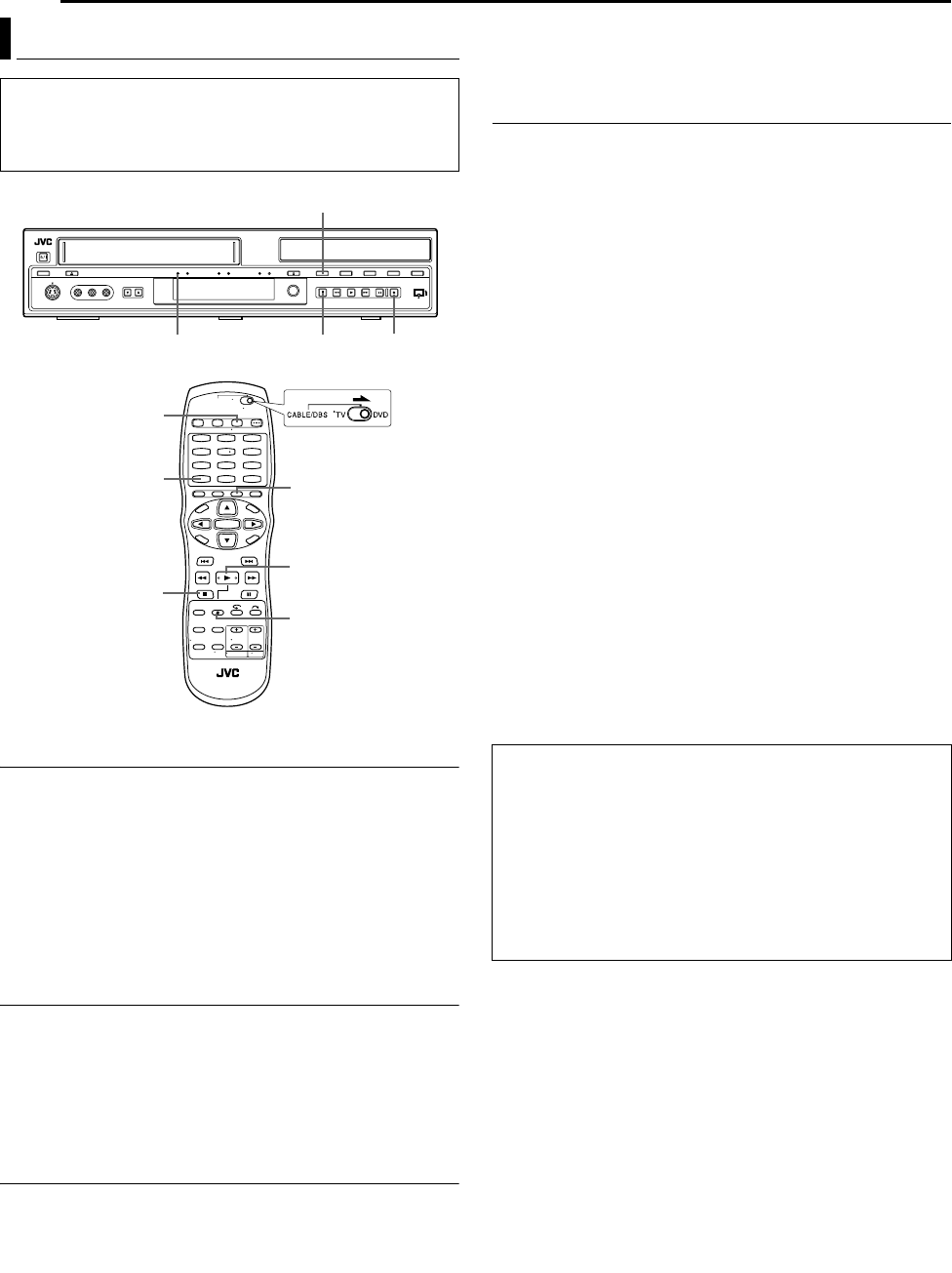

OPERATIONS ON DVD DECK

To play back an MP3/JPEG disc, see “Playback With MP3/JPEG

Navigation” (墌pg. 45).

1Load a disc.

●For details, refer to “Placing A Disc” (墌pg. 10).

●Playback begins automatically if an auto-playback DVD disc is

loaded.

●Pressing 4 also closes the disc tray, and playback begins

automatically.

2Press VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

3Press 4 to start playback.

●If you load a DVD disc whose region code does not match the unit,

“REGION CODE ERROR CHECK DISC” appears on the TV screen.

For details, refer to “Region Number” (墌pg. 8).

●If “CAN NOT PLAY BACK DISC UNDER CURRENT SETTING”

appears on the TV screen, refer to “Parental Lock” (墌pg. 32).

●With Video CD discs with PBC control or some DVD discs, the menu

display may appear on the TV screen after starting playback. In this

case, select an item which you want to play back from the menu.

Otherwise, the playback cannot go forward. Refer to “Playback

Control (PBC) Function” (墌pg. 24) or “Locating A Desired Scene

Using The DVD Menu” (墌pg. 21).

●The Library Database DVD Navi also enables you to search and

select the desired programs. (墌pg. 40)

4Press 9 to pause playback.

●To resume normal playback, press 4.

5Press 8 to stop playback.

●When a recordable disc is played, playback stops and AV input (from

external AV source) resumes on the TV screen.

●When a playback-only disc is played, playback stops and the still

image at the time you press 8 remains on the TV screen. Pressing 8

again resumes the AV input (from external AV source).

●If x (EJECT) is pressed during playback, playback stops, then the

disc tray opens.

NOTE:

When the Library Database DVD Navi screen appears, choose a

thumbnail image of the desired program on the TV screen, then press

SELECT(4). (墌pg. 40)

Basic Playback

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

A

TTENTION:

●It takes approximately 30 seconds to read a disc depending on the

type and condition of the disc since this unit is multi-disc

compatible (DVD-RAM, DVD-RW, DVD-R). It may even take

several minutes when a disc is dirty, scratched or warped.

●It may take a few seconds to start playback. This is not a

malfunction.

●Forward/reverse high-speed search and other operations cannot

be performed while playback is stopped.

1

4

7

2

5

8

0

3

6

9

4

SELECT

98

ENTER

VCR/DVD

8

x

49

VCR/DVD

DVD Lamp

SR-MV45_55US.book Page 20 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 21

Filename [SR-MV45_55U_06DVD Operation1.fm]

Page 21 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

Locating A Desired Scene Using The DVD Menu

DVD VIDEO discs may have top menu and disc menu.

Top menu

DVD discs generally have their own menus which show the disc

contents. These menus contain various items such as titles of a

movie, names of songs, or artist information. You can locate a

desired scene by using the top menu displayed on the TV screen.

Press TOP MENU to access the top menu.

Disc menu

Disc menus include playback data (angle menu, subtitle menu,

etc.) specific to each title.

Press MENU to access the disc menu.

1Press TOP MENU or MENU to

access the DVD menu.

2Press rt w e to select a

desired title, then press ENTER.

Playback starts.

●It may be possible to select the

desired item using the number

keys depending on the menu

display.

NOTE:

When “X” appears on the TV screen

in step 1, the disc does not have a top menu or disc menu.

Locating The Start Point Of The Item Or Skip The Item

Press 2 or 6 during playback.

●Pressing 6 locates the start point of the item or skips the item for

forward direction, then resumes playback.

●Pressing 2 locates the start point of the item or skips the item for

reverse direction, then resumes playback.

When a DVD-RAM/RW/R disc is played

Example:

To locate the beginning of the next item, press 6 once.

To locate the beginning of the current item, press 2 once.

To locate the beginning of the previous item, press

2

three times.

When a DVD VIDEO, Audio CD or Video CD disc is played

Example:

To locate the beginning of the next item, press 6 once.

To locate the beginning of the current item, press 2 once.

Variable Speed Search

During playback, press 5 for forward variable speed search, or

3 for reverse variable speed search.

●Each press of the button increases the search speed for each

direction.

●To resume normal playback, press 4.

OR

During playback, press and hold 6 for 2 or more seconds for

forward search at 5x speed, or press and hold 2 for 2 or more

seconds for reverse search at –5x speed.

●Releasing the button resumes normal playback.

For Audio CD

You can perform 4 levels of speed search with 5 and 3.

(Audio is active also during variable speed search.) You cannot

perform slow motion for each direction.

NOTE:

For slow motion speed search, refer to “Slow Motion” (墌pg. 22).

Playback Features

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

●Press VCR/DVD repeatedly so that the DVD lamp lights up on the

unit.

1

4

7

2

5

8

0

3

6

9

MENU

SLOW+ (5)

TOP MENU

ENTER

SLOW– (3)

2

4

6

rtw e

98

0 – 9

MARK

Example:

Reverse Search

4 steps

Reverse

Play

Reverse

Slow Motion

3steps

Slow Motion

3steps

Normal

Play Forward Search

4 steps

–60 –15 –5 –3 –1 –1/2 –1/4

–1/16

1/16 1/4 1/2 1 3 5 15 60

●: marked points if any (墌pg. 22) or beginning of recording

Current program

Drama

Previous

program

News Next

program Movie

Reverse Forward

Playback point

Reverse Forward

Scene 2

(Chapter 2)

or

Track 2

Scene 3

(Chapter 3)

or

Track 3

Scene 4

(Chapter 4)

or

Track 4

5 Forward

Reverse 3

SR-MV45_55US.book Page 21 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_06DVD Operation1.fm]

Masterpage:Left+

22 EN

Page 22 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

Still Picture/Frame-By-Frame Playback

1Press 9 to pause during playback.

2Press 9 or we to activate frame-by-frame playback.

●Each press of 9 advances the still picture frame by frame.

●Each press of we advances/reverses the still picture frame by

frame.

●Frame-by-frame playback for reverse direction cannot be performed

with Video CD discs.

●To resume normal playback, press 4.

Slow Motion

1Press 9 to pause during playback.

2Press SLOW – (3) or SLOW + (5).

●Each press of SLOW – (3) or SLOW + (5) increases the slow

motion speed for each direction (from 1/16 to 1/2 times the normal

speed).

●Slow motion for reverse direction cannot be performed with Video CD

discs.

Skip Search

During playback, press .

●Each press initiates an approximately 30-second period of fast-

motion playback. Normal playback resumes automatically.

●Skip search cannot be performed when a Video CD disc is being

played back with the PBC function.

Resume Function

It is possible to memorize the position where you stop playback

and resume playback from that position.

●Be sure to set “RESUME” to “ON” or “DISC RESUME”. (墌pg. 59)

1Press 8 during playback to memorize a resume point.

●The unit enters Resume Stop mode and memorize the position

where you have stopped playback as a resume point. (The inside of

the disc status indicator on the front display panel blinks while

memorizing.)

●The unit retains a memory of the resume points of the last 30 discs

played back, even though they have been ejected if “RESUME” is set

to “DISC RESUME”. (墌pg. 59)

●Performing the following steps would erase the resume points:

(The inside of the disc status indicator stops blinking and lights.)

When “RESUME” is set to “ON”:

• Press 1 to turn off the unit.

• Press x (OPEN/CLOSE) to take out the disc.

• Press 8 in stop mode.

• Press TOP MENU to display the top menu, then start playback by

selecting an item, etc.

• Press MENU to display the disc menu, then start playback by selecting

an item, etc.

When “RESUME” is set to “DISC RESUME”:

• Set “RESUME” to “OFF”. (墌pg. 59)

• Press 8 in stop mode.

• Press TOP MENU to display the top menu, then start playback by

selecting an item, etc.

• Press MENU to display the disc menu, then start playback by selecting

an item, etc.

2Press 4 in stop mode to resume playback. The unit starts

playback from the resume point.

NOTES:

●“DISC RESUME” setting works on DVD VIDEO, VCD and already

finalized DVD-R/DVD-RW (video mode) discs. For other types of

discs, the function under “ON” setting will be applied even if

“RESUME” is set to “DISC RESUME”. (墌pg. 59)

●If you stop the playback of a disc for which an resume point has

already been memorized, the memory will be updated with the new

resume point.

●After the unit has memorized the resume point for 30 discs,

remembering a new resume point will cause the unit to delete the

oldest memorized point. Stopping playback of a disc for which a

resume point is already stored may change the order in which the

points are stored. This may potentially change the order in which

points are deleted.

●When the unit memorizes a resume point for a disc, it also

remembers audio language, subtitle and angle settings.

●This function may not work for some Video CD.

●When “RESUME” is changed to “ON” or “OFF” (墌pg. 59), resume

points of the discs memorized with “RESUME” set to “DISC

RESUME” will be cleared.

●Resume points are memorized for each side of a double-sided disc.

Marking Positions To Play Back Again Later

It is possible to mark positions (up to 999 points) where you want to

play back once again later, and start playback from a marked

position.

To mark positions:

During playback or recording, press

MARK at positions you want to mark.

●“MARK” appears on the TV screen.

You can easily locate the marked

positions using 2 or 6 when you

play back the disc.

To delete the marked positions:

While paused, press 2 or 6 to

locate a marked position you want to

delete, then press MARK.

●Crossed “MARK” appears on the TV

screen, and the marked position is

deleted.

NOTE:

When a DVD-R/RW (Video mode) disc is finalized, marked points

marked before finalizing will be deleted, and programs will be divided

automatically into “chapters” approximately every 5 minutes.

(墌pg. 63)

SR-MV45_55US.book Page 22 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 23

Filename [SR-MV45_55U_06DVD Operation1.fm]

Page 23 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

Checking The Time Information

You can check time information of a disc on the front display panel

and the TV screen.

Press DISPLAY once to display the lastly displayed information. To

changes the display, press DISPLAY repeatedly.

8DVD-RAM/DVD-R/DVD-RW

During playback or recording

Clock time (front display panel only) ] Current title elapsed time

] Disc remaining time* ] (back to the beginning)

* only discs before finalizing

●Clock time is displayed only when a recordable disc is recorded.

In stop mode

●It is possible to check disc remaining time according to recording

modes also by pressing REMAIN.

●In FR mode, it is possible to set recording time in detail. While the

recording mode and the disc remaining time are displayed by

pressing REMAIN, press rt to select “FR”, then press we to

select the desired recording time. (墌pg. 37)

●It is not possible to switch the recording mode during playback or

while recording.

8Video CD/Audio CD

During playback or in stop mode

Total remaining time ] Current track elapsed time ] Current track

remaining time ] Total elapsed time ] (back to the beginning)

NOTE:

When a PBC-compatible Video CD disc is loaded, deactivate the PBC

function. (墌pg. 24)

Angle Selection

You can enjoy a variety of scene angles if a DVD VIDEO disc

contains “multi-angle” parts, where the same scene was shot from

different angles.

If the disc contains “multi-angle” parts, “ ” appears on the TV

screen at the beginning of the “multi-angle” part.

1Press ANGLE during playback.

The angle selection display

appears on the TV screen.

2Press ANGLE or we to select

your desired angle.

●Each time you press ANGLE or

we, the angle changes.

●When “X” appears on the TV screen, the current scene is not

recorded from multiple angles. In addition, some discs prohibit angle

selection.

●To clear the angle selection display, press ENTER. In addition, the

angle selection display disappears automatically if no operation is

done for 10 seconds.

Subtitle Selection

Some DVD VIDEO discs contain more than one subtitle language,

from among which you can choose the desired subtitle language.

“ ” appears on the TV screen at the beginning of the part where

more than one subtitle language are recorded.

1Press SUBTITLE during

playback. The subtitle selection

display appears on the TV screen.

●Each time you press SUBTITLE,

the subtitle display is switched on

and off.

2Press we to select your desired language.

●To clear the subtitle selection display, press ENTER.

NOTES:

●When “X” appears on the TV screen, no subtitle language is

recorded.

●When the subtitle language won’t be changed with the procedure

above, change the subtitle on a disc menu displayed by pressing

MENU.

Audio Language/Sound Selection

Some DVD VIDEO discs contain the multiple audio language or

sound. You can select the desired audio language or sound. For

some Video CD discs, you can switch the audio channel to choose

Karaoke either with or without the vocal.

1Press AUDIO during playback.

The Audio Language/Sound

selection display appears.

2Press AUDIO or we to select

your desired audio language/

sound.

●Each time you press AUDIO or we, the audio language/sound

changes.

●To clear the Audio Language/Sound selection display, press ENTER.

NOTES:

●When “X” appears on the TV screen, no other audio language is

recorded.

●When the audio language won’t be changed with the procedure

above, change the audio on a disc menu displayed by pressing

MENU.

●Pressing AUDIO to select the audio language/sound is only possible

during playback. It is not possible to select by pressing AUDIO in stop

mode. However, you can select the desired audio language/sound

from the setup menu while in stop mode.

1

4

7

2

5

8

0

3

6

9

MENU

0 – 9

RETURN

TOP MENU

ENTER

ANGLE

AUDIO

REMAIN

PREVIOUS (2)

4

NEXT (6)

8

DISPLAY

SUBTITLE

rtw e

When 3 scene angles are

contained.

ENGLISH

When 3 subtitle languages are

contained.

When 3 audio languages are

contained.

SR-MV45_55US.book Page 23 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_06DVD Operation1.fm]

Masterpage:Left+

24 EN

Page 24 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

Audio Channel Selection

When playing discs on which you recorded stereo programs, you

can choose the desired audio channel.

●When “SUPERIMPOSE” is set to “AUTO”, you can confirm on the TV

screen the audio channel you have chosen. (墌pg. 59)

●Each time you press AUDIO, the audio channel

changes.

Playback Control (PBC) Function

Some Video CD discs support the PBC function. PBC is an

abbreviation of “Play Back Control”. A Video CD disc recorded with

PBC has its own menus, such as a list of the songs on the disc.

You can locate a specific scene by using the menu.

1Press 4 in stop mode. The PBC menu appears.

2Press the number keys to enter the number of the desired

scene. The unit starts playback of the selected item.

●“PBC” appears on the front display panel.

●When “NEXT” or “PREVIOUS” appears on the TV screen:

Pressing NEXT (6) advances to the next page.

Pressing PREVIOUS (2) returns to the previous page.

●You can return to the menu by pressing RETURN.

●The method of the operation is different depending on the disc.

NOTES:

●If you want to playback a PBC-compatible Video CD disc without

activating the PBC function, start playback in stop mode by using the

number keys, instead of the 4 button, to choose the track, then

press ENTER.

●To activate the PBC function when a PBC-compatible Video CD disc

is being played back without the PBC function, press TOP MENU, or

press 8 then press 4.

This unit records pictures onto DVD-RAM discs, instead of video

tapes, then plays back the pictures recorded on the discs. This

makes it possible to achieve high-speed writing and read-out that

has not been possible with conventional VCRs, enabling recording

and playback simultaneously.

It is called “Live Memory Playback” to start playback of the program

being recorded, with a time-lag between a recording point and a

playback point, as shown in the figure below.

Not only can this unit play back a program previously recorded

while recording another program, but the unit also allows you to

play back from the beginning of a program while continuing to

record the same program.

Recording/playback Status Display

Press DISPLAY. The current status is superimposed on the TV

screen.

TRACK USE

On-Screen Display

For stereo discs

For audio of left channel

For audio of right channel

Live Memory Playback

Playback

(High-speed read-out)

Recording

(High-speed writing)

High-speed spin

Image figure of DVD-RAM disc

Current recording position

(Recording point)

Recording start point

Current playback point

(Live Memory Playback)

0 30 min. 1 hour

Playback

continues Recording

continues

Currently elapsed recording time

1

4

7

2

5

8

0

3

6

9

DISPLAY

Live Memory Playback status can be checked by

pressing DISPLAY to display the bar meter on the

superimpose display.

L

L-1

R

Bar meter display

Superimpose display

SR-MV45_55US.book Page 24 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 25

Filename [SR-MV45_55U_06DVD Operation1.fm]

Page 25 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

Overview Of Live Memory Playback

You can play back a program you are recording from the beginning while continuing to record onto a DVD-RAM disc. This is called “Live

Memory Playback”.

NOTES:

●Live Memory Playback could be performed approximately 30

seconds after recording has started.

●Although high-speed search up to approximately 30 seconds before

the current recording point is possible during Live Memory Playback,

once the current recording point is reached, the unit resumes normal

playback and maintains a delay of approximately 30 seconds so that

recording and playback can continue.

●Playback may be paused for a moment during Live Memory

Playback, which does not interfere with recording.

●Live Memory Playback cannot be performed while recording the

source from DV input.

●When LIVE CHECK is pressed to display the picture currently being

recorded, the picture size may not be correct.

L

L-1

R

L

L-1

R

(Recording screen) (Live Memory Playback screen)

To start Live Memory Playback,

press 4 to play back from the

beginning OR press to

reverse-skip a little

To stop Live Memory Playback,

press 8

Checking the

picture currently

being recorded

To display, press LIVE

CHECK

To clear, press LIVE

CHECK

Recording stops

To stop recording,

press 8

(Playback and Live Check screen)

Live Memory Playback


Recording


To stop Live Memory Playback,

press 8

1

4

7

2

5

8

0

3

6

9

NAVIGATION

LIVE CHECK

8

7

4

ON SCREEN

Press NAVIGATION to display

Library Database DVD Navi menu,

then choose a program to play back.

(墌pg. 39)

Pressing LIVE CHECK during Live

Memory Playback allows you to

check the picture currently being

recorded.

SR-MV45_55US.book Page 25 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_06DVD Operation1.fm]

Masterpage:Left+

26 EN

Page 26 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

Display During Live Memory Playback

During recording, you can watch at your will what was previously recorded or is currently being recorded. It is possible to perform freely

normal playback operations (forward/reverse high-speed search and variable-speed search) within the range of the red or blue bar on the

TV screen.

When Live Memory Playback reaches the point of 30 seconds before the current recording point by forward high-speed search or other

operations, the unit returns to normal playback.

The superimpose display appears by pressing ON SCREEN. (墌pg. 14)

The Live Check picture is displayed on the bottom right corner by pressing LIVE CHECK.

This unit displays the current recording/playback status by the bar meter.

(Example of bar meter display)

L

L-1

R

Live Memory Playback mark

Playback title number

Disc used

Bar meter (see below)

Title name

Playback counter

Recording title number

Recording counter display

(remaining/elapsed time)

Present time

Recording input

Playback mark

Recording mode

Recording mark

Live Check picture

Recording mark

While stopped

During playback

While recording

Live Memory Playback

Live Memory Playback of

another program

Recorded

Capacity of a disc

Not recorded

Total length of the program being played back

Current playback position

Capacity of a disc

Remaining capacity when recording started

Recording start position

Current recording position

Current playback position

Current playback position

Recording start position

Blue (recorded part)

Orange (recording part)

Green (playing part)

Black (unrecorded or unplayed part)

Total length of the program being played back

Current recording position

Capacity of a disc

Capacity of a disc

Current recording position

SR-MV45_55US.book Page 26 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 27

Filename [SR-MV45_55U_06DVD Operation1.fm]

Page 27 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

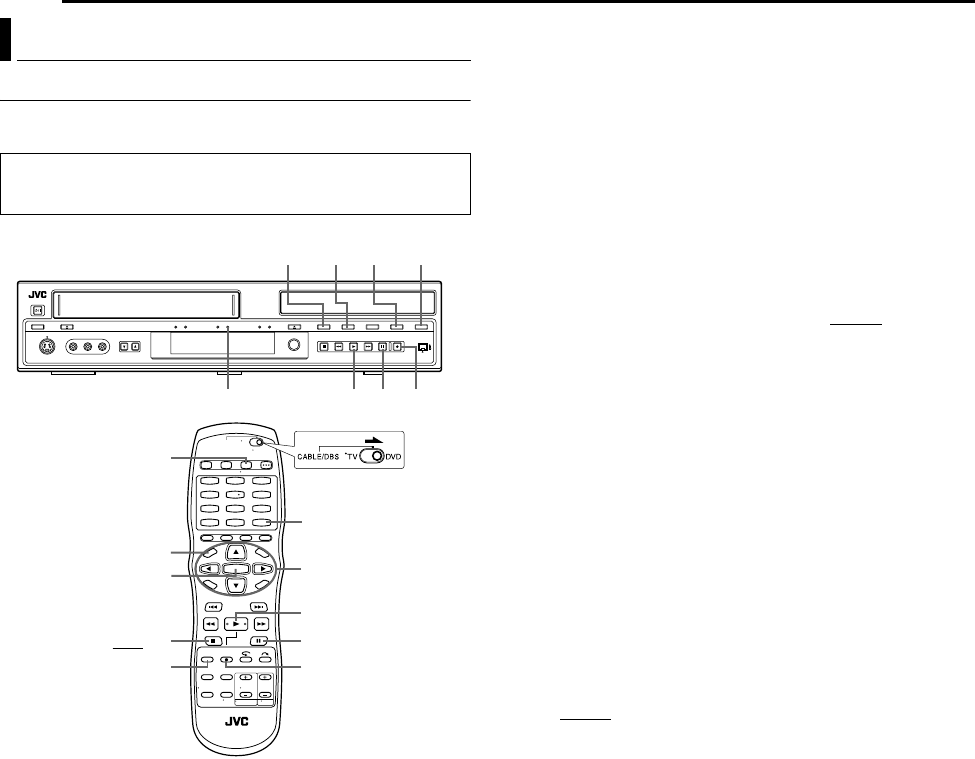

Buttons To Be Used During Live Memory Playback

ANAVIGATION

Displays Library Database DVD Navi menu. You can choose a

program to play back.

Bwe

Available only when paused

Advances/reverses the still picture frame by frame.

C2

●Pressing once skips back to the beginning of the chapter being

played back.

●Pressing down for 2 or more seconds during playback reverses

playback at 5 times the normal speed while pressed. Releasing the

button resumes normal playback.

Available only when paused

●Pressing down for 2 or more seconds reverses playback at 1/16 times

the normal speed.

D6

●Pressing once skips forward to the beginning of the next chapter

being played back.

●Pressing down for 2 or more seconds during playback advances

playback at 5 times the normal speed while pressed. Releasing the

button resumes normal playback.

Available only when paused

●Pressing down for 2 or more seconds advances playback at 1/16

times the normal speed.

E3

●Each press of the button during playback advances the playback

speed in 5 steps for reverse direction.

Available only when paused

●Pressing once reverses playback by 1/16 times the normal speed.

●Each press of the button during reverse 1/16 times slow-motion

reverses slow-motion by 1/16 times, 1/4 times and 1/2 times the

normal speed.

F5

●Each press of the button during playback advances the playback

speed in 4 steps for forward direction.

Available only when paused

●Pressing once advances playback by 1/16 times the normal speed.

●Each press of the button during forward 1/16 times slow-motion

advances slow-motion by 1/16 times, 1/4 times and 1/2 times the

normal speed.

G8

Stops Live Memory Playback to return to the screen being

recorded.

Then a resume point is stored.

Pressing 8 again stops recording.

H9

Pressing once pauses playback (still picture playback). Pressing

repeatedly advances the still picture frame by frame.

I

It is useful when watching sports programs, etc.

●Pressing once skips back for approximately 7 seconds and resumes

playback.

●Pressing repeatedly skips back continuously as many times as

pressed.

J

It is useful when skipping over unwanted sections.

●Pressing once skips forward for approximately 30 seconds and

resumes playback.

●Pressing repeatedly skips forward continuously as many times as

pressed.

KLIVE CHECK

You can check, for example, if the program you are recording has

already finished.

●Pressing once displays the picture currently being recorded and the

one being played back simultaneously.

●Pressing successively clears the Live Check window and displays

only the picture currently being played back.

To Play Back From The Beginning Of The Program

While Recording

You can play back a program you are recording from the beginning

while continuing to record onto a DVD-RAM disc.

Press 4. Live Memory Playback starts from the beginning of the

program being recorded.

●Pressing 2 or 6 allows you to locate the desired scenes.

Instant Replay

You can move back the playback position while continuing to

record onto a DVD-RAM disc.

Press .

●Each press skips back for approximately 7 seconds and resumes

playback.

●Pressing while paused skips back for approximately 7 seconds and

resumes pause.

To Watch A Program Previously Recorded While

Recording

You can play back a program you recorded previously while

recording.

1Press 4 during recording. Live Memory Playback starts.

2Press 2 or 6 to locate the beginning of the desired

program.

NOTE:

To stop playback, press 8. The program being recorded is displayed.

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

SR-MV45_55US.book Page 27 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_06DVD Operation1.fm]

Masterpage:Left+

28 EN

Page 28 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

The on-screen bar allows you to control various playback

functions. Some of the functions operated on Navigation Menu can

be controlled on the On-screen bar.

How To Access The On-screen Bar

1Press ON SCREEN whenever a disc is loaded.

Contents of the on-screen bar during playback

DVD VIDEO

Video CD

JPEG disc

ADisc type.

BSelect this for Repeat Playback. (墌pg. 29)

CSelect this for A-B Repeat Playback. (墌pg. 29)

DSelect this for search function. (墌pg. 29)

ESelect this for time search function. (墌pg. 30)

FSelect this to switch Simulated Surround Effect function.

(墌pg. 30)

GSelect this for Picture Control function. (墌pg. 30)

HSelect this to switch picture source type. (墌pg. 31)

ICurrent status area for the selected item.

JSelect this for Program Playback. (墌pg. 31)

KSelect this for Random Playback. (墌pg. 31)

LSelect this to control the switching interval of the slide show.

(墌pg. 31)

NOTE:

Although examples of the on-screen bar are provided here only for 3

types of discs, the on-screen bar will be displayed for whichever disc

indicated in the left column.

Basic Operation On The On-screen Bar

Example: When selecting Picture Control function of DVD

During playback or while stopped

1Press ON SCREEN twice to access the on-screen bar. The item

currently selected is highlighted and pointed by H.

2Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

3Press rt to select the desired option, then press ENTER.

To clear the on-screen bar

Press ON SCREEN.

NOTE:

See the corresponding pages for details on each menu item.

Using The On-screen Bar

Be sure to clear Library Database DVD Navi screen by pressing

NAVIGATION.

1

4

7

2

5

8

0

3

6

9

NAVIGATION ON SCREEN

ENTER

SR-MV45_55US.book Page 28 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 29

Filename [SR-MV45_55U_06DVD Operation1.fm]

Page 29 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

Repeat Playback

You can repeat playback as you like according to the type of disc.

1Press ON SCREEN twice to access the on-screen bar.

2Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

3Press rt repeatedly to select the desired Repeat mode, then

press ENTER.

DVD-RAM/RW/R

OFF: Repeat playback is not performed.

ALL REPEAT: The whole disc is played back repeatedly.

TITLE REPEAT: The current title is played back repeatedly.

DVD VIDEO

OFF: Repeat playback is not performed.

TITLE REPEAT: The current title is played back repeatedly.

CHAPTER REPEAT: The current chapter is played back repeatedly.

Audio CD/Video CD/JPEG/MP3

OFF: Repeat playback is not performed.

ALL REPEAT: The whole disc is played back repeatedly.

TRACK REPEAT*: The current track is played back repeatedly.

* “TRACK REPEAT” cannot be selected for JPEG discs.

To clear the on-screen bar

Press ON SCREEN.

To cancel Repeat Playback

Repeat the above procedure from step 1, select “OFF” in step 3,

then press ENTER.

NOTES:

●Repeat Playback is not possible for a Video CD with PBC function.

●Repeat Playback may not work properly depending on the type of the

disc being used.

A-B Repeat Playback

You can repeat the desired part.

During playback

1Press ON SCREEN twice to access the on-screen bar.

2Press we to select “ ”.

3Press ENTER at the beginning of the desired part you want to

repeat (point A). The elapsed playing time of the point A appears

4Press ENTER at the end of the desired part you want to repeat

(point B). The elapsed playing time of the point B appears.

●The selected part of the disc (between point A and B) is played

repeatedly.

To clear the on-screen bar

Press ON SCREEN.

To cancel A-B Repeat Playback

Press we to select “ ”, then press ENTER.

NOTES:

●A-B Repeat Playback may not work properly depending on the type

of disc being used.

●The subtitles recorded around the A-B point may not appear.

●When the end of the item is reached before the end point is set, the

on-screen bar disappears from the TV screen. In such a case, repeat

the procedure from step 1.

●The point B must be set at least 3 seconds after the point A.

●When playing back a DVD, A-B Repeat Playback is possible only

within the same title.

●“ ” cannot be selected during Program and Random

Playback.

●“ ” cannot be selected while stopped.

Locating The Beginning Of A Desired Selection

You can locate the beginning of a title, chapter, group or track.

During playback or while stopped

1Press ON SCREEN twice to access the on-screen bar.

2Press we to select “ ”, then press ENTER.

3Press rt to select the desired item, then press ENTER.

●Skip this step for Video CD and Audio CD.

For DVD-RAM/RW/R, DVD VIDEO

“TITLE SEARCH” or “CHAPTER SEARCH” is selectable. (“TITLE

SEARCH” only is selectable while stopped.)

For JPEG, MP3

“GROUP SEARCH” or “TRACK SEARCH” is selectable.

For Video CD, Audio CD

“TRACK” is selectable.

NOTE:

Settings that are selectable during playback and stop mode differ

depending on the type of disc or search used.

1

4

7

2

5

8

0

3

6

9

ON SCREEN

0 – 9

ENTER rtw e

CLEAR (8)

CANCEL

SR-MV45_55US.book Page 29 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_06DVD Operation1.fm]

Masterpage:Left+

30 EN

Page 30 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

4Press the number keys to enter the desired item number, then

press ENTER.

●Playback starts from the selected section.

Examples:

ATo select track 5, press the number key “5”.

BTo select track 15, press the number key “1” and “5”.

CTo select track 25, press the number key “2” and “5”.

If you have specified a wrong selection

Press CANCEL or CLEAR (8) to clear the wrong number, then

enter the correct one before you press ENTER in this step.

To clear the on-screen bar

Press ON SCREEN.

NOTES:

●When “X” is displayed on the TV screen in step 4, the chapter you

have selected is not contained in the disc, or chapter search does not

work on the disc.

●Before you press ENTER, playback may start automatically when you

enter the section’s number depending on the disc.

●This function is not possible for a Video CD with PBC function.

Time Search

You can play back a disc from the desired point by specifying the

elapsed playing time from the beginning of a title (DVD-RAM,

DVD-R, DVD-RW and DVD VIDEO) or a disc (Video CD and Audio

CD).

1Press ON SCREEN twice to access the on-screen bar.

2Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

3Press the number keys to enter the time, then press ENTER.

Playback starts from the specified time.

Example:

To play back from a point 12 (minutes): 50 (seconds) elapsed.

If you have specified a wrong selection,

Press CANCEL (for the last entered number) or CLEAR (8) (for

whole numbers) to clear the wrong number, then enter the correct

one(s) before you press ENTER in this step.

To clear the on-screen bar

Press ON SCREEN.

NOTES:

●When “X” is displayed on the TV screen in step 3, you have selected

a point that exceeds the recording time of the disc.

●Some DVD VIDEO discs do not contain time information, and it is not

possible to use the Time Search function. In such cases, “X” is

displayed on the TV screen as well.

●This function is not possible for a Video CD with PBC function.

Simulated Surround Effect

It is possible to get a simulated surround effect from your stereo

system. You can enjoy the virtual surround sound with your

2-channel stereo system.

1Press ON SCREEN twice to access the on-screen bar.

2Press we to select “ ”, then press ENTER.

●“3D-ON” appears above the selected item and Simulated Surround

Effect is activated.

●Each time you press ENTER, “3D-ON” appears and disappears

alternately.

To clear the on-screen bar

Press ON SCREEN.

To cancel the simulated surround effect

Press ENTER to clear “3D-ON” from the screen.

NOTES:

●The simulated surround effect works correctly only when playing back

a title recorded in multichannels.

●Simulated Surround Effect does not affect the DVD VIDEO bitstream

signal from the [DIGITAL AUDIO OUTPUT] connector.

●When Simulated Surround Effect is activated, the settings of

“ANALOG AUDIO OUT” and “D. RANGE CONTROL” are disabled.

(墌pg. 58)

Adjusting The Picture Quality

You can obtain optimal picture quality by selecting an appropriate

picture mode.

1Press ON SCREEN twice to access the on-screen bar.

2Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

3Press rt to select the desired option, then press ENTER.

NORMAL: Normally select this option.

CINEMA: Suitable for a movie disc, etc.

SHARP: Clearer, sharper-edged picture when viewing images with

lots of flat, same-colored surfaces such as cartoons.

SOFT: Select this option when too much noise appears.

To clear the on-screen bar

Press ON SCREEN.

Press 1 Press 2

Press 0Press 5

SR-MV45_55US.book Page 30 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 31

Filename [SR-MV45_55U_06DVD Operation1.fm]

Page 31 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

Setting The Progressive Mode

You can obtain optimal picture quality by selecting whether the

content on the disc is processed by field (video source) or by frame

(film source).

1Set the unit to the progressive scan mode. Refer to “Scan Mode

Set” (墌pg. 65).

2Press ON SCREEN twice to access the on-screen bar.

3Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

4Press rt to select the desired option, then press ENTER.

AUTO 1: Used to play a disc containing both video and film source

materials. This system recognizes the source type (video or film)

of the current disc according to the disc information. Normally

select this option.

AUTO 2: Almost the same as the “AUTO 1”, but the processing of

the scenes with movement is different. Select “AUTO 1” or

“AUTO 2” to your preference.

FILM: Suitable for playing back a progressive scanned film source

disc.

VIDEO: Suitable for playing back a video source disc. The outlines

on the played back pictures will be soft.

To clear the on-screen bar

Press ON SCREEN.

Program Playback

You can program up to 30 tracks to play back in the desired order.

While stopped

1Press ON SCREEN twice to access the on-screen bar.

2Press we to select “PRGM”, then press ENTER. The program

table appears under on-screen bar.

3Press the number keys to

enter the track numbers in the

desired order.

Examples:

ATo select track 5, press the

number key “5” and ENTER.

BTo select track 15, press the

number key “1” and “5”.

CTo select track 25, press the number key “2” and “5”.

If you have specified a wrong selection

Press CANCEL. The last selection is erased.

Or press CLEAR (8). The whole selection is erased.

4Press 4. Playback starts in the programmed order.

●When all of the programmed tracks have been played back, Program

Playback stops, but the programmed information remains.

●To add tracks to the end of the program, perform steps 1 through 3.

●During Program Playback, pressing 6 skips to the next selection of

the program. Pressing 2 returns to the beginning of the current

selection.

To clear the on-screen bar and the contents of the program

Press ON SCREEN.

To cancel Program Playback

Press we to select “PRGM”, then press ENTER.

NOTE:

Program Playback is not possible depending on the type of disc.

Random Playback

You can play back all the tracks on the disc in random order.

While stopped

1Press ON SCREEN twice to access the on-screen bar.

2Press we to select “RND”, then press ENTER. Playback starts

in random order.

To clear the on-screen bar

Press ON SCREEN.

To cancel Random Playback

Perform steps 1 and 2.

NOTE:

The same track will not be played back more than once during Random

Playback.

Select The Switching Interval Of The Slide Show

You can control the switching interval of the slide show.

1Press ON SCREEN twice to access the on-screen bar.

2Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

3Press rt to select the desired option, then press ENTER.

●Each time you press rt, the interval changes as follows:

5 SEC. { 10 SEC. { 15 SEC. { 20 SEC. { 25 SEC. { 30

SEC. { (Back to the beginning)

To clear the on-screen bar

Press ON SCREEN.

1

4

7

2

5

8

0

3

6

9

ON SCREEN

0 – 9

ENTER

2

4

6

rtw e

CANCEL

CLEAR (8)

SR-MV45_55US.book Page 31 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_06DVD Operation1.fm]

Masterpage:Left+

32 EN

Page 32 January 10, 2007 1:18 pm

OPERATIONS ON DVD DECK

This function restricts playback of DVD VIDEO discs which contain

violent (and other) scenes according to the level set by the user.

For example, if a movie which includes violent scenes supports the

parental lock feature, such scenes which you do not want to let

children view can be cut or replaced by other scenes.

To Set Parental Lock For The First Time

While stopped

1Press VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

2Press SET UP to access the Main Menu screen.

3Press we to select “DVD SET UP”, then press ENTER.

4Press we to select “UTILITY”,

then press ENTER.

5Press rt to select

“PARENTAL LOCK”, then press

ENTER.

6Press rt to select

“PARENTAL LEVEL”, then press

ENTER.

7Press rt to select the desired

level, then press ENTER.

●The smaller the value of level is,

the more restrictive the Parental

Lock level becomes.

●Select “NONE” to cancel the

restriction.

8Press the number keys to

enter your desired four-digit

number, then press ENTER.

●If you made a mistake, enter a

correct number again.

9Press rt to select

“COUNTRY CODE”, then press

ENTER.

10 Press rt to select your

country code, then press ENTER.

●If you do not need to change your country code, jump to 12.

●See “Country/Area Code List for Parental Lock” (墌pg. 71)

11 Press the number keys to enter the same password as in

step 8 above, then press ENTER.

12 Press SET UP twice to complete the setting.

NOTE:

Remember your password, or make a note of it.

To Change The Settings

You can change the Parental lock settings later.

1Perform steps 1 to 5 of “To Set Parental Lock For The First

Time” to access the “PARENTAL LOCK” screen before continuing.

To change the level

2Press rt to select “PARENTAL LEVEL”, then press ENTER.

3Press rt to select the desired level, then press ENTER.

To change the country code

4Press rt to select “COUNTRY CODE”, then press ENTER.

5Press rt to select your country code, then press ENTER.

●See “Country/Area Code List for Parental Lock” (墌pg. 71).

6Press the number keys to enter the same password as in

step 8 of “To Set Parental Lock For The First Time”, then press

ENTER.

7Press SET UP twice to complete the setting.

NOTE:

If you forget your password, enter “8888” in step 6.

To Temporarily Release Parental Lock

When you set the parental lock level strictly, some discs may not be

played back at all. When you insert such a disc and try to play it

back, the confirmation screen appears on the TV screen, asking

you whether you want Parental Lock to be temporarily released or

not.

1Load a disc.

●If the disc is rated higher than the selected level, the confirmation

screen appears.

2Press we to select “YES”, then press ENTER.

●If you select “NO”, you cannot play back that disc.

3Press the number keys to enter the same password as in

step 8 of “To Set Parental Lock For The First Time”, then press

ENTER.

●When you enter the correct password, the Parental Lock is released

and the unit starts playback.

●If you enter a wrong password, “ENTRY ERROR RETRY” appears on

the TV screen. Enter the correct password.

●If you have successively entered wrong password three times,

“ENTRY ERROR CAN NOT CHANGE PASSWORD” appears on the

TV screen. In such a case, press ENTER. The disc will stop. Then

play back the disc again, and try the procedure again from step 1.

NOTE:

If you forget your password, enter “8888” in step 3.

Parental Lock

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

VCR/DVD

0 – 9

SET UP

ENTER rtw e

SR-MV45_55US.book Page 32 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right0

EN 33

Filename [SR-MV45_55U_07VCR Operation.fm]

Page 33 January 10, 2007 1:18 pm

OPERATIONS ON VCR DECK

1Load a cassette. Make sure the window side is up, the rear label

side is facing you and the arrow on the front of the cassette is

pointed toward the unit.

●Do not apply too much pressure when inserting.

●If the record safety tab has been removed, playback begins

automatically. However, if “REC SAFETY” is set to “OFF” (墌pg. 61),

playback will not begin automatically.

●The unit’s power comes on automatically and the counter is reset to

0:00:00.

2Press VCR/DVD repeatedly so that the VCR lamp lights up on

the unit.

3Find the program start point. If the tape is advanced past the

start point, press 3. To go forward, press 5.

4Press 4 to start playback.

5Press 8 to stop playback.

●To eject the cassette, press x (VCR).

Basic Playback

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

x84

5

3

VCR/DVD

VCR Lamp

1

4

7

2

5

8

0

3

6

9

5

34

8

VCR/DVD

Clean the video heads using a dry cleaning cassette

—TCL-3F— when:

●Rough, poor picture appears while a tape is played back.

●The picture is unclear or no picture appears.

●“USE CLEANING CASSETTE” appears on the screen (only with

“SUPERIMPOSE” set to “ON” or “AUTO”). (墌pg. 61)

NOTE:

The heads get dirty in the following cases:

●in an environment prone to extreme temperature or humidity

●in a dusty environment

●flaw, dirt or mold on video tapes

●continuous usage for a long time

Usable cassettes

Full-Size VHS

T-30 (ST-30**)

T-60 (ST-60**)

T90

T-120 (ST-120**)

T-160 (ST-160**)

ST-210**

Compact VHS*

TC-20 (ST-C20**)

TC-30 (ST-C30**)

TC-40 (ST-C40**)

* Compact VHS camcorder recordings can be played on this unit. Simply

place the recorded cassette into a VHS Cassette Adapter and it can be

used just like any full-sized VHS cassette.

** This unit can record on regular VHS and Super VHS cassettes. While

only VHS signals can be recorded on regular VHS cassettes , both

VHS and Super VHS signals can be recorded and played back using

Super VHS cassettes.

1) By using the S-VHS ET function, it is possible to record and play back

with S-VHS picture quality on VHS cassettes with this unit.

1)

SR-MV45_55US.book Page 33 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_07VCR Operation.fm]

Masterpage:Left+

34 EN

Page 34 January 10, 2007 1:18 pm

OPERATIONS ON VCR DECK

Still Picture/Frame-By-Frame Playback

1Press 9 to pause during playback.

2Press 9 to activate frame-by-frame playback.

●To resume normal playback, press 4.

Slow Motion

1Press 9 to pause during playback.

2Press and hold 9 for 2 seconds, then release. Press 9 and

release again to return to still picture.

●The speed changes for each direction by pressing 3 and 5

repeatedly.

●To resume normal playback, press 4.

Variable Speed Search

During playback, press 5 for forward variable speed search, or

3 for reverse variable speed search.

●Each press of the button increases the search speed for each

direction.

When pressing 5:

(SP): +5x{+11x

(EP): +11x{+31x

When pressing 3:

Once 3 is pressed, reverse search starts in –1x normal playback

speed. After this process, each press of 3 changes the search

speed between –5x and –11x in SP mode, –11x and –31x in EP

mode.

(SP): –1x]–5x{–11x

(EP): –1x]–11x{–31x

●To resume normal playback, press 4.

Instant Replay

During playback, press . The unit rewinds the picture a little

(about 7 seconds) and resumes playback.

●If the button is pressed repeatedly, the unit rewinds the pictures

continuously and resumes playback.

Skip Search

During playback, press 1 to 6 times to skip over unwanted

sections.

●Each press initiates an approximately 30-second period of fast-

motion playback. Normal playback resumes automatically.

●To resume normal playback, press 4.

Index Search

Your unit automatically marks index

codes at the beginning of each

recording. This function gives you

quick access to any one of 9 index

codes in either direction.

NOTE:

Before starting, make sure the unit is in

the Stop mode.

Press 2 or 6 to activate Index Search. “INDEX –1” or “INDEX

1” is displayed on the TV screen and search begins in the

corresponding direction.

●To access index codes 2 through 9, press 2 or 6 repeatedly

until the correct index number is displayed.

Example:

To locate the beginning of B from the current position, press 2

twice.

To locate the beginning of D from the current position, press 6

once.

●When the specified index code is located, playback begins

automatically.

Playback Features

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

●Press VCR/DVD repeatedly so that the VCR lamp lights up on the

unit.

A

TTENTION:

In the search, still, slow-motion or frame-by-frame playback mode,

●the picture will be distorted.

●the noise bars will appear.

●there may be a loss of color.

●you cannot hear the sound.

1

4

7

2

5

8

0

6

9

5

3

2

4

6

98

AUDIO

INPUT +/–

VCR/DVD

1

8 4 97

VCR/DVD

INPUT SELECT +/– TBC LampTBC

VCR Lamp

5

3

Current position

Index number

SR-MV45_55US.book Page 34 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 35

Filename [SR-MV45_55U_07VCR Operation.fm]

Page 35 January 10, 2007 1:18 pm

OPERATIONS ON VCR DECK

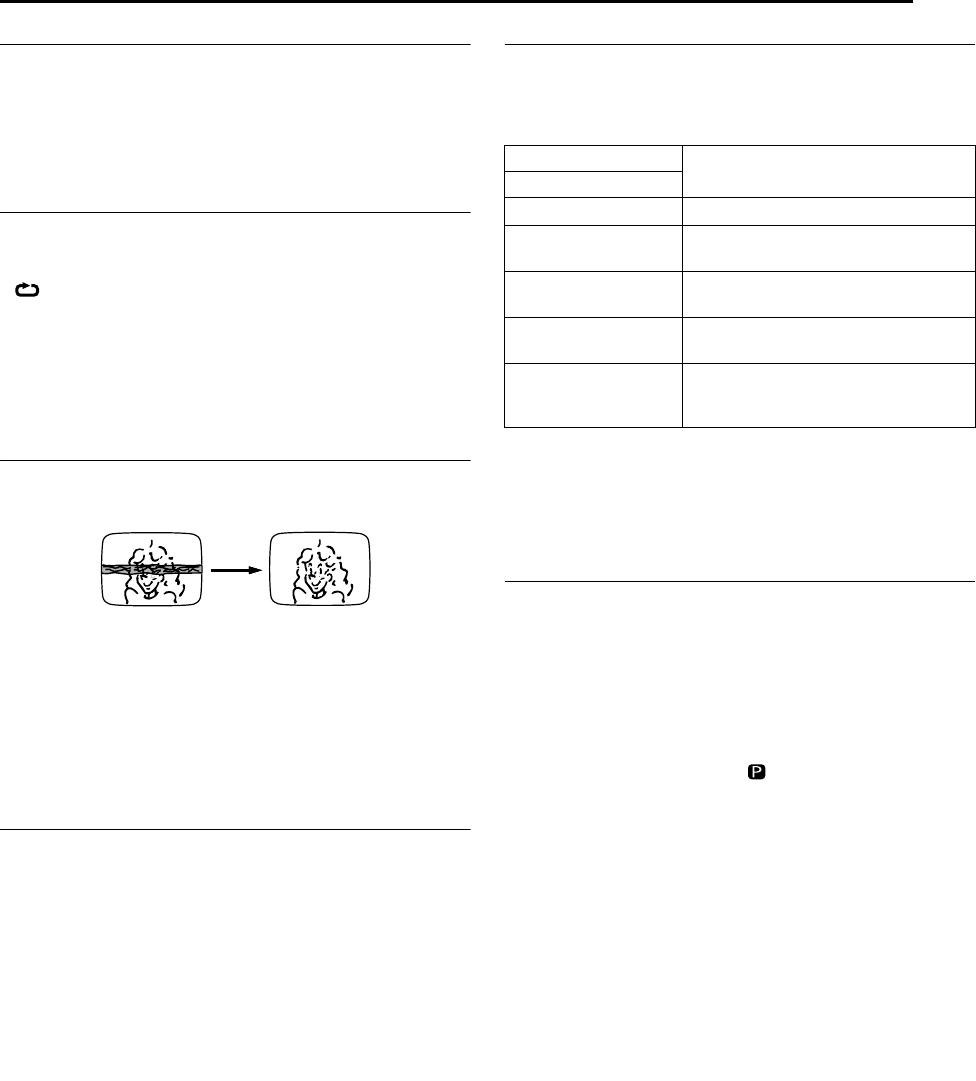

Next Function Memory

The Next Function Memory “tells” the unit what to do after rewinding.

Before continuing, make sure the unit is in the Stop mode.

For Automatic Start Of Playback

Press 3, then press 4 within 2 seconds.

For Automatic Cassette Ejection After Tape Rewind

Press 3, then press x (VCR) on the unit within 2 seconds.

Repeat Playback

Your unit can automatically play back the whole tape repeatedly.

1Press 4 to start playback.

2Press and hold 4 for over 5 seconds, then release.

● lights up on the front display panel.

3Press 8 at any time to stop Repeat Playback.

●Pressing 4, 3, 5 or 9 also stops Repeat Playback.

NOTES:

●To select the returning point (recording end or tape end), see

“RETURN POINT” on page 61.

●It is possible to use the Mode Lock function. (墌pg. 65)

Manual Tracking

Your unit is equipped with automatic tracking control. During

playback, you can override this and adjust the tracking manually by

pressing the INPUT SELECT buttons.

1During playback, press INPUT SELECT +/– on the unit

simultaneously to activate manual tracking.

2Press INPUT SELECT +/– on the unit or INPUT +/– on the

remote control to adjust the tracking manually.

●To return to automatic tracking, press INPUT SELECT +/– on the

unit simultaneously or eject and insert the tape again.

NOTE:

When a new tape is inserted, the unit enters the automatic tracking

mode automatically.

Adjusting picture condition — Digital TBC/NR

Your unit is equipped with the Digital TBC (Time Base Corrector)

that removes jitter from fluctuating video signals to deliver a stable

picture even with old tapes and rental cassettes.

The Digital 3-DNR (Noise Reduction) which cuts noise and

enables clear picture reproduction is also linked to this function.

We recommend that you use the DIGITAL TBC/NR function

when...

— playing back a tape recorded on a camcorder.

— playing back a tape repeatedly used.

— using this unit as the source player for editing.

Press TBC on the unit so that the TBC lamp lights up on the unit.

●Each time you press the button, it toggles this function on and off.

NOTES:

●If you play back a tape recorded under poor TV reception condition,

the picture may become more stable with Digital TBC/NR

deactivated.

●If you play back a tape where certain types of signals are recorded

(using a PC or some character generators) with Digital TBC/NR

activated, the playback picture may be distorted. In this case,

deactivate Digital TBC/NR.

●Digital TBC/NR and Video Stabilizer (墌pg. 61) cannot be used at

the same time; if you activated Digital TBC/NR when “VIDEO

STABILIZER” is set to “ON”, Video Stabilizer will be automatically

turned “OFF”. Make sure Digital TBC/NR is deactivated when you

want to use Video Stabilizer.

Soundtrack Selection

Your unit is capable of recording three soundtracks (HI-FI L, HI-FI

R and NORM) and will play back the one you select.

During Playback

Pressing AUDIO changes the soundtrack as follows:

NOTES:

●“HI-FI” should normally be selected. In this mode, Hi-Fi stereo tapes

are played back in stereo, and the normal audio track is played back

automatically for tapes with only normal audio.

●“SUPERIMPOSE” must be set to “ON” or “AUTO” or the on-screen

displays will not appear. (墌pg. 61)

VHS Progressive Scan

You can watch the image on VCR deck in the Progressive scan

mode via component video.

A

TTENTION:

Your TV needs to be compatible with Progressive and to have

Component video input connectors.

ASet the Progressive-compatible TV to the component input

mode.

BPress VCR/DVD repeatedly so that the DVD lamp lights up on

the unit, then press PROGRESSIVE SCAN for 3 or more seconds

so that the Video output indicator ( ) lights on the front display

panel.

CPress VCR/DVD repeatedly so that the VCR lamp lights up on

the unit.

DPress VCR]DVD.

NOTE:

Be sure to engage the DVD deck in stop mode.

TRACK USE

On-Screen Display

HI-FI Hi-Fi sound is played back

HI-FI L Sound on the left Hi-Fi channel is

played back

HI-FI R Sound on the right Hi-Fi channel is

played back

NORM Sound on the normal track is played

back

NORM

HI-FI

Both sounds on the Hi-Fi track and

normal track are mixed and played

back

SR-MV45_55US.book Page 35 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_08Recording.fm]

Masterpage:Left0

36 EN

Page 36 January 10, 2007 1:18 pm

RECORDING

This function allows you to record programs on both DVD deck and

VCR deck simultaneously from the same input source (F1 or L1). It

is useful when you require both DVD and tape version of a program

you are recording once recording is complete.

1Prepare the DVD deck for recording.

ALoad a recordable disc.

●For details, refer to “Placing A Disc” (墌pg. 10).

BPress VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

CPress INPUT SELECT +/– on the unit or INPUT +/– on the

remote control to select the recording source (F1 or L1).

DSet the DVD deck to the stop mode.

EPress REC MODE repeatedly to set the recording mode.

●When you press REC MODE once, the current recording mode is

displayed. Thereafter, each time you press REC MODE, the

recording mode changes as follows:

XP ] SP ] LP ] EP ] FR ] (Back to the beginning)

* The value is selectable from 1 to 6 hours in 5-minute intervals, from 7 to

8 hours in 1-hour intervals by pressing

we

repeatedly after selecting

“FR60–FR360”, “FR420” and “FR480”. To change the value in 30-

minute intervals, press and hold

we

.

●For details on the recording mode, see page 37.

2Prepare the VCR deck for recording.

ALoad a cassette with the record safety tab intact. If not, set

“REC SAFETY” to “OFF” (墌pg. 61).

●The counter is reset to 0:00:00.

BPress VCR/DVD repeatedly so that the VCR lamp lights up on

the unit.

CPress INPUT SELECT +/– on the unit or INPUT +/– on the

remote control to select the recording source (F1 or L1).

●The recording source selected MUST be the same as that selected

for the DVD deck.

DRewind the tape fully to the beginning and set the VCR deck to

the stop mode.

EPress REC MODE repeatedly to set the recording mode.

●When you press REC MODE once, the current recording mode is

displayed. Thereafter, each time you press REC MODE, the

recording mode alternates between SP and EP.

NOTE:

The order for the DVD and VCR deck preparation is not fixed. You may

choose to start preparation for the VCR deck first. In whichever case,

the recording source selection in step C must be the same.

3Press 7 and 9 simultaneously to set to record pause mode.

●Both the DVD and VCR deck will enter the Record Pause mode at the

same time.

●If the recording source selected in step C differs on the DVD and

VCR deck, only the current selected deck will enter the Record

Pause mode.

●If you do not start recording within 5 minutes, the VCR deck will enter

stop mode automatically while the DVD deck remains in the Record

Pause mode.

4After about 10 seconds, press 4 to start recording.

●Both the DVD and VCR deck start recording at the same time. Both

the DVD and VCR recording lamps light on the unit.

●If the recording source selected in step C differs on the DVD and

VCR deck, only the current selected deck will start recording.

●If you start recording immediately after setting the decks to Record

Pause mode in step 3, the current selected deck will start recording

while the other deck remains in the Record Pause mode. Be sure to

wait for about 10 seconds.

5To pause recording, press 9.

●Both the DVD and VCR deck will enter the Record Pause mode at the

same time.

●To resume recording, press 4.

6To stop recording, press 8.

●Both the DVD and VCR deck will stop recording at the same time.

NOTES:

●If Mode Lock is engaged when both the DVD and VCR deck are in

stop mode, Simultaneous Recording will not work.

●If Mode Lock is engaged during Simultaneous Recording, it is not

possible to pause or stop the recording.

●It is recommended to format a DVD-RAM disc before use if you use

the disc on this unit for the first time.

●When using a brand-new DVD-RW disc, format the disc either in VR

mode or in Video mode. (墌pg. 62)

●Recordings made on DVD-R/RW disc must be finalized to play back

on other DVD players. Perform “Finalize A Disc (DVD Deck Only)”

(墌pg. 63)

●You can record up to 99 programs and 99 play lists on each disc.

●When recording is started, an index of the first part of recording is

automatically recorded. (墌pg. 39) To delete the index, refer to

page 41.

●Recording on the DVD deck sometimes may stop or cannot be

performed even if there is enough available capacity remaining on the

disc.

Simultaneous Recording

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

A

TTENTION:

It is not possible to record programs on a DVD-R disc which has

already been finalized.

1

4

7

2

5

8

0

3

6

9

7

REC MODE

98

INPUT +/–

4

VCR/DVD

849 7

VCR/DVD

VCR Recording Lamp REC MODE

INPUT SELECT +/– DVD Recording Lamp

Accidental erasure prevention

To prevent accidental recording

on a recorded cassette, remove

its safety tab and set “REC

SAFETY” to “ON” (墌pg. 61). To

record on it later, cover the hole

with adhesive tape or set “REC

SAFETY” to “OFF”.

Record safety tab

SR-MV45_55US.book Page 36 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 37

Filename [SR-MV45_55U_08Recording.fm]

Page 37 January 10, 2007 1:18 pm

RECORDING

Recording Mode

MPEG2 format is used as recording format. As a guide for picture

quality, the “bps” unit is used to represent how much data can be

recorded per second. The larger this value is, the better the picture

quality becomes but more capacity is required for the recording.

Select XP or SP for programs where quick movement occurs, such

as sports programs, and LP or EP for talk shows, etc. with

relatively less movement.

The recording modes for a 4.7 GB disc are set as follows:

Elapsed Recording Time And Disc Remaining Time

Indication

During recording, press DISPLAY repeatedly until the desired

indication appears on the front display panel.

●Each time you press DISPLAY, the time indication changes as

follows:

Elapsed recording time ] Disc remaining time ] Clock ] (Back to

the beginning)

●You can also check the disc remaining time by pressing REMAIN

while the unit is stopped or recording is in progress. The list of disc

remaining times for all recording modes appears on the TV screen.

Free Rate Function

To record the entire program, the unit automatically set the

appropriate recording mode depending on the combination of the

total time of the program to be recorded and either the remaining

disc space or the specified recording time (from 60 minutes to 480

minutes).

8To record the entire program by specifying the desired

recording time

Select “FR60–FR360”, “FR420” or “FR480” in a recording mode

selection procedure. (墌pg. 36)

8To record a 25-min. long daily program five times just on a

same disc for example

Be sure to set the recording mode to “FR125” to fit the total

recording time to the whole disc space.

When the same program is recorded in SP mode instead of in

“FR125”, the 5th program cannot be recorded.

NOTES:

●In order to ensure that the recording fits on the disc, this feature may

leave a slight non-recorded section at the end of the disc.

●There may be some noise and sound disturbance at the point on the

disc where the unit switches the mode.

Recording

mode

Recording amount

(approx.)

Maximum recording

time (approx.)

XP 10 Mbps 1 hour

SP 5 Mbps 2 hours

LP 2 Mbps 4 hours

EP 1.6 Mbps 6 hours

FR60–FR360 The amount varies

depending on the

selected time.

1 – 6 hours

FR420 7 hours

FR480 8 hours

Recording Features (DVD Deck)

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

●Press VCR/DVD repeatedly so that the DVD lamp lights up on the

unit.

1

4

7

2

5

8

0

3

6

9

DISPLAY

REMAIN

Blank

A: 1st

B: 2nd

C: 3rd

D: 4th

E: 5th

A: 1st

B: 2nd

C: 3rd

D: 4th

E: Blank (20 min.)

Blank

SR-MV45_55US.book Page 37 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_08Recording.fm]

Masterpage:Left+

38 EN

Page 38 January 10, 2007 1:18 pm

RECORDING

Repeat Recording

You can record programs on one tape repeatedly. The tape is

automatically rewound to the beginning to continue recording when

the end of tape is reached during recording. The previously

recorded programs will be overwritten.

During recording, press and hold

4

and

7

on the remote control or

7

on the unit for more than 5 seconds.

●The recording lamp on the unit starts to blink slowly.

To stop recording, press 8.

NOTE:

It is possible to use the Mode Lock function (墌pg. 65).

Elapsed Recording Time Indication

1Press DISPLAY until a counter reading appears on the front

display panel.

2Press CANCEL to reset the counter before starting recording or

playback.

●The counter is reset to “0:00:00” and shows the exact elapsed time

as the tape runs. You can check the exact time of a recording or

playback.

Tape Remaining Time

1Press DISPLAY until the time remaining on the tape appears.

●By pressing the DISPLAY button, you can change display to show

the clock time, counter reading or tape remaining time.

NOTES:

●When you press ON SCREEN, the on-screen display appears on the

TV screen for 5 seconds, then the displays other than the counter

disappears. To clear the counter display, press ON SCREEN.

●Depending on the type of tape being used, the tape remaining time

reading may not appear right away, or is not correct.

“– –:– –” may sometimes appear, or the display may blink on

occasion.

Active Video Calibration

The Video Calibration checks the condition of the tape in use

during playback and recording, and compensates to provide the

highest-possible playback and recording pictures. You can set

“VIDEO CALIBRATION” to “ON” or “OFF” to your preference.

(墌pg. 60)

Playback

The unit assesses the quality of the tape once you initiate

playback.

●The unit adjusts the playback picture quality based on the quality of

the tape in use.

●Video Calibration is active during automatic tracking. The Video

Calibration screen appears blinking on the TV screen.

NOTES:

●When watching a tape recorded with “VIDEO CALIBRATION” set to

“ON”, it is recommended that you leave “VIDEO CALIBRATION” on

during playback as well.

●When watching a rental tape or one recorded on another VCR, or

when using this unit as the player for editing, set “VIDEO

CALIBRATION” to your preference. (墌pg. 60)

●The Video Calibration only appears at the beginning of automatic

tracking. Even though it doesn’t appear after that, the VIDEO

CALIBRATION function is operative.

Recording

The unit assesses the quality of the tape once you initiate

recording.

●The unit spends approximately 7 seconds assessing the condition of

the tape, then begins recording.

NOTES:

●The Video Calibration works for both SP and EP modes only after a

tape has been inserted and the Record mode is first initiated. It does

not work during recording.

●Once the cassette is ejected, the Video Calibration data is cancelled.

The next time the cassette is used for recording, Video Calibration is

re-performed.

-

Recording Features (VCR Deck)

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

●Press VCR/DVD repeatedly so that the VCR lamp lights up on the

unit.

1

4

7

2

5

8

0

3

6

9

DISPLAY

CANCEL

VCR/DVD

7

8

4

7

8

VCR/DVD

VCR Lamp

A

TTENTION:

Since the Video Calibration works before recording actually starts,

there is a delay of approximately 7 seconds after 7 and 4 on the

Remote are pressed, or 7 on the unit is pressed. To make sure you

record the desired scene or program in its entirety, first perform the

following steps:

AWhile holding 9, press 7 to engage the Record Pause mode.

●The unit then automatically checks the condition of the tape and,

after approximately 7 seconds, re-enters Record Pause mode.

BPress 4 to start recording.

If you want to bypass the Video Calibration and begin recording

immediately, set “VIDEO CALIBRATION” to “OFF”. (墌pg. 60)

SR-MV45_55US.book Page 38 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right0

EN 39

Filename [SR-MV45_55U_09Navigation.fm]

Page 39 January 10, 2007 1:18 pm

NAVIGATION (DVD DECK ONLY)

The Library Database DVD Navi enables you to search and select

the desired programs recorded on a DVD-RAM/R/RW disc very

easily.

You can record up to 99 programs on a disc.

Each time a program is recorded on the disc, the information of the

program is registered for the Library Database DVD Navi

automatically.

So, you can confirm the information of the programs recorded on

the disc with the Library Database DVD Navi screen. And, you can

also select one of the programs recorded on the disc using the

Library Database DVD Navi.

The following screen appears as the Library Database DVD Navi

screen when you press NAVIGATION. You can move the arrow to

select the desired position on the screen by pressing rt w e on

the remote control.

AIndex

(Small still picture of each program)

BNames of functions

ORIGINAL (墌pg. 40)

PLAY LIST (墌pg. 42)

LIBRARY (墌pg. 44)

CRemaining time

(Based on the recording mode currently selected)

DCurrent/Total number of program(s)

(For example, there are 6 recorded programs and the program

indicated by the arrow is the 1st one.)

EIcons

(Indicate the recording situation for each program.)

: This program is write-protected.

FRecording information for the program indicated by the arrow

GGuidance for operations

HOperational commands

Using Library Database DVD Navi system, you can easily modify

registered information, edit the program or play list, as well as

search for the beginning of each program.

About registration of information

The following information is automatically registered for each

program when ordinary recording is performed, then stored in an

area specified on the unit.

●index* (reduced still pictures to show program titles)

●program title*

●category*

●date and time

●input select

●recording mode

●length of recording time

The items marked with an asterisk (*) can be easily modified and

registered again after recording by using Library Database DVD

Navi system.

About editing of programs

Library Database DVD Navi system has the following functions for

editing of programs.

●“Edit Play List Information” (墌pg. 42)

●“Delete Program” (墌pg. 41)

The limitations of registration

You can register information up to 99 programs.

When the amount of information is at the limits of registration, you

cannot record new program any more. In this case, you need to

delete old programs to register new one. (墌pg. 41)

NOTE:

Once a DVD-R/RW (Video mode) disc has been finalized, the displays

for original and play list do not appear. Only display for library appears.

Library Database DVD Navi

The display for original

recording

The display for play list

SR-MV45_55US.book Page 39 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_09Navigation.fm]

Masterpage:Left+

40 EN

Page 40 January 10, 2007 1:18 pm

NAVIGATION (DVD DECK ONLY)

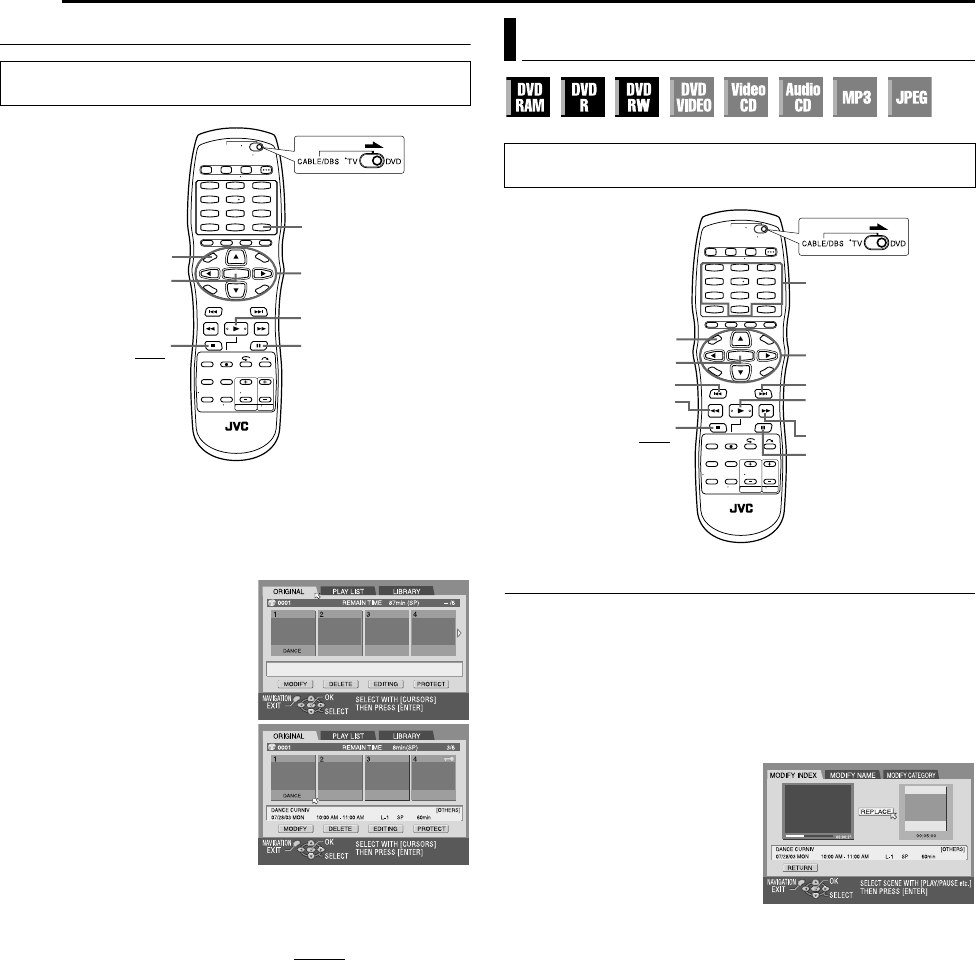

Scan For Beginning(s) Of Program(s)

You can scan the beginning of the program easily with the Library

Database DVD Navi.

1Load a recorded disc.

2Press NAVIGATION. The Library Database DVD Navi screen

appears.

3Press rt w e to select

“ORIGINAL”, then press ENTER.

4Press we to select the index

(small still pictures) of the desired

program.

●When you want the plural

programs to be played back

continuously, press MEMO after

selecting the desired program.

The numbers of the playback

order appear on the index. You

can select up to 30 programs.

●When you want to correct the order, move the arrow to the desired

index and press MEMO. The number disappears and the unit re-

numbers the other programs automatically.

●When you want to cancel the order, press CLEAR (8).

5Press SELECT (4) to start playback.

6Press 9 to pause playback.

●To resume normal playback, press 4.

7Press 8 to stop playback.

Modify Index

1Press NAVIGATION. The Library Database DVD Navi screen

appears.

2Press rt w e to select “ORIGINAL”, then press ENTER.

3Press rt w e to select one program you want to modify, then

press t.

4Press rt w e to select “MODIFY”, then press ENTER.

5Press we to select “MODIFY INDEX”.

6Search for the picture from the

program by pressing the

appropriate buttons (3, 4,

5, or 9). The pictures of the

program appear on the left

window.

7Confirm the arrow is on

“REPLACE”, then press ENTER to

register new index. New index

appears on the right window.

●When you press ENTER with the arrow on “RETURN” you can return

to the previous screen.

8Press NAVIGATION to return to the normal screen.

●Press 8 to cancel pause mode after pressing NAVIGATION.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

ENTER

4

SELECT

rtw e

9

8

CLEAR

MEMO

NAVIGATION

Edit Original Information

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

0 – 9

ENTER

2

34

SELECT

rtw e

9

6

5

8

CLEAR

NAVIGATION

SR-MV45_55US.book Page 40 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 41

Filename [SR-MV45_55U_09Navigation.fm]

Page 41 January 10, 2007 1:18 pm

NAVIGATION (DVD DECK ONLY)

Modify Program Name

1Perform steps 1 to 3 of “Modify Index” (墌pg. 40) before

continuing.

2Press rt w e to select “MODIFY”, then press ENTER.

3Press we to select “MODIFY NAME”.

4Press rt w e to select the

desired letter or command, then

press ENTER. Repeat this

process to complete the name.

●To correct a letter, press rt w e

to select “DELETE” or “DELETE

ALL”, then press ENTER.

●You can enter the letters up to 64.

●You can also enter the new name

with the number keys. For example, when you press 2 repeatedly,

“A”, “B”, “C”, “a”, “b”, “c”, “2”, and then “A” appear by turns. You can

use the following buttons.

5Press rt w e to select “SAVE”, then press ENTER.

6Press rt w e to select “RETURN”, then press ENTER. The

Library Database DVD Navi screen appears again.

7Press NAVIGATION to return to the normal screen.

Modify Category

1Perform steps 1 to 3 of “Modify Index” (墌pg. 40) before

continuing.

2Press rt w e to select “MODIFY”, then press ENTER.

3Press we to select “MODIFY CATEGORY”.

4Press rt w e to select the

desired category, then press

ENTER.

5Press ENTER. The Library

Database DVD Navi screen

appears again.

6Press NAVIGATION to return

to the normal screen.

Protect Title (DVD-RAM & DVD-RW (VR mode) only)

You can protect the program to prevent accidental erasure of the

important program.

1Perform steps 1 to 2 of “Modify Index” (墌pg. 40) before

continuing.

2Press rt w e to select a program you want to protect, then

press t.

3Press we to select “PROTECT”, then press ENTER. “ ”

appears.

●To cancel the protection, repeat 2–3 again.

4Press NAVIGATION to return to the normal screen.

NOTE:

All the programs on a disc will be deleted once the disc is formatted

even if they are protected titles. (墌pg. 62)

Delete Program

You cannot record any more with Library Database DVD Navi once

the registered programs on the disc reach 99 programs. Deleting

unnecessary programs after dubbing or other operations can

increase remaining time and available recording capacity. (For

DVD-R discs, although it is possible to delete recorded programs,

available recording capacity does not increase.) The deleted

program is never resumed. Play lists and program information in

the unit’s library are also deleted.

1Perform steps 1 to 2 of “Modify Index” (墌pg. 40) before

continuing.

2Press rt w e to select one program you want to delete, then

press t.

3Press rt w e to select “DELETE”, then press ENTER. The

message appears for your confirmation.

4Press we to select “YES”, then press ENTER.

●When you cancel the deletion, select “NO”, then press ENTER.

5Press NAVIGATION to return to the normal screen.

Delete Unwanted Part Of The Program

(DVD-RAM & DVD-RW (VR mode) only)

You can delete unwanted part of the program.

1Perform steps 1 to 2 of “Modify Index” (墌pg. 40) before

continuing.

2Press we to select one program whose unwanted part you

want to delete, then press t.

3Press we to select “EDITING”, then press ENTER.

4Press 4 to start playback. The playback pictures appear in the

window on the screen. The elapsed playing time starts counting

with the arrow on “IN”.

5Find the point where you want

the deletion to begin, then press

ENTER with the arrow on “IN”.

The edit-in time is fixed and the

elapsed playing time starts

counting again.

6Find the point where you want

the deletion to end, then press

ENTER with the arrow on “OUT”.

The edit-out time is fixed.

●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out

points.

7Press rt w e to select “PREVIEW”, then press ENTER to

preview the edited program.

8Press rt w e to select “EXECUTE”, then press ENTER.

●If you do not want to delete the scene, select “CLEAR” and press

ENTER.

9Press we to select “YES”, then press ENTER. The selected

scene is deleted.

●To cancel the deletion, press we to select “NO”, then press ENTER.

To modify the points

APress we to select “CLEAR”, then press ENTER.

BPress r to select “IN”, then repeat steps 4–9.

10 Press NAVIGATION to return to the normal screen.

NOTES:

●There may be a discrepancy of several seconds between the scene

you intend to edit, and the scene which is actually edited.

●Available recording capacity may not match the deleted part after

deletion.

Number keys: for entering letters, numbers and blank space

we buttons: for moving the entering or inserting point

CLEAR (8) button: for correcting a letter

2/6 buttons: for changing character tables

SR-MV45_55US.book Page 41 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_09Navigation.fm]

Masterpage:Left+

42 EN

Page 42 January 10, 2007 1:18 pm

NAVIGATION (DVD DECK ONLY)

Play List

It is a collection of the scenes. A play list can be freely edited and

played back without ever changing any original recording data.

Using the random access of a DVD disc (which allows video data

to be instantly read no matter where it is on the disc), a play list

includes information such as the timer counter for the playback

start point and end point, indexes for checking the contents of

recorded data, category information, and more. Playback

according to a play list you have created allows you to enjoy

various combinations of video images from a single program.

Create Play List

1Load a DVD-RAM or DVD-RW (VR mode) disc that was

recorded with this unit.

2Press NAVIGATION. The Library Database DVD Navi screen

appears.

3Press rt w e to select “PLAY LIST”, then press ENTER.

4Press rt w e to select “CREATE”, then press ENTER.

5Press 4 to start playback. The playback pictures appear in the

window on the screen. The elapsed playing time starts counting

with the arrow on “IN”.

●To locate the beginning of other titles, press 2/6.

6Find the point where you want

the created play list to begin, then

press ENTER with the arrow on

“IN”. The edit-in time is fixed and

the elapsed playing time starts

counting again.

7Find the point where you want

the created play list to end, then

press ENTER with the arrow on

“OUT”. The edit-out time is fixed.

●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out

points.

●The edit-out point must come after the edit-in point.

8Press we to select “PREVIEW”, then press ENTER to preview

the play list.

9Press we to select “EXECUTE”, then press ENTER. The play

list is created.

To modify the points

APress we to select “CLEAR”, then press ENTER.

BRepeat steps 5–9 as necessary.

10 Press NAVIGATION to return to the normal screen.

NOTES:

●There may be a discrepancy of several seconds between the scene

you intend to edit, and the scene which is actually edited.

●The title, index and category of the play list can be modified in the

same way as “ORIGINAL”. (墌pg. 40)

●You can modify the play list that has just been created here by

adding, moving, or deleting unwanted parts to create a digest edition,

etc.

Add Scenes To A Play List

1Perform steps 1 to 3 of “Create Play List” (墌pg. 42) before

continuing.

2Press we to select the play list to which you wish to add a

scene, then press t.

3Press we to select “EDITING”, then press ENTER.

4Press we to select “ADD

SCENE”.

5Press 4 to start playback. The

playback pictures appear in the

window on the screen. The

elapsed playing time starts

counting with the arrow on “IN”.

●To locate the beginning of other

titles, press 2/6.

6Find the point where you want the added scene to begin, then

press ENTER with the arrow on “IN”. The edit-in time is fixed and

the elapsed playing time starts counting again.

7Find the point where you want the added scene to end, then

press ENTER with the arrow on “OUT”. The edit-out time is fixed.

●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out

points.

8Press we to select “PREVIEW”, then press ENTER to preview

approximately 5 seconds before and after the edited scene.

9Press we to select “EXECUTE”, then press ENTER. The

selected scene is added.

To modify the points

APress we to select “CLEAR”, then press ENTER.

BRepeat steps 5–8 as necessary.

10 Press NAVIGATION to return to the normal screen.

NOTE:

There may be a discrepancy of several seconds between the scene you

intend to edit, and the scene which is actually edited.

Move Scenes

1Perform steps 1 to 3 of “Create Play List” (墌pg. 42) before

continuing.

2Press we to select a play list into which you wish to move a

scene, then press t.

3Press we to select “EDITING”, then press ENTER.

4Press we to select “MOVE

SCENE”.

5Press 4 to start playback. The

playback pictures appear in the

window on the screen. The

elapsed playing time starts

counting with the arrow on “IN”.

●To locate the beginning of other

titles, press 2/6.

Edit Play List Information

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

ENTER rtw e

NAVIGATION

SR-MV45_55US.book Page 42 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 43

Filename [SR-MV45_55U_09Navigation.fm]

Page 43 January 10, 2007 1:18 pm

NAVIGATION (DVD DECK ONLY)

6Find the point where you want the moved scene to begin, then

press ENTER with the arrow on “IN”. The edit-in time is fixed and

the elapsed playing time starts counting again.

7Find the point where you want the moved scene to end, then

press ENTER with the arrow on “OUT”. The edit-out time is fixed.

8Press 4 to start playback.

9Find the point where you want the moved scene to be moved,

then press ENTER with the arrow on “MOVE TO”.

●Press 3, 4, 5, 2, 6 or 9 to find the edit-in, edit-out and

move-to points.

10 Press we to select “PREVIEW”, then press ENTER to

preview the part approximately 5 seconds before and after the

point to which the scene has been moved.

11 Press we to select “EXECUTE”, then press ENTER. The

selected scene is moved.

To modify the points

APress we to select “CLEAR”, then press ENTER.

BRepeat steps 5–11 as necessary.

12 Press NAVIGATION to return to the normal screen.

NOTE:

There may be a discrepancy of several seconds between the scene you

intend to edit, and the scene which is actually edited.

Delete Unwanted Part From Play List

1Perform steps 1 to 3 of “Create Play List” (墌pg. 42) before

continuing.

2Press we to select a play list from which you wish to delete

unwanted parts, then press t.

3Press we to select “EDITING”, then press ENTER.

4Press we to select “DELETE

SCENE”, then press ENTER.

5Press 4 to start playback. The

playback pictures appear in the

window on the screen. The

elapsed playing time starts

counting with the arrow on “IN”.

●To locate the beginning of other

titles, press 2/6.

6Find the point where you want the deletion to begin, then press

ENTER with the arrow on “IN”. The edit-in time is fixed and the

elapsed playing time starts counting again.

7Find the point where you want the deletion to end, then press

ENTER with the arrow on “OUT”. The edit-out time is fixed.

●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out

points.

8Press we to select “PREVIEW”, then press ENTER to preview

the scene approximately 5 seconds before and after the deleted

part.

9Press we to select “EXECUTE”, then press ENTER. The

selected scene is deleted.

To modify the points

APress we to select “CLEAR”, then press ENTER.

BRepeat steps 5–9.

10 Press we to select “YES”, then press ENTER. The selected

scene is deleted.

●To cancel the deletion, press we to select “NO”, then press ENTER.

To modify the points

APress we to select “CLEAR”, then press ENTER.

BPress r to select “IN”, then repeat steps 4–10.

11 Press NAVIGATION to return to the normal screen.

NOTE:

There may be a discrepancy of several seconds between the scene you

intend to edit, and the scene which is actually edited.

Play Back Play List

1Perform steps 1 to 3 of “Create Play List” (墌pg. 42) before

continuing.

2Press we to select the index

(small still pictures) of the desired

play list.

●When you want the plural play lists

to be played back continuously,

press MEMO after selecting the

desired play lists. The numbers of

the playback order appear on the

index. You can select up to 30 play

lists.

●When you want to correct the order, move the arrow on the desired

index and press MEMO. The number disappears and the unit re-

numbers the other play lists automatically.

●When you want to cancel the order, press CLEAR (8).

3Press ENTER or SELECT (4) to start playback. The playback

starts.

4Press 9 to pause playback.

●To resume normal playback, press 4.

5Press 8 to stop playback.

Delete Play List

1Perform steps 1 to 3 of “Create Play List” (墌pg. 42) before

continuing.

2Press we to select one play list you want to delete, then press

t.

3Press we to select “DELETE”, then press ENTER.

4Press we to select “YES”, then press ENTER.

●When you cancel the deletion, select “NO”, then press ENTER.

5Press NAVIGATION to return to the normal screen.

NOTE:

Even if a play list is deleted, the programs recorded on a DVD disc and

the library information are not affected at all.

Modify Index

APerform steps 1 to 3 of “Create Play List” (墌pg. 42) before

continuing.

BPerform steps 3 to 8 of “Modify Index” (墌pg. 40).

Modify Program Title

APerform steps 1 to 3 of “Create Play List” (墌pg. 42) before

continuing.

BPress rt w e to select one program you want to modify, then

press t.

CPerform steps 2 to 7 of “Modify Program Name” (墌pg. 41).

Modify Category

APerform steps 1 to 3 of “Create Play List” (墌pg. 42) before

continuing.

BPress rt w e to select one program you want to modify, then

press t.

CPerform steps 2 to 6 of “Modify Category” (墌pg. 41).

CREATE

SR-MV45_55US.book Page 43 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_09Navigation.fm]

Masterpage:Left+

44 EN

Page 44 January 10, 2007 1:18 pm

NAVIGATION (DVD DECK ONLY)

Program information can be registered in the unit’s memory for up

to 1,300 programs. It is helpful when finding out on which disc the

desired program is recorded.

Scan For Program From Library

1Press NAVIGATION. The Library Database DVD Navi screen

appears.

2Press rt w e to select “LIBRARY”, then press ENTER.

3Press we to select the

appropriate sort button to sort the

information, then press ENTER.

“DISC No.” : Sort by disc number

“CATEGORY” : Sort by category

“DATE” : Sort by date

“NAME” : Sort by name

●The sorting order can be switched

between ascending order and

descending order by pressing the sort buttons.

4Press we to select the desired program, then press ENTER.

●Playback begins automatically after the selected program is located.

When the disc that contains the selected program is not

loaded

A screen prompting you to load the designated disc appears. Place

the disc whose number is displayed on the screen after pressing

ENTER to close the prompt screen. Then perform steps 1 to 4.

NOTE:

If a disc registered in the library is recorded or modified on DVD units

from other manufacturers, it may become impossible to operate

properly.

Register Disc

1Load a disc you want to register.

2Press NAVIGATION. The Library Database DVD Navi screen

appears.

3Press rt w e to select “LIBRARY”, then press ENTER.

4Press we to select “REGISTER”, then press ENTER.

5Press we to select “REGISTER”, then press ENTER to confirm

the registration.

6Press NAVIGATION to return to the normal screen.

NOTES:

●It is not possible to register discs formatted on devices other than

JVC’s DVD recorders.

●It is not possible to register discs recorded on devices other than

JVC’s DVD recorders.

●It is not possible to register discs when “SAVE AS LIBRARY” is set to

“OFF”. (墌pg. 59)

Delete Information

1Press NAVIGATION. The Library Database DVD Navi screen

appears.

2Press rt w e to select “LIBRARY”, then press ENTER.

3Press rt w e to select the appropriate sort button to sort the

information, then press ENTER.

4Press we to select a program you want to delete, then

press t.

5Press rt w e to select “DELETE”, then press ENTER.

6Press we to select “DELETE”, then press ENTER to confirm

the deletion.

7Press NAVIGATION to return to the normal screen.

Edit Library Information

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

ENTER rtw e

NAVIGATION

SR-MV45_55US.book Page 44 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 45

Filename [SR-MV45_55U_09Navigation.fm]

Page 45 January 10, 2007 1:18 pm

NAVIGATION (DVD DECK ONLY)

This unit can play back discs that MP3 sound files and JPEG

image files taken with digital still cameras or other devices are

recorded.

The MP3/JPEG Navigation enables you to search and select the

desired files recorded on CD-R/RW or CD-ROM discs very easily.

The following screen appears as the MP3/JPEG Navigation screen

when you press NAVIGATION. You can move the arrow to select

the desired position on the screen by pressing rt w e on the

remote control.

AName of the inserted disc.

BSort buttons (“MP3”⁄“JPEG”)

CSelected group number/total number of groups on the disc

DGroup name

EReturn button (“RETURN”)

FGroup name/Created date

GFile type indicator

:MP3

:JPEG

HSelected file

ISelected file number/total number of files in the group that

contains the selected file

JProgram number/file name

Locating The Desired Group And Tracks

1Load a disc.

2Press NAVIGATION. The MP3/JPEG Navigation screen

appears.

3For MP3 Playback

Press we to select “MP3”. Only groups which contain MP3 files

appear.

For JPEG Playback

Press we to select “JPEG”. Only groups which contain JPEG files

appear.

4Press we to select the desired

group, then press ENTER.

For MP3 Playback

●The tracks in the selected group

appear.

For JPEG Playback

●The images in the selected group

appear.

5Press rt w e to select the

desired item, then press ENTER.

The unit starts playback from the

selected item.

●The unit stops when all items in

the selected group are played

back.

NOTES:

●If you press SELECT (4) instead

of ENTER in step 4, the unit starts playback from the first file of the

group.

●JPEG files are played back as a slide show at the set intervals.

(墌pg. 31)

●If a file name includes any 2-byte character, the unit may not show

the file name correctly.

●Press rt to select “RETURN”, then press ENTER to return to the

screen that shows the group(s).

●The order of the groups and items shown in steps 4 and 5 may differ

from the order shown on your PC.

Program Playback

1Perform steps 1 to 4 of “Locating The Desired Group And

Tracks” in the left column before continuing.

2Press rt w e to select the desired item, then press MEMO in

the desired order.

●The order number appears on the left of the track name.

●Repeat this step as necessary.

●To cancel the track, press rt w e to select the track, then press

CANCEL.

●Pressing CLEAR (8) clears all the order numbers.

3Press 4 to start playback.

●To quit the Program Playback, press 8.

●Repeat playback can be performed if it is set as such on the on-

screen bar. (墌pg. 29)

NOTES:

●It is not possible to select tracks and images simultaneously.

●It is not possible to select tracks or images in other groups.

On completion of the playback of all the items

APerform steps 1 to 4 of “Locating The Desired Group And

Tracks” in the left column.

BPress CLEAR (8).

●The order numbers are reset and cleared.

CPress NAVIGATION to complete the procedure.

Playback With MP3/JPEG Navigation

SR-MV45_55US.book Page 45 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_10Editing.fm]

Masterpage:Left0

46 EN

Page 46 January 10, 2007 1:18 pm

EDITING

Because this unit includes both DVD deck and VCR deck, you can

easily use this unit for dubbing without connecting any other

equipment.

NOTES:

●The superimposed indication during the operation or dubbing is not

recorded.

●It is not possible to dub a tape with a copy protection signal.

●If the recording capacity of disc become full, the tape stops

automatically.

●It is not possible to perform other operations like Live Memory

Playback. Check the recorded program on the disc after dubbing.

●If the index code is found on a tape, a single title is created. While

creating a title, the dubbing stops and then starts again.

●When dubbing can not be performed properly, set “BLUE BACK” to

“OFF”. (墌pg. 61)

Dubbing An Entire Cassette

1Press VCR/DVD repeatedly so that the VCR lamp lights up on

the unit.

2Press SET UP to access the Main Menu screen.

3Press rt to select “COPY SET”,

then press ENTER.

4Press rt to select “FULL DISC”,

then press ENTER to select “OFF”.

●Pressing ENTER toggles the setting

between on and off.

5Press SET UP to complete the

setting.

6Load a cassette you want to dub on the VCR deck, and a

recordable disc on the DVD deck.

7Press VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

8Press REC MODE repeatedly to set the recording mode.

(墌pg. 36)

9Press VCR]DVD to select the dubbing direction.The dubbing

(DUBB.) lamp lights up on the unit.

10 Press and hold DUBB. for more than 2 seconds to start

dubbing. The dubbing (DUBB.) lamp blinks on the unit.

●When dubbing a tape-end recorded VHS tape, set the input of this

unit to a no signal input before dubbing.

●If the tape has not been rewound, the VCR deck rewinds the tape

automatically. When the VCR deck has finished rewinding, dubbing

begins automatically.

●After dubbing is completed, the VCR deck rewinds the tape

automatically. Press VCR]DVD to turn off the dubbing (DUBB.)

lamp.

●To stop dubbing, press 8.

Dubbing An Entire Cassette with Just Dubbing

When using the Just Dubbing function, the unit automatically fast-

forwards the tape to the end, then rewinds back to the beginning to

calculate the total recording time. The unit then automatically sets

the appropriate recording mode depending on the total recording

time and the available disc space.

1Press VCR/DVD repeatedly so that the VCR lamp lights up on

the unit.

2Perform steps 2 – 3 of “Dubbing An Entire Cassette” in the left

column before continuing.

3Press rt to select “FULL DISC”, then press ENTER to select

“ON”.

4Press SET UP to complete the setting.

5Load a cassette you want to dub on the VCR deck, and a

recordable disc on the DVD deck.

6Press VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

7Press VCR]DVD to select the dubbing direction. The dubbing

(DUBB.) lamp lights up on the unit

8Press and hold DUBB. for more than 2 seconds to start

dubbing. The dubbing (DUBB.) lamp blinks on the unit.

●When dubbing a tape-end recorded VHS tape, set the input of this

unit to a no signal input before dubbing.

●After dubbing is completed, the VCR deck rewinds the tape

automatically. Press VCR]DVD to turn off the dubbing (DUBB.)

lamp.

●To stop dubbing, press 8.

Tape Dubbing (From VCR To DVD)

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

REC MODE

VCR/DVD

8

8

DUBB.

VCR ] DVD

VCR/DVD REC MODE

DUBB. Lamp

PRESS ( , ), THEN (OK)

(SET UP) TO END

COPY SET

FUNCTION SET

MAIN MENU

( , ) THEN (ENTER)

(SET UP) TO END

COPY MODE FULL COPY

FULL DISC OFF

AUTO FINALIZE OFF

COPY SET

Auto Finalizing

When dubbing to a DVD-R/RW (Video mode) disc, you can

select whether to finalize the disc automatically after dubbing

has been completed.

To automatically finalize the disc after dubbing:

APerform steps 1 – 3 of “Dubbing An Entire Cassette” in the

left column before continuing.

BPress rt to select “AUTO FINALIZE”, then press ENTER to

select “ON”.

CPress SET UP to complete the setting.

NOTE:

It is possible to set the operation method of a DVD-R/RW (Video

mode) disc when finalizing the disc. Each time the finalized disc is

played back, it will be played back in accordance to the setting you

have selected during finalization. For details, refer to “Finalize A

DVD-R/RW Disc” (墌pg. 63).

SR-MV45_55US.book Page 46 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 47

Filename [SR-MV45_55U_10Editing.fm]

Page 47 January 10, 2007 1:18 pm

EDITING

Dubbing A Part Of A Cassette

You can dub the selected scenes on a tape to the DVD disc,

starting and stopping wherever you wish.

NOTES:

●There may be a discrepancy of several seconds between where you

intend dubbing to start, and where it actually starts.

●The superimposed indication during the operation or dubbing is not

recorded.

●It is not possible to dub a tape with a copy protection signal.

●If the recording capacity of disc become full, the tape stops

automatically.

●It is not possible to perform other operations like Live Memory

Playback. Check the recorded program on the disc after dubbing.

●When dubbing can not be performed properly, set “BLUE BACK” to

“OFF”. (墌pg. 61)

1Press VCR/DVD repeatedly so that the VCR lamp lights up on

the unit.

2Press SET UP to access the Main Menu screen.

3Press rt to select “COPY SET”,

then press ENTER.

4Press rt to select “COPY MODE”,

then press ENTER to select “FULL

COPY” or “1 PROG.”.

●Pressing ENTER toggles the setting

between “FULL COPY” and “1 PROG.”.

5Press SET UP to complete the

setting.

●When “1 PROG.” is selected, recording

will stop when an index code or unrecorded portion is detected.

6Load a cassette you want to dub on the VCR deck, and a

recordable disc on the DVD deck.

7Press VCR]DVD to select the dubbing direction. The dubbing

(DUBB.) lamp lights up on the unit.

8Locate the point from where you want to start dubbing, then

pause playback by pressing the following buttons: 4, 5, 3,

8, 9

9Prepare the DVD deck for dubbing.

APress VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

BPress REC MODE repeatedly to set the recording mode.

(墌pg. 36)

CPress 7 and 9 simultaneously so that the DVD deck enters the

Record Pause mode.

10 Press and hold DUBB. for more than 2 seconds to start

dubbing. The dubbing (DUBB.) lamp blinks on the unit.

●When dubbing a tape-end recorded VHS tape, set the input of this

unit to a no signal input before dubbing.

●To stop dubbing, press 8.

●Upon completing dubbing, dubbing ends automatically even without

pressing 8. Press VCR]DVD to turn off the dubbing (DUBB.)

lamp.

Manual Dubbing (From VCR To DVD)

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

REC MODE 7

5

34

98

VCR/DVD

8

VCR ]

DVD DUBB.

7

3

VCR/DVD REC

MODE

U59

DUBB. Lamp

PRESS ( , ), THEN (OK)

(SET UP) TO END

COPY SET

FUNCTION SET

MAIN MENU

( , ) THEN (ENTER)

(SET UP) TO END

COPY MODE FULL COPY

FULL DISC OFF

AUTO FINALIZE OFF

COPY SET

SR-MV45_55US.book Page 47 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_10Editing.fm]

Masterpage:Left+

48 EN

Page 48 January 10, 2007 1:18 pm

EDITING

Dubbing An Entire Disc

Because this unit includes both DVD deck and VCR deck, you can

easily use this unit for dubbing without connecting any other

equipment.

1Load a disc you want to dub on the DVD deck, and a cassette

with the record safety tab intact on the VCR deck.

2Press VCR/DVD repeatedly so that the VCR lamp lights up on

the unit.

3Press REC MODE repeatedly to set the recording mode.

(墌pg. 36)

4Press VCR}DVD to select the dubbing direction. The dubbing

(DUBB.) lamp lights up on the unit.

5Press and hold DUBB. for more than 2 seconds to start the

dubbing. The dubbing (DUBB.) lamp blinks on the unit.

●If the tape has not been rewound, the VCR deck rewinds the tape

automatically. When the VCR deck has finished rewinding, dubbing

begins automatically.

●After dubbing is completed, the VCR deck rewinds the tape

automatically. Press VCR}DVD to turn off the dubbing (DUBB.)

lamp.

●To stop dubbing, press 8.

NOTES:

●It is not possible to start dubbing if the unit retains a memory of the

resume points. Press 8 twice to clear the resume points.

●There may be a discrepancy of several seconds between where you

intend dubbing to start, and where it actually starts.

●If you do not want the superimposed indication to be recorded, set

“SUPERIMPOSE” to “OFF” before dubbing. (墌pg. 59)

●When the end of the tape is reached during dubbing, the tape is

ejected and both deck stops.

●It may be impossible to dub a DVD-R or DVD-RW (Video mode) disc

recorded on the devices from other manufacturers or on a PC. In

such case, perform “Manual Dubbing (From DVD To VCR)”

(墌pg. 49).

●It is not possible to perform other operations like Live Memory

Playback. Check the recorded program on the disc after dubbing.

Disc Dubbing (From DVD To VCR)

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

REC MODE

8

VCR/DVD

8

VCR } DVD

DUBB.

VCR/DVD

DUBB. Lamp

SR-MV45_55US.book Page 48 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 49

Filename [SR-MV45_55U_10Editing.fm]

Page 49 January 10, 2007 1:18 pm

EDITING

Dubbing A Part Of A Disc

You can dub the selected scenes on a DVD disc to the tape,

starting and stopping wherever you wish.

1Load a disc you want to dub on the DVD deck, and a cassette

with the record safety tab intact on the VCR deck.

2Press VCR}DVD to select the dubbing direction. The dubbing

(DUBB.) lamp lights up on the unit.

3Prepare the DVD deck for dubbing.

APress VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

BLocate the point from where you want to start dubbing, then

pause playback by pressing the following buttons: 4, 5, 3,

8, 9

4Prepare the VCR deck for dubbing.

APress VCR/DVD repeatedly so that the VCR lamp lights up on

the unit.

BPress REC MODE repeatedly to set the recording mode.

(墌pg. 36)

CPress 7 and 9 simultaneously so that the VCR deck enters the

Record Pause mode.

5Press and hold DUBB. for more than 2 seconds to start the

dubbing. The dubbing (DUBB.) lamp blinks on the unit.

6Press 8 to stop recording on the VCR deck. Then press VCR/

DVD, and press 8 to stop playback on the DVD deck.

●Press VCR}DVD to turn off the dubbing (DUBB.) lamp.

NOTES:

●It is not possible to start dubbing if the unit retains a memory of the

resume points. Press 8 twice to clear the resume points.

●There may be a discrepancy of several seconds between where you

intend dubbing to start, and where it actually starts.

●If you do not want the superimposed indication to be recorded, set

“SUPERIMPOSE” to “OFF” before dubbing. (墌pg. 59)

●When the end of the tape is reached during dubbing, the tape is

ejected and both deck stops.

●When the progressive mode is set, the dubbing (DUBB.) lamp does

not light up on the front display panel. Press PROGRESSIVE SCAN

so that video output indicator ( ) lights off on the front display panel.

●It is not possible to perform other operations like Live Memory

Playback. Check the recorded program on the disc after dubbing.

Manual Dubbing (From DVD To VCR)

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

8

5

34

7

9

REC MODE

PROGRESSIVE SCAN

VCR/DVD

8

VCR } DVD

DUBB.

7

3

VCR/DVD REC

MODE

U59

DUBB. Lamp

SR-MV45_55US.book Page 49 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_10Editing.fm]

Masterpage:Left+

50 EN

Page 50 January 10, 2007 1:18 pm

EDITING

Dubbing The Desired Programs On A Disc

You can select and dub your desired programs on a DVD disc to

the tape.

1Load a disc you want to dub on the DVD deck, and a cassette

with the record safety tab intact on the VCR deck.

2Press VCR}DVD to select the dubbing direction. The dubbing

(DUBB.) lamp lights up on the unit.

3Prepare the DVD deck for dubbing.

APress VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

BPress NAVIGATION to access the Library Database DVD Navi

screen.

CPress rt w e to select “ORIGINAL”, then press ENTER.

DPress we to select the desired program, then press MEMO.

●Select the programs in the order that you want them to be dub. The

numbers of the playback order appear on the index. You can select

up to 30 programs.

●If you have specified a wrong selection, press MEMO. The number

disappears.

●When you want to clear all the numbers, press CLEAR (8).

4Press 4 to locate the point where you want dubbing to start,

then press 9 to pause playback.

5Prepare the VCR deck for dubbing.

APress VCR/DVD repeatedly so that the VCR lamp lights up on

the unit.

BPress REC MODE repeatedly to set the recording mode.

(墌pg. 36)

CPress 7 and 9 simultaneously so that the VCR deck enters the

Record Pause mode.

6Press and hold DUBB. for more than 2 seconds to start the

dubbing. The dubbing (DUBB.) lamp blinks on the unit.

●Playback on the DVD deck and recording on the VCR deck starts at

the same time.

●When all the selected programs have been dubbed, playback on the

DVD deck and recording on the VCR deck stops automatically at the

same time. Press VCR}DVD to turn off the dubbing (DUBB.)

lamp.

NOTES:

●The program memory remains even after dubbing is completed. To

clear the memory, access the Library Database DVD Navi screen and

press CLEAR (8).

●When locating the point where you want dubbing to start, be sure to

press 4 then press 9. There should be at least a one-second

interval when pressing these two buttons.

●If you do not want the superimposed indication to be recorded, set

“SUPERIMPOSE” to “OFF” before dubbing. (墌pg. 59)

Program Dubbing (From DVD to VCR)

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

1

4

7

2

5

8

0

3

6

9

4

7

9

REC MODE

ENTER rtw e

NAVIGATION

MEMO

VCR/DVD

CLEAR (8)

VCR } DVD

DUBB.

7

VCR/DVD REC

MODE

U9

DUBB. Lamp

SR-MV45_55US.book Page 50 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 51

Filename [SR-MV45_55U_10Editing.fm]

Page 51 January 10, 2007 1:18 pm

EDITING

You can dub programs from a DV camcorder or DV equipment

connected to the unit with a DV cable. The unit’s remote control

allows you the limited control of the connected DV camcorder or

DV equipment functions during dubbing.

1Connect a DV camcorder or DV equipment to the [DV IN]

connector on the unit’s front panel.

2Load a DVD-RAM/RW/R disc on the unit.

3Press VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

4Press INPUT SELECT +/– on the unit or INPUT +/– on the

remote control to set the input to “DV”.

●The “DV DUBBING” controller appears on the TV screen.

●If “ ” does not appear on the “DV DUBBING” controller, make

sure the DV equipment is connected correctly.

5Press REC MODE repeatedly to set the recording mode.

(墌pg. 36)

6Locate the point from where you want to start dubbing, then

stop or pause playback by pressing the following buttons on the

remote control: 4, 5, 3, 8, 9

●To play back in slow speed (1/10 of the normal speed), press 9 to

pause playback, then press 3 or 5.

●To play back frame-by-frame, press 9 to pause playback, then press

9 repeatedly. Each press of 9 advances a frame.

●To change the playback direction, press 3 or 5.

7Press we to select , then press ENTER.

8Press rt to select the desired

sound track, then press ENTER.

AUDIO 1: Select this to record the

original stereo sound played

back on the connected DV

equipment.

AUDIO 2: Select this to record the

dubbed stereo sound played

back on the connected DV

equipment.

MIX: Select this to record the sound of both “AUDIO 1” and

“AUDIO 2”.

●Note that this selection is not available when the source program is

recorded in 16BIT (48 kHz) mode.

9Press we to select , then press ENTER. The

dubbing starts.

●Playback on the external DV equipment and recording on the unit

should start simultaneously.

●When the playback from the beginning is not possible, the “DV

DUBBING” controller cannot be used. Perform dubbing without using

the “DV DUBBING” controller. (墌below)

●To pause dubbing, press we to select , then press

ENTER. Both the unit and the external DV equipment pause dubbing.

Pressing 9 on the unit also works the same way.

●To clear the “DV DUBBING” controller from the TV screen, press ON

SCREEN.

10 Press 8 on the remote control to stop dubbing.

●Both the unit and the external DV equipment stop dubbing.

NOTES:

●Dubbing copyright guarded programs is not possible.

●Original DV information such as the recording date and time are not

recorded.

●The superimposed indication during the operation or dubbing is not

recorded.

●It is not possible to perform dubbing when the dubbing (DUBB.)

lamp lights up on the unit. Press VCR]DVD so that the dubbing

(DUBB.) lamp lights off.

Performing dubbing without using the “DV DUBBING”

controller

APress INPUT SELECT +/– on the unit or INPUT +/– on the

remote control to set the input to “DV”.

BPress REC MODE repeatedly to set the recording mode.

(墌pg. 36)

CStart playback on the external DV equipment slightly before the

actual point from where you wish to start dubbing.

DPress 7 on the unit to start recording. Or while holding 7, press

4 on the remote control. The dubbing starts.

EWhen the dubbing ends, press 8 on the unit, then stop

playback on the external DV equipment.

DV Dubbing (DVD Deck Only)

NOTES:

●Use the DV cable VC-VDV 204U for connection.

●When you connect a PC to the [DV IN] connector, we do not

assure the normal operation of this unit.

To [DV IN]

DV cable

(VC-VDV 204U)

(not supplied)

DV Camcorder

DV connector

Your unit

DV equipment

SR-MV45_55US.book Page 51 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_10Editing.fm]

Masterpage:Left+

52 EN

Page 52 January 10, 2007 1:18 pm

EDITING

You can use a camcorder as the source player and your unit as the

recording deck.

1Make connections.

AIf the camcorder has no S-VIDEO output connector:

— connect the camcorder’s Audio/Video output connector to the

unit’s [AUDIO IN F-1] and [VIDEO IN F-1] input connectors on the

front panel.

●When using a monaural camcorder, connect its AUDIO OUT

connector to the [AUDIO L] input connector on your unit.

BIf the camcorder has an S-VIDEO output connector:

— connect the camcorder’s Audio/Video output and S-Video

output connectors to the unit’s [AUDIO IN F-1] and [S-VIDEO IN

F-1] connectors on the front panel.

2Press VCR/DVD repeatedly to select the recording deck.

3Press INPUT SELECT +/– on the unit or INPUT +/– on the

remote control to select “F-1”.

●Set “FRONT AUX F-1” to “VIDEO” for the [VIDEO IN F-1] connector,

or “S-VIDEO” for the [S-VIDEO IN F-1] connector, depending on the

connector being used. (墌pg. 59) This setting is also applied to the

VCR deck.

4For VCR deck only

Set “PICTURE CONTROL” to the appropriate mode. (墌pg. 61)

5Press REC MODE repeatedly to set the recording mode.

(墌pg. 36)

6Start playback on the camcorder slightly before the actual point

from where you wish to start dubbing.

For VCR deck only

Press 7 and 9 simultaneously to set to record pause mode.

7Press 7 on the unit to start recording. Or while holding 7, press

4 on the remote control. The dubbing starts.

For VCR deck only

After about 10 seconds, press 4 to start recording.

8Press 8 on the unit, then stop playback on the camcorder.

NOTES:

●All necessary cables can be obtained from your dealer.

●Refer to the camcorder’s instruction manual for operating procedure.

●The quality of dubbed picture becomes poorer than that of the

original.

●When you select “EDIT” to dub tapes in step 4, be sure to select

“AUTO” (or “NORM” when “VIDEO CALIBRATION” is set to “OFF”)

after you finish dubbing the tapes.

Edit From A Camcorder

AIf the camcorder has no S-VIDEO output connector:

Recorder

Player

Audio/Video cable

(not supplied)

To [AUDIO IN F-1]

To

[VIDEO

IN F-1]

To Audio/Video

output

BIf the camcorder has an S-VIDEO output connector:

Recorder

Audio/Video cable (not supplied)

To S-Video output

To Audio/Video

output

Player

S-Video cable

(supplied)

To [AUDIO IN F-1]

To [S-VIDEO

IN F-1]

Slide the TV/CABLE/DBS/DVD switch to DVD.

SR-MV45_55US.book Page 52 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 53

Filename [SR-MV45_55U_10Editing.fm]

Page 53 January 10, 2007 1:18 pm

EDITING

You can use your unit as the source player or as the recording

deck.

NOTE:

When using another recorder as the recording deck, refer to its

instruction manual.

1Make connections.

When using this unit as the recording deck

AIf the another recorder has no S-VIDEO connector, connect the

unit’s [AUDIO/VIDEO INPUT] connectors to the audio/video output

connectors on another recorder.

BIf the another recorder has S-VIDEO connector, connect the

[AUDIO INPUT] and [S-VIDEO INPUT] connectors to the audio

and S-video output connectors on another recorder.

●If connecting a unit with an S-VIDEO connector, it is recommended to

use the supplied S-Video cable to minimize picture degradation while

editing.

2Press VCR/DVD repeatedly to select the recording deck.

3Press INPUT SELECT +/– on the unit or INPUT +/– or AUX on

the remote control to select “L-1” when using this unit as the

recording deck.

●Set “REAR AUX L-1” to “VIDEO” for the [VIDEO INPUT] connector,

or “S-VIDEO” for the [S-VIDEO INPUT] connector, depending on the

connector being used. (墌pg. 59) This setting is also applied to the

VCR deck.

4For VCR deck only

Set “PICTURE CONTROL” to the appropriate mode. (墌pg. 61)

5Press REC MODE repeatedly to set the recording mode.

(墌pg. 36)

6Engage the Play mode of the source player.

For VCR deck only

Press 7 and 9 simultaneously to set to record pause mode.

7Engage the Record mode of the recording deck.

For VCR deck only

After about 10 seconds, press 4 to start recording.

8Stop recording on the recording deck, then stop playback on the

source player.

NOTES:

●All necessary cables can be obtained from your dealer.

●When you use this unit as the source player for editing, be sure to set

“SUPERIMPOSE” to “OFF” before starting. (墌pg. 59)

●When you select “EDIT” to dub tapes in step 4, be sure to select

“AUTO” (or “NORM” when “VIDEO CALIBRATION” is set to “OFF”)

after you finish dubbing the tapes.

Edit To Or From Another Recorder

Player

Your unit

Another recorder

Recorder

TV receiver

Slide the TV/CABLE/DBS/DVD switch to DVD.

SR-MV45_55US.book Page 53 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_10Editing.fm]

Masterpage:Left+

54 EN

Page 54 January 10, 2007 1:18 pm

EDITING

You can dub selected audio from a DVD or Audio CD disc to a

digital audio device.

However, it is not possible to dub copy-protected discs.

Example: Dubbing to an MD

1Connect the unit and a digital audio device using either an

optional optical cable or an optional coaxial cable.

2Place a disc on the unit and load an MD on the connected digital

audio device.

3Select the audio to be dubbed.

4Start playback slightly before the actual point from where you

wish to start dubbing.

5Press 9 to pause playback.

6Select the input mode on the connected digital audio device.

7Press 4 to start playback on the unit.

8Start recording on the digital audio device.

9Stop recording on the digital audio device. Then press 8 to stop

playback on the unit.

NOTE:

There may be a discrepancy of several seconds between where you

intend editing to start, and where it actually starts.

Digital Audio Dubbing

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

Rear of unit

Note for connection:

Remove the protection cap from the cable.

Digital audio device

(MD deck, etc.)

Coaxial cable

(not supplied)

To [DIGITAL AUDIO OUT

(COAXIAL)]

Player

Recorder

Optical cable

(not supplied)

To [DIGITAL AUDIO

OUT (OPTICAL)]

SR-MV45_55US.book Page 54 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right0

EN 55

Filename [SR-MV45_55U_10Editing.fm]

Page 55 January 10, 2007 1:18 pm

REMOTE CONTROL

Remote control 1/2/3/4 Code Switching

The remote control is capable of controlling four JVC video units

independently. Each of the units can respond to one of four codes

(1, 2, 3 or 4). The remote control is preset to send 3 code signals

because your unit is initially set to respond to 3 code signals. You

can easily modify your unit to respond to 1, 2 or 4 code signals.

●Keep pressing SET UP down during step 1.

1Press the number key “1” for 1, “2” for 2, “3” for 3 or “4” for 4

to change the remote control code, then press ENTER.

2Press 1 on the unit to turn off the unit.

3Press 4 on the unit for over 5 seconds while the unit is turned

off. The current code appears on the front display panel.

4Press 8 on the remote control to change the unit’s code. The

new code currently set on the remote control blinks on the front

display panel for approximately 5 seconds, and is applied to the

unit.

TV Multi-Brand Remote Control

Your remote control can operate the basic functions of your TV set.

In addition to JVC TVs, other manufacturer’s TVs can also be

controlled.

IMPORTANT:

Although the supplied remote control unit is compatible with JVC

televisions, as well as many other models, it may not work with your TV,

or in some instances, may have limited function capability.

●Keep pressing SET UP down during step 1.

1Enter your TV’s brand code using the number keys, then press

ENTER.

2Press 1 on the unit’s remote control to turn on the TV and try

operations (墌 step 3).

●Once you have set the remote control to operate the TV, you do not

have to repeat this step until you replace your remote control’s

batteries.

●Some brands of TVs have more than one code. If the TV does not

function with one code, try entering another.

3Press the corresponding button to operate the TV: 1, TV/VCR,

TV CH +/–, TV VOL., (TV Muting), number keys.

●For some brands of TVs, you must press ENTER after having

pressed the number keys.

Remote Control Functions

Slide the TV/CABLE/DBS/DVD switch to DVD.

4

1

1

4

7

2

5

8

0

3

6

9

1 – 4

SET UP

ENTER

8

●Turn off the TV using its remote control.

●Slide the TV/CABLE/DBS/DVD switch to TV.

BRAND NAME CODE

JVC

HITACHI

MAGNAVOX

MITSUBISHI

PANASONIC

RCA

SHARP

SONY

SAMSUNG

SANYO

SEARS

TOSHIBA

ZENITH

01, 03

10

02

03

04, 11

05

06

07

12

13

13

08

09

1

4

7

2

5

8

0

3

6

9

TV/VCR

0 – 9

SET UP

ENTER

1

TV CH +/–

TV VOL.

SR-MV45_55US.book Page 55 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_10Editing.fm]

Masterpage:Left+

56 EN

Page 56 January 10, 2007 1:18 pm

REMOTE CONTROL

Cable Box Or DBS Receiver Multi-Brand Remote

Control

Your remote control can operate the basic functions of your cable

box or DBS (Direct Broadcast Satellite) receiver set. In addition to

JVC cable boxes or DBS receivers, other manufacturer’s cable

boxes or DBS receiver can also be controlled.

●Keep pressing SET UP down during step 1.

1Enter your cable box or DBS receiver’s brand code using the

number keys, then press ENTER.

2Press 1 on the unit’s remote control to turn on the cable box or

DBS receiver and try operations (墌step 3).

●Once you have set the remote control to operate the cable box or

DBS receiver, you do not have to repeat this step until you replace

your remote control’s batteries.

●Some brands of cable box or DBS receiver have more than one code.

If the cable box or DBS receiver does not function with one code, try

entering another.

3Press the corresponding button to operate the cable box or DBS

receiver: 1, TV CH +/–, number keys.

●For some brands of cable box, you must press ENTER after having

pressed the number keys.

●The number keys may not function with some cable boxes.

IMPORTANT:

It may not work with your cable box, or in some instances, may have

limited function capability.

NOTES:

●It’s not possible to operate a cable box or DBS receiver that is not

equipped with a receiving window.

●It’s not possible to set the remote control for both your cable box and

a DBS receiver at the same time. You can only set the remote control

to operate one of these units at a time.

Slide the TV/CABLE/DBS/DVD switch to CABLE/DBS.

CABLE BOX BRAND CODE

ARCHER

CABLETENNA

CABLEVIEW

CITIZEN

CURTIS

DIAMOND

GC BRAND

GEMINI

GENERAL INSTRUMENTS

HAMLIN

JASCO

JERROLD

NOVAVISION

OAK

PANASONIC

PULSER

RCA

REGAL

REMBRANDT

SAMSUNG

SCIENTIFIC ATLANTA

SIGMA

SL MARX

SPRUCER

STARGATE

TELEVIEW

TOCOM

UNIKA

UNIVERSAL

VIDEOWAY

ZENITH

01, 05, 17

01, 17

15, 16, 17, 21, 25

15, 16, 17, 21, 25

02

01, 17

15, 16, 17, 21, 25

15

01, 04, 06, 11, 12, 15, 28

10, 18, 23

15

01, 04, 06, 11, 12, 15, 28

02

07

13, 14

15, 16, 17, 21, 25

13, 14

10, 18, 23

01, 16, 17

05, 16, 24

02

07

05, 16, 17, 24, 25

13, 14

05, 15, 16, 17, 21, 24, 25

05, 16, 24

01, 04, 16

01, 17

16, 17, 25

03, 09, 22

03, 09, 22

DBS RECEIVER BRAND CODE

JVC (DISH Network)

ECHOSTAR (DISH Network)

SONY (DSS)

RCA (DSS)

51

51

41

40

SR-MV45_55US.book Page 56 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right0

EN 57

Filename [SR-MV45_55U_10Editing.fm]

Page 57 January 10, 2007 1:18 pm

SYSTEM CONNECTIONS

These instructions enable you to connect your unit to a Dolby

Digital decoder or an amplifier with built-in DTS.

1Connect the unit and a Dolby Digital decoder or an amplifier

with built-in DTS using either an optional optical cable or an

optional coaxial cable.

NOTES:

●For Dolby Digital sound, set “DIGITAL AUDIO OUT” to “DOLBY

DIGITAL/PCM”. (墌pg. 58)

●For DTS sound, set “DIGITAL AUDIO OUT” to “STREAM/PCM”.

(墌pg. 58)

CAUTIONS:

●This unit has a dynamic range of more than 110 dB with regards to its

Hi-Fi audio capability. It is recommended that you check the

maximum level if you are going to listen to the Hi-Fi audio signals

through a stereo amplifier. A sudden surge in the input level to the

speakers may damage them.

●Some speakers and televisions are specially shielded to prevent

television interference. If both are of the non-shielded type, do not

place the speakers adjacent to the TV set as this can adversely affect

the playback picture.

Connecting To A Dolby Digital Decoder

Or An Amplifier With Built-in DTS

Note for connection:

Remove the protection cap from the cable.

Optical cable

(not supplied)

Dolby Digital Decoder or

amplifier with built-in DTS

To DIGITAL AUDIO input

Coaxial cable

(not supplied)

To [DIGITAL AUDIO OUT (OPTICAL)] To [DIGITAL AUDIO

OUT (COAXIAL)]

Rear of unit

SR-MV45_55US.book Page 57 Wednesday, January 10, 2007 1:18 PM

Filename [SR-MV45_55U_11Subsidiary.fm]

Masterpage:Left0

58 EN

Page 58 January 10, 2007 1:18 pm

SUBSIDIARY SETTINGS

Various modes of this unit are categorized into menus nested in 2

levels shown in the following table. To change the settings of these

modes, find the desired mode in the menu (for details on each

menu, see pages 58 through 59), then follow the procedure below.

●The procedure below shows how to set the desired option of the “DV

AUTO CHAPTER” mode as an example.

1Press VCR/DVD repeatedly so that the DVD lamp lights up on

the unit.

2Press SET UP to access the Main Menu screen.

3Press we to select “FUNCTION SET UP”, then press ENTER.

4Press we to select

“RECORDING SET”, then press

ENTER.

5Press rt to select “DV AUTO

CHAPTER”, then press ENTER.

6Press rt to select the desired

option, then press ENTER.

7Press SET UP to complete the

setting.

*The boldface settings below indicate the settings at your purchase.

AUDIO OUTPUT

8DIGITAL AUDIO OUT — DOLBY DIGITAL/PCM / STREAM/PCM

/ PCM ONLY

Set to the appropriate mode according to the type of the device

connected to [DIGITAL AUDIO OUT] connector.

DOLBY DIGITAL/PCM: Select this when you connect the digital

input connector of a Dolby Digital decoder or an amplifier with a

built-in Dolby Digital decoder.

STREAM/PCM: Select this when you connect the digital input

connector of an amplifier with a built-in DTS, Dolby Digital, or

MPEG multichannel decoder.

PCM ONLY: Select this when you connect the linear PCM digital

input of other audio equipment (amplifier, MD or DAT deck, etc.).

8ANALOG AUDIO OUT — STEREO / DOLBY SURROUND

Select the appropriate setting to accommodate the unit to the

connected A/V equipment. This function takes effect when a

DVD VIDEO disc is played back.

STEREO: Select this when listening to conventional two-channel

stereo audio with the unit’s [AUDIO OUTPUT] connectors

connected to a stereo amplifier/receiver or TV set, or in case you

want to record the audio from a DVD VIDEO disc to a Mini Disc,

etc.

DOLBY SURROUND: Select this when listening to multichannel

surround audio with the unit’s [AUDIO OUTPUT] connectors

connected to an amplifier/receiver with a built-in surround

decoder or a surround decoder.

8D. RANGE CONTROL — NORMAL / WIDE RANGE / TV MODE

The dynamic range (the difference between the loudest sound and

the quietest one) can be compressed during playback of a program

encoded in Dolby Digital format.

This function takes effect when a DVD VIDEO disc recorded in

Dolby Digital format is played back at low or middle volume.

NORMAL: Normally select this setting to activate this function.

WIDE RANGE: Select this to deactivate this function when you

enjoy wide dynamic range program.

TV MODE: Select this when you hear the sound through the TV’s

speaker(s).

NOTES:

●This function takes no effect on programs other than that recorded in

Dolby Digital format.

●This function does not work when Simulated Surround Effect is

activated. (墌pg. 30)

●The effect of “NORMAL” and “WIDE RANGE” may not be different

depending on discs.

8OUTPUT LEVEL — STANDARD / LOW

You can lower the output level of analog audio to accommodate the

unit to the connected A/V equipment.

STANDARD: Normally select this setting.

LOW: The output level of analog audio is lowered.

Mode Set (DVD Deck)

●Turn on the unit.

●Turn on the TV and select the AV mode.

●Slide the TV/CABLE/DBS/DVD switch to DVD.

DVD SET UP LANGUAGE SET (墌pg. 18)

AUDIO OUTPUT (墌pg. 58)

UTILITY (墌pg. 32, 62, 63, 64)

FUNCTION SET UP VIDEO IN/OUT (墌pg. 19, 59)

RECORDING SET (墌pg. 59)

DISPLAY SET (墌pg. 59)

OTHERS (墌pg. 59)

INITIAL SET UP CLOCK SET (墌pg. 17)

1

4

7

2

5

8

0

3

6

9

ENTER

SET UP

rtw e

VCR/DVD

SR-MV45_55US.book Page 58 Wednesday, January 10, 2007 1:18 PM

Masterpage:Right+

EN 59

Filename [SR-MV45_55U_11Subsidiary.fm]

Page 59 January 10, 2007 1:18 pm

SUBSIDIARY SETTINGS

VIDEO IN/OUT

8MONITOR TYPE — 4:3LB / 4:3PS / 16:9AUTO / 16:9FIX

You can select the monitor type depending on the TV used when
