KAB Enterprise TR-025S Remote Controller User Manual TM 121 TR 025S FCC IC IM 20180126
KAB Enterprise Co., Ltd. Remote Controller TM 121 TR 025S FCC IC IM 20180126
User Manual
IMPORTANT SAFEGUARDS
WARNING-- To reduce the risk of fire, electric shock, or
serious personal injury
• Do not immerse the product in liquids
• Do not use an electrical device or appliance with this
product whose electrical specifications exceed those
specified in the “Electrical Specifications” section of this
manual.
• For Indoor use.
CAUTION-- To reduce the risk of personal injury or product/
property damage:
• This product is intended for non-commercial, non-industrial
use in the remote control of two electrical outlets.
Do not use this product for any other purpose.
Replacing the battery
• Remove the Battery compartment cover from the back
of the remote control by sliding the cover in the
direction that its trends curve.
• Remove the spent battery and place a new DC 12V
Type A23 battery into the Battery Compartment
correctly observing the polarity indications (+/-) inside
the Battery Compartment.
• Replace the Battery Compartment Cover.
• Clear the battery contacts and also those of the device
prior to battery installation
TM-121 Indoor Remote Controlled Countdown Timer
When using electrical products, always follow basic
safety precautions including the following:
Made in China
SAVE THESE INSTRUCTIONS!
RECEIVER MODEL: TM-121
TRANSMITTER MODEL: TR-025S
FCC ID: PAGTR-025S
IC: 4494A-TR025S
NOTE: These are general definitions only; all may not pertain to the actual product purchased.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury. Usage of this signal word is limited to the most extreme situations.
WARNING: Indicates potentially hazardous situation, which, if not avoided, may result in
minor / moderate injury or product/ property damage. It also alerts against unsafe practices.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor/moderate injury or product/ property damage. It also alerts against unsafe practices.
Replacing the battery
ELECTRICAL RATINGS
Features:
• Control electrical outlet up to a distance of 100 feet.
• Has two grounded receptacles.
• Weather resistant housing protects connected lighting.
• Countdown function automatically turns power off 30 min, 60 min, 2 Hr, 4Hr later.
Federal Communications Commission
Interference Statement
This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
Industry Canada statement:
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
* Maximum combined wattage for items using a tungsten bulb plugged into the Receiver is
1000W.
* Maximum combined wattage for appliances plugged into the Receiver is 1250W.
Voltage Frequency Wattage Amperage Horse Power
*1000W-1250W 60Hz125VAC 10A 1/3HP
Installation
1. Plug the Receiver into a standard 125-volt AC electrical outlet.
2. Confirm that the electrical specifications of an item you wish to use with this product do not
exceed those specified in the “Electrical Specifications” section. Plug the item into an outlet of
the Receiver.
3. Remove the plastic battery tab from the Battery Compartment in the back of the Remote
Control to activate the DC 12V Type A23 pre-installed battery.
Operating Instructions
Control by transmitter:
1. Press the ON button on the transmitter to turn the receiver ON.
2. Press OFF button on the transmitter to turn the receiver OFF.
3. Press 30 min, 60 min, 2 Hr, 4Hr, to turn the receiver on and off after that specific min or hour.
Battery Handling and Usage
WARNING: Keep batteries away from children and pets.
• Follow the battery manufacturer’s safety and usage instructions.
• Insert the battery observing the proper polarity (+/-) as indicated inside the Battery
Compartment.
• Remote a spent or discharged battery from the product. remove the battery when not using
the product for an extended period.
• Never throw batteries into a fire. Do not expose batteries to fire or other heat sources.
• Battery contains mercury. Do not put in trash. Recycle or manage as hazardous waste.
• Dispose or recycle spent / discharged batteries in compliance with all applicable laws. For
detailed information contact your local solid waste authority.
CAUTION: Failure to properly align the battery polarity can cause personal injury and/or
property damage.
30
Min
ON
60
Min
2Hr 4Hr
30
Min
ON
OFF
60
Min
2
Hr
4
Hr
Receiver
Transmitter

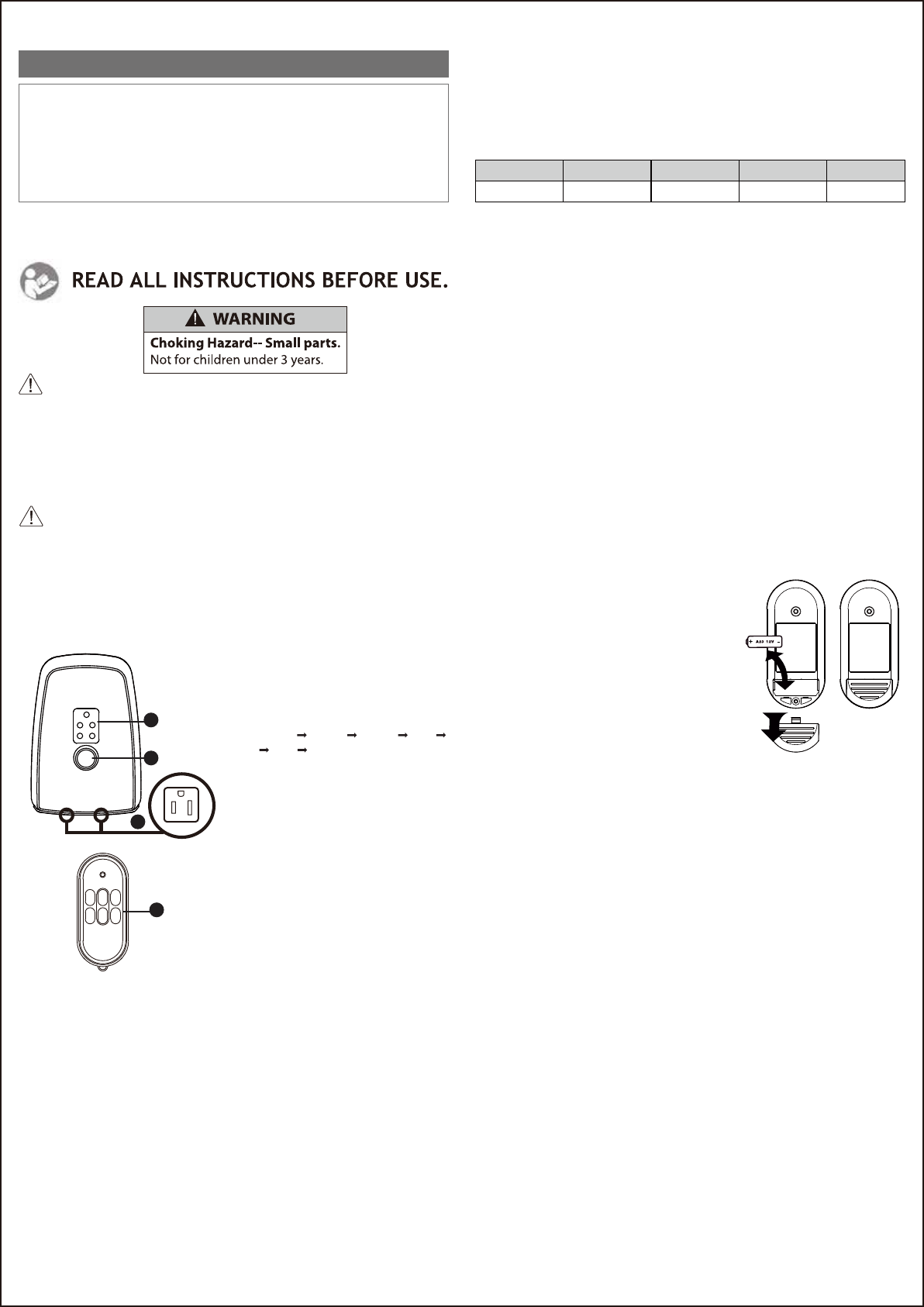

1. Operating Mode:
Timer will turn ON, 30 min, 60 min,
2 Hr, 4Hr.
2. Select button:
To select the function and repeatedly.
Power ON 30 min 60 min 2 Hr
4Hr OFF ON
3. Outlets:
Plug the lights or devices to be
controlled by the timer into one of the
outlets.
4. Transmitter
Button Layout
4
2
1
3
Control by receiver:
1. Press the button. The power indicator will light and the two outlets are “ON”.
2. Press the button and select 30 min, 60 min, 2 Hr, 4Hr, to turn the receiver on and off
after that specific min or hour.
3. Continue pressing the button until all indicator lights are out. All two outlets are turned off.
TR-025S Remote Controller User Manual
