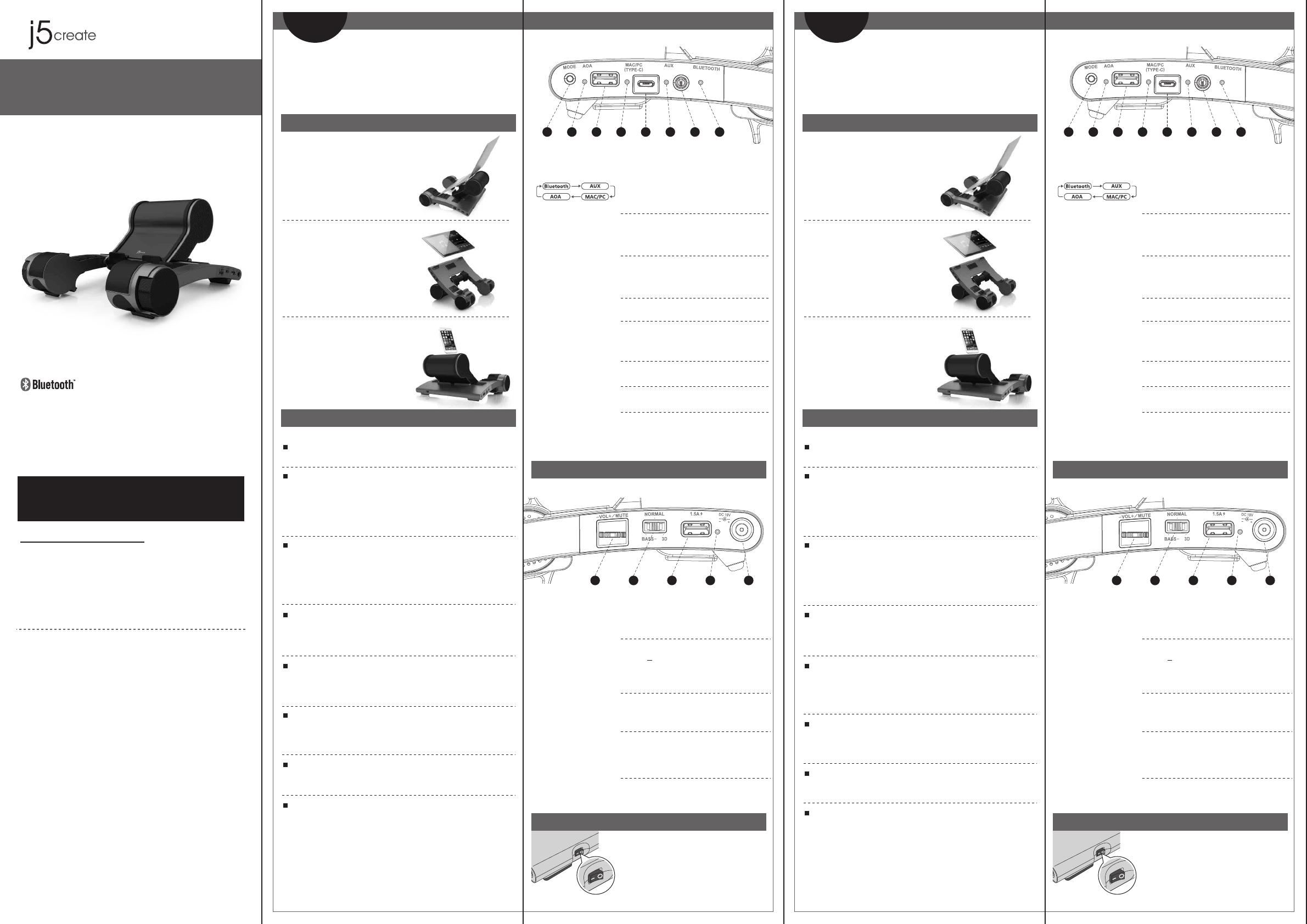

KAIJET TECHNOLOGY JSS800 2.1 Audio Docking Station User Manual V1 JSS800 QIG B
KaiJet Technology International Limited 2.1 Audio Docking Station V1 JSS800 QIG B
Users Manual
JSS800
2.1Audio Docking Station
Bluetooth / AOA / USB / AUX
STOP!
If you have any issues with this product, please try the instructions below
before returning the product.
SOPORTE TÉCNICO
Número gratuito : +1-888-988-0488
Horario de atención :
Lun-Vier. 10:00-18:00 U.S.A-E.S.T
Email : service@j5create.com
TECHNISCHER SUPPORT
Kostenloser Anruf bei : +1-888-988-0488
Sprechstunden :
Mon. – Frei. 10.00-18.00 U.S.A-E.S.T
E-mail : service@j5create.com
SUPPORT TECHNIQUE
Numéro gratuit : +1-888-988-0488
Heures d’ouverture :
lun. - Ven. 10:00 - 18:00 U.S.A-E.S.T
Email : service@j5create.com
技術支援資訊
美國客服專線 : +1-888-988-0488
台灣客服專線 : +886-2-2269-5533#19
客服時間：
星期一至星期五10:00-18:00 (台灣時間)
Email信箱 : service.tw@j5create.com
2016-V1
TECHNICAL SUPPORT
Customer Service :
888-988-0488
Technical Support :
888-689-4088
Email :
service@j5create.com
Service Time :
Mon. - Fri. 10:00 - 18:00 E.S.T
Live Chat :
www.j5create.com/livechat
Support Ticket :
tickets.j5create.com
EN
: Quick Installation Guide
ES : Guía De Instalación Rápida
FR : Guide D'installation Rapide
TC : 快速安裝手冊
Power On : Turn on audio processor and amplifier.
Power Off : Turn off audio processor and amplifier.
* Charging port is still available for charging.
With its revolutionary design j5create's 2.1 Audio Docking Station gives
you high quality sound combined with a sturdy stand that allows you to
place your tablet/laptop at various angles. The JSS800 features two
mid-range speakers, two tweeters and one independent subwoofer. It has
four input ports AOA,USB type-C, Bluetooth and AUX. The additional
charging port provides up to 1.5 Amps of power.
Power On/Off
1 2 3 4 5 6 7 8
Turn right to increase the volume or turn left to
decrease the volume. Press to mute.
Supports Android and Apple devices up to 1.5
amps.
System power indicator.
On : The DC jack is plugged in and powered.
Off : The DC jack is unplugged.
Plug in for system power.
910 11 12 13
Features
Applications
Specs
Right Side
Back Side
Left Side
10. Sound control
switch
11. Charging port
12. Power LED
13. DC Power Jack
9. Volume Control/
Mute
For Laptop
For Tablet
For Smart Phone
English
AUX IN
Connector type : 3.5mm Stereo Jack
Bluetooth
Version : Bluetooth 3.0+EDR
Profile : A2DP, AVRCP
RF Output Power : Class 2
Maximum Communication Range : 10meter / 33ft
(Without interference)
Sampling rate : 48K / 44.1KHz
USB Audio
Connector type : USB 2.0 C type
Sampling rate : 48K
OS Support : Win XP / 7 / 8 / 8.1 / 10 ,
Mac OS X 10.6~10.11 ,
Linux
AOA Audio (Android open accessory)
Connector type : USB 2.0 A type
Sampling rate : 48K
OS Support : Android 4.2 and above
Driver unit
Left / Right channel : 3.6 cm(1.4 inch)5W tweeter × 2
5.7 cm(2.25 inch)5W mid-range driver × 2
Woofer channel : 6.8 cm(2.6 inch)10W woofer × 1
Amplifier
Amplifier type : Class D
Maximum output power (RMS) : 30W
Response frequency : 80Hz ~ 20KHz
USB charging
Connector type : USB 2.0 A type
Output rating : 5V / 1.5A
Main system
Power Supply : AC 100 ~ 240V, 50 ~ 60Hz
Input power : DC 19V / 1.89A
Power Consumption : 30 W
Dimensions(W×D×H) : 12.9 × 11.4 × 3.5 inch (unexpanded)
12.9 × 12.7 × 63.8 inch (expanded)
328 × 290 × 89 mm (unexpanded)
328 × 322 × 162 mm (expanded)
Weight : 5.18 lbs (2.35 kg)
Operating Temperature : 0 ~ 45°C
2. AOA LED
3. AOA Connector
5. MAC/PC Connector
( Type-C )
8. Bluetooth LED
6. AUX LED
7. AUX Connector
4. MAC/PC LED
AOA input source indicator.
ON : AOA link successful.
Blinking : Trying to link or link failure.
Connect your Android device using a USB cable.
* Android 4.2 and above is required.
* Stop playback before connecting.
Connect your MAC Book or PC using a USB
cable.
Bluetooth input source indicator.
ON : Bluetooth link successful.
Blinking : Available for link.
AUX input source indicator.
Connect to your 3.5mm analog source device.
MAC / PC USB input source indicator.
Use this button to switch input sources.
Press and hold for 5 seconds to disconnect the
Bluetooth.
1. Mode Switch
Three modes.
1. Bass
2. Normal
3. 3D surround

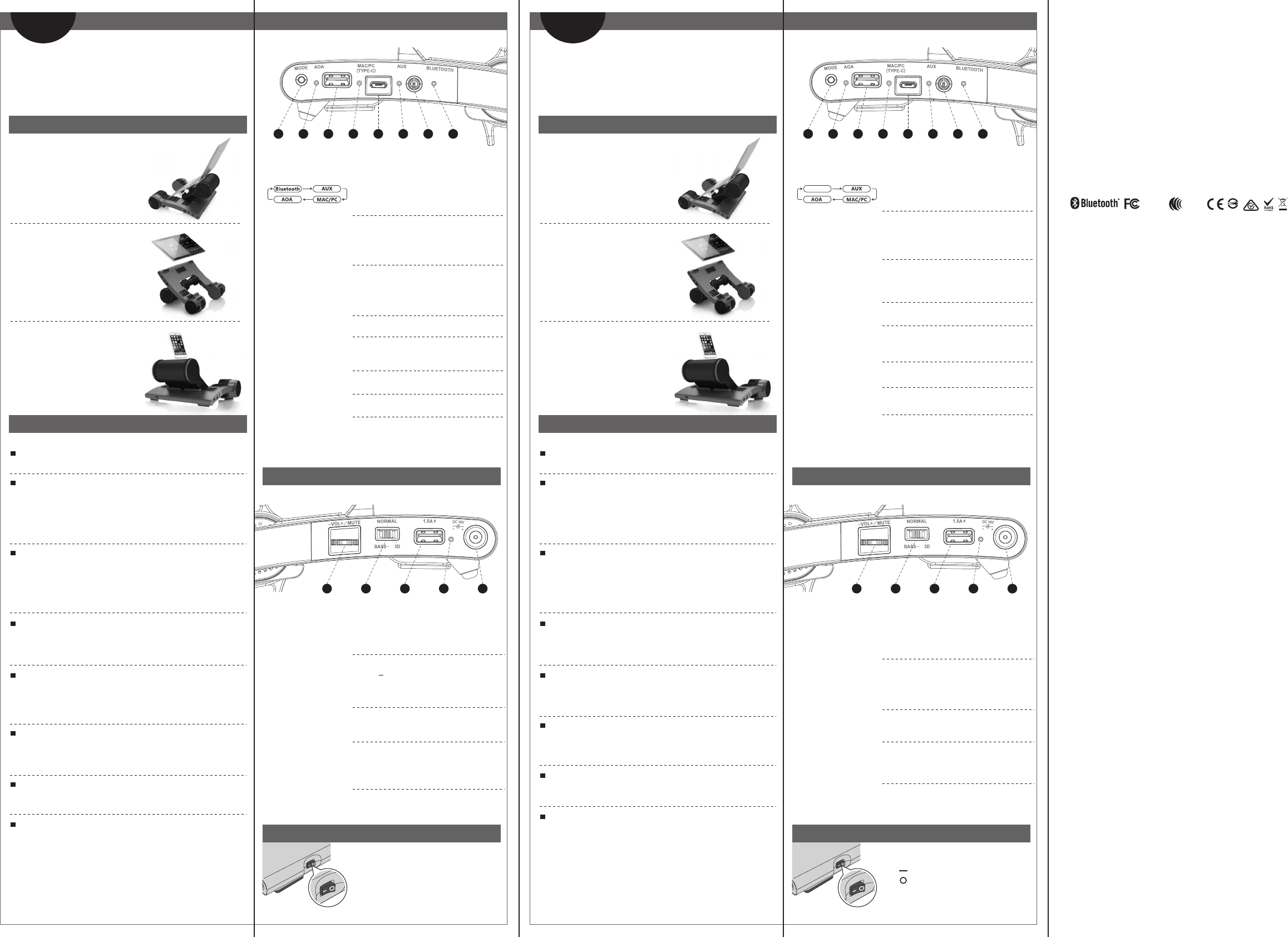

Encendido : Encienda el procesador de audio y un
amplificador.
Apagado : Apaga procesador de audio y un amplificador.
* Puerto de carga está todavía disponible para la carga.
Con base para su revolucionario diseño de j5create’s Sistema de Audio
2.1 le ofrece un sonido de alta calidad combinado con sun soporte
resistente que le permite colocar el tablet / portátil en varios ángulos. El
JSS800 cuenta con dos altavoces de gama media, dos tweeters y un
subwoofer independiente. Cuenta con cuatro puertos de entrada AOA,
USB tipo C, Bluetooth y AUX. El puerto de carga adicional proporciona
hasta 1.5 amperios de potencia.
Encendido / apagado
1 2 3 4 5 6 7 8
Rodar derecho de volumen hacia arriba o hacia la
izquierda para bajar el volumen.
Pulse para silenciar.
Este puerto de carga es compatible con
dispositivos Android y Apple hasta 1.5 amperios.
Indicador de alimentación del sistema.
En : La toma de CC está conectada y encendida.
Apagado : La toma de CC está desconectado.
Enchufe para la alimentación del sistema.
910 11 12 13
Característica
Aplicaciónes
Especificaciones
Lado Derecho
Parte trasera
Lado Izquierdo
10. Conmutador de
efecto de sonido
11. Puerto de carga
12. LED de encendido
13. Alimentación de
corriente continua
9. Control de Volumen
/Silencio
Para Computadora portáil
Para Tableta
Para Móvil
Español
AUX IN
Tipo de conector : Jack estéreo de 3,5 mm
Bluetooth
Versión : Bluetooth 3.0 + EDR
Perfil : A2DP, AVRCP
RF de potencia de salida : Clase 2
El rango máximo de comunicación : 10 metros / 33 pies
(sin interferencias)
Velocidad de muestreo : 48K / 44.1KHz
USB Audio
Tipo de conector : USB 2.0 Tipo C
Velocidad de muestreo : 48K
Operativos compatibles : Win XP / 7 / 8 / 8.1 / 10 ,
Mac OS X 10.6~10.11 ,
Linux
AOA Audio (Android accesorio abierto)
Tipo de conector : USB 2.0 tipo A
Velocidad de muestreo : 48K
Soporta Sistema Operativo : Android 4.2 y superiors
Unidad de disco
Canal izquierdo / derecho :
3.6 cm (1.4 pulgadas) 5W tweeter de × 2
5.7 cm (2.25 pulgadas) 5W conductor gama completa × 2
canal de graves : 6.8 cm (2.6 pulgadas) 10W x 1 woofer
Amplificador
Tipo de Amplificador : Clase D
Potencia máxima de salida (RMS) : 30 W
Frecuencia de respuesta : 80Hz ~ 20KHz
La carga USB
Tipo de conector : USB 2.0 tipo A
Potencia de salida : 5V / 1.5A
Sistema Principal
Fuente de alimentación : AC 100 ~ 240V, 50 ~ 60Hz
La potencia de entrada : DC 19V / 1.89A
Consumo de energía : 30 W
Dimensiones (W x D x H) : 12.9 × 11.4 × 3.5 inches (no expandido)
12.9 × 12.7 × 63.8 inches (ampliado)
328 × 290 × 89 mm (no expandido)
328 × 322 × 162 mm (ampliado)
Peso : 5.18 lbs (2.35 kg)
Temperatura de funcionamiento : 0 ~ 45°C
2. AOA LED
3. Conector AOA
5. MAC / PC Conector
( Type-C )
8. LED de Bluetooth
6. Vacío LED
7. Conector de vacío
4. MAC / PC LED
AOA indicador de la fuente de entrada.
ON : AOA enlace éxito.
Intermitente : Tratar de vincular o fallo del enlace.
Conecta tu dispositivo Android mediante un cable USB.
*
Se requiere Android 4.2 o superior.
* Detener la reproducción antes de conectar.
Conectar su PC o MAC libro mediante un cable
USB.
Indicador de la fuente de entrada de Bluetooth
ON : Enlace Bluetooth éxito.
Intermitente : Disponible para el enlace.
Vacío indicador de la fuente de entrada.
Conectar con el dispositivo de fuente de 3,5 mm
cinta de correr.
MAC indicador de la fuente de entrada USB / PC.
Utilice este botón para cambiar las fuentes de entrada.
Pulse y mantenga pulsado durante 5 segundos
para desconectar el bluetooth.
1. Interruptor de Modo
Tres modos
1. Bass
2. normal
3. envolvente 3D
■ Limited Warranty
j5create offers a limited 1-year warranty. User’s wear & tear damage is not
included.
The user shall call or e-mail j5create's customer service with information
regarding the defect(s) of the product and obtain a return authorization
number. Users are responsible for one way return freight cost and we will take
care of one way freight back. In order to obtain a return authorization number,
users should have the following information handy when calling or emailing
the service team:
(i) a copy of the original purchase invoice to verify your warranty
(ii) a product serial number
(iii) a description of the problem
(iv) customer’s name, address, and telephone number
j5create does not warrant that the operation of the product will be
uninterrupted or error-free. j5create is not responsible for damage arising
from failure to follow instructions relating to the product’s use. This warranty
does not apply to:(a) consumable parts, unless damage has occurred due to a
defect in materials or workmanship; (b) cosmetic damage, including but not
limited to scratches, dents , and broken plastic on ports; (c) damage caused by
use with non-j5create products; (d) damage cause by natural disasters (flood,
fire, earthquake, lighting strike, typhoon etc.,); (e) damage caused by human
misuse (lost, accident, abuse, misuse or other external causes); (f) damage
caused by operating the product outside the permitted or intended uses
described by j5create; (g) damage caused by service (including upgrades and
expansions) performed by anyone who is not a representative of j5create or a
j5create Authorized Service Provider; (h) a product or part that has been
modified to alter functionality or capability without the written permission of
j5create; or (i) if any j5create serial number on the product has been removed
or defaced. If such a situation occurs, j5create will calculate the cost of
materials and repair for your reference. This warranty is given by j5create in
lieu of any other warranties expressed or implied.
■ The User Manual
Contains detailed instructions and a troubleshooting section, many common
issues can be easily resolved by reading the user manual.
■ Online Support
Please visit the j5create website (www.j5create.com) to find the latest software
for your device. If you are still experiencing issues, you can submit a trouble
ticket through our j5 web support. Your ticket will be responded to within 24
hours.
■ Telephone Support
Please call us @ +1-888-689-4088 and one of our support technicians will be
very happy to assist you.We stand behind our products and it is our goal to
provide you with world class support.
● Regulatory Compliance : FCC / CE / BSMI / NCC
● Reglas de Conformidad : FCC / CE / BSMI / NCC
● Regulatorische Erfüllung : FCC / CE / BSMI / NCC
● Conformité réglementaire : FCC / CE / BSMI / NCC
■ Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
You are cautioned that any changes or modifications to this product not
explicitly approved by the manufacturer in writing could void the user's authority
to operate the equipment and any assurances of Safety or Performance, and
could result in violation of Part 15 of the FCC Rules.
■ FCC Radiation Exposure Statement
● This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
● This equipment should be installed and operated with a minimun distance of
20 cm between the radiator and your body.
■ NCC警語
● 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能。
● 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立
即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線
電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之
干擾。
Position On : Allume le processeur audio et amplificateur.
Position Off : Eteint le processeur audio et amplificateur.
* Port de Chargement est encore disponible pour le
chargement.
Avec un design révolutionnaire, la Station d’Acceuil Audio 2.1 de j5create
vous donne un son de haute qualité en plus d’un support qui vous permet
de positionner votre tablette/ordinateur portable à plusieurs angles. Le
JSS800 possède deux hauts parleurs à mi- amplitude, deux tweeters, et un
caisson de basse indépendant. Elle contient aussi quatre ports d’input :
AOA, USB type-C, Bluetooth, et AUX. Un port d’alimentation supplémen-
taire fournit un chargement jusqu’à 1.5 Amps.
Boutton On/Off
1 2 3 4 5 6 7 8
Tournez à droite pour augmenter ou à gauche
pour baisser.
Appuyez pour mettre en silence.
Ce port de chargement soutient les appareils
Android et Apple jusqu’à 1.5 AMP.
Indicateur de charge du système
Allumé : La prise DC est branché et fonctionne
Eteint : La prise DC est débranchée.
Branchez pour alimentation du système.
910 11 12 13
Caractéristiques
Application
Spécifications
Côté Droit
Côté Arrière
Côté Gauche
10. Bouton
effets sonores
11. Port de
Chargement
12. LED Alimentation
13. Prise de
courant DC
9. Réglage du volume
sonore/silence
Pour Ordinateur Portable
Pour Tablette
Pour Smart Phone
Francais
AUX IN
Type de connecteur : Prise Stéréo 3.5 mm
Bluetooth
Version : Bluetooth 3.0 +EDR
Profile : A2DP , AVRCP
Sortie d’Alimentation RF : Classe 2
Portée de Communication Maximale : 10 mètres / 33 pds
(Sans interférence)
Fréquence d'échantillonnage : 48K / 44.1 KHz
USB Audio
Type de Connecteur : USB 2.0 type-C
Fréquence d'échantillonnage : 48K
OS Soutenu : Win XP / 7 / 8 / 8.1 / 10 ,
Mac OS X 10.6~10.11 ,
Linux
AOA Audio (Android Open Accessory)
Type de Connecteur : USB 2.0 type A
Fréquence d'échantillonnage : 48K
OS Soutenu : Android 4.2 et plus
Enceinte
Chaine Gauche / Droite :
Haut-parleur 5W, 3.6cm (1.4 pouces) x 2
Haut-parleur à grande portée 5W, 5.7cm (2.25 pouces) x 2
Canal Woofer : Woofer 10W, 6.8cm (2.6 pouces) x 1
Amplificateur
Type d’amplificateur : Class D
Puissance maximale d’alimentation (RMS) : 30W
Délai de réponse : 80Hz ~ 20KHz
Chargement USB
Type de connecteur : USB 2.0 Type A
Classement d’alimentation : 5V / 1.5A Changement de Mode
Système principale
Alimentation : AC 100 ~ 240V, 50 ~ 60Hz
Puissance input : DC 19V / 1.89A
Consommation : 30 W
Dimensions(La x Pr x Hau) : 12.9 × 11.4 × 3.5 inch (replié)
12.9 × 12.7 × 63.8 inch (étendu)
328 × 290 × 89 mm (replié)
328 × 322 × 162 mm (étendu)
Poids : 5.18 livres (2.35 kg)
Température de fonctionnement : 0 ~ 45°C
2. LED AOA Indicateur de source input AOA.
Allumé : Connexion AOA établi.
Clignotant : Essai de connexion ou connexion non
établi.
3. Connecteur AOA Connectez votre appareil Android avec un câble
USB.
*
Android 4.2 ou plus est requis.
* Arrêtez la lecture avant de connecter.
5. Connecteur MAC/PC
(type-c)
Connectez votre MAC Book ou PC avec un câble
USB.
8. LED Bluetooth Indicateur source input Bluetooth.
Allumé : Connexion Bluetooth établi.
Clignotant : Connexion disponible.
6. LED AUX Indicateur source input AUX.
7. Connecteur AUX Connectez à votre appareil de source 3.5mm.
4. LED MAC/PC Indicateur source input MAC / PC.
Utilisez ce bouton pour changer la source d’input.
Appuyez et maintenez enfoncé le bouton pendant
5 secondes pour déconnecter Bluetooth.
1. Changement de Mode
Trois modes
1. Bass
2. Normale
3. Son 3D
j5create’s 2.1聲道多媒體喇叭基座有著革命性的設計，不僅僅
擁有高品質的聲音，更結合了多角度變化的平板 / 筆電底座功
能。JSS800擁有兩顆高音、兩顆中音以及1顆低音單體，並提供
藍芽、AUX、USB Audio(Type-C)和AOA等4種音源輸入，且額外
提供1.5安培的USB充電埠。
電源開關
1 2 3 4 5 6 7 8
向右撥動→使音量增大
向左撥動→使音量減小
按壓→靜音
提供1.5安培充電給您的安卓及蘋果裝置
恆亮 : 電源接頭已接入且供電中
恆滅 : 電源接頭無接入或無供電
連接電源供應器
910 11 12 13
特色
應用
規格
右側
背部
左側
10. 聲音效果切換
11. 充電連接埠
12. 電源指示燈
13. 電源連接埠
9. 音量控制/靜音開關
搭配筆記型電腦
搭配平板
搭配智慧型手機
繁中文
類比輸入
連接器 : 3.5mm立體聲插孔
藍芽
版本 : Bluetooth 3.0+EDR
支援協定 : A2DP, AVRCP
無線輸出 : Class 2
最大通訊距離 : 10公尺 / 33英呎(無障礙物)
支援播放取樣率 : 48K / 44.1KHz
USB 音源
連接器 : USB 2.0 C型
支援播放取樣率 : 48K
支援作業系統 : Win XP / 7 / 8 / 8.1 / 10 ,
Mac OS X 10.6 ~ 10.11 ,
Linux
AOA 音源 (Android open accessory)
連接器 : USB 2.0 A 型
支援播放取樣率 : 48K
支援作業系統 : Android 4.2以上
驅動單體
左右聲道 : 3.6公分(1.4英吋)5W高音單體 × 2
5.7公分(2.25英吋)5W全音域單體 × 2
低音聲道 : 6.8公分(2.6英吋)10W低音單體 × 1
擴大機
擴大器類型 : Class D
最大輸出功率(RMS) : 30W
頻率範圍 : 80Hz ~ 20KHz
USB 充電功能
連接器 : USB 2.0 A型
額定輸出 : 5V / 1.5A
主機系統
變壓器 : AC 100 ~ 240V, 50 ~ 60Hz
輸入電源 : DC 19V / 1.89A
功率消耗 : 30 W
尺寸(寬×深×高) : 12.9 × 11.4 × 3.5 英吋 (收起)
12.9 × 12.7 × 63.8 英吋 (展開)
328 × 290 × 89毫米 (收起)
328 × 322 × 162毫米 (展開)
重量 : 2350 克 (2.35 公斤)
操作溫度 : 0 ~ 45°C
2. AOA指示燈
3. AOA連接埠
5.
MAC/PC連接埠
( Type-C )
8. 藍芽指示燈
6. AUX指示燈
7. AUX連接埠
4.
MAC/PC指示燈
表示音源切換至AOA模式
恆亮 : AOA連線成功
閃爍 : 嘗試連線或連線失敗
使用USB線連接您的安卓裝置
* 需要安卓版本4.2以上
* 連接前請停止所有播放動作
使用USB線連接您的MAC或是Windows電腦
表示音源切換至藍芽模式
恆亮 : 藍芽連線成功
閃爍 : 等待連線中
表示音源切換至AUX模式
使用3.5mm音源線連接您的類比音源輸出裝置
表示音源切換至MAC/PC(USB Audio)模式
按壓一次 : 依左圖順序切換輸入音源
按壓五秒 : 可將藍芽中斷連線
1. 音源選擇
1. 低音減弱模式
2. 一般模式
3. 3D環繞模式
D33J08
FCC ID: 2AD37JSS800CCAF16LP0410T6
藍芽
撥至 : 開啟電源
撥至 : 關閉電源
* 電源關閉時，充電埠仍可使用
建檔日期：
修改日期：2016-03-16
製作版本：V1-B版
單 號：
客戶名稱：j5create
產品名稱：JSS800
需求內容：QIG
尺 寸：420X297mm
材 質：70p模造紙，
黑白雙面印刷
成型尺寸
