KAIJET TECHNOLOGY JUPW2W mightywave Wood Stand 10W 2-Coil Wireless Fast Charger User Manual

KAIJET TECHNOLOGY INTERNATIONAL CORPORATION mightywave Wood Stand 10W 2-Coil Wireless Fast Charger

User manual

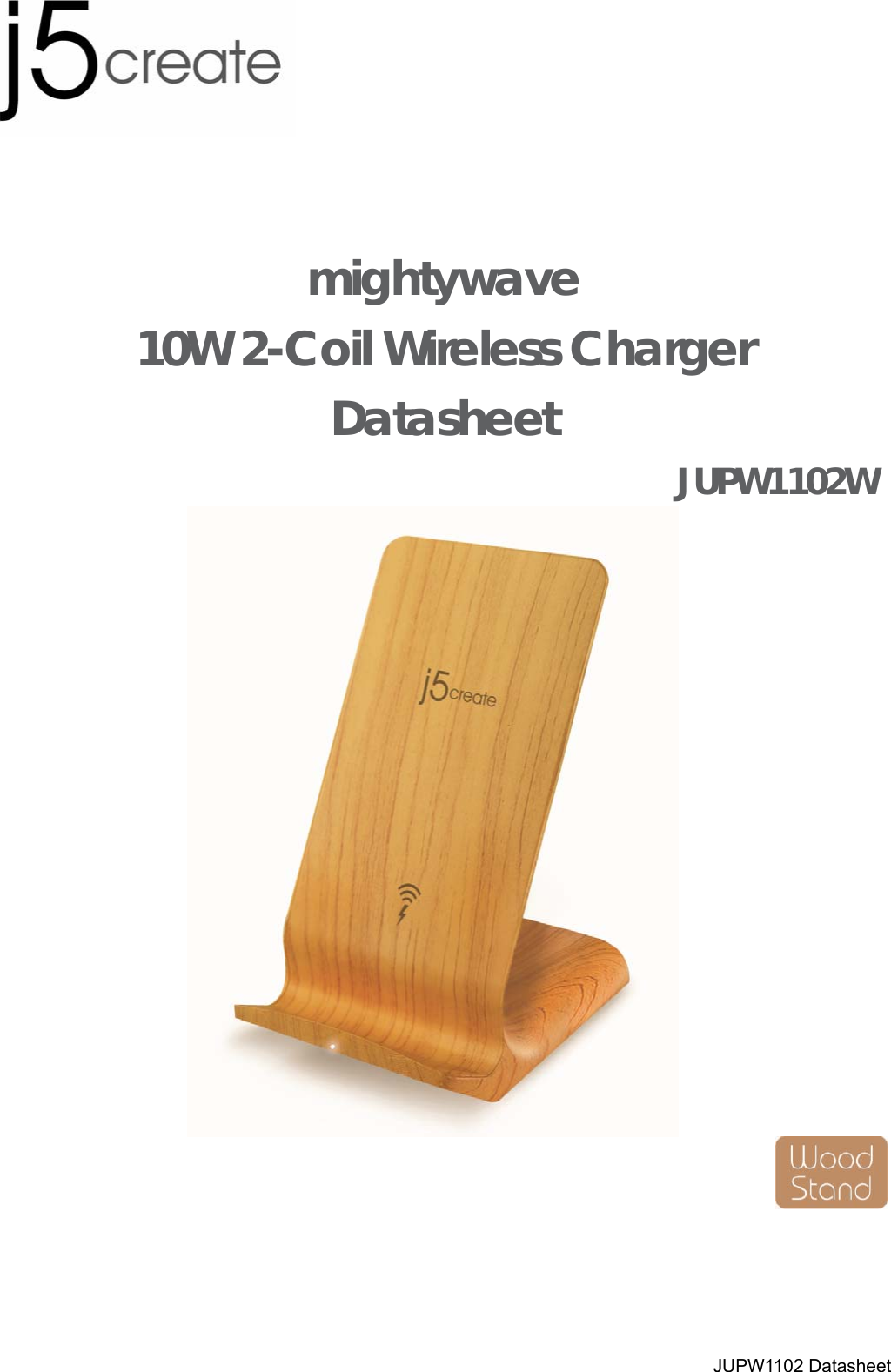

JUPW1102 Datasheet mightywave 10W 2-Coil Wireless Charger Datasheet JUPW1102W

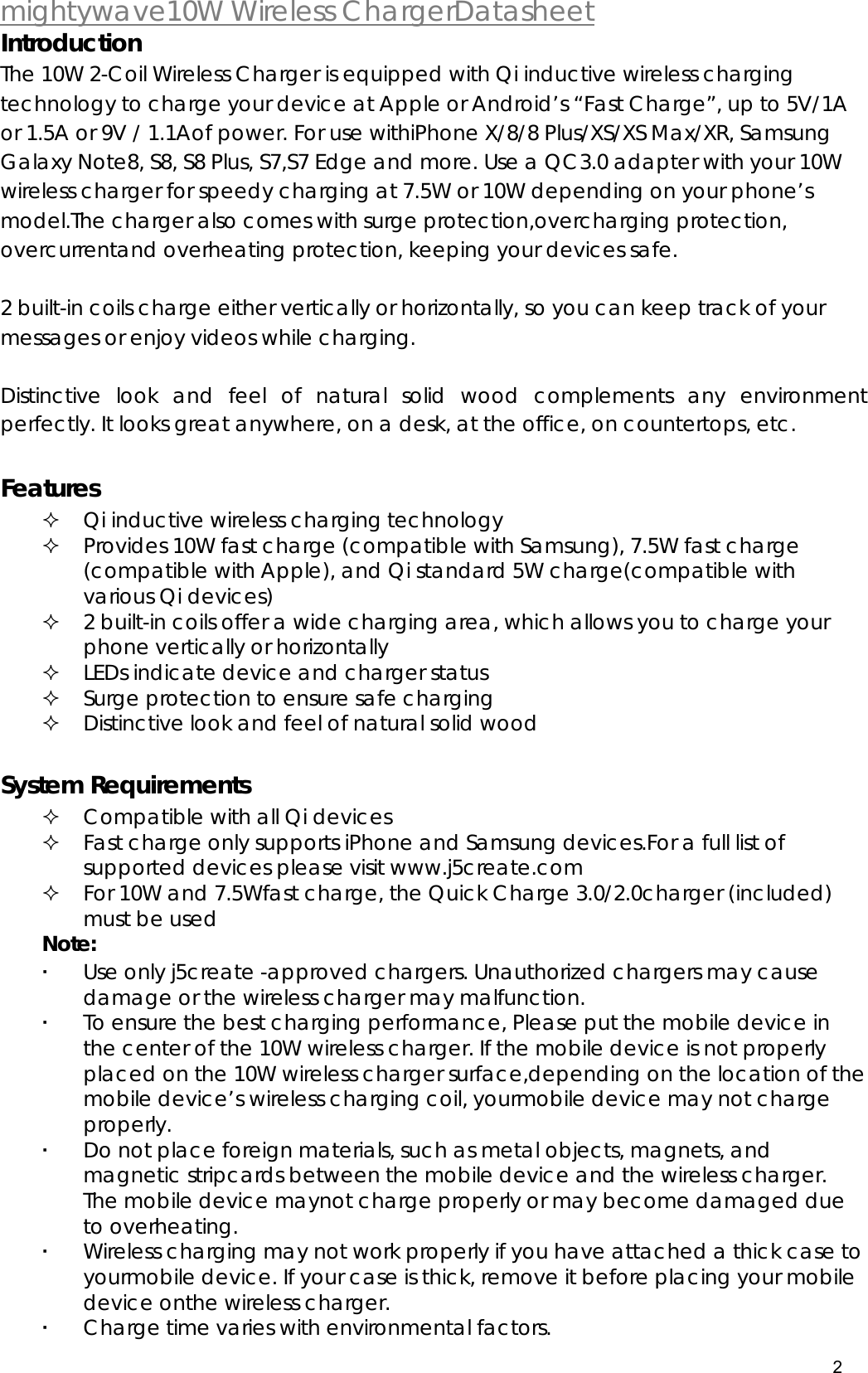

mightywave10W Wireless ChargerDatasheet 2 Introduction The 10W 2-Coil Wireless Charger is equipped with Qi inductive wireless charging technology to charge your device at Apple or Android’s “Fast Charge”, up to 5V/1A or 1.5A or 9V / 1.1Aof power. For use withiPhone X/8/8 Plus/XS/XS Max/XR, Samsung Galaxy Note8, S8, S8 Plus, S7,S7 Edge and more. Use a QC3.0 adapter with your 10W wireless charger for speedy charging at 7.5W or 10W depending on your phone’s model.The charger also comes with surge protection,overcharging protection, overcurrentand overheating protection, keeping your devices safe. 2 built-in coils charge either vertically or horizontally, so you can keep track of your messages or enjoy videos while charging. Distinctive look and feel of natural solid wood complements any environment perfectly. It looks great anywhere, on a desk, at the office, on countertops, etc. Features  Qi inductive wireless charging technology  Provides 10W fast charge (compatible with Samsung), 7.5W fast charge (compatible with Apple), and Qi standard 5W charge(compatible with various Qi devices)  2 built-in coils offer a wide charging area, which allows you to charge your phone vertically or horizontally  LEDs indicate device and charger status  Surge protection to ensure safe charging  Distinctive look and feel of natural solid wood System Requirements  Compatible with all Qi devices  Fast charge only supports iPhone and Samsung devices.For a full list of supported devices please visit www.j5create.com  For 10W and 7.5Wfast charge, the Quick Charge 3.0/2.0charger (included) must be used Note:  Use only j5create -approved chargers. Unauthorized chargers may cause damage or the wireless charger may malfunction.  To ensure the best charging performance, Please put the mobile device in the center of the 10W wireless charger. If the mobile device is not properly placed on the 10W wireless charger surface,depending on the location of the mobile device’s wireless charging coil, yourmobile device may not charge properly.  Do not place foreign materials, such as metal objects, magnets, and magnetic stripcards between the mobile device and the wireless charger. The mobile device maynot charge properly or may become damaged due to overheating.  Wireless charging may not work properly if you have attached a thick case to yourmobile device. If your case is thick, remove it before placing your mobile device onthe wireless charger.  Charge time varies with environmental factors.

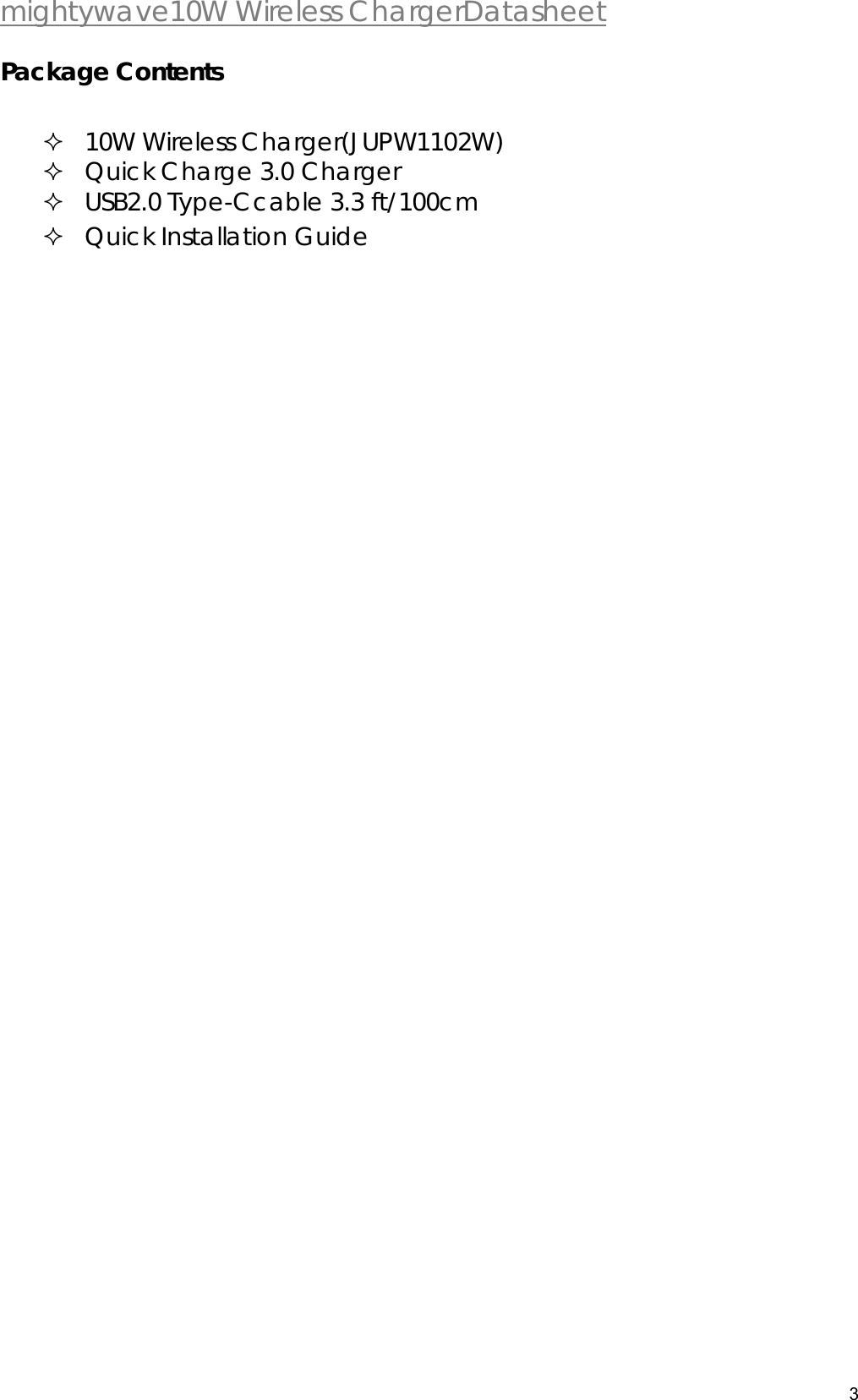

mightywave10W Wireless ChargerDatasheet 3 Package Contents  10W Wireless Charger(JUPW1102W)  Quick Charge 3.0 Charger  USB2.0 Type-Ccable 3.3 ft/100cm  Quick Installation Guide

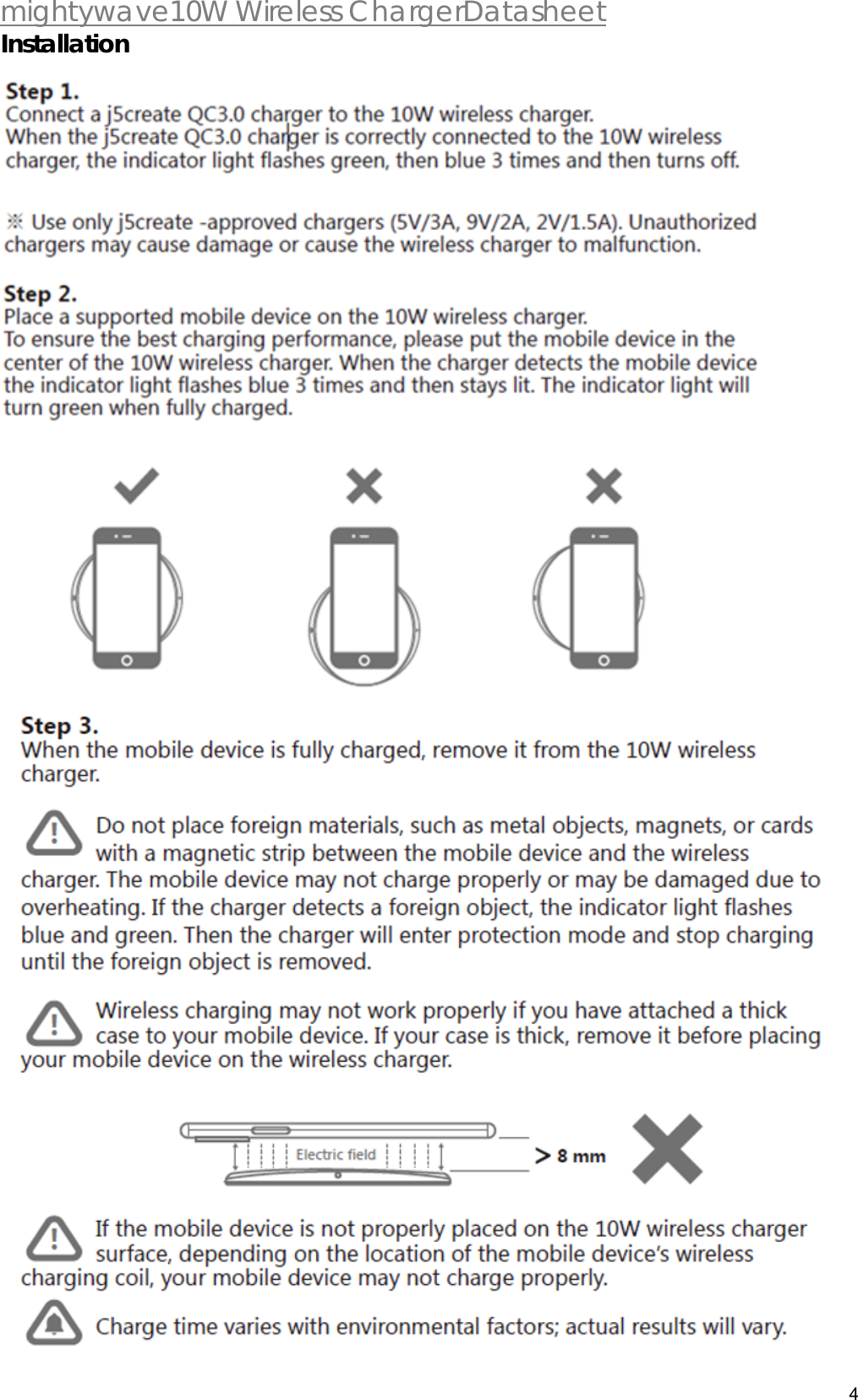

mightywave10W Wireless ChargerDatasheet 4 Installation

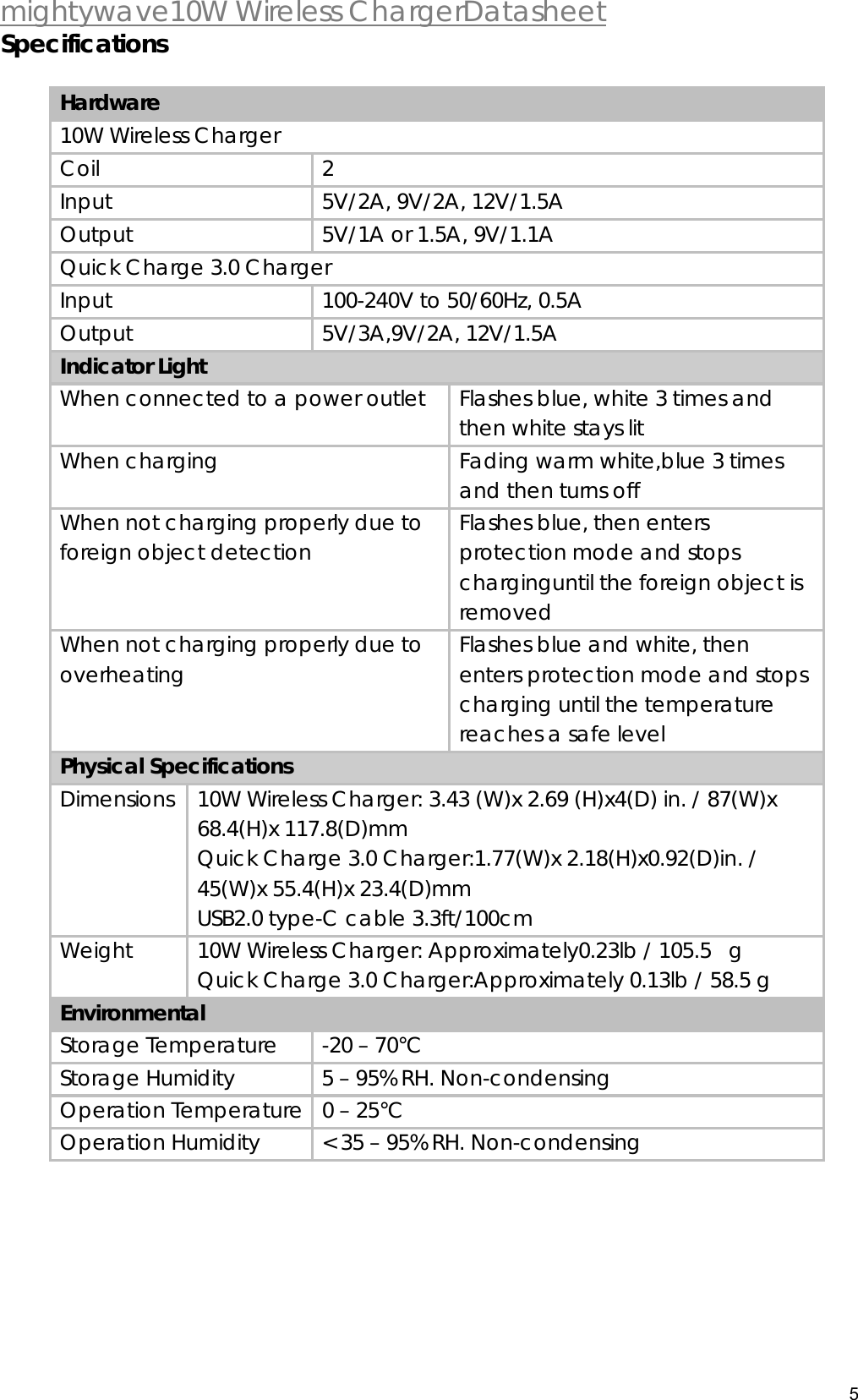

mightywave10W Wireless ChargerDatasheet 5 Specifications Hardware 10W Wireless Charger Coil 2 Input 5V/2A, 9V/2A, 12V/1.5A Output 5V/1A or 1.5A, 9V/1.1A Quick Charge 3.0 Charger Input 100-240V to 50/60Hz, 0.5A Output 5V/3A,9V/2A, 12V/1.5A Indicator Light When connected to a power outlet Flashes blue, white 3 times and then white stays lit When charging Fading warm white,blue 3 times and then turns off When not charging properly due to foreign object detection Flashes blue, then enters protection mode and stops charginguntil the foreign object is removed When not charging properly due to overheating Flashes blue and white, then enters protection mode and stops charging until the temperature reaches a safe level Physical Specifications Dimensions 10W Wireless Charger: 3.43 (W)x 2.69 (H)x4(D) in. / 87(W)x 68.4(H)x 117.8(D)mm Quick Charge 3.0 Charger:1.77(W)x 2.18(H)x0.92(D)in. / 45(W)x 55.4(H)x 23.4(D)mm USB2.0 type-C cable 3.3ft/100cm Weight 10W Wireless Charger: Approximately0.23lb / 105.5 g Quick Charge 3.0 Charger:Approximately 0.13lb / 58.5 g Environmental Storage Temperature -20 – 70°C Storage Humidity 5 – 95% RH. Non-condensing Operation Temperature 0 – 25°C Operation Humidity < 35 – 95% RH. Non-condensing

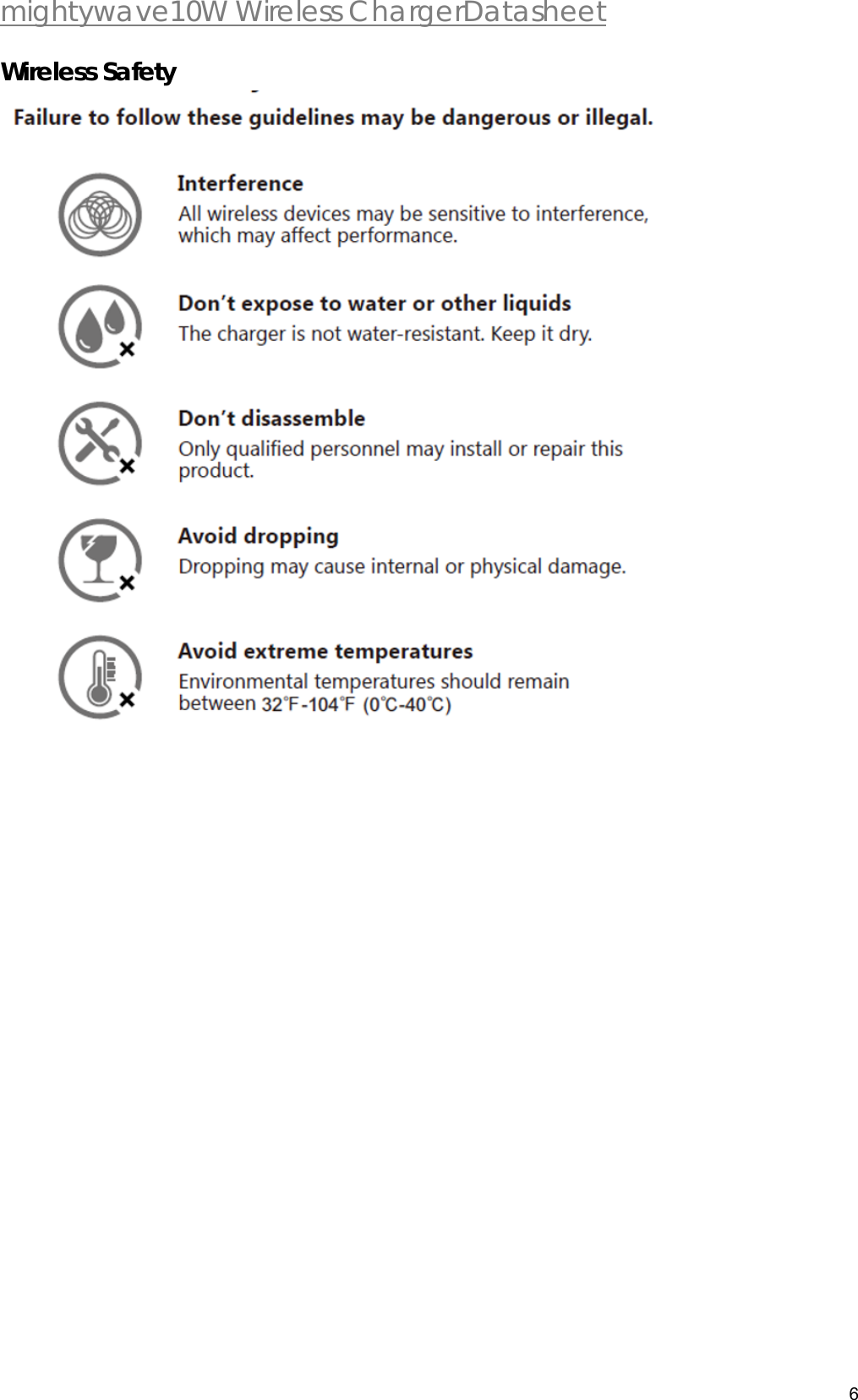

mightywave10W Wireless ChargerDatasheet 6 Wireless Safety

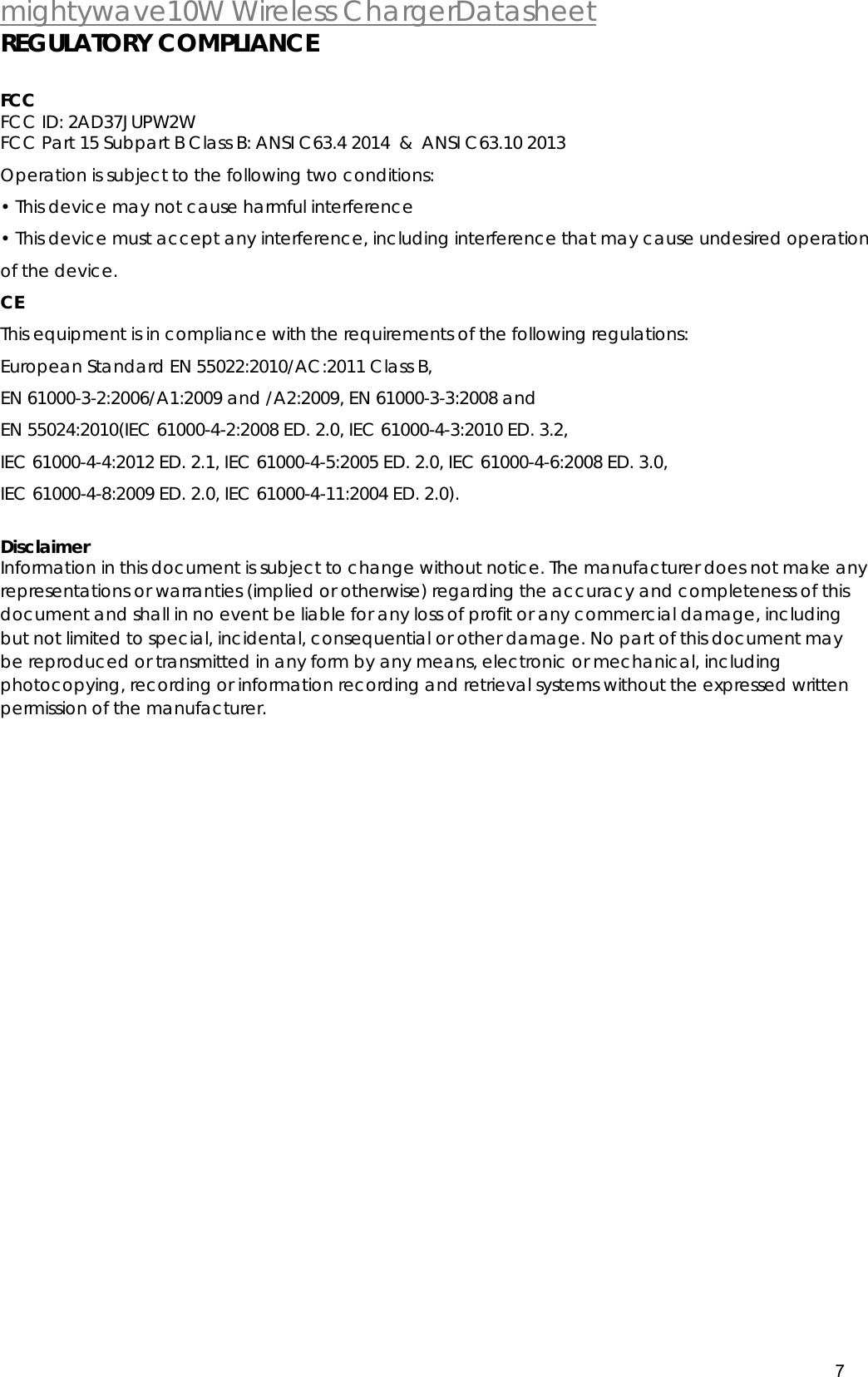

mightywave10W Wireless ChargerDatasheet 7 REGULATORY COMPLIANCE FCC FCC ID: 2AD37JUPW2W FCC Part 15 Subpart B Class B: ANSI C63.4 2014 & ANSI C63.10 2013 Operation is subject to the following two conditions: • This device may not cause harmful interference • This device must accept any interference, including interference that may cause undesired operation of the device. CE This equipment is in compliance with the requirements of the following regulations: European Standard EN 55022:2010/AC:2011 Class B, EN 61000-3-2:2006/A1:2009 and /A2:2009, EN 61000-3-3:2008 and EN 55024:2010(IEC 61000-4-2:2008 ED. 2.0, IEC 61000-4-3:2010 ED. 3.2, IEC 61000-4-4:2012 ED. 2.1, IEC 61000-4-5:2005 ED. 2.0, IEC 61000-4-6:2008 ED. 3.0, IEC 61000-4-8:2009 ED. 2.0, IEC 61000-4-11:2004 ED. 2.0). Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential or other damage. No part of this document may be reproduced or transmitted in any form by any means, electronic or mechanical, including photocopying, recording or information recording and retrieval systems without the expressed written permission of the manufacturer.

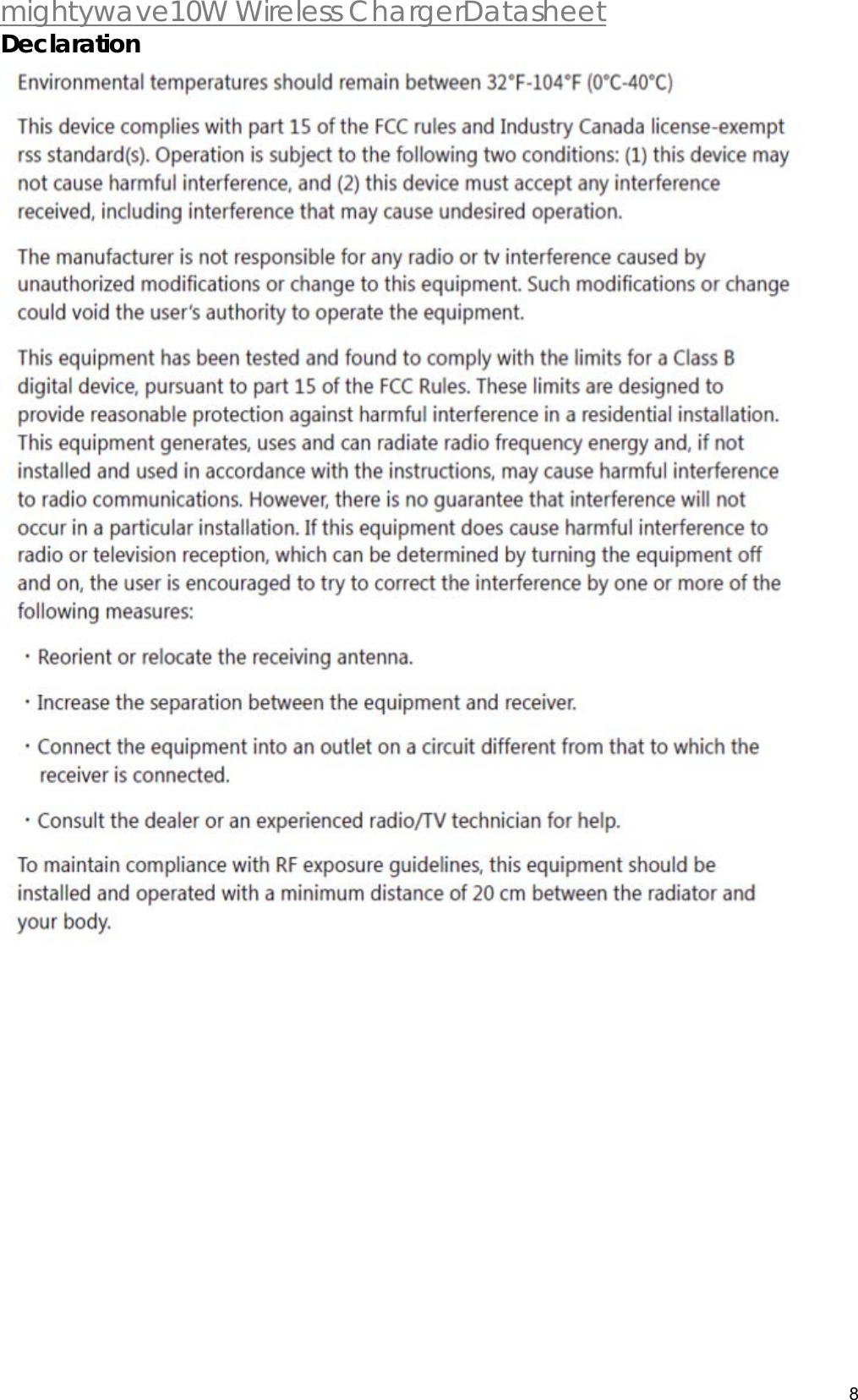

mightywave10W Wireless ChargerDatasheet 8 Declaration

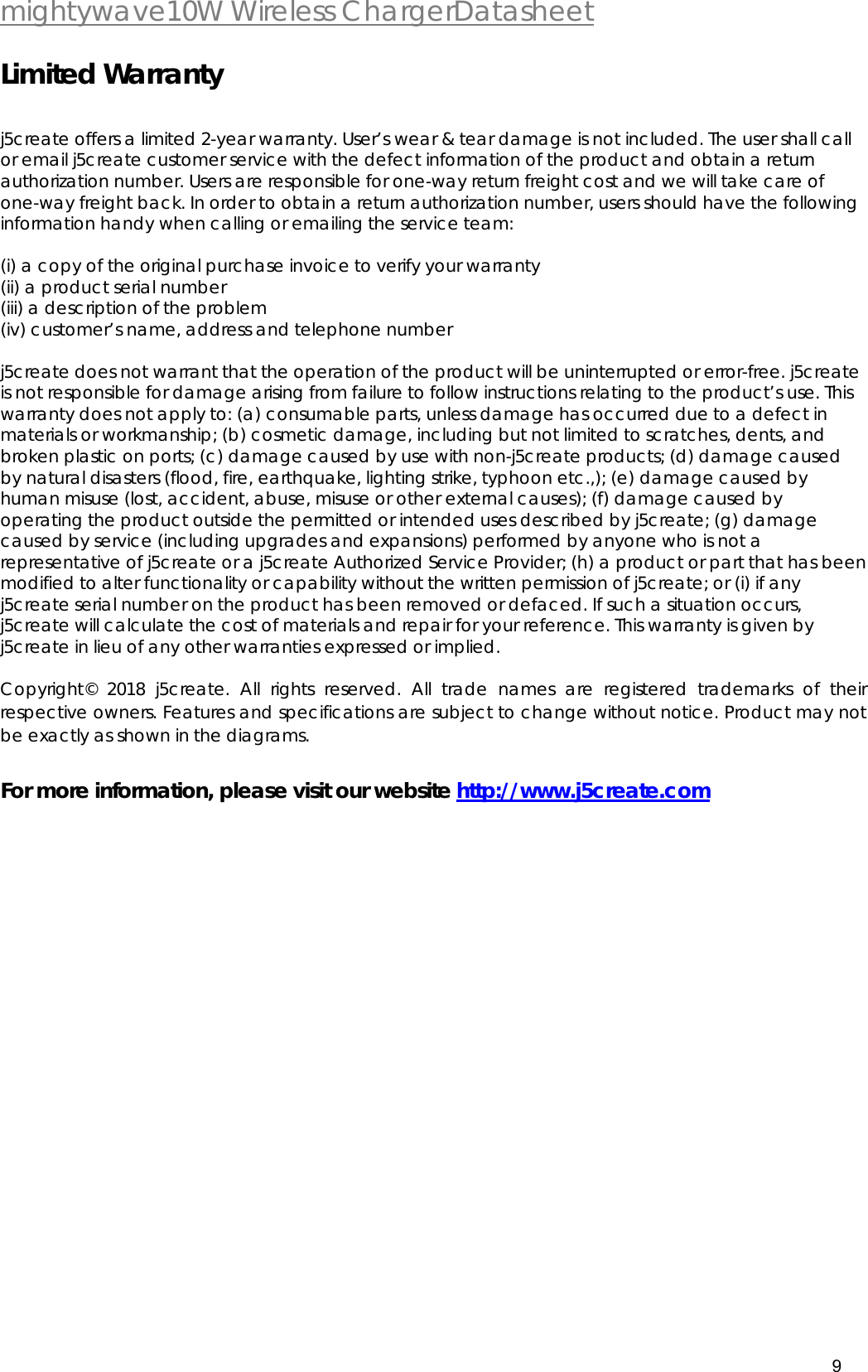

mightywave10W Wireless ChargerDatasheet 9 Limited Warranty j5create offers a limited 2-year warranty. User’s wear & tear damage is not included. The user shall call or email j5create customer service with the defect information of the product and obtain a return authorization number. Users are responsible for one-way return freight cost and we will take care of one-way freight back. In order to obtain a return authorization number, users should have the following information handy when calling or emailing the service team: (i) a copy of the original purchase invoice to verify your warranty (ii) a product serial number (iii) a description of the problem (iv) customer’s name, address and telephone number j5create does not warrant that the operation of the product will be uninterrupted or error-free. j5create is not responsible for damage arising from failure to follow instructions relating to the product’s use. This warranty does not apply to: (a) consumable parts, unless damage has occurred due to a defect in materials or workmanship; (b) cosmetic damage, including but not limited to scratches, dents, and broken plastic on ports; (c) damage caused by use with non-j5create products; (d) damage caused by natural disasters (flood, fire, earthquake, lighting strike, typhoon etc.,); (e) damage caused by human misuse (lost, accident, abuse, misuse or other external causes); (f) damage caused by operating the product outside the permitted or intended uses described by j5create; (g) damage caused by service (including upgrades and expansions) performed by anyone who is not a representative of j5create or a j5create Authorized Service Provider; (h) a product or part that has been modified to alter functionality or capability without the written permission of j5create; or (i) if any j5create serial number on the product has been removed or defaced. If such a situation occurs, j5create will calculate the cost of materials and repair for your reference. This warranty is given by j5create in lieu of any other warranties expressed or implied. Copyright© 2018 j5create. All rights reserved. All trade names are registered trademarks of their respective owners. Features and specifications are subject to change without notice. Product may not be exactly as shown in the diagrams. For more information, please visit our website http://www.j5create.com
