Internal Technical Documentation
RFID-Module Introduction
Kemro K2
XE 020/C RFID-Module
Internal Technical Documentation V 1.0
Introduction XE 020/C
List of changes
Version
changed
from / to
Date
Description
Modified
by
1.0
10-2015
Created (derived from XE 020/A)
dbg
RFID-Module Introduction
Contents
1 Introduction ................................................................................................................... 5
1.1 Purpose of the document ..................................................................................... 5
1.2 Audience and prerequisites ................................................................................. 5
1.3 Intended use ........................................................................................................ 5
1.4 Notes on this document ....................................................................................... 6
1.4.1 Contents of document .............................................................................. 6
1.4.2 Not contained in this document ................................................................ 6
1.5 Documentation for further reading ....................................................................... 7
2 Safety notes .................................................................................................................. 8
2.1 Representation .................................................................................................... 8
3 Product overview .......................................................................................................... 9
3.1 Summary ............................................................................................................. 9
3.1.1 Range and detection .............................................................................. 10
3.2 RFID module before installation ......................................................................... 10
3.3 RFID module after installation ............................................................................ 11
4 Assembly and installation notes ................................................................................ 12
4.1 Space requirements ........................................................................................... 12
4.2 Installing the RFID module ................................................................................. 12
5 Connections and wiring ............................................................................................. 14
5.1 EMC and wiring guidelines ................................................................................ 14
5.1.1 Personal safety ...................................................................................... 14
5.1.2 Why EMC-aware wiring? ........................................................................ 14
5.1.3 Which EMC measures must be taken? ................................................... 14
5.2 Power supply ..................................................................................................... 14
5.3 XE 020/C module interfaces .............................................................................. 15
5.3.1 Internal Connector for coaxial antenna cable.......................................... 15
5.3.2 Internal Connector for status LED .......................................................... 15
5.3.3 XE 020/C module RJ45 socket ............................................................... 15
5.4 Cables ............................................................................................................... 16
5.4.1 Coaxial antenna cable ............................................................................ 16
5.4.2 Connector cable for RFID status LED..................................................... 16
5.4.3 Connector cable for RFID module / OP 3xx ............................................ 16
6 Configuration .............................................................................................................. 17
6.1 RFID module DIP switch .................................................................................... 17
7 Status display.............................................................................................................. 18
7.1 RFID status LED ................................................................................................ 18
7.1.1 Boot-time behaviour ............................................................................... 18
8 Maintenance and repair notes .................................................................................... 19
Introduction XE 020/C
8.1 Maintenance ...................................................................................................... 19
8.2 Repair ................................................................................................................ 19
8.2.1 Packaging and shipping ......................................................................... 19
8.3 Waste disposal .................................................................................................. 19
9 Accessories and spares ............................................................................................. 20
10 Technical specification ............................................................................................... 21
11 Relevant EC directives and applicable standards .................................................... 22
11.1 EC directives ..................................................................................................... 22
11.2 Standards .......................................................................................................... 22
11.2.1 Validating conformance to the R&TTE directive .................................... 22
11.2.2 Other standards .................................................................................... 22
11.2.3 USA standards ..................................................................................... 22
RFID-Module Introduction
1 Introduction
1.1 Purpose of the document
This planning manual describes the structure, installation and connection of
the XE 020/C RFID (Radio Frequency Identification) module.
The XE 020/C is only intended for use in conjunction with an operating
panel from KEBA. The application and functionality of the RFID module is
the same for each operating panel.
1.2 Audience and prerequisites
The planning manual is geared towards those who are using or intend to
deploy an operating panel with RFID module.
Only electrical technicians who are qualified to the VDE 1000-10 standard
are permitted to install and maintain the operating panel.
This means personnel who:
can evaluate the work to be carried out and recognise the possible
hazards based on their technical training, knowledge and experience
plus their expertise in the applicable standards.
have a level of knowledge equivalent to that obtained through
professional training as a result of several years experience working in
a similar field.
1.3 Intended use
The intended use of the XE 020/C module includes deployment in KEBA
operating panels.
The XE 020/C module is used in conjunction with an RFID card for
contactless logon and logoff (as per ISO 15693) and is employed for user
identification. This replaces the login of a user with username and
password.
The RFID module may not be used to fulfill protection requirements in the
area of personal safety to prevent a malfunction compromising personal
safety.
Introduction XE 020/C
1.4 Notes on this document
1.4.1 Contents of document
RFID module description
Assembly and installation notes
Description of the connections and wiring including EMC measures
Description of the configuration
Description of the status display
Maintenance notes
Accessories
Technical specification
1.4.2 Not contained in this document
Operating panel description
(see “XE 020/C – RFID module – Project engineering manual V 1.00”)
RFID-Module Introduction
1.5 Documentation for further reading
Description
Target group
Project engineering manual of the KEBA
operating panel
● Project engineer
● Electrician
● Programmers
● Start-up operator
● Service technician
Safety notes XE 020/C
2 Safety notes
2.1 Representation
At various points in this manual you will see notes and precautionary warn-
ings regarding possible hazards. The symbols used have the following
meaning:
!
DANGER!
indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
!
WARNING!
indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury..
!
CAUTION!
means that if the corresponding safety measures are not taken a poten-
tially hazardous situation can occur which, if not avoided, may result in
property damage or slight bodily injury.
NOTICE
NOTICE used without the safety alert symbol indicates a potentially haz-
ardous situation which, if not avoided, may result in property damage.
This symbol reminds you of the possible consequences of touching
electrostatically sensitive components.
Information
Information on use of equipment and useful practical tips are identified by
the symbol "Information". "Information" do not contain any information that
draws attention to potentially dangerous or harmful functions.
RFID-Module Product overview
3 Product overview
3.1 Summary
The RFID card user must hold the RFID card close to the RFID antenna on
the front of the operating panel for identification.
If the user's RFID card was recognised, the LED on the front panel turns
green.
The RFID module can also supply the data captured from the RFID card,
e.g. so that it can be further processed by the kemro.view.standard
program on the KEBA control.

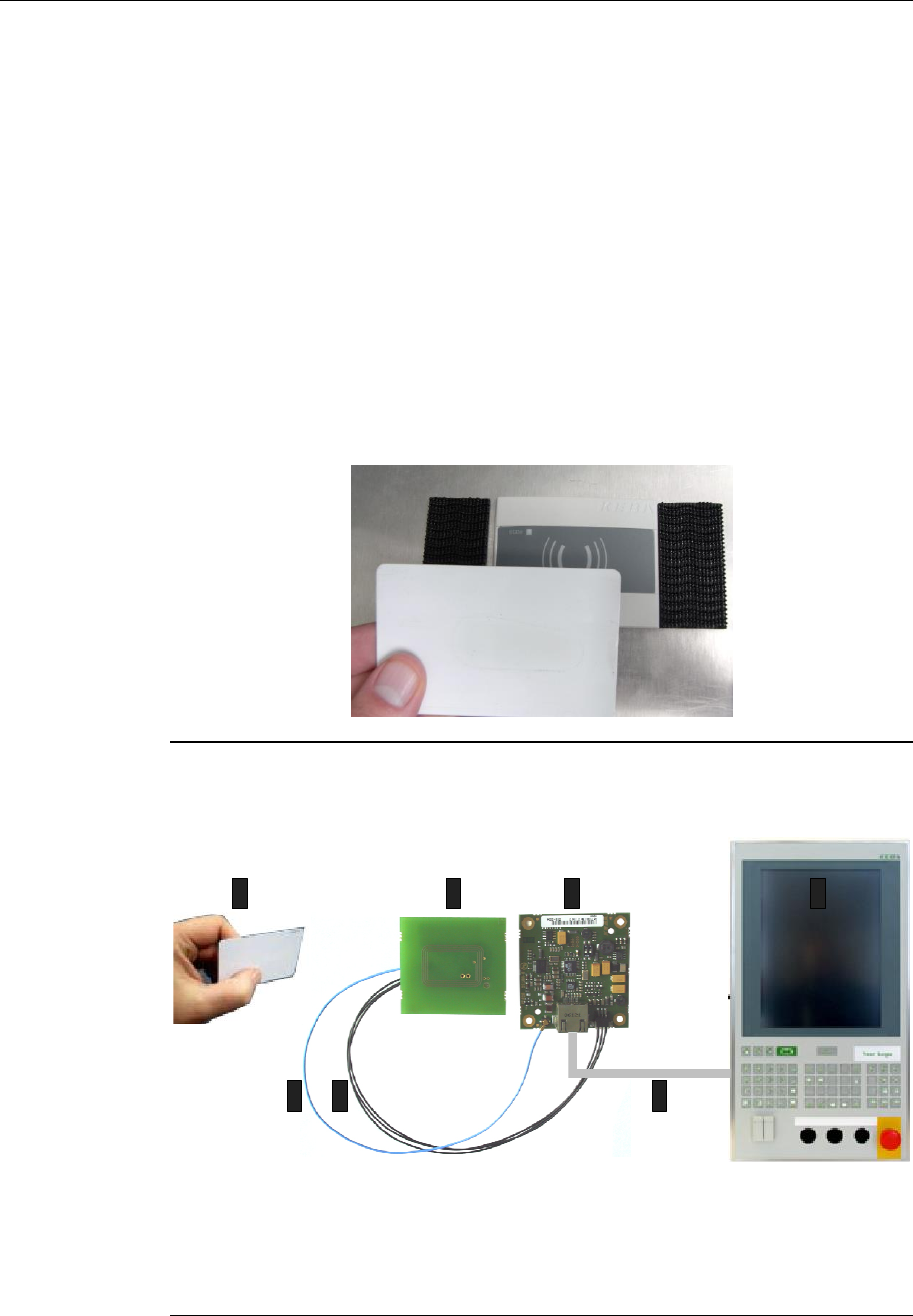

Contactless user identification with an RFID card (e.g. operating panel)
An RFID system comprises:
1 ...... RFID card
2 ...... Antenna
3 ...... RFID module (evaluation unit)
4 ...... Operating panel
5 ...... Coaxial antenna cable
6 ...... Connector cable for RFID status LED
7 ...... Connector cable for RFID module / OP 3xx
RFID system components
5 6 7
1 2 3 4
5 6 7
Product overview XE 020/C
3.1.1 Range and detection
The typical range for RFID card to XE 020/C antenna module is 30 mm for
the recommended RI-I02112A-03 RFID card (assuming an aluminium front
panel).
The card is recognised when the RFID LED on the front of the operating
panel turns green (for 3 secs) (refer to chapter “RFID status LED“).
There is no provision to detect multiple cards at the same time. If several
RFID cards are within range, either only one will be detected or this will
cause a detection error, in which case the RFID status LED will turn red.

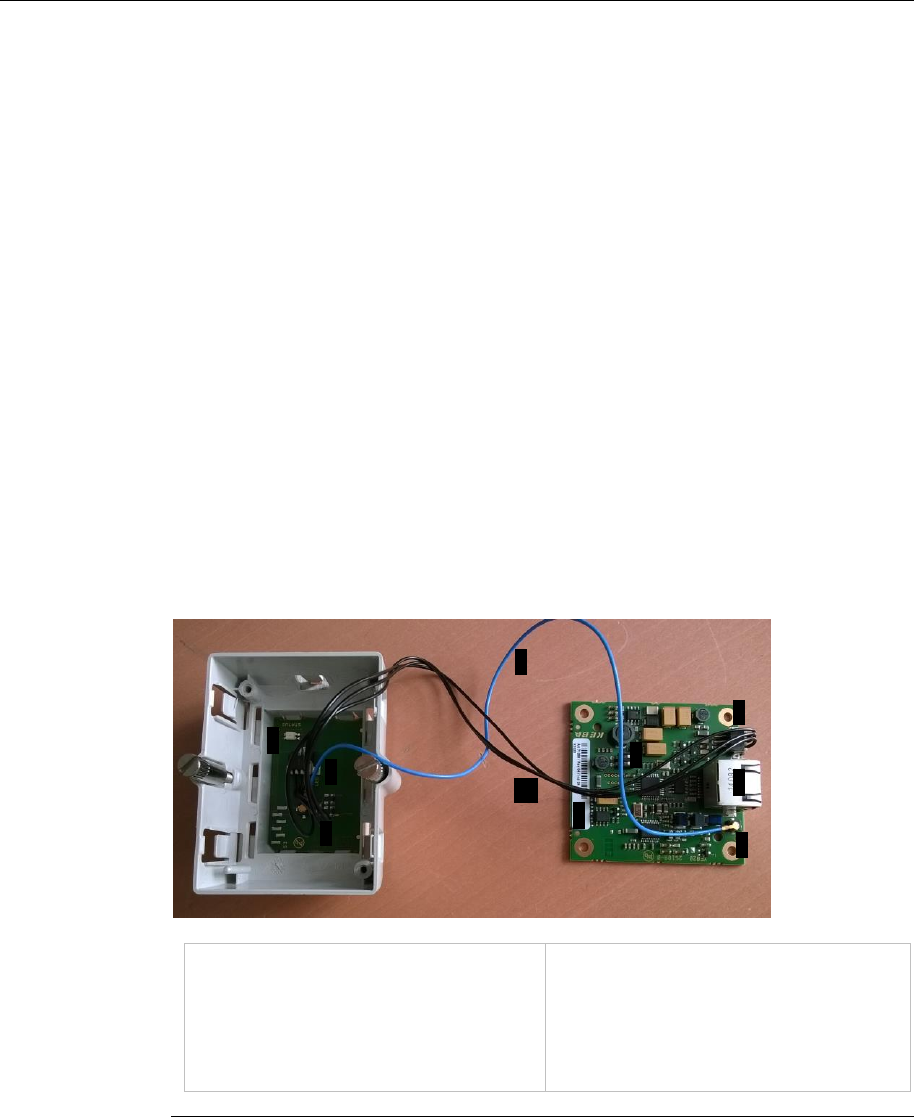

3.2 RFID module before installation
The RFID module consists of the following components:
Antenna module
1 ....... Connector for coaxial antenna cable
2 ....... Connector for LED cable
3 ....... RFID status LED
Cables
9 ....... Coaxial antenna cable
10 ..... Connector cable for RFID status LED
RFID module
4 ........ Connector for coaxial antenna cable
5 ........ Connector for LED cable
6 ........ RJ45 socket for shielded connection
cable between RFID module and OP 3xx
7 ........ DIP switch for address settings
8 ........ Model identification label
RFID module before installation
1
2
3
1
4
1
5
6
1
7
1
8
1
9
1
10
RFID-Module Product overview

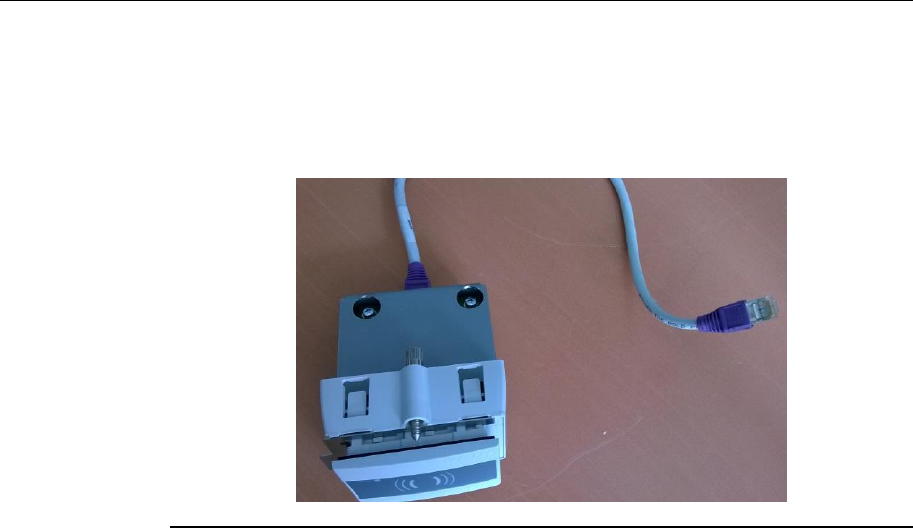

3.3 RFID module after installation
RFID module after installation
Assembly and installation notes XE 020/C
4 Assembly and installation notes

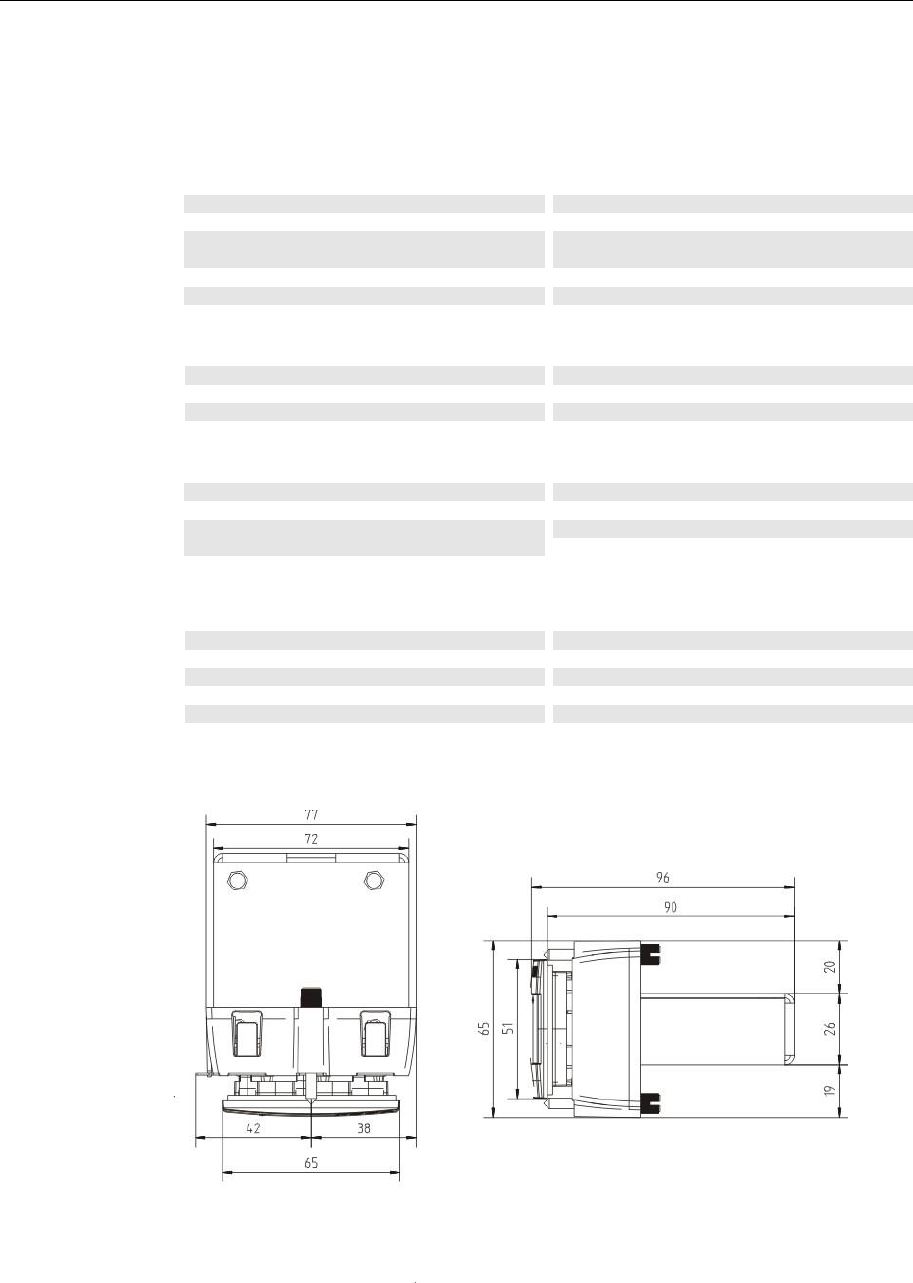

4.1 Space requirements
Please see the device dimensions for the space requirement to the rear (=
installation depth). The following dimensions are recommended for the
opening of the RFID module:

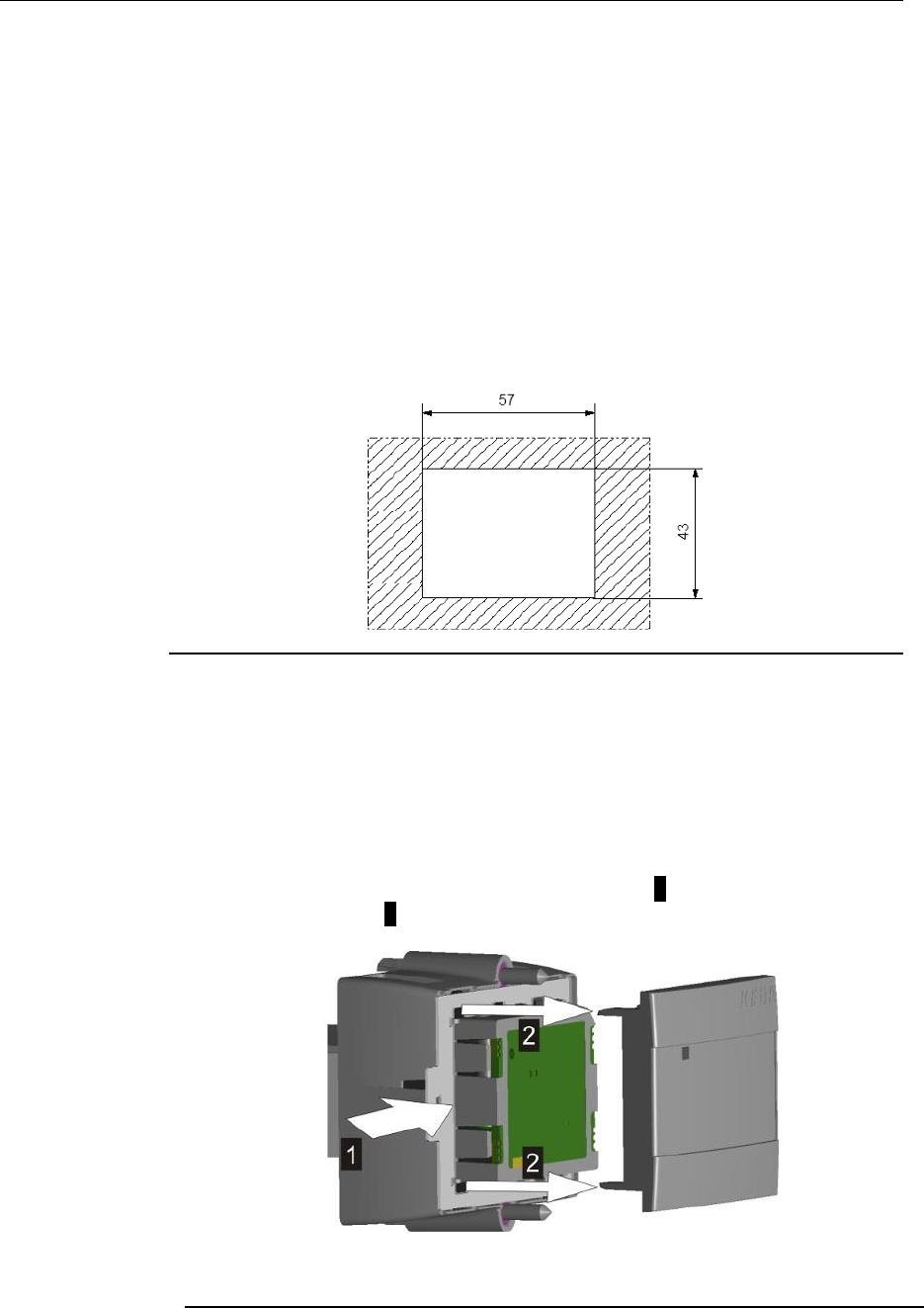

Recommended opening
4.2 Installing the RFID module
Prerequisites:
To mount the XE 020/C, proceed as follows:
1) Remove the front cover by pressing the clip (1) and re-
move the cover (2).
Removing the front cover
2) Fit the module (without the front cover) into the opening.
RFID-Module Assembly and installation notes
The clip for securing the front cover must be on the left-
hand side when viewed from the front.

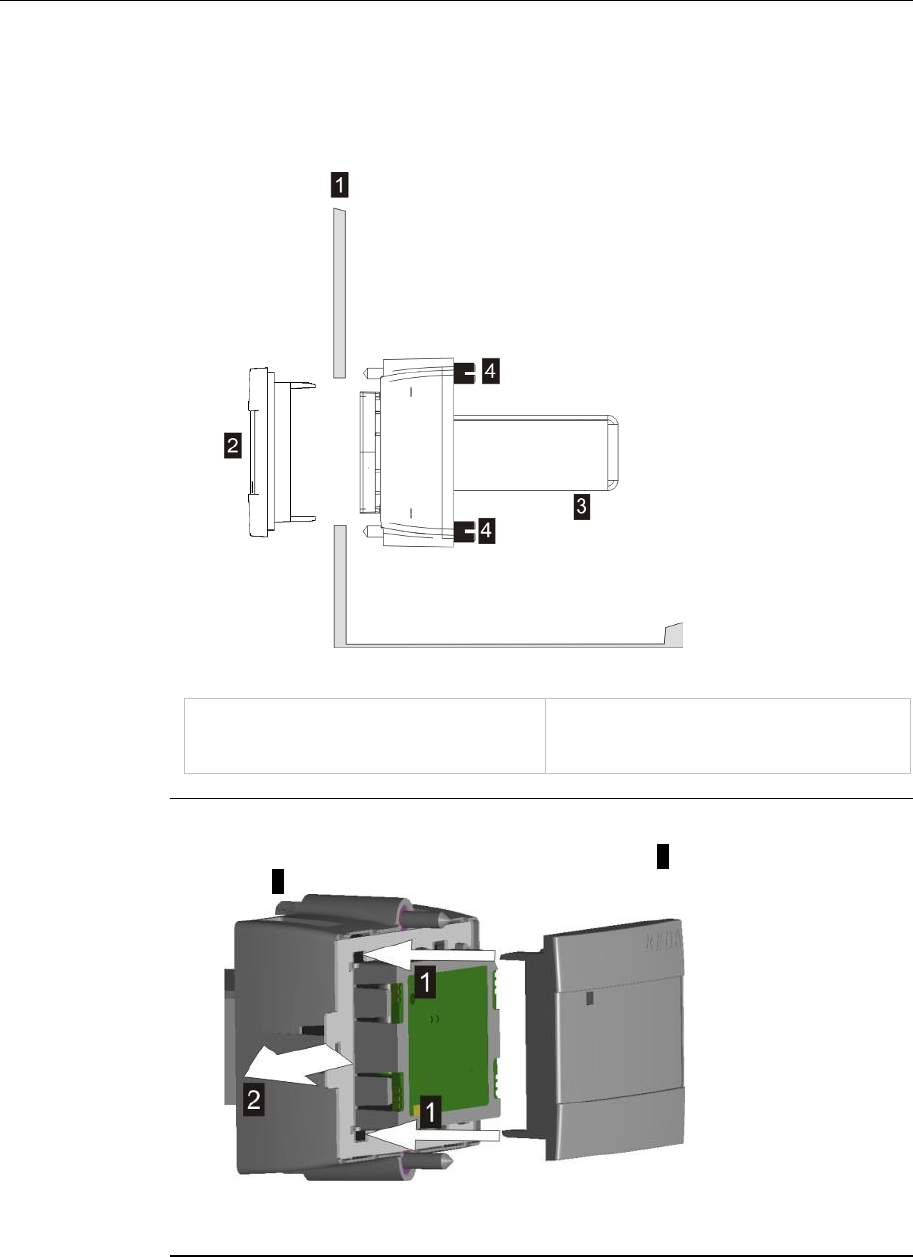

1 ...... Mounting wall (wall thickness between
1.5mm and 6mm
2 ...... Front panel
3 ........ RFID module
4 ........ Mounting screws
Mounting the RFID module
3) Stick the front cover onto the module again (1) and secure with the
clip (2).
Securing the front cover
4) Secure the RFID module to the wall using the mounting screws.
Connections and wiring XE 020/C
5 Connections and wiring
5.1 EMC and wiring guidelines
5.1.1 Personal safety
Safety extra-low voltage
All operating panels are powered by safety extra-low voltage.
5.1.2 Why EMC-aware wiring?
The immunity of an electrical system depends essentially on wiring and
shielding that is designed to overcome any EMC problems. Servicing
experience has shown that inadequate wiring and shielding is a common
cause of system interference and failure.
Electromagnetic interference is far more troublesome than "conventional"
faults:
It is not normally recognised as such from the symptoms displayed and
can often be mistaken for a fault in an assembly, which is basically
sound.
They mainly occur sporadically and are difficult to duplicate.
As a consequence fault-finding is time-consuming and expensive.
Therefore ensure from the start that the wiring and shielding
conforms to the guidelines documented below.
5.1.3 Which EMC measures must be taken?
The EMC measures for the RFID module concentrate on shielding the
connecting cable of the RFID module and the operating panel.
5.2 Power supply
The power to the RFID module is supplied via the operating panel (refer to
chapter “XE 020/C module RJ45 socket“).
RFID-Module Connections and wiring
5.3 XE 020/C module interfaces
5.3.1 Internal Connector for coaxial antenna cable
The antenna module and the XE 020 RFID module both have connectors
for the coaxial antenna cable.
5.3.2 Internal Connector for status LED

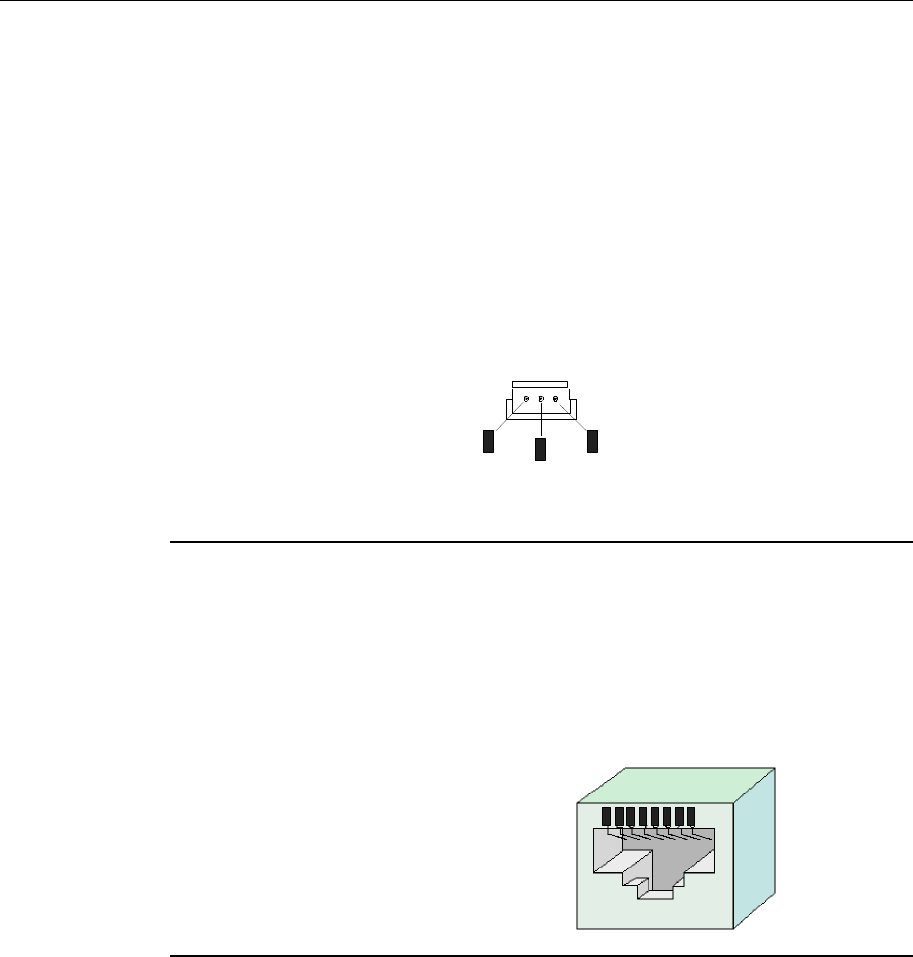

The pin assignment is defined for the status LED connector as follows:
1...LED red
2...GND
3...LED green
Status LED connector on the antenna module and XE 020 RFID module: pin assignment
5.3.3 XE 020/C module RJ45 socket
The RJ45 socket on the XE 020/C module is the counterpart to the "EXT0
external interface" on the operating panel. The interface comprises the
serial signals and the power for the XE 020/C module supplied by the
operating panel.
1…n.c.
2…n.c.
3…n.c.
4…Data-
5…Data+
6…n.c.
7…+12V
8… GND
RJ45 socket on the XE 020/C module: pin assignment
Plug specification
Refer to the KEBA manual, "RJ45 cable connections, General Guidelines".
123
123
21 3 4 5 6 7 8
Connections and wiring XE 020/C
5.4 Cables
5.4.1 Coaxial antenna cable
The maximum permitted length of the coaxial antenna cable is 300 mm.
5.4.2 Connector cable for RFID status LED
Three unshielded cores are sufficient for the RFID status LED connection
cable.
5.4.3 Connector cable for RFID module / OP 3xx
The connection cable for the RFID module / OP 3xx must be shielded and
no longer than 3 m.
RFID-Module Configuration
6 Configuration
6.1 RFID module DIP switch
If the overall system contains multiple RFID modules, the HW addressing
must be configured using the DIP switch.
The required DIP switch is located directly on the RFID module. A
maximum of 4 addresses can be configured (factory setting: 14H):

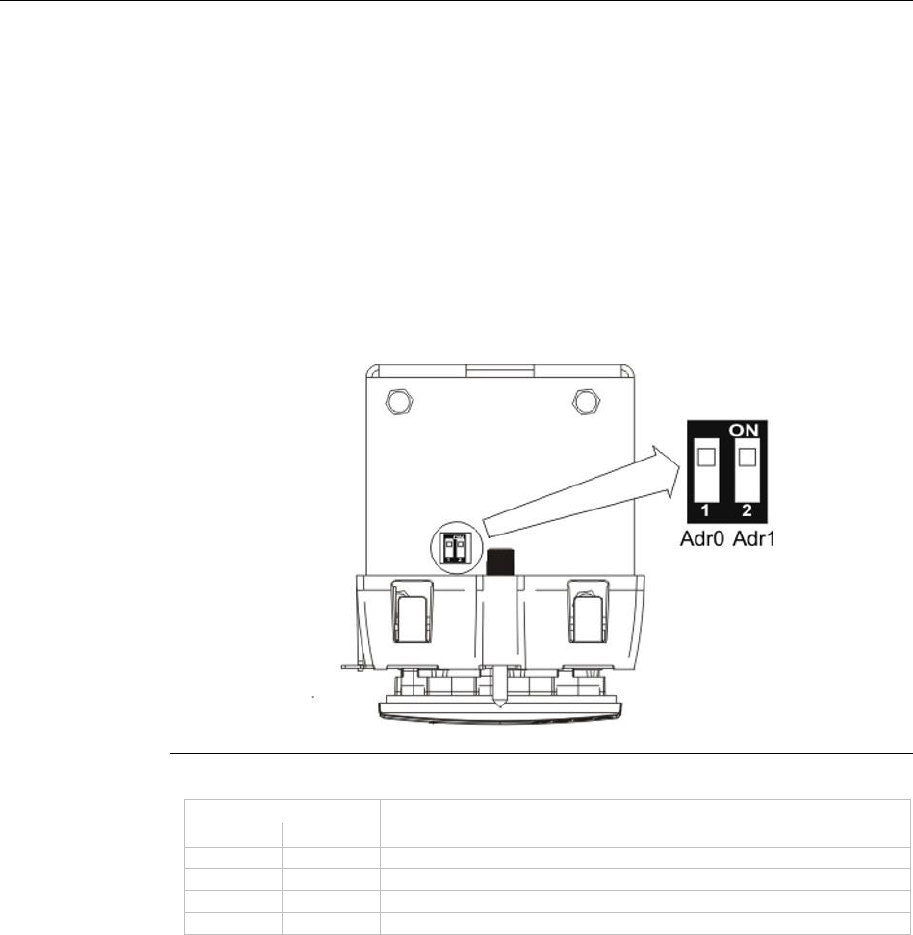

DIP switch location and factory setting
DIP switch
Address
Adr0
Adr1
0
0
17H
0
1
16H
1
0
15H
1
1
14H
Status display XE 020/C
7 Status display
7.1 RFID status LED
The RFID status LED is located on the front of the operating panel and
indicates the status of RFID card recognition:
RFID status LED
Meaning
Cause of fault / solution
red
RFID card not recognised or no
authorisation
RFID card is defective
Wrong information recorded
on RFID card
green for ca. 3
sec.
RFID card has been recognised
-
permanent red
No firmware, hardware does not
boot
Contact the manufacturer
permanent
orange
Not connected to the control
Check the wiring
LED off
Connection is OK
-
7.1.1 Boot-time behaviour
If a connection is established, the status LED is red for a short interval and
then becomes permanent orange. The firmware has failed to boot if the
LED does not change to the permanent orange state and indicates there is
a firmware fault. After connecting successfully the LED goes out.
RFID-Module Maintenance and repair notes
8 Maintenance and repair notes
8.1 Maintenance
This device does not require regular maintenance.
8.2 Repair
Only KEBA technicians may repair faulty devices, otherwise the warranty
becomes void.
8.2.1 Packaging and shipping
The module is placed in protective packing for shipping. Please return the
packaging since KEBA tries to reuse it to minimise the environmental
impact.
This protective packaging is not transport packaging and as such it is
unsuitable for transport by carrier or air. Suitable, extra transport packaging
must be used for this purpose.
8.3 Waste disposal
Comply with your national regulations for the disposal of electronic
components!
Accessories and spares XE 020/C
9 Accessories and spares
Component
Order number
XE 020/C RFID module
96634
Connector cable for RFID module / OP 3xx 0.4m
58033
Connector cable for RFID module / OP 3xx 1.5m
62590
RFID card XC 140/A
74665
RFID-Module Technical specification
10 Technical specification
General
Reading distance:
30 mm from the front panel
Antenna installation:
permanently installed in the front panel
Communication protocol:
according to ISO 15693 or ISO 18000-3,
and suitable for Euromap 65
Evaluation unit protection class:
IP 20
Signalling:
3-colour LED on the printed antenna
Interfaces
Data interface:
serial
Supply voltage:
12 V DC (+/- 5%)
Connector plug:
RJ45
RF signal
Frequency response:
13.56 MHz
Transmission power:
200 mW (max. 250 mW)
Sampling rate:
configurable (default: 10 samples / sec)
Environmental conditions
Operating temperature:
+5 °C to +55 °C
Storage temperature:
-30 °C to +70 °C
Relative humidity:
5 to 95% (non-condensing)
Vibration resistance:
as per IEC 61131
Shock resistance:
as per IEC 61131
Dimensions
Relevant EC directives and applicable standards XE 020/C
11 Relevant EC directives and applicable standards
11.1 EC directives
99/5/EG
R&TTE directive
11.2 Standards
The following non-legally binding European standards are used to validate
the RFID module's conformance to the directives.
11.2.1 Validating conformance to the R&TTE directive
Personal safety:
EN 50364
Radio sector:
EN 300330-2, Class 3 receiver, Class 1 as per 2000/299/EG
EMC sector:
EN 301489-3
Electrical safety:
EN 60950-1
11.2.2 Other standards
In addition the following non-legally binding standards provide advice in
some areas:
Environmental conditions
EN 61131-2
Programmable logic controller - part 2 Equipment requirements and tests
11.2.3 USA standards
FCC Part 15
Radio Frequency Devices
The device complies with Part 15 of the FCC Rules. Operation in subject to
the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including in-
terference that may cause undesired operation.
This device is labelled with an FCC ID number.
If this label is not visible when installed in an end device, the outside of the
device MUST also display a label referring to the enclosed module.
e.g.
"Contains FCC ID: U870006"
(KEBA Product XE020/C)
Information
- No other antennas except the one provided by KEBA shall be used.
- Changes or modifications not expressly approved by KEBA could void the
user's authority to operate the equipment.
