KEEBOX GLM300 Wireless N module User Manual

KEEBOX,Inc. Wireless N module

User Manual

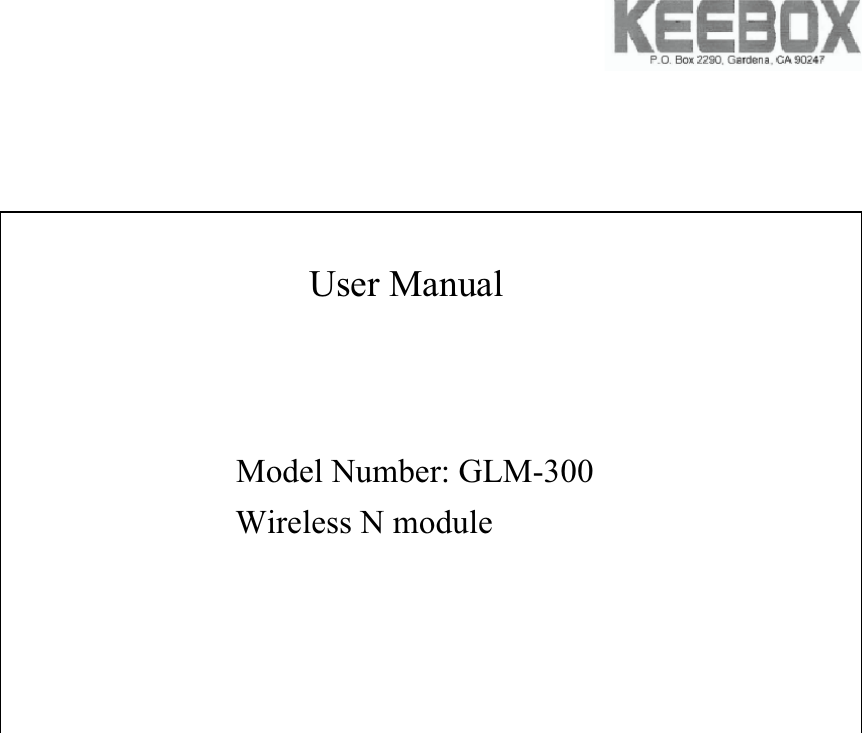

ALPHA Proprietary and Confidential InformationProduct User Manual Model Number: GLM-300 Wireless N module User Manual

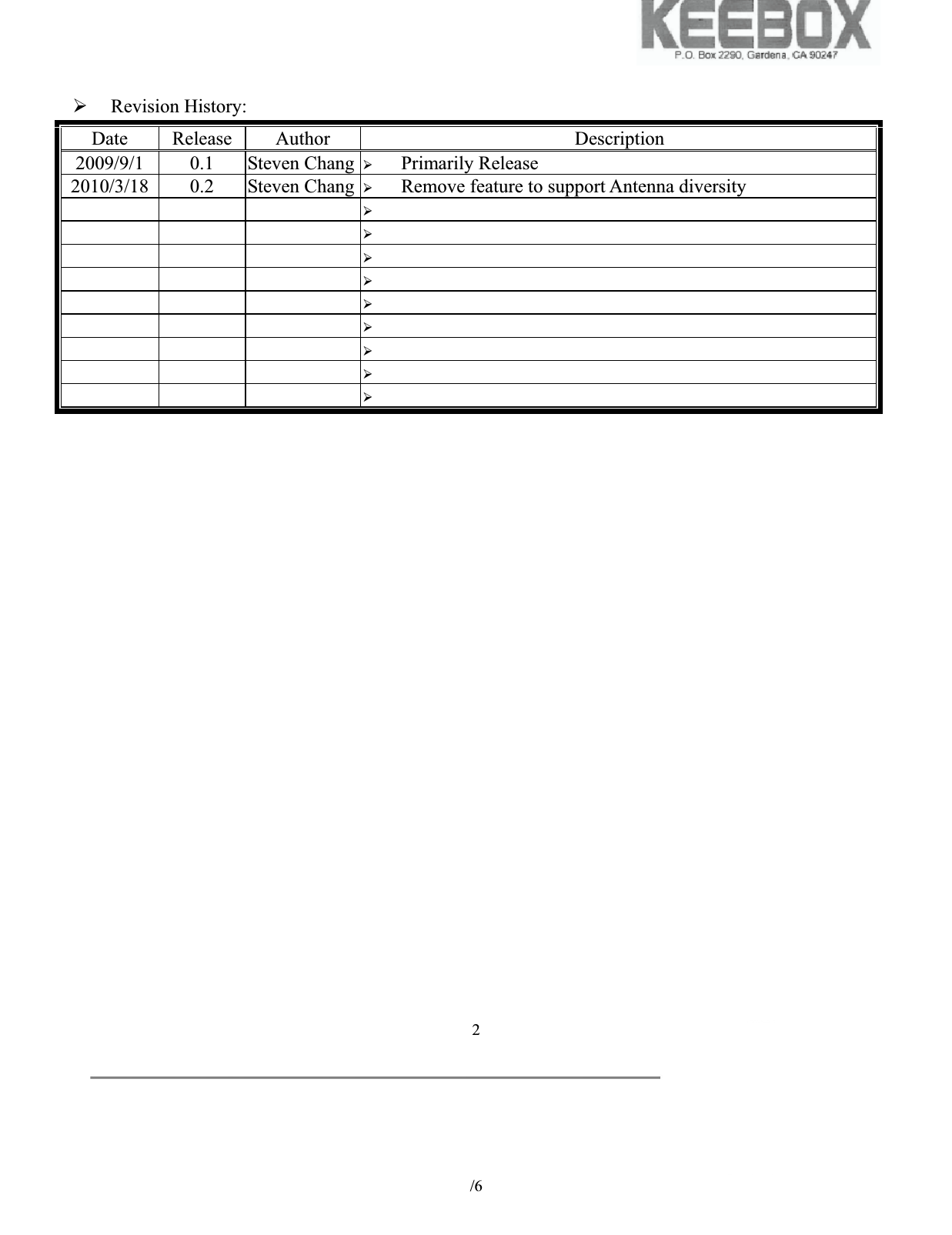

/6 2¾Revision History: Date Release Author Description2009/9/1 0.1 Steven Chang ¾Primarily Release 2010/3/18 0.2 Steven Chang ¾Remove feature to support Antenna diversity ¾¾¾¾¾¾¾¾¾

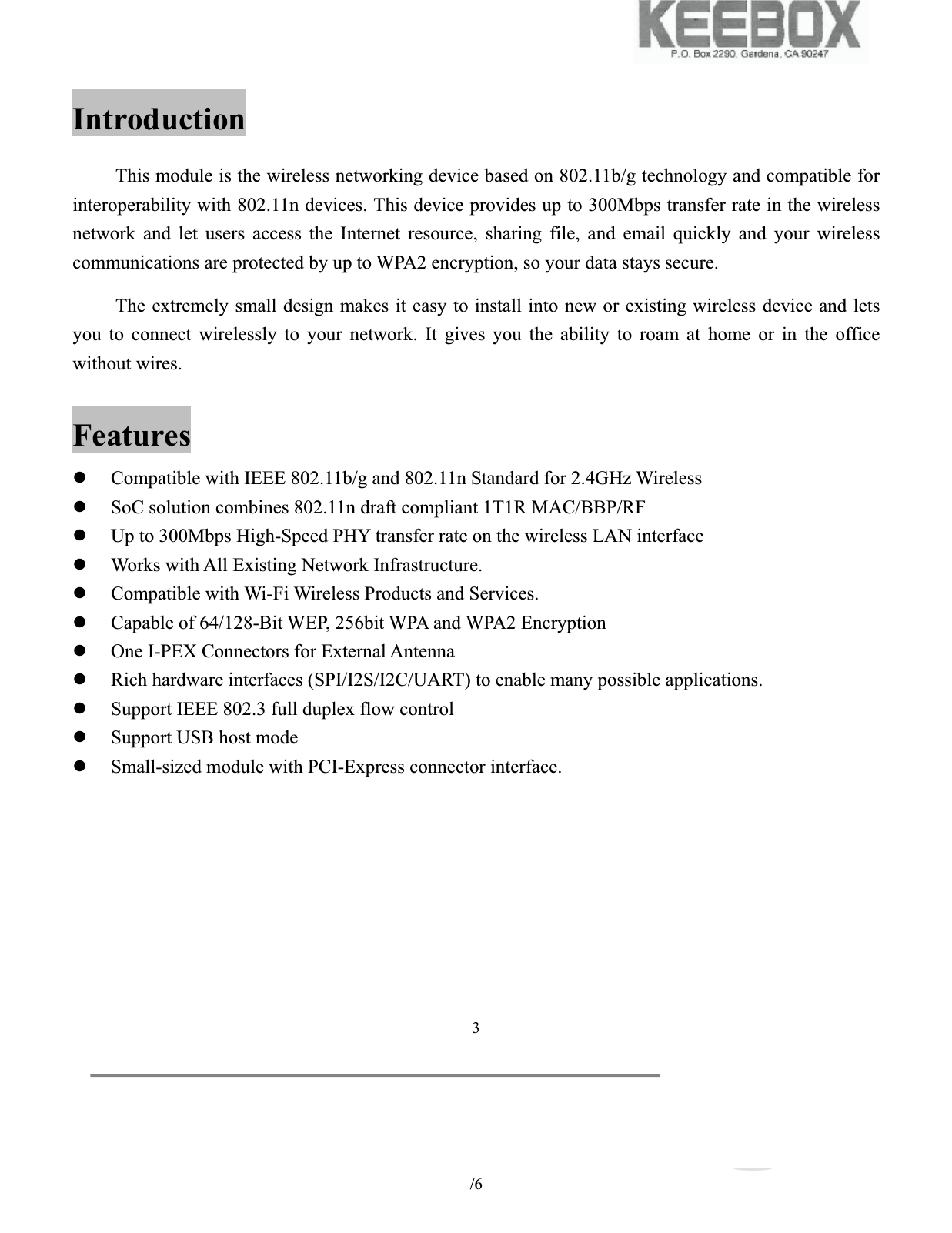

/6 3Introduction This module is the wireless networking device based on 802.11b/g technology and compatible for interoperability with 802.11n devices. This device provides up to 300Mbps transfer rate in the wireless network and let users access the Internet resource, sharing file, and email quickly and your wireless communications are protected by up to WPA2 encryption, so your data stays secure. The extremely small design makes it easy to install into new or existing wireless device and lets you to connect wirelessly to your network. It gives you the ability to roam at home or in the office without wires. Features zCompatible with IEEE 802.11b/g and 802.11n Standard for 2.4GHz Wireless zSoC solution combines 802.11n draft compliant 1T1R MAC/BBP/RF zUp to 300Mbps High-Speed PHY transfer rate on the wireless LAN interface zWorks with All Existing Network Infrastructure. zCompatible with Wi-Fi Wireless Products and Services. zCapable of 64/128-Bit WEP, 256bit WPA and WPA2 Encryption zOne I-PEX Connectors for External Antenna zRich hardware interfaces (SPI/I2S/I2C/UART) to enable many possible applications. zSupport IEEE 802.3 full duplex flow control zSupport USB host mode zSmall-sized module with PCI-Express connector interface.

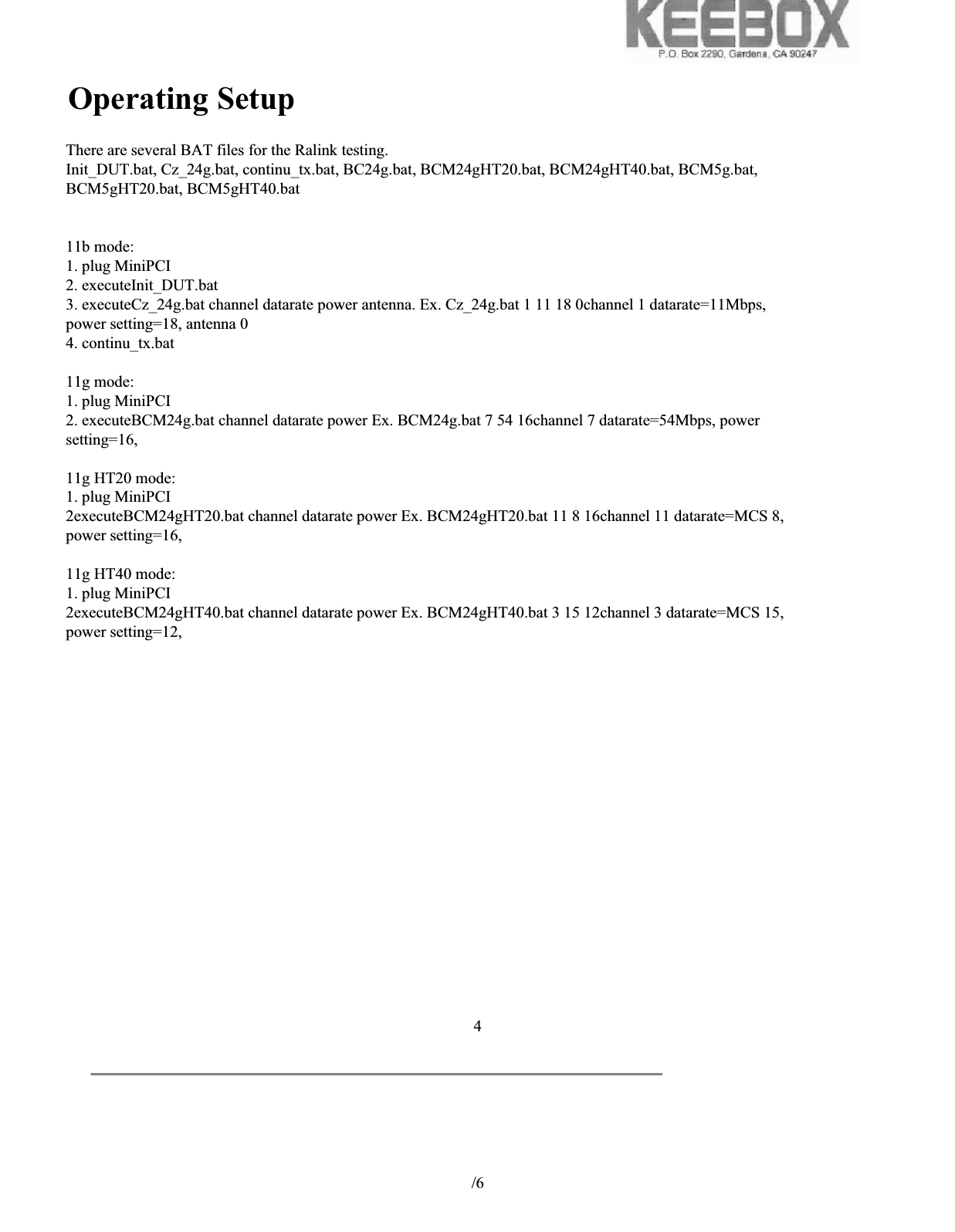

Hardware Block Diagram /6 4Qmfbtf!tff!uif!gjmf!pg!Cmpdl!ejbhsbn/!There are several BAT files for the Ralink testing.Init_DUT.bat, Cz_24g.bat, continu_tx.bat, BC24g.bat, BCM24gHT20.bat, BCM24gHT40.bat, BCM5g.bat,BCM5gHT20.bat, BCM5gHT40.bat11b mode:1. plug MiniPCI2. executeInit_DUT.bat3. executeCz_24g.bat channel datarate power antenna. Ex. Cz_24g.bat 1 11 18 0channel 1 datarate=11Mbps,power setting=18, antenna 04. continu_tx.bat11g mode:1. plug MiniPCI2. executeBCM24g.bat channel datarate power Ex. BCM24g.bat 7 54 16channel 7 datarate=54Mbps, powersetting=16,11g HT20 mode:1. plug MiniPCI2executeBCM24gHT20.bat channel datarate power Ex. BCM24gHT20.bat 11 8 16channel 11 datarate=MCS 8,power setting=16,11g HT40 mode:1. plug MiniPCI2executeBCM24gHT40.bat channel datarate power Ex. BCM24gHT40.bat 3 15 12channel 3 datarate=MCS 15,power setting=12,Operating Setup
System Hardware zProcessor : Ralink RT-3050 Single Chip SoC 320MHz CPU CLK zMIPS 24KEc 320MHz with 32KB I cache/16KB D cache zEmbedded 1Tx1R 2.4G CMOS RF zChipset maximum consumption 1.45W z802.11n 1T1R MAC/BBP z1 port 10/100Mbps PHY z16 bit 106MHz SDRAM zSupport 16 bit NOR FLASH (up-to 8 Mbytes) zSDRAM: 32M Byte (16Mx16) zFlash ROM: 4M Byte (2Mx16) z3.3V DC switching type power adapter zInterface : 1x 10/100 Base-T LAN port zModule with PCI-Express connector interface zOther interface : UART, JTAG, GPIOs, WPS button, reset button zPower Requirement: Operating Voltage: 3.3V DC TX consumption: TBD mA (Max) RX consumption: TBD mA (Max) System Software STANDARDS zIEEE 802.11b/g zIEEE 802.11n draft 2.0 zIEEE 802.3 zIEEE 802.3u zSystem use Linux 2.6. WIRELESS SECURITY zWEP (64/128 bit) /6 5zWPA / WPA2 zQOS- WMM, WMM Power Save Output power: 11b: 17dBm (AVG Power) 11g/n: 15dBm (AVG Power) 22c;!2:/:eCn!22h;!35/6eCn!913/22o!)31NI{*;!35/3eCn!913/22o!)51NI{*;!35/3eCn!

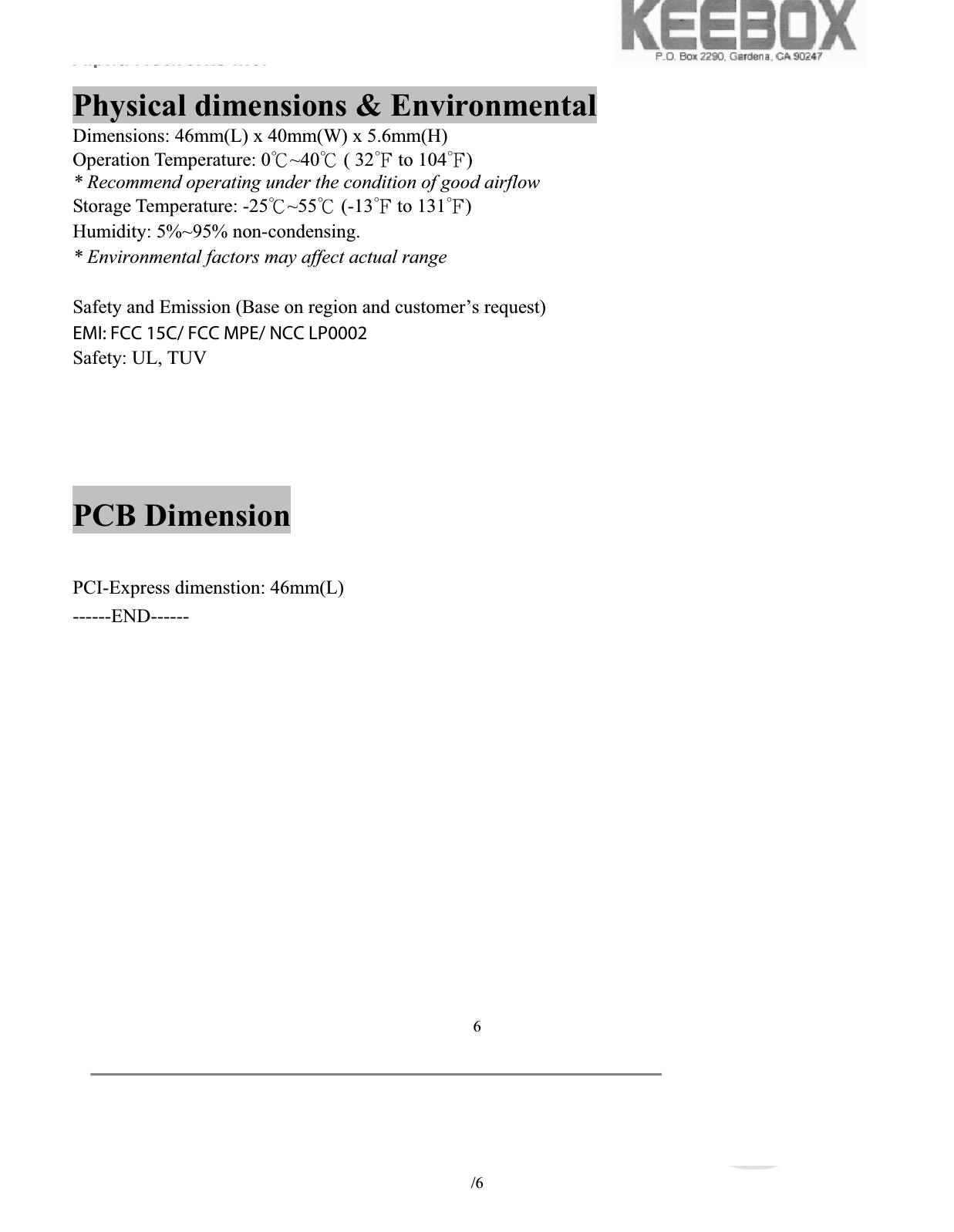

Physical dimensions & Environmental Dimensions: 46mm(L) x 40mm(W) x 5.6mm(H) Operation Temperature: 0к~40к ( 32л to 104л)PIN Description TBDPCB Dimension PCBA dimension : TBD mm(W) x mm(H) PCI-Express dimenstion: 46mm(L) ------END------ /6 6* Recommend operating under the condition of good airflowStorage Temperature: -25к~55к (-13л to 131л)Humidity: 5%~95% non-condensing. * Environmental factors may affect actual range Safety and Emission (Base on region and customer’s request) EMI: FCC class B, CE lass B Safety: UL, TUV EMI: FCC 15C/ FCC MPE/ NCC LP0002

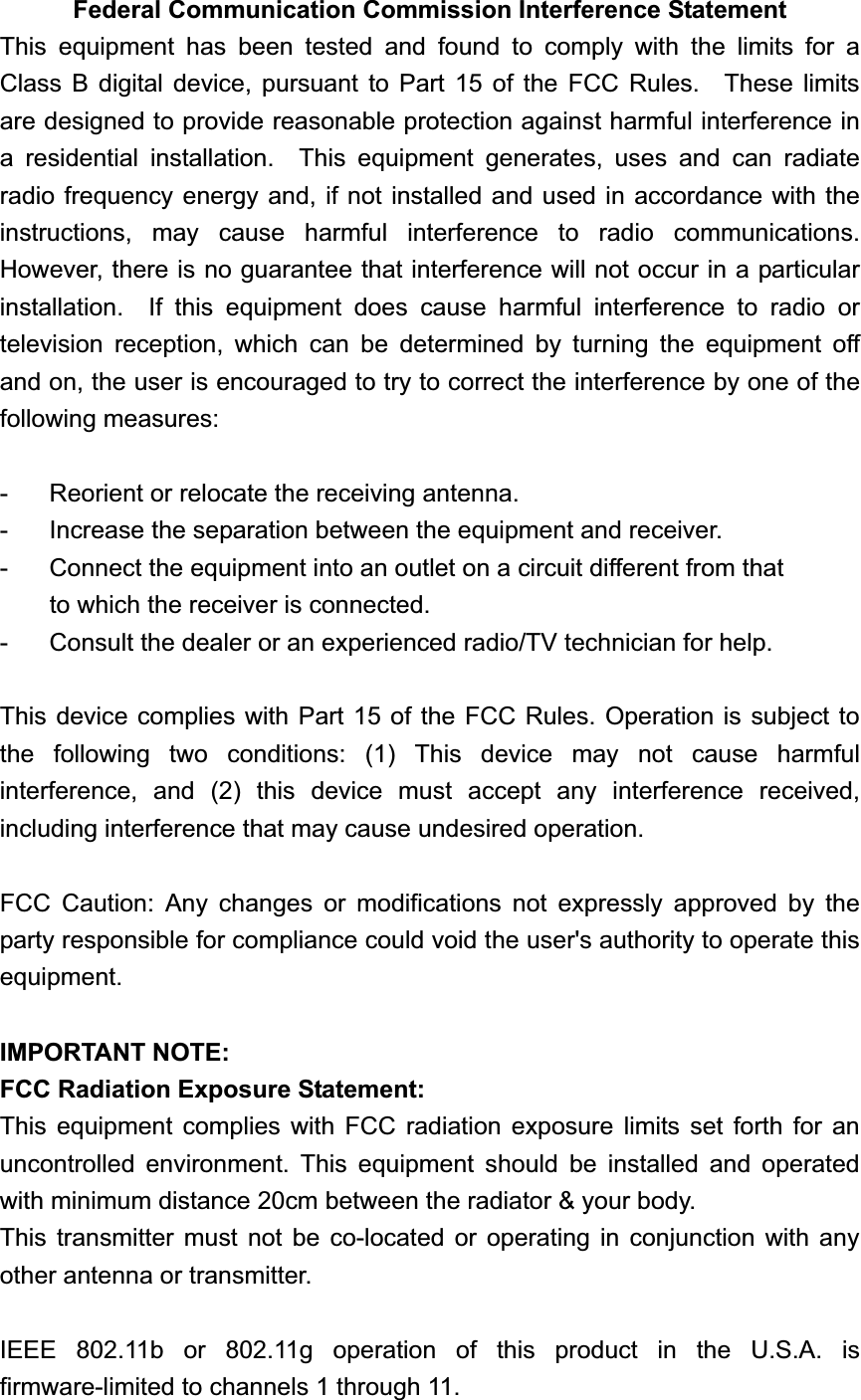

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.

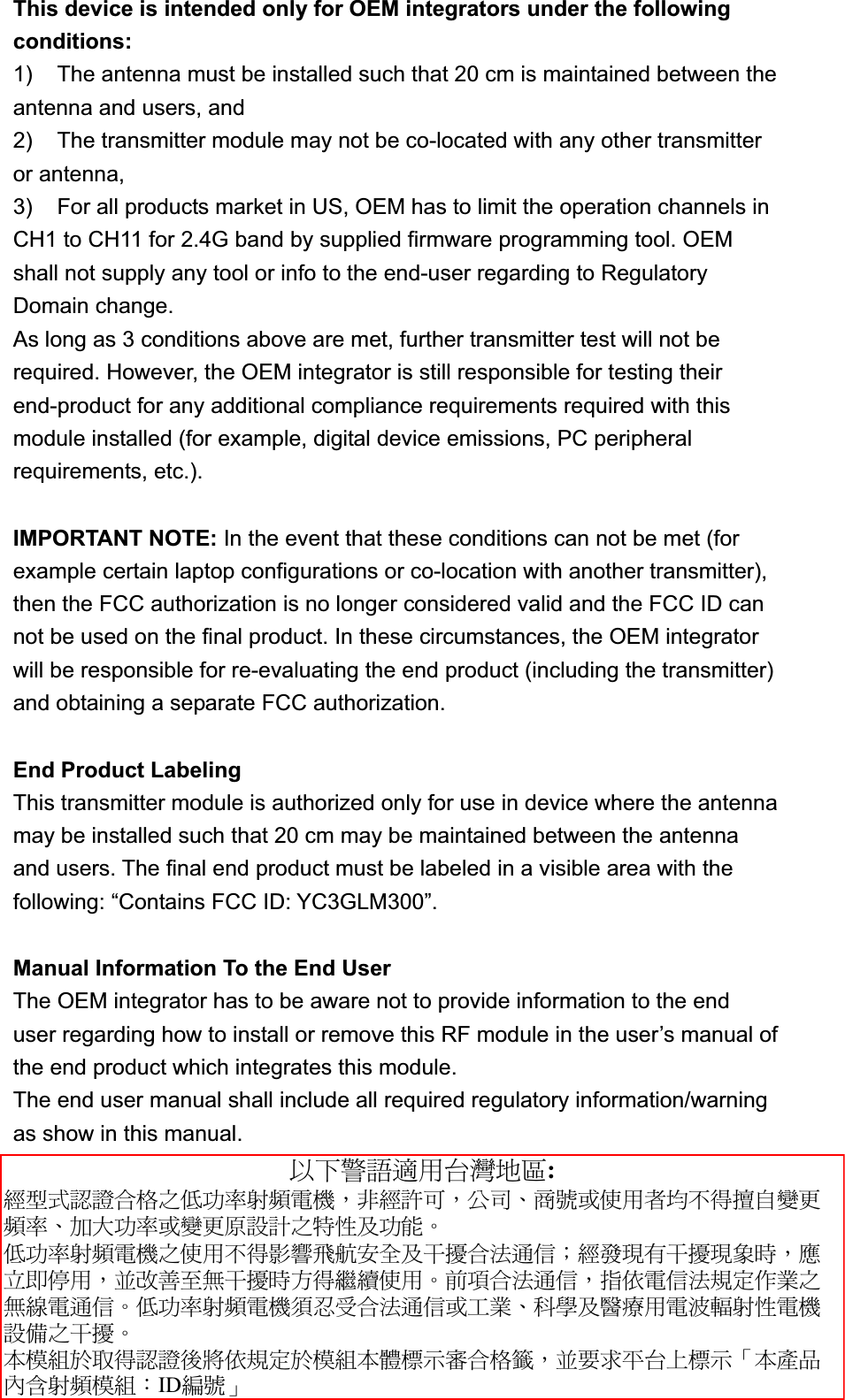

This device is intended only for OEM integrators under the following conditions:1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: YC3GLM300”.Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. אՀᤞ፿ᔞش؀᨜چ೴: ᆖীڤᎁᢞٽ௑հ܅פ෷୴᙮ሽᖲΔॺᆖ๺ױΔֆ׹Ε೸ᇆࢨࠌشृ݁լ൓ᖐ۞᧢ޓ᙮෷ΕףՕפ෷ࢨ᧢ޓ଺๻ૠհ௽ࢤ֗פ౨Ζ ܅פ෷୴᙮ሽᖲհࠌشլ൓ᐙ᥼ଆ౰ڜ٤֗եឫٽऄຏॾΙᆖ࿇෼ڶեឫ෼ွழΔᚨمܛೖشΔࠀޏ࿳۟ྤեឫழֱ൓ᤉᥛࠌشΖছႈٽऄຏॾΔਐࠉሽॾऄ๵ࡳ܂ᄐհྤᒵሽຏॾΖ܅פ෷୴᙮ሽᖲႊݴ࠹ٽऄຏॾࢨՠᄐΕઝᖂ֗᠔᛭شሽंᘿ୴ࢤሽᖲ๻ໂհեឫΖʳءᑓิ࣍࠷൓ᎁᢞ৵ലࠉ๵ࡳ࣍ᑓิء᧯ᑑقᐉٽ௑᧘Δࠀ૞ޣؓ؀Ղᑑقψءข঴փܶ୴᙮ᑓิΚIDᒳᇆωʳ
