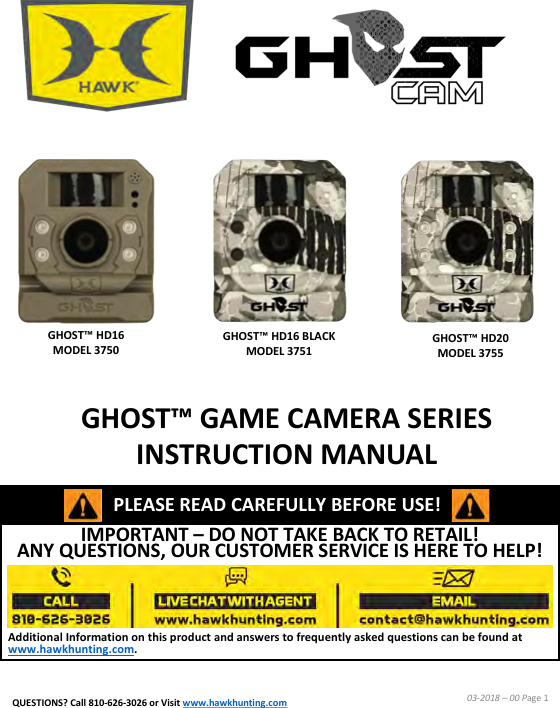

IMPORTANT –DO NOT TAKE BACK TO RETAIL! ANY QUESTIONS, OUR CUSTOMER SERVICE IS HERE TO HELP!Additional Information on this product and answers to frequently asked questions can be found at www.hawkhunting.com.GHOST™ GAME CAMERA SERIES INSTRUCTION MANUAL03-2018 –00 Page 1PLEASE READ CAREFULLY BEFORE USE!GHOST™ HD16 MODEL 3750GHOST™ HD16 BLACK MODEL 3751GHOST™ HD20 MODEL 3755QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

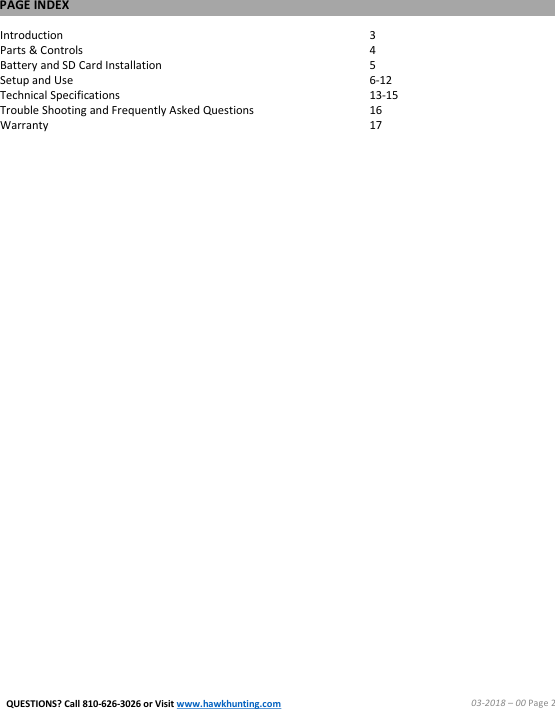

PAGE INDEX03-2018 –00 Page 2Introduction 3Parts & Controls 4Battery and SD Card Installation 5Setup and Use 6-12Technical Specifications 13-15Trouble Shooting and Frequently Asked Questions 16Warranty 17QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

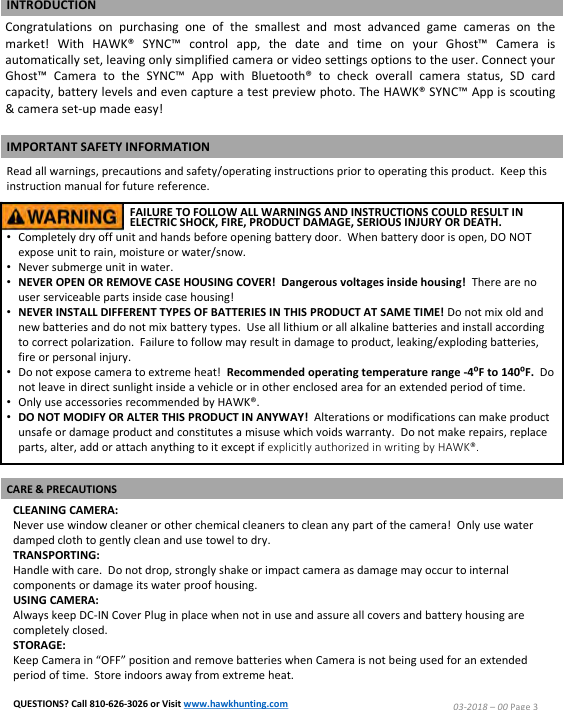

CLEANING CAMERA:Never use window cleaner or other chemical cleaners to clean any part of the camera! Only use water damped cloth to gently clean and use towel to dry.TRANSPORTING:Handle with care. Do not drop, strongly shake or impact camera as damage may occur to internal components or damage its water proof housing.USING CAMERA:Always keep DC-IN Cover Plug in place when not in use and assure all covers and battery housing are completely closed.STORAGE:Keep Camera in “OFF” position and remove batteries when Camera is not being used for an extended period of time. Store indoors away from extreme heat.03-2018 –00 Page 3IMPORTANT SAFETY INFORMATIONRead all warnings, precautions and safety/operating instructions prior to operating this product. Keep this instruction manual for future reference.FAILURE TO FOLLOW ALL WARNINGS AND INSTRUCTIONS COULD RESULT IN ELECTRIC SHOCK, FIRE, PRODUCT DAMAGE, SERIOUS INJURY OR DEATH.Congratulations on purchasing one of the smallest and most advanced game cameras on themarket! With HAWK® SYNC™ control app, the date and time on your Ghost™ Camera isautomatically set, leaving only simplified camera or video settings options to the user.Connect yourGhost™ Camera to the SYNC™ App with Bluetooth® to check overall camera status, SD cardcapacity, battery levels and even capture atest preview photo.The HAWK® SYNC™ App is scouting&camera set-up made easy!•Completely dry off unit and hands before opening battery door. When battery door is open, DO NOT expose unit to rain, moisture or water/snow. •Never submerge unit in water. •NEVER OPEN OR REMOVE CASE HOUSING COVER! Dangerous voltages inside housing! There are no user serviceable parts inside case housing!•NEVER INSTALL DIFFERENT TYPES OF BATTERIES IN THIS PRODUCT AT SAME TIME! Do not mix old and new batteries and do not mix battery types. Use all lithium or all alkaline batteries and install according to correct polarization. Failure to follow may result in damage to product, leaking/exploding batteries, fire or personal injury.•Do not expose camera to extreme heat! Recommended operating temperature range -4⁰F to 140⁰F. Do not leave in direct sunlight inside a vehicle or in other enclosed area for an extended period of time.•Only use accessories recommended by HAWK®.•DO NOT MODIFY OR ALTER THIS PRODUCT IN ANYWAY! Alterations or modifications can make product unsafe or damage product and constitutes a misuse which voids warranty. Do not make repairs, replace parts, alter, add or attach anything to it except if explicitly authorized in writing by HAWK®. CARE & PRECAUTIONSINTRODUCTIONQUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

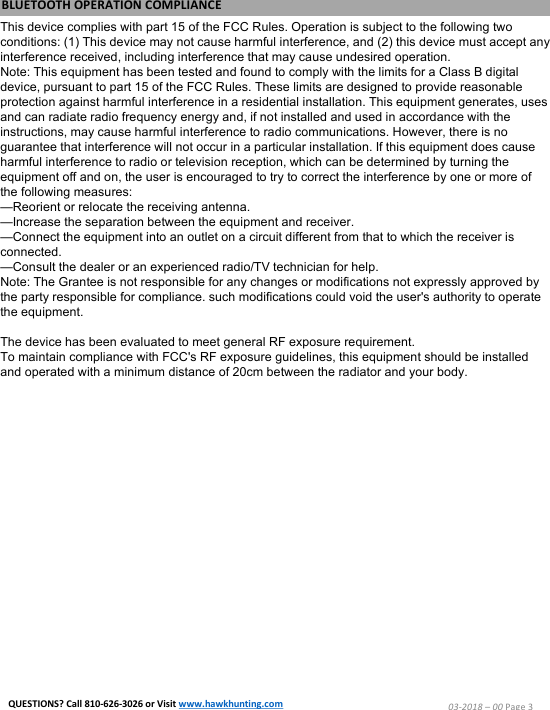

03-2018 –00 Page 3This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.The device has been evaluated to meet general RF exposure requirement.To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.BLUETOOTH OPERATION COMPLIANCEQUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

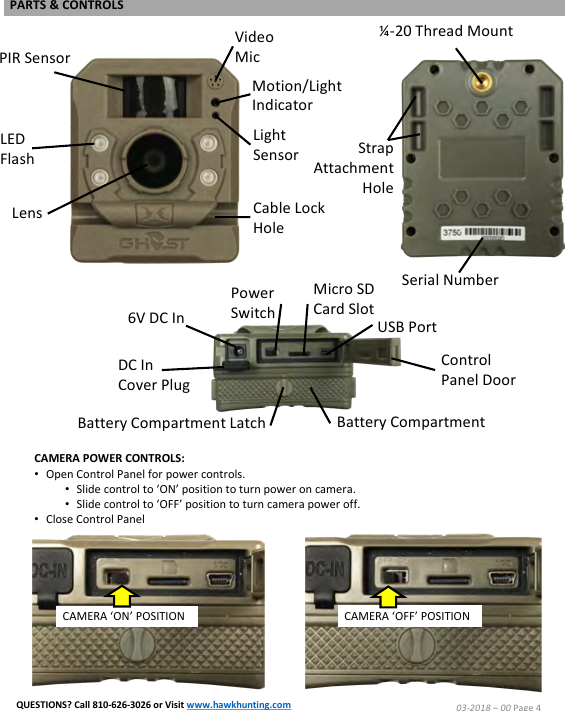

Micro SD Card SlotCAMERA POWER CONTROLS:•Open Control Panel for power controls. •Slide control to ‘ON’ position to turn power on camera.•Slide control to ‘OFF’ position to turn camera power off.•Close Control PanelCAMERA ‘OFF’ POSITIONLED FlashLensPIR SensorVideo MicMotion/Light IndicatorLight SensorCable Lock HoleUSB PortPower Switch6V DC InDC In Cover PlugBattery CompartmentBattery Compartment LatchControl Panel DoorStrap AttachmentHole¼-20 Thread MountSerial NumberCAMERA ‘ON’ POSITION03-2018 –00 Page 4PARTS & CONTROLSQUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

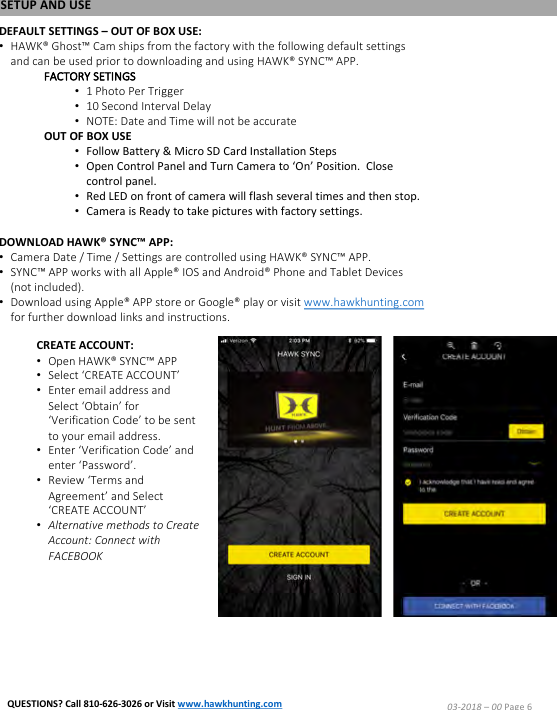

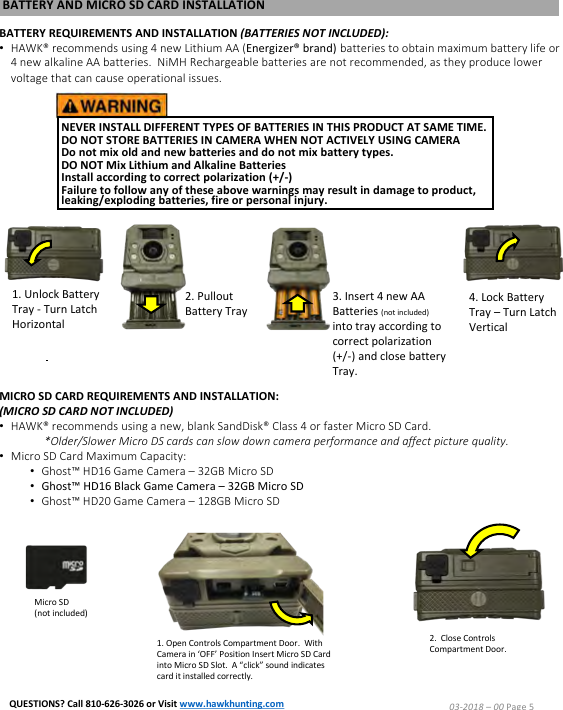

SETUP AND USEDEFAULT SETTINGS –OUT OF BOX USE:•HAWK® Ghost™ Cam ships from the factory with the following default settings and can be used prior to downloading and using HAWK® SYNC™ APP.FACTORY SETINGS•1 Photo Per Trigger•10 Second Interval Delay•NOTE: Date and Time will not be accurateOUT OF BOX USE•Follow Battery & Micro SD Card Installation Steps•Open Control Panel and Turn Camera to ‘On’ Position. Close control panel.•Red LED on front of camera will flash several times and then stop.•Camera is Ready to take pictures with factory settings.DOWNLOAD HAWK® SYNC™ APP:•Camera Date / Time / Settings are controlled using HAWK® SYNC™ APP.•SYNC™ APP works with all Apple® IOS and Android® Phone and Tablet Devices (not included).•Download using Apple® APP store or Google® play or visit www.hawkhunting.comfor further download links and instructions.CREATE ACCOUNT:•Open HAWK® SYNC™ APP•Select ‘CREATE ACCOUNT’•Enter email address and Select ‘Obtain’ for ‘Verification Code’ to be sent to your email address.•Enter ‘Verification Code’ and enter ‘Password’.•Review ‘Terms and Agreement’ and Select ‘CREATE ACCOUNT’•Alternative methods to Create Account: Connect with FACEBOOK03-2018 –00 Page 6QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

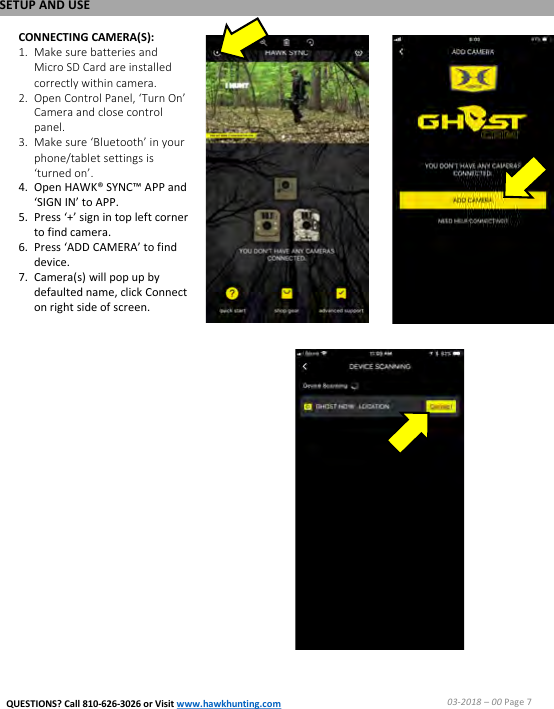

CONNECTING CAMERA(S):1. Make sure batteries and Micro SD Card are installed correctly within camera.2. Open Control Panel, ‘Turn On’ Camera and close control panel.3. Make sure ‘Bluetooth’ in your phone/tablet settings is ‘turned on’.4. Open HAWK® SYNC™ APP and ‘SIGN IN’ to APP.5. Press ‘+’ sign in top left corner to find camera.6. Press ‘ADD CAMERA’ to find device.7. Camera(s) will pop up by defaulted name, click Connect on right side of screen.SETUP AND USE03-2018 –00 Page 7QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

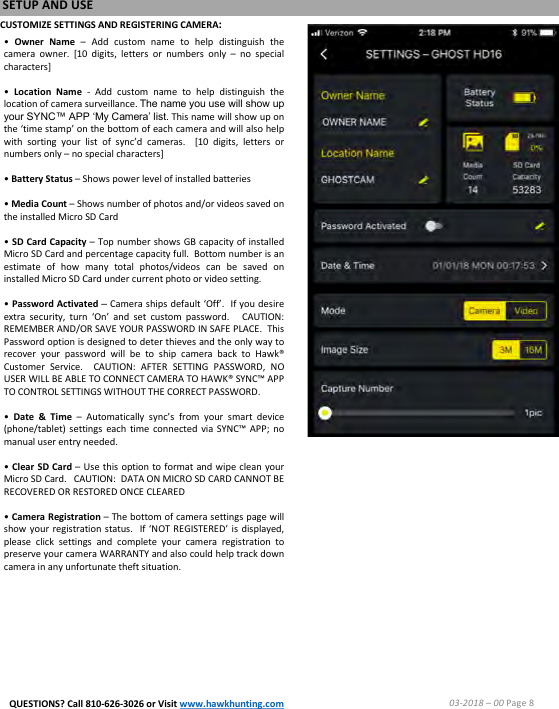

CUSTOMIZE SETTINGS AND REGISTERING CAMERA:•Owner Name –Add custom name to help distinguish thecamera owner. [10 digits, letters or numbers only –no specialcharacters]•Location Name -Add custom name to help distinguish thelocation of camera surveillance.The name you use will show upyour SYNC™ APP ‘My Camera’ list.This name will show up onthe ‘time stamp’ on the bottom of each camera and will also helpwith sorting your list of sync’d cameras. [10 digits, letters ornumbers only –no special characters]•Battery Status –Shows power level of installed batteries•Media Count –Shows number of photos and/or videos saved onthe installed Micro SD Card•SD Card Capacity –Top number shows GB capacity of installedMicro SD Card and percentage capacity full.Bottom number is anestimate of how many total photos/videos can be saved oninstalled Micro SD Card under current photo or video setting.•Password Activated –Camera ships default ‘Off’.If you desireextra security, turn ‘On’ and set custom password.CAUTION:REMEMBER AND/OR SAVE YOUR PASSWORD IN SAFE PLACE.ThisPassword option is designed to deter thieves and the only way torecover your password will be to ship camera back to Hawk®Customer Service.CAUTION:AFTER SETTING PASSWORD, NOUSER WILL BE ABLE TO CONNECT CAMERA TO HAWK® SYNC™ APPTO CONTROL SETTINGS WITHOUT THE CORRECT PASSWORD.•Date & Time –Automatically sync’s from your smart device(phone/tablet) settings each time connected via SYNC™ APP;nomanual user entry needed.•Clear SD Card –Use this option to format and wipe clean yourMicro SD Card.CAUTION:DATA ON MICRO SD CARD CANNOT BERECOVERED OR RESTORED ONCE CLEARED•Camera Registration –The bottom of camera settings page willshow your registration status.If ‘NOT REGISTERED’ is displayed,please click settings and complete your camera registration topreserve your camera WARRANTY and also could help track downcamera in any unfortunate theft situation.SETUP AND USE03-2018 –00 Page 8QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

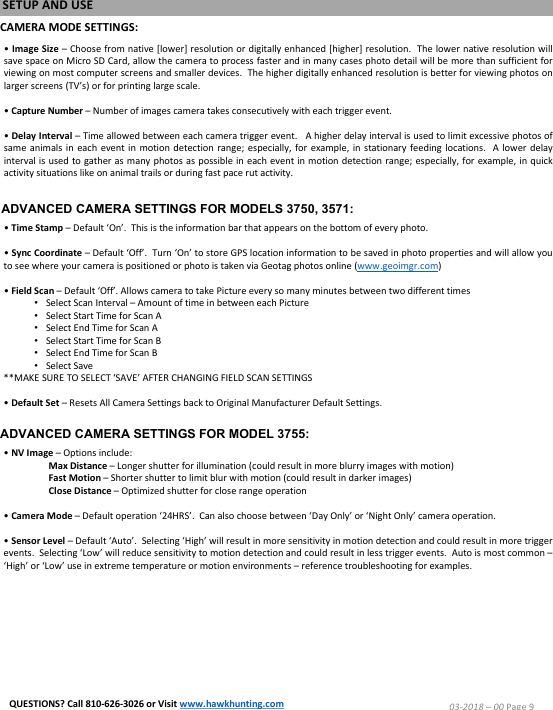

CAMERA MODE SETTINGS:•Image Size –Choose from native [lower] resolution or digitally enhanced [higher] resolution.The lower native resolution willsave space on Micro SD Card, allow the camera to process faster and in many cases photo detail will be more than sufficient forviewing on most computer screens and smaller devices.The higher digitally enhanced resolution is better for viewing photos onlarger screens (TV’s) or for printing large scale.•Capture Number –Number of images camera takes consecutively with each trigger event.•Delay Interval –Time allowed between each camera trigger event. A higher delay interval is used to limit excessive photos ofsame animals in each event in motion detection range;especially, for example, in stationary feeding locations. A lower delayinterval is used to gather as many photos as possible in each event in motion detection range;especially, for example, in quickactivity situations like on animal trails or during fast pace rut activity.•Time Stamp –Default ‘On’.This is the information bar that appears on the bottom of every photo.•Sync Coordinate –Default ‘Off’.Turn ‘On’ to store GPS location information to be saved in photo properties and will allow youto see where your camera is positioned or photo is taken via Geotag photos online (www.geoimgr.com)•Field Scan –Default ‘Off’.Allows camera to take Picture every so many minutes between two different times•Select Scan Interval –Amount of time in between each Picture•Select Start Time for Scan A•Select End Time for Scan A•Select Start Time for Scan B•Select End Time for Scan B•Select Save**MAKE SURE TO SELECT ‘SAVE’ AFTER CHANGING FIELD SCAN SETTINGS•Default Set –Resets All Camera Settings back to Original Manufacturer Default Settings.•NV Image –Options include:Max Distance –Longer shutter for illumination (could result in more blurry images with motion)Fast Motion –Shorter shutter to limit blur with motion (could result in darker images)Close Distance –Optimized shutter for close range operation•Camera Mode –Default operation ‘24HRS’.Can also choose between ‘Day Only’ or ‘Night Only’ camera operation.•Sensor Level –Default ‘Auto’.Selecting ‘High’ will result in more sensitivity in motion detection and could result in more triggerevents.Selecting ‘Low’ will reduce sensitivity to motion detection and could result in less trigger events.Auto is most common –‘High’ or ‘Low’ use in extreme temperature or motion environments –reference troubleshooting for examples.SETUP AND USE03-2018 –00 Page 9QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.comADVANCED CAMERA SETTINGS FOR MODELS 3750, 3571:ADVANCED CAMERA SETTINGS FOR MODEL 3755:

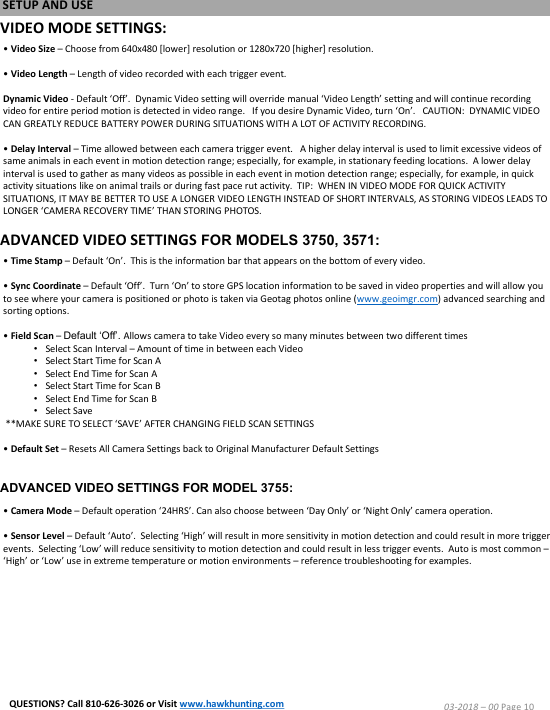

VIDEO MODE SETTINGS:• Video Size –Choose from 640x480 [lower] resolution or 1280x720 [higher] resolution. • Video Length –Length of video recorded with each trigger event. Dynamic Video - Default ‘Off’. Dynamic Video setting will override manual ‘Video Length’ setting and will continue recording video for entire period motion is detected in video range. If you desire Dynamic Video, turn ‘On’. CAUTION: DYNAMIC VIDEO CAN GREATLY REDUCE BATTERY POWER DURING SITUATIONS WITH A LOT OF ACTIVITY RECORDING. • Delay Interval –Time allowed between each camera trigger event. A higher delay interval is used to limit excessive videos of same animals in each event in motion detection range; especially, for example, in stationary feeding locations. A lower delay interval is used to gather as many videos as possible in each event in motion detection range; especially, for example, in quickactivity situations like on animal trails or during fast pace rut activity. TIP: WHEN IN VIDEO MODE FOR QUICK ACTIVITY SITUATIONS, IT MAY BE BETTER TO USE A LONGER VIDEO LENGTH INSTEAD OF SHORT INTERVALS, AS STORING VIDEOS LEADS TO LONGER ‘CAMERA RECOVERY TIME’ THAN STORING PHOTOS.• Time Stamp –Default ‘On’. This is the information bar that appears on the bottom of every video.• Sync Coordinate –Default ‘Off’. Turn ‘On’ to store GPS location information to be saved in video properties and will allow you to see where your camera is positioned or photo is taken via Geotag photos online (www.geoimgr.com) advanced searching and sorting options.•Field Scan –Default ‘Off’.Allows camera to take Video every so many minutes between two different times•Select Scan Interval –Amount of time in between each Video•Select Start Time for Scan A•Select End Time for Scan A•Select Start Time for Scan B•Select End Time for Scan B•Select Save**MAKE SURE TO SELECT ‘SAVE’ AFTER CHANGING FIELD SCAN SETTINGS• Default Set –Resets All Camera Settings back to Original Manufacturer Default Settings•Camera Mode –Default operation ‘24HRS’.Can also choose between ‘Day Only’ or ‘Night Only’ camera operation.• Sensor Level – Default ‘Auto’. Selecting ‘High’ will result in more sensitivity in motion detection and could result in more trigger events. Selecting ‘Low’ will reduce sensitivity to motion detection and could result in less trigger events. Auto is most common –‘High’ or ‘Low’ use in extreme temperature or motion environments – reference troubleshooting for examples.SETUP AND USE03-2018 –00 Page 10QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.comADVANCED VIDEO SETTINGS FOR MODELS 3750, 3571:ADVANCED VIDEO SETTINGS FOR MODEL 3755:

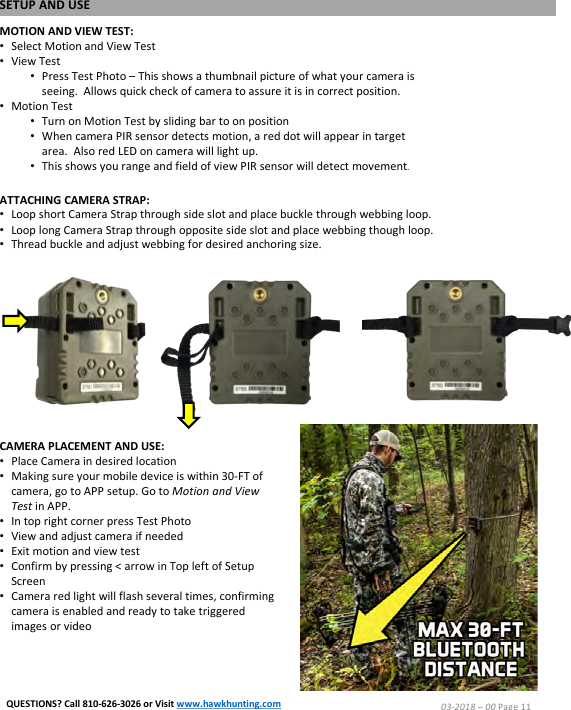

ATTACHING CAMERA STRAP:•Loop short Camera Strap through side slot and place buckle through webbing loop.•Loop long Camera Strap through opposite side slot and place webbing though loop.•Thread buckle and adjust webbing for desired anchoring size.MOTION AND VIEW TEST:•Select Motion and View Test•View Test•Press Test Photo –This shows a thumbnail picture of what your camera is seeing. Allows quick check of camera to assure it is in correct position.•Motion Test•Turn on Motion Test by sliding bar to on position•When camera PIR sensor detects motion, a red dot will appear in target area. Also red LED on camera will light up.•This shows you range and field of view PIR sensor will detect movement.CAMERA PLACEMENT AND USE:•Place Camera in desired location•Making sure your mobile device is within 30-FT of camera, go to APP setup. Go to Motion and View Test in APP.•In top right corner press Test Photo•View and adjust camera if needed•Exit motion and view test•Confirm by pressing < arrow in Top left of Setup Screen•Camera red light will flash several times, confirming camera is enabled and ready to take triggered images or videoSETUP AND USE03-2018 –00 Page 11QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

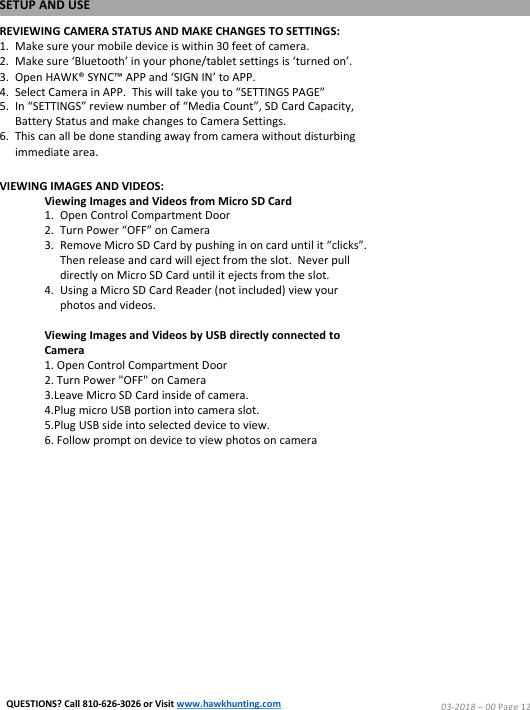

REVIEWING CAMERA STATUS AND MAKE CHANGES TO SETTINGS:1. Make sure your mobile device is within 30 feet of camera.2. Make sure ‘Bluetooth’ in your phone/tablet settings is ‘turned on’.3. Open HAWK® SYNC™ APP and ‘SIGN IN’ to APP.4. Select Camera in APP. This will take you to “SETTINGS PAGE”5. In “SETTINGS” review number of “Media Count”, SD Card Capacity, Battery Status and make changes to Camera Settings. 6. This can all be done standing away from camera without disturbing immediate area.VIEWING IMAGES AND VIDEOS:Viewing Images and Videos from Micro SD Card1. Open Control Compartment Door2. Turn Power “OFF” on Camera3. Remove Micro SD Card by pushing in on card until it “clicks”. Then release and card will eject from the slot. Never pull directly on Micro SD Card until it ejects from the slot.4. Using a Micro SD Card Reader (not included) view your photos and videos.Viewing Images and Videos by USB directly connected to Camera1. Open Control Compartment Door2. Turn Power "OFF" on Camera3.Leave Micro SD Card inside of camera.4.Plug micro USB portion into camera slot.5.Plug USB side into selected device to view.6. Follow prompt on device to view photos on cameraSETUP AND USE03-2018 –00 Page 12QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

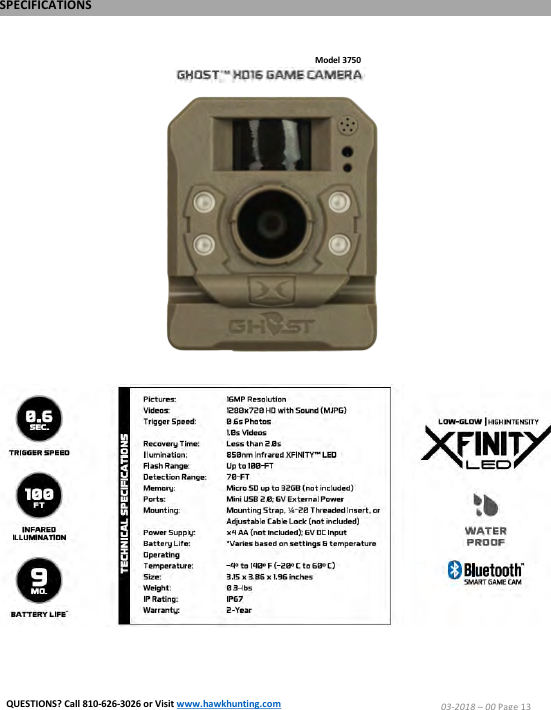

Model 3750SPECIFICATIONS03-2018 –00 Page 13QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

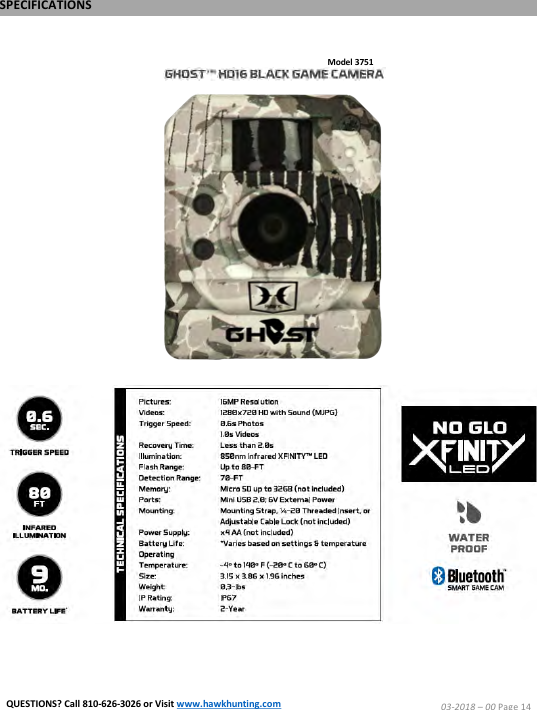

Model 3751SPECIFICATIONS03-2018 –00 Page 14QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

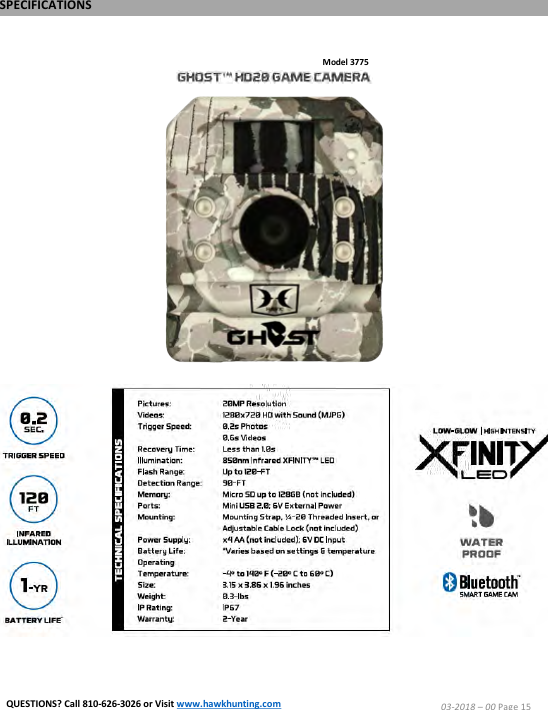

Model 3775SPECIFICATIONS03-2018 –00 Page 15QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

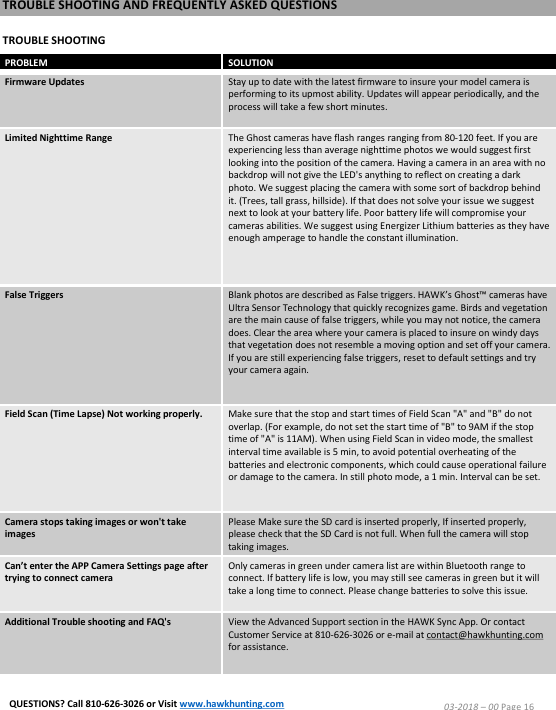

TROUBLE SHOOTING AND FREQUENTLY ASKED QUESTIONS03-2018 –00 Page 1603-2018 –00 Page 11QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.comTROUBLE SHOOTINGPROBLEMSOLUTIONFirmware UpdatesStay up to date with the latest firmware to insure your model camera is performing to its upmost ability. Updates will appear periodically, and the process will take a few short minutes.Limited Nighttime RangeThe Ghost cameras have flash ranges ranging from 80-120 feet. If you are experiencing less than average nighttime photos we would suggest first looking into the position of the camera. Having a camera in an area with no backdrop will not give the LED's anything to reflect on creating a dark photo. We suggest placing the camera with some sort of backdrop behind it. (Trees, tall grass, hillside). If that does not solve your issue we suggest next to look at your battery life. Poor battery life will compromise your cameras abilities. We suggest using Energizer Lithium batteries as they have enough amperage to handle the constant illumination.False TriggersBlank photos are described as False triggers. HAWK’s Ghost™ cameras have Ultra Sensor Technology that quickly recognizes game. Birds and vegetation are the main cause of false triggers, while you may not notice, the camera does. Clear the area where your camera is placed to insure on windy days that vegetation does not resemble a moving option and set off your camera. If you are still experiencing false triggers, reset to default settings and try your camera again.Field Scan (Time Lapse) Not working properly.Make sure that the stop and start times of Field Scan "A" and "B" do not overlap. (For example, do not set the start time of "B" to 9AM if the stop time of "A" is 11AM). When using Field Scan in video mode, the smallest interval time available is 5 min, to avoid potential overheating of the batteries and electronic components, which could cause operational failure or damage to the camera. In still photo mode, a 1 min. Interval can be set.Camera stops taking images or won't take imagesPlease Make sure the SD card is inserted properly, If inserted properly, please check that the SD Card is not full. When full the camera will stop taking images.Can’t enter the APP Camera Settings page after trying to connect cameraOnly cameras in green under camera list are within Bluetooth range to connect. If battery life is low, you may still see cameras in green but it will take a long time to connect. Please change batteries to solve this issue.Additional Trouble shooting and FAQ'sView the Advanced Support section in the HAWK Sync App. Or contact Customer Service at 810-626-3026 or e-mail at contact@hawkhunting.com for assistance.QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

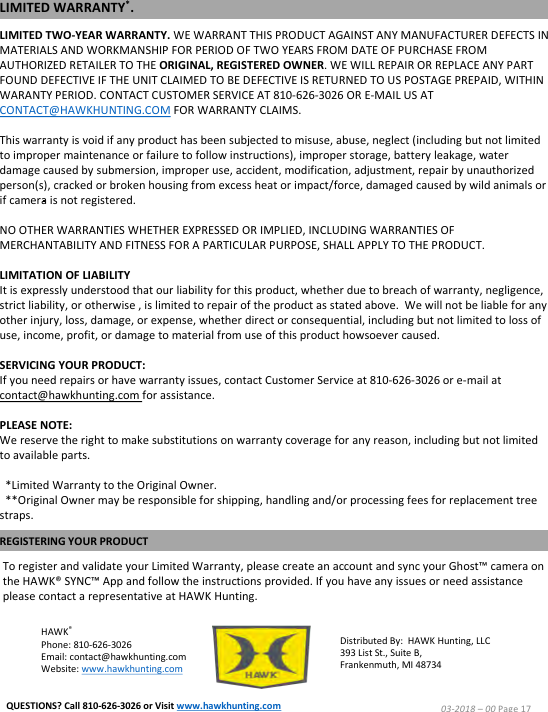

LIMITED TWO-YEAR WARRANTY. WE WARRANT THIS PRODUCT AGAINST ANY MANUFACTURER DEFECTS IN MATERIALS AND WORKMANSHIP FOR PERIOD OF TWO YEARS FROM DATE OF PURCHASE FROM AUTHORIZED RETAILER TO THE ORIGINAL, REGISTERED OWNER. WE WILL REPAIR OR REPLACE ANY PART FOUND DEFECTIVE IF THE UNIT CLAIMED TO BE DEFECTIVE IS RETURNED TO US POSTAGE PREPAID, WITHIN WARANTY PERIOD. CONTACT CUSTOMER SERVICE AT 810-626-3026 OR E-MAIL US AT CONTACT@HAWKHUNTING.COM FOR WARRANTY CLAIMS.This warranty is void if any product has been subjected to misuse, abuse, neglect (including but not limited to improper maintenance or failure to follow instructions), improper storage, battery leakage, water damage caused by submersion, improper use, accident, modification, adjustment, repair by unauthorized person(s), cracked or broken housing from excess heat or impact/force, damaged caused by wild animals or if camera is not registered.NO OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THE PRODUCT.LIMITATION OF LIABILITYIt is expressly understood that our liability for this product, whether due to breach of warranty, negligence, strict liability, or otherwise , is limited to repair of the product as stated above. We will not be liable for any other injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use, income, profit, or damage to material from use of this product howsoever caused.SERVICING YOUR PRODUCT:If you need repairs or have warranty issues, contact Customer Service at 810-626-3026 or e-mail at contact@hawkhunting.com for assistance.PLEASE NOTE: We reserve the right to make substitutions on warranty coverage for any reason, including but not limited to available parts.*Limited Warranty to the Original Owner.**Original Owner may be responsible for shipping, handling and/or processing fees for replacement tree straps.HAWK®Phone: 810-626-3026Email: contact@hawkhunting.comWebsite: www.hawkhunting.comDistributed By: HAWK Hunting, LLC393 List St., Suite B,Frankenmuth, MI 48734To register and validate your Limited Warranty, please create an account and sync your Ghost™ camera on the HAWK® SYNC™ App and follow the instructions provided. If you have any issues or need assistance please contact a representative at HAWK Hunting.REGISTERING YOUR PRODUCTLIMITED WARRANTY*.03-2018 –00 Page 17QUESTIONS? Call 810-626-3026 or Visit www.hawkhunting.com

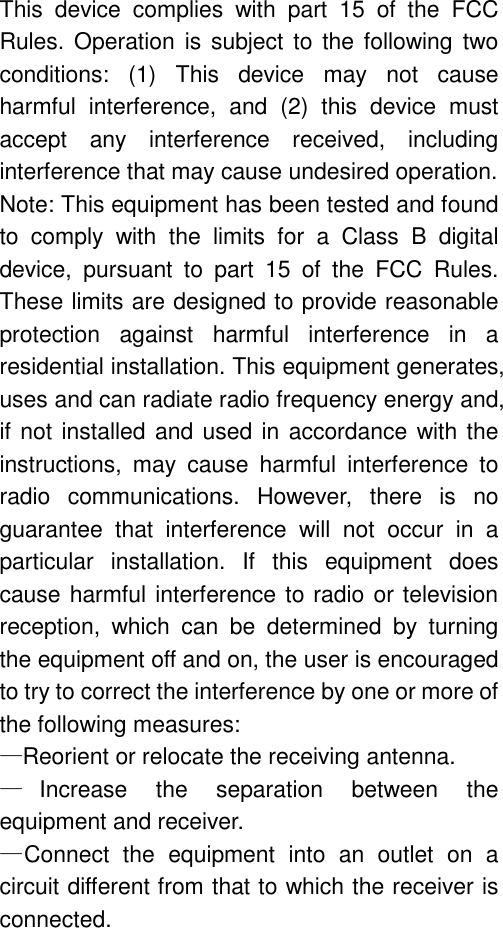

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

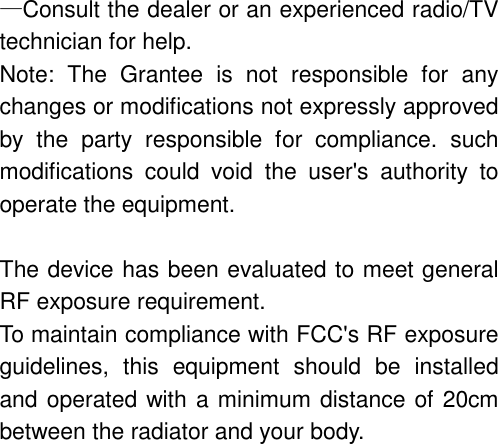

—Consult the dealer or an experienced radio/TV technician for help. Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
