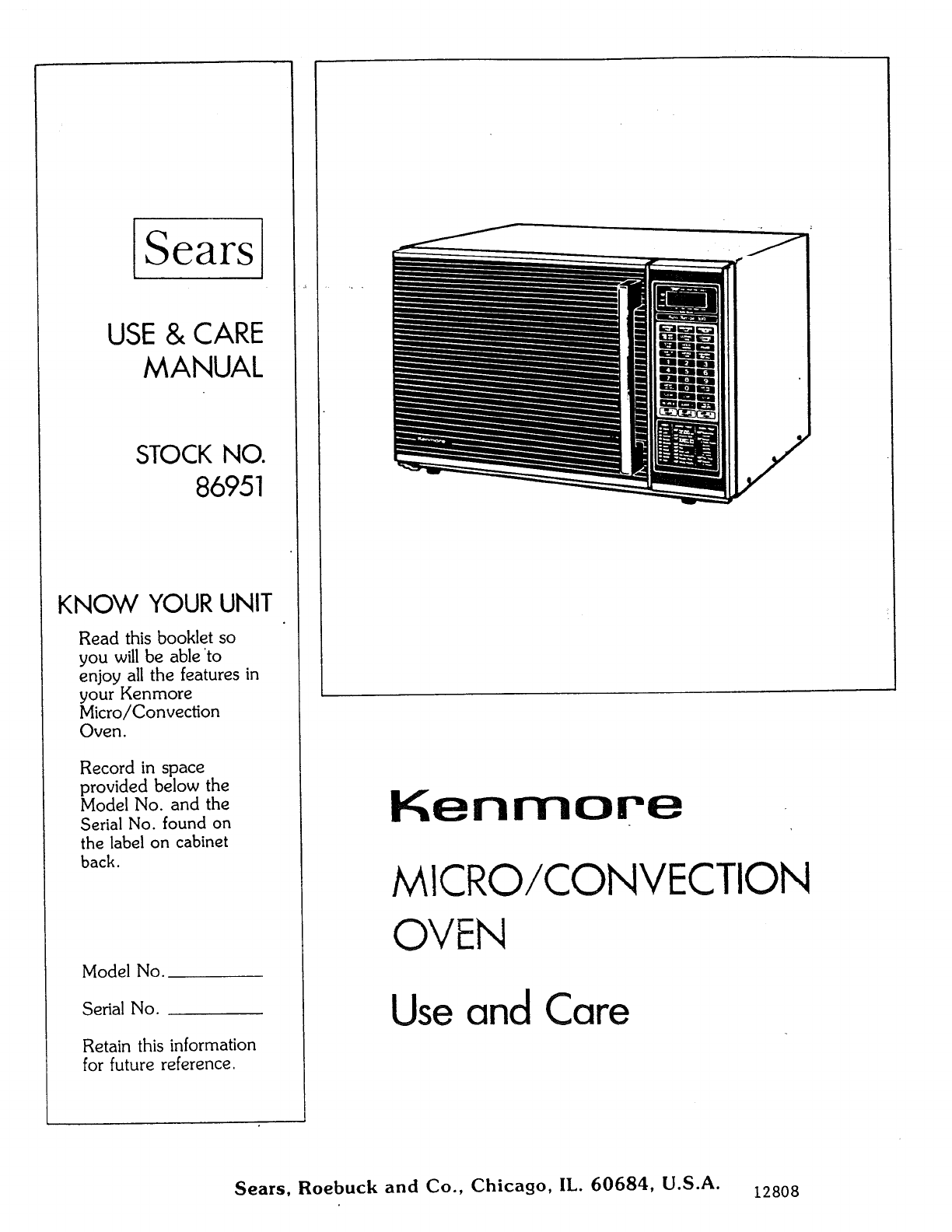

ISearsl

USE& CARE

MANUAL

STOCK NO.

86951

KNOW YOUR UNIT

Read this booklet so

you will be able 'to

enjoy all the features in

your Kenmore

Micro/Convection

Oven.

Record in space

provided below the

Model No. and the

Serial No. found on

the label on cabinet

back.

Model No.

Serial No.

Retain this information

for future reference.

Kenmore

MICRO/C ONVECTION

OVEN

Use and Care

Sears, Roebuck and Co., Chicago, IL. 60684, U.S.A. 12808

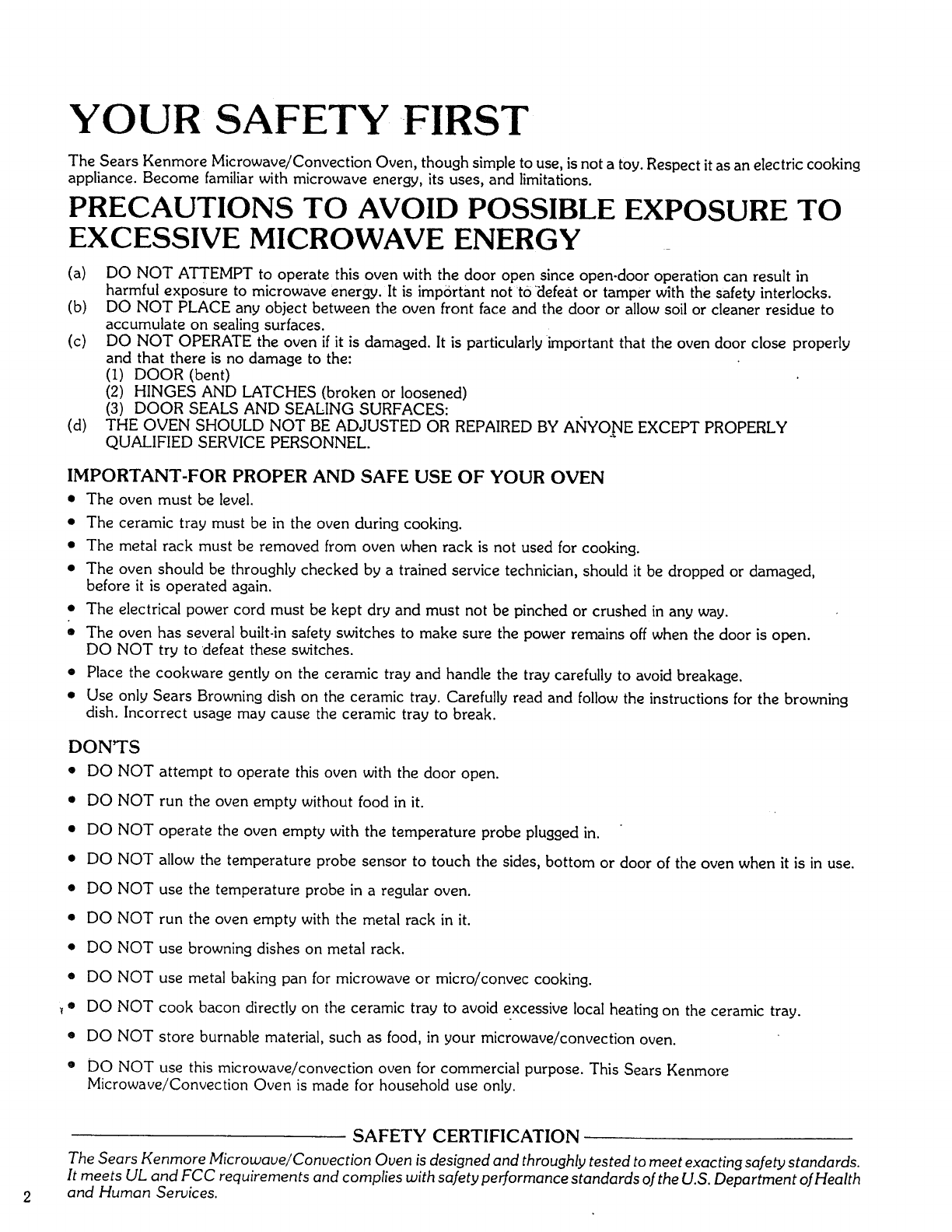

YOUR SAFETY-FIRST

The Sears Kenmore Microwave/Convection Oven, though simple to use, is not a toy. Respect it as an electric cooking

appliance. Become familiar with microwave energy, its uses, and limitations.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

(a) DO NOT ATTEMPT to operate this oven with the door open since open-door operation can result in

harmful exposure to microwave energy. It is important not t0"defeat or tamper with the safety interlocks.

(b) DO NOT PLACE any object between the oven front face and the door or allow soil or cleaner residue to

accumulate on sealing surfaces.

and that there is no damage to the:

(I) DOOR (bent)

(2) HINGES AND LATCHES (broken or loosened)

(3) DOOR SEALS AND SEALING SURFACES:

(d) THE OVEN SHOULD NOT BE ADJUSTED OR REPAIRED BY AIXlYO.NE EXCEPT PROPERLY

QUALIFIED SERVICE PERSONNEL.

IMPORTANT-FOR PROPER AND SAFE USE OF YOUR OVEN

• The oven must be level.

• The ceramic tray must be in the oven during cooking.

• The metal rack must be removed from oven when rack is not used for cooking.

• The oven should be throughly checked by a trained service technician, should it be dropped or damaged,

before it is operated again.

• The electrical power cord must be kept dry and must not be pinched or crushed in any way.

• The oven has several built-in safety switches to make sure the power remains off when the door is open.

DO NOT try to defeat these switches.

• Place the cookware gently on the ceramic tray and handle the tray carefully to avoid breakage.

• Use only Sears Browning dish on the ceramic tray. Carefully read and follow the instructions for the browning

dish. Incorrect usage may cause the ceramic tray to break.

DON'TS

• DO NOT attempt to operate this oven with the door open.

• DO NOT run the oven empty without food in it.

• DO NOT operate the oven empty with the temperature probe plugged in.

• DO NOT allow the temperature probe sensor to touch the sides, bottom or door of the oven when it is in use.

• DO NOT use the temperature probe in a regular oven.

• DO NOT run the oven empty with the metal rack in it.

• DO NOT use browning dishes on metal rack.

• DO NOT use metal baking pan for microwave or micro/convec cooking.

• DO NOT cook bacon directly on the ceramic tray to avoid excessive local heating on the ceramic tray.

• DO NOT store burnable material, such as food, in your microwave/convection oven.

• DO NOT use this microwave/convection oven for commercial purpose. This Sears Kenmore

Microwave/Convection Oven is made for household use only.

SAFETY CERTIFICATION

The Sears Kenmore Microwave/Convection Oven is designed and throughly tested to meet exacting safety standards.

It meets UL and FCC requirements and complies with safety performance standards of the U.S. Department of Health

and Human Services.

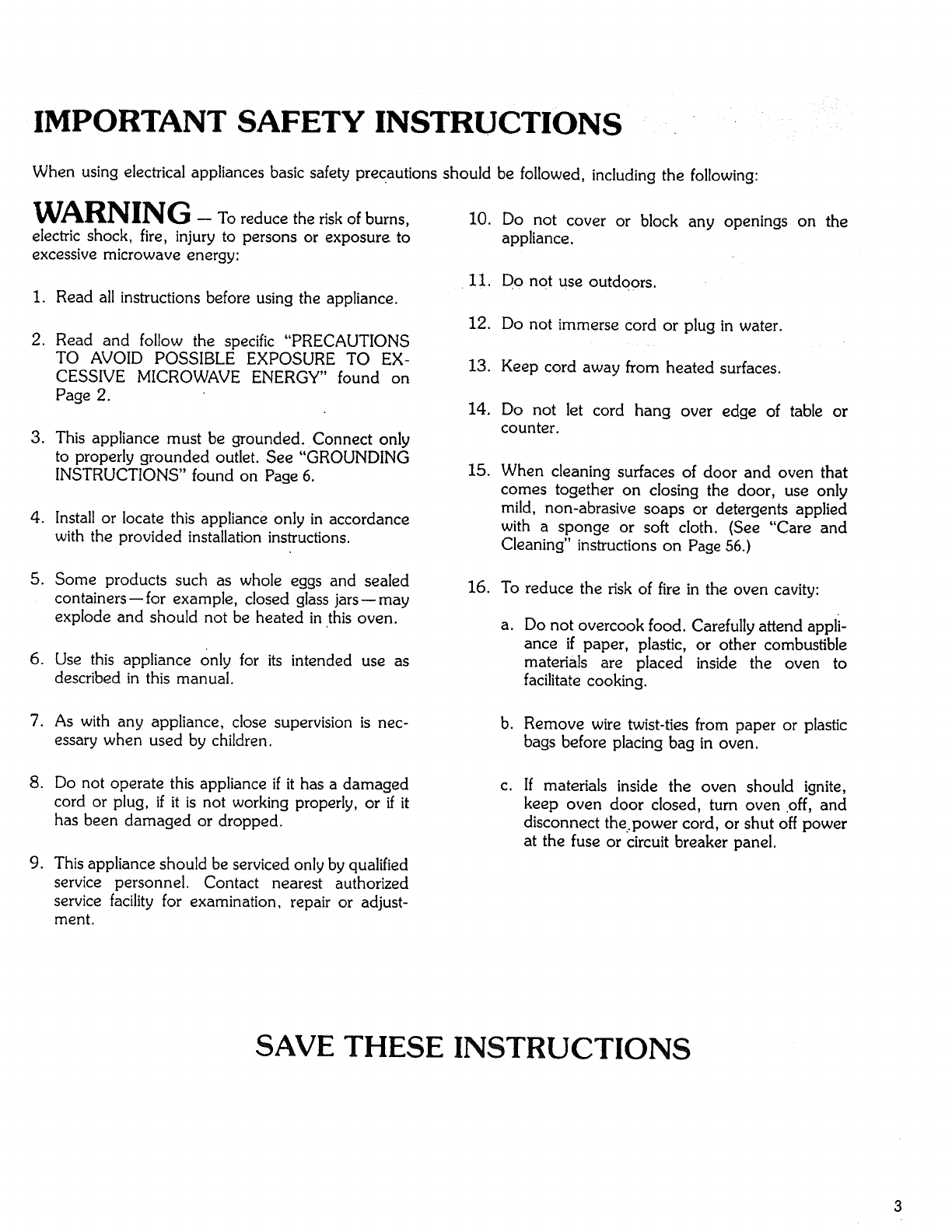

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING - Toreducetheriskofburns,

electric shock, fire, injury to persons or exposure to

excessive microwave energy:

1. Read all instructions before using the appliance.

2. Read and follow the specific "PRECAUTIONS

TO AVOID POSSIBLE EXPOSURE TO EX-

CESSIVE MICROWAVE ENERGY" found on

Page 2.

3. This appliance must be grounded. Connect only

to properly grounded outlet. See "GROUNDING

INSTRUCTIONS" found on Page 6.

4. Install or locate this appliance only in accordance

with the provided installation instructions.

10. Do not cover or block any openings on the

appliance.

11. Do not use outdoors.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. Do not let cord hang over edge of table or

counter.

15. When cleaning surfaces of door and oven that

comes together on closing the door, use only

mild, non-abrasive soaps or detergents applied

with a sponge or soft cloth. (See "Care and

Cleaning" instructions on Page 56.)

5. Some products such as whole eggs and sealed

containers--for example, closed glass jars--may

explode and should not be heated in this oven.

6. Use this appliance 0nly for its intended use as

described in this manual.

16. To

reduce the risk of fire in the oven cavity:

Do not overcook food. Carefully attend appli-

ance if paper, plastic, or other combustible

materials are placed inside the oven to

facilitate cooking.

7. As with any appliance, close supervision is nec-

essary when used by children. b. Remove wire twist-ties from paper or plastic

bags before placing bag in oven.

8. Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly, or if it

has been damaged or dropped.

9. This appliance should be serviced only by qualified

service personnel. Contact nearest authorized

service facility for examination, repair or adjust-

ment.

C, If materials inside the oven should ignite,

keep oven door closed, turn oven off, and

disconnect the..power cord, or shut off power

at the fuse or circuit breaker panel.

SAVE THESE INSTRUCTIONS

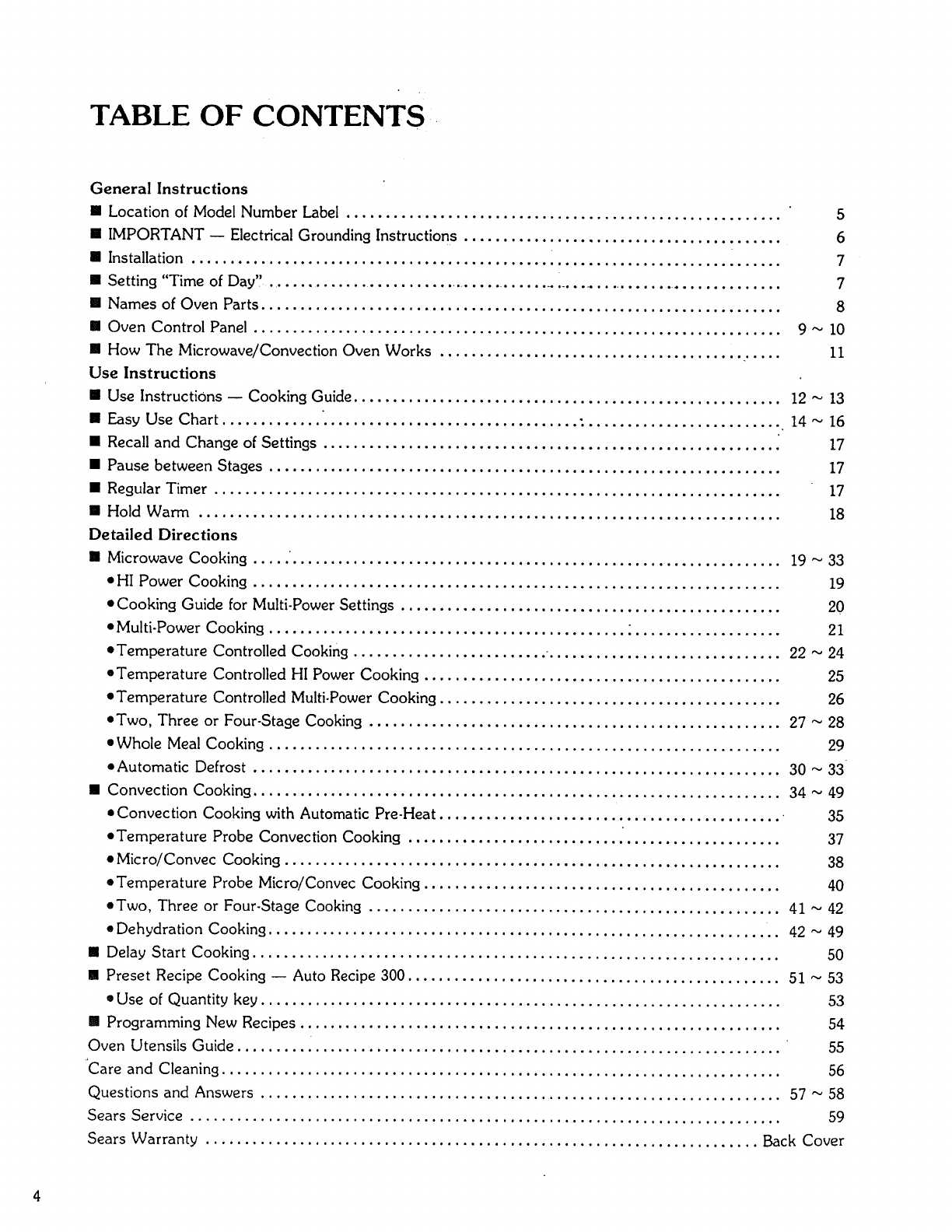

TABLE OF CONTENTS.

General Instructions

[] Location of Model Number Label ........................................................ 5

[] IMPORTANT -- Electrical Grounding Instructions ......................................... 6

[] Installation ............................................................................ 7

[] Setting "Time of Day'! ............................................................................ 7

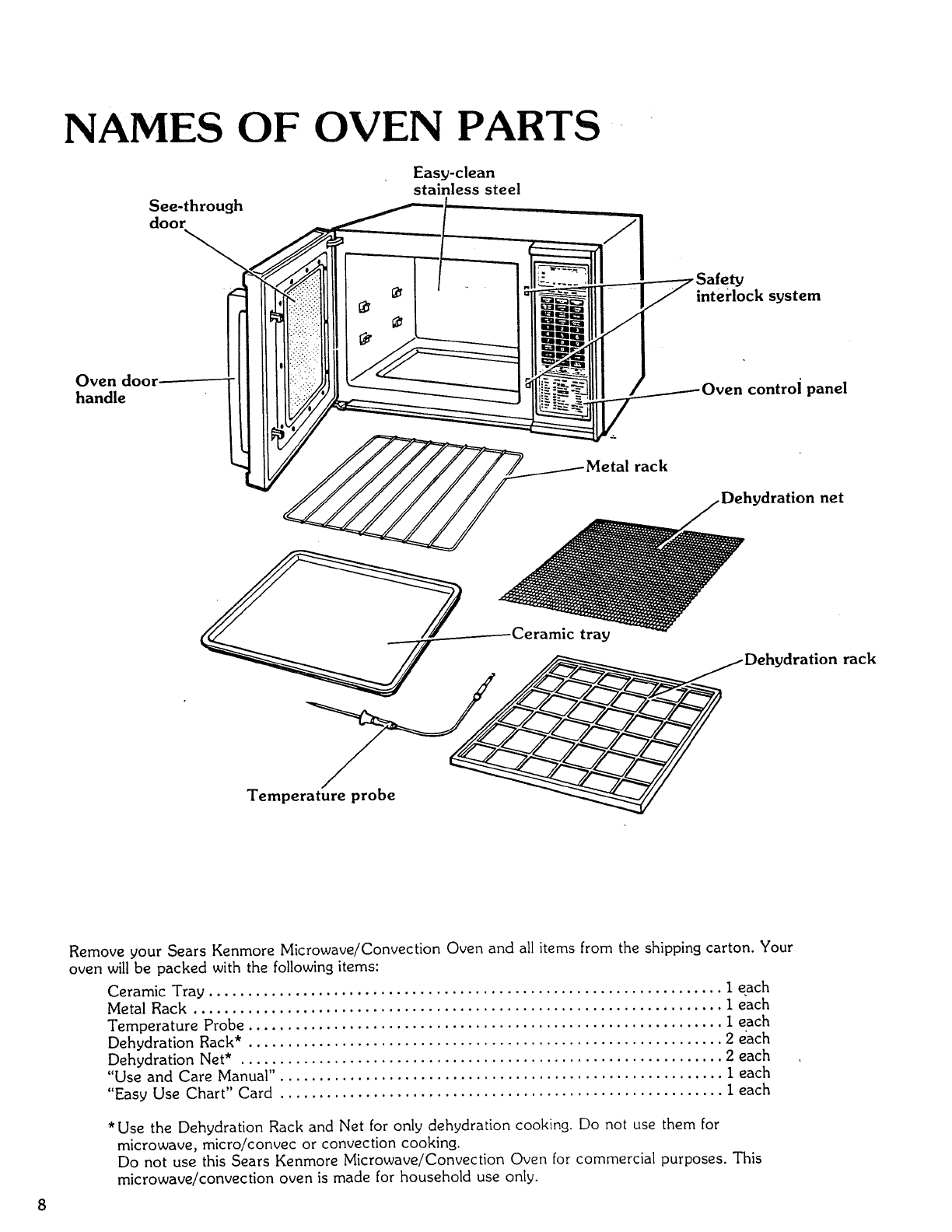

[] Names of Oven Parts ................................................................... 8

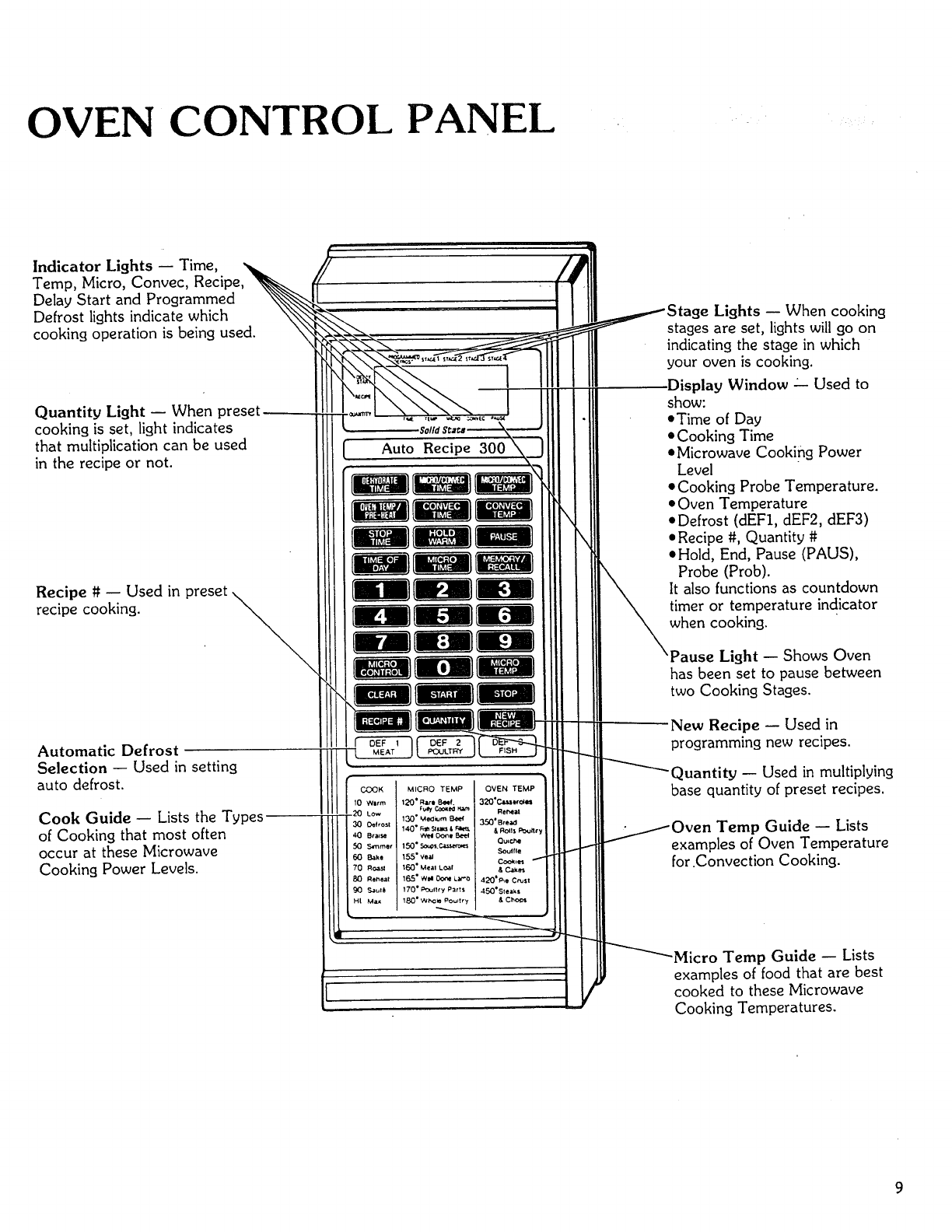

[] Oven Control Panel .................................................................... 9 ~ I0

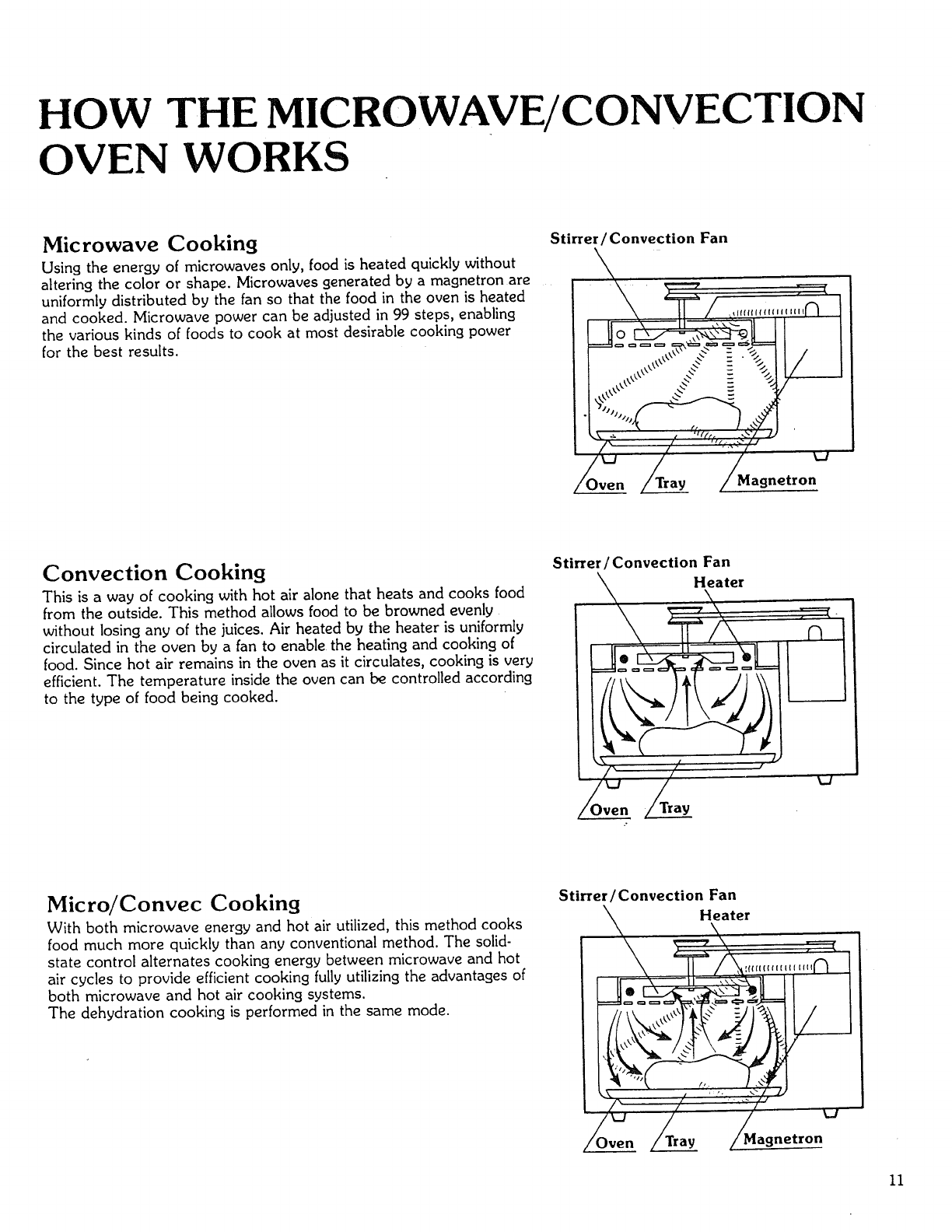

[] How The Microwave/Convection Oven Works ............................................ 11

Use Instructions

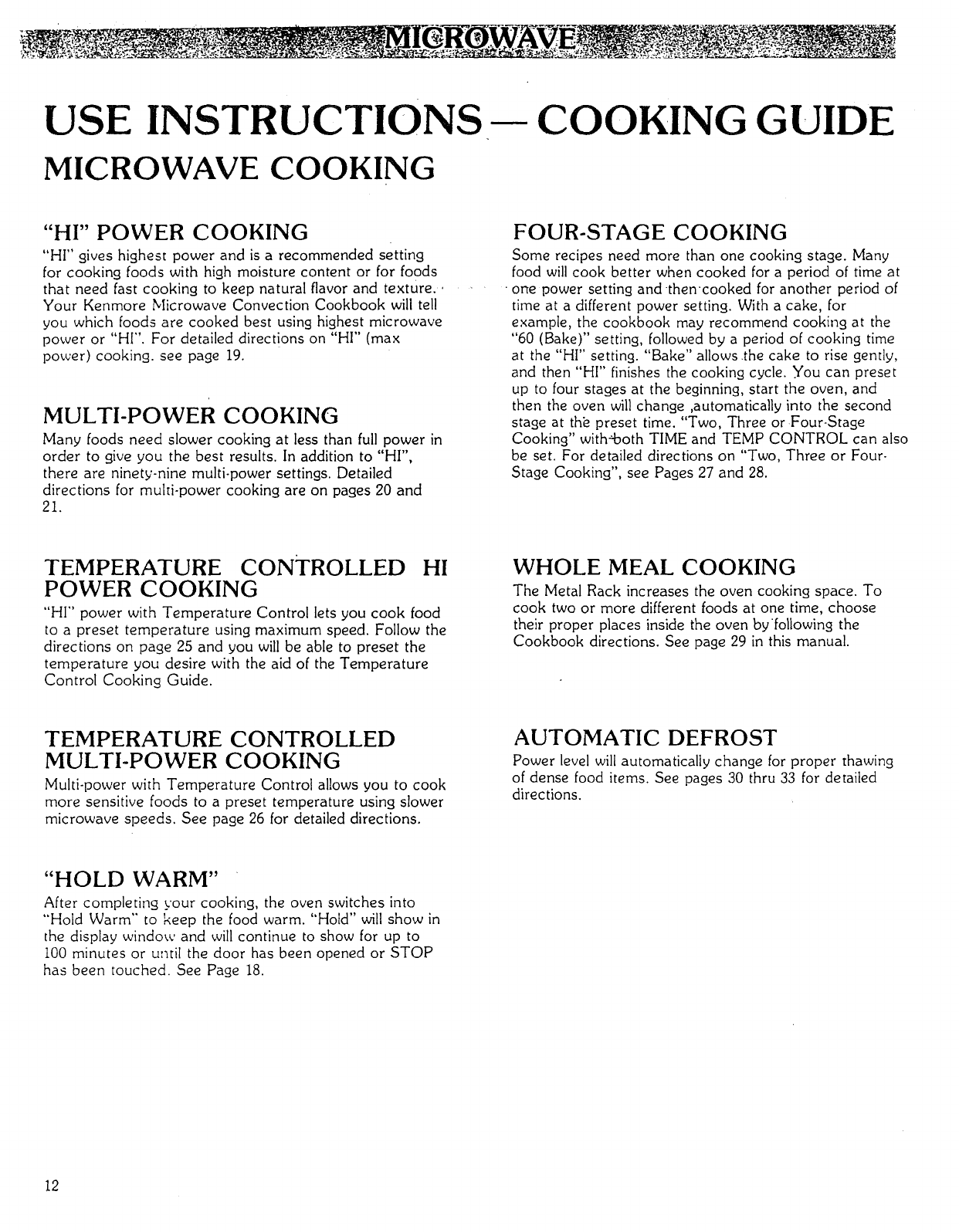

[] Use Instructions -- Cooking Guide ....................................................... 12 ~ 13

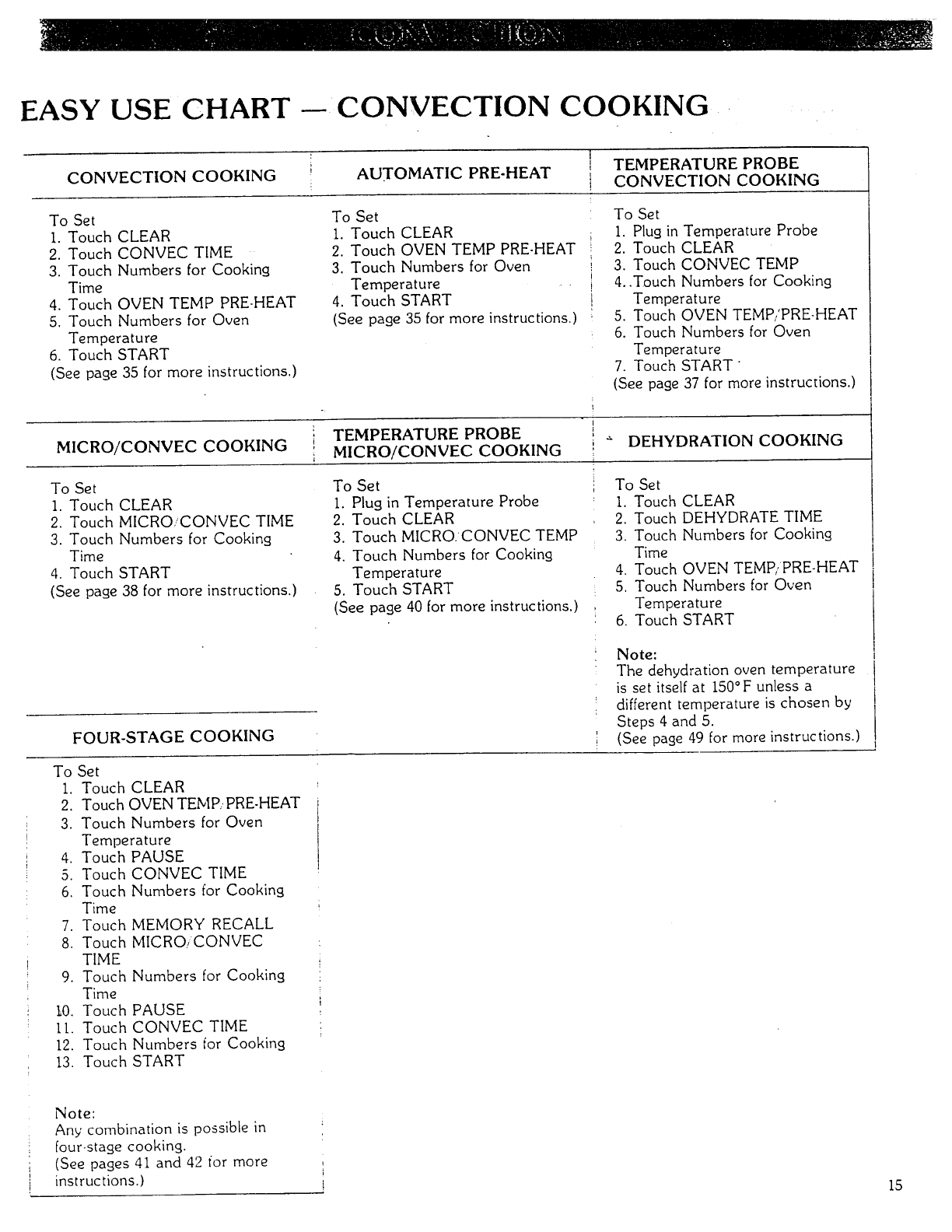

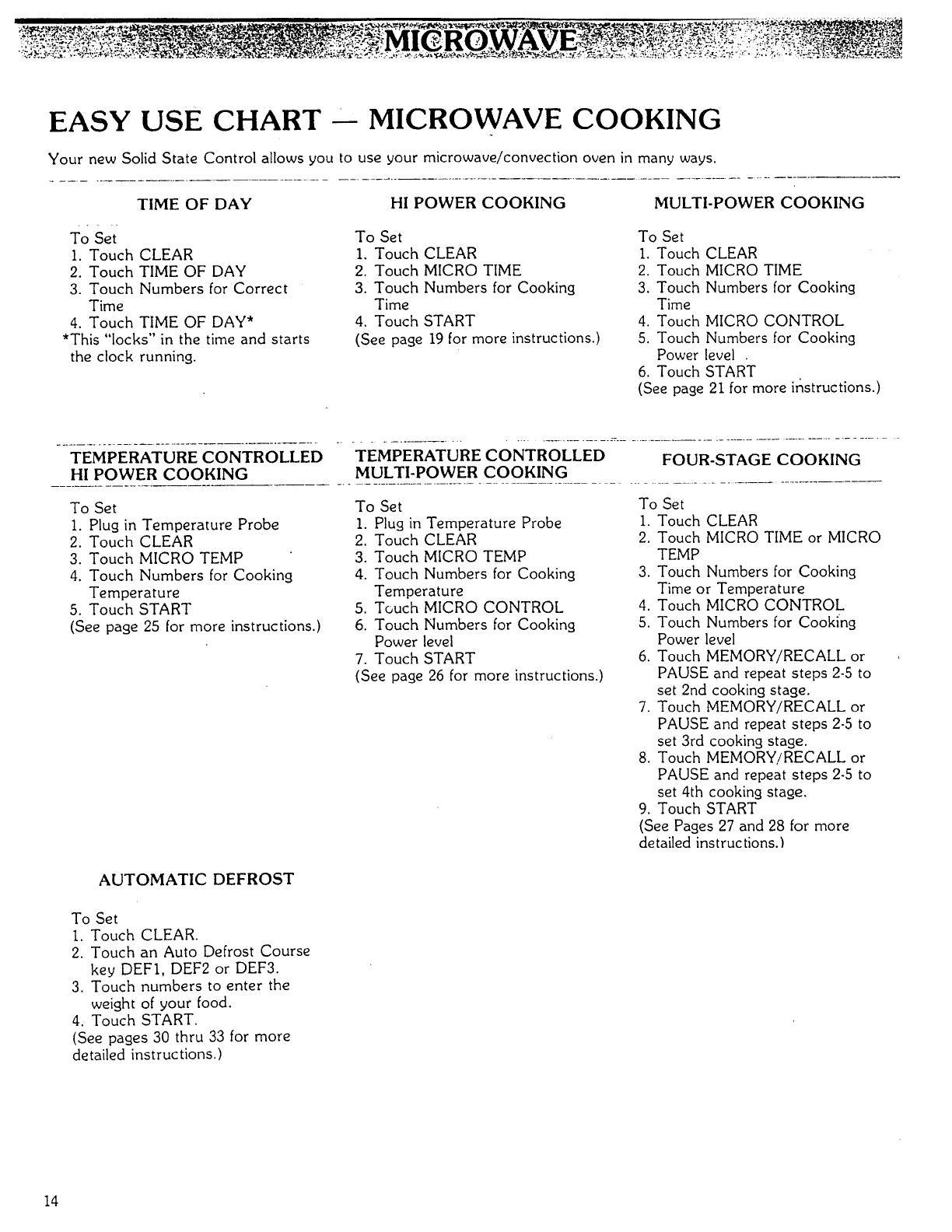

[] Easy Use Chart .............................................. -.......................... 14 "_ 16

Microwave Cooking ..... '............................................................... 19 "_ 33

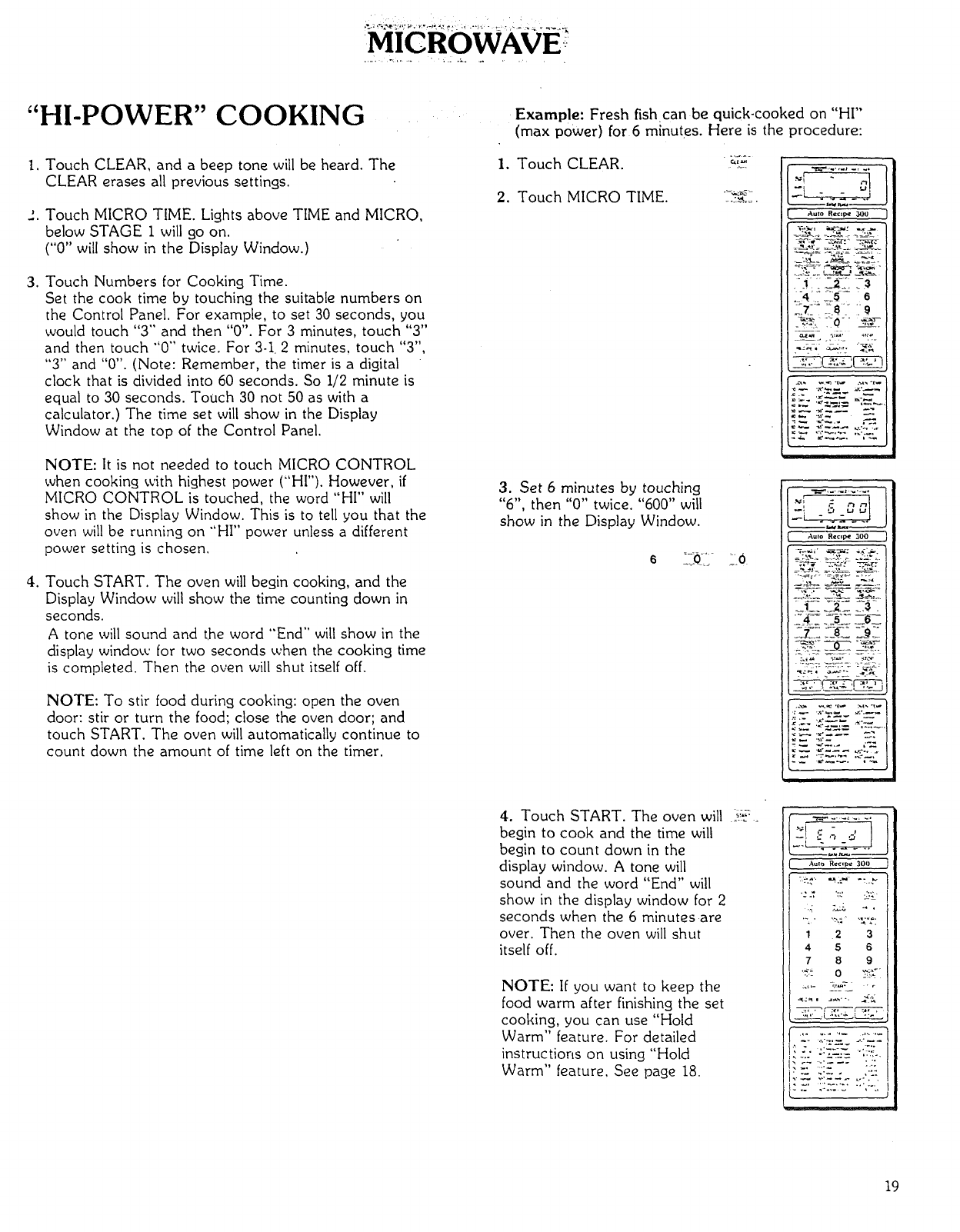

• HI Power Cooking .................................................................... 19

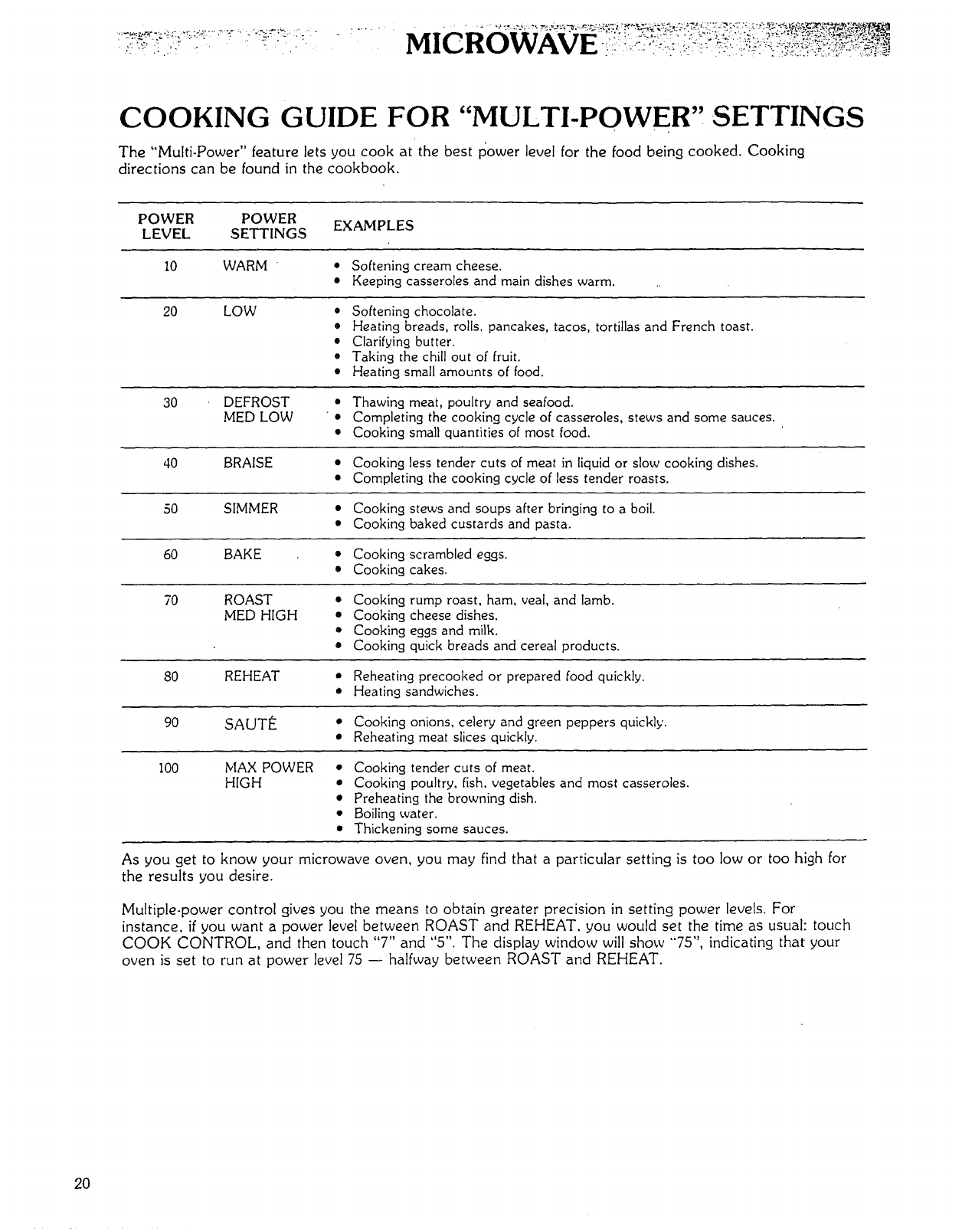

oCooking Guide for Multi-Power Settings ................................................. 20

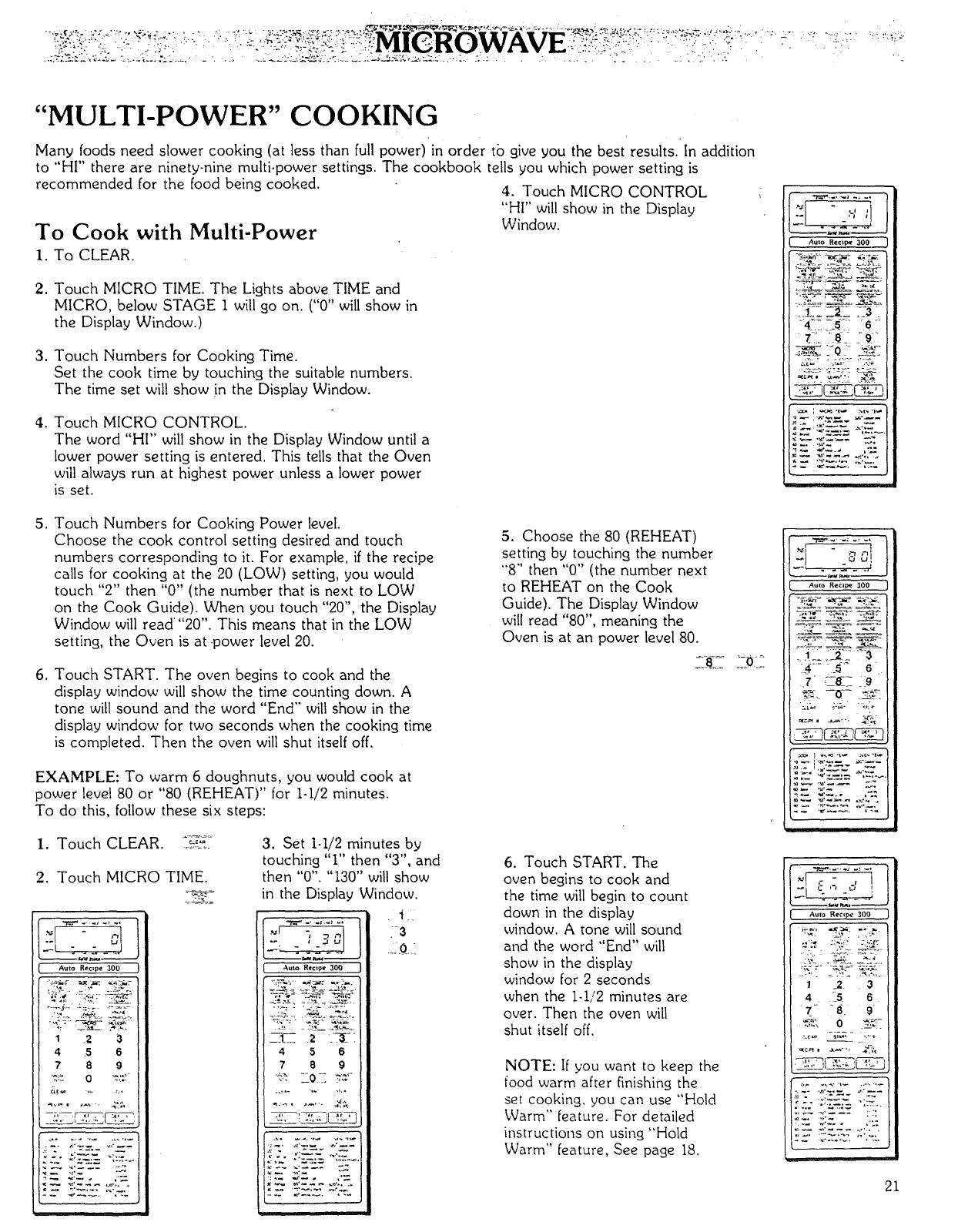

• Multi-Power Cooking .............................................. ; ................... 21

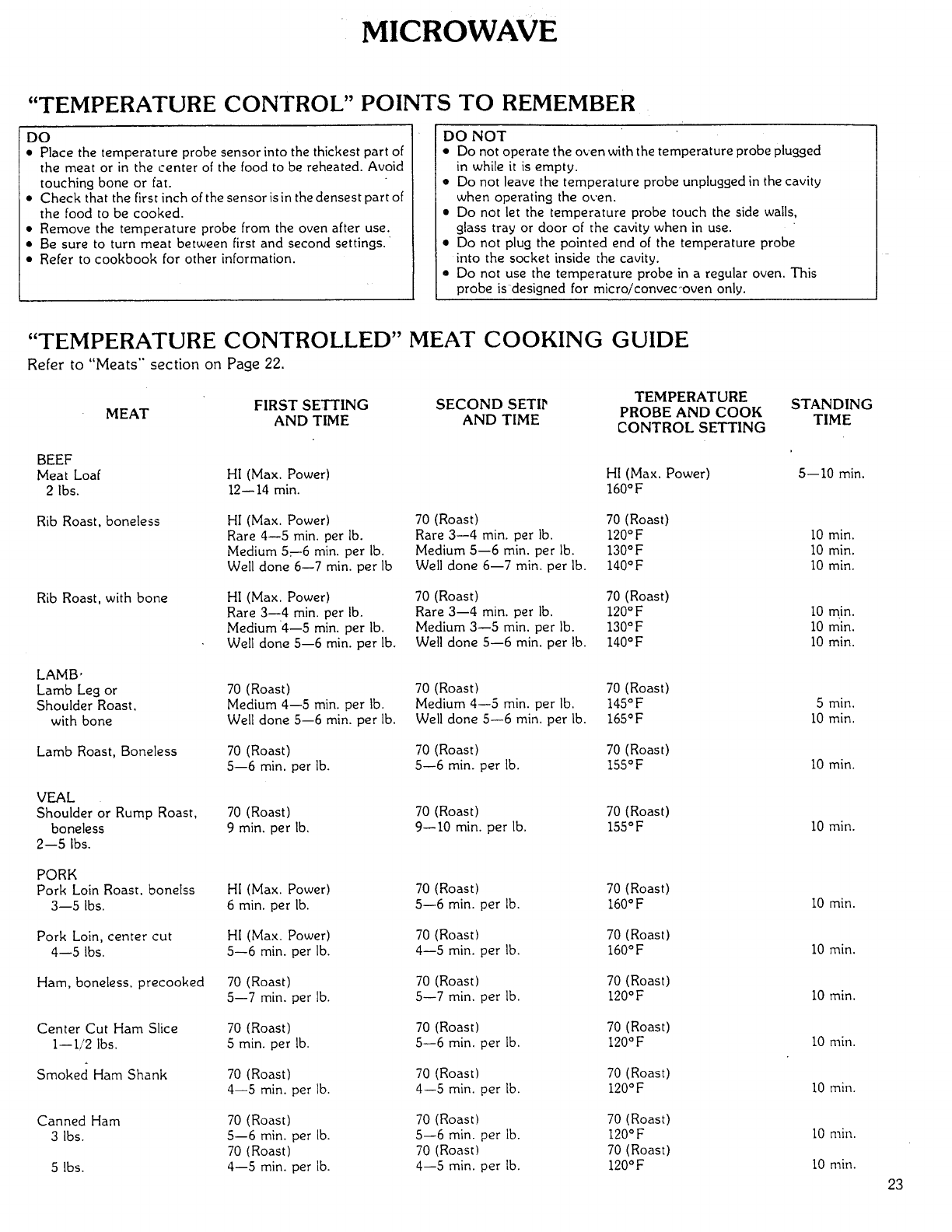

*Temperature Controlled Cooking ......................... .............................. 22 ,-_24

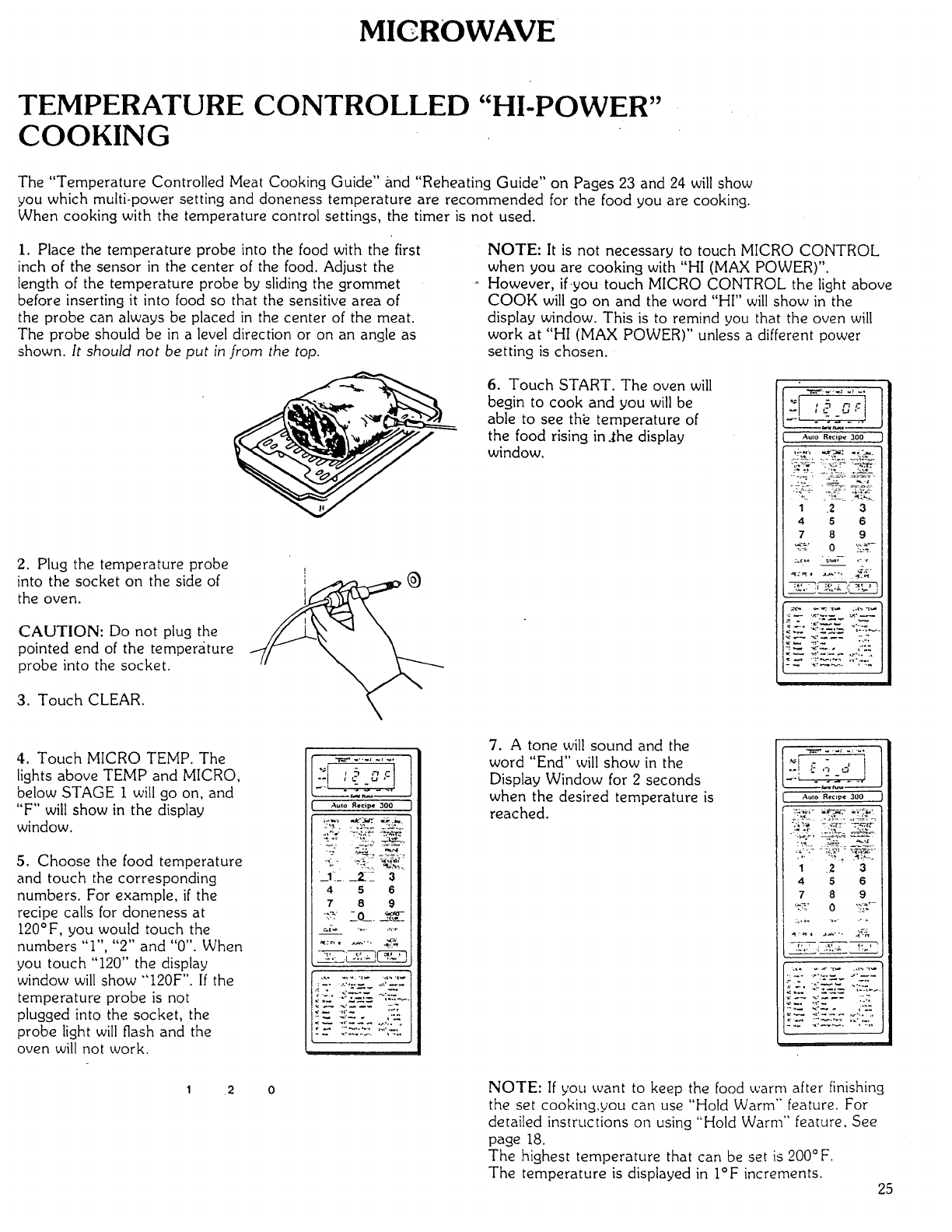

oTemperature Controlled HI Power Cooking .............................................. 25

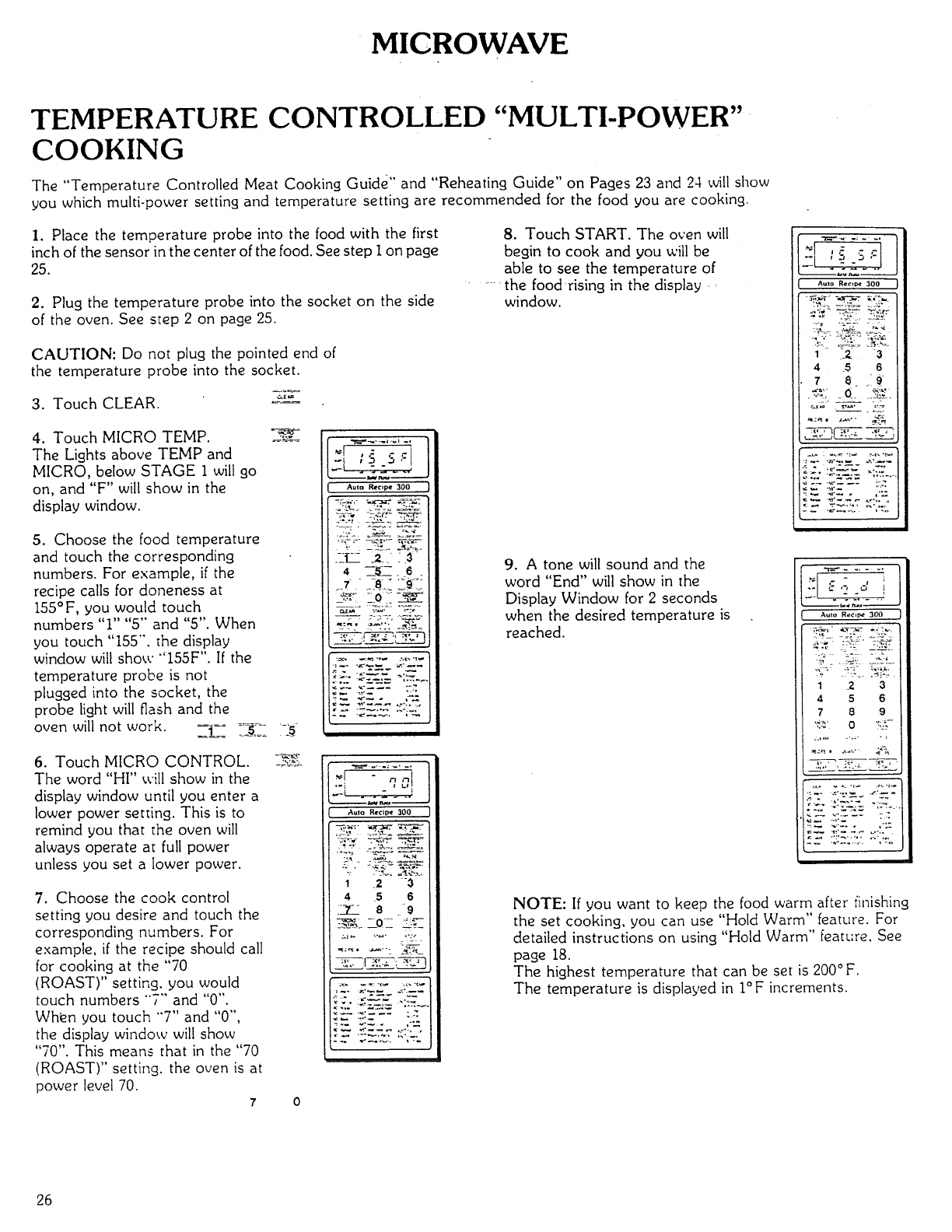

• Temperature Controlled Multi-Power Cooking ............................................ 26

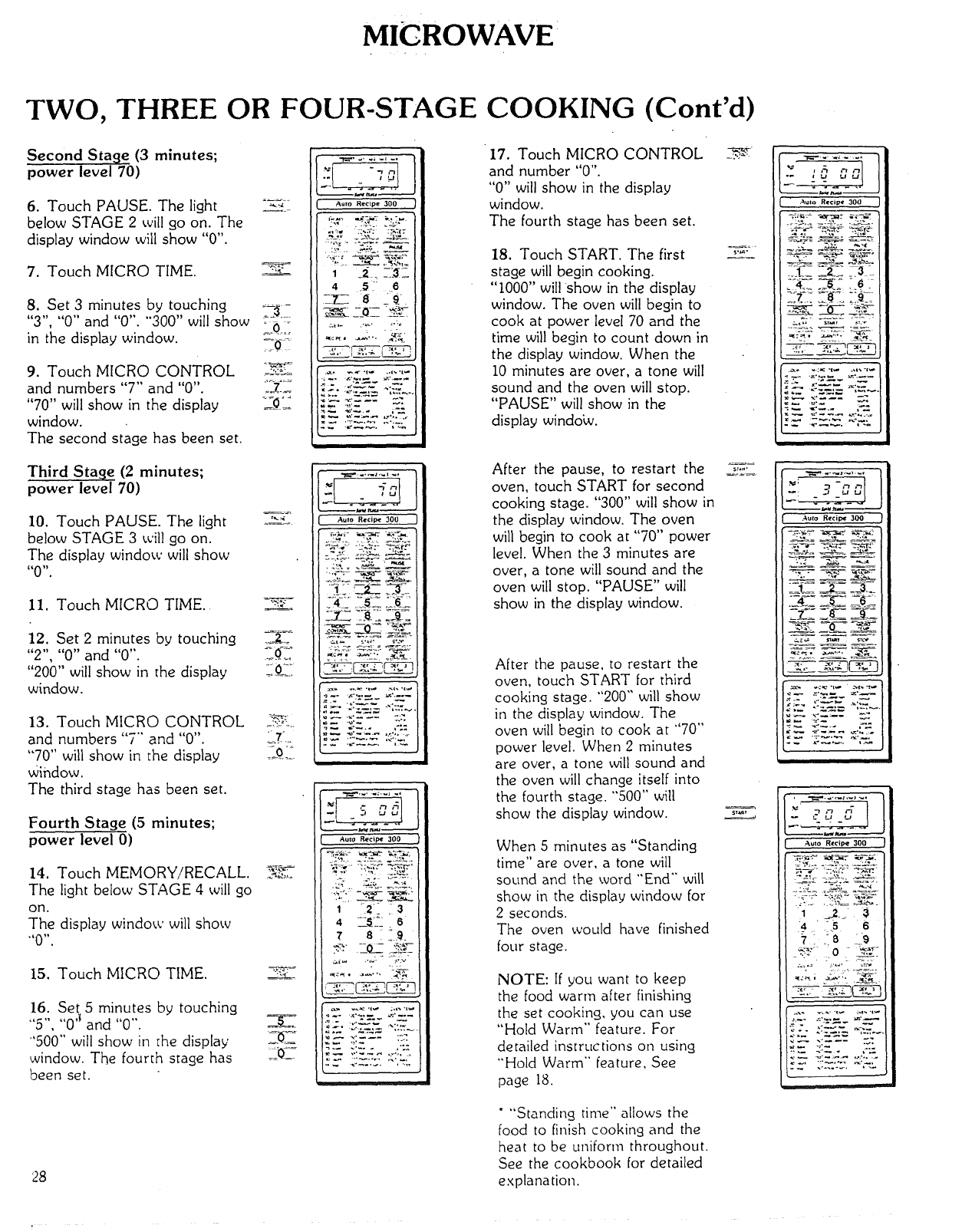

• Two, Three or Four-Stage Cooking ..................................................... 27 ~ 28

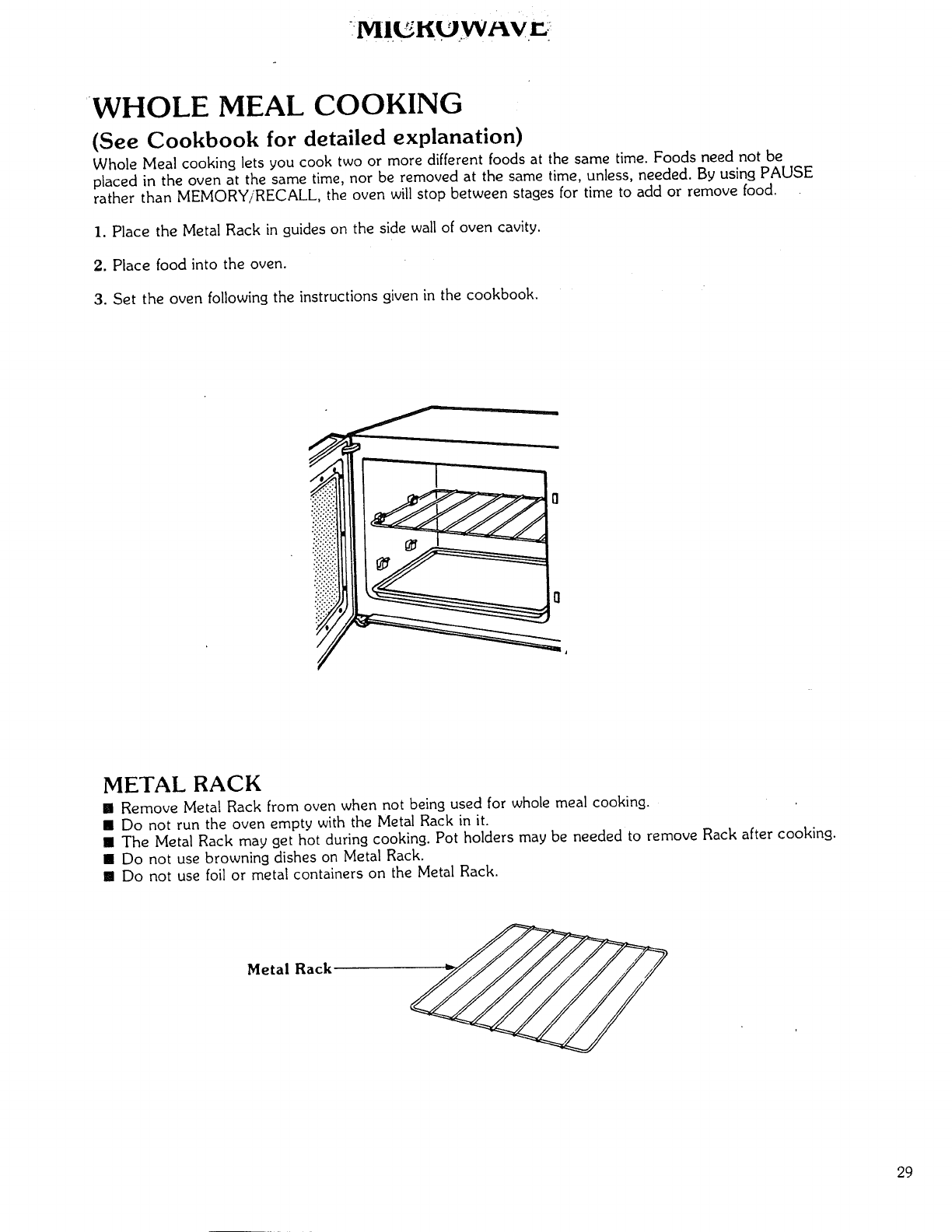

• Whole Meal Cooking .................................................................. 29

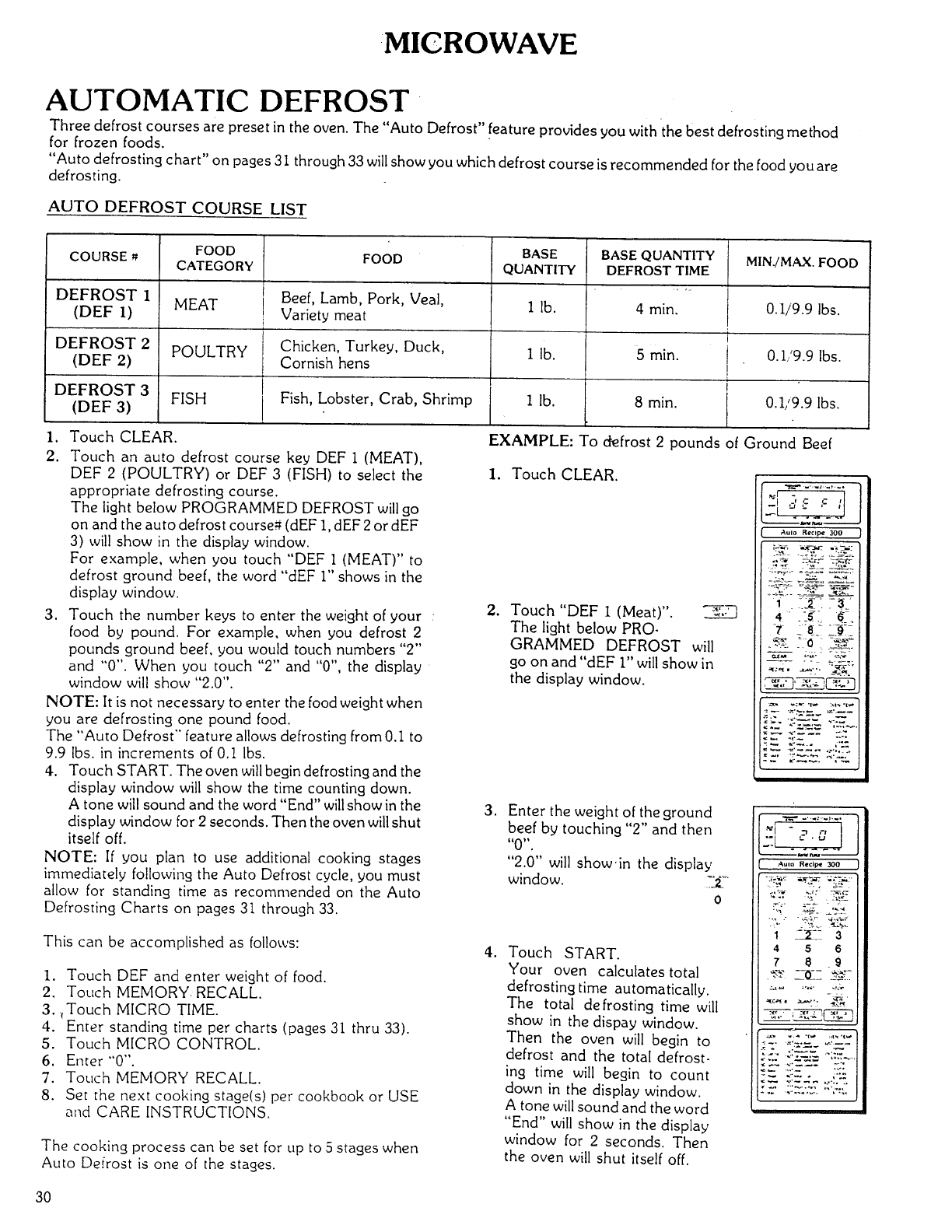

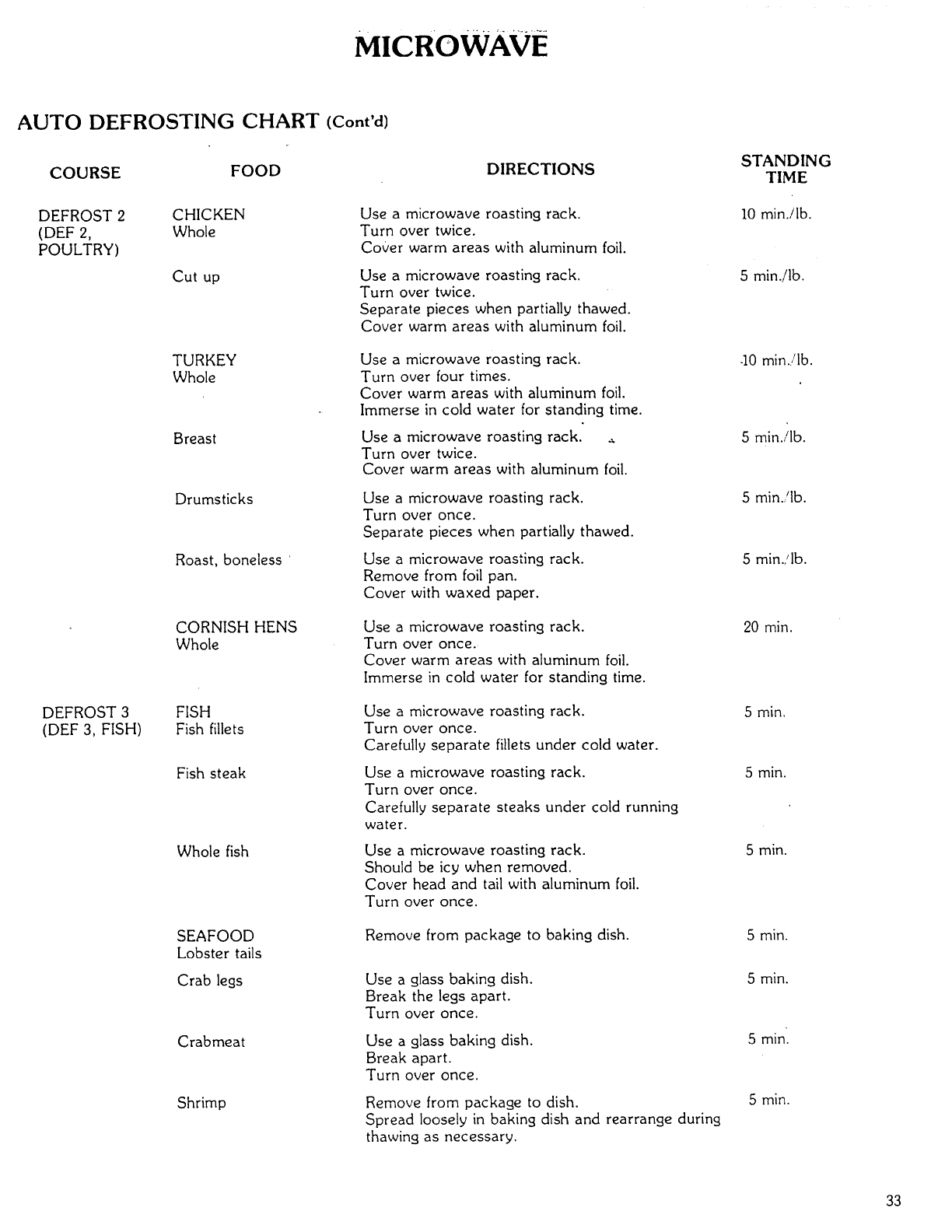

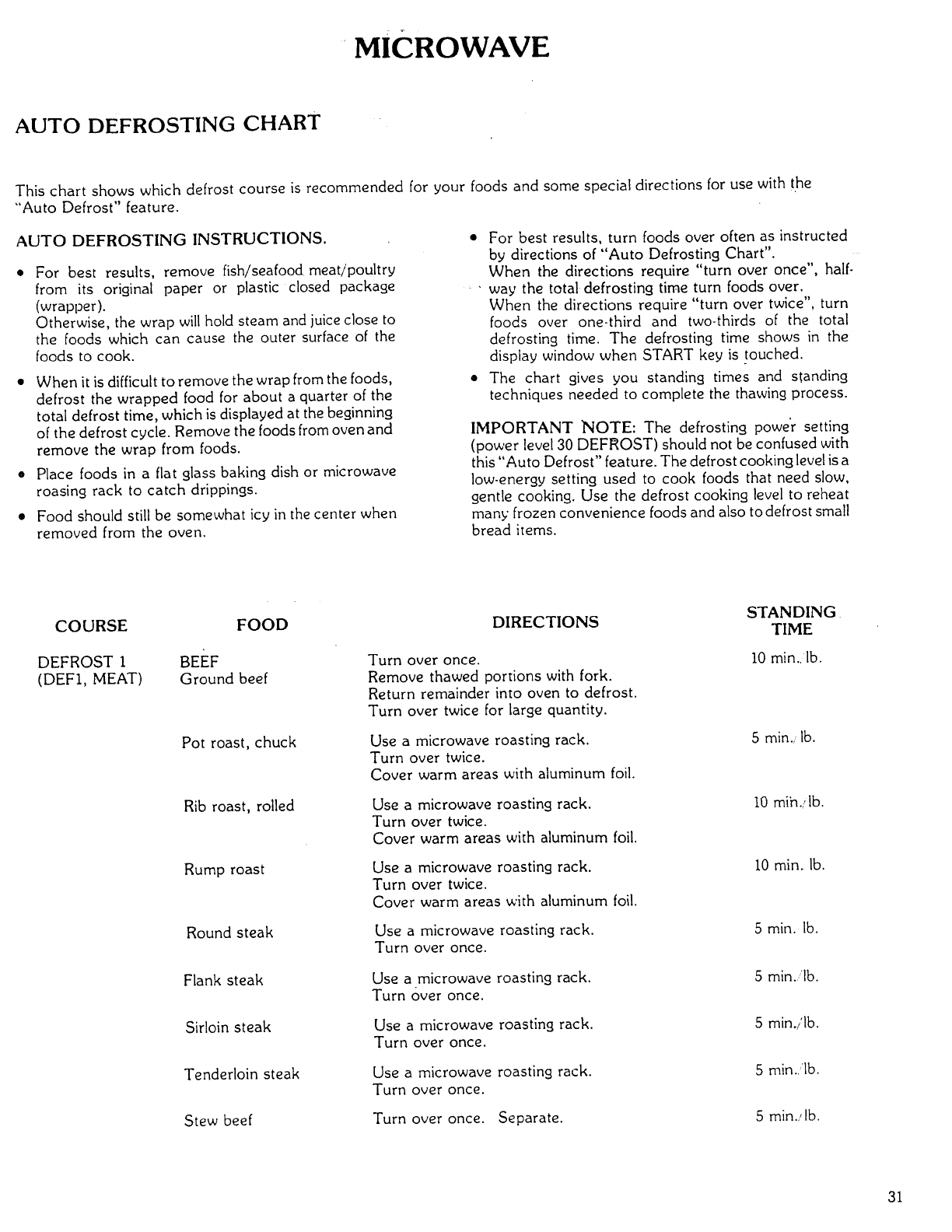

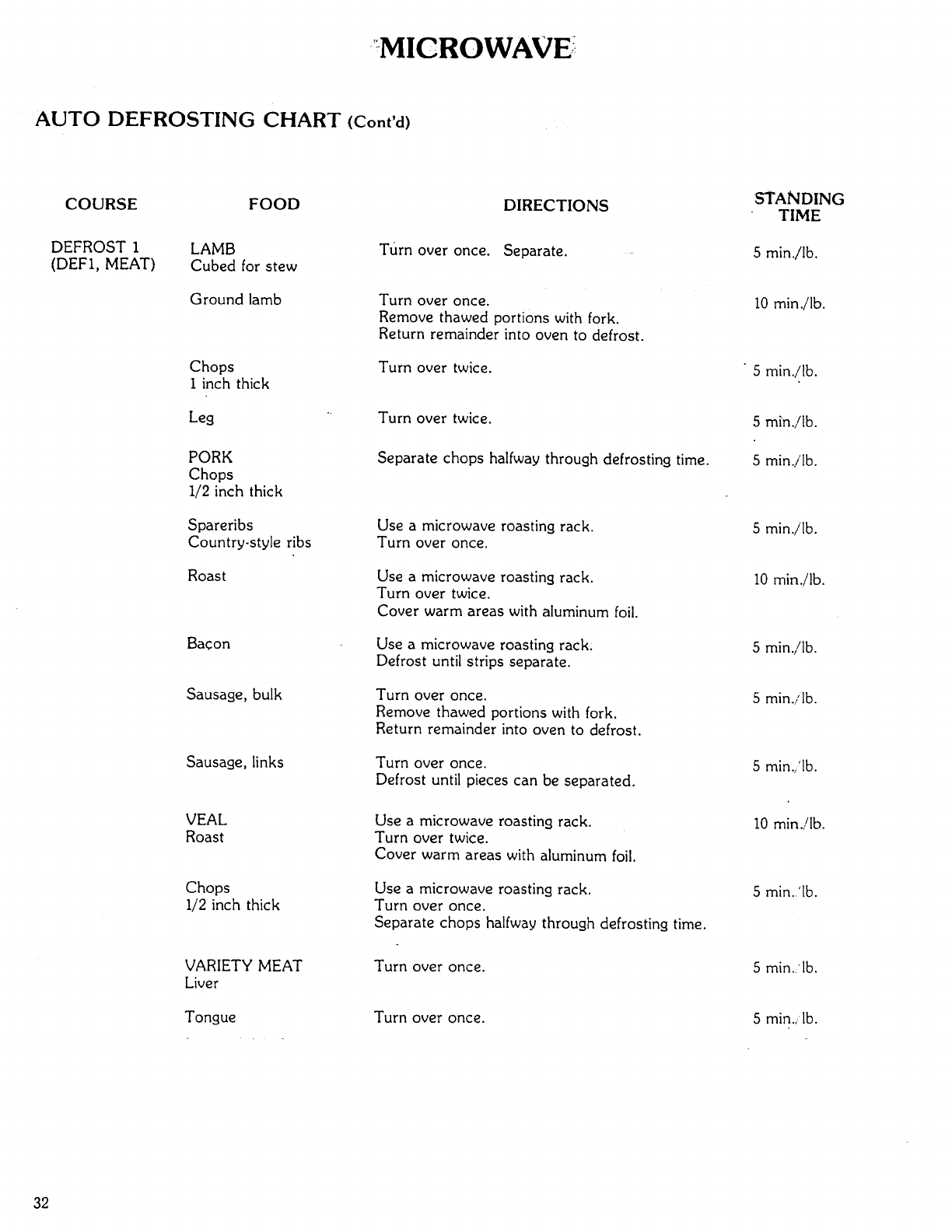

oAutomatic Defrost .................................................................... 30 "-_33

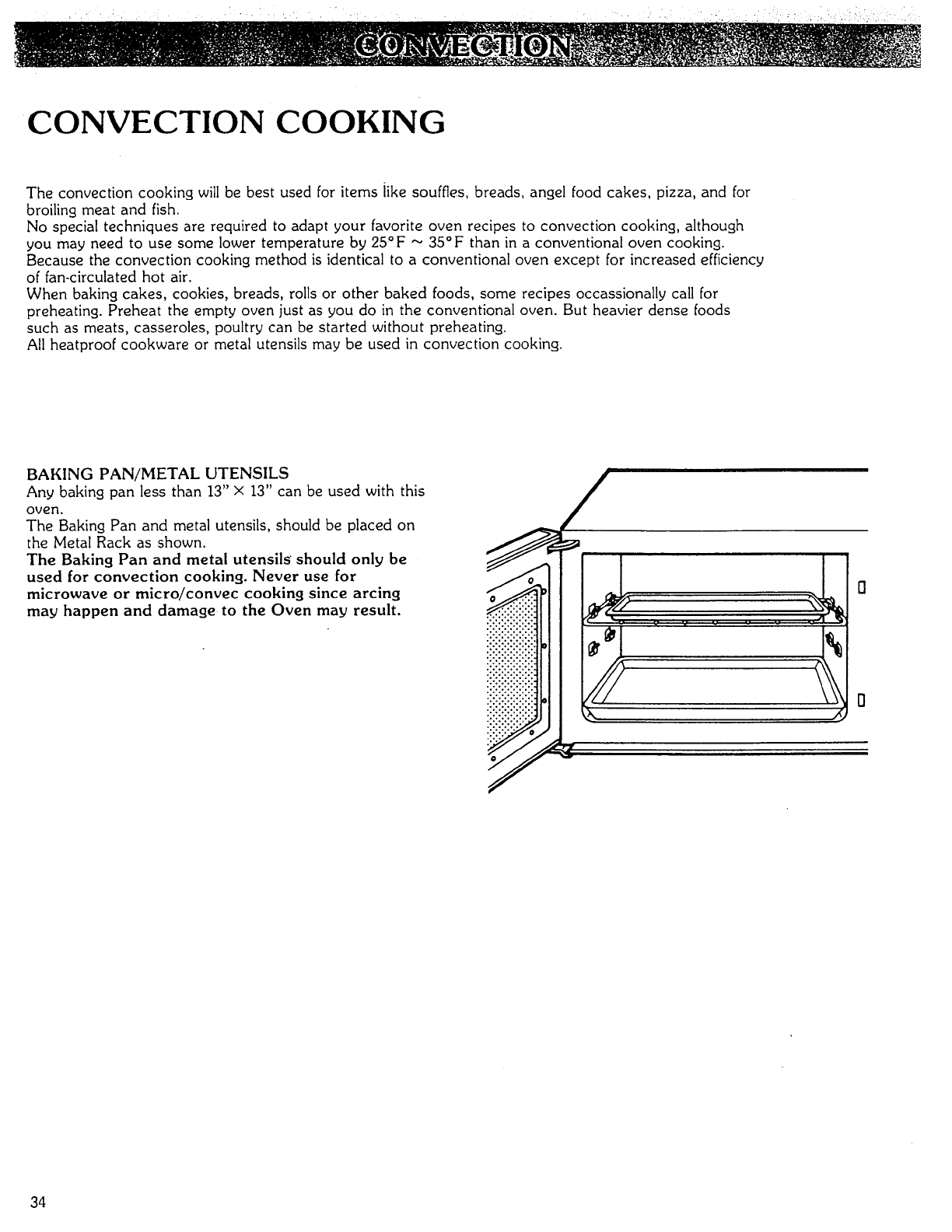

[] Convection Cooking .................................................................... 34 _ 49

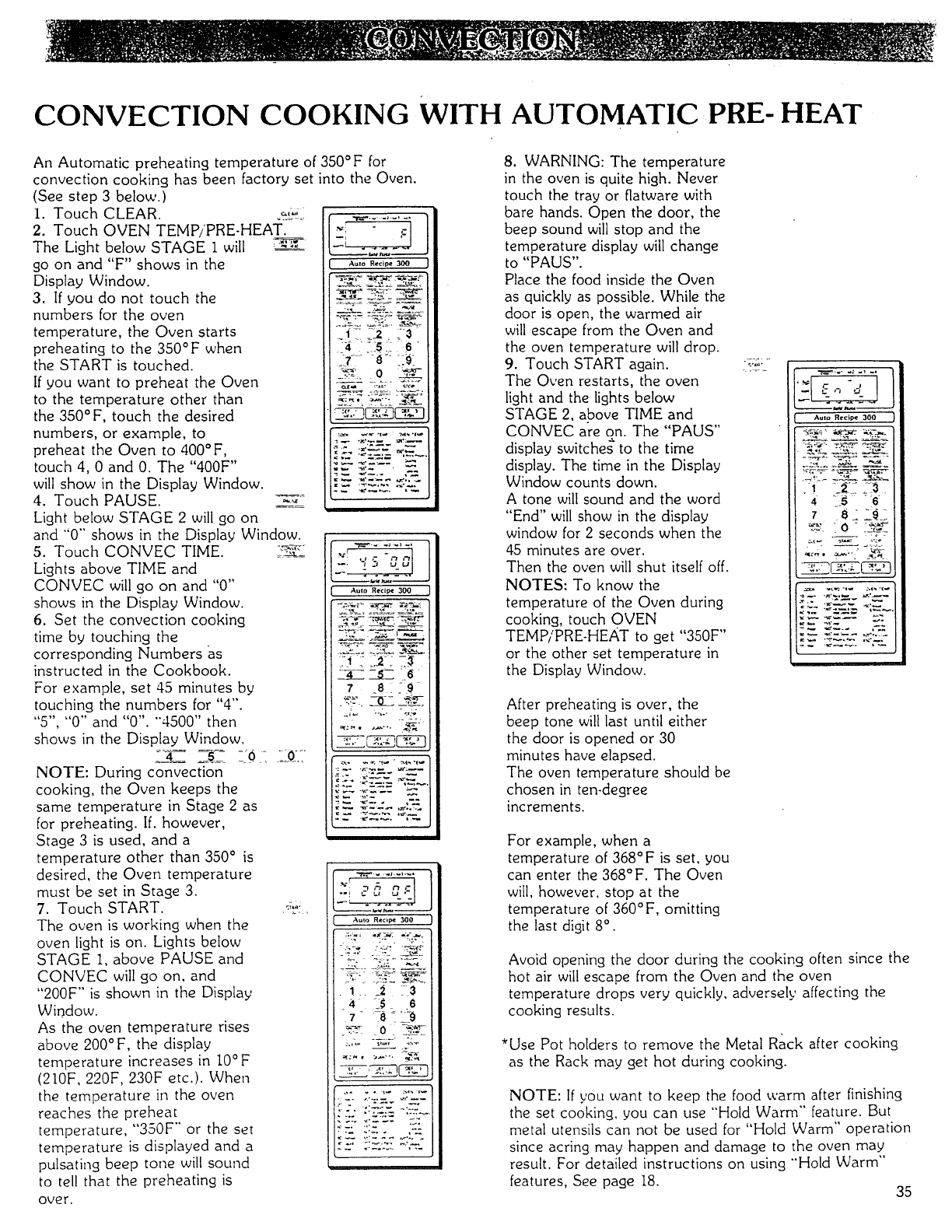

• Convection Cooking with Automatic Pre-Heat ............................................ 35

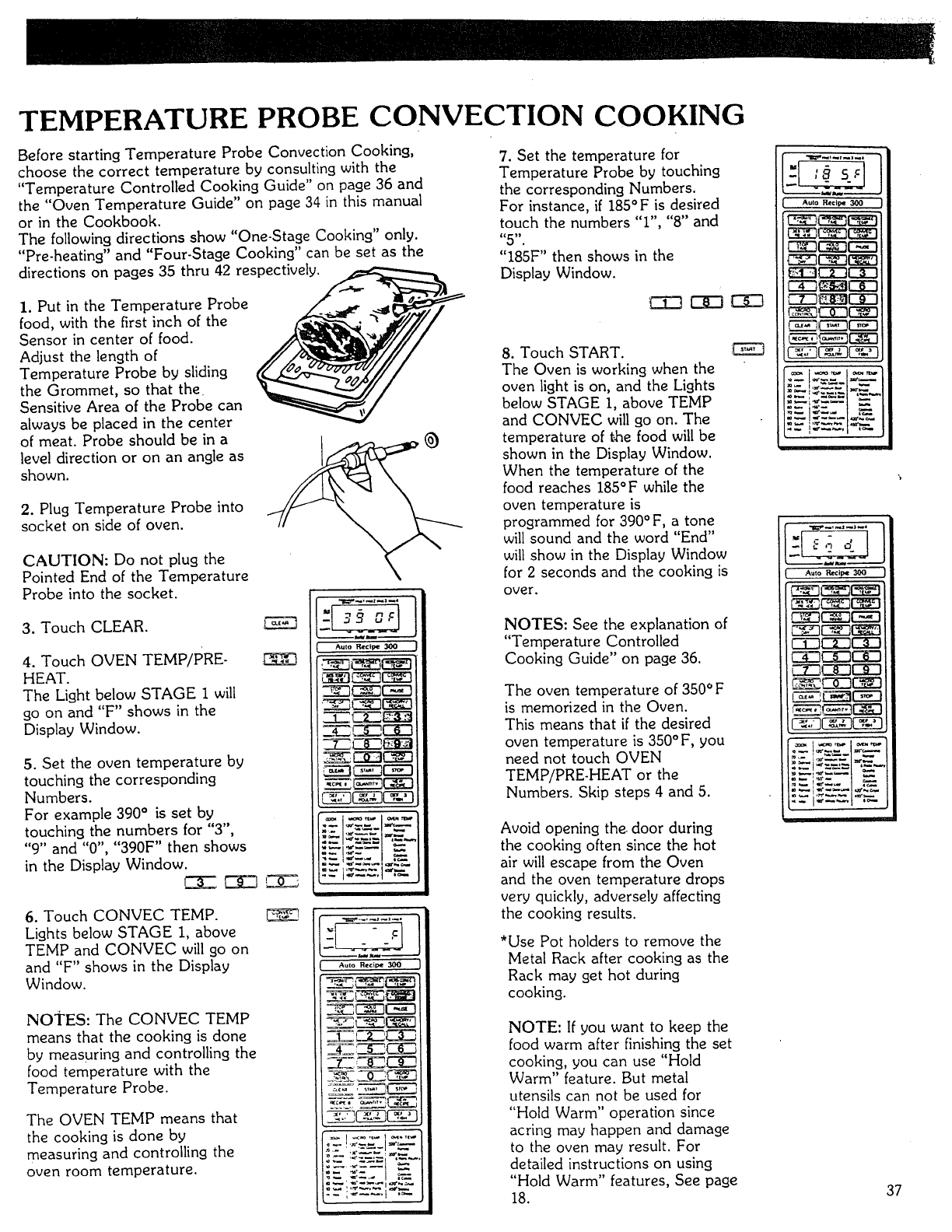

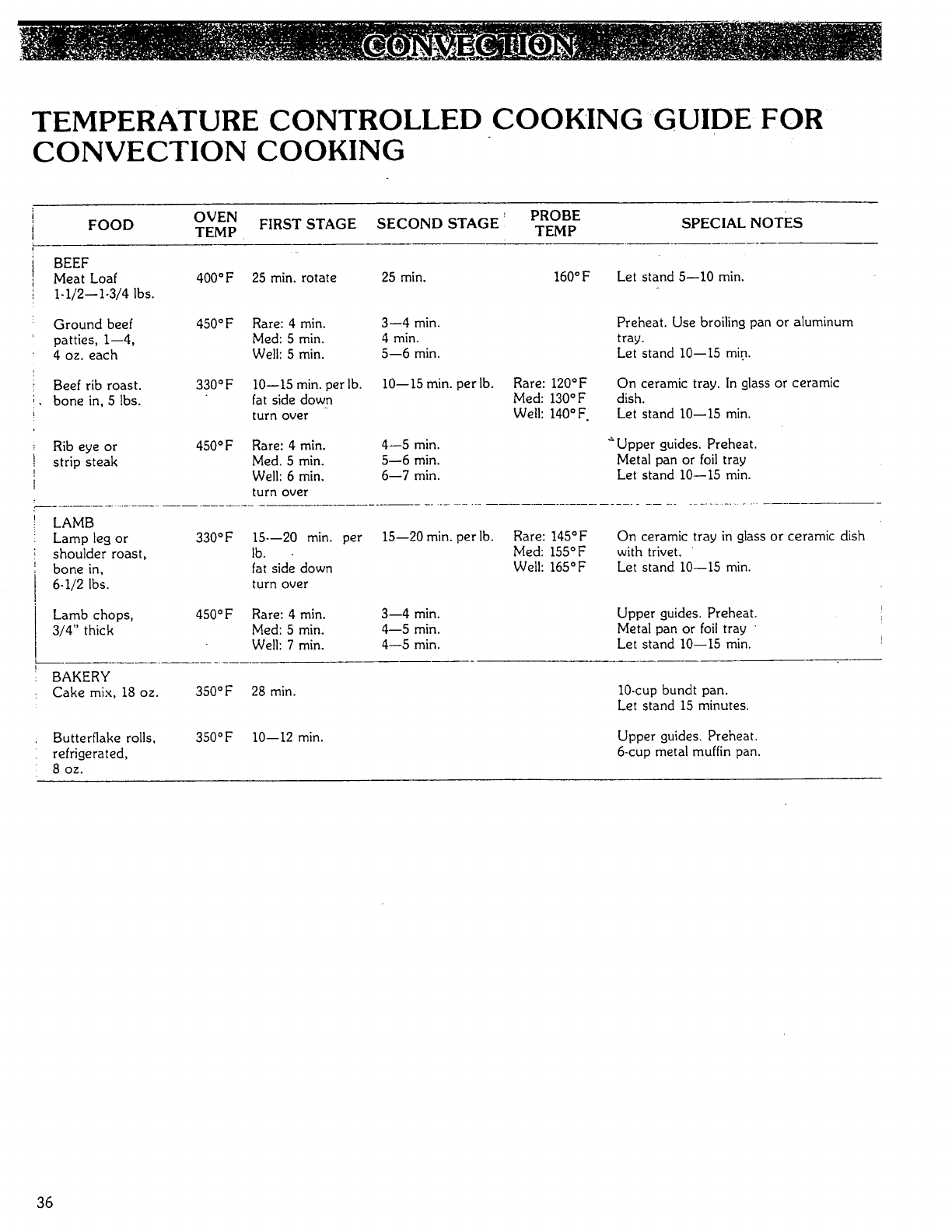

*Temperature Probe Convection Cooking ................................................ 37

• Micro/Convec Cooking ................................................................ 38

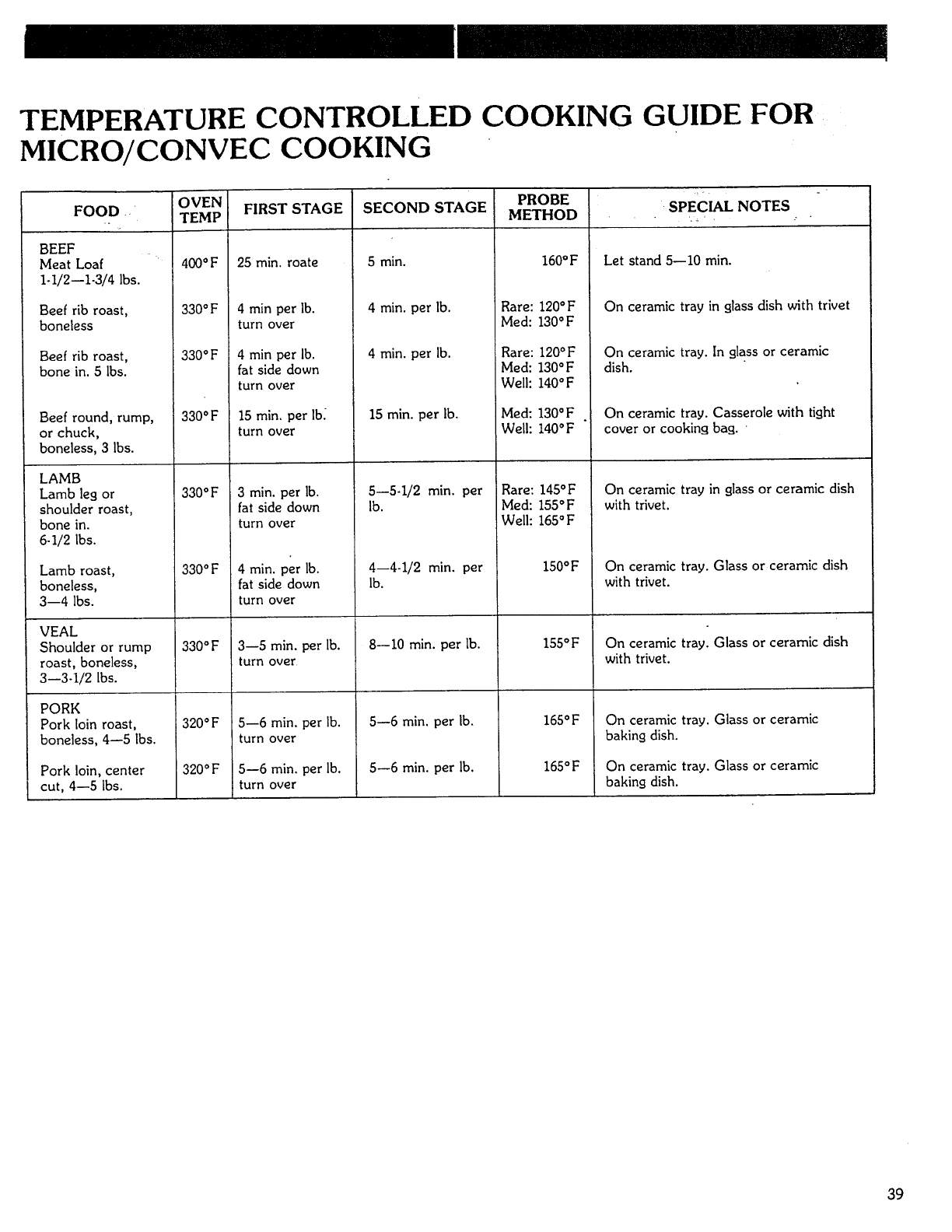

*Temperature Probe Micro/Convec Cooking .............................................. 40

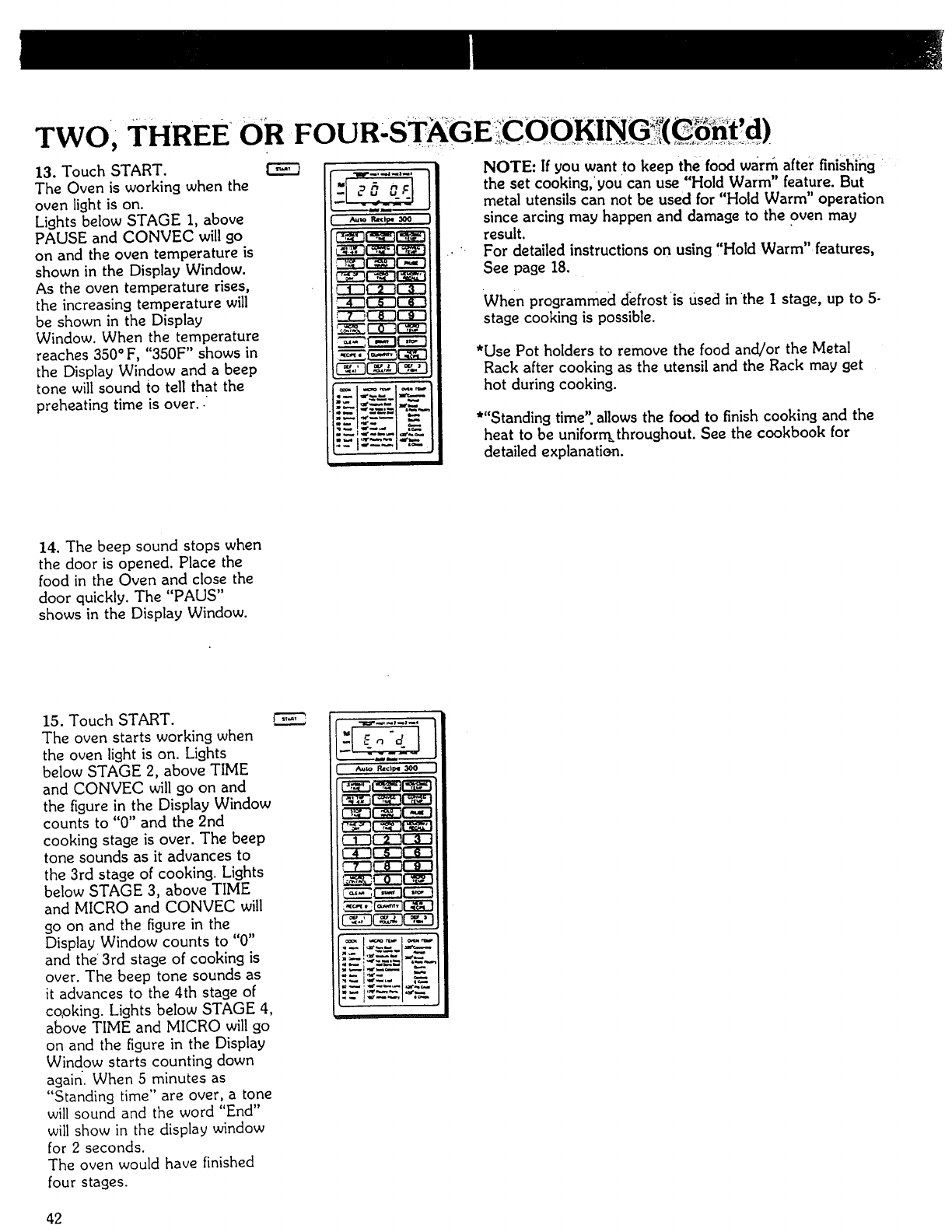

oTwo, Three or Four-Stage Cooking ..................................................... 41 "-"42

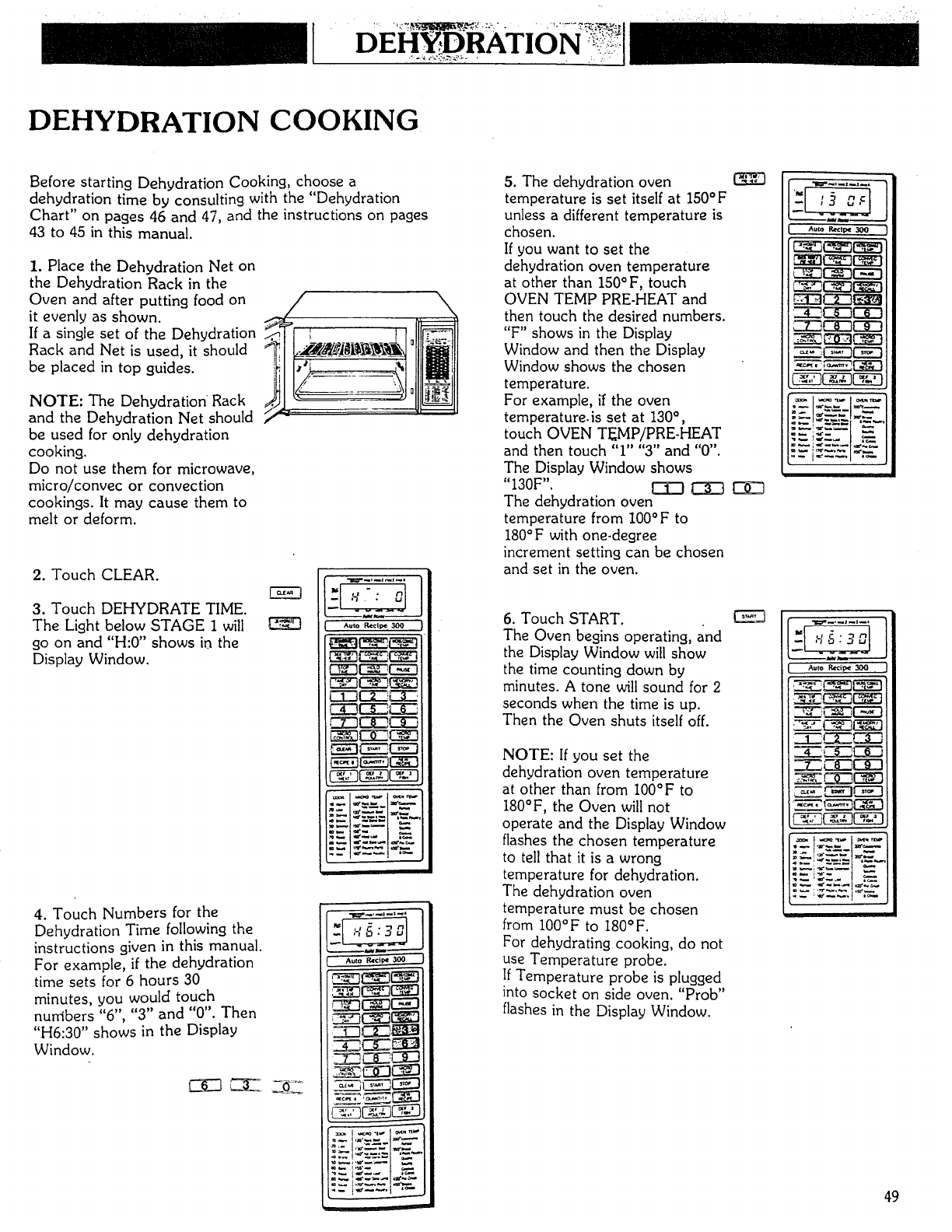

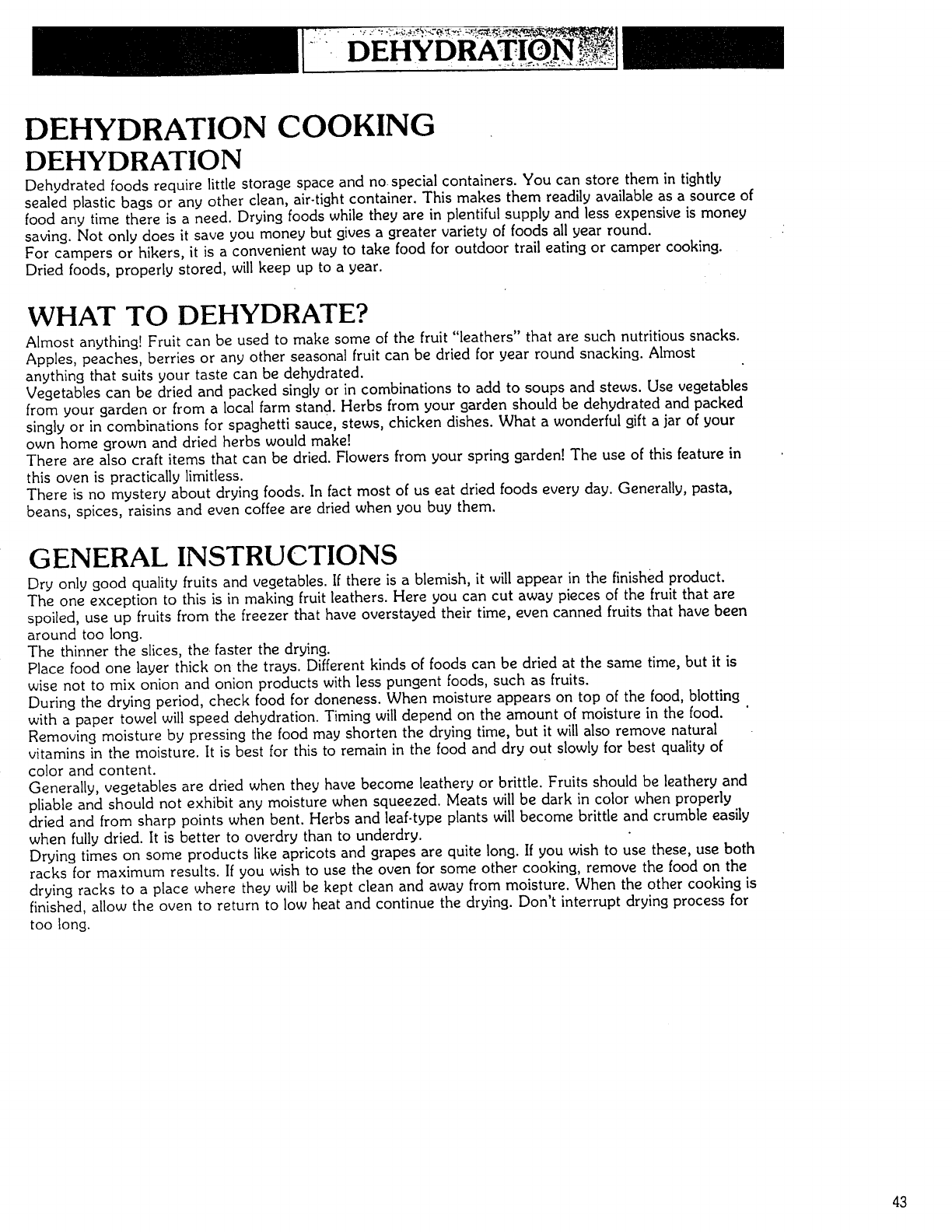

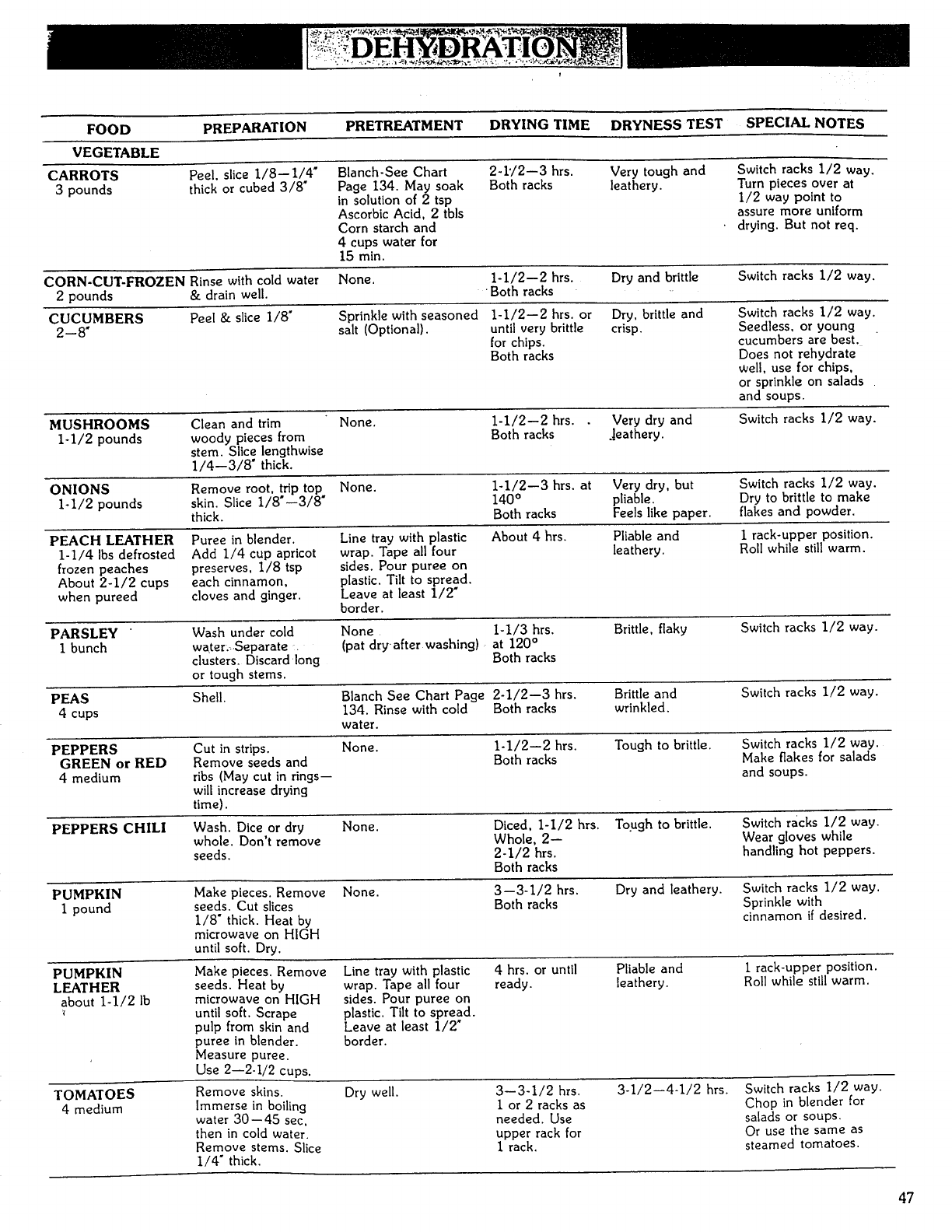

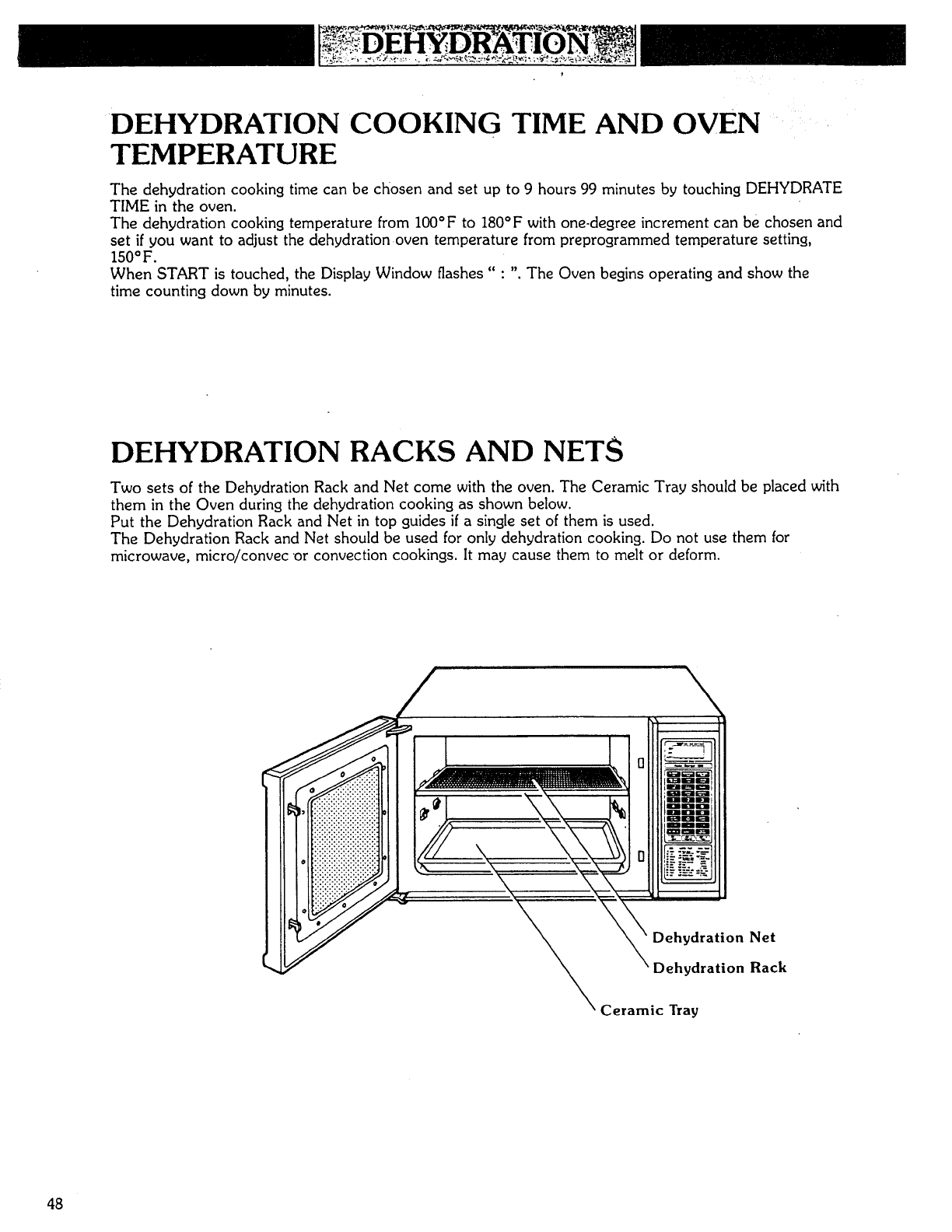

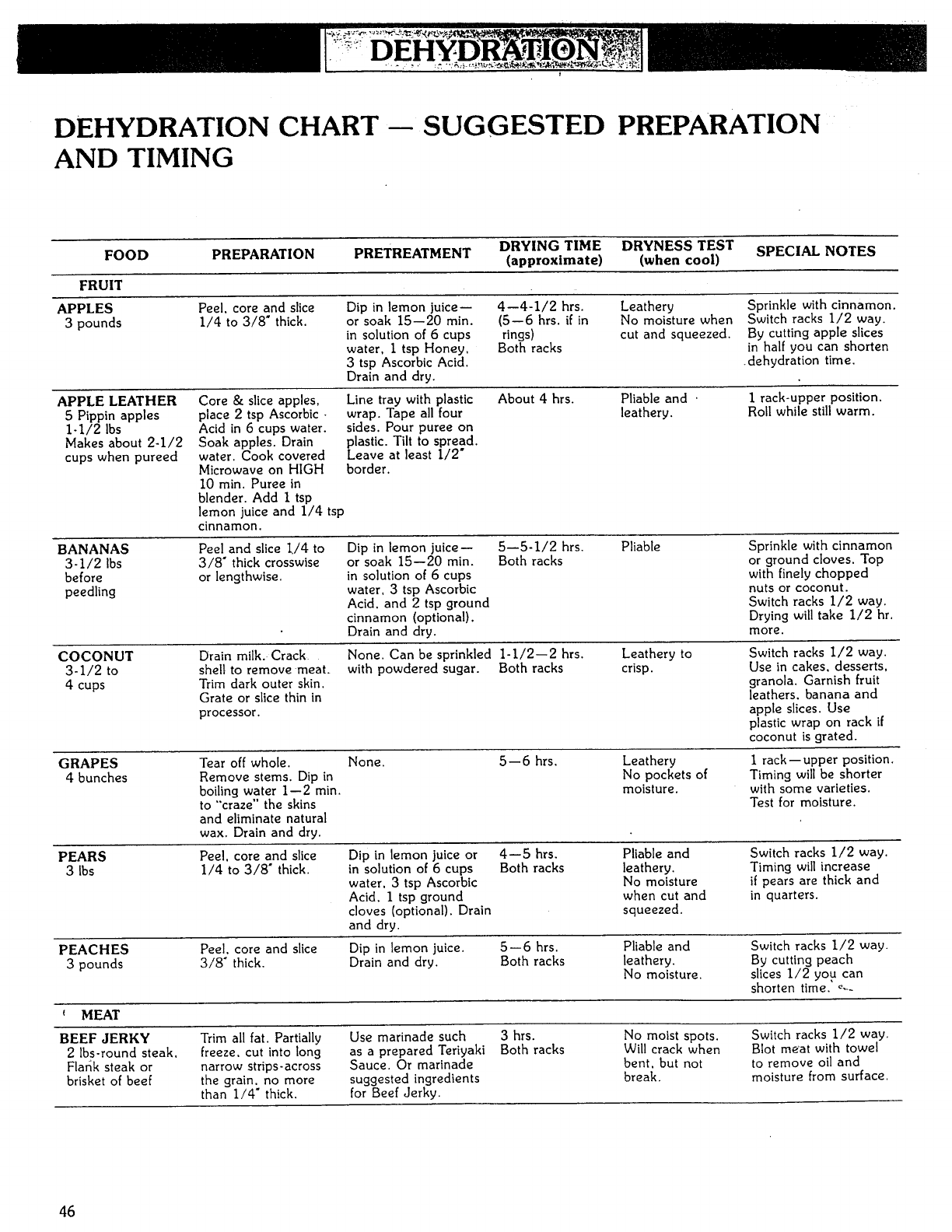

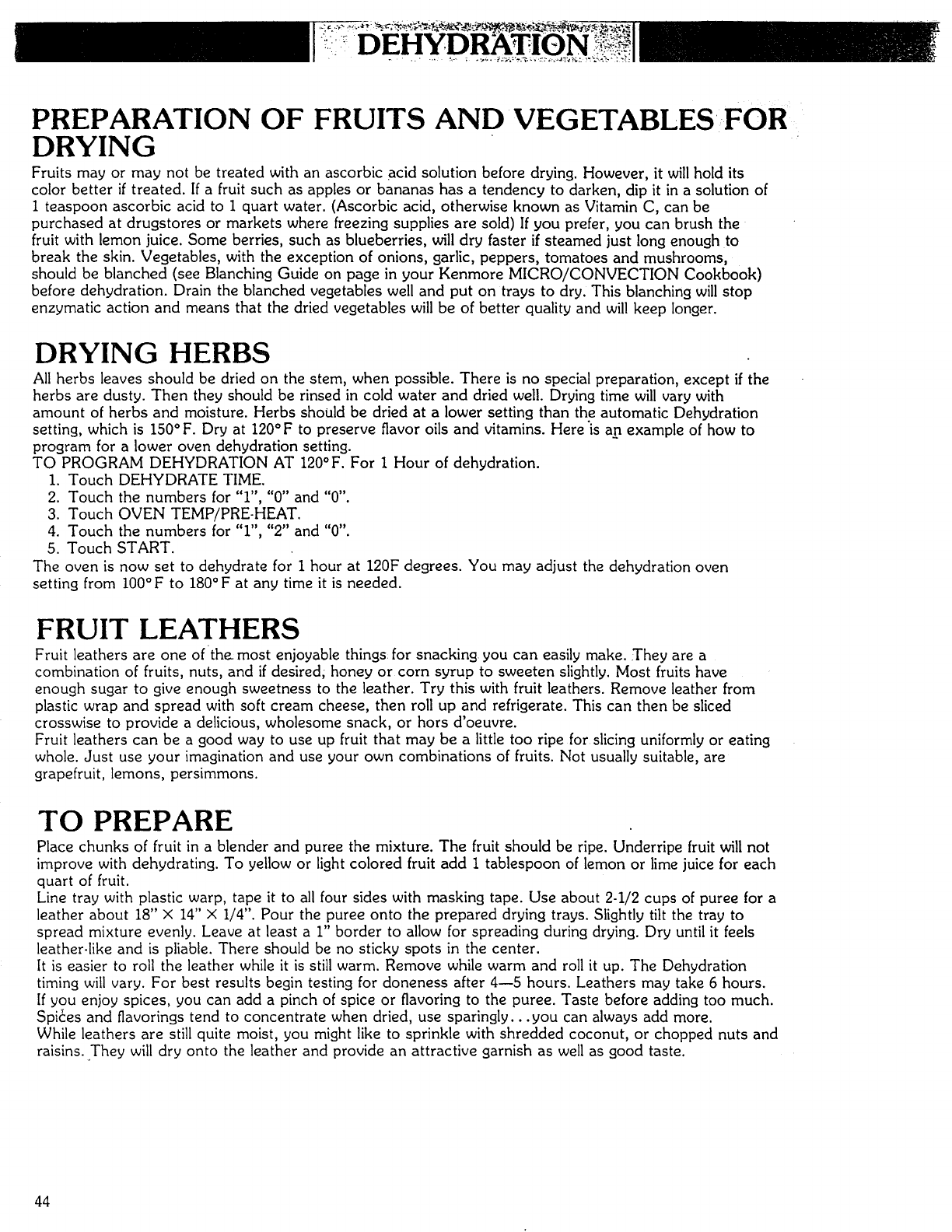

o Dehydration Cooking .................................................................. 42 _ 49

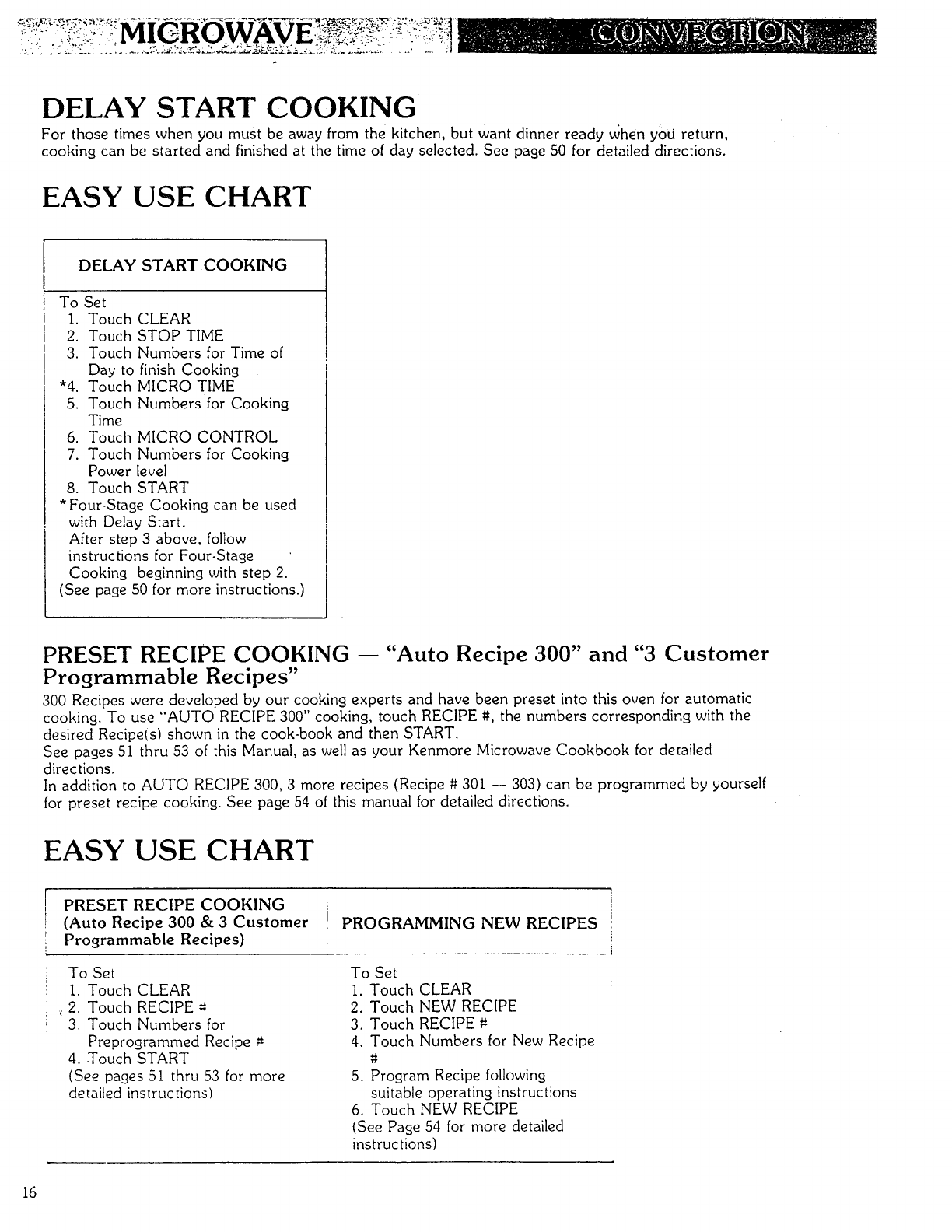

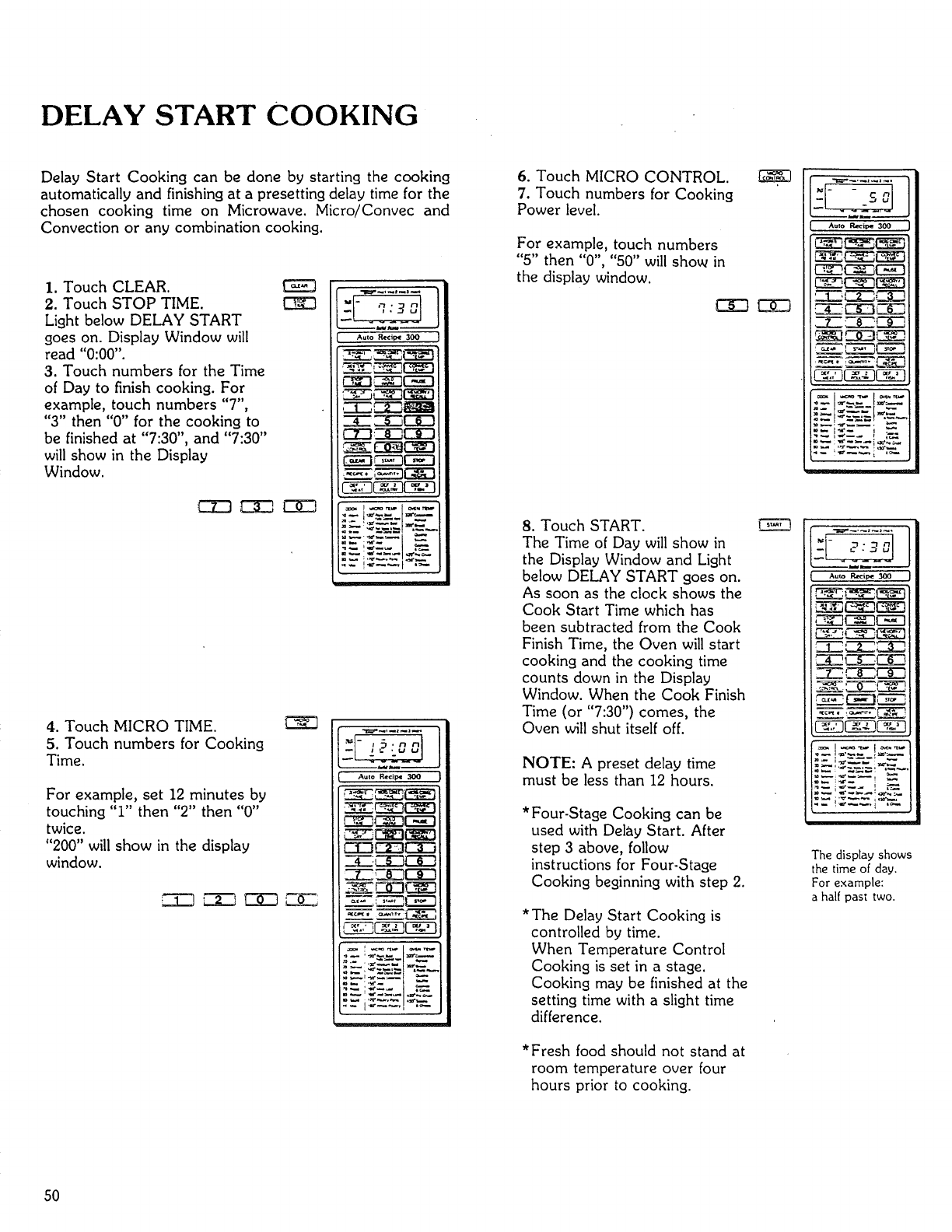

[] Delay Start Cooking .................................................................... 50

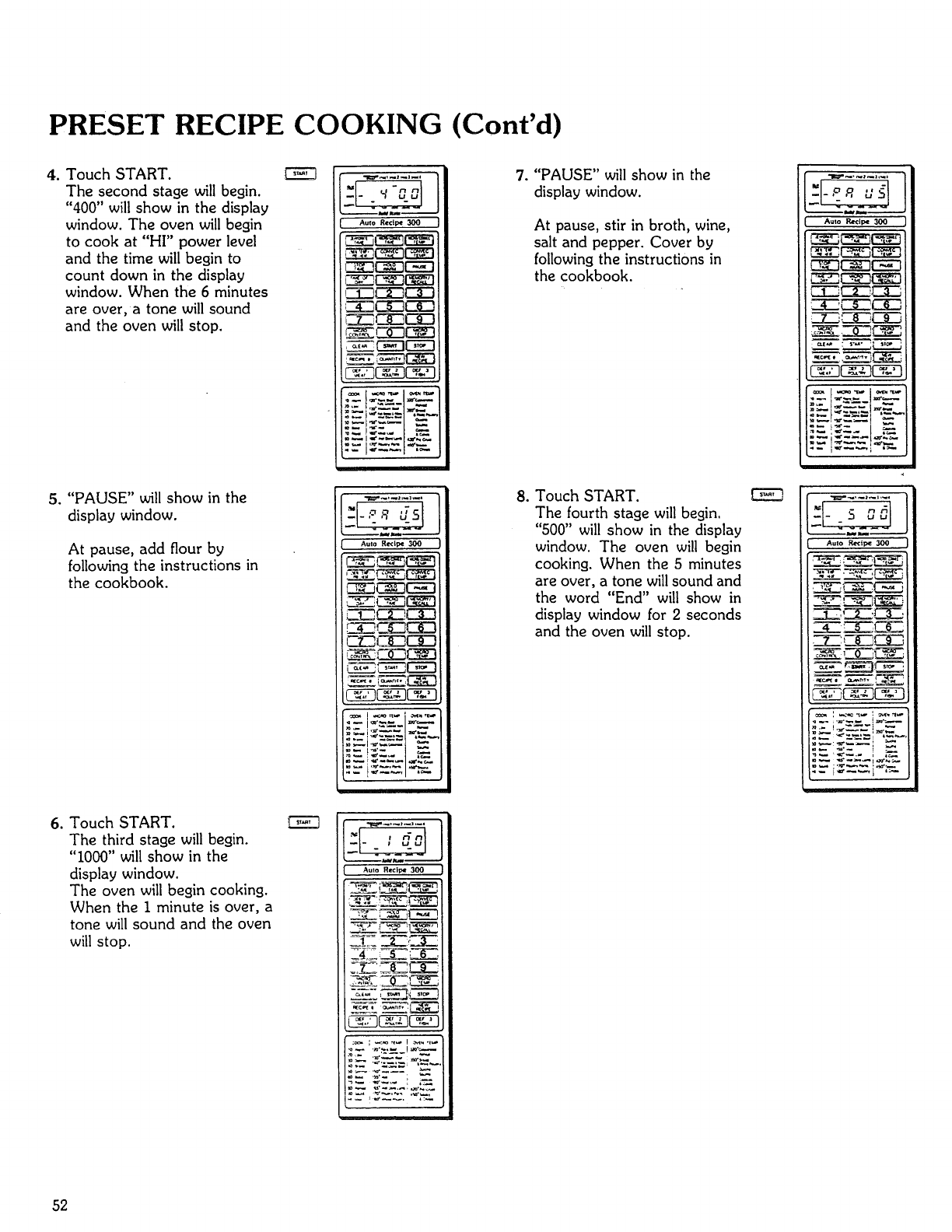

[] Preset Recipe Cooking -- Auto Recipe 300 ................................................ 51 "_ 53

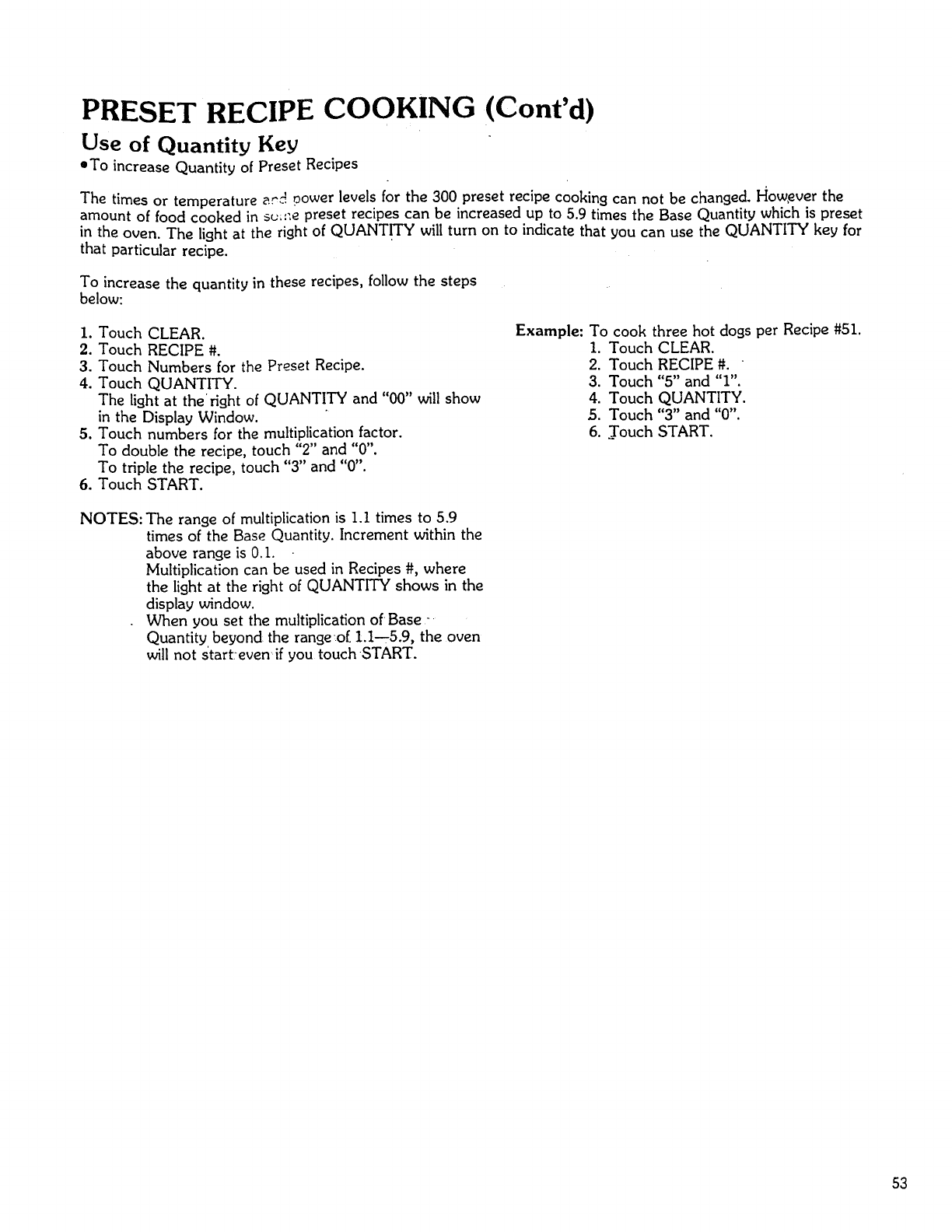

• Use of Quantity key ................................................................... 53

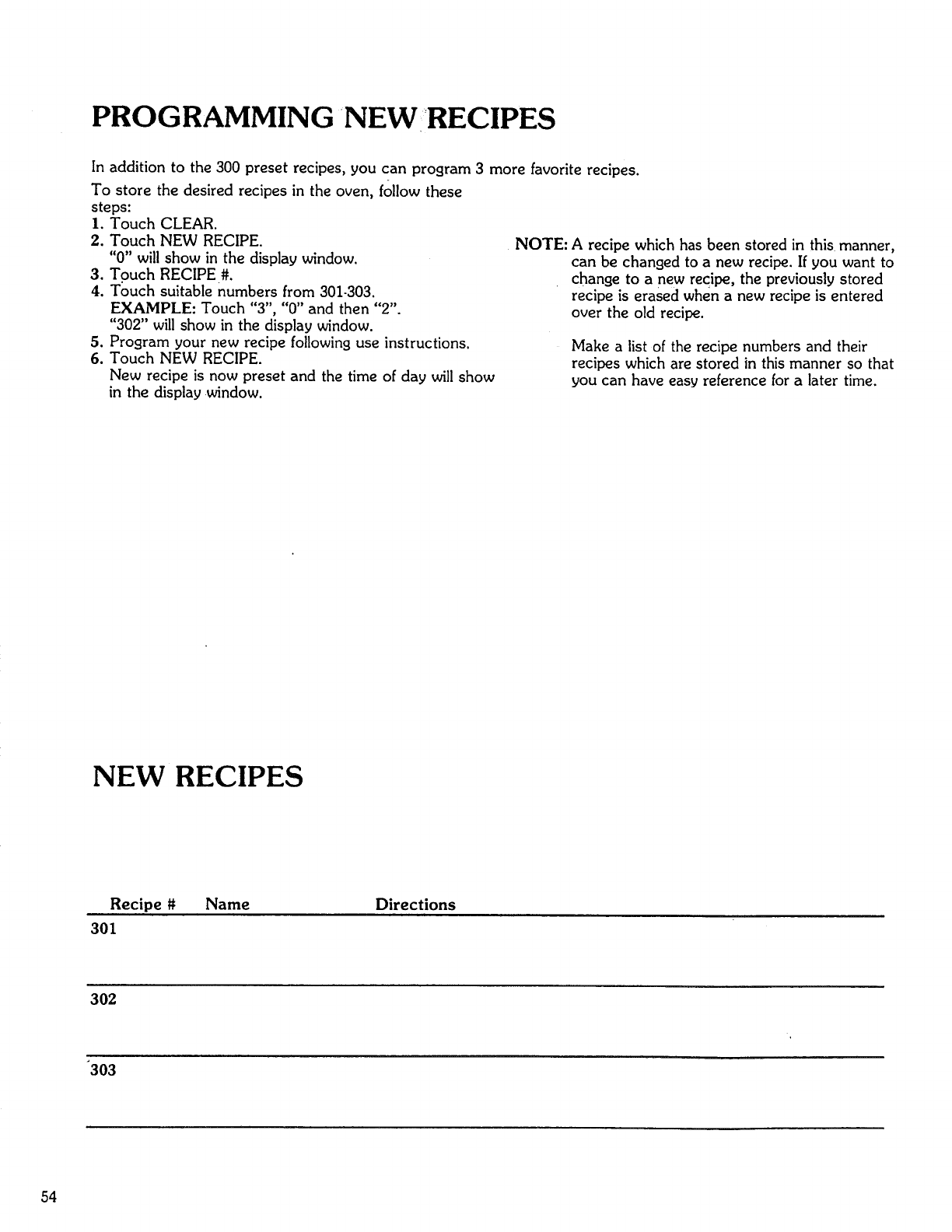

[] Programming New Recipes .............................................................. 54

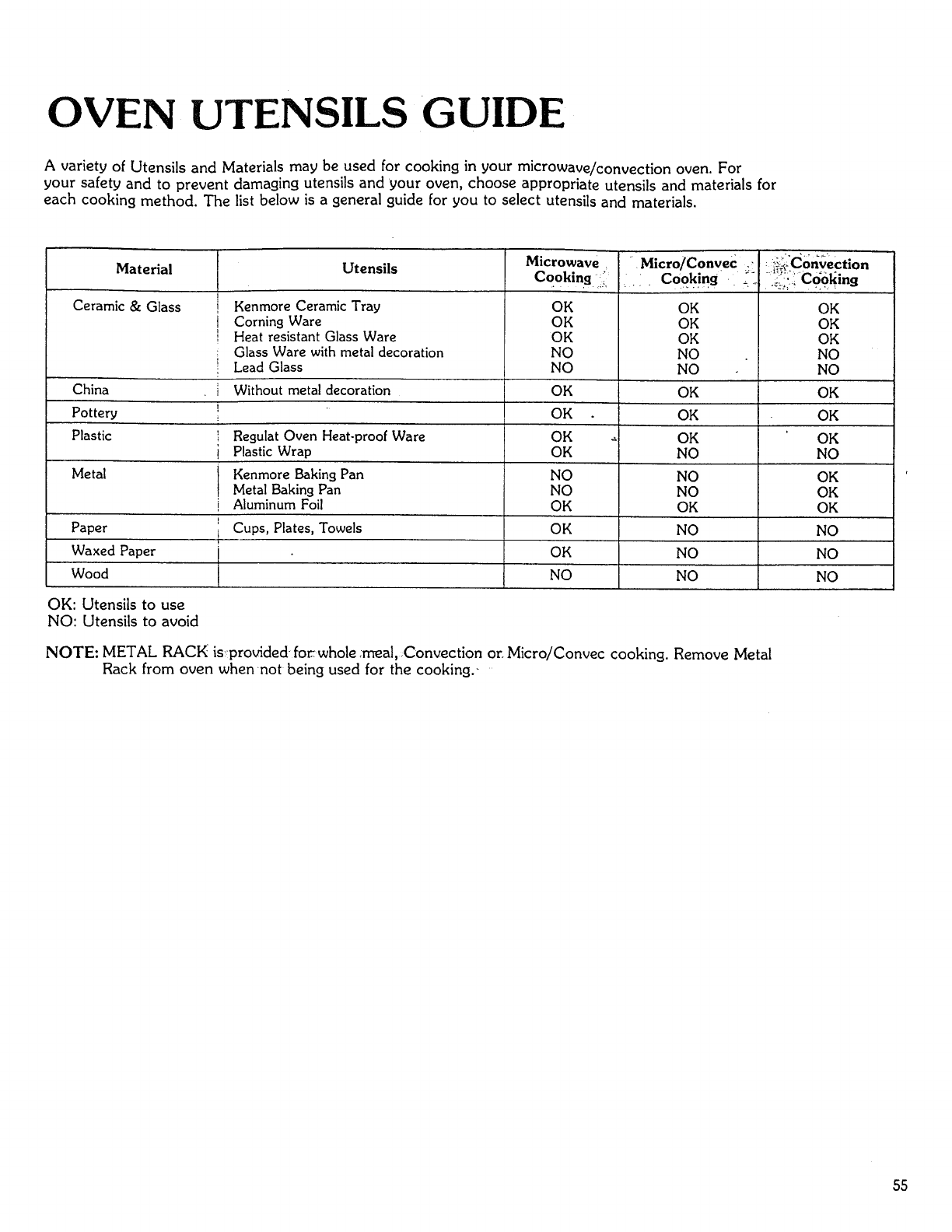

Oven Utensils Guide ...................................................................... 55

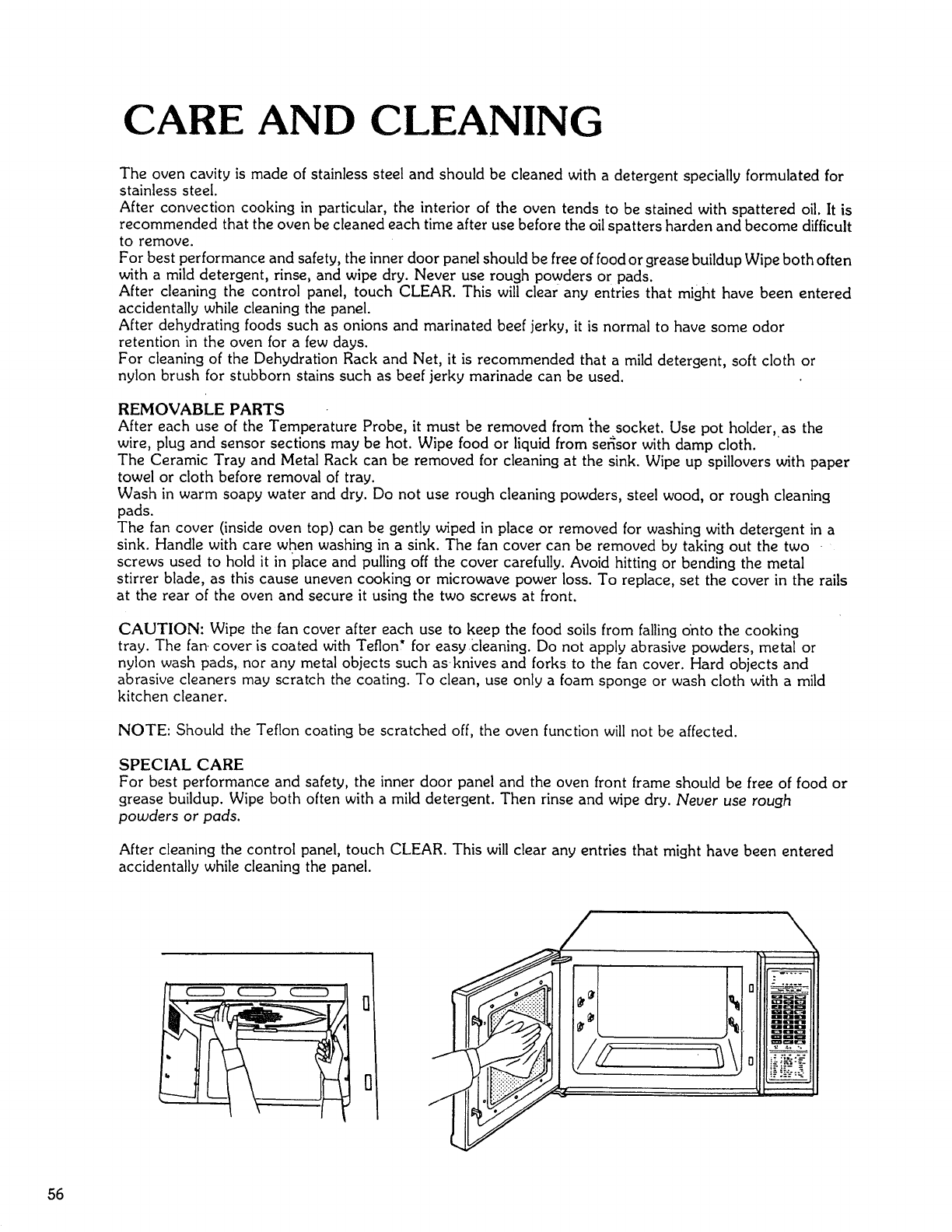

_Care and Cleaning ........................................................................ 56

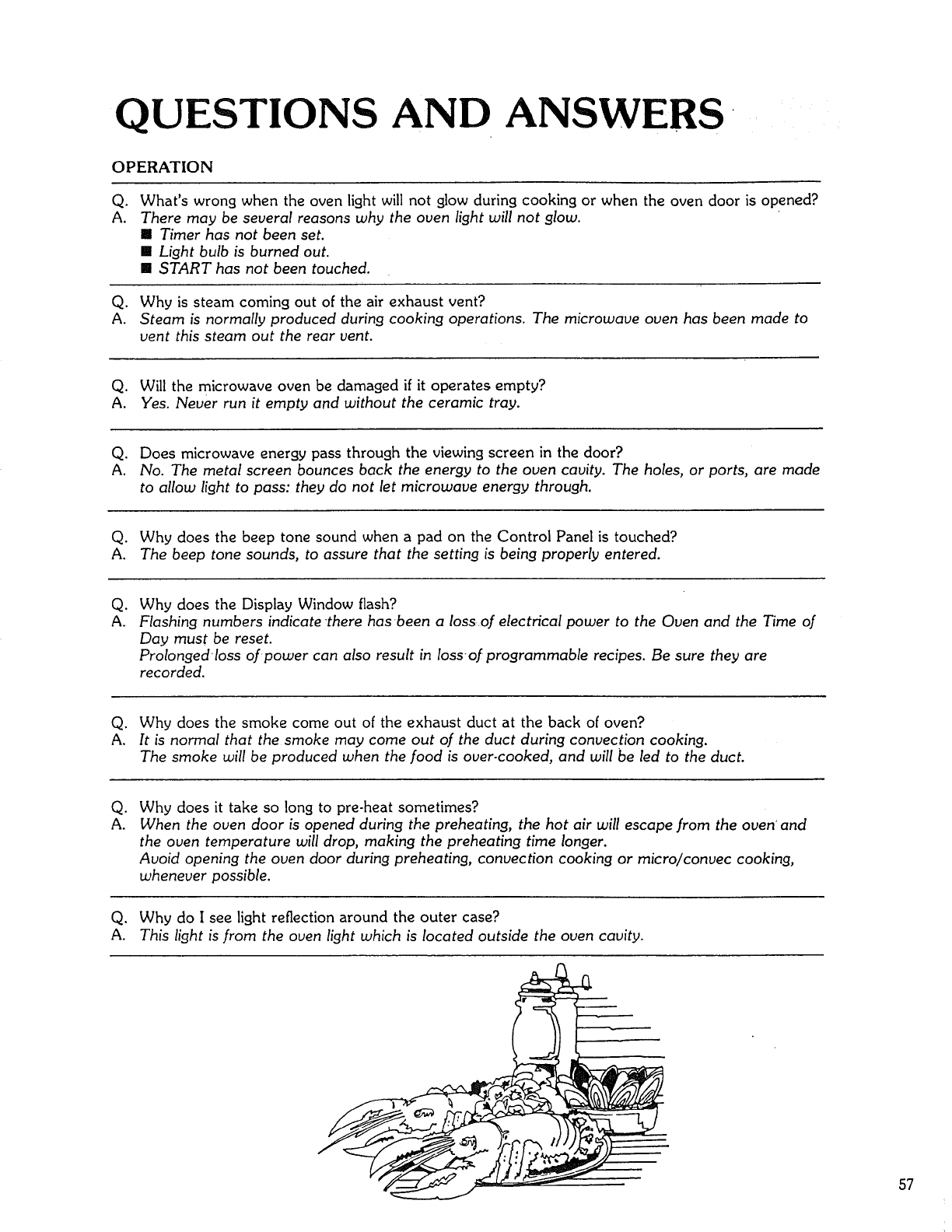

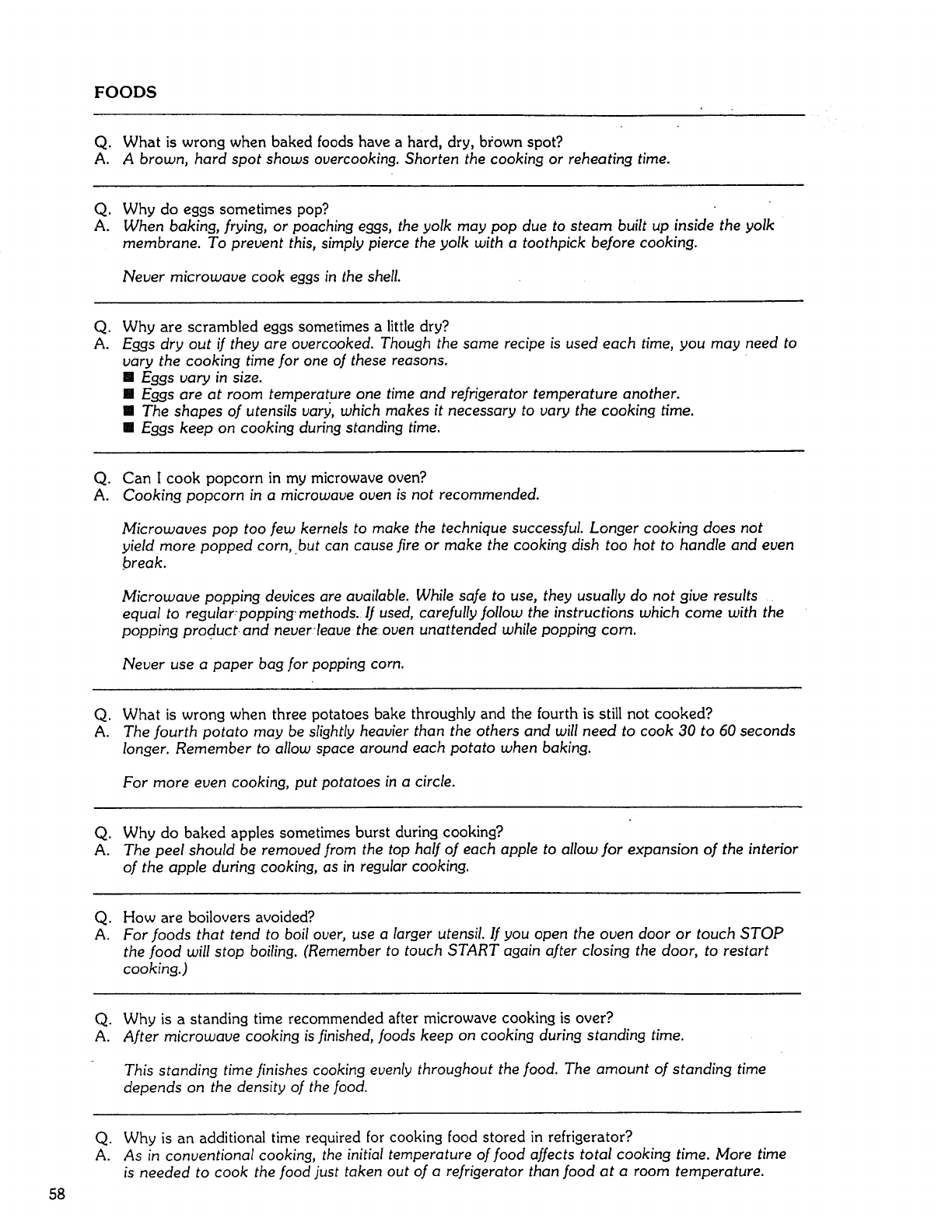

Questions and Answers ................................................................... 57 "_ 58

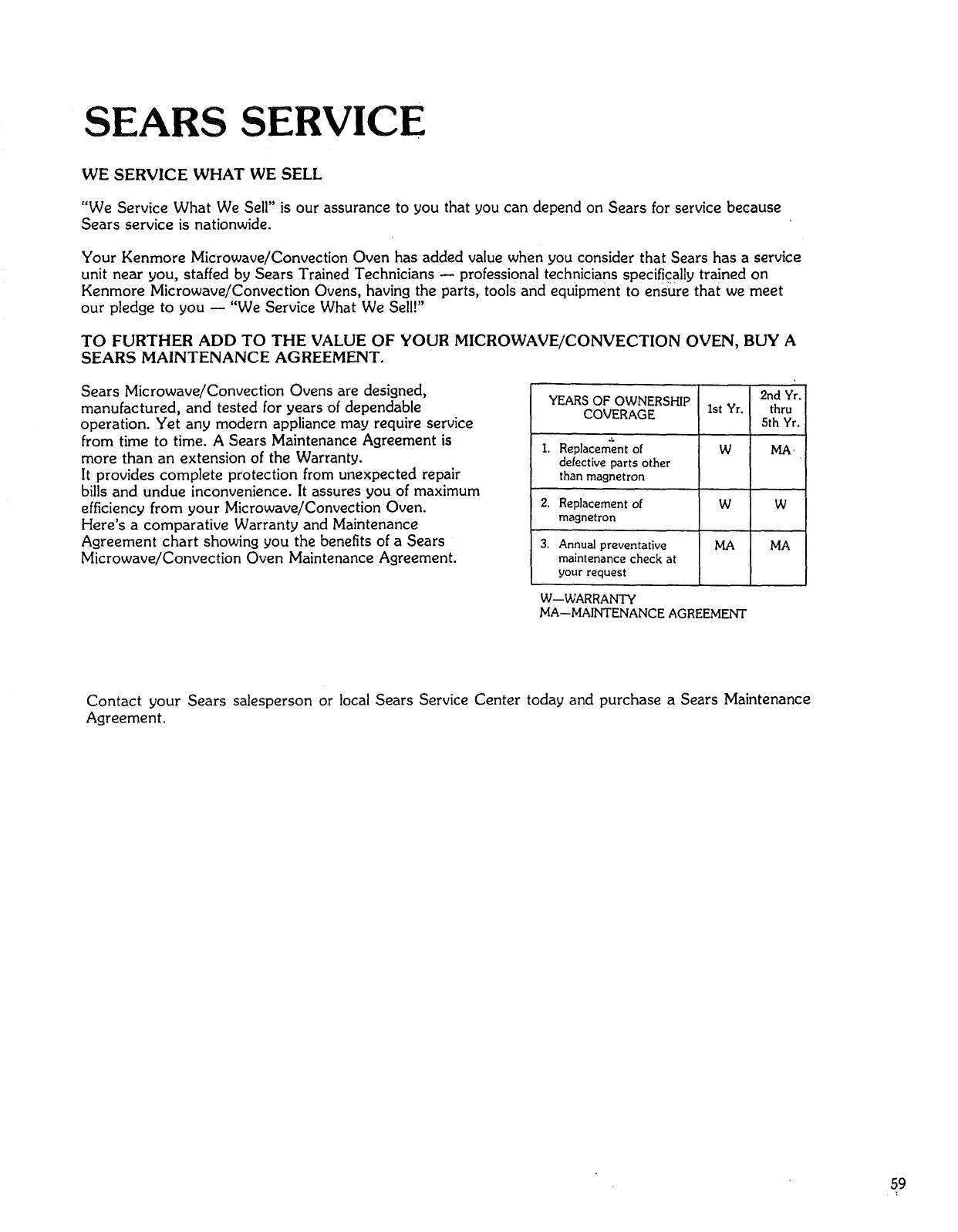

Sears Service ............................................................................ 59

Sears Warranty ....................................................................... Back Cover

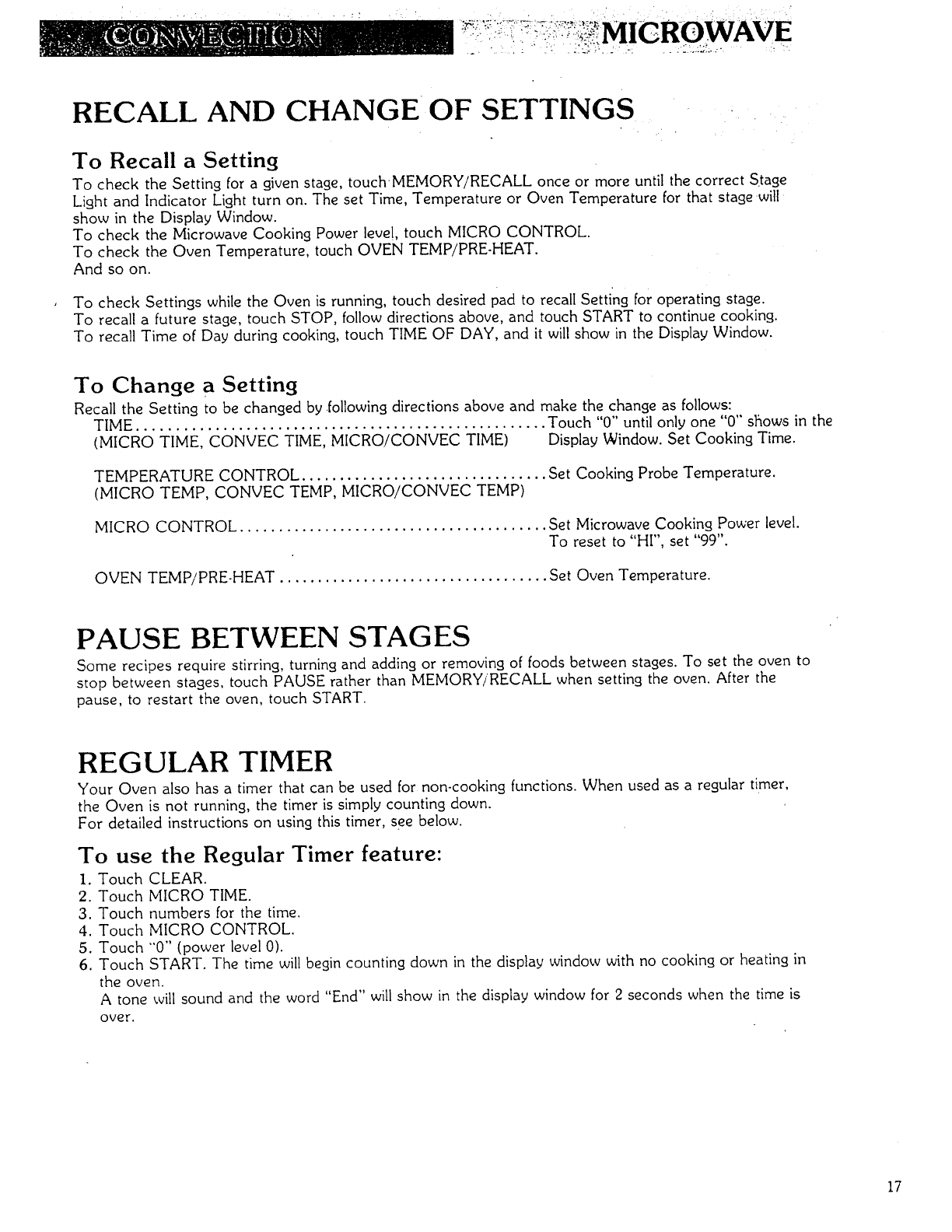

[] Recall and Change of Settings ........................................................... 17

[] Pause between Stages .................................................................. 17

[] Regular Timer ......................................................................... 17

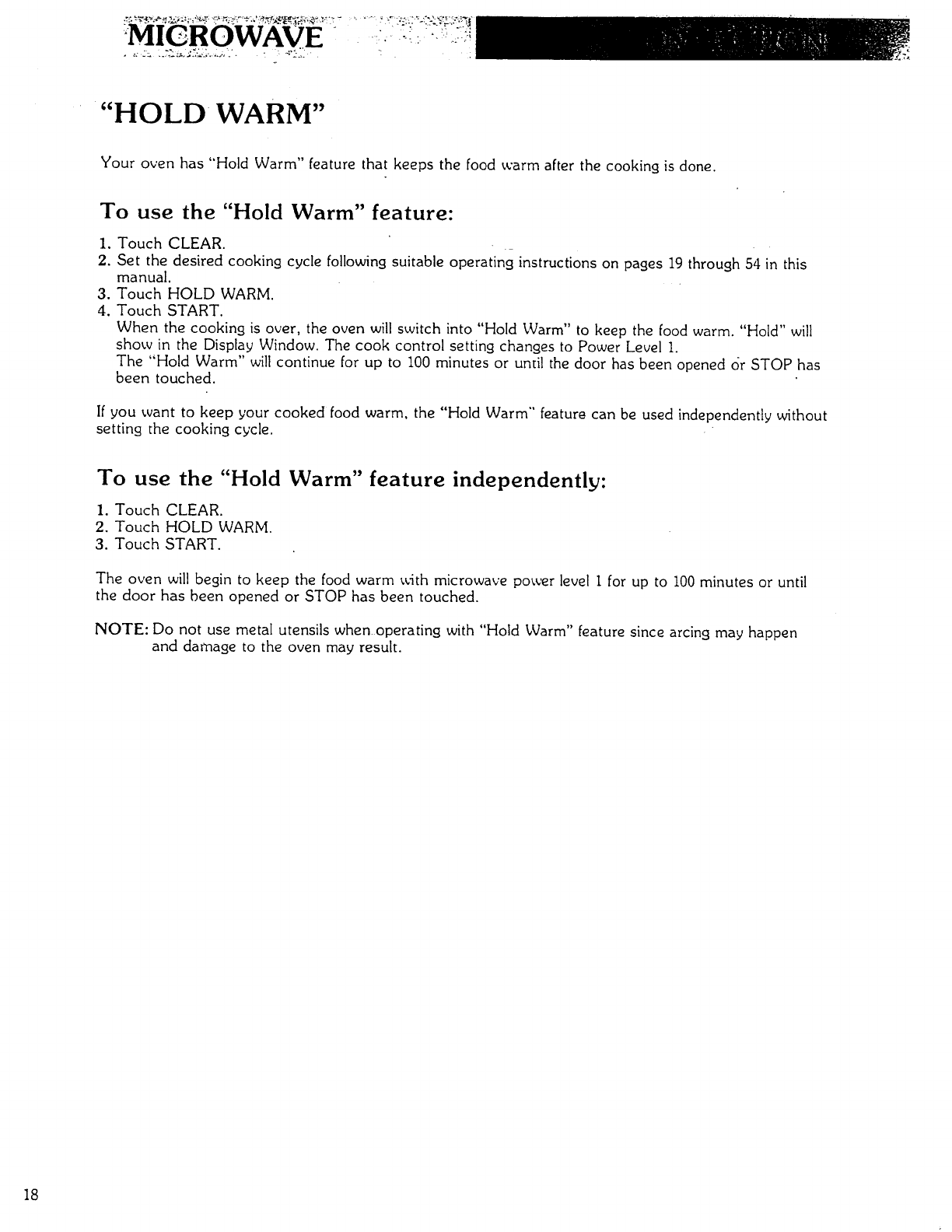

•Hold Warm ........................................................................... 18

Detailed Directions

[]

SEARS KENMORE MICROWAVE/CONVECTION OVEN

USE AND CARE MANUAL"--

MICROWAVE/CONVECTION OVEN USE INSTRUCTIONS

Enjoy a new cooking experience from Sears. Please read this booklet.i

It takes only a few minutes --time well spent to learn how to use all of the

features.

Advice on the use and care of Sears appliances is always available at

your nearest Sears store. When seeking information, be sure you have

the complete model number which is located on the plastic label.

See below for its location.

MODEL NUMBER

To make a request for service, information or replacement of parts, Sears will require the complete model

number of you microwave/convection oven. The number is on the inner left side of the control panel. (You

must open the door to see the number). The model number is also located on the back of the cabinet.

The number will look like this: 564.8000000.

Model Number Label

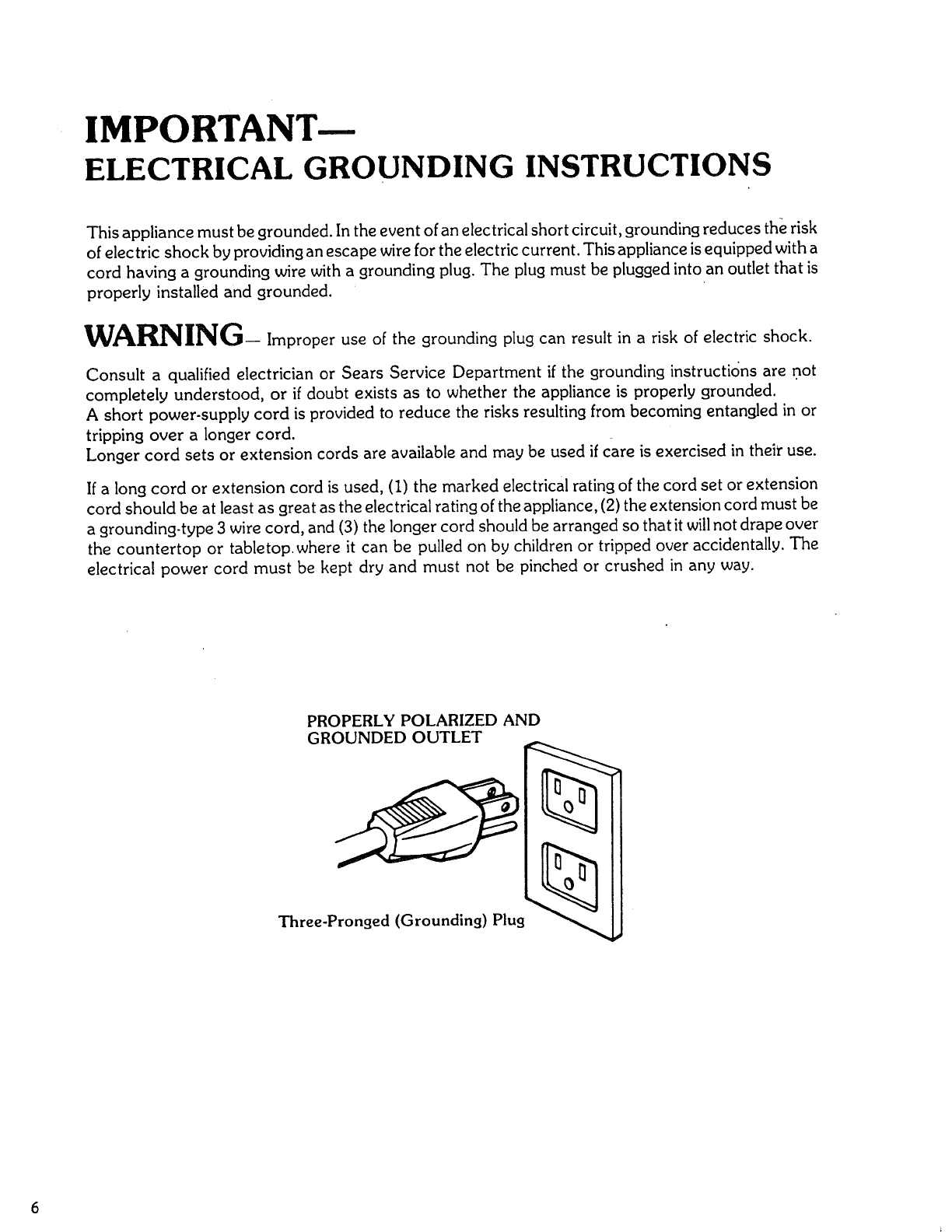

IMPORTANT--

ELECTRICAL GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk

of electric shock by providing an escape wire for the electric current. This appliance is equipped with a

cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is

properly installed and grounded.

WARNING- Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualified electrician or Sears Service Department if the grounding instructions are not

completely understood, or if doubt exists as to whether the appliance is properly grounded.

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or

tripping over a longer cord.

Longer cord sets or extension cords are available and may be used if care is exercised in their use.

If a long cord or extension cord is used, (I) the marked electrical rating of the cord set or extension

cord should be at least as great as the electrical rating of the appliance, (2) the extension cord must be

a grounding-type 3 wire cord, and (3) the longer cord should be arranged so that it will not drape over

the countertop or tabletop.where it can be pulled on by children or tripped over accidentally. The

electrical power cord must be kept dry and must not be pinched or crushed in any way.

PROPERLY POLARIZED AND

GROUNDED OUTLET

Three-Pronged (Grounding) Plug

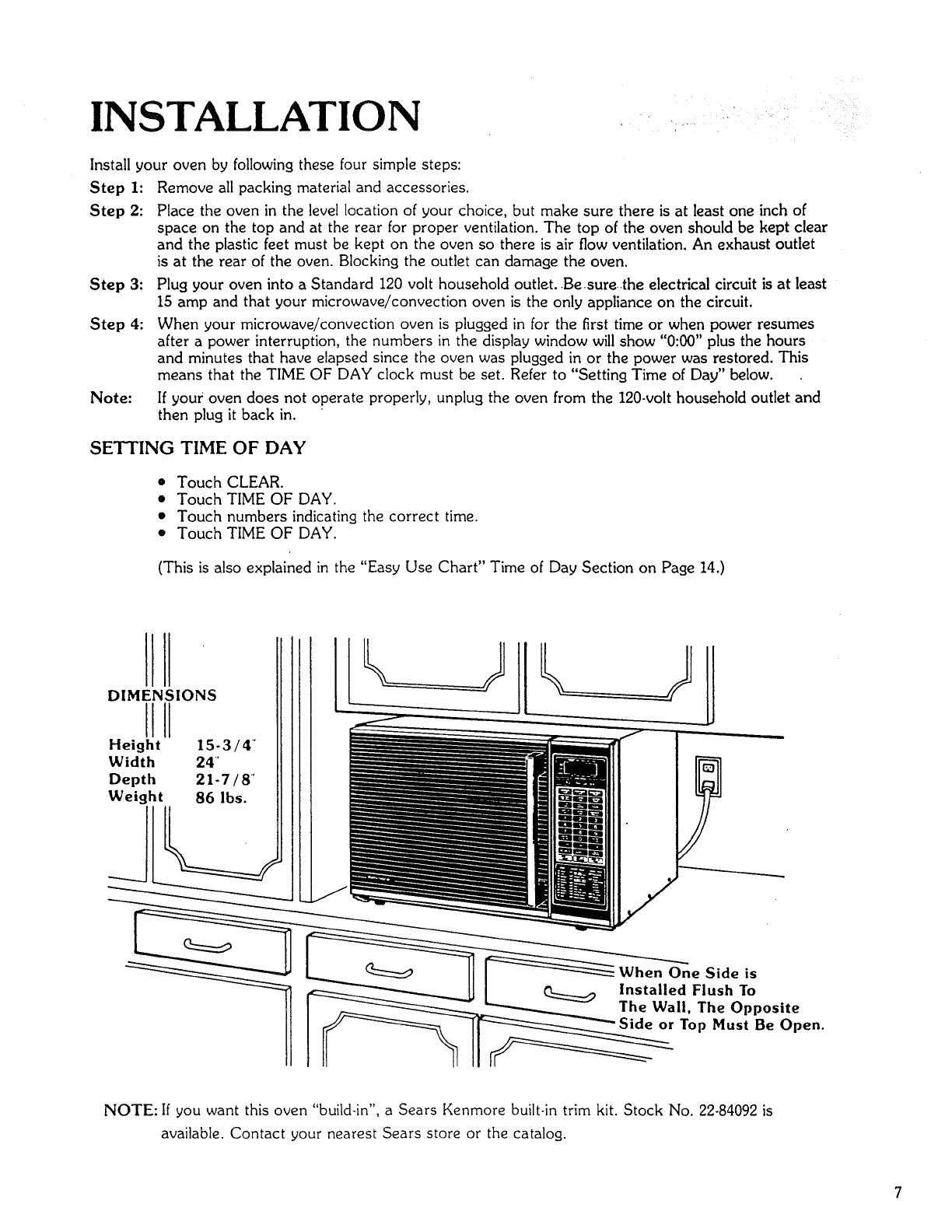

INSTALLATION

Install your oven by following these four simple steps:

Step I: Remove all packing material and accessories.

Step 2: Place the oven in the level location of your choice, but make sure there is at least one inch of

space on the top and at the rear for proper ventilation. The top of the oven should be kept clear

and the plastic feet must be kept on the oven so there is air flow ventilation. An exhaust outlet

is at the rear of the oven. Blocking the outlet can damage the oven.

Step 3: Plug your oven into a Standard 120 volt household outlet. Besurethe electrical circuit is at least

15 amp and that your microwave/convection oven is the only appliance on the circuit.

Step 4: When your microwave/convection oven is plugged in for the first time or when power resumes

after a power interruption, the numbers in the display window will show "0:00" plus the hours

and minutes that have elapsed since the oven was plugged in or the power was restored. This

means that the TIME OF DAY clock must be set. Refer to "Setting Time of Day" below.

Note: If your oven does not operate properly, unplug the oven from the 120-volt household outlet and

then plug it back in.

SETTING TIME OF DAY

• Touch CLEAR.

• Touch TIME OF DAY.

• Touch numbers indicating the correct time.

• Touch TIME OF DAY.

(This is also explained in the "Easy Use Chart" Time of Day Section on Page 14.)

III

DIMENSIONS

Height

Width

Depth

Weight

15-3/4'

24'

21-7/8'

86 lbs.

NOTE: If you want this oven "build-in", a Sears Kenmore built-in trim kit. Stock No. 22-84092 is

available, Contact your nearest Sears store or the catalog.

NAMES OF OVEN PARTS

See-through

door

Easy-clean

stainless steel

Oven d

handle

rack

interlock system

control panel

ration net

,.ramic tray

Iration rack

Temperature probe

Remove your Sears Kenmore Microwave/Convection Oven and all items from the shipping carton. Your

oven will be packed with the following items:

Ceramic Tray .................................................................. I each

Metal Rack .................................................................... I each

Temperature Probe ............................................................. I each

Dehydration Rack* ............................................................. 2 each

Dehydration Net* .............................................................. 2 each

"Use and Care Manual". ........................................................ I each

"Easy Use Chart" Card ......................................................... I each

* Use the Dehydration Rack and Net for only dehydration cooking. Do not use them for

microwave, micro/convec or convection cooking.

Do not use this Sears Kenmore Microwave/Convection Oven for commercial purposes. This

microwave/convection oven is made for household use only.

OVEN CONTROL PANEL

Indicator Lights -- Time,

Temp, Micro, Convec, Recipe,

Delay Start and Programmed

Defrost lights indicate which

cooking operation is being used.

Quantity Light -- When preset

cooking is set, light indicates

that multiplication can be used

in the recipe or not.

Recipe #-- Used in

recipe cooking.

Auto Recipe 300

Wn--------nU

Automatic Defrost

Selection -- Used in setting

auto defrost.

Cook Guide -- Lists the Types

of Cooking that most often

occur at these Microwave

Cooking Power Levels.

Lights -- When cooking

stages are set, lights will go on

indicating the stage in which

your oven is cooking.

.Display Window .u_ Used to

show:

oTime of Day

•Cooking Time

ÙMicrowave Cooking Power

Level

eCooking Probe Temperature.

•Oven Temperature

,,Defrost (dEFI, dEF2, dEF3)

eRecipe #, Quantity #

"Hold, End, Pause (PAUS),

Probe (Prob).

It also functions as countdown

timer or temperature indicator

when cooking.

use Light -- Shows Oven

has been set to pause between

two Cooking Stages.

New Recipe -- Used in

programming new recipes.

"Quantity -- Used in multiplying

base quantity of preset recipes.

Temp Guide -- Lists

examples of Oven Temperature

for.Convection Cooking.

•Micro Temp Guide -- Lists

examples of food that are best

cooked to these Microwave

Cooking Temperatures.

OVEN CONTROL PANEL

Convec Time -- Used "

setting Convection

Time.

Dehydrate Time -- Used in,,,

setting Dehydration Cooking

Time.

Oven Temp/Pre-Heat -- Used,,

in setting the desired Oven

Temperature, Pre-heat \

Temperature or Dehydration

Temperature.

Stop Time -- Used in setting a

Delay Start Cooking. Cooking

can be finished at the preset

stop time.

Time of Day -- Used in

Time of Day.

Micro Time -- Used in setting

Microwave Cooking Time.

Numbers -- Used to enter the

Time of Day, Delay Start Time,

Cooking Times, Cooking

Powers and Cooking

Temperatures.

Micro Control -- Used

select Microwave Cooking

Power Levels.

Clear -- Clears all entries'

except Time of Day. Once

cooking has begun, however,

Clear will function only after

Stop has been touched.

Lto Recip

/Convec Time -- Used

in setting Micro/Convec

Cooking Time.

wec Temp -- Used

in setting the desired

Micro/Convec Cooking

Temperature with Temperature

Probe.

;onvec Temp _ Used in

setting the desired Convection

Cooking Temperature with

Temperature Probe.

Hold Warm -- Used in setting

a Hold Warm. Cooked food can

be kept warm.

Pause -- Used to stop Oven

between Cooking Stages.

Memory/Recall -- Used in

setting Cooking Time. Power

Level and Temperature for Two

or Three-Stage Cooking. Also

used to recall each memory

stage in a multiple stage

program.

Micro Temp -- Used in setting

the desired Microwave Cooking

Temperature. Temperature

Controlled Cooking can be done

only when the Temperature

Probe is plugged into the socket

inside the Oven.

-- Stops Oven.

Start -- Starts Oven.

_IOTE: A "beep tone" sounds when a "pad" on

the control panel is touched, to indicate

a setdng has been entered.

HOW THE MICROWAVE/CONVECTION

OVEN WORKS

Microwave Cooking

Using the energy of microwaves only, food is heated quickly without

altering the color or shape. Microwaves generated by a magnetron are

uniformly distributed by the fan so that the food in the oven is heated

and cooked. Microwave power can be adjusted in 99 steps, enabling

the various kinds of foods to cook at most desirable cooking power

for the best results.

Stirrer /Convection Fan

_Oven z//TTray /Magnetron

Convection Cooking

This is a way of cooking with hot air alone that heats and cooks food

from the outside. This method allows food to be browned evenly

without losing any of the juices. Air heated by the heater is uniformly

circulated in the oven by a fan to enable the heating and cooking of

food. Since hot air remains in the oven as it circulates, cooking is very

efficient. The temperature inside the oven can be controlled according

to the type of food being cooked.

Stirrer/Convection Fan

Heater

/O_n _ray

Micro/Convec Cooking

With both microwave energy and hot air utilized, this method cooks

food much more quickly than any conventional method. The solid-

state control alternates cooking energy between microwave and hot

air cycles to provide efficient cooking fully utilizing the advantages of

both microwave and hot air cooking systems.

The dehydration cooking is performed in the same mode.

Stirrer /Convection Fan

USE INSTRUCTIONS

MICROWAVE COOKING

COOKING GUIDE

"HI" POWER COOKING

"HI" gives highest power and is a recommended setting

for cooking foods with high moisture content or for foods

that need fast cooking to keep natural flavor and texture..

Your Kenmore Microwave Convection Cookbook will tell

you which foods are cooked best using highest microwave

power or "HI". For detailed directions on "HI" (max

power) cooking, see page 19.

MULTI-POWER COOKING

Many foods need slower cooking at less than full power in

order to give you the best results. In addition to "HI",

there are ninet_,'-nine multi-power settings. Detailed

directions for multi-power cooking are on pages 20 and

21.

FOUR-STAGE COOKING

Some recipes need more than one cooking stage. Many

food will cook better when cooked for a period of time at

•one power setting and-then'cooked for another period of

time at a different power setting. With a cake, for

example, the cookbook may recommend cooking at the

"60 (Bake)" setting, followed by a period of cooking time

at the "HI" setting. "Bake" allows .the cake to rise gently,

and then "HI" finishes the cooking cycle..You can preset

up to four stages at the beginning, start the oven, and

then the oven will change ,automatically into the second

stage at th_ preset time. "Two, Three or Four-Stage

Cooking" with_oth TIME and TEMP CONTROL can also

be set. For detailed directions on "Two, Three or Four-

Stage Cooking", see Pages 27 and 28.

TEMPERATURE CONTROLLED HI

POWER COOKING

"HI" power with Temperature Control lets you cook food

to a preset temperature using maximum speed. Follow the

directions on page 25 and you will be able to preset the

temperature you desire with the aid of the Temperature

Control Cooking Guide.

WHOLE MEAL COOKING

The Metal Rack increases the oven cooking space. To

cook two or more different foods at one time, choose

their proper places inside the oven byfollowing the

Cookbook directions. See page 29 in this manual.

TEMPERATURE CONTROLLED

MULTI-POWER COOKING

Multi-power with Temperature Control allows you to cook

more sensitive foods to a preset temperature using slower

microwave speeds. See page 26 for detailed directions.

AUTOMATIC DEFROST

Power level will automatically change for proper thawing

of dense food items. See pages 30 thru 33 for detailed

directions.

"HOLD WARM"

After completing your cooking, the oven switches into

"Hold Warm" to keep the food warm. "Hold" will show in

the display window and will continue to show for up to

t00 minutes or until the door has been opened or STOP

has been touched. See Page 18.

USE INSTRUCTIONS

CONVECTION COOKING

COOKING GUIDE

CONVECTION COOKING

With cooking time controlled, this is the most common

way of cooking. Many foods can be cooked using this ......

method in which the oven temperature is set according to

the type of food. The oven is usually preheated before

using.

TEMPERATURE PROBE

MICRO/CONVEC COOKING

The temperature probe is used to control the temperature

of the food in the combination of microwave and

convection cookings. This method is useful when cooking

meat. See page 40.

AUTOMATIC PRE-HEAT

Preheating required before convection or micro/convec

cooking can be performed automatically. See page 35.

TEMPERATURE PROBE

CONVECTION COOKING

This function enables a type of convection cooking in

which the temperature of the food is controlled by a

temperature probe. See page 37.

This cooking mode is suitable for cooking meat.

MICRO/CONVEC COOKING

Since both microwaves and hot air are used, food can be

cooked very quickly. Cooking this way utilizes the

features of both the microwave and hot air systems and

finishes food nicely. See page 38.

FOUR-STAGE COOKING

With the memory feature that controls four different

stages of cooking, four-stage cooking can be performed

automatically.

For example, the first stage can be set for preheating, the

second for convection cooking, third for micro/convec

cooking and fourth for convection cooking.

Just start the oven for automatic sequential cooking.

It is also possible to set a combination of microwave and

convection cooking in each stage. See pages 41 and 42.

DEHYDRATION COOKING

This function enabies apples, peaches, berries and any

other seasonal fruit as well as meats to be dried.

To get efficient dehydration cooking, the Oven has been

programmed itself to alternate cooking energy between

microwave and hot air cycles.

This method can dehydrate food much more quickly than

any conventionally dehydrated cooking. See pages 43 thru

49 for detailed directions.

EASY USE CHART MICROWAVE COOKING

Your new Solid State Control allows you to use your microwave/convection oven in many ways.

TIME OF DAY

To Set

I. Touch CLEAR

2. Touch TIME OF DAY

3. Touch Numbers for Correct

Time

4. Touch TIME OF DAY*

*This "locks" in the time and starts

the clock running.

HI POWER COOKING MULTI-POWER COOKING

To Set To Set

I. Touch CLEAR I. Touch

2. Touch MICRO TIME 2. Touch

3. Touch Numbers for Cooking 3. Touch

Time Time

4. Touch START 4. Touch

(See page 19 for more instructions.) 5. Touch

Power

CLEAR

MICRO TIME

Numbers for Cooking

MICRO CONTROL

Numbers for Cooking

level .

6. Touch START

(See page 21 for more instructions.)

--T-EMPEi_ATuRE-C-(_)NT-Fi-OL--LED " TEMPERATURE CONTROLLED FOUR-STAGE COOKING

HI POWER COOKING MULTI-POWER COOKING

To Set

I. Plug in Temperature Probe

2. Touch CLEAR

3. Touch MICRO TEMP

4. Touch Numbers for Cooking

Temperature

5. Touch START

(See page 25 for more instructions.)

To Set

i. Plug in Temperature Probe

2. Touch CLEAR

3. Touch MICRO TEMP

4. Touch Numbers for Cooking

Temperature

5. Touch MICRO CONTROL

6. Touch Numbers for Cooking

Power level

7. Touch START

(See page 26 for more instructions.)

To Set

I. Touch CLEAR

2. Touch MICRO TIME or MICRO

TEMP

3. Touch Numbers for Cooking

Time or Temperature

4. Touch MICRO CONTROL

5. Touch Numbers for Cook{ng

Power level

6. Touch MEMORY/RECALL or

PAUSE and repeat steps 2-5 to

set 2nd cooking stage.

7. Touch MEMORY/RECALL or

PAUSE and repeat steps 2-5 to

set 3rd cooking stage.

8. Touch MEMORY!RECALL or

PAUSE and repeat steps 2-5 to

set 4th cooking stage.

9. Touch START

(See Pages 27 and 28 for more

detailed instructions.)

AUTOMATIC DEFROST

To Set

I. Touch CLEAR.

2. Touch an Auto Defrost Course

key DEFI, DEF2 or DEF3.

3. Touch numbers to enter the

weight of your food.

4. Touch START.

(See pages 30 thru 33 for more

detailed instructions.)

EASY USE CHART CONVECTION COOKING

CONVECTION COOKING AUTOMATIC PRE-HEAT TEMPERATURE PROBE

• CONVECTION COOKING

To Set

I. Touch CLEAR

2. Touch CONVEC TIME

3. Touch Numbers for Cooking

Time

Touch OVEN TEMP PRE-HEAT

Touch Numbers for Oven

Temperature

6. Touch START

(See page 35 for more instructions.)

To Set

I. Touch CLEAR

2. Touch OVEN TEMP PRE-HEAT

3. Touch Numbers for Oven

Temperature .

4. Touch START

(See page 35 for more instructions.)

To Set

I. Plug in Temperature Probe

2. Touch CLEAR

3, Touch CONVEC TEMP

4. ,Touch Numbers for Cooking

Temperature

5. Touch OVEN TEMP/'PRE-HEAT

6. Touch Numbers for Oven

Temperature

7. Touch START"

(See page 37 for more instructions.)

TEMPERATURE PROBE

MICRO/CONVEC COOKING MICRO/CONVEC COOKING _ DEHYDRATION COOKING

To Set

I, Touch CLEAR

2. Touch MICRO/CONVEC TIME

3. Touch Numbers for Cooking

Time

4. Touch START

(See page 38 for more instructions,)

FOUR-STAGE COOKING

To Set

1. Plug in Temperature Probe

2. Touch CLEAR

3. Touch M[CRO.CONVEC TEMP

4. Touch Numbers for Cooking

Temperature

5. Touch START

(See page 40 for more instructions.)

To Set

I. Touch CLEAR

2. Touch DEHYDRATE TIME

3. Touch Numbers for Cooking

Time

4. Touch OVEN TEMPiPRE-HEAT

5. Touch Numbers for Oven

Temperature

6. Touch START

Note:

The dehydration oven temperature

is set itself at 150°F unless a

different temperature is chosen by

Steps 4 and 5.

(See page 49 for more instructions.)

To Set

1, Touch CLEAR

2. Touch OVEN TEMI_, PRE-HEAT

3. Touch Numbers for Oven

Temperature

4. Touch PAUSE

5. Touch CONVEC TIME

5. Touch Numbers for Cooking

Time

7. Touch MEMORY RECALL

8. Touch MICRO/CONVEC

TIME

9. Touch Numbers for Cooking

Time

1,0. Touch PAUSE

II. Touch CONVEC TIME

12. Touch Numbers for Cooking

13. Touch START

Note:

Any' combination is possible in

(our-stage cooking.

(See pages 41 and 42 for more

instructions.) 15

DELAY START COOKING

For those times when you must be away from the kitchen, but want dinner ready when yo0 return,

cooking can be started and finished at the time of day selected. See page 50 for detailed directions.

EASY USE CHART

DELAY START COOKING

To Set

I. Touch CLEAR

2. Touch STOP TIME

3. Touch Numbers for Time of

Day to finish Cooking

*4. Touch MICRO TIME

5. Touch Numbers for Cooking

Time

6. Touch MICRO CONTROL

7. Touch Numbers for Cooking

Power level

8. Touch START

* Four-Stage Cooking can be used

with Delay Start.

After step 3 above, follow

instructions for Four-Stage

Cooking beginning with step 2.

(See page 50 for more instructions.)

PRESET RECIPE COOKING m "Auto Recipe 300" and "3 Customer

Programmable Recipes"

300 Recipes were developed by our cooking experts and have been preset into this oven for automatic

cooking. To use "AUTO RECIPE 300" cooking, touch RECIPE #, the numbers corresponding with the

desired Recipe(s) shown in the cook-book and then START.

See pages 51 thru 53 of this Manual, as well as your Kenmore Microwave Cookbook for detailed

directions.

In addition to AUTO RECIPE 300, 3 more recipes (Recipe # 301 -- 303) can be programmed by yourself

for preset recipe cooking. See page 54 of this manual for detailed directions.

EASY USE CHART

PRESET RECIPE COOKING

(Auto Recipe 300 & 3Customer

Programmable Recipes)

To Set

1. Touch CLEAR

2. Touch RECIPE e,

3. Touch Numbers for

Preprogrammed Recipe ,e

4. Touch START

(See pages 51 thru 53 for more

detailed instructions)

PROGRAMMING NEW RECIPES

To Set

1. Touch CLEAR

2. Touch NEW RECIPE

3. Touch RECIPE #

4. Touch Numbers for New Recipe

5. Program Recipe following

suitable operating instructions

6. Touch NEW RECIPE

(See Page 54 for more detailed

instructions)

RECALL AND CHANGE OF SETTINGS •

To Recall a Setting

To check the Setting for a given stage, touchMEMORY/RECALL once or more until the correct Stage

Light and Indicator Light turn on. The set Time, Temperature or Oven Temperature for that stage will

show in the Display Window.

To check the Microwave Cooking Power leve!, touch MICRO CONTROL.

To check the Oven Temperature, touch OVEN TEMP/PRE-HEAT.

And so on.

To check Settings while the Oven is running, touch desired pad to recall Setting for operating stage.

To recall a future stage, touch STOP, follow directions above, and touch START to continue cooking.

To recall Time of Day during cooking, touch TIME OF DAY, and it will show in the Display Window.

To Change a Setting

Recall the Setting to be changed by .following directions above and make the change as follows:

TIME ..................................................... Touch "0" until only one "0" shows in the

(MICRO TIME, CONVEC TIME, MICRO!CONVEC TIME) Display Window. Set Cooking Time.

TEMPERATURE CONTROL ................................ Set Cooking Probe Temperature.

(MICRO TEMP, CONVEC TEMP, MICRO/CONVEC TEMP)

MICRO CONTROL ........................................ Set Microwave Cooking Power level.

To reset to "HI", set "99".

OVEN TEMP/PRE-HEAT ................................... Set Oven Temperature.

PAUSE BETWEEN STAGES

Some recipes require stirring, turning and adding or removing of foods between stages. To set the oven to

stop between stages, touch PAUSE rather than MEMORY/RECALL when setting the oven. After the

pause, to restart the oven, touch START.

REG ULAR TIMER

Your Oven also has a timer that can be used for non-cooking functions. When used as a regular timer,

the Oven is not running, the timer is simply counting down.

For detailed instructions on using this timer, see below.

To use the Regular Timer feature:

I. Touch CLEAR.

2. Touch MICRO TIME.

3. Touch numbers for the time.

4. Touch MICRO CONTROL.

5. Touch "'0" (power level 0).

6. Touch START. The time will begin counting down in the display window with no cooking or heating in

the oven.

A tone will sound and the word "End" will show in the display window for 2 seconds when the time is

over.

"HOLD WARM"

Your oven has "Hold Warm" feature that keeps the food warm after the cooking is done.

To use the "Hold Warm" feature:

1. Touch CLEAR.

2, Set the desired cooking cycle following suitable operating instructions on pages 19 through 54 in this

manual.

3. Touch HOLD WARM.

4. Touch START.

When the cooking is over, the oven will switch into "Hold Warm" to keep the food warm. "Hold" will

show in the Display Window. The cook control setting changes to Power Level I.

The "Hold Warm" will continue for up to 100 minutes or until the door has been opened c_rSTOP has

been touched.

If you want to keep your cooked food warm, the "Hold Warm" feature can be used independently without

setting the cooking cycle.

To use the "Hold Warm" feature independently:

1. Touch CLEAR.

2. Touch HOLD WARM.

3. Touch START.

The oven will begin to keep the food warm _,fith microwave power level I for up to i00 minutes or until

the door has been opened or STOP has been touched.

NOTE: Do not use metal utensils when operating with "Hold Warm" feature since arcing may happen

and damage to the oven may result.

_MiCROwAVE_'_'_i';_''_:''-_'_ _ _ .,_ - _._ : ,,._ _, ._ • _ L_.

"HI-POWER" COOKING

I. Touch CLEAR, and a beep tone will be heard. The

CLEAR erases all previous settings.

2. Touch MICRO TIME. Lights above TIME and MICRO,

below STAGE I will go on.

("0" will show in the Display Window.)

3. Touch Numbers for Cooking Time.

Set the cook time by touching the suitable numbers on

the Control Panel. For example, to set 30 seconds, you

would touch "3" and then "0". For 3 minutes, touch "3"

and then touch "0" twice. For 3-I. 2 minutes, touch "3",

"3" and "0". (Note: Remember, the timer is a digital

clock that is divided into 60 seconds. So I/2 minute is

equal to 30 seconds. Touch 30 not 50 as with a

calculator.) The time set will show in the Display

Window at the top of the Control Panel.

NOTE: It is not needed to touch MICRO CONTROL

when cooking with highest power ("HI"). However, if

MICRO CONTROL is touched, the word "HI" will

show in the Display Window. This is to tell you that the

oven will be running on "'HI" power unless a different

power setting is chosen,

4. Touch START. The oven will begin cooking, and the

Display Window will show the time counting down in

seconds.

A tone will sound and the word "End" will show in the

display window for two seconds when the cooking time

is completed. Then the oven will shut itself off.

NOTE: To stir food during cooking: open the oven

door: stir or turn the food; close the oven door; and

touch START. The oven will automatically continue to

count down the amount of time left on the timer.

Example: Fresh fish can be quick-cooked on "HI"

(max power) for 6 minutes. Here is the procedure:

1. Touch CLEAR. _"_-

2. Touch MICRO TIME. _

_. _'_-. _ .

Auto Recipe 3O0 ]

! 22-;;:?3

2"Z___?.ai " 0

_.,:,%,_

' !

3. Set 6 minutes by touching

"6", then "0" twice. "600" wil!

show in the Display Window.

Z0:5 __0

Aulo Recipe 300 3/

,_. _- -_._

2_Z Z2_2Z__2

4. Touch START. The oven will _q_

begin to cook and the time will

begin to count down in the

display window. A tone will

sound and the word "End" will

show in the display window for 2

seconds when the 6 minutes are

over. Then the oven will shut

itself off.

NOTE: If you want to keep the

food warm after finishing the set

cooking, you can use "Hold

Warm" feature. For detailed

instructions on using "Hold

Warm" feature, See page 18.

Aulo Reope 300

': .', ';_' -Z.::

..... >.; "_Z,':

1.2 3

456

7 8 9

iii!!:i!il

_._:_,_-t.,_: _:,:_:_-._-_ :,:':_i'_:: i:r -

COOKING GUIDE FOR "MULTI-POWER', SETTINGS

The "Multi-Power" feature lets you cook at the best l_ower level for the food being cooked. Cooking

directions can be found in the cookbook.

POWER POWER EXAMPLES

LEVEL SETTINGS

10 WARM • Softening cream cheese.

Keeping casseroles and main dishes warm.

20 LOW • Softening chocolate.

Heating breads, roils, pancakes, tacos, tortillas and French toast.

Clarifying butter.

Taking the chill out of fruit.

Heating small amounts of food.

30 DEFROST • Thawing meat, poultry and seafood.

MED LOW " • Completing the cooking cycle of casseroles, stews and some sauces.

• Cooking small quantities of most food.

40 BRAISE • Cooking less tender cuts of meat in liquid or slow cooking dishes.

• Completing the cooking cycle of less tender roasts.

50 SIMMER • Cooking stews and soups after bringing to a boil.

• Cooking baked custards and pasta.

60 BAKE • Cooking scrambled eggs.

• Cooking cakes•

70 ROAST • Cooking rump roast, ham, veal, and lamb.

MED HIGH • Cooking cheese dishes.

• Cooking eggs and milk.

• Cooking quick breads and cereal products.

80 REHEAT • Reheating precooked or prepared food quickly.

• Heating sandwiches.

90 SAUTI e • Cooking onions, celery and green peppers quickly.

• Reheating meat slices quickly•

I00 MAX POWER • Cooking tender cuts of meat.

HIGH • Cooking poultry, fish, vegetables and most casseroles.

• Preheating the browning dish.

• Boiling water.

• Thickening some sauces.

As you get to know your microwave oven, you may find that a particular setting is too low or too high for

the results you desire.

Multiple-power control gives you the means to obtain greater precision in setting power levels, For

instance, if you want a power level between ROAST and REHEAT. you would set the time as usual: touch

COOK CONTROL, and then touch "7" and "5". The display window will show "'75", indicating that your

oven is set to run at power level 75 -- halfway between ROAST and REHEAT.

"MULTI-POWER" COOKING

Many foods need slower cooking (at less than full power) in order to give you the best results. In addition

to "'HI"there are ninety-nine multi-power settings. The cookbook tells you which power setting is

recommended for the food being cooked. 4. Touch MICRO CONTROL

"HI" will show in the Display

To Cook with Multi-Power Window.

I. To CLEAR.

2. Touch MICRO TIME. The Lights above TIME and

MICRO, below STAGE I will go on, ("0" will show in

the Display Window.)

3. Touch Numbers for Cooking Time.

Set the cook time by touching the suitable numbers.

The time set will show in the Display Window.

4. Touch MICRO CONTROL.

The word "HI" will show in the Display Window until a

lower power setting is entered. This tells that the Oven

will always run at highest power unless a lower power

is set.

5. Touch Numbers for Cooking Power level.

Choose the cook control setting desired and touch

numbers corresponding to it. For example, if the recipe

calls for cooking at the 20 (LOW) setting, you would

touch "2" then "0" (the number that is next to LOW

on the Cook Guide). When you touch "20", the Display

Window will read' "20". This means that in the LOW

setting, the Oven is at .power level 20.

6. Touch START. The oven begins to cook and the

display window will show the time counting down. A

tone will sound and the word "End" will show in the

display window for two seconds when the cooking time

is completed. Then the oven will shut itself off,

5. Choose the 80 (REHEAT)

setting by touching the number

"8"' then "0" (the number next

to REHEAT on the Cook

Guide). The Display Window

will read "80", meaning the

Oven is at an power level 80.

_-_7_- Z-oZ

EXAMPLE: To warm 6 doughnuts, you would cook at

power level 80 or "80 (REHEAT)" for 1-I/2 minutes.

To do this, follow these six steps:

1. Touch CLEAR. _/_'_?

2. Touch MICRO TIME.

Auto Recipe 300

r2.__ " " ' .... *'2;_T

=: r-'-..%--

_2 3

4 ,5 6

789

3. Set 1-I/2 minutes by

touching "I" then "3", and

then "0". "130" will show

in the Display Window.

-2/

--_ It,.t.--

Auto Recipe 300 J

__-i-2_2_73::

456

?8 9

:.... .,. .,,.

6. Touch START. The

oven begins to cook and

the time will begin to count

down in the display

window. A tone will sound

and the word "End" will

show in the display

window for 2 seconds

when the 1-1/2 minutes are

over. Then the oven will

shut itself off.

NOTE: If you want to keep the

food warm after finishing the

set cooking, you can use "Hold

Warm" feature. For detailed

instructions on using "Hold

Warm" feature, See page 18.

-_:-It

t.____:..,._F,- - ._

Auto Recipe 300

f-__.7Z2 i-'__

-'4Li:?::_'i....6-"

Auto Recip_ 300

..LL ,_.-Z:"_

.z _-_Z -9

-_ ",,'_--= 73:

Auto Rectpe 300

4._5. 6

T- _. 9

"TEMPERATURE CONTROLLED" COOKING

The temperature probe is used to judge doneness.when

cooking or reheating food. Set the desired food

temperature with the MICRO TEMP and the desired

power level with the MICRO CONTROL. When "Hold

Warm" is set, after completing the set cooking the 'oven

will hold the food warm up to I00 minutes.

TEMPERATURE SETTING & DISPLAY

TEMPERATURE

Temperatures from 90°F to 200°F can be chosen and set

in the oven. The temperature should be set in one-degree

increments.

The display window will show the rise in food temperature

in one-degree increments.

The display window will not accurately s_ow food

temperature below 90 °F.

Plug

(_) _ Socket

Temperature

Probe

Sensitive

Area

Slide Temperature

Probe

Grommet Sensor

MEATS

• Choose only fresh, completely thawed meat.

• Place meat fat side down on the microwave roasting

rack in a glass baking dish.

• Microwave cook on the first "multi-power" setting for

half of the total cooking time. (See "Temperature

..... Controlled" Meat Cooking Guide on Page 23.)

• Turn meat to fat side up and:

I. Place the temperature probe sensor into the meat

with the first inch of the sensor in the center of the

meat. The sensor should not touch the bone or fat

pocket. The sensor should be put in from the side or

from the front -- it should not be put in from the

top of the meat.

2. Plug t-he temperature probe into the socket on the

side of t_e oven wall.

3. Choose the doneness temperature from the chart on

Page 23. Set the temperature with the MICRO

TEMP.

4. Microwave cook the meat on the second "multi-

power" setting. The microwave oven will turn itself

off when the preset temperature is reached. Take

the food out of the oven as soon as the display

window shows "End".

5. Remove the temperature sensor. Let the meat stand,

covered with foil for about 10 minutes before

serving. The temperature will rise about 15°F during

standing time.

NOTE: It is normal for meats to become slightly over-

cooked in a small circular area in the immediate vicinity of

the hole made by the meat probe.

DEFINITIONS

TEMPERATURE PROBE SENSOR: The pointed metal

portion of the probe which is placed into the food.

SENSITIVE AREA OF SENSOR: The first inch, or tip,

of the temperature probe sensor.

PLUG: The end of the temperature probe that is plugged

into the oven socket.

SOCKET: The outlet on the side of the oven wall.

CAUTION: Do not plug the pointed end of the

temperature probe into the socket.

SLIDE GROMMET: Adjust the length of the

temperature probe by sliding the grommet before inserting

it into food so that the sensitive area of the probe can

always be placed in the center of the food.

DISPLAY WINDOW: Shows the cooking temperature

rising as the food is cooking. Chosen temperature may be

seen during cooking by touching MICRO TEMP. When

"Hold Warm" is set, after completing the set cooking the

Display will show "Hold" for I00 minutes or until the door

is opened or STOP is touched.

Temperature Probe

Microwave Roasting Rack

Glass Baking Dish

MICROWAVE

"TEMPERATURE CONTROL" POINTS TO REMEMBER

• Place the temperature probe sensor into the thickest part of

the meat or in the center of the food to be reheated. Avoid

touching bone or fat.

• Check that the first inch of the sensor is in the densest part of

the food to be cooked.

• Remove the temperature probe from the oven after use.

• Be sure to turn meat between first and second settings.

• Refer to cookbook for other information.

DO NOT

• Do not operate the oven with the temperature probe plugged

in while it is empty.

• Do not leave the temperature probe unplugged in the cavity

when operating the oven.

• Do not let the temperature probe touch the side walls,

glass tray or door of the cavity when in use.

• Do not plug the pointed end of the temperature probe

into the socket inside the cavity.

• Do not use the temperature probe in a regular oven. This

probe isdesigned for micro/convec"oven only.

"TEMPERATURE CONTROLLED" MEAT COOKING GUIDE

Refer to "Meats" section on Page 22.

FIRST SETTING SECOND SETIP

MEAT AND TIME AND TIME

TEMPERATURE

PROBE AND COOK

CONTROL SETTING

BEEF

Meat Loaf HI (Max. Power)

2 Ibs. 12--14 min.

HI (Max. Power)

160° F

Rib Roast, boneless

Rib Roast, with bone

HI (Max. Power)

Rare 4--5 rain. per lb.

Medium 5:-6 min. per lb.

Well done 6--7 min. per Ib

HI (Max. Power)

Rare 3--4 min. per lb.

Medium4--5 min. per lb.

Well done 5--6 min. per lb.

70 (Roast) 70 (Roast)

Rare 3--4 min. per lb. 120° F

Medium 5--6 rain. per lb. 130°F

Well done 6--7 rain. per lb. 140°F

70 (Roast) 70 (Roast)

Rare 3--4 rain. per lb. 120° F

Medium 3--5 min. per lb. 130°F

Well done 5--6 min. per lb. 140° F

LAMB'

Lamb Leg or

Shoulder Roast.

with bone

Lamb Roast, Boneless

70 (Roast)

Medium 4--5 min. per lb.

Well done 5--6 min. per lb.

70 (Roast) 70 (Roast)

Medium 4--5 rain. per lb. 145° F

Well done 5--6 rain. per lb. 165°F

70 (Roast) 70 (Roast) 70 (Roast)

5--6 rain. per lb. 5--6 min. per lb. 155°F

VEAL

Shoulder or Rump Roast,

boneless

2--5 Ibs.

70 (Roast) 70 (Roast) 70 (Roast)

9 min. per lb, 9--10 min. per lb. 155°F

PORK

Pork Loin Roast. bonelss

3--5 Ibs,

Pork Loin, center cut

4--5 Ibs.

Ham, boneless, precooked

Center Cut Ham Slice

I--I/2 Ibs.

Smoked Ham Shank

Canned Ham

3 Ibs.

5 Ibs.

HI (Max. Power)

6 min. per lb.

HI (Max. Power)

5--6 min. per lb.

70 (Roast)

5--7 min. per lb.

70 (Roast)

5 rain. per lb.

70 (Roast)

4--5 rain. per lb.

70 (Roast)

5--6 rain. per lb.

70 (Roast)

4--5 rain. per lb.

70 Roast)

5--6 min. per lb.

70 Roast)

4--5 min. per lb.

70 Roast)

5--7 min. per lb.

70 (Roast)

160° F

70 (Roast)

160° F

70 (Roast)

120°F

70 (Roast) 70 (Roast)

5--6 rain. per lb. 120° F

70 Roast)

4--5 min. per lb.

70 Roast)

5--6 min. per lb.

70 (Roast)

4--5 rain. per lb.

70 (Roast)

120°F

70 (Roast)

120°F

70 (Roast)

120°F

STANDING

TIME

5--10 min,

I0 min.

10 min.

I0 min.

10 rain.

i0 rain.

I0 rain.

5 rain.

10 rain.

I0 rain.

I0 mm.

10 mm.

i0 ram.

I0 mtn.

10 ram.

10 nHn.

I0 rain.

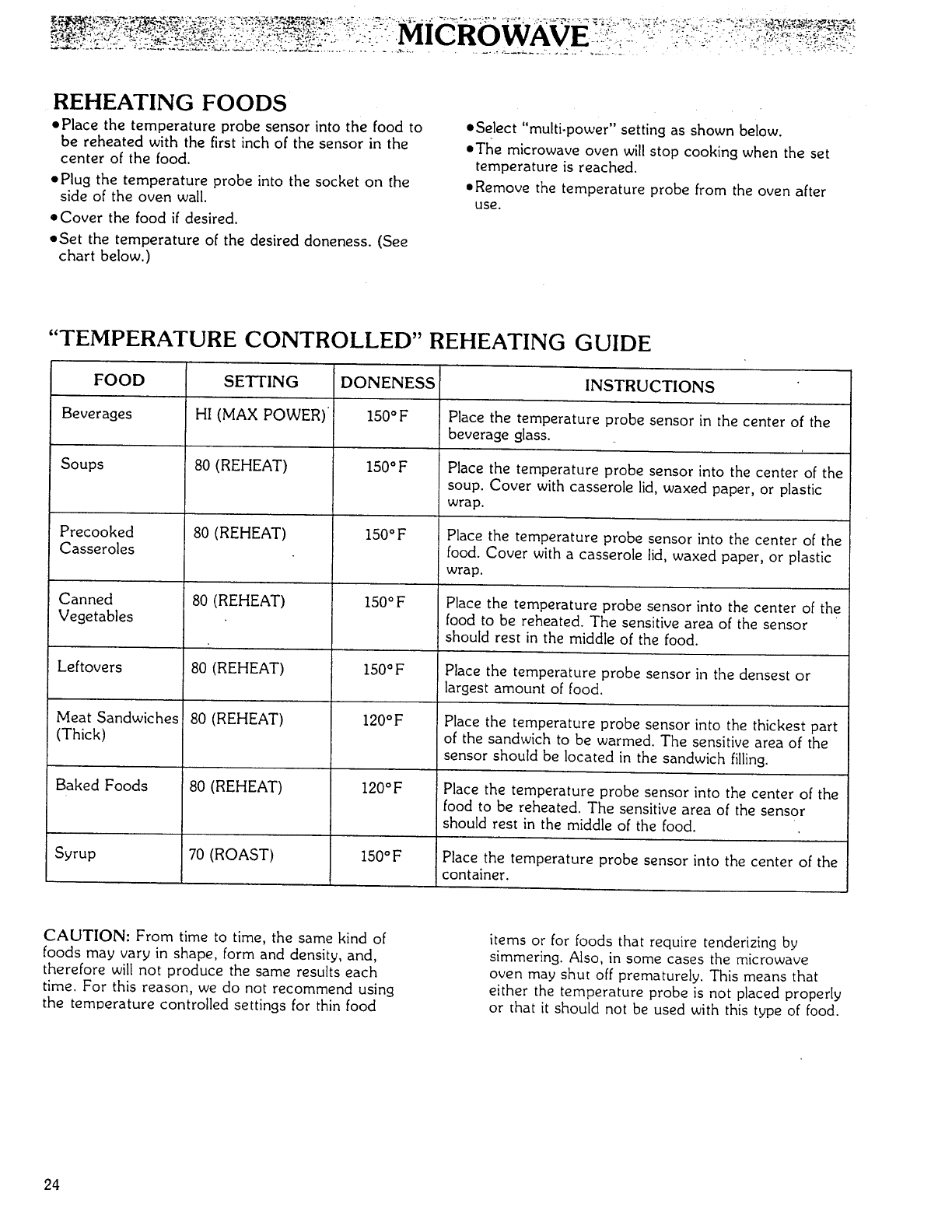

REHEATING FOODS

oPlace the temperature probe sensor into the food to

be reheated with the first inch of the sensor in the

center of the food.

•,Plug the temperature probe into the socket on the

side of the oven wall.

oCover the food if desired.

•,Set the temperature of the desired doneness. (See

chart below.)

•,Select "multi-power" setting as shown below.

oTl_e microwave oven will stop cooking when the set

temperature is reached.

eRemove the temperature probe from the oven after

use,

"TEMPERATURE CONTROLLED" REHEATING GUIDE

FOOD

Beverages

Soups

Precooked

Casseroles

Canned

Vegetables

Leftovers

Meat Sandwiches

(Thick)

Baked Foods

SETTING

HI (MAX POWER)'

80 (REHEAT)

DONENESS

150°F

150oF

150°F

120°F

INSTRUCTIONS

Place the temperature probe sensor in the center of the

beverage glass.

Place the temperature probe sensor into the center of the

soup. Cover with casserole lid, waxed paper, or plastic

wrap.

Place the temperature probe sensor into the center of the

food. Cover with a casserole lid, waxed paper, or plastic

wrap.

Place the temperature probe sensor into the center of the

food to be reheated. The sensitive area of the sensor

should rest in the middle of the food.

Place the temperature probe sensor in the densest or

largest amount of food.

Place the temperature probe sensor into the thickest part

of the sandwich to be warmed. The sensitive area of the

sensor should be located in the sandwich filling.

Place the temperature probe sensor into the center of the

food to be reheated. The sensitive area of the sensor

should rest in the middle of the food.

Syrup 70 (ROAST) 150°F Place the temperature probe sensor into the center of the

container.

CAUTION: From time to time, the same kind of

foods may vary in shape, form and density, and,

therefore will not produce the same results each

time. For this reason, we do not recommend using

the temperature controlled settings for thin food

items or for foods that require tenderizing by

simmering. Also, in some cases the microwave

oven may shut off prematurely. This means that

either the temperature probe is not placed properly

or that it should not be used with this type of food.

MICROWAVE

TEMPERATURE CONTROLLED "HI-POWER"

COOKING

The "Temperature Controlled Meat Cooking Guide" ,_nd "Reheating Guide" on Pages 23 and 24 will show

you which multi-power setting and doneness temperature are recommended for the food you are cooking.

When cooking with the temperature control settings, the timer is not used.

I. Place the temperature probe into the food with the first

inch of the sensor in the center of the food. Adjust the

length of the temperature probe by sliding the grommet

before inserting it into food so that the sensitive area of

the probe can always be placed in the center of the meat.

The probe should be in a level direction or on an angle as

shown. It should not be put in from the top.

2. Plug the temperature probe

into the socket on the side of

the oven.

CAUTION: Do not plug the

pointed end of the temperature

probe into the socket.

NOTE: It is not necessary to touch MICRO CONTROL

when you are cooking with "HI (MAX POWER)".

However, if.you touch MICRO CONTROL the light above

COOK will go on and the word "HI" will show in the

display window. This is to remind you that the oven will

work at "HI (MAX POWER)" unless a different power

setting is chosen.

6. Touch START. The oven will

begin to cook and you will be

able to see th_ temperature of

the food rising in .the display

window.

Auto Recipe 300

1 _2 3

456

78 9

3. Touch CLEAR.

4. Touch MICRO TEMP. The

lights above TEMP and MICRO,

below STAGE I will go on, and

"F" will show in the display

window.

5. Choose the food temperature

and touch the corresponding

numbers. For example, if the

recipe calls for doneness at

120 ° F, you would touch the

numbers "1", "2" and "0". When

you touch "120" the display

window will show "120F". If the

temperature probe is not

plugged into the socket, the

probe light will flash and the

oven will not work.

1•2

Aulo Recipe 300

+:...., ,._%J..:-._-._..,,

-- +. ..........

. _:... ..-.E:T+ -:.._

__IU _.2_E

4 5 6

7 8 9

•_:_+, _.+ .. -._

:Lz ::.::_- +,+.......__"

7. A tone will sound and the

word "End" will show in the

Display Window for 2 seconds

when the desired temperature is

reached.

,'_-,-, d

iIZ...4__,.,s,,T...-+"

Auto Recipe 300

: s'_.

1 .2 3

4 5 6

7 8 9

NOTE: If you want to keep the food warm after finishing

the set cooking.you can use "Hold Warm" feature. For

detailed instructions on using "Hold Warm" feature. See

page 18.

The highest temperature that can be set is 200 ° F.

The temperature is displayed in I°F increments. 25

MICROWAVE

TEMPERATURE CONTROLLED "MULTI-POWER"

COOKING

The "Temperature Controlled Meat Cooking Guide" and "Reheating Guide" on Pages 23 and 24 ,.rill show

you which multi-power setting and temperature setting are recommended for the food you are cooking.

I. Place the temperature probe into the food with the first

inch of the sensor in the center of the food. See step I on page

25.

2. Plug the temperature probe into the socket on the side

of the oven. See step 2 on page 25.

CAUTION: Do not plug the pointed end of

the temperature probe into the socket.

3. Touch CLEAR.

4. Touch MICRO TEMP.

The Lights above TEMP and

MICRO, below STAGE I will go

on, and "F" will show in the

display window.

5. Choose the food temperature

and touch the corresponding

numbers. For example, if the

recipe calls for doneness at

155° F, you would touch

numbers "I .... 5" and "5". When

you touch "155". the display

window will show "'155F". If the

temperature probe is not

plugged into the socket, the

probe light will flash and the

oven will not work. _-i=: _:7_ 7:_-

•,F - "i

.:t :5_:$':

{Auto Recipe 300

Z:I22 2._" "_+

_ .... _::-i __ _;._.._.

6. Touch MICRO CONTROL. _-_

_ .'_'_:__5.

The word "HI" will show in the

display window until you enter a

lower power setting. This is to

remind you that the oven will

always operate at full power

unless you set a lower power.

7. Choose the cook control

setting you desire and touch the

corresponding numbers. For

example, if the recipe should call

for cooking at the "70

(ROAST)" setting, you would

touch numbers "'7" and "0".

Whi_n you touch "'7" and "0",

the display window will show

"70". This means that in the "70

(ROAST)" setting, the oven is at

power level 70.

Auto Recip_ 300

I_2 -3

4.5 6

:L_Z a. 9

-+-,_,--__5_0_ Z.:-.'L--

8. Touch START. The oven will

begin to cook and you will be

able to see the temperature of

.....the foodrising in the display

window.

AUlO Re_loe :300

_ ++ +

I ._2 3

4+5 6

__:: _O.._:_"•

9. A tone will sound and the

word "End" will show in the

Display Window for 2 seconds

when the desired temperature is

reached.

Auto Recipe 300

I23

456

789

'_:_" 0':-;:"._

iiiii :i: ill

NOTE: If you want to keep the food warm after finishing

the set cooking, you can use "Hold Warm" feature. For

detailed instructions on using "Hold Warm" feature. See

page 18.

The highest temperature that can be set is 200°F.

The temperature is displayed in I ° F increments.

MICROWAVE

TWO, THREE OR FOUR-STAGE COOKING

Four-stage cooking lets you cook in four cooking stages each at a different power setting for a chosen

time or temperature. Set all stages before cooking and start the oven. Simply follow these steps:

I. Touch CLEAR.

.Touch MICRO TIME or MICRO TEMP. The lights

above TIME or TEMP. above MICRO and below

STAGE I will go on. The display window will show "0,

or "F",

3. Touch the correct numbers for the time or

temperature of the first cooking stage.

4. Touch MICRO CONTROL.

Display Window will read "HI".

5. Touch the correct numbers for the cooking power

level of the first cooking stage (if other than "HI").

10.

llA.

liB.

12A.

12B.

Touch MEMORY/RECALL or PAUSE. The light

below STAGE 2 will go on. The display window will

show "0".

Touch MICRO TIME or MICRO TEMP.

Touch the correct numbers for the time or

temperature of the second cooking stage.

Touch MICRO CONTROL. The display window will

show "HI".

Touch the correct numbers for the cooking power

level in the second cooking stage (if other than "HI").

Touch START for two-stage cooking.

If three-stage or four-stage cooking is desired, touch

MEMORY/RECALL or PAUSE. The light below

STAGE 3 will go on. The display window will show

'_0_.

Repeat steps 7-10 above to set the third cooking stage at

the same or a different power level for a chosen time or

temperature.

Touch START for three-stage cooking.

If four-stage cooking is desired, touch

MEMORY/RECALL or PAUSE. The light below

STAGE 4 will go on. The display window will show

_'0 _ '

Repeat steps 7-10 above to set the fourth cooking

st'age at the same or a different power level for a

chosen time or temperature.

13. Touch START.

EXAMPLE: (Four-stage cooking)

All-American Meat Balls

(10 minutes, power level 70) (PAUSE)

(3 minutes, power level 70) (PAUSE)

(2 minutes, power level 70)

(MEMORY/RECALL)

(5 minutes, power level 0)

The following steps explain how to set the oven.

First Stage (I0 minutes; power level 70).

1. Touch CLEAR. _

2. Touch MICRO TIME.

3. Set 10 minutes by touching

"1", "0", "0" and "0". "1000" will

show in the display window.

"3L ;

Auto Recil_ 300

4 .S. - +6

z ,8._29.

4. Touch MICRO CONTROL.

"HI t' will show in the display

window to remind you that the

oven will operate at highest

power unless you enter a lower

power setting,

5. Touch numbers "7" and "0".

"70" will show in the display

window (indicating that you

have set the oven to operate at

power level 70).

The first stage has been set.

.Zt -

Auto R+ectp+ 300

4__ 6

mmo-- --_--- ,+-:_ -

..... • ., _,

MICROWAVE

TWO, THREE OR FOUR-STAGE COOKING (Cont'd)

Second Stage (3 minutes;

power level 70)

6. Touch PAUSE. The light

below STAGE 2 will go on. The

display window will show "0".

7. Touch MICRO TIME.

8. Set 3 minutes by touching

"3", "0" and "0". "300" will show

in the display window.

9. Touch MICRO CONTROL

and numbers "7" and "0".

"70" will show in the display

window.

The second stage has been set.

L_0Z

Third Stage (2 minutes;

power level 70)

I0. Touch PAUSE. The light

below STAGE 3will go on.

The display window will show

11. Touch MICRO TIME. _--.._

12. Set 2 minutes by touching ..___

"2", "0" and "0". _.0___°

"200" will show in the display g__-_

window.

13. Touch MICRO CONTROL _L

and numbers "7"" and "0". _L.T_

"70" will show in the display _

Window.

The third stage has been set.

Fourth Stage (5 minutes;

power level 0)

14. Touch MEMORY!RECALL.

The light below STAGE 4 will go

on,

The display window will show

15. Touch MICRO TIME. _-_

16. Se_ 5 minutes by touching

"5", "0" and "0". --_-?-

'500" will show in _he display --0_

window. The fourth stage has Z_

been set.

[ Auto Recip_ 300

4.5 26

......i ii!],

[Auto R_cipe 300

./I.-_ .:z...__

_' "¢.Z.2_z:.._

[ Auto8¢cim a00 J

z s 2._.

17. Touch MICRO CONTROL __,_

and number "0".

"0" will show in the display

window.

The fourth stage has been set.

18. Touch START. The first

stage will begin cooking.

"I000" wil! show in the display

window. The oven will begin to

cook at power level 70 and the

time will begin to count down in

the display window. When the

I0 minutes are over, a tone will

sound and the oven will stop.

"PAUSE" will show in the

display window.

After the pause, to restart the

oven, touch START for second

cooking stage. "300" will show in

the display window. The oven

will begin to cook at "70" power

level. When the 3 minutes are

over, a tone will sound and the

oven will stop. "PAUSE" will

show in the display window.

s_"

After the pause, to restart the

oven, touch START for third

cooking stage. "200"" will show

in the display window. The

oven will begin to cook at "70"

power level. When 2 minutes

are over, a tone will sound and

the oven will change itself into

the fourth stage. "500" will

show the display window.

When 5 minutes as "Standing

time" are over, a tone will

sound and the word "End" will

show in the display window for

2 seconds.

The oven would have finished

four stage.

NOTE: If you want to keep

the food warm after finishing

the set cooking, you can use

"Hold Warm" feature. For

detailed instructions on using

"Hold Warm" feature, See

page 18.

S_m_

===,==_,=_

" "Standing time" allows the

food to finish cooking and the

heat to be uniform throughout.

See the cookbook for detailed

explanation.

,Auto Recipe 300

Z172_:2 _-3:..

.Z_Z ;T_2-:.6

Auto Recipe 300

;.N72ZrZ Z__Z

27_ Z_-_ Zf2

[Auto Re¢ip_ 300

_=_" _:-" =_7,,/

't" .ia.19

:"." _Y" ...2_'_.

L__

: l KUW, vr:

WHOLE MEAL COOKING

(See Cookbook for detailed explanation)

Whole Meal cooking lets you cook two or more different foods at the same time. Foods need not be

placed in the oven at the same time, nor be removed at the same time, unless, needed. By using PAUSE

rather than MEMORY/RECALL, the oven will stop between stages for time to add or remove food.

I. Place the Metal Rack in guides on the side wall of oven cavity.

2. Place food into the oven.

3. Set the oven following the instructions given in the cookbook.

::::::::.: 0

METAL RACK

[] Remove Metal Rack from oven when not being used for whole meal cooking.

[] Do not run the oven empty with the Metal Rack in it.

[] The Metal Rack may get hot during cooking. Pot holders may be needed to remove Rack after cooking.

[] Do not use browning dishes on Metal Rack.

[] Do not use foil or metal containers on the Metal Rack.

Metal Rack

•MICROWAVE

AUTOMATIC DEFROST

Three defrost courses are preset in the oven. The "Auto Defrost" feature provides you with the best defrosting method

for frozen foods.

"Auto defrosting chart" on pages 31 through 33 will show you which defrost course is recommended for the food you are

defrosting.

AUTO DEFROST COURSE LIST

COURSE _ FOOD BASE BASE QUANTITY

CATEGORY FOOD MIN./MAX, FOOD

QUANTITY DEFROST TIME

DEFROST I Beef, Lamb, Pork, Veal, ....

(DEF I) MEAT Variety meat I lb. 4 min. 0.1/9.9 Ibs.

DEFROST 2 POULTRY ' Chicken, Turkey, Duck, I lb. 5 min. 0.1,,'9.9 Ibs.

(DEF 2) Cornish hens

FISH Fish, Lobster, Crab, Shrimp I lb. 8 min. 0.1,'9.9 Ibs.

DEFROST 3

(DEF 3)

1. Touch CLEAR.

2. Touch an auto defrost course key DEF I (MEAT),

DEF 2 (POULTRY) or DEF 3 (FISH) to select the

appropriate defrosting course.

The light below PROGRAMMED DEFROST will go

on and the auto defrost course# (dEF I, dEF 2 or dEF

3) will show in the display window.

For example, when you touch "DEF I (MEAT)" to

defrost ground beef, the word "dEF I" shows in the

display window.

3. Touch the number keys to enter the weight of your

food by pound. For example, when you defrost 2

pounds ground beef, you would touch numbers "2"

and "'0". When you touch "2" and "0", the display

window will show "2.0".

NOTE: It is not necessary to enter the food weight when

you are defrosting one pound food.

The "Auto Defrost" feature allows defrosting from 0.I to

9.9 Ibs. in increments of 0.I Ibs.

4. Touch START. The oven willbegin defrosting and the

display window will show the time counting down.

A tone will sound and the word "End" willshow in the

display window for 2 seconds. Then the oven will shut

itself off.

NOTE: If you plan to use additional cooking stages

immediately following the Auto Defrost cycle, you must

allow for standing time as recommended on the Auto

Defrosting Charts on pages 31 through 33.

This can be accomplished as follows:

1. Touch DEF and enter weight of food.

2. Touch MEMORY. RECALL.

3. ,Touch MICRO TIME.

4. Enter standing time per charts (pages 31 thru 33).

5. Touch MICRO CONTROL.

6. Enter "'0".

7. Touch MEMORY RECALL.

8. Set the next cooking stage(s) per cookbook or USE

and CARE INSTRUCTIONS.

The cooking process can be set for up to 5 stages when

Auto Defrost is one of the stages.

EXAMPLE: To defrost 2 pounds of Ground Beef

I. Touch CLEAR.

2. Touch "DEF I (Meat)". _Z.._

The light below PRO-

GRAMMED DEFROST will

go on and "dEF I" will show in

the display window.

I3".............°'"-=:=:- ]

i _____z.__=_zz__J

(Aulo Recipe 300 J

4 __sT_.0-

,-._€-7-h .-_. r - _

Ill I

3. Enter the weight of the ground

beef by touching "2" and then

"2.0" will show'in the display

window. -_

.Touch START.

Your oven calculates total

defrosting time automatically.

The total defrosting time will

show in the dispay window.

Then the oven will begin to

defrost and the total defrost-

ing time will begin to count

down in the display window.

A tone will sound and the word

"End" will show in the display

window for 2 seconds. Then

the oven will shut itself off.

AUlO Recipe 300

4 5 6

7_ _9

MICROWAVE

AUTO DEFROSTING CHART

This chart shows which defrost course is recommended for your foods and some special directions for use with the

"Auto Defrost" feature.

AUTO DEFROSTING INSTRUCTIONS.

For best results, remove fish/seafood meat/poultry

from its original paper or plastic closed package

(wrapper).

Otherwise, the wrap will hold steam and juice close to

the foods which can cause the outer surface of the

foods to cook.

• When it is difficult to remove the wrap from the foods,

defrost the wrapped food for about a quarter of the

total defrost time, which is displayed at the beginning

of the defrost cycle. Remove the foods from oven and

remove the wrap from foods.

• Place foods in a flat glass baking dish or microwave

roasing rack to catch drippings.

• Food should still be somewhat icy in the center when

removed from the oven.

• For best results, turn foods over often as instructed

by directions of "Auto Defrosting Chart".

When the directions require "turn over once", half-

" way the total defrosting time turn foods over.

When the directions require "turn over twice", turn

foods over one-third and two-thirds of the total

defrosting time. The defrosting time shows in the

display window when START key is touched.

• The chart gives you standing times and sl;anding

techniques needed to complete the thawing process.

IMPORTANT NOTE: The defrosting powe'r setting

(power level 30 DEFROST) should not be confused with

this "Auto Defrost" feature. The defrost cooking level is a

low-energy setting used to cook foods that need slow,

gentle cooking. Use the defrost cooking level to reheat

many frozen convenience foods and also to defrost small

bread items.

COURSE FOOD

DEFROST 1 BEEF

(DEF1, MEAT) Ground beef

Pot roast, chuck

Rib roast, rolled

Rump roast

Round steak

Flank steak

Sirloin steak

Tenderloin steak

Stew beef

STANDING.

DIRECTIONS TIME

Turn over once.

Remove thawed portions with fork.

Return remainder into oven to defrost.

Turn over twice for large quantity.

Use a microwave roasting rack.

Turn over twice.

Cover warm areas with aluminum foil.

Use a microwave roasting rack.

Turn over twice,

Cover warm areas with aluminum foil.

Use a microwave roasting rack.

Turn over twice.

Cover warm areas with aluminum foil.

Use a microwave roasting rack.

Turn over once.

Use a microwave roasting rack.

Turn Over once.

Use a microwave roasting rack.

Turn over once.

Use a microwave roasting rack.

Turn over once.

Turn over once. Separate.

I0 min.. lb.

5 rain., lb.

10 mih./lb.

10 rain. lb.

5 rain. lb.

5 rain./lb.

5 min.,'lb.

5min./lb.

"MICROWAVE

AUTO DEFROSTING CHART (Cont'd)

COURSE FOOD

DEFROST I LAMB

(DEFI, MEAT) Cubed for stew

Ground lamb

Chops

i inch thick

Leg

PORK

Chops

I/2 inch thick

Spareribs

Country-style ribs

Roast

Bacon

Sausage, bulk

Sausage, links

VEAL

Roast

Chops

1/2 inch thick

DIRECTIONS

Turn over once. Separate.

Turn over once.

Remove thawed portions with fork.

Return remainder into oven to defrost.

Turn over twice.

Separate chops halfway through defrosting time.

Use a microwave roasting rack.

Turn over once.

Use a microwave roasting rack.

Turn over twice.

Cover warm areas with aluminum foil.

Use a microwave roasting rack:

Defrost until strips separate.

Turn over once.

Remove thawed portions with fork.

Return remainder into oven to defrost.

Turn over once.

Defrost until pieces can be separated.

Use a microwave roasting rack.

Turn over twice.

Cover warm areas with aluminum foil.

Use a microwave roasting rack.

Turn over once.

Separate chops halfway through defrosting time.

STANDING

TIME

5 min./lb.

I0 min./lb.

5 min./Ib.

5 min./lb.

5 min.ilb.

10 min./lb.

5 min./lb.

5 min.ilb.

10 min./lb.

5 min. 'lb.

VARIETY MEAT

Liver

Tongue

Turn over once.

5 min..'lb.

5 rain., lb.

MICROWAVE

AUTO DEFROSTING CHART (Cont'd)

COURSE FOOD

DEFROST 2 CHICKEN

(DEF 2, Whole

POULTRY)

Cut up

TURKEY

Whole

Breast

Drumsticks

Roast, boneless

CORNISH HENS

Whole

DEFROST 3 FISH

(DEF 3, FISH) Fish fillets

Fish steak

Whole fish

SEAFOOD

Lobster tails

Crab legs

Crabmeat

Shrimp

DIRECTIONS

Use a microwave roasting rack.

Turn over twice.

Cover warm areas with aluminum foil.

Use a microwave roasting rack.

Turn over twice.

Separate pieces when partially thawed.

Cover warm areas with aluminum foil.

Use a microwave roasting rack.

Turn over four times.

Cover warm areas with aluminum foil.

Immerse in cold water for standing time.

Use a microwave roasting rack. _.

Turn over twice.

Cover warm areas with aluminum foil.

Use a microwave roasting rack.

Turn over once.

Separate pieces when partially thawed.

Use a microwave roasting rack.

Remove from foil pan.

Cover with waxed paper.

Use a microwave roasting rack.

Turn over once.

Cover warm areas with aluminum foil.

Immerse in cold water for standing time.

Use a microwave roasting rack.

Turn over once.

Carefully separate fillets under cold water.

Use a microwave roasting rack.

Turn over once.

Carefully separate steaks under cold running

water.

Use a microwave roasting rack.

Should be icy when removed.

Cover head and tail with aluminum foil.

Turn over once.

Remove from package to baking dish.

Use a glass baking dish.

Break the legs apart.

Turn over once.

Use a glass baking dish.

Break apart.

Turn over once.

Remove from package to dish.

Spread loosely in baking dish and rearrange during

thawing as necessary,

STANDING

TIME

I0 Tin./lb.

5 min./lb.

-I0 min./lb.

5 min./lb.

5 min./Ib.

5 min./lb.

20 Tin.

5 Tin.

CONVECTION COOKING

The convection cooking will be best used for items hke souffles, breads, angel food cakes, pizza, and for

broiling meat and fish.

No special techniques are required to adapt your favorite oven recipes to convection cooking, although

you may need to use some lower temperature by 25°F "- 35°F than in a conventional oven cooking.

Because the convection cooking method is identical to a conventional oven except for increased efficiency

of fan-circulated hot air.

When baking cakes, cookies, breads, rolls or other baked foods, some recipes occassionally call for

preheating. Preheat the empty oven just as you do in the conventional oven. But heavier dense foods

such as meats, casseroles, poultry can be started without preheating.

All heatproof cookware or metal utensils may be used in convection cooking.

BAKING PAN/METAL UTENSILS

Any baking pan less than 13" x 13" can be used with this

oven.

The Baking Pan and metal utensils, should be placed on

the Metal Rack as shown.

The Baking Pan and metal utensils should only be

used for convection cooking. Never use for

microwave or micro/convec cooking since arcing

may happen and damage to the Oven may result. iiiiiiiiiiiiiiii

CONVECTION COOKING WITH AUTOMATIC PRE-HEAT

An Automatic preheating temperature of 350°F for

convection cooking has been factory set into the Oven.

(See step 3below.)

1. Touch CLEAR. _._'L4:

2. Touch OVEN TEMPiPRE-HEAT.

The Light below STAGE I will _

go on and "F" shows in the

Display Window.

3. If you do not touch the

numbers for the oven

temperature, the Oven starts

preheating to the 350°F when

the START is touched.

If you want to preheat the Oven

to the temperature other than

the 350 ° F, touch the desired

numbers, or example, to

preheat the Oven to 400°F,

touch 4, 0 and 0. The "400F"

will show in the Display Window.

4. Touch PAUSE. ____-

Light below STAGE 2 will go on

and "0" shows in the Display Window.

5. Touch CONVEC TIME. -_

Lights above TIME and

CONVEC will go on and "0"

shows in the Display Window.

6. Set the convection cooking

time by touching the

corresponding Numbers as

instructed in the Cookbook.

For example, set 45 minutes by

touching the numbers for "4".

"5", "0" and "0". "'4500" then

shows in the Display Window.

__ _Sl- :0: Z0;T

NOTE: During convection

cooking, the Oven keeps the

same temperature in Stage 2 as

for preheating. If. however,

Stage 3 is used, and a

temperature other than 350 ° is

desired, the Oven temperature

must be set in Stage 3.

7. Touch START. /'}:.

The oven is working when the

oven light is on. Lights below

STAGE I, above PAUSE and

CONVEC will go on. and

"200F" is shown in the Display

Window.

As the oven temperature rises

above 200 °F, the display

temperature increases in 10°F

(210F, 220F, 230F etc.). When

the temperature in the oven

reaches the preheat

temperature, "350F" or the set

temperature is displayed and a

pulsating beep tone will sound

to tell that the preheating is

over.

-i ¢

[Auto ReciPe 300

_____ __..._,_.._..

...... v

:F_ _'Z:_ _::-5

_! '-/ 5

L.,,,

{ Aulo ReciPe 300

2__2_ ._

_?_-.__:: _-

•--_-,

_:..*_ _.L__J__

_? ,=,n,-]

--i 2,_, _,-_

[Auto Recipe 3130

e.::._ %?,:-:_::.--:

!)ii 121

8. WARNING: The temperature

in the oven is quite high. Never

touch the tray or flatware with

bare hands. Open the door, the

beep sound will stop and the

temperature display will change

to "PAUS".

Place the food inside the Oven

as quickly as possible. While the

door is open, the warmed air

will escape from the Oven and

the oven temperature will drop.

9. Touch START again.

The Oven restarts, the oven

light and the lights below

STAGE 2, above TIME and

CONVEC are on. The "PAUS"

display switches to the time

display. The time in the Display

Window counts down.

A tone will sound and the word

"End" will show in the display

window for 2 seconds when the

45 minutes are over.

Then the oven will shut itself off.

NOTES: To know the

temperature of the Oven during

cooking, touch OVEN

TEMP/PRE-HEAT to get "350F"

or the other set temperature in

the Display Window.

I Aulo Rec:iPe 300

4:g .....6

7 B -:Z__:

0 - - q.ox_

After preheating is over, the

beep tone will last until either

the door is opened or 30

minutes have elapsed.

The oven temperature should be

chosen in ten-degree

increments.

For example, when a

temperature of 368°F is set, you

can enter the 368°F. The Oven

will, however, stop at the

temperature of 360 ° F, omitting

the last digit 8 ° .

Avoid opening the door during the cooking often since the

hot air will escape from the Oven and the oven

temperature drops very quickly, adversely affecting the

cooking results.

*Use Pot holders to remove the Metal Rack after cooking

as the Rack may get hot during cooking.

NOTE: If you want to keep the food warm after finishing

the set cooking, you can use "Hold Warm" feature. But

metal utensils can not be used for "Hold Warm" operation

since acring may happen and damage to the oven may

result. For detailed instructions on using "'Hold Warm"

features, See page 18. 35

TEMPERATURE CONTROLLED COOKING GUIDE FOR

CONVECTION COOKING

OVEN FIRST STAGE SECOND STAGE ' PROBE

FOOD TEMP TEMP SPECIAL NoTEs

BEEF

Meat Loaf

1-I/2--1-3/4 Ibs.

400°F 25 min. rotate 25 min. 160°F Let stand 5--10 min.

Ground beef 450 ° F Rare: 4 min. 3--4 min.

patties, i--4, Med: 5 min. 4 min.

4 oz. each Well: 5min. 5--6 min.

Preheat. Use broiling pan or aluminum

tray.

Let stand 10--15 min.

Beef rib roast. 330 ° F i0--15 min. per lb. 10--15 min. per lb. Rare: 120° F

bone in, 5Ibs. fat side down Med: 130°F

turn over Well: 140°F.

On ceramic tray. In glass or ceramic

dish.

Let stand 10--!5 rain.

Rib eye or 450°F Rare: 4 min. 4--5 min.

strip steak Med. 5rain. 5--6 min.

Well: 6 rain. 6--7 rain.

turn over

LAMB

Lamp leg or 330°F 15---20 min. per

shoulder roast, lb.

bone in, fat side down

6-I/2 Ibs. turn over

Upper guides. Preheat.

Metal pan or foil tray

Let stand 10--15 min.

15--20 min. per lb. Rare: 145°F

Med: 155°F

Well: 165°F

On ceramic tray in glass or ceramic dish

with trivet.

Let stand 10--15 rain.

Lamb chops, 450 ° F Rare: 4 min. 3--4 min.

3/4" thick Med: 5 min. 4--5 min.

Well: 7 min. 4--5 min.

Upper guides. Preheat.

Metal pan or foil tray "

Let stand 10--15 min.

BAKERY

Cake mix, 18 oz. 350°F 28 min. lO-cup bundt pan.

Let stand 15 minutes.

Butterflake rolls,

refrigerated,

8 oz.

350°F 10--12min. Upper guides. Preheat.

6-cup metal muffin pan.

TEMPERATURE PROBE CONVECTION COOKING

Before starting Temperature Probe Convection Cooking,

choose the correct temperature by consulting with the

"Temperature Controlled Cooking Guide" on page 36 and

the "Oven Temperature Guide" on page 34 in this manual

or in the Cookbook.

The following directions show "One-Stage Cooking" only.

"Pre-heating" and "Four-Stage Cooking" can be set as the

directions on pages 35 thru 42 respectively.

7. Set the temperature for

Temperature Probe by touching

the corresponding Numbers.

For instance, if 185 °F is desired

touch the numbers "I", "8" and

"5".

"185F" then shows in the

Display Window.

I. Put in the Temperature Probe

food, with the first inch of the

Sensor in center of food.

Adjust the length of

Temperature Probe by sliding

the Grommet, so that the

Sensitive Area of the Probe can

always be placed in the center

of meat. Probe should be in a

level direction or on an angle as

shown.

2. Plug Temperature Probe into

socket on side of oven.

CAUTION: Do not plug the

Pointed End of the Temperature

Probe into the socket.

3. Touch CLEAR.

4. Touch OVEN TEMP/PRE-

HEAT.

The Light below STAGE I will

go on and "F" shows in the

Display Window.

5. Set the oven temperature by

touching the corresponding

Numbers.

For example 390 ° is set by

touching the numbers for "3",

"9" and "0", "390F" then shows

in the Display Window.

6. Touch CONVEC TEMP.

Lights below STAGE I, above

TEMP and CONVEC will go on

and "F" shows in the Display

Window.

NOTES: The CONVEC TEMP

means that the cooking is done

by measuring and controlling the

food temperature with the

Temperature Probe.

The OVEN TEMP means that

the cooking is done by

measuring and controlling the

oven room temperature.

Auto R_cl_

_CI2_

( Auto RGci_ 300

i,Z][E_C][_

ZF_Z_[Z_

8. Touch START.

The Oven is working when the

oven light is on, and the Lights

below STAGE I, above TEMP

and CONVEC will go on. The

temperature of the food will be

shown in the Display Window.

When the temperature of the

food reaches 185°F while the

oven temperature is

programmed for 390 °F, a tone

will sound and the word "End"

will show in the Display Window

for 2 seconds and the cooking is

over.

NOTES: See the explanation of

"Temperature Controlled

Cooking Guide" on page 36.

The oven temperature of 350 °F

is memorized in the Oven.

This means that if the desired

oven temperature is 350°F, you

need not touch OVEN

TEMP/PRE-HEAT or the

Numbers. Skip steps 4 and 5.

Avoid opening the. door during

the cooking often since the hot

air will escape from the Oven

and the oven temperature drops

very quickly, adversely affecting

the cooking results.

*Use Pot holders to remove the

Metal Rack after cooking as the

Rack may get hot during

cooking.

NOTE: If you want to keep the

food warm after finishing the set

cooking, you can use "Hold

Warm" feature. But metal

utensils can not be used for

"Hold Warm" operation since

acring may happen and damage

to the oven may result. For

detailed instructions on using

"Hold Warm" features, See page

18.

_::_nC3_I_Z3

r_,CI312_3

_[,_w_ I_ _

MICRO/CONVEC COOKING - .

Cooking is done by both microwave and hot air.

Micro/Convec cooking is fast and efficient.

The following directions show "One-Stage Cooking" only.

"Pre-heating" and "Four-Stage Cooking" can be set as the

directions on pages 35 thru 42 respectively.

I. Touch CLEAR.

2. Touch MICRO/CONVEC

TIME.

Lights below STAGE I, above

TIME and MICRO and

CONVEC will go on, and "0"

shows in the Display Window.

3. Set the desired cooking time

by touching the corresponding

Numbers. For example, to set

16 minutes and 30 seconds,

touch numbers "I", "6", "3" and

"0". "1630" then shows in the

Display Window.

_ El3 C3Z3 E_ZZ

_a,at a.m_

( Auto _t_ 300

i Ci23CX23i_

4. Touch OVEN TEMP/PRE-

HEAT.

"F" shows in the Display

Window.

5. Set the desired oven

temperature by touching the

corresponding Numbers. For

example, 400°F is set by

touching the numbers "4", "0"

and "0".

"400F" will then show in the

Display Window.

Ei3 El3 _EXZ

• k.

6. Touch START.

The Oven is working when the

oven light is on and the time in

the Display Window begins

counting down. When the figure

in the Display Window counts

down to "0" while the oven

temperature is programmed for

400 ° F a tone will sound and the

word "End" will show in the

Display Window for 2 seconds

and the cooking is over.

NOTES: The oven temperature

of 350°F is memorized in the

Oven. This means that if the

desired oven temperature is

350°F, you need not touch

OVEN TEMP/PRE-HEAT or the

Numbers.

Skip steps 4 and 5.

Avoid opening the door during

the cooking often since the hot

air will escape from the Oven

and the oven temperature drops

very quickly, adversely affecting

the cooking results.

*Use Pot holders to remove the

Metal Rack after cooking as the

Rack may get hot during

cooking.

NOTE: If you want to keep the

food warm after finishing the set

cooking, you can use "Hold

Warm" feature. But metal

utensils can not be used for

"Hold Warm" operation since

acring may happen and damage

to the oven may result. For

detailed instructions on using

"Hold Warm" features, See page

18.

[Ao,om,_,, "'I

._2__'2_ _ -_']

:.---==-- 7-_I

TEMPERATURE CONTROLLED COOKING GUIDE FOR

MICRO/CONVEC COOKING

FOOD ..

BEEF

Meat Loaf

1-1/2--1-3/4 Ibs.

Beef rib roast,

boneless

Beef rib roast,

bone in. 5 Ibs.

Beef round, rump,

or chuck,

boneless, 3 Ibs.

LAMB

Lamb leg or

shoulder roast,

bone in.

6-I/2 Ibs.

Lamb roast,

boneless,

3--4Ibs.

VEAL

Shoulder or rump

roast, boneless,

3--3-1/2 Ibs.

PORK

Pork loin roast,

boneless, 4--5 Ibs.

Pork loin, center

cut, 4--5 Ibs.

OVEN FIRST STAGE

TEMP

400°F 25 min. roate

330" F 4 min per lb.

turn over

330°F 4 min per lb.

fat side down

turnover

330°F15 min. per [b_

turnover

330°F

320°F

3 min. per lb.

fat side down

turn over

4 min. per lb.

fat side down

turn over

3--5 min. per lb.

turn over

5--6 min. per lb.

turn over

5--6 min. per lb.

turn over

SECOND STAGE

5 min.

4min. per lb.

4 min. per lb.

15 min. per lb.

5--5-I/2 min. per

lb.

4--4-1/2 min. per

lb.

8--10 min. per lb.

5--6 min. per lb.

PROBE

METHOD

160°F

Rare: 120°F

Med: 130°F

Rare: 120°F

Med: 130°F

Well: 140°F

Med: 130°F

Well: 140°F

Rare: 145°F

Med: 155°F

Well: 165°F

150°F

155°F

165°F

SPECIAL NOTES

Let stand 5--10 rain.

On ceramic tray in glass dish with trivet

On ceramic tray. In glass or ceramic

dish.

On ceramic tray. Casserole with tight

cover or cooking bag.

On ceramic tray in glass or ceramic dish

with trivet.

On ceramic tray. Glass or ceramic dish

with trivet.

On ceramic tray. Glass or ceramic dish

with trivet.

On ceramic tray. Glass or ceramic

baking dish.

On ceramic tray. Glass or ceramic

baking dish.

TEMPERATURE PROBE MICRO/CONVEC COOKING

Consult the "Temperature controlled Cooking Guide" on

page 39 before you start Temperature Probe

Micro/Convec Cooking. The following directions show

"One-Stage Cooking" only. "Pre-heating" and "Four-Stage

Cooking" can be set as the directions on pages 35 thru 42

respectively.

1. Put in the Temperature Probe

in food, with the first inch of the

Sensor in center of food.

Adjust the length of

Temperature Probe by sliding

the Grommet, so that the

Sensitive Area of the Probe can

always be placed in the center

of meat. Probe should be in a

level direction or on an angle as

shown.

2. Plug Temperature Probe into

socket on side of oven.

CAUTION: Do not plug the

Pointed End of the Temperature

Probe into the socket.

3. Touch CLEAR. _E2

4. Touch OVEN TEMP/PRE-

HEAT.

The Light below STAGE I will

go on and "F" shows in the

Display Window.

5. Set the oven temperature by

touching the corresponding

Numbers.

For example, set 390 °F by

touching numbers "3", "9" and

_0 _' '.

"390F" then shows in the

Display Window.

Auto Recip_ 300

6. Touch MICRO CONVEC

TEMP.

Lights below STAGE I, above

TEMP and MICRO and

CONVEC will go on and "F"

shows in the Display Window.

7. Set the desired temperature

for Temperature Probe by

touching the corresponding

Numbers. If 185 ° F is desired,

for example, touch numbers "I",

"8" and "5". "185F" then shows

in the Display Window.

8. Touch START.

The Oven is working when the

oven light is on. Lights below

STAGE I, above TEMP and

MICRO and CONVEC will go

on and the food temperature is

shown in the Display Window.

When the temperature of the

food reaches 185 °F while the

oven temperature is

programmed for 390°F, a tone

will sound and the word "End"

will show in the display window

for 2 seconds and the cooking is

over.

NOTES: The oven temperature

of 350°F is memorized in the

Oven. This means that if the

desired oven temperature is

350 ° F, you need not touch

OVEN TEMP PRE-HEAT or the

Numbers. Skip steps 4 and 5.

Avoid opening the door during

the cooking often since the hot

air will escape from the Oven

and the oven temperature drops

very quickly, adversely affecting

the cooking results.

Auto Reclp_e 300

Auto Recipe 300

,_} .... !

*Use Pot holders to remove the

Metal Rack after cooking as the

Rack may get hot during

cooking.

NOTE: If you want to keep the food warm after finishing

the set cooking, you can use "Hold Warm" feature. But

metal utensils can not' be used for "Hold Warm" operatior

since acring may happen and damage to the oven may

result.

For detailed instructions on using "Hold Warm" features,

See page 18.

TWO.I THREEOR FOUR-STAGE COOKING

In four-stage cooking, different modes of cooking can be combined for sequential cooking. -[o make

Lemon Chiffon Cake, for example, Preheating in the 1st stage, Convection Cooking in the 2nd stage,

Micro/Convec Cooking in the 3rd stage, and Microwave cooking in the 4th stage can be combined to get

best cooking result.=

First Stage

1. Touch CLEAR.

2. Touch OVEN TEMP/PRE-

HEAT. Light below STAGE 1

will go on and "F" shows in the

Display Window.

NOTE: Since the oven

temperature is 350 ° F in this

case, the temperature need not

be pre-set since this

temperature is memorized in the

Oven.

Auto _,_:_ 300

E_DI"_ml--_'I

r-imrr_

rim.l-rlL--rl

.DEDr"r_r-'cn

c'_-'lt-'_'qf'_--t

Third Stage

6. Touch MEMORY/RECALL.

Light below STAGE 3 and "0"

shows in the Display Window.

7. Touch MICRO/CONVEC

TIME.

Lights above TIME, MICRO and

CONVEC will go on and "0"

shows in the Display Window.

8. Set the desired time for 3rd

stage cooking, 5minutes, by

touching numbers "5", "0" and

"0", "500" then shows in the

Display Window. C2D £2D f-o_

;[ S __u

{. mt,,_-_ 3oo

Second Stage

3. Touch PAUSE.

Light below STAGE 2 will go on

and "0" shows in the Display

Window.

CEE3

4. Touch CONVEC TIME.

Light below STAGE 2, TIME

and CONVEC will go on and

"0" shows in the Display

Window.

5. ,_t the desired time for 2nd

stage cooking, 30 minutes, by

touchi0g numbers "3", "0", "0"

and "0". "3000" then shows in

the Display Window.

. ,"

[ Auto R_I_ 300

_DC_D

_Z_r-'_-_

Fourth Stage

9. Touch MEMOIRY/RECALL.

Light below STAGE 4 and "0"

shows in the Display Window.

10. Touch MICRO TIME, go on

Lights above TIME and MICRO

will go on and "0" shows in the

Display Window.

II. Set the desired time for 4th

stage cooking, 5 minutes, by

touching numbers "5", "0" and

"0". "500" then shows in the

Display Window. _ _

12. Touch MICRO CONTROL

and number "0".

"0" will show in the display

window.

t- A.t,,_ ,

,EX_C2E_I2

__',,,q "'" !! _ !

[_' .I!_-.' _1_' I

.-'-7_

TWO, THREE OR

13. Touch START.

The Oven is working when the

oven light is on.

Lights below STAGE I, above

PAUSE and CONVEC will go

on and the oven temperature is

shown in the Display Window.

As the oven temperature rises,

the increasing temperature will

be shown in the Display

Window. When the temperature

reaches 350 °F, "350F" shows in

the Display Window and a beep

tone will sound to tell that the

preheating time is over..

{_ m_,l_3oo... J

;_ Jl''-_-0-_! _' I

i'_. _ j{""-_ _l_,._,l

f1][ 2_1 3]

4]! 511 6

NOTE: If you want to keep the food warm after finishing '

the set cooking, you can use "Hold Warm" feature. But

metal utensils can not be used for "Hold Warm" operation

since arcing may happen and damage to the oven may

result.

For detailed instructions on using "HoM Warm" features,

See page 18.

When programmed defrost is Used in the 1 stage, up to 5-

stage cooking is possible.

*Use Pot holders to remove the food and/or the Metal

Rack after cooking as the utensil and the Rack may get

hot during cooking.

*"Standing time", allows the food to finish cooking and the

heat to be uniformthroughout. See the cookbook for

detailed explanation.

14. The beep sound stops when

the door is opened. Place the

food in the Oven and close the

door quickly. The "PAUS"

shows in the Display Window.

15. Touch START.

The oven starts working when

the oven light is on. Lights

below STAGE 2, above TIME

and CONVEC will go on and

the figure in the Display Window

counts to "0" and the 2nd

cooking stage is over. The beep

tone sounds as it advances to

the 3rd stage of cooking. Lights

below STAGE 3, above TIME

and MICRO and CONVEC will

go on and the figure in the

Display Window counts to "0"

and the 3rd stage of cooking is

over. The beep tone sounds as

it advances to the 4th stage of

cooking. Lights below STAGE 4,

above TIME and MICRO will go

on and the figure in the Display

Window starts counting down

again. When 5 minutes as

"Standing time" are over, a tone

will sound and the word "End"

will show in the display window

for 2 seconds.

The oven would have finished

four stages.

Aalo I_.:11_ 300

_r_r_

c3Br-_Tr-_'l

cE_r-_r"_

CE_c_r'_

_r-_r_-_

--" I,,,-"-I,_ I

.-L .... I,,-|

DEHYDRA 1

DEHYDRATION COOKING

DEHYDRATION

Dehydrated foods require little storage space and no special containers. You can store them in tightly

sealed plastic bags or any other clean, air-tight container. This makes them readily available as a source of

food any time there is a need. Drying foods while they are in plentiful supply and less expensive is money

saving. Not only does it save you money but gives a greater variety of foods all year round.

For campers or hikers, it is a convenient way to take food for outdoor trail eating or camper cooking.

Dried foods, properly stored, will keep up to a year.

WHAT TO DEHYDRATE?

Almost anything! Fruit can be used to make some of the fruit "leathers" that are such nutritious snacks.

Apples, peaches, berries or any other seasonal fruit can be dried for year round snacking. Almost

anything that suits your taste can be dehydrated.

Vegetables can be dried and packed singly or in combinations to add to soups and stews. Use vegetables

from your garden or from a local farm stand. Herbs from your garden should be dehydrated and packed

singly or in combinations for spaghetti sauce, stews, chicken dishes. What a wonderful gift a jar of your

own home grown and dried herbs would make!

There are also craft items that can be dried. Flowers from your spring garden! The use of this feature in

this oven is practically limitless.

There is no mystery about drying foods. In fact most of us eat dried foods every day. Generally, pasta,

beans, spices, raisins and even coffee are dried when you buy them.

GENERAL INSTRUCTIONS

Dry only good quality fruits and vegetables. If there is a blemish, it will appear in the finished product.

The one exception to this is in making fruit leathers. Here you can cut away pieces of the fruit that are

spoiled, use up fruits from the freezer that have overstayed their time, even canned fruits that have been

around too long.

The thinner the slices, the faster the drying.

Place food one layer thick on the trays. Different kinds of foods can be dried at the same time, but it is

wise not to mix onion and onion products with less pungent foods, such as fruits.

During the drying period, check food for doneness. When moisture appears on top of the food, blotting

with a paper towel will speed dehydration. Timing will depend on the amount of moisture in the food.

Removing moisture by pressing the food may shorten the drying time, but it will also remove natural

vitamins in the moisture. It is best for this to remain in the food and dry out slowly for best quality of

color and content.

Generally, vegetables are dried when they have become leathery or brittle. Fruits should be leathery and

pliable and should not exhibit any moisture when squeezed. Meats will be dark in color when properly

dried and from sharp points when bent. Herbs and leaf-type plants will become brittle and crumble easily

when fully dried. It is better to overdry than to underdry.

Drying times on some products like apricots and grapes are quite long. If you wish to use these, use both

racks for maximum results. If you wish to use the oven for some other cooking, remove the food on the

drying racks to a place where they will be kept clean and away from moisture. When the other cooking is

finished, allow the oven to return to low heat and continue the drying. Don't interrupt drying process for

too long.

PREPARATION OF FRUITS AND VEGETABLESFOR

DRYING

Fruits may or may not be treated with an ascorbic acid solution before drying. However, it will hold its

color better if treated. If a fruit such as apples or bananas has a tendency to darken, dip it in a solution of

I teaspoon ascorbic acid to I quart water. (Ascorbic acid, otherwise known as Vitamin C, can be

purchased at drugstores or markets where freezing supplies are sold) If you prefer, you can brush the

fruit with lemon juice. Some berries, such as blueberries, will dry faster if steamed just long enough to

break the skin. Vegetables, with the exception of onions, garlic, peppers, tomatoes and mushrooms,

should be blanched (see Blanching Guide on page in your Kenmore MICRO/CONVECTION Cookbook)

before dehydration. Drain the blanched vegetables well and put on trays to dry. This blanching will stop

enzymatic action and means that the dried vegetables will be of better quality and will keep longer.

DRYING HERBS

All herbs leaves should be dried on the stem, when possible. There is no special preparation, except if the

herbs are dusty. Then they should be rinsed in cold water and dried well. Drying time will vary with

amount of herbs and moisture. Herbs should be dried at a lower setting than the automatic Dehydration

setting, which is 150 °F. Dry at 120°F to preserve flavor oils and vitamins. Here'is ap example of how to

program for a lower oven dehydration setting.

TO PROGRAM DEHYDRATION AT 120°F. For I Hour of dehydration.

I. Touch DEHYDRATE TIME.

2. Touch the numbers for "I", "0" and "0".

3. Touch OVEN TEMP/PRE-HEAT.

4. Touch the numbers for "i', "2" and "0".

5. Touch START.

The oven is now set to dehydrate for I hour at 120F degrees. You may adjust the dehydration oven

setting from 100 °F to 180°F at any time it is needed.

FRUIT LEATHERS

Fruit leathers are one of the_ most enjoyable things: for snacking you can easily make. They are a

combination of fruits, nuts, and if desired; honey or corn syrup to sweeten slightly. Most fruits have

enough sugar to give enough sweetness to the leather. Try this with fruit leathers. Remove leather from

plastic wrap and spread with soft cream cheese, then roll up and refrigerate. This can then be sliced

crosswise to provide a delicious, wholesome snack, or hors d'oeuvre.

Fruit leathers can be a good way to use up fruit that may be a little too ripe for slicing uniformly or eating

whole. Just use your imagination and use your own combinations of fruits. Not usually suitable, are

grapefruit, lemons, persimmons.

TO PREPARE

Place chunks of fruit in a blender and puree the mixture. The fruit should be ripe. Underripe fruit will not

improve with dehydrating. To yellow or light colored fruit add I tablespoon of lemon or lime juice for each

quart of fruit.

Line tray with plastic warp, tape it to all four sides with masking tape. Use about 2-1/2 cups of puree for a

leather about 18" × 14" × I/4". Pour the puree onto the prepared drying trays. Slightly tilt the tray to

spread mixture evenly. Leave at least a I" border to allow for spreading during drying. Dry until it feels

leather-like and is pliable. There should be no sticky spots in the center.

It is easier to roll the leather while it is still warm. Remove while warm and roll it up. The Dehydration

timing will vary. For best results begin testing for doneness after 4--5 hours. Leathers may take 6 hours.

If you enjoy spices, you can add a pinch of spice or flavoring to the puree. Taste before adding too much.

Spi_es and flavorings tend to concentrate when dried, use sparingly...you can always add more.

While leathers are still quite moist, you might like to sprinkle with shredded coconut, or chopped nuts and

raisins. They will dry onto the leather and provide an attractive garnish as well as good taste.

BEEF JERKY

It is important in making beef jerky to select lean cuts of meat and to remove any far around the edges.

Flank steak, brisket, round steak, can all be used. For greatest tenderness, slice very thinly against the

grain and cut into strips. Pieces of meat may be sprinkled with sea salt, according to individual taste, or

marinating for several hours, then draining well, will add tenderness and flavor.

BEEF JERKY MARINADE RECIPE

Marinate for about 1-1/2 hours before drying. Blot dry on paper towels before Dehydrating.

EXAMPLE #1 EXAMPLE #2

2-1/2

1-1/2

1/4

Tablespoons soy sauce

Tablespoons white wine

Tablespoons Honey

Cloves minced garlic

teaspoon fresh ginger

teaspoons Sesame Oil

teaspoon Cayenne Pepper

Just a pinch -- White pepper

Combine all ingredients, blend well.

Add sliced beef, stir once during marinating.

3 Tablespoons dry white wine

2 Tablespoons Soy sauce

2 Tablespoons Worcestershire Sauce

i Tablespoon sugar

3/4 teaspoon salt

I/2 teaspoon pepper

I/4 teaspoon garlic powder

I/8 teaspoon Cayenne Pepper

Combine all ingredients, blend well.

Add sliced beef, stir once during marinating.

HOW TO STORE YOUR DEHYDRATED FOODS

Clean, airtight jars may be used for storing. Jars should be placed in a cool area and protected from light.

Using plastic bags is also a convenient method. Since heat and light affect the quality and shelf-life of dried

foods, these bags may be kept in cartons in a cool place. We suggest that you store your dried foods in

the approximate size portions, you will be using, This eliminates frequent exposure to air and the resultant

•absorption of moisture. Plastic ziplocbags available in different sizes are ideal for the purpose. Label all

packages so you can identify the contents.

HOW TO USE DEHYDRATEDFOODS

Uses for dehydrated foods can be as varied as the imagination of the cook. Most of the fruits you

dehydrate are deliciously eaten just "as is" for snacks. This is also true of fruit leathers and beef-jerky.

A wonderful substitute for "junk" foods for children. Banana slices, apple slices, cherries, pineapple, pears,

apricots and peaches are all appetizing tidbits to eat.

Soak dried foods in water or juice and beat in a blender to make a nutritious drink.

Dried fruits may also be "rehydrated" by soaking in water or fruit juice and simmered by microwave to

provide a delicious dessert or side dish. Instead of serving potato chips with dips, be different and serve

dried cucumber chips. Sprinkle I/8" slices with a little salt and dehydrate. Serve them for a different flavor

with variety of dips.

Dehydrated soup ingredients can be heated with water on the microwave cycle. Dried vegetables can

added to stews and casseroles as needed. They may also be simmered in water until tender and served as

you would a fresh vegetable.

ALL ABOUT TIMING

All suggested timing are approximate. It is not possible to be absolutely accurate in predicting the time to

the minute for dehydration. It all depends upon the thickness of the food, the moisture content, and the

quality of the food being dehydrated. It is always up to you... The Cook to determine when the trays

should be removed. Two trays of apples which may have a suggested timing of 5--6 hours, when sliced in

rings, may only take 4--4-1//2 hours when the rings are cut in half, and sliced a bit thinner.

For even results foods should be approximately the same size and thickness. If both racks are used,

reverse rack position after half the predicted dehydration time.

Timings may change with even the same variety of foods used before. Look for the clues described in the

dryness test and do taste. For chewy fruits, you may wish to use less time. Experiment for texture until

you discover your taste for desired doneness. Above all, try whatever foods are in season and in

abundance, since that is always the best time to "put away" foods. That is when flavors are at their best

and the food least expensive. That is what dehydration is all about.

DEHYDRATION CHART- SUGGESTED PREPARATION

AND TIMING

FOOD PREPARATION PRETREATMENT DRYING TIME DRYNESS TEST

(approximate) (when cool) SPECIAL NOTES

FRUIT

APPLES Peel. core and slice Dip in lemon juice-- 4--4-1/2 hrs. Leathery

3 pounds 1/4 to 3/8" thick, or soak 15--20 min. (5--6 hrs. if in No moisture when

in solution of 6 cups rings) cut and squeezed.

water. I tsp Honey, Both racks

3 tsp Ascorbic Acid.

Drain and dry.

APPLE LEATHER Core & slice apples, Line tray with plastic About 4 hrs. Pliable and '

5Pippin apples place 2 tsp Ascorbic - wrap. Tape all four leathery.

1-I/2 Ibs Acid in 6 cups water, sides, Pour puree on

Makes about 2-i/2 Soak apples. Drain plastic. Tilt to spread.

cups when pureed water. Cook covered Leave at least I/2"

Microwave on HIGH border.

I0 min. Puree in

blender. Add I tsp

lemon juice and I/4 tsp

cinnamon.

BANANAS Peel and slice 1./4 to Dip in lemon juice-- 5--5-1/2 hrs.

3-1/2 Ibs 3/8" thick crosswise or soak 15--20 min. Both racks

before or lengthwise, in solution of 6 cups

peedling water, 3 tsp Ascorbic

Acid. and 2 tsp ground

cinnamon (optional).

Drain and dry.

COCONUT

3-1/2 to

4 cups

Pliable

Drain milk. Crack None. Can be sprinkled 1-1/2--2 hrs. Leathery to

shell to remove meat. with powdered sugar. Both racks crisp.

Trim dark outer skin.

Grate or slice thin in

processor.

GRAPES Tear off whole. None. 5--6 hrs. Leathery

4 bunches Remove stems. Dip in No pockets of

boiling water 1--2 rain. moisture.

to "'craze" the skins

and eliminate natural

wax. Drain and dry.

PEARS Peel, core and slice Dip in lemon juice or 4--5 hrs. Pliable and

3 Ibs 1/4 to 3/8" thick, in solution of 6 cups Both racks leathery.

water, 3 tsp Ascorbic No moisture

Acid, I tsp ground when cut and

cloves (optional). Drain squeezed.

and dry.

PEACHES Peel. core and slice Dip in lemon juice, 5--6 hrs. Pliable and

3 pounds 3/8" thick. Drain and dry. Both racks leathery.

No moisture.

Sprinkle with cinnamon.

Switch racks 1/2 way.

By cutting apple slices

in half you can shorten

•dehydration time.

1 rack-upper position.

Roll while still warm.

Sprinkle with cinnamon

or ground cloves. Top

with finely chopped

nuts or coconut.

Switch racks I/2 way,

Drying will take I/2 hr.

more.

Switch racks 1/2 way.

Use in cakes, desserts,

granola. Garnish fruit

leathers, banana and

apple slices. Use

plastic wrap on rack if

coconut is grated.

1 rack-- upper position.

Timing will be shorter

with some varieties.

Test for moisture.

Switch racks 1/2 way.

Timing will increase

if pears are thick and

in quarters.

Switch racks I/2 way.

By cutting peach

slices I/2 you can

shorten time. _--

MEAT

BEEF JERKY Trim all fat. Partially Use marinade such 3 hrs. No moist spots. Switch racks 1/2 way.

2 Ibs-round steak, freeze, cut into long as a prepared Teriyaki Both racks Will crack when Blot me'at with towel

Flar_k steak or narrow strips-across Sauce. Or marinade bent. but not to remove oil and

brisket of beef the grain, no more suggested ingredients break, moisture from surface.

than 1/4" thick, for Beef Jerky.

FOOD

VEGETABLE

CARROTS Peel, slice1/8--1/4" Blanch-See Chart 2-1"/2--3 hrs. Very tough and

3 pounds thickor cubed 3/8" Page 134. May soak Both racks leathery,

in solutionof 2 tsp

Ascorbic Acid, 2 tbls

Corn starchand

4 cups water for

15 rain.

PREPARATION PRETREATMENT DRYING TIME DRYNESS TEST SPECIAL NOTES

Switch racks 1/2 way.

Turn pieces over at

1/2 way point to

assure more uniform

drying. But not req.

CORN-CUT-FROZEN Rinse with cold water None. 1-1/2--2 hrs. Dry and brittle Switch racks 1/2 way.

2 pounds & drain well. Both racks

CUCUMBERS Peel & slice I/8" Sprinkle with seasoned 1-1/2--2 hrs. or Dry, brittle and Switch racks I/2 way.

2--8" salt (Optional). until very brittle crisp. Seedless, or young

for chips, cucumbers are best.

Both racks Does not rehydrate

well, use for chips,

or sprinkle on salads

and soups.

MUSHROOMS Clean and trim None, 1-1/2--2 hrs. Very dry and

1-1/2 pounds woody pieces from Both racks ,leathery.

stem. Slice lengthwise

1/4--3/8" thick.

Switch racks 1/2 way.

ONIONS Remove root, trip top None. 1-1/2--3 hrs. at Very dry, but Switch racks 1/2 way.

1-1/2 pounds skin. Slice I/8"--3/8" 140 °pliable. Dry to brittle to make

thick. Both racks Feels like paper, flakes and powder,

PEACH LEATHER Puree in blender. Line tray with plastic About 4 hrs. Pliable and I rack-upper position,

I-I/4 Ibs defrosted Add 1/4 cup apricot wrap. Tape all four leathery. Roll while still warm.

frozen peaches preserves. 1/8 tsp sides. Pour puree on

About 2-1/2 cups each cinnamon, plastic. Tilt to spread.

when pureed cloves and ginger. Leave at least 1/2"

border.

PARSLEY " Wash under cold None 1-1/3 hrs, Brittle, flaky

1 bunch water._Separate :. (pat dryafter washing)at 120 °

clusters. Discard long Both racks

or tough stems,

PEAS Shell. Blanch See Chart Page 2-1/2--3 hrs. Brittle and

4 cups 134. Rinse with cold Both racks wrinkled.

water.

PEPPERS Cut in strips. None. 1-1/2--2 hrs. Tough to brittle.

GREEN or RED Remove seeds and Both racks

4 medium ribs (May cut in rings--

will increase drying

time).

To.ugh to brittle.PEPPERS CHILl Wash. Dice or dry None. Diced, 1-1/2 hrs.

whole, Don't remove Whole, 2--

seeds. 2-1/2 hrs.

Both racks

PUMPKIN Make pieces. Remove None. 3--3-1/2 hrs.

1 pound seeds. Cut slices Both racks

1/8" thick. Heat by

microwave on HIGH

until soft. Dry.

Dry and leathery.

Pliable and

leathery.

3-I/2--4-1/2hrs.

PUMPKIN Make pieces. Remove Line tray with plastic

LEATHER seeds. Heat by wrap. Tape all four

about 1-1/2 Ib microwave on HIGH sides. Pour puree on

, until soft. Scrape plastic. Tilt to spread.

pulp from skin and Leave at least 1/2"

puree in blender, border.

Measure puree.

Use 2--2-1/2 cups.

TOMATOES Remove skins. Dry well.

4 medium Immerse in boiling

water 30--45 sec,

then in cold water,

Remove stems. Slice

1/4" thick.

4 hrs. or until

ready.

3--3-I/2 hrs.

i or 2 racks as

needed. Use

upper rack for

I rack.

Switch racks 1/2 way.

Make flakes for salads

and soups.

Switch racks 1/2 way.

Wear gloves while

handling hot peppers.

Switch racks 1/2 way.

Sprinkle with

cinnamon if desired.

1 rack-upper position.

Roll while still warm.

Switch racks I/2 way.

Chop in blender for

salads or soups.

Or use the same as

steamed tomatoes.

DEHYDRATION COOKING TIME AND OVEN

TEMPERATURE

The dehydration cooking time can be chosen and set up to 9 hours 99 minutes by touching DEHYDRATE

TIME in the oven.

The dehydration cooking temperature from 100°F to 180°F with one-degree increment can be chosen and

set if you want to adjust the dehydration oven temperature from preprogrammed temperature setting,

150°F.

When START is touched, the Display Window flashes " : ". The Oven begins operating and show the

time counting down by minutes.

DEHYDRATION RACKS AND NETS

Two sets of the Dehydration Rack and Net come with the oven. The Ceramic Tray should be placed with

them in the Oven during the dehydration cooking as shown below.

Put the Dehydration Rack and Net in top guides if a single set of them is used.

The Dehydration Rack and Net should be used for only dehydration cooking. Do not use them for

microwave, micro/convec or convection cookings. It may cause them to melt or deform.

Dehydration Net

Dehydration Rack

Ceramic Tray

IOiN

DEHYDRATION COOKING

Before starting Dehydration Cooking, choose a

dehydration time by consulting with the "Dehydration

Chart" on pages 46 and 47, and the instructions on pages

43 to 45 in this manual.

1. Place the Dehydration Net on

the Dehydration Rack in the

Oven and after putting food on

it evenly as shown.

If a single set of the Dehydration

Rack and Net is used, it should

be placed in top guides.

NOTE: The Dehydration Rack

and the Dehydration Net should

be used for only dehydration

cooking.

Do not use them for microwave,

micro/convec or convection

cookings. It may cause them to

melt or deform.

2. Touch CLEAR.

3. Touch DEHYDRATE TIME.

The Light below STAGE 1 will

go on and "H:0" shows in the

Display Window.

[ Auto R_l_ 3OO )

C2i_CI2_

E_2CI2_

r-_'7 r_-_r_-7

4. Touch Numbers for the

Dehydration Time following the

instructions given in this manual.

For example, if the dehydration

time sets for 6 hours 30

minutes, you would touch

nurrlbers "6", "3" and "0". Then

"H6:30" shows in the Display

Window.

C_Z_ E_Z Z_Z

Auto Recipe 300

5. The dehydration oven

temperature is set itself at 150°F

unless a different temperature is

chosen.

If you want to set the

dehydration oven temperature

at other than 150 °F, touch

OVEN TEMP PRE-HEAT and

then touch the desired numbers.

"F" shows in the Display

Window and then the Display

Window shows the chosen

temperature.

For example, il_the oven

temperature, is set at 130° ,

touch OVEN TI_MP/PRE-HEAT

and then touch "1.... 3" and "0".

The Display Window shows

"130F". _ _

The dehydration oven

temperature from 100 °F to

180°F with one-degree

increment setting can be chosen

and set in the oven.

6. Touch START.

The Oven begins operating, and

the Display Window will show

the time counting down by

minutes. A tone will sound for 2

seconds when the time is up.

Then the Oven shuts itself off.

NOTE: If you set the

dehydration oven temperature

at other than from 100°F to

180°F, the Oven will not

operate and the Display Window

flashes the chosen temperature

to tell that it is a wrong

temperature for dehydration.

The dehydration oven

temperature must be chosen

from 100 ° F to 180° F.

For dehydrating cooking, do not

use Temperature probe.

If Temperature probe is plugged

into socket on side oven. "Prob"

flashes in the Display Window.

_F_mf'-€7

:--Im,,C_2r-_m

:__

(" Aura I_,_i_ 300

"-TT;r'_'-_m,

DELAY START COOKING

Delay Start Cooking can be done by starting the cooking

automatically and finishing at a presetting delay time for the

chosen cooking time on Microwave. Micro/Convec and

Convection or any combination cooking.

1. Touch CLEAR.

2. Touch STOP TIME.

Light below DELAY START

goes on. Display Window will

read "0:00".

3. Touch numbers for the Time

of Day to finish cooking. For

example, touch numbers "7",

"3" then "0" for the cooking to

be finished at "7:30", and "7:30"

will show in the Display

Window.

Zi- gJ

[Auto R_'¢i_ 300

r___

'.--T--J--_'_

--W--r--_'C_Z}

4. Touch MICRO TIME. F_r3

5. Touch numbers for Cooking

Time.

For example, set 12 minutes by

touching "1" then "2" then "0"

twice.

"200" will show in the display

window.

Auto ReCil_ 300

_'-1£2_CI]

2ZZ'E2_Zr-_-_

_. ___

6. Touch MICRO CONTROL.

7. Touch numbers for Cooking

Power level.

For example, touch numbers

"5" then "0", "50" will show in

the display window.

8. Touch START.

The Time of Day will show in

the Display Window and Light

below DELAY START goes on.

As soon as the clock shows the

Cook Start Time which has

been subtracted from the Cook

Finish Time, the Oven will start

cooking and the cooking time

counts down in the Display

Window. When the Cook Finish

Time (or "7:30") comes, the

Oven will shut itself off.

NOTE: A preset delay time

must be less than 12 hours.

*Four-Stage Cooking can be

used with Delay Start. After

step 3 above, follow

instructions for Four-Stage

Cooking beginning with step 2.

*The Delay Start Cooking is

controlled by time.

When Temperature Control

Cooking is set in a stage.

Cooking may be finished at the

setting time with a slight time

difference.

*Fresh food should not stand at

room temperature over four

hours prior to cooking.

AUTO P.ectpe 300

_C_r_--_

=-I

Auto I_ci_ 300

The display shows

the time of day,

For example:

a half past two.

PRESET RECIPE COOKING

Auto Recipe 300 plus 3 Customer Programmable Recipes

300 recipes shown in the cookbook have been stored in this oven. By touching the recipe number corresponding

to preset recipe, cooking can be done. These 300 recipes have been preset, so you can not erase or substitute

them.

Yo can program 3 more favorite recipes in Recipes #301-303.

See page 54 in this manual for programming new recipes.

• To cook one of 303 preset recipes, simply following the

steps below.

I. Touch CLEAR.

2. Touch RECIPE #.

"0" will show in the display window.

3. Touch the correct numbers of Recipe found in your

Kenmore Microwave Cookbook.

EXAMPLE: Ifyou cook "Hearty Cheese and Frank Soup of

Recipe ff25", touch "2" and then "5".

The display window shows "25".

NOTE: When you touch the numbers of Recipe #301-303,

the display window may flash, it means that no

preset recipe has been stored in the oven for that

recipe number.

4, Touch START.

The oven will begin cooking, and the display window

will show the time counting down.

Some preset cookings of "AUTO RECIPE 300" can

cook up to 4th stage.

NOTES:

•If "PAUSE" shows in the display window between stages,

a special requirement (i.e. stirring, turning over, rotating

and covering by following instructions in the cookbook)

is needed.

olf "PAUSE" does not show in the display window,

cooking in the stage cooking will start itself or the

cooking has been completed.

EXAMPLE: Hearty Cheese and

Frank Soup of Recipe #25.

The following program has

been stored into the oven.

(Stage I; HI, 4 minutes)

(PAUSE)

(Stage 2; HI. 4 minutes)

(PAUSE)

(Stage 3; HI. 10 minutes)

(PAUSE) •

(Stage 50; 58_minutes)

I. Touch RECIPE #, "2" and

"5".

The light at the right of

RECIPE in the display

window will go on, "25" will

show in the display window.

.Touch START.

The first stage will begin. The

light below STAGE I will go

on and "400" will show in the

display window. The oven will

begin to cook at "HI" power

level and the time will begin

to count down in the display

window. When the 6 minutes

are over, a tone will sound

and the oven will stop.

3. "PAUSE" will show in the

display window.

At pause, stir by following the

instructions in the cookbook.

_p.m

Au(a _.cipc 300

Aulo R¢cil_ 300

_-_ _Z

,_l--_q

PRESET RECIPE COOKING (Cont'd)

4. Touch START.

The second stage will begin.

"400" will show in the display

window. The oven will begin

to cook at "HI" power level

and the time will begin to

count down in the display

window. When the 6 minutes

are over, a tone will sound

and the oven will stop.

5. "PAUSE" will show in the

display window.

At pause, add flour by

following the instructions in

the cookbook.

Aulo ReciPe 300

,_-v_C_3CE_3

_ZZ12C3133

_ClZ:3Et3

ZZ2C_Z3CI3

_EEZ3

_ I_--I_-- _-

7. "PAUSE" will show in the

display window.

At pause, stirin broth, wine,

salt and pepper. Cover by

following theinstructionsin

the cookbook.

8. Touch START.

The fourth stage will begin.

"500" will show in the display

window. The oven will begin

cooking. When the 5 minutes

are over, a tone will sound and

the word "End" will show in

display window for 2 seconds

and the oven will stop.

RU_

Auto R_clpe 300

Z3Z!ZIZ£t3

ZZ_.Z_Z3CZ:3

ZZZ?.z_c-

'=-I

-n

_.T..T.-- -

Auto l_:i_ 300

,_, ', _ _ t _- _ I

_ _" -.._._---. _ .... J

.__.-,_:-.. _,

6. Touch START.

The third stage will begin.

"I000" will show in the

display window.

The oven will begin cooking.

When the I minute is over, a

tone will sound and the oven

will stop.

1- Aulo Rlclpe 300

Z_ZZZ_Z

PRESET RECIPE COOKING (Cont'd)

Use of Quantity Key

eTo increase Quantity of Preset Recipes

The times or temperature at" power levels for the 300 preset recipe cooking can not be changed. How_ever the

amount of food cooked in su_:_e preset recipes can be increased up to 5.9 times the Base Quantity which is preset

in the oven. The light at the right of QUANT.ITY will turn on to indicate that you can use the QUANTITY key for

that particular recipe.

To increase the quantity in these recipes, follow the steps

below:

I. Touch CLEAR.

2. Touch RECIPE #.

3. Touch Numbers for the Preset Recipe.

4. Touch QUANTITY.

The light at the fight of QUANTITY and "00" will show

in the Display Window.

5. Touch numbers for the multiplication factor.

To double the recipe, touch "2" and "0".

To triple the recipe, touch "3" and "0".

6. Touch START.

Example: To cook three hot dogs per Recipe #51.

I. Touch CLEAR.

2. Touch RECIPE #.

3. Touch "5" and "I".

4. Touch QUANTITY.

5. Touch "3" and "0".

6. Touch START.

NOTES: The range of multiplication is I. I times to 5.9

times of the Base Quantity. Increment within the

above range is 0. i.

Multiplication can be used in Recipes #, where

the light at the right of QUANTITY shows in the

display window.

When you set the multiplication of Base -

Quantity beyond the range of 1.1-,5.9, the oven

will not start:evenif you touch START.

PROG RAMMING NEW IRECIPES

In addition to the 300 preset recipes, you can program 3 more favorite recipes.

To store the desired recipes in the oven, follow these

steps:

1. Touch CLEAR.

2. Touch NEW RECIPE.

"0" will show in the display window.

3. Touch RECIPE #.

4. Touch suitable numbers from 301-303.

EXAMPLE: Touch "3", "0" and then "2".

"302" will show in the display window.

5. Program your new recipe following use instructions.

6. Touch NEW RECIPE.

New recipe is now preset and the time of day will show

in the display window.

NOTE: A recipe which has been stored in this manner,

can be changed to a new recipe. If you want to

change to a new reqipe, the previously stored

recipe is erased when a new recipe is entered

over the old recipe.

Make a list of the recipe numbers and their

recipes which are stored in this manner so that

you can have easy reference for a later time.

NEW RECIPES

Recipe # Name Directions

301

302

_303

OVEN UTENSILS GUIDE

A variety of Utensils and Materials may be used for cooking in your microwave/convection oven. For

your safety and to prevent damaging utensils and your oven, choose appropriate utensils and materials for

each cooking method. The list below is a general guide for you to select utensils and materials.

Microwave " Micro/Convec ;-

Material Utensils C°okin.g_ ii, ,_ . i . Cooking-.

Ceramic & Glass 1

China

Pottery

Plastic

Metal

Paper

Waxed Paper

Wood

Kenmore Ceramic Tray

Coming Ware

Heat resistant Glass Ware

Glass Ware with metal decoration

Lead Glass

Without metal decoration

Regulat Oven Heat-proof Ware

Plastic Wrap

Kenmore Baking Pan

Metal Baking Pan

Aluminum Foil

Cups, Plates, Towels

: OK

: ii_-'€onvection

Co. ,ang

OK: Utensils to use

NO: Utensils to avoid

NOTE: METAL RACK is_provided forwhole :meal, :Convection or. Micro/Convec cooking. Remove Metal

Rack from oven when not being used for the cooking.-

CARE AND CLEANING

The oven cavity is made of stainless steel and should be cleaned with a detergent specially formulated for

stainless steel.

After convection cooking in particular, the interior of the oven tends to be stained with spattered oil. It is

recommended that the oven be cleaned each time after use before the oil spatters harden and become difficult

to remove.

For best performance and safety, the inner door panel should be free of food or grease buildup Wipe both often

with a mild detergent, rinse, and wipe dry. Never use rough powders or pads.

After cleaning the control panel, touch CLEAR. This will clear any entries that might have been entered

accidentally while cleaning the panel.

After dehydrating foods such as onions and marinated beef jerky, it is normal to have some odor

retention in the oven for a few days.

For cleaning of the Dehydration Rack and Net, it is recommended that a mild detergent, soft cloth or

nylon brush for stubborn stains such as beef jerky marinade can be used.

REMOVABLE PARTS

After each use of the Temperature Probe, it must be removed from the socket. Use pot holder, as the

wire, plug and sensor sections may be hot. Wipe food or liquid from ser_sor with damp cloth.

The Ceramic Tray and Metal Rack can be removed for cleaning at the sink. Wipe up spillovers with paper

towel or cloth before removal of tray.

Wash in warm soapy water and dry. Do not use rough cleaning powders, steel wood, or rough cleaning

pads.

The fan cover (inside oven top) can be gently wiped in place or removed for washing with detergent in a

sink. Handle with care when washing in a sink. The fan cover can be removed by taking out the two

screws used to hold it in place and pulling off the cover carefully. Avoid hitting or bending the metal

stirrer blade, as this cause uneven cooking or microwave power loss. To replace, set the cover in the rails

at the rear of the oven and secure it using the two screws at front.

CAUTION: Wipe the fan cover after each use to keep the food soils from falling onto the cooking

tray. The fan cover is coated with Teflon' for easy Cleaning. Do not apply abrasive powders, metal or

nylon wash pads, nor any metal objects such asknives and forks to the fan cover. Hard objects and

abrasive cleaners may scratch the coating. To clean, use only a foam sponge or wash cloth with a mild

kitchen cleaner.

NOTE: Should the Teflon coating be scratched off, the oven function will not be affected.

SPECIAL CARE

For best performance and safety, the inner door panel and the oven front frame should be free of food or

grease buildup. Wipe both often with a mild detergent. Then rinse and wipe dry. Never use rough

powders or pads.

After cleaning the control panel, touch CLEAR. This will clear any entries that might have been entered

accidentally while cleaning the panel.

QUESTIONS AND ANSWERS

OPERATION

A. What's wrong when the oven light will not glow during cooking or when the oven door is opened?

There may be several reasons why the oven light will not glow.

[] Timer has not been set.

[] Light bulb is burned out.

[] START has not been touched.

Q. Why is steam coming out of the air exhaust vent?

A. Steam is normally produced during cooking operations. The microwave oven has been made to

vent this steam out the rear vent.

Q, Will the microwave oven be damaged if it operates empty?

A. Yes. Never run it empty and without the ceramic tray.

Q. Does microwave energy pass through the viewing screen in the door?

A. No. The metal screen bounces back the energy to the oven cavity. The holes, or ports, are made

to allow light to pass: they do not let microwave energy through.

Q. Why does the beep tone sound when a pad on the Control Panel is touched?

A. The beep tone sounds, to assure that the setting is being properly entered.

A. Why does the Display Window flash?

Flashing numbers indicate there has been a loss of electrical power to the Oven and the Time of

Day must be reset.

Prolonged-loss of power can also result in lossof programmable recipes. Be sure they are

recorded.

Q. Why does the smoke come out of the exhaust duct at the back of oven?

A. It is normal that the smoke may come out of the duct during convection cooking.

The smoke will be produced when the food is over-cooked, and will be led to the duct.

A. Why does it take so long to pre-heat sometimes?

When the oven door is opened during the preheating, the hot air will escape from the oven _and

the oven temperature will drop, making the preheating time longer.

Avoid opening the oven door during preheating, convection cooking or micro/convec cooking,

whenever possible.

Q. Why do I see light reflection around the outer case?

A. This light is from the oven light which is located outside the oven cavity.

FOODS

Q. Whatis wrongwhenbakedfoodshavea hard,dry,brownspot?

A. Abrown, hard spot shows overcooking. Shorten the cooking or reheating time.

Q. Why do eggs sometimes pop?

A. When baking, frying, or poaching eggs, the yolk may pop due to steam built up inside the yolk

membrane. To prevent this, simply pierce the yolk with a toothpick before cooking.

Never microwave cook eggs in the shell.

A. Why are scrambled eggs sometimes alittle dry?

Eggs dry out if they are overcooked. Though the same recipe is used each time, you may need to

vary the cooking time for one of these reasons.

[] Eggs vary in size.

[] Eggs are at room temperature one time and refrigerator temperature another.

[] The shapes of utensils vary, which makes it necessary to vary the cooking time.

[] Eggs keep on cooking during standing time.

Q. Can I cook popcorn in my microwave oven?

A. Cooking popcorn in a microwave oven is not recommended.

Microwaves pop too few kernels to make the technique successful. Longer cooking does not

yield more popped corn, .but can cause fire or make the cooking dish too hot to handle and even

_reak.

Microwave popping devices are available. While safe to use, they usually do not give results

equal to regular_popping ' methods.: If used, carefully follow the instructions which come with the

popping product_ and neverleave the oven unattended while popping com.

Never use apaper bag for popping corn.

Q. What is wrong when three potatoes bake throughly and the fourth is still not cooked?

A. The fourth potato may be slightly heavier than the others and will need to cook 30 to 50 seconds

longer. Remember to allow space around each potato when baking.

For more even cooking, put potatoes in a circle.

Q. Why do baked apples sometimes burst during cooking?

A. The peel should be removed from the top half of each apple to allow for expansion of the interior

of the apple during cooking, as in regular cooking.

How are boilovers avoided?

For foods that tend to boil over, use a larger utensil. If you open the oven door or touch STOP

the food will stop boiling. (Remember to touch START again after closing the door, to restart

cooking.)

Q. Why is a standing time recommended after microwave cooking is over?

A. After microwave cooking is finished, foods keep on cooking during standing time.

This standing time finishes cooking evenly throughout the food. The amount of standing time

depends on the density of the food.

Q. Why is an additional time required for cooking food stored in refrigerator?

A. As in conventional cooking, the initial temperature of food affects total cooking time. More time

is needed to cook the food just taken out of a refrigerator than food at a room temperature.

SEARS SERVICE

WE SERVICE WHAT WE SELL

"We Service What We Sell" is our assurance to you that you can depend on Sears for service because

Sears service is nationwide.

Your Kenmore Microwave/Convection Oven has added value when you consider that Sears has a service

unit near you, staffed by Sears Trained Technicians -- professional technicians specifically trained on

Kenmore Microwave/Convection Ovens, having the parts, tools and equipment to ensure that we meet

our pledge to you -- "We Service What We Sell!"

TO FURTHER ADD TO THE VALUE OF YOUR MICROWAVE/CONVECTION OVEN, BUY A

SEARS MAINTENANCE AGREEMENT.

Sears Microwave/Convection Ovens are designed,

manufactured, and tested for years of dependable

operation. Yet any modem appliance may require service

from time to time. A Sears Maintenance Agreement is

more than an extension of the Warranty.

It provides complete protection from unexpected repair

bills and undue inconvenience. It assures you of maximum

efficiency from your Microwave/Convection Oven.

Here's a comparative Warranty and Maintenance

Agreement chart showing you the benefits of a Sears

Microwave/Convection Oven Maintenance Agreement.

YEARS OF OWNERSHIP 2nd Yr.

COVERAGE 1st Yr. thru

5th Yr.

I. Replacementof W IvIA.

defective parts other 1

than magnetron

2. Replacement of W W

magnetron

3. Annual preventative MA MA

maintenance check at

your request

W--WARRANTY

MA--MAINTENANCE AGREEMENT

Contact your Sears salesperson or local Sears Service Center today and purchase a Sears Maintenance

Agreement.

Sears I

USE& CARE

MANUAL

STOCKNO.

86951

Kenmore

MICRO/CONVECTION

OVEN

WARRANTY

FULL ONE YEAR WARRANTY ON MICROWAVE OVEN

FOR ONE YEAR FROM THE DATE OF PURCHASE, IF THIS KENMORE

MICROWAVE OVEN FAILS DUE TO A DEFECT IN MATERIAL OR

WORKMANSHIP, SEARS WILL REPAIR IT, FREE OF CHARGE.

FULL FIVE YEAR WARRANTY OF THE MAGNETRON

FOR FIVE YEARS FROM THE DATE OF PURCHASE, IF THE

MAGNETRON IN THIS KENMORE MICROWAVE OVEN FAILS DUE TO A

DEFECT IN MATERIAL OR WORKMANSHIP, SEARS WILL REPAIR IT,

FREE OF CHARGE.

THE ABOVE WARRANTY COVERAGE APPLIES ONLY TO

MICROWAVE OVENS WHICH ARE USED FOR PRIVATE HOUSEHOLD

PURPOSES.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY

CONTACTING THE NEAREST SEARS STORE OR

SERVICE CENTER IN THE UNITED STATES.

THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS IN USE IN

THE UNITED STATES.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU

MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO

STATE.

SEARS, ROEBUCK AND CO.

DEPT. 698/731A, SEARS TOWER, CHICAGO, IL. 60684

Part No.12808

Sears, Roebuck and Co., Chicago, IL 60684 U.S.A.

Revised 5/'84 Printed in Japan

KENMORE Countertop Microwave Manual L0905094

Microwave Oven to the manual 9b510574-8b85-47a0-bc95-5010777b56ba

Navigation menu

Versions of this User Manual:

Views

Navigation
