SR001
2.4 G transceiver
Datasheet
V100
深圳市尚瑞思电子有限公司
ShenZhen Sunrise Electronics CO.,Ltd
TEL: +86-755-23093179-802 FAX: +86-755-23093179-816
www.sunrisedigit.com/en/ sales@sunrisedigit.com
-------------------------------------------------------------------------------------------------------
NO.623, Block B1, Huayuan Technology Innovation Park, Baoyuan Rd, Baoan District,
Shenzhen City, Guangdong Province, China
1. Outline
SR001 is a low cost, high integrated 2.4GHZ SOC transceiver;
It use GFSK modulation and demodulation technology, It has a strong
anti-interference ability;
Transmit power can be adjusted, and the max transmit power is up to 6DBM;
The receiver with low IF structure, the receive sensitivity can be
-96dBm@62.5Kbps。Also, the RSSI can be detected ;
The MCU with a low power consumption, Wakeup enable, 2K flash coding room;
The sleep current can be less than 5UA, and the lowest working voltage is up
to 2.2V;
SR001 has a very low cost application, single side board can ensure the
function and performance, it support the 33MM wire antenna;
SOP16 footprint，compatible RoHS standard;
1.1 Performance
2.4G SOC transceiver
SOP16 footprint
Support single side board
Communication distance up to 100 m
Support 33 mm wire antenna
9 GPIO
16 bit instruction
2K x 14-bit FLASH Program Memory
256x8b data EEPROM
128x8b SRAM
7 CH 10 bit A/D
Low voltage reset, low voltage detect
1.2 Typical application
Remote
Wireless key and mouse
Wireless net
Smart home
Industrial and commerce short distance communication;
IP telephone，Cordless phone
深圳市尚瑞思电子有限公司
ShenZhen Sunrise Electronics CO.,Ltd
TEL: +86-755-23093179-802 FAX: +86-755-23093179-816
www.sunrisedigit.com/en/ sales@sunrisedigit.com
-------------------------------------------------------------------------------------------------------
NO.623, Block B1, Huayuan Technology Innovation Park, Baoyuan Rd, Baoan District,
Shenzhen City, Guangdong Province, China

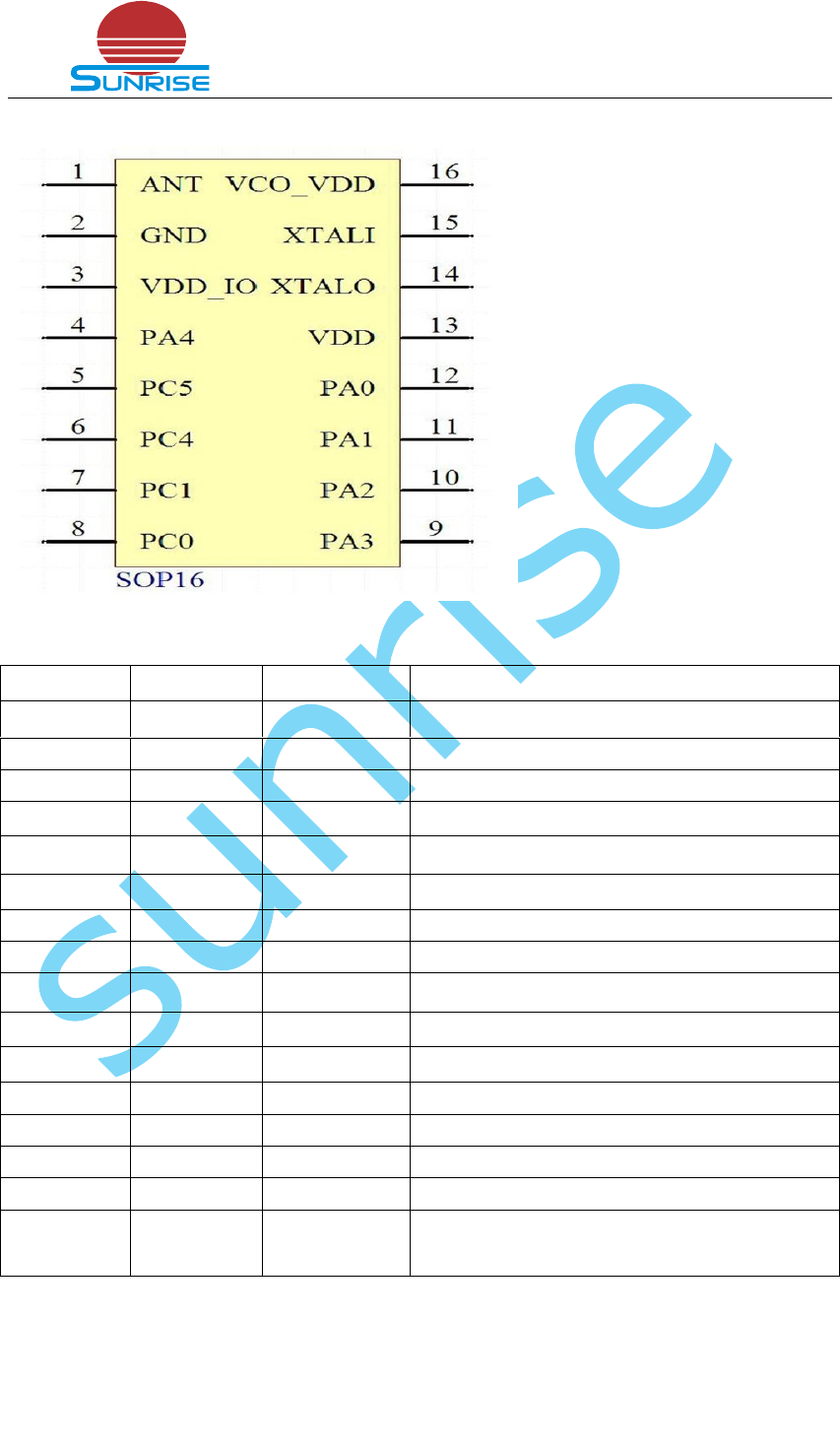

2 Pin assignment：
2.1 pin function description
Pin No
Pin Name
Type
Description
1
ANT
Balanced RF
Rf input/output
2
GND
GND
GND
3
VDD_IO
Power
Power for mcu
4
PA4
I/O
GPIO
5
PC5
I/O
GPIO
6
PC4
I/O
GPIO
7
PC1
Power
GPIO
8
PC0
I/O
GPIO
9
PA3
I/O
GPIO
10
PA2
I/O
GPIO
11
PA1
I/O
GPIO
12
PA0
I/O
GPIO
13
VDD
I/O
VDD for RF
14
XTALO
XO
XTAL Output
15
XTALI
XI
XTAL input
16
VCO_VDD
Power
Power for VCO
深圳市尚瑞思电子有限公司
ShenZhen Sunrise Electronics CO.,Ltd
TEL: +86-755-23093179-802 FAX: +86-755-23093179-816
www.sunrisedigit.com/en/ sales@sunrisedigit.com
-------------------------------------------------------------------------------------------------------
NO.623, Block B1, Huayuan Technology Innovation Park, Baoyuan Rd, Baoan District,
Shenzhen City, Guangdong Province, China
3 IC Block diagram

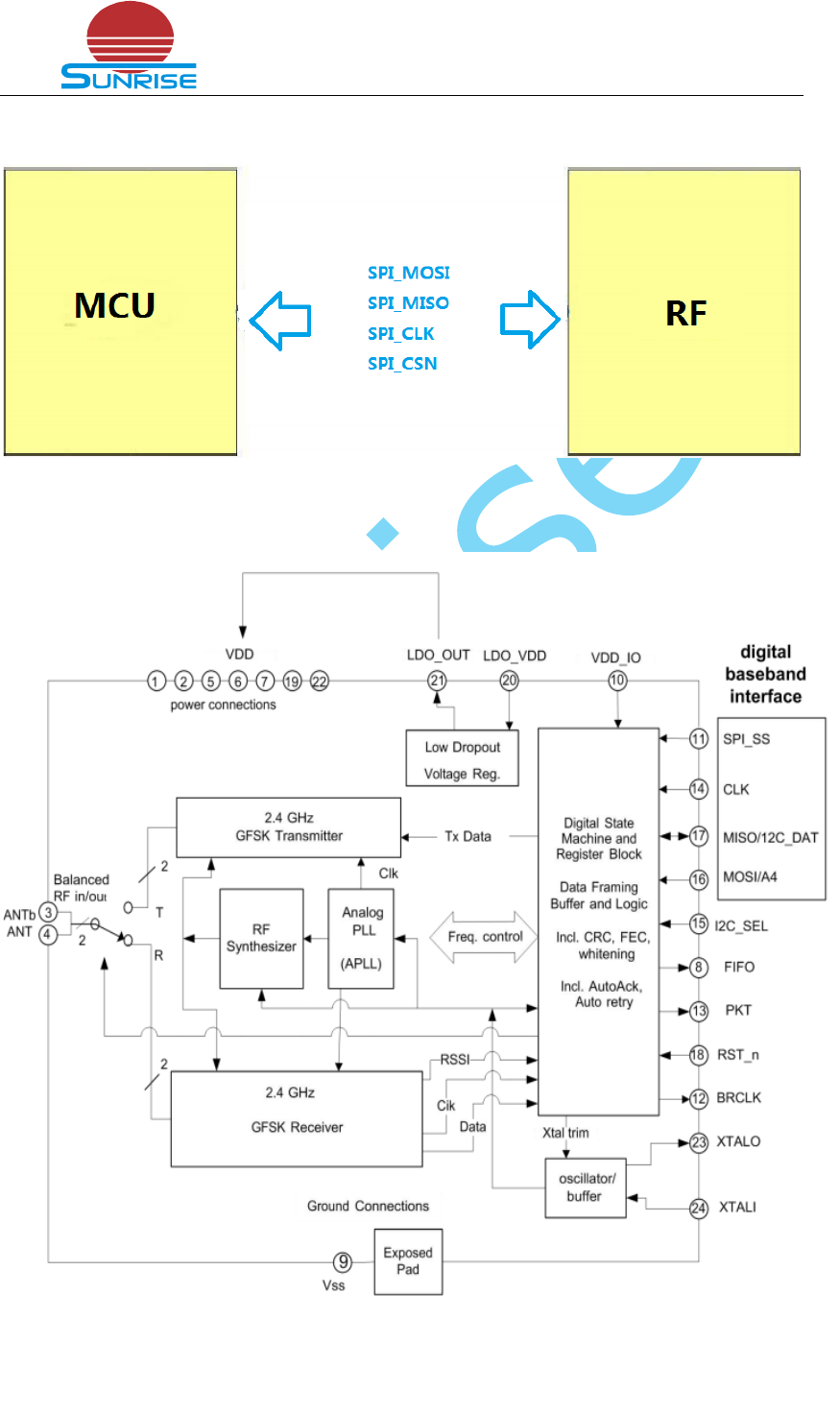

3.1 IC internal interface
3.2 RF Block diagram
深圳市尚瑞思电子有限公司
ShenZhen Sunrise Electronics CO.,Ltd
TEL: +86-755-23093179-802 FAX: +86-755-23093179-816
www.sunrisedigit.com/en/ sales@sunrisedigit.com
-------------------------------------------------------------------------------------------------------
NO.623, Block B1, Huayuan Technology Innovation Park, Baoyuan Rd, Baoan District,
Shenzhen City, Guangdong Province, China

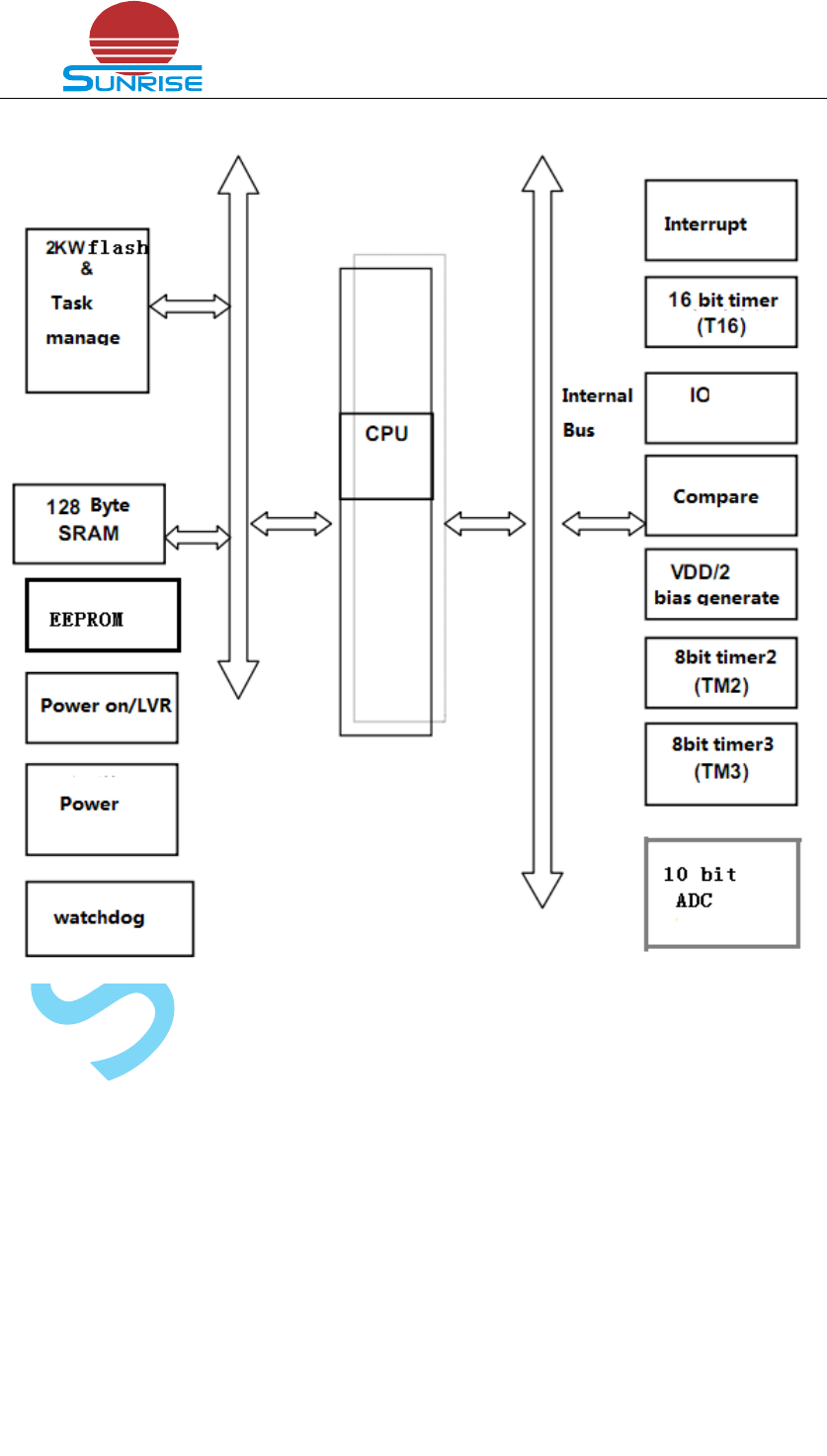

3.3 MCU block diagram
深圳市尚瑞思电子有限公司
ShenZhen Sunrise Electronics CO.,Ltd
TEL: +86-755-23093179-802 FAX: +86-755-23093179-816
www.sunrisedigit.com/en/ sales@sunrisedigit.com
-------------------------------------------------------------------------------------------------------
NO.623, Block B1, Huayuan Technology Innovation Park, Baoyuan Rd, Baoan District,
Shenzhen City, Guangdong Province, China

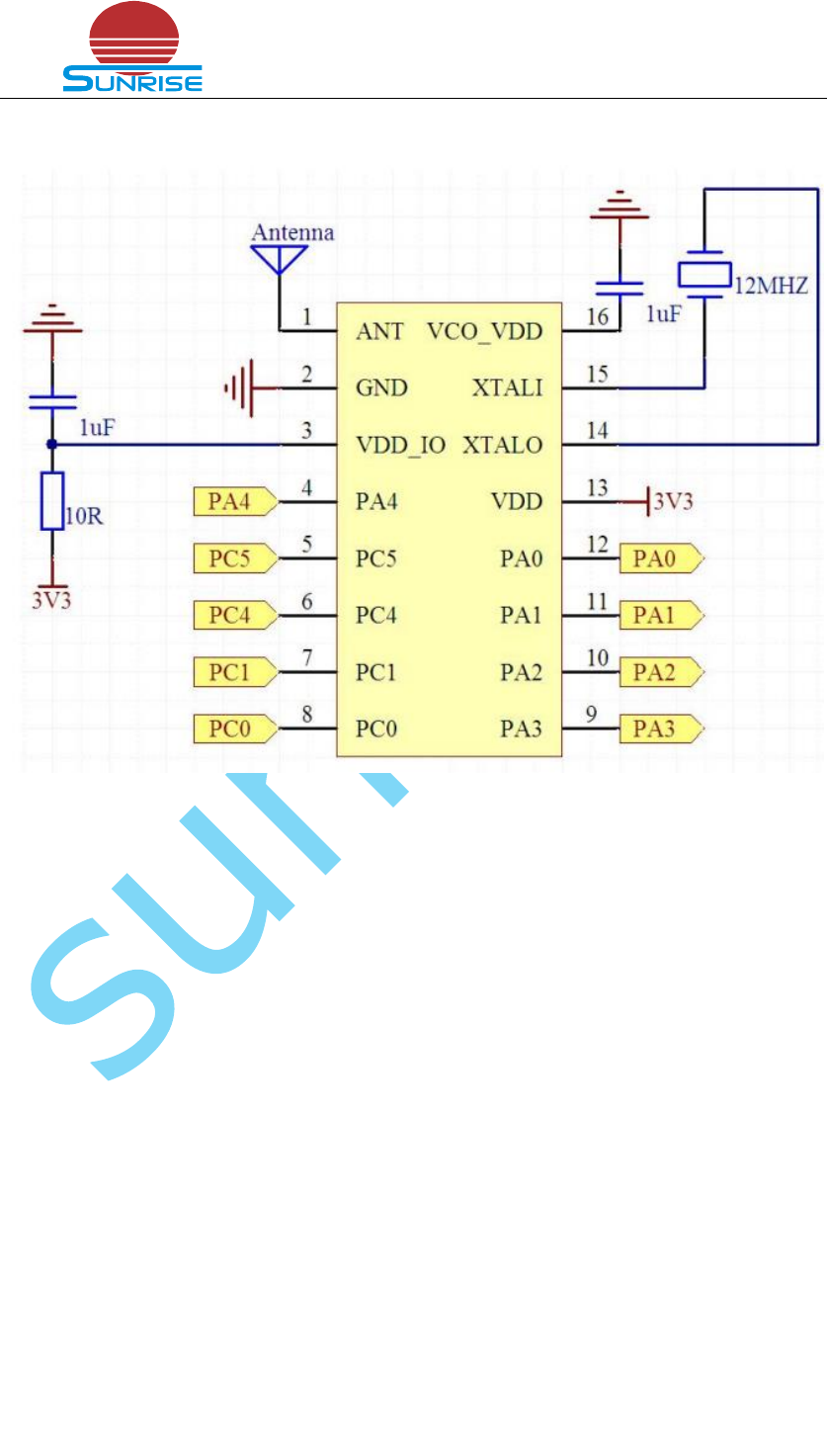

4 Typical application circuit
深圳市尚瑞思电子有限公司
ShenZhen Sunrise Electronics CO.,Ltd
TEL: +86-755-23093179-802 FAX: +86-755-23093179-816
www.sunrisedigit.com/en/ sales@sunrisedigit.com
-------------------------------------------------------------------------------------------------------
NO.623, Block B1, Huayuan Technology Innovation Park, Baoyuan Rd, Baoan District,
Shenzhen City, Guangdong Province, China

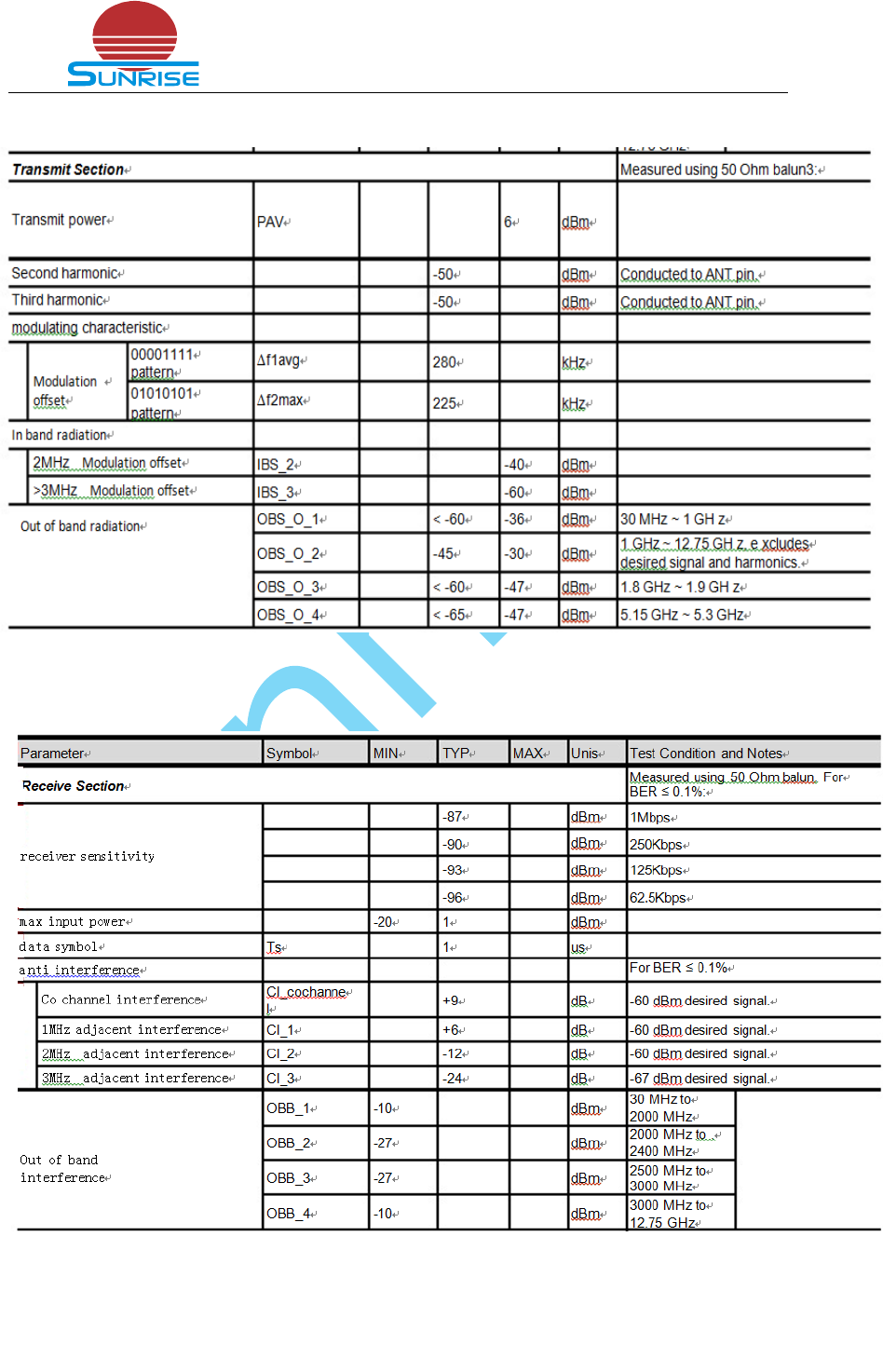

5. Transmit performance
6. Receiver performance
深圳市尚瑞思电子有限公司
ShenZhen Sunrise Electronics CO.,Ltd
TEL: +86-755-23093179-802 FAX: +86-755-23093179-816
www.sunrisedigit.com/en/ sales@sunrisedigit.com
-------------------------------------------------------------------------------------------------------
NO.623, Block B1, Huayuan Technology Innovation Park, Baoyuan Rd, Baoan District,
Shenzhen City, Guangdong Province, China

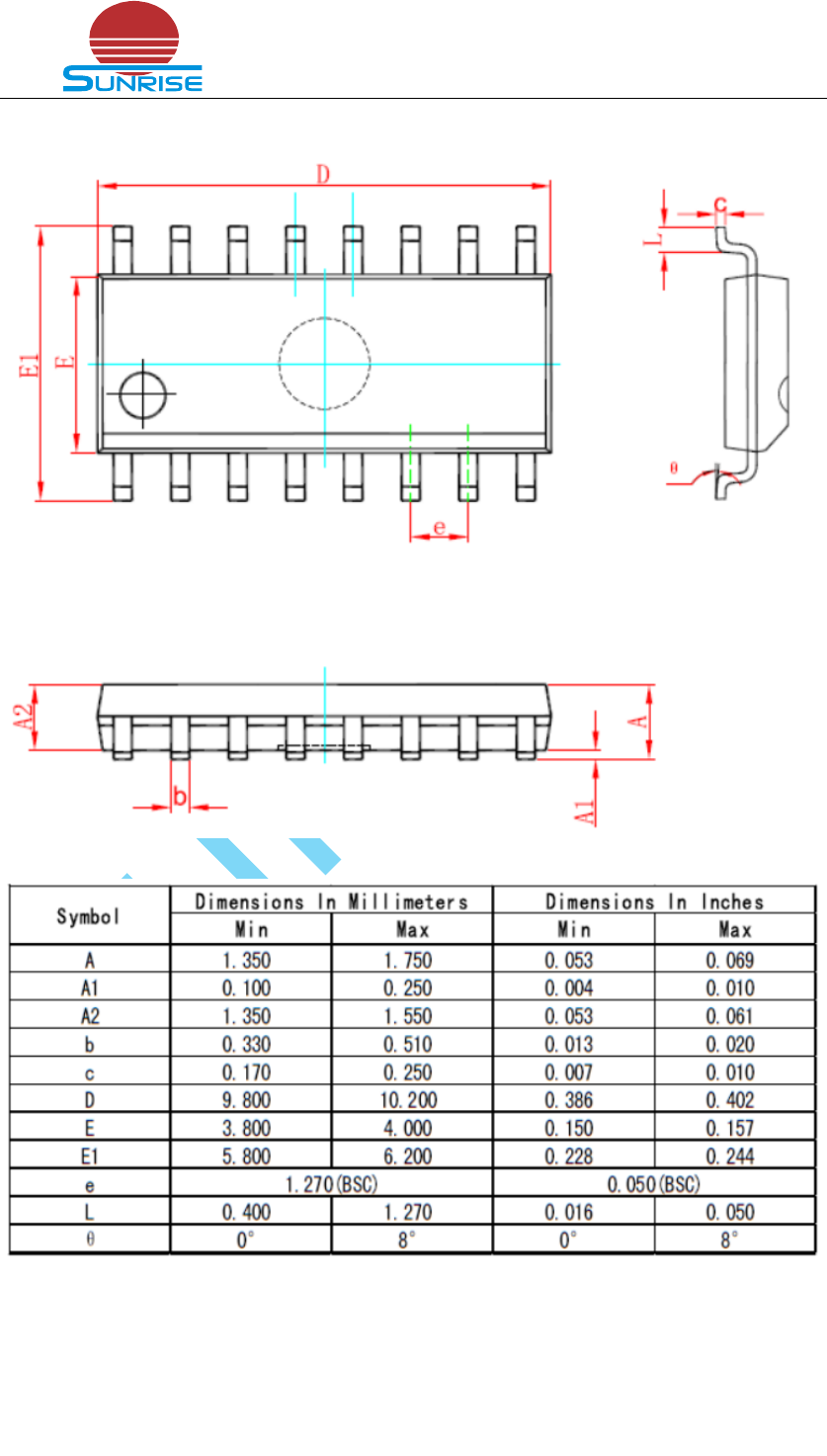

7. PACKAGE
