KIMIN Electronics LT47U5 LCD TV MONITOR User Manual User s Manual G

Kimin Electronic Co., Ltd LCD TV MONITOR User s Manual G

USERS MANUAL

Order Number : GETEC-C1-09-109 FCC Class B Certification
Test Report Number : GETEC-E3-09-055 Page 1 / 1
EUT Type: LCD TV/ Monitor
FCC ID.: TGELT47U5
APPENDIX G
: USER’S MANUAL
47”LCD TV USER’S GUIDE
HLD-47SAT
PLEASE READ CAREFULLY BEFORE USE
Before Connecting, operating or adjusting this product, please read the instructions completely.
Please keep this manual for future reference.
For future reference, record the serial number of your LCD TV.
SERIAL NO.
The serial number is located on the rear of LCD TV.
Warning / Caution
3
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE.
WARNING/CAUTION
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric
Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
NOTE TO CABLE/TV INSTALLER
Do not attempt to modify this product in any way without written authorization from the dealer.
Unauthorized modification could void the user’s authority to operate this product.
CAUTION
WARNING/CAUTION
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equi-
lateral triangle is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompa-
nying the appliance.
WARNING / CAUTION
Warning / Caution
4
WARNING / CAUTION
Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turn-
ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow-
ing measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC NOTICE
Changes or modification not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Caution
a. The fluorescent lamp used in this product contains a small amount of mercury.
b. Do not dispose of this product with general household waste.
c. Disposal of this product must be carried out in accordance to the regulations of your local authority.
On Disposal
The nationwide transition to digital television broadcasting by full-power TV stations will be completed by June 12,
2009, but your local television stations may switch sooner. After the switch, analog-only television sets that receive
TV programming through an antenna will need a converter box to continue to receive over-the-air TV. Watch your
local stations to find out when they will turn off their analog signal and switch to digital-only broadcasting. Analog-
only TVs should continue to work as before to receive low-power, Class A or translator television stations and with
cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products.
Information about the DTV transition is available from your local television stations, www.DTV.gov, or 1-888-CALL-
FCC (TTY 1-888-TELL-FCC). Information about government coupons for eligible digital-to-analog converter boxes
is available from www.dtv2009.gov or 1-888-DTV-2009 (TTY 1-877-530-2634).
Digital Television Transition Notice
To prevent fire or shock hazards, do not expose this product to rain or moisture.
Important Safety Instructions
5
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electri-
cian for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as
vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the mains plug from the AC receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. This apparatus shall be connected to a Mains socket outlet with a protective earthing connection.
Important Safety Instructions
6
The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to
the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Prolonged use of headphones at a high volume may cause health damage on your ears.
NN
NNOO
OOTT
TTEE
EE
Contents
7
Contents
3WARNING / CAUTION
5Important Safety Instructions
WARNING
CAUTION
Controls
And
Connectors
Setting up
TV Channel
Controls
Advanced
Video
Installation
Connection
Basic
Operation
On Screen
Menus
10 Front Panel
11 Rear Panel

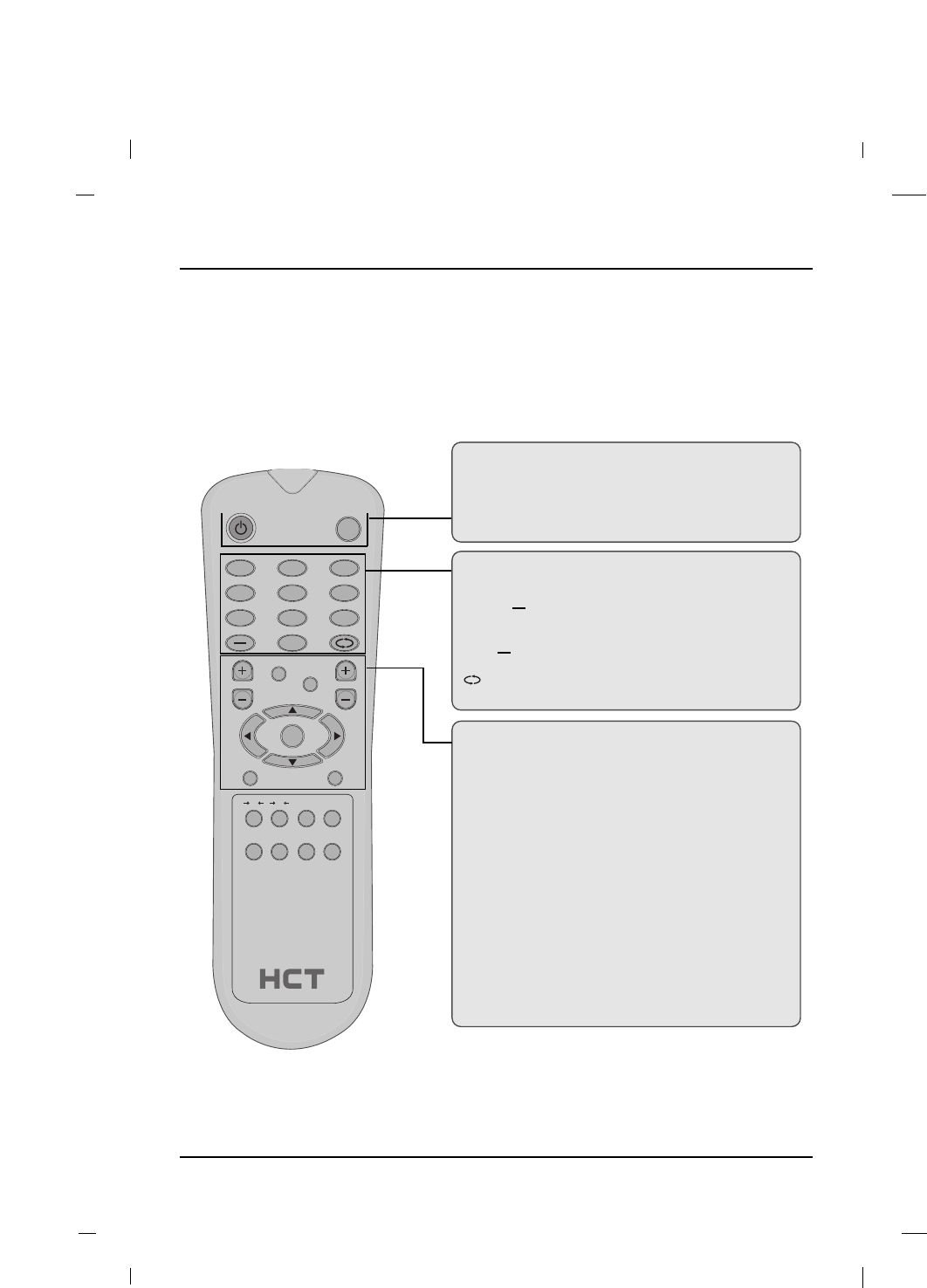

12 Remote Control

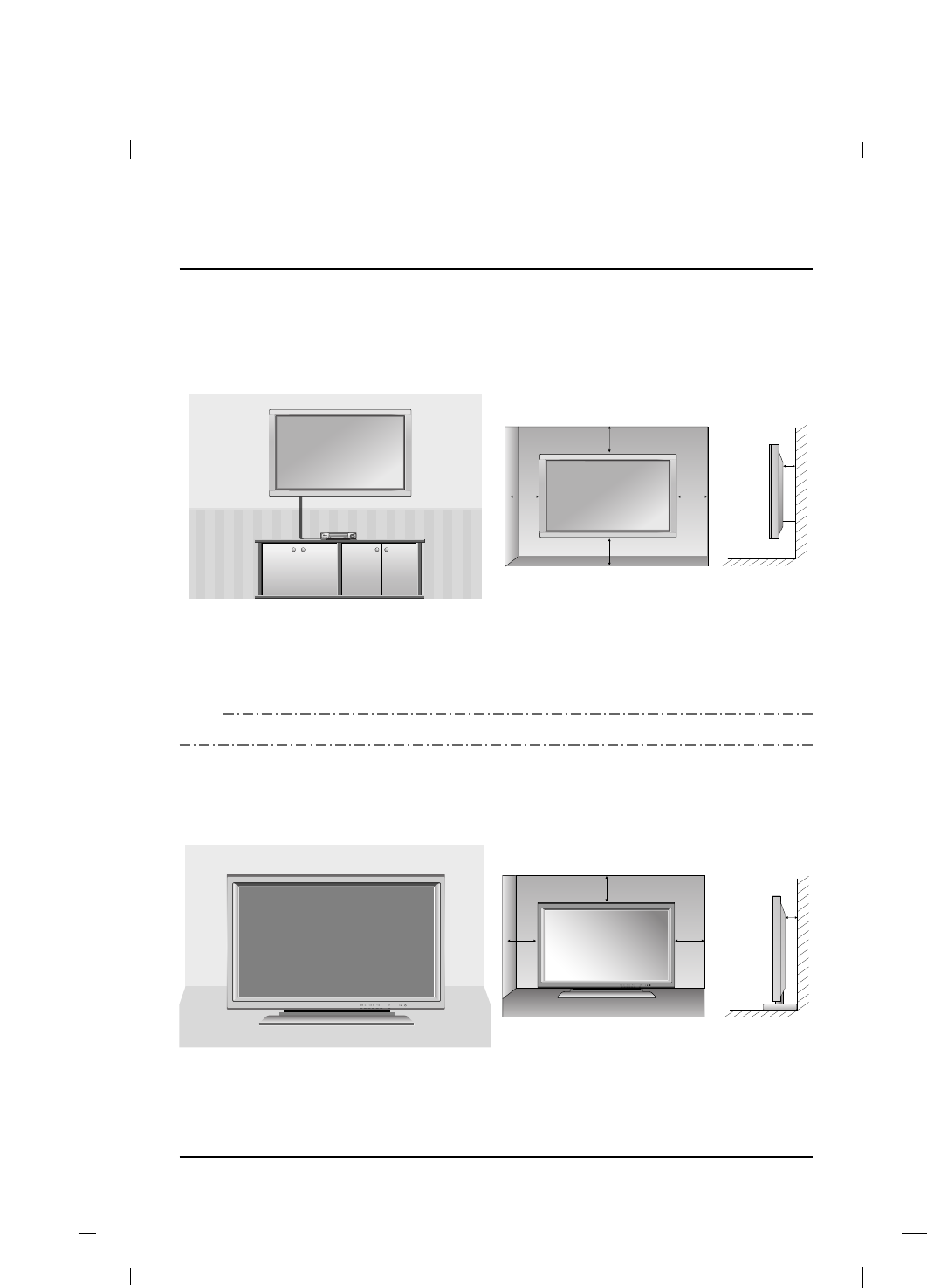

14 Wall mount Installation
14 Desktop Pedestal Installation

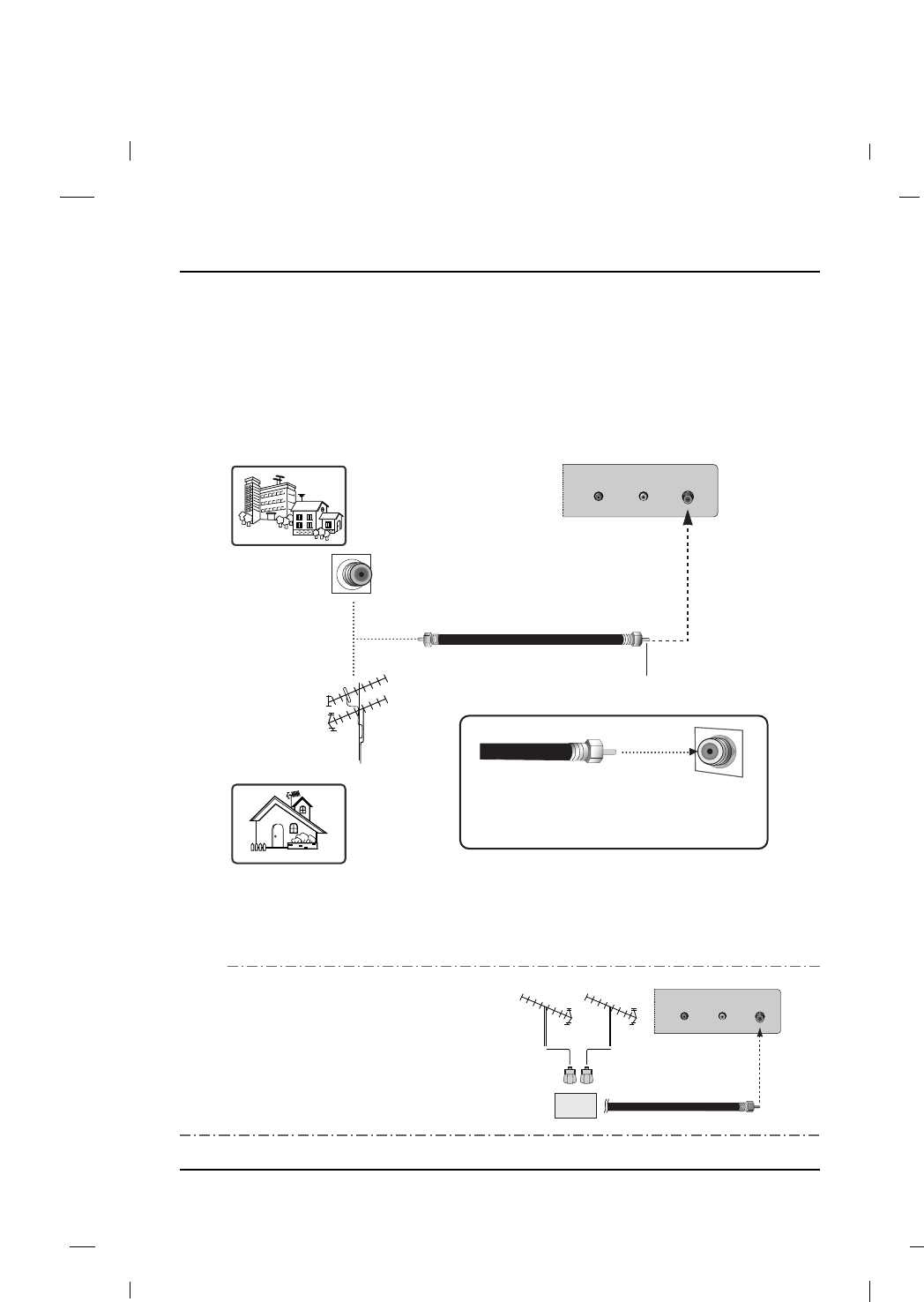

15 Antenna Connection

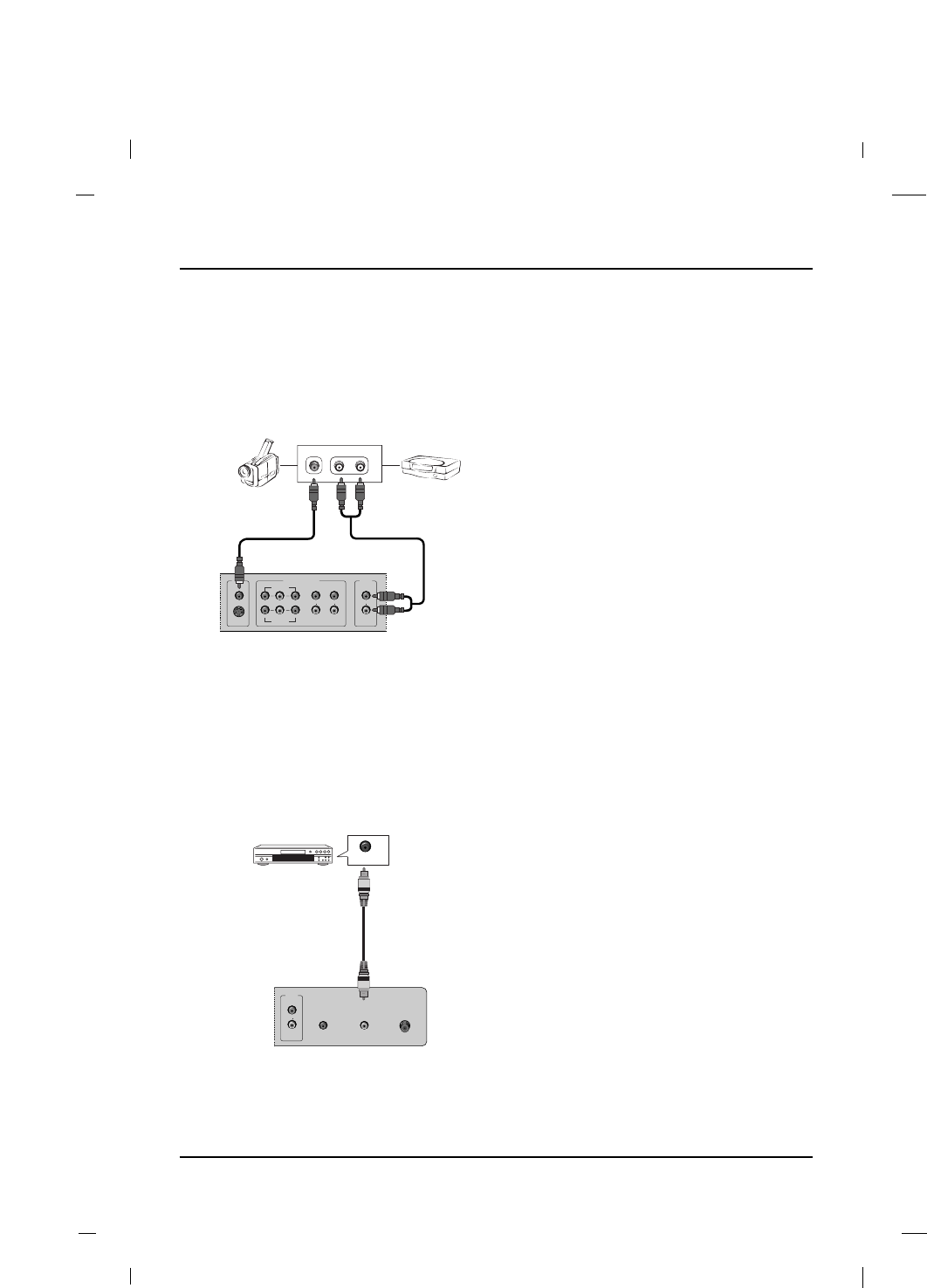

16 VCR Connection
18 DVD Connection
20 HDSTB Connection
22 External A/V Source
22 Digital Audio Out

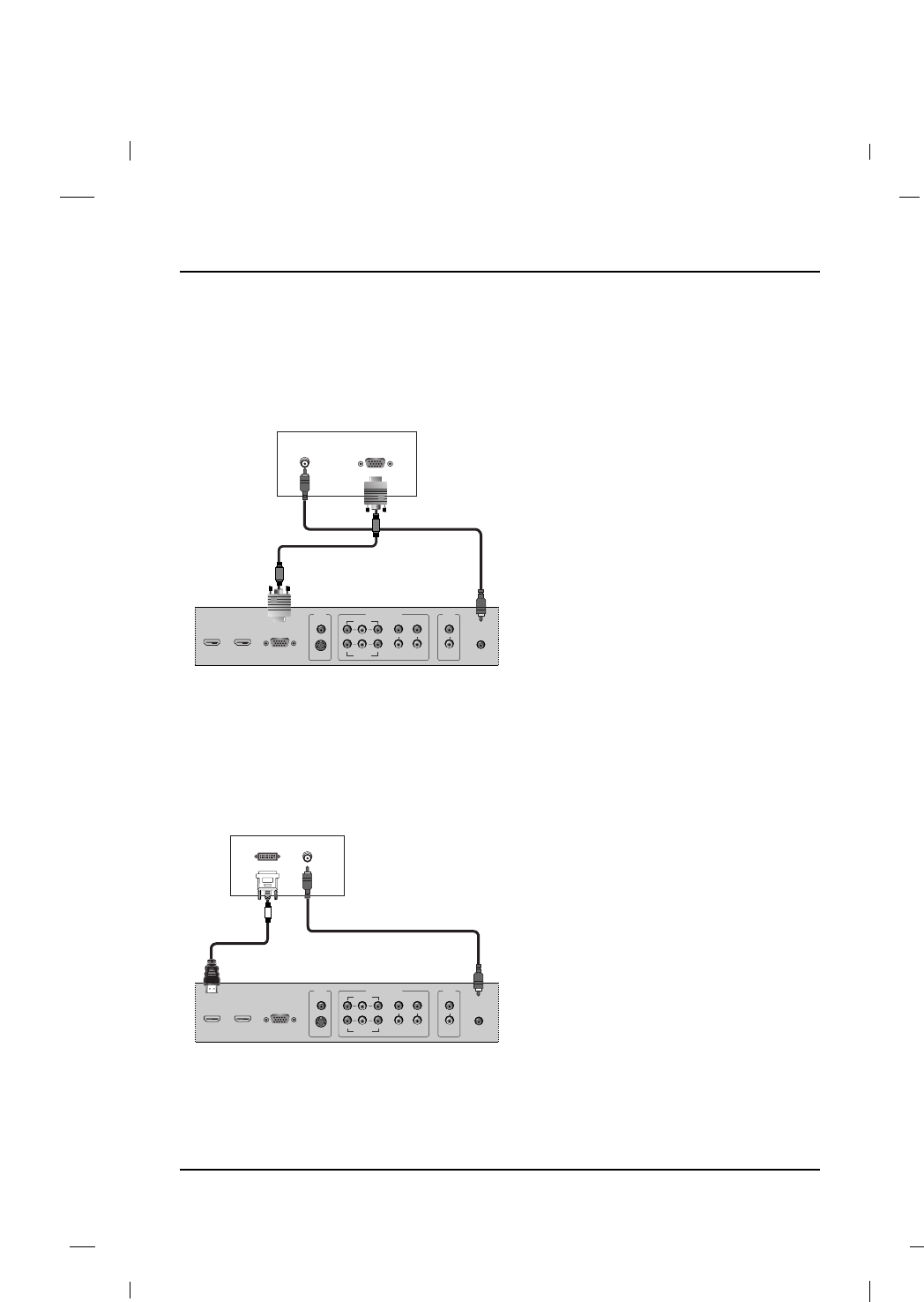

23 PC Connection
24 Resolution
25 Turning On or Off
25 Channel Selection
25 Volume Adjustment
25 Sound Mute
25 Quick View
26 Input Selection
26 Language Selection

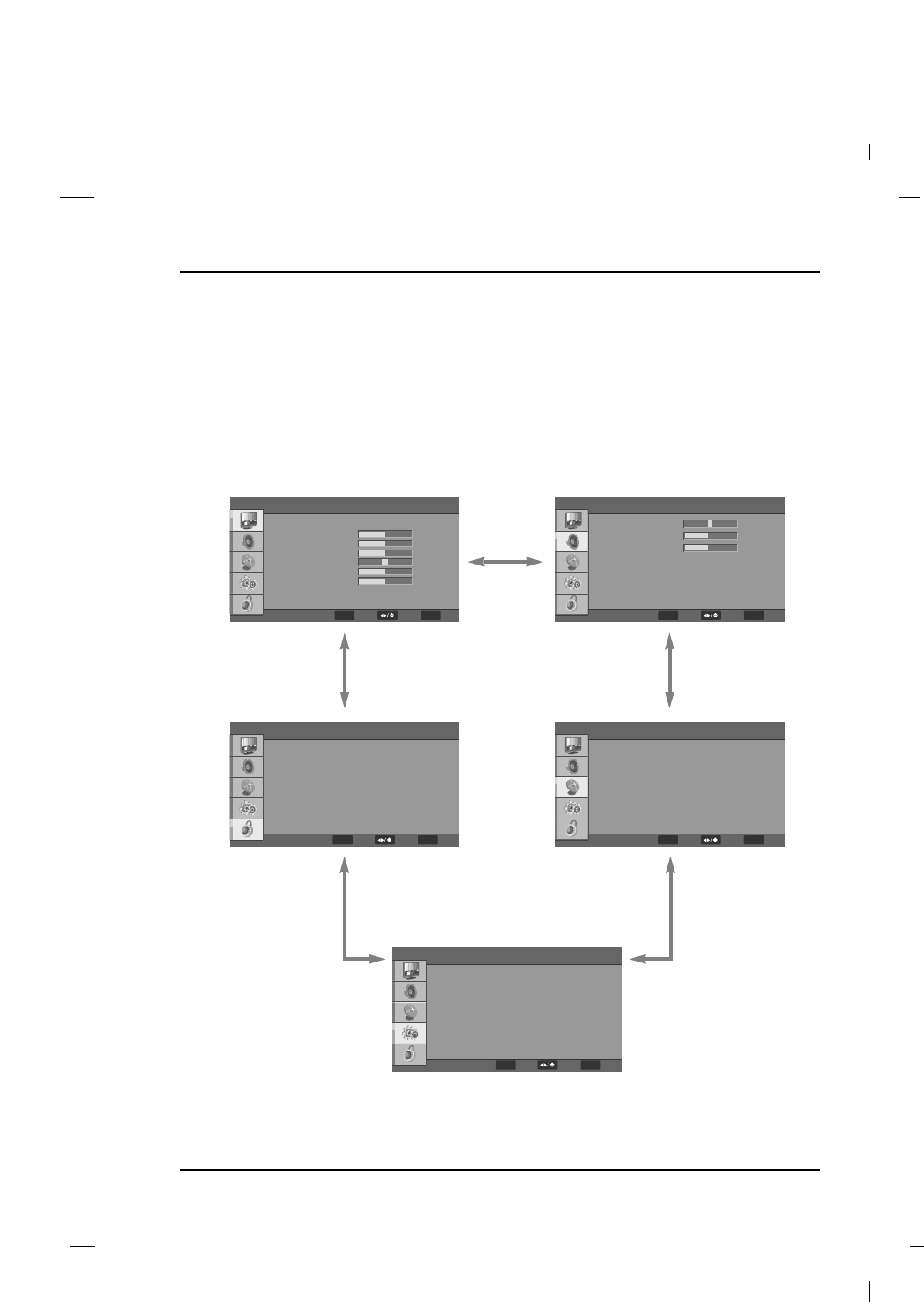

27 On Screen Menus
28 Auto Scan
29 Add/Delete Channel
30 EPG(Electronic Program Guide)

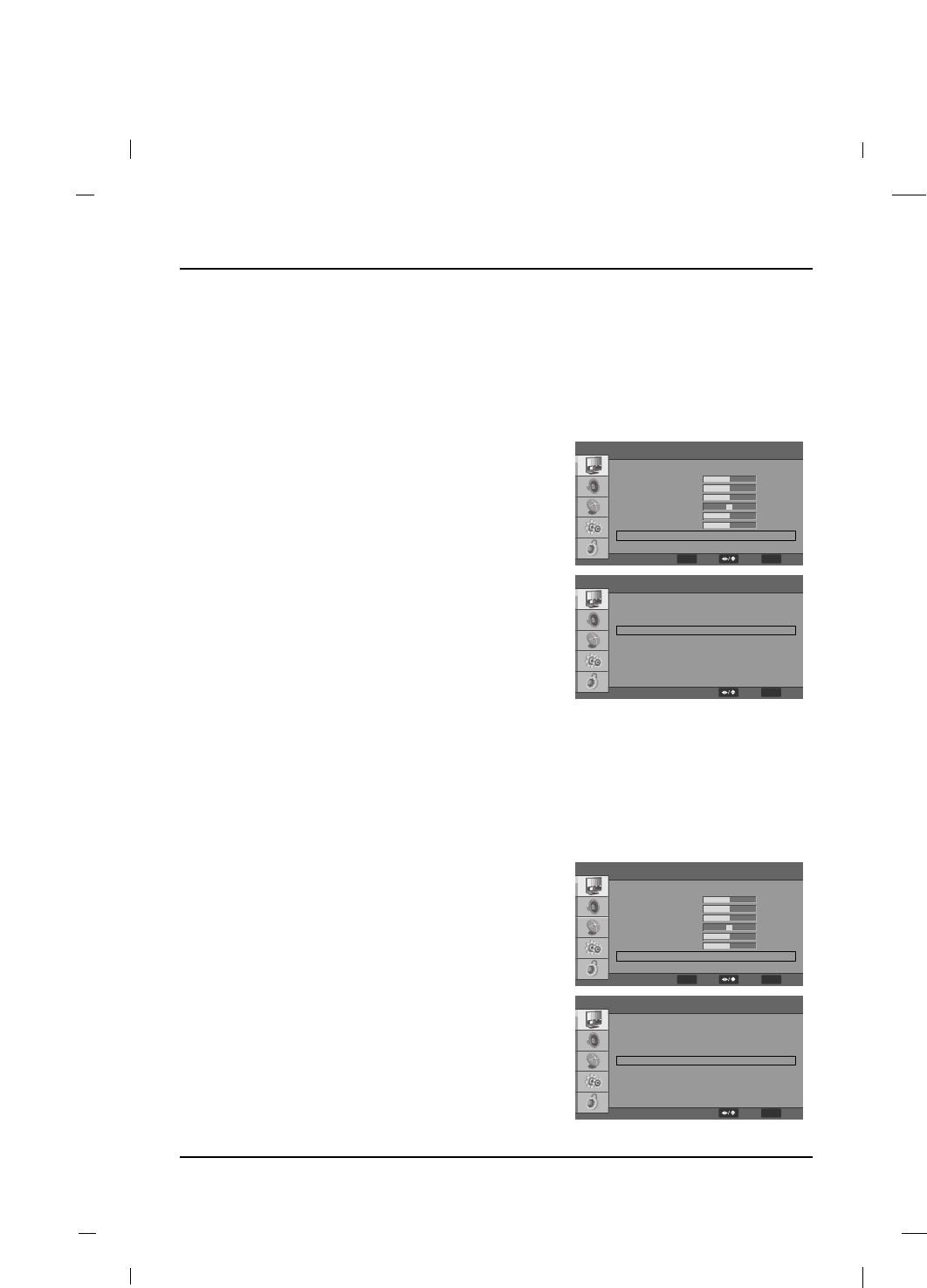

31 Adjusting The Picture Controls
32 Manual Picture Controls
33 Reset Picture Mode
34 Dynamic Noise Reduction
35 Black Level Extender
35 White Peak Limiter
36 CTI (Color Transient Intensity)
36 Flesh Tone
37 Adaptive Luma Control
Contents
8
Advanced
Video
Captions
Reset
Parental
Control
Setting the
PC Mode
Special
Functions
Sound
Controls
Time
Setting
41 Adjusting The Sound Controls
42 Manual Sound Controls
43 Digital Output
44 Auto Volume Control
44 Stereo/SAP Broadcast Setup
45 Time Zone Setting
46 Auto Time Setting
47 Manual Time Setting
48 Auto On/Off Time Setting
49 Sleep Timer
50 Closed Caption-Analog
51 Closed Caption-Digital
52 Closed Caption Options
53 Reset Default
54 Enter your password
54 Set Password
55 Rating Enable/Disable
56 TV Ratings for USA
58 Movie Ratings
59 TV Rating English for Canada
60 TV Rating French for Canada
61 Downloadable Rating
62 Clean All
63 Auto Picture Controls
64 Manual Picture Controls
65 Color Temperature
66 Automatic Screen Adjustment
67 Manual Screen Adjustment
68 Picture Format
69 Specification
70 Troubleshooting

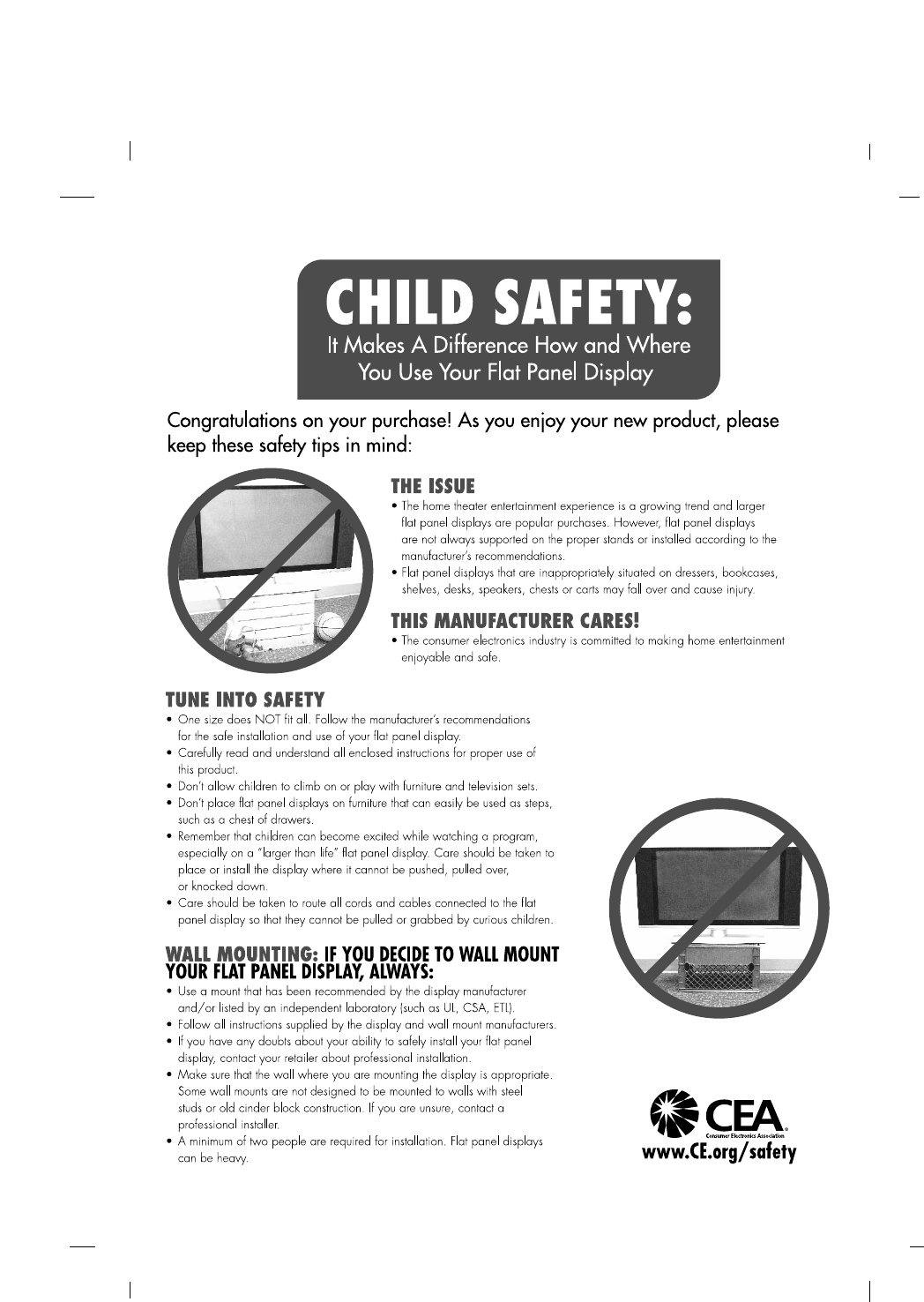

71 CHILD SAFETY

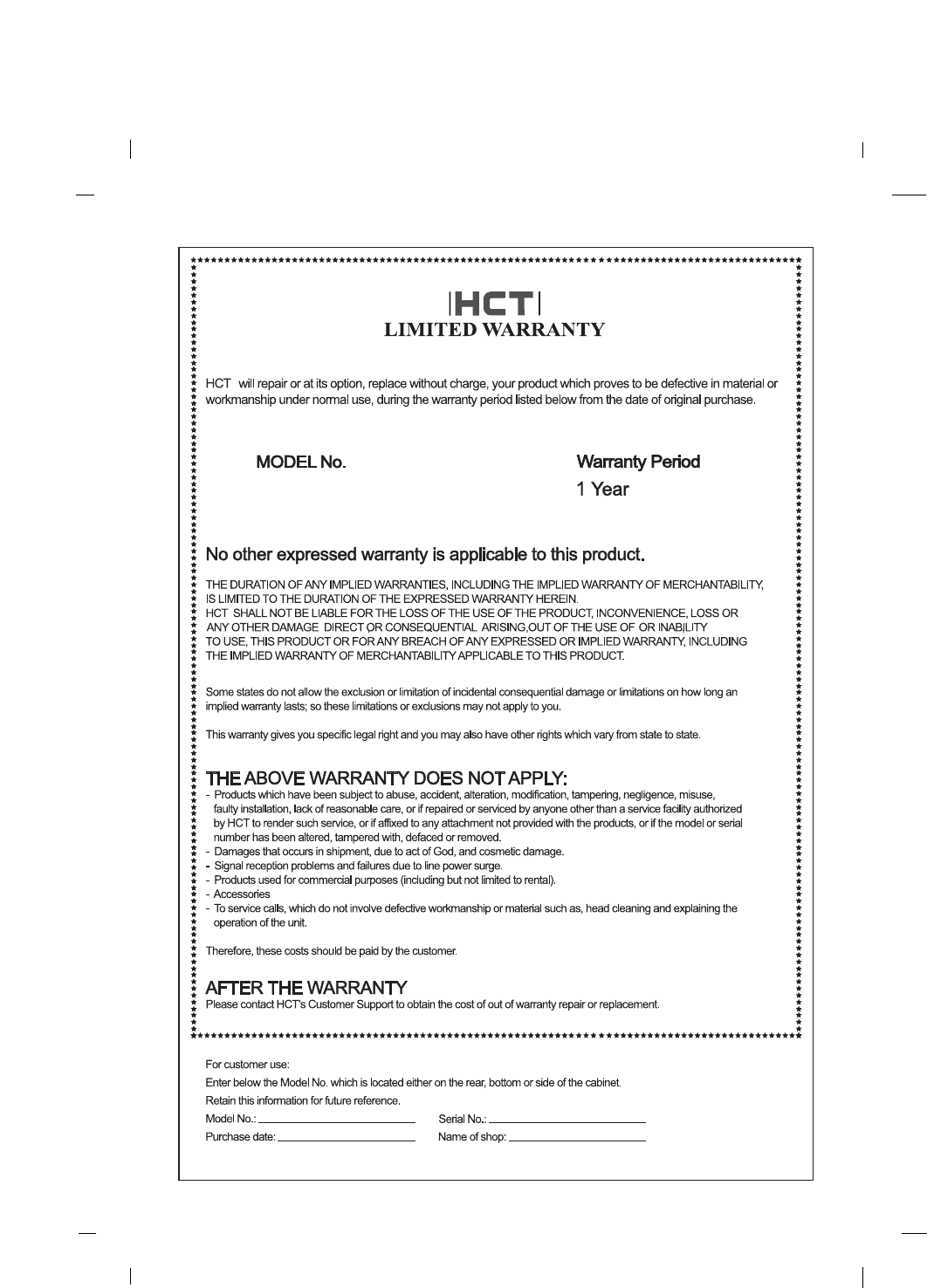

72 Warranty
37 Gamma
38 Color Temperature
39 Demo Mode
Accessories
9

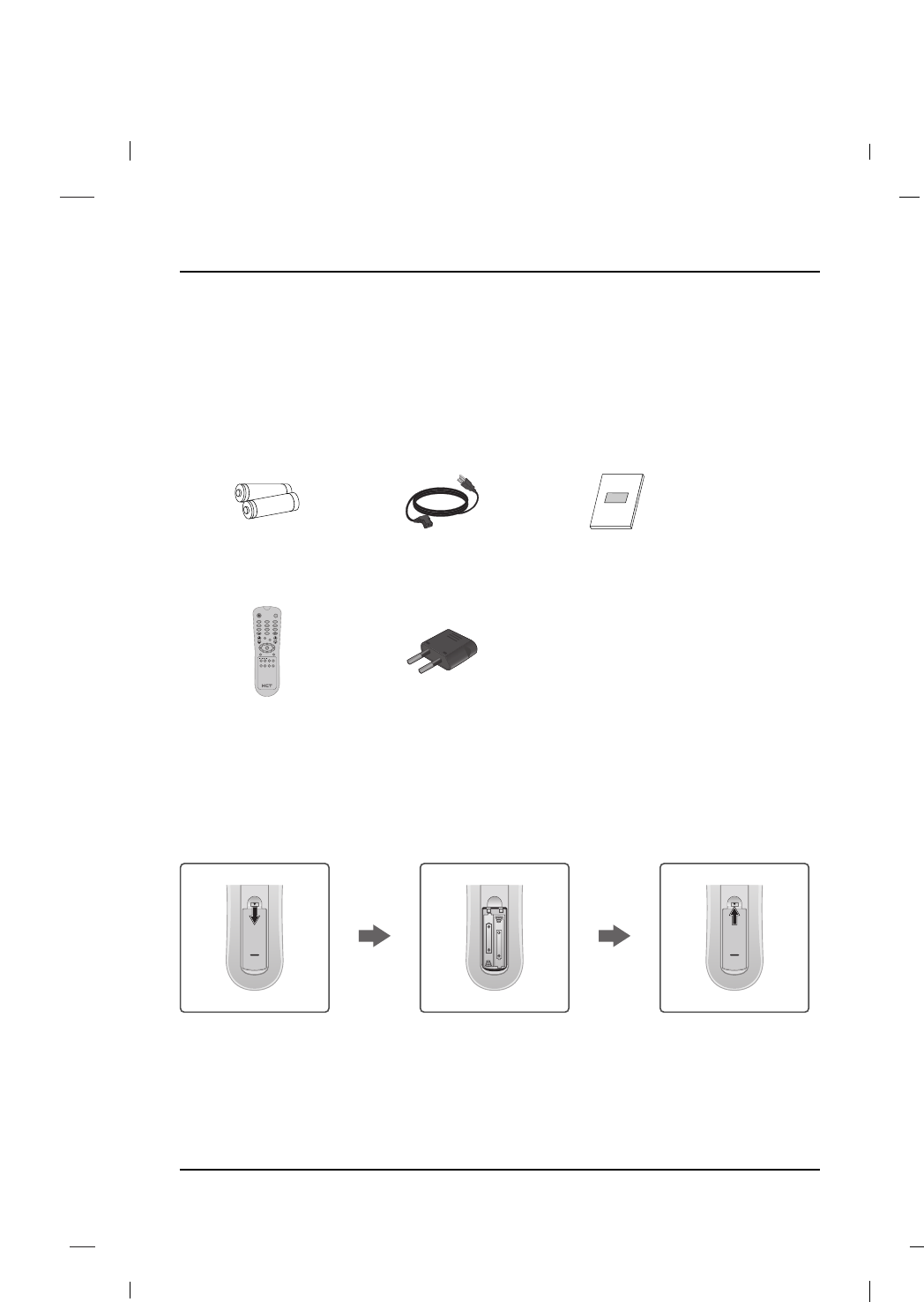

Accessories
Ensure that the following accessories are included with your product.
If an accessory is missing, please contact the dealer where you purchased the product.
User must use shielded signal interface cables with ferrite cores to maintain standard compliance for the product.
Supplied Accessories
Installing Batteries
1
Open the battery cover on
the back side.
2
Insert two batteries in
correct polarity, match
(+ with +), and match
(- with -).
Don't mix old batteries
with new batteries.
3
Close the battery cover.
1.5V
1.5V
Batteries Power cord Owner’s Manual
1 2 3
4 5 6
7 8 9
0
EXIT
VOL CH
MENU MUTE
OK
SOURCE
POWER
SLEEP ZOOM
IPI ISI
EPGMTSCC DISPLAY
Remote Adaptor Plug
(UL to VDE)
Controls And Connectors
10
Controls And Connectors

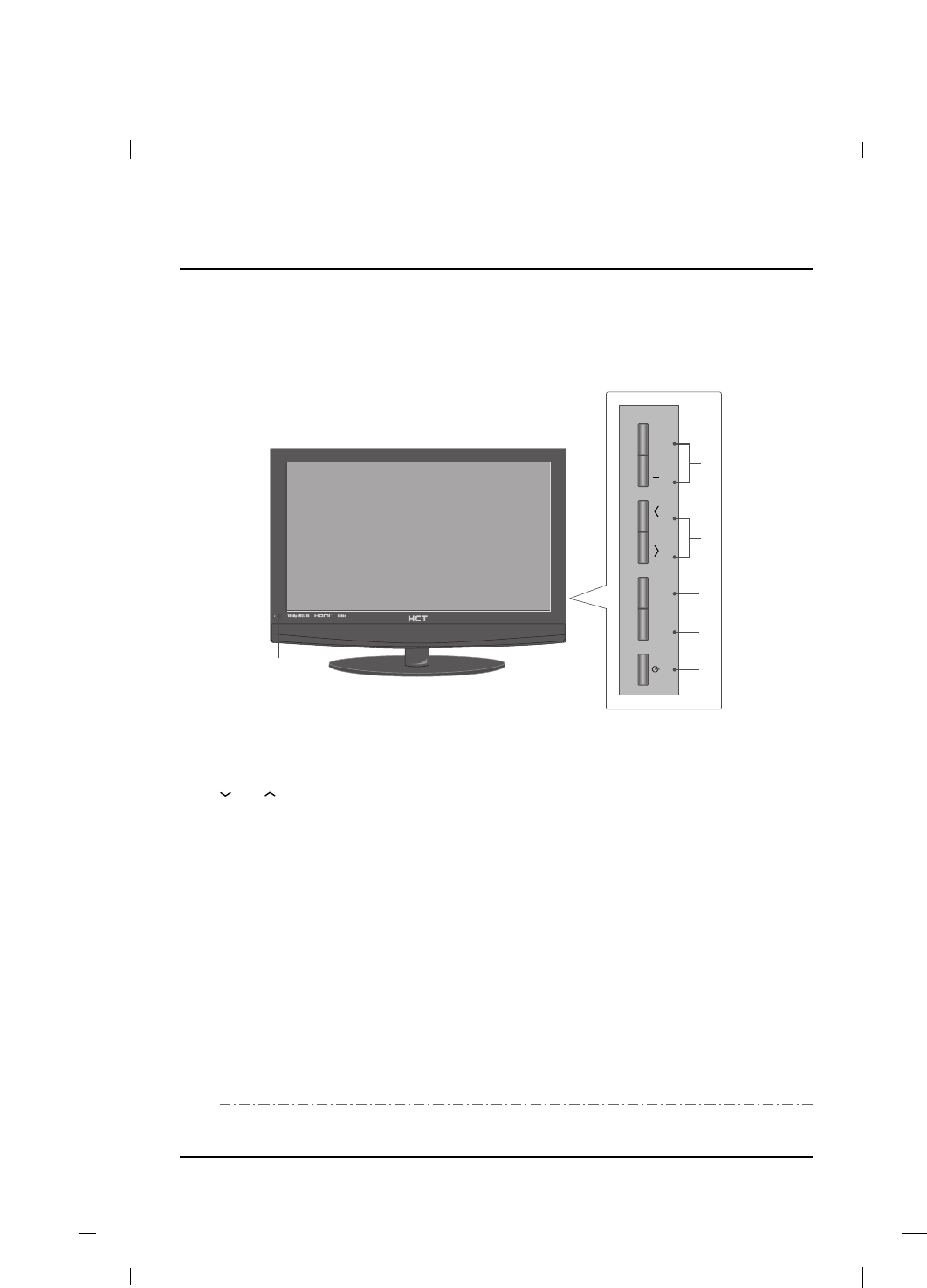

Front Panel
6
1
2
3
4
5
SOURCE MENU
VOL CH
1. VOL + / VOL -
Adjusts menu setting.
Adjusts sound level.
2. CH / CH
Select a channel.
3. SOURCE
Selects the TV, AV,S-Video,YPbPr1,YPbPr2,VGA,HDMI1,HDMI2,HDMI3,HDMI4 and HDMI5 mode.
4. MENU
Display on screen menus.
5. POWER
Switches the set on or off.
6. Power Indicator
Illuminates in bright blue when the TV is in standby mode.
Illuminates in dark blue when the TV is switched on.
Remote control sensor
Accepts the IR signal of remote controller.
Here shown may be somewhat different from your set.
NN
NNOO
OOTT
TTEE
EE
Controls And Connectors
11

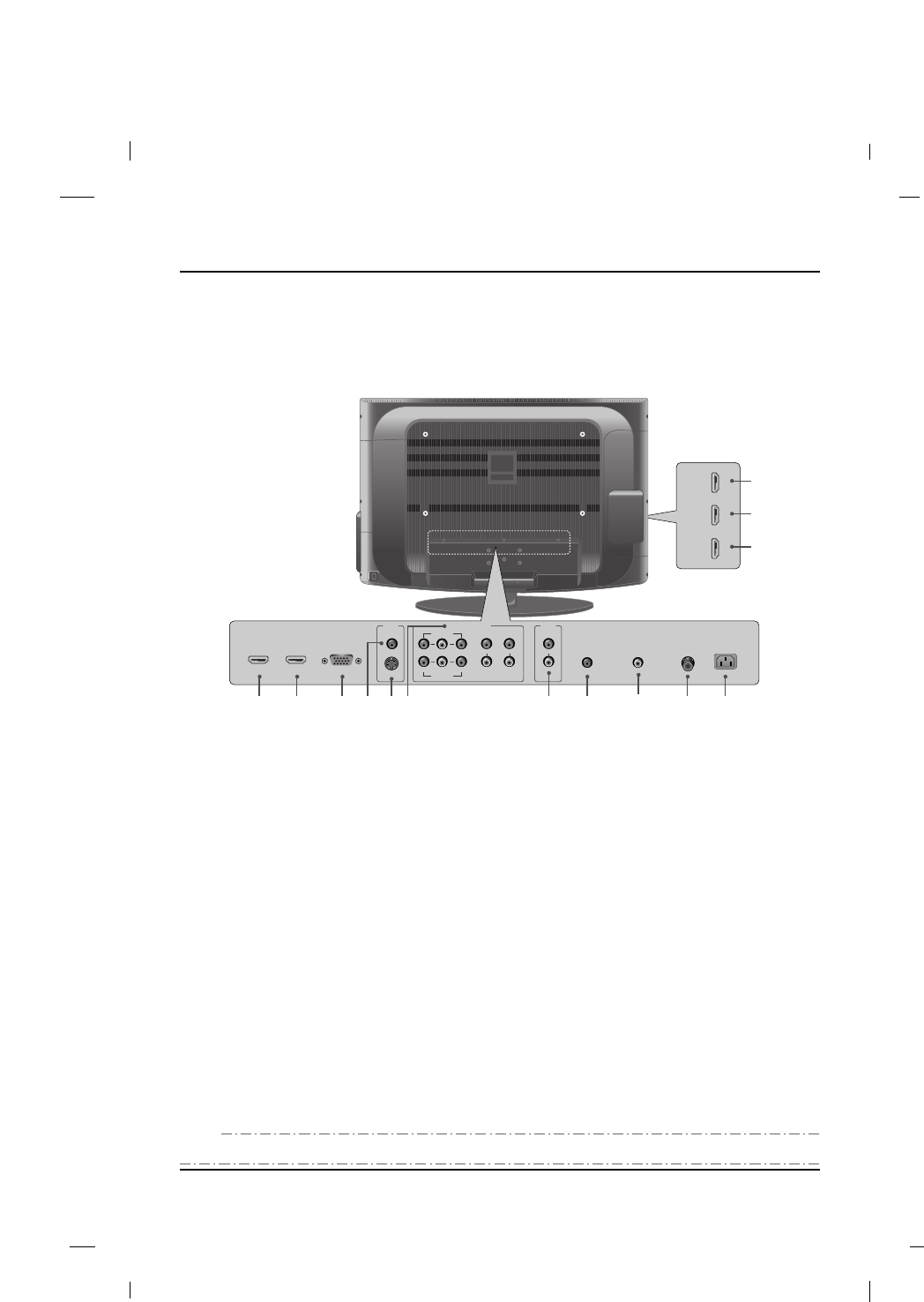

Rear Panel
HDMI IN
3
HDMI IN
4
1112
HDMI IN
5
13
RGB IN
(PC) AUDIO IN
(RGB/DVI)
ANTENNA/
CABLE IN
DIGITAL AUDIO
OUT(COAXIAL)

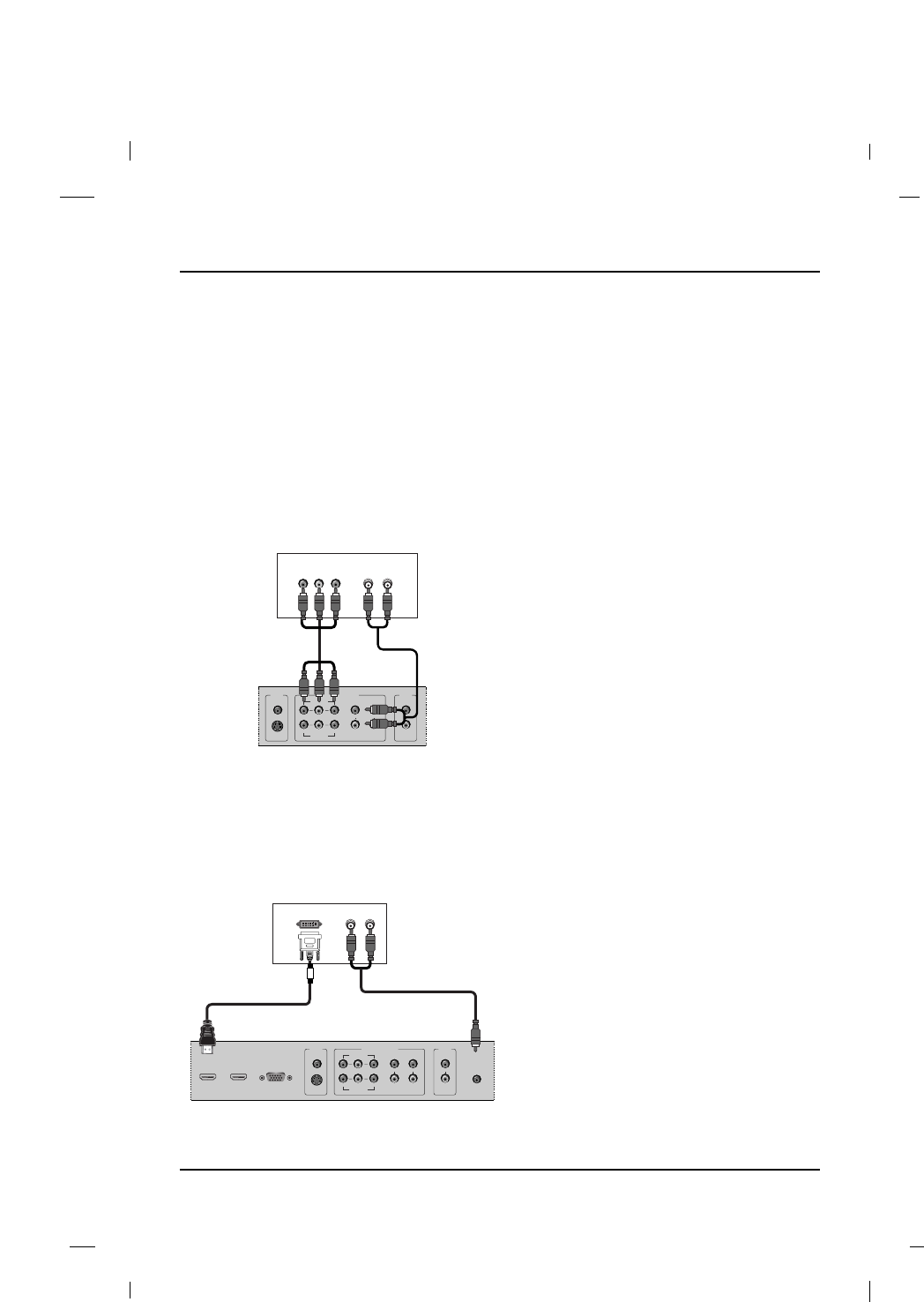

VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV IN AV IN
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
3 54 6 974
HDMI IN
2
2
HDMI/DVI IN
1
18
AC IN
10
1. HDMI/DVI1 IN - Quality Level: 5
Connects to High Definition devices using an HDMI
Cable. Both Audio and Video is transferred through
this cable.
(This input can also be used as a DVI connection
with an HDMI to DVI adaptor. A separate audio con-
nection must be used as DVI does not transmit
audio.)
2. HDMI2 IN - Quality Level: 5
Connects to High Definition devices using an HDMI
Cable. Both Audio and Video is transferred through
this cable.
3. RGB IN (PC)
Connects to the video output jack on your computer
using a RGB / DB15 cable.
4. AV IN - Quality Level: 1-2
Connects to your Audio/Video devices using a com-
posite (Yellow/Red/White) cable.
5. S-VIDEO IN - Quality Level: 3
Connects to your video devices using an S-Video
Cable.
6. COMPONENT IN (YPbPr1/YPbPr2) - Quality
Level: 4
Connects to your Video devices to achieve higher
quality video than S-Video and Composite using a
Component (Red/Green/Blue) Cable.
7. AUDIO IN (RGB/DVI)
Connects to the audio output jack on your computer
using a 3.5mm headphone jack.
8. DIGITAL AUDIO OUT(COAXIAL)
Connects to your digital audio devices to transmit a
digital rather than an analog audio signal.
9. ANTENNA/CABLE IN
Connects to your antenna or Cable/Satellite set top
box using a coaxial cable.
10. AC IN
Connects to a three prong, grounded AC outlet.
11. HDMI3 IN - Quality Level: 5
Connects to High Definition devices using an HDMI
Cable. Both Audio and Video is transferred through
this cable.
12. HDMI4 IN - Quality Level: 5
Connects to High Definition devices using an HDMI
Cable. Both Audio and Video is transferred through
this cable.
13. HDMI5 IN - Quality Level: 5
Connects to High Definition devices using an HDMI
Cable. Both Audio and Video is transferred through
this cable.
Here shown may be somewhat different from your set.
NN
NNOO
OOTT
TTEE
EE
Controls And Connectors
12
- All the functions can be controlled with the remote control handset.
- Some functions can also be adjusted with the buttons on the side panel of the set.
- Before using remote control handset, please install the batteries.

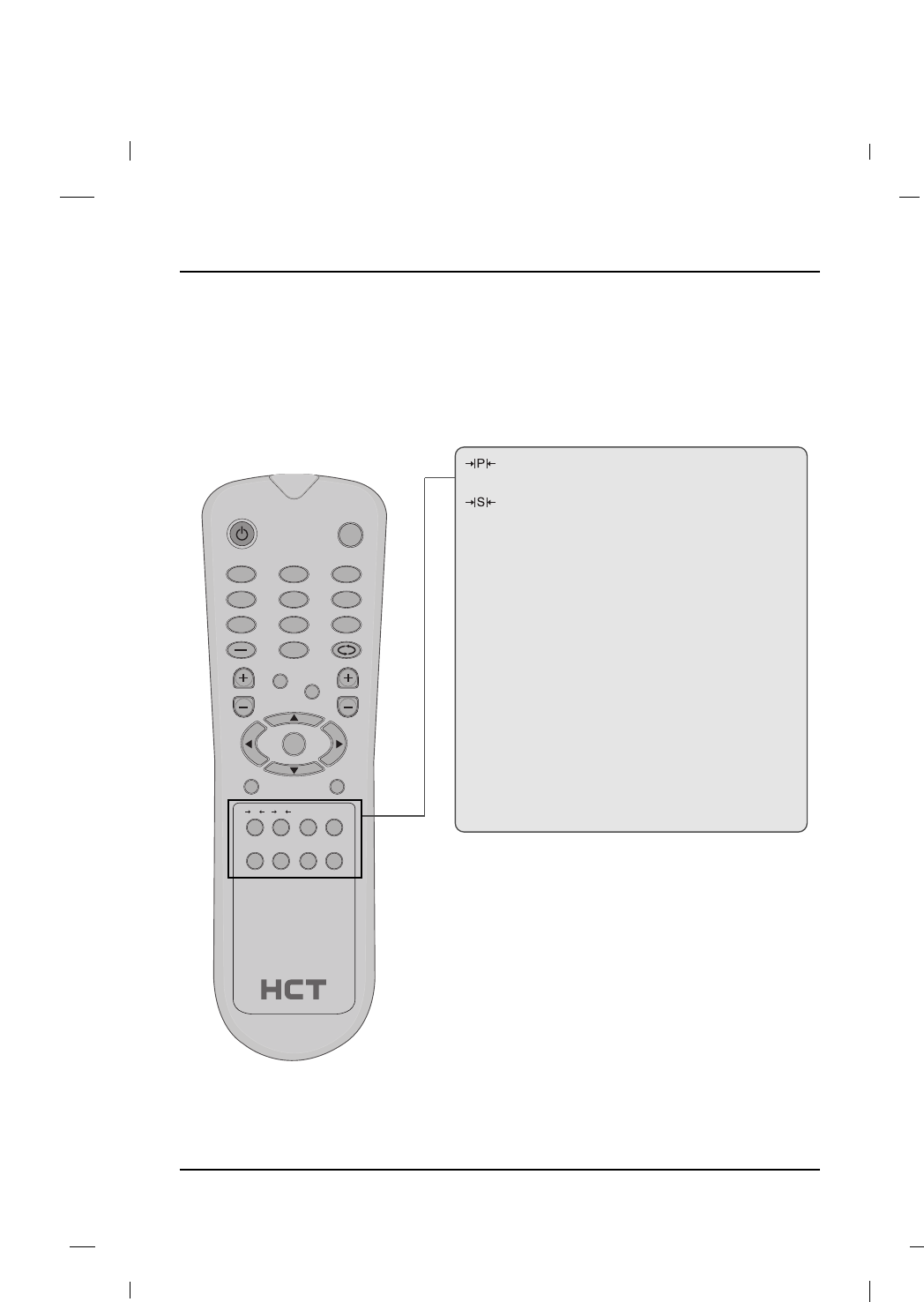

Remote Control
1 2 3
4 5 6
7 8 9
0
EXIT
VOL CH
MENU MUTE
OK
SOURCE
POWER
SLEEP ZOOM
IPI ISI
EPGMTSCC DISPLAY
POWER
Switches the set on or off.
SOURCE
Selects the TV, AV,S-Video,YPbPr1,YPbPr2,VGA,
HDMI1,HDMI2,HDMI3,HDMI4 and HDMI5 mode.
NUMBER BUTTONS
Selects channel numbers.
Hyphen( )
Press to select DTV channels.
For example, to select channel ‘10-1’, press ‘10’ then
press ‘ ’ and ‘1’.
Switch to the previous channel number.
VOL+ / VOL -
Adjusts sound level.
CH+ / CH -
Select a channel.
EXIT
Clear all on-screen menus and return to TV viewing from any
menu.
Navigational Controls
Adjusts menu settings.
Selects menu item.
Accepts your selection.
MENU
Display on screen menus.
MUTE
Switches the sound on or off.
Installation
13
1 2 3
4 5 6
7 8 9
0
EXIT
VOL CH
MENU MUTE
OK
SOURCE
POWER
SLEEP ZOOM
IPI ISI
EPGMTSCC DISPLAY
Recalls your preferred picture setting.
Recalls your preferred sound setting.
SLEEP
Sets the sleep timer.
ZOOM
Selects your desired picture format.
CC
Select the Caption menu directly.
MTS
Select MTS sound : Mono, Stereo and SAP in Analog
Channel.
Change the audio language in DTV Channel.
EPG
Displays the program guide.
DISPLAY
Shows the present screen information.
Installation
14
Installation
Wall mount Installation
4 inches
4 inches
4 inches
4 inches
4 inches
The set can be installed on a wall as shown above.
For proper ventilation, allow a clearance of 4 inches on all four sides from the wall.
Detailed instructions are available from your dealer, refer to the optional Wall Mounting Bracket Installation and
Setup Guide. (Wall Mount Sold Separately)
Desktop Pedestal Installation
4 inches
4 inches
4 inches
4 inches
The set can be mounted on a desk as shown above.
For proper ventilation, allow a clearance of 4 inches on each side from the wall.
Detailed instructions are available from your dealer, refer to the optional Desktop Stand Installation and Setup
Guide.
- Do not install the Wall-Mount except the Qualified Service Personnel.
NN
NNOO
OOTT
TTEE
EE
Connections
15
Connections
Antenna Connection
AUDIO IN
(RGB/DVI)
ANTENNA/
CABLE IN
DIGITAL AUDIO
OUT(COAXIAL)
Multi-family Dwellings / Apartments
(Connect to wall antenna socket)
Single-family Dwellings / Houses
(Connect to wall jack for outdoor antenna)
Wall Antenna Socket
RF Coaxial Wire (75 ohm)
VHF
UHF
Outdoor Antenna
Turn clockwise to tighten.
Be careful not to bend the bronze wire when
connecting to an antenna port.
* RF Coaxial Wire (75 ohm) Sold Separately
-To improve the picture quality in a poor signal
area, please purchase a signal amplifier and
install properly.
-If the antenna is not installed properly, contact
your dealer for assistance.
NN
NNOO
OOTT
TTEE
EE
Connections
16
- To avoid picture noise (interface), leaves an adequate distance between the TV and the VCR.
VCR Connection
AUDIO IN
(RGB/DVI)
ANTENNA/
CABLE IN
DIGITAL AUDIO
OUT(COAXIAL)
ANT IN
ANT OUT S-VIDEO
IN
OUT
(R) AUDIO (L) VIDEO

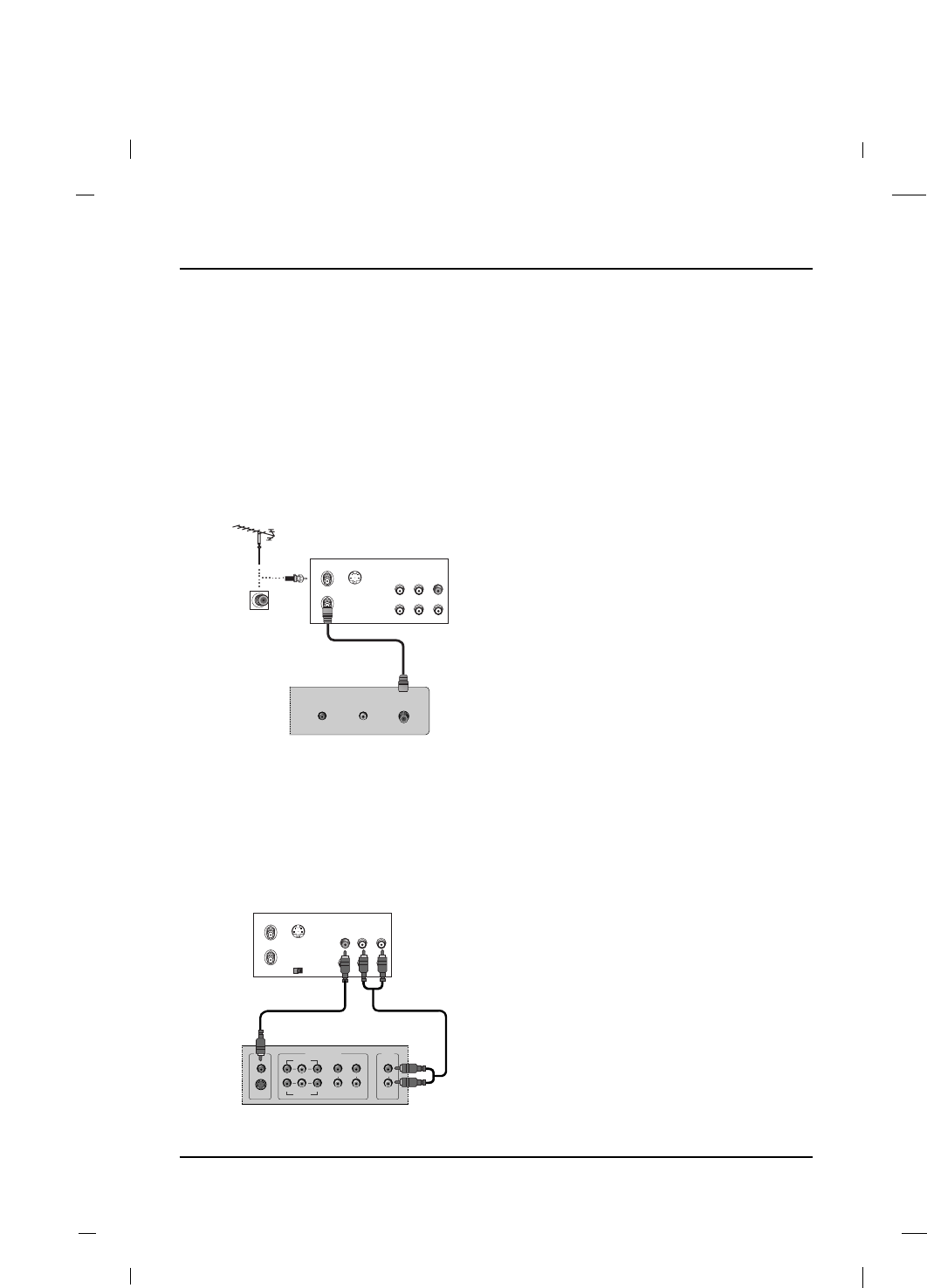

1. Connect the Antenna Out socket on the VCR to
the Antenna Input socket on the TV.
2. Press the POWER button on the VCR and select
the appropriate input selection on the TV using
the remote control or the side buttons on the TV.
AAWhen connecting with an antenna
VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV I N AV IN
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
ANT IN
ANT OUT S-VIDEO
IN
OUT
(L) AUDIO (R)VIDEO
OUTPUT
SWITCH
1. Connect the composite jacks between AV Input
on the TV and AV Output on the VCR. Make sure
the jack colors match with the connector colors on
both ends. (Video = yellow, Left Audio = white,
and Right Audio = red)
2. Insert a video tape into the VCR and press PLAY.
3. Select the AV input source on the TV using either
the SOURCE buttons on the remote control.
4. Refer to the VCR manual for operating instruc-
tions.
AAWhen connecting with a RCA cable
VCR
Back panel of the set
VCR
Back panel of the set
Connections
17
VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV IN AV IN
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
ANT IN
ANT OUT S-VIDEO
IN
OUT
(L) AUDIO (R)VIDEO
OUTPUT
SWITCH

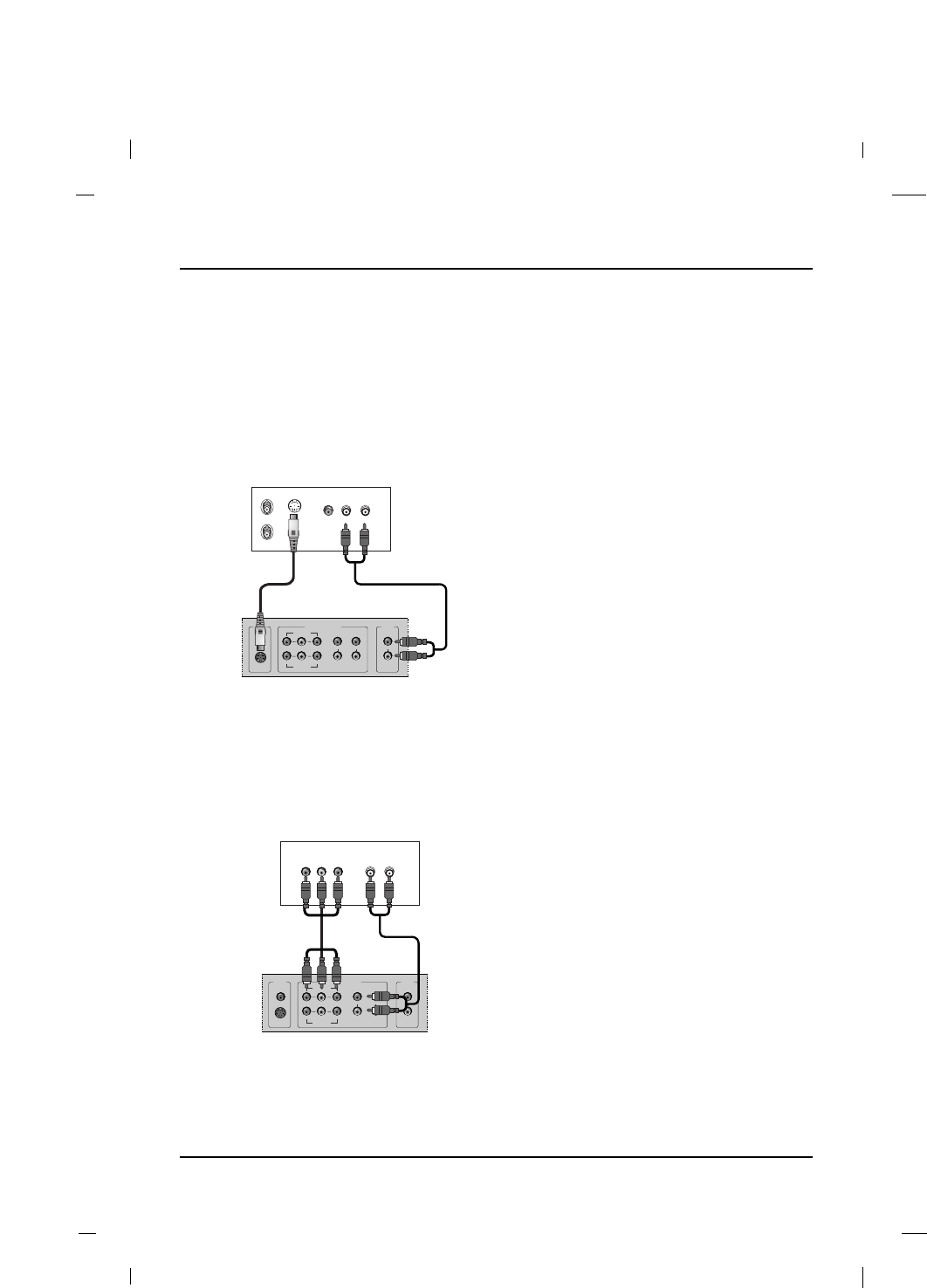

1. Connect the S-VIDEO Output on the VCR to the
S-VIDEO Input on the TV.
2. Connect the audio outputs of the VCR to the
AUDIO L / R input jacks under AV IN on the TV.
3. Insert a video tape into the VCR and press PLAY.
4. Select the S-Video input source on the TV using
either the SOURCE buttons on the remote con-
trol.
5. Refer to the VCR manual for operating instruc-
tions.
AAWhen connecting with a S-Video cable
VCR
Back panel of the set
Connections
18
DVD Connection
VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV I N AV IN
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
ANT IN
ANT OUT S-VIDEO
(L) AUDIO (R)VIDEO
1. Connect the S-VIDEO Output of the DVD player
to the S-VIDEO Input on the TV.
2. Connect the Audio Outputs on the DVD player to
the AUDIO L / R Input jacks under AV IN on the
TV.
3. Turn on the DVD player and insert a DVD.
4. Select the S-Video input source on the TV using
either the SOURCE buttons on the remote con-
trol.
5. Refer to the DVD player’s manual for operating
instructions.
AAWhen connecting with a S-Video cable
DVD
Back panel of the set
VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV IN AV IN
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
(L) AUDIO (R)
YPb Pr
1. Connect the Video Outputs (Y, PB, PR) on the
DVD player to the COMPONENT1 or COMPO-
NENT2 Video Inputs on the TV.
2. Connect the Audio Outputs on the DVD player to
the COMPONENT1 or COMPONENT2 Audio
Inputs on the set.
3. Turn on the DVD player and insert a DVD.
4. Select the YPbPr1 or YPbPr2 input source on
your TV by pressing either the SOURCE buttons
on the remote control.
5. Refer to the DVD player’s manual for operating
instructions.
AAWhen connecting with a Component Cable
DVD
Back panel of the set
Connections
19
RGB IN
(PC)
S-VIDEO
VIDEO
AV IN
HDMI IN
2
HDMI/DVI IN
1
HDMI-DVD OUTPUT
HDMI IN
3
HDMI IN
4
HDMI IN
5

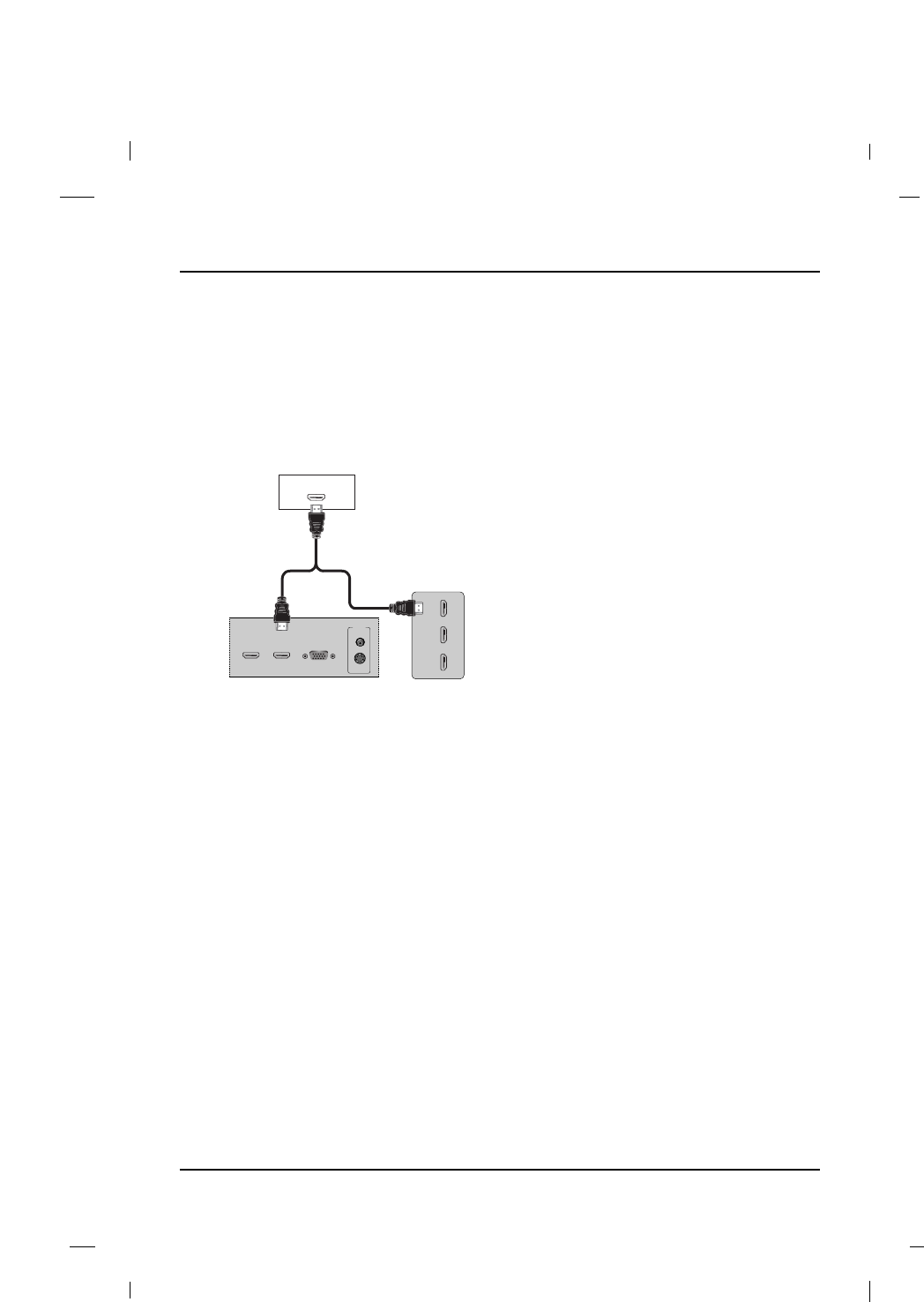

1. Connect the HDMI Output on the DVD player to
the HDMI/DVI IN1, HDMI IN2, HDMI IN3, HDMI
IN4 or HDMI IN5 Input on the TV.
2. Select the HDMI1, HDMI2, HDMI3, HDMI4 or
HDMI5 input source on your TV by pressing either
the SOURCE buttons on the remote control.
3. Refer to the DVD player’s manual for operating
instructions.
AAWhen connecting with a HDMI cable
DVD
Back panel of the set Side panel of the TV
Connections
20
-This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box.
However, if you do receive Digital signals from a digital set-top box or other digital external device, refer to the
figure as shown below.

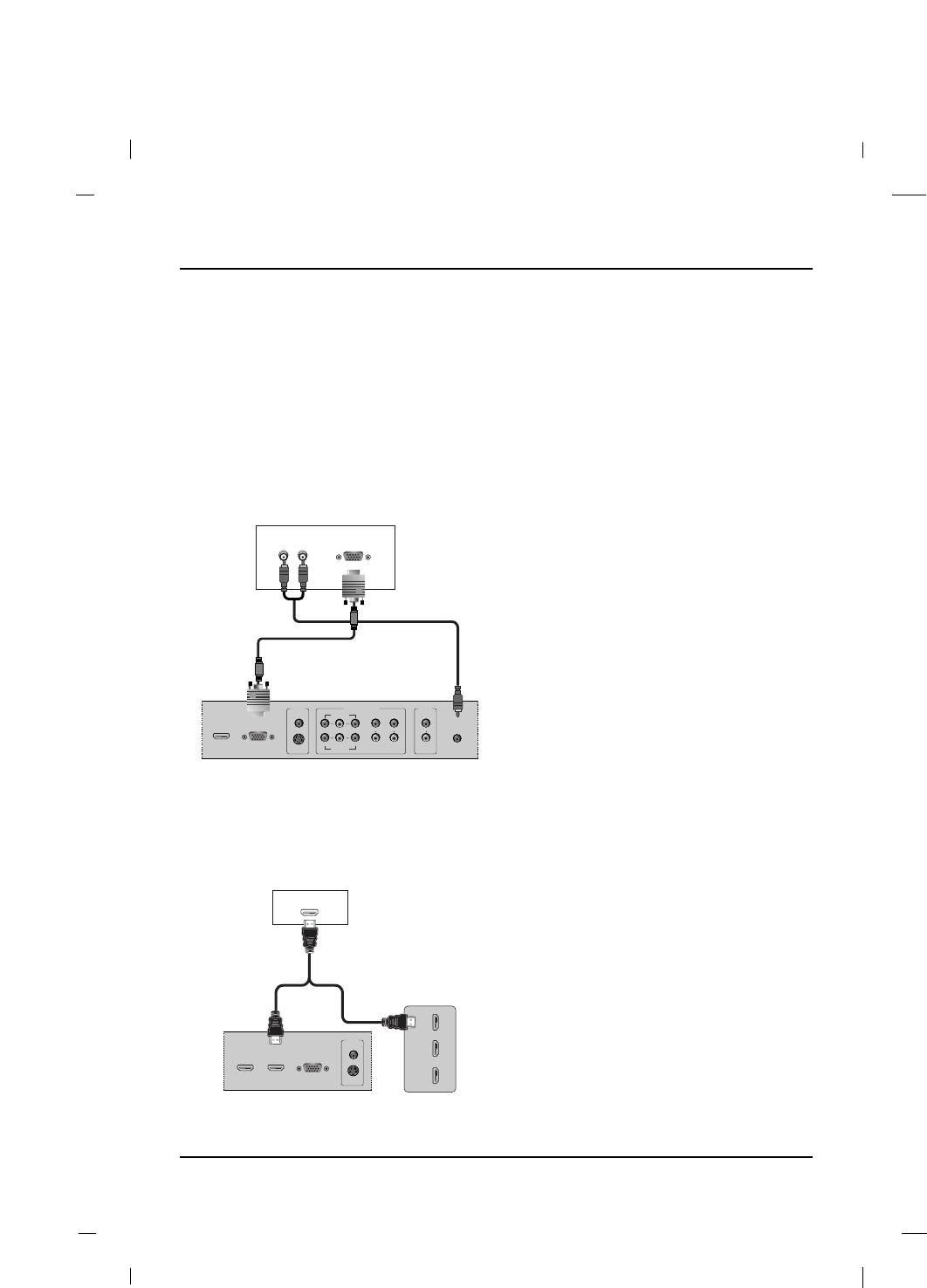

HDSTB Connection
RGB IN
(PC) AUDIO IN
(RGB/DVI)
VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV IN AV IN
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
HDMI IN
2
(R) AUDIO (L) RGB-DTV OUTPUT
1. Connect the RGB Output on the digital set-top
box to the RGB Input (PC) jack on the TV.
2. Connect the Audio Output on the set-top box to
the AUDIO Input (RGB/DVI) jack on the TV.
3. Turn on the digital set-top box.
4. Select the VGA input source on your TV by press-
ing either the SOURCE buttons on the remote
control.
5. Refer to the digital set-top box manual for operat-
ing instructions.
AAWhen connecting with a D-Sub 15 pin cable
Digital Set-top Box
Back panel of the set
RGB IN
(PC)
S-VIDEO
VIDEO
AV IN
HDMI IN
2
HDMI/DVI IN
1
HDMI-DTV OUTPUT
HDMI IN
3
HDMI IN
4
HDMI IN
5
1. Connect the HDMI Output on the digital set-top
box to the HDMI/DVI IN1, HDMI IN2, HDMI IN3,
HDMI IN4 or HDMI IN5 Input on the TV.
2. Turn on the digital set-top box.
3. Select the HDMI1, HDMI2, HDMI3, HDMI4 or
HDMI5 input source on your TV by pressing either
the SOURCE buttons on the remote control.
4. Refer to the digital set-top box manual for operat-
ing instructions.
AAWhen connecting with a HDMI cable
Digital Set-top Box
Back panel of the set Side panel of the TV
Connections
21
VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV IN AV IN
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
(L) AUDIO (R)
YPb Pr
1. Connect the Video Outputs (Y, PB, PR) on the
digital set-top box to the COMPONENT1 or COM-
PONENT2 Video Inputs on the TV.
2. Connect the Audio Outputs on the digital set-top
box to the COMPONENT1 or COMPONENT2
Audio Inputs on the set.
3. Turn on the digital set-top box.
4. Select the YPbPr1 or YPbPr2 input source on
your TV by pressing either the SOURCE buttons
on the remote control.
5. Refer to the digital set-top box manual for operat-
ing instructions.
AAWhen connecting with a Component cable
Digital Set-top Box
Back panel of the set
RGB IN
(PC) AUDIO IN
(RGB/DVI)
VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV I N AV I N
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
HDMI IN
2
HDMI/DVI IN
1
DVI-DTV OUTPUT (R) AUDIO (L)
1. Connect the DVI Output on the digital set-top box
to the HDMI / DVI IN1 Input jack on the TV.
2. Connect the Audio Output on the set-top box to
the AUDIO IN (RGB/DVI) jack on the set.
3. Turn on the digital set-top box.
4. Select the HDMI1 input source on your TV by
pressing either the SOURCE buttons on the
remote control.
5. Refer to the digital set-top box manual for operat-
ing instructions.
AAWhen connecting with a HDMI to DVI cable
Back panel of the set
Digital Set-top Box
Connections
22
External A/V Source
VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV IN AV IN
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
L-AUDIO-RVIDEO
OUT
1. Connect the composite jacks between AV Input
on the TV and AV Output on the External Device.
Make sure the jack colors match with the connec-
tor colors on both ends. (Video = yellow,
Left Audio = white, and Right Audio = red)
2. Select the AV input source on the TV using either
the SOURCE buttons on the remote control.
3. Turn on the External Device.
4. Refer to the External Device’s manual for operat-
ing instructions.
Camcorder Video game set
Back panel of the set
Digital Audio Out
ANTENNA/
CABLE IN
DIGITAL AUDIO
OUT(COAXIAL)
AUDIO IN
(RGB/DVI)
AV IN
AUDIO
L
R
DIGITAL AUDIO
IN(COAXIAL)
1. Connect the Digital Audio Output on the TV to the
Digital Audio Input on the Digital Audio Device
using a Digital Coax Cable.
2. Refer to the audio equipment’s manual for operat-
ing instructions.
Audio Equipment
Back panel of the set
Connections
23
PC Connection
RGB IN
(PC) AUDIO IN
(RGB/DVI)
VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV IN AV IN
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
HDMI IN
2
HDMI/DVI IN
1
AUDIO OUT PC OUTPUT
1. Connect the RGB output of the PC to the RGB IN
(PC) jack on the set.
2. Connect the PC Audio Output to the AUDIO IN
(RGB/DVI) jack on the TV using a male-to-male
3.5mm mini jack.
3. Turn on both the PC and TV.
4. Select the VGA input source on your TV by press-
ing either the SOURCE buttons on the remote
control.
AAWhen connecting with a D-Sub 15 pin cable
PC
Back panel of the set
RGB IN
(PC) AUDIO IN
(RGB/DVI)
VIDEO 1
S-VIDEO
YPb Pr
VIDEO 2
YPb Pr
VIDEO
AV IN AV IN
AUDIO
COMPONENT IN
AUDIO1
L
R
AUDIO2
L
R
L
R
HDMI IN
2
HDMI/DVI IN
1
DVI OUTPUT AUDIO OUT
1. Connect the DVI Output on the PC to the
HDMI / DVI IN1 Input jack on the TV.
2. Connect the PC Audio Output to the AUDIO IN
(RGB/DVI) jack on the TV using a male-to-male
3.5mm mini jack.
3. Turn on both the PC and TV.
4. Select the HDMI1 input source on your TV by
pressing either the SOURCE buttons on the
remote control.
AAWhen connecting with a HDMI to DVI cable
PC
Back panel of the set
Connections
24
31.47
35.16
37.88
48.36
59.94
56.25
60.32
60.00
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640 x 480
800 x 600
1024 x 768
Resolution
Resolution
a. The synchronization input form is separate.
b. If the resolution is not supported, ‘Not Support!’ message will be displayed.
NN
NNOO
OOTT
TTEE
EE
AAPC
60.000
60.000
60.000
60.000
Vertical
Frequency (Hz)
480/60P
720/60P
1080/60I
1080/60P
Resolution
AAHDMI
Basic Operation
25
Basic Operation
Turning On or Off
Standby Setup: The AC power cord must be connected to have the TV in standby mode and ready to
be turned on. Press the ON/OFF button on the side panel of the TV to go into standby mode.
1. If the TV is in standby mode, press the POWER button on the remote or the TV itself to turn the TV on.
2. Press the POWER button again on the remote controller or the TV itself to turn the TV off.
Channel Selection
You can select a channel number with the CH+ /CH- button or NUMBER buttons.
Sound Mute
Press the MUTE button. The sound is switched off and the mute display appears.
To cancel mute mode, press the MUTE or VOL+ / VOL- button again.
Quick View
Press the button to view the last channel you were watching.
Volume Adjustment
Press the VOL+ / VOL- button to adjust the sound level.
Basic Operation
26
Input Selection
1. Press the SOURCE button to change the input mode.
2. Press the Down or Up button to select your desired
mode.
3. Press the OK button to change your selected mode.
Language Selection
1. Press the MENU button and then press the Down or Up
button to select the Setup.
2. Press the OK button and then press the Down or Up
button to select OSD Language.
3. Press the Left or Right button to select your desired lan-
guage. (Select between English, French, Spanish,
German)
4. The on screen menu will then appear in the
selected language.
Input Source
AV
S-Video
YPbPr1
YPbPr2
VGA
HDMI1
HDMI2
HDMI3
HDMI4
HDMI5
TV
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Setup
MENU ExitSelect
On Screen Menus
27
On Screen Menus
Your TV’s OSD (On Screen Display) may differ slightly from what is shown in this manual.
1. Press the MENU button on enter the on-screen menu and then use either the Down or Up button to select each
sub-menu.
2. Press the OK button and then use Down, Up, Left and Right buttons to navigate to the available menus.
Video MENU Audio MENU
Parental MENU
Setup MENU
TV MENU
Tuner Mode
Channel Scan
Channel Skip
Cable FF GG
GG
GG
TV
MENU Exit
ENTER Enter Select
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
MENU Exit
ENTER Enter Select
Audio
Balance
Bass
Treble
Sound Mode
Digital Output
Auto Volume Control
0
40
40
FF GG
FF GG
FF GG
Voice
Off
Off
MENU Exit
ENTER Enter Select
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Setup
ENTER
Enter MENU ExitSelect
Parental
Program Block
Change Password
Clean All
GG
GG
GG
ENTER
Enter MENU ExitSelect
Setting up TV Channel
28

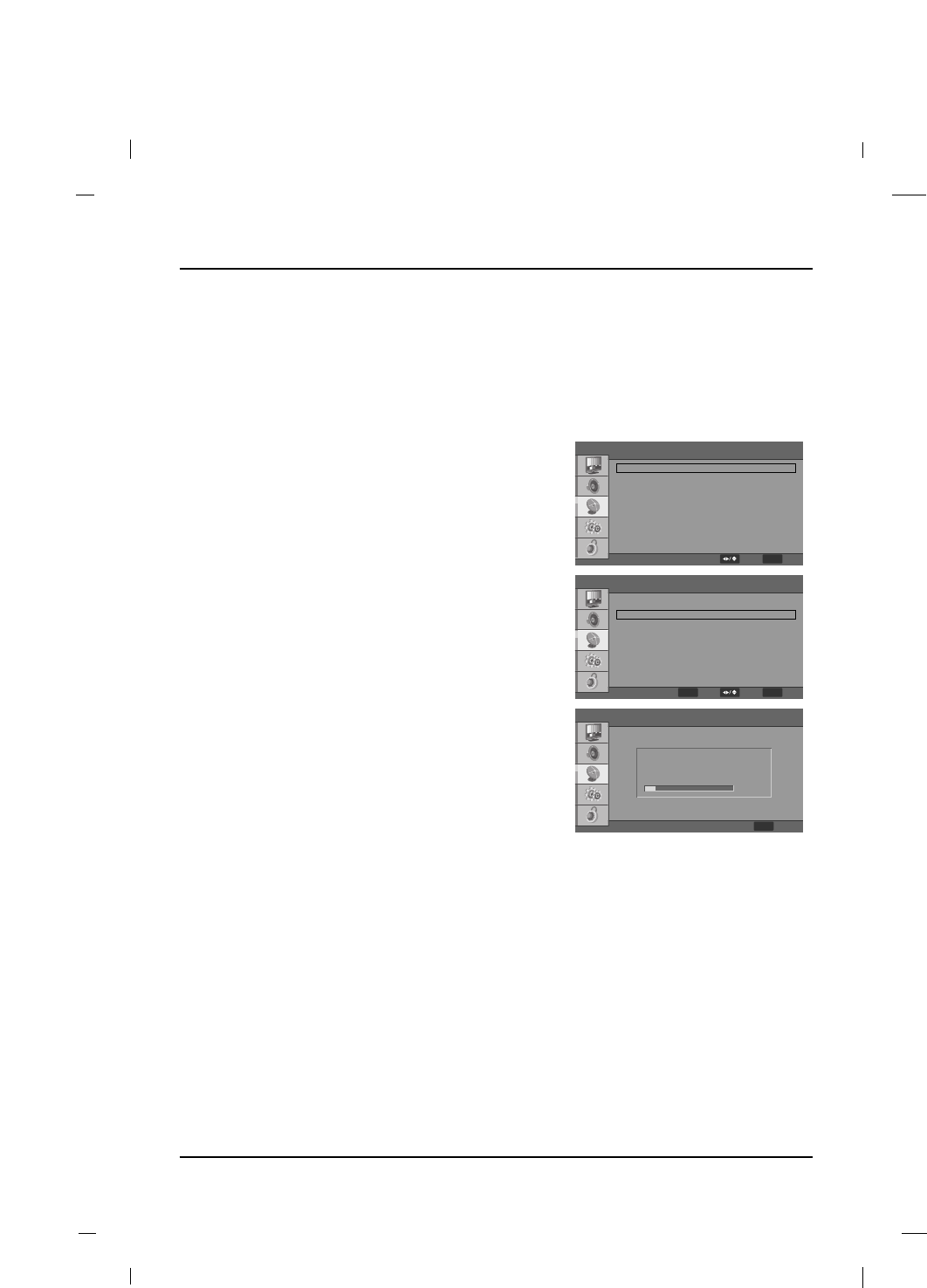

Setting up the TV Channels
This function automatically finds all channels available through the Antenna or Cable and stores them in memory on
the channel list.
Auto Scan
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the TV sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Tuner
Mode.
3. Press the Left or Right button to select either Antenna
or Cable.
4. Press the Down or Up button to select Channel Scan.
5. Press the OK button to start the auto search.
The TV will begin memorizing all of the available chan-
nels.
6. Press the MENU button at any time to exit the channel
scan process.
7. Once the channel scan is complete the channels found
and recognized by the TV will be available for viewing.
TV
Tuner Mode
Channel Scan
Channel Skip
Cable FF GG
GG
GG
TV
Status:Scanning.. Cable
Analog Channels:1
Digital Channels:0
10%
Tuner Mode
Channel Scan
Channel Skip
Cable FF GG
GG
GG
TV
ENTER
Scan
MENU ExitSelect
MENU BackSelect
MENU Cancel
Setting up TV Channel
29

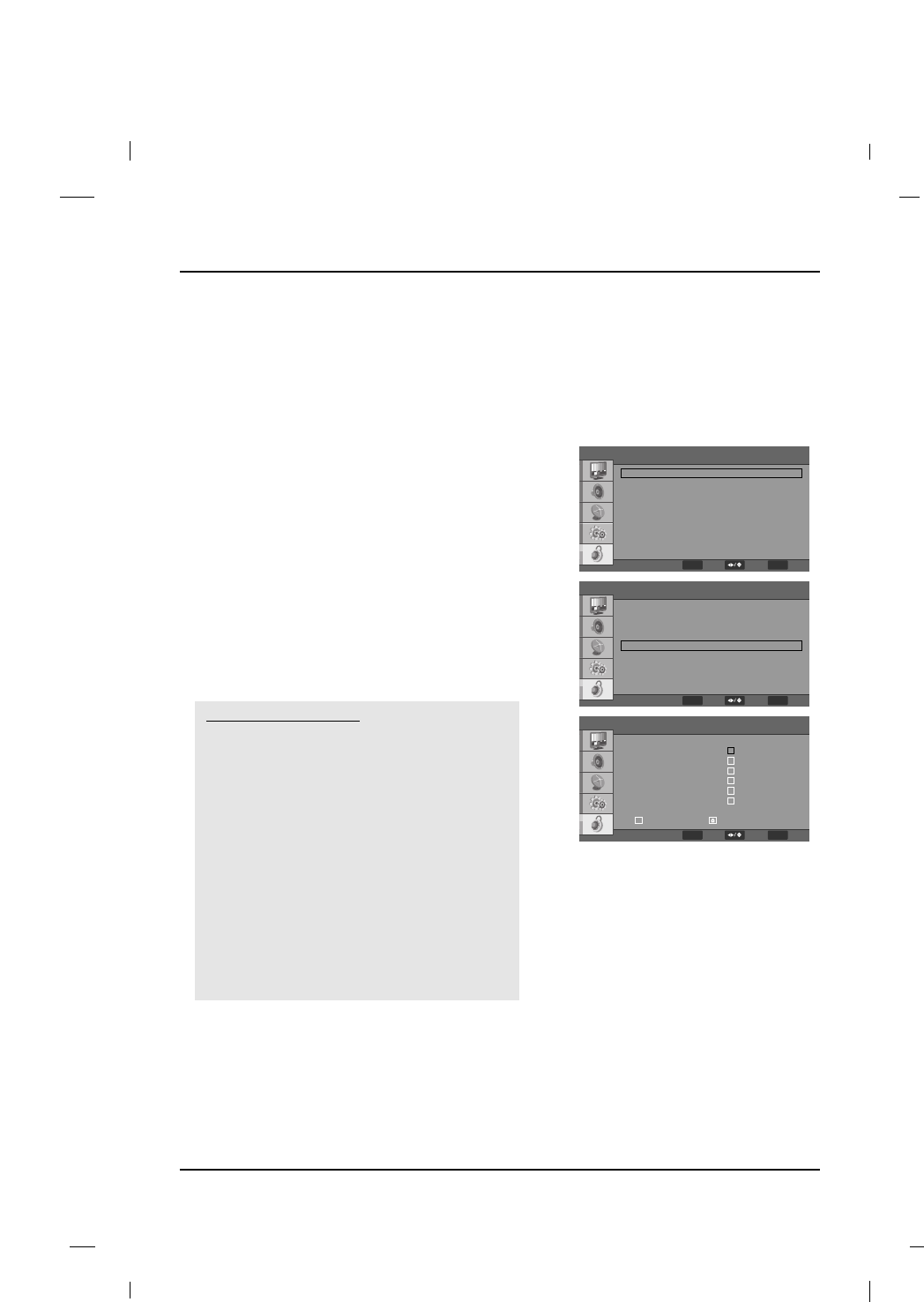

You can manually store or remove channels in whatever order you desire.

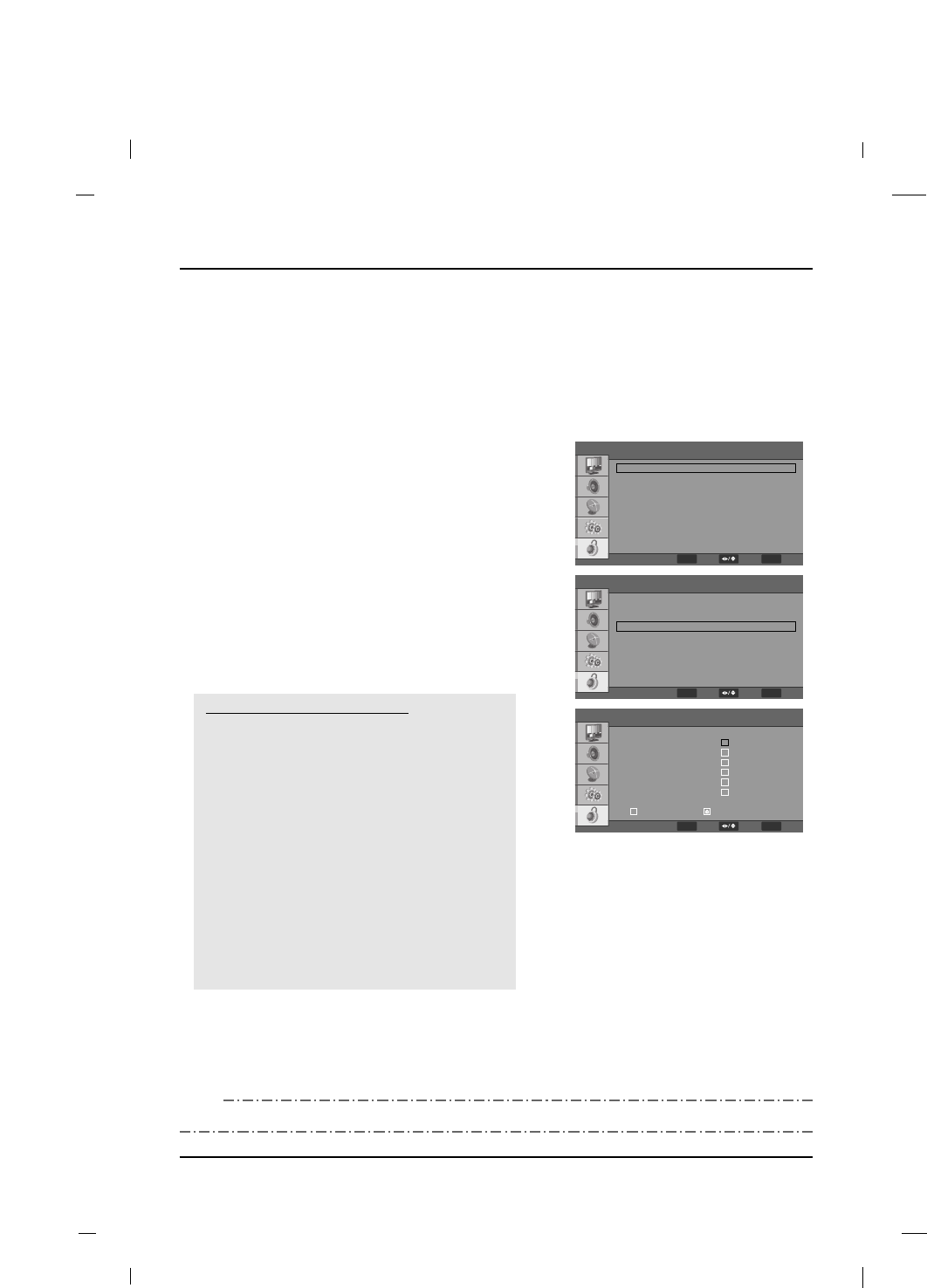

Add / Delete a Channel
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the TV sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Channel
Skip.
3. Press the OK button and then press the Down or Up
button to select channel you want to add or delete.
If you want to skip the selected channel, press the OK
button to uncheck your selection.
4. All channels that have a check will be added to your
viewing selection.
5. Press the MENU button to return to the previous menu.
Channel Skip
1Analog
2Analog
3Analog
4Analog
5Analog
6Analog
7Analog
8Analog
9Analog
Tuner Mode
Channel Scan
Channel Skip
Cable FF GG
GG
GG
TV
ENTER
Enter MENU ExitSelect
ENTER
Set MENU BackSelect
Setting up TV Channel
30
Displays the broadcasting guide of the current digital channel.
EPG (Electronic Program Guide)
1. Press the EPG button on the remote control to display the Electronic Program Guide.
2. Press the Left or Right button to change channel and display the broadcasting guide at the bottom of the
screen.
Today 9:00 PM HD
Today 10:00 PM
Today 11:00 PM
Tomorrow 12:00 AM ABC
Tomorrow 12:50 AM HD1
9:01 PM-10:09 PM Sun, 3-Feb Not Rated
7 FF7-1 ABC D-2 GG8
EE
Sunday, 3-February-2008 9:00:00 PM PM
Picture Controls
31

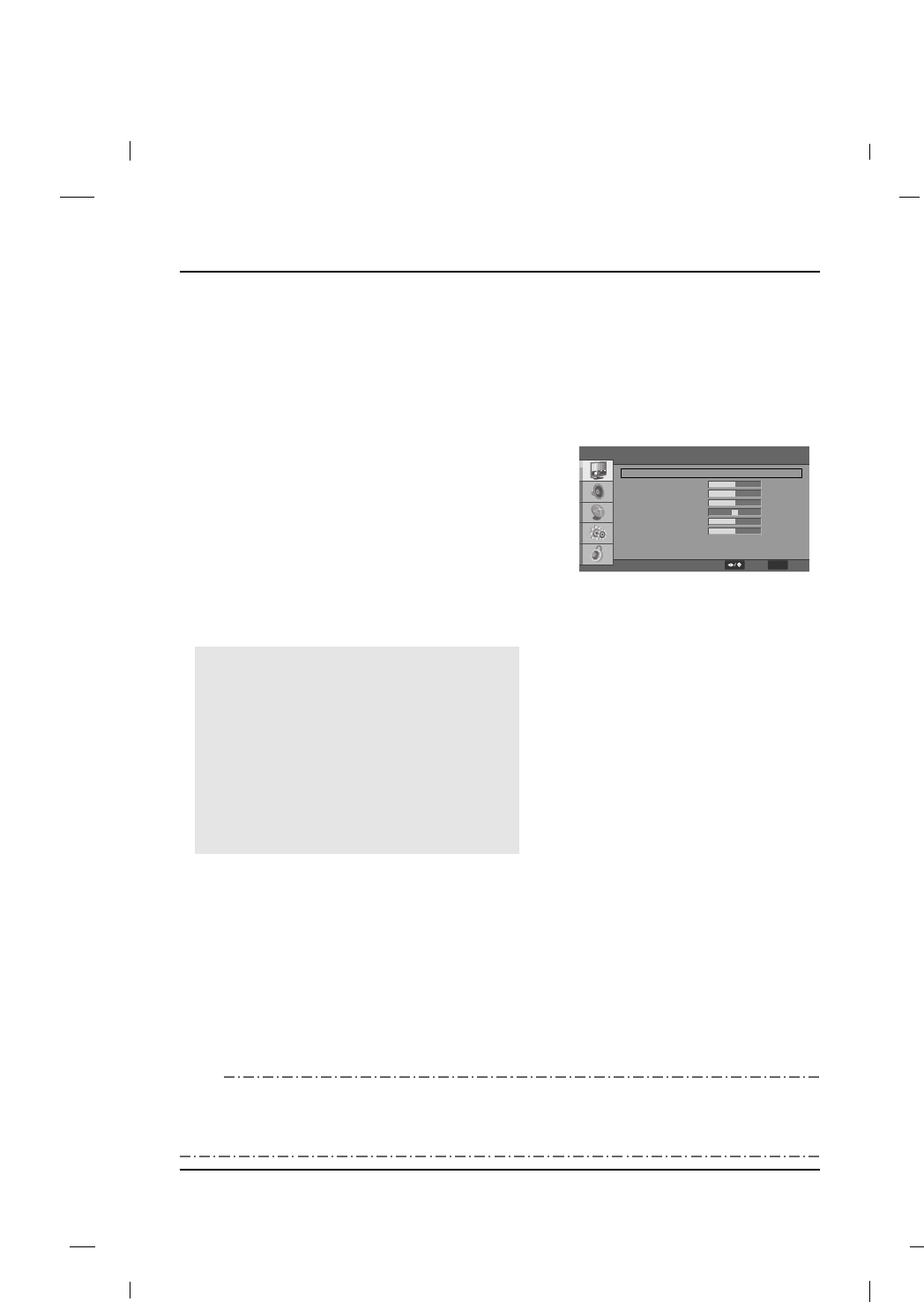

The various Picture Modes allow you to adjust the display to your viewing preference.
Adjusting The Picture Controls
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Picture
Mode.
3. Press the Left or Right button to select between Soft,
Standard, Vivid or User Picture Modes.
4. Press the MENU button to return to the previous menu.
Soft
This mode will give you a soft feeling image.
Standard
This mode is the standard for viewing and falls
between soft and vivid.
Vivid
This mode will display a more colorful, vibrant image.
User
This mode allows you to finely tune the display to
your viewing preference.
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
MENU BackSelect
-If you want to select Picture Mode directly, press the PICTURE button.
-Every time you press the button, it will switch between Soft, Standard, Vivid or User.
-When you adjust the Brightness, Contrast, Saturation, HUE, Sharpness, or Back Light, it will be saved.
If you want to recall the default presseting, run Reset Picture Mode.
NN
NNOO
OOTT
TTEE
EE
Picture Controls
Picture Controls
32
This mode will allow you to fine-tune the display settings to your viewing preference.

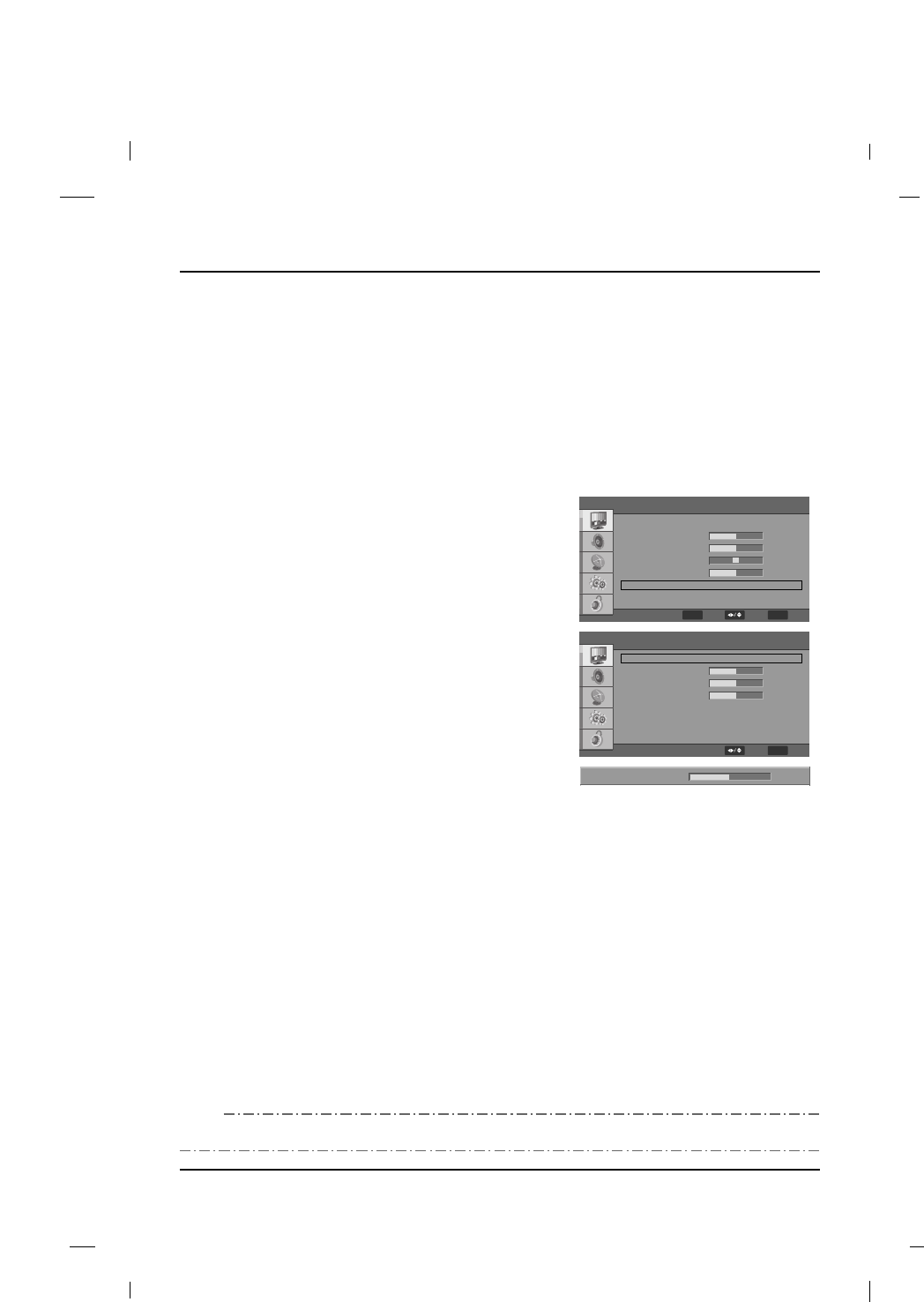

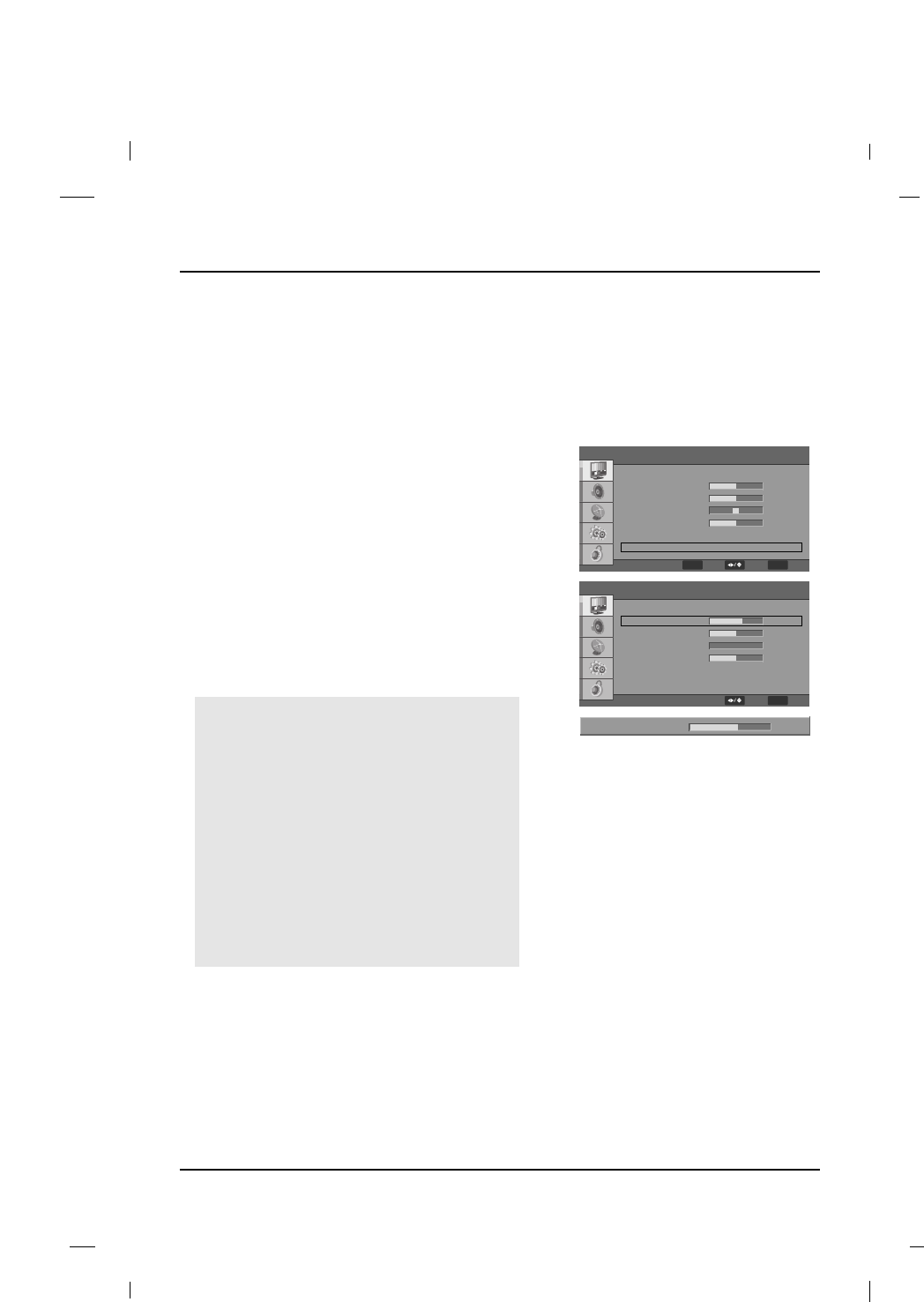

Manual Picture Controls
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and use
the Left or Right button to change the picture mode to
User. Then, press either the Down or Up button to
scroll to the desired picture option. (Brightness,
Contrast, Saturation, HUE, Sharpness, Back Light)
3. Press the OK button and then use the Left or Right
button to adjust the selection to your preference.
4. Press the MENU button to return to the previous menu.
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
Brightness 60
ENTER
Adjust MENU BackSelect
Brightness
Increases or decreases amount of white in the your
picture.
Contrast
Adjusts the amount of difference between the light and
dark levels in the picture.
Saturation
Adjusts intensity of all colors.
HUE
Adjusts the balance between red and green levels.
Sharpness
Adjusts the level of sharpness in the edges between
the light and dark areas of the picture.
The lower the level, the softer the image.
Back Light
Adjusts the brightness level of the back light.
Increasing the Back Light level will result in a brighter
picture and is recommended for use brightly lit rooms,
however, it will also decrease your black levels and
result in a higher power consumption.
Picture Controls
33
When changing your settings, you can select the Reset Picture Mode option to restore the previous
settings.

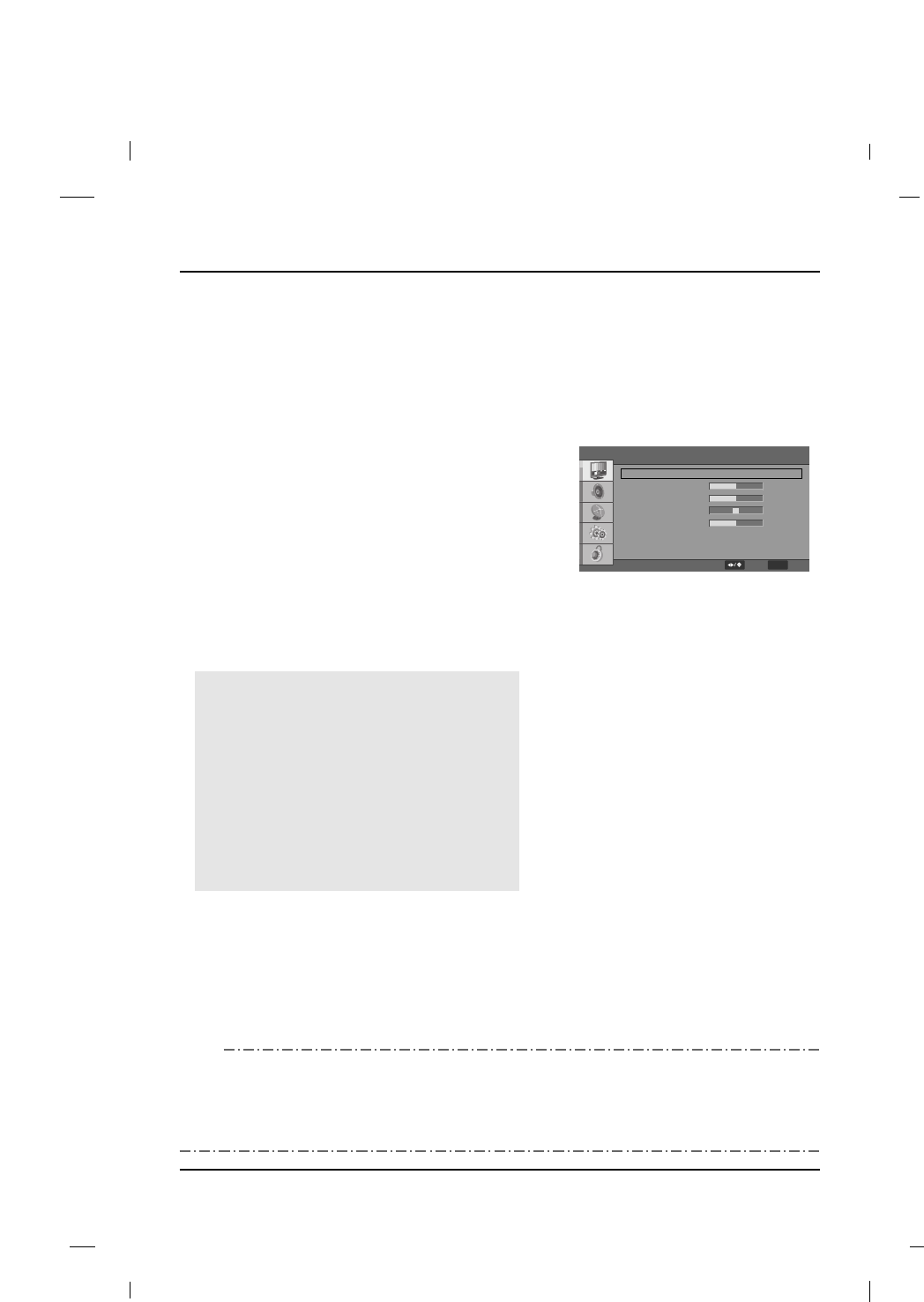

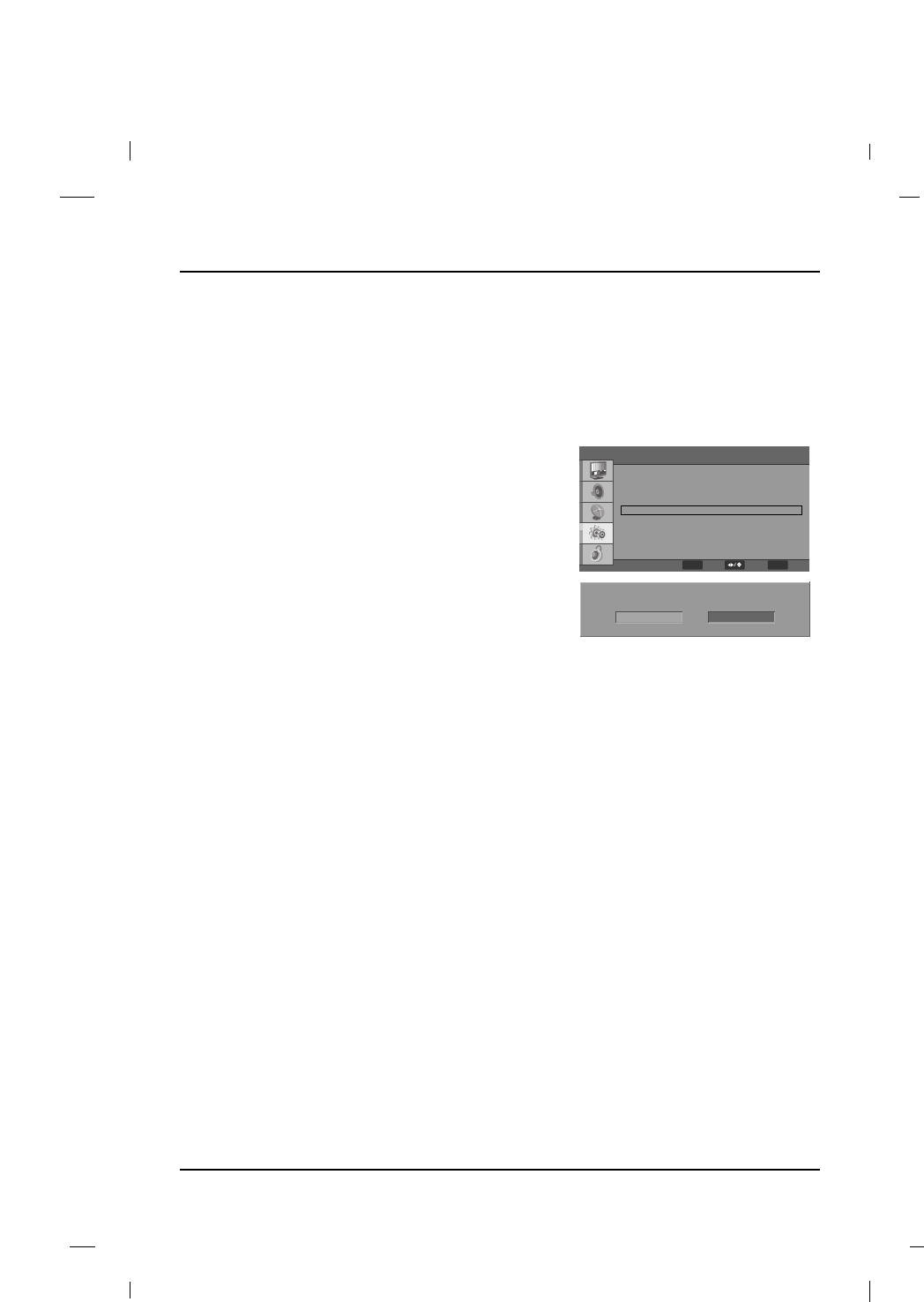

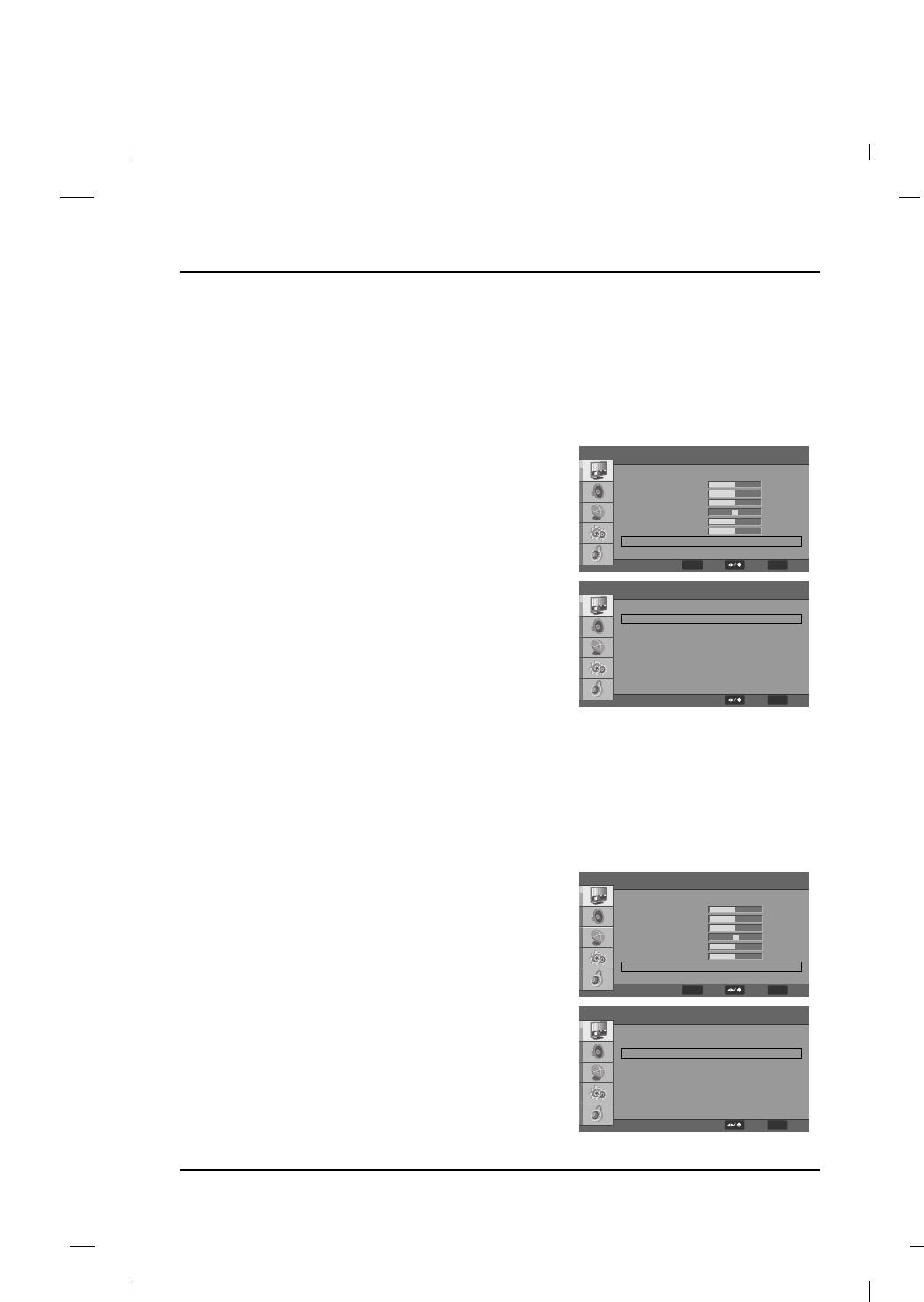

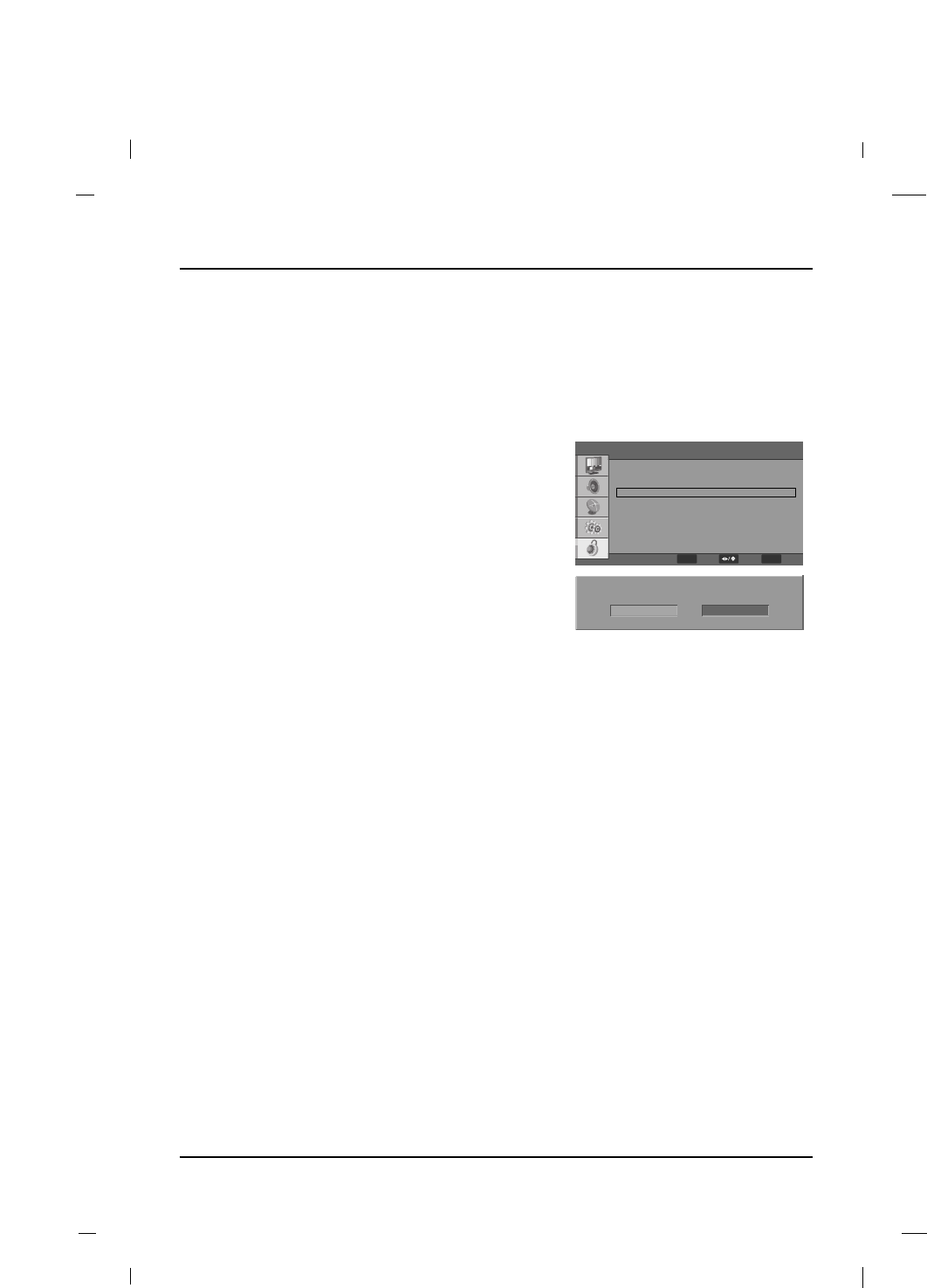

Reset Picture Mode
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and use
the up or down buttons to select Reset Picture mode.
3. Once the confirmation window appears, press OK to
restore the previous settings.
Video
Are you sure?
OK Cancel
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
ENTER
Enter MENU BackSelect
Advanced Video
34
Use this feature to reduce the amount of noise, or film grain, that may be present in the picture.

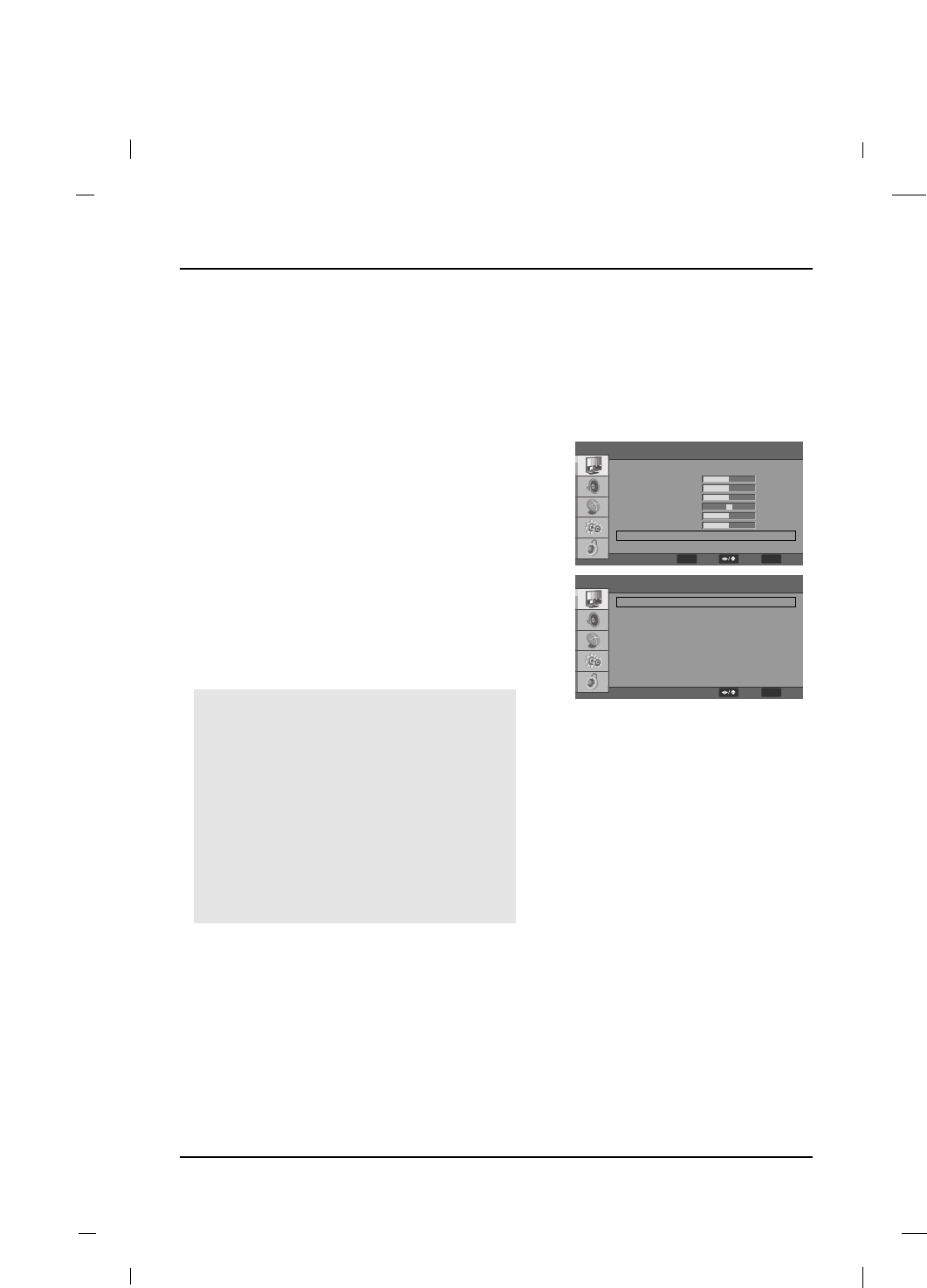

Dynamic Noise Reduction
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Advanced
Video.
3. Press the OK button to enter the submenu and then
press the Down or Up button to select DNR.
4. Press the Left or Right button to select between Off,
Low, Medium, Strong or Auto.
5. Press the MENU button to return to the previous menu.
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Gamma
Color Temperature
MotionDS
Medium
Off
On
Low
Off
On
Middle
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
GG
GG
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
ENTER
Enter MENU BackSelect
MENU BackSelect
Off
Turns the screen noise reduction function off.
Low
Reduces screen noise at a low level.
Medium
Reduces screen noise at a medium level.
Strong
Reduces screen noise at a high level.
Auto
Automatically adjusts the noise reduction level
according to received signal.
Advanced Video
Advanced Video
35
This feature increases the image reproduction performance in the dark areas of the picture.

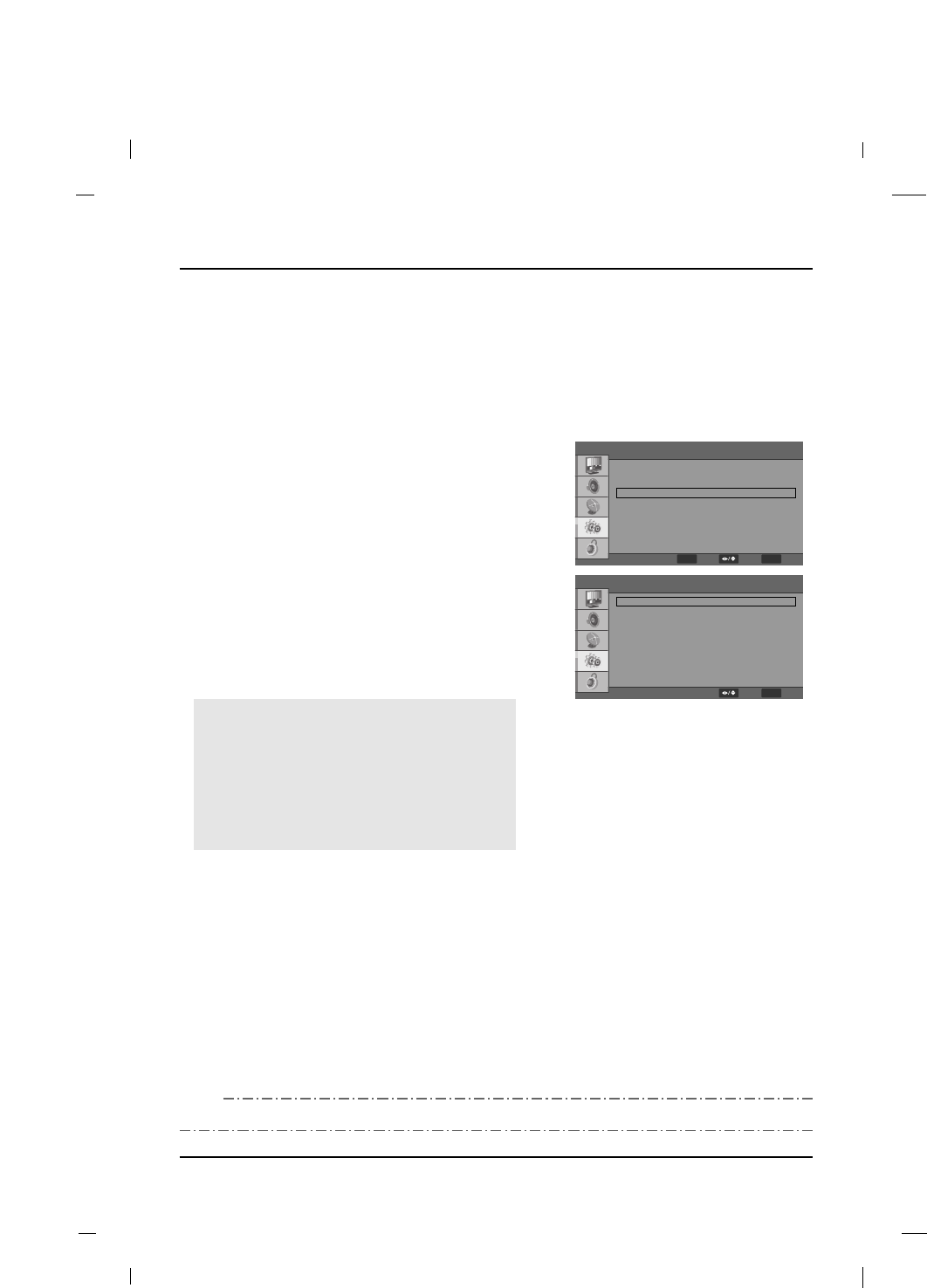

Black Level Extender
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Advanced
Video.
3. Press the OK button and then press the Down or Up
button to select Black Level Extender.
4. Press the Left or Right button to select On or Off.
5. Press the MENU button to return to the previous menu.
This feature limits excessive amounts of white in bright areas of the picture. Excessive amounts of white is caused
by a lower sync level from a channel being received from the antenna or cable.

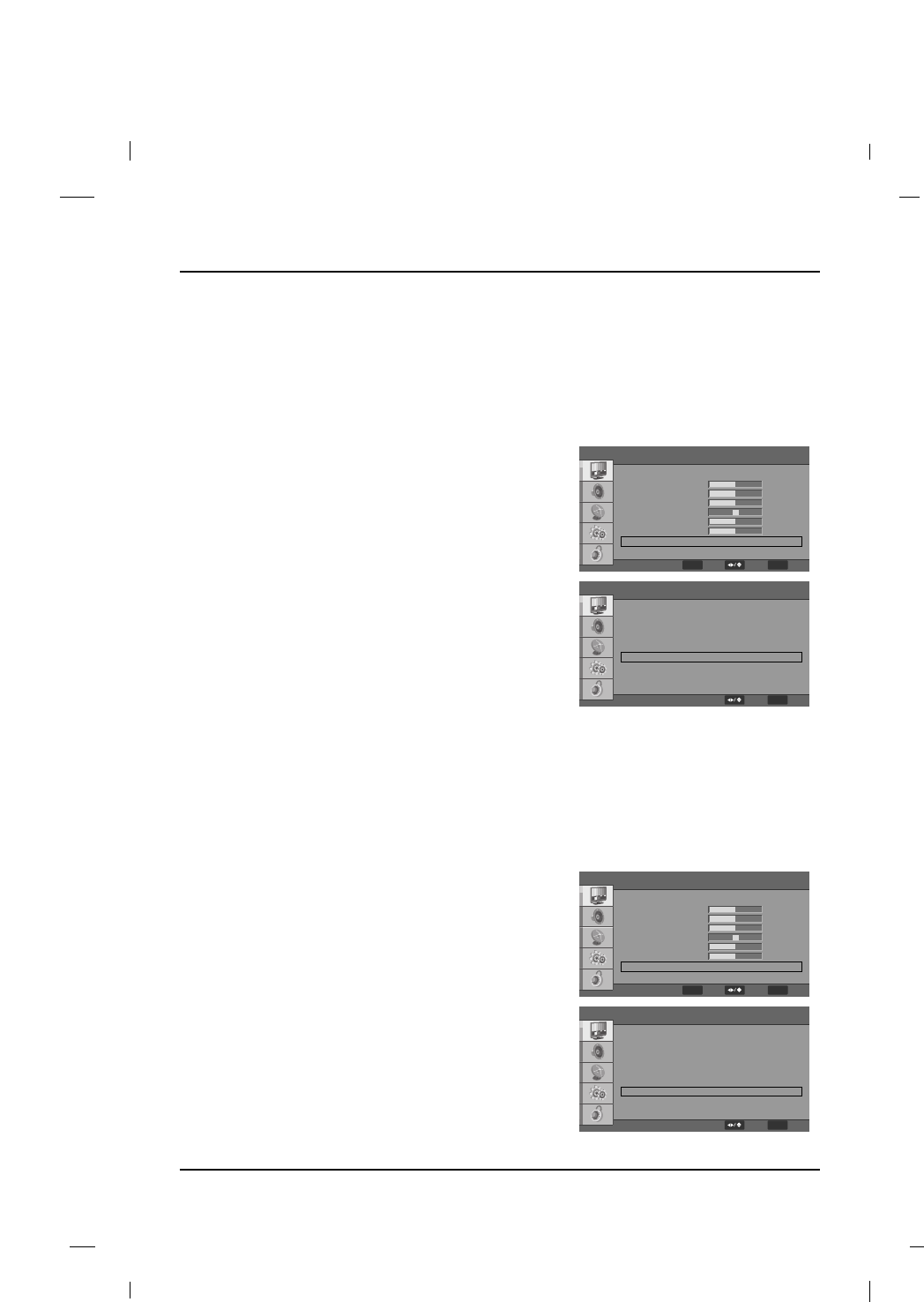

White Peak Limiter
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Advanced
Video.
3. Press the OK button and then press the Down or Up
button to select White Peak Limiter.
4. Press the Left or Right button to select On or Off.
5. Press the MENU button to return to the previous menu.
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Gamma
Color Temperature
MotionDS
Medium
Off
On
Low
Off
On
Middle
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
GG
GG
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
ENTER
Enter MENU BackSelect
MENU BackSelect
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Gamma
Color Temperature
MotionDS
Medium
Off
On
Low
Off
On
Middle
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
GG
GG
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
ENTER
Enter MENU BackSelect
MENU BackSelect
Advanced Video
36
This feature is used to reduce the time the display takes to transition from one color to another.
The effect of CTI will be seen as sharpening the border between colors.

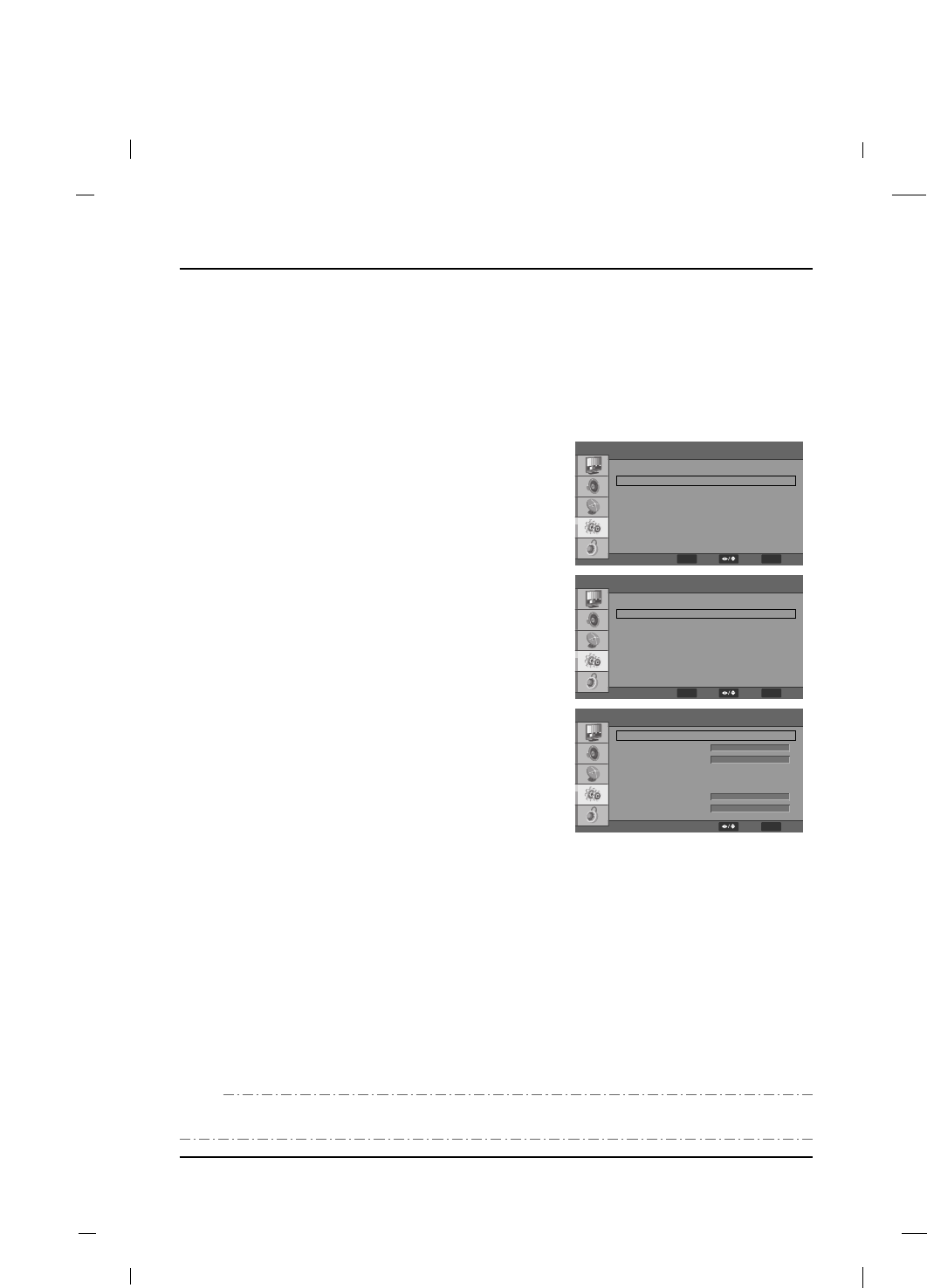

CTI (Color Transient Intensity)
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Advanced
Video.
3. Press the OK button and then press the Down or Up
button to select CTI.
4. Press the Left or Right button to select between Off,
Low, Medium or Strong.
5. Press the MENU button to return to the previous menu.
In some cases, activation of this feature can result in a more pleasing display of sky and flesh colors.
Flesh Tone
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Advanced
Video.
3. Press the OK button and then press the Down or Up
button to select Flesh Tone.
4. Press the Left or Right button to select On or Off.
5. Press the MENU button to return to the previous menu.
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Gamma
Color Temperature
MotionDS
Medium
Off
On
Low
Off
On
Middle
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
GG
GG
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
ENTER
Enter MENU BackSelect
MENU BackSelect
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Gamma
Color Temperature
MotionDS
Medium
Off
On
Low
Off
On
Middle
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
GG
GG
MENU BackSelect
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
ENTER
Enter MENU BackSelect
Advanced Video
37
Large amounts of dark areas present in a picture will result in a lower Average Picture Level (APL) and
the overall picture will look too dark; activation of this feature will raise the APL to counteract this effect.

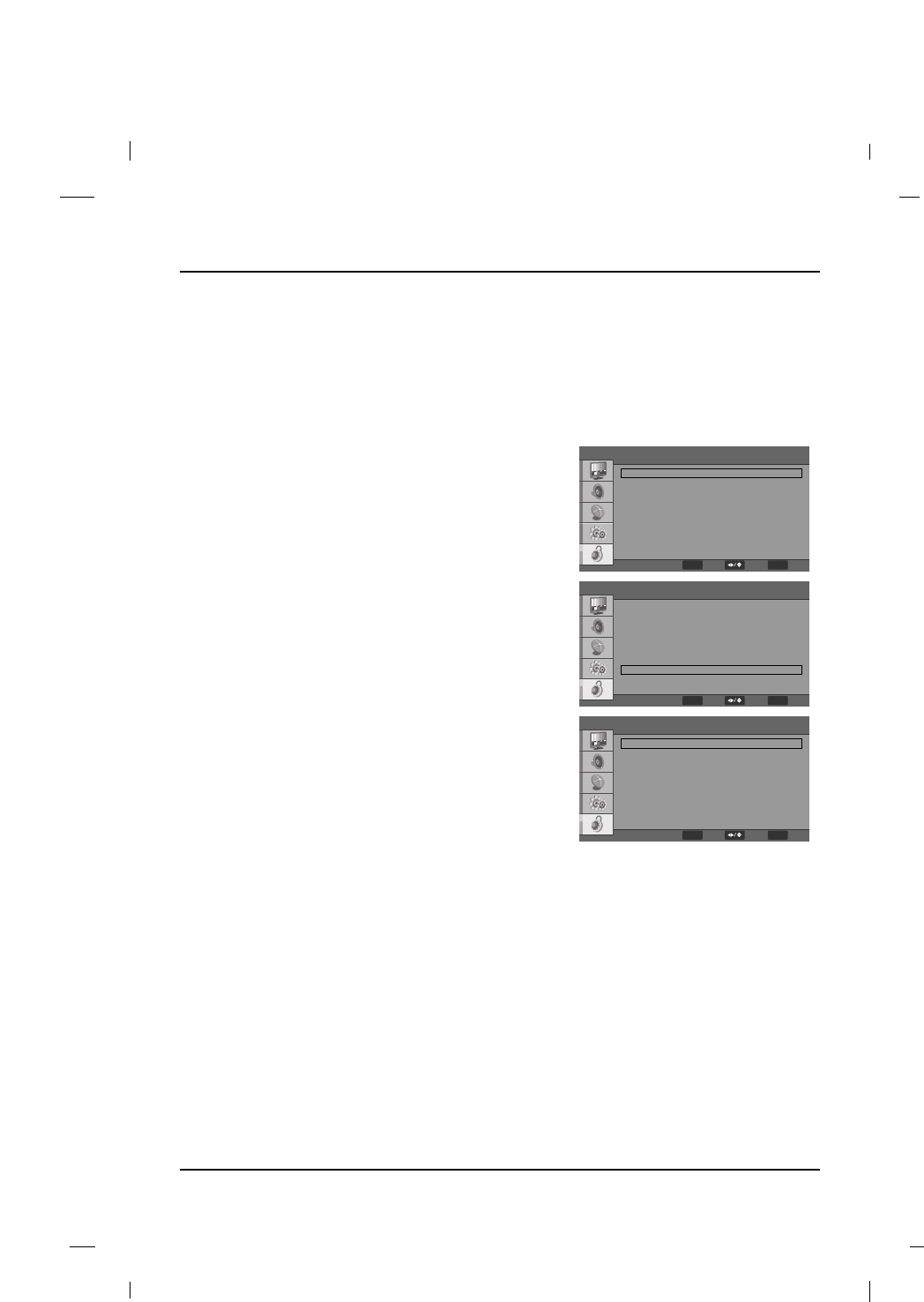

Adaptive Luma Control
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Advanced
Video.
3. Press the OK button and then press the Down or Up
button to select Adaptive Luma Control.
4. Press the Left or Right button to select On or Off.
5. Press the MENU button to return to the previous menu.
This feature will allow you to adjust the brightness curve for the display.
Gamma
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Advanced
Video.
3. Press the OK button and then press the Down or Up
button to select Gamma.
4. Press the Left or Right button to select between Low,
Middle or High.
5. Press the MENU button to return to the previous menu.
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Gamma
Color Temperature
MotionDS
Medium
Off
On
Low
Off
On
Middle
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
GG
GG
MENU BackSelect
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
ENTER
Enter MENU BackSelect
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Gamma
Color Temperature
MotionDS
Medium
Off
On
Low
Off
On
Middle
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
GG
GG
MENU BackSelect
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
ENTER
Enter MENU BackSelect
Advanced Video
38
The Color Temperature settings will allow you to adjust the lighting in the display to compliment your viewing prefer-
ence.
The Cool setting will add more Blues and Greens into the image to give it a “cooler ” feeling.
The Warm setting will add more Reds and Yellows into the image to give it a “warmer ” feeling.
The Standard setting will be a more natural feeling and will fall between the Cool and Warm settings.

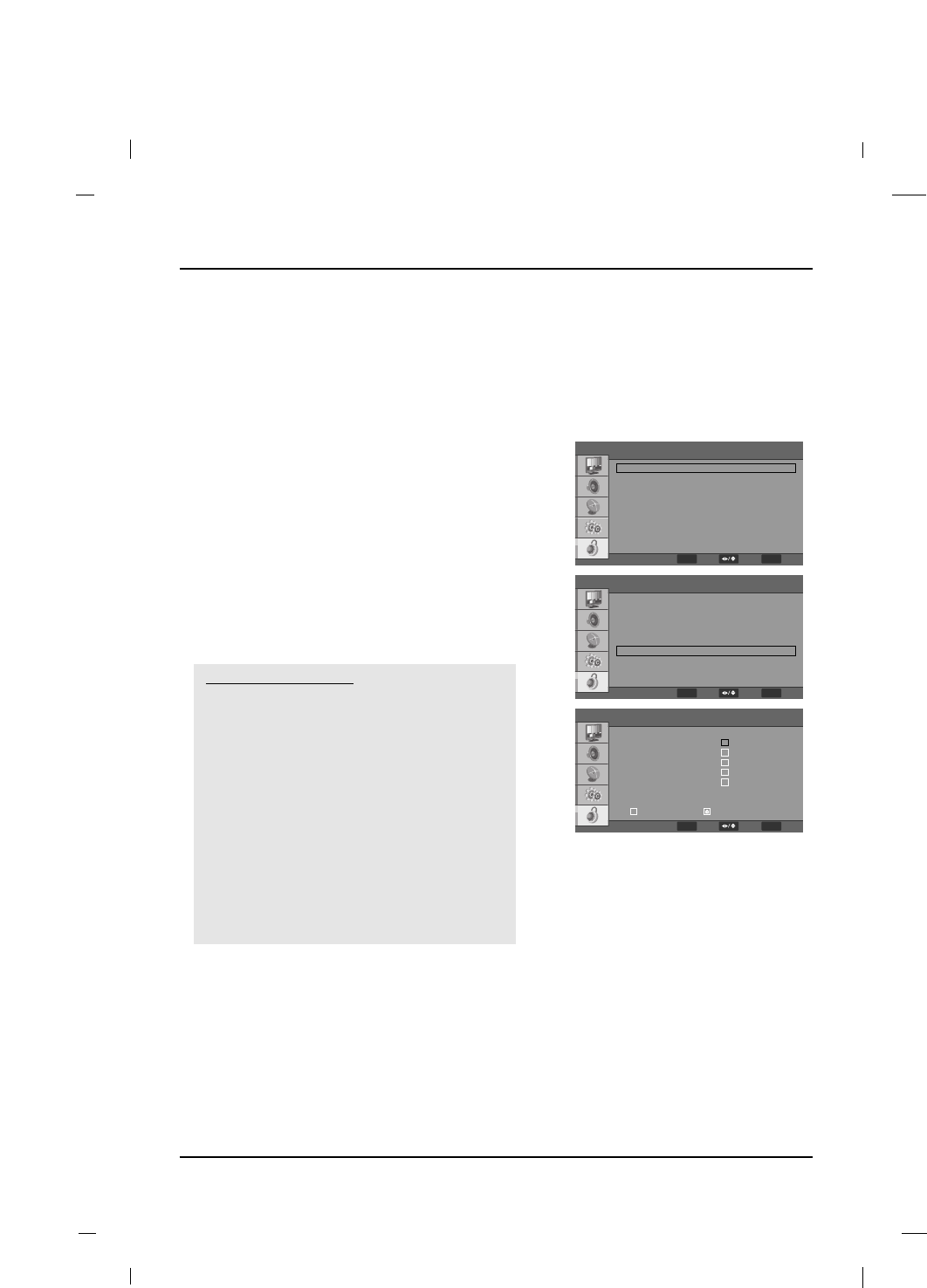

Color Temperature
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select and enter
into the Advanced Video submenu.
3. Navigate to and select Color Temperature.
Press the OK button and then press the Left or Right
button to select between Cool, Standard, Warm or User
settings.
4. If you selected the User setting, press the Down or Up
button to select desired color option you wish to adjust.
5. Press the OK button and then use the Left or Right but-
ton to make appropriate adjustments.
6. Press the MENU button to return to the previous menu. Color Temperature
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
Color Temperature
R Gain
G Gain
B Gain
Standard FF GG
0
0
0
R Gain 0
ENTER
Enter MENU BackSelect
MENU BackSelect
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Gamma
Color Temperature
MotionDS
Medium
Off
On
Low
Off
On
Middle
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
GG
GG
MENU BackSelect
-To adjust manually Color Temperature on your display, change the Color Temperature Mode to User.
NN
NNOO
OOTT
TTEE
EE
Advanced Video
39
Removing the noise up to the point where it does not damage the original picture.

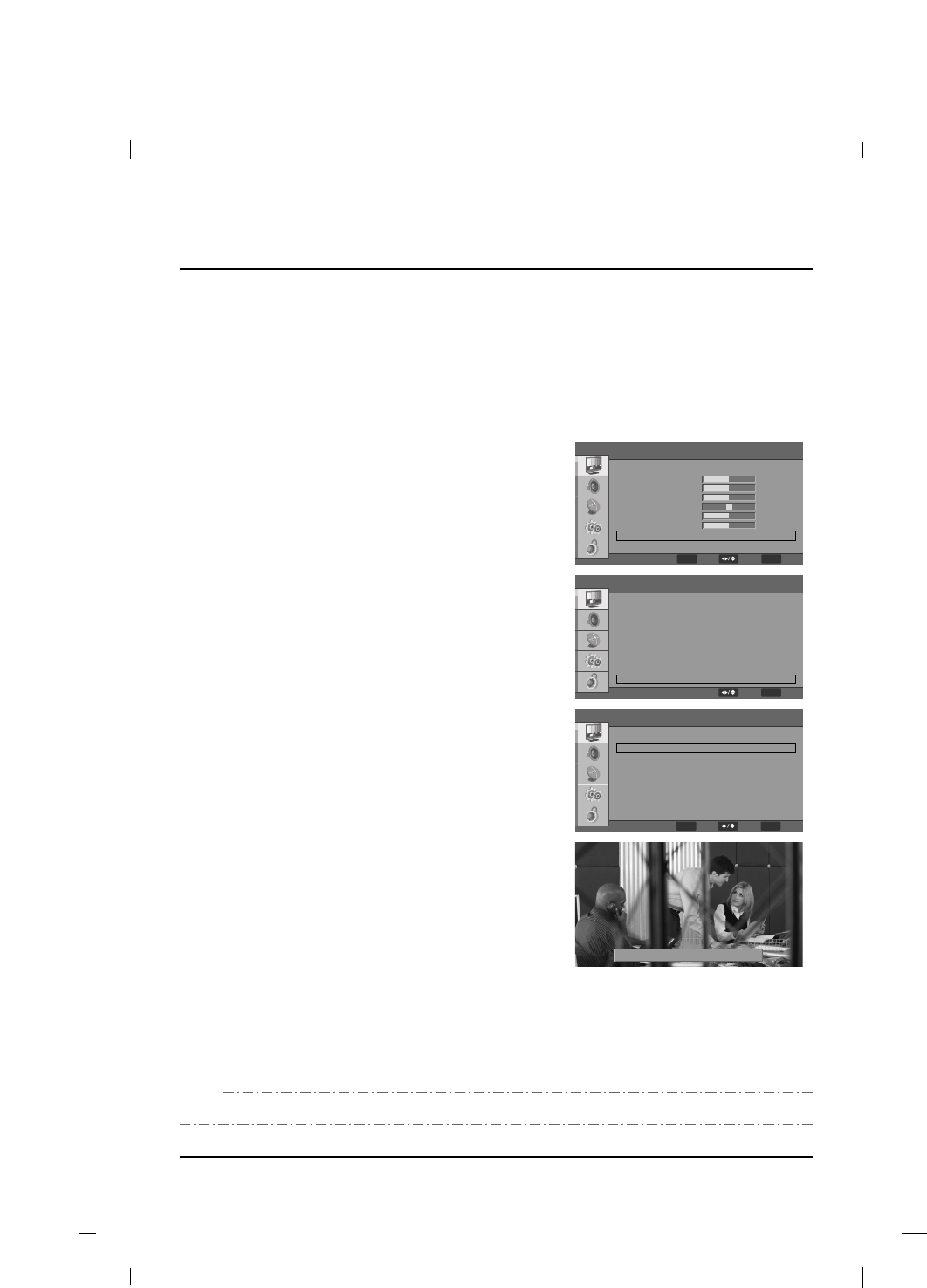

MotionDS
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Advanced
Video.
3. Press the OK button and then press the Down or Up
button to select MotionDS.
4. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Demo
Mode.
5. Press the Left or Right button to select between On or
Off.
When you select On, the Demo Mode picture will be
displayed as shown in the picture.
6. Press the MENU button to return to the previous menu.
MotionDS
Demo Mode
MotionDS Level
Off
High
FF GG
FF GG
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
ENTER
Enter MENU BackSelect
MENU BackSelect
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Gamma
Color Temperature
MotionDS
Medium
Off
On
Low
Off
On
Middle
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
GG
GG
MENU BackSelect
MotionDS Off MotionDS On
-After switching off the menu picture, Demo Mode picture will be displayed.
NN
NNOO
OOTT
TTEE
EE
AADemo Mode
Advanced Video
40
Removing the noise up to the point where it does not damage the original picture.
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Advanced
Video.
3. Press the OK button and then press the Down or Up
button to select MotionDS.
4. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select MotionDS
Level.
5. Press the Left or Right button to select between Off,
Low, Middle or High.
6. Press the MENU button to return to the previous menu.
MotionDS
Demo Mode
MotionDS Level
Off
High
FF GG
FF GG
Video
User FF GG
45
50
50
0
0
50
GG
GG
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Back Light
Advanced Video
Reset Picture Mode
ENTER
Enter MENU BackSelect
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Gamma
Color Temperature
MotionDS
Medium
Off
On
Low
Off
On
Middle
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
GG
GG
MENU BackSelect
ENTER
Adjust MENU BackSelect
AAMotionDS Level
MotionDS Level FFHigh GG
-After switching off the menu picture, MotionDS Level picture will be displayed.
NN
NNOO
OOTT
TTEE
EE
41
Sound Controls
-To scroll through the different sound modes without entering the on-screen menus, press the SOUND button
on the remote control.
-When you adjust manually the Bass or Treble, the Sound Mode will change to User Mode.
NN
NNOO
OOTT
TTEE
EE
The Sound Mode preset selection will allow you to adjust the sound to your listening preference.
Adjusting The Sound Controls
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Audio sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Sound
Mode.
3. Press the Left or Right button to select between Voice,
Concert, Jazz or User Modes.
4. Press the MENU button to return to the previous menu.
Audio
Balance
Bass
Treble
Sound Mode
Digital Output
Auto Volume Control
0
40
40
FF GG
FF GG
FF GG
Voice
Off
Off
MENU BackSelect
Voice
Select this option while watching a show that is mostly
dialog.
Concert
Select this option to when listening to music to enjoy
the original intended sound.
Jazz
This option highlights bass and also emphasizes instru-
ments such as piano and guitar.
User
Select this option to manually adjust the audio
settings to your preference.
Sound Controls
42
Sound Controls
This function allows you to manually adjust the individual audio settings to your preferred levels.

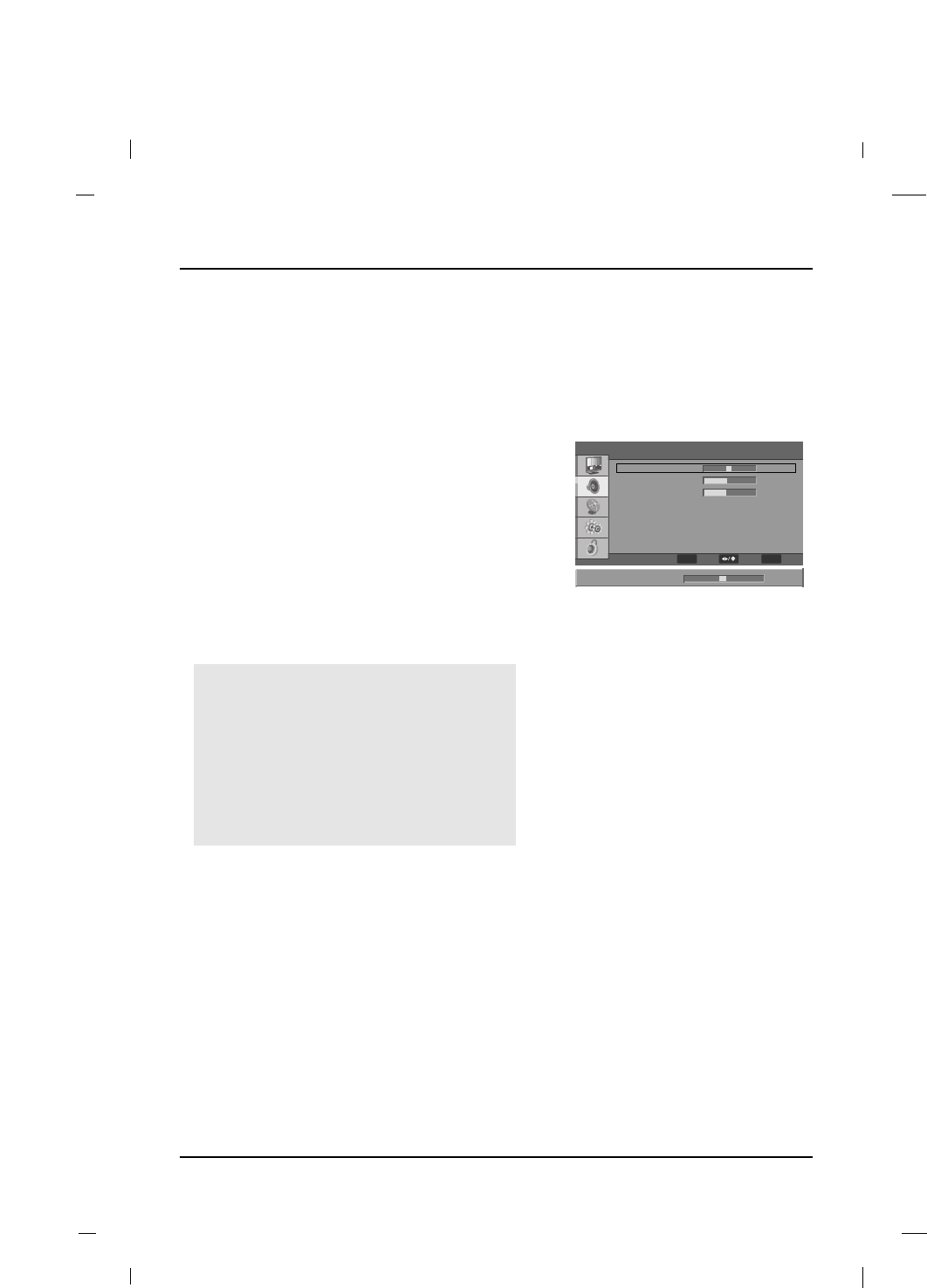

Manual Sound Controls
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Audio sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select the
desired sound option.(Bass, Treble, Balance)
3. Press the OK button to select the sound option that you
wish to change and then press either the Left or Right
button to make appropriate adjustments.
4. Press the MENU button to return to the previous menu.
Balance 0
Audio
Balance
Bass
Treble
Sound Mode
Digital Output
Auto Volume Control
0
40
40
FF GG
FF GG
FF GG
Voice
Off
Off
ENTER
Adjust MENU BackSelect
Bass
This adjusts the presence of the lower frequency
audio.
Treble
This adjusts the presence of the higher frequency
audio.
Balance
Adjusts the left to right sound balance between the
built-in speakers.
43
Sound Controls
This option activates the Digital Audio Output. This is recommended for use with other devices capable of receiving
digital audio signals. (This mode is set to Off by default)
Digital Output
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Audio sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Digital
Output.
3. Press the Left or Right button to select between Off,
Dolby Digital or PCM.
4. Press the MENU button to return to the previous menu.
Off
Television will only output an Analog audio
signal.
(This mode is set to Off by default)
Dolby Digital
Television will output a digital audio signal.
PCM (Pulse-code modulation)
This mode creates a digital representation of an
analog signal and is only used with an audio CD
signal.
Manufactured under license from
Dolby Laboratories.
“ Dolby “and the double-D symbol
are trademarks of Dolby
Laboratories.
Audio
Balance
Bass
Treble
Sound Mode
Digital Output
Auto Volume Control
0
40
40
FF GG
FF GG
FF GG
Voice
Off
Off
MENU BackSelect
44
Sound Controls
This function automatically stabilizes the volume level while changing to channels with different audio levels.

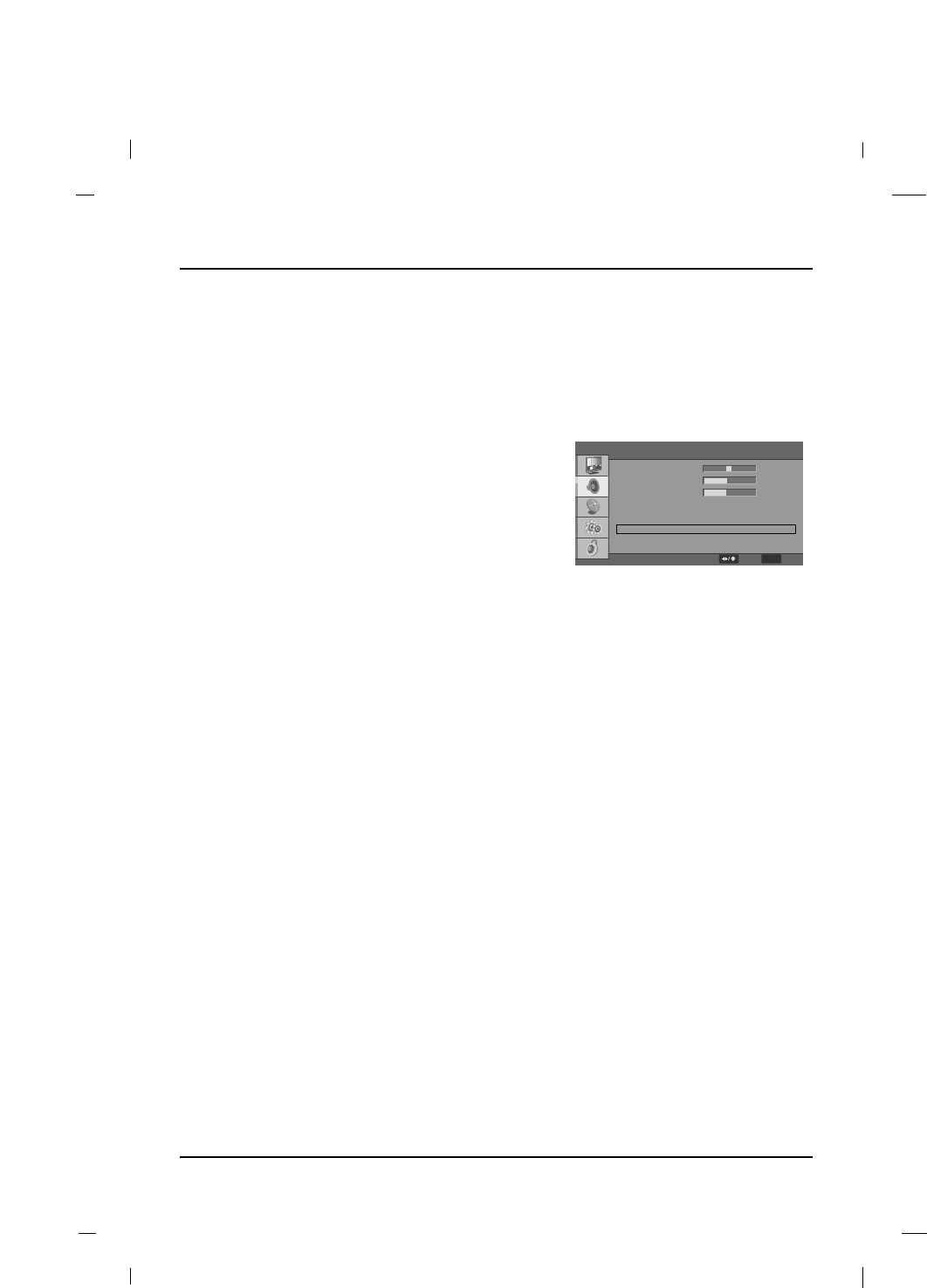

Auto Volume Control
This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that the station may transmit.
The television will automatically switch to Mono sound if the broadcasted channel is transmitted in Mono.
Also, you can manually select Mono if you want to listen to a stereo or SAP broadcasted channel in Mono by press-
ing the MTS button on the remote control.
1. Press the MTS button on the remote control to scroll through the Mono, Stereo and SAP sound
modes.
If other languages are available on a digital signal, they can also be selected using the MTS but-
ton.
2. Press the EXIT button to save your settings and return to TV viewing.
Stereo/SAP Broadcast Setup
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Audio sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Auto
Volume Control.
3. Press the Left or Right button to select On or Off.
4. Press the MENU button to return to the previous menu.
Audio
Balance
Bass
Treble
Sound Mode
Digital Output
Auto Volume Control
0
40
40
FF GG
FF GG
FF GG
Voice
Off
Off
MENU BackSelect
45
Time Setting
This mode allows you to set the Time Zone for your local area.
Time Zone Settings
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button in order to
select the Setup sub-menu.
2. Press the OK button to enter the submenu and then
press either the Down or Up button in order to select
Time Setup.
3. Press the OK button and then press the Down or Up
button to select Time Zone.
4. Use the Left or Right button to select your viewing
area’s time zone. (Select between: Eastern Time,
Indiana, Central Time, Mountain Time, Arizona, Pacific
Time, Alaska, Hawaii)
5. Press the MENU button to return to the previous menu.
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Setup
Time Zone
Time
Sleep Timer
Eastern Time
Off
FF GG
GG
FF GG
Time Setup
ENTER
Enter MENU BackSelect
MENU BackSelect
Time Setting
46
Time Setting
The Auto Time Setting receives the current time from an available digital channel.
The digital channel signal includes information for the current time provided by the broadcasting station.
Auto Time Settings
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button in order to
select the Setup sub-menu.
2. Press the OK button to enter the submenu and then
press either the Down or Up button in order to select
Time Setup.
3. Press the OK button and then press the Down or Up
button to select Time.
4. Press the OK button and then press the Down or Up
button to select Auto Synchronization.
5. Press the Left or Right button to switch between On or
Off.
6. Press the MENU button to return to the previous menu.
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Setup
Time Zone
Time
Sleep Timer
Eastern Time
Off
FF GG
GG
FF GG
Time Setup
Time
Auto Synchronization
Date
Time
Timer
Power On Timer
Power Off Timer
FF GG
FF GG
On
Off
2008/01/01
00:00:00
00:00:00
00:00:00
ENTER
Enter MENU BackSelect
MENU BackSelect
ENTER
Enter MENU BackSelect
-If Auto Synchronization is On, the Date and Time menus cannot be adjusted.
-Set the time manually if the current time is incorrect using the Auto Synchronization function.
NN
NNOO
OOTT
TTEE
EE
47
Time Setting
If the current time setting is wrong when using the Auto Synchronization function, this setting allows you to set the
clock manually.
Manual Time Settings
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button in order to
select the Setup sub-menu.
2. Press the OK button to enter the submenu and then
press either the Down or Up button in order to select
Time Setup.
3. Press the OK button and then press the Down or Up
button to select Time.
4. Press the OK button and then press the Down or Up
button to select Auto Synchronization.
5. Press the Left or Right button to turn Auto
Synchronization Off.
6. Press the Down or Up button to select Date or Time.
7. Use the Left or Right button to select the variable that
you want to change and use number buttons to enter
the date or time.
8. Press the MENU button to return to the previous menu.
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Setup
Time Zone
Time
Sleep Timer
Eastern Time
Off
FF GG
GG
FF GG
Time Setup
Time
Auto Synchronization
Date
Time
Timer
Power On Timer
Power Off Timer
FF GG
FF GG
Off
Off
2008/01/01
00:00:00
00:00:00
00:00:00
ENTER
Enter MENU BackSelect
MENU BackSelect
ENTER
Enter MENU BackSelect
48
Time Setting
The timer function will only operate when the current time has been set.
This function automatically turns the TV On and Off at the specific time you designate.
Auto On /Off Time Settings
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button in order to
select the Setup sub-menu.
2. Press the OK button to enter the submenu and then
press either the Down or Up button in order to select
Time Setup.
3. Press the OK button and then press the Down or Up
button to select Time.
4. Press the OK button and then press the Down or Up
button to select Timer.
5. Press the Left or Right button to select On.
If Timer is selected to Off, Power On Timer and Power
Off Timer menu are cannot be adjusted.
6. Press the Down or Up button to select Power On Timer
or Power Off Timer.
7. Press the Left or Right button to move to the desired
variable and use number buttons to set time.
8. Press the MENU button to return to the previous menu.
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Setup
Time Zone
Time
Sleep Timer
Eastern Time
Off
FF GG
GG
FF GG
Time Setup
Time
Auto Synchronization
Date
Time
Timer
Power On Timer
Power Off Timer
FF GG
FF GG
Off
Off
2008/01/01
00:00:00
00:00:00
00:00:00
ENTER
Enter MENU BackSelect
MENU BackSelect
ENTER
Enter MENU BackSelect
49
Time Setting
The sleep timer automatically switches the set to standby after the preset time elapses.
Sleep Timer
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button in order to
select the Setup sub-menu.
2. Press the OK button to enter the submenu and then
press either the Down or Up button in order to select
Time Setup.
3. Press the OK button and then press the Down or Up
button to select Sleep Timer.
4. Press the Left or Right button to select desired sleep
time.
The timer begins to count down from the number of
minutes selected and will switch the unit to standby
when the time runs out.
5.Press the MENU button to return to the previous menu.
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Setup
Time Zone
Time
Sleep Timer
Eastern Time
Off
FF GG
GG
FF GG
Time Setup
MENU BackSelect
ENTER
Enter MENU BackSelect
-If you want to select directly select the sleep timer without entering the menus, press the SLEEP button on
the remote control.
-Every time you press the button, it will switch between Off, 5, 10, 15, 30, 45, 60, 90, 120, 180 and 240.
NN
NNOO
OOTT
TTEE
EE
50
Captions
The Analog Caption function operates when watching a regular analog channel.

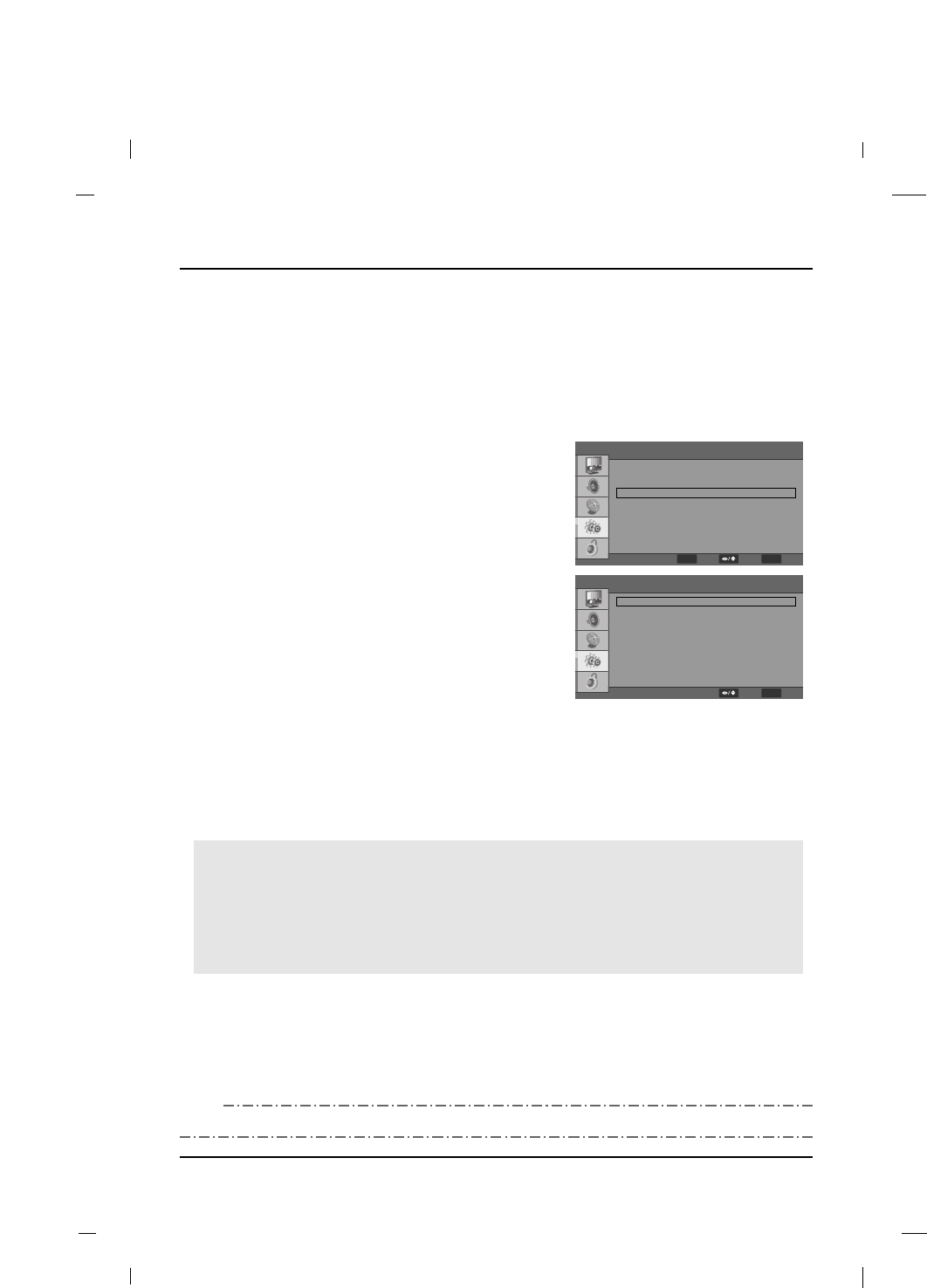

Closed Caption - Analog
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button in order to
select the Setup sub-menu.
2. Press the OK button to enter the submenu and then
press either the Down or Up button in order to select
Caption.
3. Press the OK button and then press the Down or Up
button to select Analog Closed Caption.
4. Press the Left or Right button to select between Off,
CC1, CC2, CC3, CC4, TEXT1, TEXT2, TEXT3 or
TEXT4.
5. Press the MENU button to return to the previous menu.
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Setup
Analog Closed Caption
Digital Closed Caption
Digital Caption Style
Off
Off
FF GG
FF GG
GG
Caption
MENU BackSelect
ENTER
Enter MENU BackSelect
Caption
The term for the words that scroll across the bottomof
the TV screen; usually the audio portion of the pro-
gram provided for the hearing impaired.
TEXT
The term for the words that appear in a large black-
frame and almost cover the entire screen; usually mes-
sages provided by the broadcaster.
-If you want to select directly the Closed Captions, press the CC button on the remote control.
NN
NNOO
OOTT
TTEE
EE
Captions
51
Captions
The Digital Caption function only operates on digital channels.
Closed Caption - Digital
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button in order to
select the Setup sub-menu.
2. Press the OK button to enter the submenu and then
press either the Down or Up button in order to select
Caption.
3. Press the OK button and then press the Down or Up
button to select Digital Closed Caption.
4. Press the Left or Right button to select between
Off, SERVICE1, SERVICE2, SERVICE3,
SERVICE4, SERVICE5 or SERVICE6.
5. Press the MENU button to return to the previous menu.
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Setup
Analog Closed Caption
Digital Closed Caption
Digital Caption Style
Off
Off
FF GG
FF GG
GG
Caption
MENU BackSelect
ENTER
Enter MENU BackSelect
52
Captions
Customize the DTV captions that appear on your screen.
Digital Closed Caption Options
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button in order to
select the Setup sub-menu.
2. Press the OK button to enter the submenu and then
press either the Down or Up button in order to select
Caption.
3. Press the OK button and then press the Down or Up
button to select Digital Caption Style.
4. Press the OK button and then press the Down or Up
button to select Caption Style.
5. Press the Left or Right button to select Custom.
6. Press the Down or Up button to select desired caption
option you wish to change. (Select between: Font Size,
Font Color, Font Opacity, Background Color,
Background Opacity, Window Color, Window Opacity)
7. Press the Left or Right button to customize your select-
ed preference.
8. Press the MENU button to return to the previous menu.
Analog Closed Caption
Digital Closed Caption
Digital Caption Style
Off
Off
FF GG
FF GG
GG
Caption
Caption Style
Font Size
Font Color
Font Opacity
Background Color
Background Opacity
Window Color
Window Opacity
Custom
Large
White
Solid
Black
Solid
Black
Trasparent
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
Digital Caption Style
MENU BackSelect
ENTER
Enter MENU BackSelect
Font Size
Set the size in which the captions will appear in.
Font Color
Set the color in which the captions will appear in.
Font Opacity
Select the transparency for the captions.
Background Color
Select a background color for the captions.
Background Opacity
Select the transparency for the background.
Window Color
Select a color for the edges.
Window Opacity
Select the transparency for the edges.
-If the Caption Style is selected to “As Broadcaster”, the Caption Options cannot be adjusted.
NN
NNOO
OOTT
TTEE
EE
53
Reset
This function returns all of the menu selections back to their original factory preset values.
This function removes all TV channels from memory. Channels must be scanned for again after resetting to the unit
to factory defaults.
Reset Default
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button in order to
select the Setup sub-menu.
2. Press the OK button to enter the submenu and then
press either the Down or Up button in order to select
Reset Default.
3. Press the OK button and then press the Left or Right
button to highlight the OK button.
4. Press the OK button on the remote control to reset all
settings.
5. Press the MENU button to return to the previous menu.
Reset
Are you sure?
OK Cancel
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Setup
ENTER
Enter MENU BackSelect
54
Parental Control
Parental Control can be used to block specific channels, ratings and other viewing sources.
The default password of 0-0-0-0 is required to gain access to this menu.

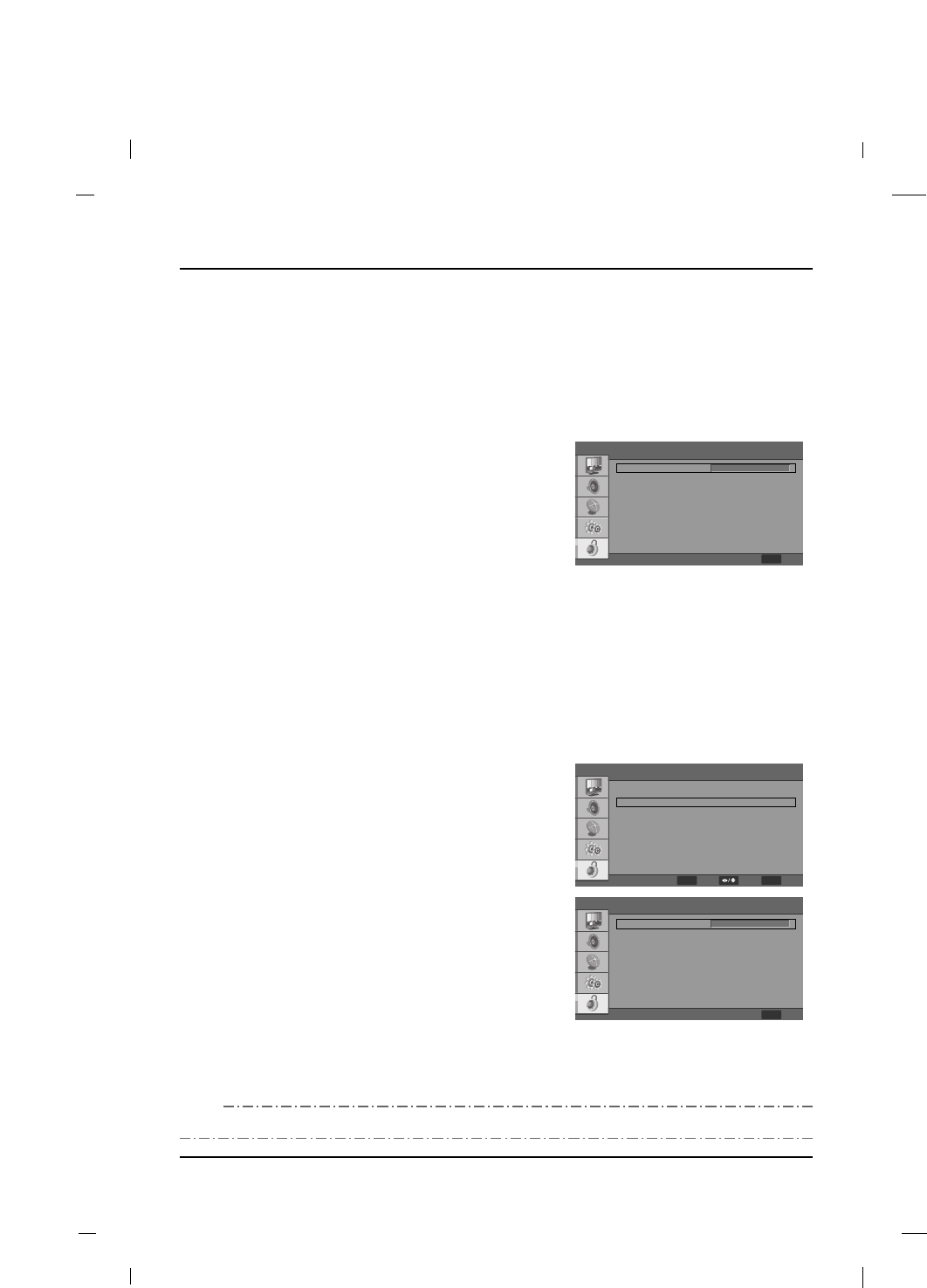

Entering your password
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button in order to
select the Parental sub-menu.
2. Press the OK button and then enter the default pass-
word as requested.
3. The TV is set up with the initial password of
“0-0-0-0 ”.
Parental
Password
MENU Back
This option will allow you to input a new password of your choice.
Set Password
1. After entering the parental sub-menu, press the Down
or Up button to select Change Password.
2. Press the OK button and then select any 4 digits for
your new password and enter them in the New
Password section.
3. As soon as the 4 digits are entered, re-enter the same
4 digits on the Confirm Password to finalize your selec-
tion.
4. Your new password has now been memorized.
5. Press the MENU button to return to the previous menu.
Parental
Change Password
New Password
Confirm Password
Program Block
Change Password
Clean All
GG
GG
GG
MENU Back
ENTER
Enter MENU BackSelect
-Write down your new password and keep it somewhere safe for the case of forgetting it in the future.
NN
NNOO
OOTT
TTEE
EE
Parental Control
55
Parental Control
Enables or disables a parental blocking scheme.

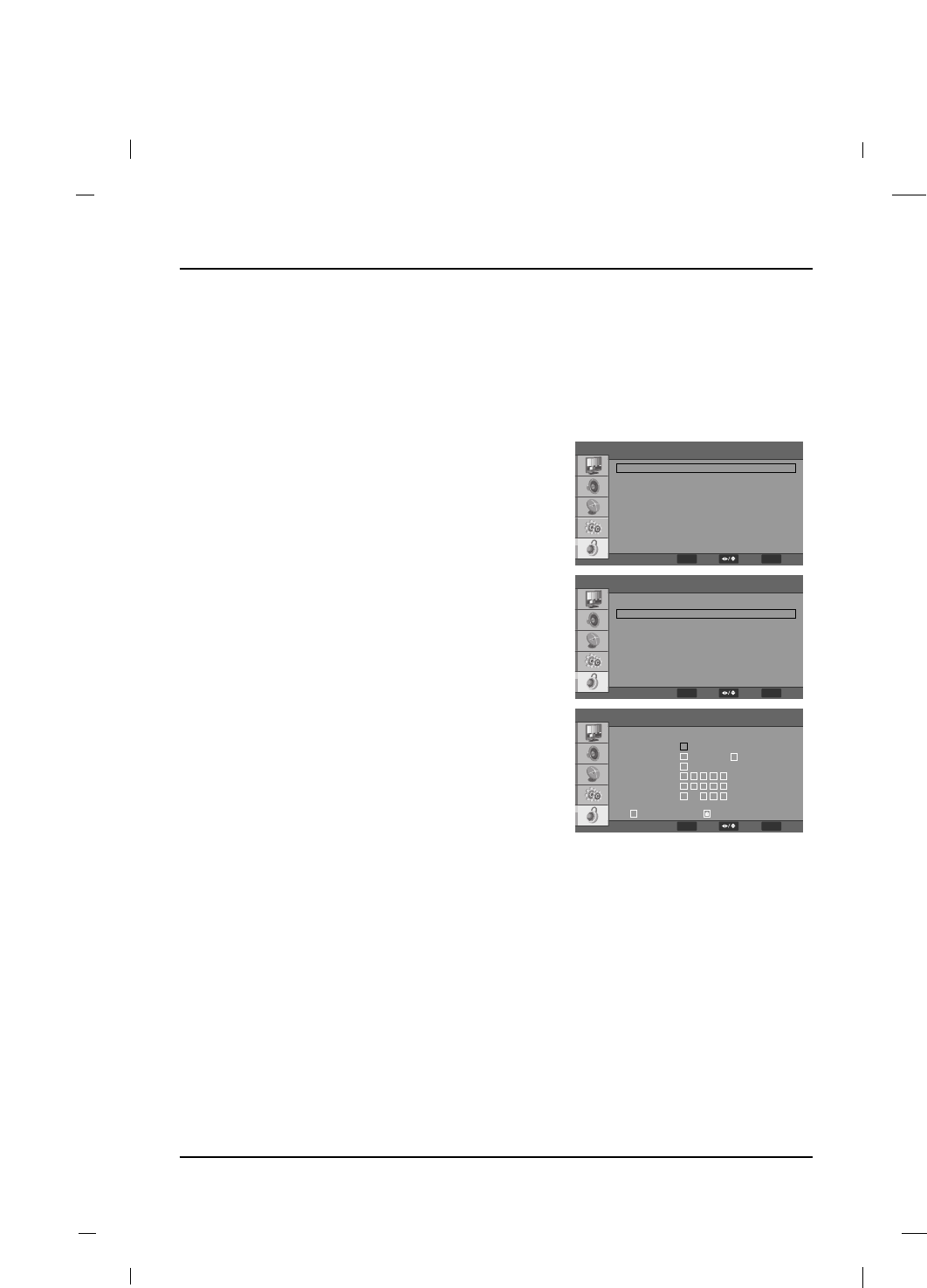

Ratings - Enable / Disable
1. After entering the Parental sub-menu, press the Down
or Up button to choose Program Block.
2. Press the OK button and then press the Down or Up
button to select Rating Enable.
3. Press the Left or Right button to select On or Off.
When you select On, the Program Block options are
enabled.
4. Press the MENU button to return to the previous menu
or scroll down to edit a Program Block option.
Parental
Program Block
Change Password
Clean All
GG
GG
GG
Program Block
On FF GG
GG
GG
GG
GG
GG
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
MENU BackSelect
ENTER
Enter MENU BackSelect
56
Parental Control
This rating system has been established to help you monitor and block the types of programs viewed on TV.
Ratings with a lock next to them will be blocked from being viewed.
TV Ratings for USA
1. After entering the Parental sub-menu, press the Down
or Up button to choose Program Block.
2. Press the OK button and then press either the Down or
Up button to select U.S.TV Ratings.
3. Press the OK button to enter the sub-menu.
4. Use the Down, Up, Left or Right buttons to highlight the
selection you wish to block and press the OK button to
block that selection.
(Note:See rating descriptions on the next page.)
5. Press the MENU button to return to the previous menu.
Parental
Program Block
Change Password
Clean All
GG
GG
GG
Program Block
On FF GG
GG
GG
GG
GG
GG
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
U.S TV Ratings
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
ADLSVFV
Allowed Rating Blocked Rating
ENTER
Enter MENU BackSelect
ENTER
Set MENU BackSelect
ENTER
Enter MENU BackSelect
57
Parental Control
This rating system has been established to help you monitor and block the types of programs viewed on TV.
Ratings with a lock next to them will be blocked from being viewed.
TV (FCC) Age Categories
D: Dialog...sexual innuendo.
L: Offensive language.
S: Sexual Situation
V: Violence.
FV: Fantasy or cartoon violence.
TV (FCC) Age Categories
TV-MA
Mature audiences only.
This program may contain mature themes,
profane language, graphic violence and explicit
sexual content.
TV-14
Parents strongly cautioned.
This program may contain sophisticated themes,
sexual content, strong language and more intense
violence.
TV-PG
Parental guidance suggested.
The program may contain infrequent coarse
language, limited violence, some suggestive
sexual dialog and situations.
TV-G
General audience.
This contains little or no violence, no strong
language, and little or no sexual dialog or
situations.
TV-Y7
Directed for older children.
Themes and elements in this program may
include mild physical or comedic violence, or
may frighten children under the age of seven.
TV-Y
All children.
The themes and elements in this program are
specifically designed for a very young audience,
including children from ages two – six.
58
Parental Control
This rating system has been established to help you monitor and block the types of movies viewed.
These ratings apply to movies broadcasted on TV and allows you to select which ratings you want blocked.
Movie Ratings
1. After entering the Parental sub-menu, press the Down
or Up button to choose Program Block.
2. Press the OK button and then press either the Down or
Up button to select U.S. Movie Ratings.
3. Press the OK button to enter the submenu.
4. Press the Down or Up buttons to choose the rating you
wish to block and press the OK button to block that
selection. (See rating descriptions below)
5. Press the MENU button to return to the previous menu.
Parental
Program Block
Change Password
Clean All
GG
GG
GG
Program Block
On FF GG
GG
GG
GG
GG
GG
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
U.S Movie Ratings
G
PG
PG-13
R
NC-17
X
Allowed Rating Blocked Rating
ENTER
Enter MENU BackSelect
ENTER
Set MENU BackSelect
ENTER
Enter MENU BackSelect
The MPAA Rating System (Movies)
G
General Audience.
PG
Parental guidance suggested.
PG-13
Parents strongly cautioned.
R
Restricted.
NC-17
No one 17 and under admitted.
X
Adults only.
-If you block PG-13, G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.
NN
NNOO
OOTT
TTEE
EE
59
Parental Control
This rating system has been established to help you monitor and block the types of programs viewed on TV.
Ratings with a lock next to them will be blocked from being viewed.
English TV Ratings for Canada
1. After entering the Parental sub-menu, press the Down
or Up button to choose Program Block.
2. Press the OK button and then press the Down or Up
button to select Canadian English Ratings.
3. Press the OK button to enter the sub-menu.
4. Press the Down or Up buttons to choose the
selection you wish to block and press the OK button on
the remote to block it. (See rating descriptions below)
5. Press the MENU button to return to the previous menu.
Canadian English Ratings
C
Children
C8+
Children eight years and older
G
General programming,suitable for all audiences
PG
Parental Guidance
14+
Viewers 14 years and older
18+
Adult programming
Parental
Program Block
Change Password
Clean All
GG
GG
GG
Program Block
On FF GG
GG
GG
GG
GG
GG
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
Canadian English Ratings
C
C8+
G
PG
14+
18+
Allowed Rating Blocked Rating
ENTER
Enter MENU BackSelect
ENTER
Set MENU BackSelect
ENTER
Enter MENU BackSelect
60
Parental Control
This rating system has been established to help you monitor and block the types of programs viewed on TV.
Ratings with a lock next to them will be blocked from being viewed.
French TV Ratings for Canada
1. After entering the Parental sub-menu, press the Down
or Up button to choose Program Block.
2. Press the OK button and then press the Down or Up
button to select Canadian French Ratings.
3. Press the OK button to enter the sub-menu.
4. Press the Down or Up buttons to choose the
selection you wish to block and press the OK button on
the remote to block it. (See rating descriptions below)
5. Press the MENU button to return to the previous menu.
Parental
Program Block
Change Password
Clean All
GG
GG
GG
Program Block
On FF GG
GG
GG
GG
GG
GG
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
Canadian French Ratings
G
8 ans+
13 ans+
16 ans+
18 ans+
Allowed Rating Blocked Rating
ENTER
Enter MENU BackSelect
ENTER
Set MENU BackSelect
ENTER
Enter MENU BackSelect
Canadian French Ratings
G
General
8 ans+
General-Not convenient for little children
13 ans+
Not convenient for children of 13 years and
younger
16 ans+
Not convenient for children of 16 years and
younger
18 ans+
This programs is only for adult
61
Parental Control
Your TV’s OSD (On Screen Display) may differ slightly from what is shown in this manual.
Downloadable Rating
1. After entering the Parental sub-menu, press the Down
or Up button to choose Program Block.
2. Press the OK button and then press the Down or Up
button to select Open V-Chip.
3. Press the OK button twice.
4. Press the Down or Up buttons to choose the menu
options for Open V-Chip.
5. Press the OK button to make your selection.
6. Press the MENU button to return to the previous menu.
Parental
Program Block
Change Password
Clean All
GG
GG
GG
Program Block
On FF GG
GG
GG
GG
GG
GG
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
Open V-Chip
GG
U.S.(50 States+Possessions)
ENTER
Enter MENU BackSelect
ENTER
Enter MENU BackSelect
ENTER
Enter MENU BackSelect
62
Parental Control
This function cleans and resets all current parental block settings.
Clean All
1. After entering the Parental sub-menu, press the Down
or Up button to choose Clean All.
2. Press the OK button on the remote control to select
Clean All and then press the Left or Right button to
select OK button.
3. Press the OK button to clean and reset the Program
Block menu options.
4. Press the MENU button to return to the previous menu. Are you sure?
OK Cancel
Parental
Program Block
Change Password
Clean All
GG
GG
GG
ENTER
Enter MENU BackSelect
63
Setting the PC Mode
The various Picture Modes allow you to adjust the display to your viewing preference.
Adjusting The Picture Controls
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Picture
Mode.
3. Press the Left or Right button to select between Soft,
Standard, Vivid or User Picture Modes.
4. Press the MENU button to return to the previous menu.
Video
Picture Mode
Brightness
Contrast
HUE
Back Light
Advanced Video
VGA
User FF GG
60
50
0
50
GG
GG
MENU BackSelect
Soft
This mode will give you a soft feeling image.
Standard
This mode is the standard for viewing and falls
between soft and vivid.
Vivid
This mode will display a more colorful, vibrant image.
User
This mode allows you to finely tune the display
to your viewing preference.
-Select the VGA mode by pressing either the SOURCE button.
-If you want to scroll through the various picture modes without entering the on-screen menus, press the PIC-
TURE button on the remote control.
-When you adjust Brightness, Contrast, HUE, or Back Light, it will be saved. If you want to recall the default
preset, go to setup menu and run reset default.
NN
NNOO
OOTT
TTEE
EE
Setting the PC Mode
64
Setting the PC Mode
This mode will allow you to fine-tune the display settings to your viewing preference.
Manual Picture Controls
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and use
the Left or Right button to change the picture mode to
User. Then, press either the Down or Up button to
scroll to the desired picture option. (Brightness,
Contrast, HUE and Back Light)
3. Press the OK button and then use the Left or Right but-
ton to adjust the selection to your preference.
4. Press the MENU button to return to the previous menu.
Video
Picture Mode
Brightness
Contrast
HUE
Back Light
Advanced Video
VGA
User FF GG
60
50
0
50
GG
GG
MENU BackSelect
Brightness
Increases or decreases amount of white in the your
picture.
Contrast
Adjusts the amount of difference between the light and
dark levels in the picture.
HUE
Adjusts the balance between red and green levels.
Back Light
Adjusts the brightness level of the back light.
Increasing the Back Light level will result in a brighter
picture and is recommended for use brightly lit rooms,
however, it will also decrease your black levels and
result in a higher power consumption.
-Select the VGA mode by pressing either the SOURCE button.
NN
NNOO
OOTT
TTEE
EE
65
Setting the PC Mode
The Color Temperature settings will allow you to adjust the lighting in the display to compliment your viewing pref-
erence.
The Cool setting will add more Blues and Greens into the image to give it a “cooler ” feeling.
The Warm setting will add more Reds and Yellows into the image to give it a “warmer ” feeling.
The Standard setting will be a more natural feeling and will fall between the Cool and Warm settings.
Color Temperature
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
use the Down or Up button to select the Advanced
Video Submenu.
3. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select Color
Temperature.
4. Press the OK button and then press the Left or Right
button to select between Cool, Standard, Warm or User
settings.
5. If you selected the User setting,press the Down or Up
button to select desired color option you wish to adjust.
6. Press the OK button and then use the Left or Right but-
ton to make appropriate adjustments.
7. Press the MENU button to return to the previous menu.
-To adjust Color Temperature on your display, change the Color Temperature to User.
NN
NNOO
OOTT
TTEE
EE
Video
Picture Mode
Brightness
Contrast
HUE
Back Light
Advanced Video
VGA
User FF GG
60
50
0
50
GG
GG
Color Temperature
Color Temperature
R Gain
G Gain
B Gain
Standard FF GG
0
0
0
R Gain 0
MENU BackSelect
ENTER
Enter MENU BackSelect
66
Setting the PC Mode
This function automatically adjusts the screen position, clock, phase and scale in pc mode.
The displayed image will disappear for a few seconds while the auto configuration is in progress. If the result of the
automatic adjustment is not correct, you can manually adjust the settings to fit your viewing preference.
Automatic Screen Adjustment
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select VGA.
3. Press the OK button and then use the Down or Up but-
ton to select Auto Adjust.
4. Press the OK button to start the auto adjustment.
5. If the result of the automatic adjustment is not
correct, you can manually adjust the settings to fit your
viewing preference. (See the next page for manual
adjustment settings.)
Video
Video
Picture Mode
Brightness
Contrast
HUE
Back Light
Advanced Video
VGA
User FF GG
60
50
0
50
GG
GG
Auto Adjust
H.Position
V.Position
Phase
Clock
FF GG
60
50
0
100
MENU BackSelect
ENTER
Enter MENU BackSelect
67
Setting the PC Mode
If the result of the automatic adjustment is not correct, you can manually adjust the settings to fit your viewing pref-
erence.
Manual Screen Adjustment
1. Press the MENU button to enter the on-screen menu
and then press either the Down or Up button to select
the Video sub-menu.
2. Press the OK button to enter the sub-menu and then
press either the Down or Up button to select VGA.
3. Press the OK button and then press the Down or Up
button to select video option you wish to change.
4. Press the OK button and then press the Left or Right
button to make appropriate adjustments.
5. Press the MENU button to return to the previous menu.
H.Position 60
VGA
Video
Picture Mode
Brightness
Contrast
HUE
Back Light
Advanced Video
VGA
User FF GG
60
50
0
50
GG
GG
Auto Adjust
H.Position
V.Position
Phase
Clock
GG
60
50
0
100
MENU BackAdjust
ENTER
Enter MENU BackSelect
H.Position
This function is used to adjust the horizontal position of
the display.
V.Position
This function is used to adjust the vertical
position of the display.
Phase
This function allows you to remove any
horizontalnoise or lines in the image and also
help sharpen text.
Clock
This function minimizes any vertical bars or stripes vis-
ible on the screen. This setting will also adjusts the
horizontal screen size.
68
Special Functions
You can watch the screen in various picture formats; 4:3, ZOOM, Auto, Normal.
To scroll through the various picture formats, press the ZOOM button on the remote control.
Below are descriptions of the available picture formats.
Picture Format
•4:3
This selection will display the image in a 4:3 size ratio. This mode will place black or greybars on the
left and right sides of the image. This mode is recommended for viewing content displayed in the 4:3
size ratio to prevent stretching or distortion of the image.
•ZOOM
This selection is used to fill the entire screen with the image so no black bars appear; however, some
trimming of the image may occur.
•Auto
This mode is designed to match the picture format on the TV with the picture format of the received
content.
•Normal
This selection will display the image in a 16:9 size ratio. This mode is recommended for viewing con-
tent that is displayed in 16:9, or widescreen, format. Content that is originally delivered in 4:3 content
and is viewed in 16:9 mode will be stretched to fit to the left and right sides of the display.
•Just Scan
This mode will apply dot-by-dot mode when using an HDMI connection.
-You can only select 4:3, Zoom, Auto and Normal in 480p and below.
-You can only select 4:3 and Normal in 720p and above.
-You can only select 4:3 and Normal in VGA mode.
-You can only select 4:3, Normal and Just Scan in HDMI 720p, 1080i and 1080p.
NN
NNOO
OOTT
TTEE
EE
Special Functions
69
Specification
Specification
• The Specification shown above may be changed without prior notice for quality important.
Dimension (Width x Hight x Depth)
Weight (kg / lbs)
Broadcast Signal System
Receiving Channel
Contrast Ratio
Brightness
Panel Resolution
Power Rating
Consumption
Audio Output
Operating Temperature
Accessories
External Port
Model
1140mm (44.88") x 740mm (97.63") x 248mm (29.13")
29.7 kg (65.47 lbs)
ATSC / NTSC
Air : 2 ~ 69, Cable : 1 ~ 135
1,000:1
500 cd/m2
1920 (H) x 1080 (V)
AC100-240V ~50/60Hz
300W
10W + 10W
0°C ~ 40°C
HLD-47SAT
•5 x HDMI
•RGB IN(PC)
•2 x COMPONENT IN
•S-VIDEO IN
•AV IN
•AUDIO IN (RGB / DVI)
•ANTENNA / CABLE IN
•DIGITAL AUDIO OUT
(COAXIAL)
•AC IN
•Batteries
•Power Cord
•Plug Adaptor (UL to VDE)
•Owner’s Manual
•Remote
Troubleshooting
70
No picture on screen.
The remote control doesn’t work.
Picture appears slowly, after
switching on.
No or Poor color
Horizontal/Vertical bars or picture
shaking
Unusual sound from inside the set.
Problem Solution
•Check whether the set is turned on.
•Make sure the power cord is plugged into the wall.
•Test if there is power coming from the wall outlet by
plugging in another product into the same wall outlet
where the set’s power cord was plugged in.
•Check to see if there is any object between the set and
the remote control causing obstruction.
•Check to see if the batteries are installed with the
correct polarities.
•Install new batteries.
•This is normal as the image is muted during the start up
process of the set. Please contact your service center, if
the picture has not appeared after five minutes.
•Select color in the Picture menu and press the Left or
Right button.
•Check for local interference such as a nearby electrical
appliance or power tool.
•Achange in ambient humidity or temperature may result
in an unusual noise at the time of switching off or on of
the set and does not indicate a fault with the set.
Troubleshooting
Memo
74
Memo
75
P/NO : 3350GDKM0080A
GPN09MA001K

Navigation menu
