Operating Manual
Ma
d
e in the USA
TM
Mobile Satellite TV Antenna
With FastFind Remote
Vu Qube PORTABLE_01
2
1. INTRODUCTION and BACKGROUND................................................ 3
2. COMPENT OVERVIEW and SPECIFICATIONS................................. 4
3. FCC USER’S INFORMATION………………………………………...….5
4. OPERATION .......................................................................................6-7
6. TROUBLESHOOTING ........................................................................ 8
7. MAINTENANCE .................................................................................. 8
8. LIMITED WARRANTY ........................................................................ 8
Vu Qube PORTABLE_01
3
Introduction
Congratulations on your purchase of the Vu Qube PORTABLE. The Vu Qube PORTABLE is
equipped with a FastFind remote enabling you to quickly position the Vu Qube antenna from
inside your vehicle. The Vu Qube PORTABLE is compatible with any service provider such as
DIRECTV ®, DISH Network ® or Bell ExpressVu.
This manual includes a:
• Brief background on satellite television
• Components overview
• Operating Instructions
Technical Support
Phone: (866) 802-2228
Email: info@vuqube.com
Web: www.vuqube.com
Background
Satellites used for television signals are 22,300 miles (37,000 km) above the earth’s equator.
The purpose of the Vu Qube is to acquire the signal traveling that great distance and transmit
the signal to your digital receiver in your vehicle so you can watch TV anywhere you park.
Satellite television, like other communications relayed by satellite, starts with a transmitting
antenna located at an uplink facility on Earth. The uplink dish is pointed toward a specific
satellite and the uplinked signals are transmitted. The signal transmitted to the satellite is
within a specific frequency range and is received by one of the transponders tuned to that
frequency range aboard that satellite. The transponder then transmits the signals back to Earth
but at a different frequency band (to avoid interference with the uplink signal). The leg of the
signal path from the satellite to the receiving Earth station, in this case the Vu Qube, is called
the downlink.
The downlinked satellite signal, quite weak after traveling the great distance is received by the
Vu Qube antenna, which reflects the weak signal to a focal point that gets transferred to a
feedhorn. The receiving antenna must have a clear view, without obstruction, of the
southern sky to maximize signal acquired. This signal is then amplified and converted by
the LNBf (Low-noise block converter feed) to a signal that is sent via a co-axial cable to the
receiver. Once the signal is transmitted from the Vu Qube to your receiver, you can enjoy all of
your programming in your vehicle just like at home!
A Quick Reference guide is included with Operating Instructions & Elevation information
that we suggest you keep with the Vu Qube Controller or near your Satellite TV receiver.
The Satellite Broadcast Market is changing and expanding. The information in this
manual was accurate at the time of printing. If the Vu Qube does not operate as shown
in this manual, please call Wallace Technologies at 1-866-802-2228 or email us at
info@vuqube.com.
Vu Qube PORTABLE_01
4

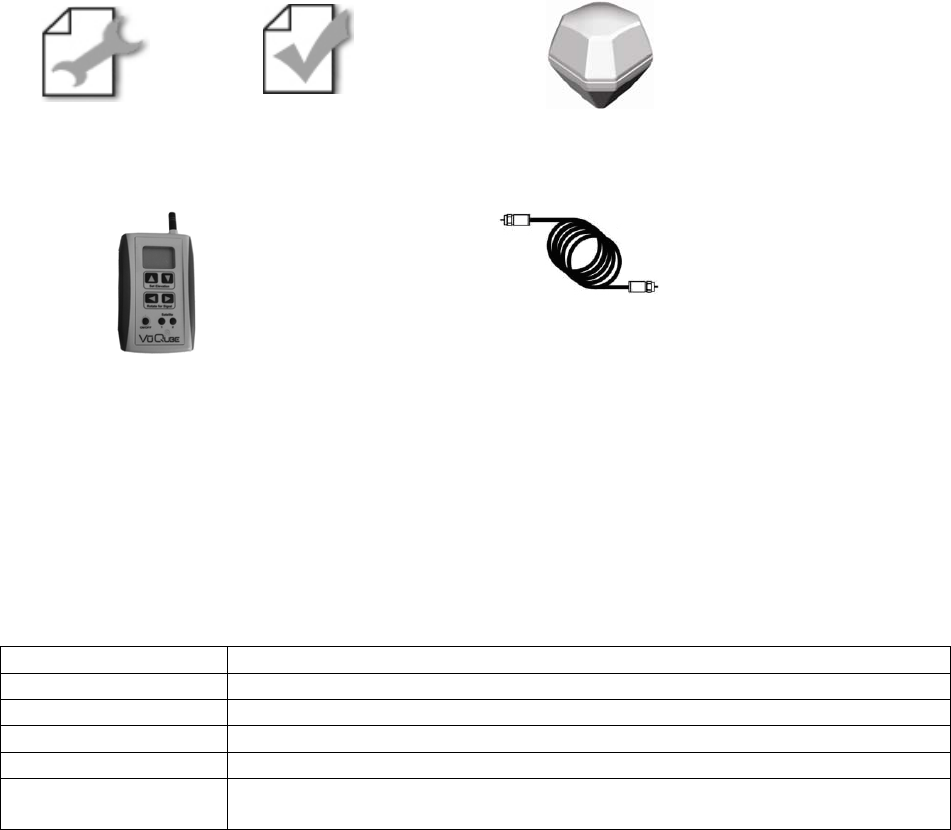

Vu Qube PORTABLE Component Overview
Manual Quick Reference Guide Vu Qube Antenna
Vu Qube FastFind Remote RG6 Coaxial
Cable (20’)
Items needed to watch TV
Satellite TV service
Satellite TV receiver
Television
SPECIFICATIONS
Height: 17.5”
Width: 16”
Weight: 10.5 lbs
Range: US/Southern Canada
Compatibility: DirecTV, Dish Network, Bell ExpressVu, Free-to-air receivers
Operating Temp: May experience difficulty positioning antenna when temperatures are
below 0°F
Vu Qube PORTABLE_01
5
FCC User Information
Main Components

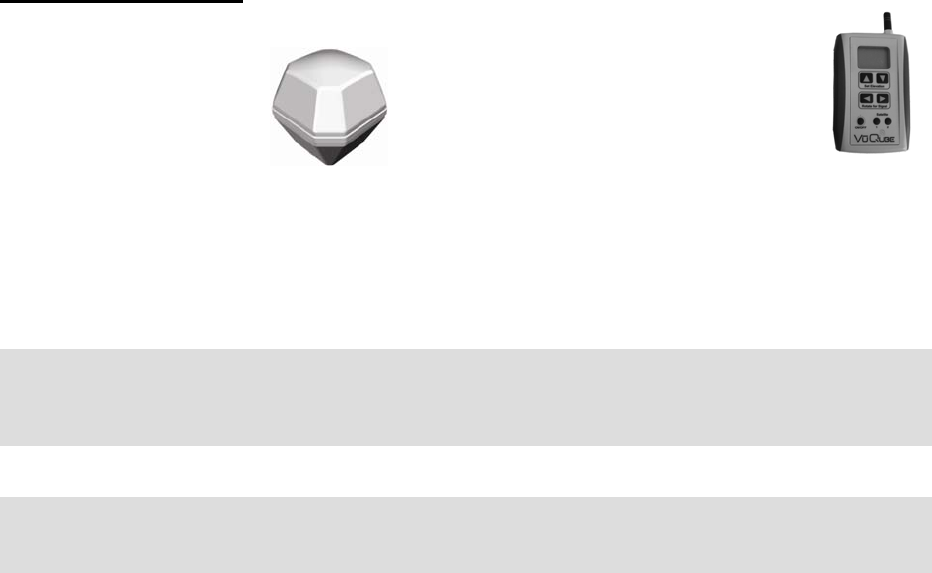

Vu Qube PORTABLE Antenna Vu Qube PORTABLE Remote
Part #: VQV10P
FCC ID: UUM10156V10
IC: 6873A -10156V10
This devise complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1) This devise must not cause harmful
interference, and 2) This devise must accept
interference received including interference that
may cause undesired operation.
Part #: VQV10RP
FCC ID: UUM10157V10
IC: 6873A -10157V10
This devise complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1) This devise must not cause harmful
interference, and 2) This devise must accept
interference received including interference that
may cause undesired operation.
The Vu Qube PORTABLE and Vu Qube PORTABLE remote have been tested and found
to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radio communications. However, there is
no guarantee that the interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located with other transmitters to ensure
compliance with FCC RF exposure requirements.
Please note that changes or modifications to the Vu Qube PORTABLE or Vu
Qube remote not expressly approved by Wallace Technologies could void the
p
urchaser’s or user’s authorit
y
to o
p
erate this e
q
ui
p
ment.
Vu Qube PORTABLE_01
6
Vu Qube PORTABLE Operation
• IMPORTANT! CLEAR LINE OF SIGHT for Vu Qube Antenna to the SOUTHERN
SKY REQUIRED. Physical obstruction (i.e., smokes stacks, buildings, trees,
telephone poles, etc.) can block the satellite signal from reaching the antenna.
• Satellite TV and receiver technology are constantly changing. If you experience
difficulty contact (866) 802-2228.
Set-up
1. Place Vu Qube PORTABLE on stable surface, making sure the unit has a clear
view of the southern sky
2. Connect coaxial cable to Vu Qube PORTABLE coaxial connector
3. Make sure coaxial connector is connected to “Satellite In” port on Satellite TV
Receiver.

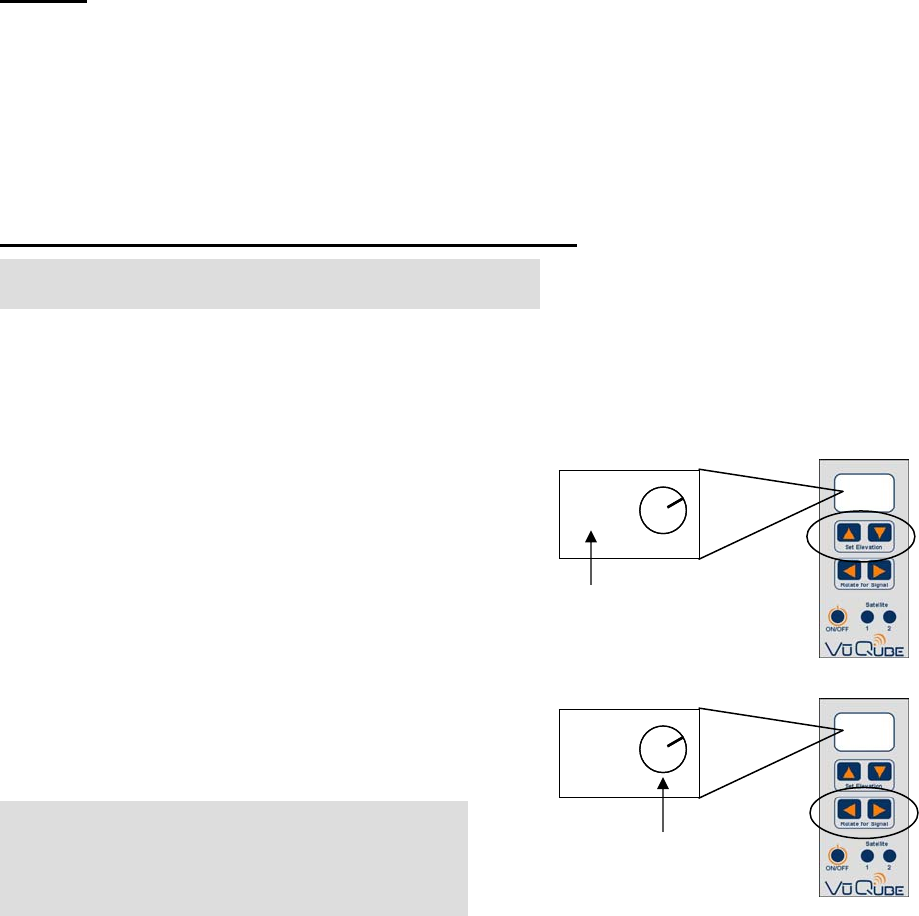

Finding the Satellite and Acquiring a Signal
1. Determine Dish Elevation
Options: Enter Zip Code in System Set-up on receiver
-or-
Use Quick Reference Maps to estimate Elevation
2. Position Antenna to proper Elevation using
Up/Down arrows on Vu Qube Remote.
3. Go to the signal meter screen on TV.
Choose transponder number: Dish Network #11
DirecTV #19
4. Rotate Antenna using Left/Right arrows
on Vu Qube remote until signal appears
on Signal Meter screen.
5. Fine tune and maximize signal using all 4 arrows.
NOTE: When rotating line is straight up,
the antenna is pointing directly away
from coaxial connector on the Vu Qube.
NOTE: Satellite Receiver and TV MUST be ON
37°37°
This number indicates Elevation
37°37°
Line moves to indicate
Rotating Antenna
Vu Qube PORTABLE_01
7
Satellite Position Memory
TO STORE POSITION: Hold down either the Satellite 1 or Satellite 2 button for at least 2.5
seconds. The LCD will show “P1” or “P2” when button is released.
TO RECALL POSITION: Hold down either the Satellite 1 or Satellite 2 button for less than 2.5
seconds. The LCD will “r1” or “r2”.
TO CANCEL RECALL: Press any arrow button to stop moving to a stored position.
Vu Qube PORTABLE_01
8
Troubleshooting
If you cannot lock-on to the correct satellite, it is most likely that an object is blocking
the signal. If this is the case, move the vehicle to have an unobstructed view of the
southern sky.
ERROR CODES Problem ACTION
E0 Remote is unable to send
commands to Antenna
•
Make sure RECEIVER is turned ON
• Make sure Coax from Antenna is
attached to Receiver
• Move remote closer to Antenna
E1 Remote is unable to receive
response from Antenna Move remote closer to Antenna
E2 Miscommunication between
remote and antenna Call Wallace Technologies @ 866-802-2228
Maintenance
The Vu Qube has been designed to be maintenance and trouble free. For optimum signal
strength, keep the cover clean from dirt, bugs, and other debris. Periodic washing of the top
cover with mild soap and water is recommended.
If you plan on storing your vehicle for long periods of time, it is recommended that the system
be put through a search procedure on a quarterly basis to keep all moving parts in good
working order.
If you have any comments or questions, please contact Wallace Technologies at (866) 802-
2228, or email at info@vuqube.com.
Limited Warranty
Every Vu Qube is thoroughly inspected and tested before leaving the factory and is covered
by a one year parts from the date of original purchase. This warranty does not cover
installation and external wiring or refurbished units.
Should any trouble develop during the warranty period, contact Wallace Technologies. Only
Wallace Technologies and certified dealers are authorized to perform warranty evaluations
and repairs.
