KINGTA TECHNOLOGY B29 Bluetooth Speaker User Manual User mnaual

KINGTA TECHNOLOGY CO., LIMITED Bluetooth Speaker User mnaual

Contents

User mnaual

Introduction
Thank you for choosing the BT29 as your source for
e n t e r t a i n m e n t ! , you can use this item with iPads,iPhones,
iPods and many types of smartphone to stream music ,
and enjoy handsfree calling.In order to get the best results
when using the device,please read this manual first before using.
Important Waterproof/Safety Information
Important: DO NOT submerge the BT29 speaker in water,this unit is
not intended to function properly after being under water.
BT29 is rated IPX6,which means the speaker can be heavily
splashed with water or left in the rain(but not submerged in water)
for approximately a limited time.If the BT29 gets wet,it is
recommended that you dry the speaker completely before using it
again.
Please note:Speaker is not water-resistant when the silicone cover
is open.please make sure that cover is closed and secure before
using in a wet environment.

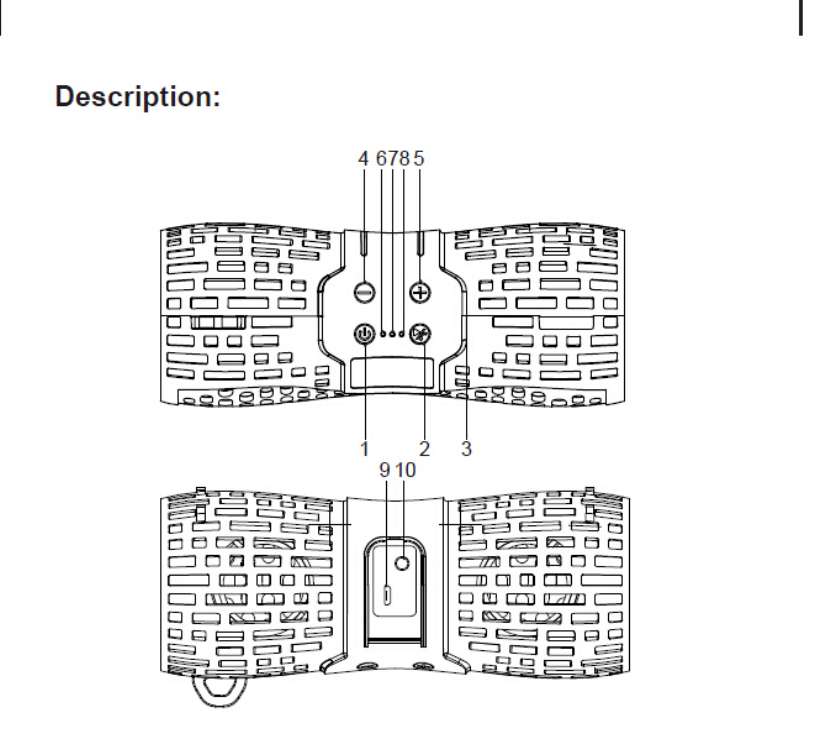

Description:
1.ON/OFF button
2.Play/Pause/Phone
3.MIC
4.Previous/Volume –
5.Next/Volume +
6.Blue LED(Bluetooth)
7.Red LED(Charging)
8.Green LED(AUX)
9.Micro USB Charging Port
10.AUX in Port
Included:
1.Speaker
2.USB Micro Charging Cable
3.3.5 mm Audio Cable
4.User Manual
Specifications
Supported Profiles: A2DP, HFP, AVRCP
Bluetooth Range:33ft (10m)
Dimensions: 180 mm x 65 mm
Battery: Li-Ion 3.7V, 1000 mAh
Charging: 5V @ 500 mA
Operation
Powering On
Press and Hold "ON/OFF" button 2 seconds to power ON, the
Blue LED will start to flash.
If an Aux (3.5 mm) cable is connected to the unit, the Blue LED
will turn off, and the Green LED will stay illuminated,notifying you,
the uint is in Aux-In mode. .
Powering Off
Press and Hold "ON/OFF" button 2 seconds to power OFF
Bluetooth Mode
Pairing
The unit will automatically go into “Pairing Mode” when it is
powered ON.
Go into your Bluetooth device settings menu and look for
“BT29”.
After the unit has paired and connected, it will re-connect
automatically when the unit is powered on and the device
is in range.
Note: Bluetooth Timeout :10 minutes
Begin Streaming Music
Press “ ” to start playing music
Press and Hold“ ” 2 seconds to play the next track
Press and Hold“ ” 2 seconds to play previous track
Press either “ ” or “ ” for volume control
Making and Receiving Phone Calls
When the unit is connected and paired to your device,
the unit allows you to make or receive phone calls with its
built-in microphone.
Press “ ” to accept a call
To end a call press“ ”
To place a call, simply dial the number or select a contact from
your Bluetooth device and call
To reject a call, press and hold “ ” for 2 seconds
Aux-In Mode
Plug in the supplied 3.5 mm cable into the unit. The other end is
connected to your device. The Green LED will only illuminate
when in “Aux” mode.
Please note music and volume can be controlled by your device.
Charging
Attach the USB cable to the unit, and plug into any USB charger.
If the unit is completely discharged, it will take approximately 4
hours to fully charge.
The Red LED will illuminate during charging, when it has
completed, the Red LED will turn off.
Note:There will be a beep when the battery is low and needs to
be recharged
LED Status
Blue LED flashing & Green LED solid Bluetooth Mode
Green LED on solid Aux Mode, Charging Completed
Red LED Charging
Trouble shooting
Unit doesn’t connectto device Speaker needs to be connected/re-paired to device
A tone is heard every few seconds Speaker needs to be charged
Unit will not power on Speaker needs to be charged
Unit doesn’t controltrack(s)/volume Speaker needs to be in Bluetooth mode for full control
Unit distorts at high volume The devices’ volume needs to be lowered
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
* RF warning for Portable device:
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
