Users Manual
MODEL: KT-6011D6
PLEASE READ OPERATION MANUAL BEFORE USING YOUR
NEW TELEPHONE AND KEEP IT FOR FURTHER REFERENCE.
TABLE OF CONTENTS
TABLE OF CONTENTS
OWNER'S INSTRUCTION MANUAL
DECT 6.0 Digital Expandable Cordless System with
Caller ID
1
PRODUCT FEATURES….………………..………………………………………..2
LOCATION AND FUNCTION OF CONTROLS……………………………..……3
QUICK OPERATION GUIDE............................................................................5
OPERATION....................................................................................................6
MENU SETUP...…………………………………………………….......................6
PHONEBOOK........…………………………………………………….................6
CLIP INCOMING CALL BROWSE…………………………….............................6
DIALED CALL BROWSE...............................................................……............6
SET MUSIC RINGER.......................................................................…............7
RINGER VOLUME, RINGER FILTER AND RINGER OFF SELECT.................7
AUDIO VOLUME CONTROL……………………..............................................7
AUTO ANSWER FUNCTION.......……………………………….......................7
ROOM MONITOR FUNCTION.....………………………………………............8
BABY CALL FUNCTION......……………………………………........................8
IMPORTANT SAFETY INSTRUCTIONS.........................................................9
TROUBLE SHOOTING GUIDE......................................................................10
2
PRODUCT FEATURES
1. New DECT6.0 (1.9 GHz) technology
2. GAP compatible
3. Maximum 6 cordless handsets
4. Multiple base up to 2 units
5. Commercial grade high quality speakerphone on base & cordless handset
6. Hands-free speakerphone on handset
7. Handset volume 6 levels adjustable
8. Speaker volume 6 levels adjustable
9. Backlight LCD displays 20 characters, 14 digits and icons
10. 2-way Intercom and call transfer between cordless handsets
11. 3 way conference between 2 handsets and 1 external
12. 2 intercoms at the same time
13. 1 way paging from base unit to cordless handsets
14. 20 polyphonic ring melodies selectable
15. Ringer volume off & 6 levels adjustable
16. 20 dialed number review & redial
17. 100 phonebook entries, 16 characters for each name, 24 digits for each
number
18. Call waiting caller ID
19. 100 caller ID memory for received/missed calls
20. Call back from caller ID memories
21. On-hook pre-dial and dialing number editing
22. Flash time 100/300/600 adjustable
23. Automatic call timer
24. Automatic answer
25. Out of range warning tone
26. Battery capacity indication & low battery warning tone
27. Baby call
28. Multiple language support: English, Spanish, French…etc
29. Key in tone music/on/off
30. 2 group alarm
31. Power: 2 "AAA"rechargeable batteries
32. Auto standby up to 120 hrs; talking up to 10 hrs
33. Outdoor range up to 300m
34. Desk/Wall mountable

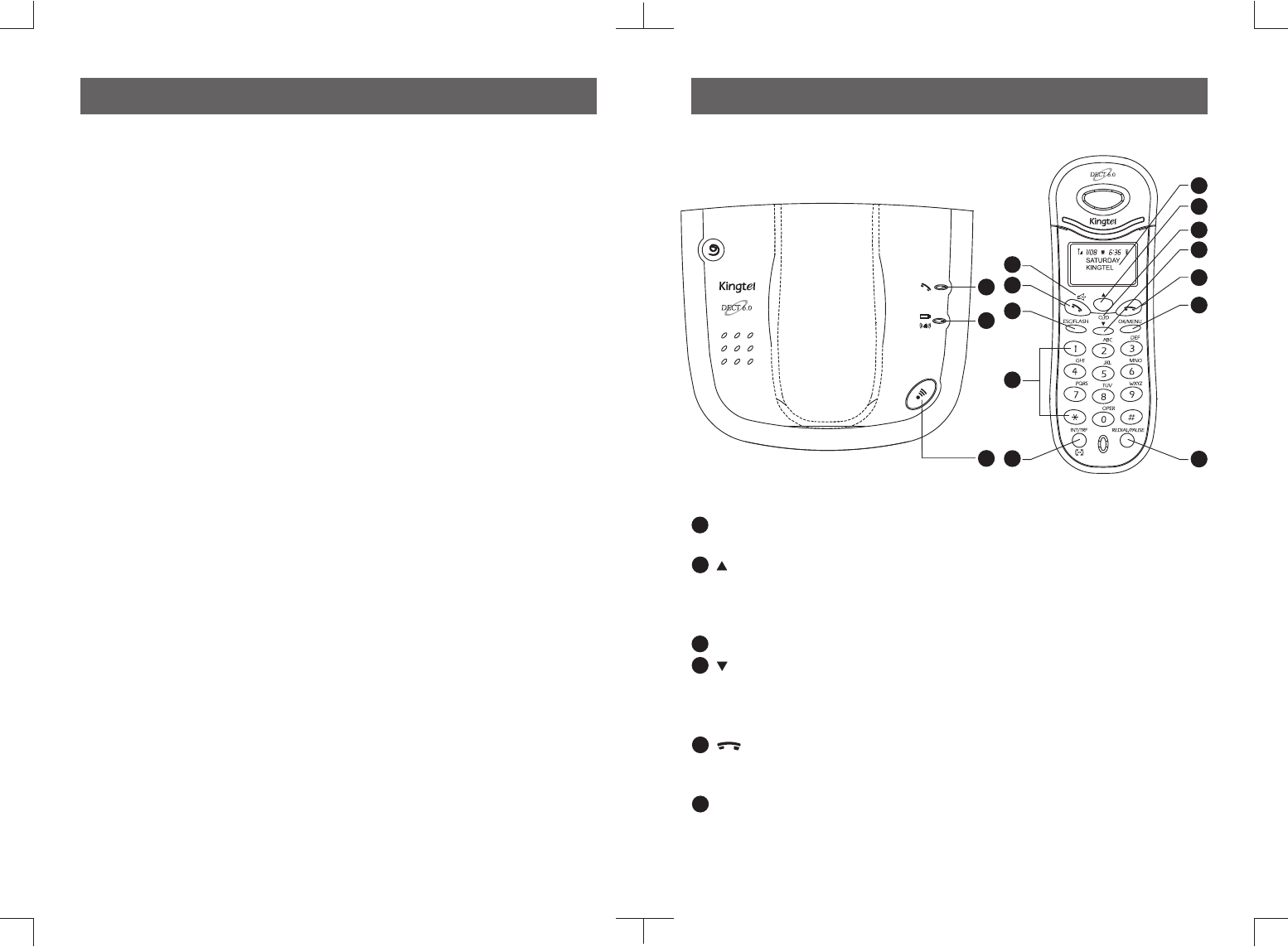

LOCATION AND FUNCTION OF CONTROLS
LCD..........................................Display the phone number, date, time and
other information
............................................. a. On-hook: press to show missed calls
b. Off-hook: press to increase volume
c. Speakerphone: press to increase volume
d. Navigation key
CLID.........................................Up down to view Caller ID
..............................................a. On-hook: press to show received calls
b. Off-hook: press to decrease volume
c. Speakerphone: press to decrease volume
d. Navigation key
...........................................a. Press to disconnect
b. Under any sub-menu: press to return to
idle status
OK/Menu..................................a. Press to access main menu
b. Press to enter sub-menus
c. Press to confirm setting
d. Off-hook: press to mute
1
2
3
4
5
6
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
3
5
4
Redial/Pause...........................a. On-hook: press to show last dialed number
b. Off-hook: press to dial last dialed number
c. Speakerphone: press to dial last dialed
number
d. Press to for a break of 1.2/2.4/3.6 seconds
INT/TRF................................... Press to enable intercom, conference call, or
room monitor
Dialing key (0-9, ,#).............. a. Dial numbers and extensions
b. (0-9) speed-dial key
ESC/Flash............................... a. Press to return to upper menu
b. Press to delete character or digit when
editing number or contact Information
c. For PBX
........................................... a. Press once to enable dialing
b. Pre-dial: press to dial out the pre-entered
number when on-hook
c. Press to answer a call
............................................Press to activate or deactivate speakerphone
...........................................Incoming call indication
/ ...............................a. : Battery indication
b. : Ringing indication
Page key................................. a. Page the handset
b. Flashing when it is ringing or off-hook
c. Press and hold for 10 seconds to
establish a connection with handset
under registration process
7
8
9
10
11
12
13
14
15
QUICK OPERATION GUIDE
1. MAKE A CALL
a. Remove handset from cradle press or dial number
b. Remove handset from cradle dial number press or
2. ANSWER A CALL
a. Auto answer on: remove handset from cradle
b. Auto answer off: remove handset from cradle press or
3. END A CALL
a. Press
b. Return handset back to cradle
4. REDIAL
a. On-hook: press REDIAL/PAUSE select number press or
b. Off-hook: press REDIAL/PAUSE
5. PRE-DIAL
On-hook: dial number press or
6. VIEW CALLER ID
a. On-hook: press ▲ to view missed calls
b. On-hook: press ▼ to view received calls
7. DELETE CALLER ID
On-hook: press ▲ or ▼ and select a number press OK/MENU select
DELETE RECORD press OK/MENU
8. CALL BACK FROM CALLER ID
On-hook: press ▲ or ▼ and select a number press or
9. STORE NUMBER TO PHONE BOOK
On-hook: press MENU/OK to menu mode and select PHONE BOOK
press OK select NEW ENTRY press OK enter name
press OK
10. DELETE NUMBER FROM PHONE BOOK
On-hook: press MENU/OK to menu mode and select PHONE BOOK And
select a number press OK select DELETE RECORD
press OK
11. DIAL FROM PHONE BOOK
On-hook: press MENU/OK to menu mode and select a number press
or
1. Menu setup
At standby mode, press [ OK/MENU ] key to enter menu mode
‧Press [ ] or [ ] to move page backward or forward
Press [ OK/MENU ] key to go to selected page
Press [ ] key to return to standby mode
2. Phonebook
To press [ OK/MENU ] and select phonebook mode, Or, press [ OK/MENU ]
key to enter phonebook.
Press [ ▲ ] or [ ▼ ] to browse name list backward or forward
To search record, press digit key for character entry or press [ ] key to
change language, press [ OK/MENU ] key to search
Press [ ] or [ ] to dial out
Press [ OK/MENU ]to select option, function include new entry, show
record, edit record, delete, select ring group, assign speed dial and check
memory status
‧Press [ ] key to return to standby mode
3. CLIP Incoming call browse
To enter incoming call browse mode, go to menu mode, select call log menu
then select missed call sub-menu for missed call browse or select received
call sub-menu for answered call browse. User can press shortcut key at
standby mode to enter. Press [ ▲ ] key to enter answered call browse or
press [ ▼ ] key to enter missed call browse.
Press [ ▲ ] or [ ▼ ] to browse call list backward or forward
To edit number, press digit key to add prefix number or press [ ESC ] key
to delete number from left hand side
Press [ OK/MENU ] to select option, function include number edit, transfer
to phonebook and delete record
Press [ ] key to return to standby mode
4. Dialed call browse
To enter outgoing call browse mode, go to menu mode, select call log menu
then select dialed call browse. User can press [ REDIAL ] key at standby
mode to enter.
‧Press [ ▲ ] or [ ▼ ] to browse call list backward or forward
▲ ▼
OPERATION
6
Press to select option, function include number edit, transfer
to phonebook and delete record
Press [ ] key to return to standby mode
5. Set music ringer
To select external call music ringer, enter setup mode, go to profile menu,
select set handset ringer. Then select music group of default, VIP, family,
friend or colleague, browse music melody by pressing [ ▲ ] or [ ▼ ] key.
Press [ OK/MENU ] to confirm selection and return to music group menu.
Total number of song for selection can be define at EEPROM parameter,
maximum selectable song is 32. Song number 1~20 are NS's royalty, song
21~30 are classical music for which will have royalty issue that customer
should take care.
To select internal call music ringer, enter setup mode, go to profile menu,
select set page tone. Then browse music tone (1-4) by pressing [ ▲ ] or [ ▼ ]
key, press [ OK/MENU ] to confirm selection.
6. Ringer volume, Ringer filter and Ringer off select
1. To set external or internal call ringer volume, enter setup mode, go to
profile menu, select set handset ringer, then select volume. User can set
ringer volume level from 1 to 6, or set ringer off.
2. To temporary turn off ringer at sleep time, enter setup mode, go to
function menu, select set non-disturb. User can set temporary ringer off
period from 1 to 16 hours. After this period, ringer will resume to normal.
A shortcut key for 8 hours non-disturb is provided by hold [ ] key for 2
second at standby mode, or hold [ ] key again to release non-disturb
function.
3. To active ring filter for external call, user should assign external call
number in phonebook music group. Then enter setup mode, go to profile
menu, select music group for ringer filter, set ringer off for assigned group.
7. Audio volume control
To change speakerphone volume, press [ ▲ ] , [ ▼ ] key at speakerphone
mode.
To change receiver volume, press [ ▲ ] , [ ▼ ] key at earpieces mode.
To change headset volume, press [ ▲ ] , [ ▼ ] key at headset mode.
8. Auto answer function
To answer an external or internal call by lifting from charge cradle, user can
enable auto-answer function. At standby mode, enter menu mode, go to
setup menu, select auto answer to function on.
[ OK/MENU ]
7
9
To run room monitor function, two units are used : detector unit (listen) and
monitor unit (play).
To setup a detector, enter menu mode, go to function menu, select room
monitor function on. The unit will lock at detector mode and wait for
monitor unit to connect. Press [ESC] key to function off menu. Press
[ ] to return to standby mode.
To setup a monitor, press [INT] + detector unit number to connect to
detector. Handset : Press [ ] key to quit room monitor function.
In case of external ring in during room monitor mode, detector will keep
silent and monitor will be ring. To answer call, press [ ] key at
monitor and detector will keep state at detector mode and wait for next
connection. After phone call is finished, press [INT] + detector unit number
to reconnect detector again.
10. Baby call function
Baby call is a function to provide a quick dial out a predefine number by
pressing any key. This is used for child or baby to call their parent just
simple press any key on the keypad.
To turn on the function, enter menu mode, go to function menu, select
baby call function on. A telephone number (up to 24 digit) should be input,
this is for quick dial access.
. Room monitor function
8
When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of fire, electric shock and injury to individuals.
1. Read and understand all directions.
2. Follow all warnings and instructions.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water.(i.e. Near a bathtub, kitchen sink, washing
machine, in a wet basement, or near a swimming pool.) Avoid spilling liquid
on the product.
5. Do not place this product on an unstable cart, stand, or table. Serious
Damage may occur to the product if it falls.
6. Do not allow anything to rest on the telephone cord. Do not locate this
product where the cord might be damaged by persons walking on it.
7. Never put foreign objects of any kind into the product as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or
electrical shock.
8. To reduce the risk of electric shock, do not disassemble this product, take it
to a qualified service person if service or repair work is required. Opening or
removing cover may expose you to dangerous voltages or other risks.
Operate after Incorrect reassembly can cause electric shock.
9. Adjust only the controls that are covered by the operating instructions.
Improper adjustment of controls may result in malfunction that could require
extensive work by a qualified technician.
10. Refer servicing to qualified service personnel if the following should occur:
If the phone line or plug is damaged or frayed.
If liquid has been spilled into the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following operating instructions.
If the product has been dropped or the cabinet has been damaged.
If the product exhibits a distinct change in performance.
11. Avoid using a telephone during an electrical storm. There may be risks of
electric shock from lightning.
12. Do not use the telephone in the vicinity of a gas leak.
13. The handset receiver may retain dangerous materials such as metallic
pins and staples because the receiver is magnetic.
IMPORTANT SAFETY INSTRUCTIONS
9
10
TROUBLE SHOOTING GUIDE
PROBLEM SOLUTION
Phone does not ring Make sure phone line cord is connected
to base unit and wall jack
Ringer volume is too low Check if ringer volume set on low (see
page 11 for HS Ringer Vol adjustment)
Phone receives but cannot Is the dial mode in accordance with the
make calls local telephone company
FCC Interference Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference;
and (2) This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna (that is, the antenna for radio or
television that is “receiving” the interference).
• Reorient or relocate and increase the separation between the
elecommunications equipment and receiving antenna.
• Connect the telecommunications equipment into an outlet on a circuit different
from that to which the receiving antenna is connected
FCC RF Radiation Exposure Statement
The installation of the base unit should allow at least 20 centimeter between
the base and persons to be in compliance with FCC RF exposure guidelines.
For body worn operation, the portable part (handset) has been tested and
meets FCC RF exposure guidelines.
This device must not be co-located or operating in conjunction with any other
antenna or transmitter. The changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
